MP: 0095.60 |
Updated March 6, 2021
Total Accidents: 7
Crossing
DOT #: 353149N
TOTAL
DAILY TRAINS: 2 ( ESTIMATED)
Page created by: freebrickproductions
This crossing is located on the ATN Guntersville Branch.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | General Signals Type 2 electronic | General Signals Type 2 electronic |
| Cantilever: | Lincoln Industries | Lincoln Industries |
| Light Frames: | 12 - 12x24" US&S w/ Harmon Fading LEDs | 6 - 12x24" US&S w/ Harmon Fading LEDs 2 - 12x20" RSI w/ RSI LEDs |
| Base: | N/A | RSI |
| Gate Lights: | 3 - NEG LEDs | 3 - NEG LEDs |
| Gate Mechanism: | Safetran 2000s | Safetran 2000s |
| Gate Striping: | Diagonal | Diagonal |
1 |
2 |
3 |
4 |

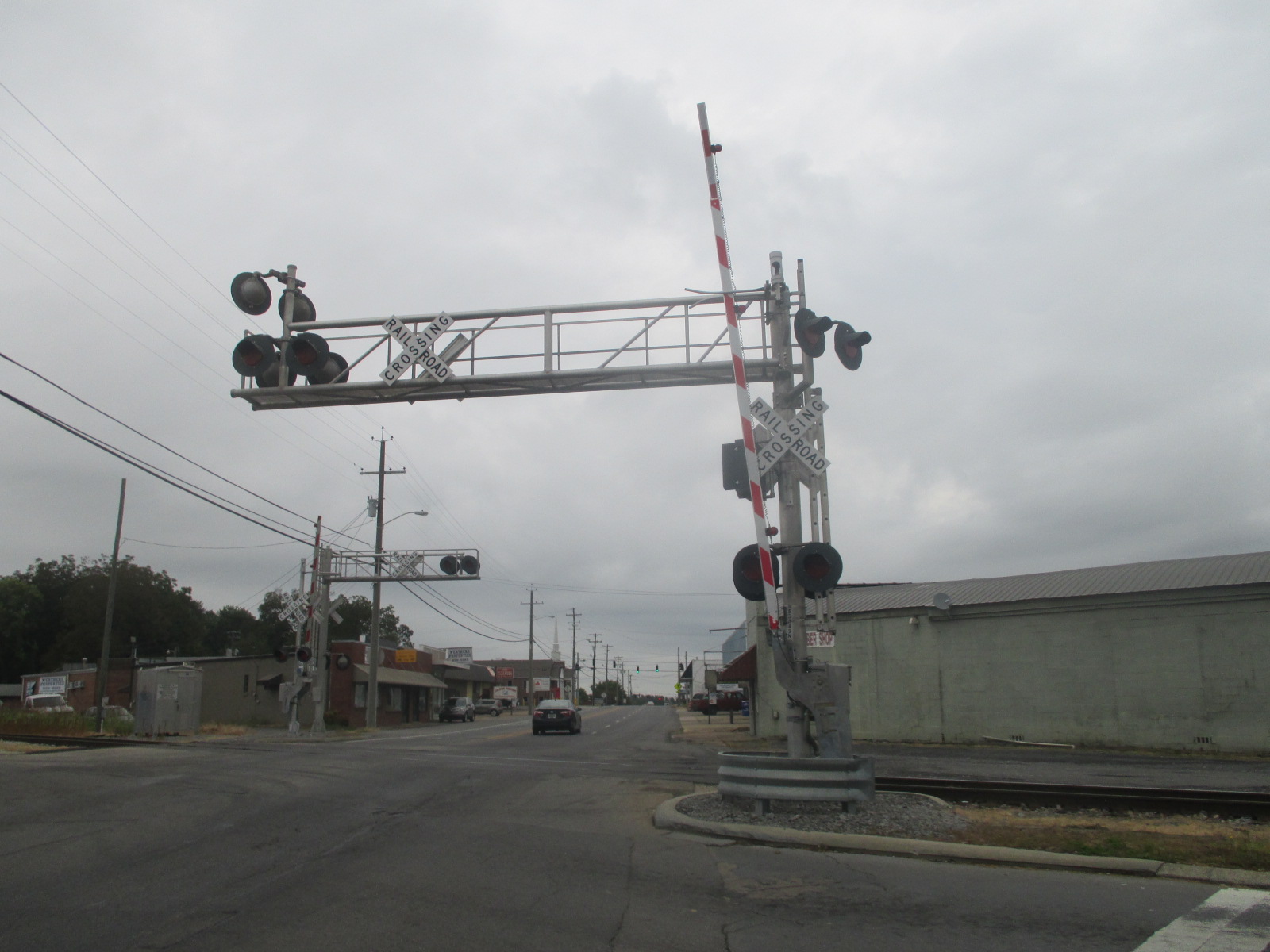

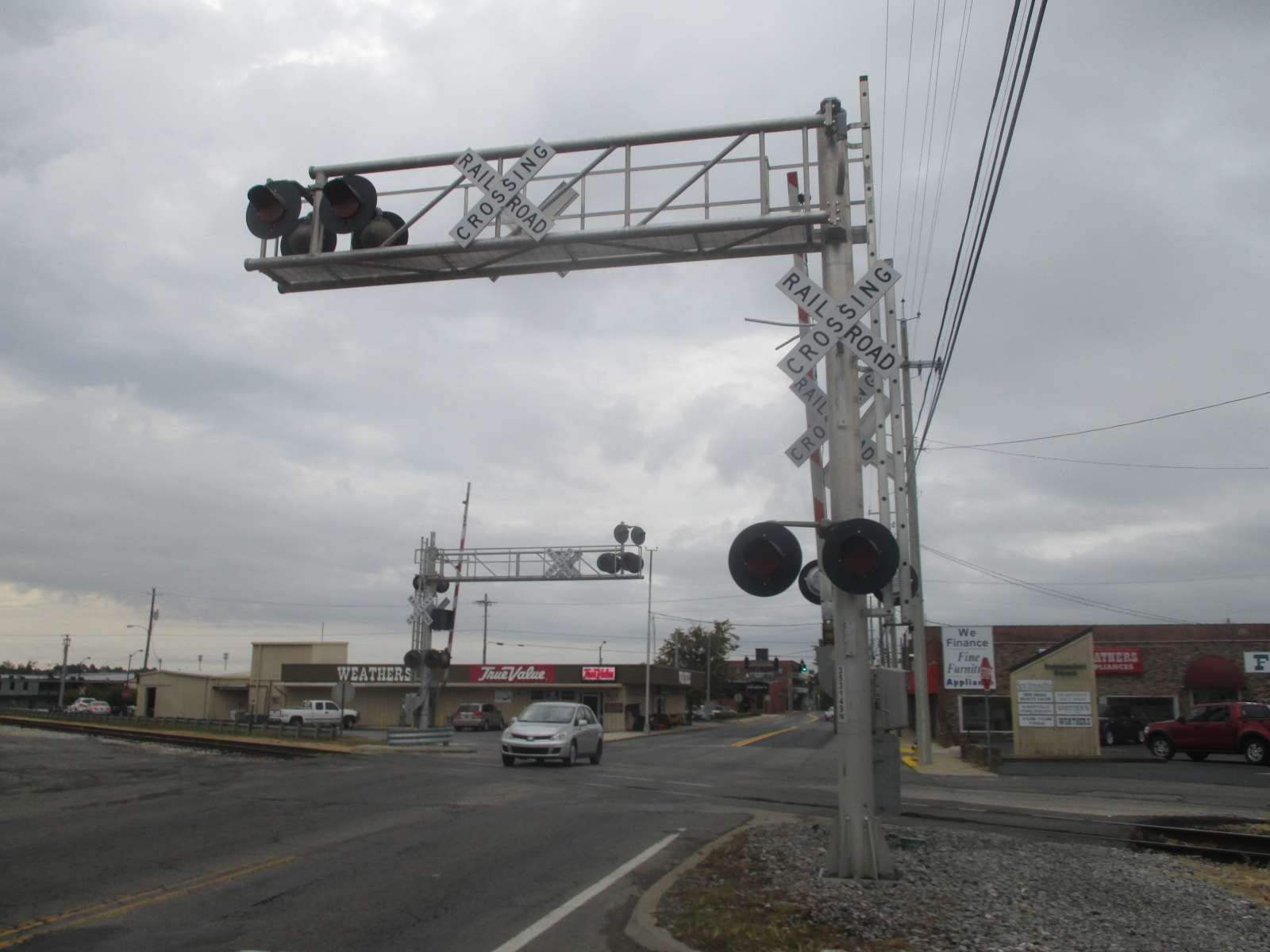

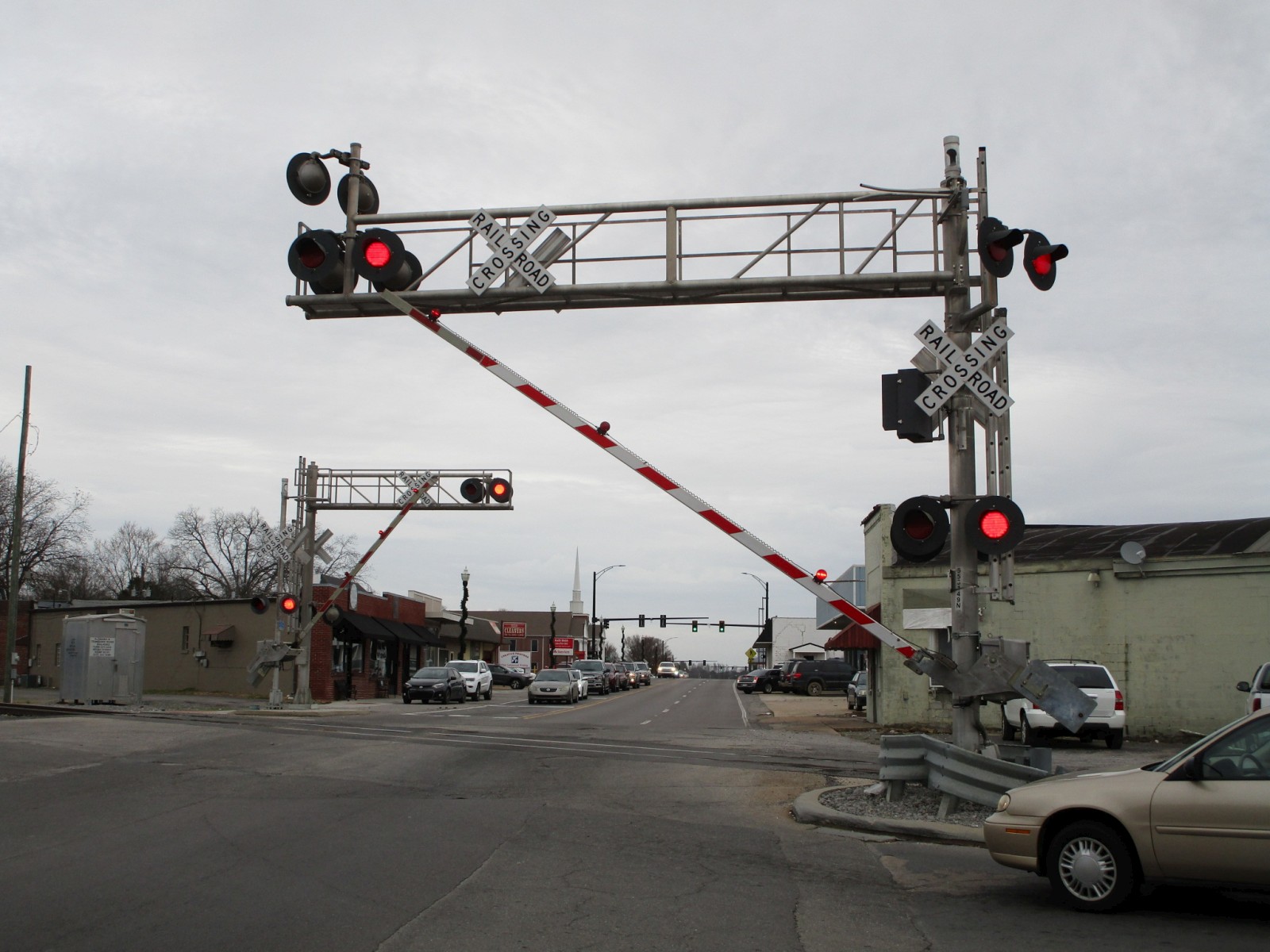

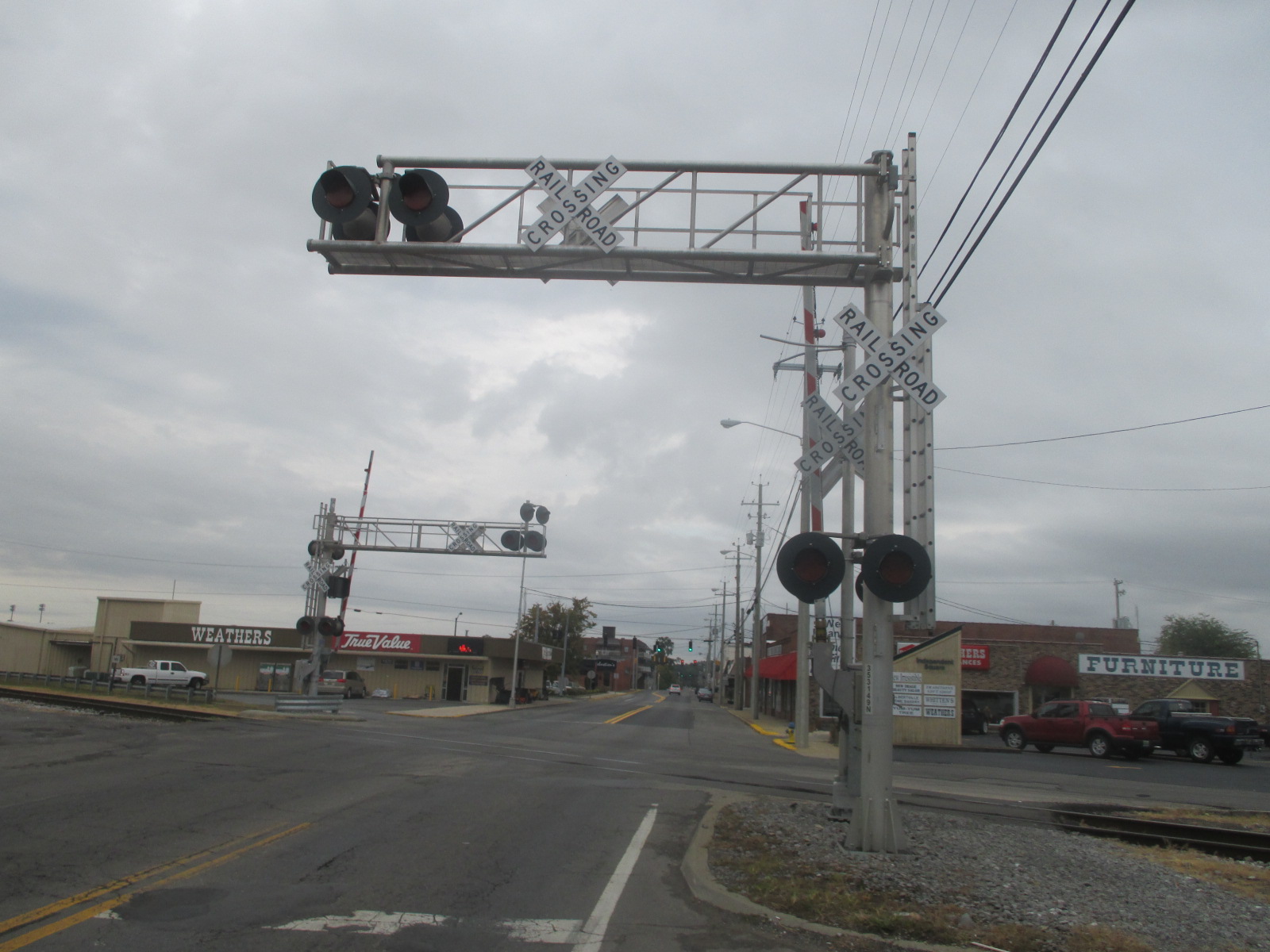

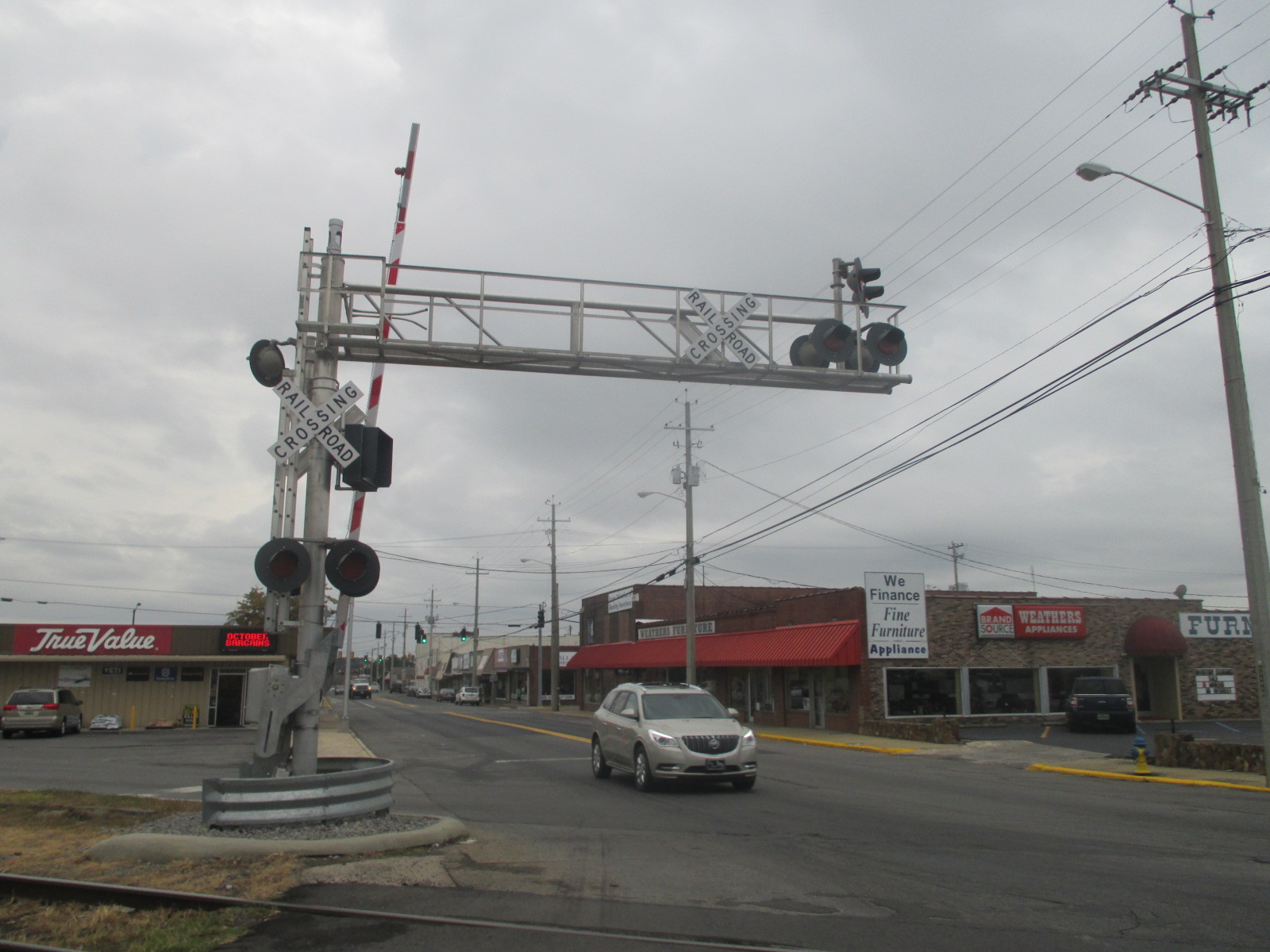

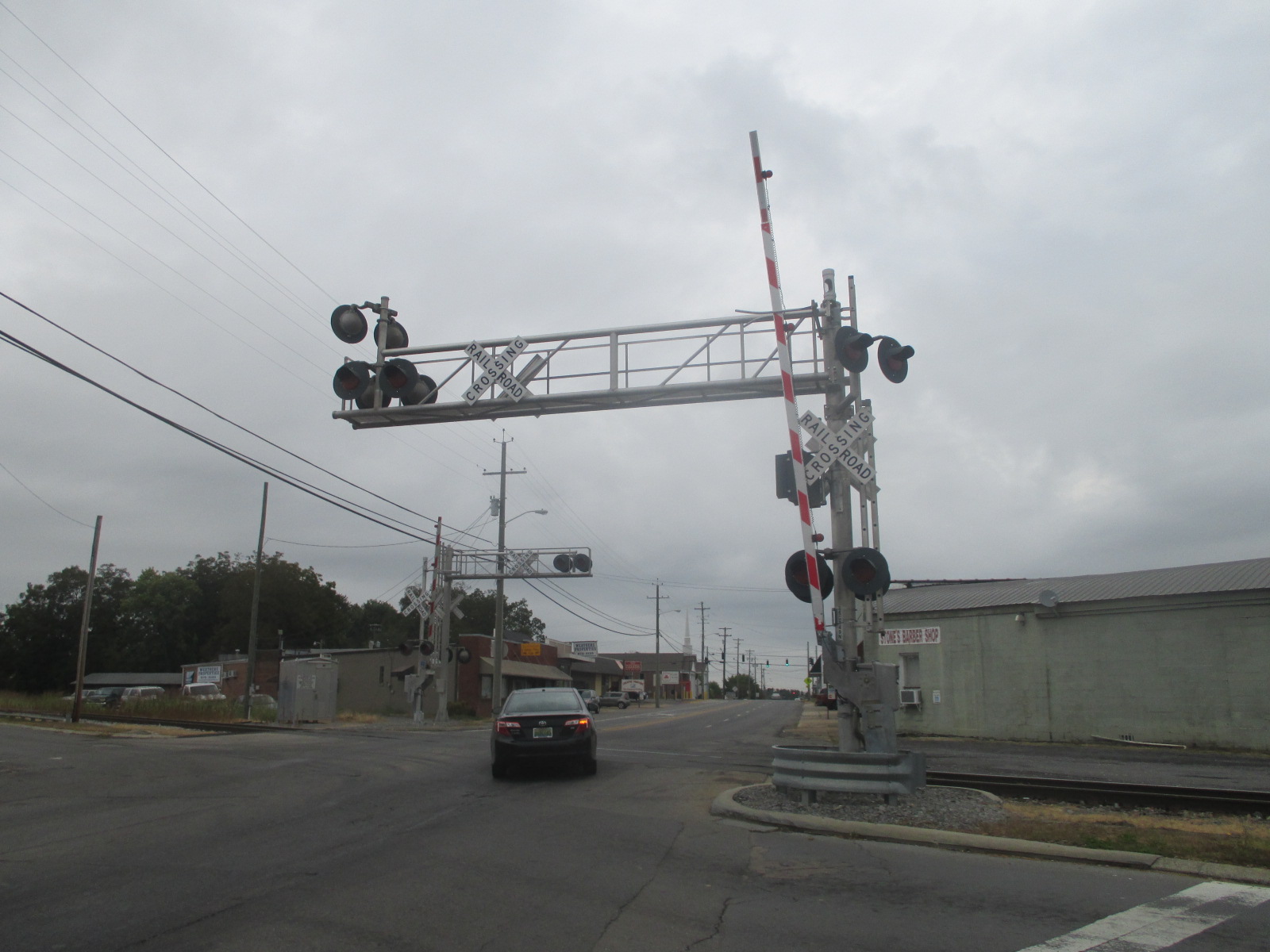

Overviews of the crossing. |
The first signal. |
||
5 |
6 |
7 |
8 |

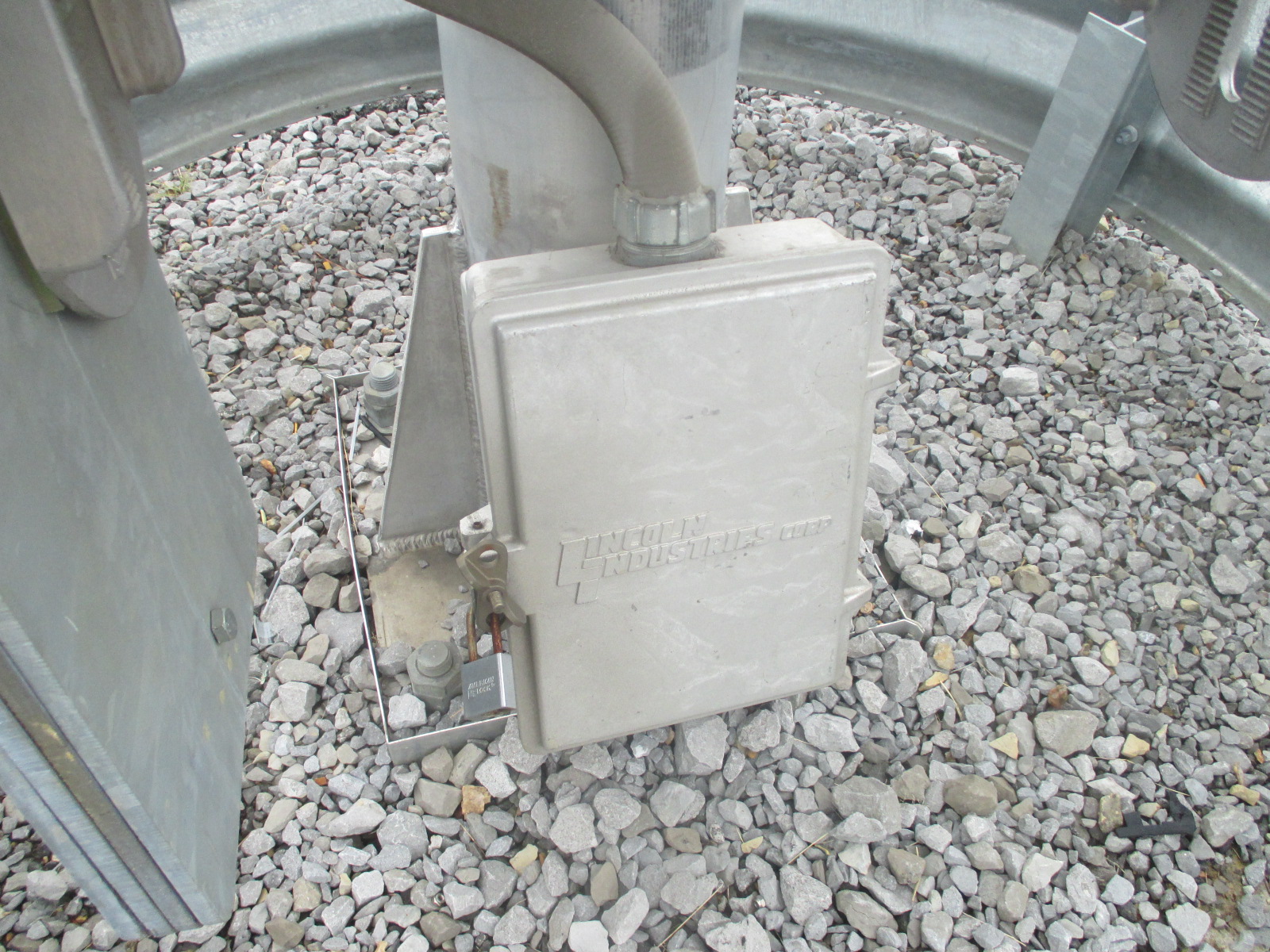

It's a Lincoln Industries cantilever. |

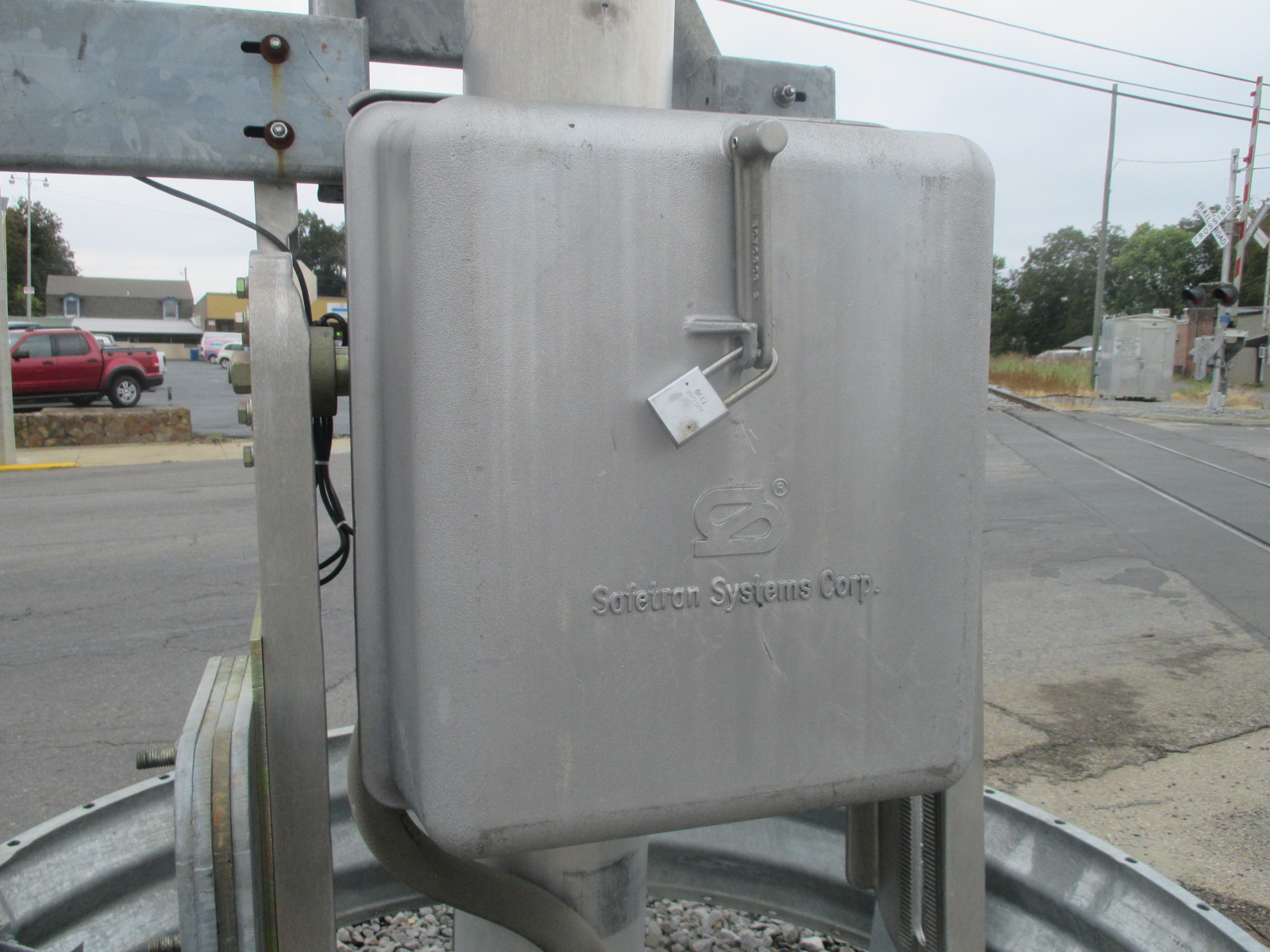

It has a Safetran gate mechanism. |
The emergency information. |

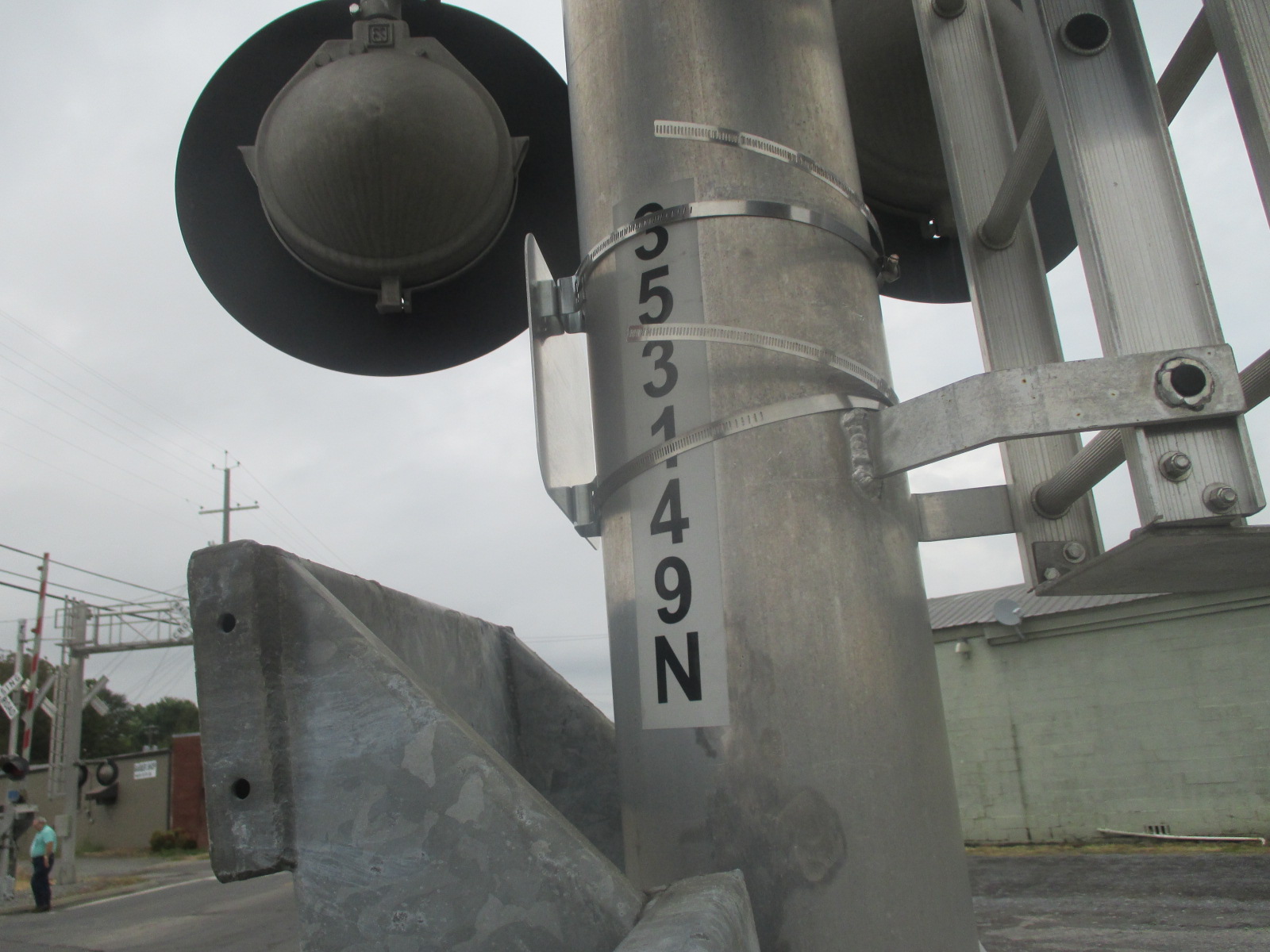

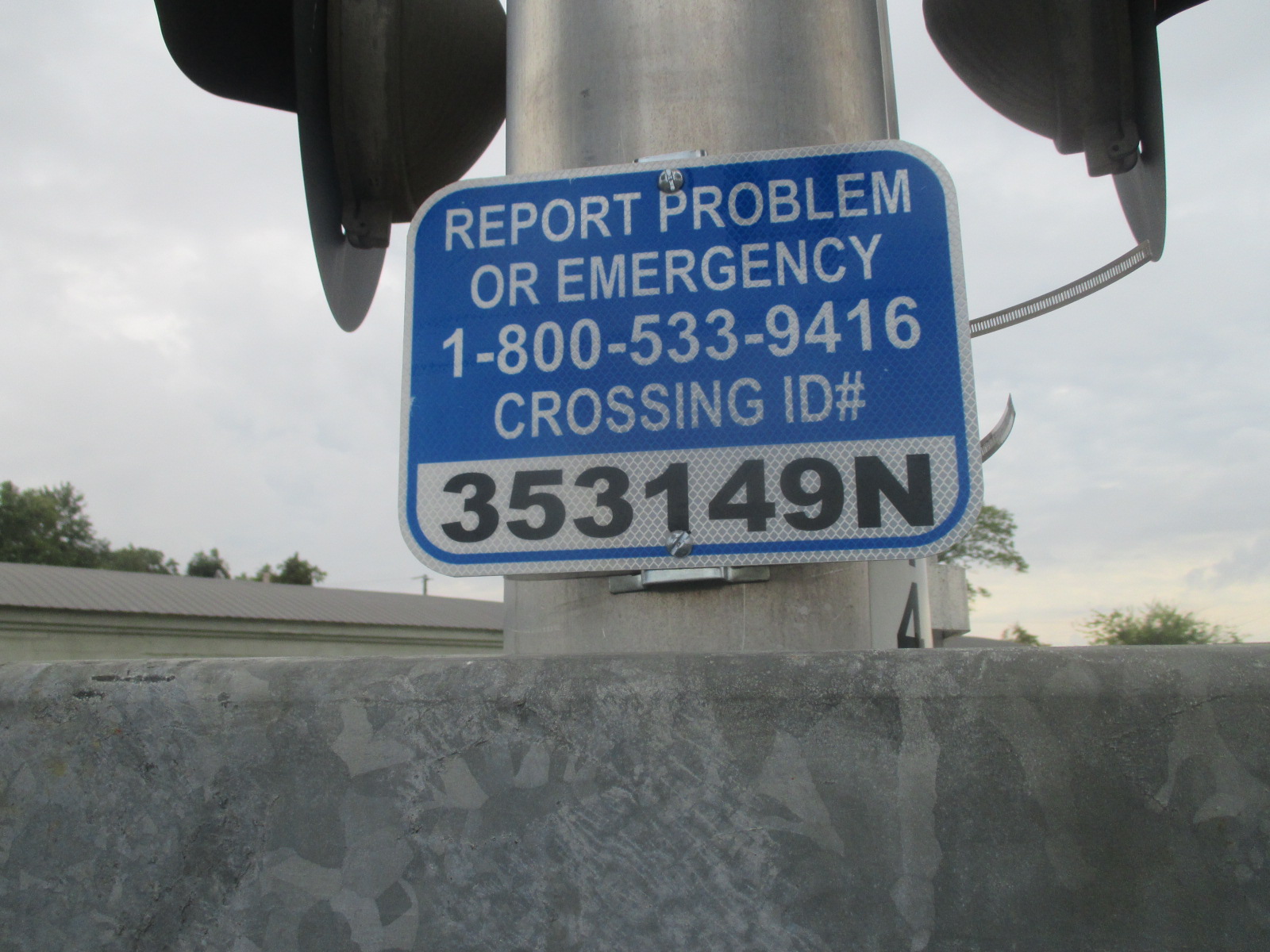

The DOT number. |
9 |
10 |
11 |
12 |

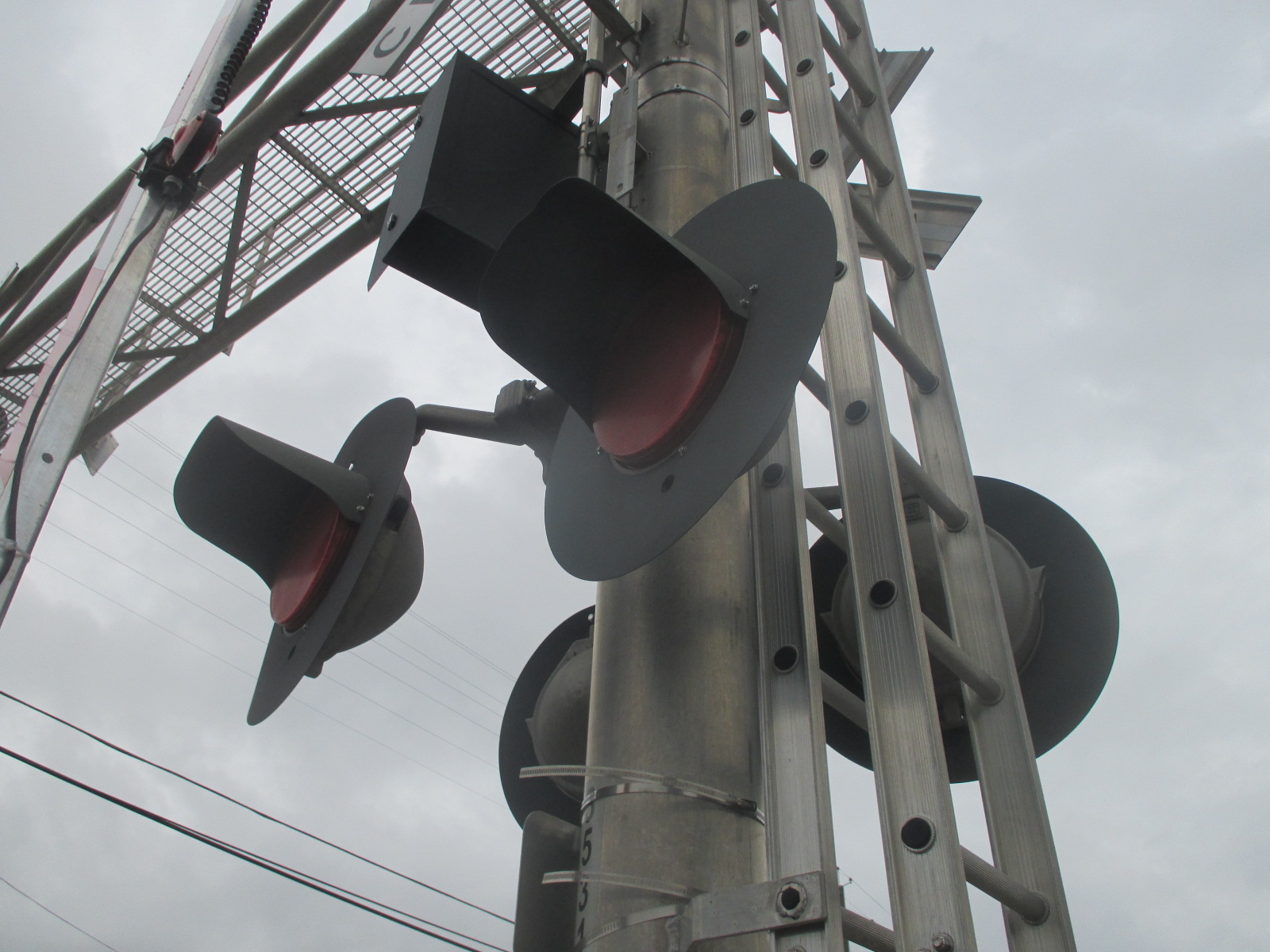

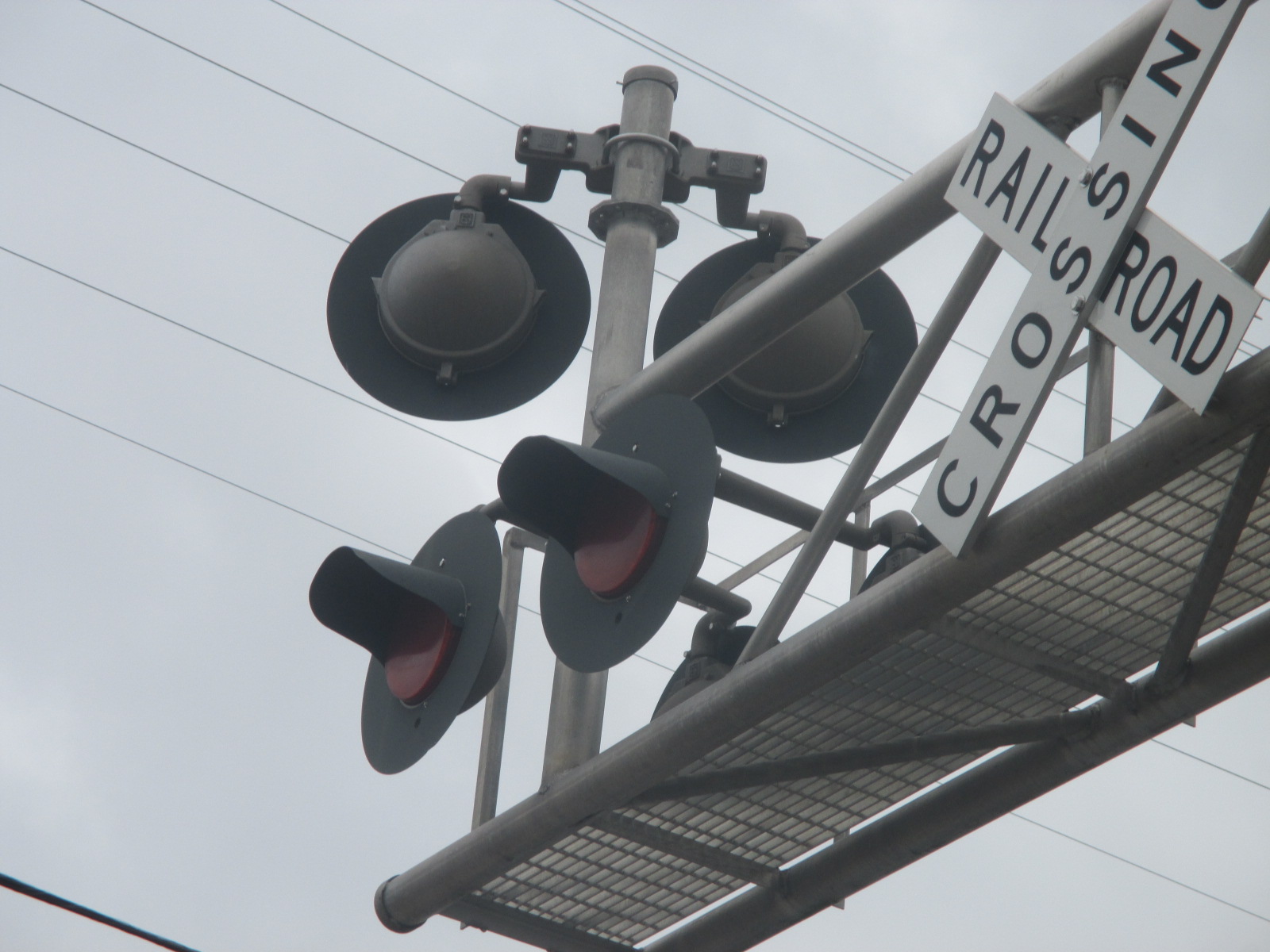

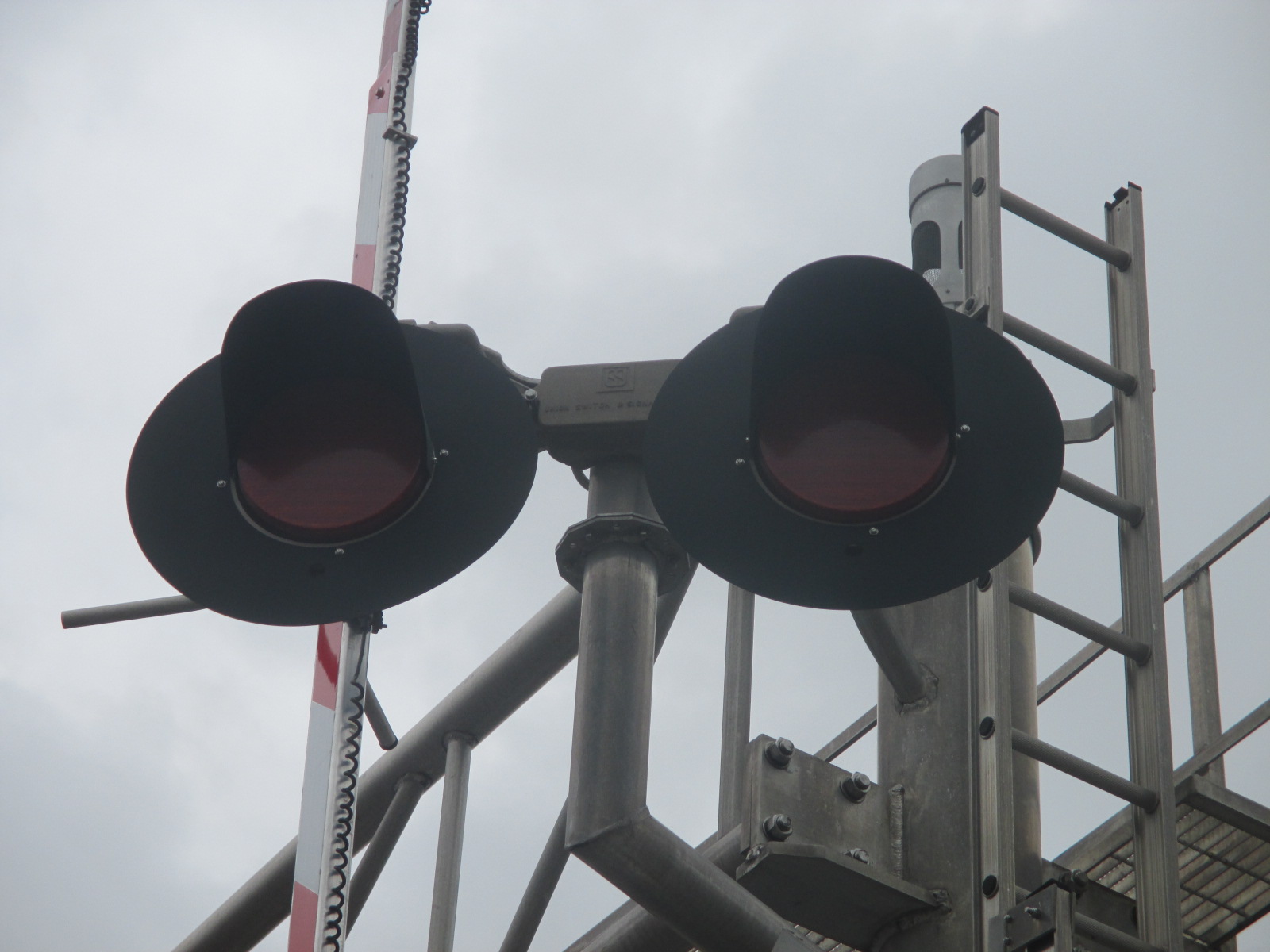

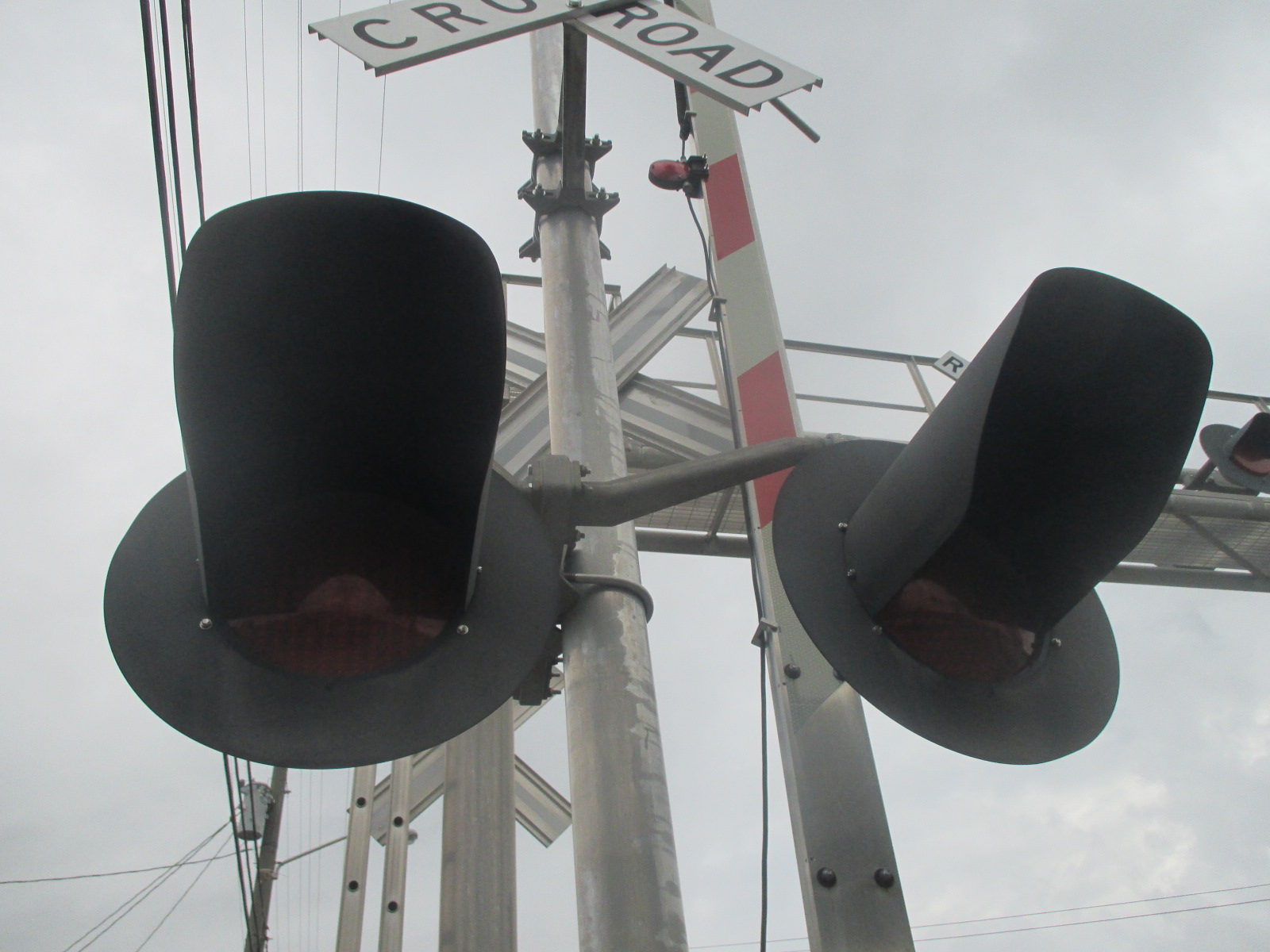

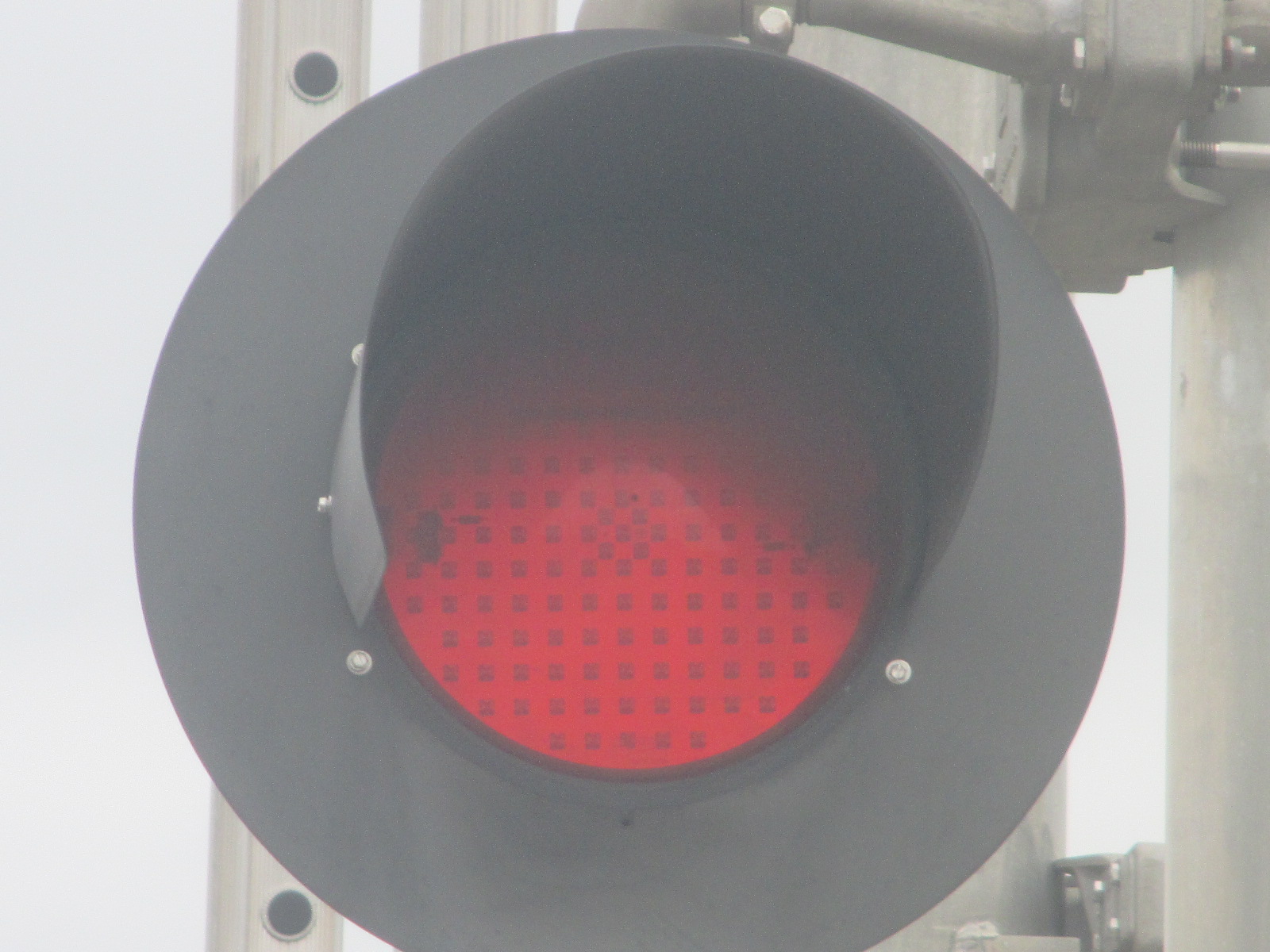

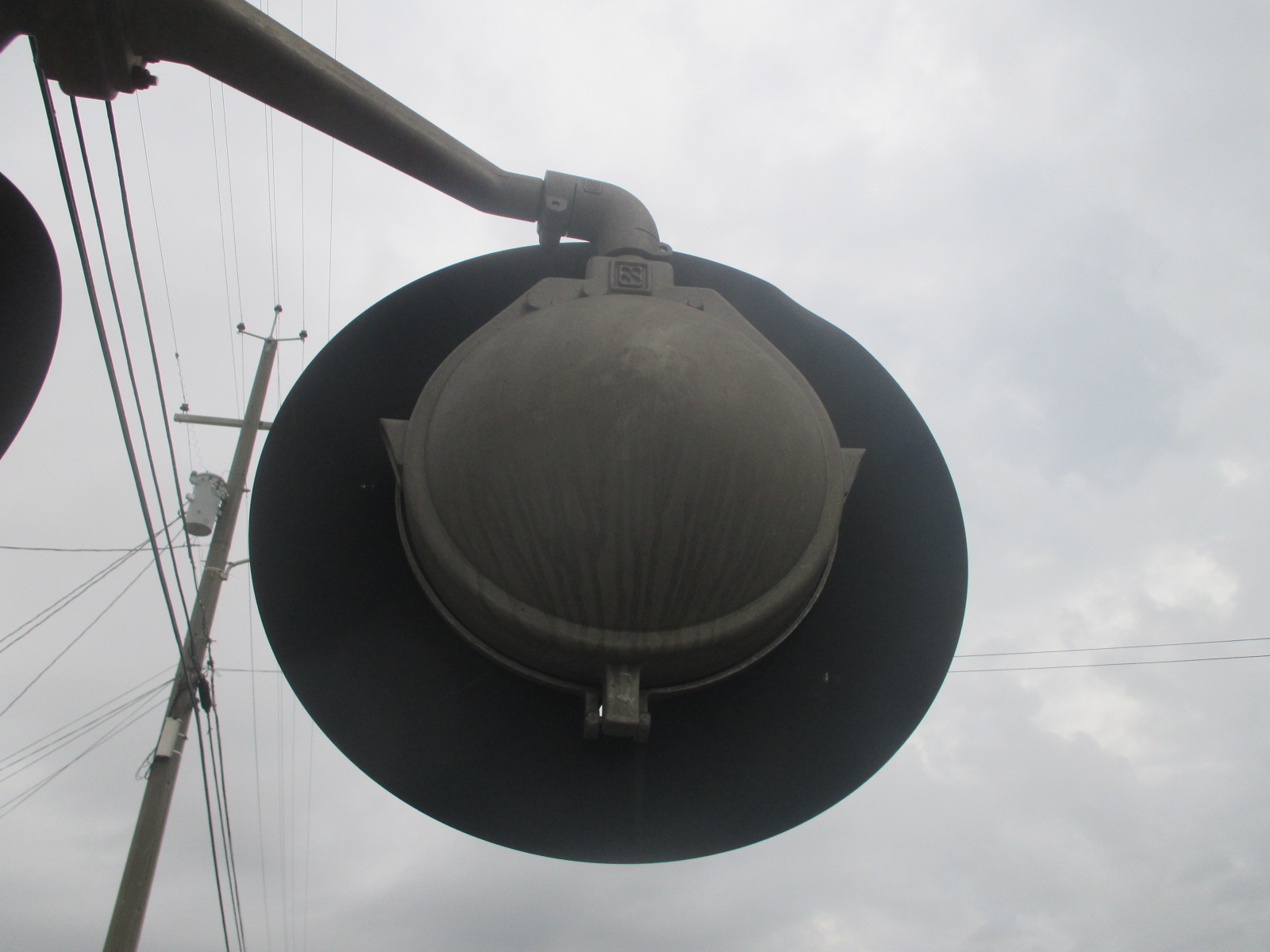

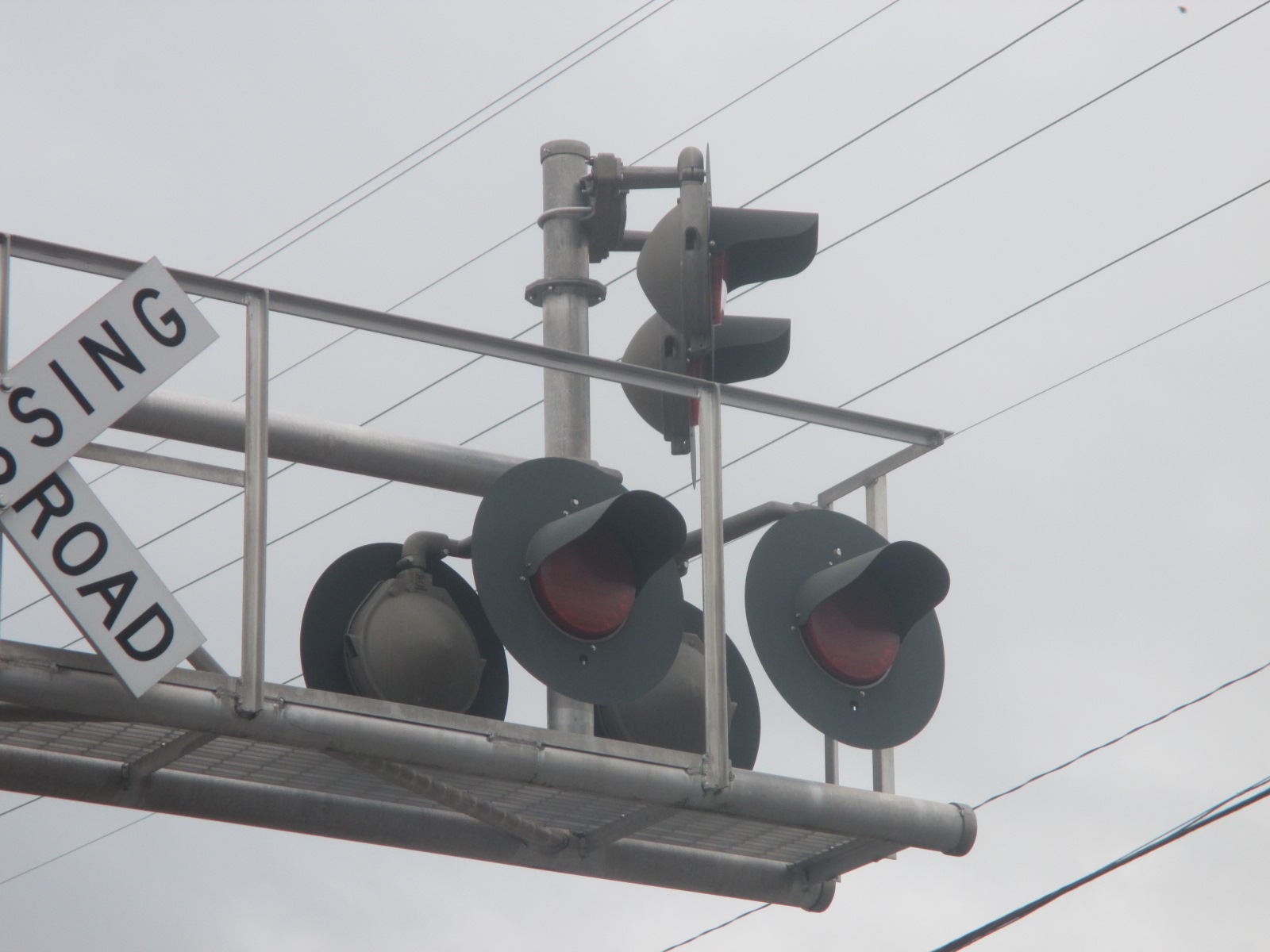

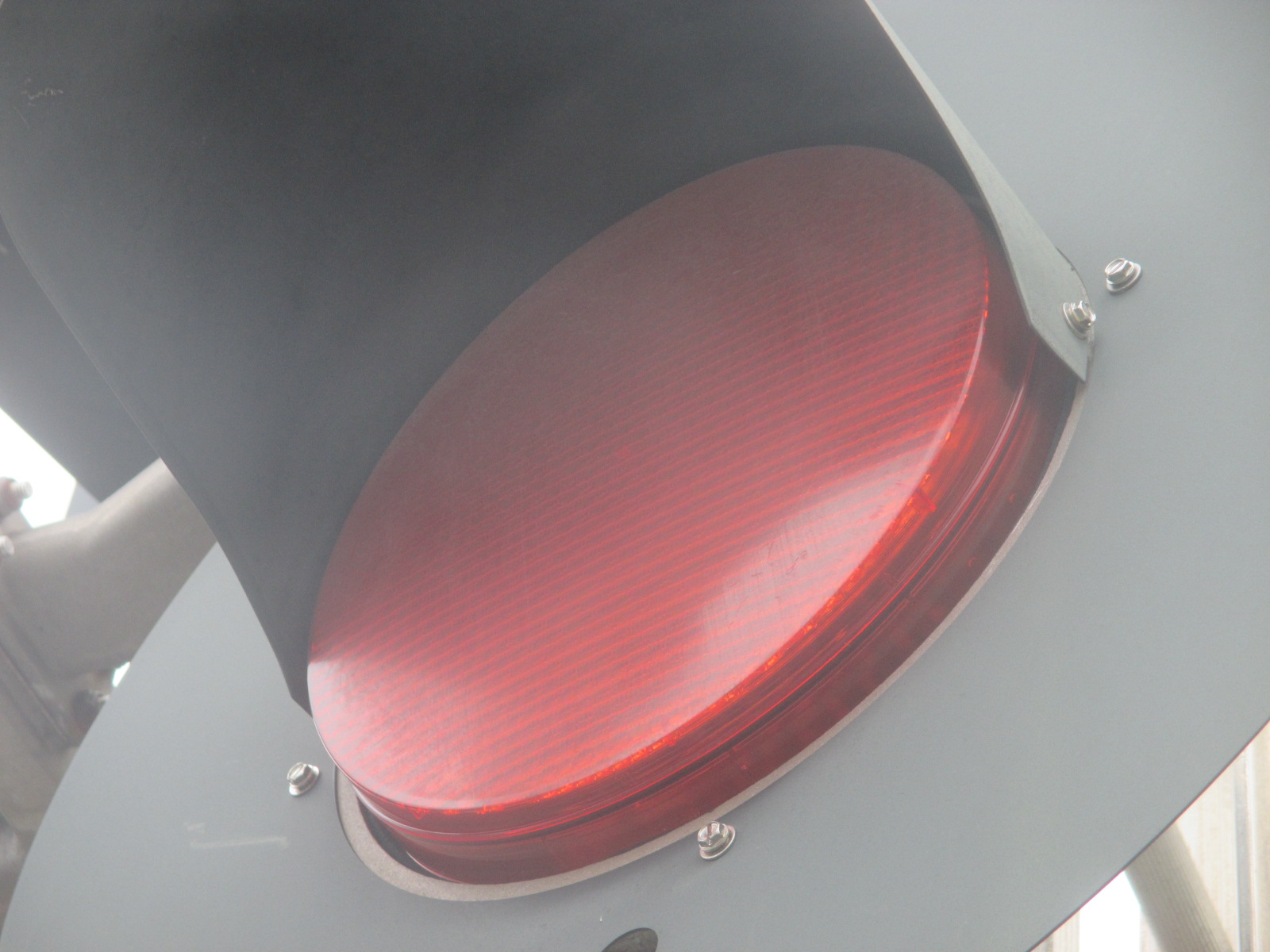

All of the lights on this signal are US&S 12x24 inch lights with Harmon LEDs in them. |
|||
13 |
14 |
15 |
16 |

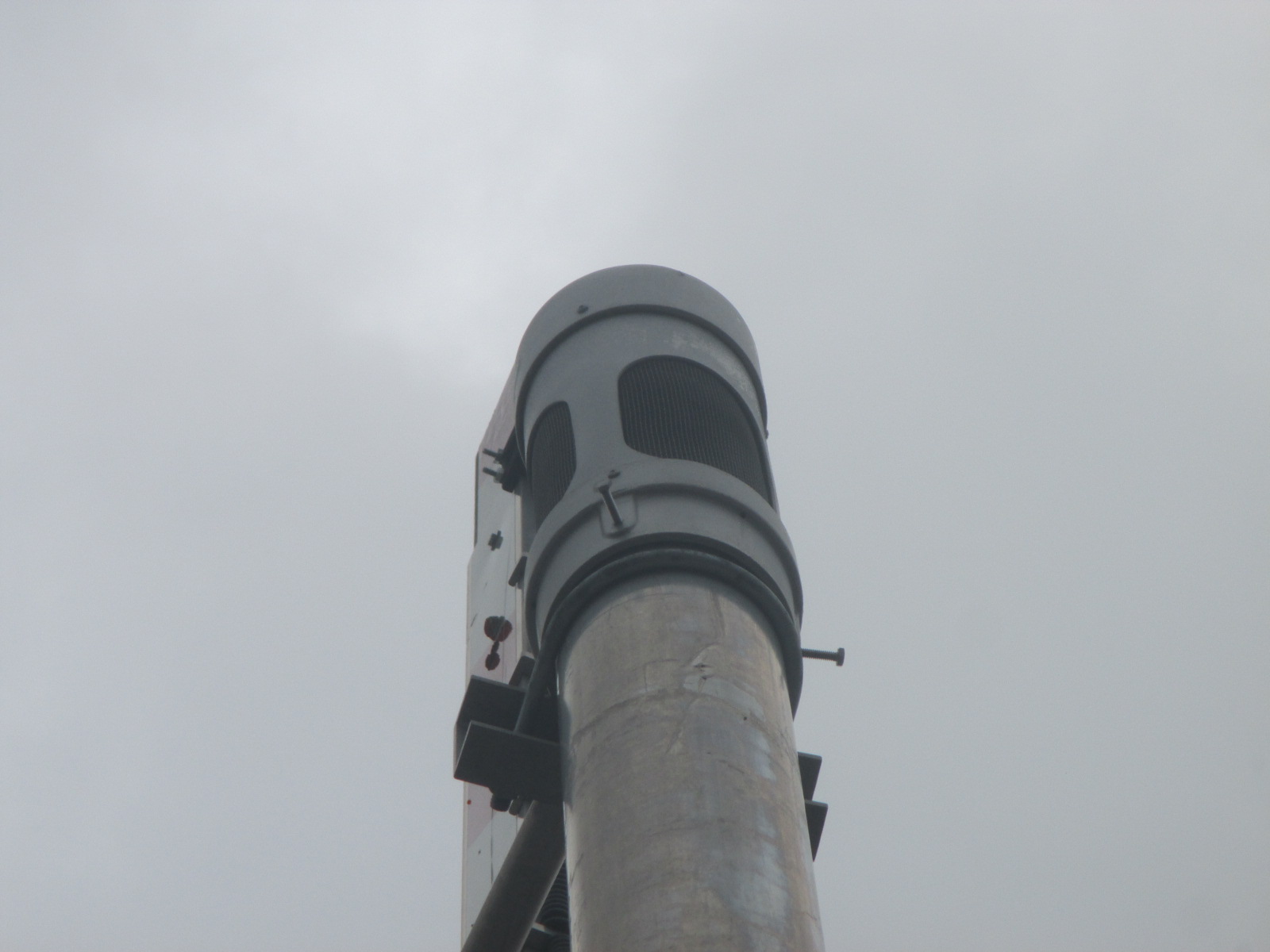

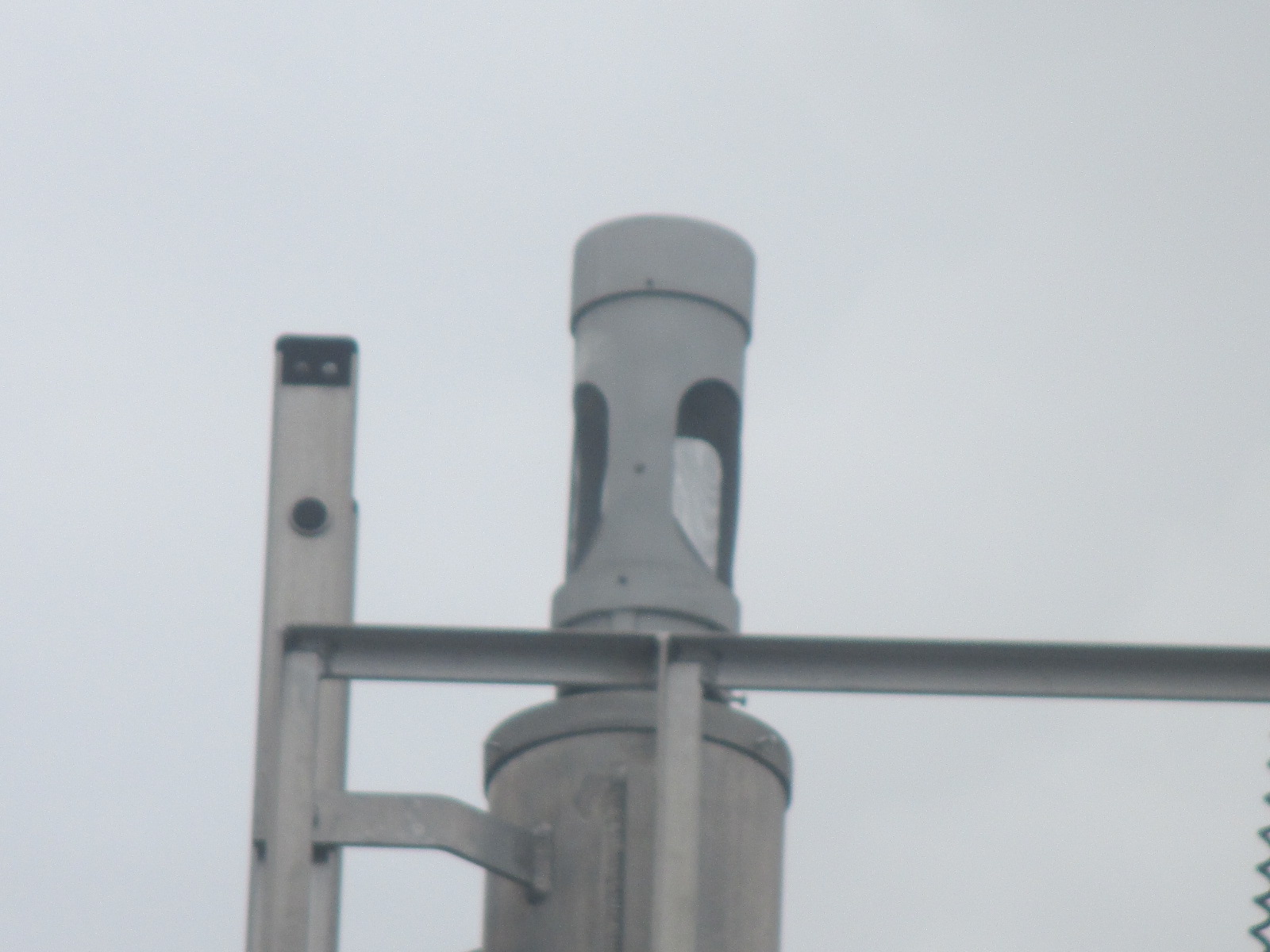

The bell on this signal is a General Signals Type 2 e-bell. |

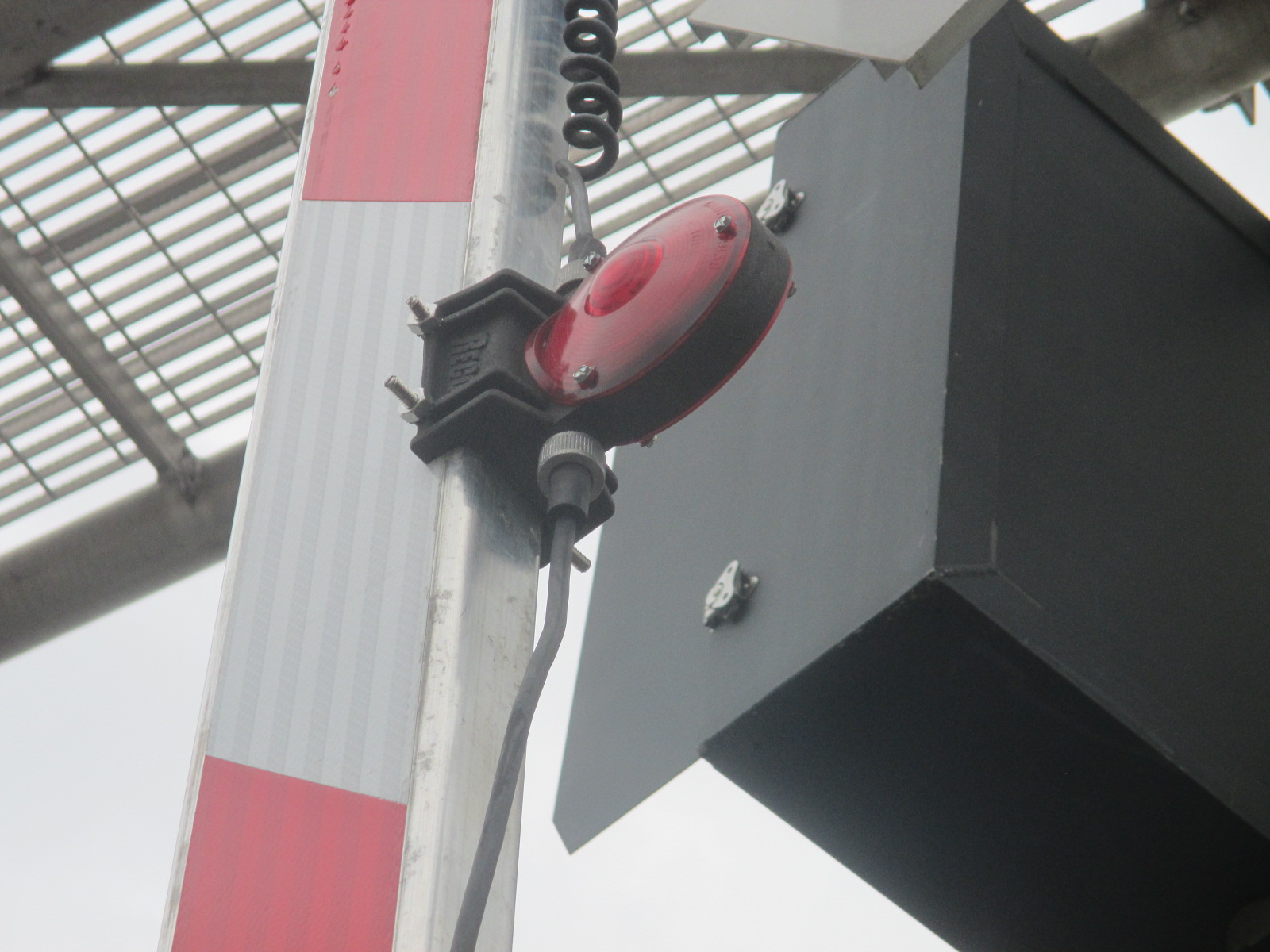

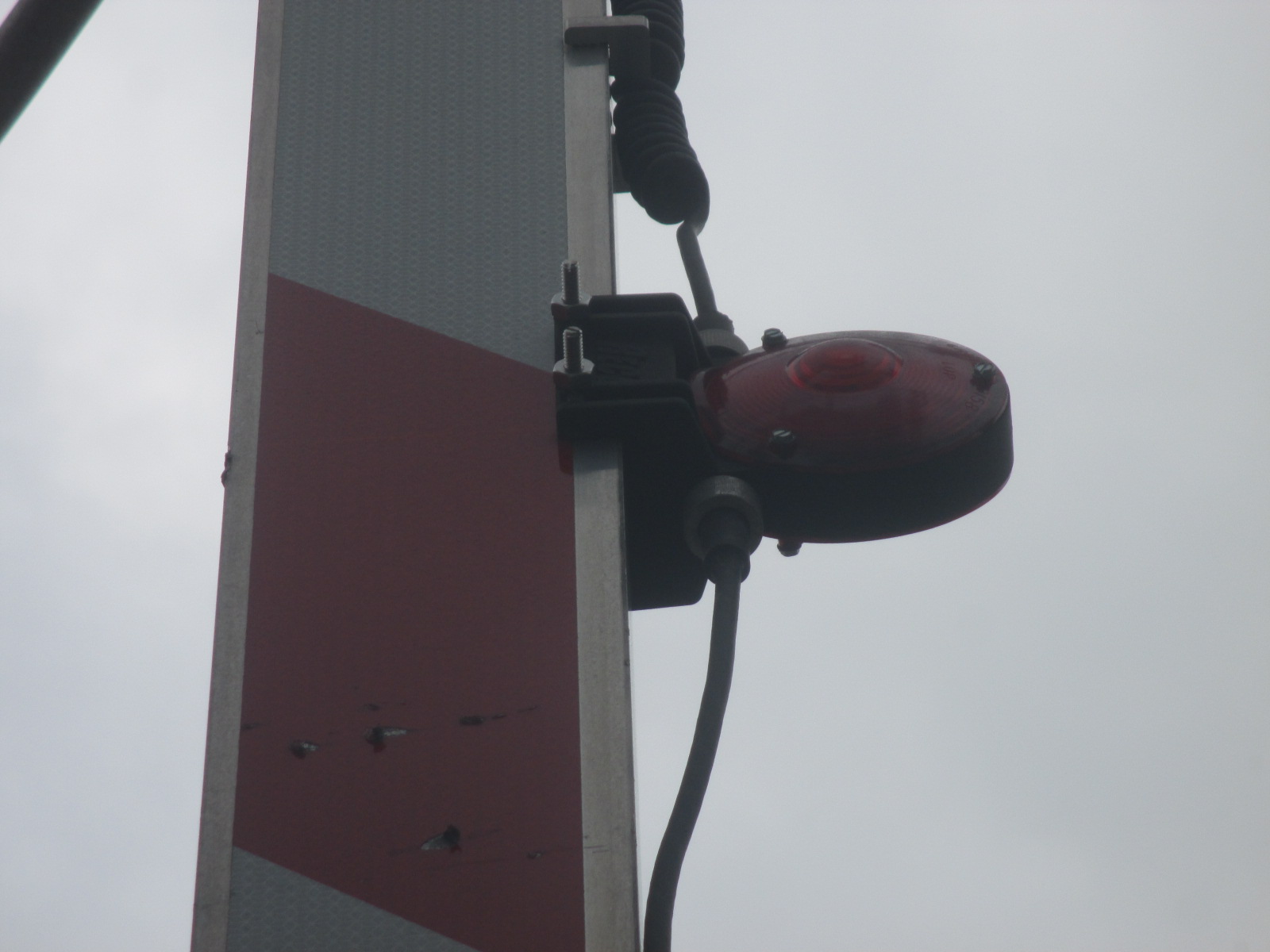

The gate lights here are RECO gate lights. |
||
17 |
18 |
19 |
20 |

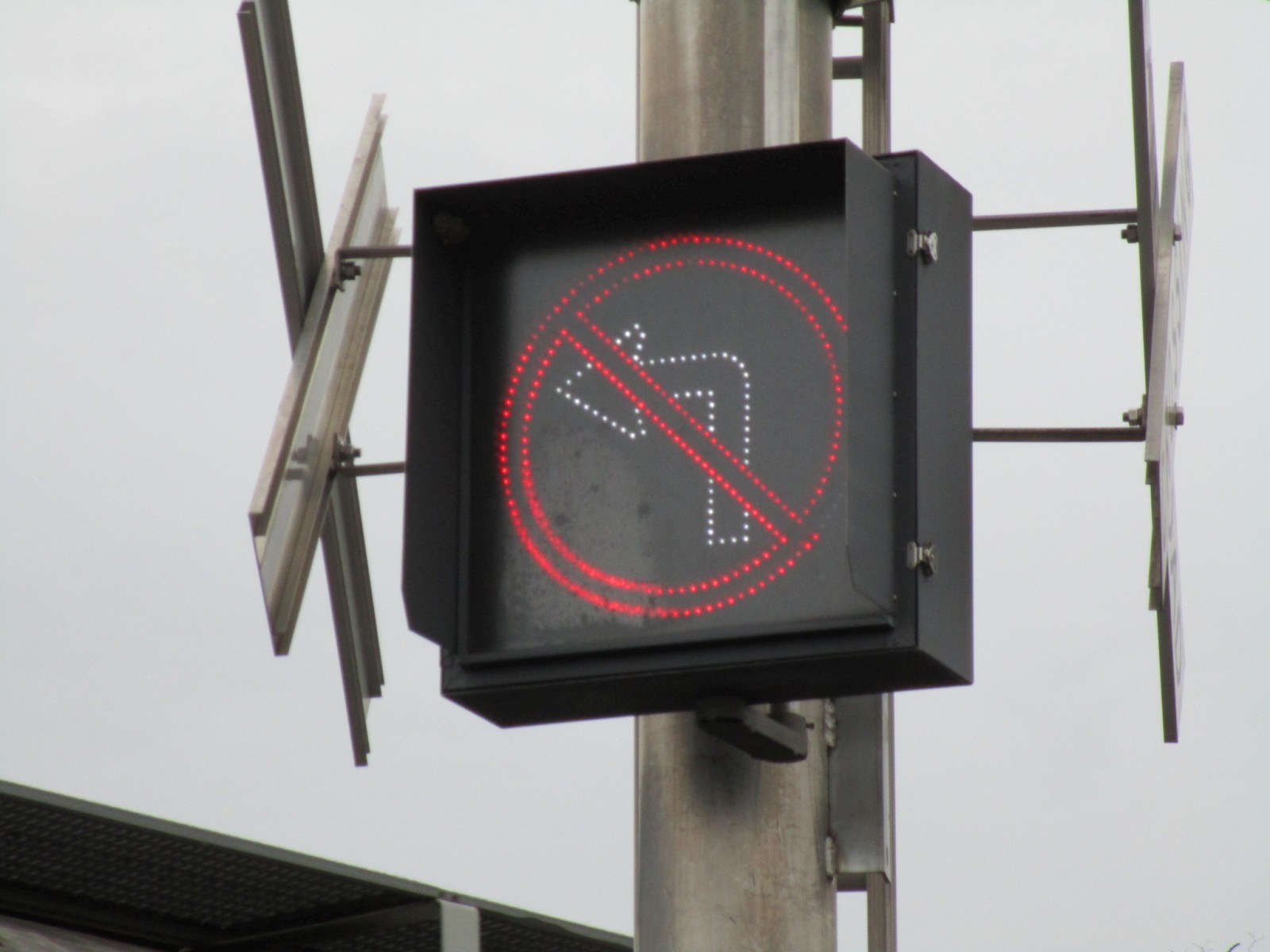

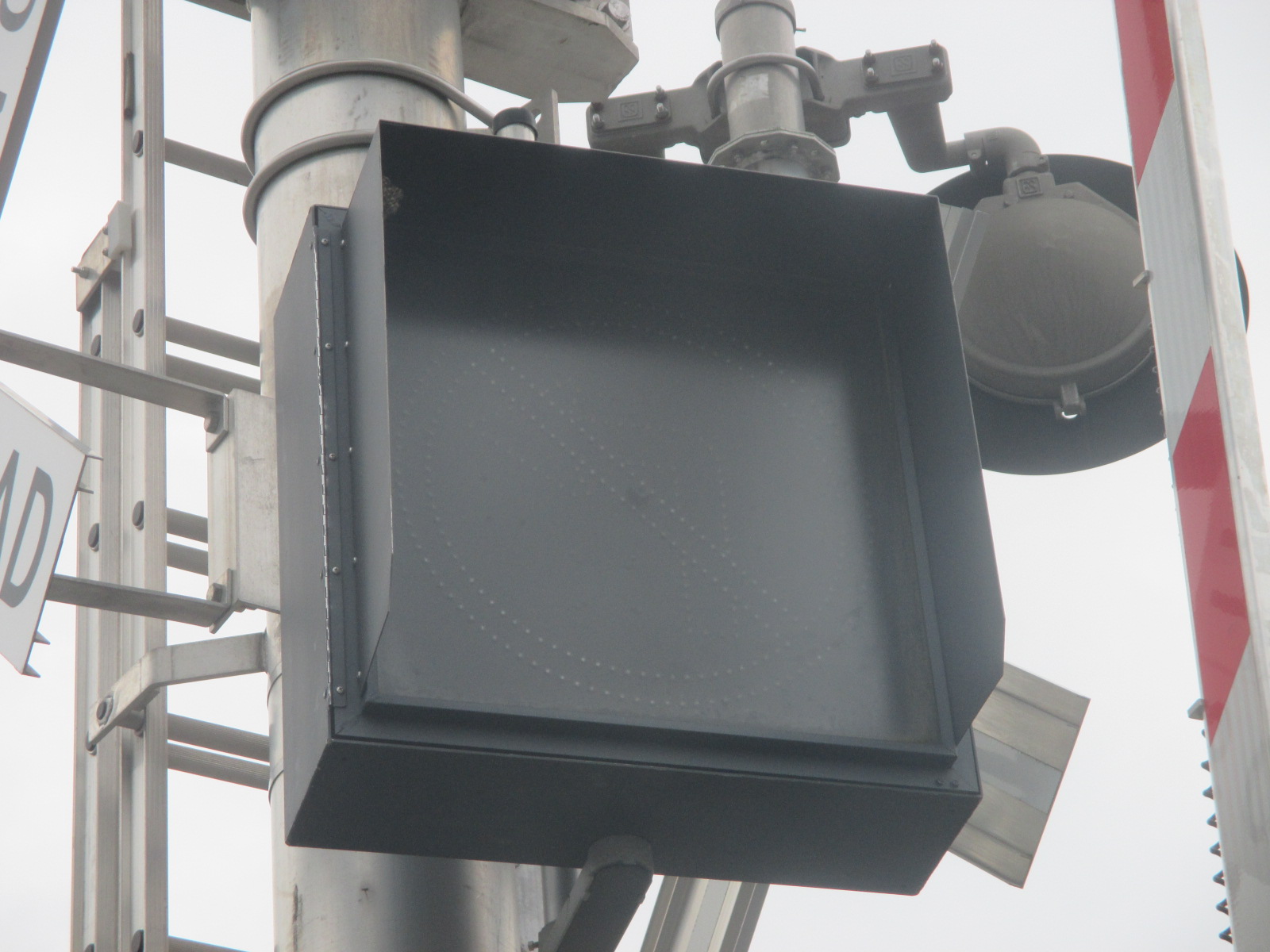

A light-up "No Left Turn" sign. |
The second signal. |

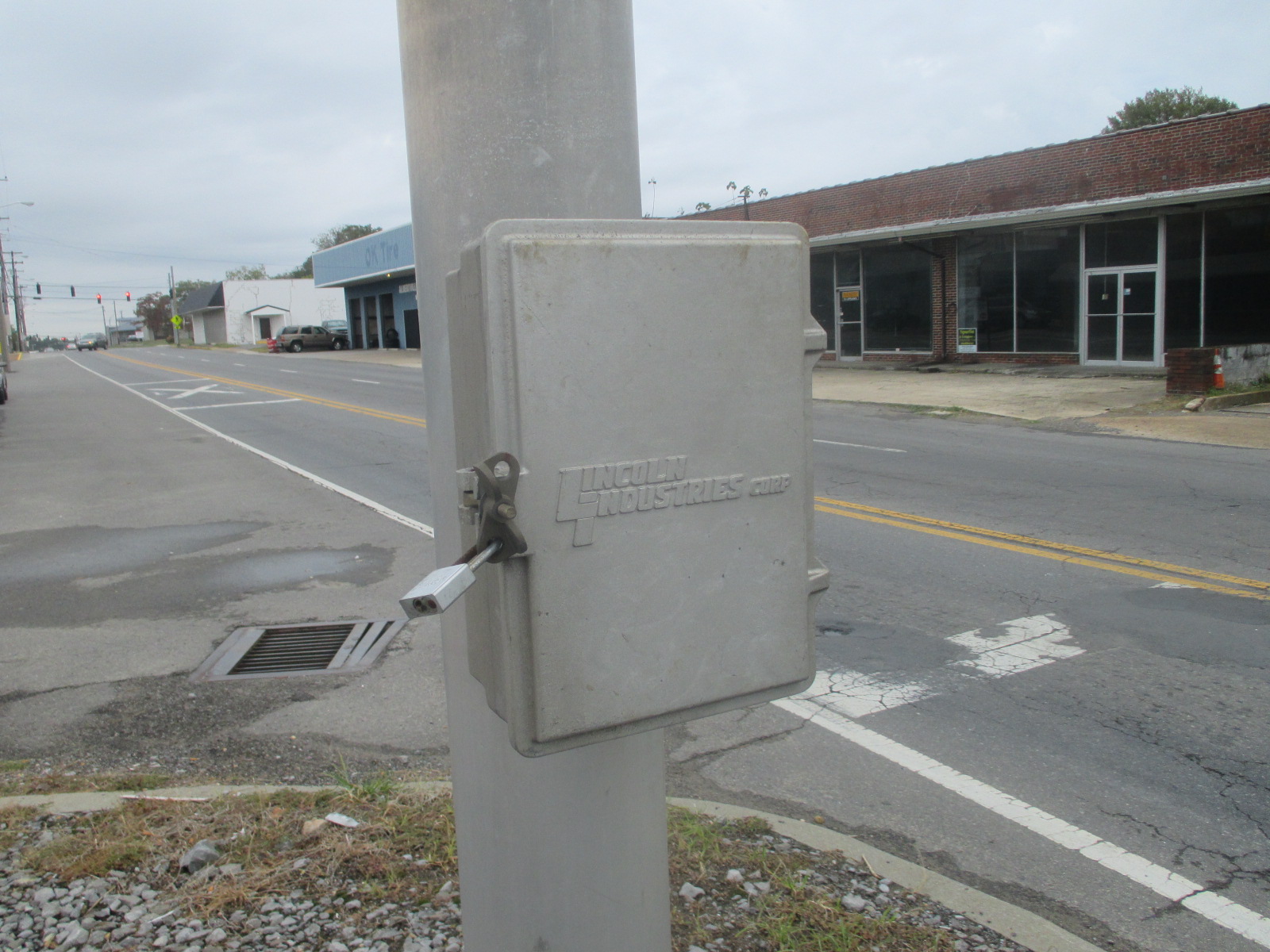

It's also a Lincoln industries cantilever. |
The emergency information. |
21 |
22 |
23 |
24 |

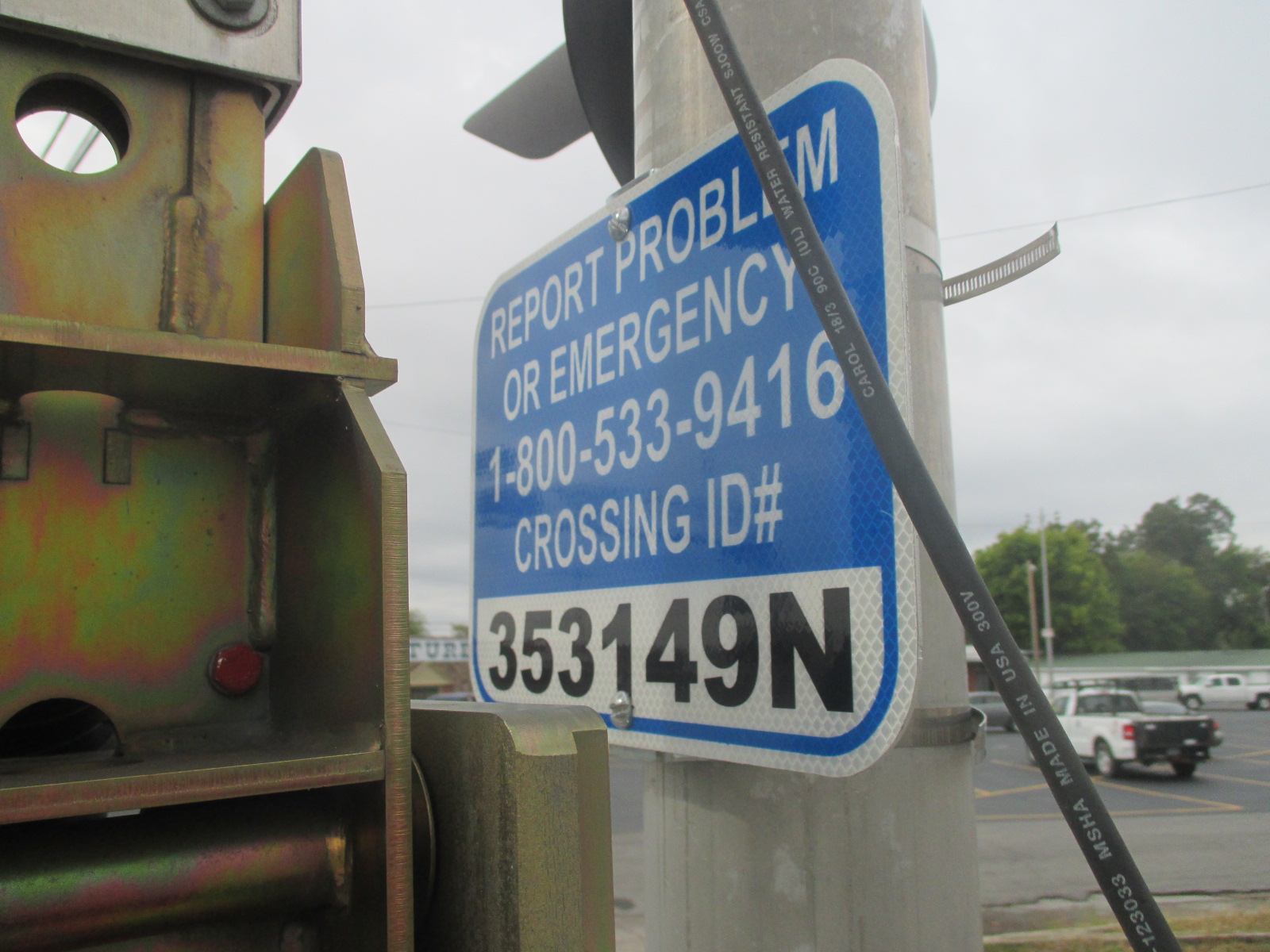

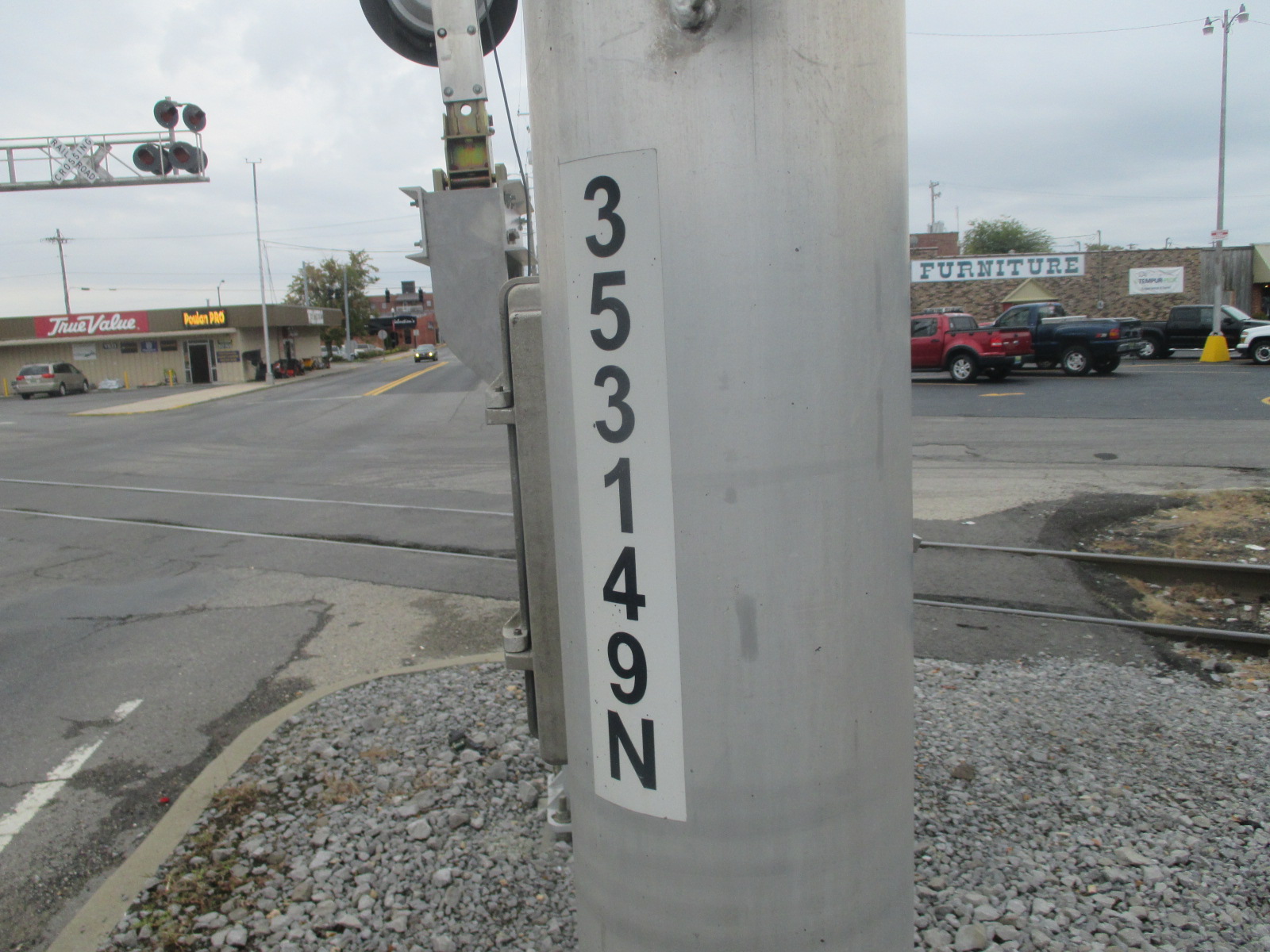

The DOT number again. |

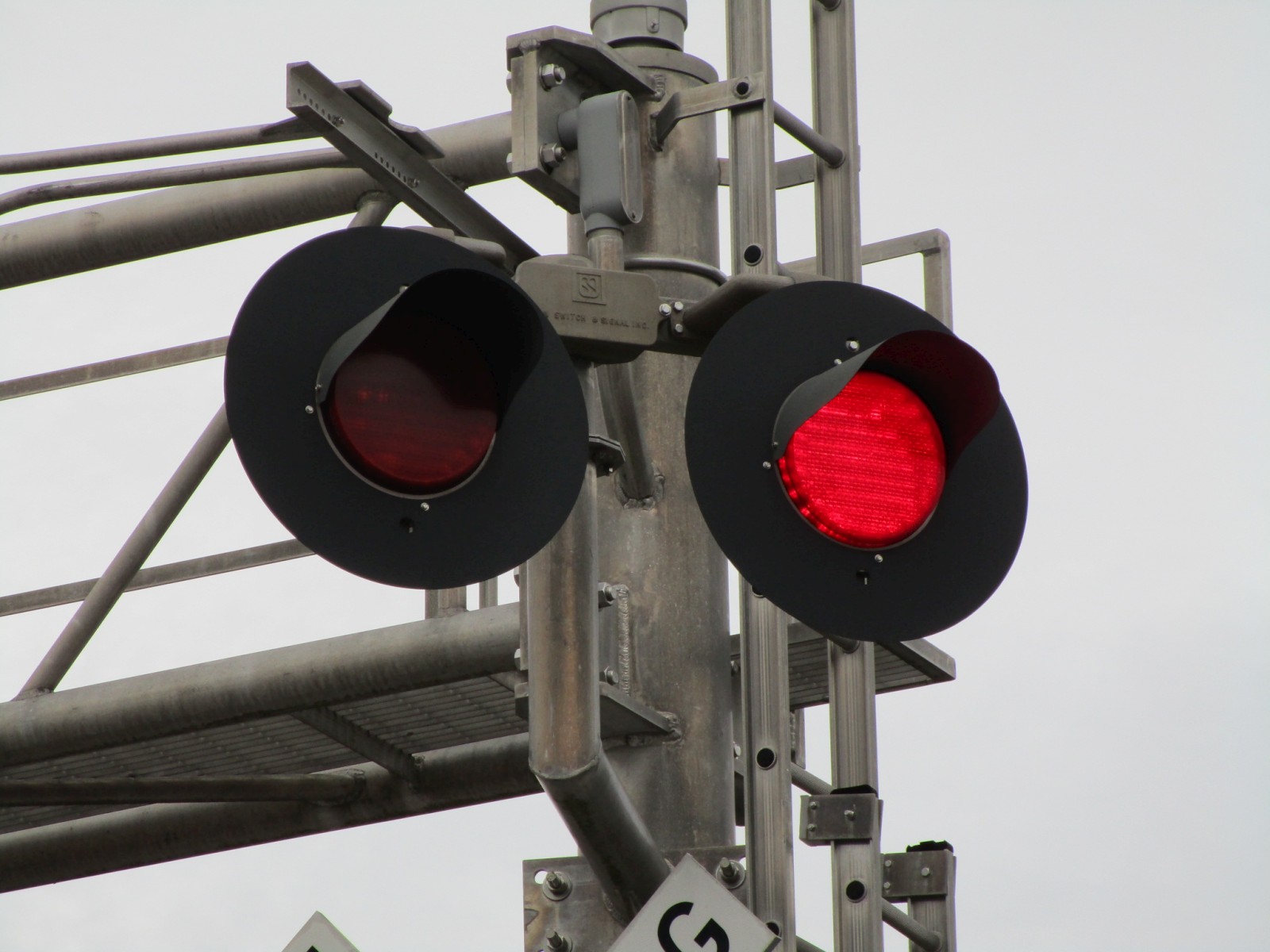

The front lights are more US&S 12x24 inch lights with Harmon LEDs. |

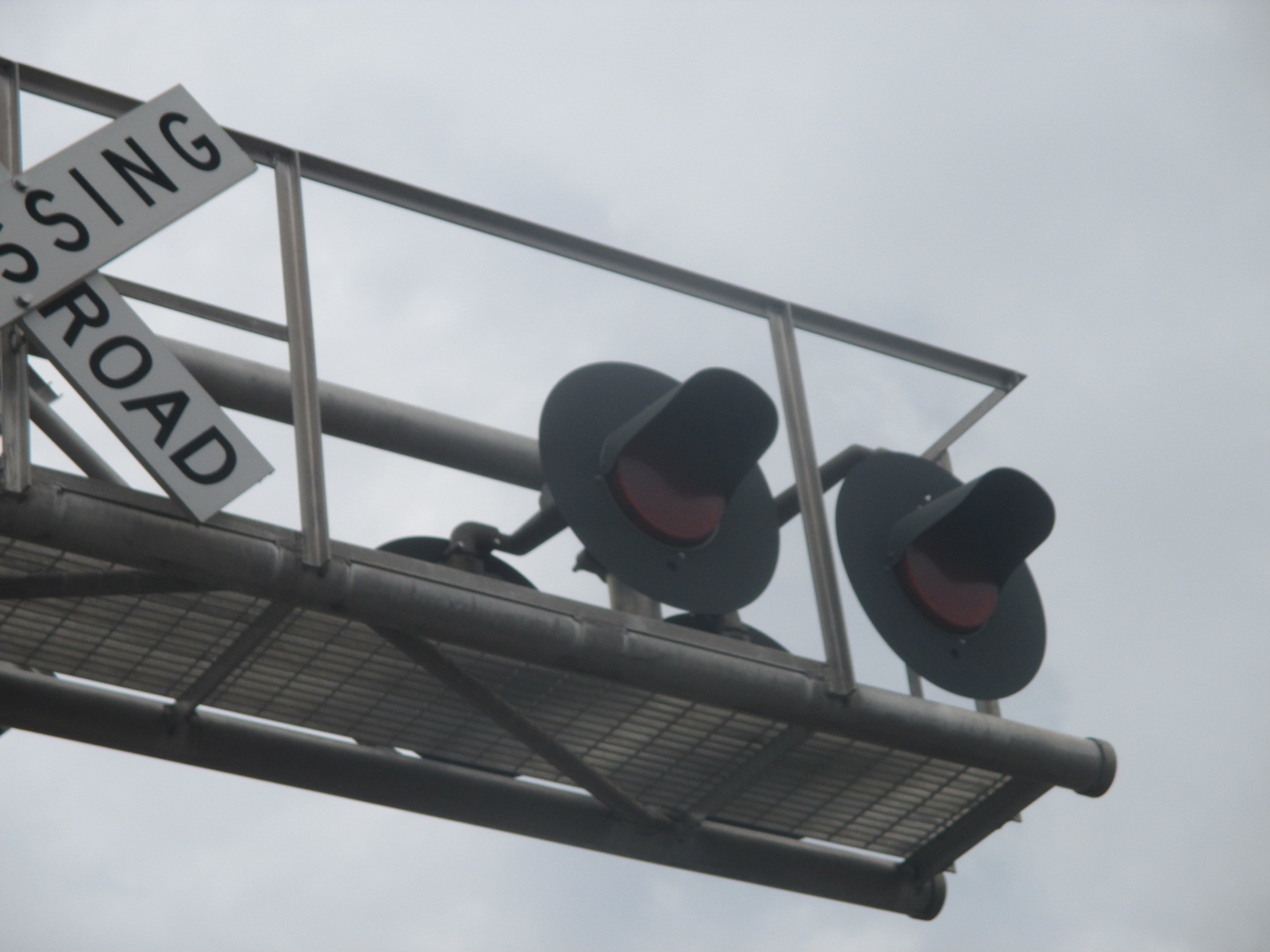

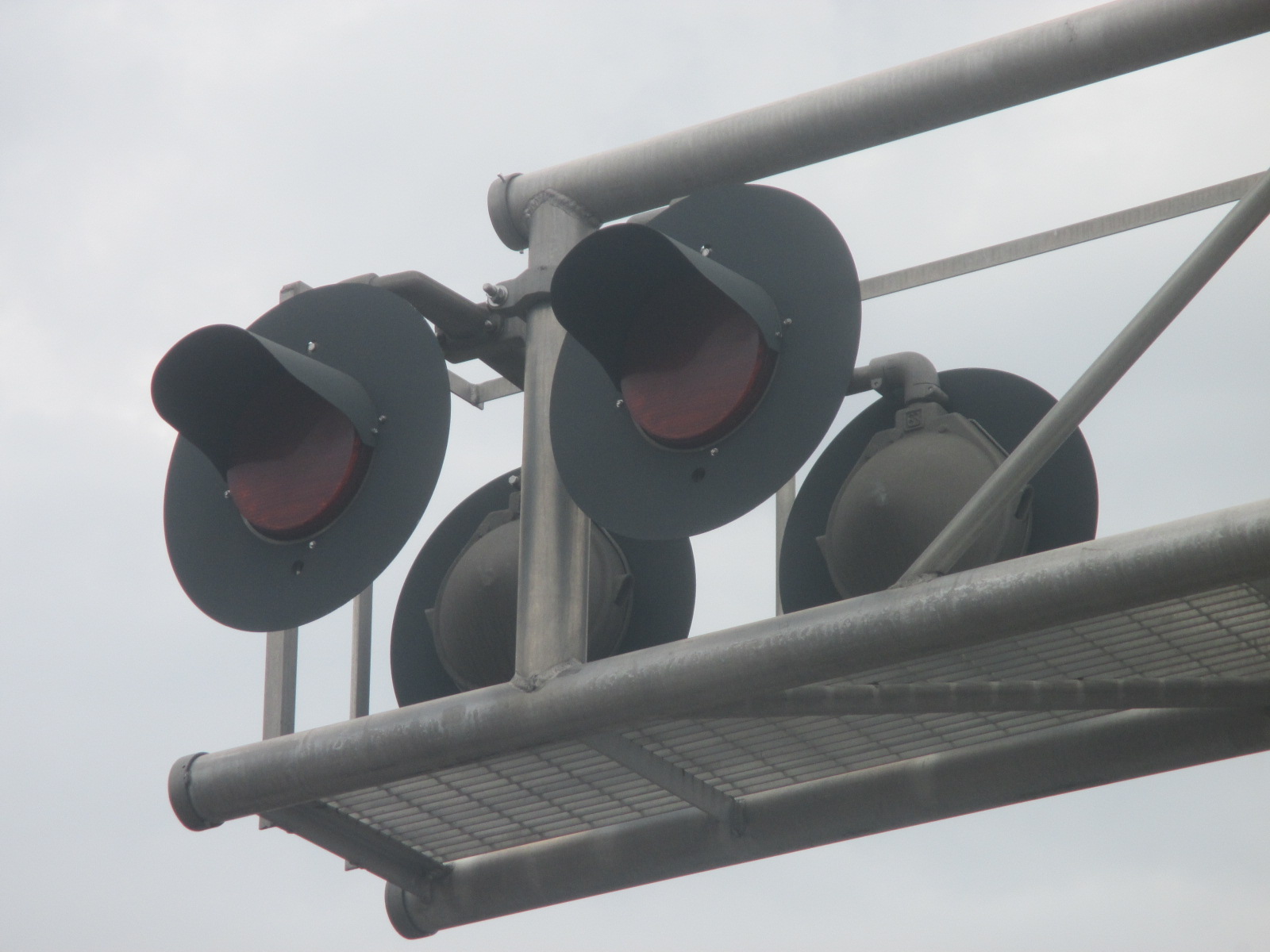

The overhead lights are the same as the front lights. |
|
25 |
26 |
27 |
28 |

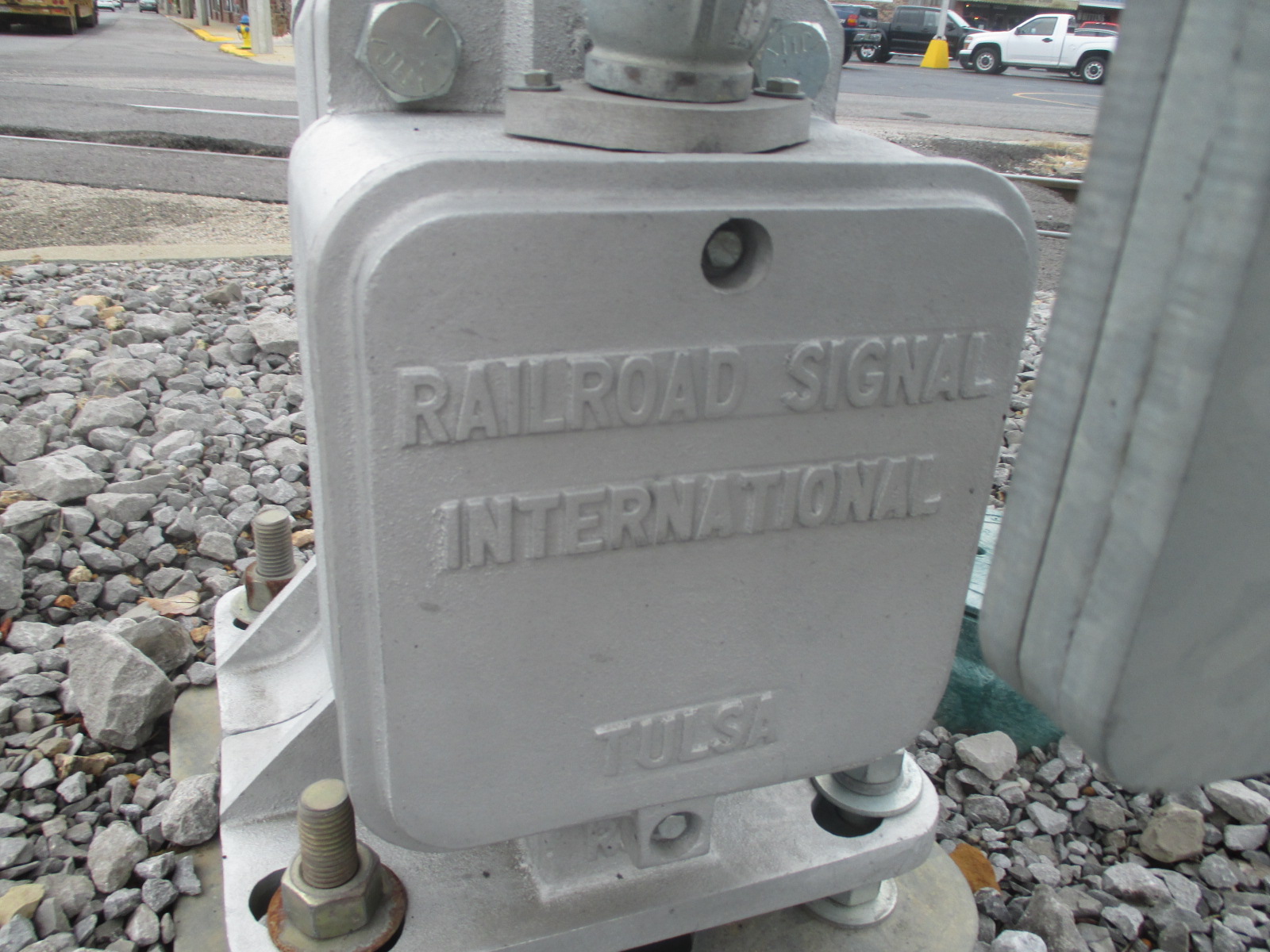

An RSI base. |

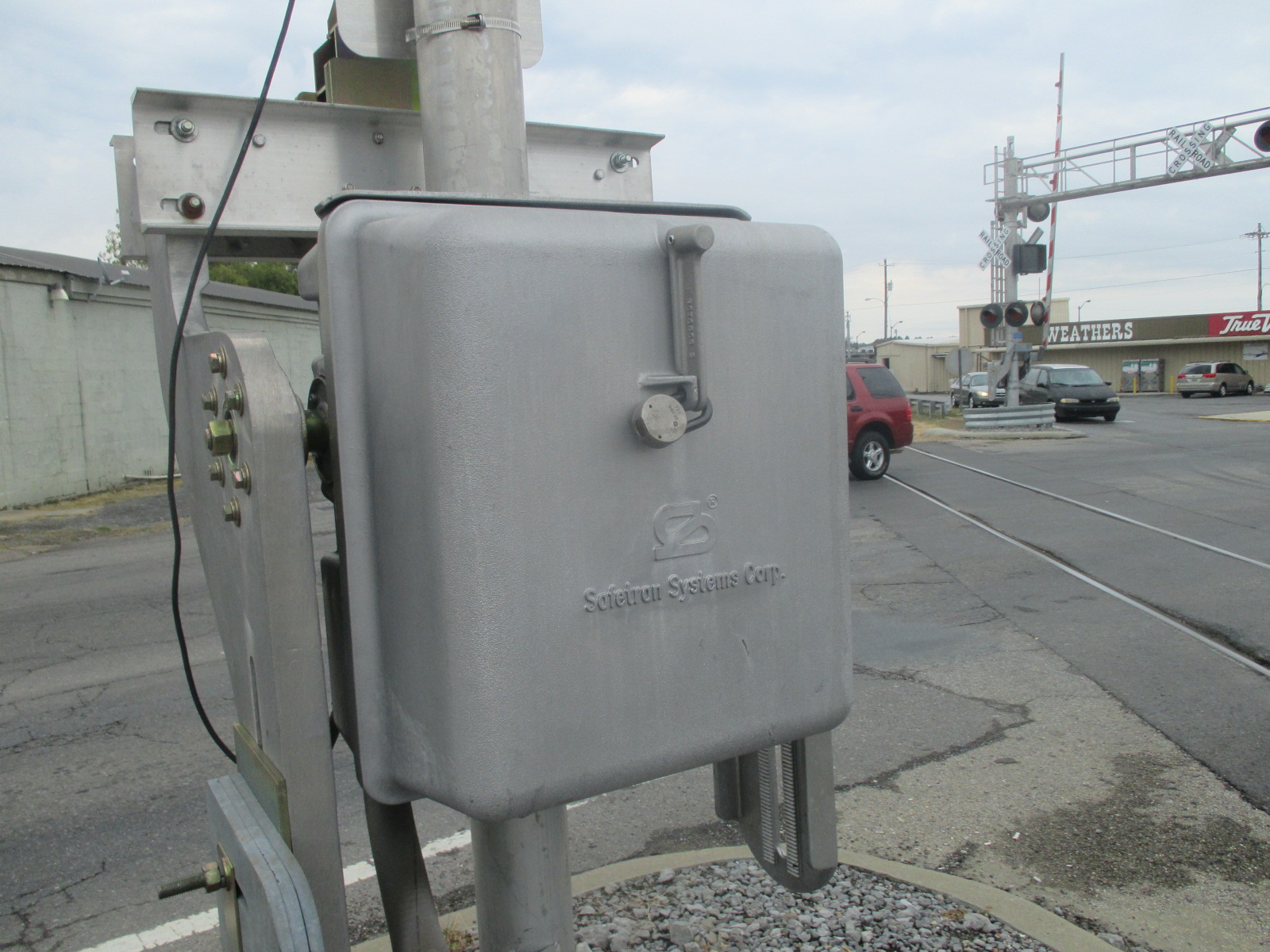

Another Safetran gate mechanism over here. |

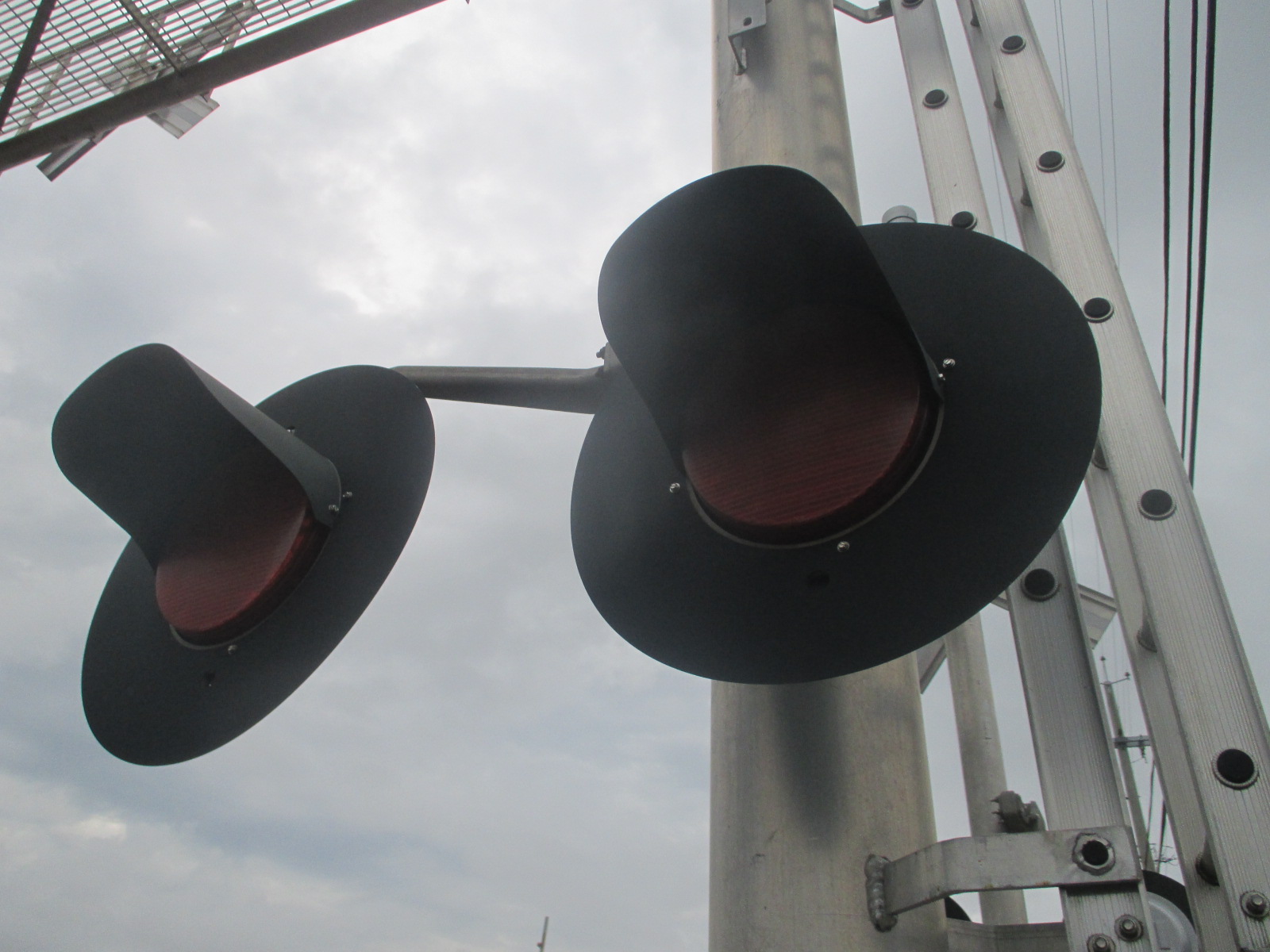

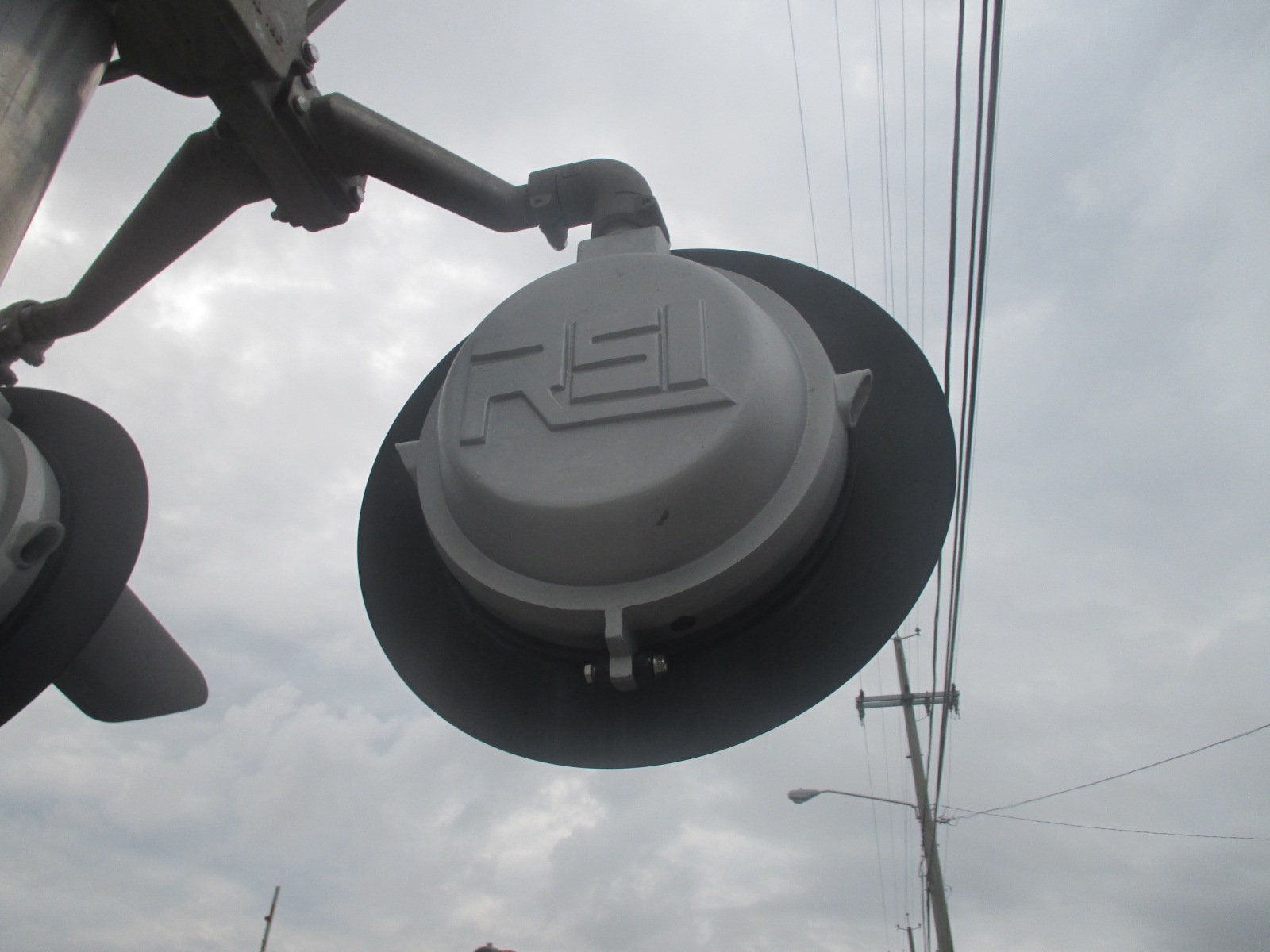

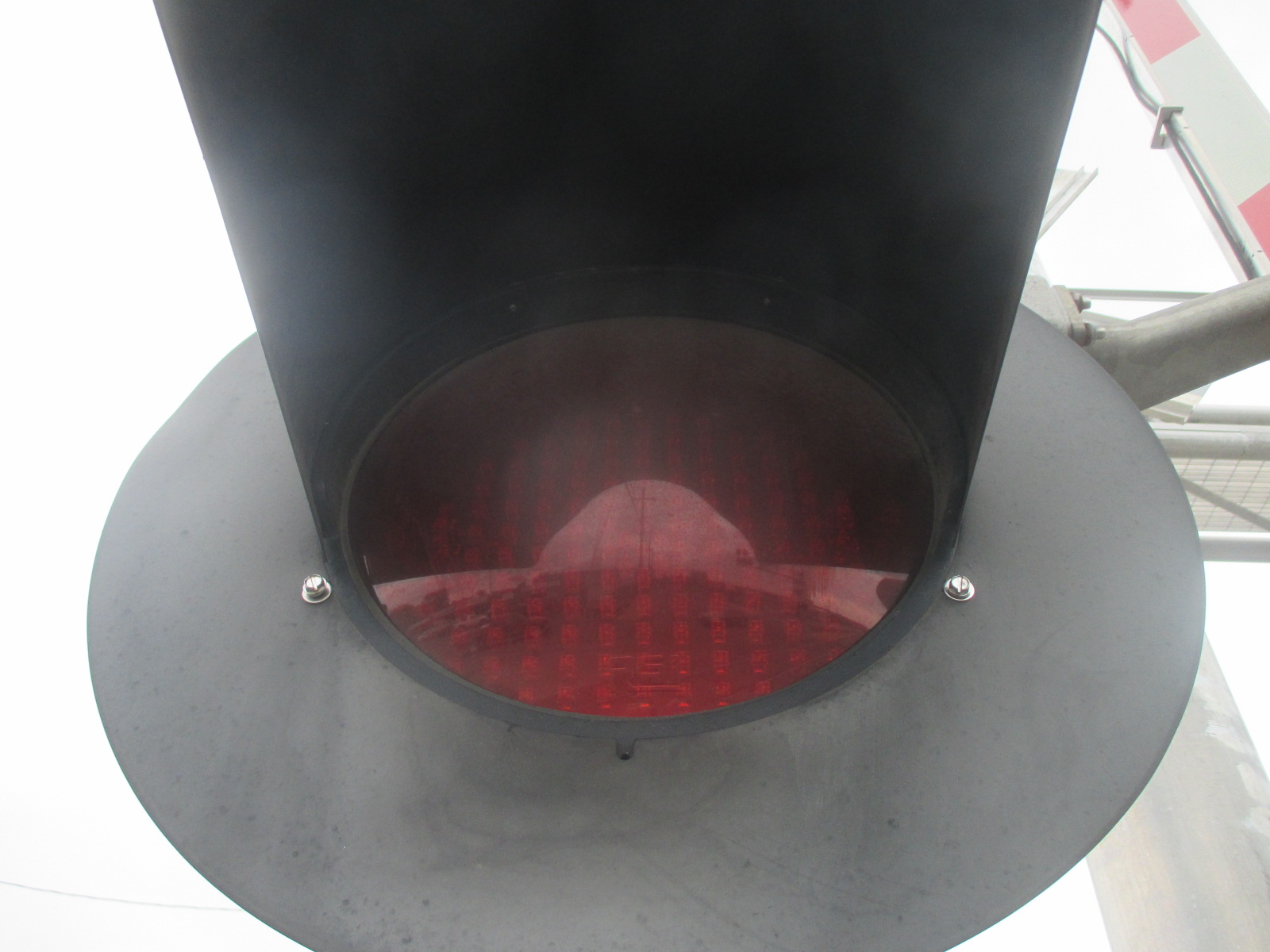

The rear lights are RSI 12x20 inch lights with RSI LEDs in them. |
29 |
30 |
31 |
32 |
The bell on this signal is also a General Signals Type 2 electronic bell. |
|||
33 |
34 |
35 |
36 |
This signal has even more RECO gate lights on it. |

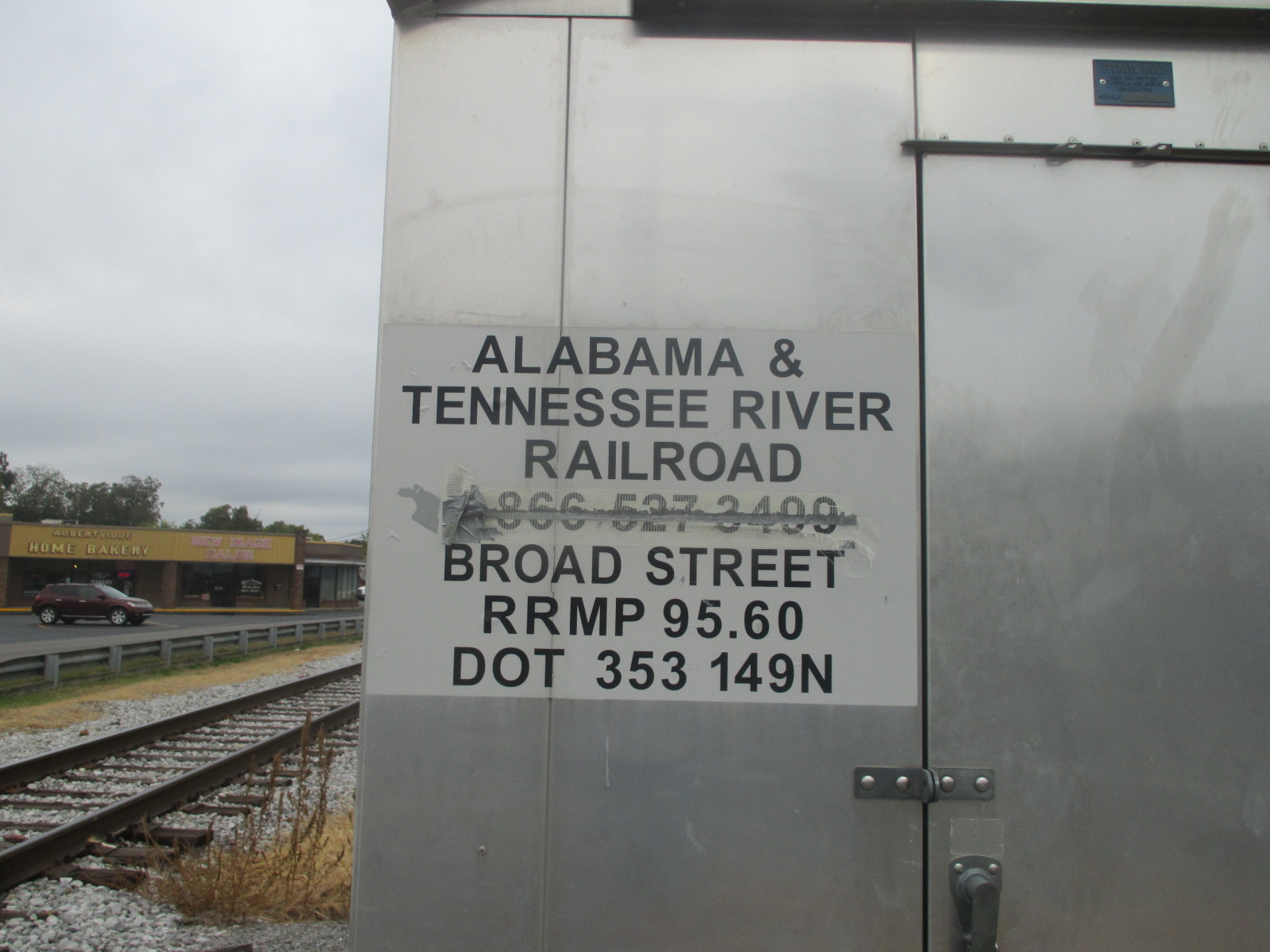

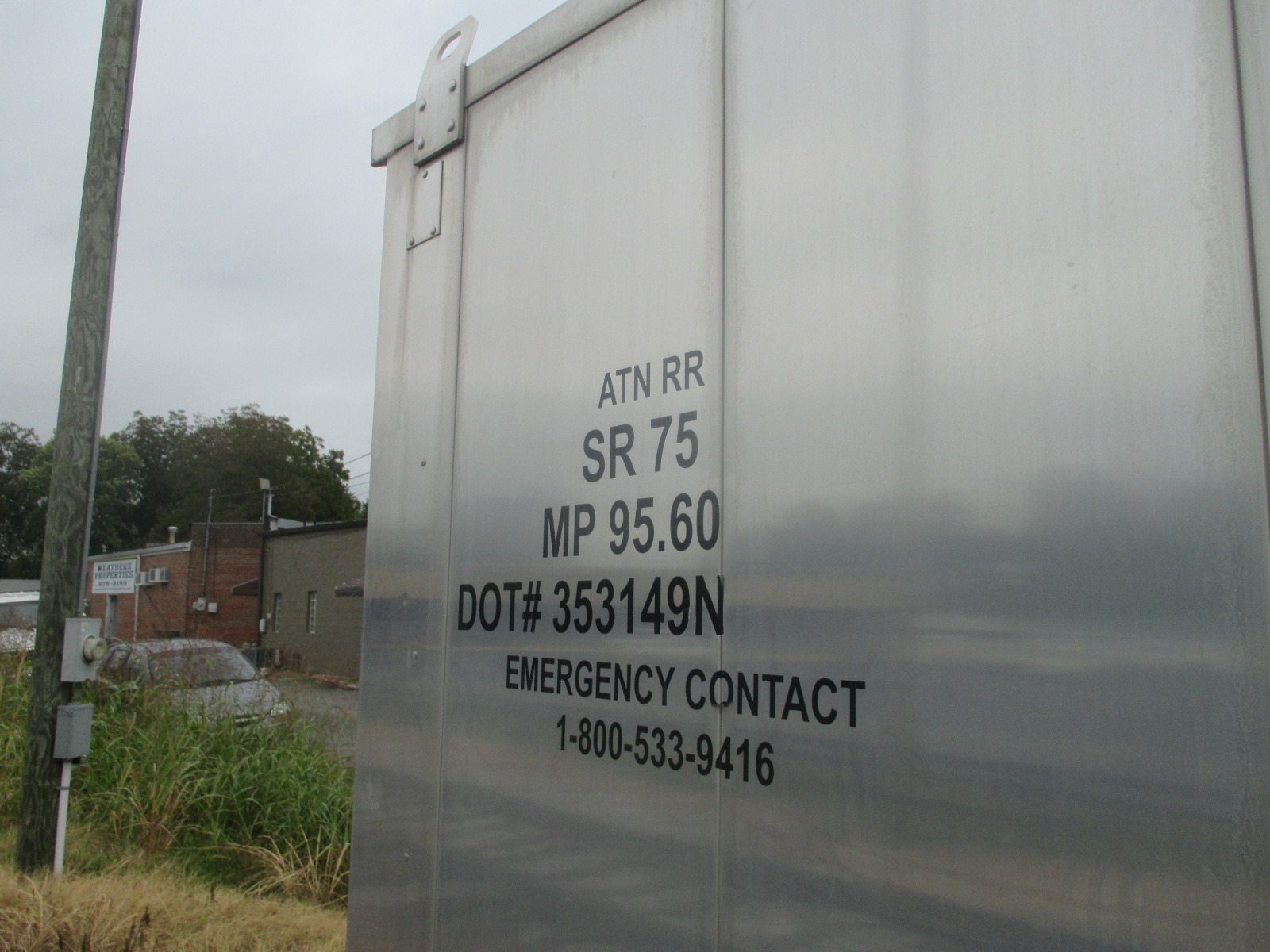

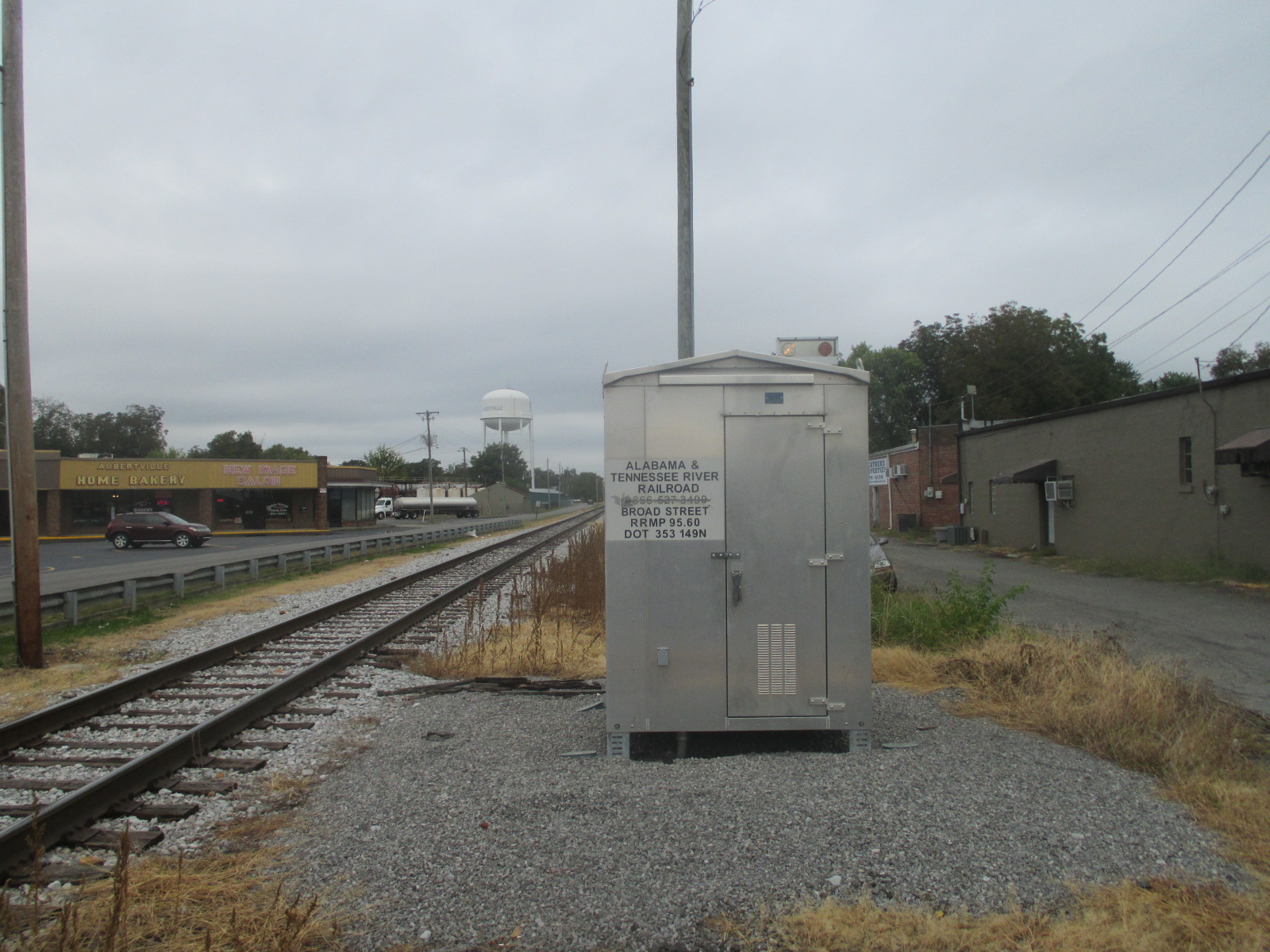

The relay case which has even more emergency information on it. |
||
37 |
38 |

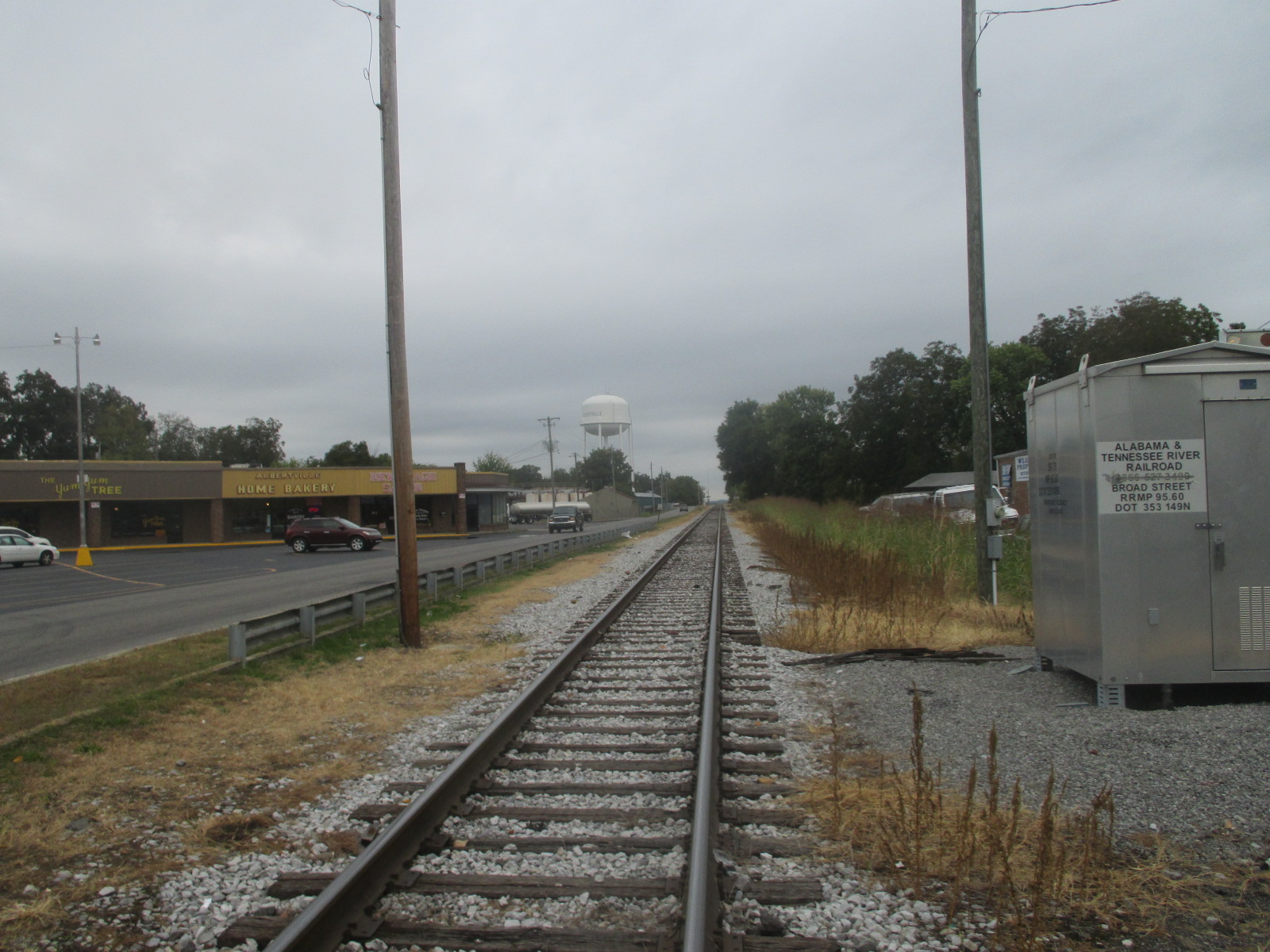

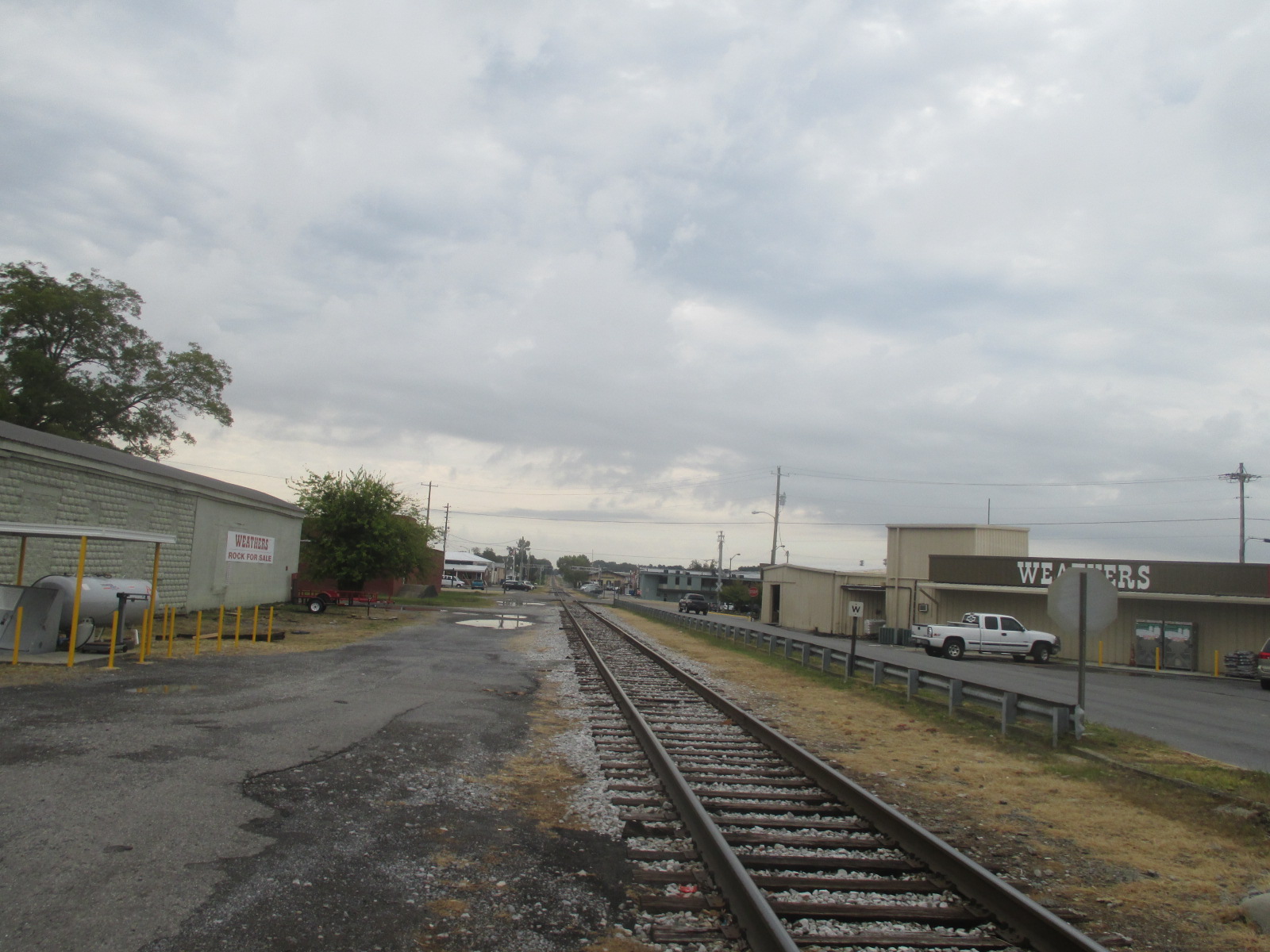

Track views. Picture 37 looks south towards Sand Mountain Drive #2. Picture 38 looks north towards McKinney Avenue. |
|
39 |
40 |

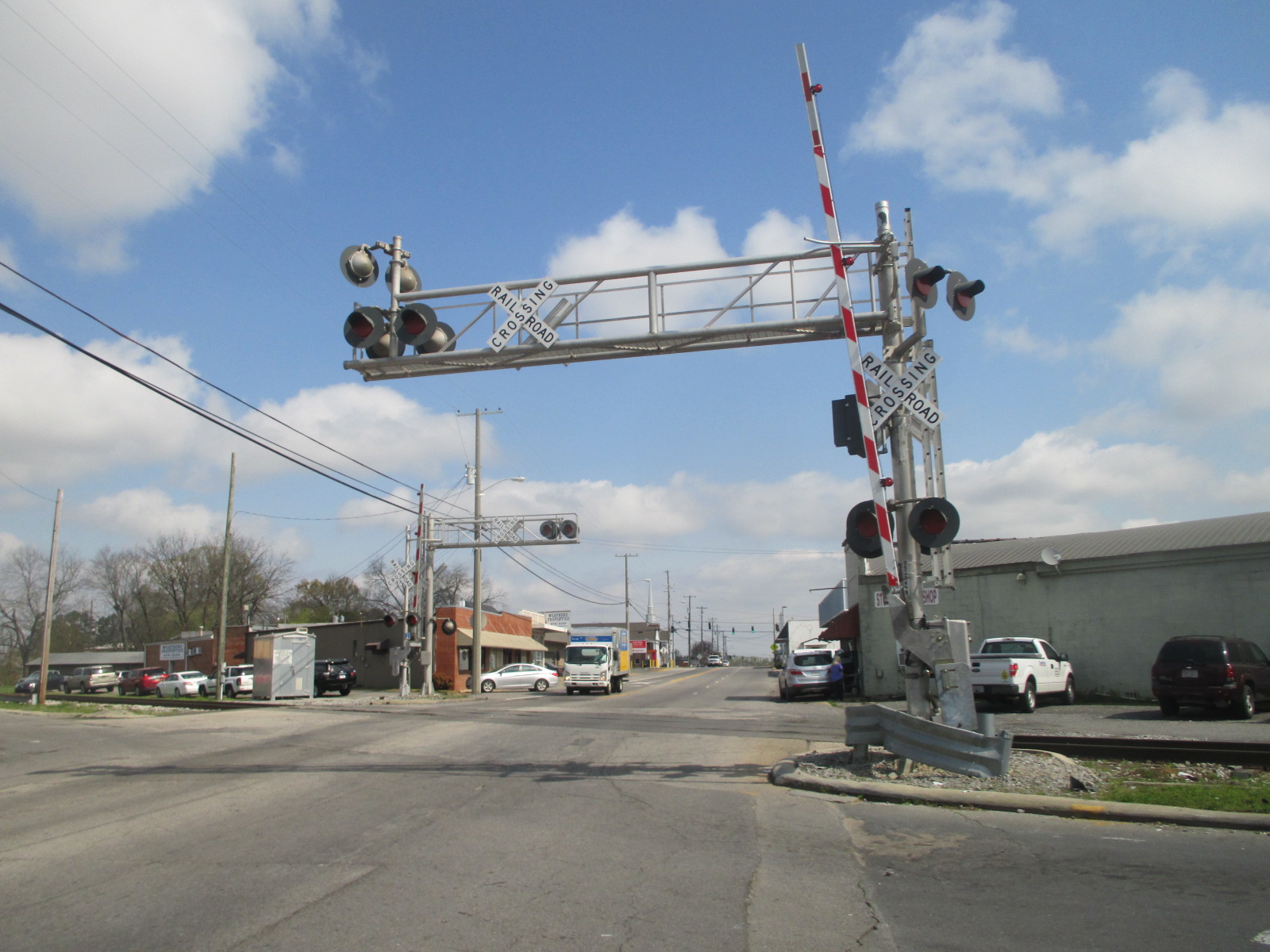

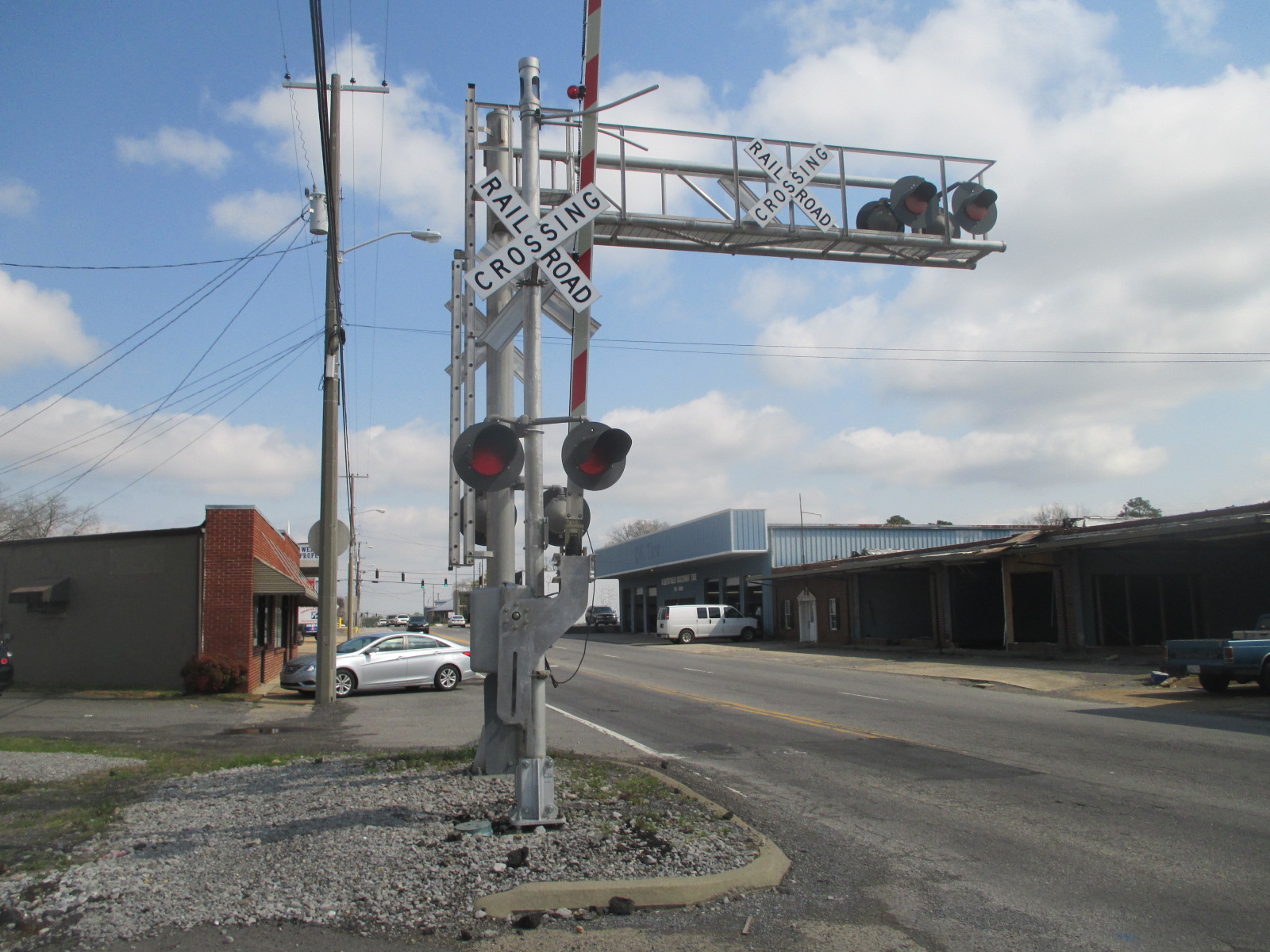

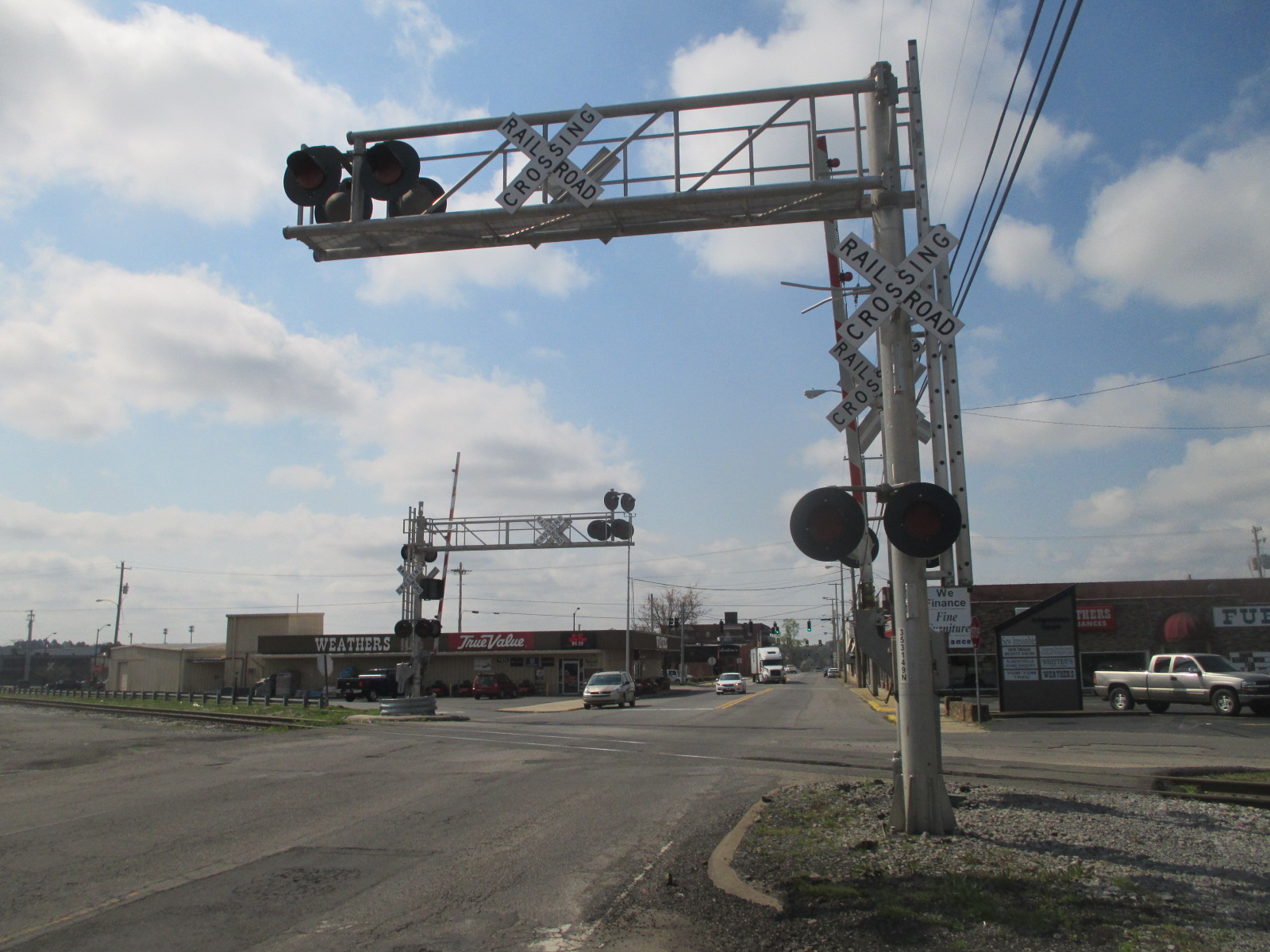

A return trip on 3-25-16 shows a minor change to the crossing. |
|
41 |
42 |
43 |
44 |

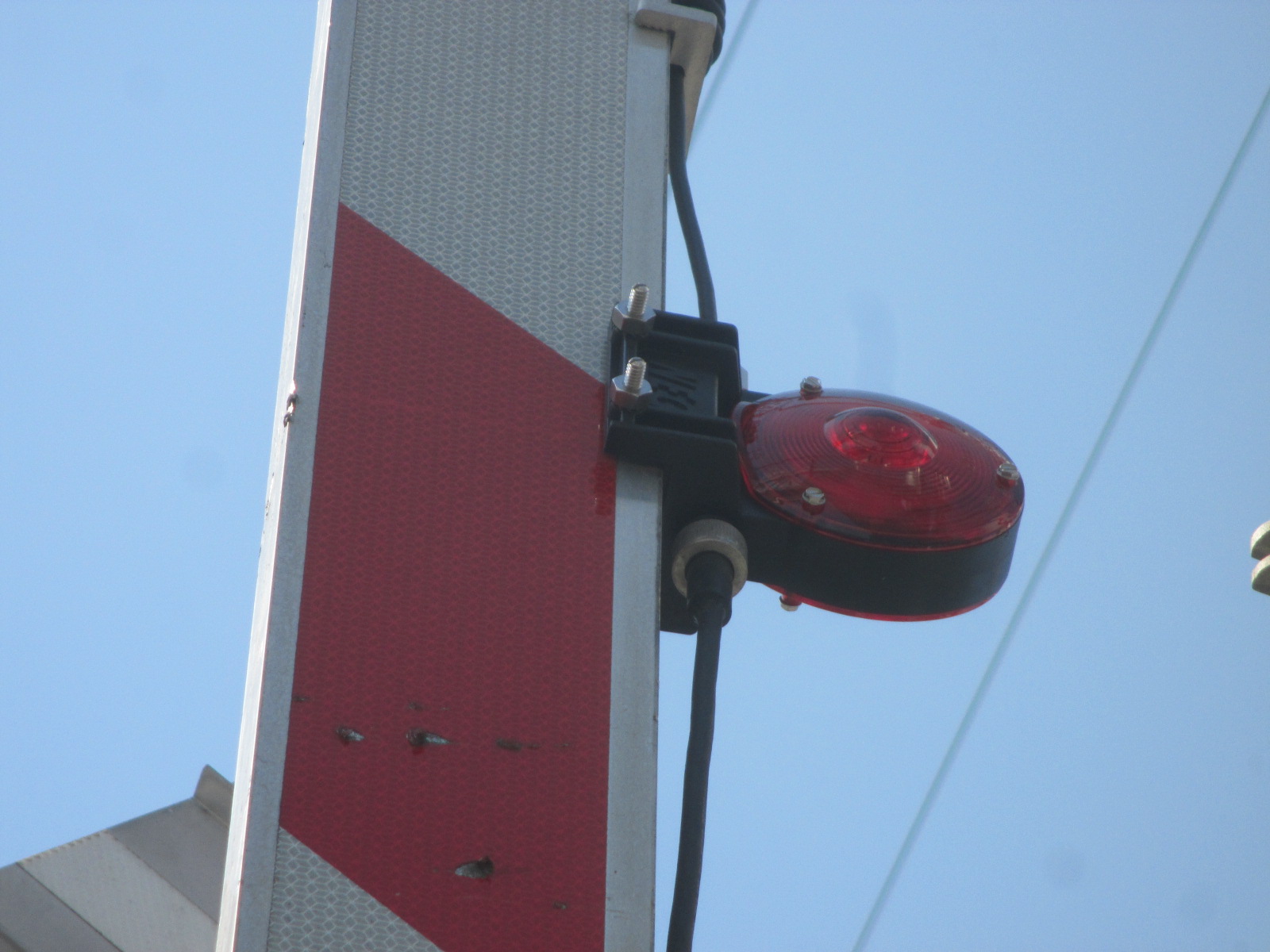

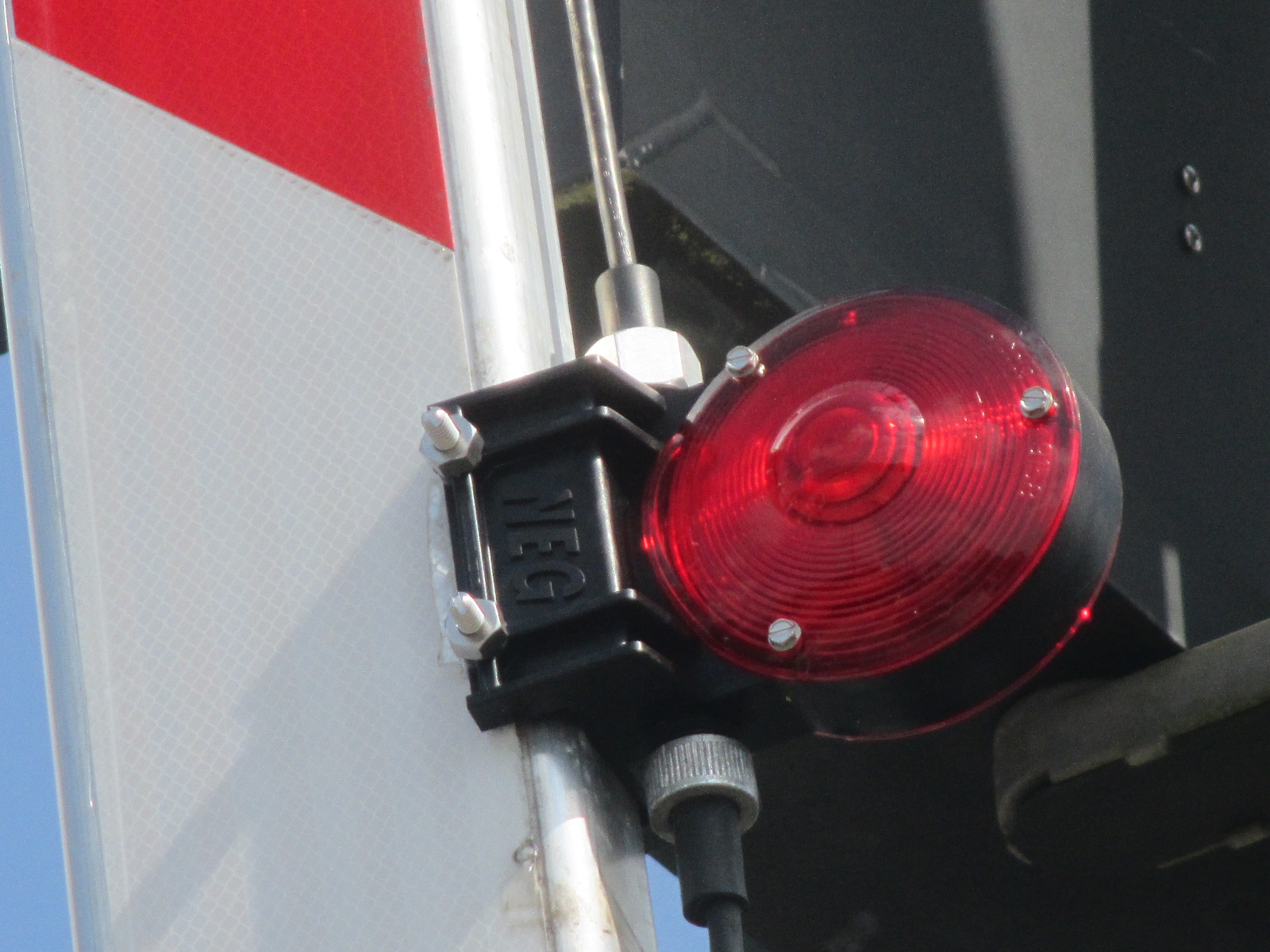

Both signals now have NEG LED gate lights. |
|||
45 |
46 |
47 |
48 |

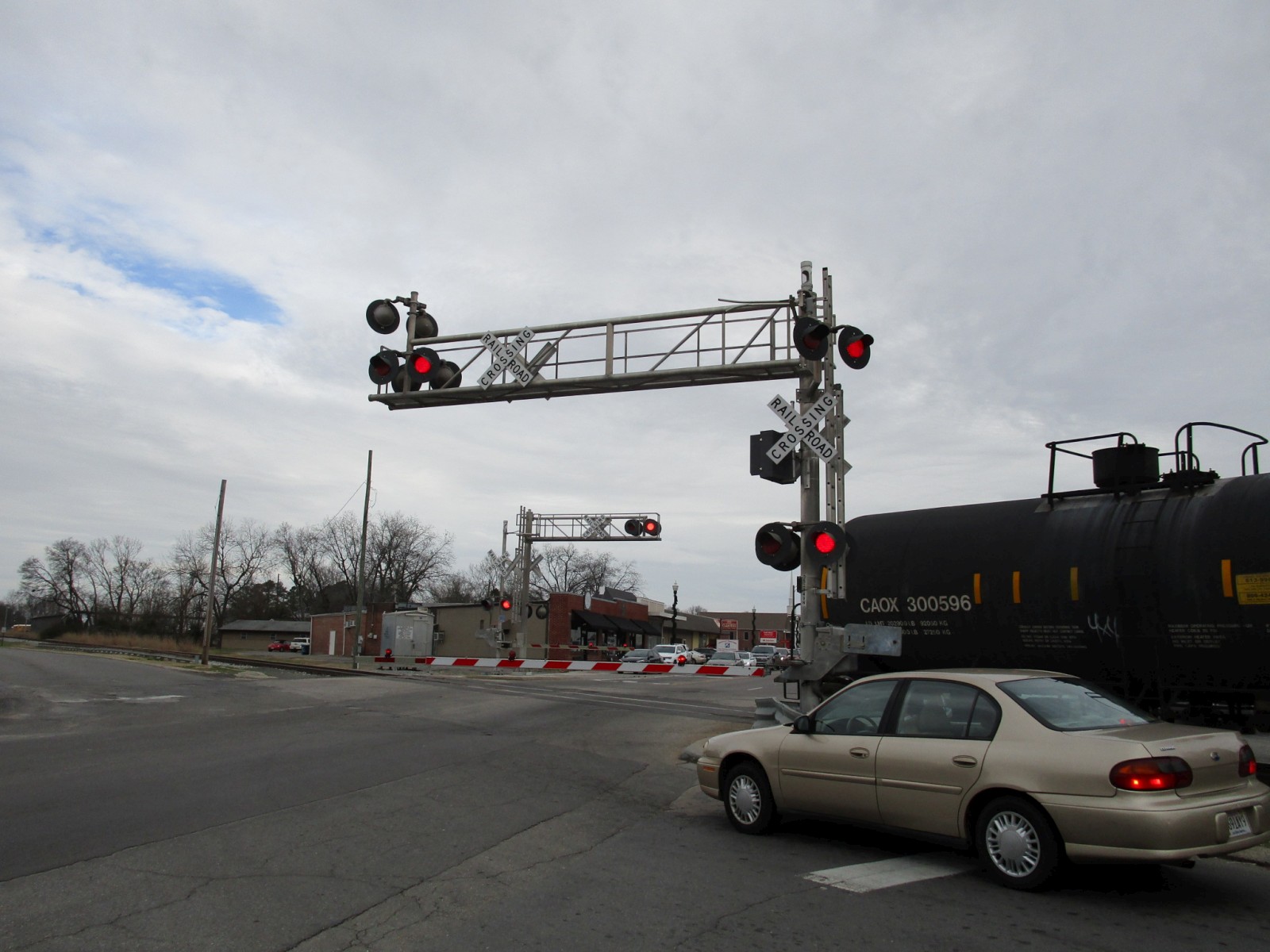

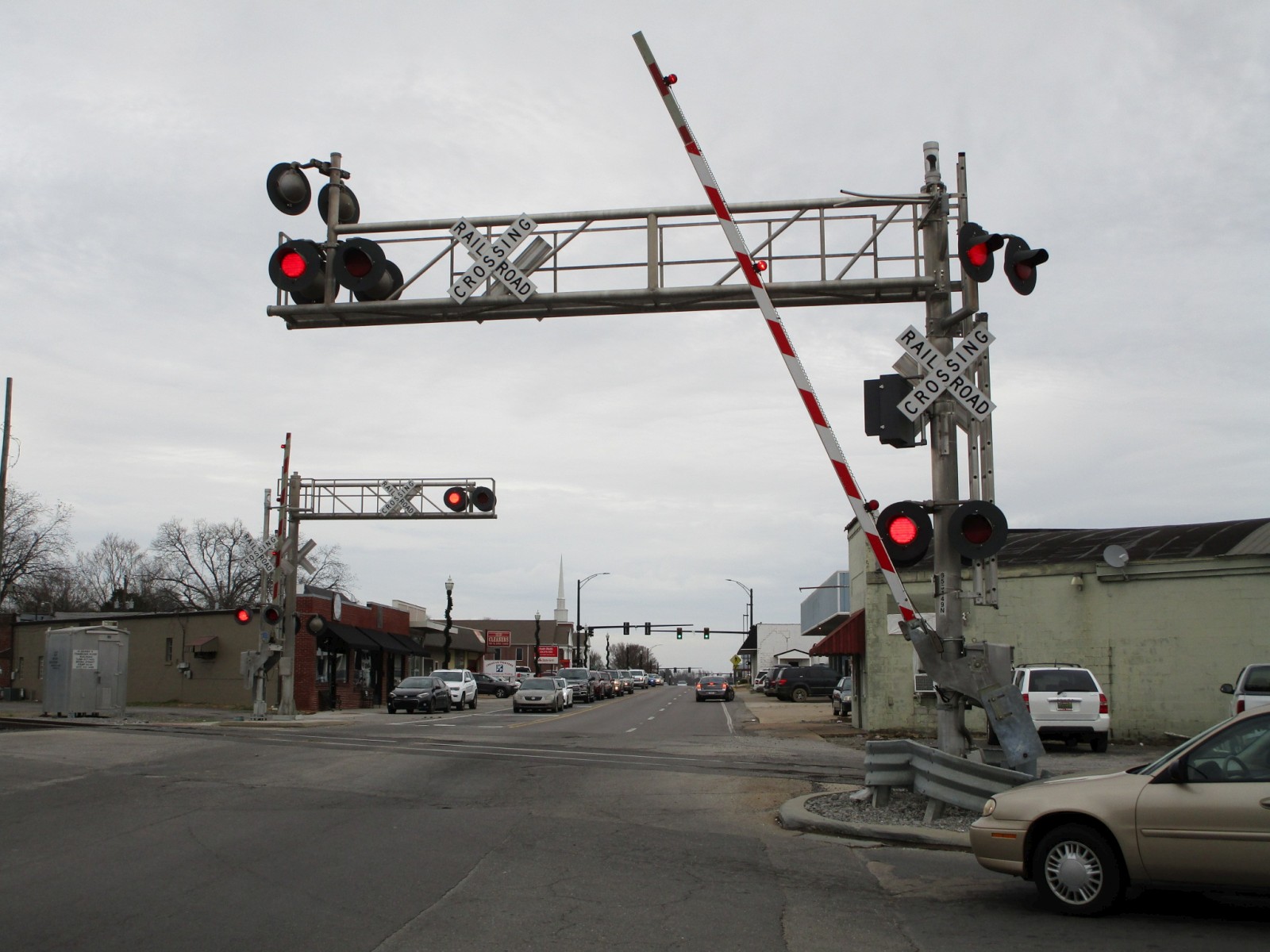

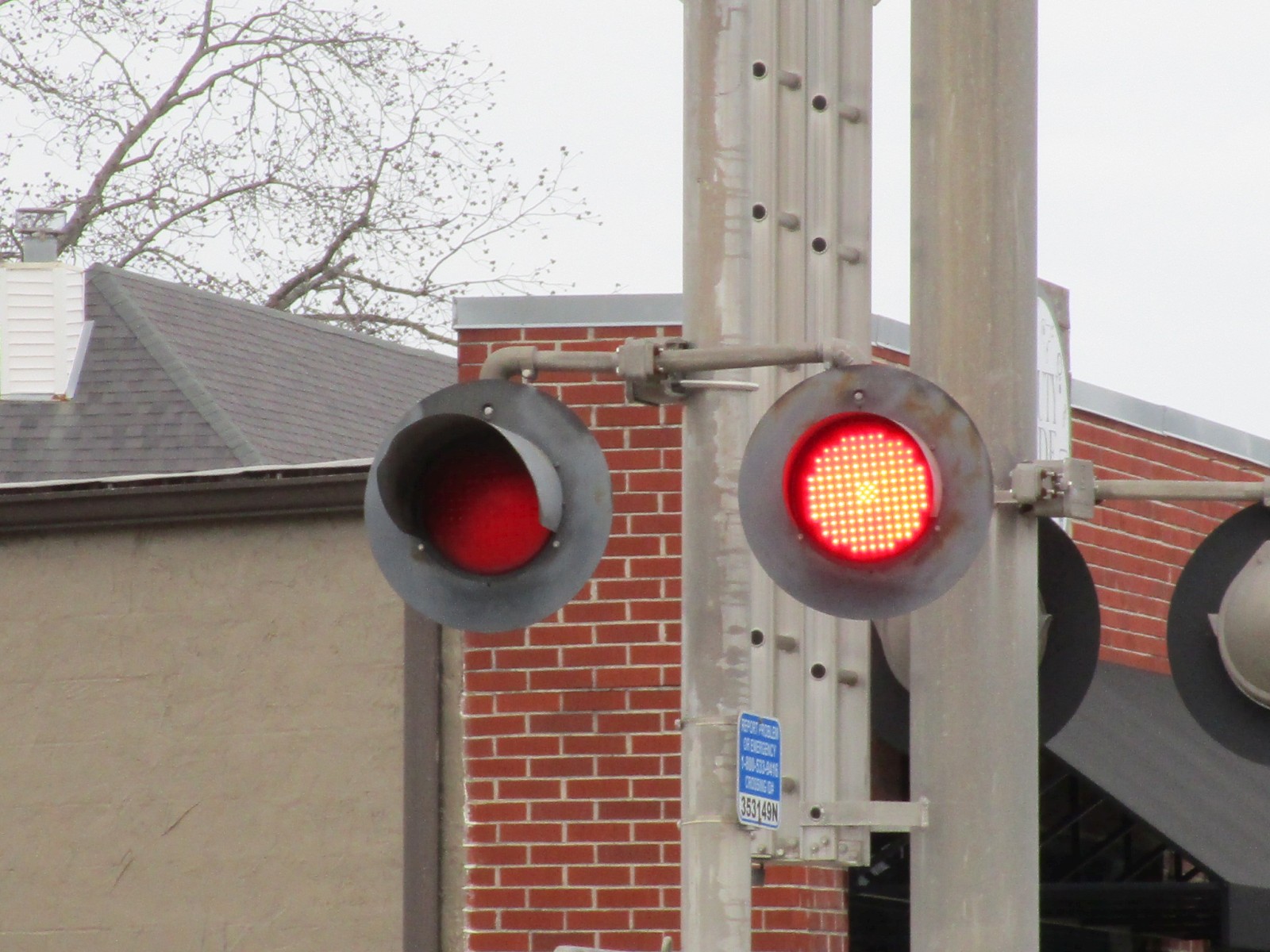

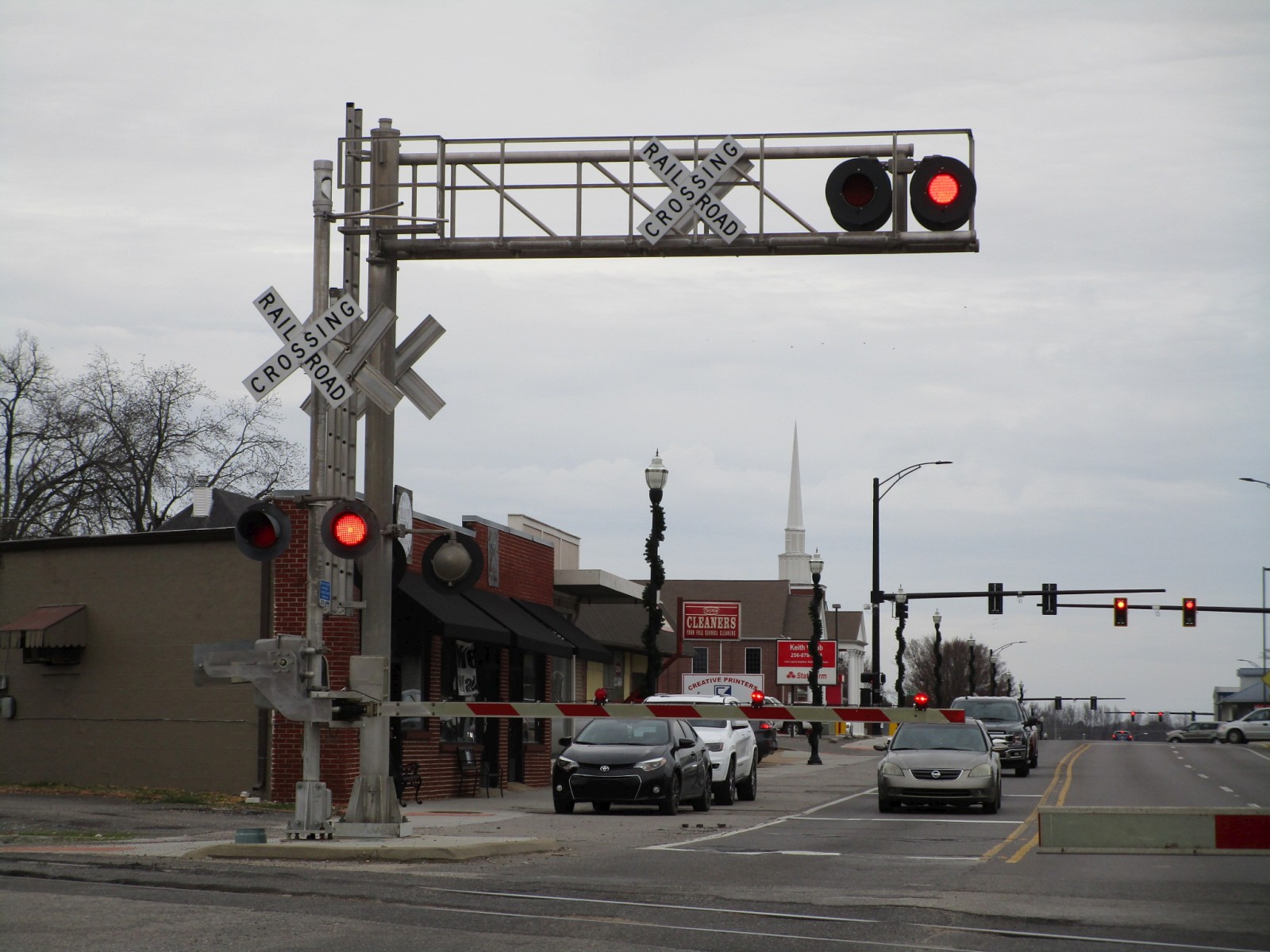

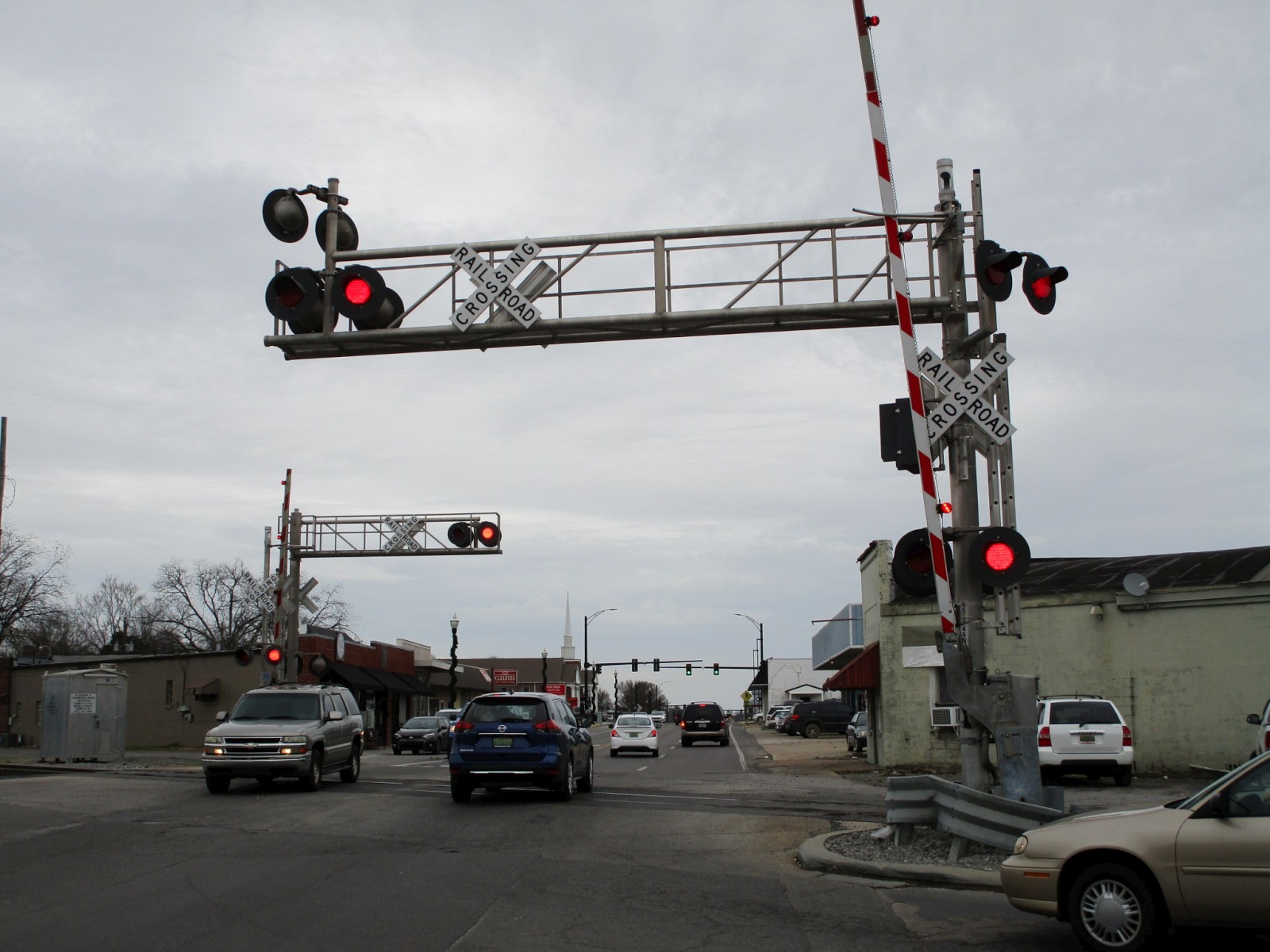

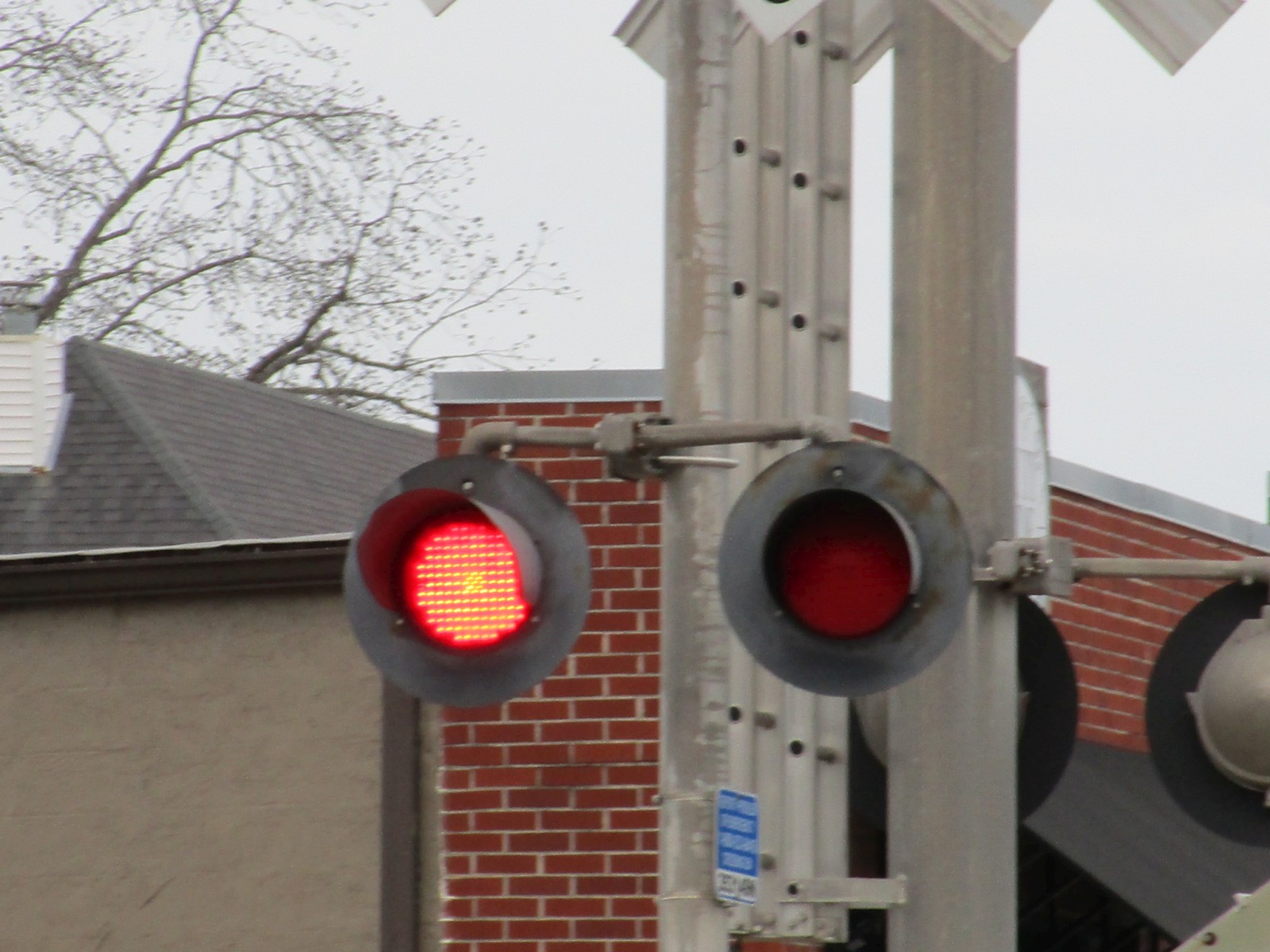

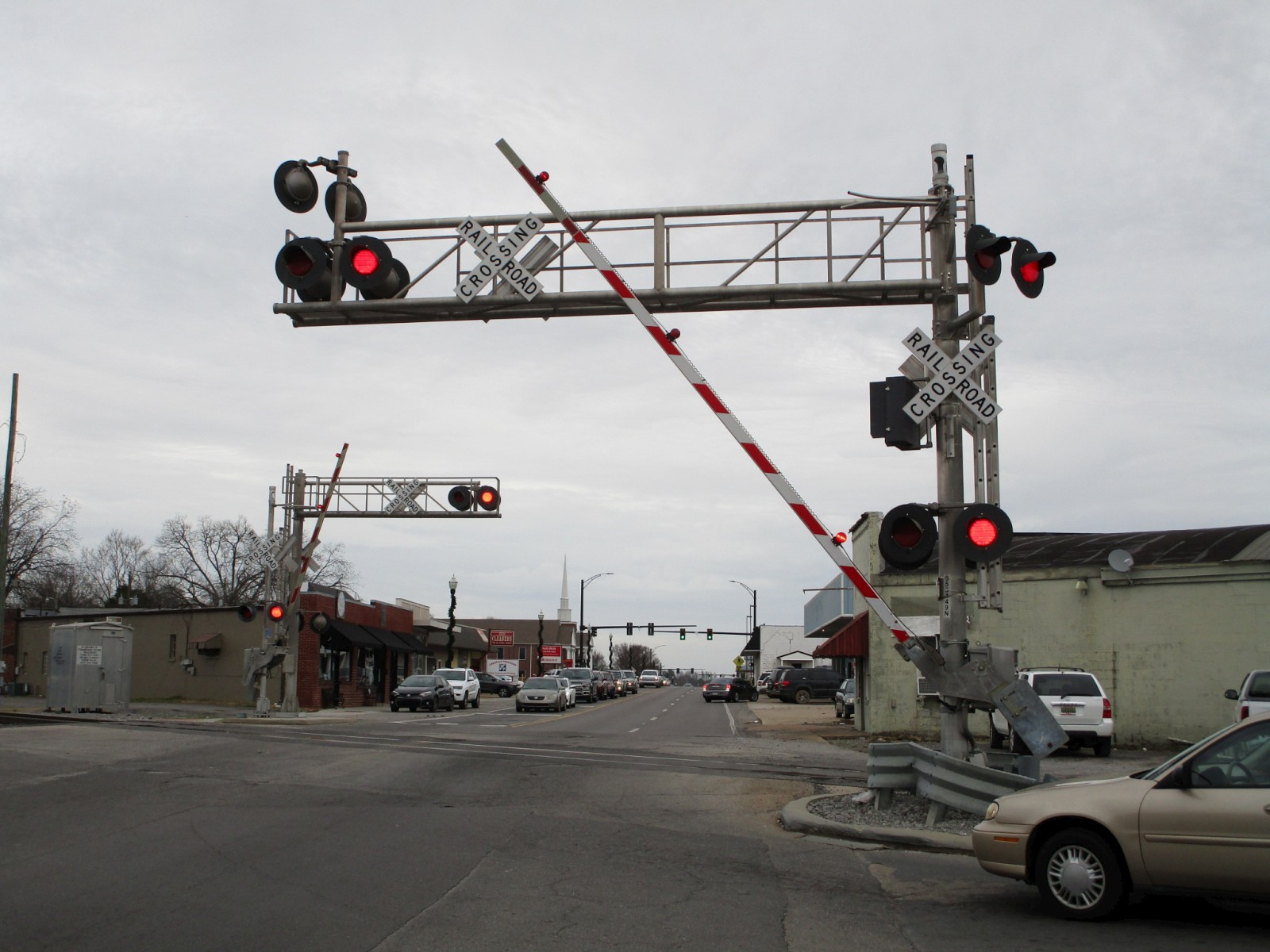

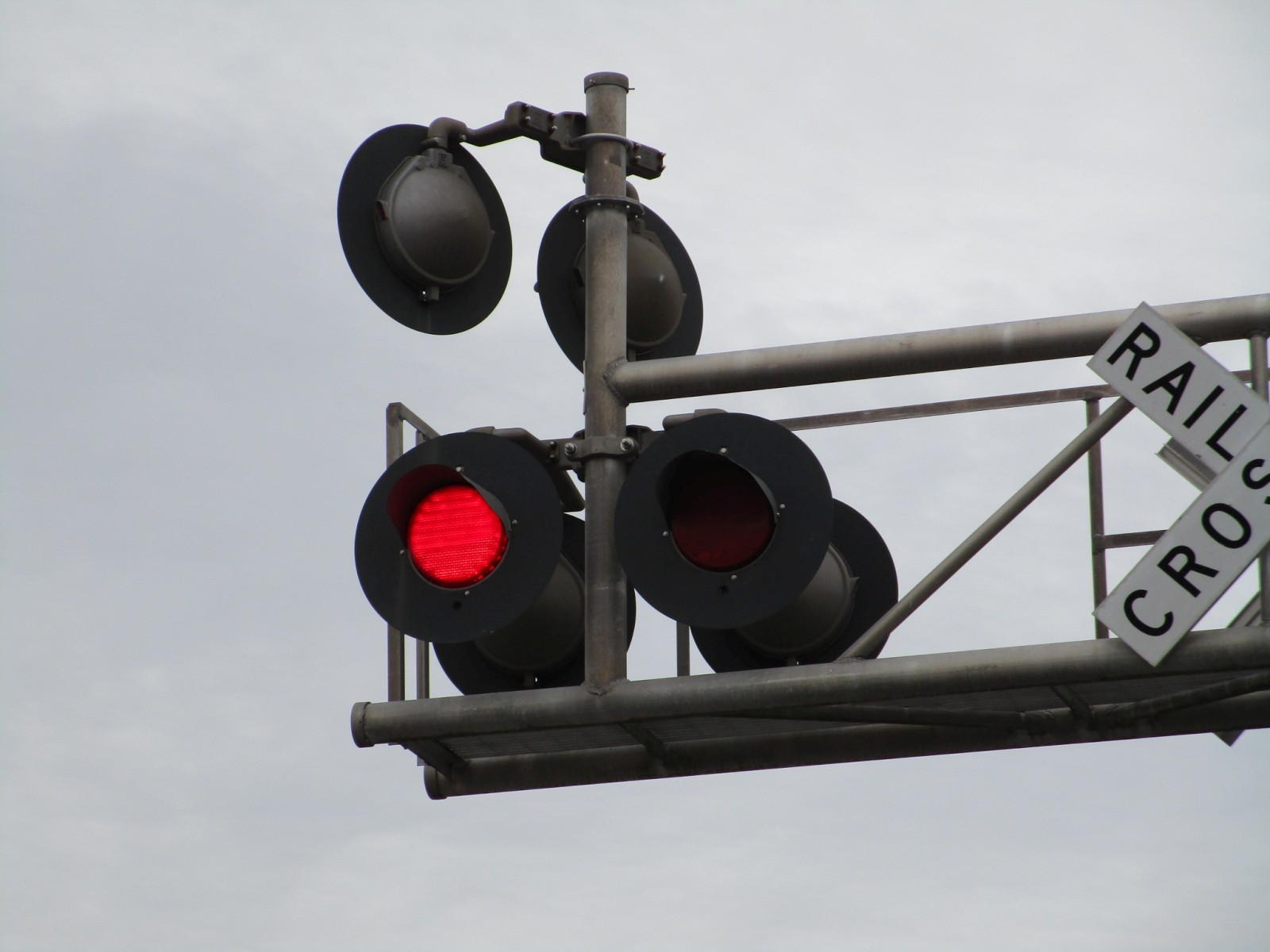

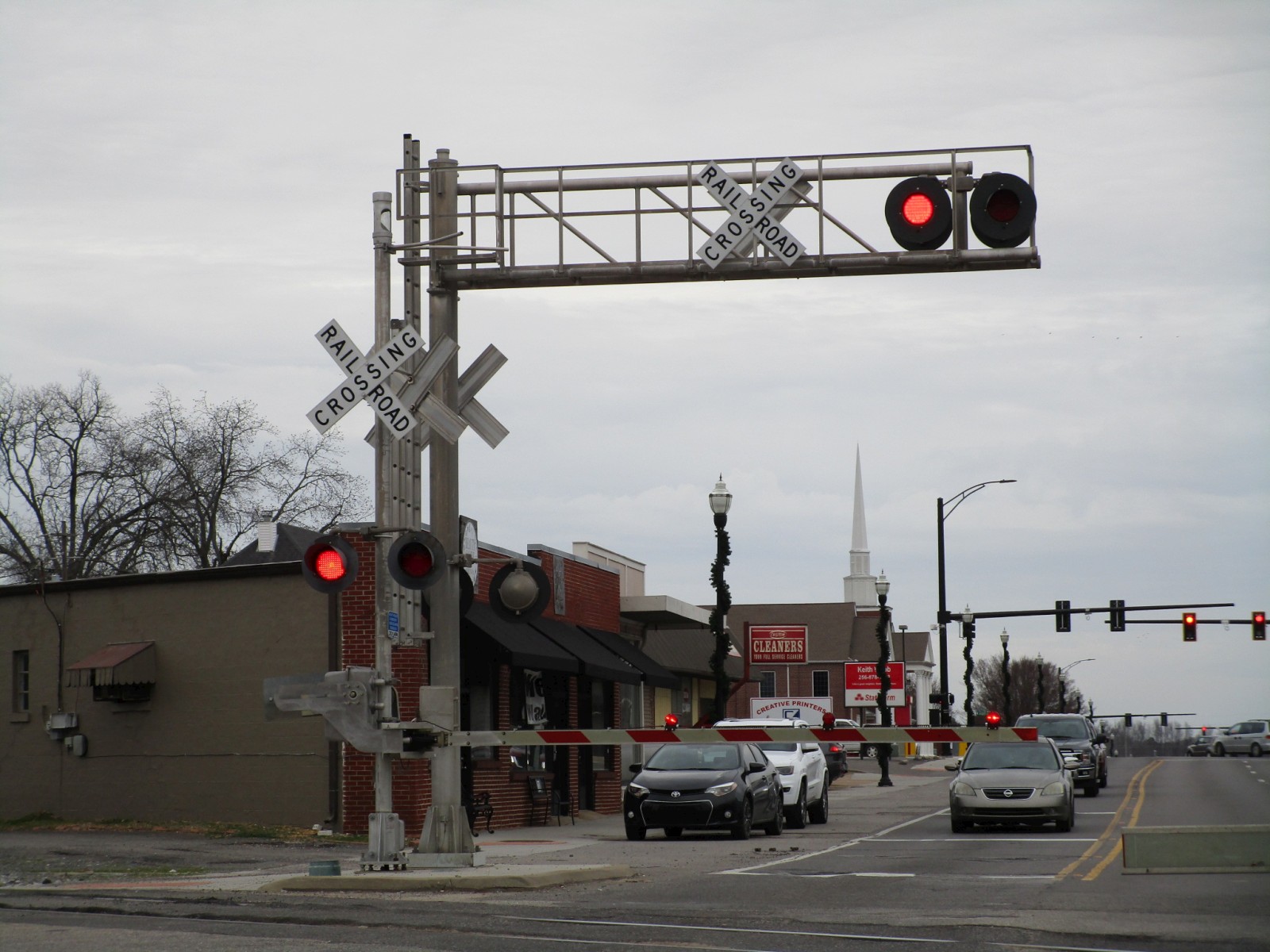

Another return trip on 12-27-19 catches the crossing in action! |
||
49 |
50 |
51 |
52 |

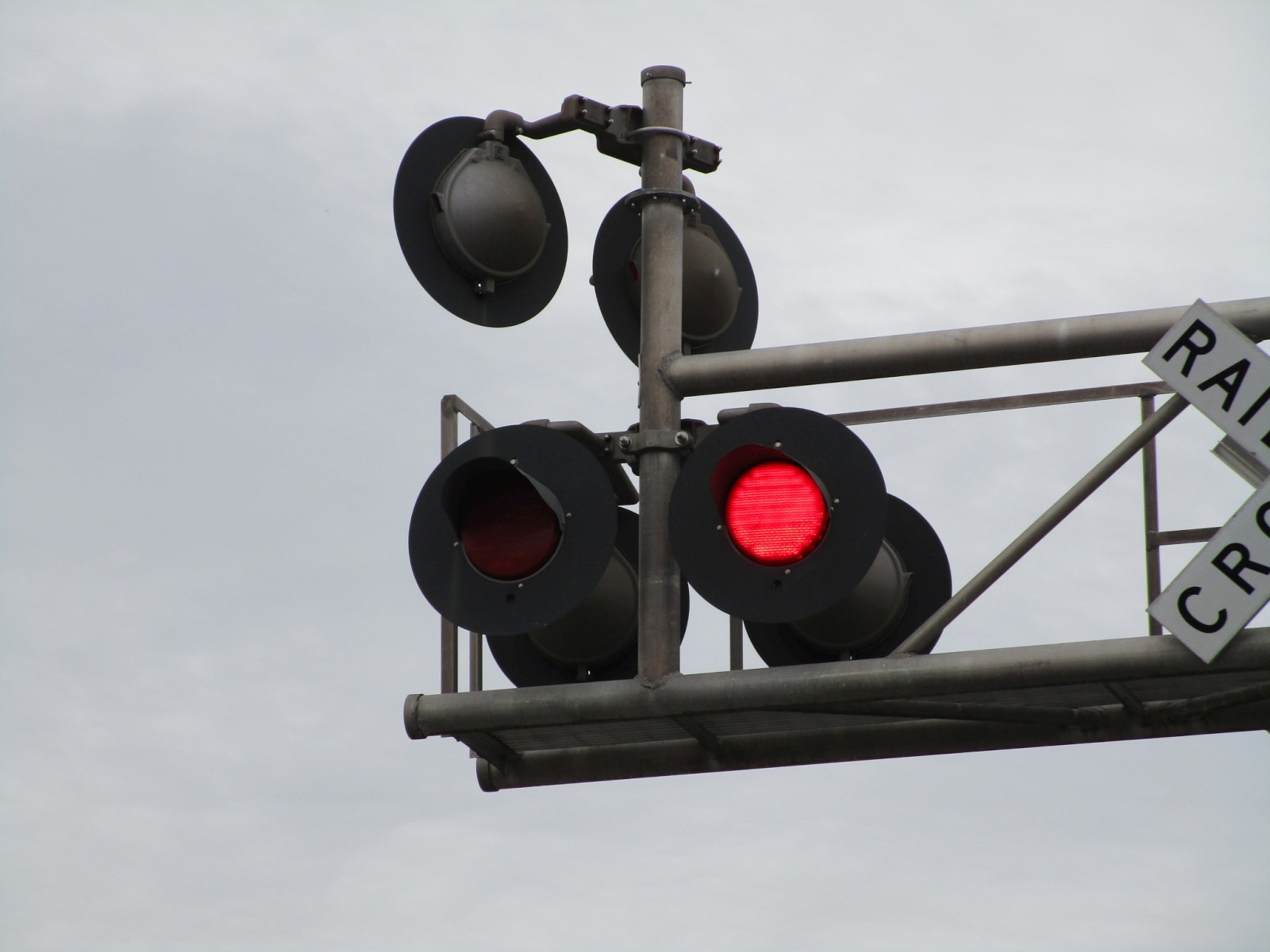

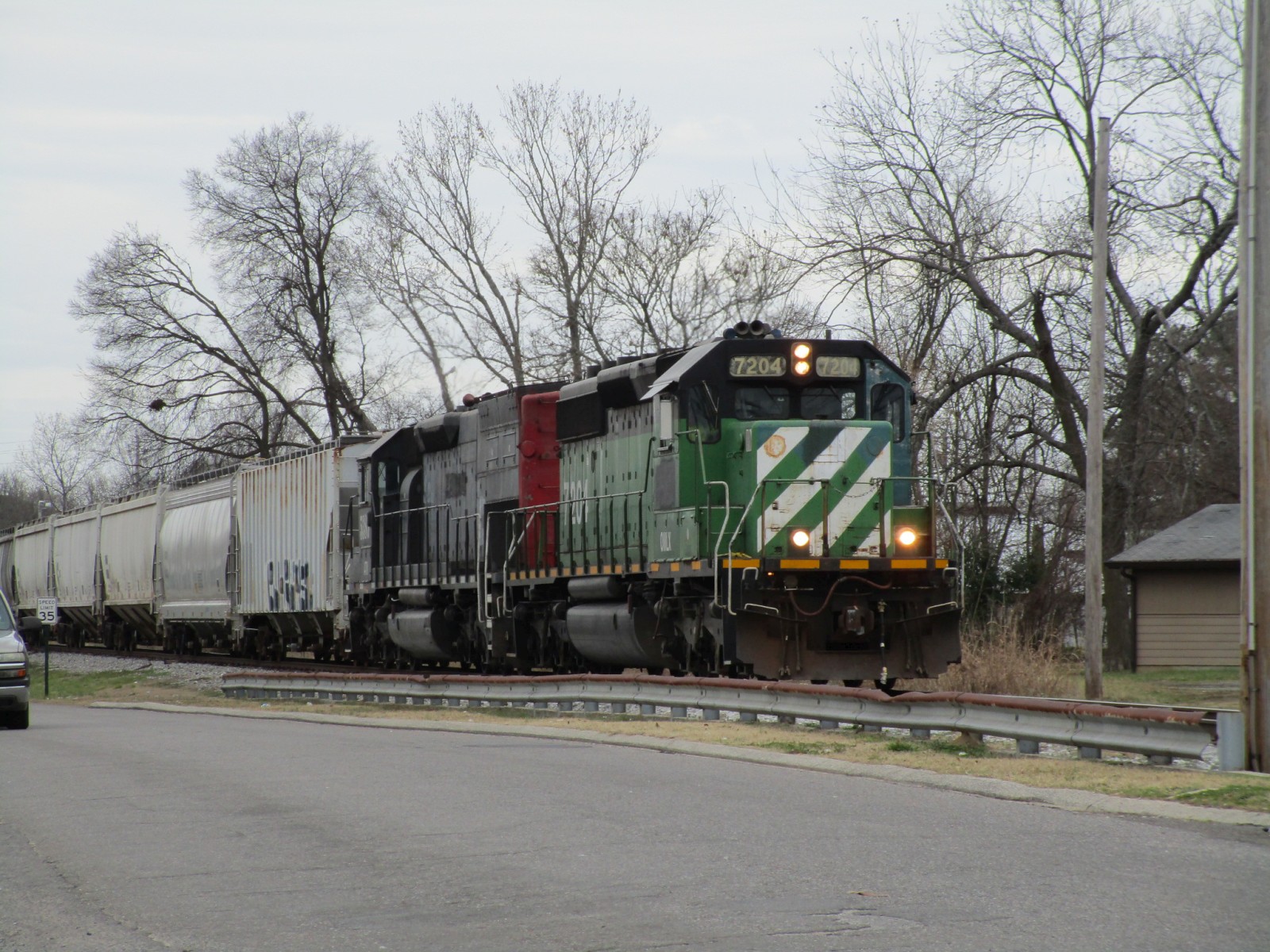

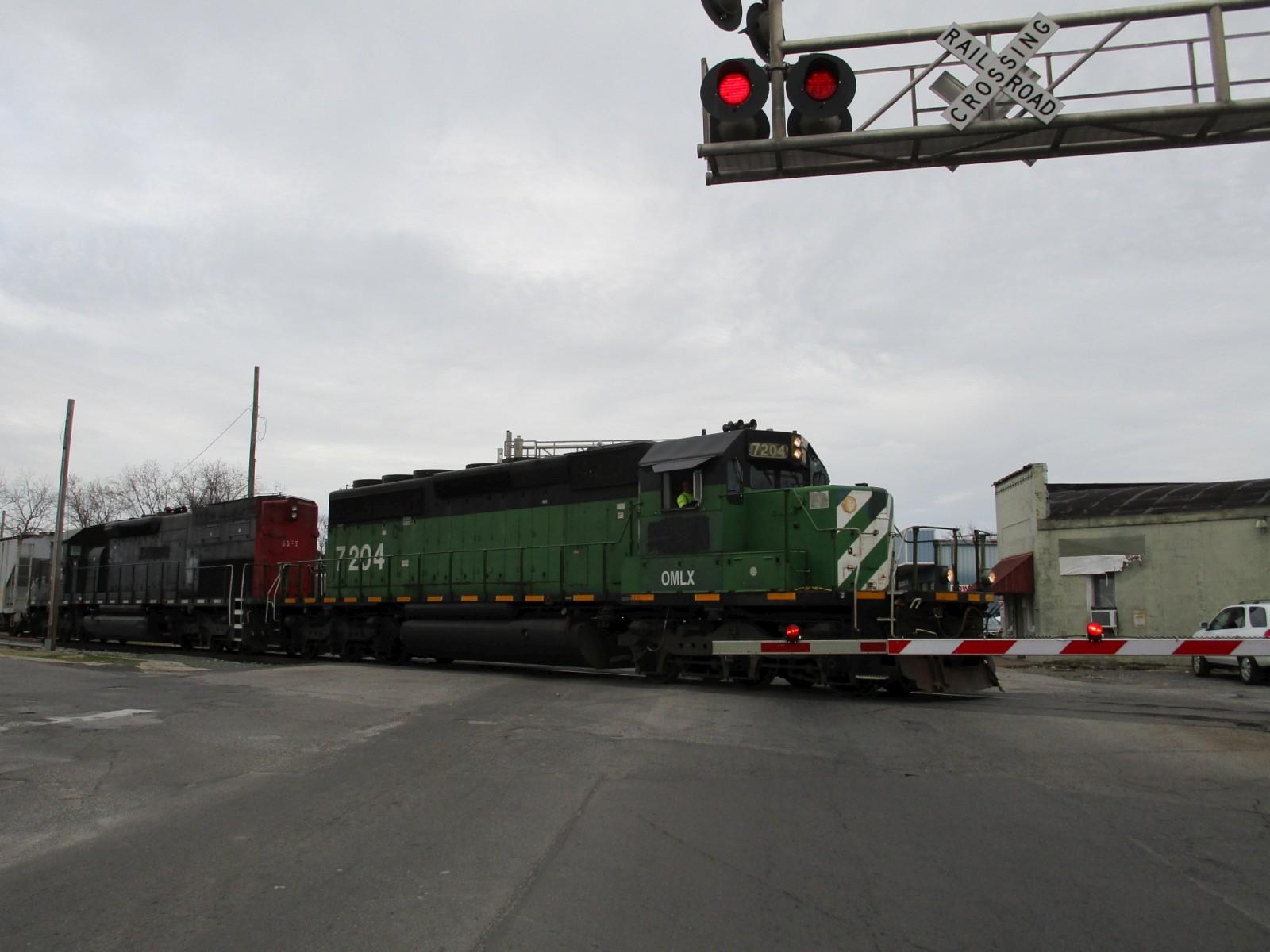

ATN M715 comes south through the crossing with an ex-BN SD40-2 leading an ex-SP SD40-2T. |
|||
53 |
54 |
55 |
56 |
57 |
58 |
59 |
60 |

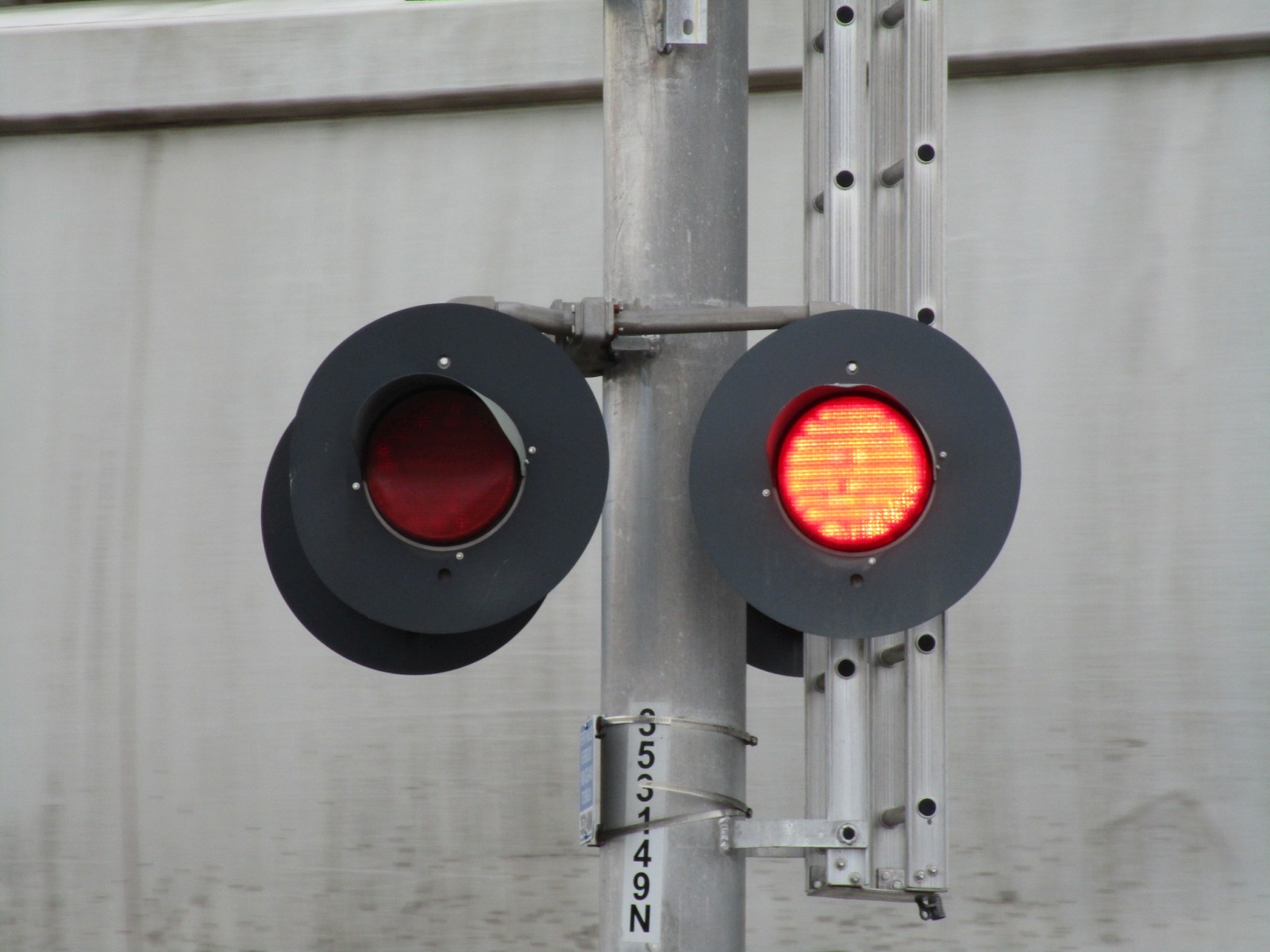

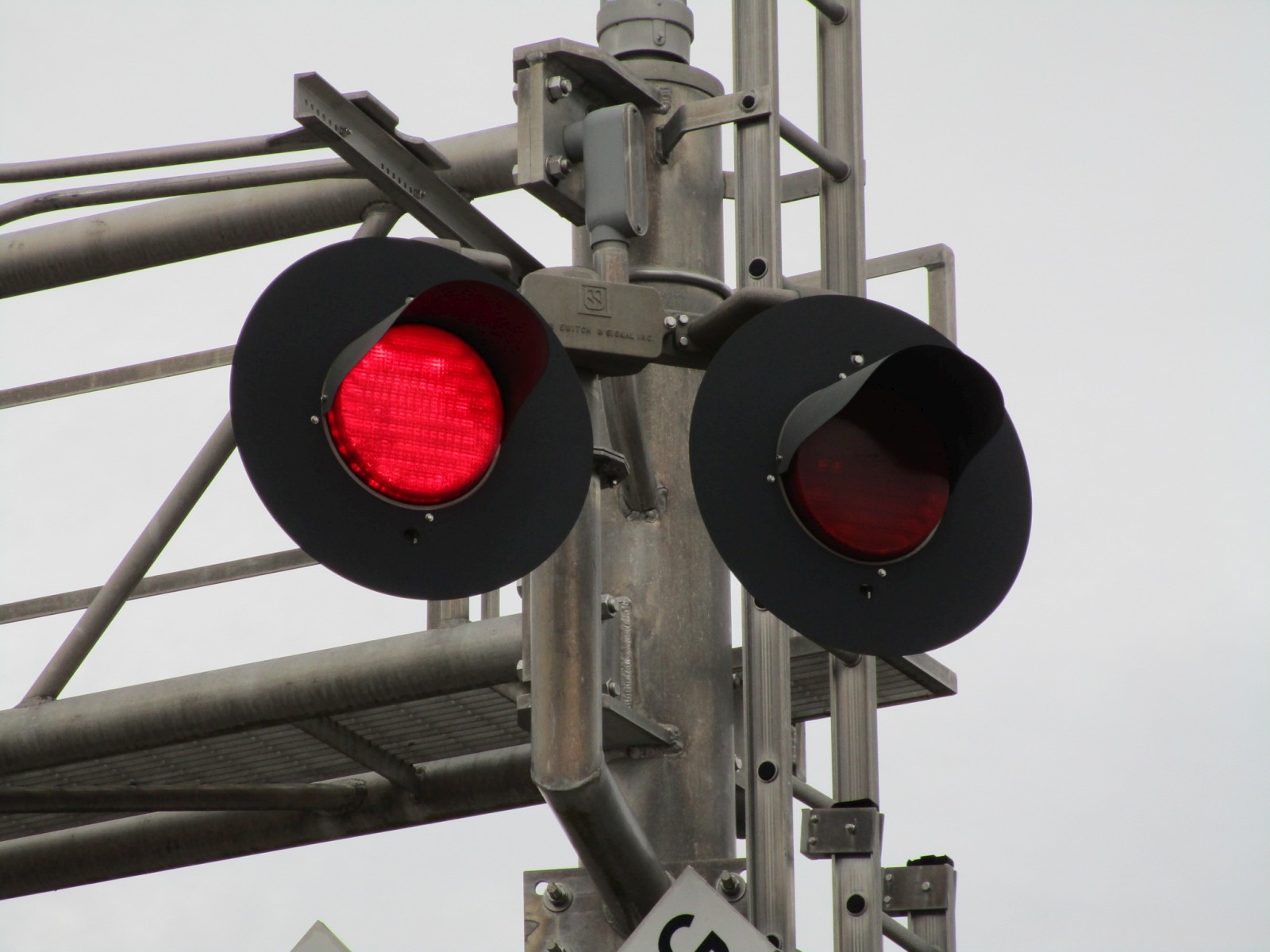

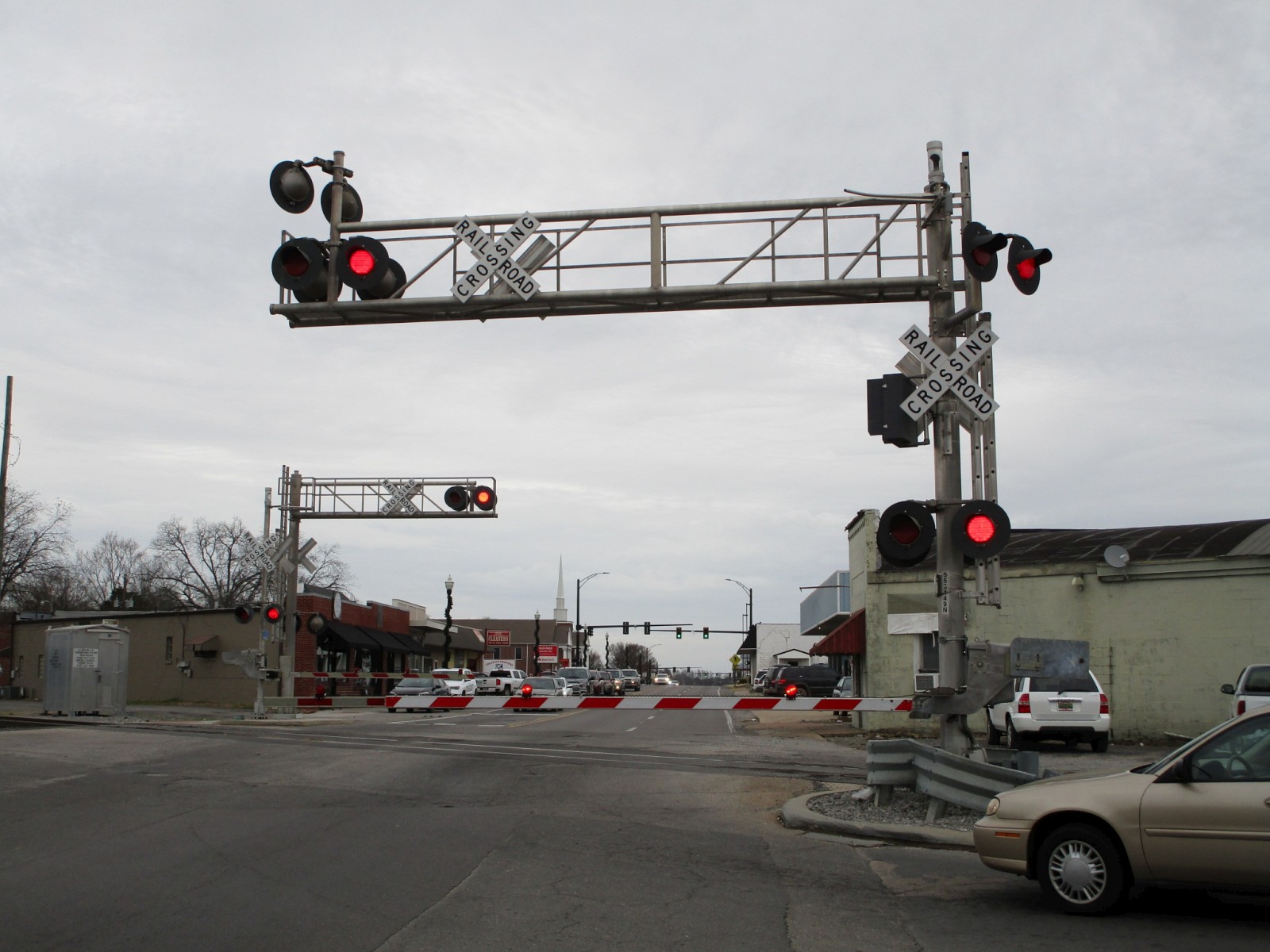

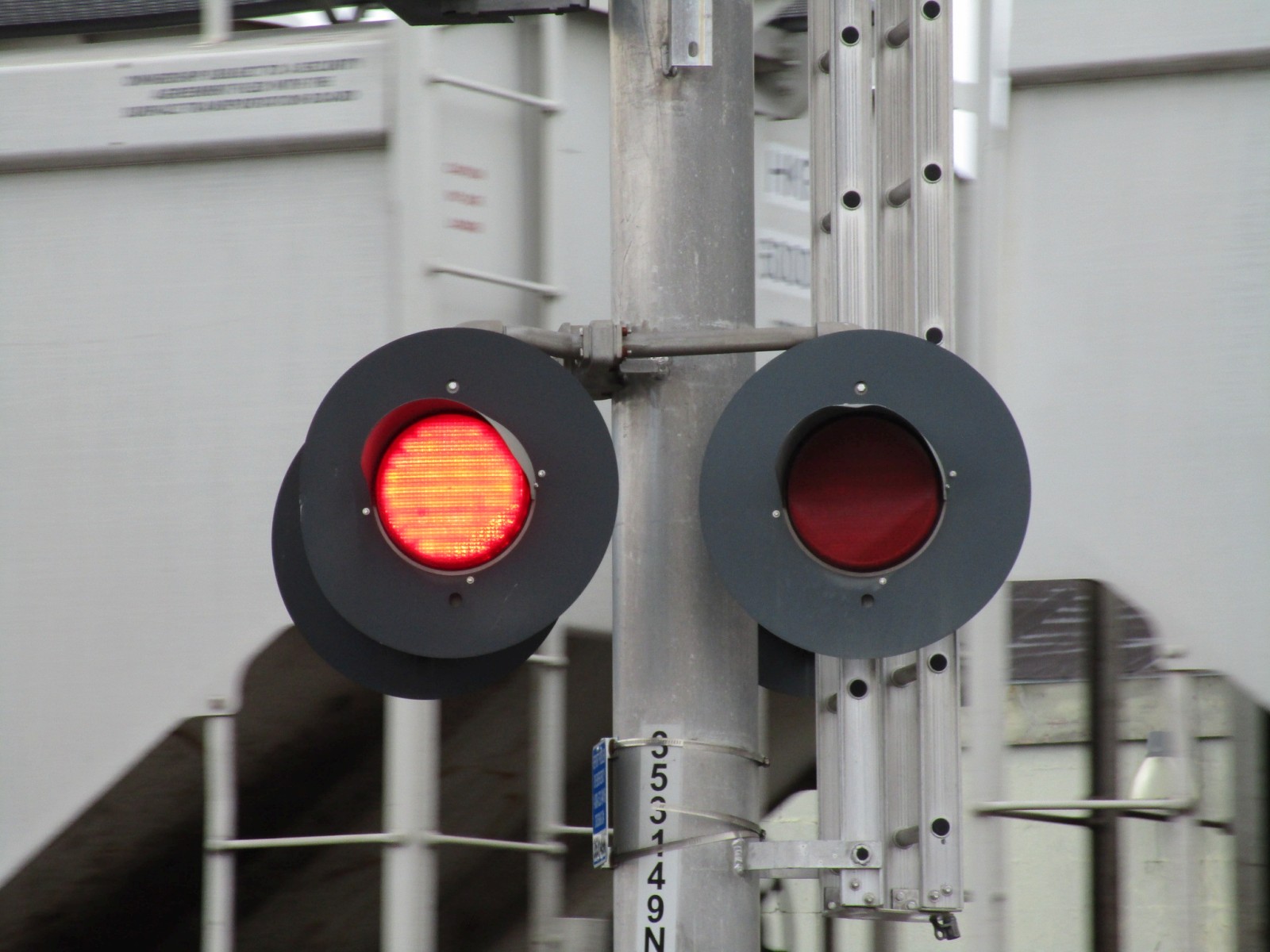

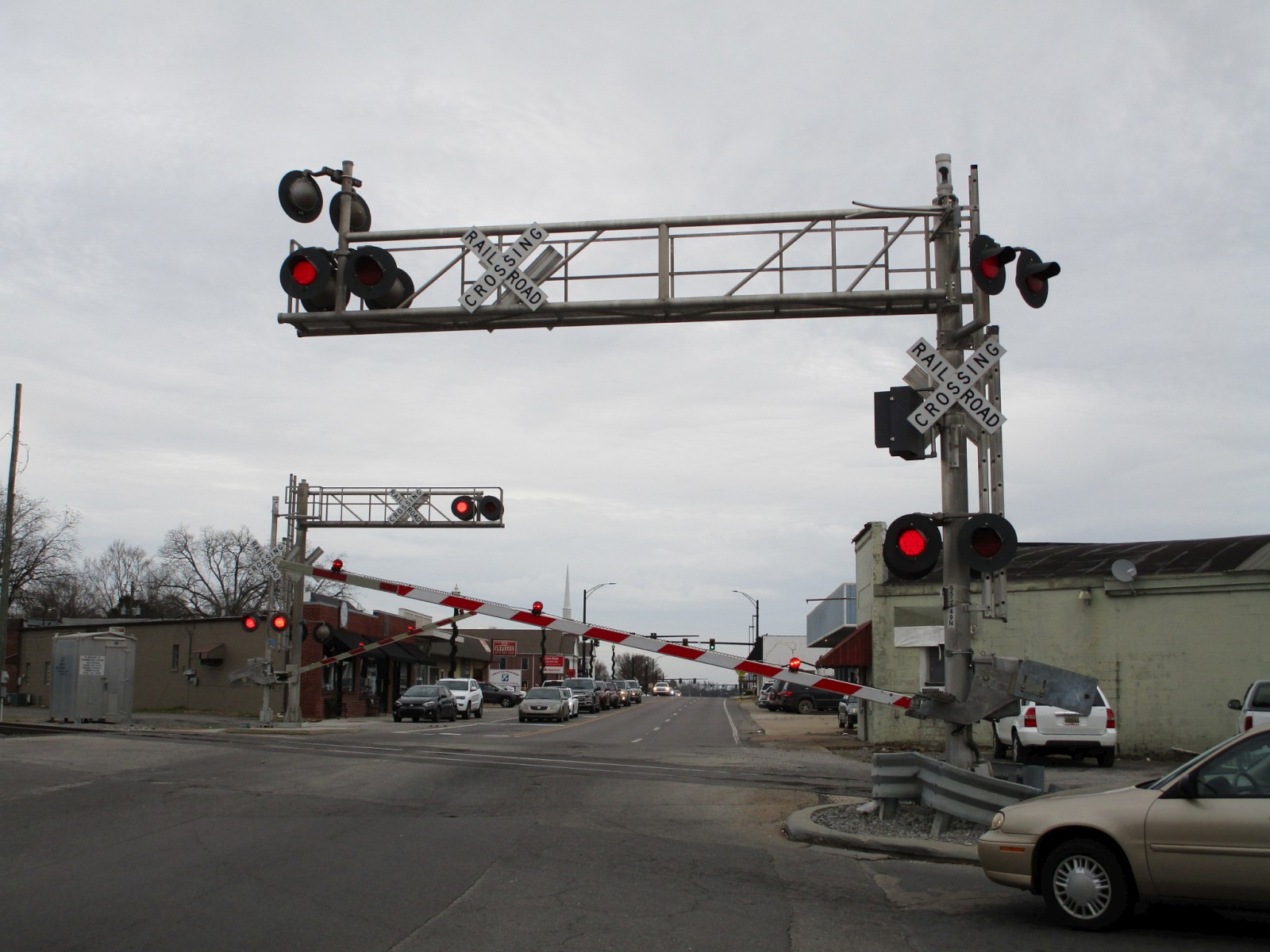

The train passes... |
|||
61 |
62 |
63 |
64 |
65 |
66 |

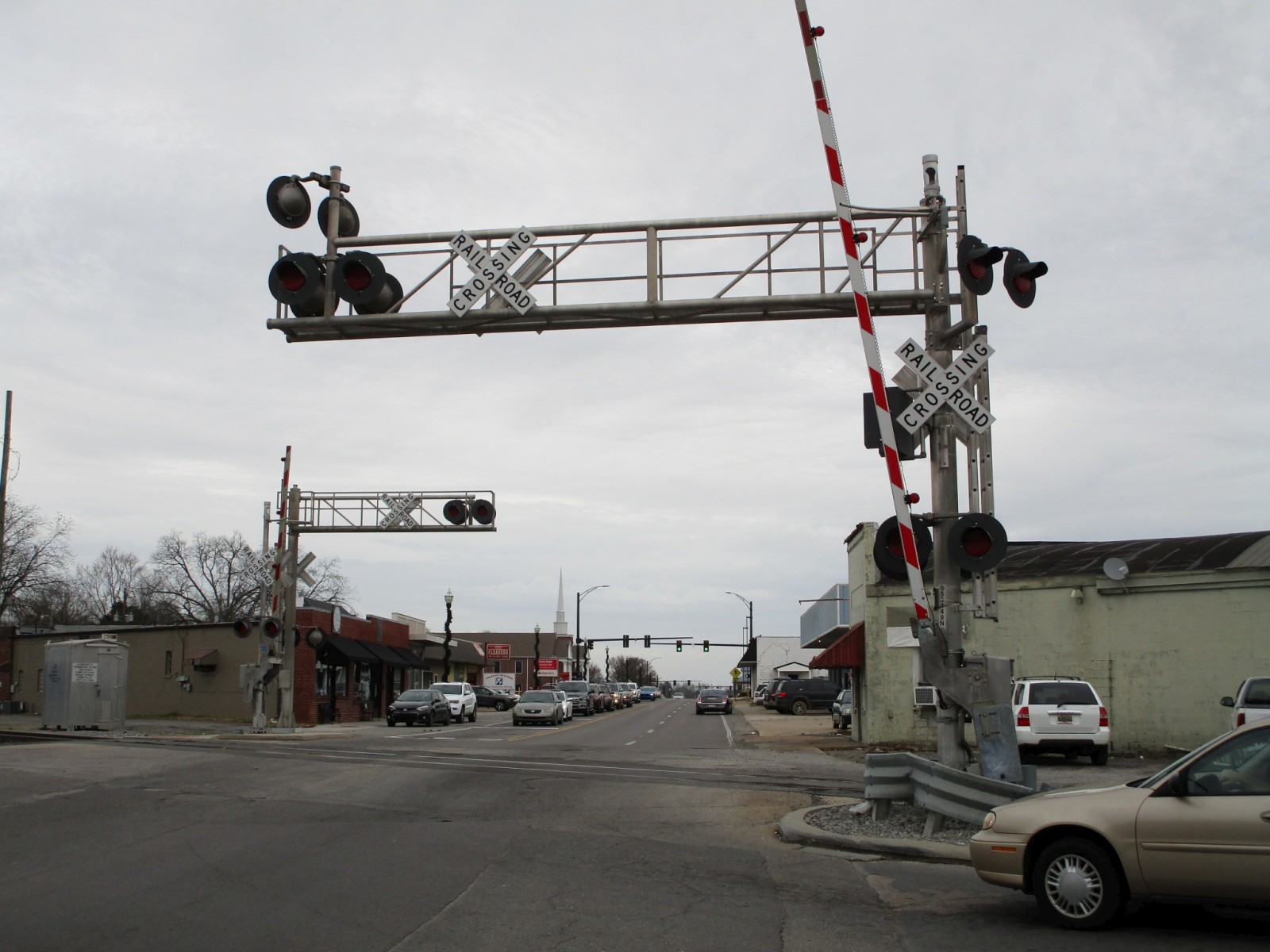

...and the gates rise. |
|
Pictures 1-38 were taken on 10-7-14.
Pictures 39-45 were taken on 3-25-16.
Pictures 46-66 and the video were taken on 12-27-19.
