MP:  0096.10



Updated December 13, 2022



Total Accidents:   2
Crossing DOT #:  353153D
TOTAL DAILY TRAINS:   2   ( ESTIMATED)



Page created by: freebrickproductions



This crossing is located on the ATN Guntersville Branch.



>>>>>>>>>>>>> Signal #1 Signal #2
Bell: N/A WCH Type 4 electronic
Cantilever: Harmon Harmon
Light Frames:

10 - 12x24" Harmon

4 - 12x24" Safetran

6 - 12x24" Harmon

2 - 12x24" Safetran
Base: Safetran Safetran
Gate Lights: 3 - NEG LEDs 3 - NEG LEDs
Gate Mechanism: Safetran 2000s Safetran 2000s
Gate Striping: Vertical Vertical



1

2

3

4

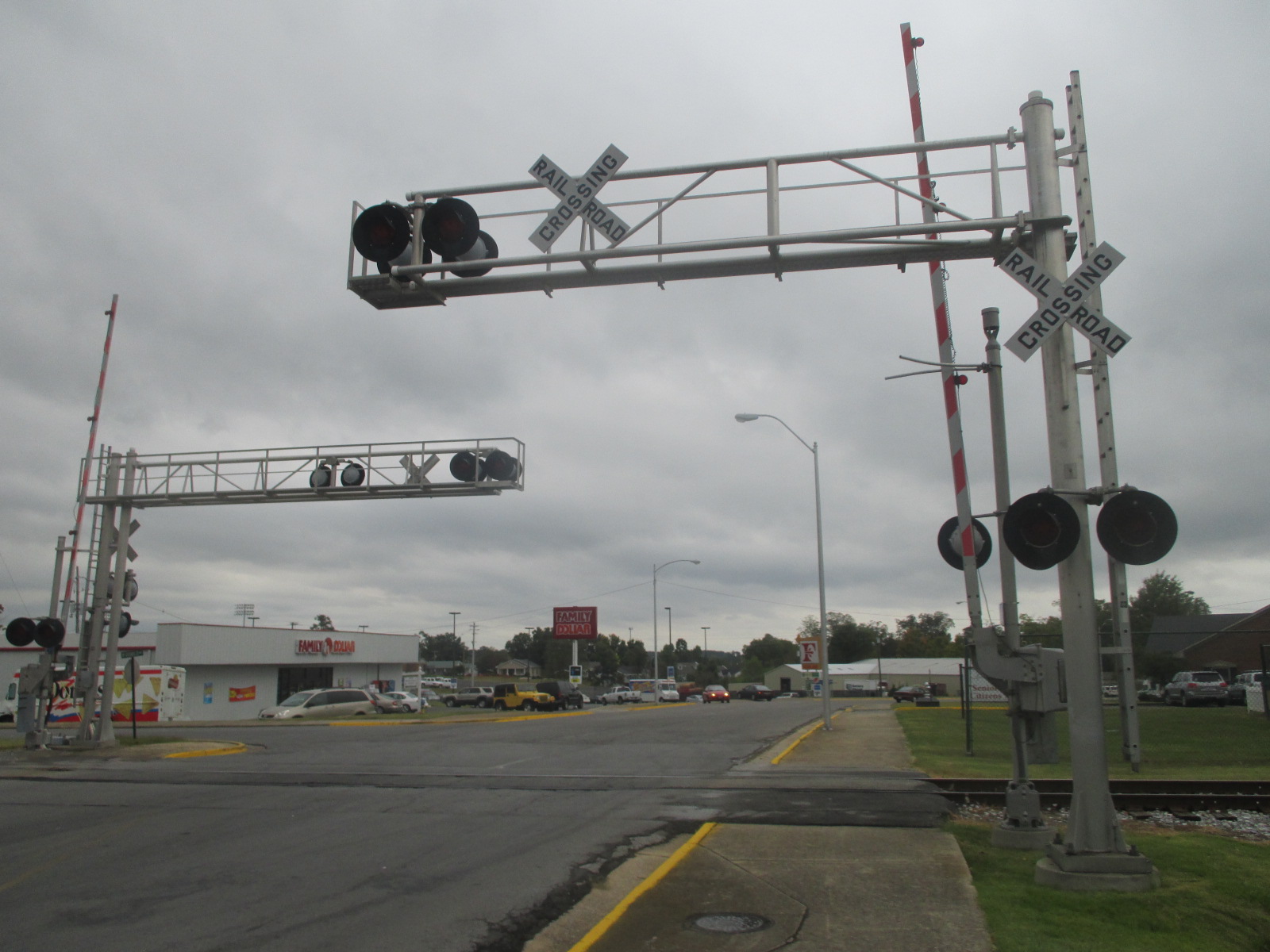

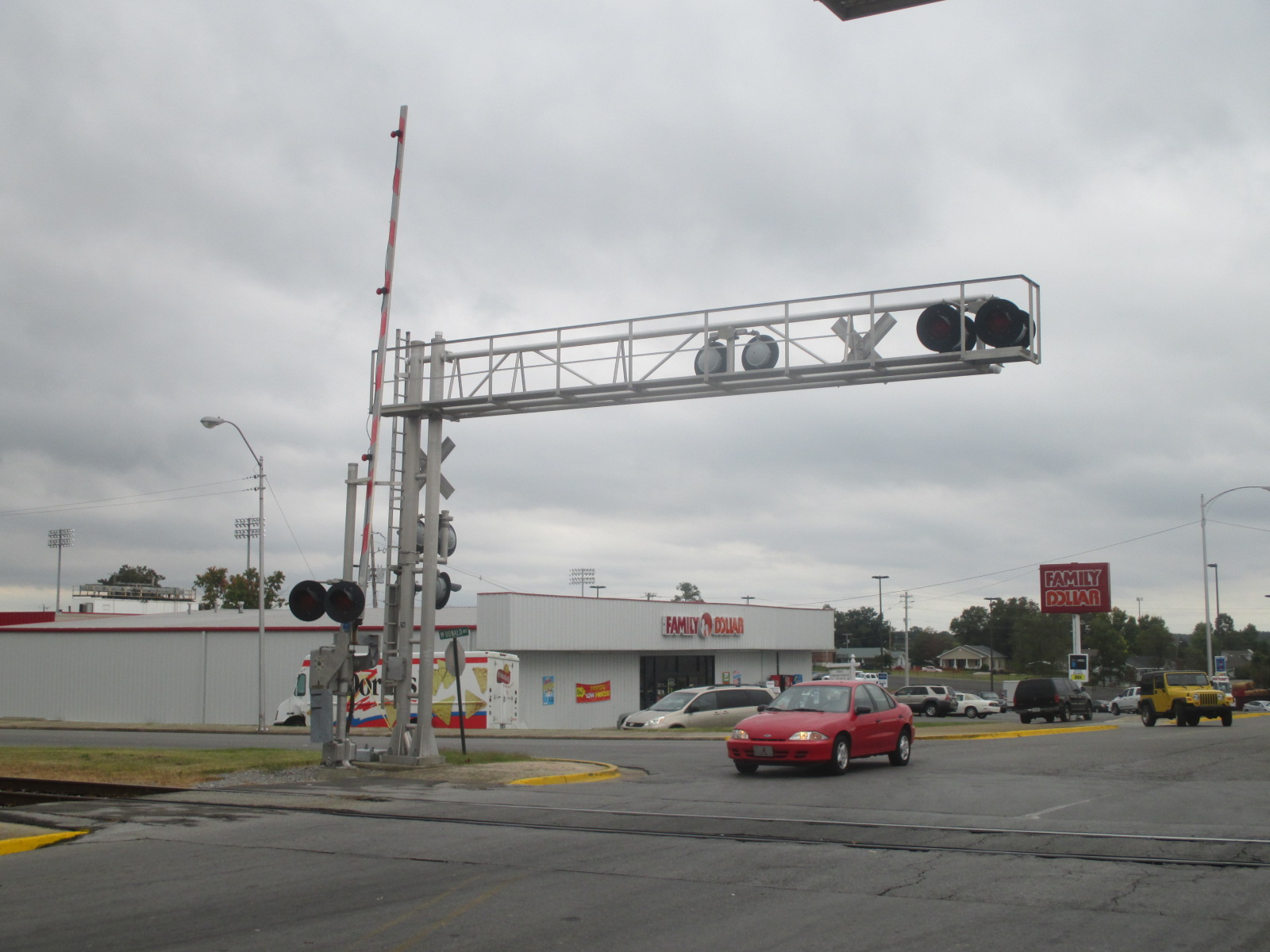

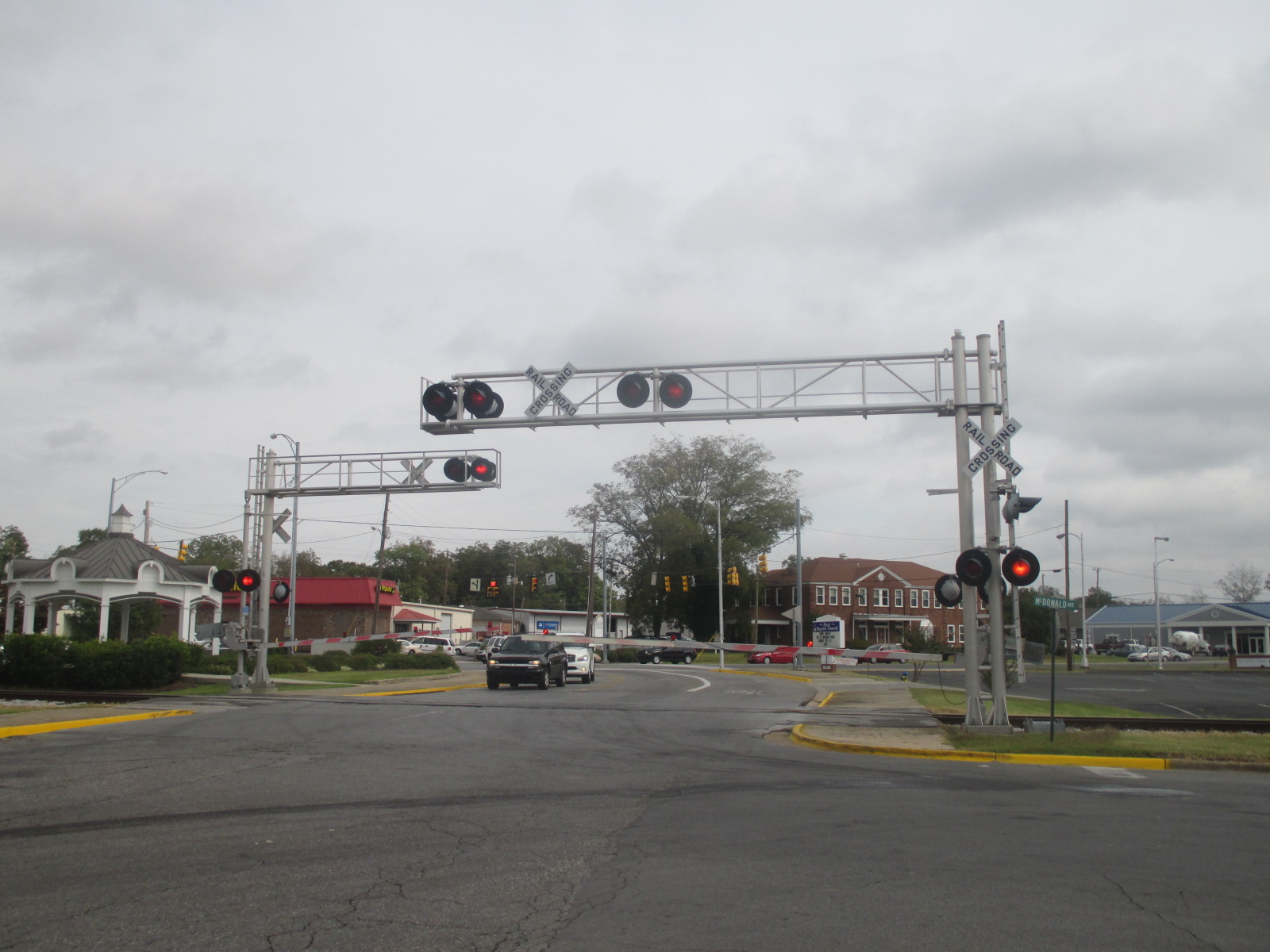

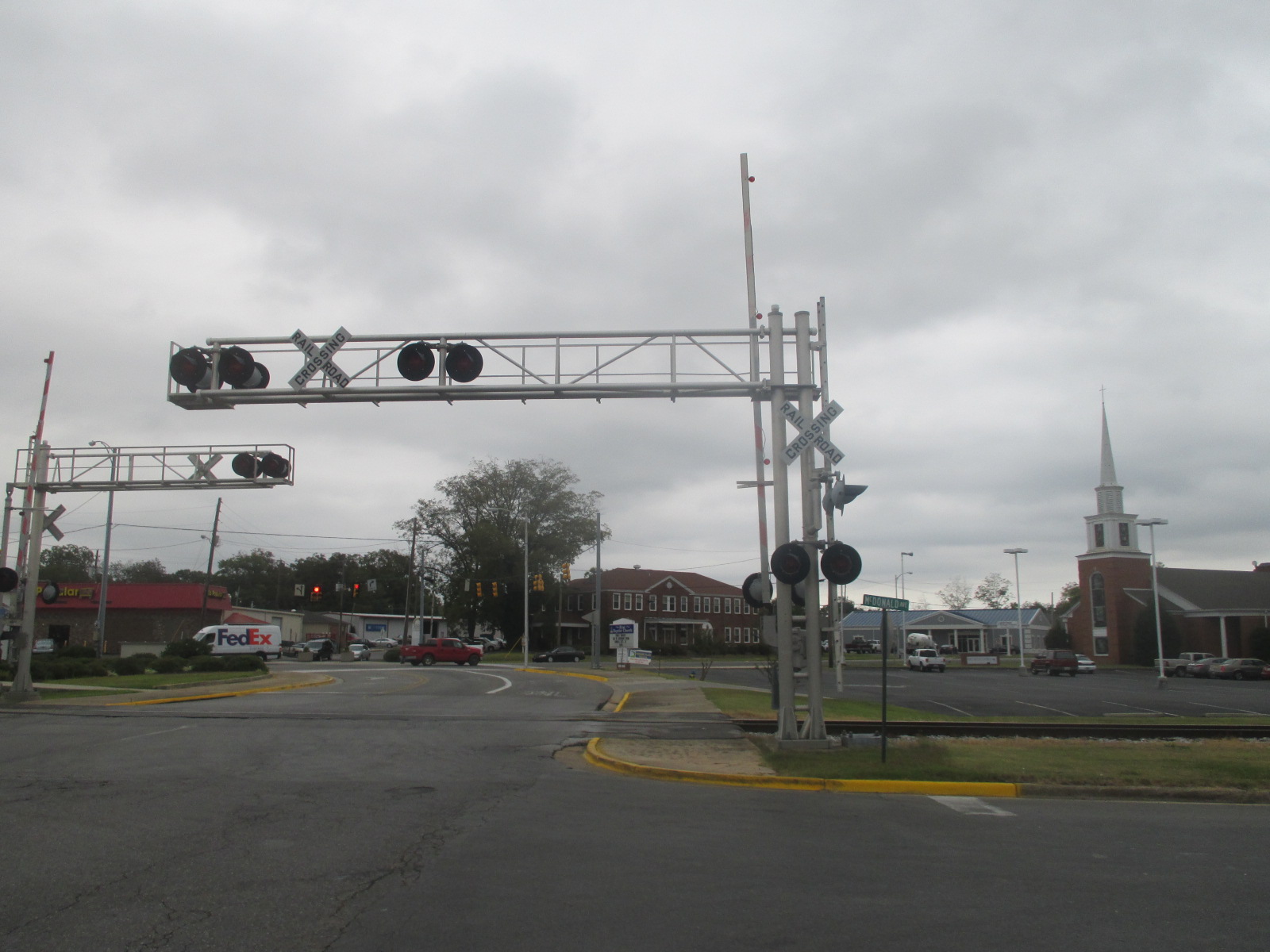

Overviews of the crossing.
The first signal.

5

6

7

8

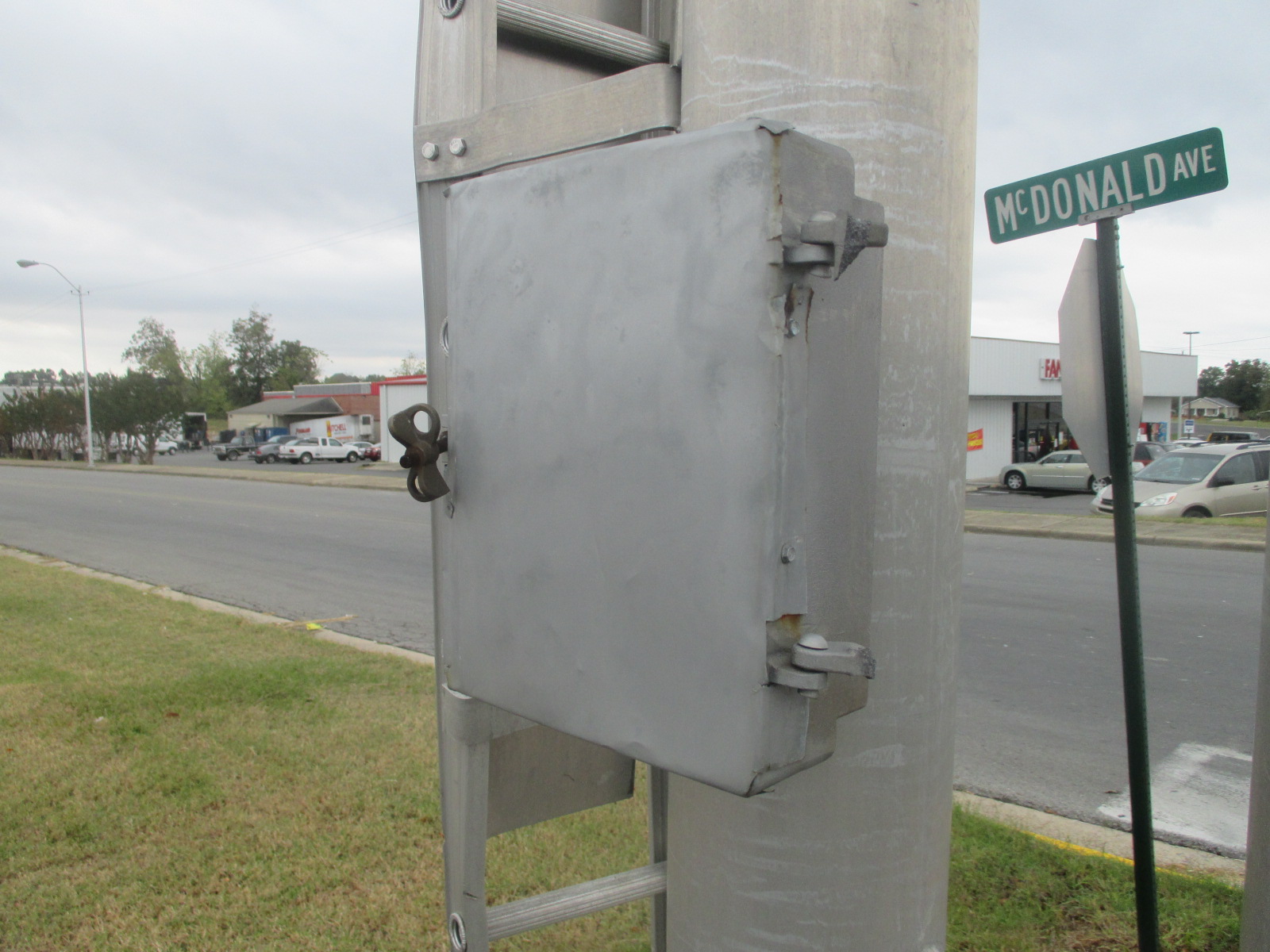

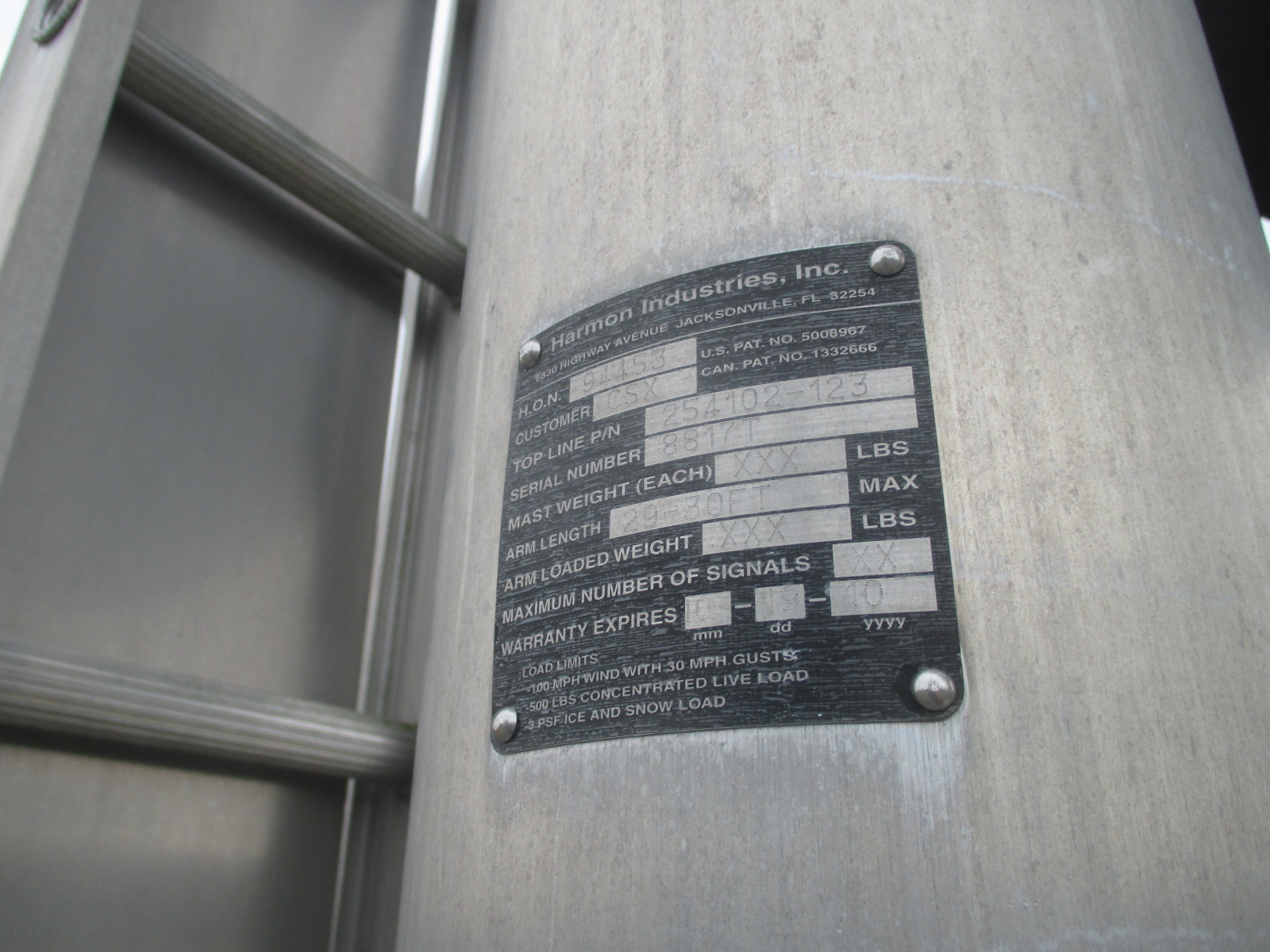

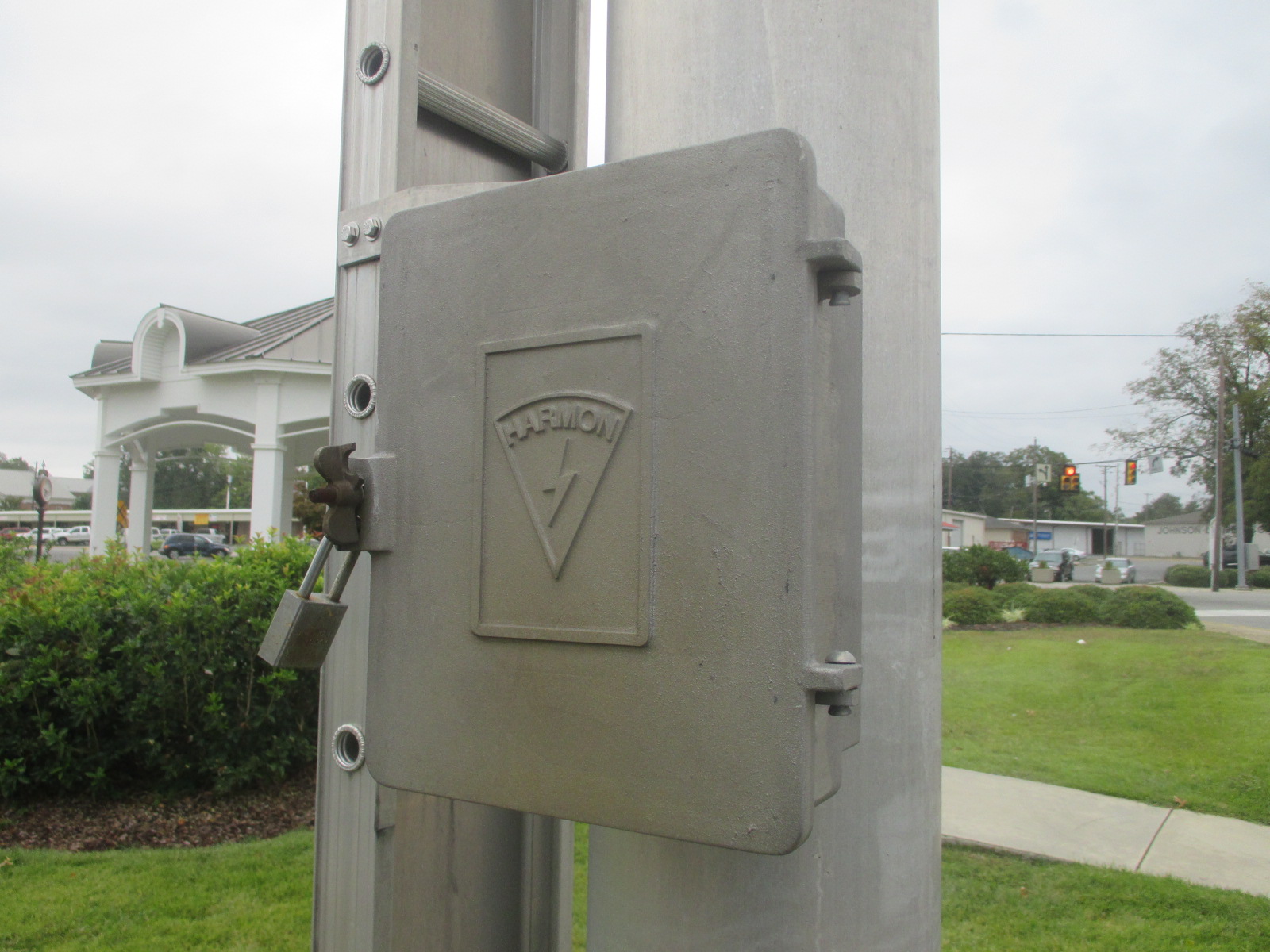

The signal is a Harmon cantilever that was installed by CSX in 2000. The damage in picture 5 was likely caused by the April 24, 2010 storms.

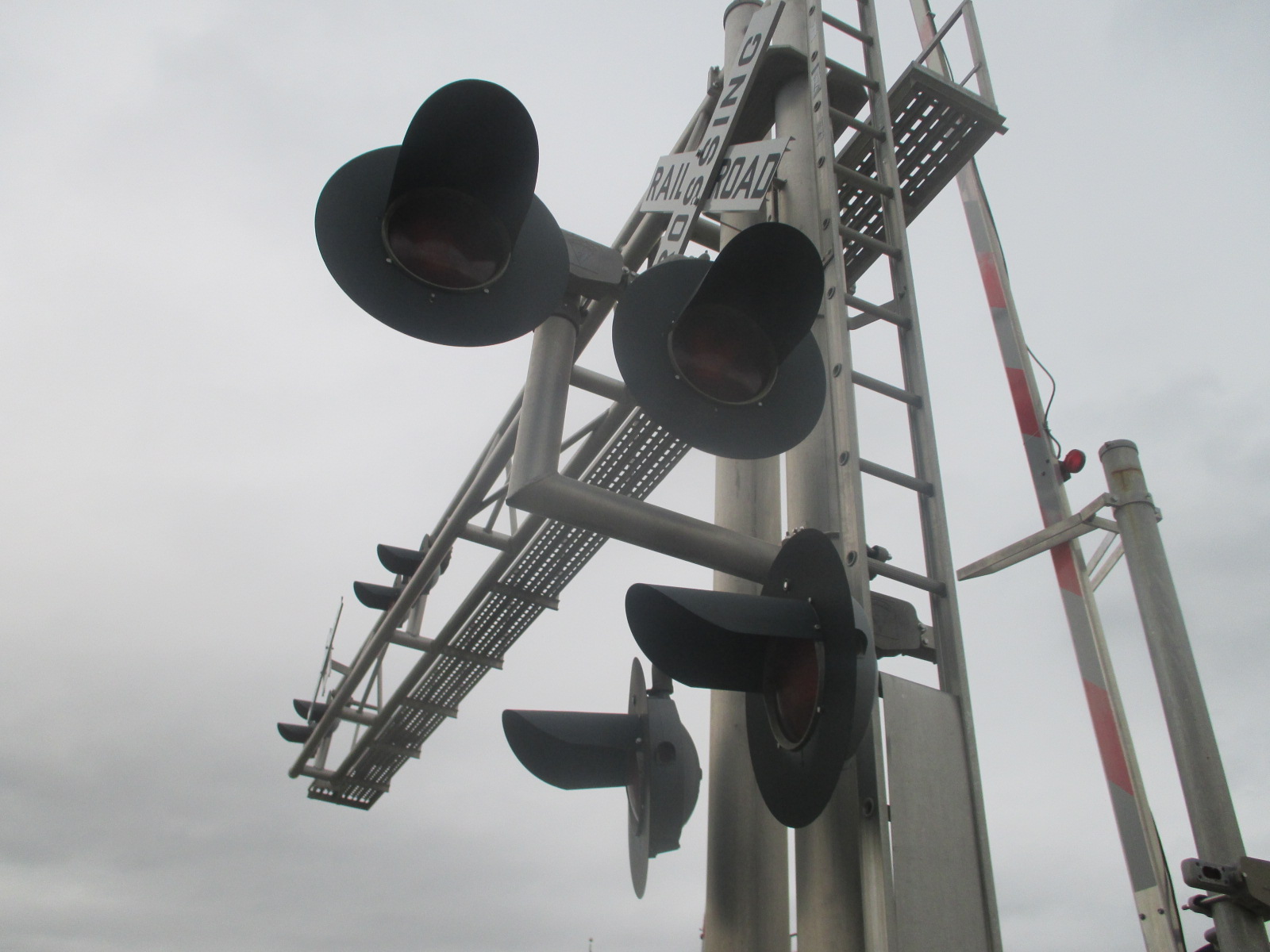

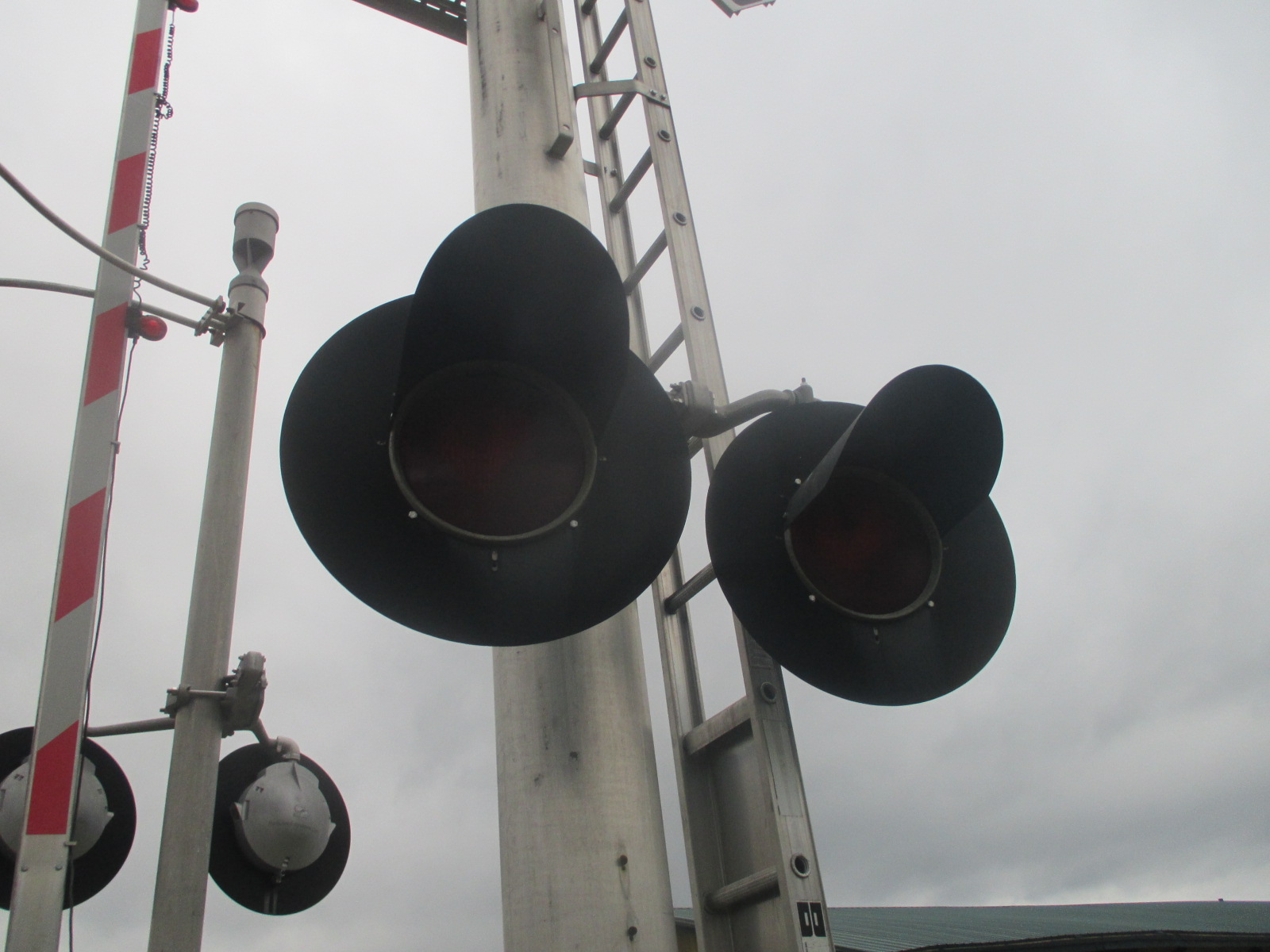

The front and side lights on the mast are 12x24 inch Harmon lights.

9

10

11

12

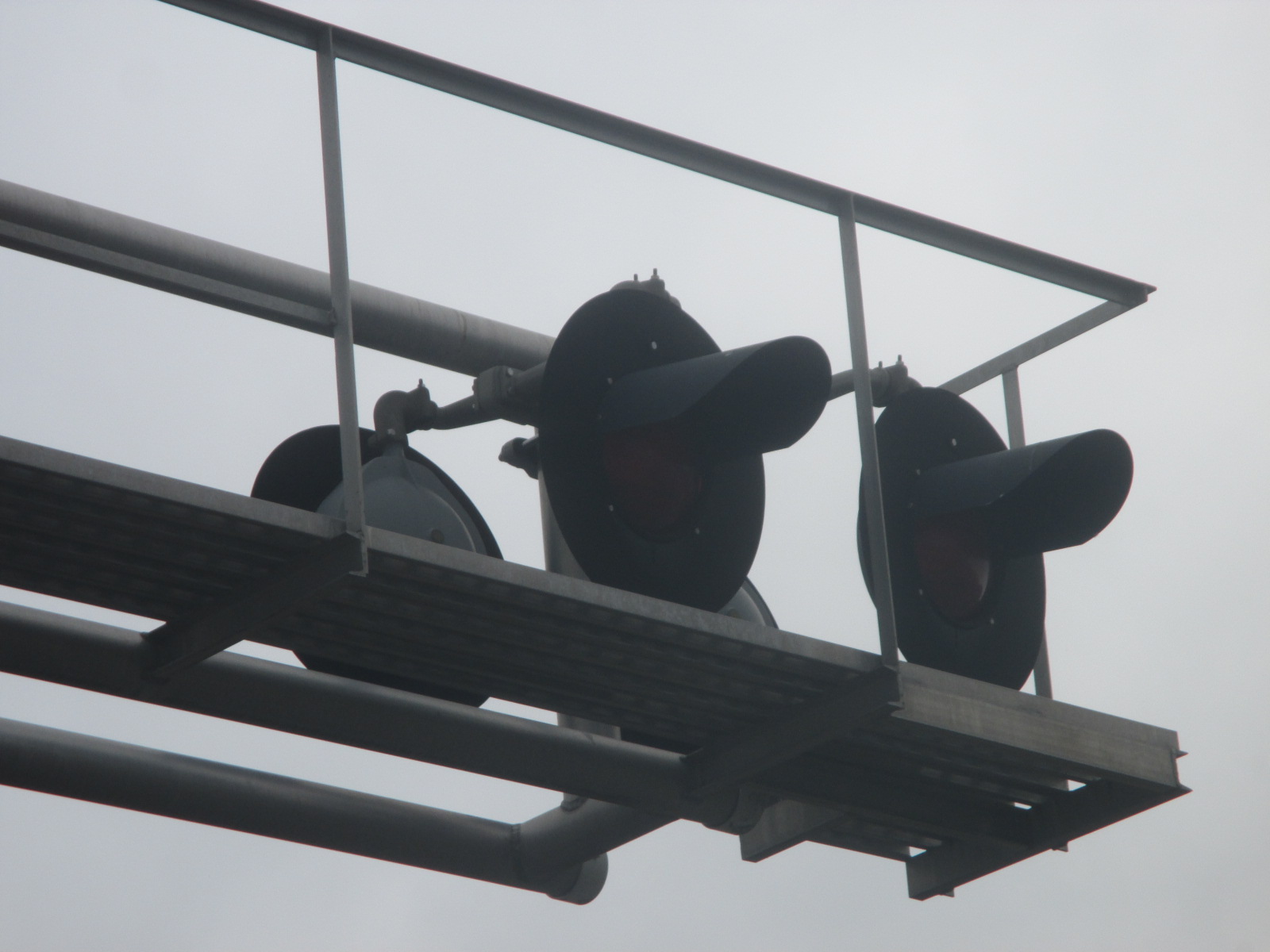

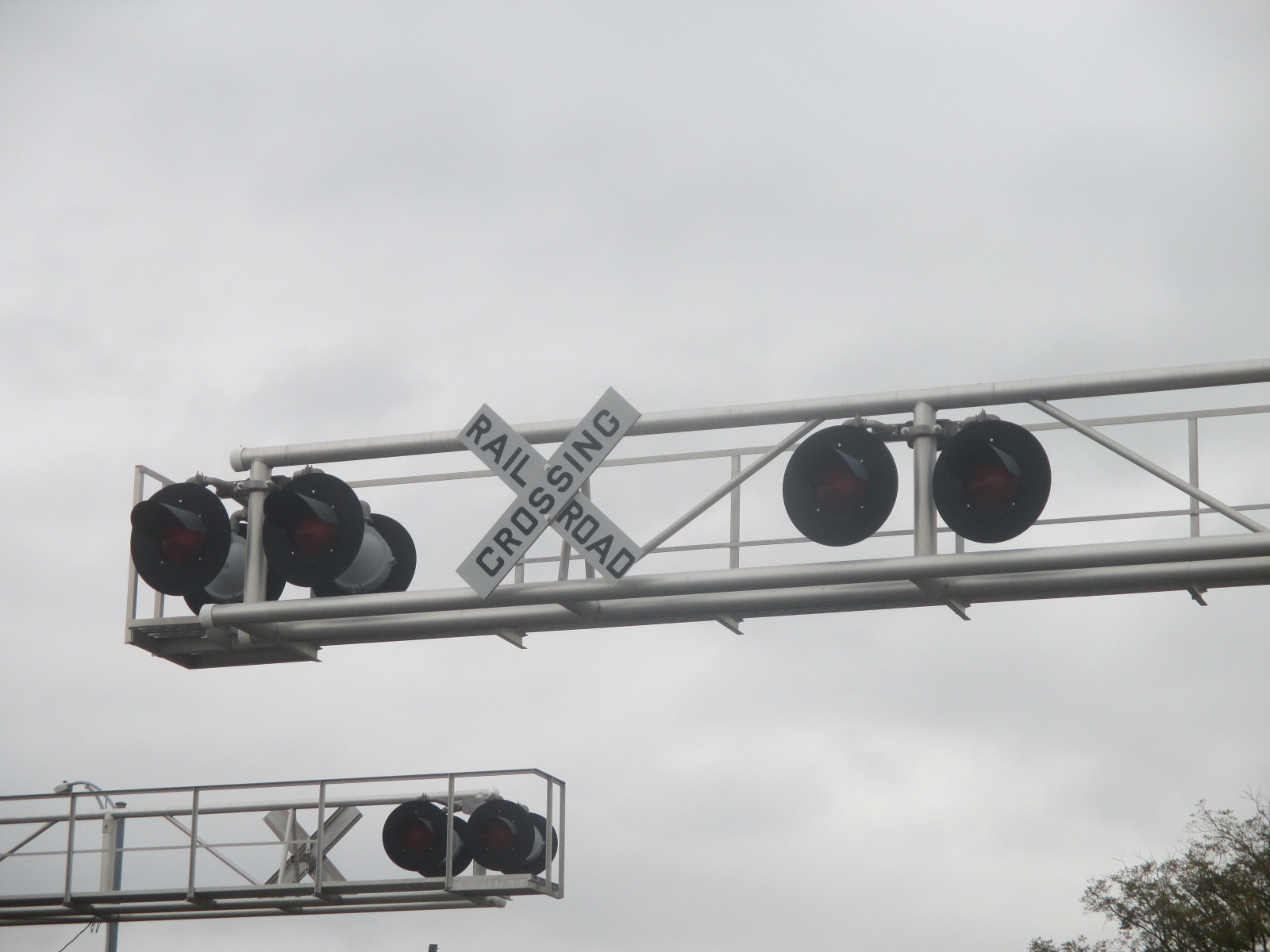

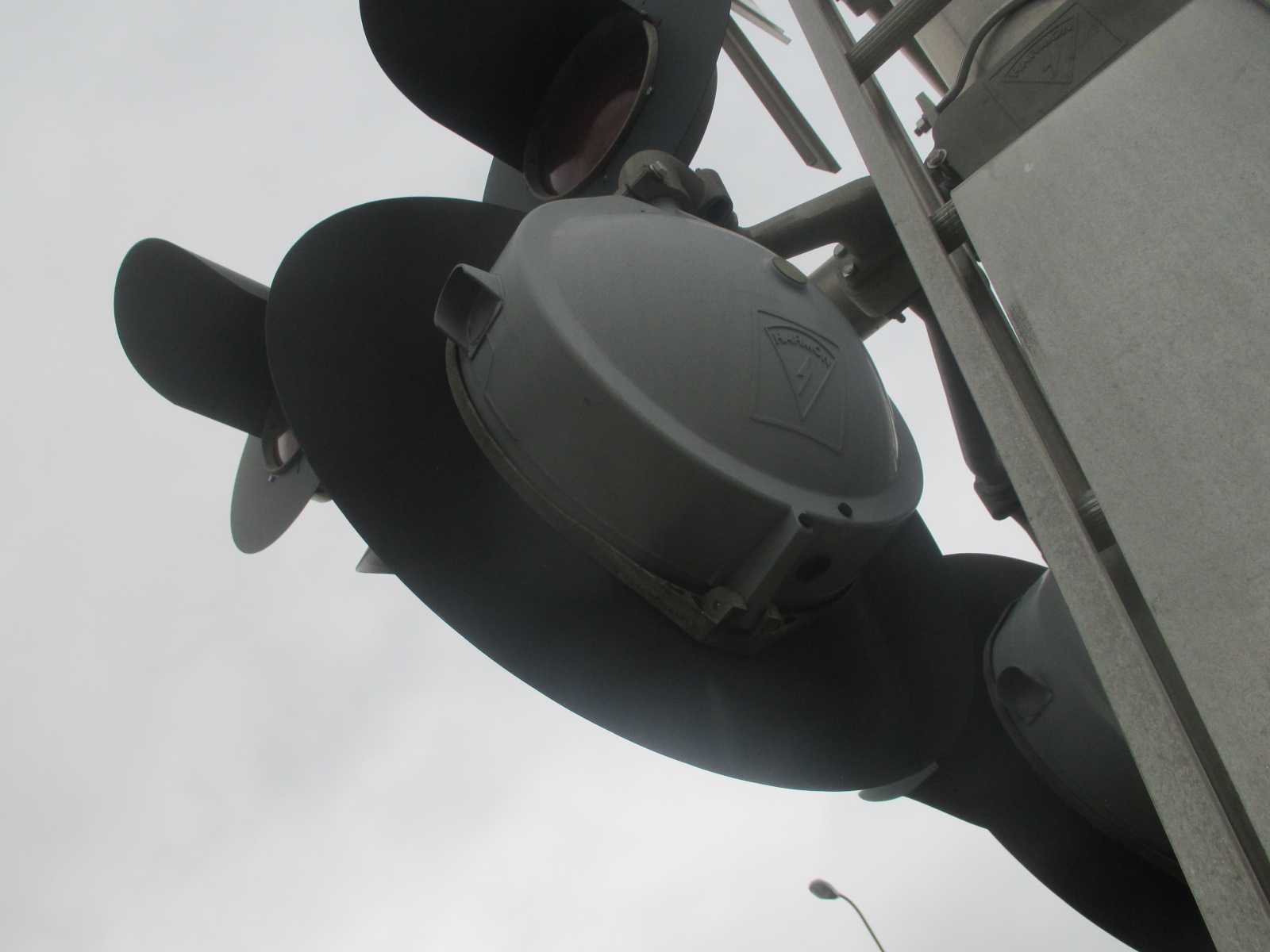

The overhead lights are also Harmon 12x24 inch lights.

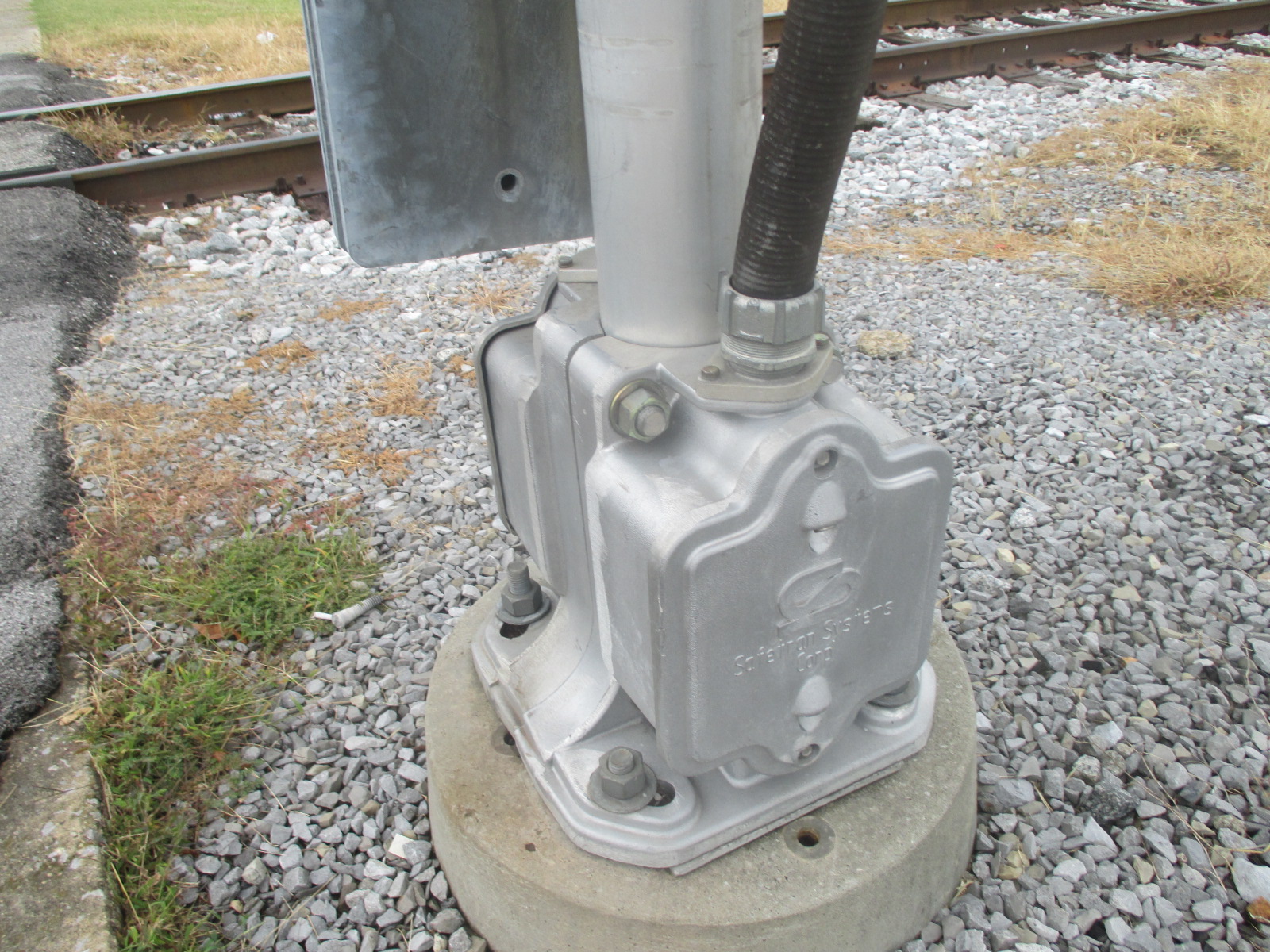

A Safetran base.

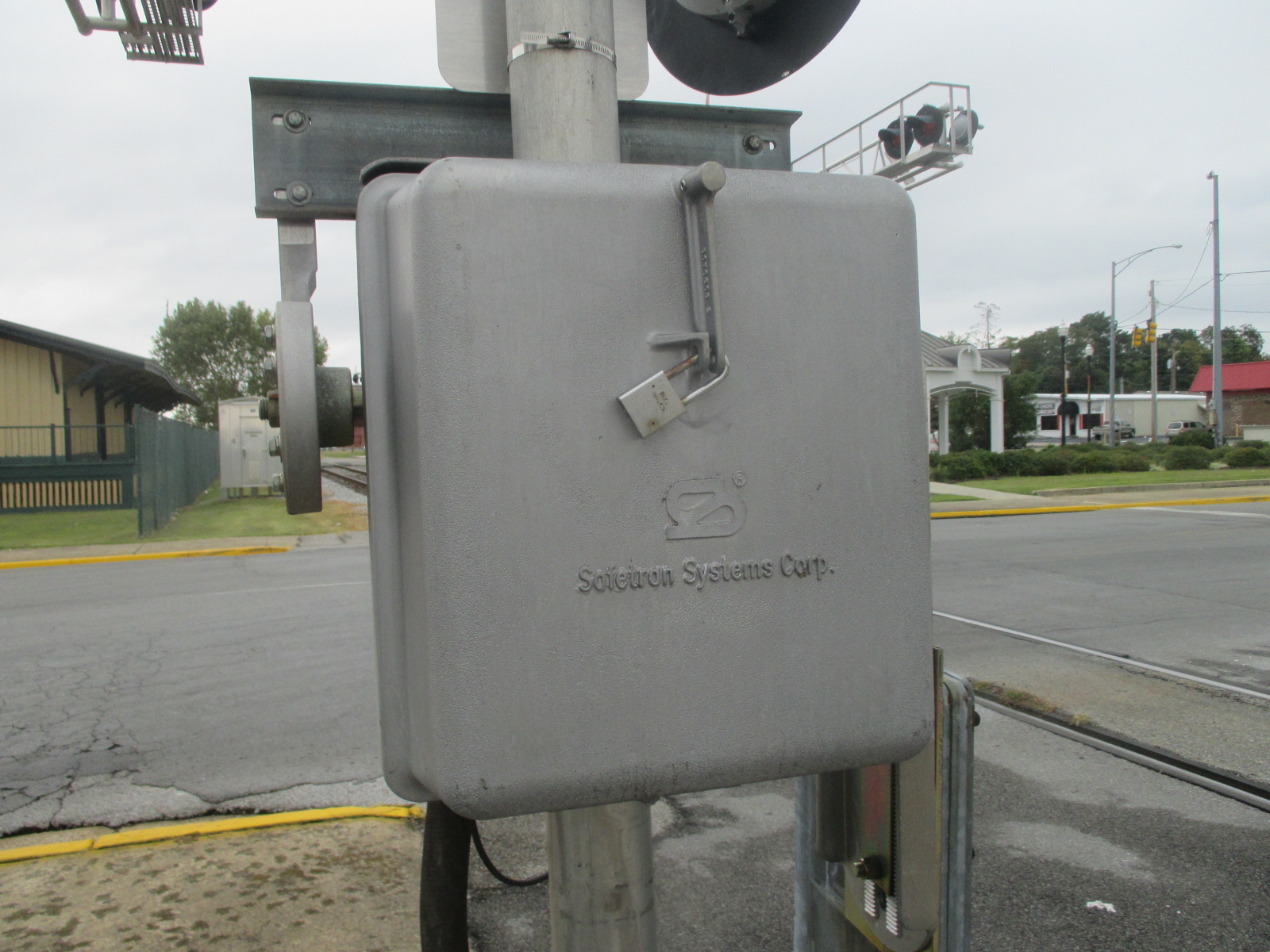

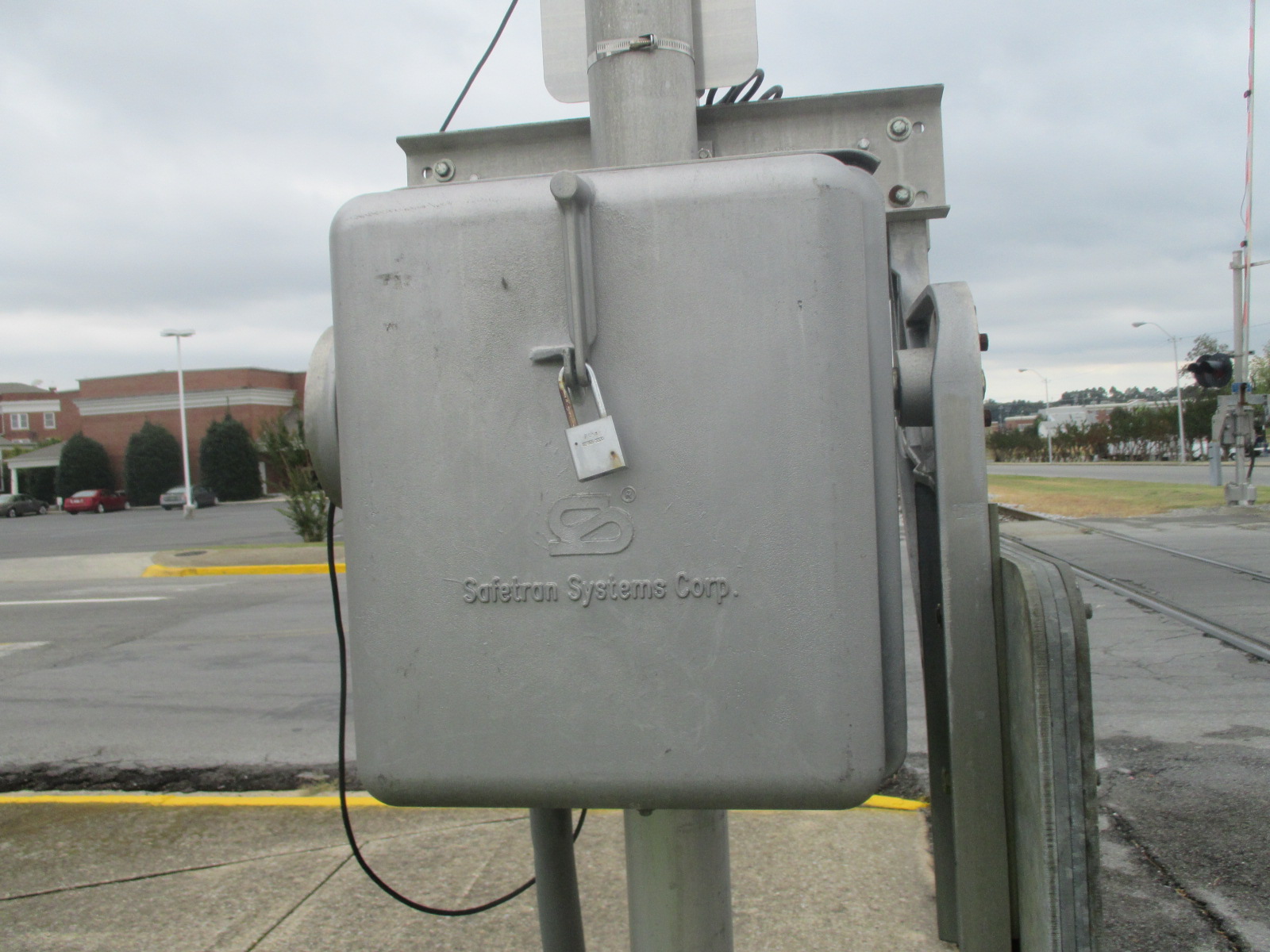

This signal has a Safetran gate mechanism.

13

14

15

16

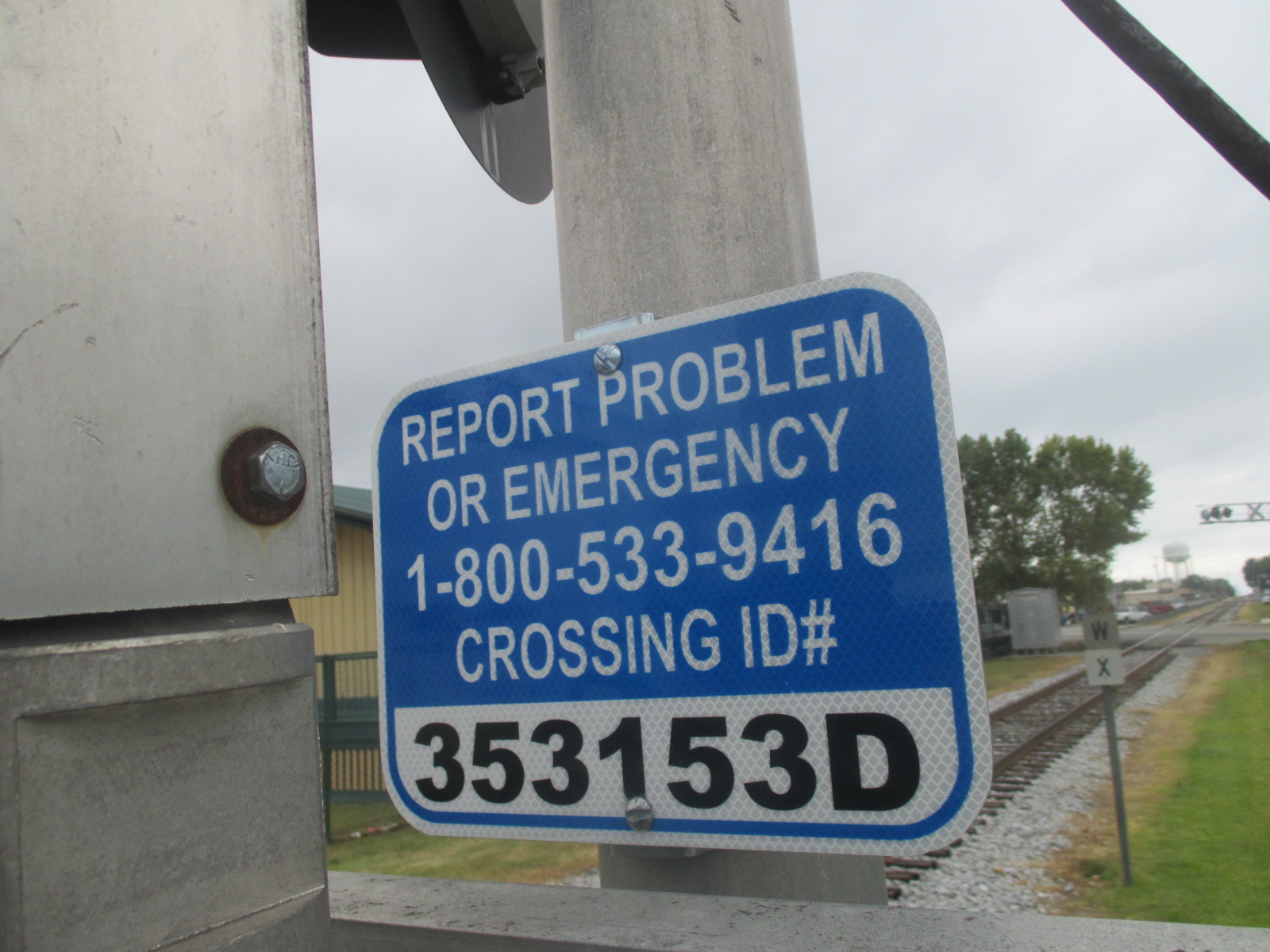

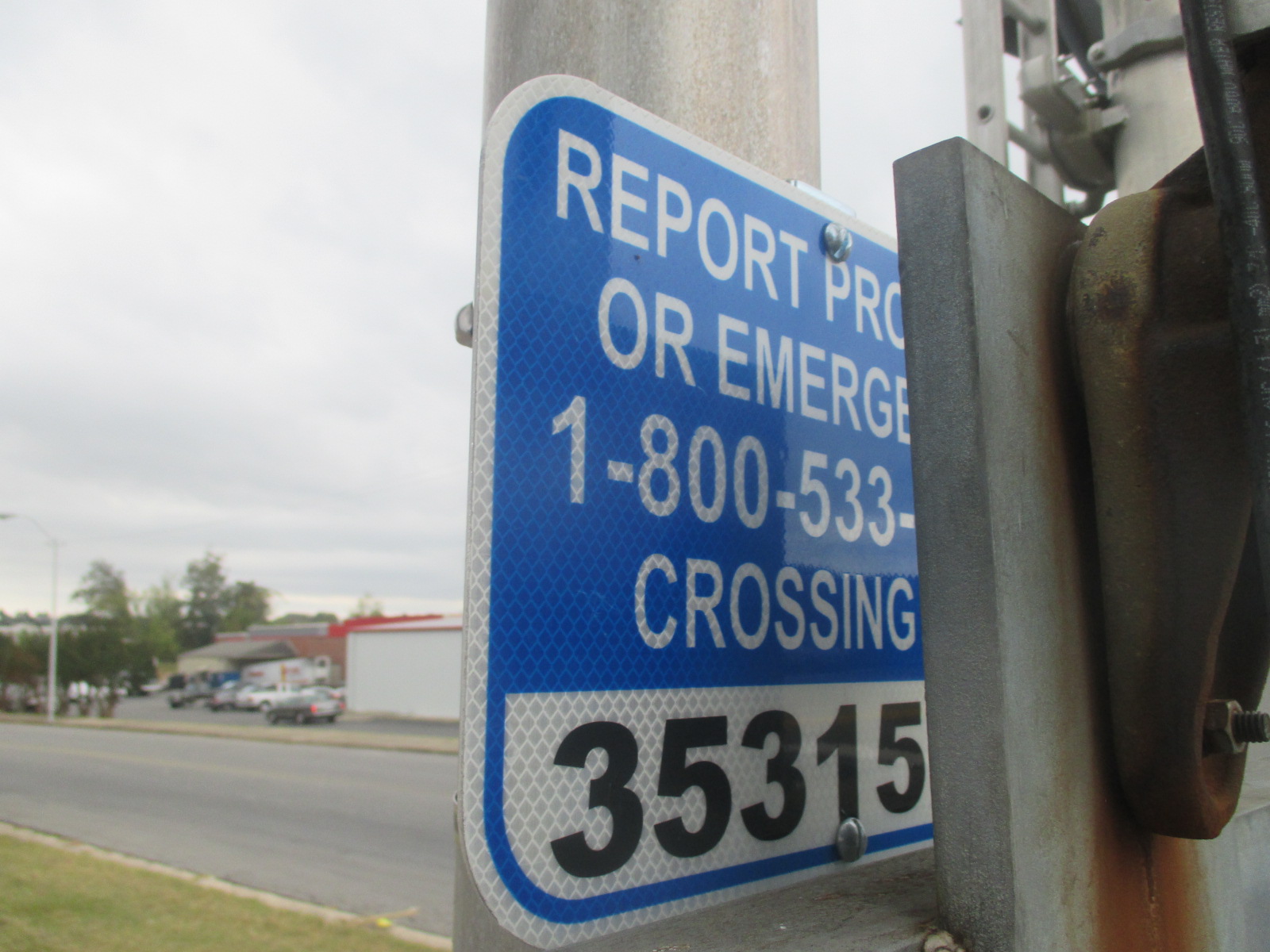

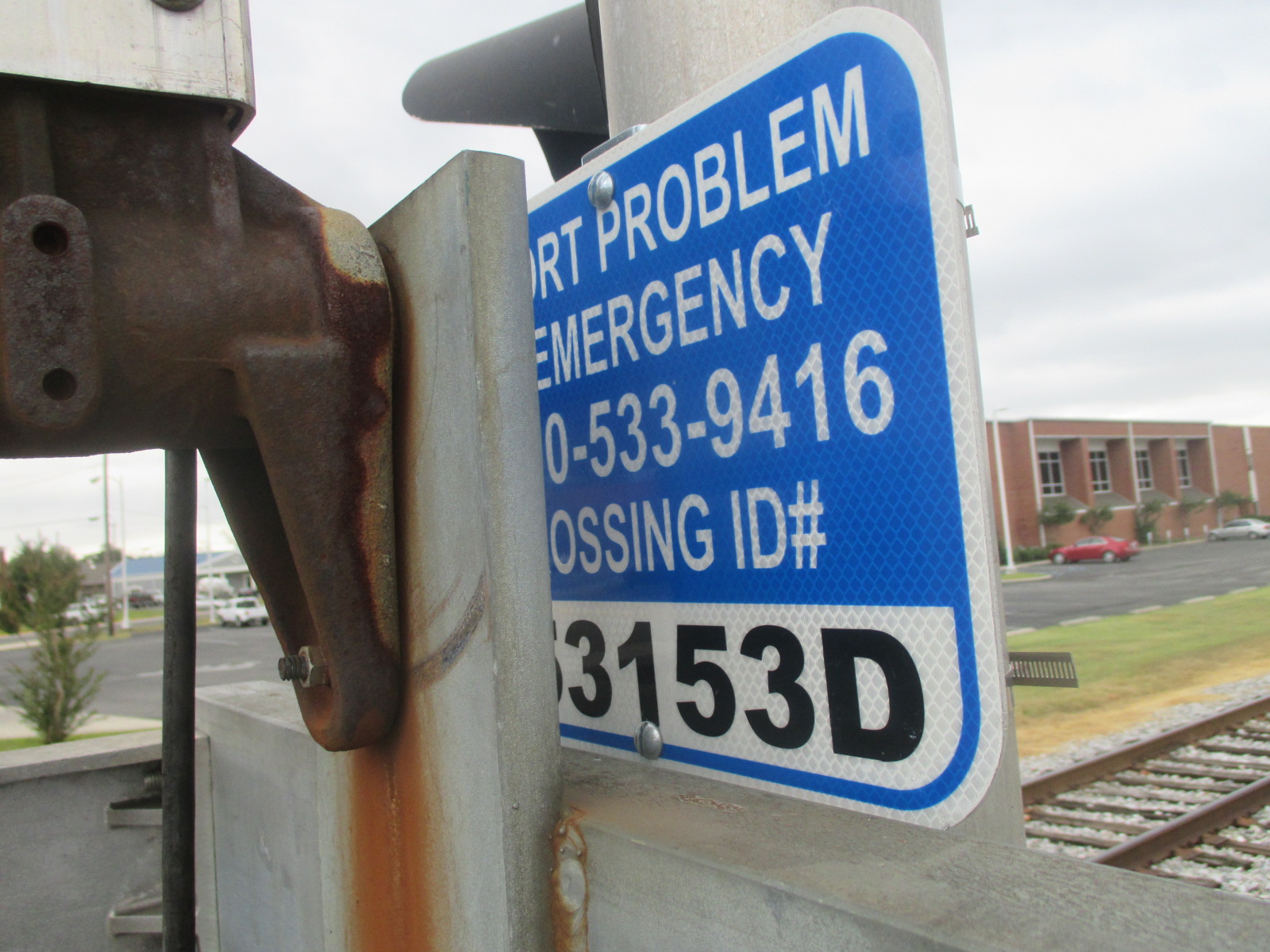

The two halves of the emergency information.

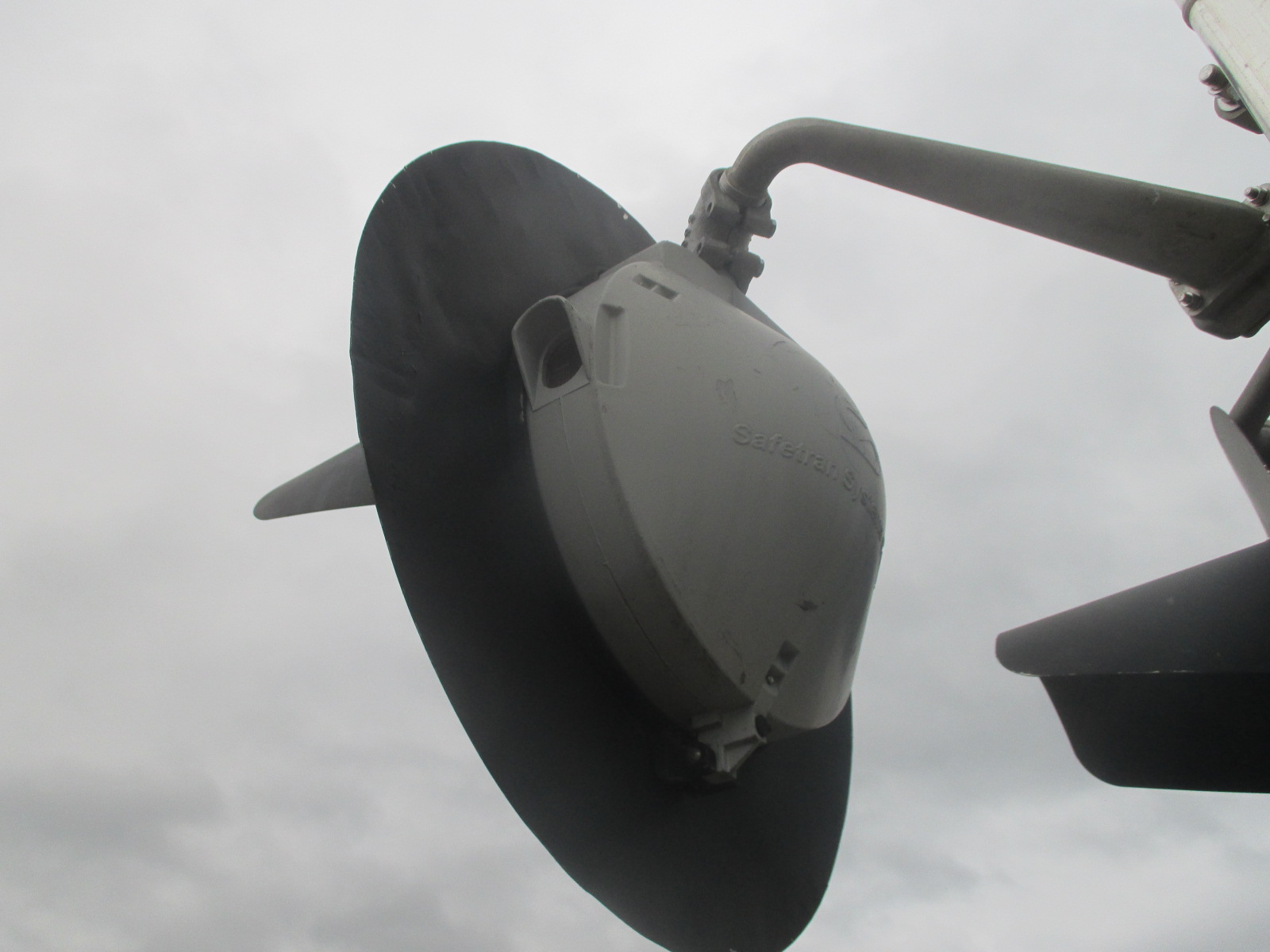

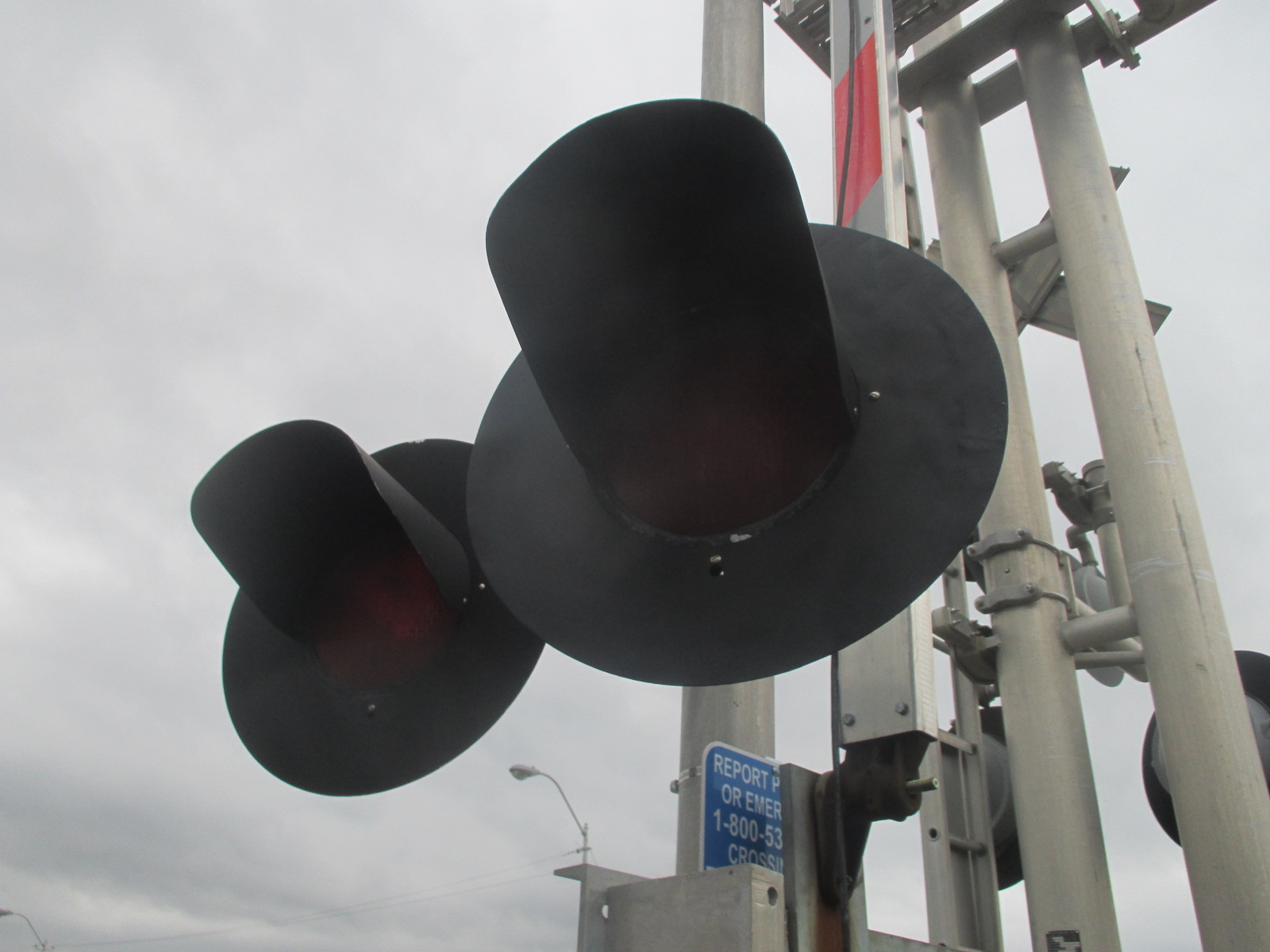

The rear lights are Safetran 12x24 inch lights.

17

18

19

20

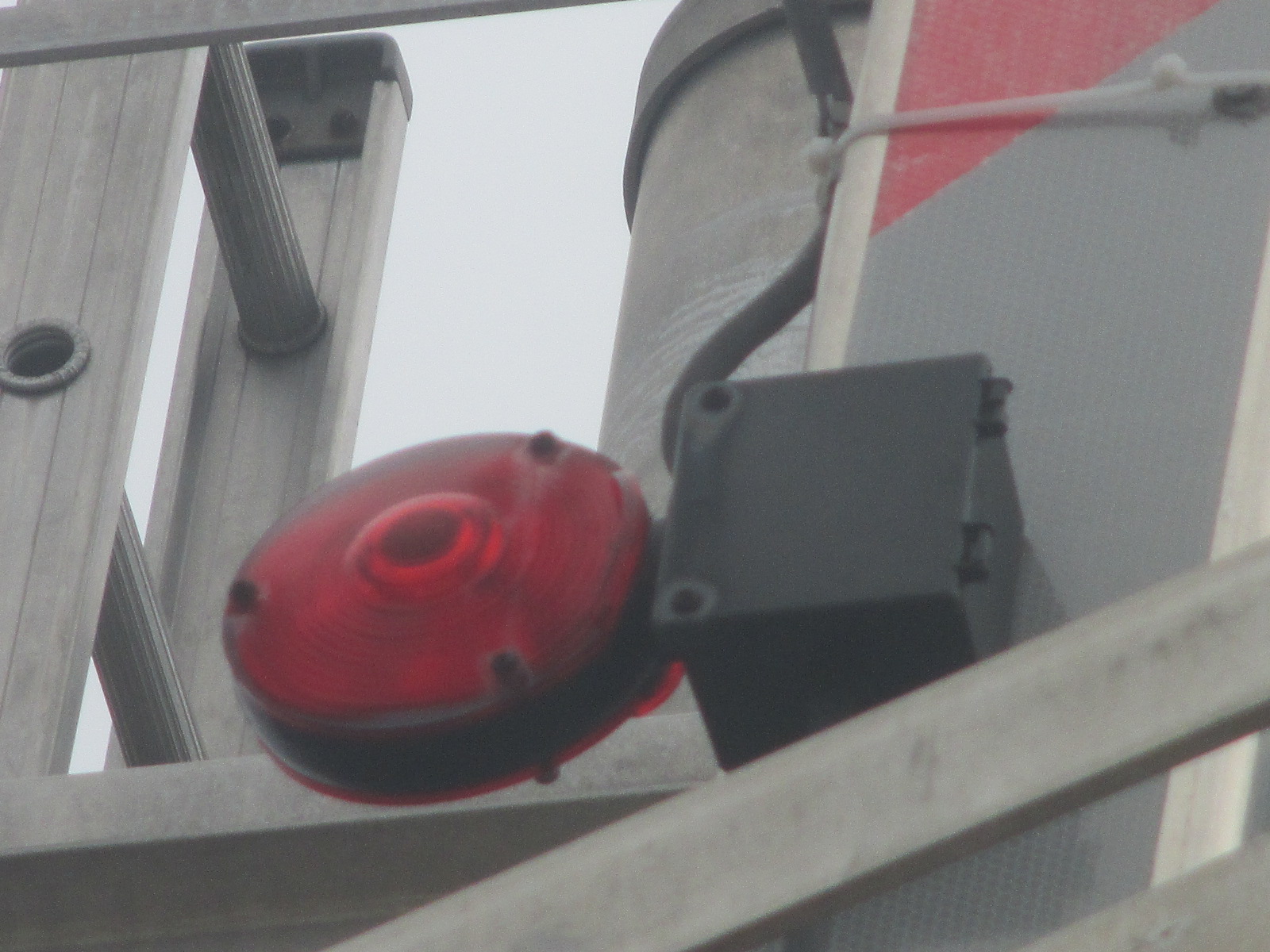

The gate lights on this signal are 4 inch ones from an unknown brand.

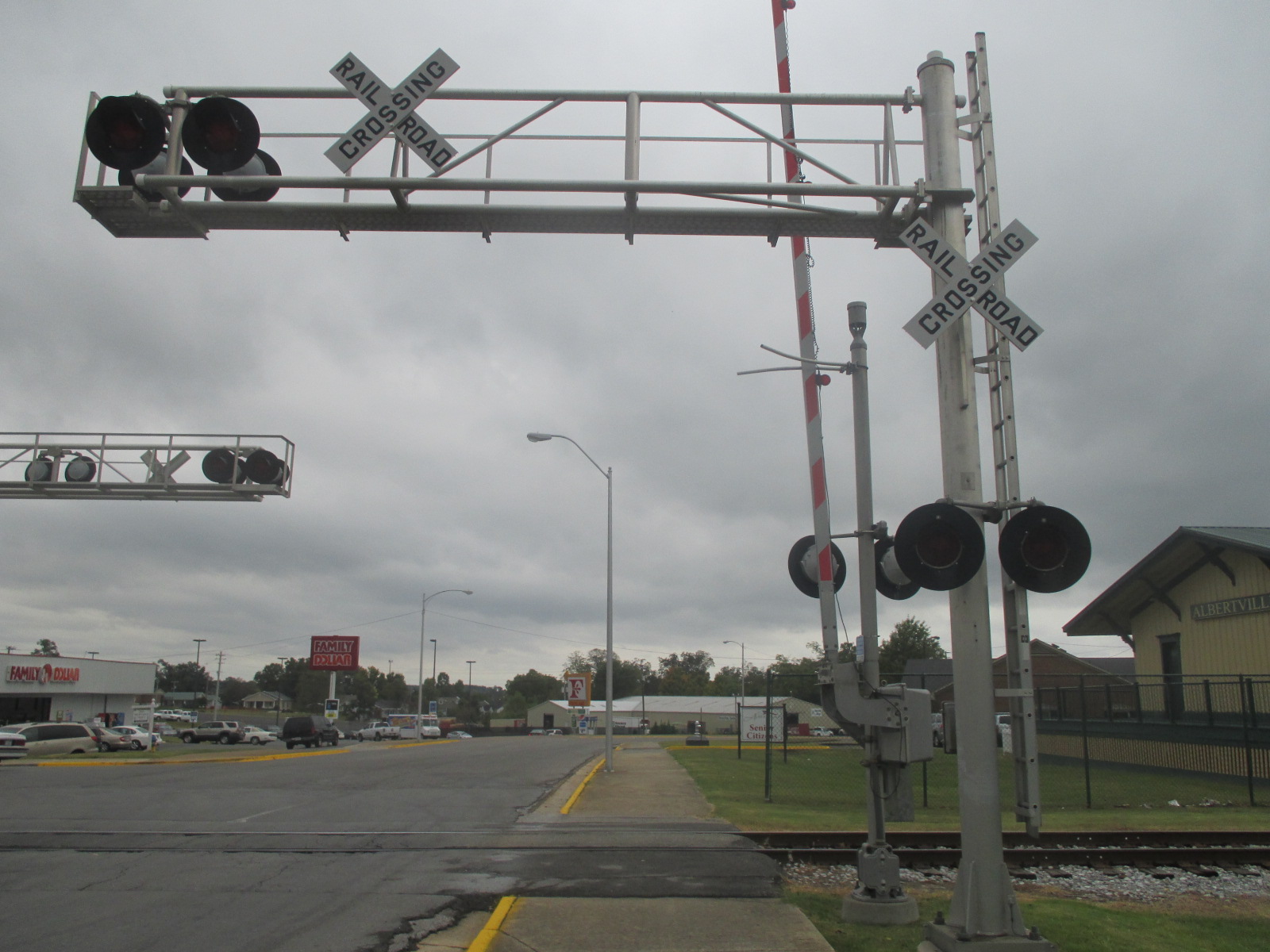

The second signal.
It's also a Harmon cantilever.

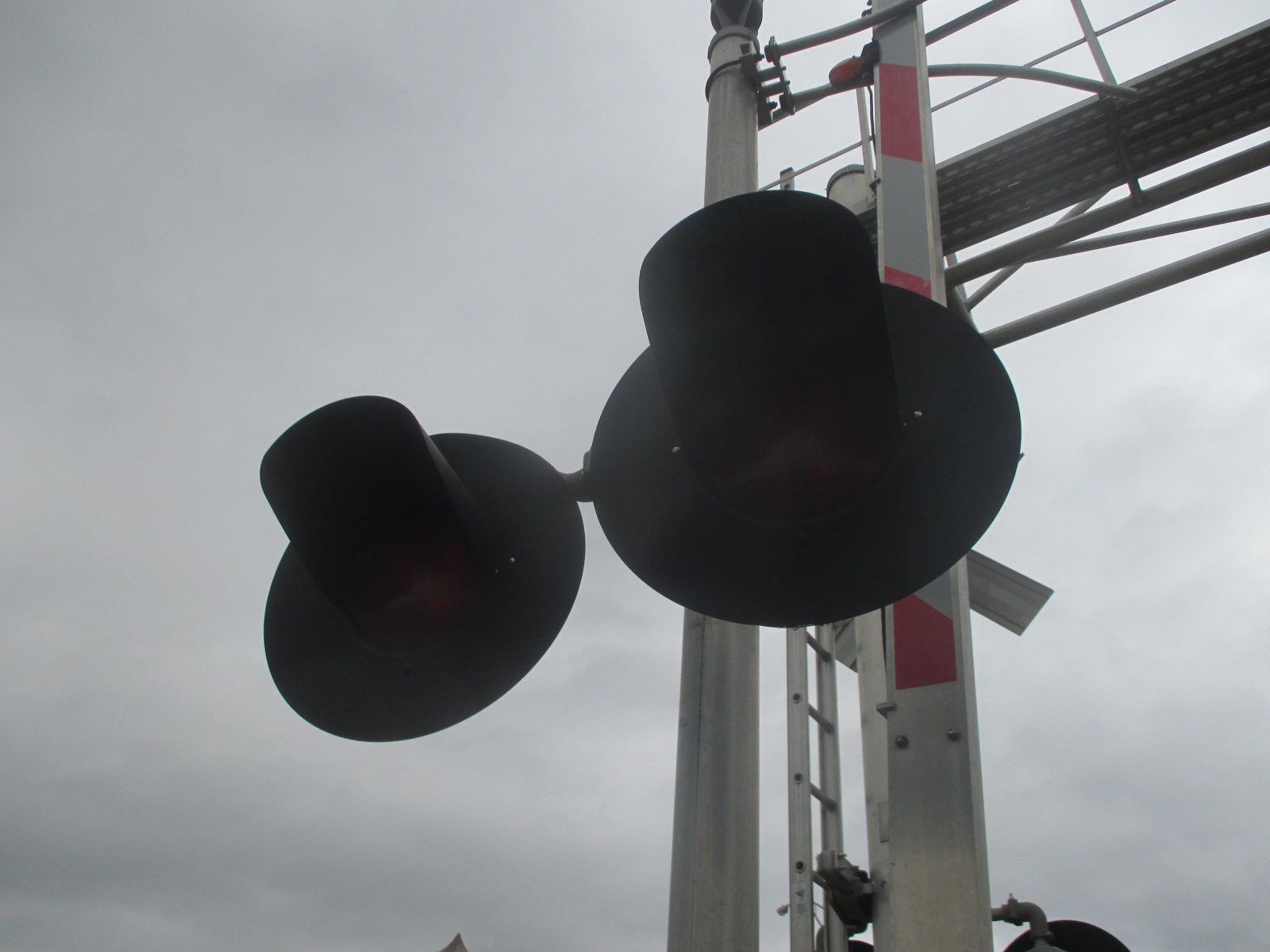

The front mast lights are Harmon 12x24 inch lights as well.

21

22

23

24

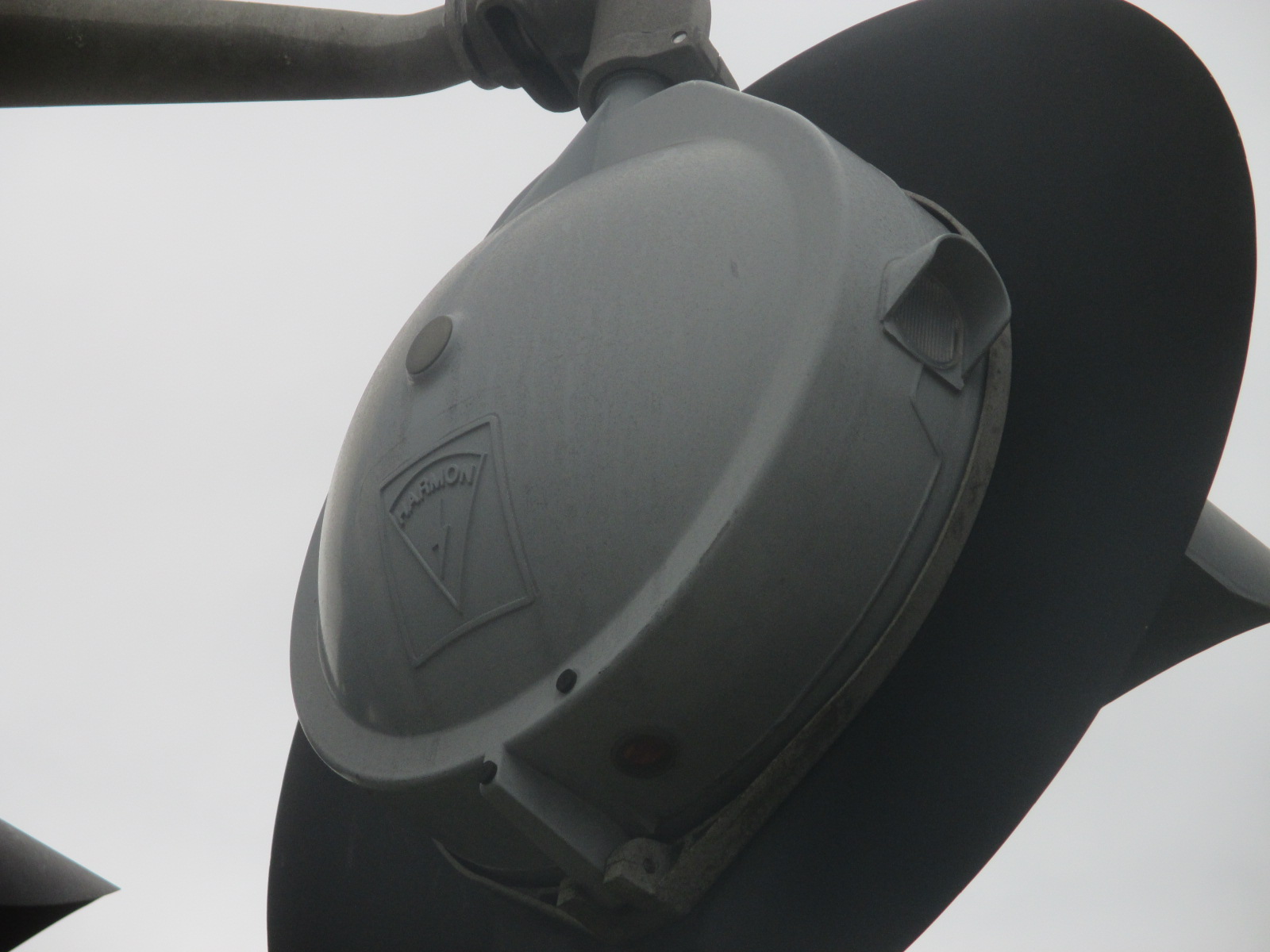

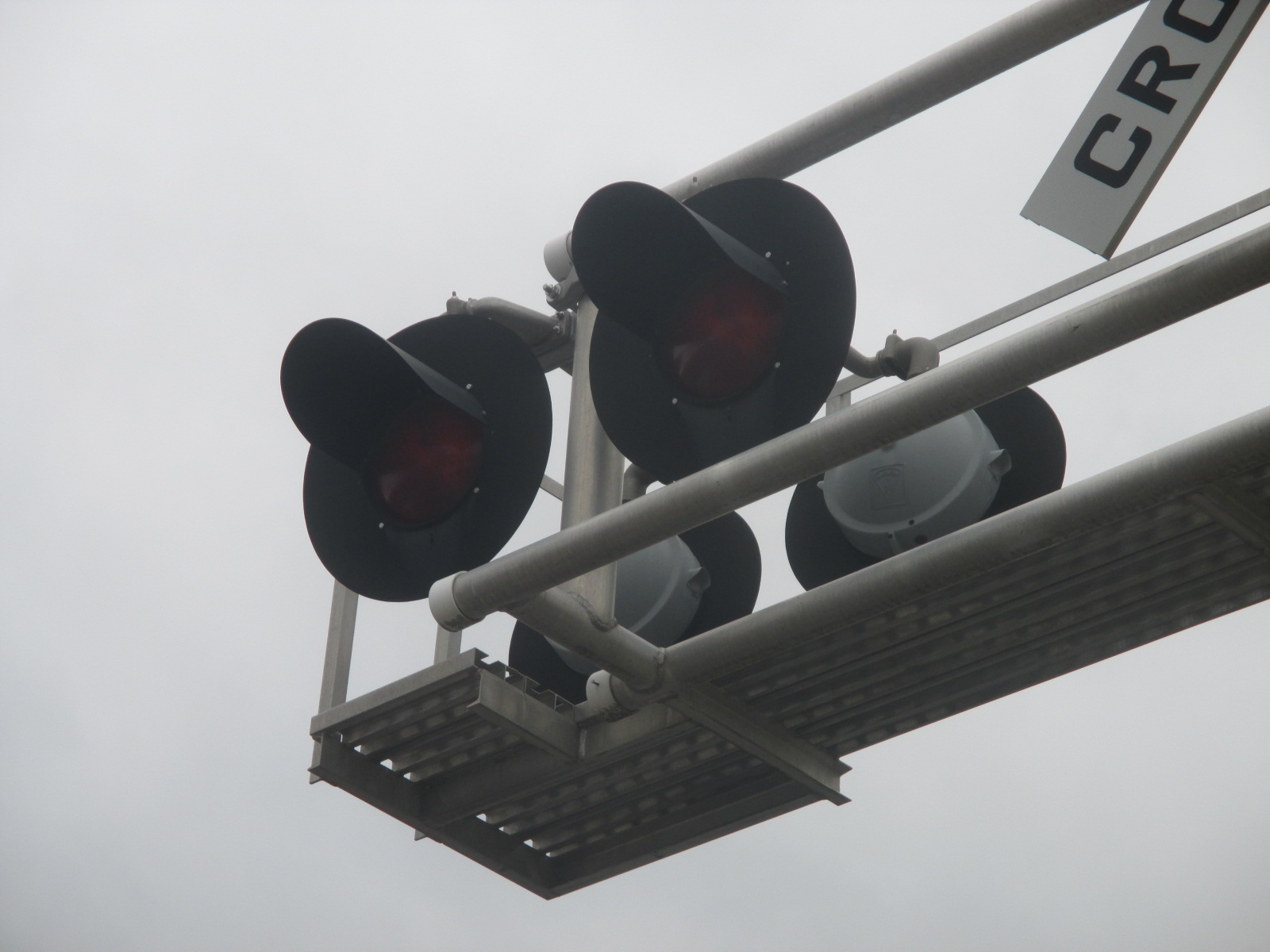

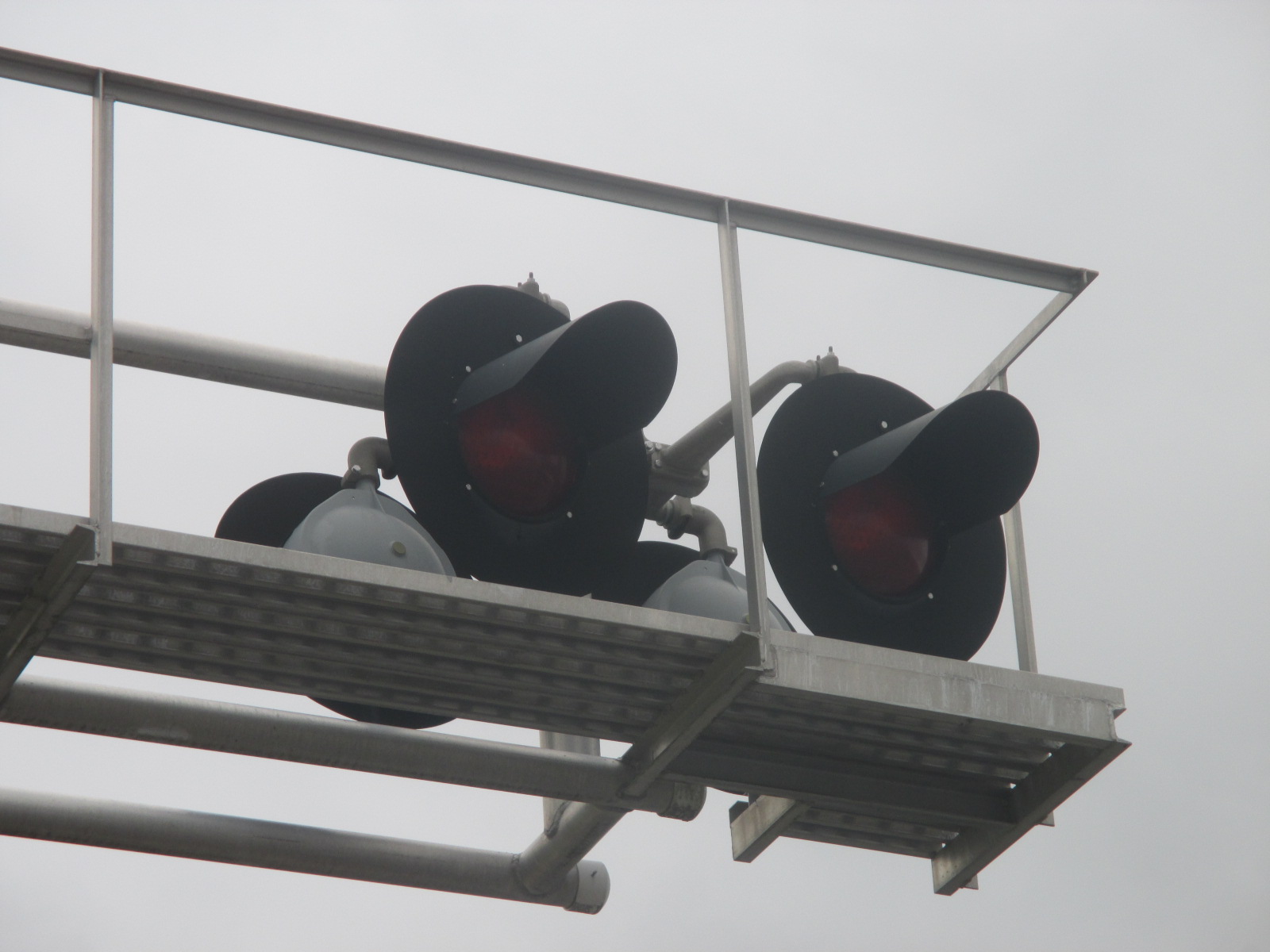

The overhead lights are even more Harmon 12x24 inch lights.

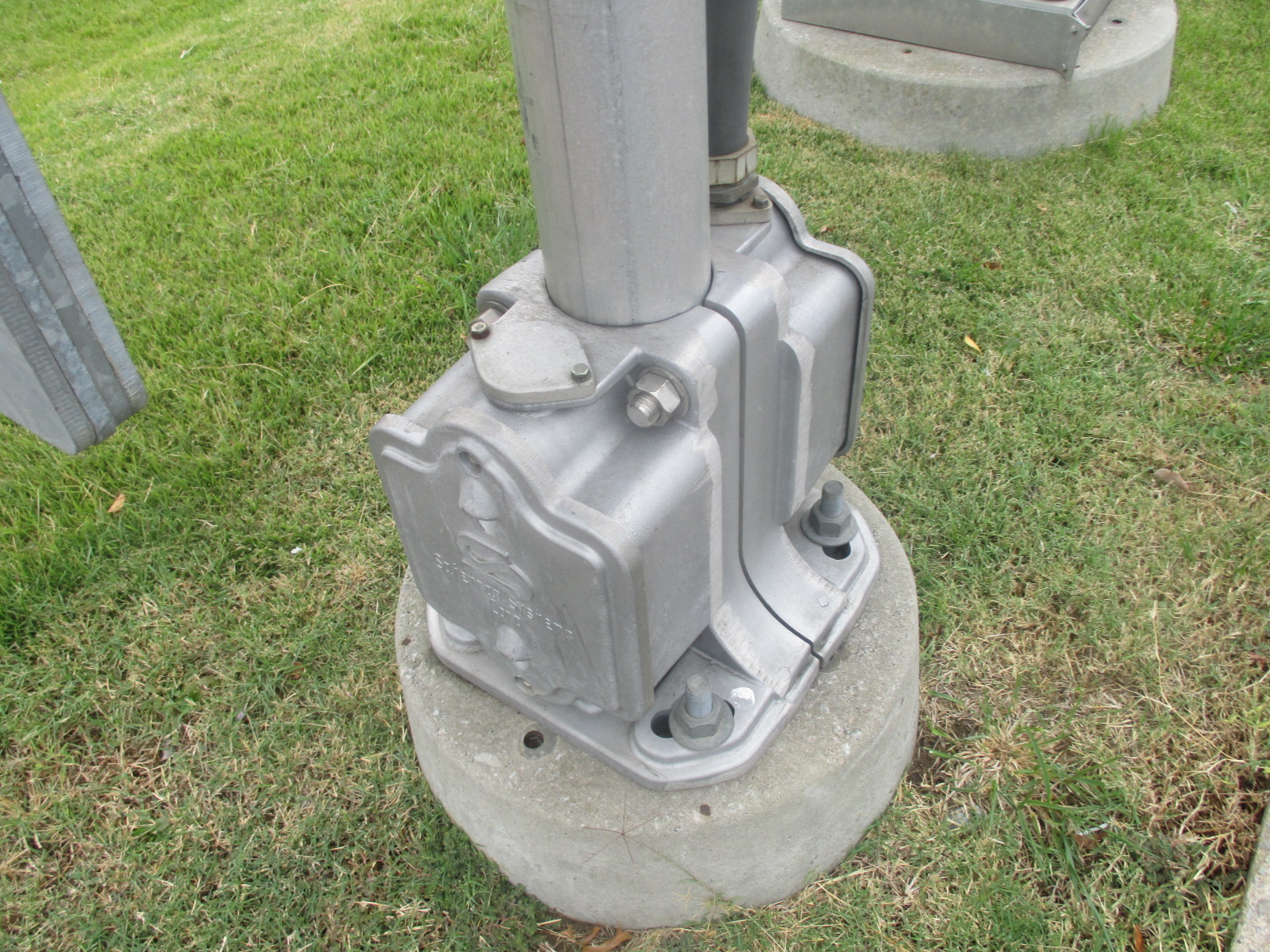

Another Safetran base.

25

26

27

28
There is another Safetran gate mechanism on this signal.
The emergency information in it's entirety.
The rear lights are another pair of Safetran 12x24 inch lights.

29

30

31

32

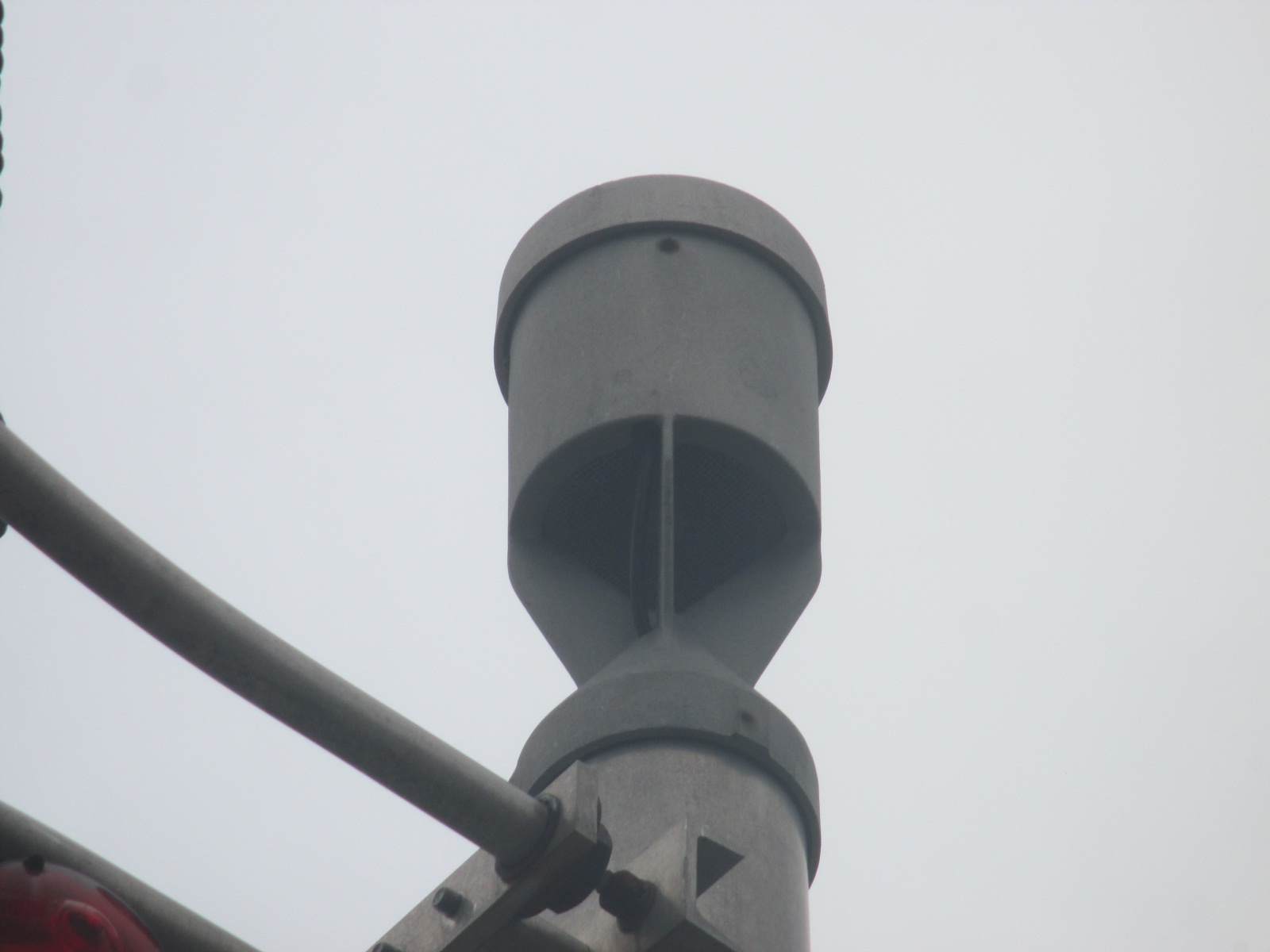

The bell at this crossing is a WCH Type 3 electronic bell.

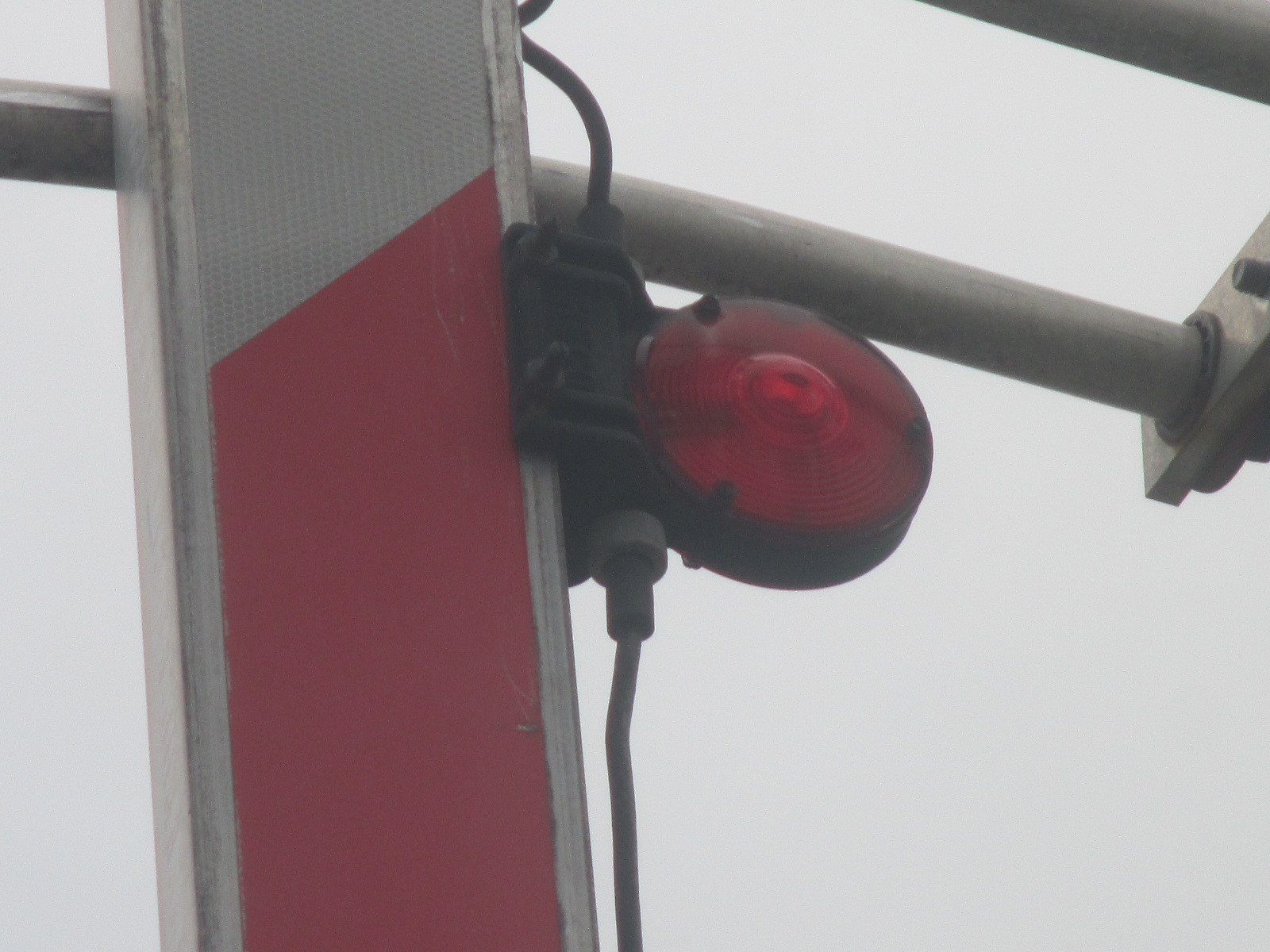

The gate lights on this signal are RECO gate lights.

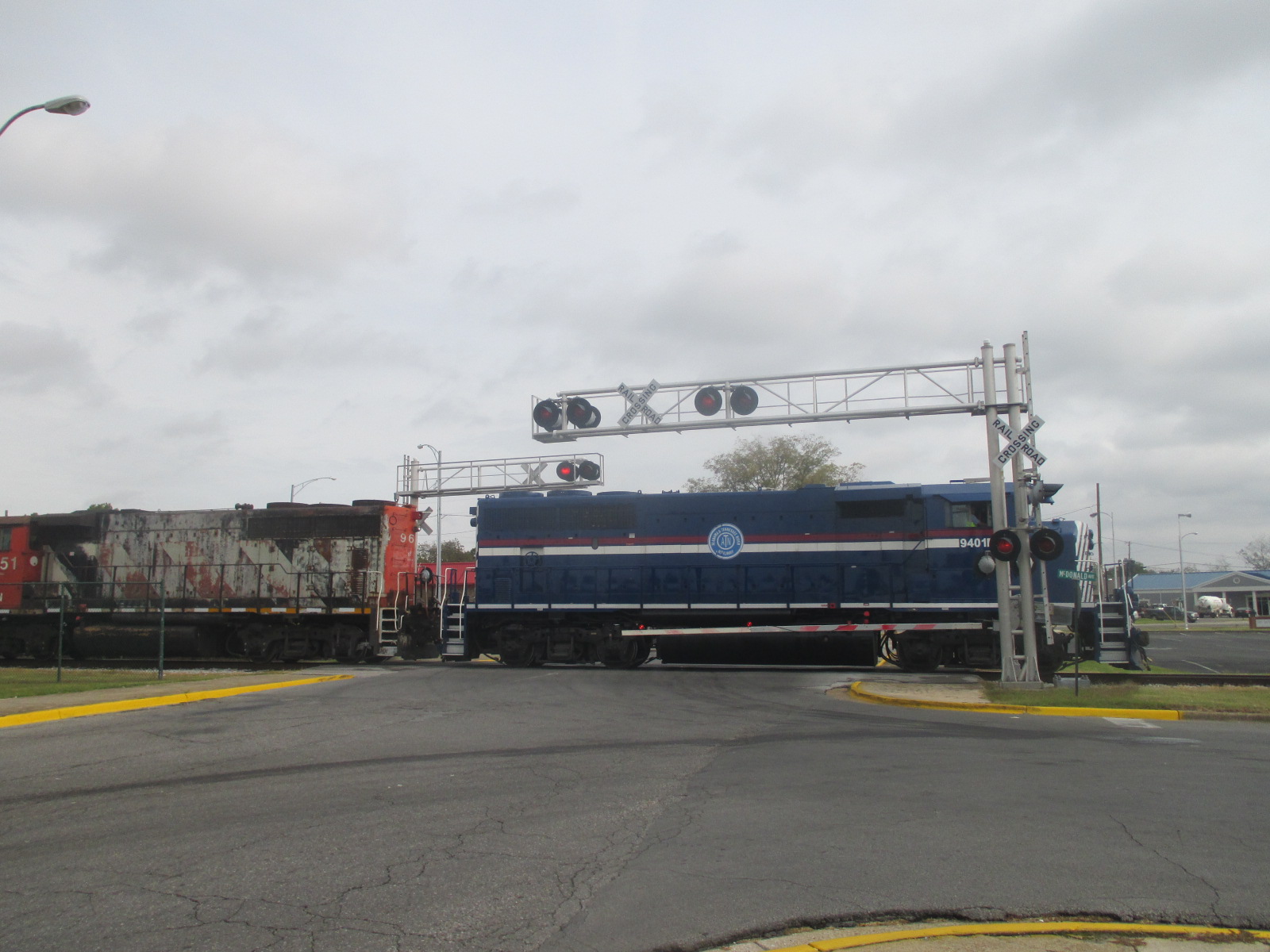

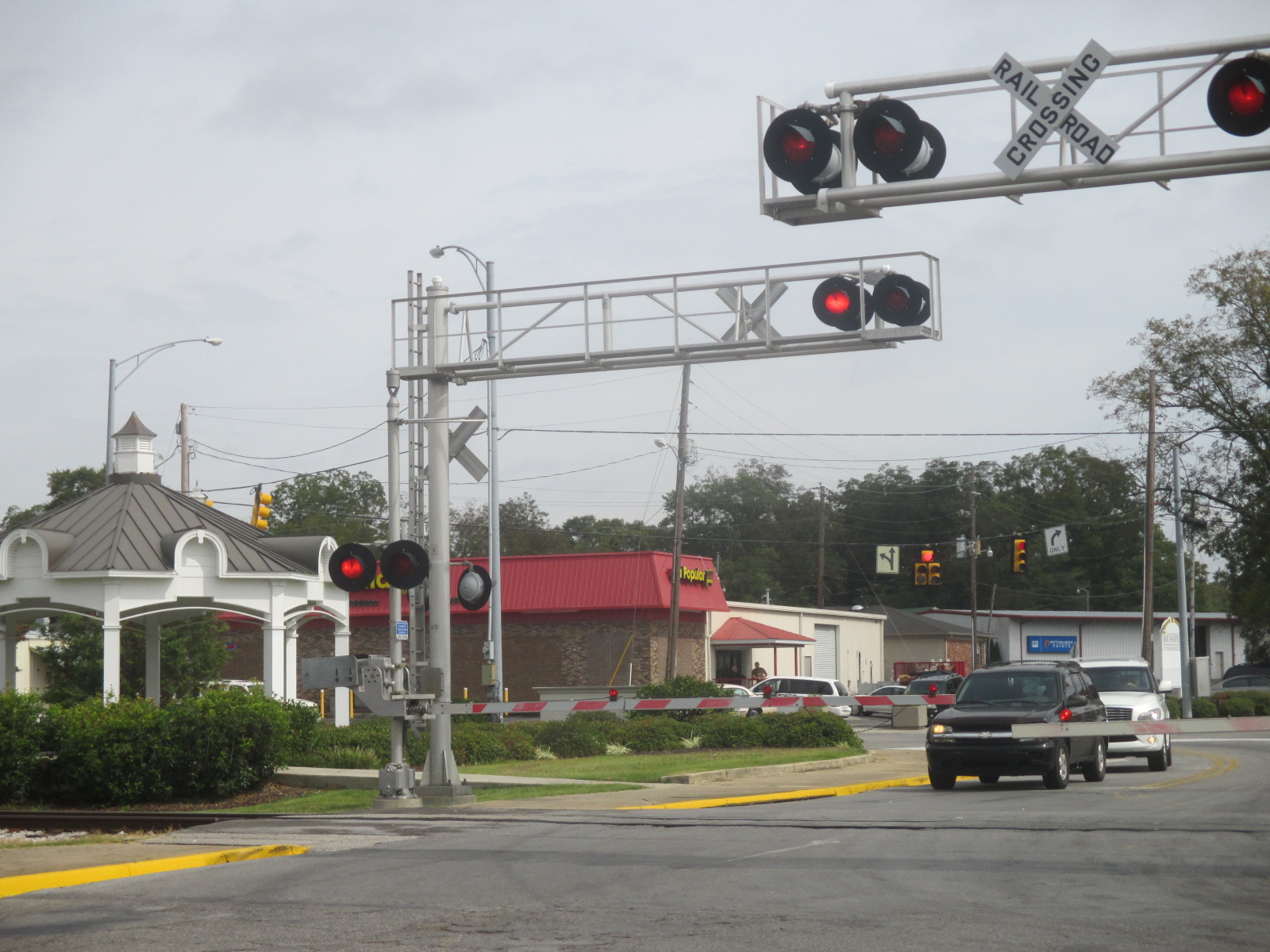

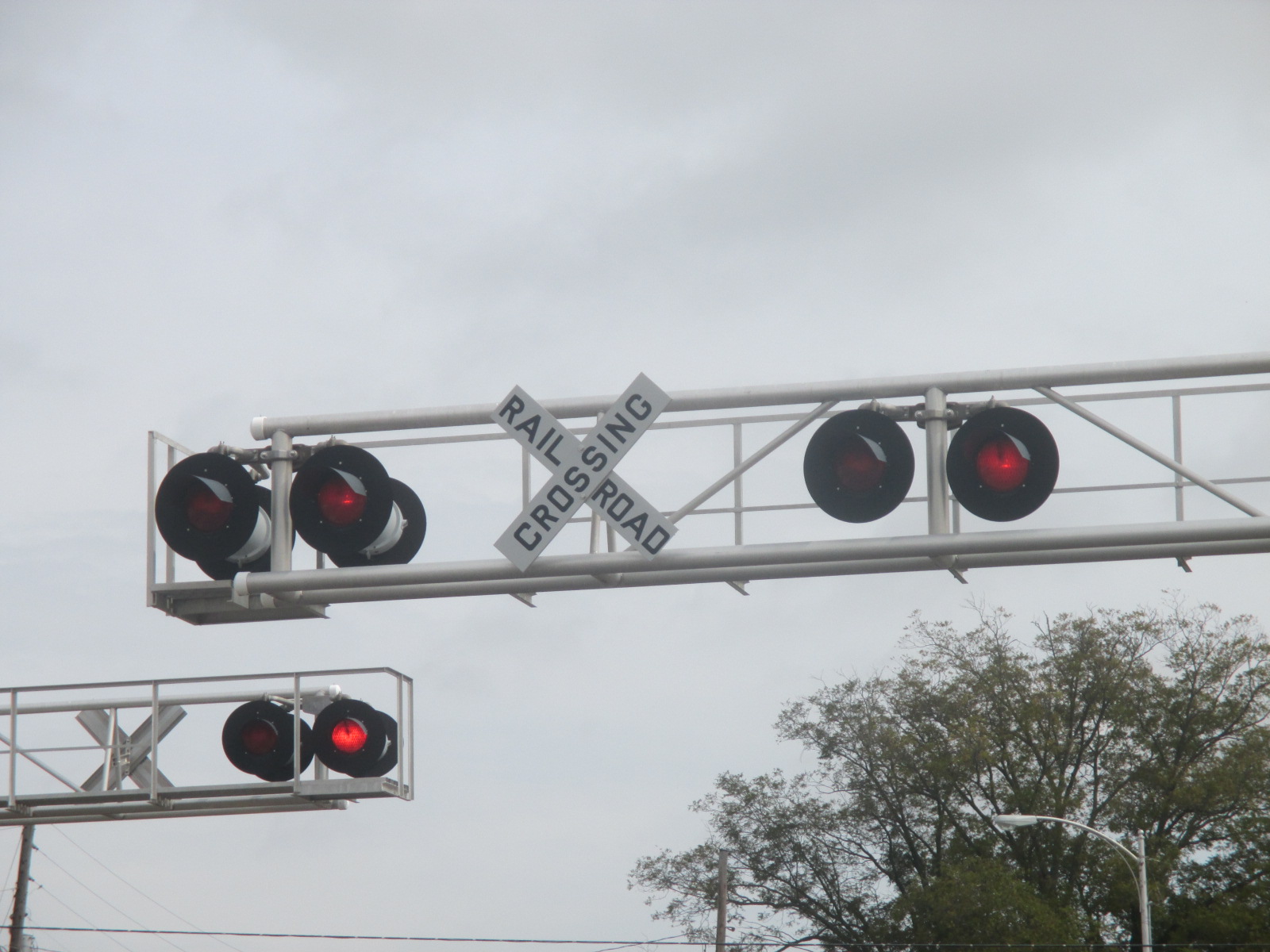

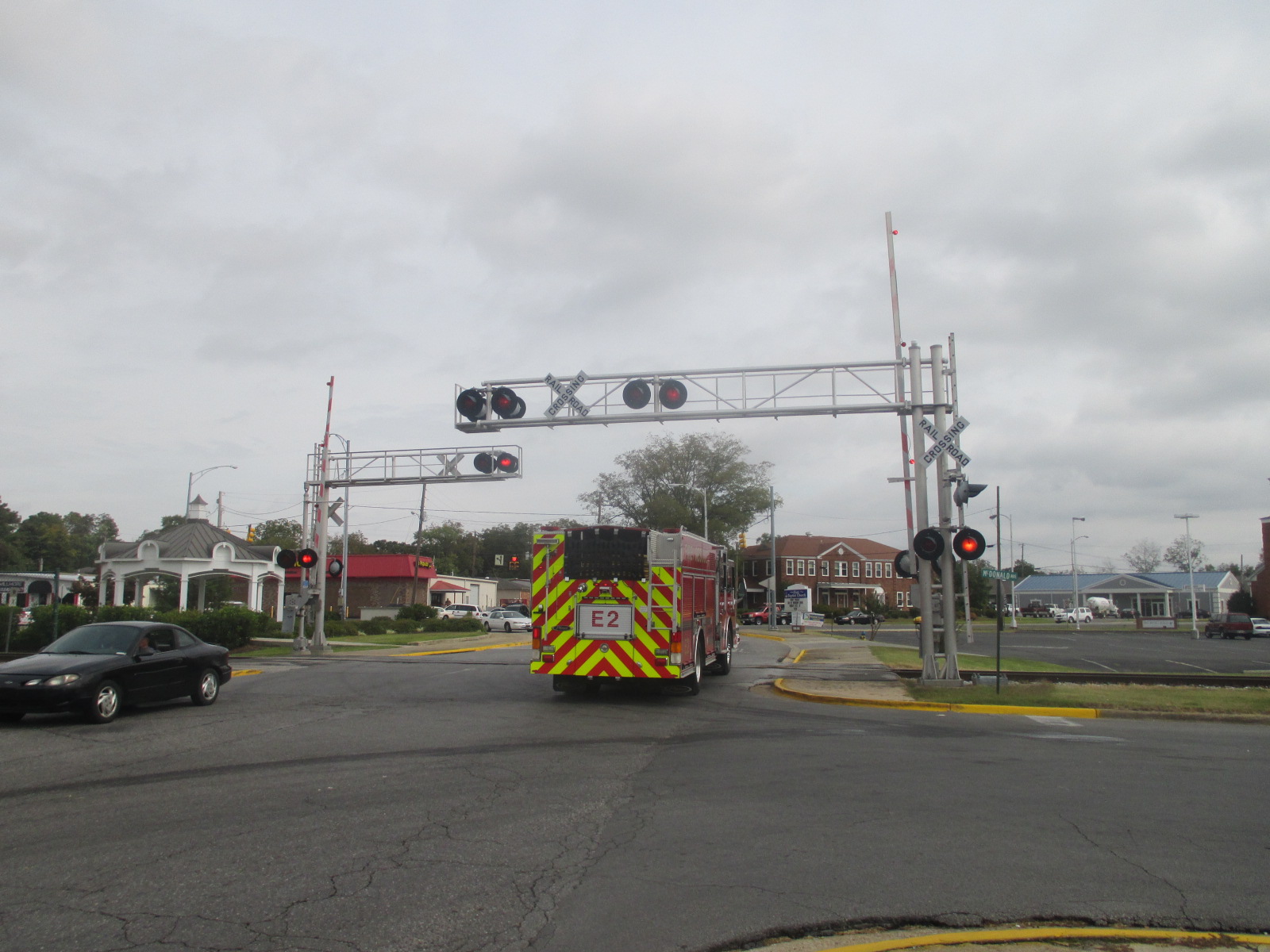

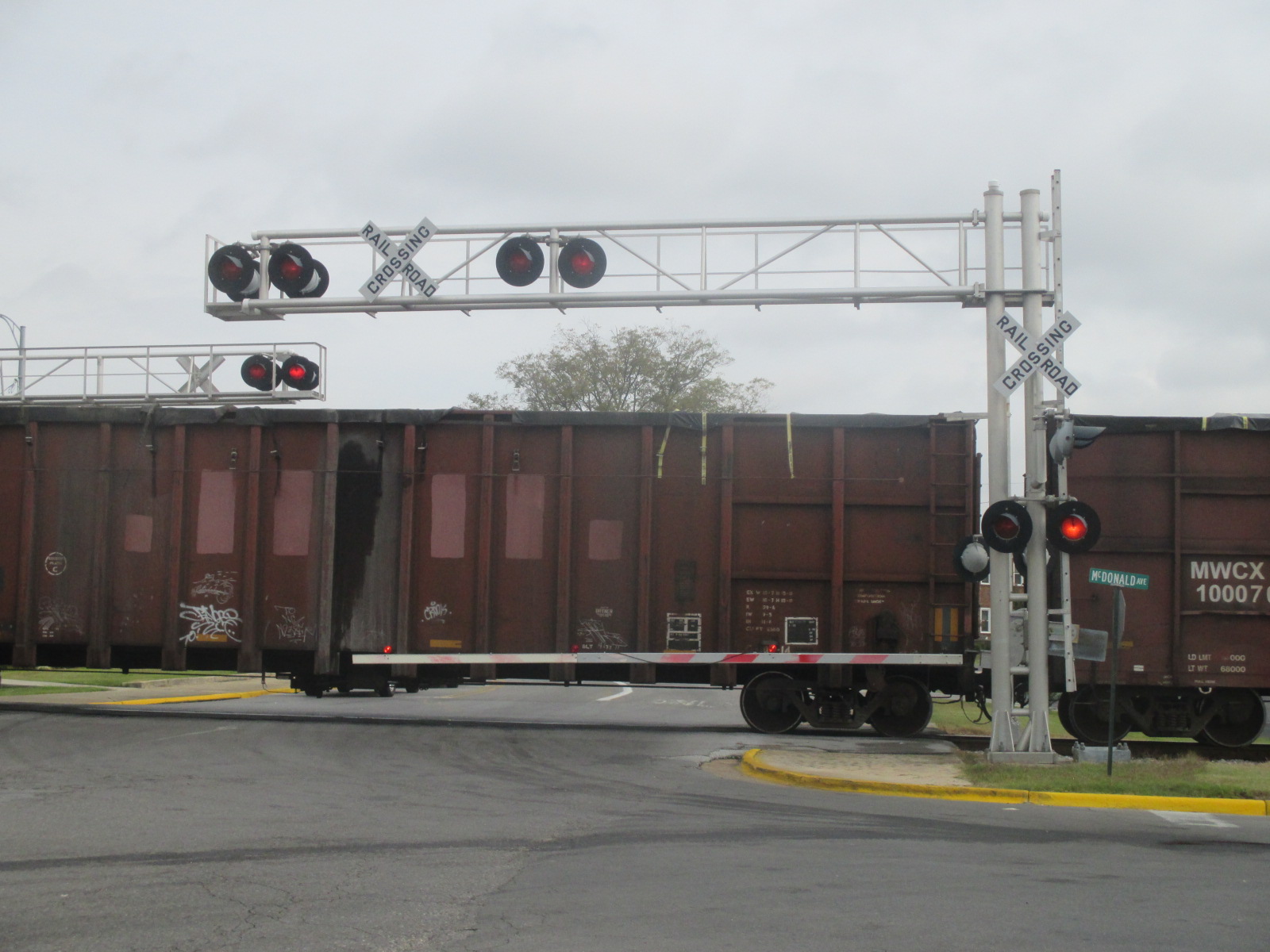

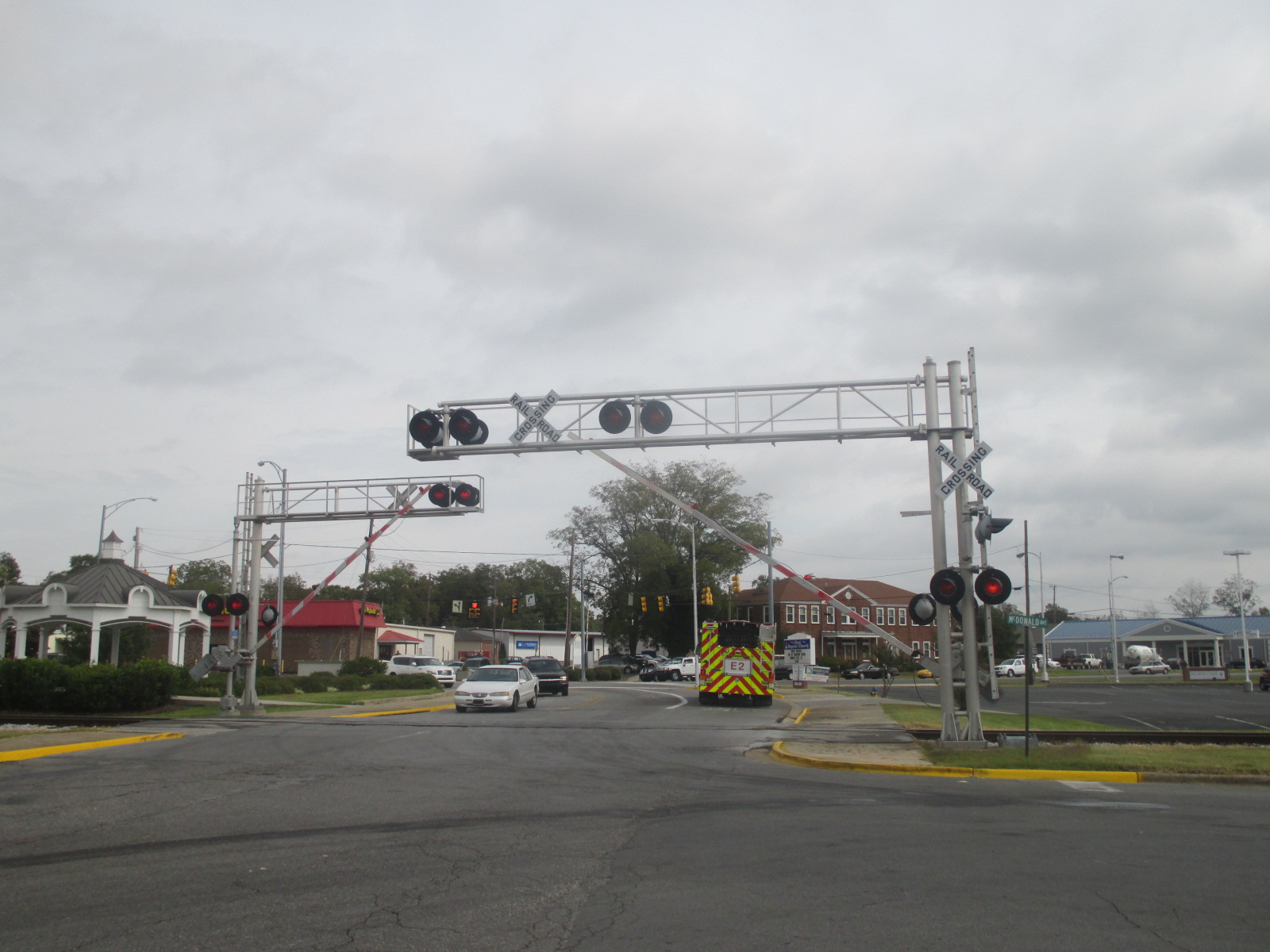

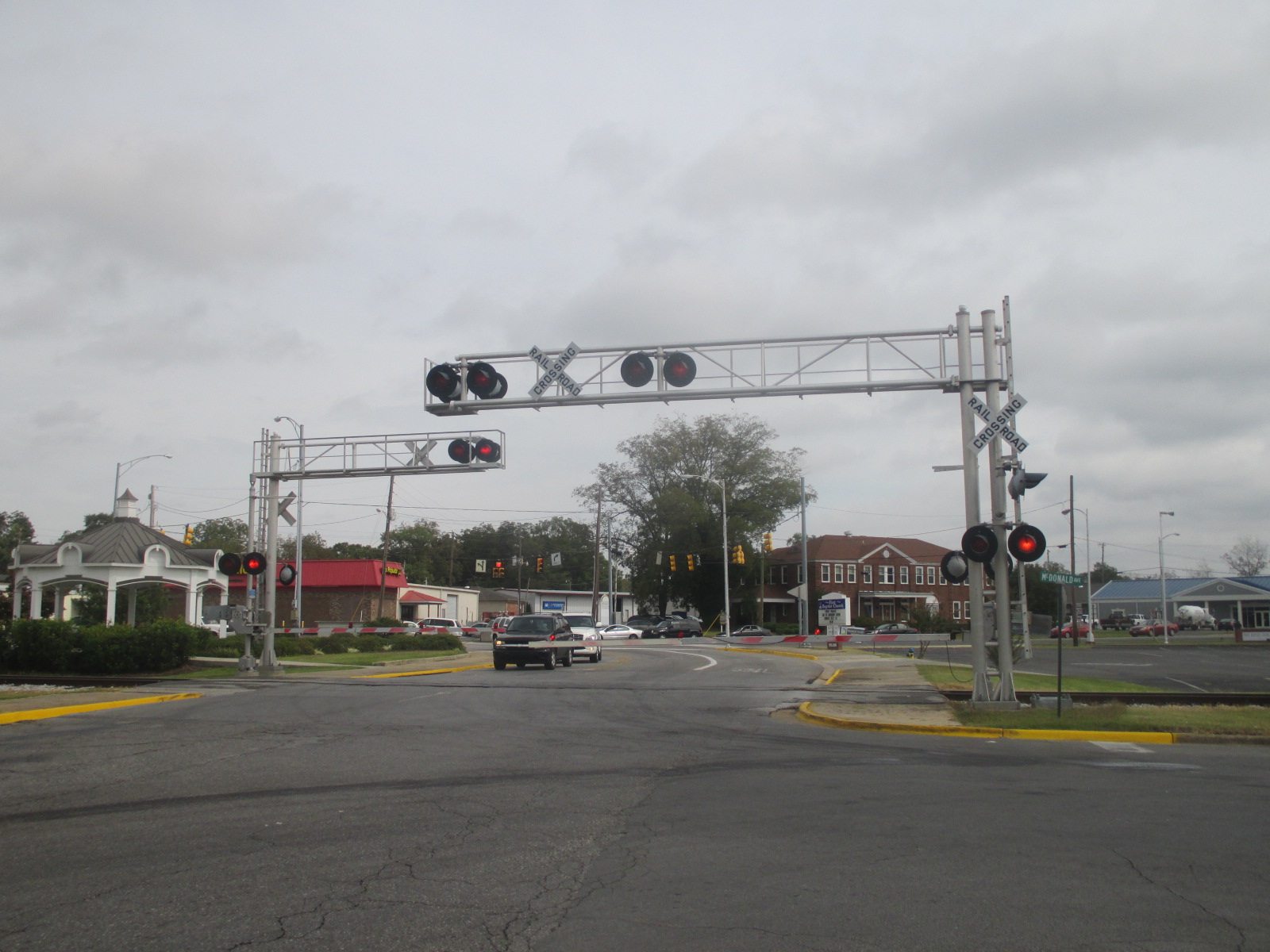

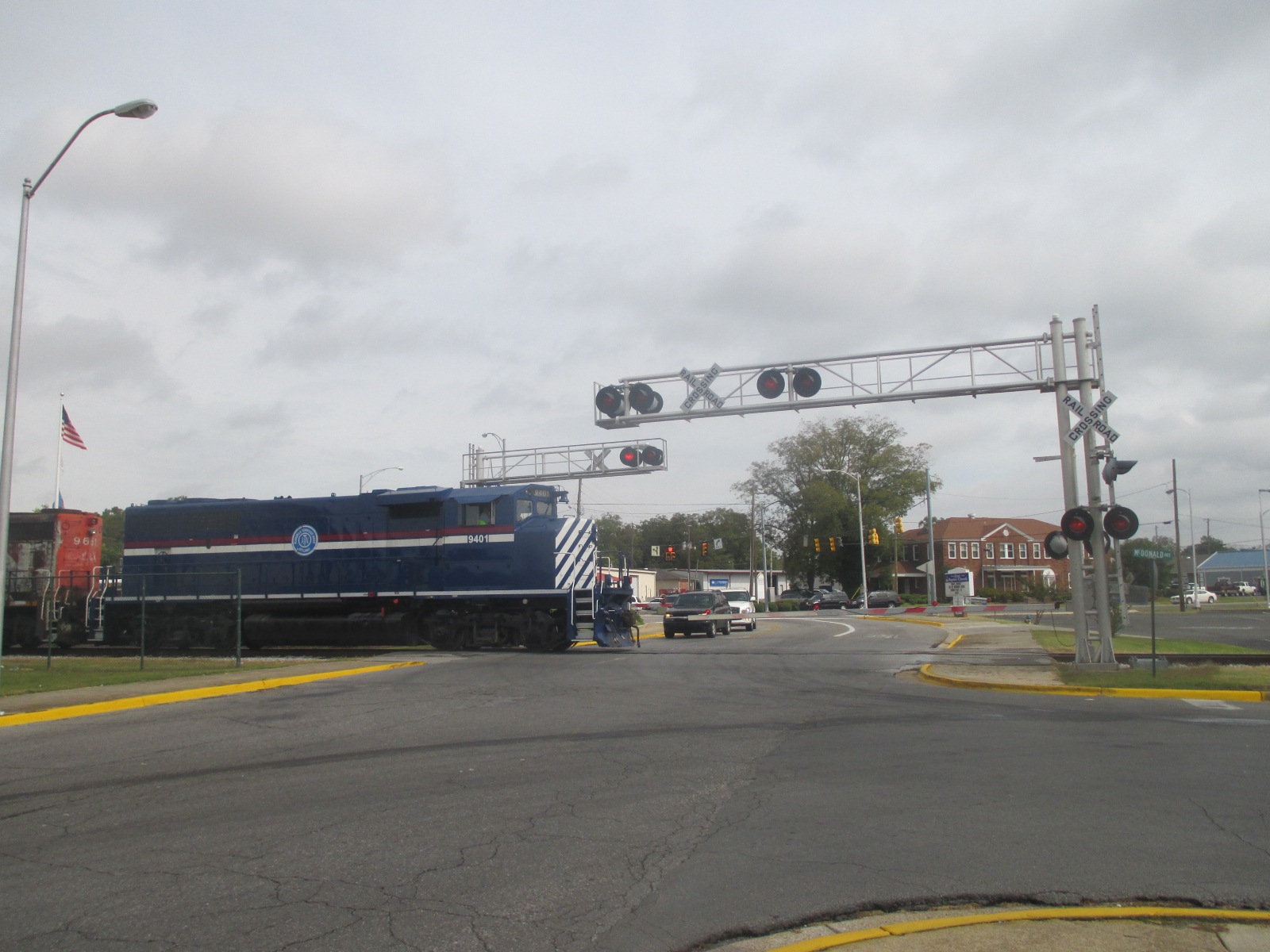

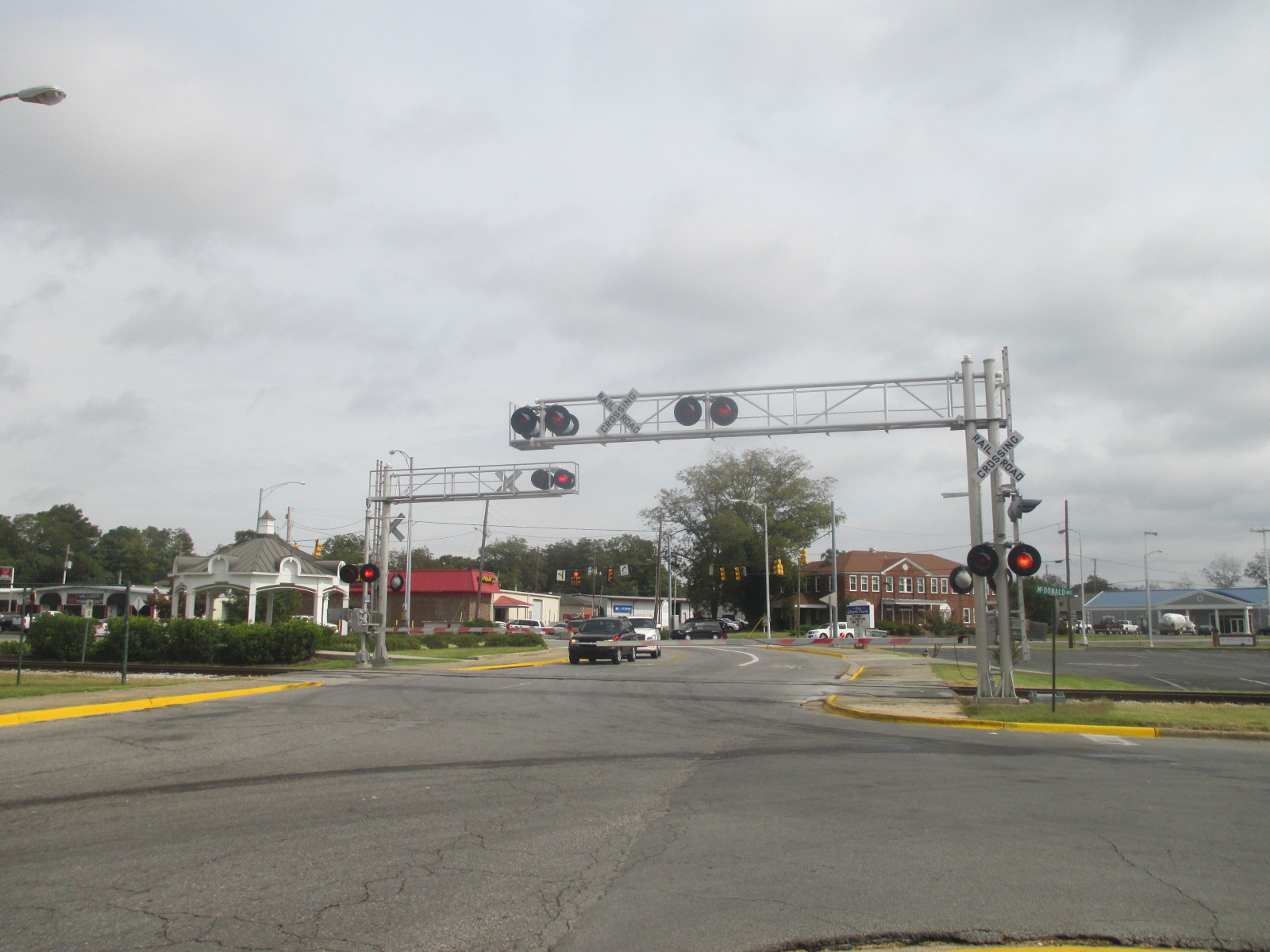

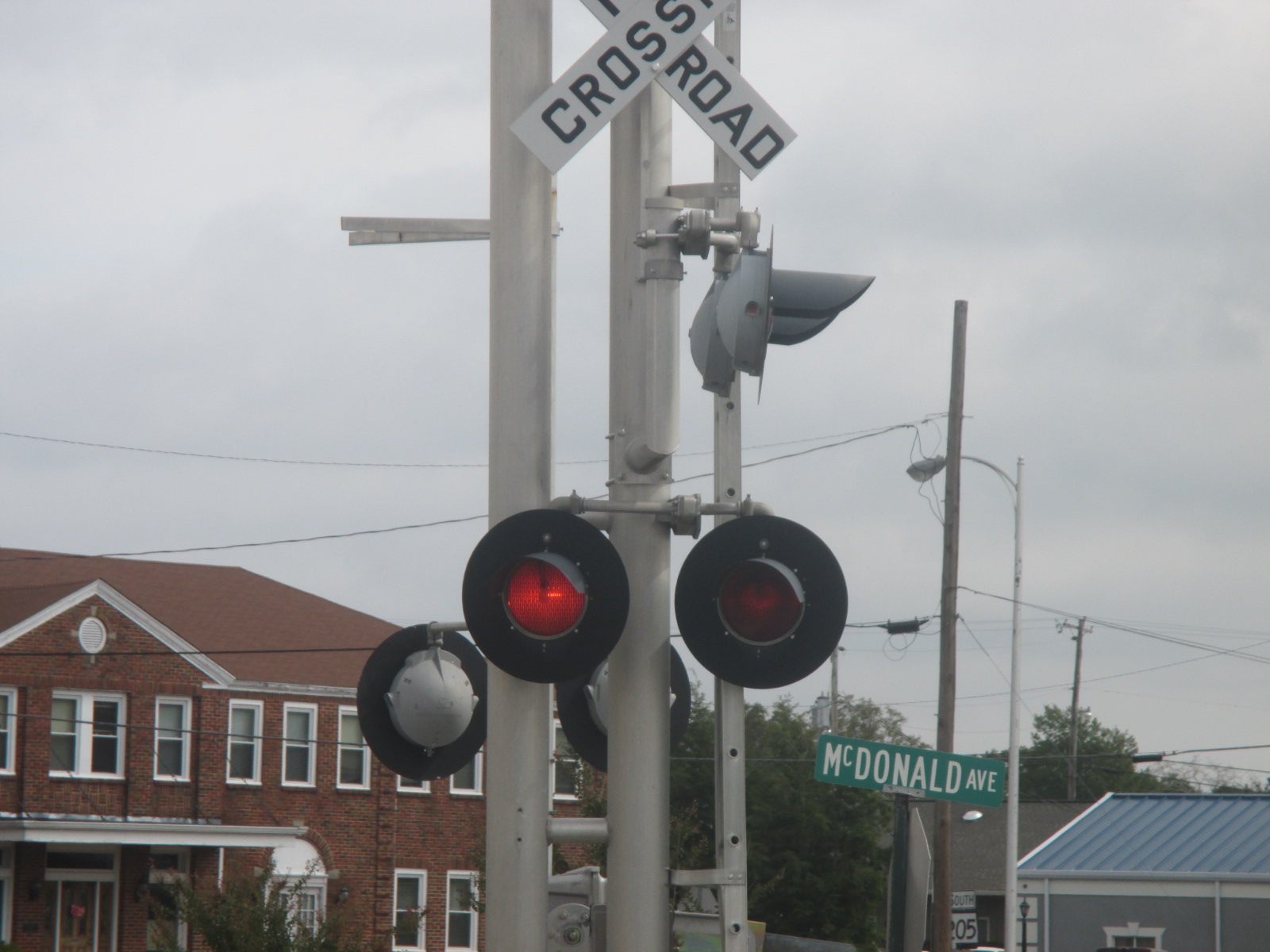

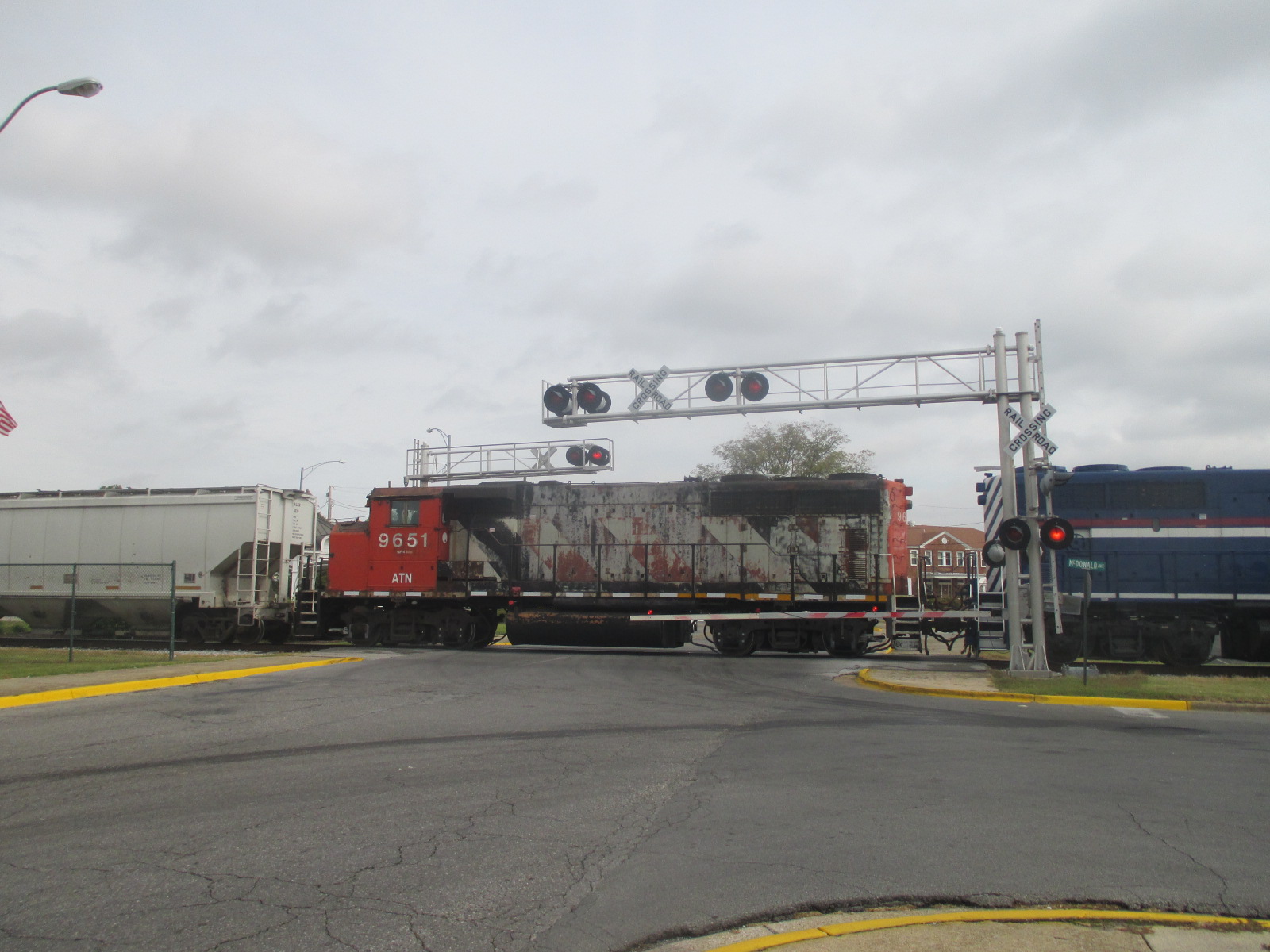

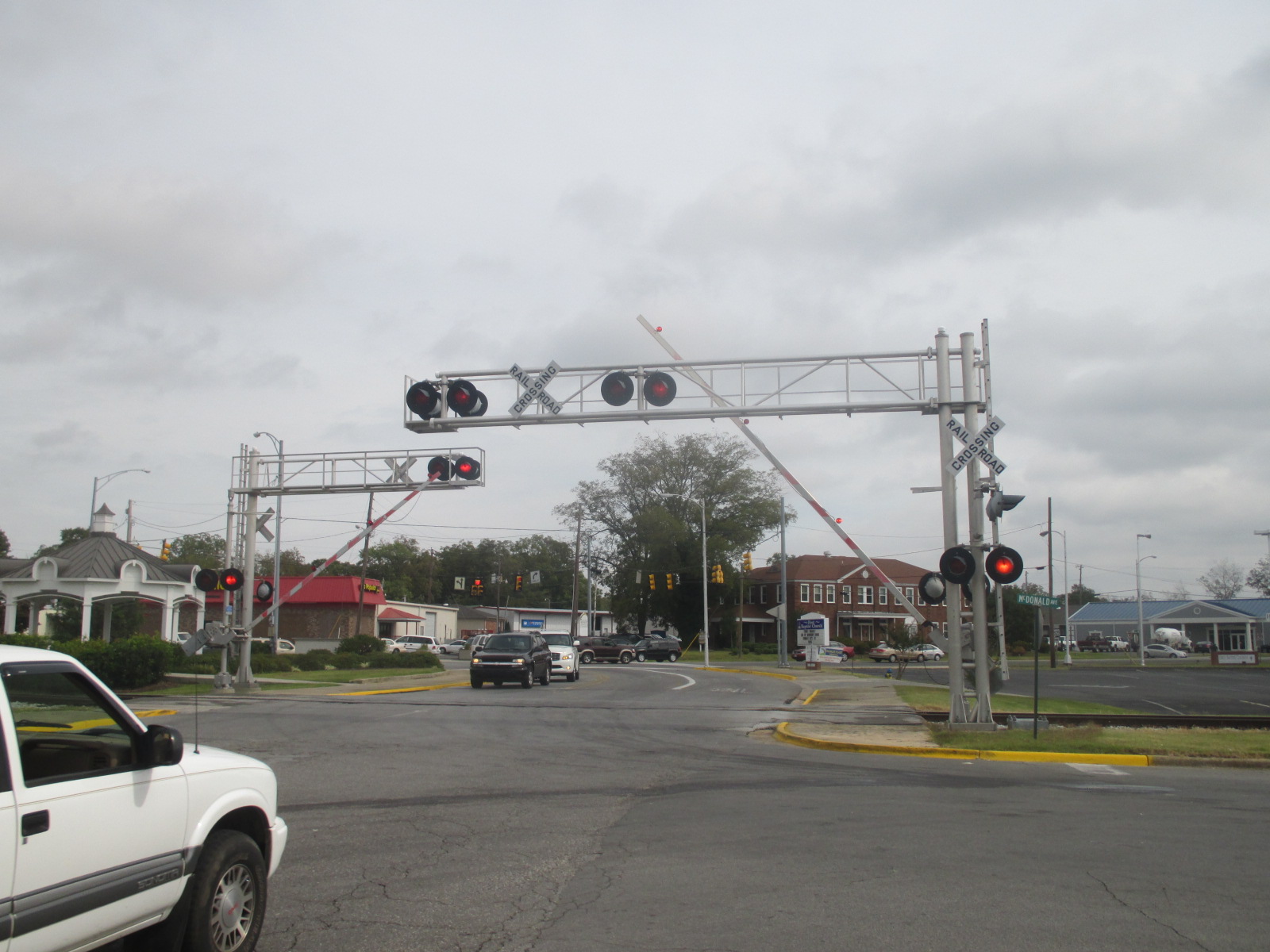

Action shots.

33

34

35

36

37

38

39

40

41

42

43

44

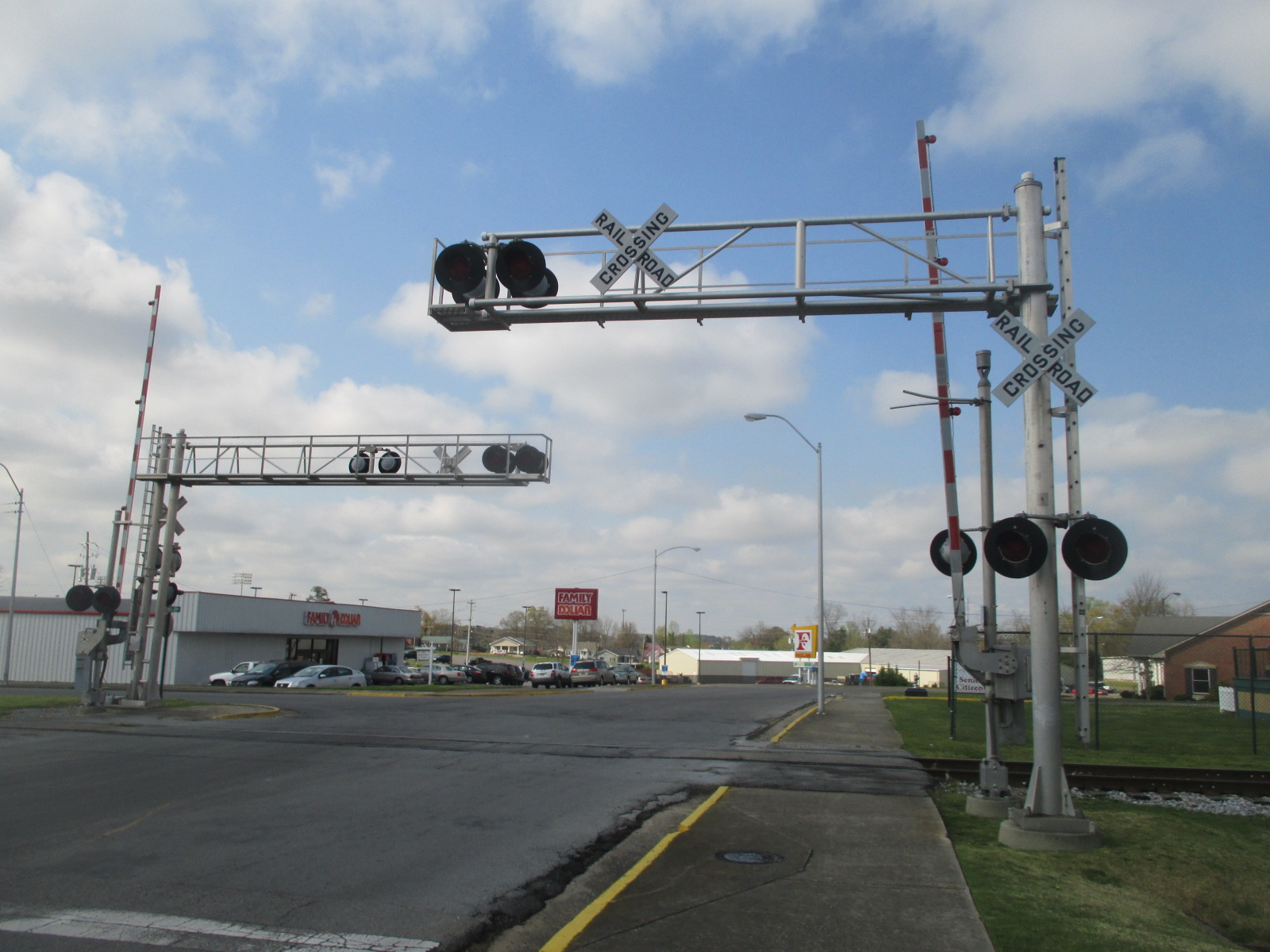

Apparently I had forgotten the track views and a relay case shot here back in 2014. To the north is Main Street, to the south is Jackson Street.



45

46

47

48

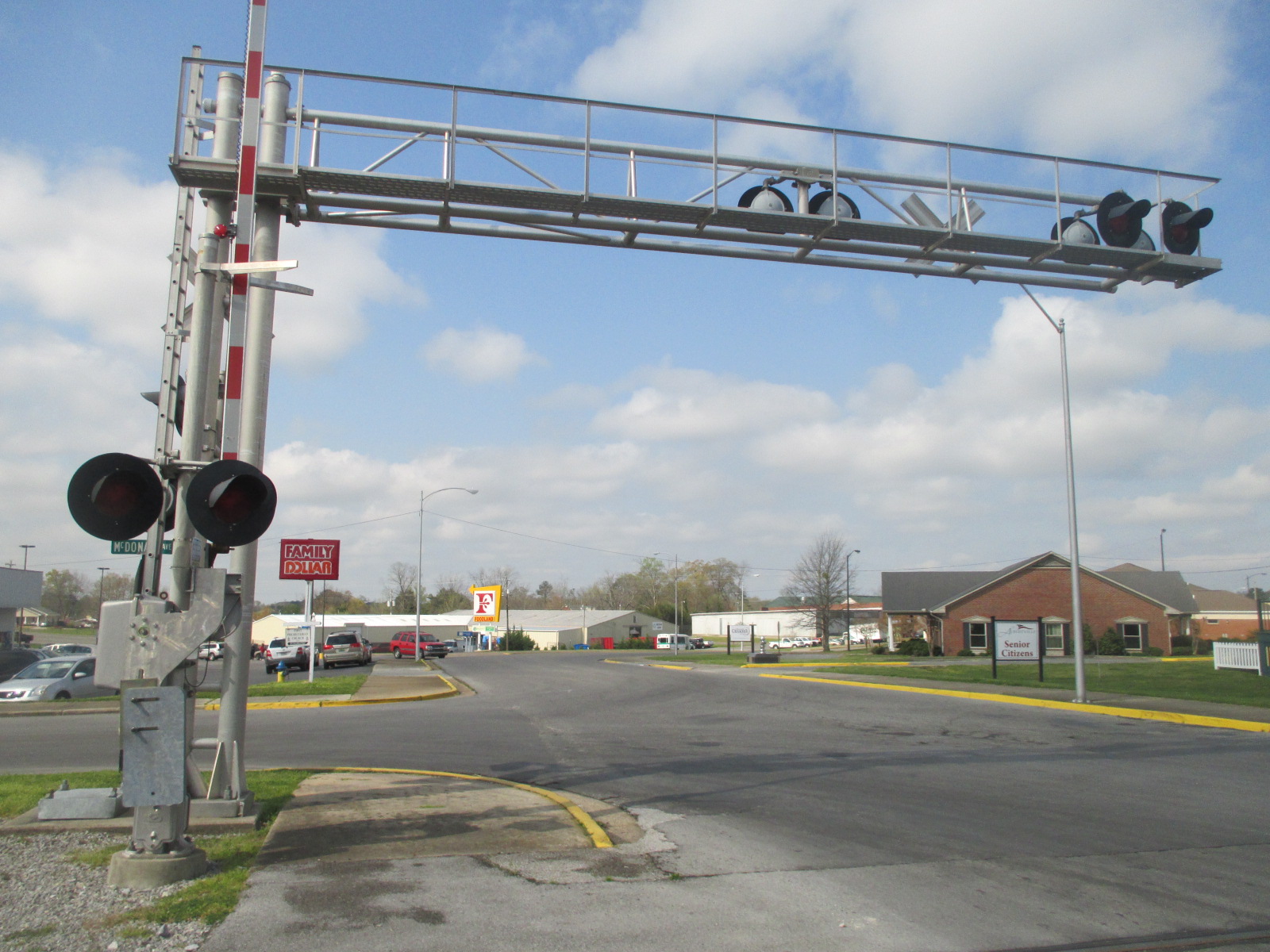

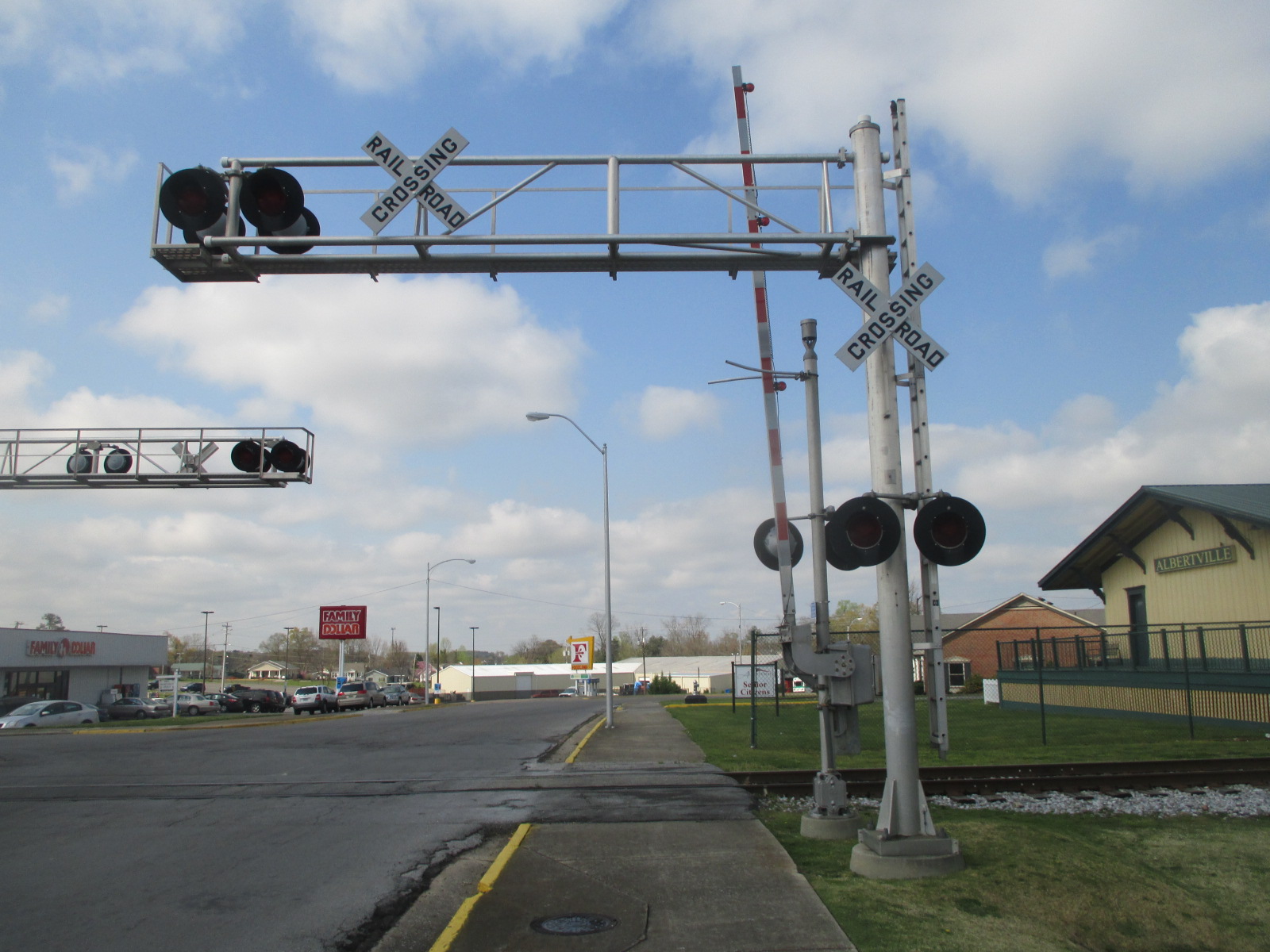

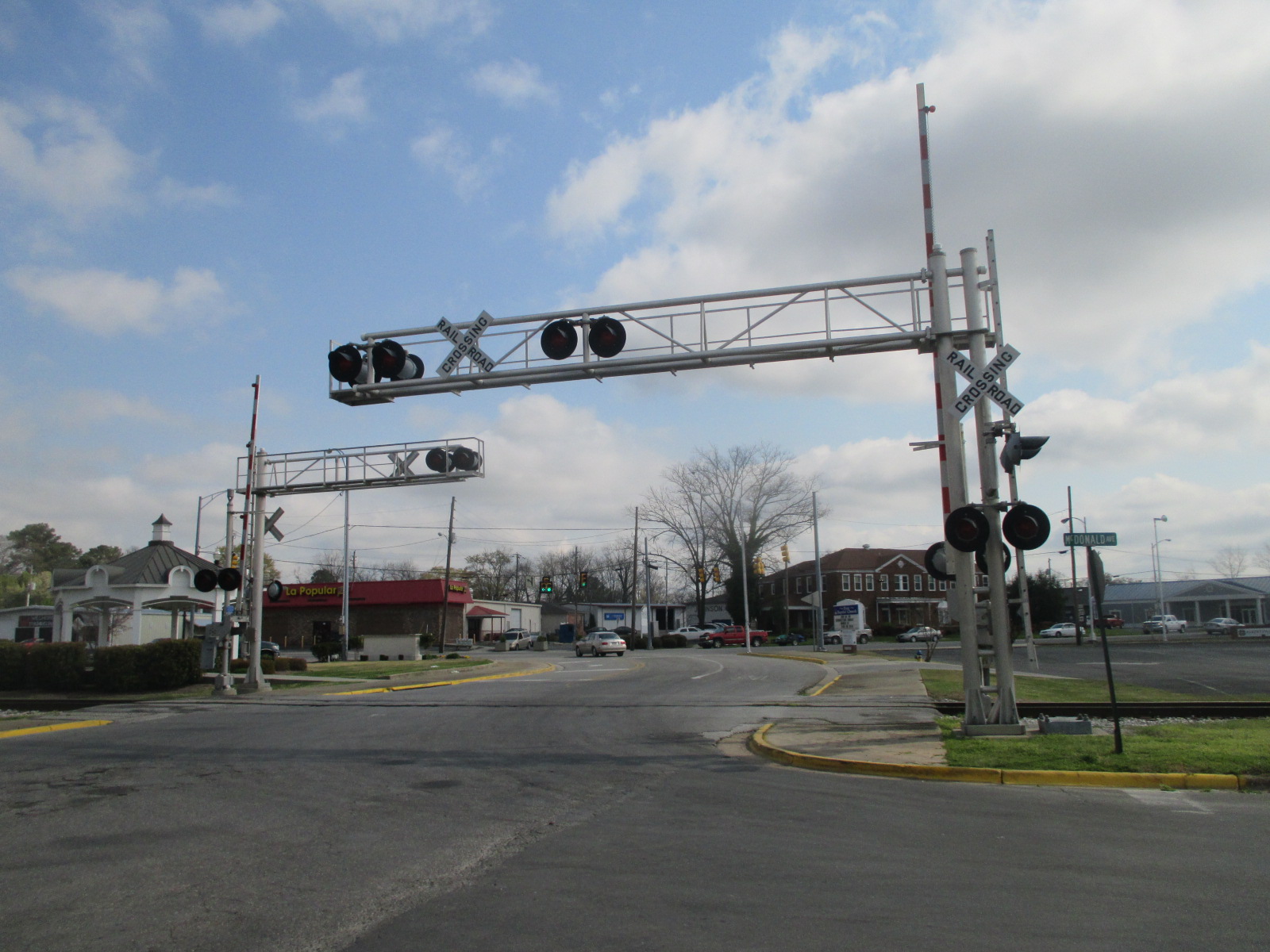

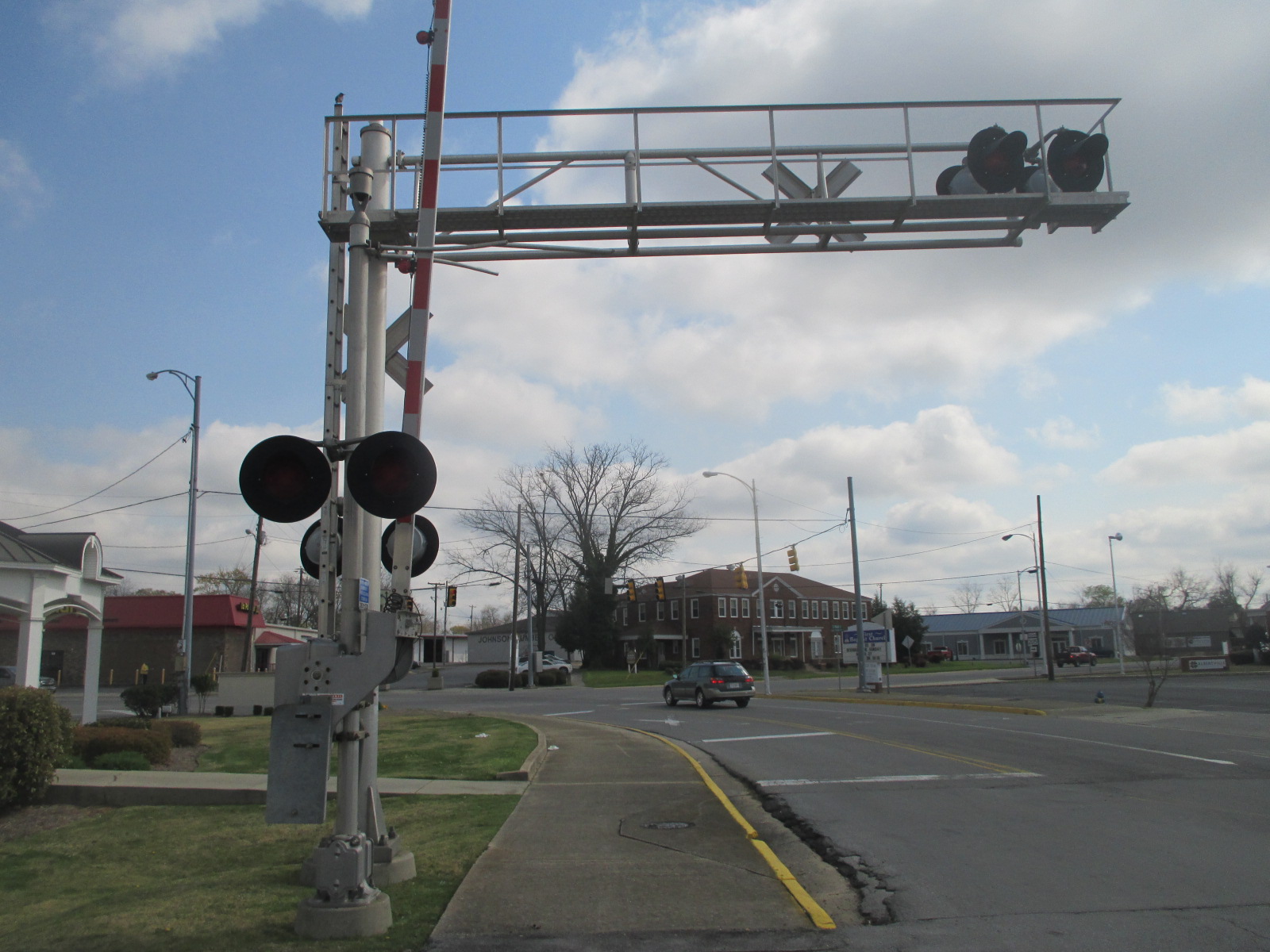

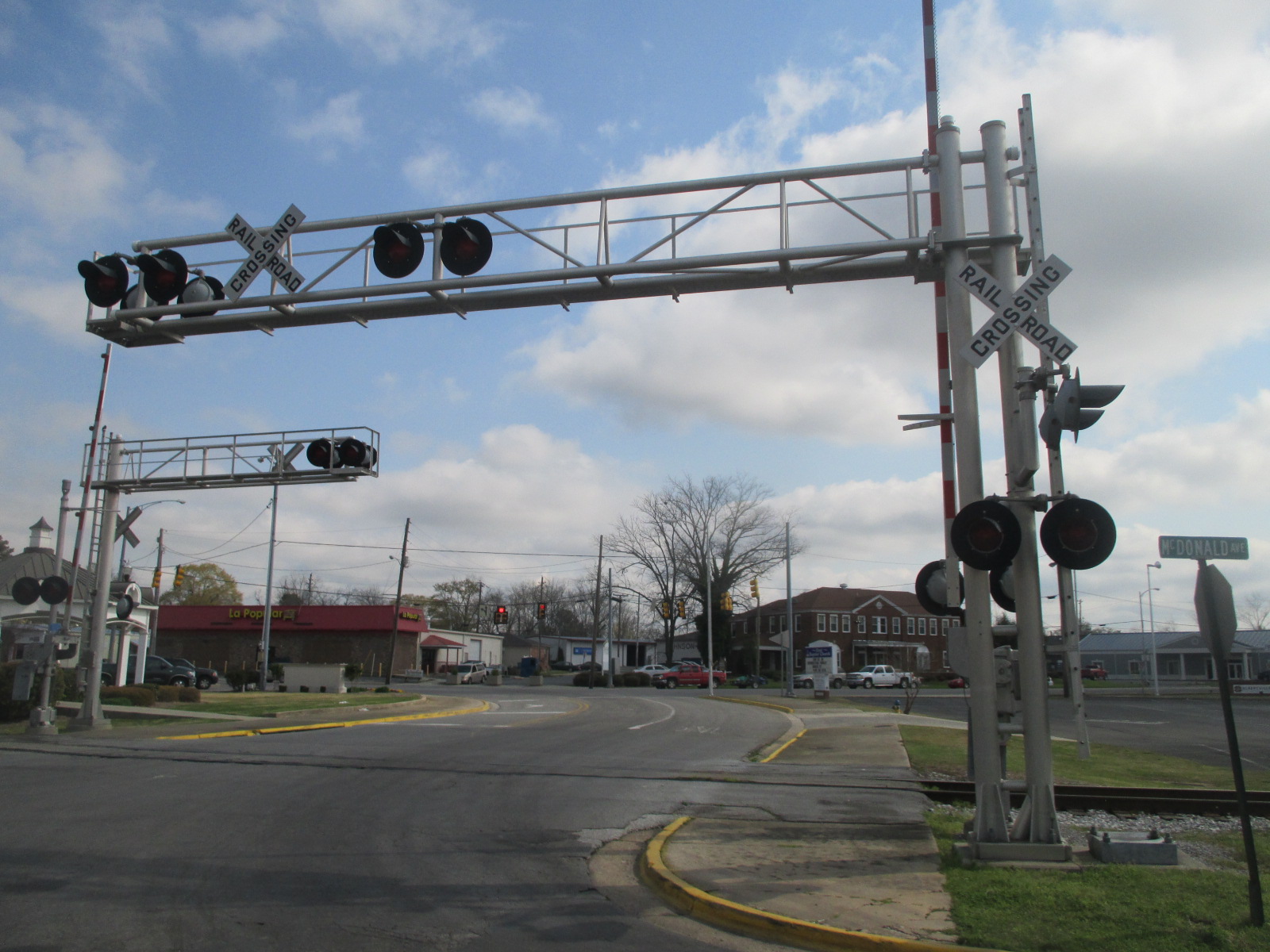

A return trip to the crossing on 3-25-16 shows some minor changes to the crossing.
The first signal got a new gate.

49

50

51

52

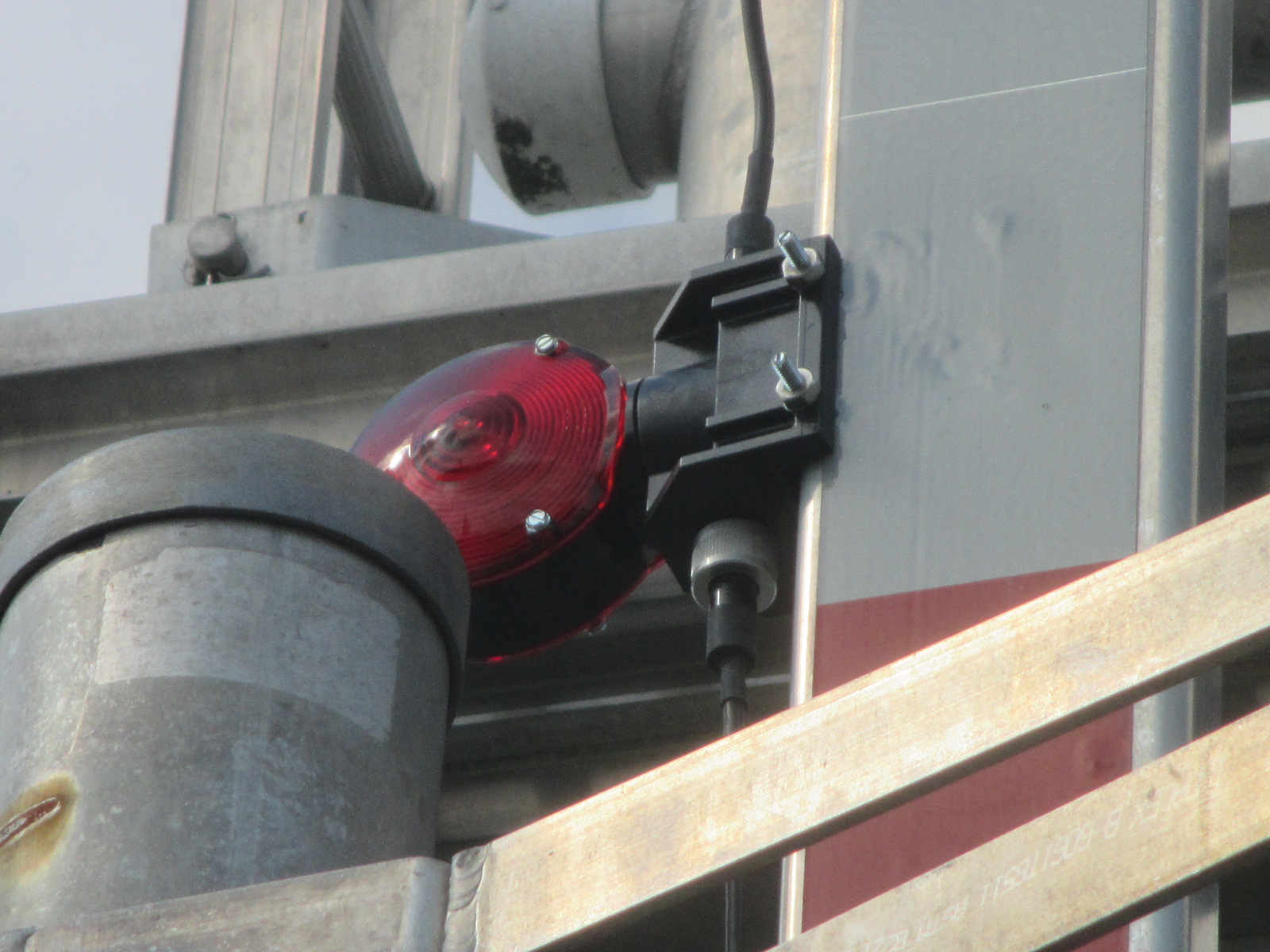

It now also has some NEG incandescent gate lights.
The second signal also got a new gate.

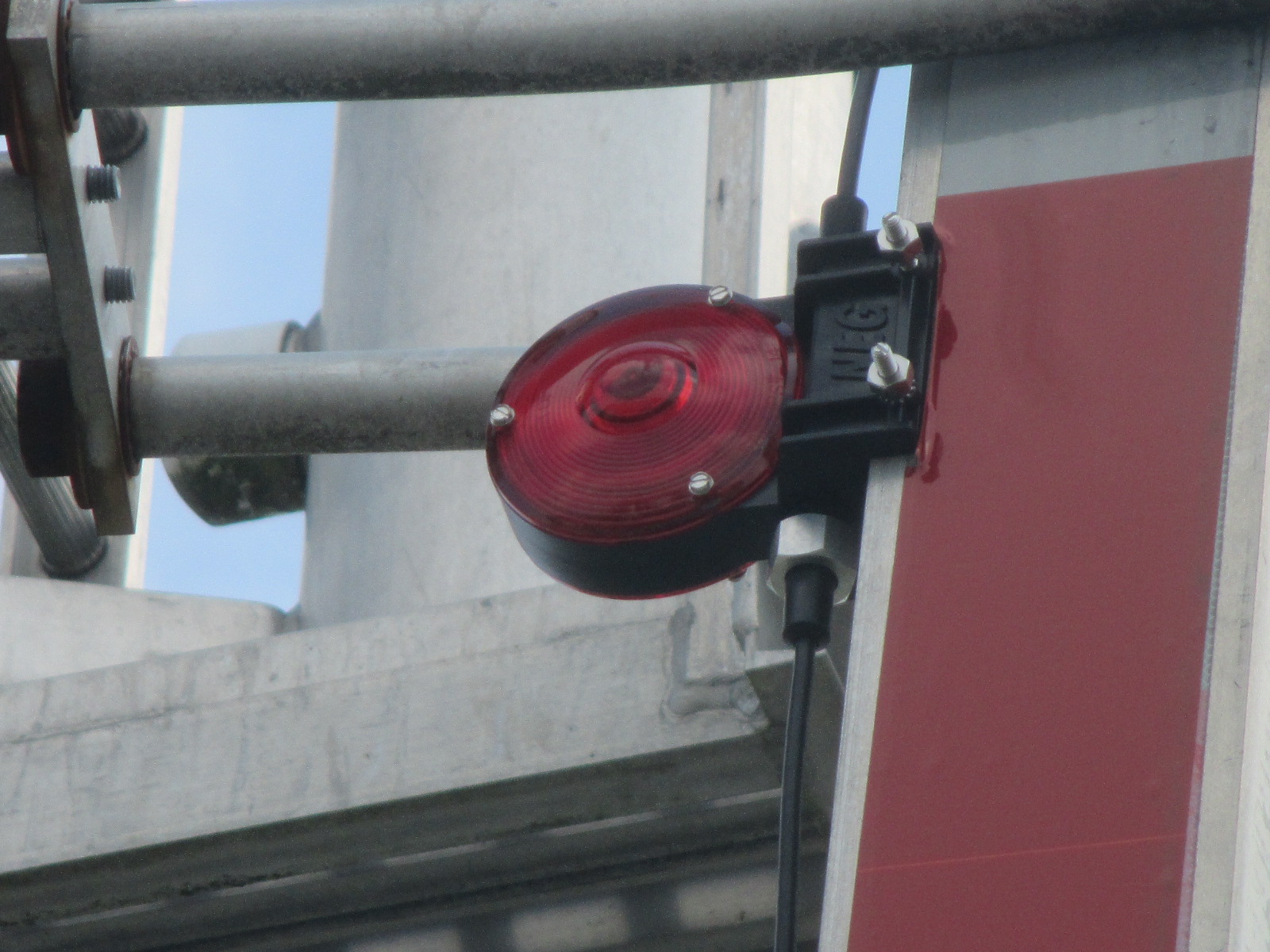

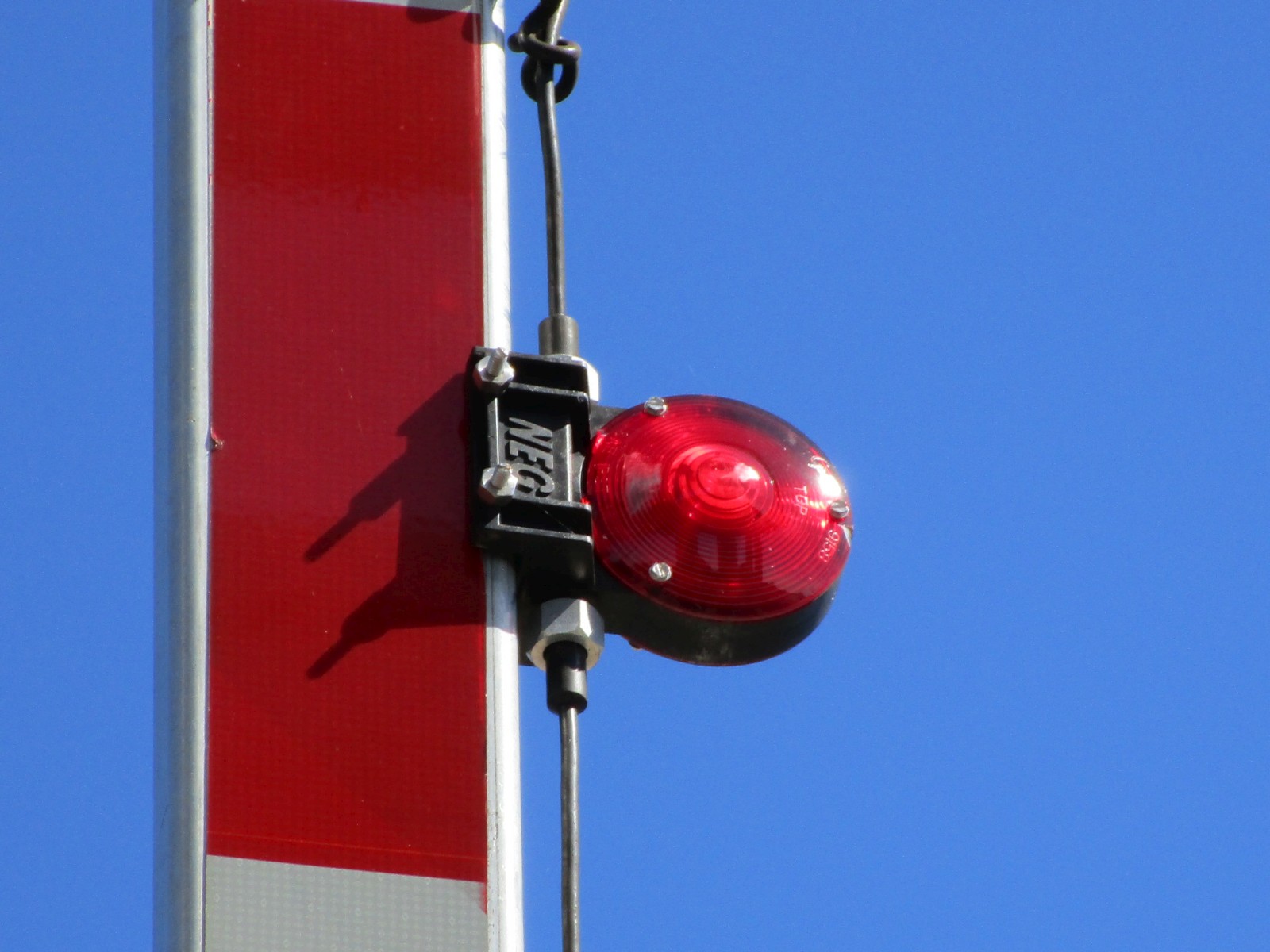

Its gate lights are now NEG LED gate lights.

53

54

55

56

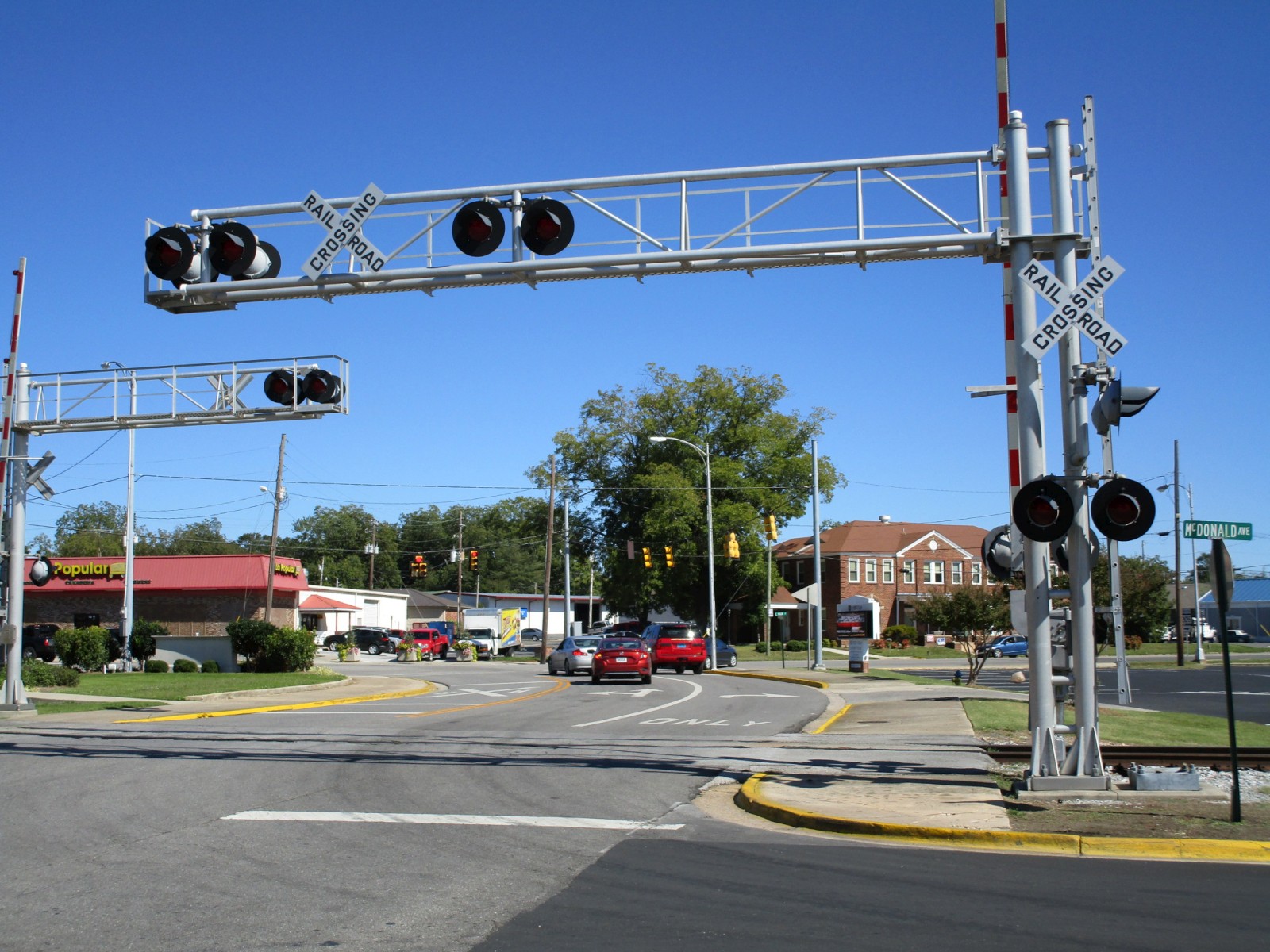

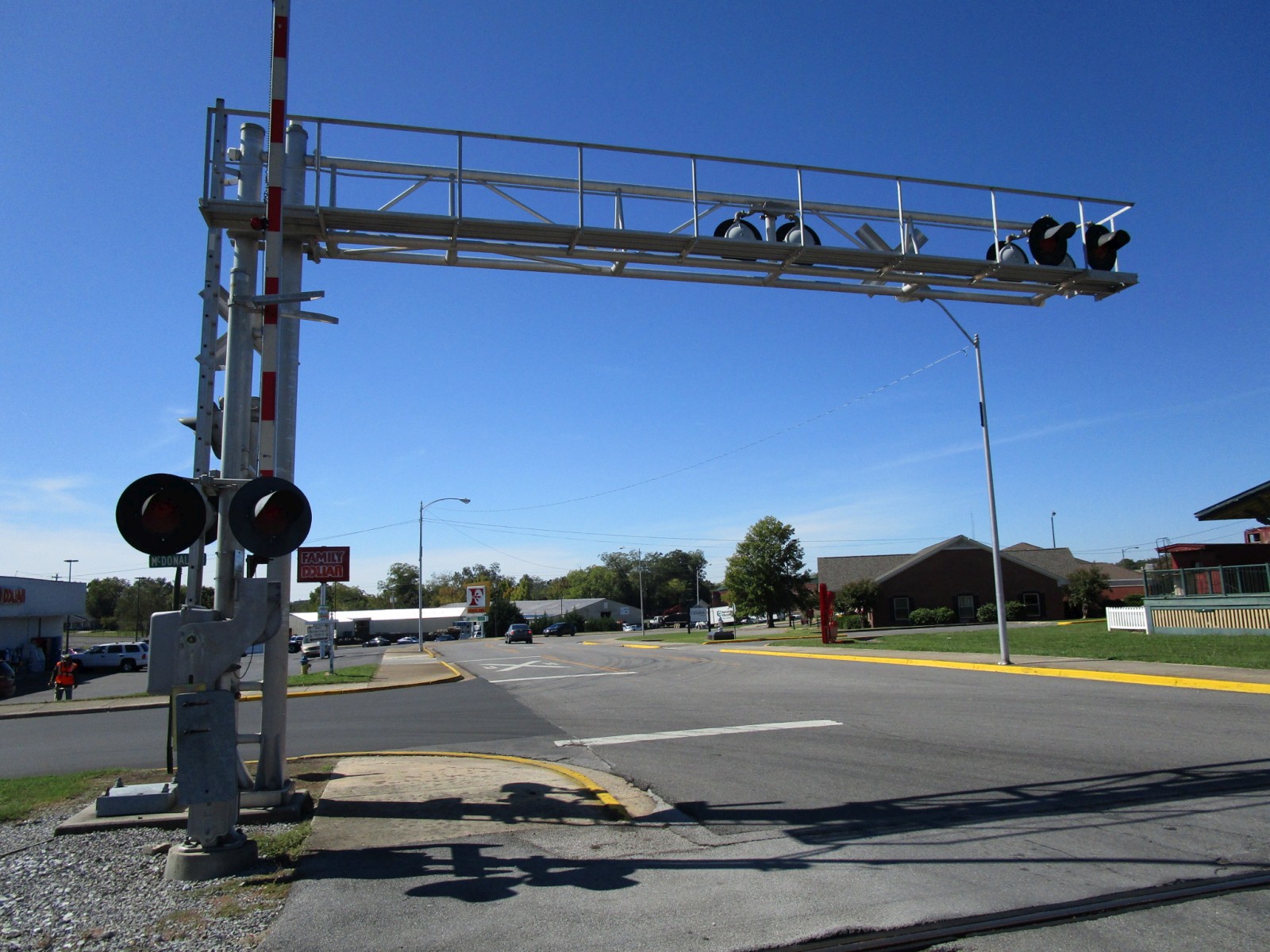

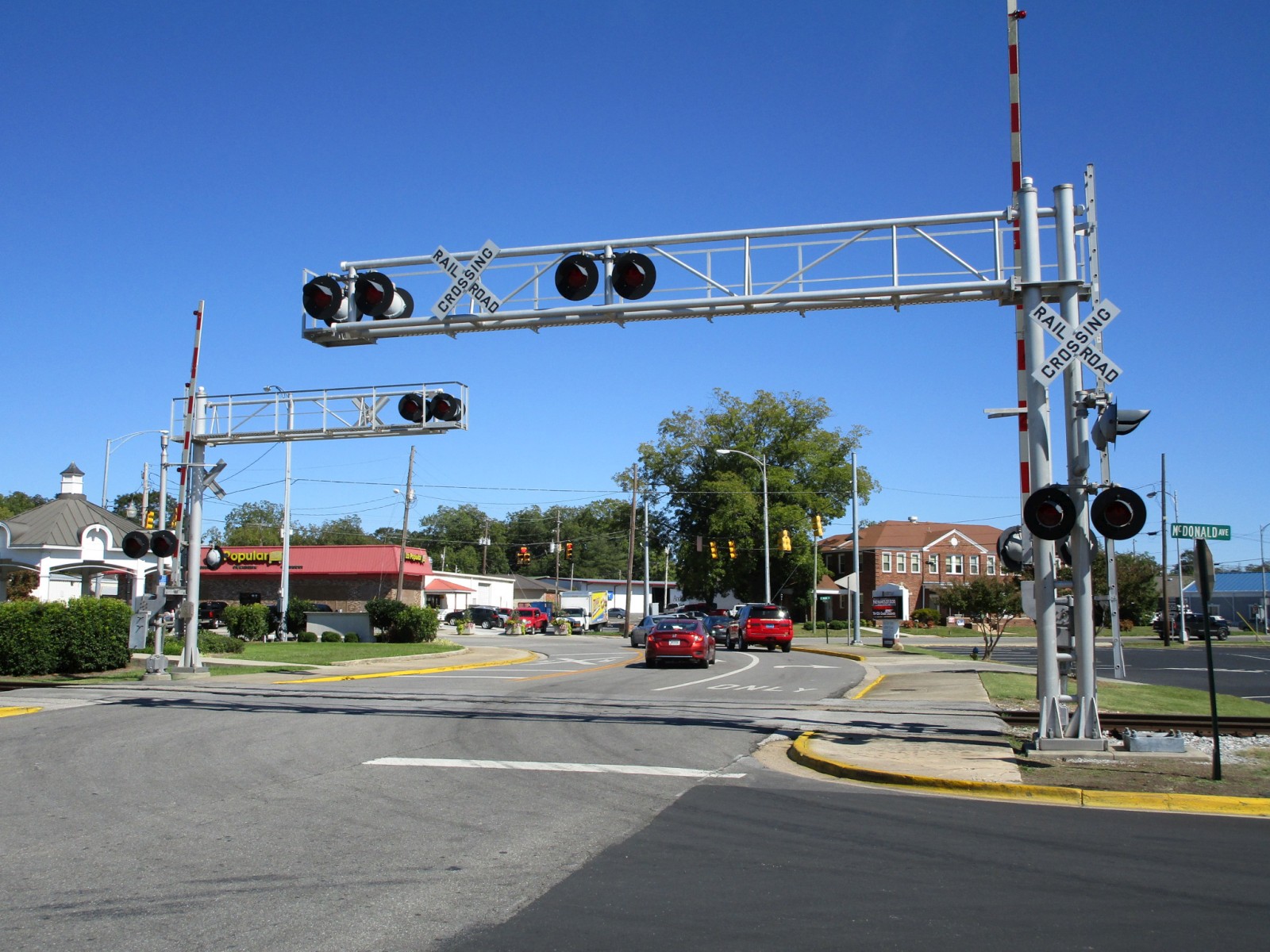

Another return trip on 10-12-19 shows that the bell-less signal has had its gate lights replaced with more NEG LED gate lights.

57

58

59

60

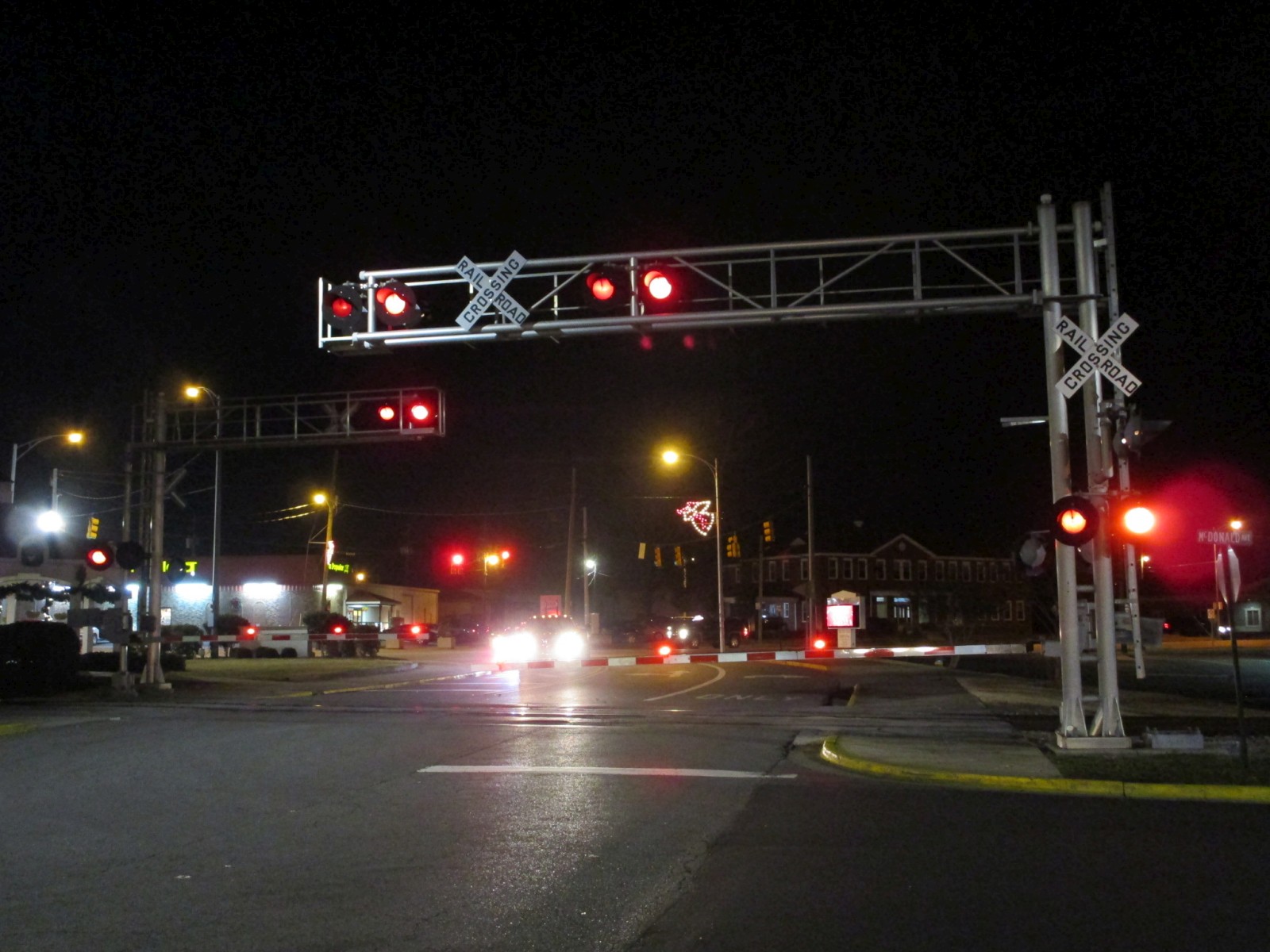

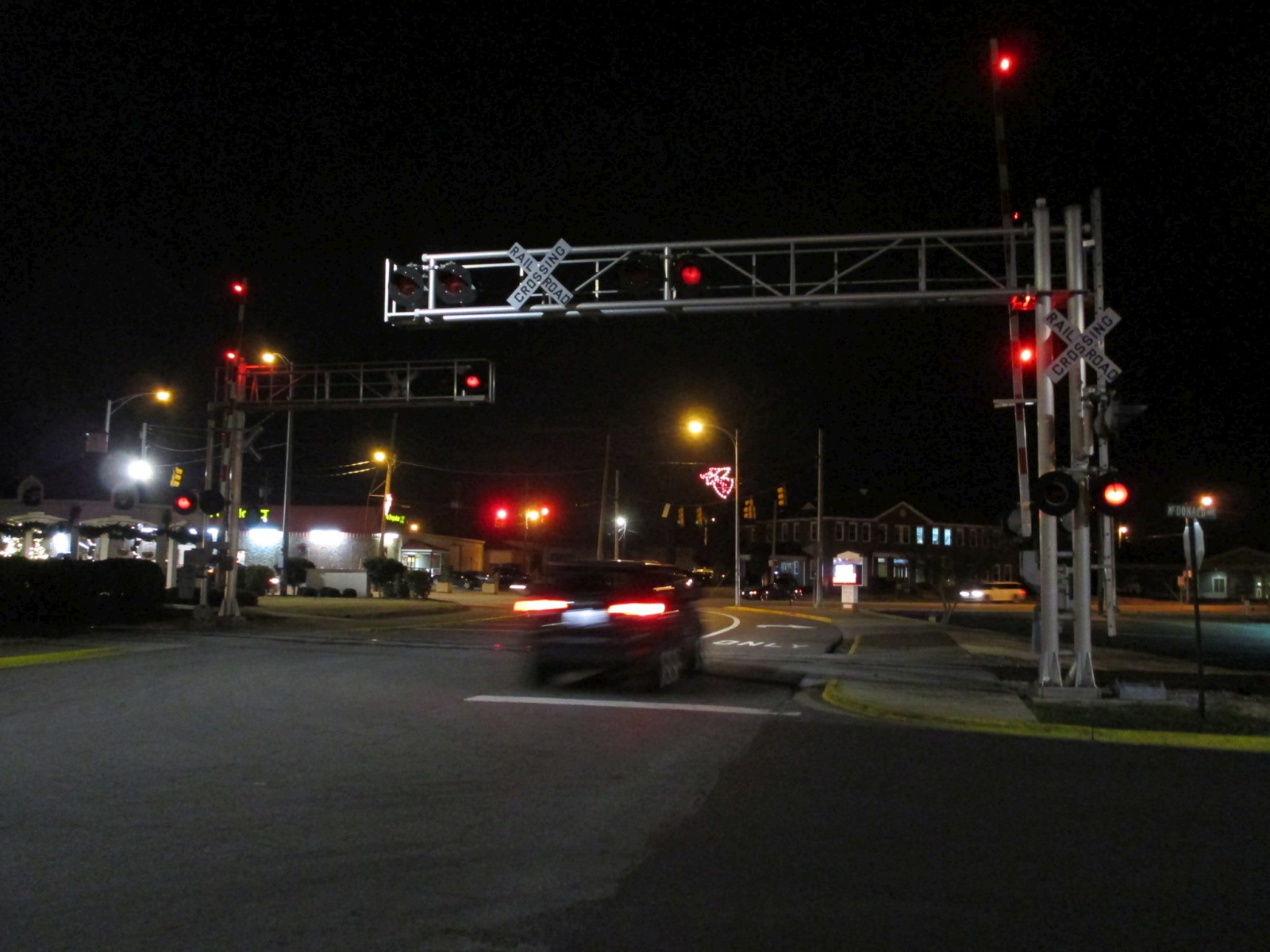

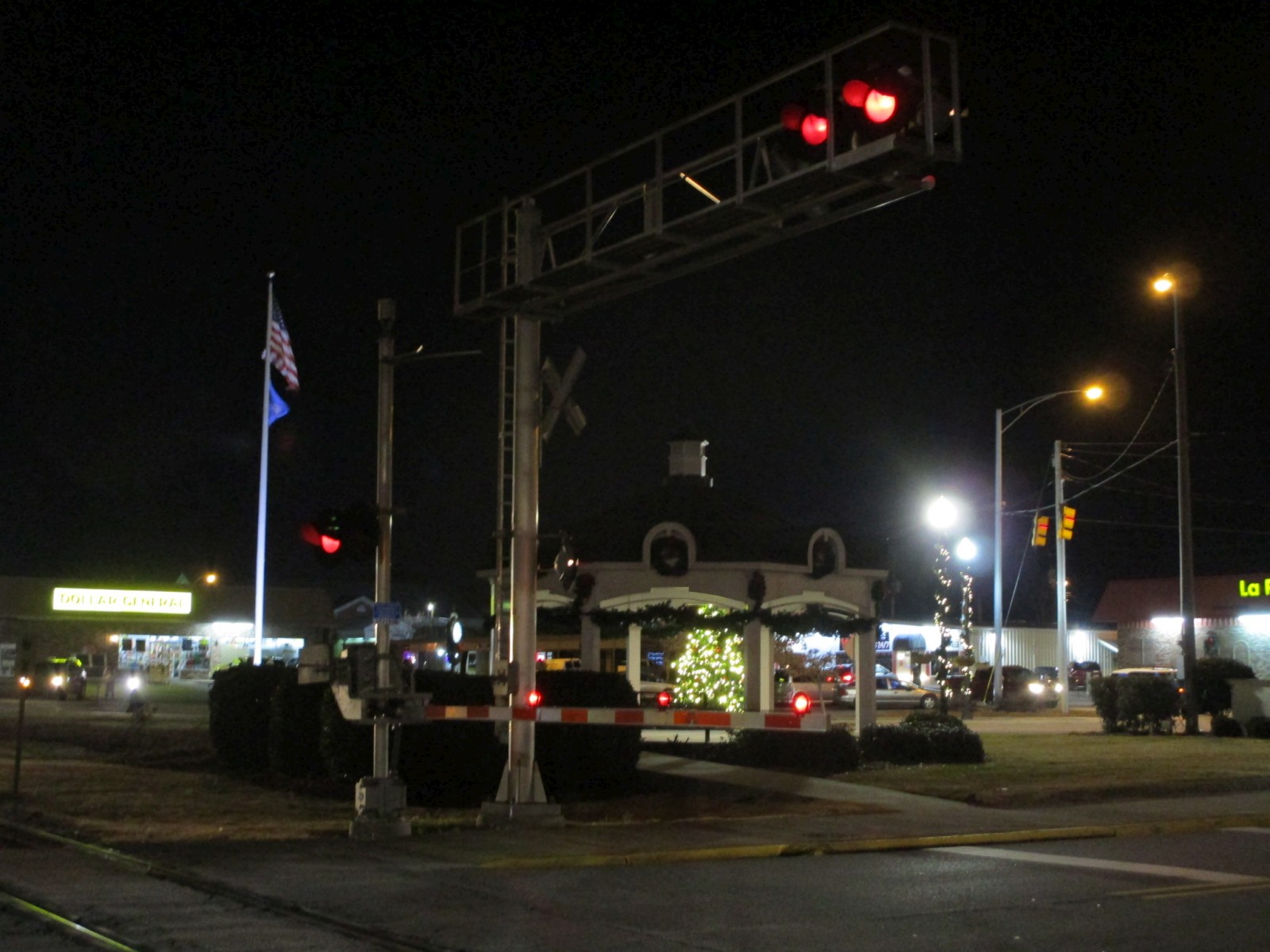

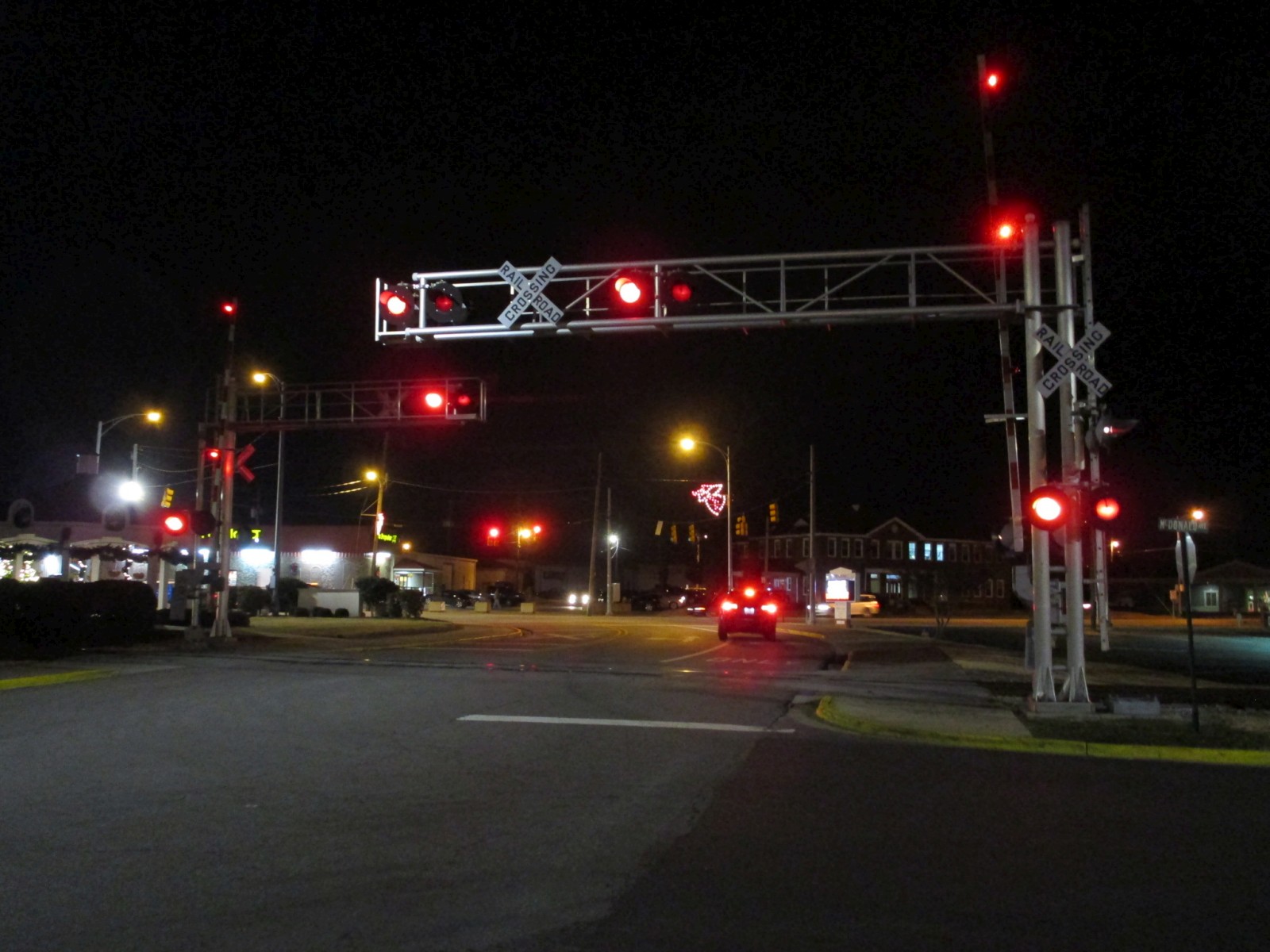

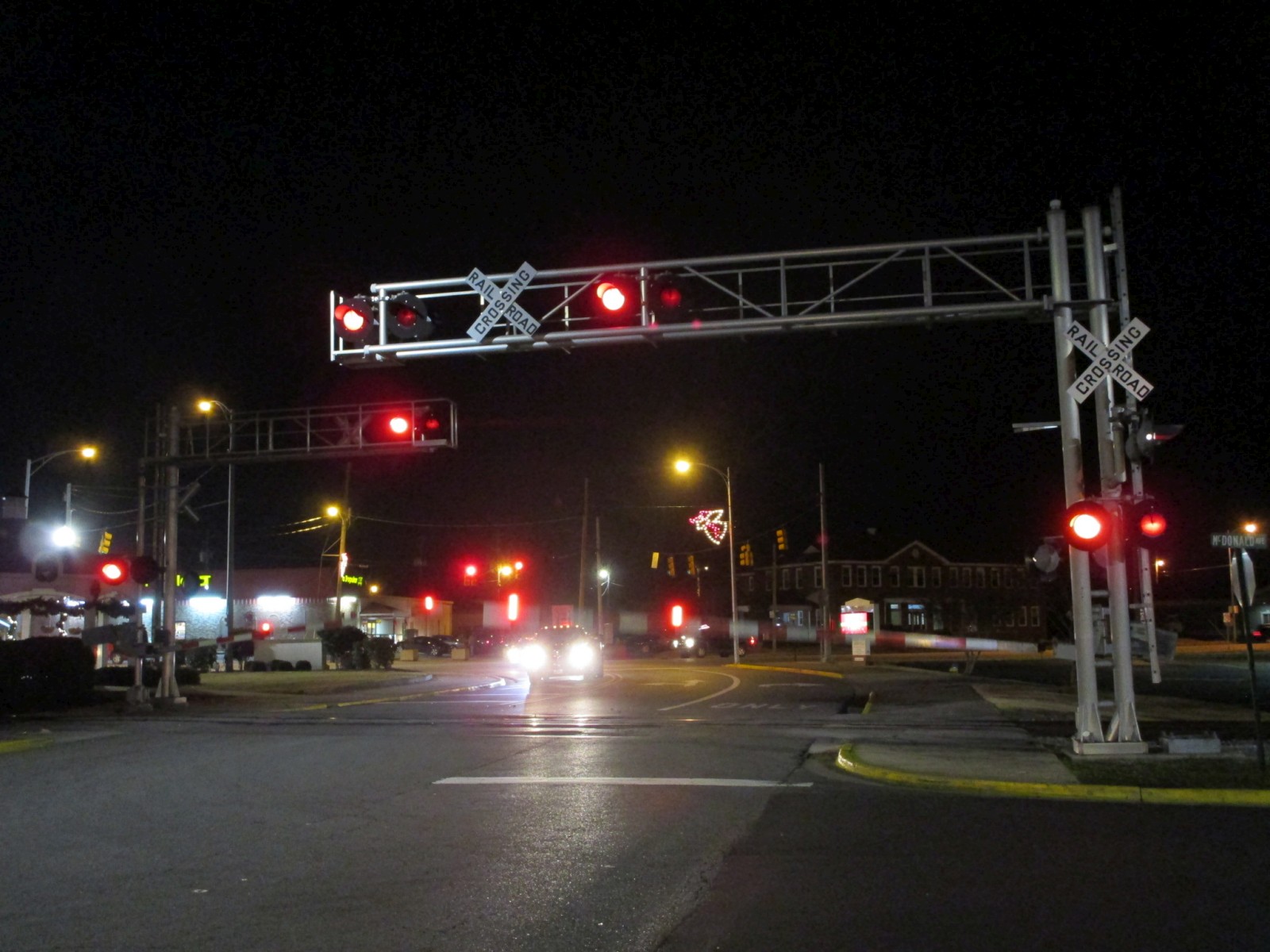

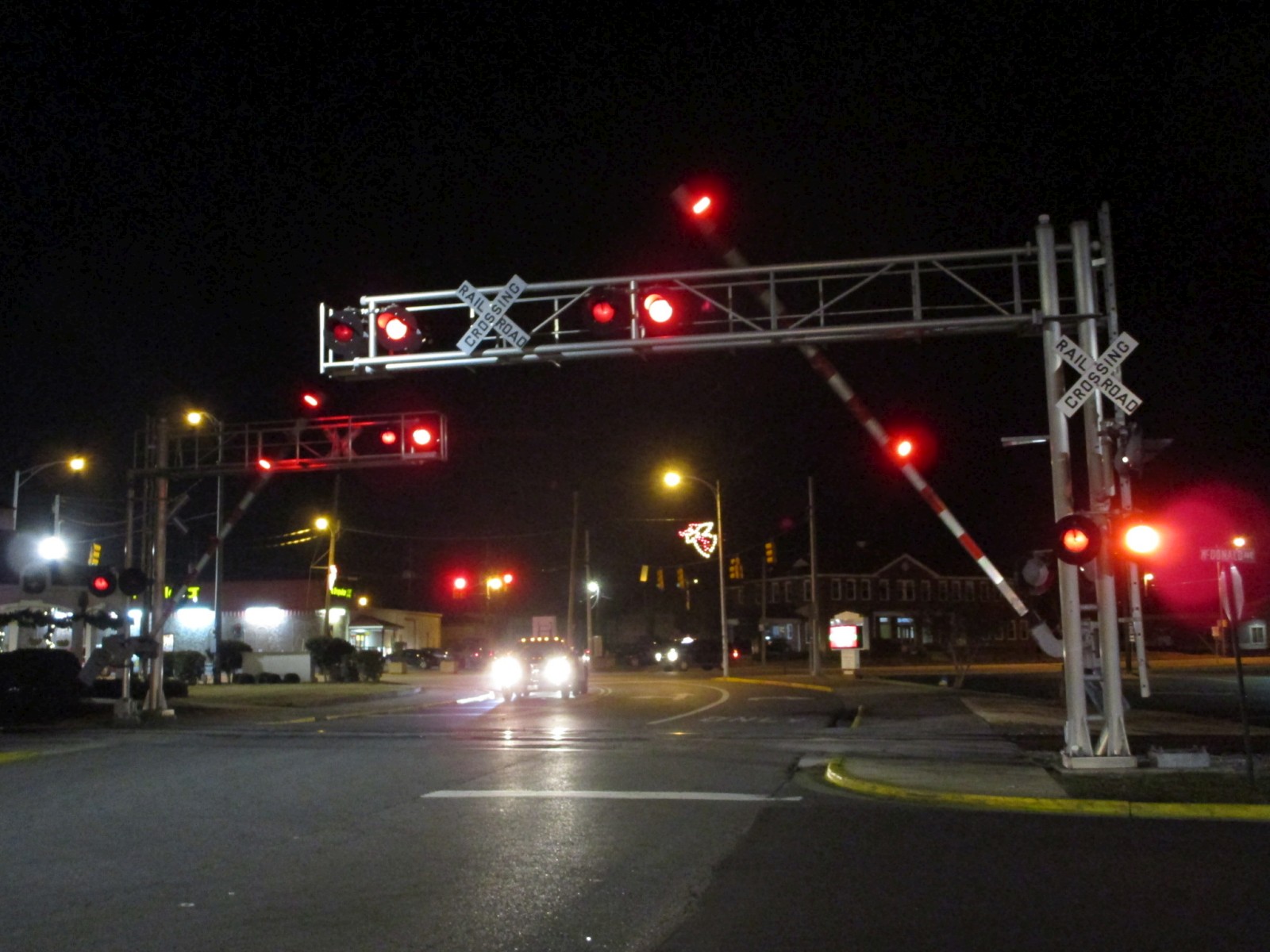

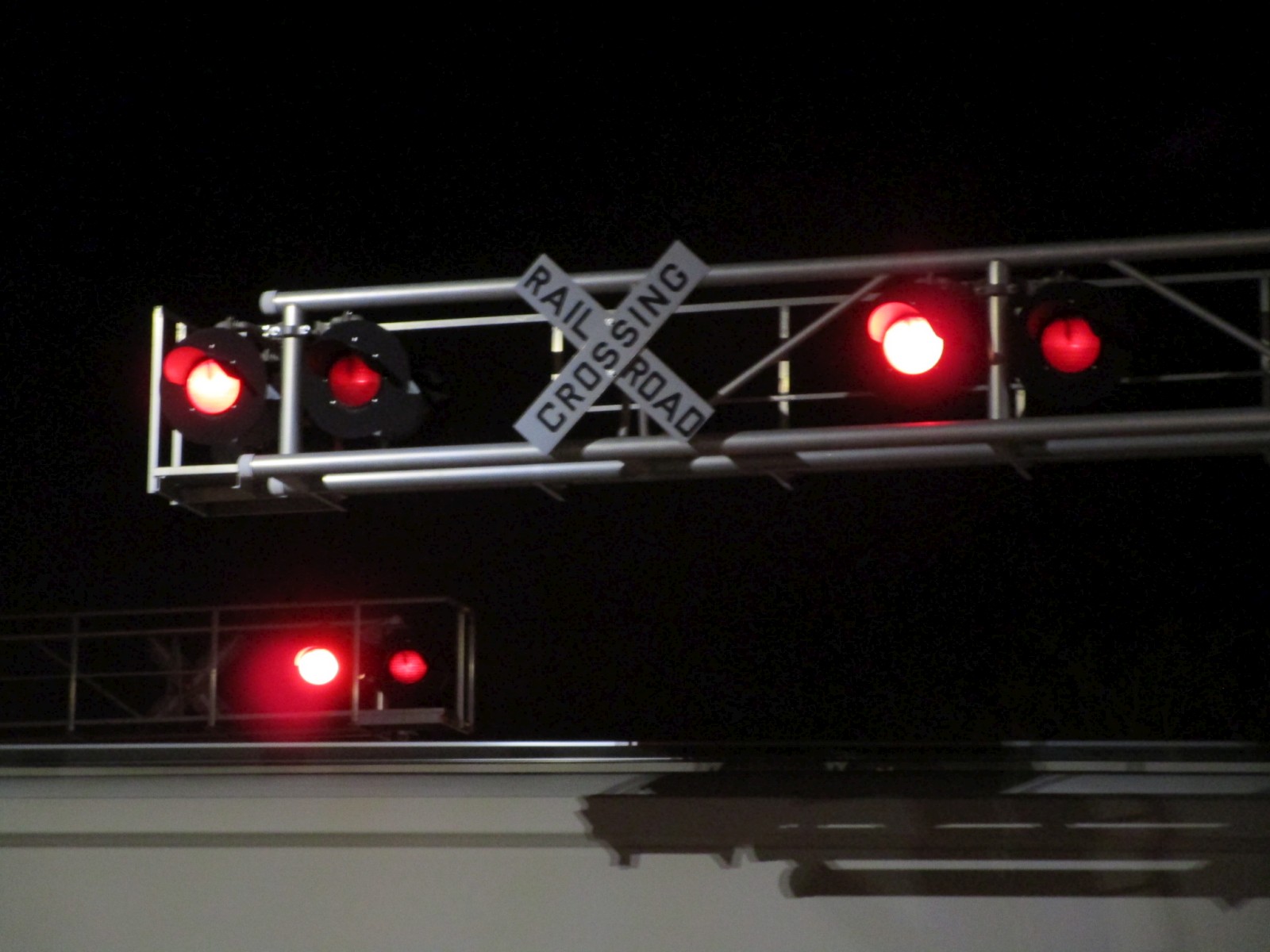

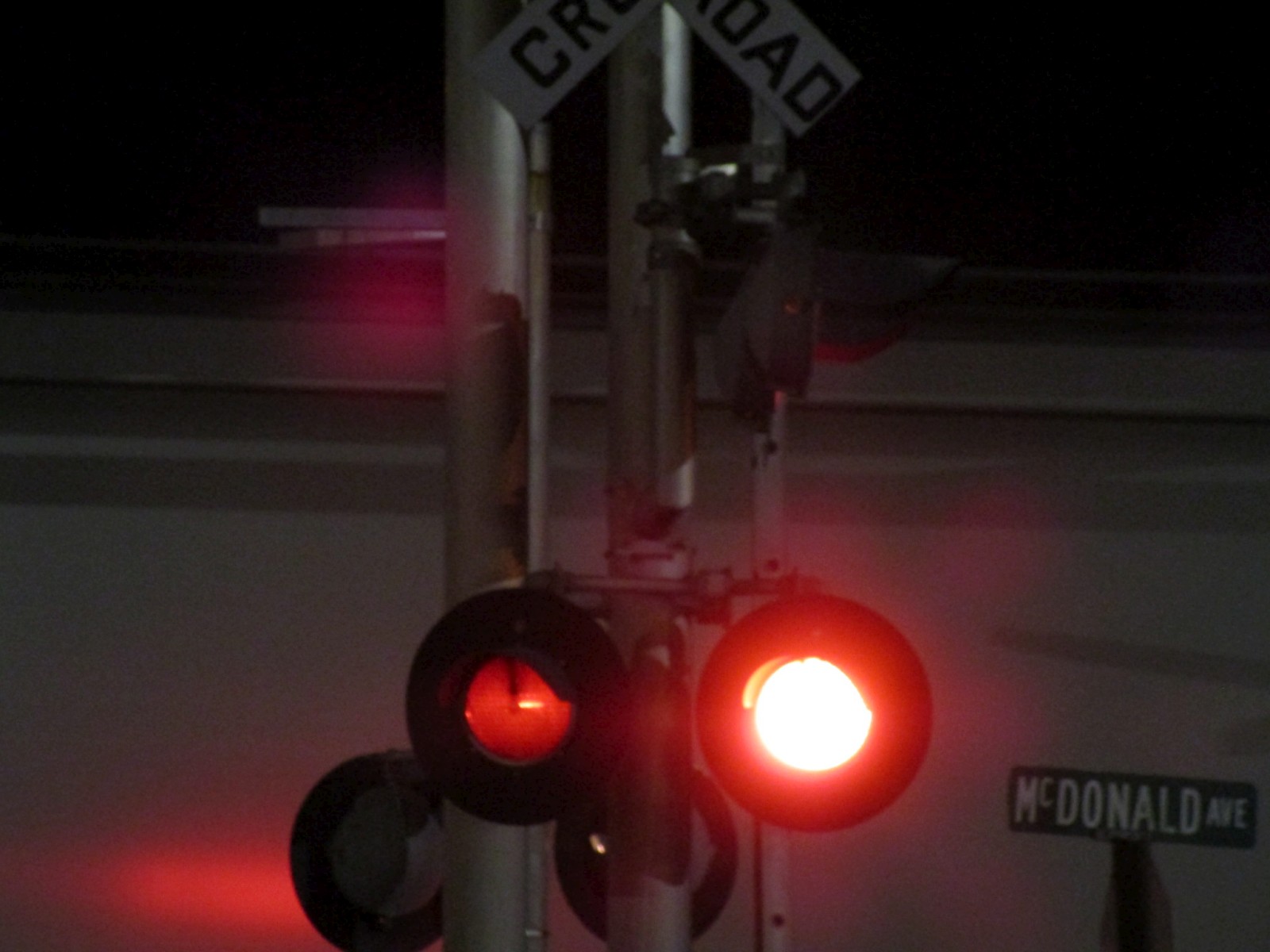

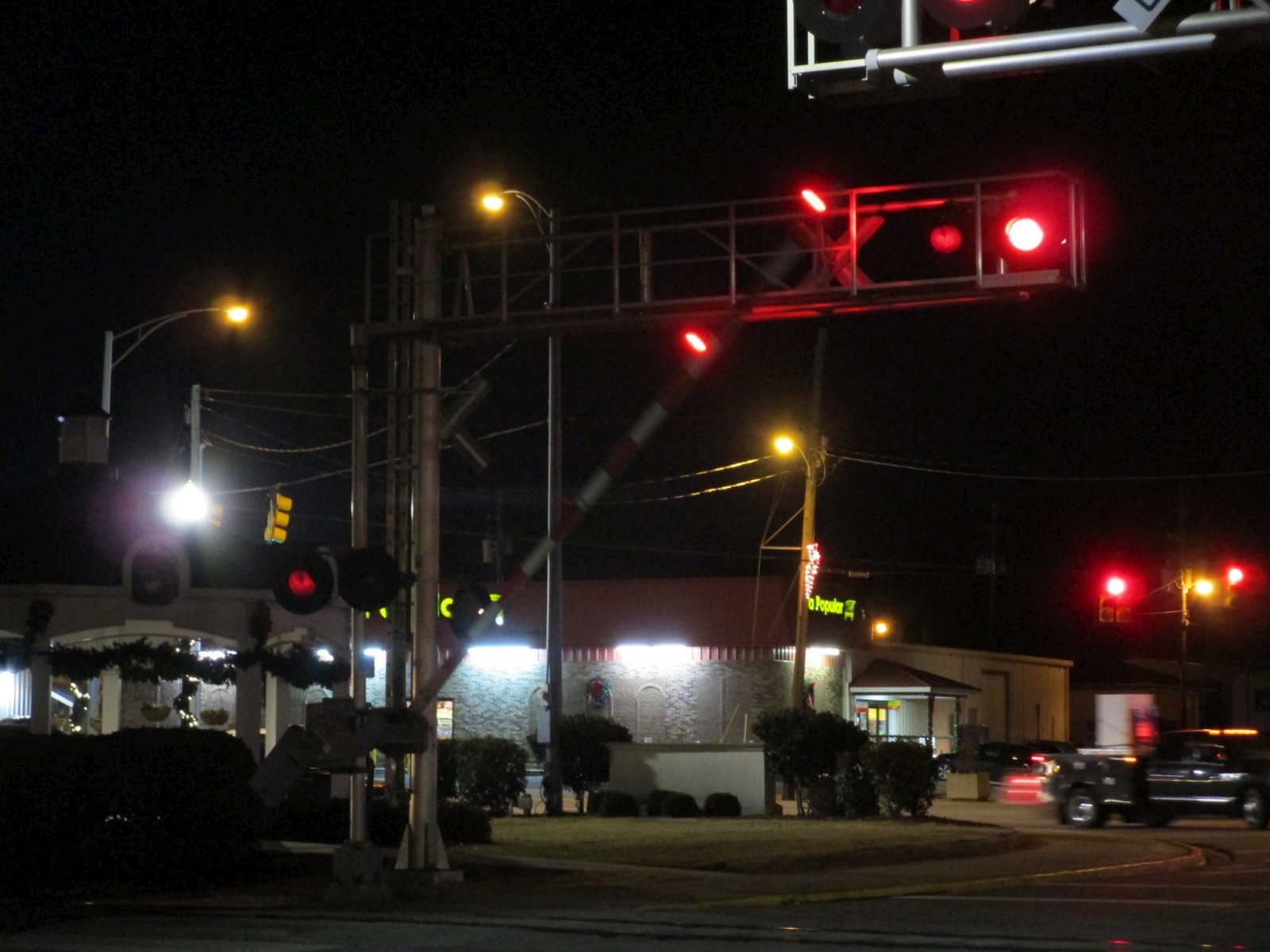

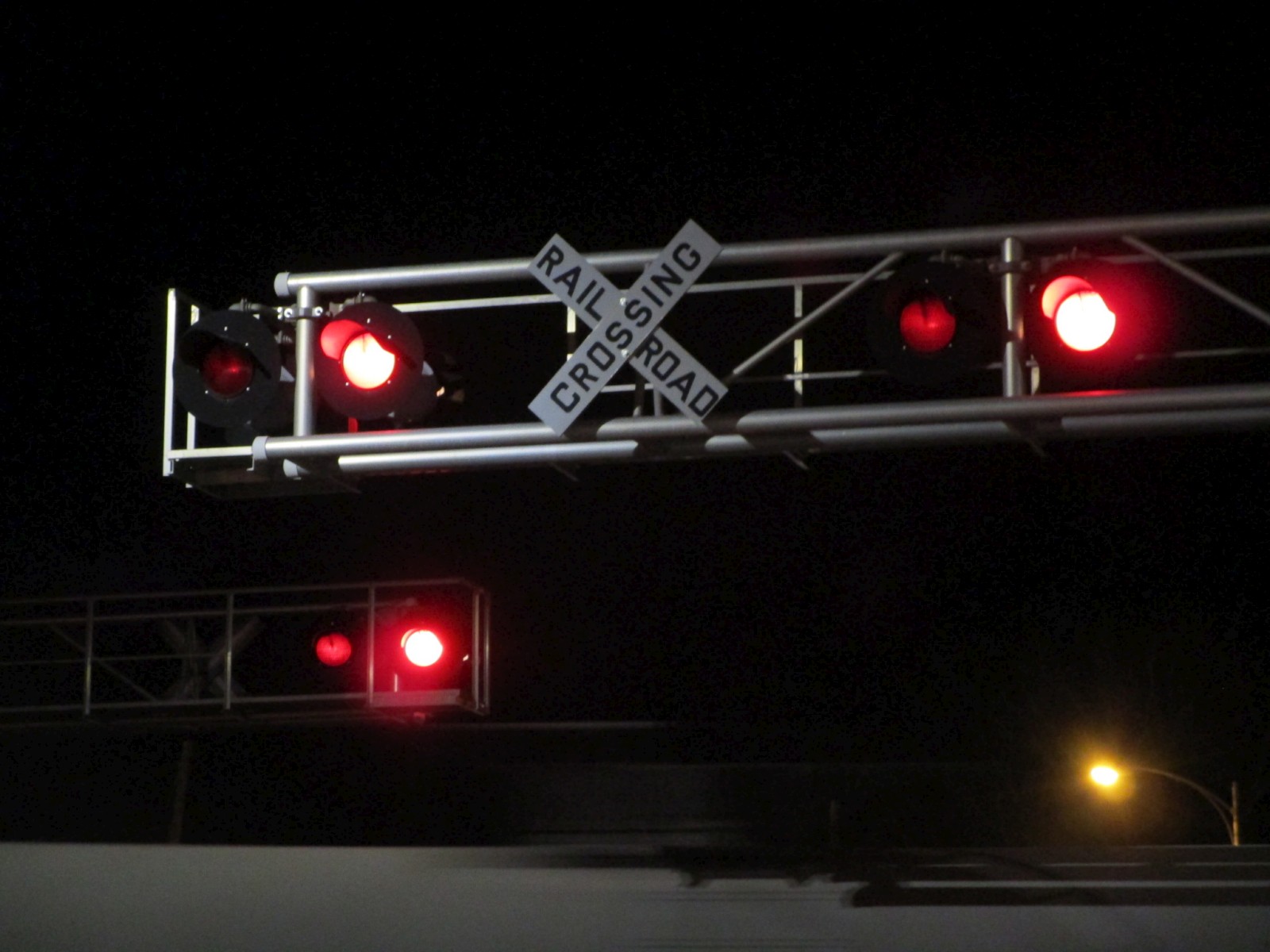

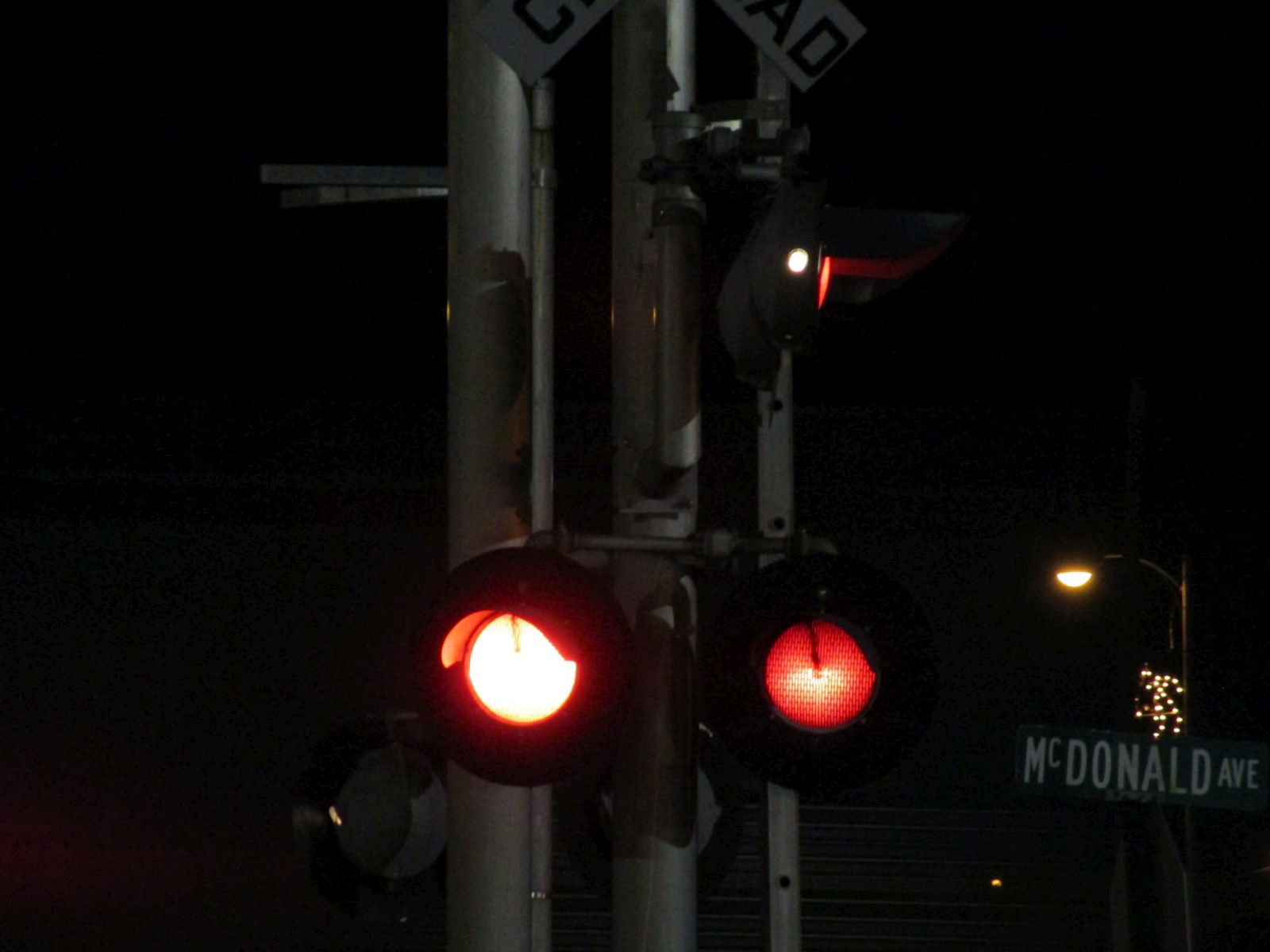

Yet another return trip on 12-9-20 catches the crossing in action! The WCH e-bell here was replaced with a WCH Type 4 electronic bell by this time.

61

62

63

64

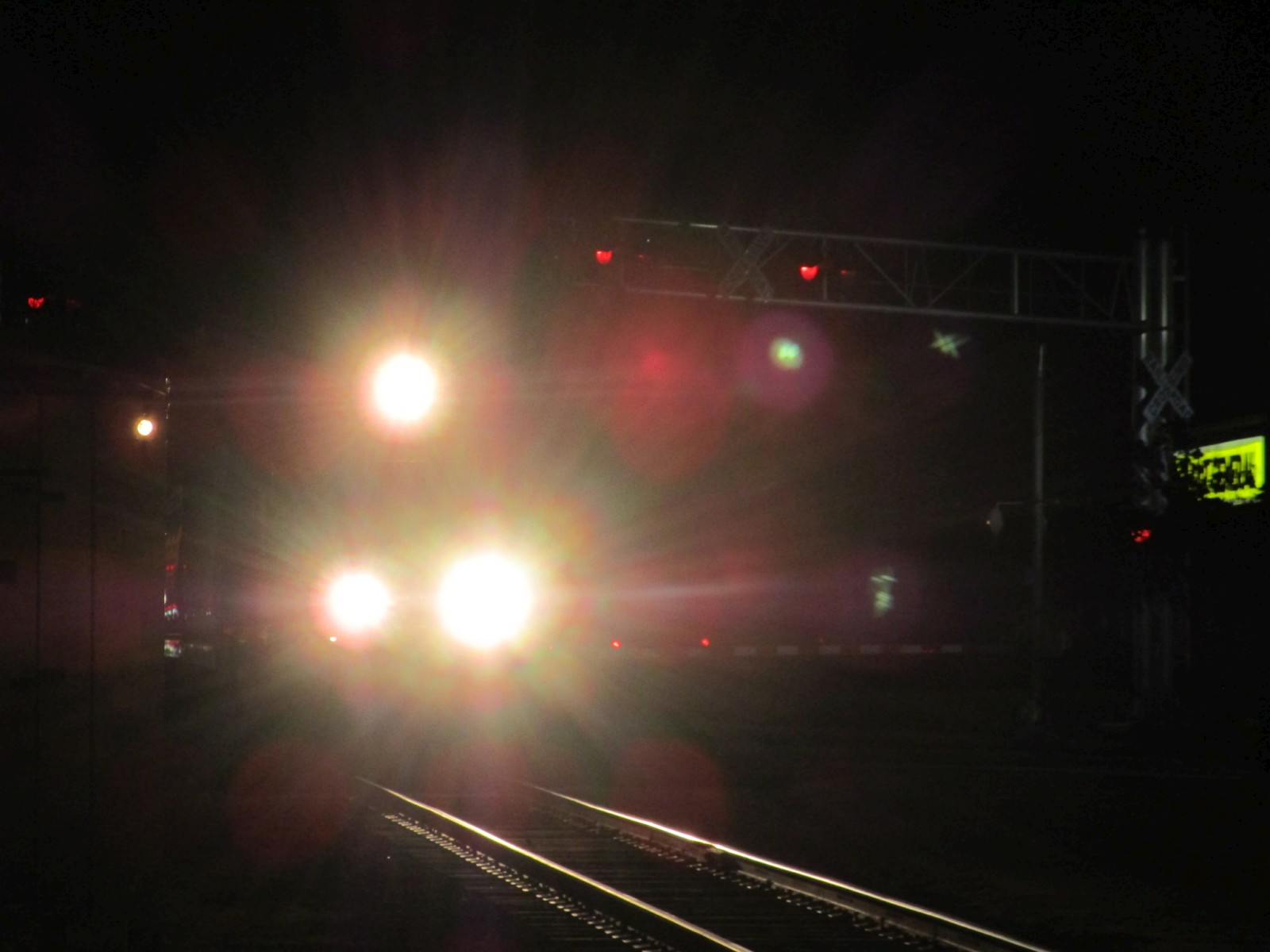

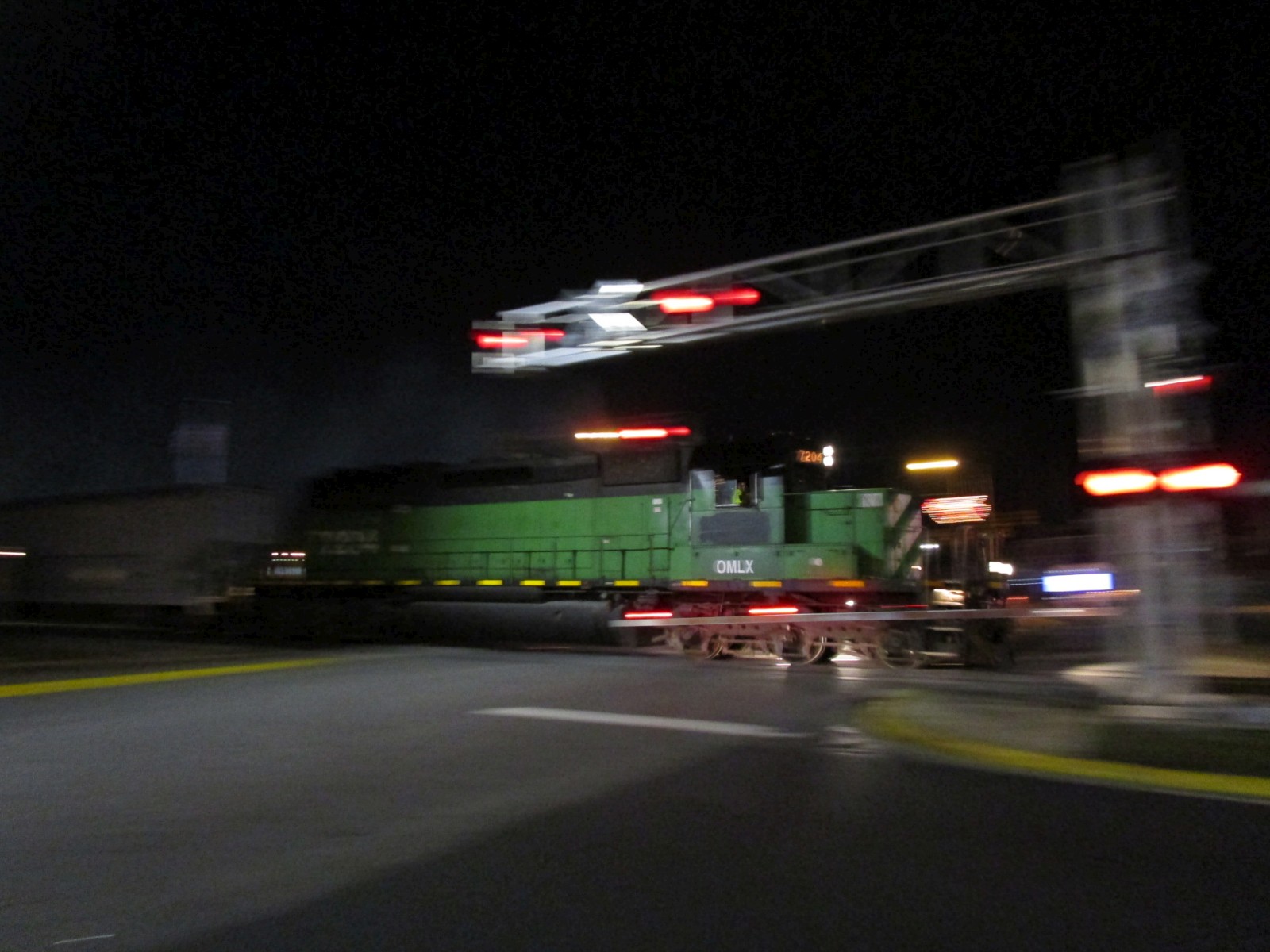

ATN M715 flies through with an ex-BN SD40-2 for power.

65

66

67

68

69

70

71

72

73

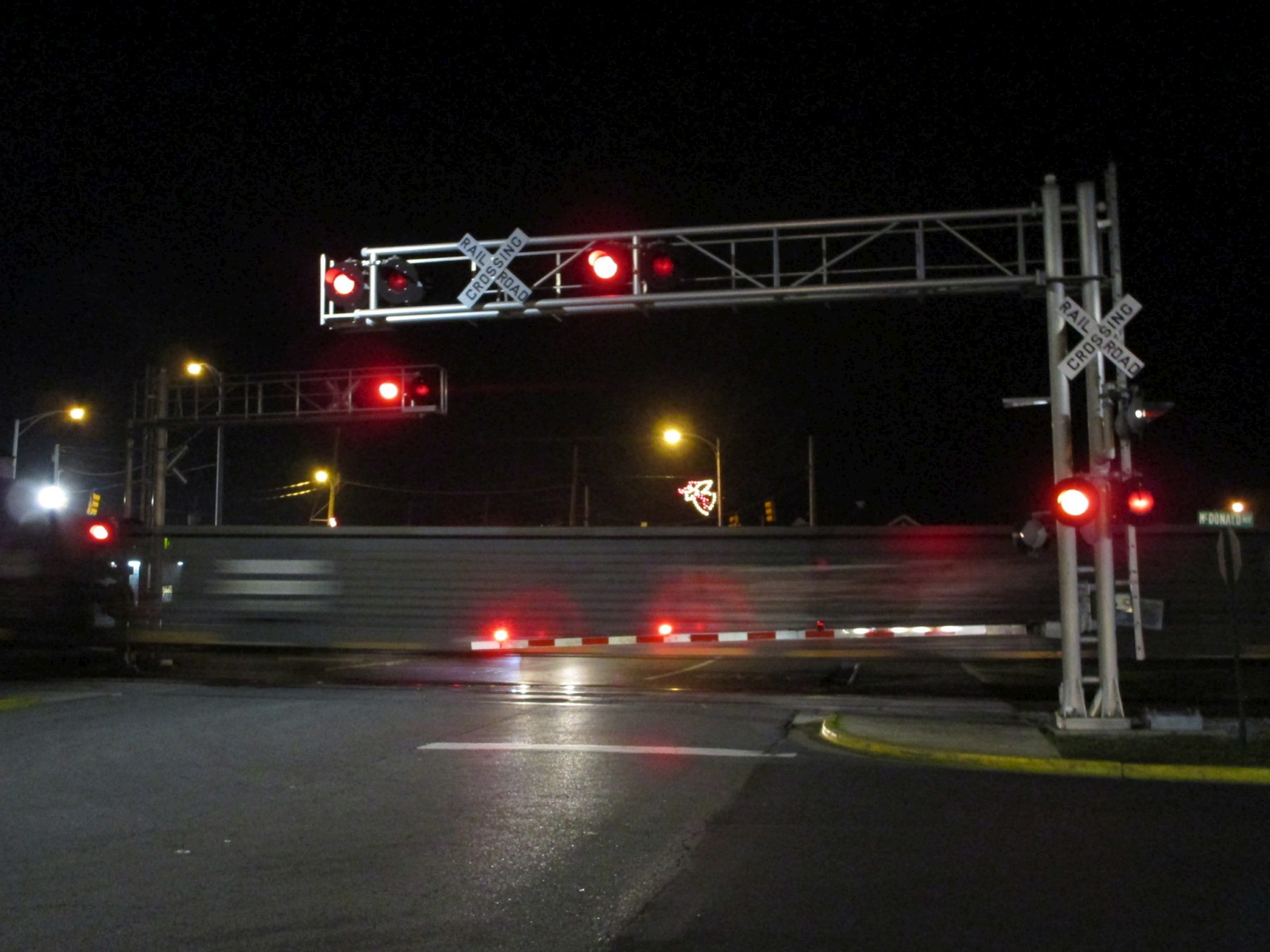

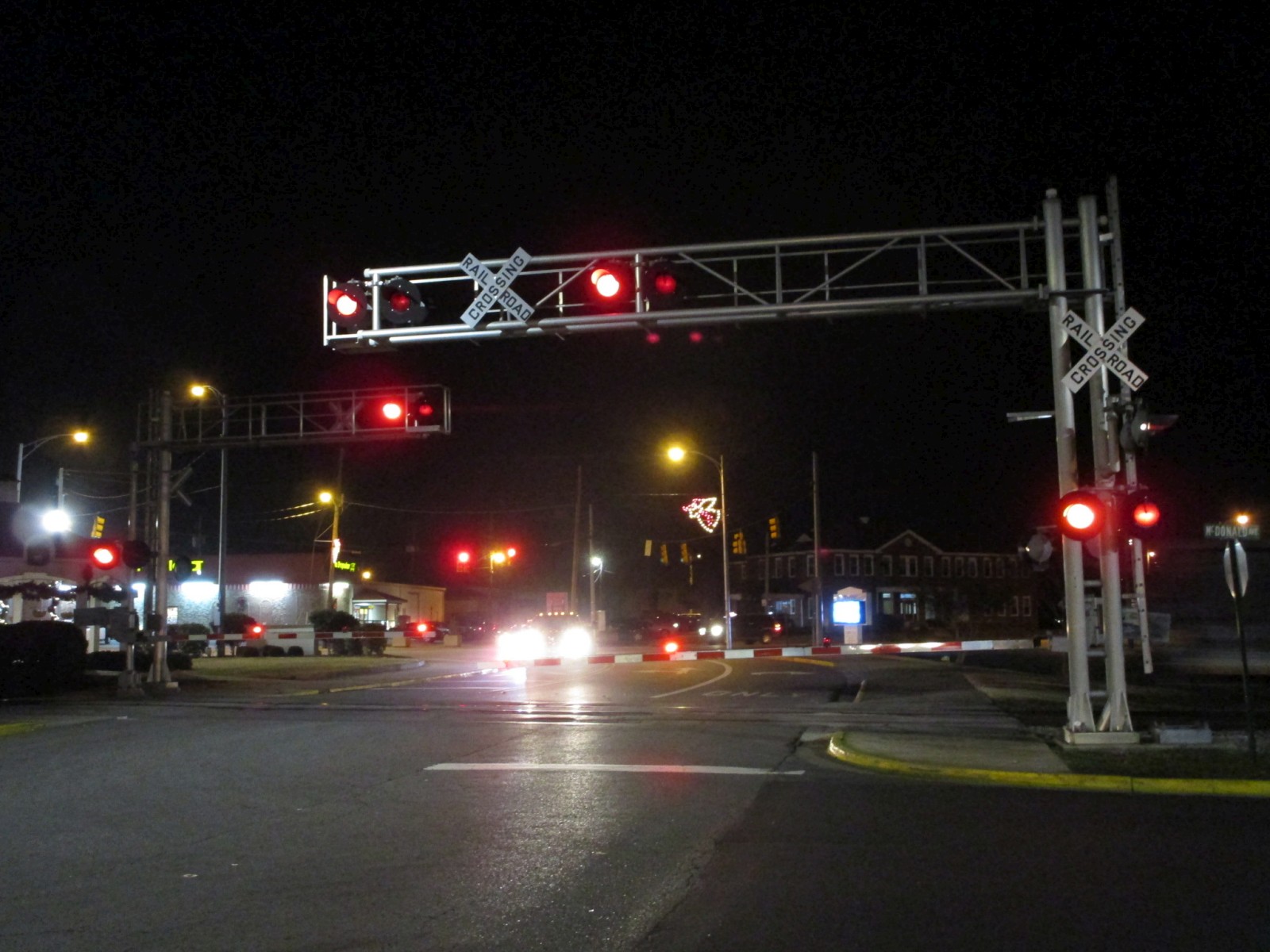

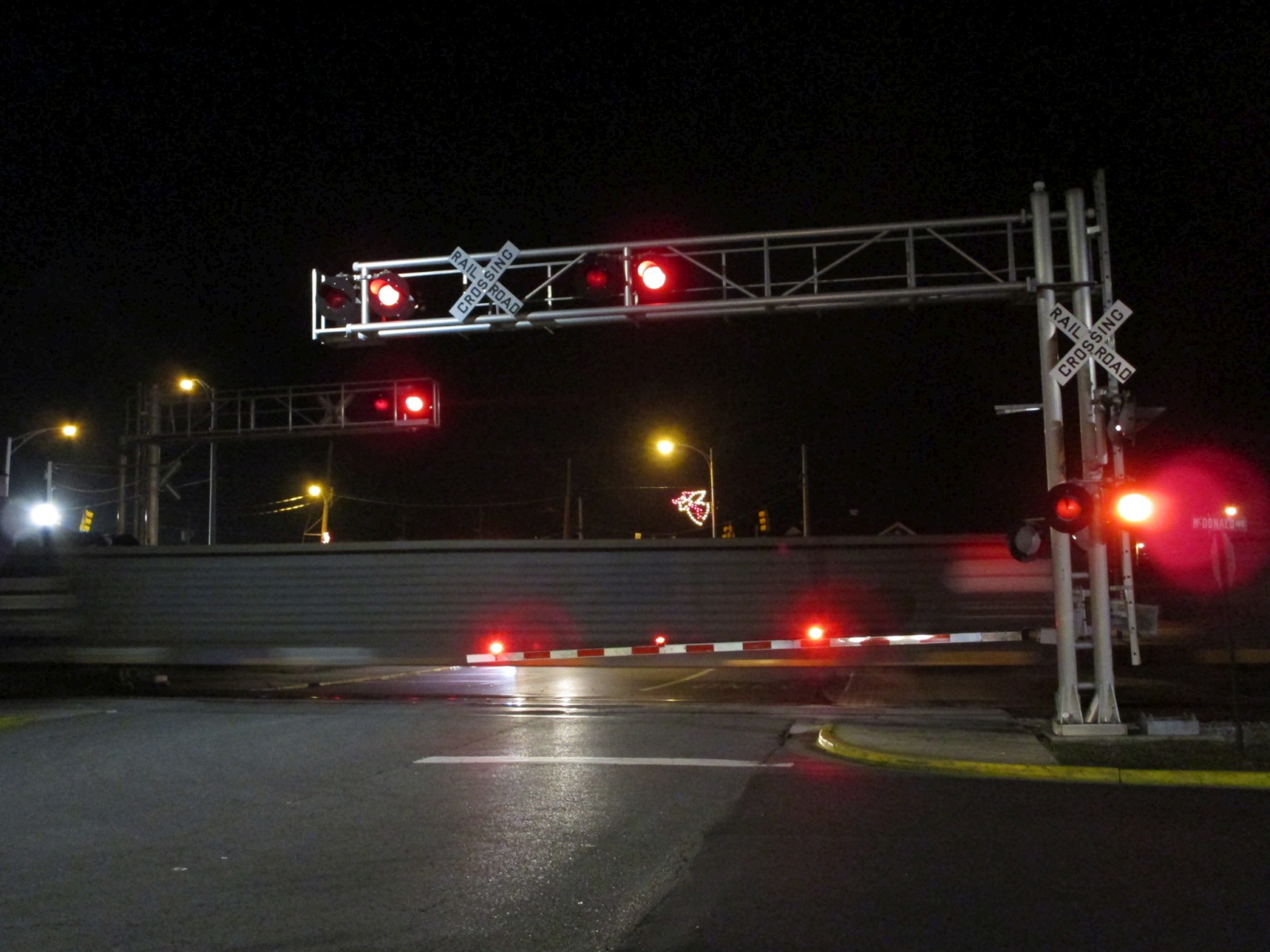

The train passes and the gates rise.











Pictures 1-44 and the first video were taken on 10-7-14.

Pictures 45-52 were taken on 3-25-16.

The second video was taken on 3-8-18.

Pictures 53-56 were taken on 10-12-19.

Pictures 57-73 and the third video were taken on 12-9-19.

The fourth video was taken on 1-14-22.
