MP: 0543.40 |
Updated December 13, 2022
Total Accidents: 2
Crossing
DOT #: 353828C
TOTAL
DAILY TRAINS: 12 (AS OF 2012)
Page created by: freebrickproductions
This crossing is located on the ATN Alabama Mineral Loop.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | Modern Industries mechanical | N/A |
| Base: | Modern Industries | Modern Industries |
| Light Frames: | 2 - 12x24" Modern Industries 1 - 12x24" Harmon 1 - 12x24" Safetran |
6 - 12x24" Modern Industries |
| Gate Lights: | 3 - RECO LEDs | 3 - NEG LEDs |
| Gate Mechanism: | GRS Type D | GRS Type D |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

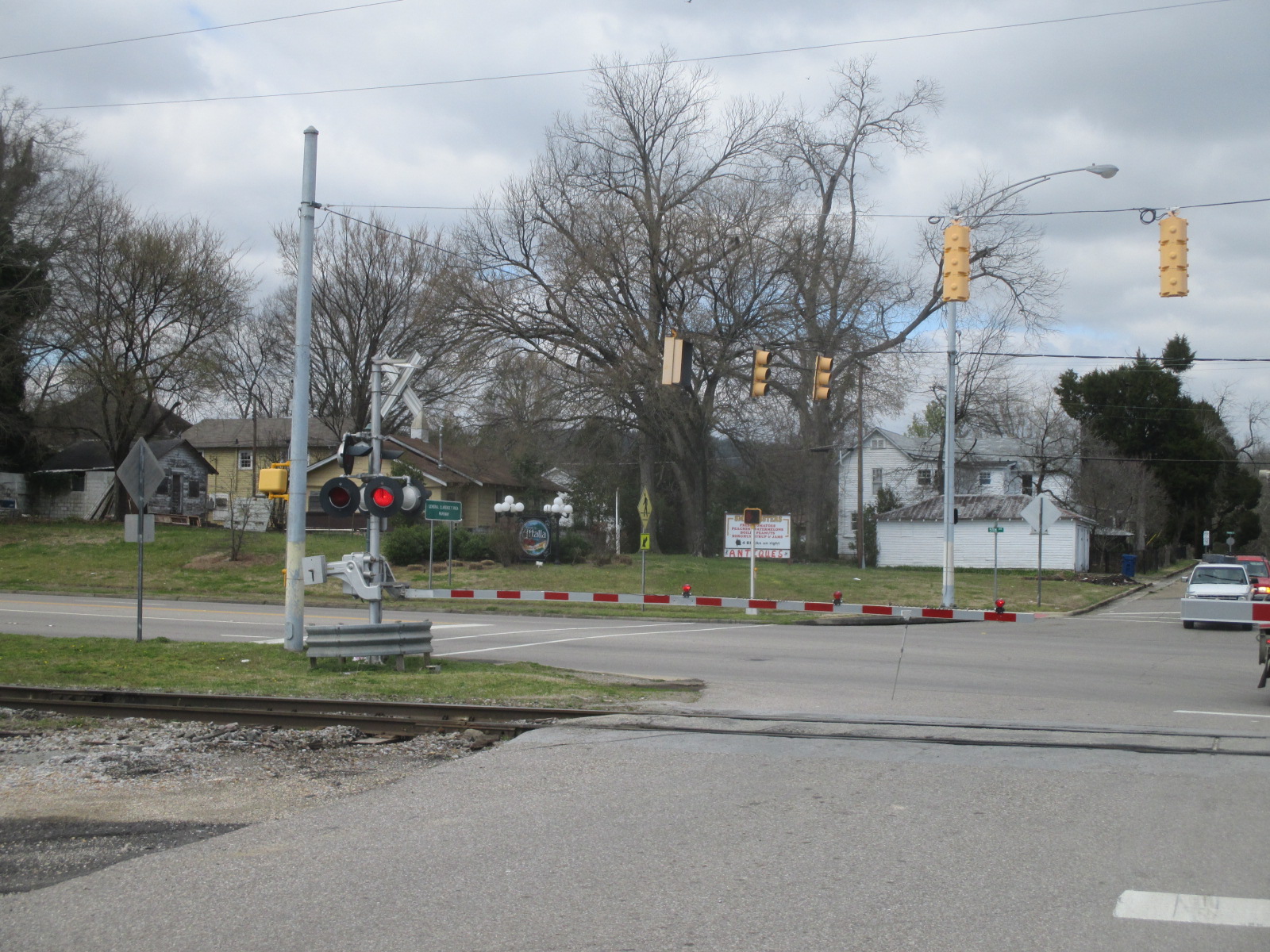

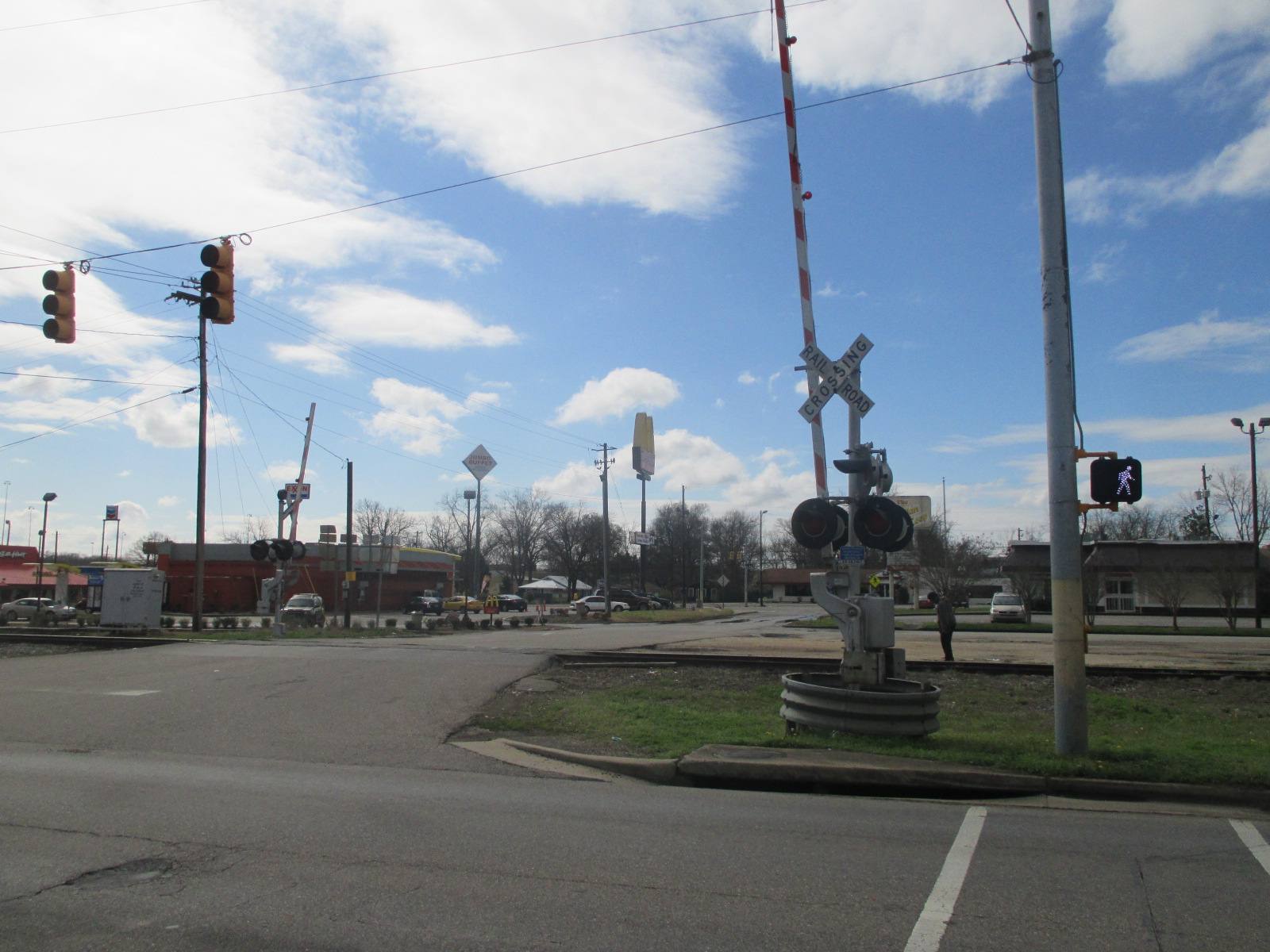

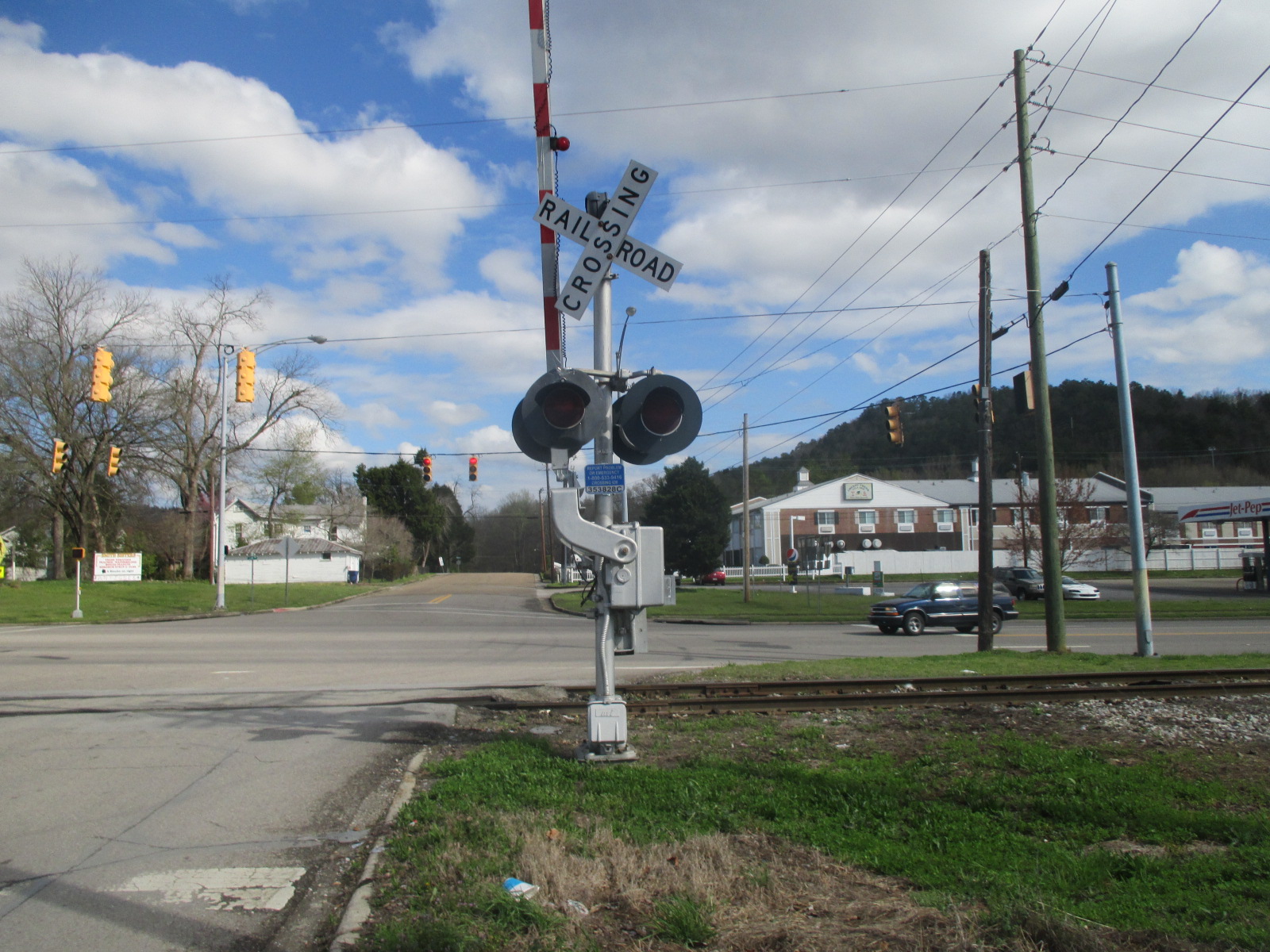

Overviews of the crossing. |

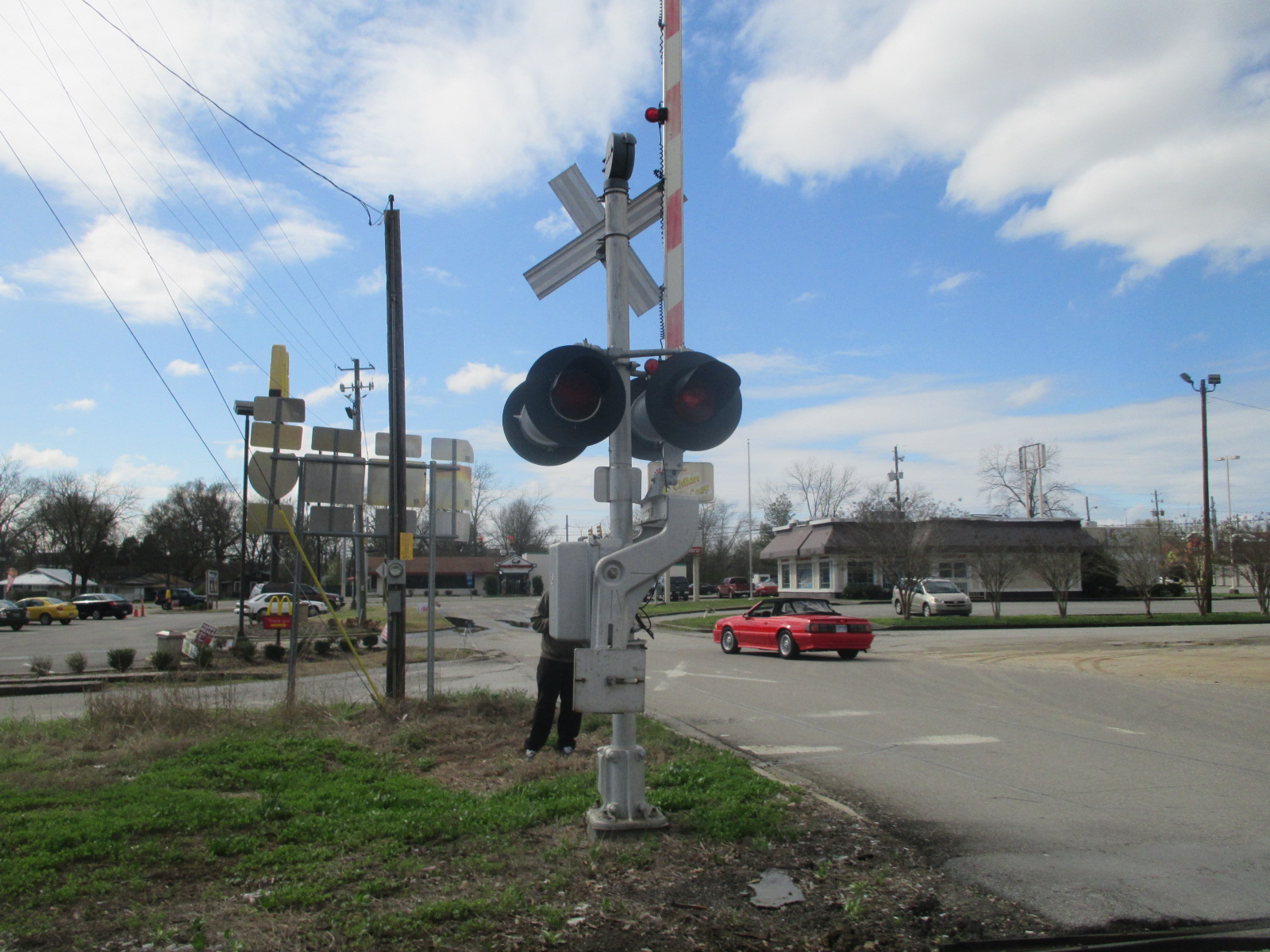

The first signal. |
||
5 |
6 |
7 |
8 |

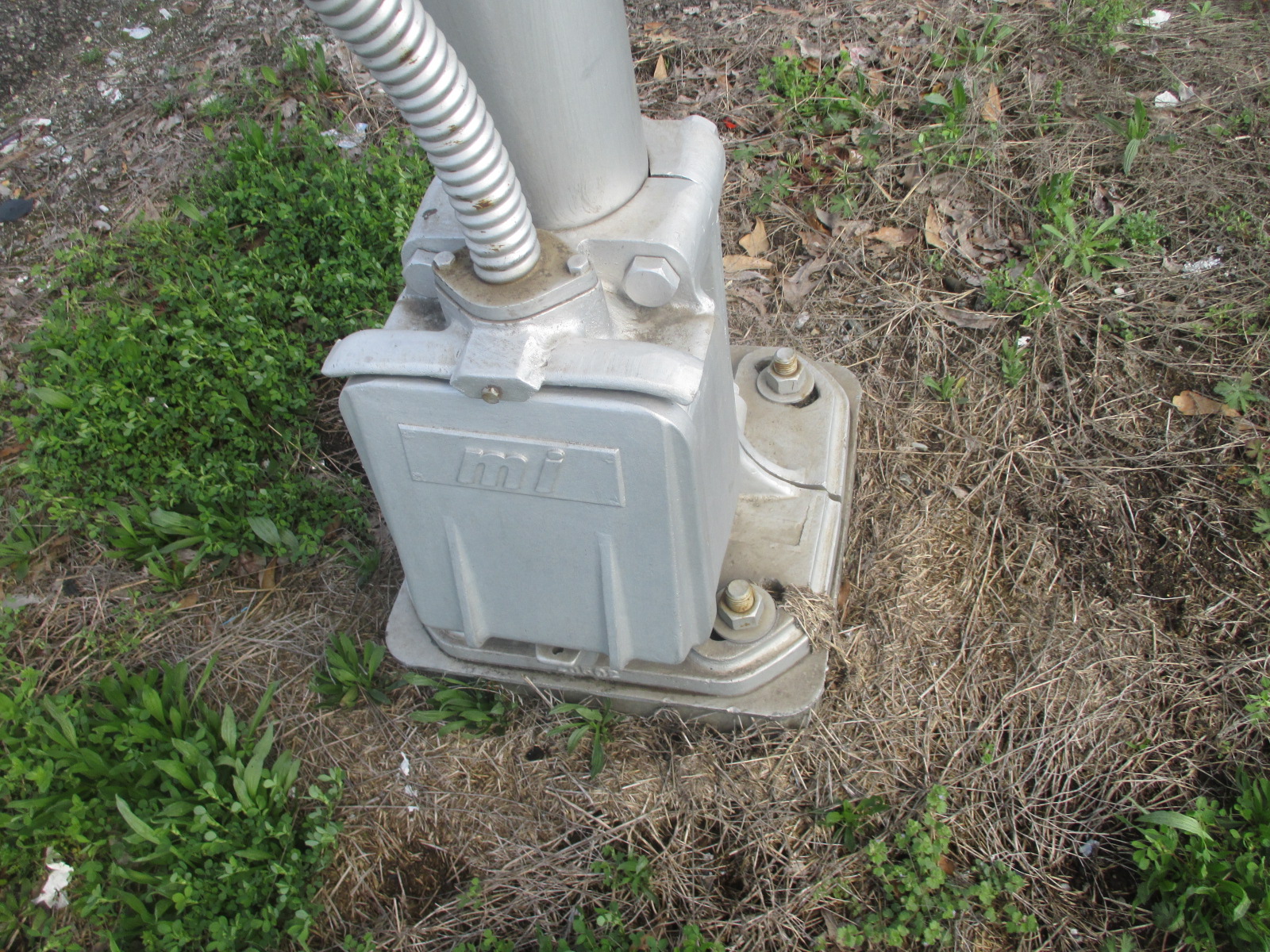

It has a Modern Industries base. |

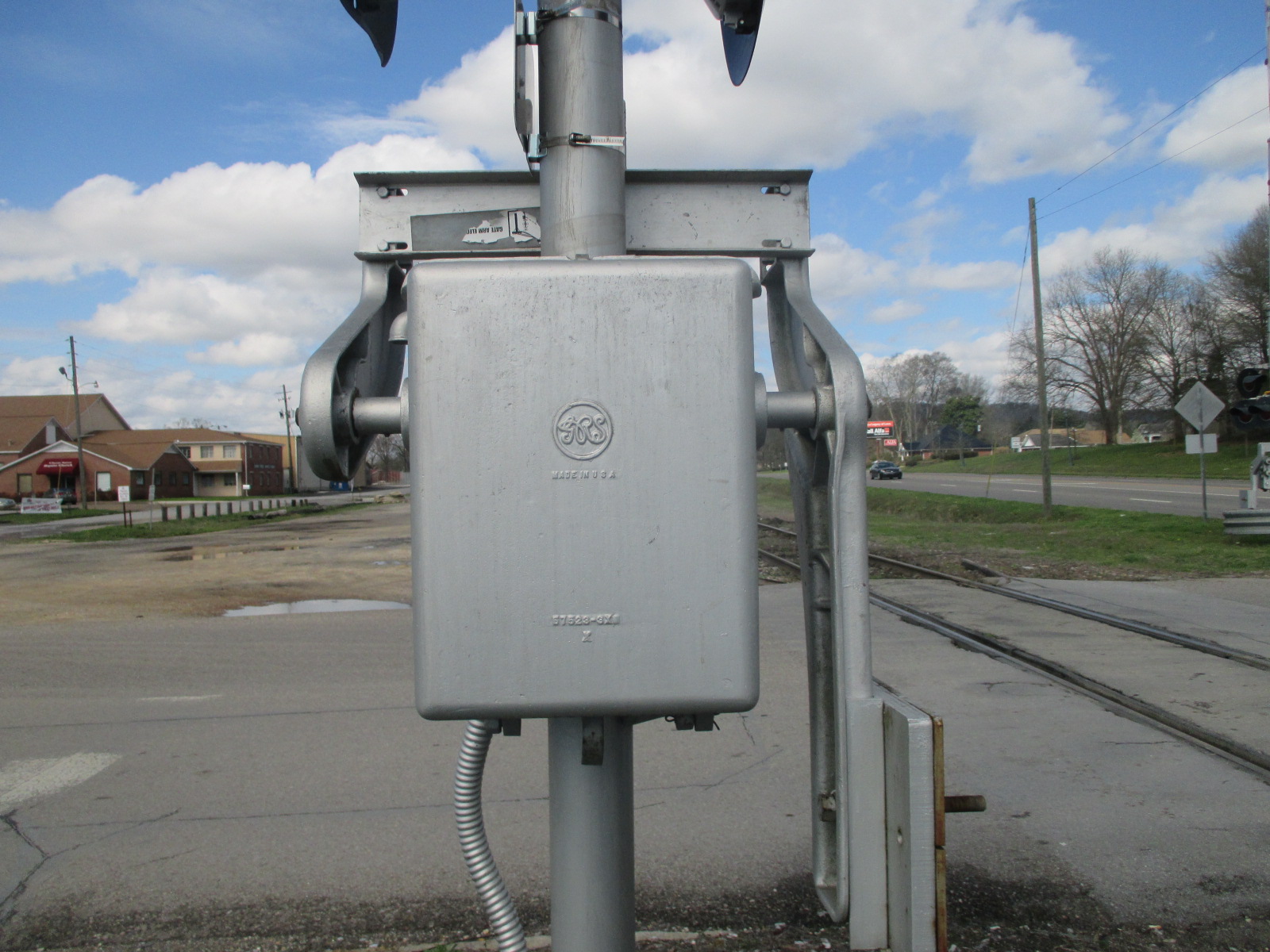

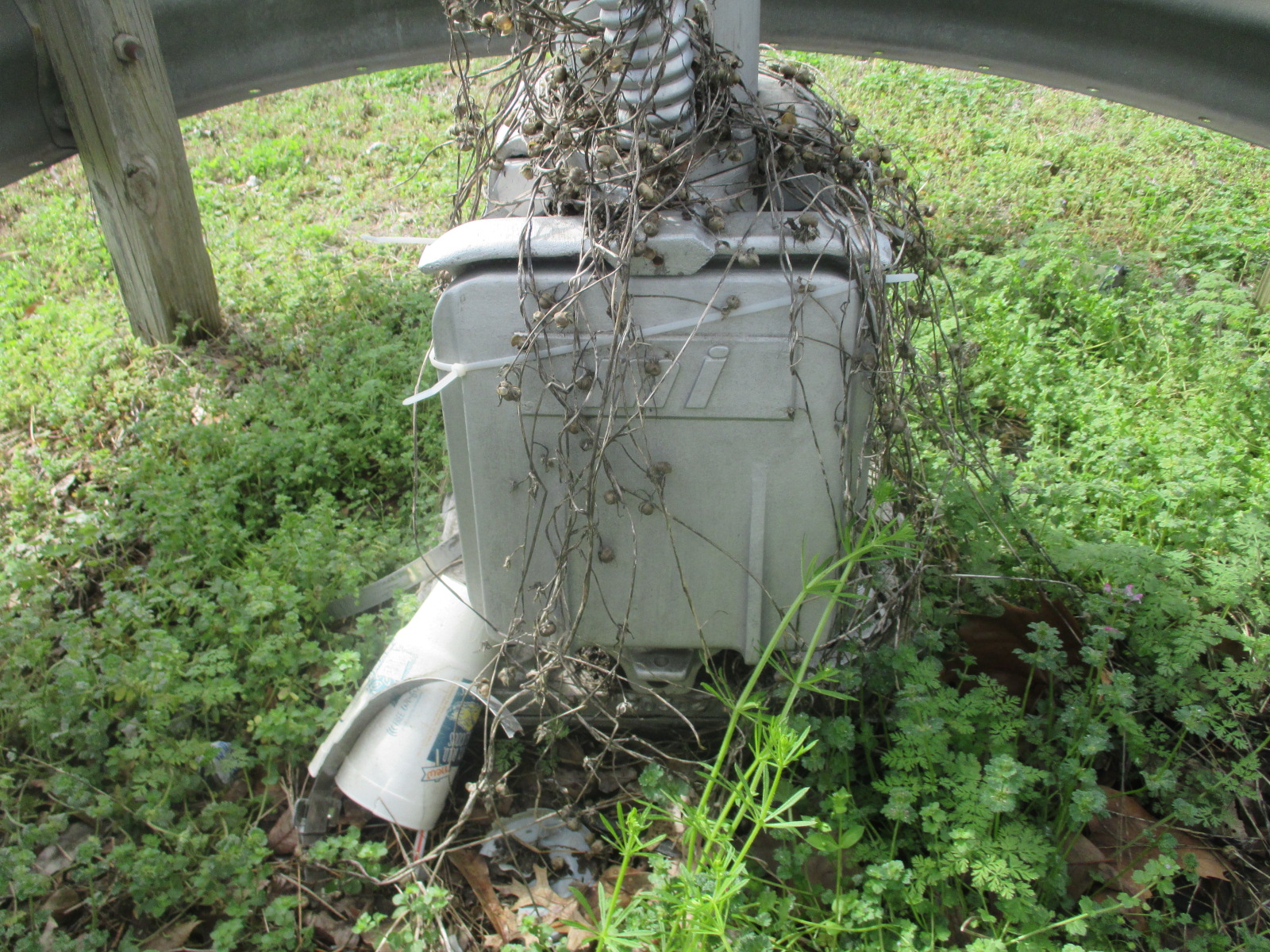

The gate mechanism is a GRS gate mechanism. |

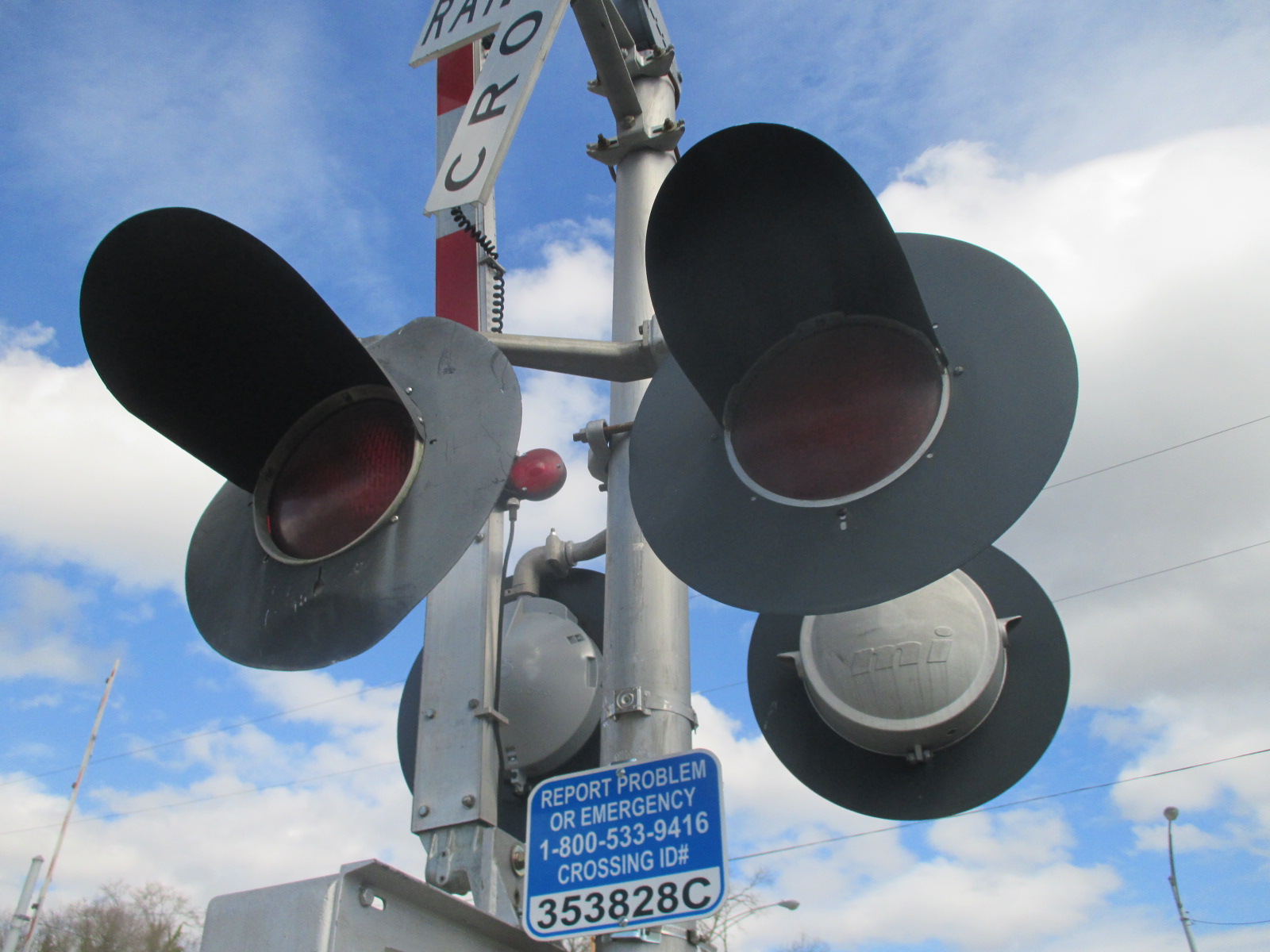

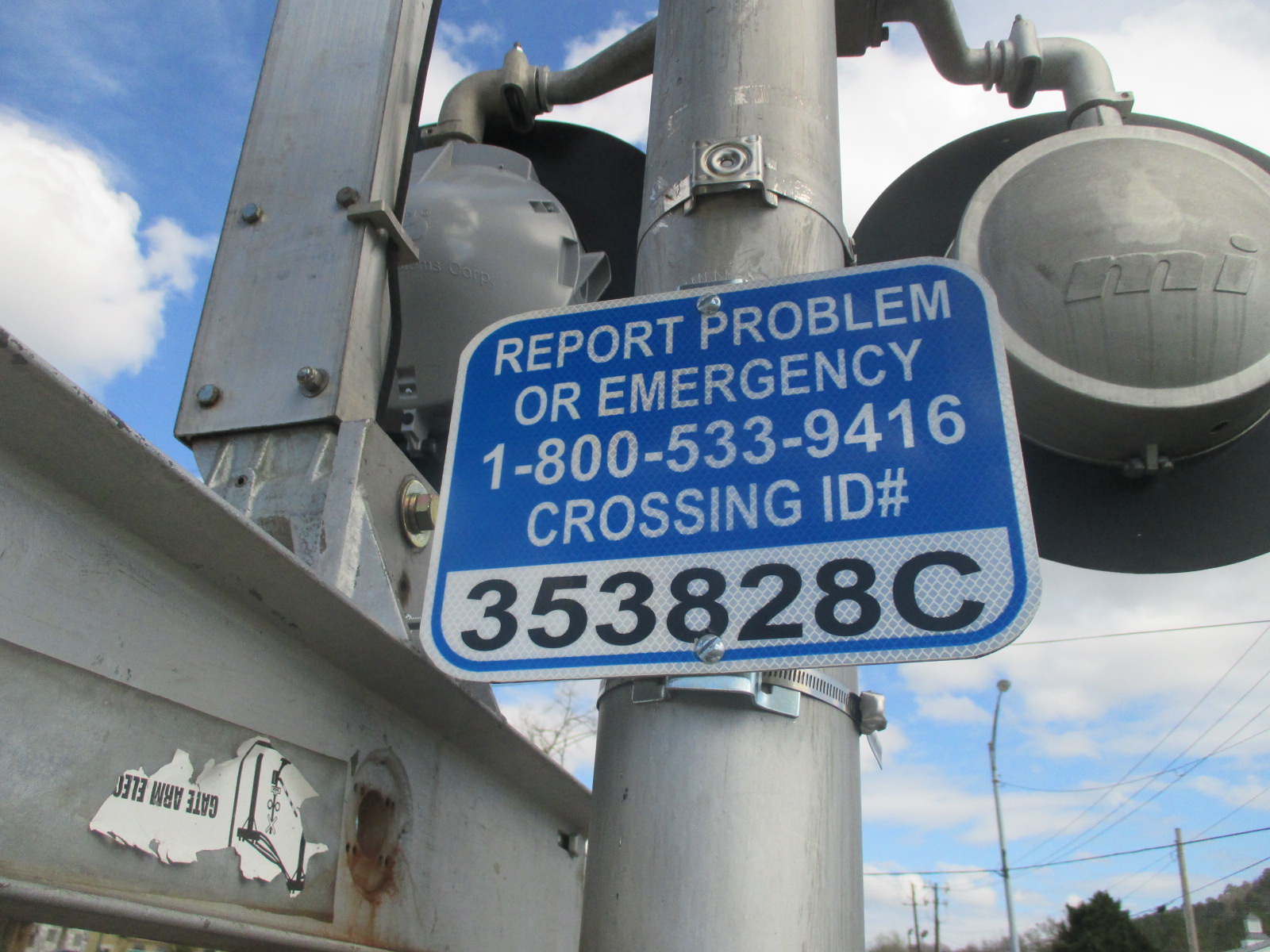

The emergency information. |
9 |
10 |
11 |
12 |

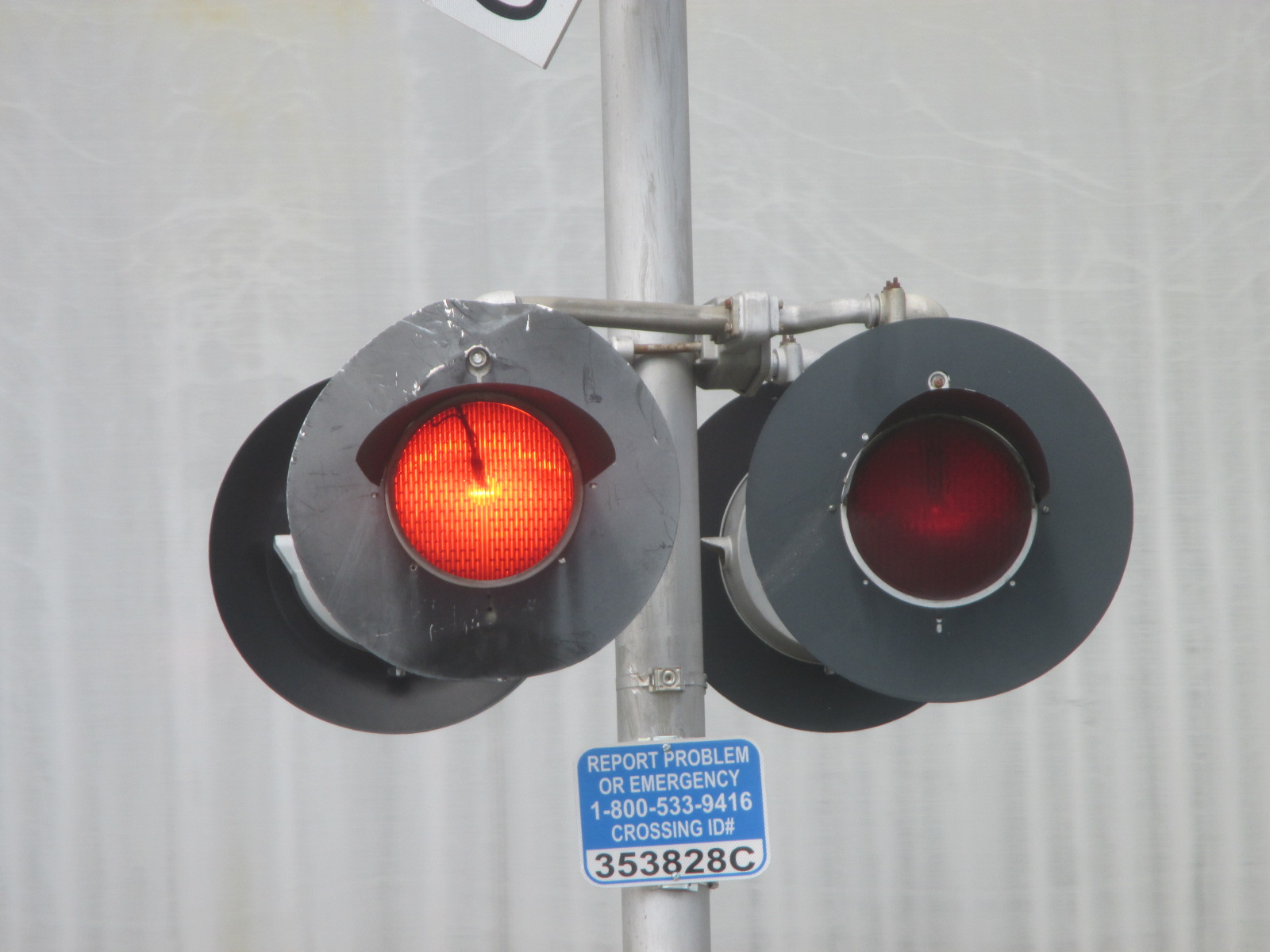

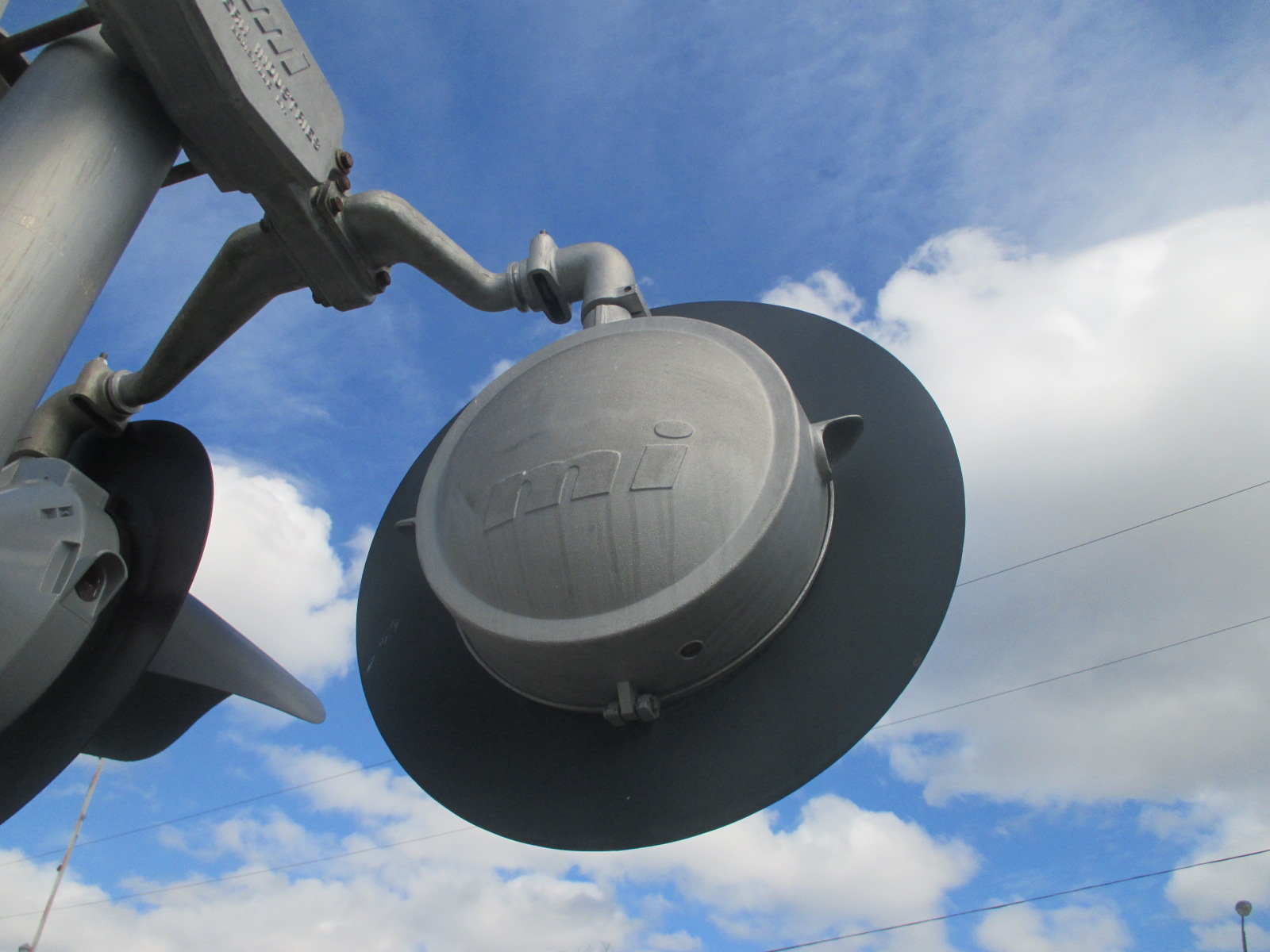

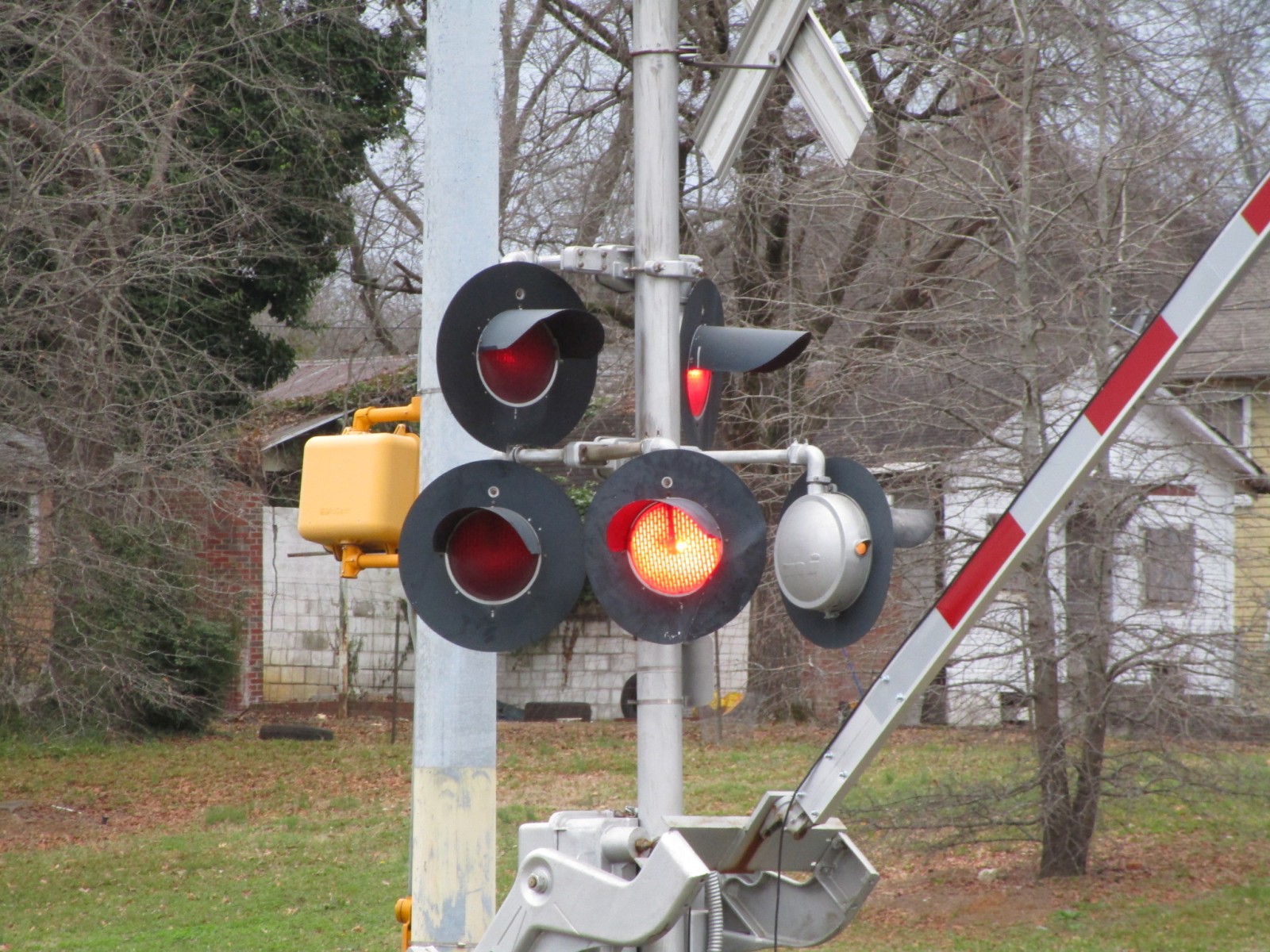

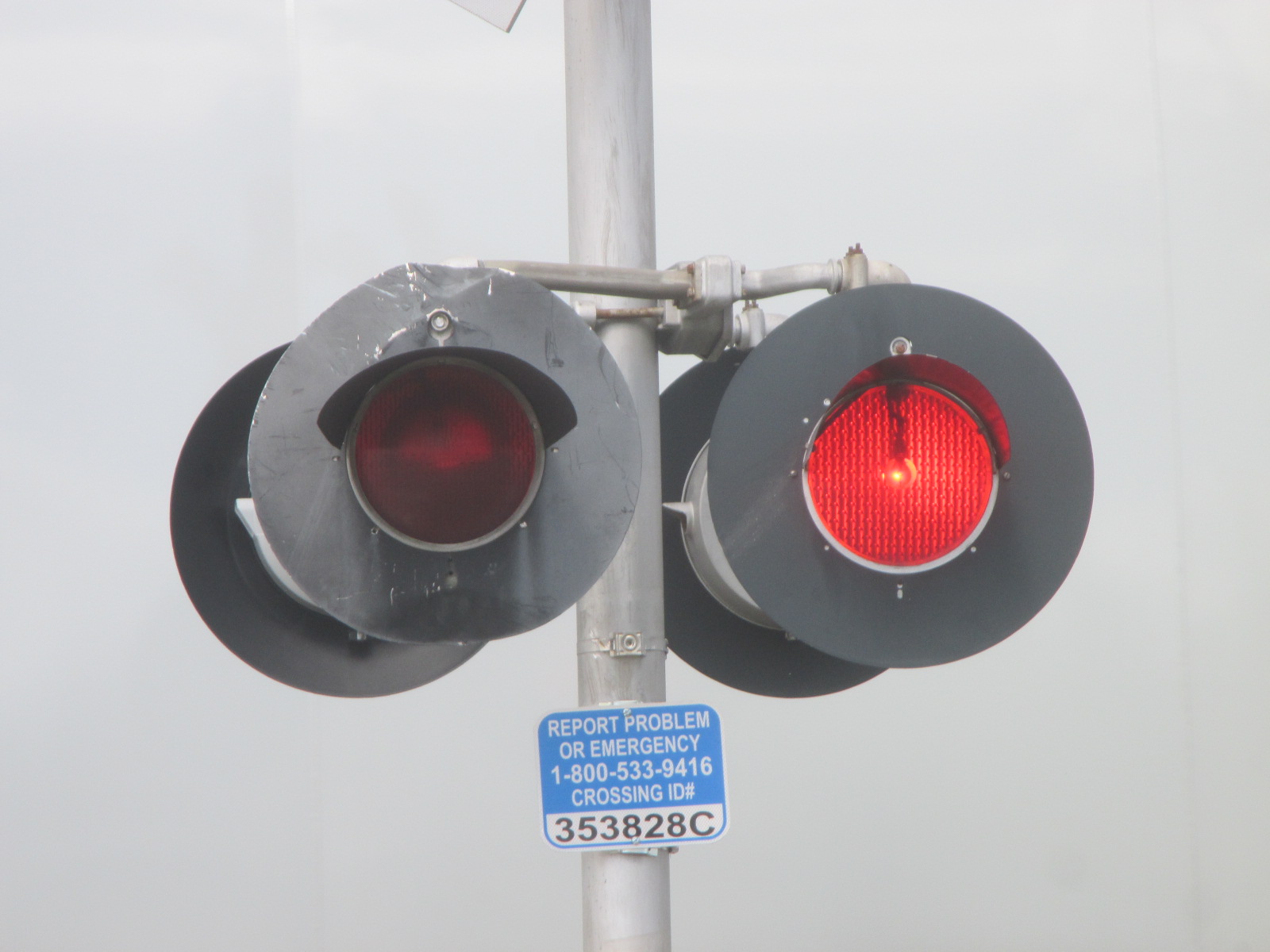

The lights on this signal are all 12x24 inch and they are from Modern Industries, Safetran, and Harmon. |

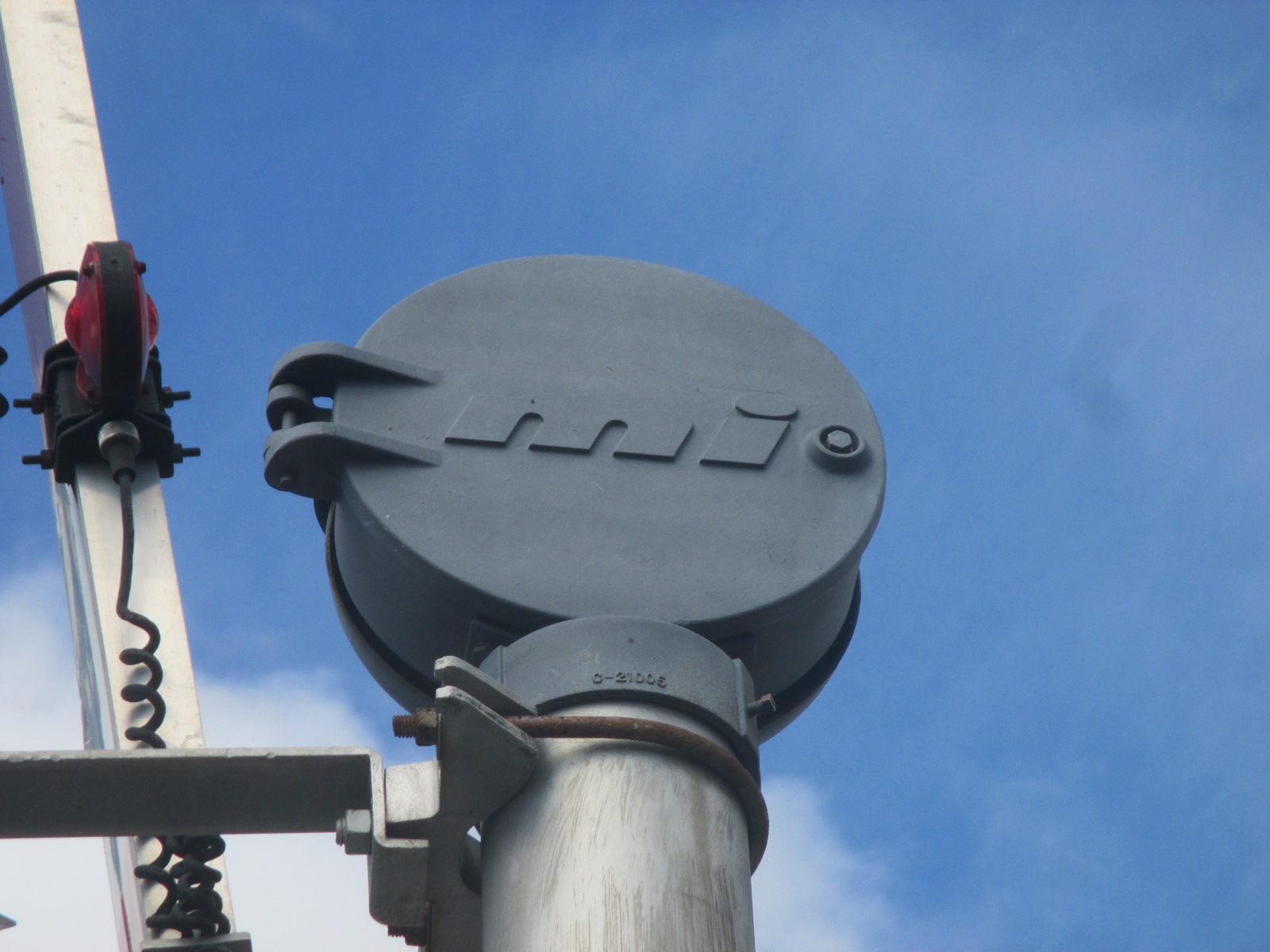

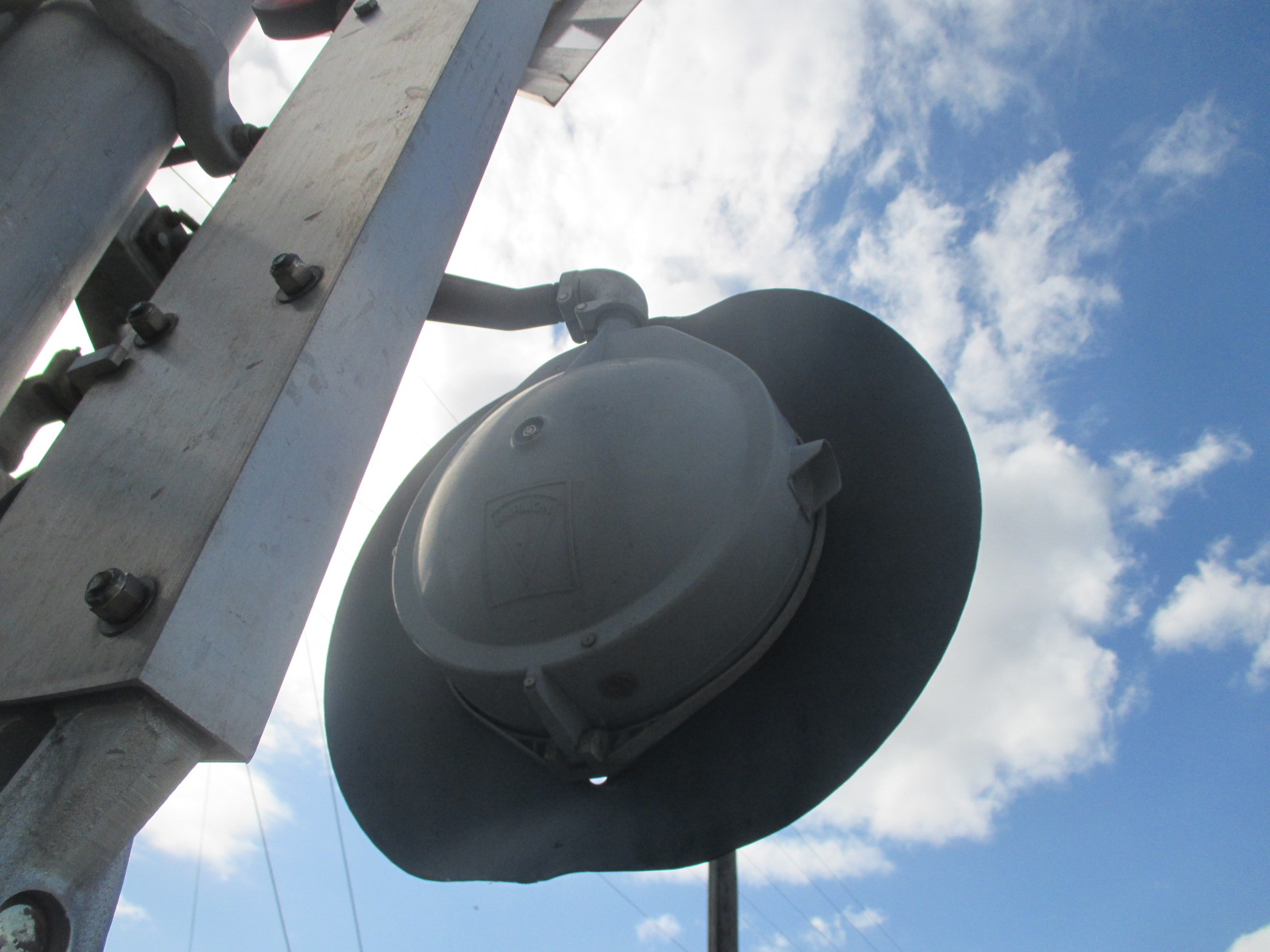

The bell here is a Modern Industries mechanical bell. |
||
13 |
14 |
15 |
16 |

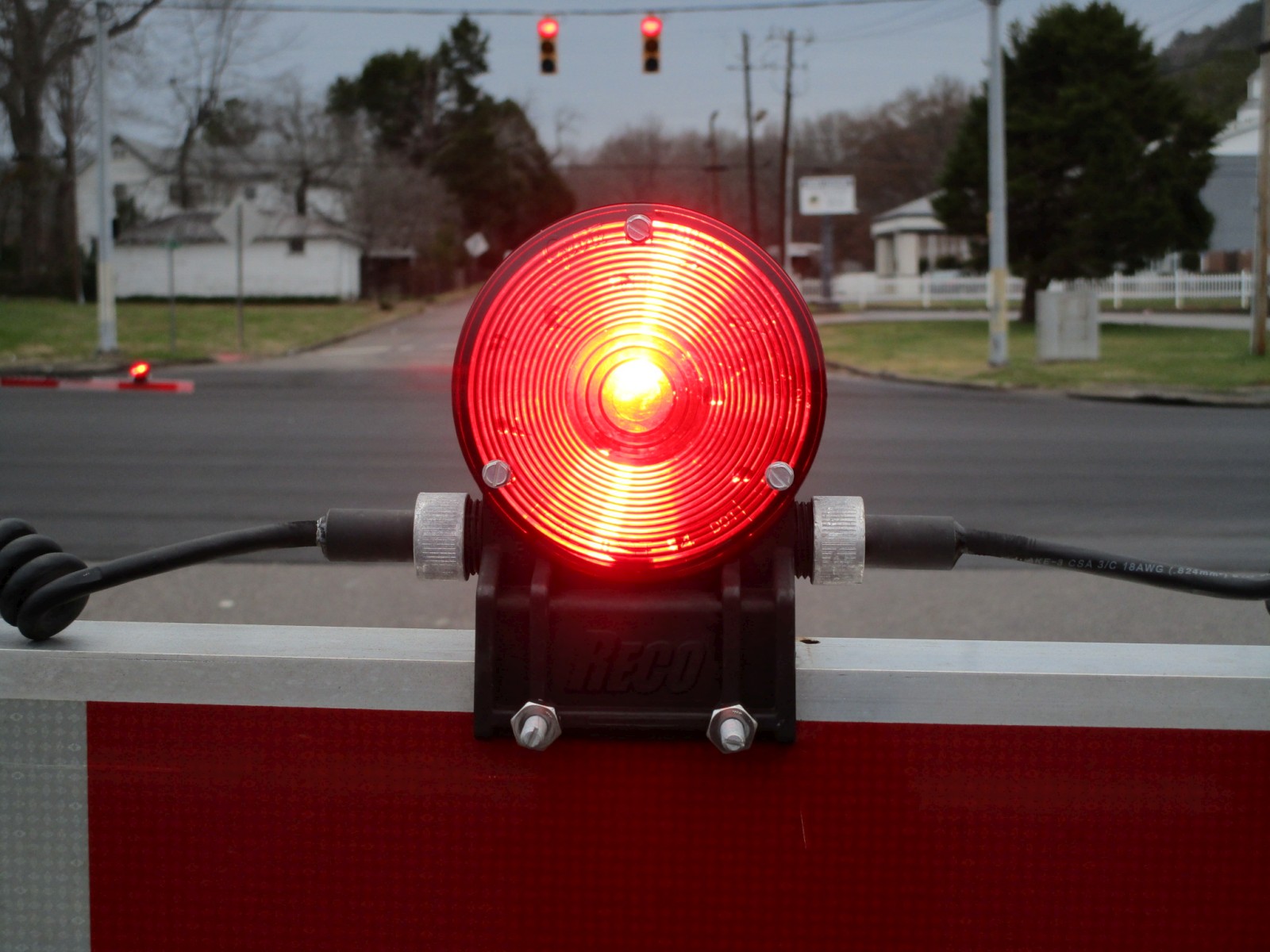

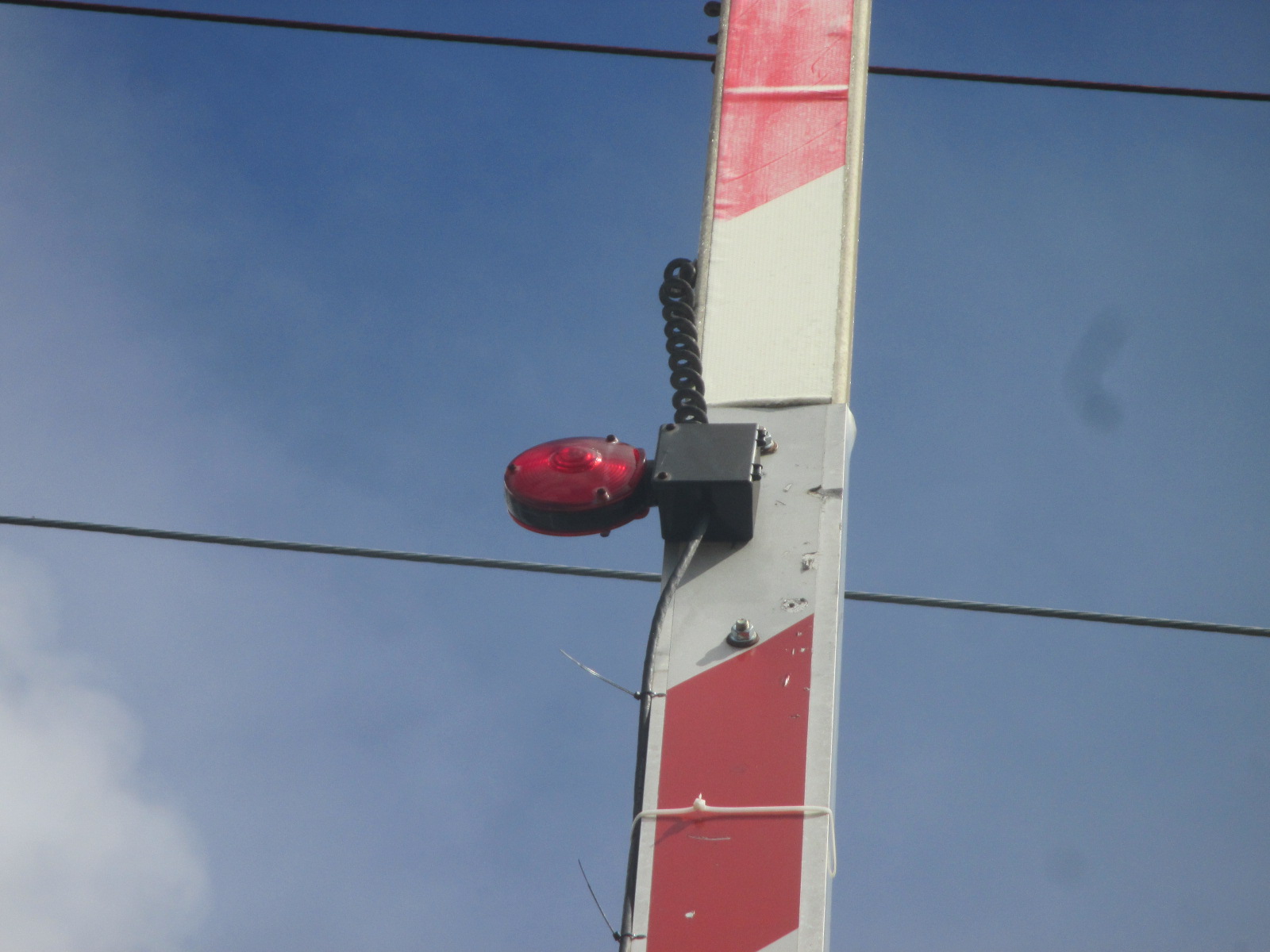

The gate lights on this signal are from RECO. |
The second signal. |
||
17 |
18 |
19 |
20 |
It has another Modern Industries base. |
This gate mechanism is from GRS as well. |
The emergency information again. |

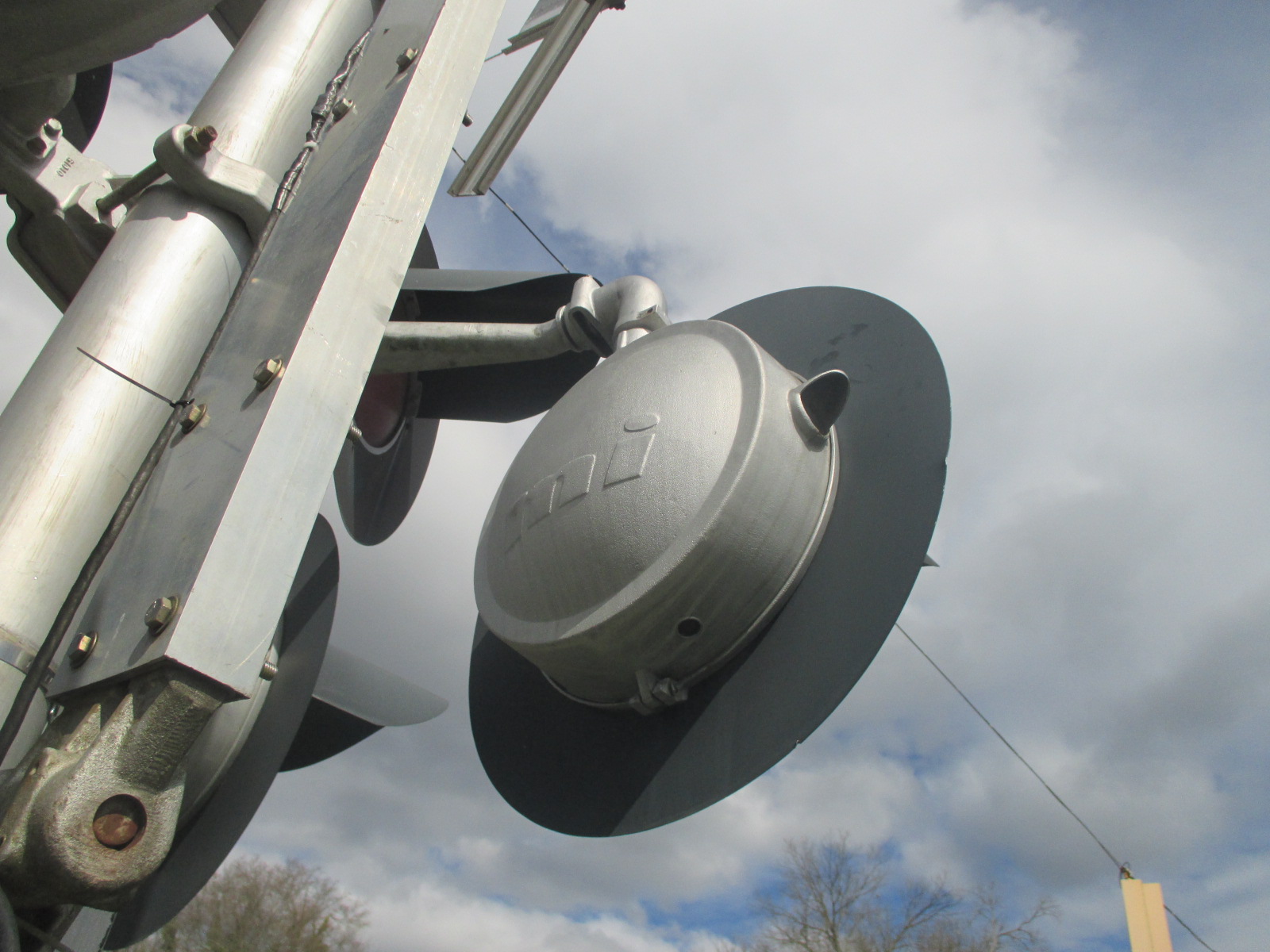

The lights here are all from Modern Industries. |
21 |
22 |
23 |
24 |
The gate lights on this signal are a mixture of RECO and General Signals. |
The relay case. |
||
25 |
26 |
27 |
28 |

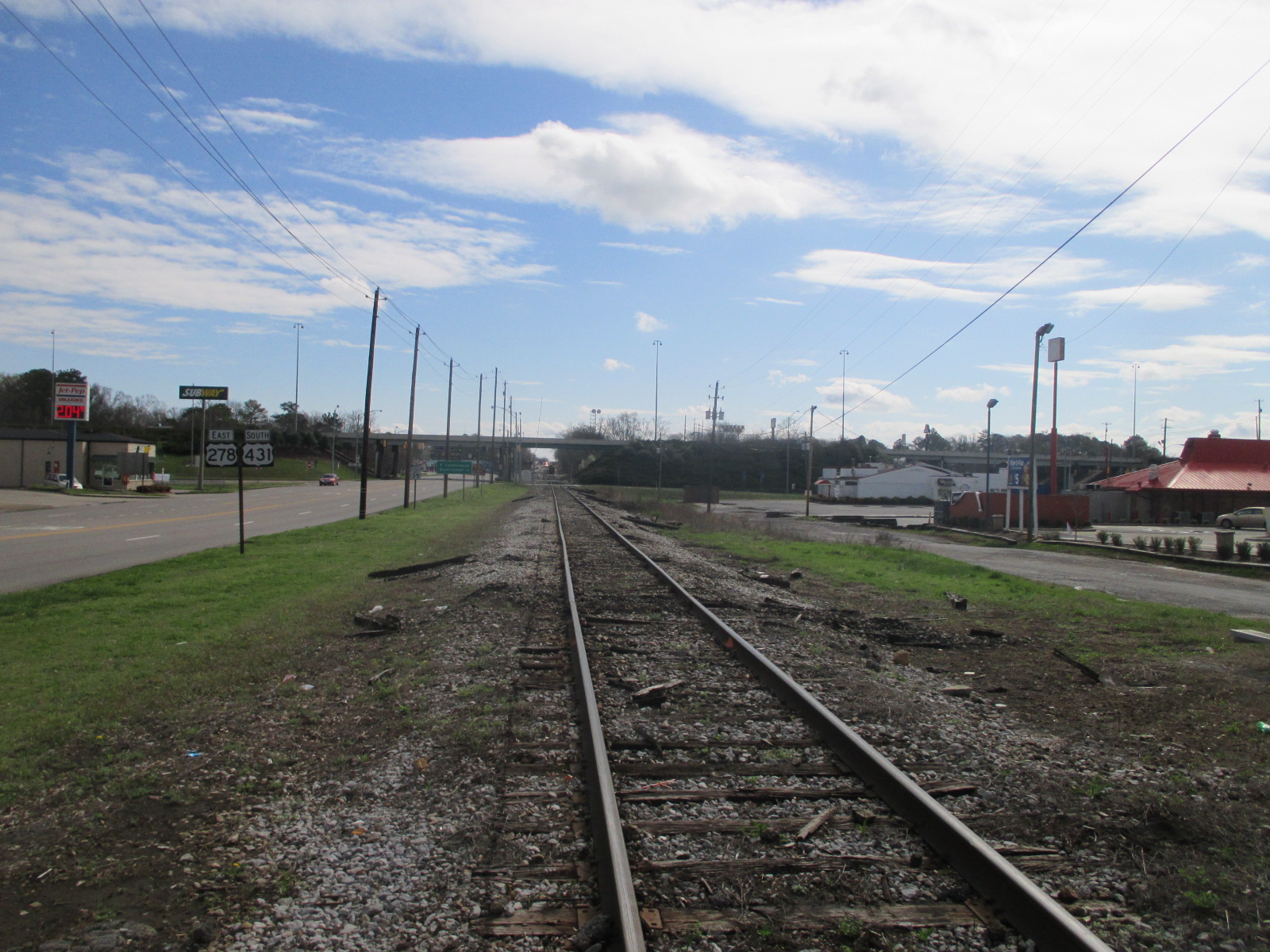

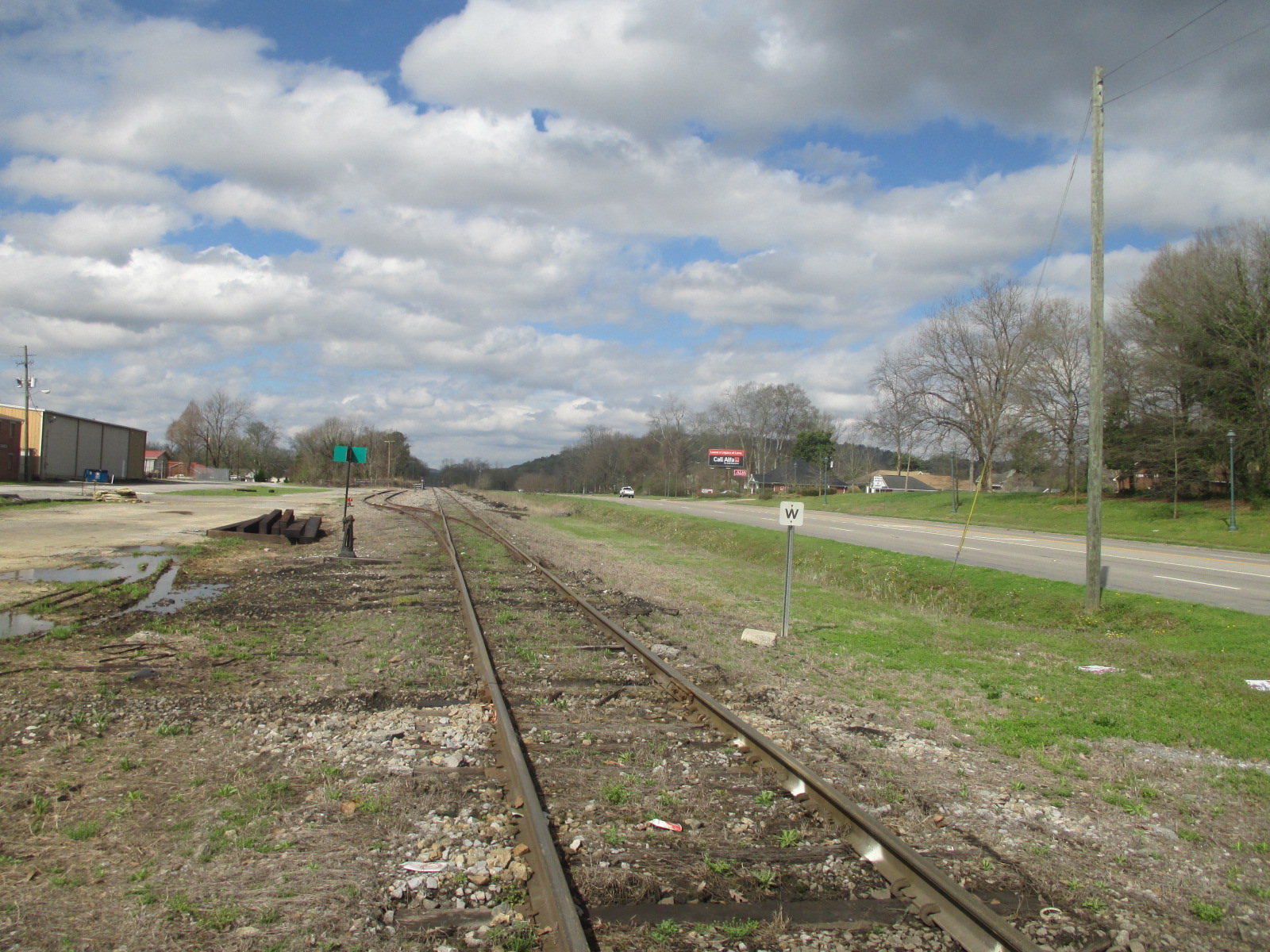

Track views. Picture 25 looks east towards I-59 #1 and picture 26 looks west towards Chestnut Street. |

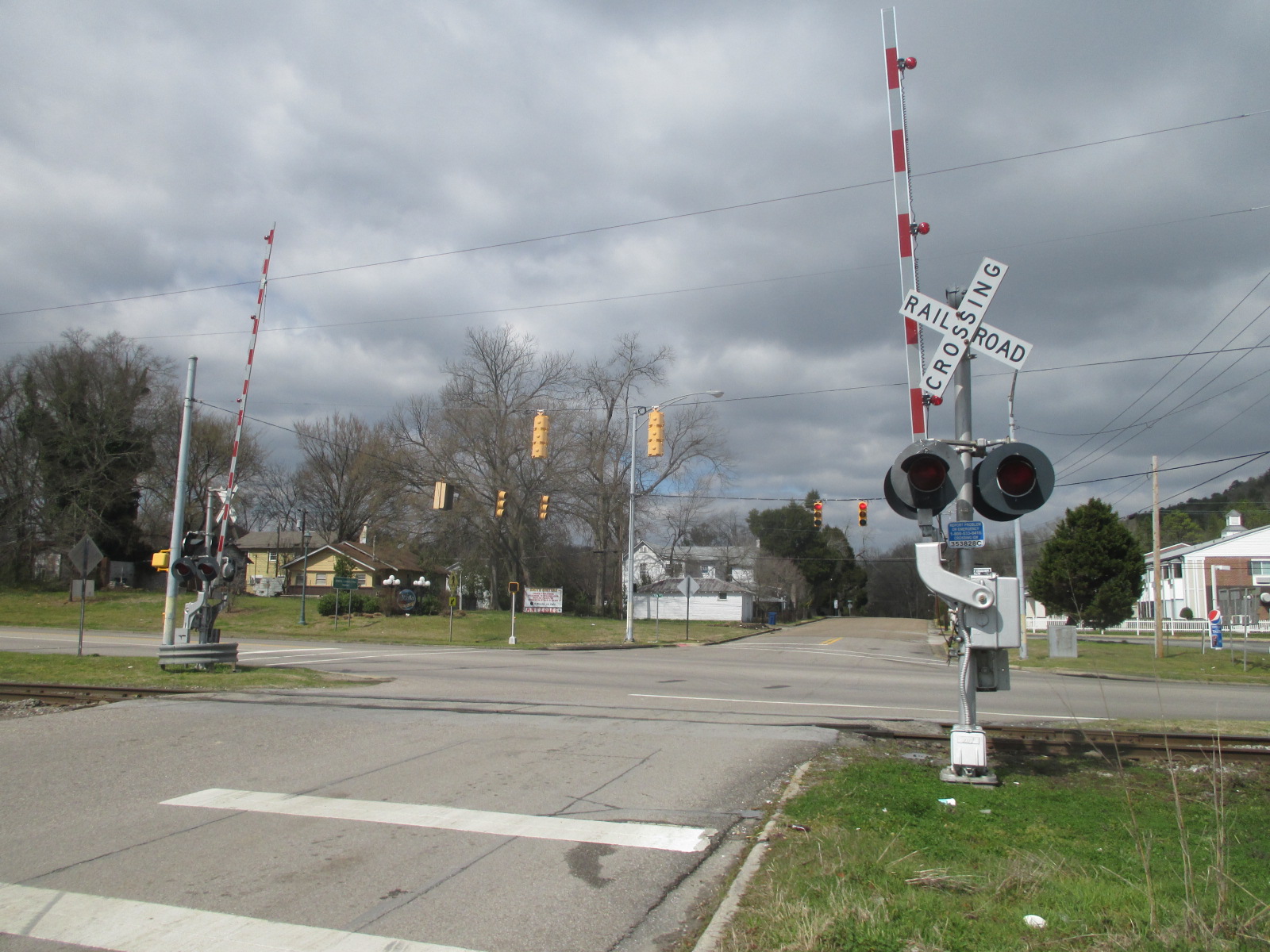

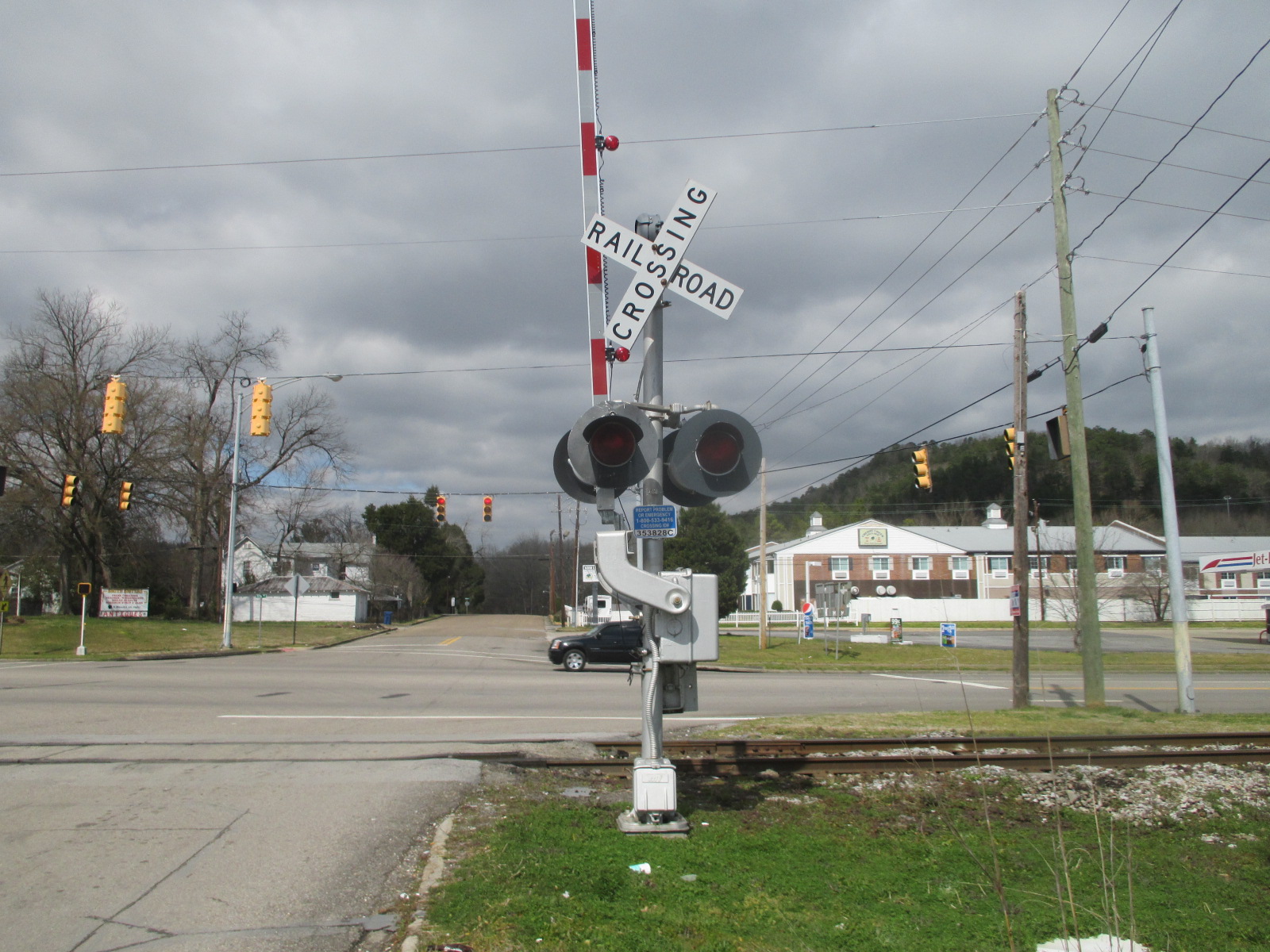

A return trip on 3-4-16 shows that the gates were replaced. |
||
29 |
30 |
31 |
32 |

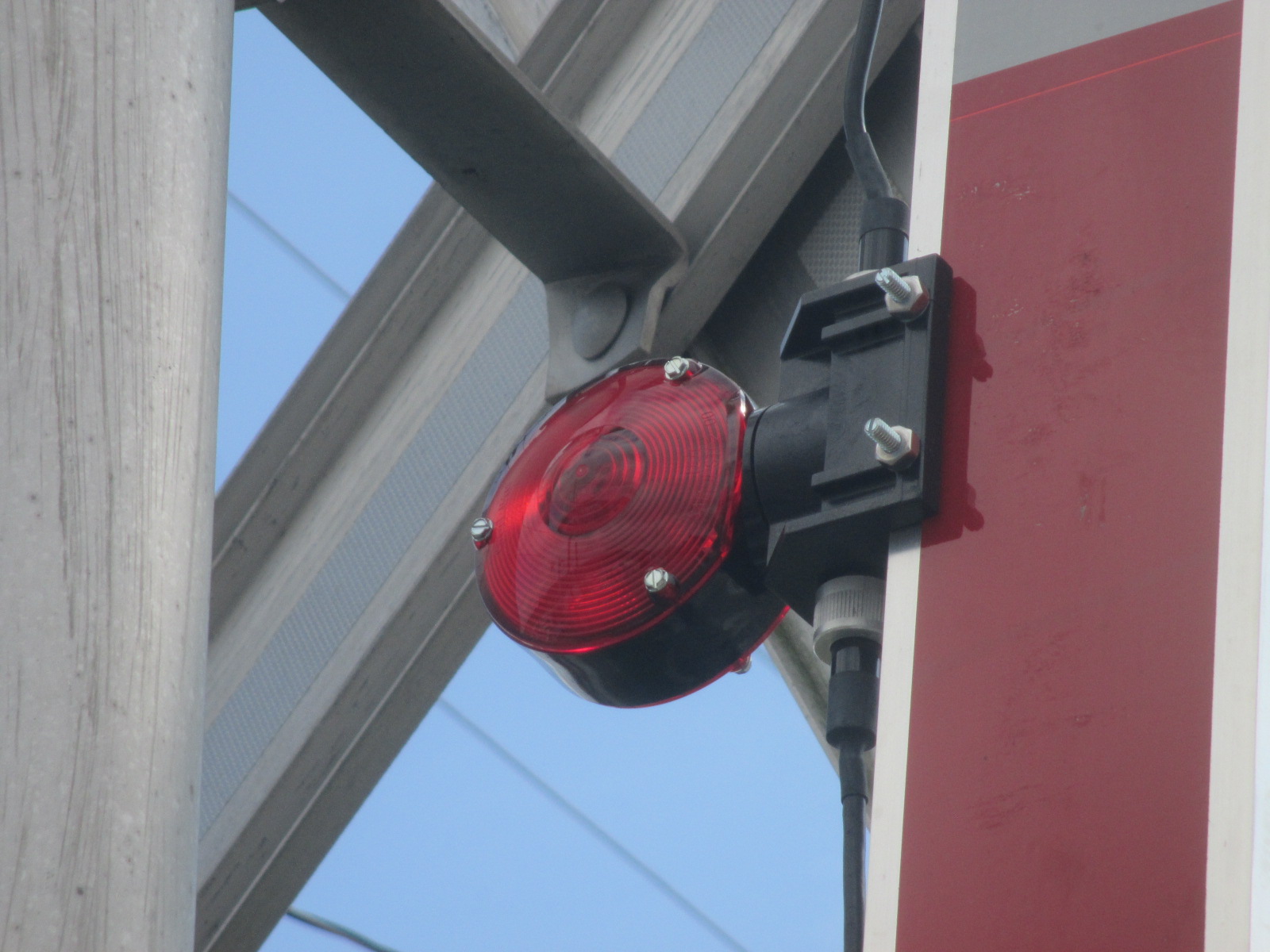

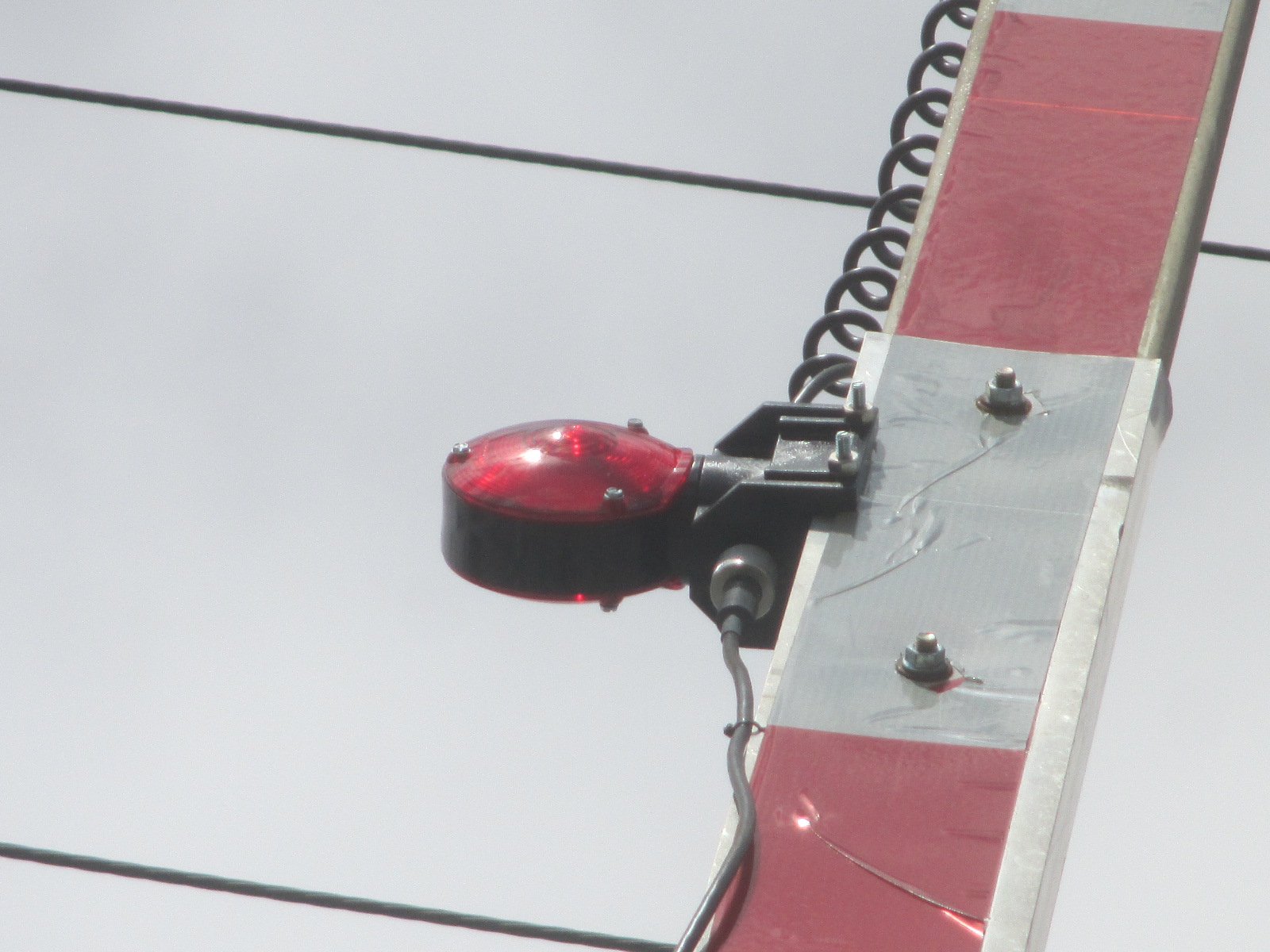

The gate lights were also
replaced with NEG gate lights. These are also incandescent,
interestingly enough. |
|||
Nothing else has changed at the crossing.
33 |
34 |
35 |
36 |

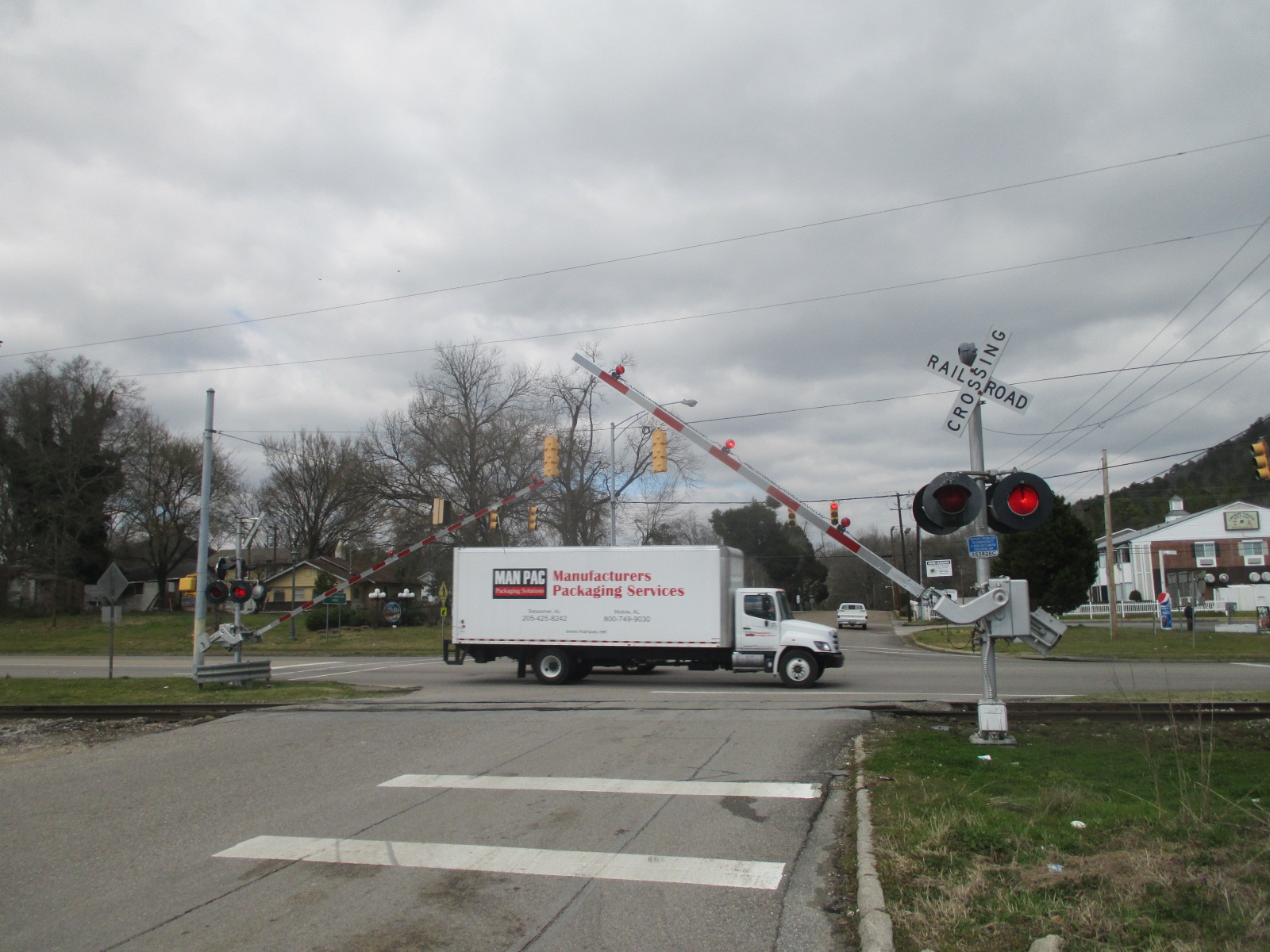

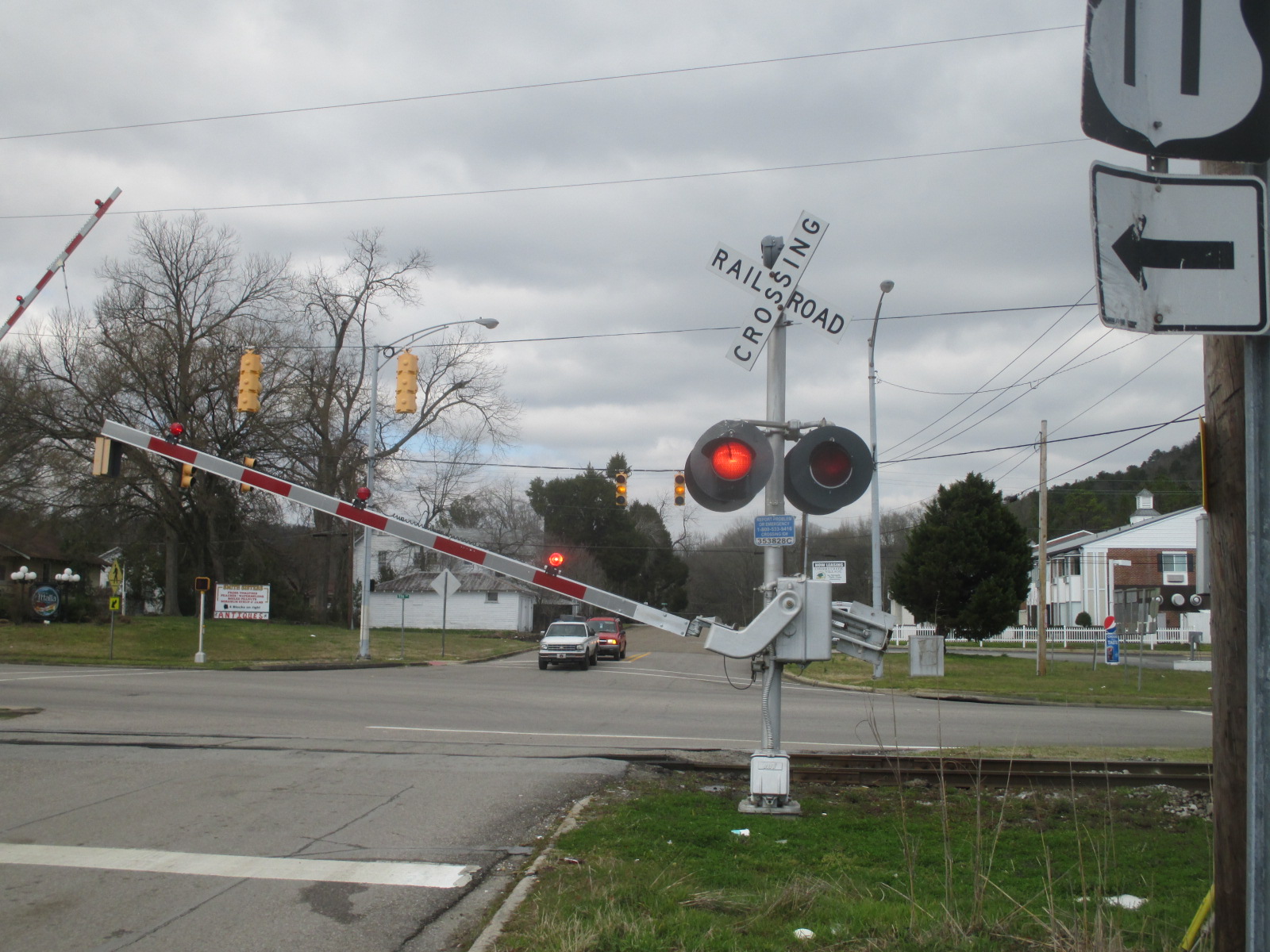

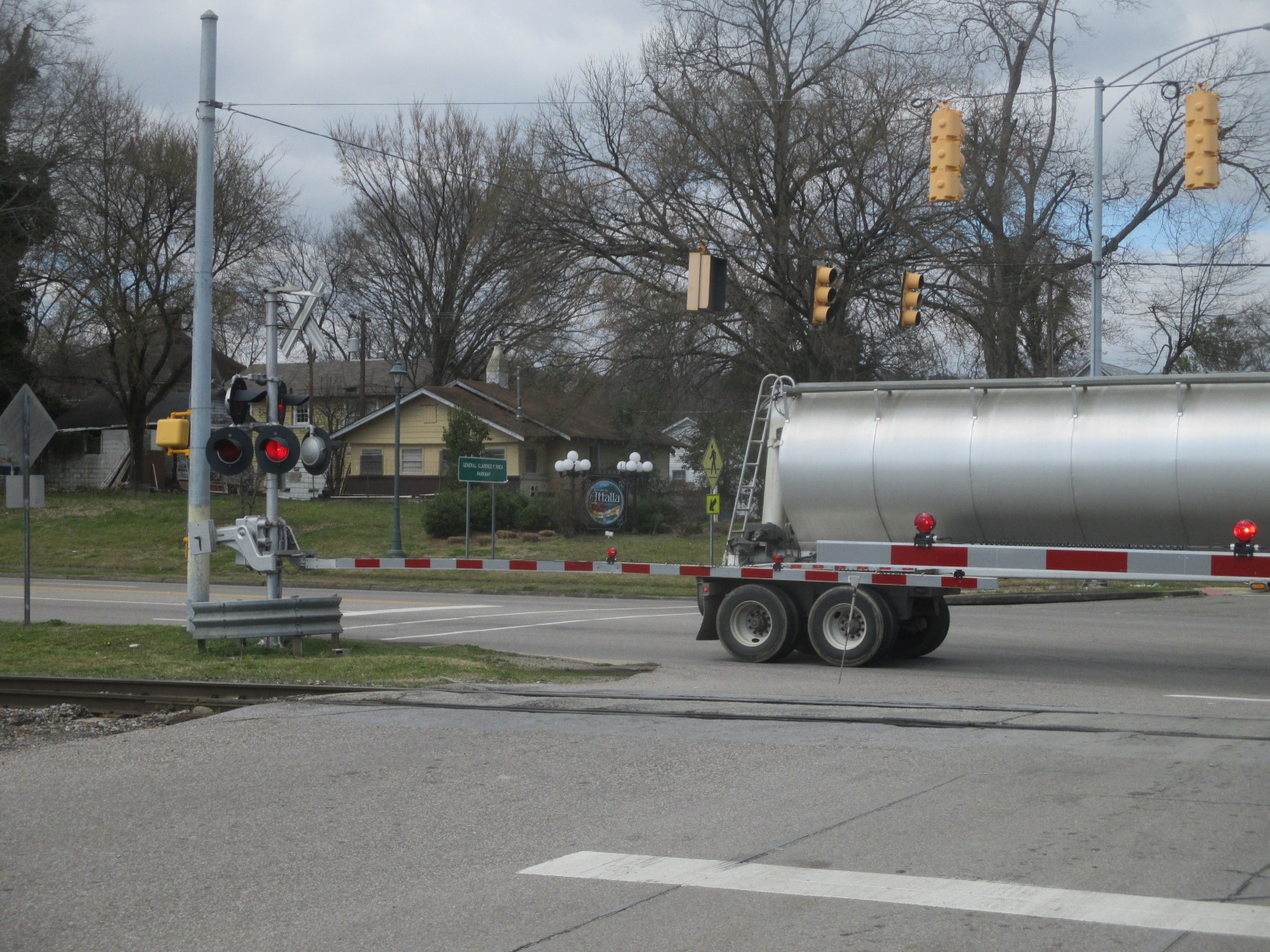

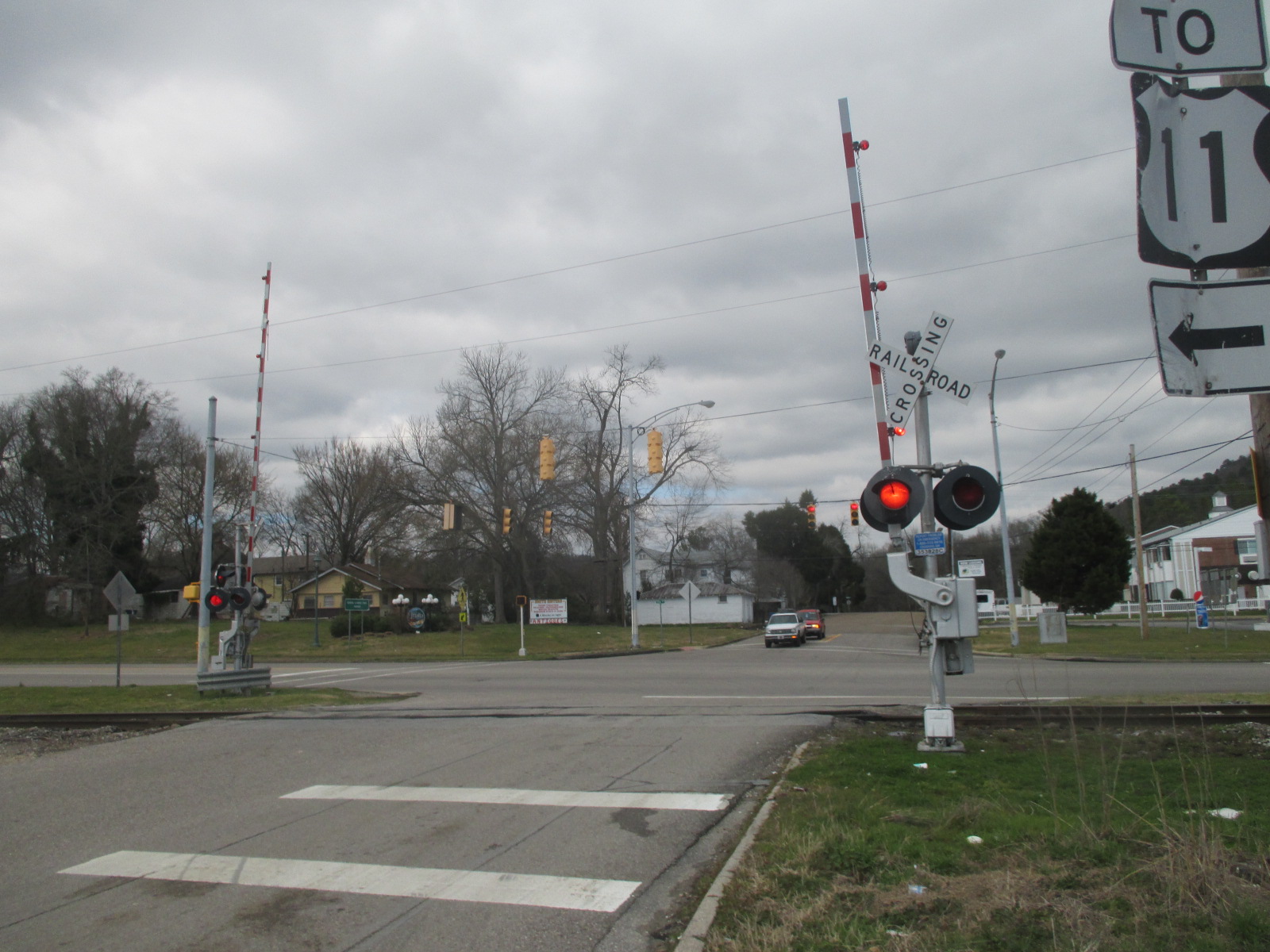

The crossing activates! The bell rings until the gate on the left has fully lowered. |
|||
37 |
38 |
39 |
40 |

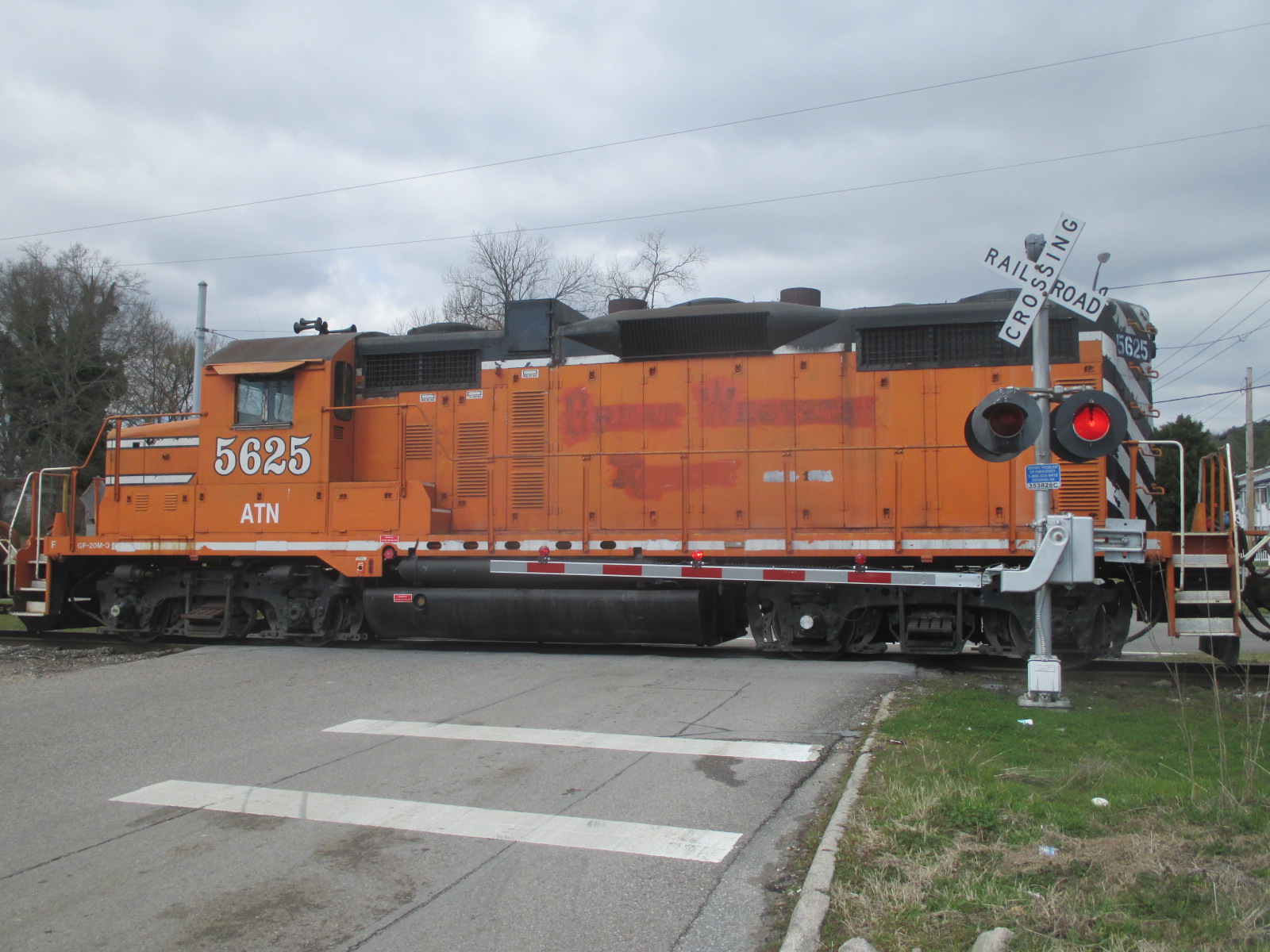

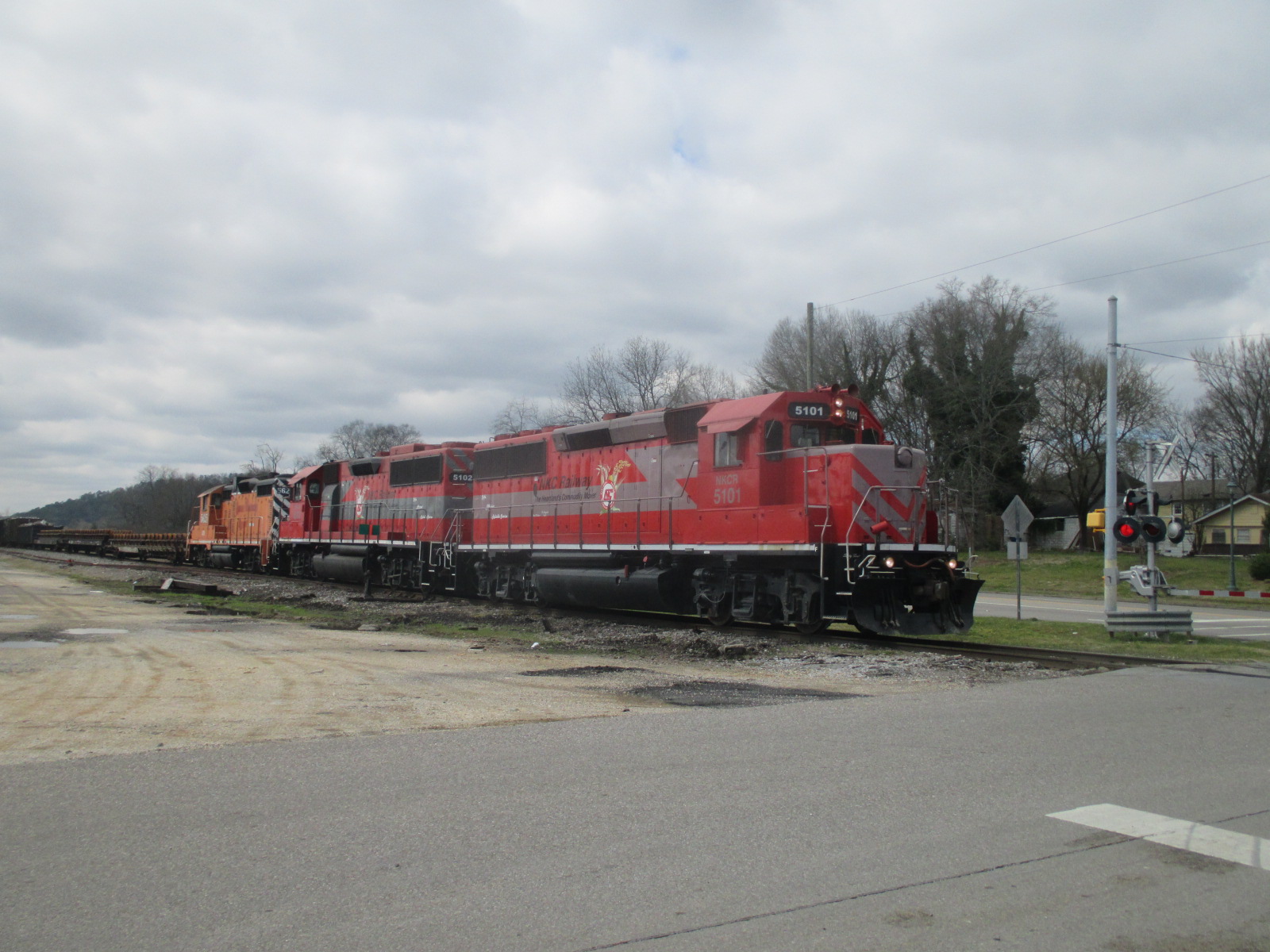

ATN train GN 1 (formerly train M715) heads back towards the ATN's yard in Gadsden. |
|||
41 |
42 |
43 |
44 |

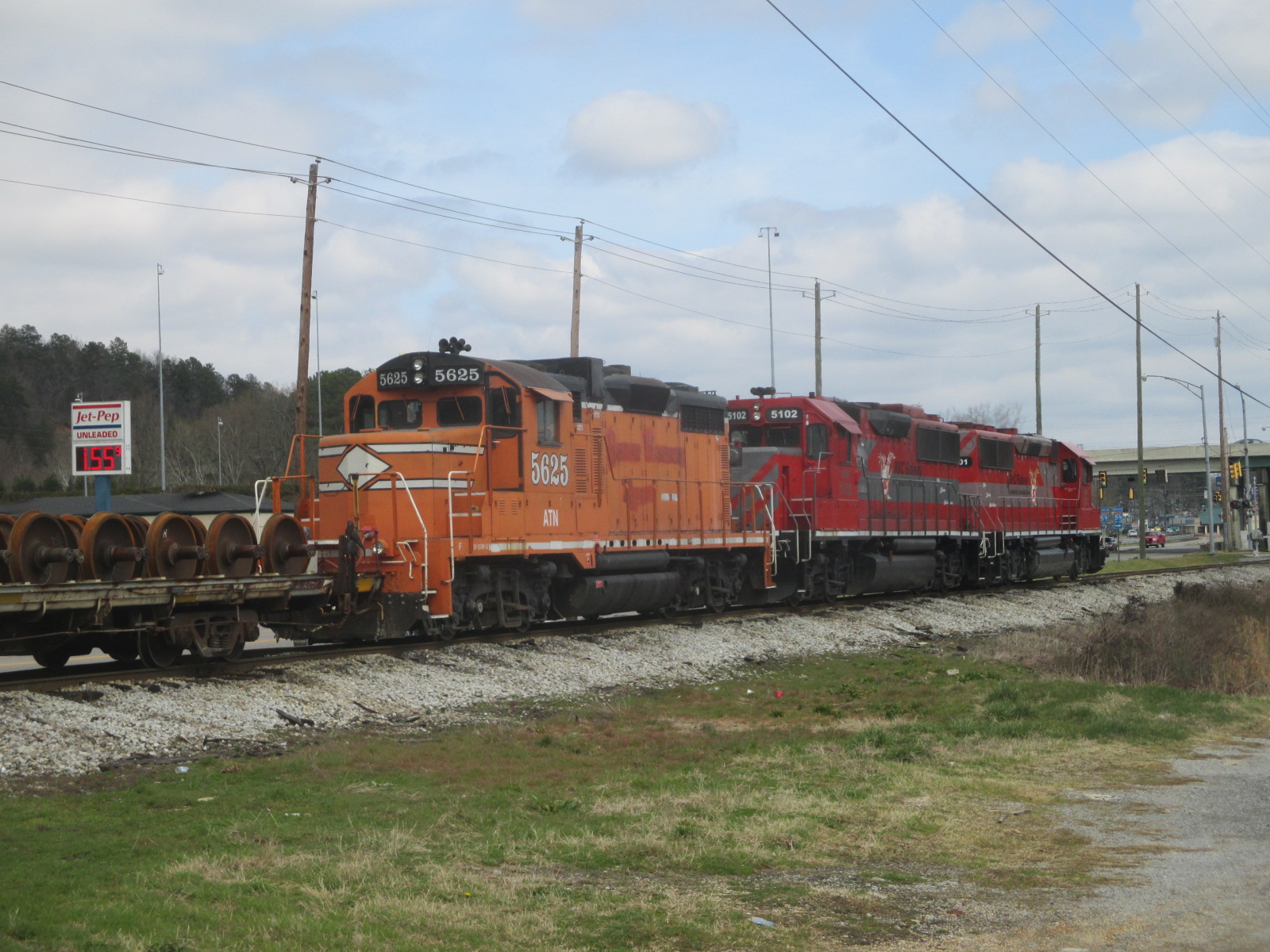

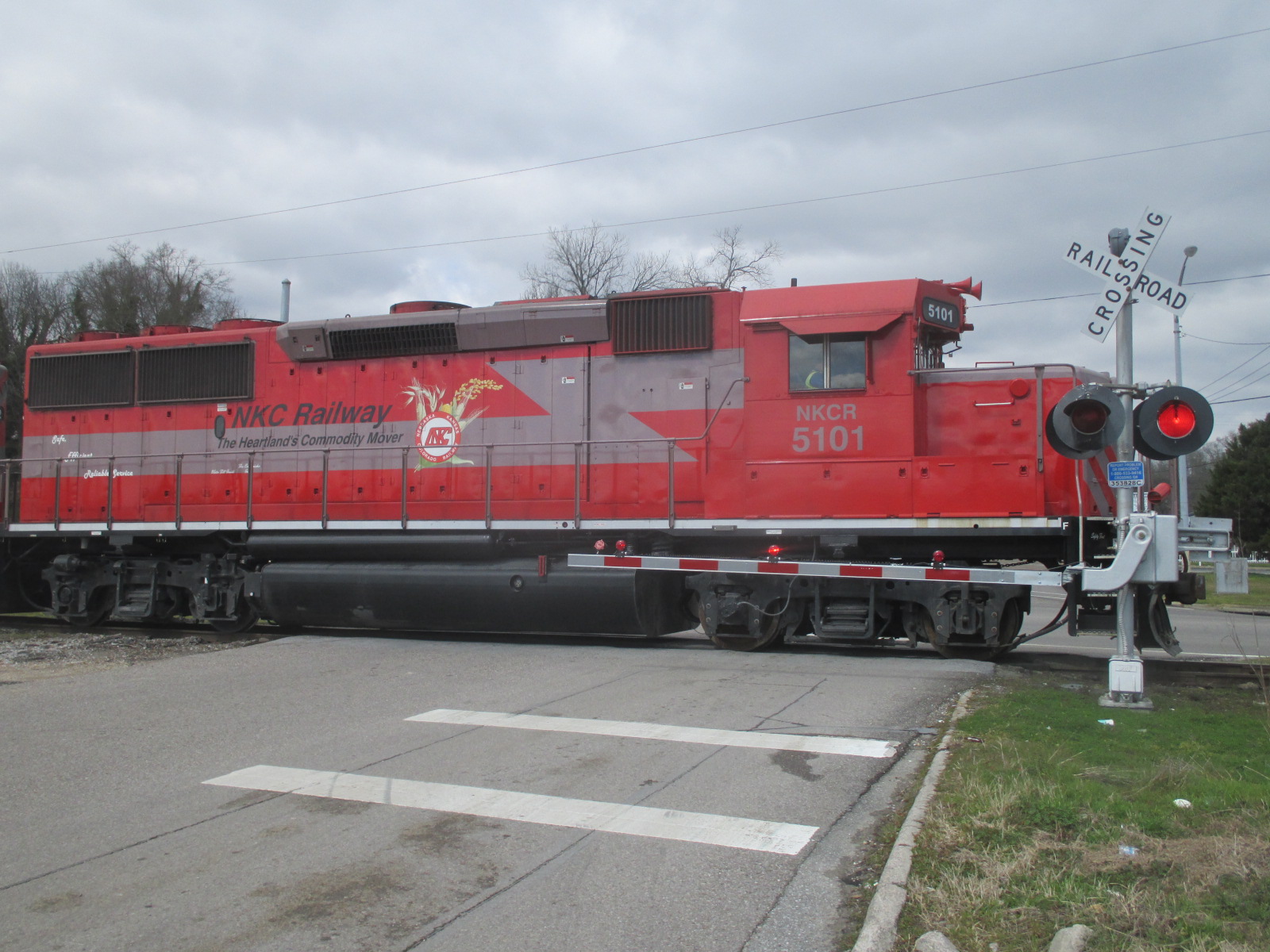

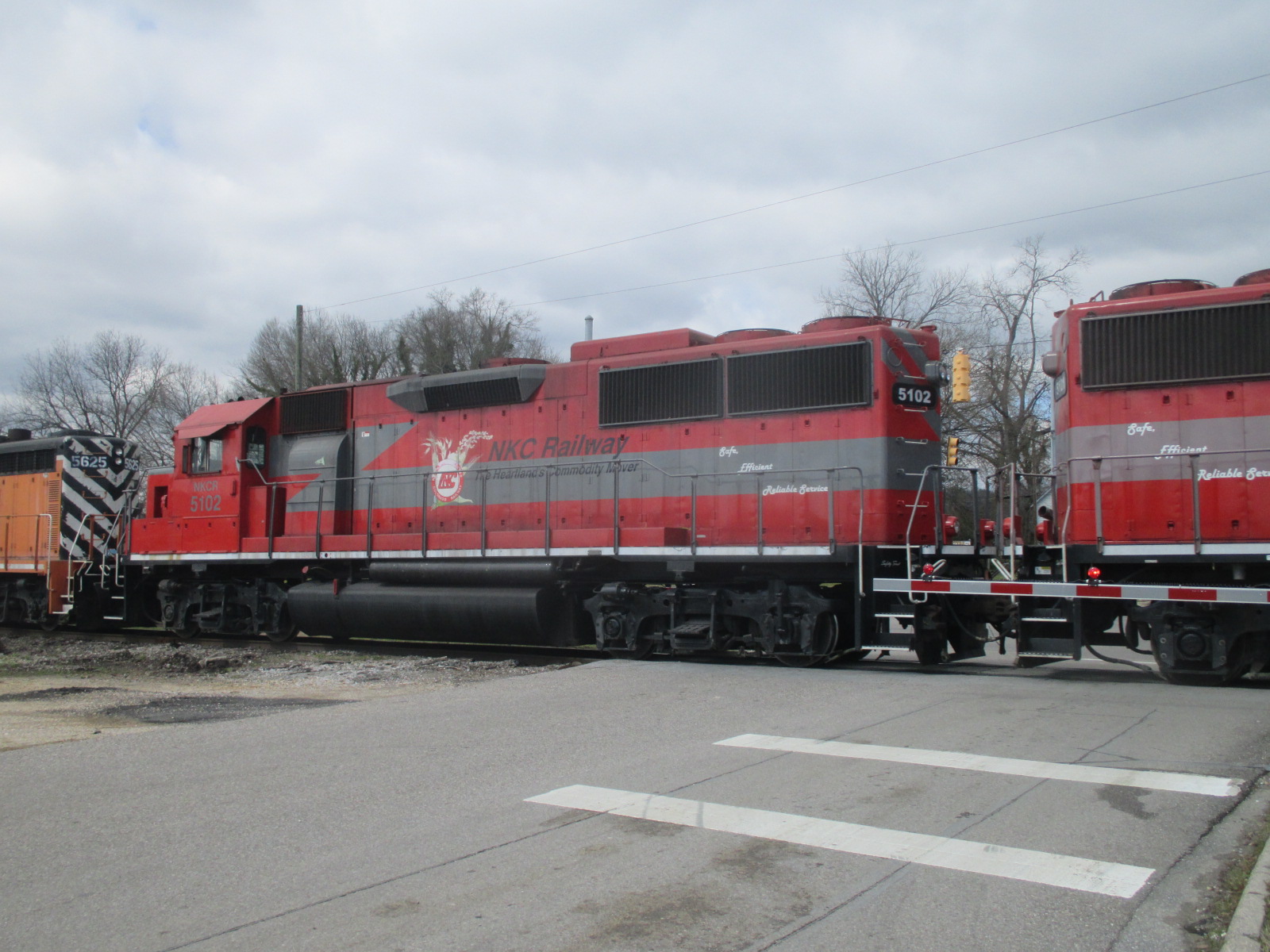

Two GP50s... |
...and an ex-GWR GP20M-Q! |
||
45 |
46 |
47 |
48 |

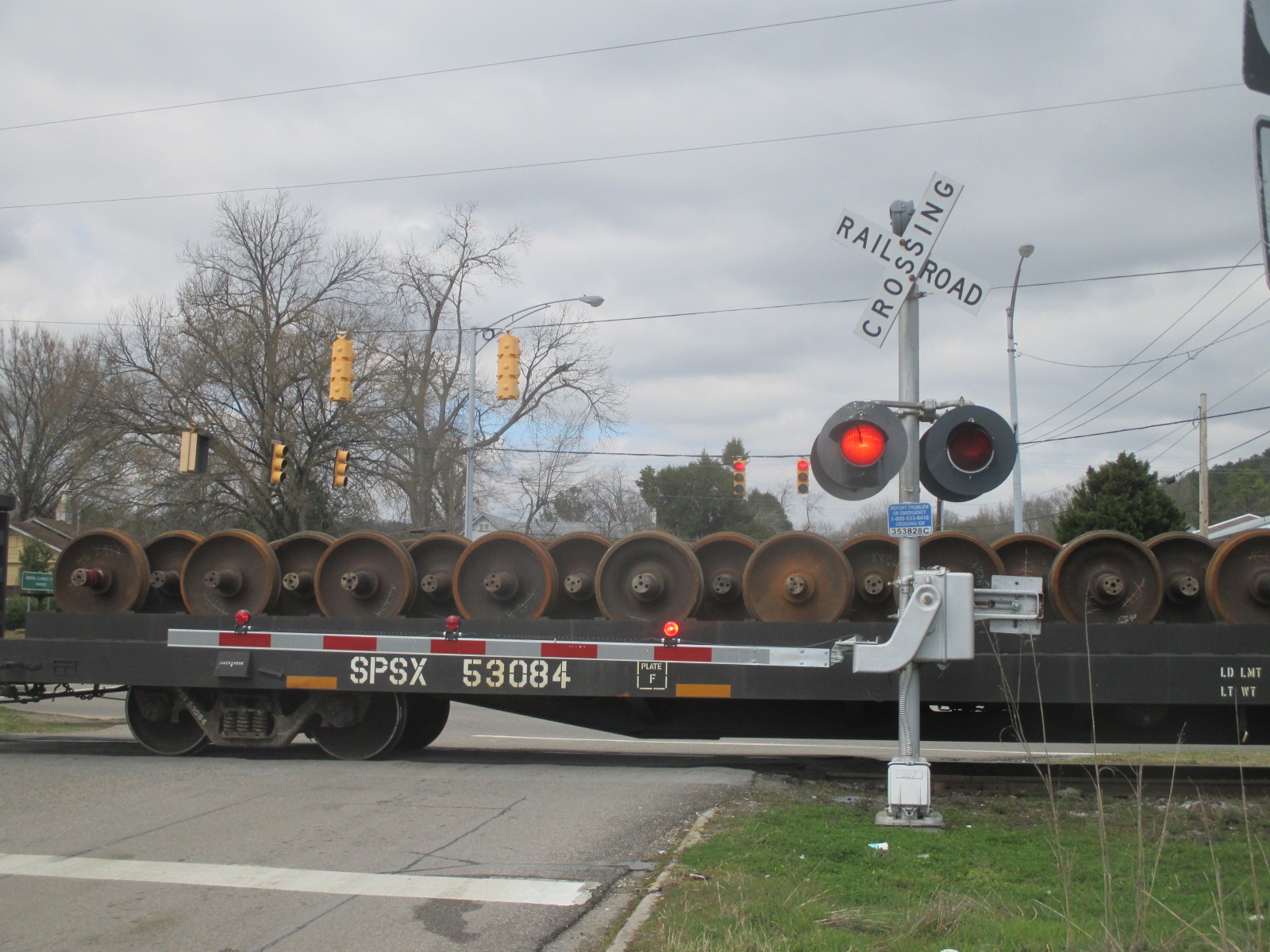

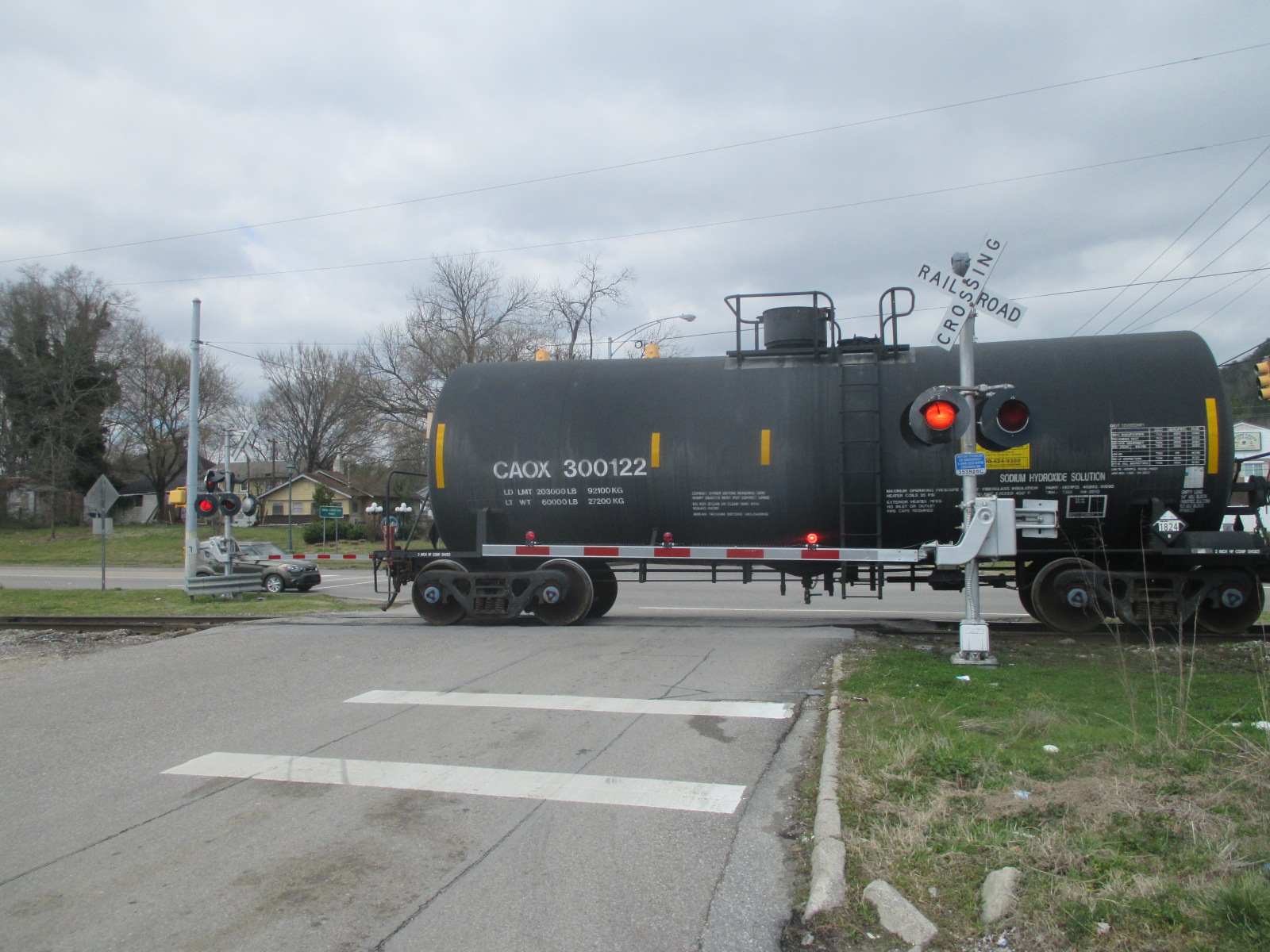

The train had a few cars full of wheels on it. |
|||
49 |
50 |
51 |
52 |
53 |
54 |
55 |
56 |

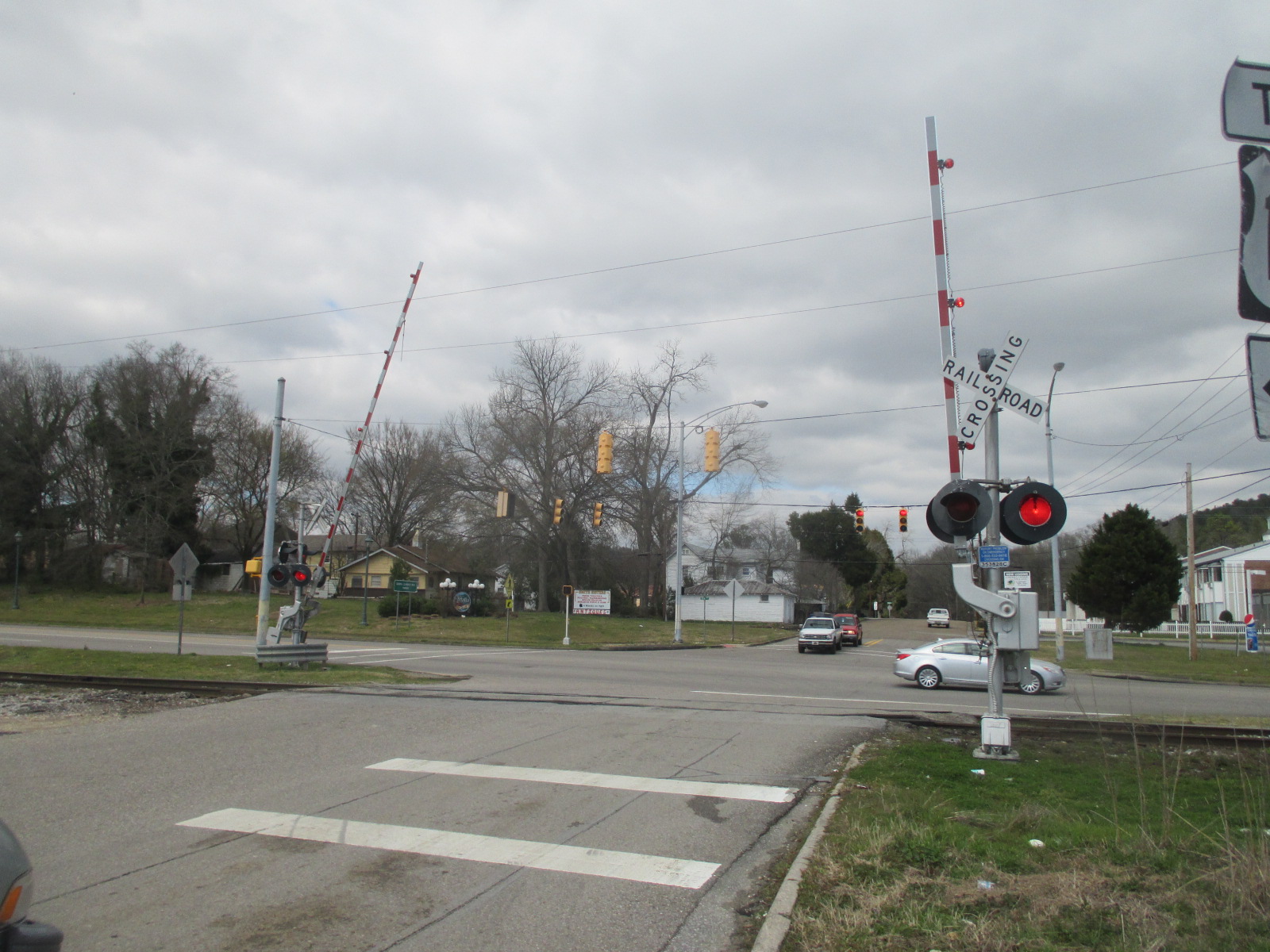

The crossing deactivates. The gate on the left takes a longer time to rise. |
|||
57 |
58 |
59 |
60 |

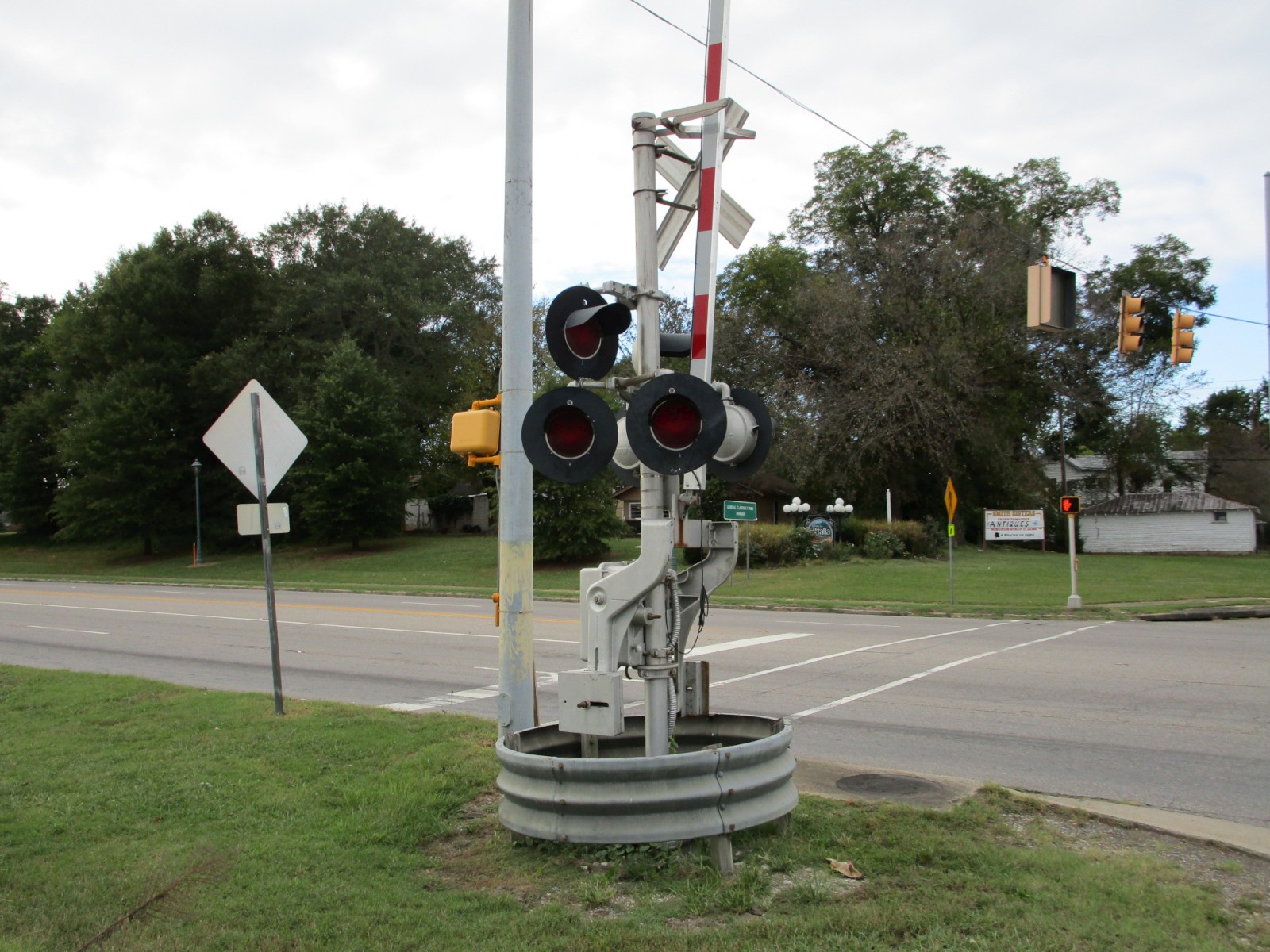

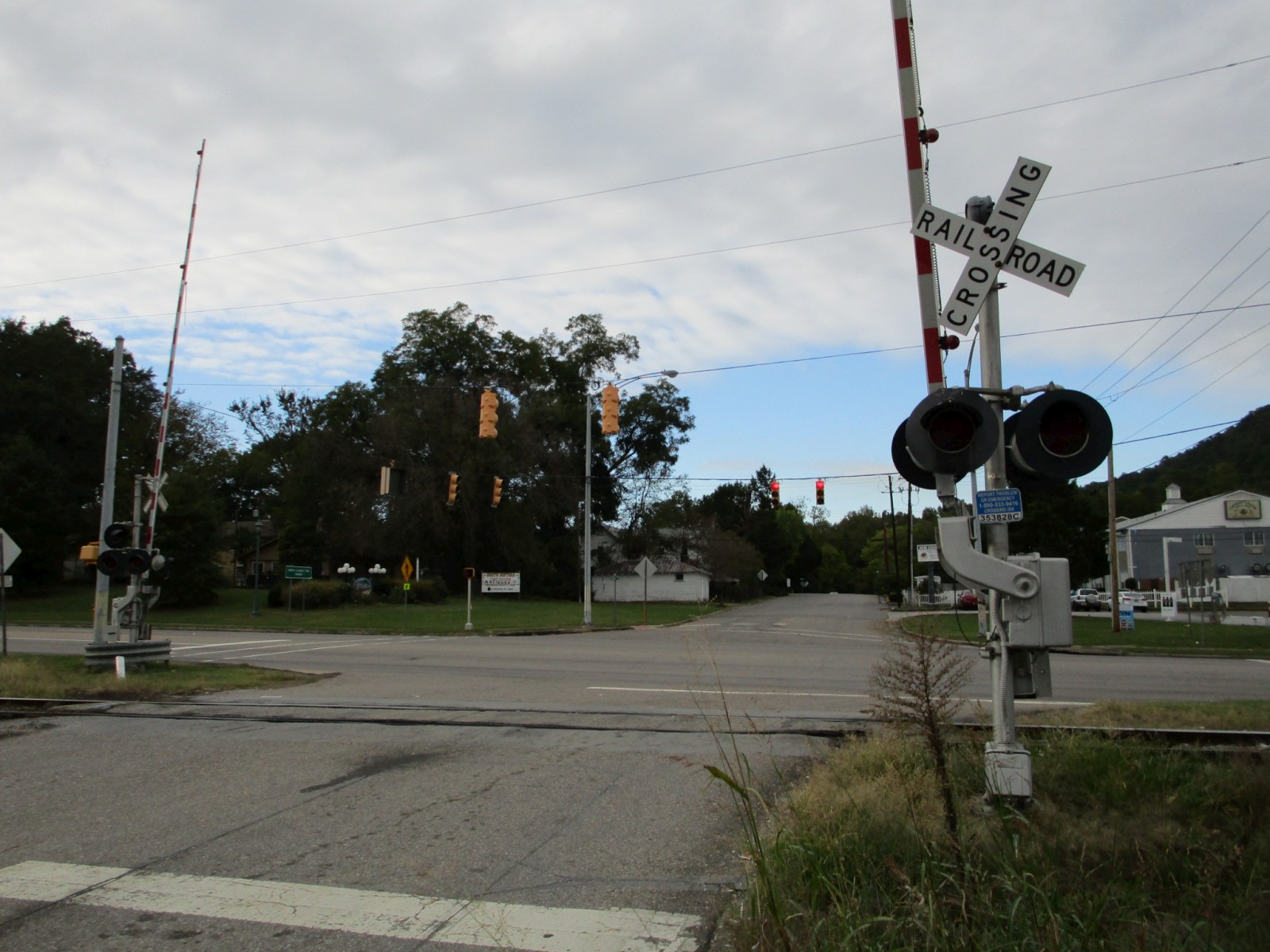

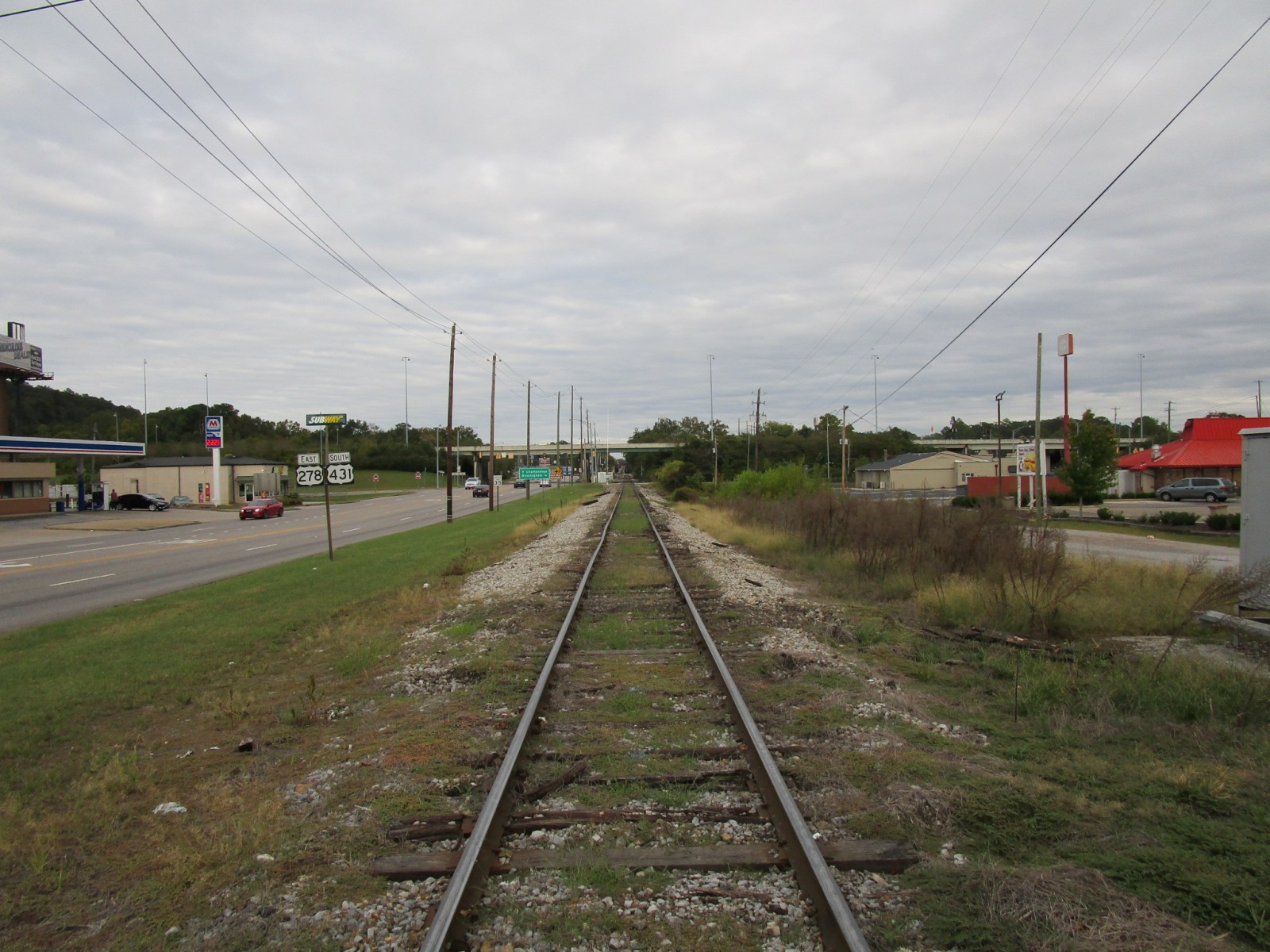

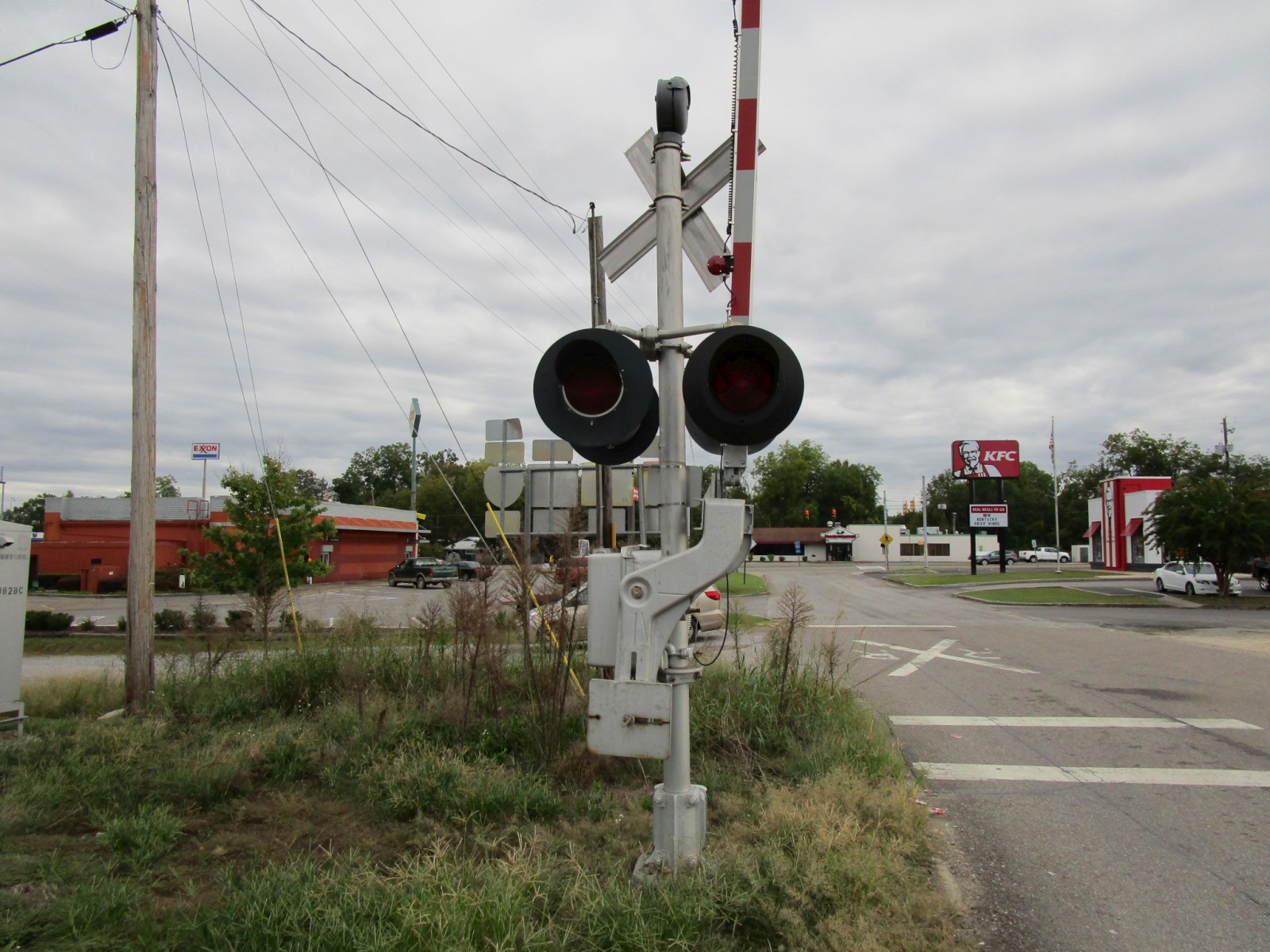

A return trip on 10-12-19 shows a few changes to the crossing. |

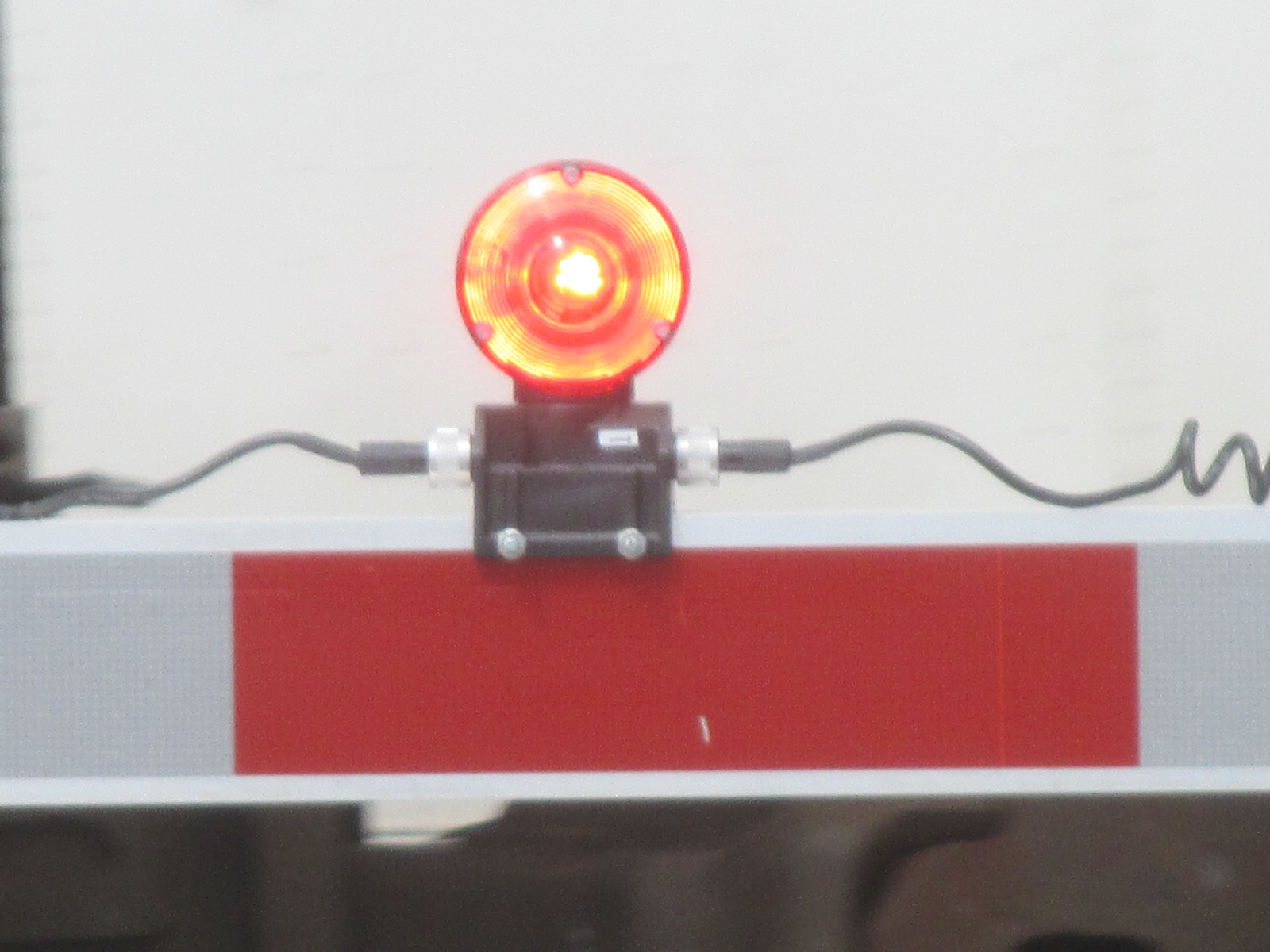

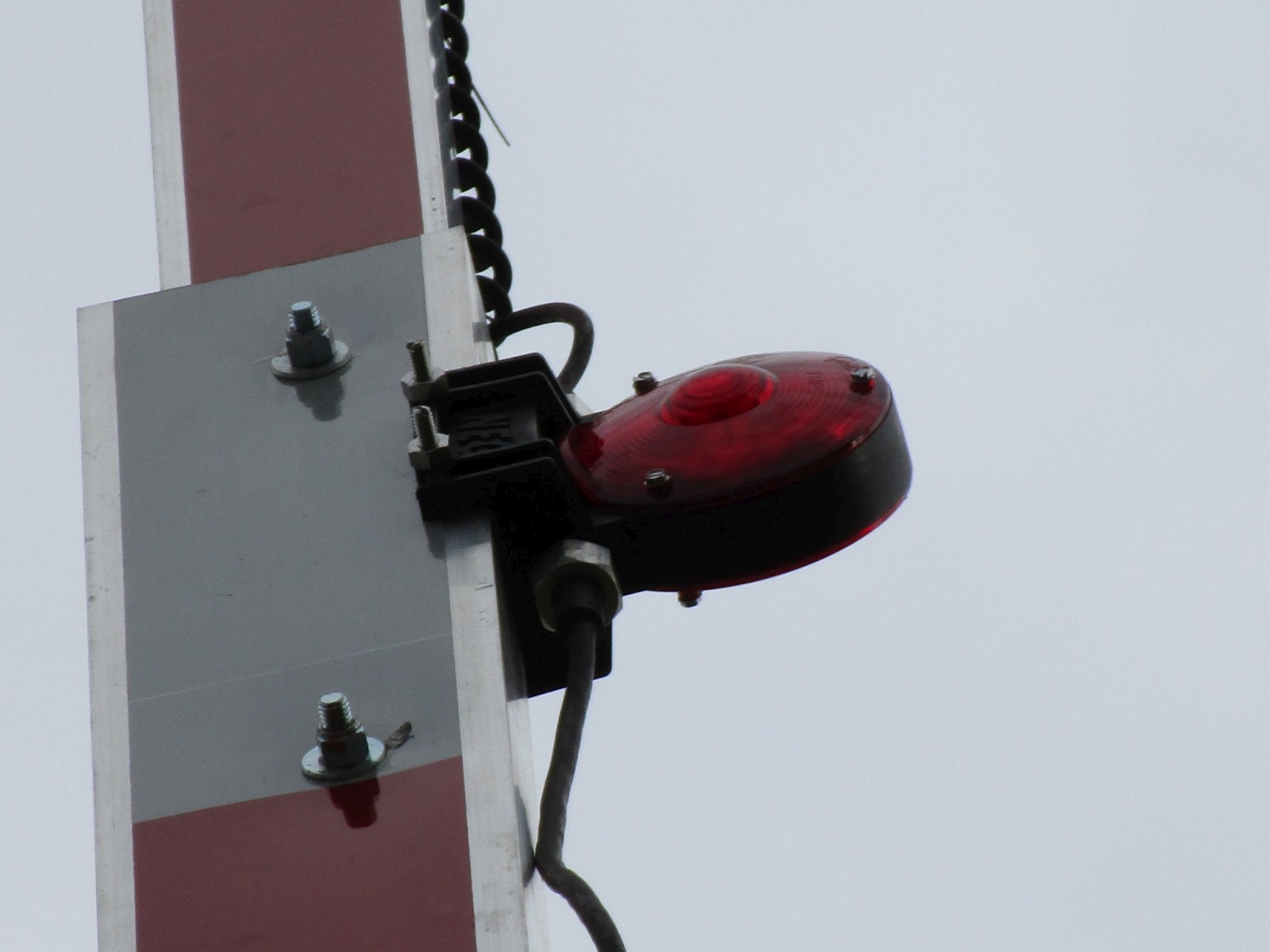

The first signal now has RECO LED gate lights! |
||
61 |
62 |
63 |
64 |
The second signal now has a new gate arm and NEG LED gate lights. |

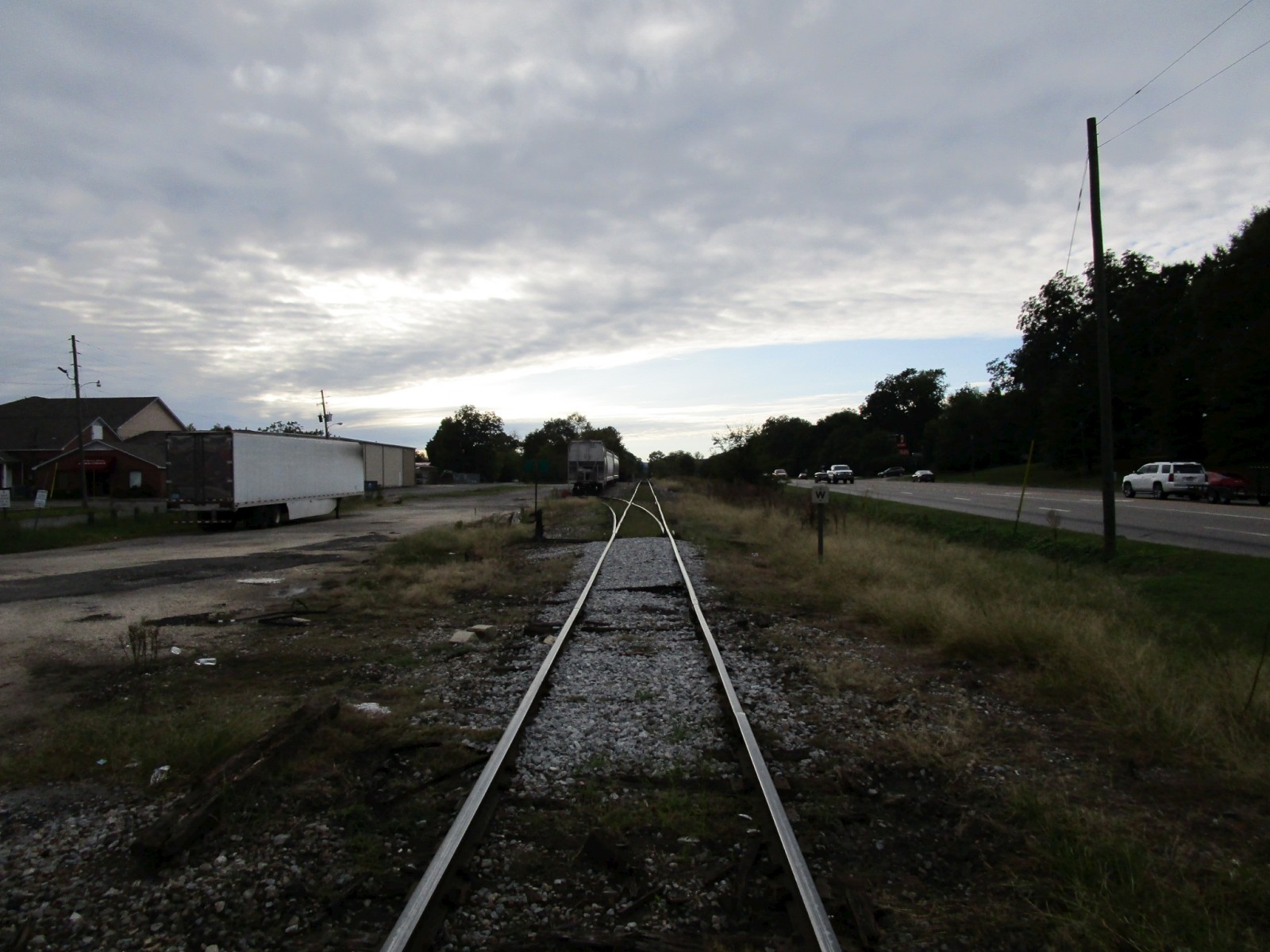

Track views. |
||
65 |
66 |
67 |
68 |

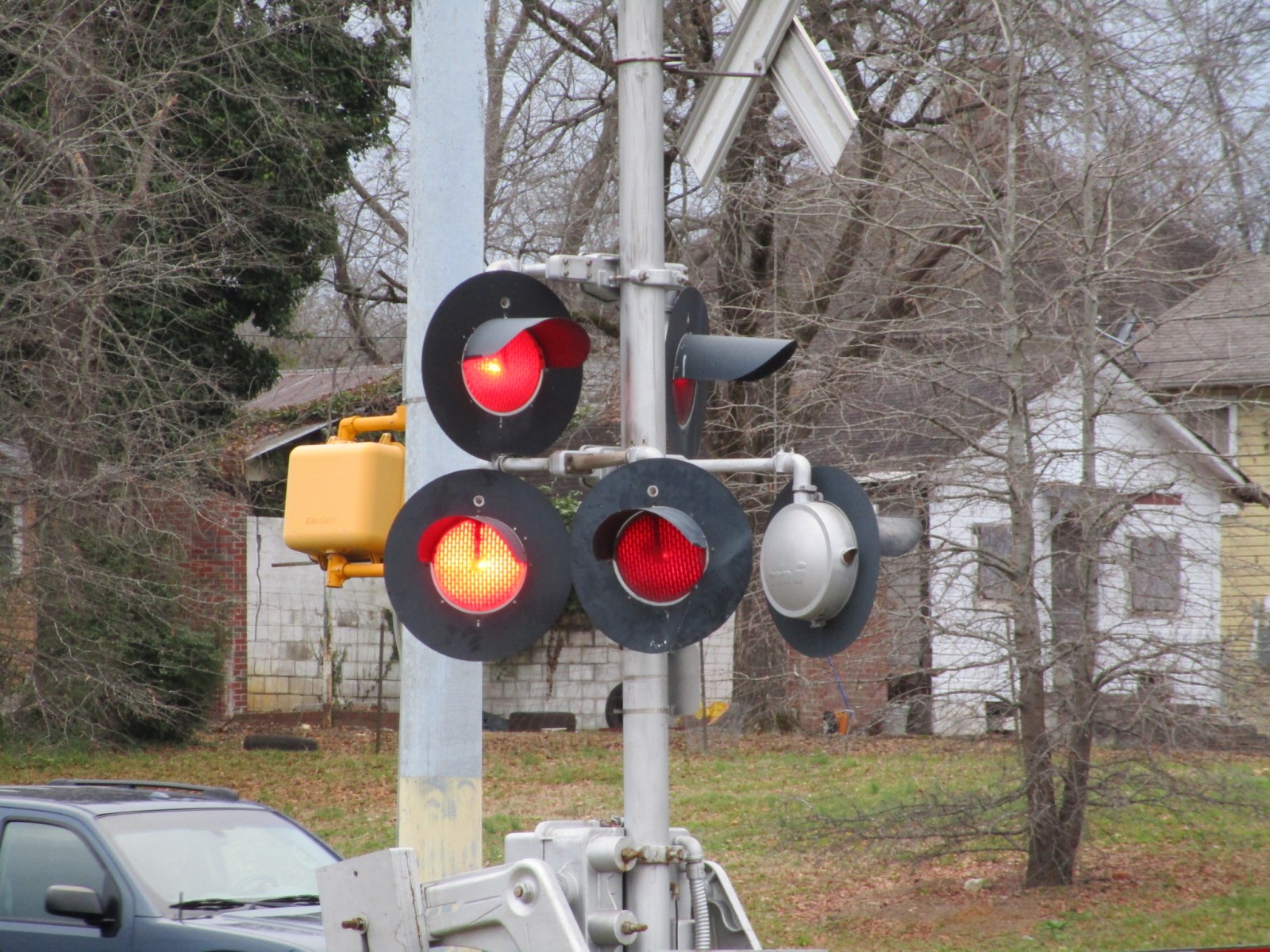

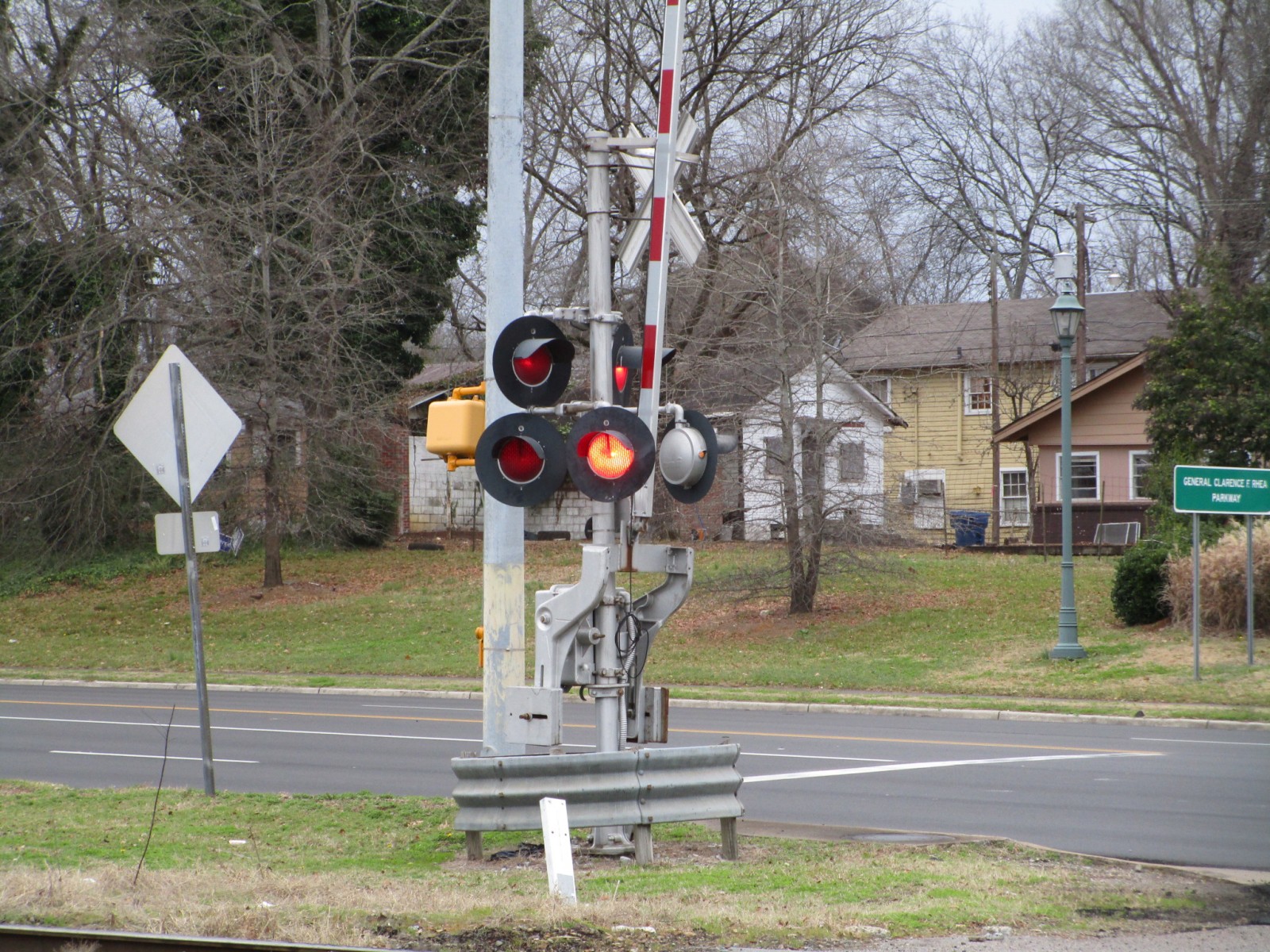

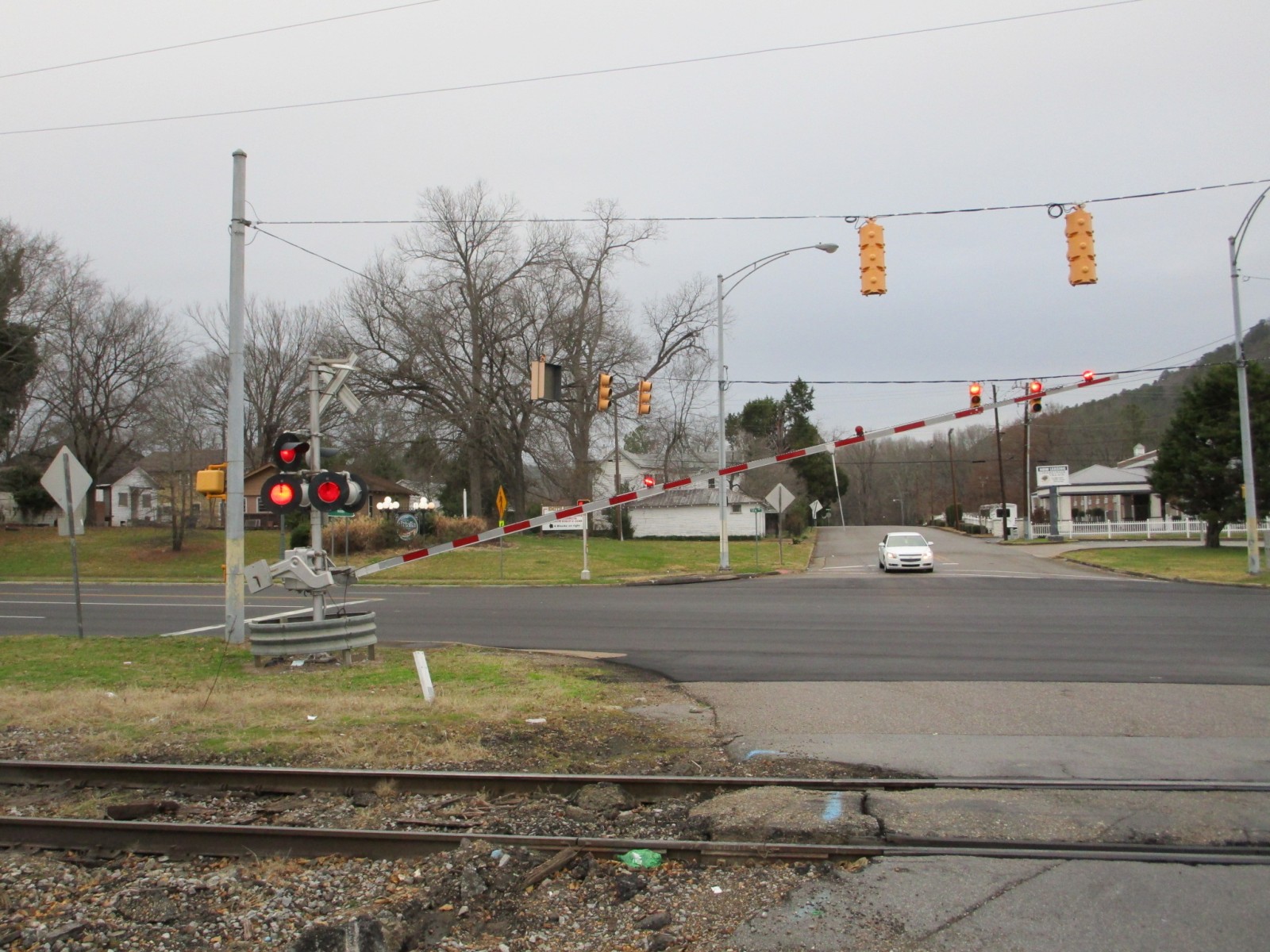

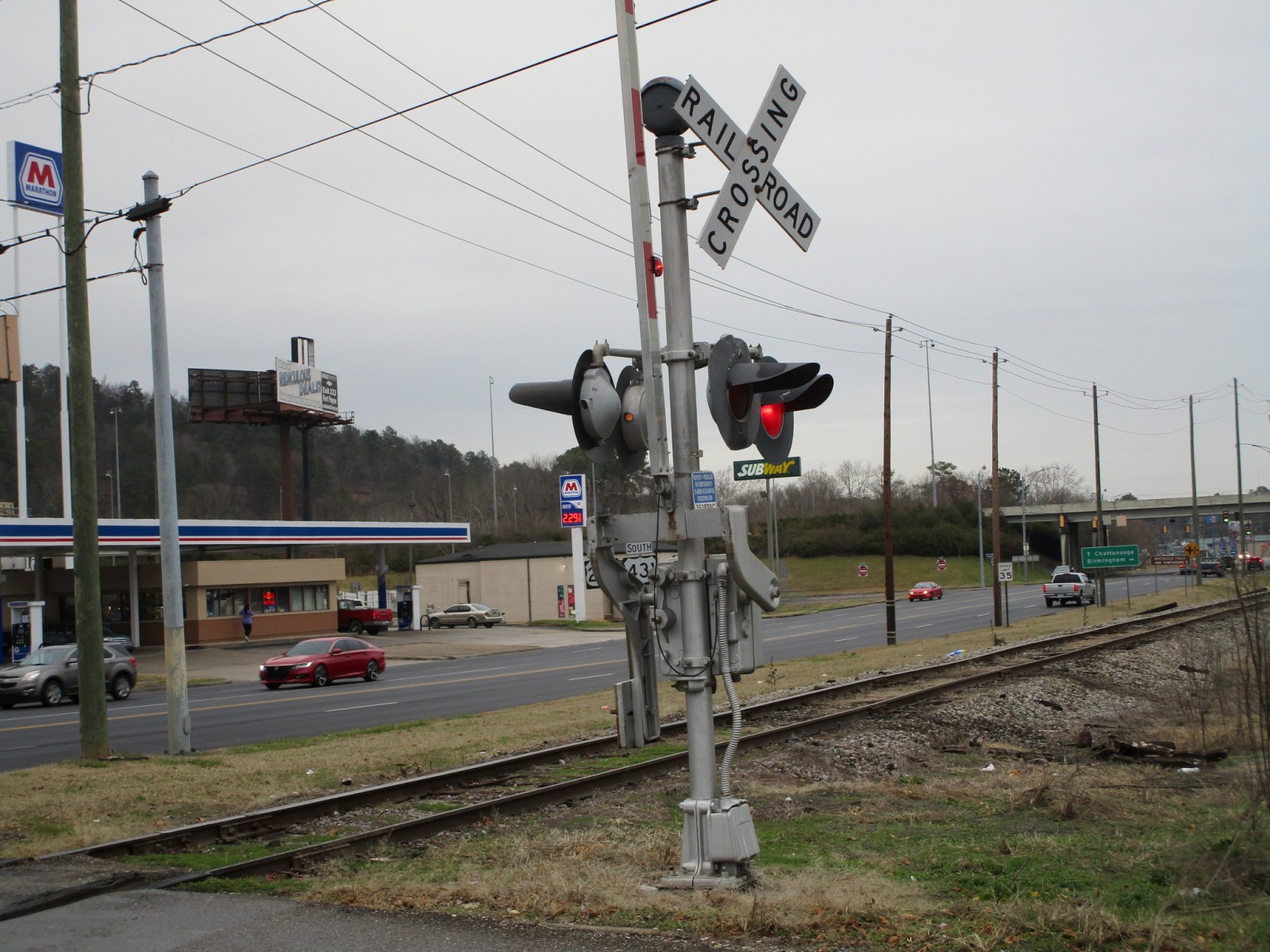

Another return trip on 12-27-19 catches the crossing in action once again! |
|||
69 |
70 |
71 |
72 |

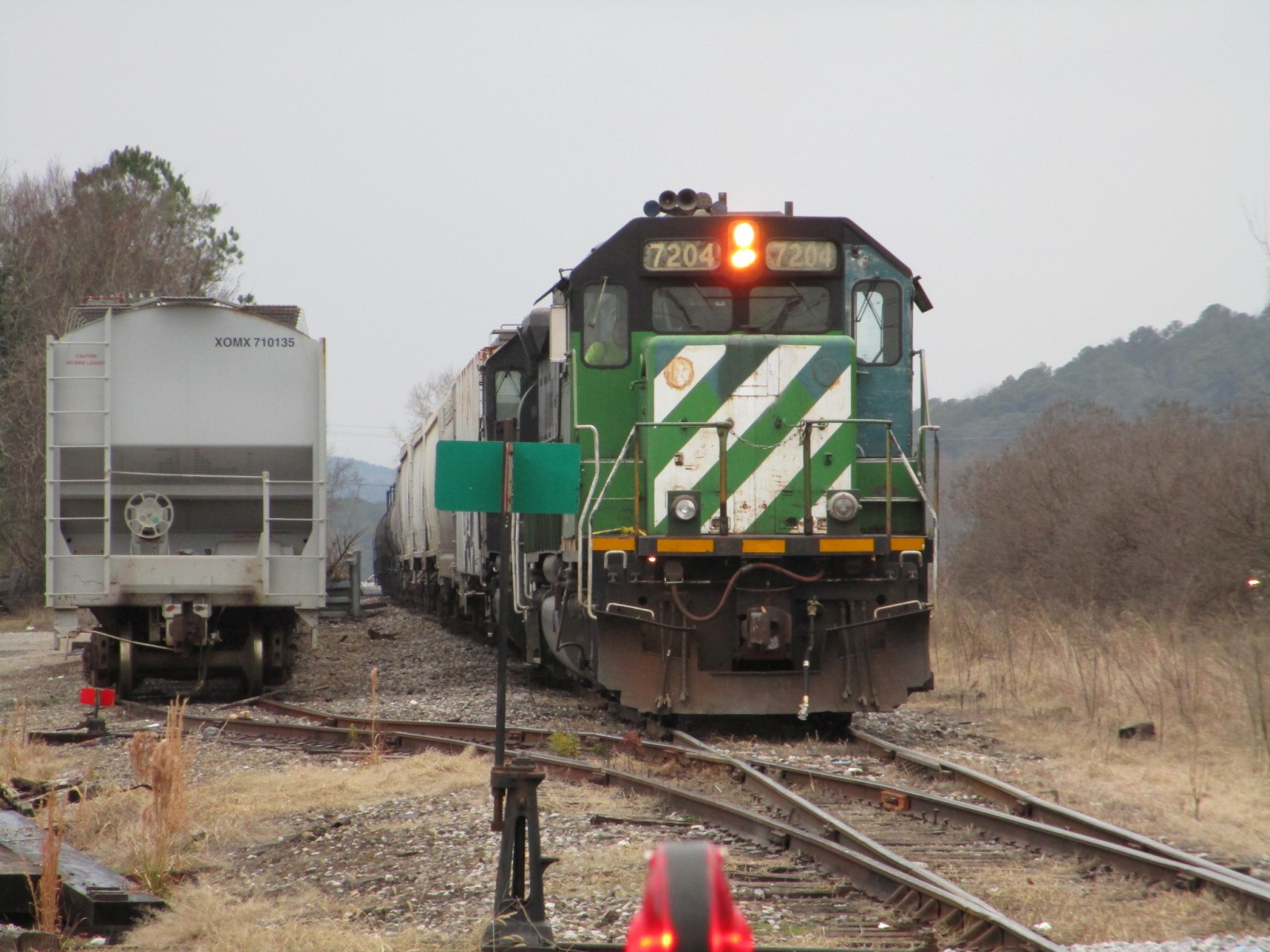

ATN M715 stops just before the crossing. |
|||
73 |
74 |
75 |
76 |
The crossing times out and the gates rise. |
|||
77 |
78 |

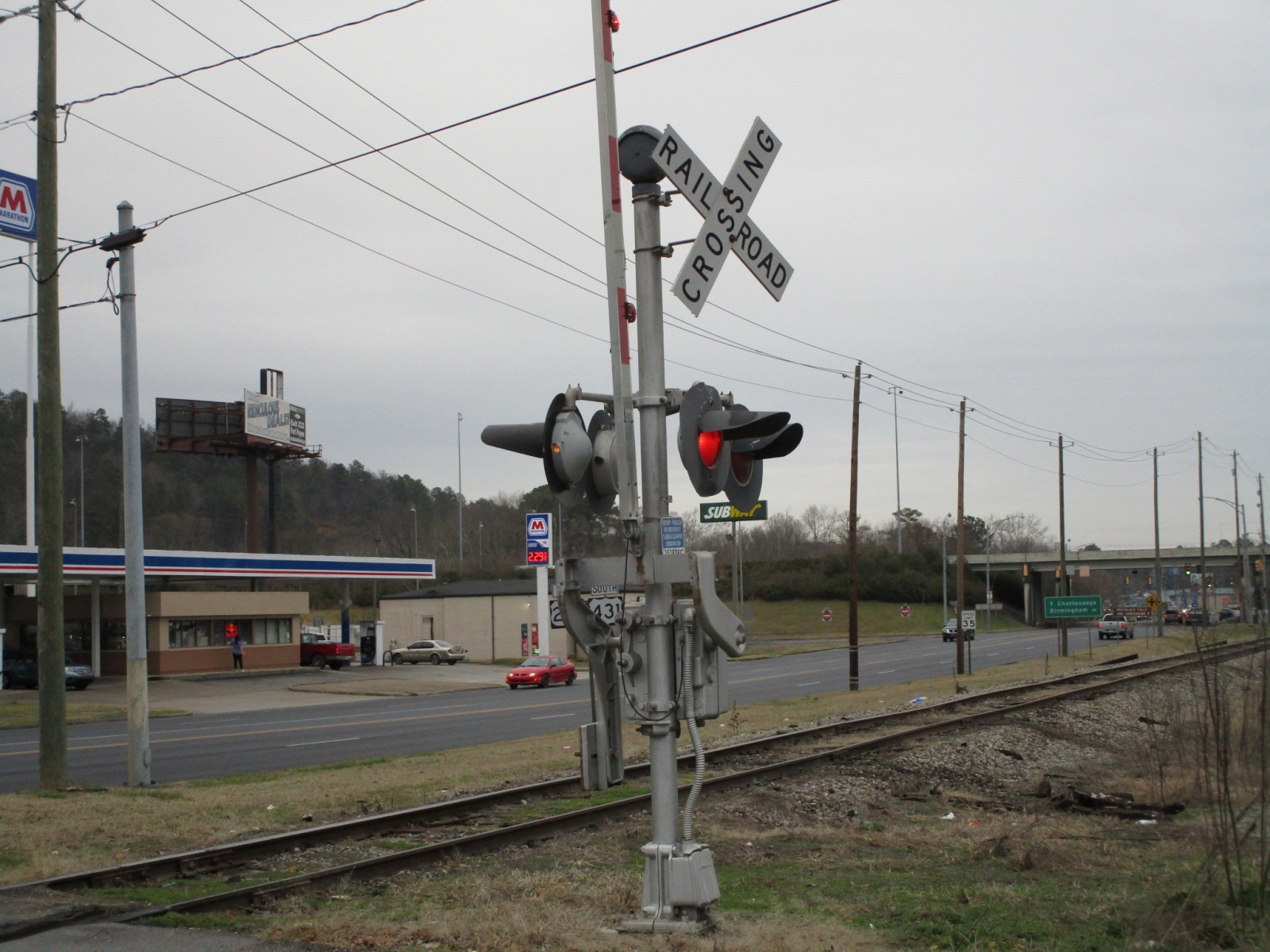

Another look at ATN M715. |
Pictures 1-26 were taken on 3-27-15.
Pictures 27-56 and the first video were taken on 3-4-16.
Pictures 57-64 were taken on 10-12-19.
Pictures 65-78 and the second video were taken on 12-27-19.
The third video was taken on 1-14-22.
