MP:  A356.40



Updated December 13, 2022



Total Accidents:   0
Crossing DOT #:  731841J
TOTAL DAILY TRAINS:   13   (AS OF 2014)



Page created by: freebrickproductions



This crossing is located on the NS Memphis District East End.



>>>>>>>>>>>>> Southbound Signal Northbound Signal
Bell: Safetran Type 3 electronic N/A
Base: Siemens Siemens
Light Frames: 4 - 12x20" Safetran 4 - 12x20" Safetran
Gate Lights:

2 - RECOs

1 - RECO LED

 3 - RECOs
Gate Mechanism: Siemens Sticker Style 2 Siemens Sticker Style 2
Gate Striping: Vertical Vertical



1

2

3

4

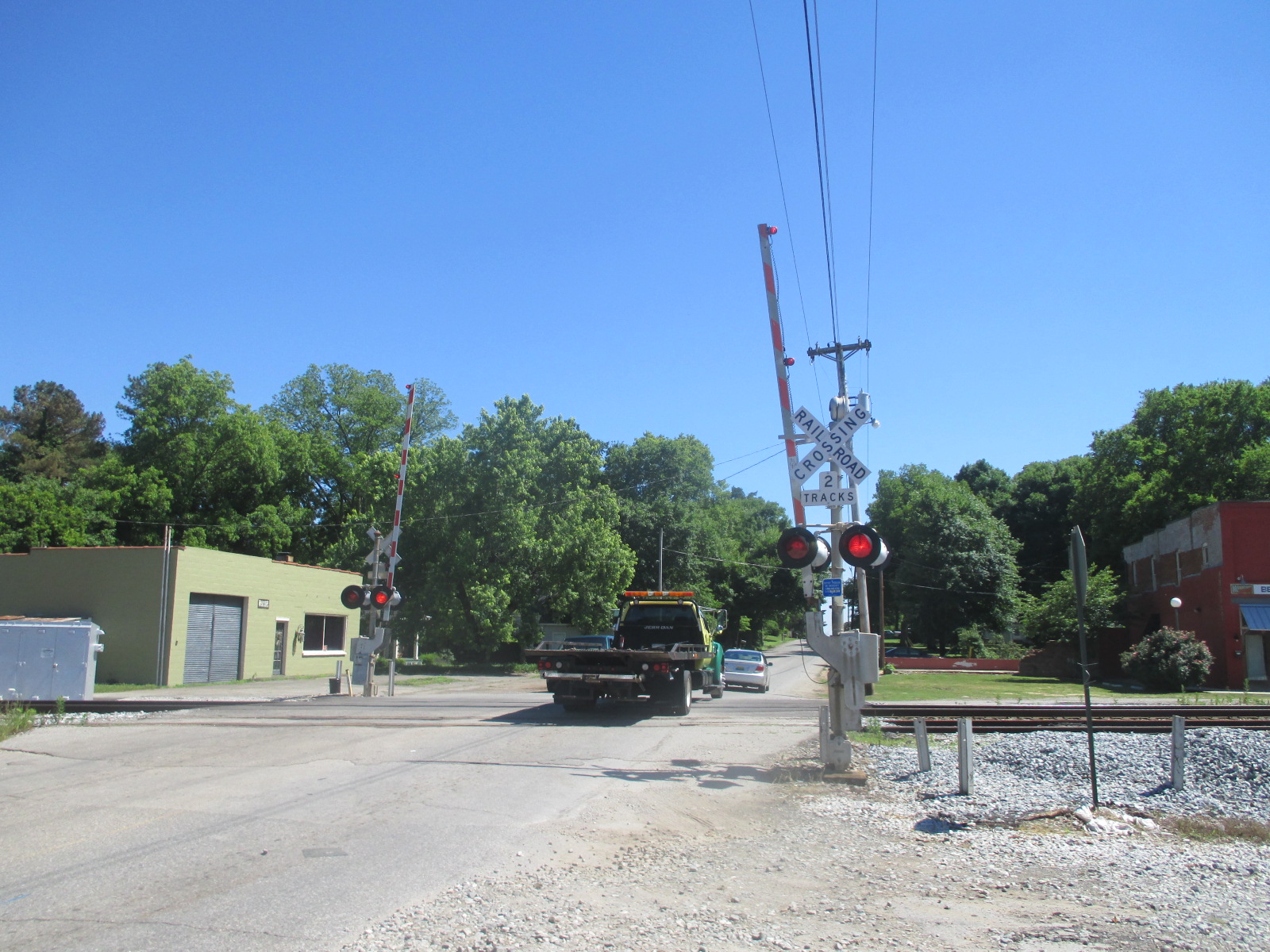

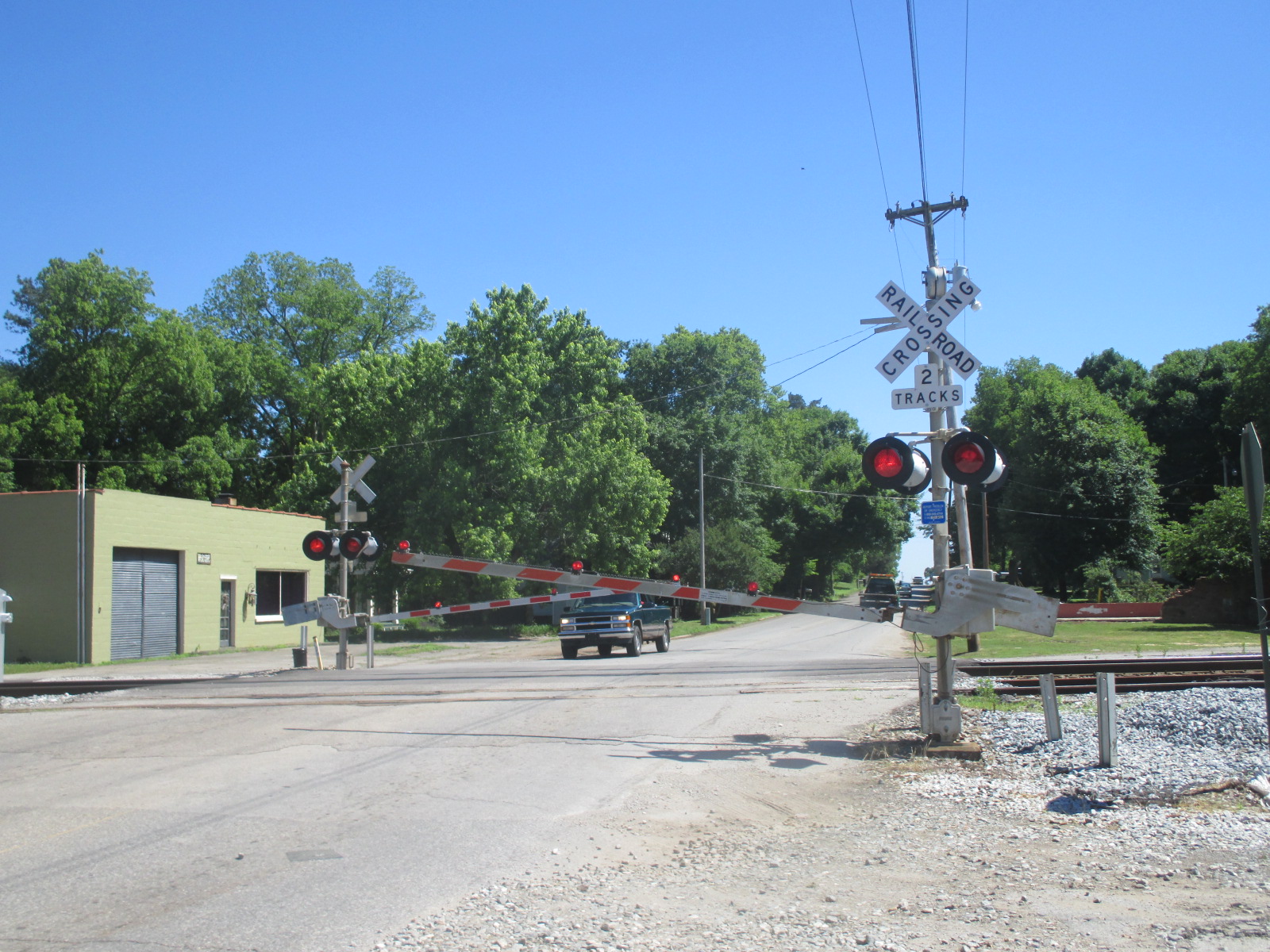

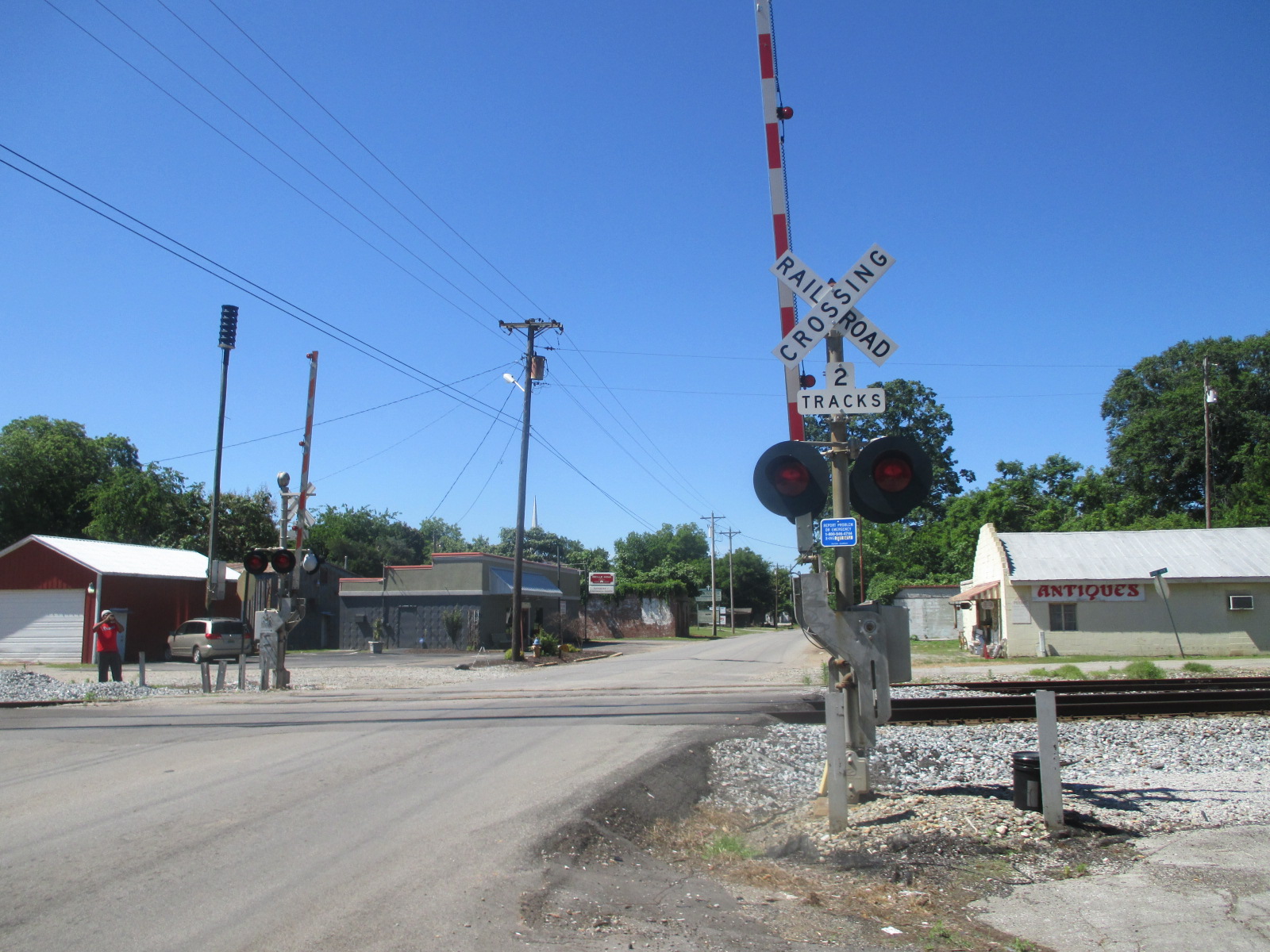

Overviews of the crossing.

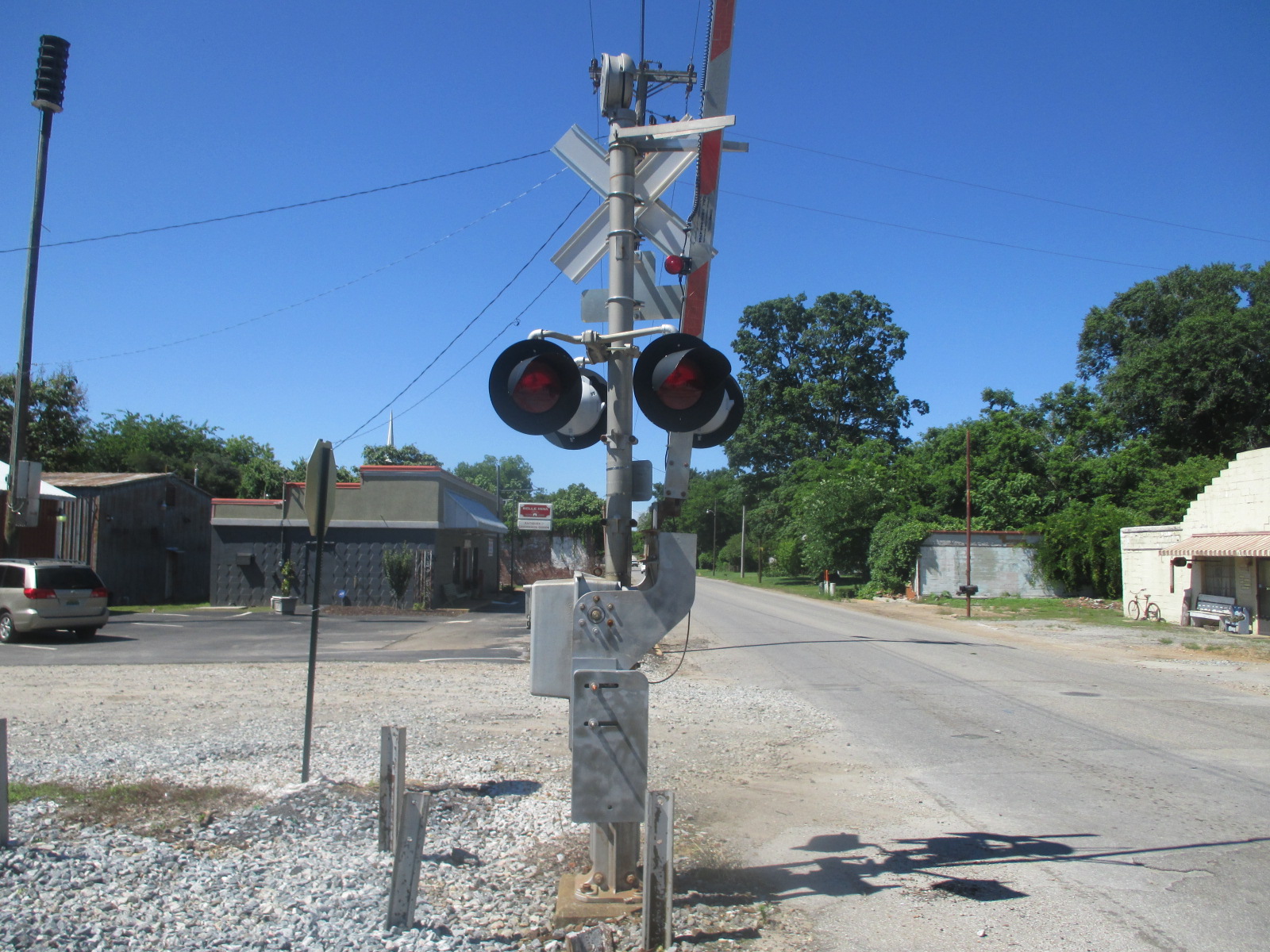

The southbound signal.

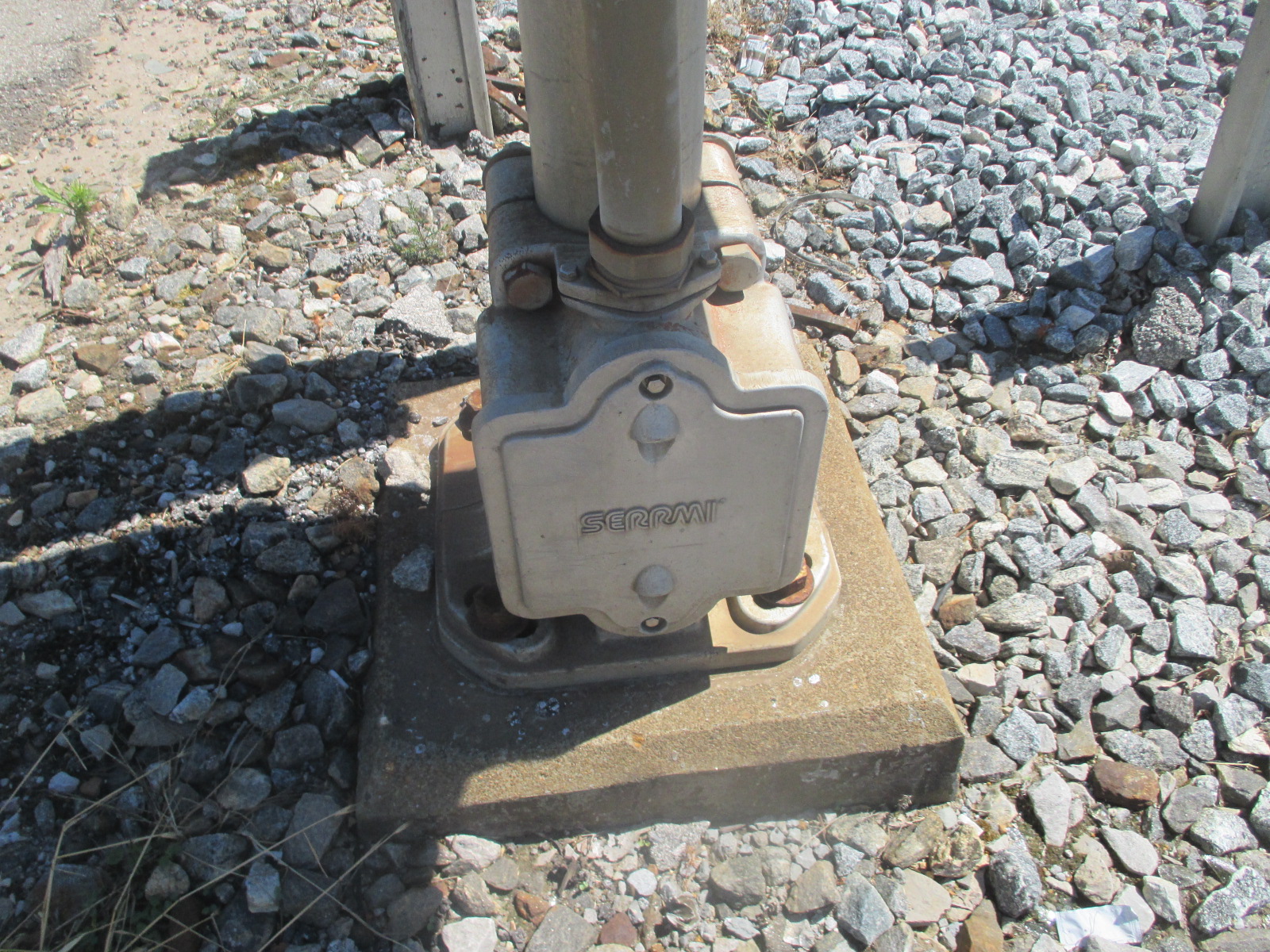

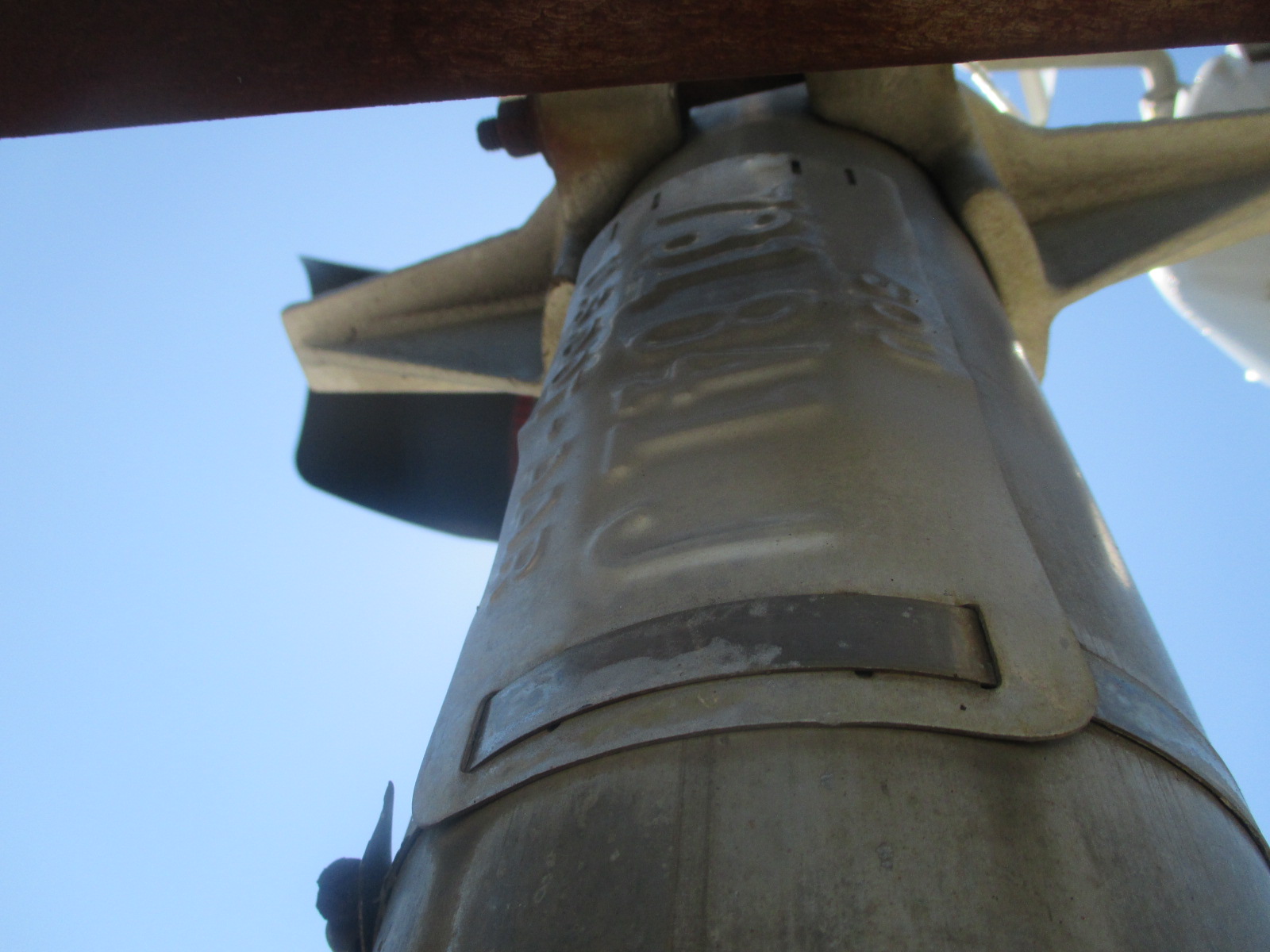

It has a SERRMI base.

5

6

7

8

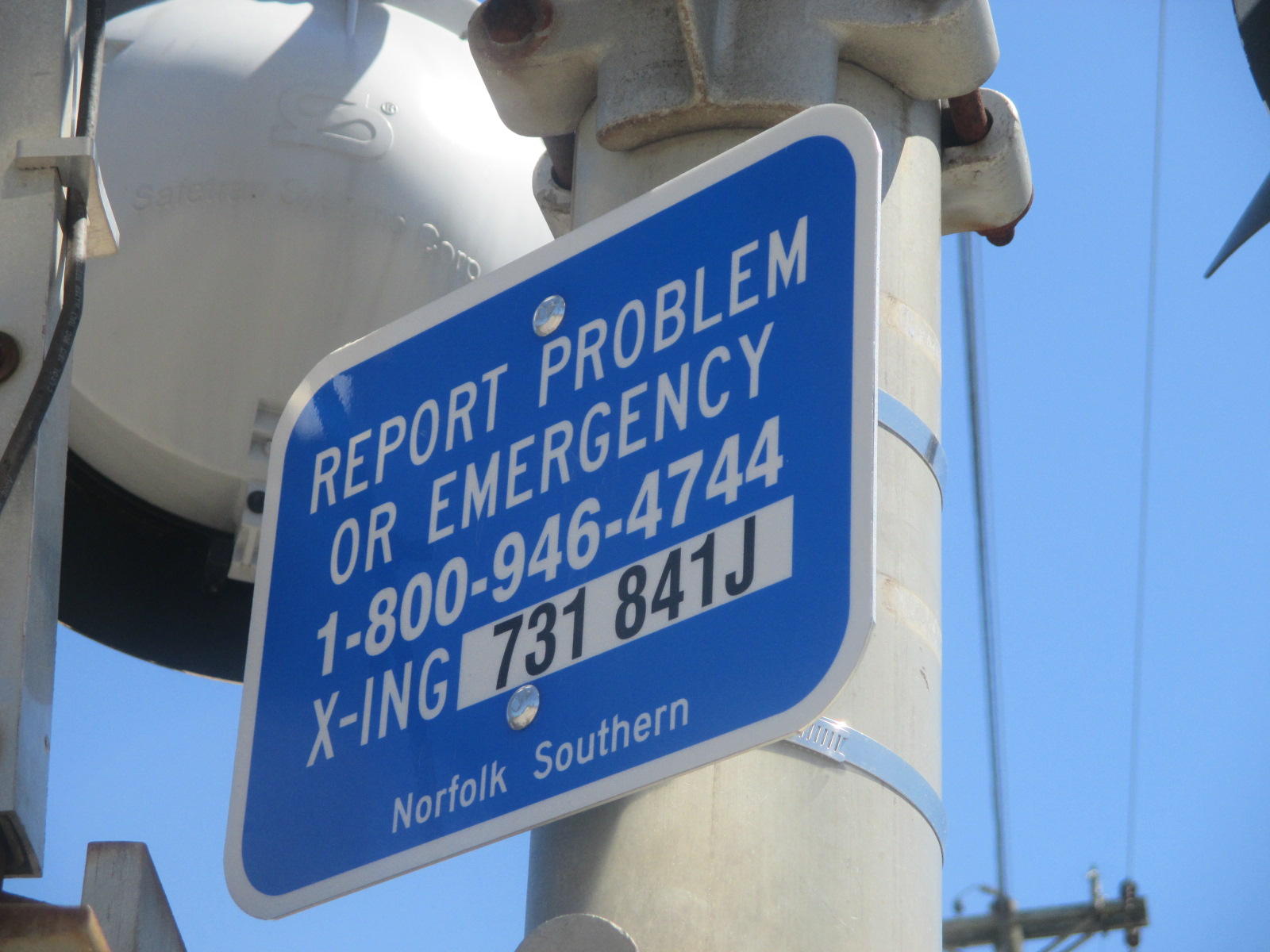

An old Southern DOT tag and the emergency information.

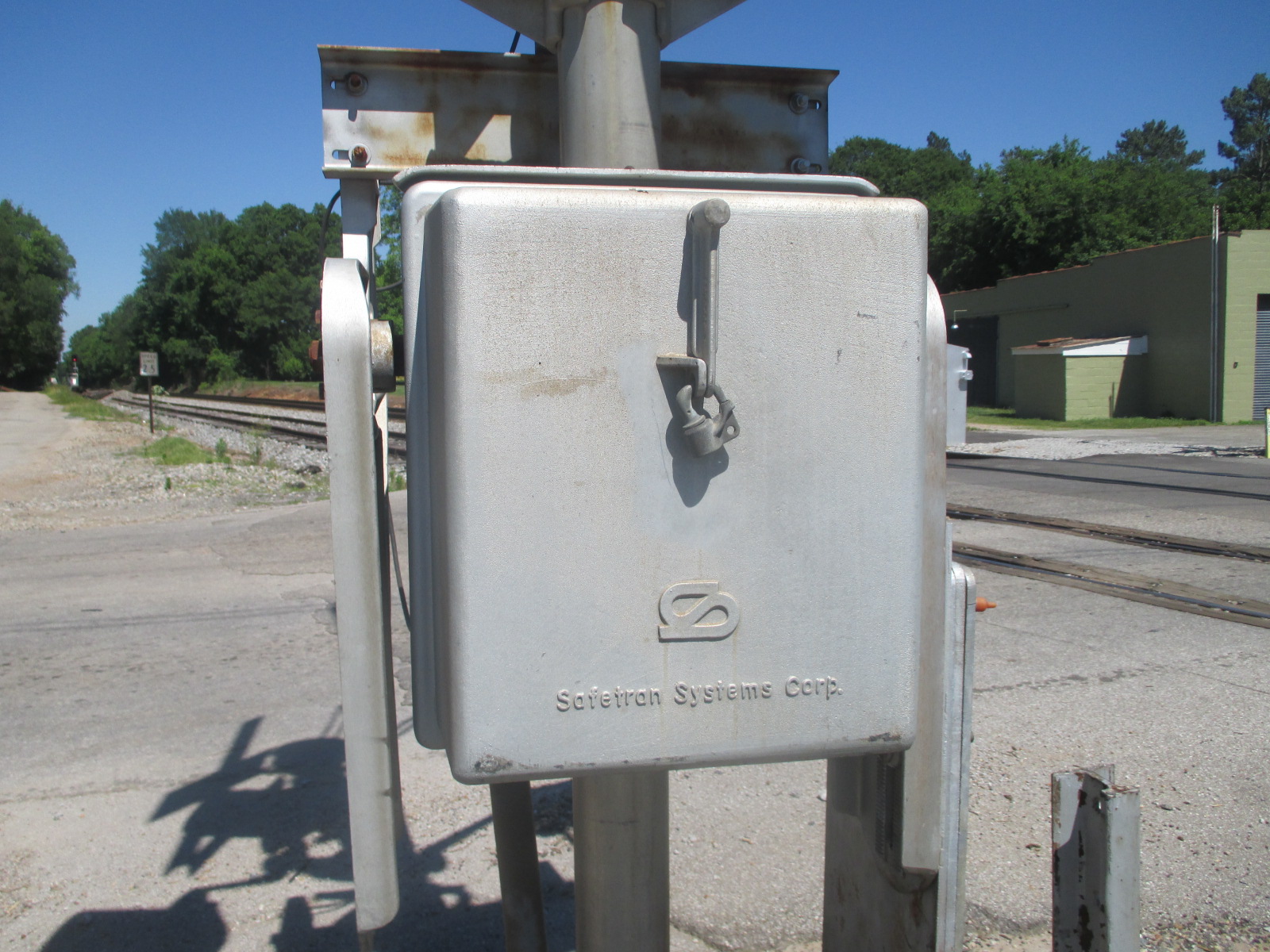

A Safetran gate mechanism.

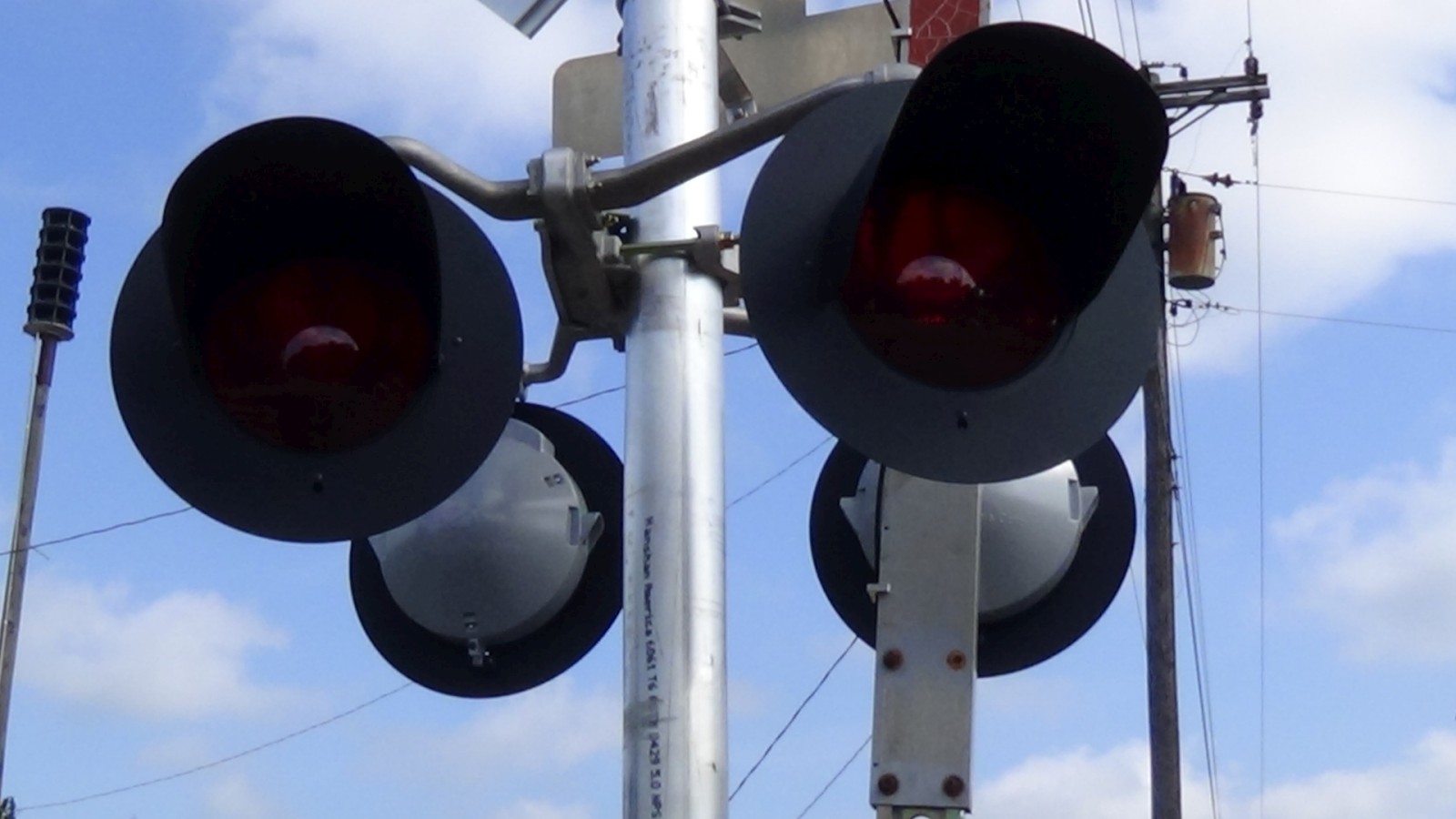

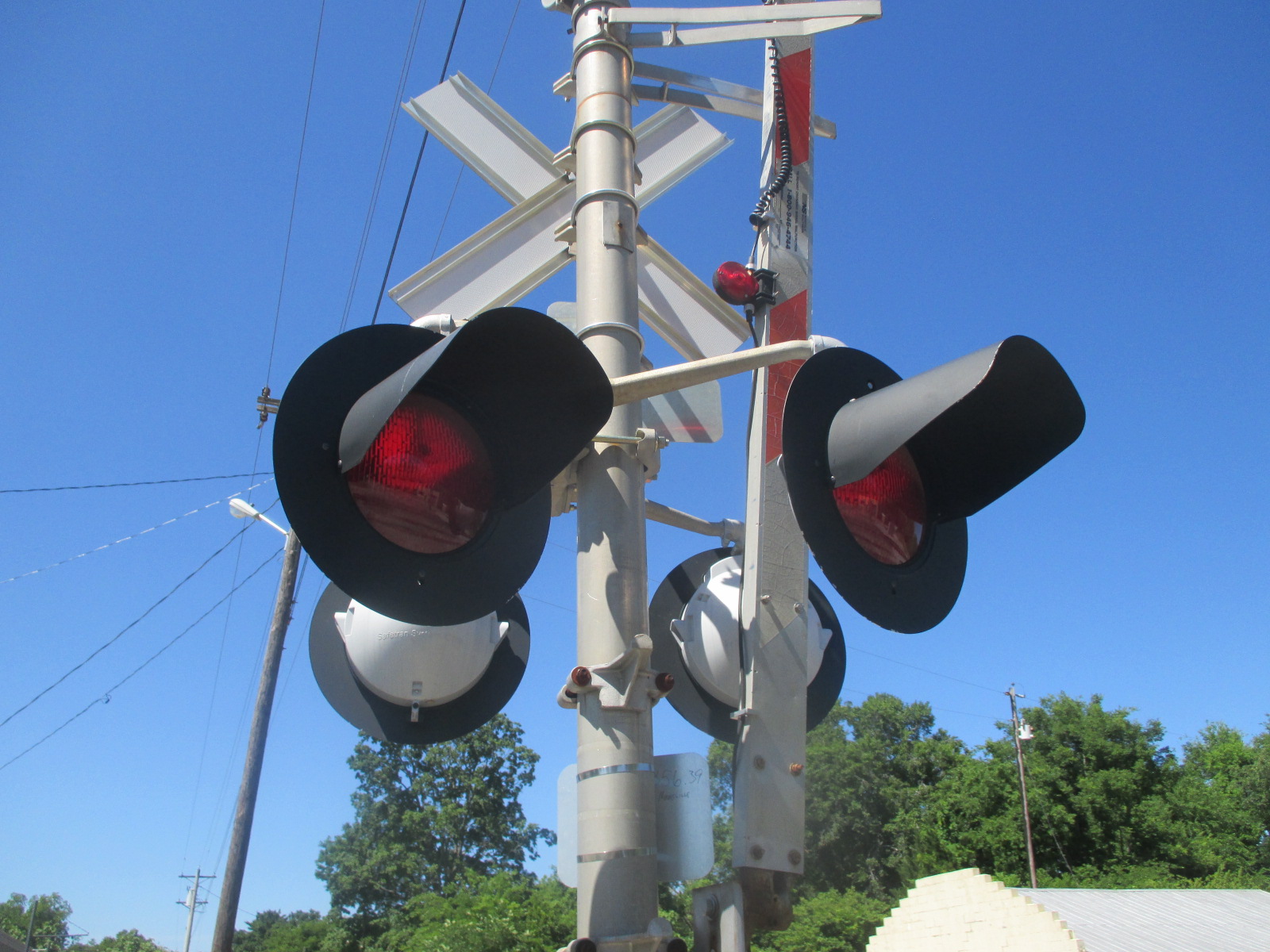

The lights on this signal are Safetran 12x20 inch lights.

9

10

11

12

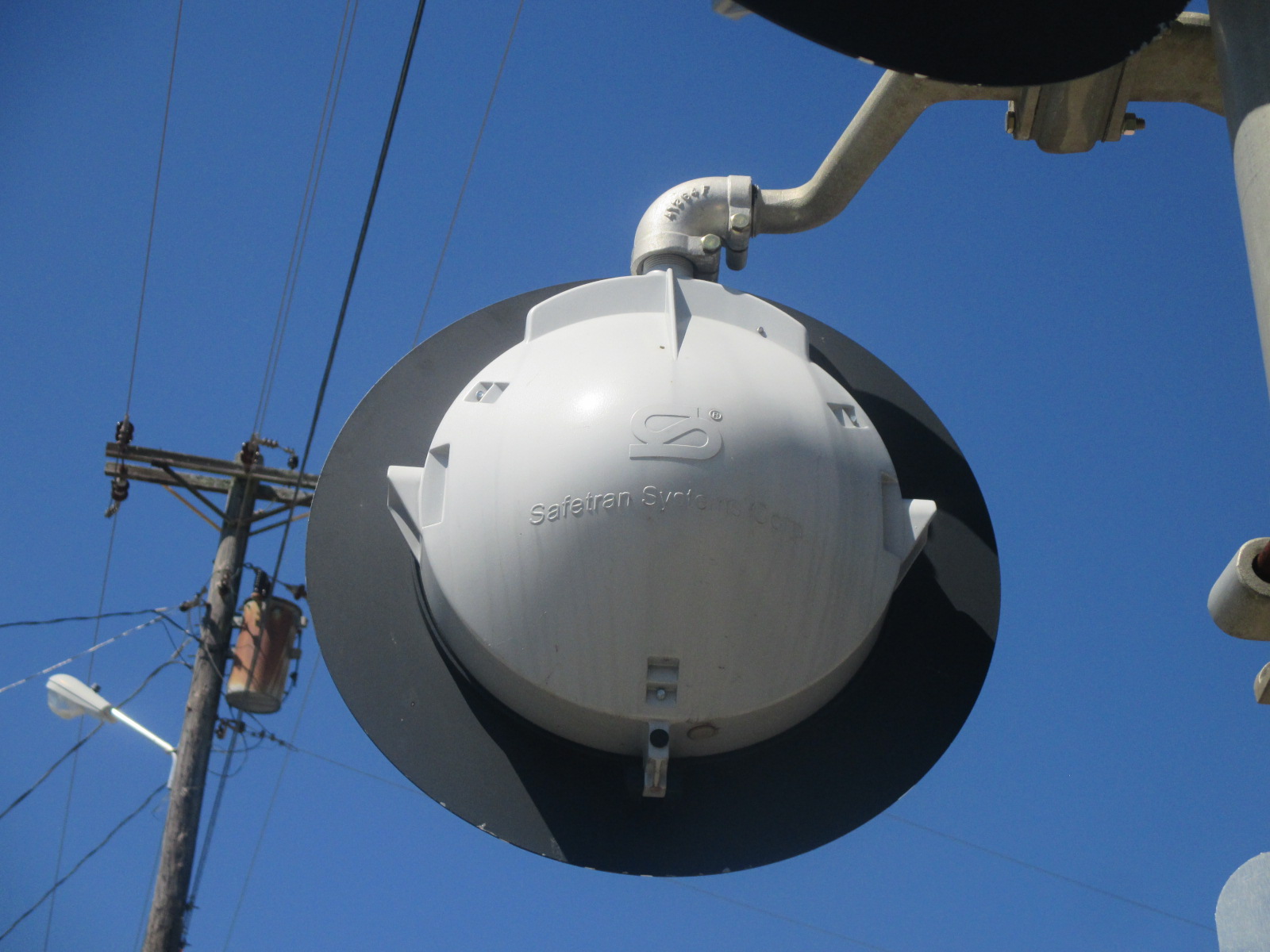

The bell at this crossing is a Safetran mechanical bell.
This signal has RECO gate lights.

13

14

15

16
The northbound signal has a Safetran base.
The emergency information again.
Another Safetran gate mechanism.

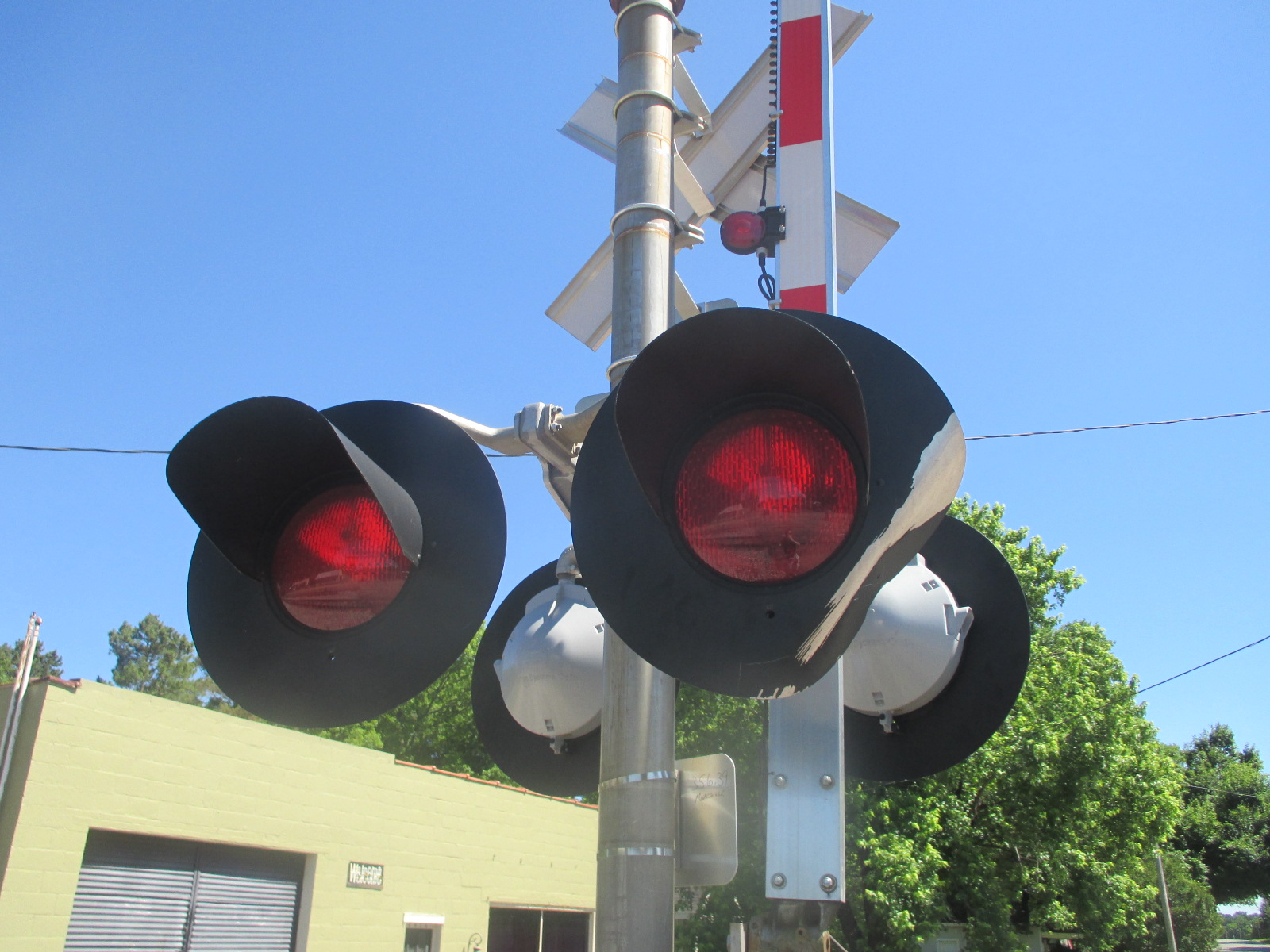

This signal has Safetran 12x24 inch lights.

17

18

19

20

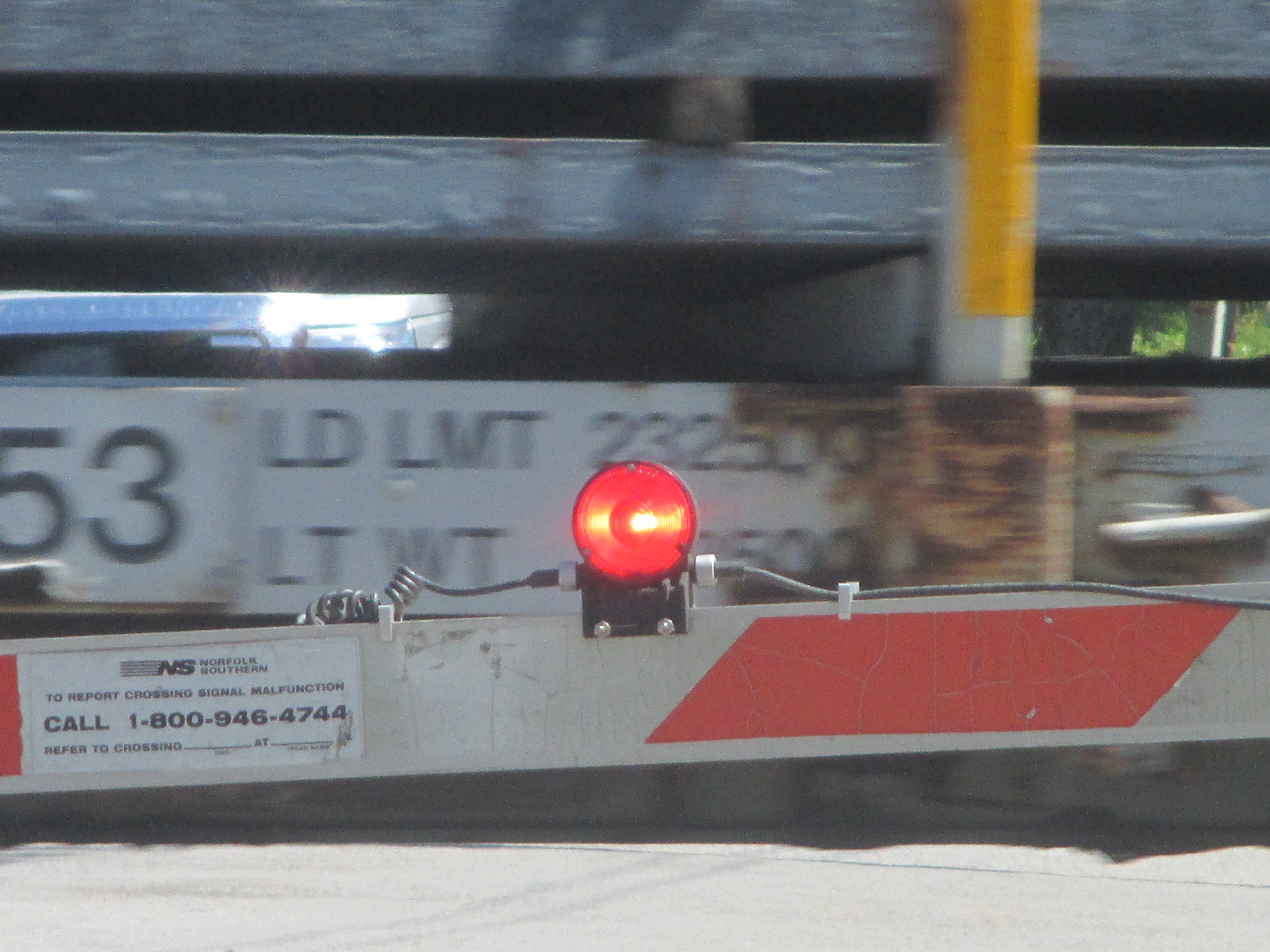

More RECO gate lights on the northbound signal.
The relay case.

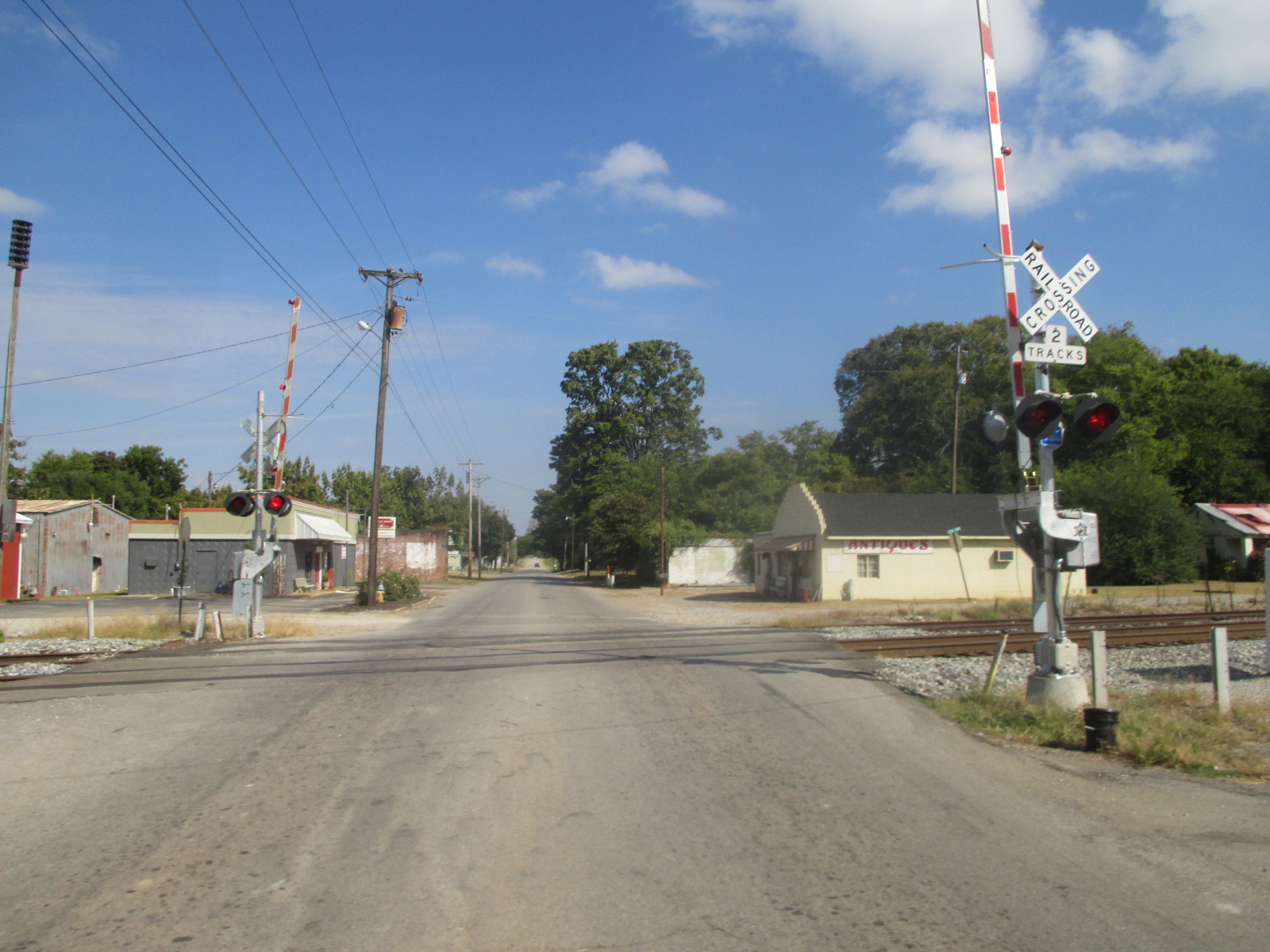

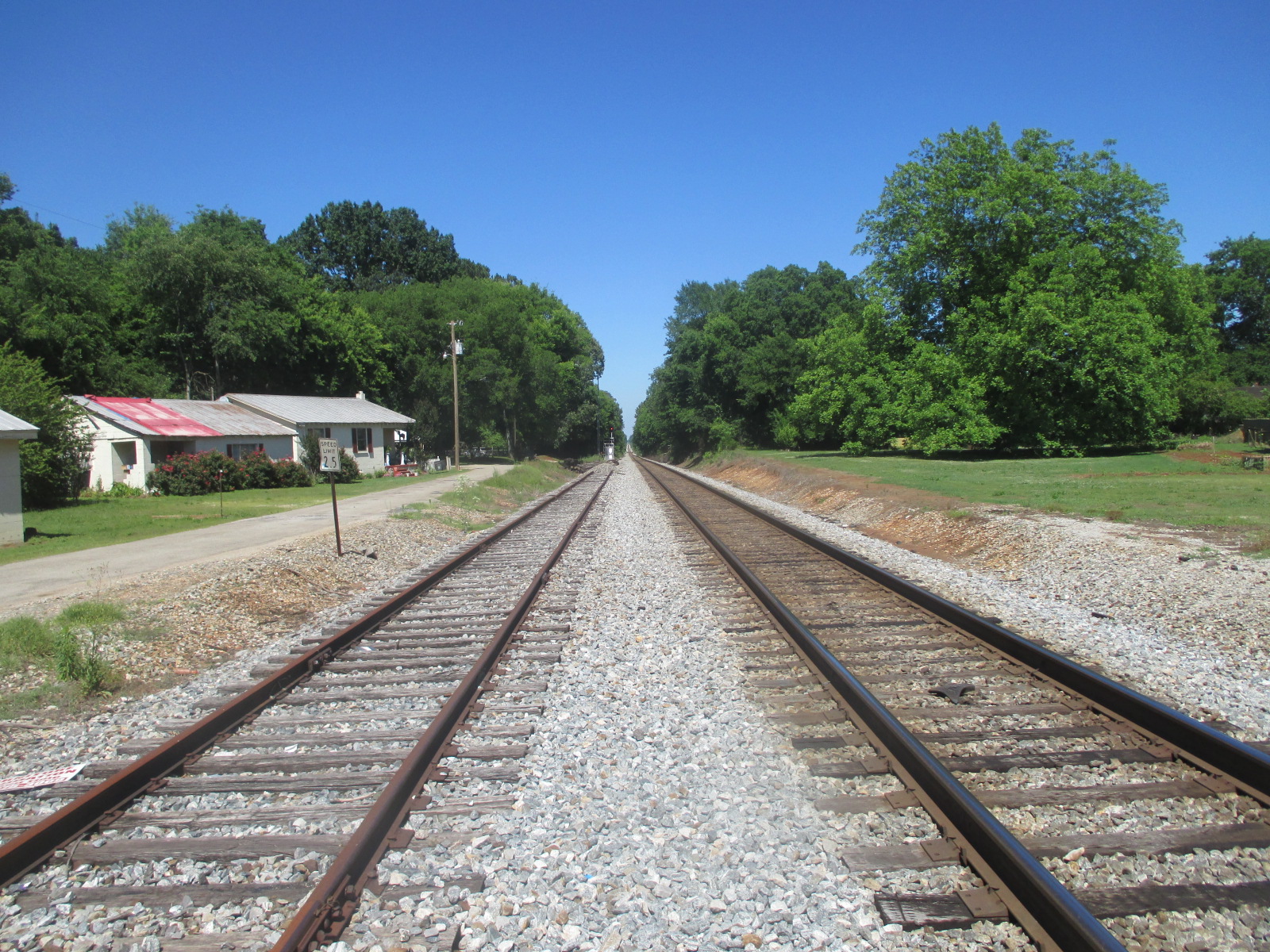

Looking southwest towards Bibb-Garrett Road in Decatur.

21

22

23

24
Looking northeast towards Greenbrier Parkway in Huntsville.

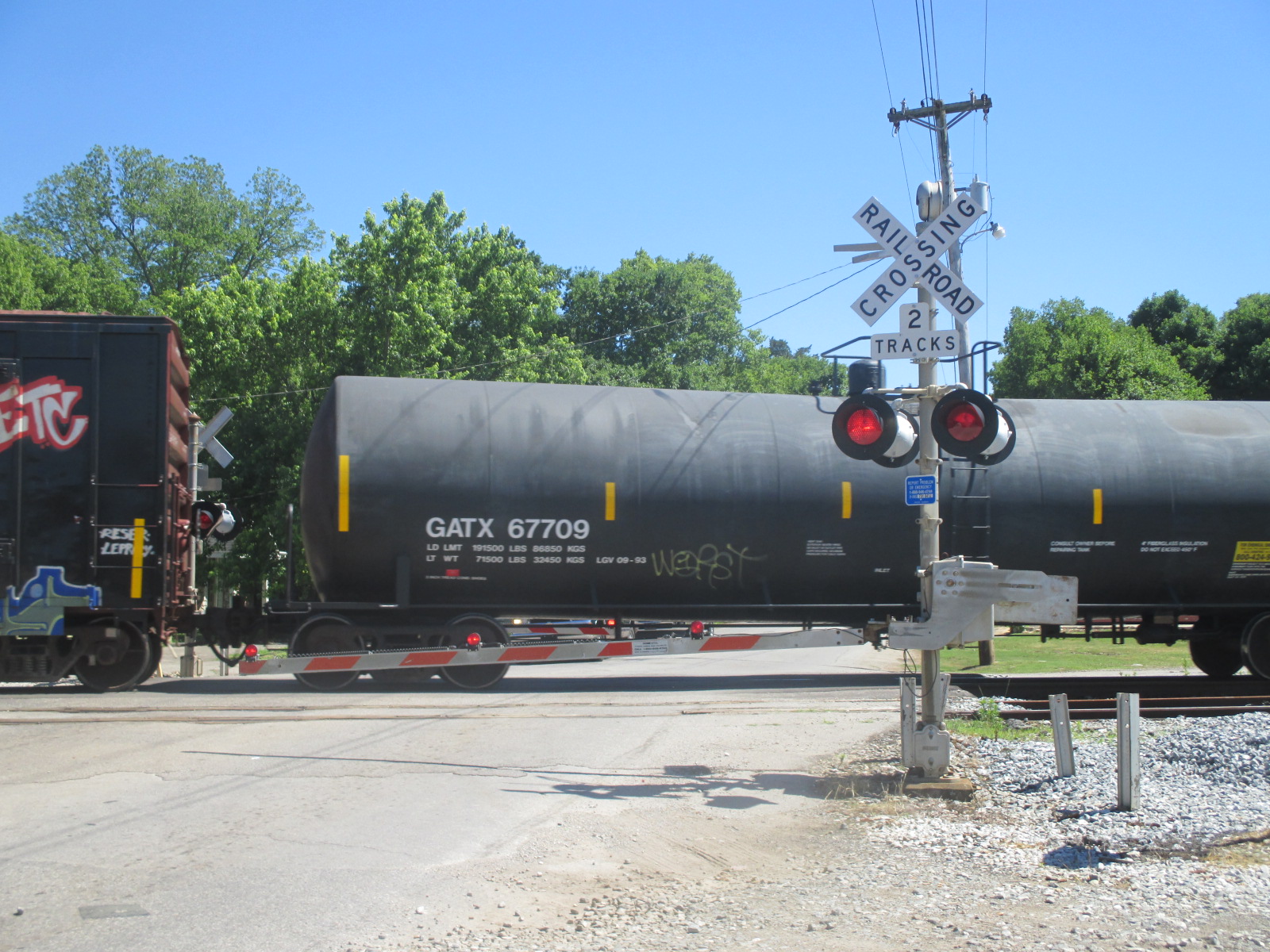

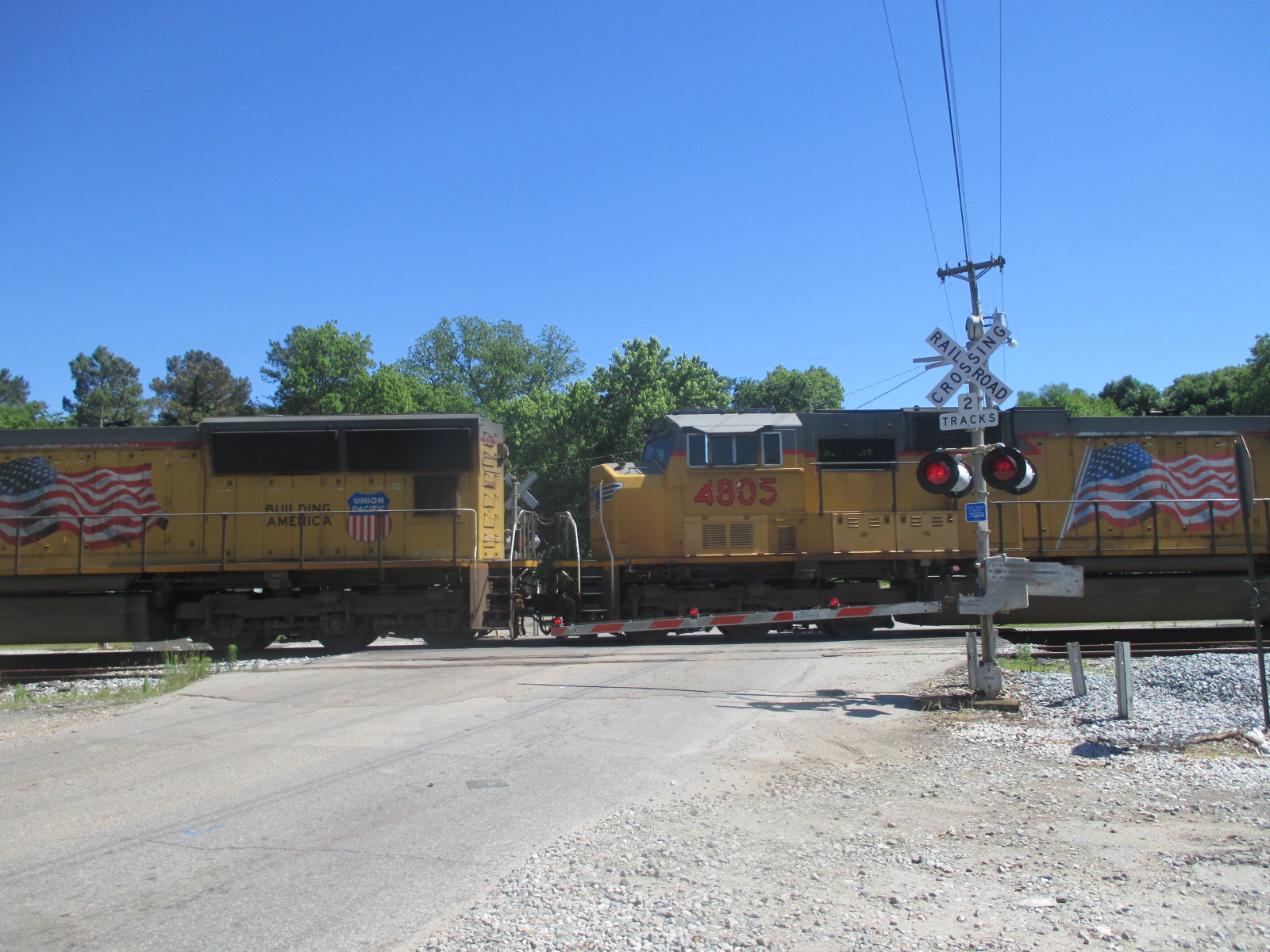

Action shots. The bell starts up about two seconds before the lights do for some reason.

25

26

27

28

29

30

31

32



33

34

35

36
A return trip to the crossing on 8-8-16 shows the signals have been replaced!

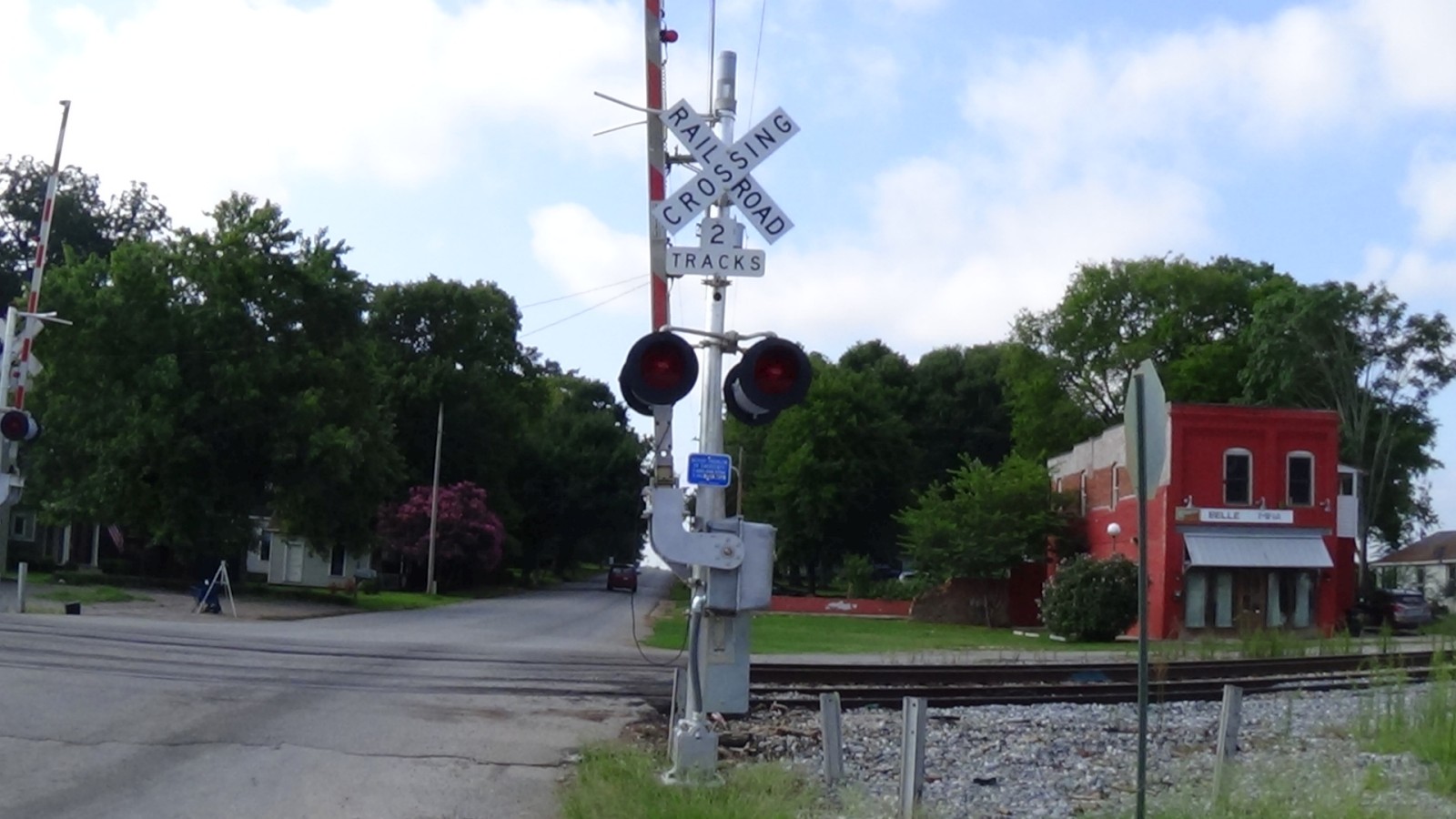

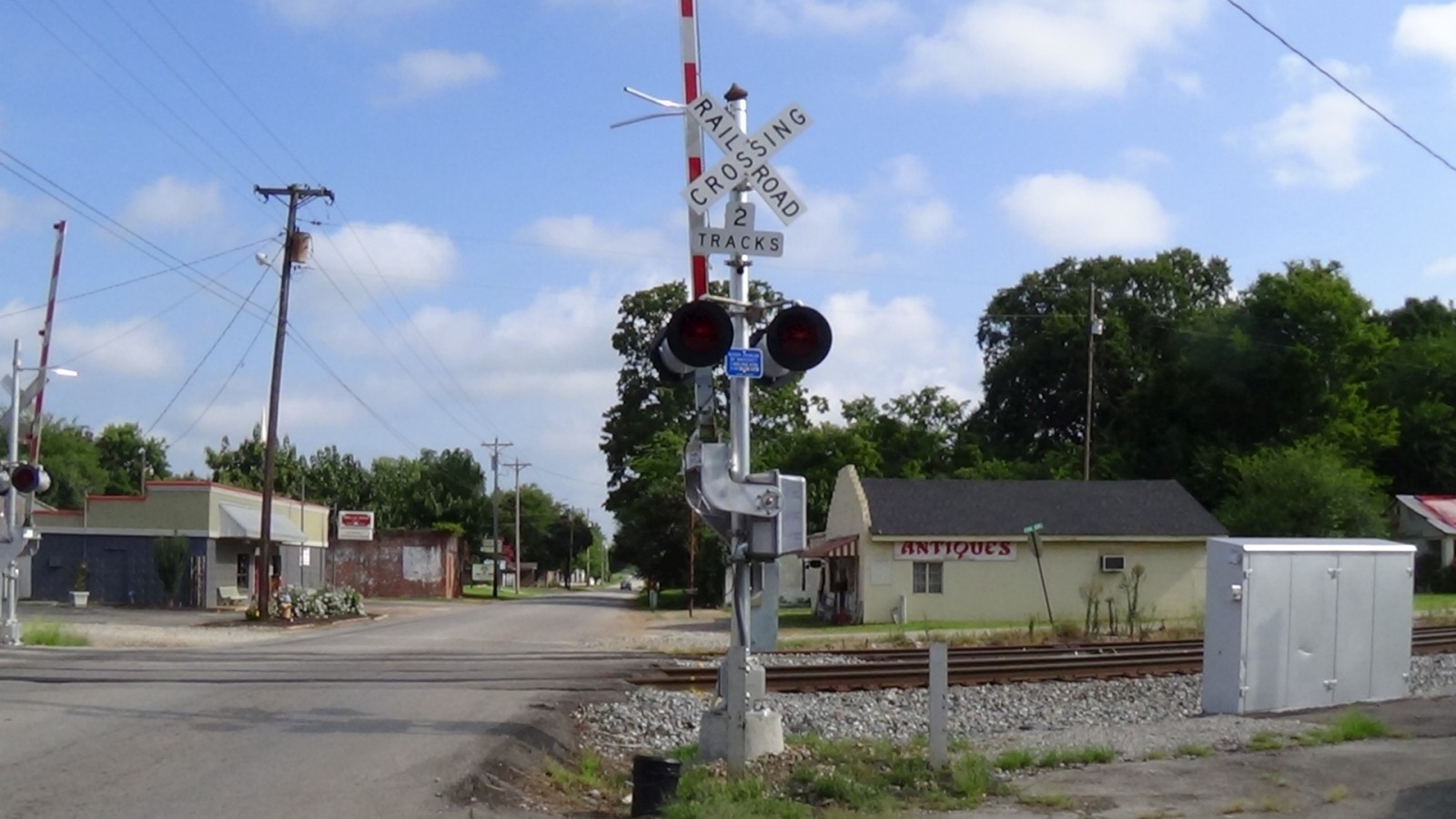

The new northbound signal.

37

38

39

40

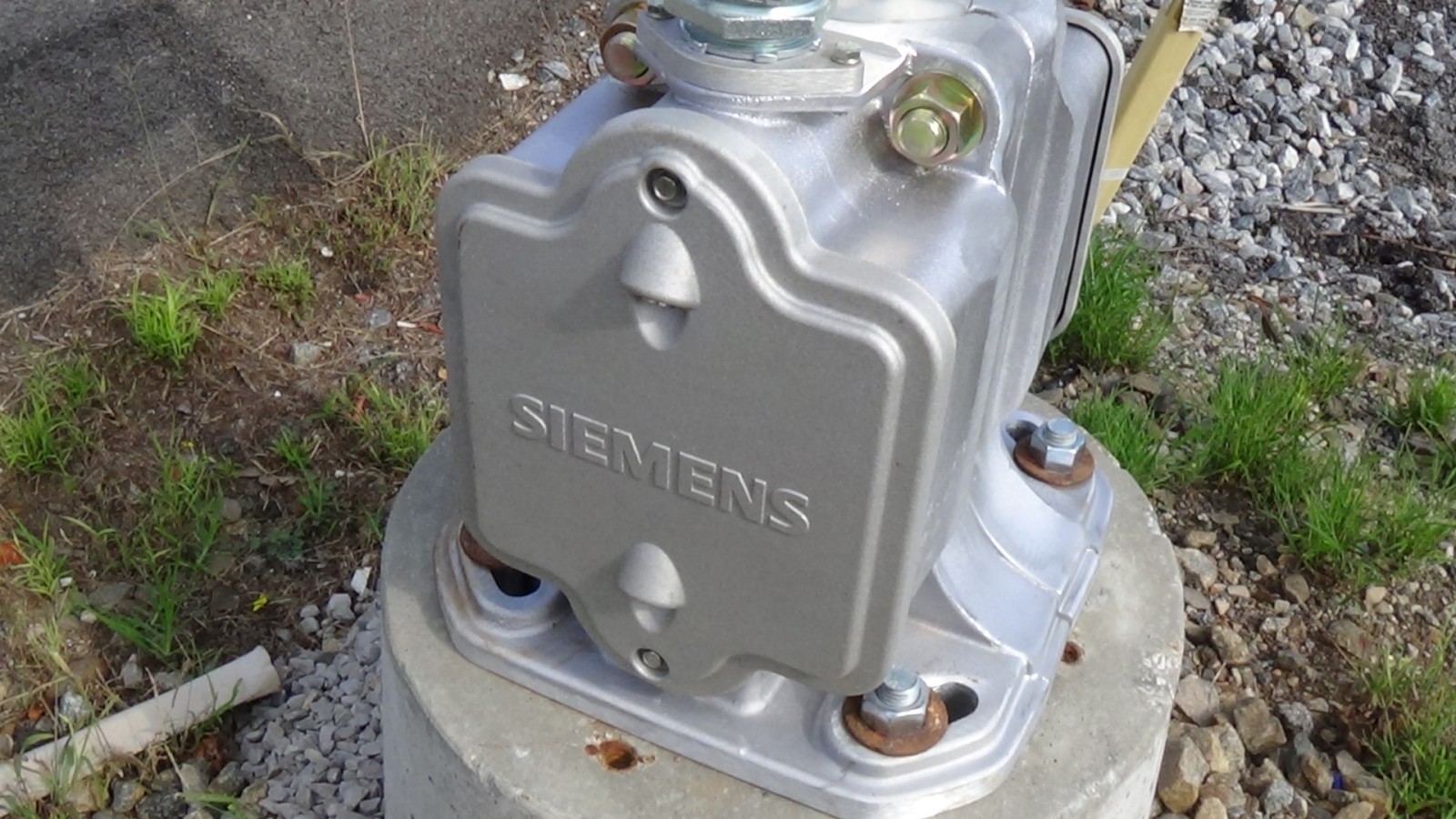

It has a Siemens base.

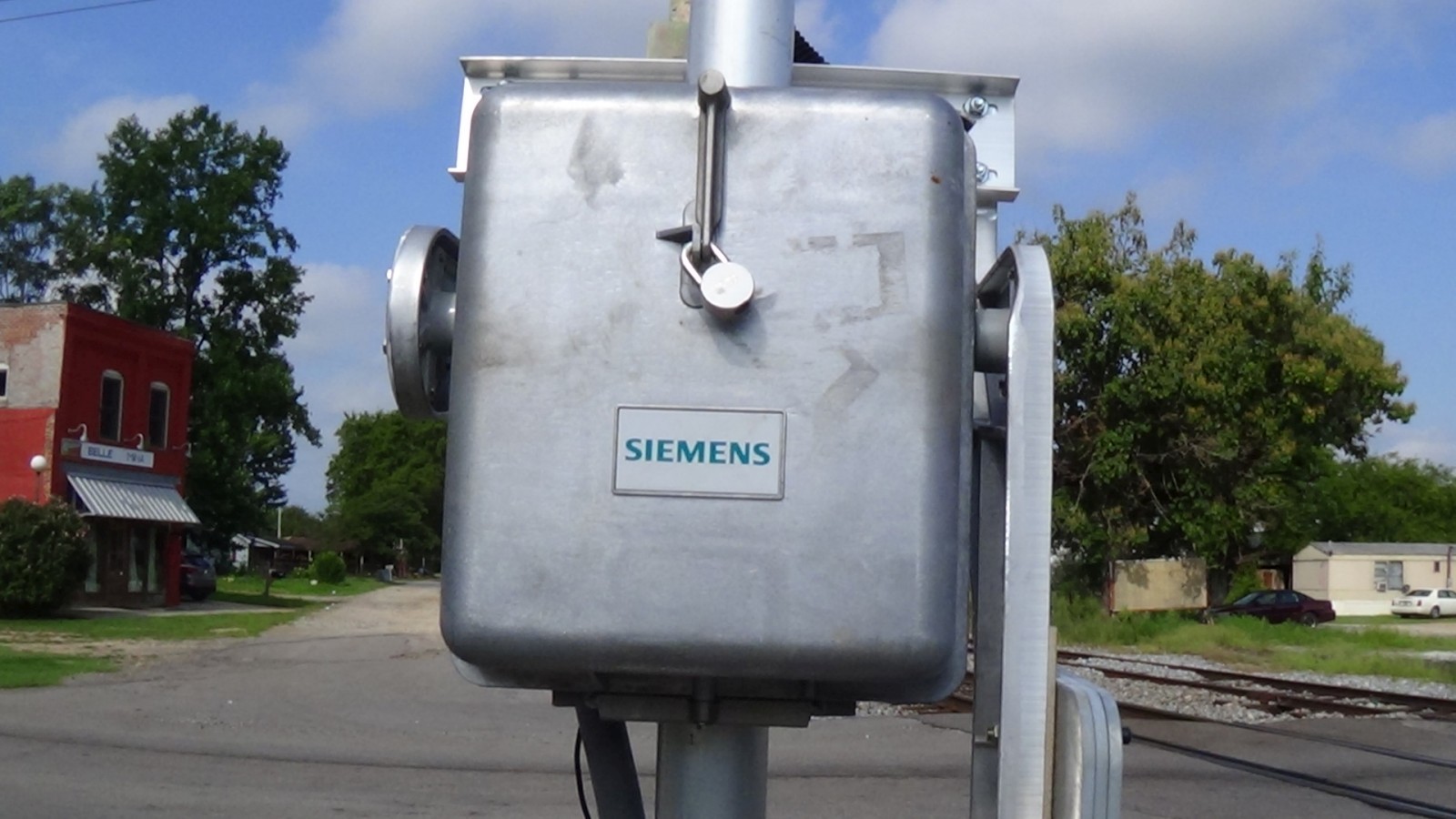

A Siemens gate mechanism.
This signal has Safetran 12x20 inch incandescent lights.

41

42

43

44

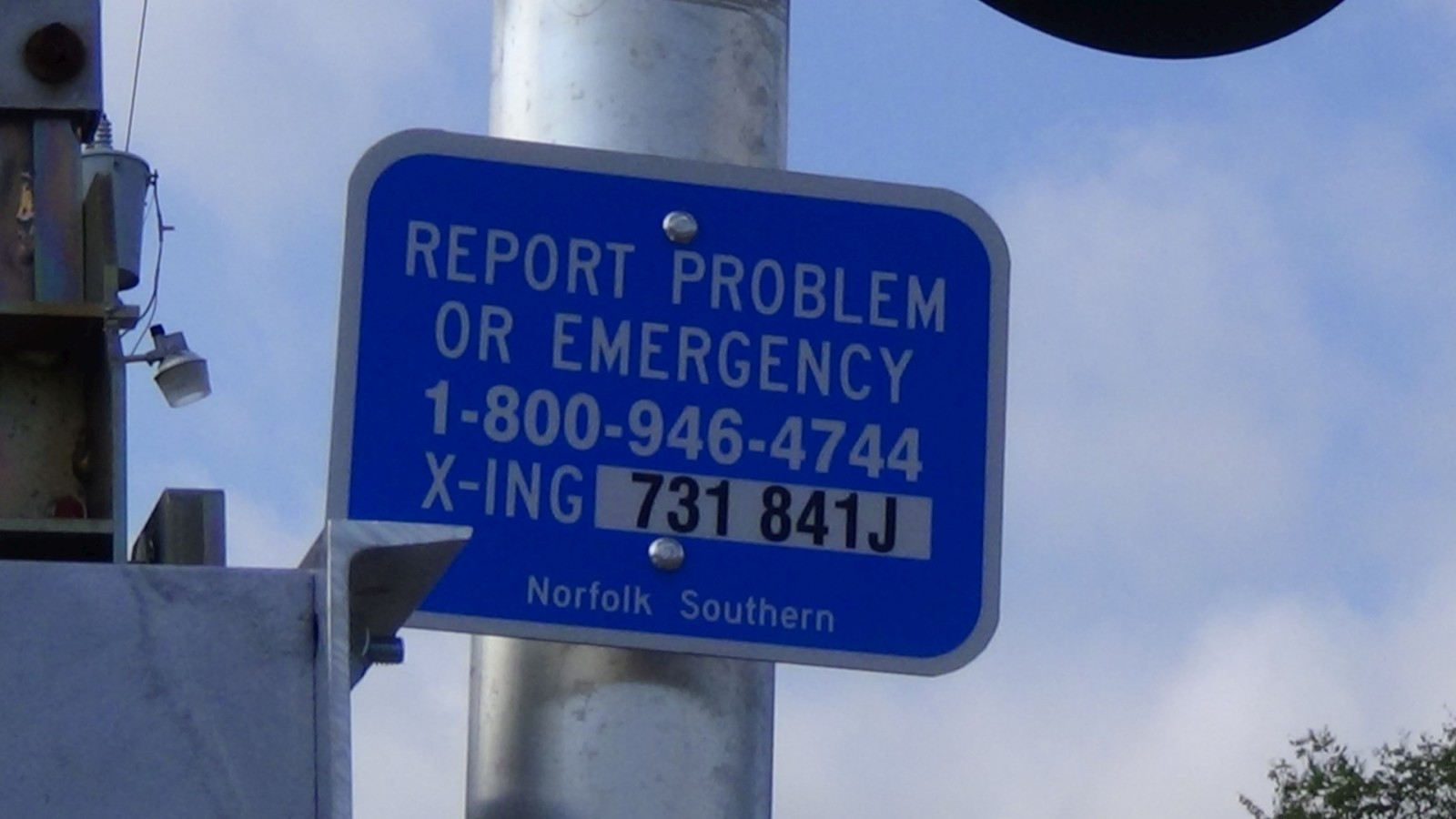

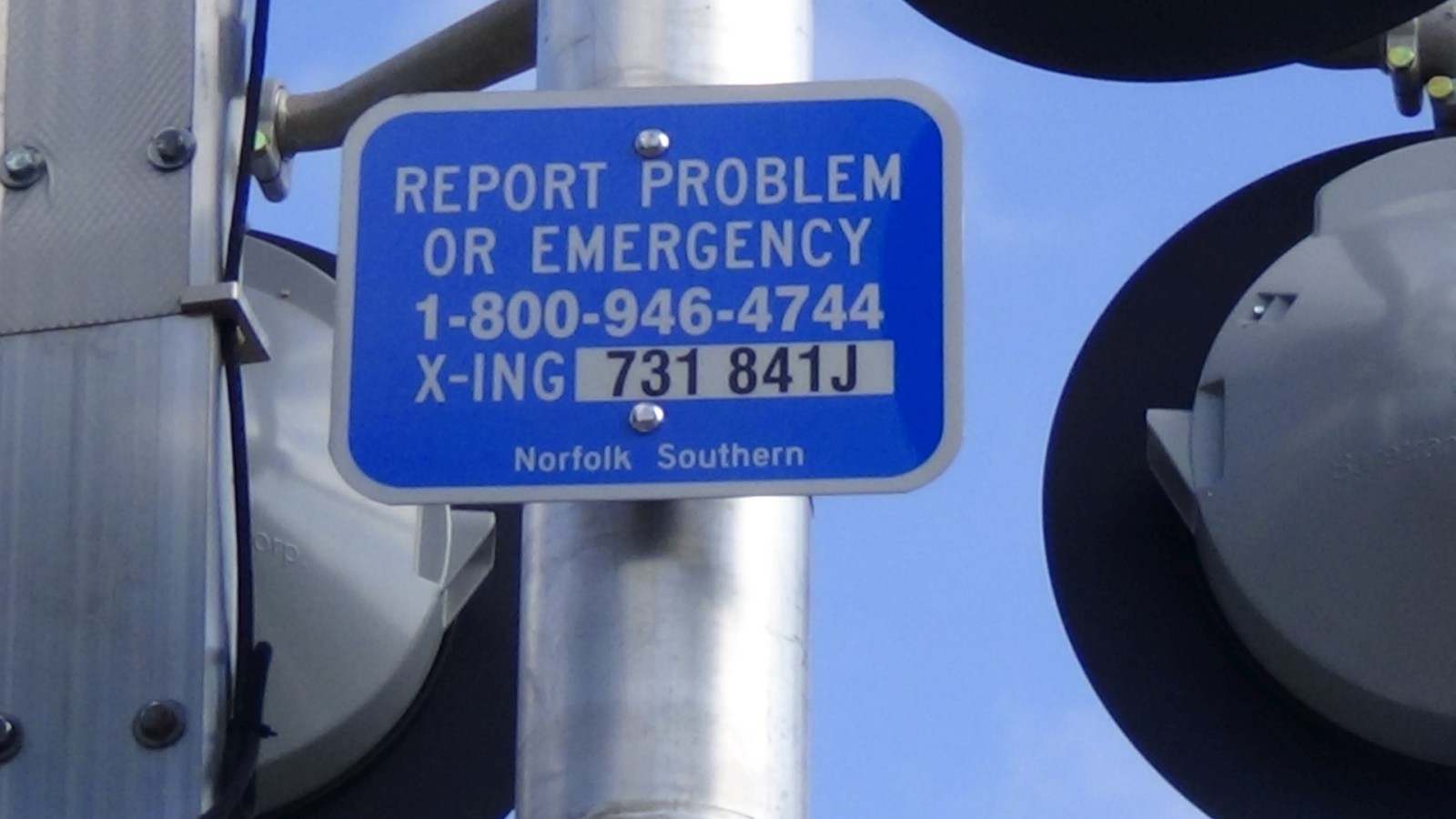

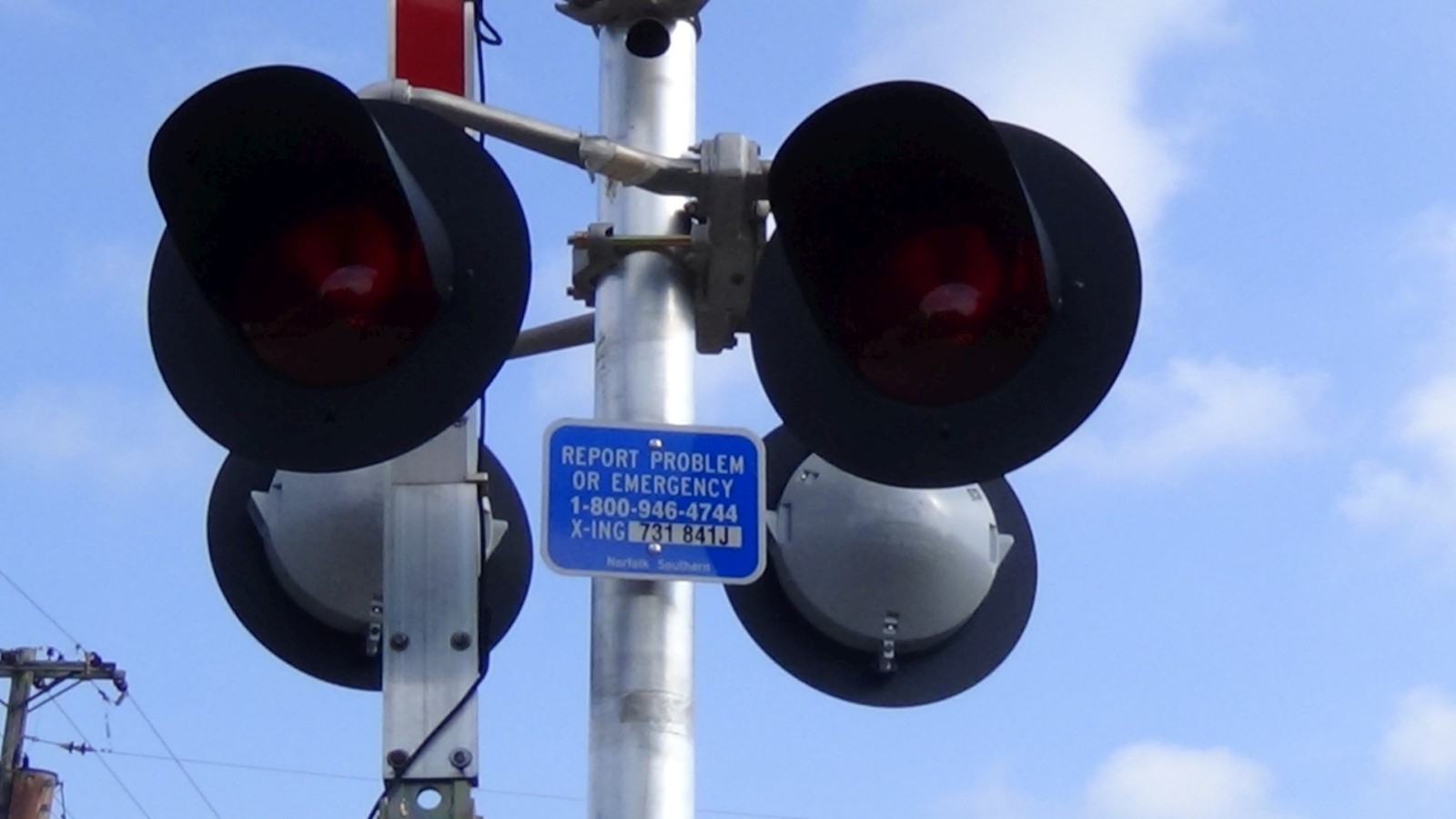

The emergency information.

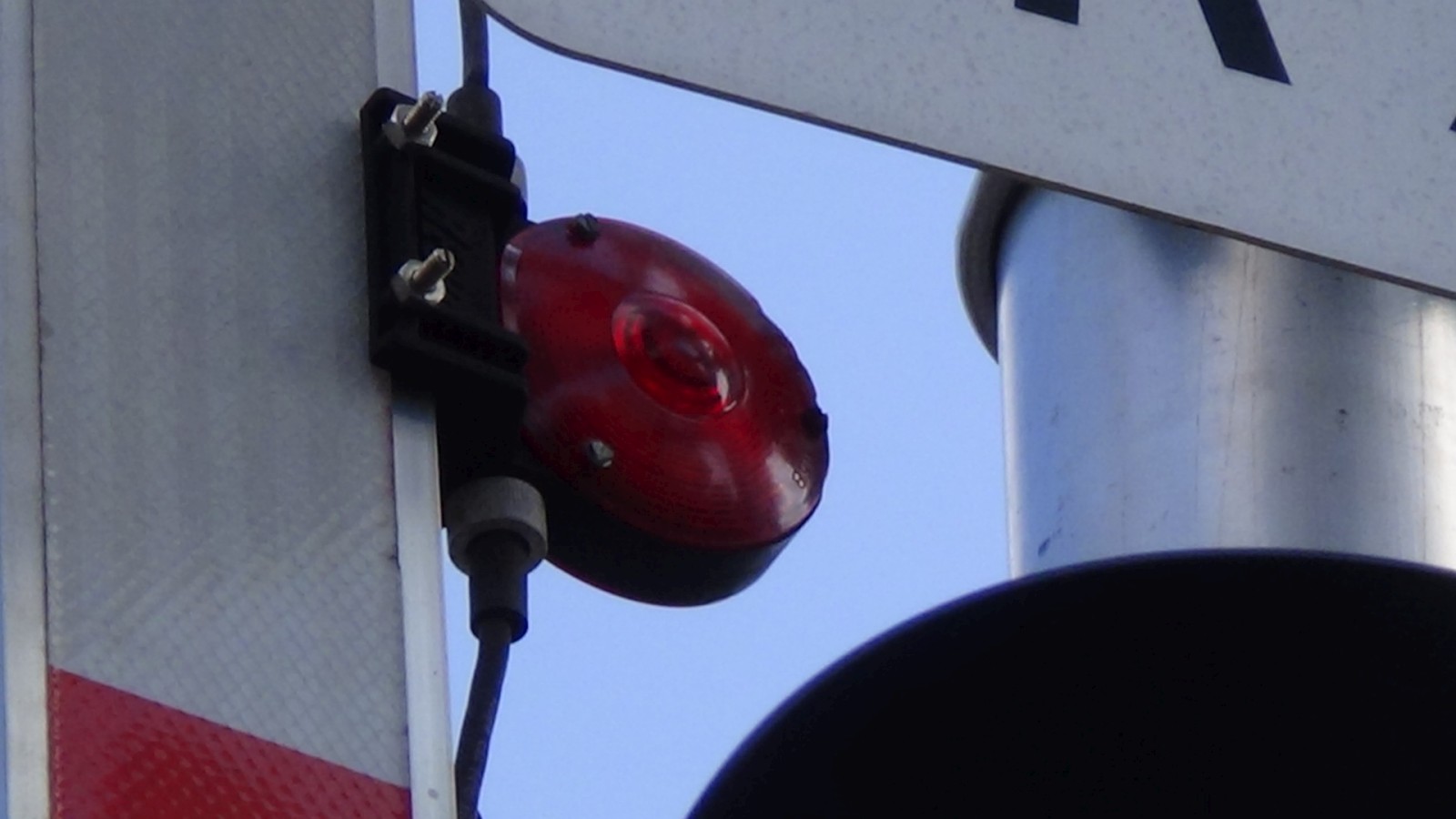

The incandescent RECO gate lights and gate arm were re-used.

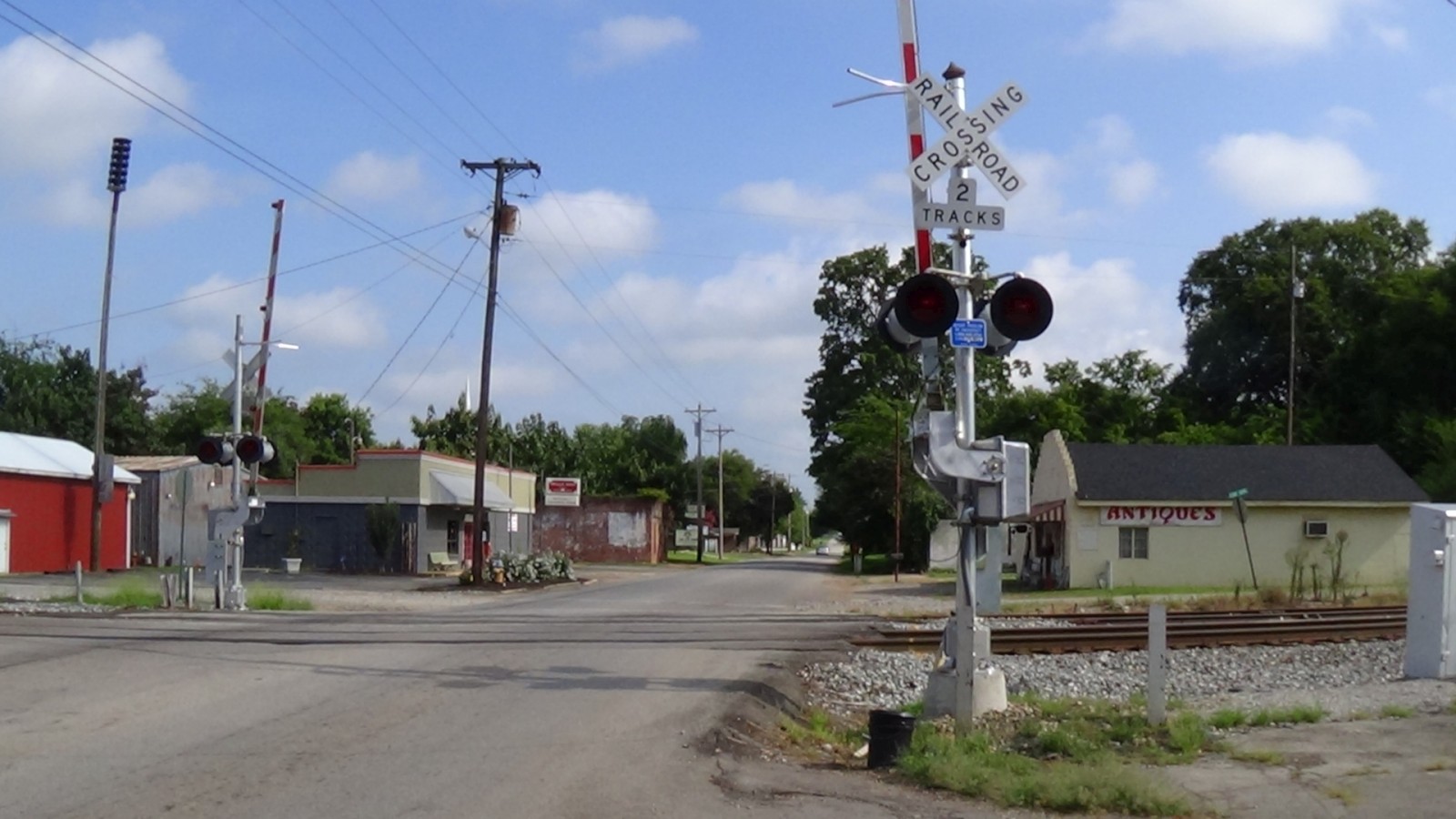

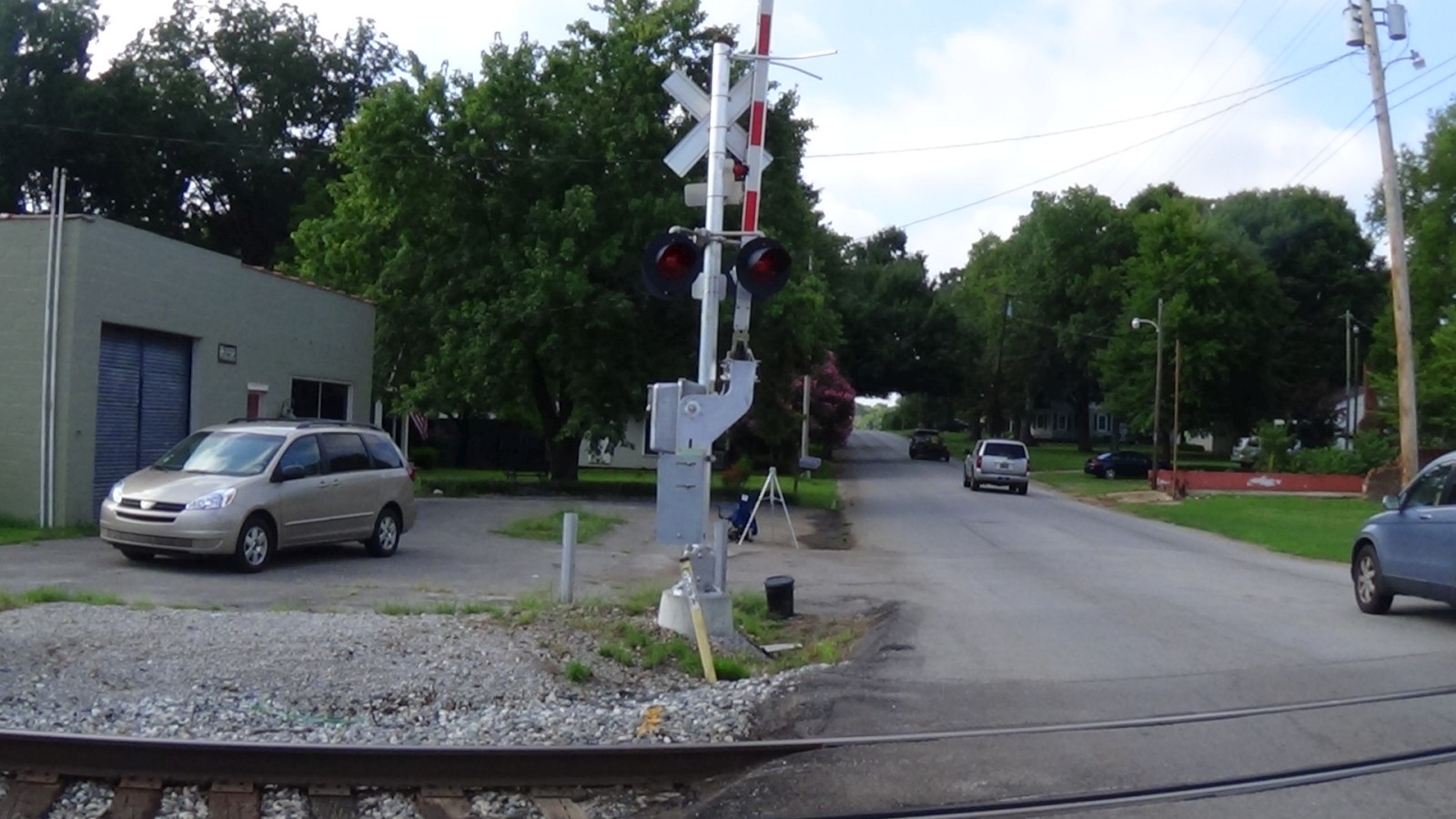

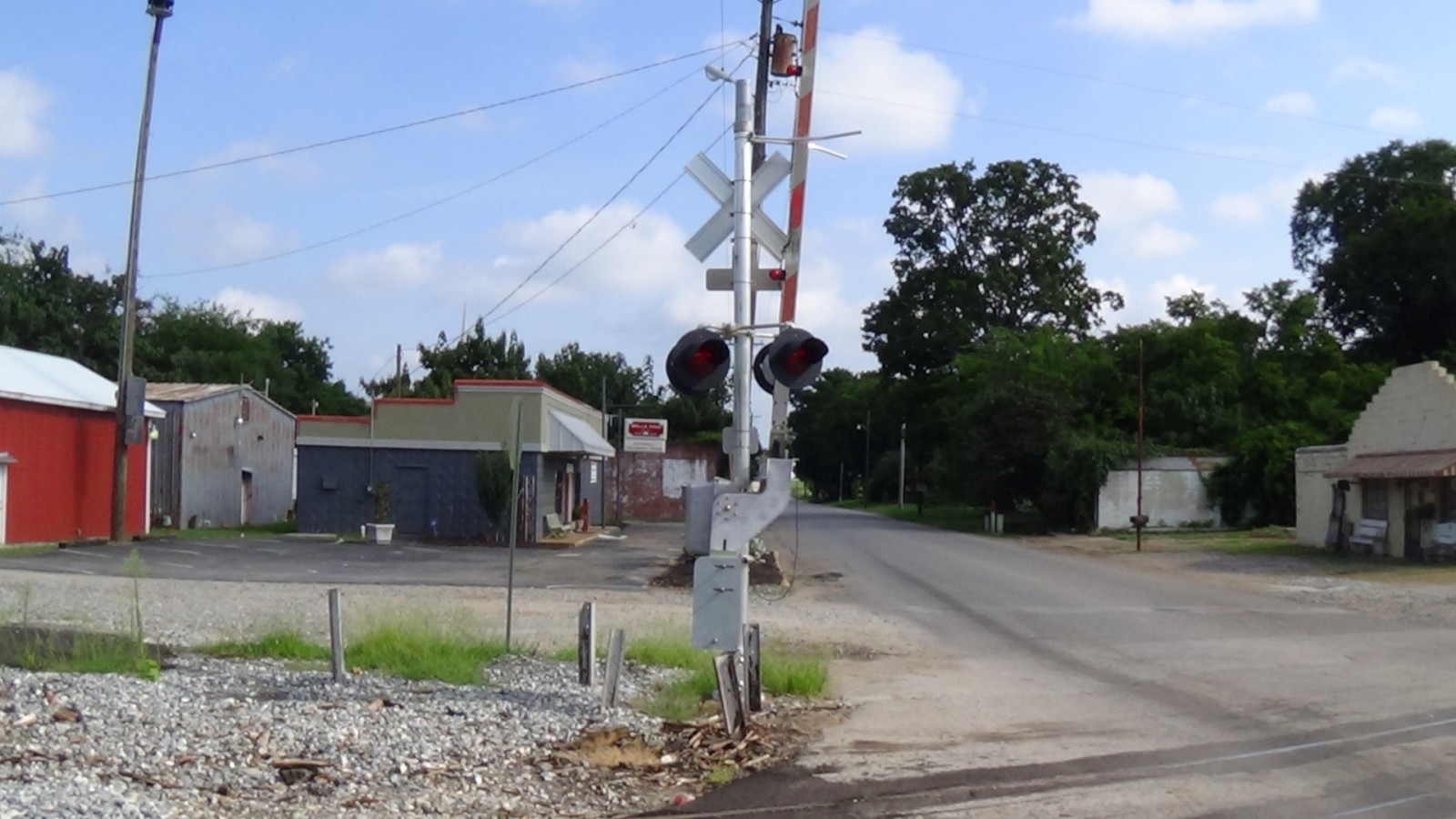

The new southbound signal.

45

46

47

48

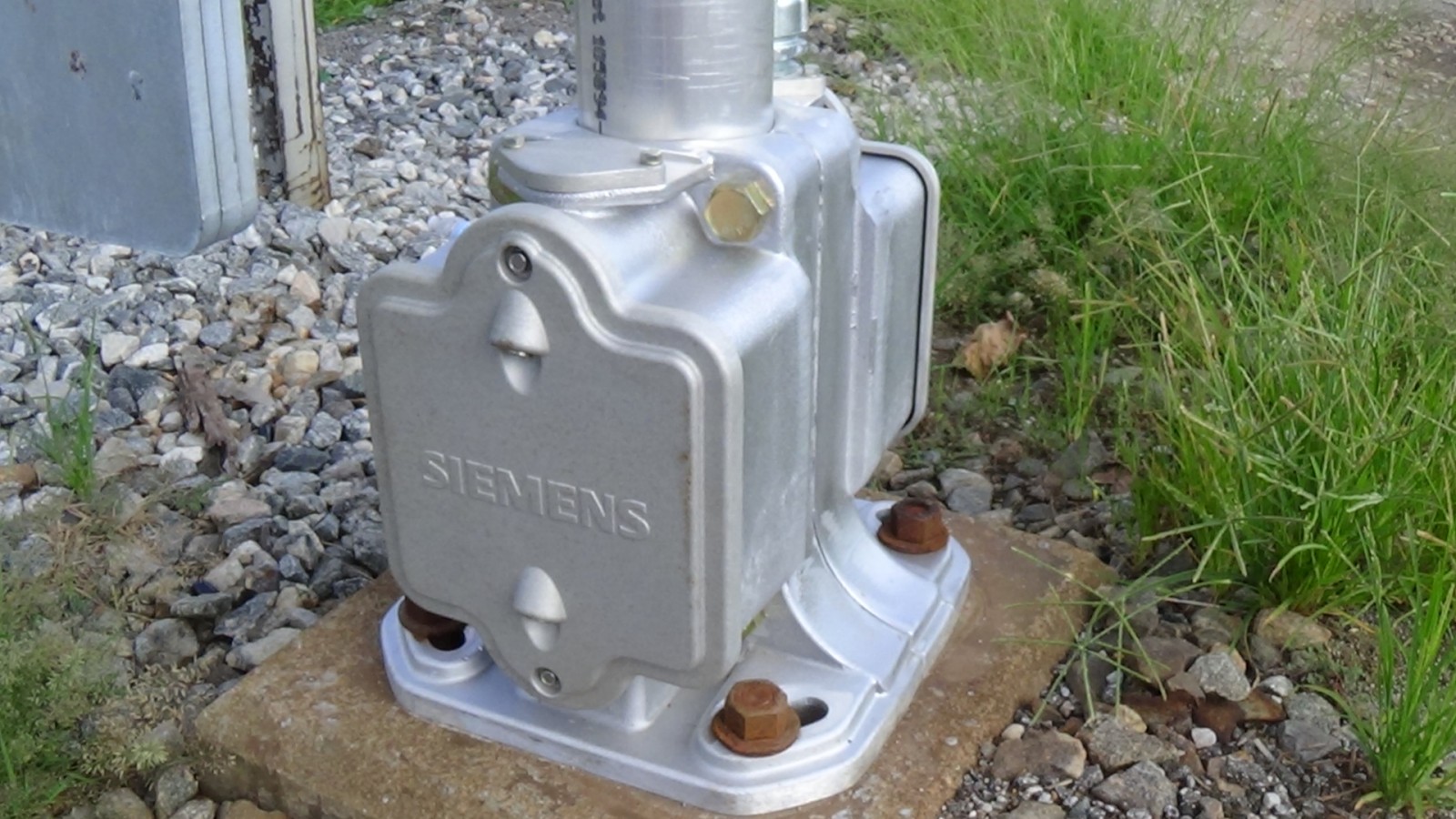

Another Siemens base.

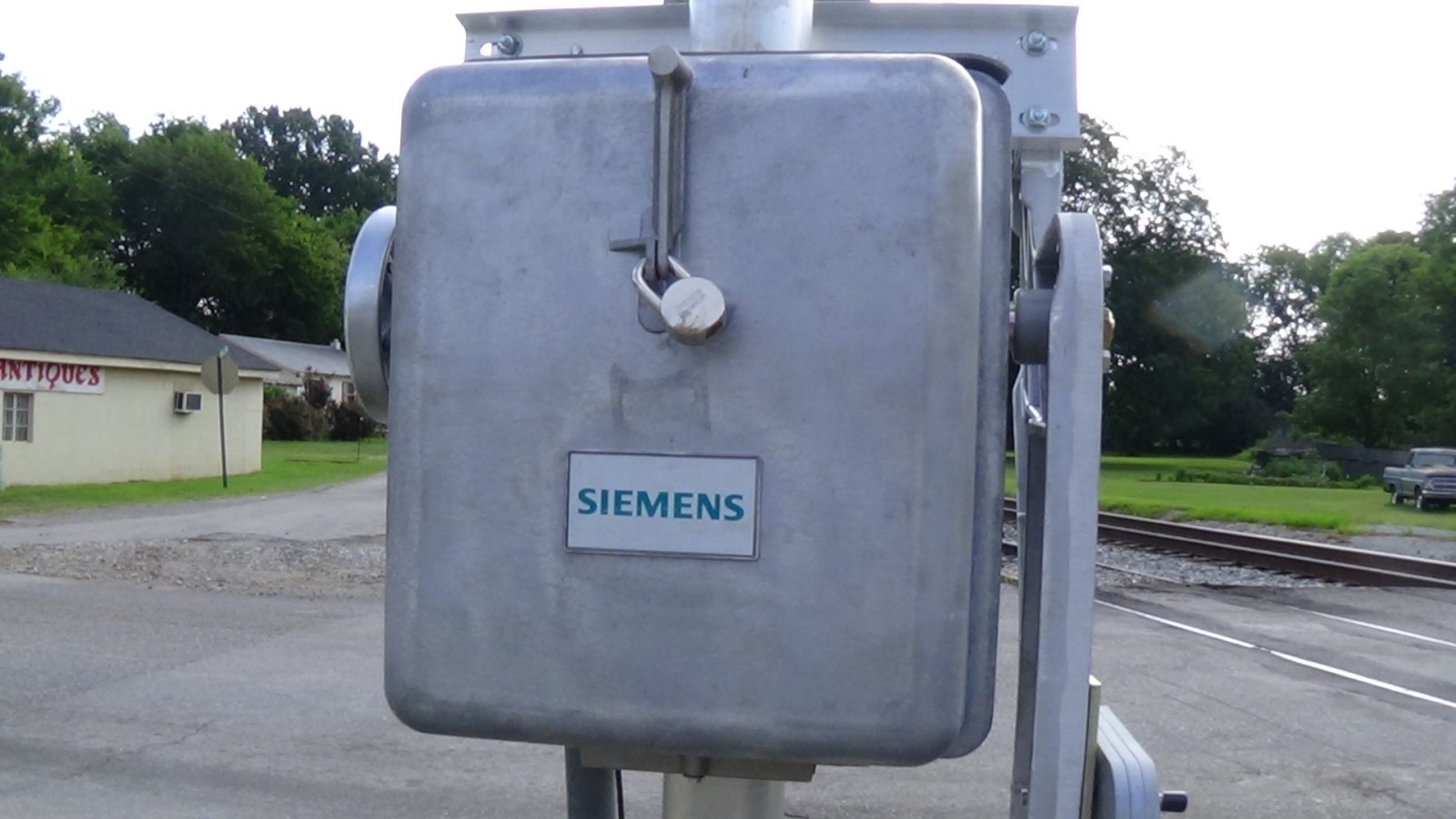

Another Siemens gate mechanism.

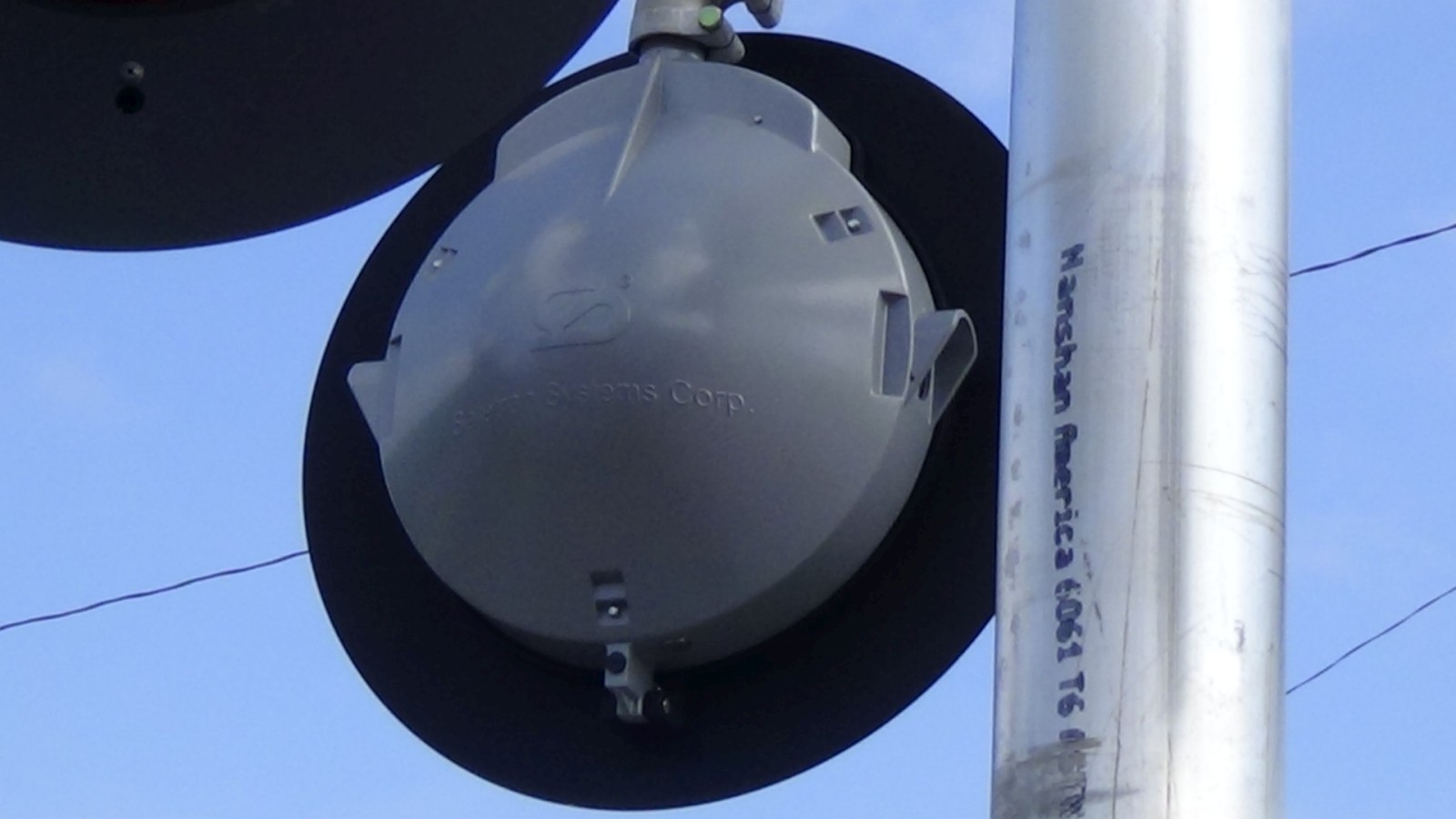

This signal has more Safetran 12x20 inch incandescent lights.

49

50

51

52
The emergency information.
The bell here is now a Safetran Type-3 electronic bell.
The incandescent RECO gate lights and gate arm were also re-used.
The old relay case still controls the signals!

53

54

55

56

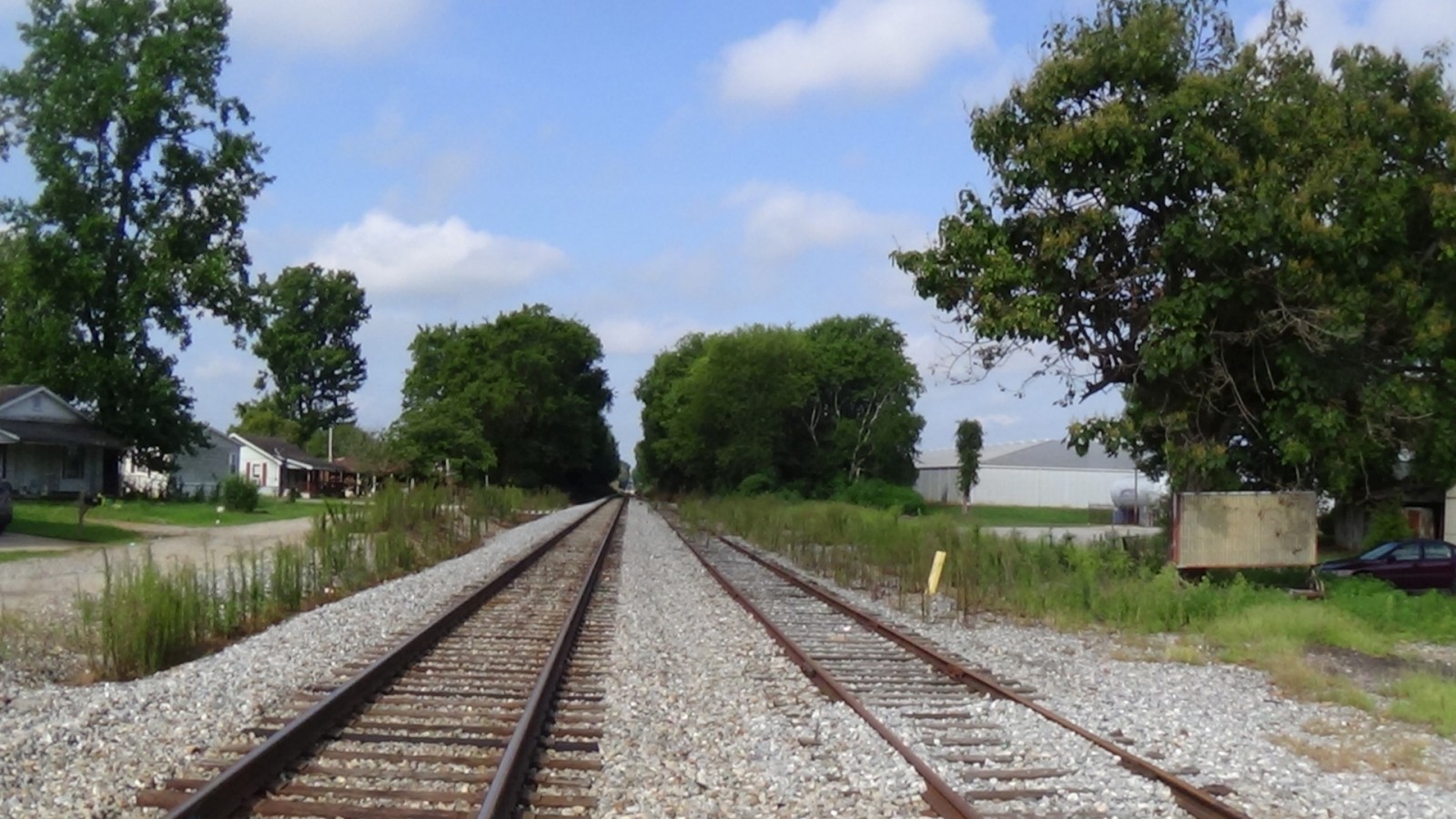

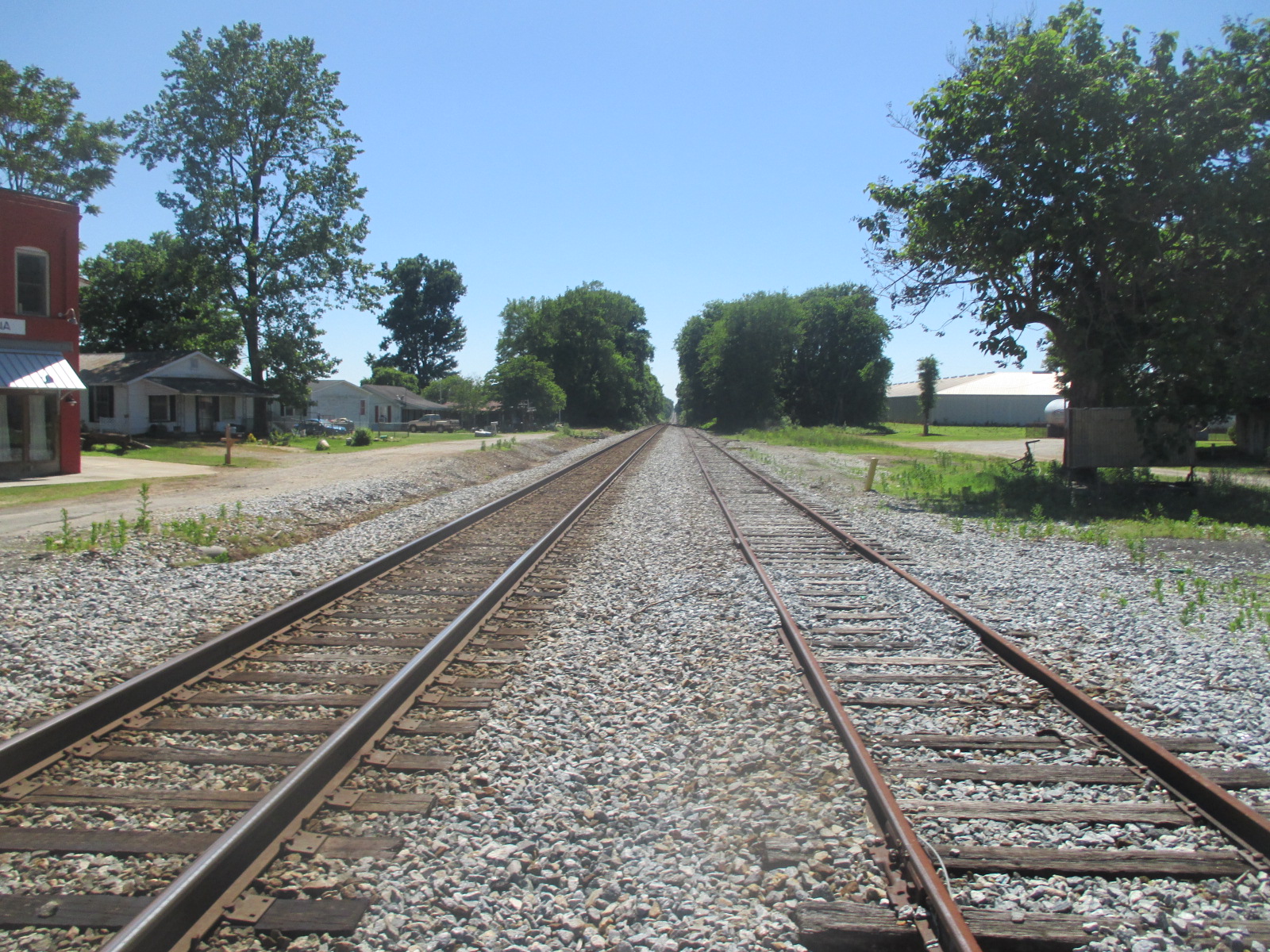

Track views.

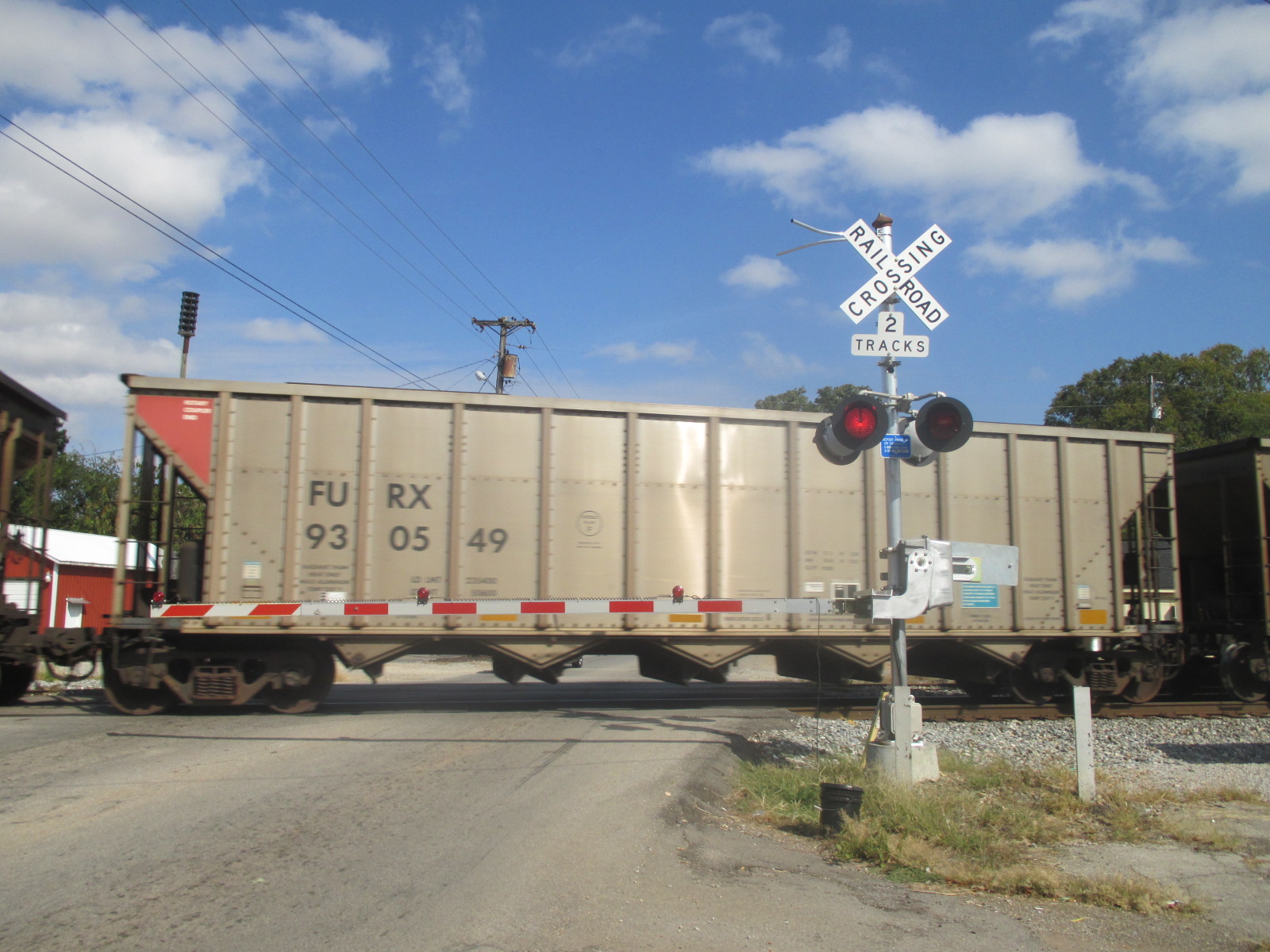

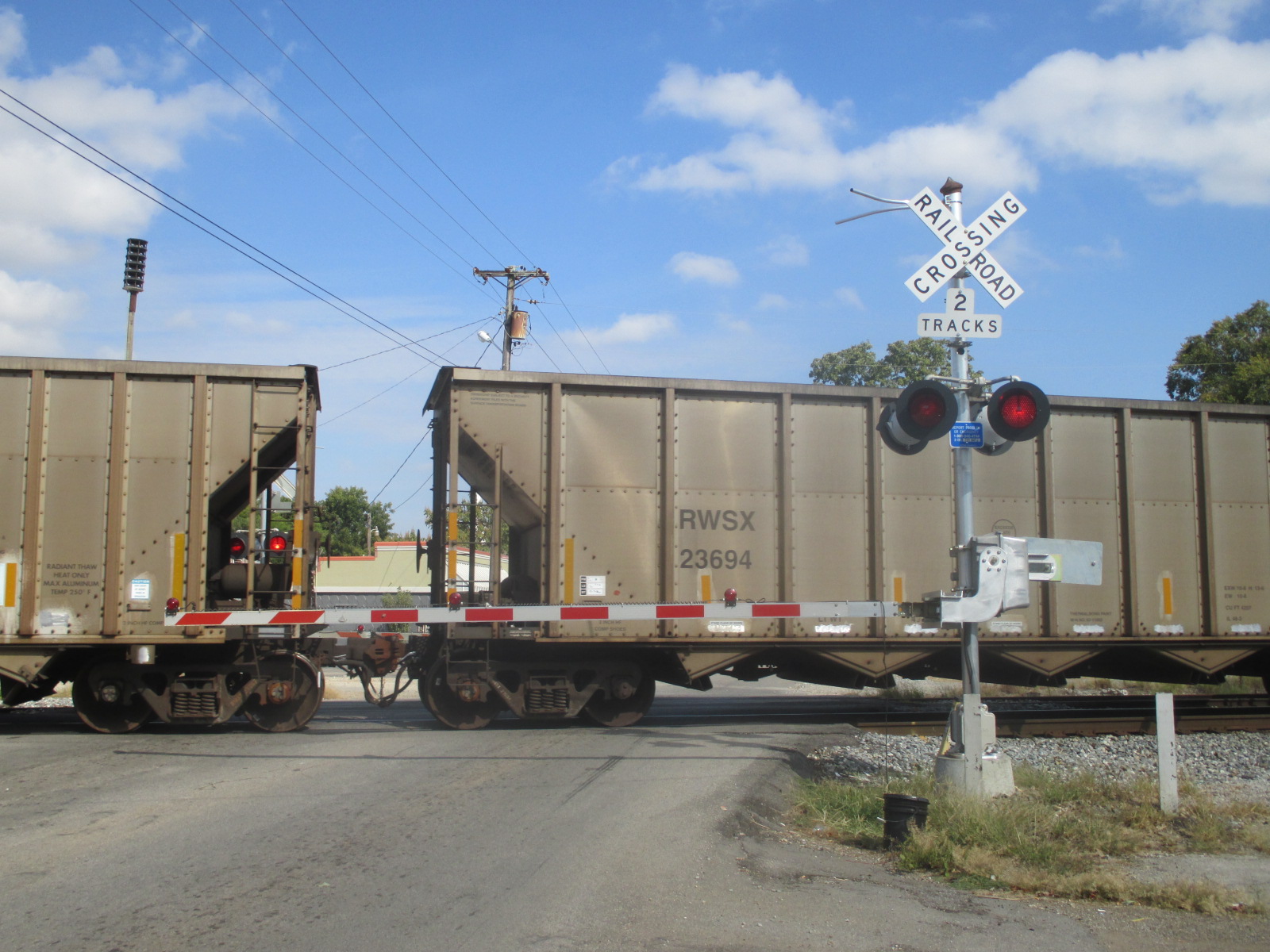

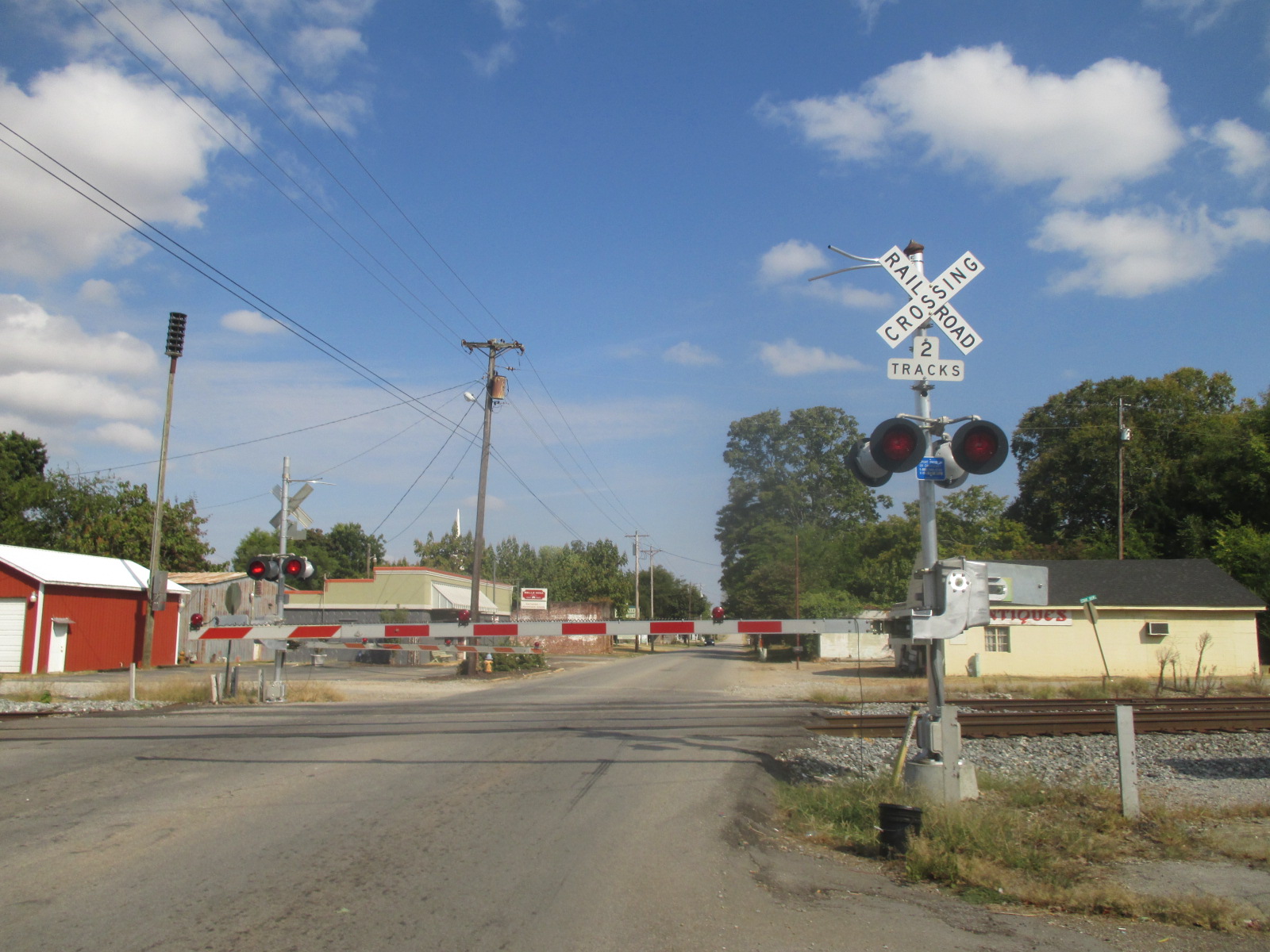

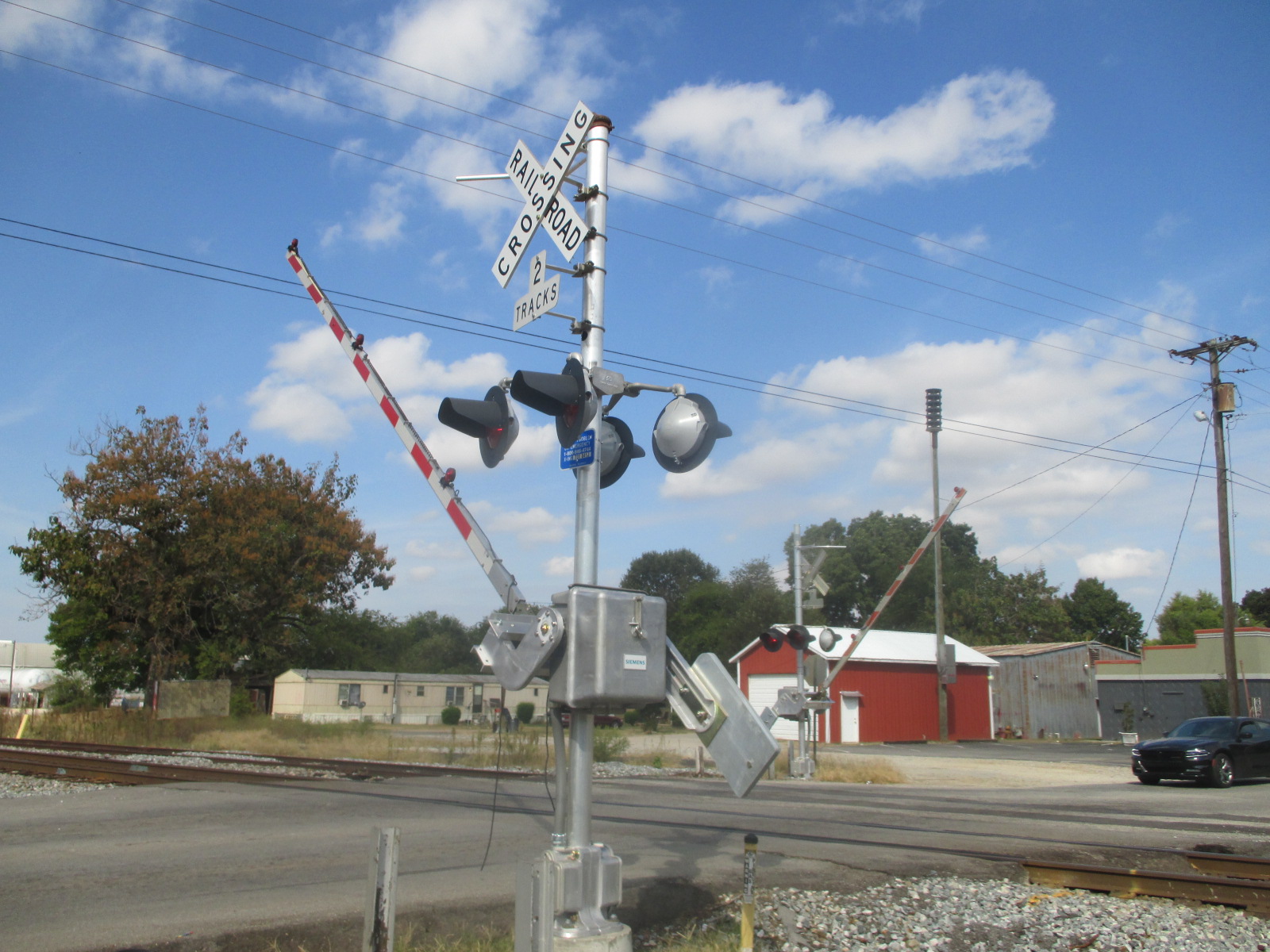

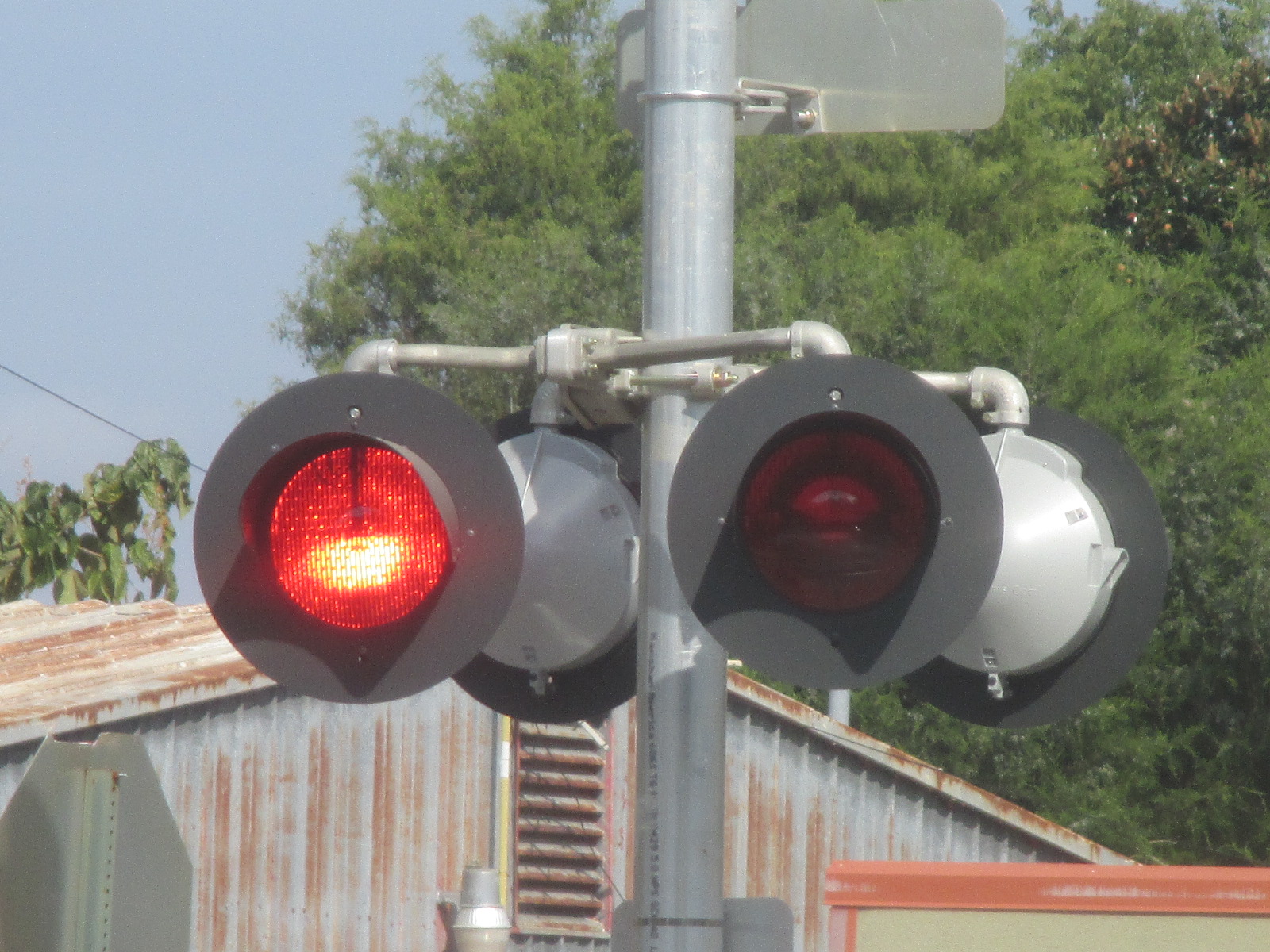

A return trip on 10-4-16 catches the crossing in action. The signals still have the bell start before the lights do!

57

58

59

60

61

62

63

64

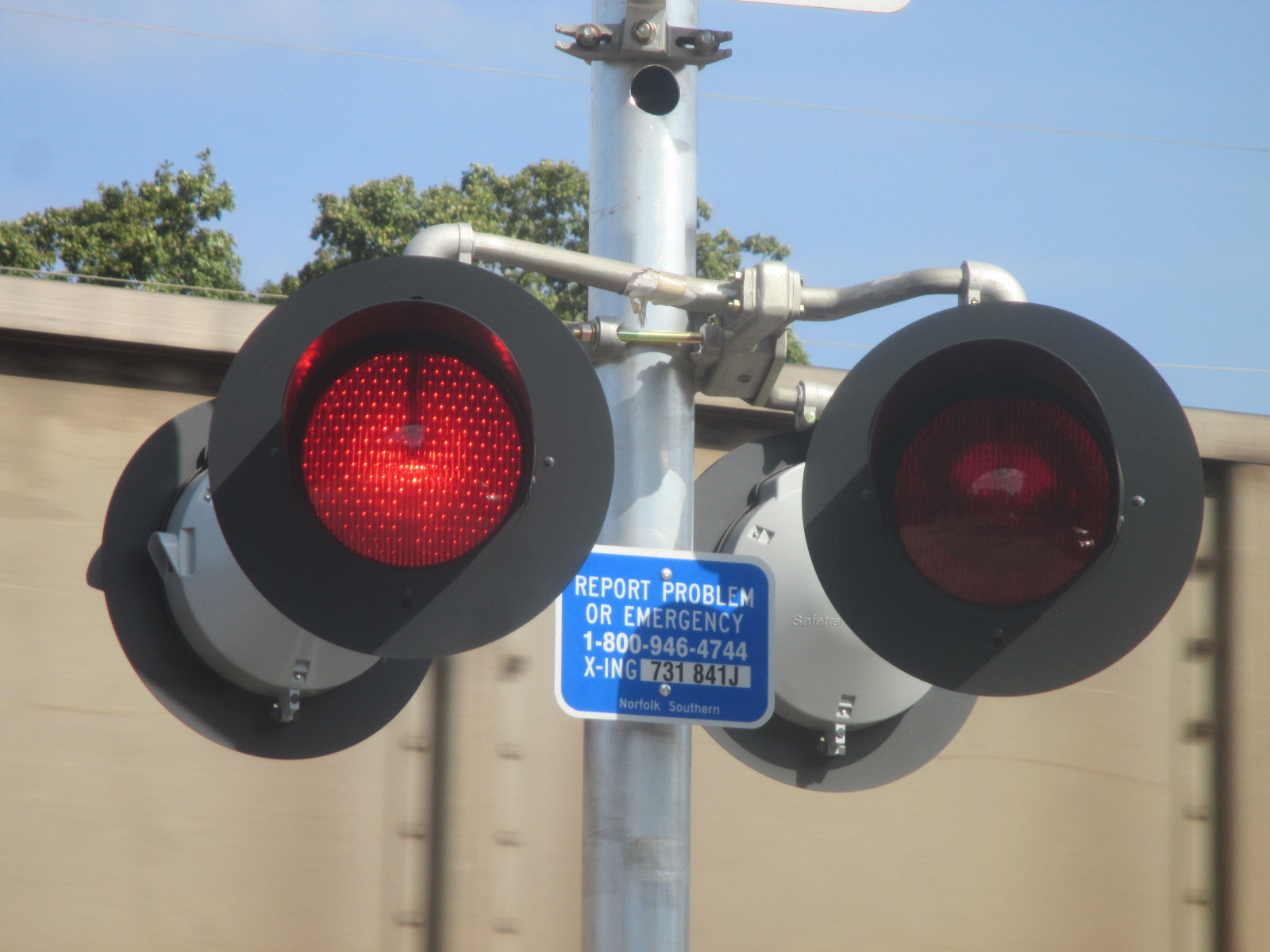

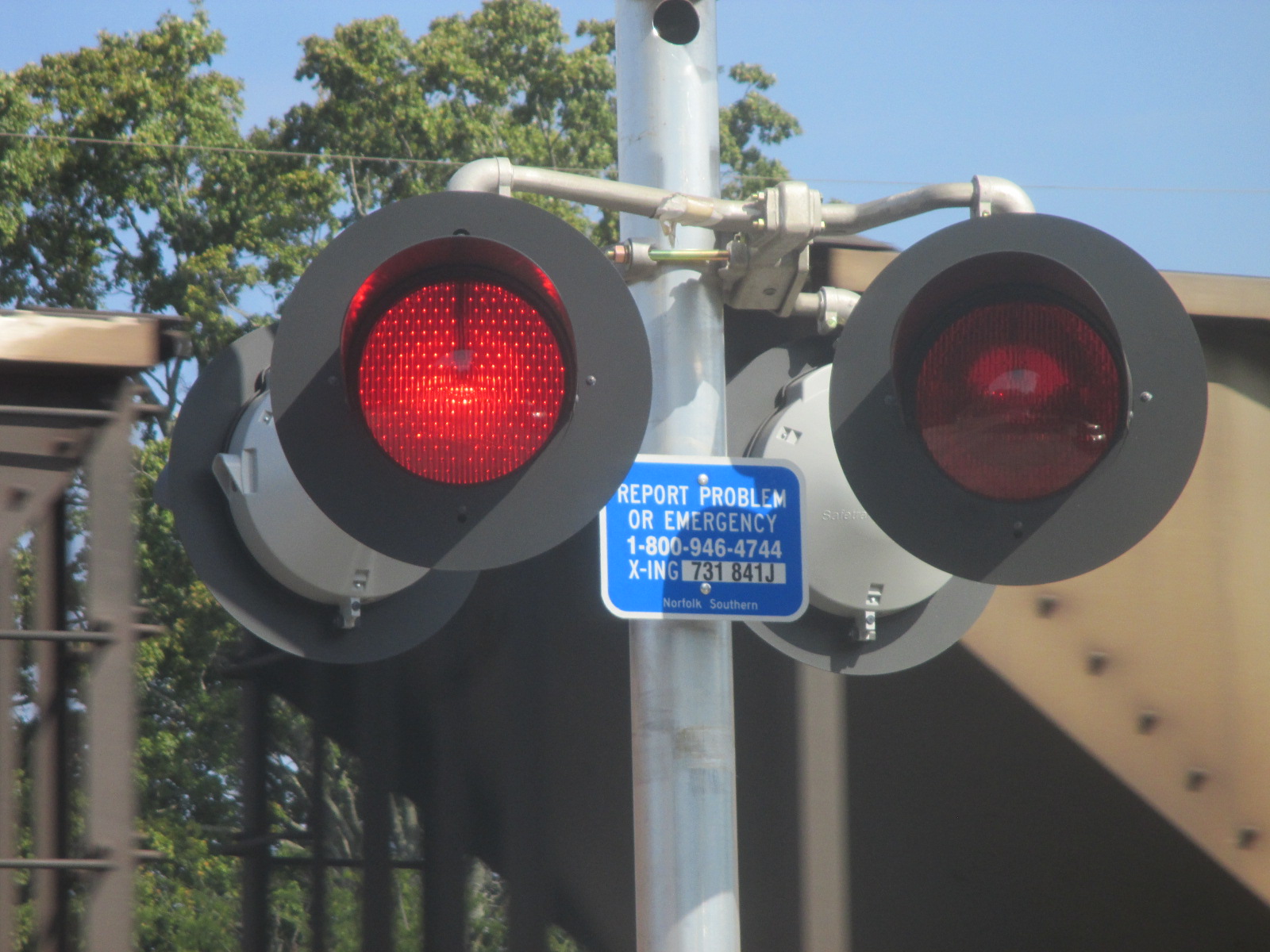

NS 73Z goes through the crossing.

65

66

67

68

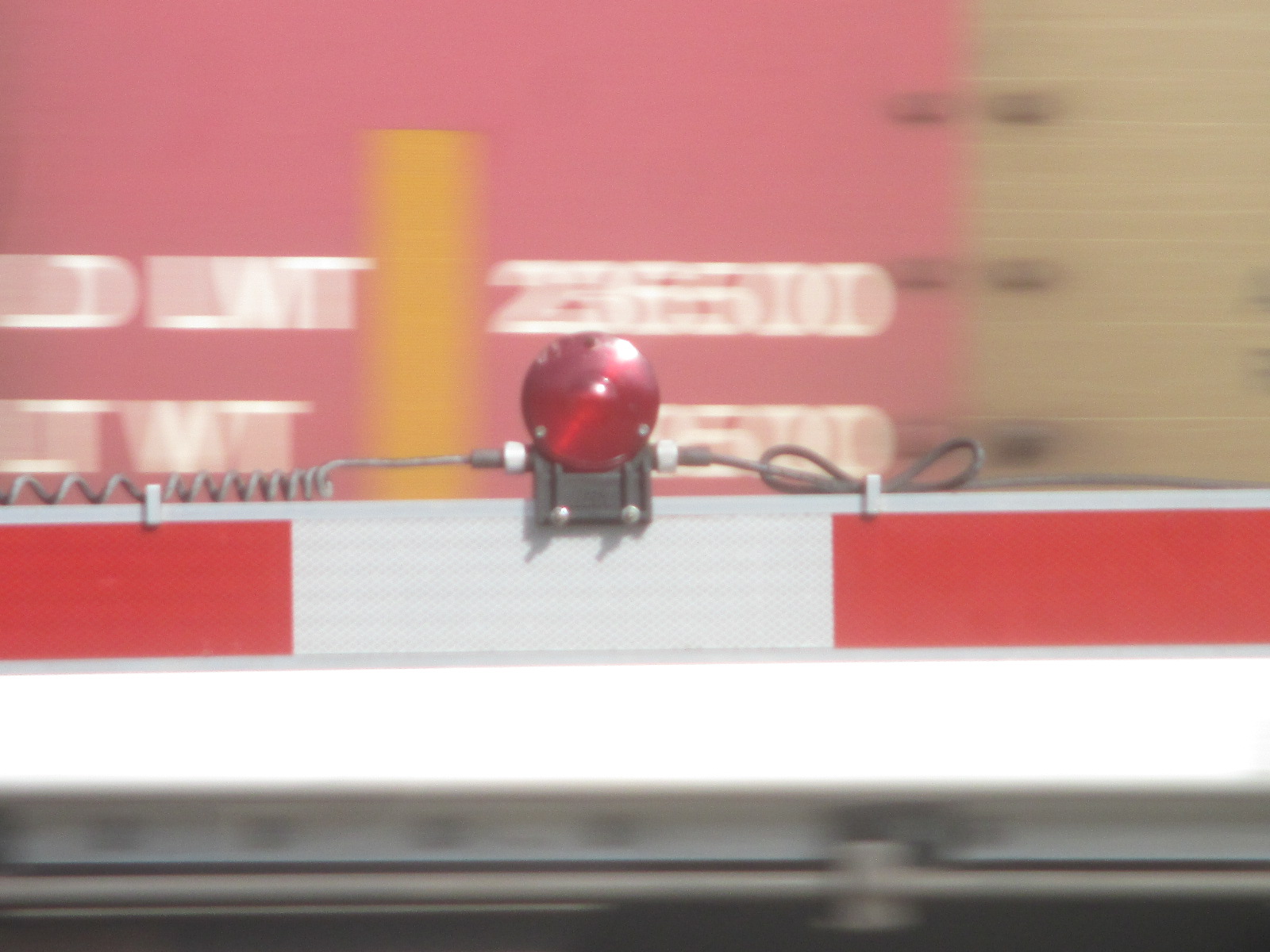

The wire for the gate lights on the northbound signal was cut! I reported this to NS after the train had passed.

69

70

71

72

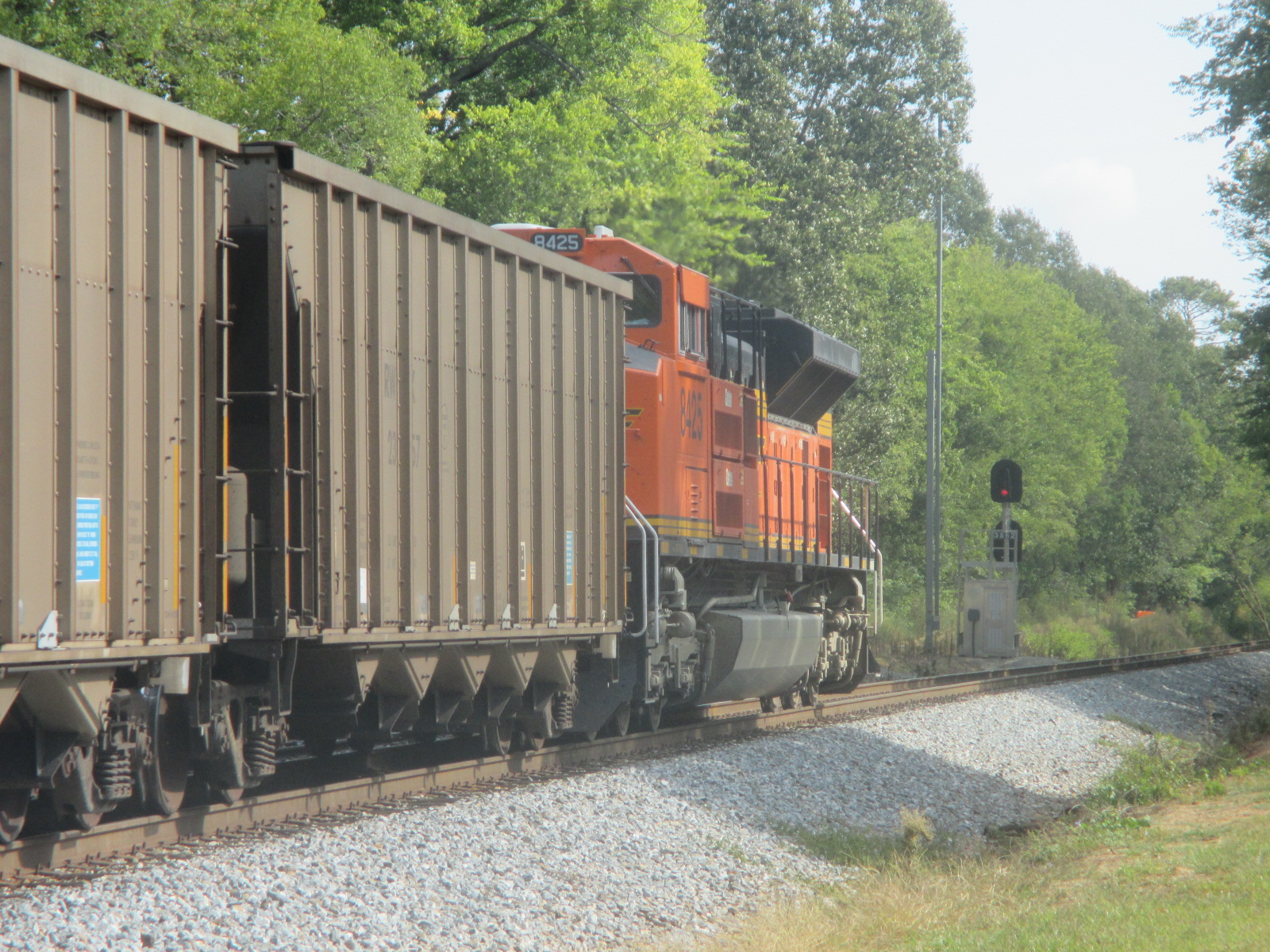

The DPU on the end of the train passes.

73

74

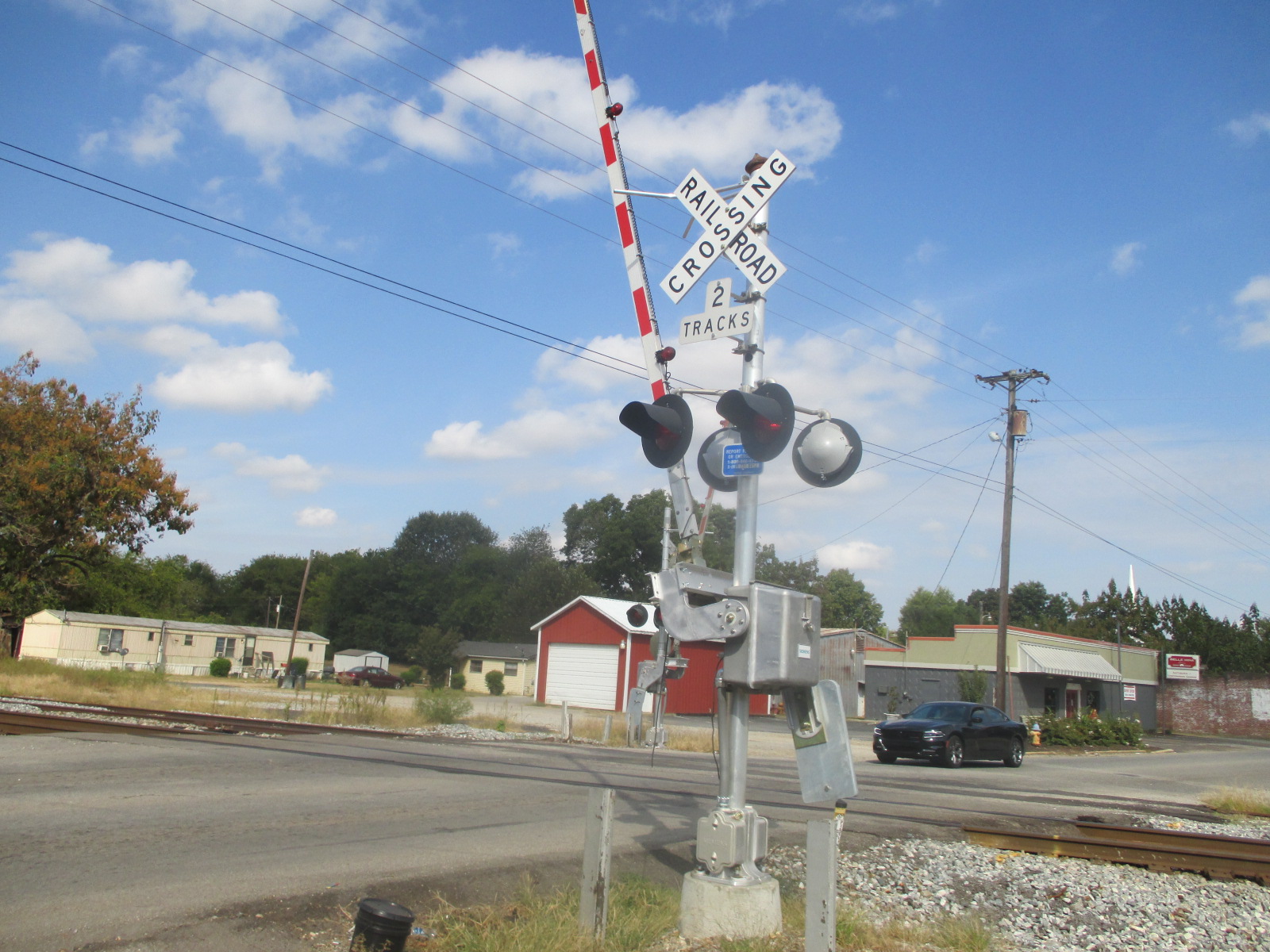

The gates rise.

75

76

77

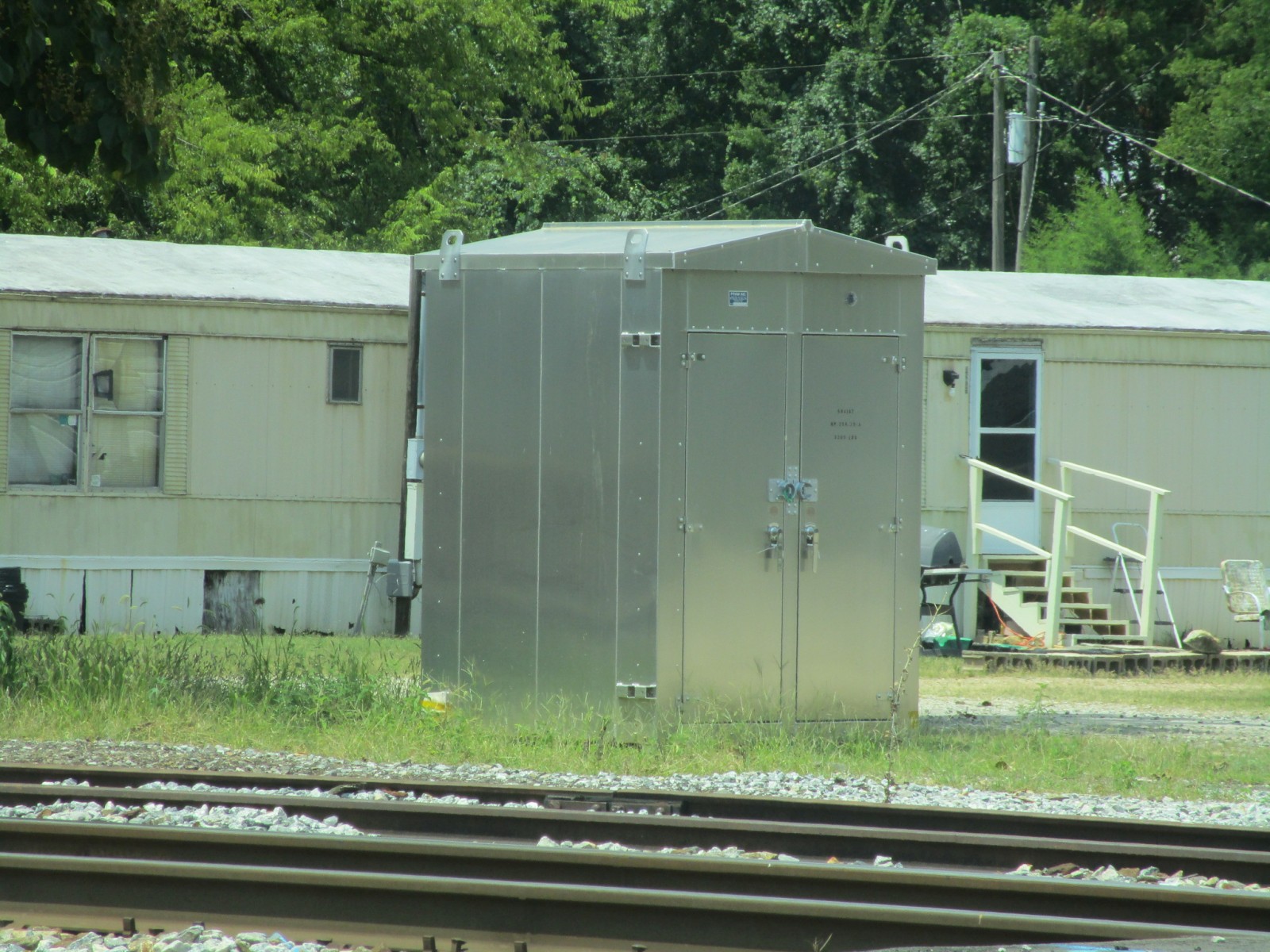

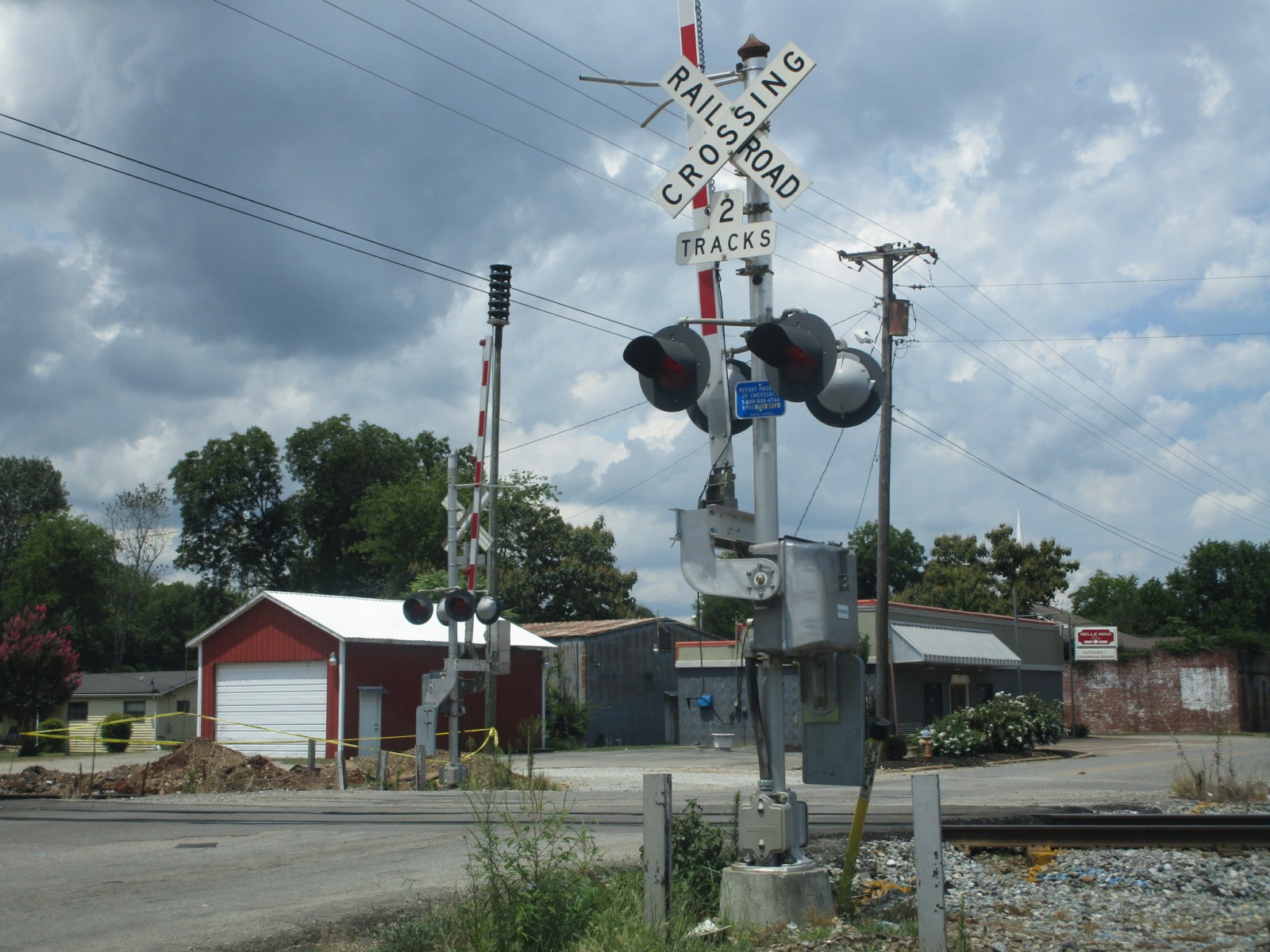

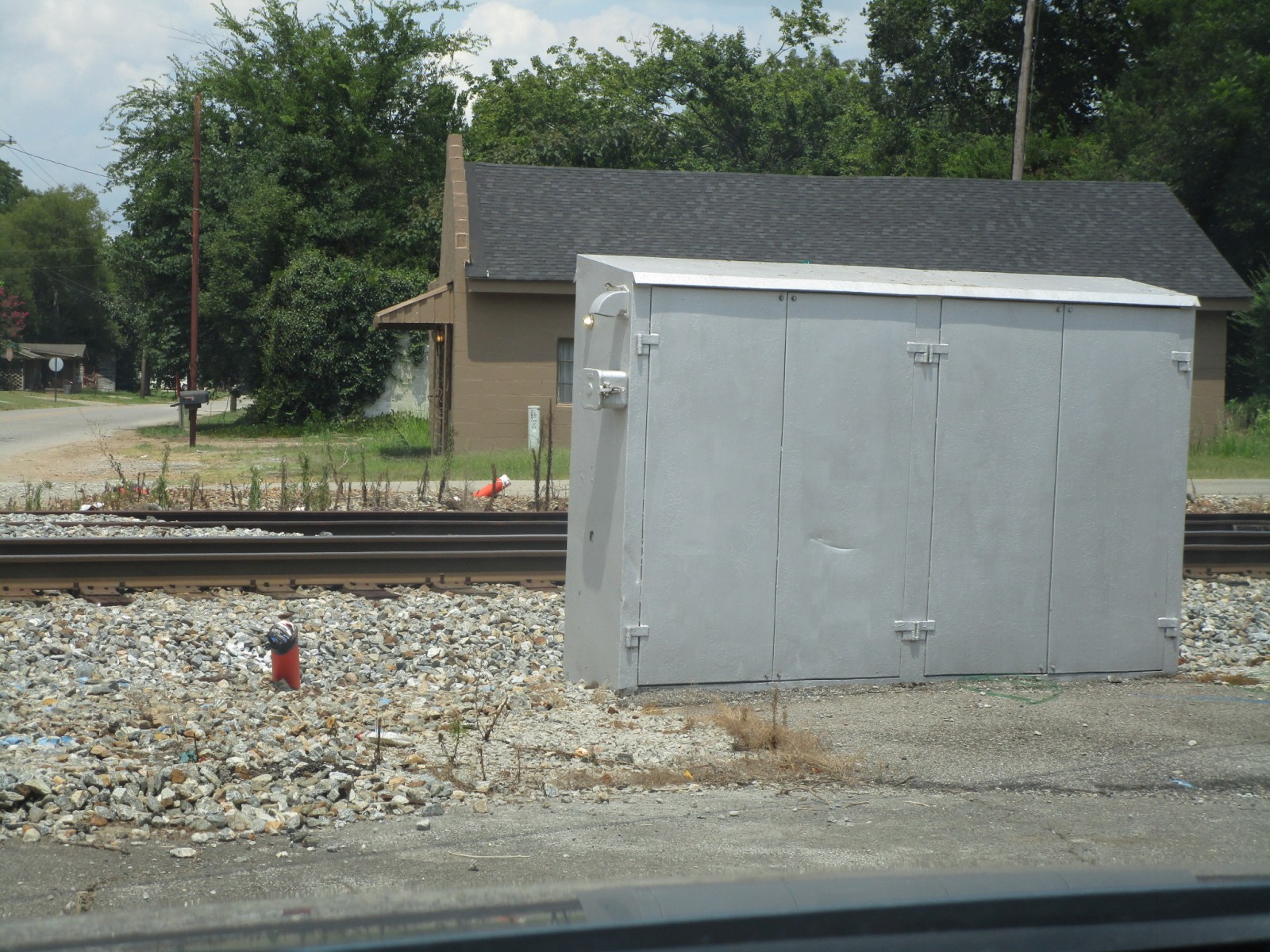

A return trip on 8-5-20 finds a new relay case awaiting installation on the opposite side of the tracks from the old (current) one.

78

79

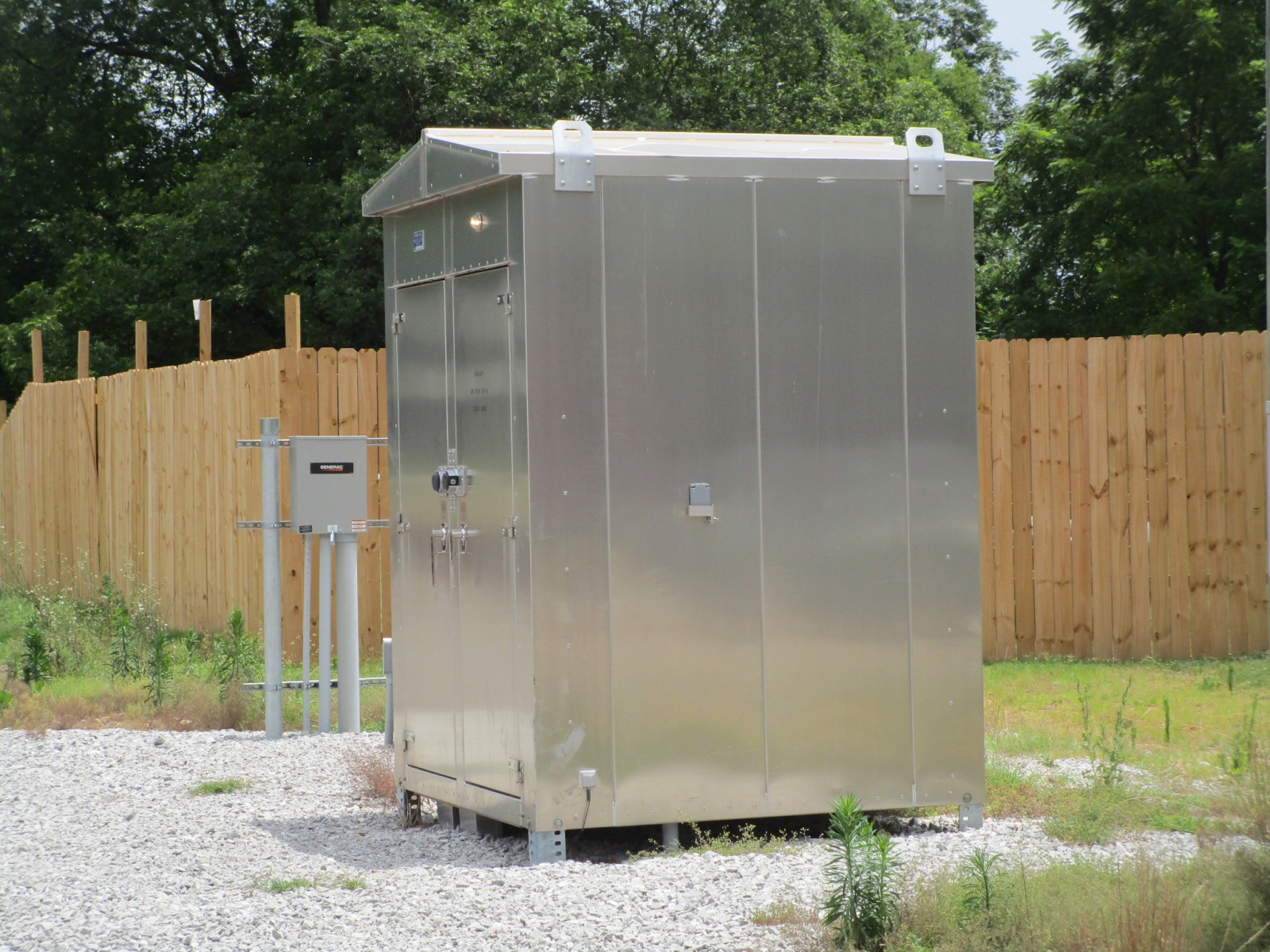

A fourth return trip to the crossing on 7-1-21 finds that the new relay case is now installed next to where the old one was and is now active as well.



The crossing no longer has it's unique start-up where the bell started a couple seconds before the lights did as a result, unfortunately.

80

81

82

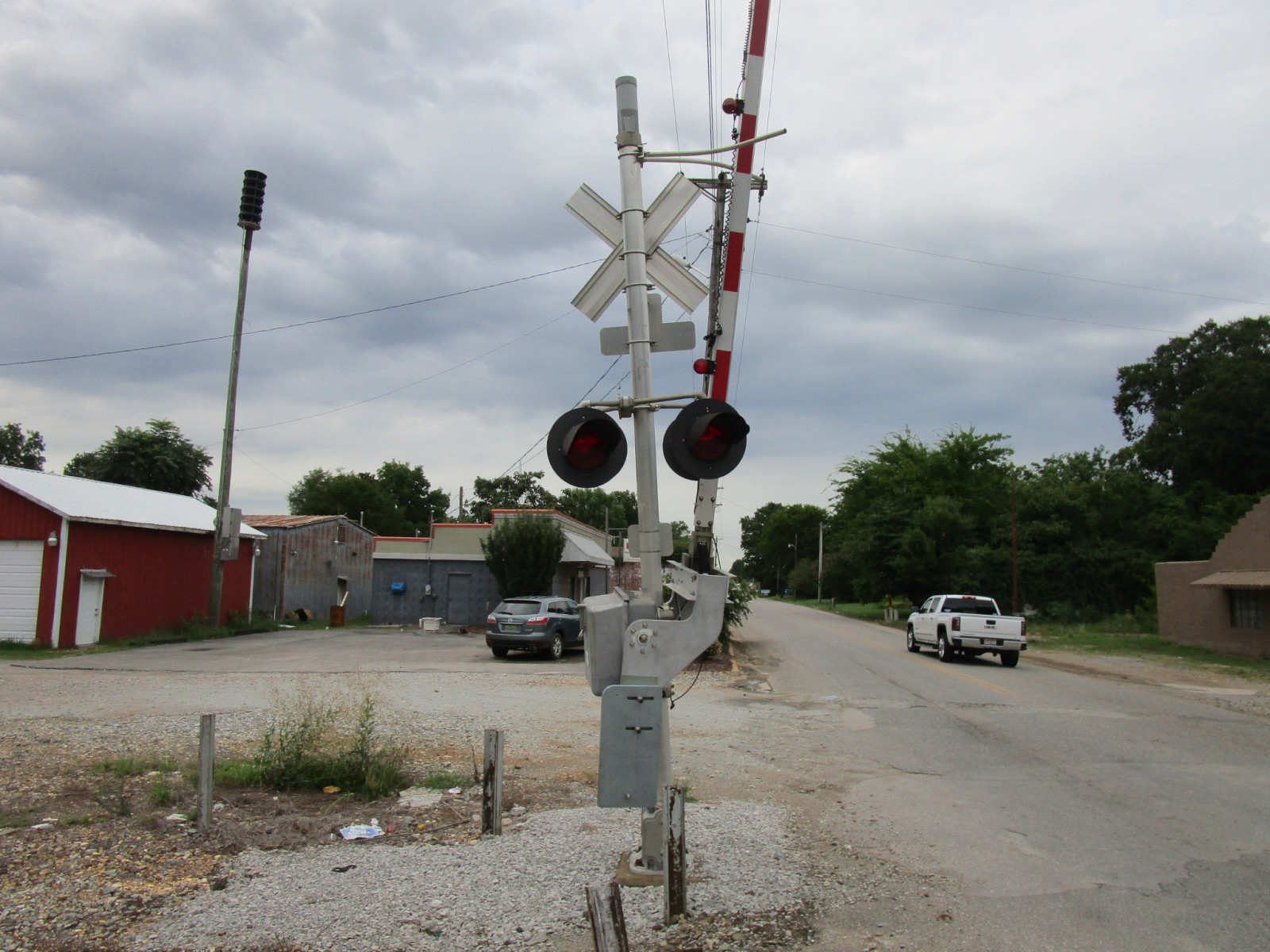

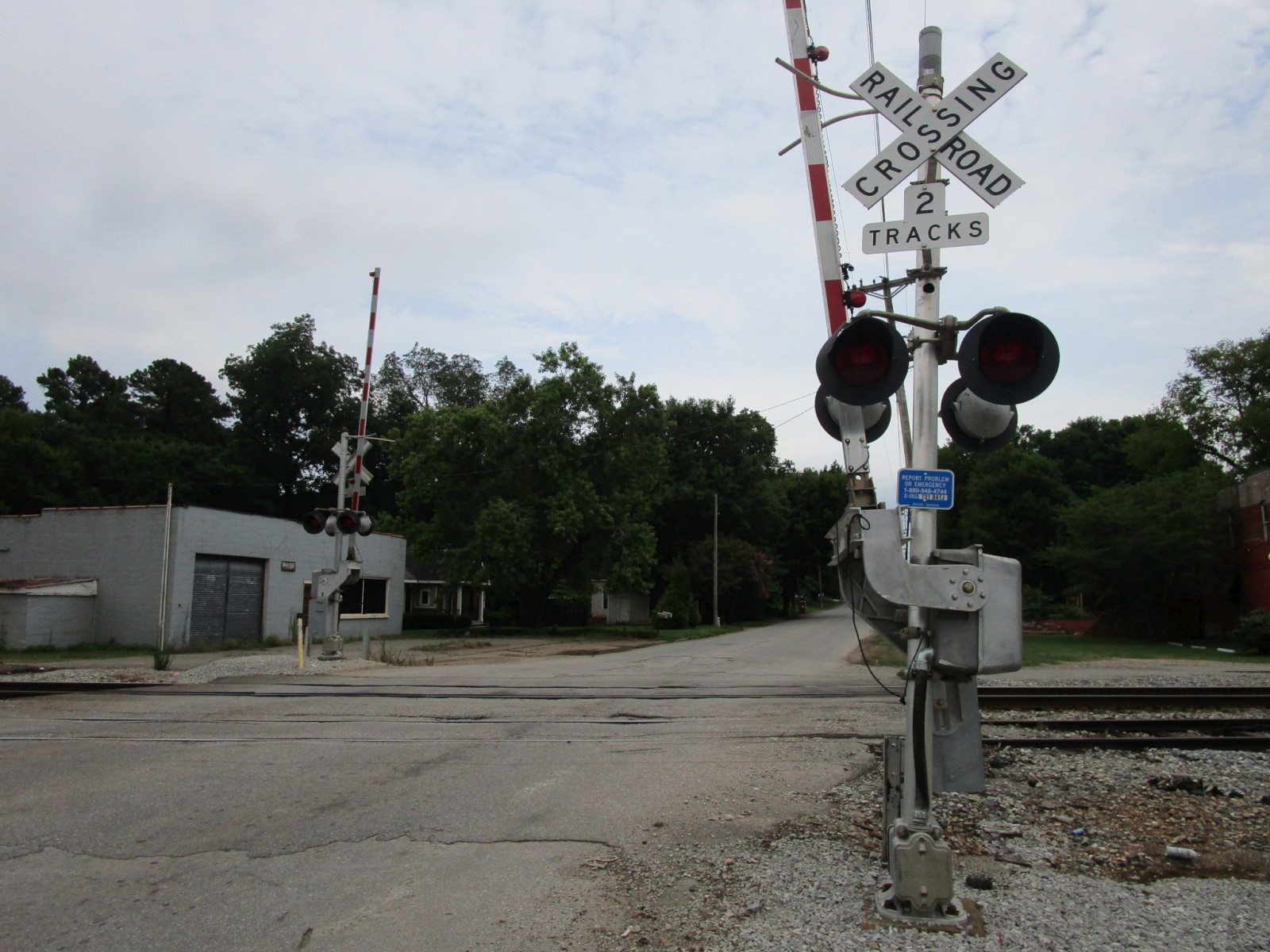

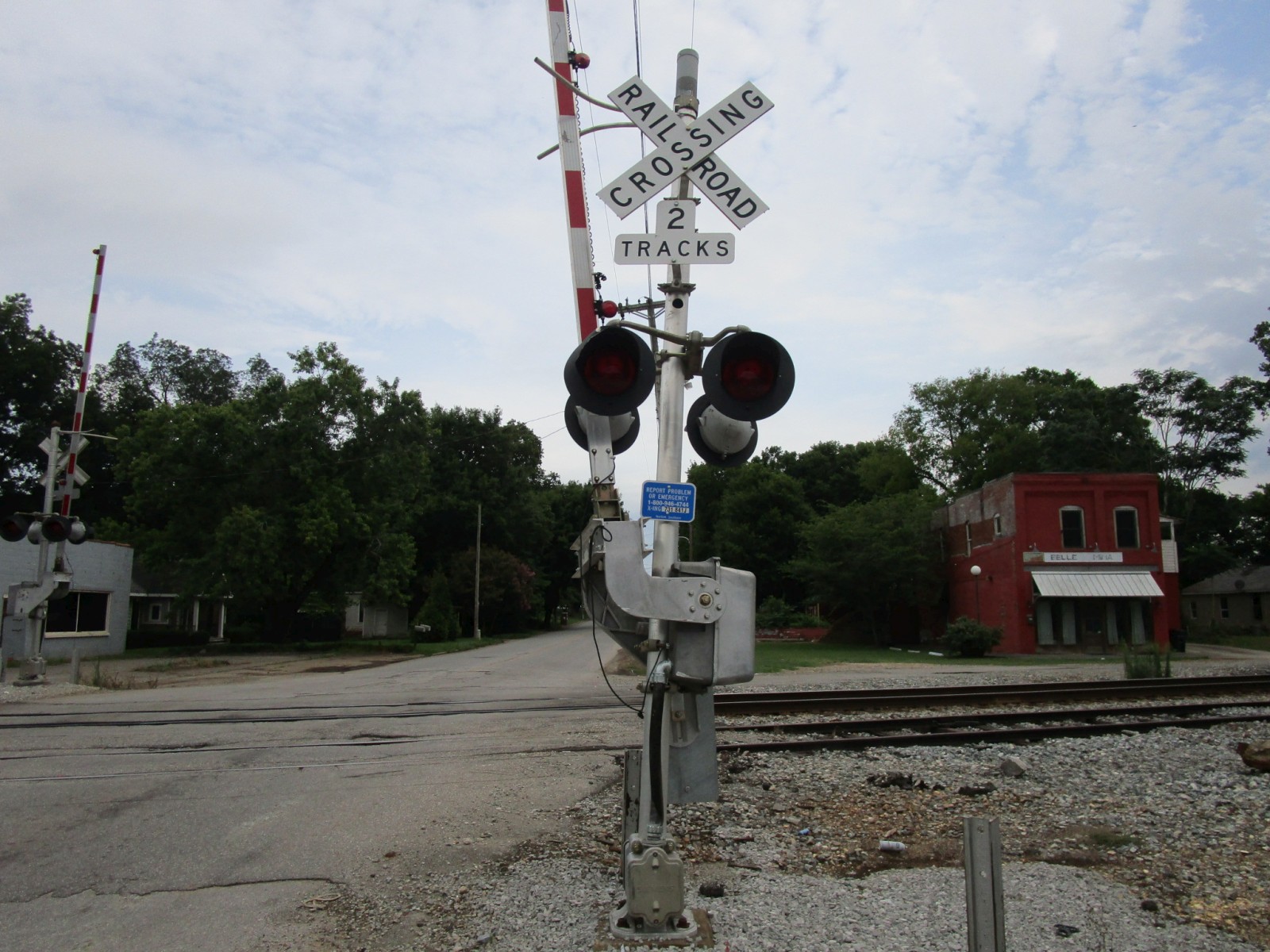

A fifth return trip to this crossing on 7-18-22 finds a minor change to the signal with the bell here (other than the fact it's now bent just above the base)...

83

84

85

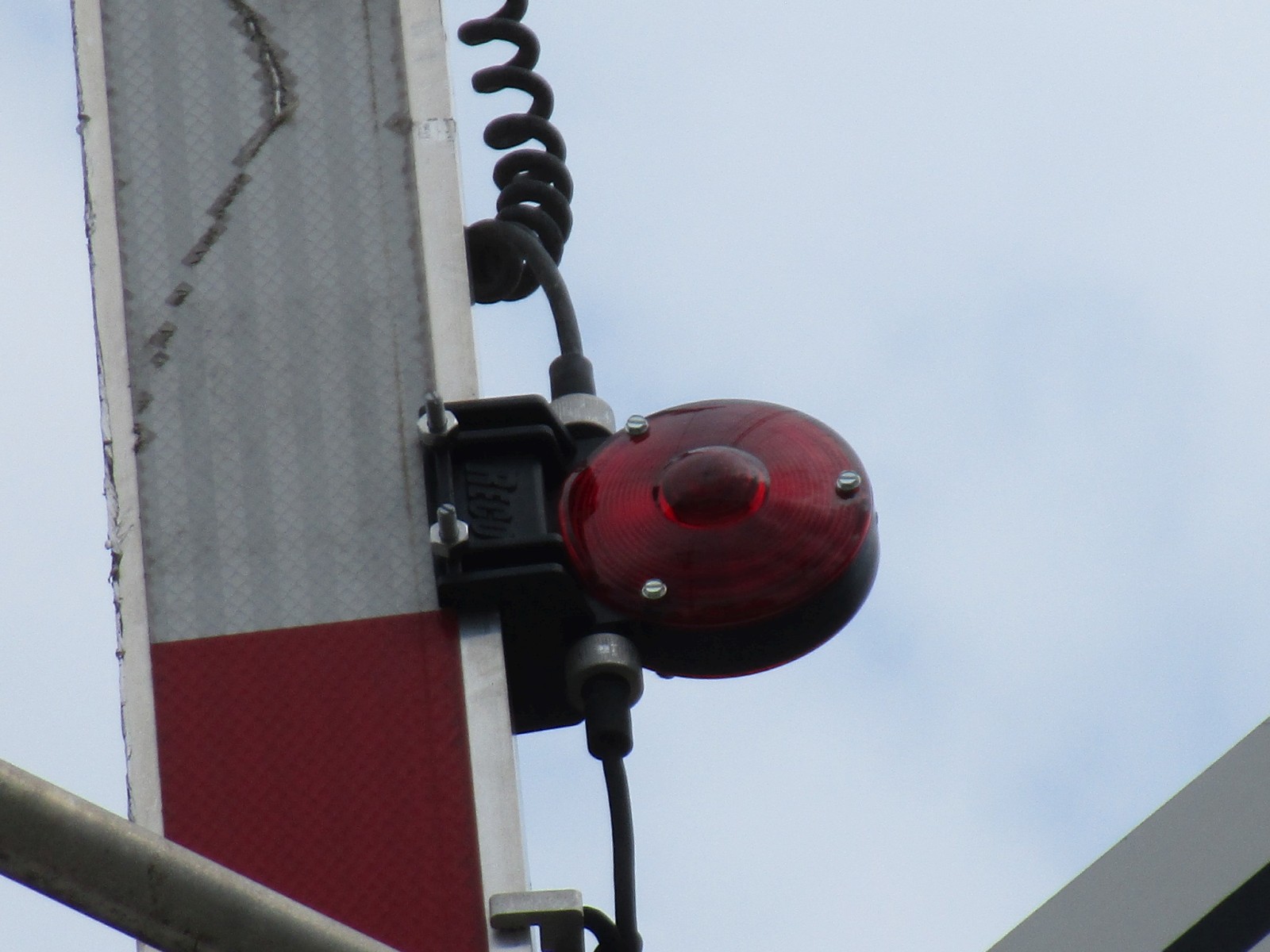

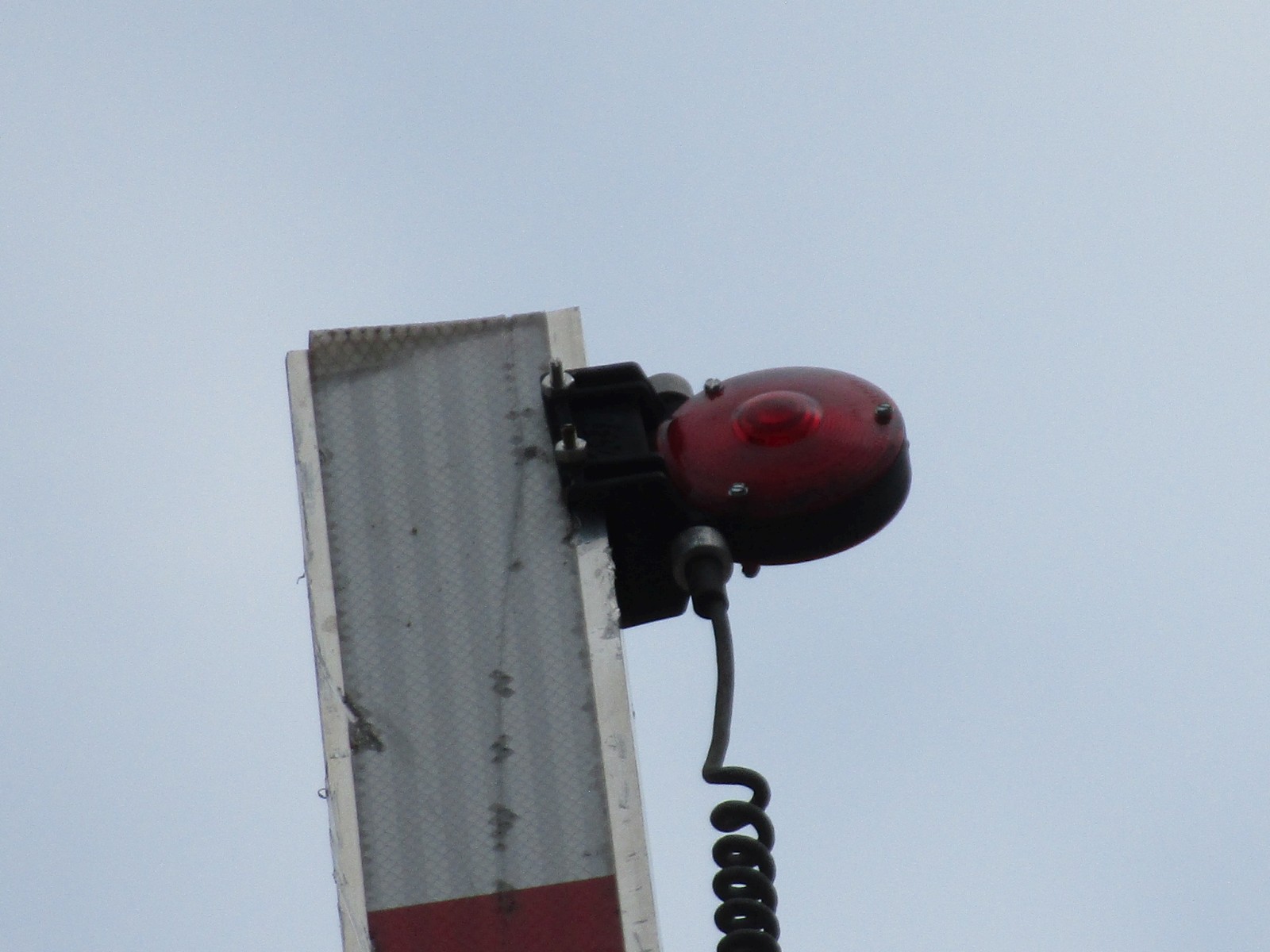

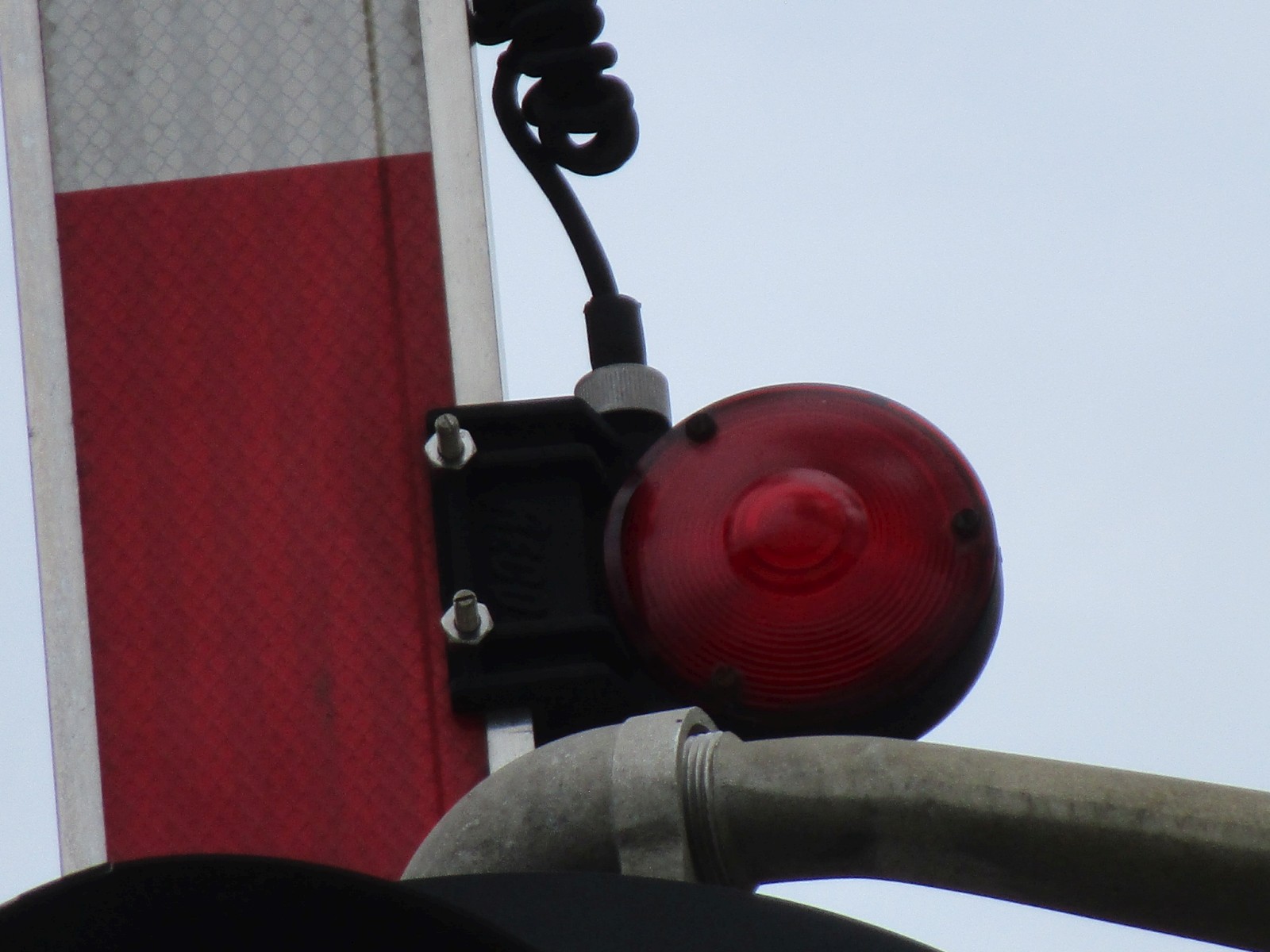

...the middle gate light is now a RECO LED gate light! The rest of the RECO gate lights on this signal (and the other signal) remain unchanged, however.



























Pictures 1-32 and the first video were taken on 5-22-15.

The second video was taken on 12-26-15.

The third video was taken on 6-25-16.

Pictures 33-54 were taken on 8-8-16.

Pictures 55-74 and the fourth video were taken on 10-4-16.

The fifth video was taken on 5-19-17.

The sixth video was taken on 1-1-18.

Pictures 75-77 and the seventh video were taken on 8-5-20.

The eighth video was taken on 9-21-20.

The ninth video was taken on 1-29-21.

Pictures 78 and 79 were taken on 7-1-21.

The tenth video was taken on 7-25-21.

The eleventh video was taken on 10-17-21.

The twelth video was taken on 12-8-21.

Pictures 80-85 were taken on 7-18-22.
