MP: 0LB390.730 |
Updated December 13, 2022
Total Accidents: 4
Crossing
DOT #: 352526W
TOTAL
DAILY TRAINS: 2 (AS OF 2020)
Page created by: freebrickproductions
This crossing is located on the CSX Birmingham Mineral Subdivision.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | NEG electronic | NEG electronic |
| Base: | WCH | WCH |
| Light Frames: | 1 - 12x24" WCH w/ a WCH 2nd Gen LED 3 - 12x24" WCH w/ Leotek EV Series LEDs |
4 - 12x24" WCH w/ WCH 2nd Gen LEDs |
| Gate Lights: | 3 - NEG LEDs | 3 - RECO LEDs |
| Gate Mechanism: | Siemens Imprinted | Invensys Rail |
| Gate Striping: | Vertical | Vertical w/ Diagonal tip |
1 |
2 |
3 |
4 |

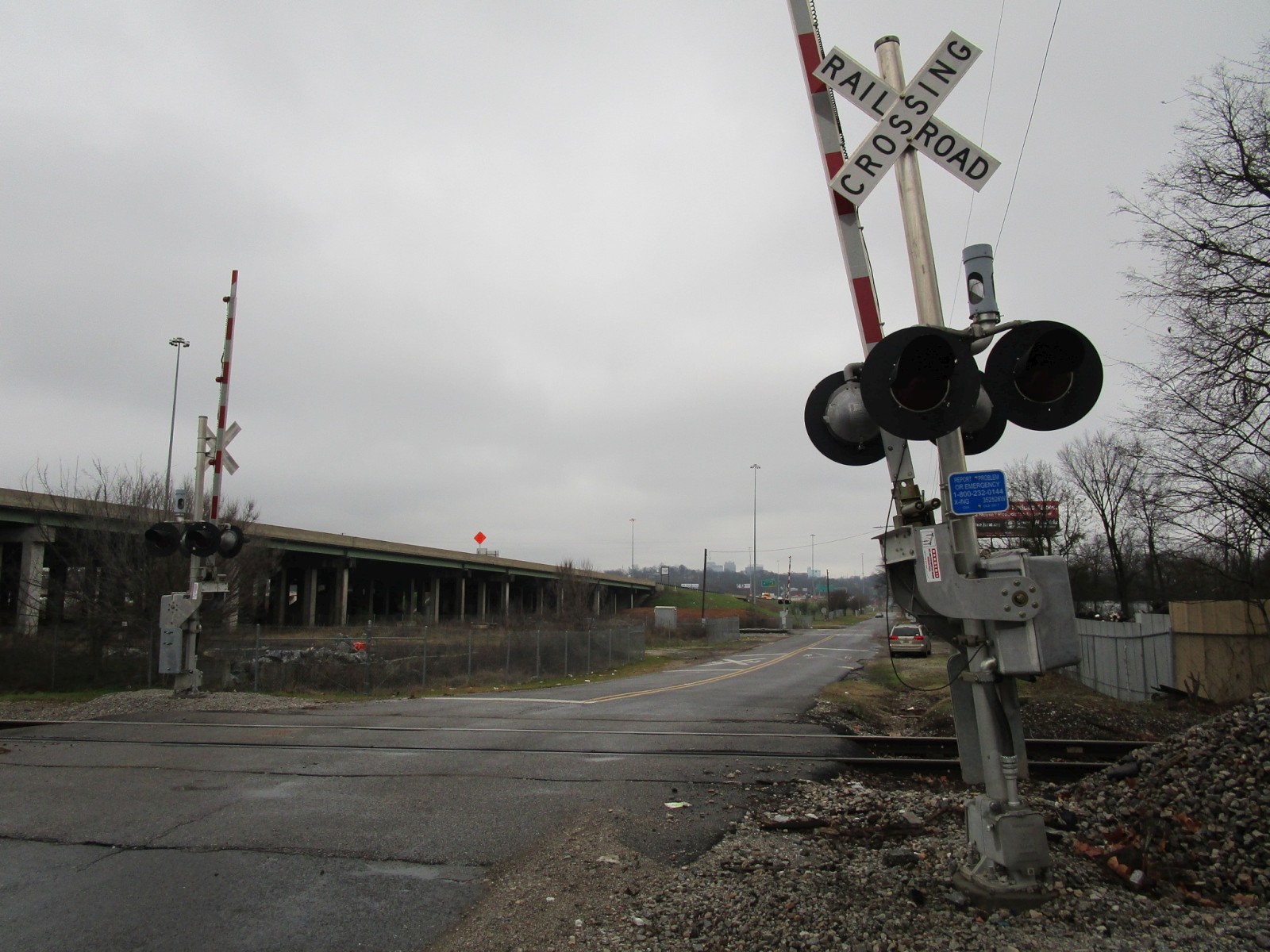

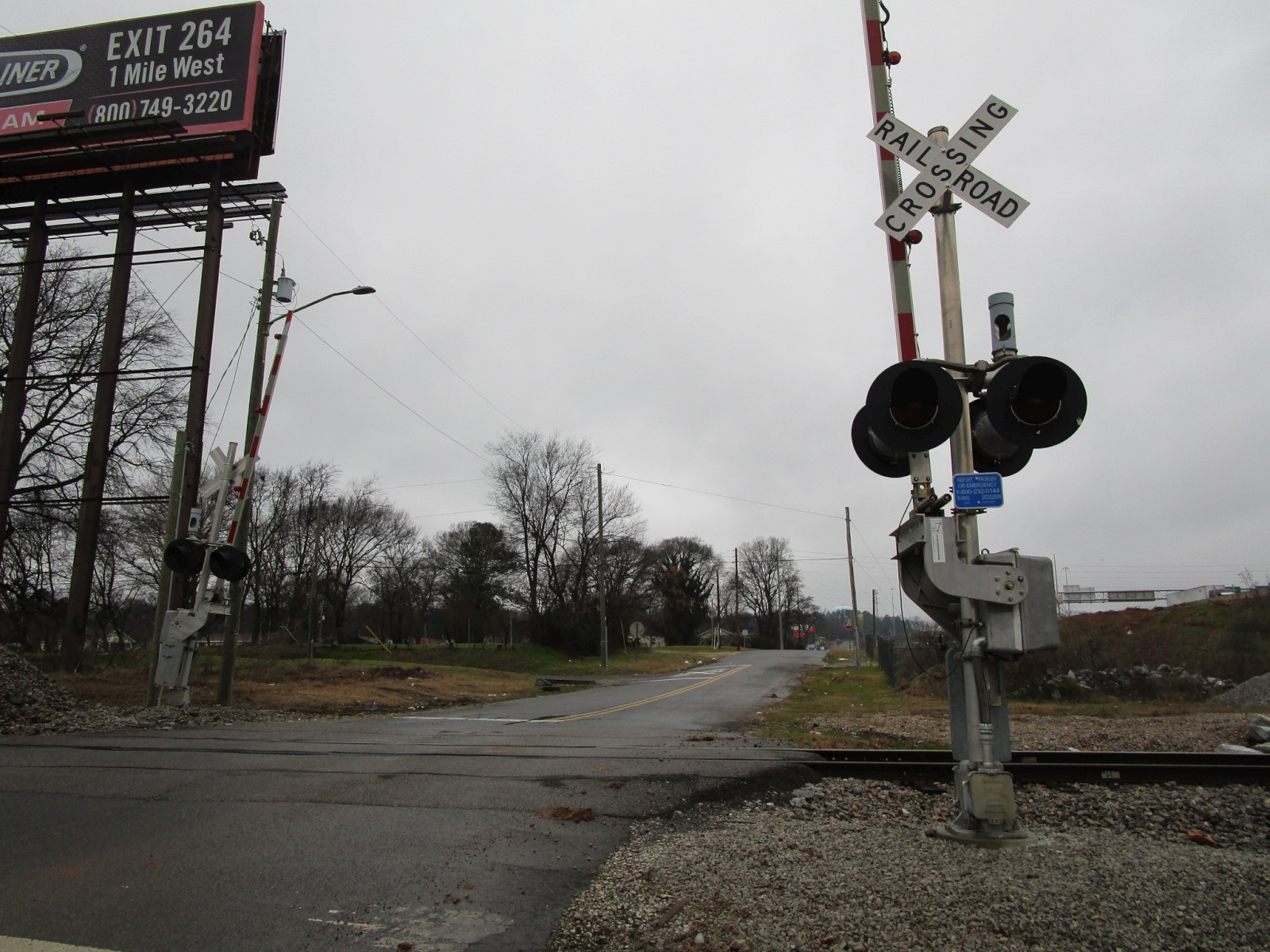

Overviews of the crossing. |

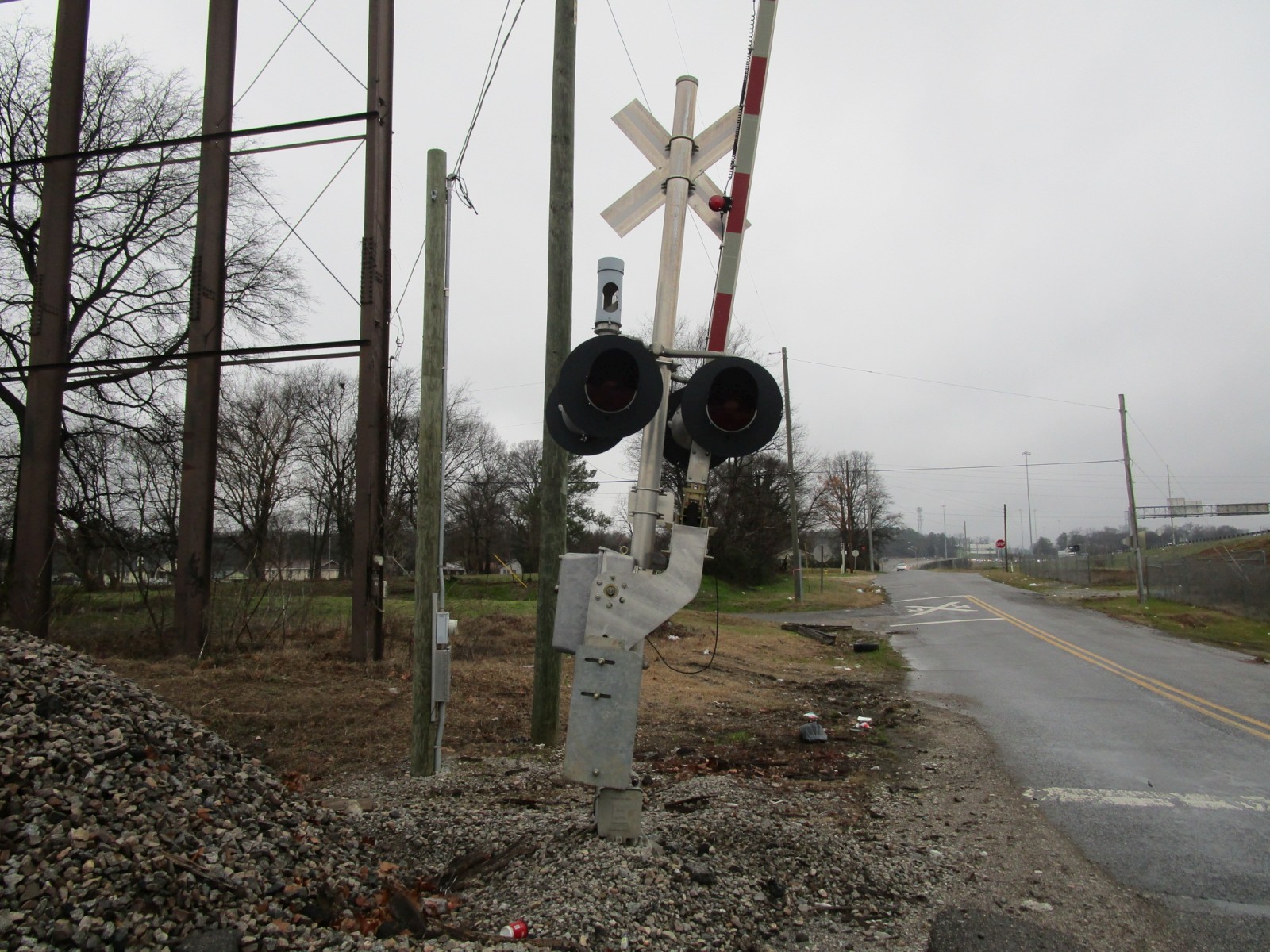

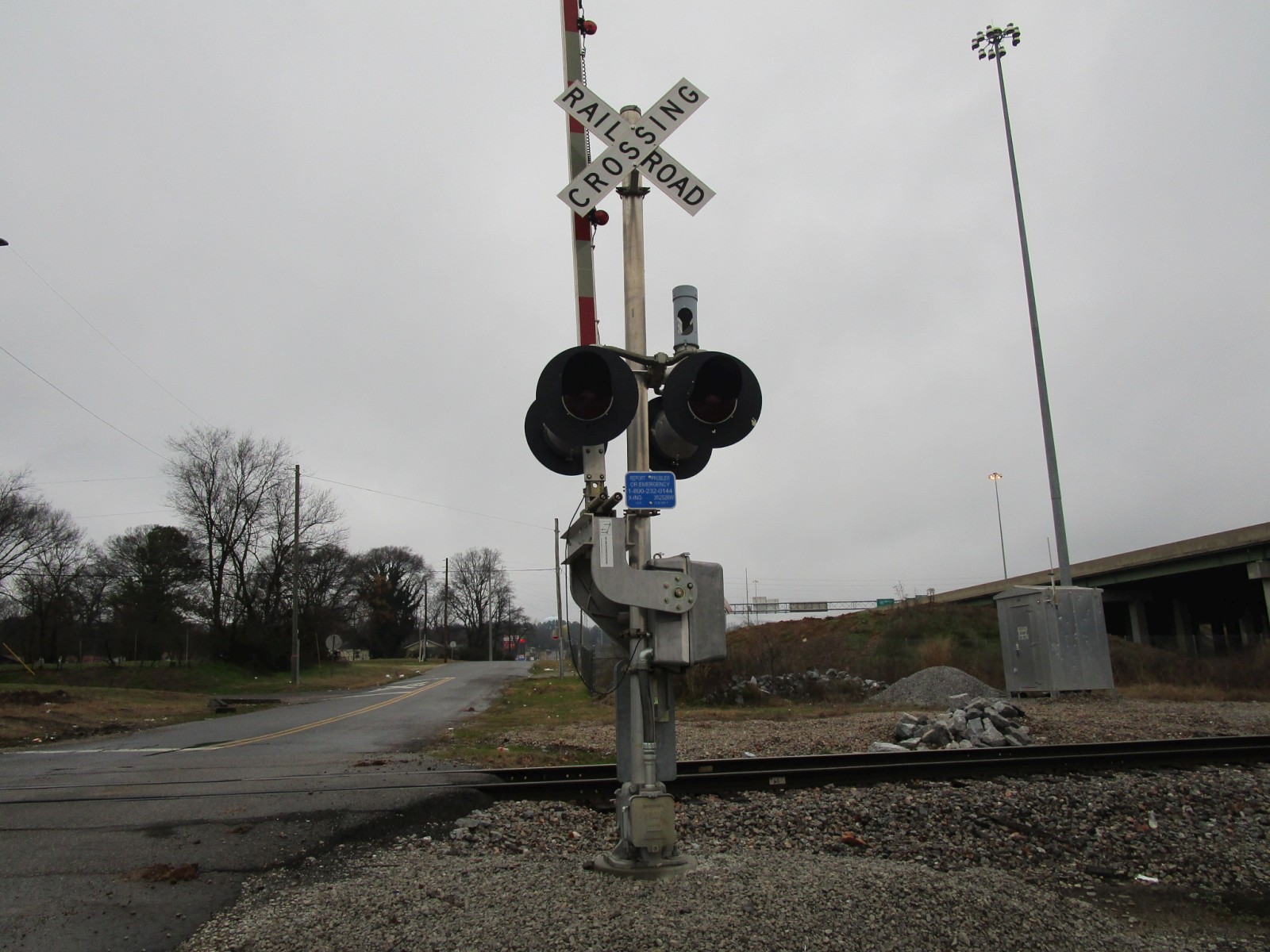

The first signal. |
||
5 |
6 |
7 |
8 |

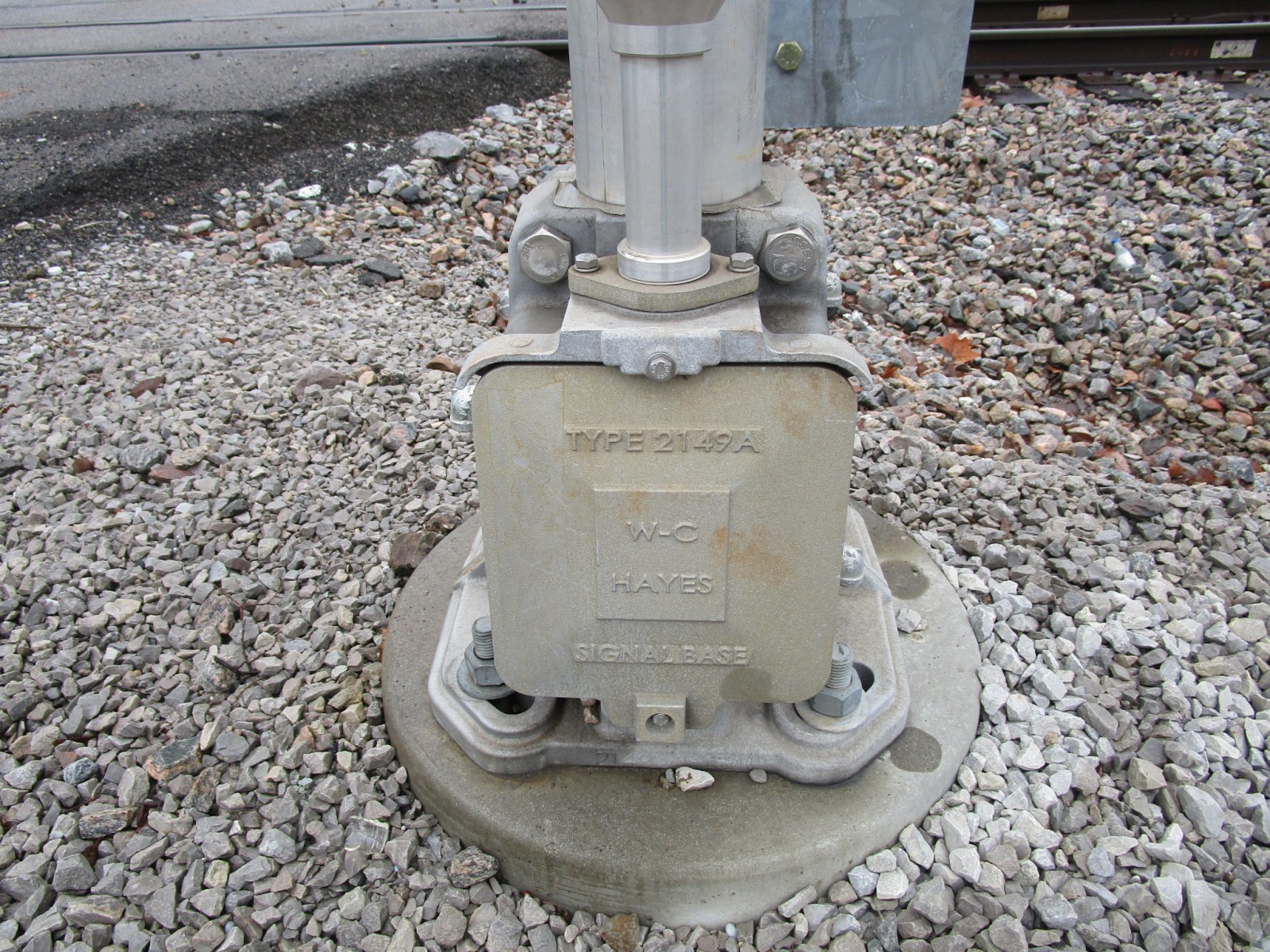

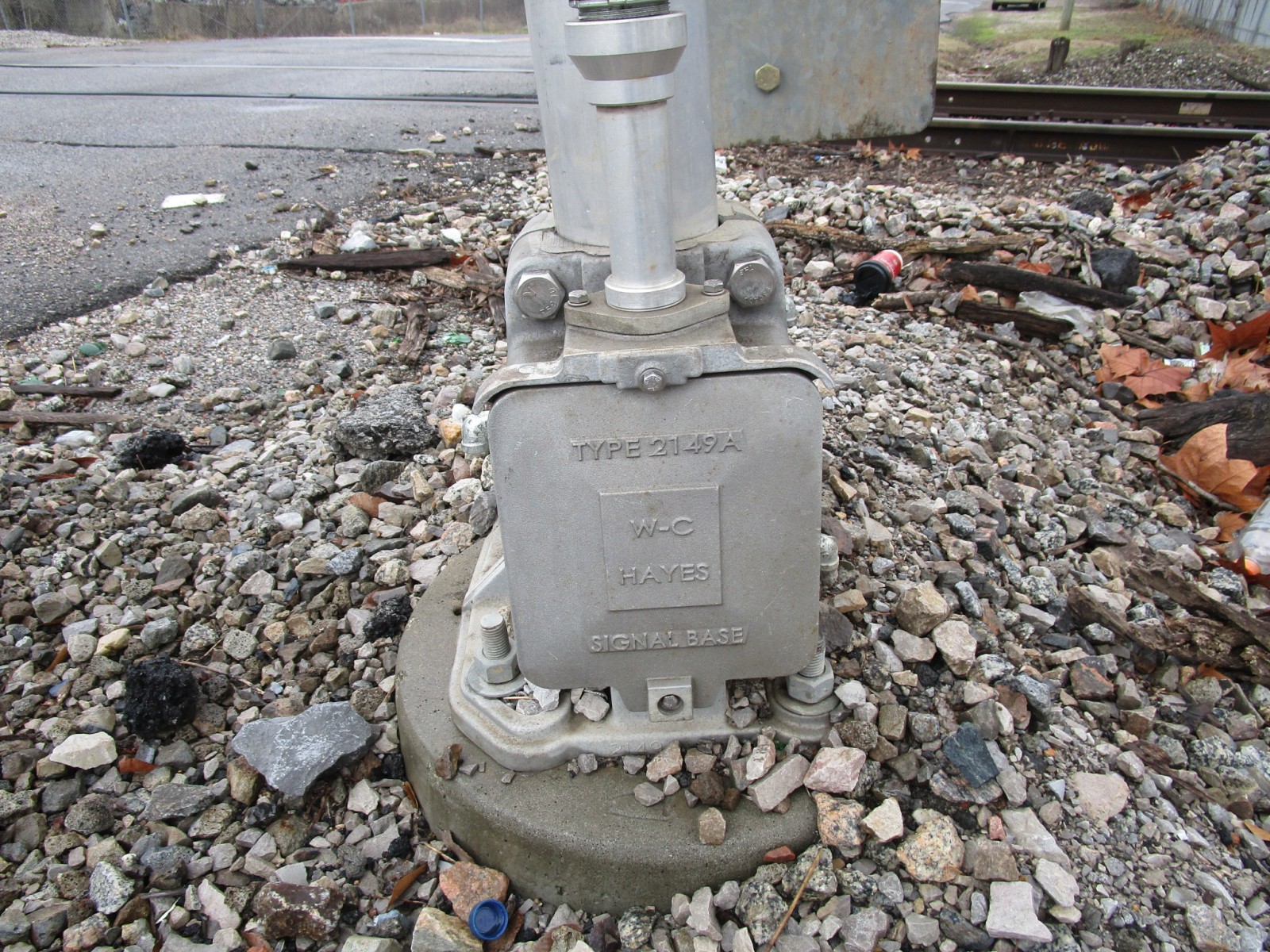

It has a WCH base. |

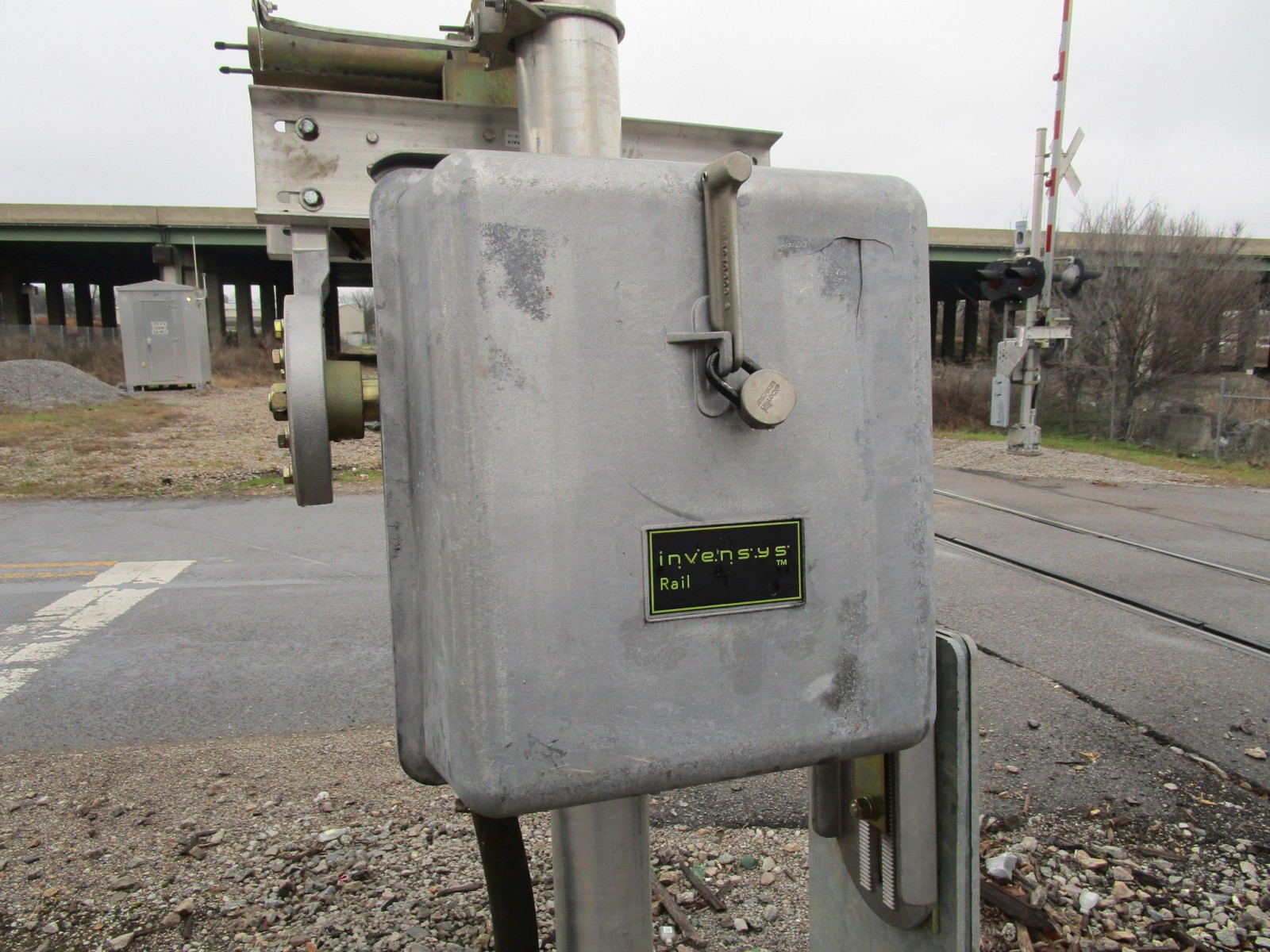

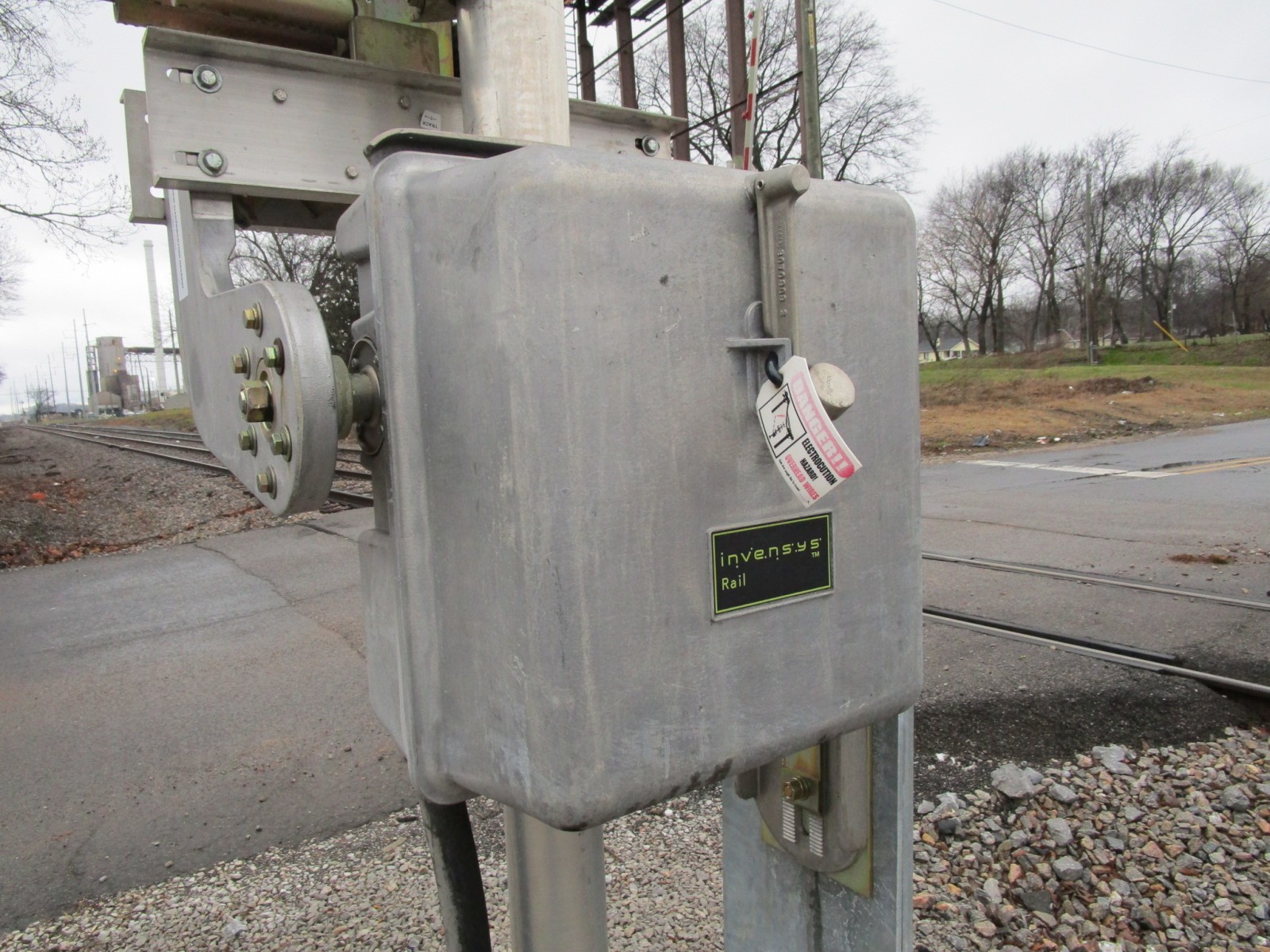

An Invensys Rail gate mechanism. |

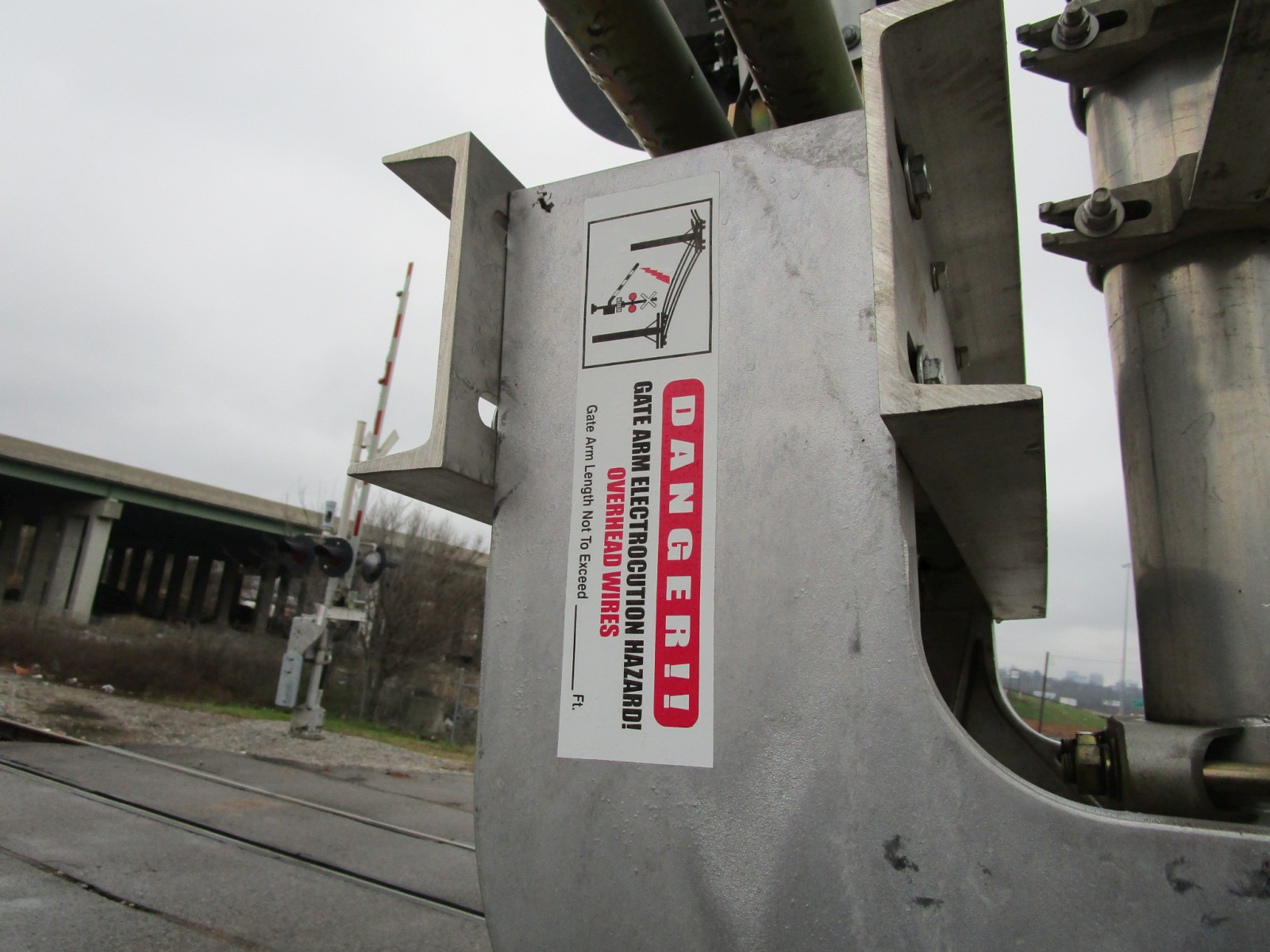

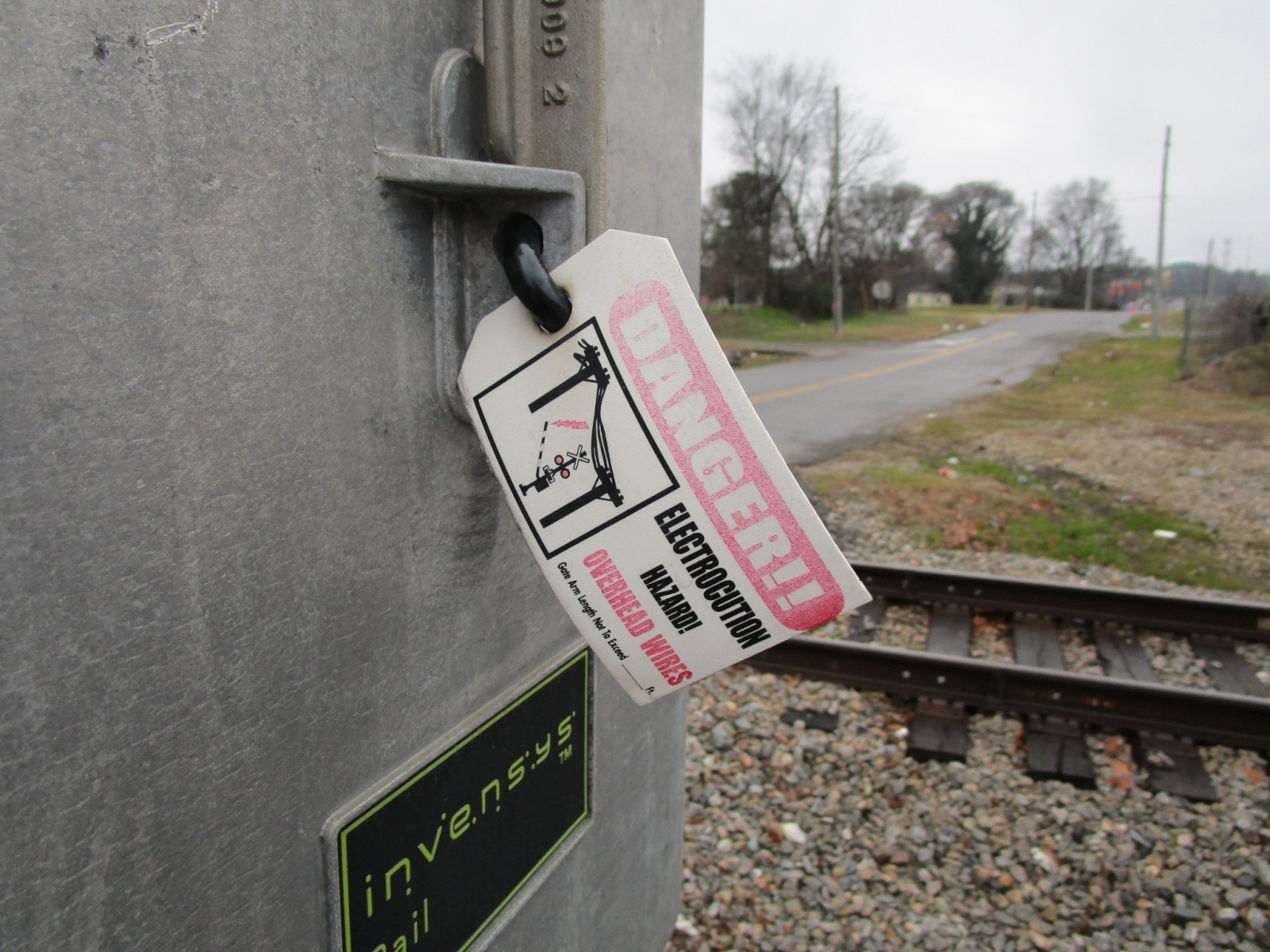

A warning sticker about overhead power lines. |

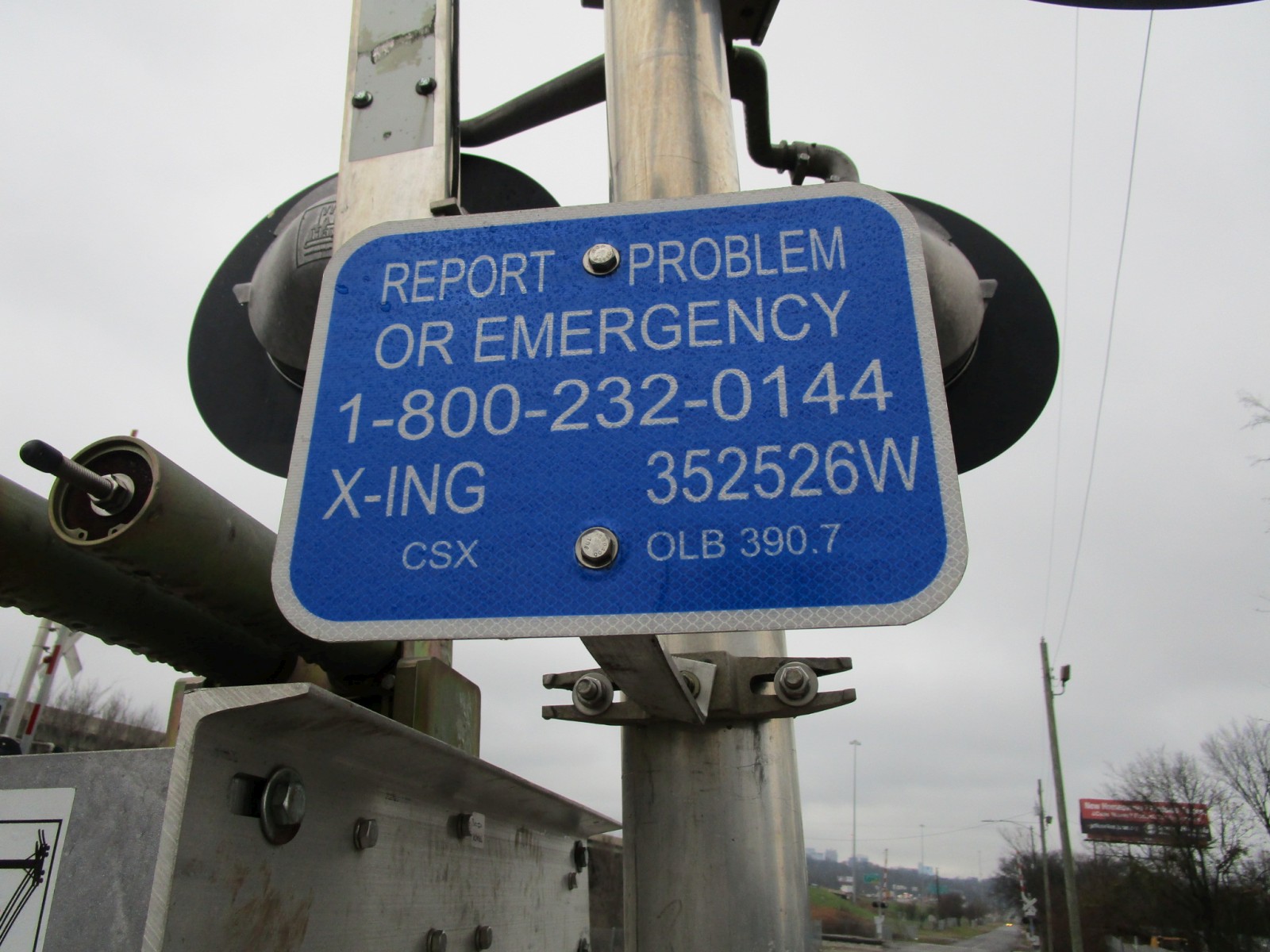

The emergency information. |
9 |
10 |
11 |
12 |

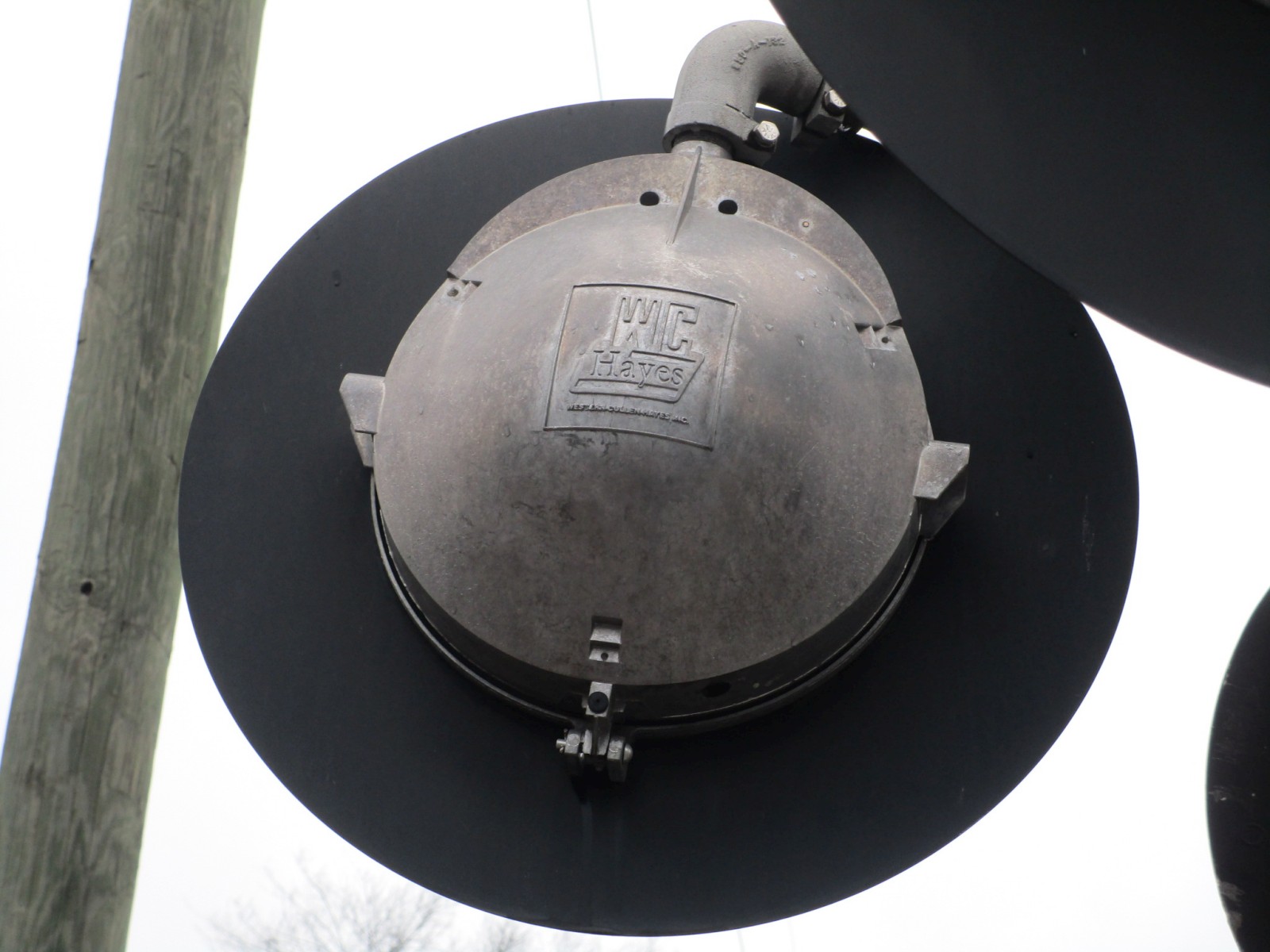

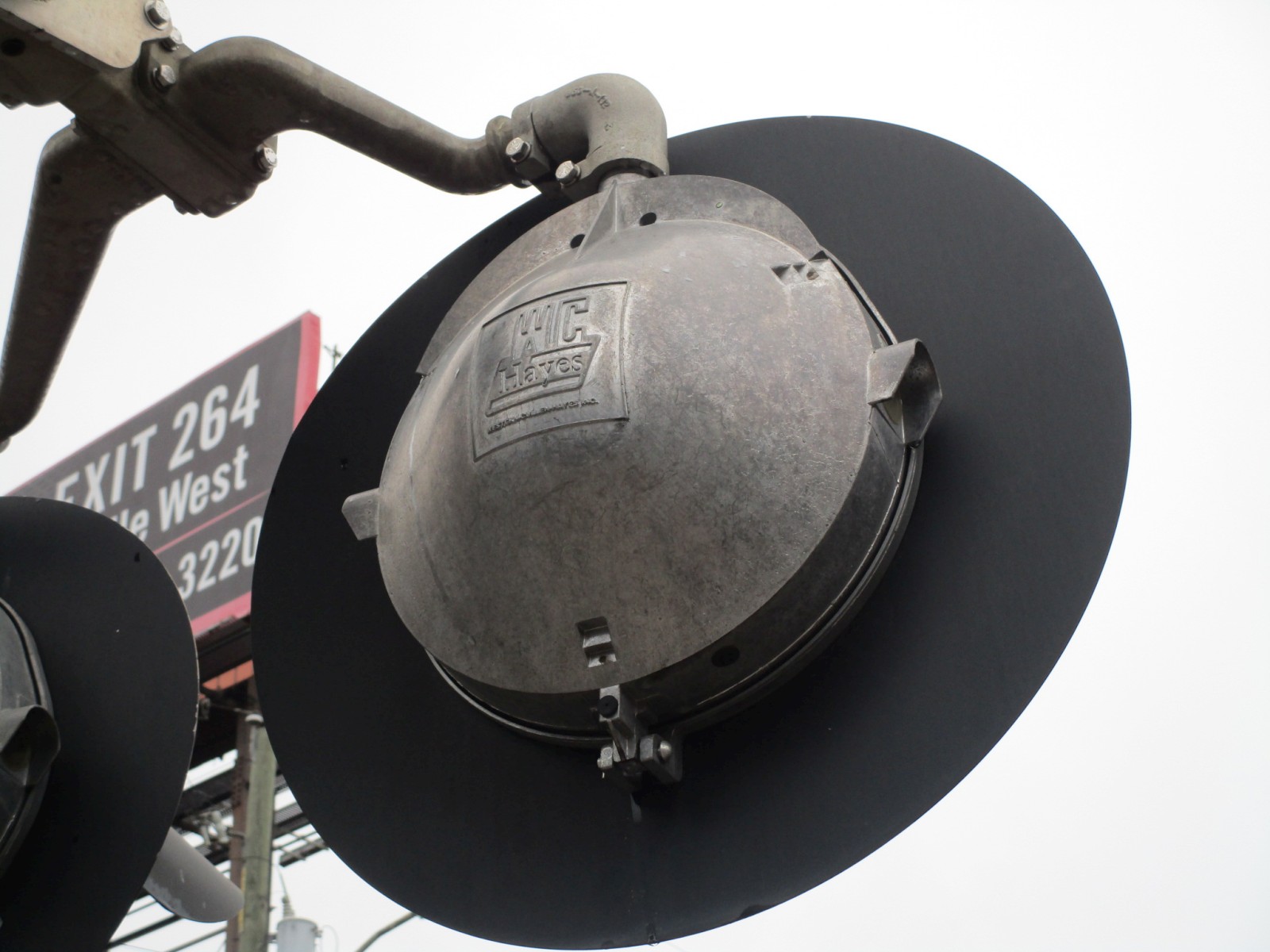

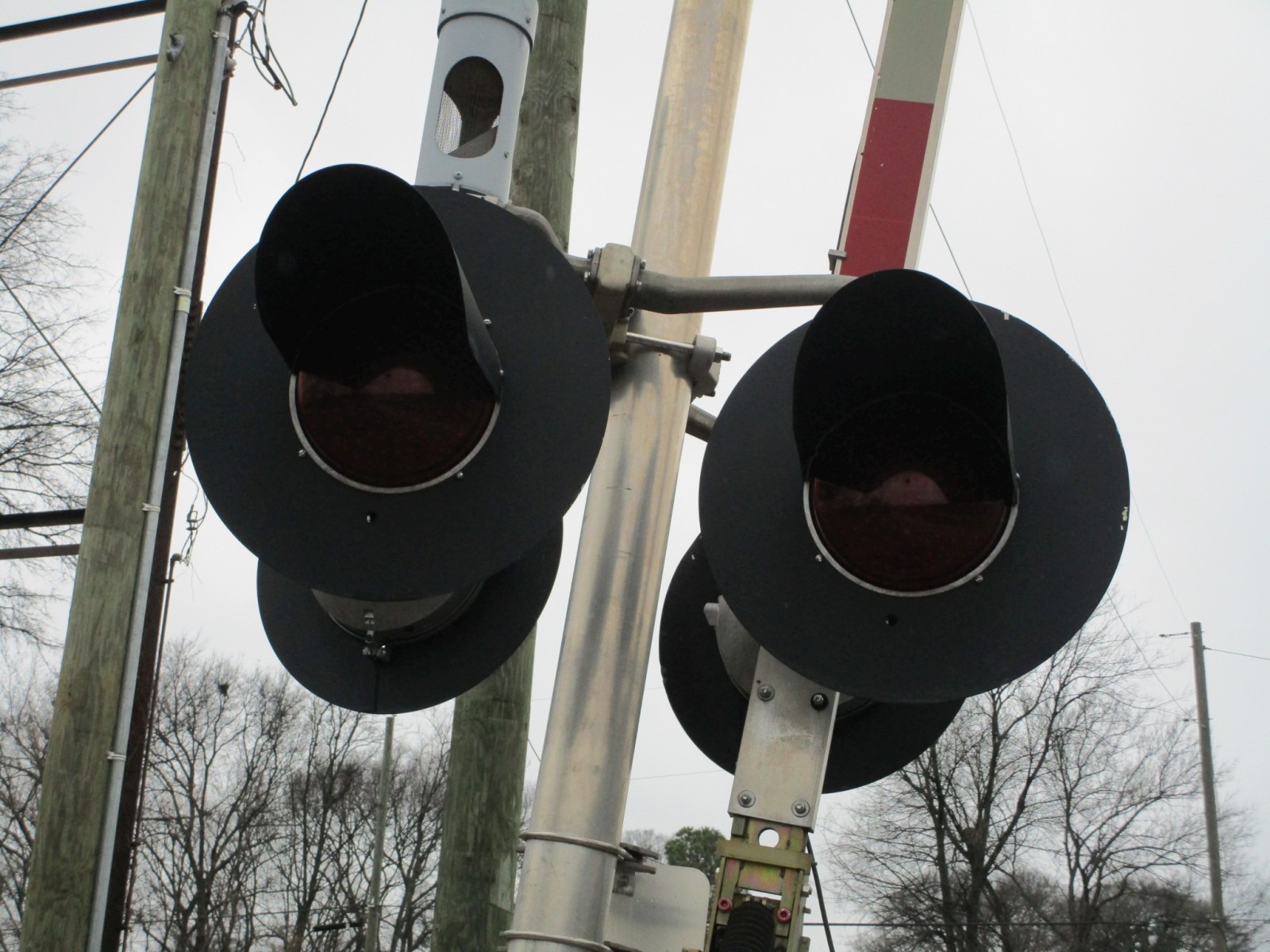

The lights here are all WCH 12x24 inch lights with WCH 2nd Generation LEDs. |

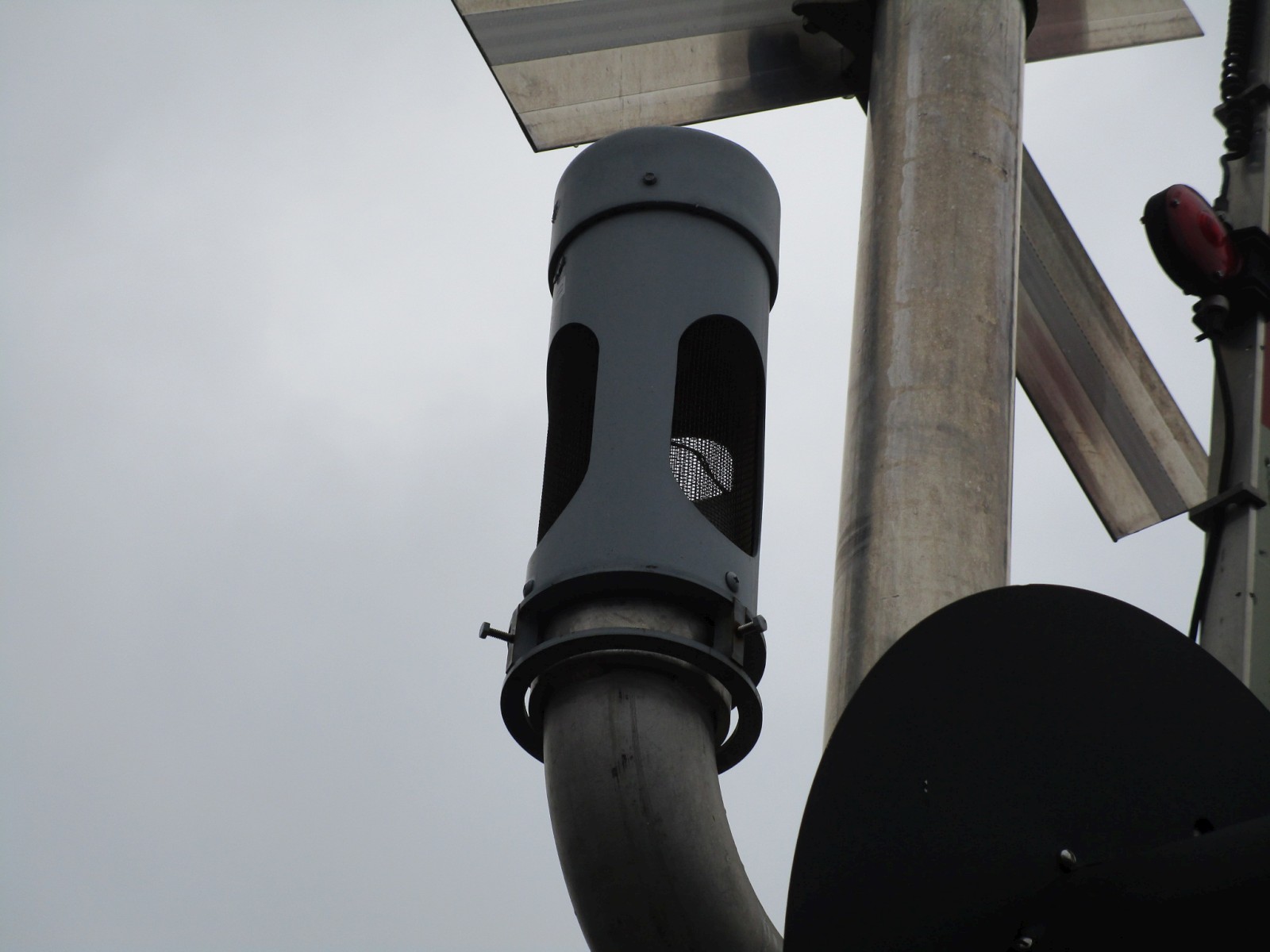

This bell is an NEG e-bell. |

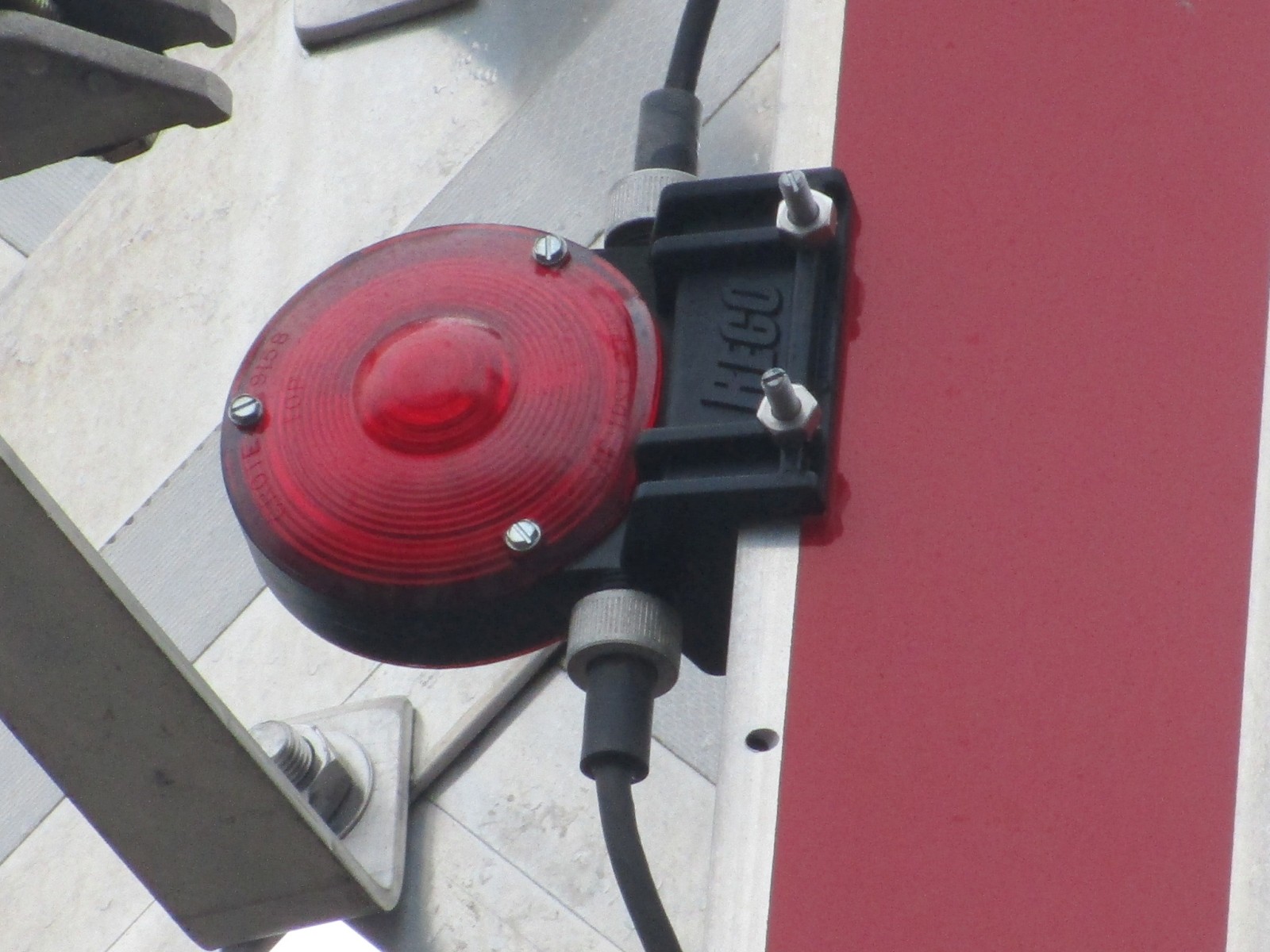

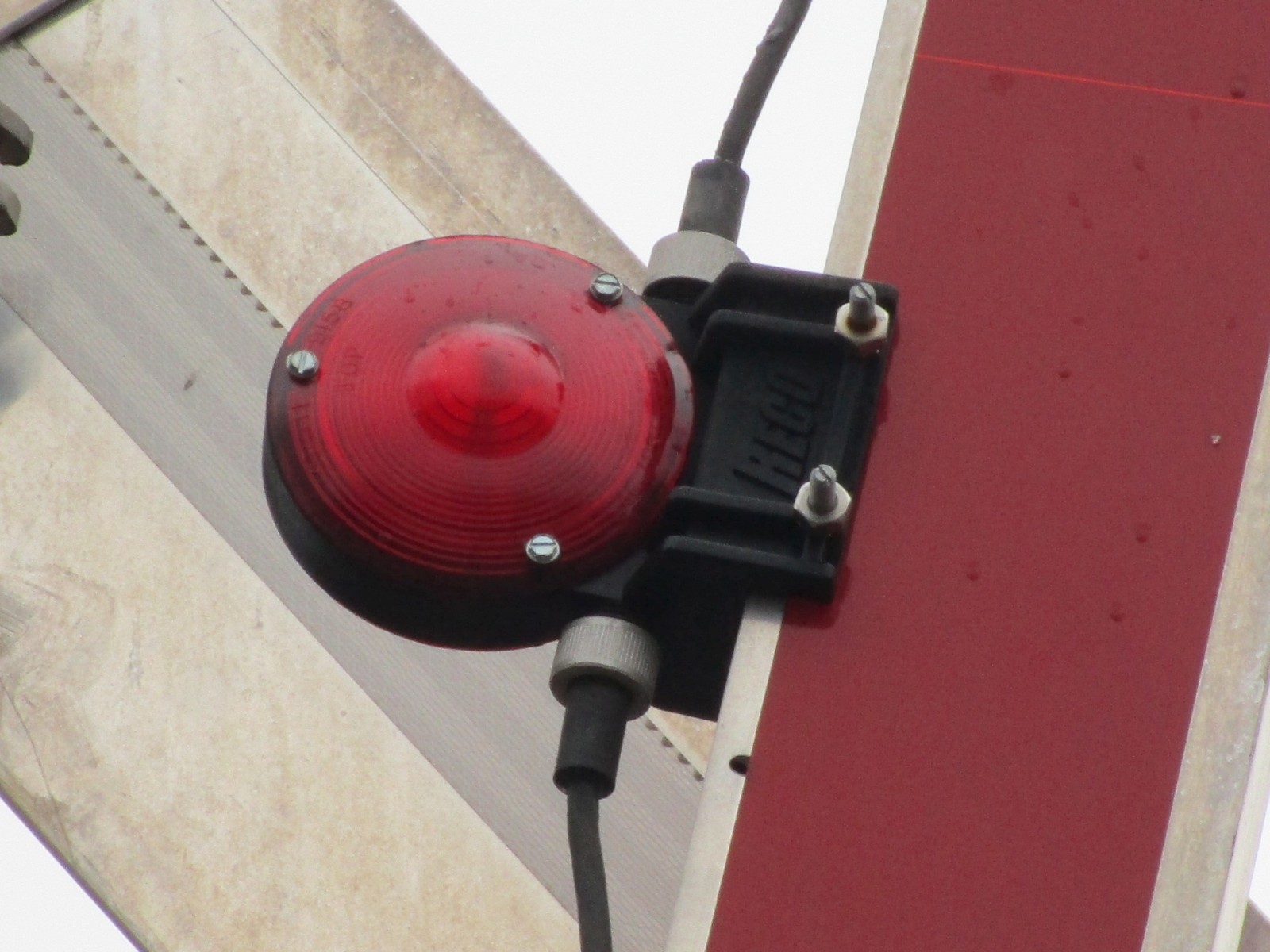

This signal uses RECO gate lights. |
|
13 |
14 |
15 |
16 |

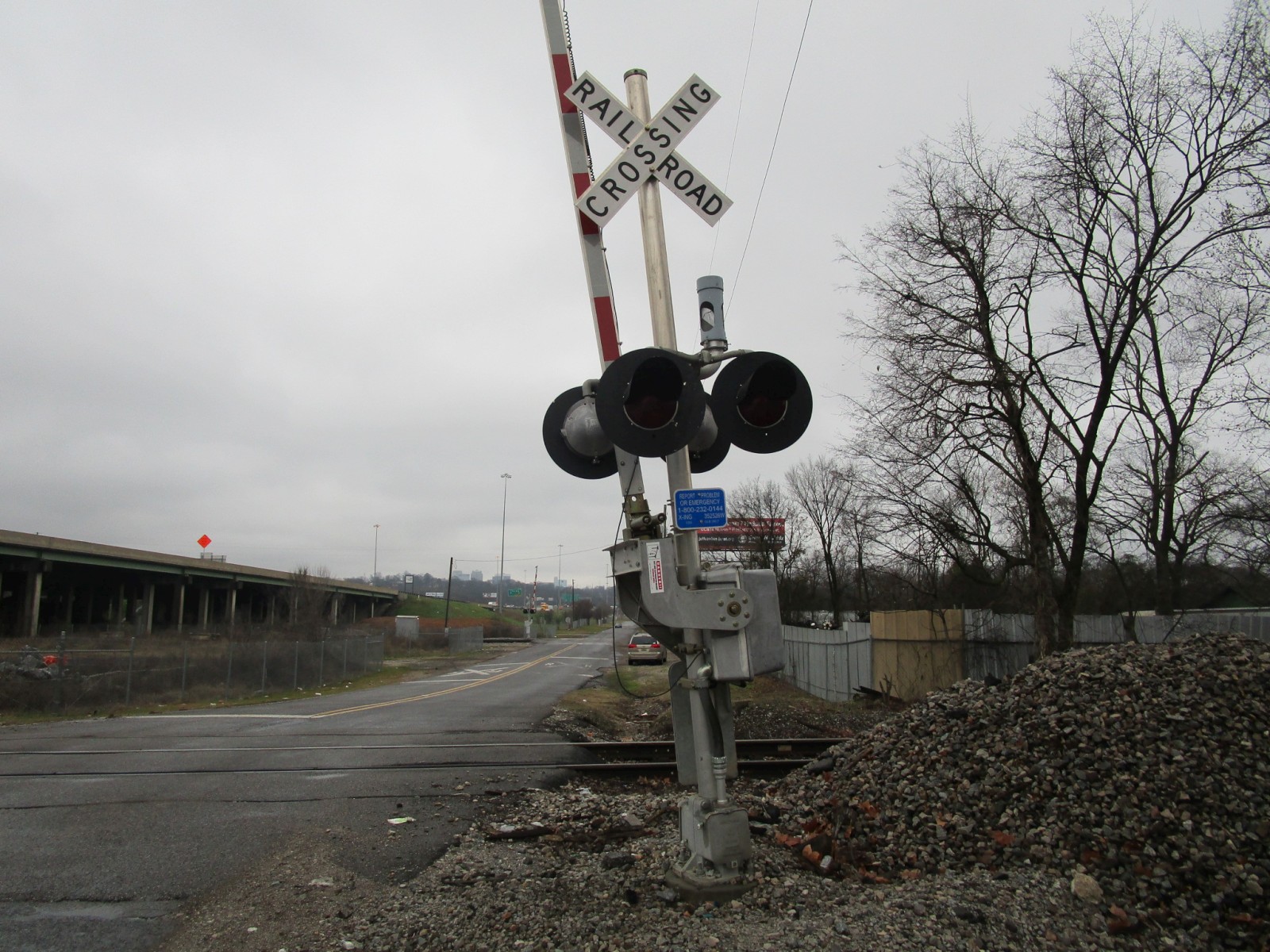

The second signal. |
It has another WCH base. |
Another Invensys Rail gate mechanism. |
A warning tag about overhead power lines. |
17 |
18 |
19 |
20 |

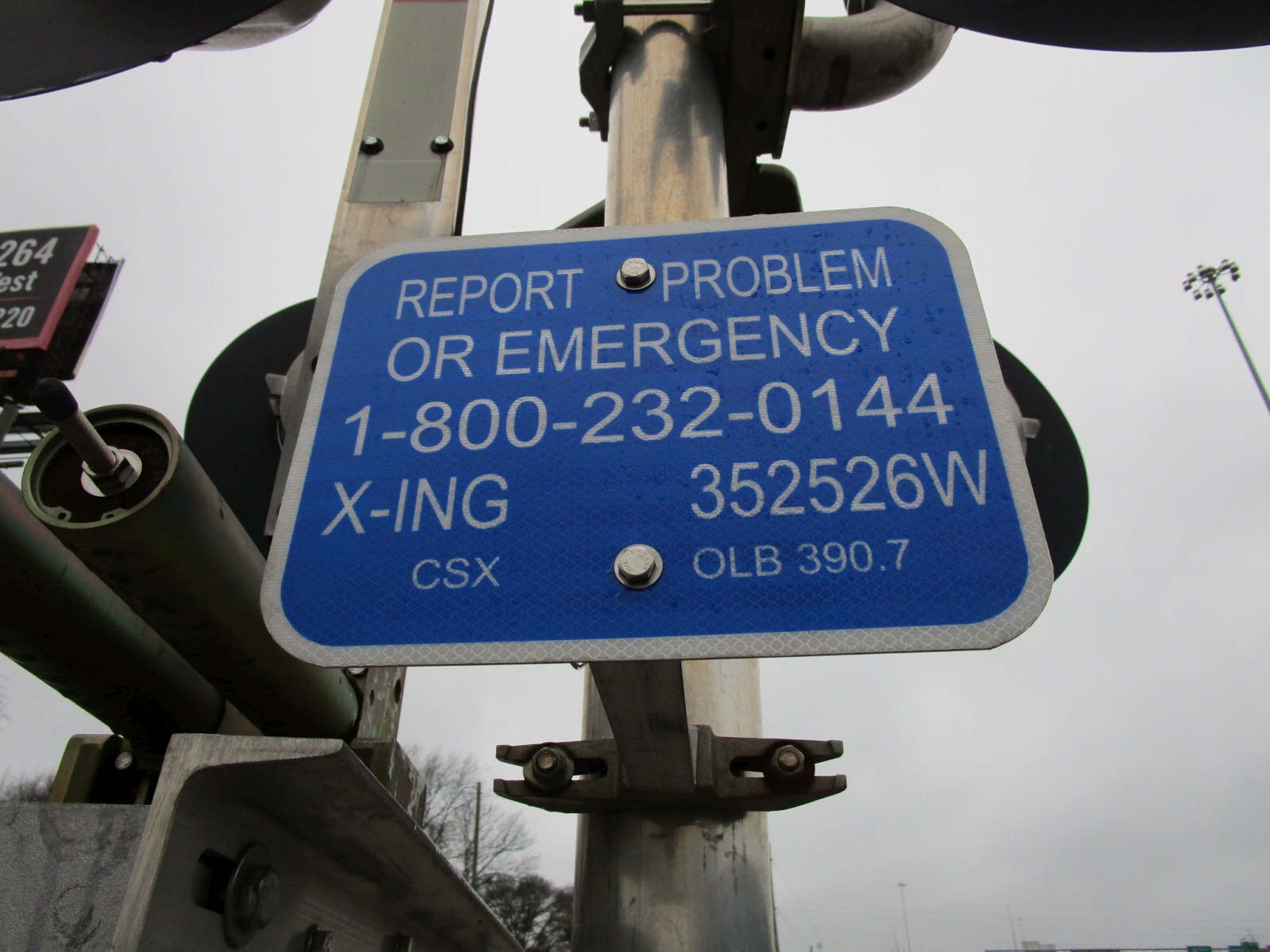

The emergency information. |

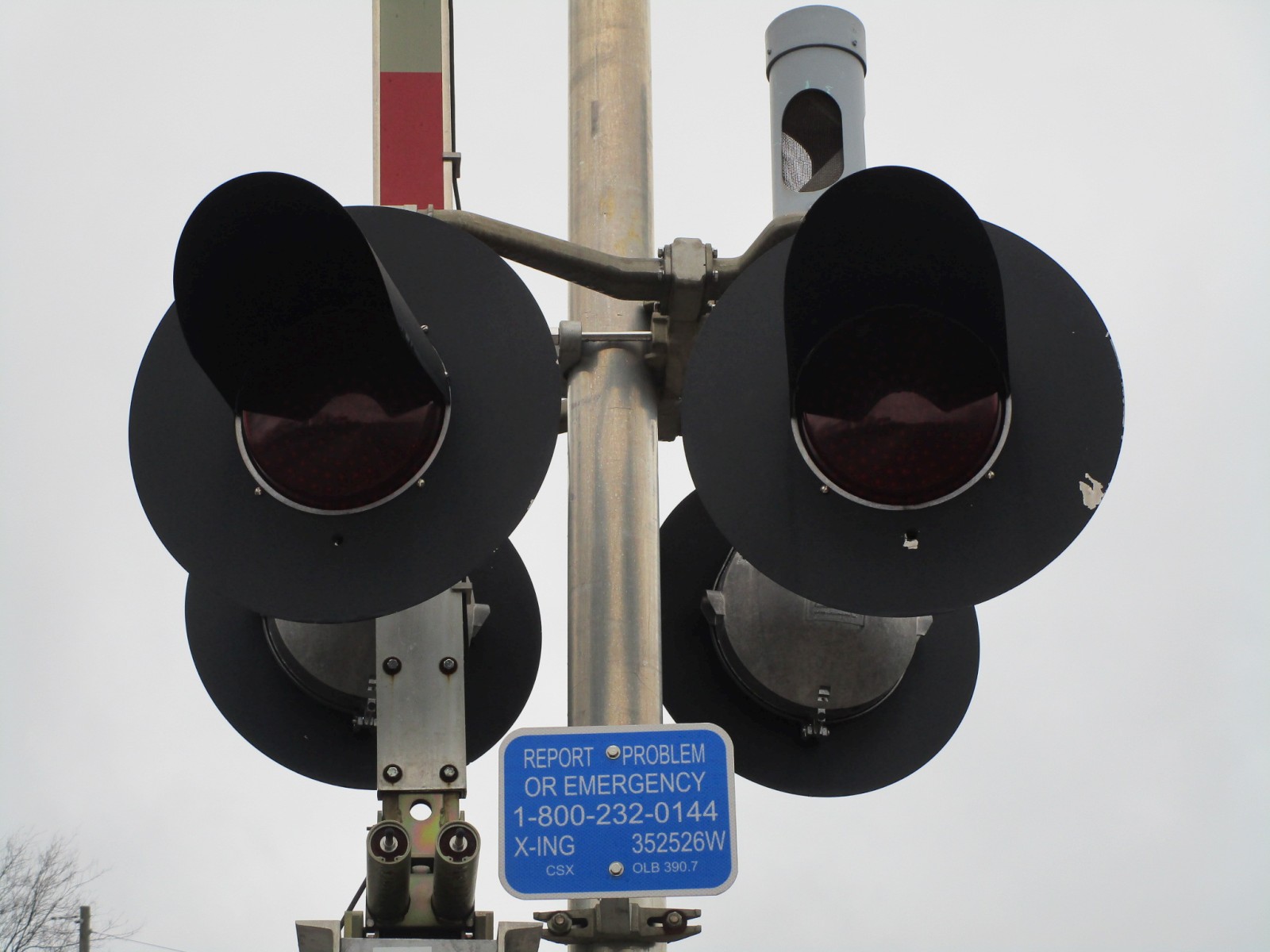

It has more WCH 12x24 inch lights with WCH 2nd Generation LEDs. |

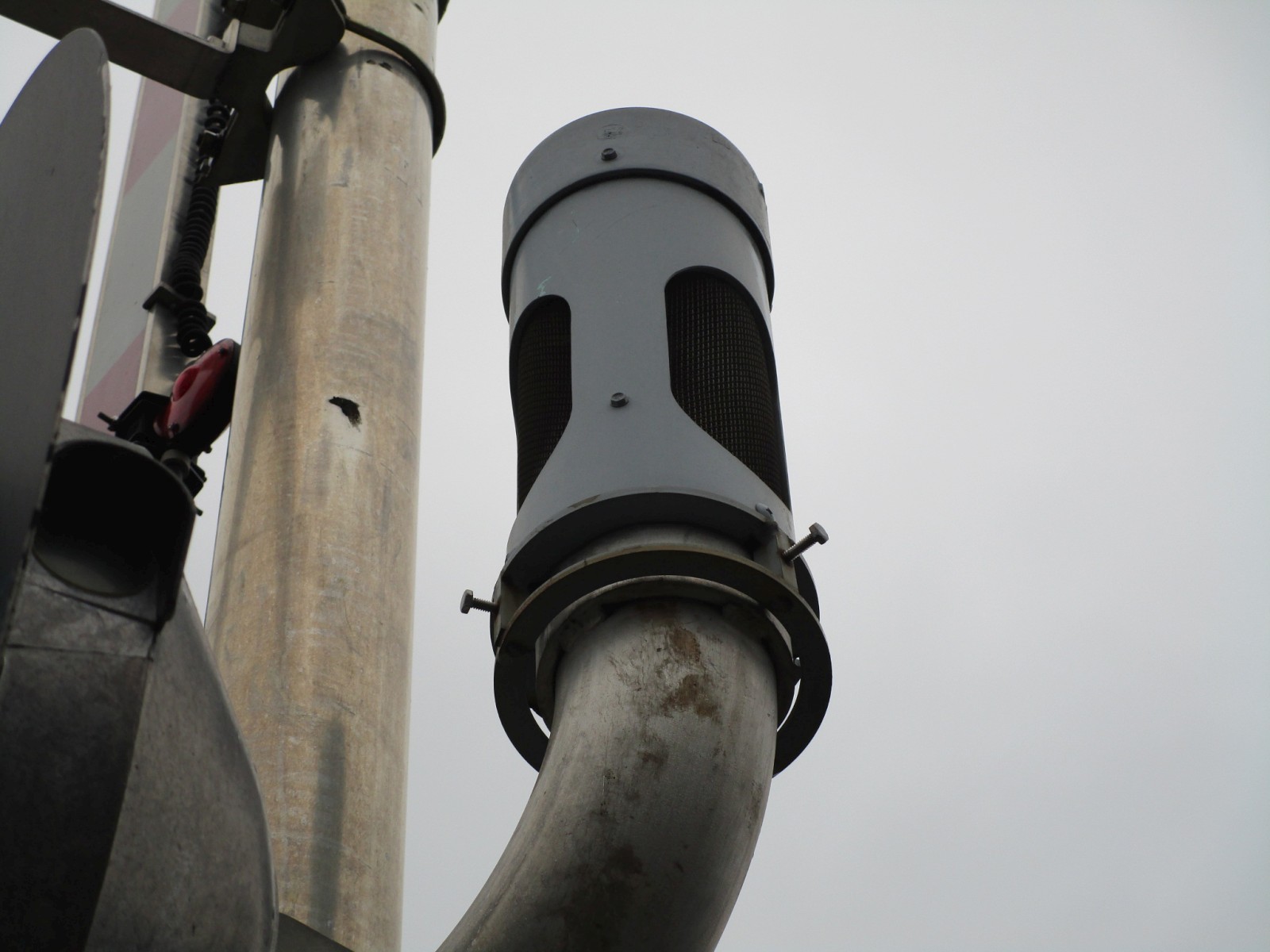

Another NEG e-bell over here. |
|
21 |
22 |
23 |
24 |
RECO LED gate lights on this signal. |

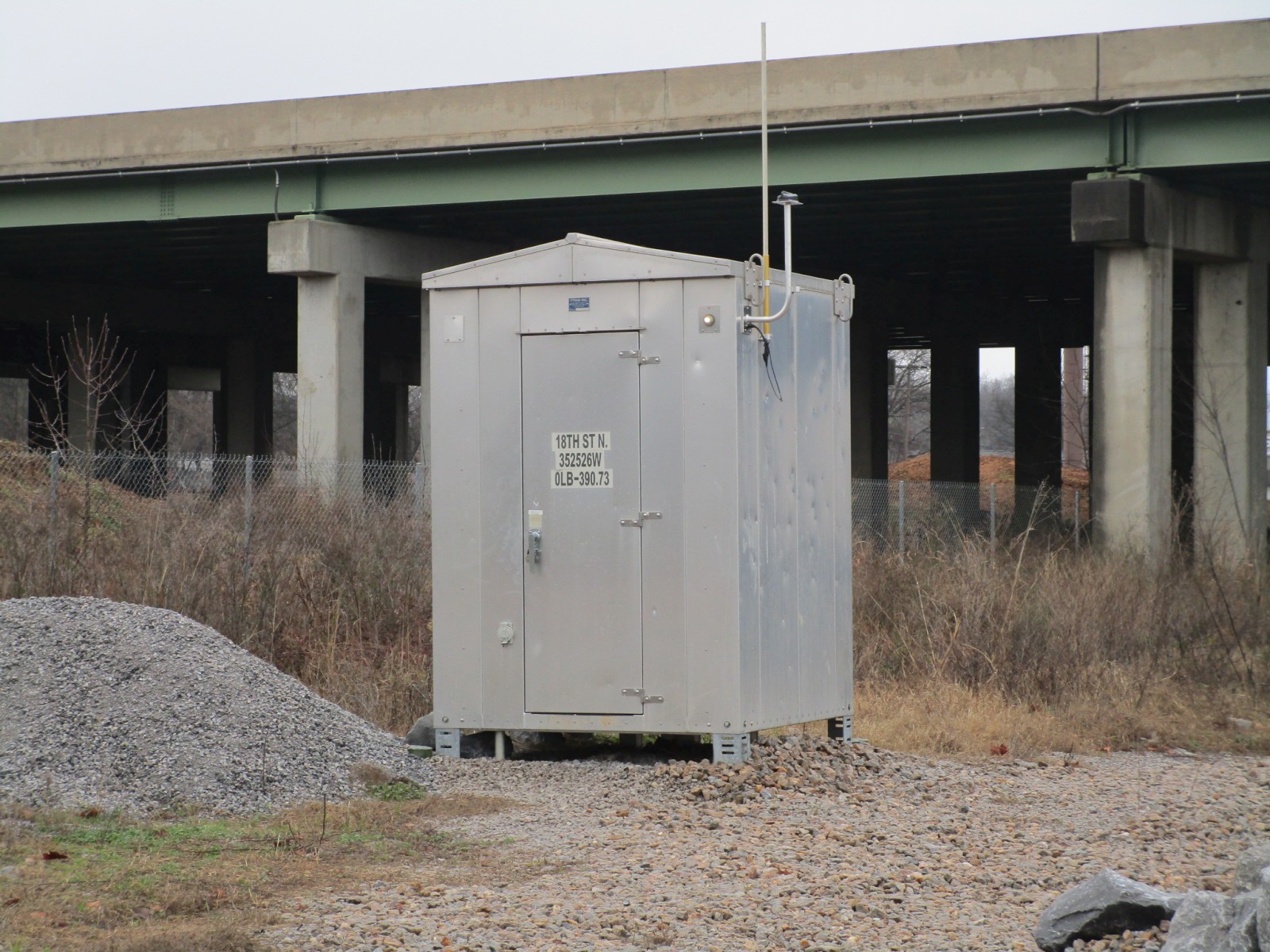

The relay case. |

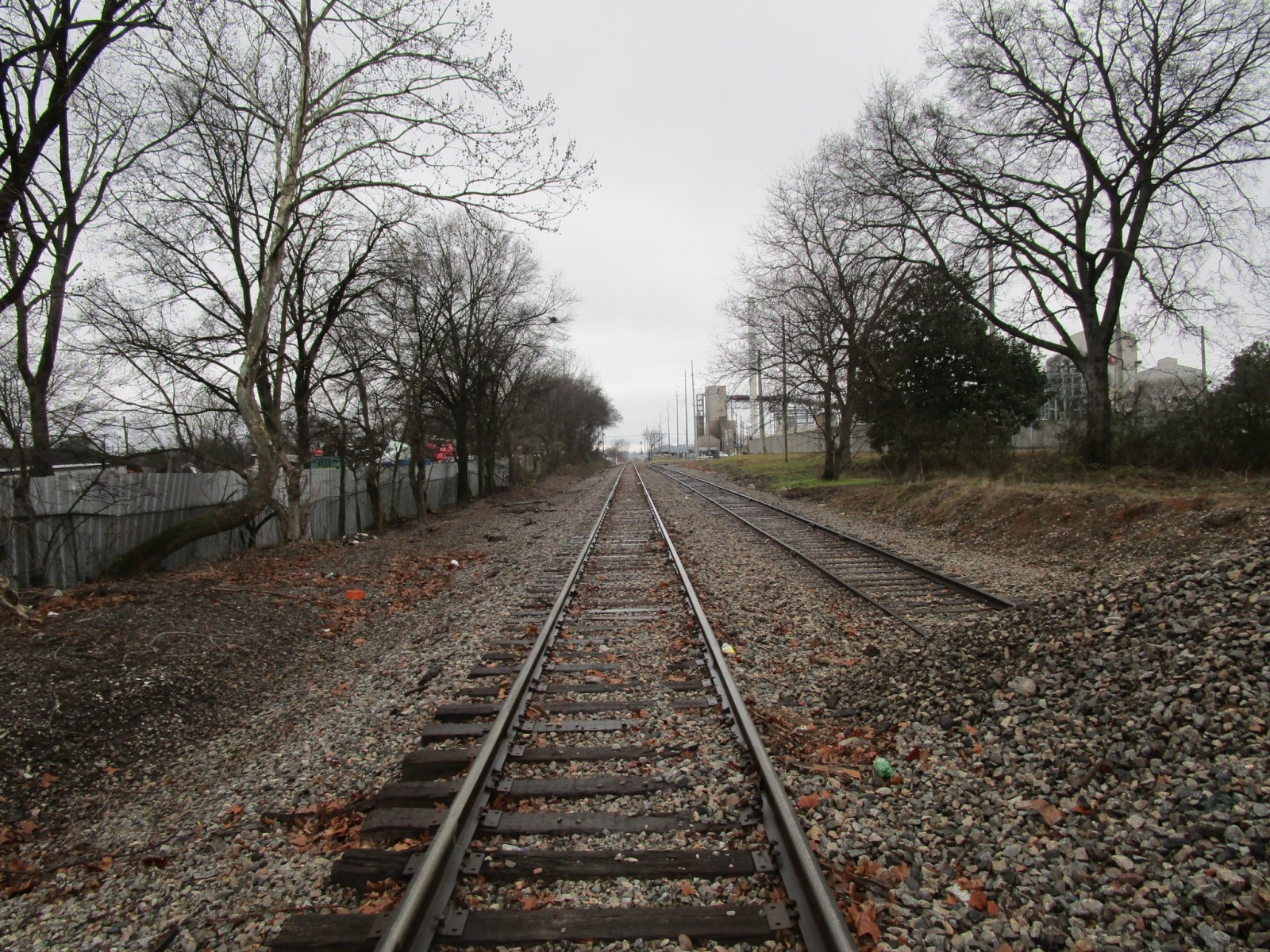

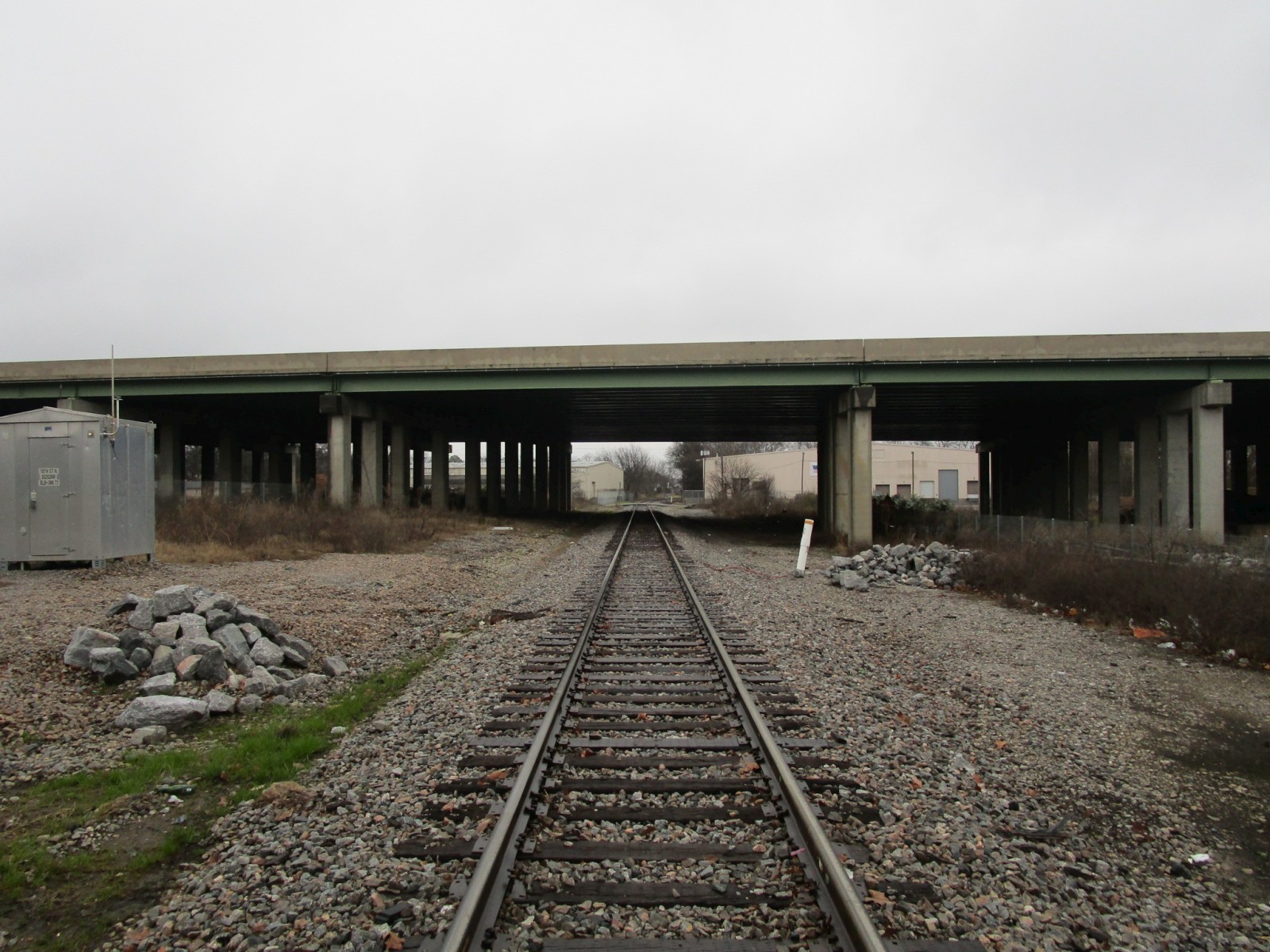

Looking northeast towards 24th Street #4. |
Looking southwest towards 16th Street #3. |
25 |
26 |
27 |
28 |

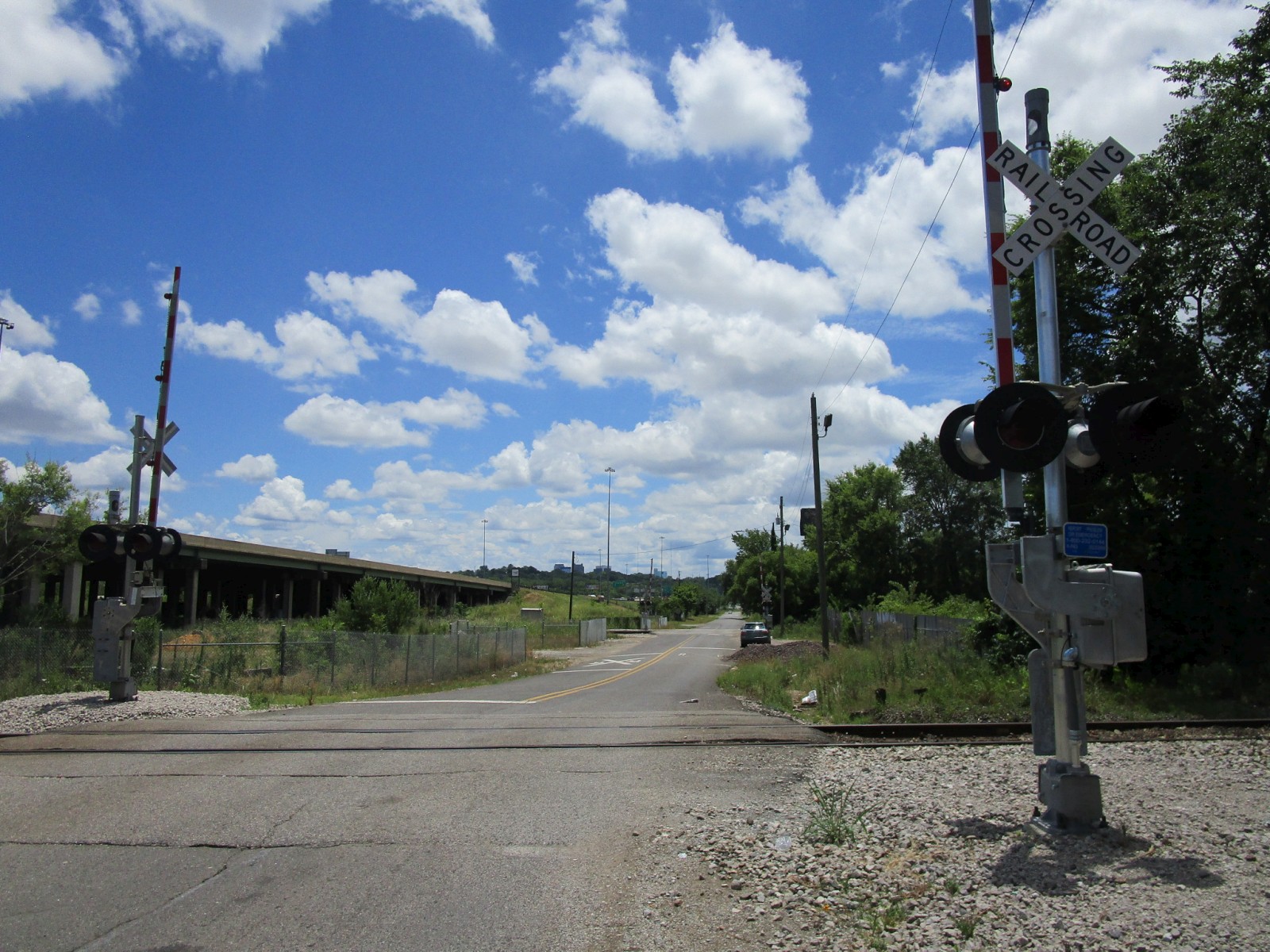

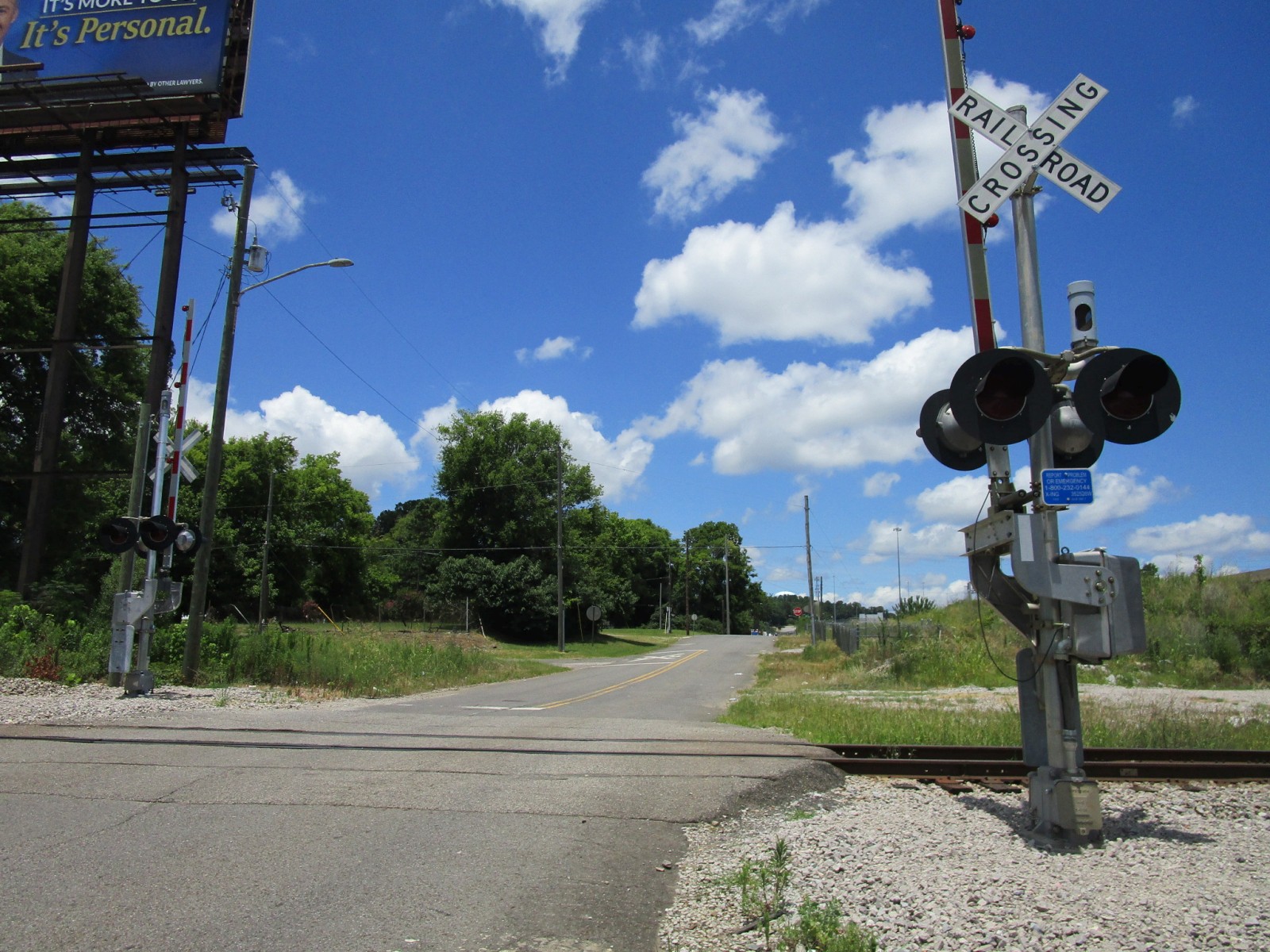

A return trip to the crossing on 7-3-22 finds a major change here! |

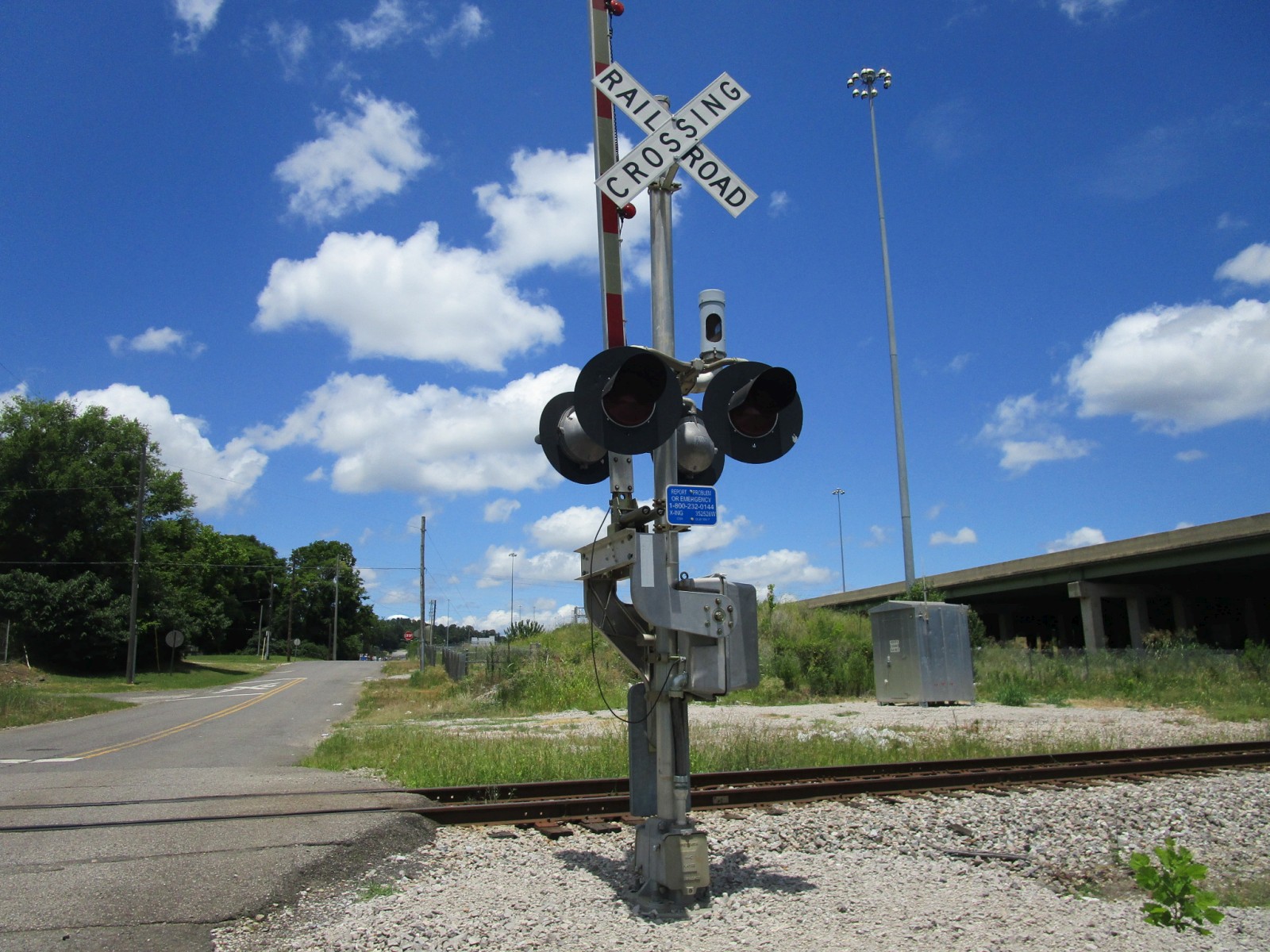

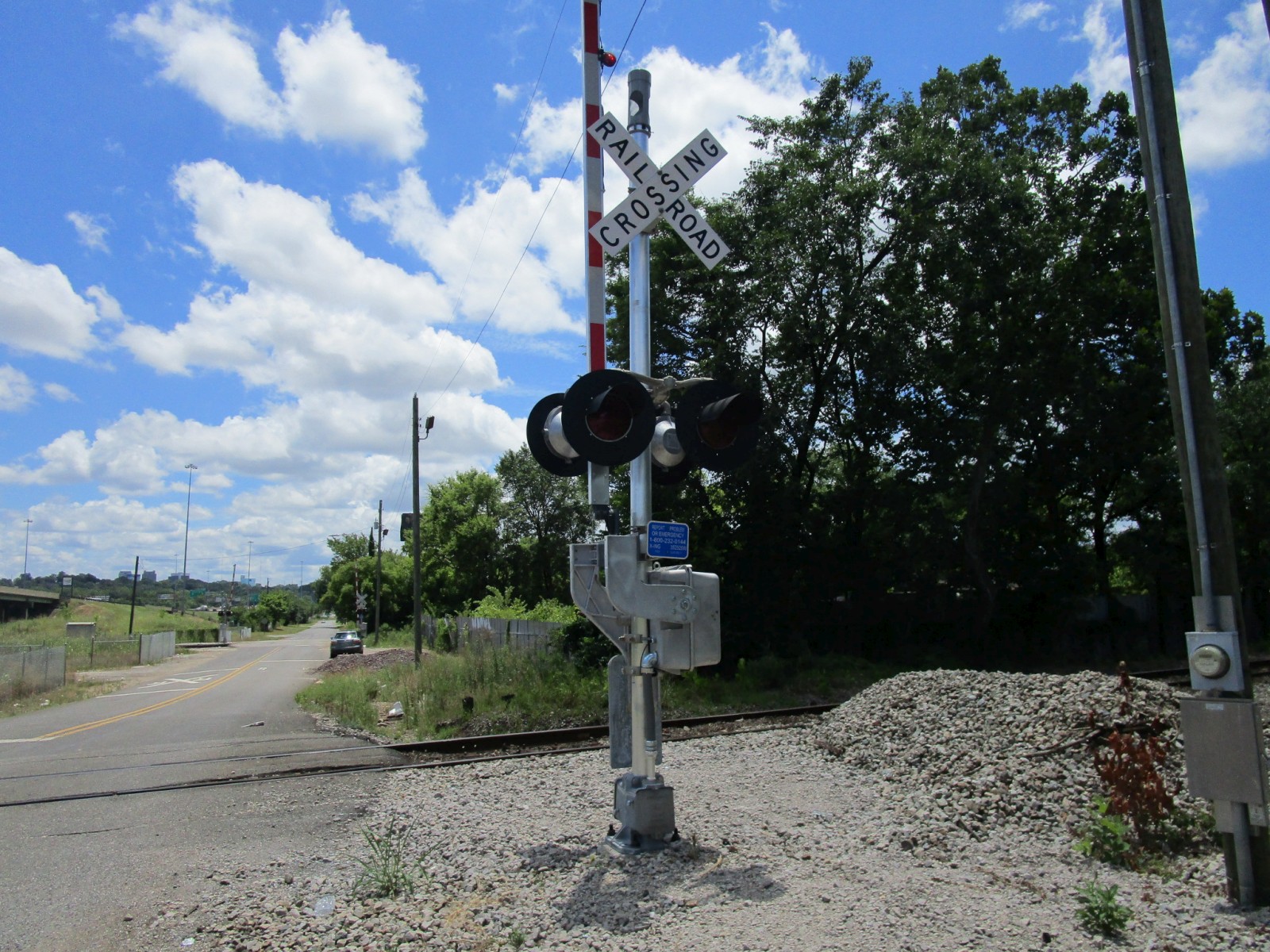

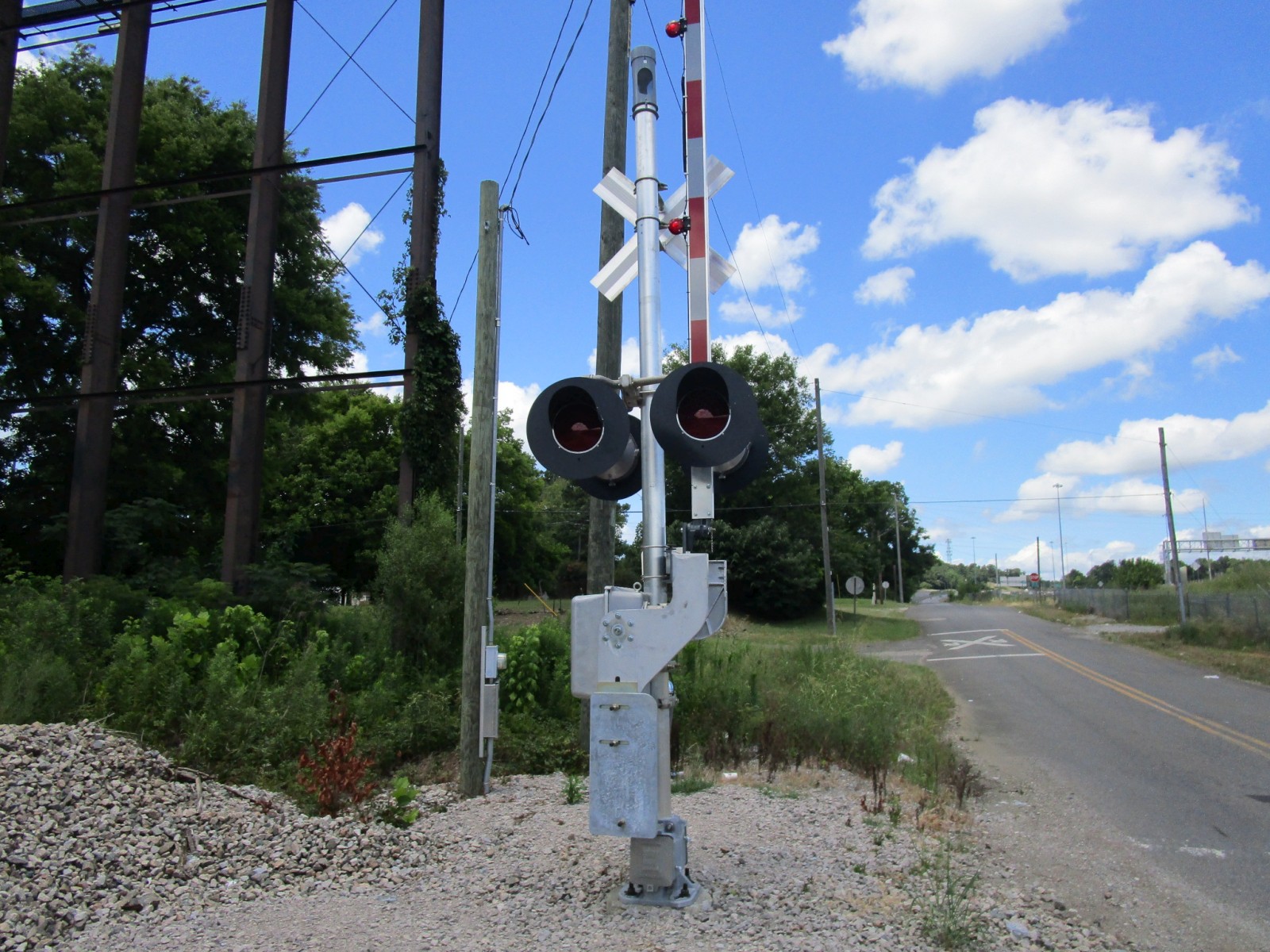

The first signal has been replaced with a new signal! |
||
29 |
30 |
31 |
32 |

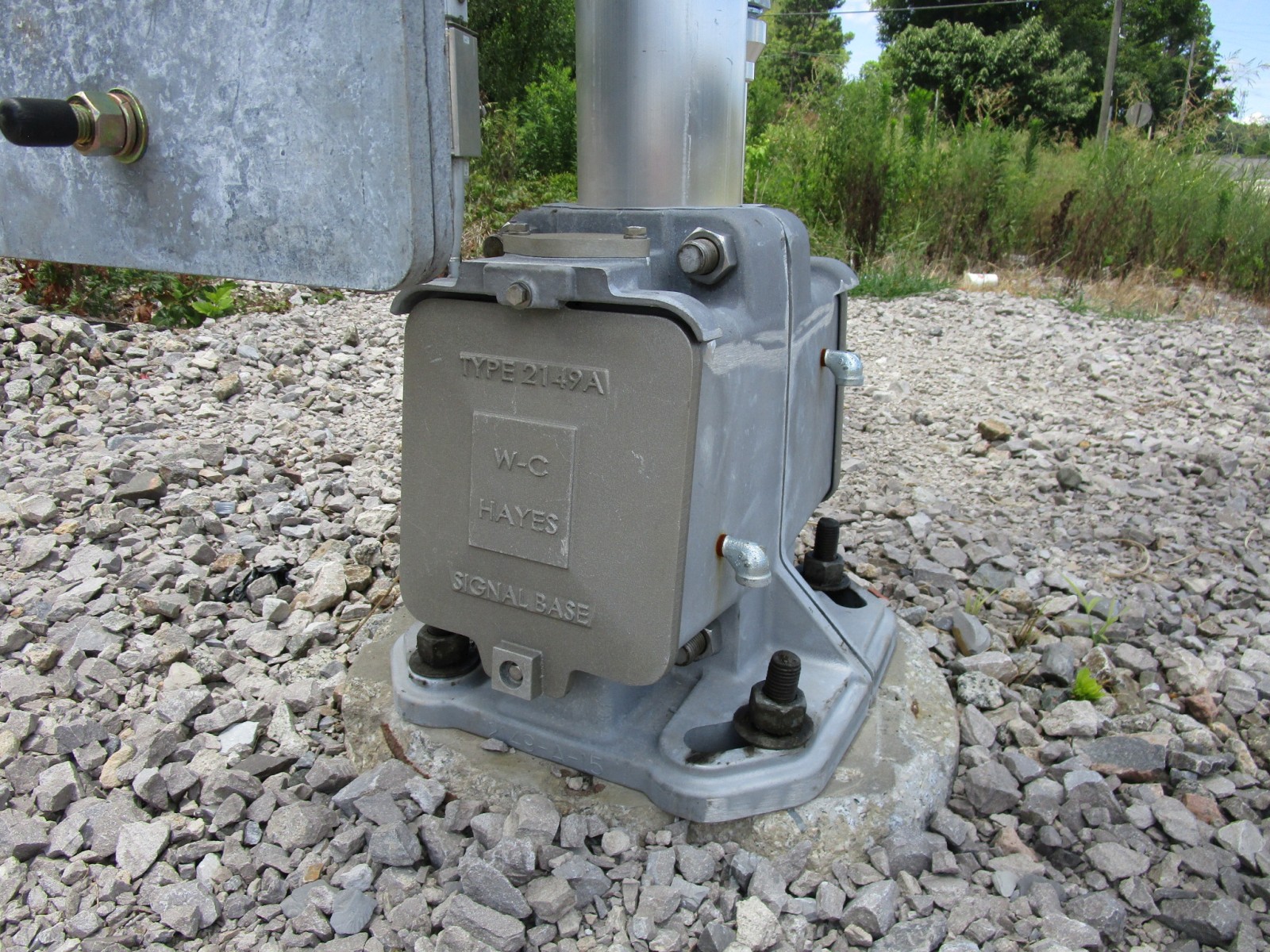

It has yet another WCH base. |

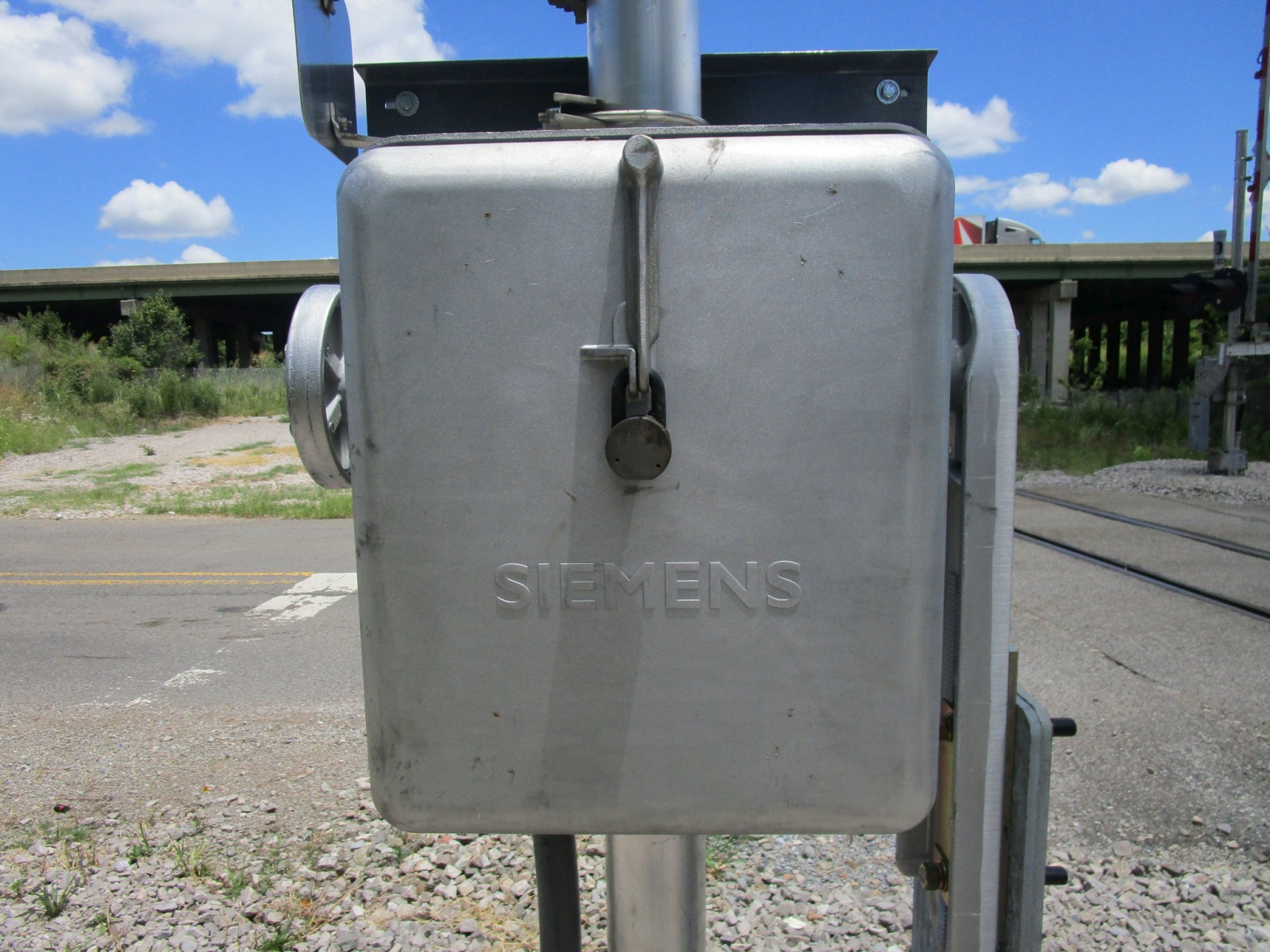

A Siemens gate mechanism. |

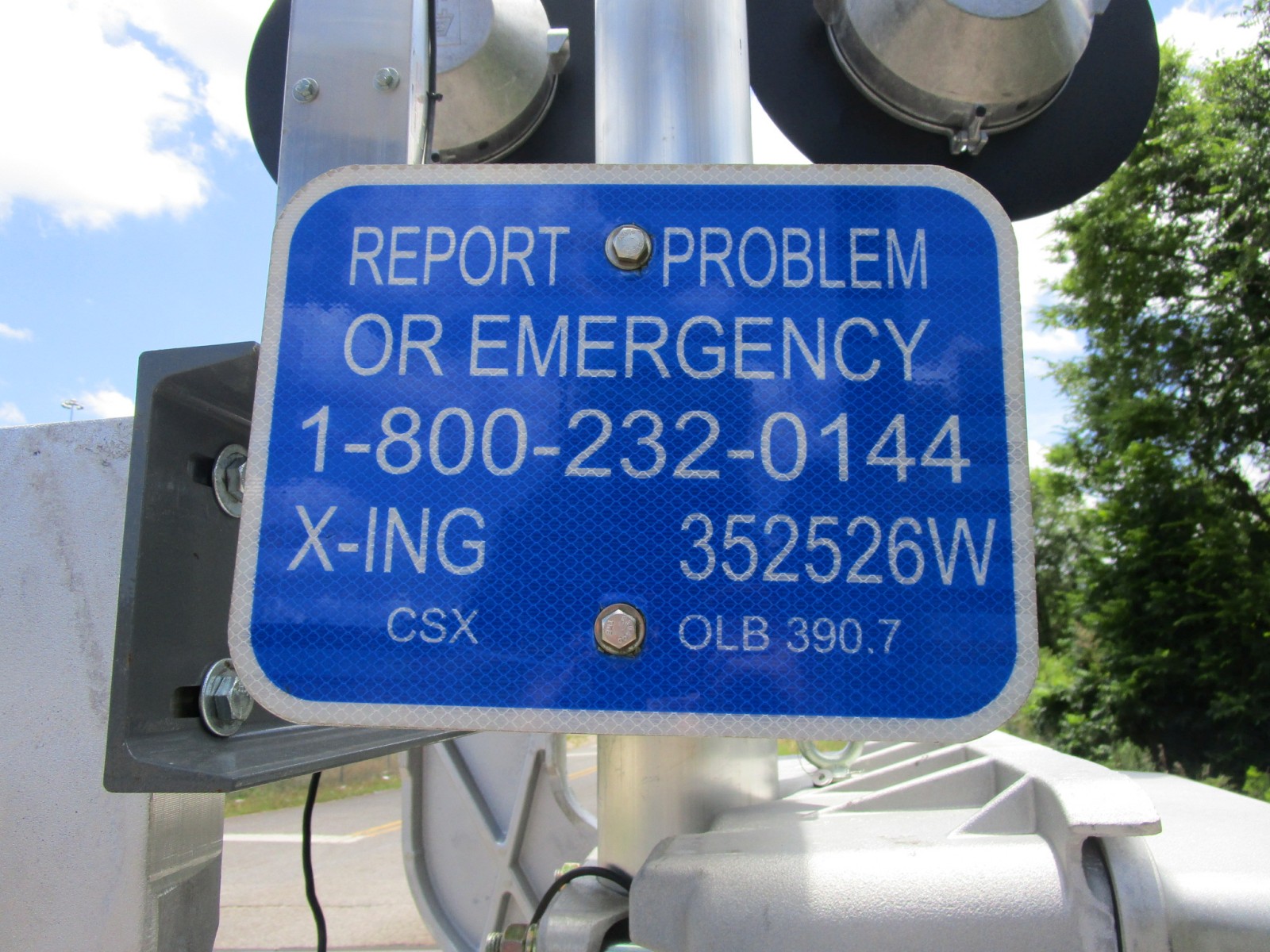

The emergency information. |

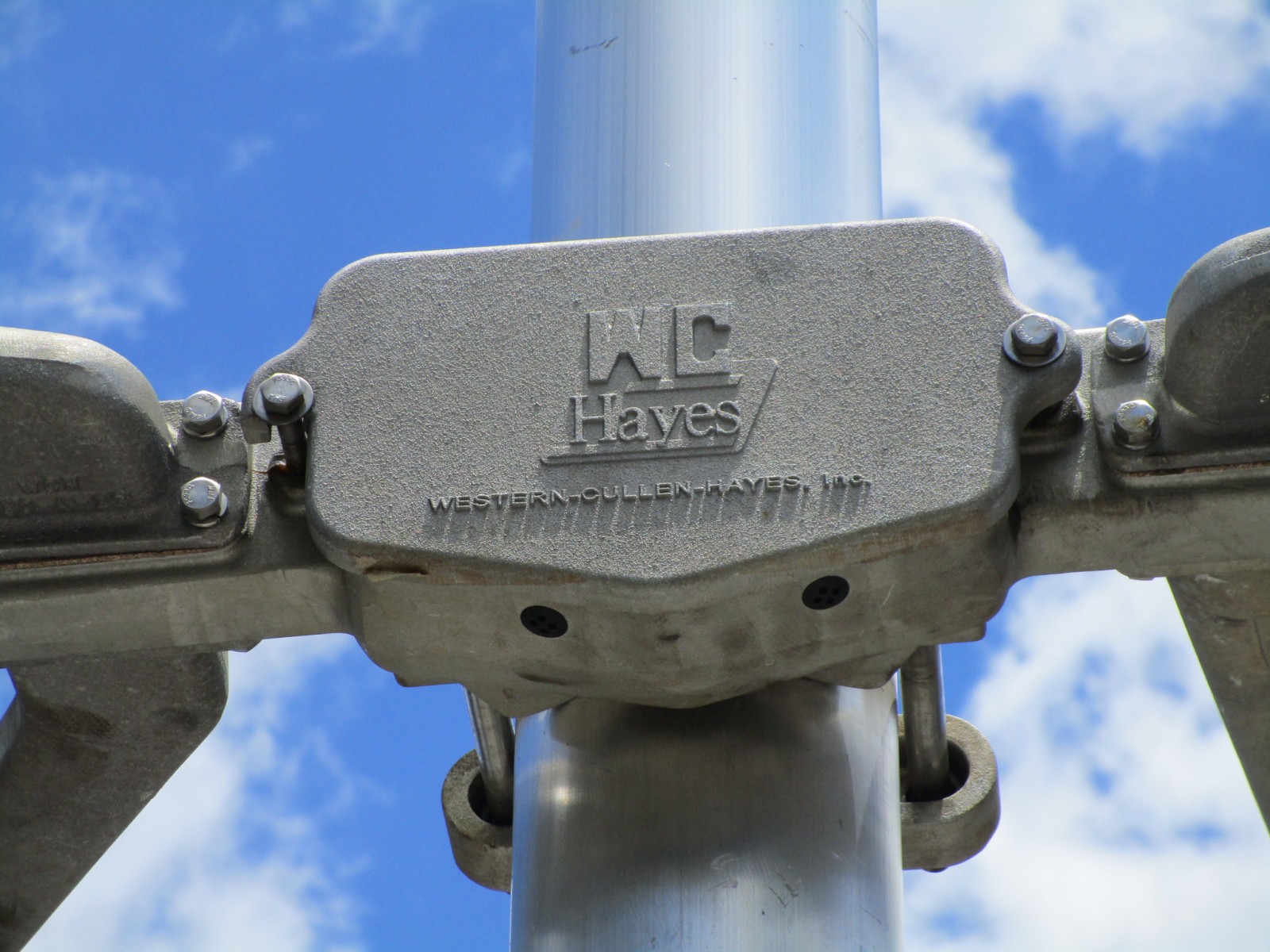

A WCH bracket. |
33 |
34 |
35 |
36 |

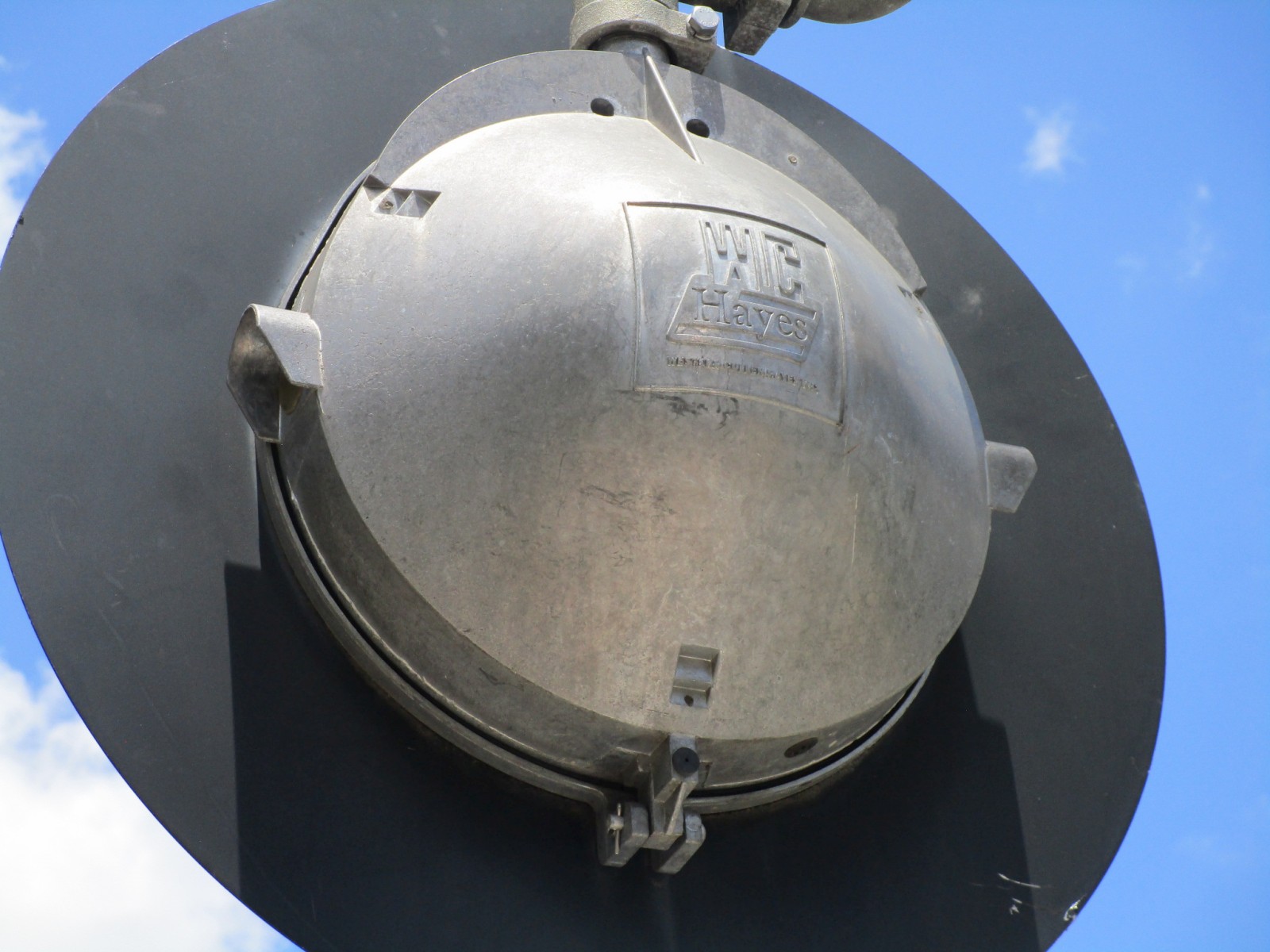

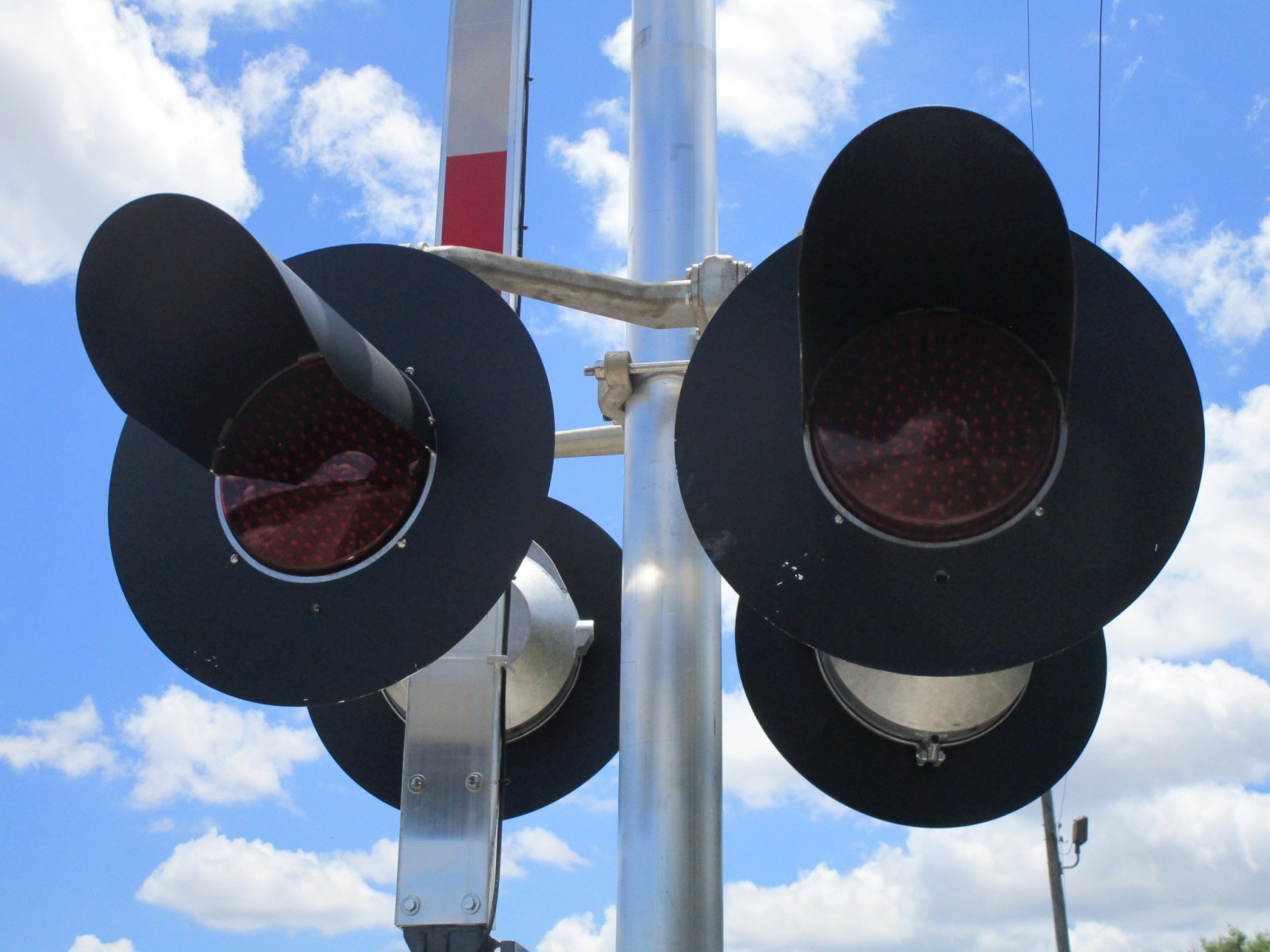

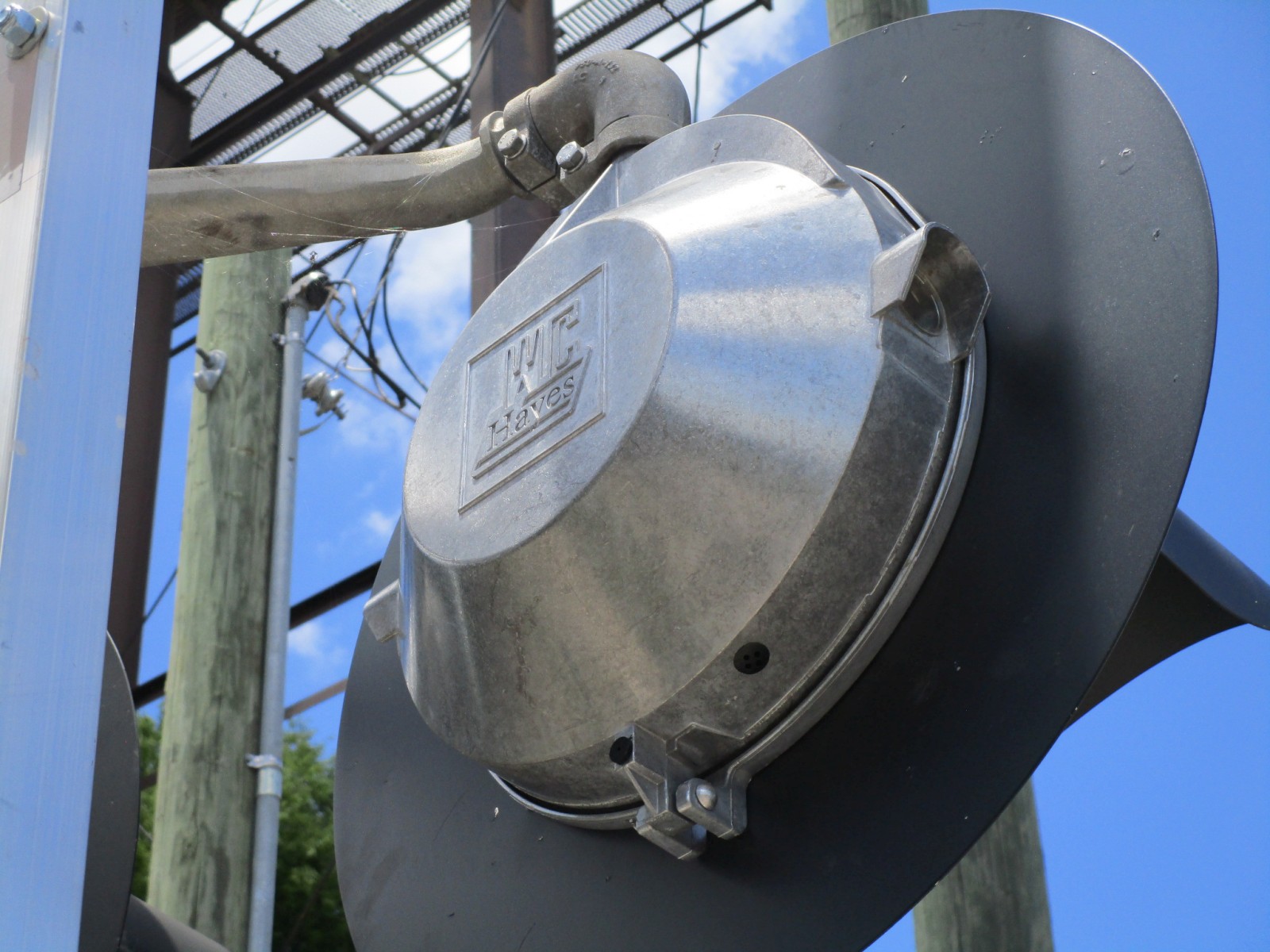

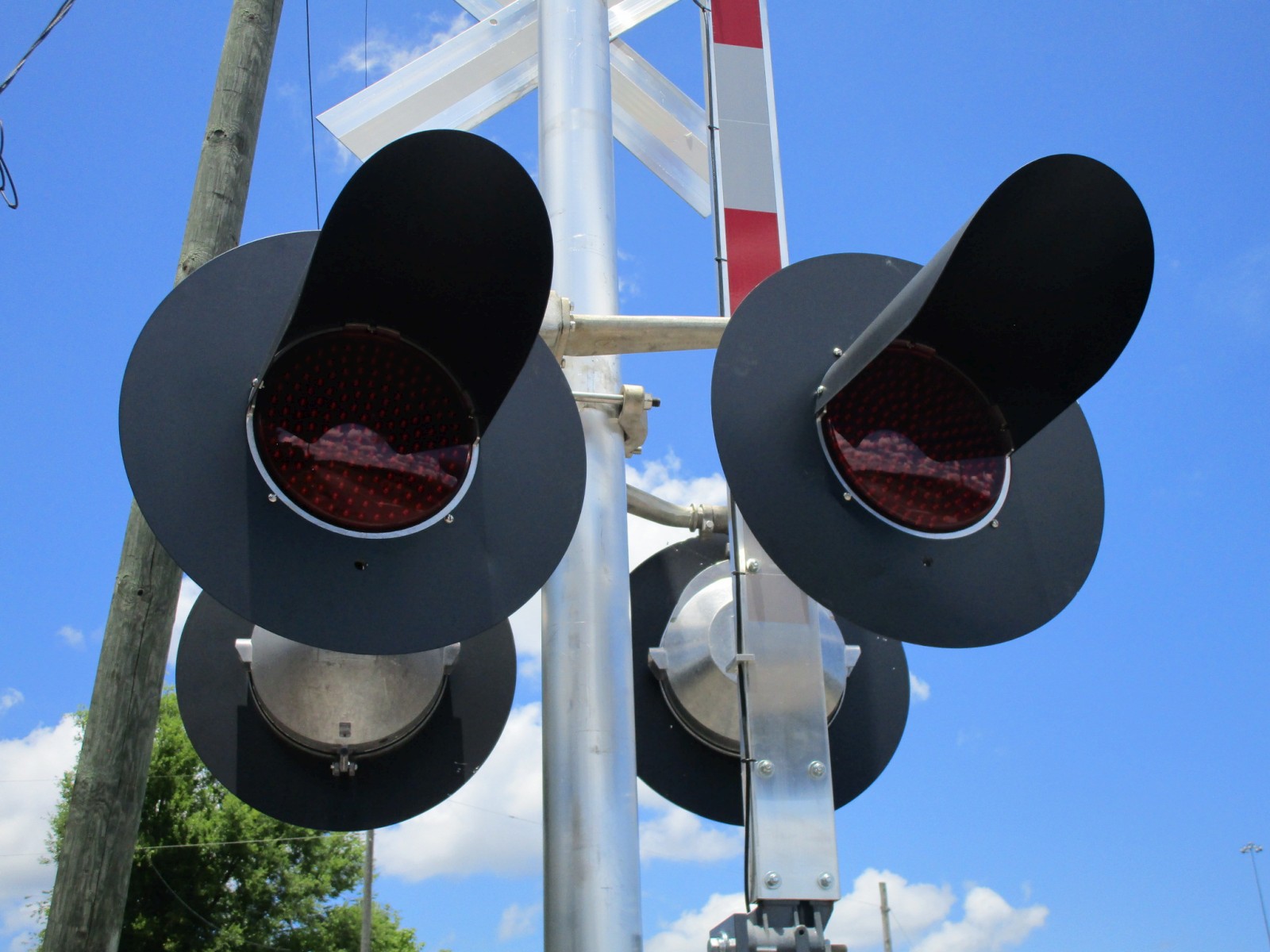

The lights on this signal are a mix of an older WCH 12x24 inch light with a WCH 2nd Generation LED (which I believe was re-used from the old signal) and newer WCH 12x24 inch lights with Leotek EV Series LEDs. |
|||
37 |
38 |
39 |
40 |

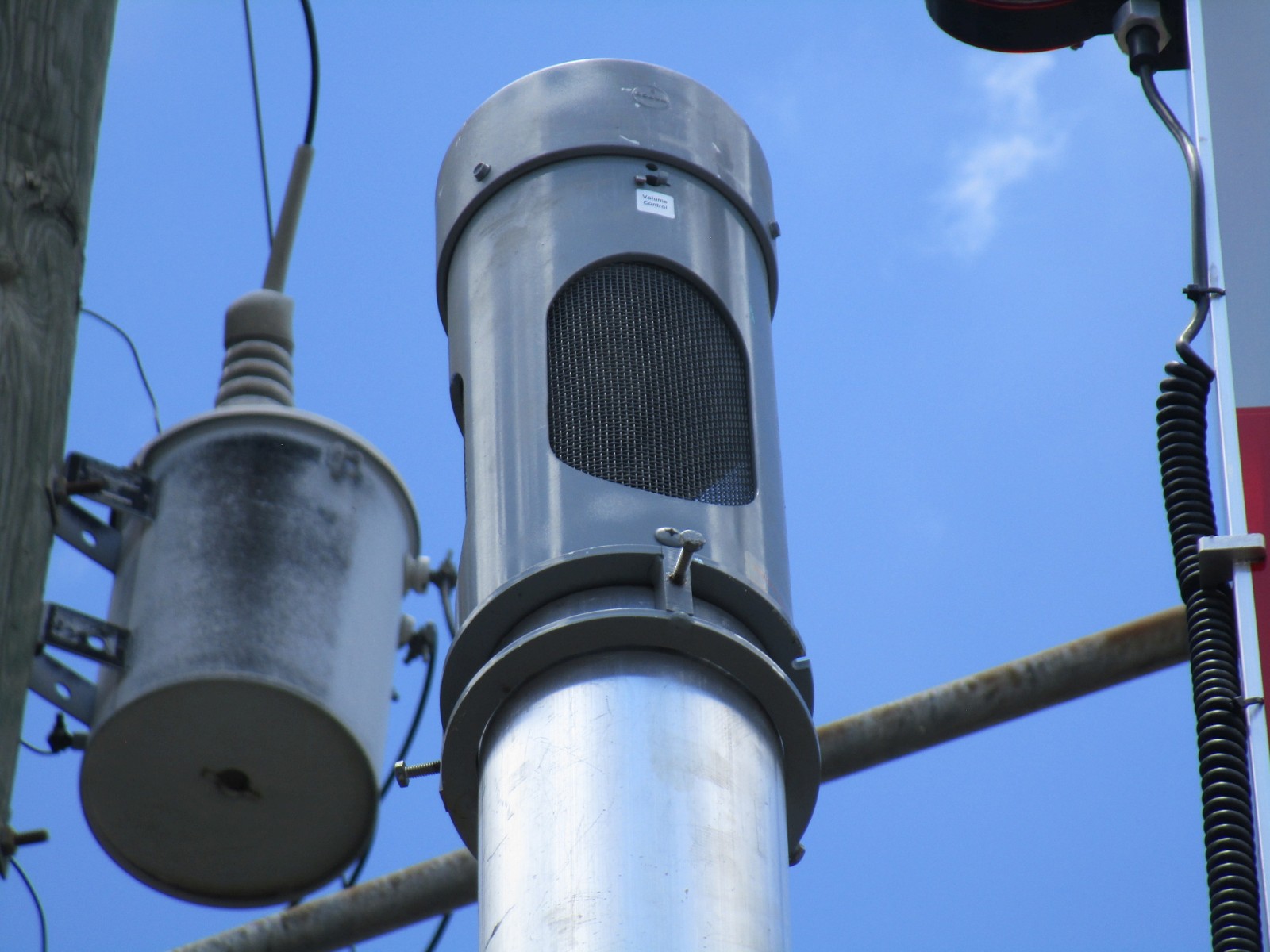

This signal has an NEG e-bell at the top of the mast. |

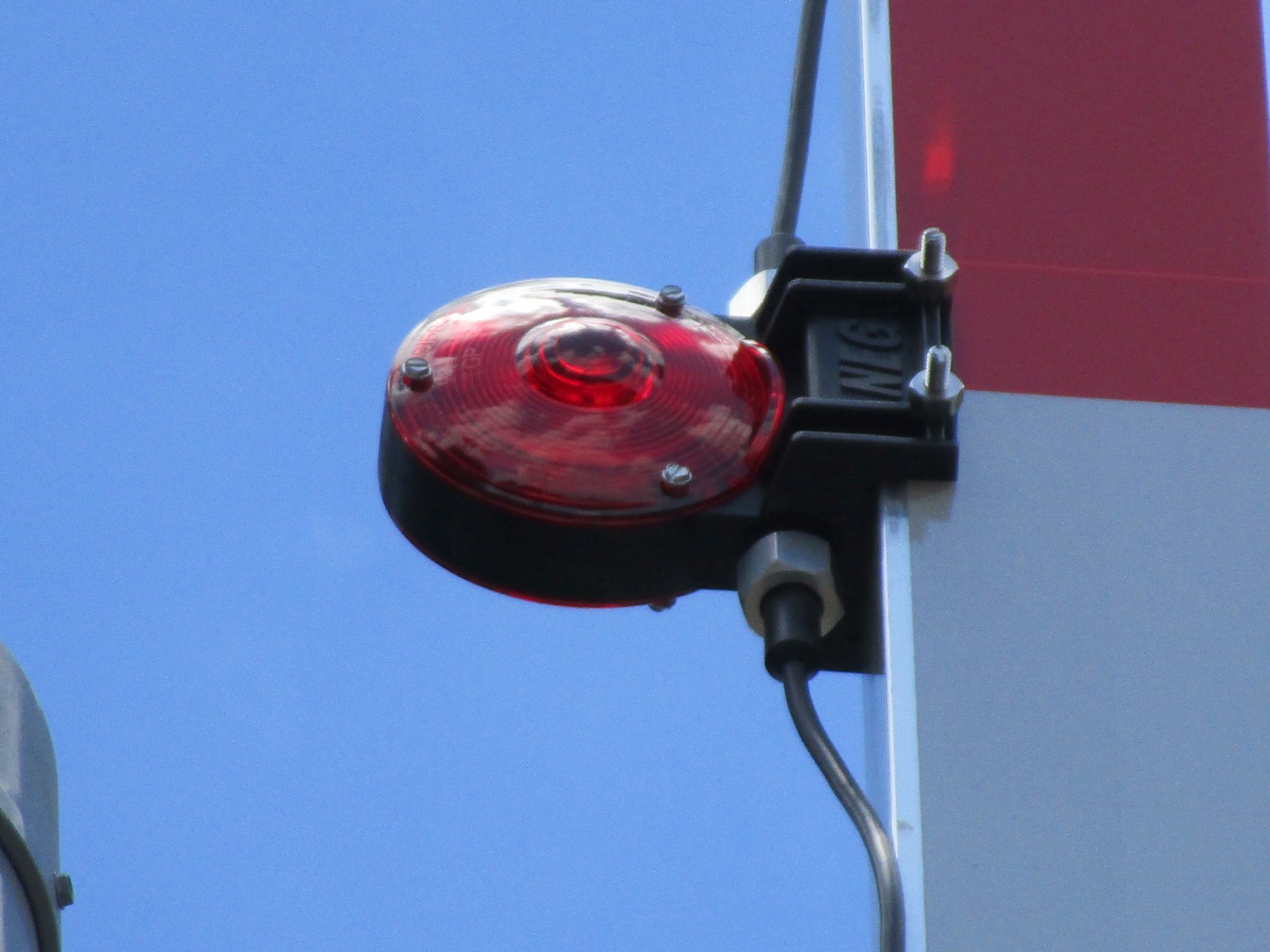

This signal uses NEG LED gate lights. |

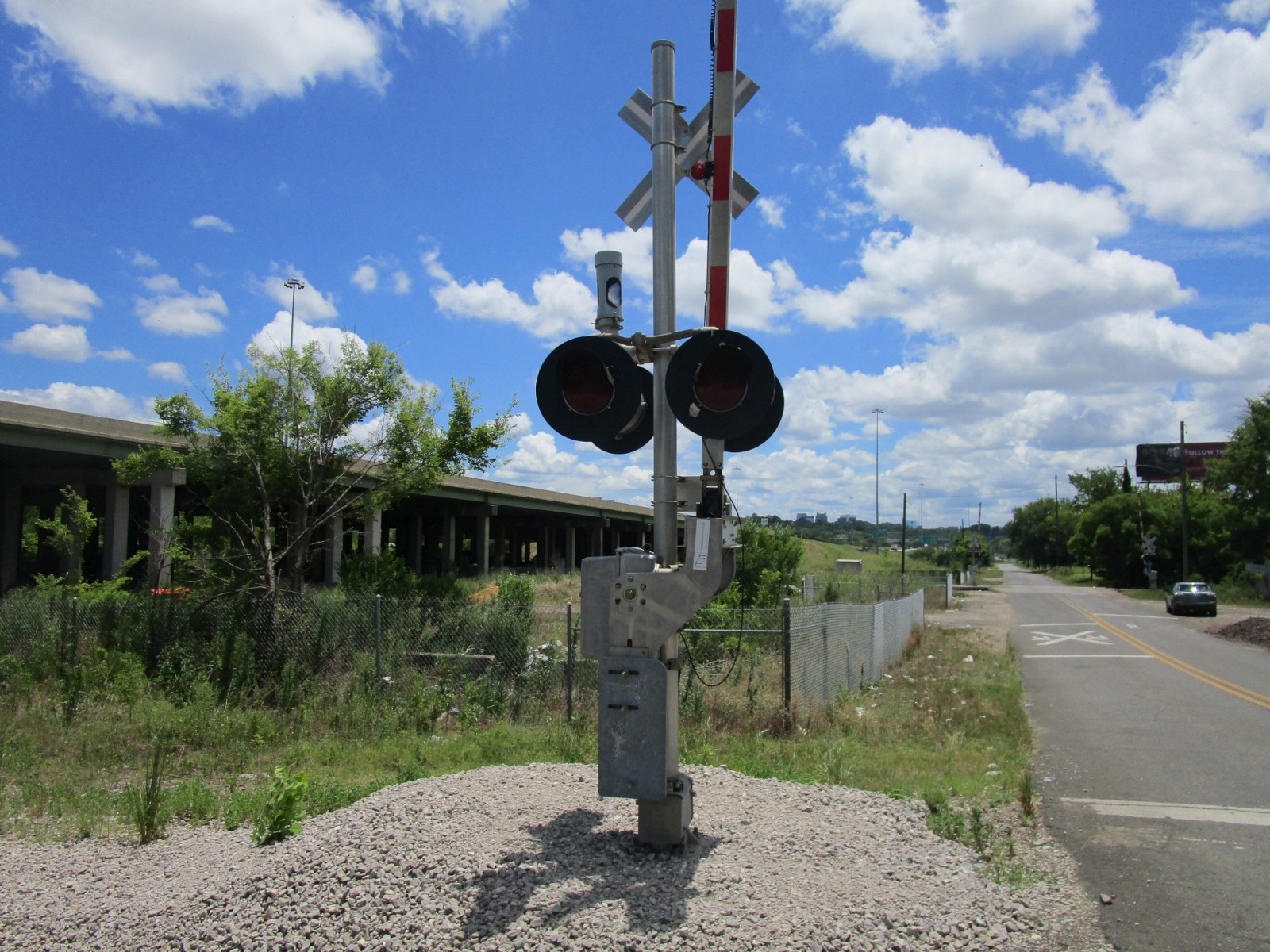

The other signal remains untouched. |
|
Pictures 1-24 were taken on 2-1-20.
Pictures 25-40 were taken on 7-3-22.
