MP:  ANJ923.310



Updated June 25, 2018



Total Accidents:   3
Crossing DOT #:  639395T
TOTAL DAILY TRAINS:   23   (AS OF 2018)



Page created by: freebrickproductions



This crossing is located on the CSX Lineville Subdivision.



>>>>>>>>>>>>> Signal #1 Signal #2
Bell: Safetran Type 2 electronic NEG electronic
Cantilever: Federal Signal Federal Signal
Light Frames:

2 - 12x20" Federal Signal w/ Dialight Ball LEDs

2 - 12x20" WCH w/ Dialight Ball LEDs

4 - 12x24" Federal Signal w/ Dialight Ball LEDs

2 - 12x24" Safetran w/ Dialight Ball LEDs

5 - 12x24" Federal Signal w/ Dialight Ball LEDs

1 - 12x24" WCH w/ Dialight Ball LEDs

2 - 12x24" Safetran w/ Dialight Ball LEDs

2 - 12x24" Hawker-Siddeley Safetran w/ Dialight Ball LEDs
Base: WRRS early Safetran
Gate Lights: 3 - RECO LEDs 3 - RECO LEDs
Gate Mechanism: Safetran mid-70s Safetran mid-90s
Gate Striping: Vertical Vertical



1

2

3

4

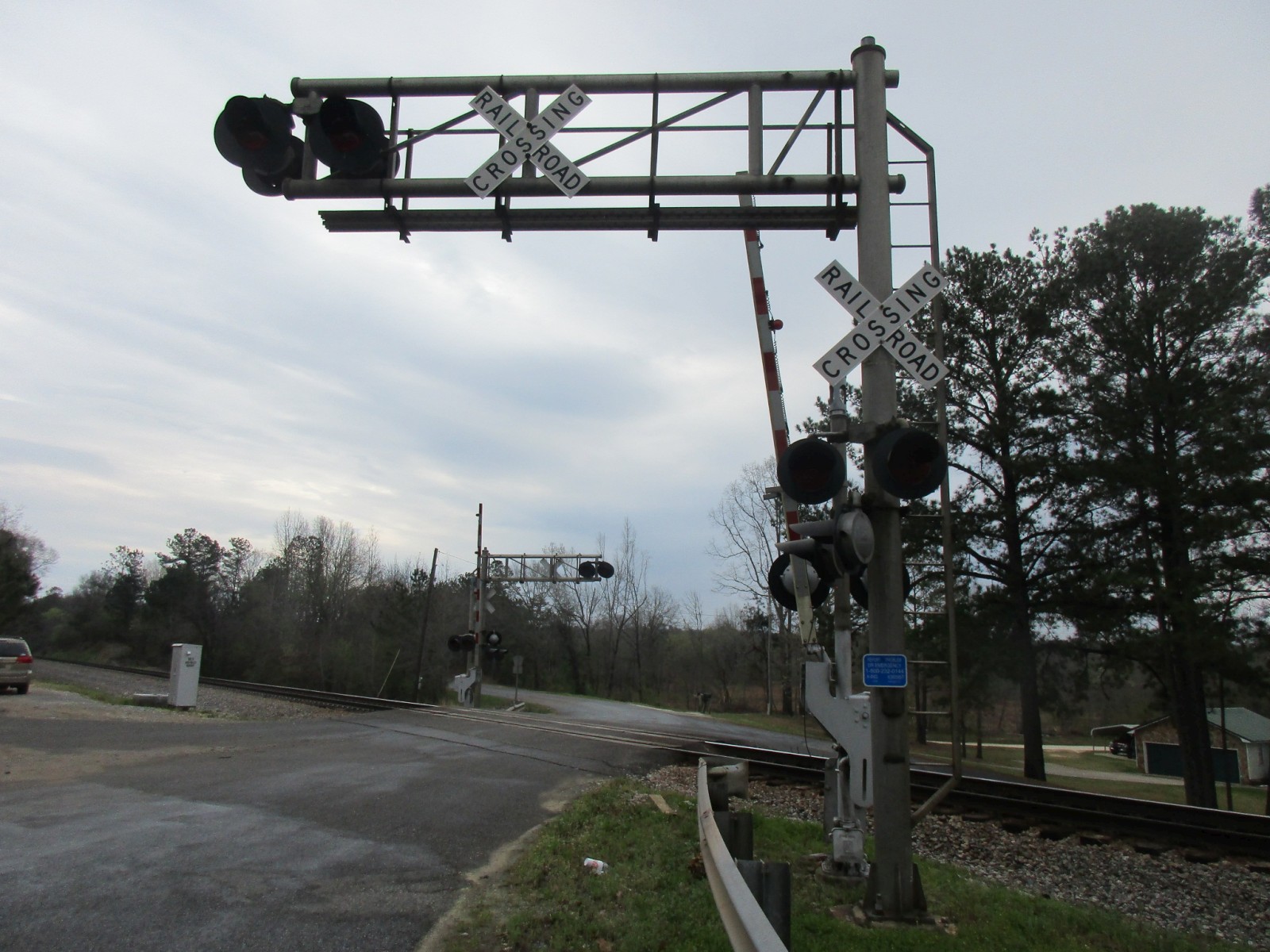

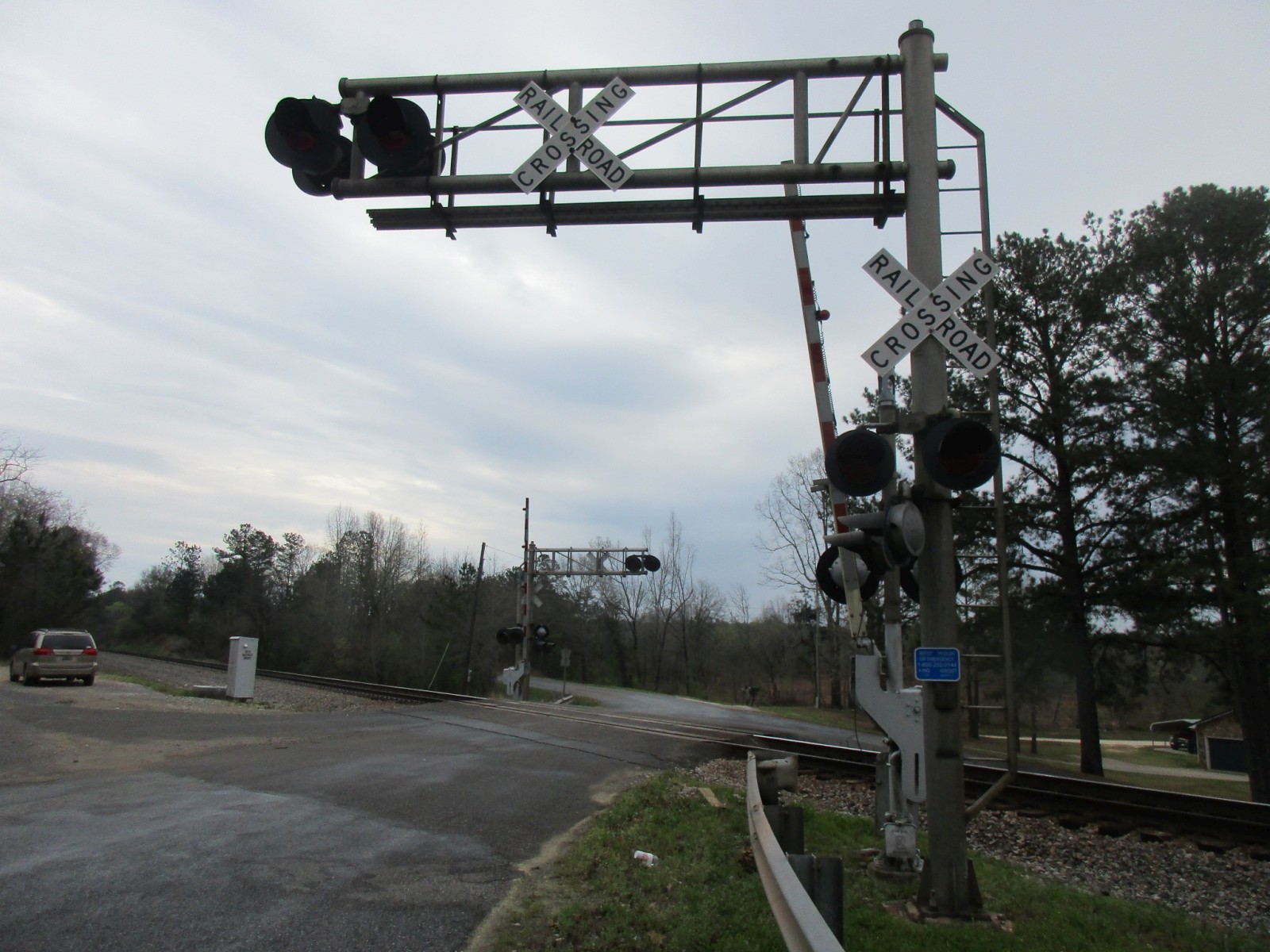

Overviews of the crossing.

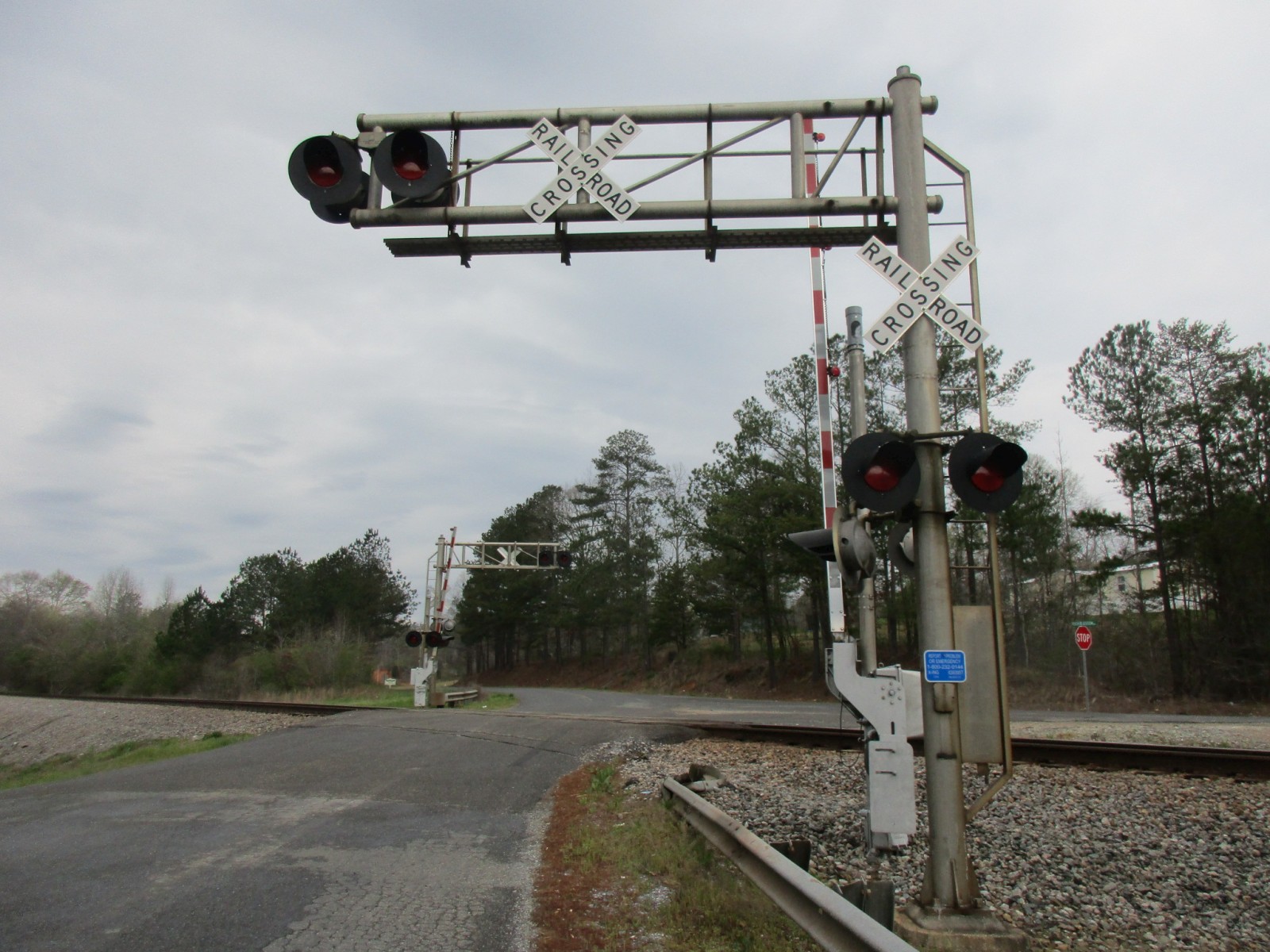

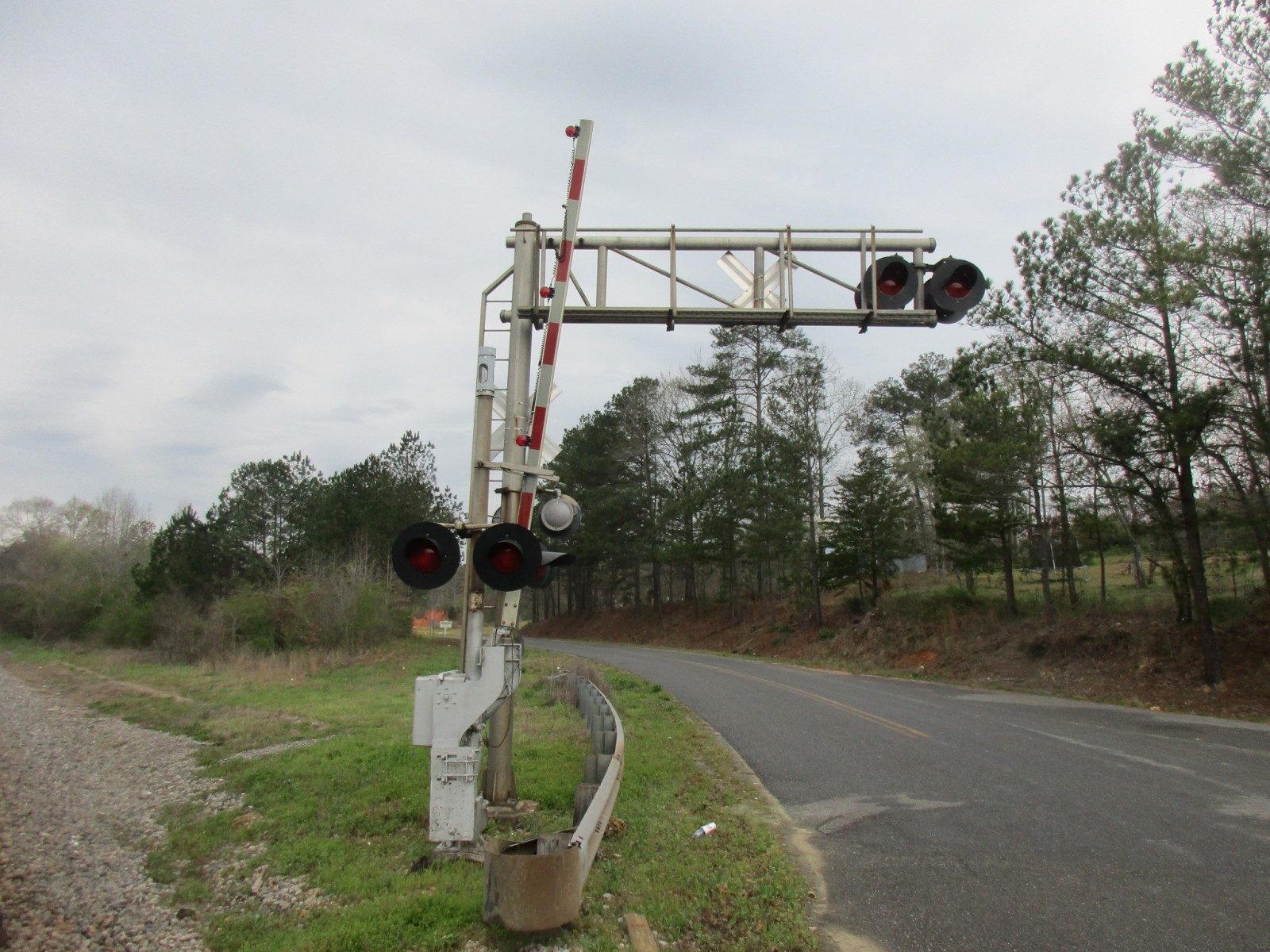

The first signal.

5

6

7

8

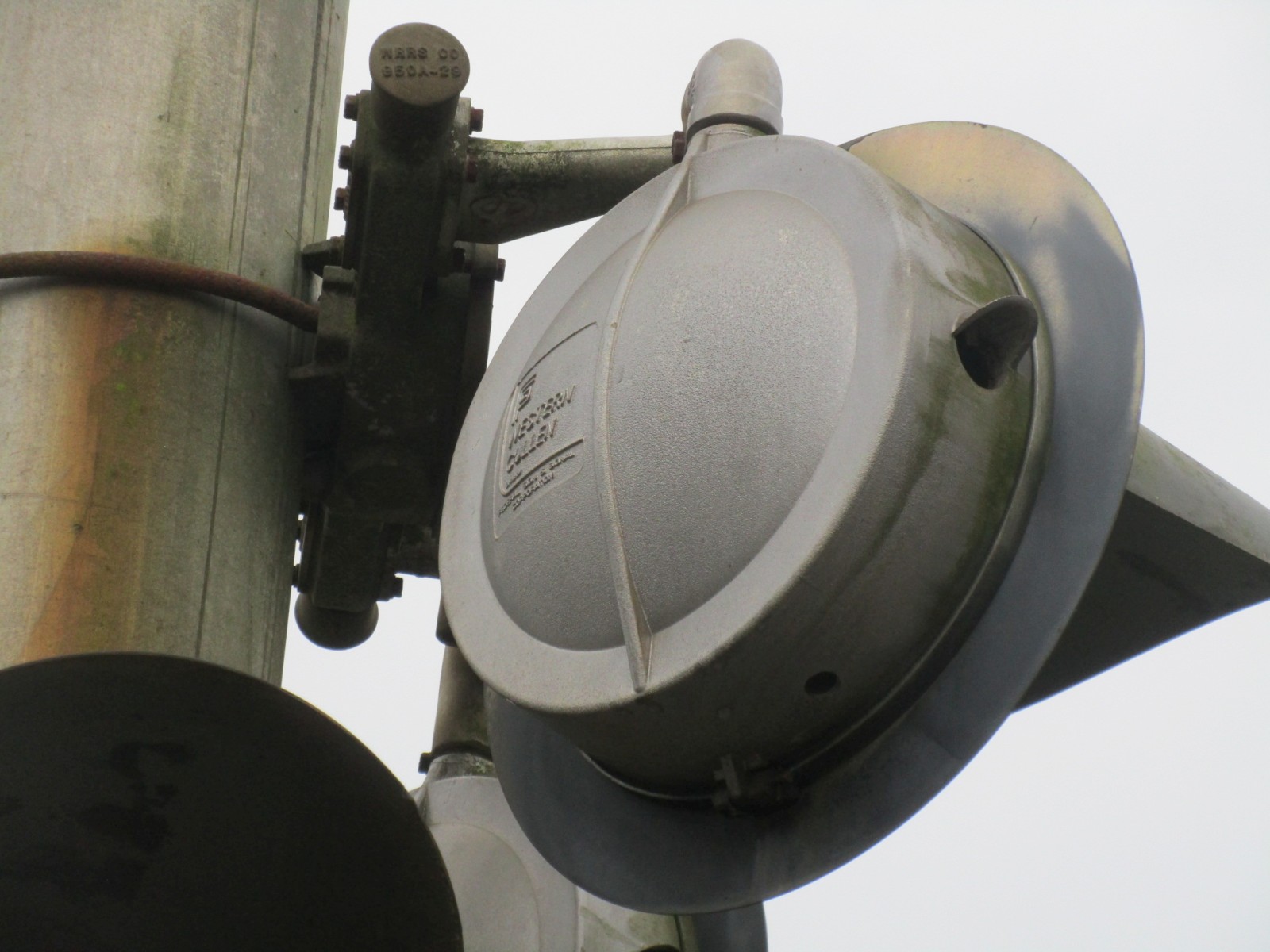

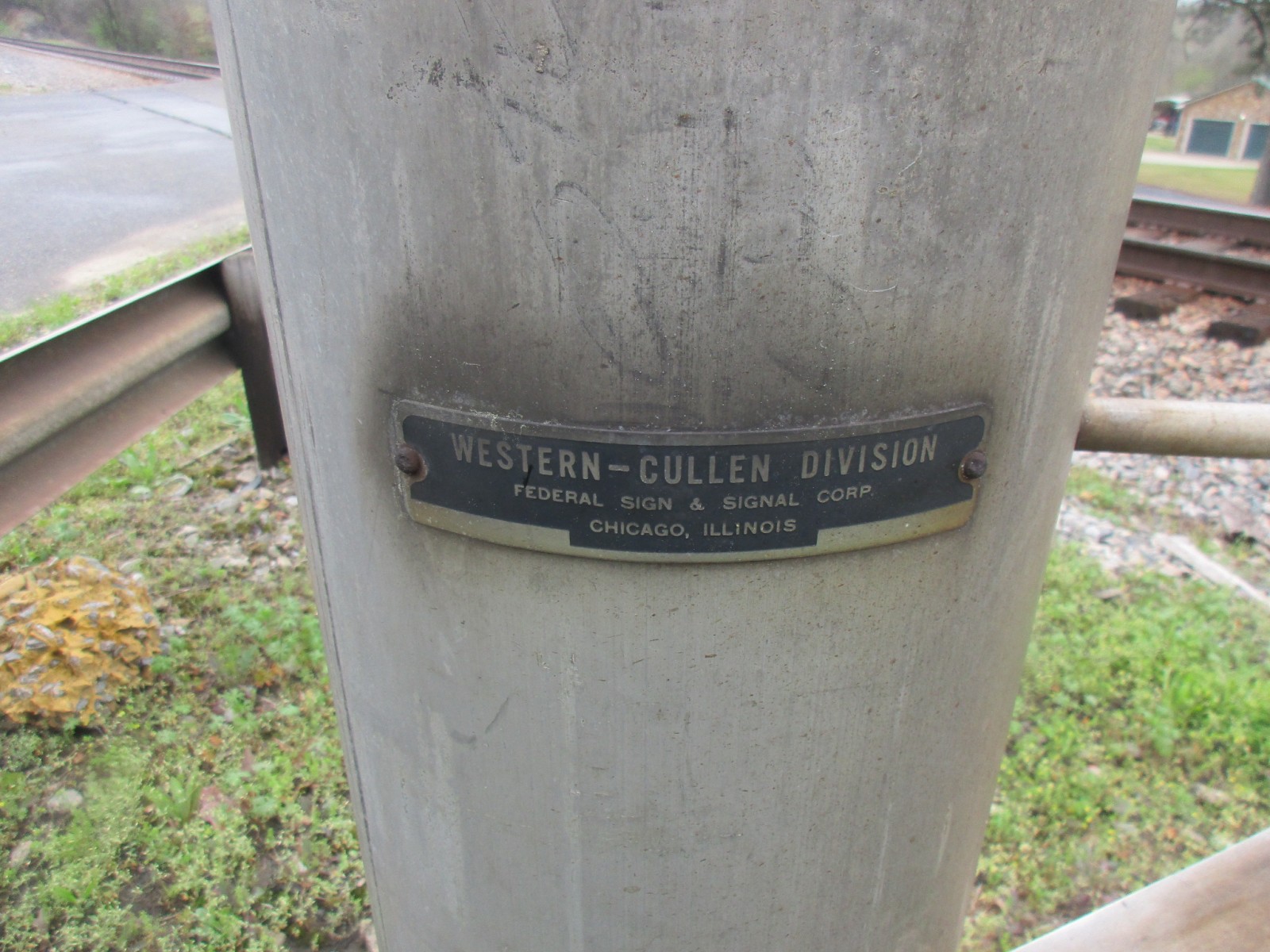

It's a Federal Signal cantilever.

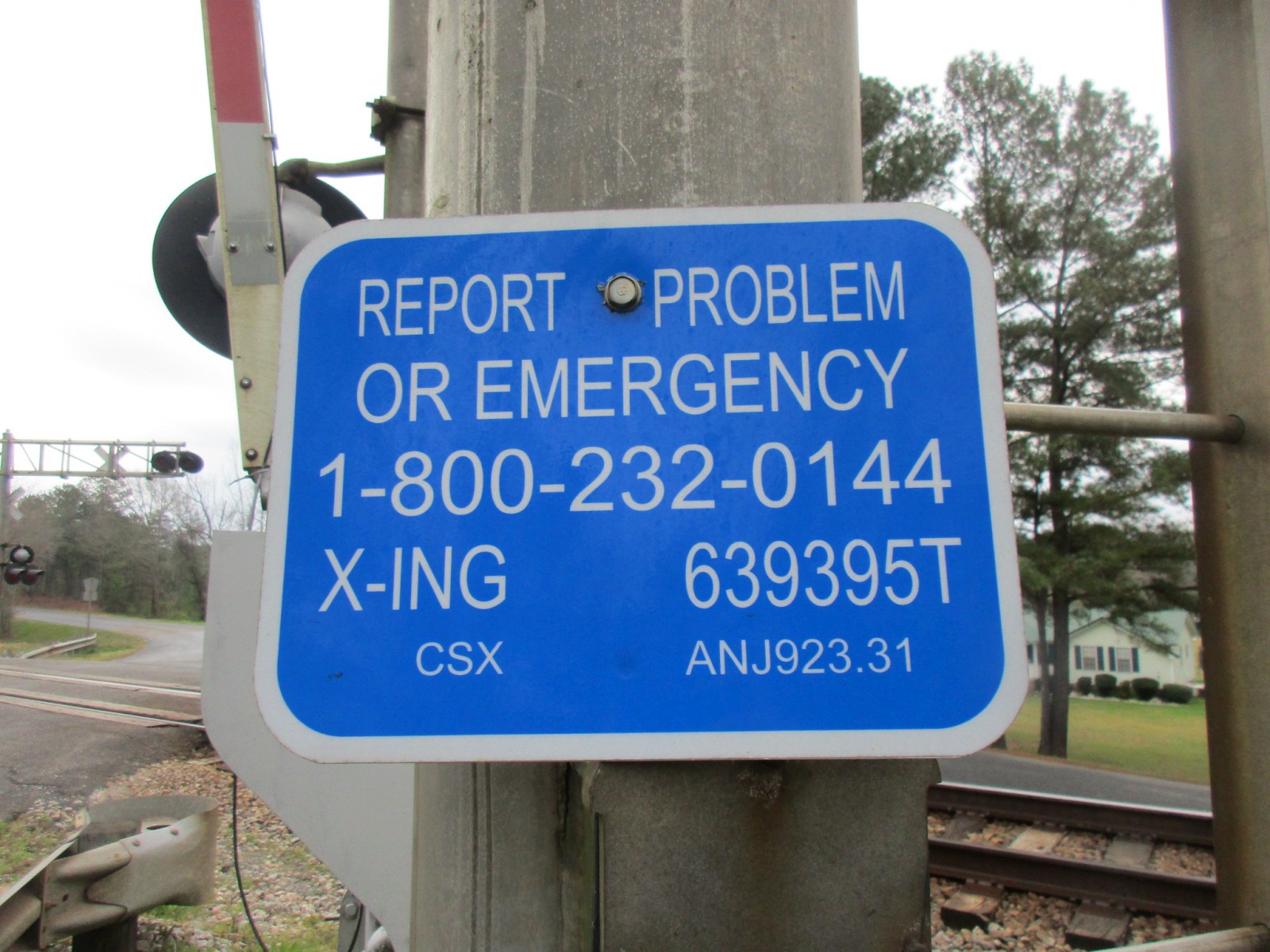

The emergency information.

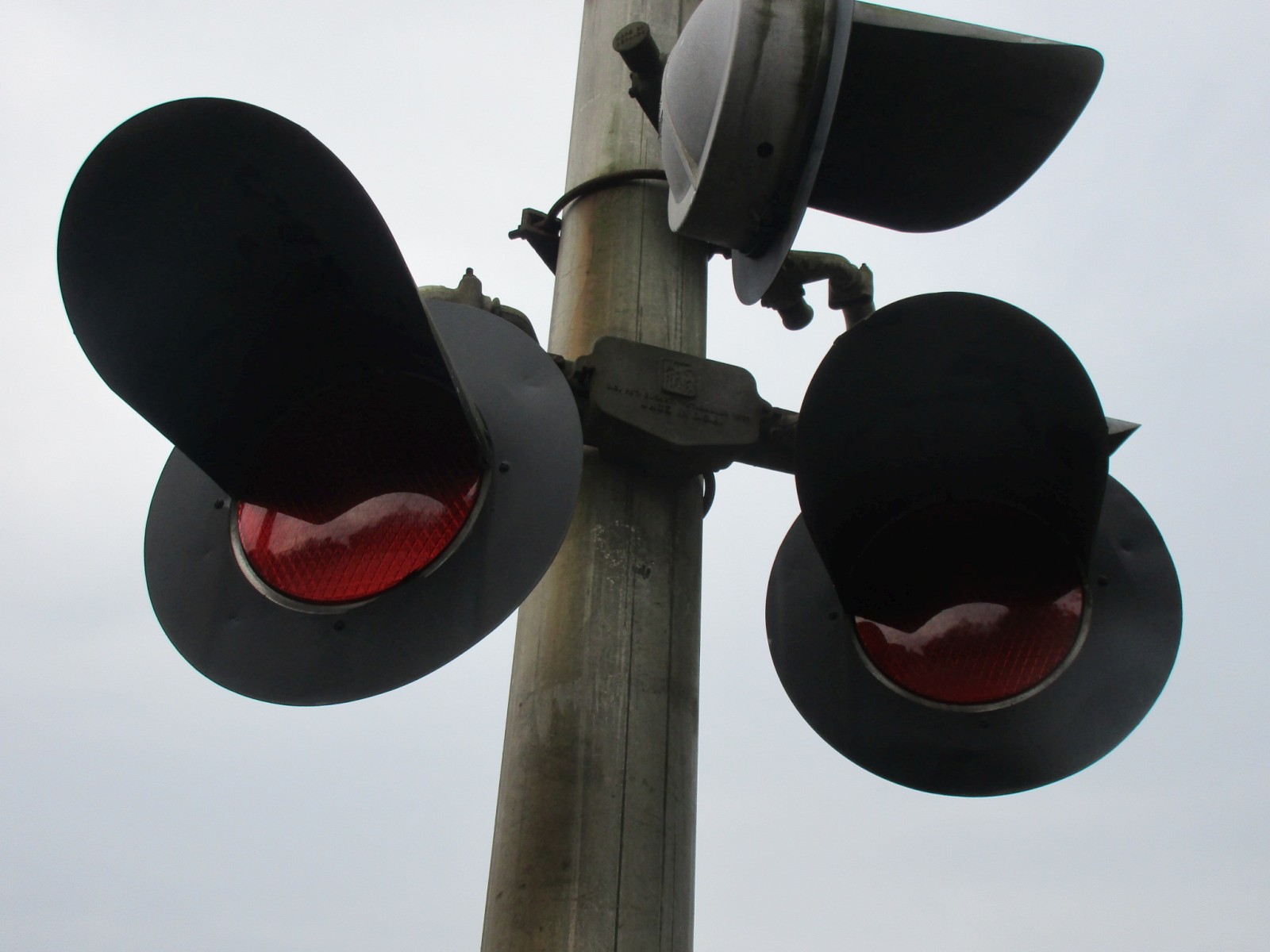

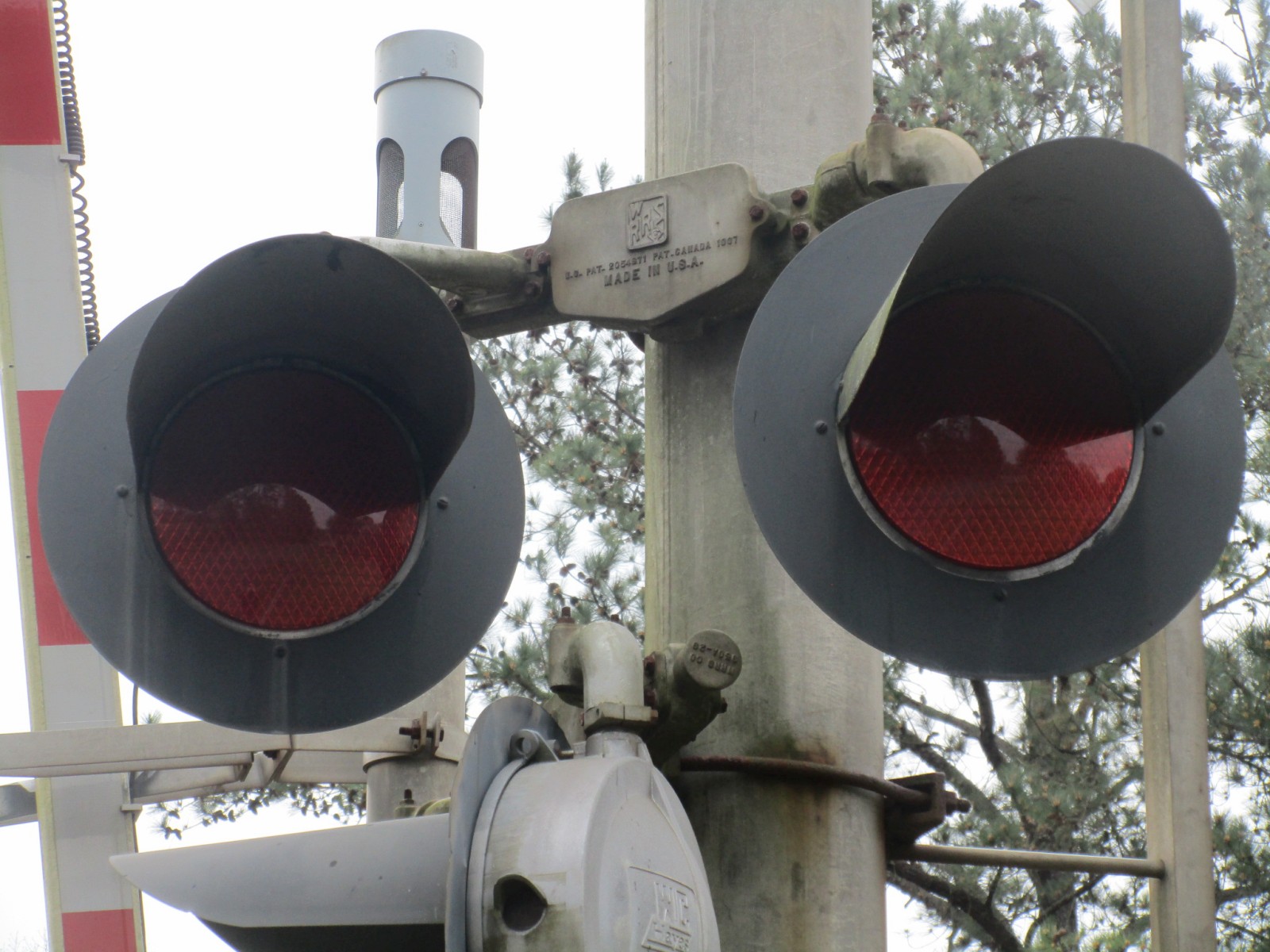

The front mast lights are Federal Signal 12x20 inch lights with Dialight Ball LEDs.

9

10

11

12

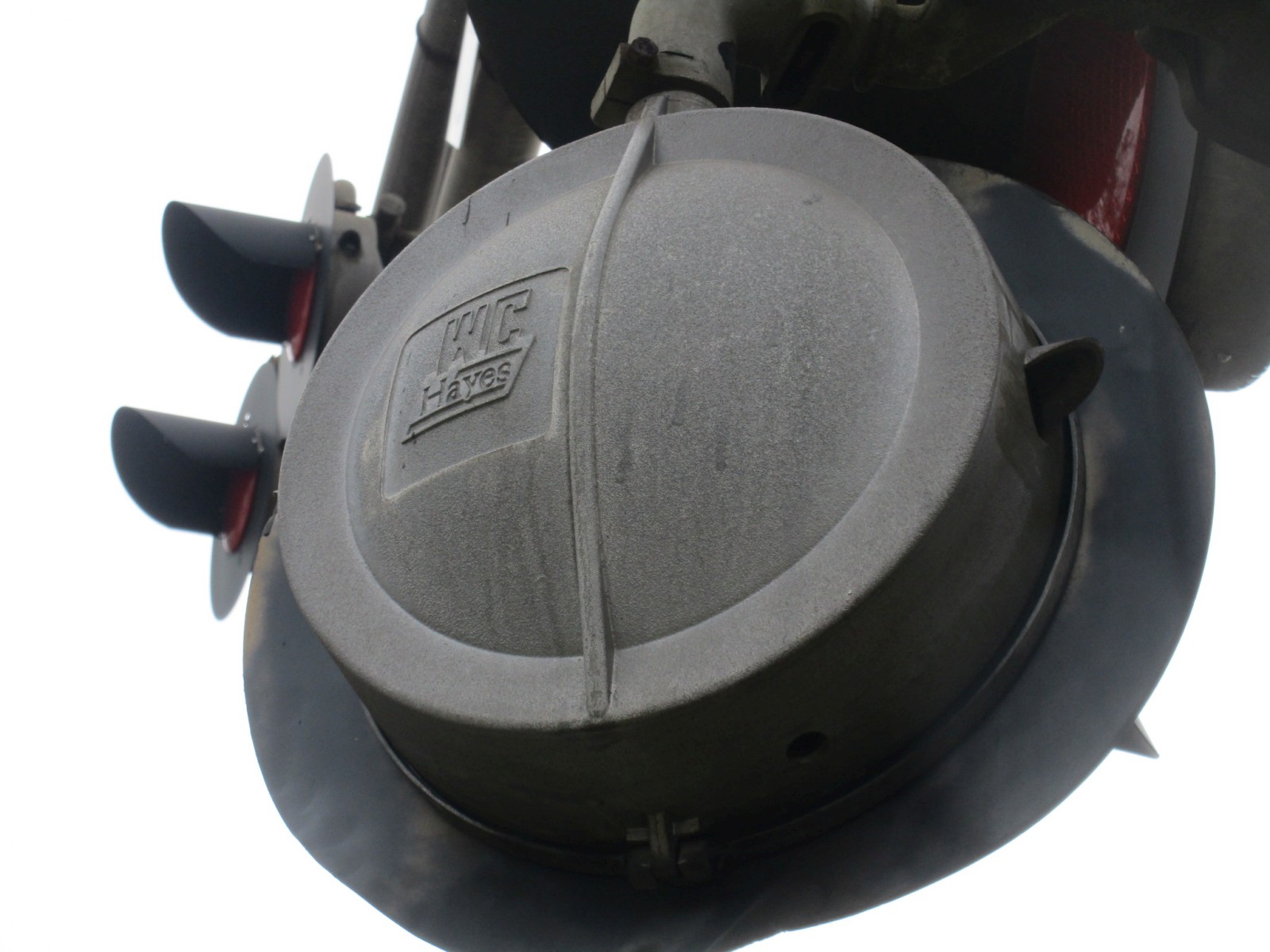

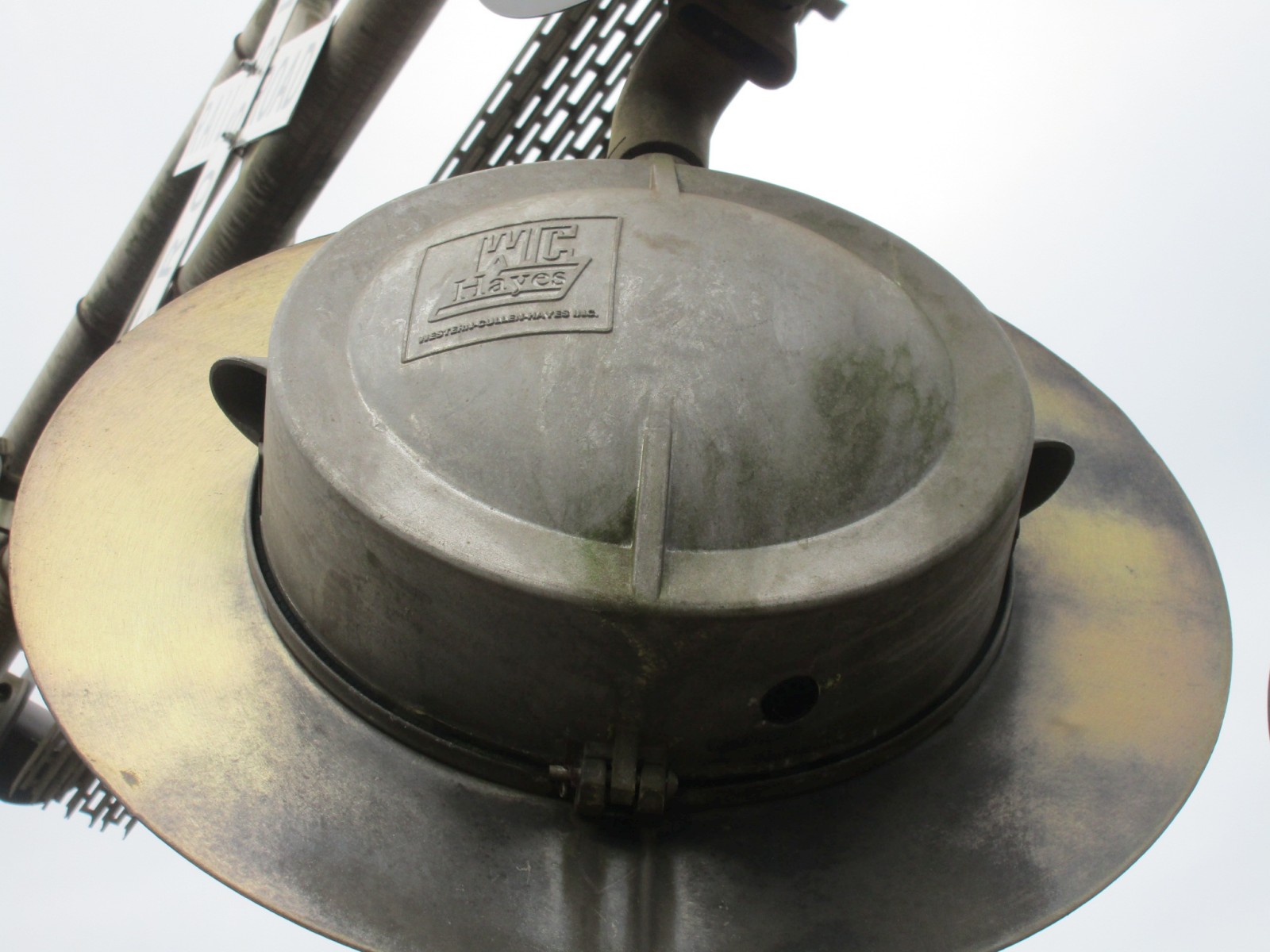

The side lights are WCH 12x20 inch lights with Dialight Ball LEDs.

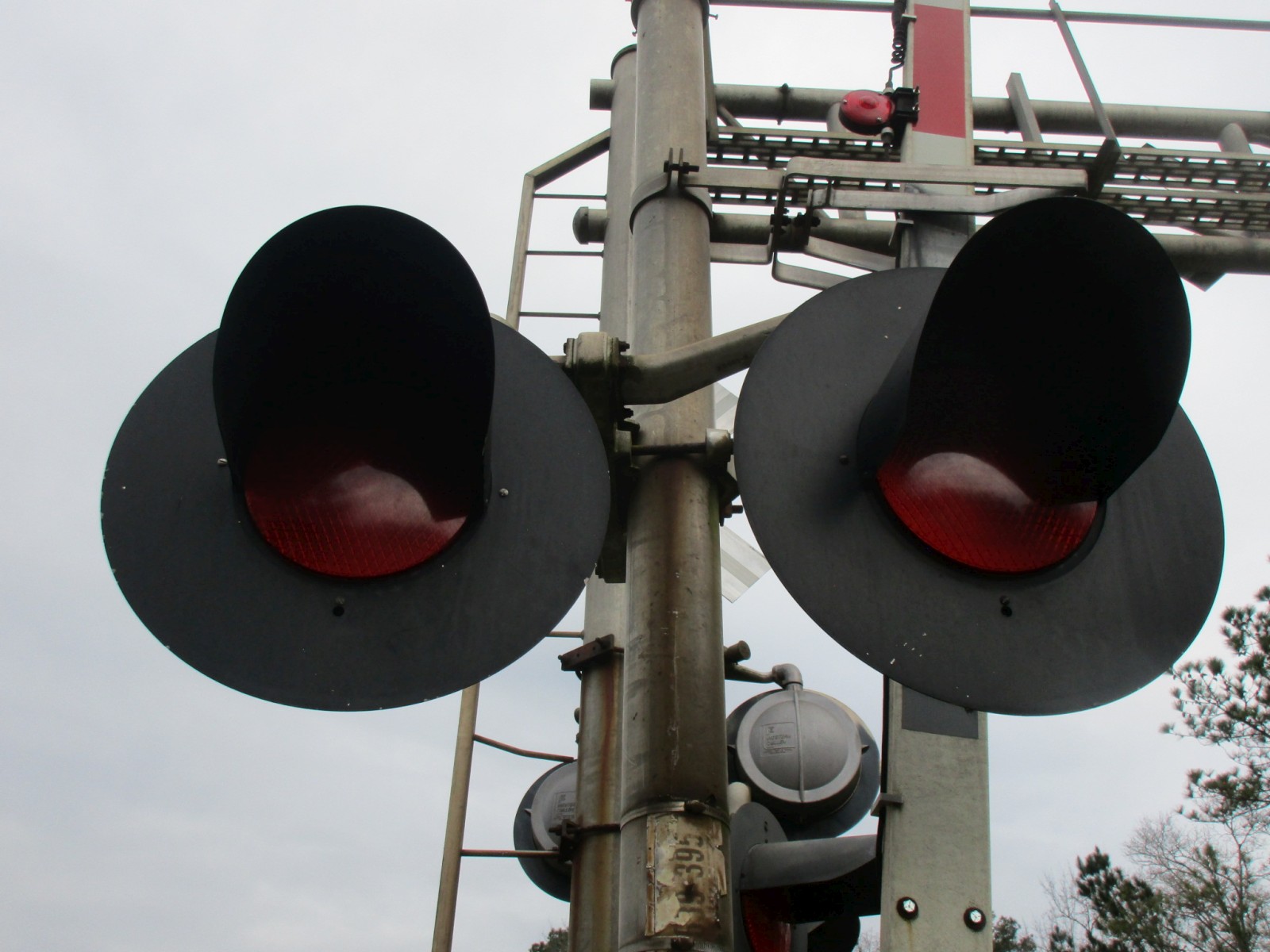

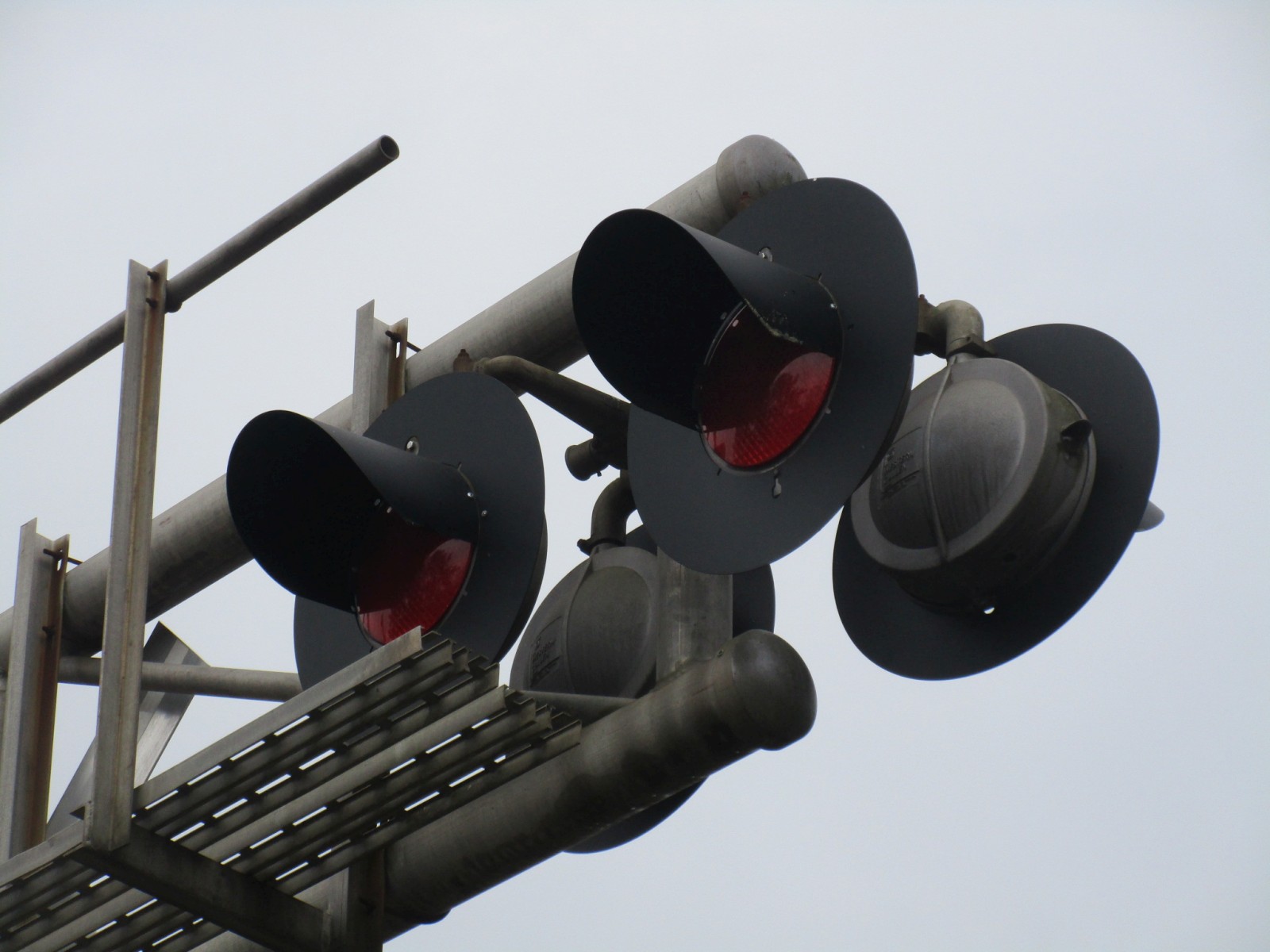

The overhead lights are all Federal Signal 12x24 inch lights with Dialight Ball LEDs.

13

14

15

16

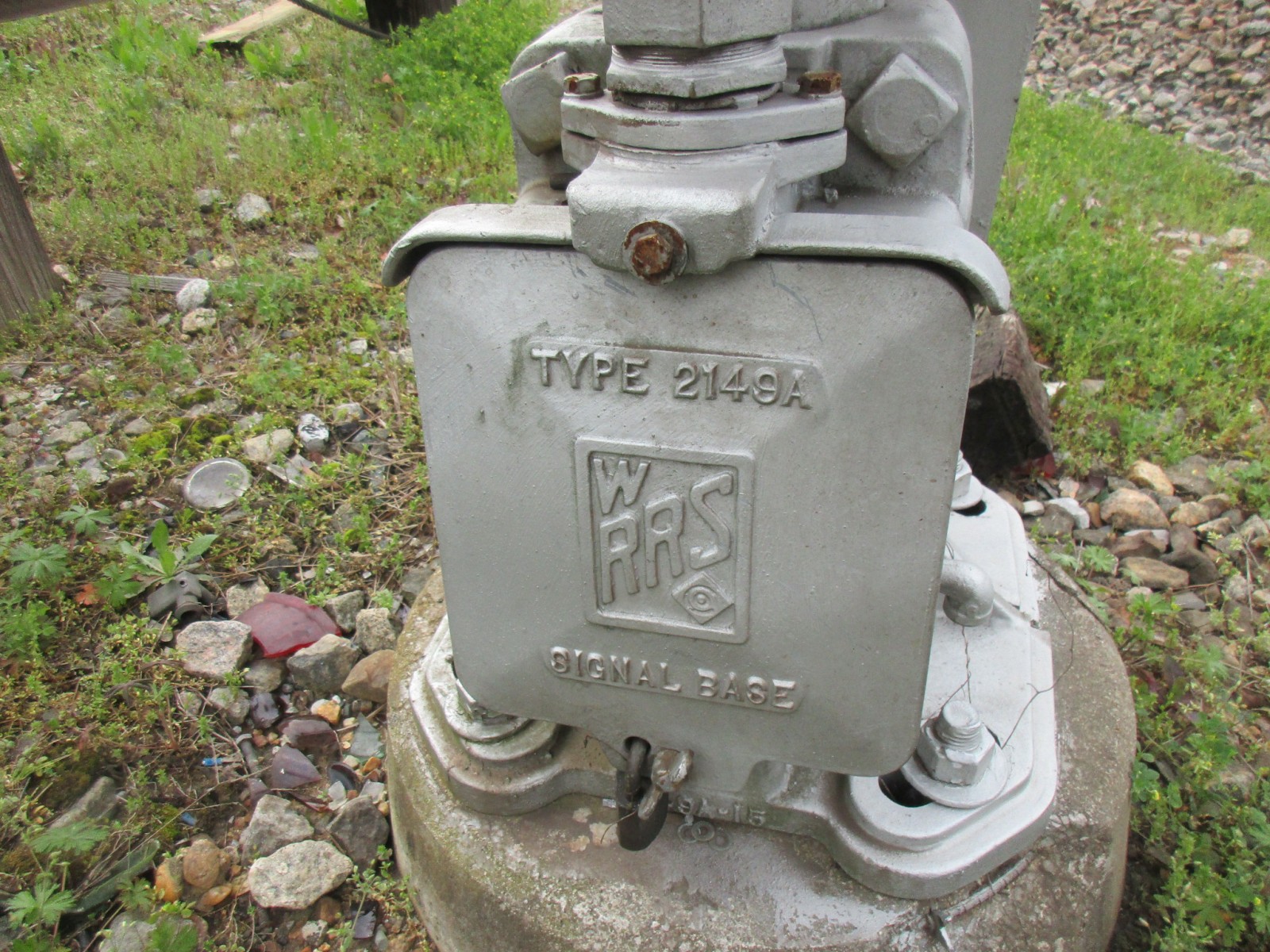

A WRRS base!

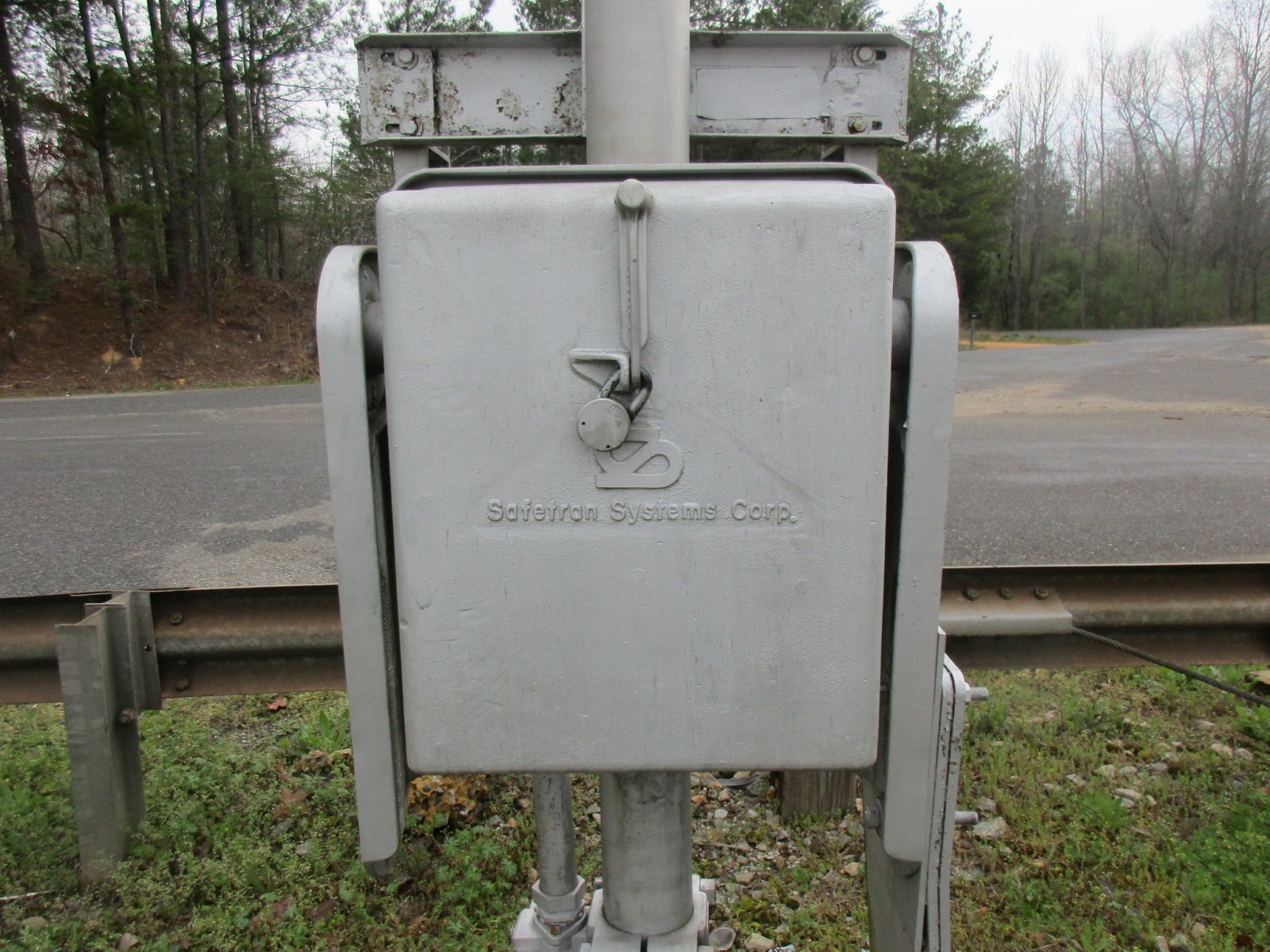

A Safetran gate mechanism.

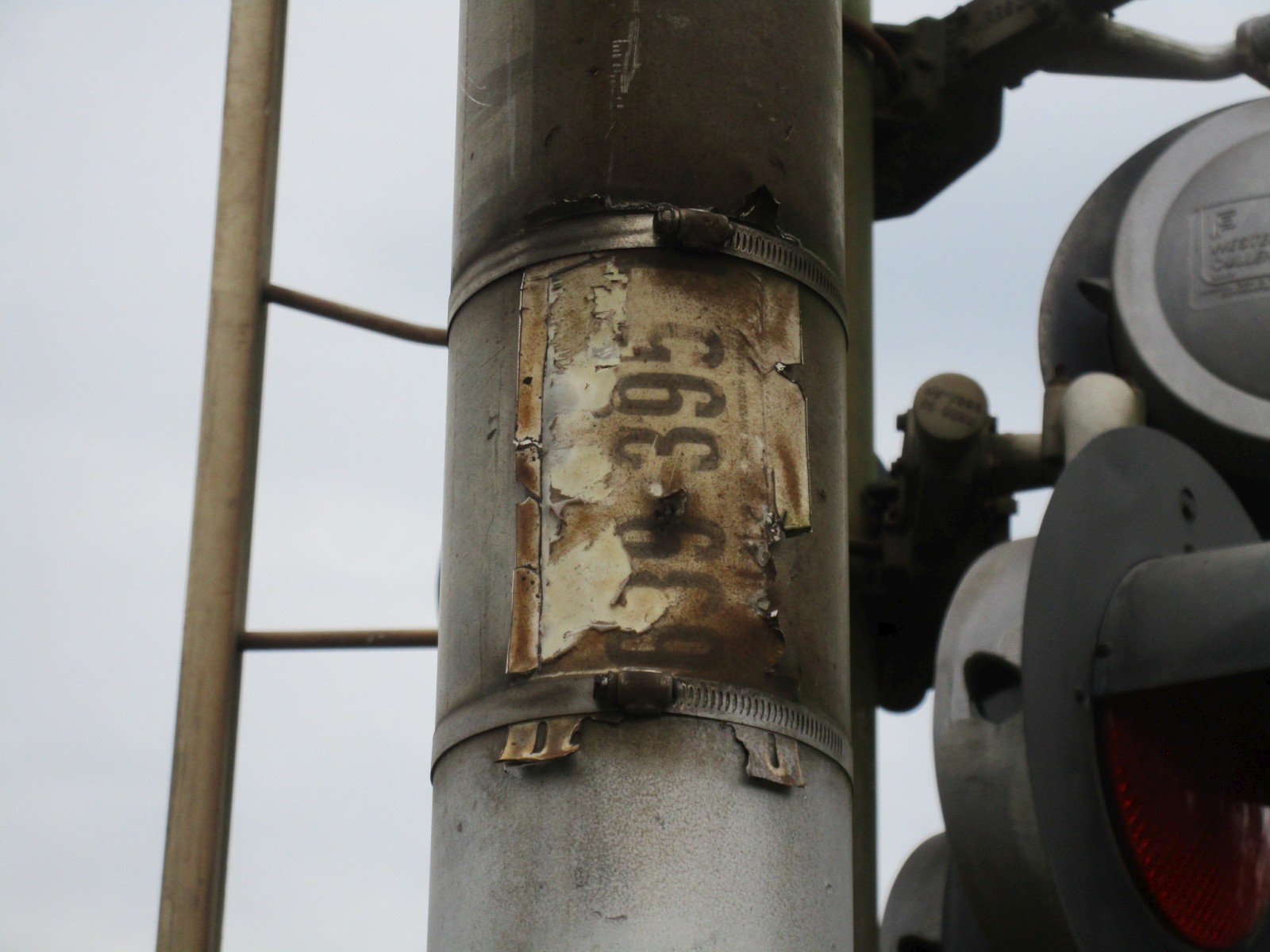

An old SCL or ACL DOT tag!
The rear mast lights.

17

18

19

20

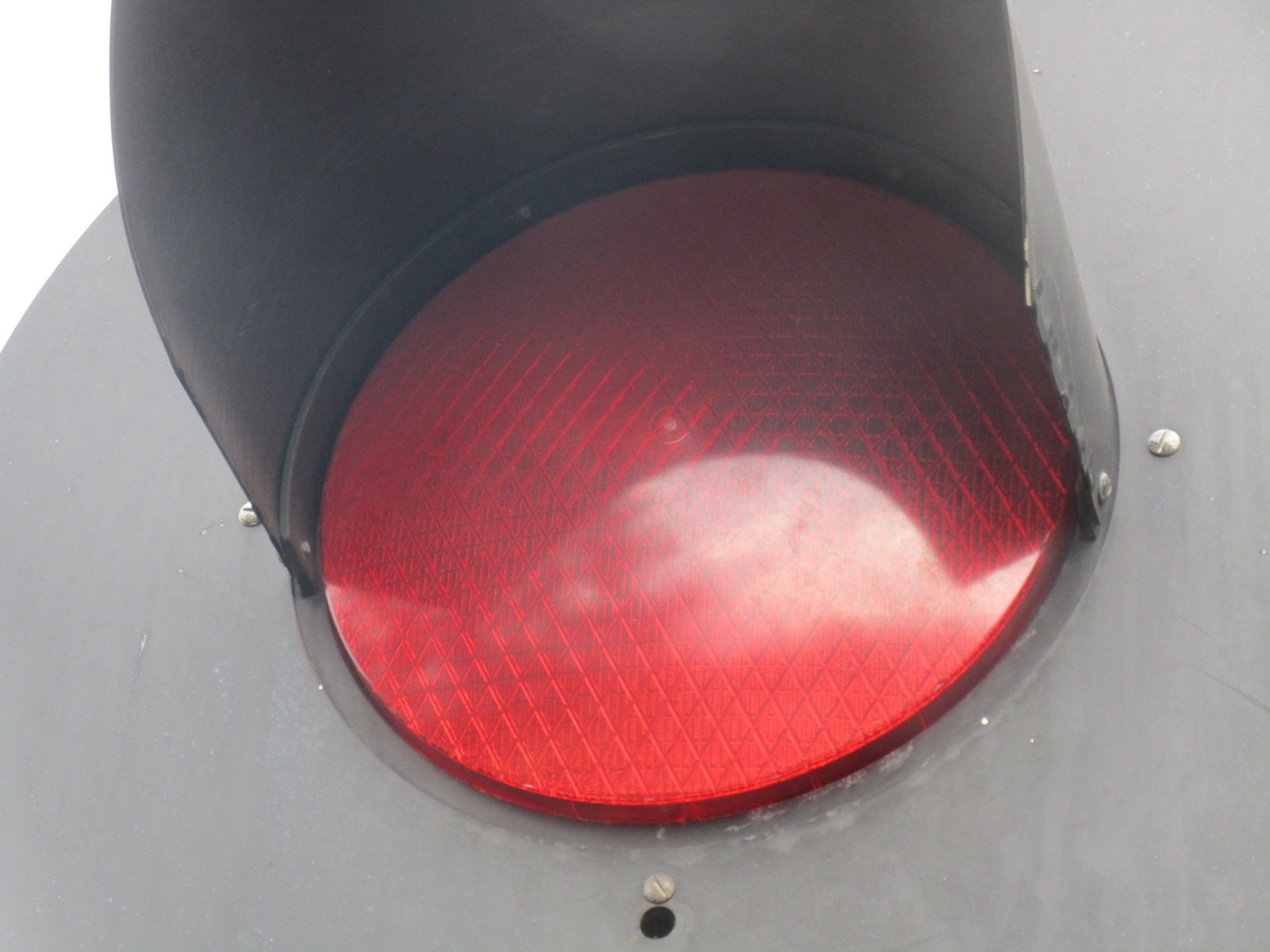

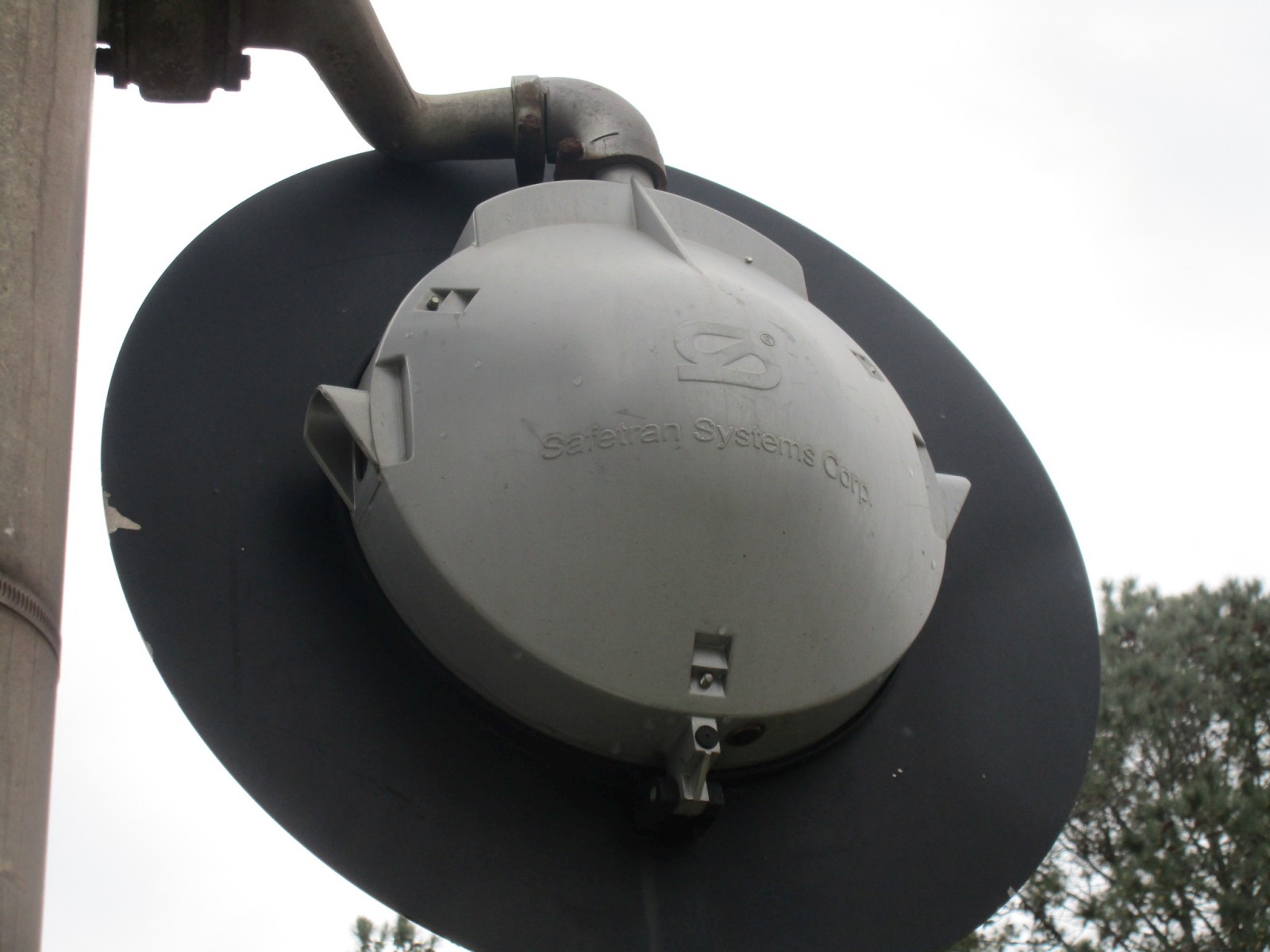

These lights are Safetran 12x24 inch lights with Dailight Ball LEDs.

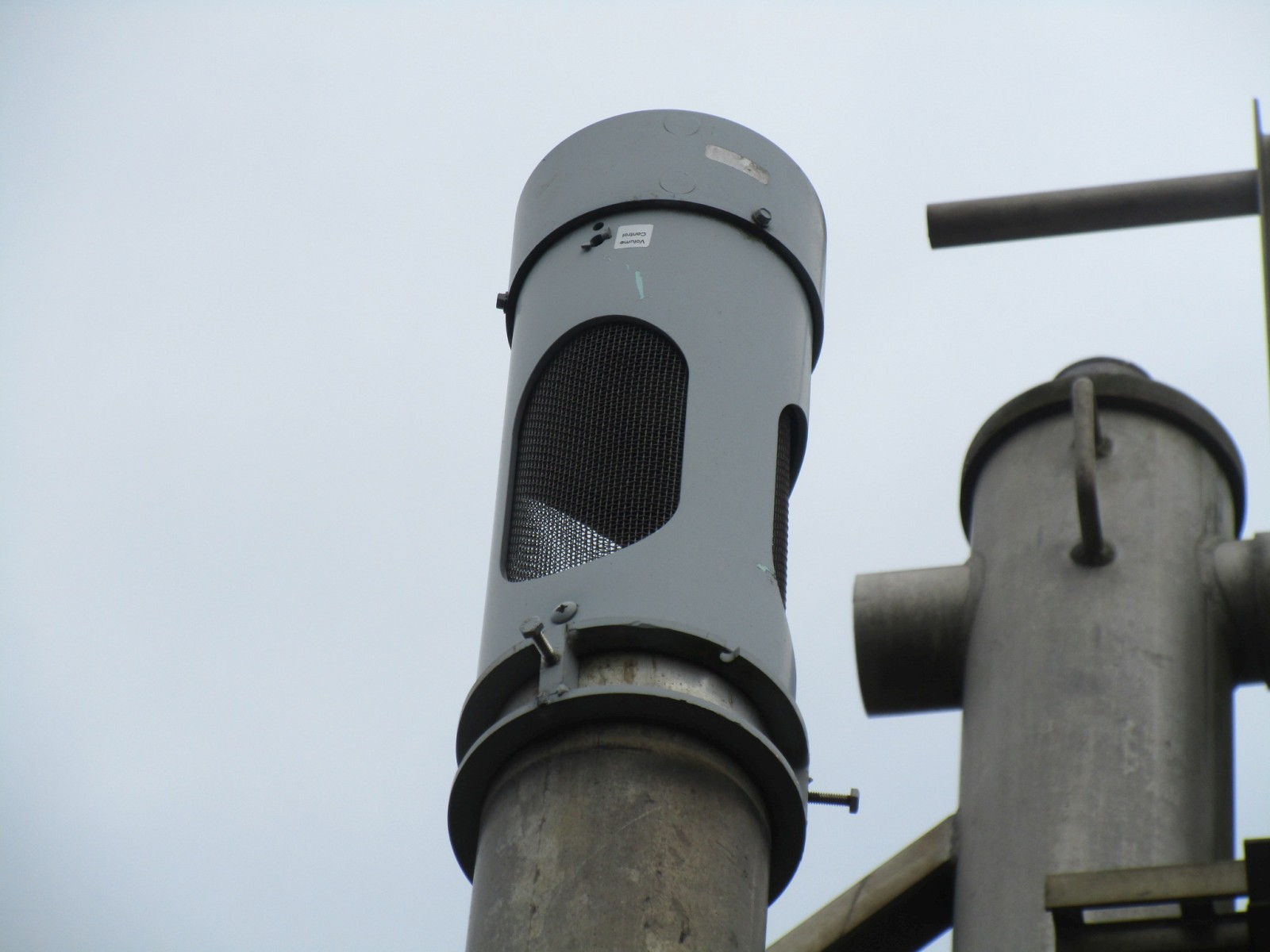

A Safetran Type 2 electronic bell.

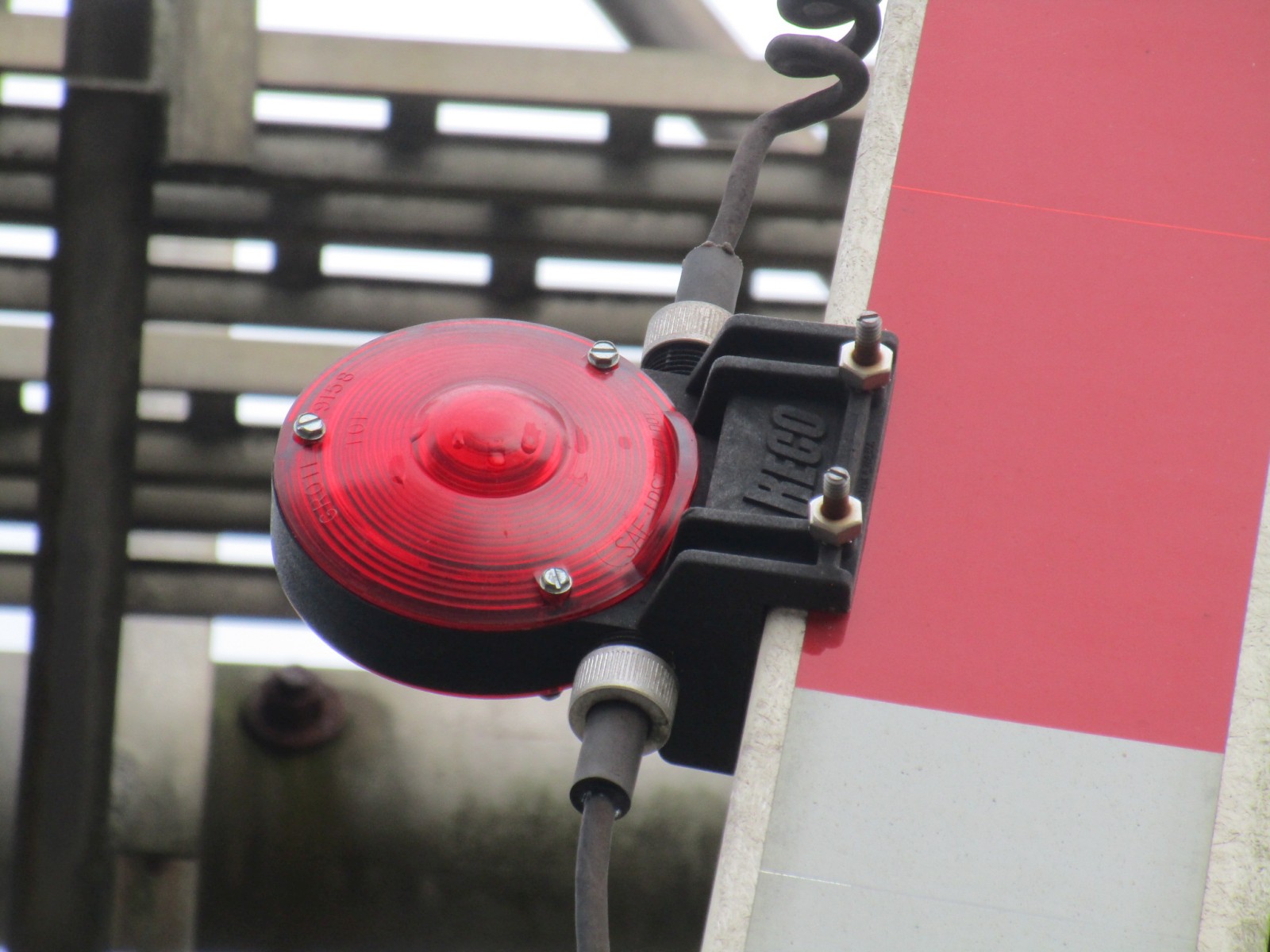

RECO LED gate lights over here.

21

22

23

24

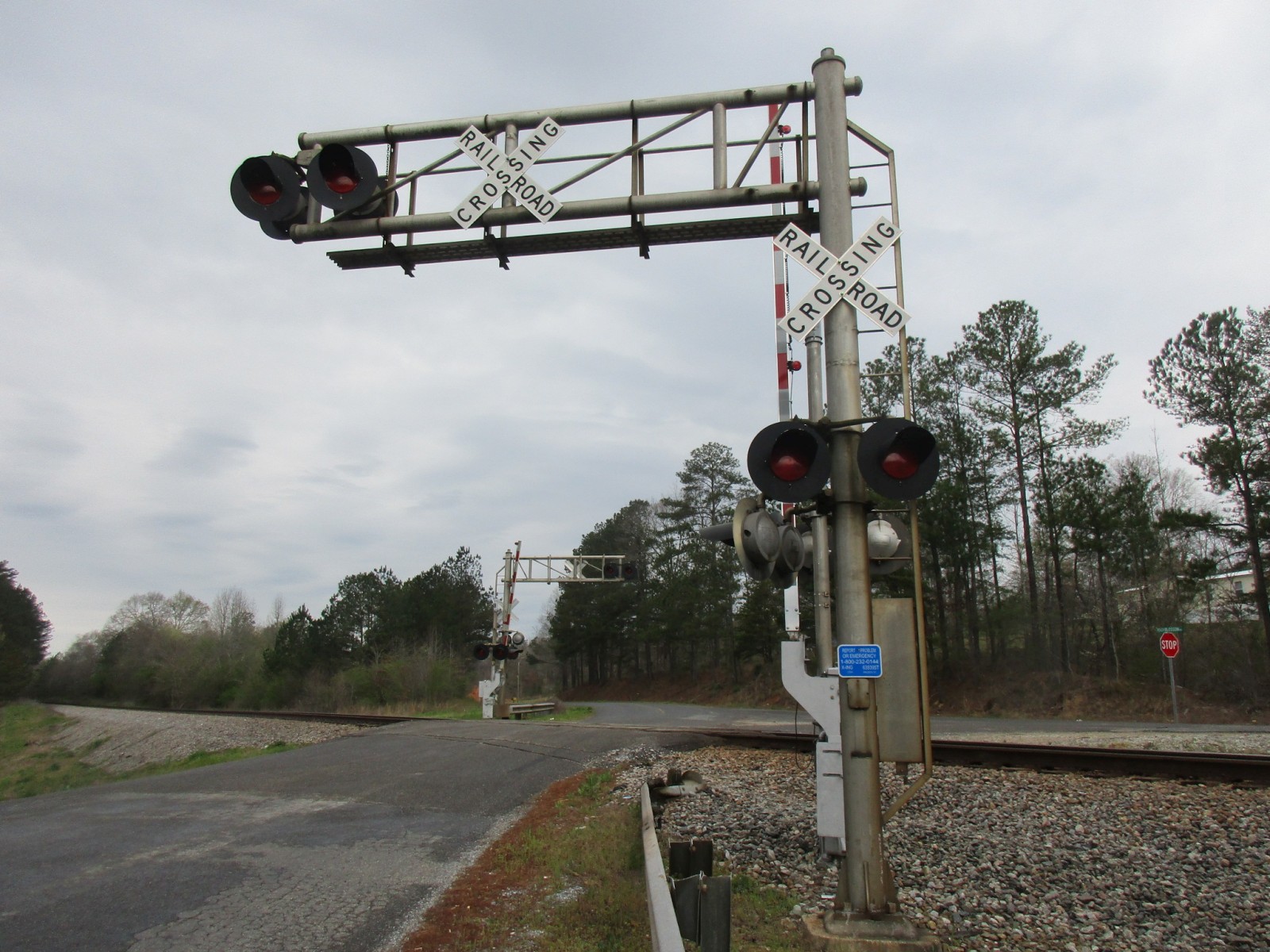

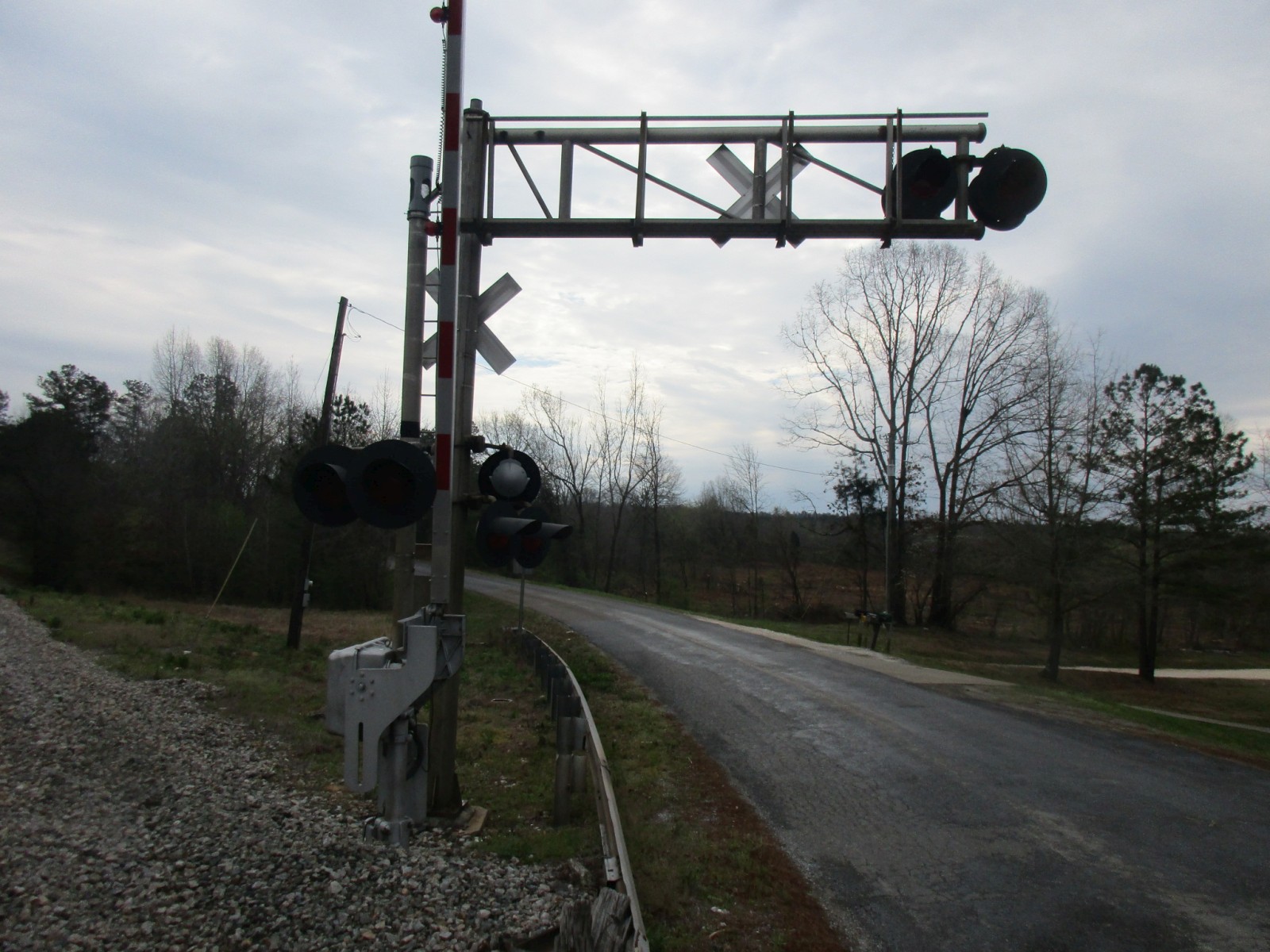

The second signal.
It's another Federal Signal cantilever.

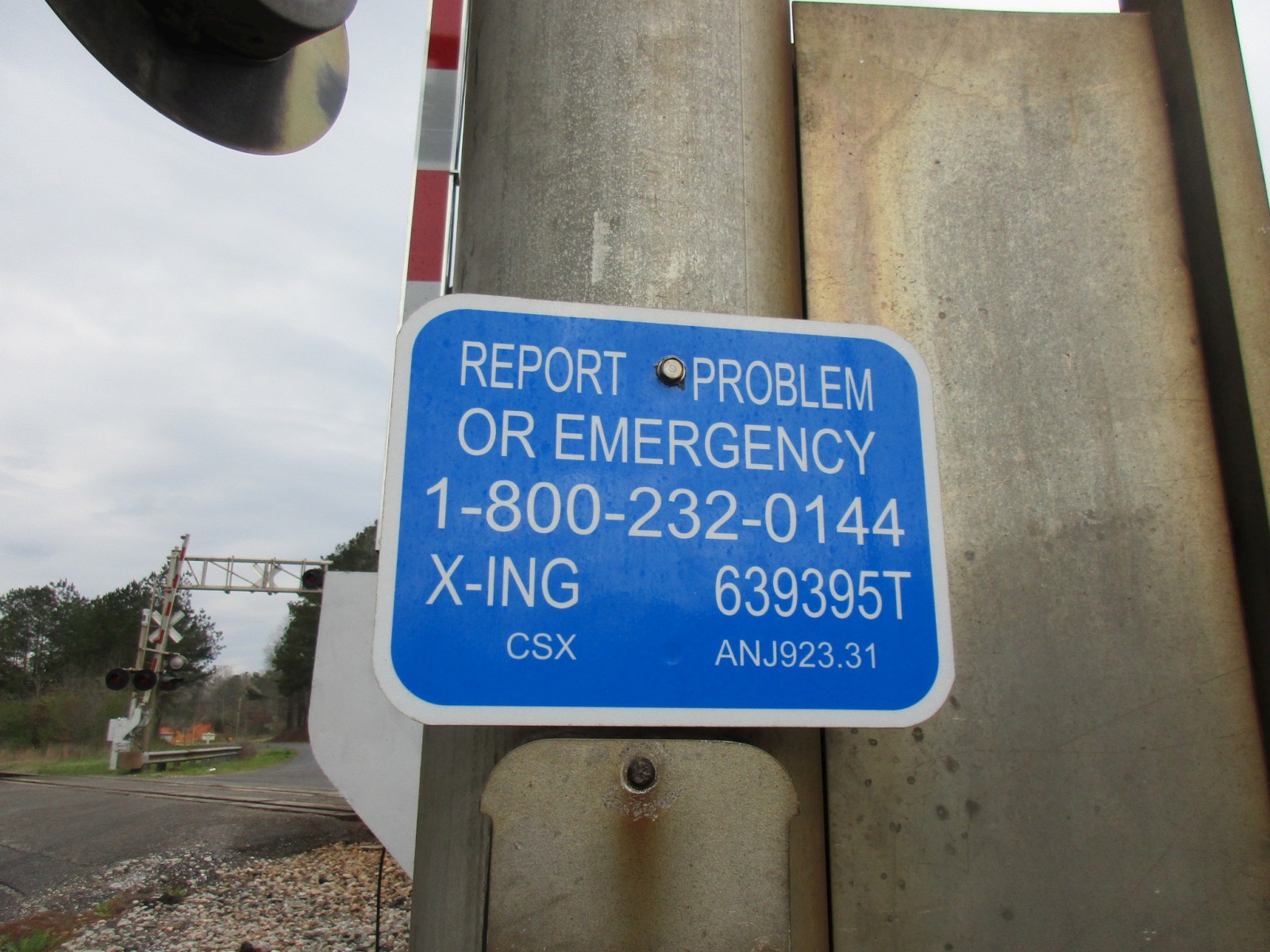

The emergency information.

25

26

27

28

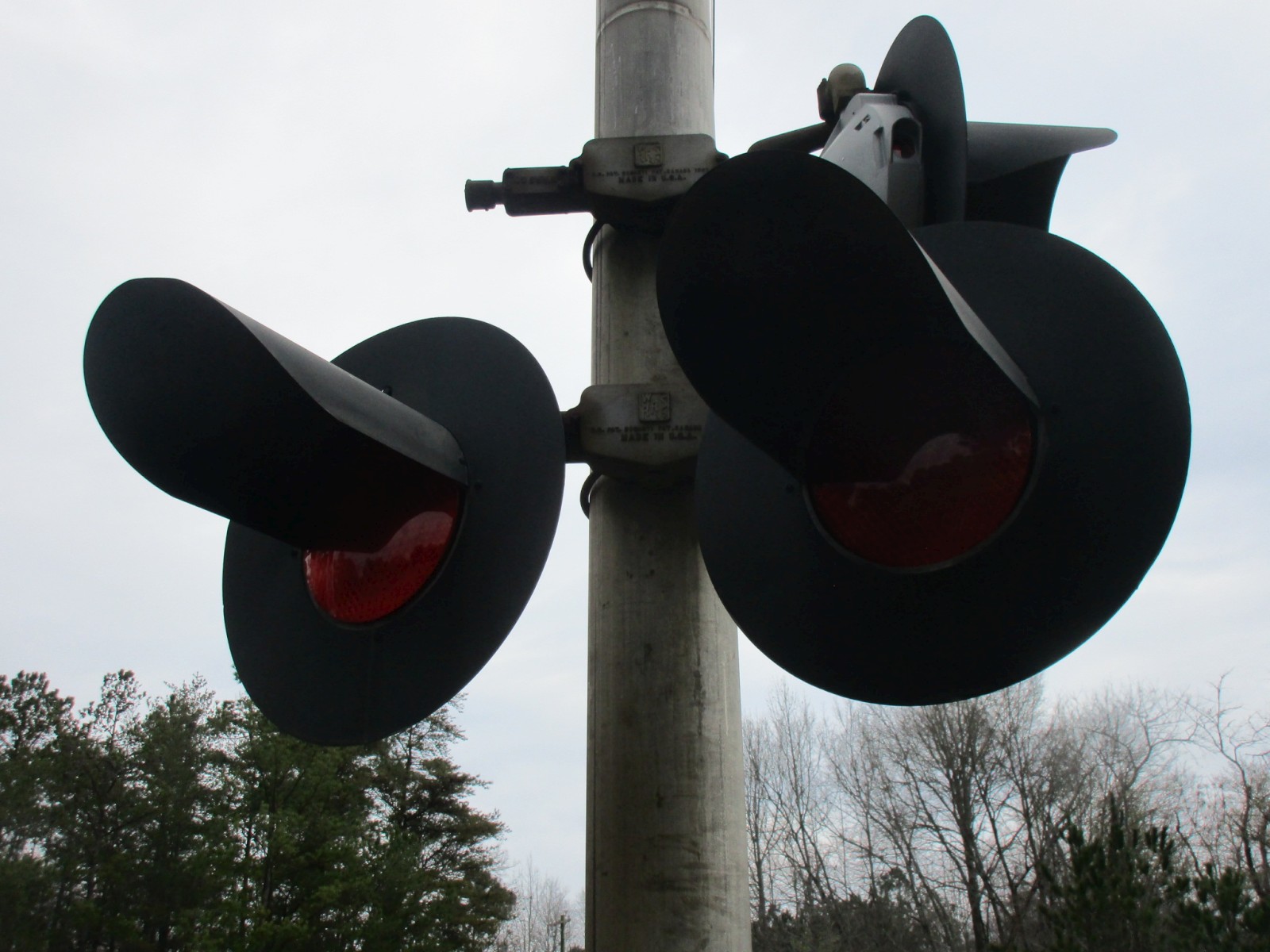

This signal has all 12x24 inch lights.

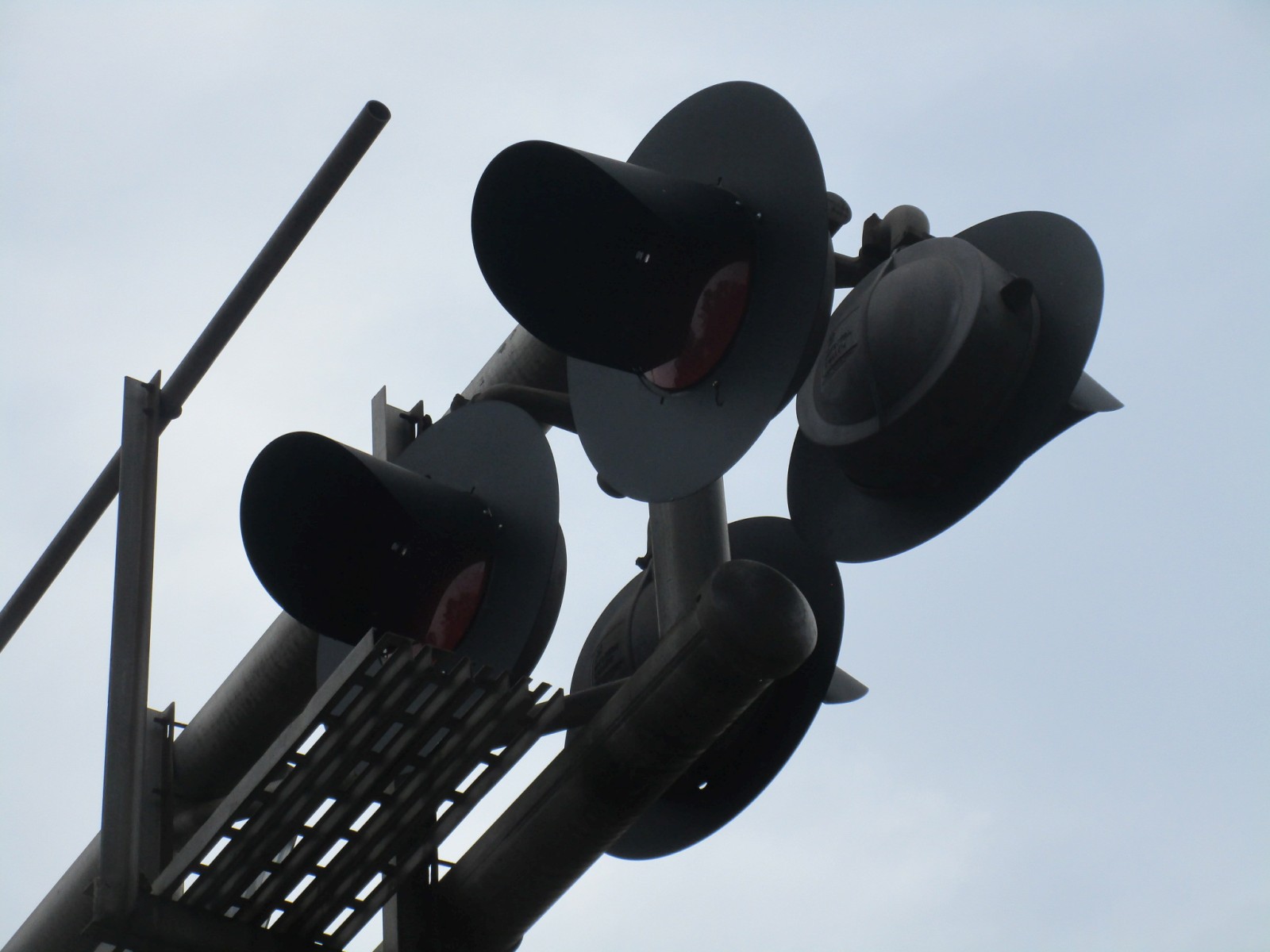

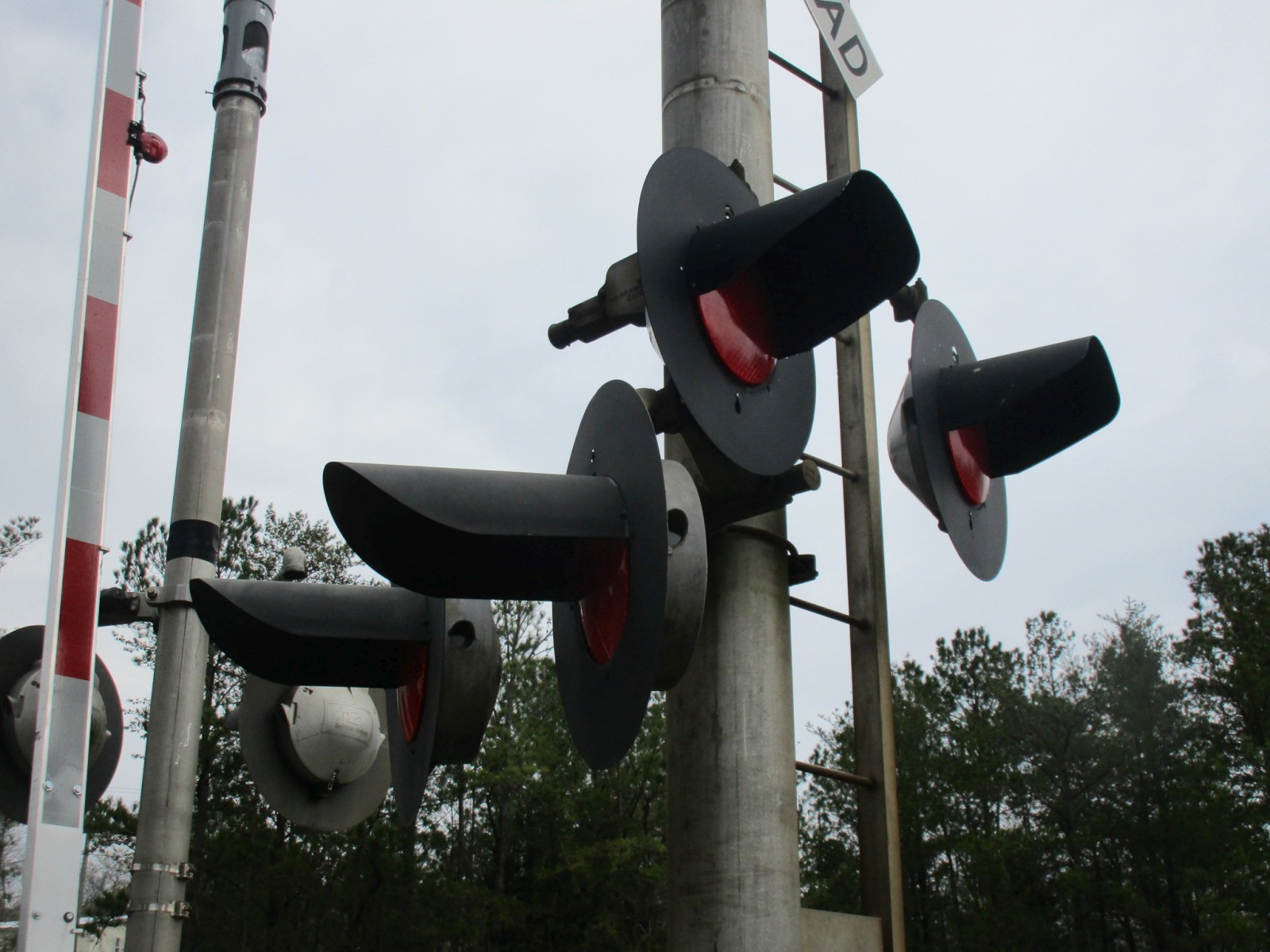

The side lights are one Federal Signal light and one WCH light, both with Dailight Ball LEDs.

29

30

31

32

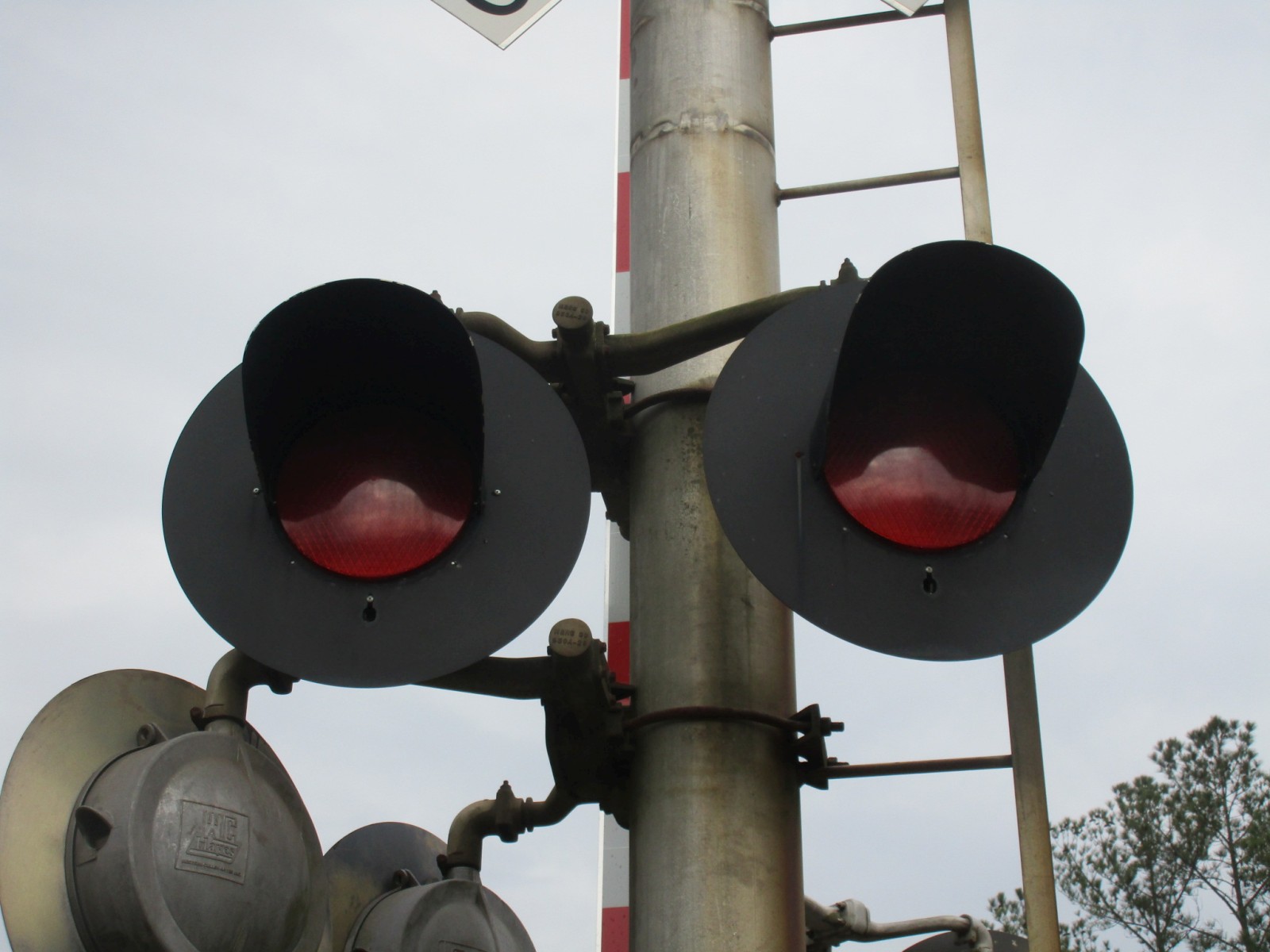

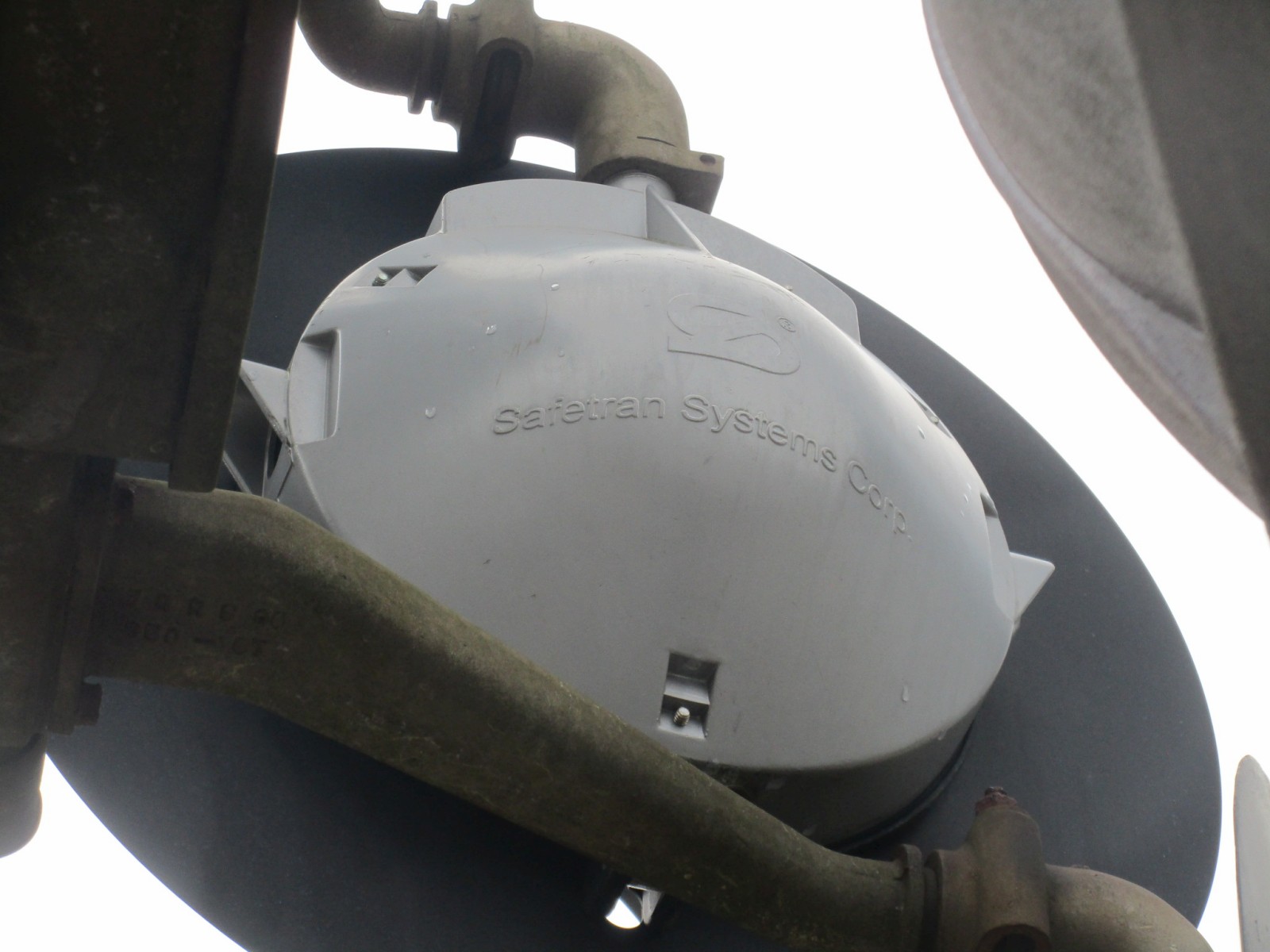

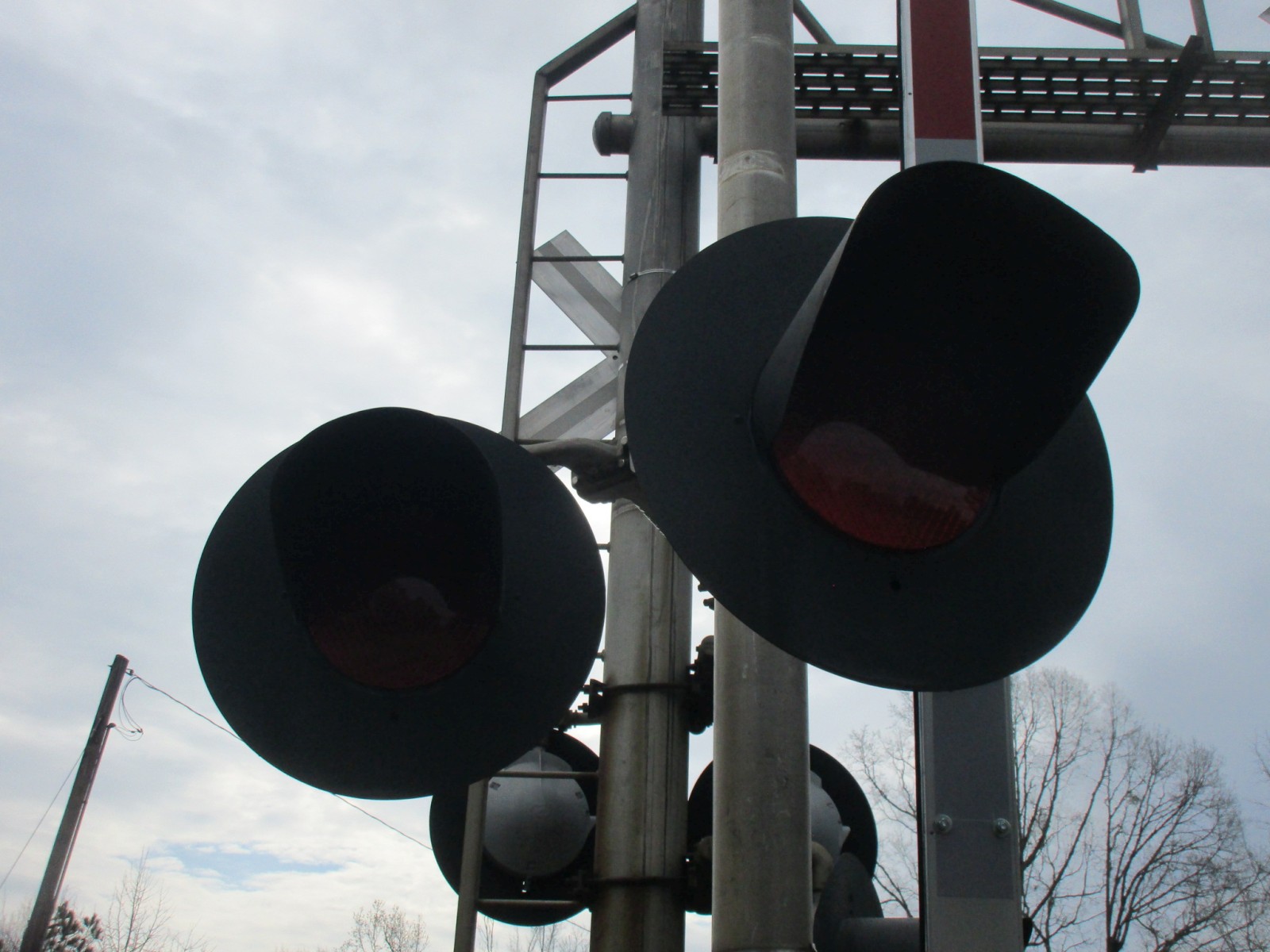

The front mast lights are Safetran 12x24 inch lights wit Dialight Ball LEDs.

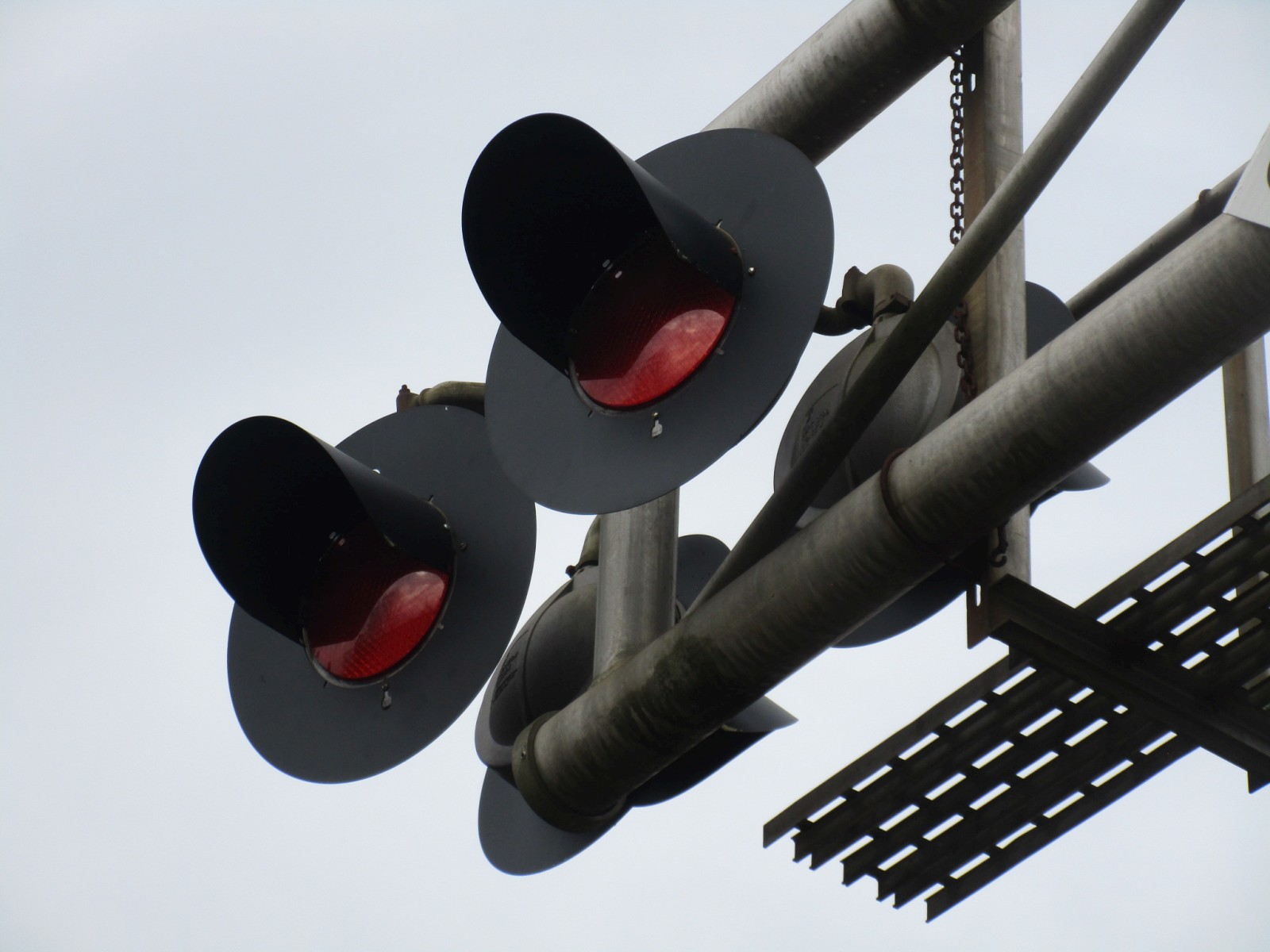

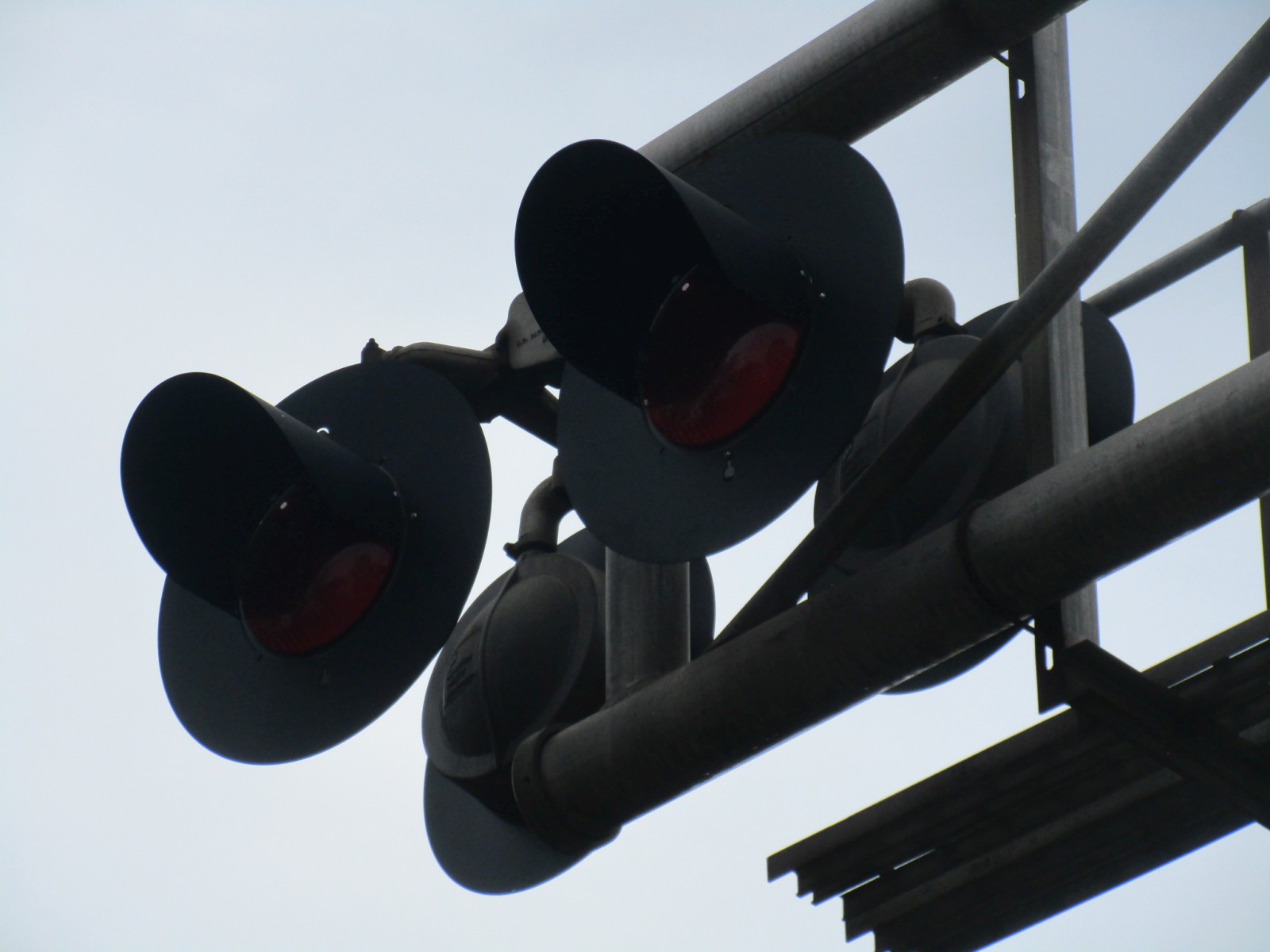

The overhead lights are all Federal Signal 12x24 inch lights with Dailight Ball LEDs.

33

34

35

36

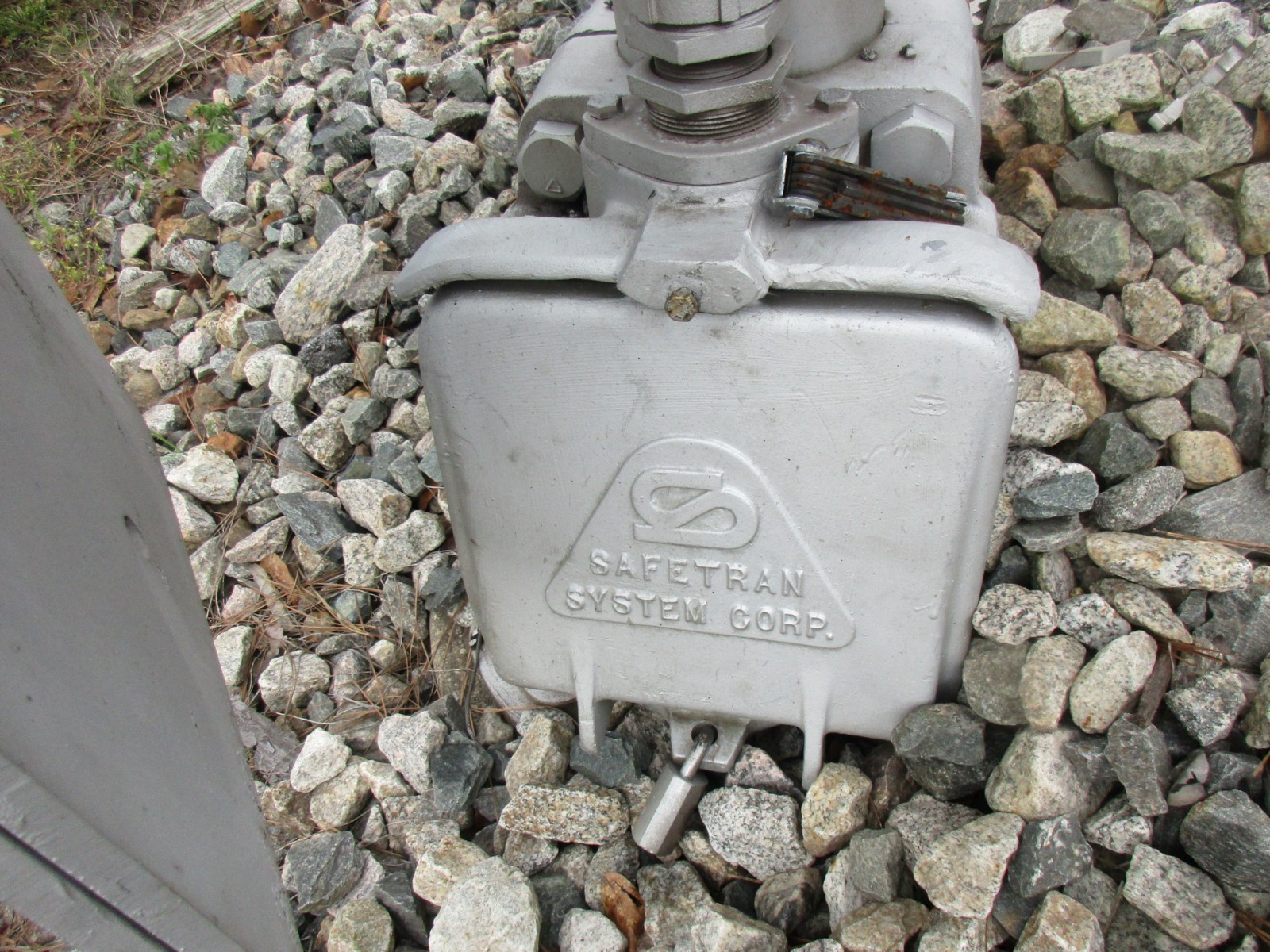

An older Safetran base.

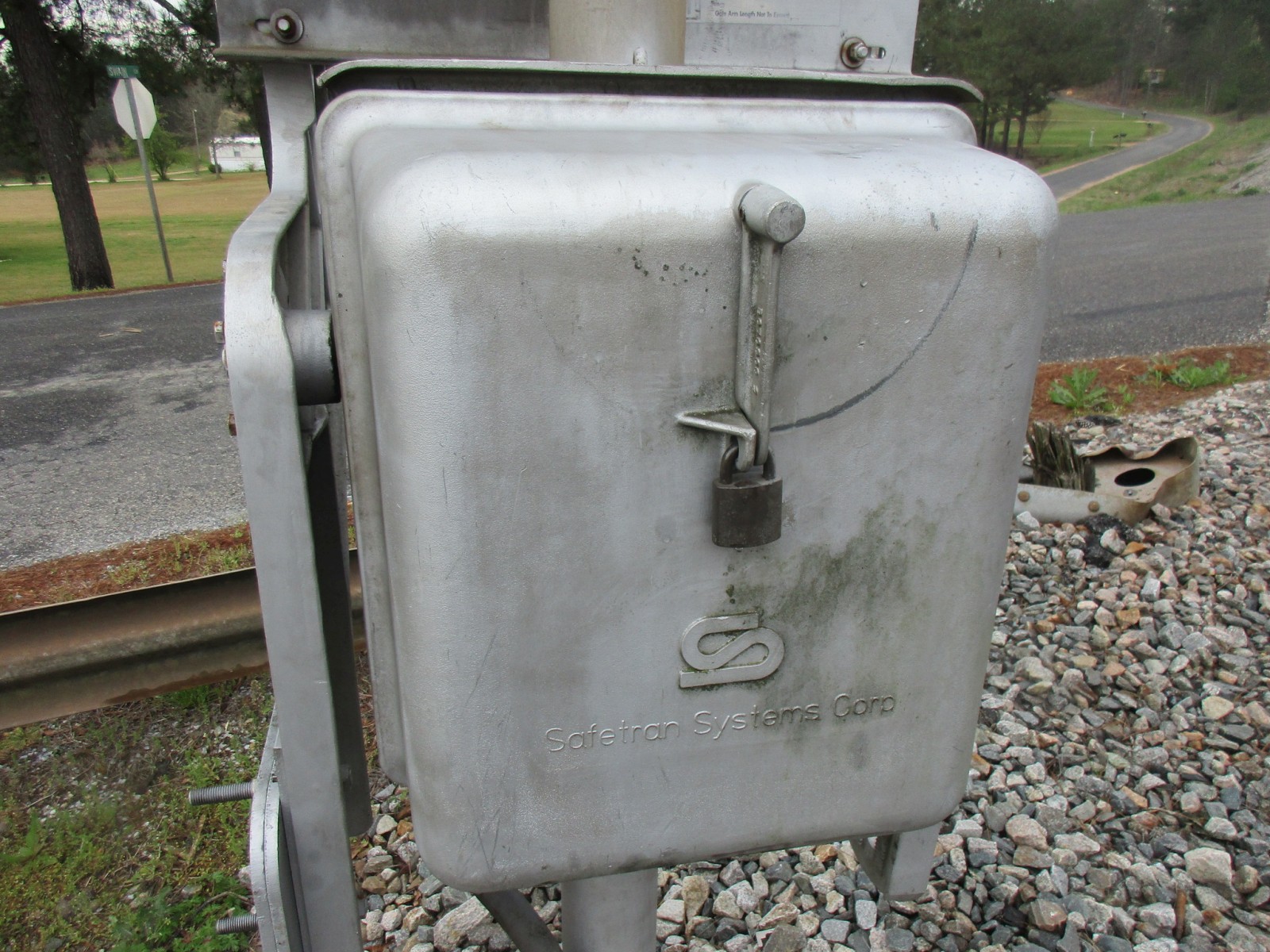

A Safetran gate mechanism.

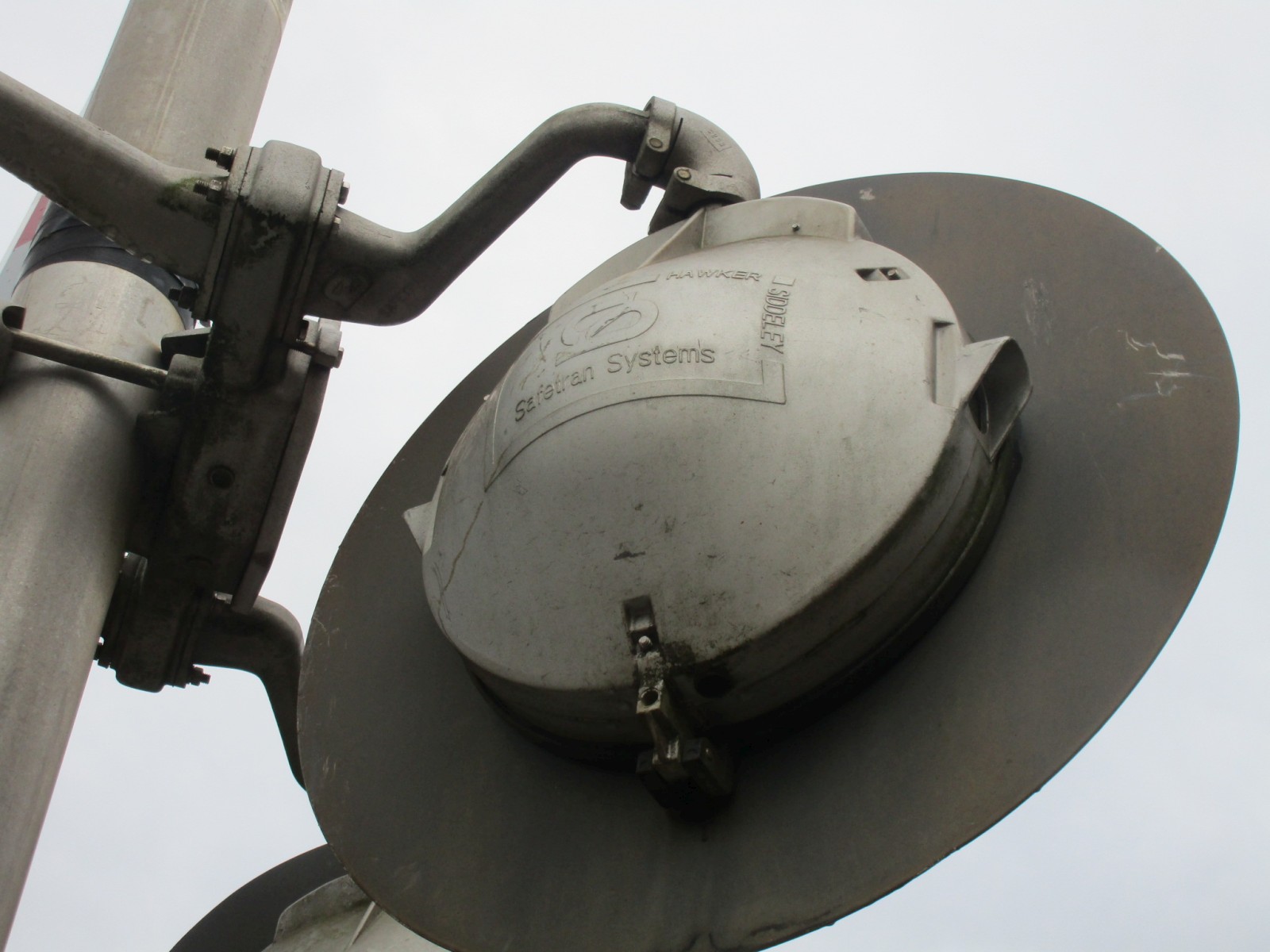

The rear lights are another pair of Safetran 12x24 inch lights with Dialight Ball LEDs.

37

38

39

40

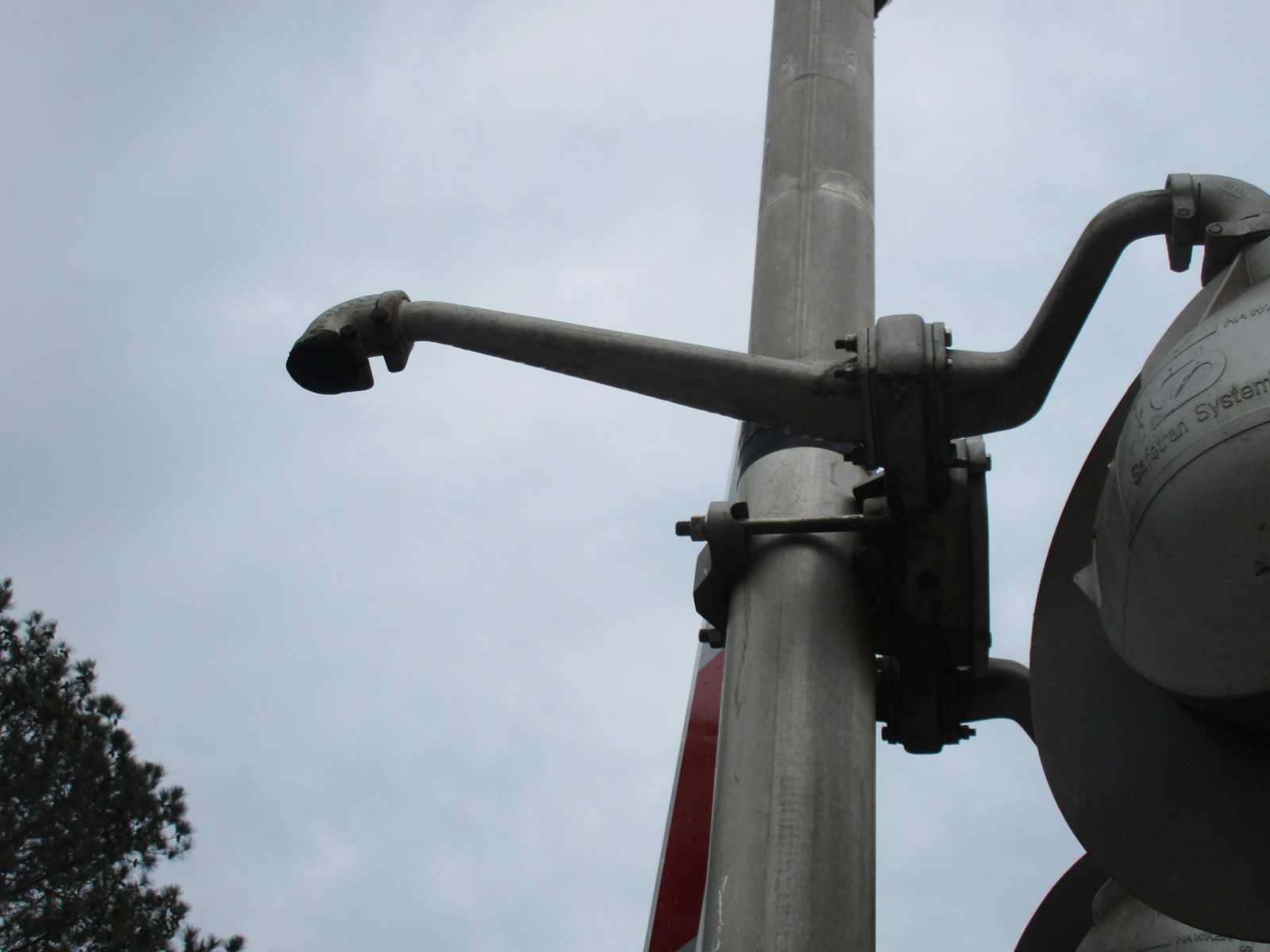

An un-used light mount.

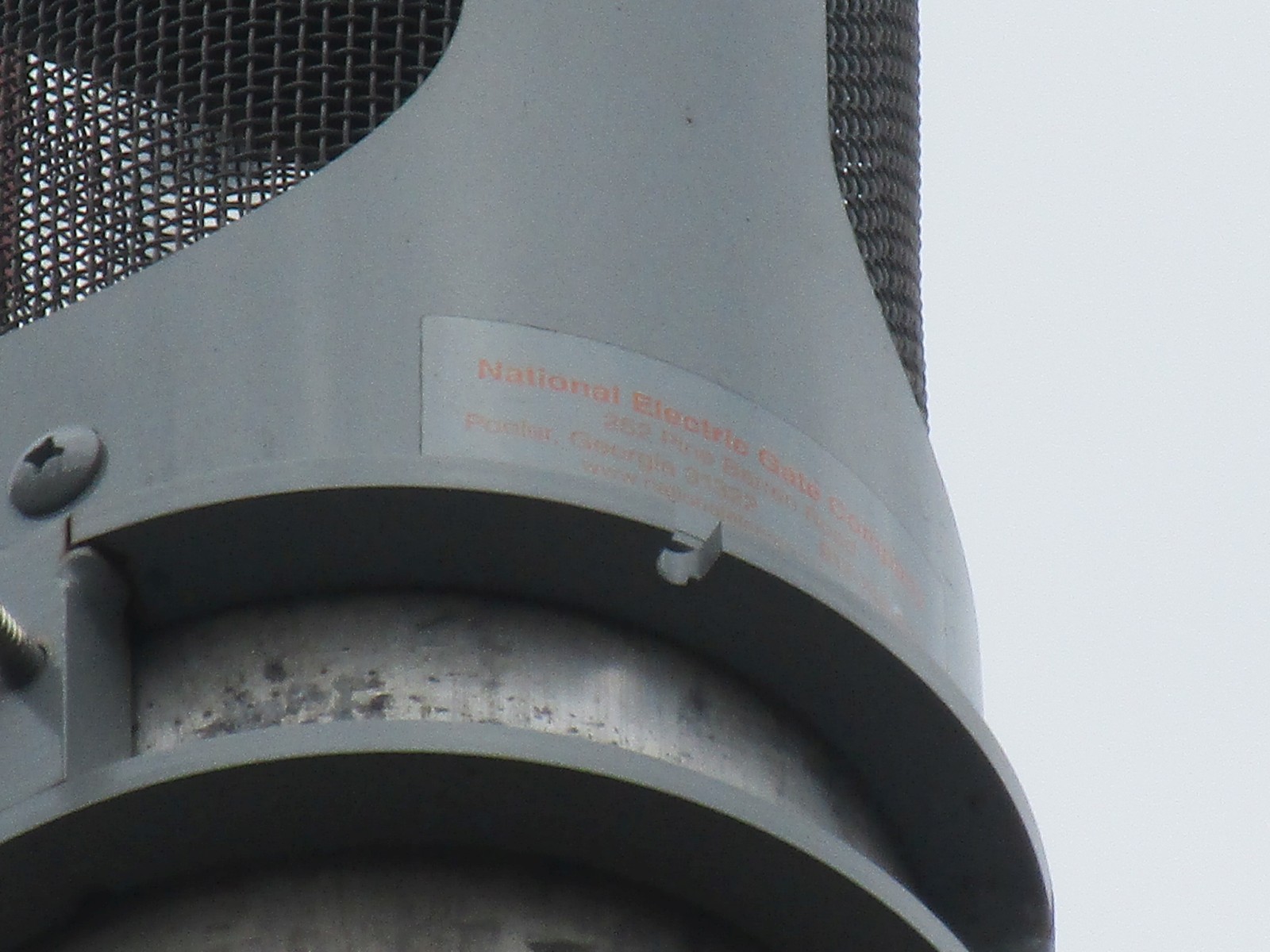

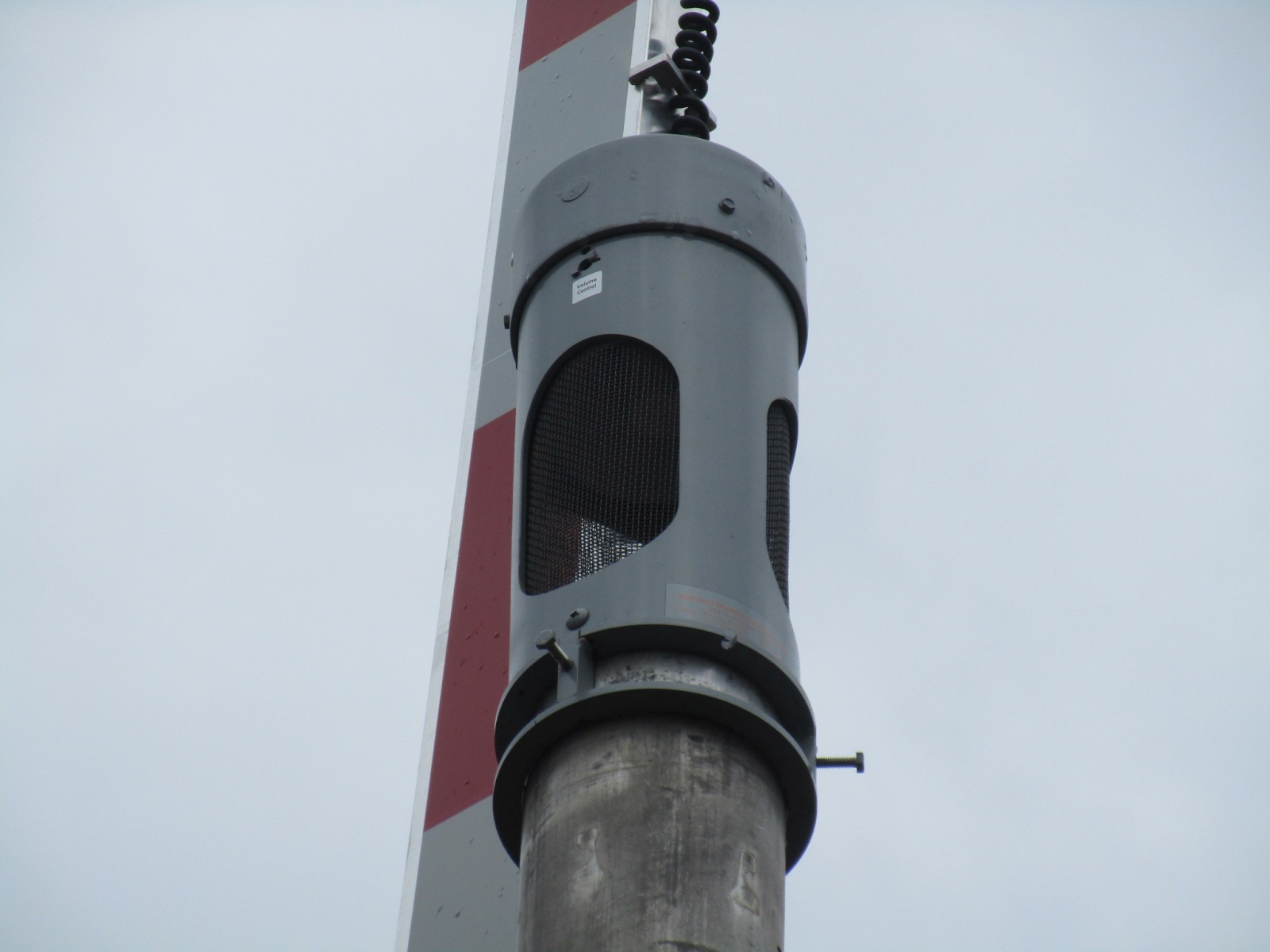

This signal has an NEG electronic bell.

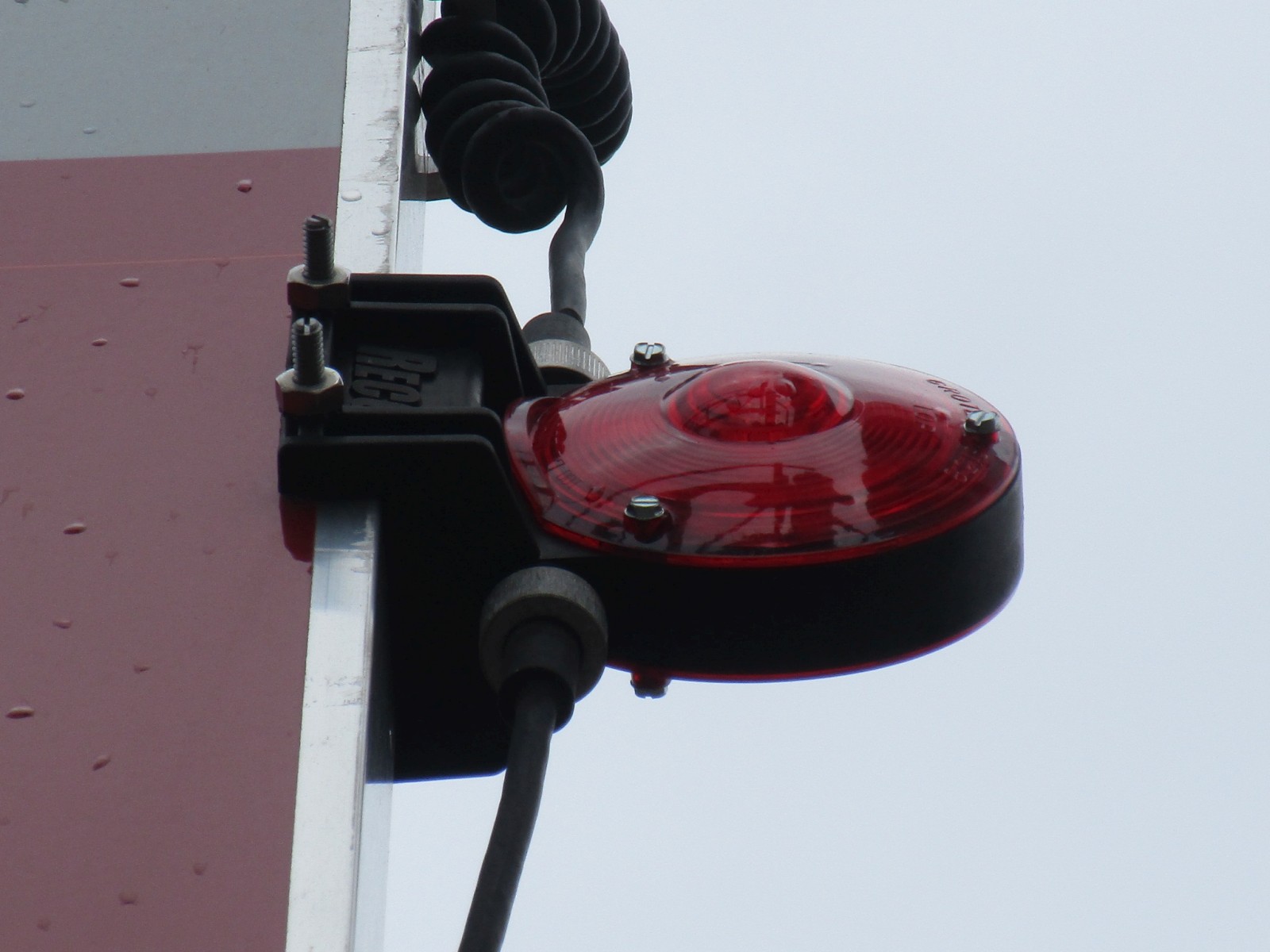

More RECO LED gate lights here.

41

42

43

44

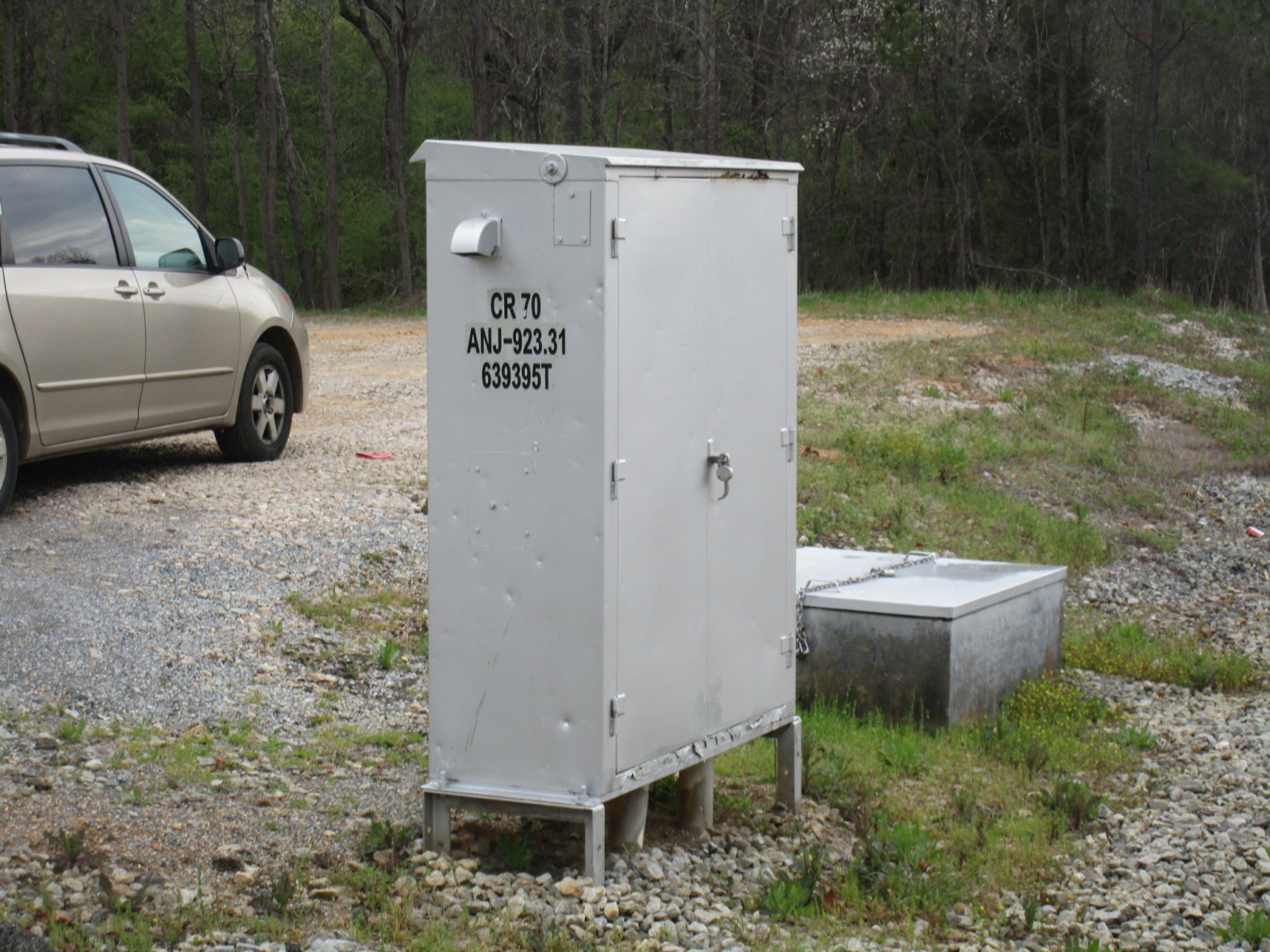

The relay case.

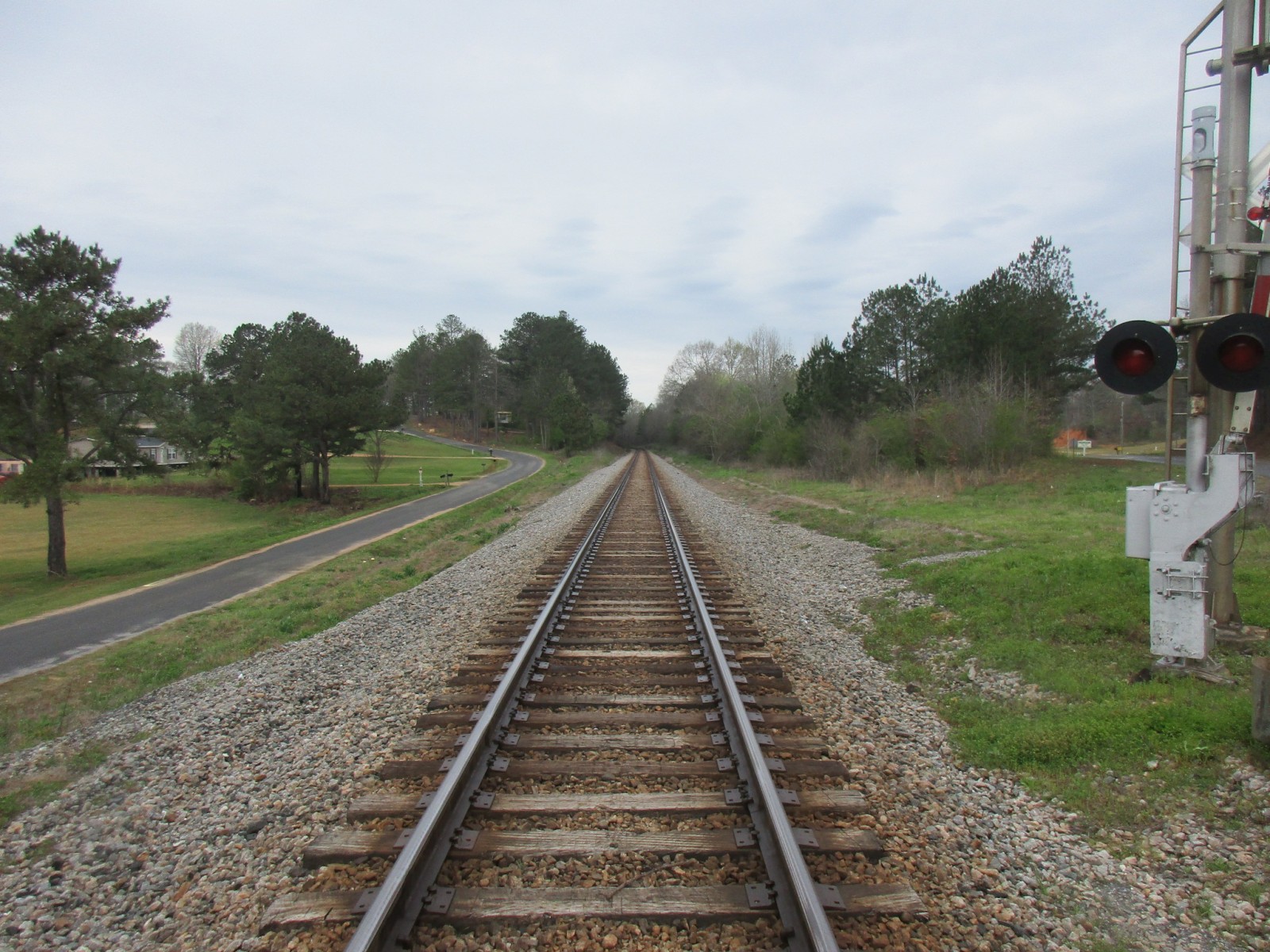

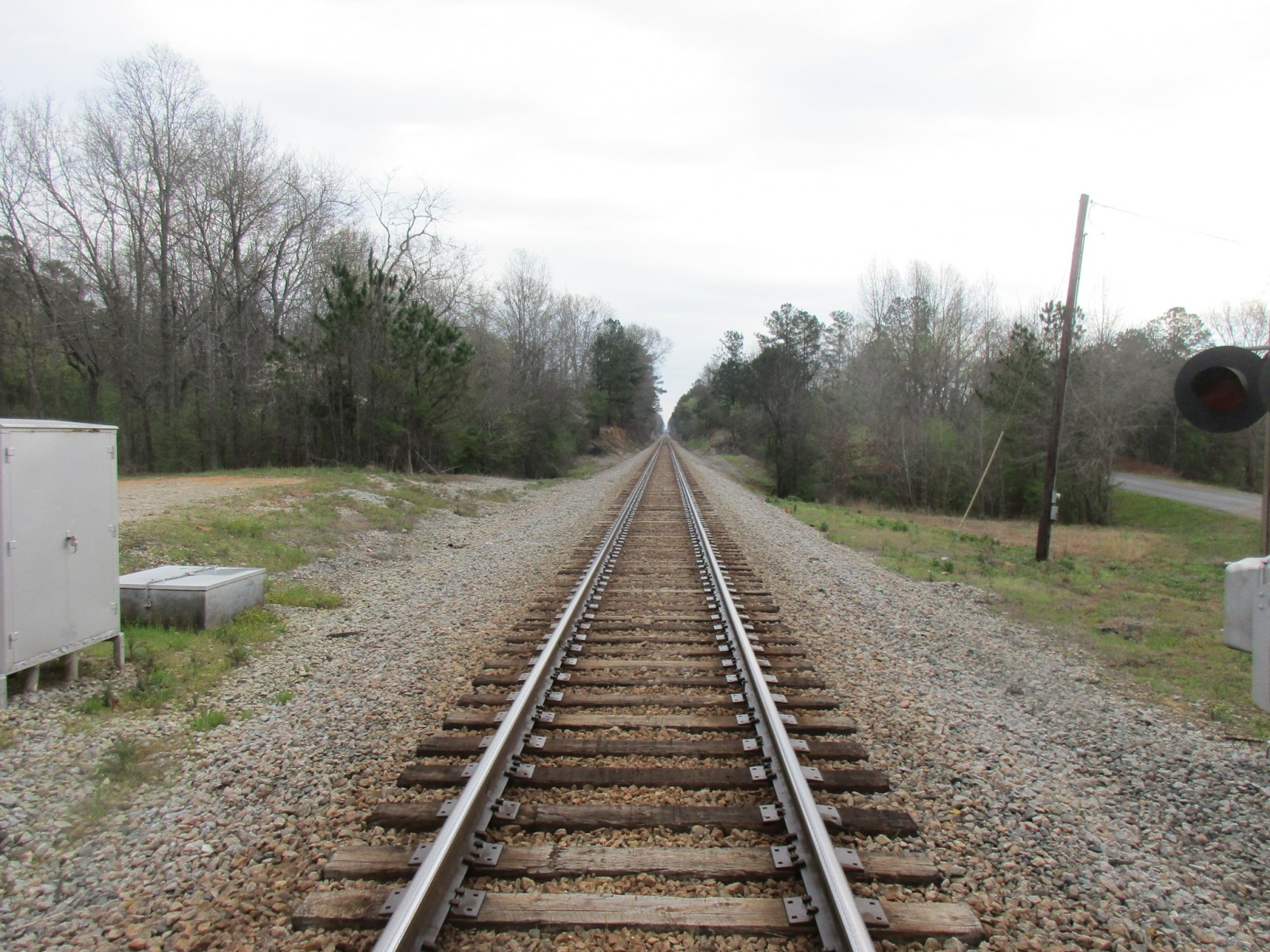

Track view looking west towards Garrett Drive.
Track view looking east towards Logan Martin Dam Road.

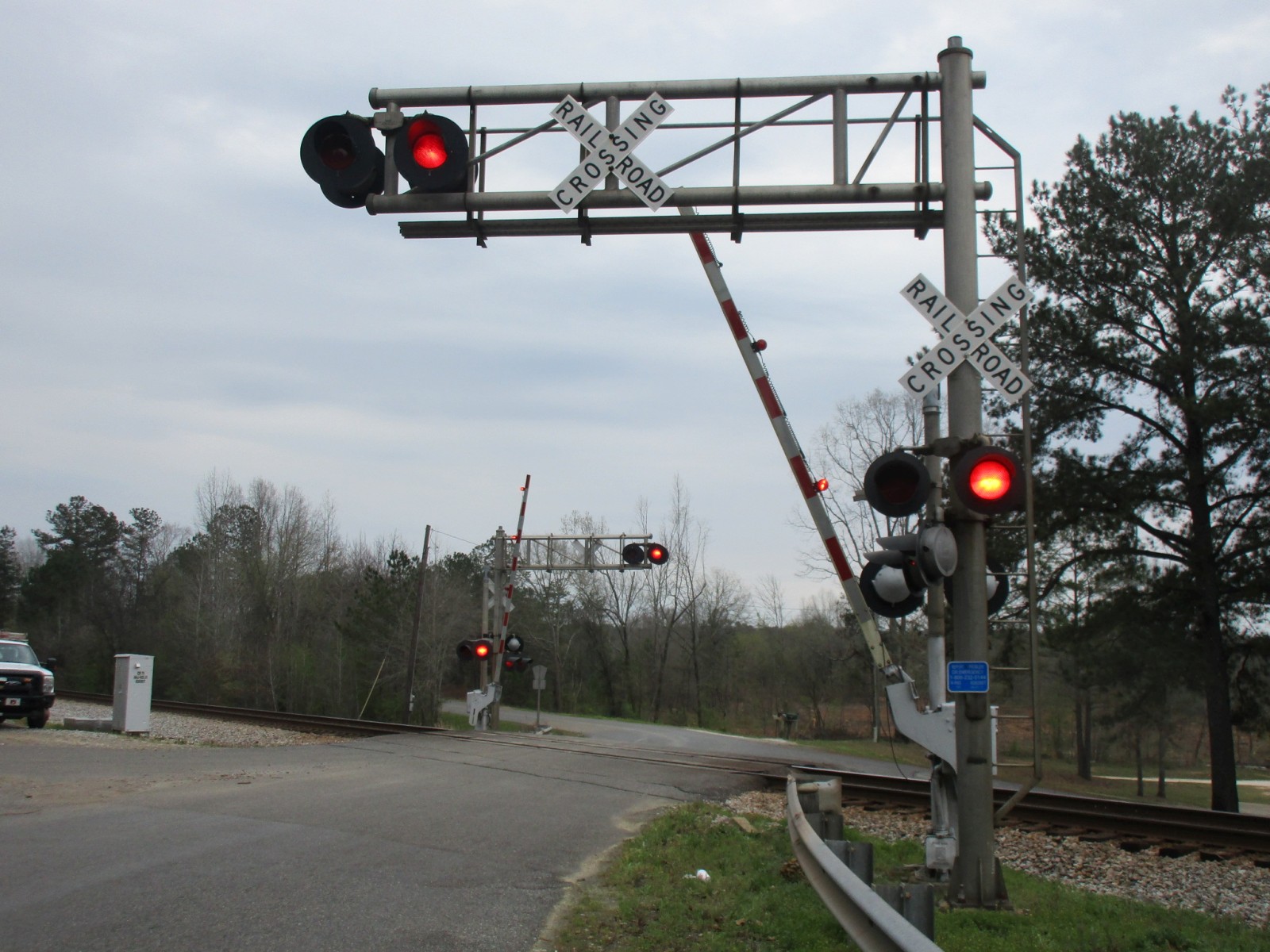

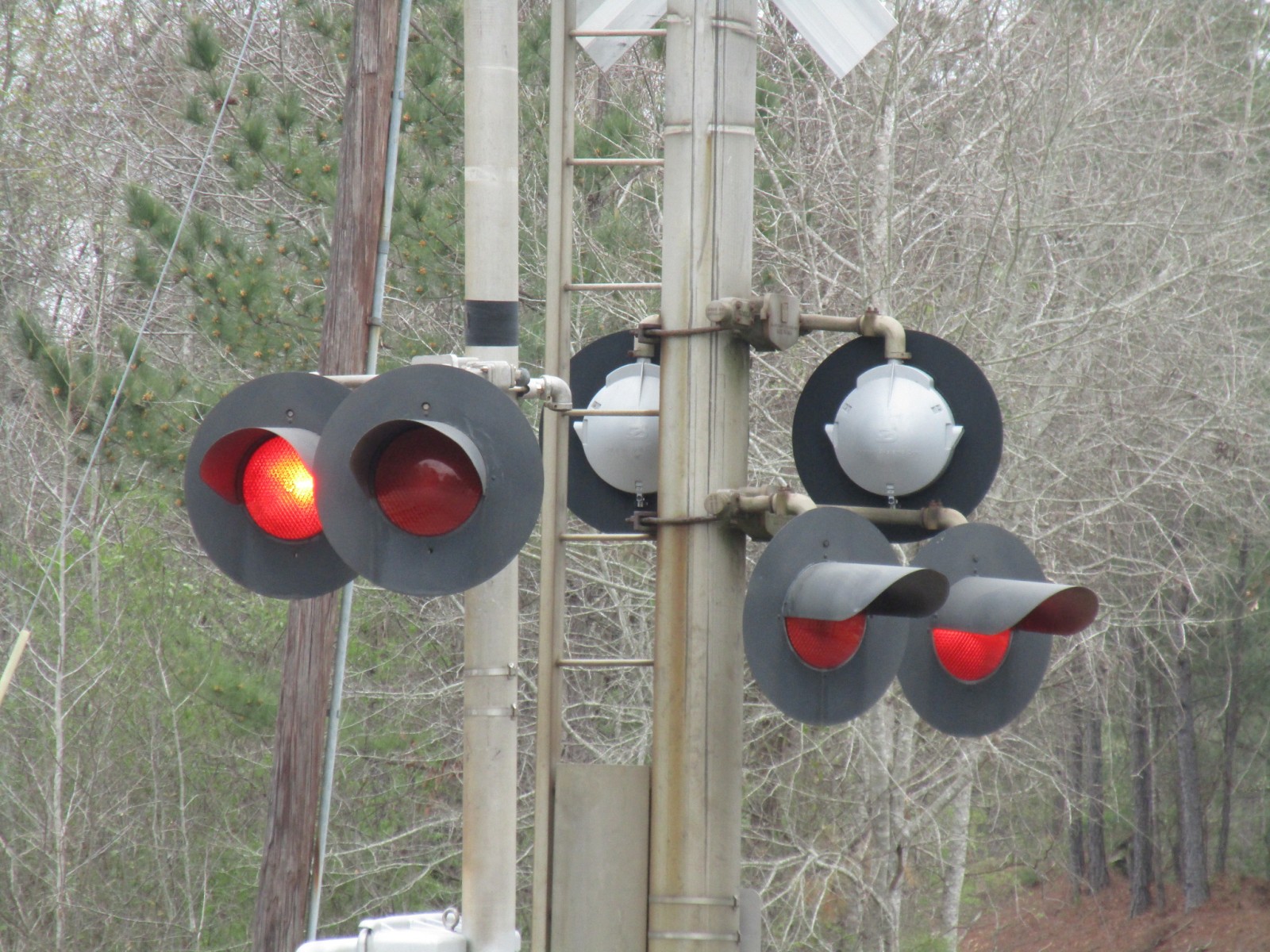

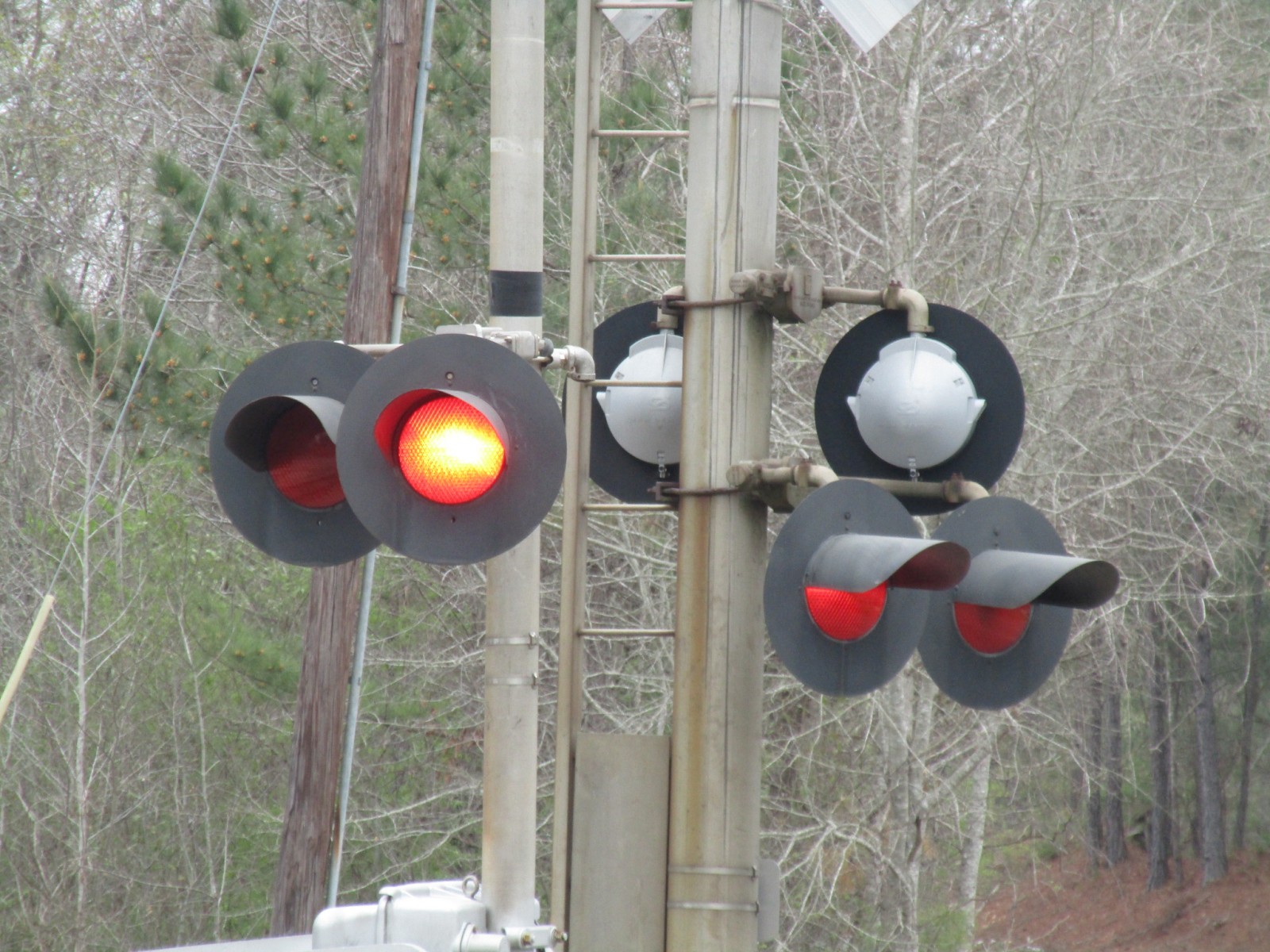

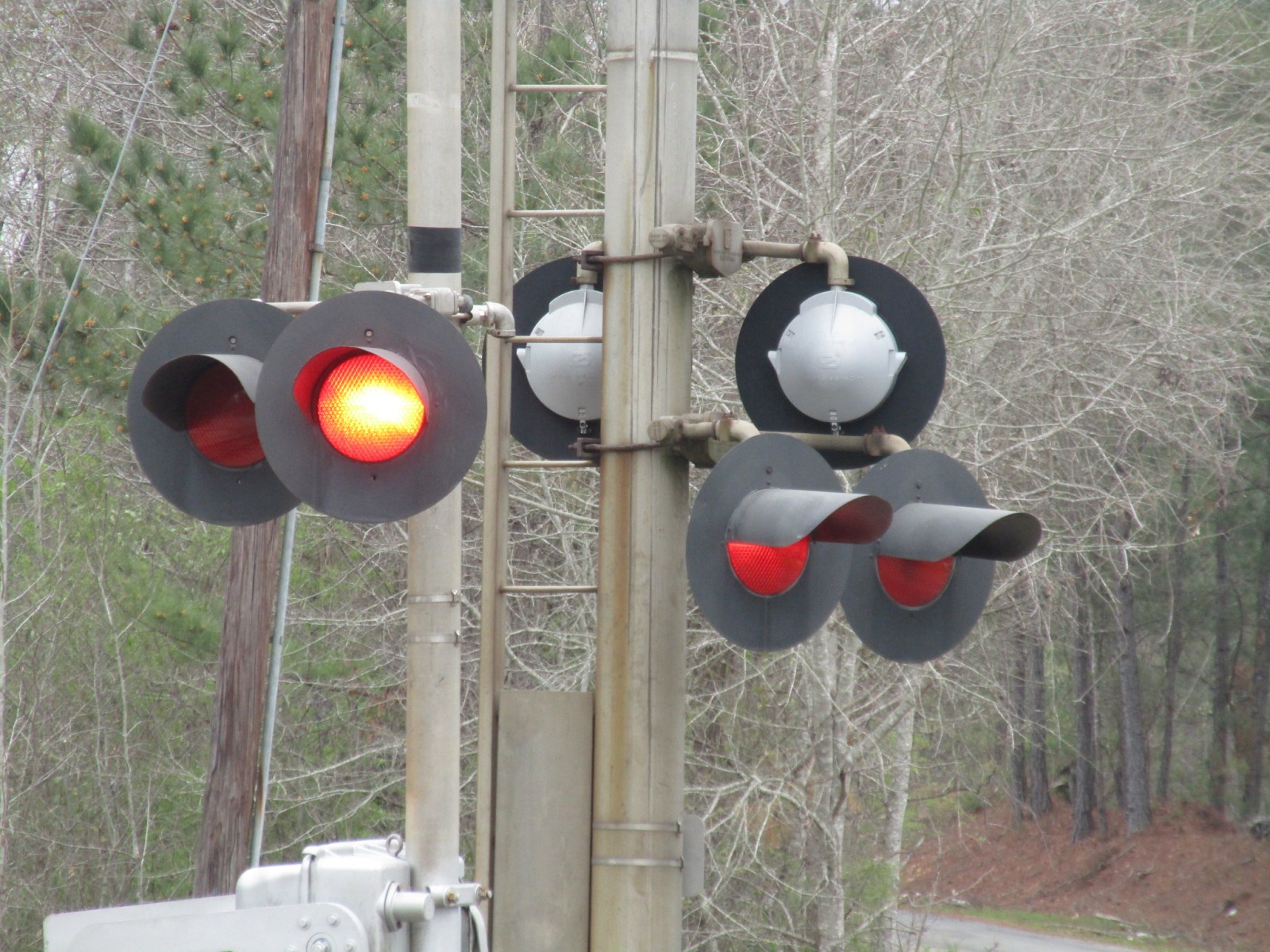

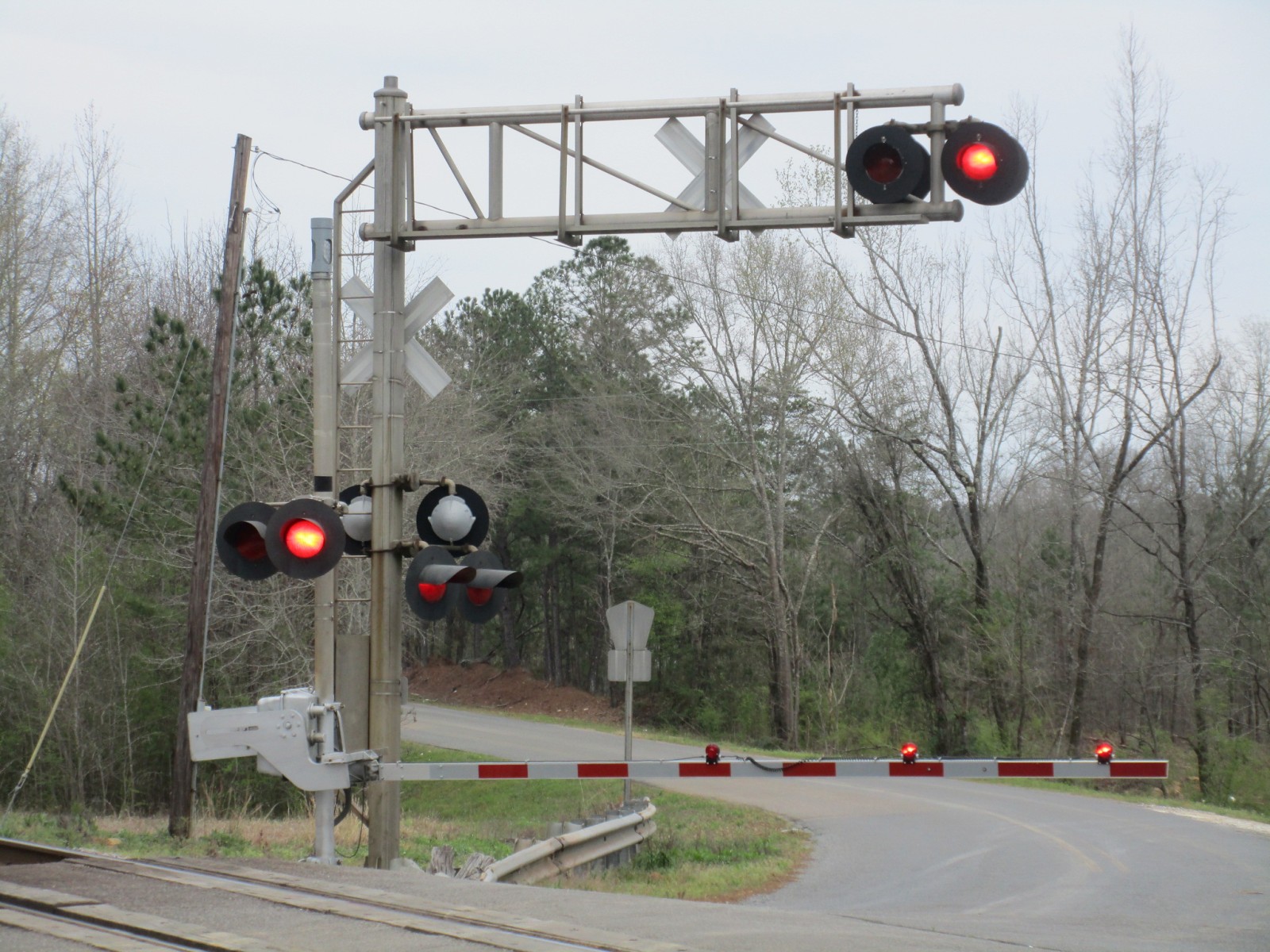

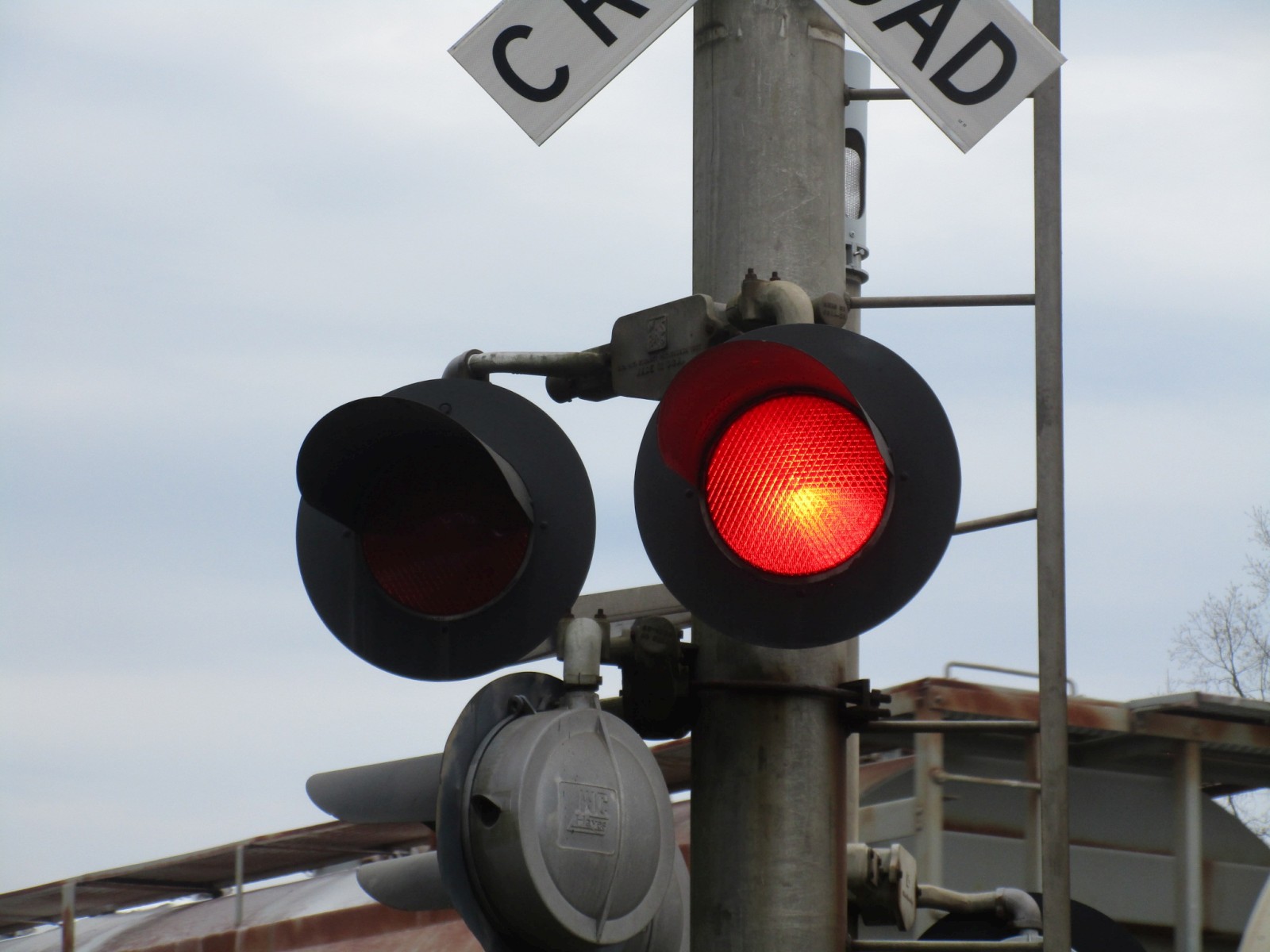

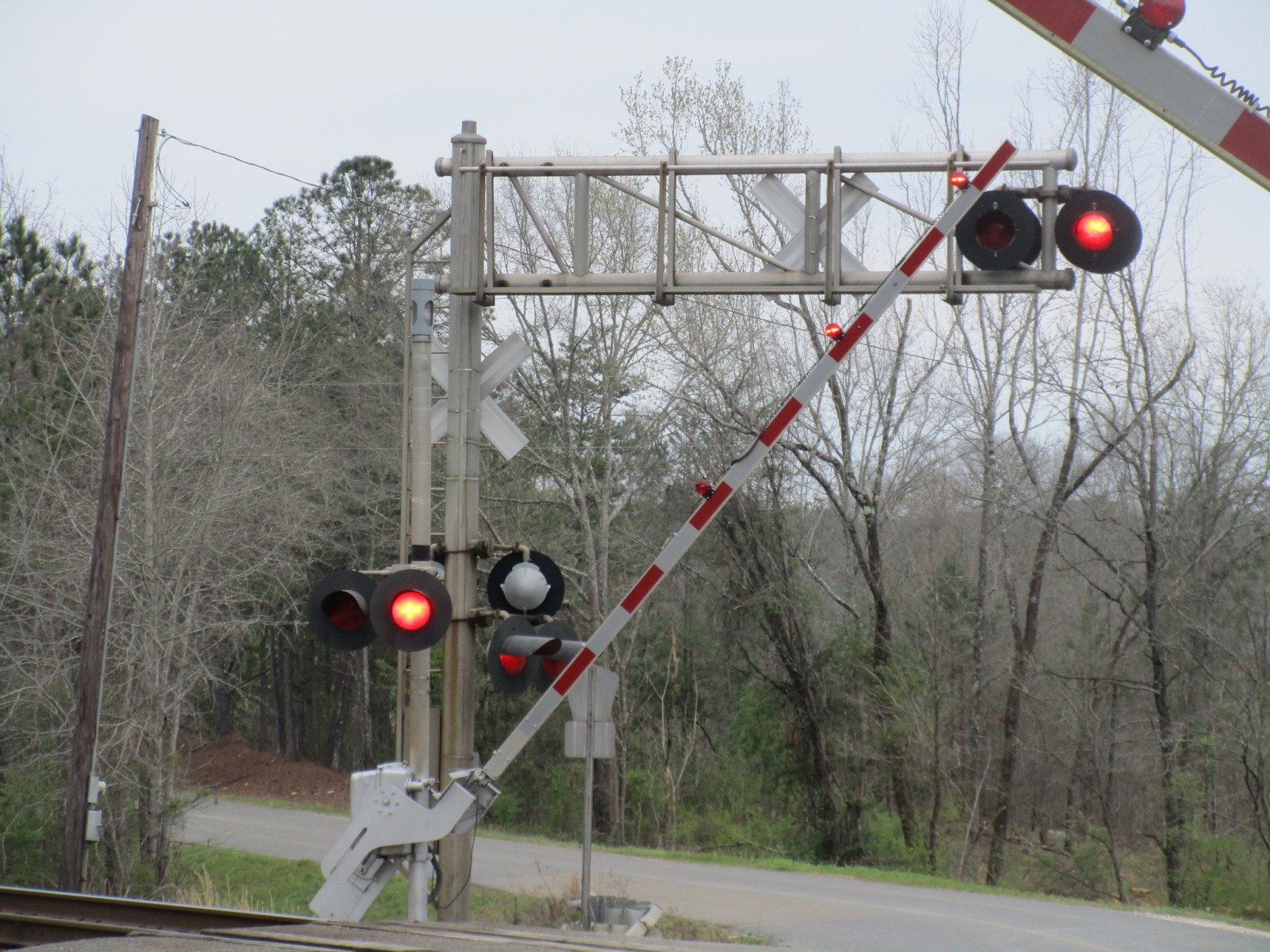

The crossing activates!

45

46

47

48

49

50

51

52

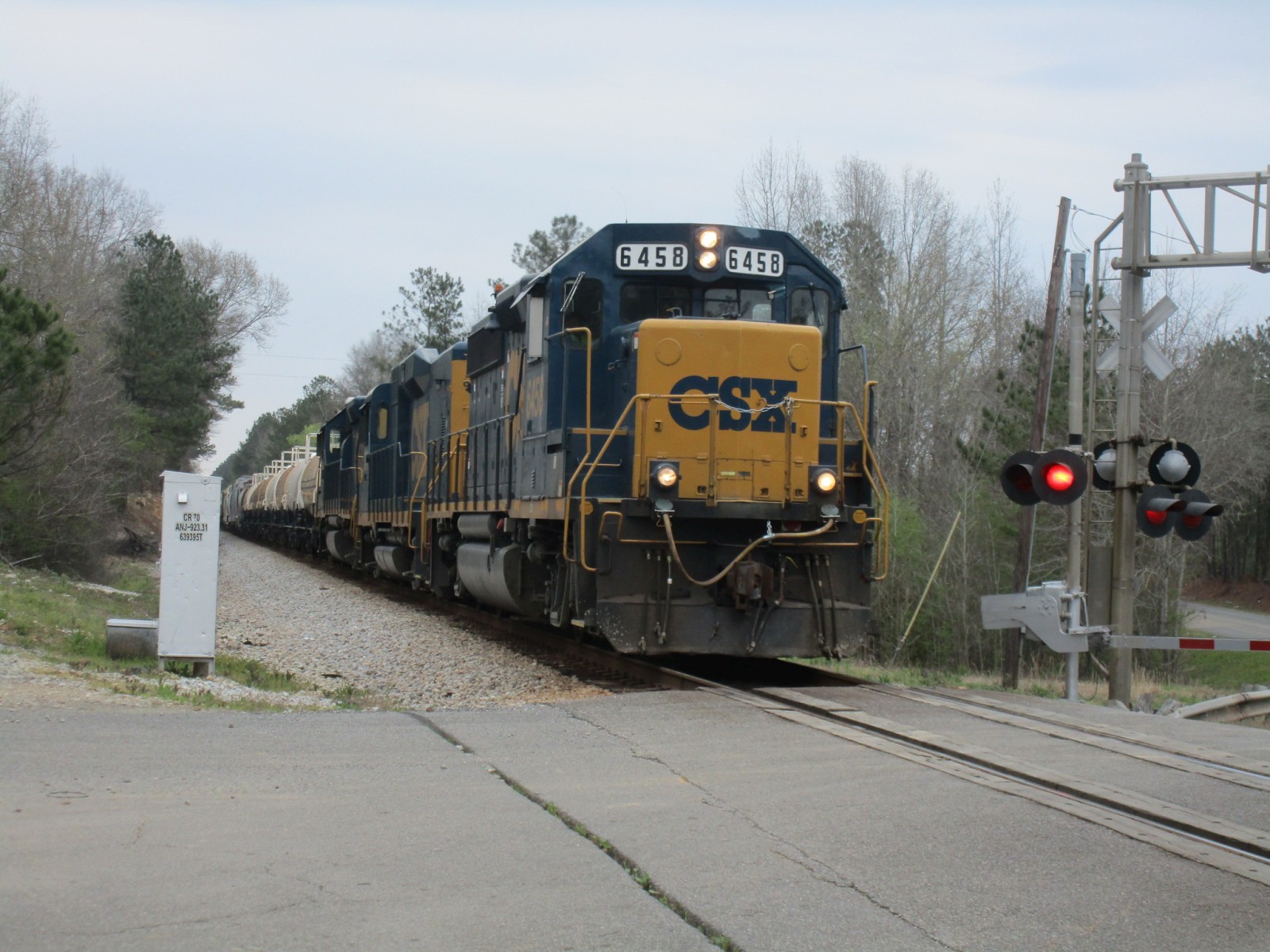

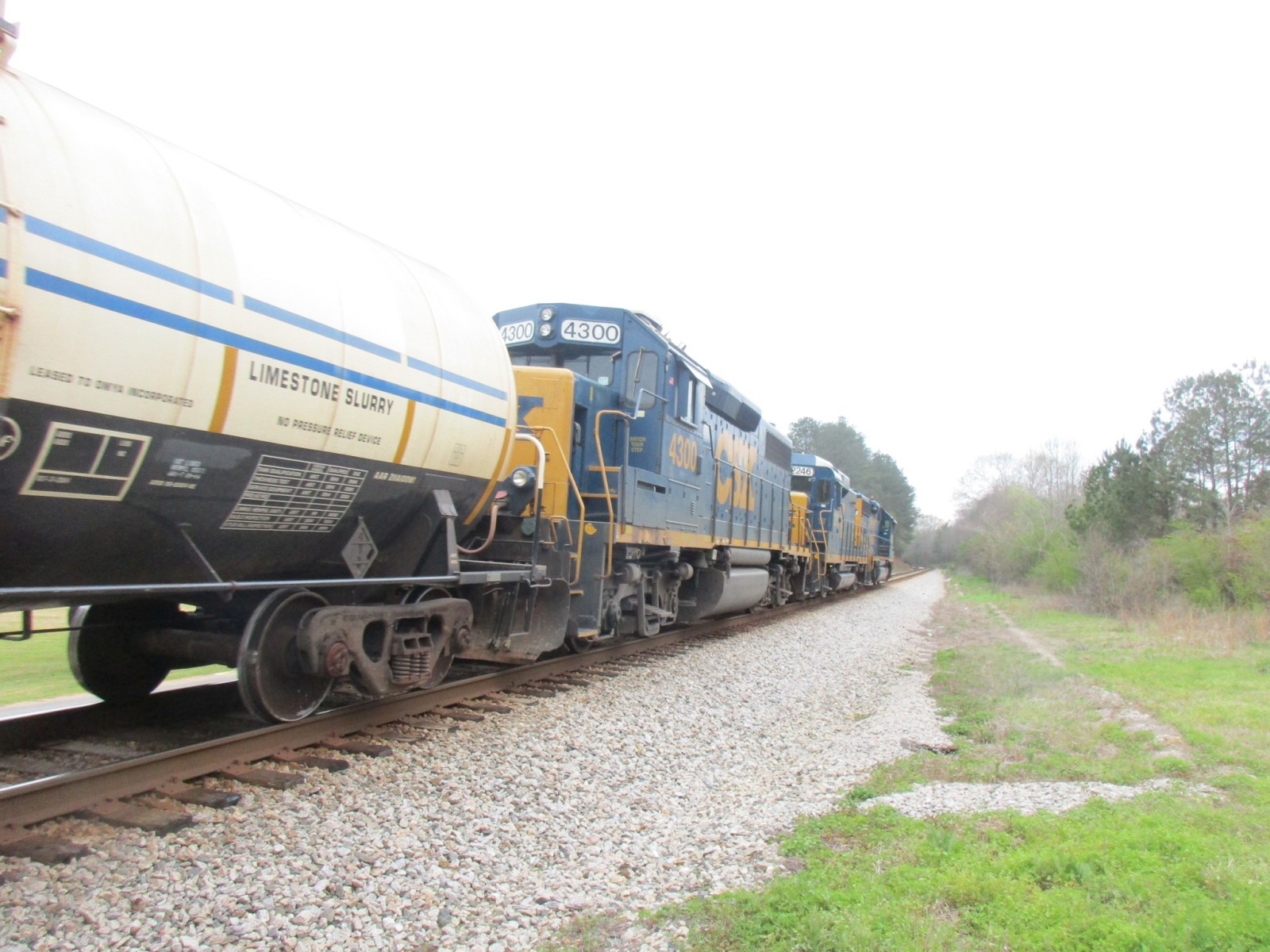

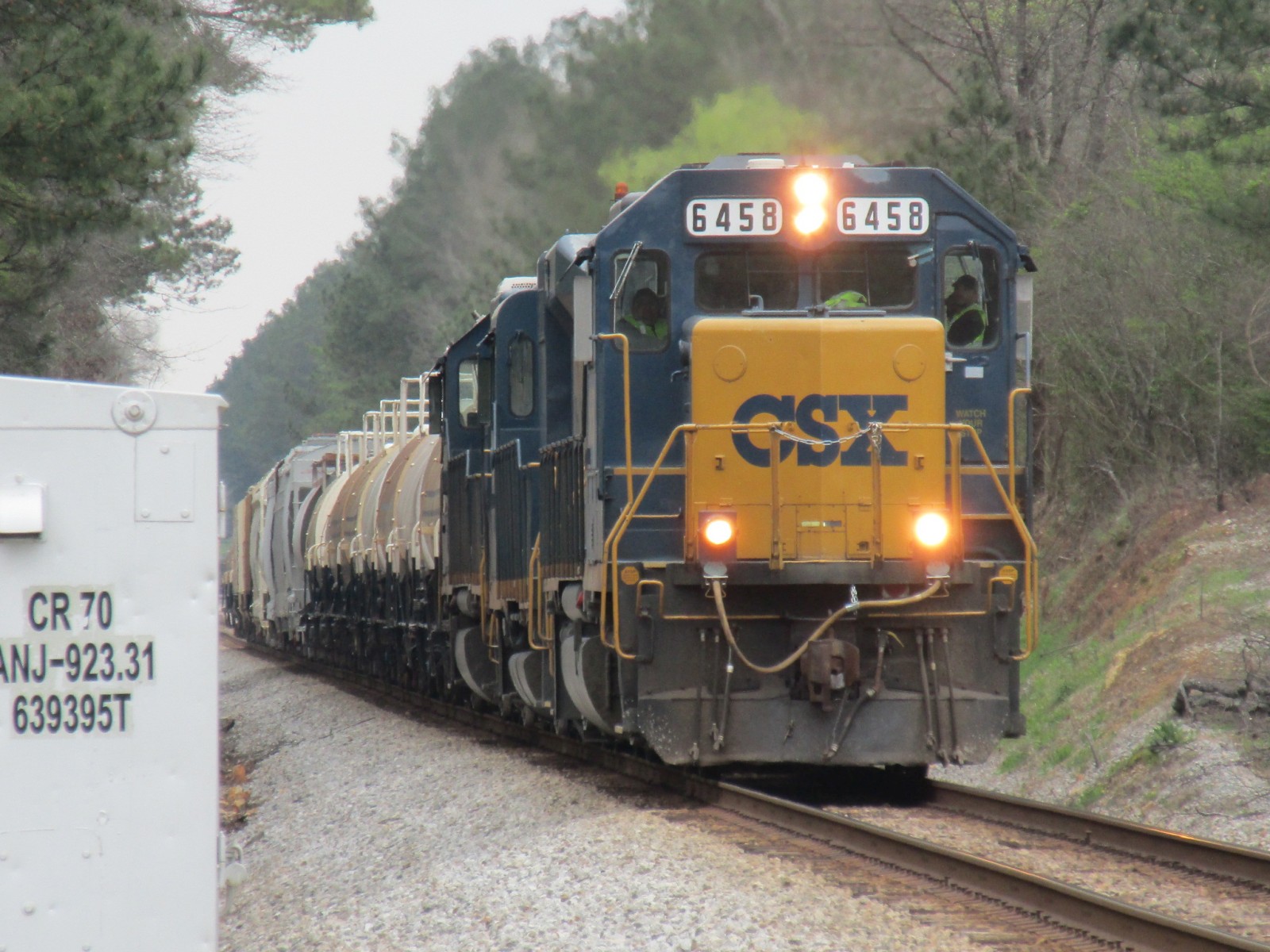

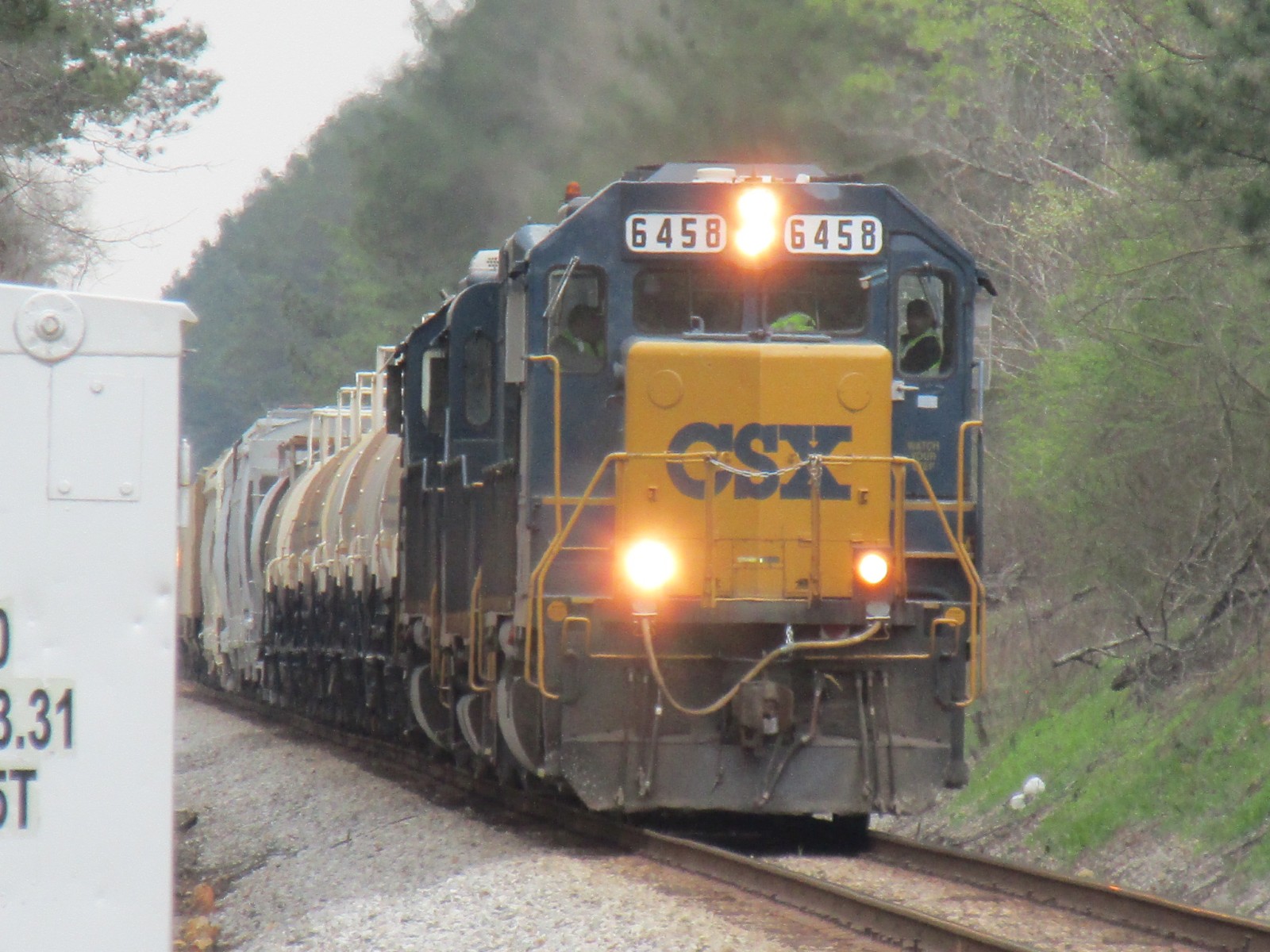

CSX A714 comes through with three engines.

53

54

55

56

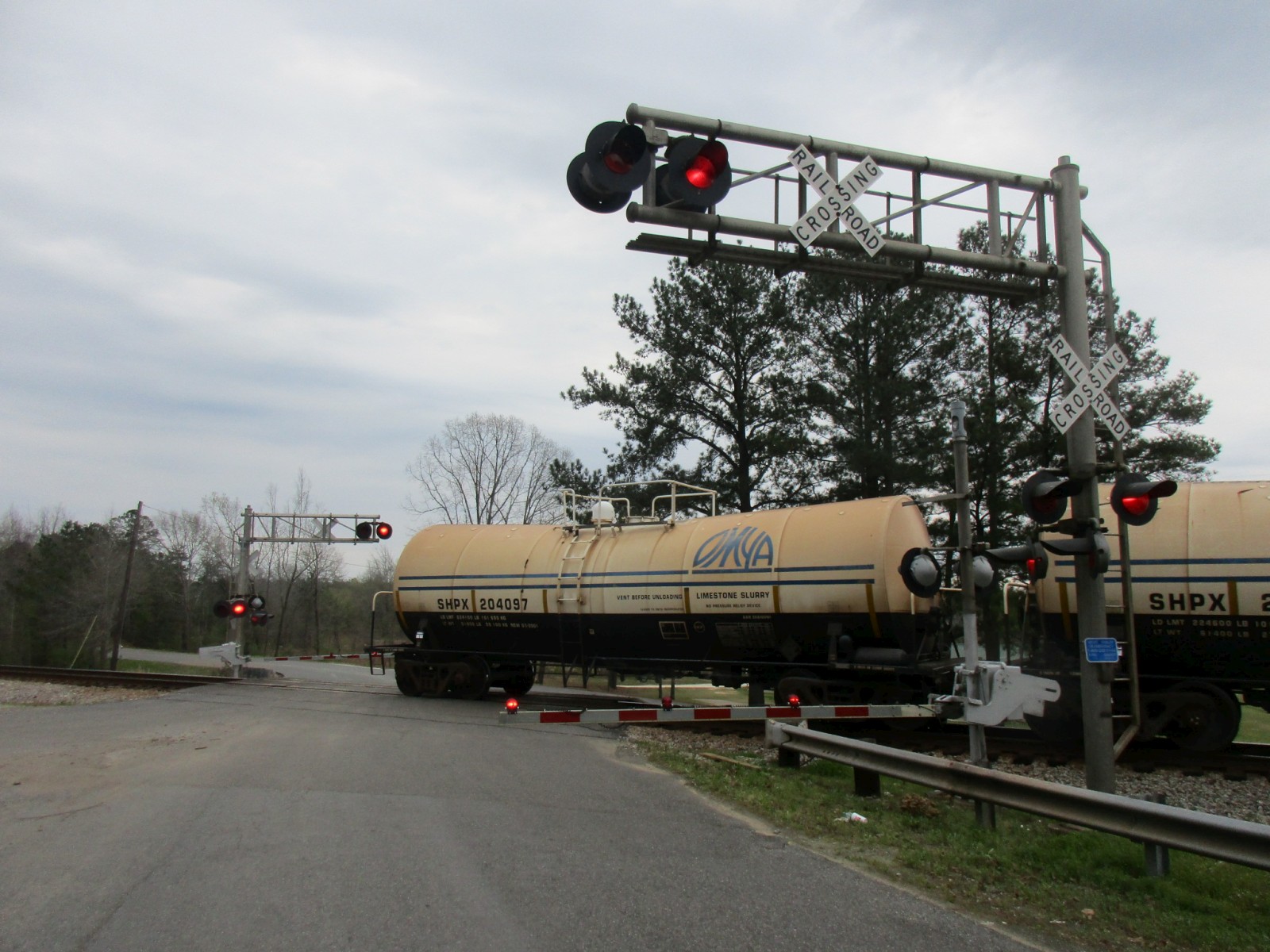

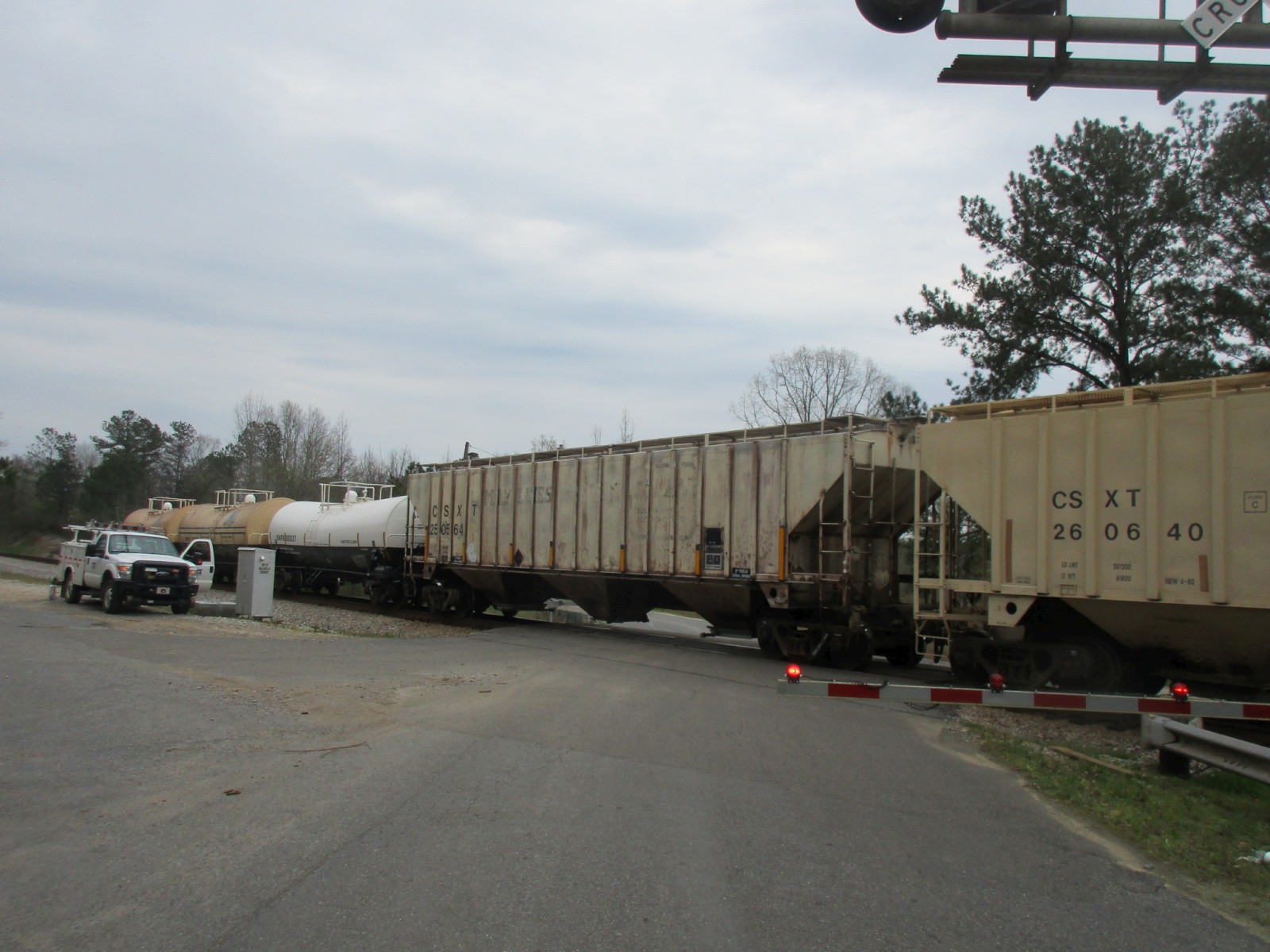

The train passes...

57

58

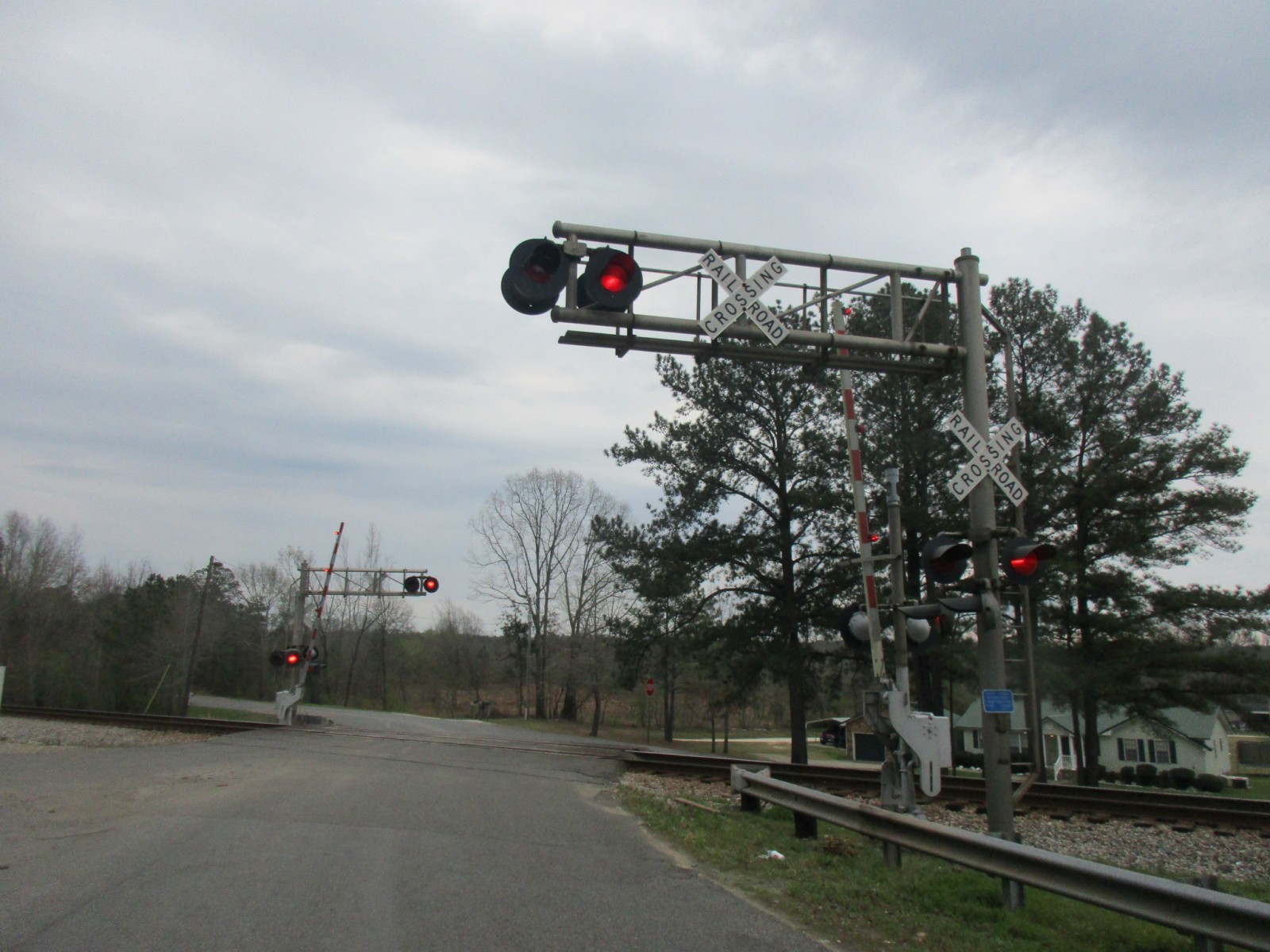

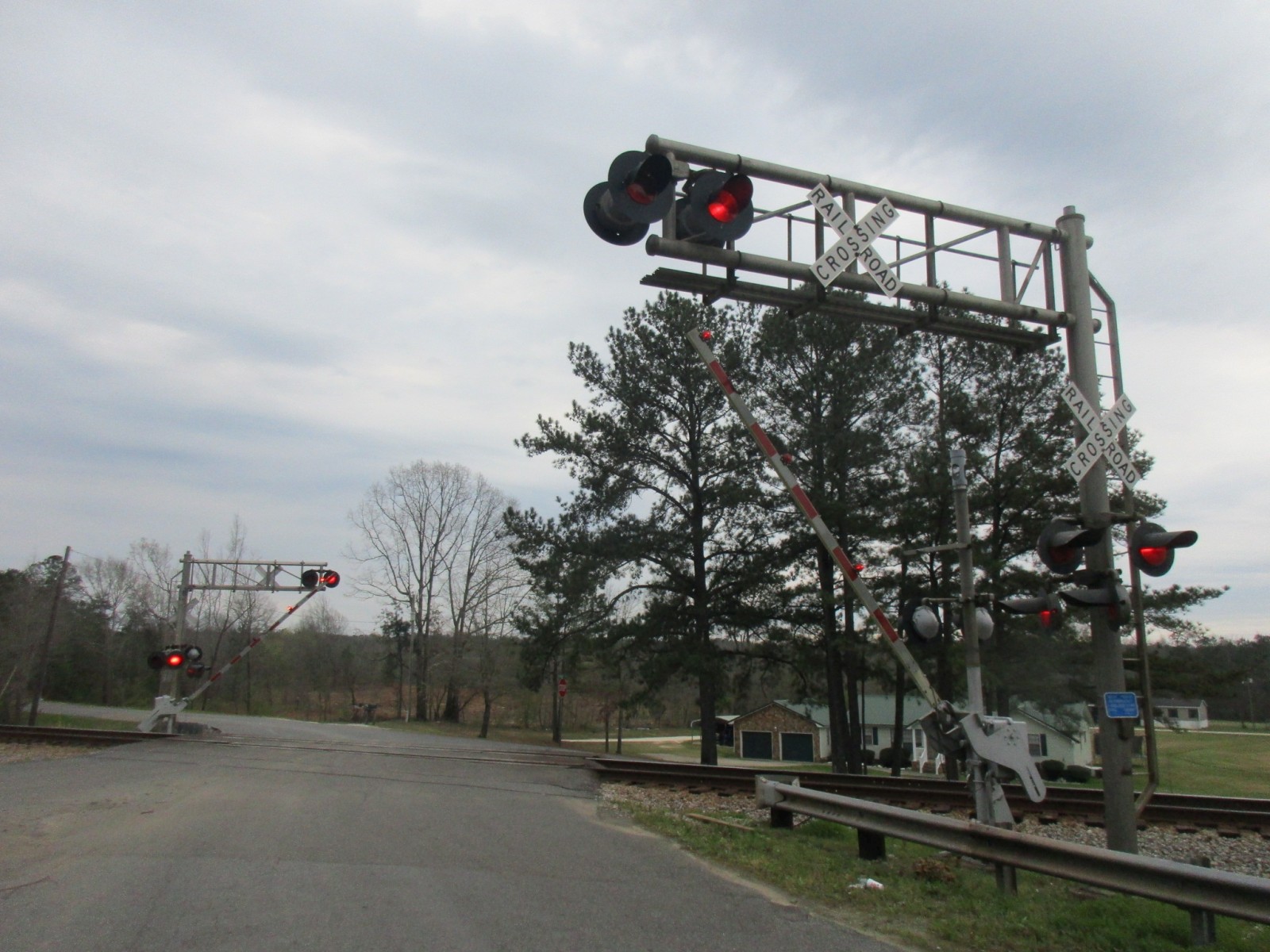

...and the gates rise.





All pictures were taken on 3-23-18.
