MP: A328.60 |
Updated December 13, 2022
Total Accidents: 4
Crossing
DOT #: 731786L
TOTAL
DAILY TRAINS: 14 (AS OF 2022)
Page created by: freebrickproductions
This crossing is located on the NS Memphis District East End.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | General Signals Type 2 electronic | General Signals Type 2 electronic |
| Base: | Safetran | Safetran |
| Light Frames: | 4 - 12x20" Safetran | 4 - 12x20" Safetran |
| Gate Lights: | 3 - RECO LEDs | 3 - NEGs |
| Gate Mechanism: | Safetran 2000s | Safetran 2000s |
| Gate Striping: | Vertical | Diagonal |
1 |
2 |
3 |
4 |

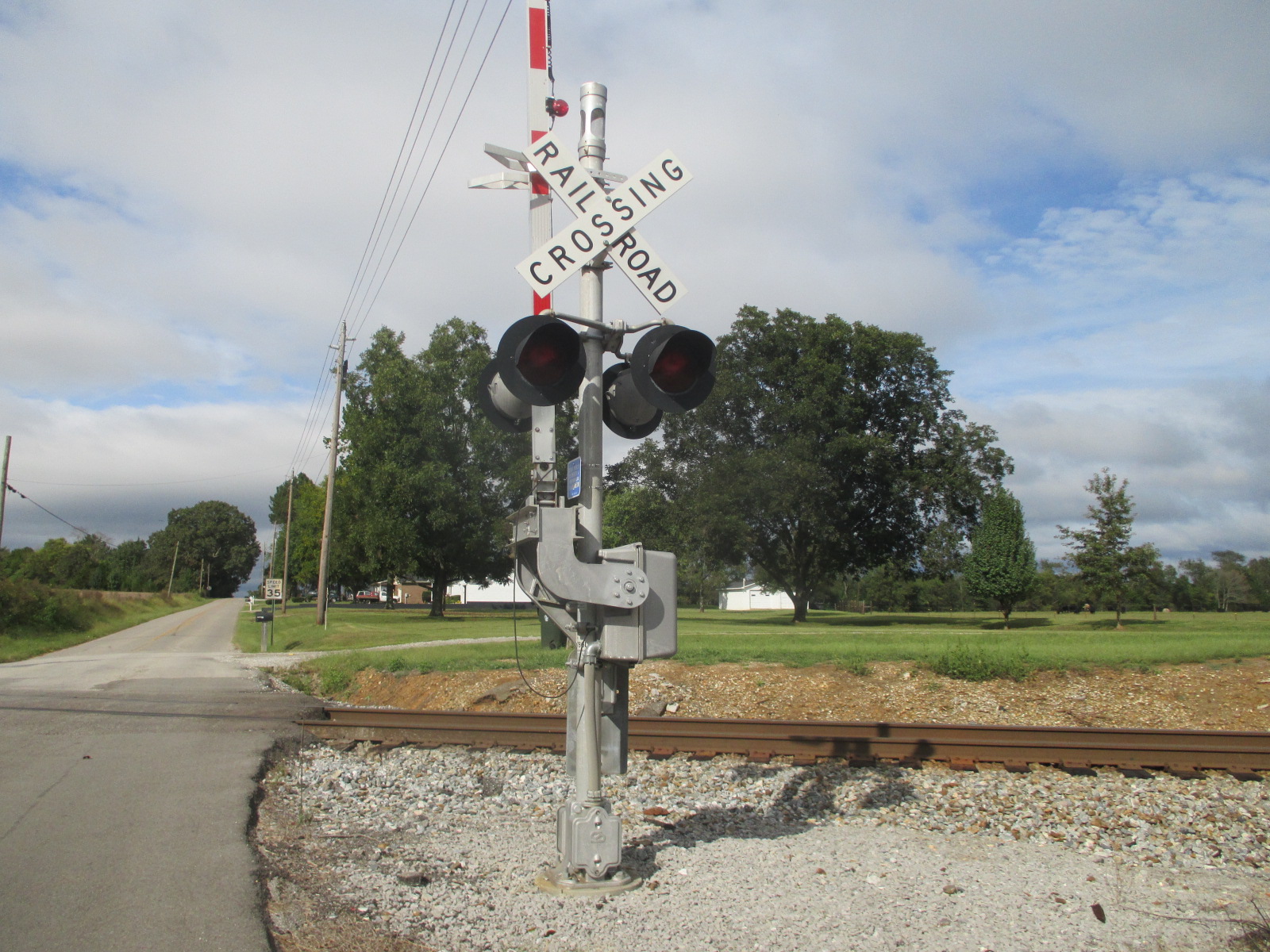

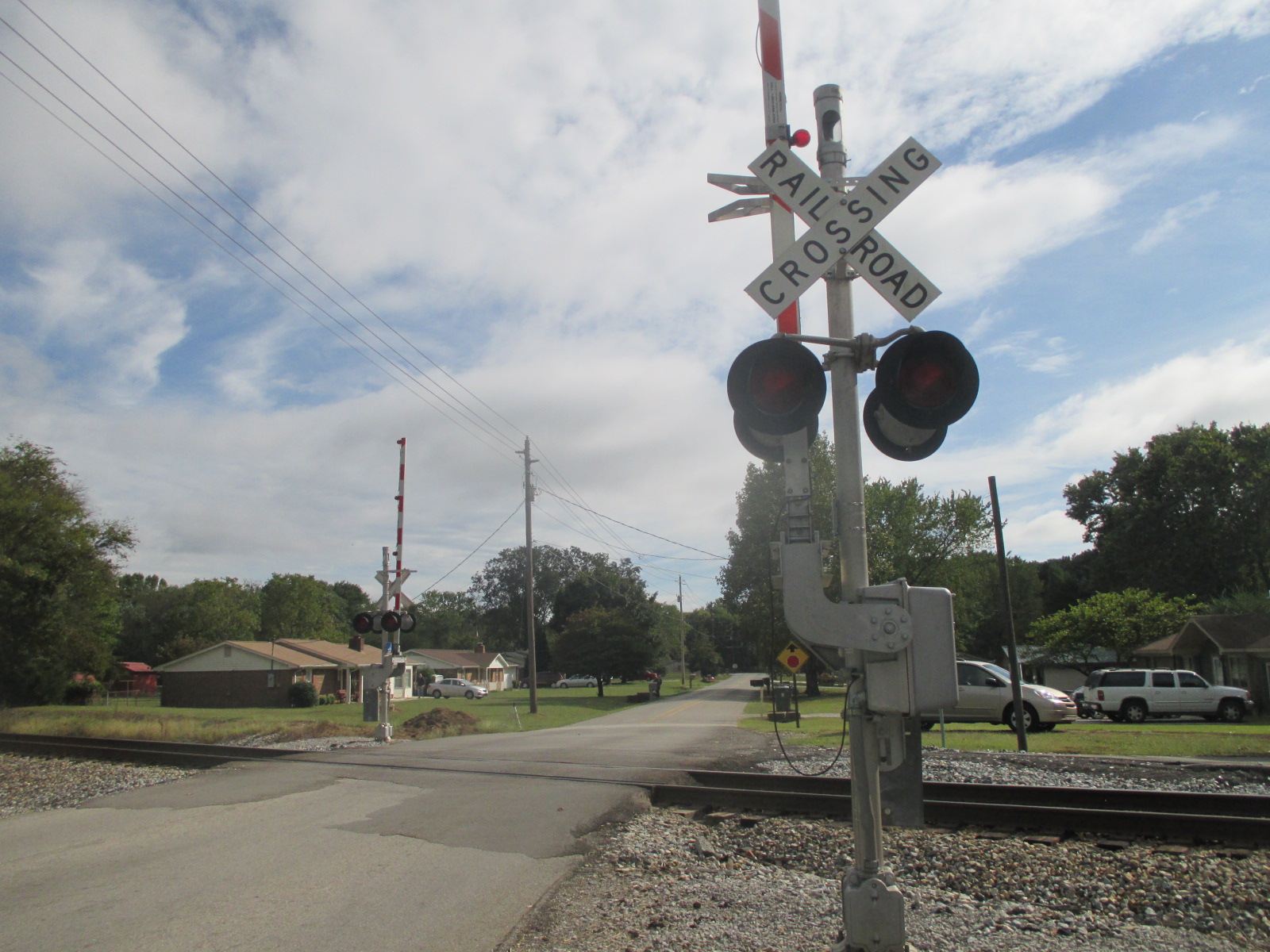

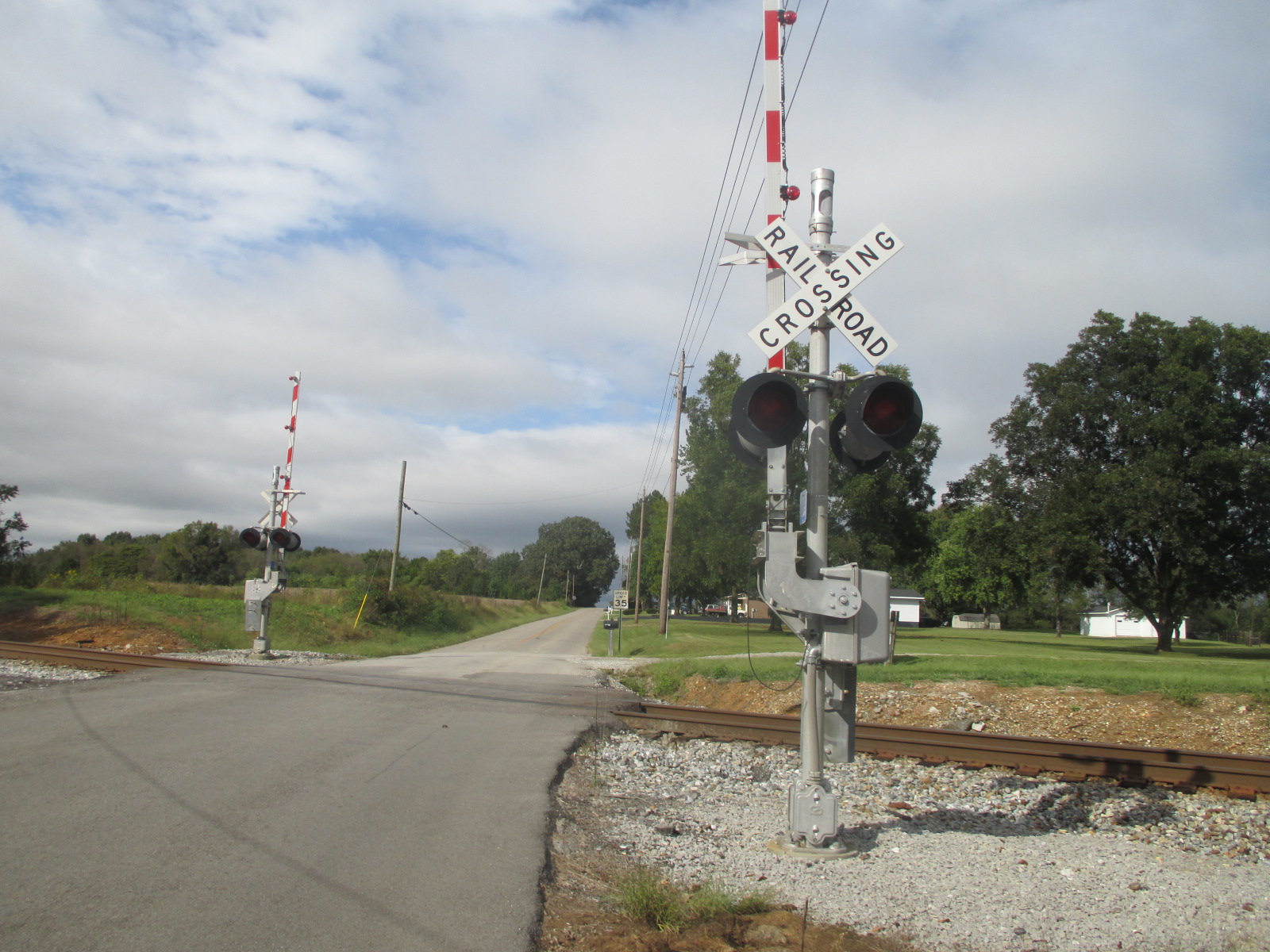

Overviews of the crossing. |

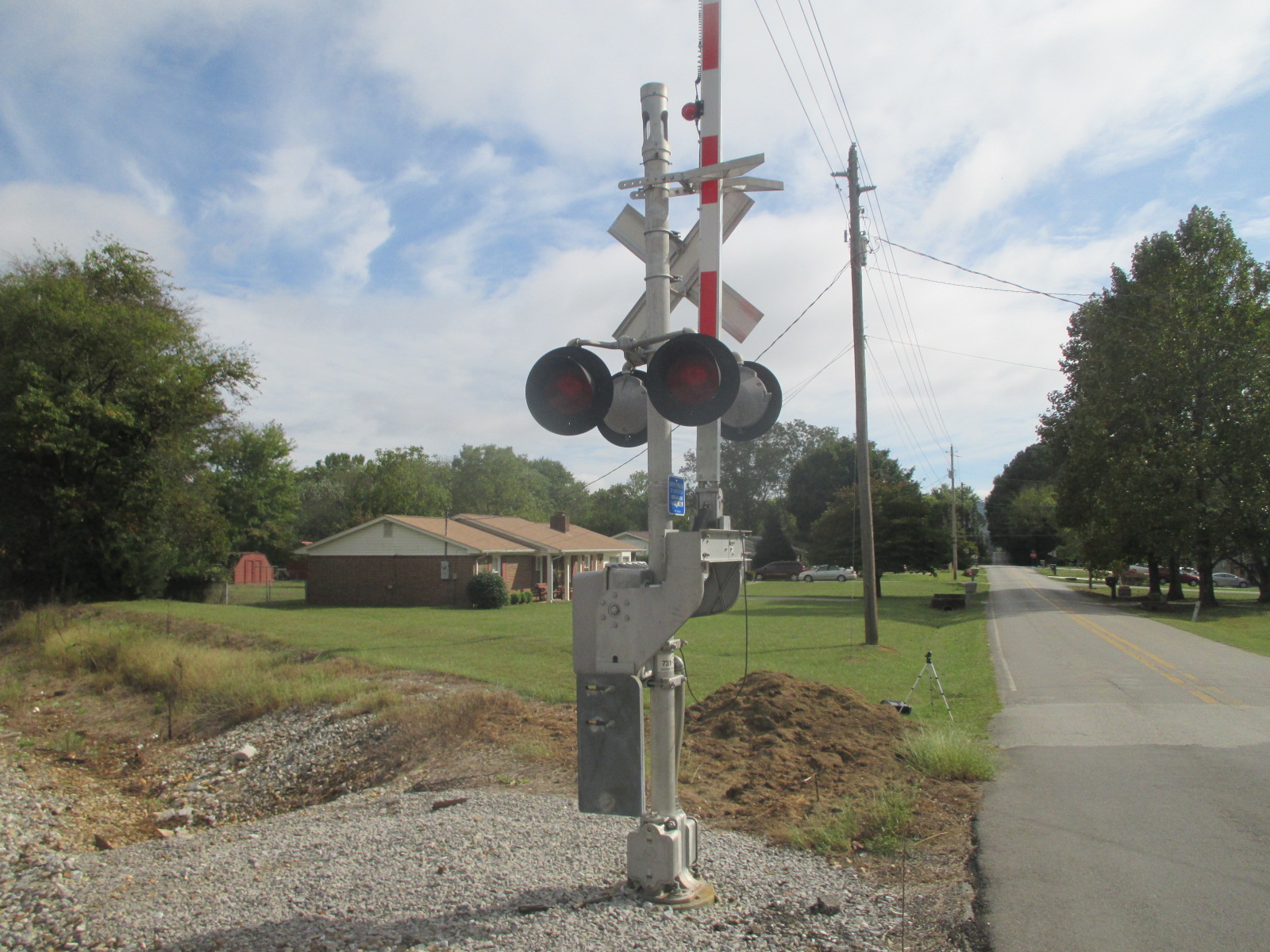

The first signal. |
||
5 |
6 |
7 |
8 |

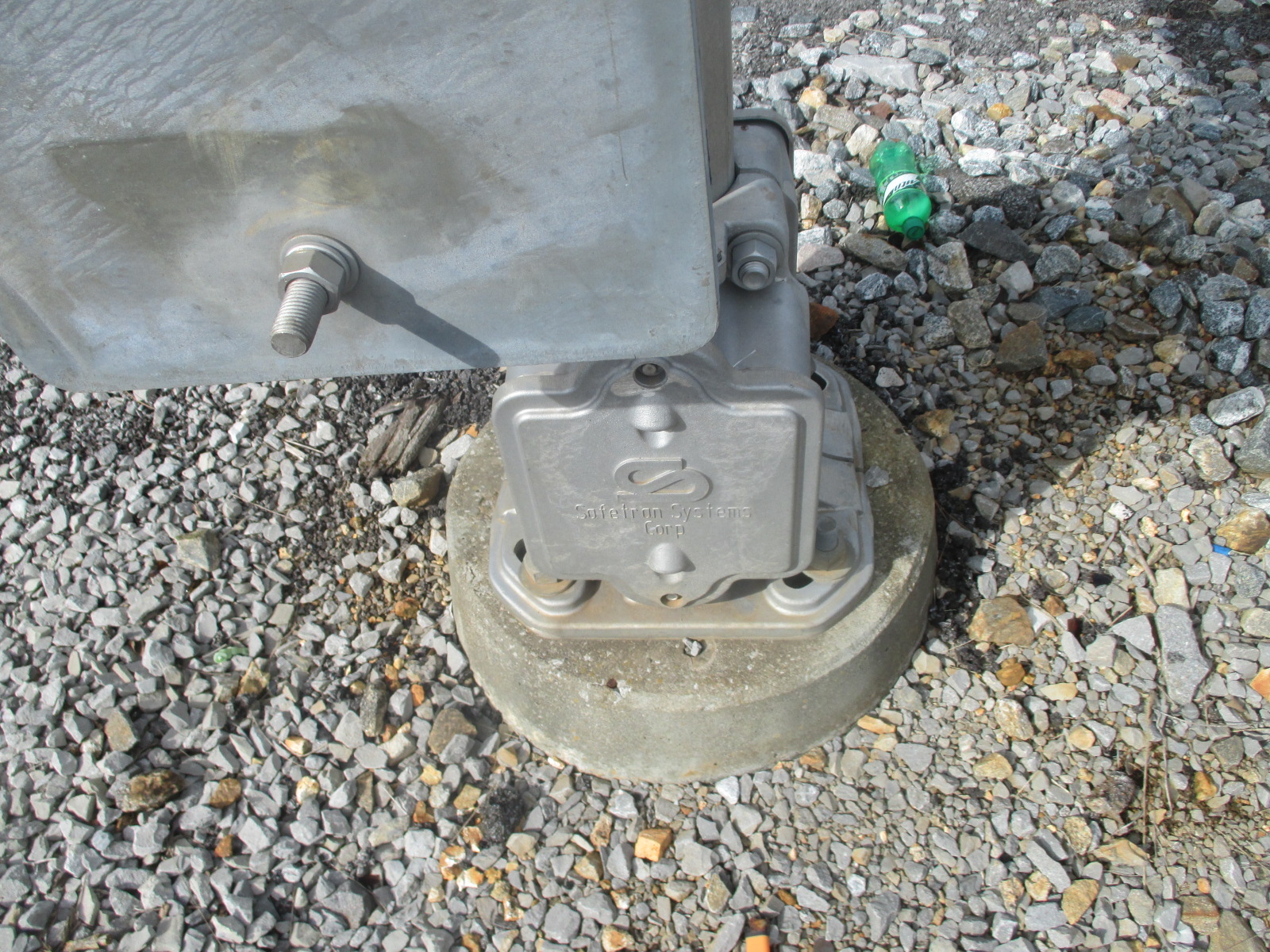

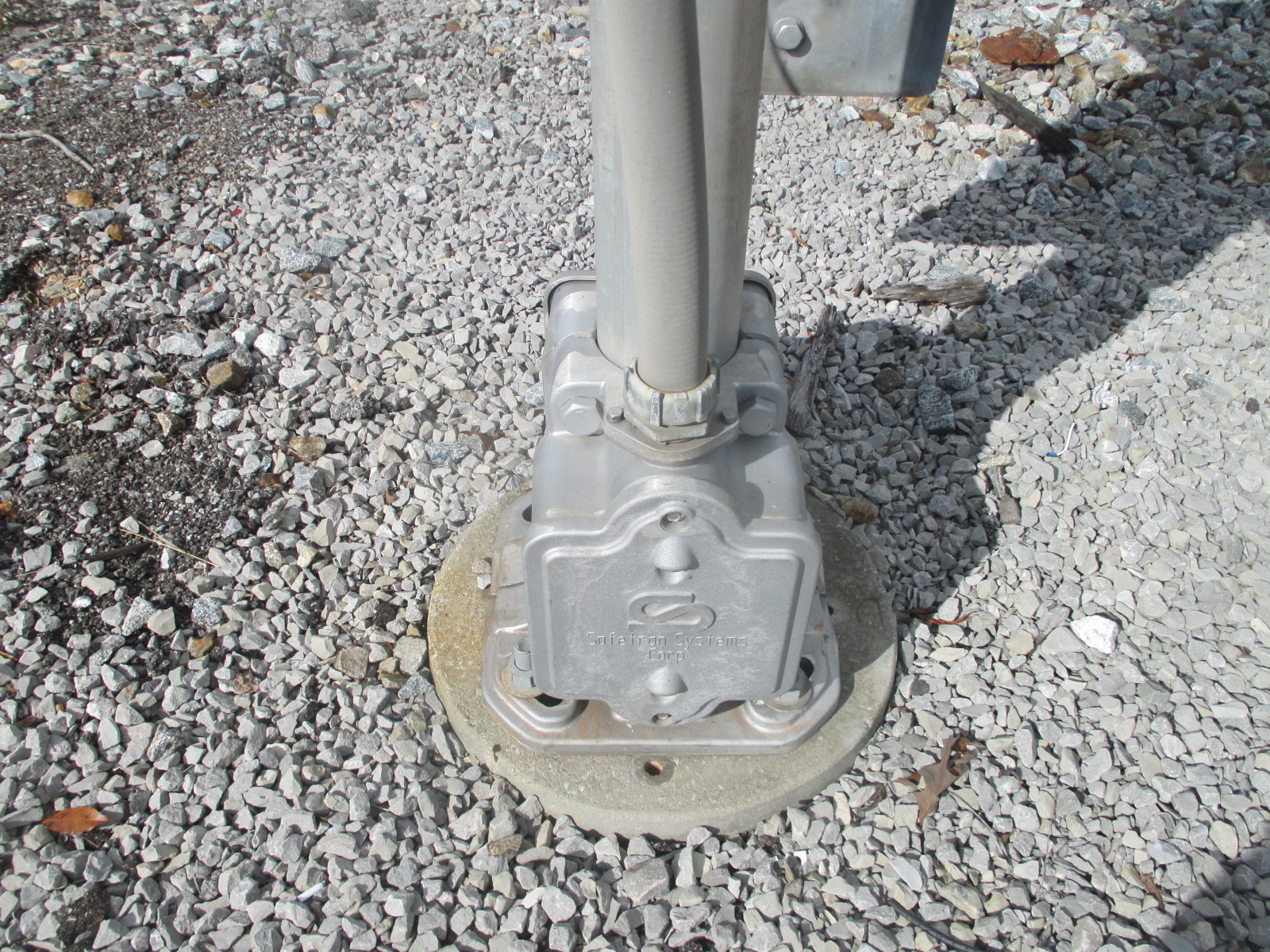

It has a Safetran base. |

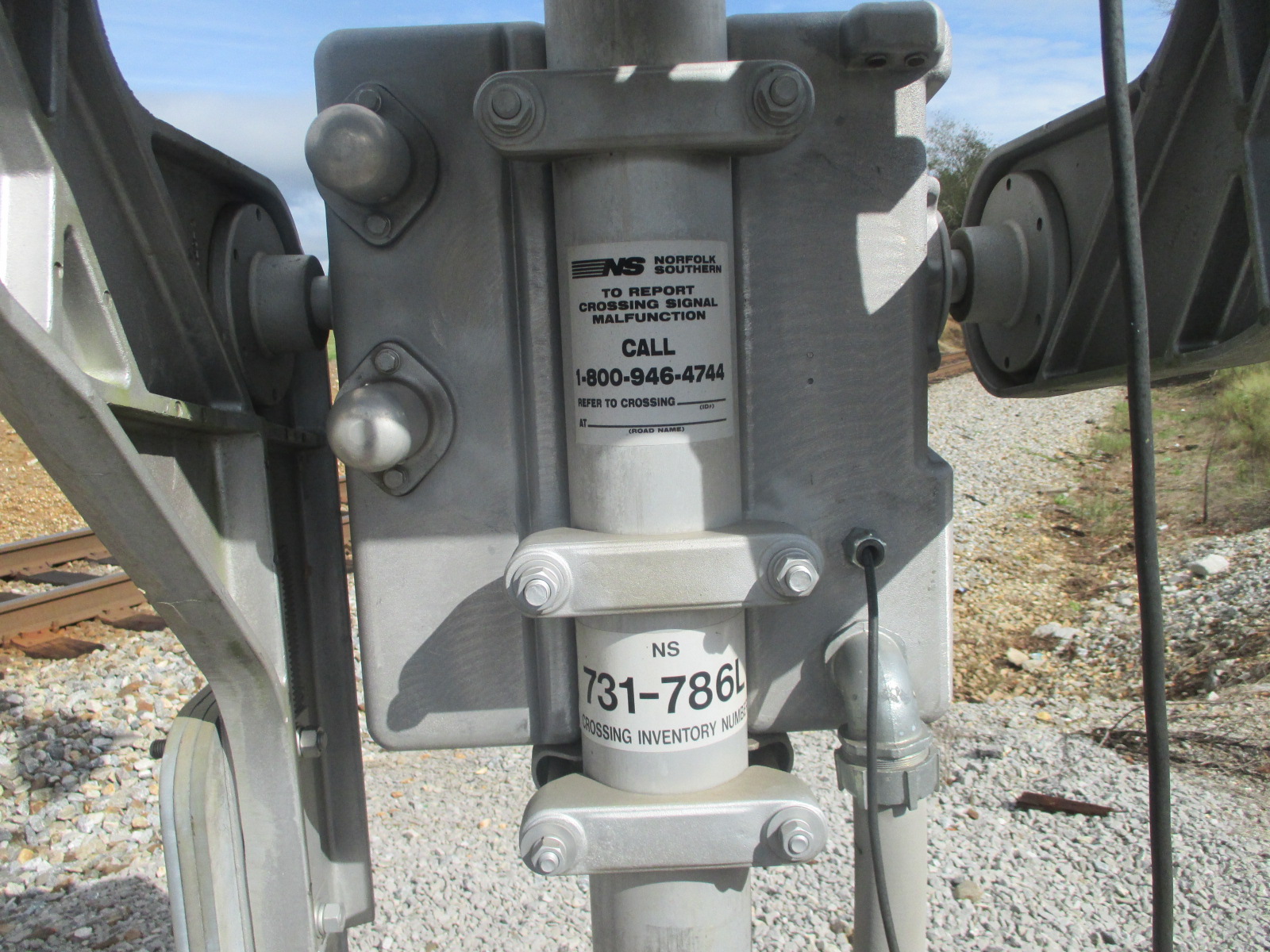

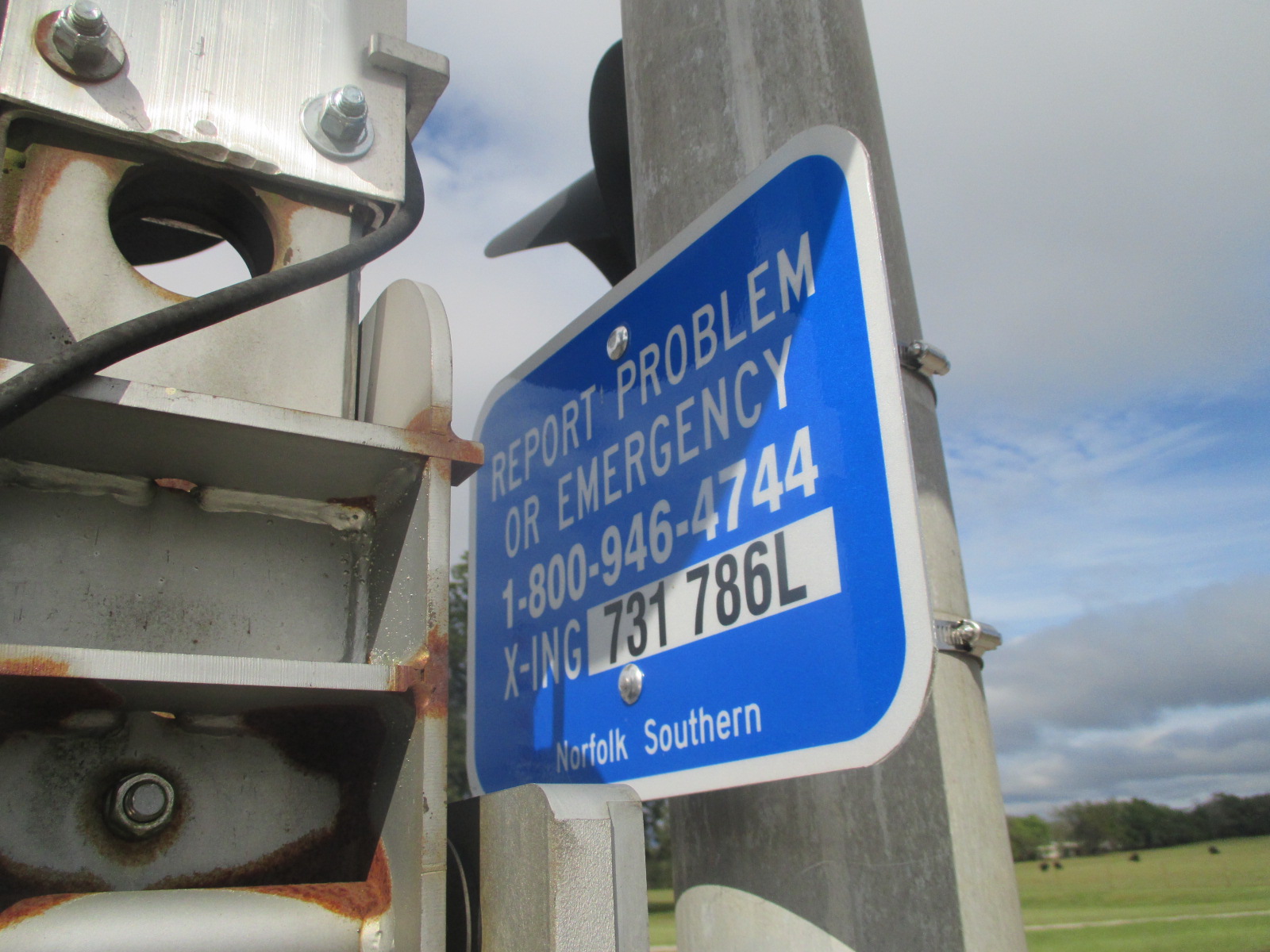

The DOT tags. |

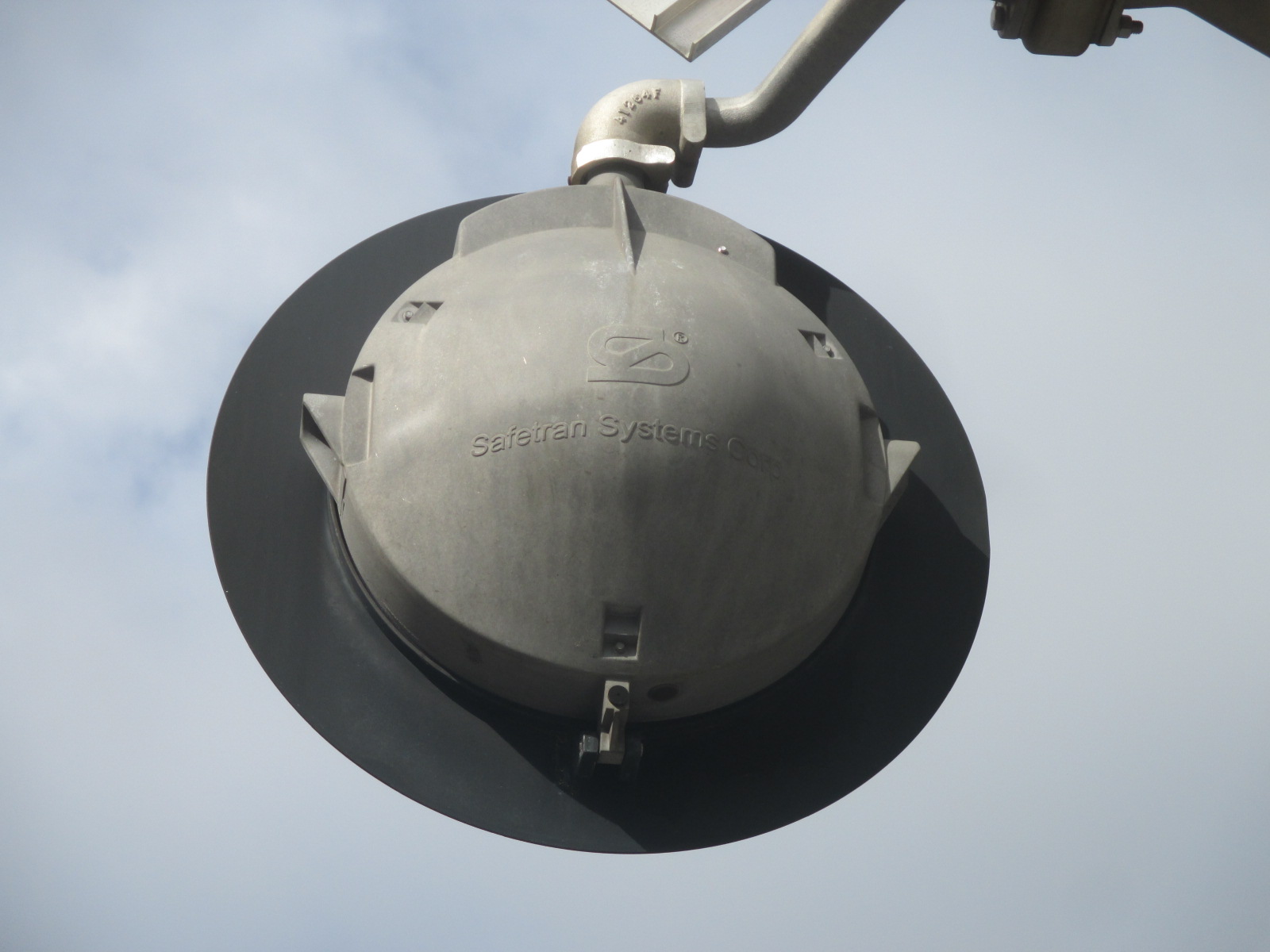

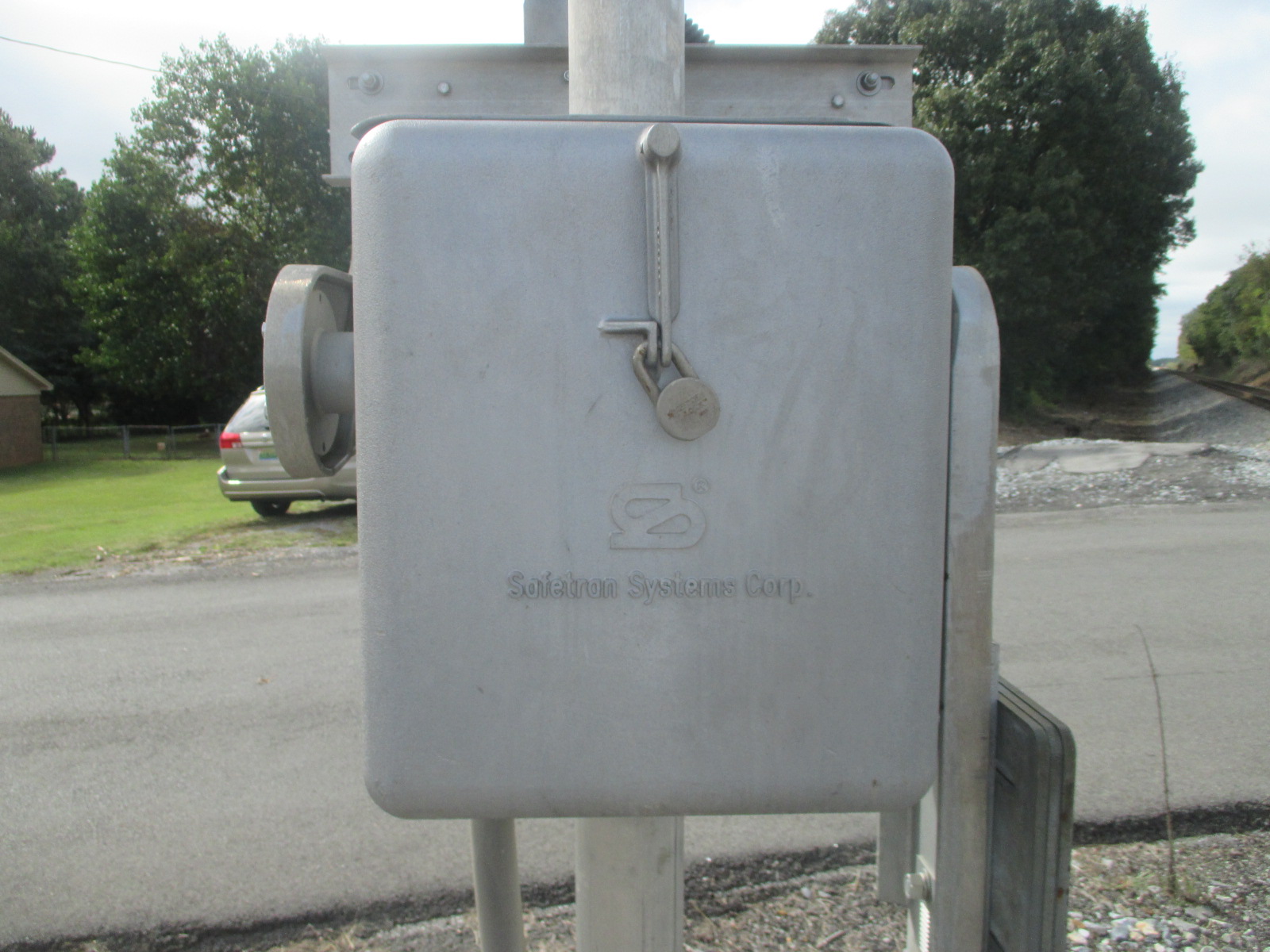

A Safetran gate mechanism. |
|
9 |
10 |
11 |
12 |

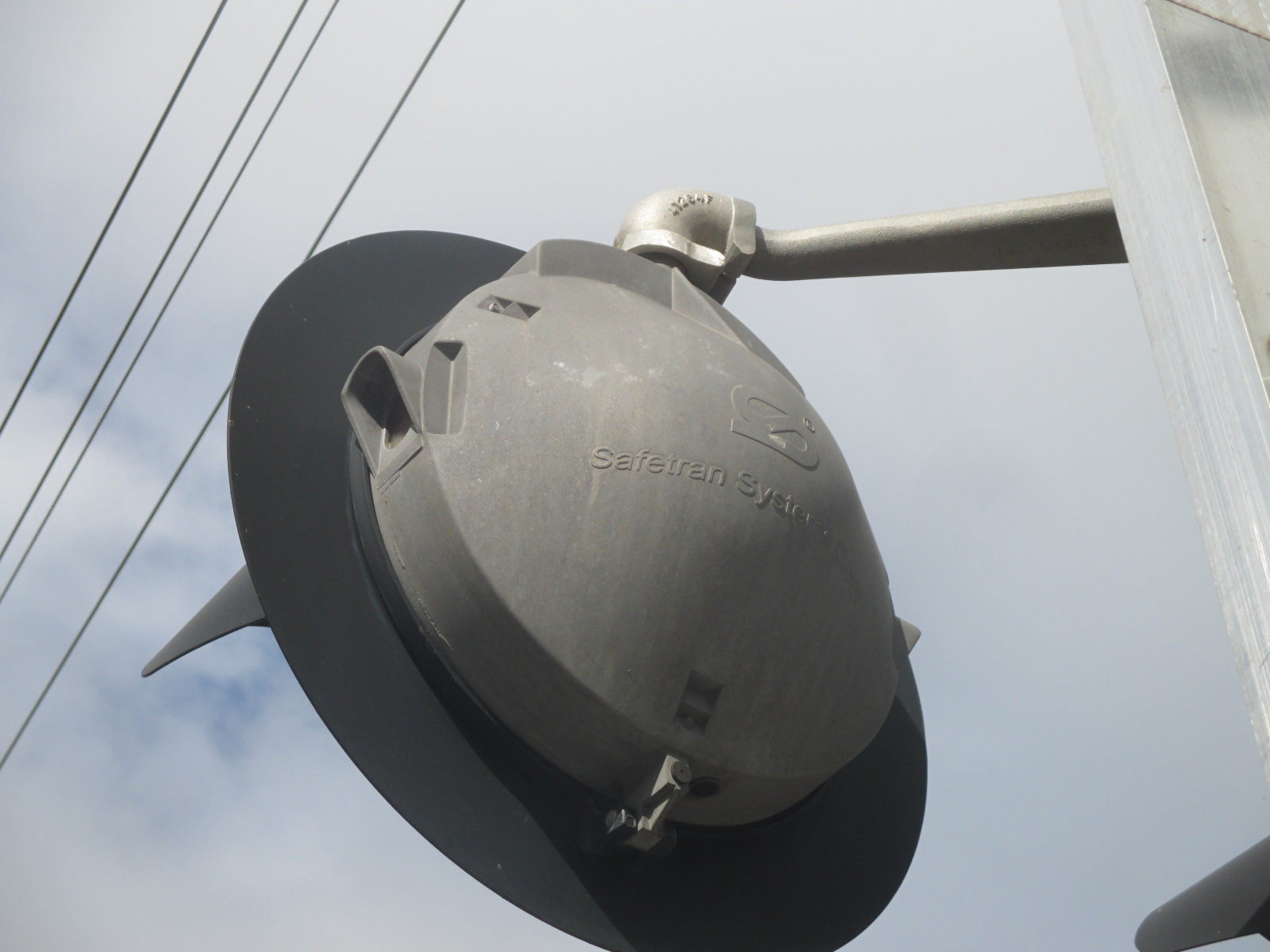

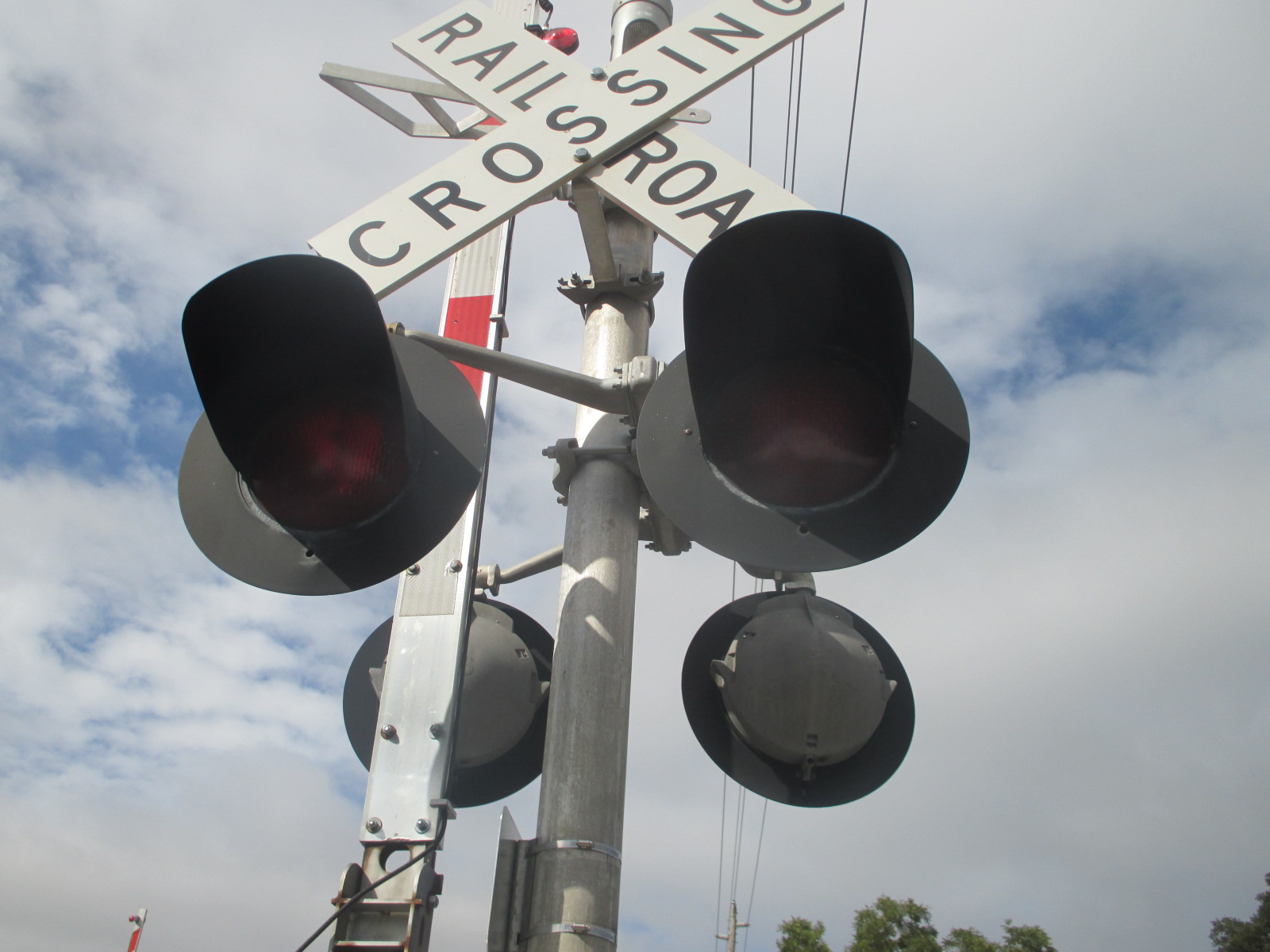

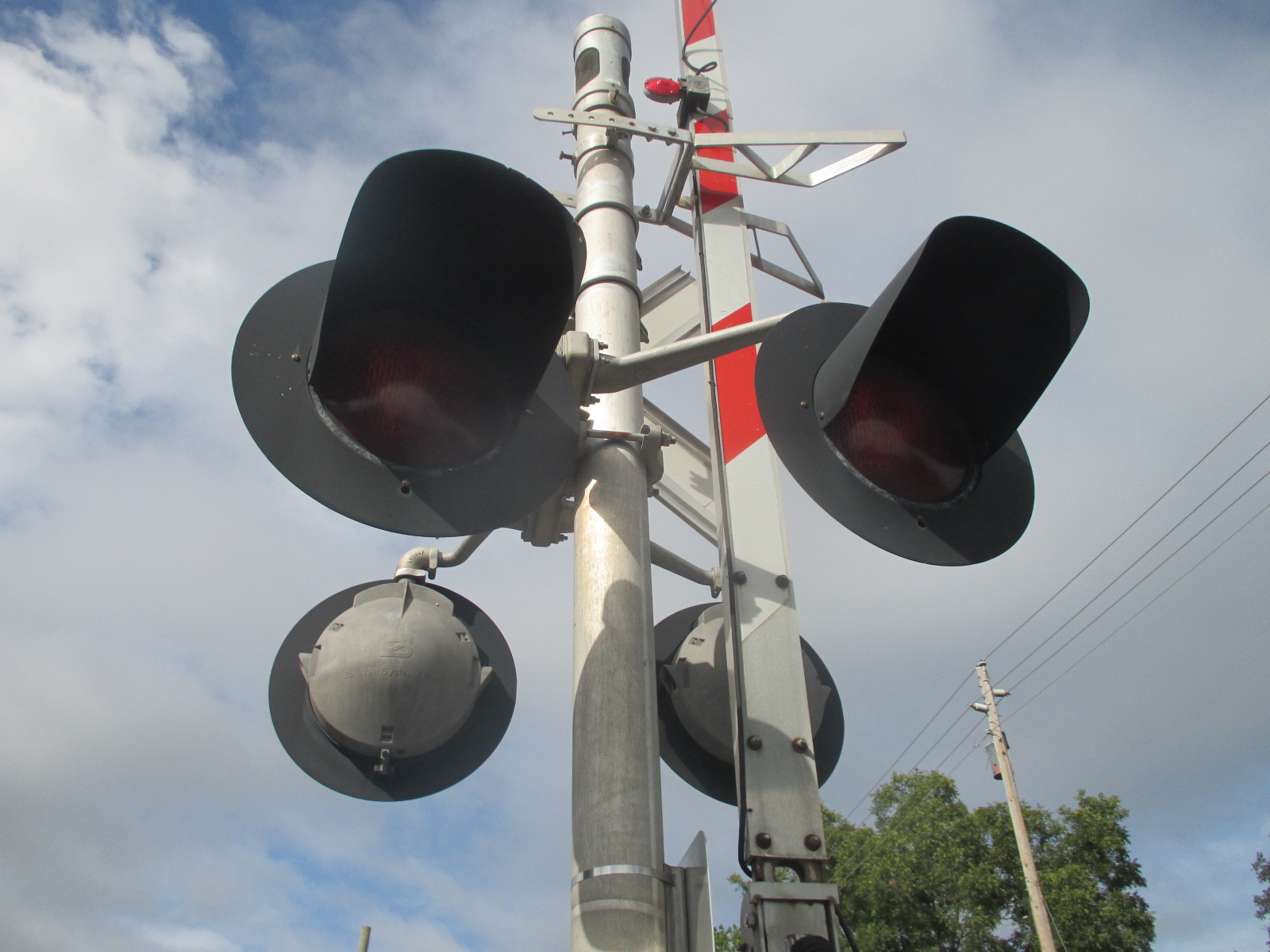

The lights on this signal are Safetran 12x20 inch lights. |

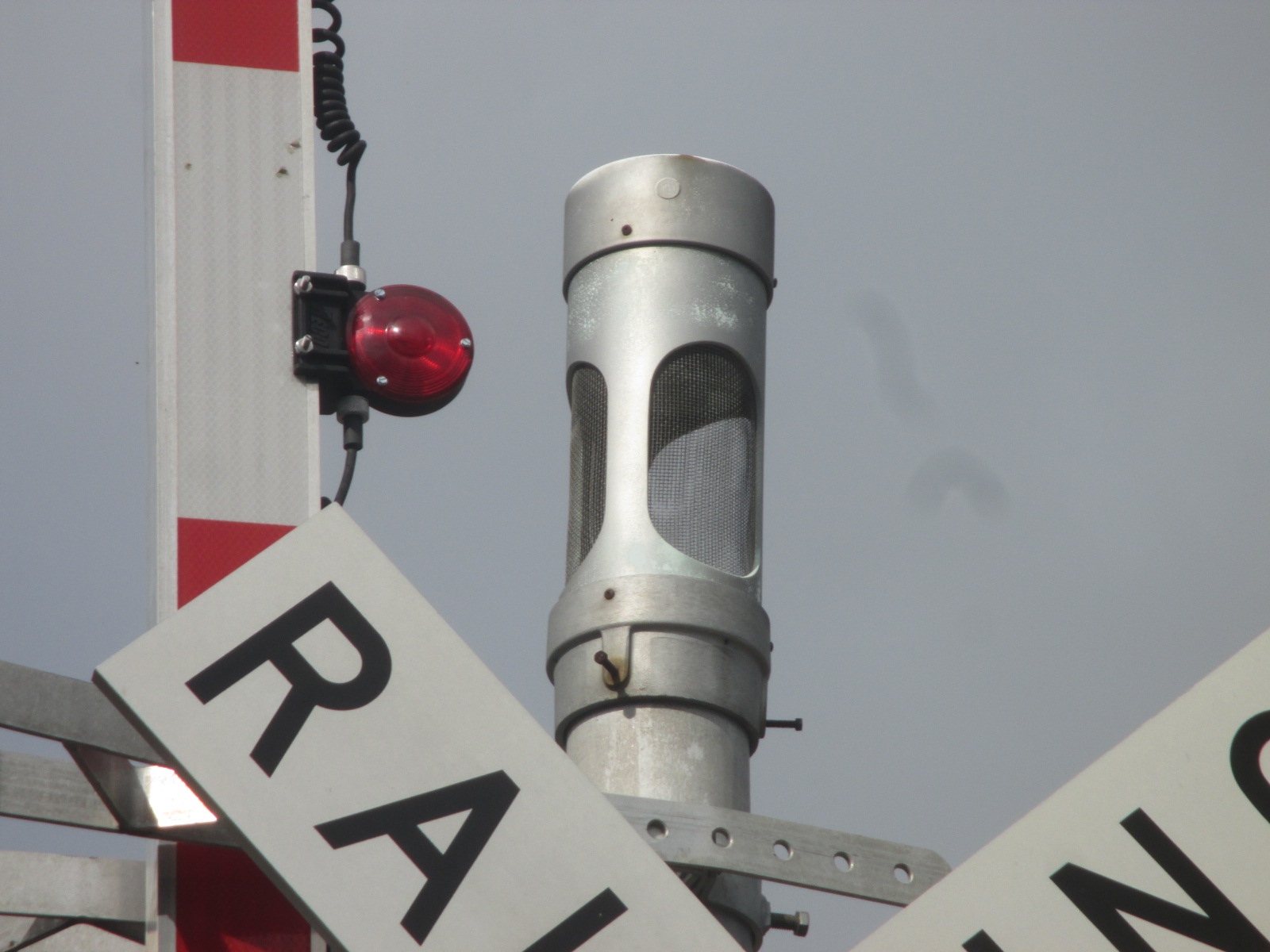

The bell is a General Signals Type-2 electronic bell. |

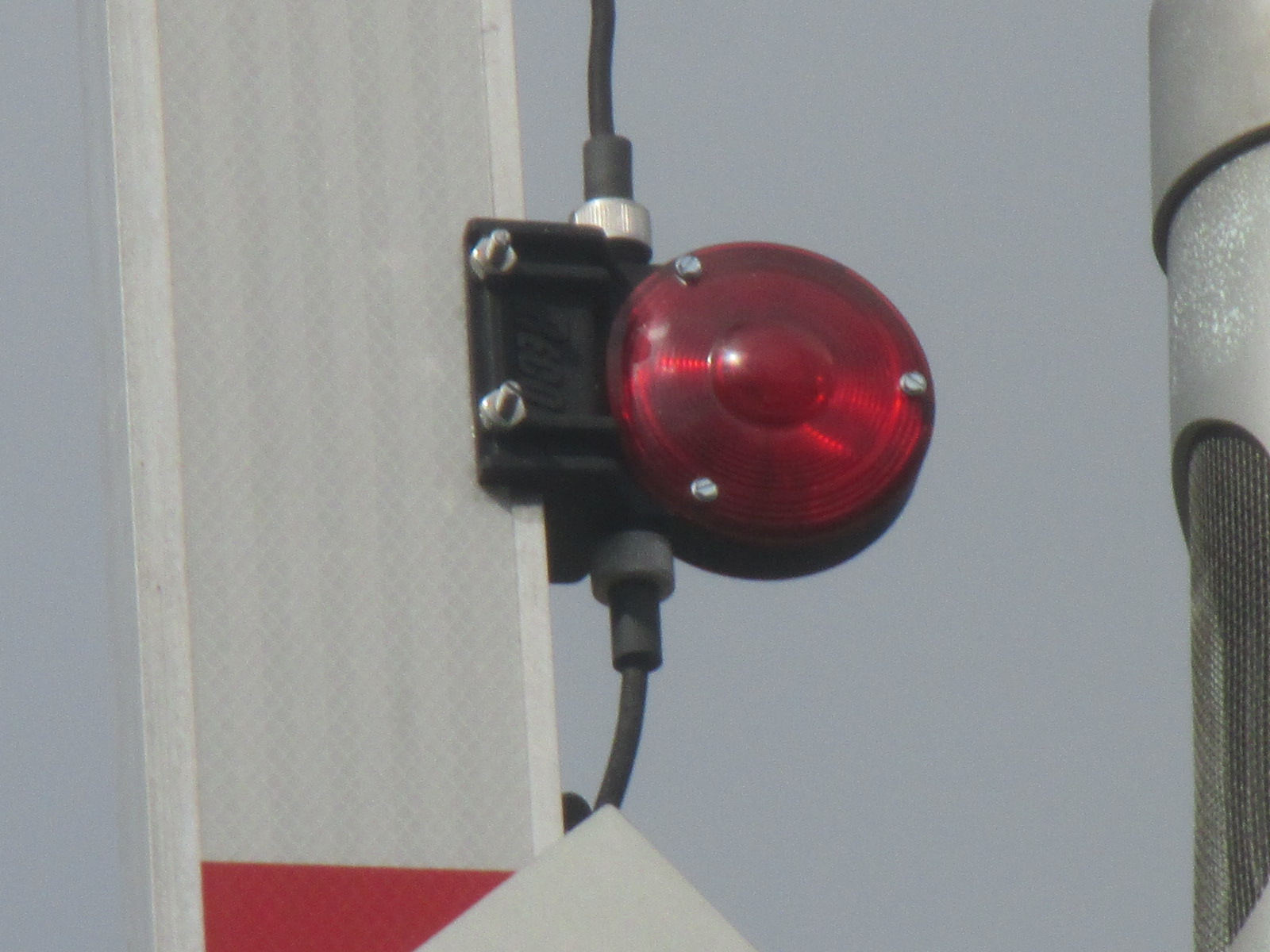

The gate lights on this signal are RECO LED gate lights. |
|
13 |
14 |
15 |
16 |

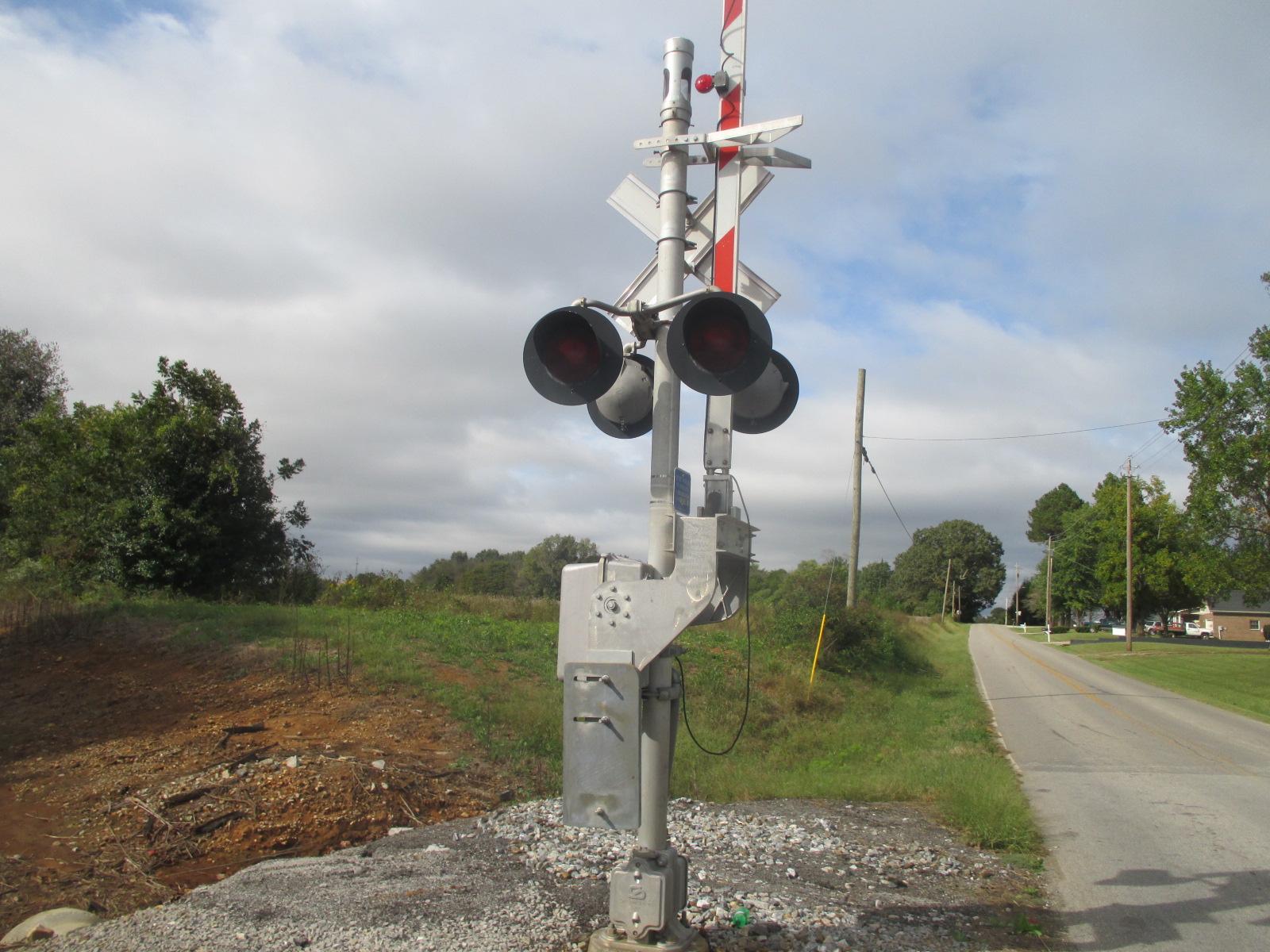

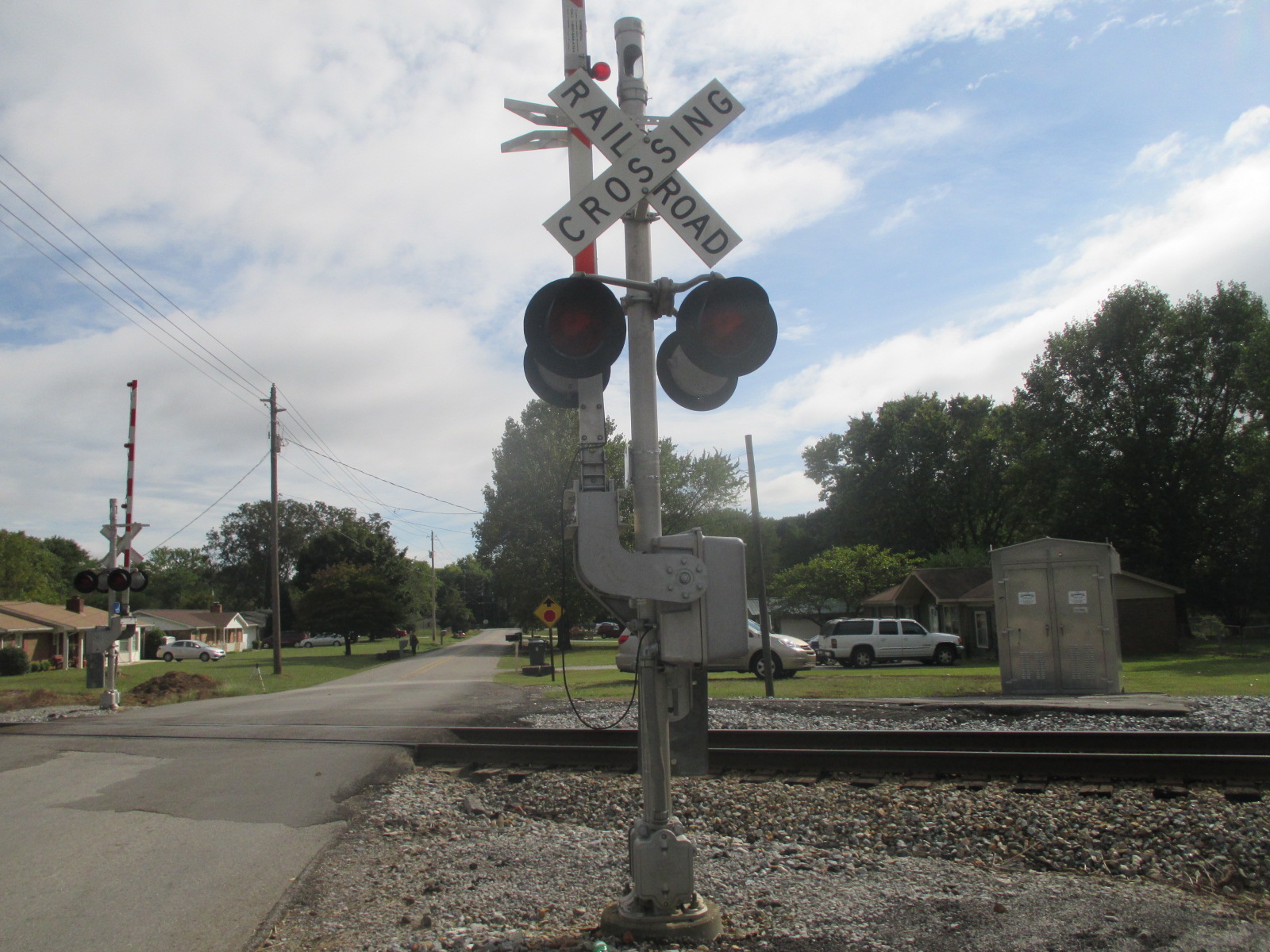

The second signal. |
The base is also from Safetran. |

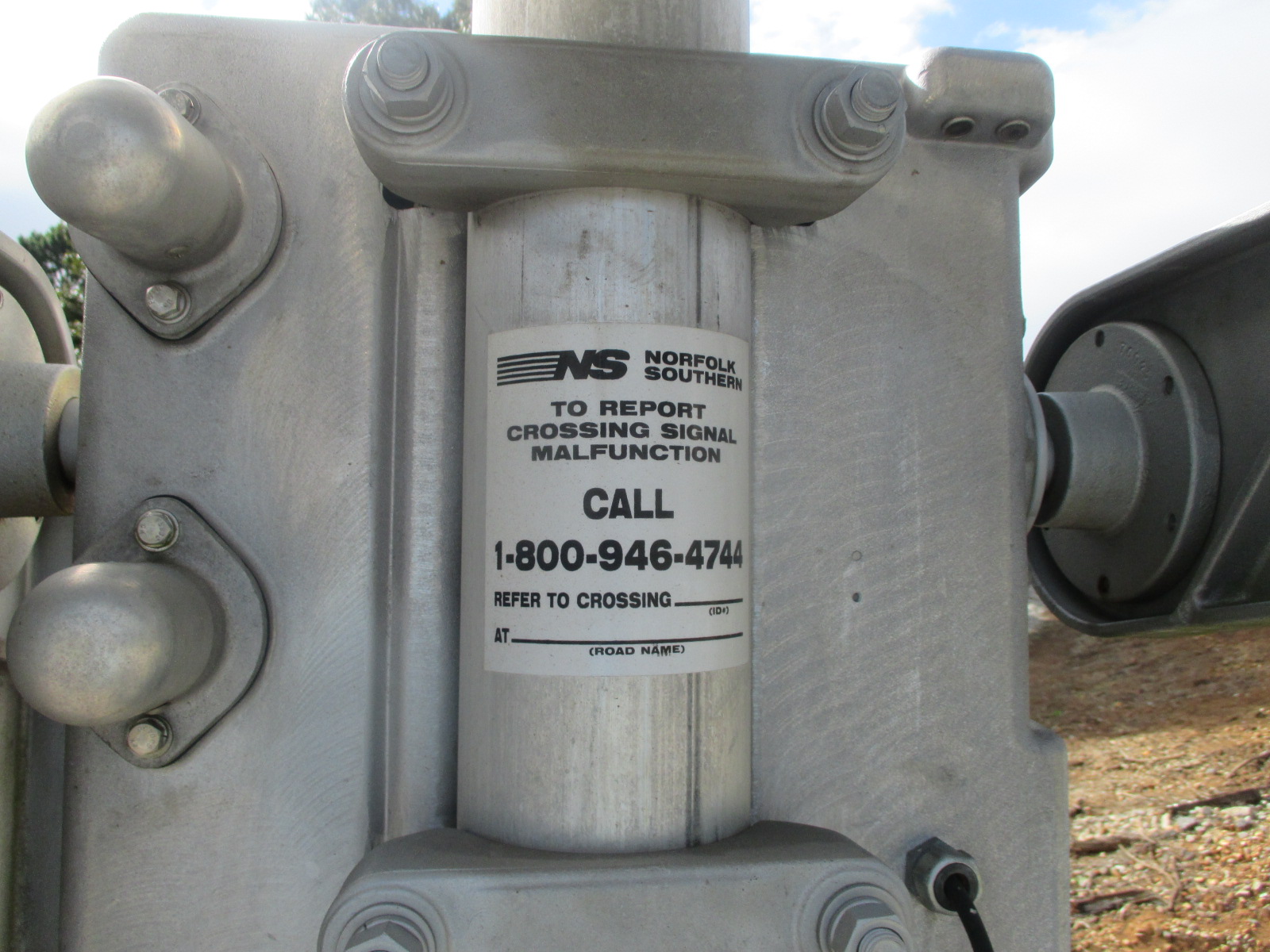

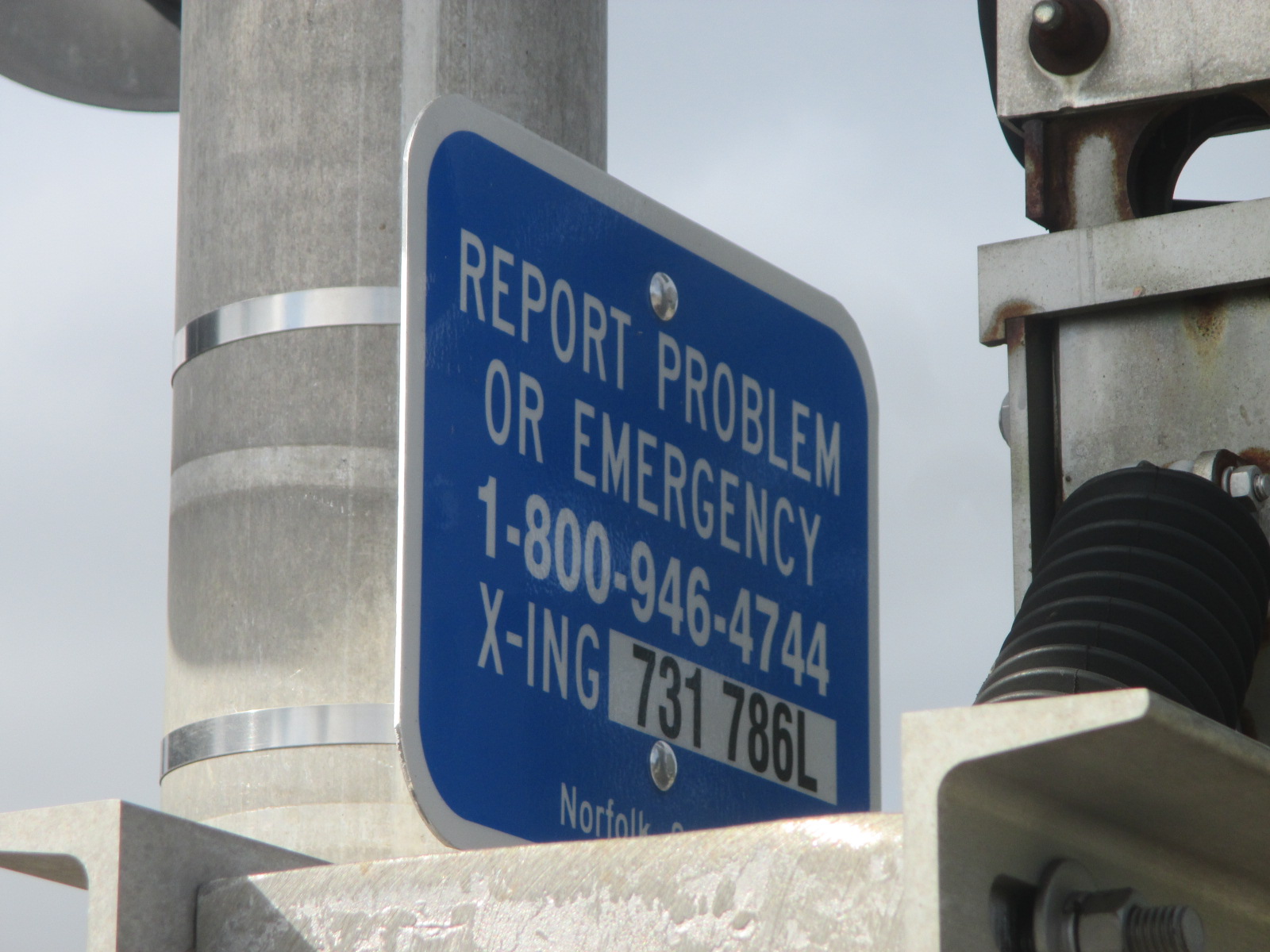

A DOT tag. |
|
17 |
18 |
19 |
20 |
A second DOT tag. |

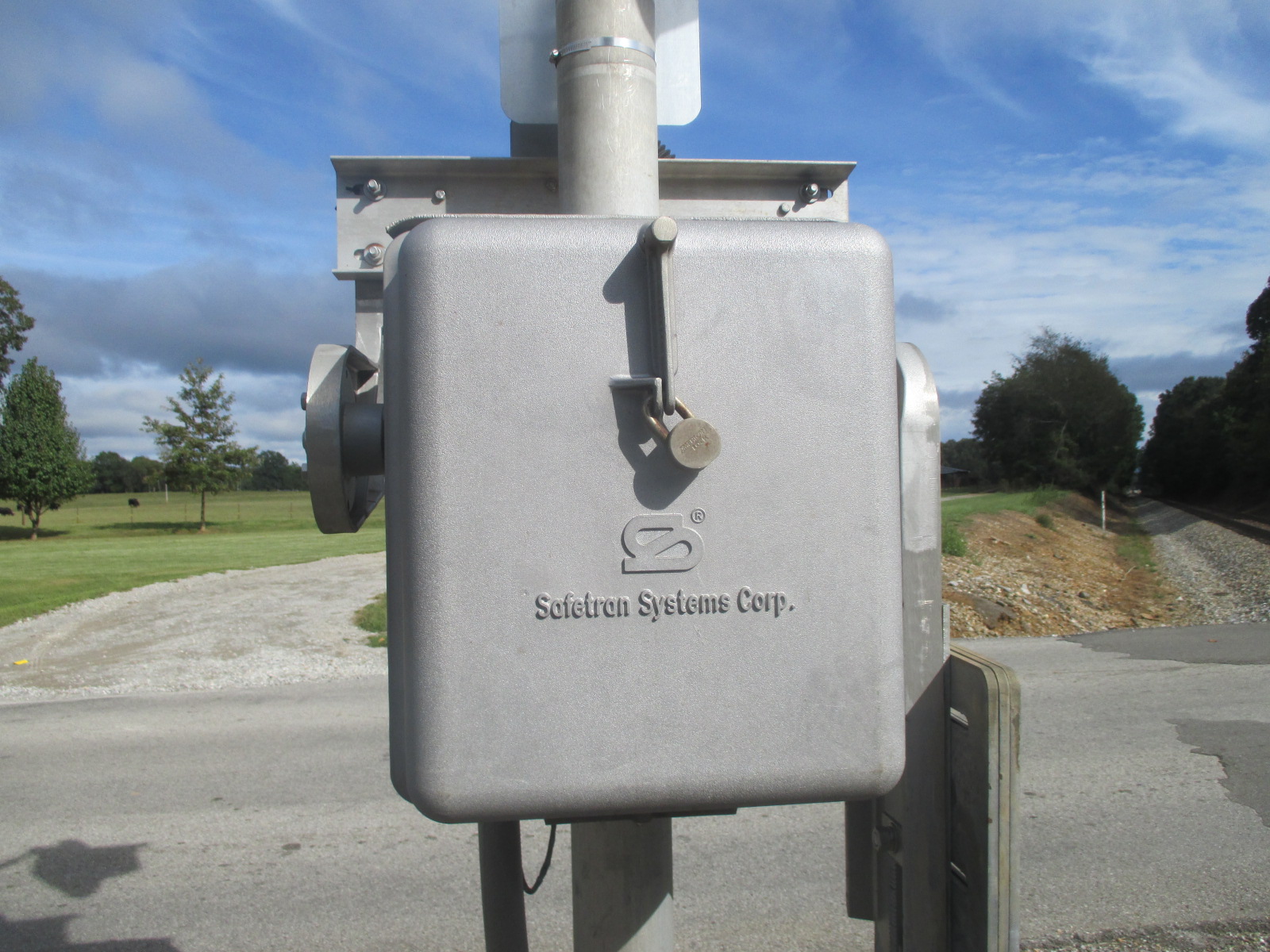

The gate mechanism is also from Safetran. |
The lights on this signal are more Safetran 12x20 inch lights. |
|
21 |
22 |
23 |
24 |

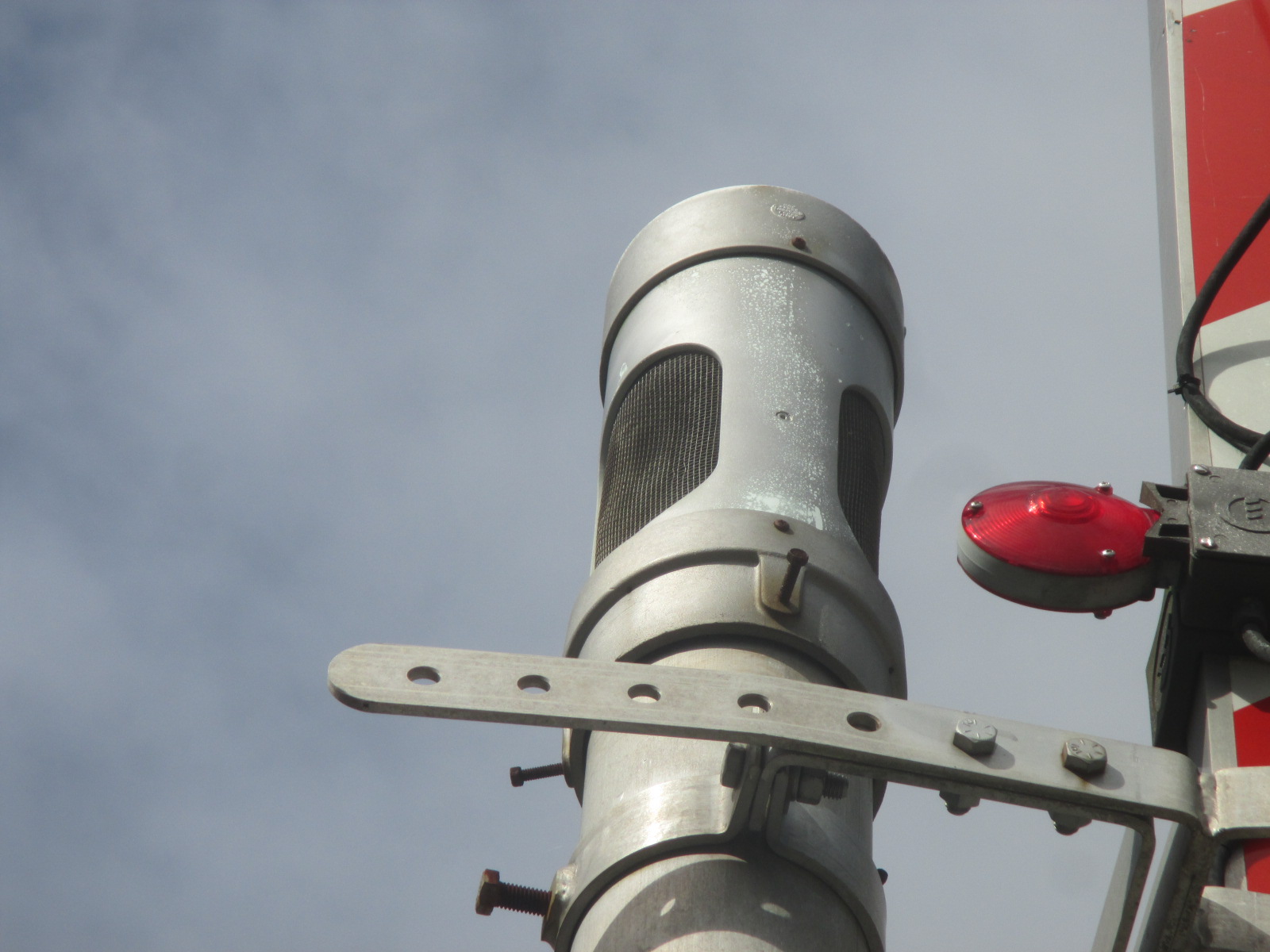

This signal has another General Signals Type-2 e-bell. |

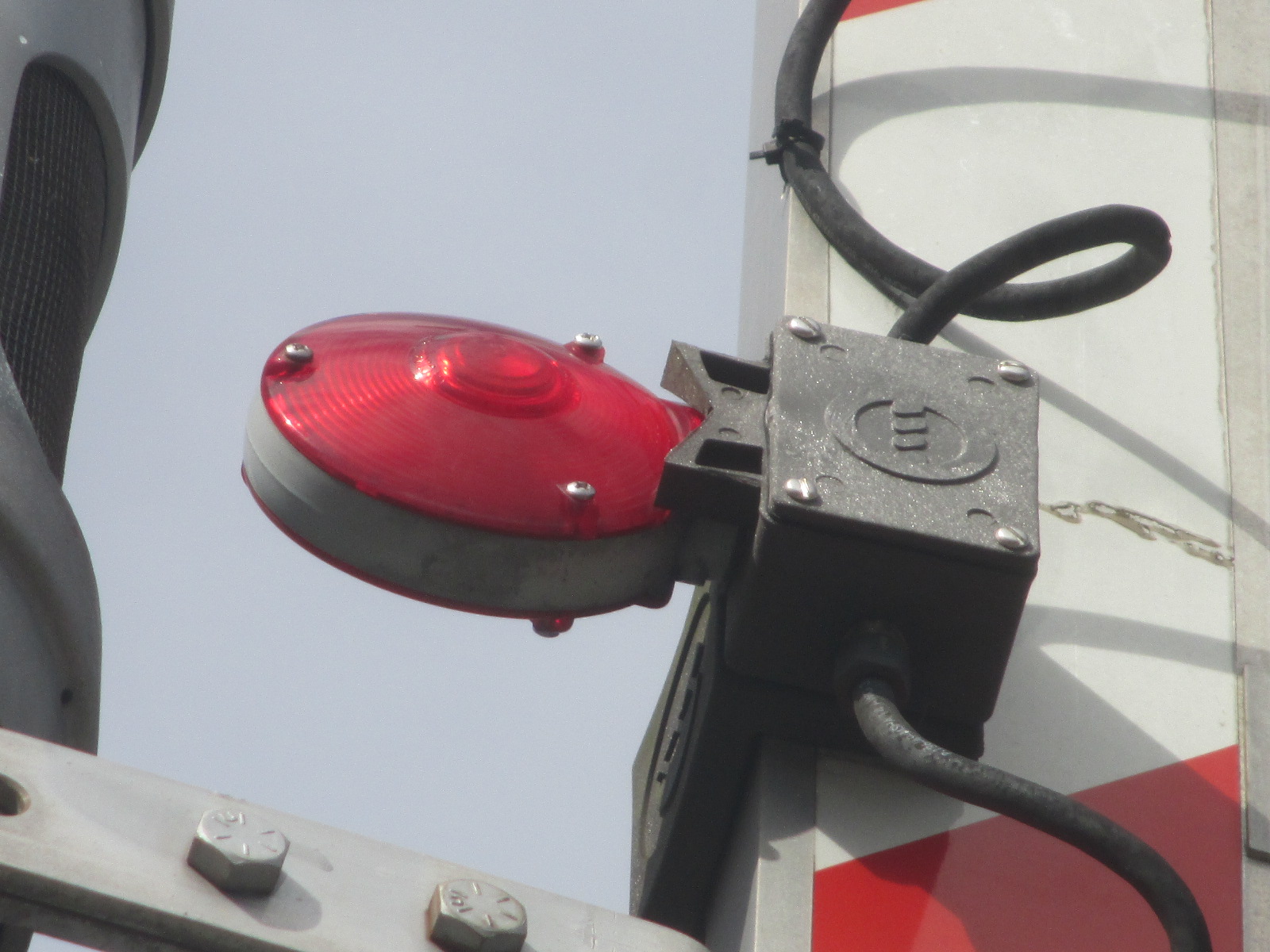

This signal has NEG gate lights. |

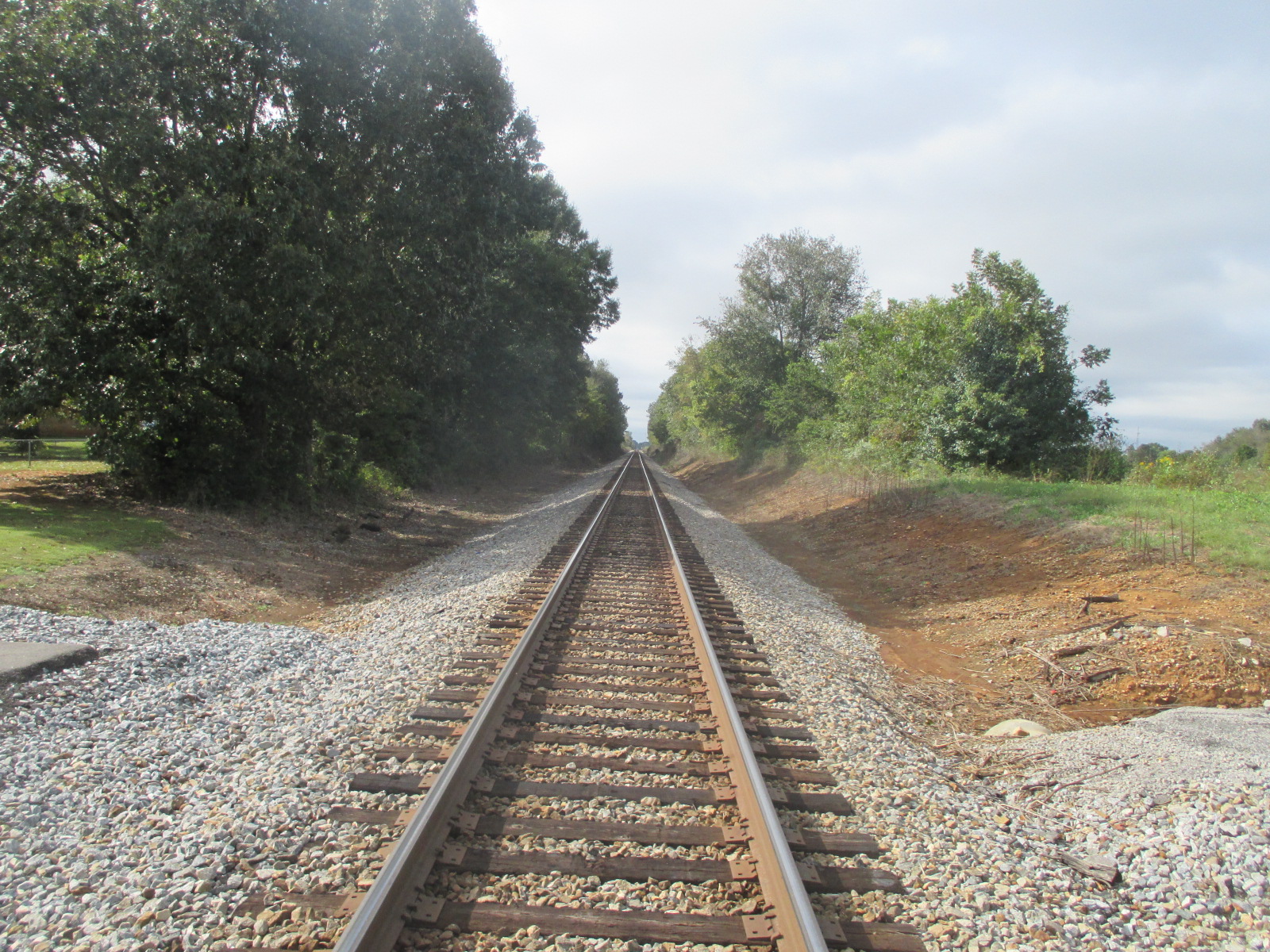

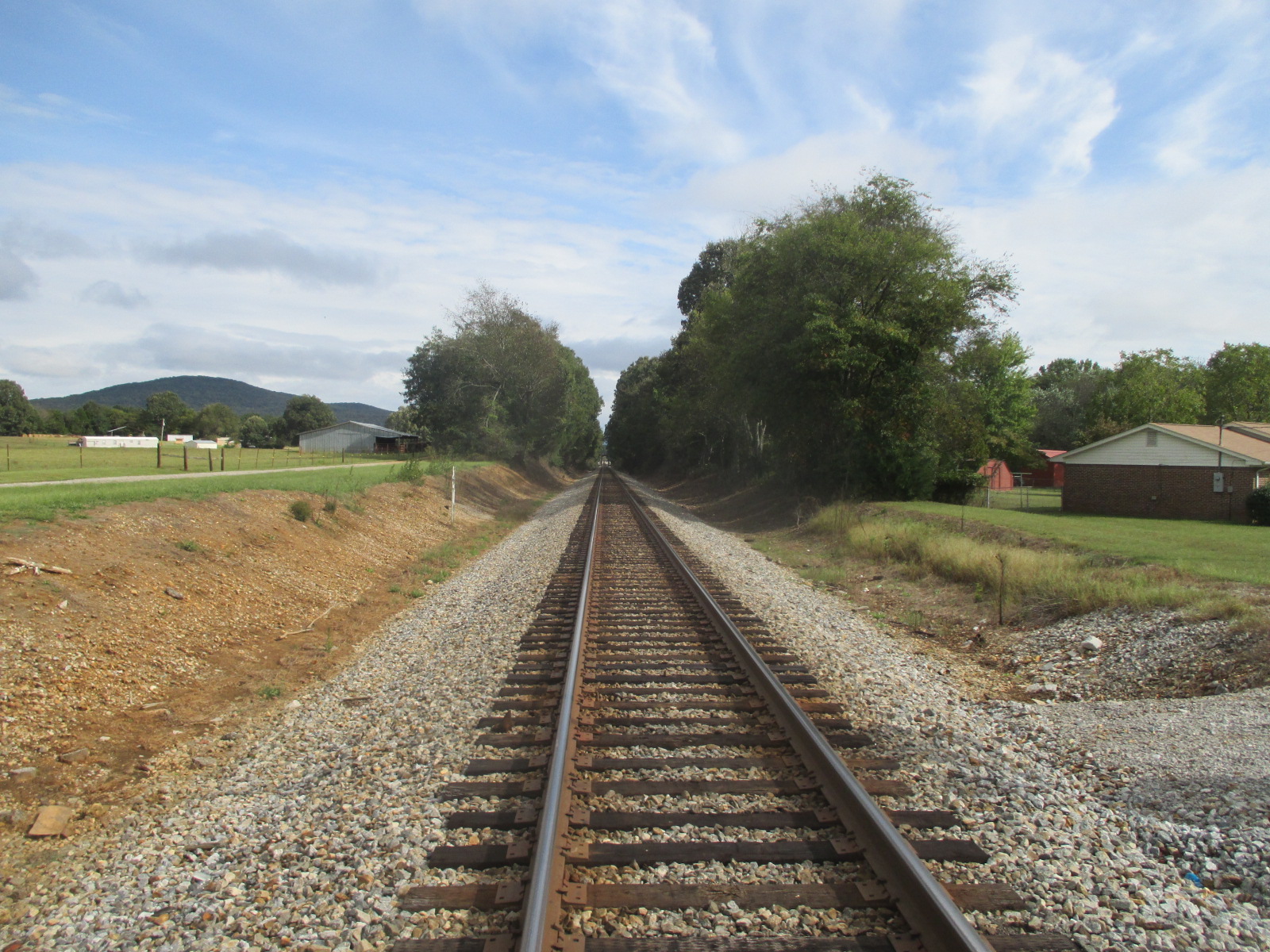

Track views. Picture 23 looks southeast towards Brownsboro Road. Picture 24 looks northwest towards Dug Hill Road in Ryland. |
|
25 |
26 |
27 |
28 |
The relay case. |

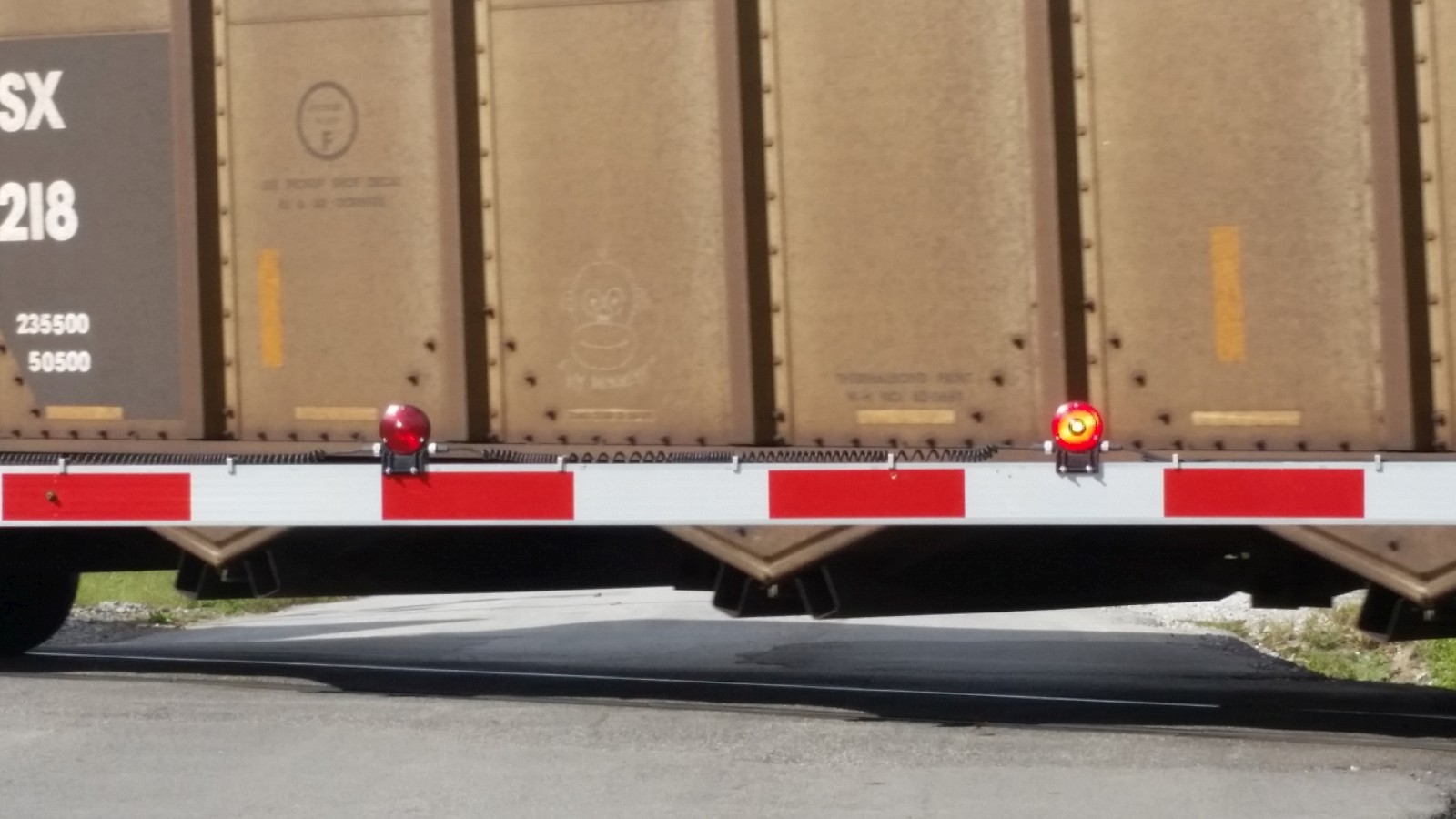

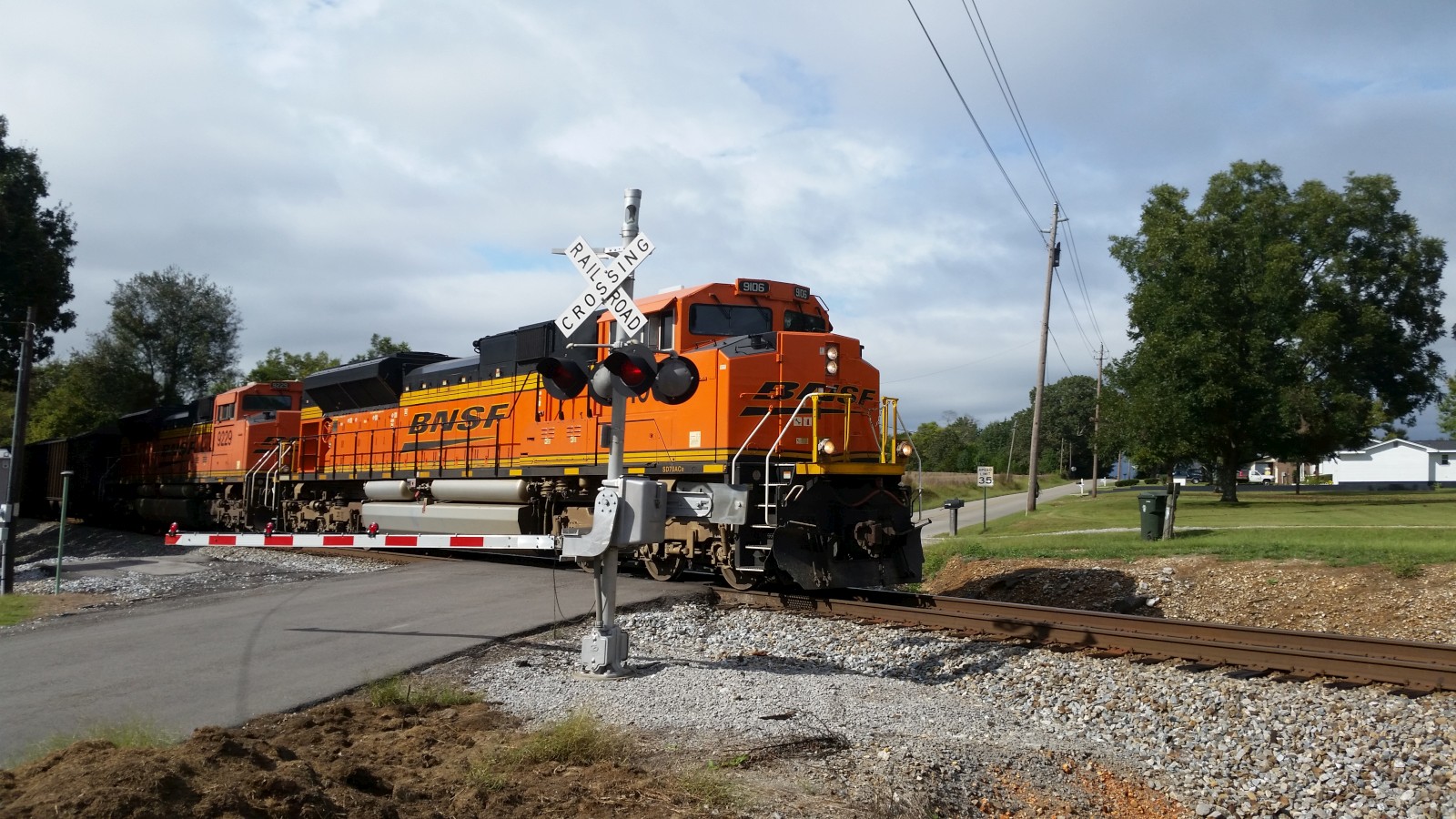

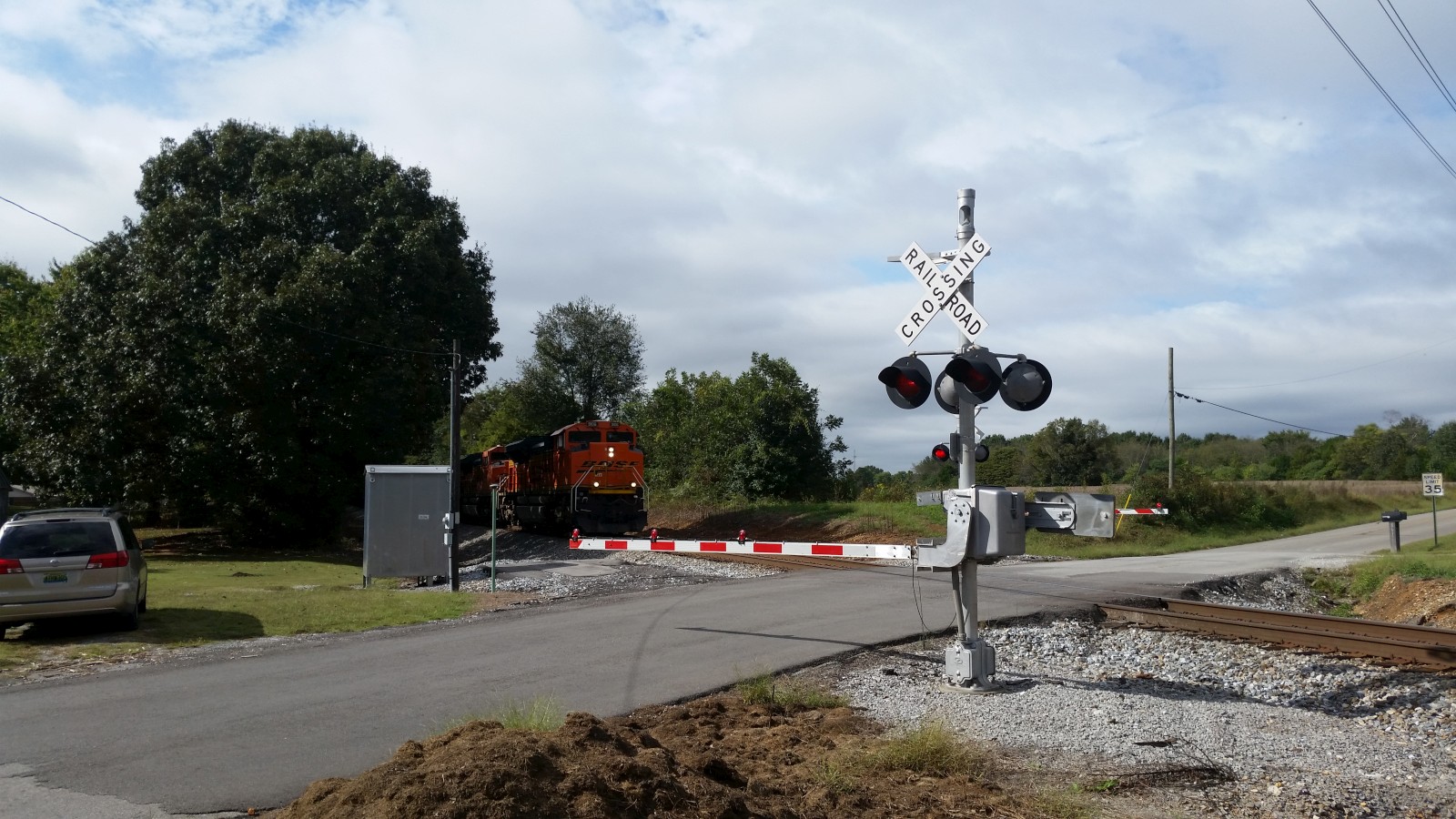

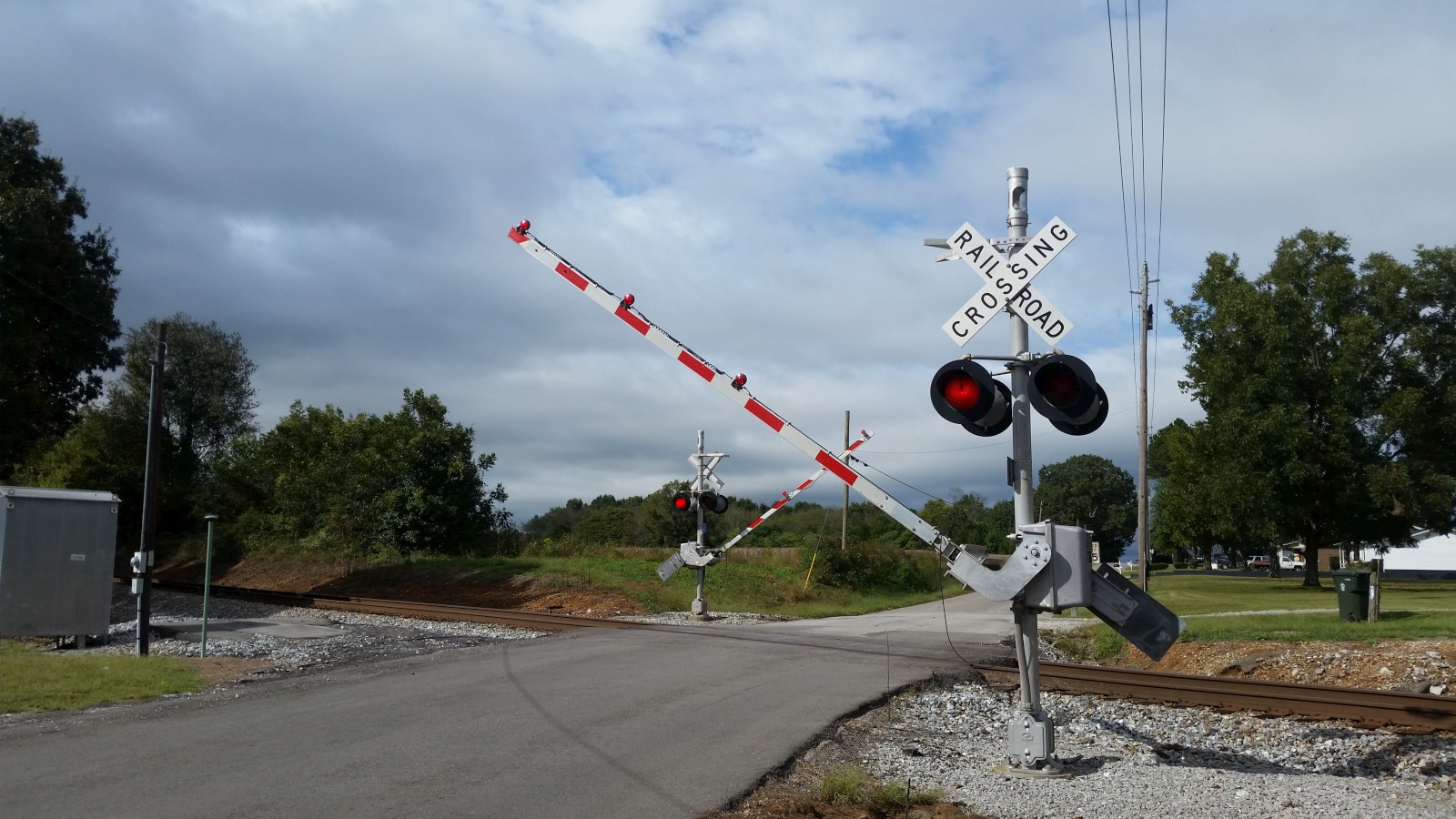

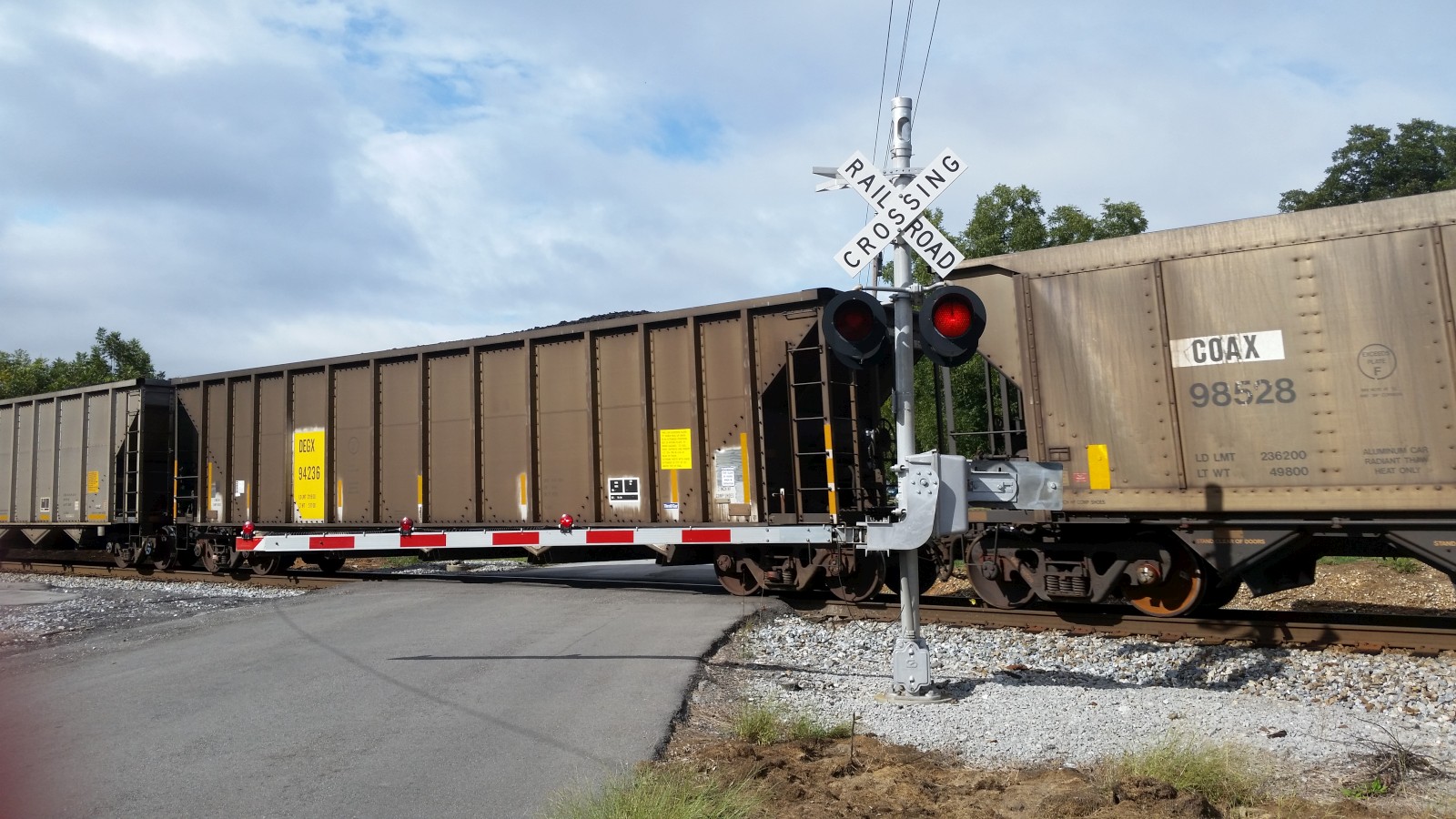

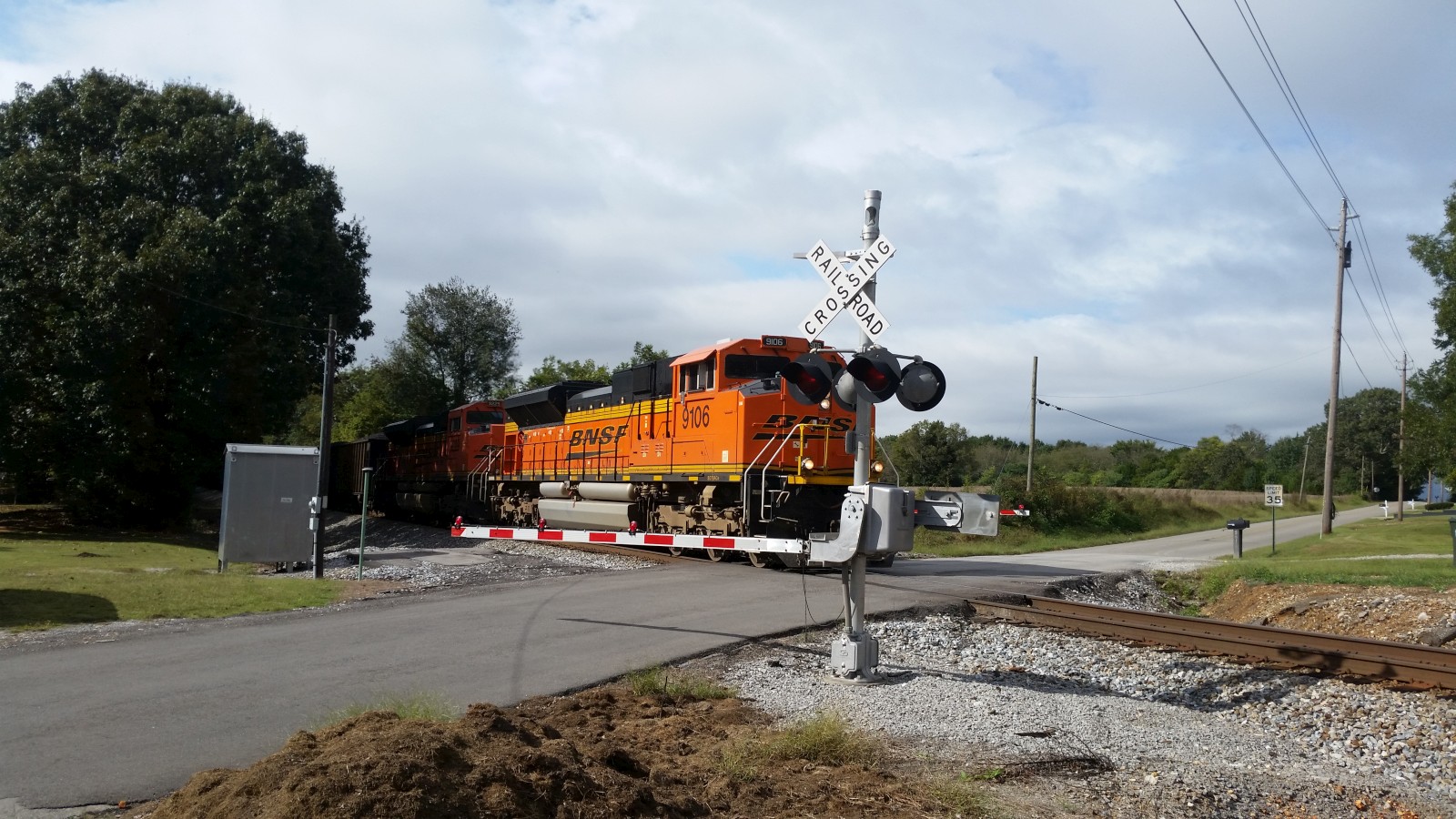

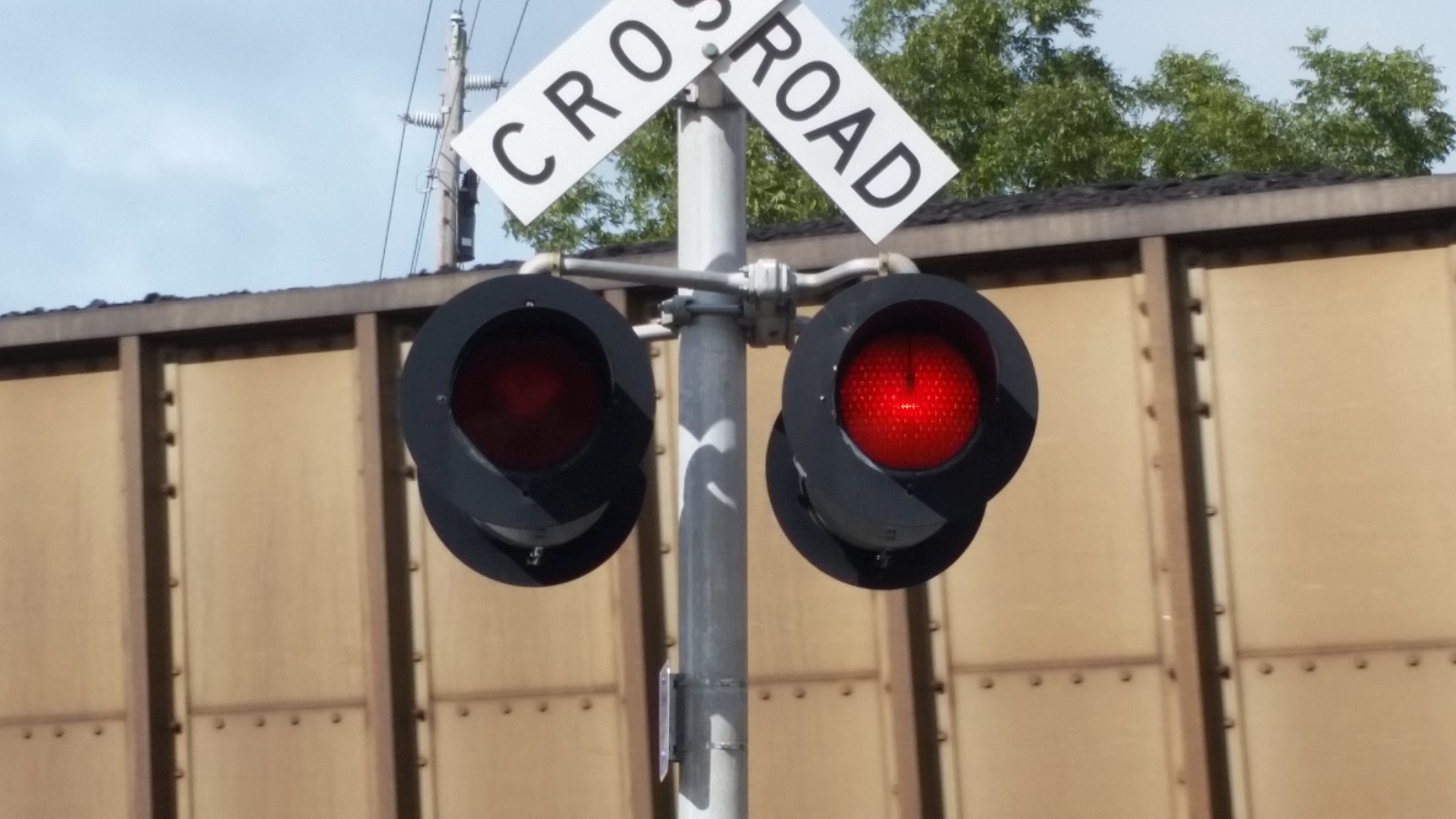

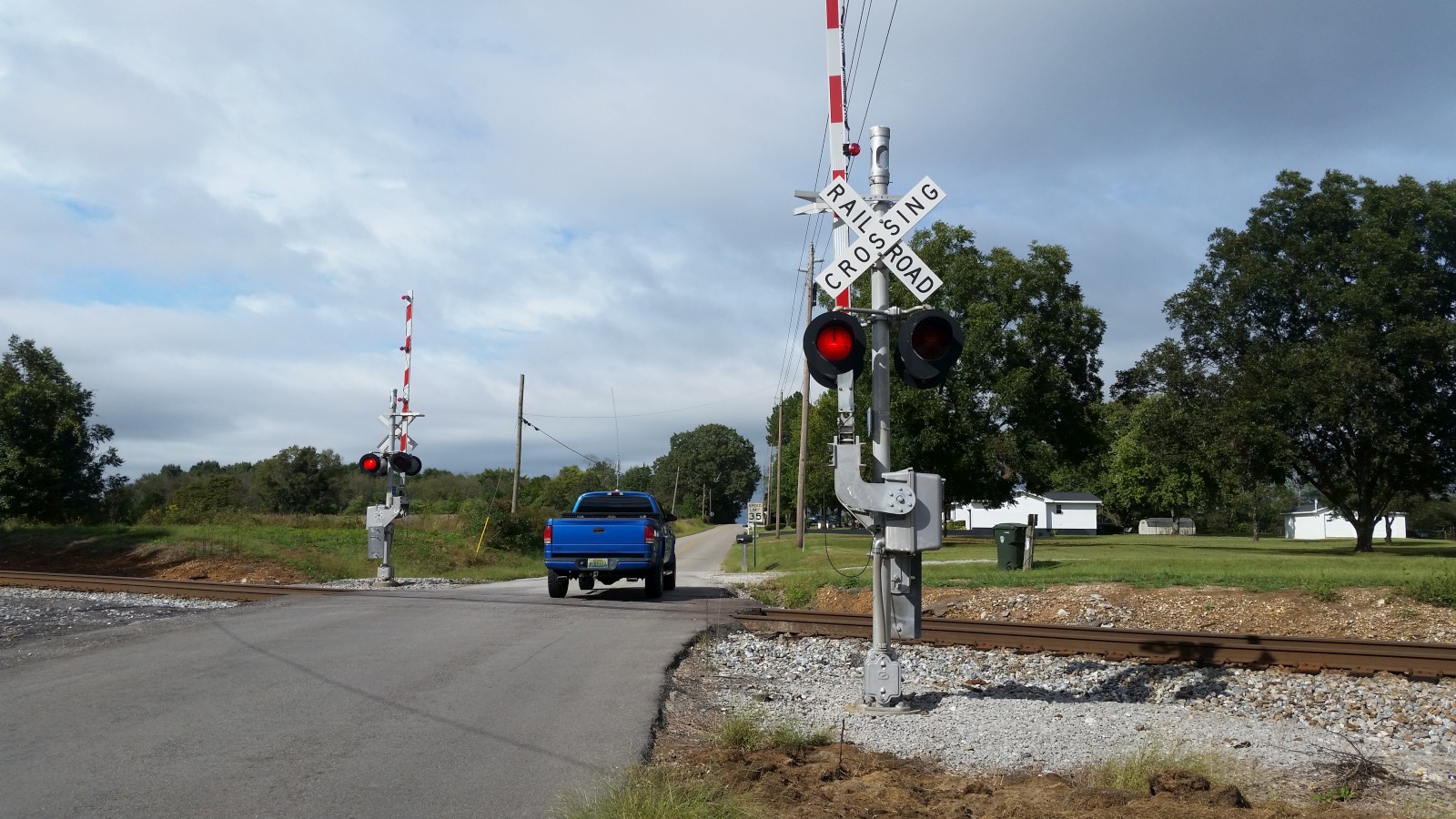

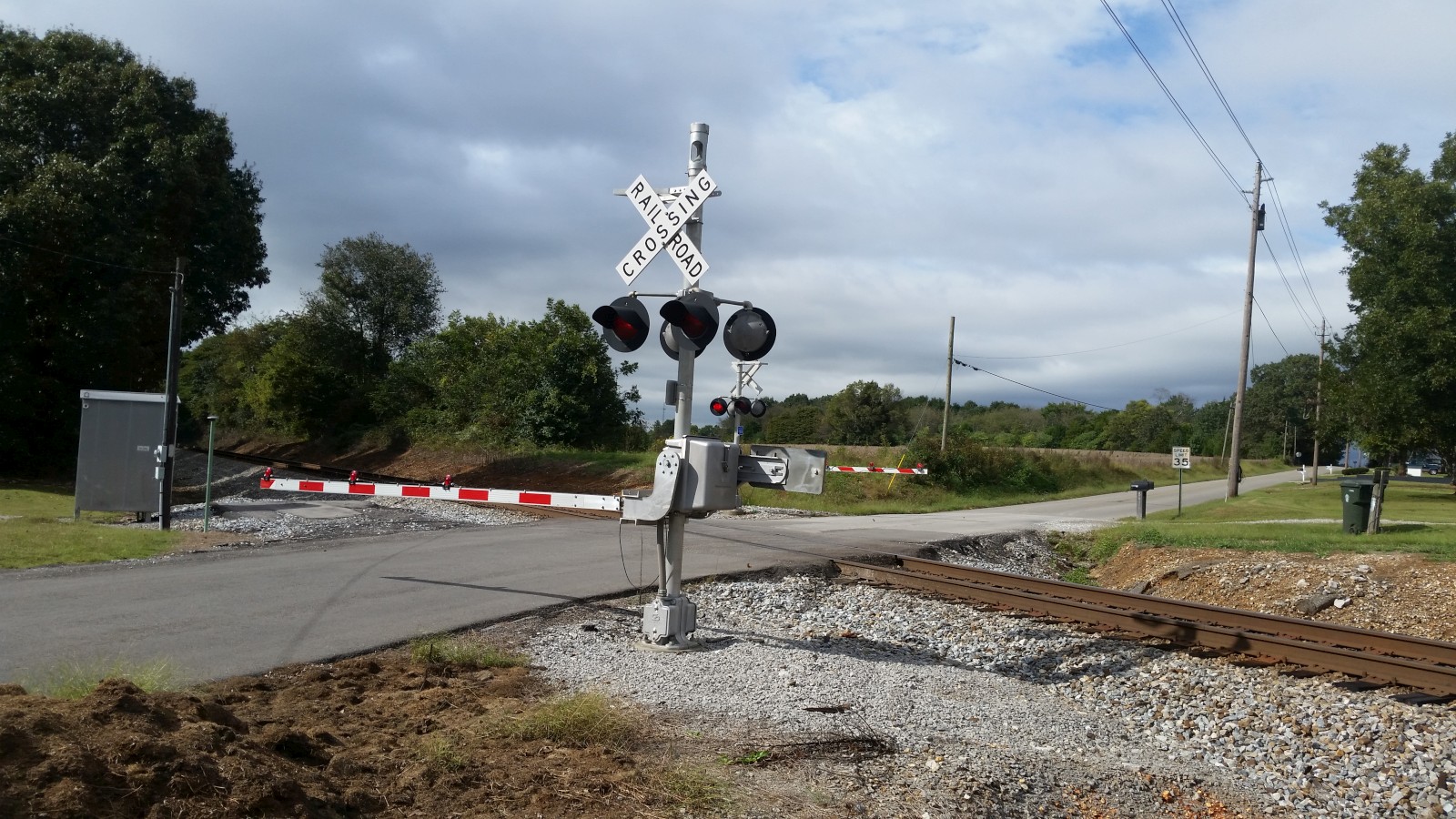

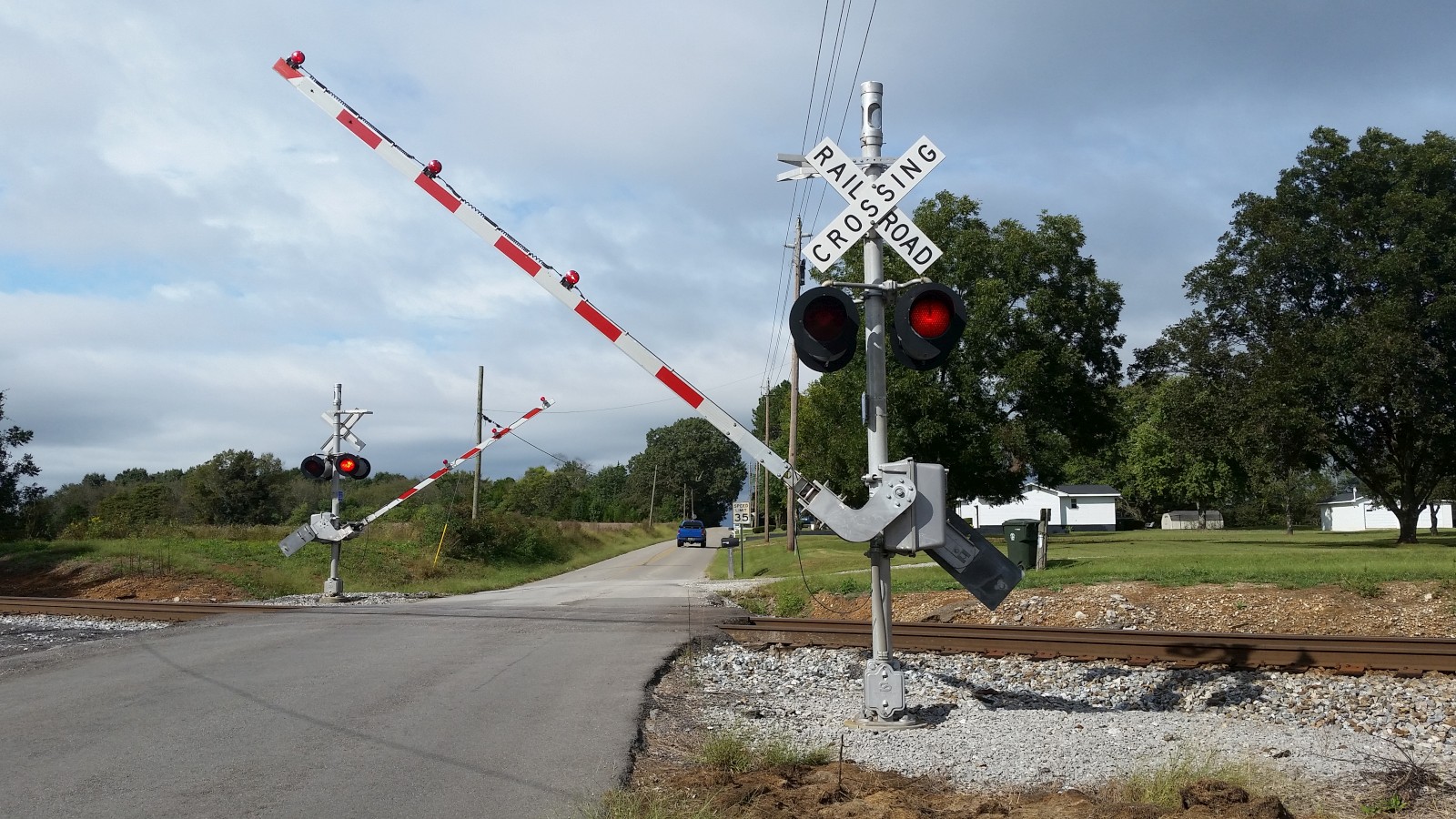

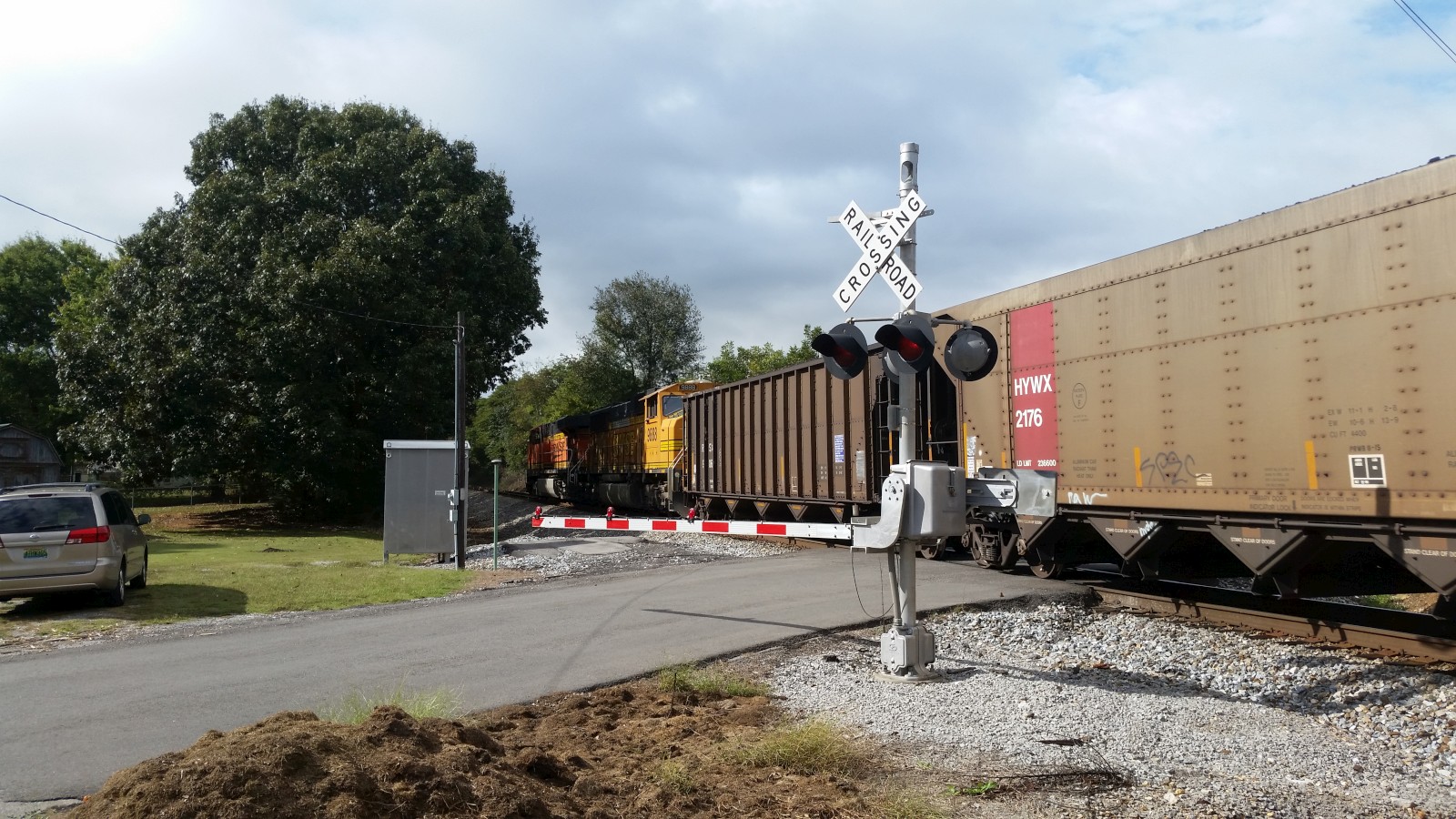

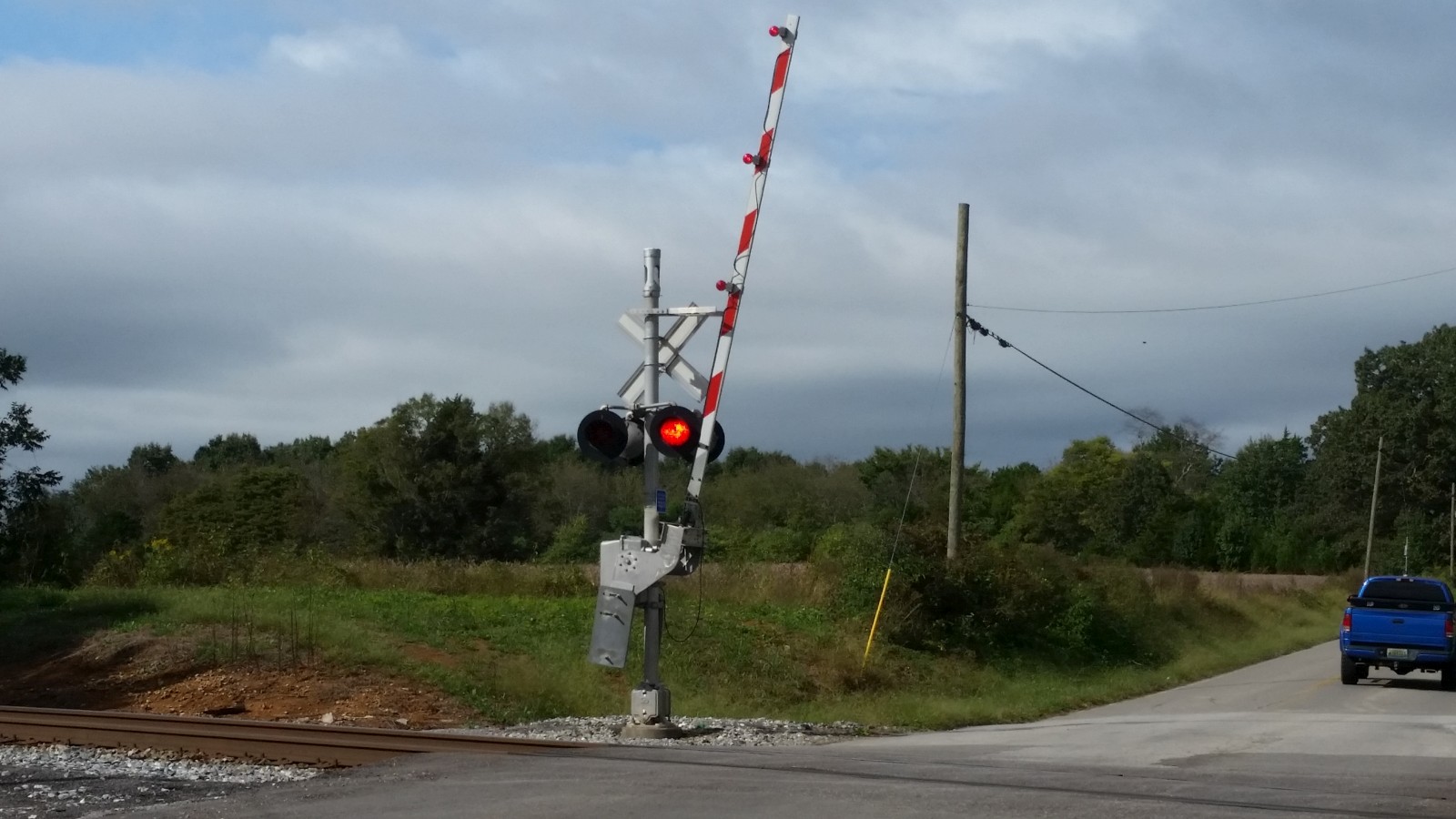

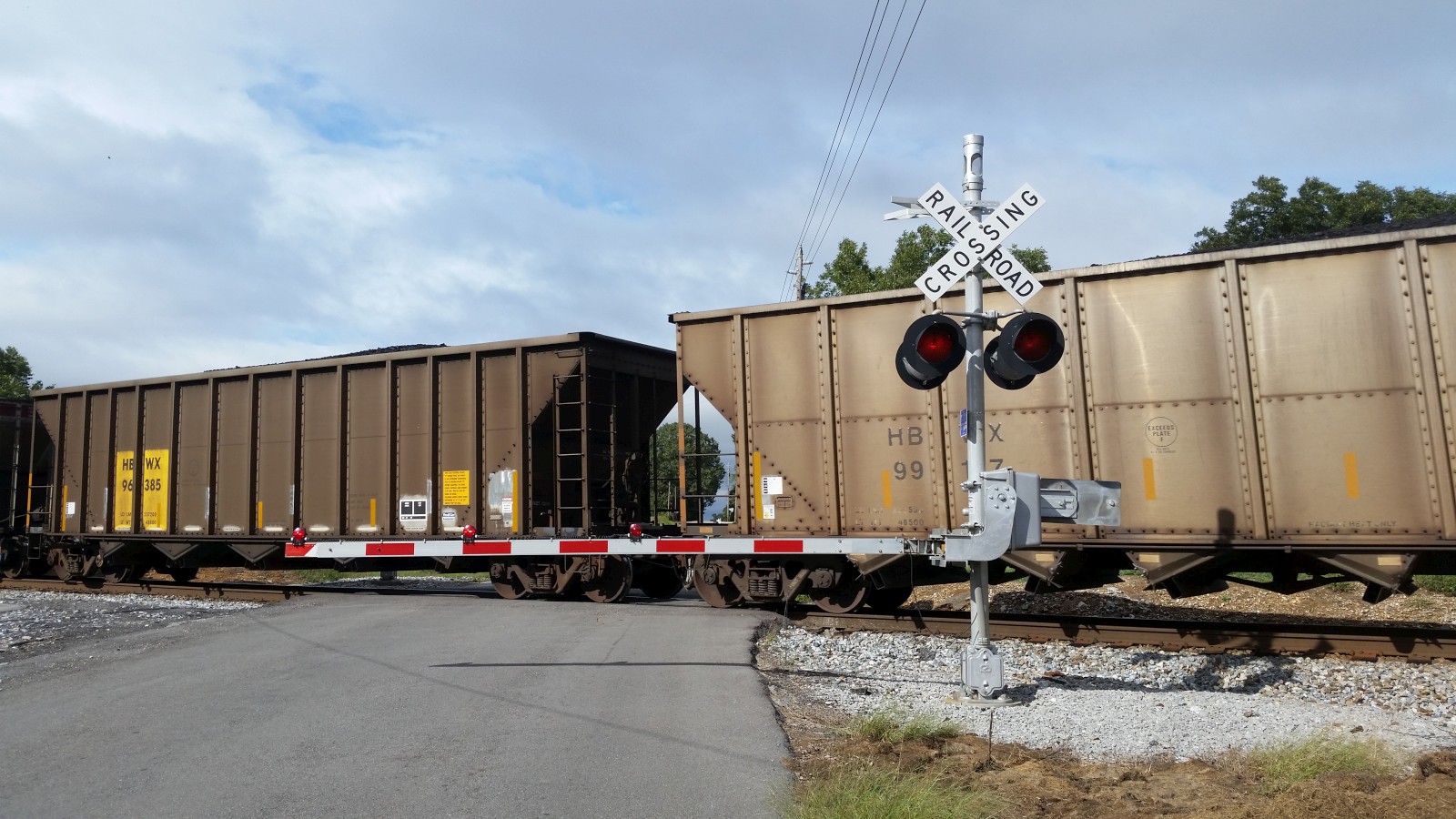

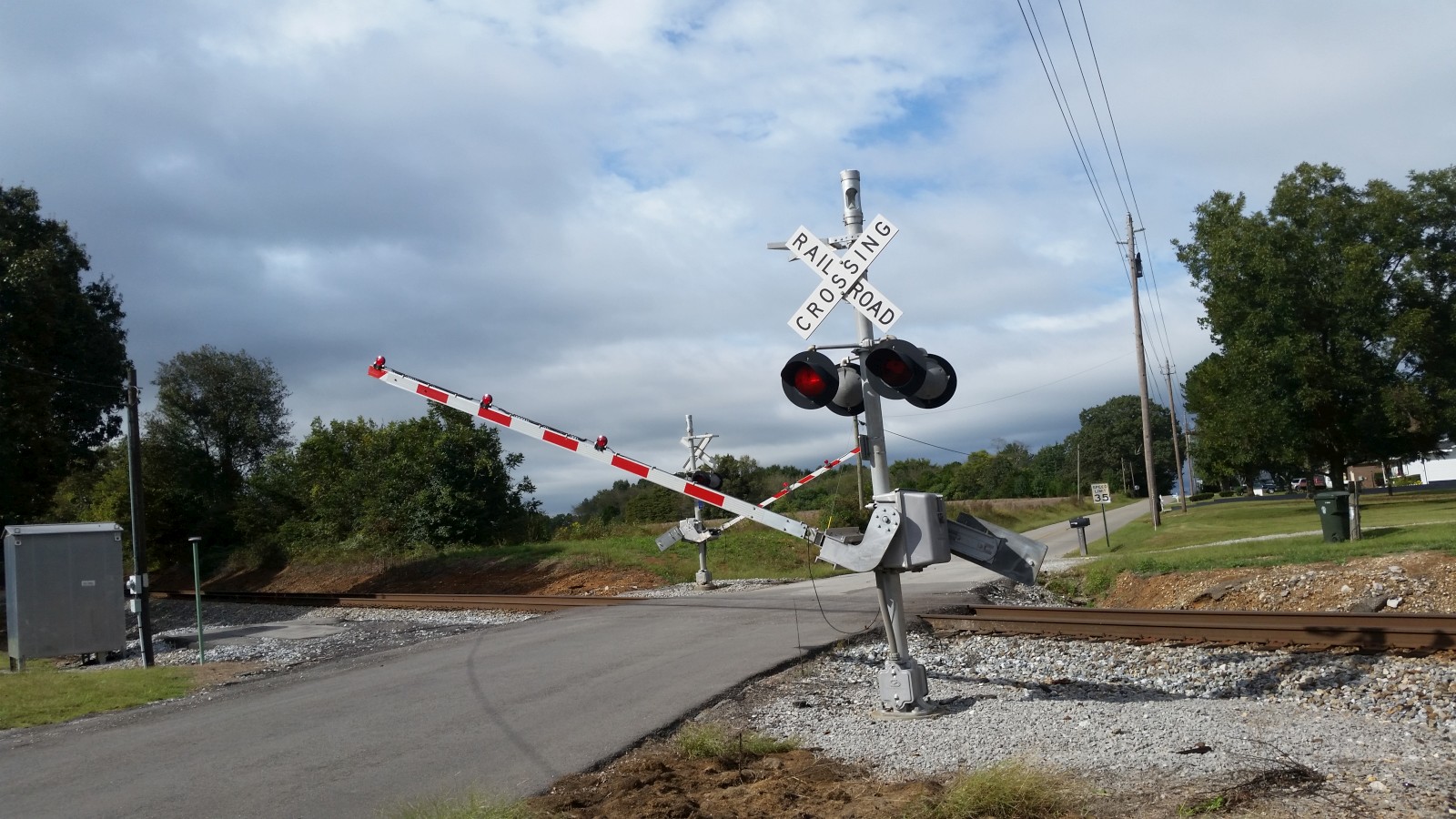

Action shots. |
||
29 |
30 |
31 |
32 |
33 |
34 |
35 |
36 |
37 |
38 |
39 |
40 |
All pictures and the first video were taken on 10-4-15.
The second video was taken on 12-31-17.
