MP: A422.70 |
Updated June 25, 2018
Total Accidents: 1
Crossing
DOT #: 731983A
TOTAL
DAILY TRAINS: 22 (AS OF 2014)
Page created by: freebrickproductions
This crossing is located on the NS Memphis District West End.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | N/A | RACO mechanical |
| Cantilever: | Safetran | Safetran |
| Light Frames: | 4 - 12x20" Safetran w/ GE Uniform Look LEDs 4 - 12x20" 70s Safetran w/ GE Uniform Look LEDs |
4 - 12x20" Safetran w/ GE Uniform Look LEDs 4 - 12x20" 70s Safetran w/ GE Uniform Look LEDs |
| Base: | early Safetran | early Safetran |
| Gate Lights: | 3 - RECO LEDs | 3 - RECO LEDs |
| Gate Mechanism: | Safetran early-70s | Safetran early-70s |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

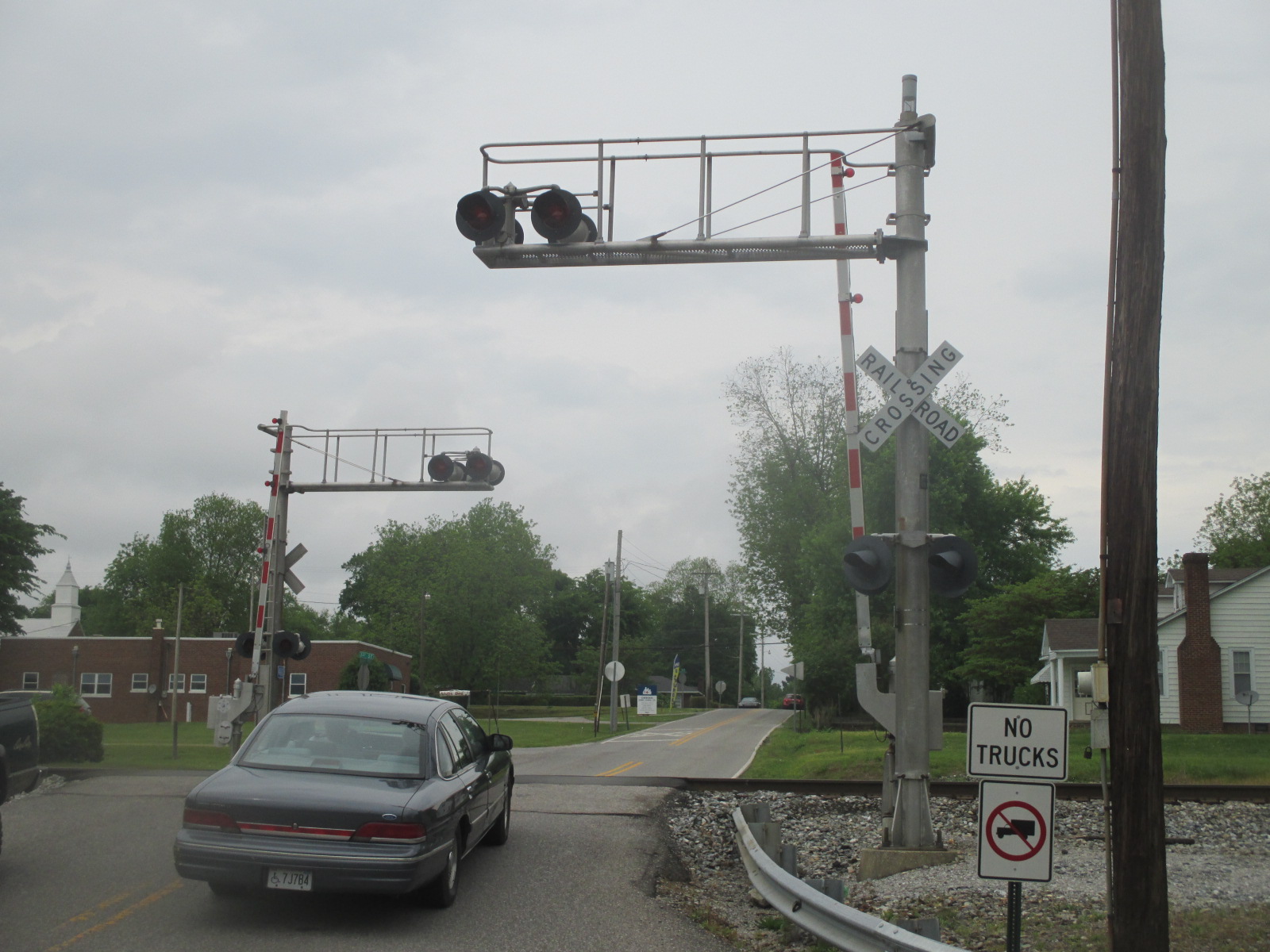

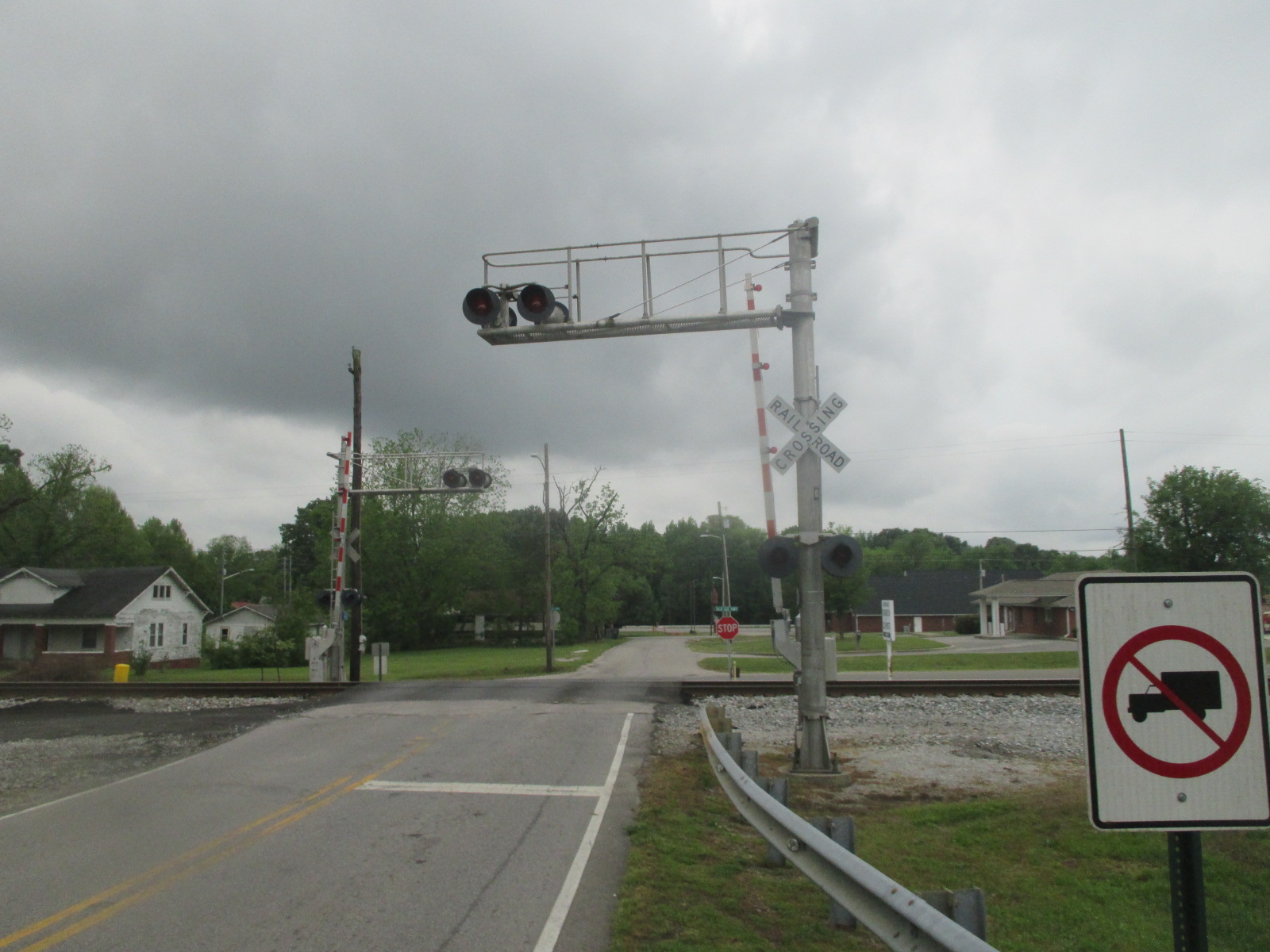

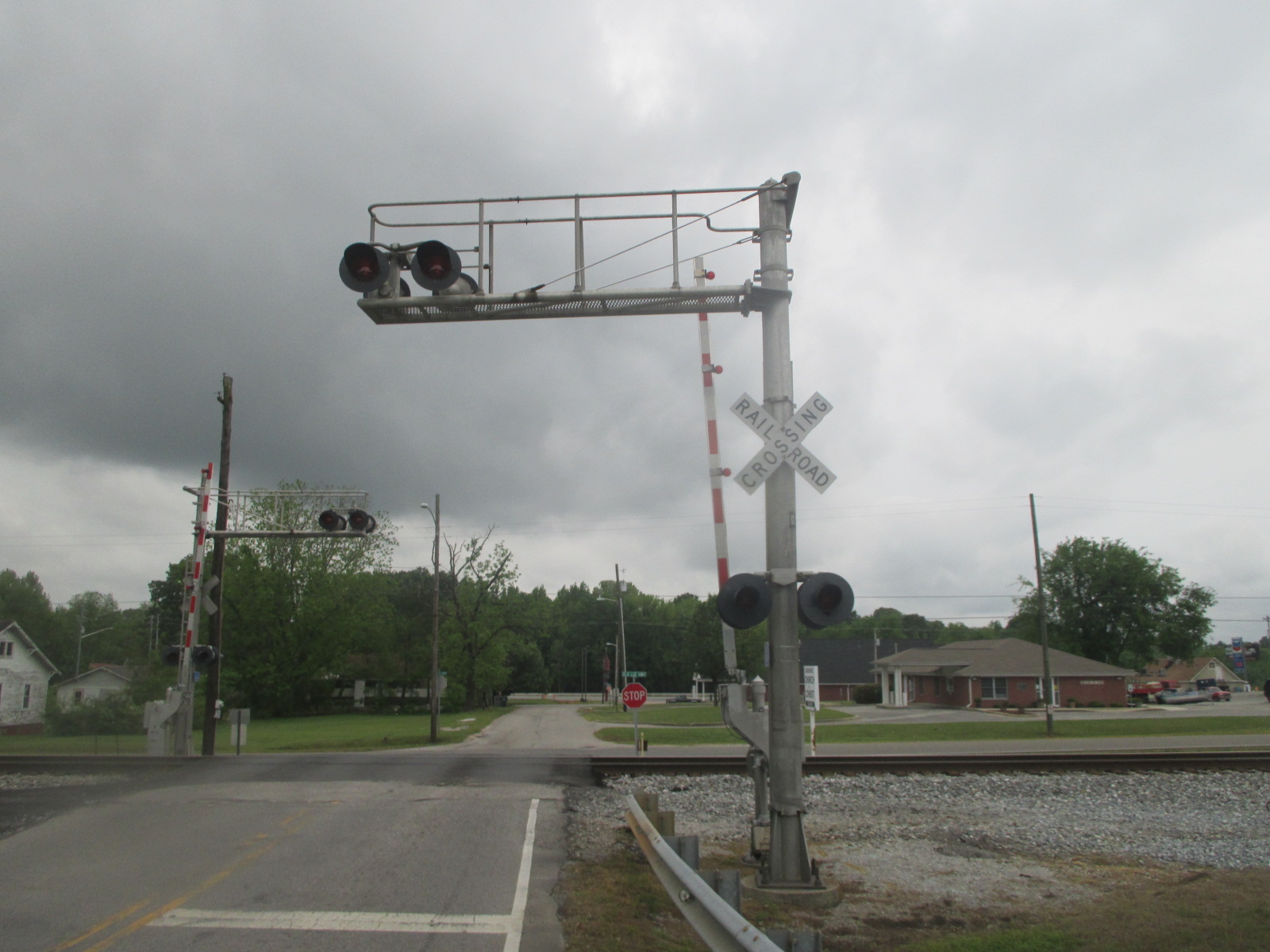

Overviews of the crossing. |

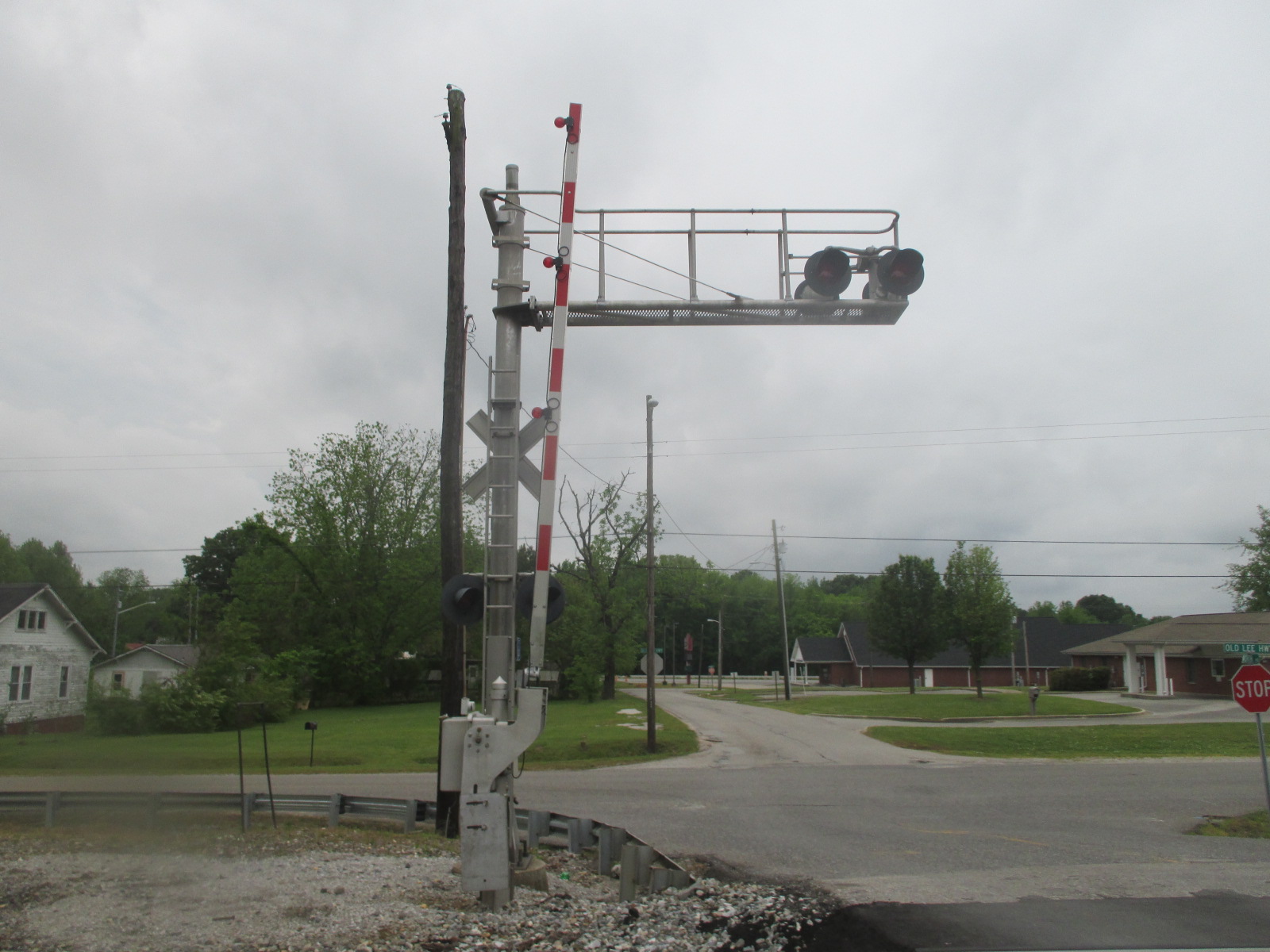

The first signal. |
||
5 |
6 |
7 |
8 |
It's a Safetran cantilever. |

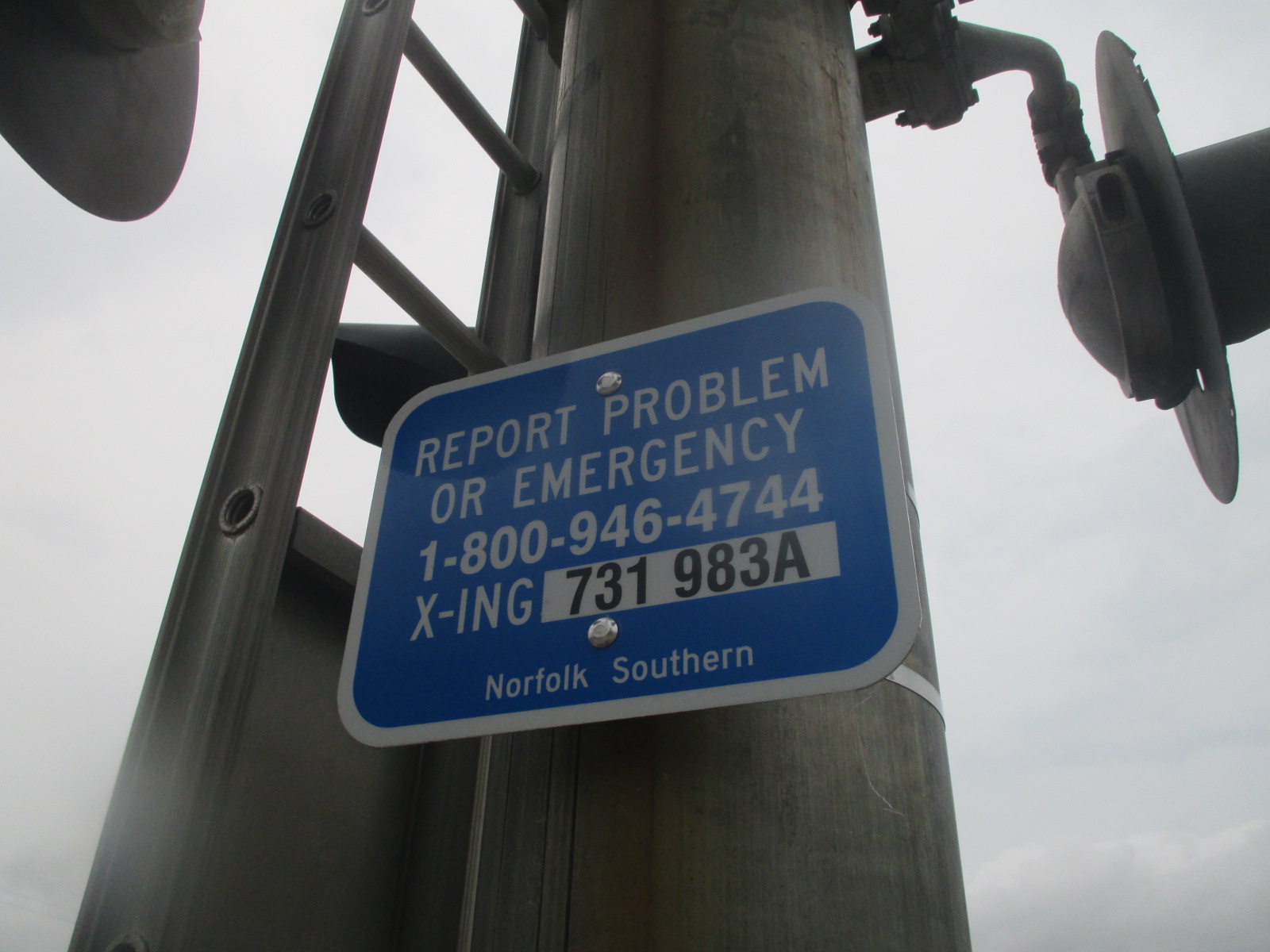

The DOT tag. |

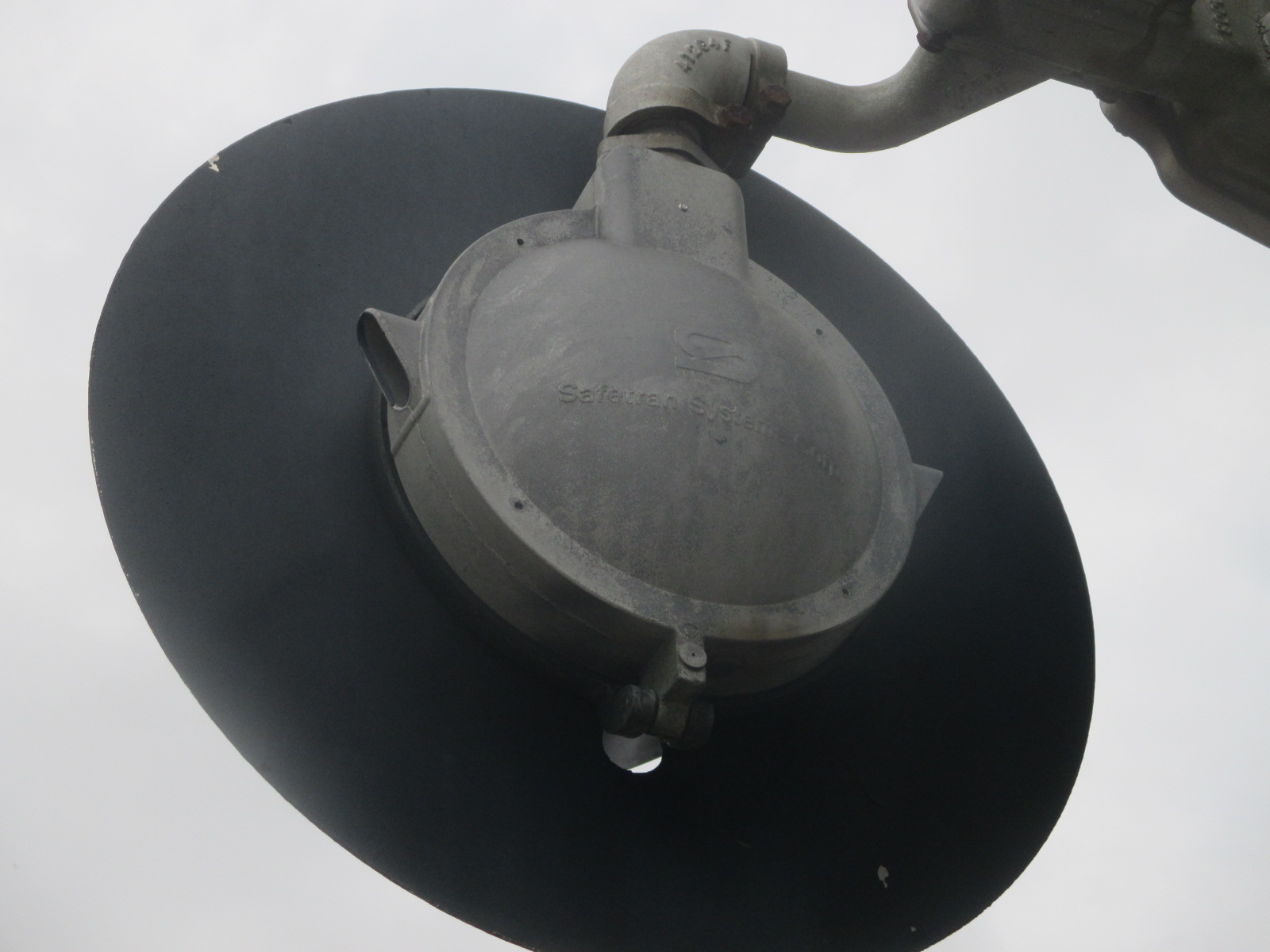

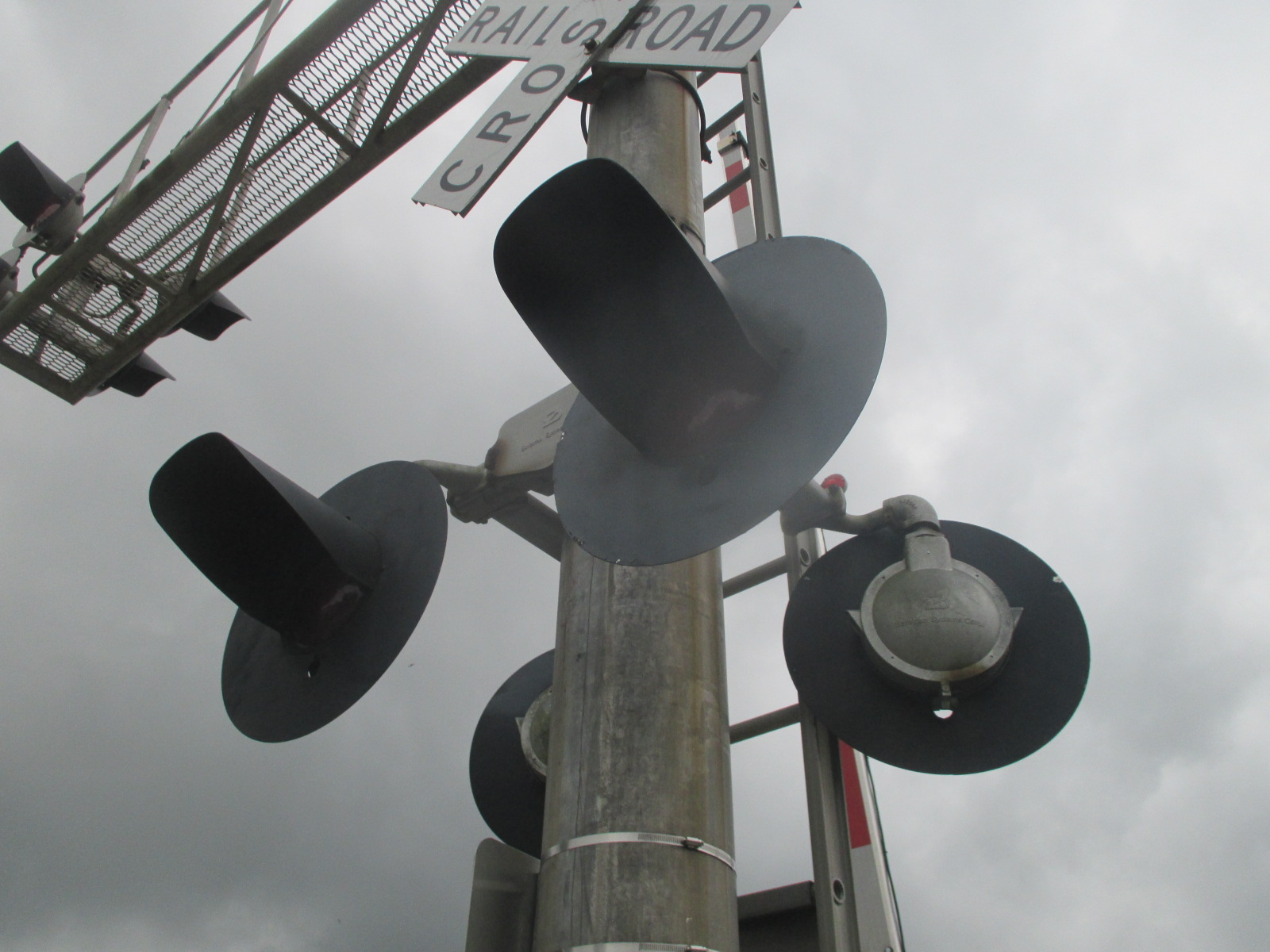

The mast lights are 8 inch Safetrans. |
|
9 |
10 |
11 |
12 |

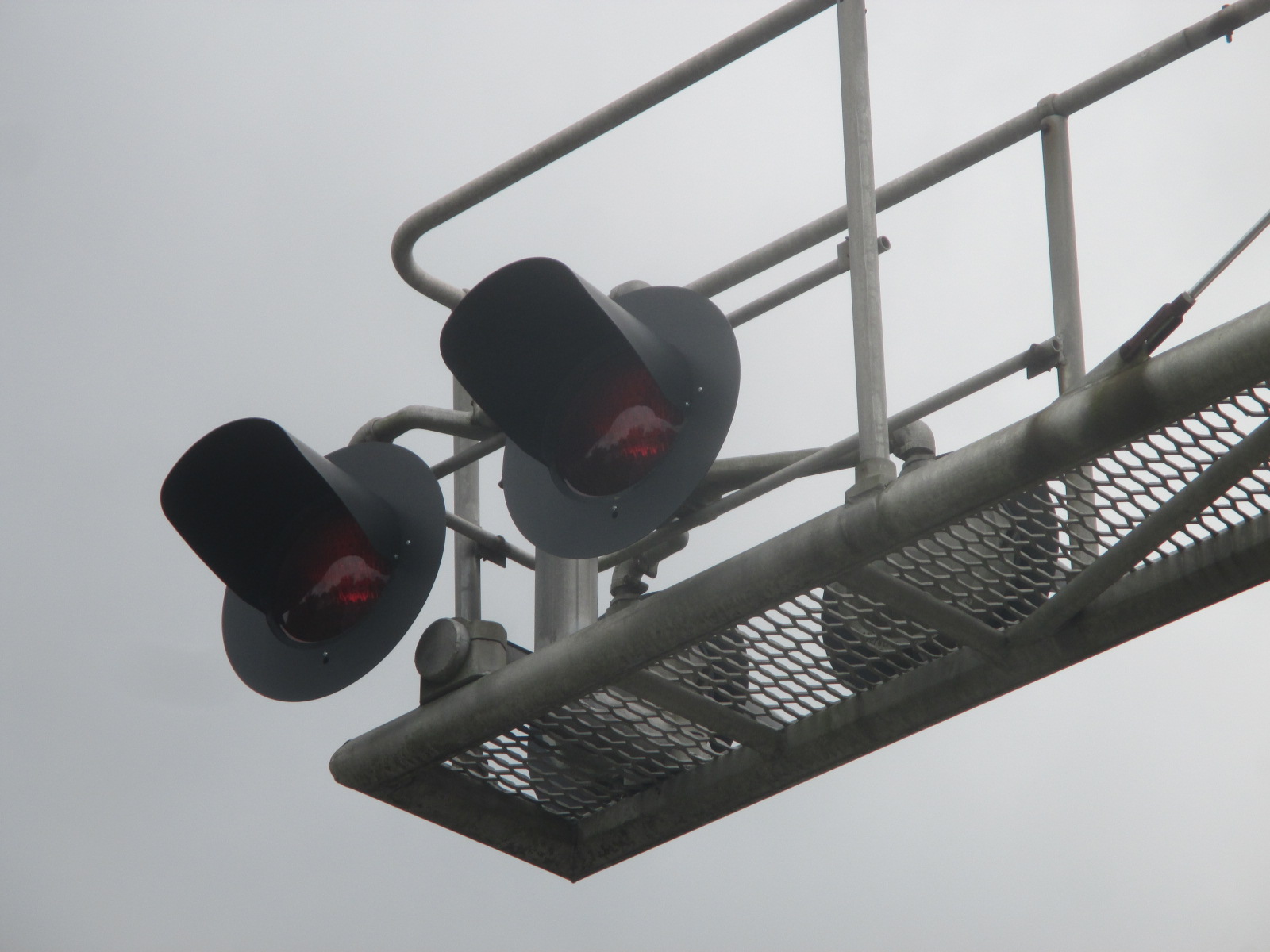

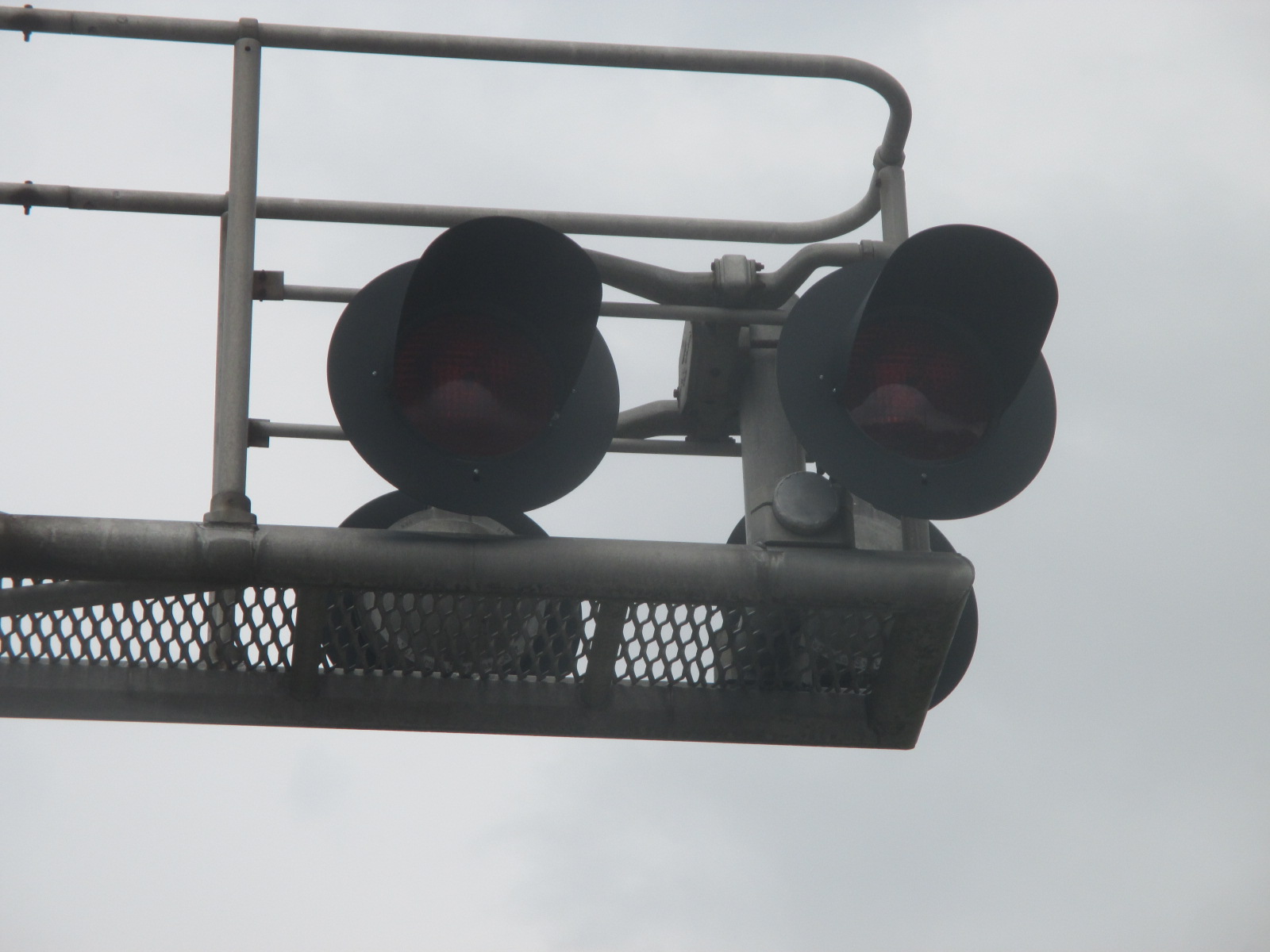

The overhead lights are older Safetran 12x20s. |

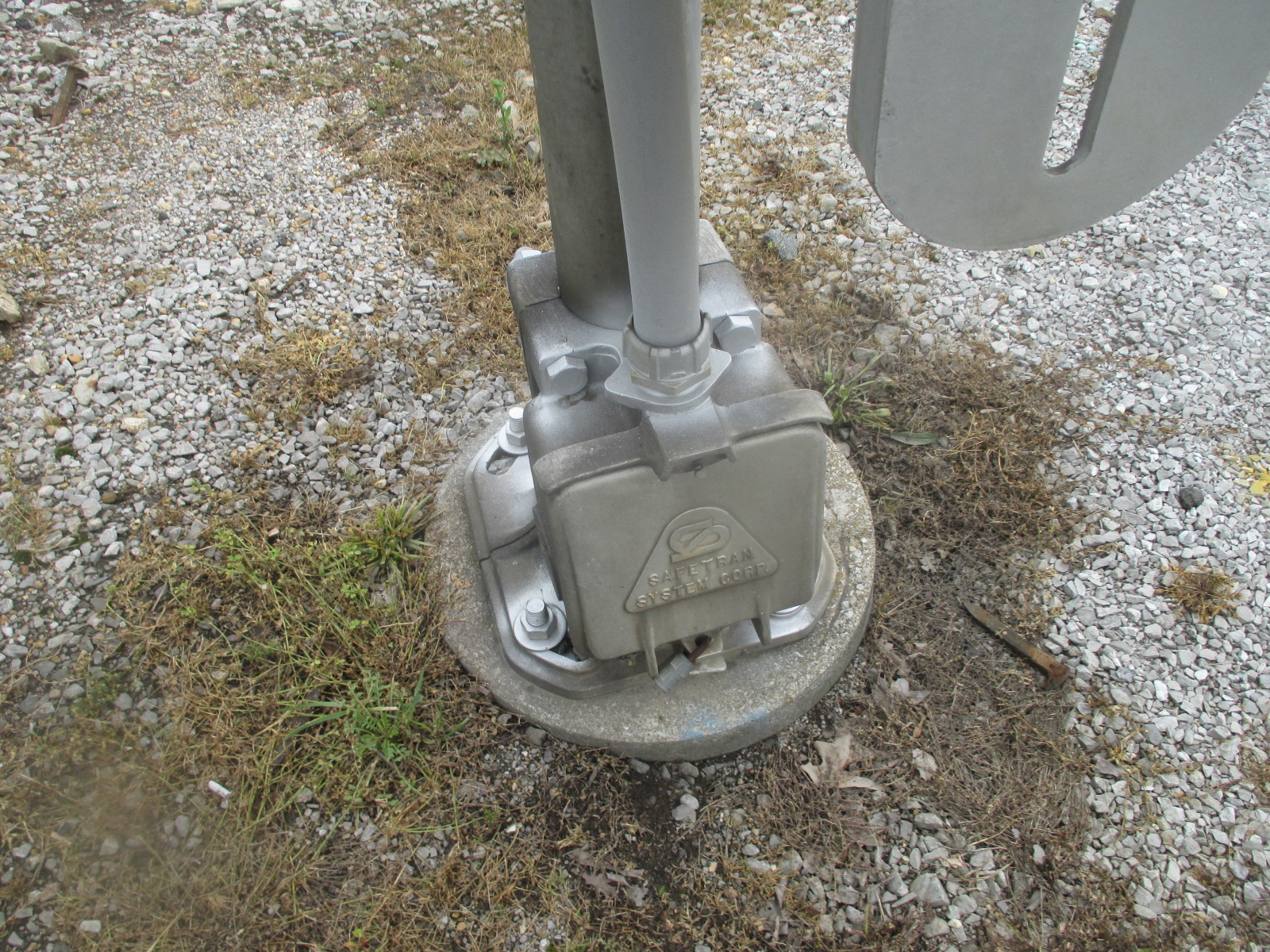

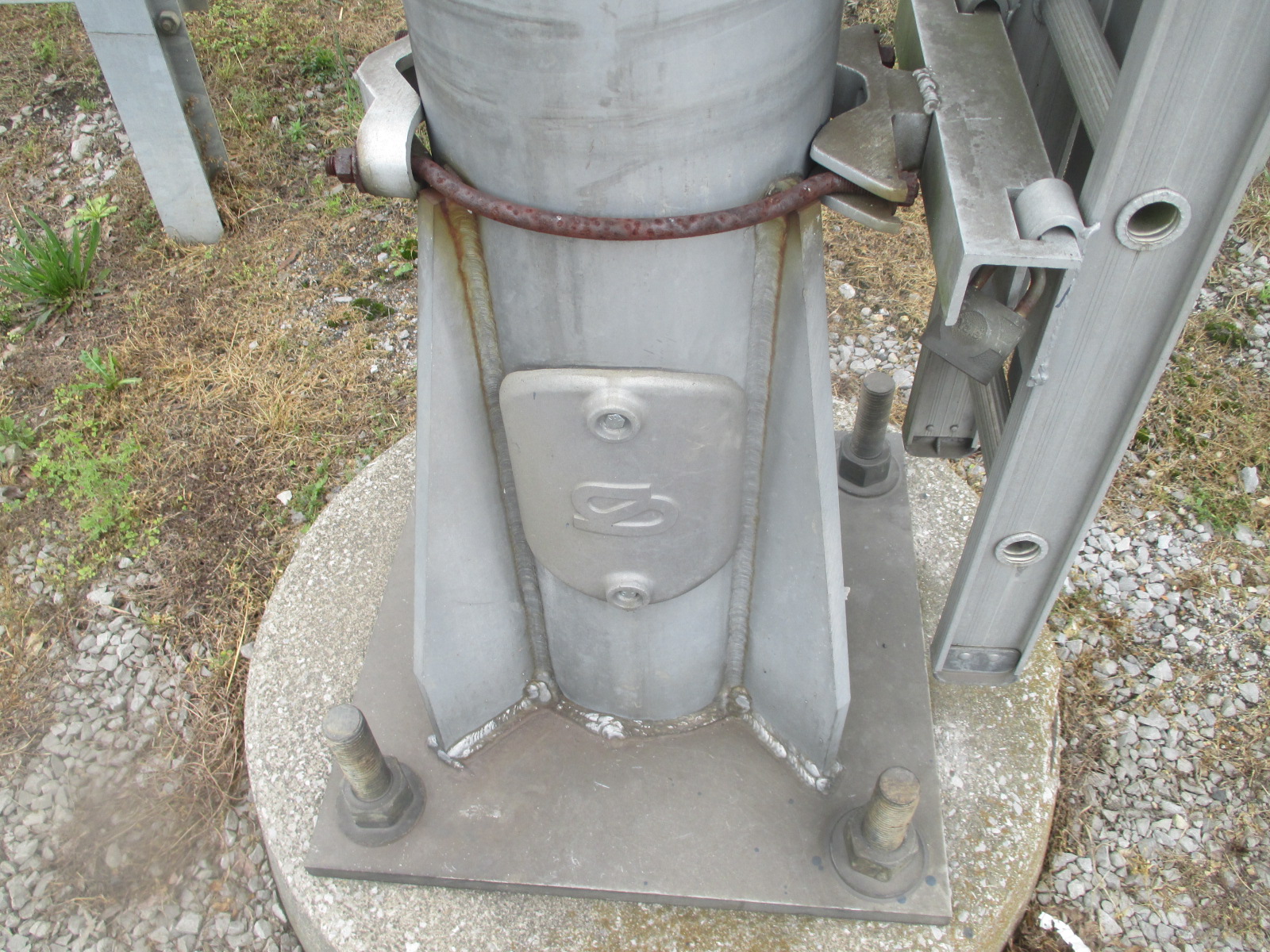

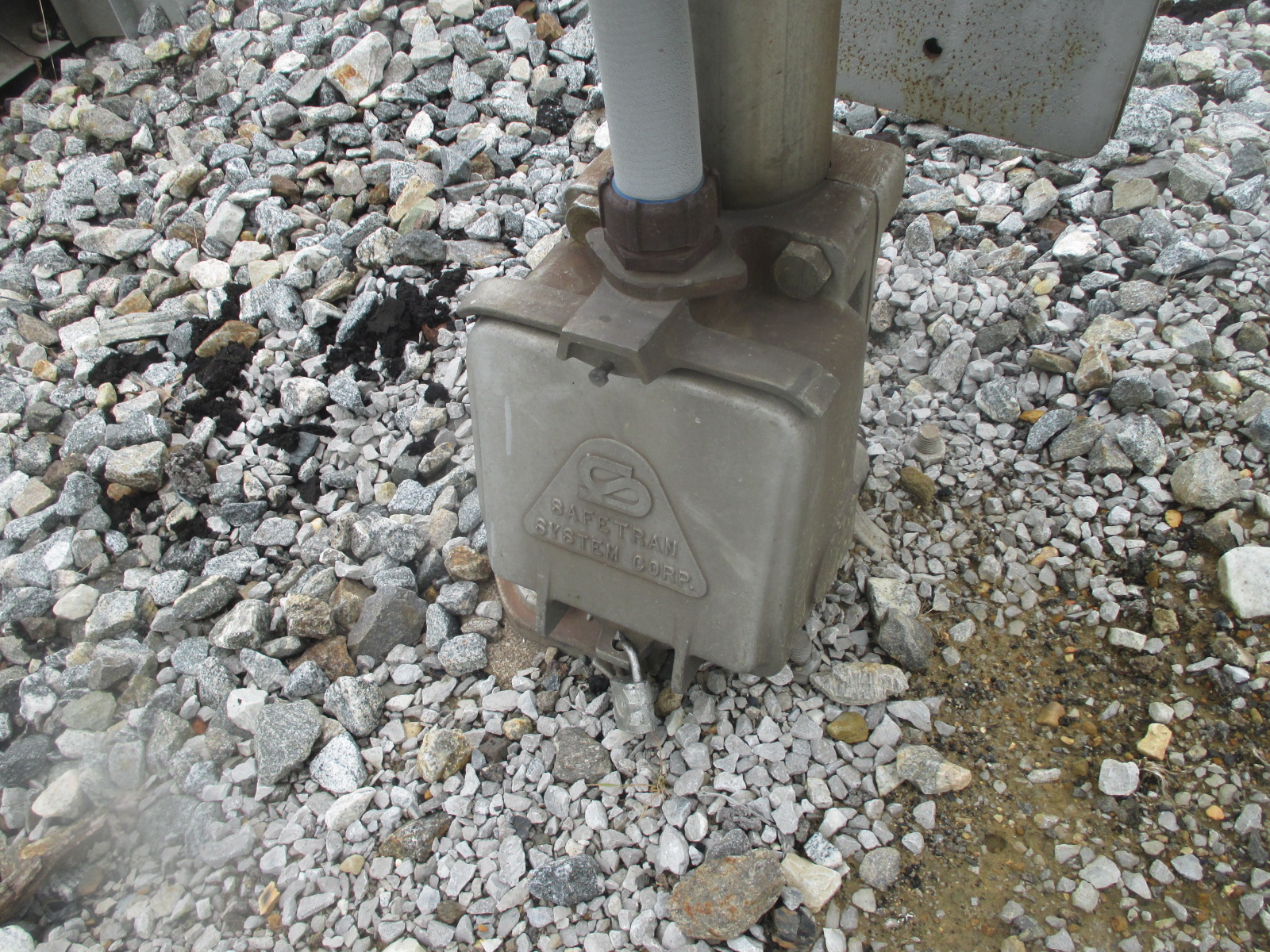

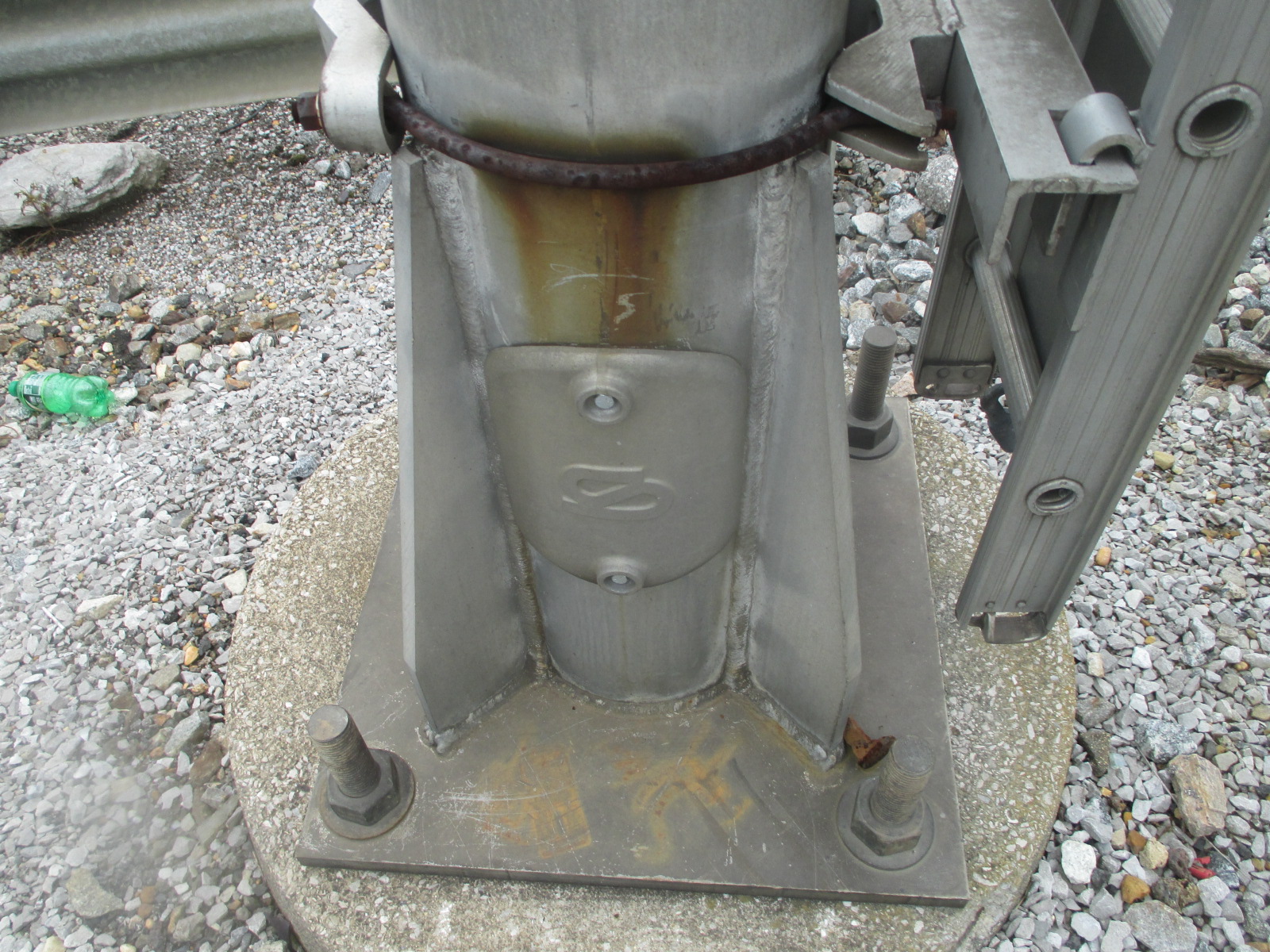

An older Safetran base. |

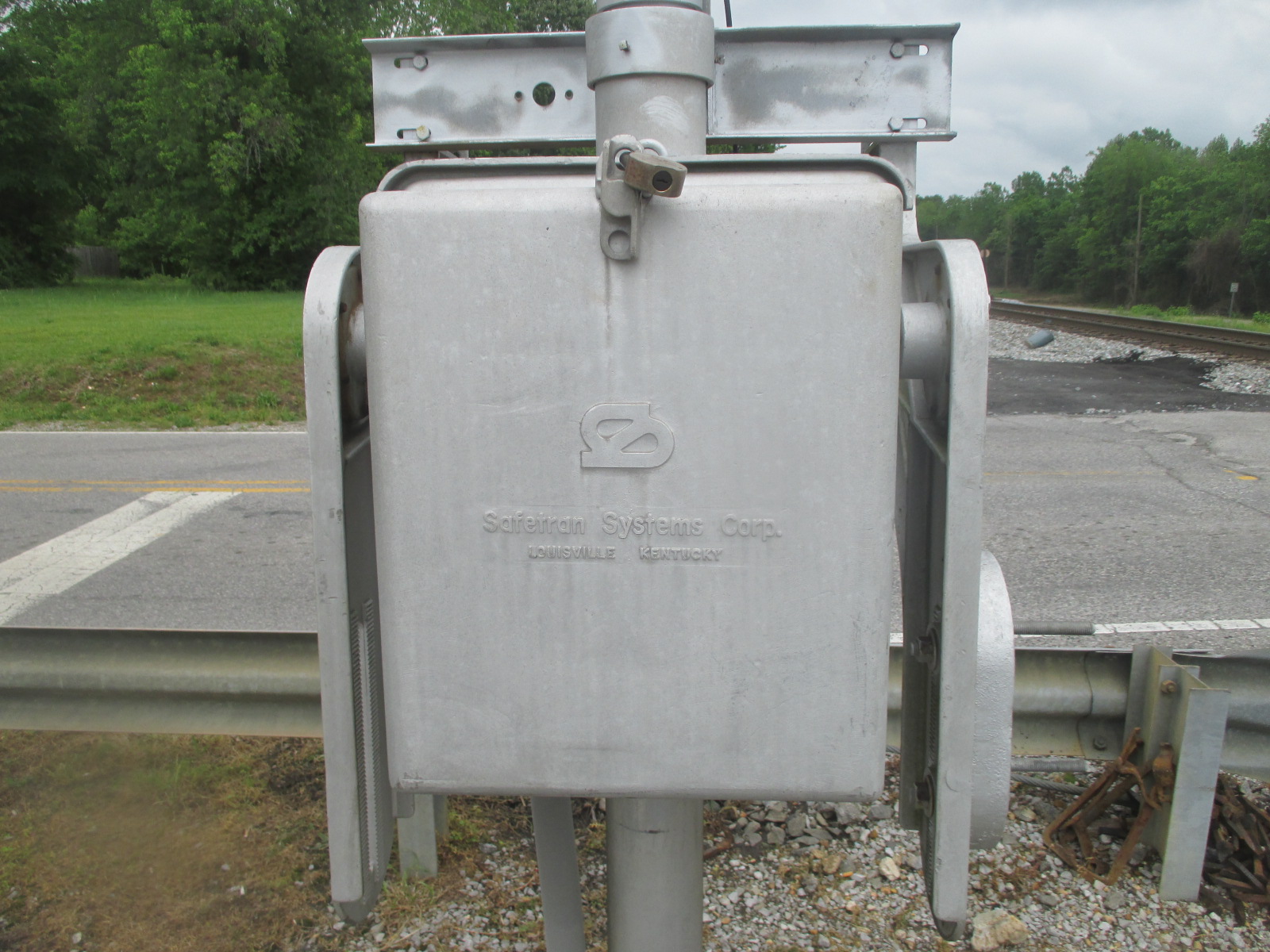

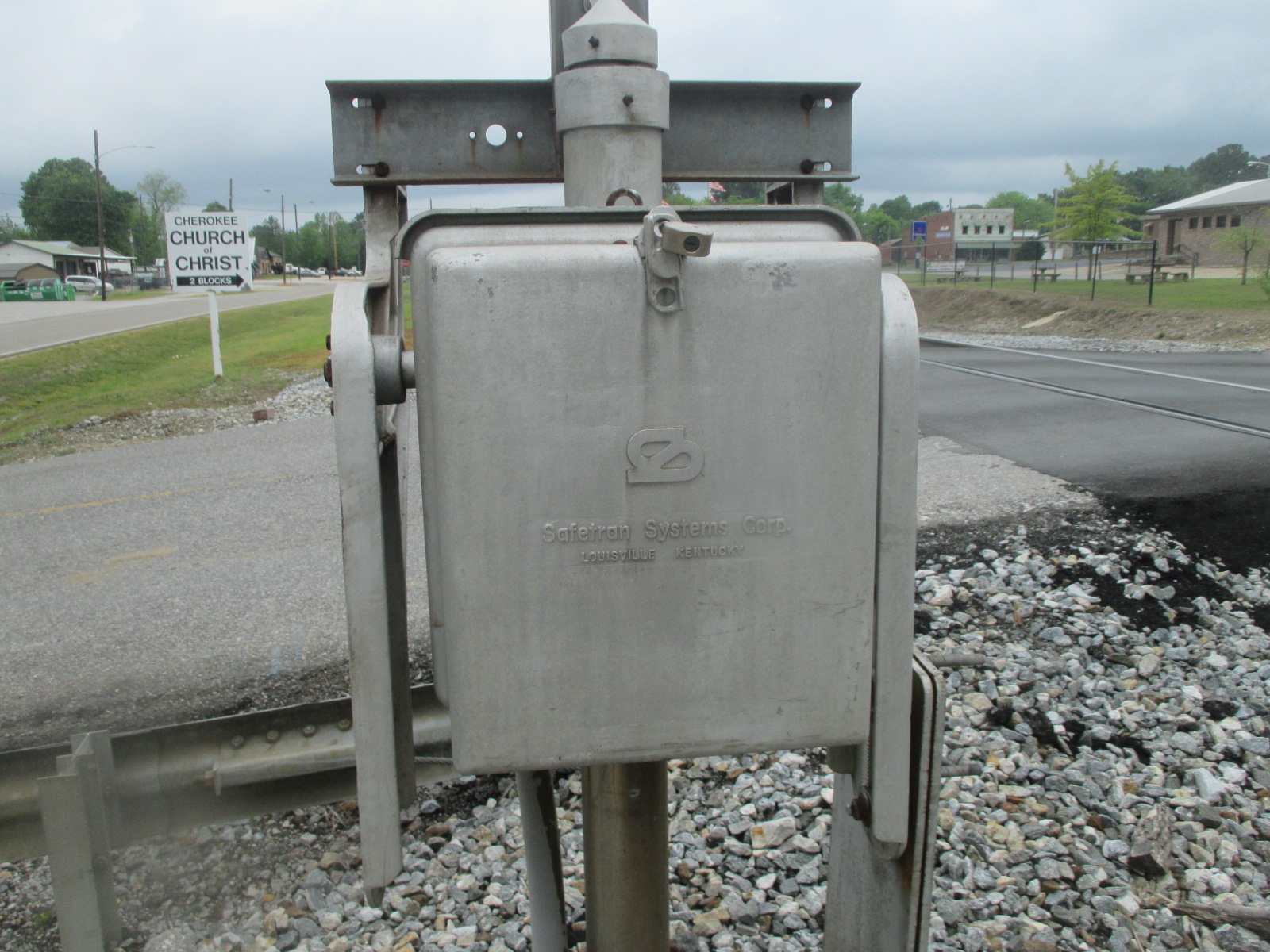

The Safetran gate mechanism. |
|
13 |
14 |
15 |
16 |

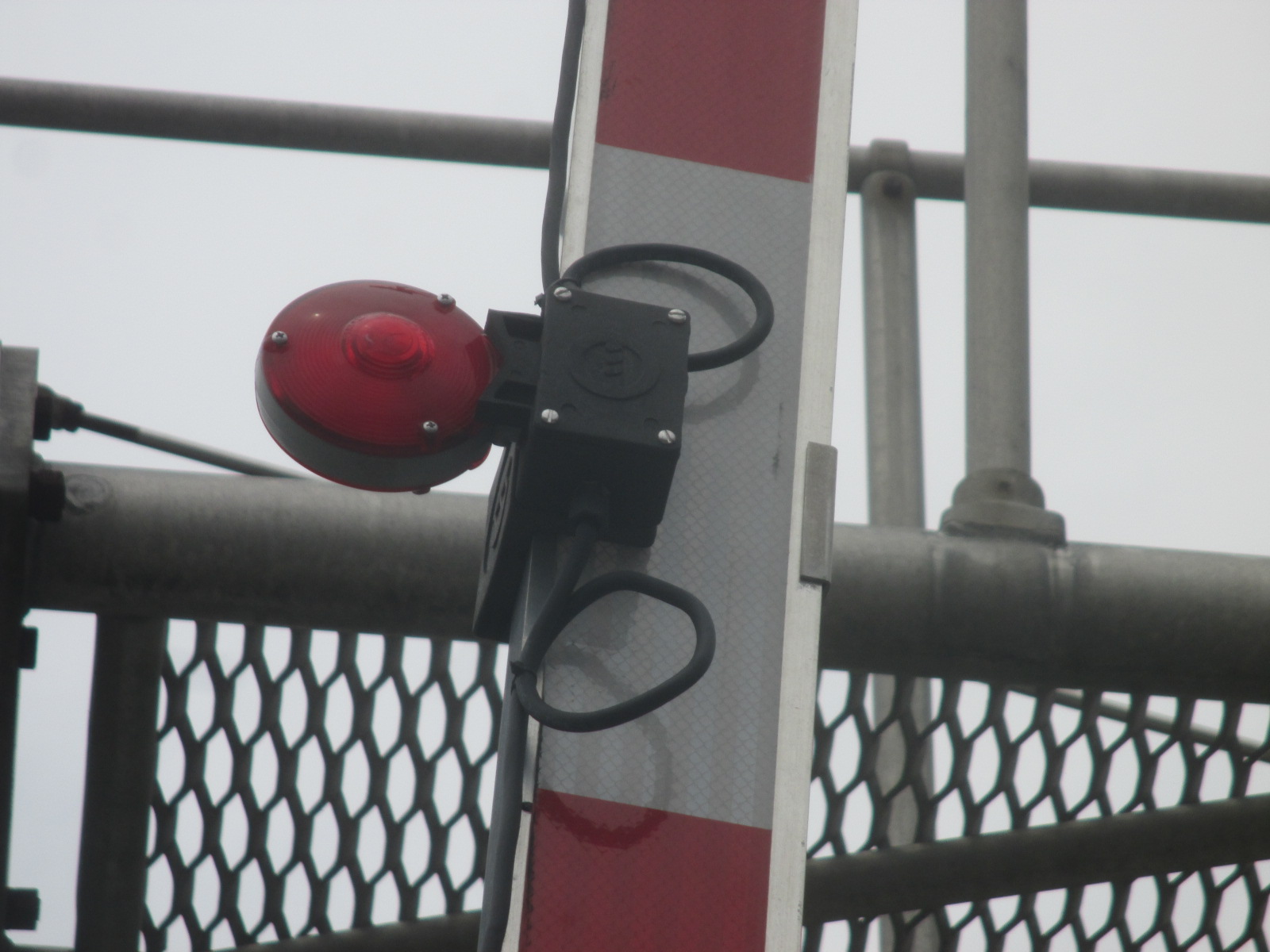

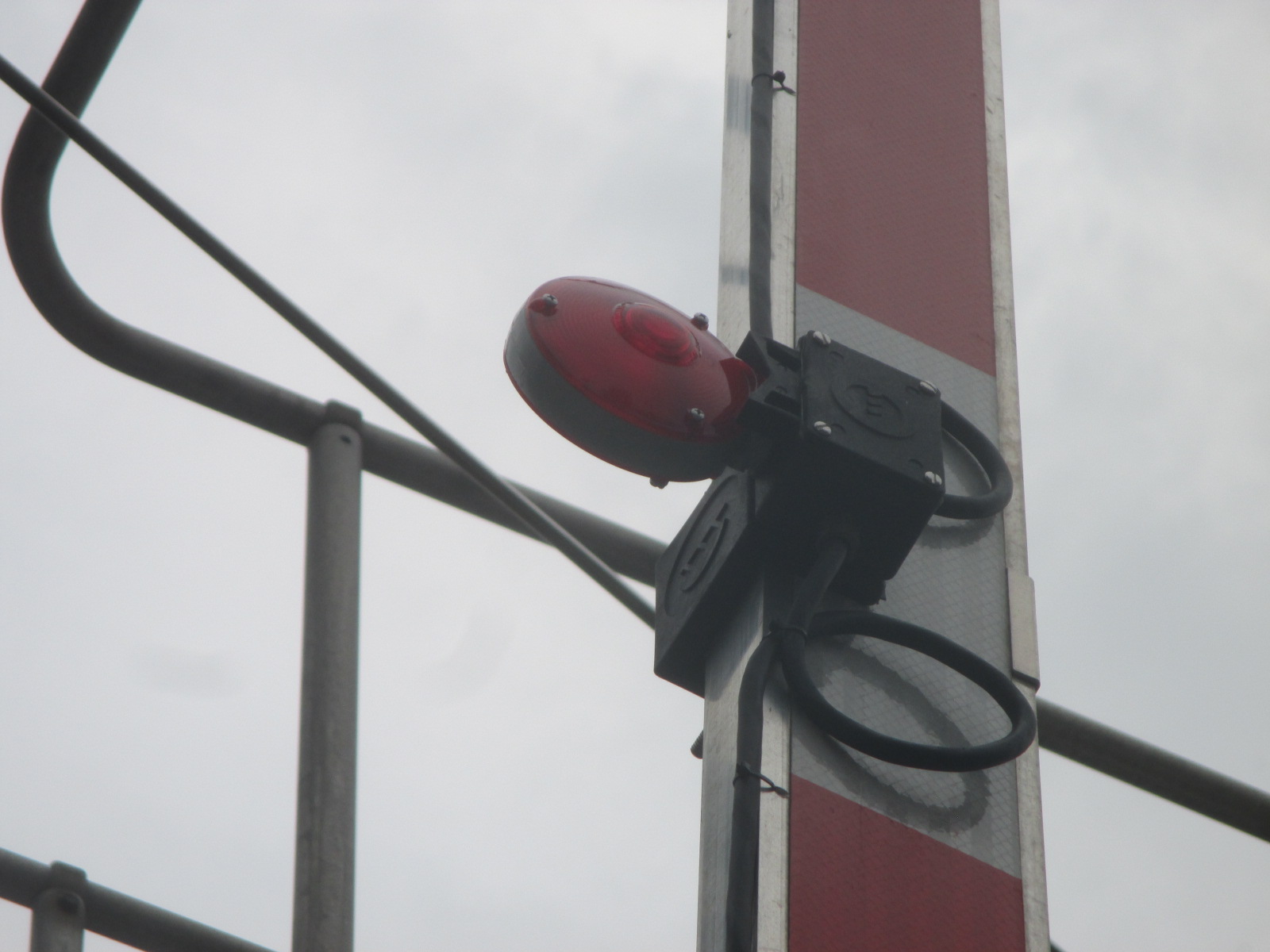

NEG gate lights. |

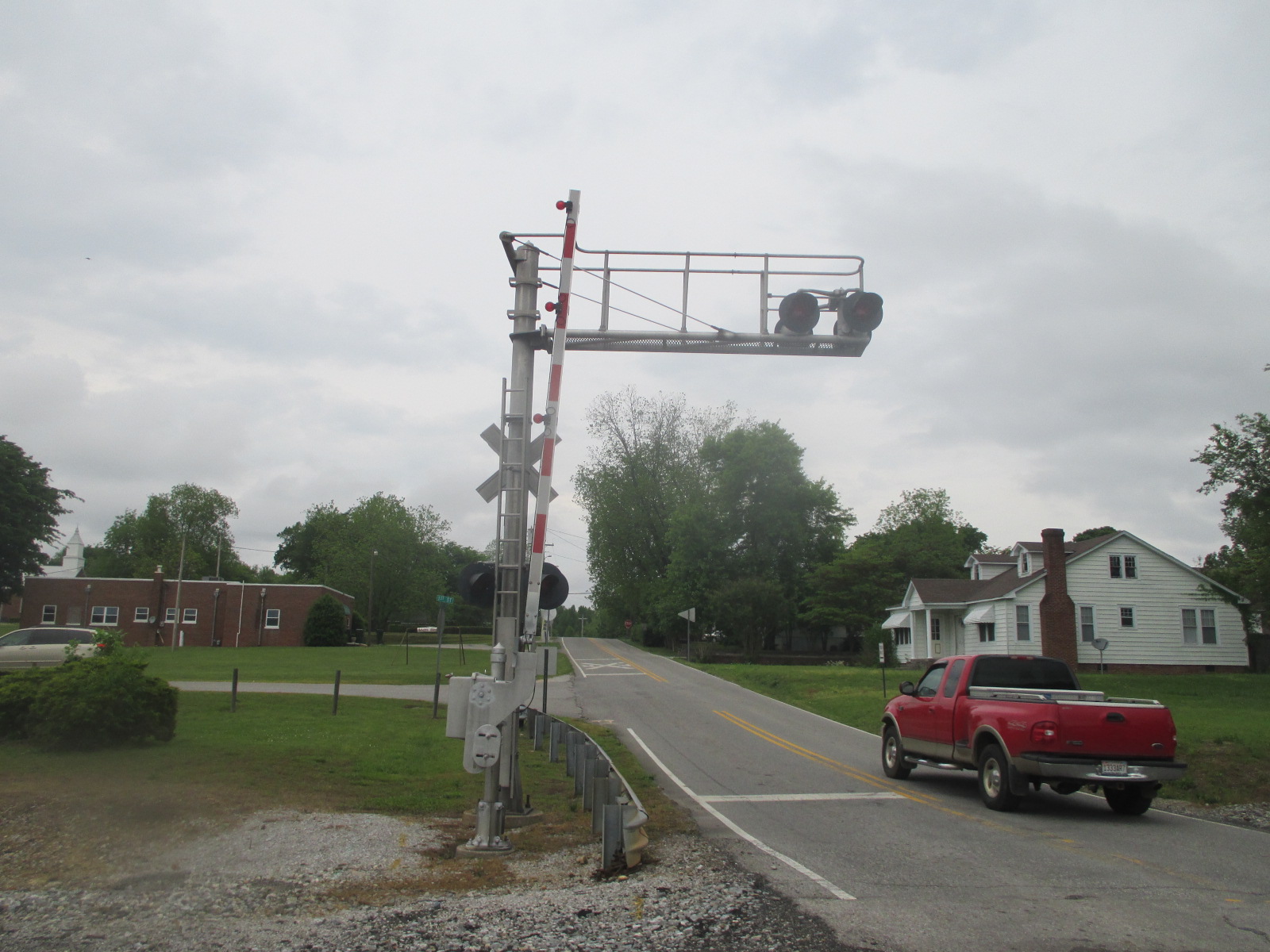

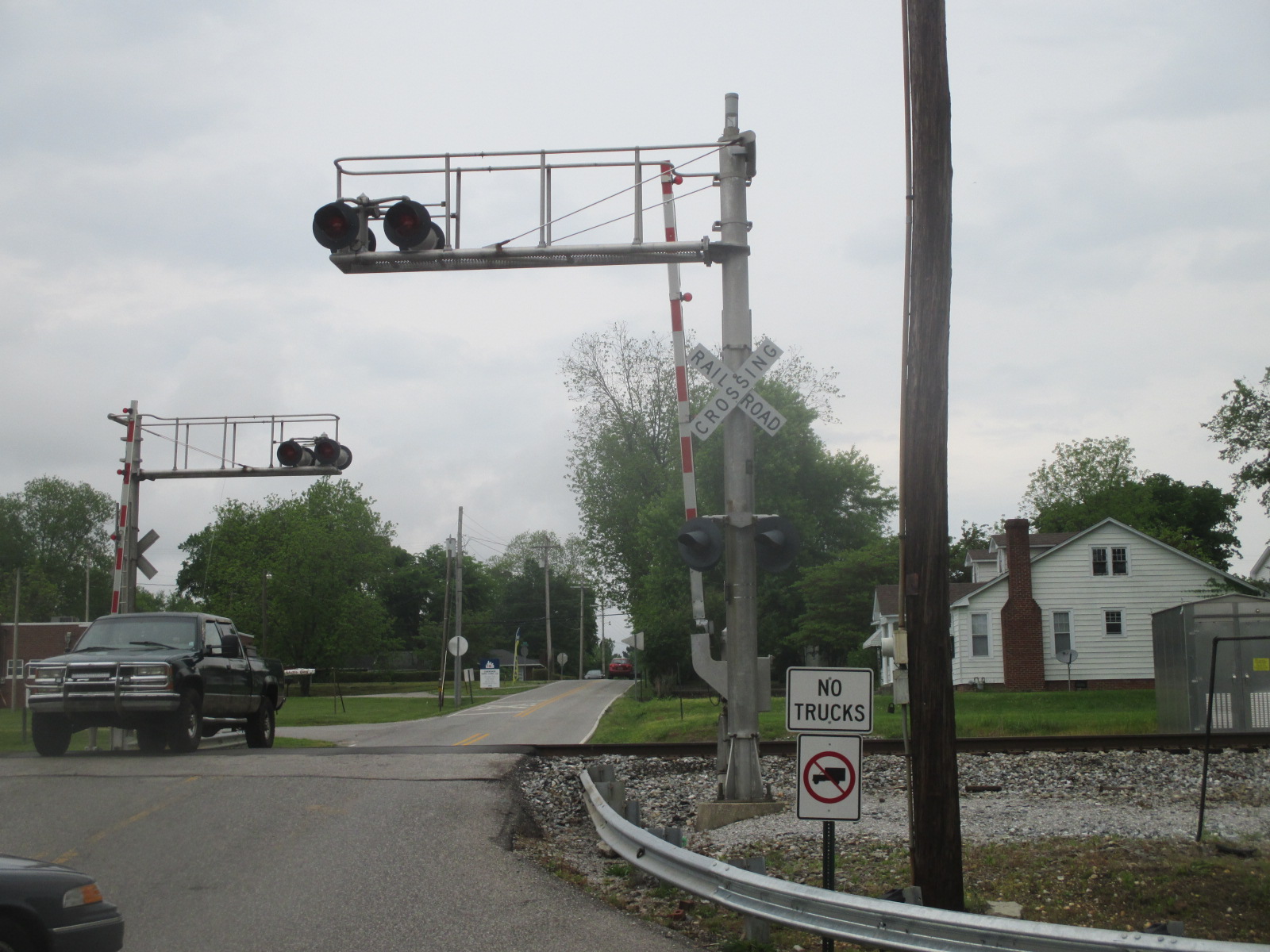

The second signal. |
It's another Safetran cantilever. |
|
17 |
18 |
19 |
20 |

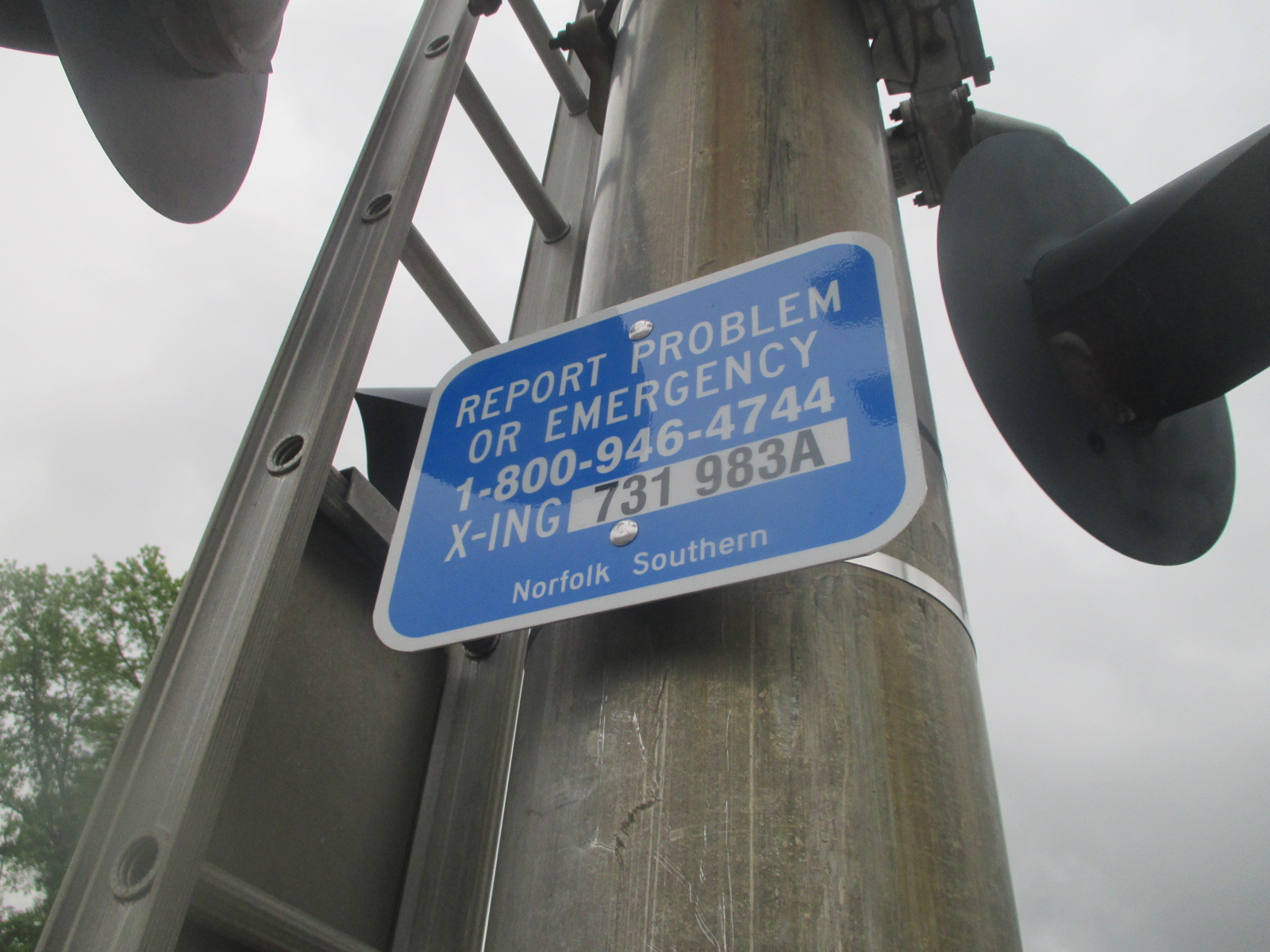

The DOT tag. |

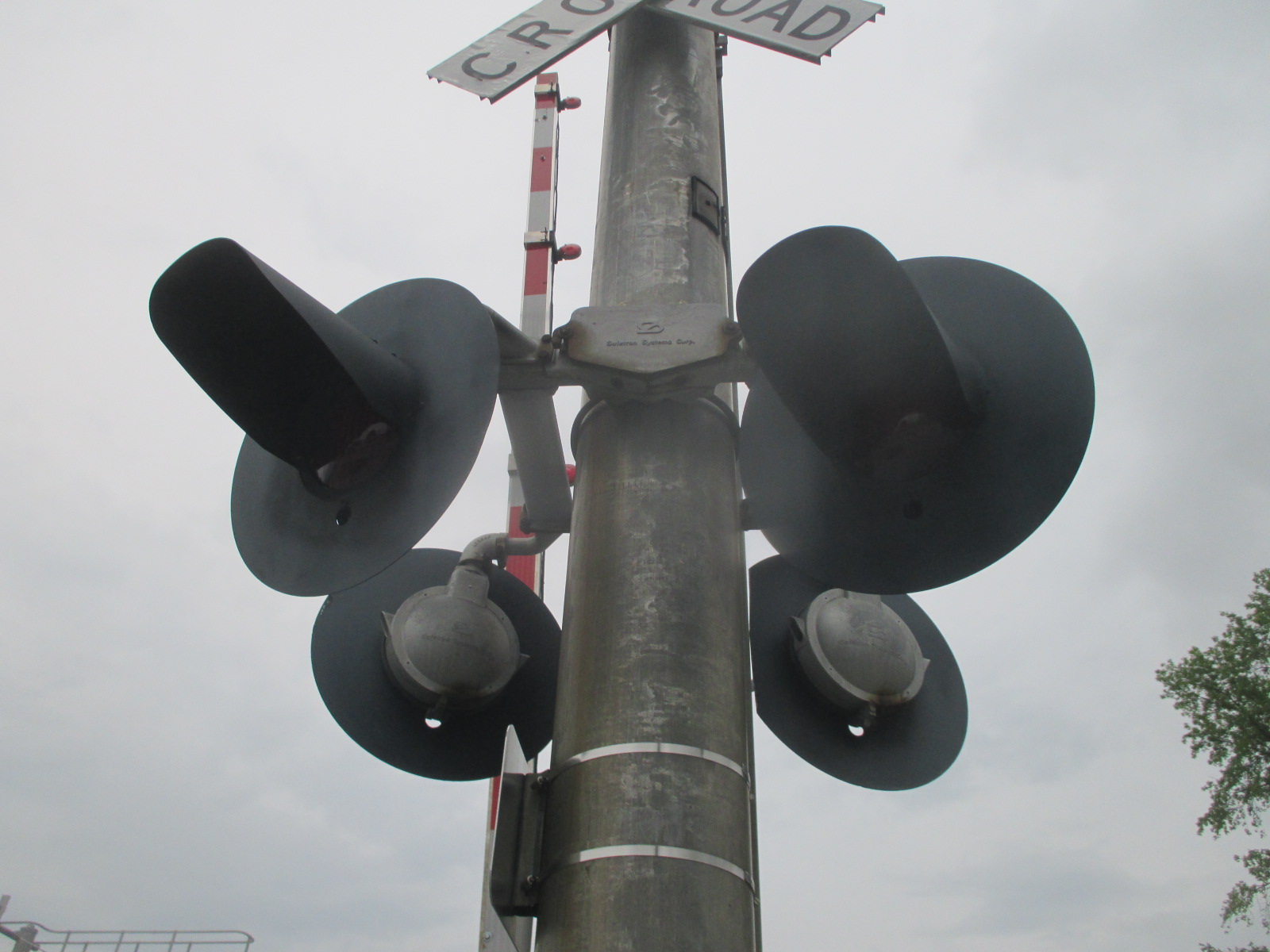

The mast lights are more Safetran 8 inchers. |

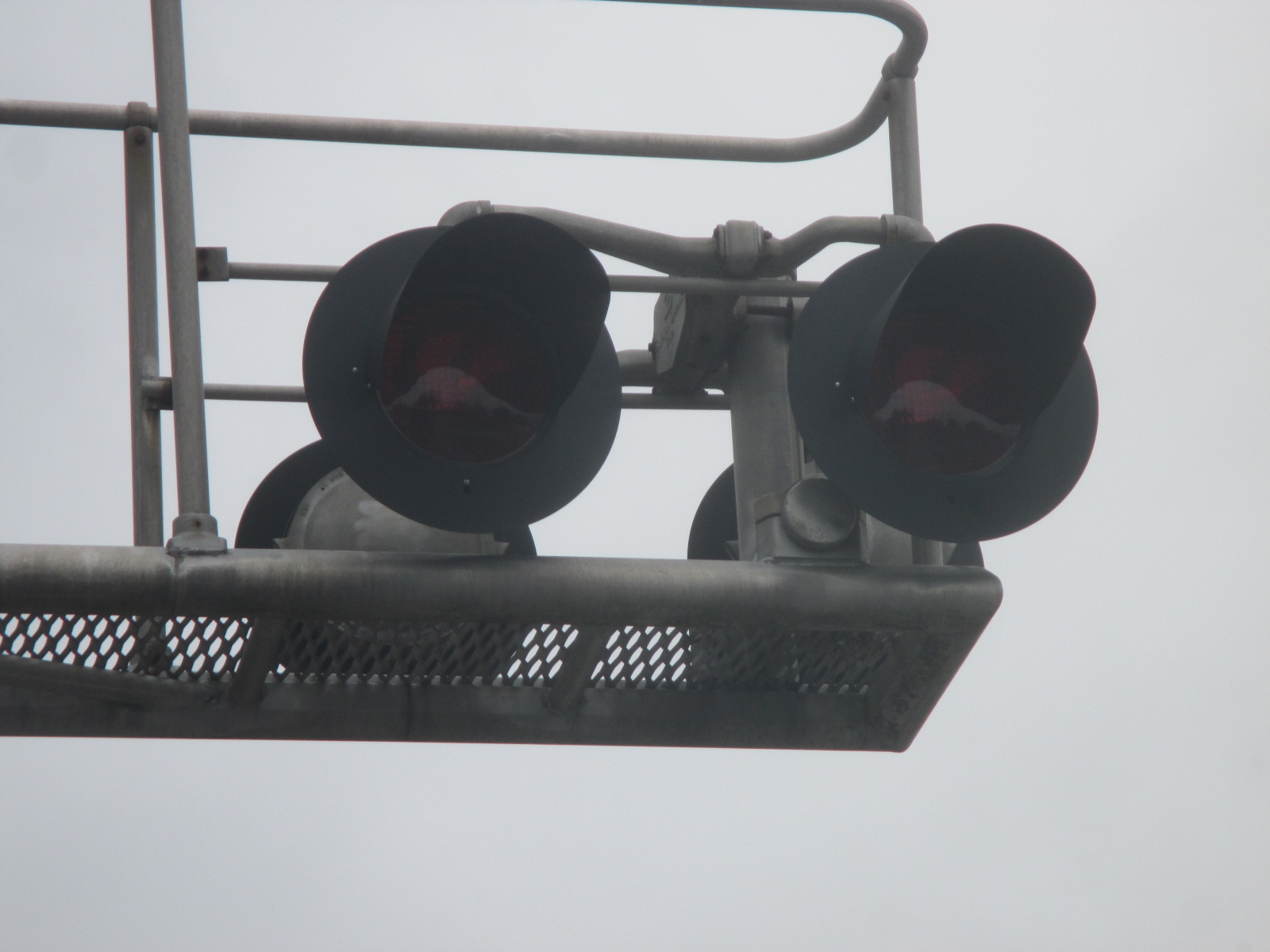

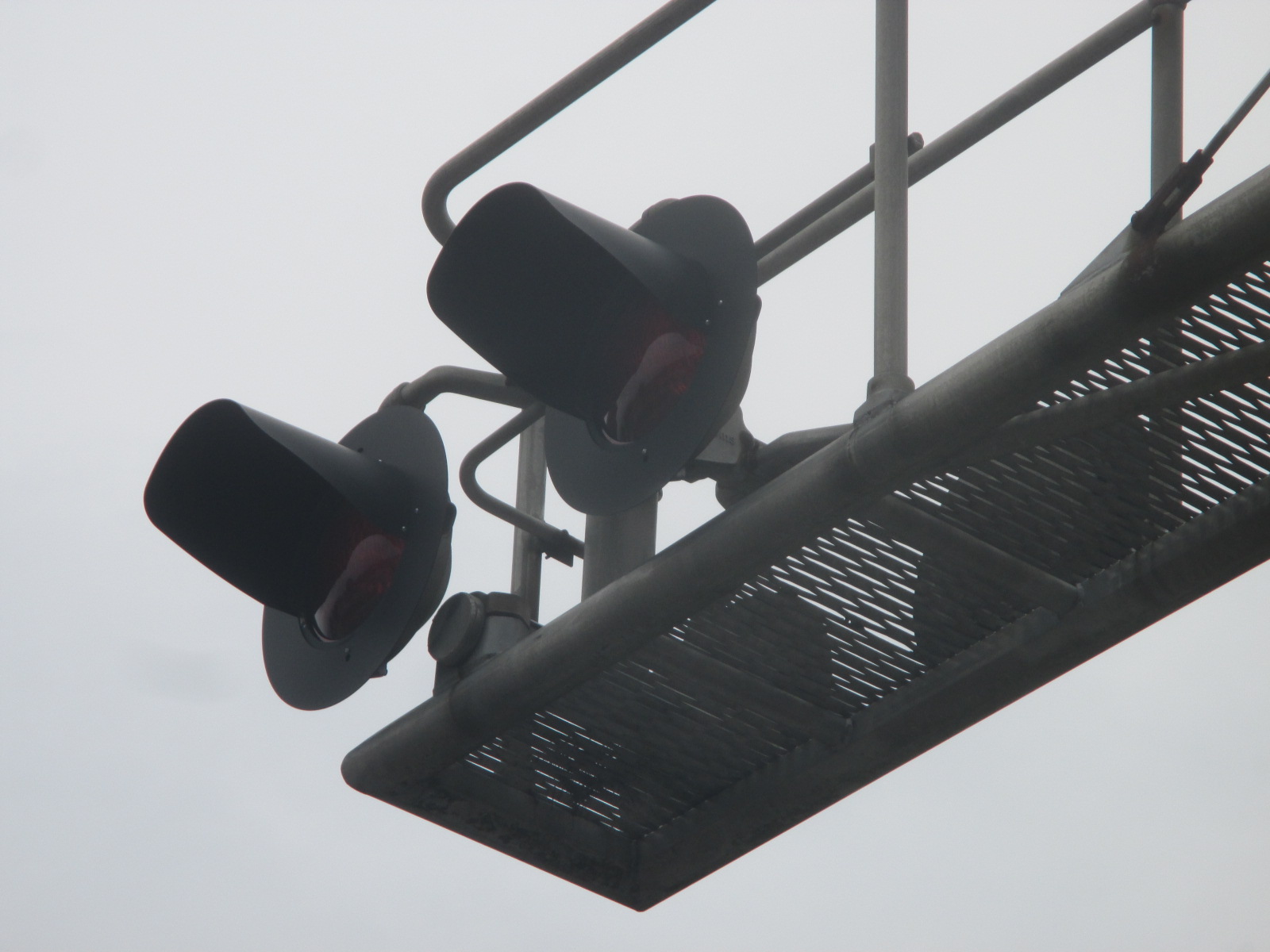

The overhead lights are more older Safetran 12x20s. |
|
21 |
22 |
23 |
24 |

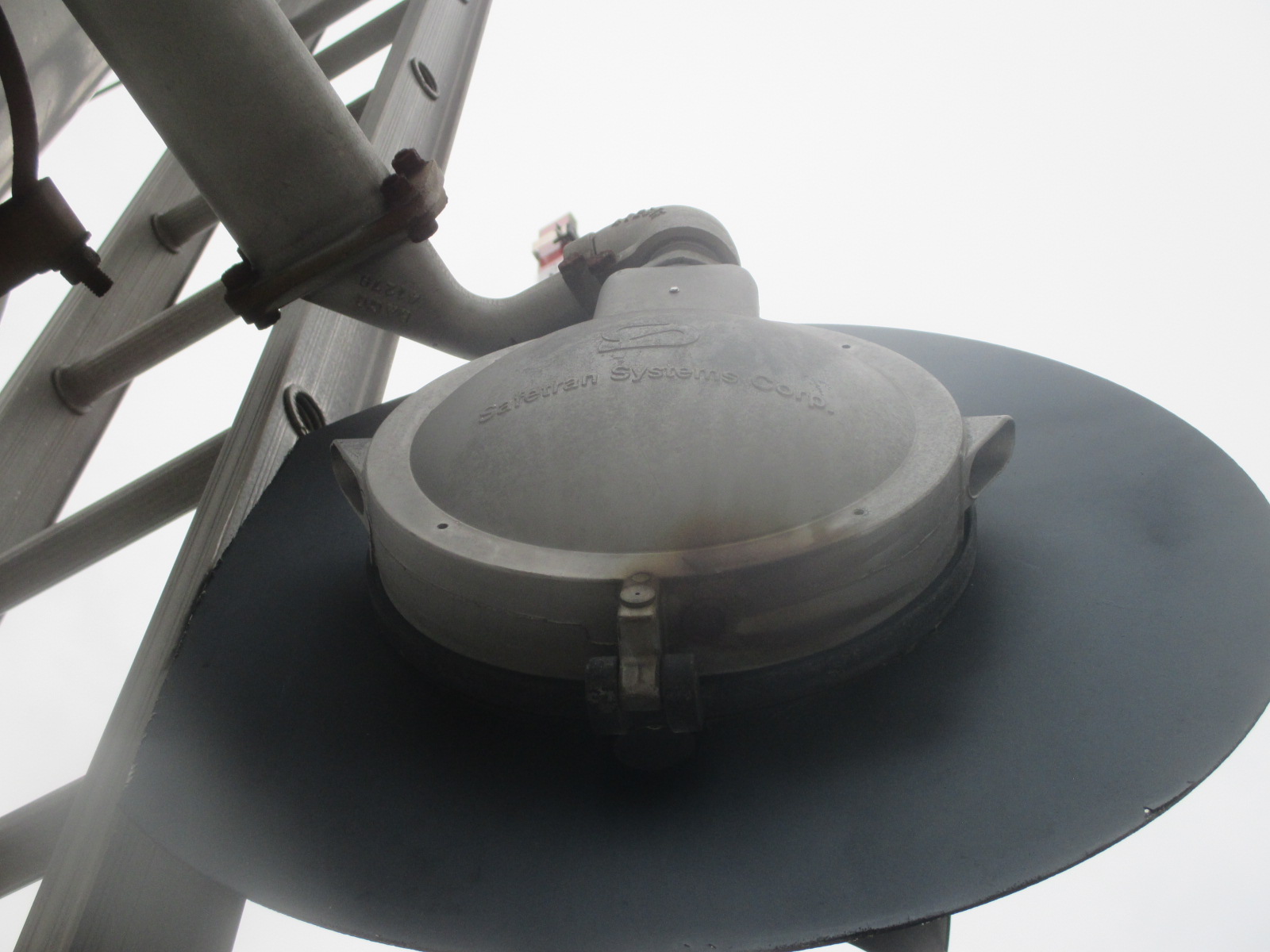

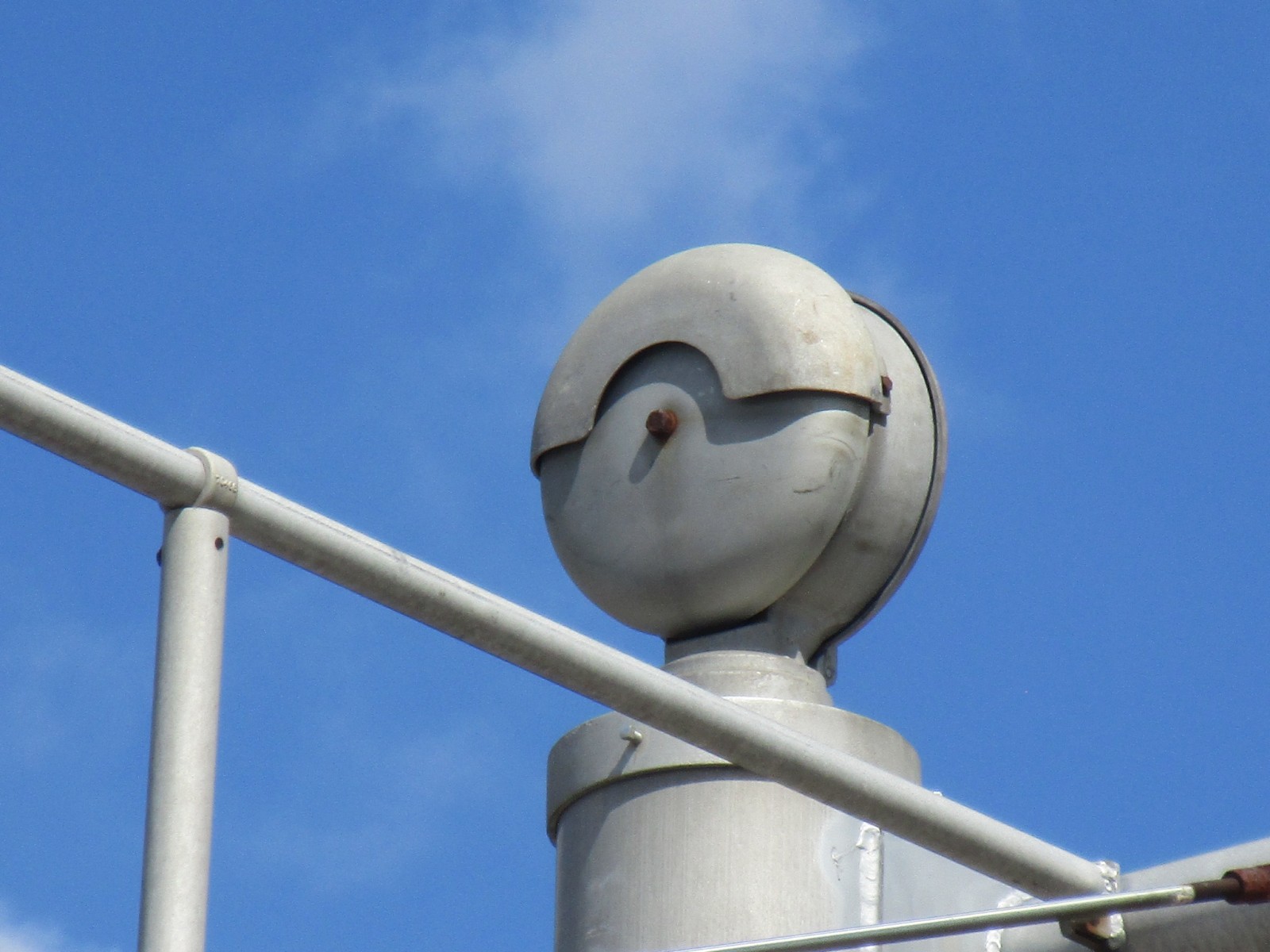

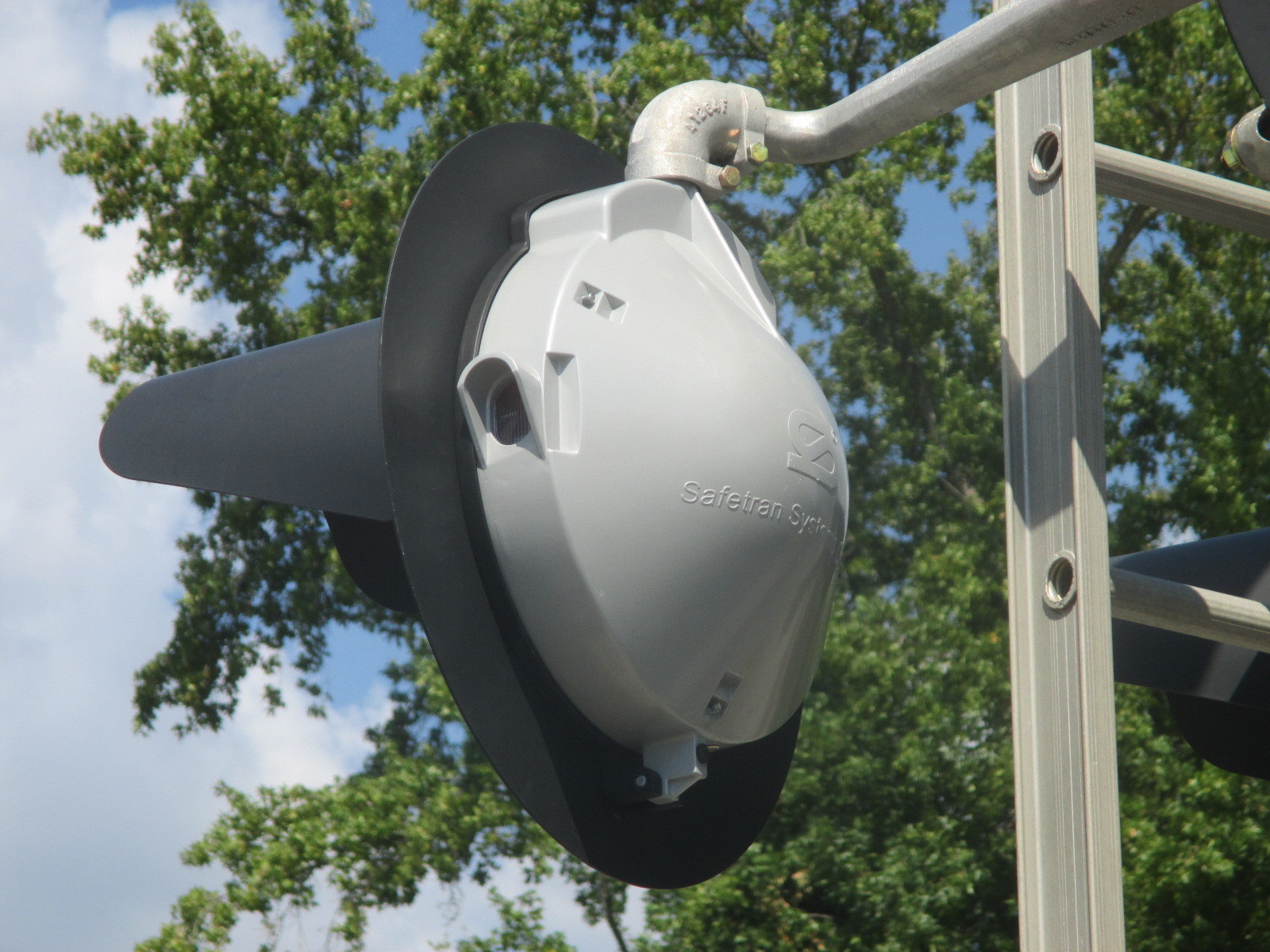

The lone bell at this crossing is a Safetran Type-3 e-bell. |
Another older Safetran base. |
Another Safetran gate mechanism. |
25 |
26 |
27 |
28 |

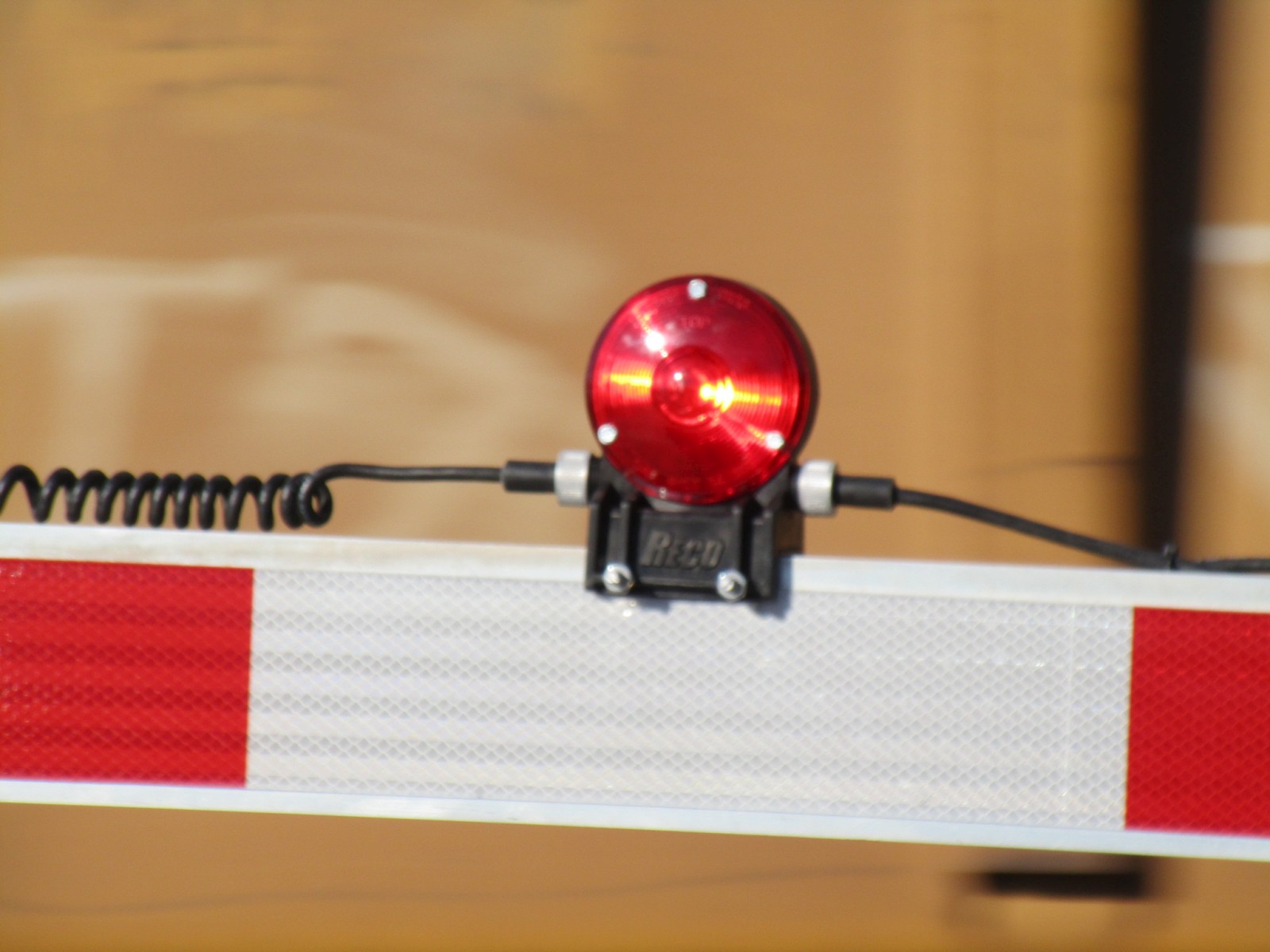

This signal has more NEG gate lights. |

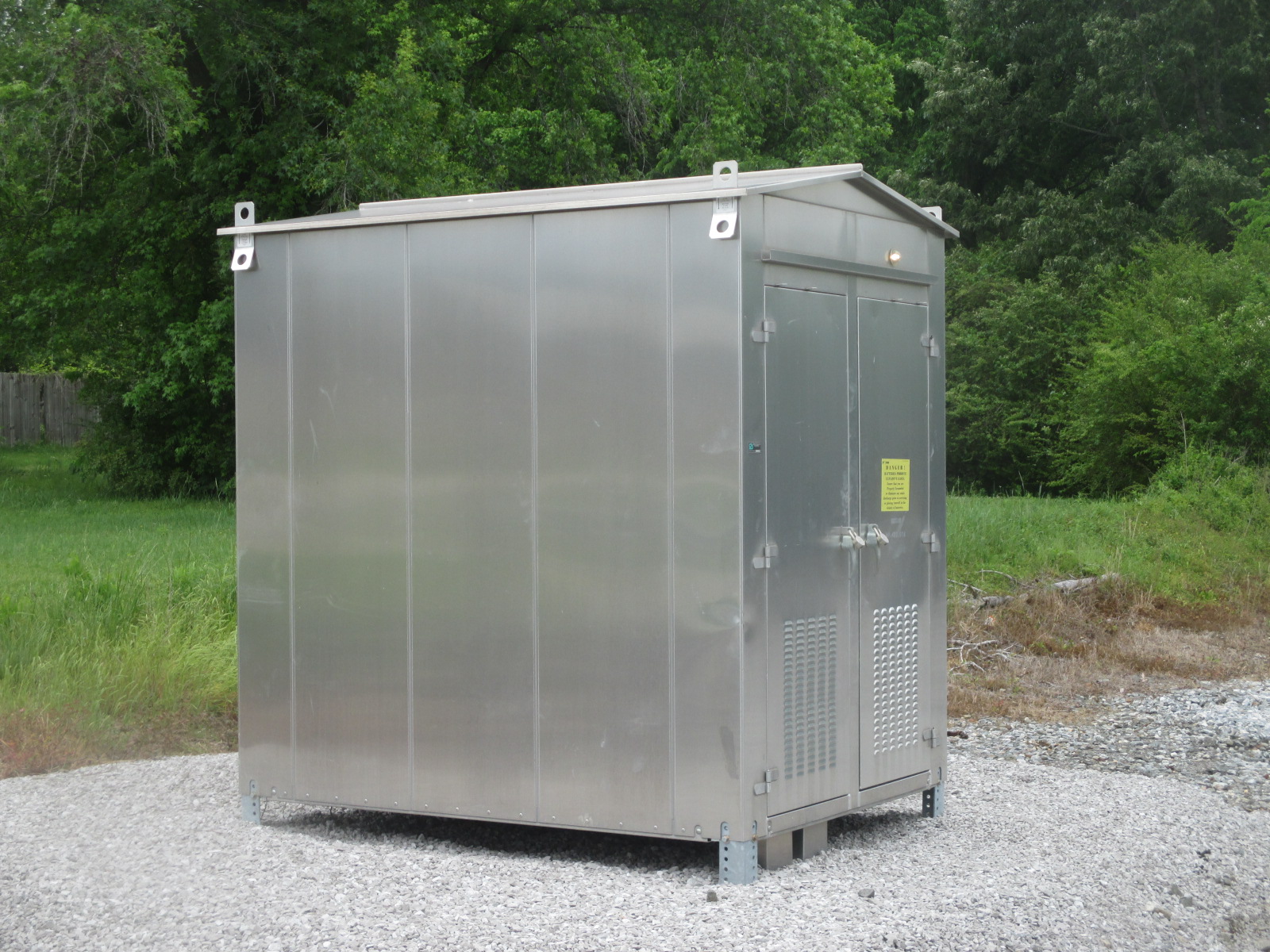

The relay case. |

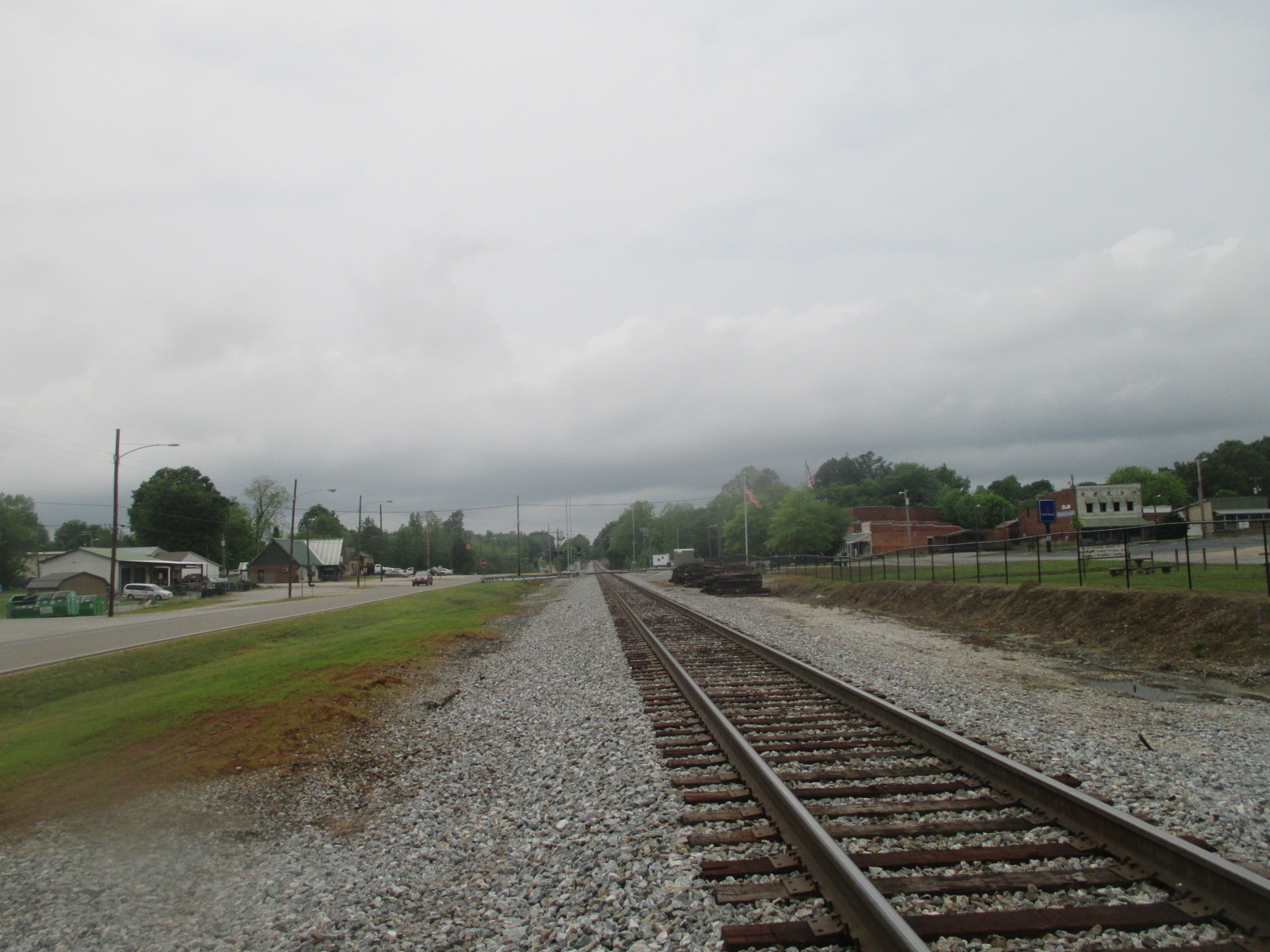

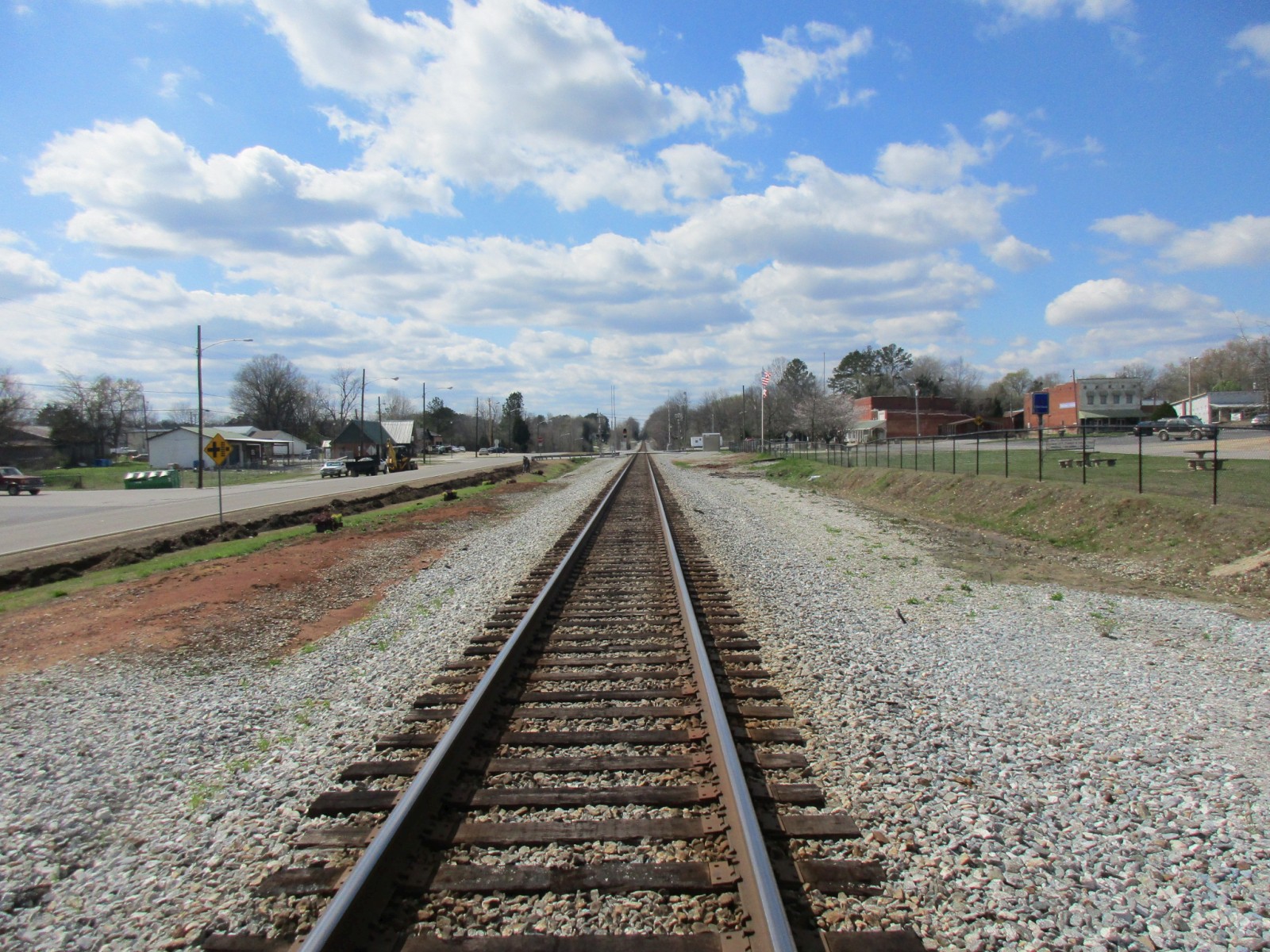

Looking west along the tracks towards Main Street. |

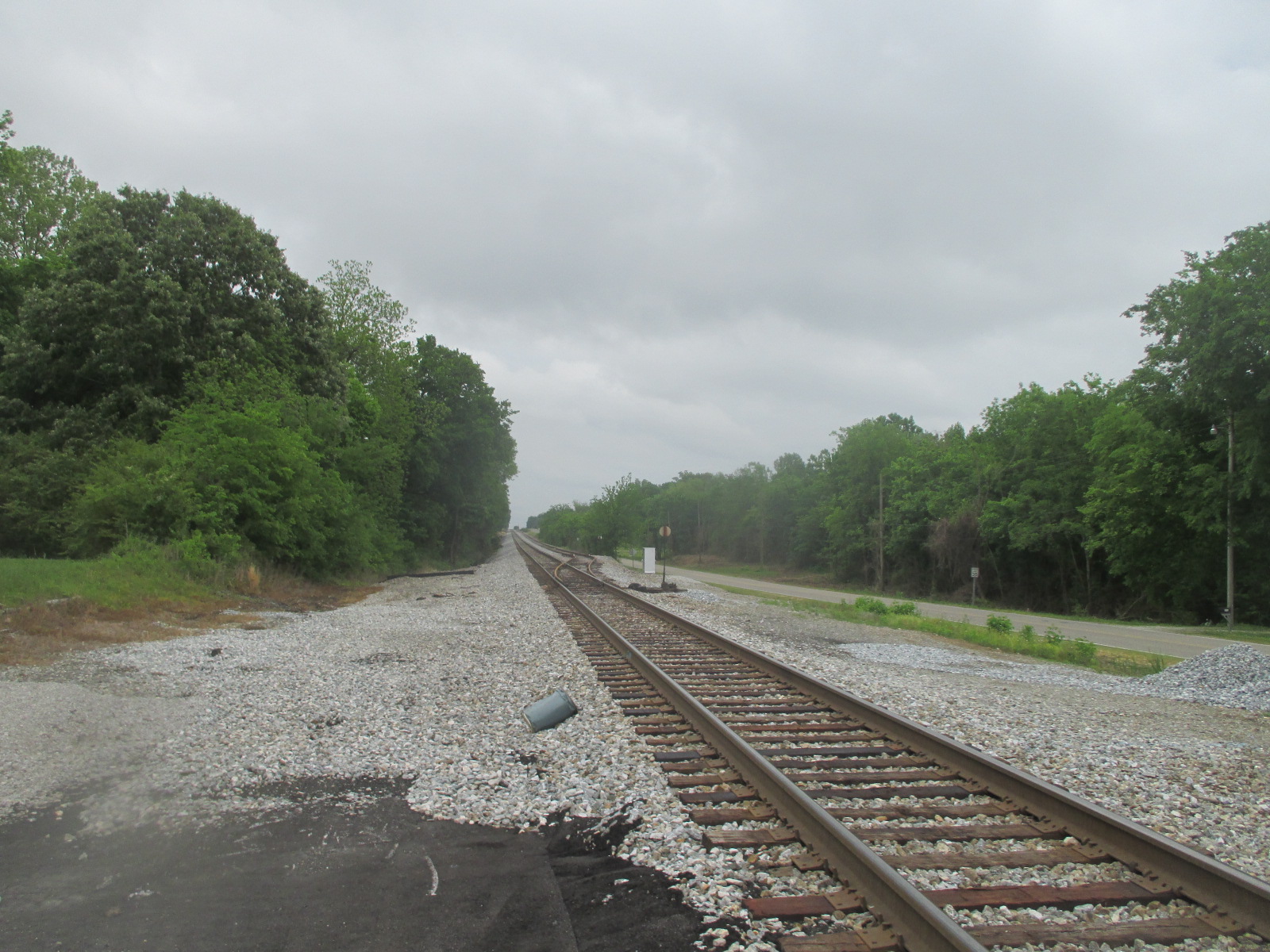

Looking east along the tracks towards Easterwood Street. |
29 |
30 |
31 |
32 |

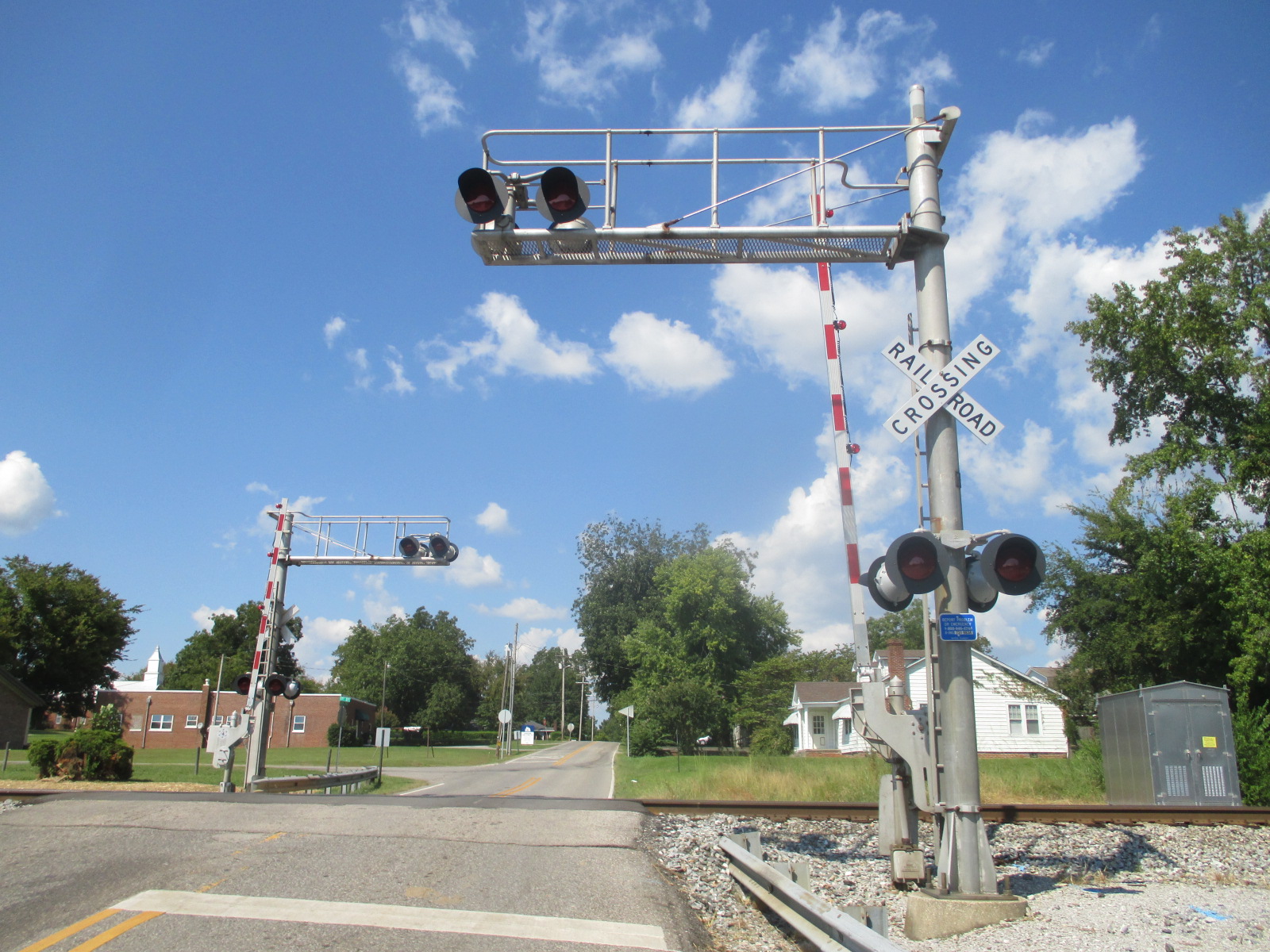

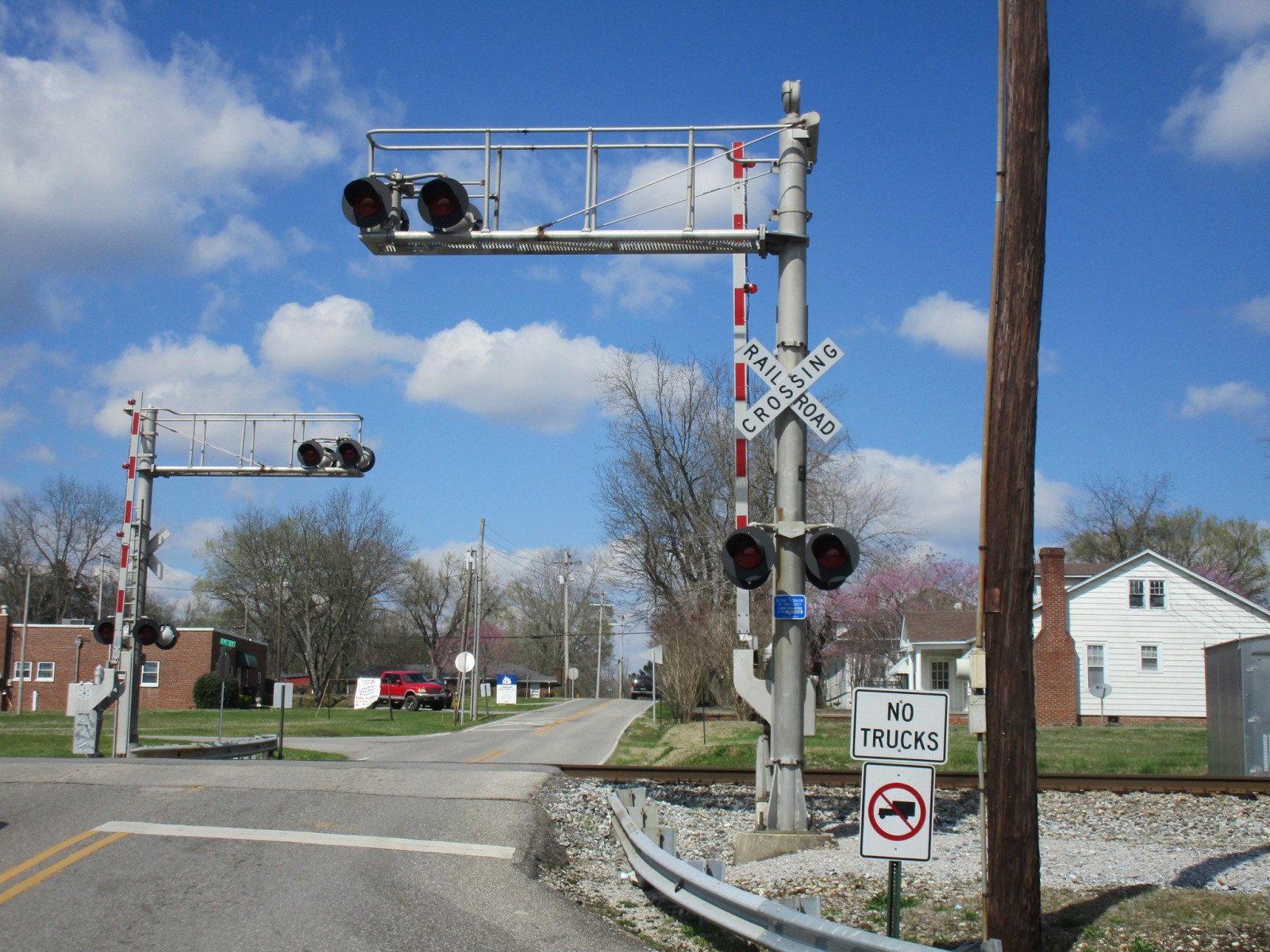

A return trip on 9-5-16 shows some changes to the crossing. |

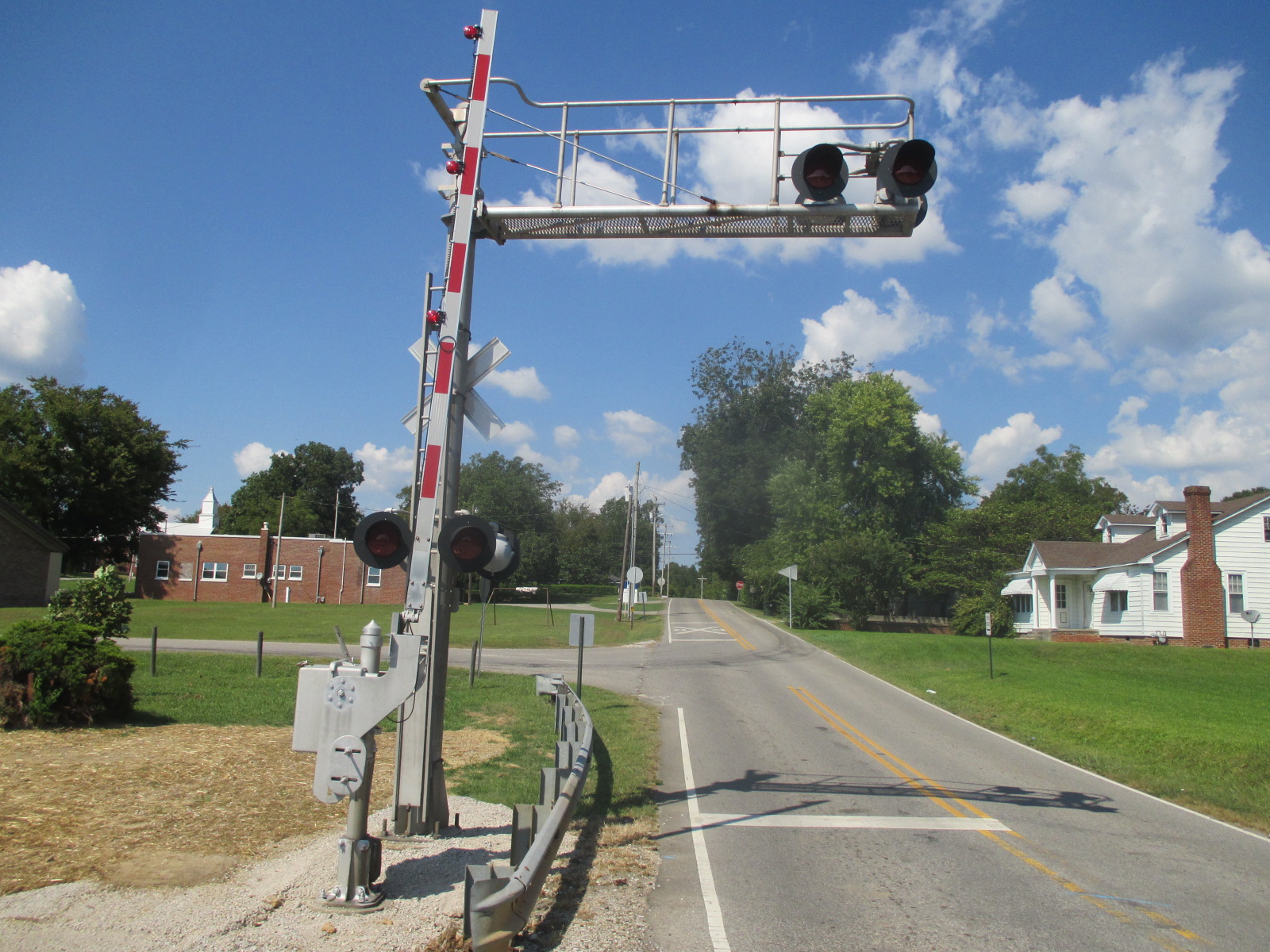

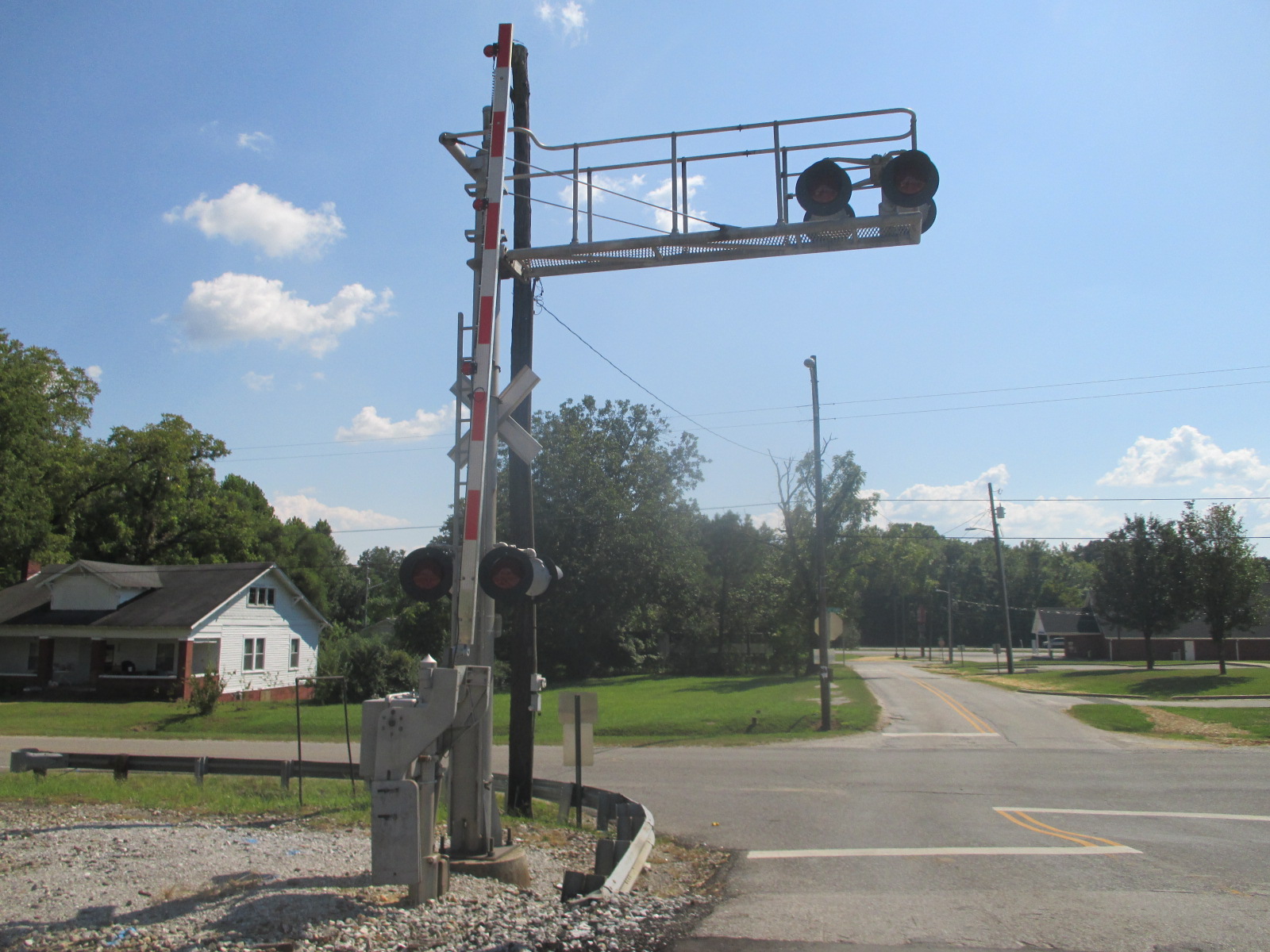

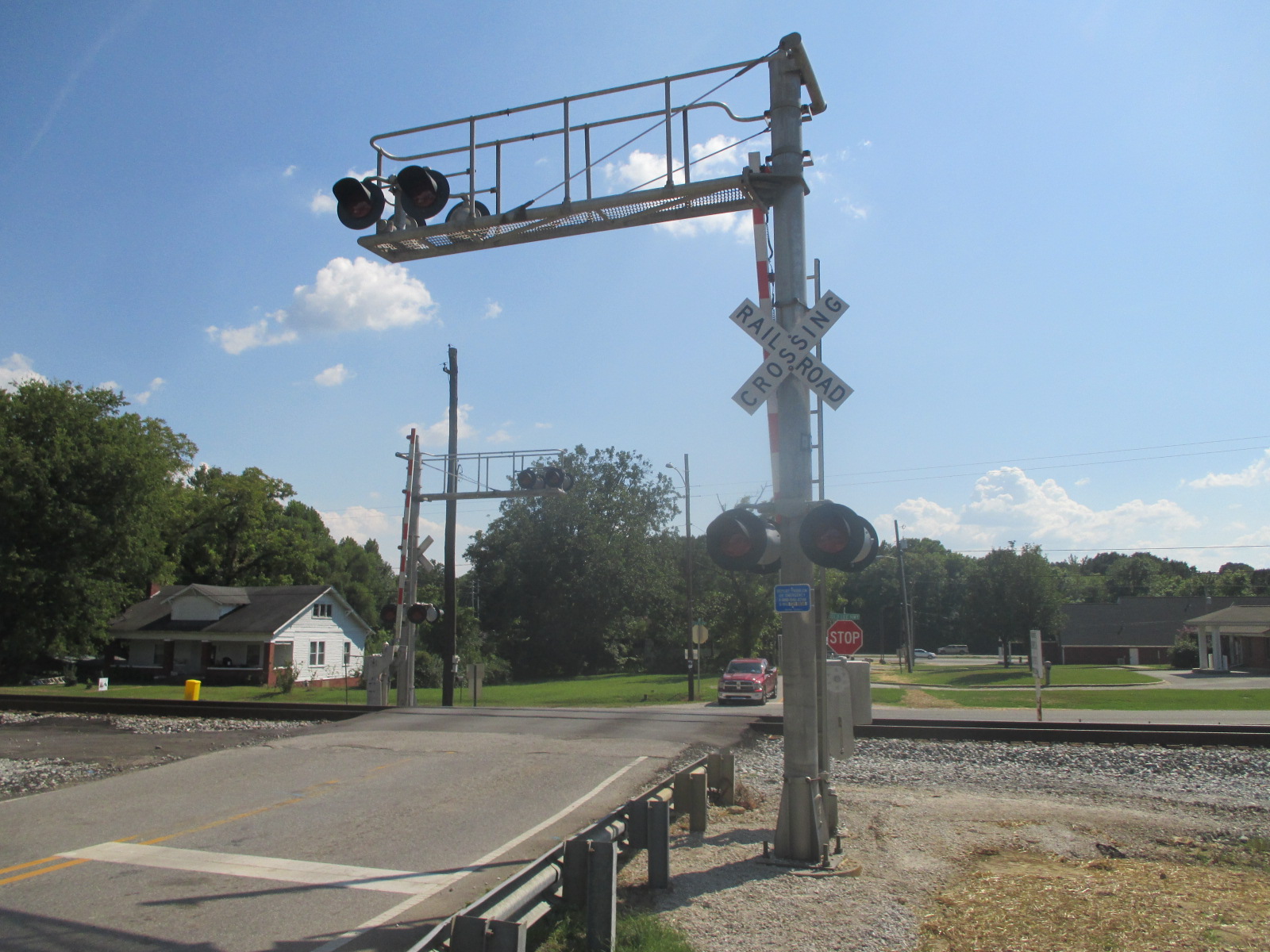

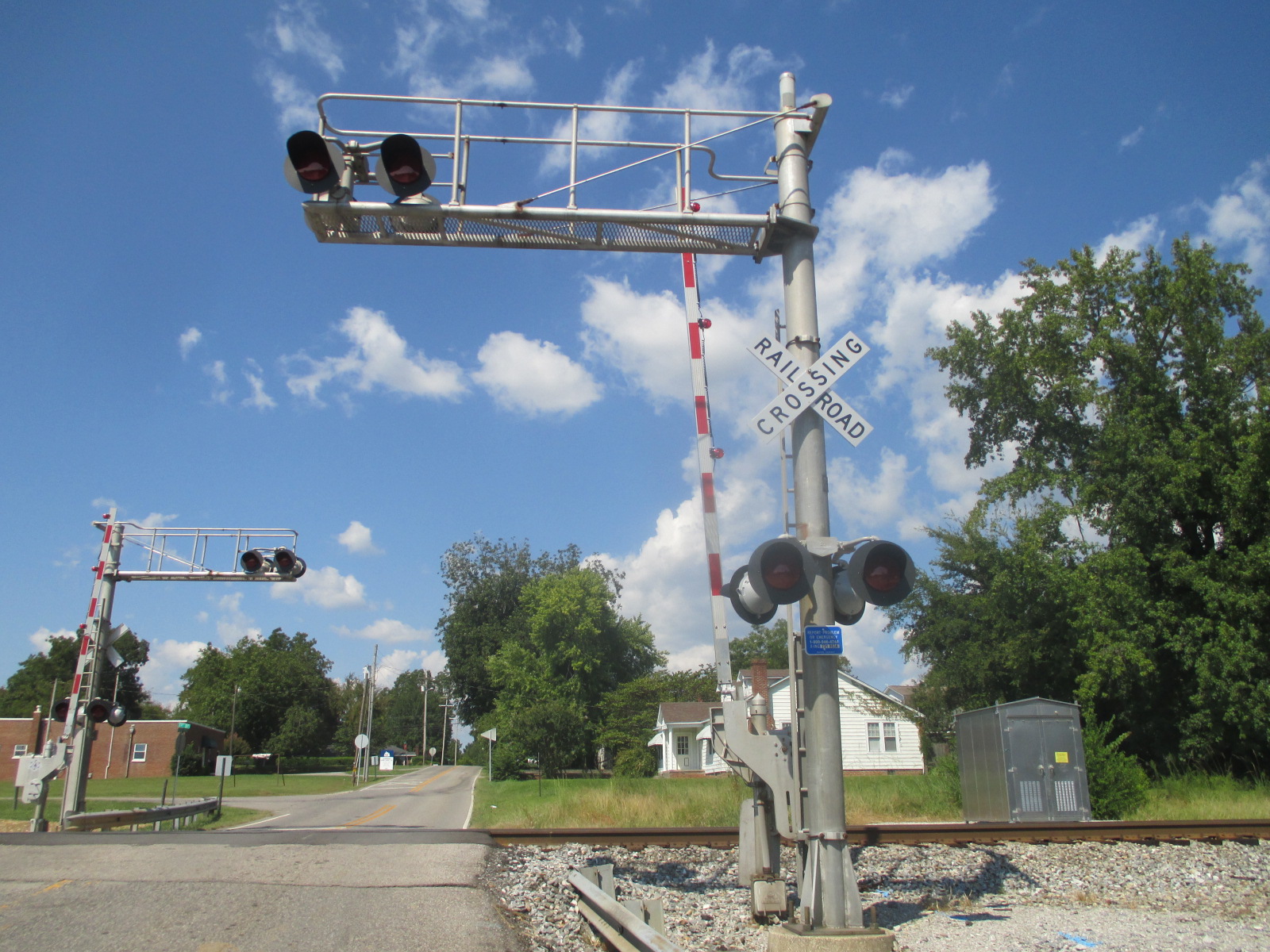

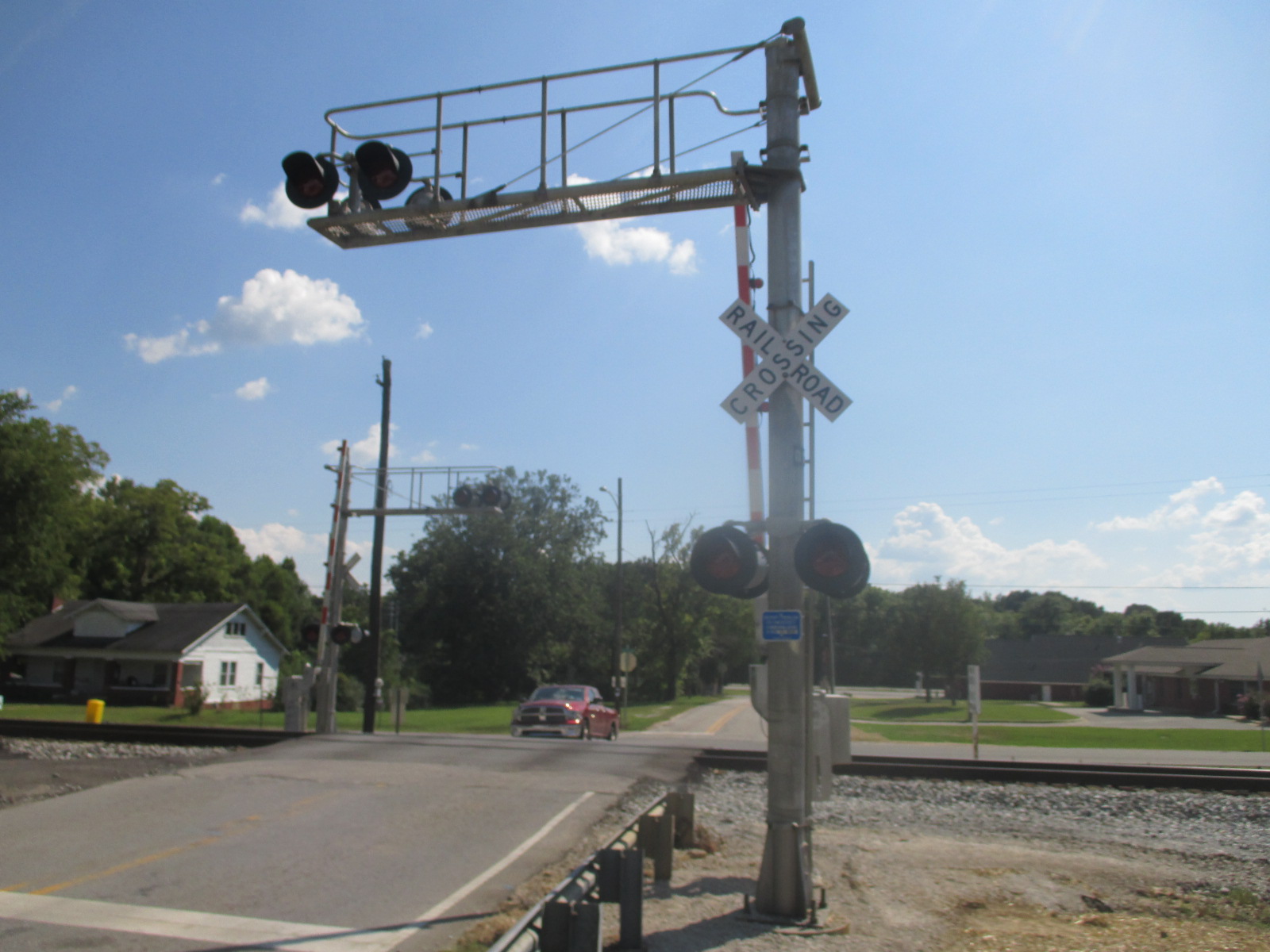

The second signal. |
||
33 |
34 |
35 |
36 |

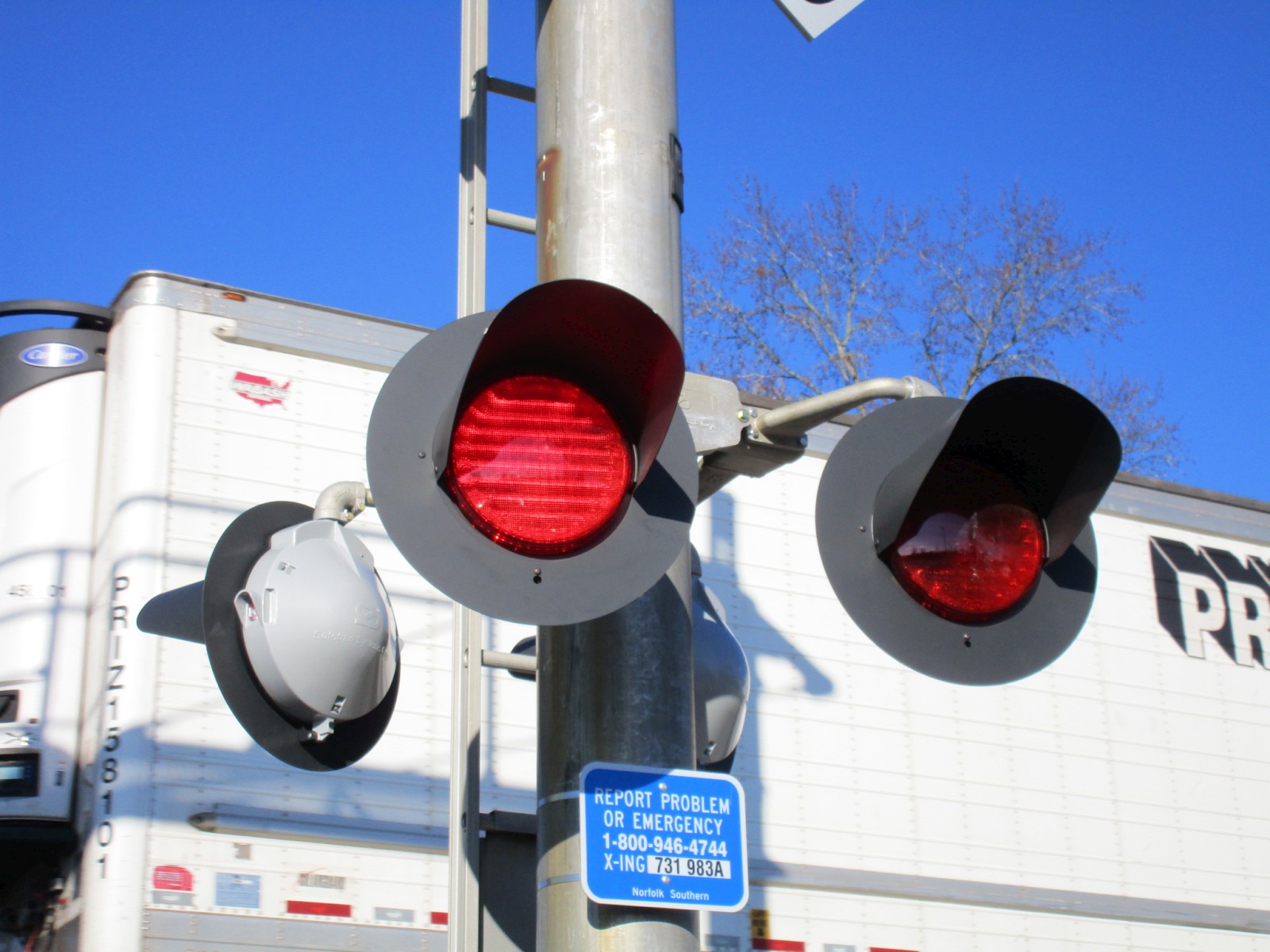

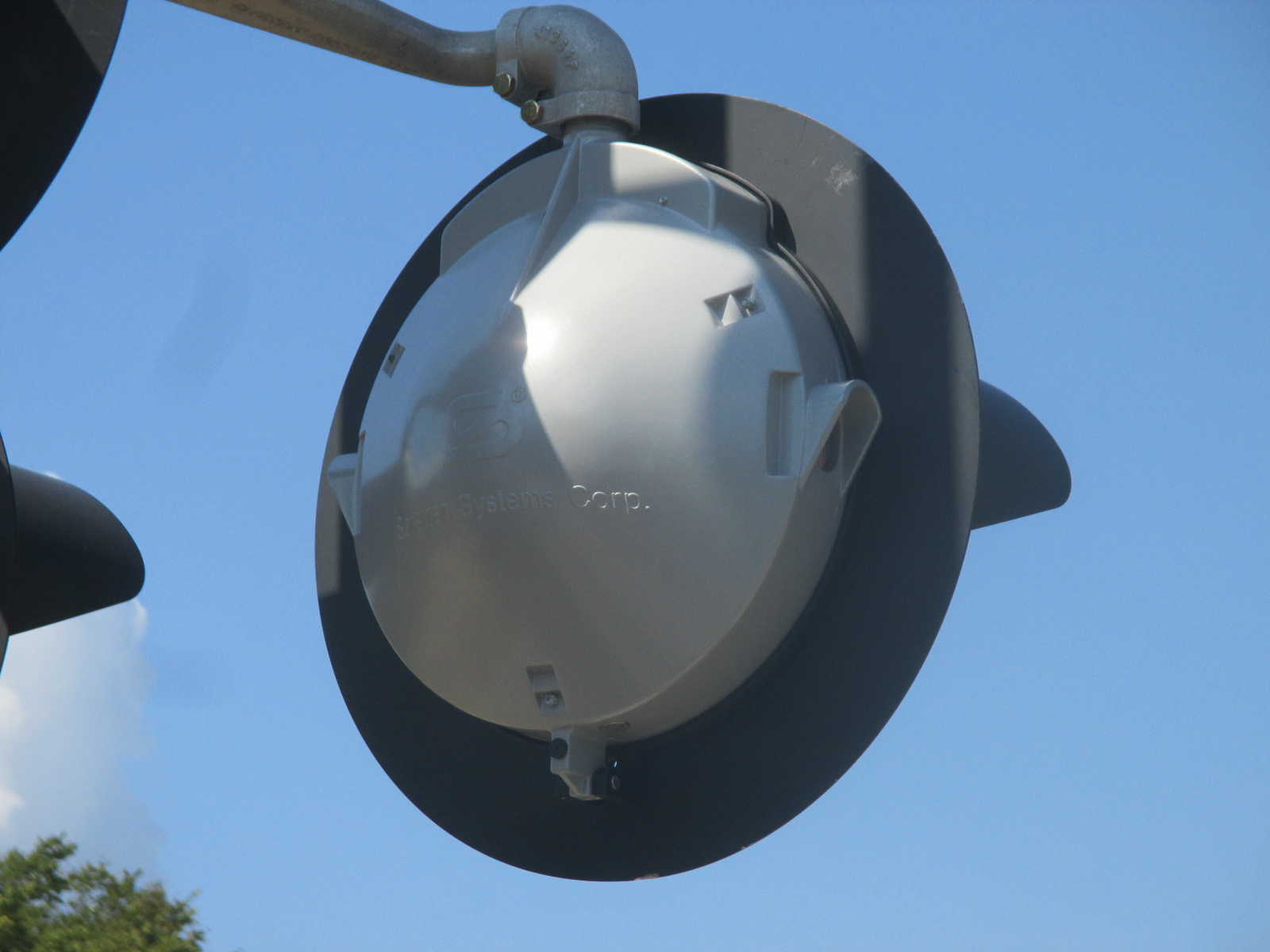

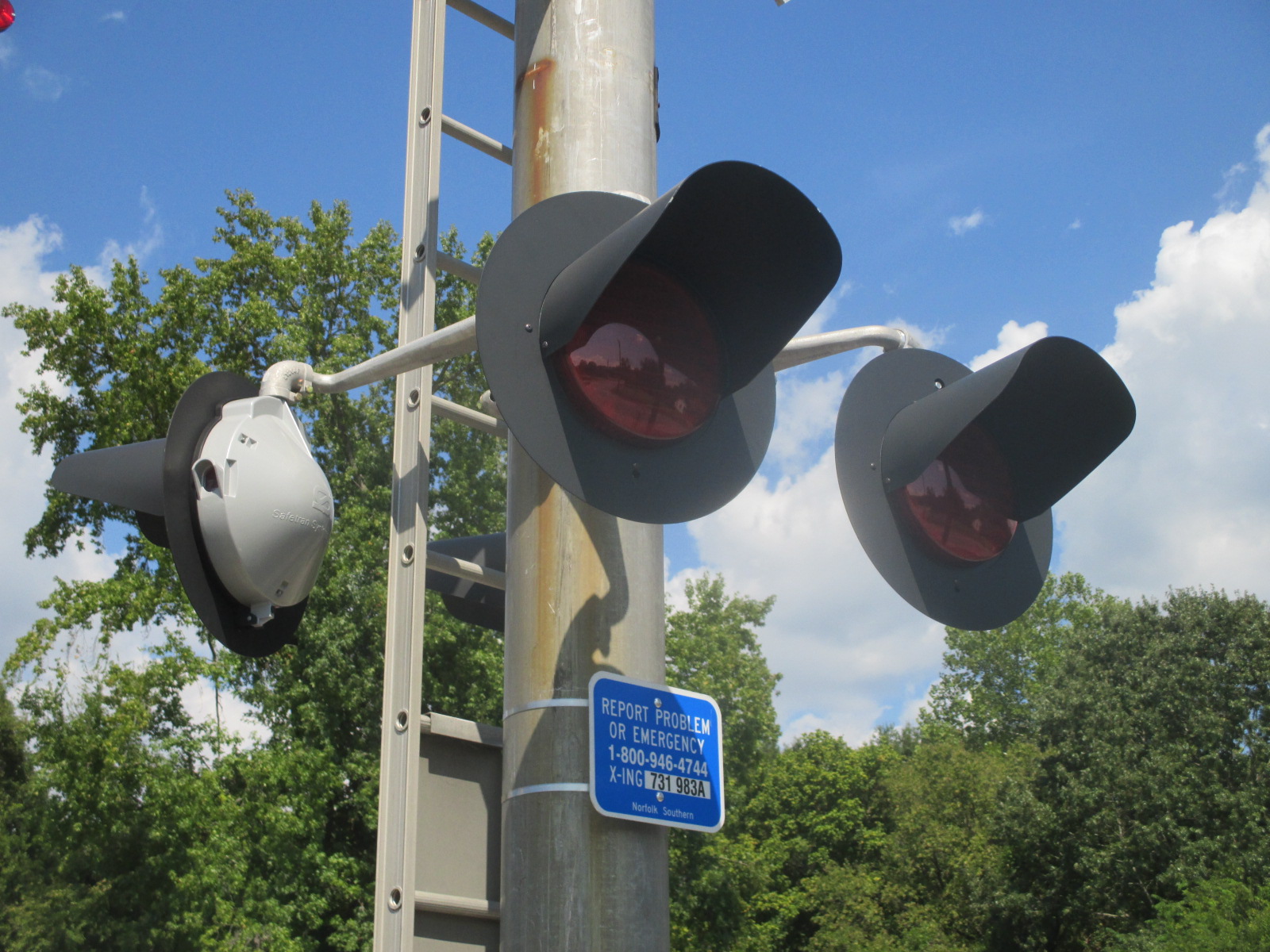

The mast lights were replaced with Safetran 12x20 inch lights with GE Uniform Look LEDs! |

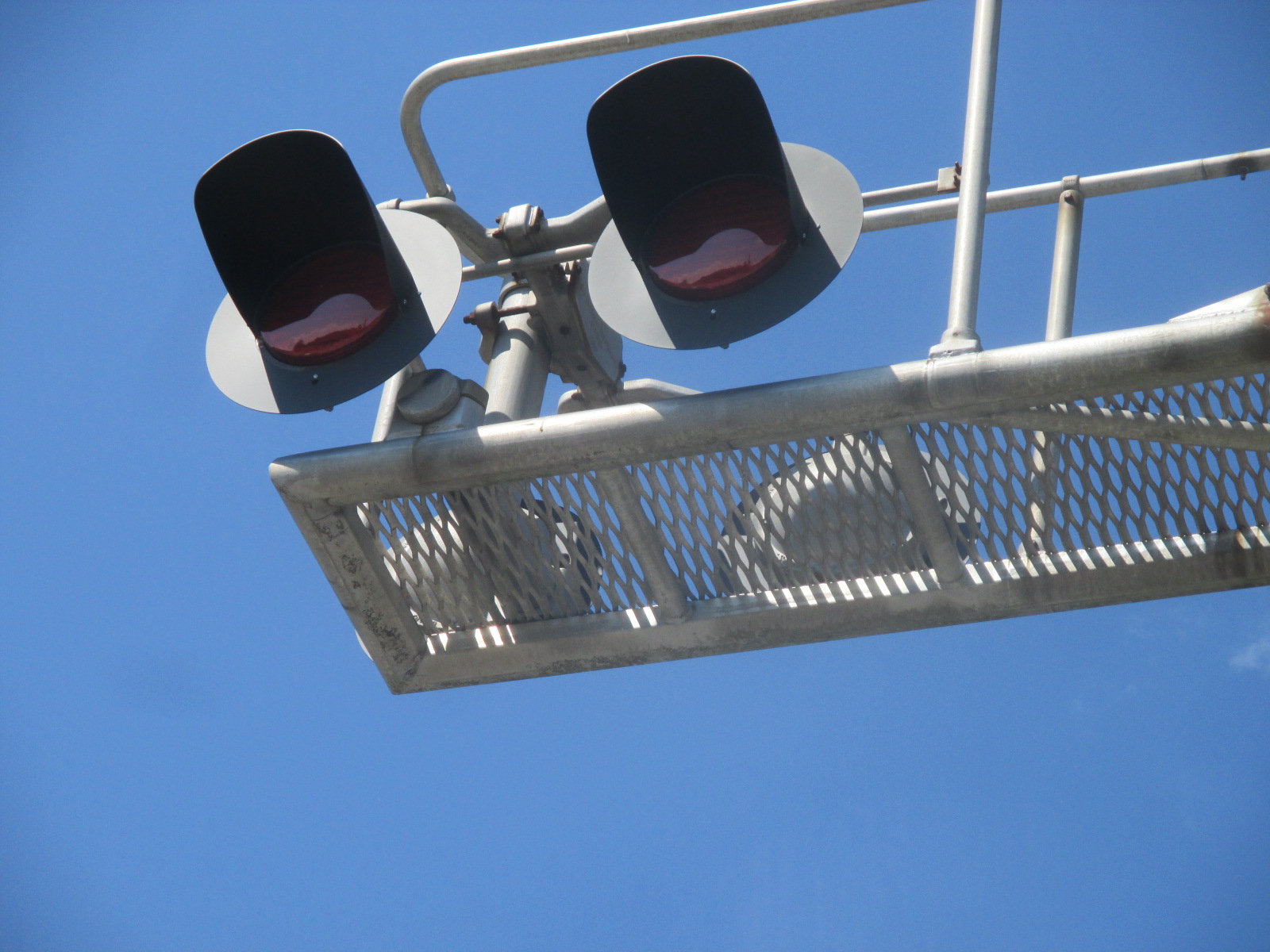

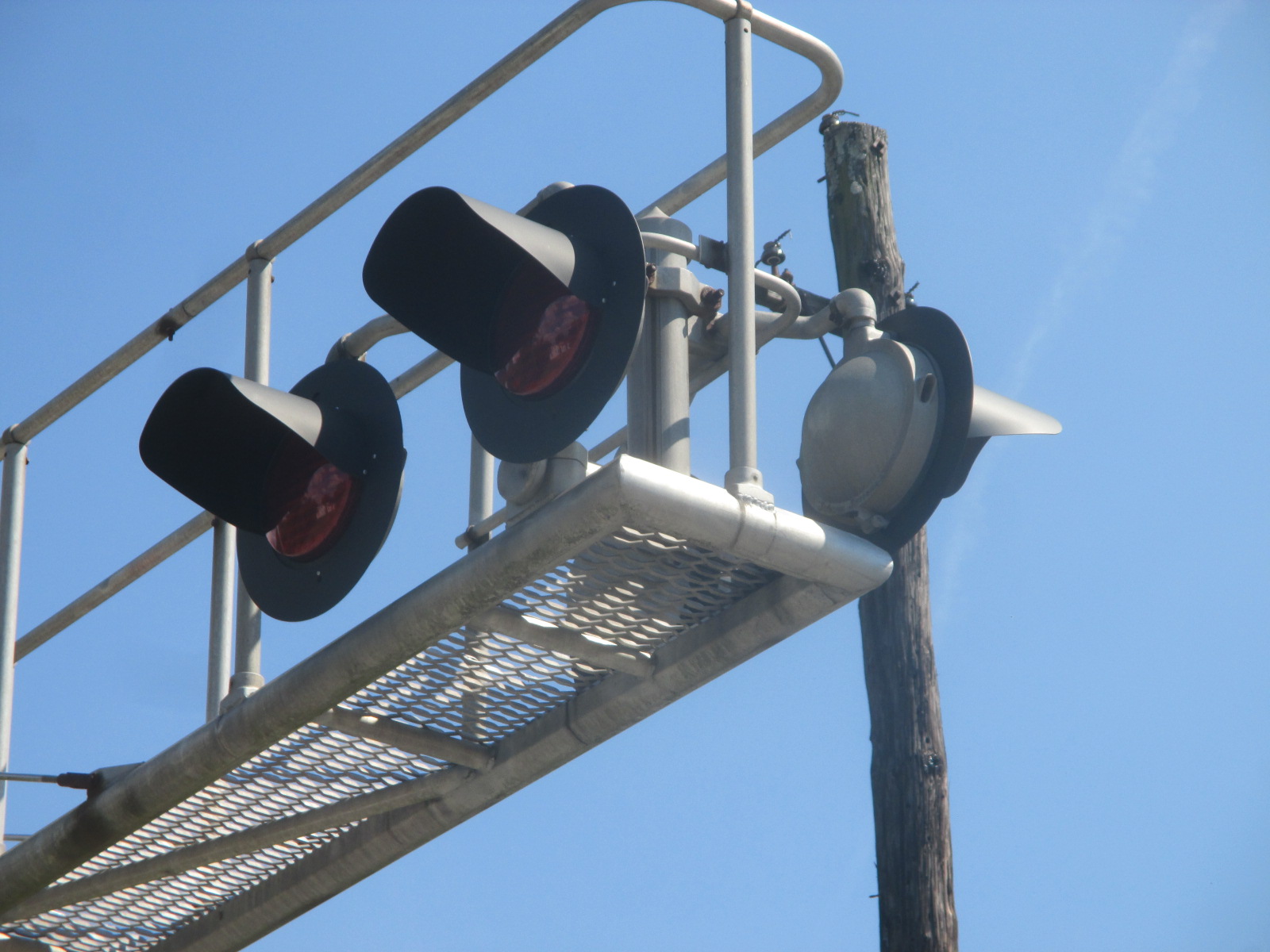

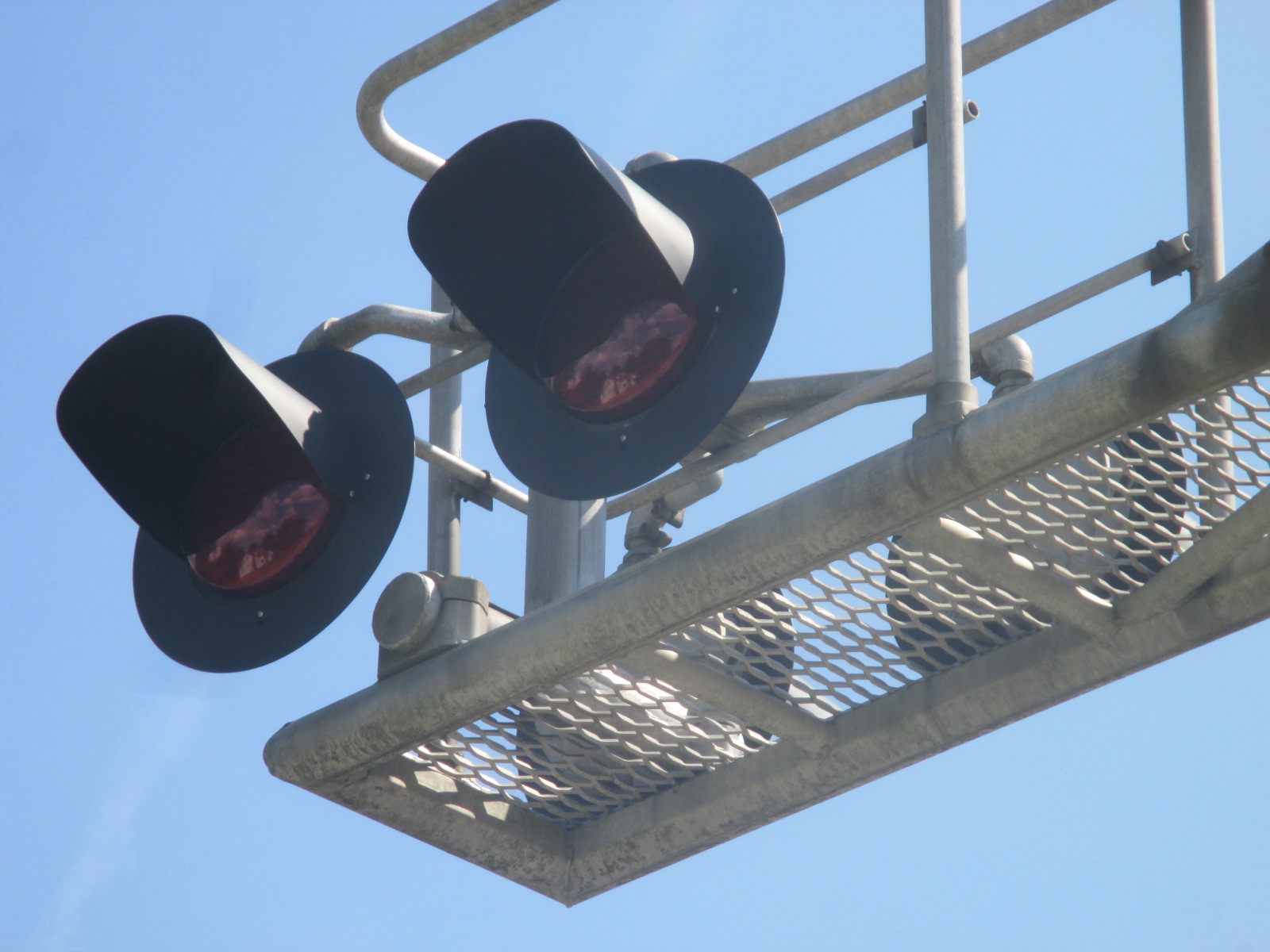

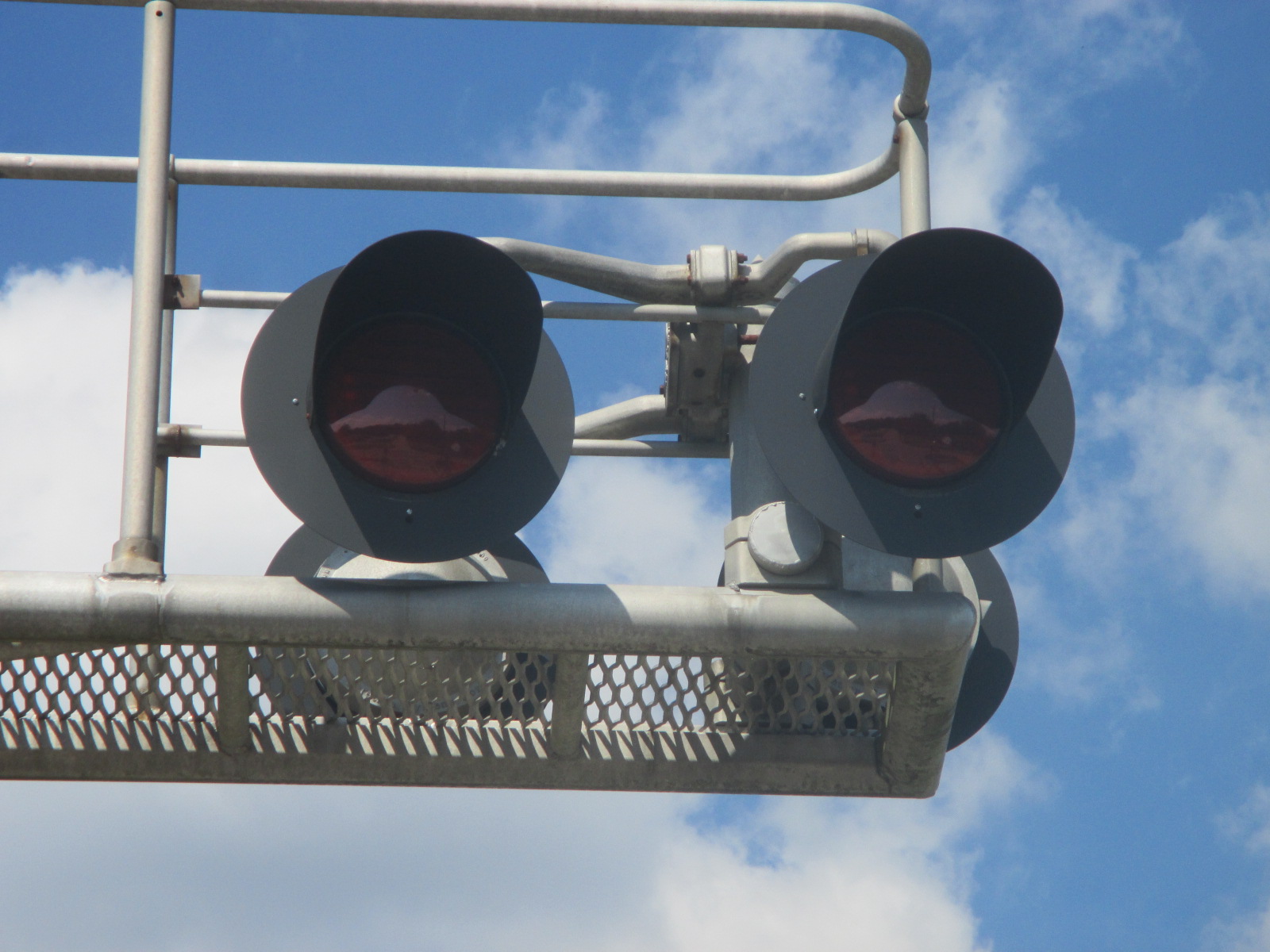

The overhead lights also got GE Uniform Look LEDs installed in them! |
||
37 |
38 |
39 |
40 |
The first signal. |

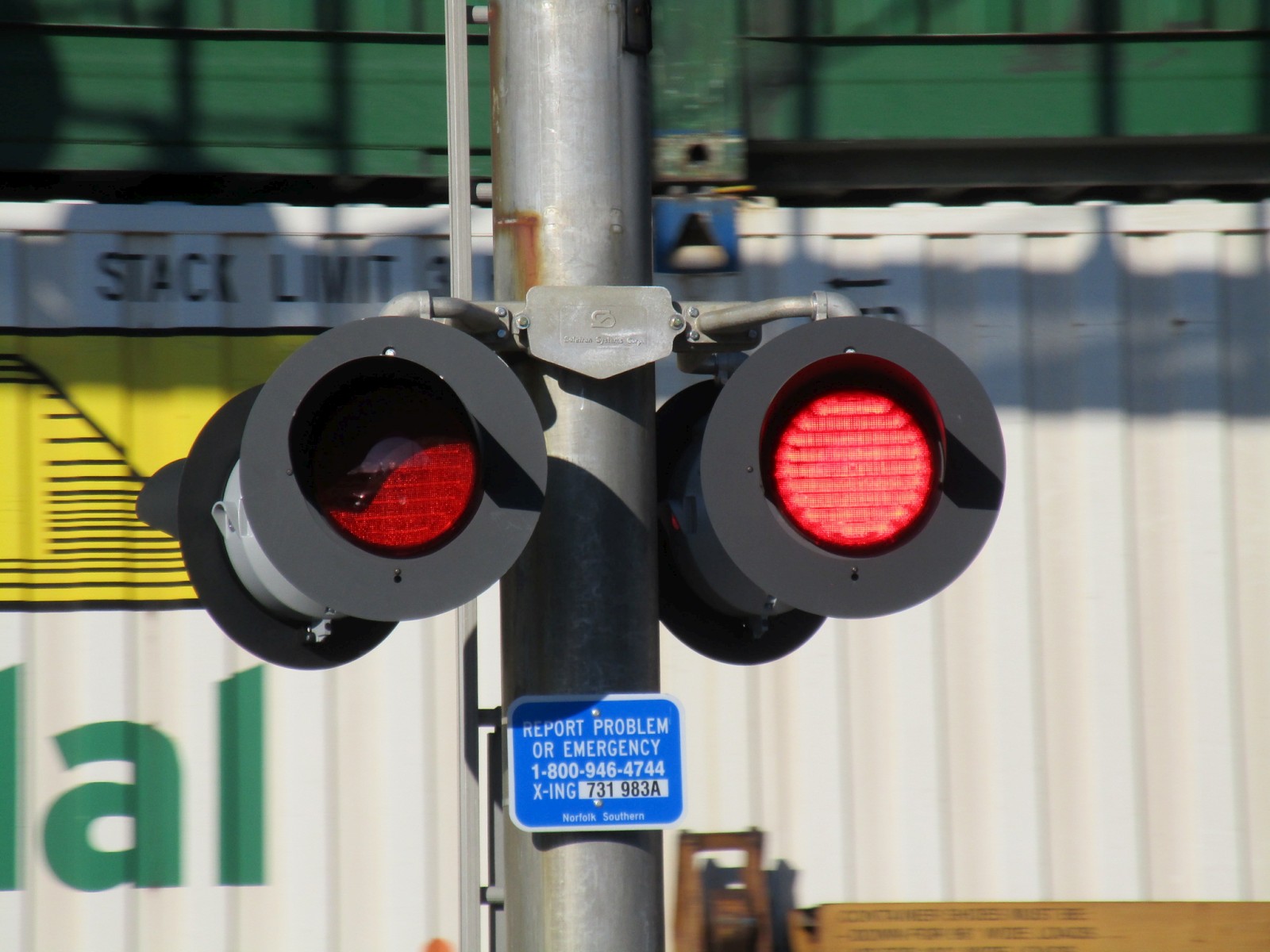

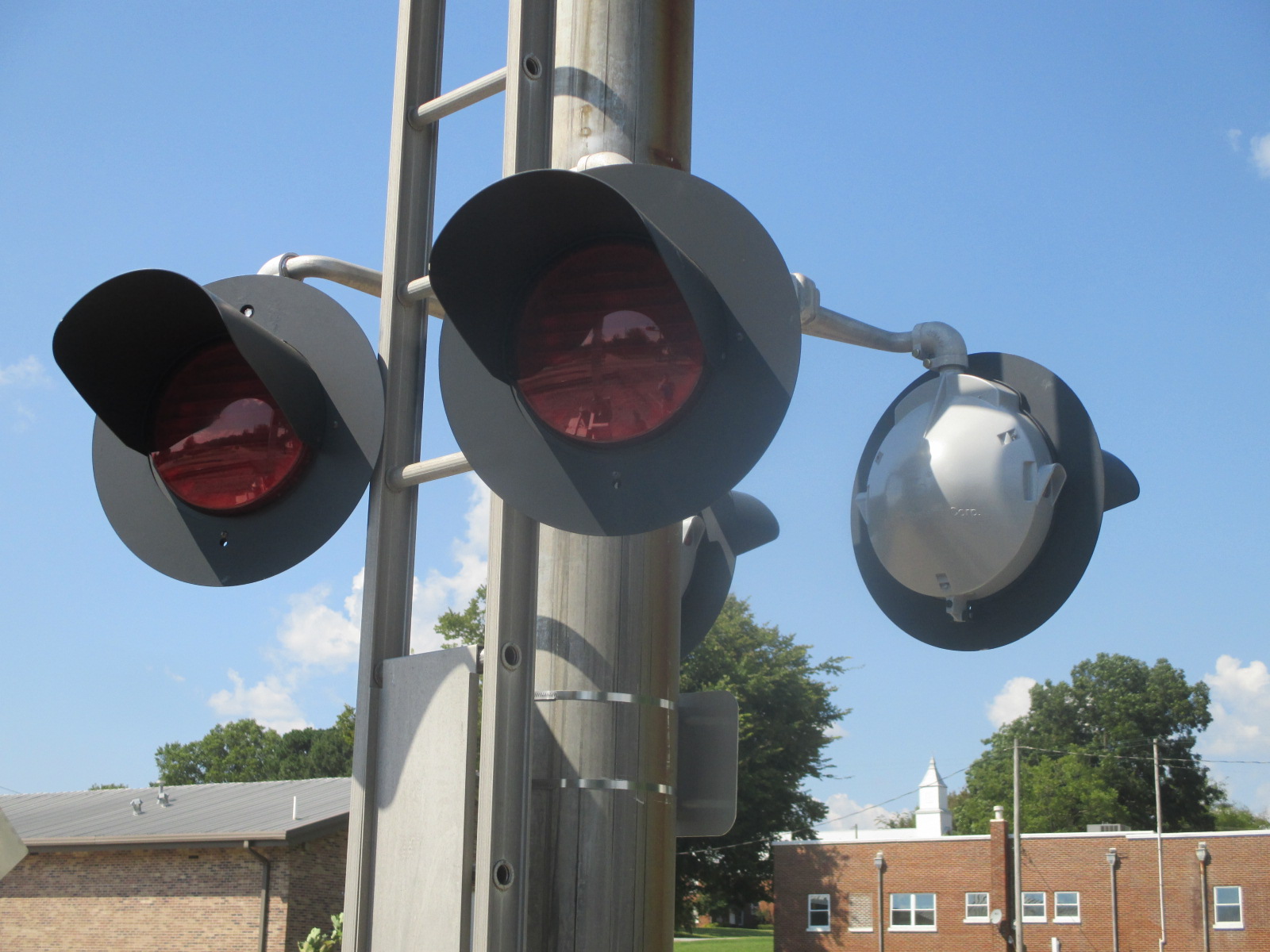

The mast lights overhere were also replaced with Safetran 12x20 inch lights with GE Uniform Look LEDs! |
||
41 |
42 |

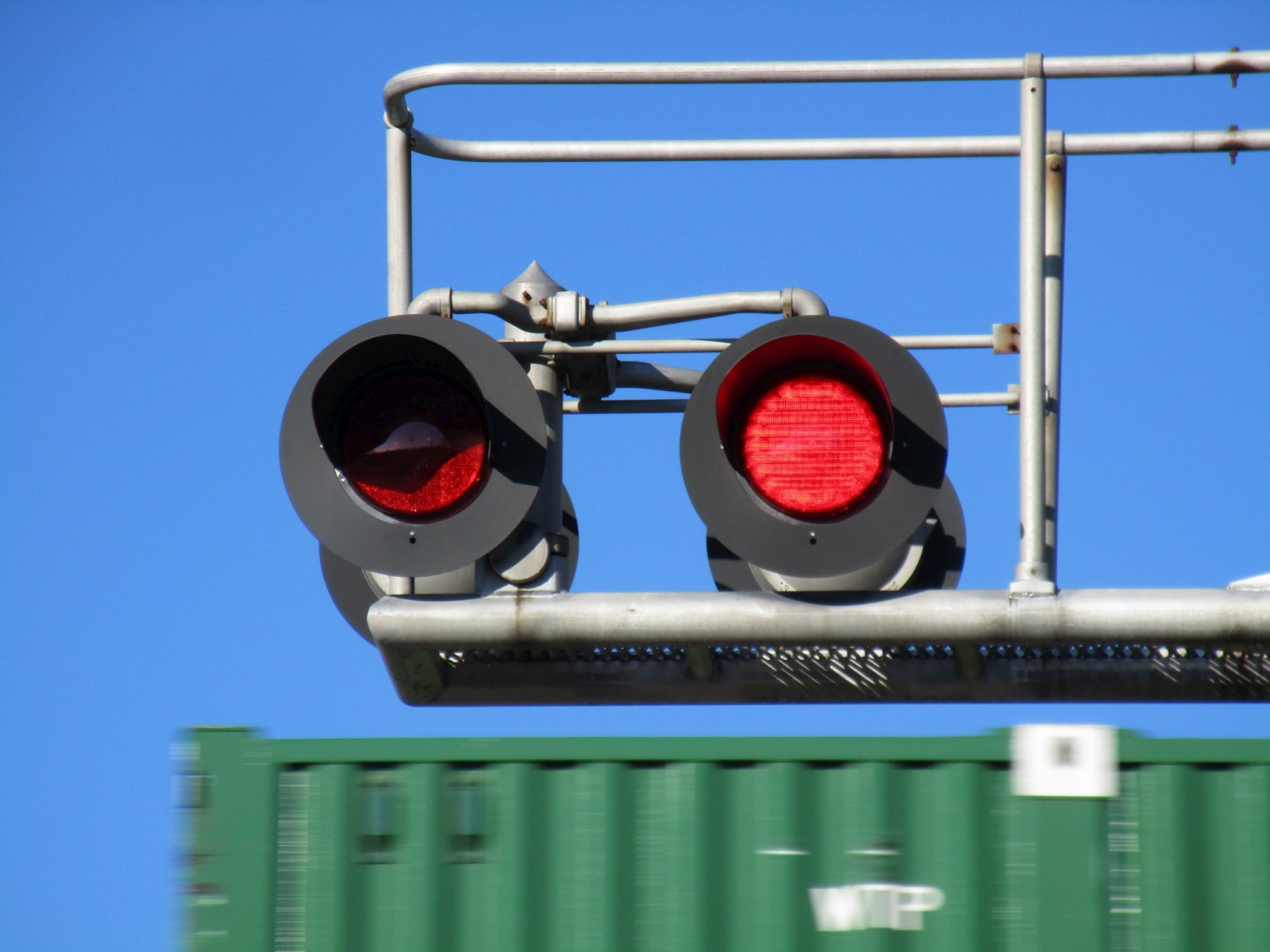

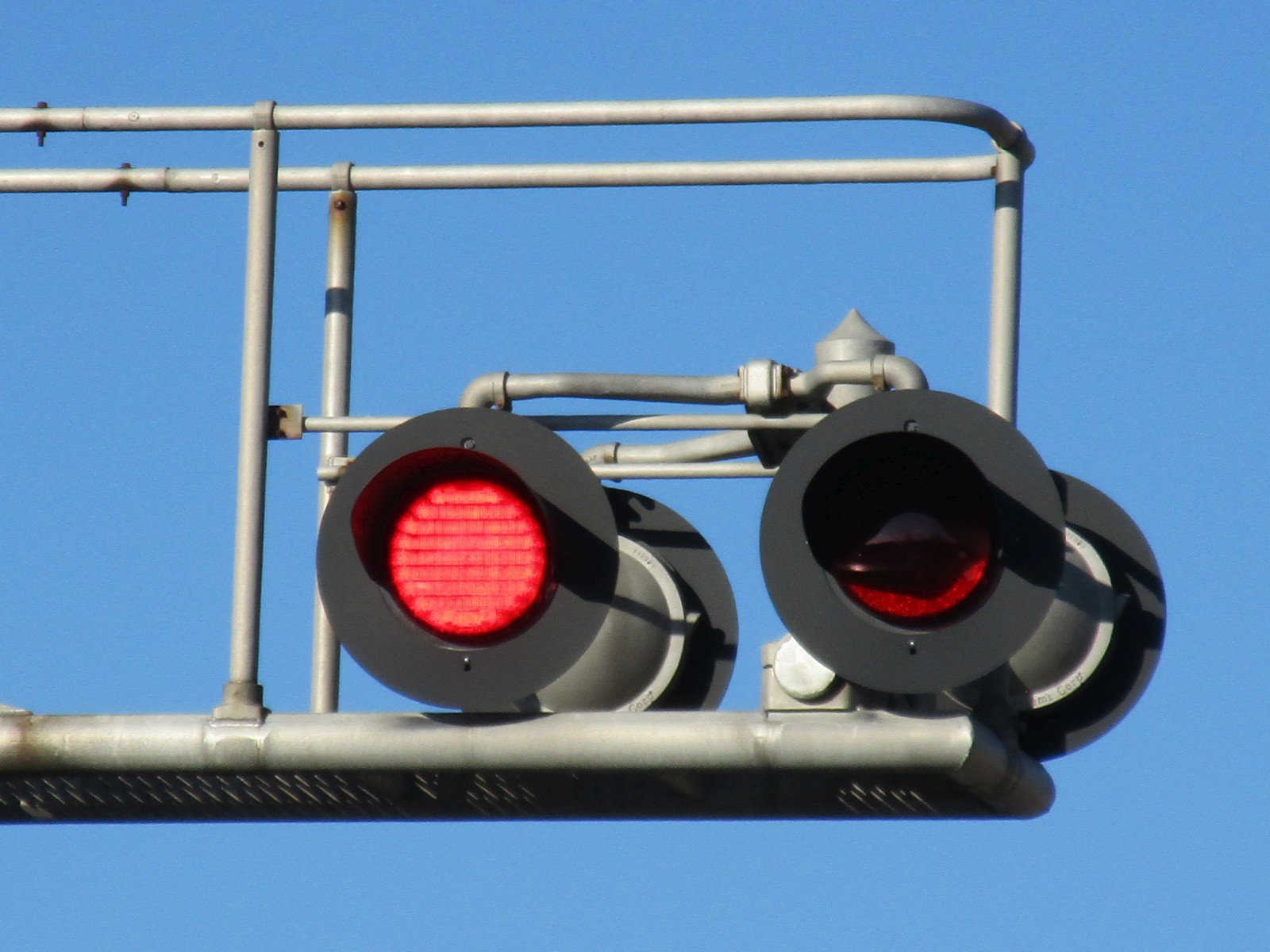

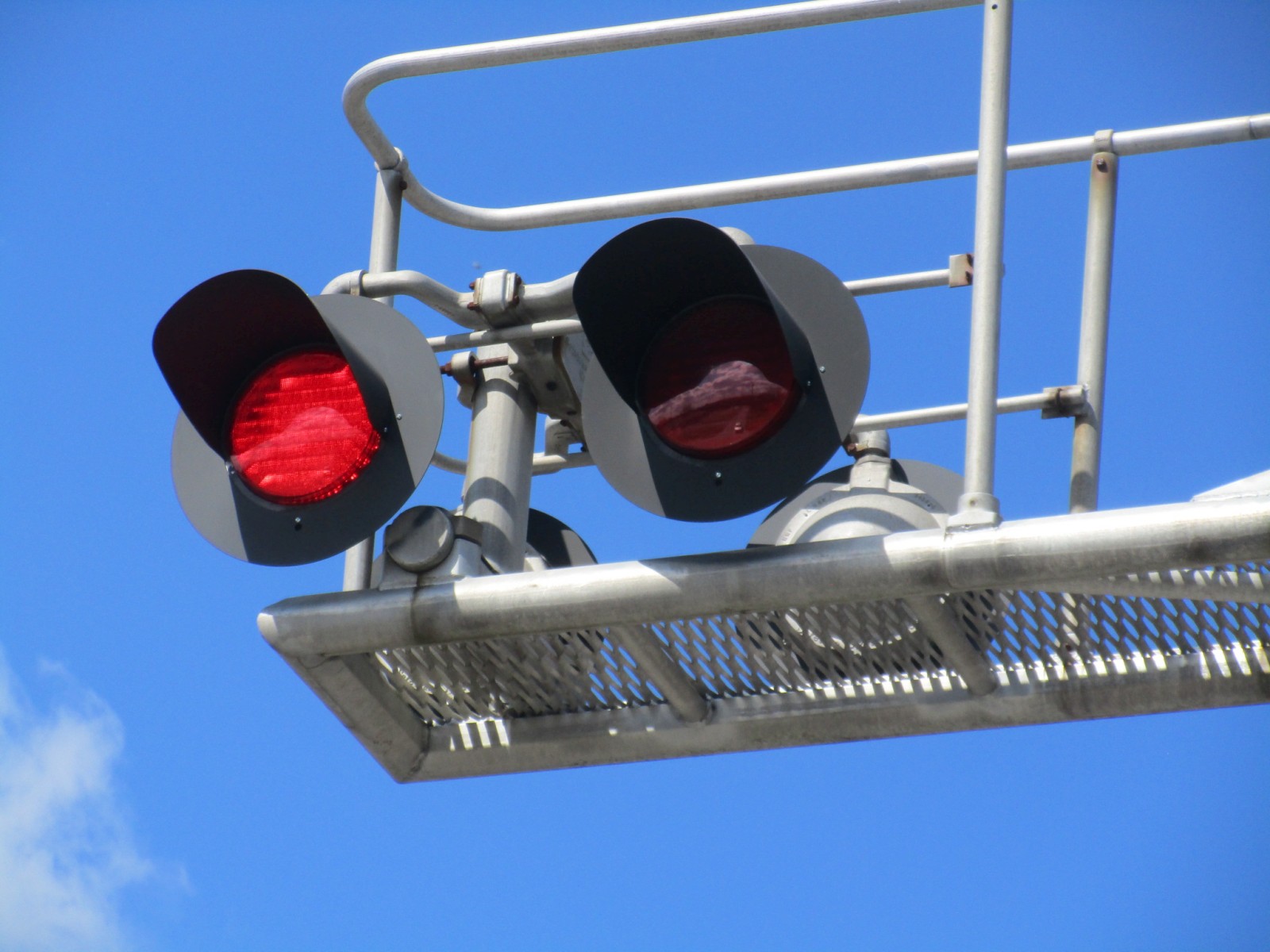

The overhead lights on this signal got more GE Uniform Look LEDs installed in them! |
|
43 |
44 |

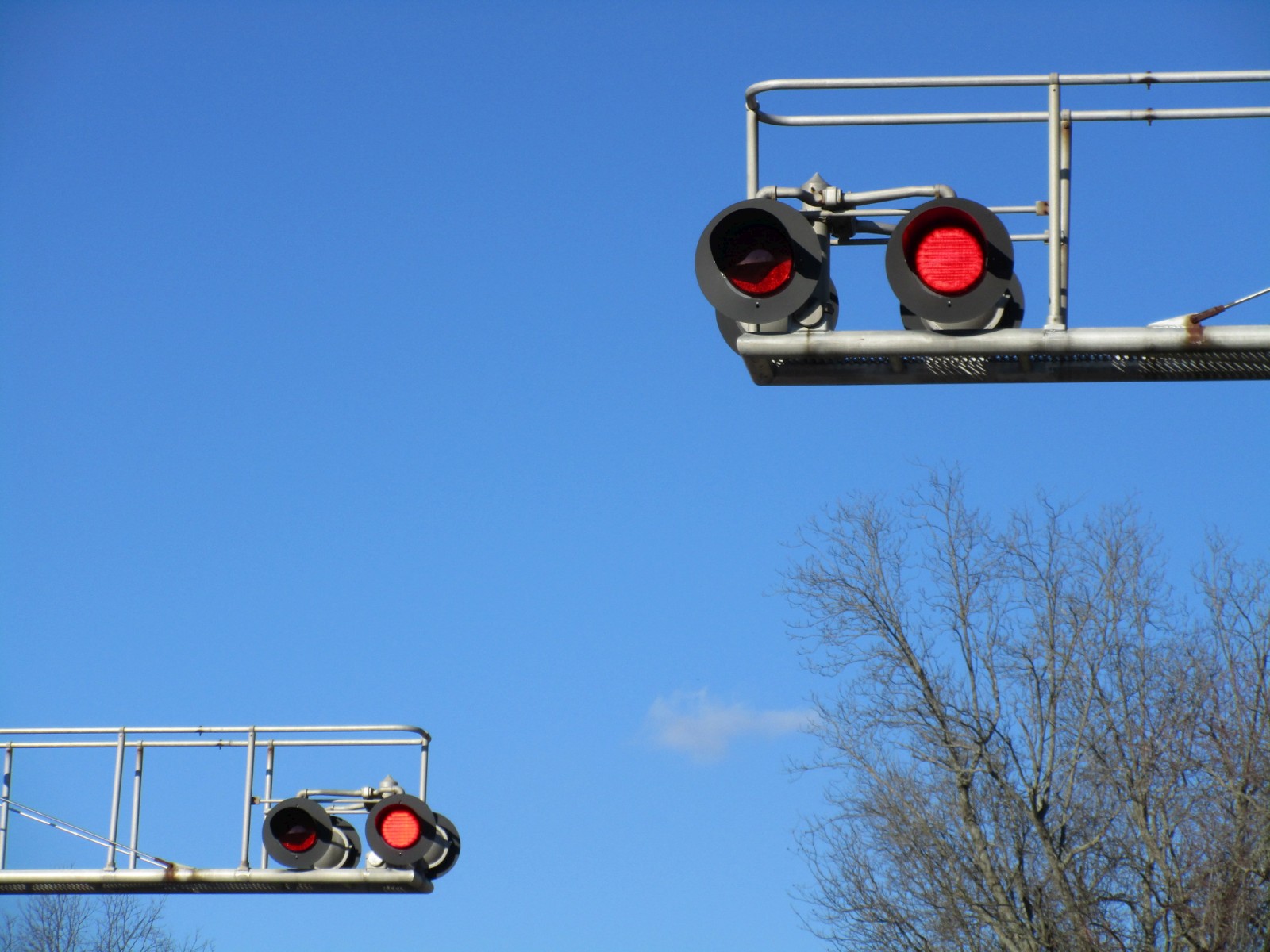

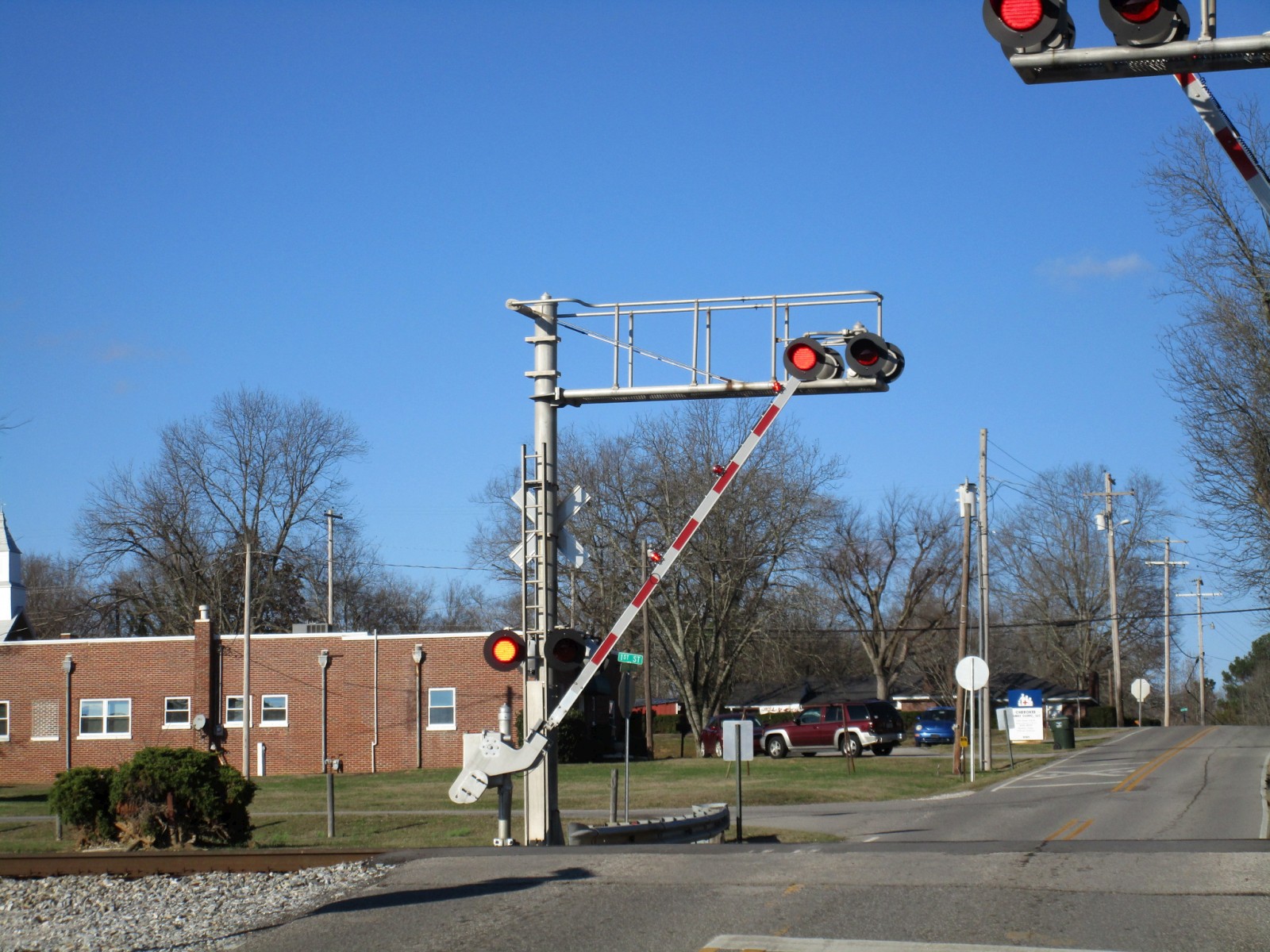

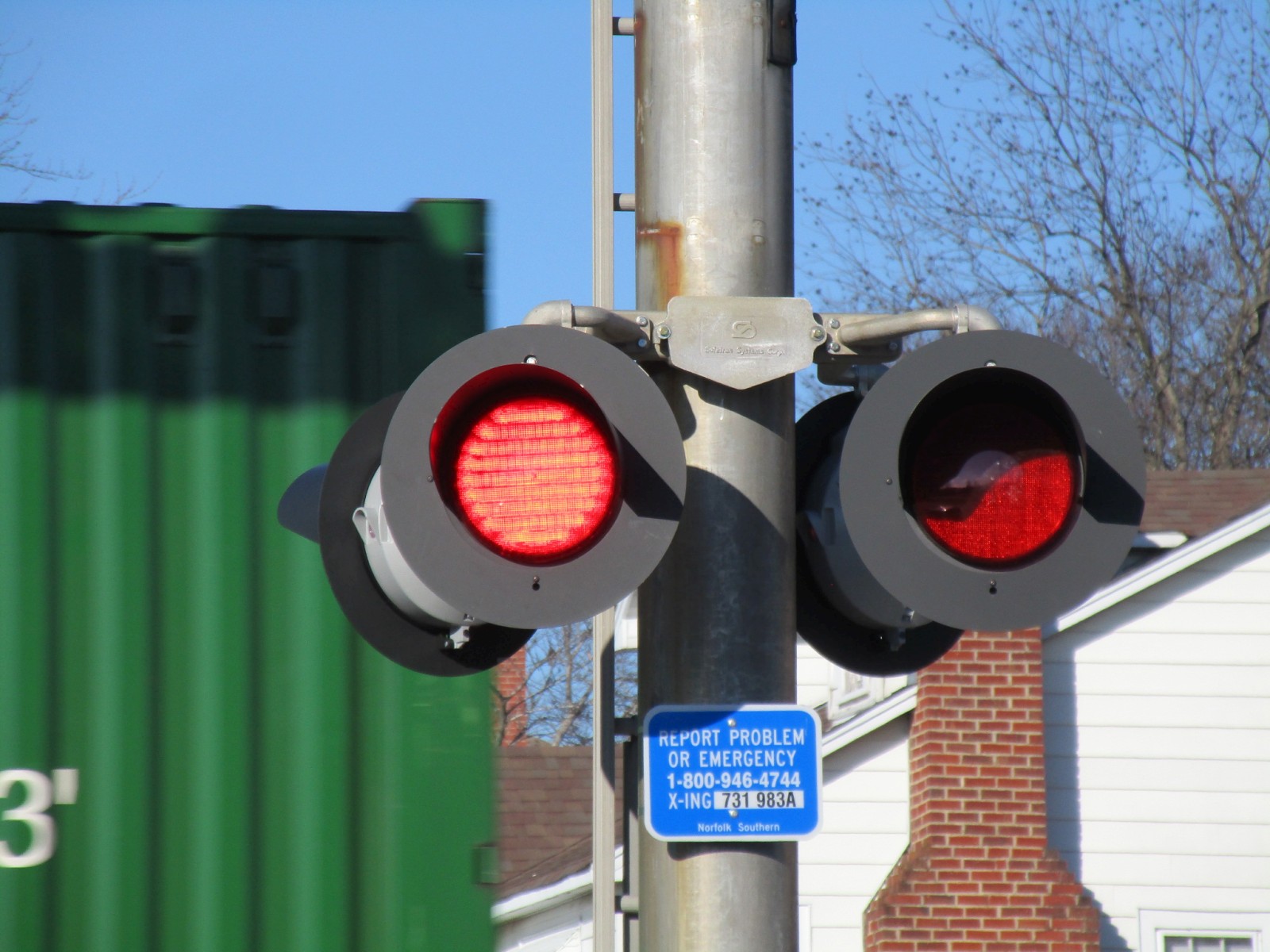

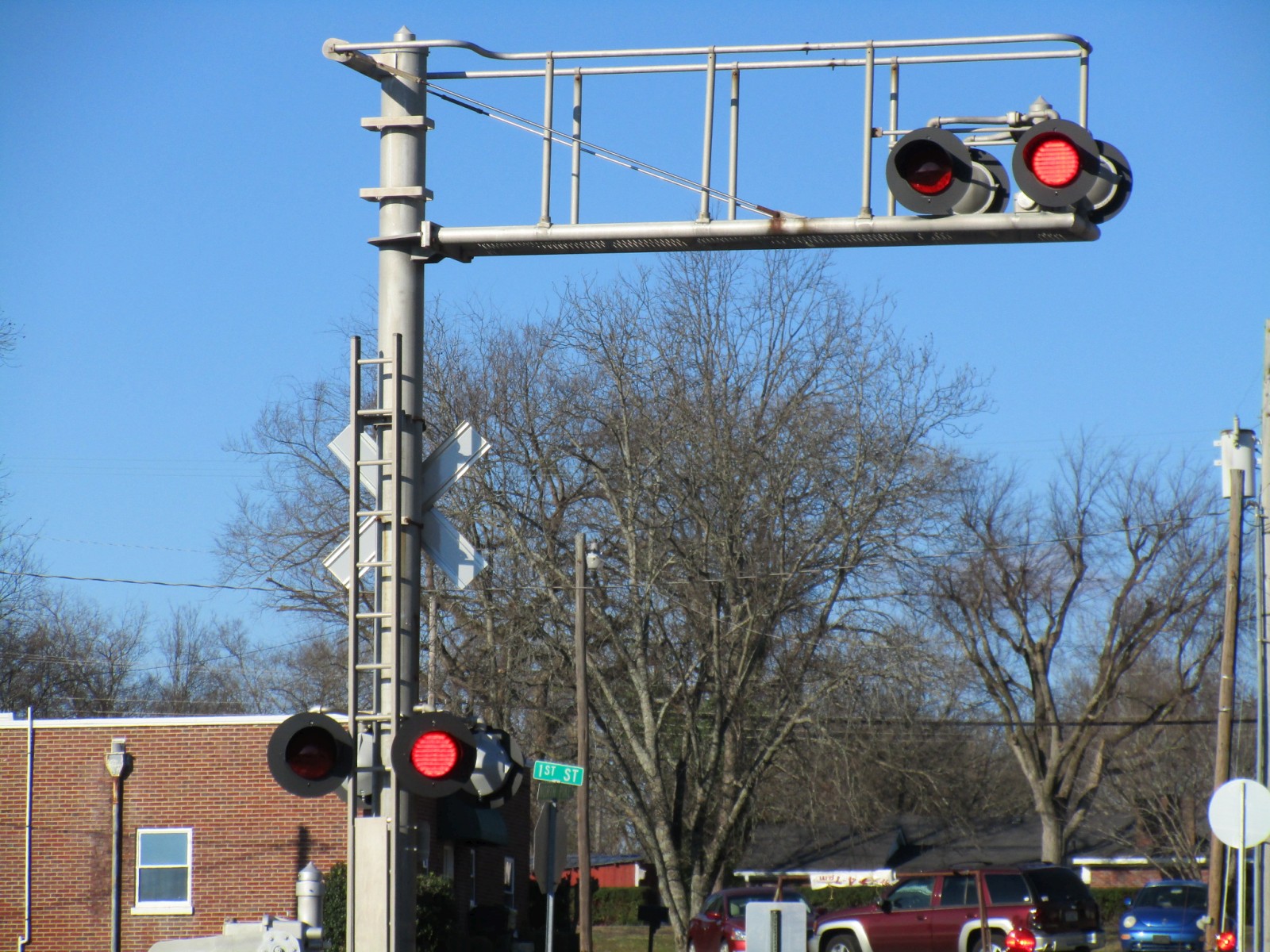

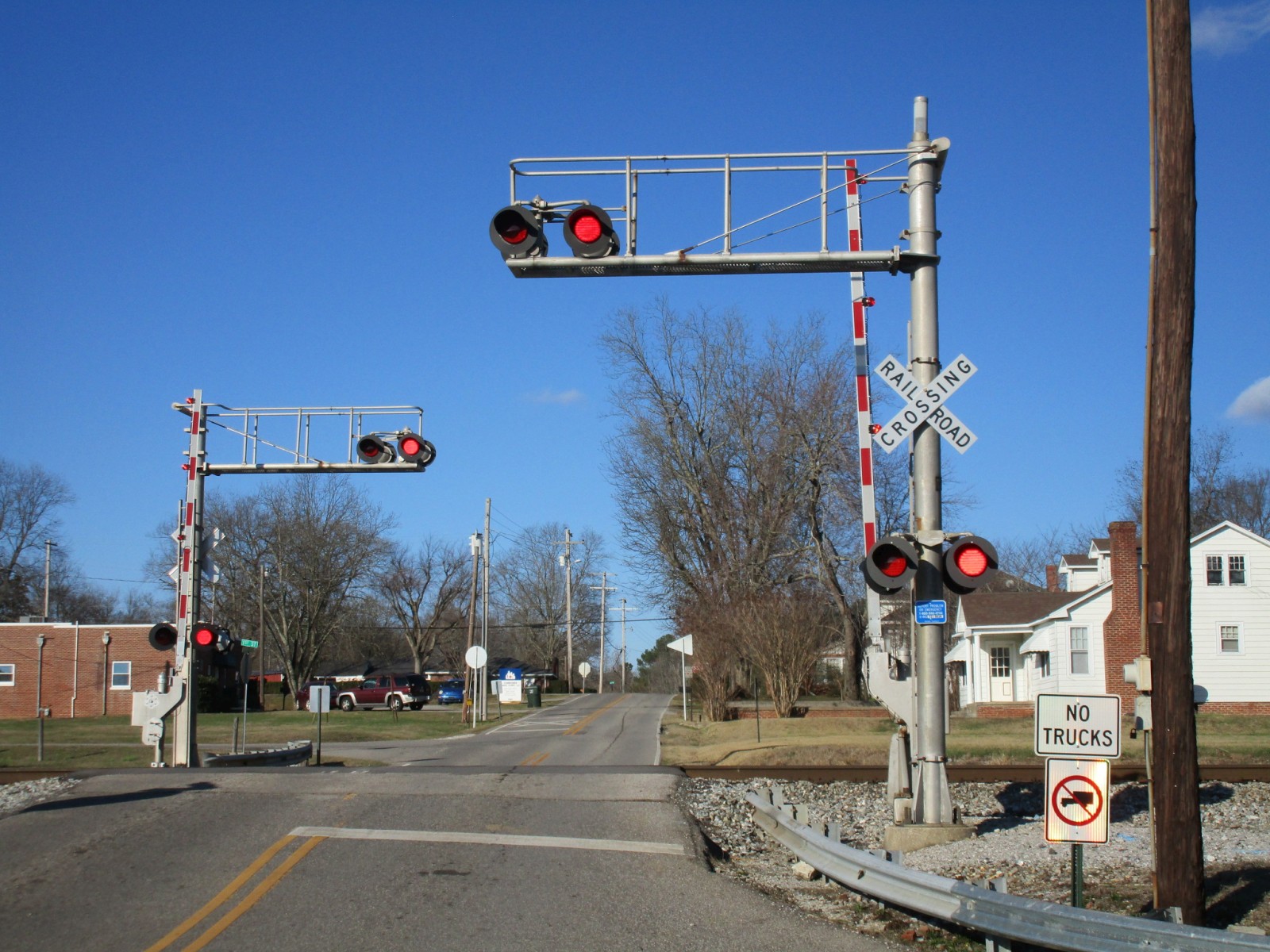

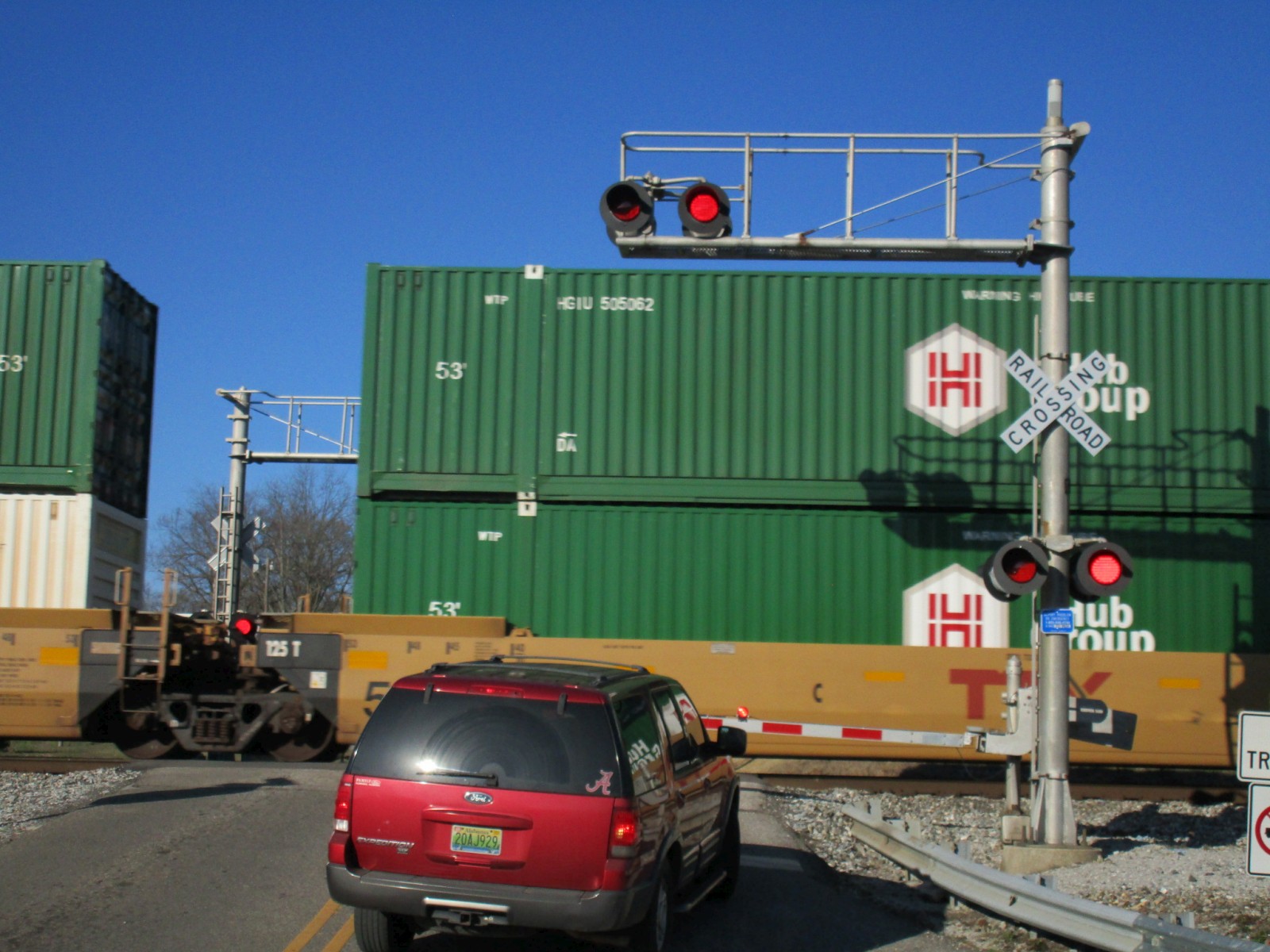

A return trip on 1-26-17 catches the crossing in action! |
|
45 |
46 |
47 |
48 |
49 |
50 |
51 |
52 |

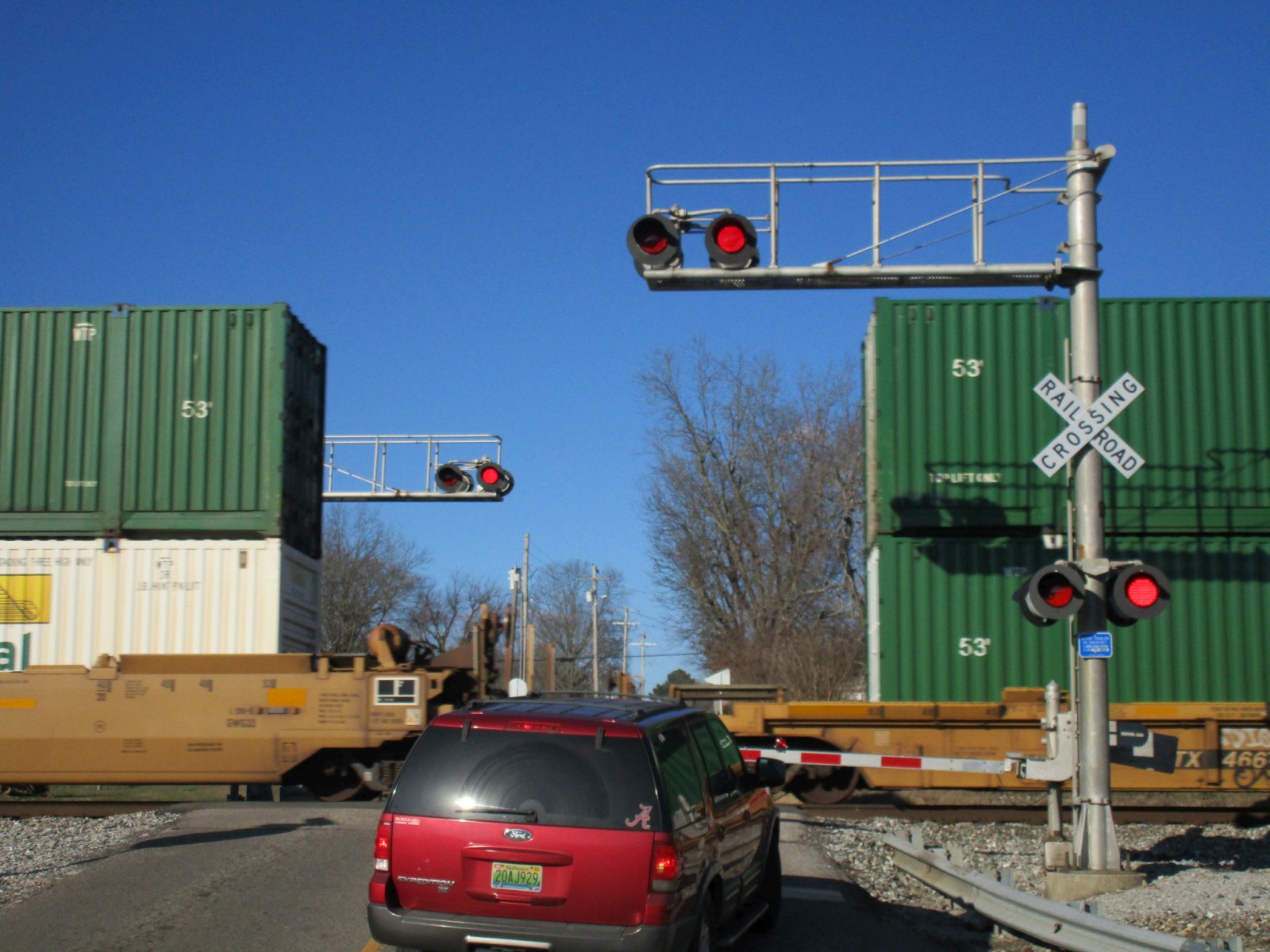

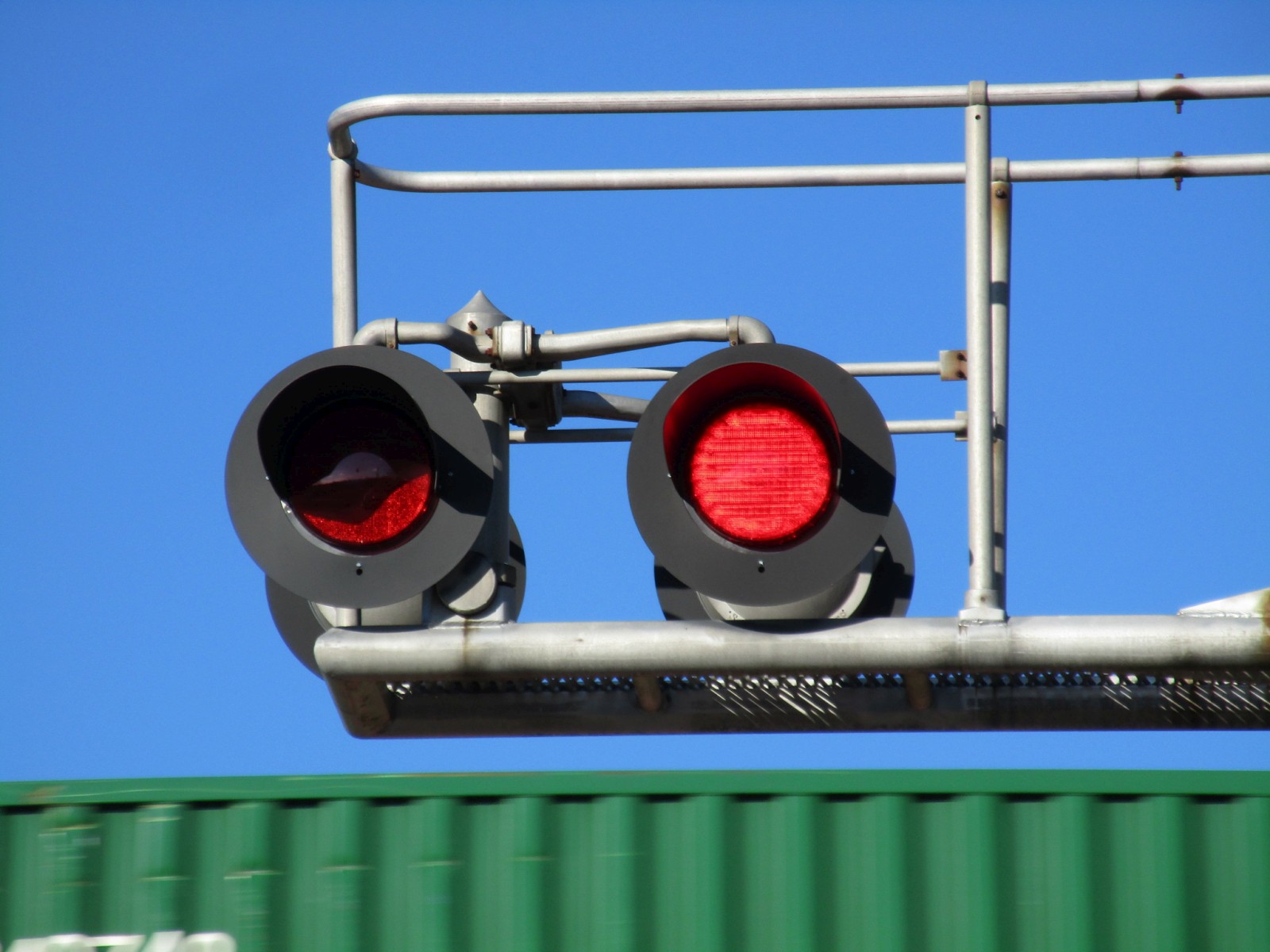

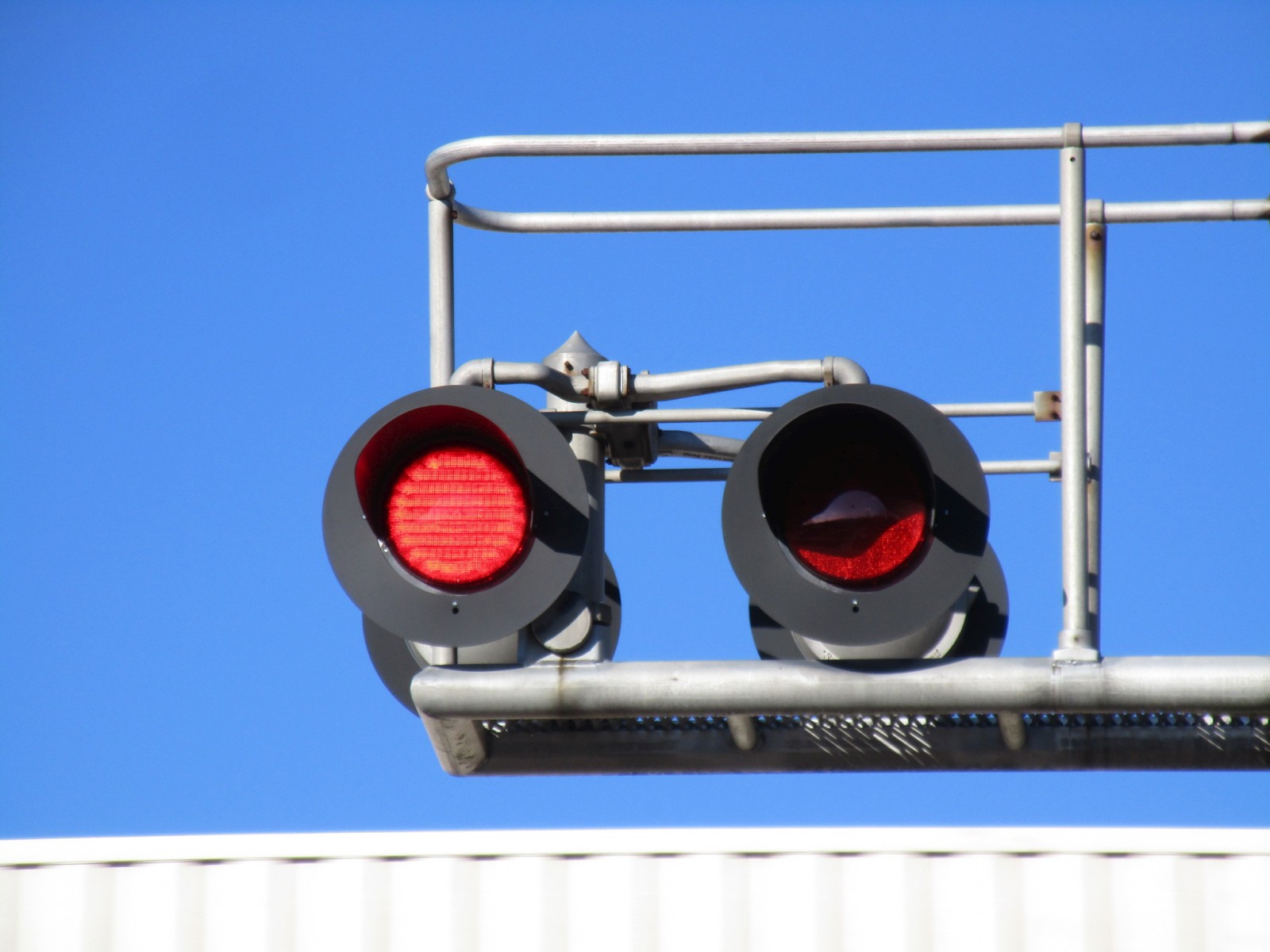

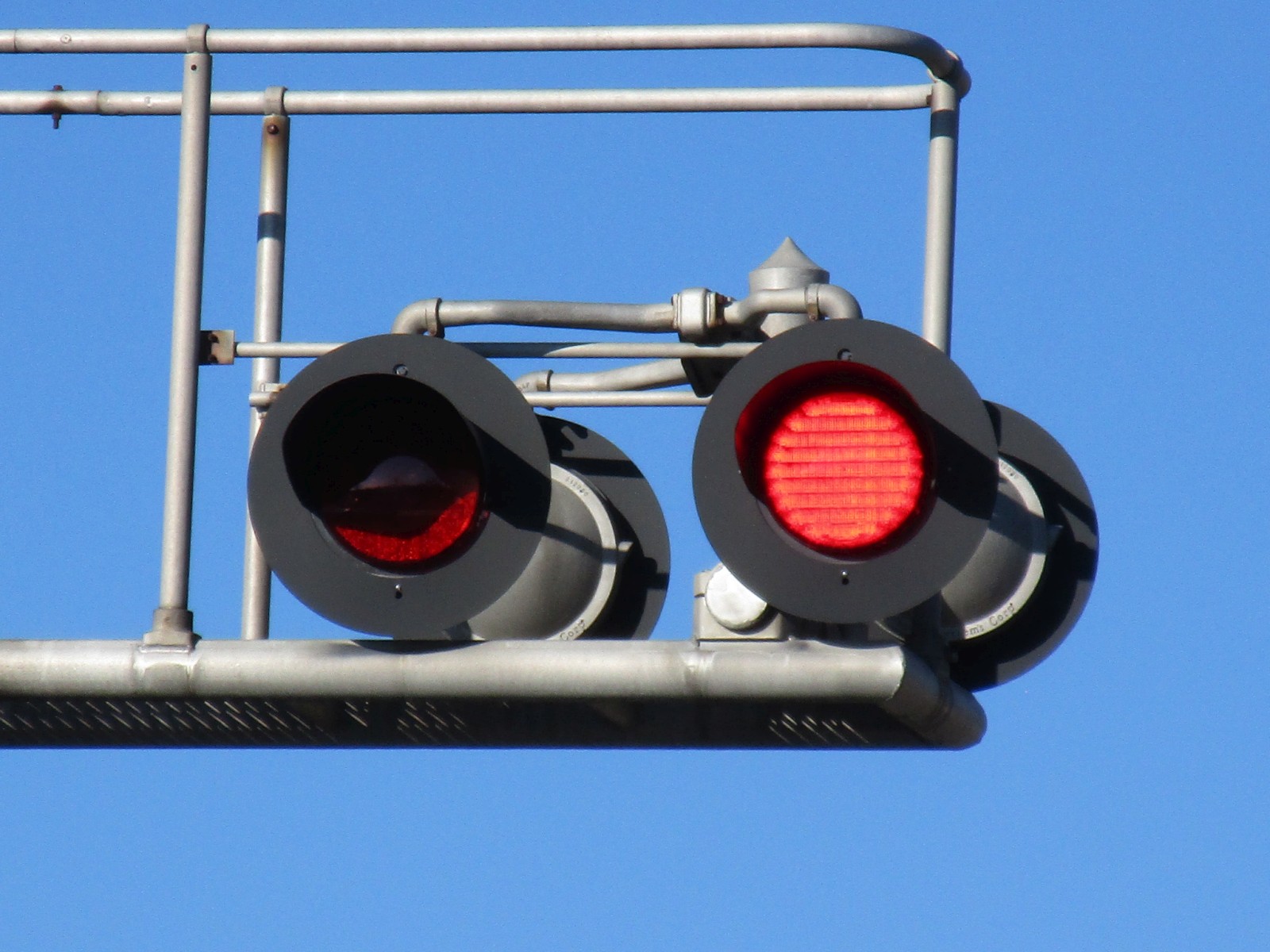

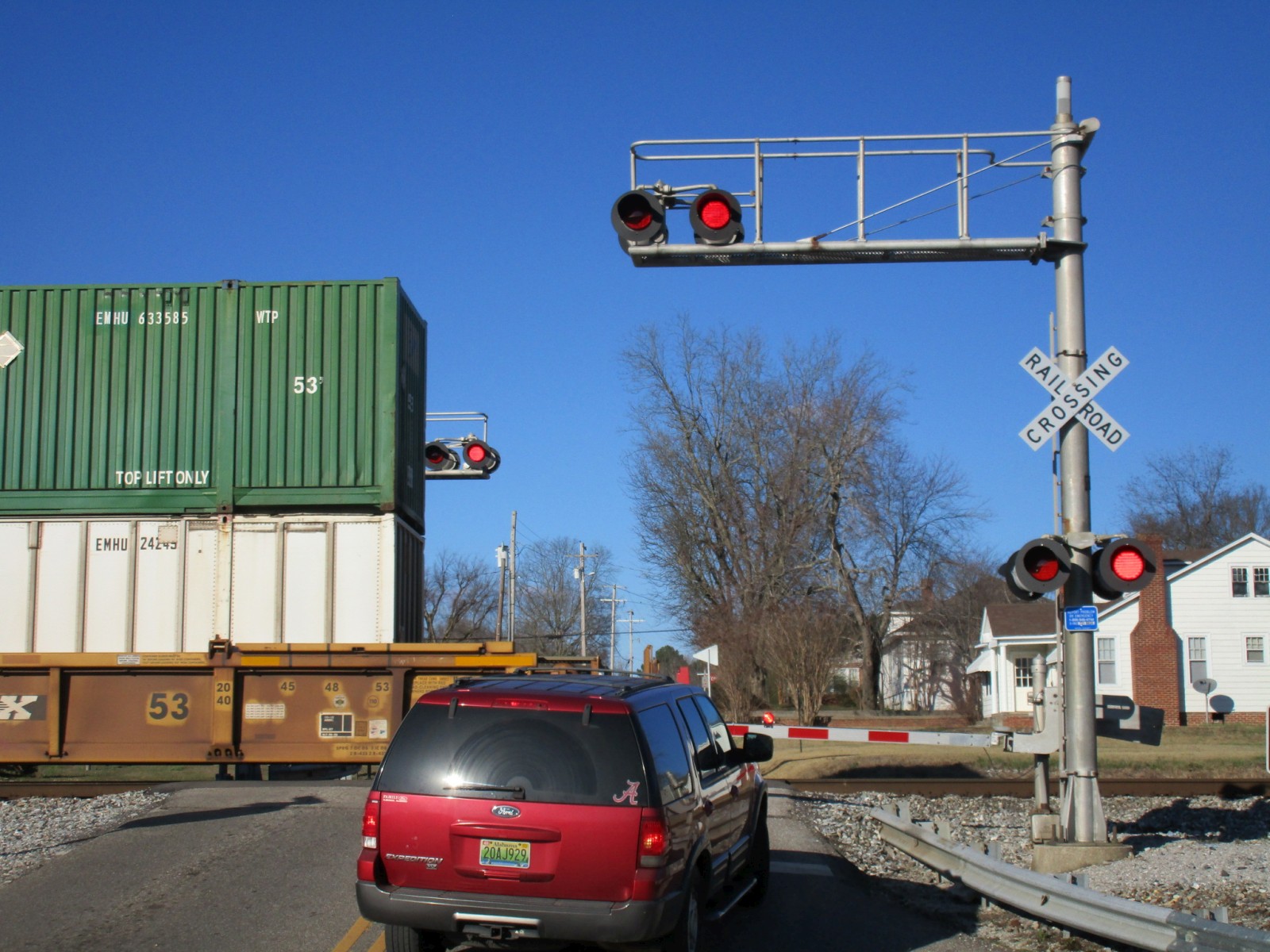

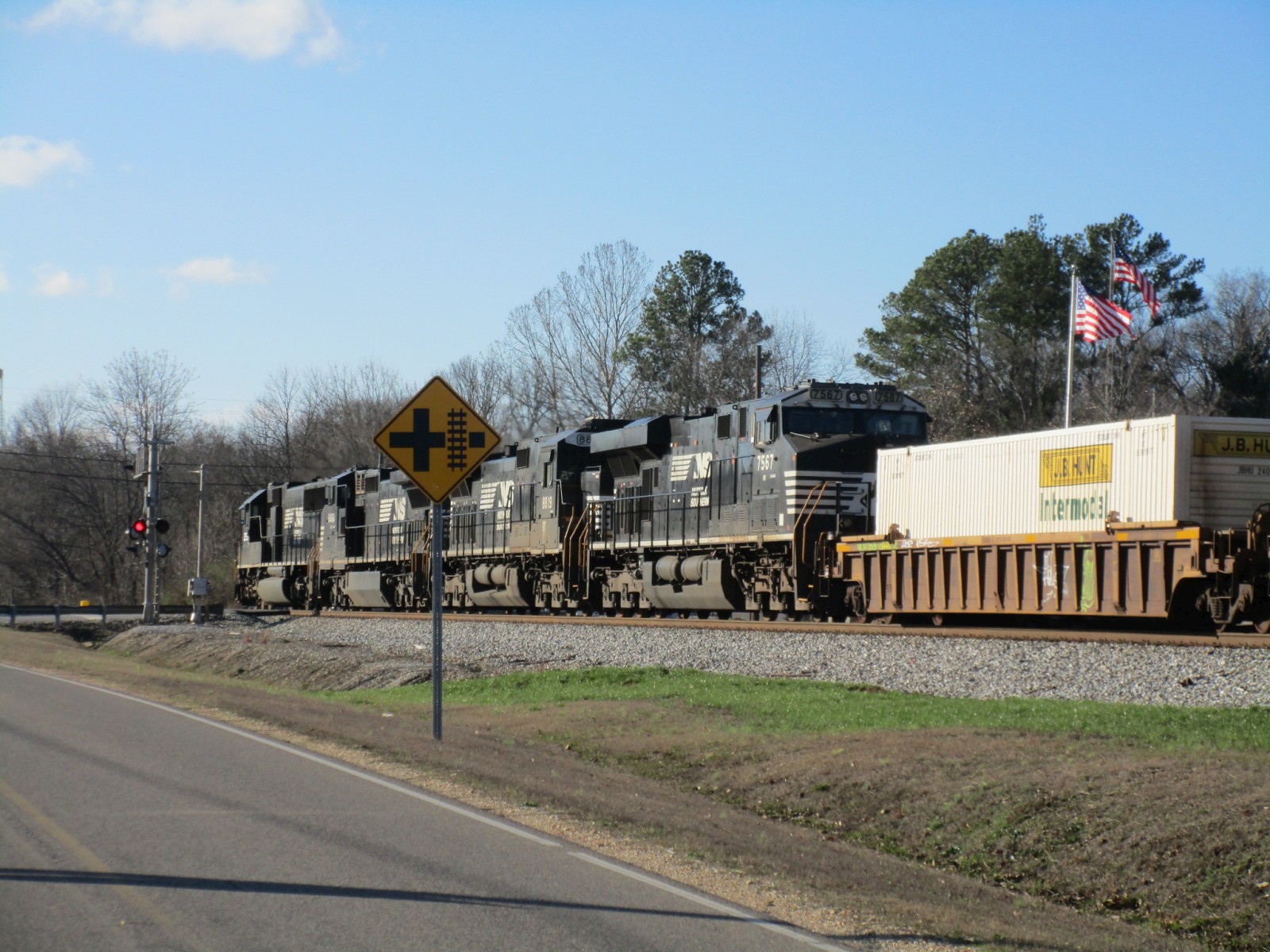

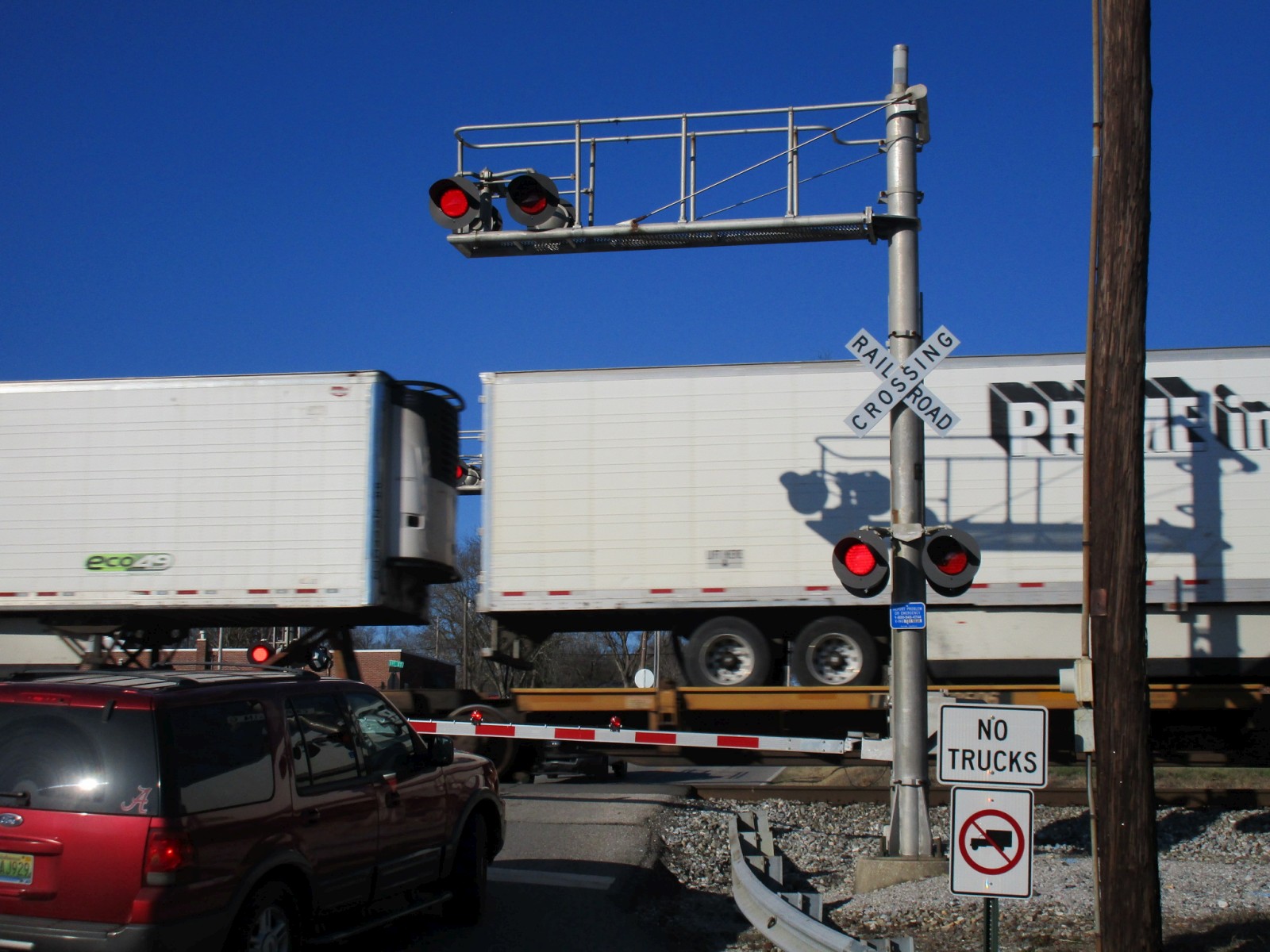

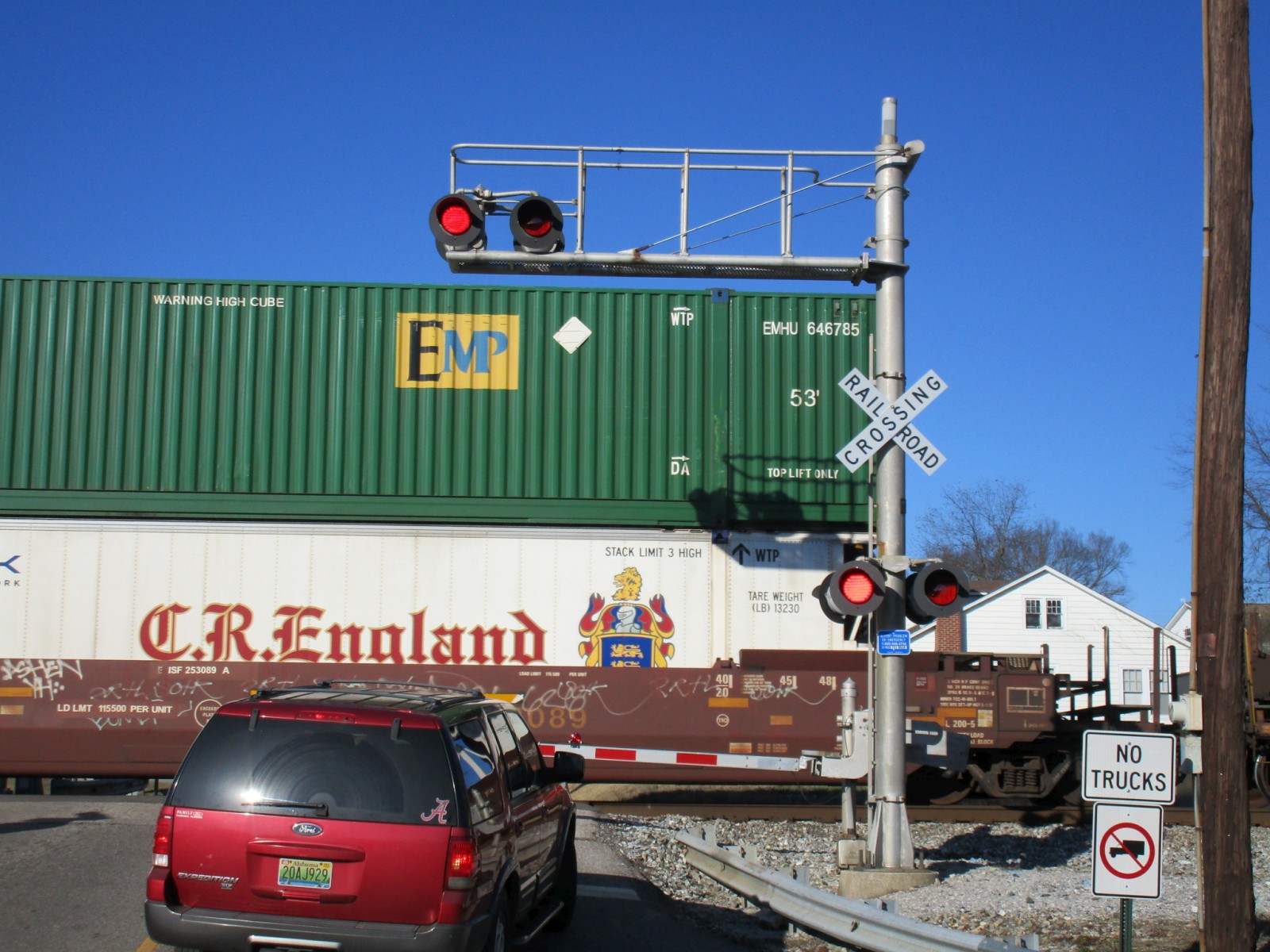

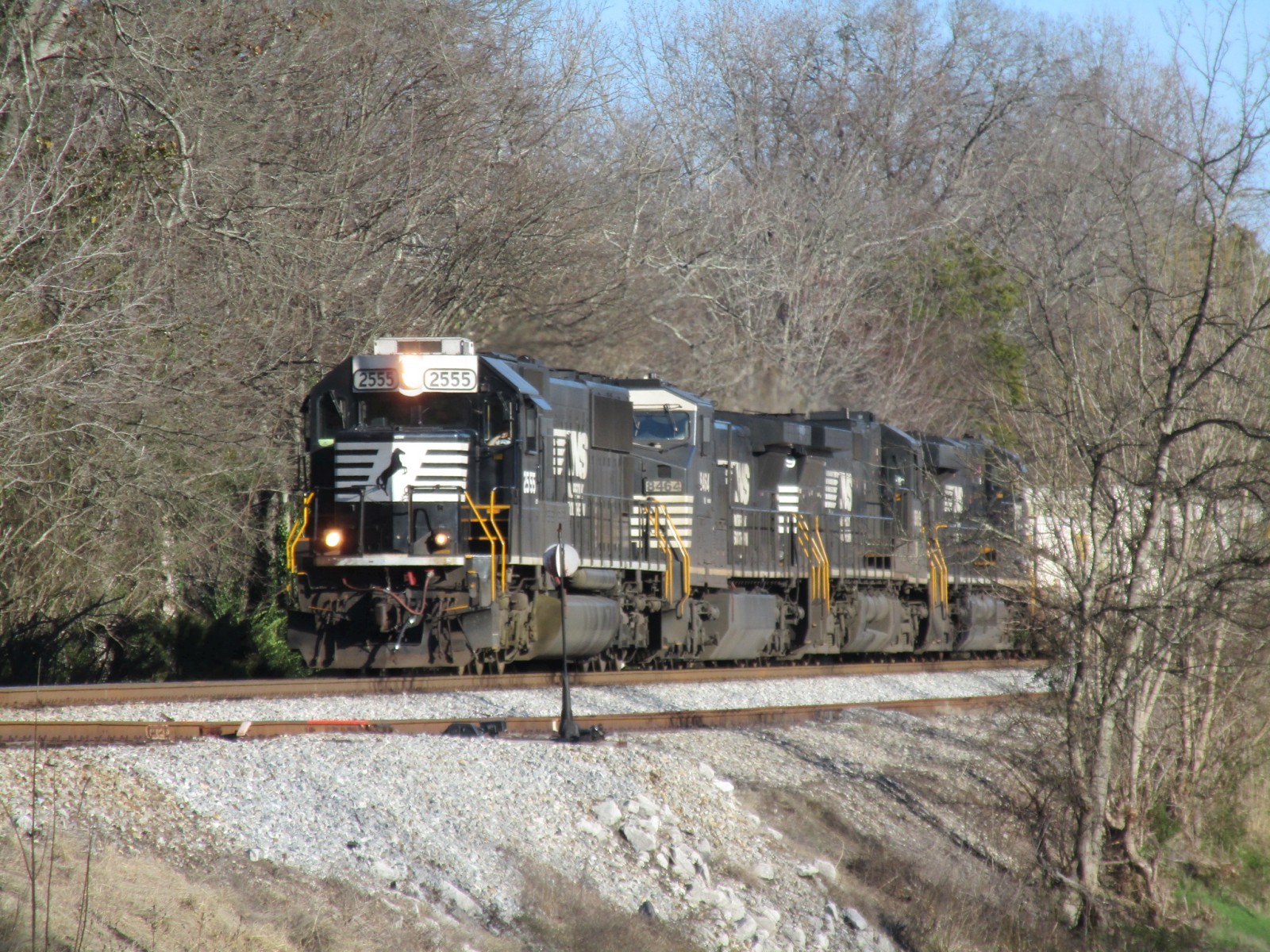

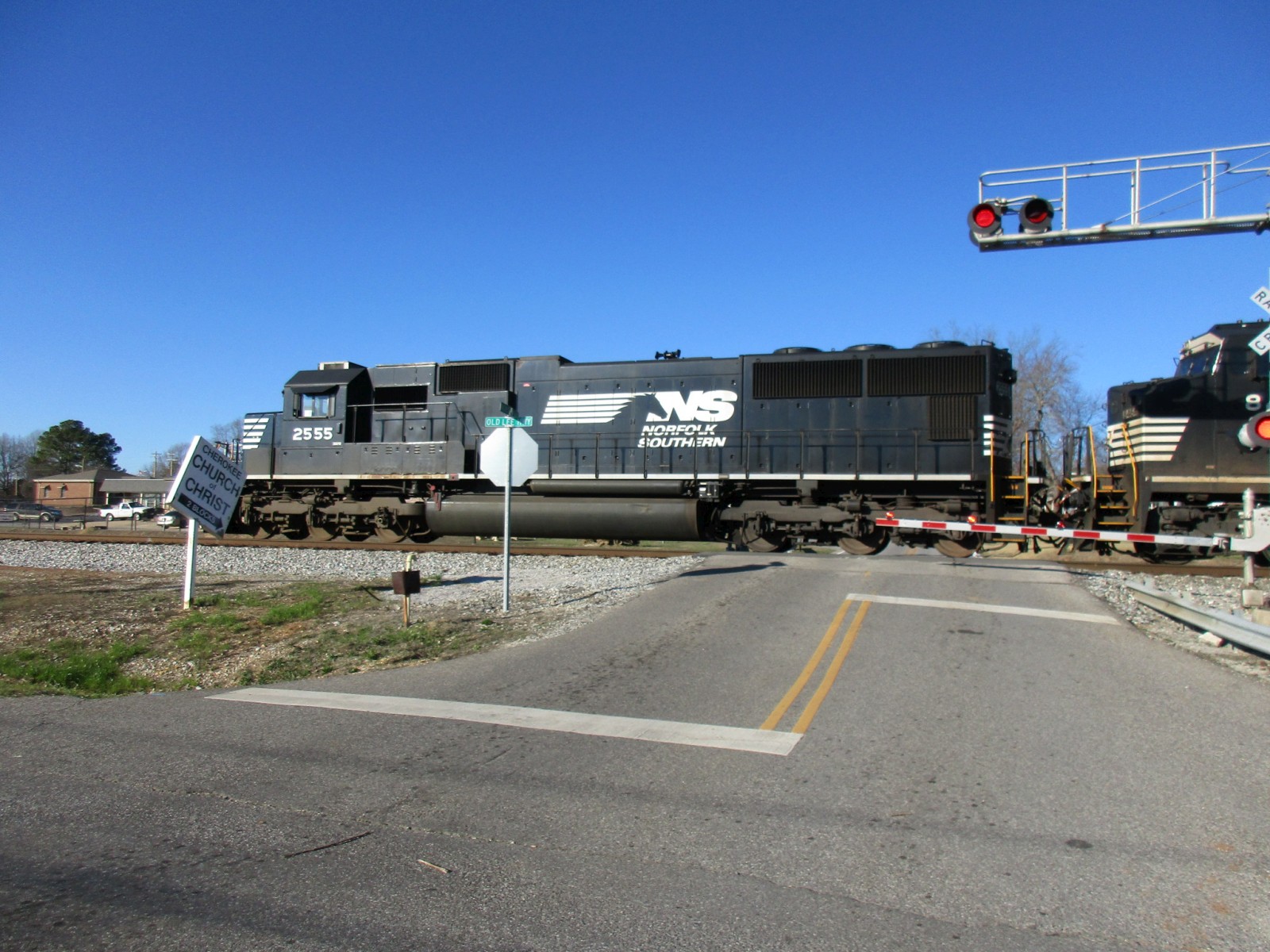

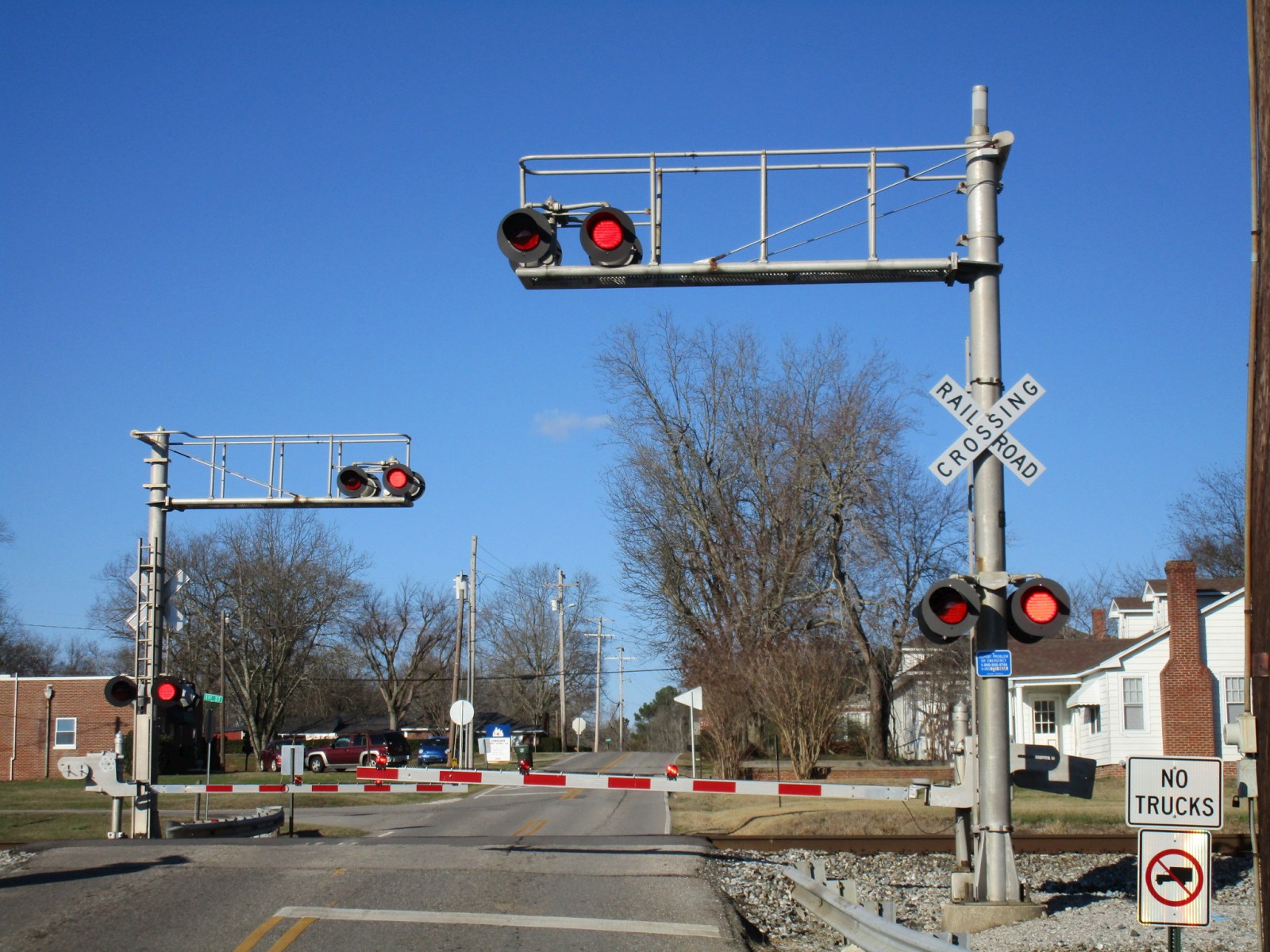

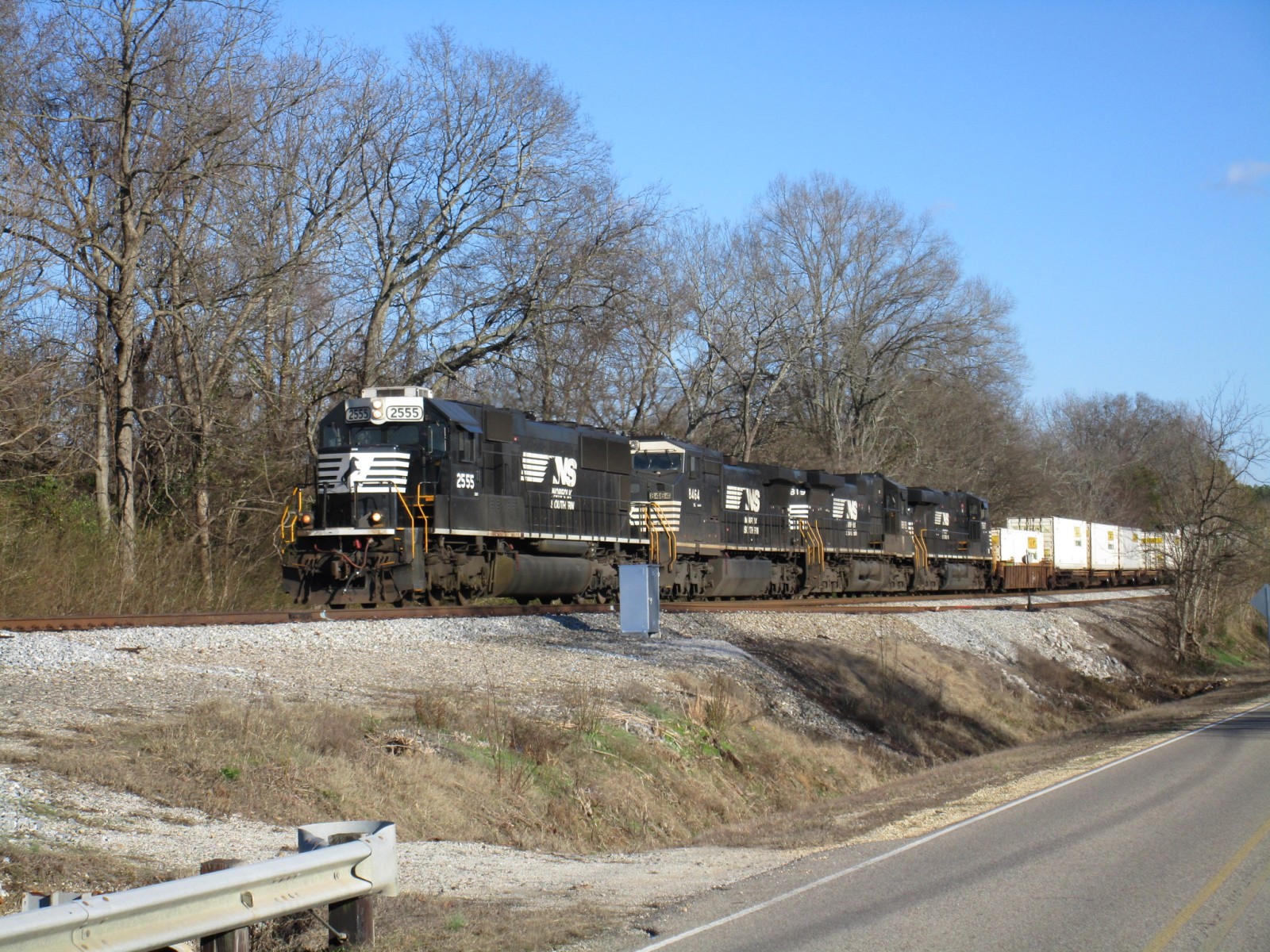

NS 2555 leads NS 201 through the crossing! |
|||
53 |
54 |
55 |
56 |
57 |
58 |
59 |
60 |
61 |
62 |
63 |
64 |
65 |
66 |
67 |
68 |

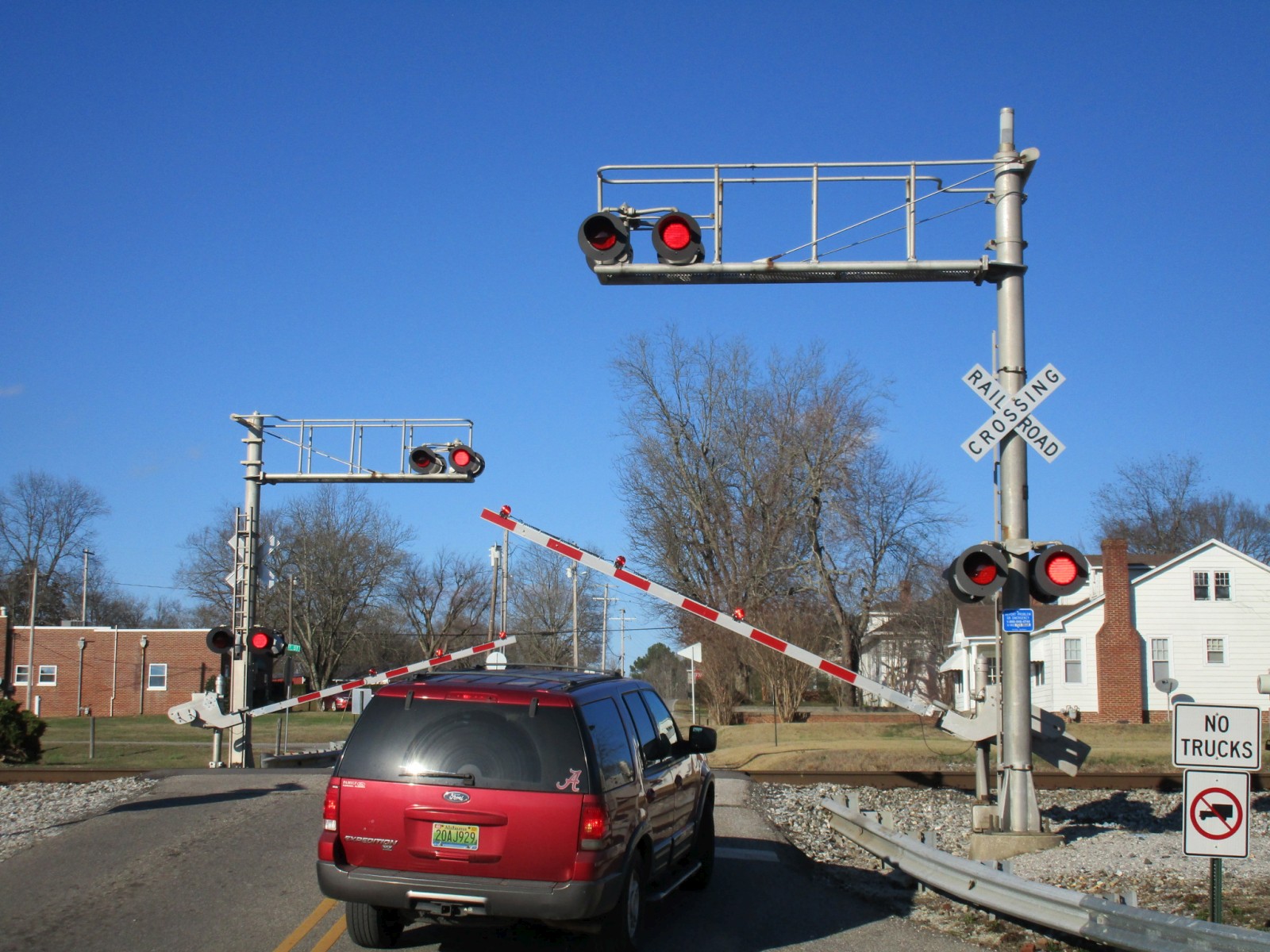

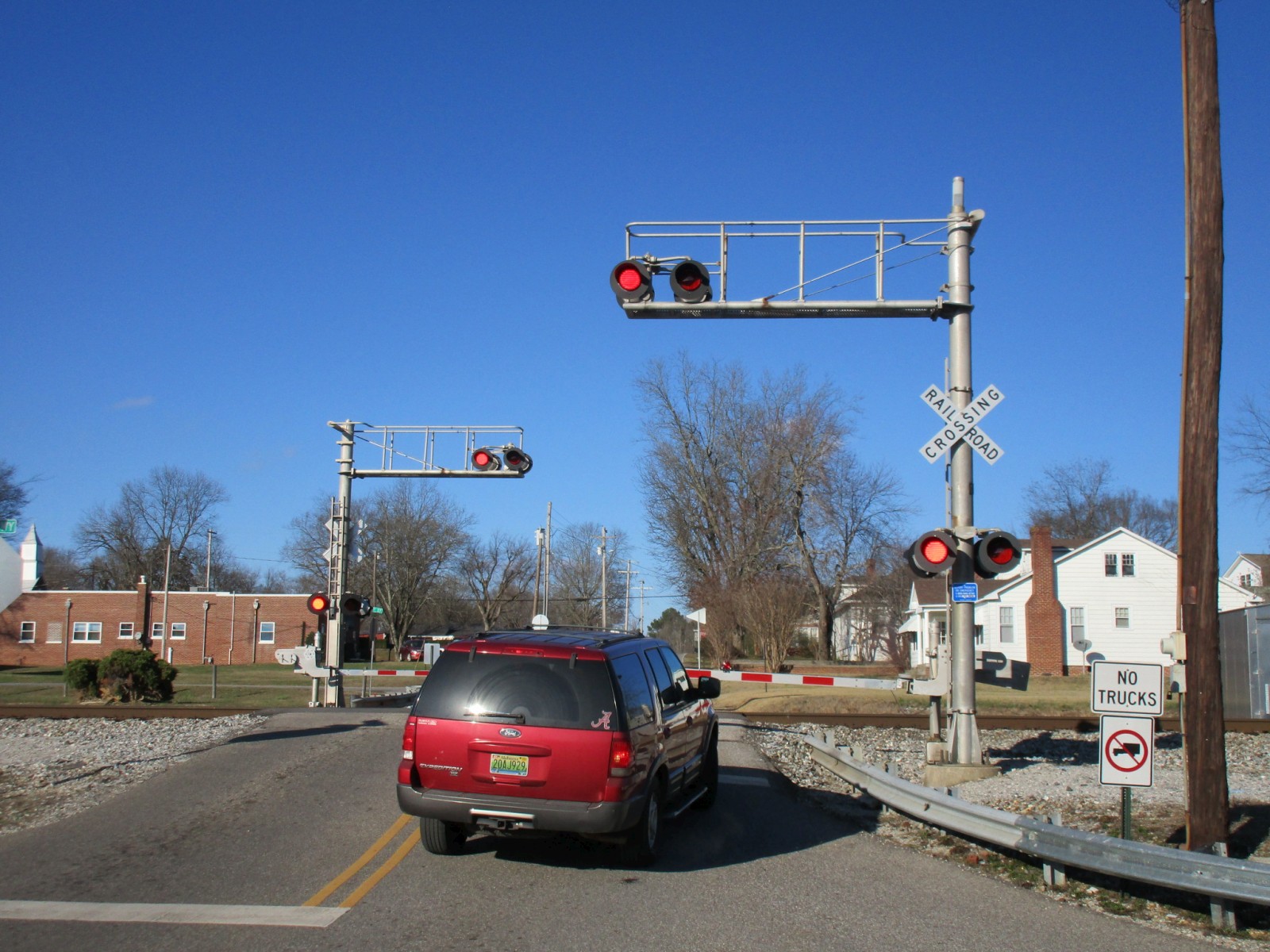

The train passes and the gates rise. |
|||
69 |
70 |
71 |
72 |

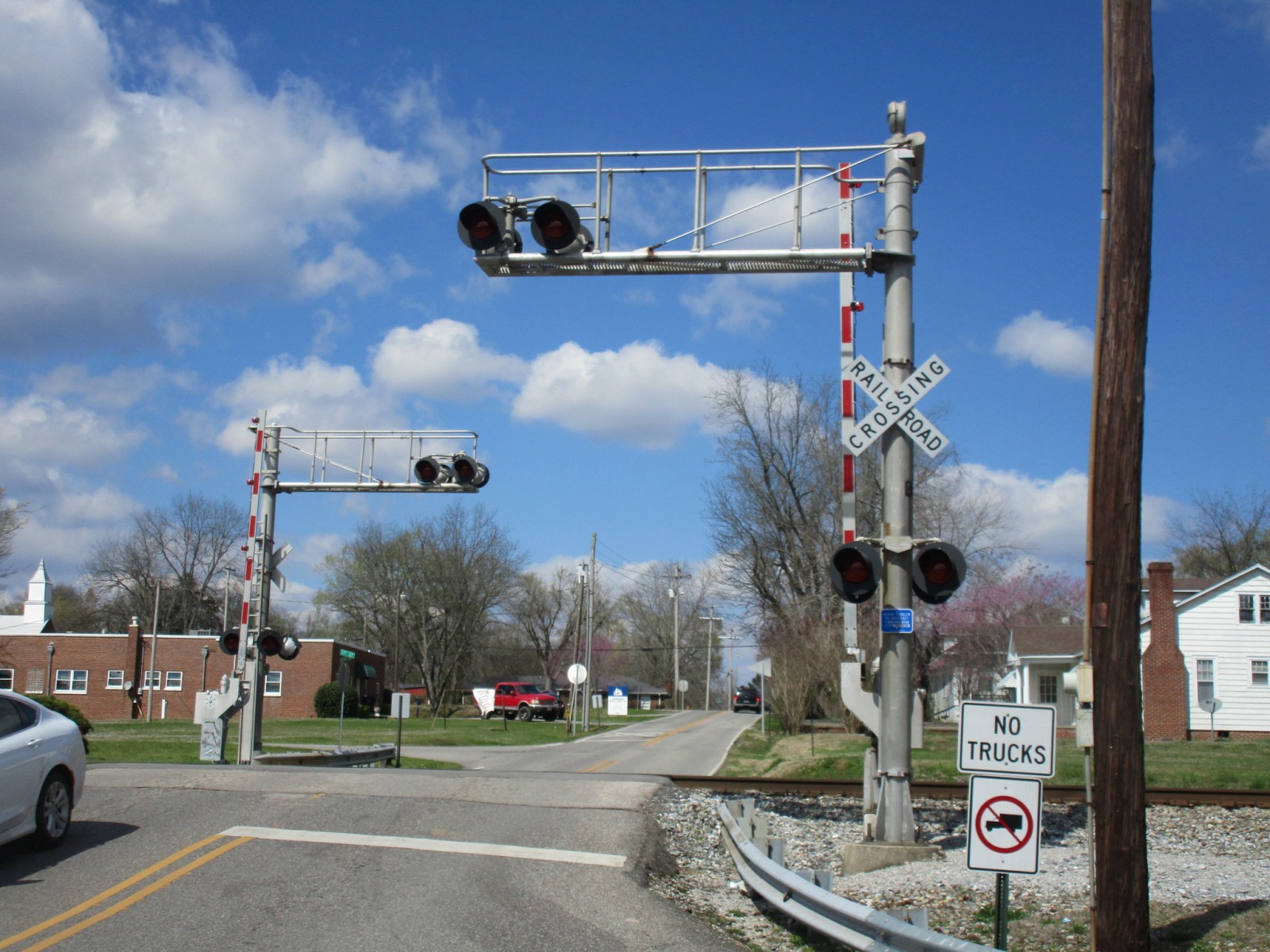

Another return trip on 3-21-18 finds a rather interesting change to the crossing. |

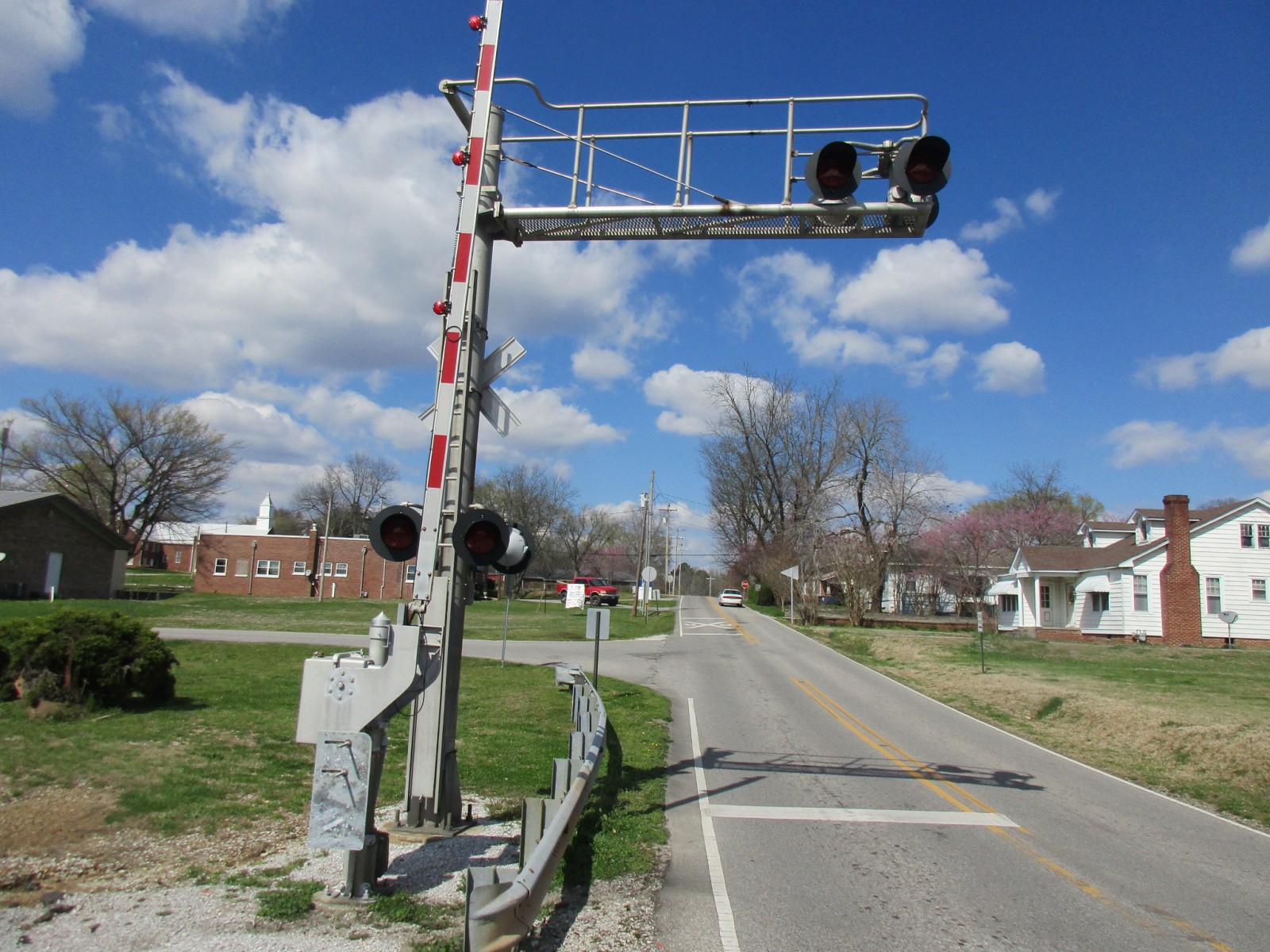

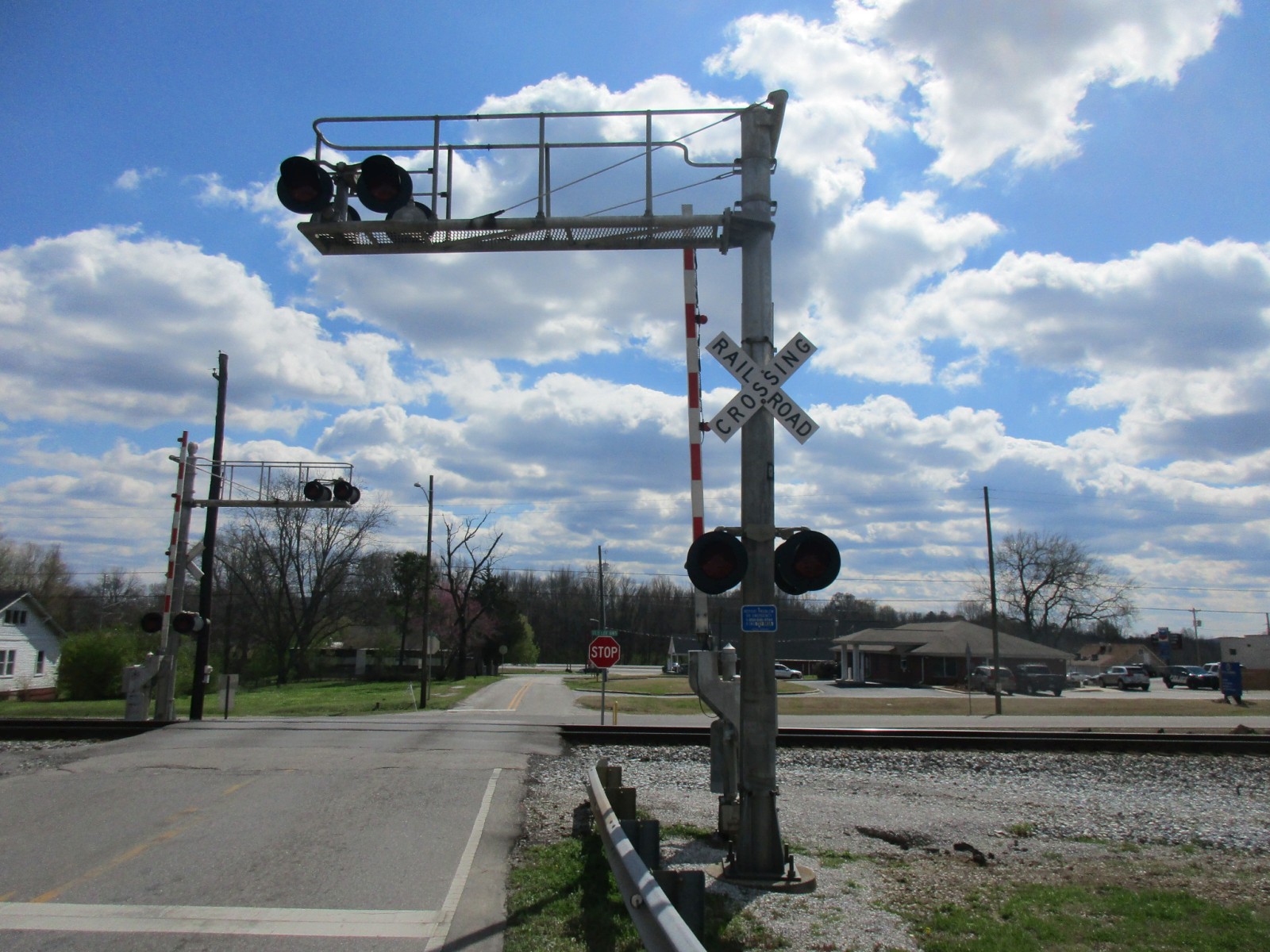

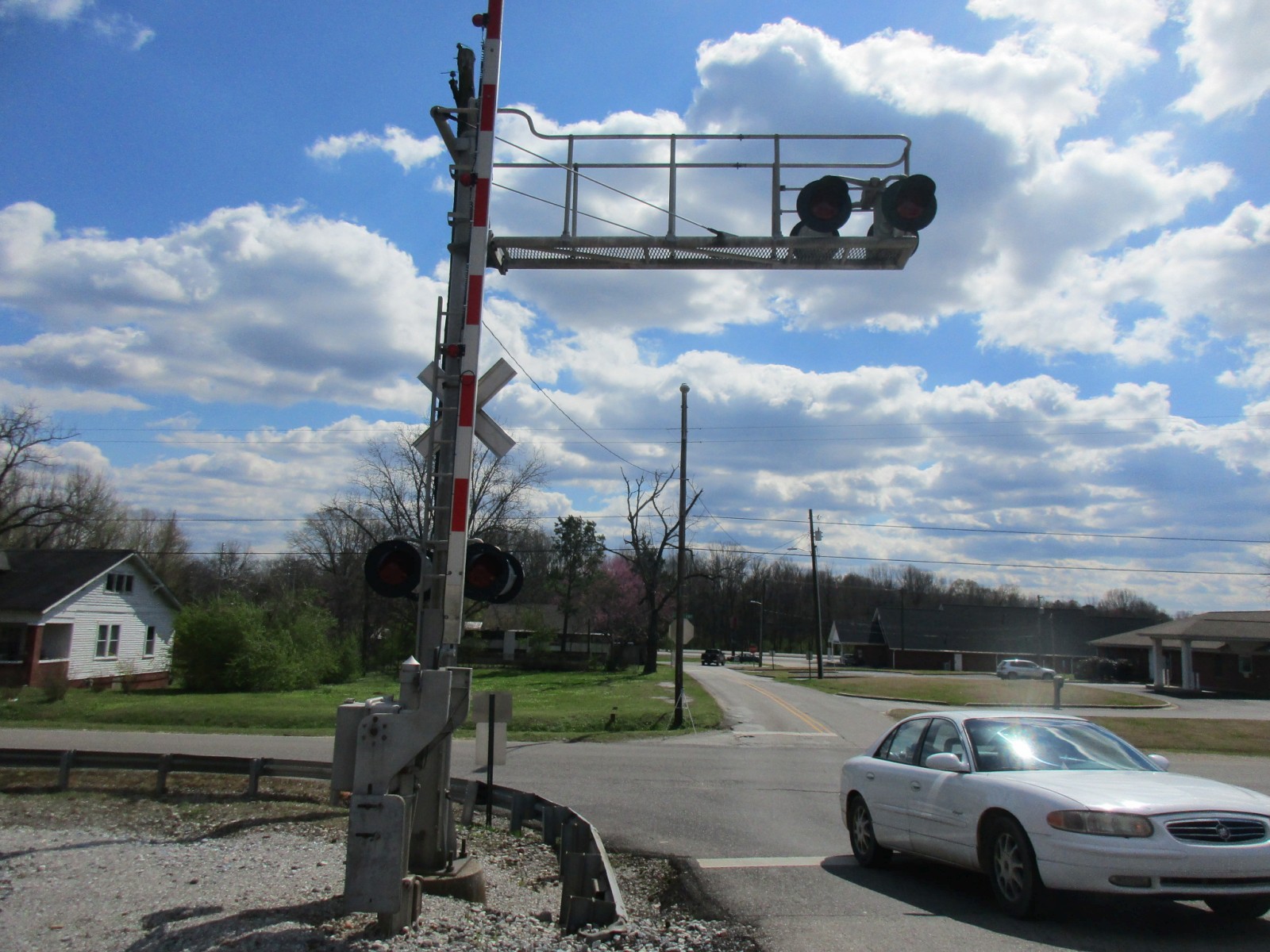

The second signal, which has had the change. |
||
73 |
74 |
75 |
76 |

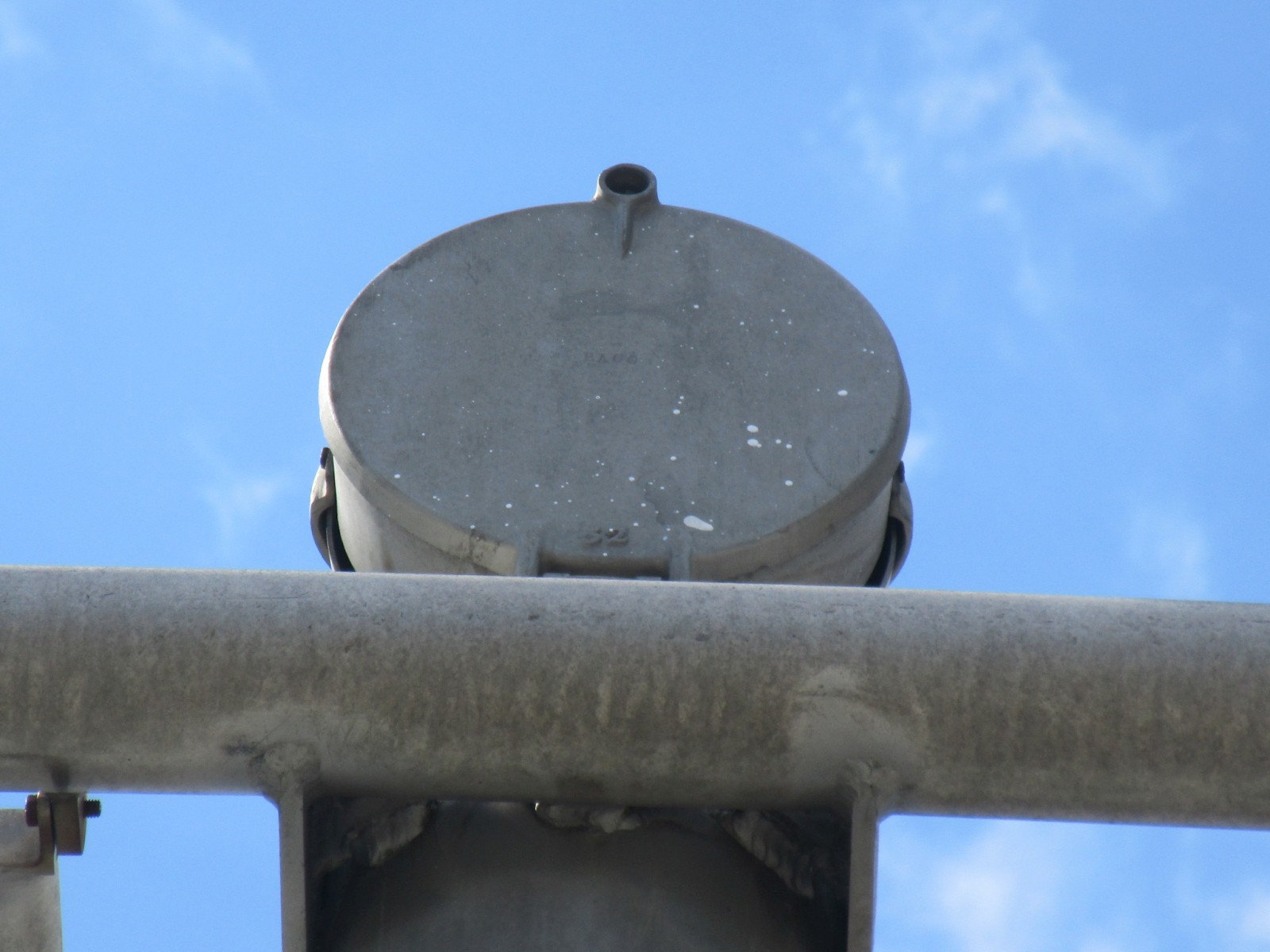

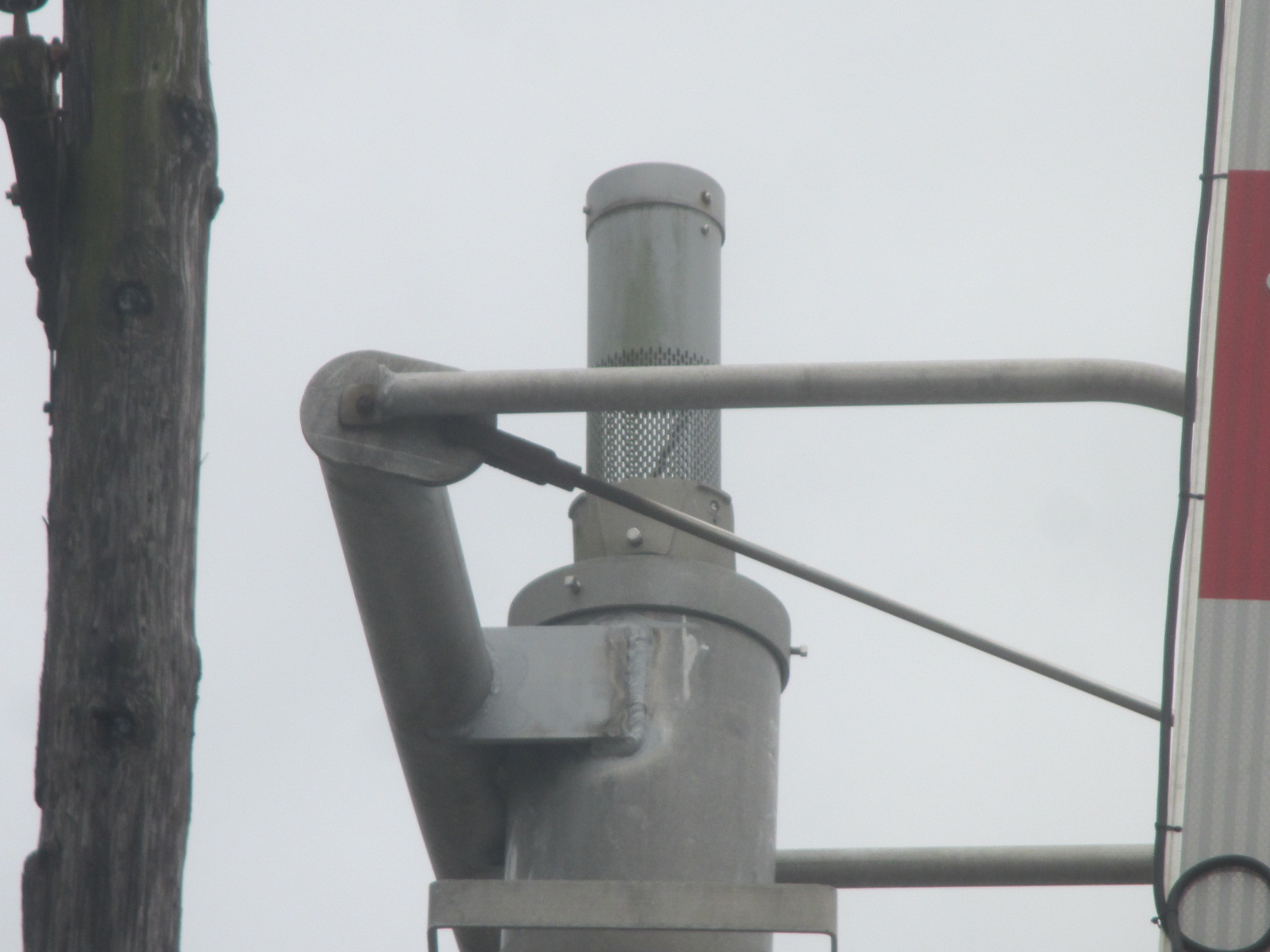

The Safetran Type 3 here was replaced with a RACO mechanical bell!!! |

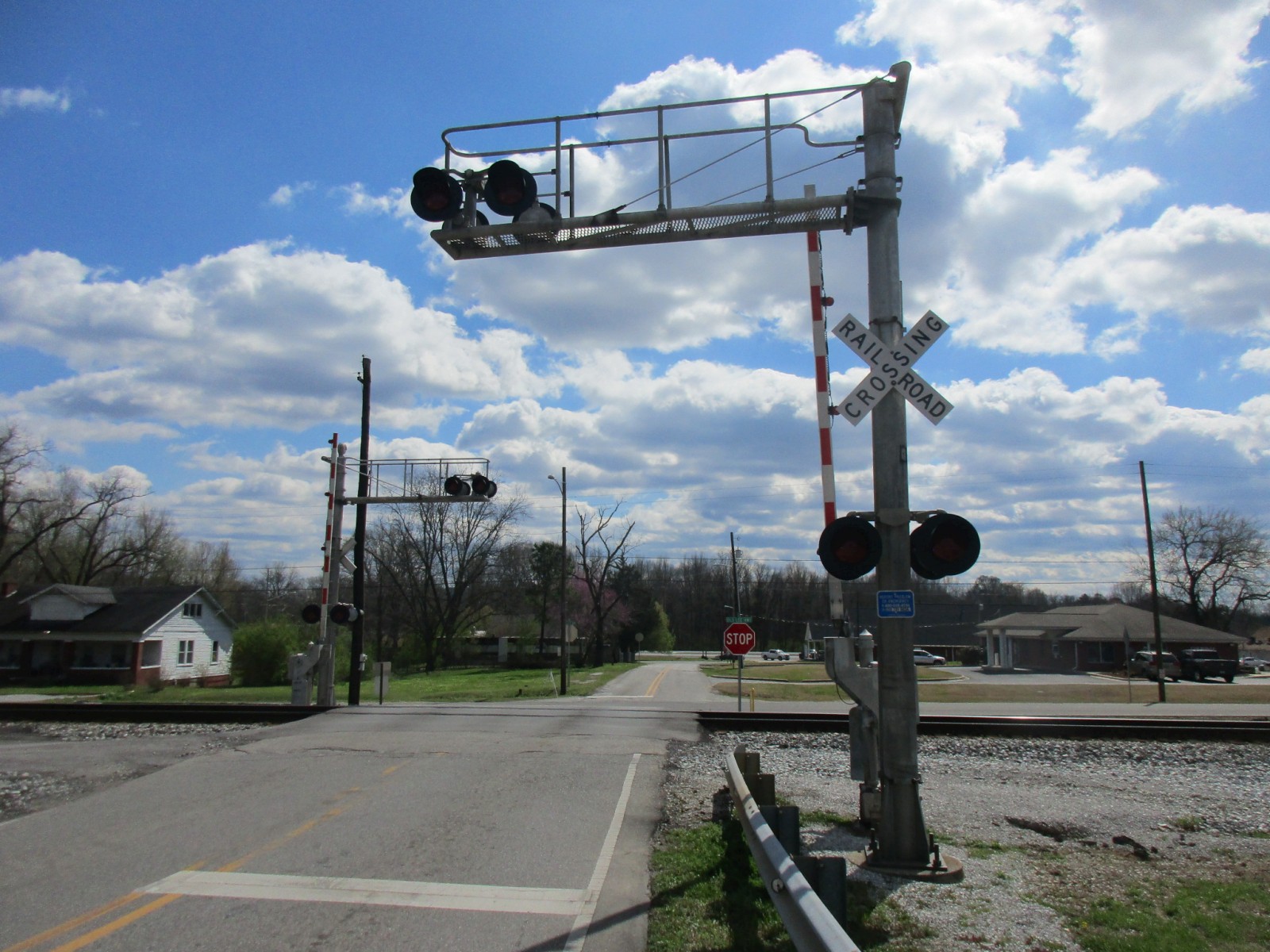

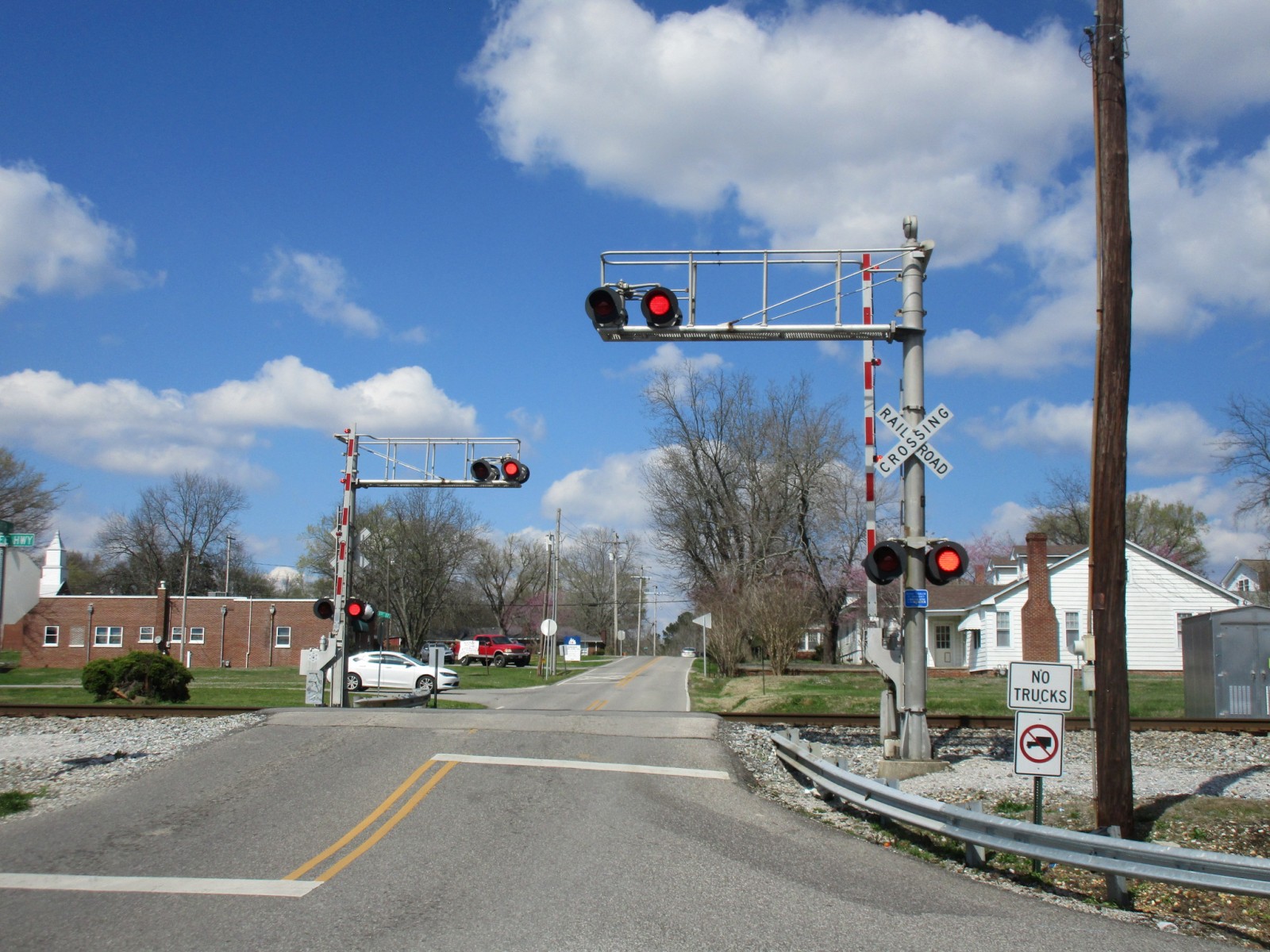

The other signal hasn't changed at all. |
||
77 |
78 |
79 |
80 |

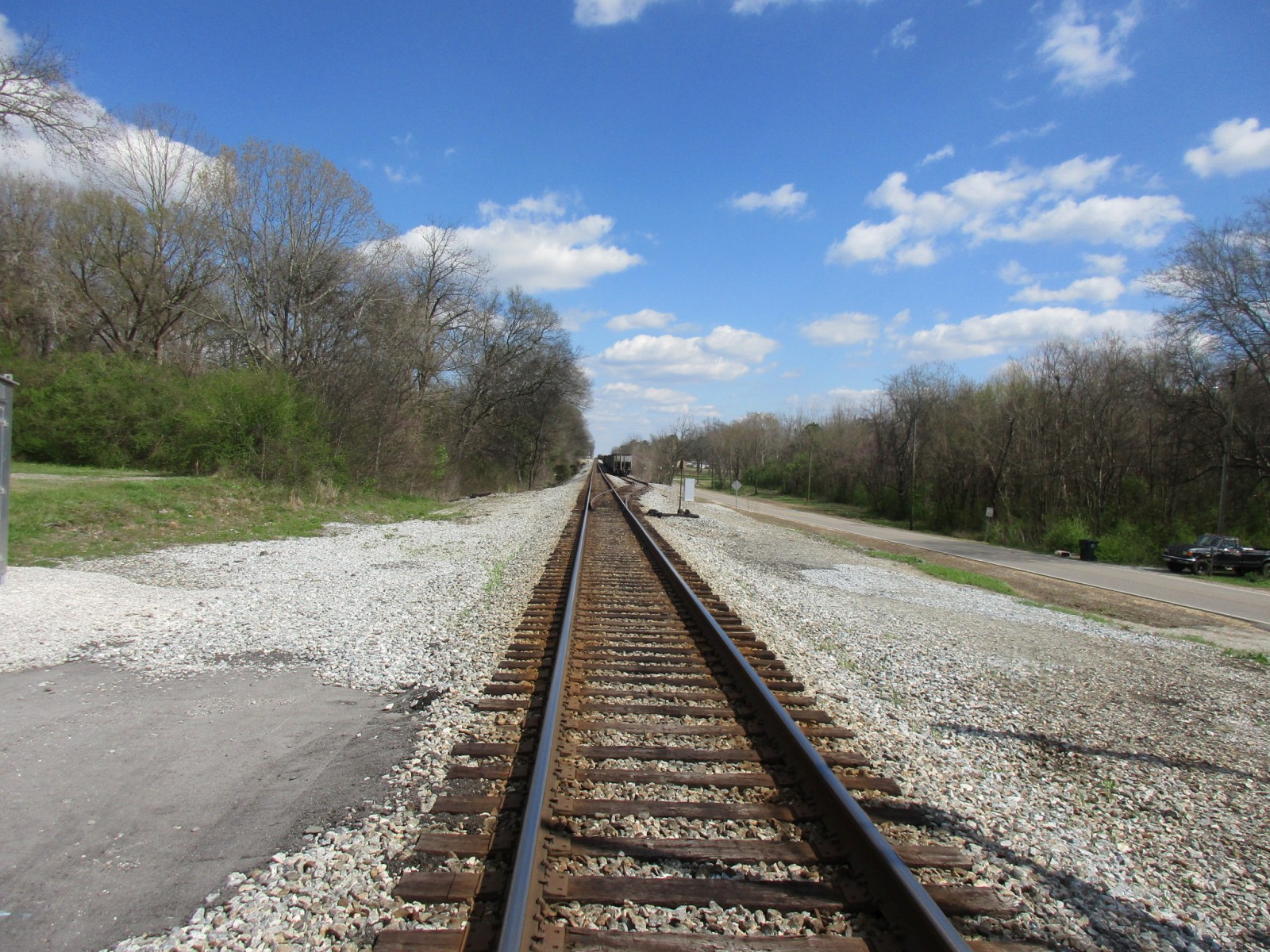

Track views. |

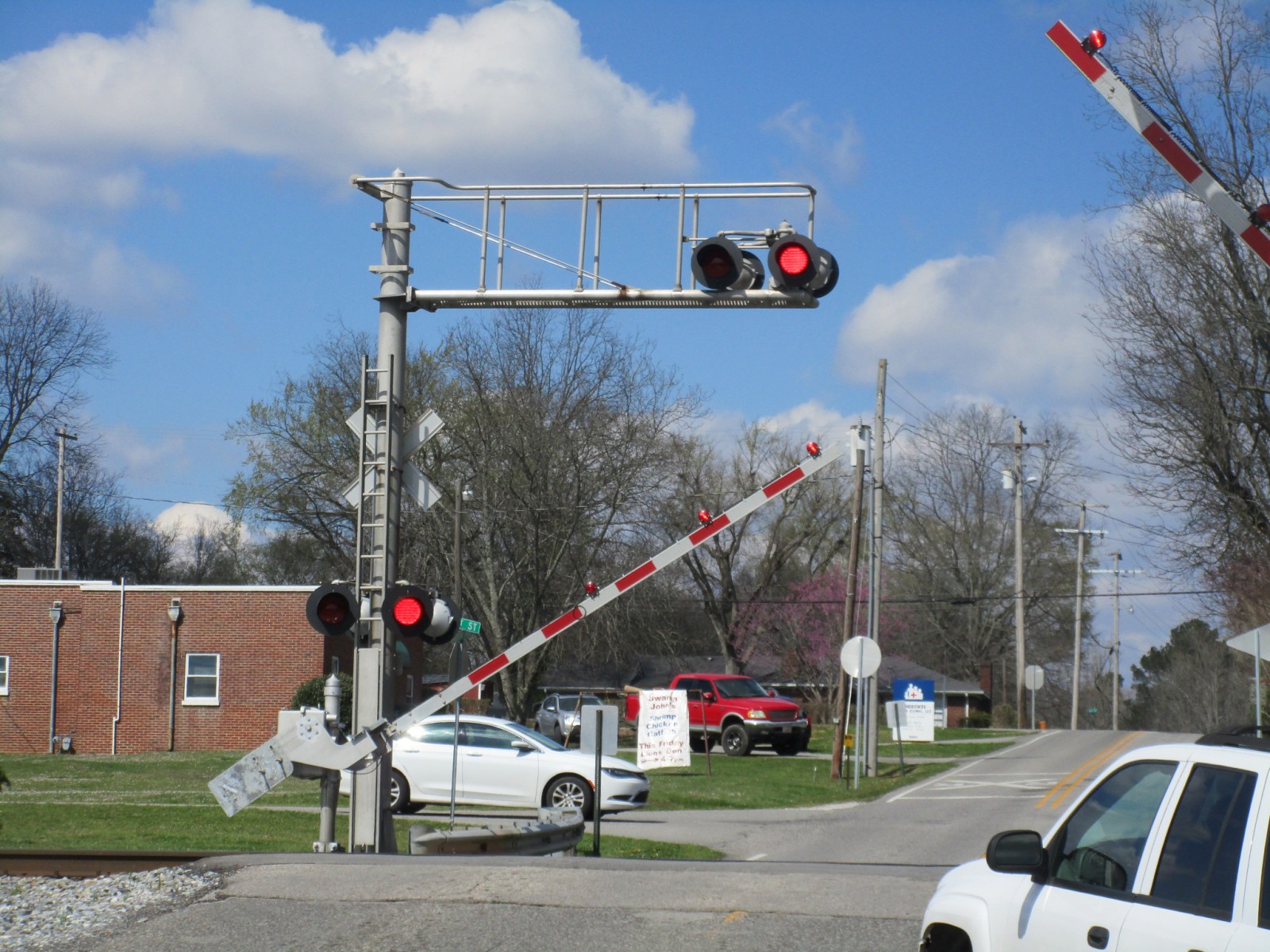

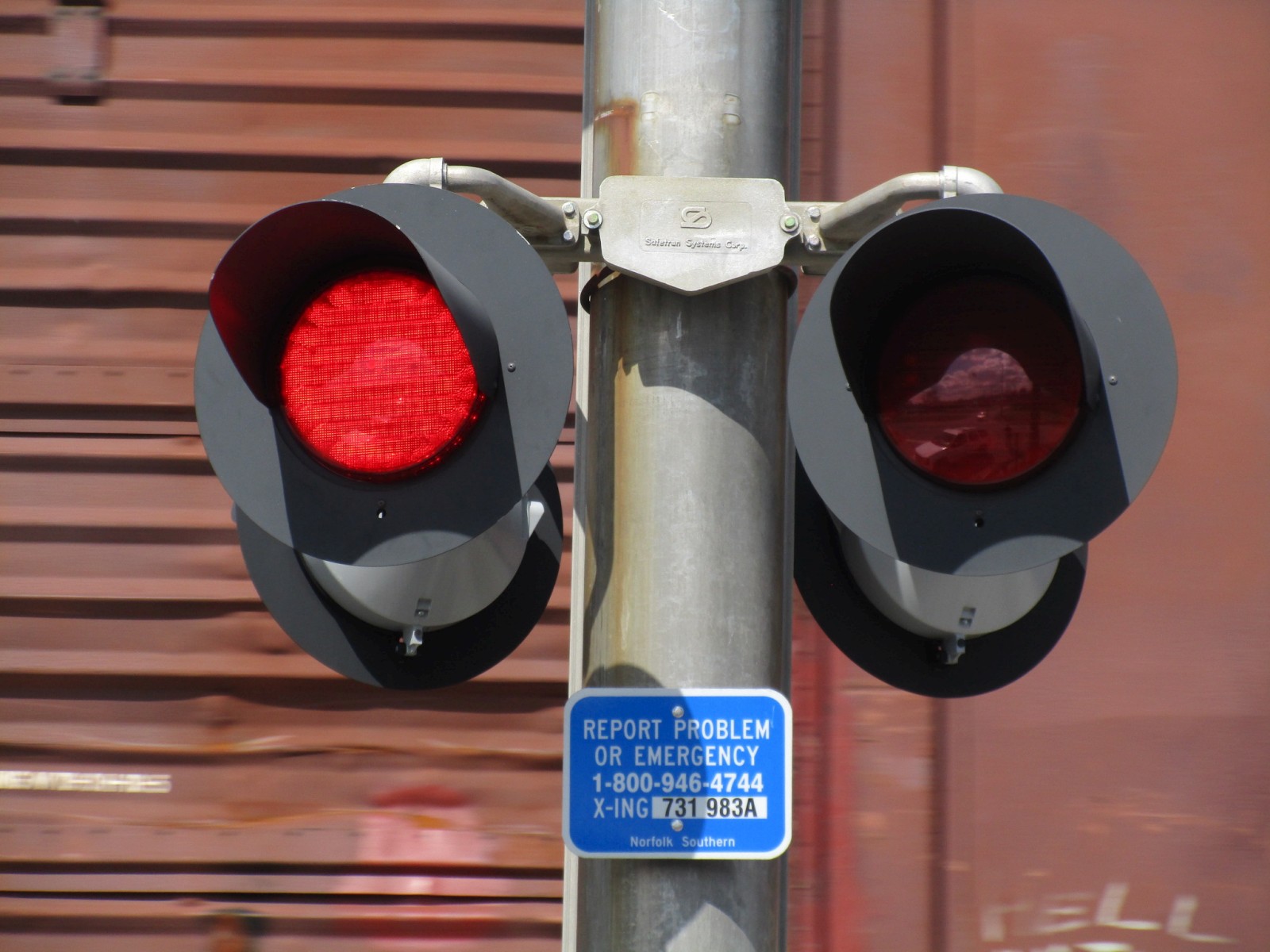

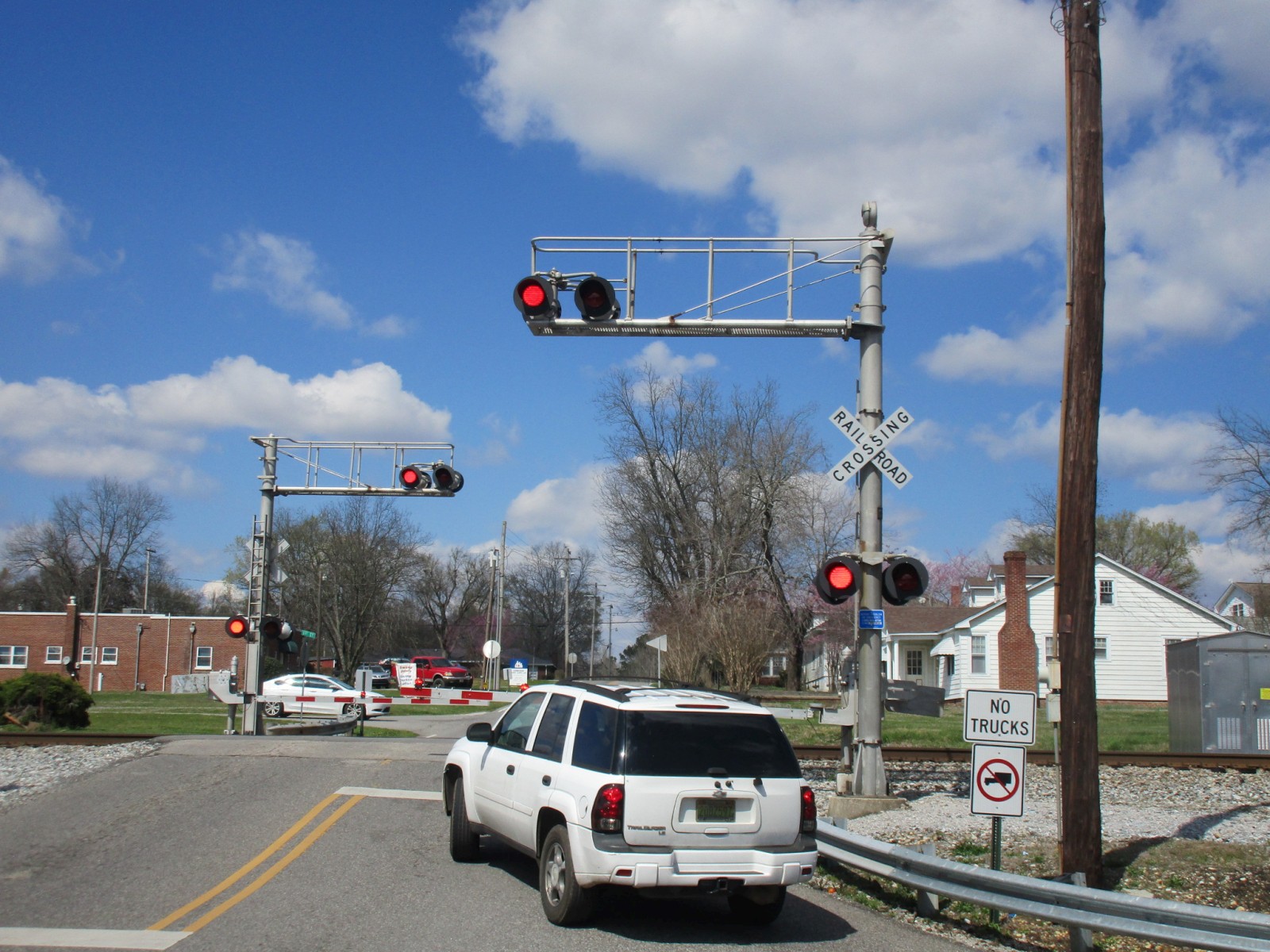

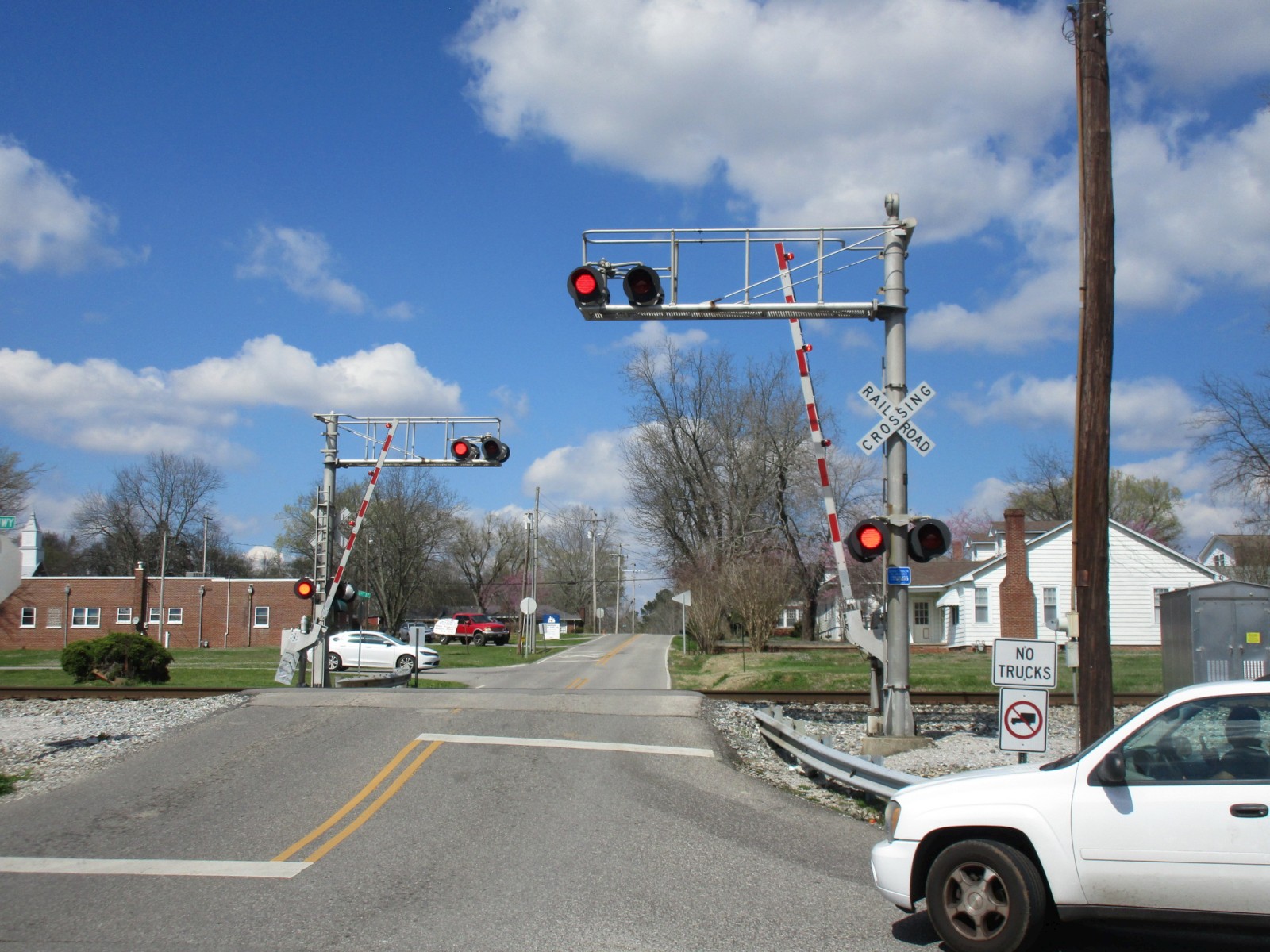

The crossing activates! The RACO bell has a pretty fast rate for it. |
||
81 |
82 |
83 |
84 |

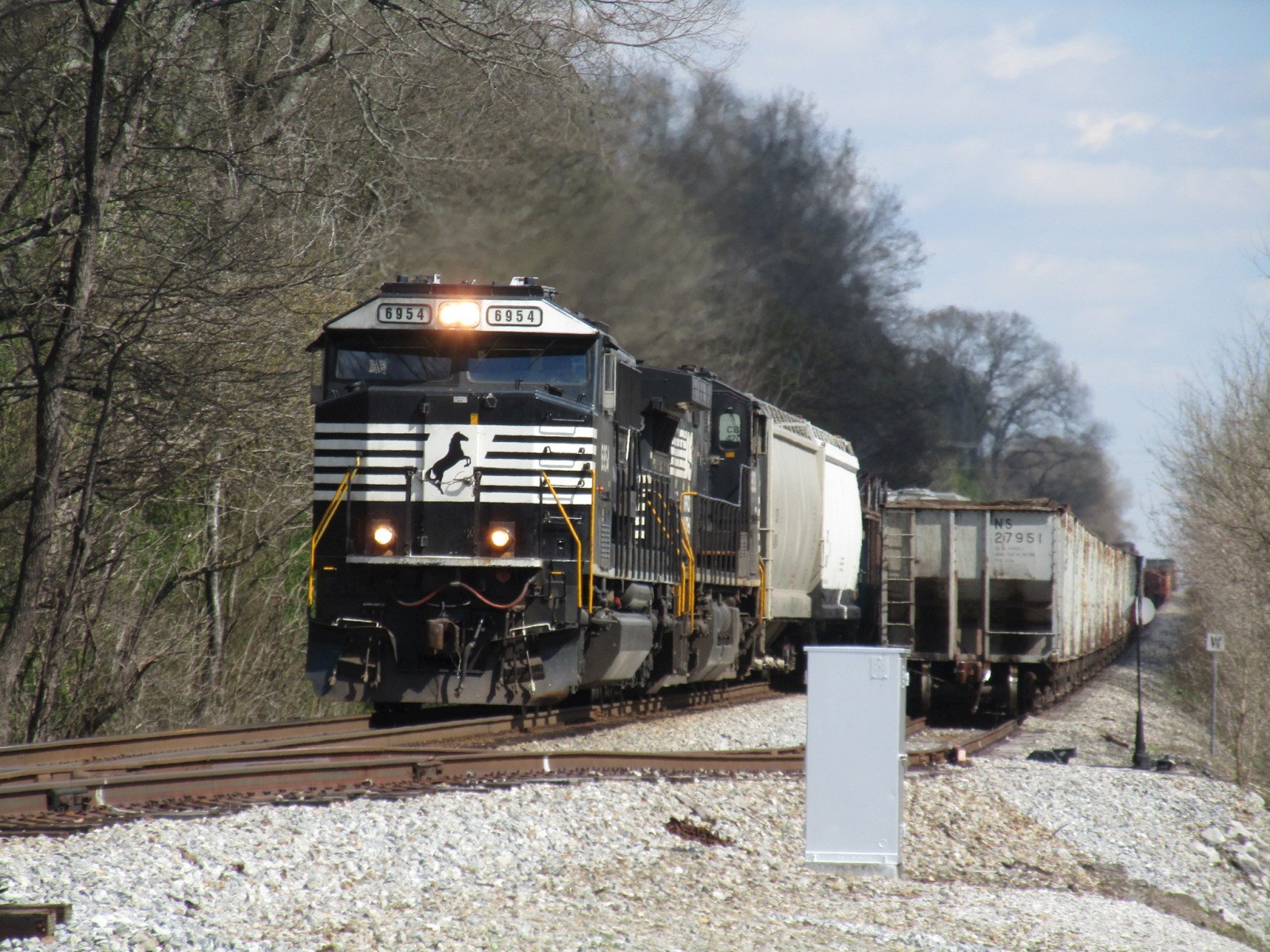

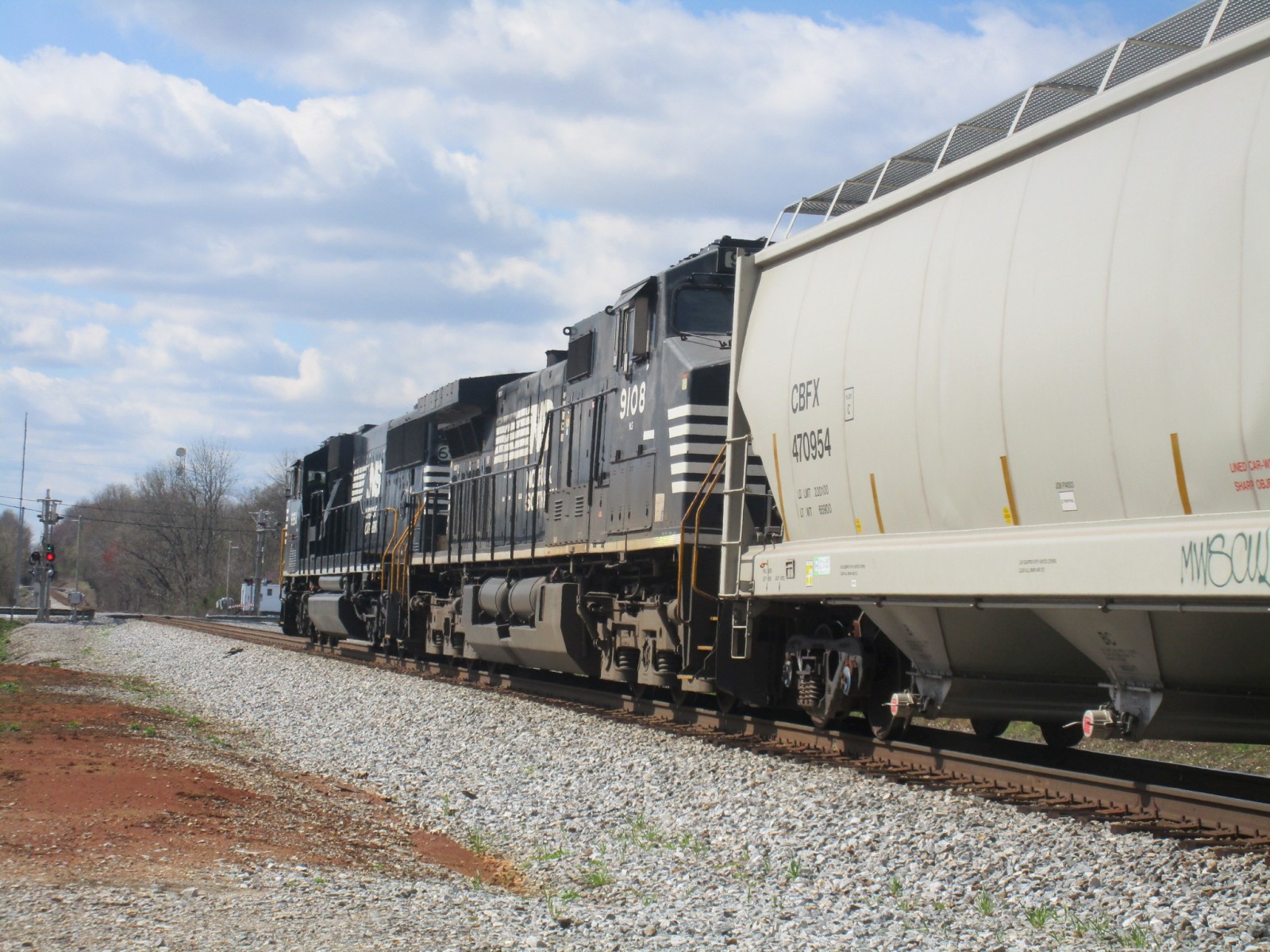

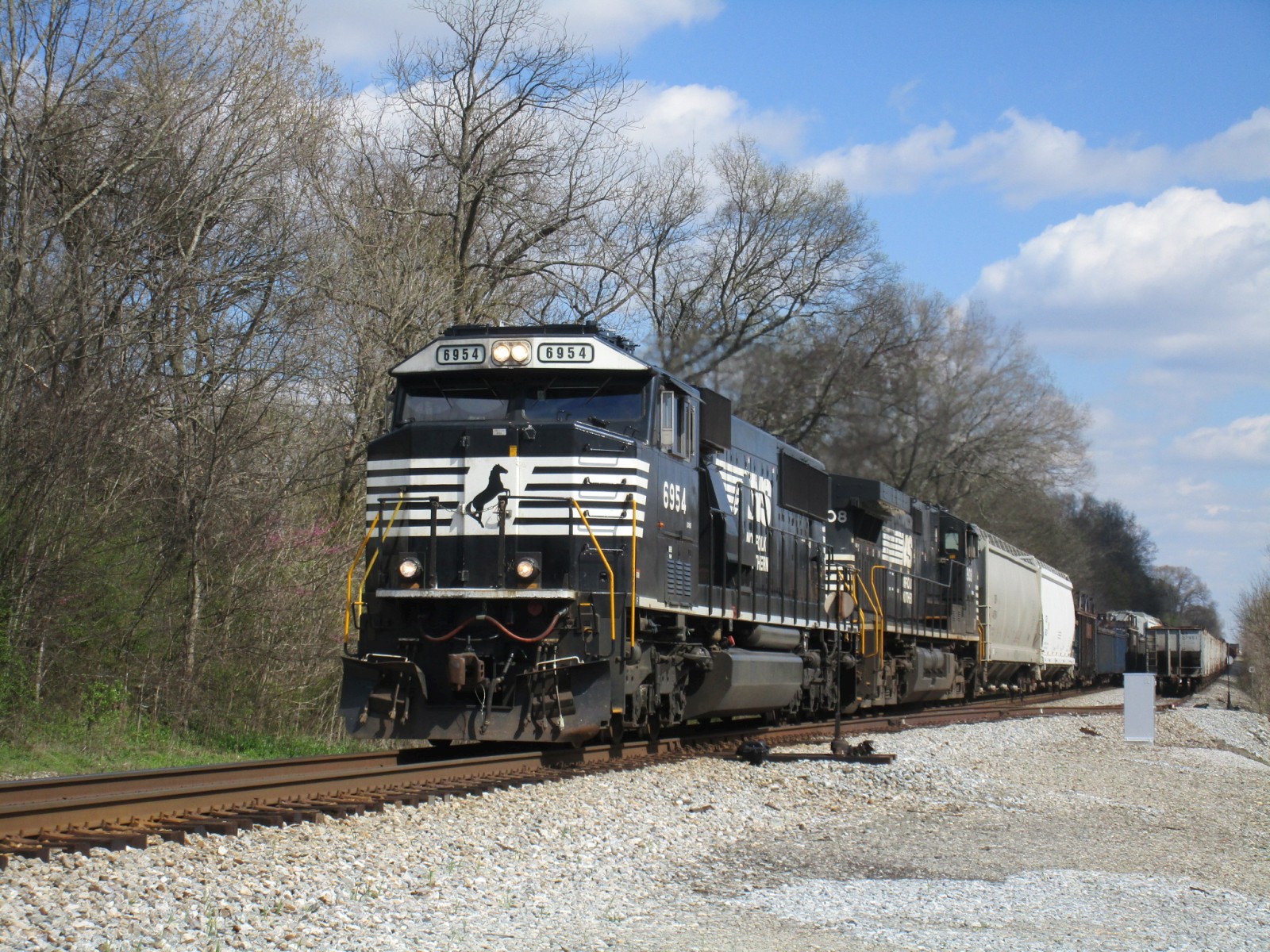

The train is a westbound mixed freight with an NS SD60E leading an NS Dash-9! |
|||
85 |
86 |
87 |
88 |
89 |

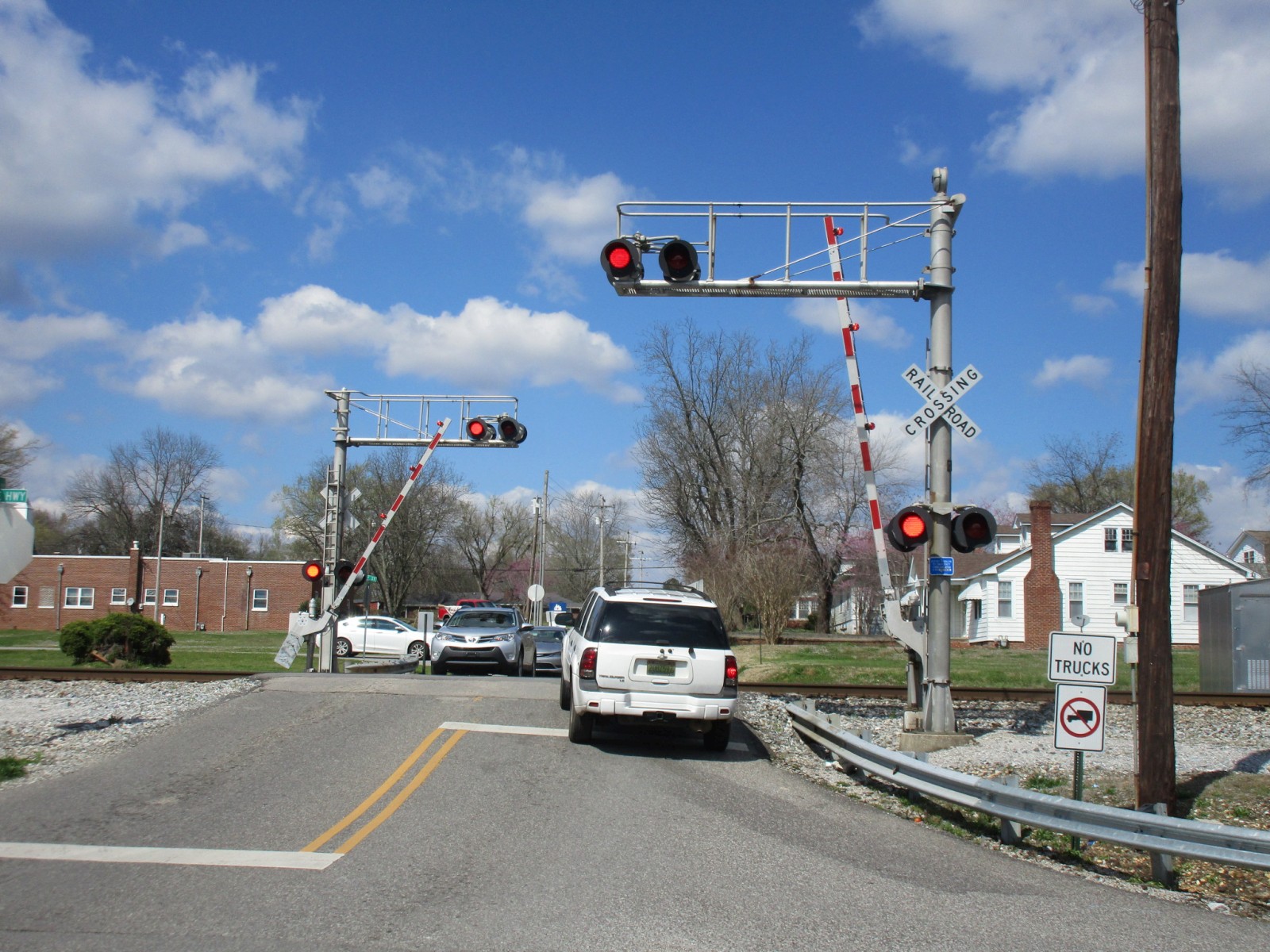

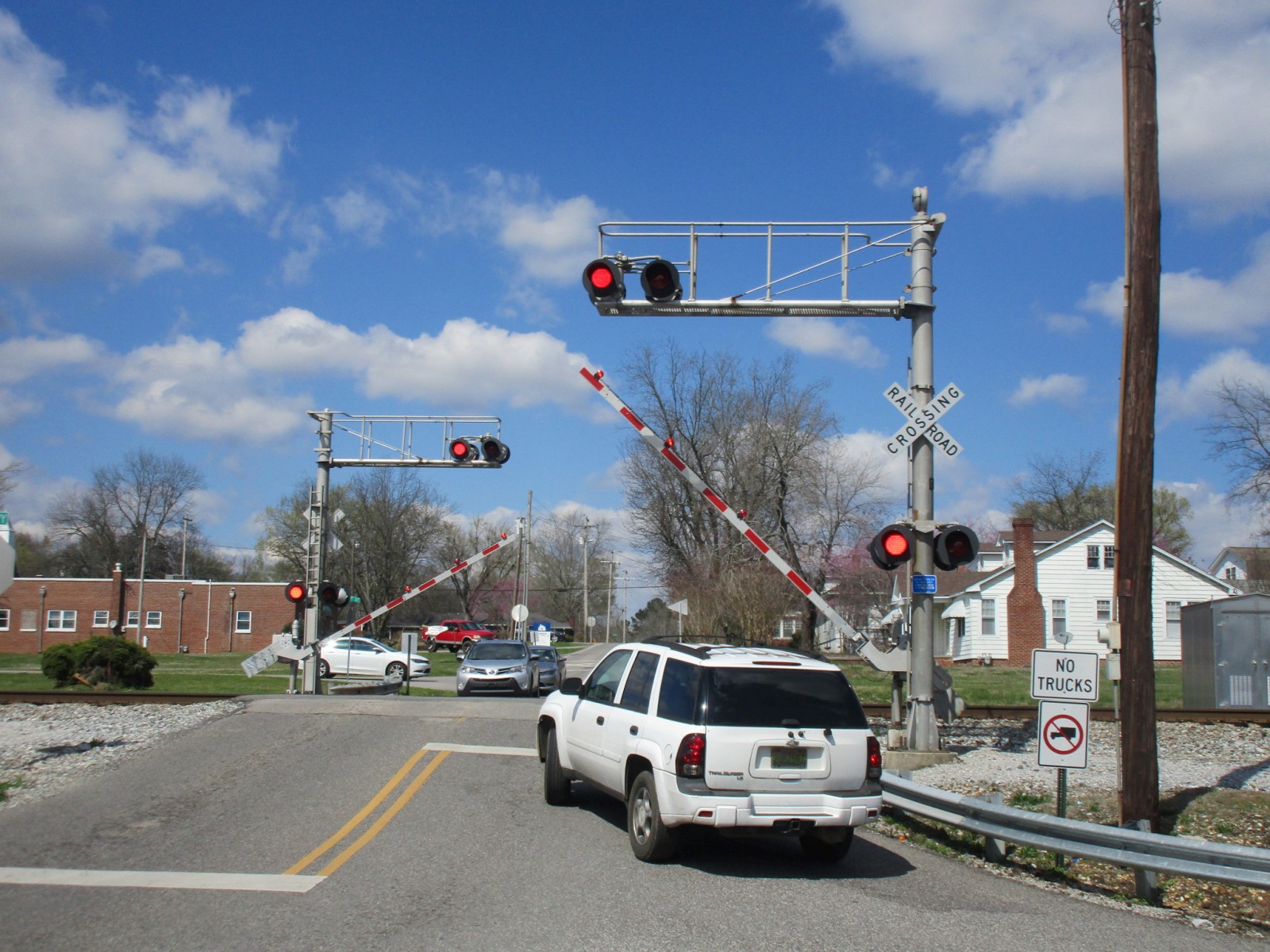

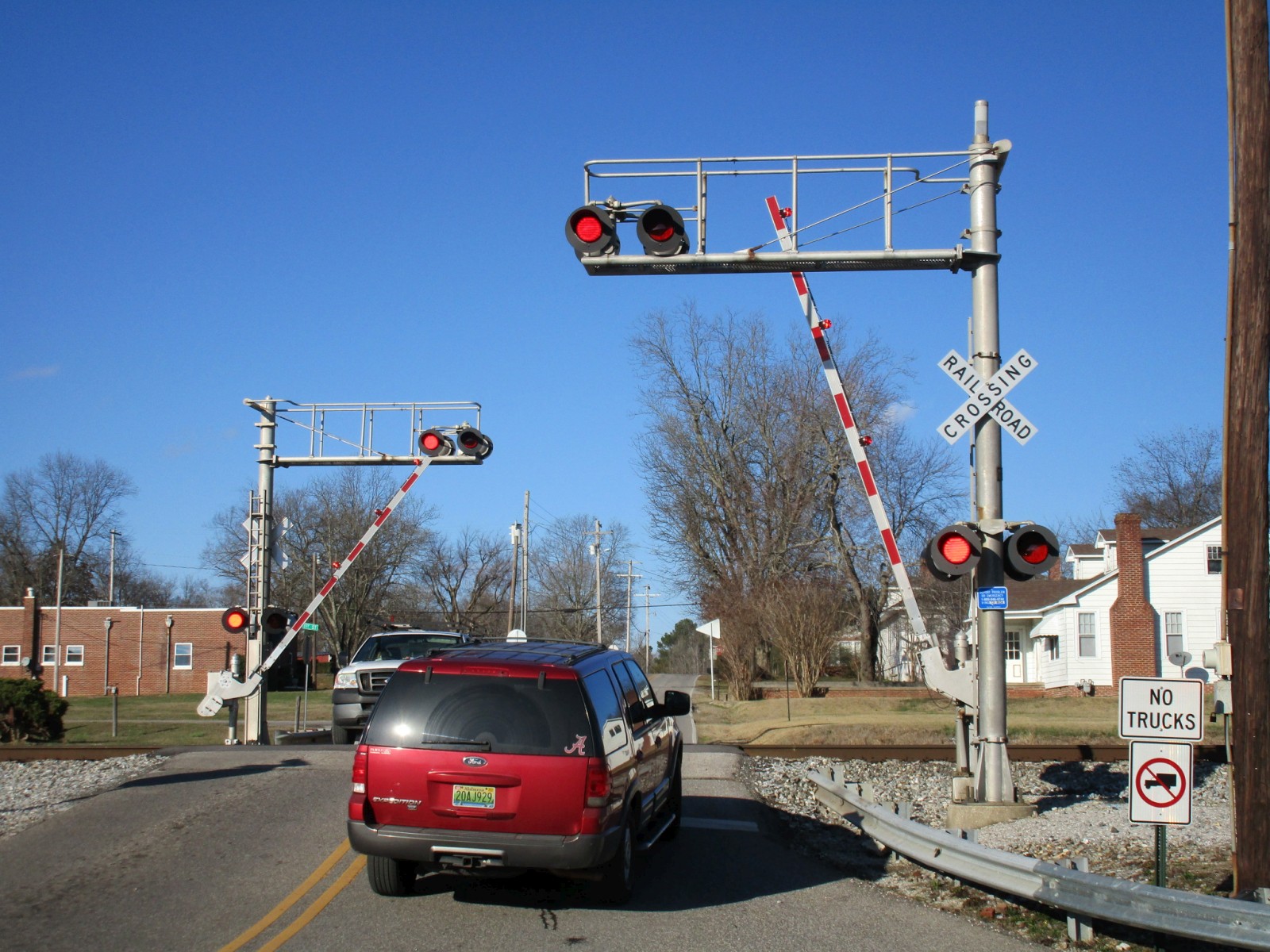

The gates rise once the train has passed. |
|
Pictures 1-28 were taken on 4-30-16.
Pictures 29-42 were taken on 9-5-16.
Pictures 43-68 and the first video were taken on 1-26-17.
Pictures 69-89 and the second video were taken on 3-21-18.
