MP:  0832.73



Updated December 13, 2022



Total Accidents:   1
Crossing DOT #:  726915N
TOTAL DAILY TRAINS:   12   (AS OF 2016)



Page created by: freebrickproductions



This crossing is located on the NS West End District.



>>>>>>>>>>>>> Signal #1 Signal #2
Bell: General Signals Type 2 N/A
Base: SERRMI SERRMI
Light Frames: 4 - 12x20" Hawker-Siddeley Safetran 4 - 12x20" Hawker-Siddeley Safetran
Gate Lights: 3 - NEG LEDs 3 - RECOs
Gate Mechanism: Safetran 80s Safetran 80s
Gate Striping: Vertical Vertical



1

2

3

4

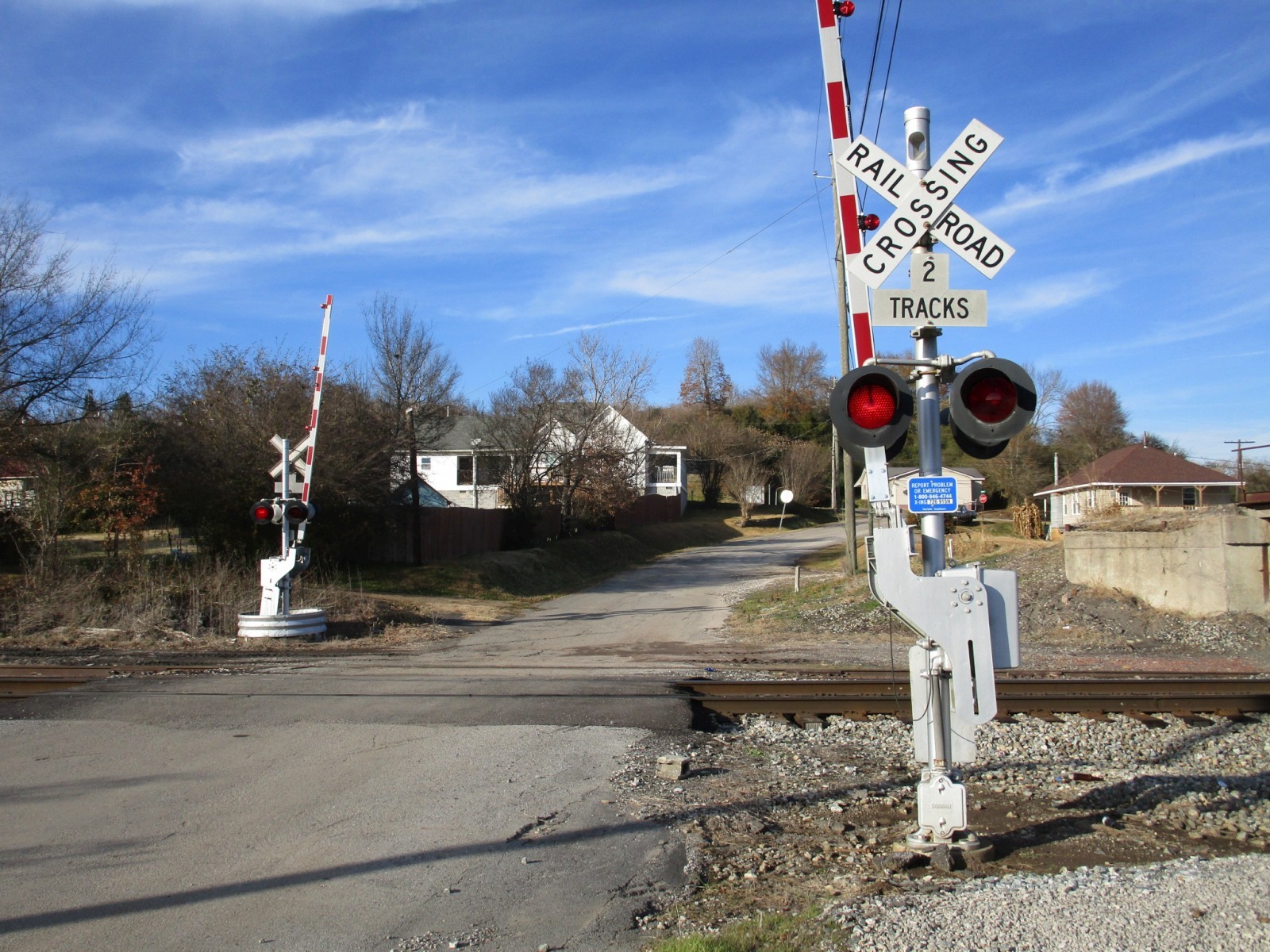

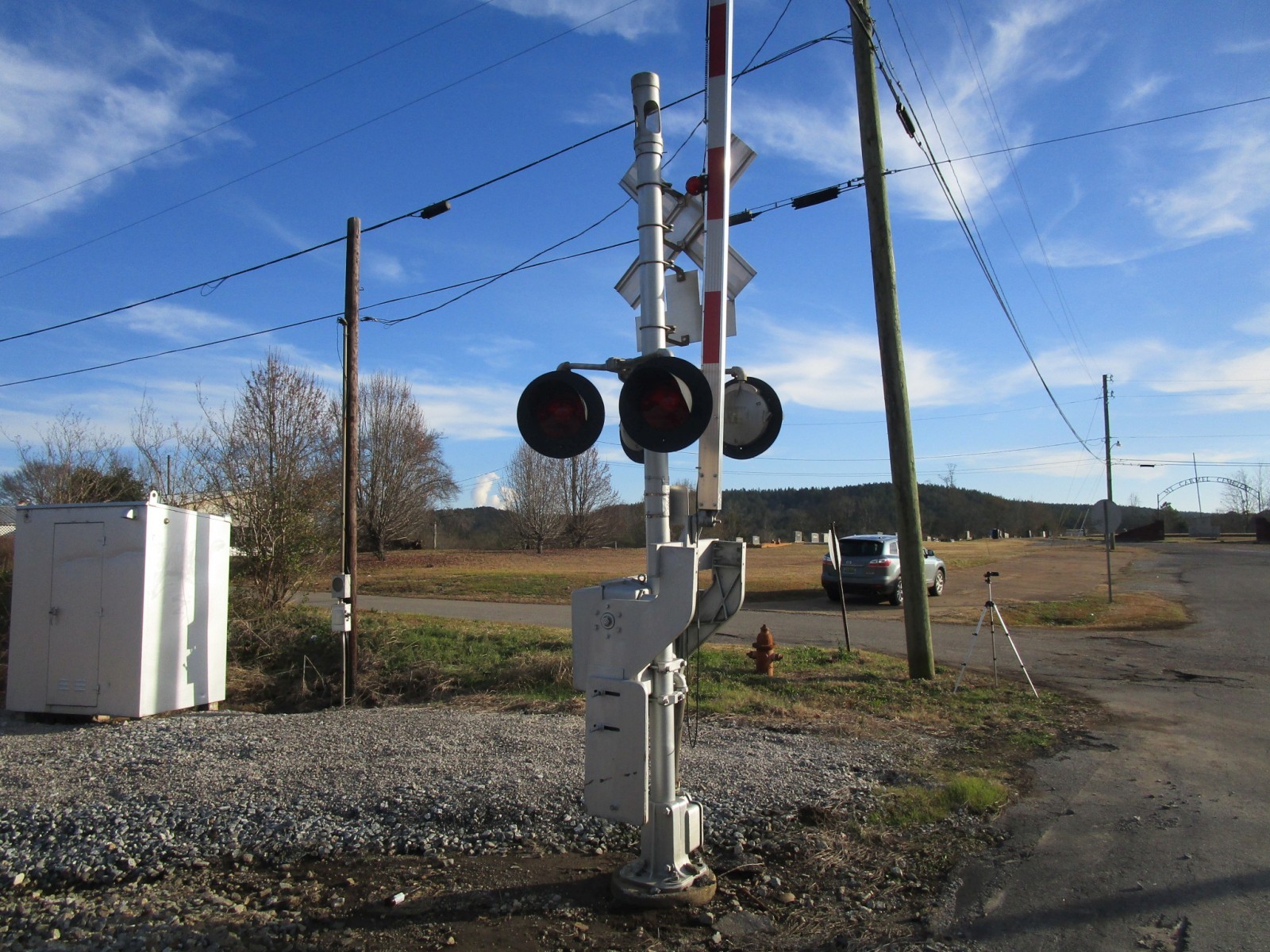

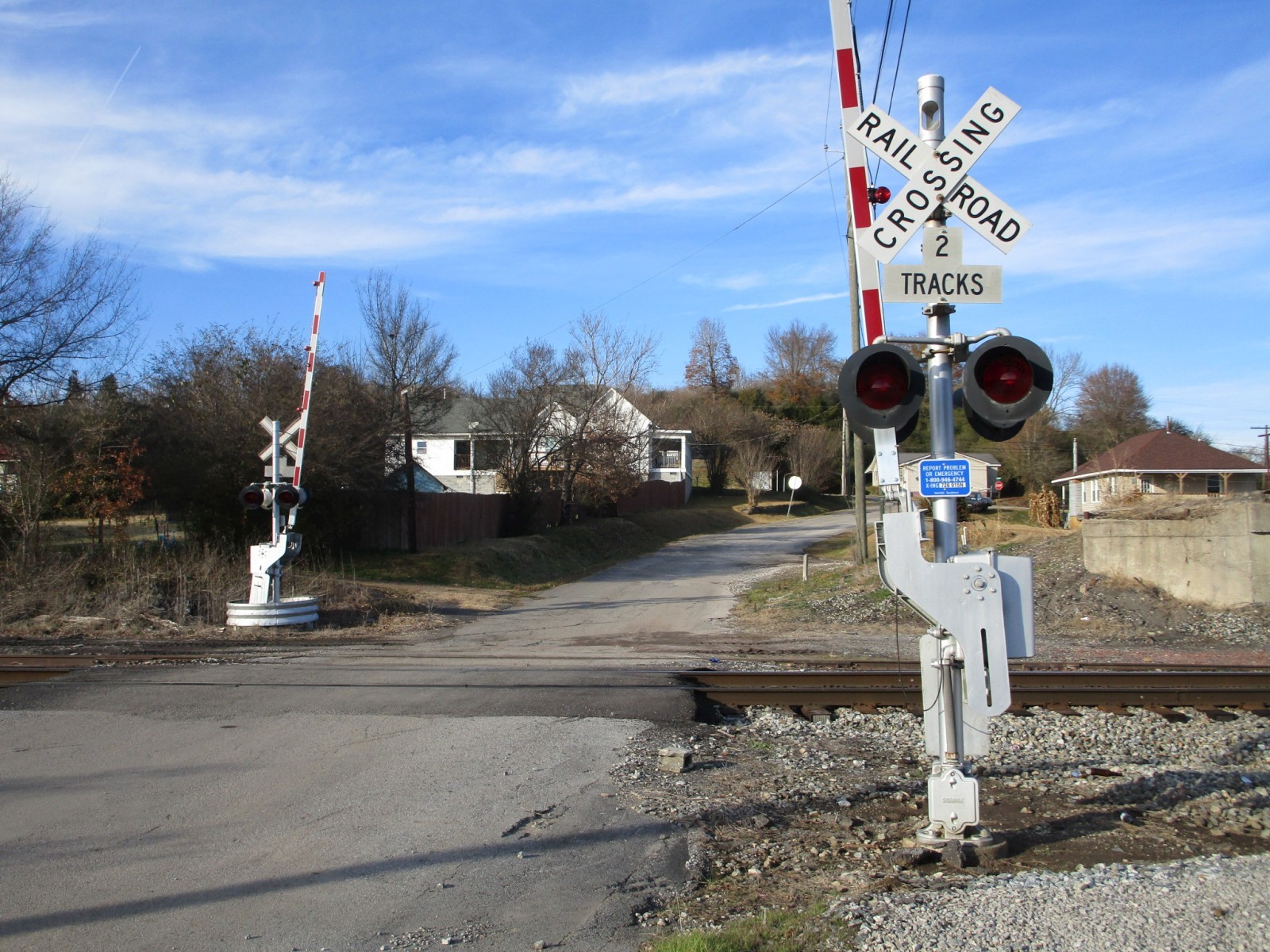

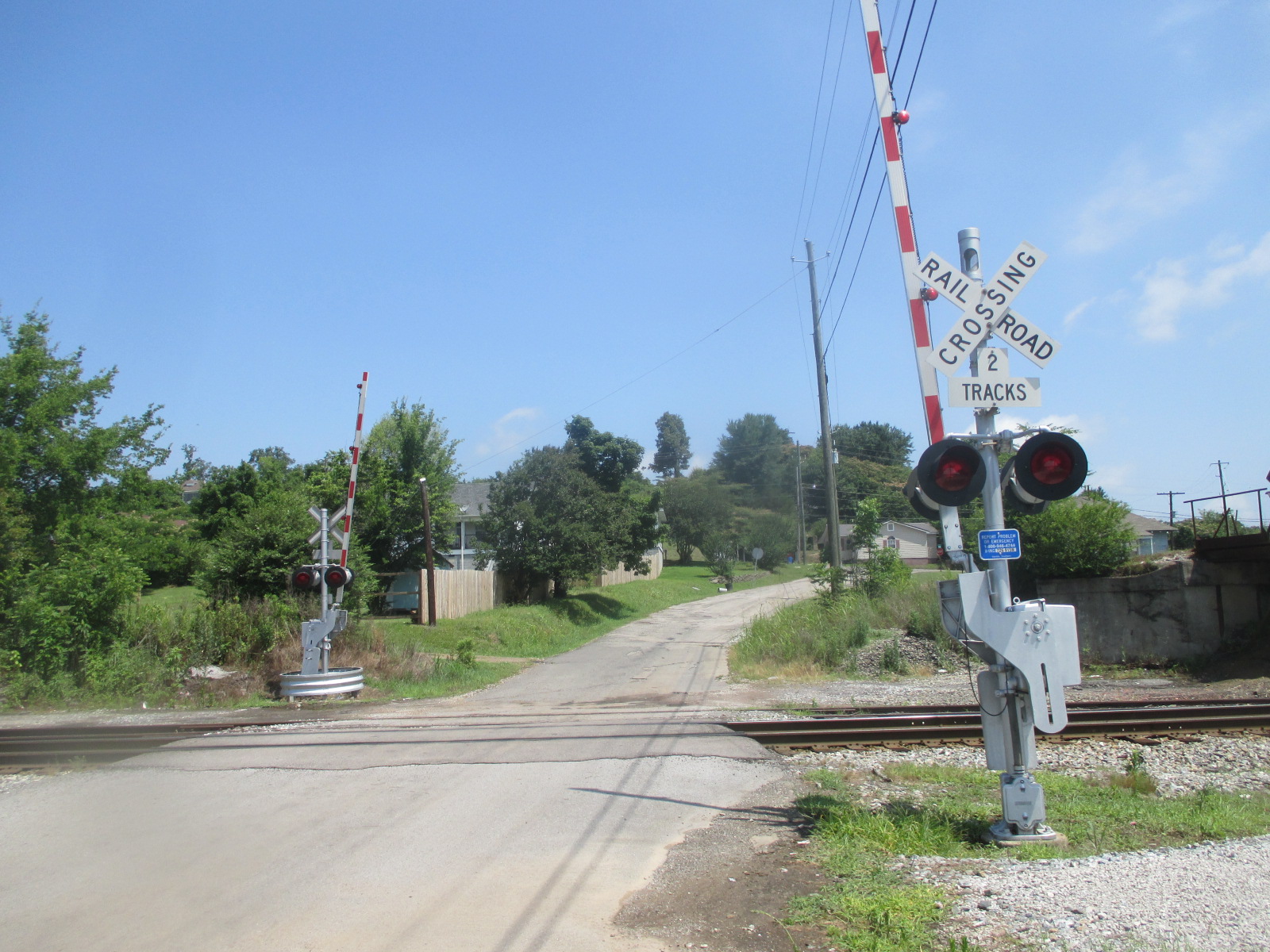

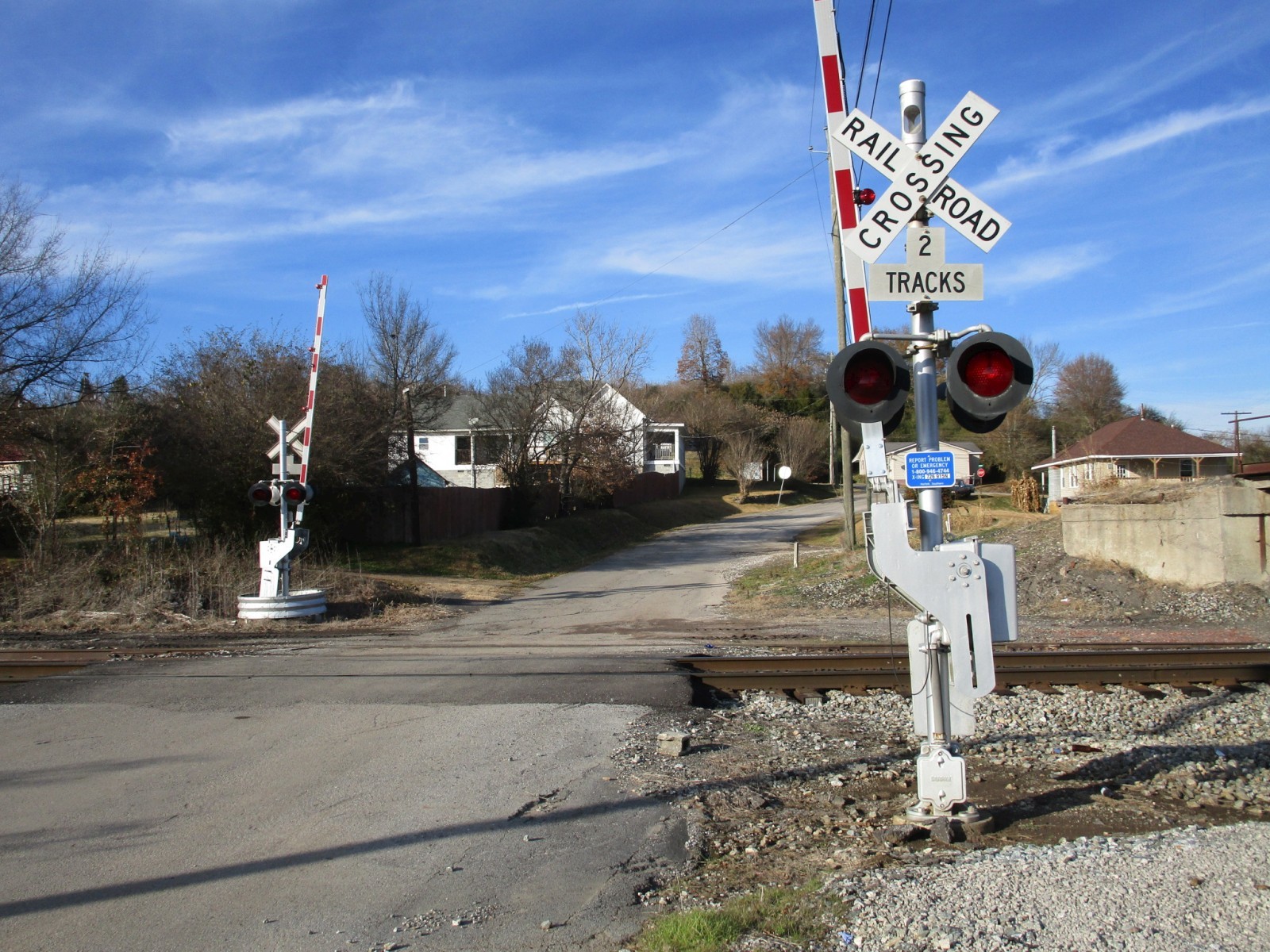

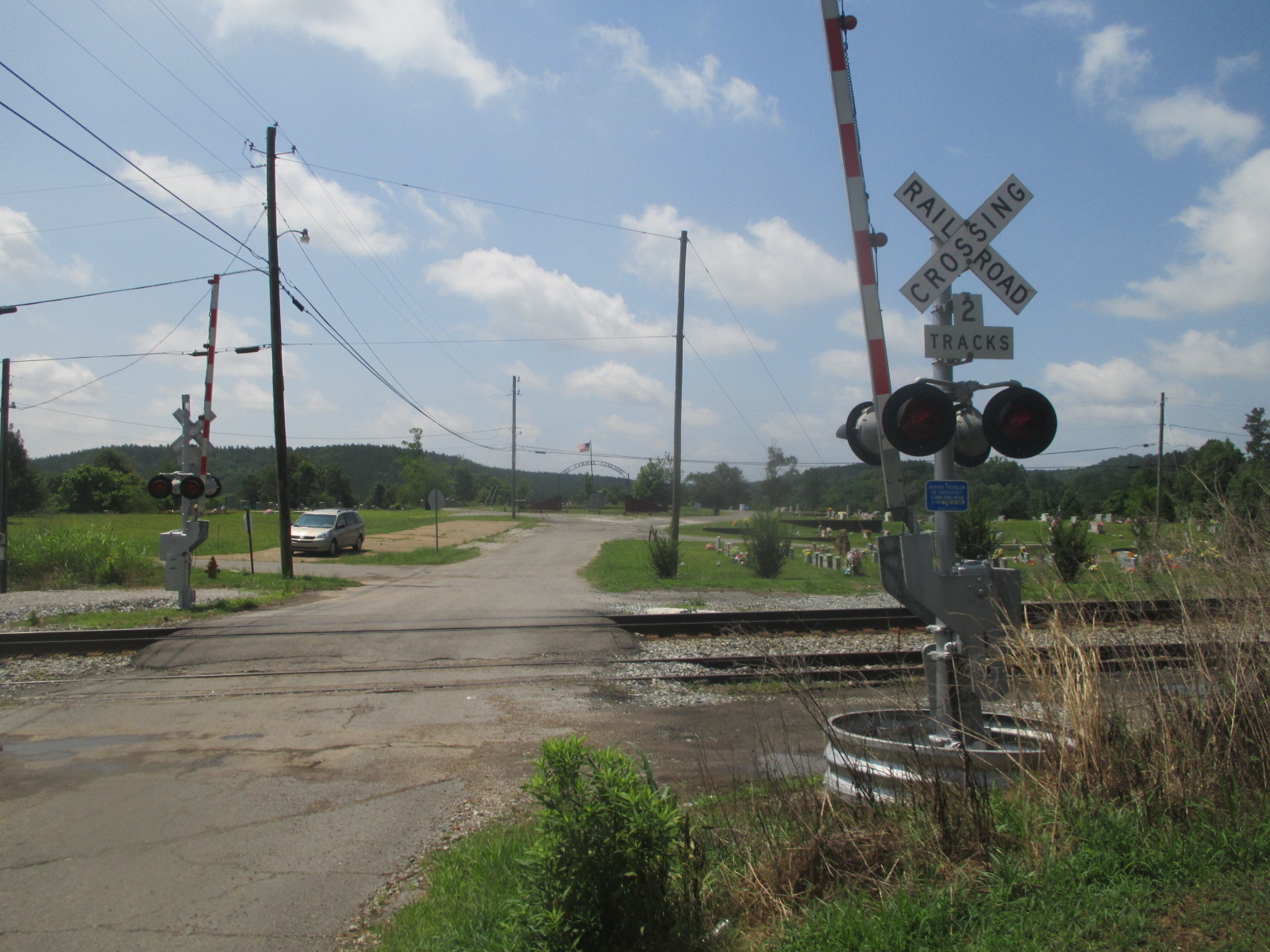

Overviews of the crossing.

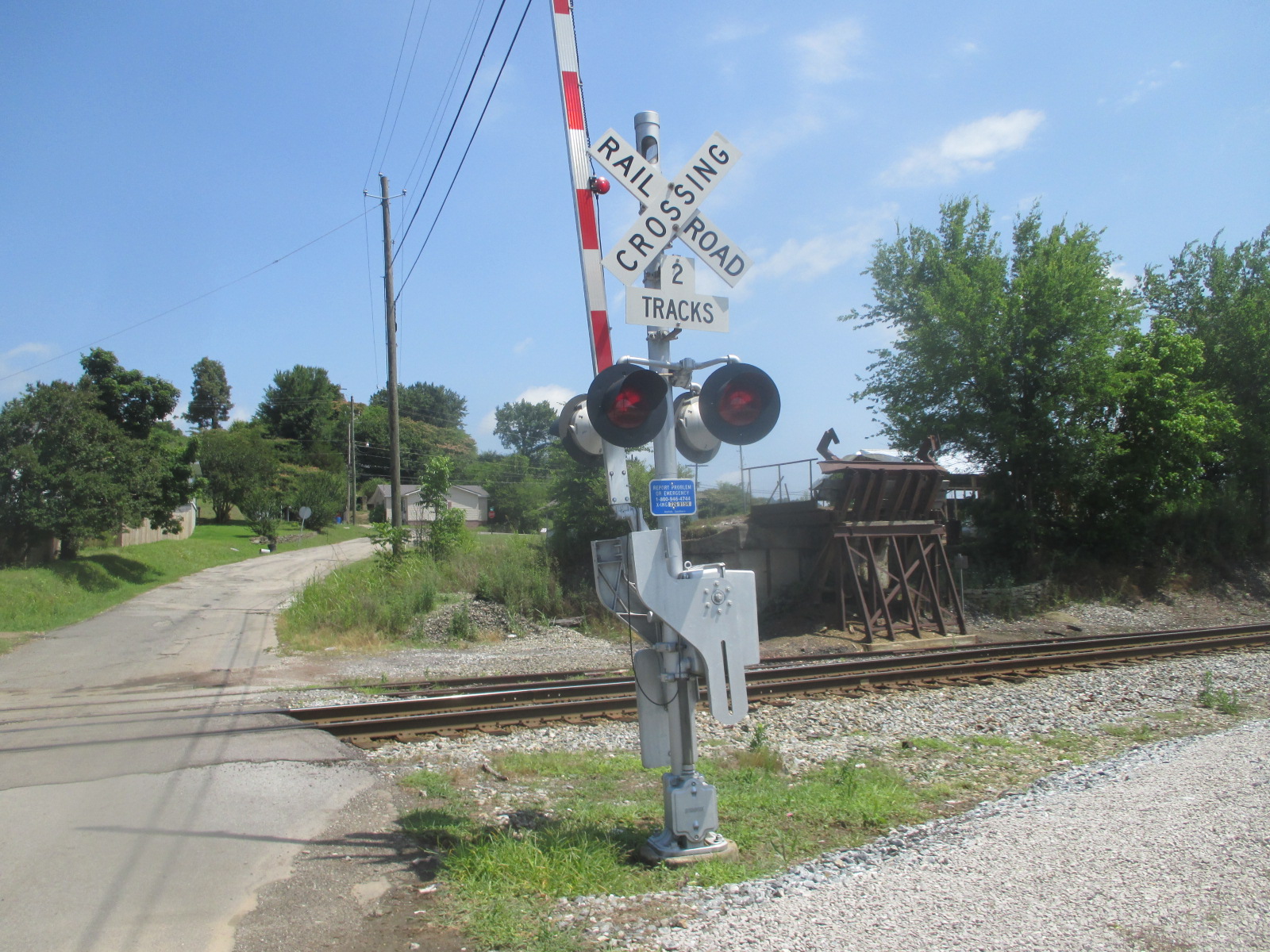

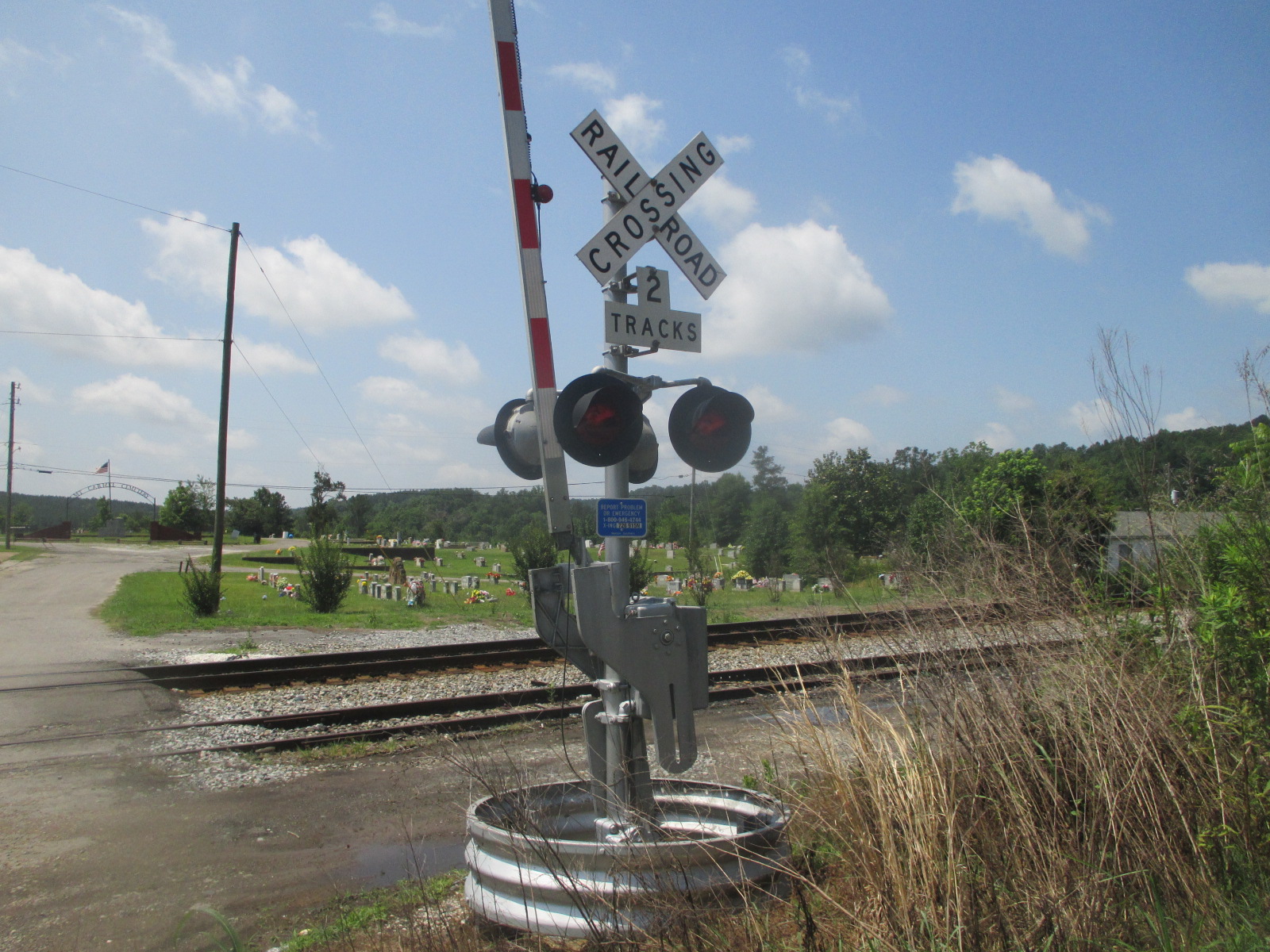

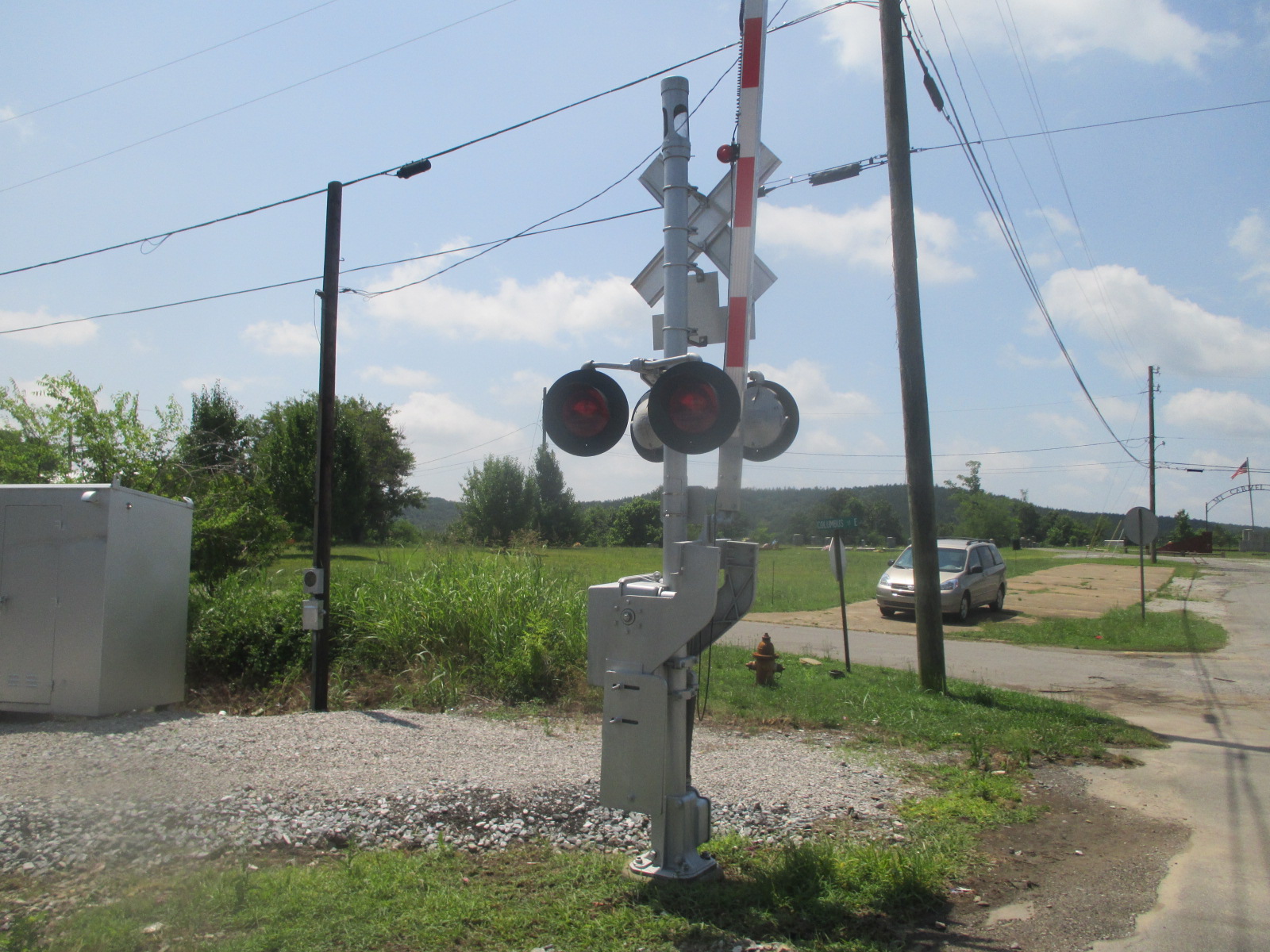

The first signal.

5

6

7

8

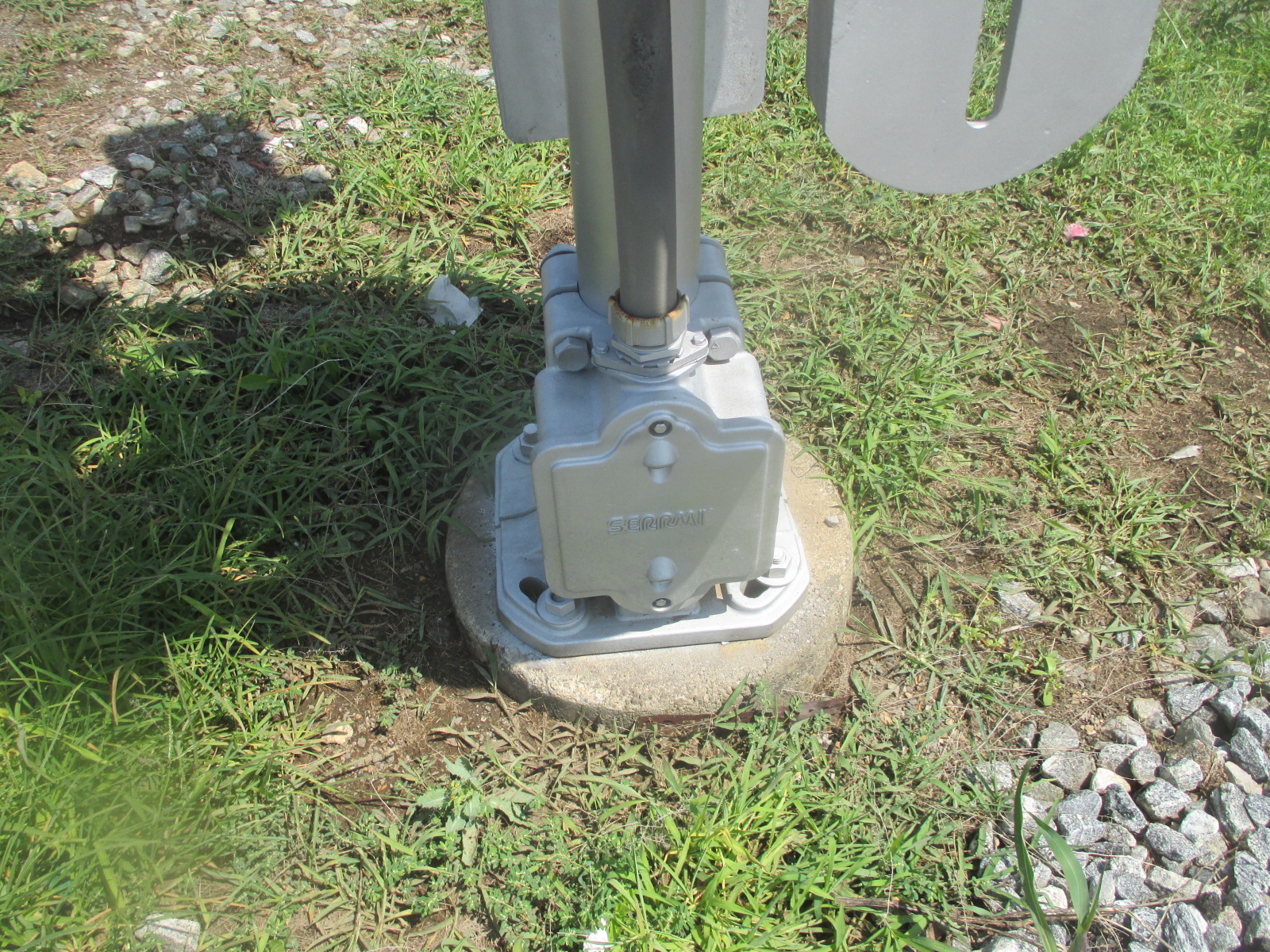

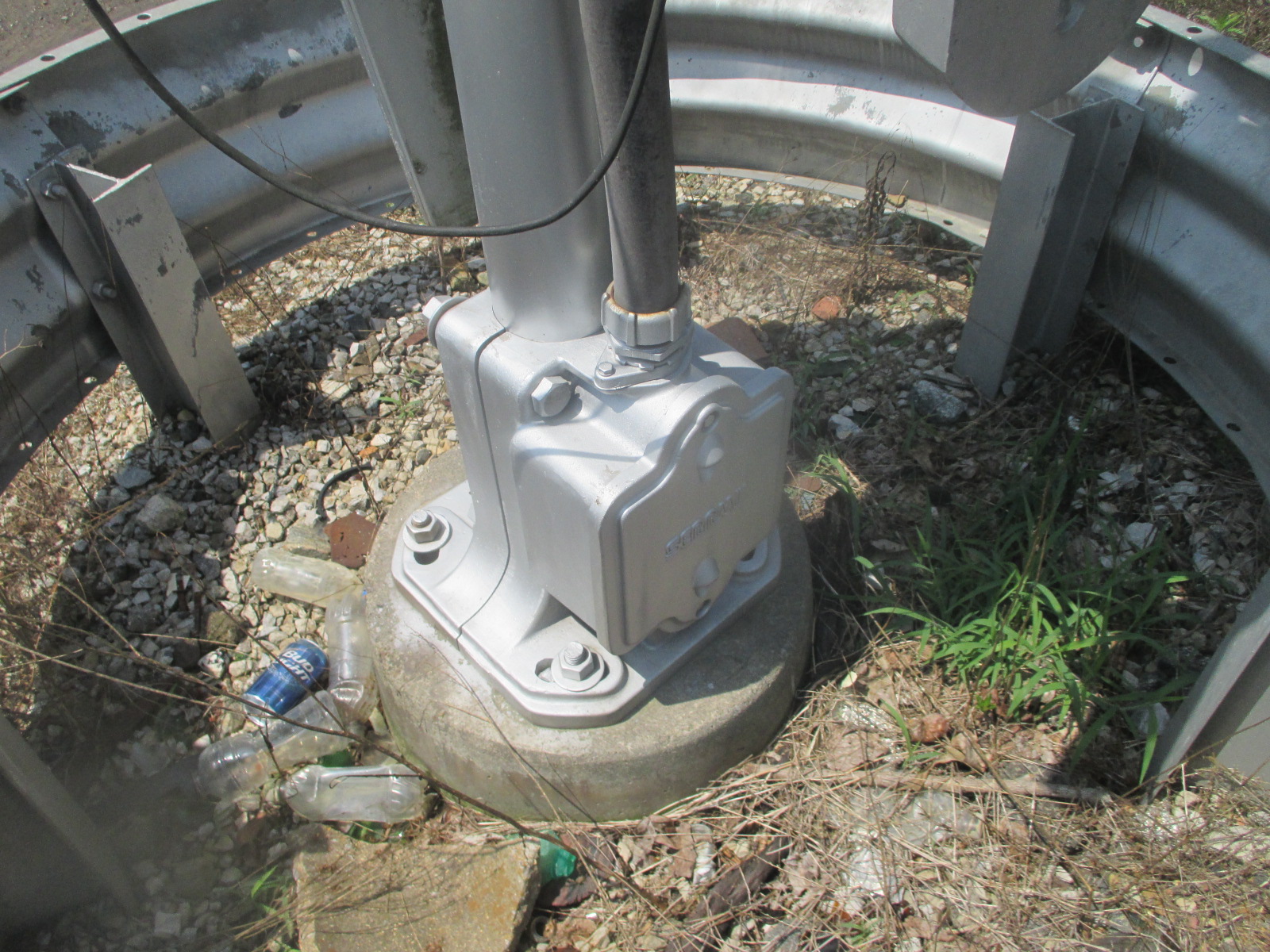

It has a Serrmi base.

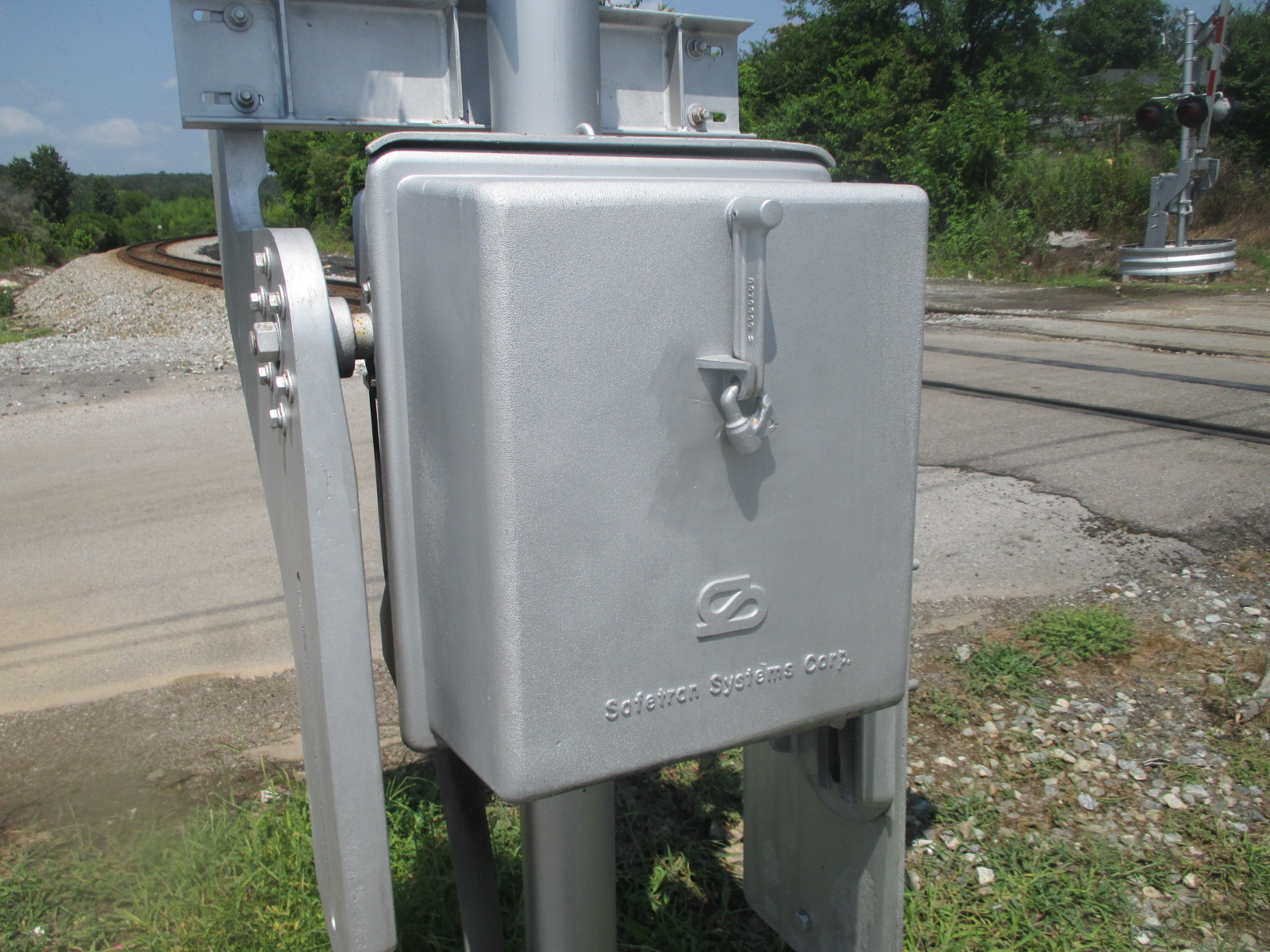

The gate mechanism is from Safetran.

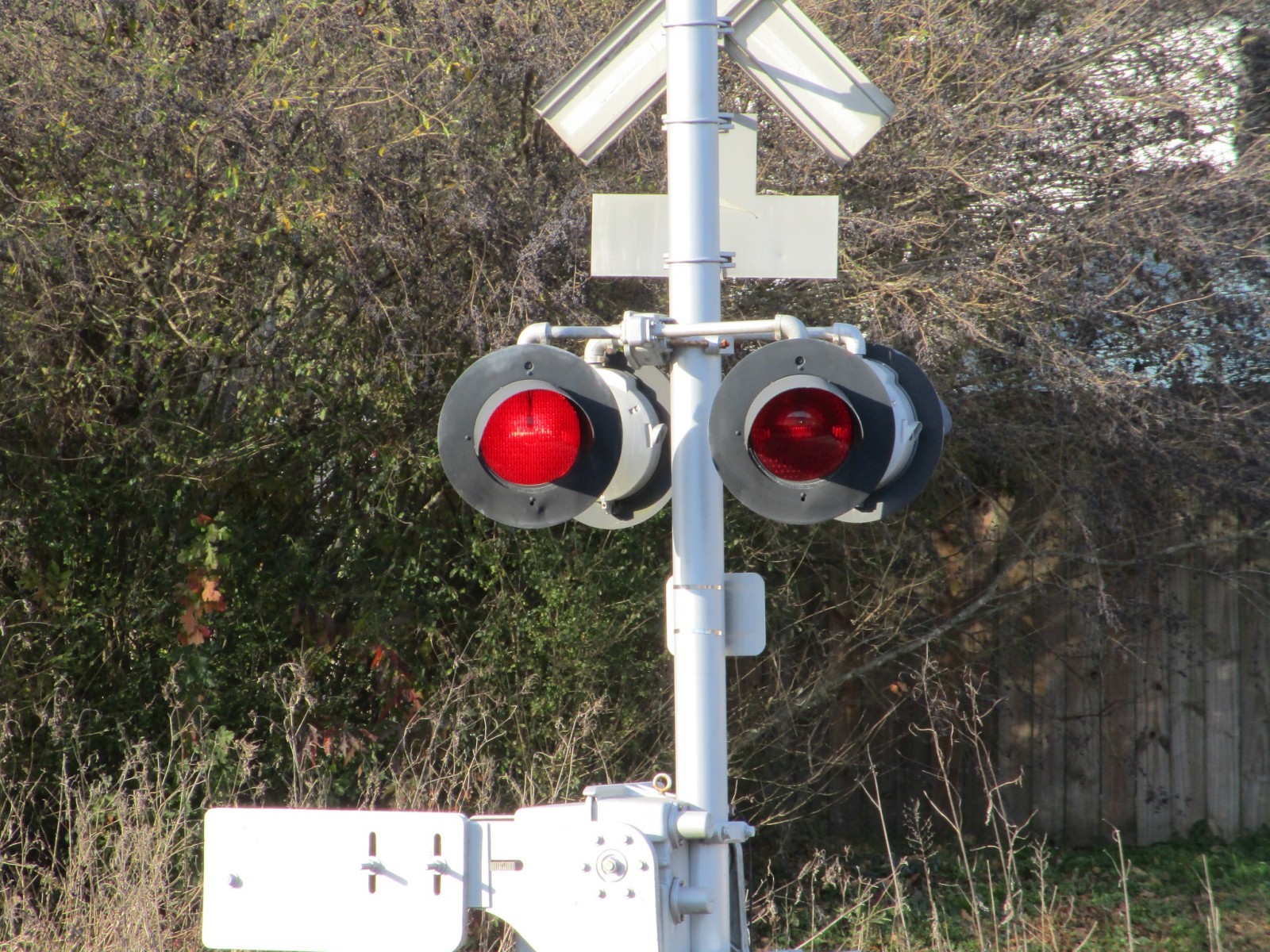

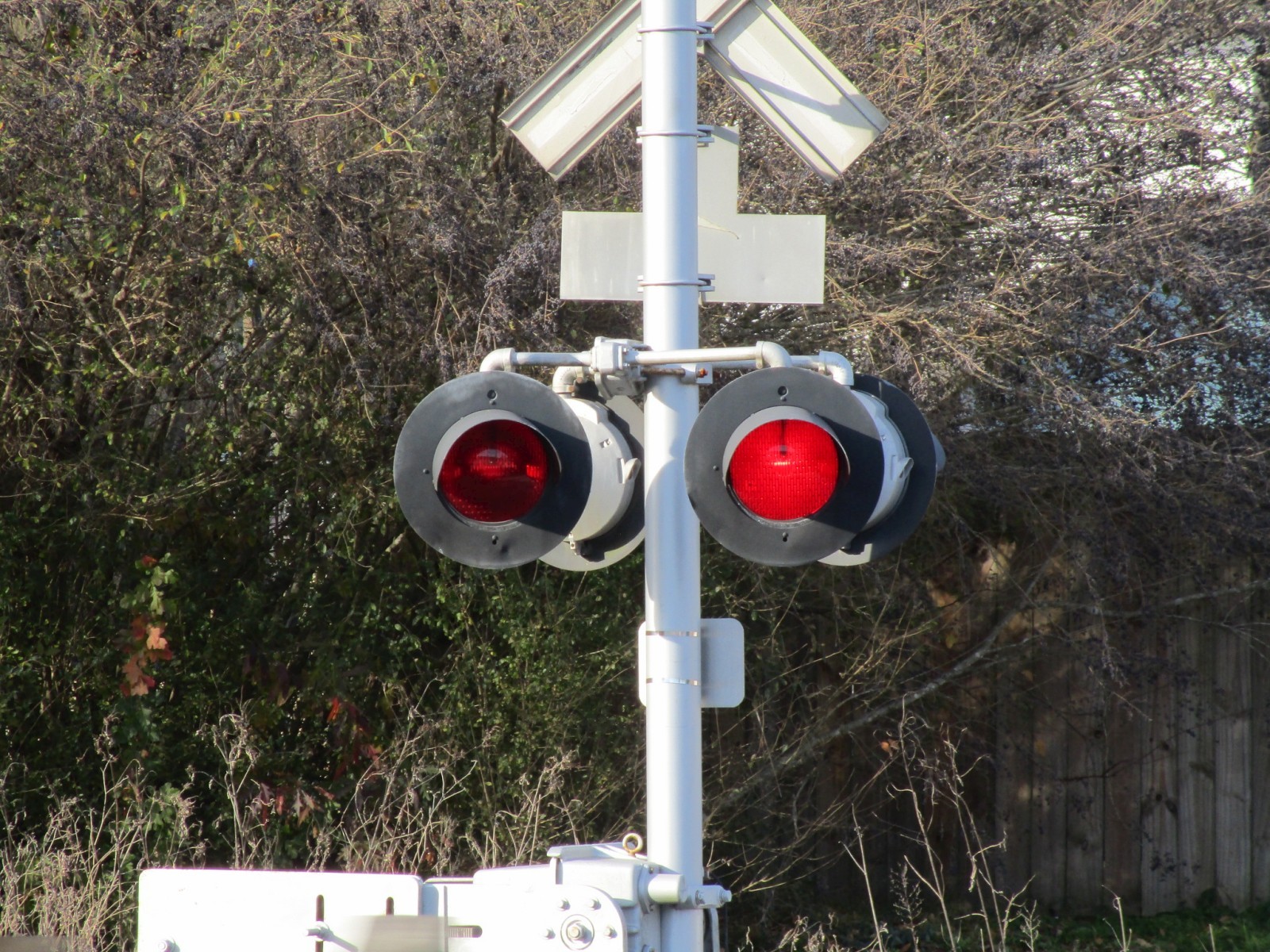

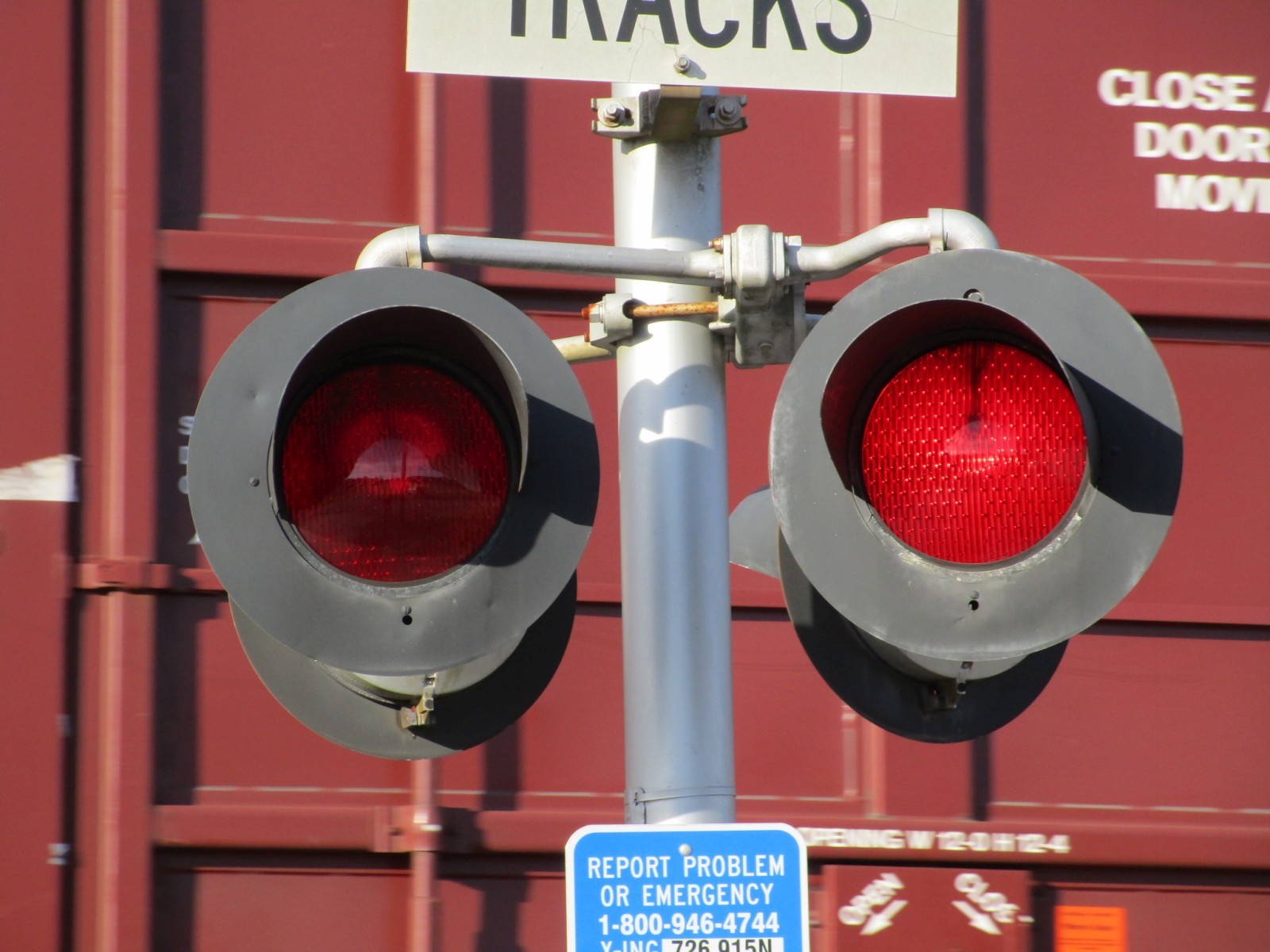

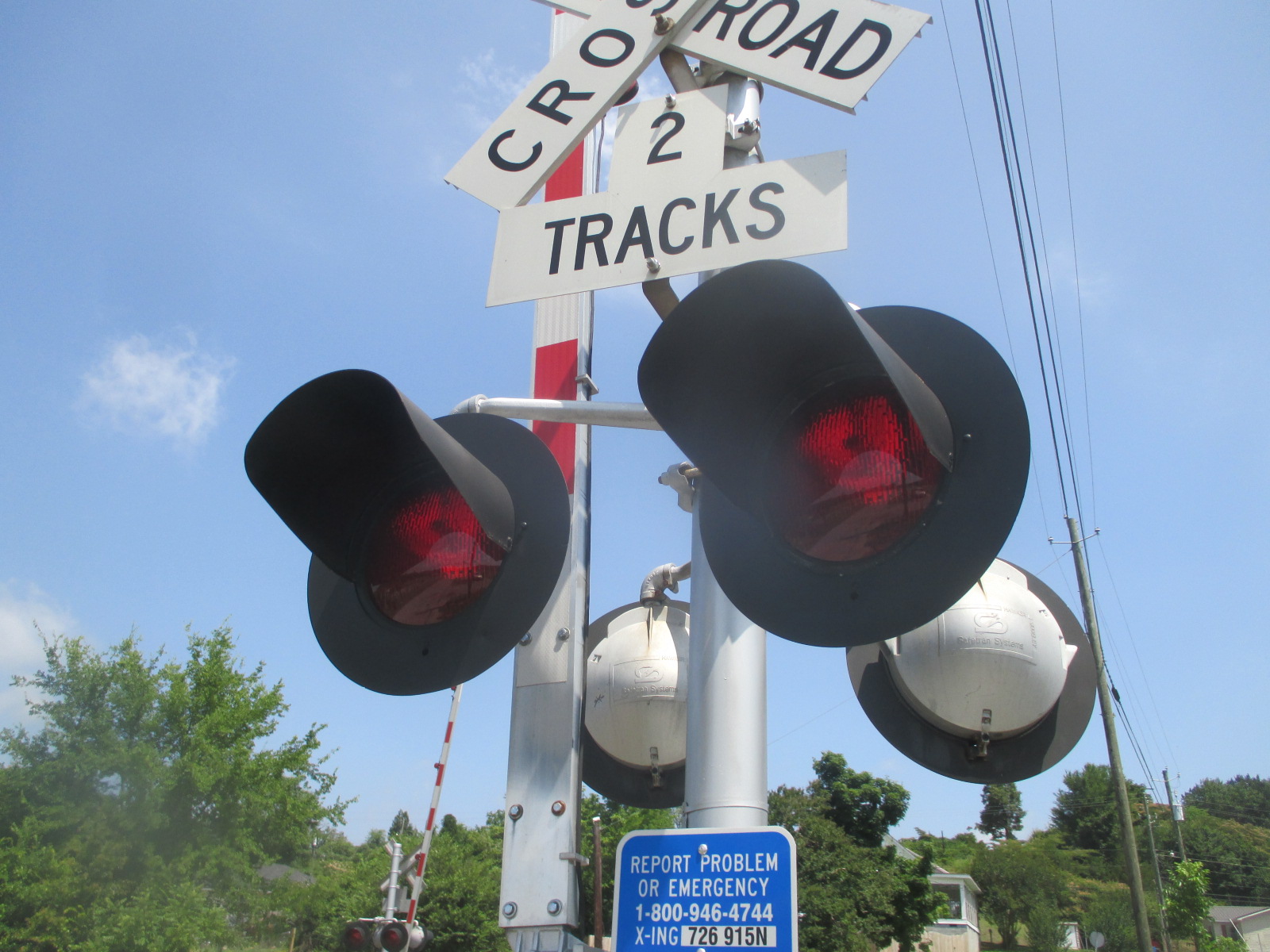

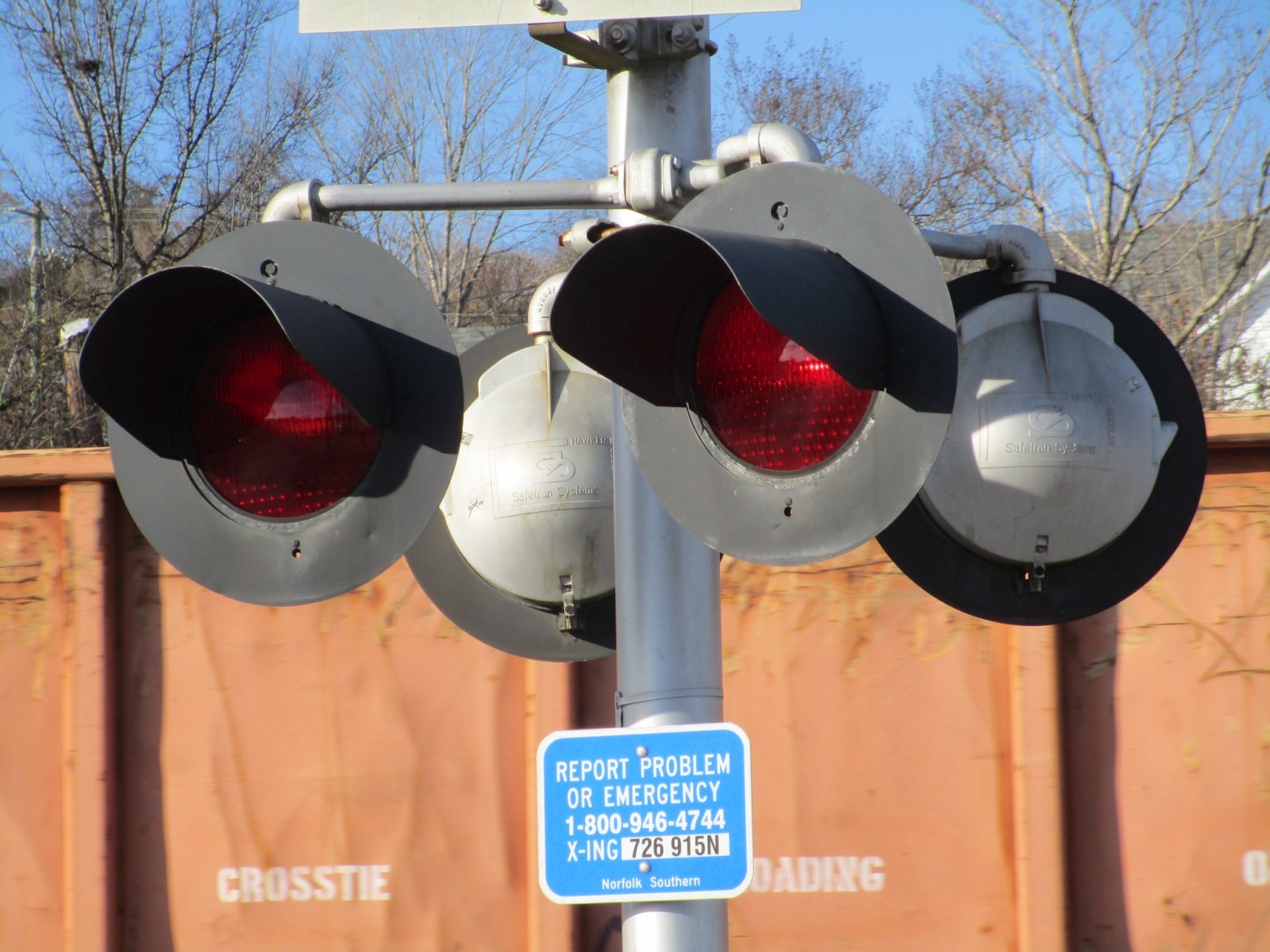

The signal has Safetran 12x20 inch lights.

9

10

11

12

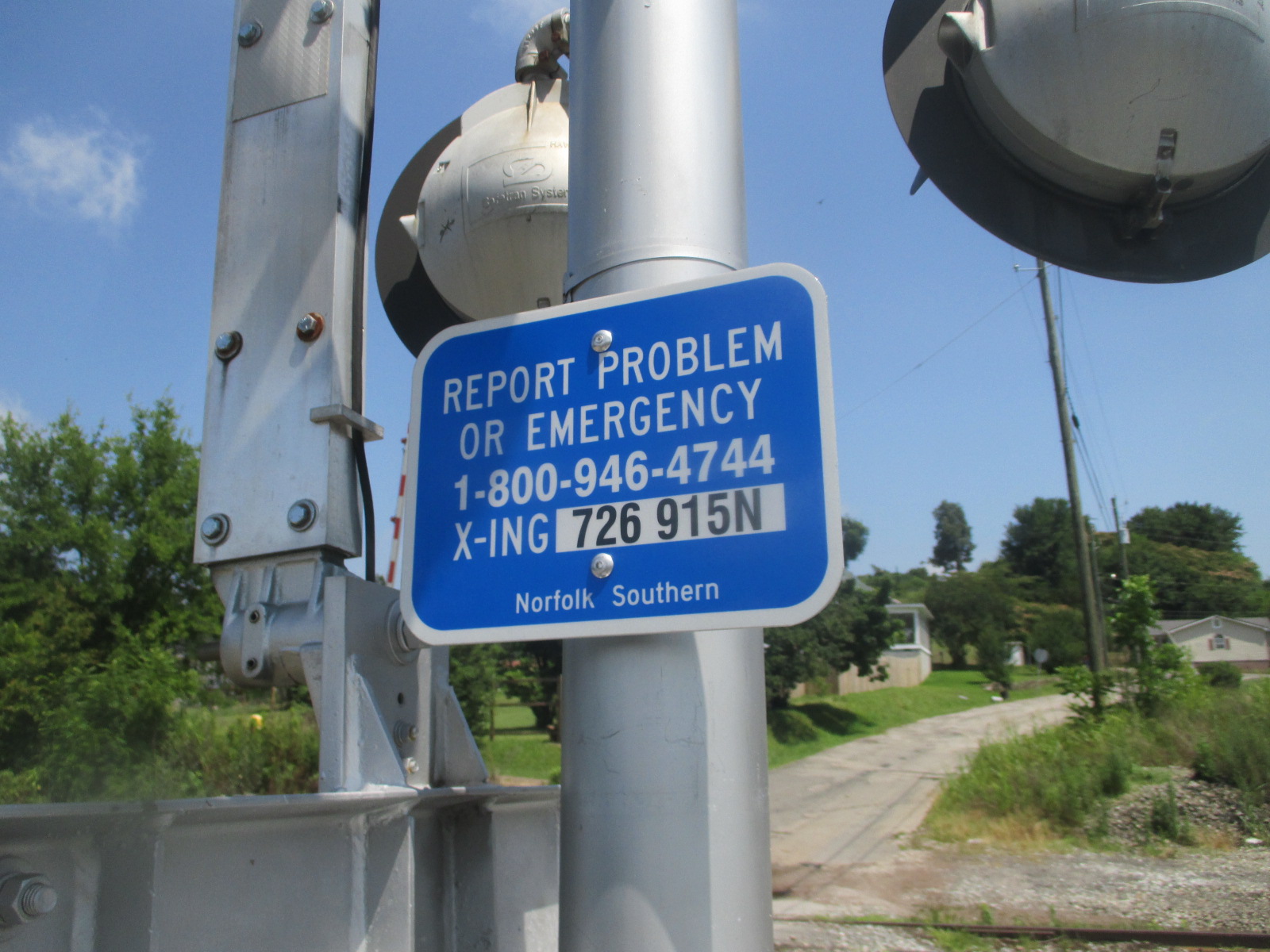

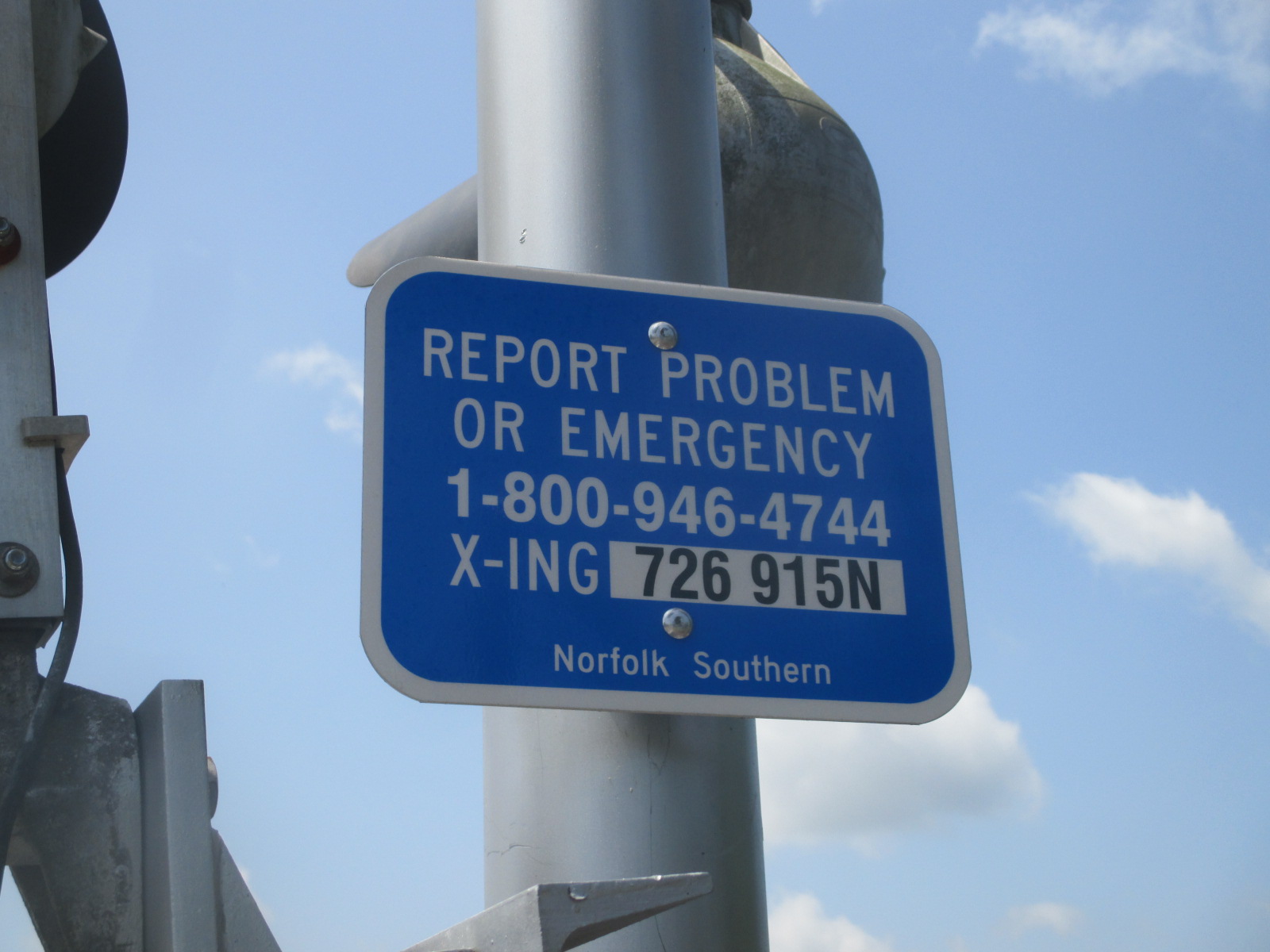

The emergency information.

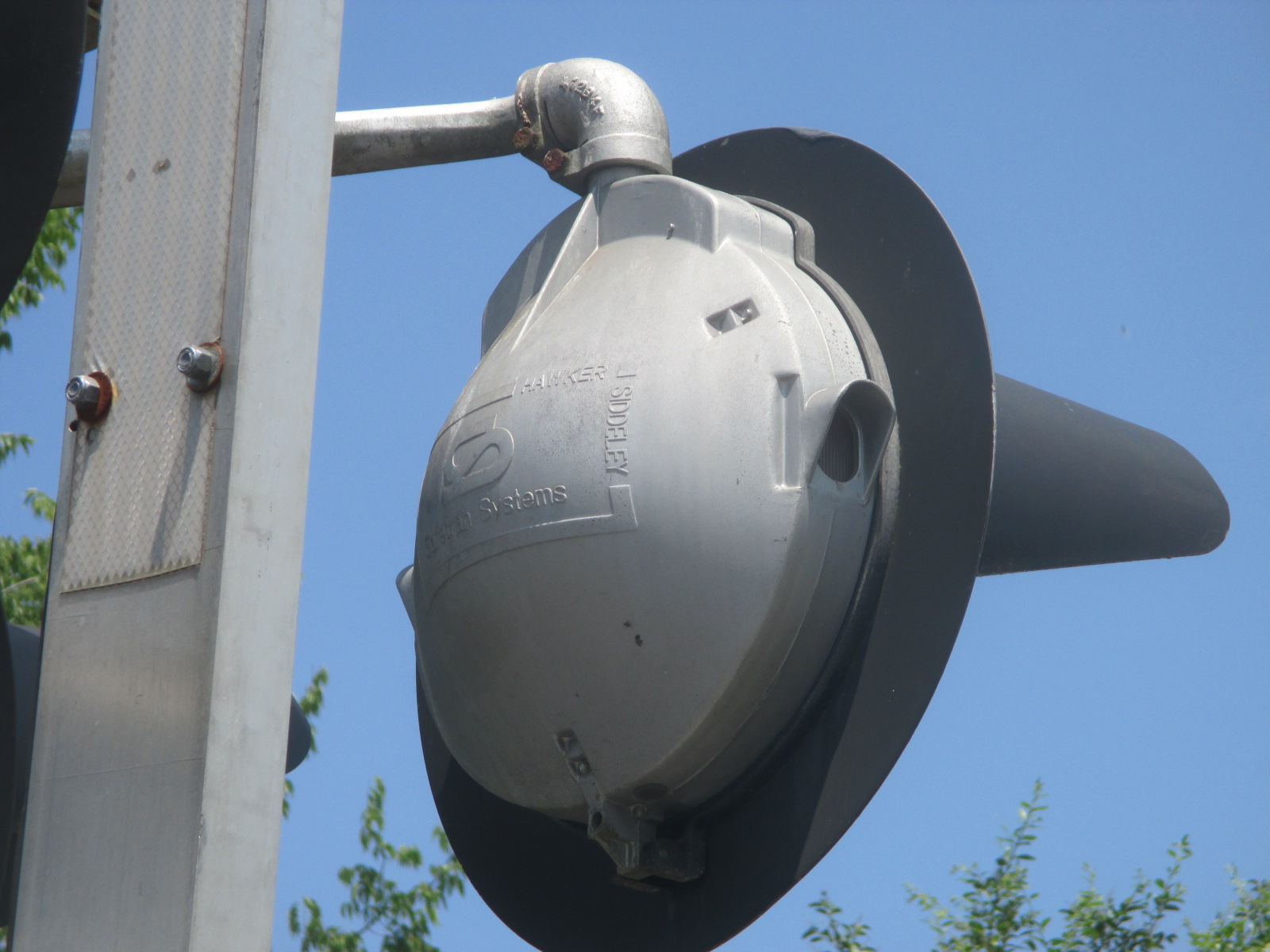

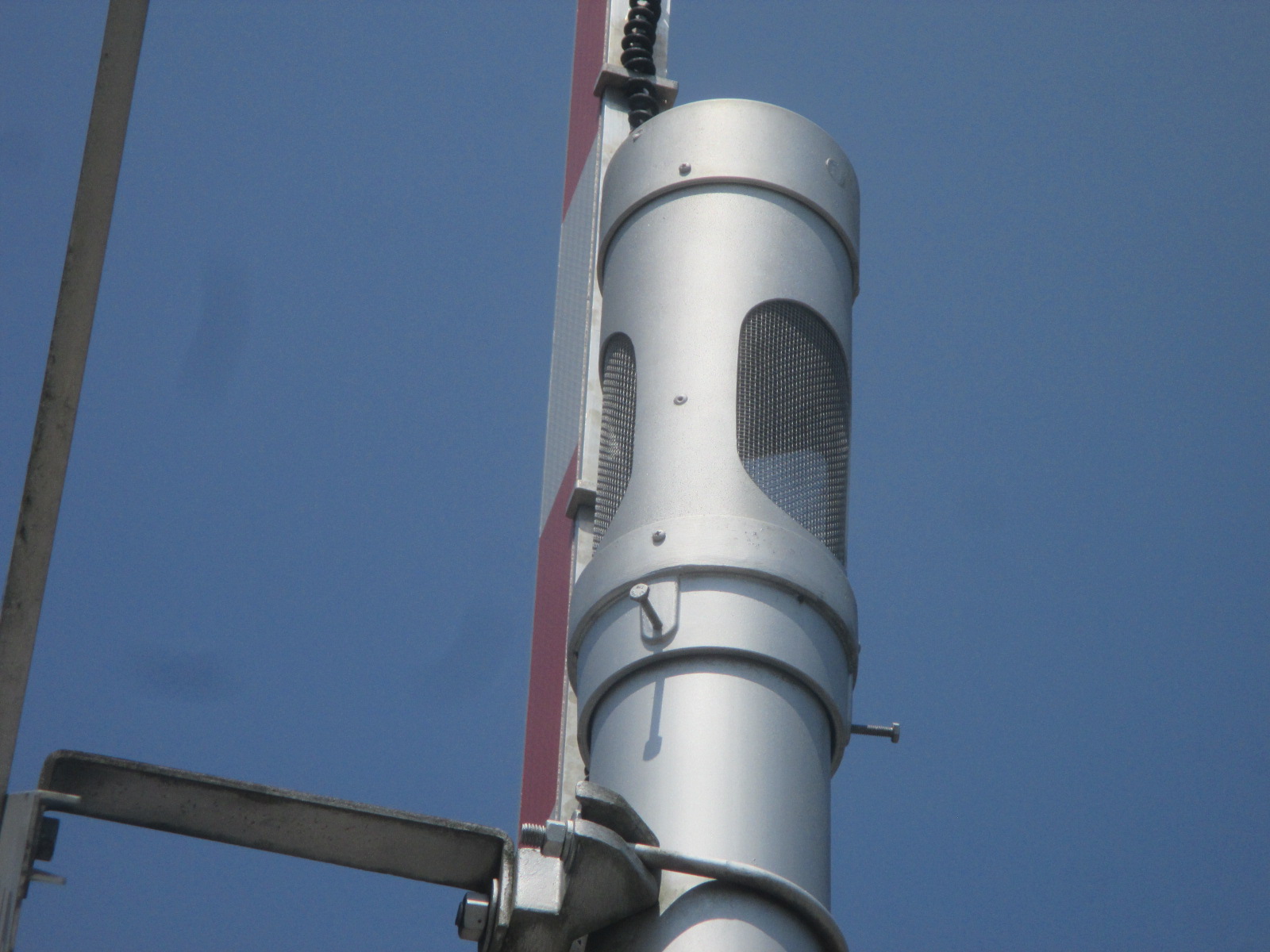

The lone bell here is a General Signals Type 2 electronic bell.

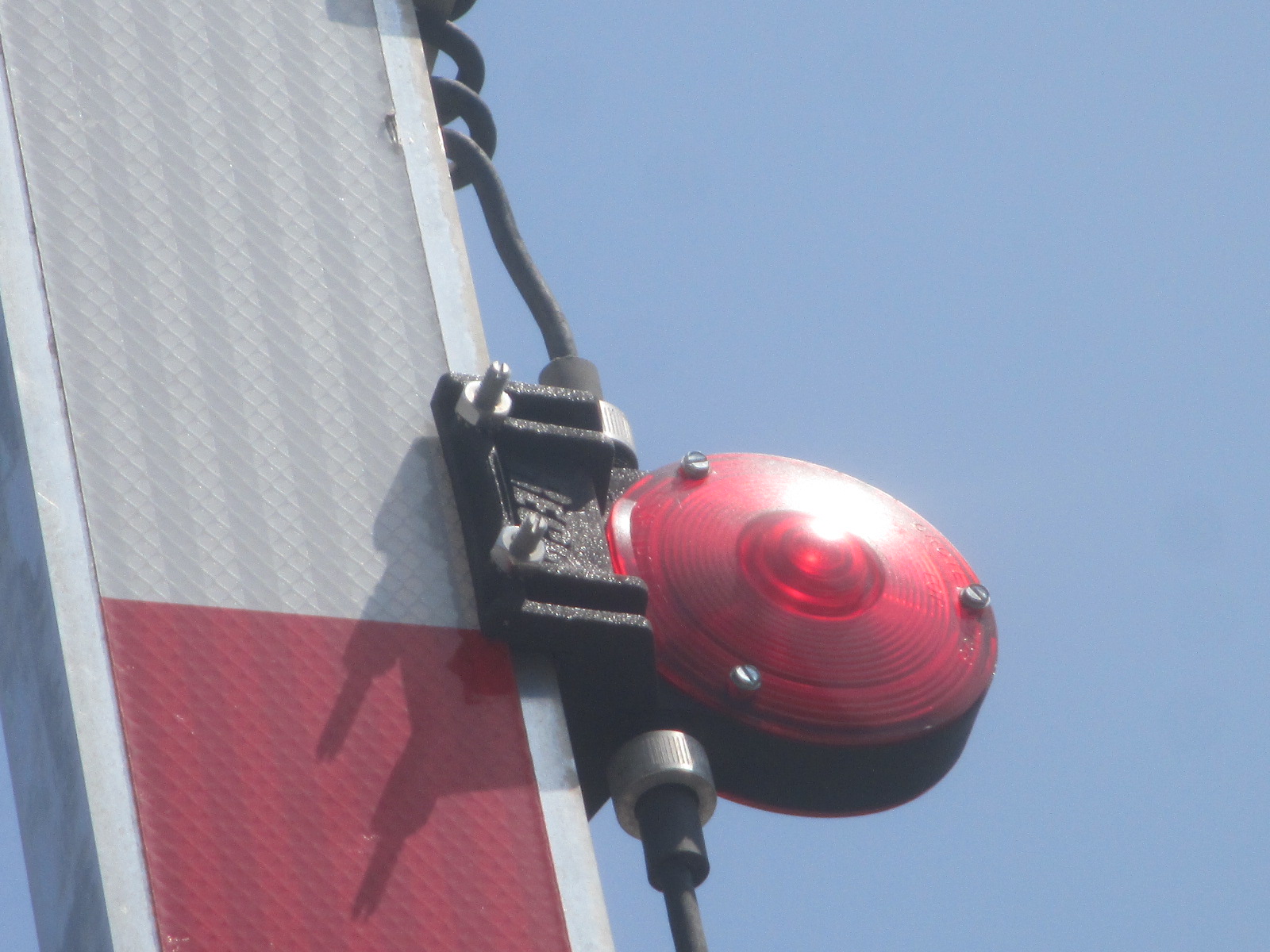

This signal has incandescent RECO gate lights.

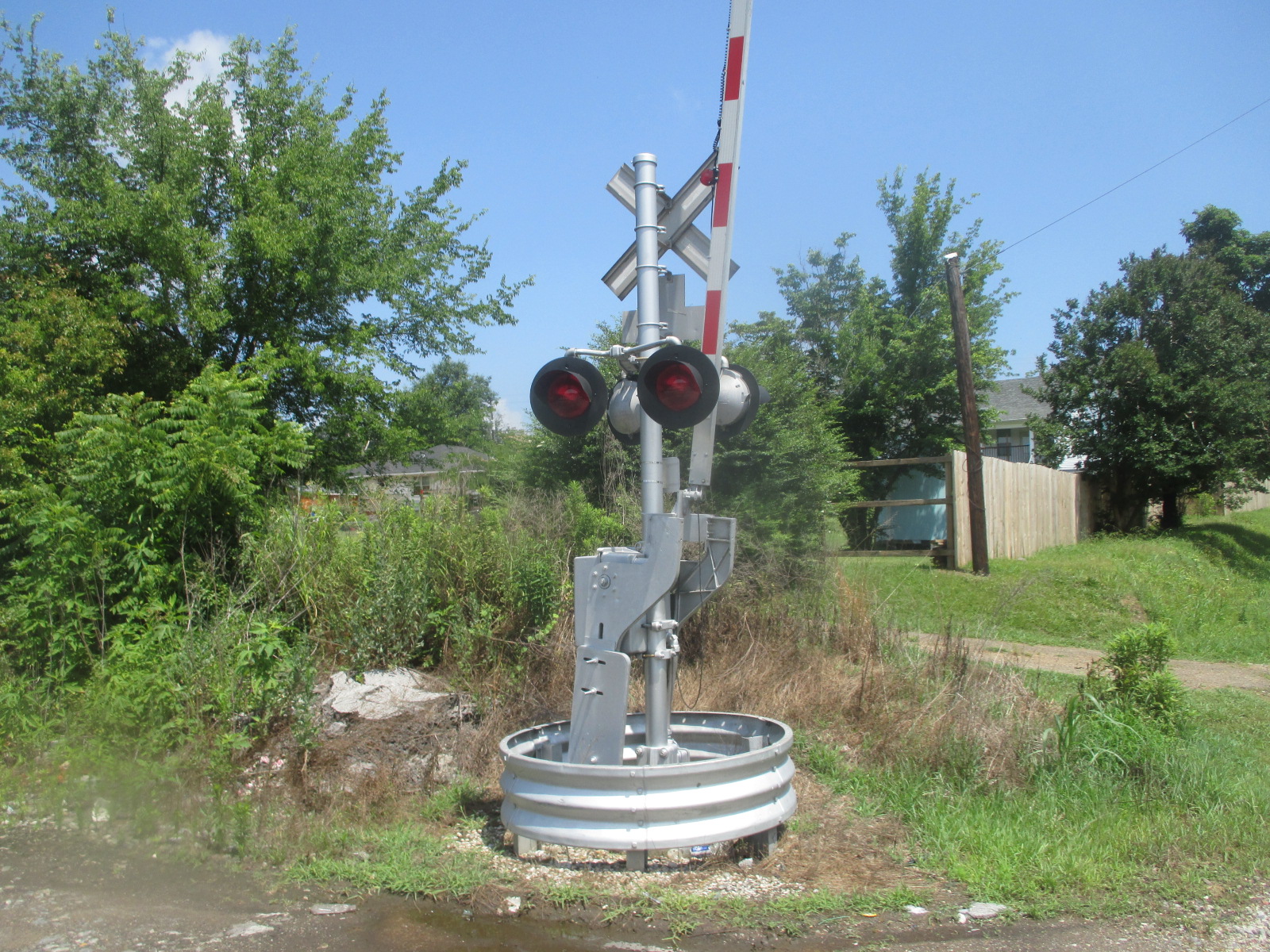

The second signal.

13

14

15

16
Another Serrmi base.

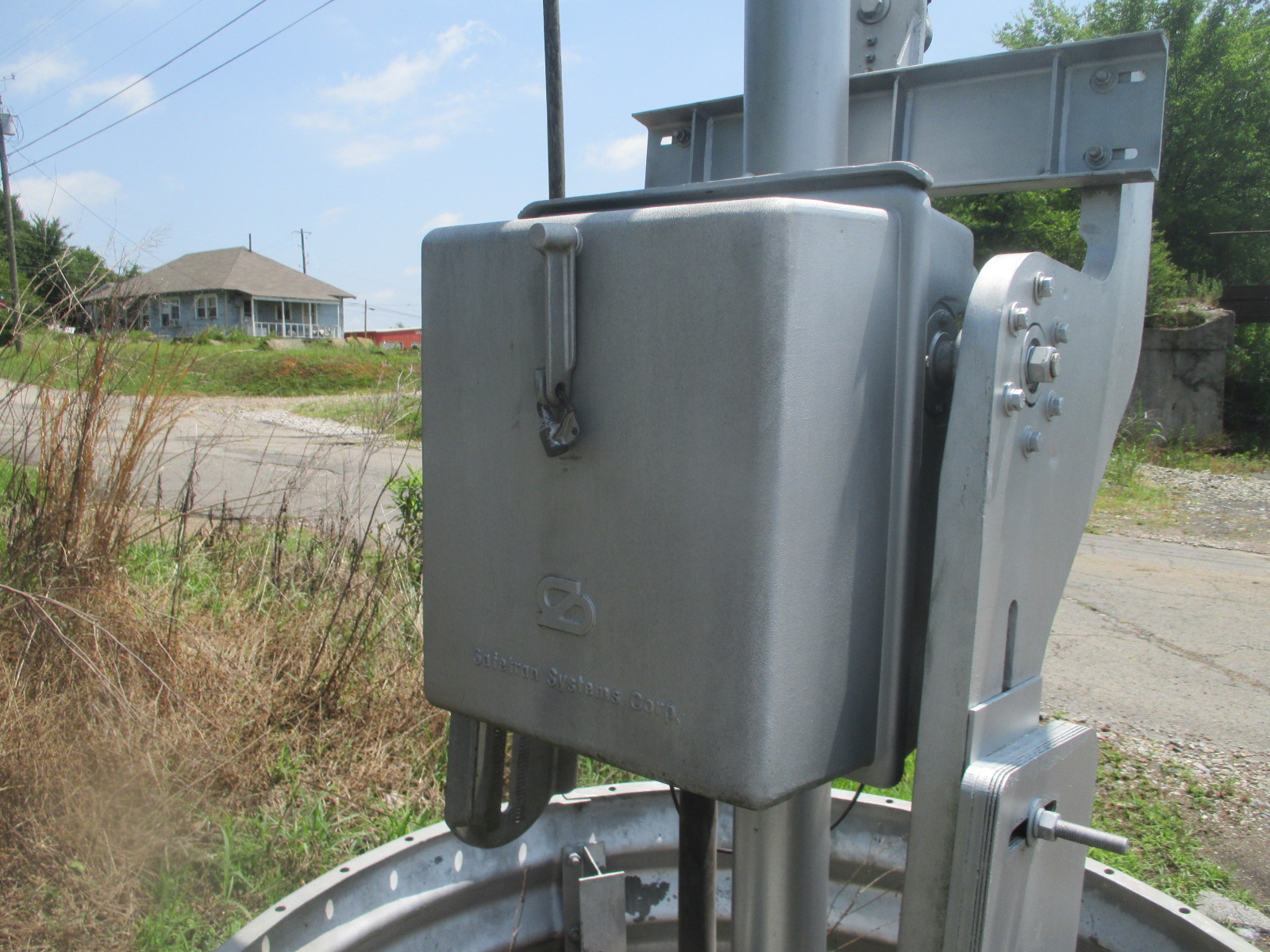

Another Safetran gate mechanism.
The emergency information.

17

18

19

20

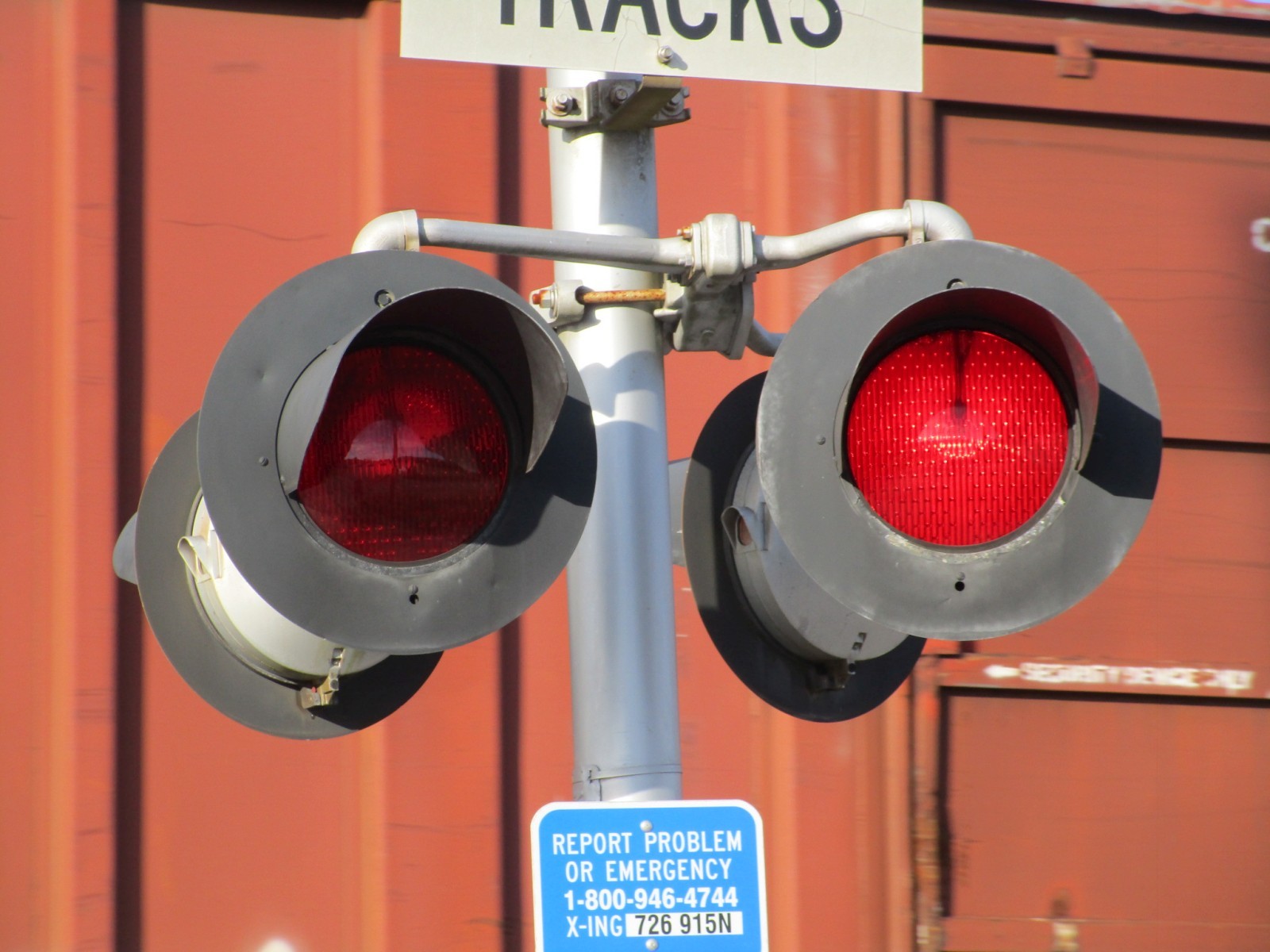

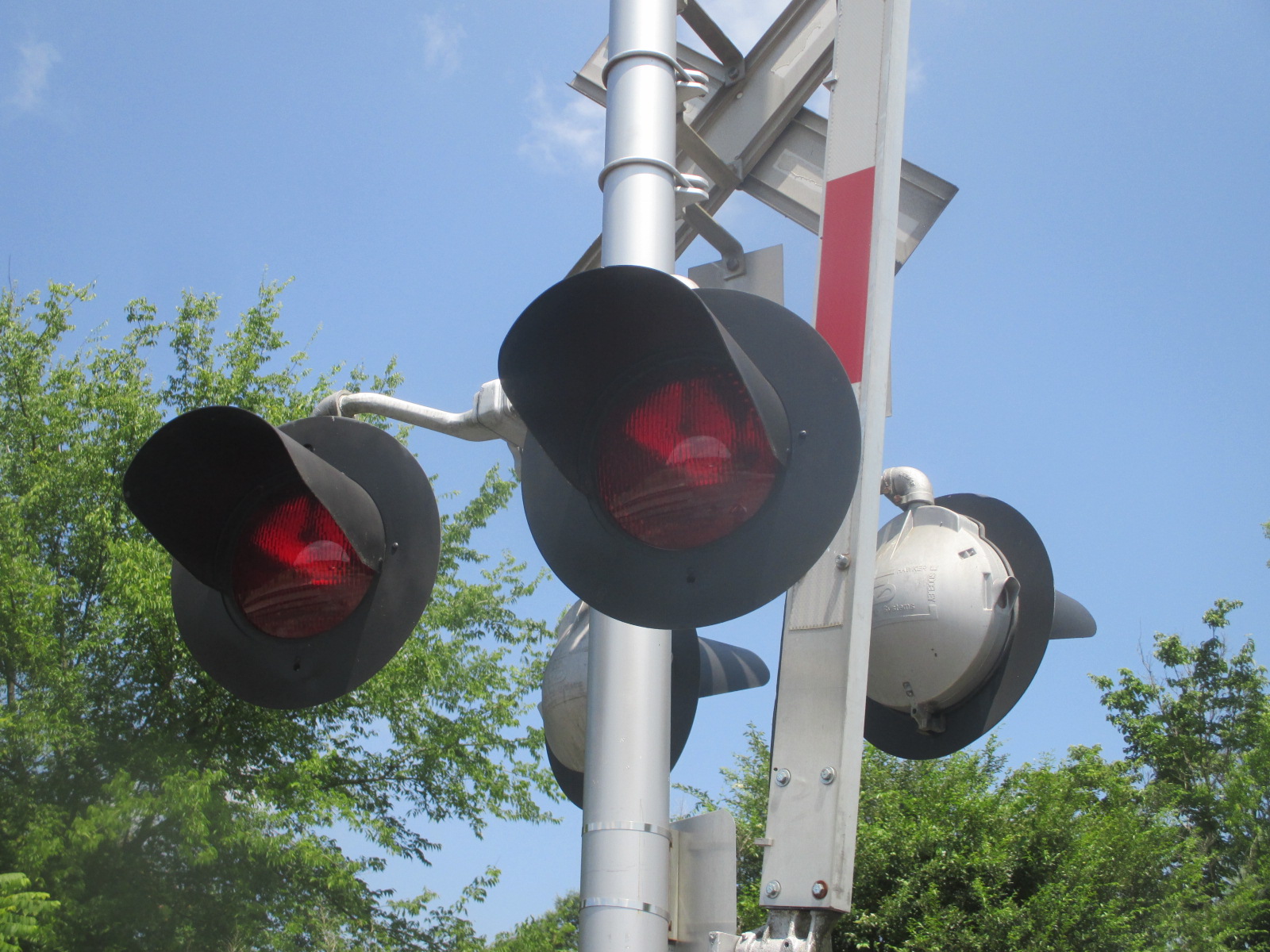

This signal has more Safetran 12x20 inch lights.

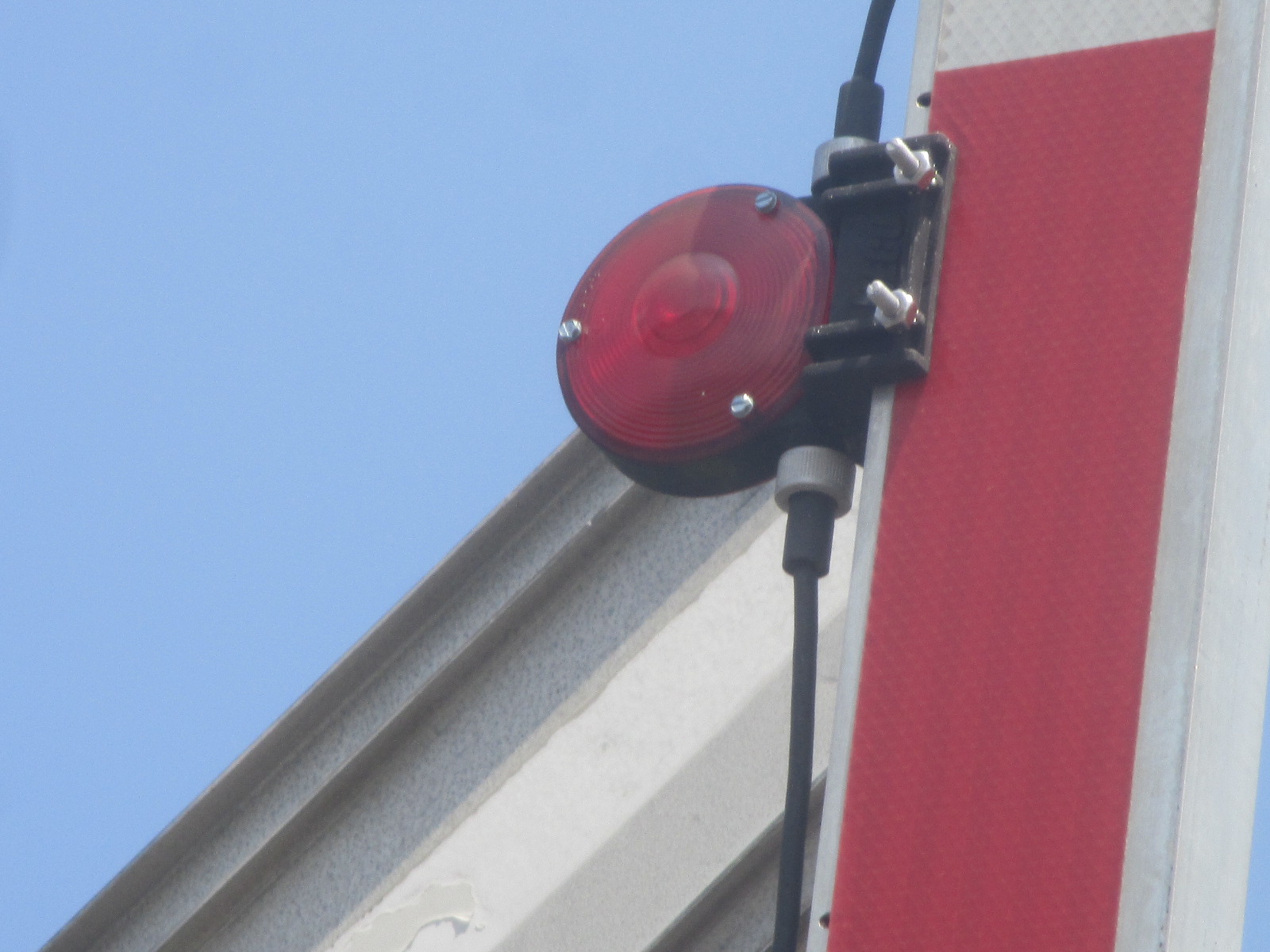

More incandescent RECO gate lights over here.

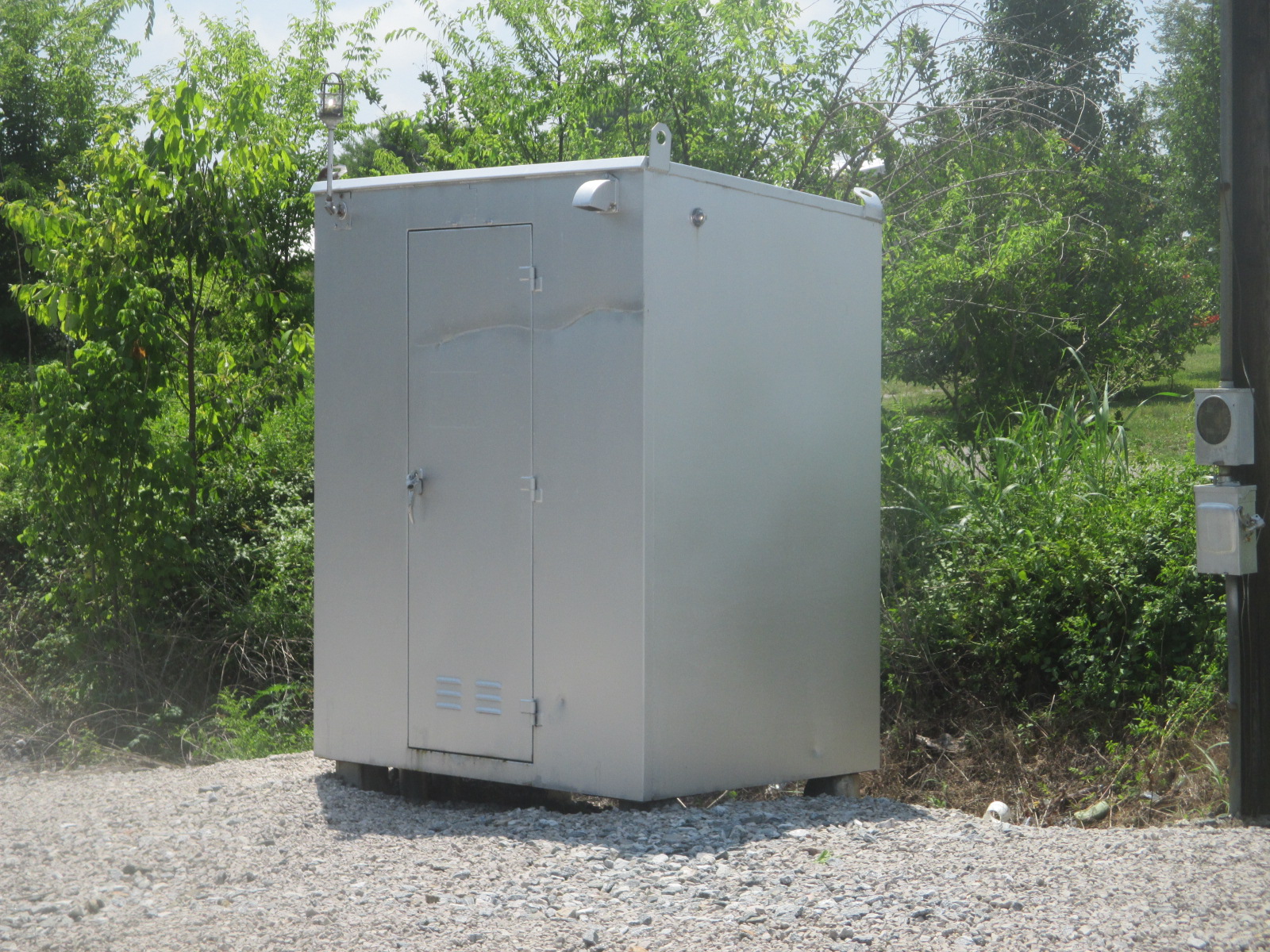

The relay case.

21

22

23

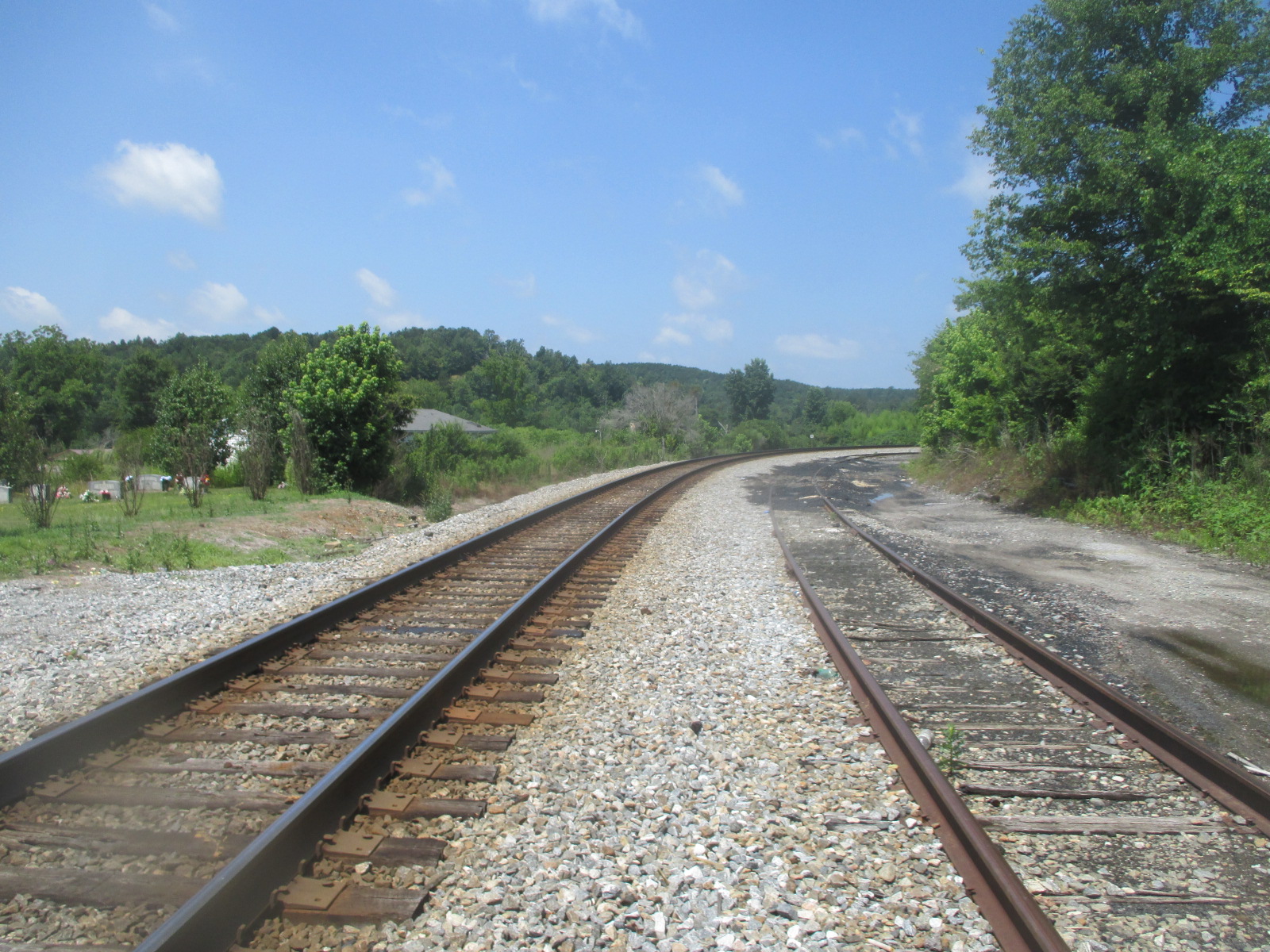

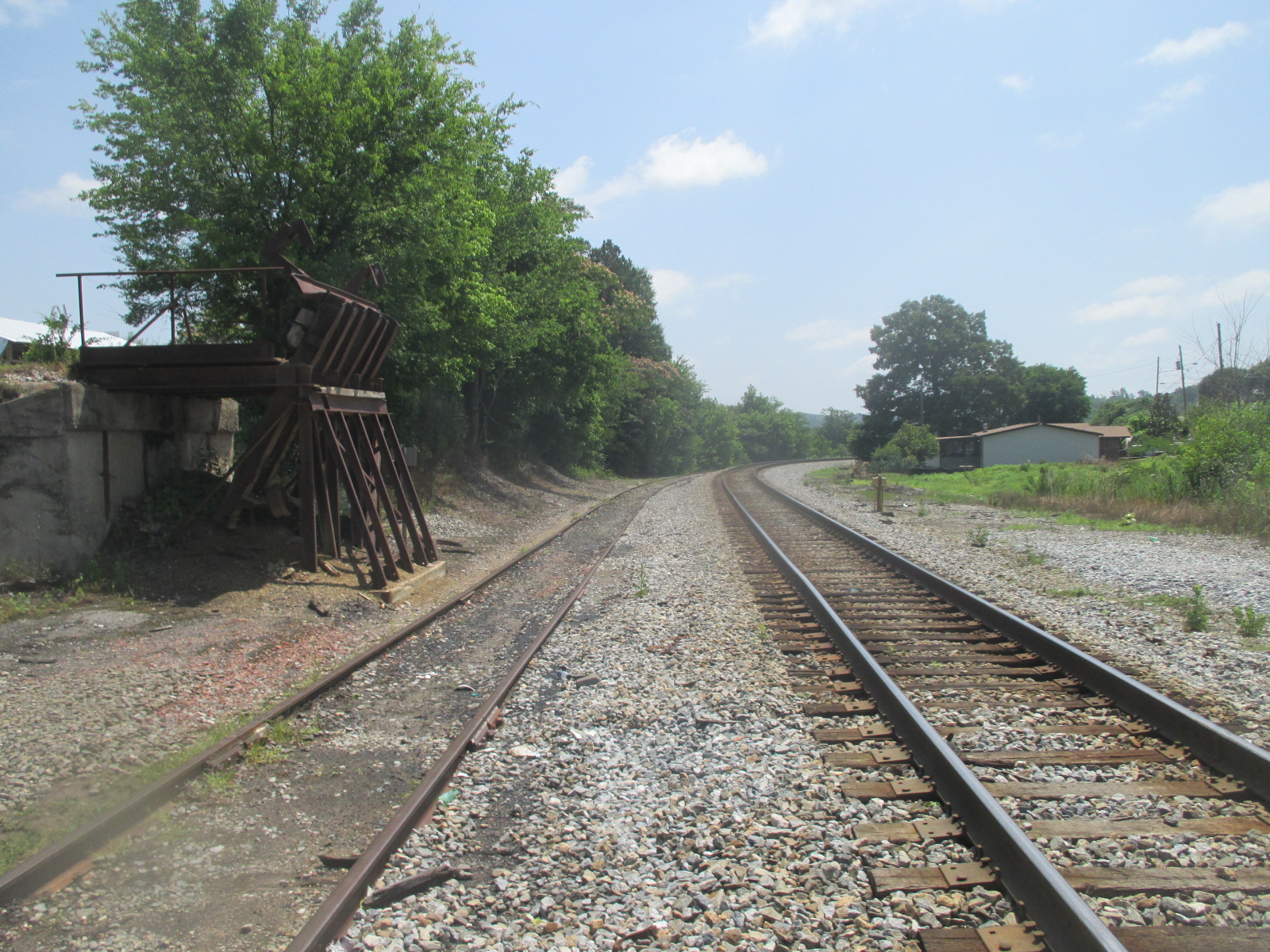

Track views. Picture 21 looks east towards Robinson Road. Picture 22 looks west towards Columbus Boulevard.

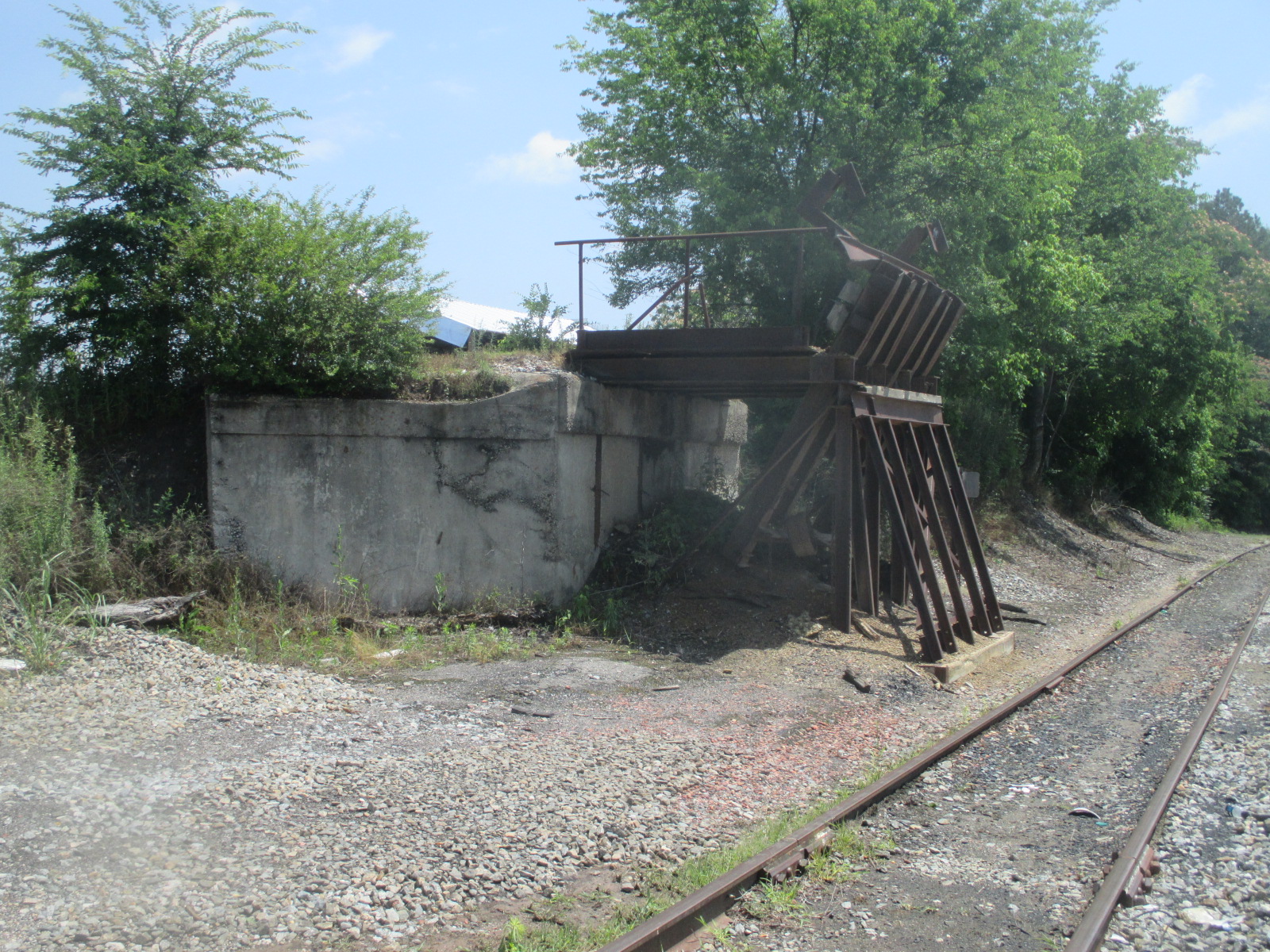

Some kind of structure next to the un-used storage track.

24

25

26

27

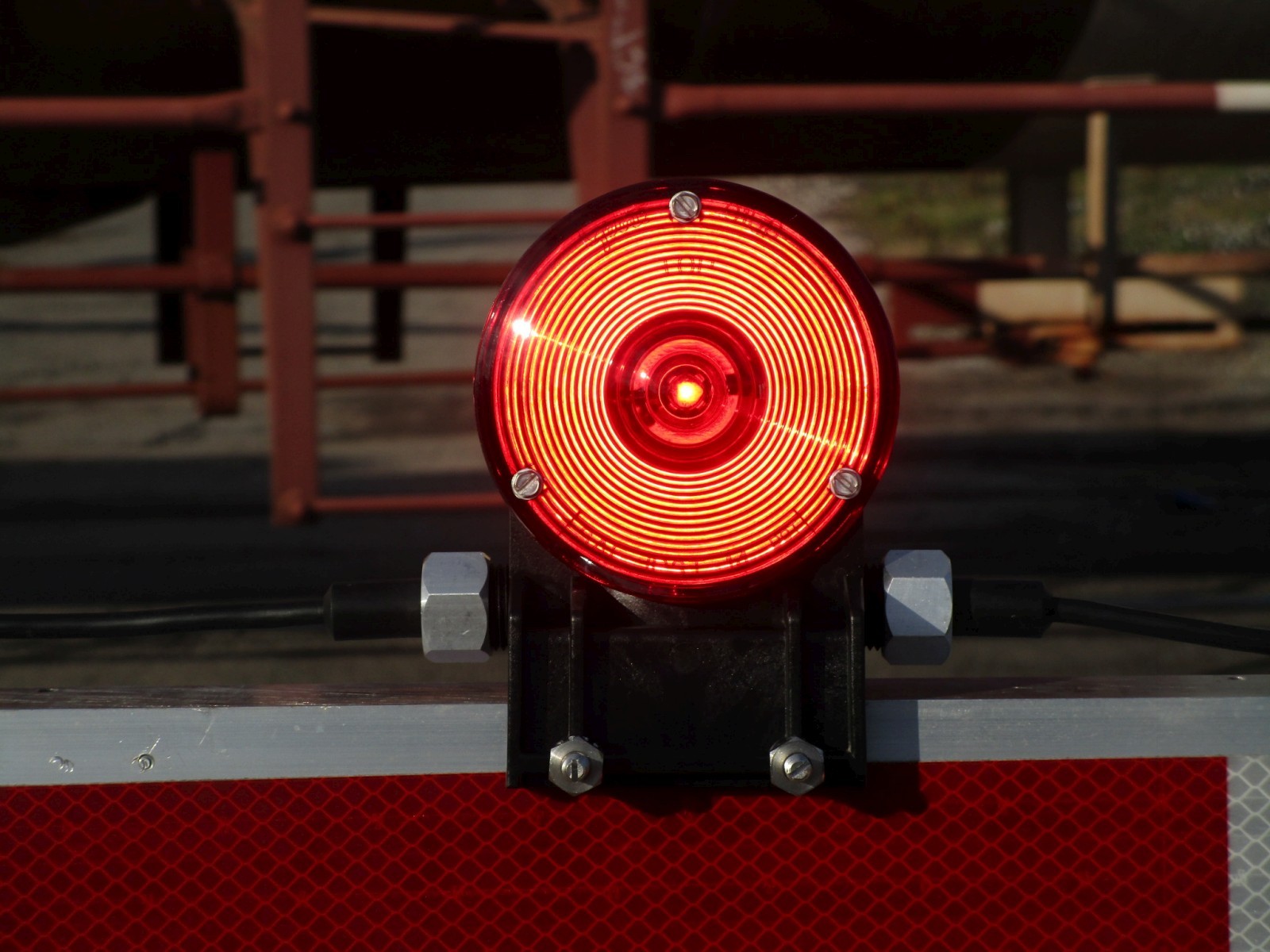

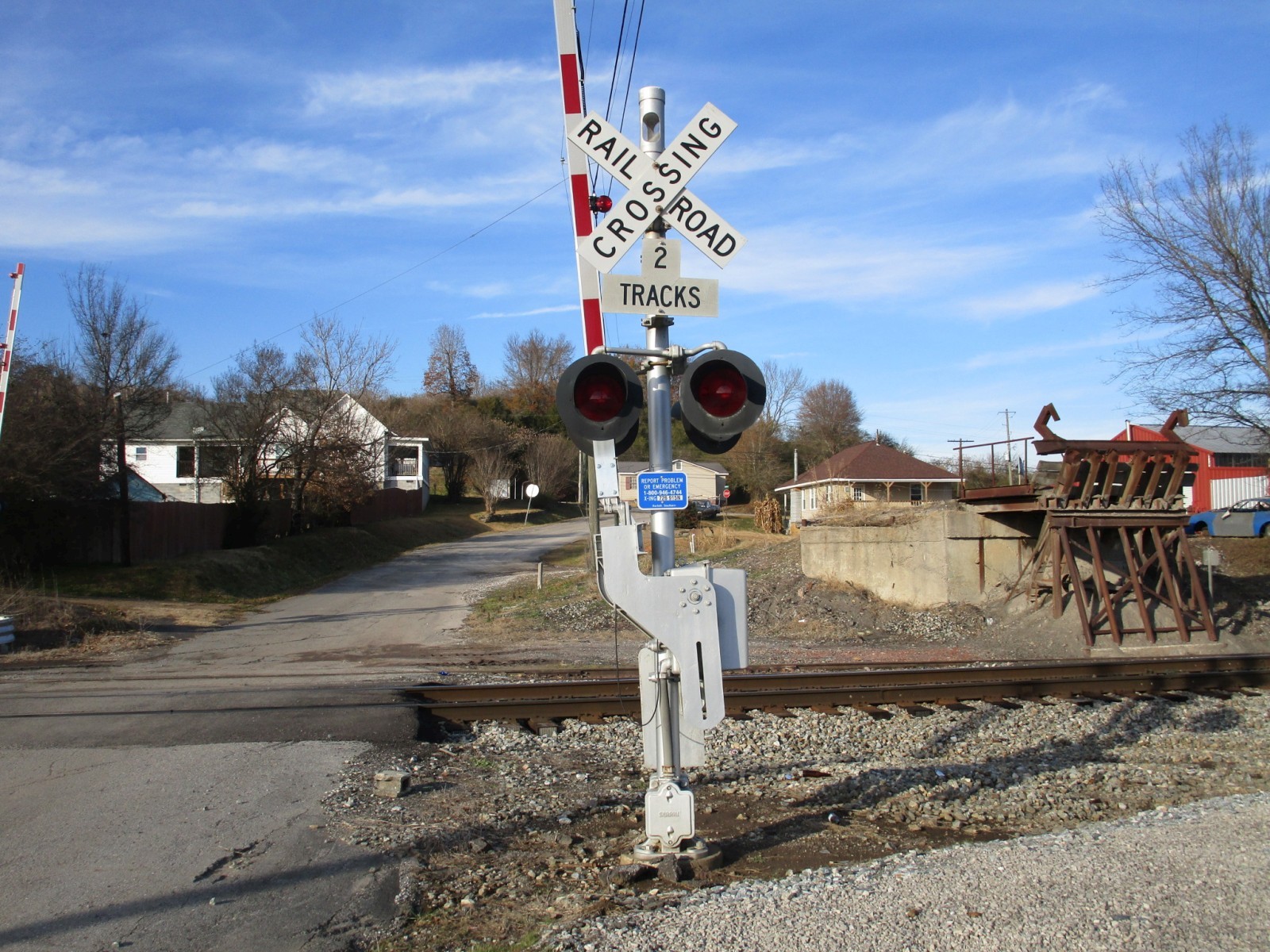

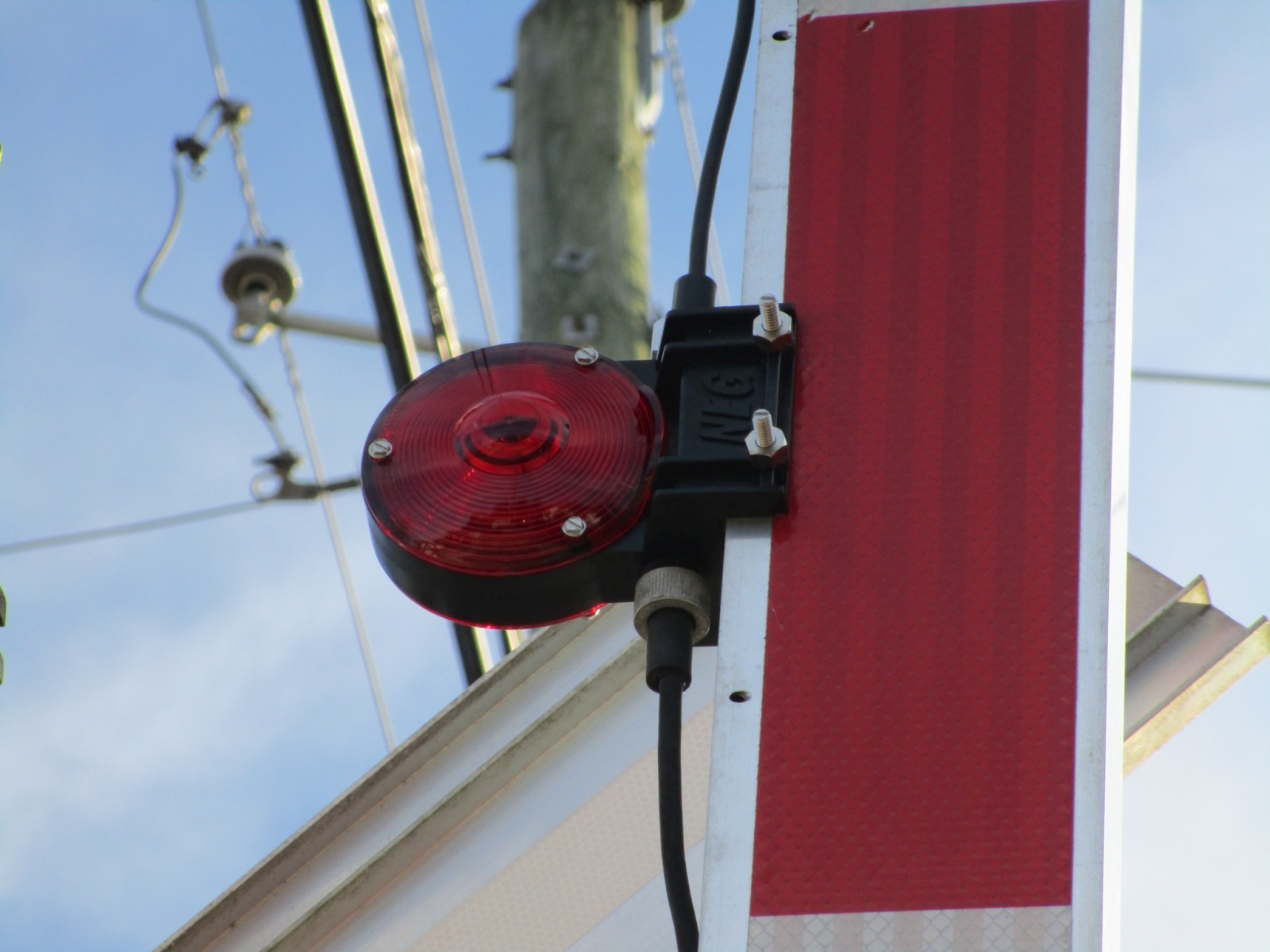

A return trip to the crossing on 12-18-20 finds that the first signal here has had its gate lights replaced with NEG LED gate lights.

28

29

30

31

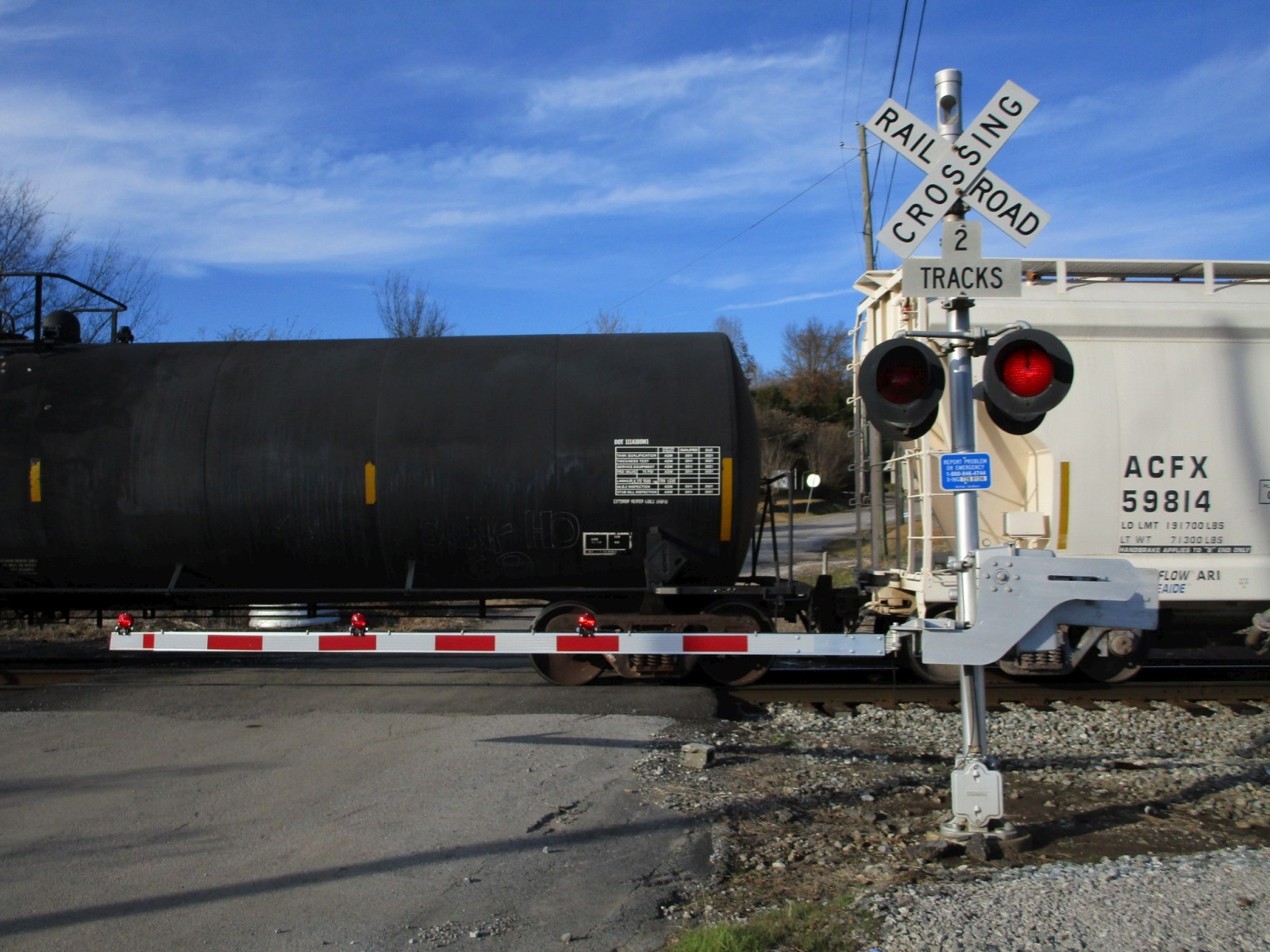

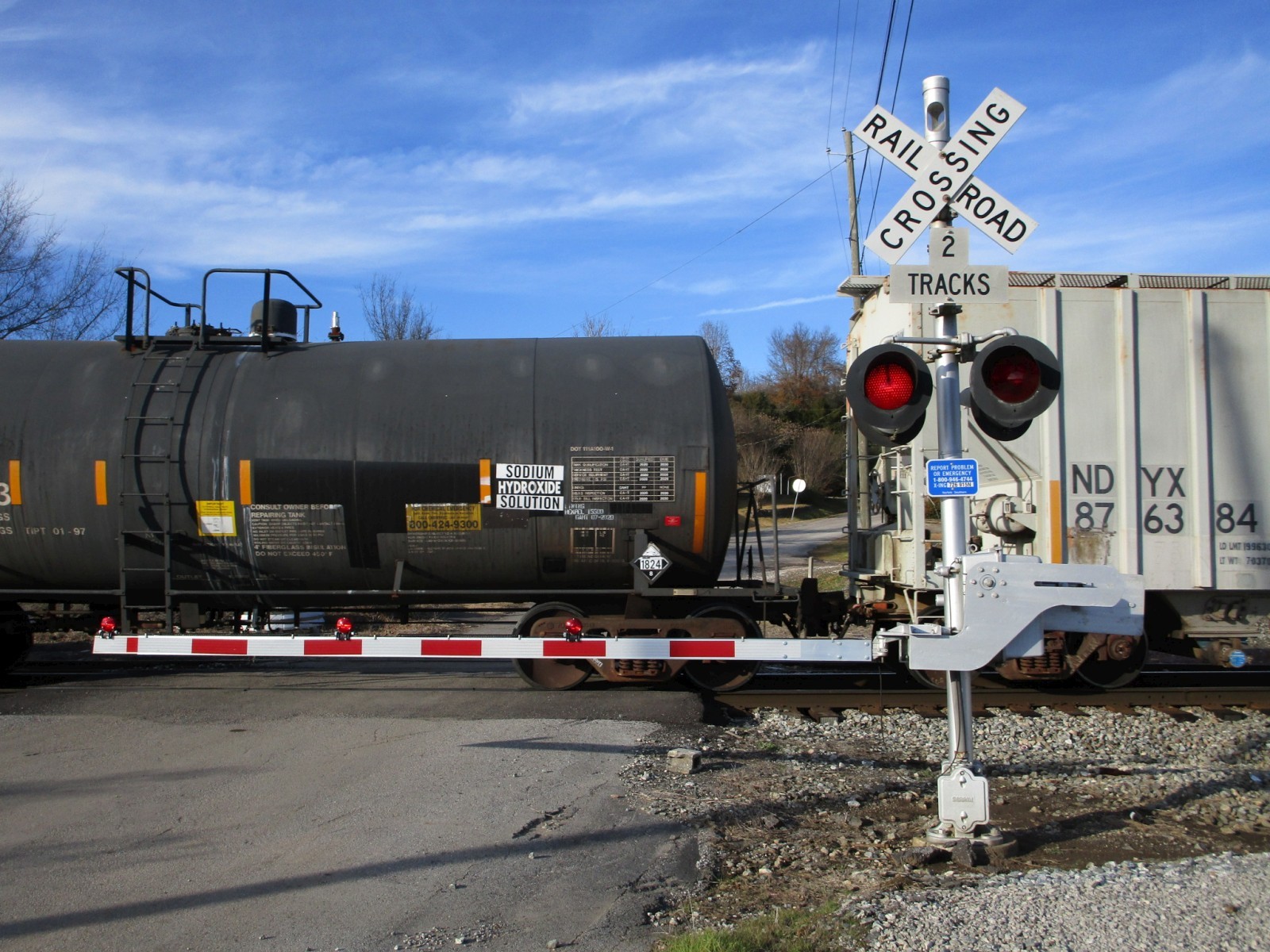

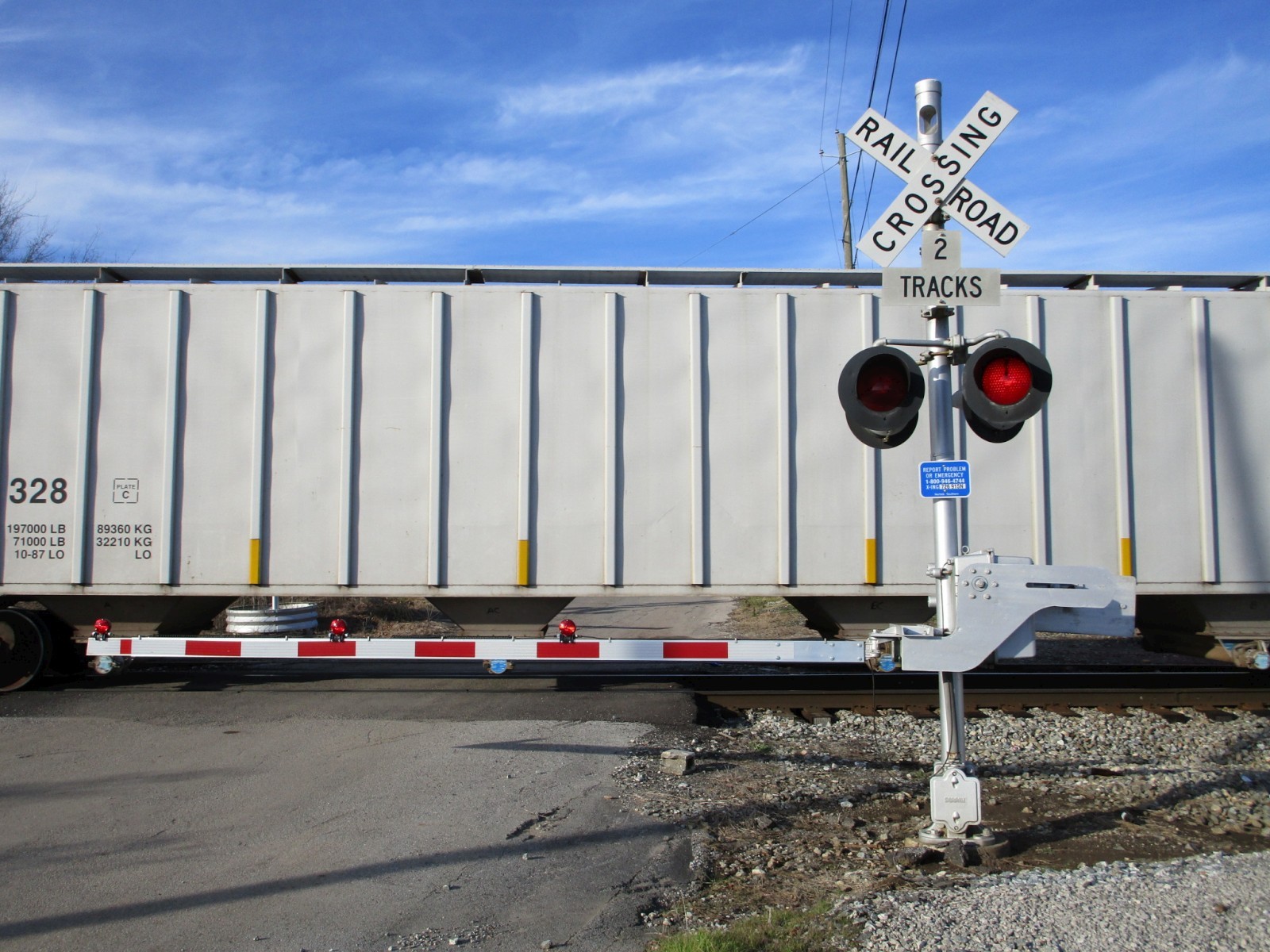

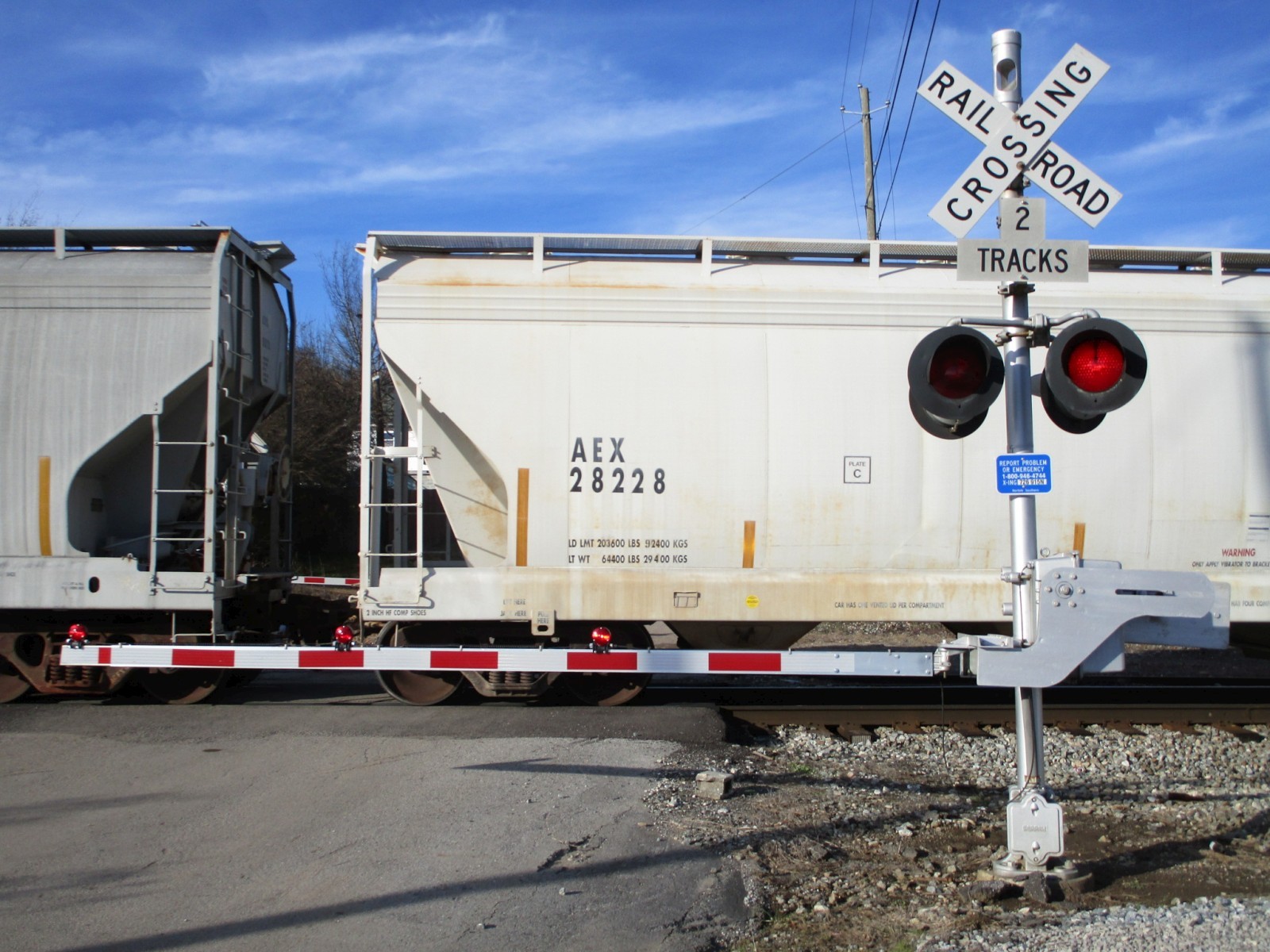

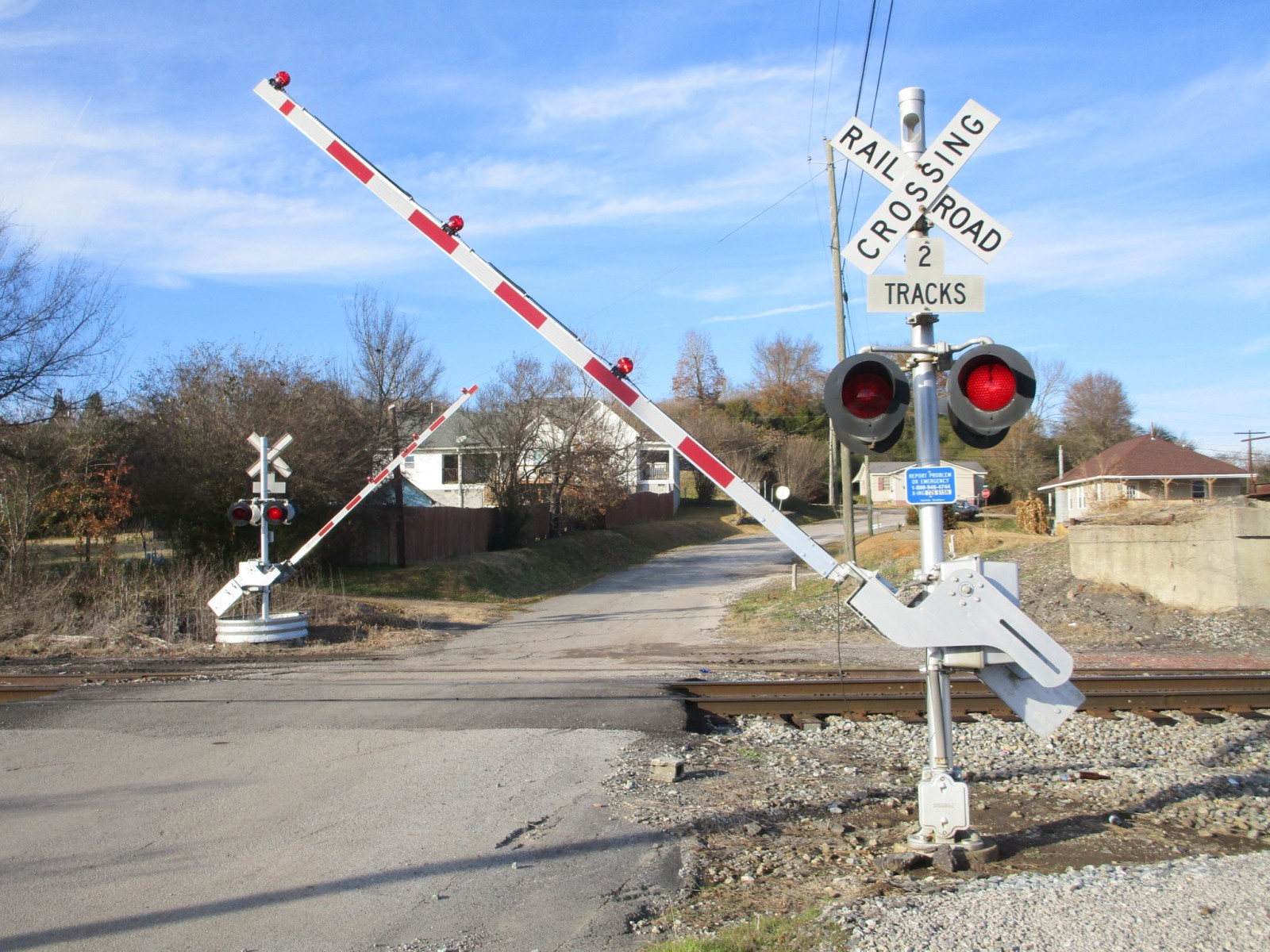

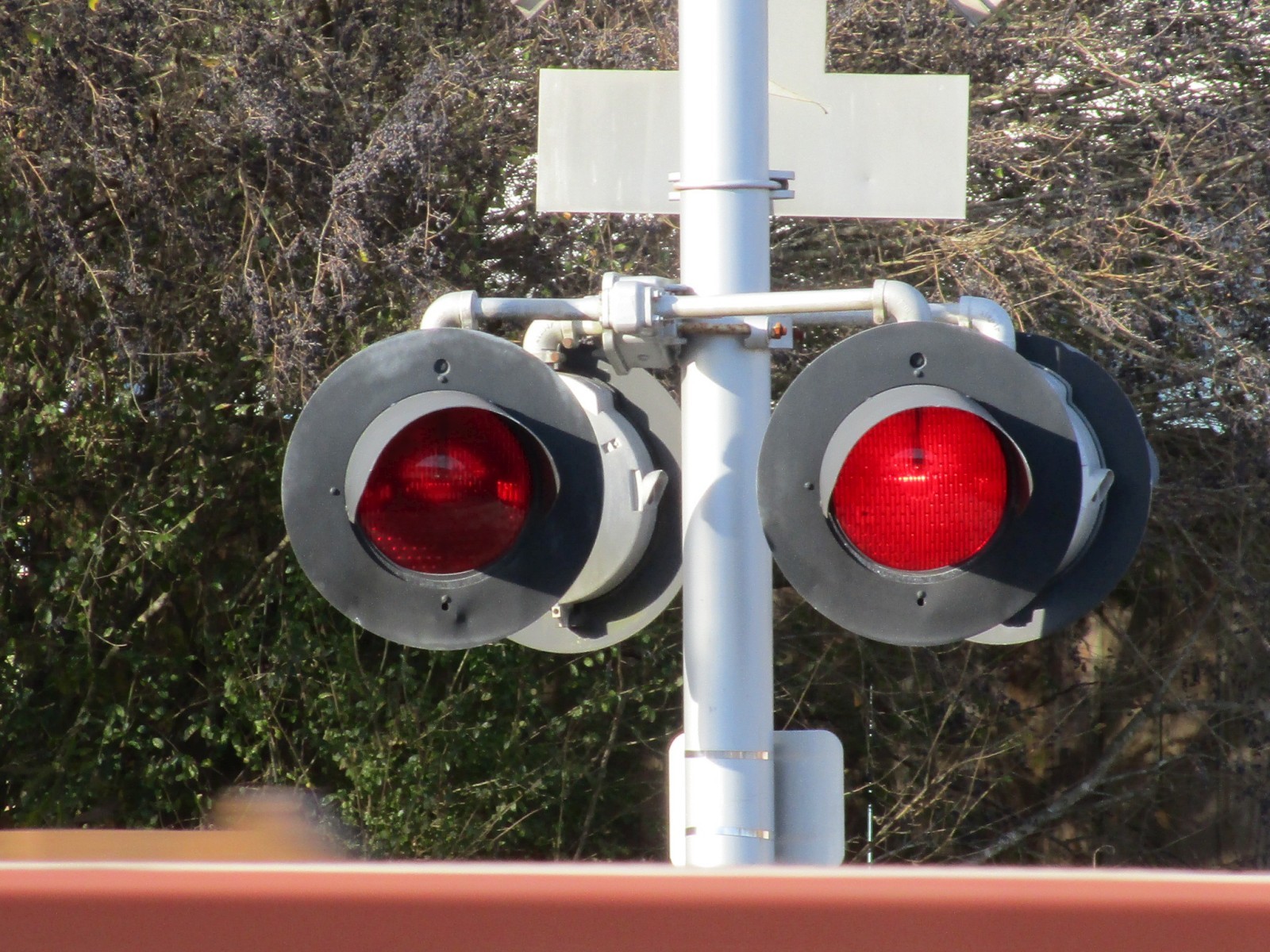

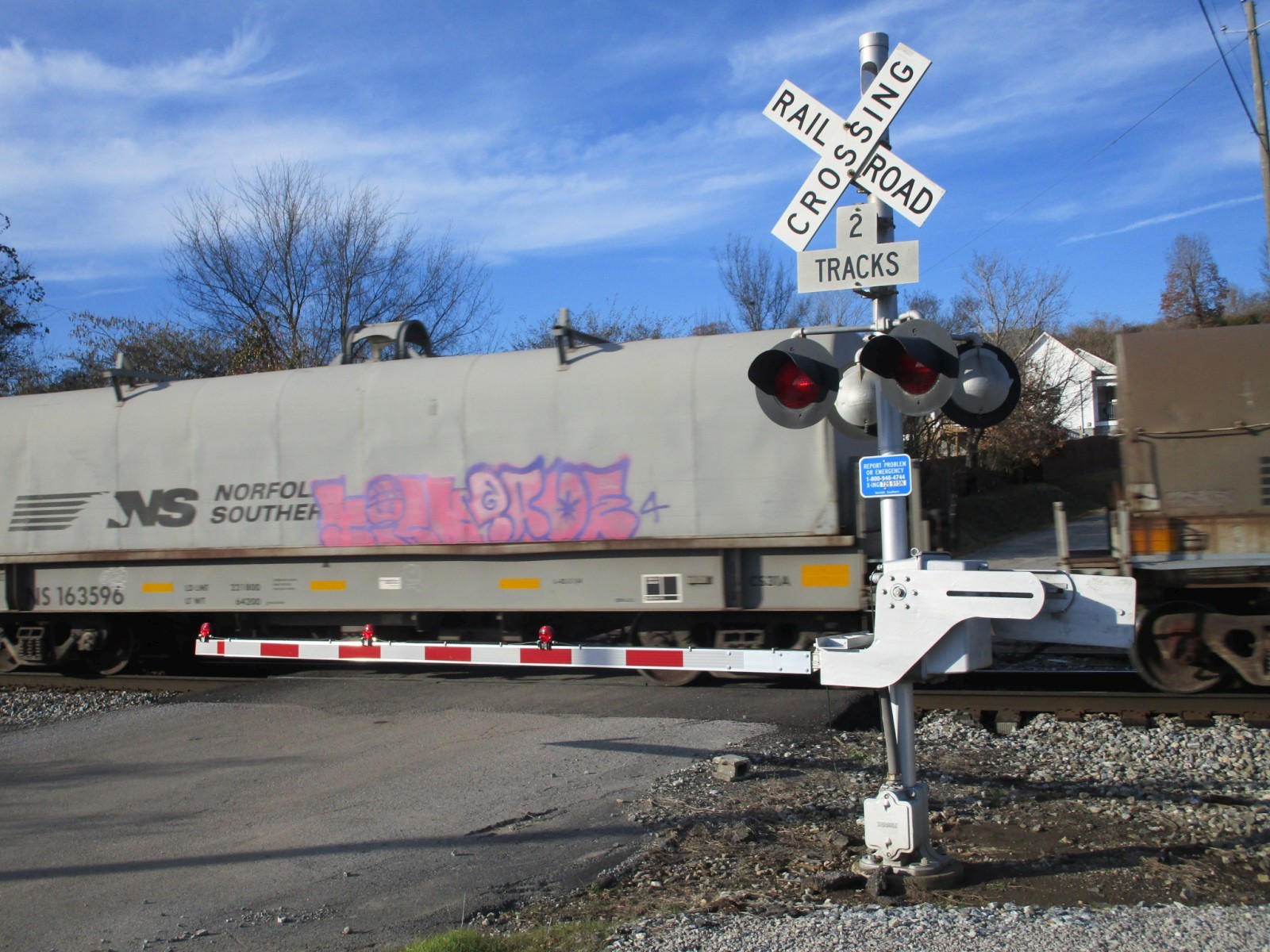

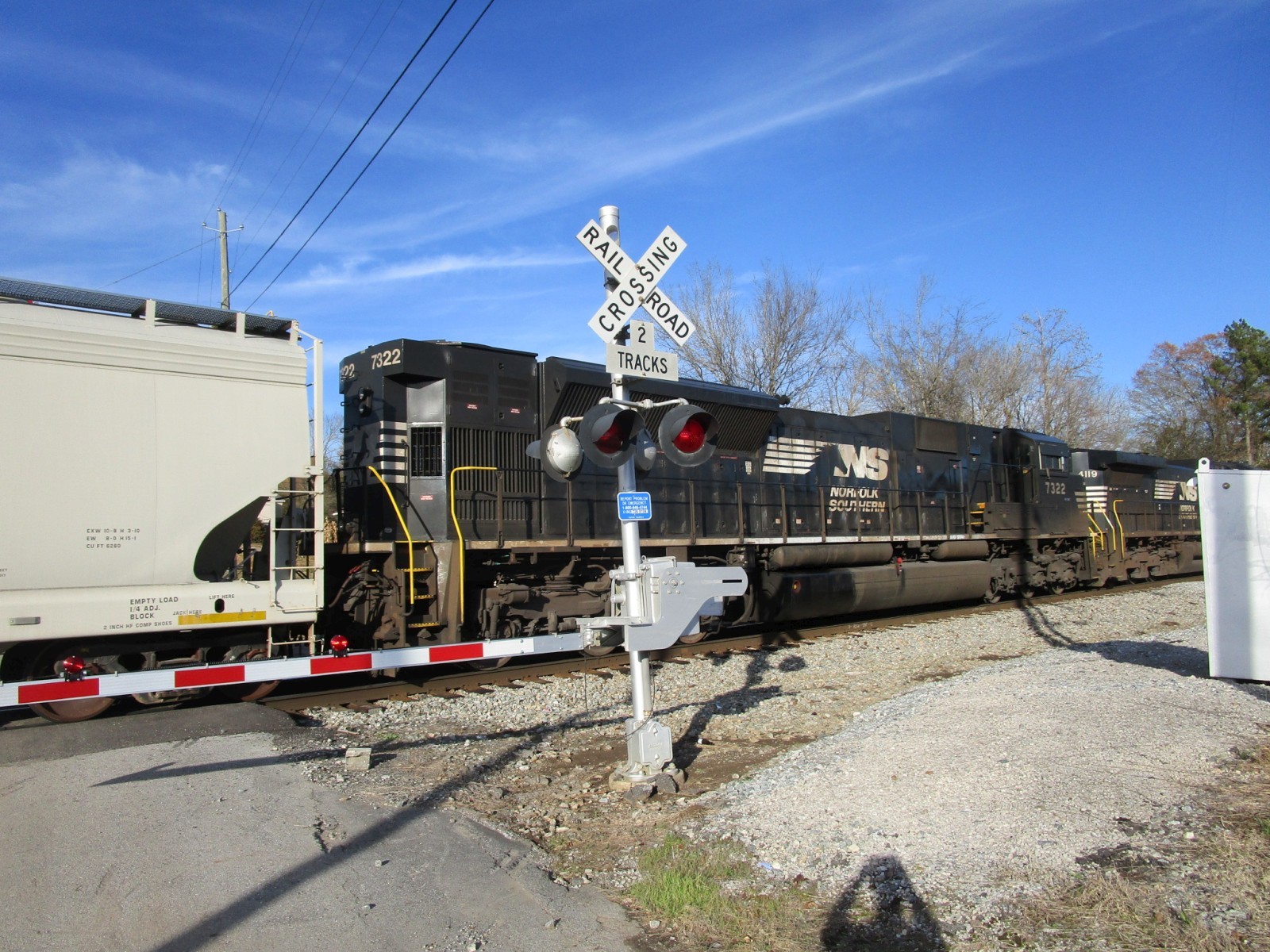

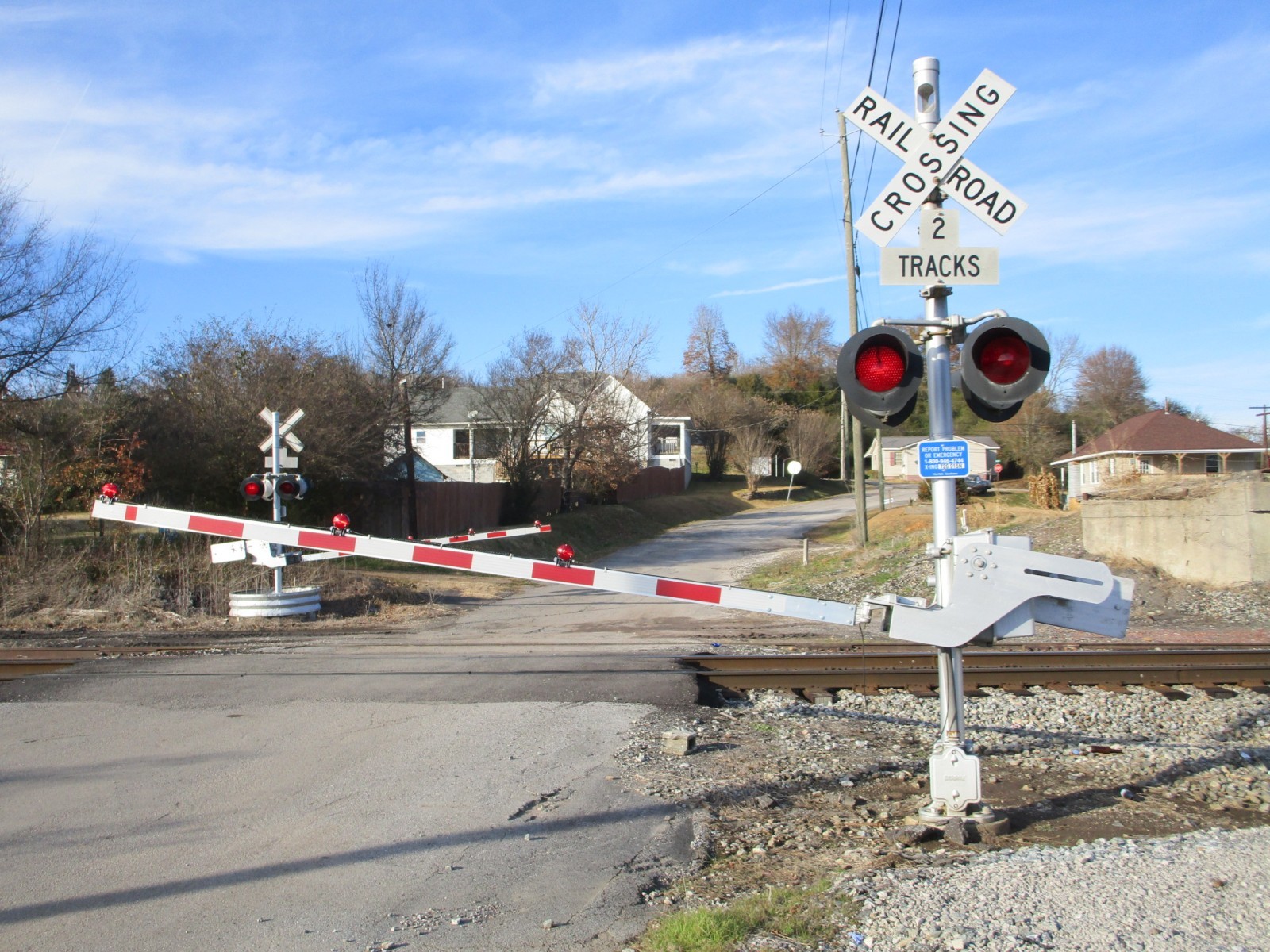

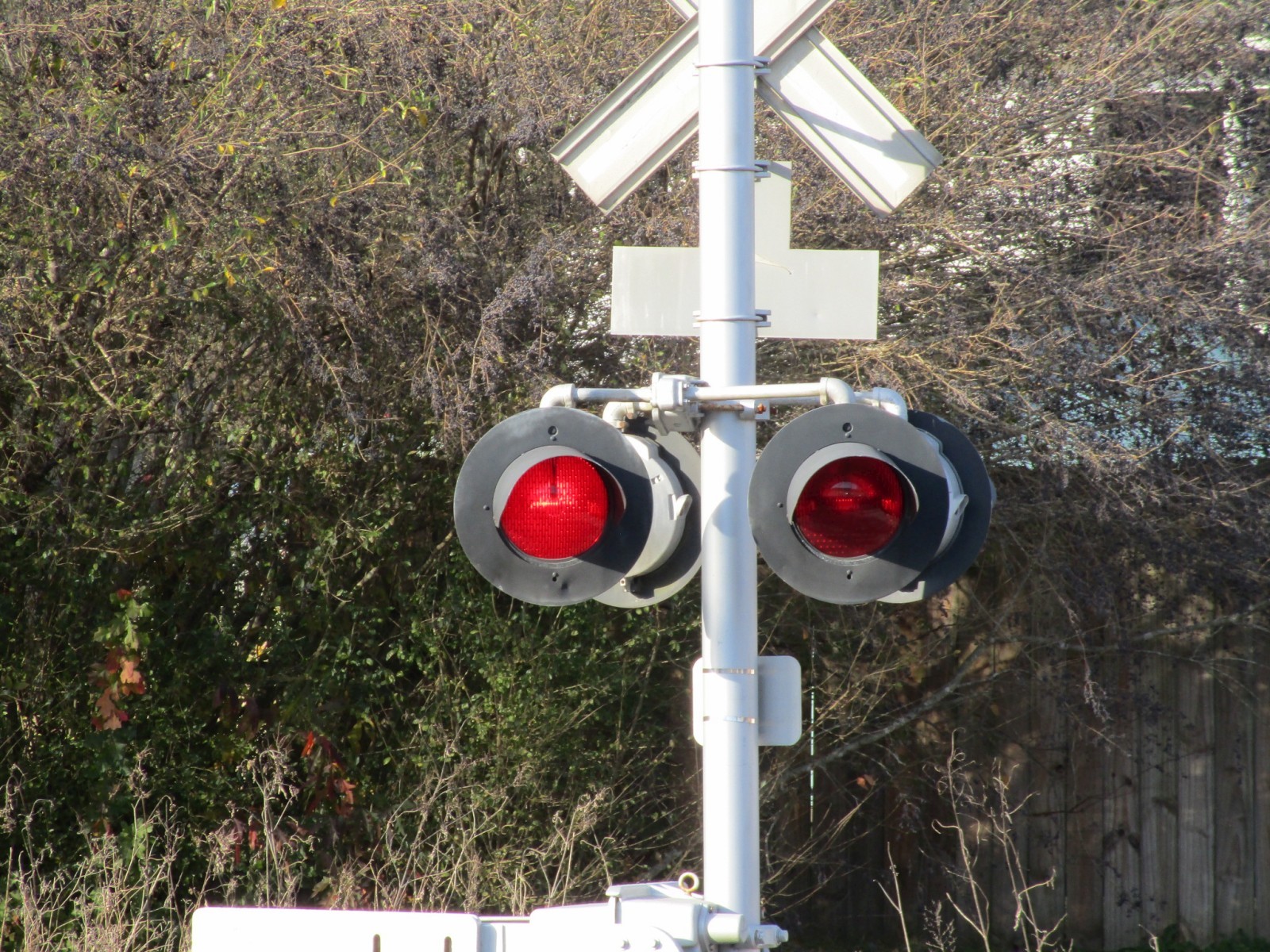

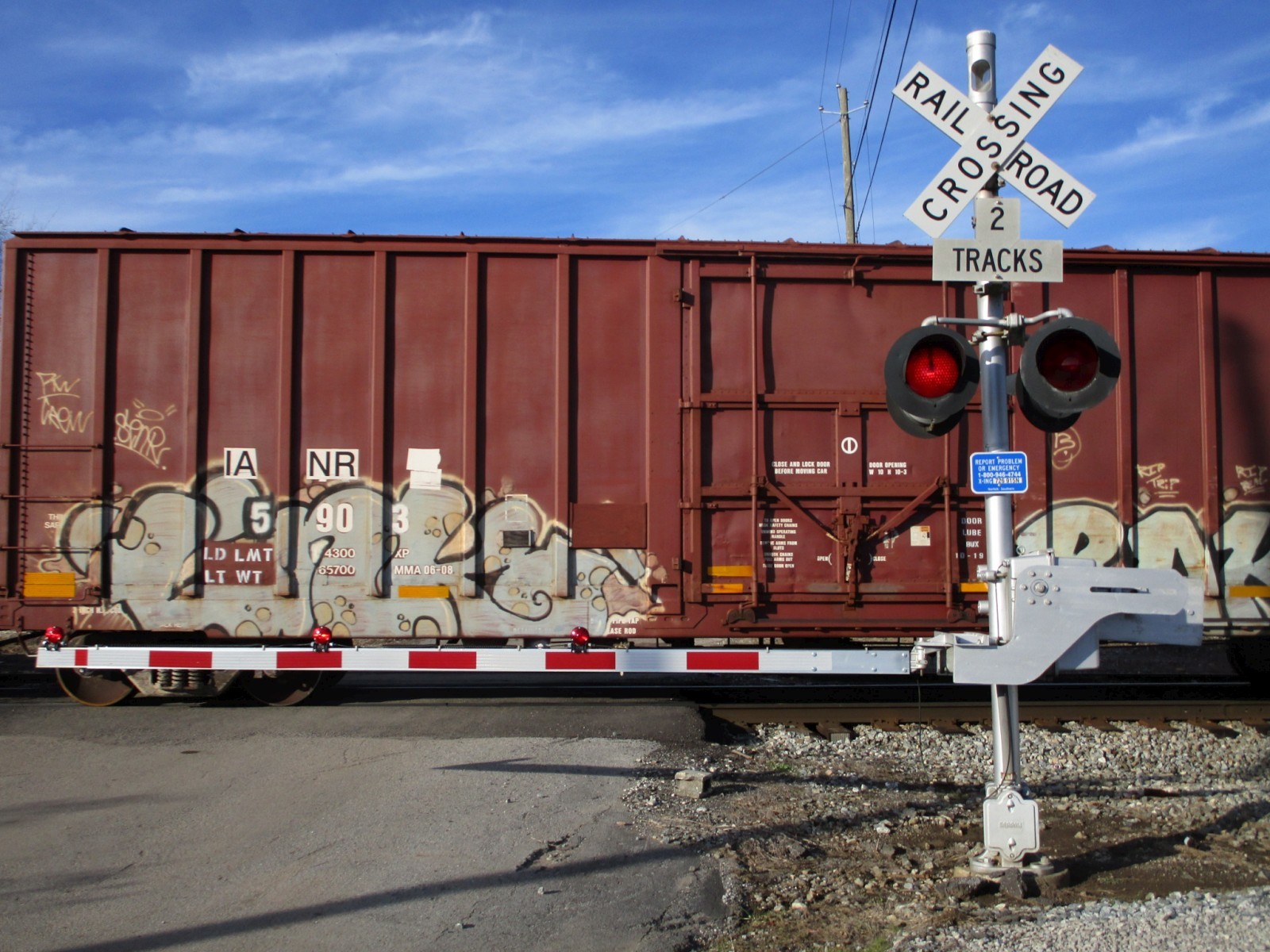

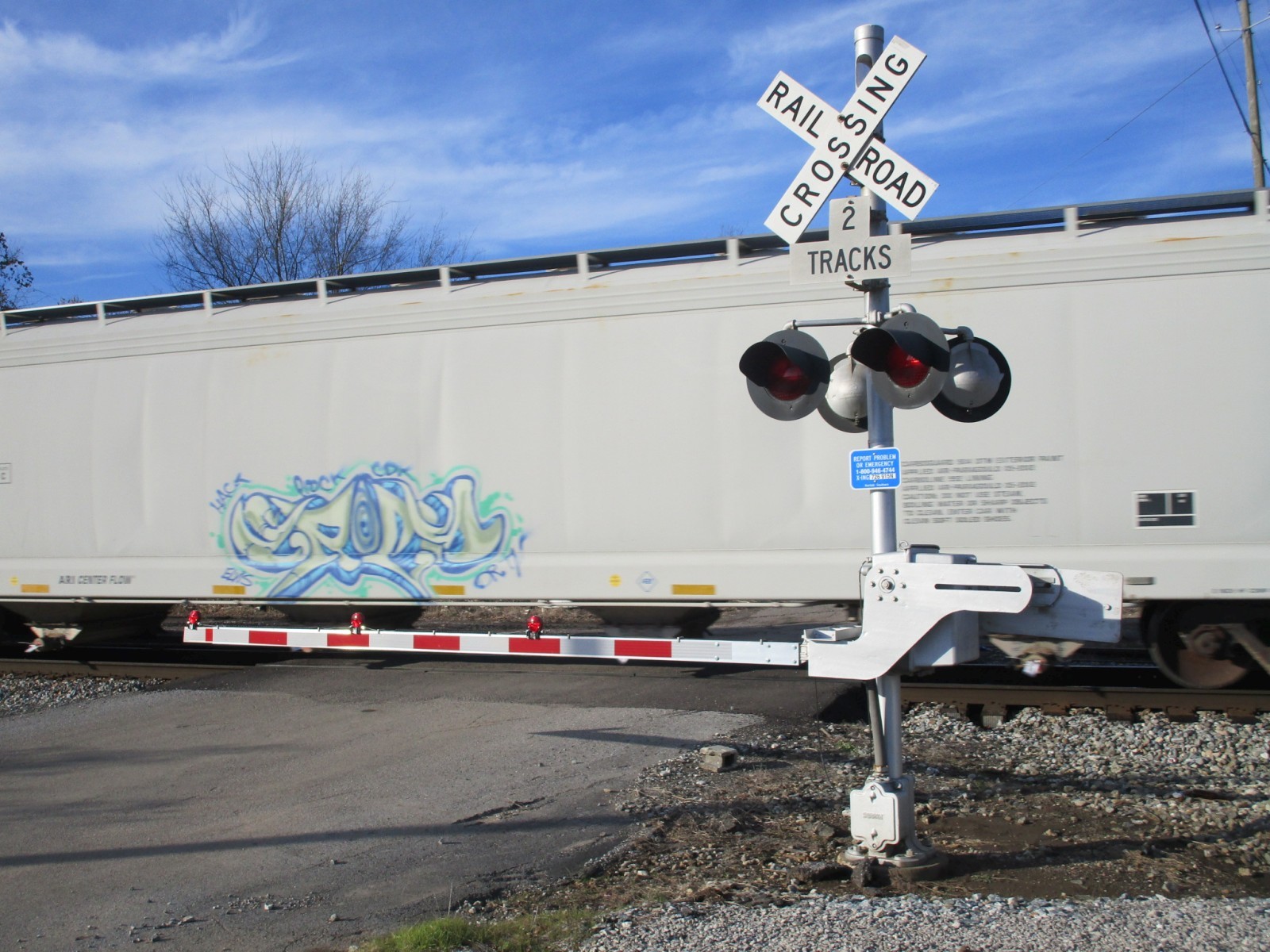

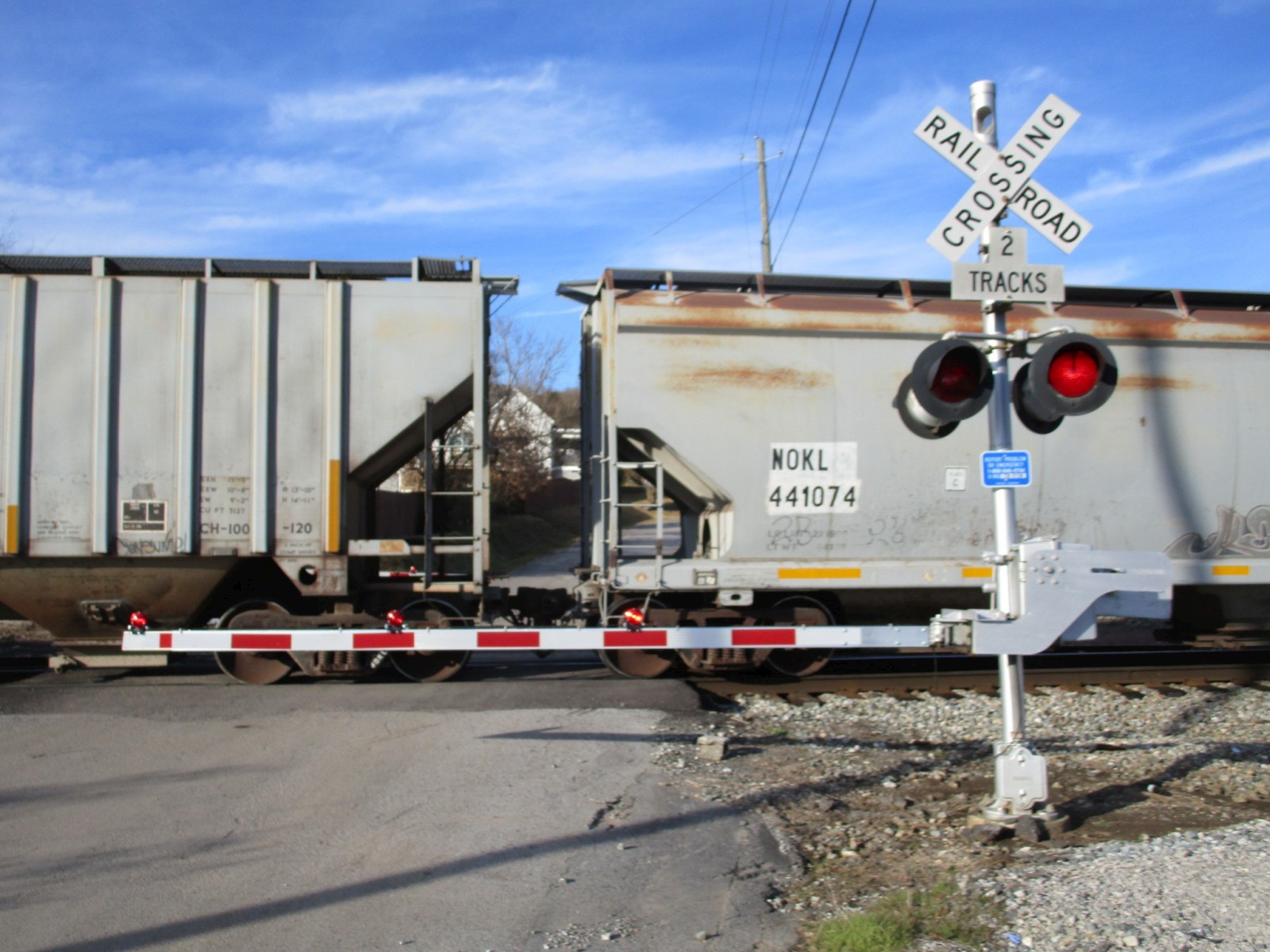

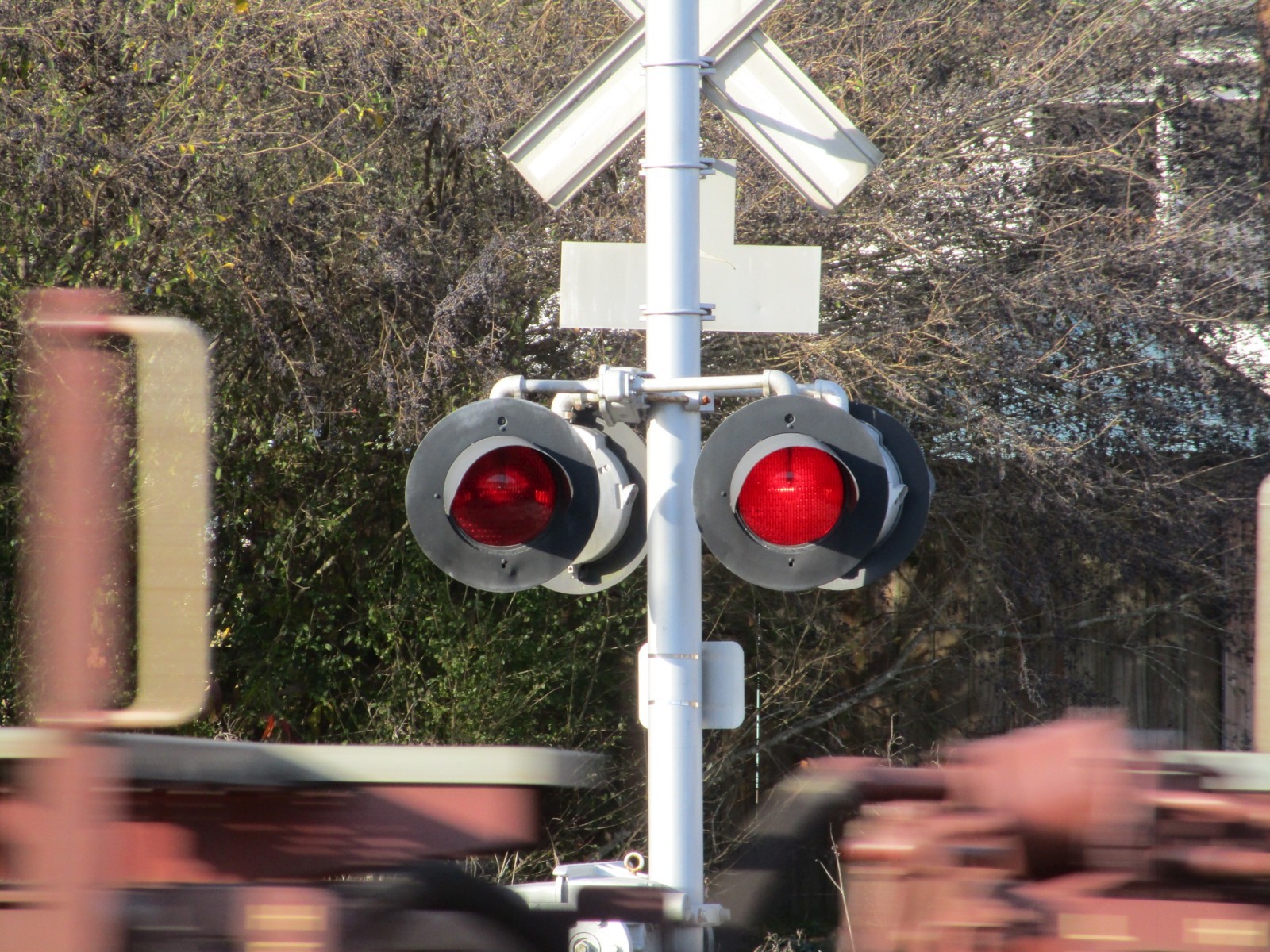

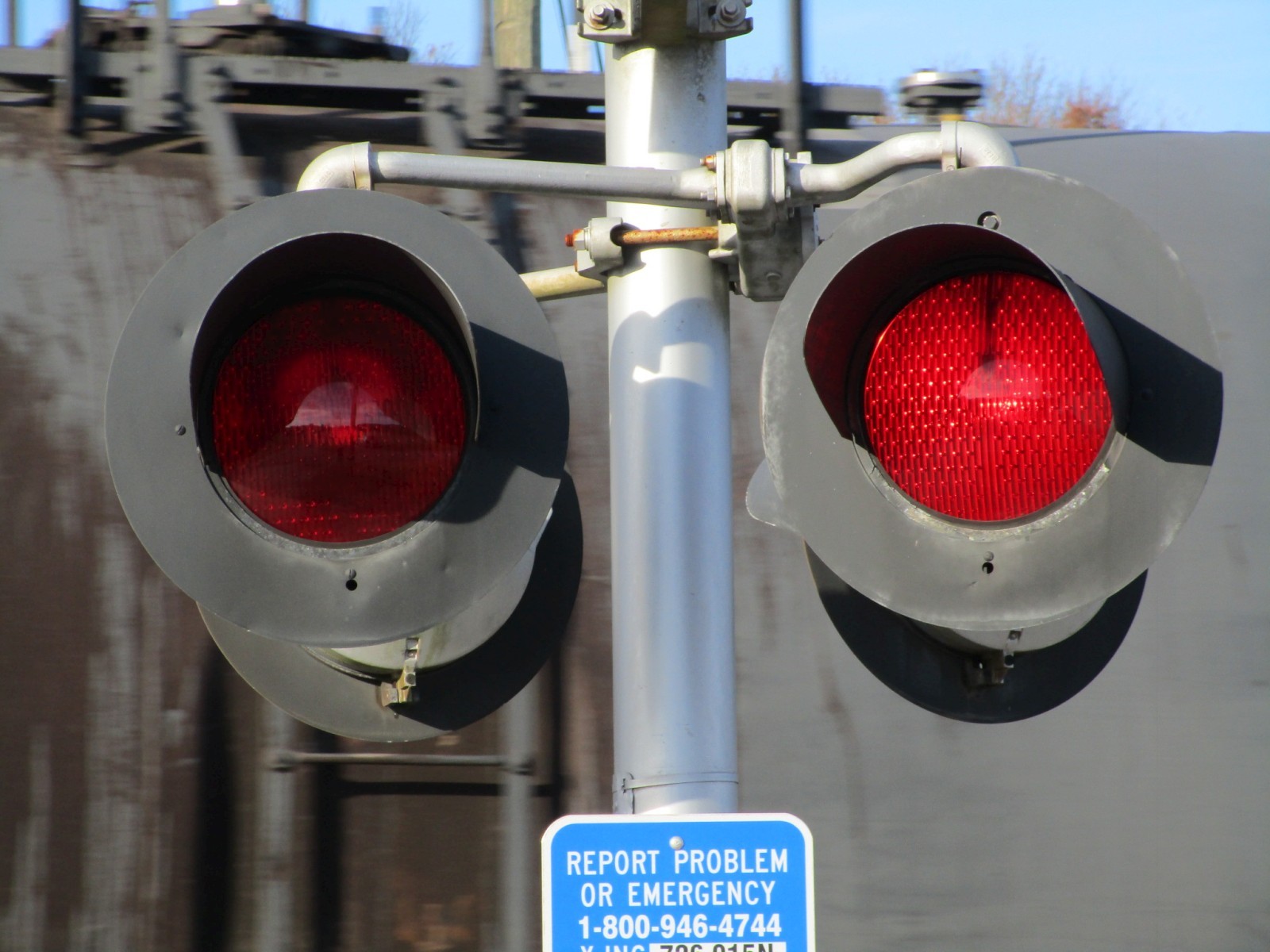

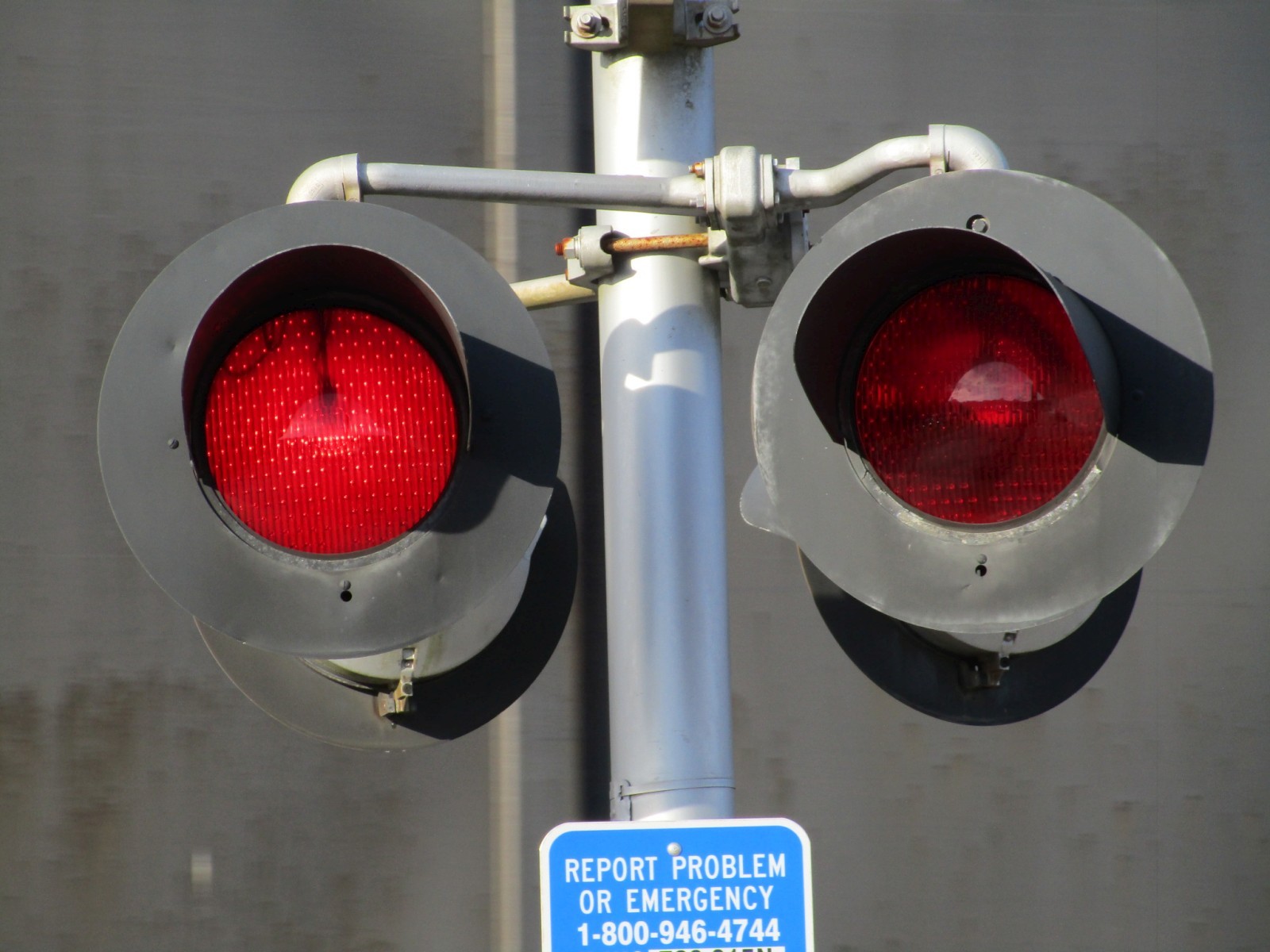

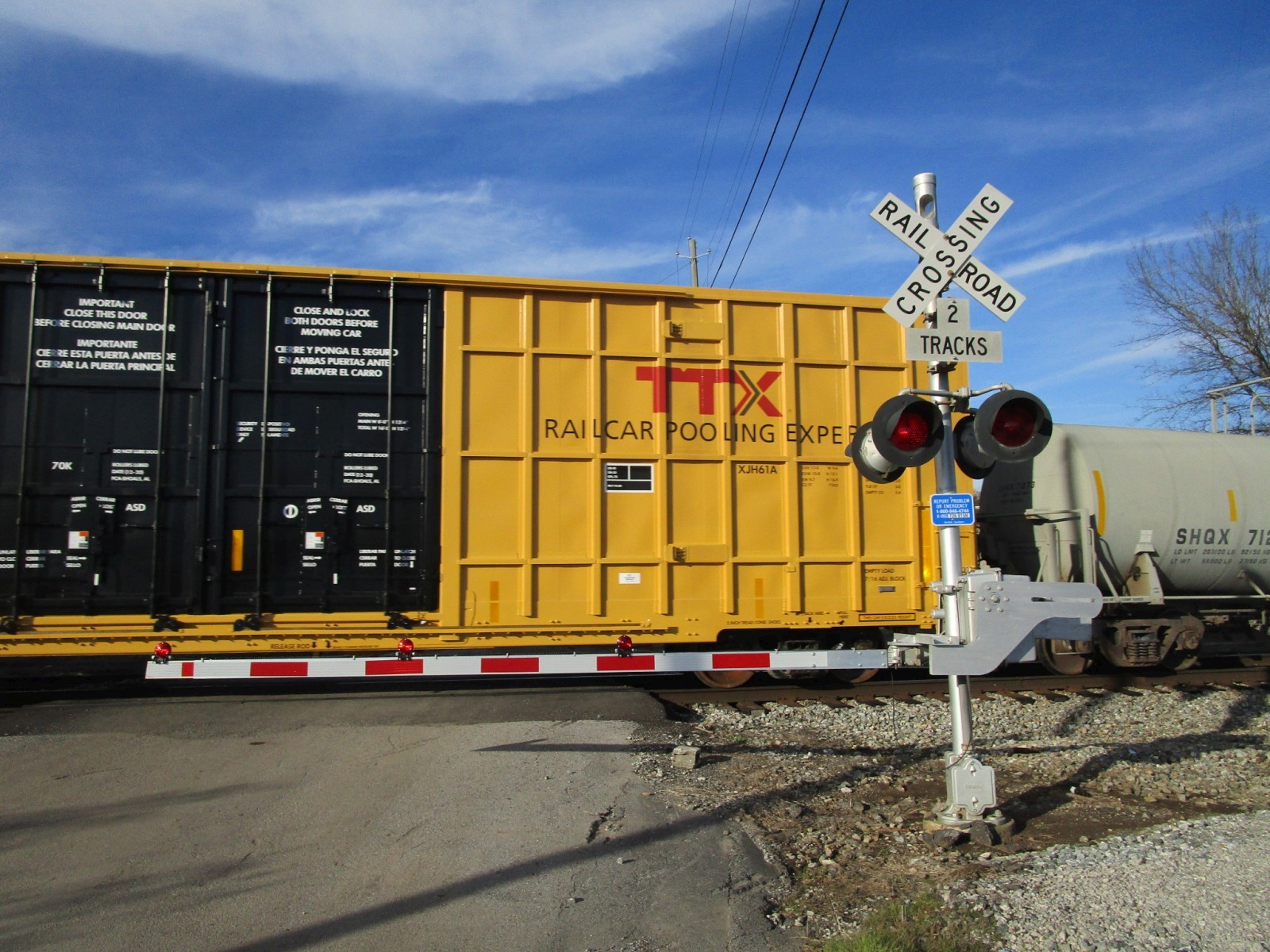

The crossing activates!

32

33

34

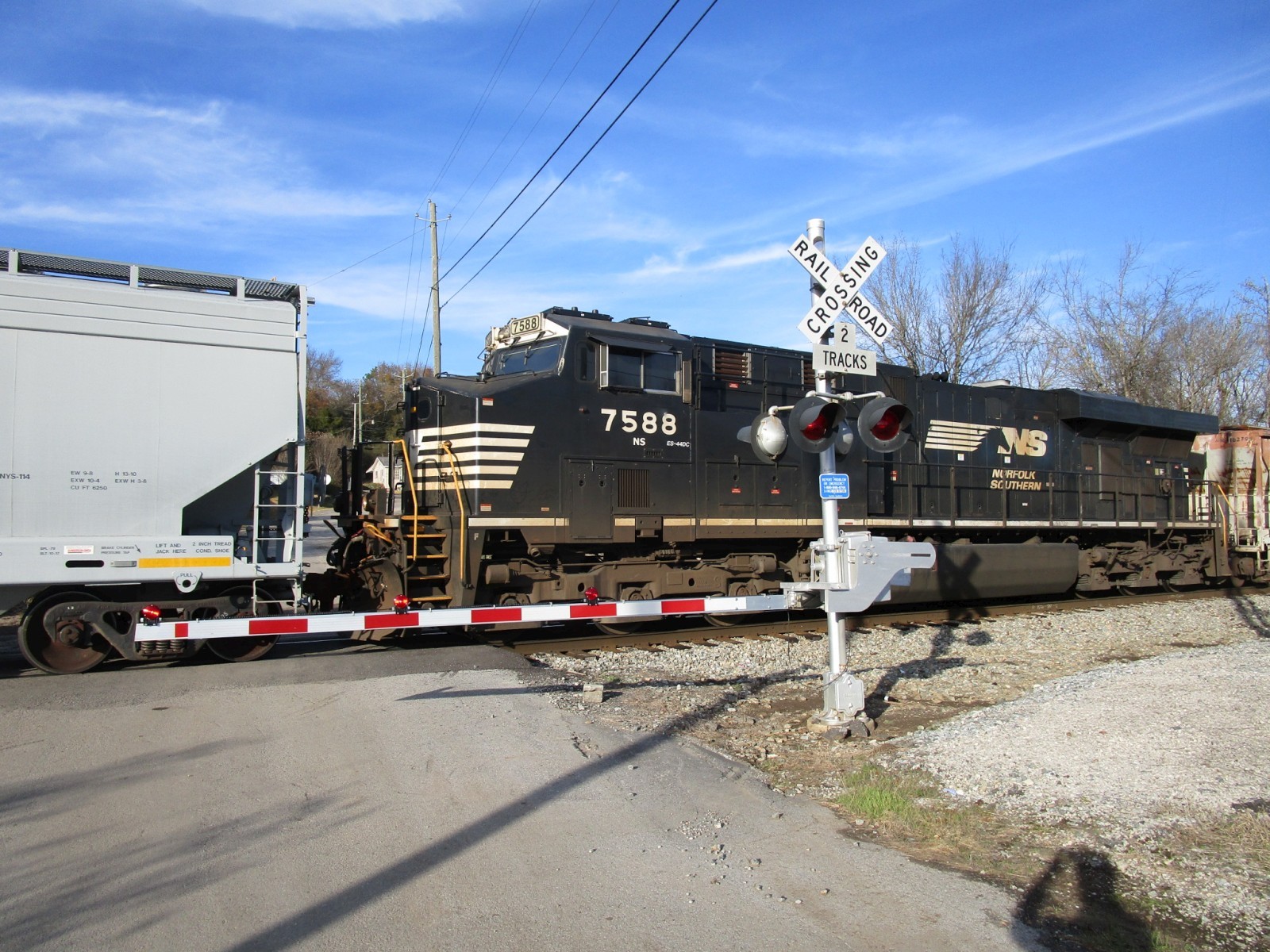

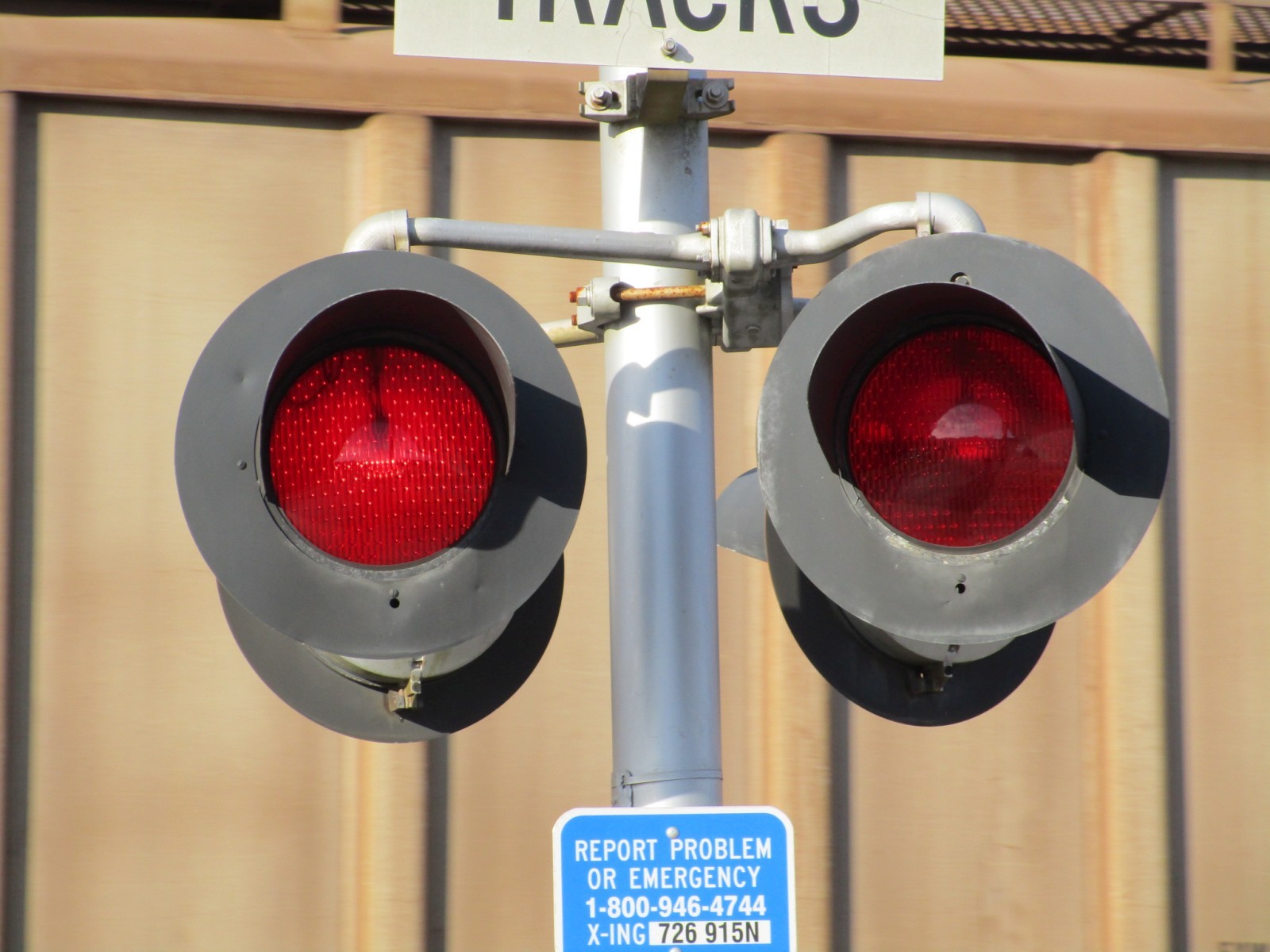

NS 320 comes through with an AC44C6M leading an SD70ACu on the head-end.

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

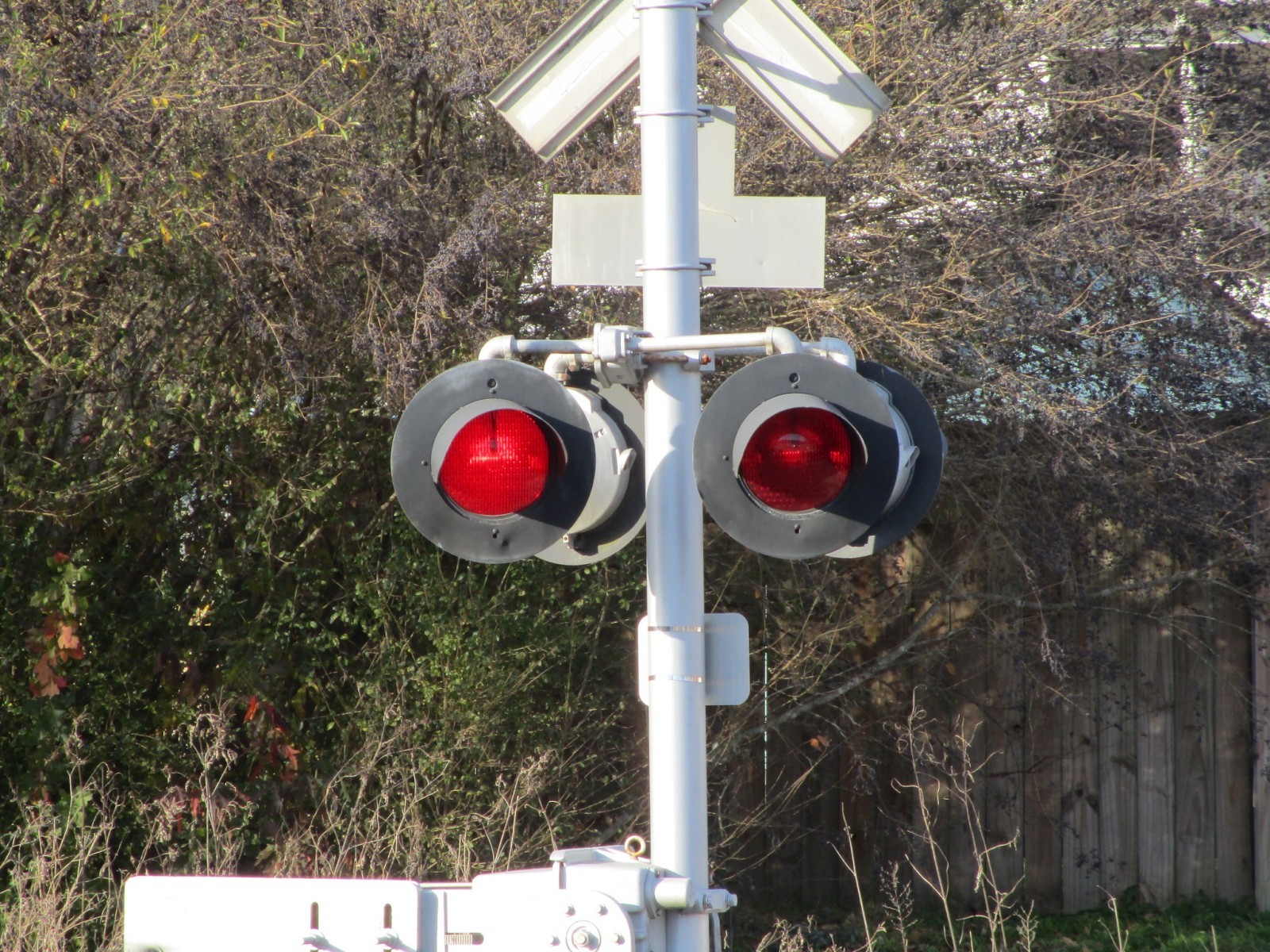

An ES44DC works as the mid-train DPU.

62

63

64

65

66

67

68

69

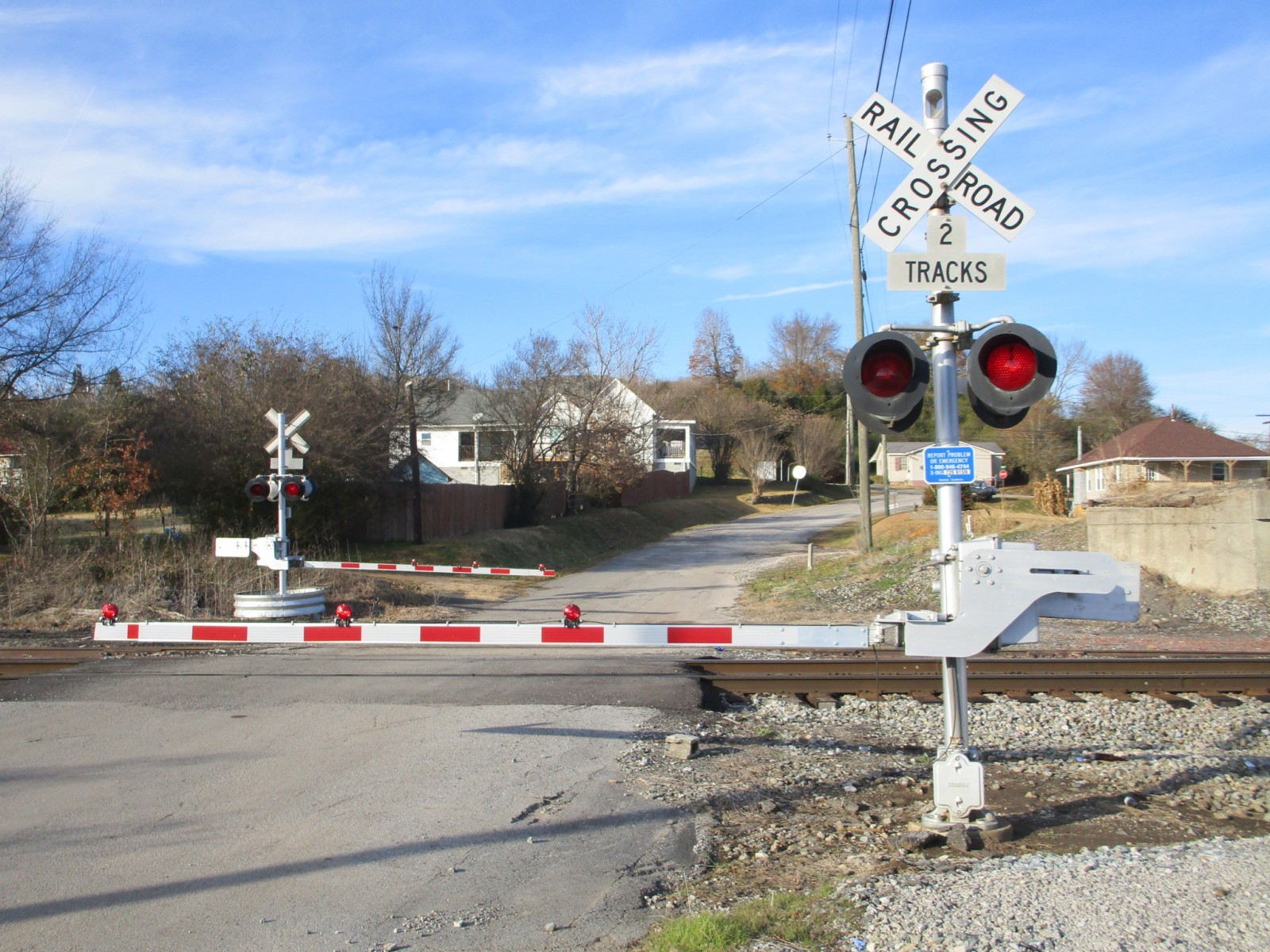

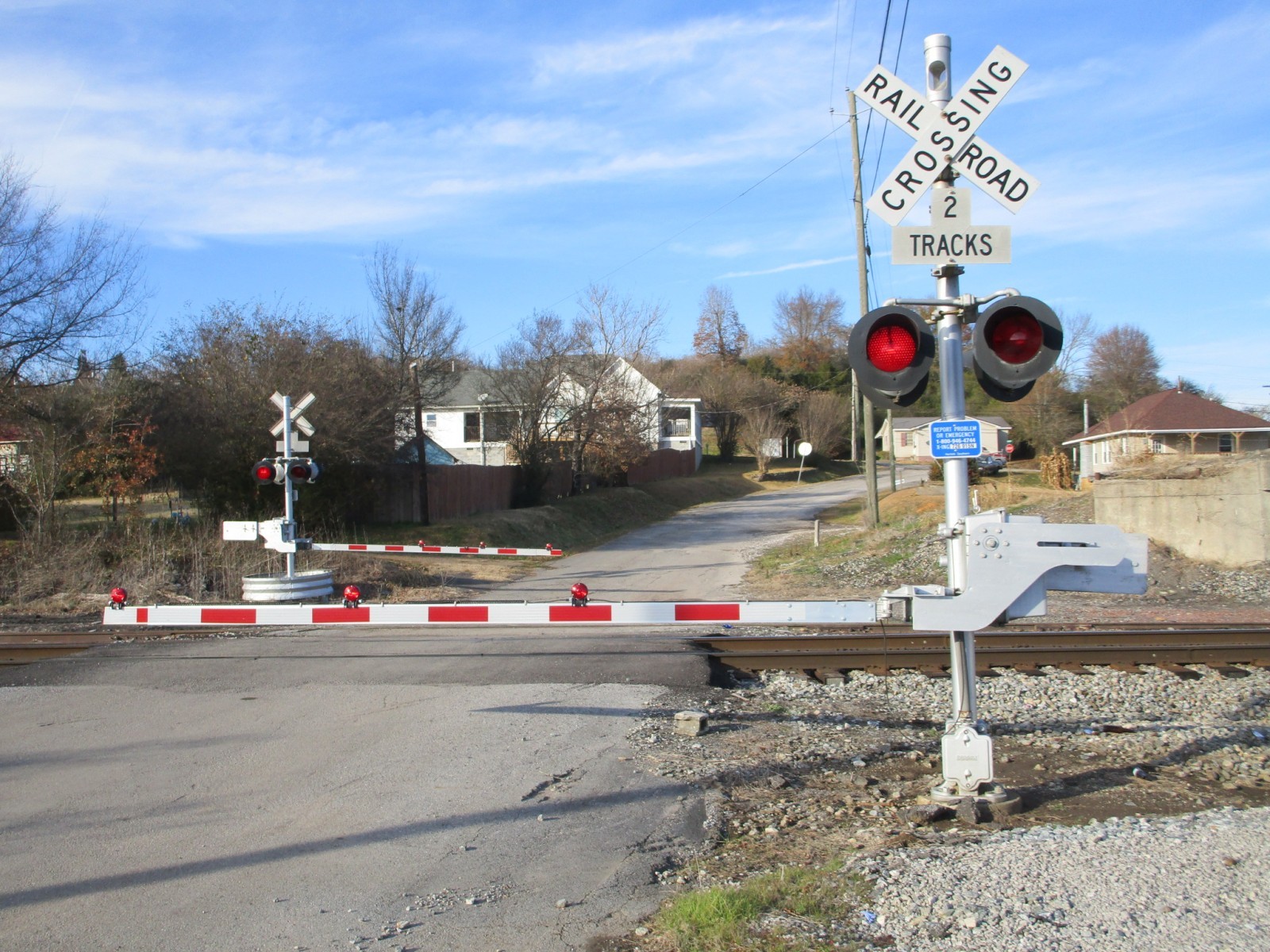

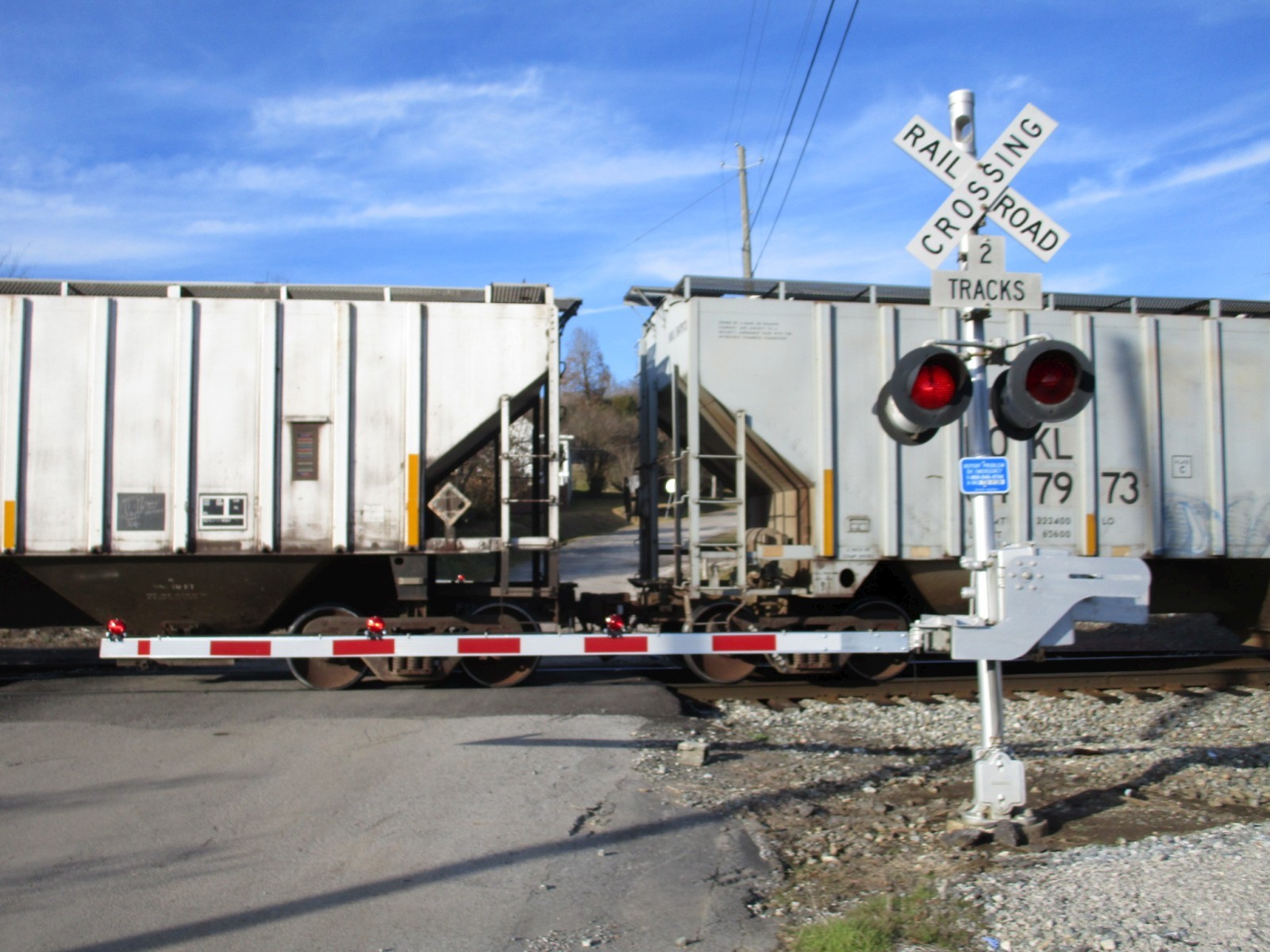

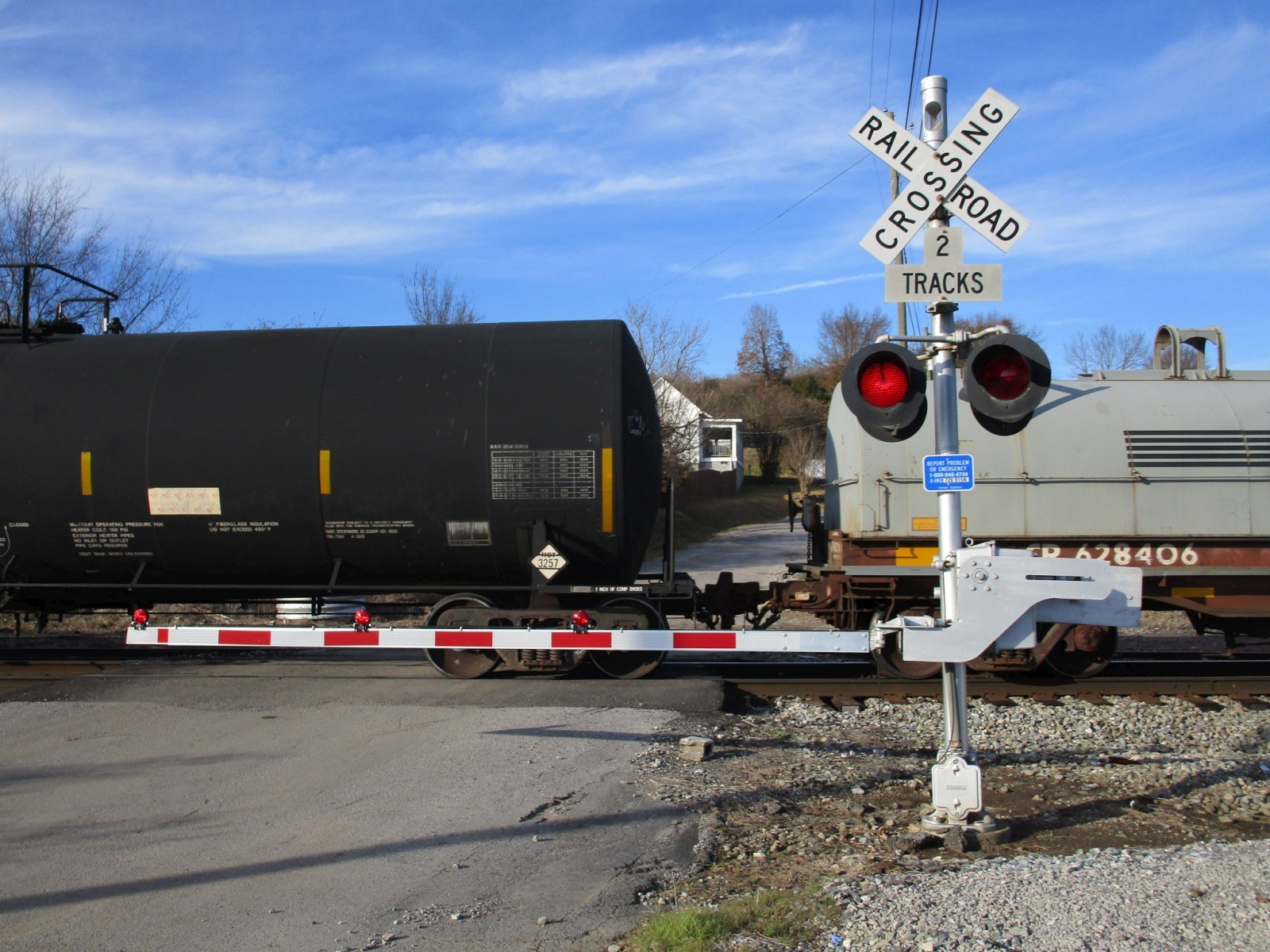

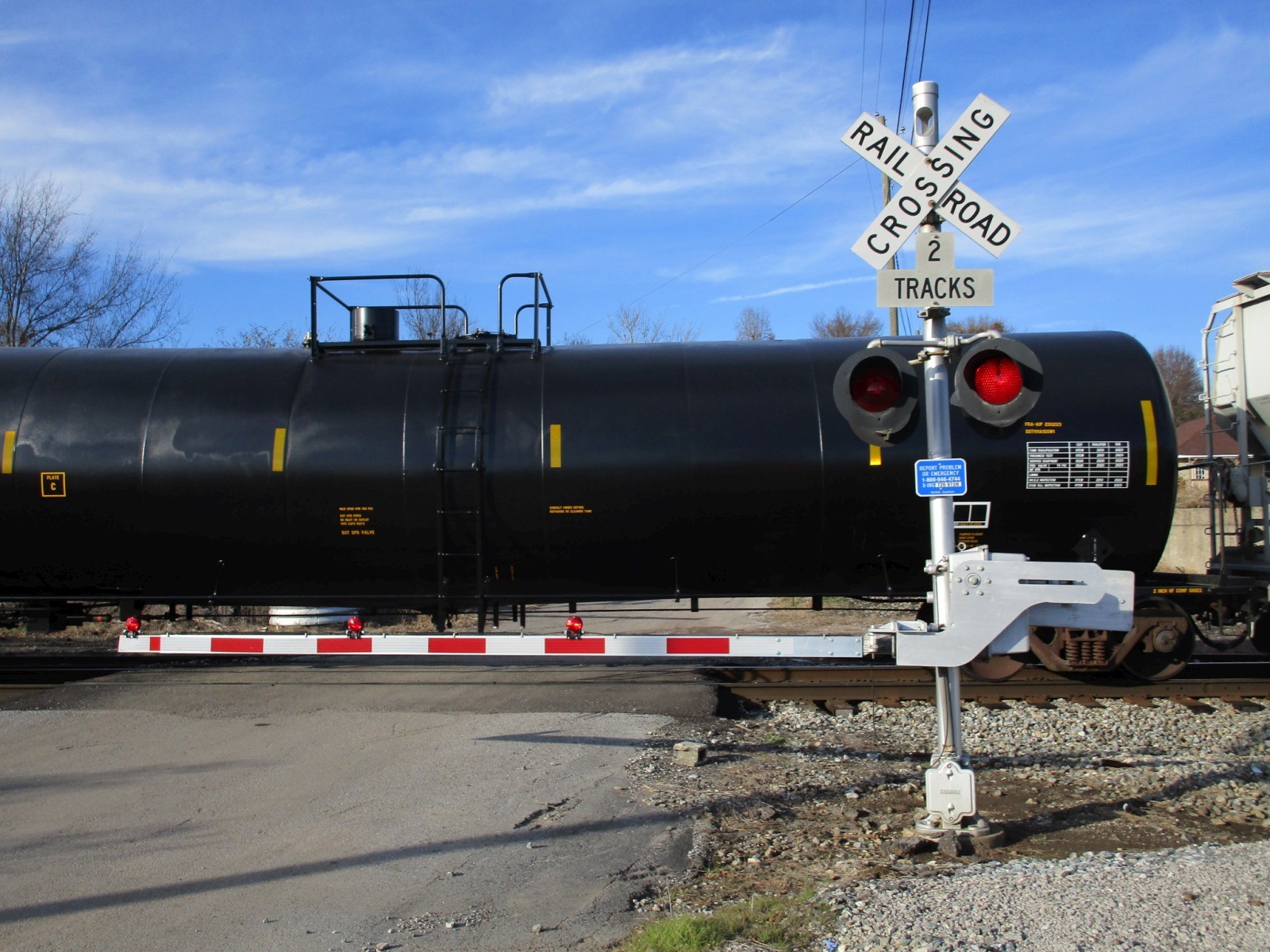

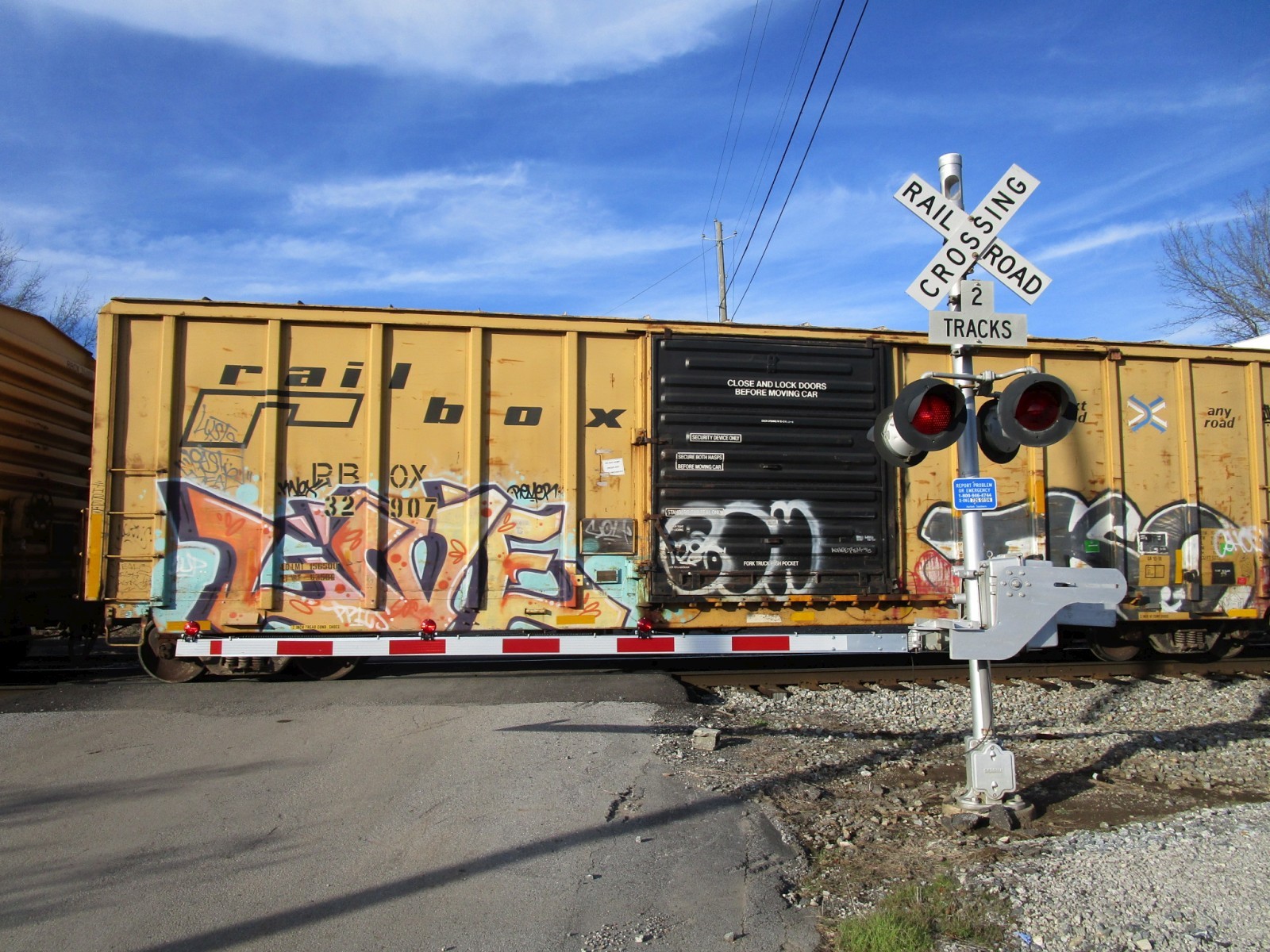

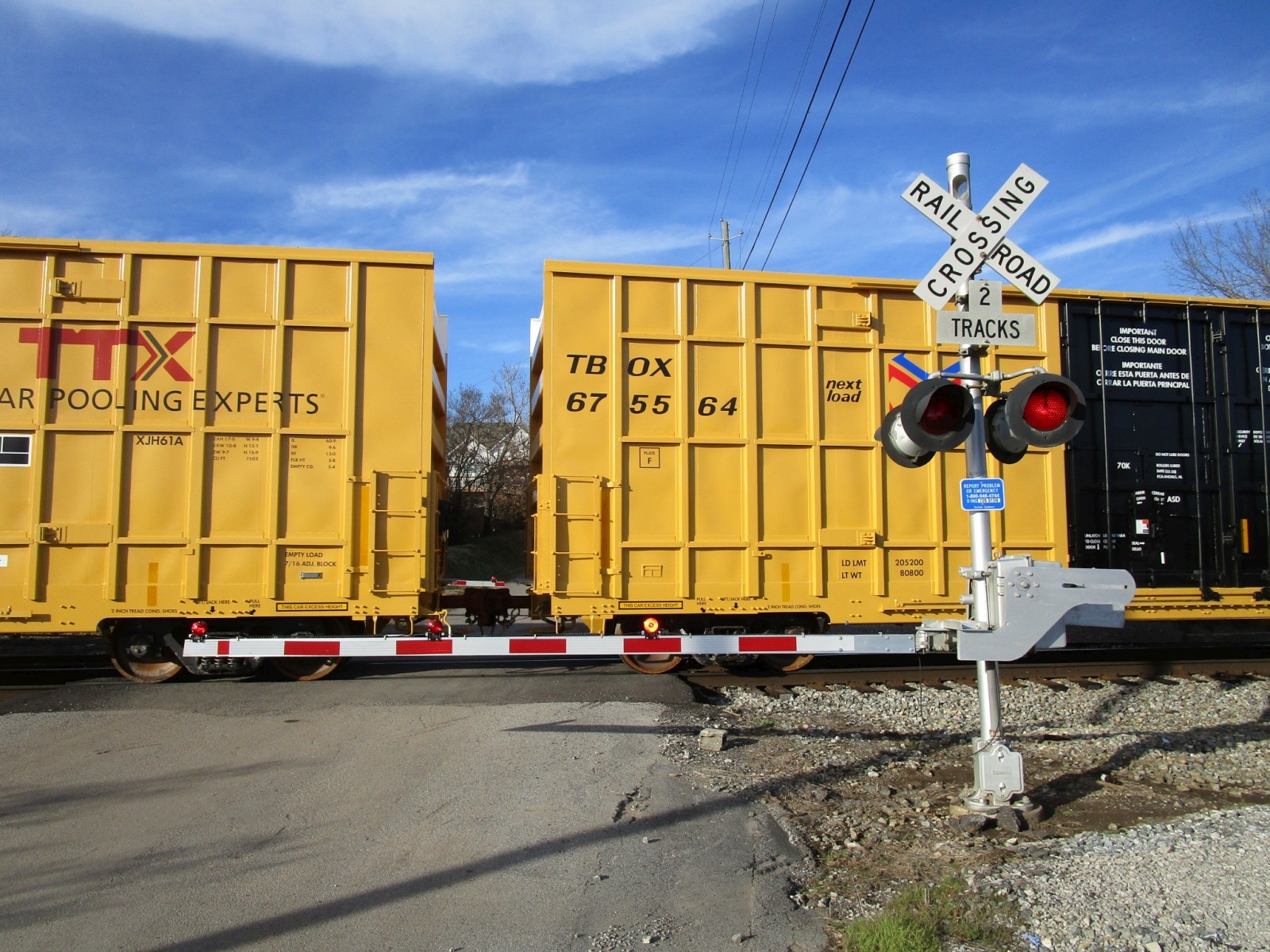

The train passes...

70

71

72

73

74

75

76

77

78

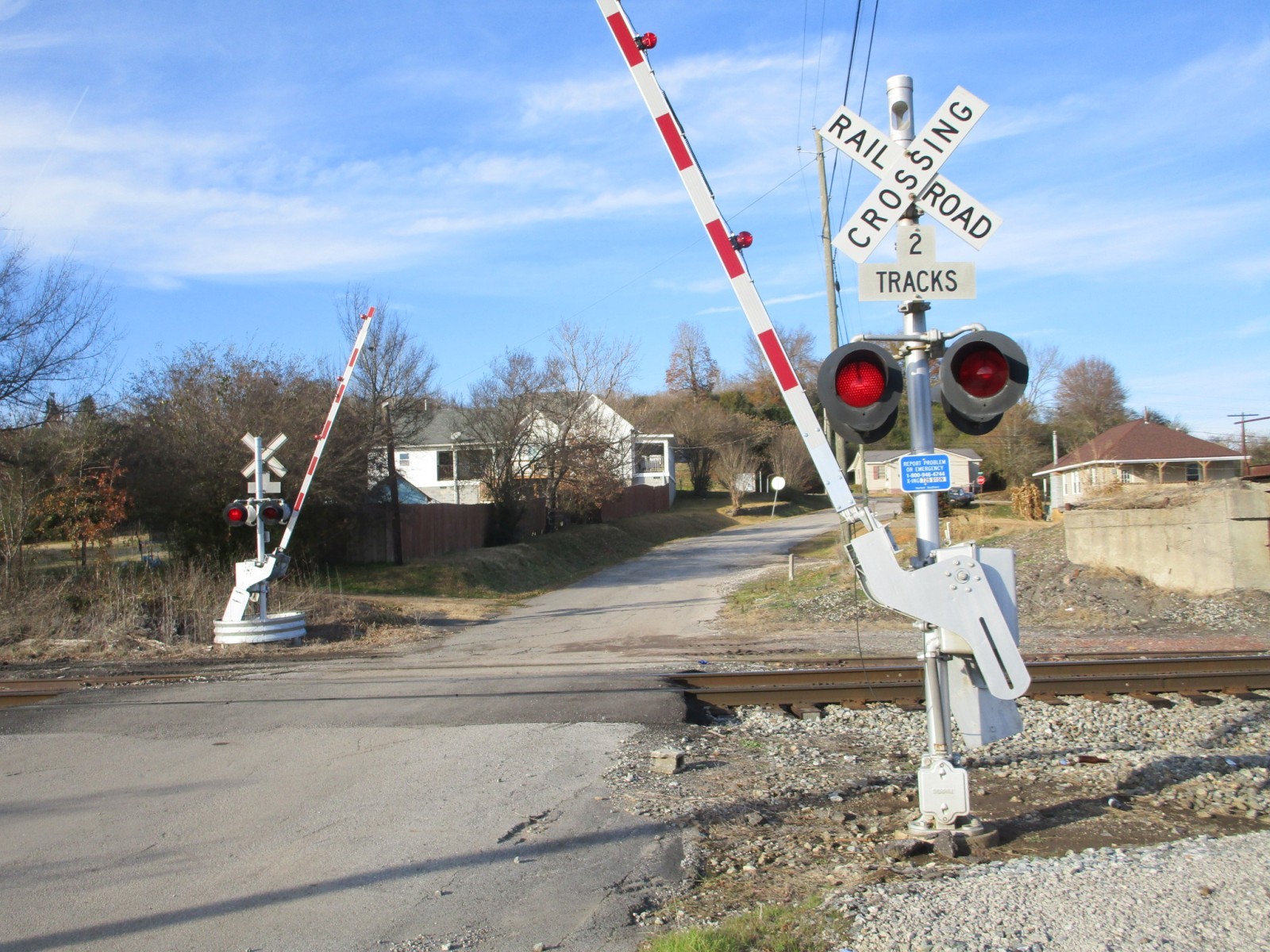

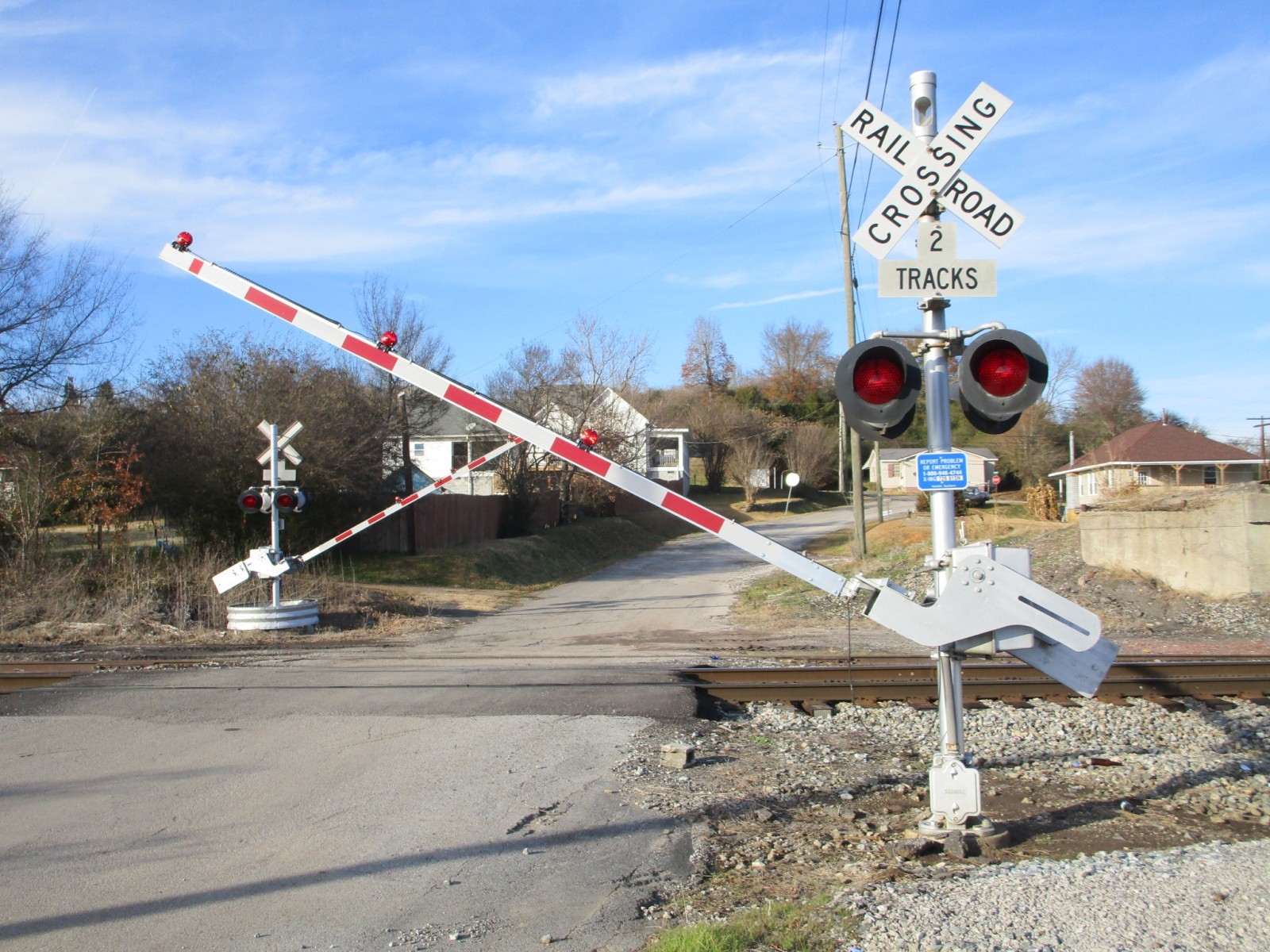

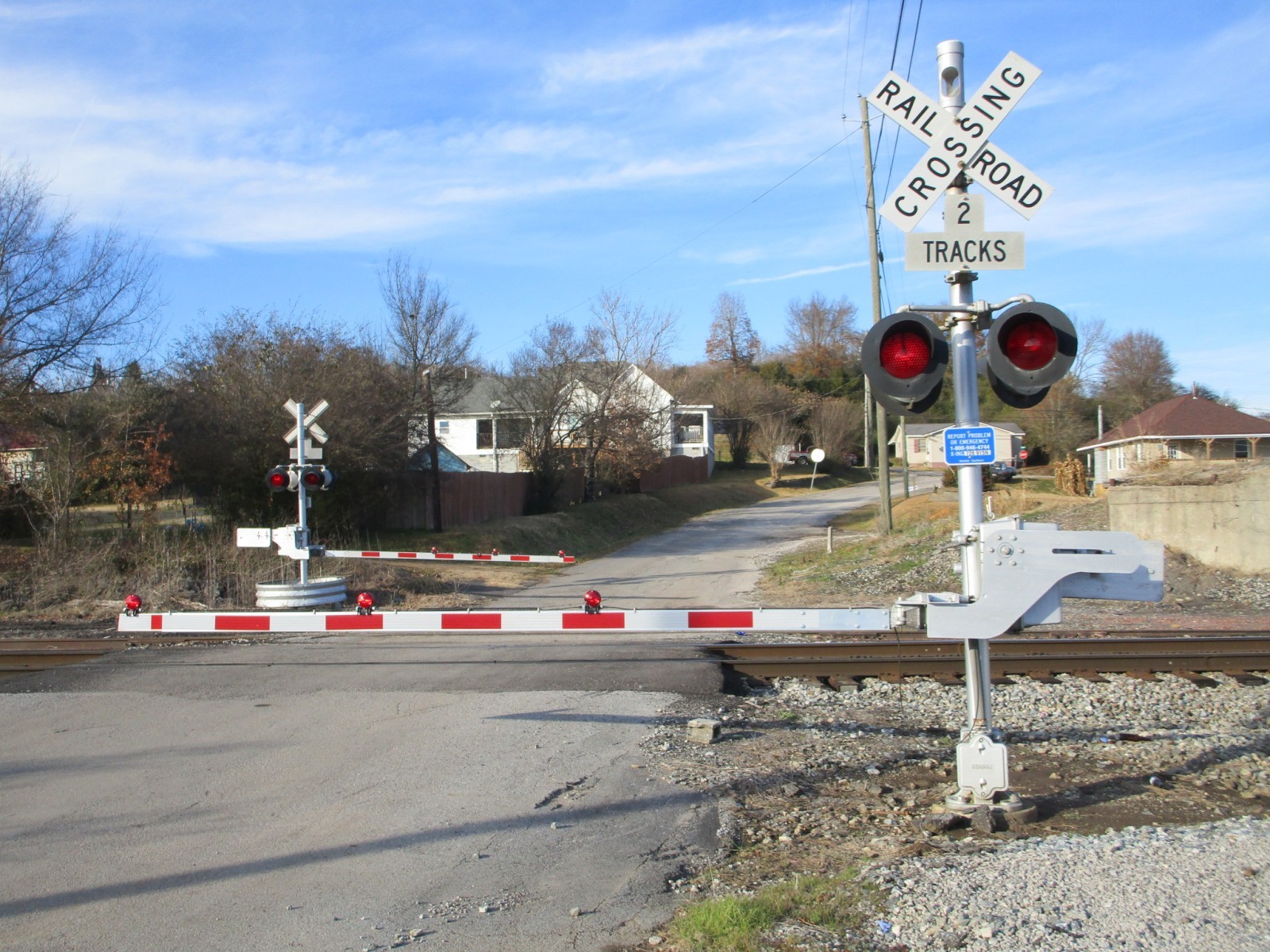

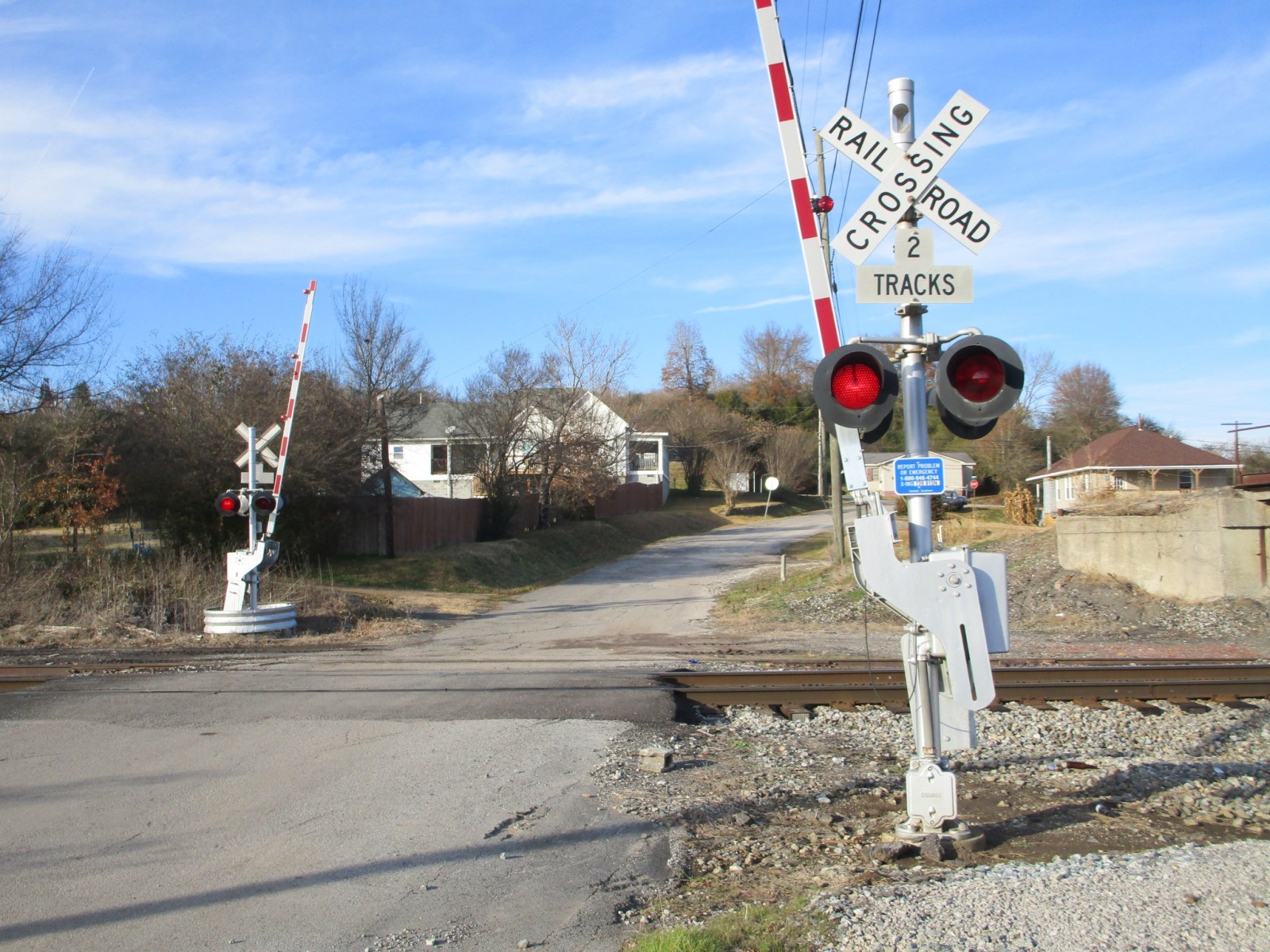

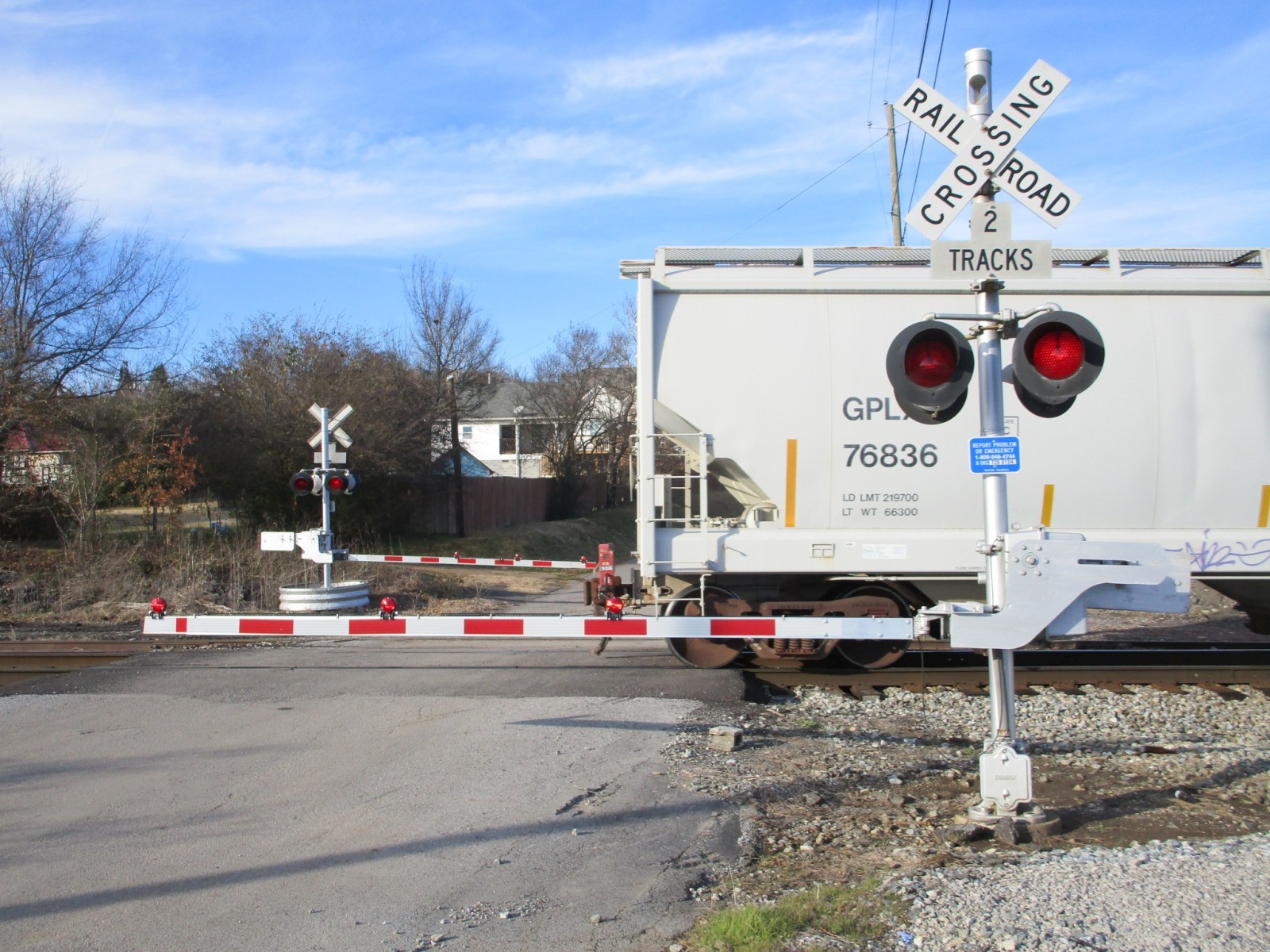

...and the gates rise.





Pictures 1-23 were taken on 6-16-16.

Pictures 24-78 and the video were taken on 12-18-20.
