MP:  A286.540



Created June 25, 2018



Total Accidents:   4
Crossing DOT #:  731687N
TOTAL DAILY TRAINS:   22   (AS OF 2018)



Page created by: freebrickproductions



This crossing is located on the NS Memphis District East End.



1

2

3

4

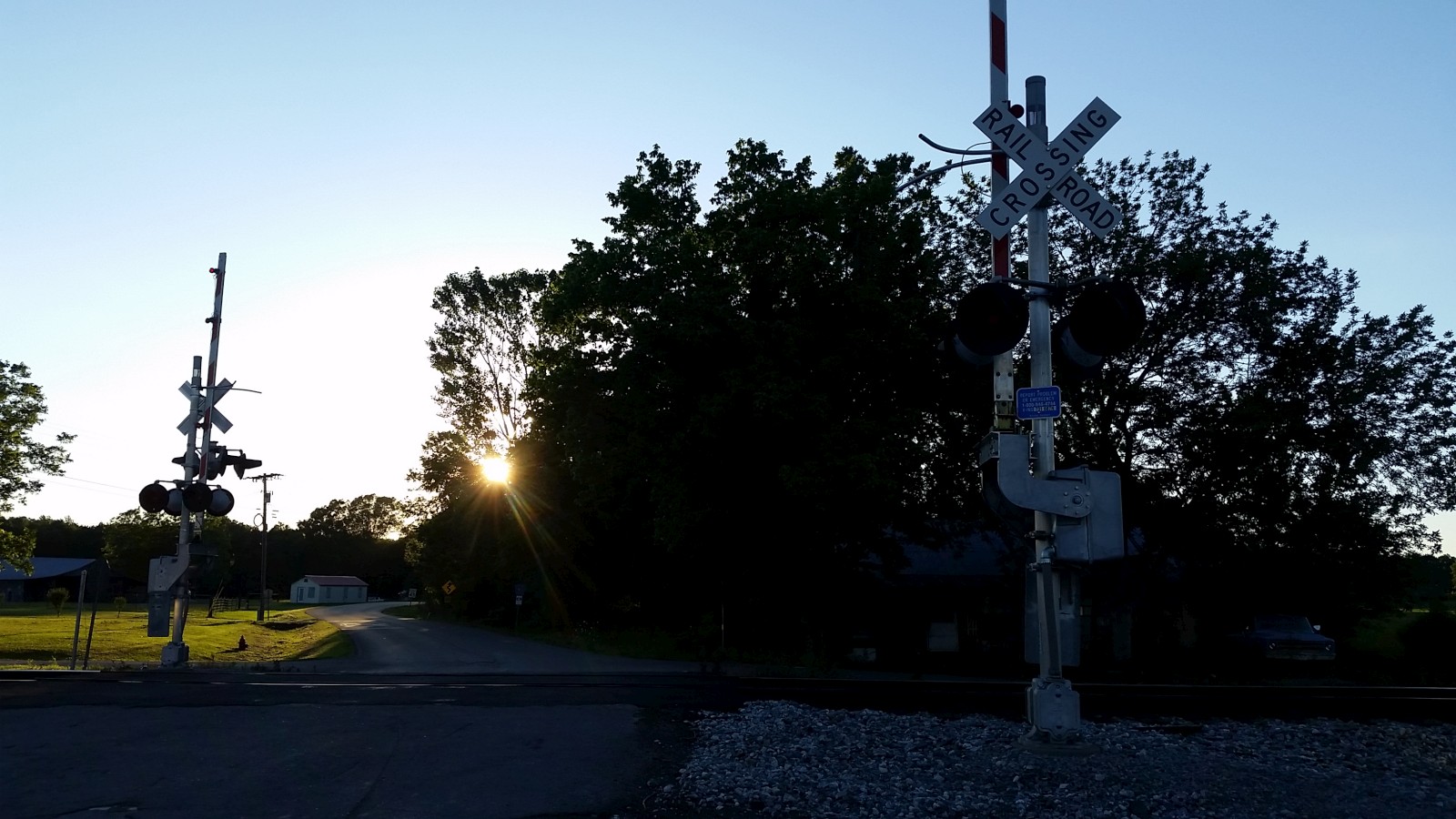

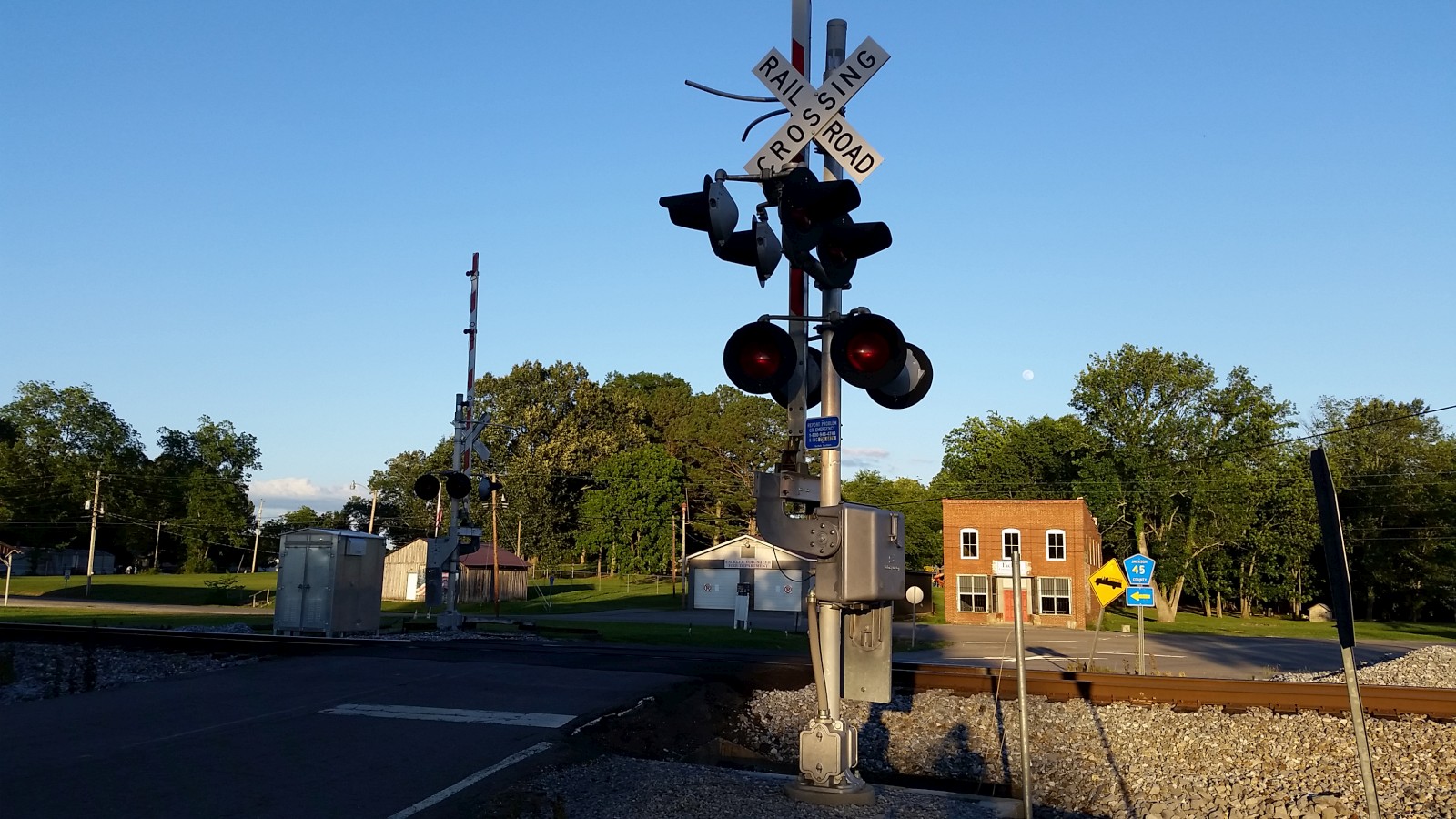

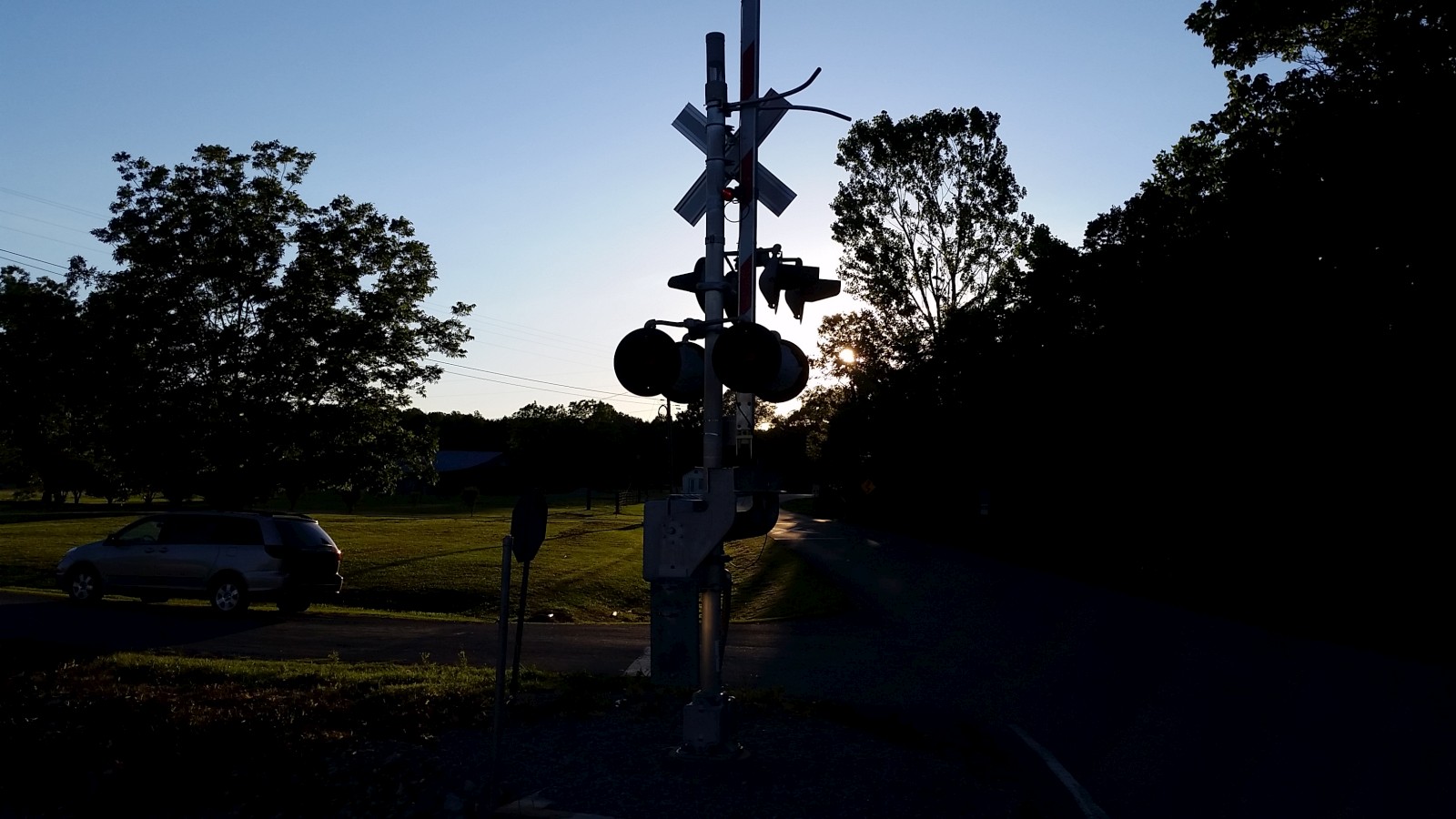

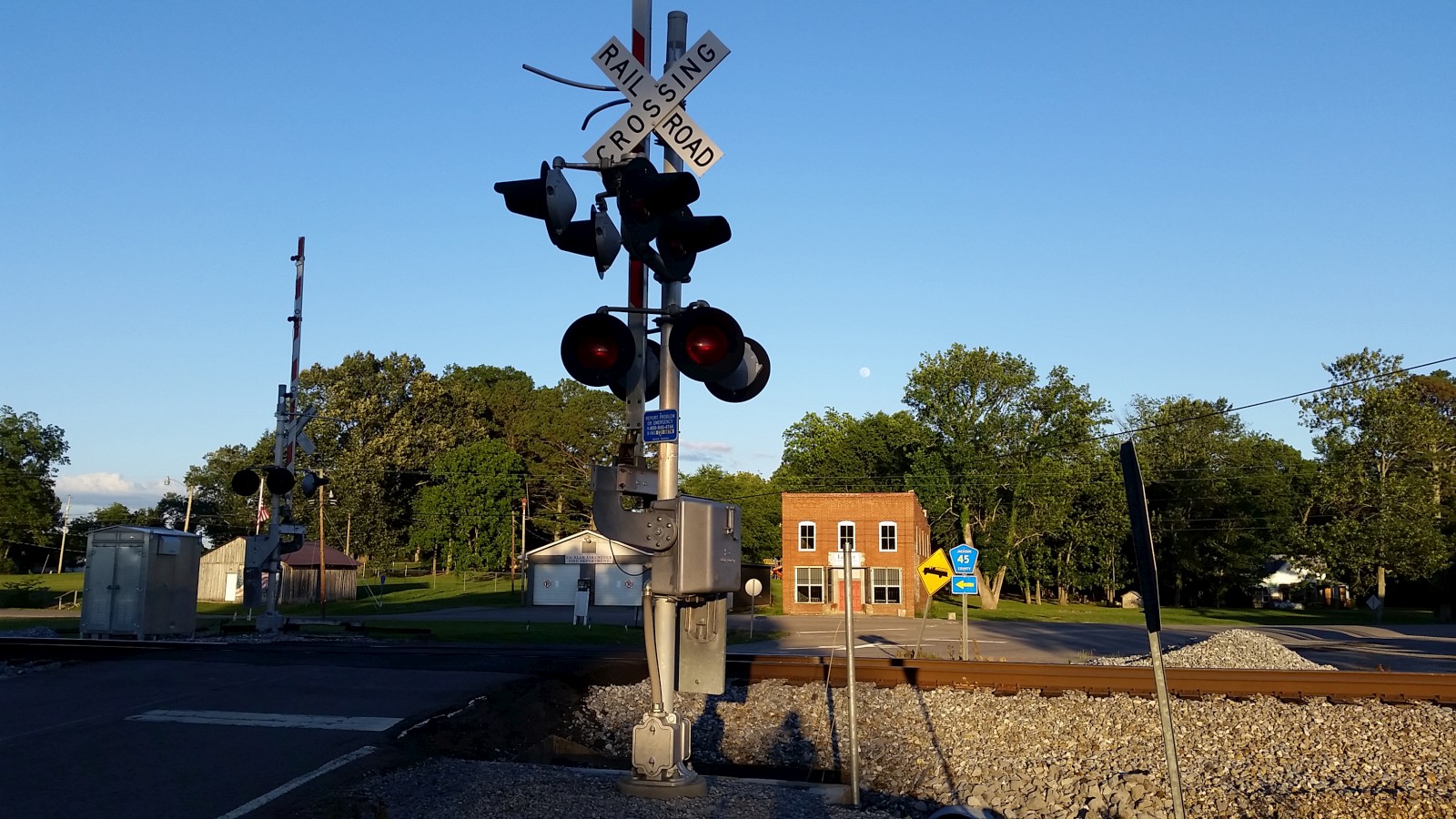

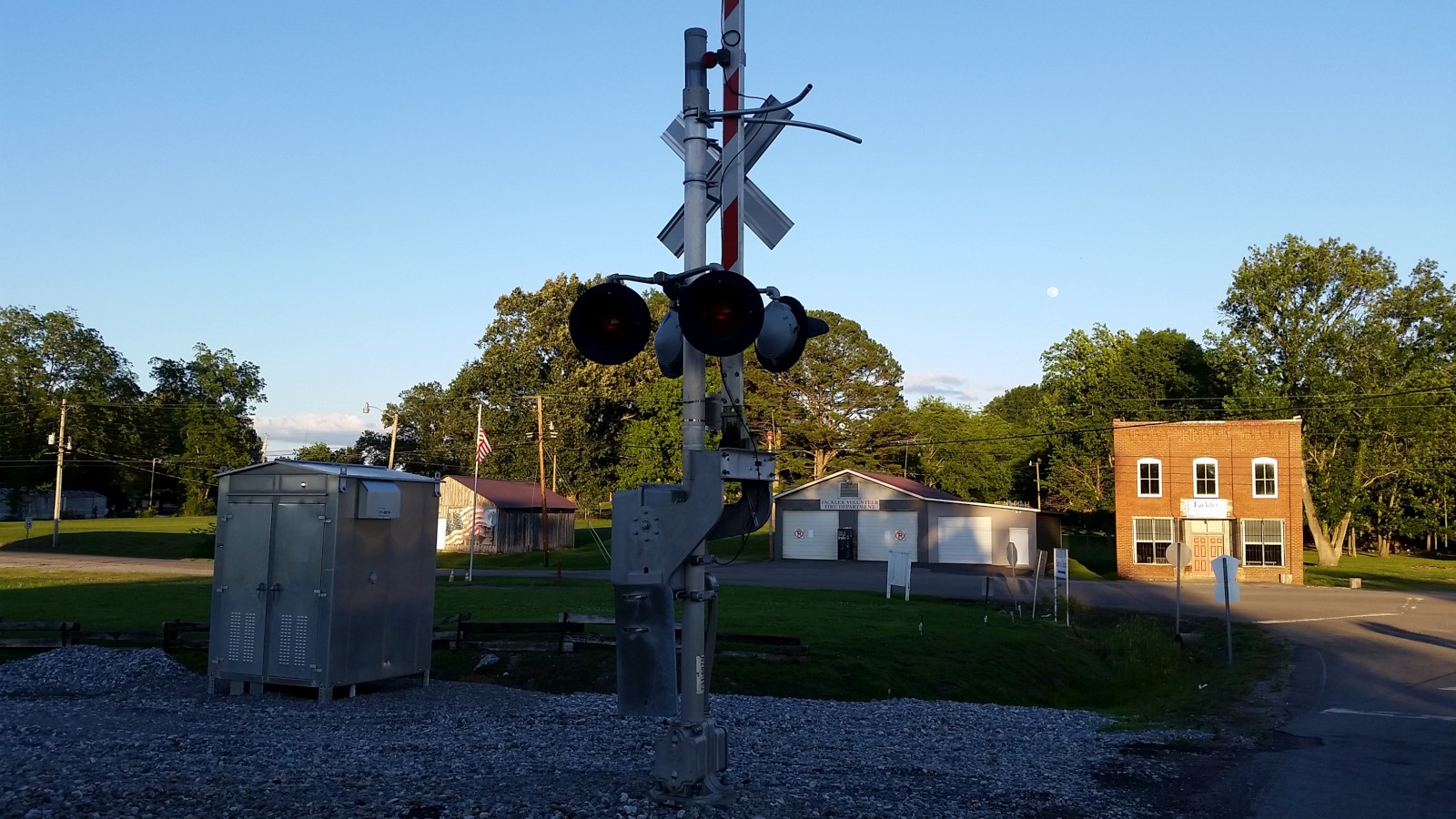

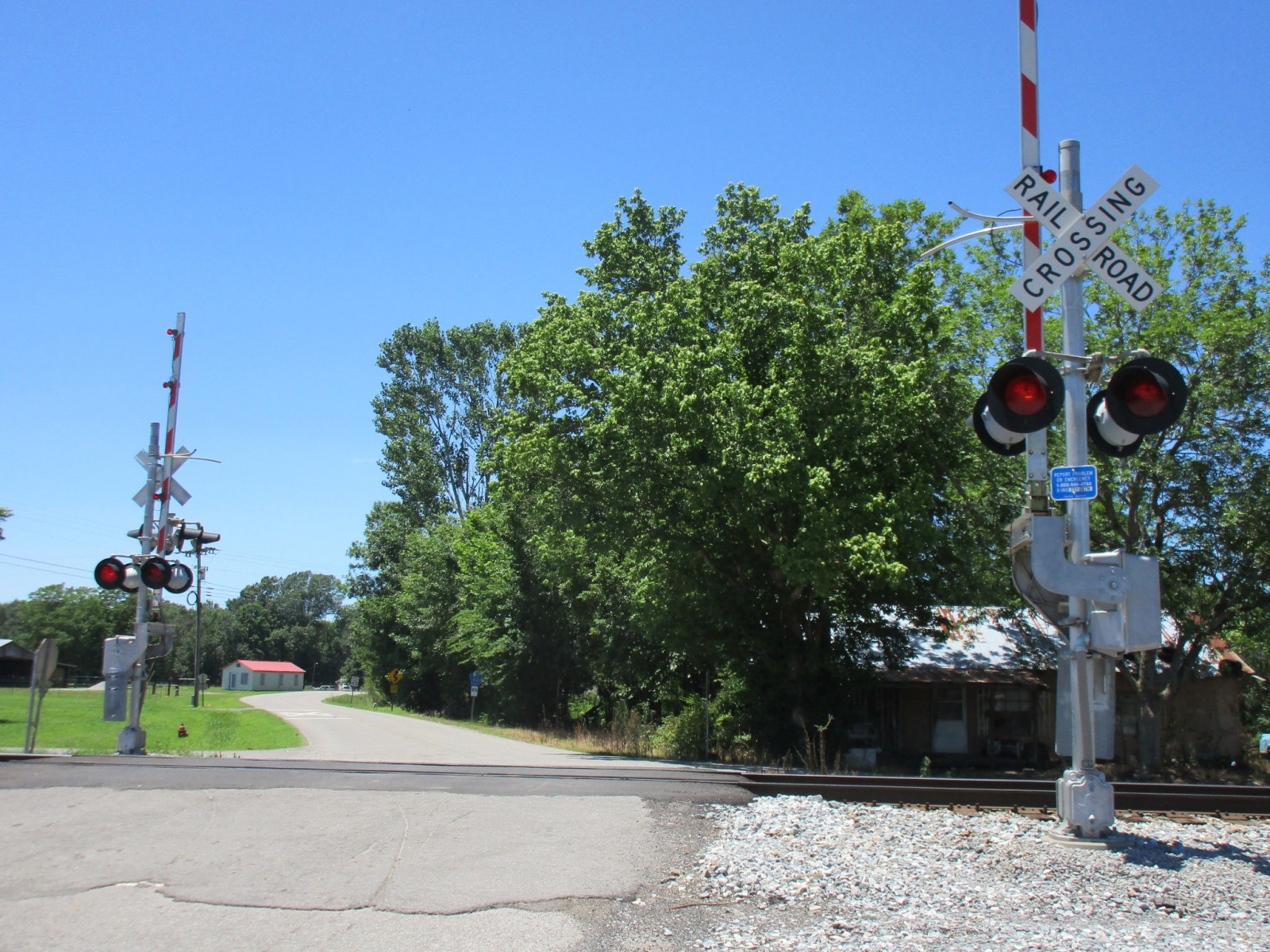

Overviews of the crossing, which got these signals installed in July of 2007 according to the FRA.

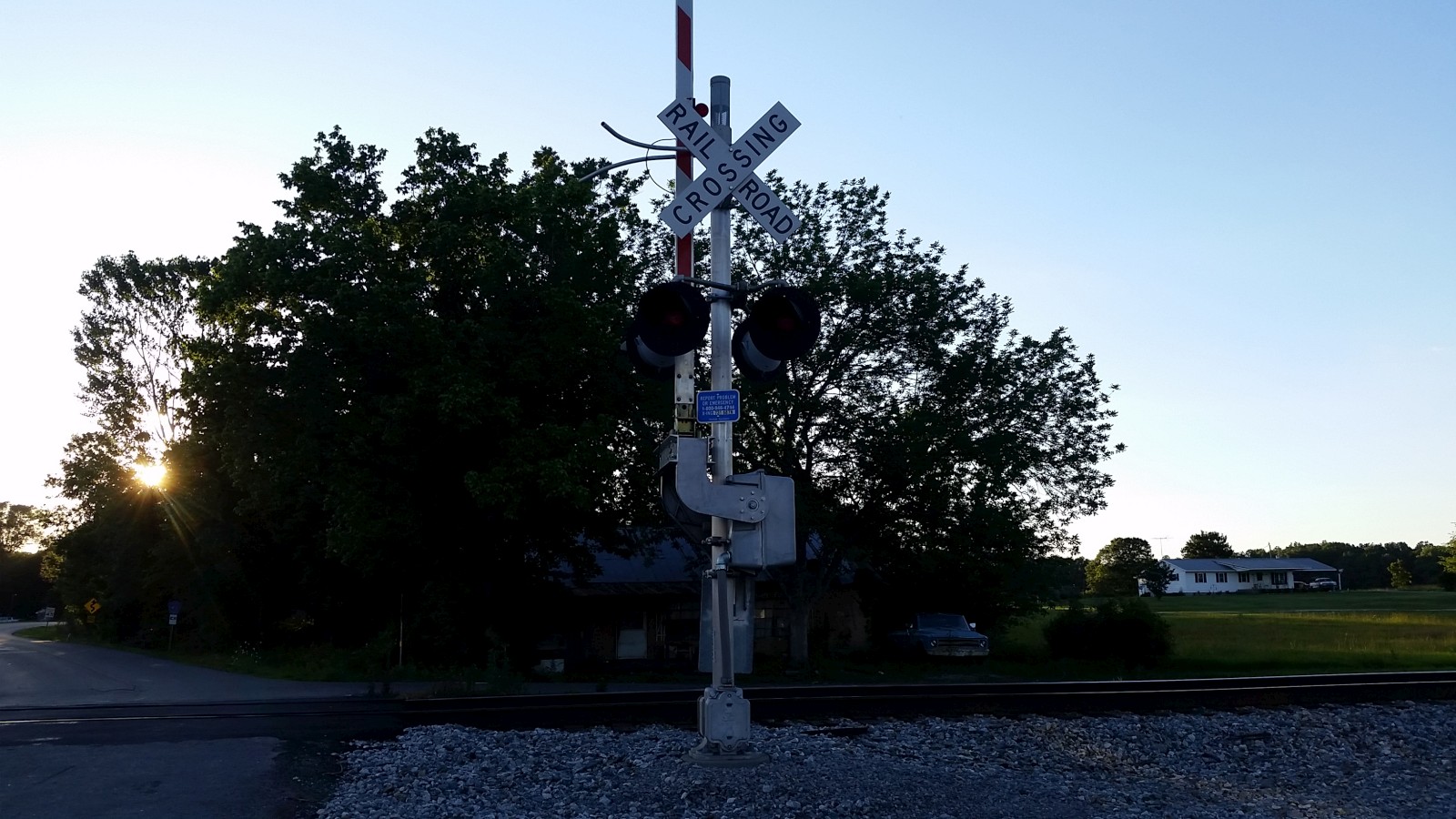

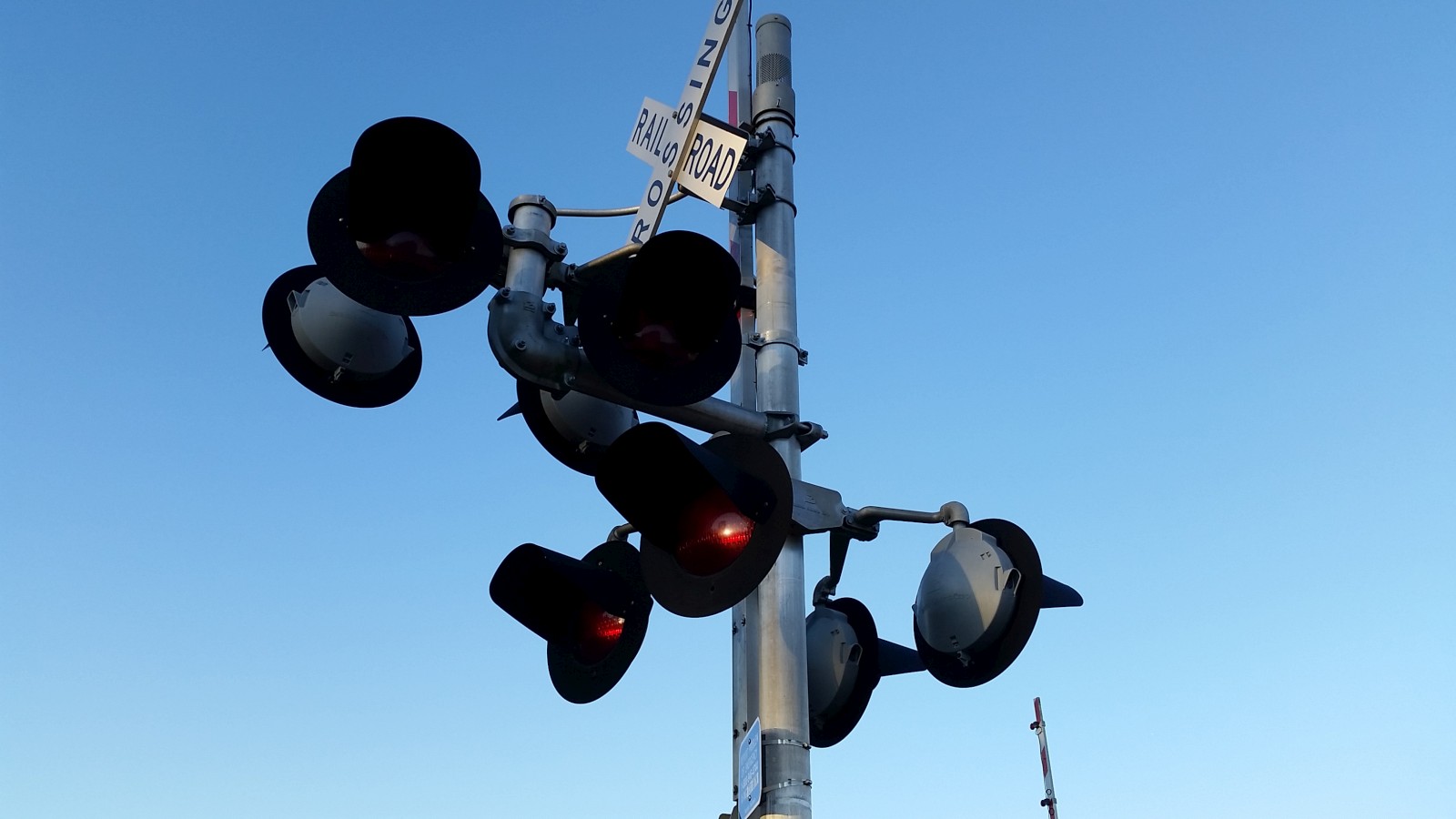

The first signal.

5

6

7

8

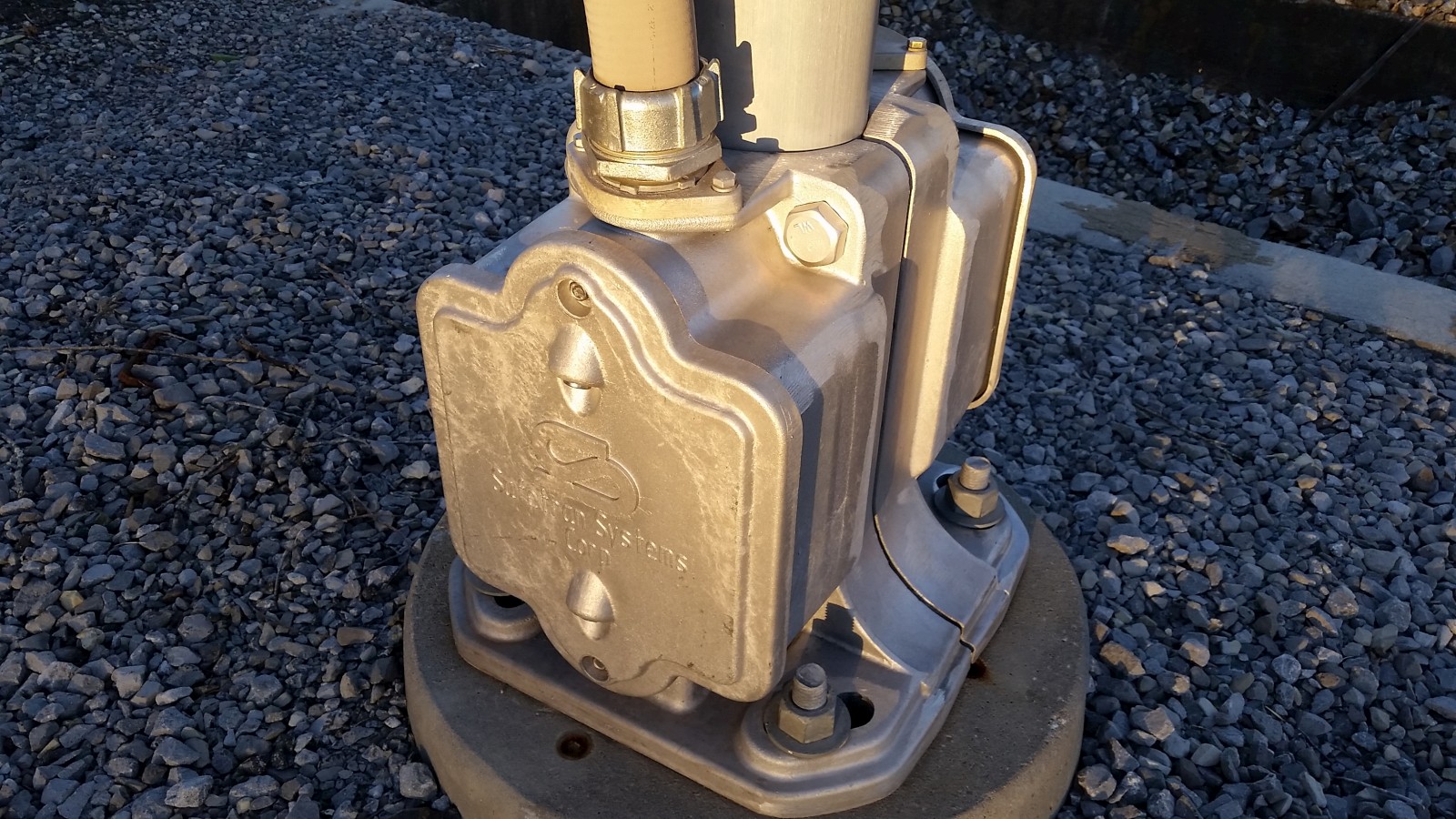

It has a Safetran base.

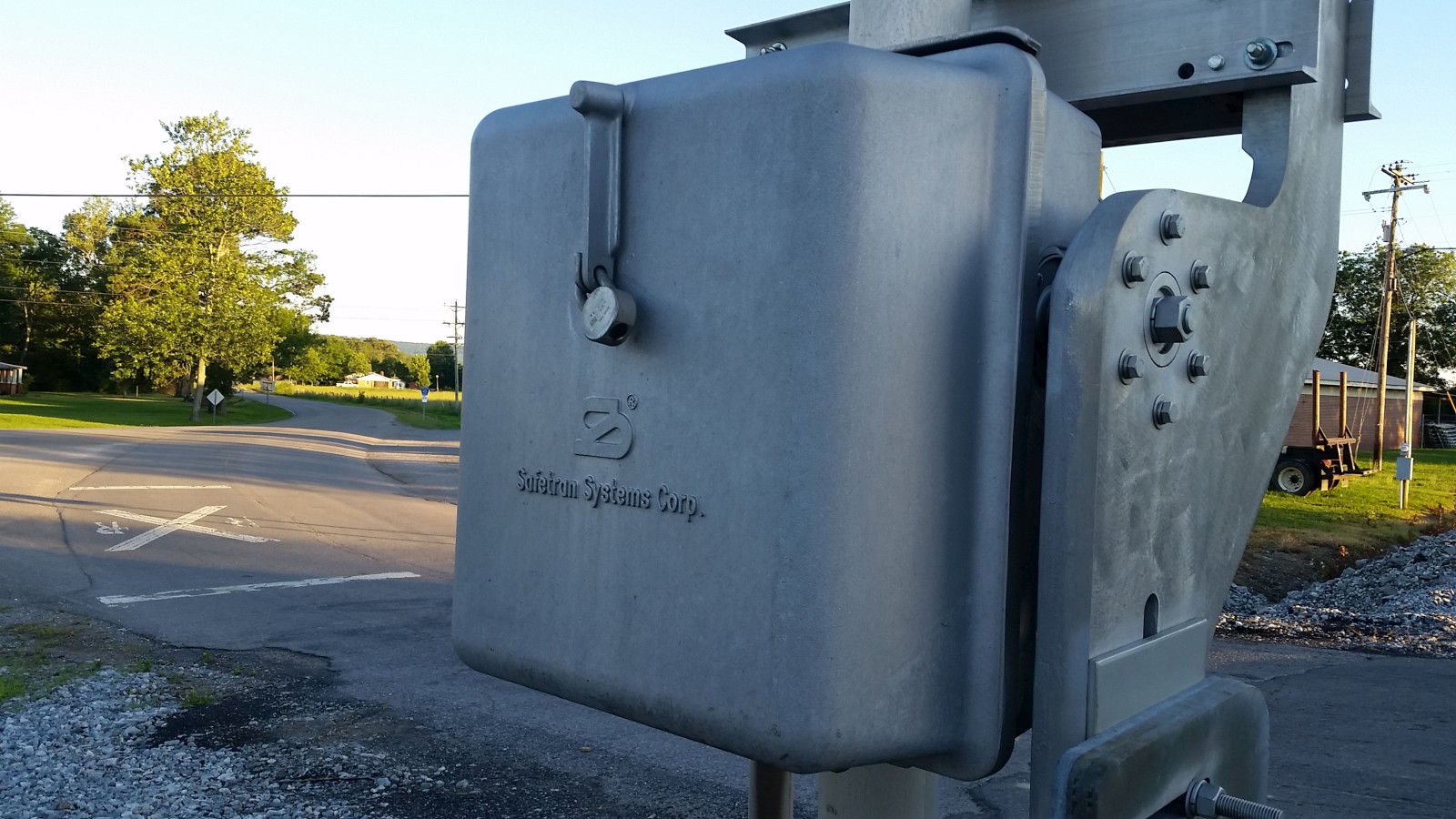

A Safetran gate mechanism.

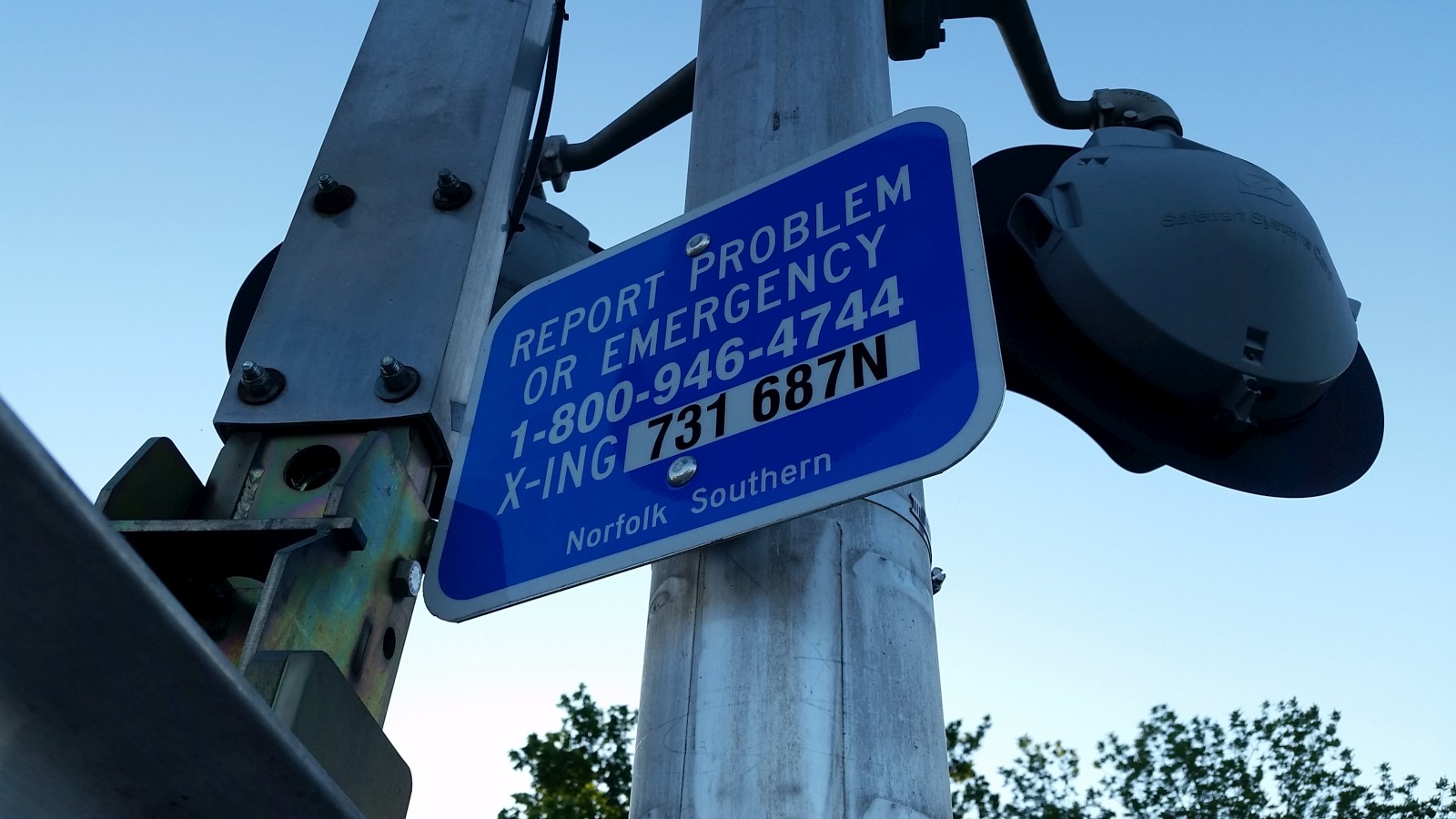

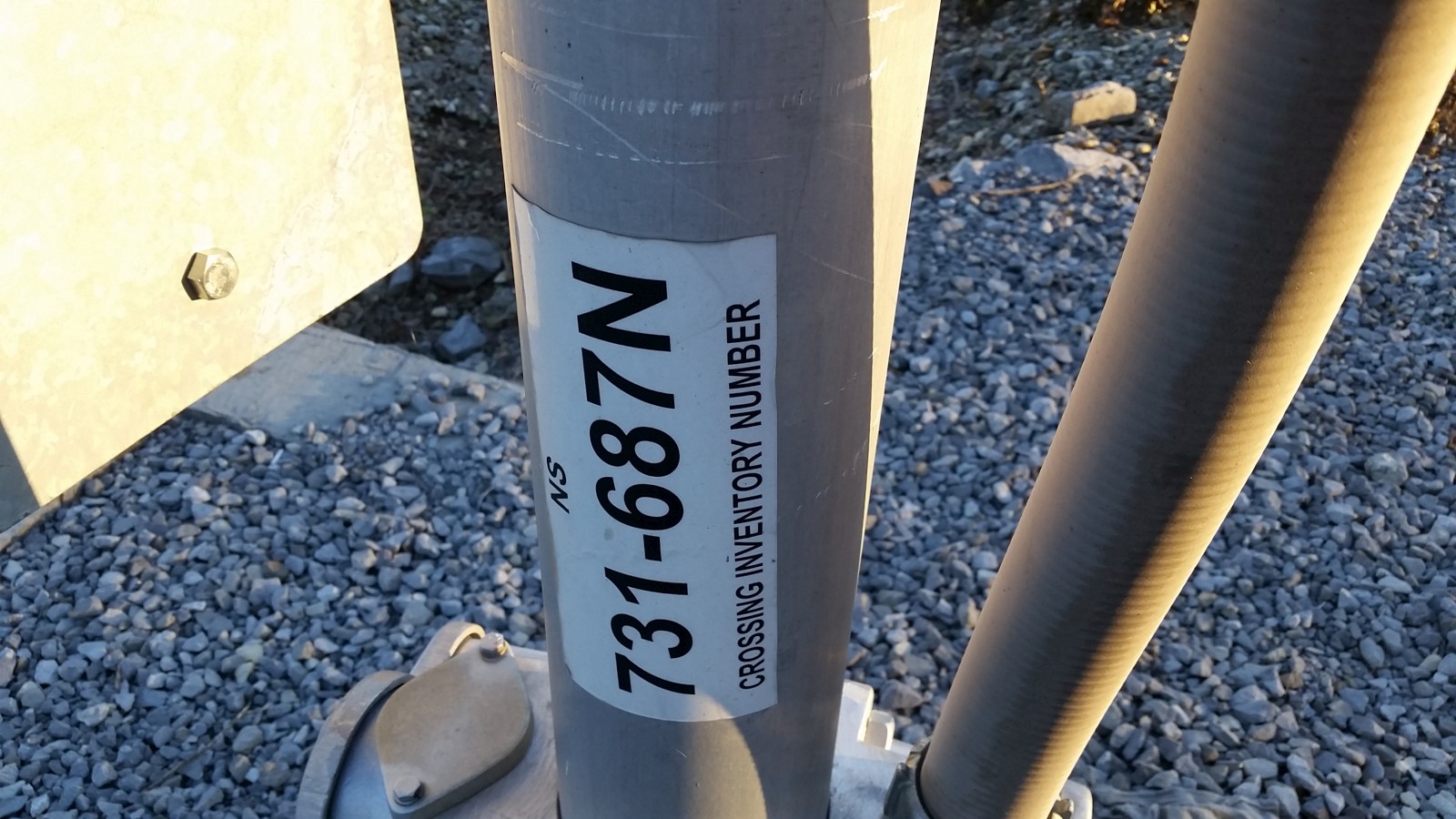

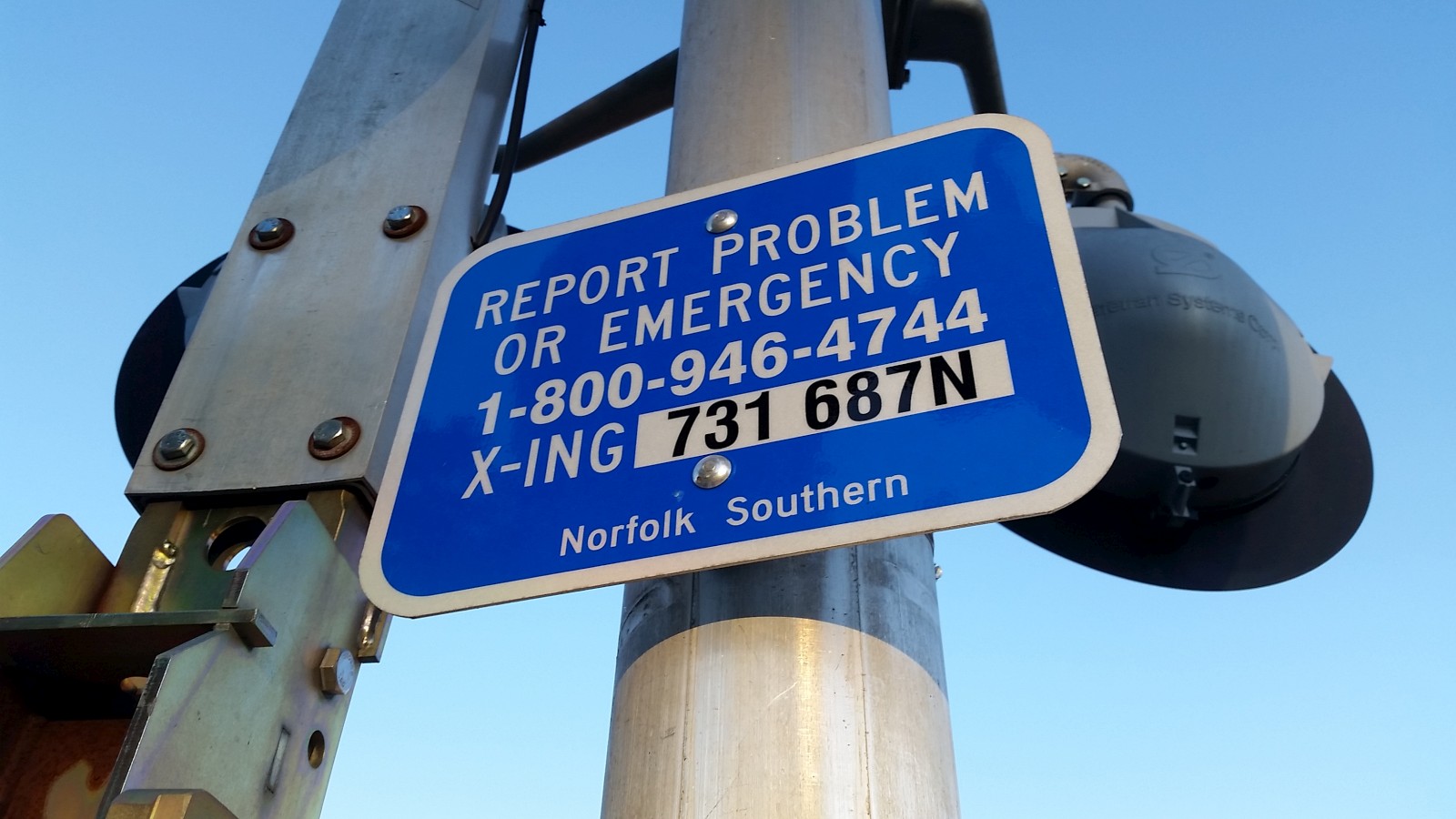

A DOT tag and the emergency information.

9

10

11

12

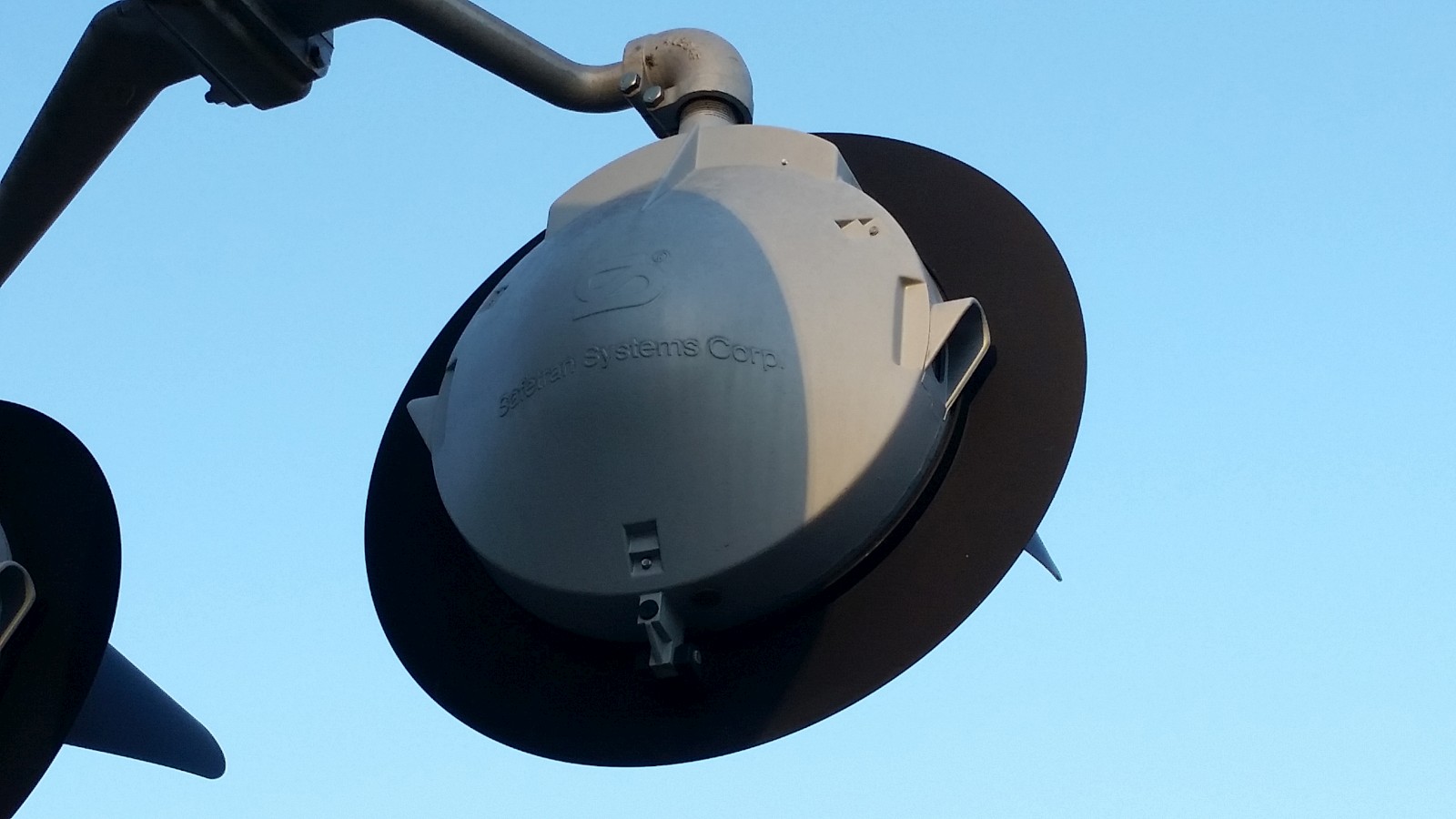

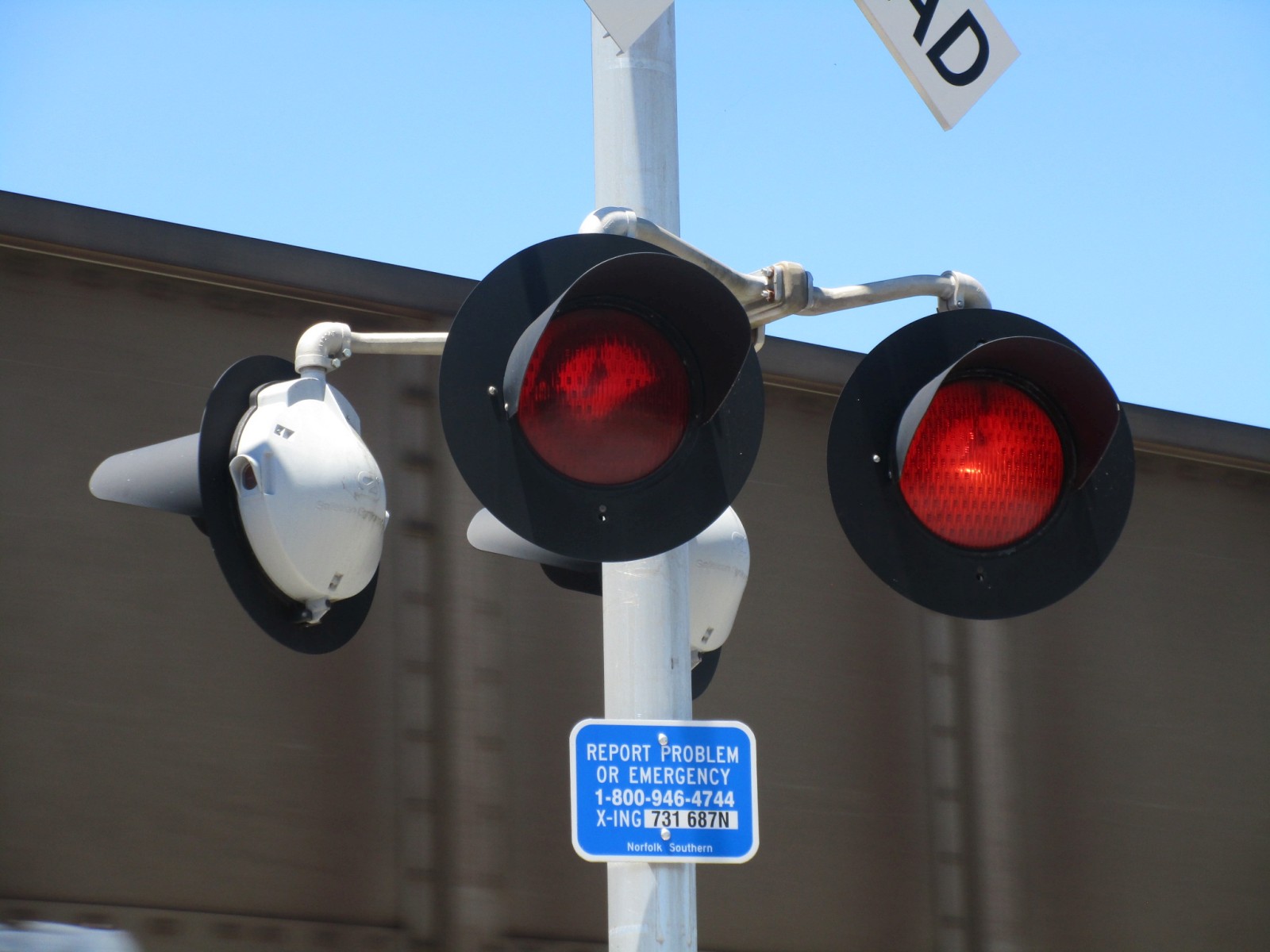

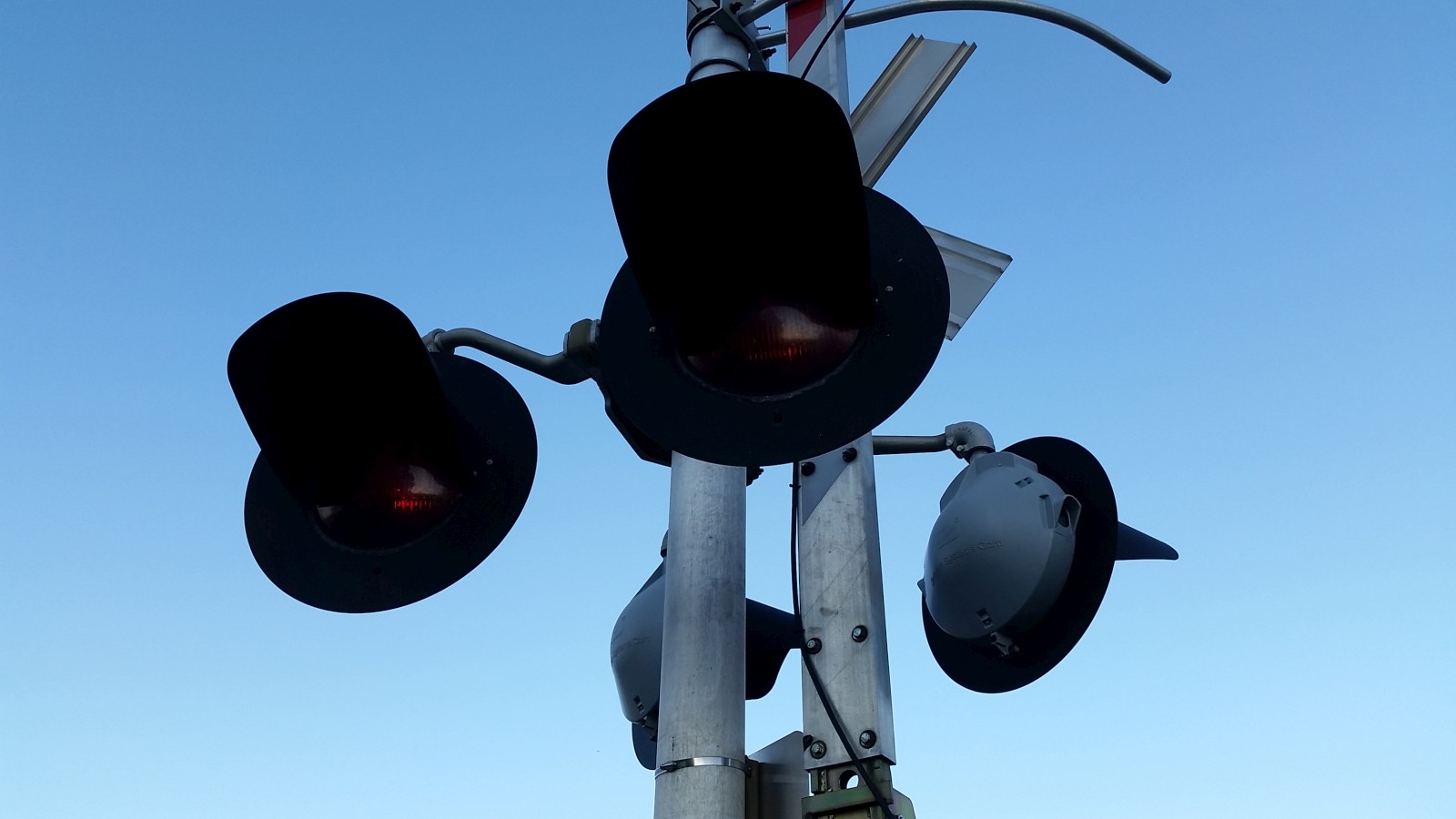

The lights are all Safetran 12x20 inch lights.

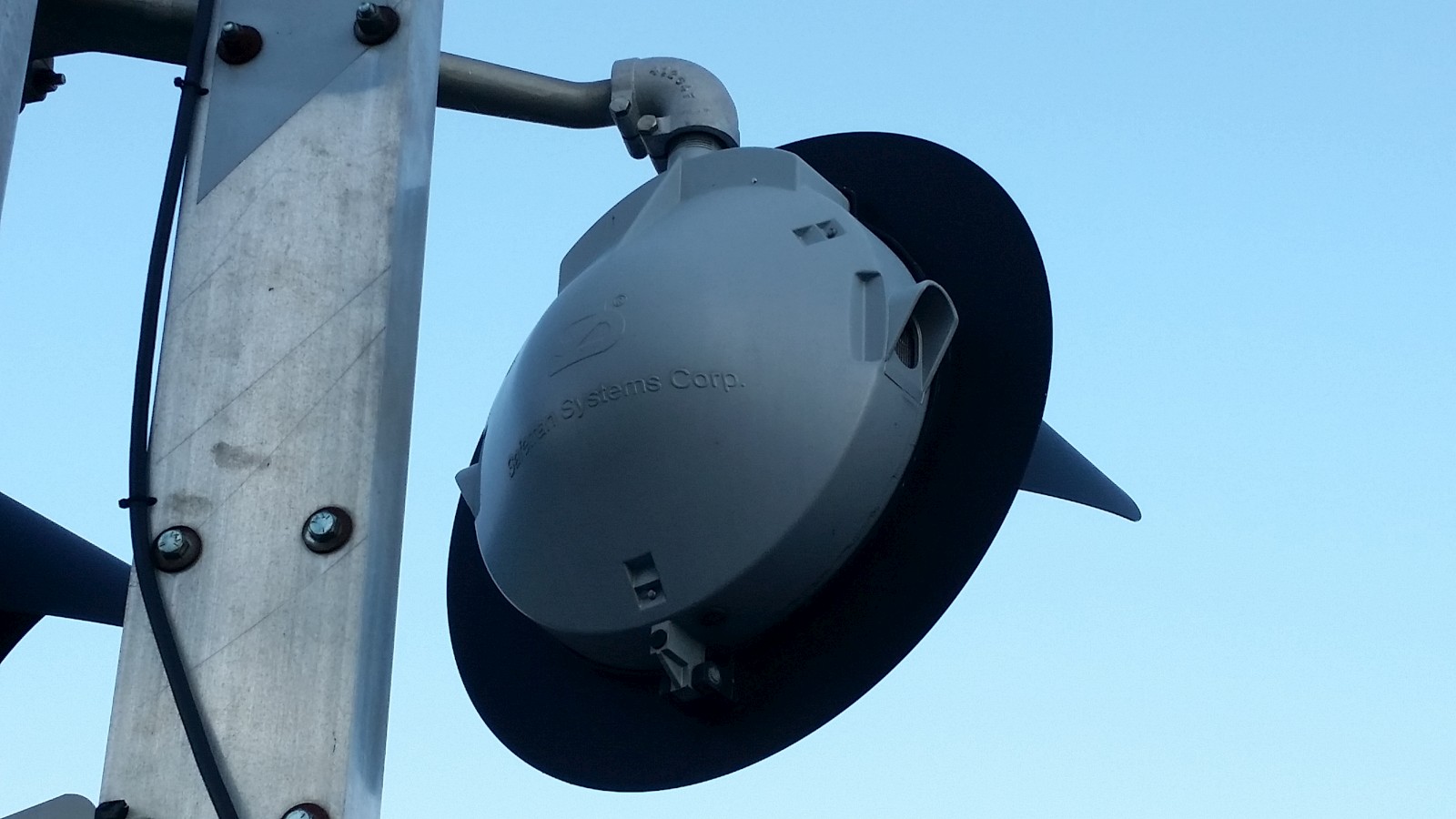

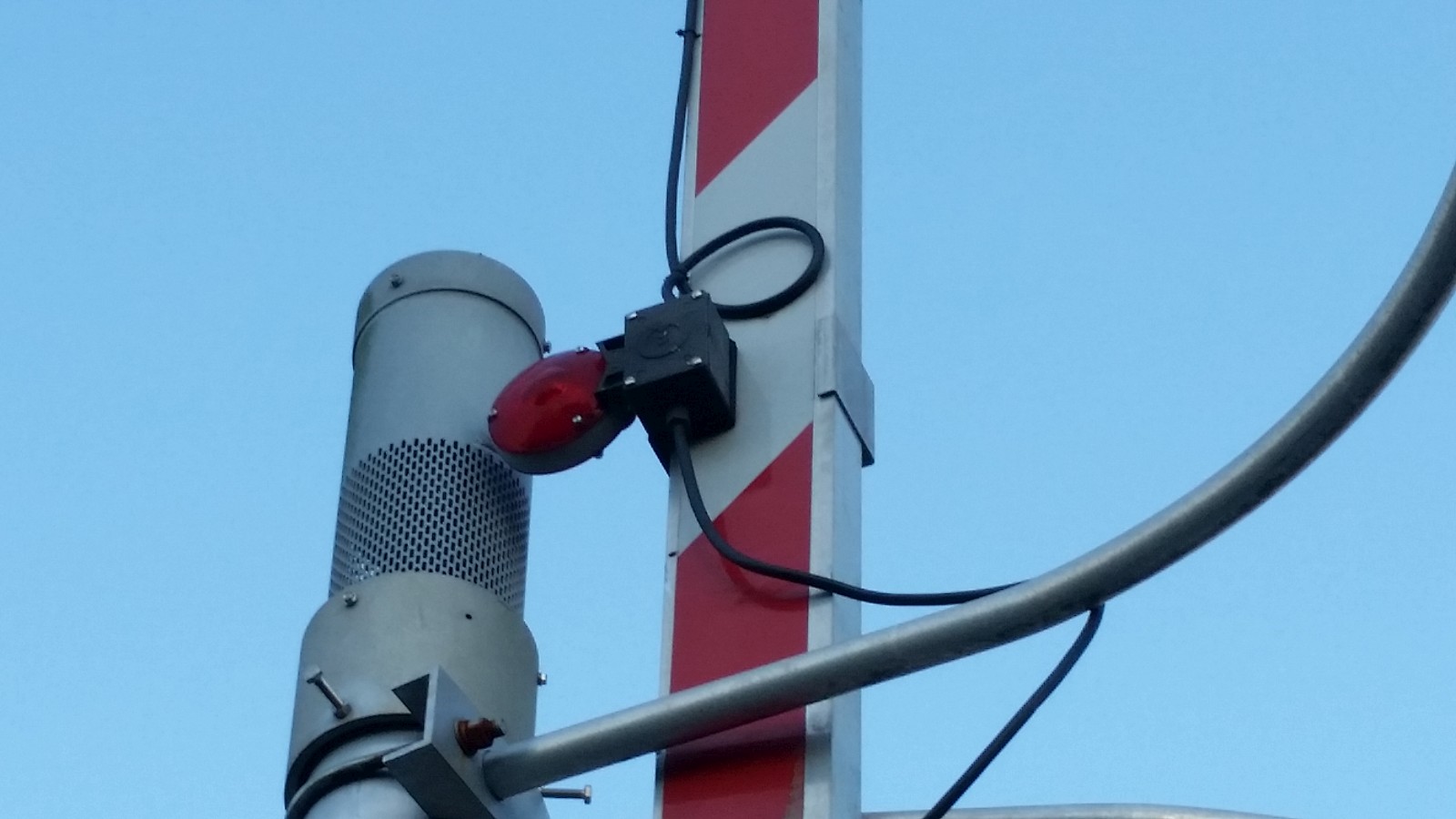

This signal has a Safetran Type 3 electronic bell.

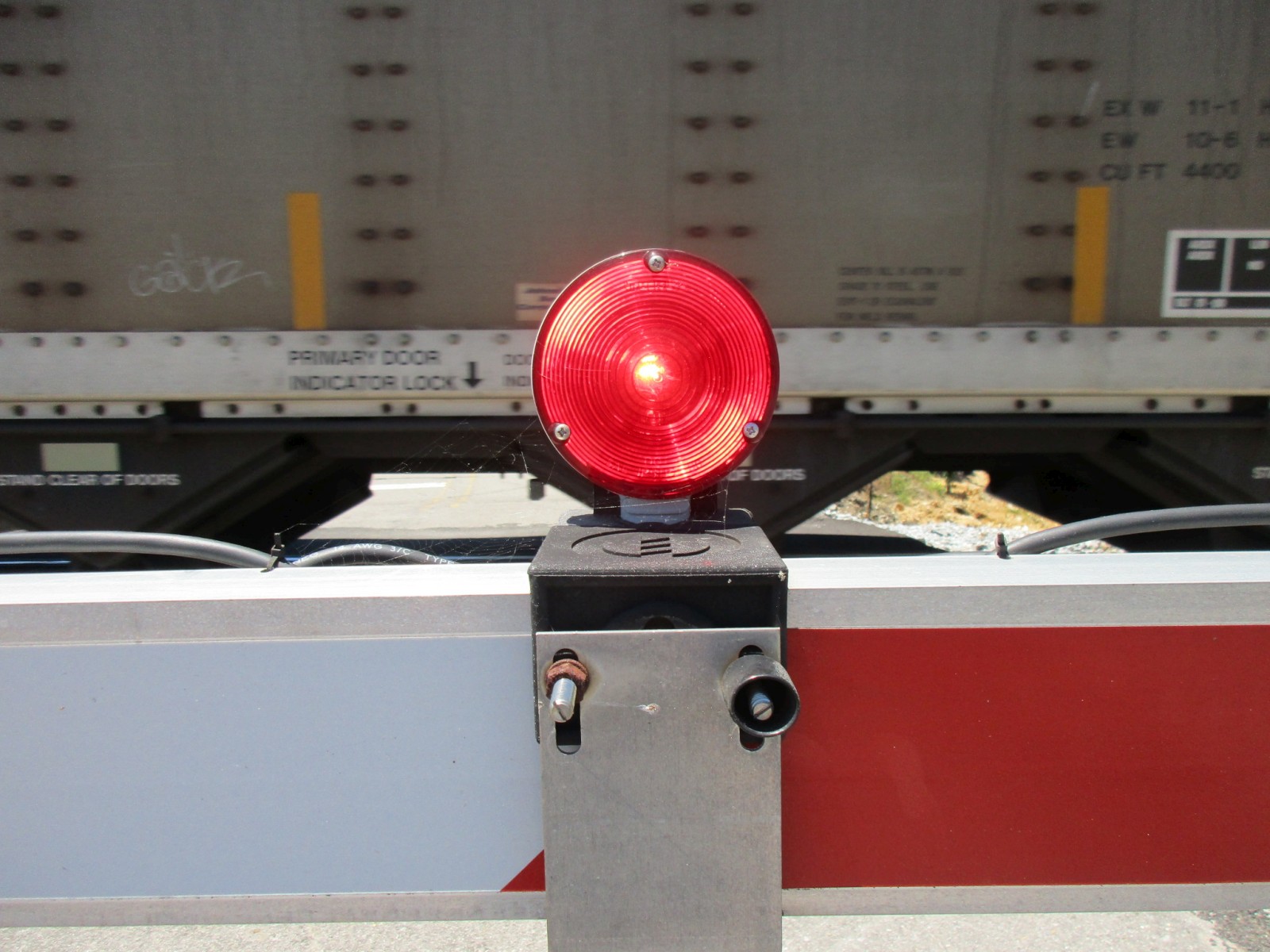

This signal uses NEG gate lights.

13

14

15

16

The second signal.

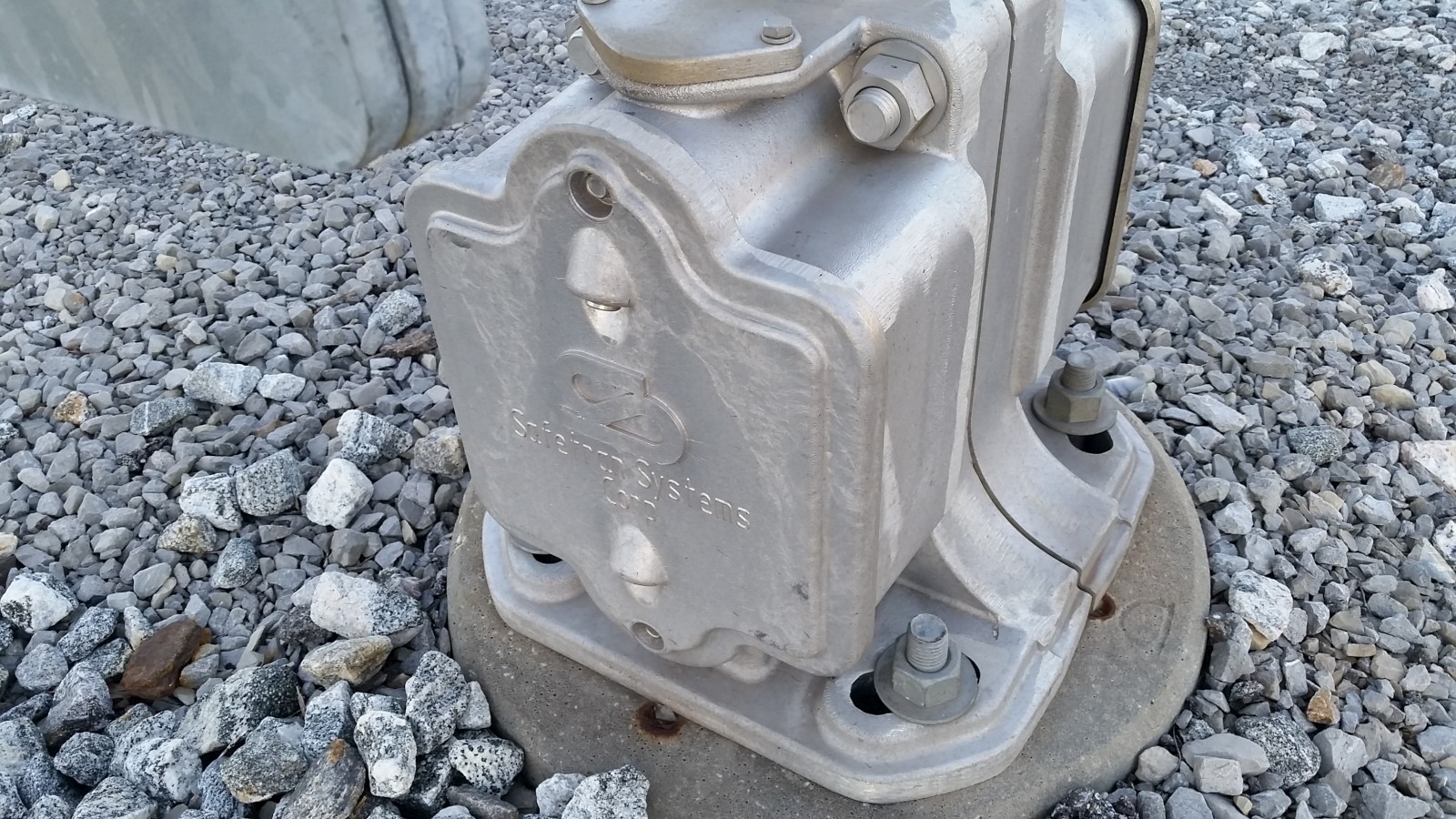

It has another Safetran base.
Another Safetran gate mechanism.

17

18

19

20

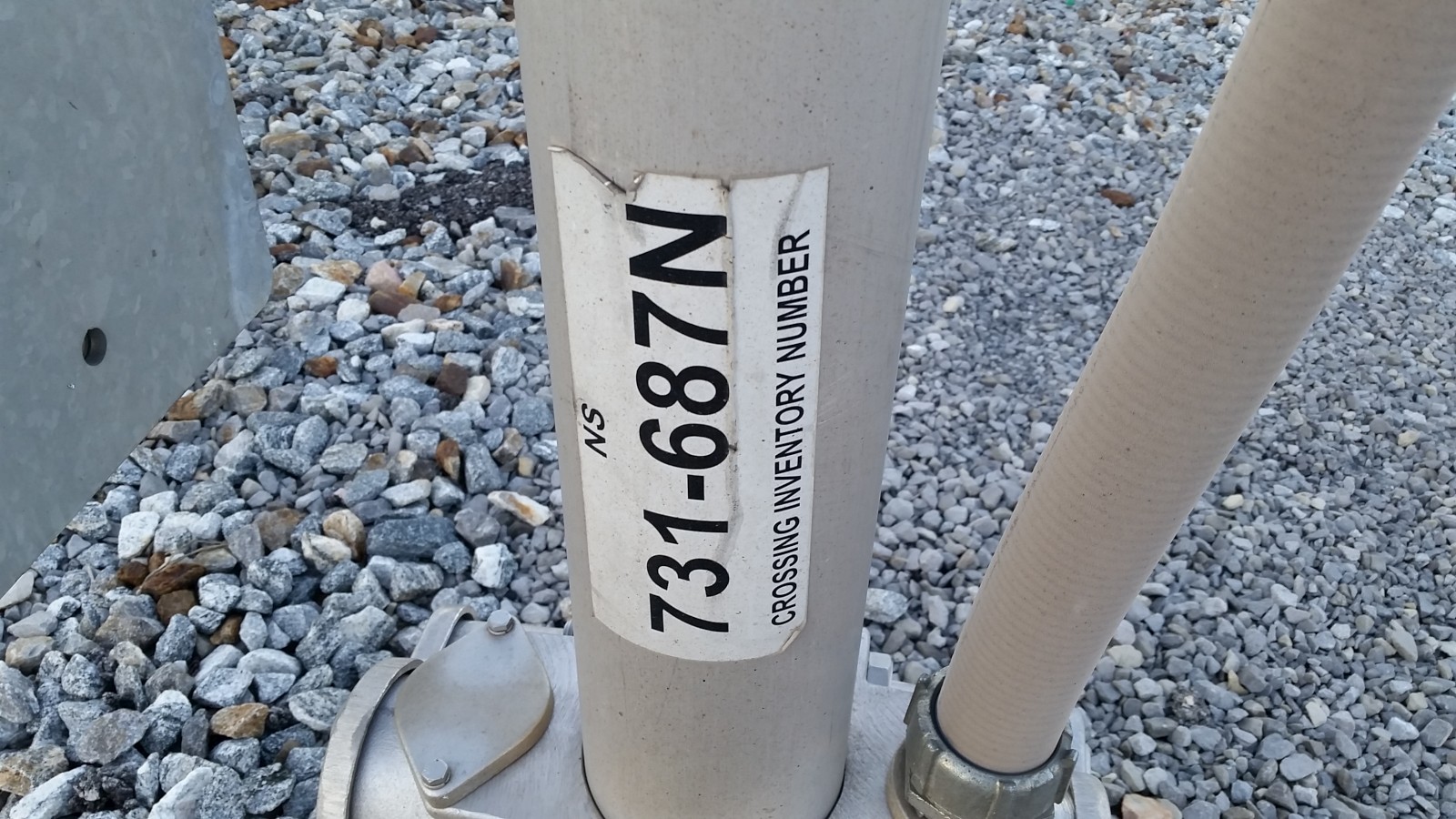

Another DOT tag and the emergency information.

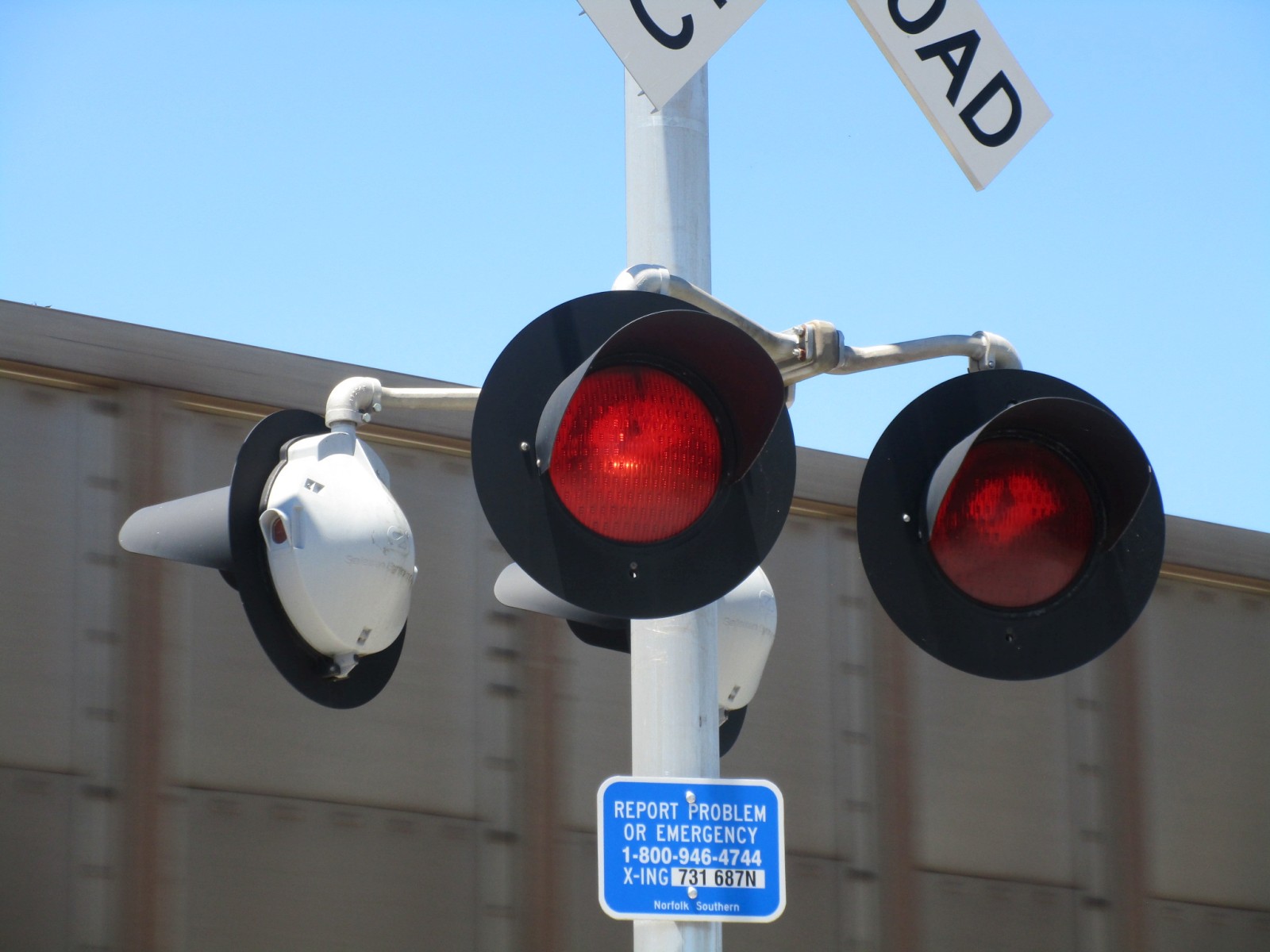

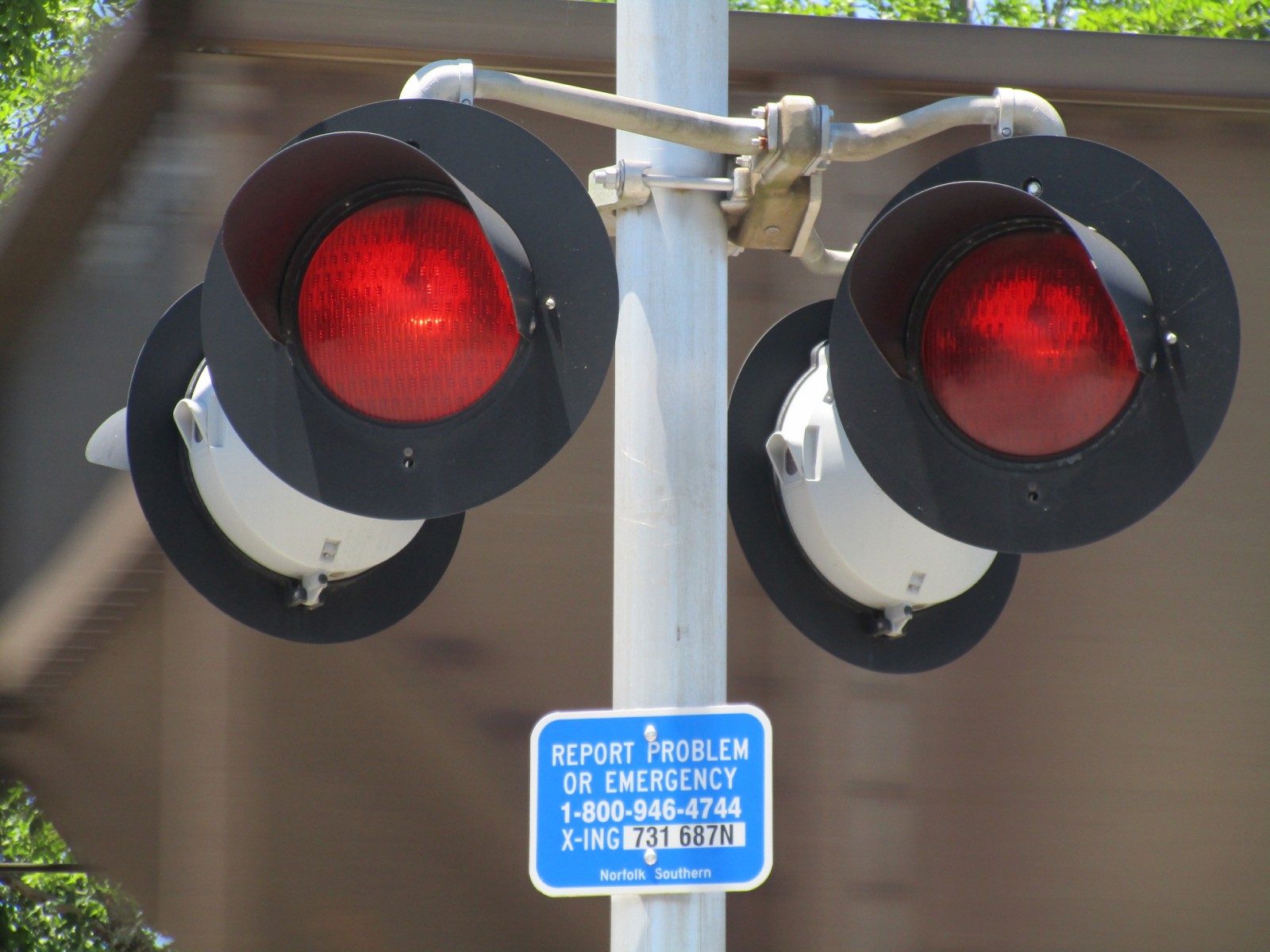

This signal uses more Safetran 12x20 inch lights.

21

22

23

24

Another Safetran Type 3 electronic bell over here.

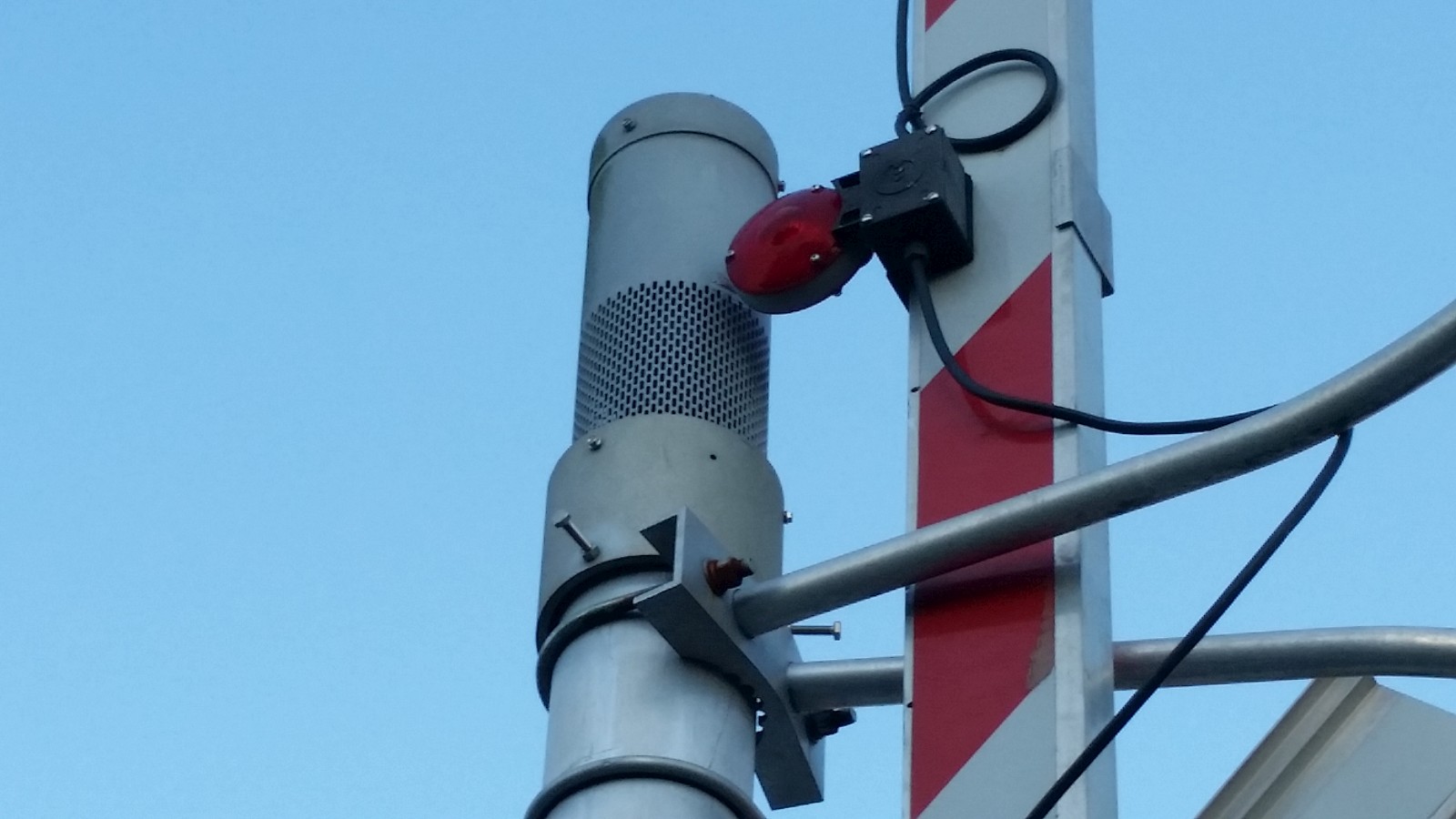

More NEG gate lights on this signal as well.

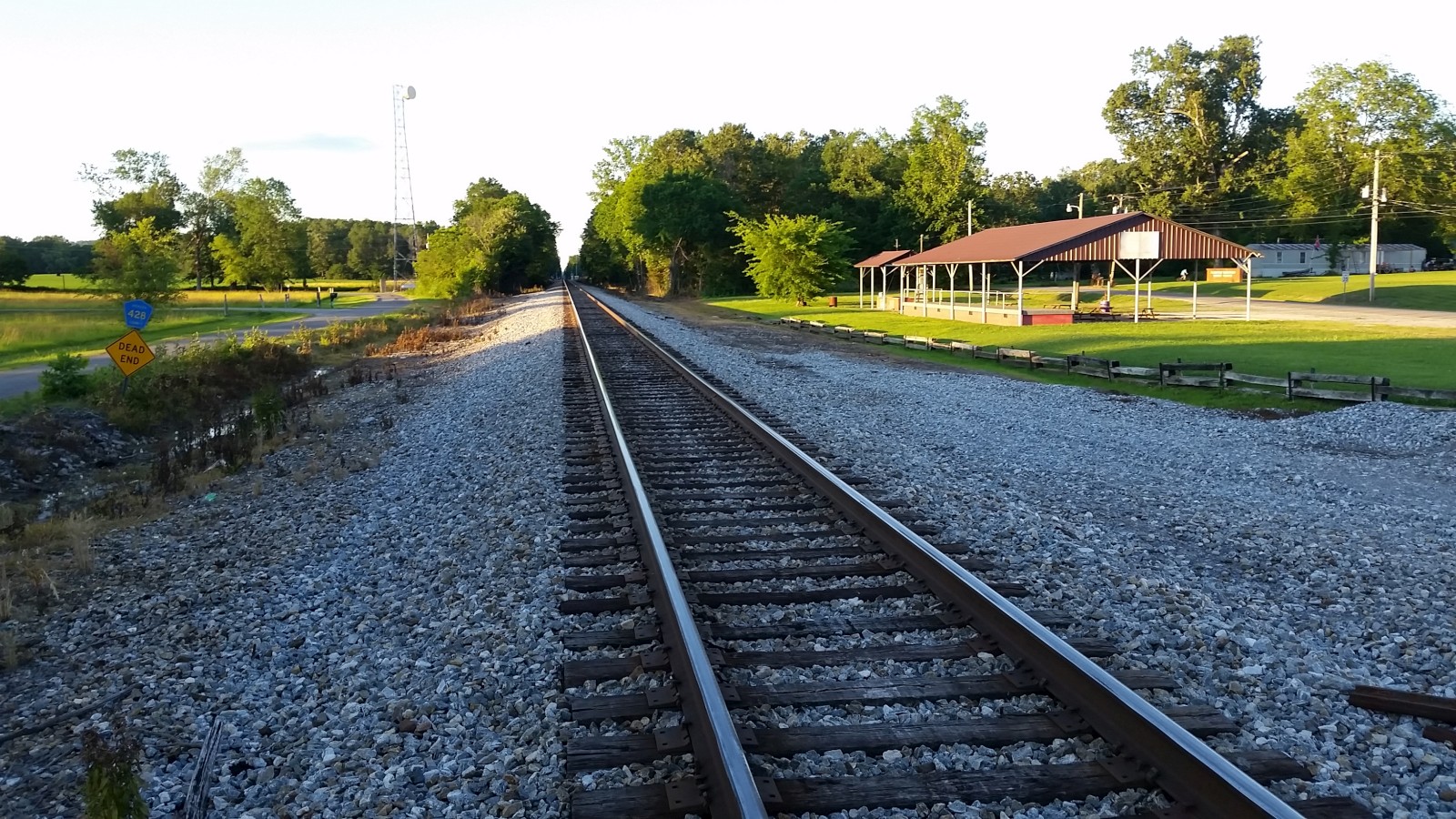

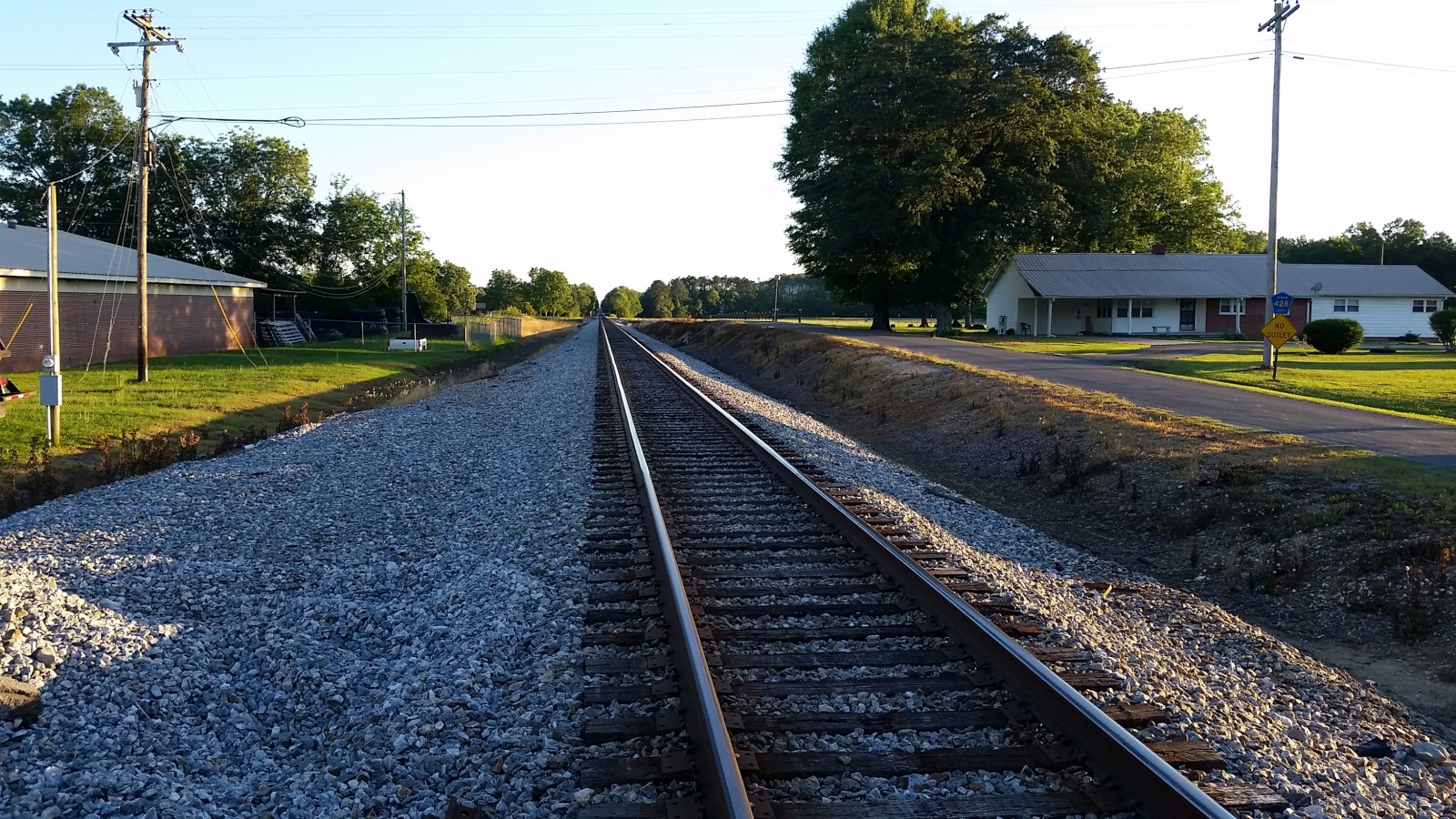

Track view looking west towards CR 428.
Track view looking east towards CR 169 #1.

25

26

27

28

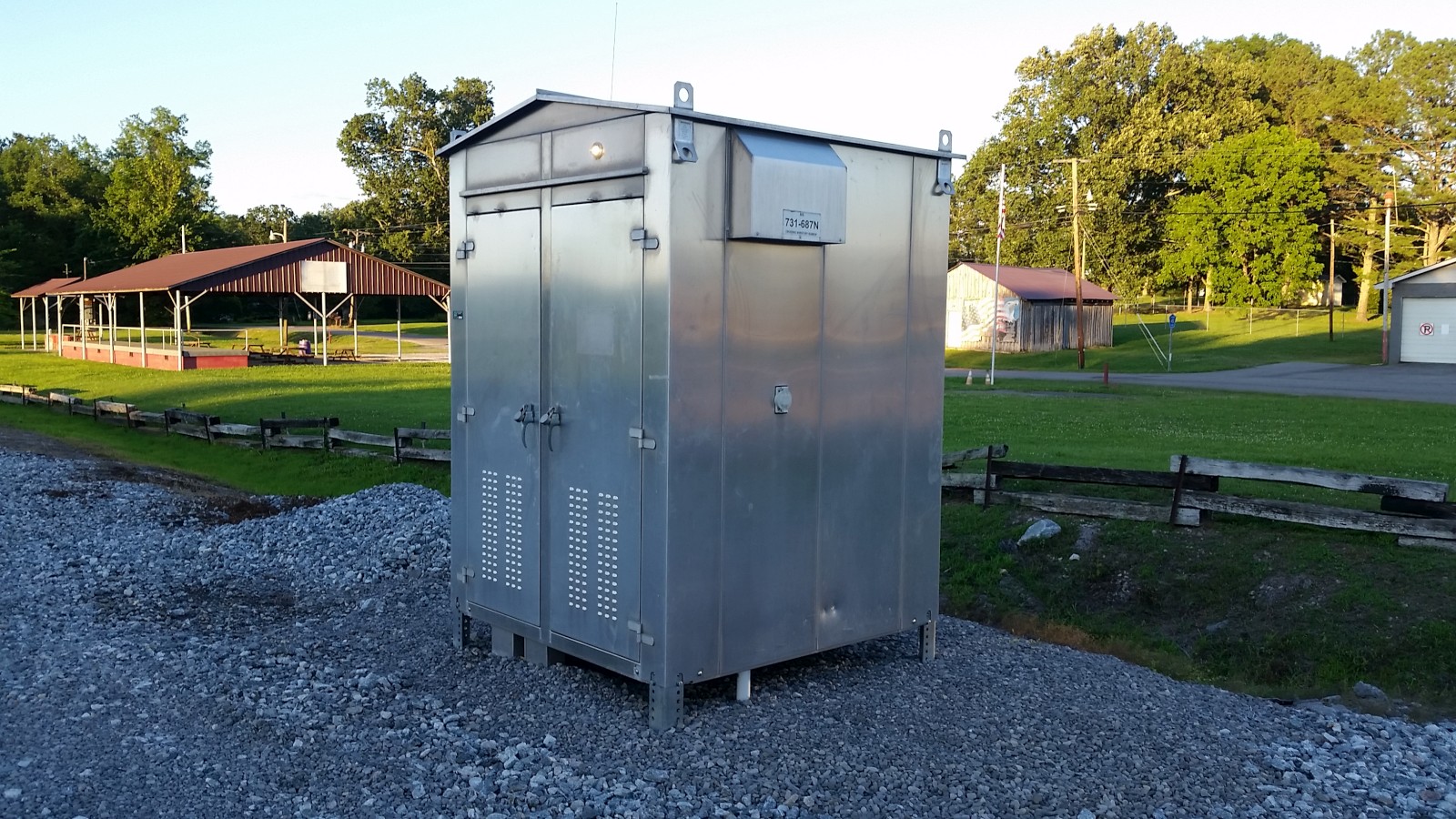

The relay case.

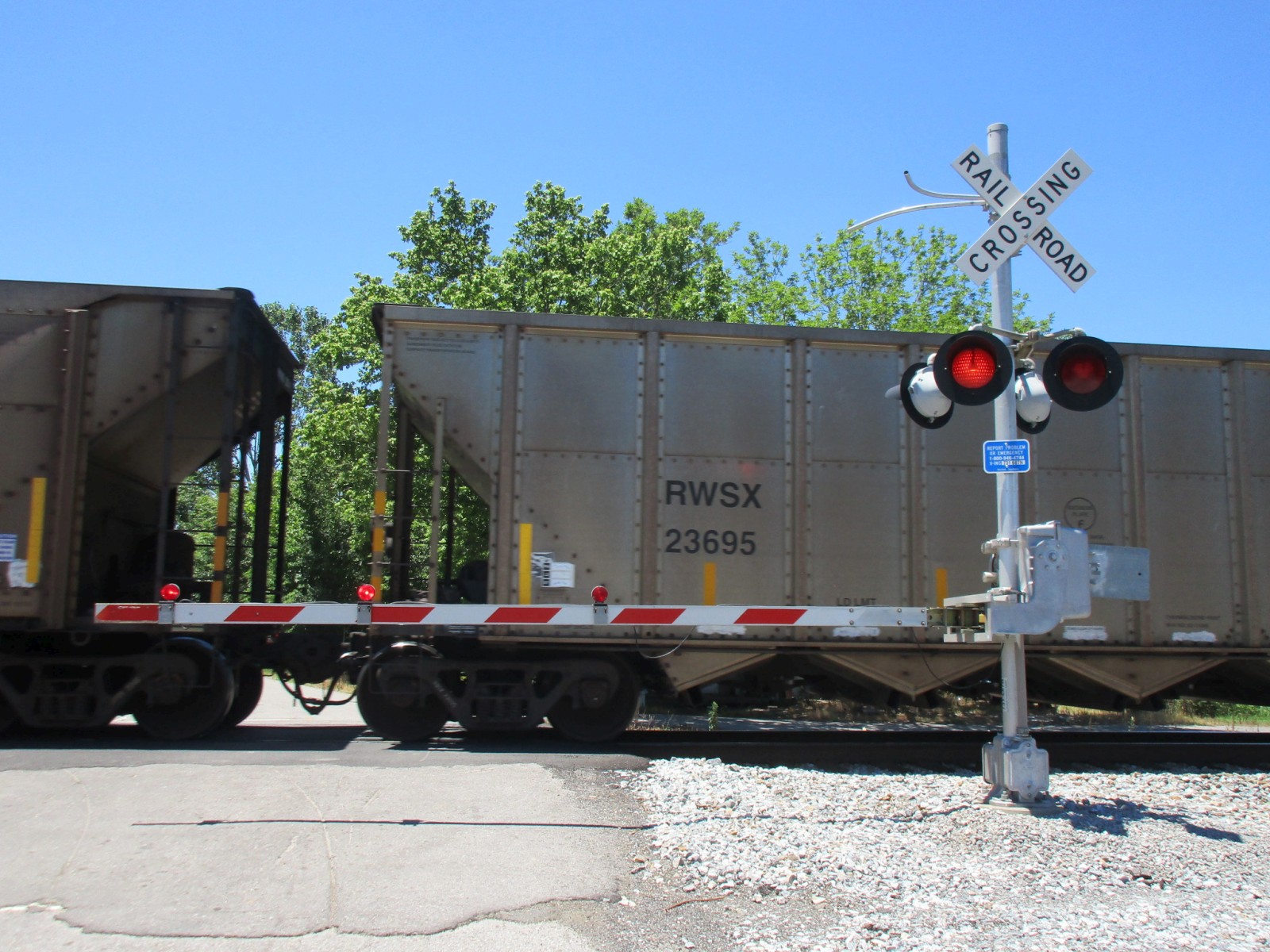

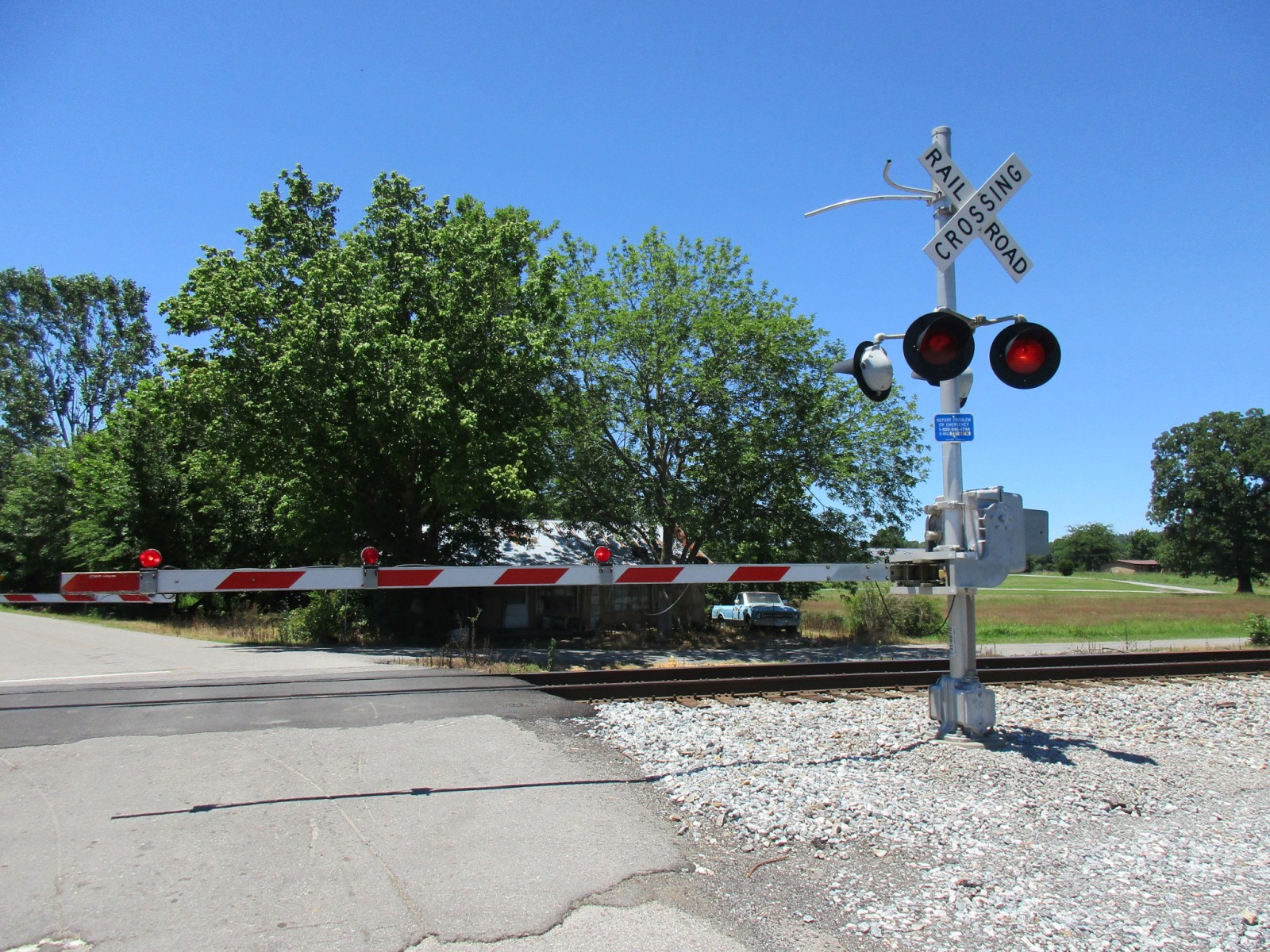

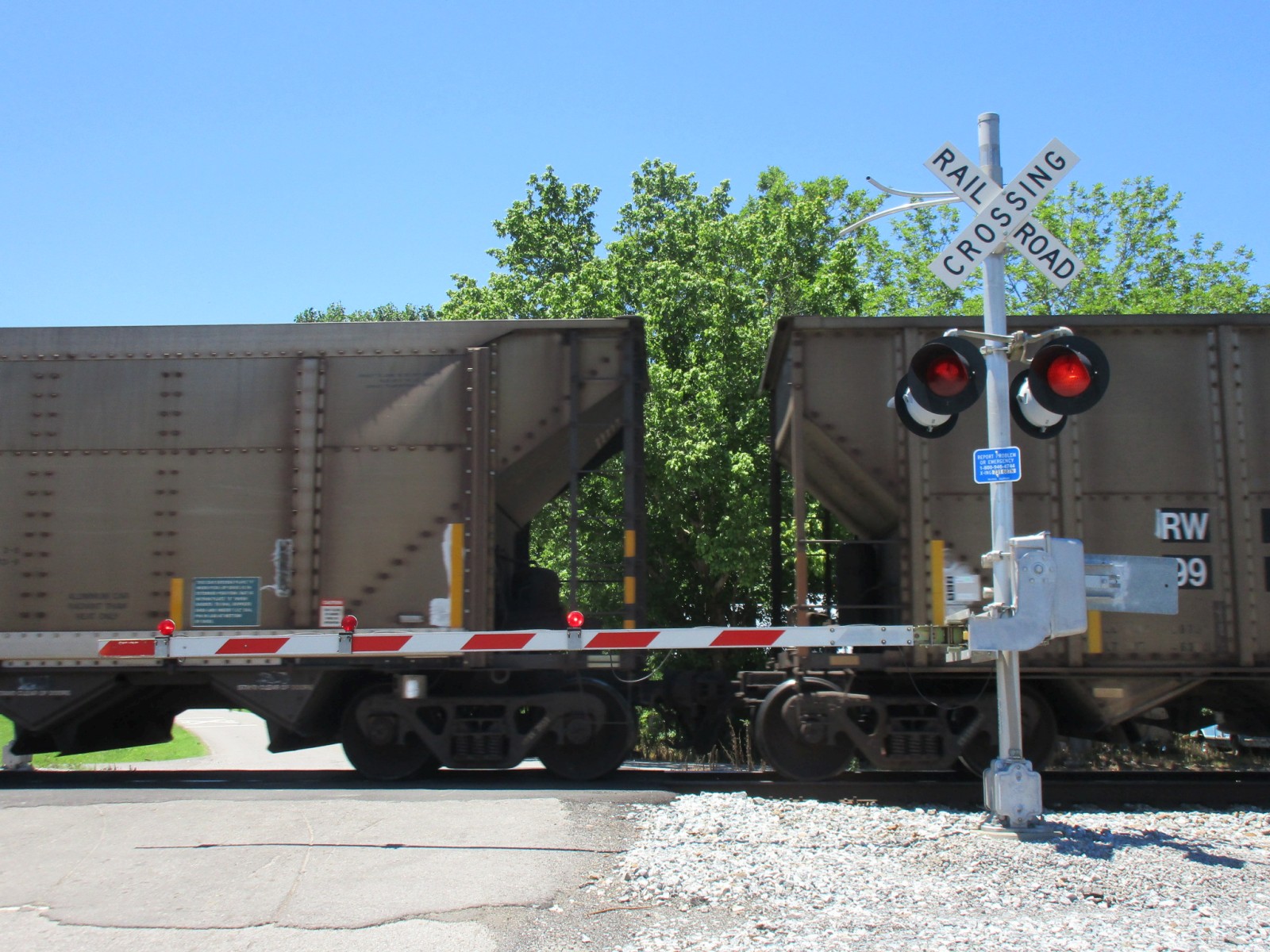

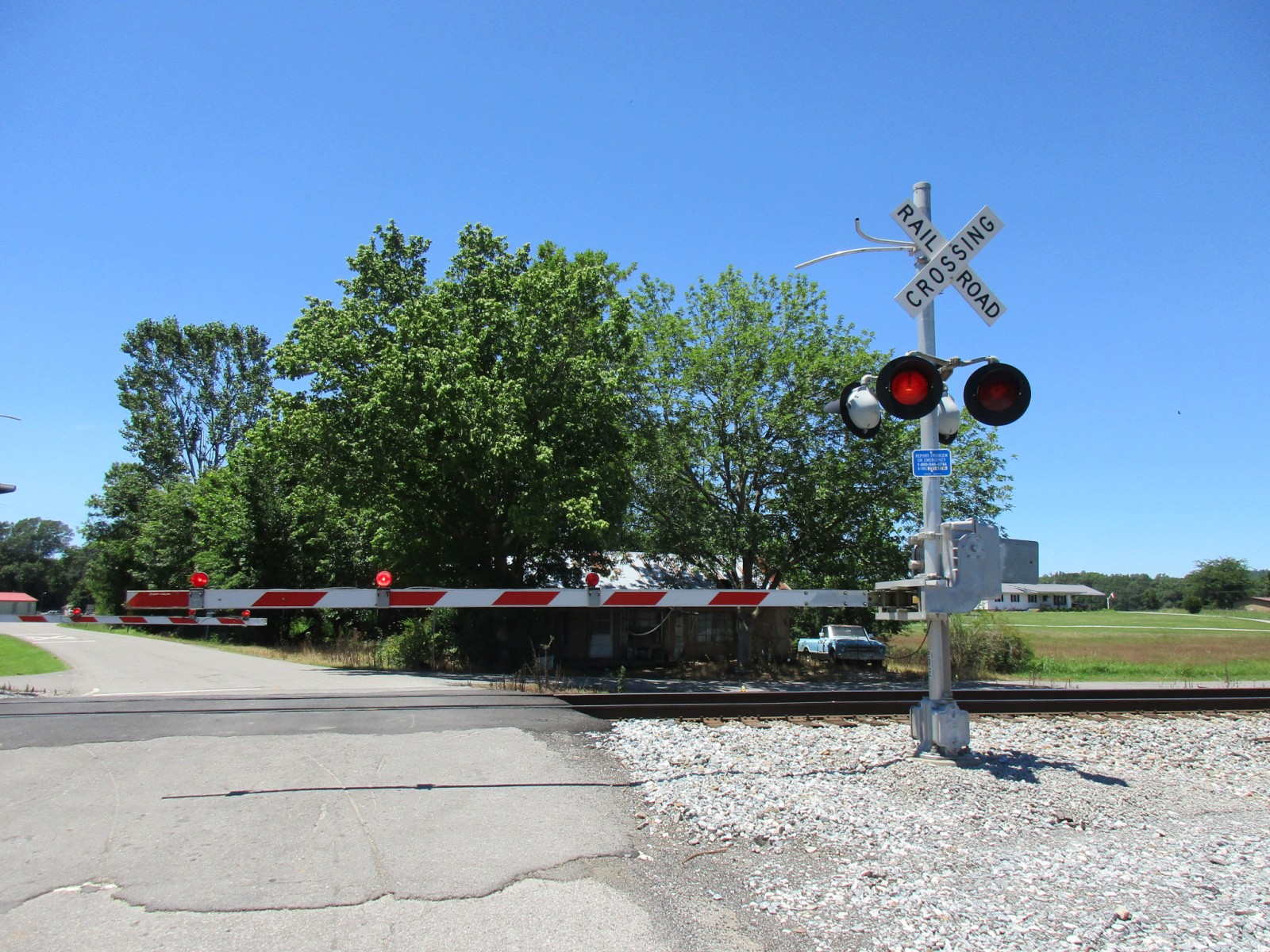

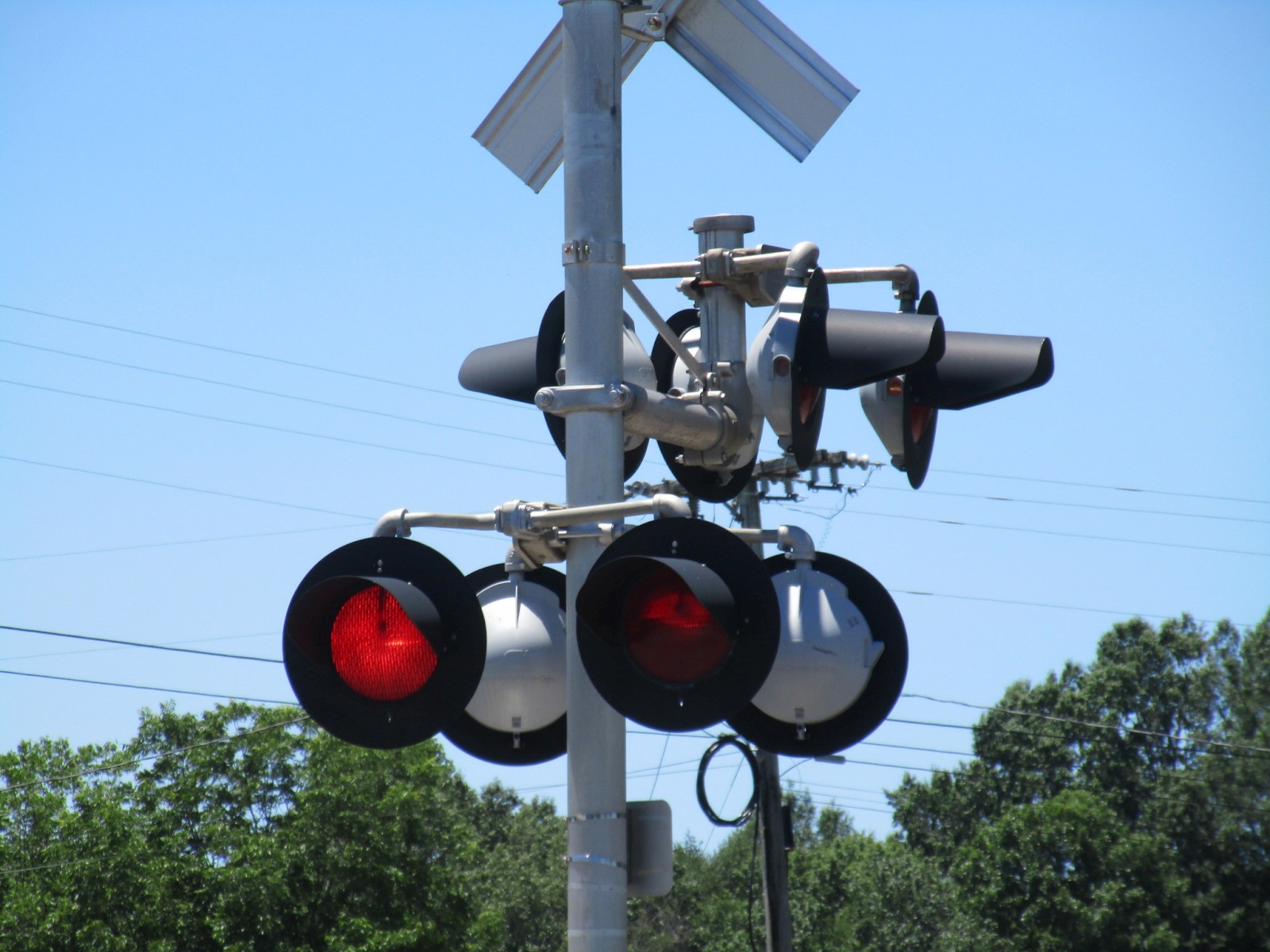

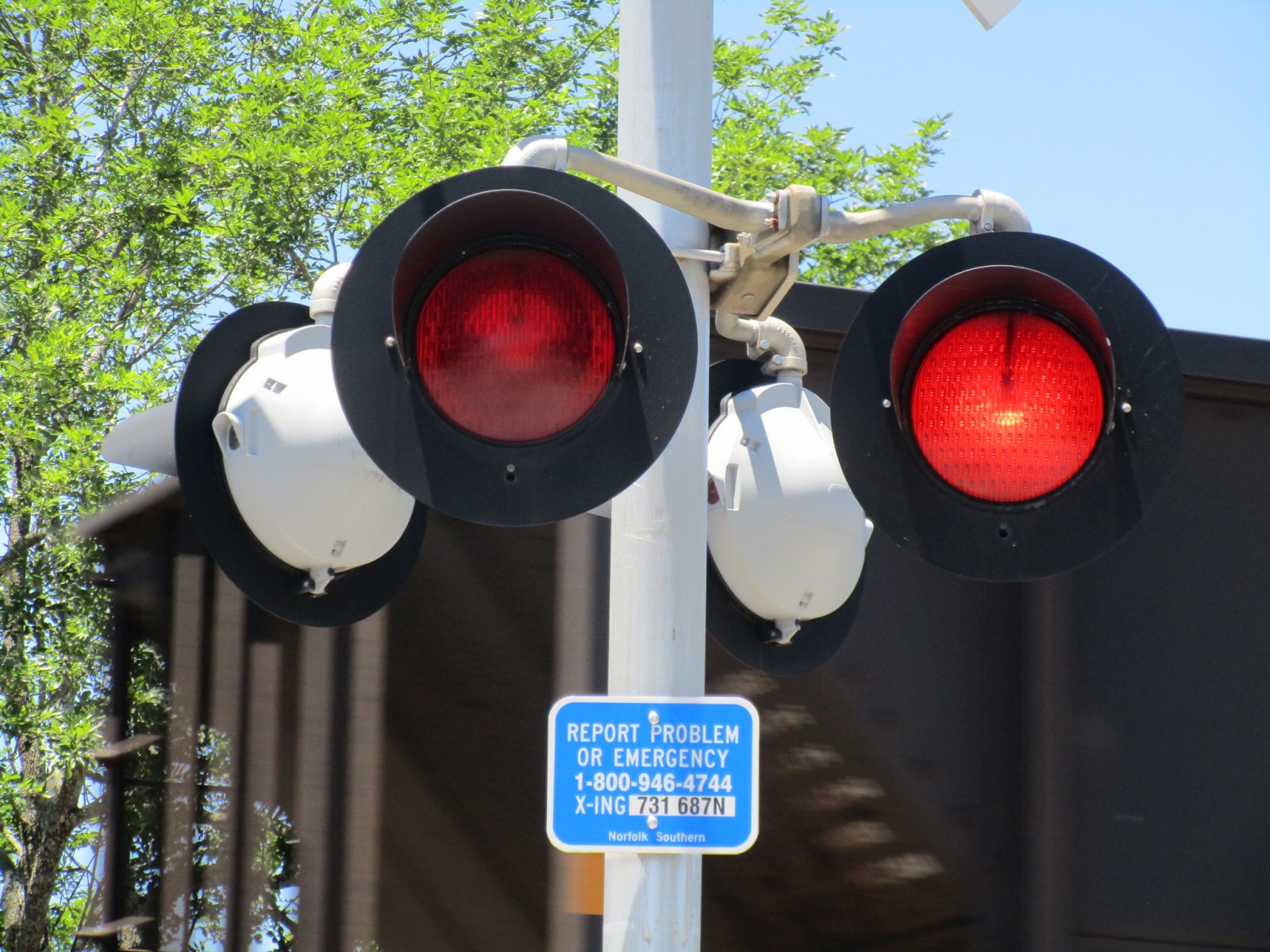

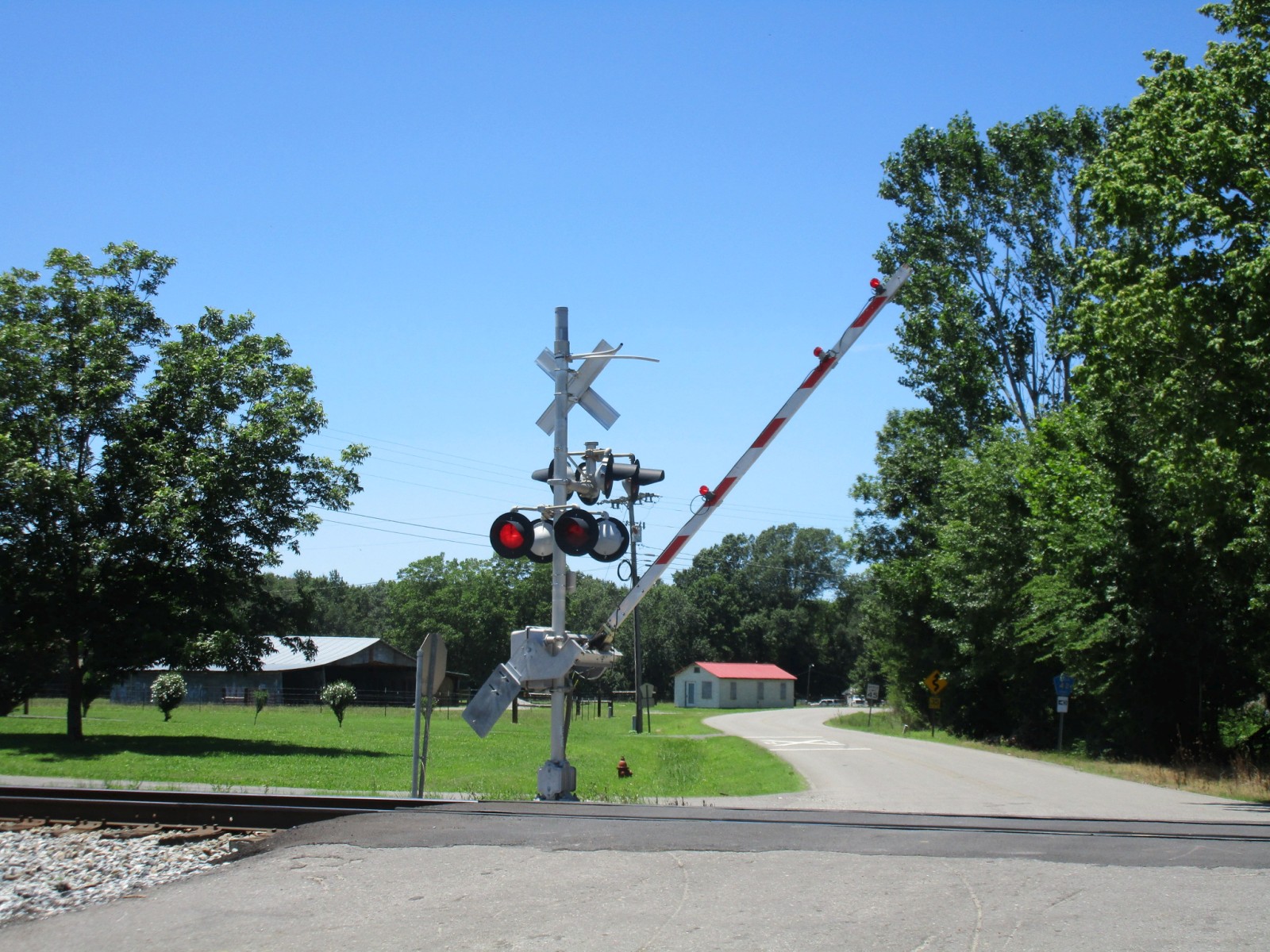

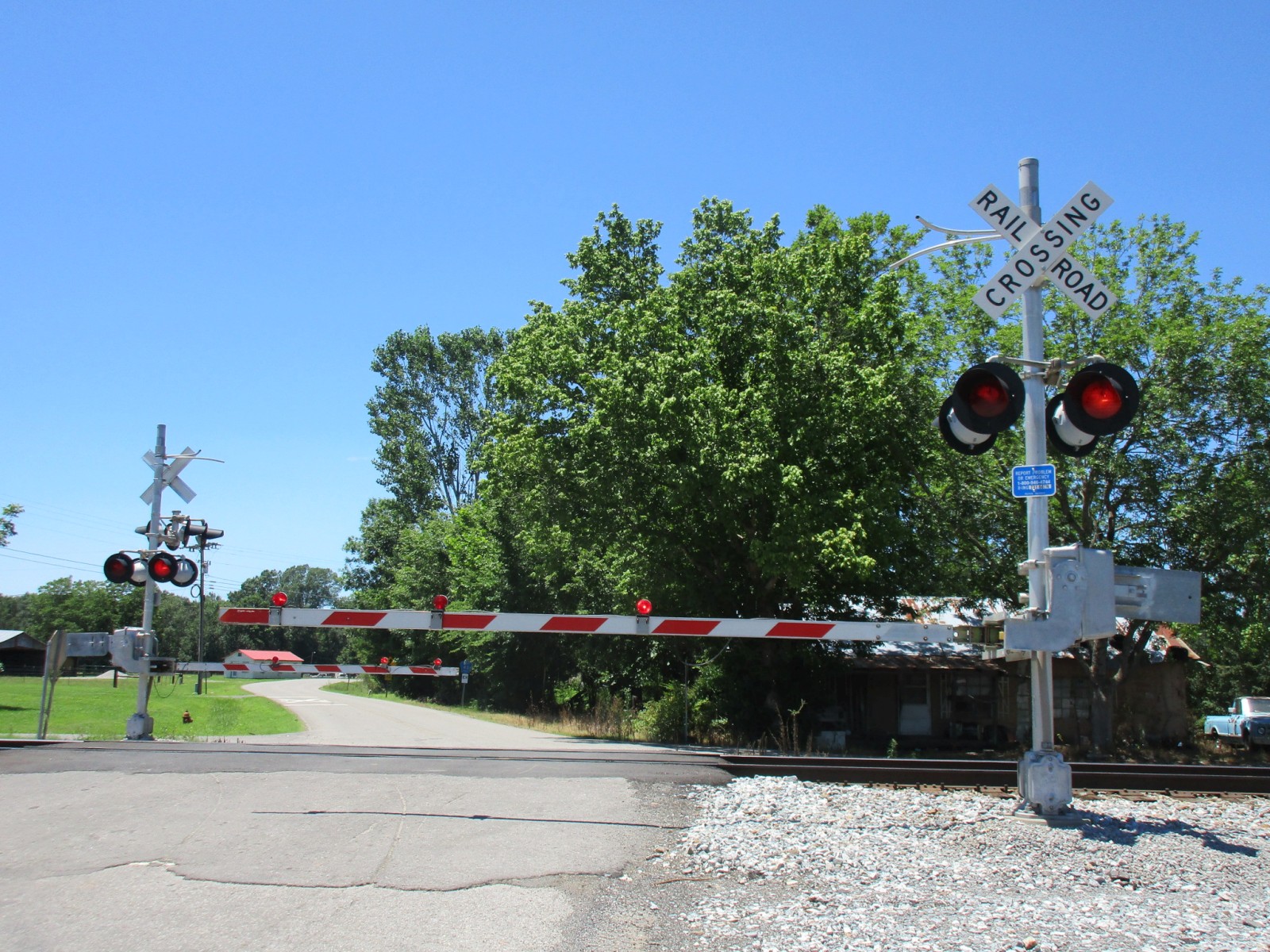

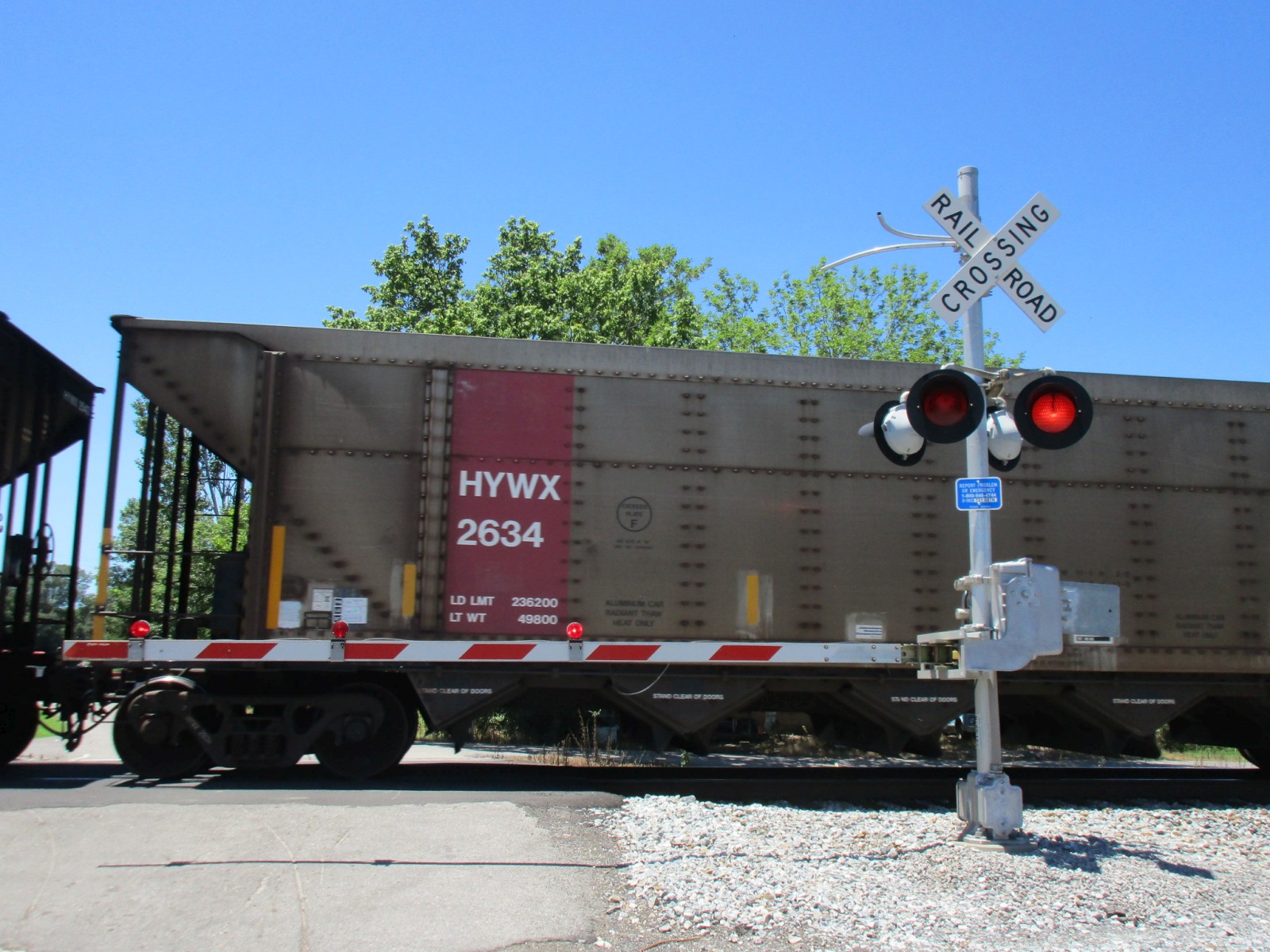

A return trip to the crossing on 6-27-17 catches it in action!

29

30

31

32

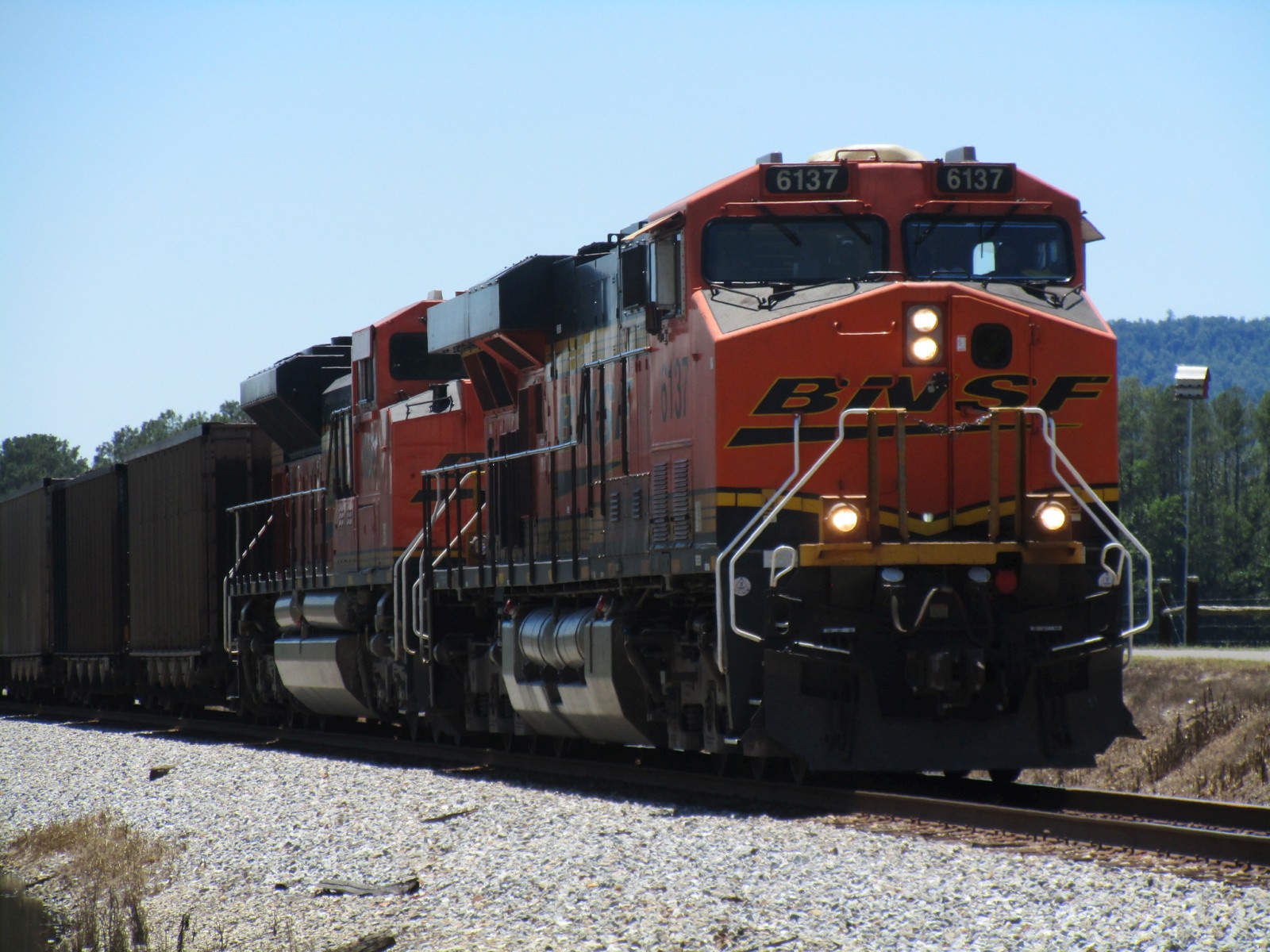

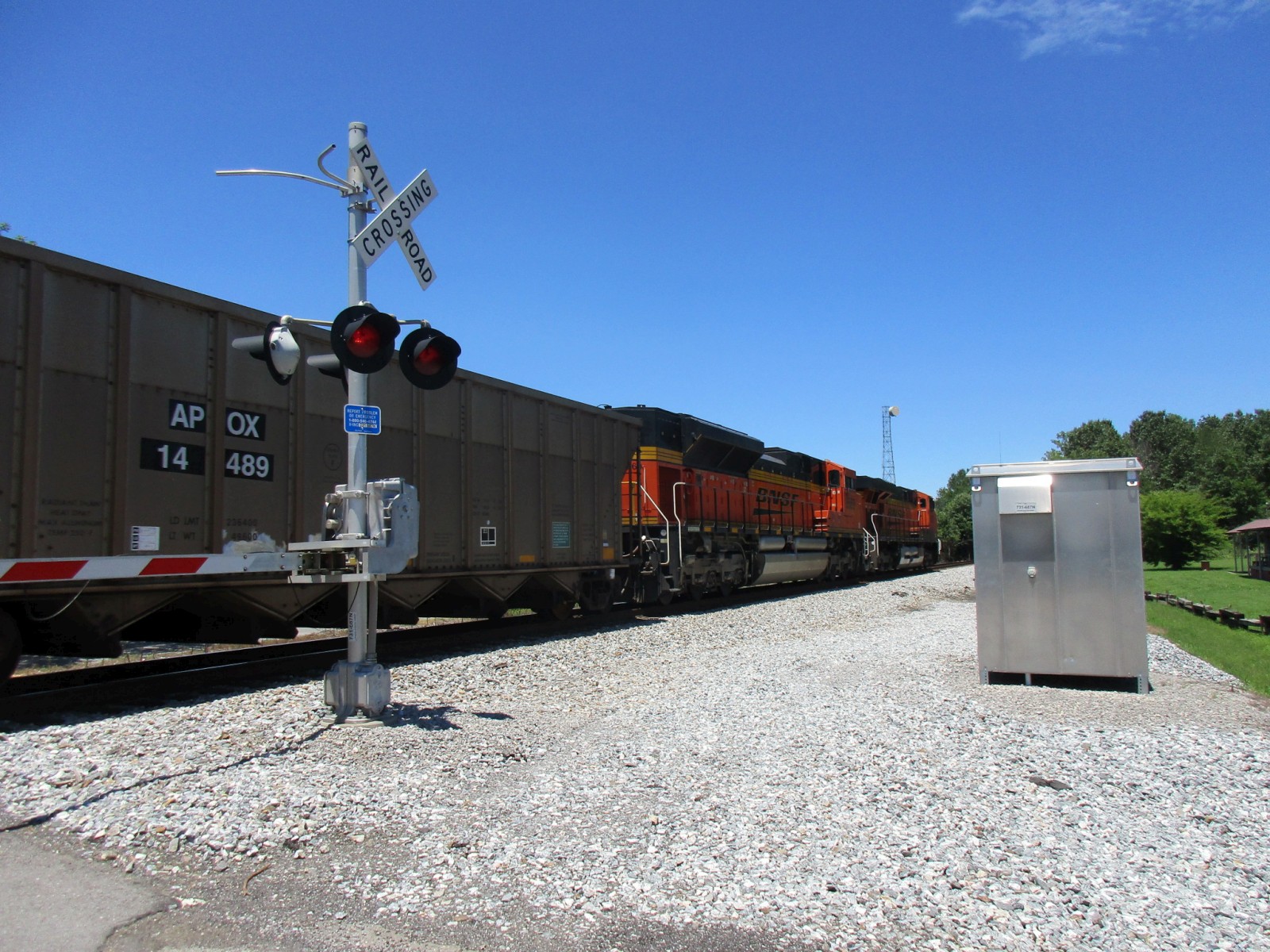

A BNSF ES44AC and a BNSF SD70ACe pull NS 734 through the crossing.

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

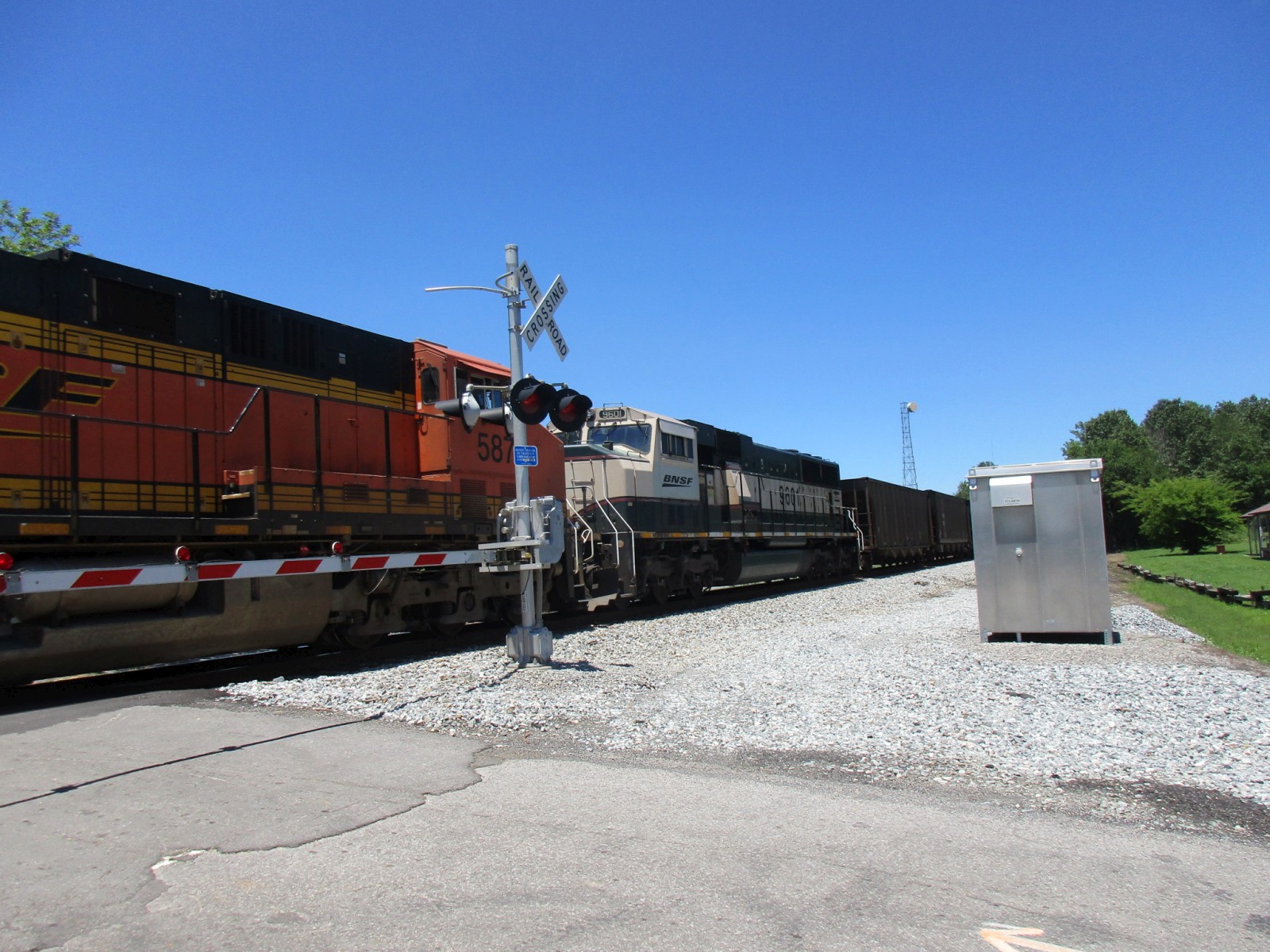

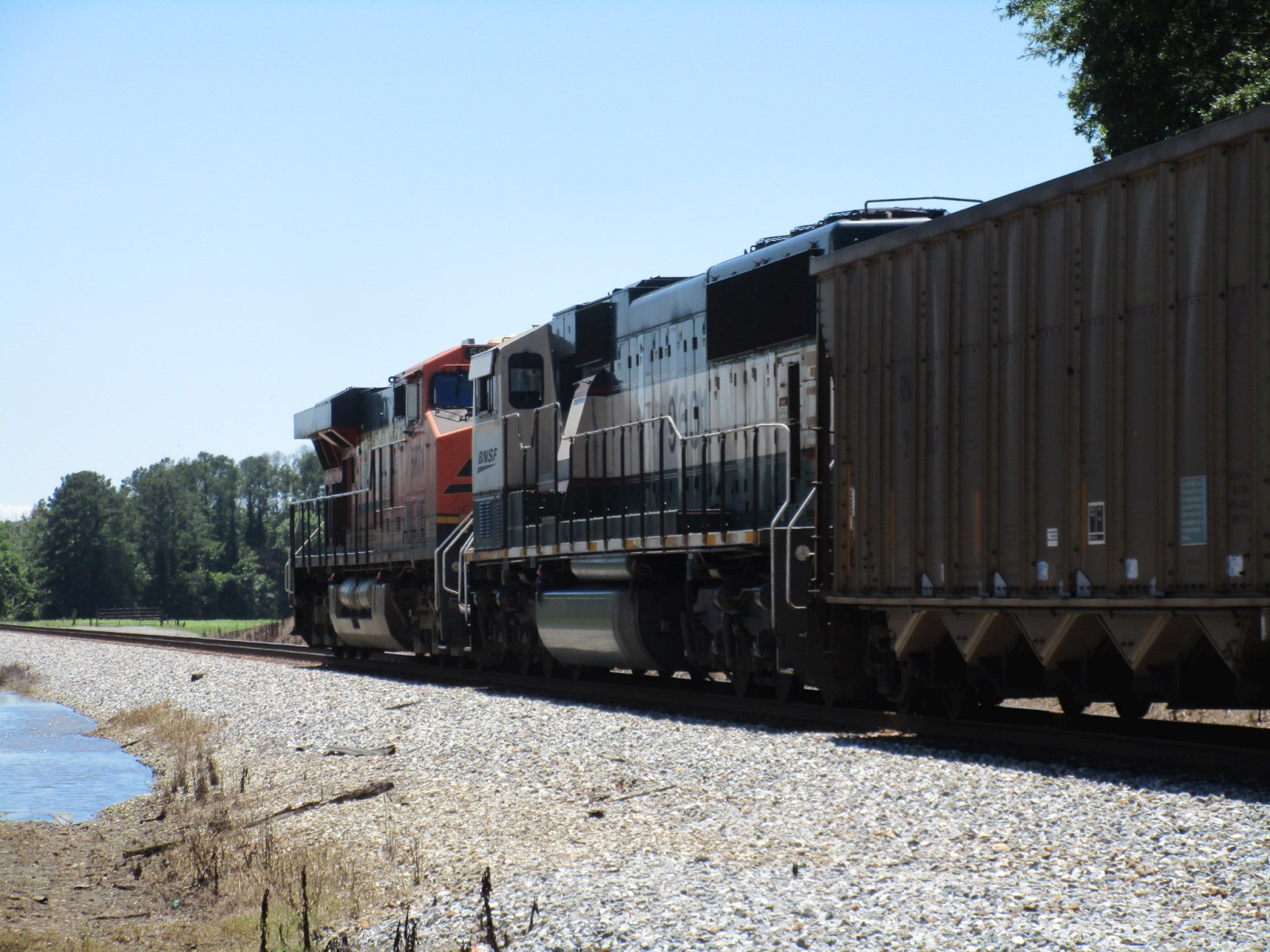

The DPUs on this coal train are a BNSF SD70MAC in "executive" paint and another BNSF ES44AC.

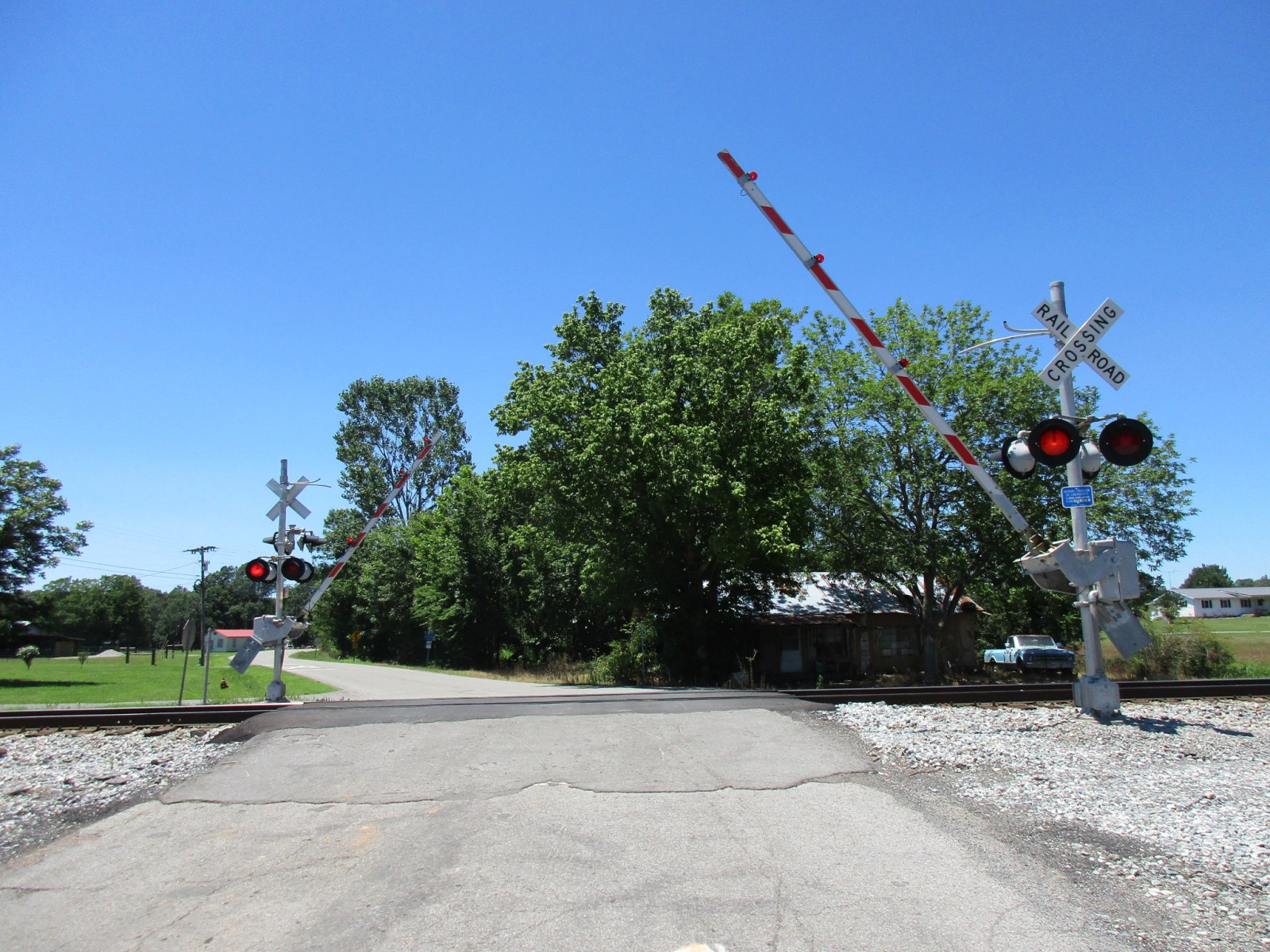

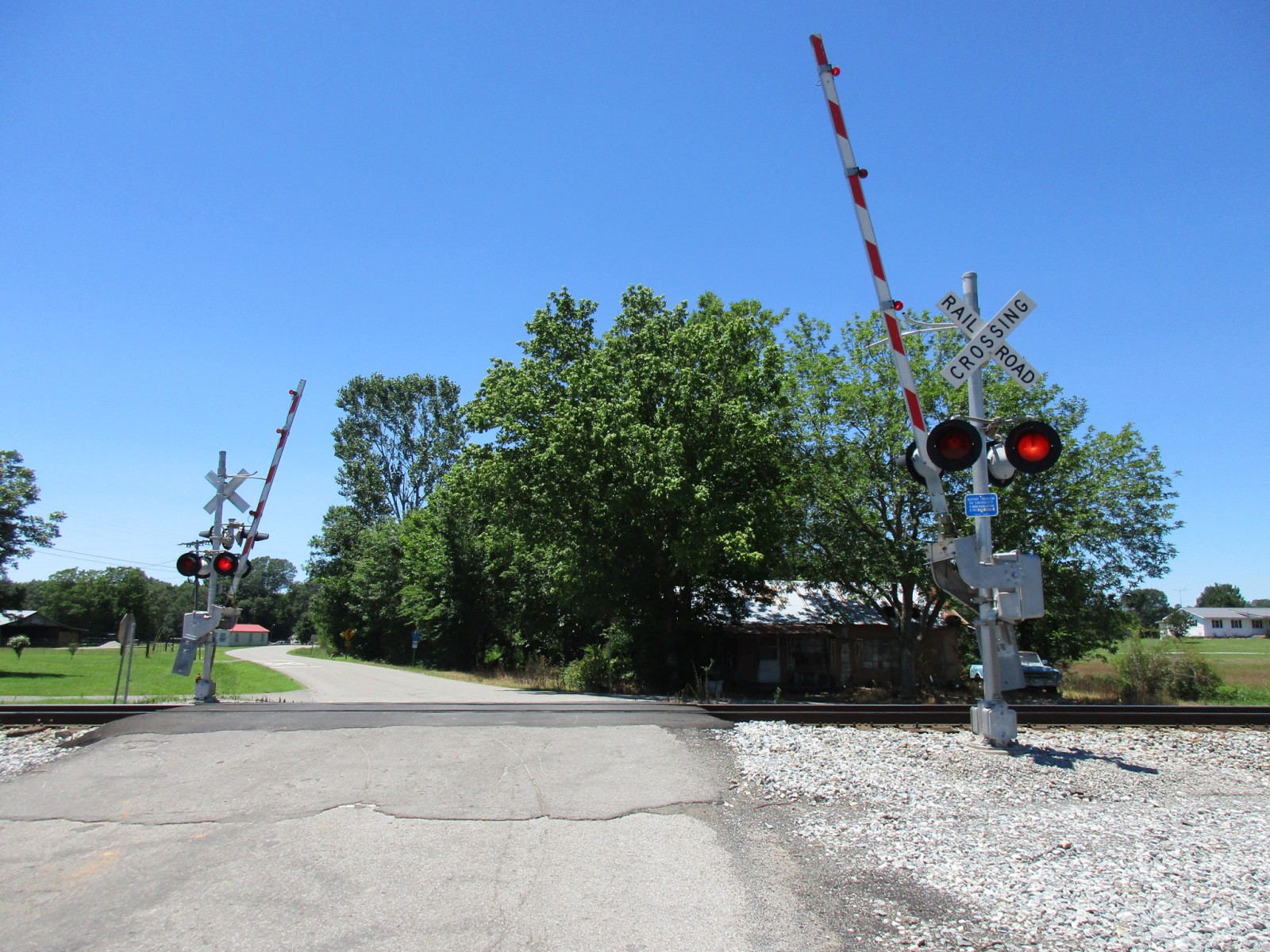

The gates rise once the train clears the crossing.

49

50





Pictures 1-25 were taken on 6-7-17.
Pictures 26-50 and the video were taken on 6-27-17.
