Updated January 2, 2007
Total Accidents: 4
Crossing DOT #: 750604Y
TOTAL
DAILY TRAINS: 24 (AS OF 1991)
1 800x600 86.2 KB |
2 800x600 96.7 KB |
3 800x600 88.4 KB |
4 800x600 68.8 KB |

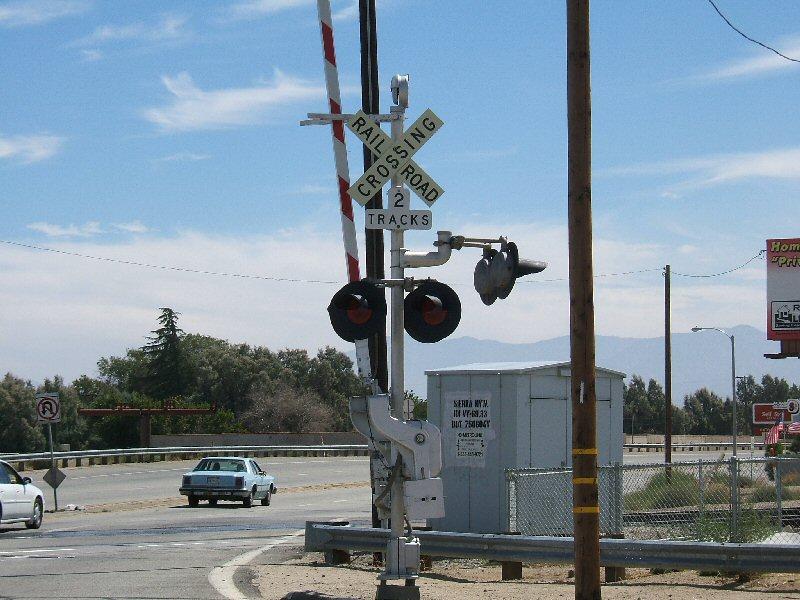

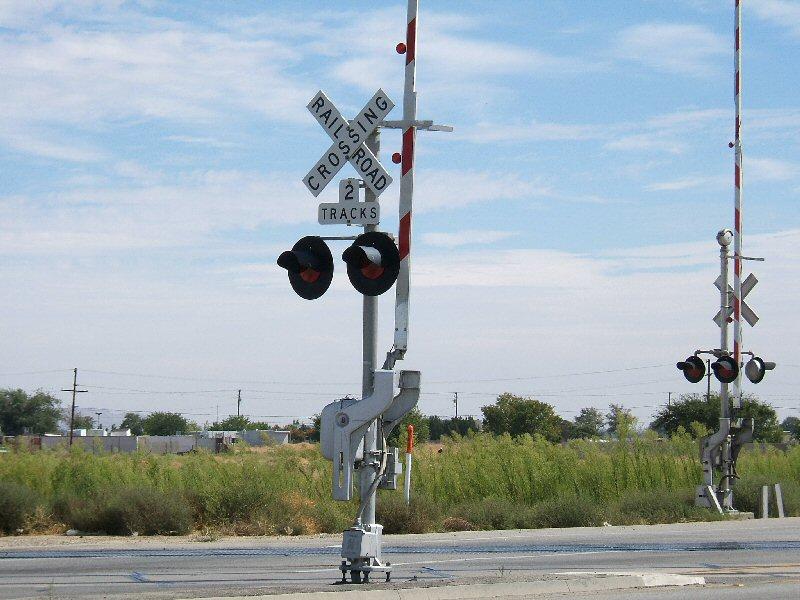

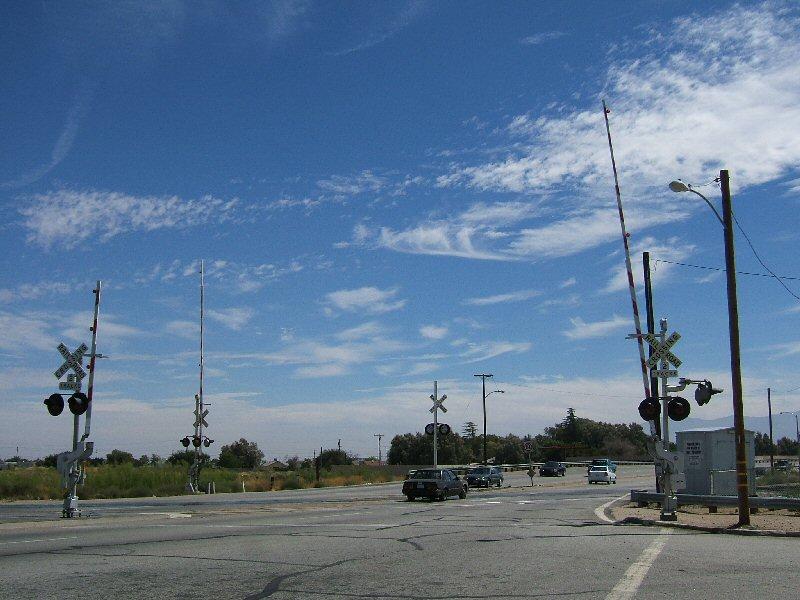

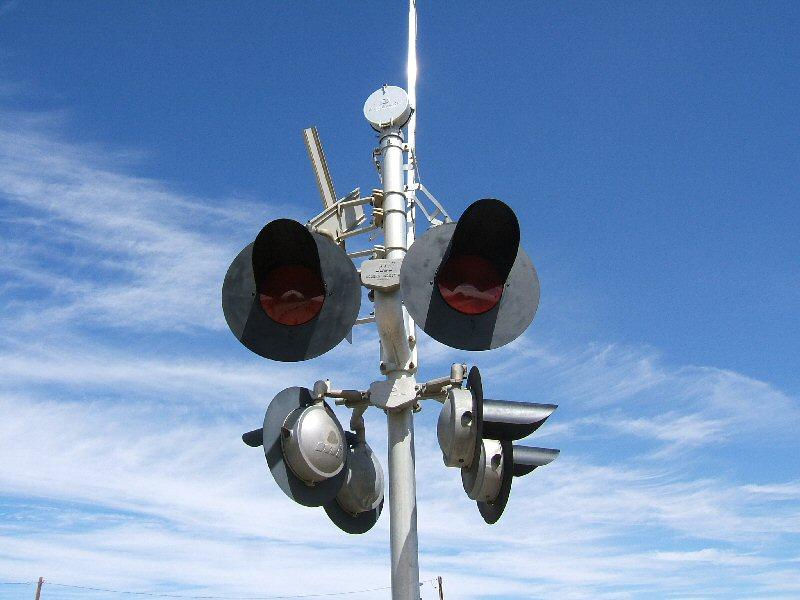

Here's another crossing that belongs to UP and Metrolink. Pictures 1-5 are facing Southeast. These two signals are what Metrolink installed, and they are both 12"x24" ball L.E.Ds. in Modern Industries frames and 2 tracks signs. The bell seen on pictures 1, 2, 4, and 5 is an Safetran mechanical bell.
Look how small the gate is on picture 1 on the median signal! It used to be a gateless signal, until Metrolink decided to put a gated median signal in. |
|||
5 800x600 110 KB |
6 800x600 98.4 KB |
7 800x600 103 KB |
8 800x600 117 KB |

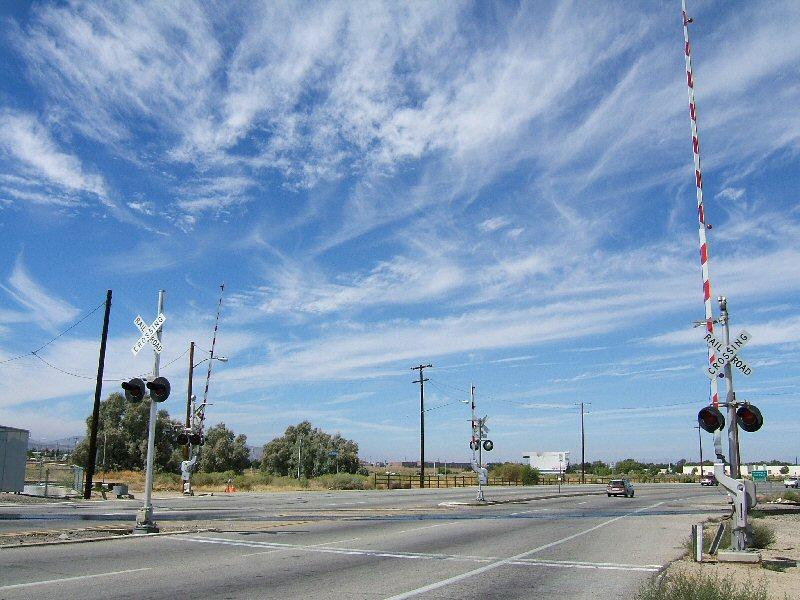

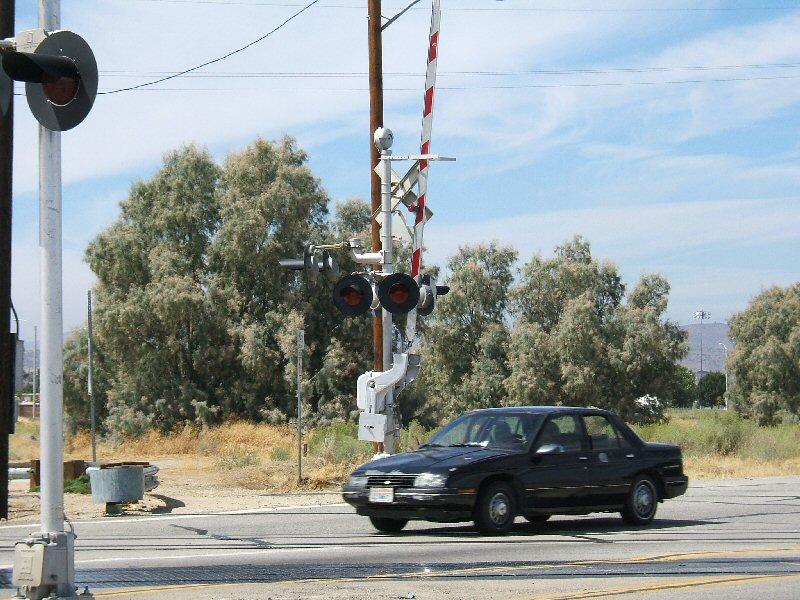

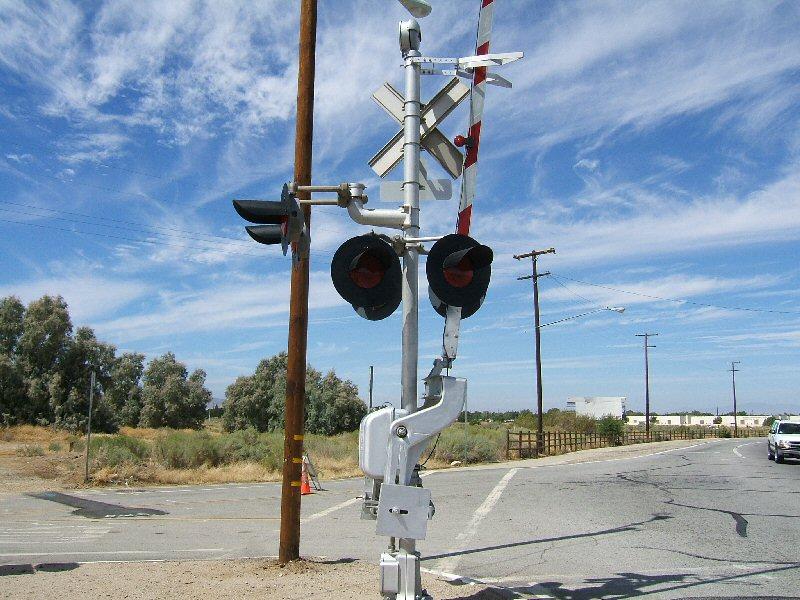

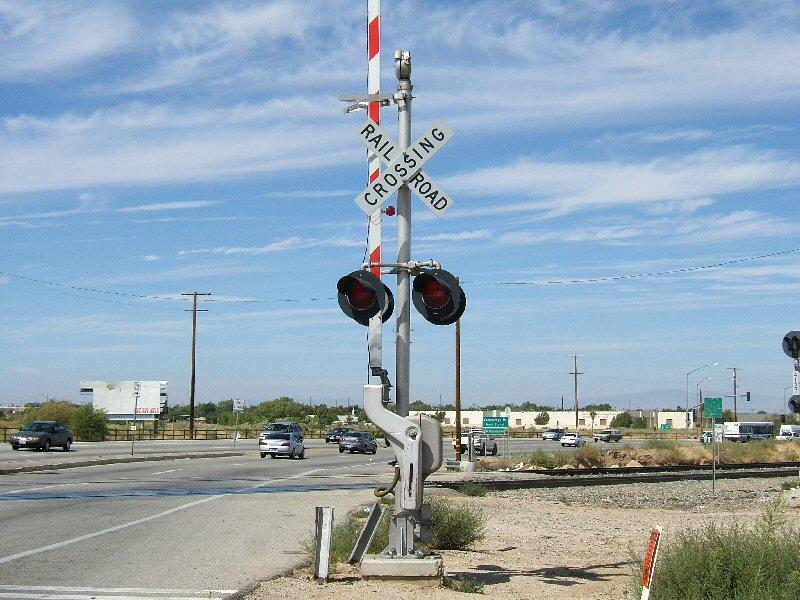

Pictures 6 and 7 show the other side of the crossing facing Northeast with the UP signals. The shoulder signal has 12"x20" incandescent lights. The median signal has 12"x24" dotted L.E.D. lights. Both signals are made from WCH products.
All 3 gate mechanisms belong to WCH. The gate lights are 4" incandescent lights. The median signal is kind of new. There was an older one, but it kept on getting knocked down by careless motorists. |
|||
9 800x600 115 KB |
10 800x600 101 KB |
11 800x600 80.6 KB |

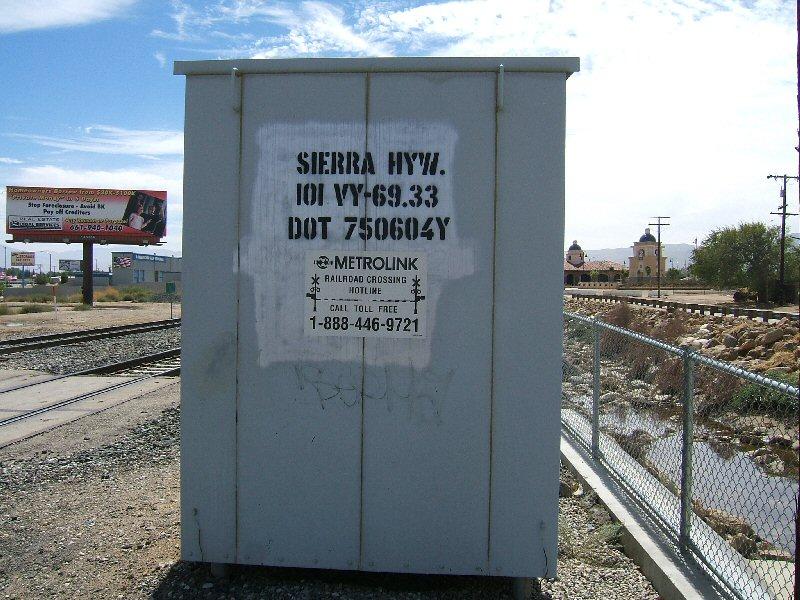

Once again, two relay cases protect this crossing. Picture 11 shows a signal that Metrolink put in. Despite what it looks like, it's NOT a hooded signal. All three lights have visors. |
||
12 800x600 63.7 KB |
Here are a few tri-color lights that UP has. |
Pictures 1-12 were taken September 24, 2005.
13 800x600 118 KB |
14 800x600 116 KB |
15 800x600 111 KB |
16 600x800 110 KB |

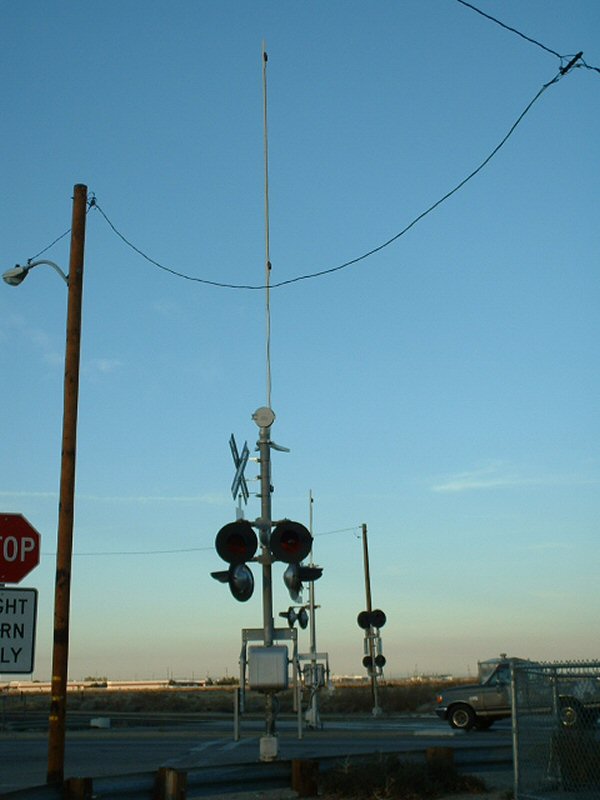

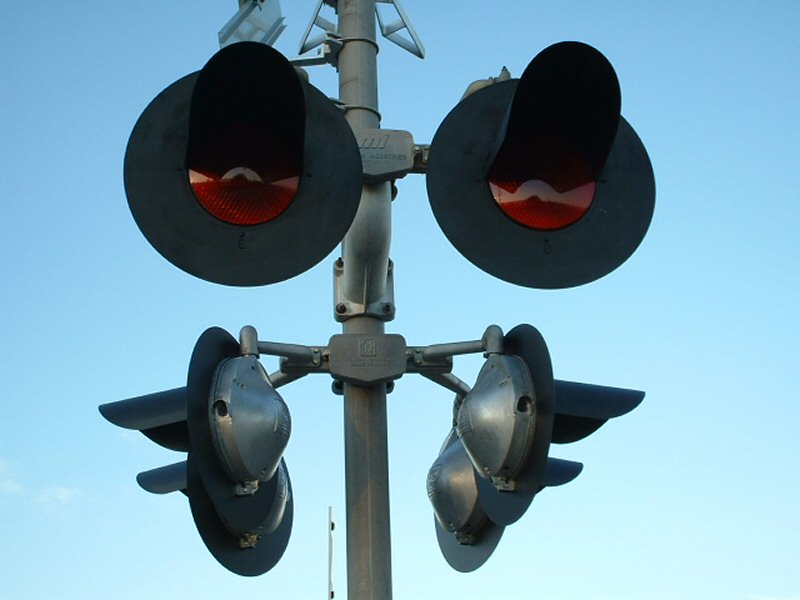

The front and rear Modern Industries lights have been replaced with WCH L.E.D. lights. The sidelight as seen in pictures 15-16 has been left alone. The Safetran bell seen in picture 13 was changed to a WCH mechanical bell.
I wasn't told what happened to the median short gated signal, so I assume nothing's changed on that signal. |
|||
17 800x600 132 KB |
18 800x600 129 KB |
19 800x600 129 KB |
20 800x600 123 KB |
A close-up at a counterweight. |
Looking South. |
Looking North. |
A closer look at the tri-light signal. |
21 800x600 119 KB |
22 800x600 123 KB |
23 800x600 122 KB |

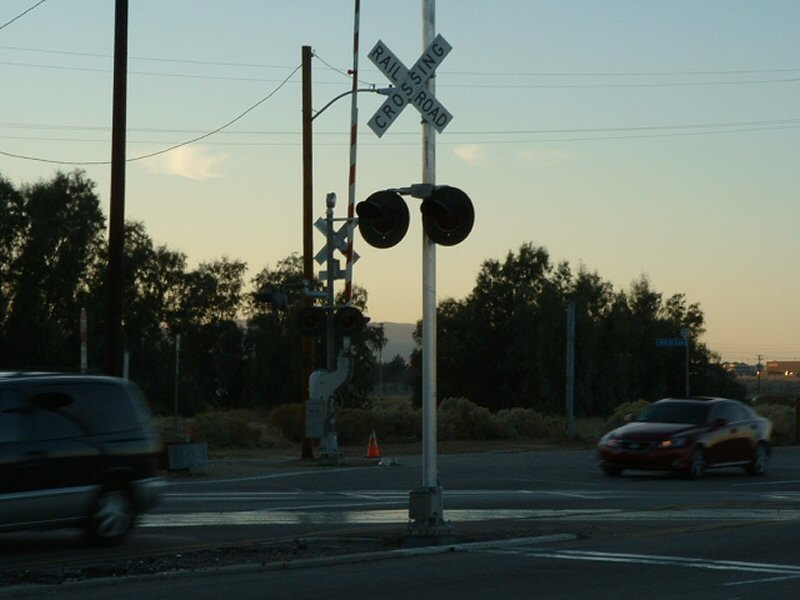

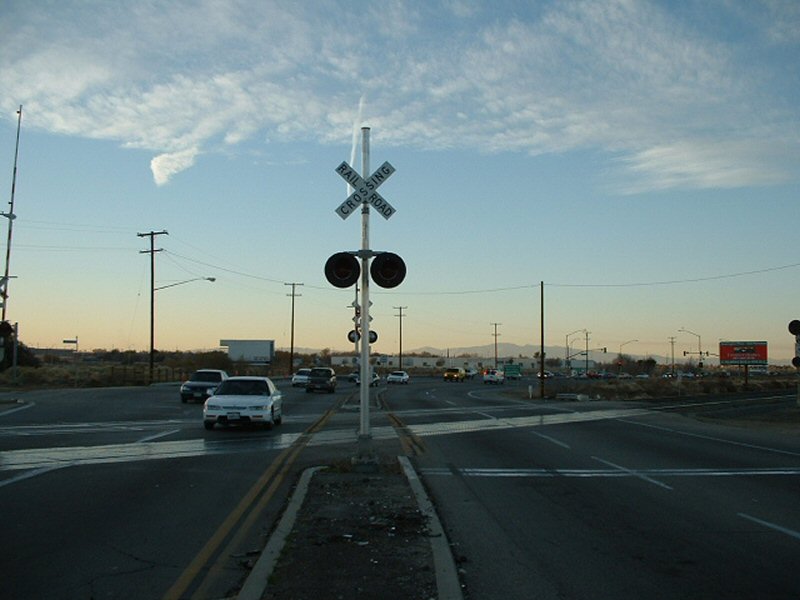

Another look at the other side of the crossing. It appears that nothing's changed on this side of the tracks. |
||
 |
CLICK THE ICON TO THE LEFT TO HEAR THE CROSSING IN ACTION. (RECORDED 2002 BACK WHEN THERE WAS A SAFETRAN & WCH MECHANICAL BELL) |
|
 |
CLICK THE ICON TO THE LEFT TO HEAR THE CROSSING IN ACTION. (RECORDED 2005 BACK WHEN THERE WAS A SAFETRAN & WCH MECHANICAL BELL) |
|
 |
CLICK THE ICON TO THE LEFT TO HEAR THE CROSSING IN ACTION. (RECORDED 2006 WITH 2 WCH MECHANICAL BELLS, TAKEN FROM THE UP SIDE BACK WHEN THE UP WCH BELL WAS DEAD) |
|
24 800x600 70.0 KB |
25 800x600 71.2 KB |
26 800x600 49.2 KB |
27 800x600 54.8 KB |

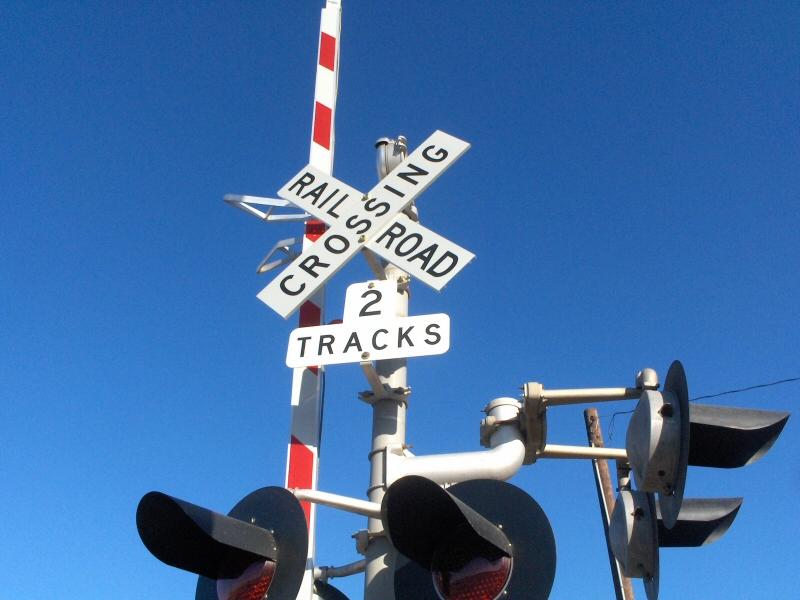

A few changes have been made to the crossing on September 17, 2006... |
|||
28 800x600 55.4 KB |
29 800x600 50.9 KB |
30 800x600 67.8 KB |
31 800x600 47.6 KB |
32 800x600 56.0 KB |
33 800x600 48.5 KB |
34 800x600 45.5 KB |
35 800x600 49.5 KB |

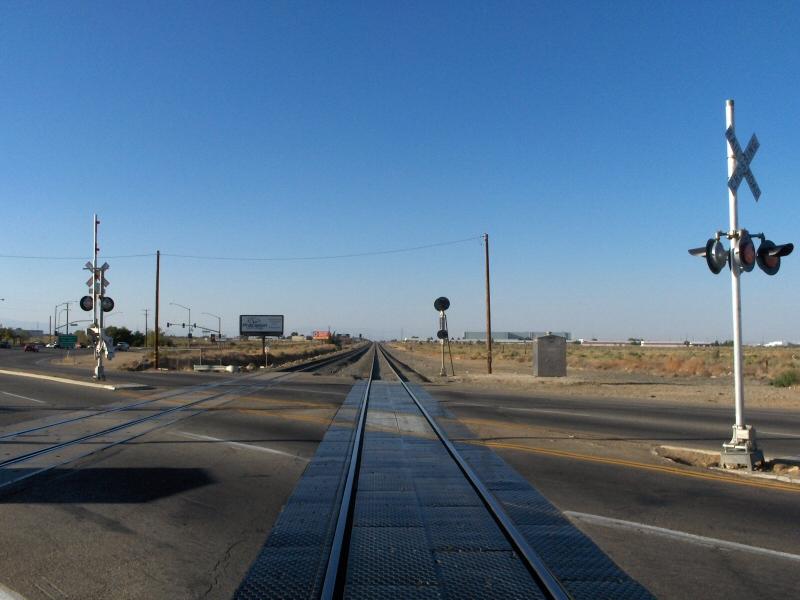

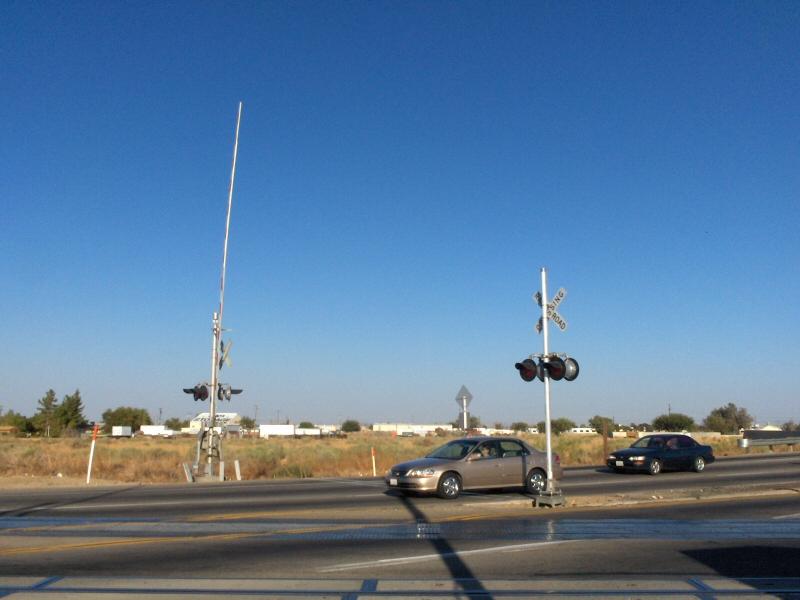

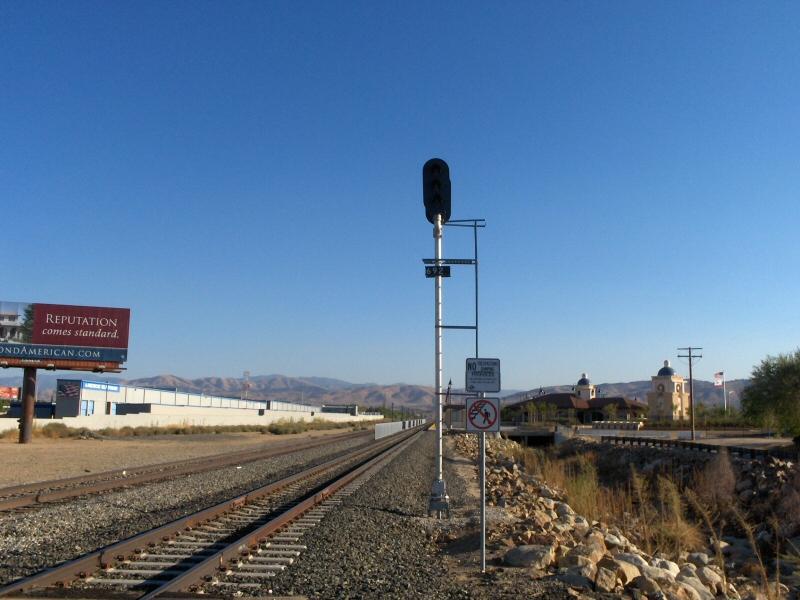

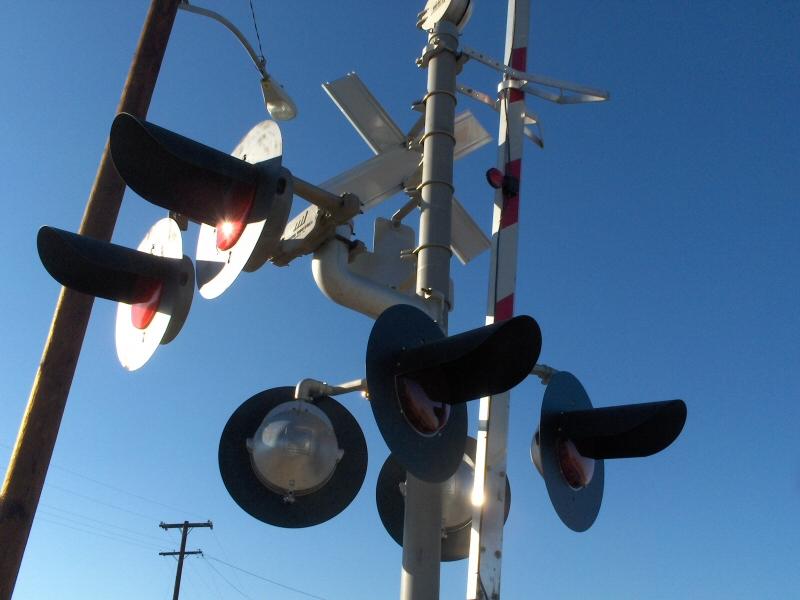

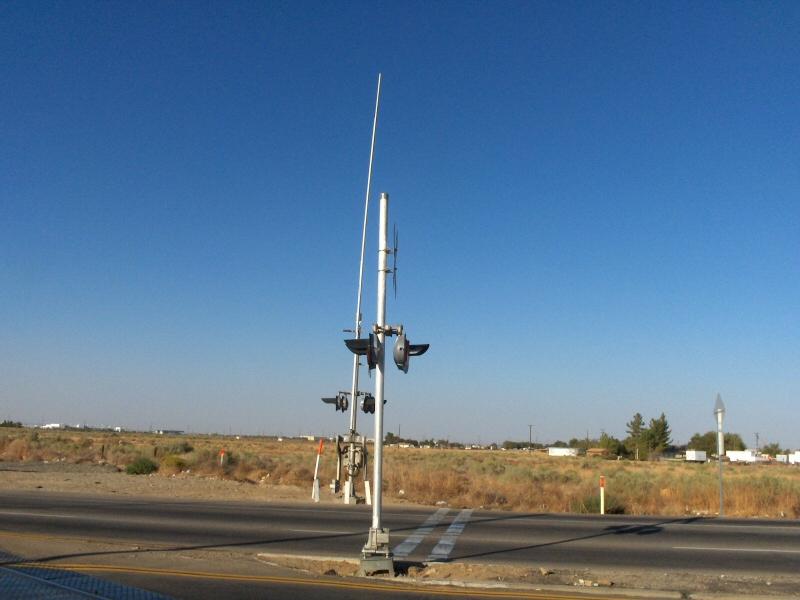

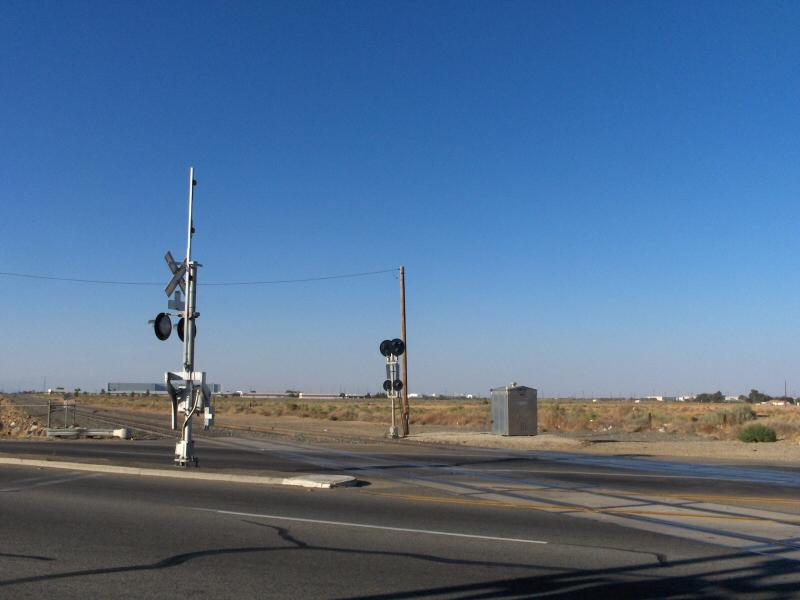

The median signal has changed to 12"x20" with front and rear lights! The lights are Harmon fading L.E.D. lights. You can see a missing visor on the left light in picture 31. The right 12"x20" lights are still the same. |
|||
36 800x600 68.7 KB |
37 800x600 74.5 KB |
38 800x600 50.8 KB |
39 800x600 75.8 KB |
40 800x600 38.8 KB |
41 800x600 45.4 KB |
42 800x600 54.1 KB |
43 800x600 53.3 KB |

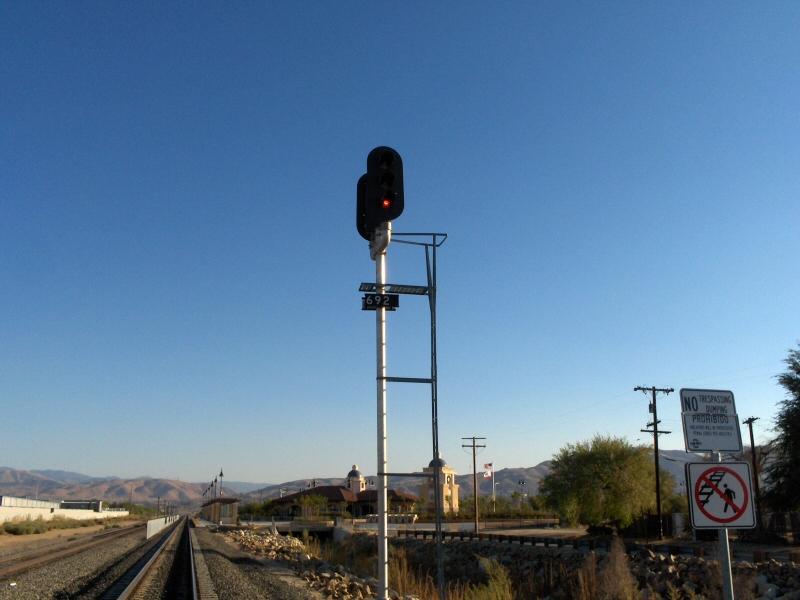

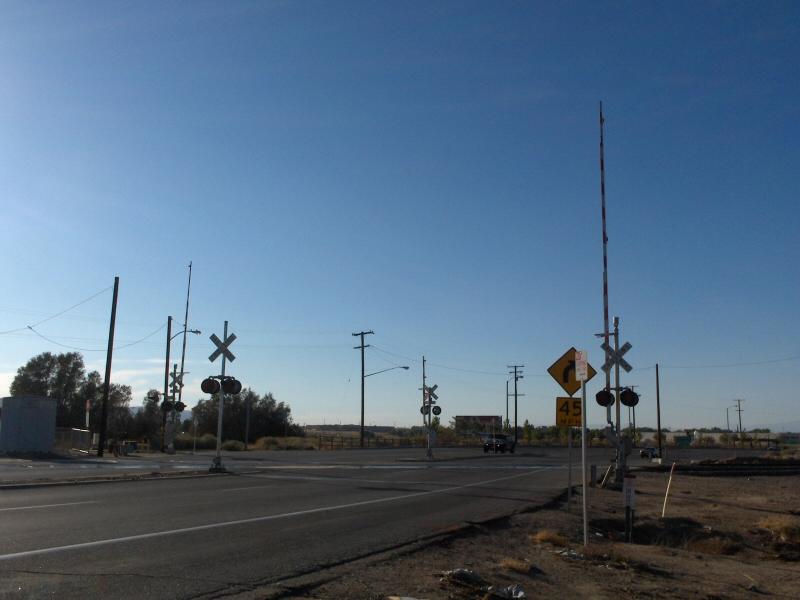

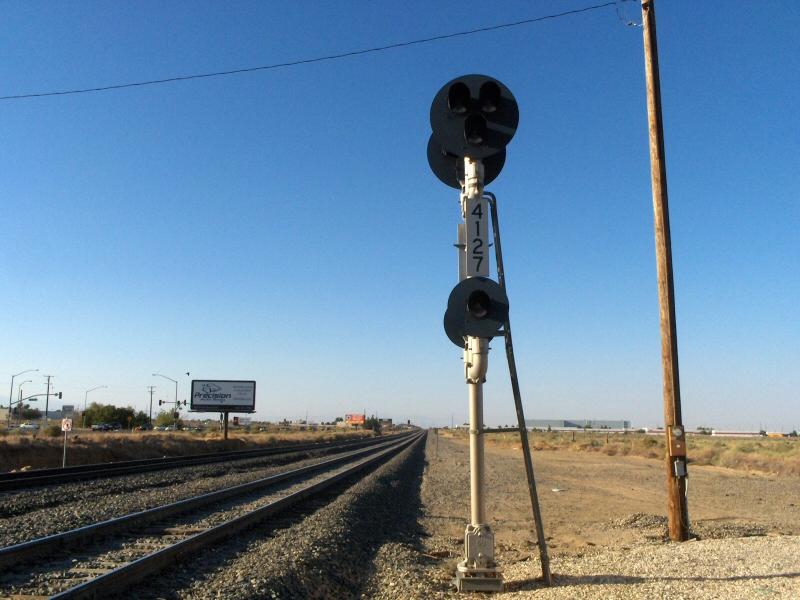

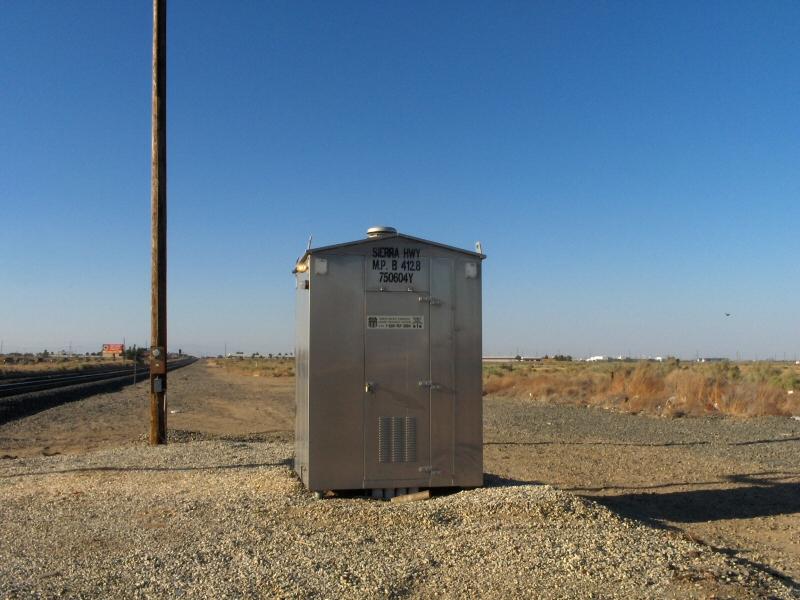

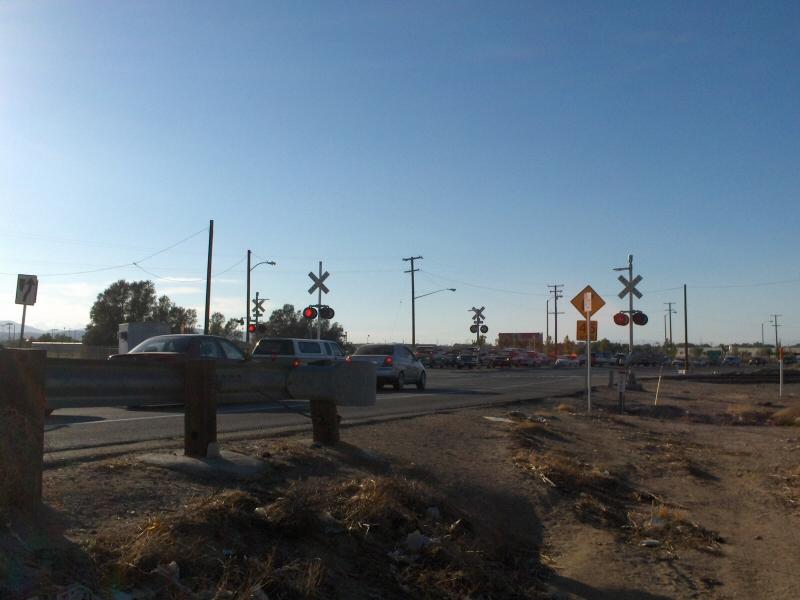

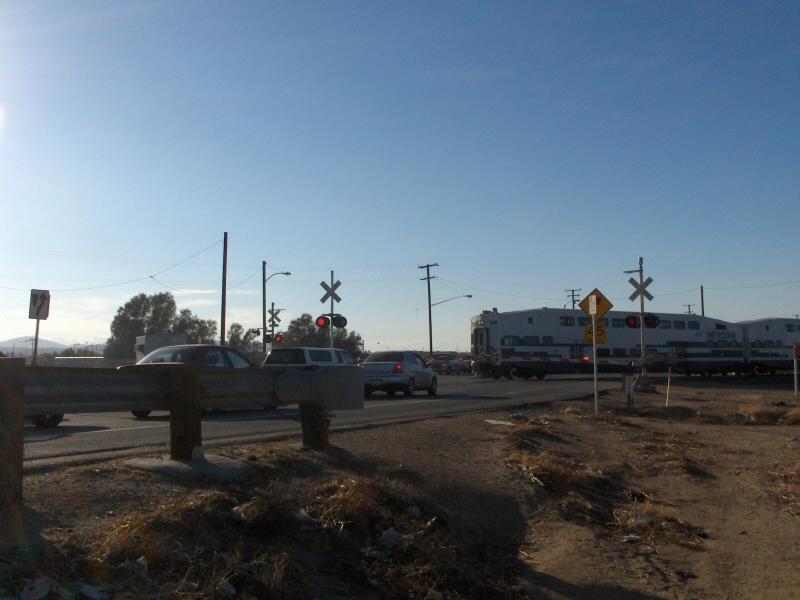

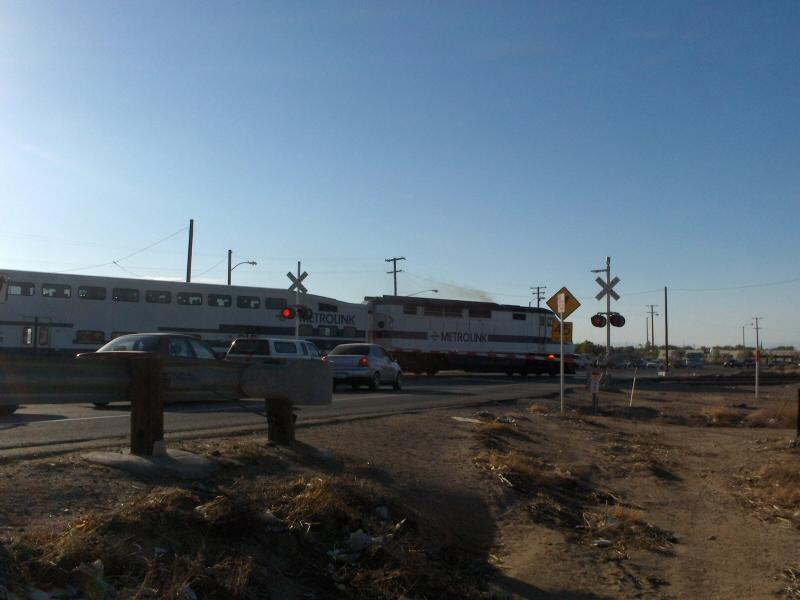

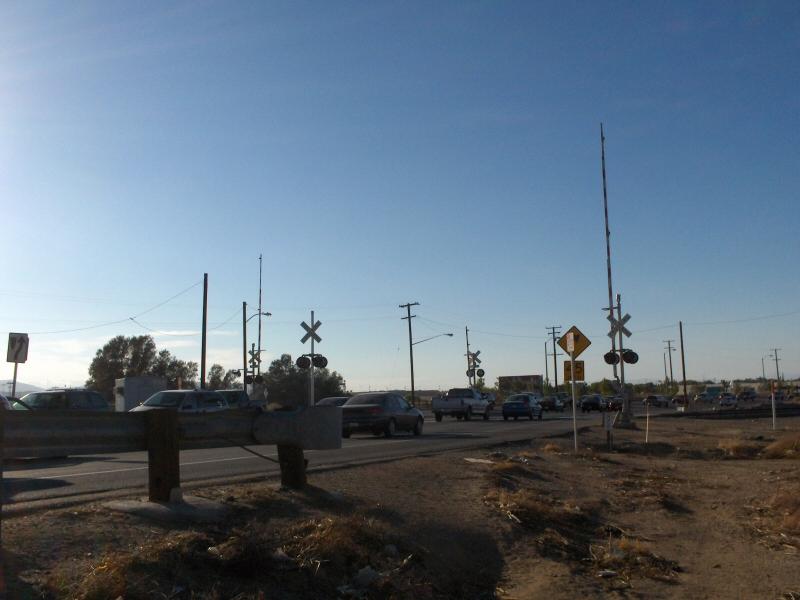

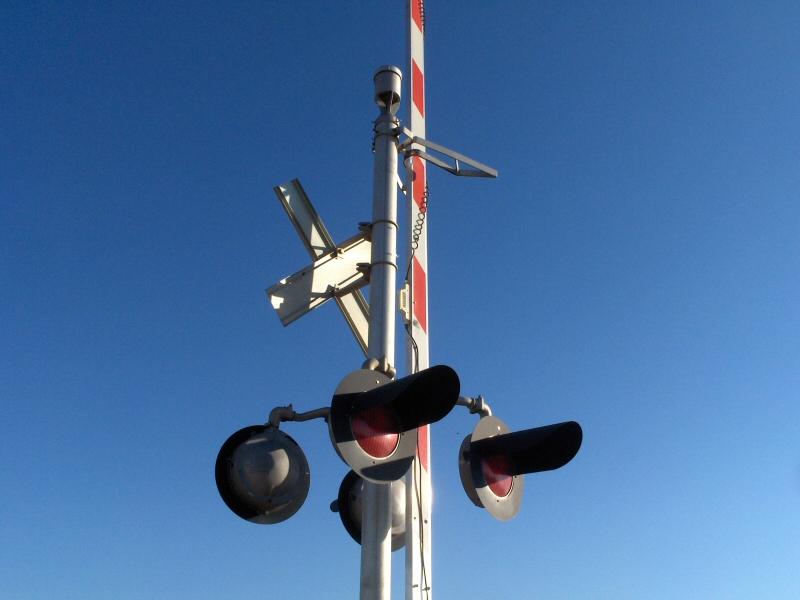

The dead WCH mechanical bell was replaced with a WCH type 2 electronic bell, and the UP signal in pictures 38-40 now has Aurora L.E.D. gate lights.
The old WCH mechanical bell was transferred to the 8th Street East crossing after one of the US&S teardrop bells was stolen. The bell was brought back to life somewhat, but still has some problems. |
|||
|
44 800x600 53.0 KB |
45 800x600 51.7 KB |
46 800x600 49.1 KB |
47 800x600 50.4 KB |
48 800x600 49.6 KB |
|||
|
CLICK THE ICON TO THE LEFT TO HEAR THE CROSSING IN ACTION. (RECORDED SEPTEMBER 17, 2006) |
|
