Created August 15, 2008
Total Accidents: 2
Crossing DOT #: 833784F
TOTAL DAILY TRAINS: 143
(AS 0F 2017)
Page created by: Benny (caltrain927@yahoo.com)
This crossing is located on the SACRT Blue Line and the UP Sacramento Subdivision with BNSF having trackage rights over it.
This crossing is located in a quiet zone. Trains do not blow their horns at this crossing.
|
1 900x600 65.9 KB |
2 900x600 65.1 KB |
3 900x600 38.7 KB |
|

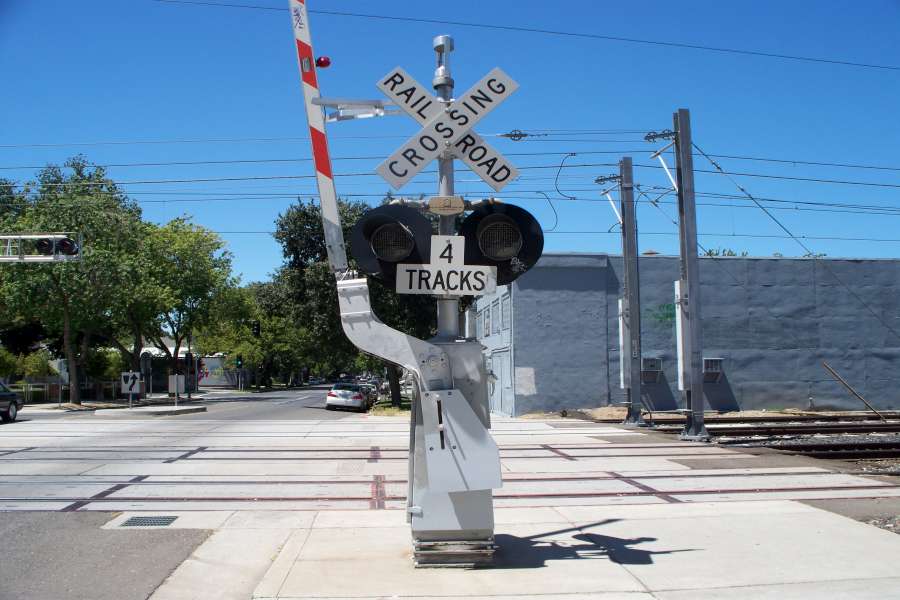

The Eastbound Signal.
|
This signal is a EM made by Safetran.
|

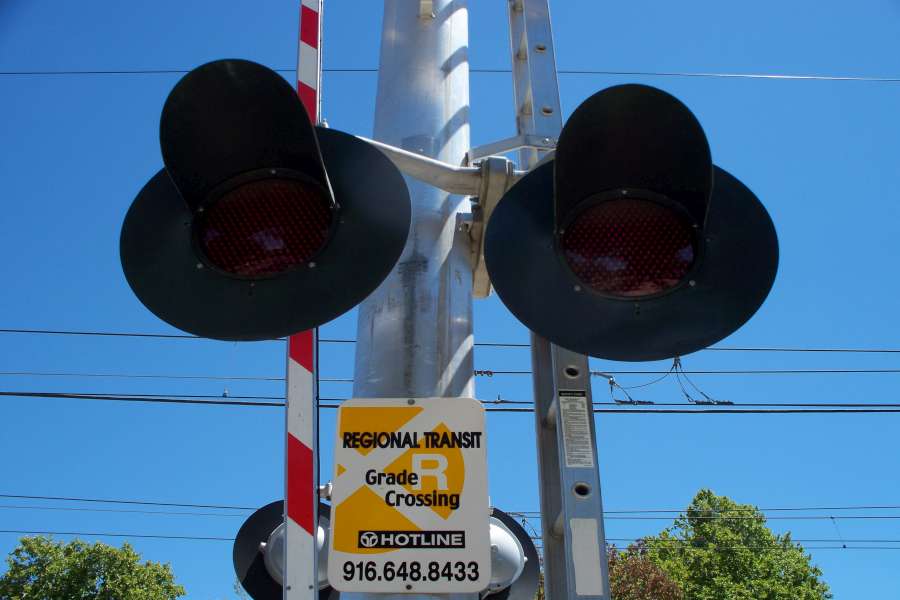

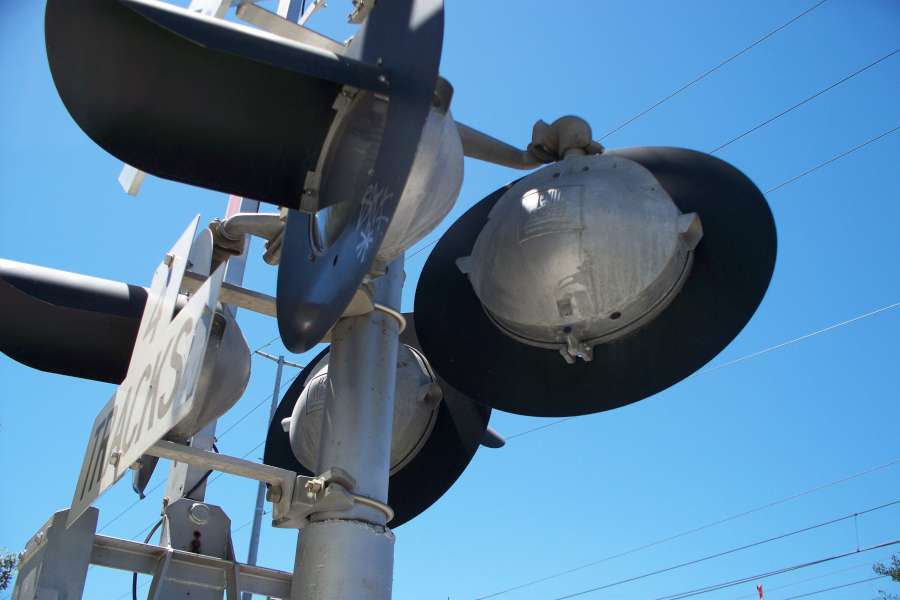

These lights are 12"x24" WCH Clear LED's.
|
|
4 900x600 23.7 KB |
5 900x600 72.4 KB |
6 900x600 64.4 KB |
|

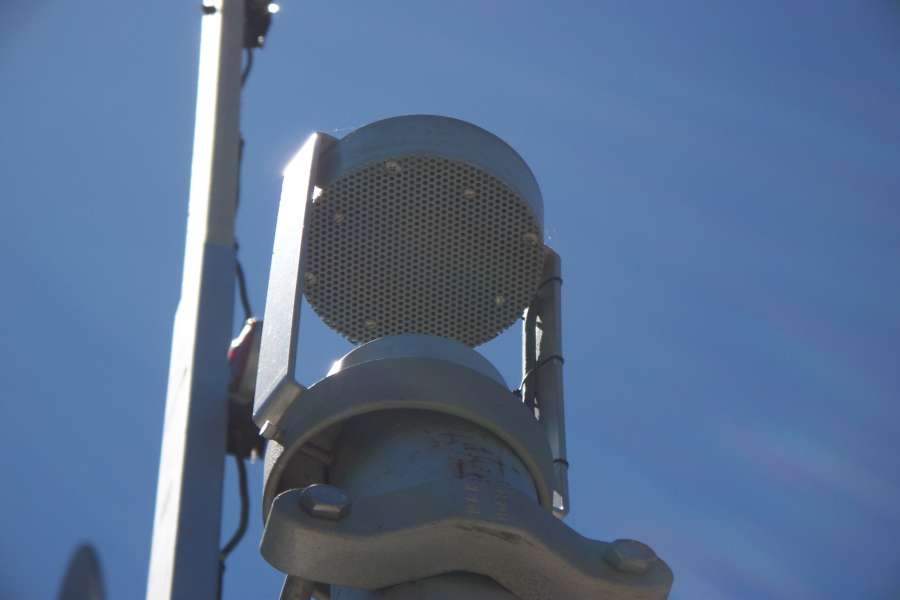

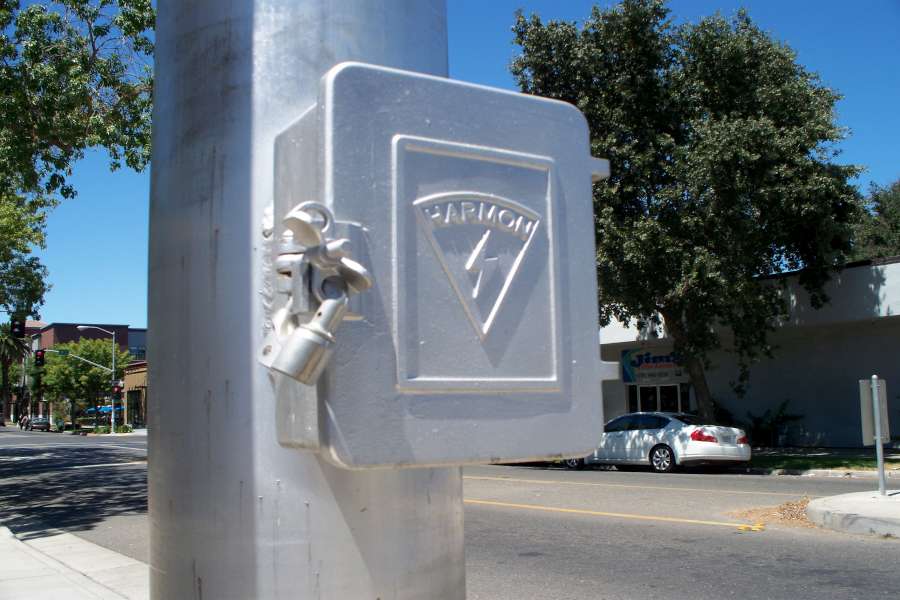

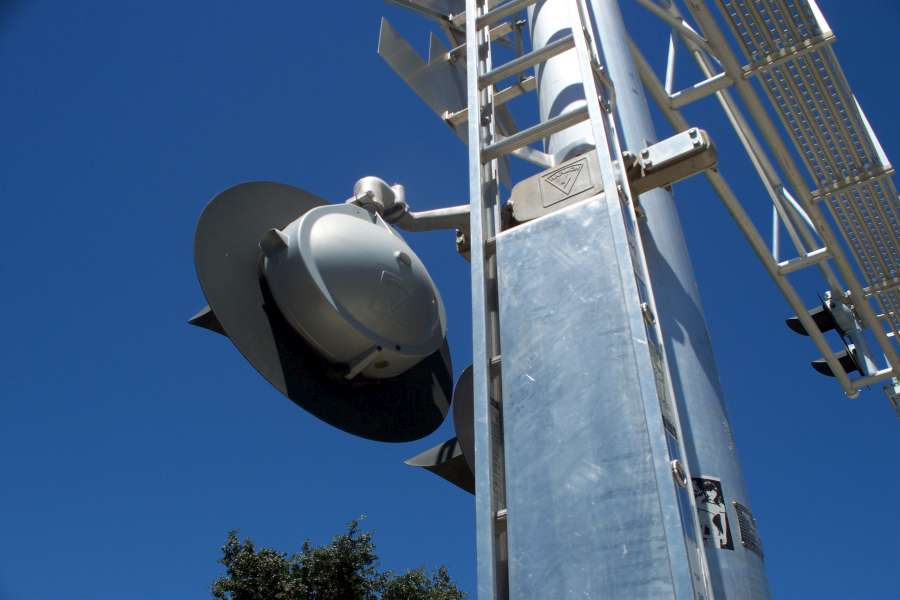

A Safetran Type 1 Electronic Bell!!!!!
|

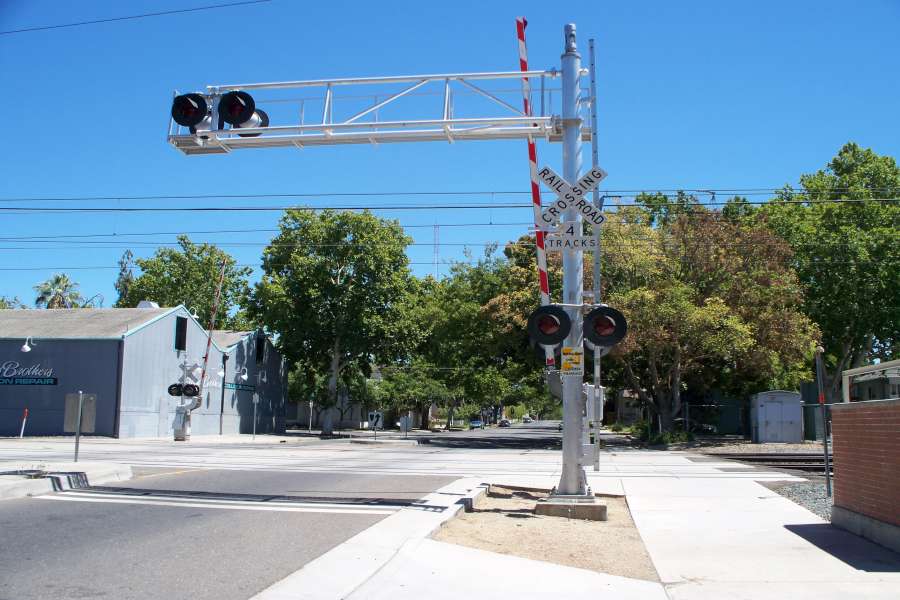

The Westbound Signal.
|

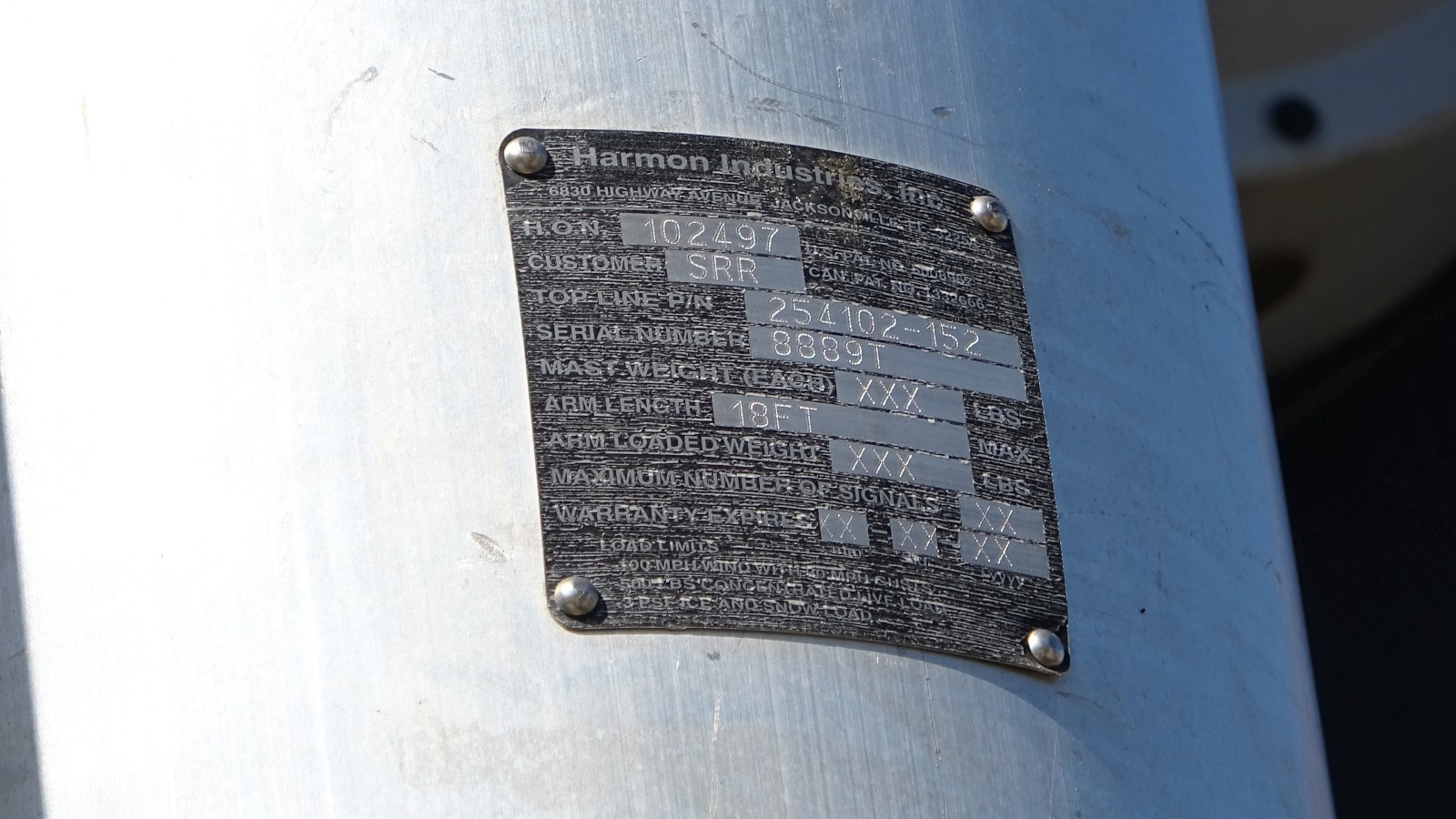

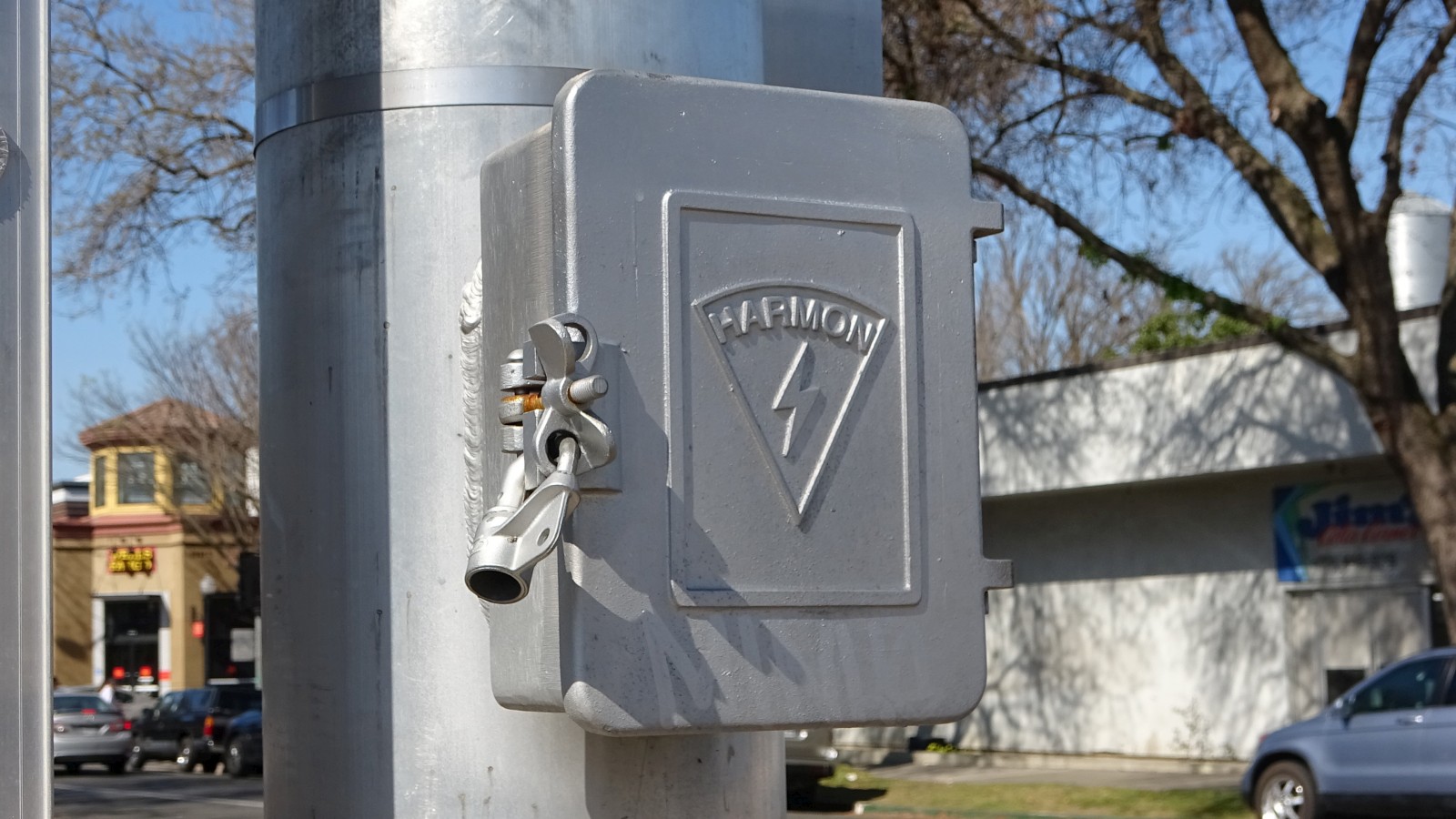

This is a newer Harmon Cantilever.
|
|
7 900x600 44.4 KB |
8 900x600 42.4 KB |
9 900x600 87.2 KB |
|
These lights are 12"x24" GS LED's in Harmon
Light Frames.
|

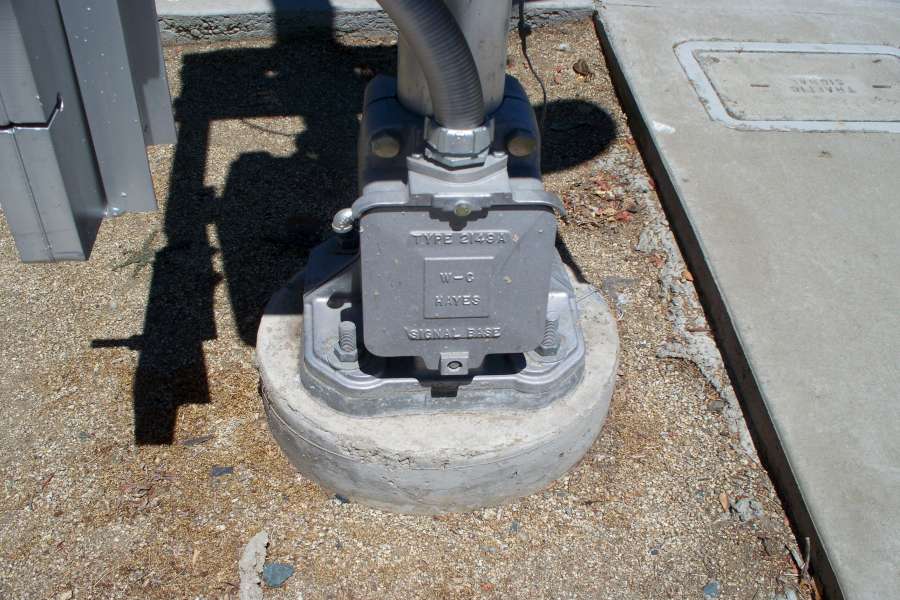

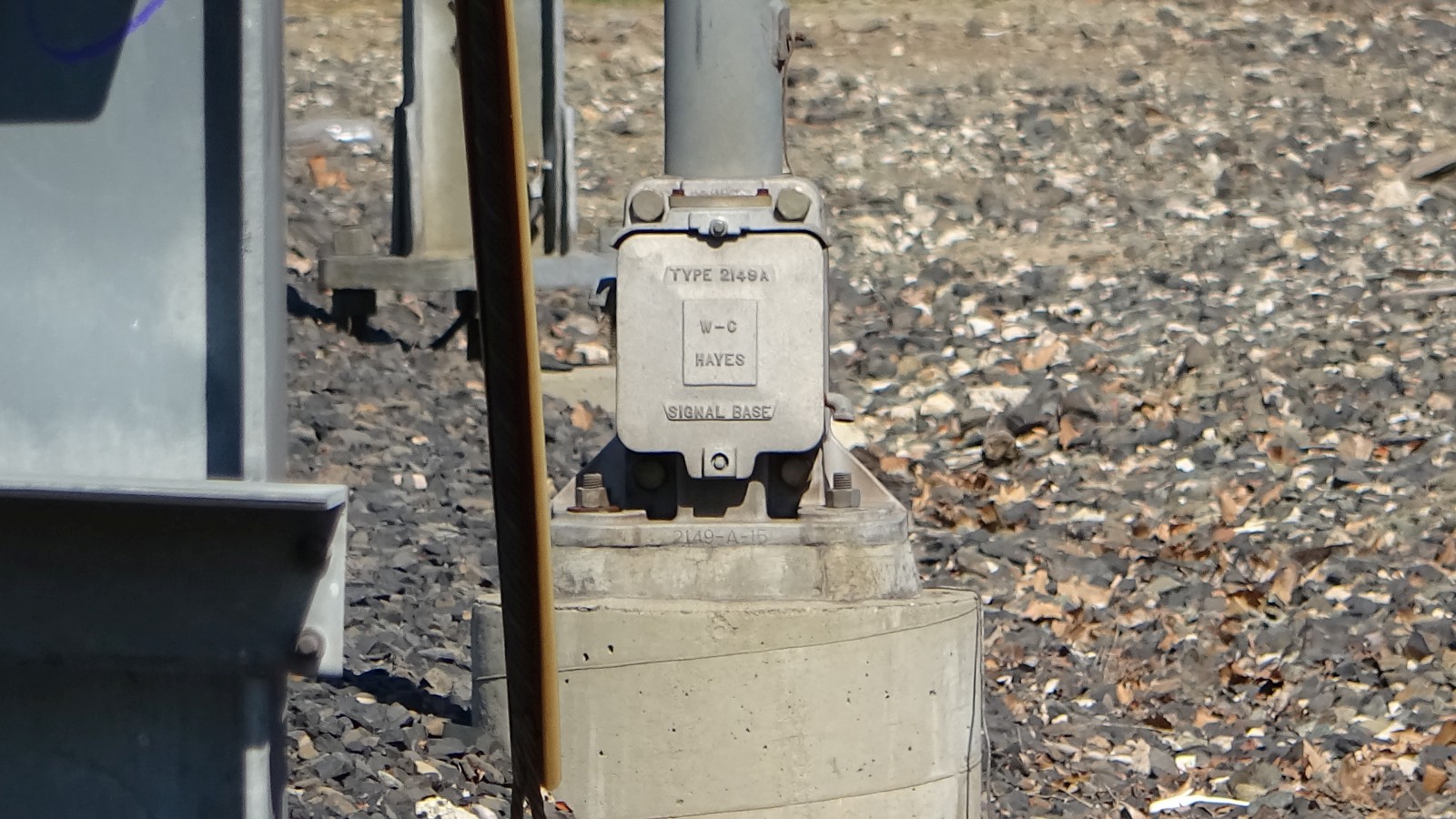

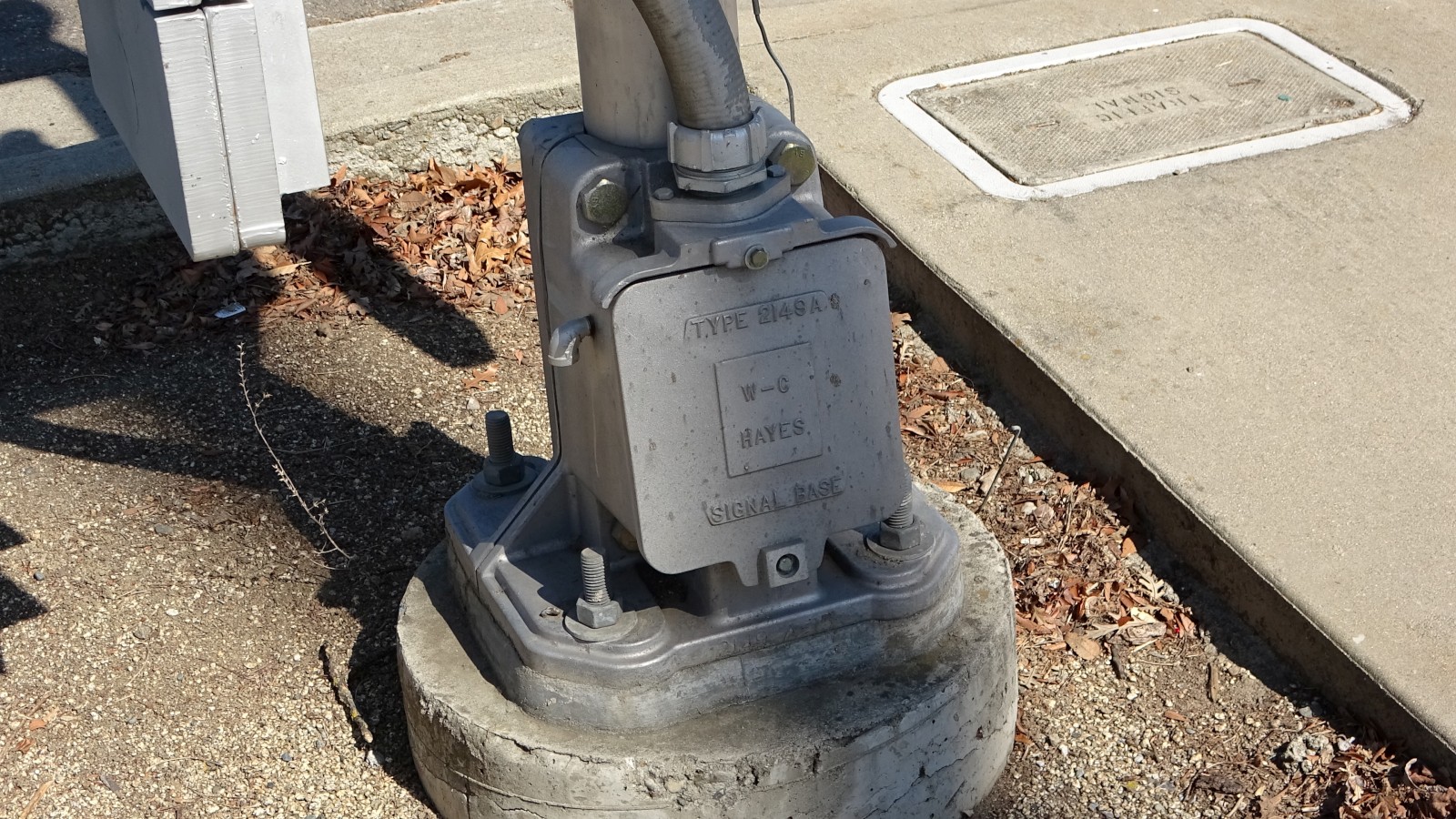

A WCH Signal Base.
|
|
|
10 900x600 60.2 KB |
11 900x600 35.4 KB |
12 900x600 38.7 KB |
|

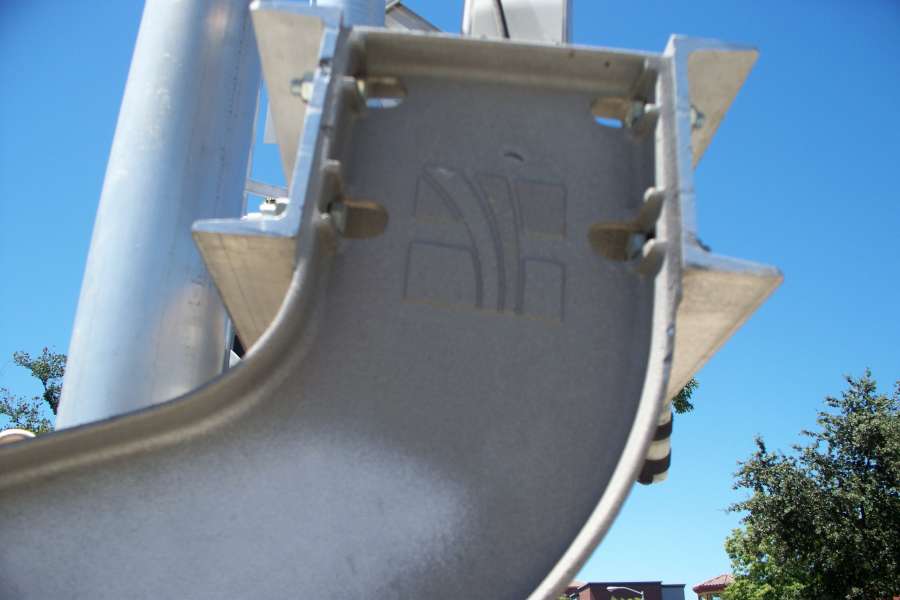

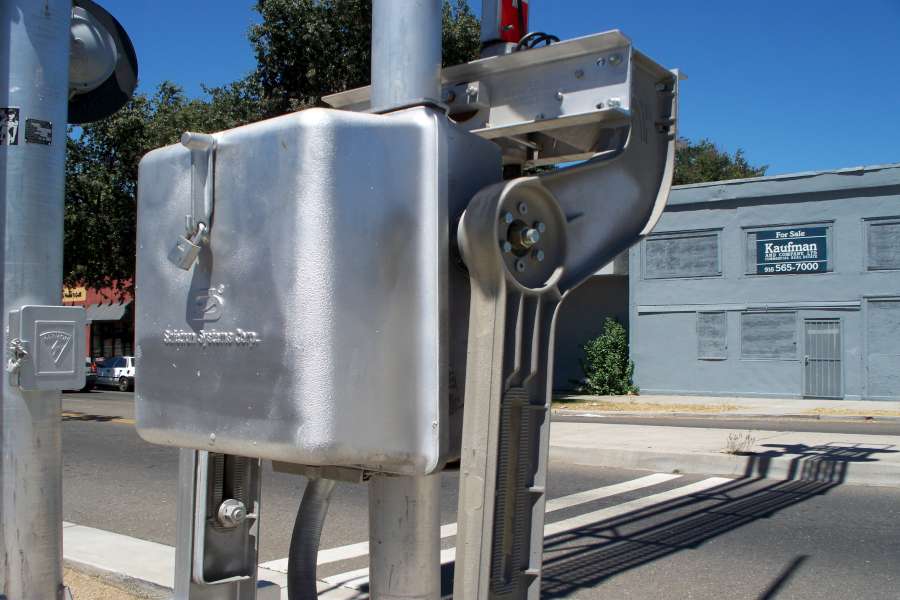

A Safetran Gate Mechanism with Harmon support
arms.
|

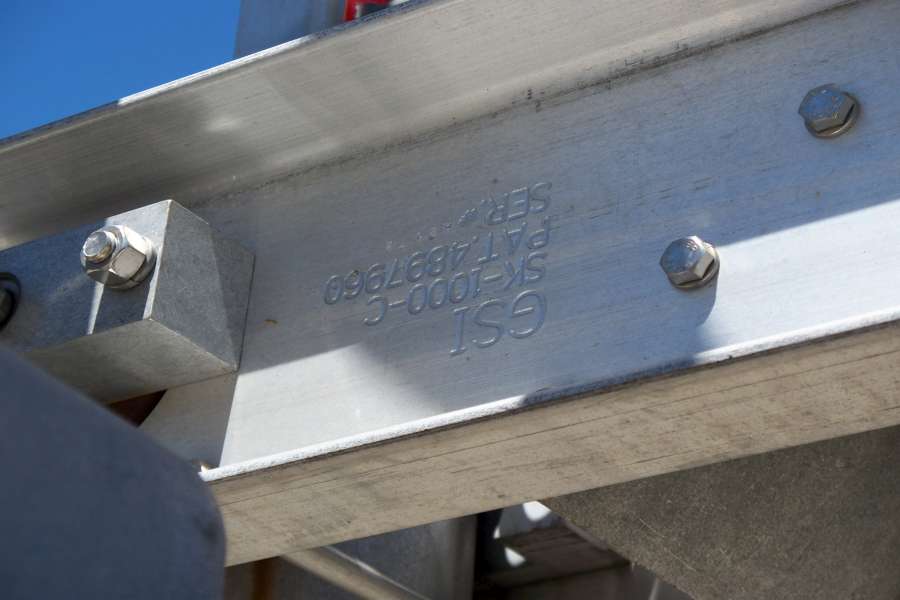

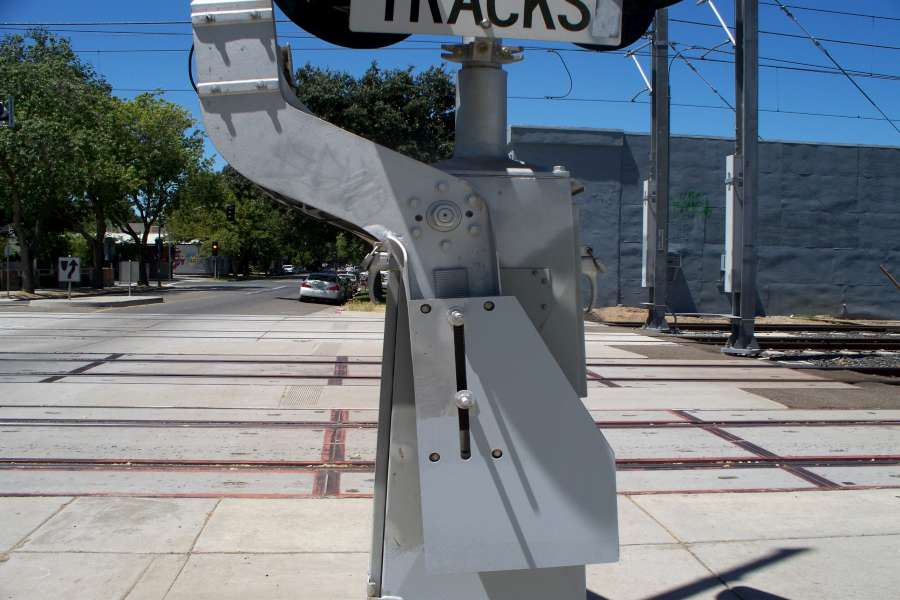

This is a gate guard from GS.
|
|
|
13 900x600 31.1 KB |
14 900x600 45.6 KB |
15 900x600 50.2 KB |
|

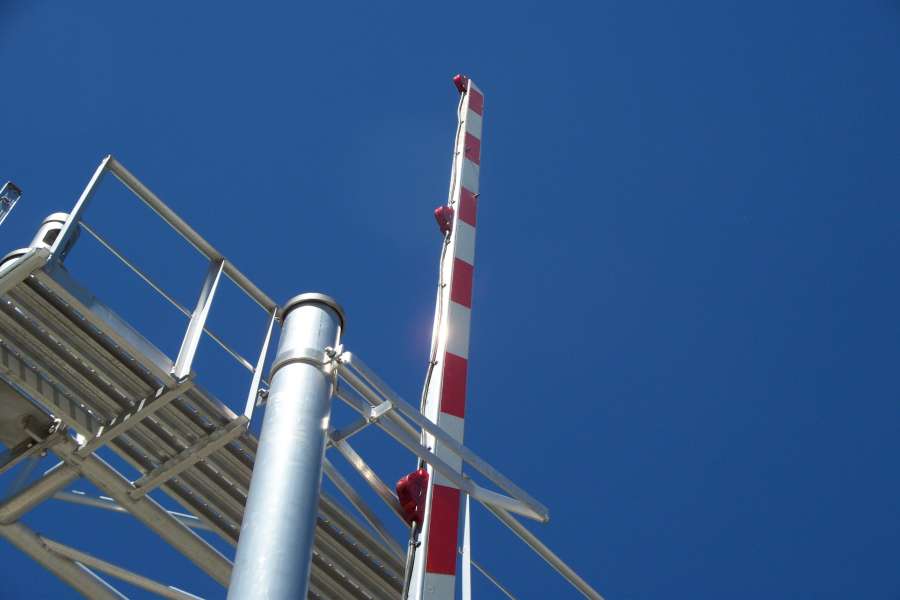

The gate lights are WCH LED.
|

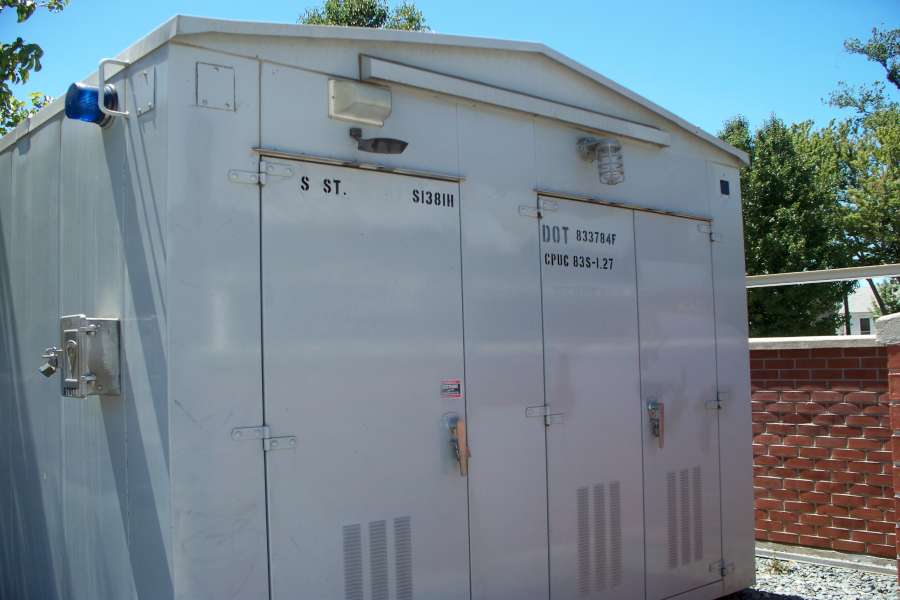

This is Relay Case controls the SCRTA's
Harmon Cantilever.
|

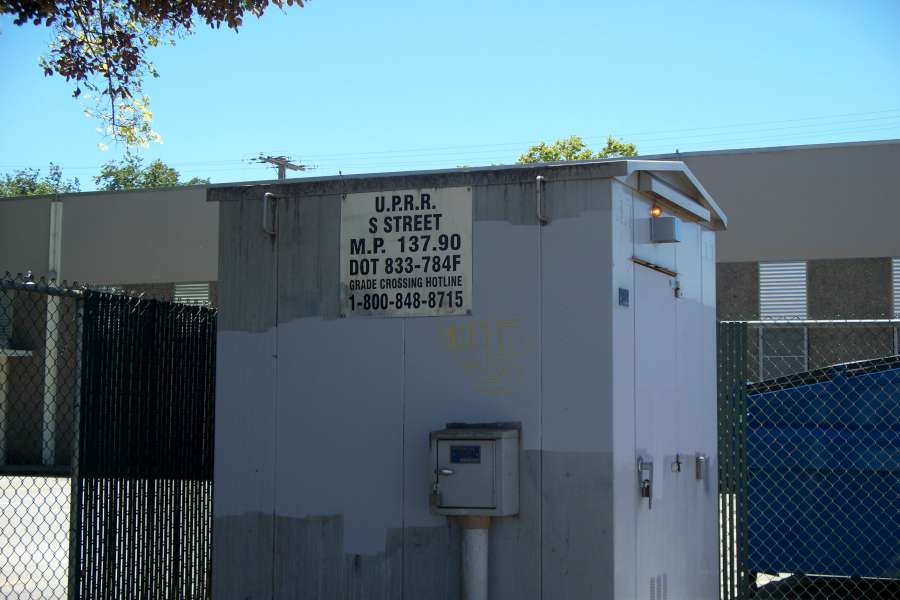

This Relay Case controls UP's EM Signal.
|
A video showcasing the old signals can be seen here.
|
16 |
17 |
|
A return trip to the crossing on 2-27-20 by
MobileRailSpotterRXR shows some changes to the crossing.
|
|
|
18 |
19 |
|

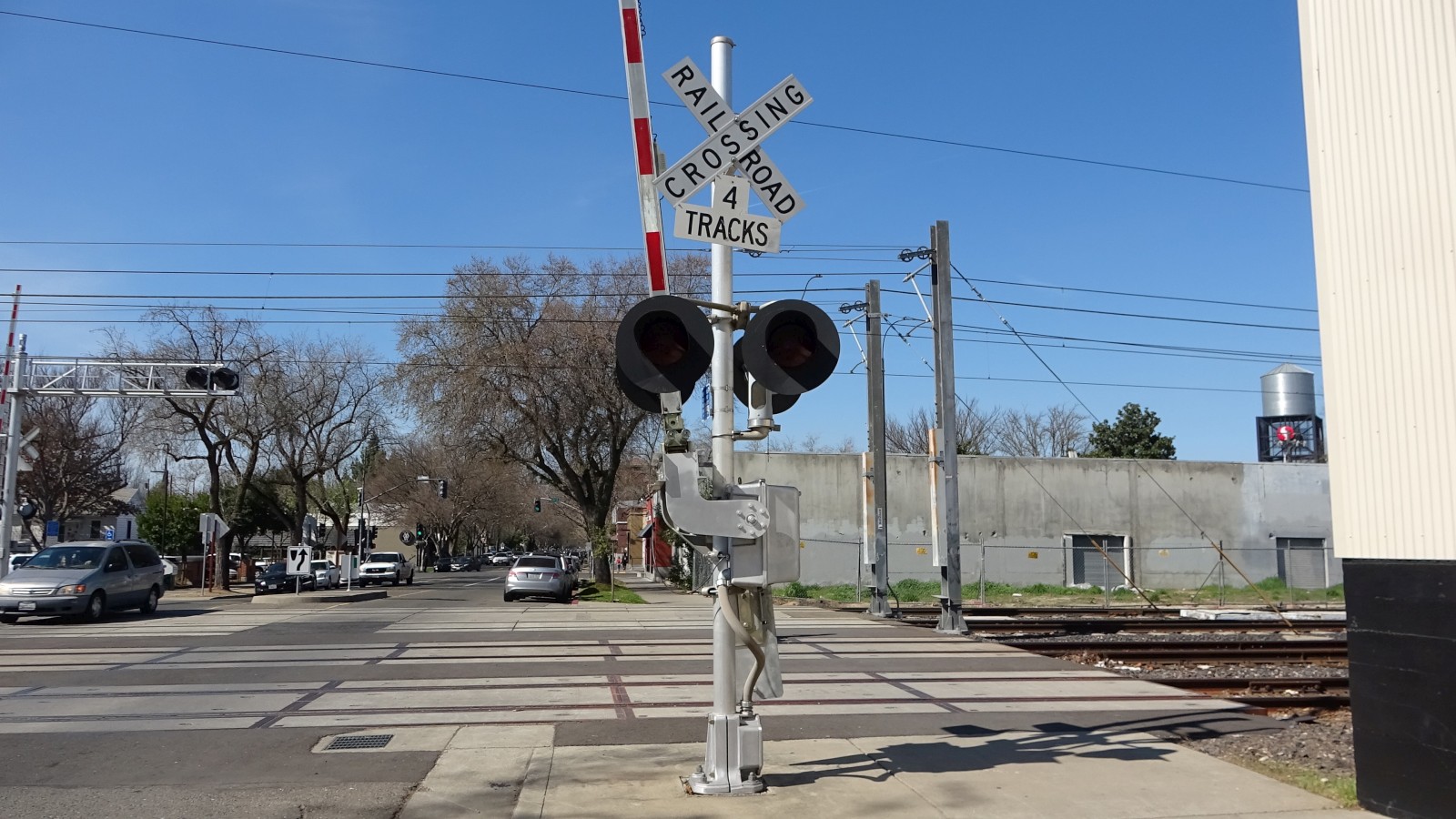

UP's signal, which was replaced entirely!
|
|
|
20 |
21 |
22 |
|

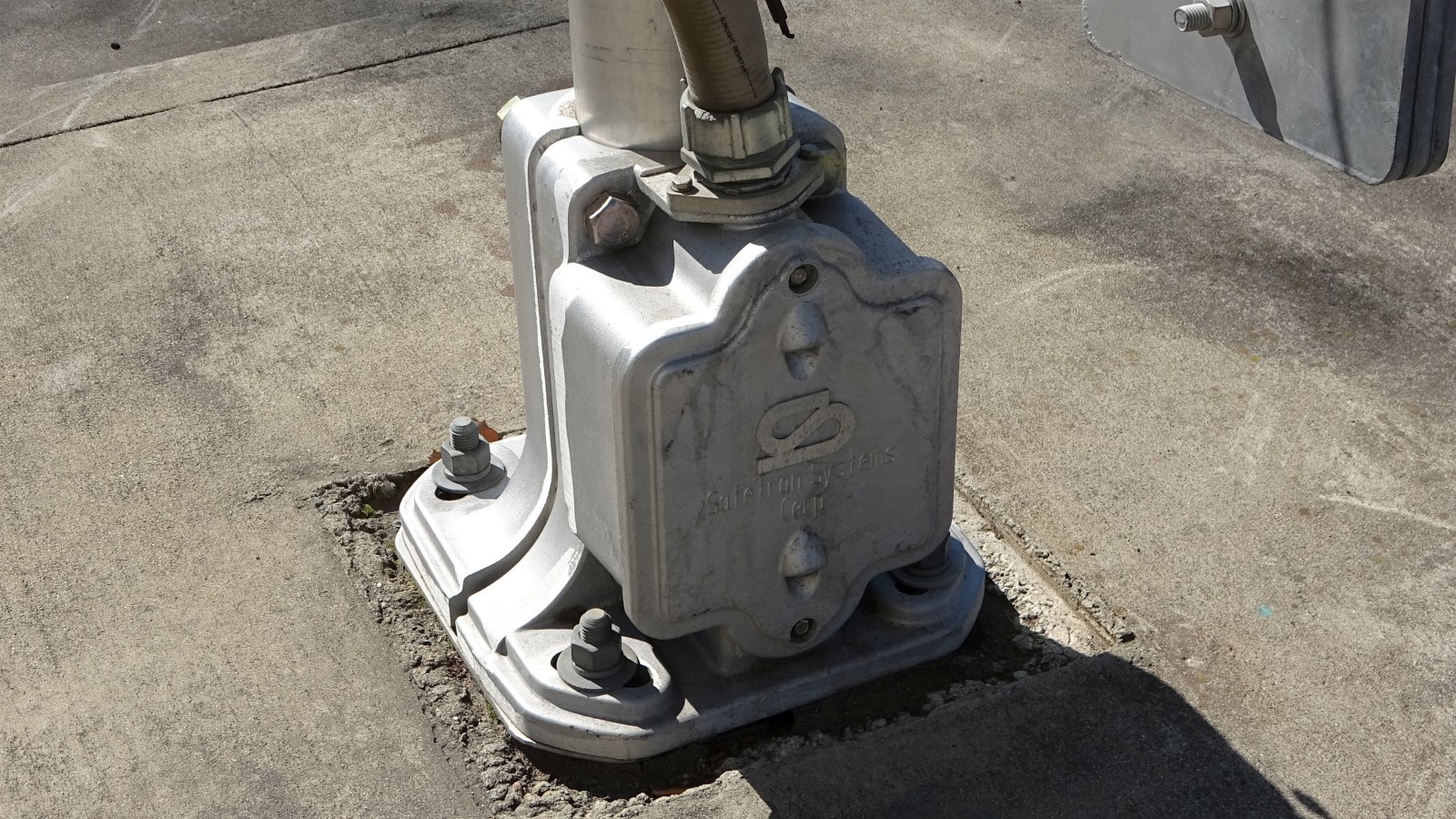

It has a Safetran base.
|

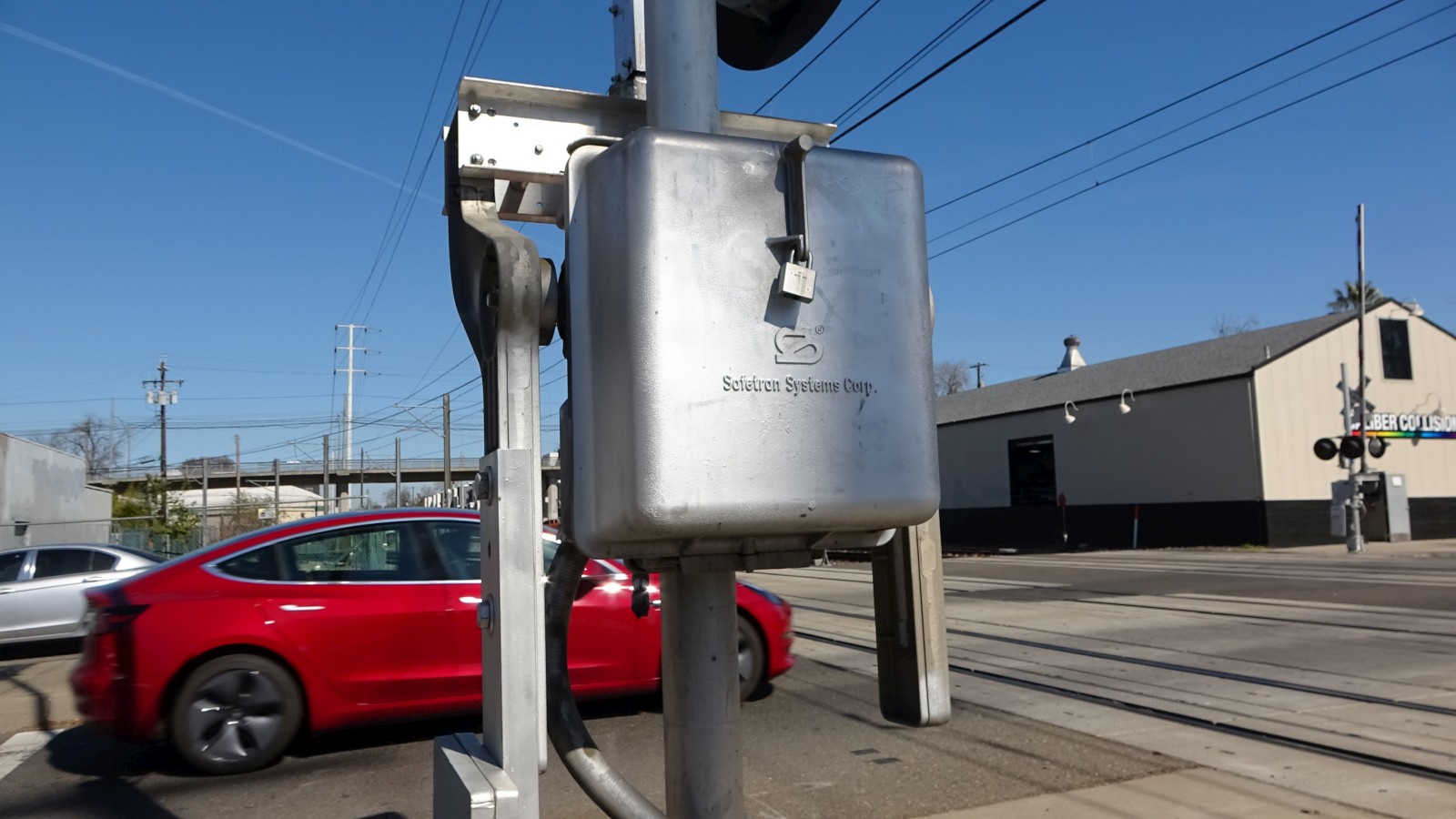

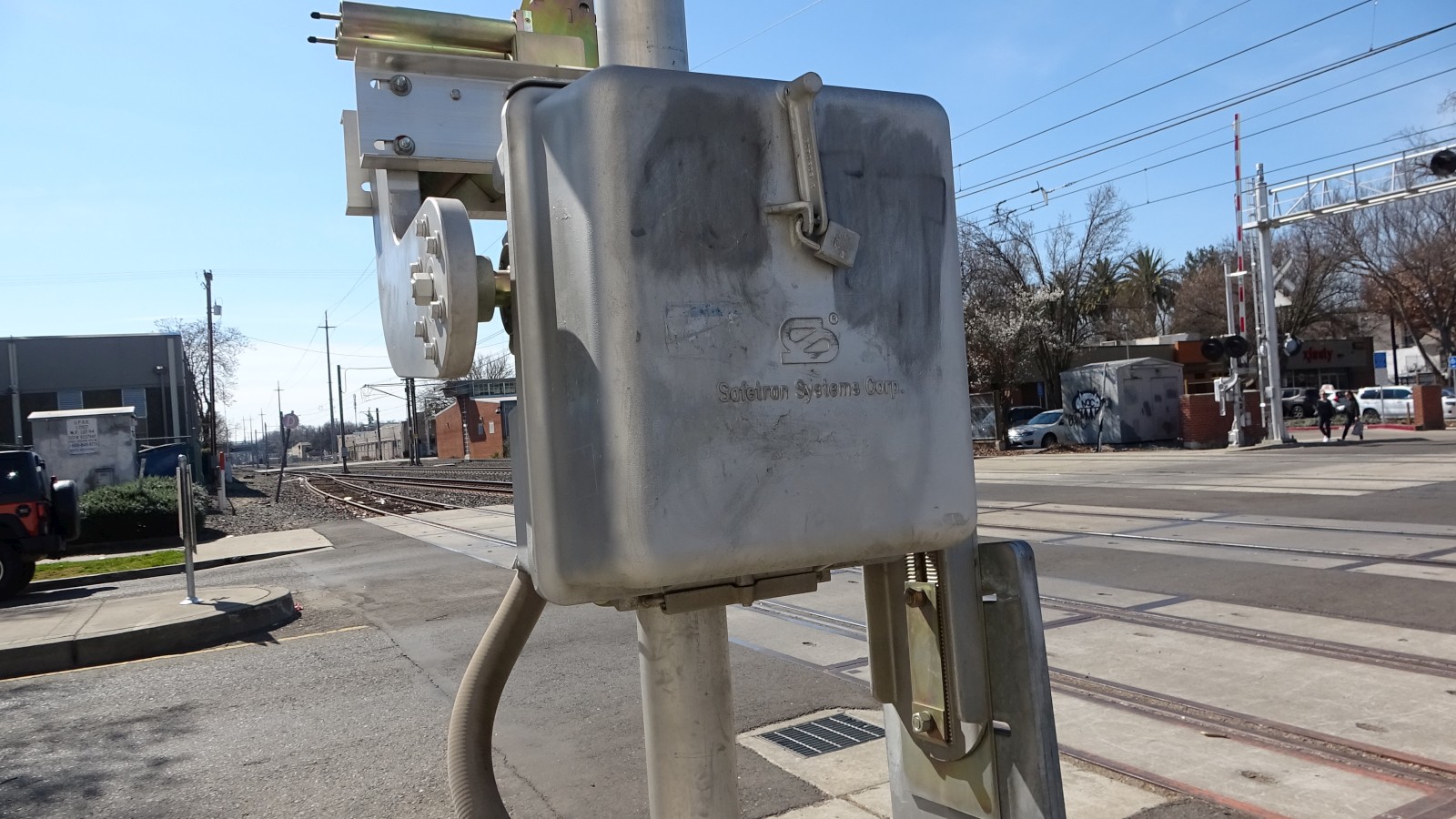

A Safetran gate mechanism.
|

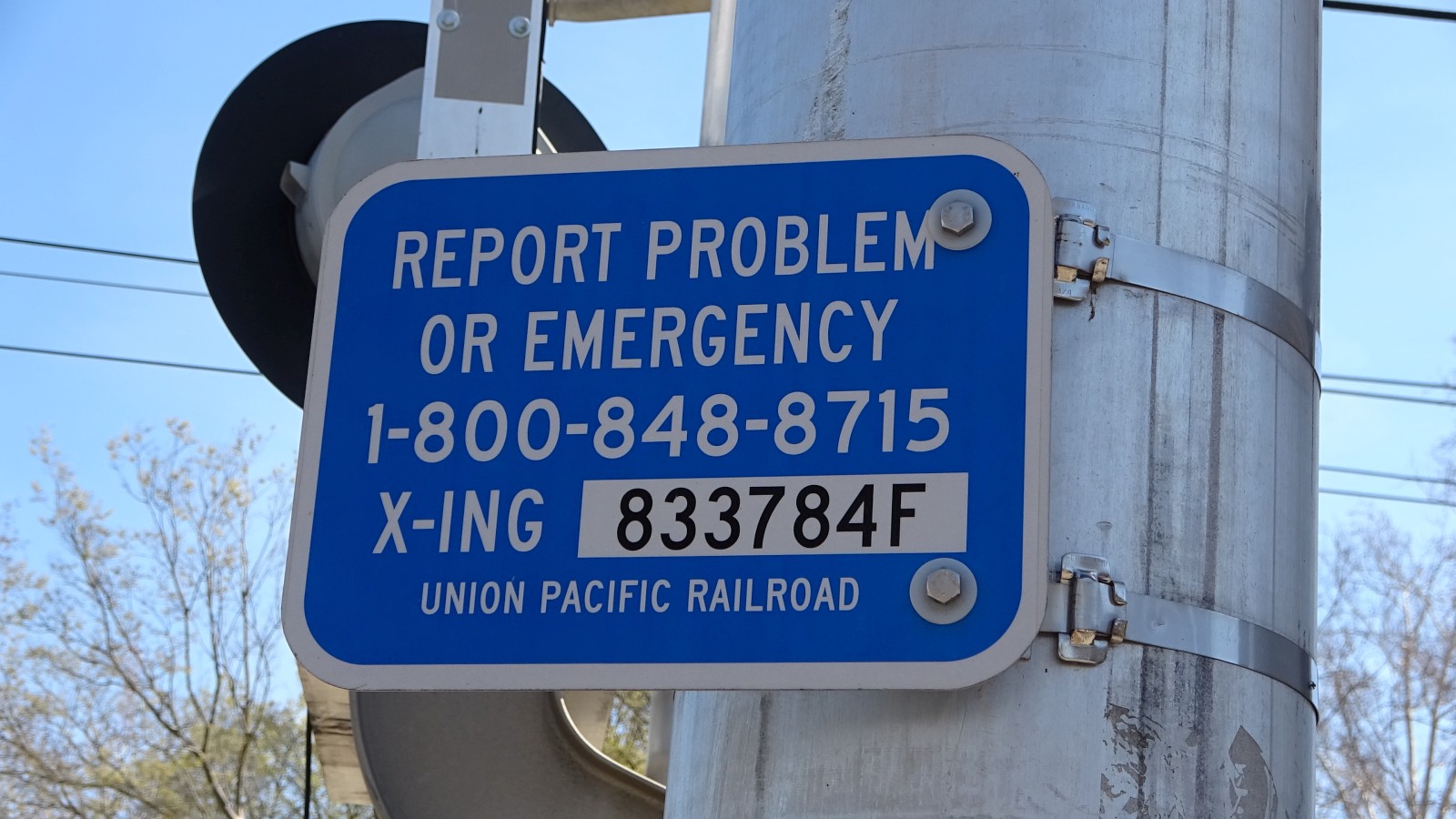

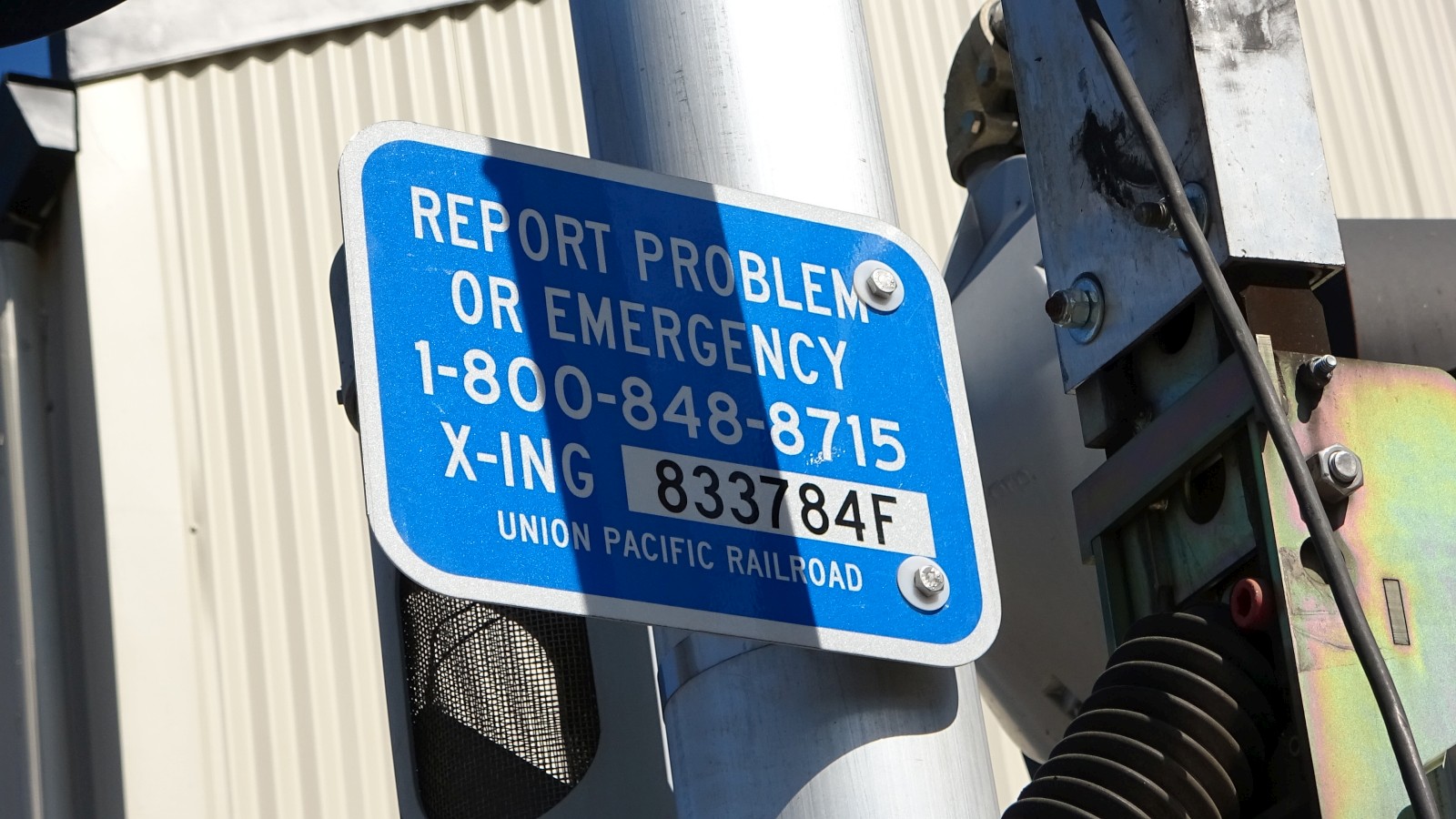

The emergency information.
|
|
23 |
24 |
25 |
26 |
27 |
|

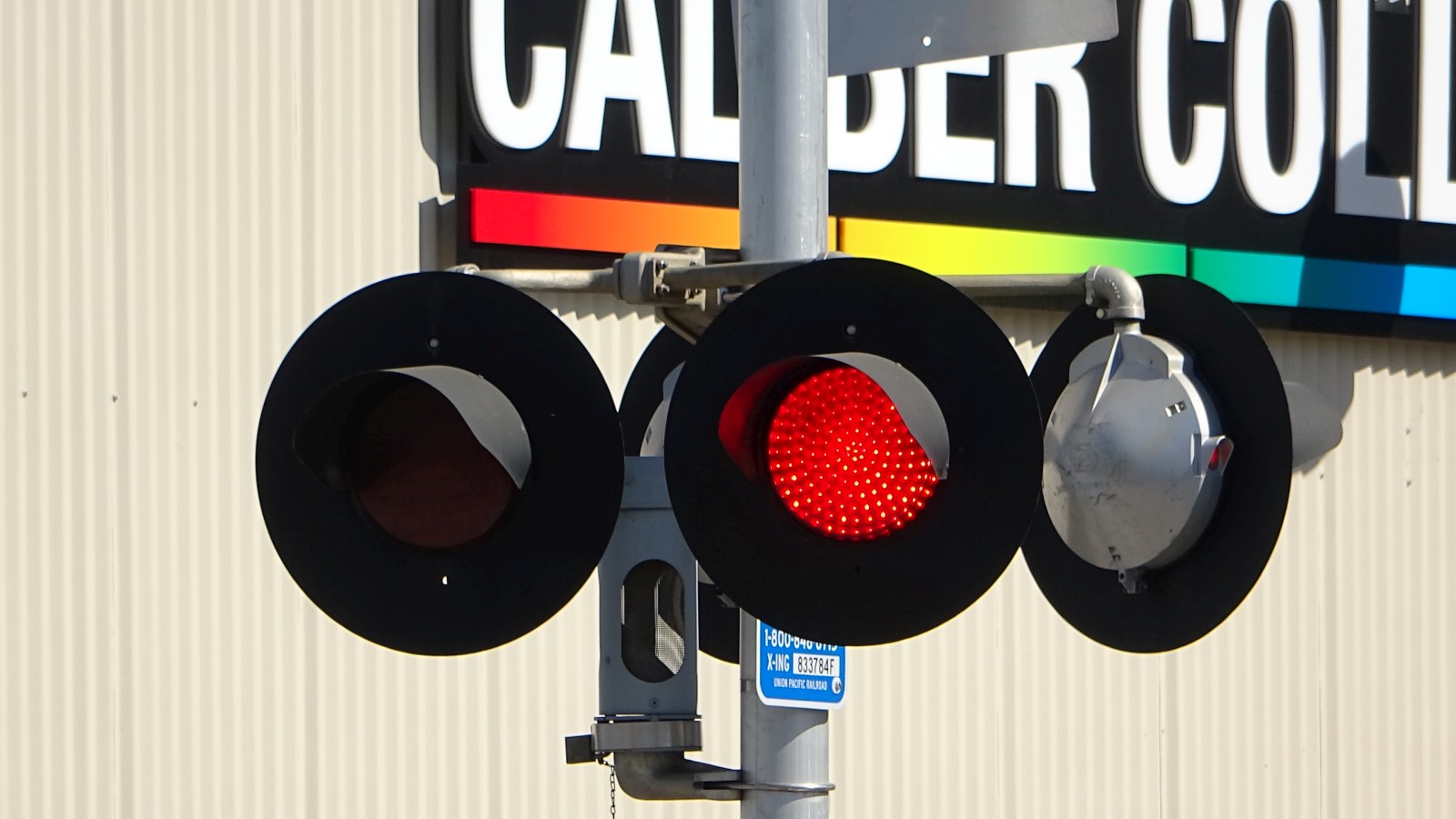

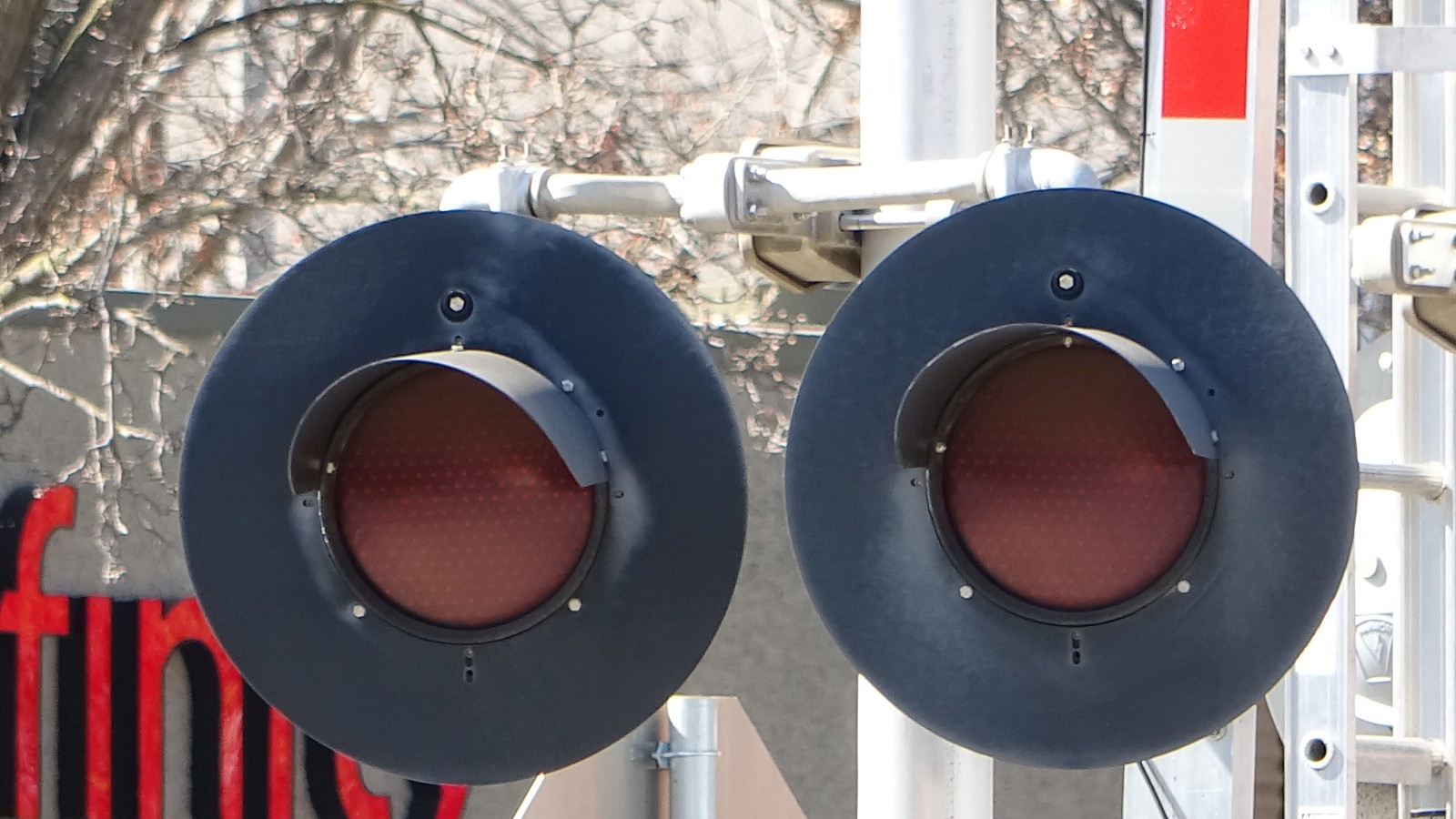

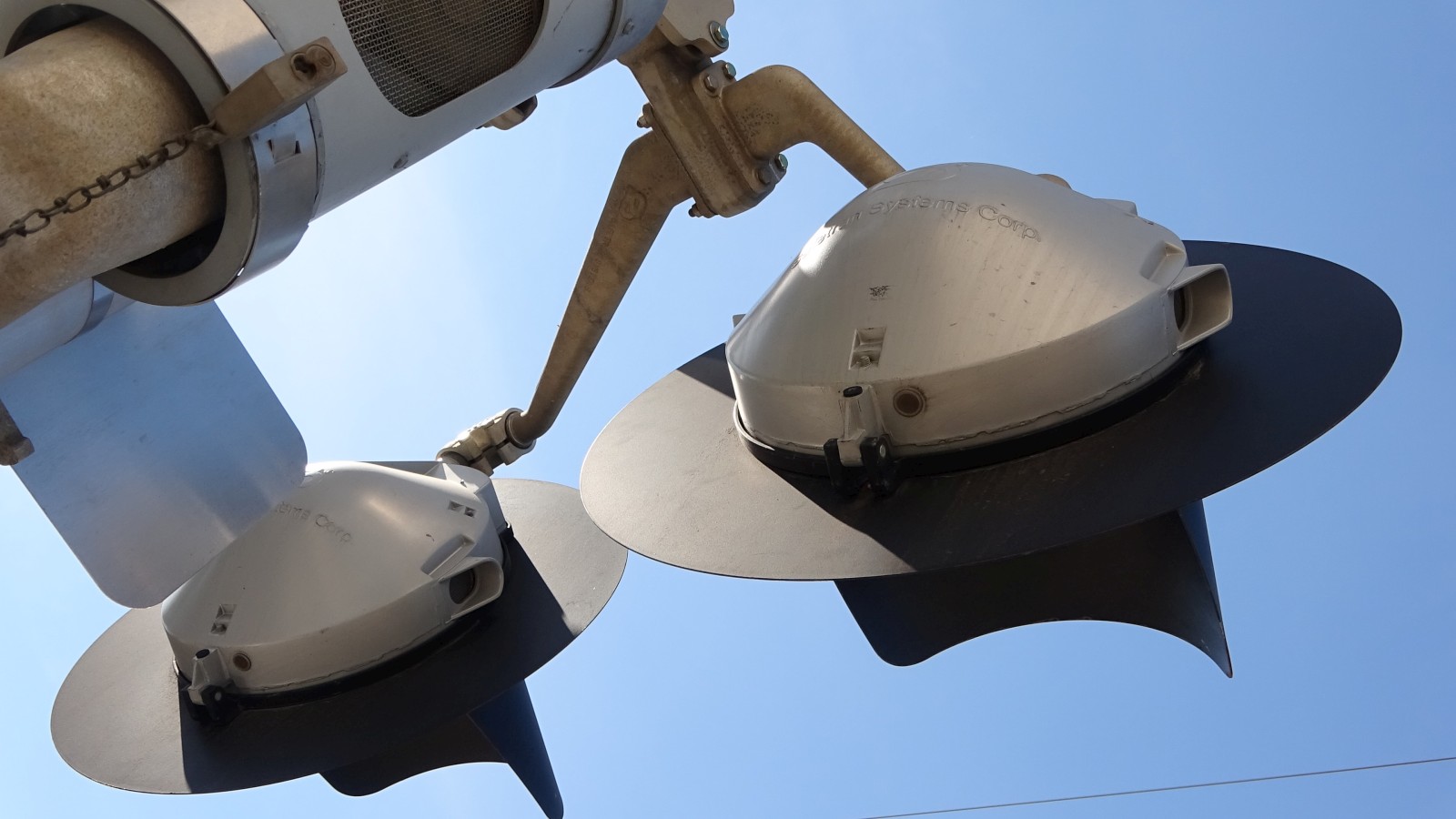

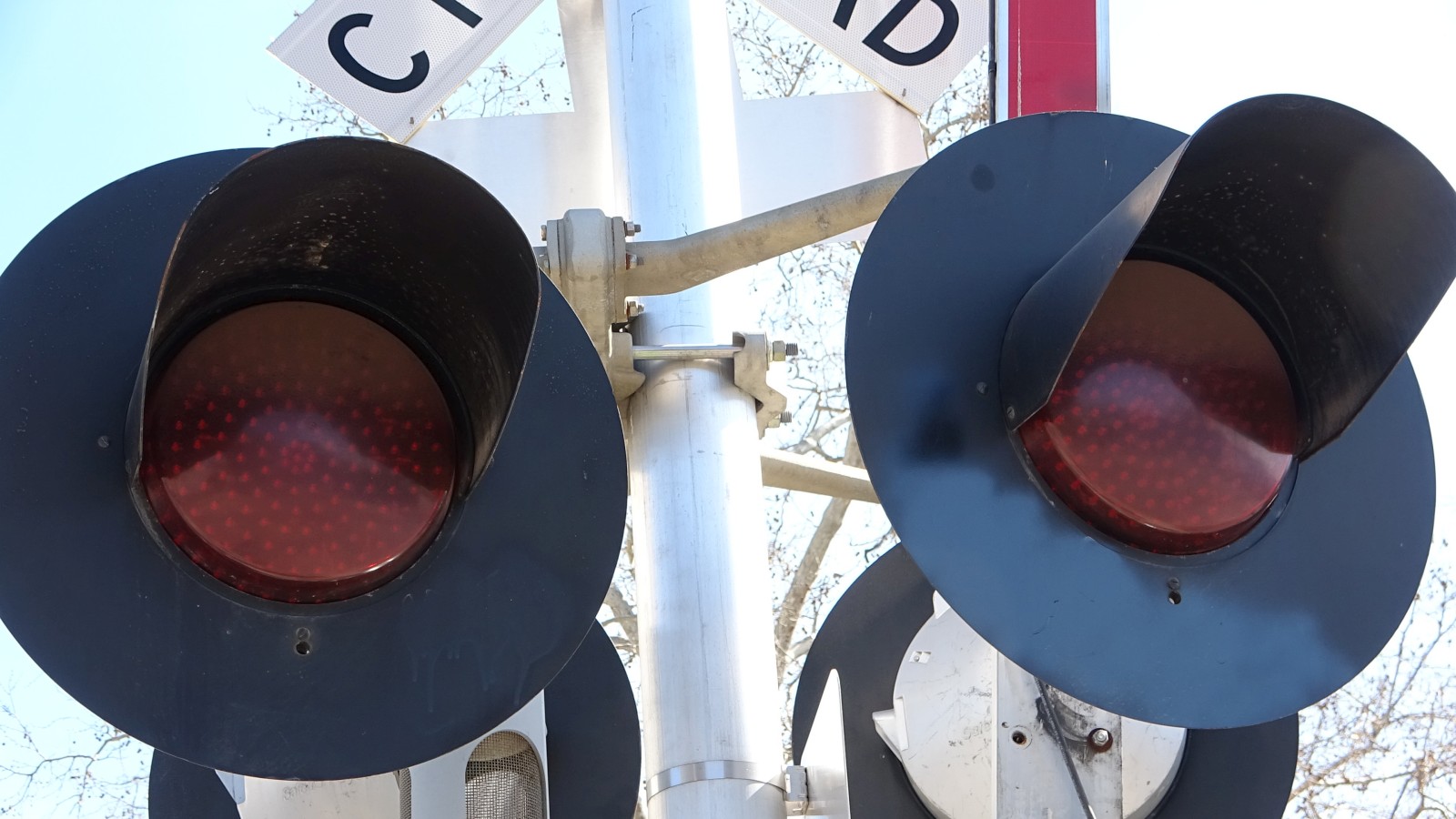

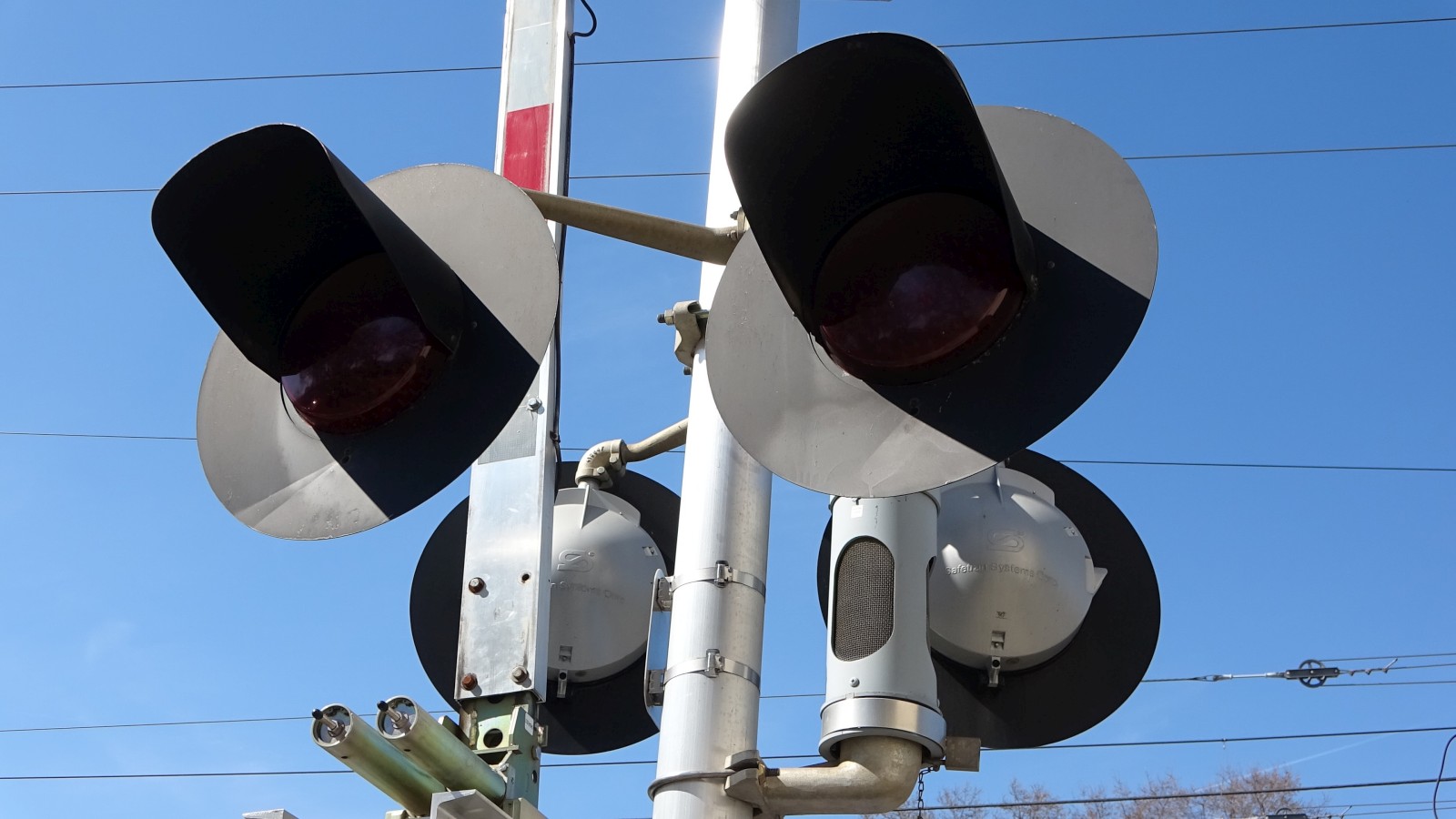

The lights are all Safetran 12x24 inch lights
with WCH 2nd Generation LEDs.
|
||||
|
28 |
29 |
|

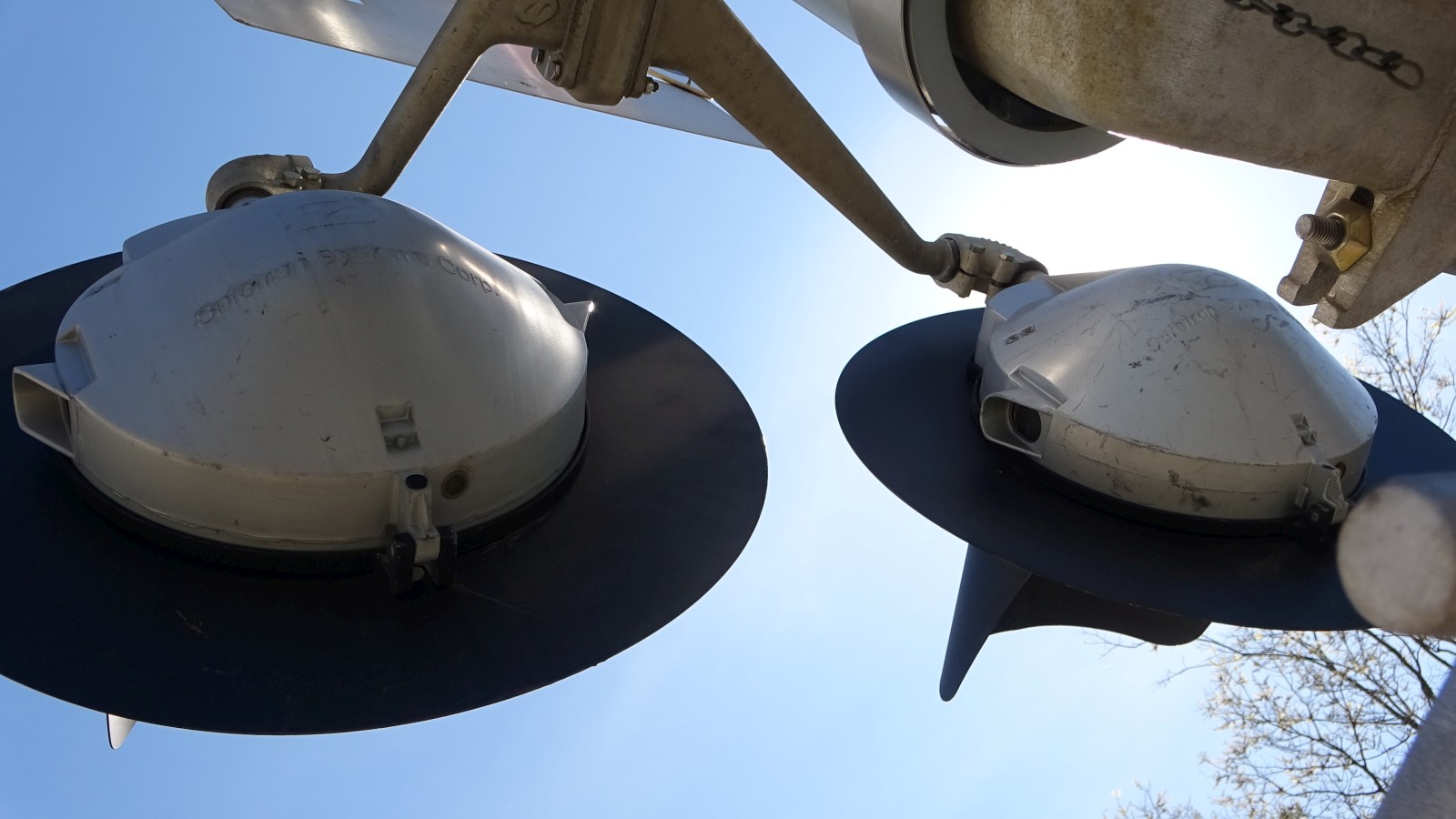

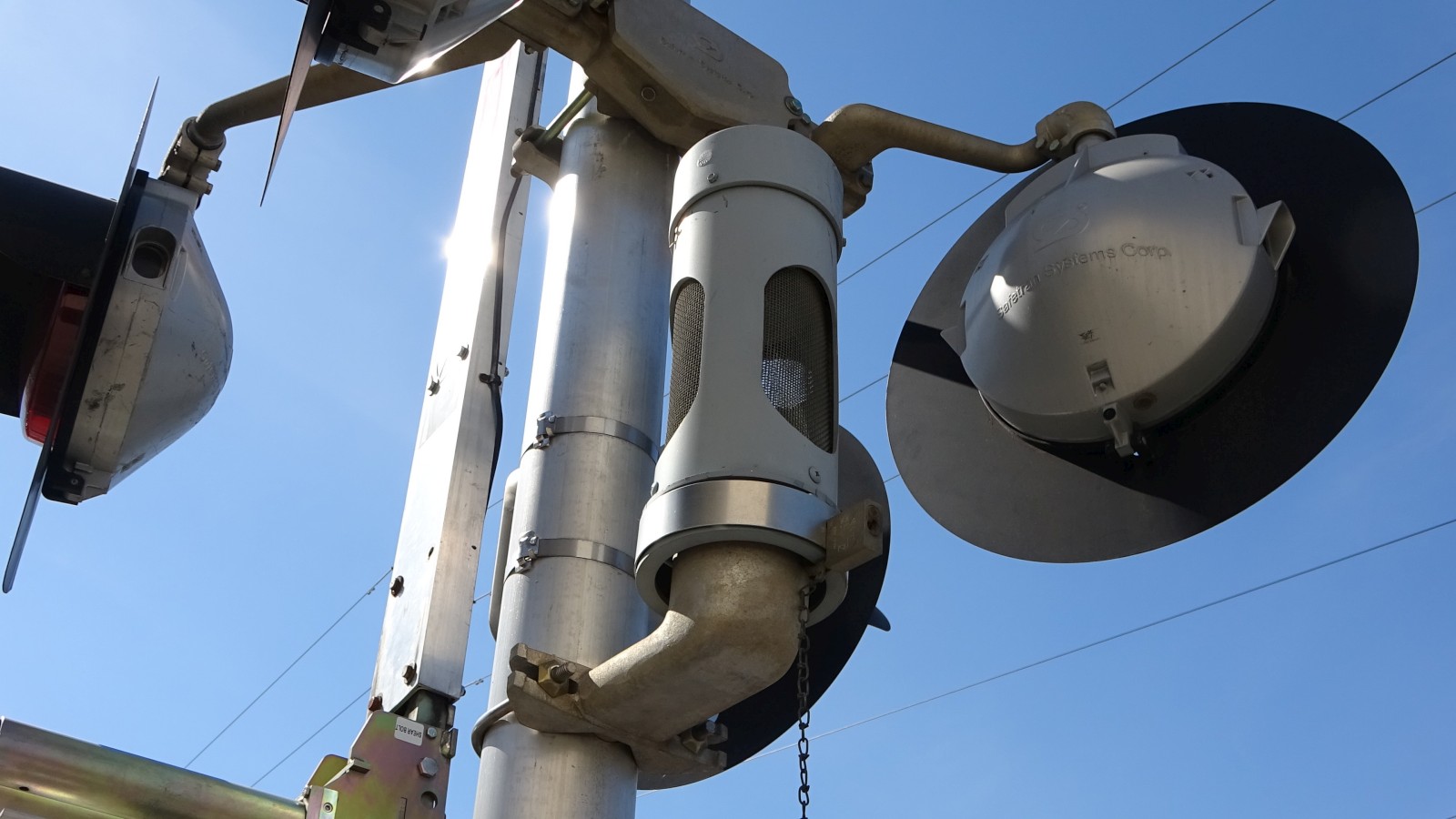

The bell is an NEG electronic bell mounted on
the side of the mast.
|

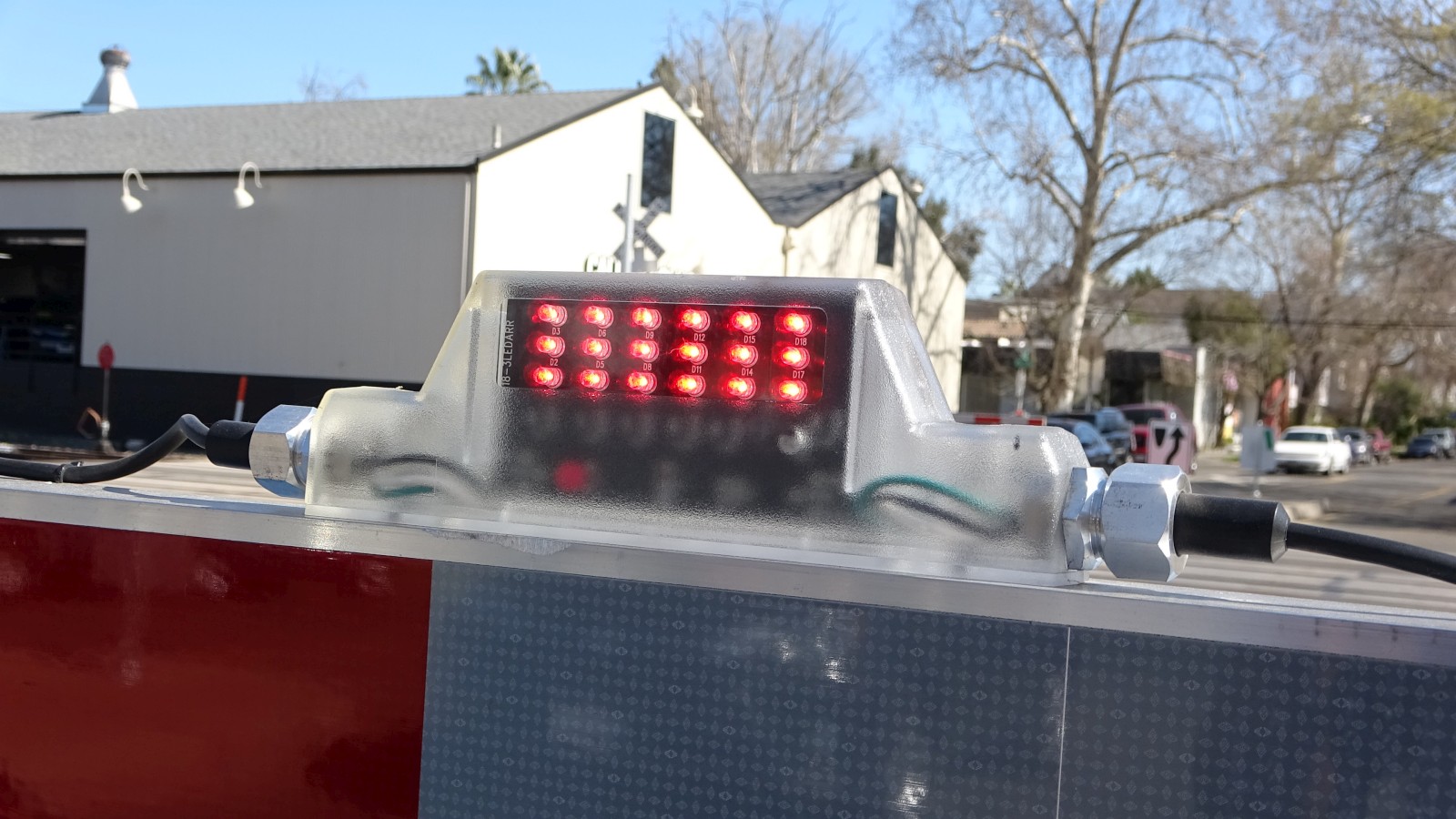

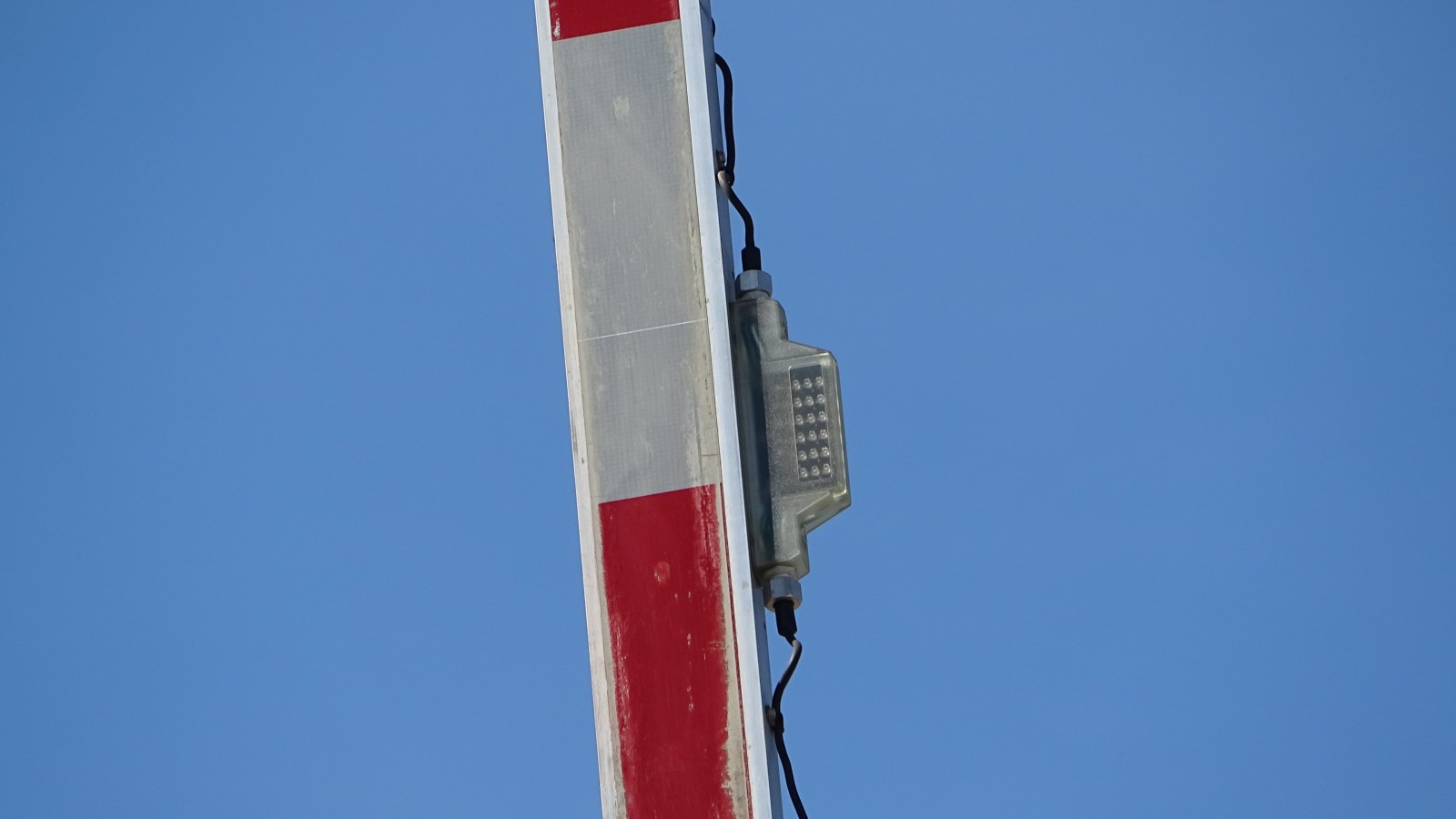

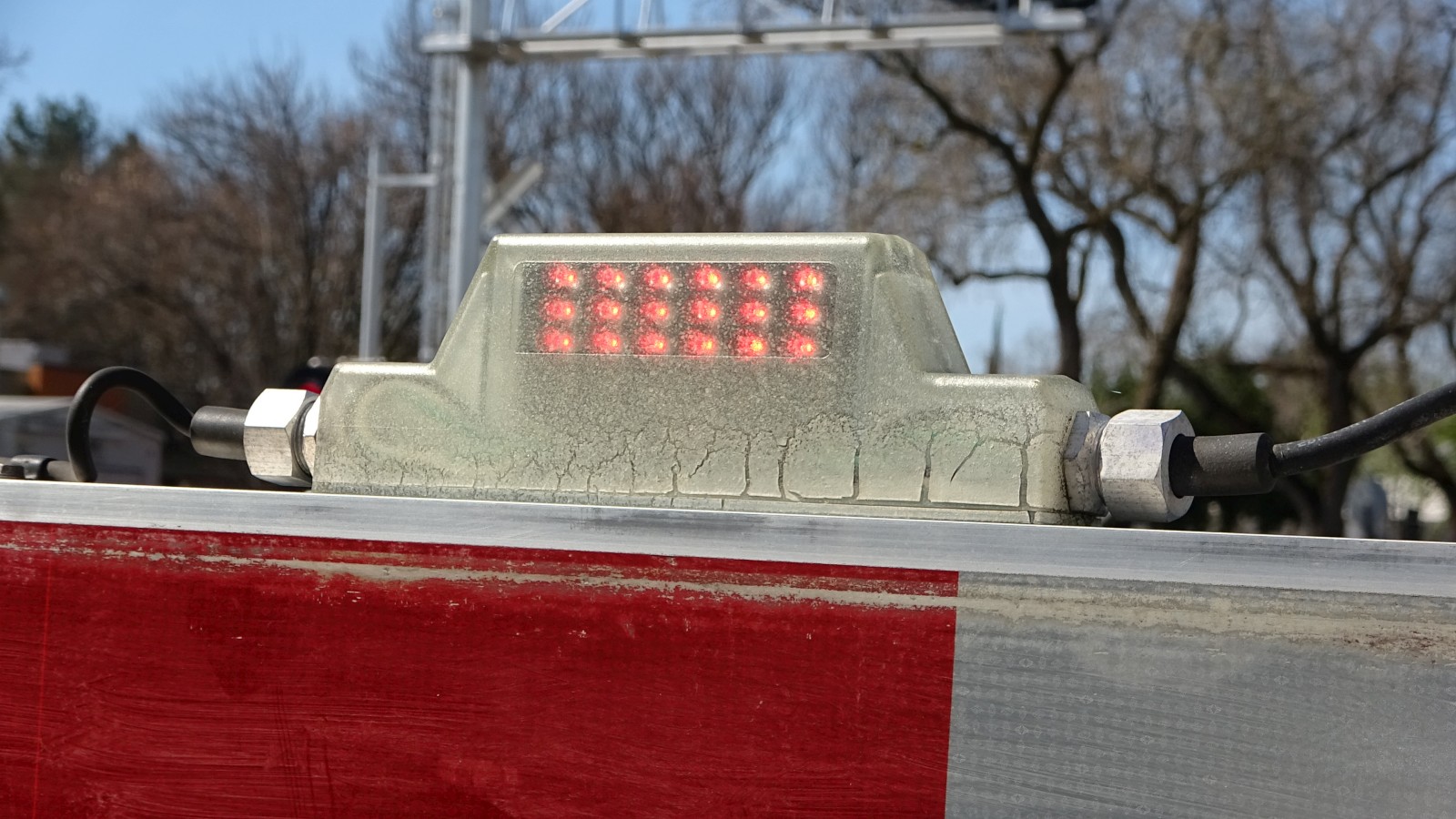

This signal uses Alstom LED gate lights.
|
|
30 |
31 |
|

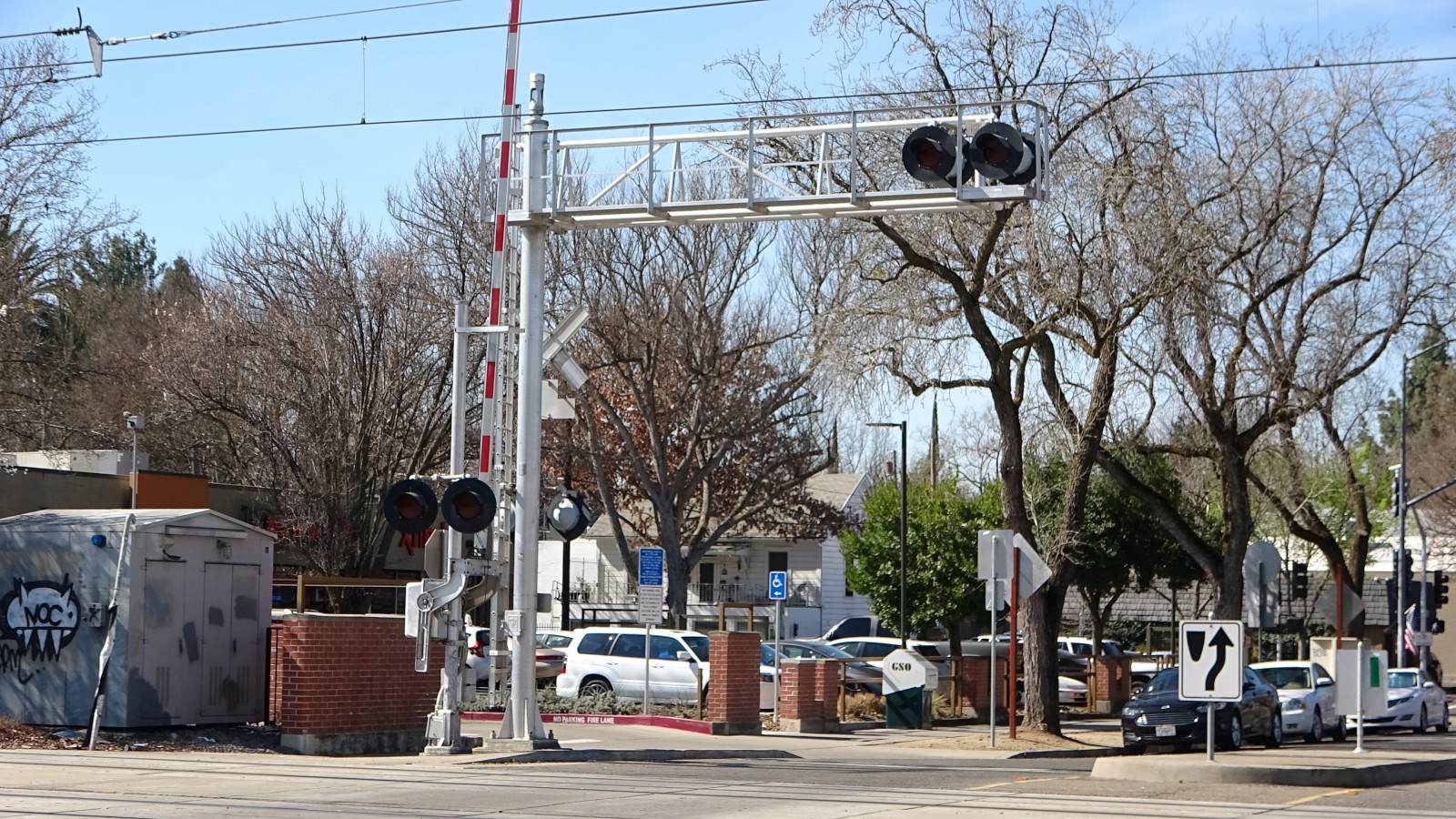

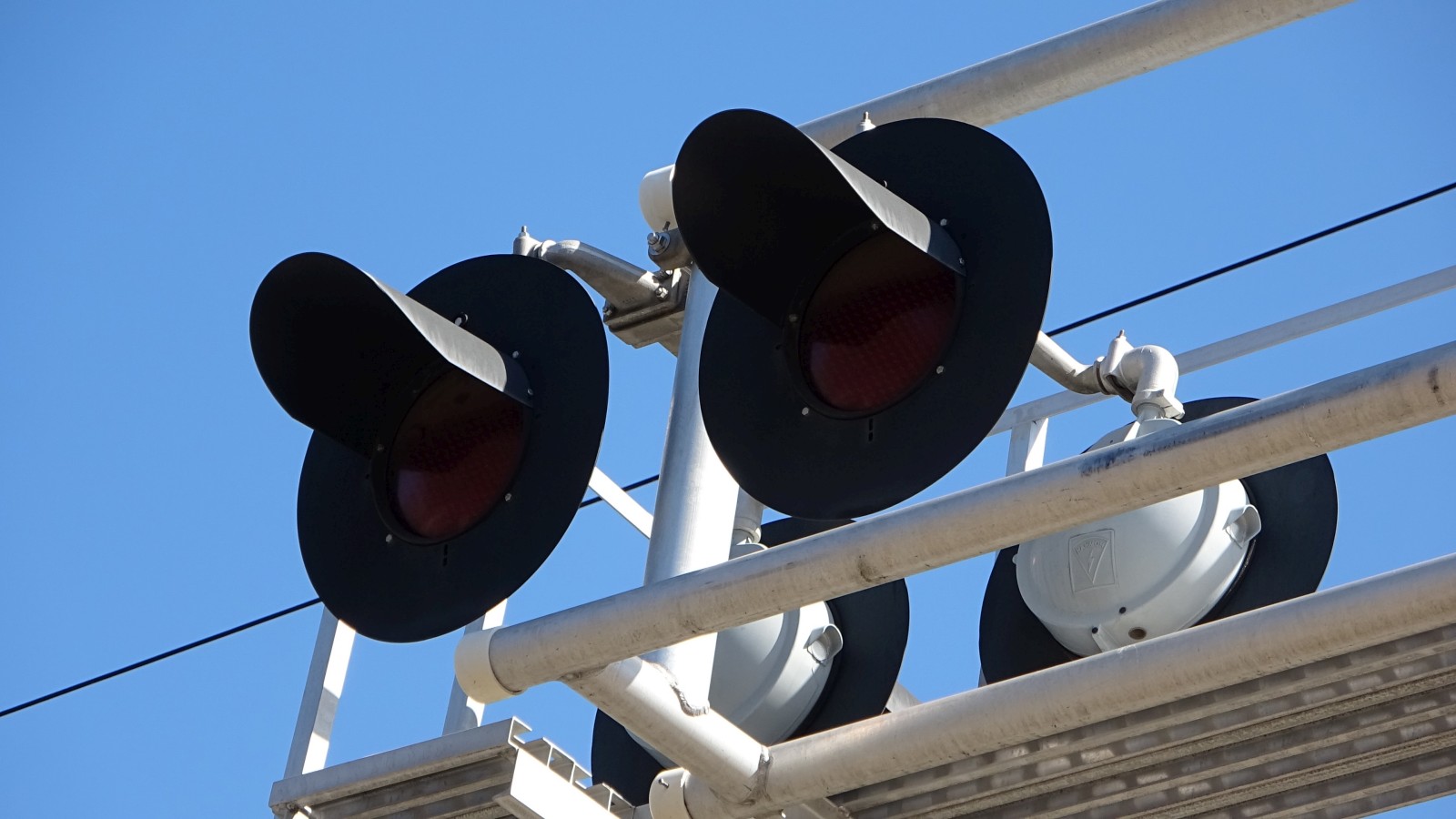

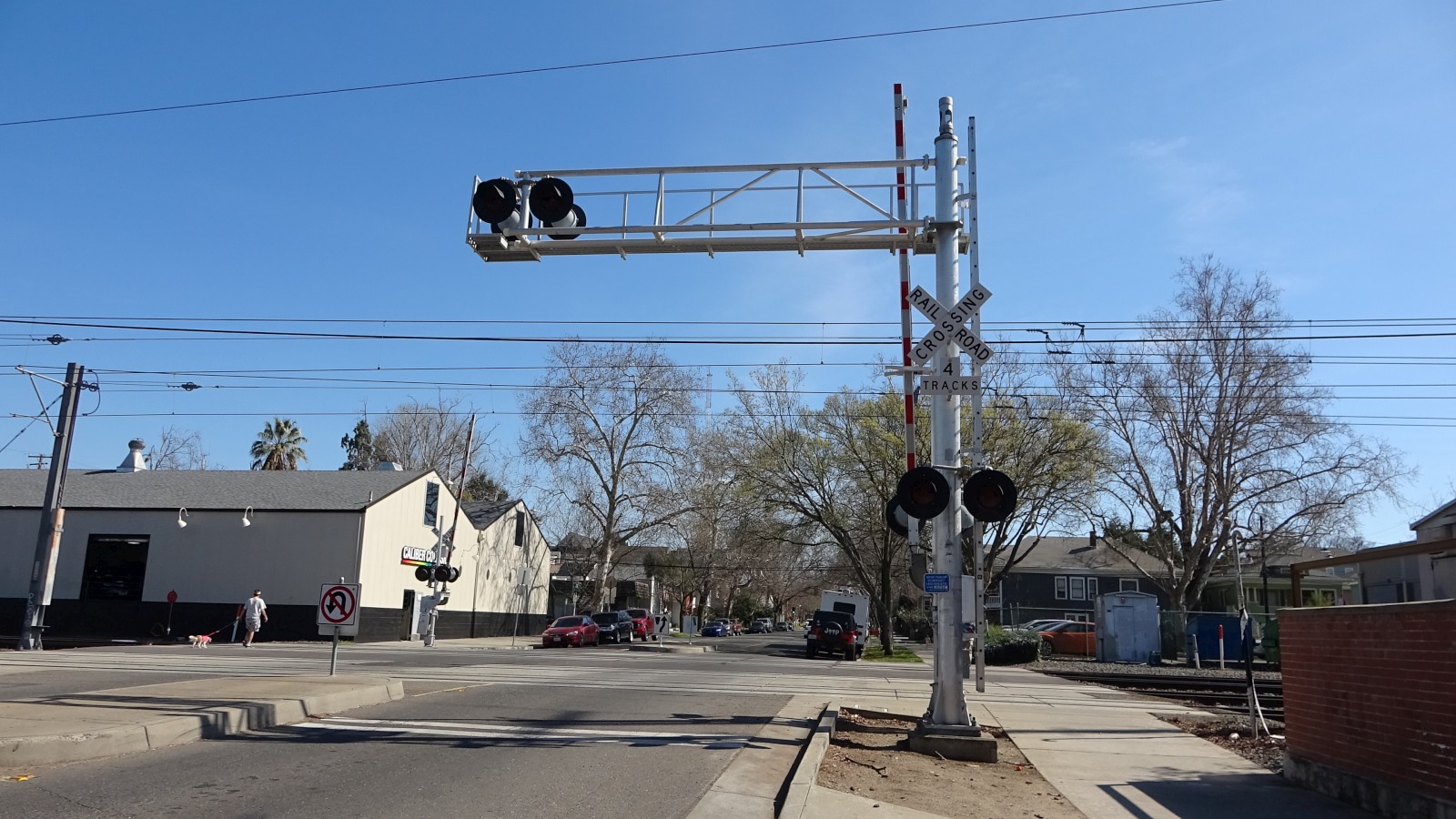

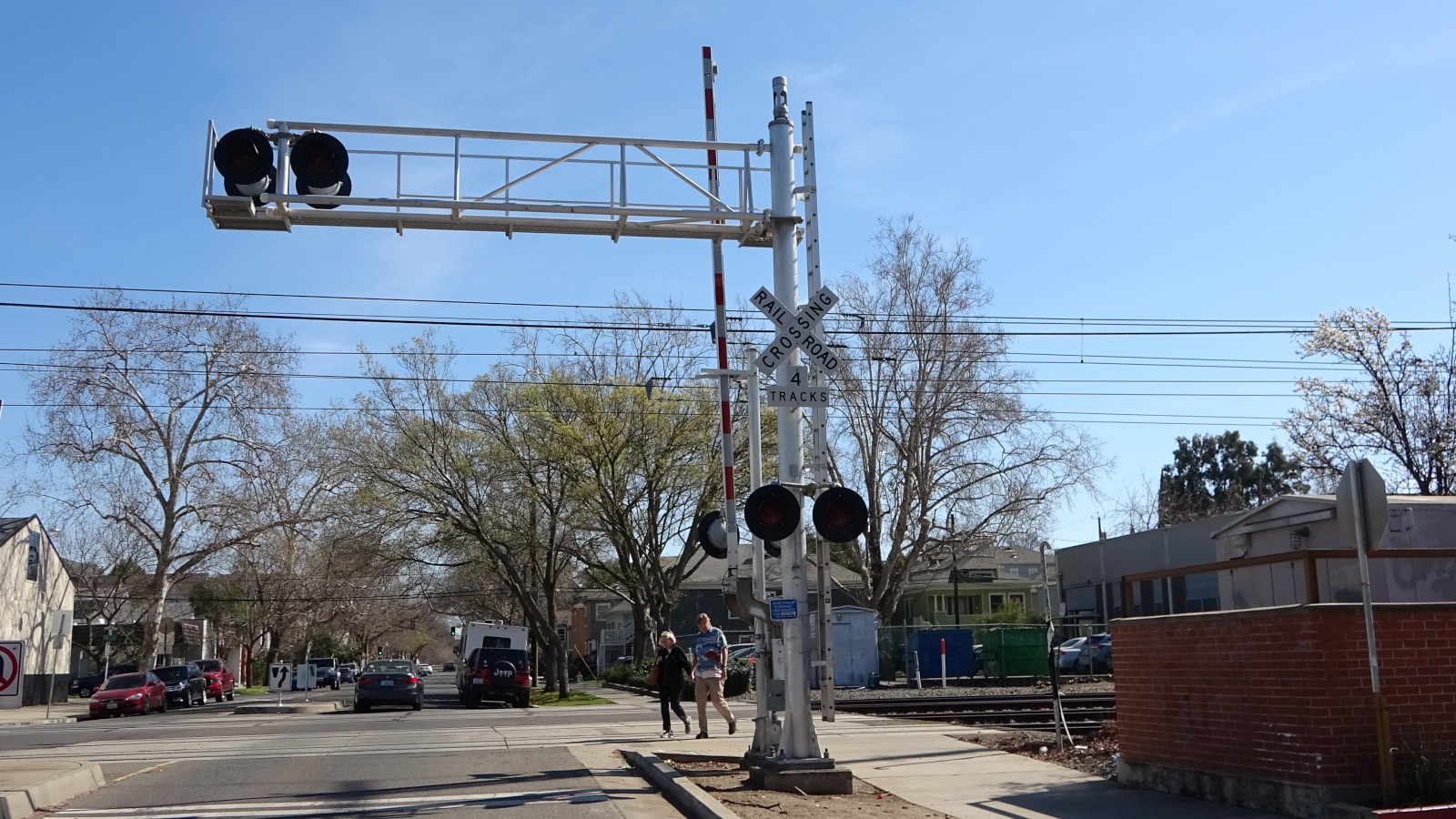

SACRT's signal.
|
|
|
32 |
33 |
34 |
35 |
|
36 |
37 |
38 |
39 |
|
40 |
41 |
42 |
43 |
|

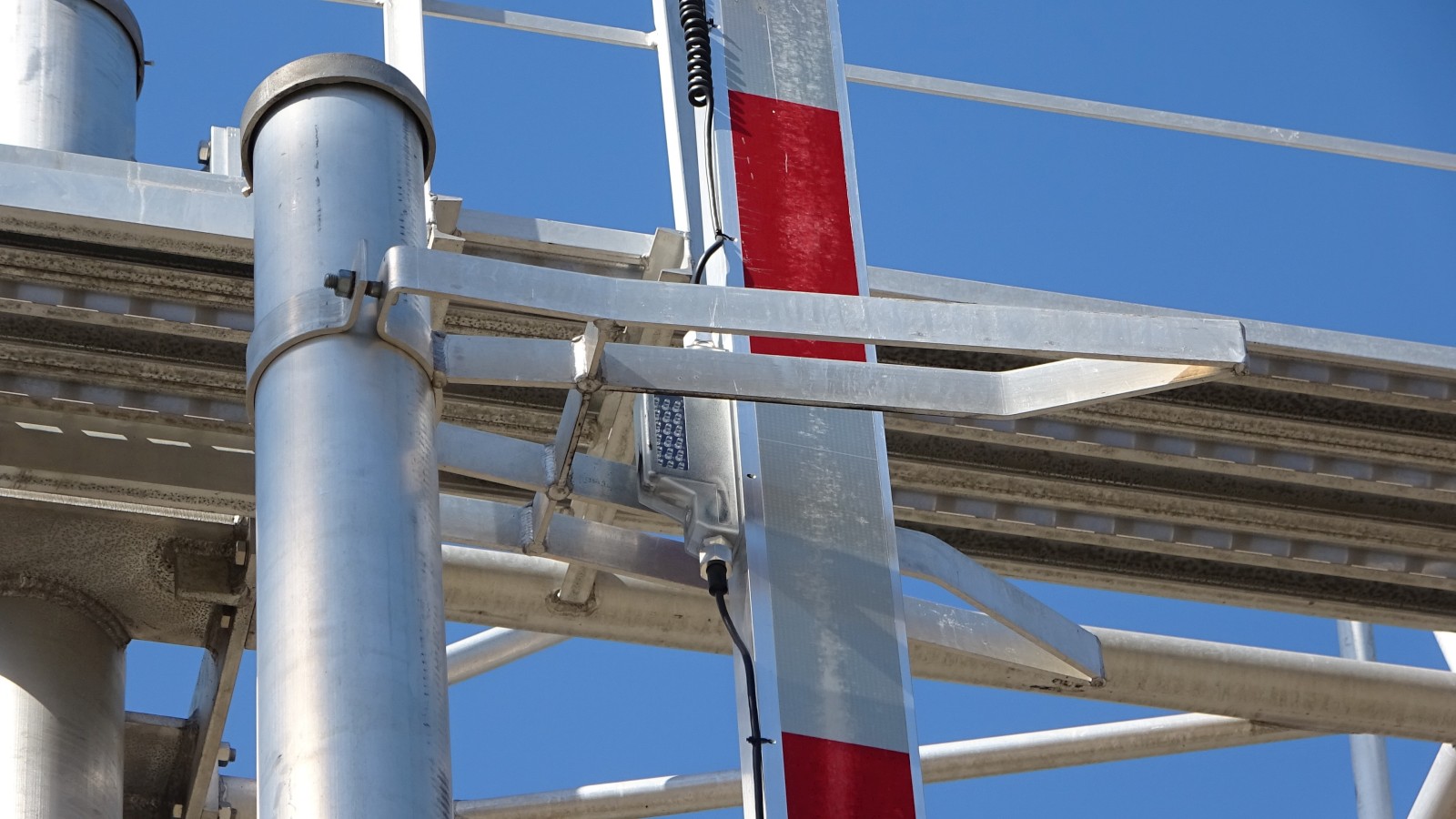

No major changes to this signal, outside of a new UP ENS sign being installed and the gate lights being replaced with more Alstom LED gate lights (Pictures 42 and 43, respectively).

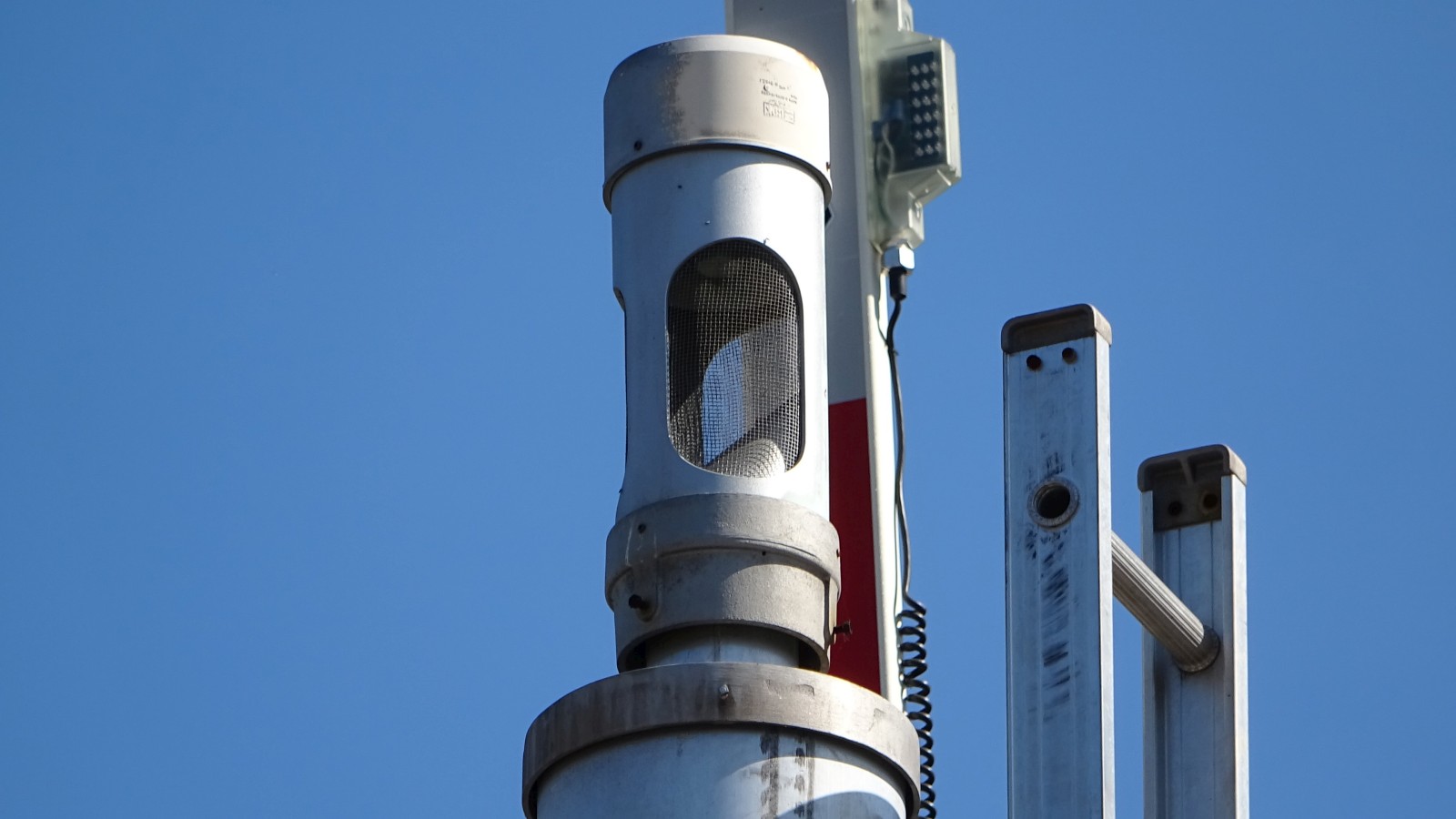

The General Signals e-bell seen in Picture 41 is a Type 1, for those whom are curious. |
|||
|
44 |
45 |
46 |
47 |
|

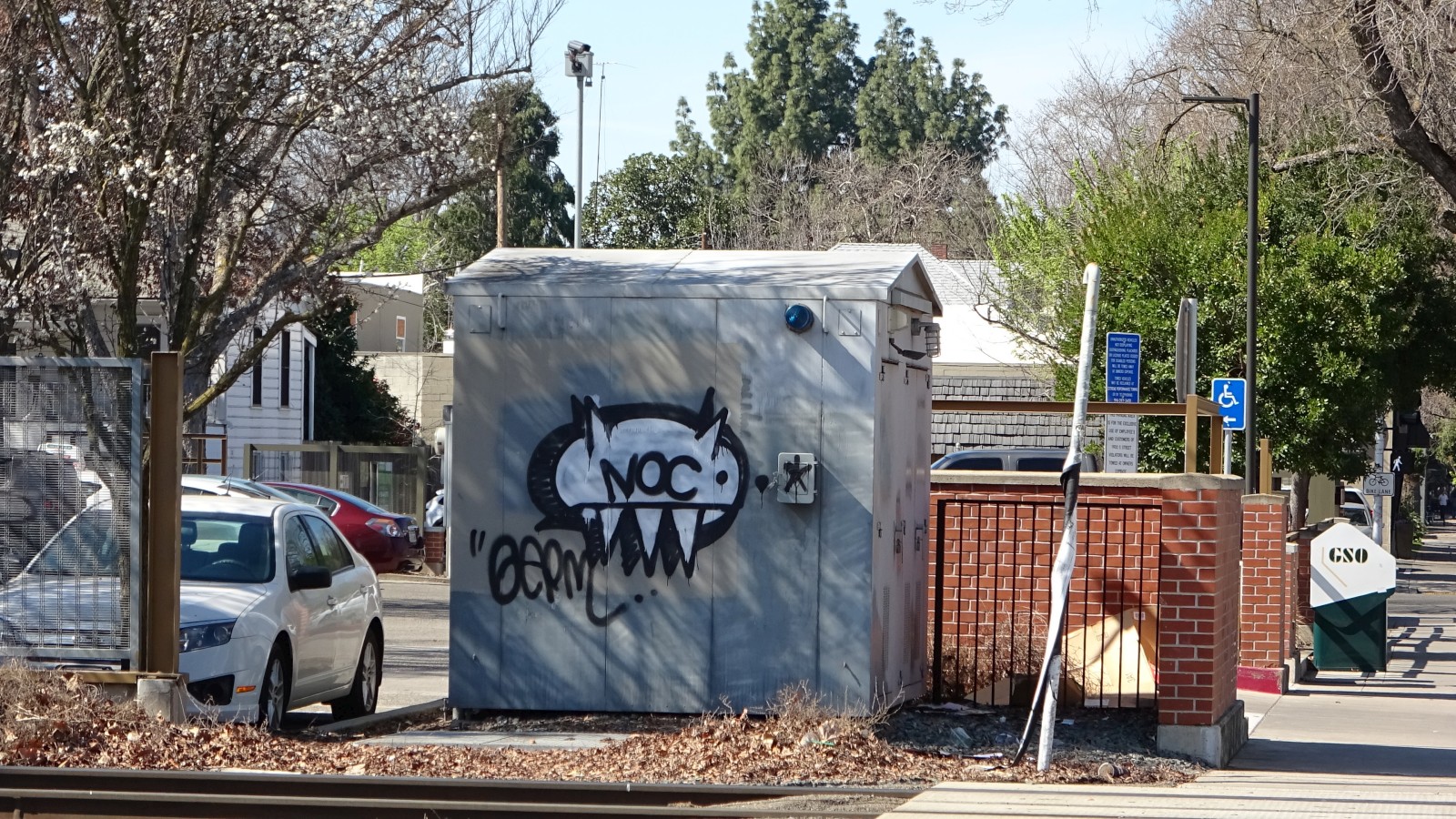

The two relay cases for the crossing.
|

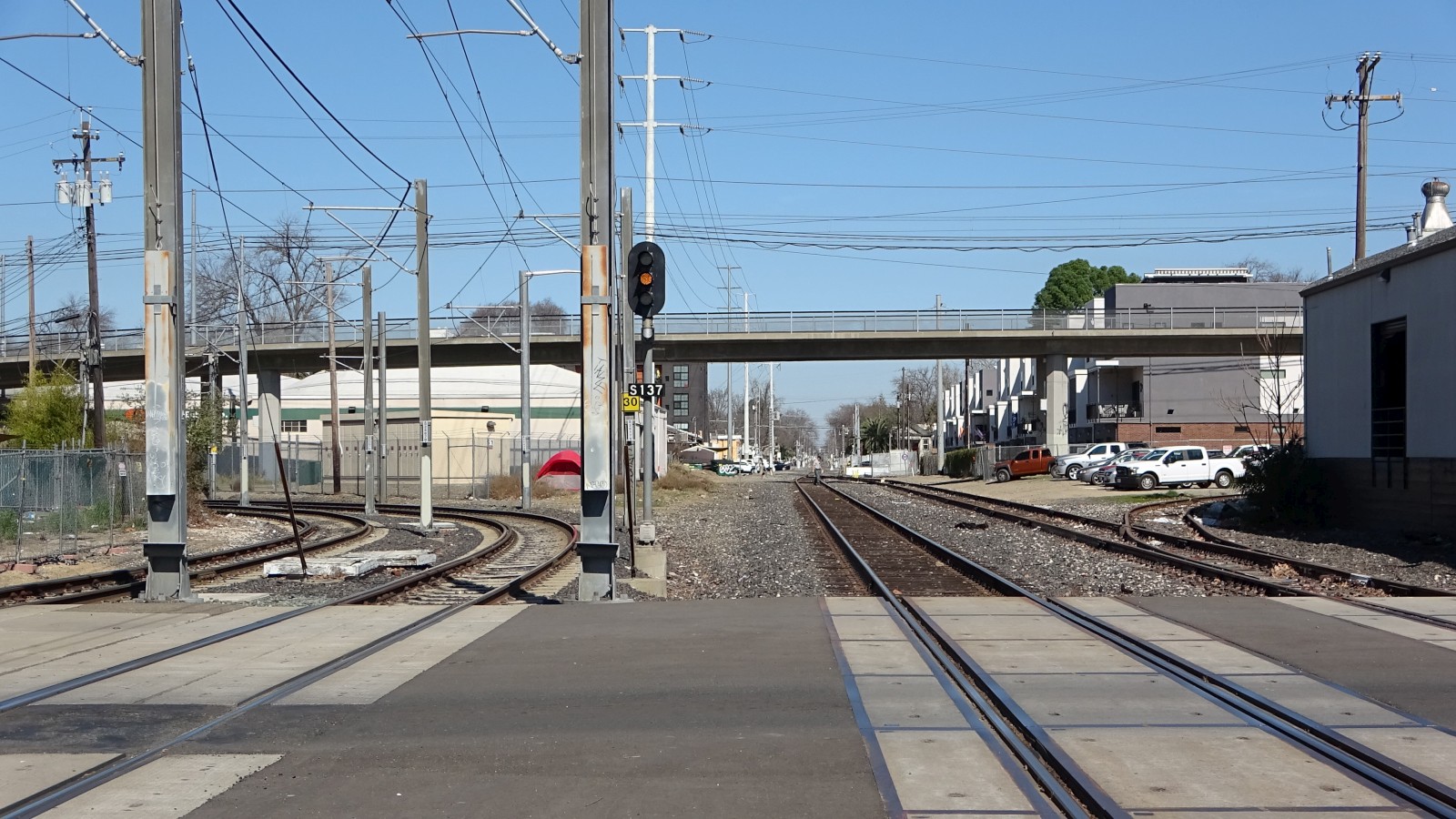

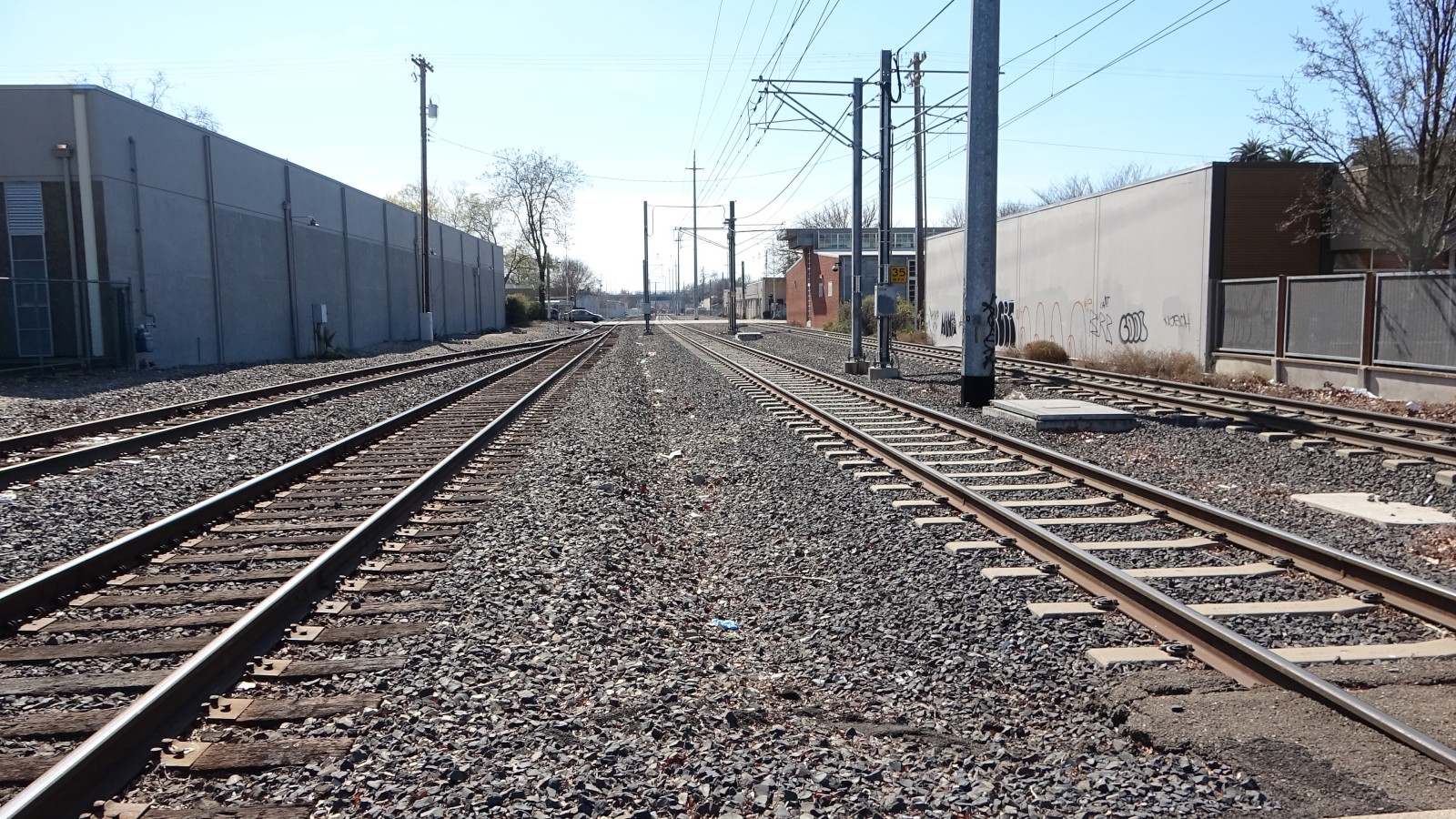

Looking north towards Q Street
and 20th Street #1.
|
Looking south.
|
|
|
48 |
49 |
50 |
51 |
|
52 |
53 |
54 |
55 |
|
56 |
57 |
58 |
59 |
|

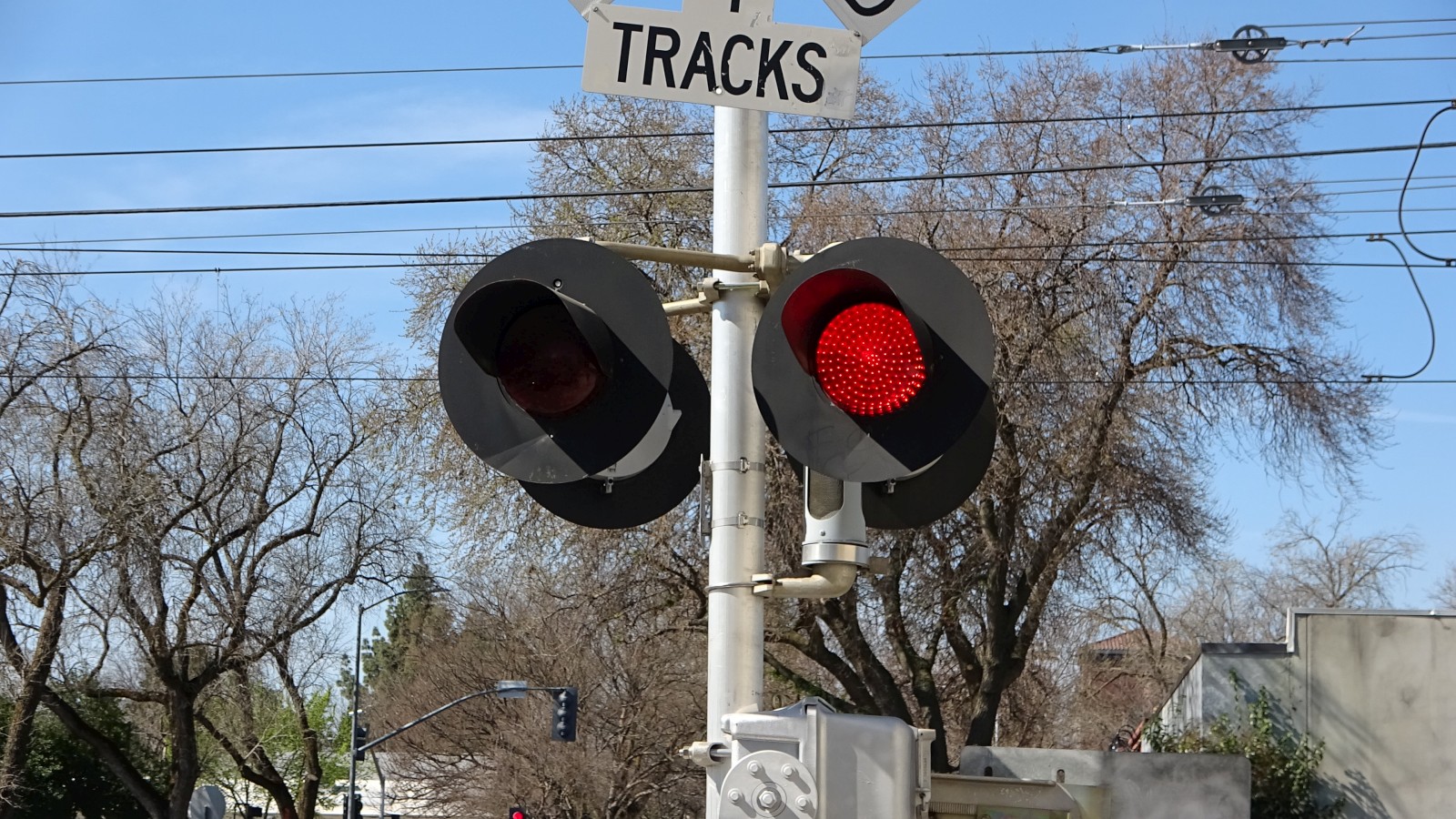

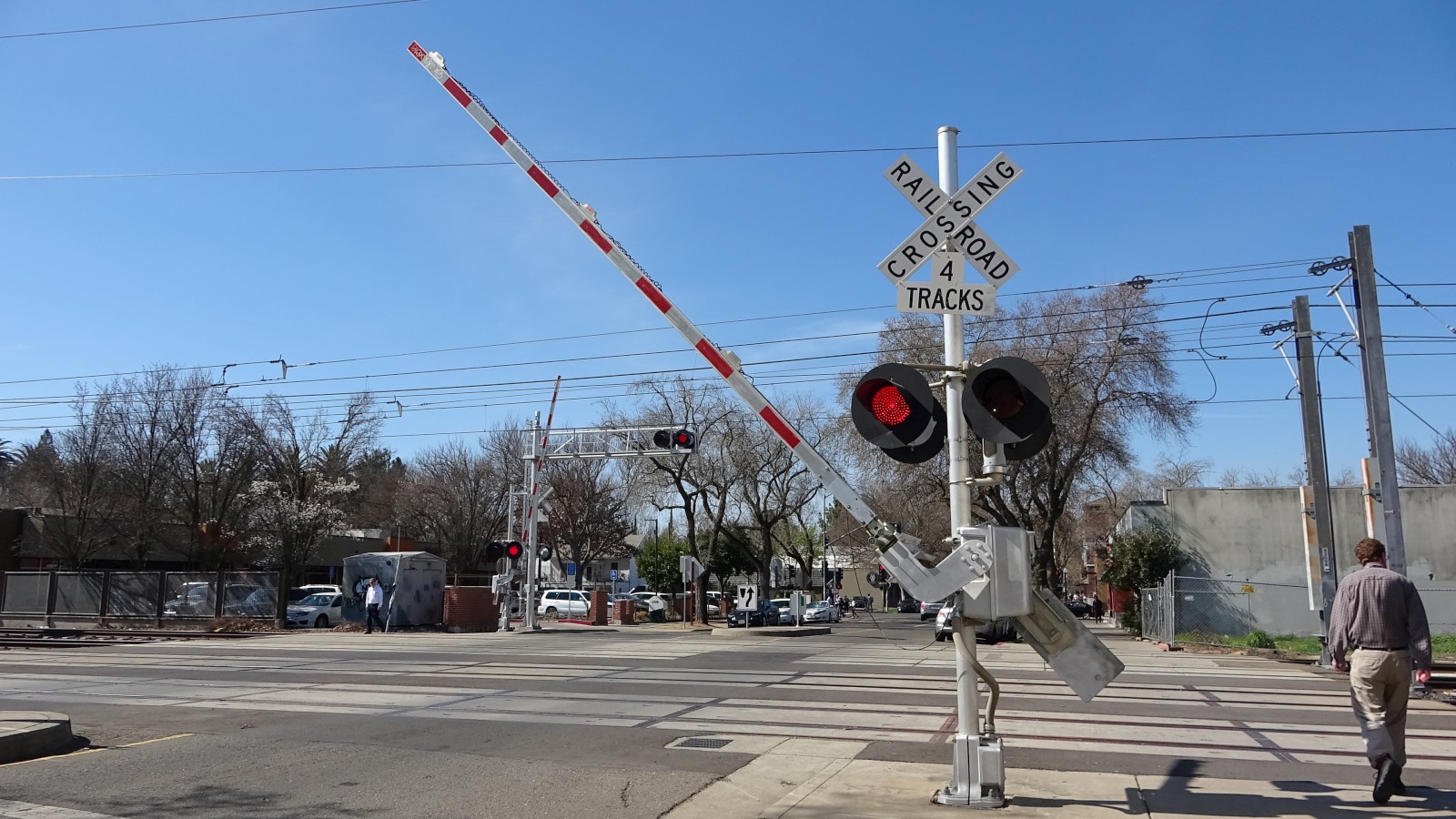

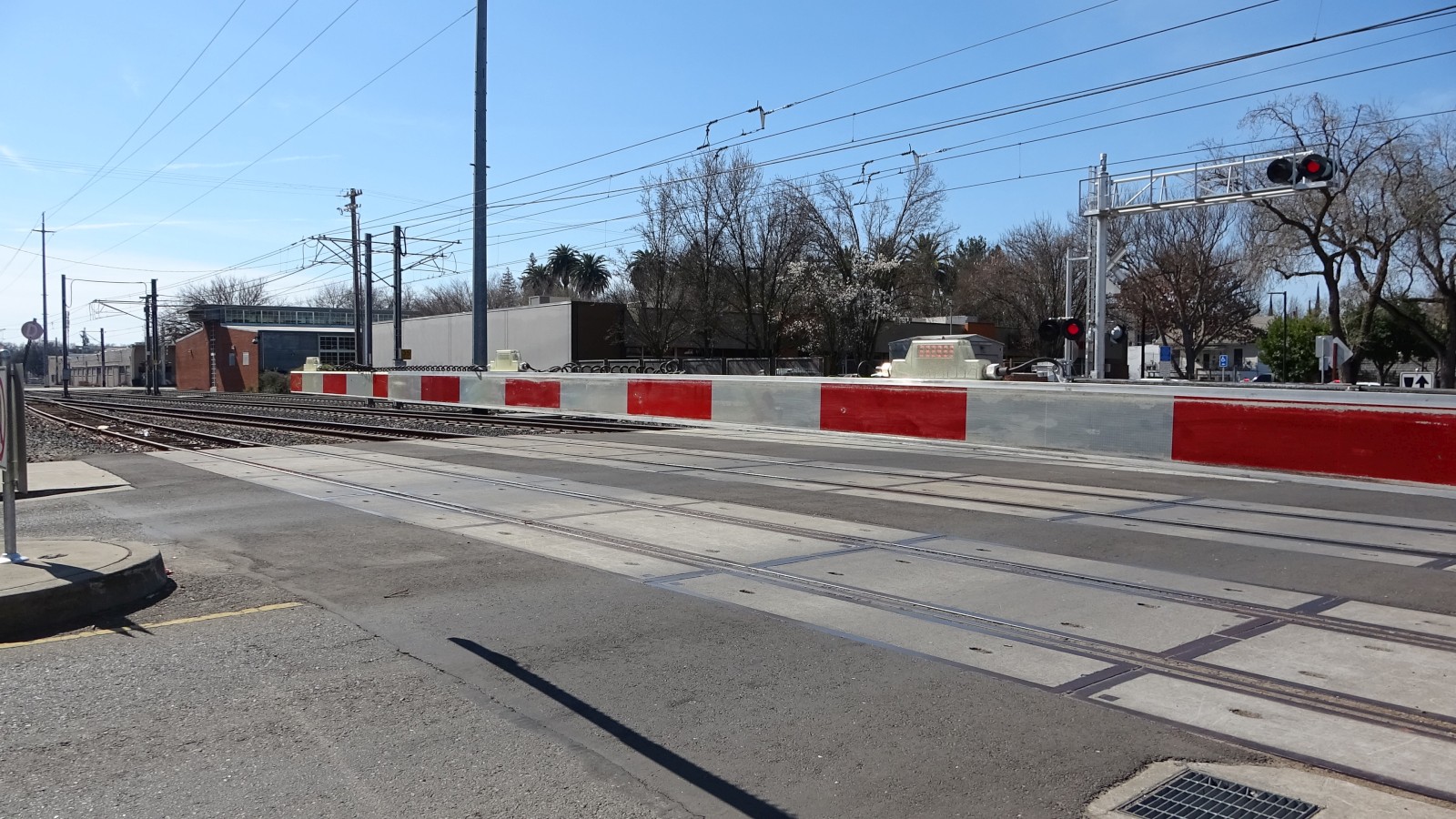

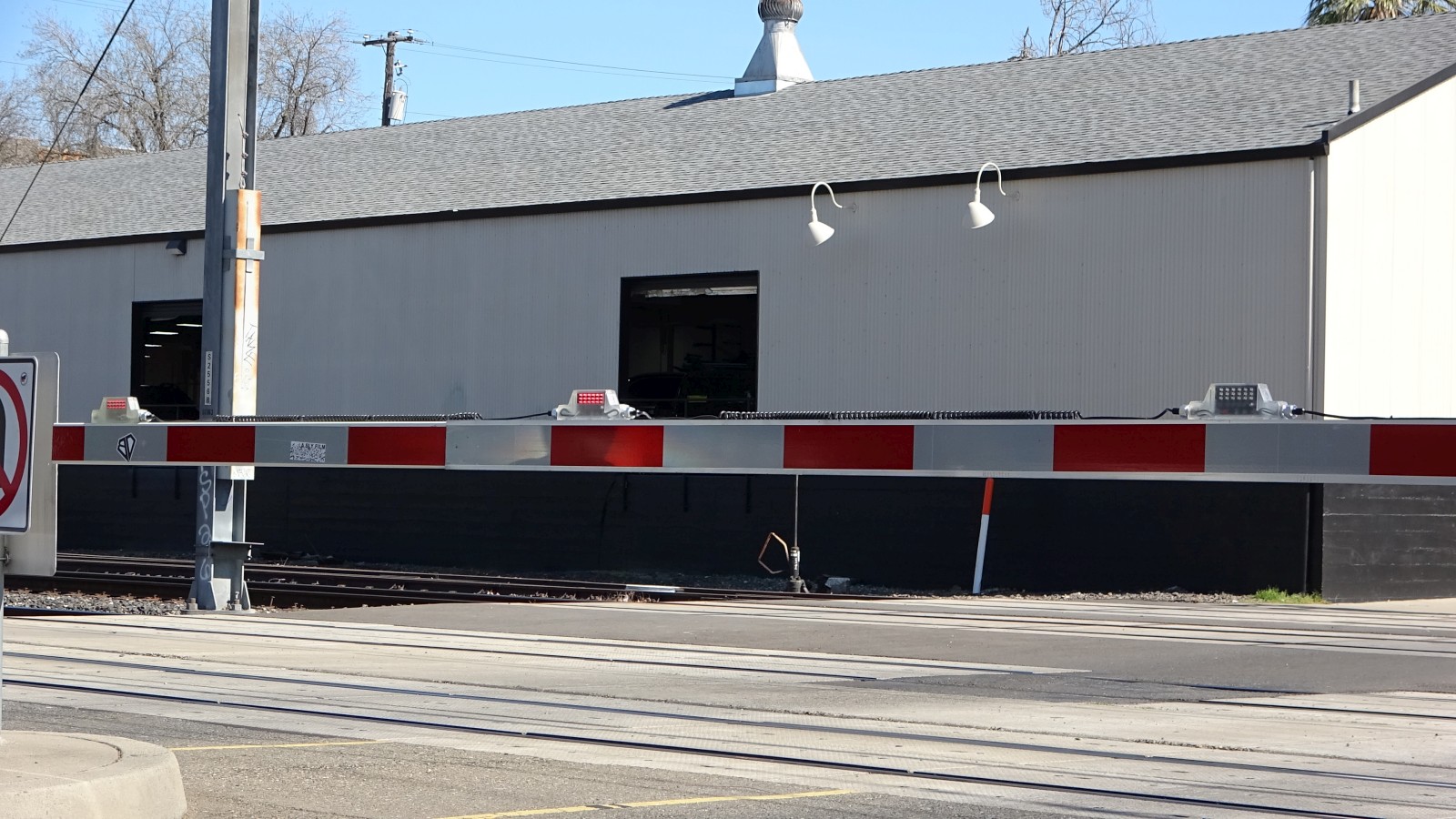

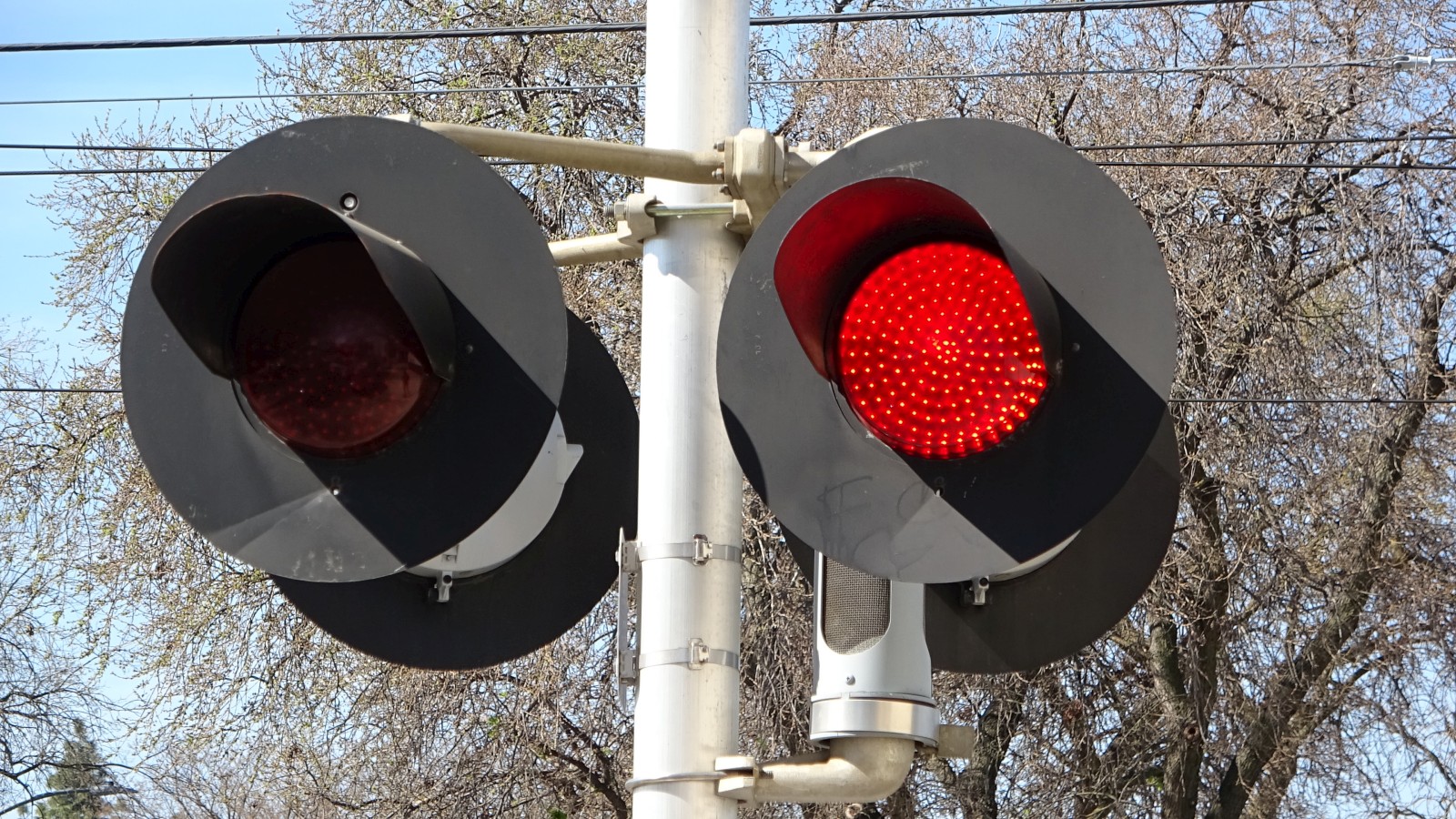

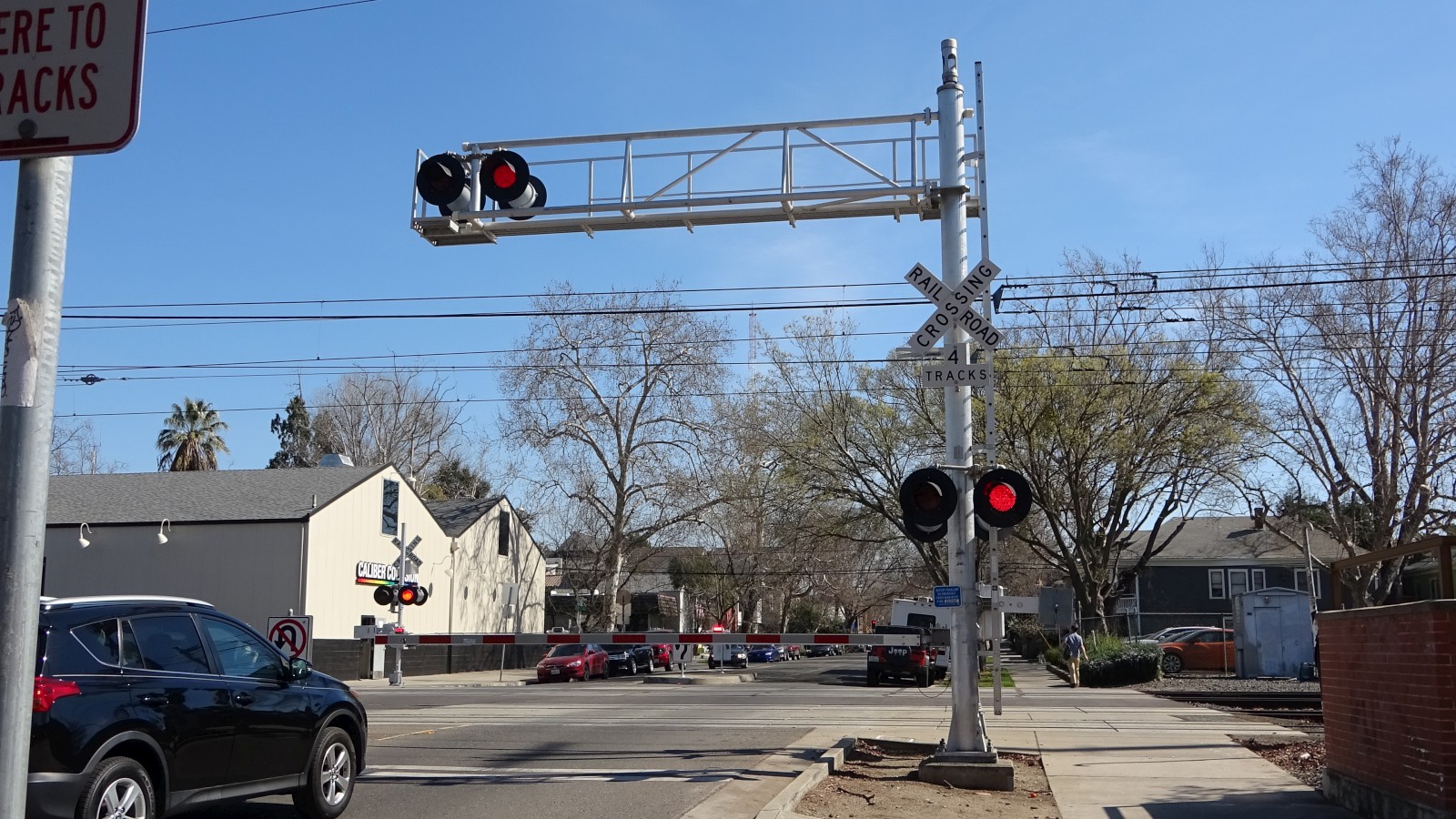

Some shots of the crossing in action.
|
|||
|
60 |
61 |
62 |
|

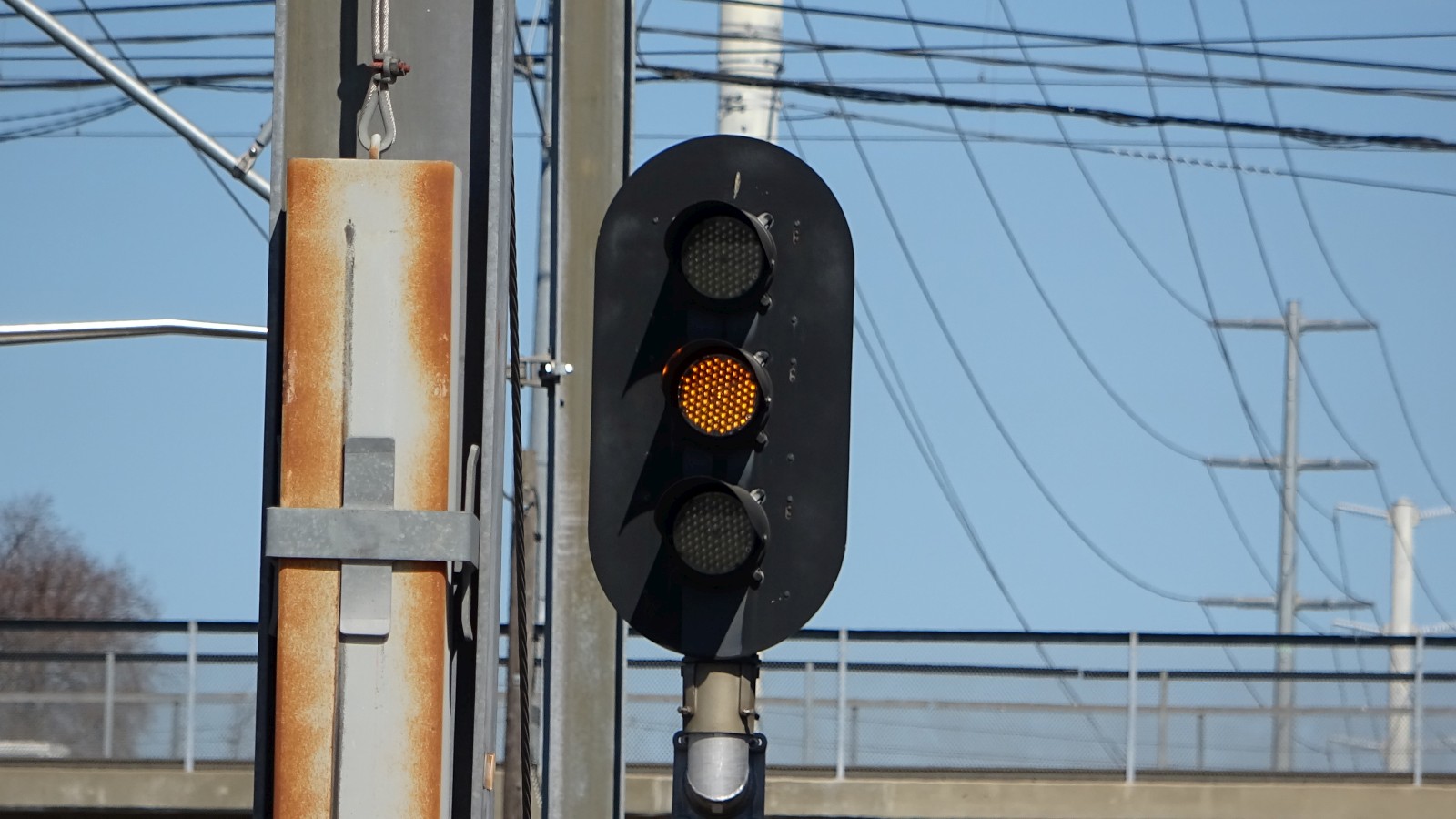

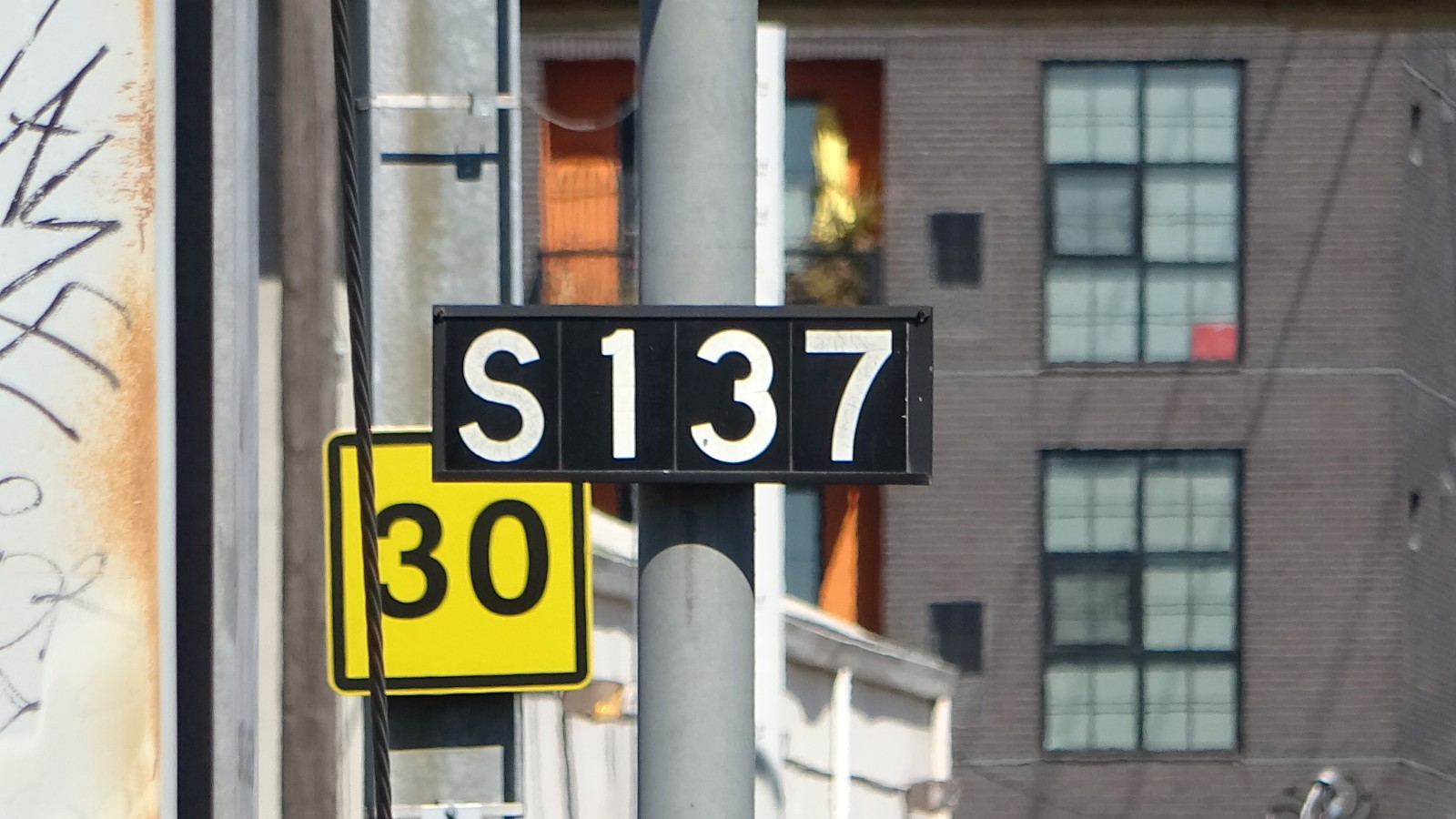

Some views of a SACRT wayside signal which
stands next to the crossing.
|
||
Pictures 1-15 were taken by Benny (caltrain927@yahoo.com) in August 2008.
Pictures 16-62 were taken by MobileRailSpotterRXR on February 27, 2020.
The video was taken by MobileRailSpotterRXR on March 16, 2020.
