MP: 40.77
|
MP: 40.77 |
| Created April 2021 |
| Total Accidents:

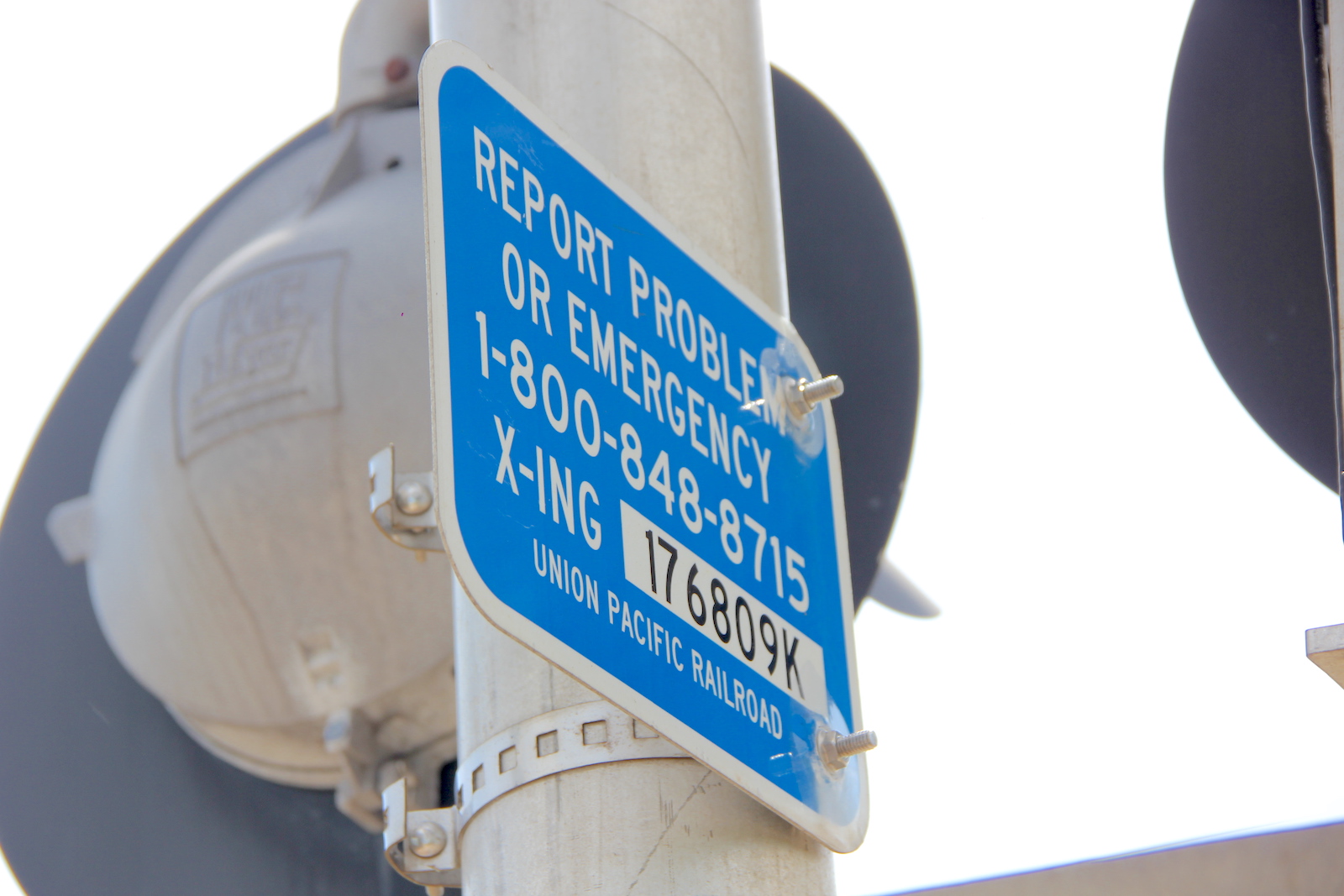

7 Crossing DOT #: 176809K TOTAL DAILY TRAINS: 7 (AS OF 2020) |
| >>>>>>>>>>>>>> | Western Signal | Eastern Signal |
| Bell: | WCH E-Bell | WCH E-Bell |

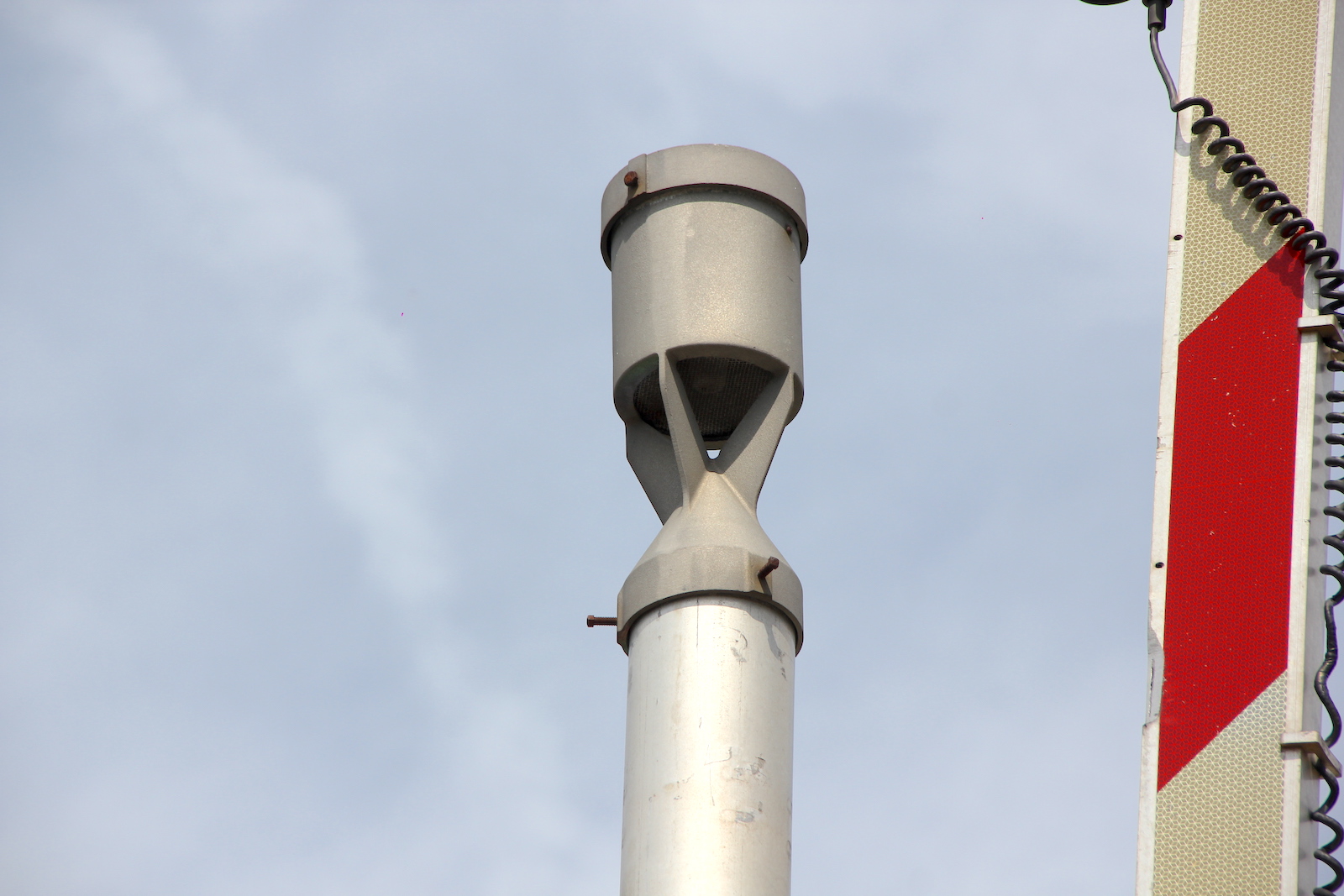

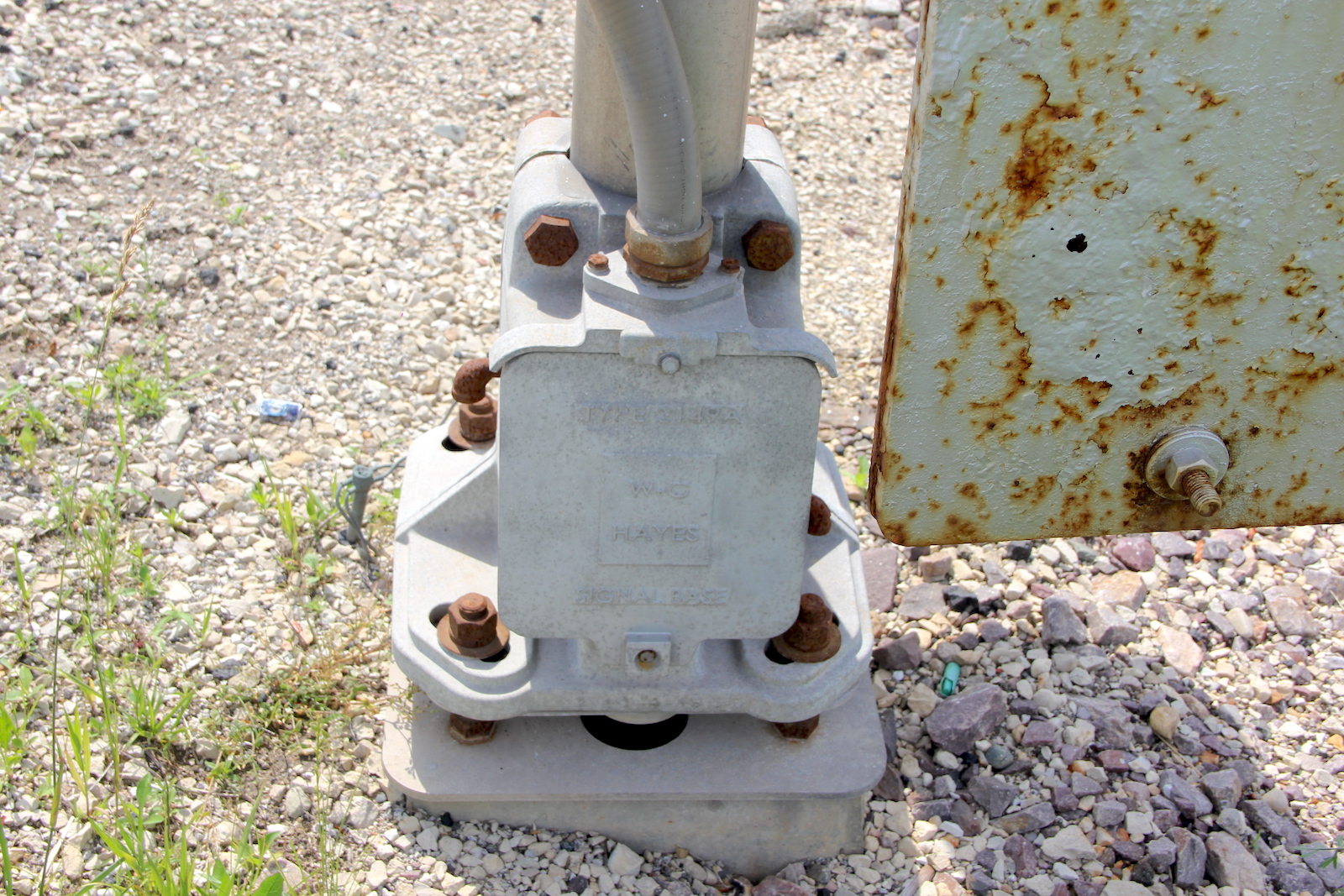

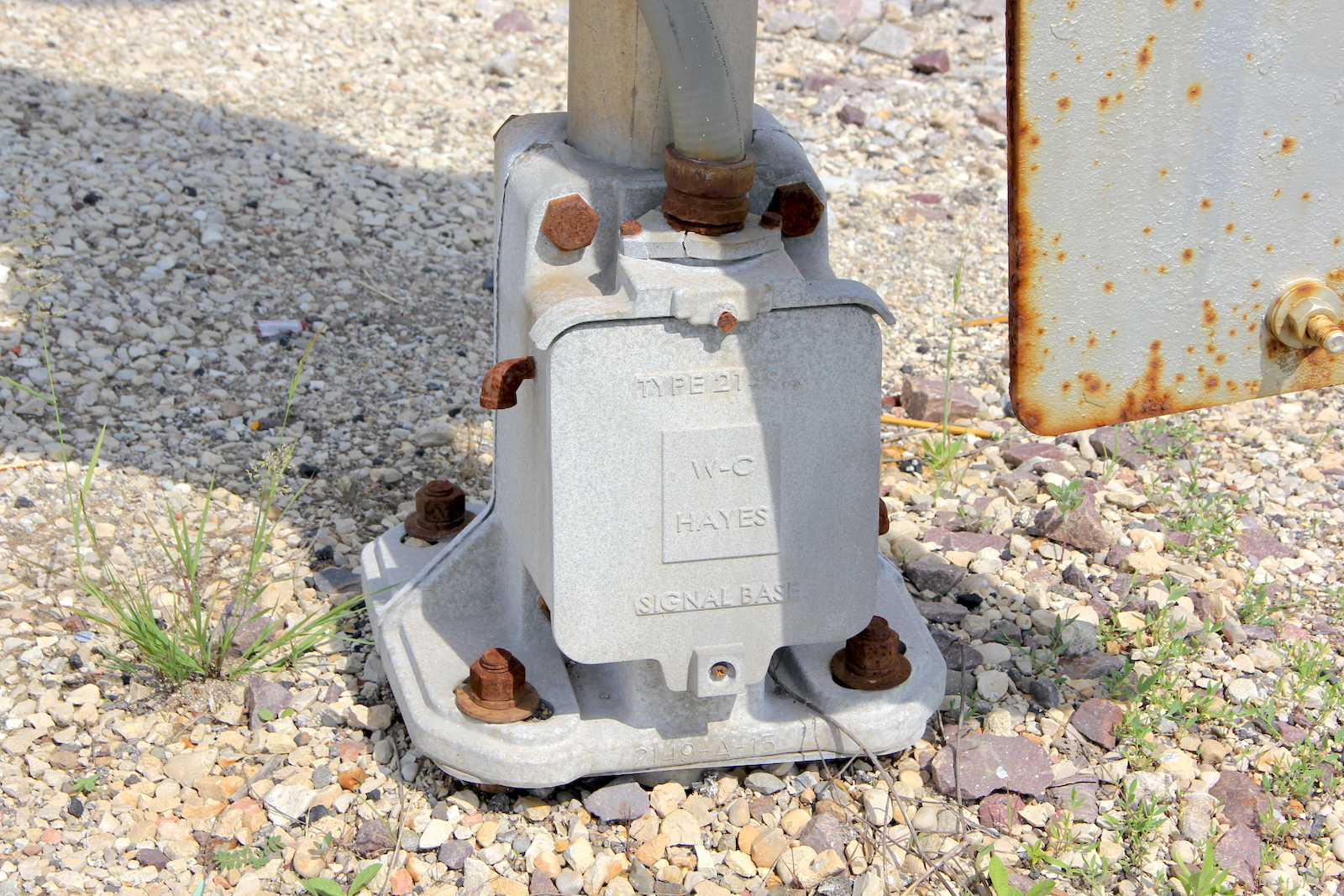

| Base: | WCH 5" Single Sided ^ | WCH 5" Single Sided ^ |
| Lights: | 4 - 12"x24" WCH w/ 1st Gen WCH LEDs | 4 - 12"x24" WCH w/ 1st Gen WCH LEDs |
| Junction Box: | WRRS | WRRS |
| Gate Lights: | 3 - 4" RECO | 3 - 4" RECO |

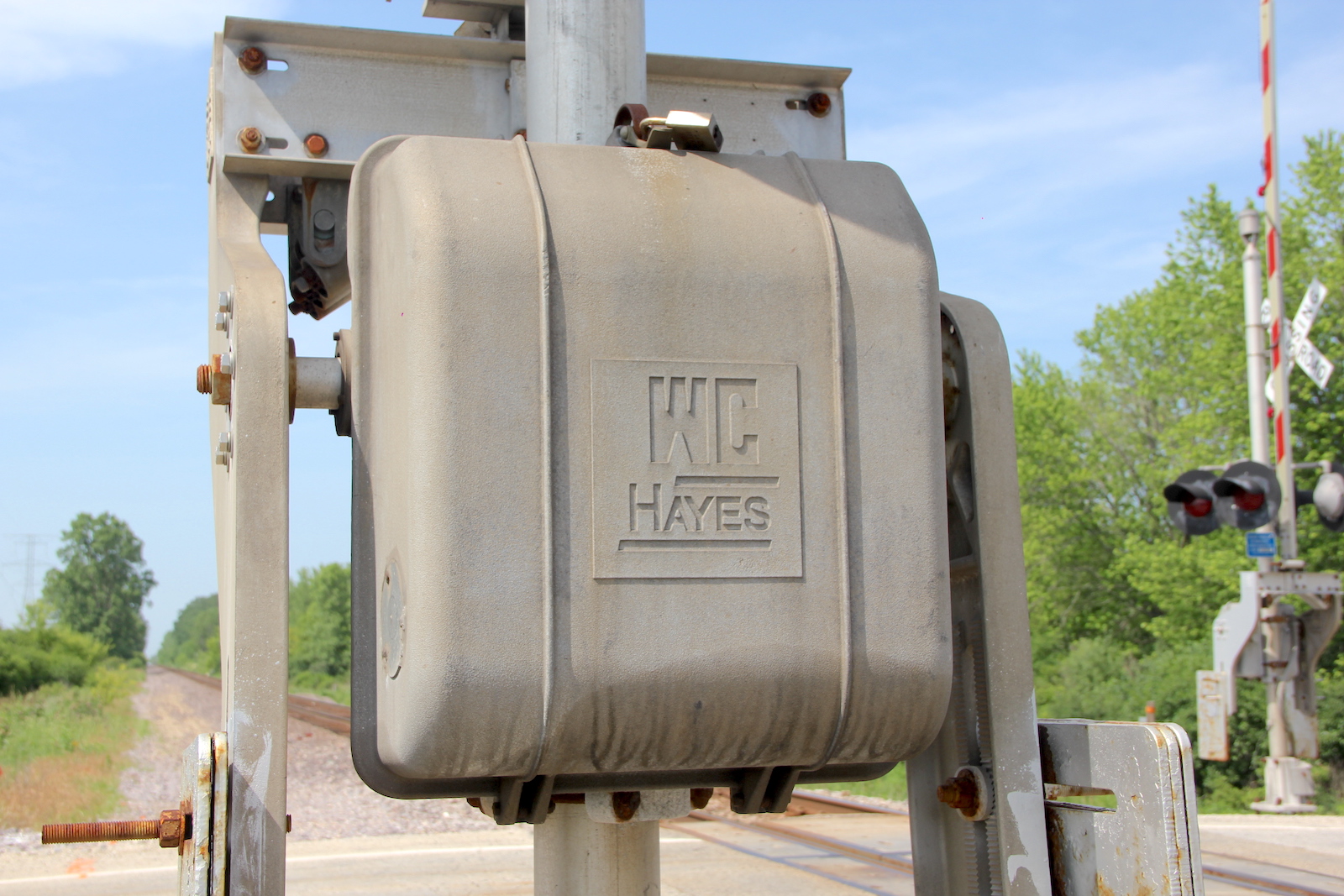

| Gate Mechanism: | WCH Style 3.5 w/ WCH Gate Saver | WCH Style 3.5 w/ WCH Gate Saver |
| Gate Striping: | Diagonal Striping | Diagonal Striping |
1 |
2
|

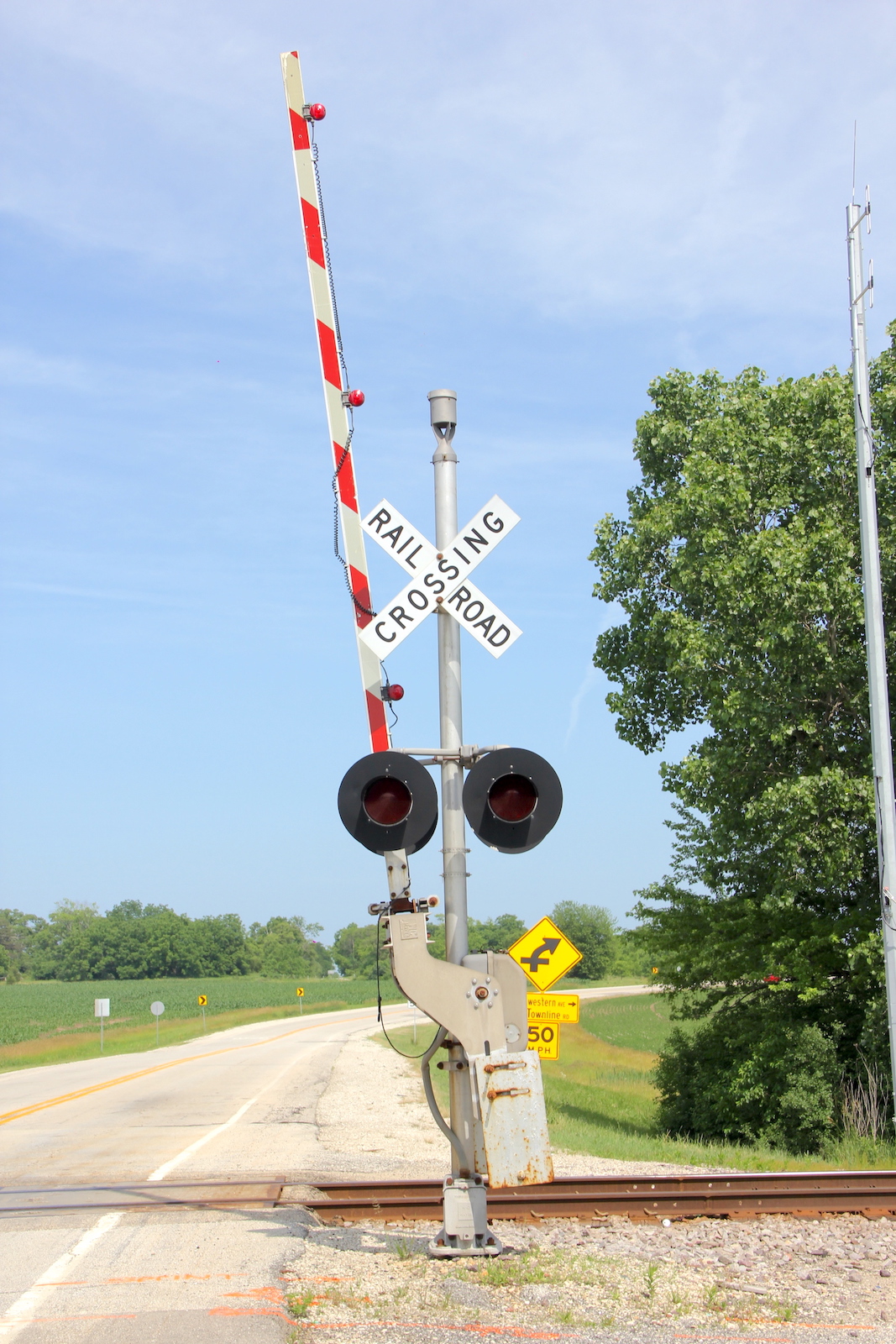

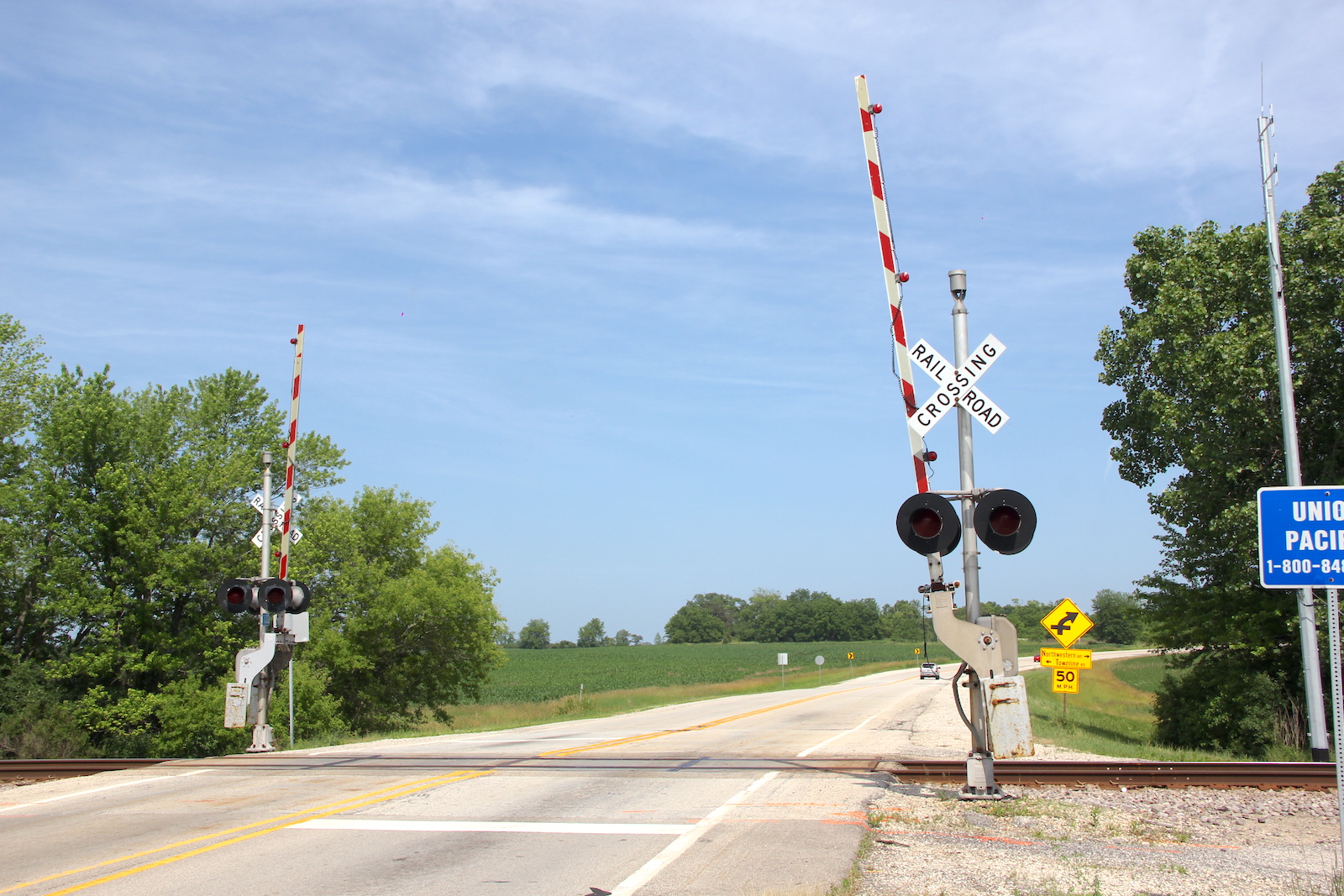

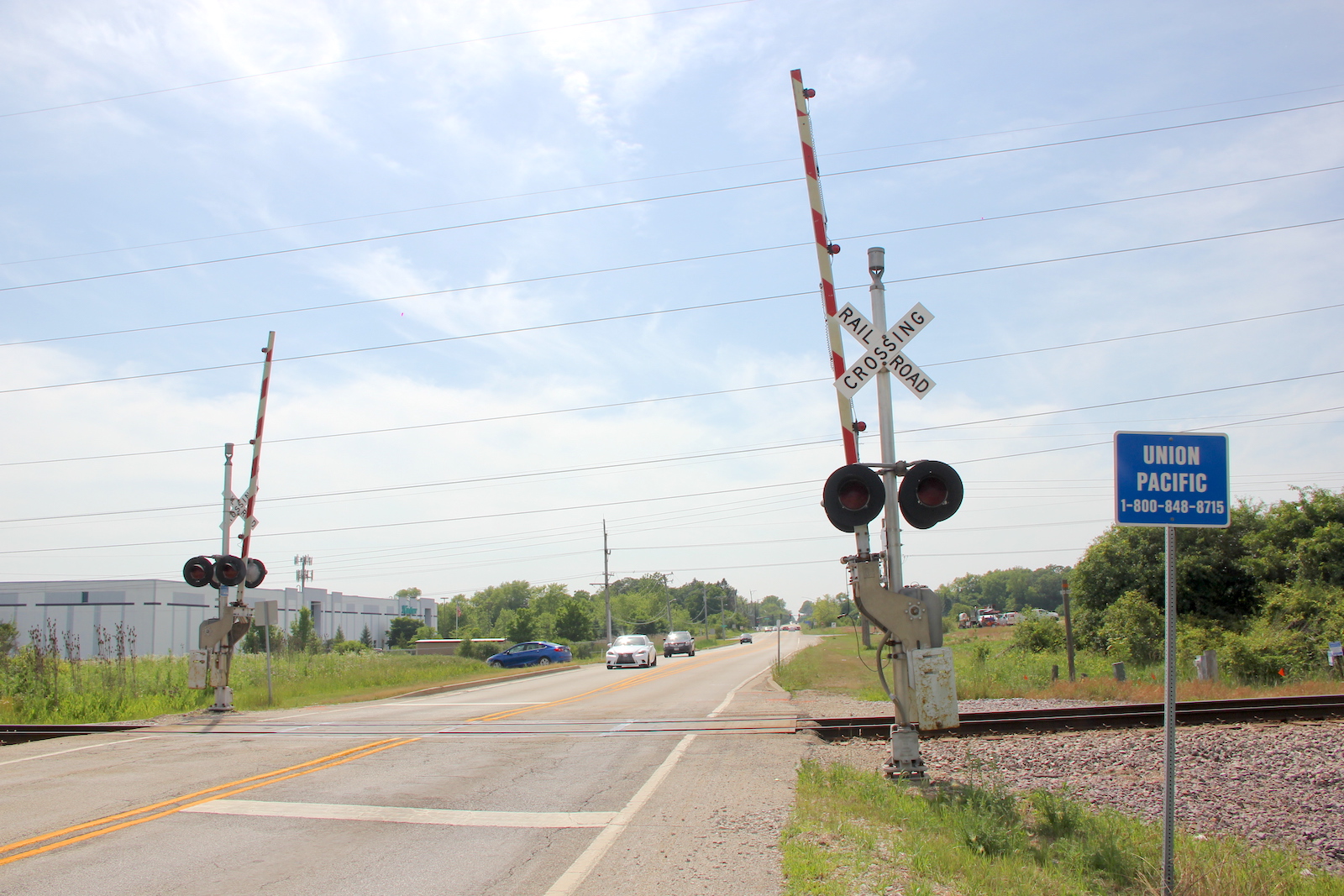

| Overview of two 2000s WCH signals facing east. | Overview facing west. |
3
| 4
| 5
|
6
| 7
| 8
|
9
| 10
| 11 | 12
|

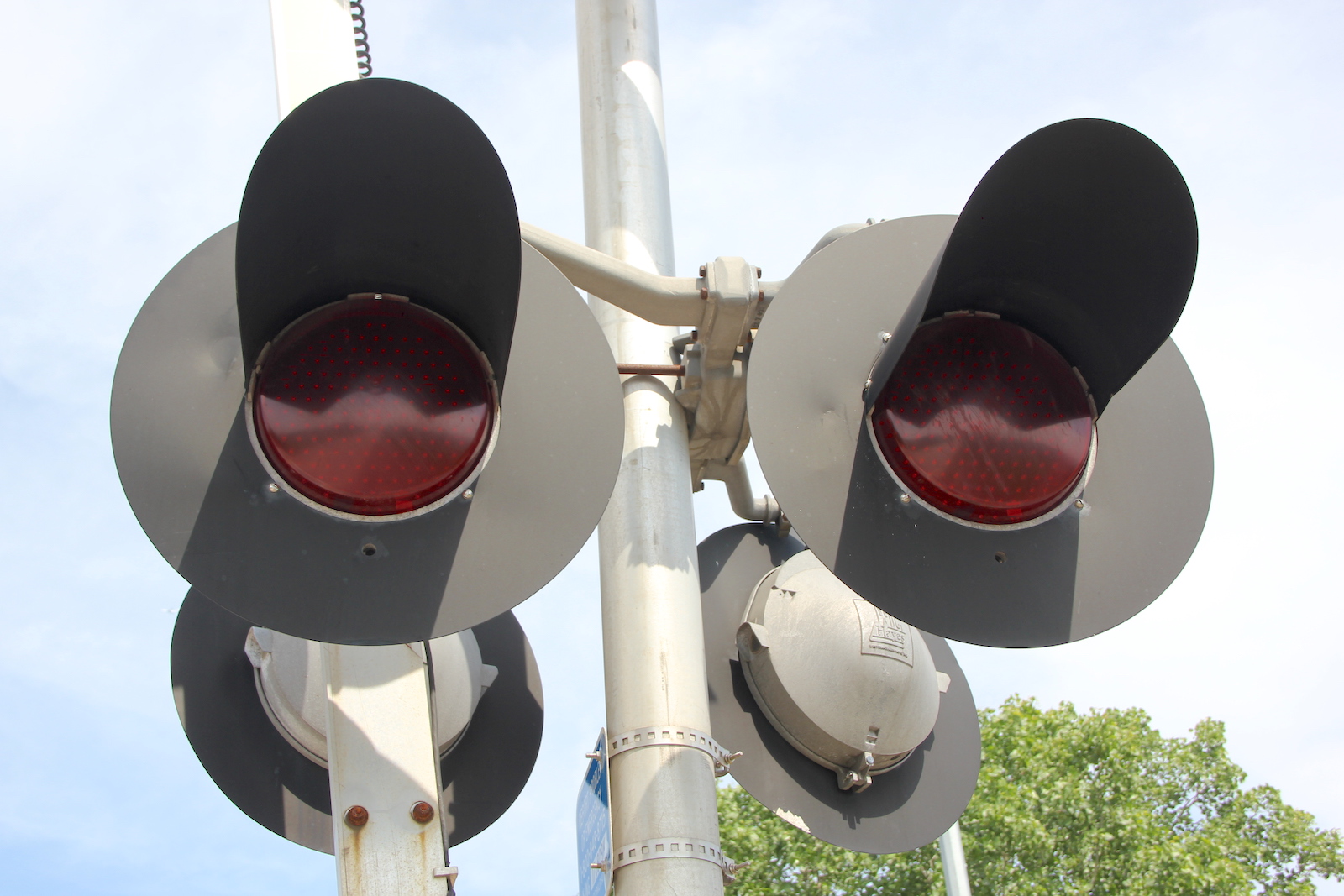

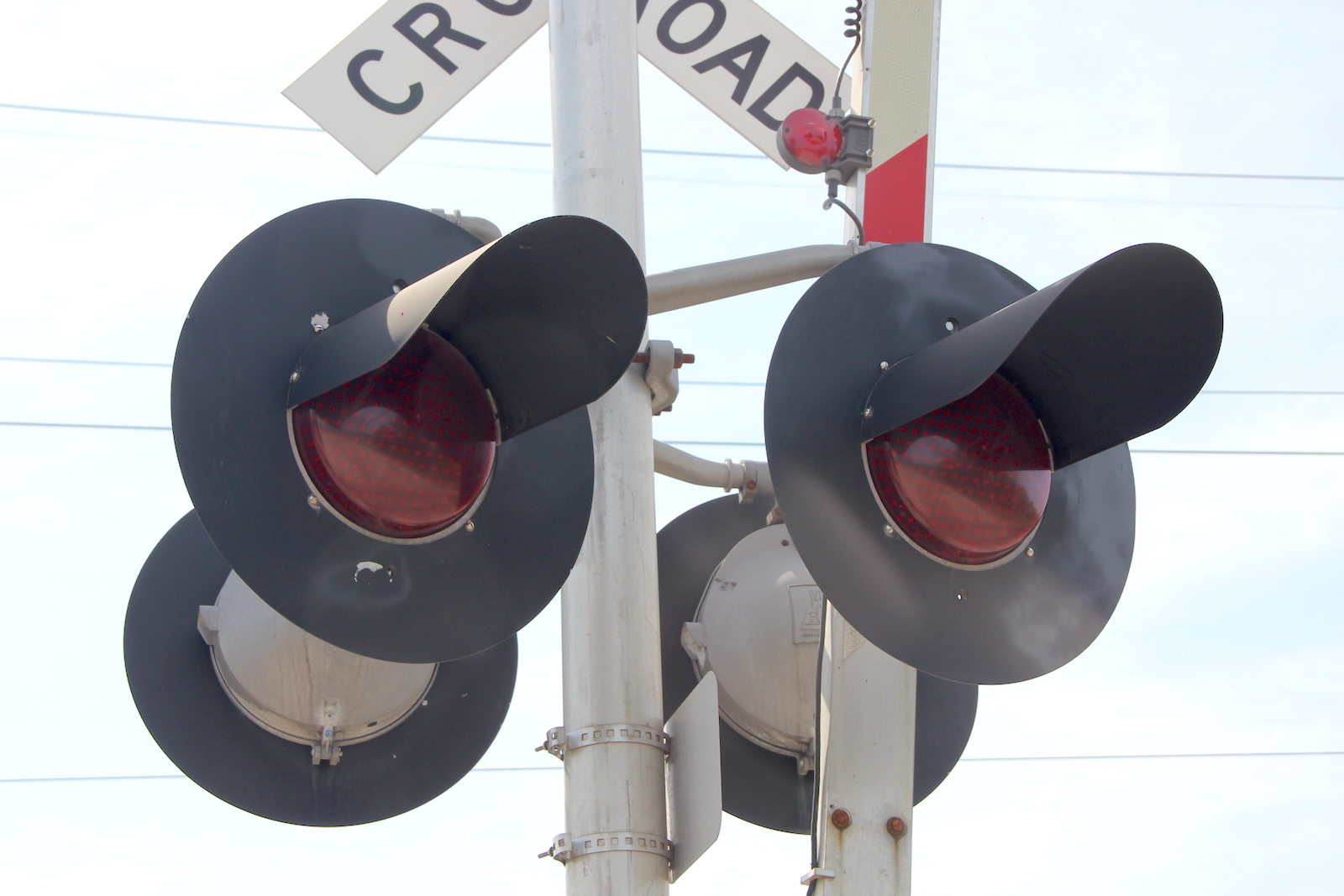

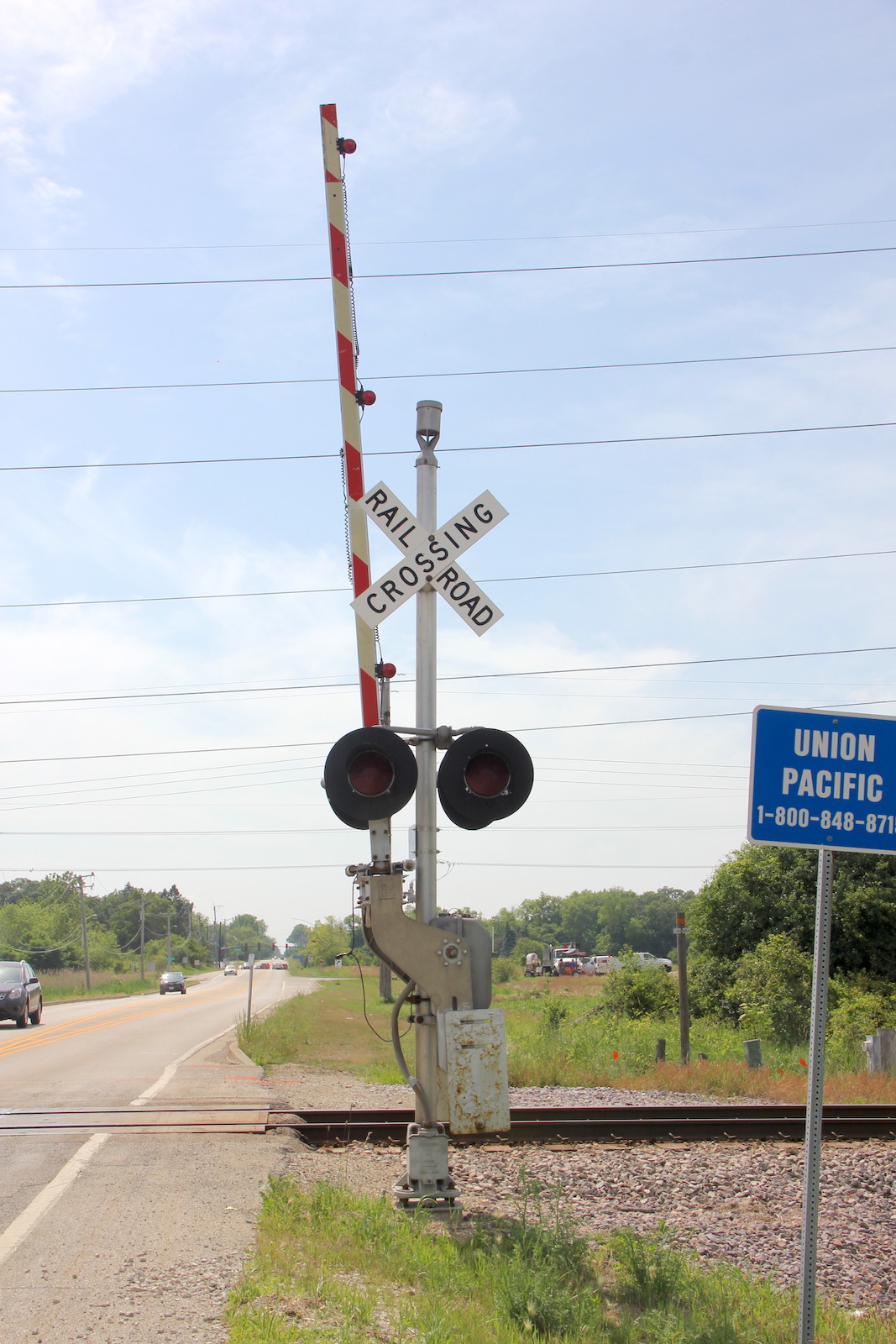

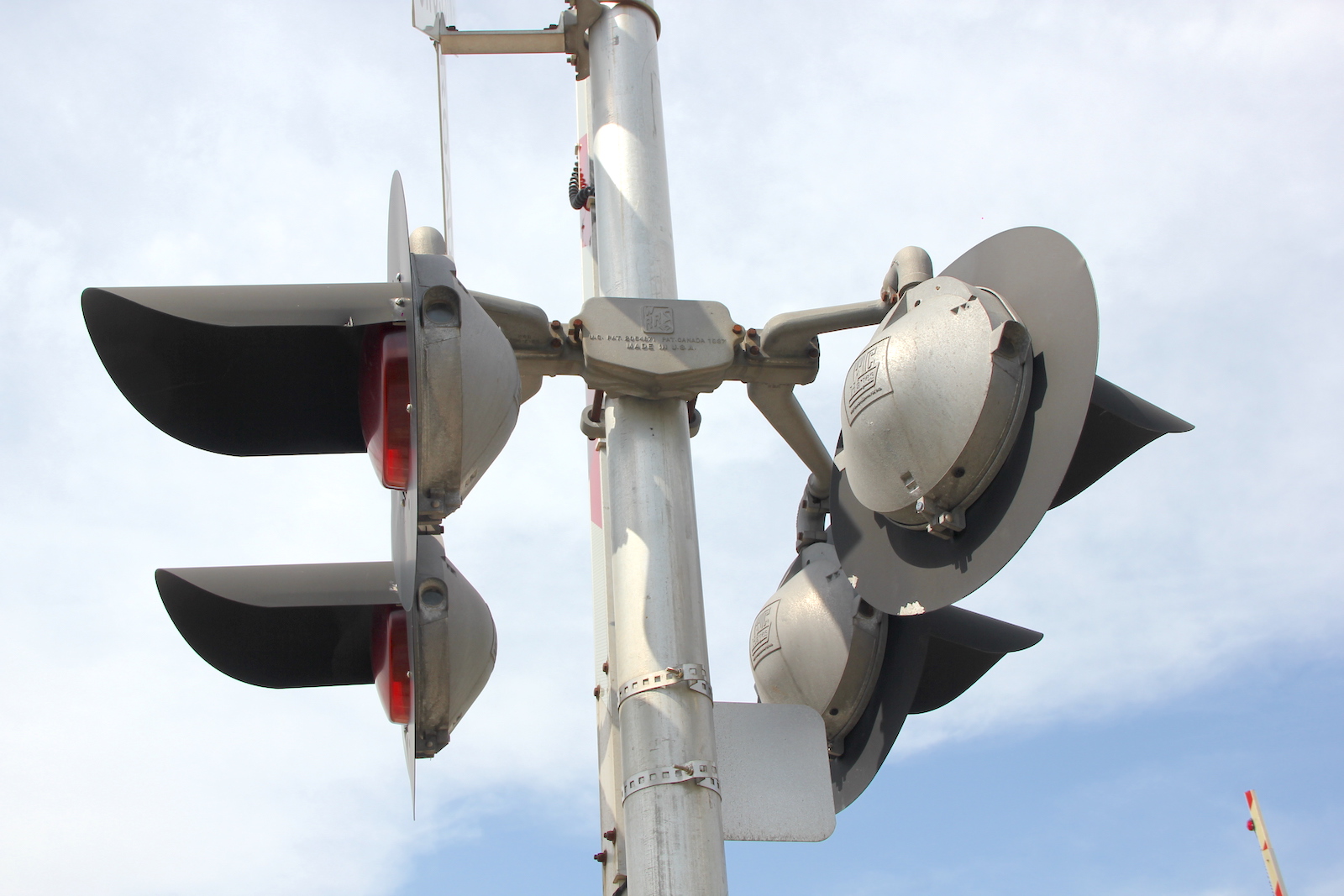

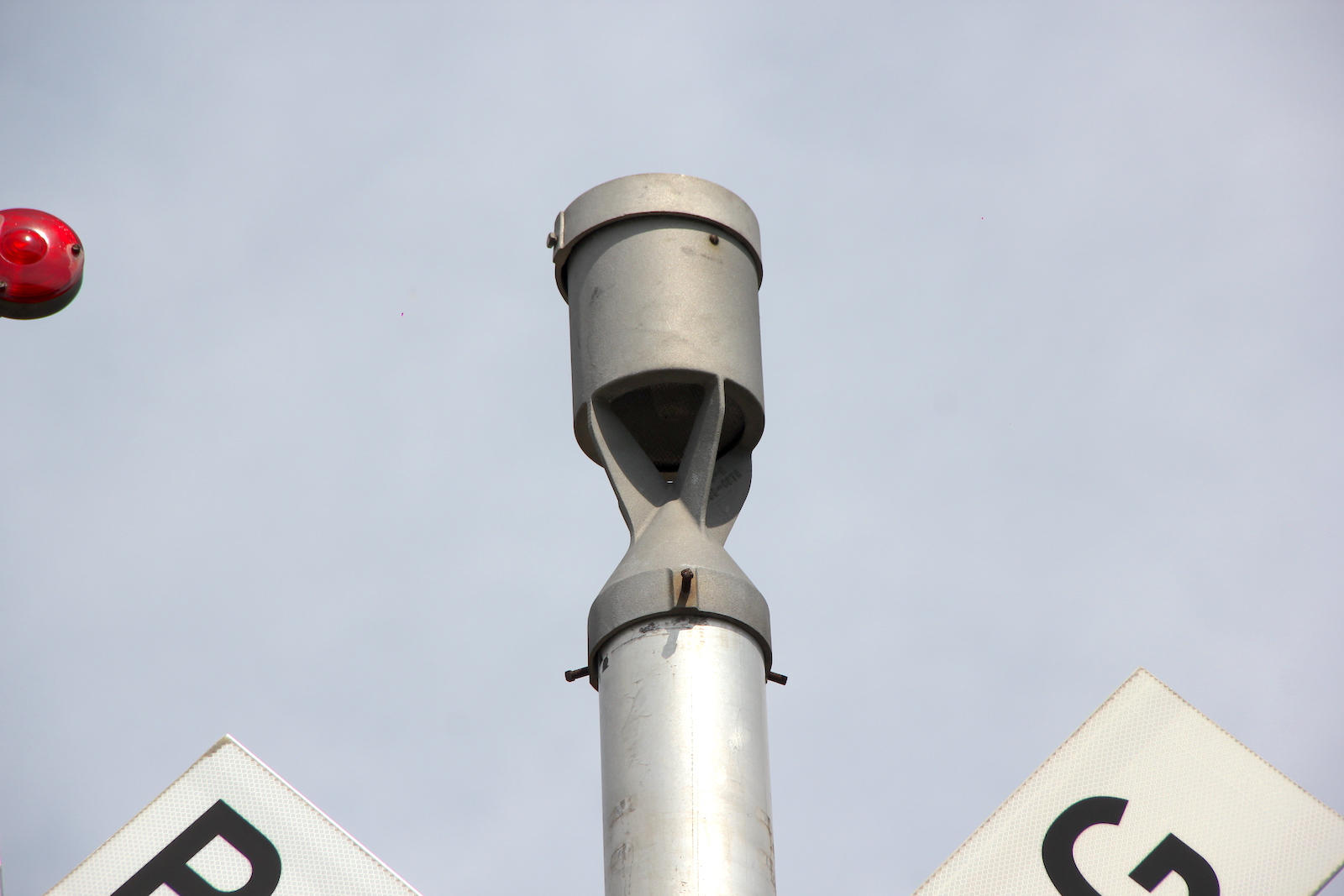

| The western signal. | |||
13
| 14
| 15
|
16
| 17
| 18
| 19
|
20
| 21
| 22 | 23
|

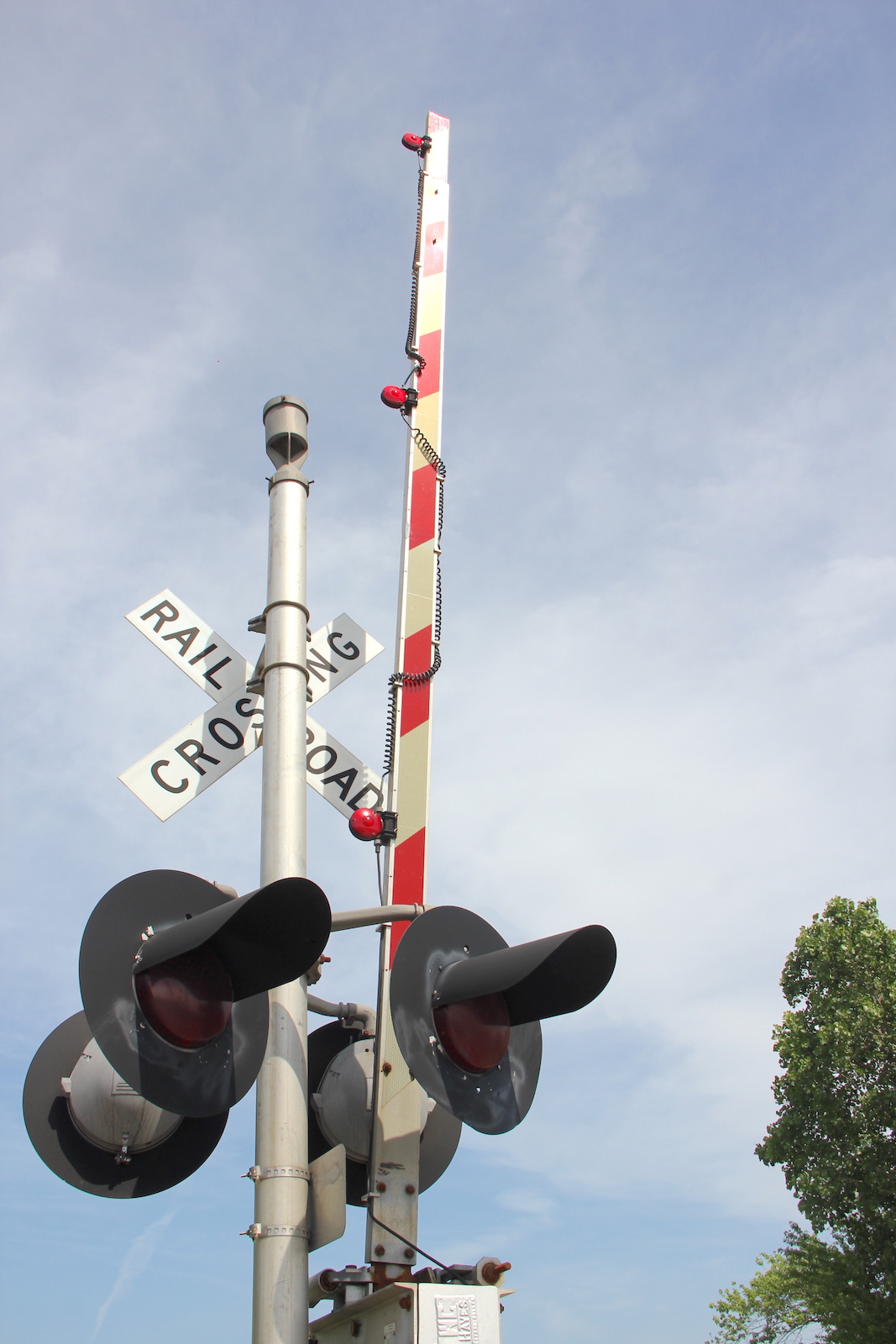

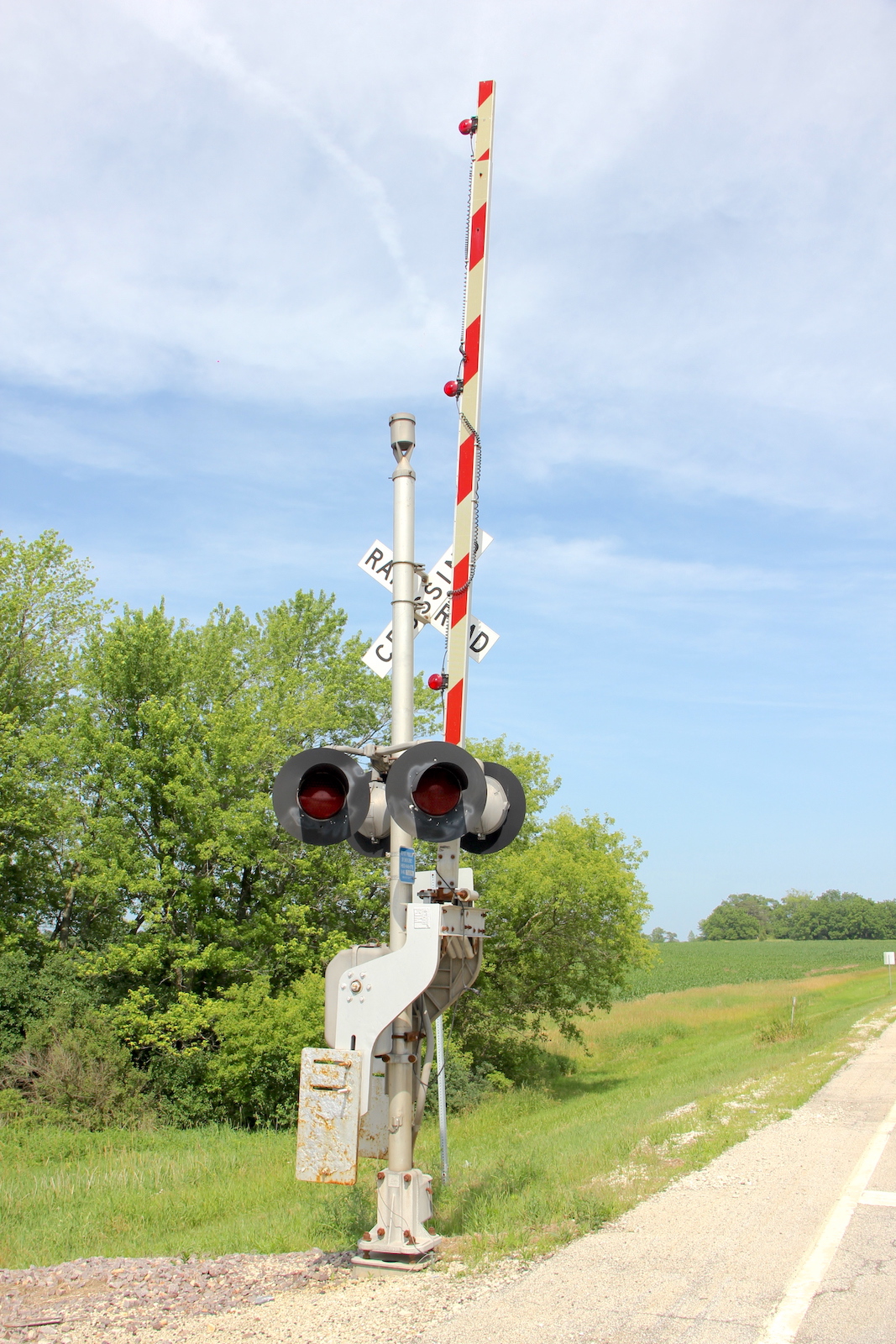

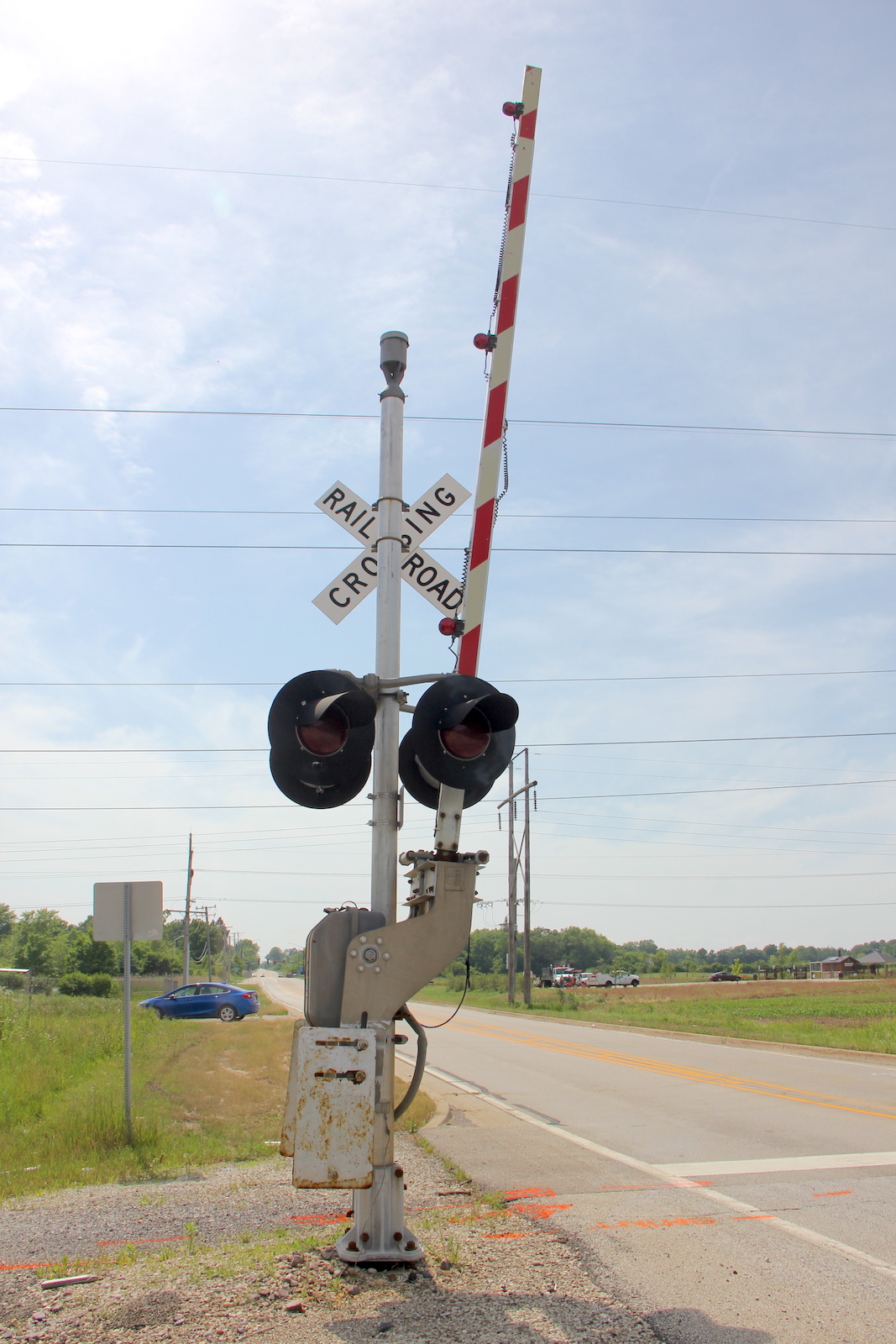

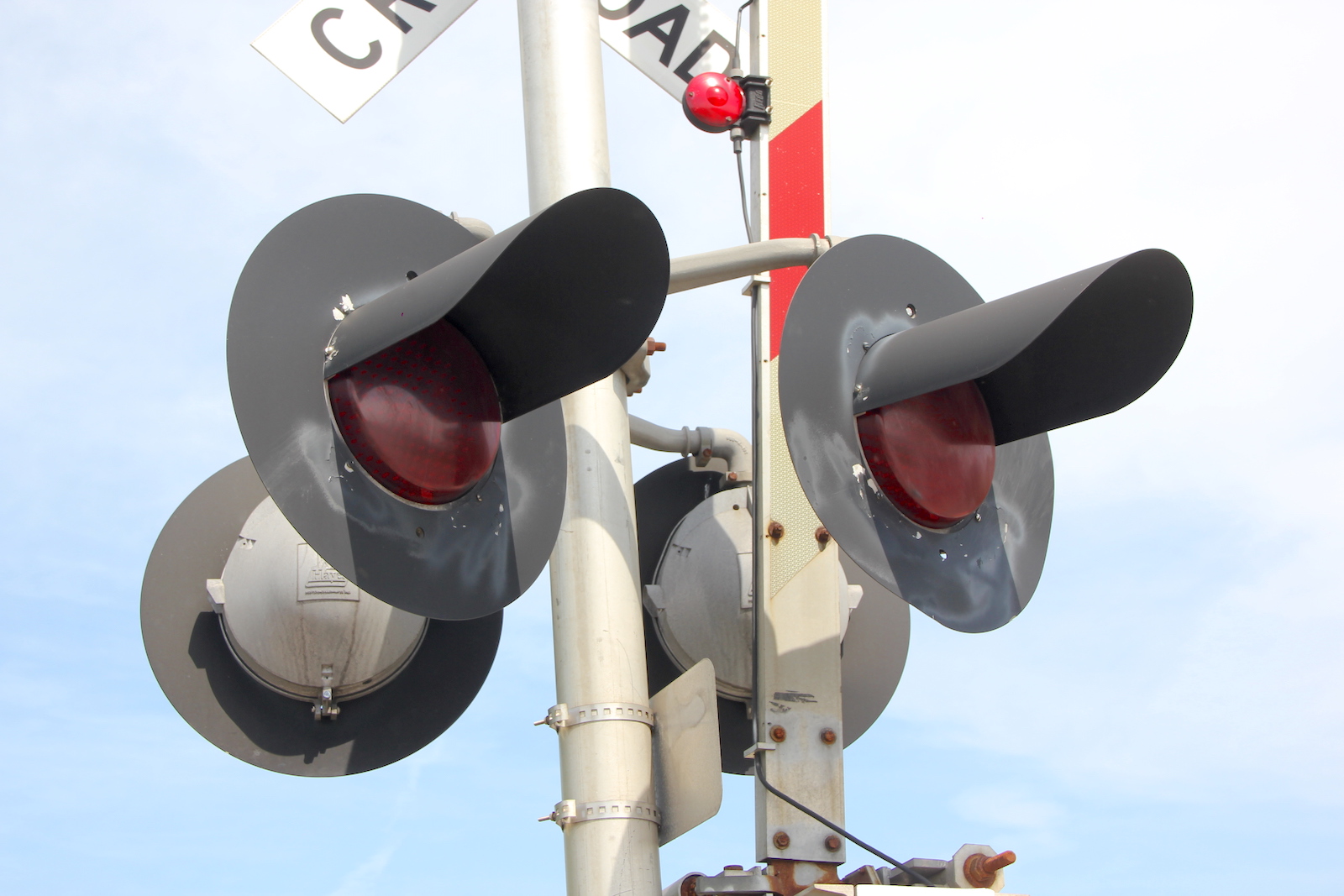

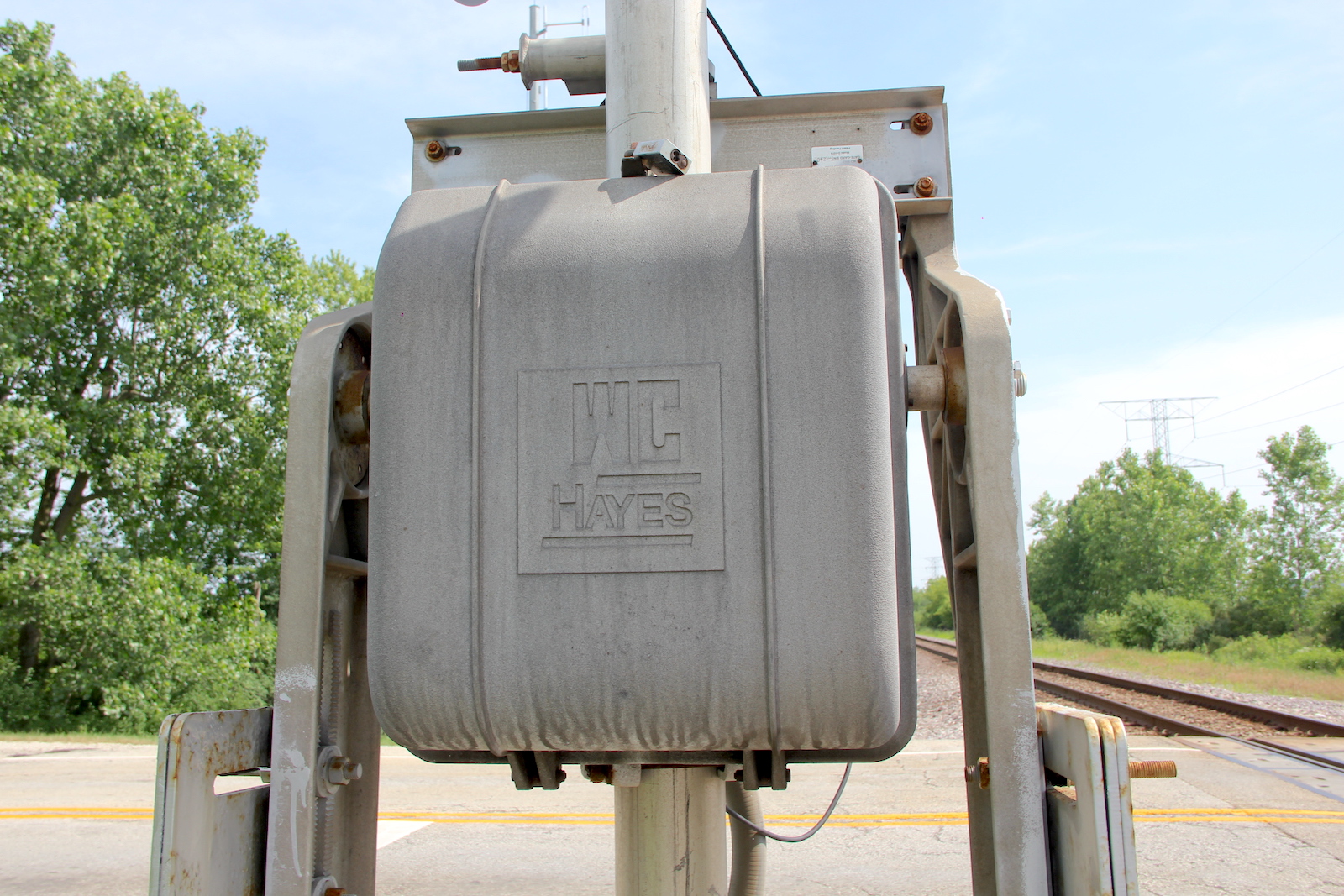

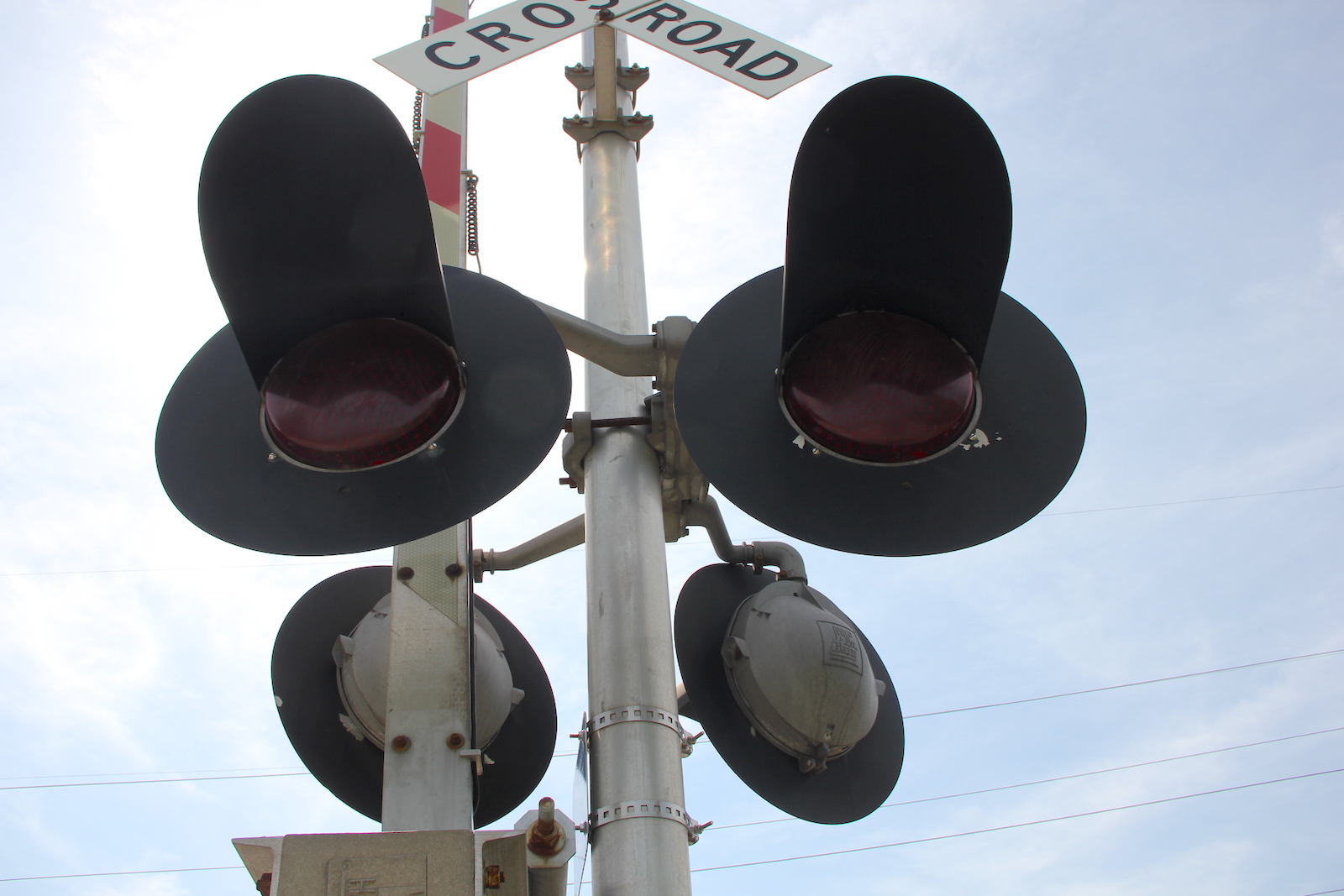

| The eastern signal. | |||
24
|
25
|
26
|
27
|

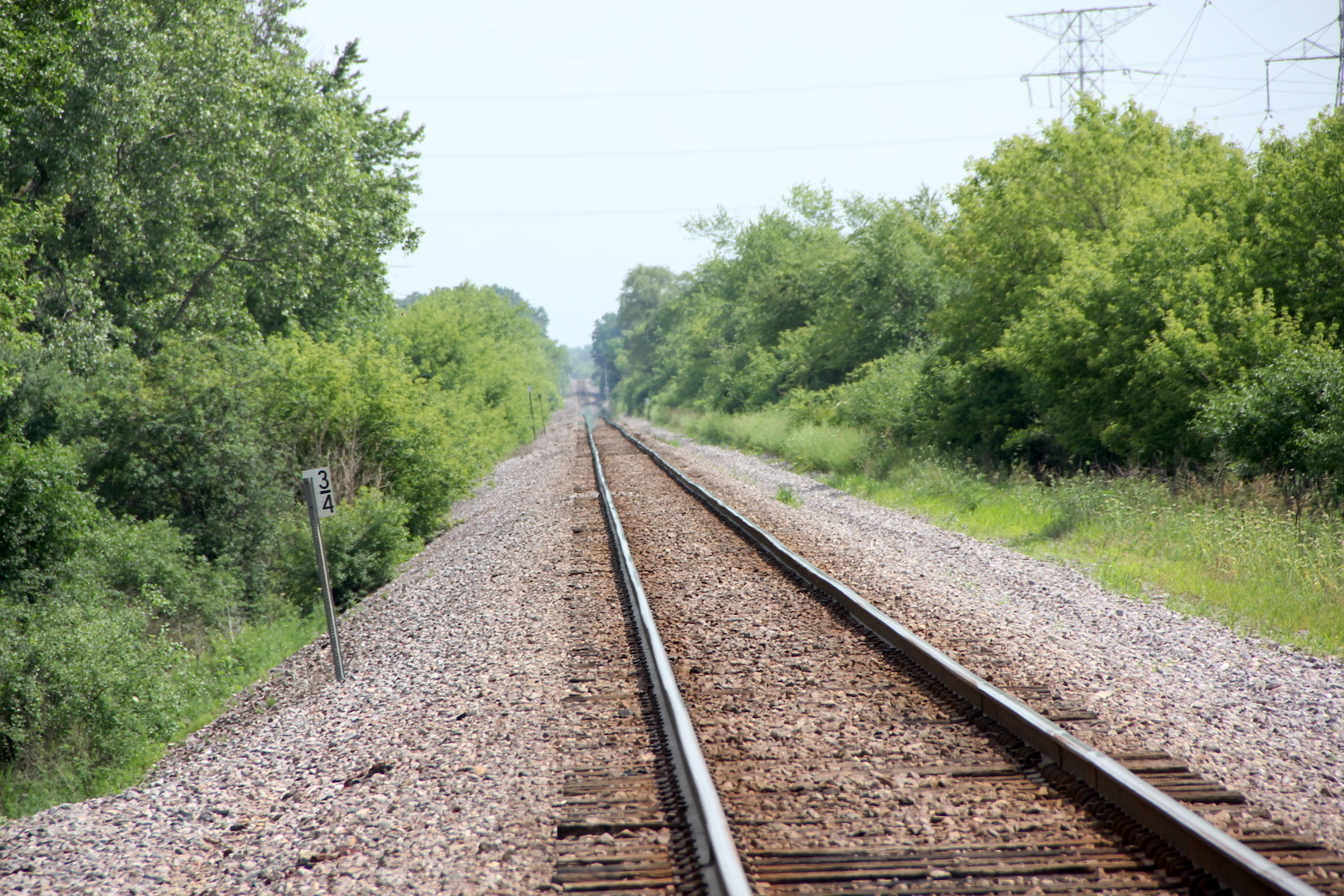

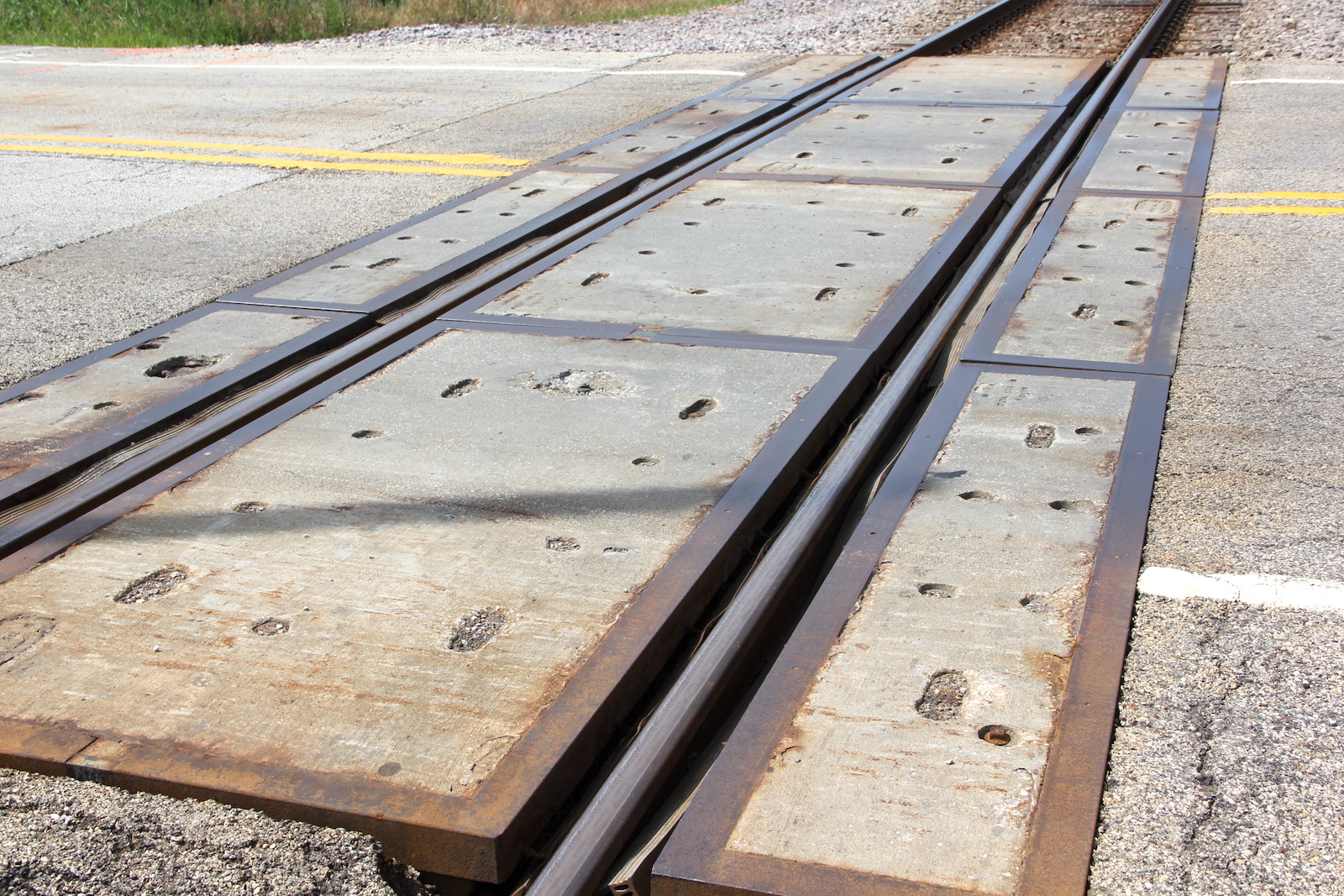

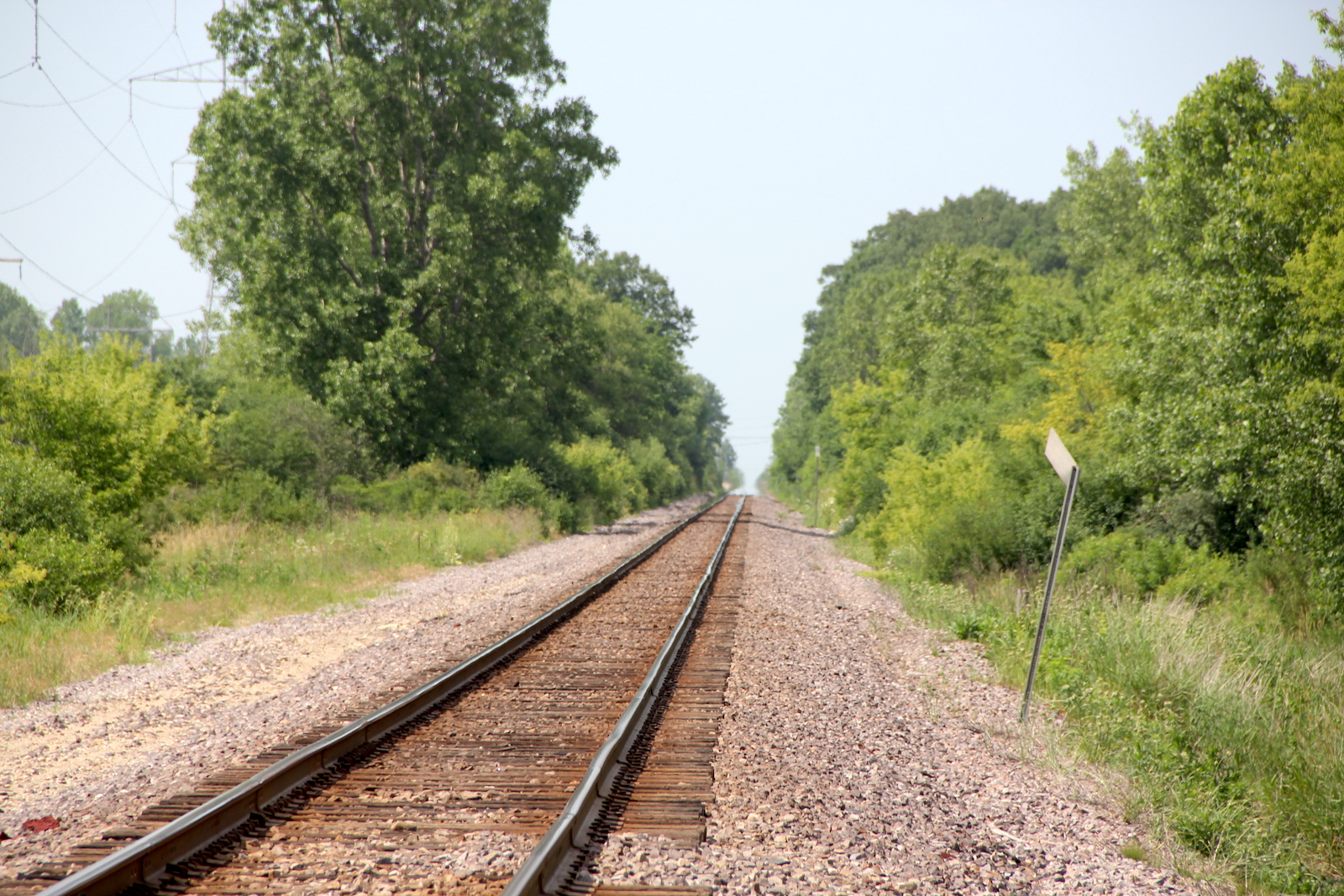

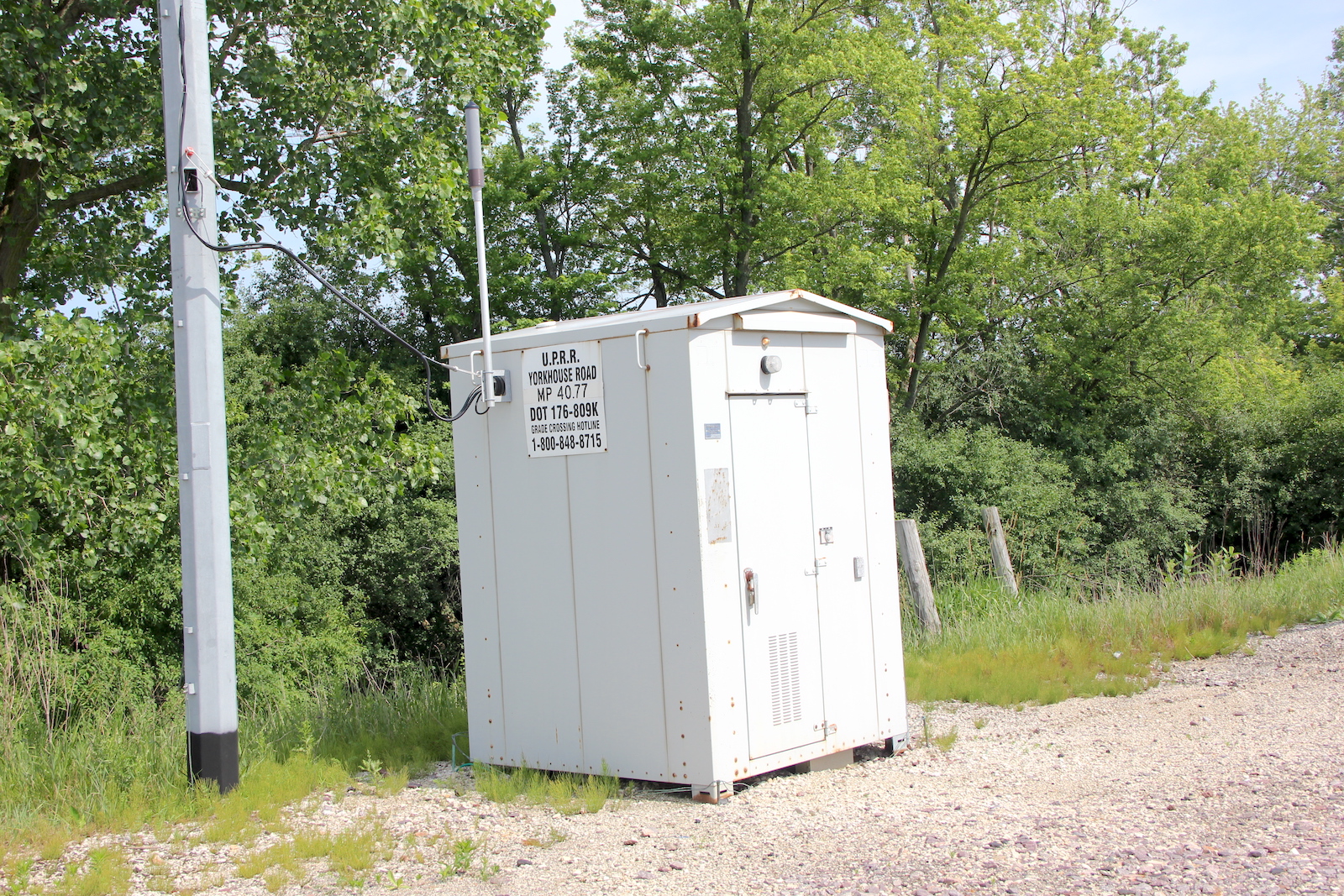

| The relay bungalow in the southeast quadrant. | The grade is all concrete. | Track view facing north towards Wadsworth Rd. #2. | Track view facing south towards Blanchard Rd. in Gurnee. |
28 |
| An older wayside signal next to the crossing. I believe this was a later C&NW install. |
