MP: 499.29
|
MP: 499.29 |
| Created December 2024 |
| Total Accidents:
32 Crossing DOT #: 522646H TOTAL DAILY TRAINS: 72 (AS OF 2022) |
| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | Dead GS Type 3 E-Bell | None |
| Base: | Safetran 5" Single Sided ^ | Siemens 5" Double Sided ^ |
| Lights: | 8 - 12"x20" Safetran incandescents | 4 - 12"x20" Safetran incandescents |
| Junction Boxes: | Safetran | Safetran |
| Gate Lights: | 2 - 4" RECO incandescents 1 - 4" RECO LED |
3 - 4" RECO incandescents |
| Gate Mechanism: | Safetran 2000s w/ GSI Gate Saver | Siemens Imprinted w/ NEG 1 Way Saver |
| Gate Striping: | Vertical Striping | Vertical Striping |
IN1 |
IN2 |
IN3 |
IN4 |

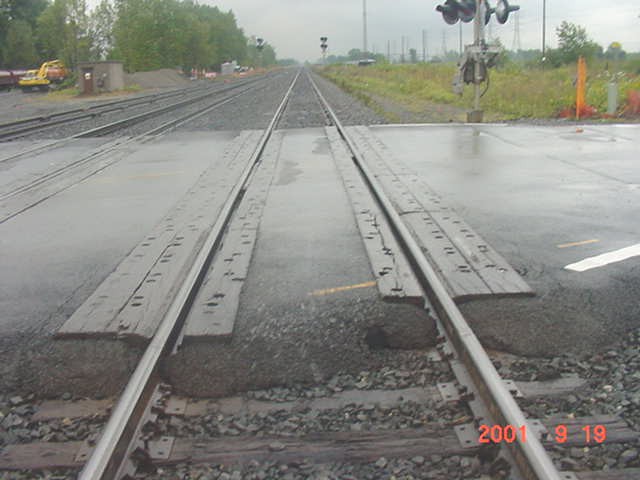

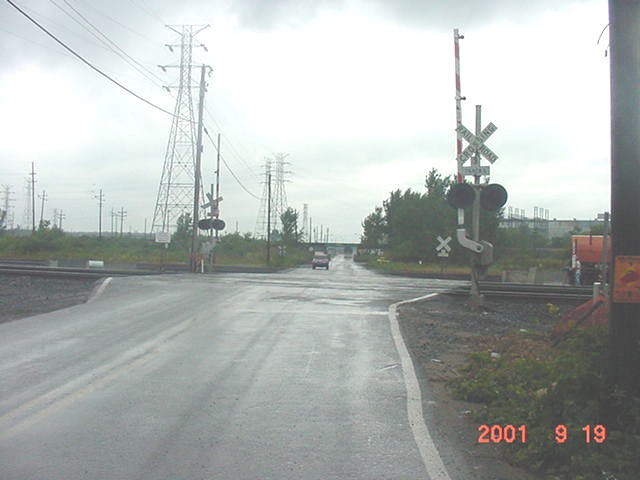

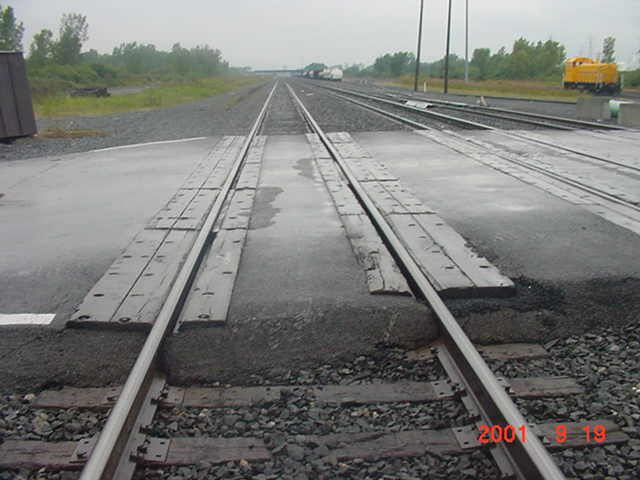

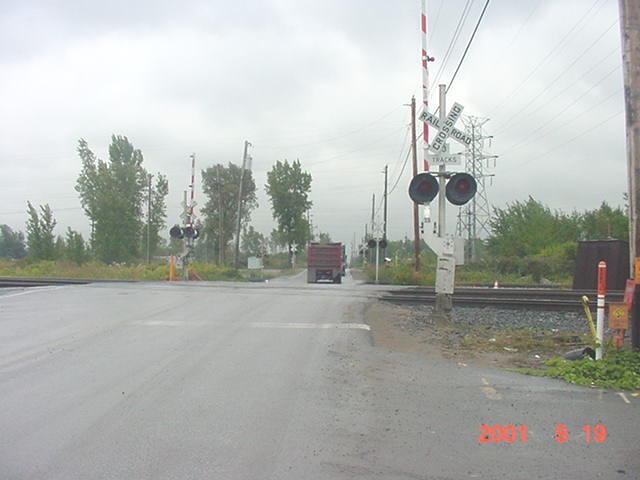

| INDOT pictures from the early 2000s showing a Conrail setup with 12"x24" lights and no bells. The northern signal had a Safetran gate mechanism while the southern had a WCH gate mechanism. Shortly after, both signals were replaced with new NS Safetran signals. Originally it had a GS Type 1, but later was replaced with a GS Type 2, then a GS Type 3. The southern signal also changed, but more on that below. |
1 |
2 |

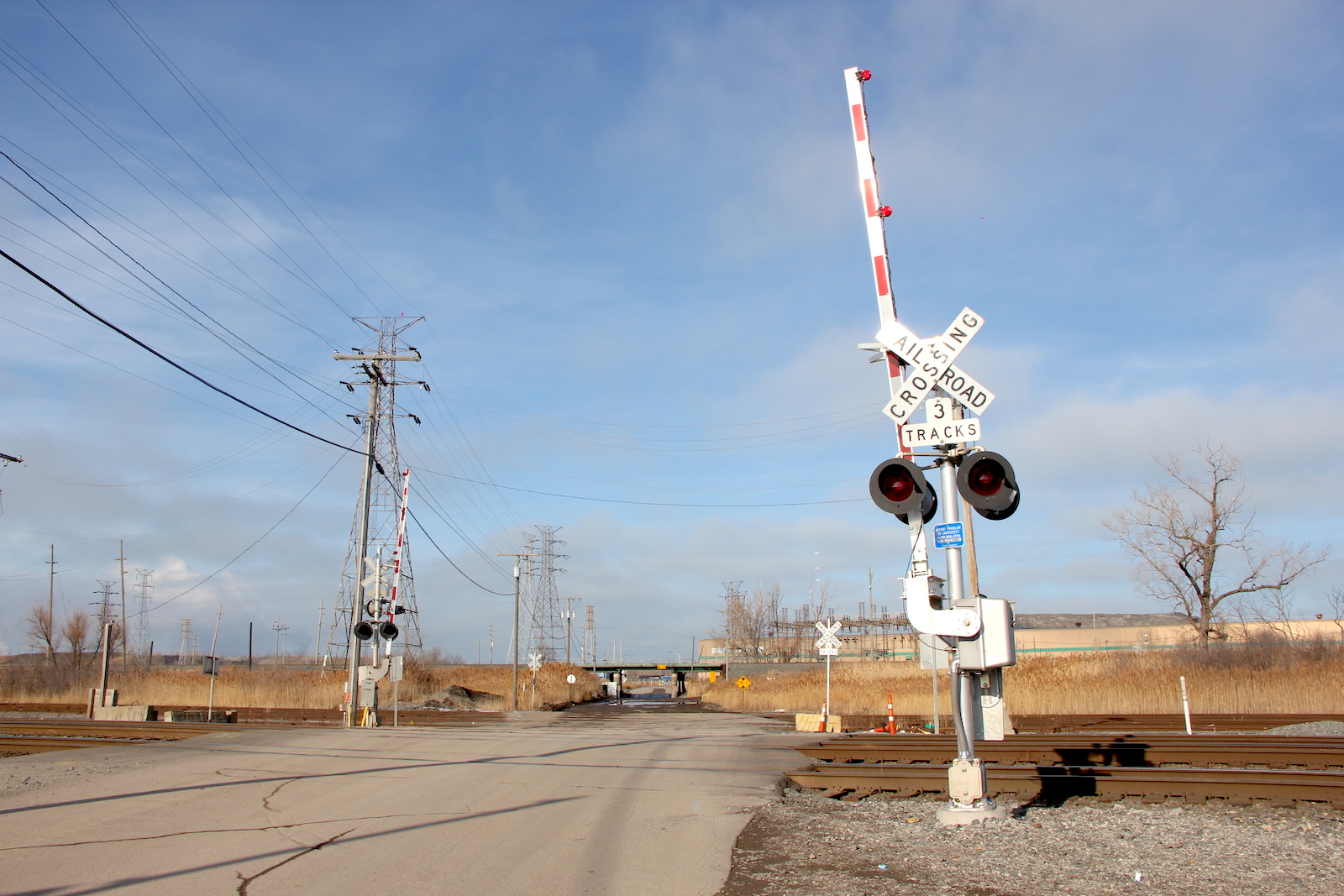

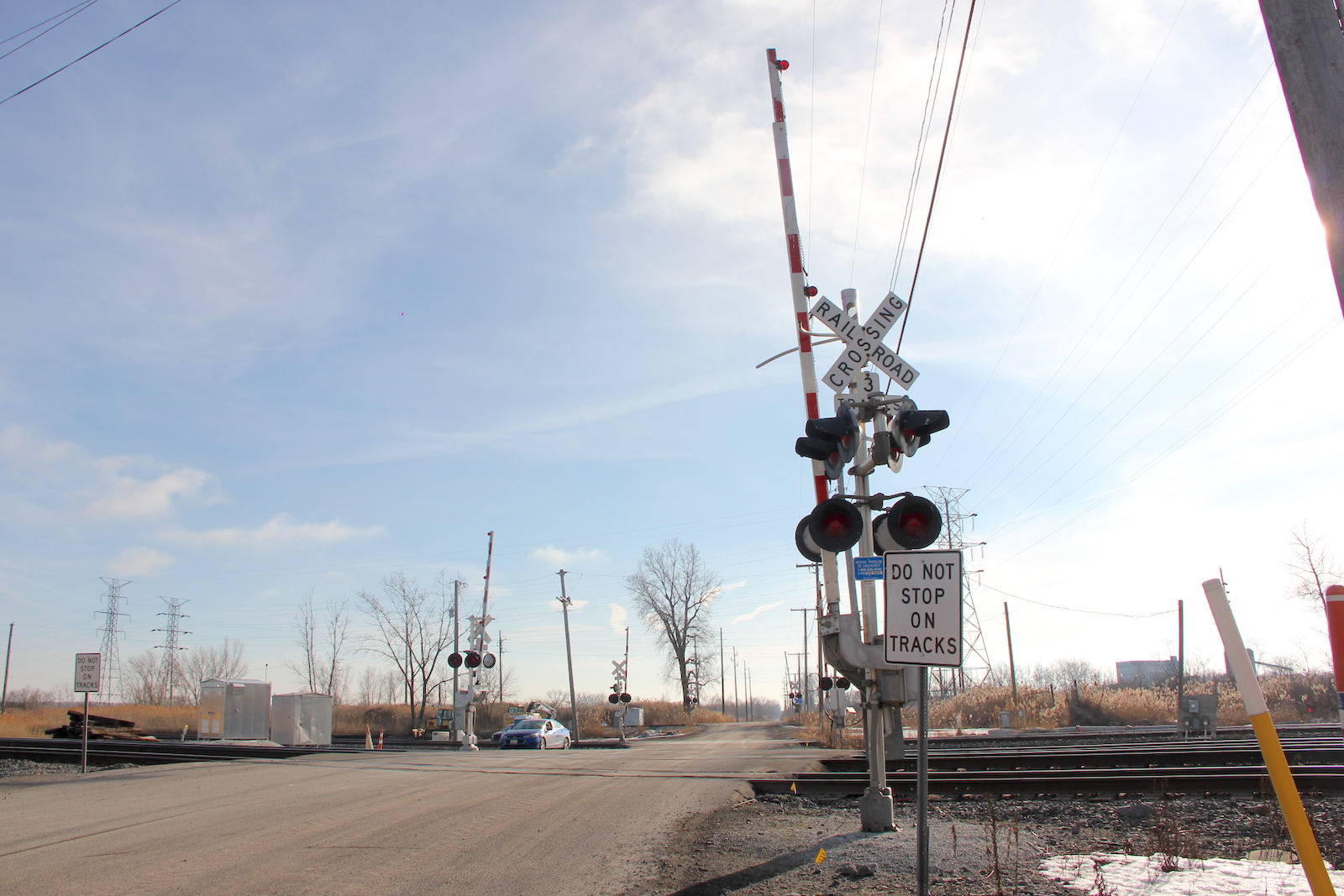

| Overview of 2 gated signals facing south. | Overview facing north. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |

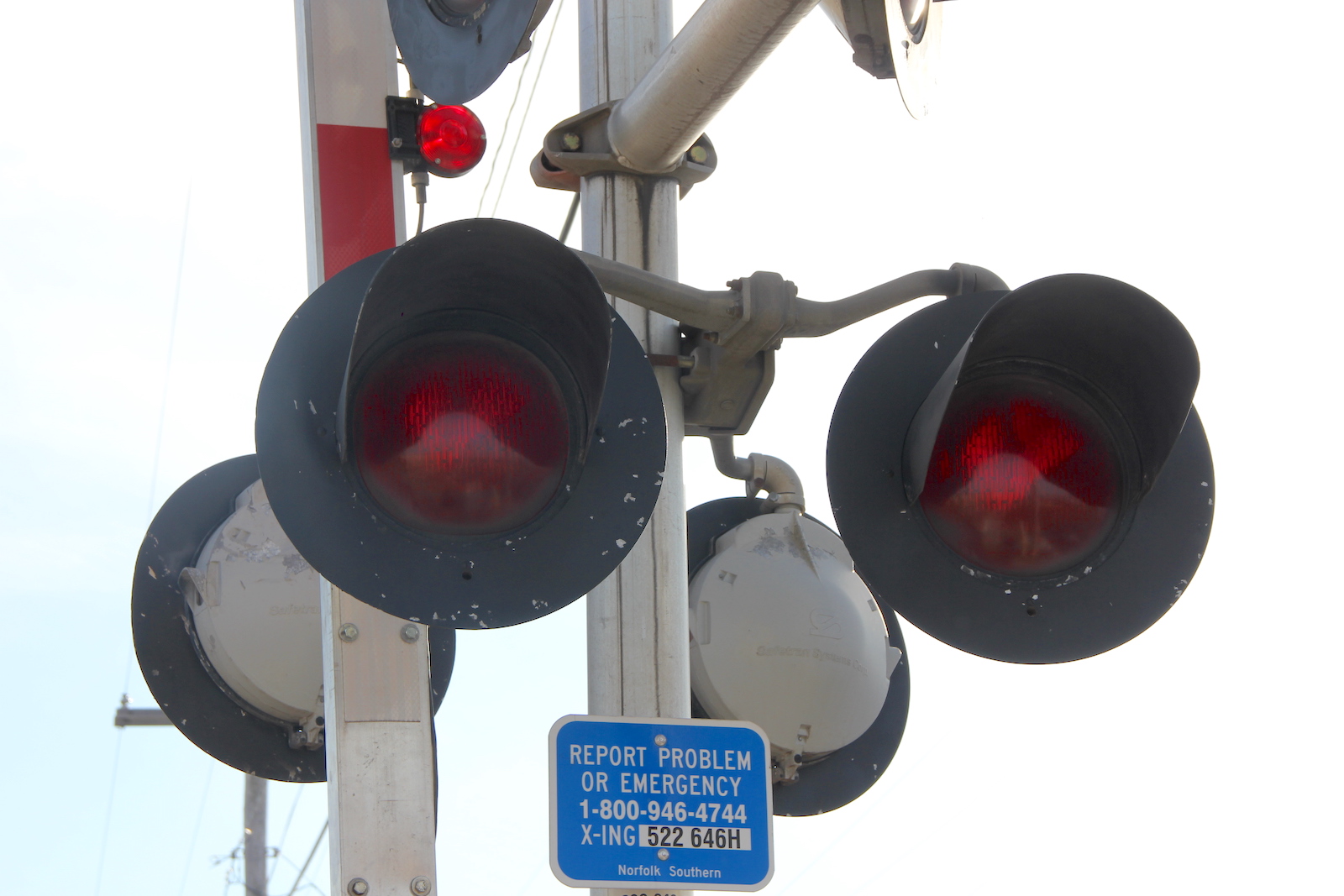

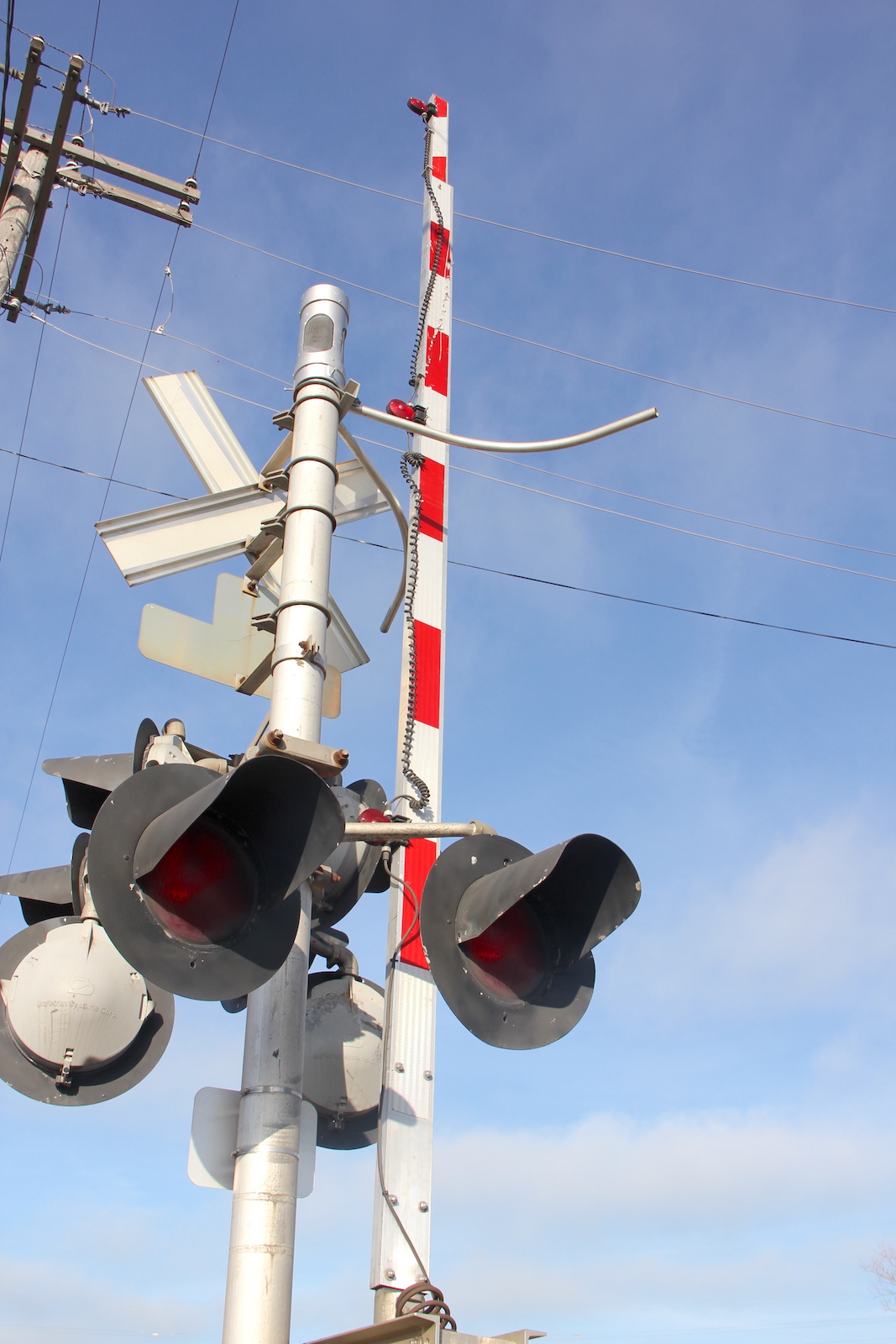

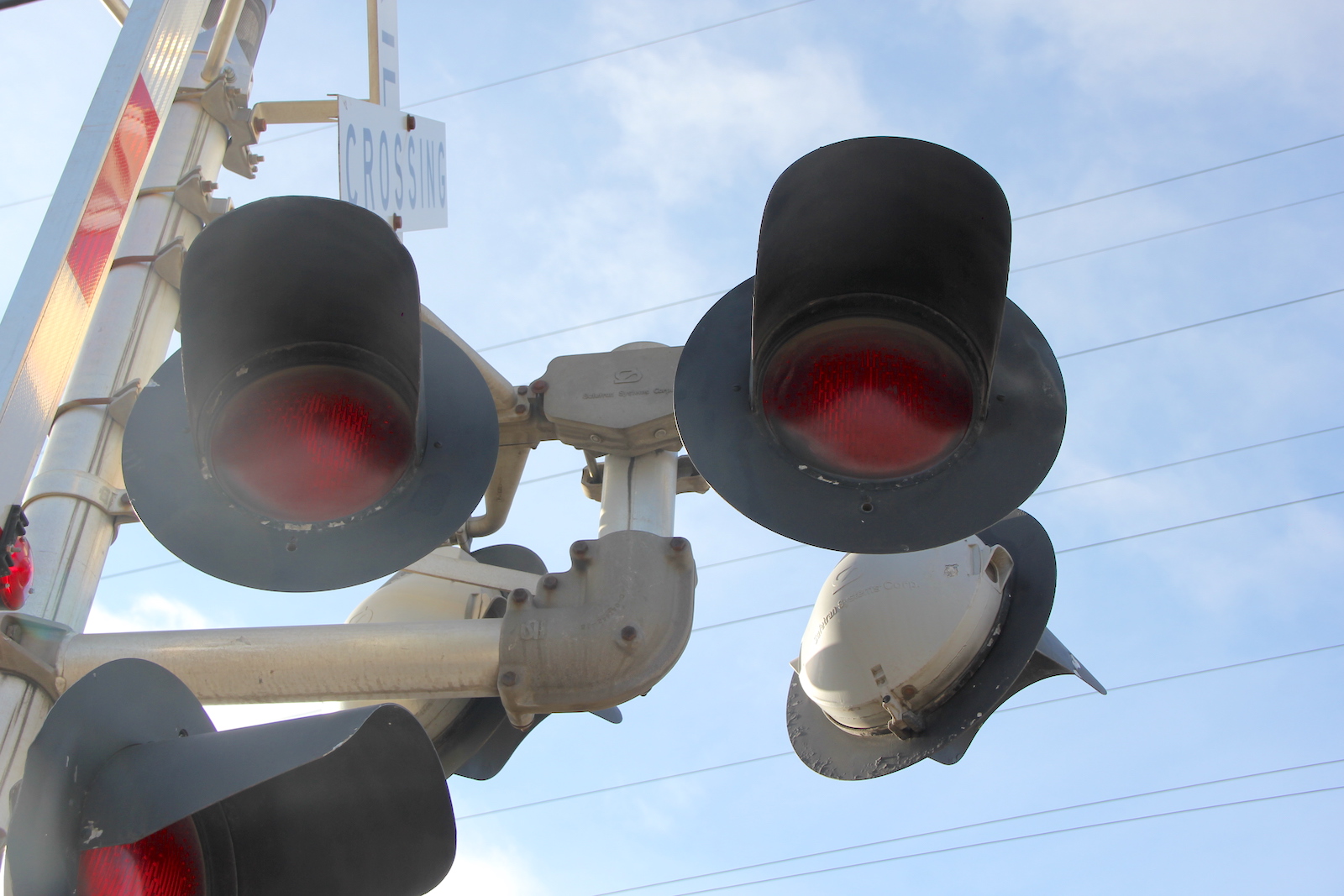

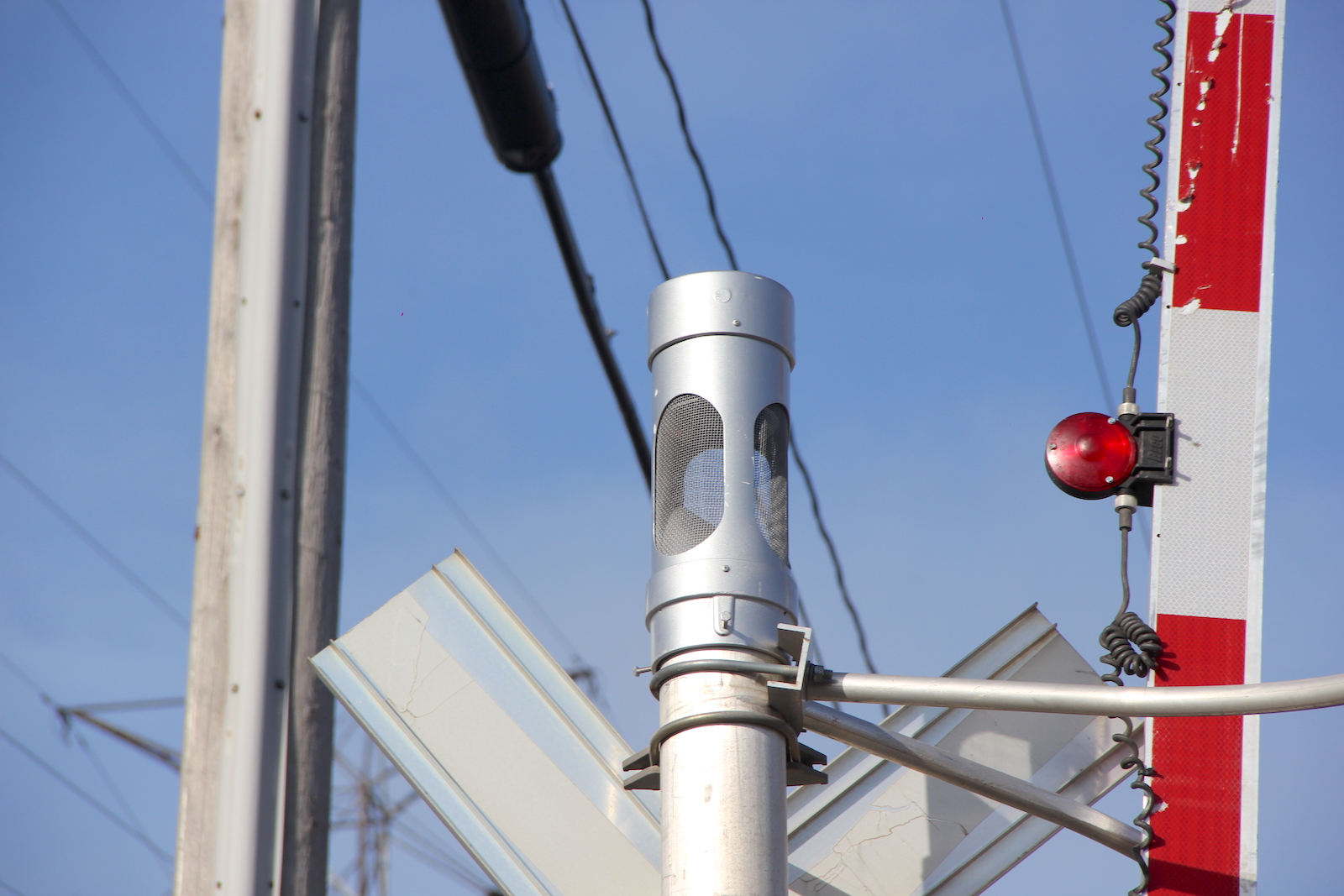

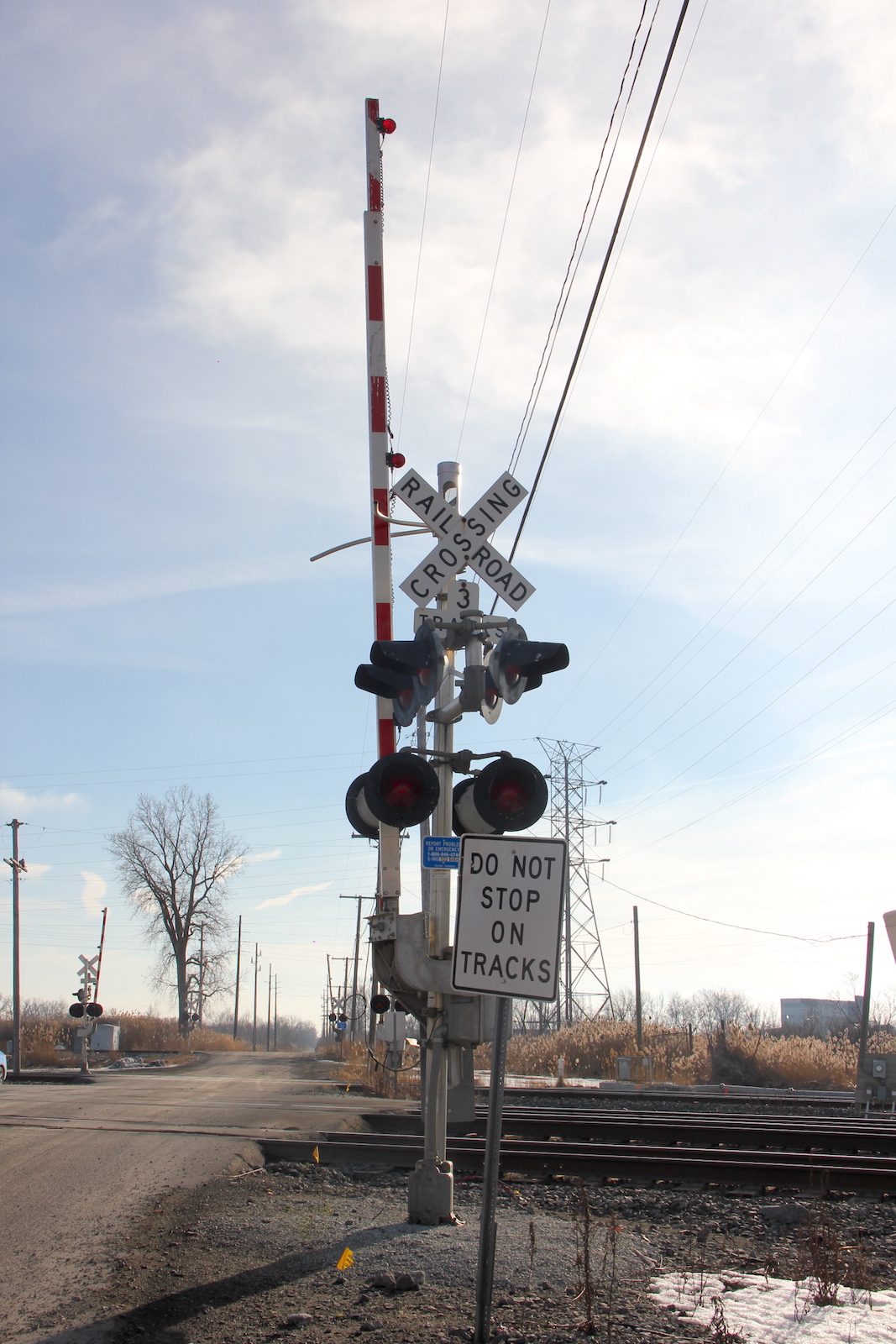

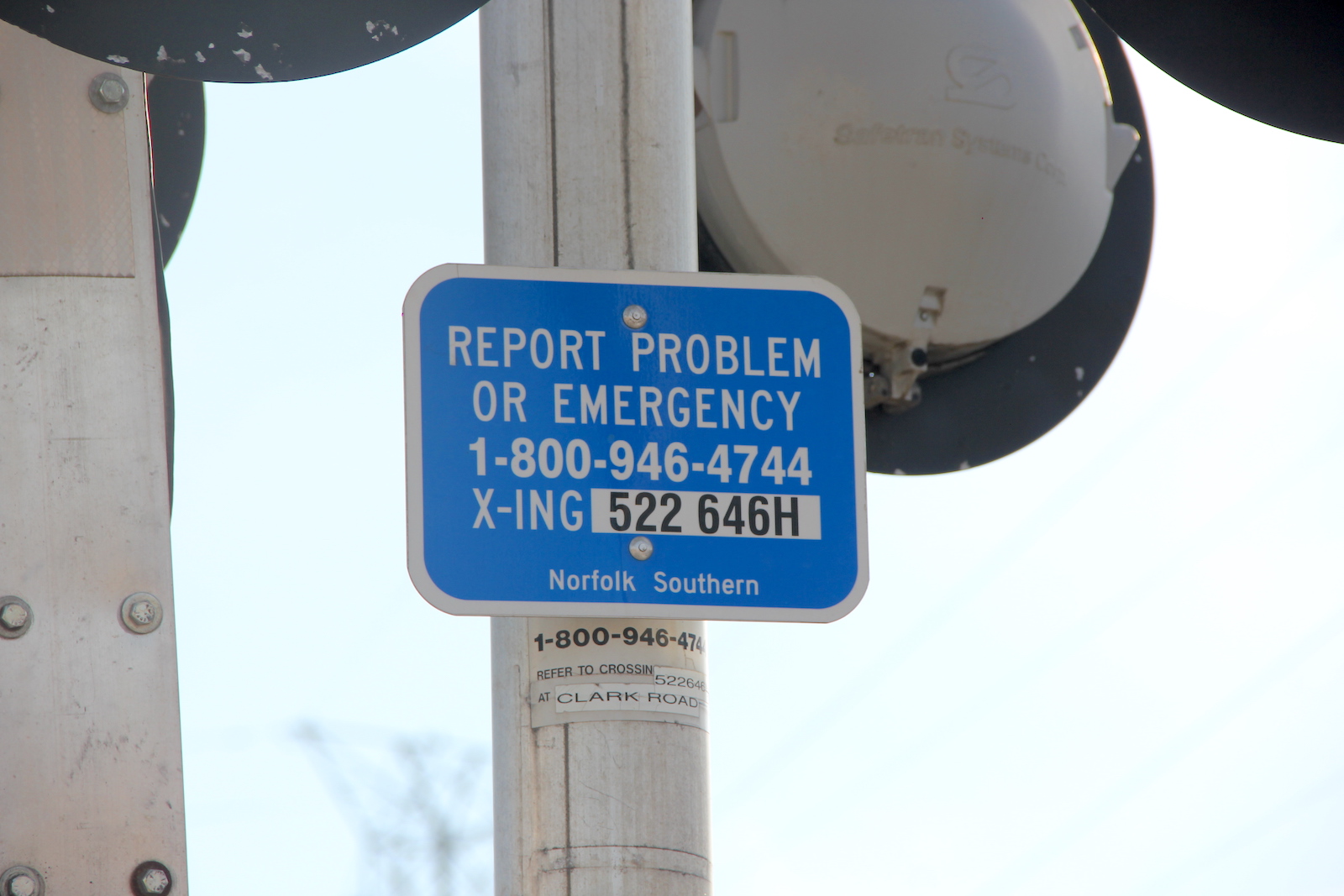

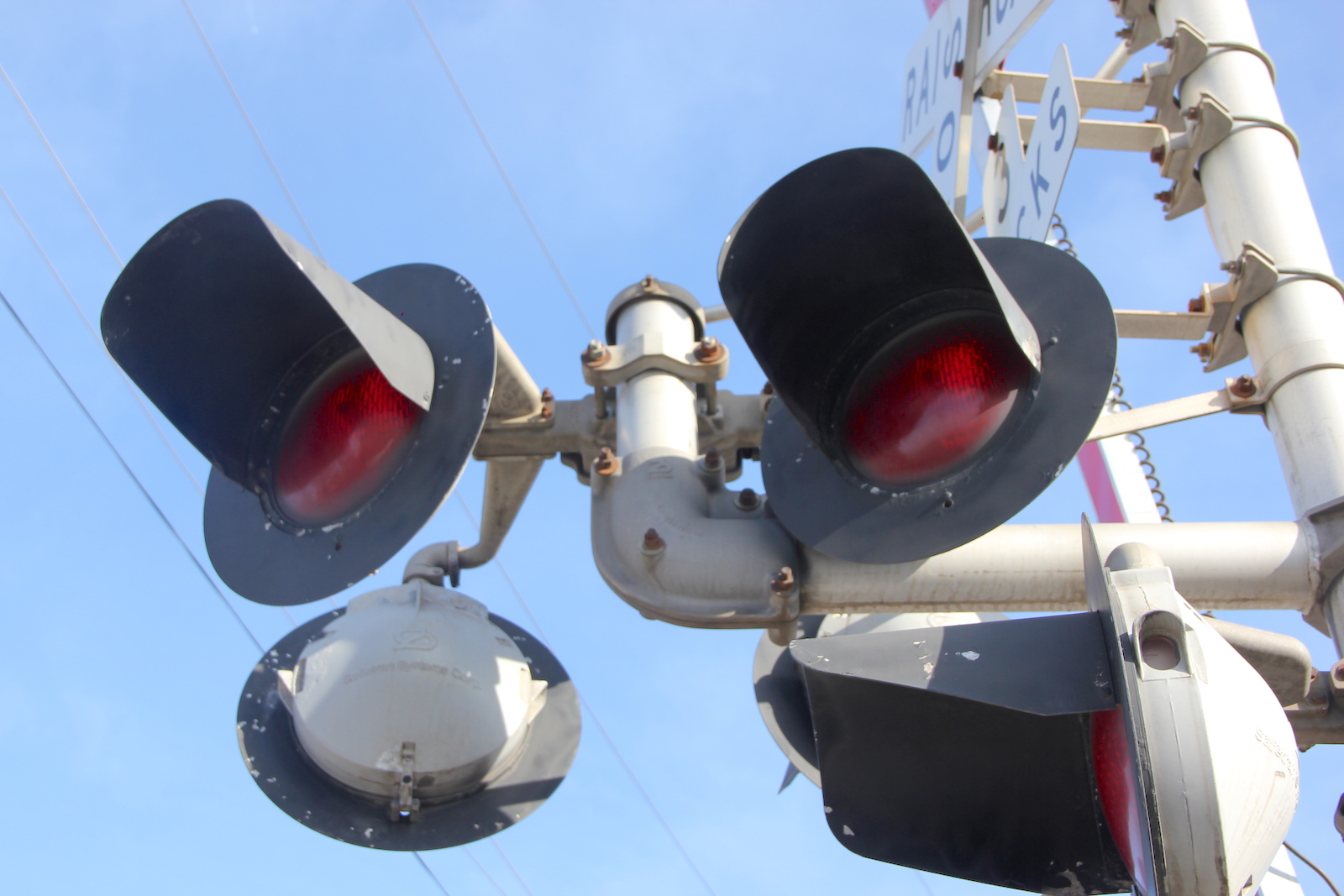

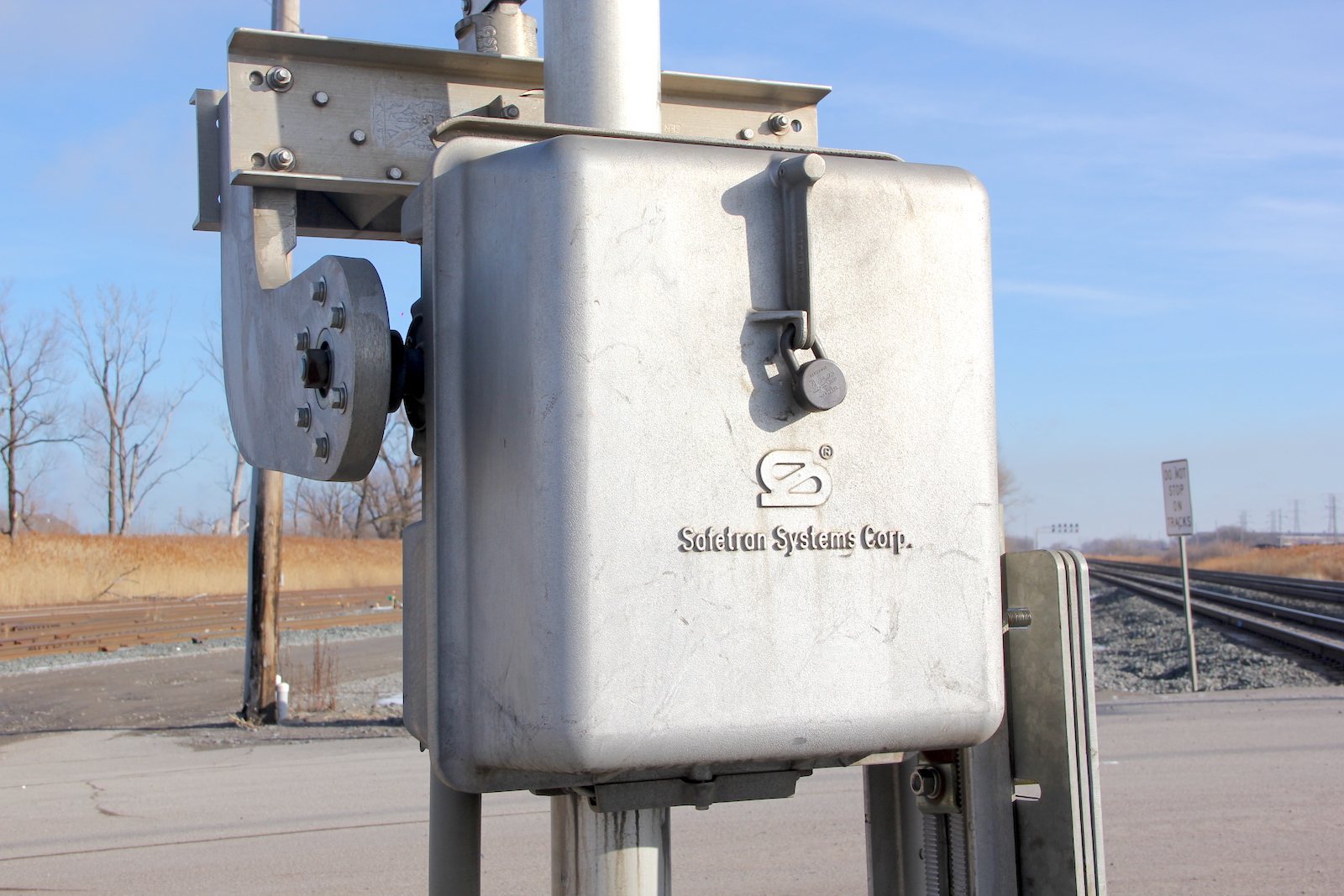

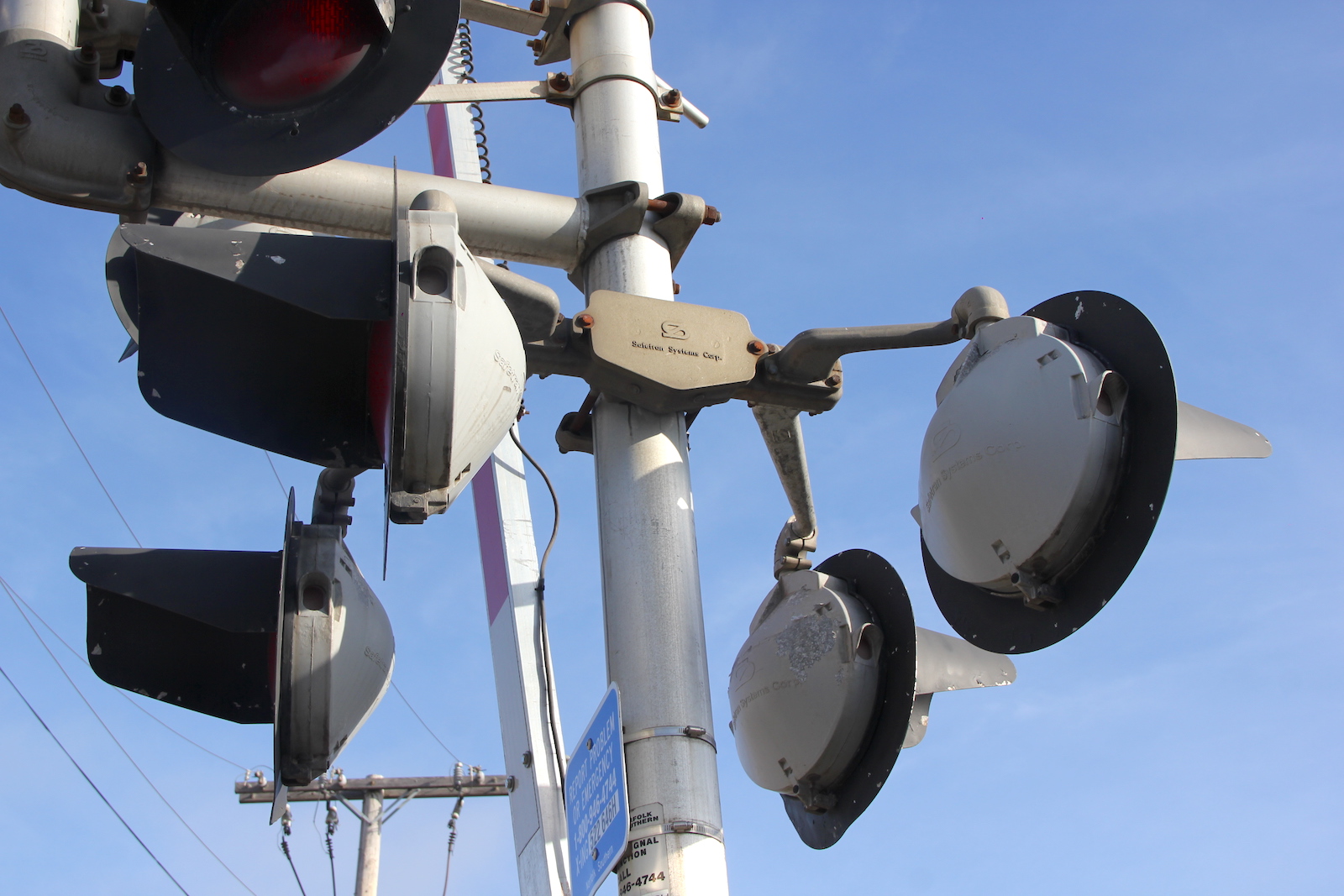

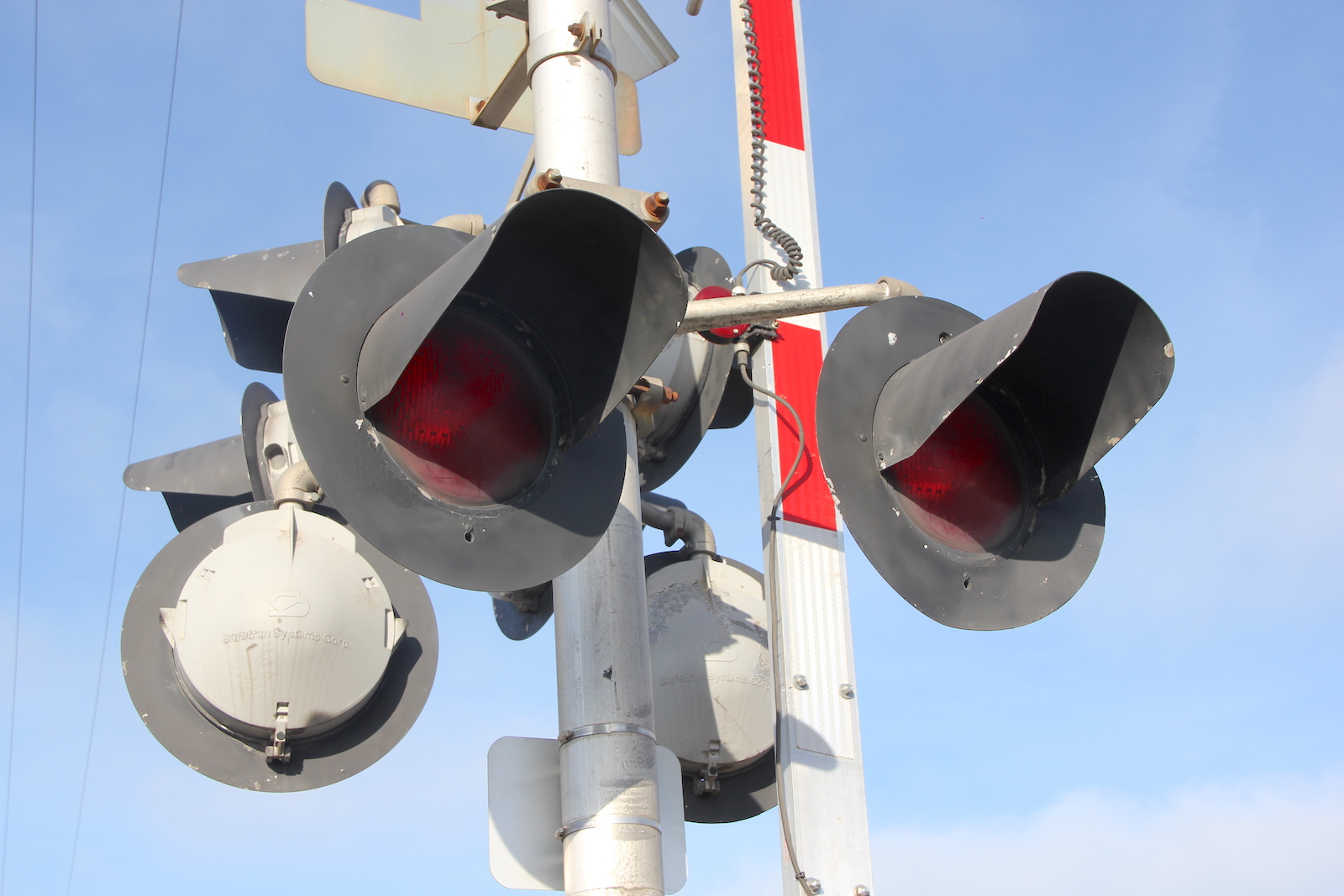

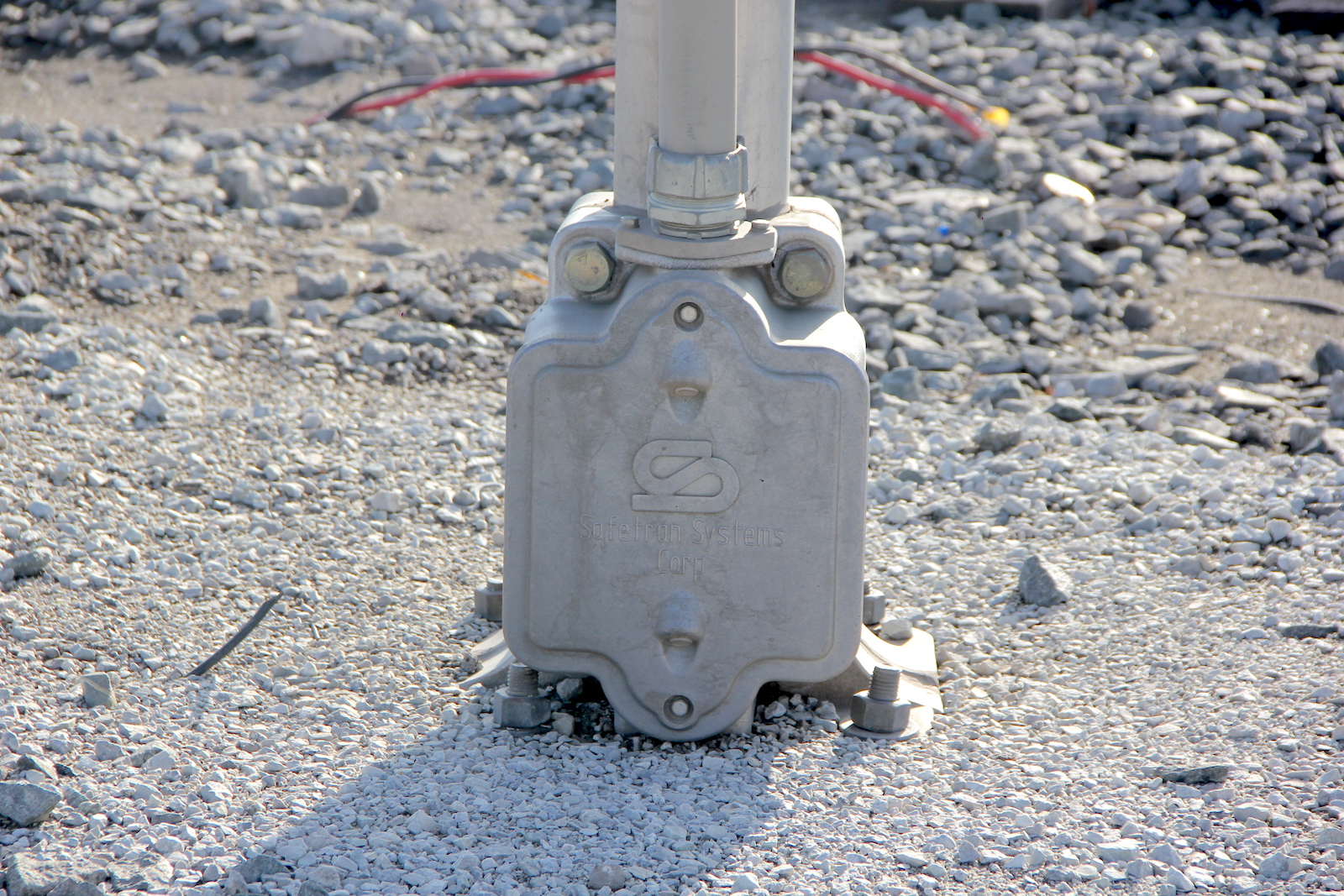

| The northern signal. This one remains the same from the early 2000s with a replacement GS Type 3 which later died. |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |

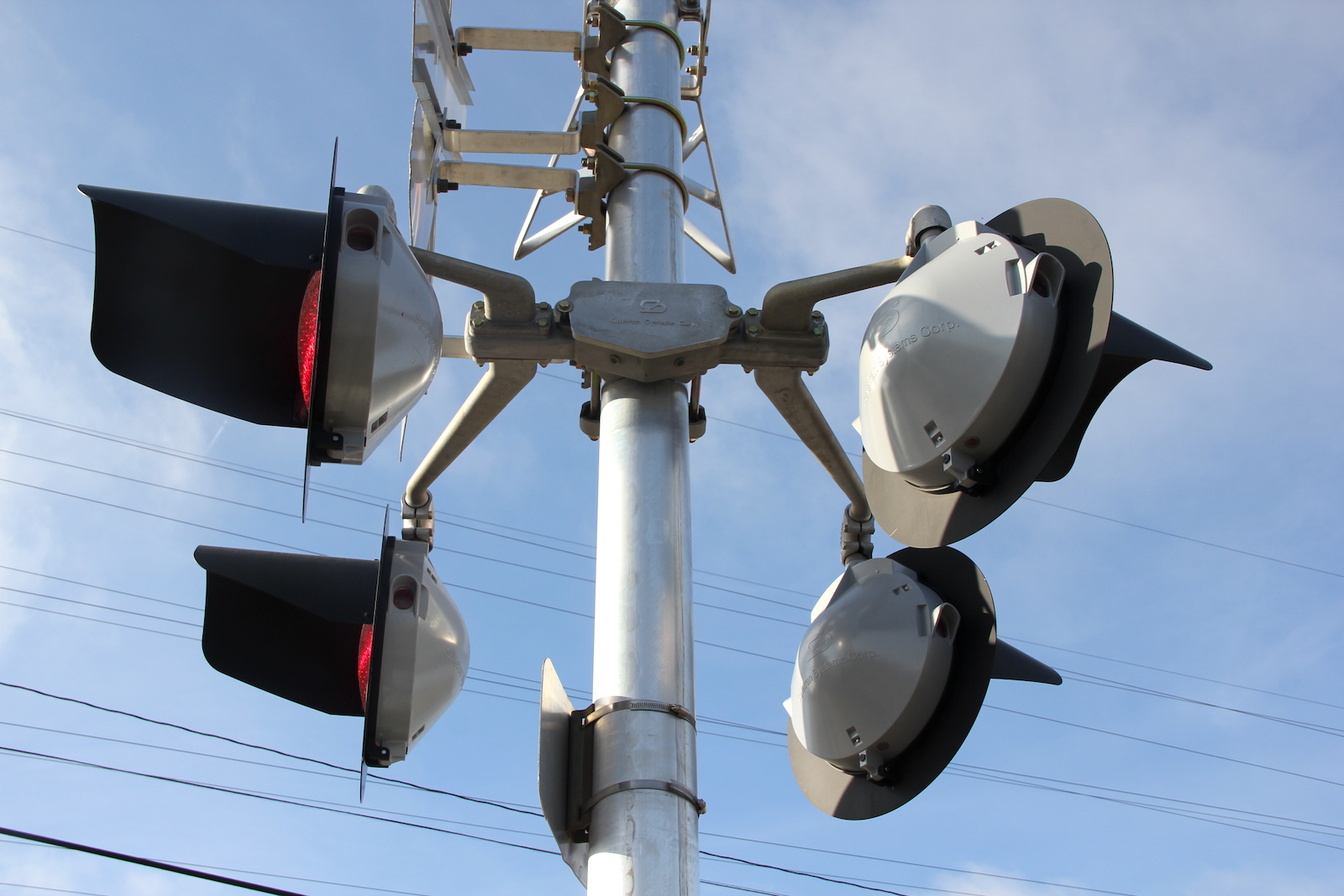

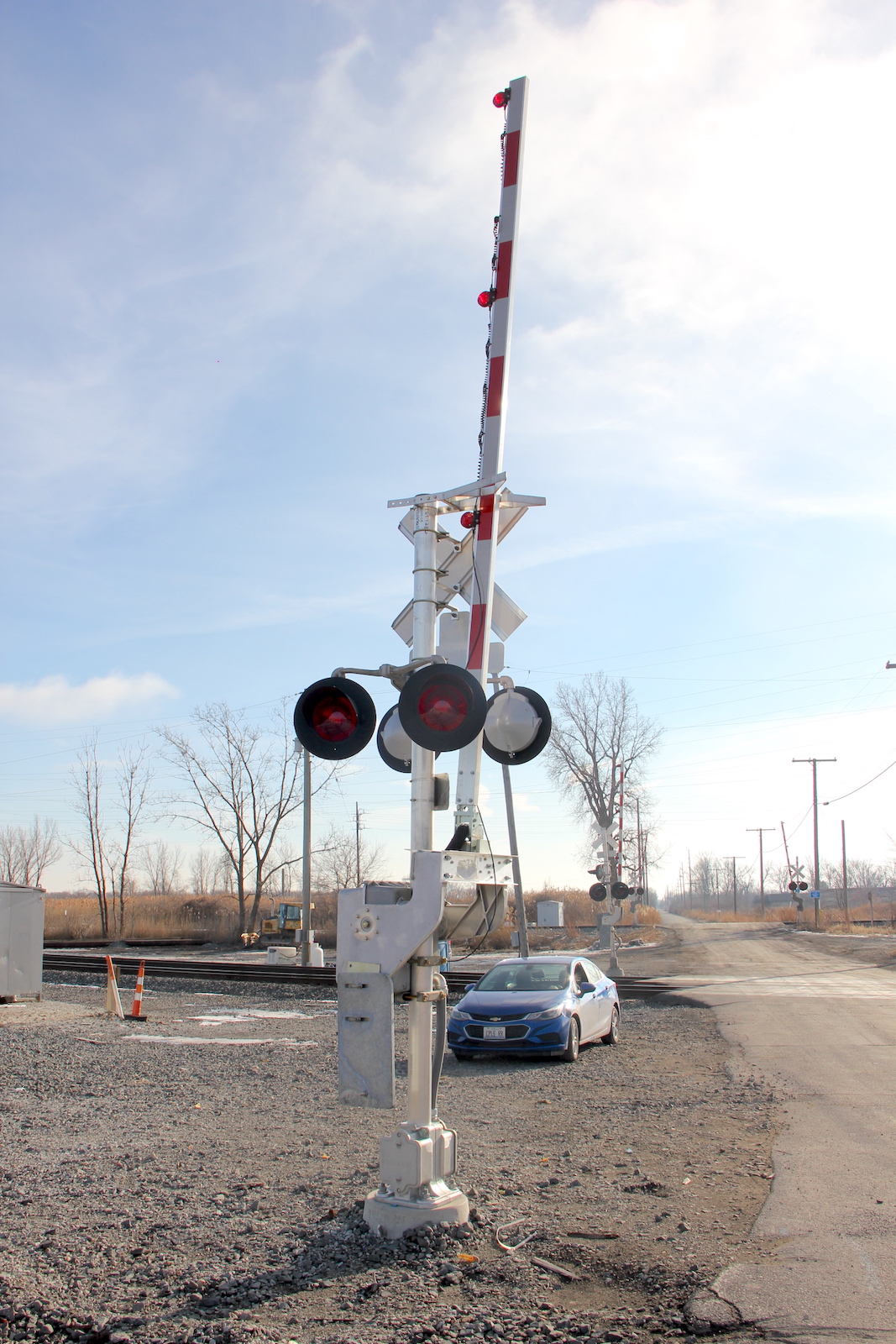

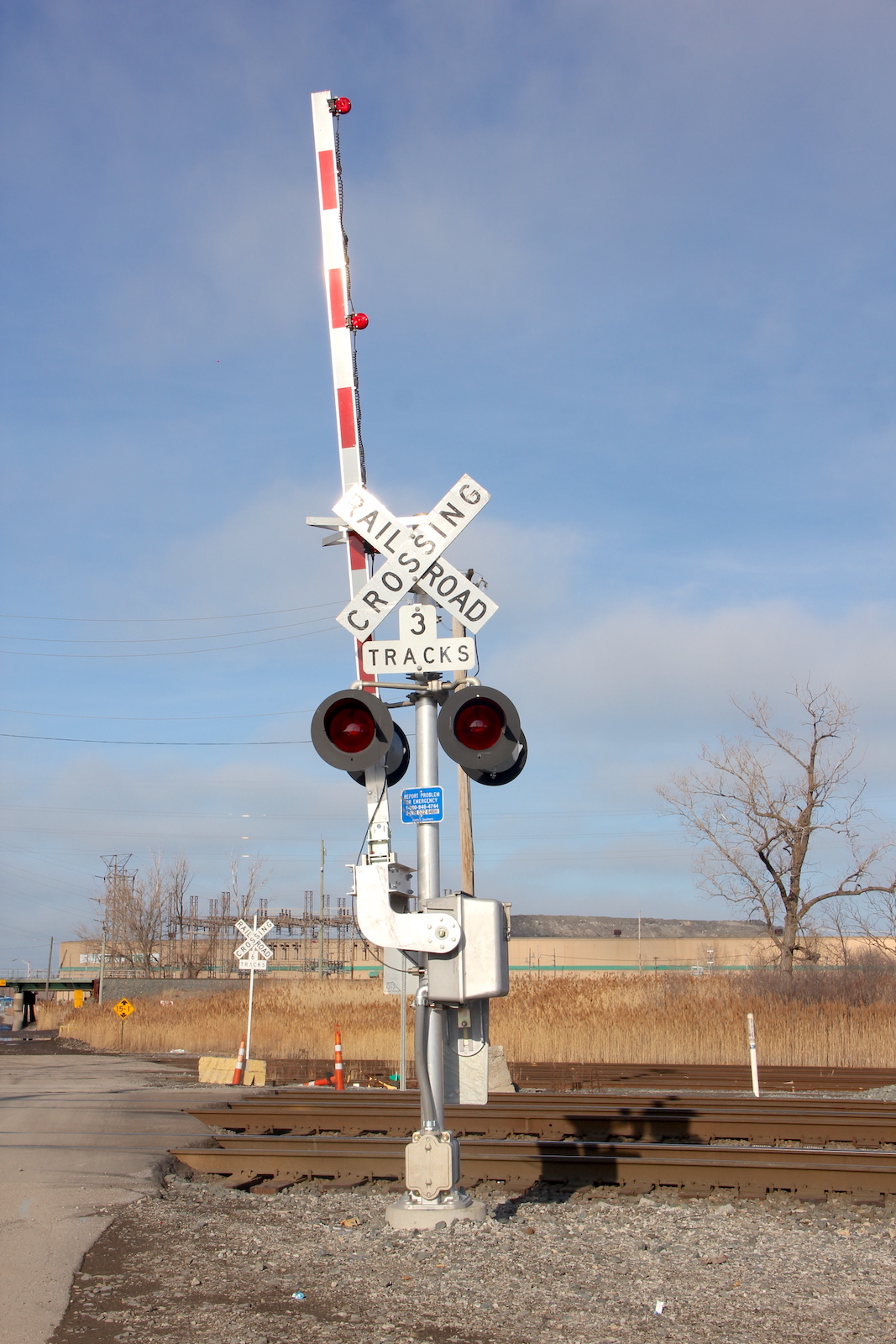

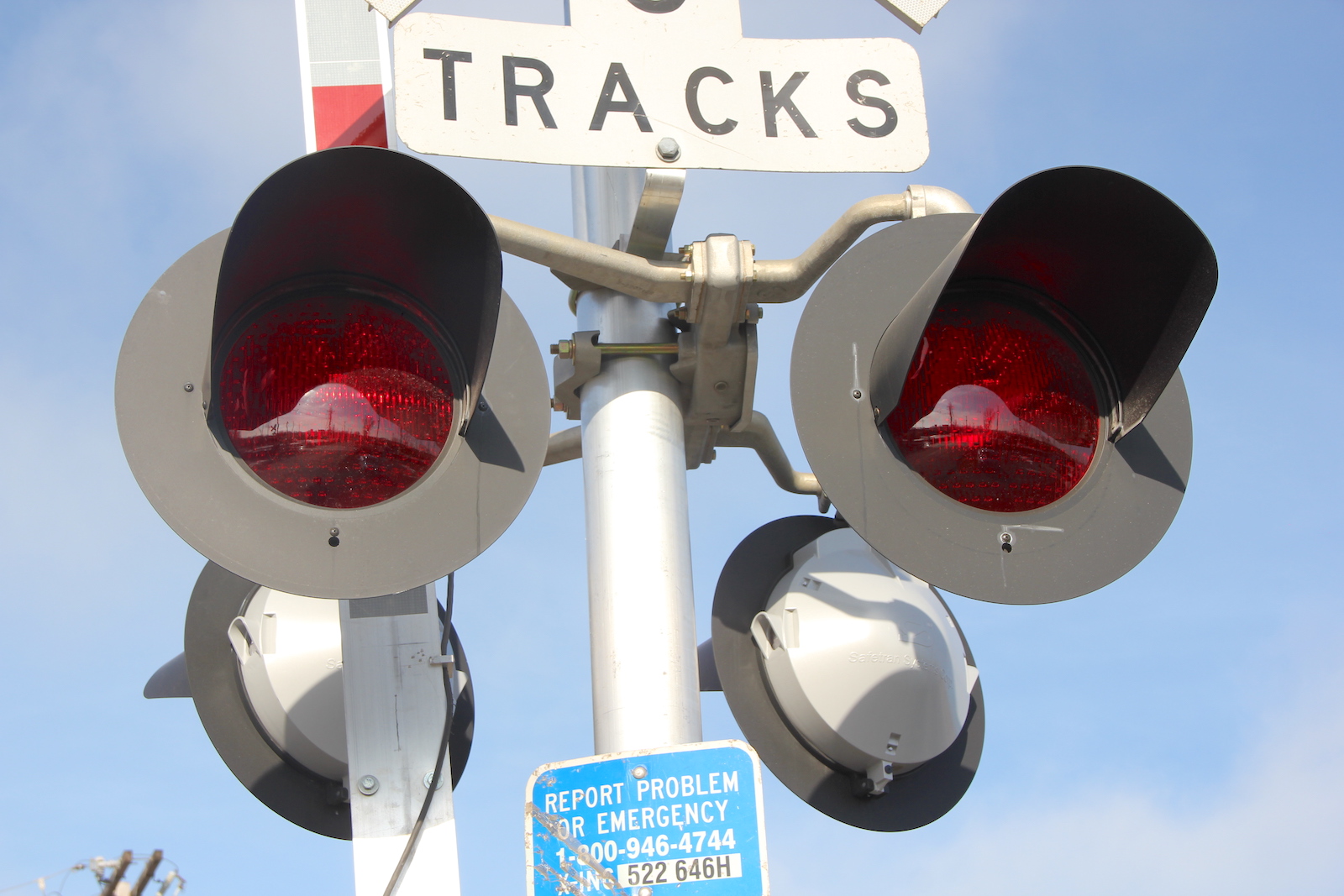

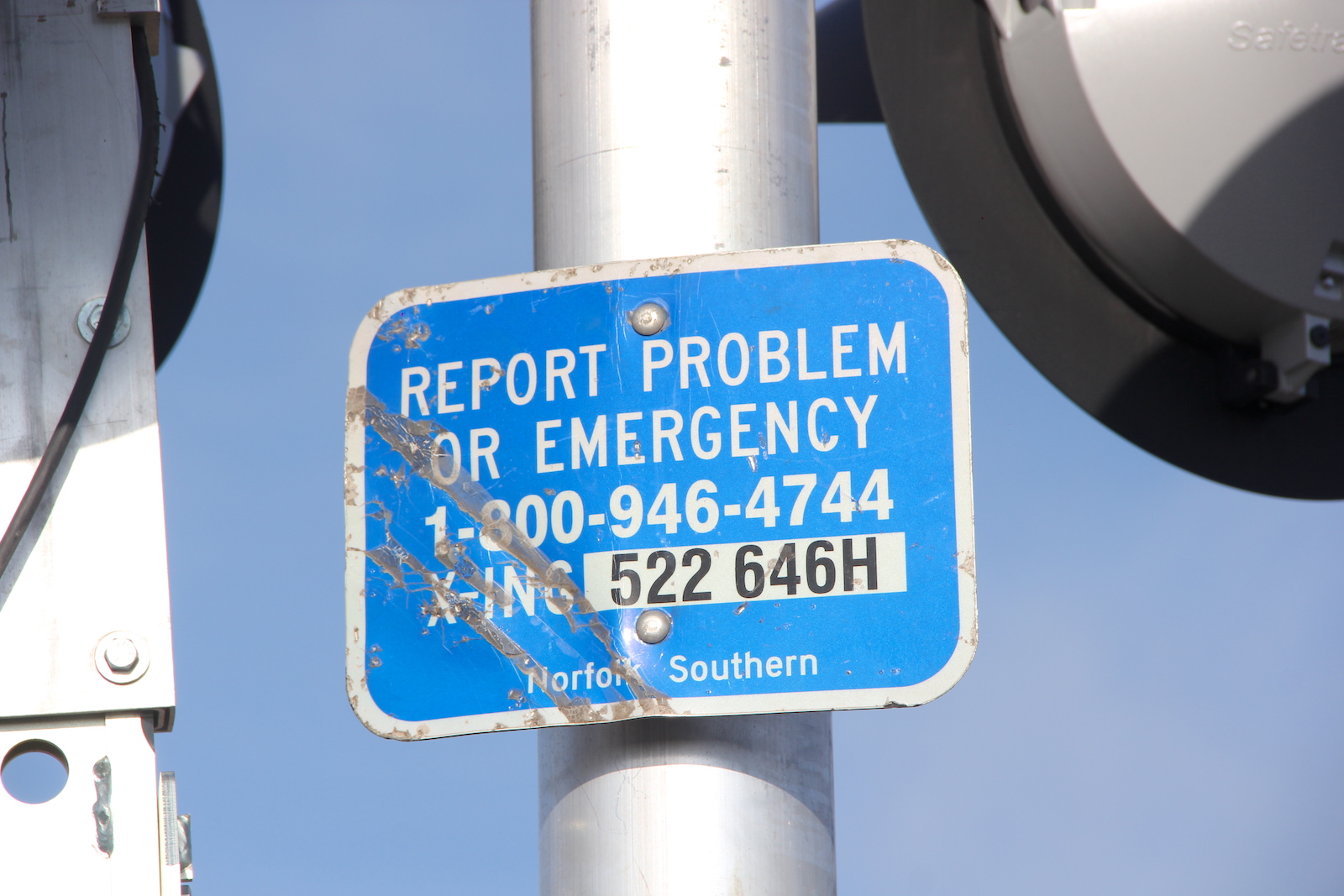

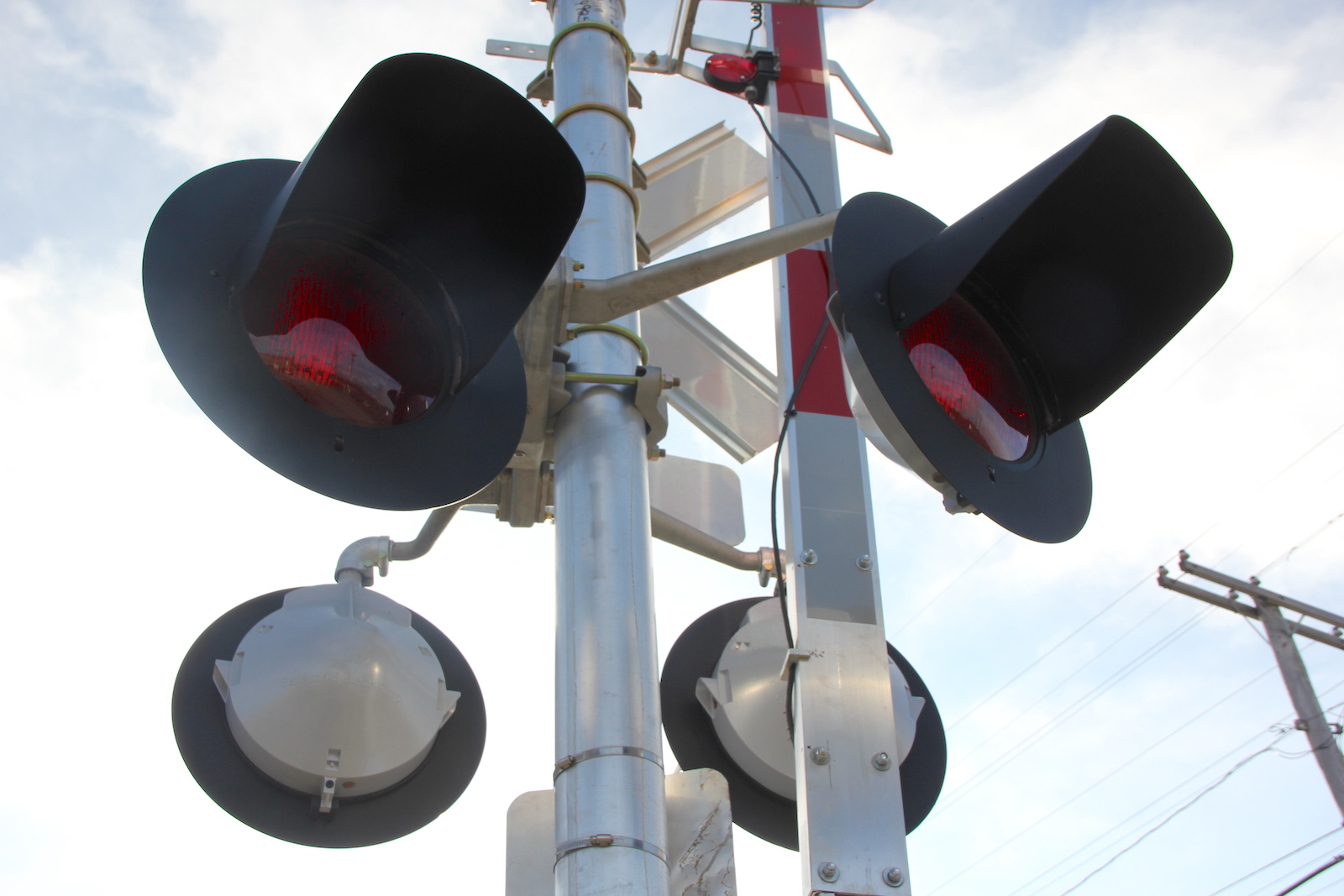

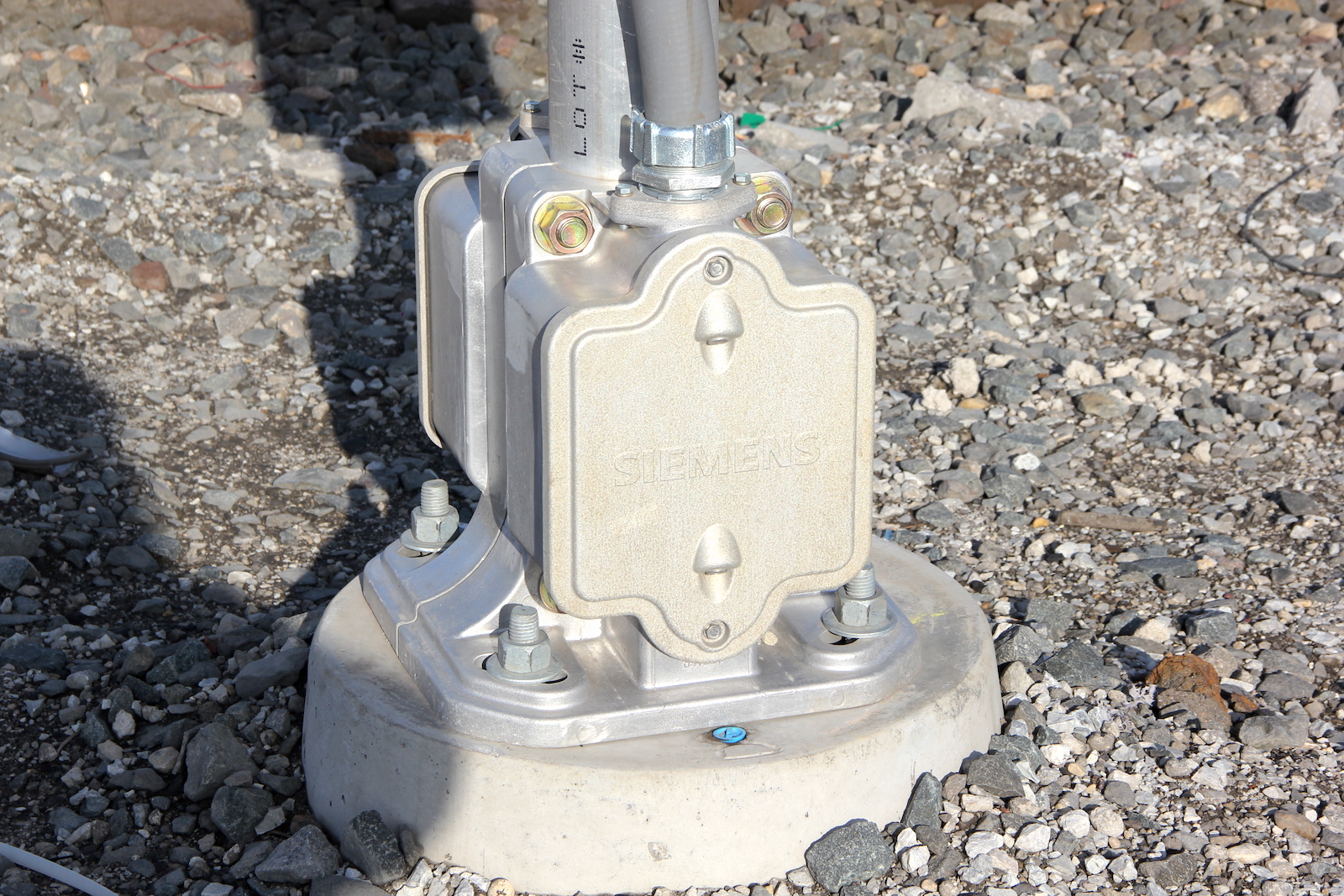

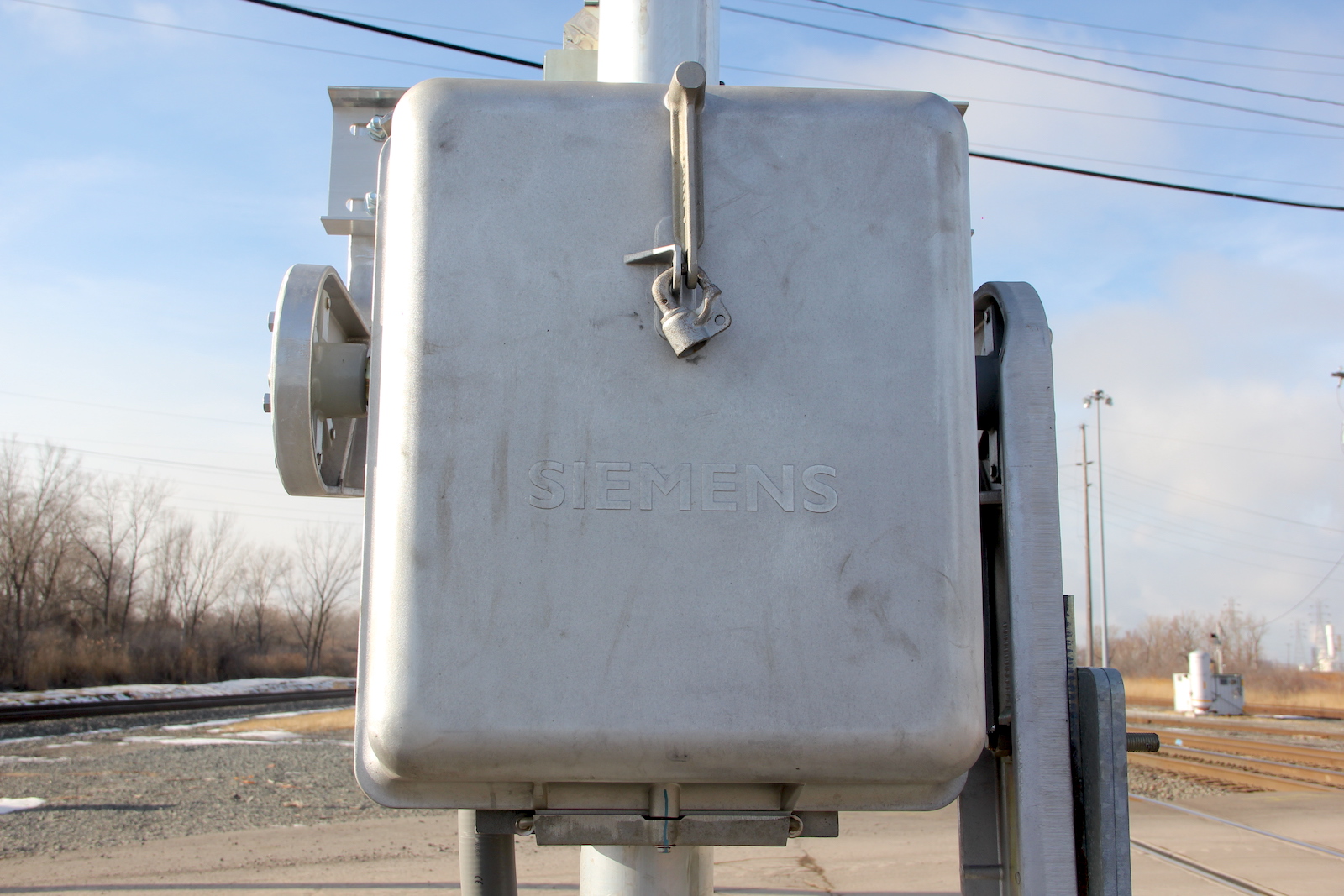

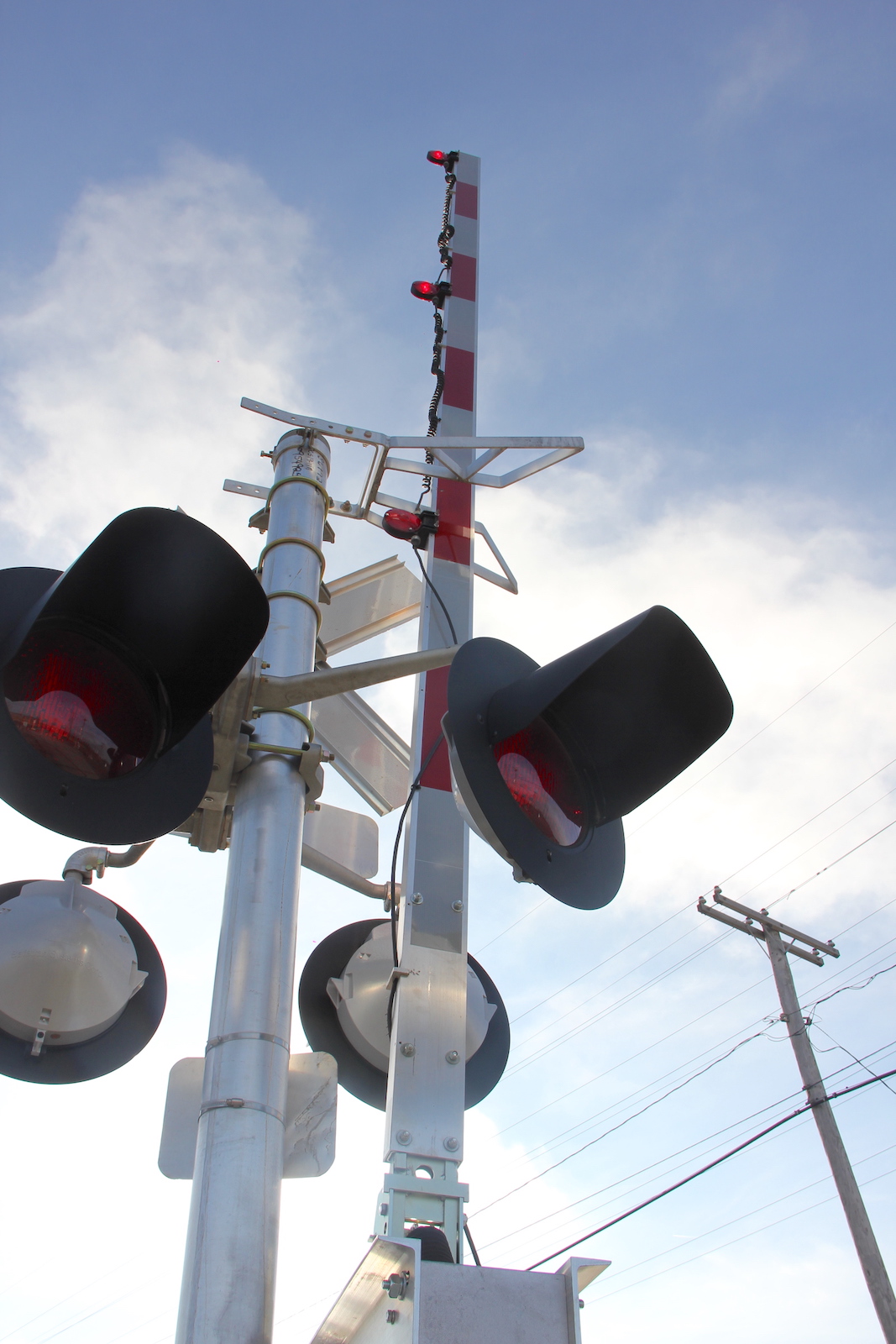

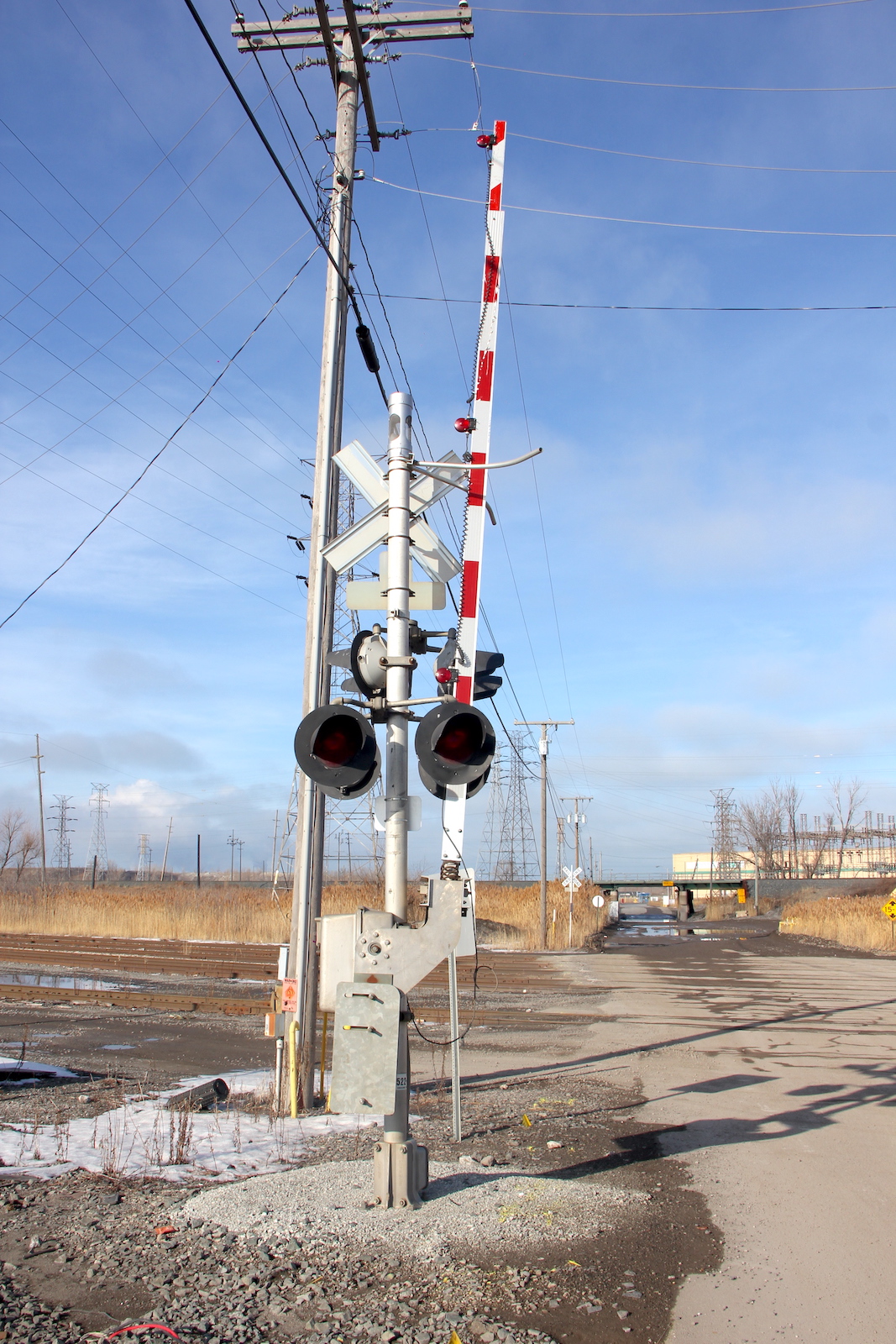

| The southern signal. This got replaced many times. The original signal can be seen here, which appears to still be newer than the northern signal, then the very short lived 1st replacement is seen here, then another replacement is seen here. Both prior signals were destroyed in accidents with semis in 2019 and 2020. |
24 |
25 |
26 |
27 |

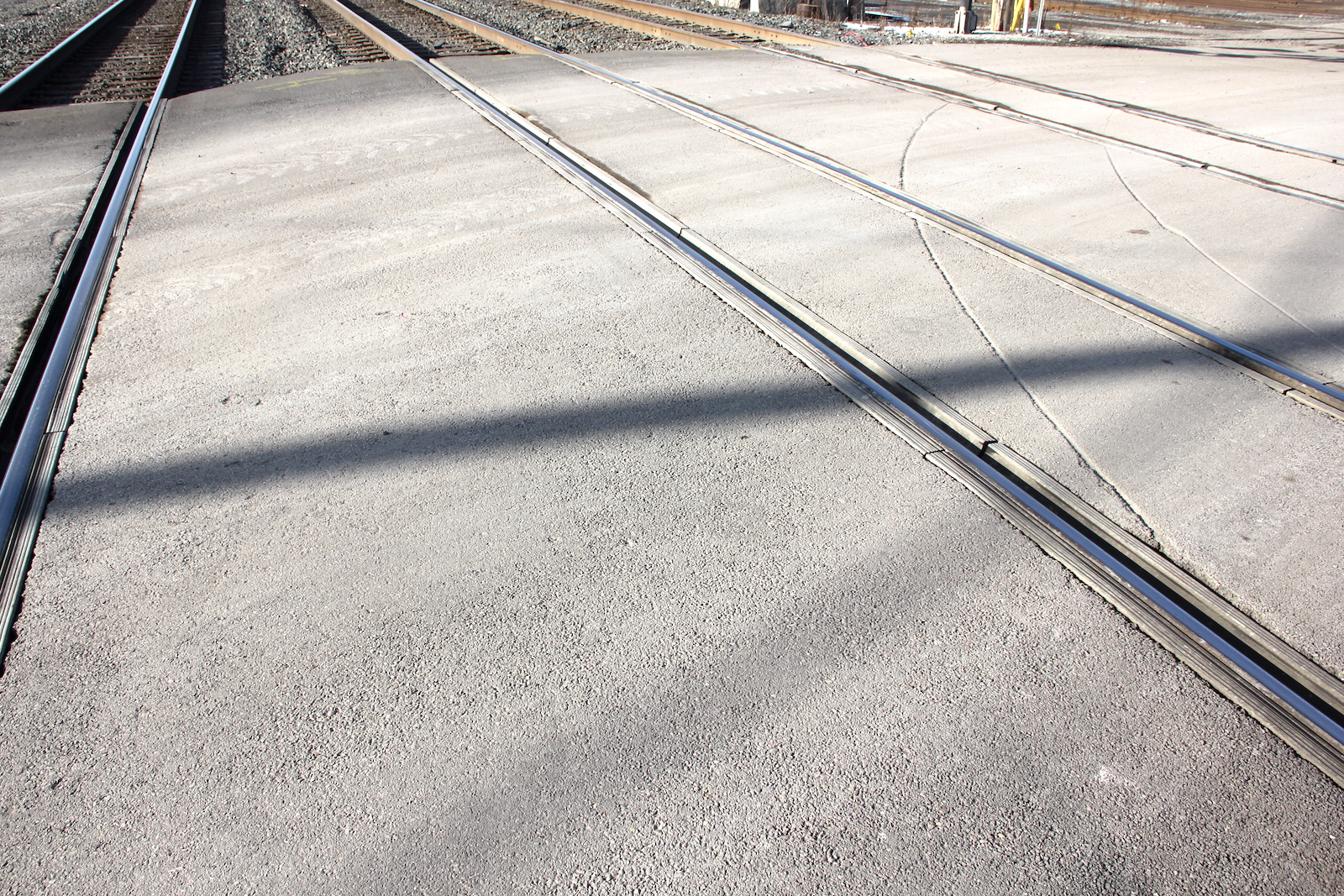

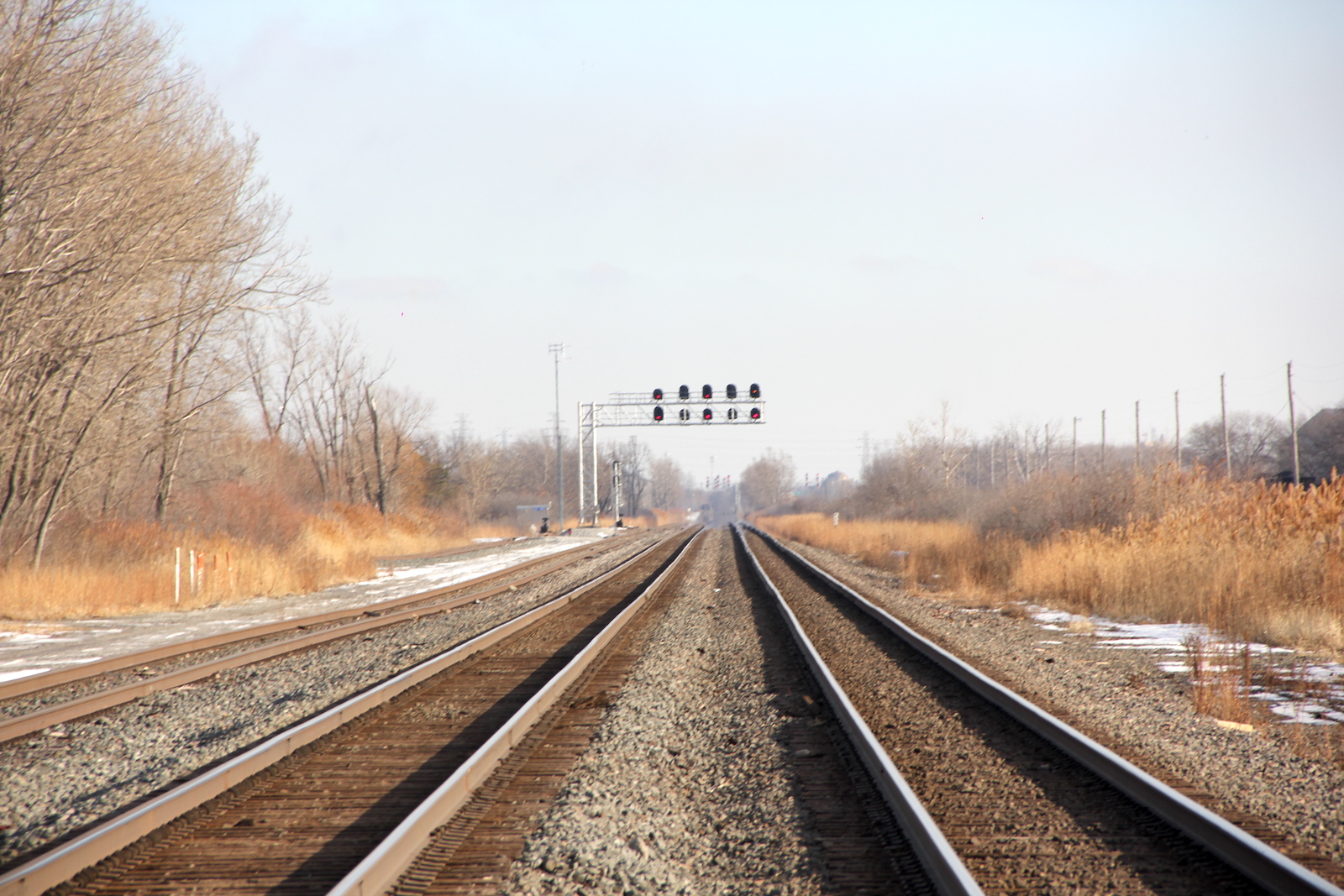

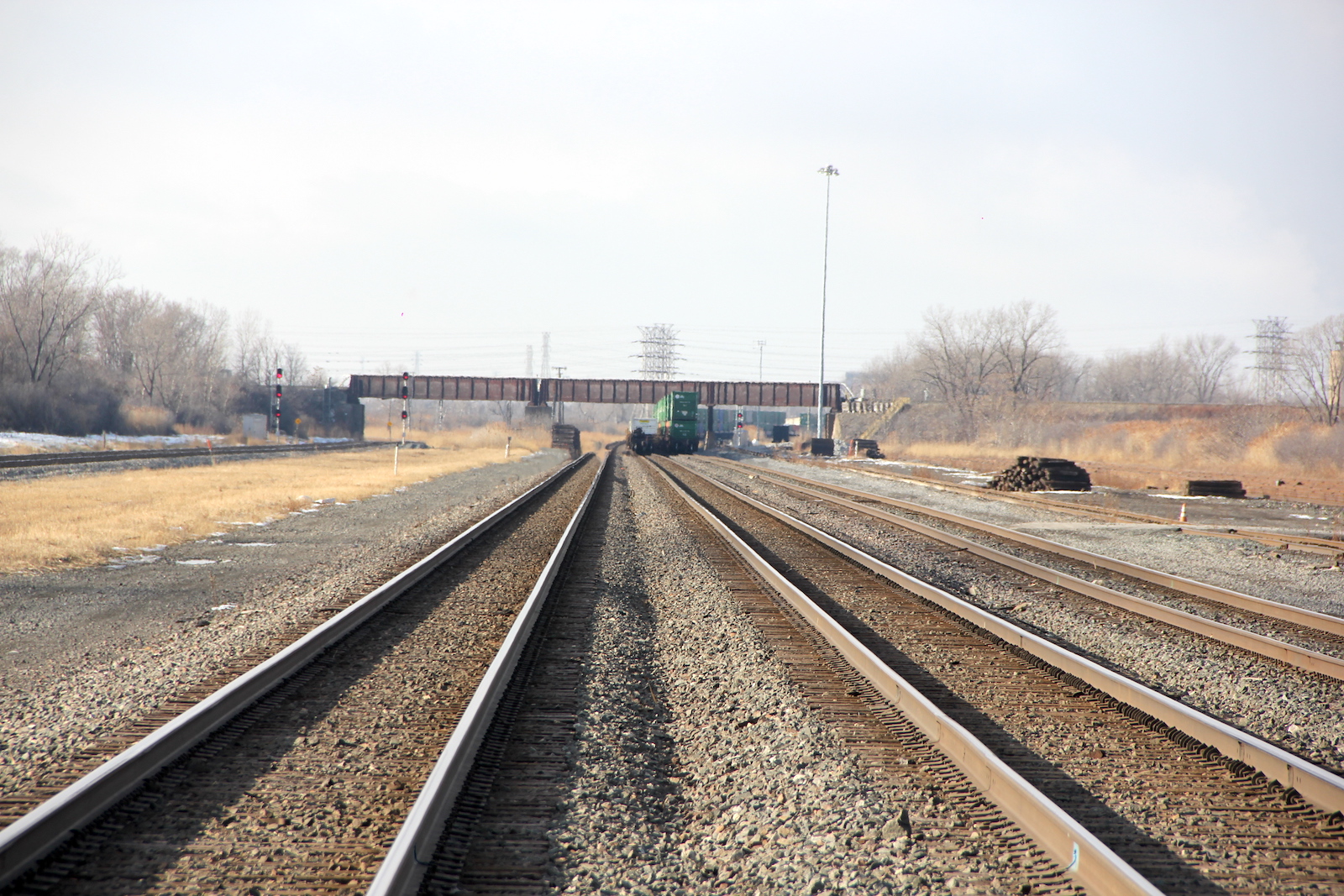

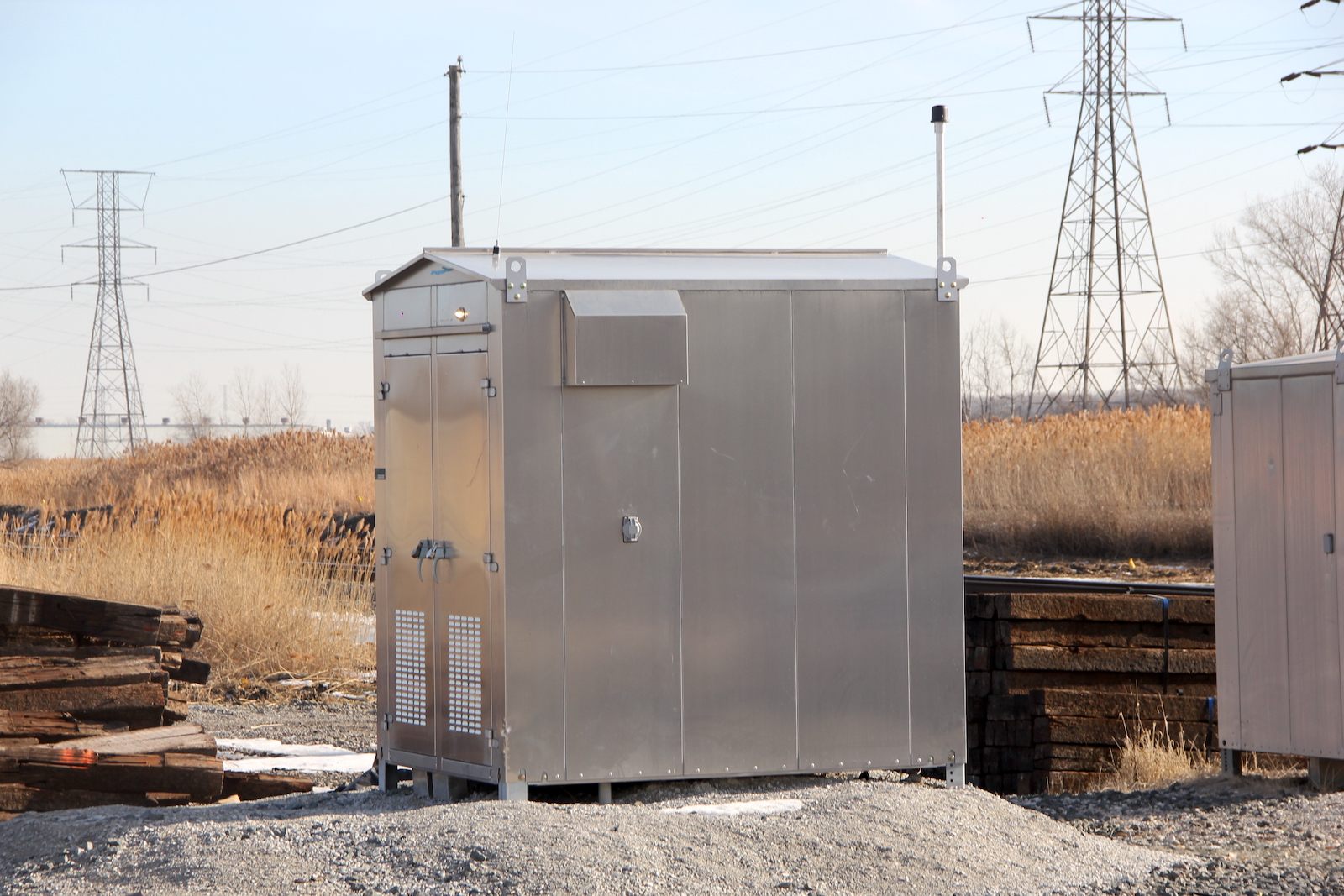

| The relay bungalow in the southeast quadrant. | The grade is rubber and asphalt. | Track view facing west towards Front St. #2 in Whiting. | Track view facing east towards County Line Rd. #1 in Ogden Dunes. |
