46.42


190430G

>>>>>>>>>>>>>> Northern Signal Southern Signal

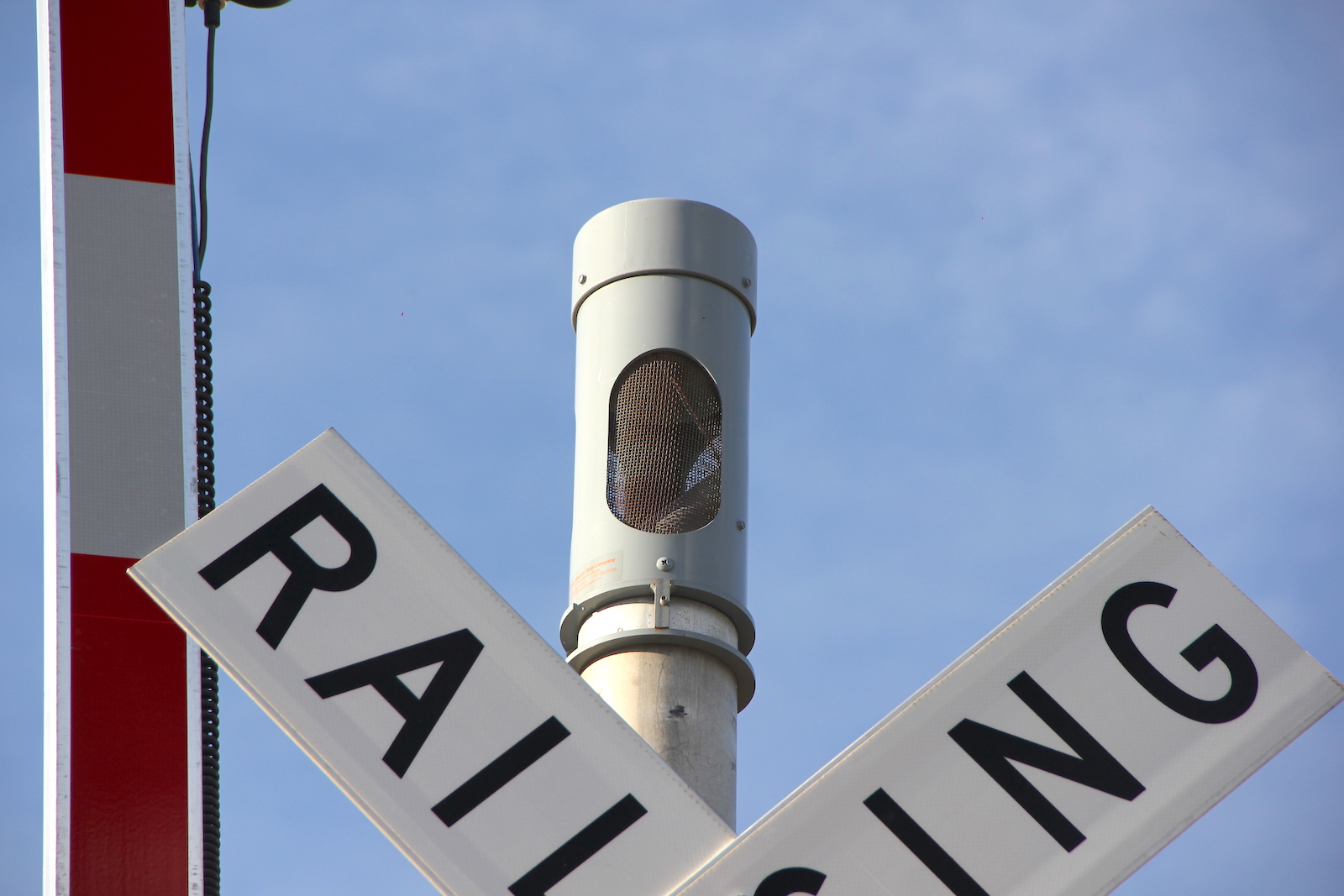

Bell: None NEG E Bell
Base: WCH Single Sided WCH Single Sided
LED Types: Six Harmon Fading LEDs Four Harmon Fading LEDs
Light Frames: Six 12"x24' Harmon frames Four 12"x24' Harmon frames
Junction Box: 1 Harmon, 1 WRRS Harmon
Gate Lights: 4" RECO LEDs 4" RECO LEDs
Gate Mechanism: WCH Style 3.5 WCH Style 3.5
Gate Striping: |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Crossbuck font: Ugly font, double sided Normal font, double sided
Bell Cycle: N/A Rings for the whole duration

All pictures and the video were taken on June 24, 2020, by Tommy McGowan.
This crossing is located on the UP Clinton Sub.

1
2

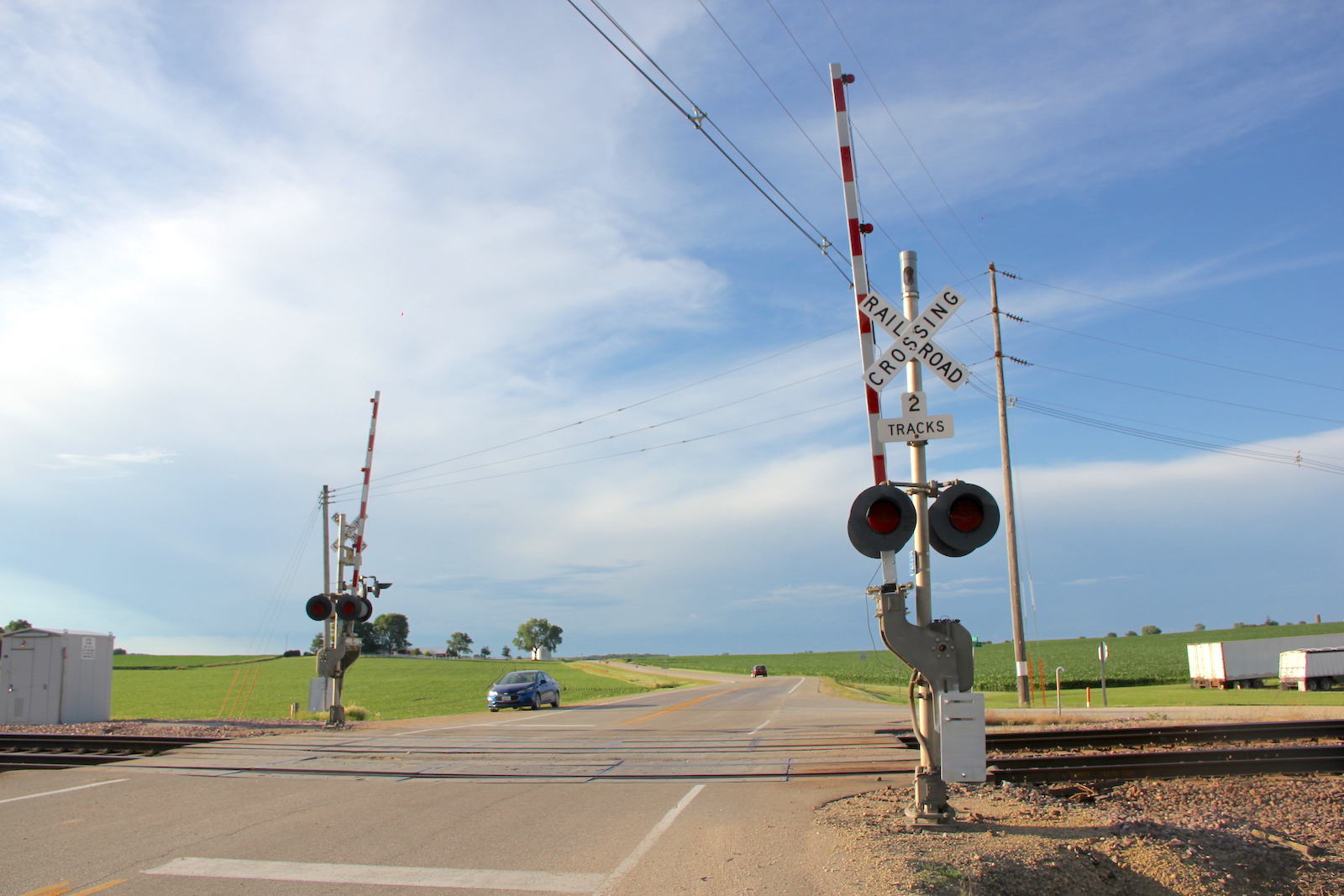

Overview of 2 gated signals facing north. Overview facing south.
3 4 5
6 7 8
9 10 11
12

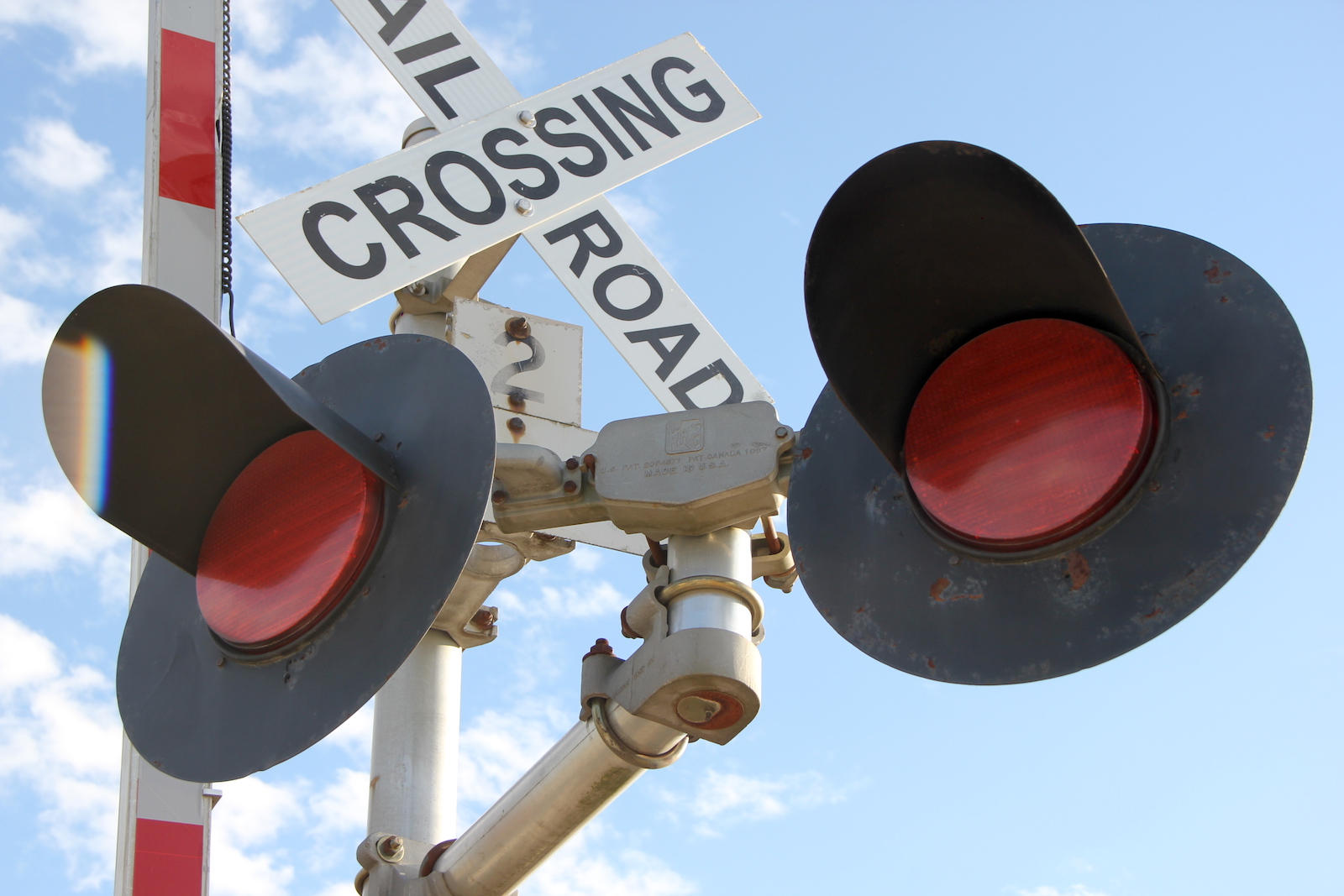

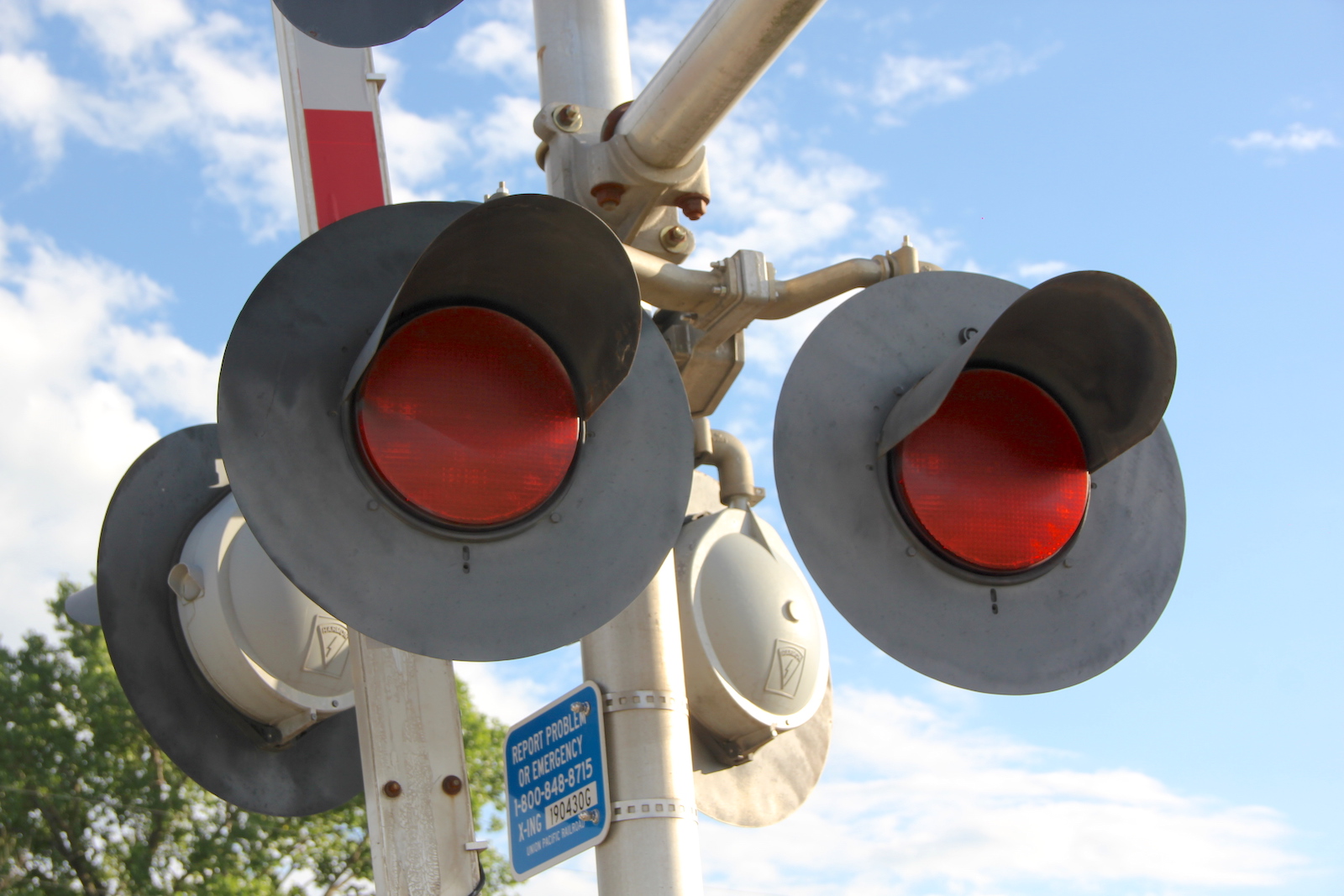

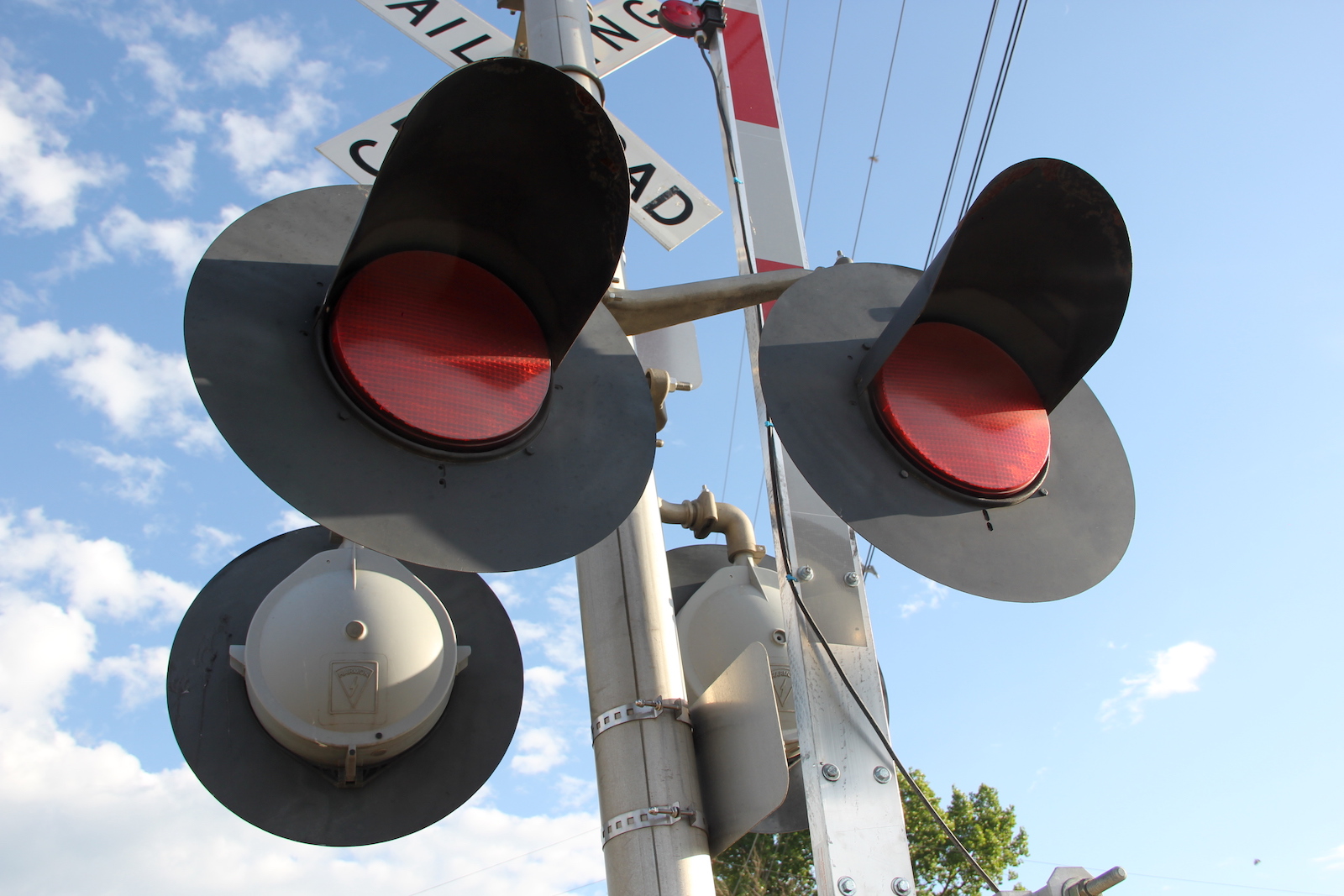

The southern signal.
13 14 15
16 17 18 19
20 21 22
23

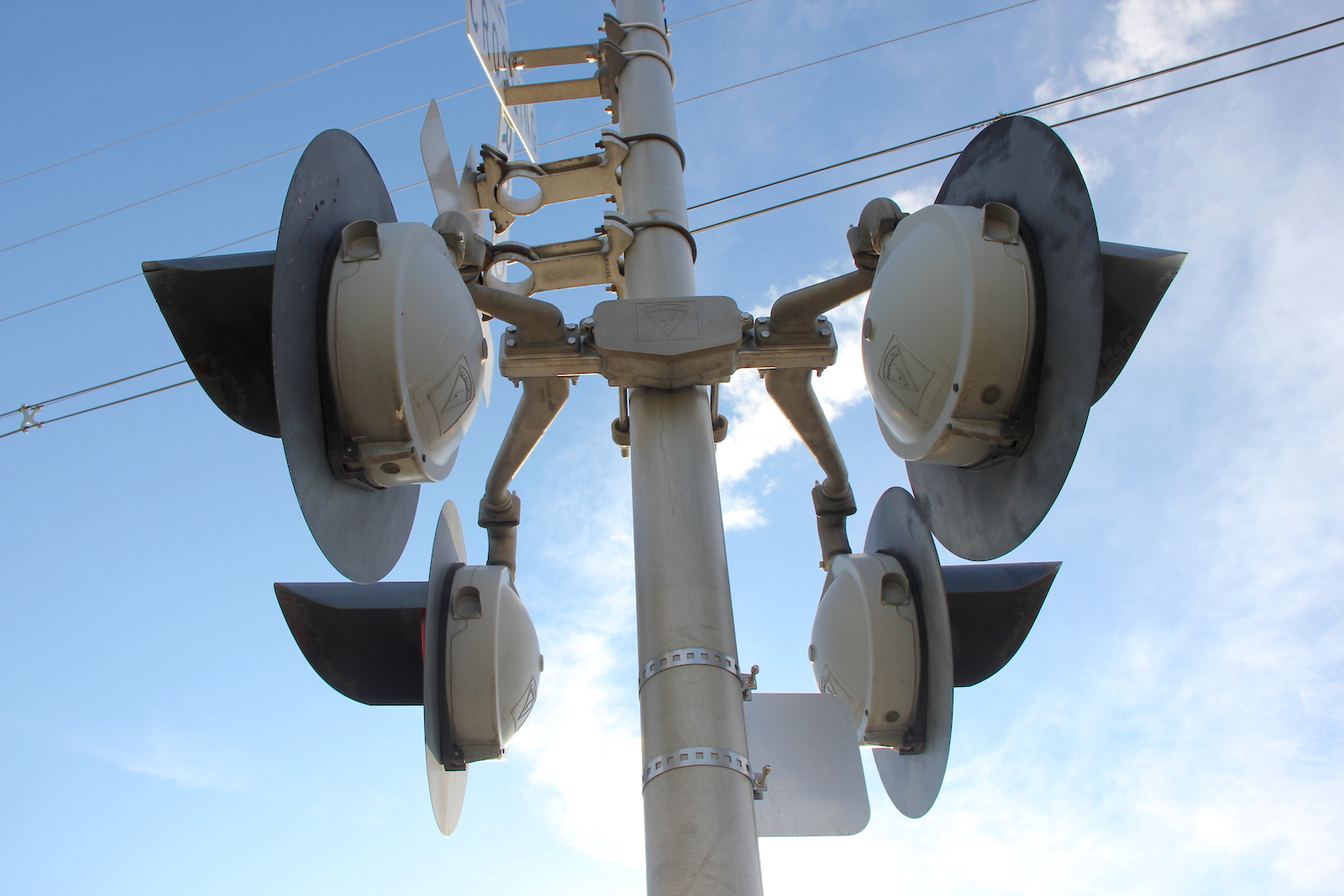

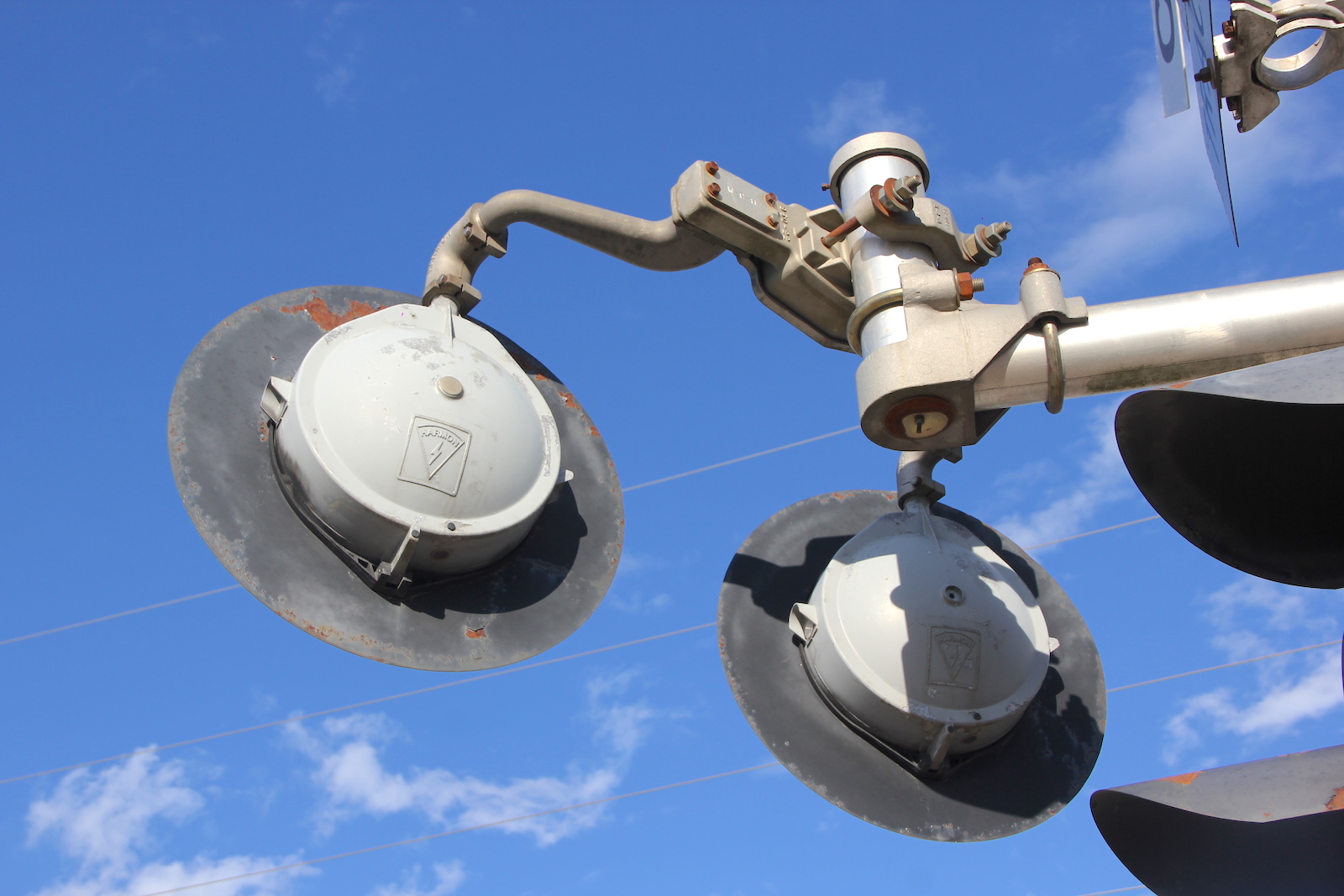

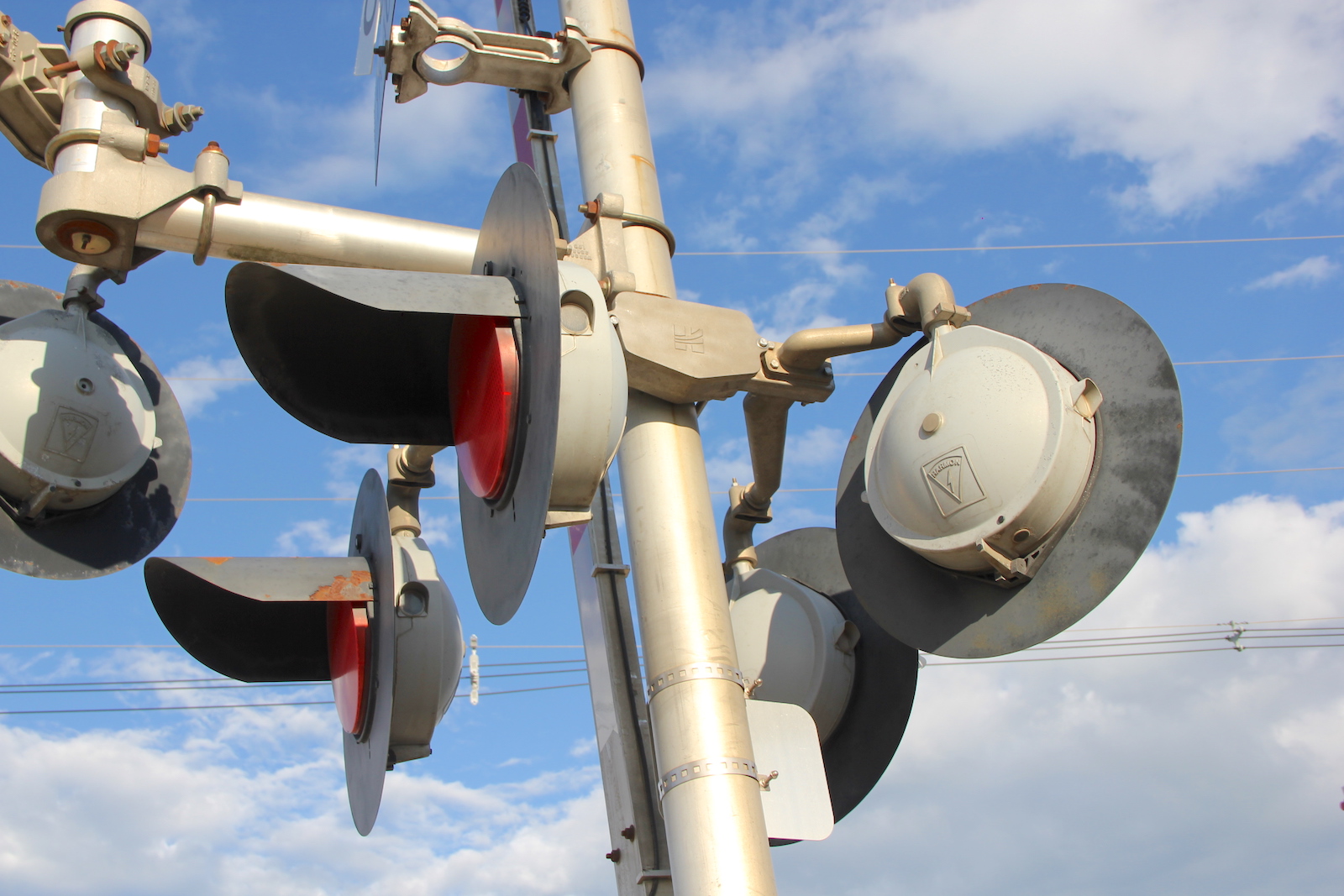

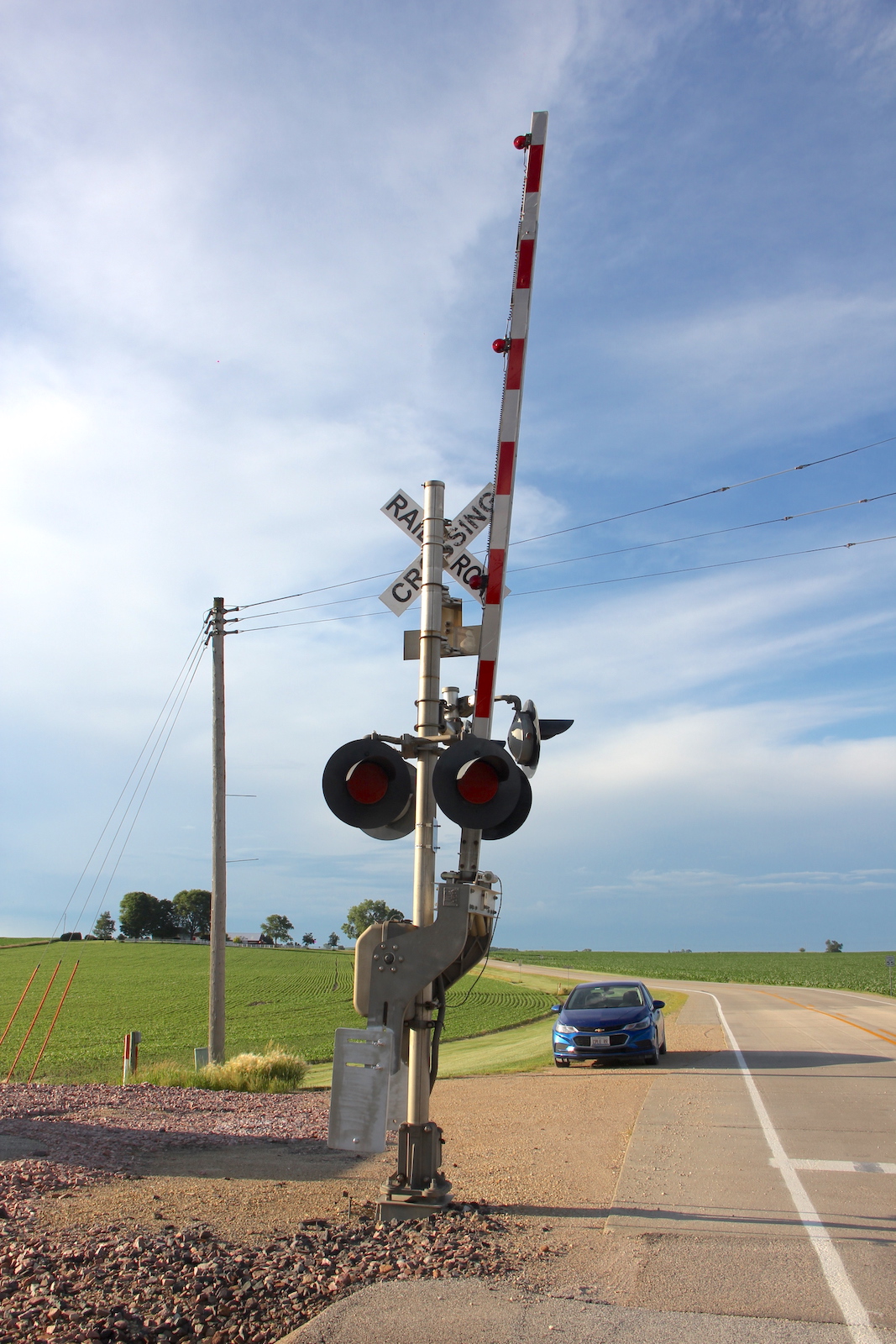

The northern signal.
24 25 26 27

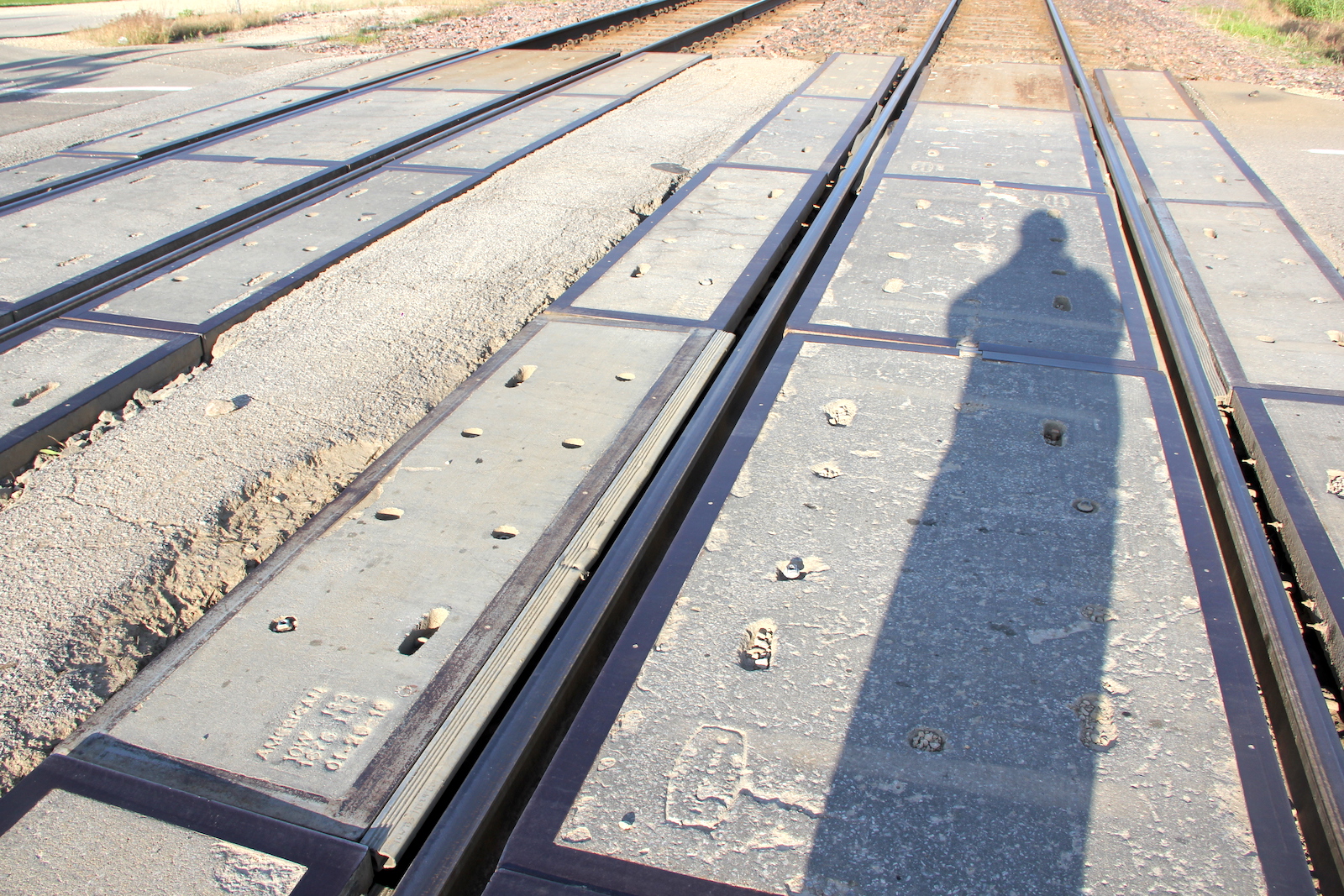

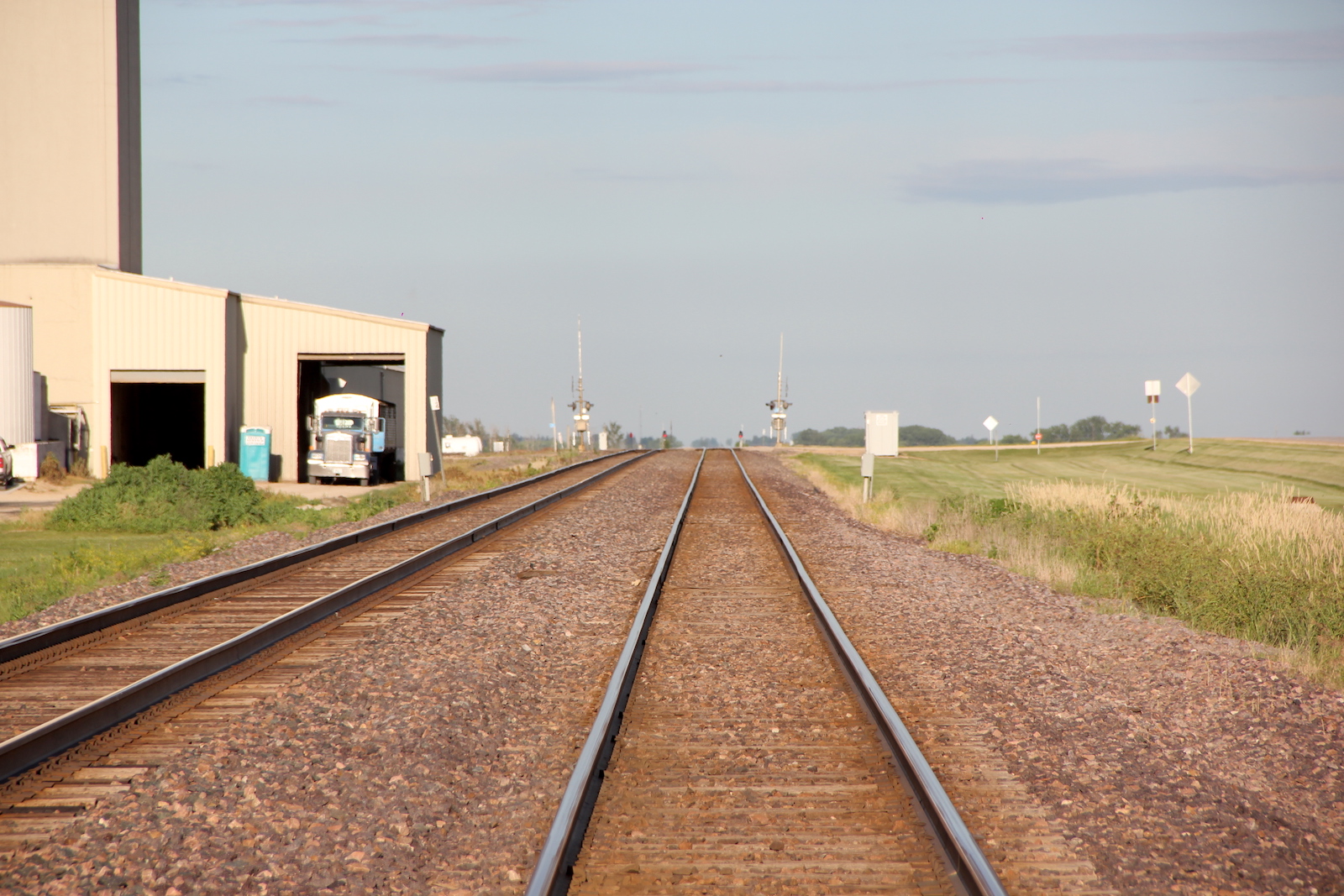

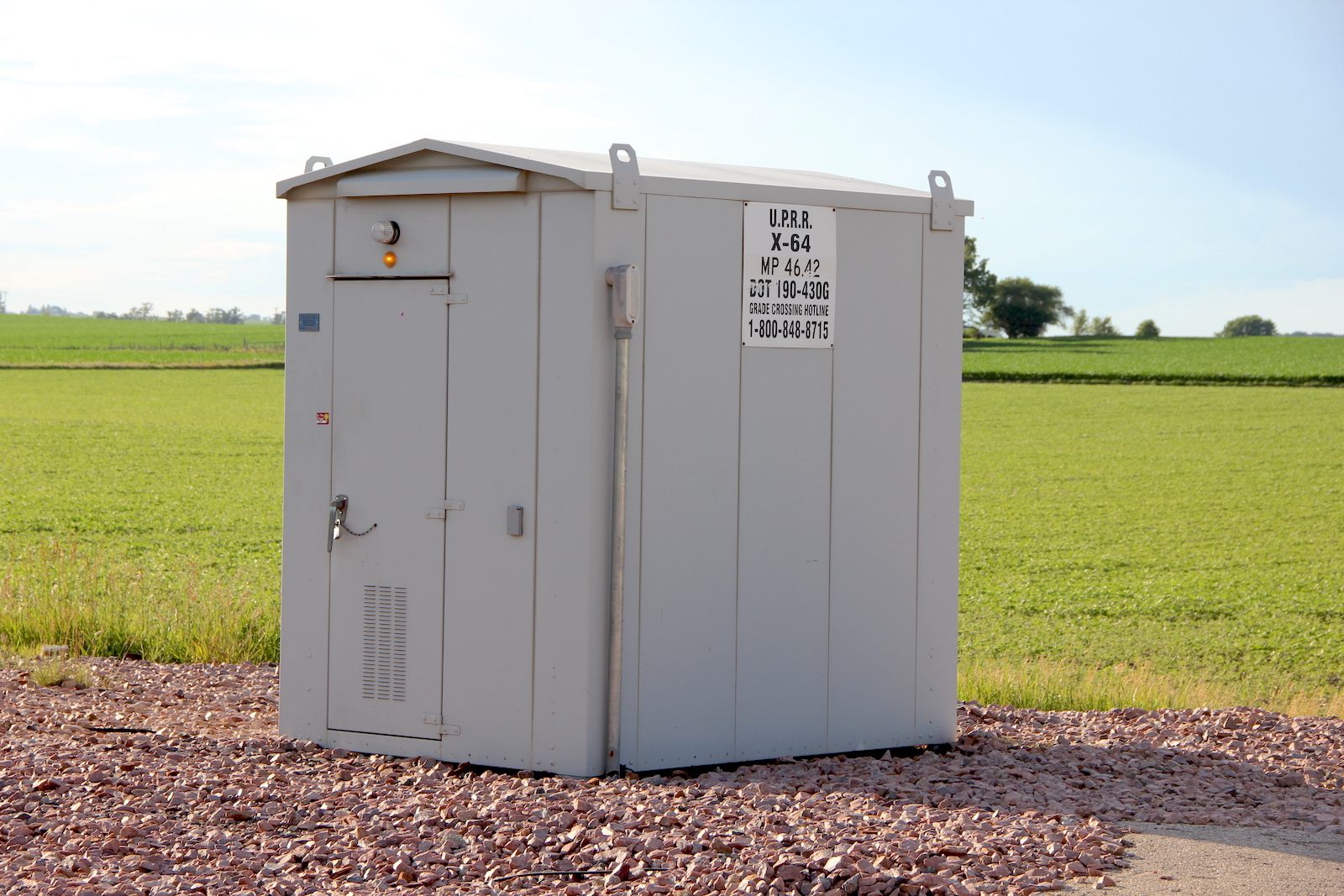

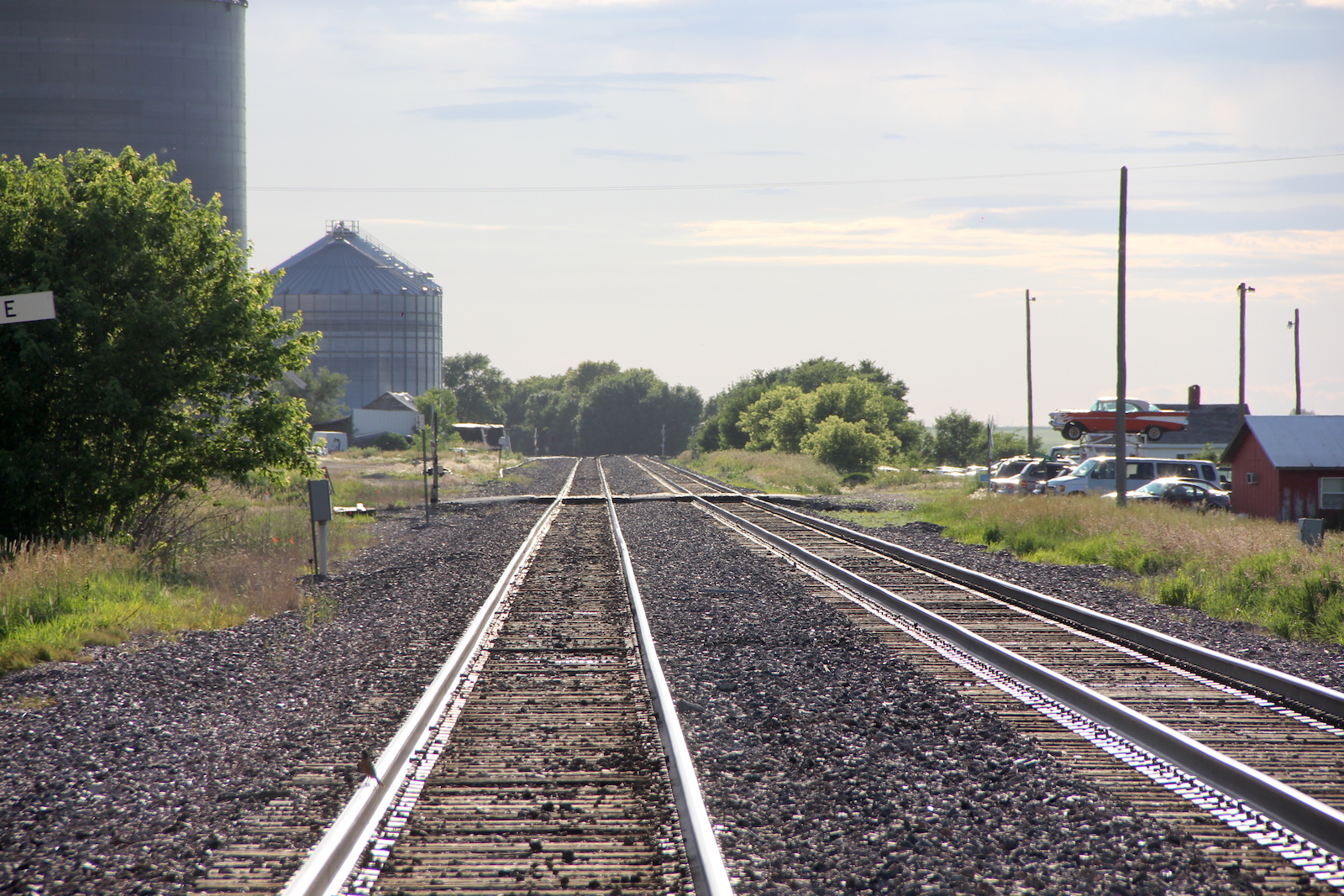

The relay bungalow in the northwest quadrant. The grade is all concrete. Track view facing west at 8th Ave. Track view facing east at CR 7860 #1.
