45.61


190428F

>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: None GS Type 2 E Bell
Base: Harmon Double Sided Harmon Double Sided
LED Types: Four Electro-Tech's LEDs Four Electro-Tech's LEDs
Light Frames: Four older 12"x24" Harmon frames Four older 12"x24" Harmon frames
Junction Box: Harmon Harmon
Gate Lights: NEG Clear LEDs NEG Clear LEDs
Gate Mechanism: WCH Style 3.5 WCH Style 3.5
Gate Striping: |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Crossbuck font: Normal font, double sided Normal font, double sided
Bell Cycle: N/A Rings for the whole duration

All pictures and the video were taken on June 24, 2020, by Tommy McGowan.
This crossing is located on the UP Clinton Sub.

1
2

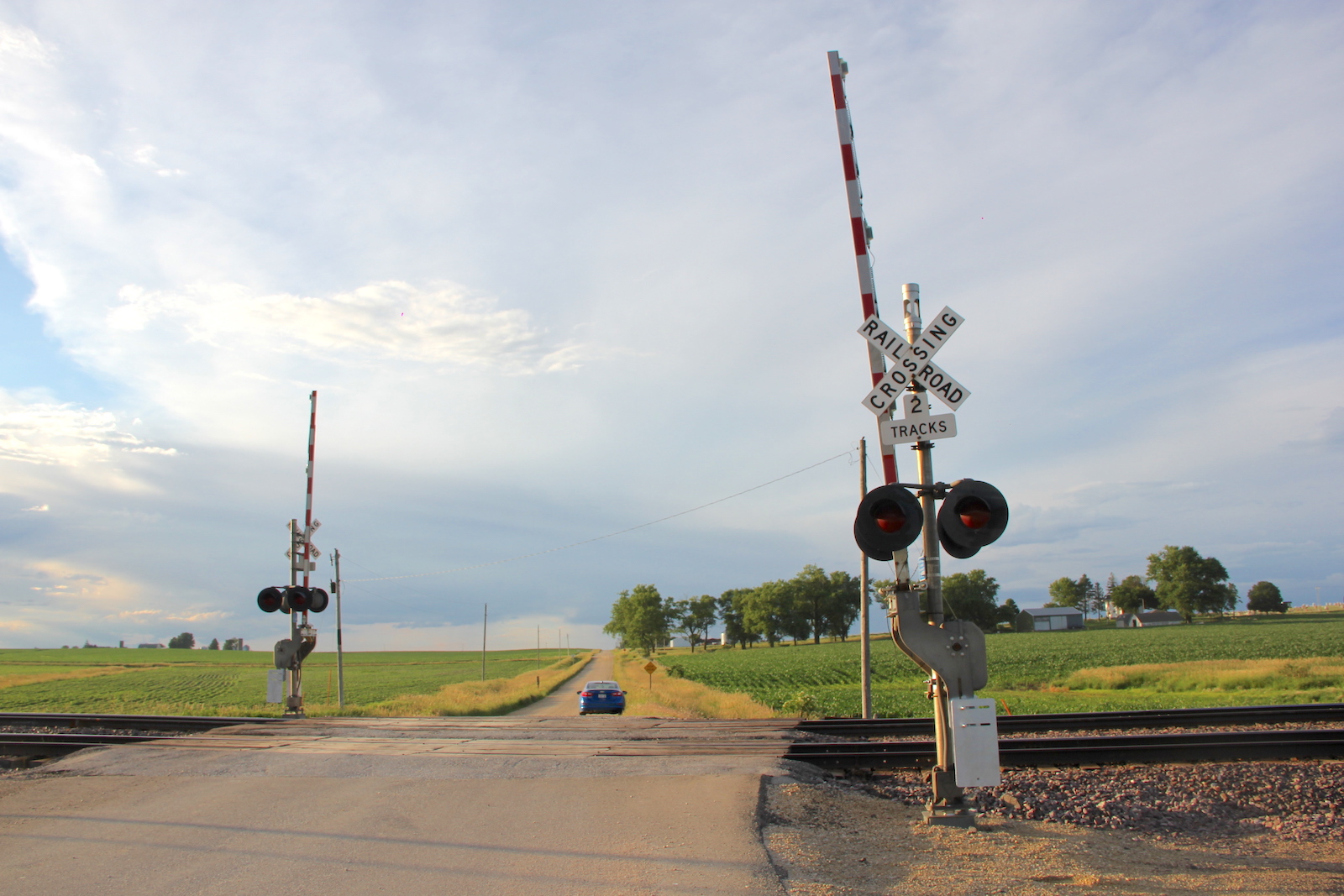

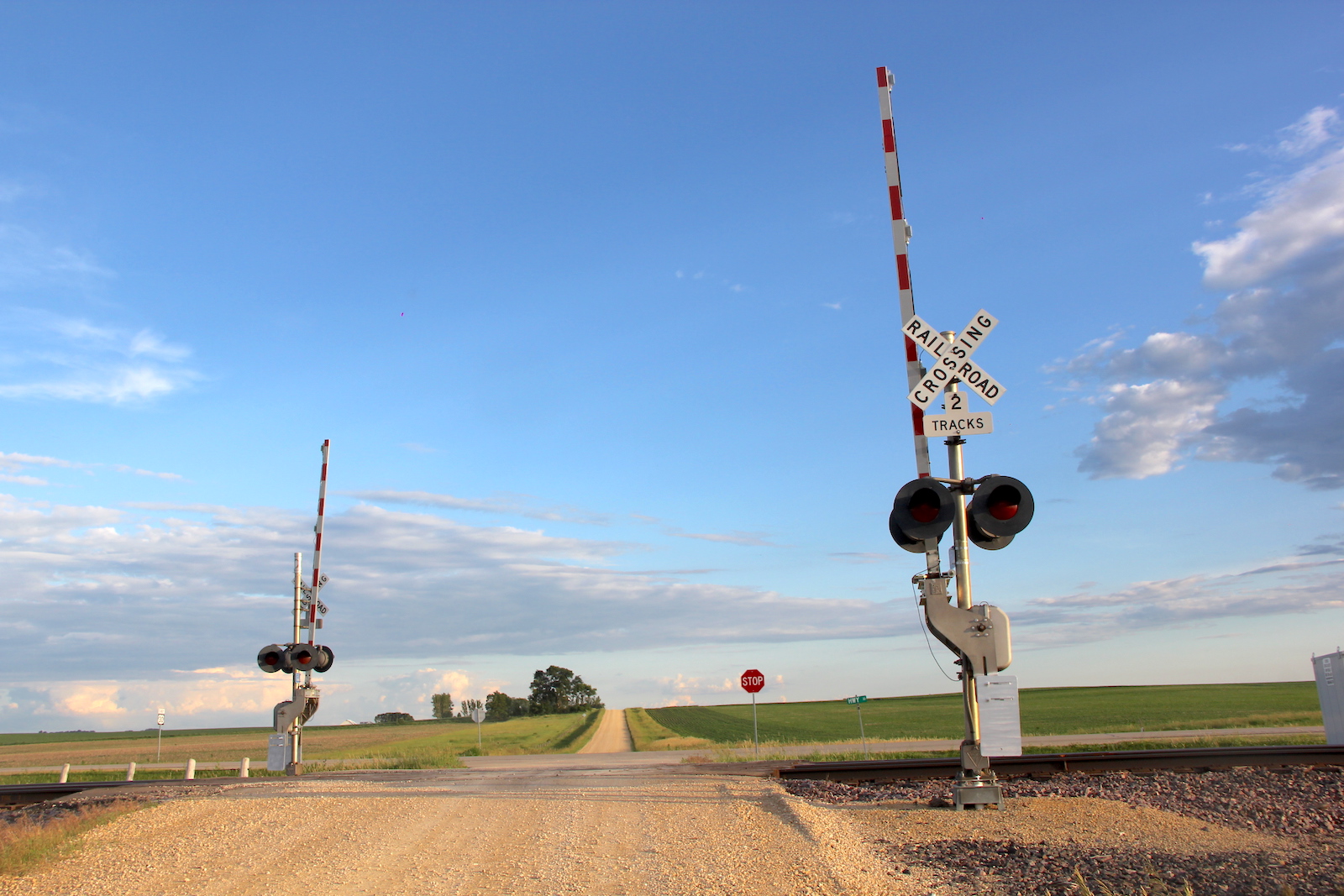

Overview of 2 gated signals facing south. Overview facing north.
3 4 5
6 7 8
9 10 11

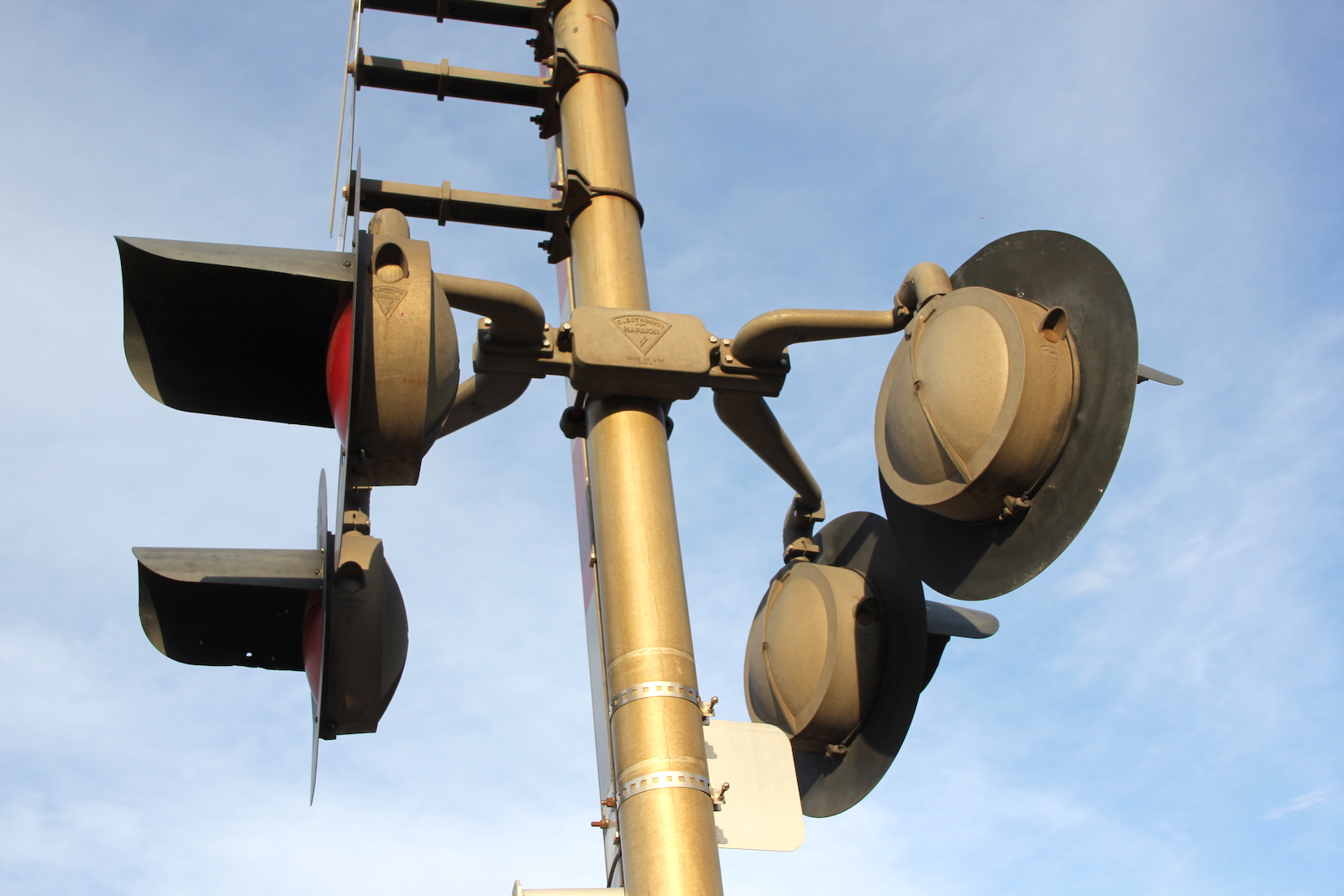

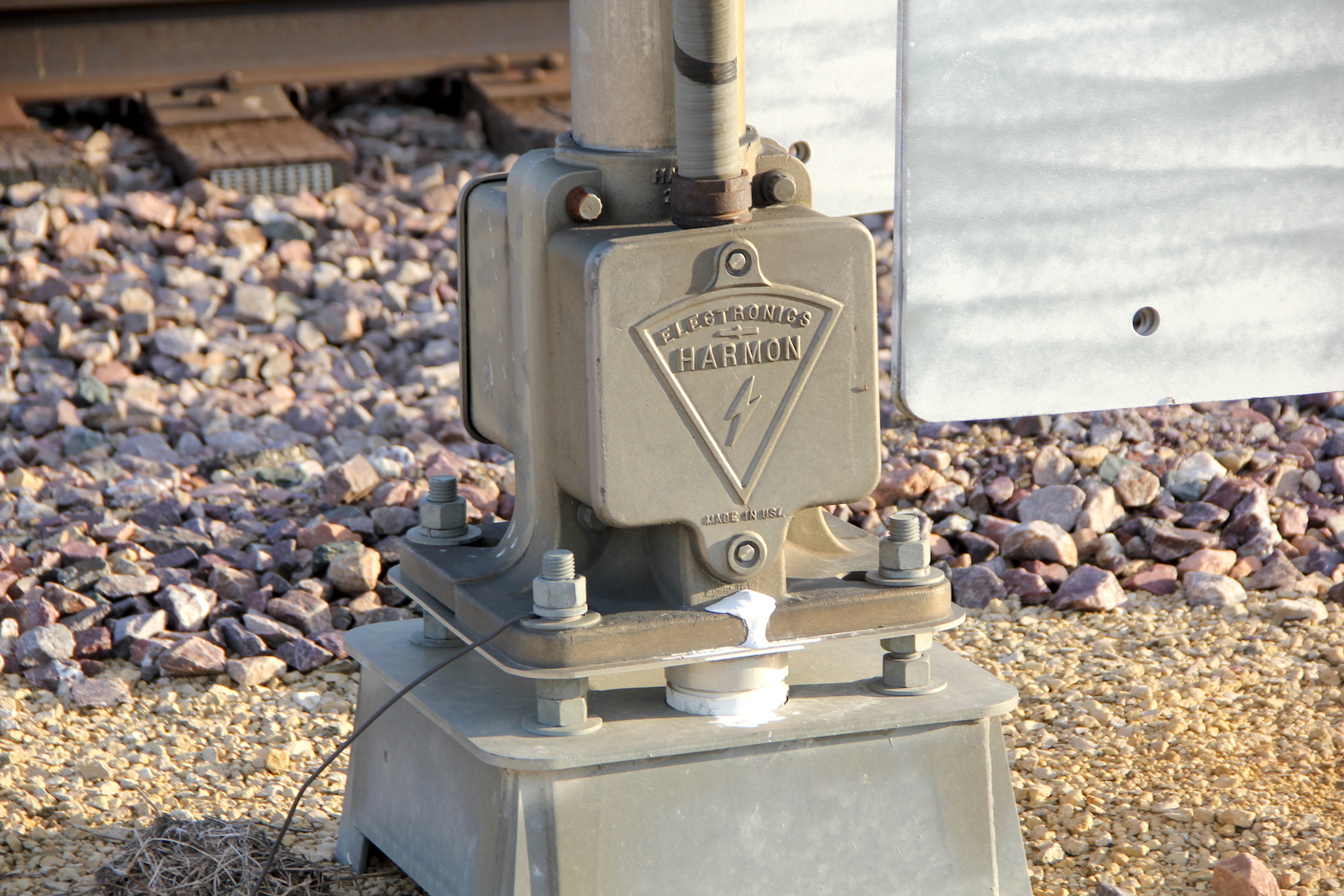

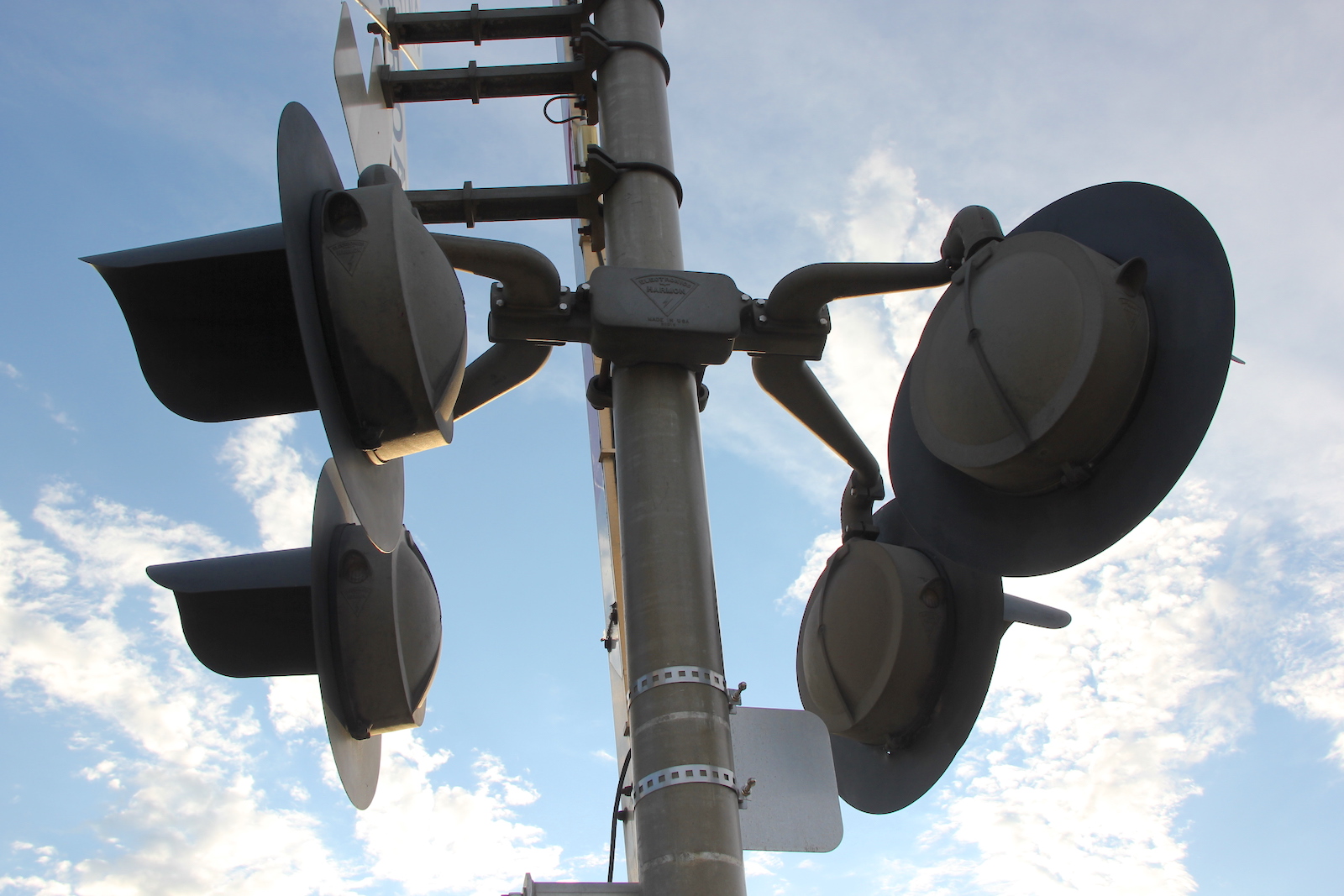

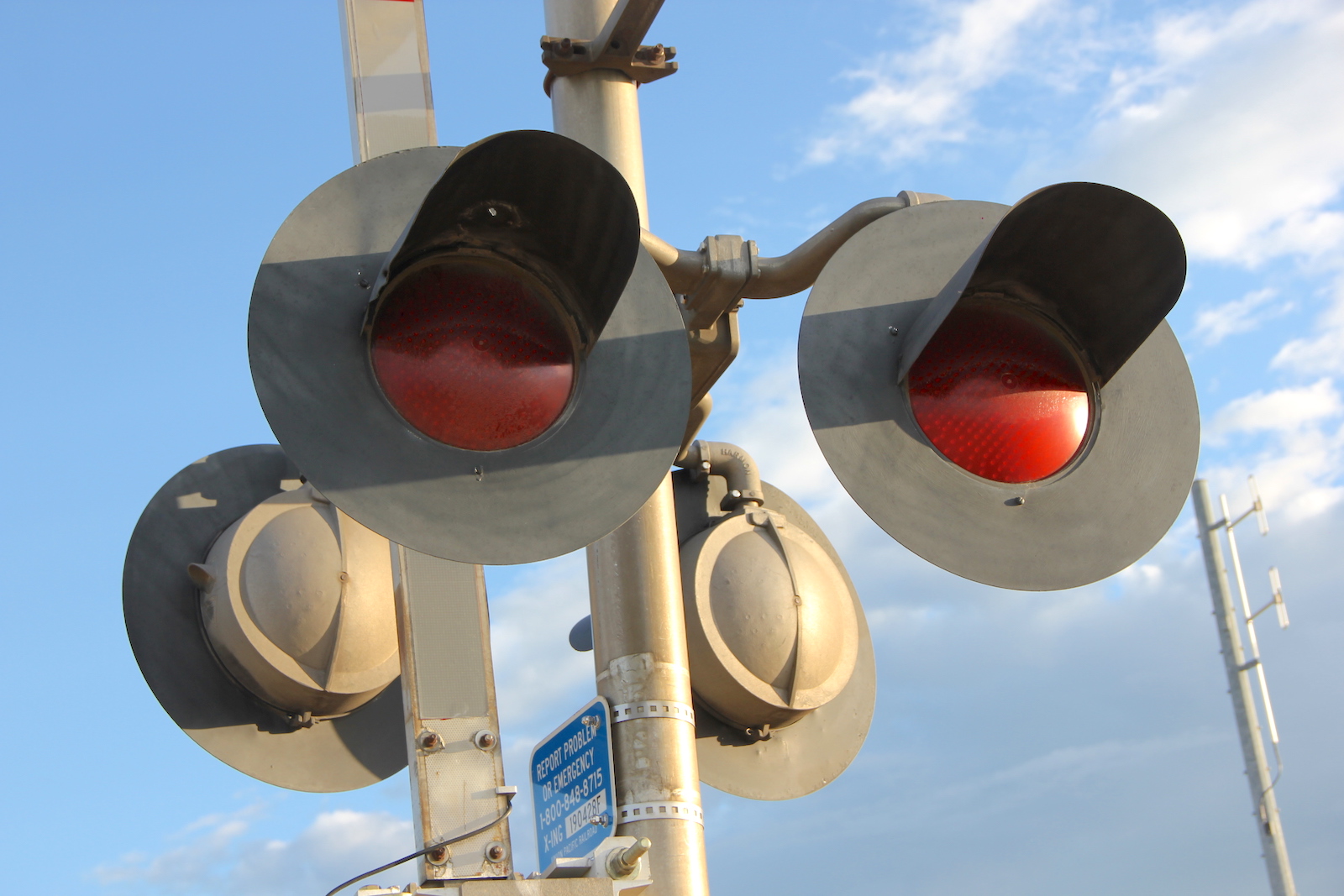

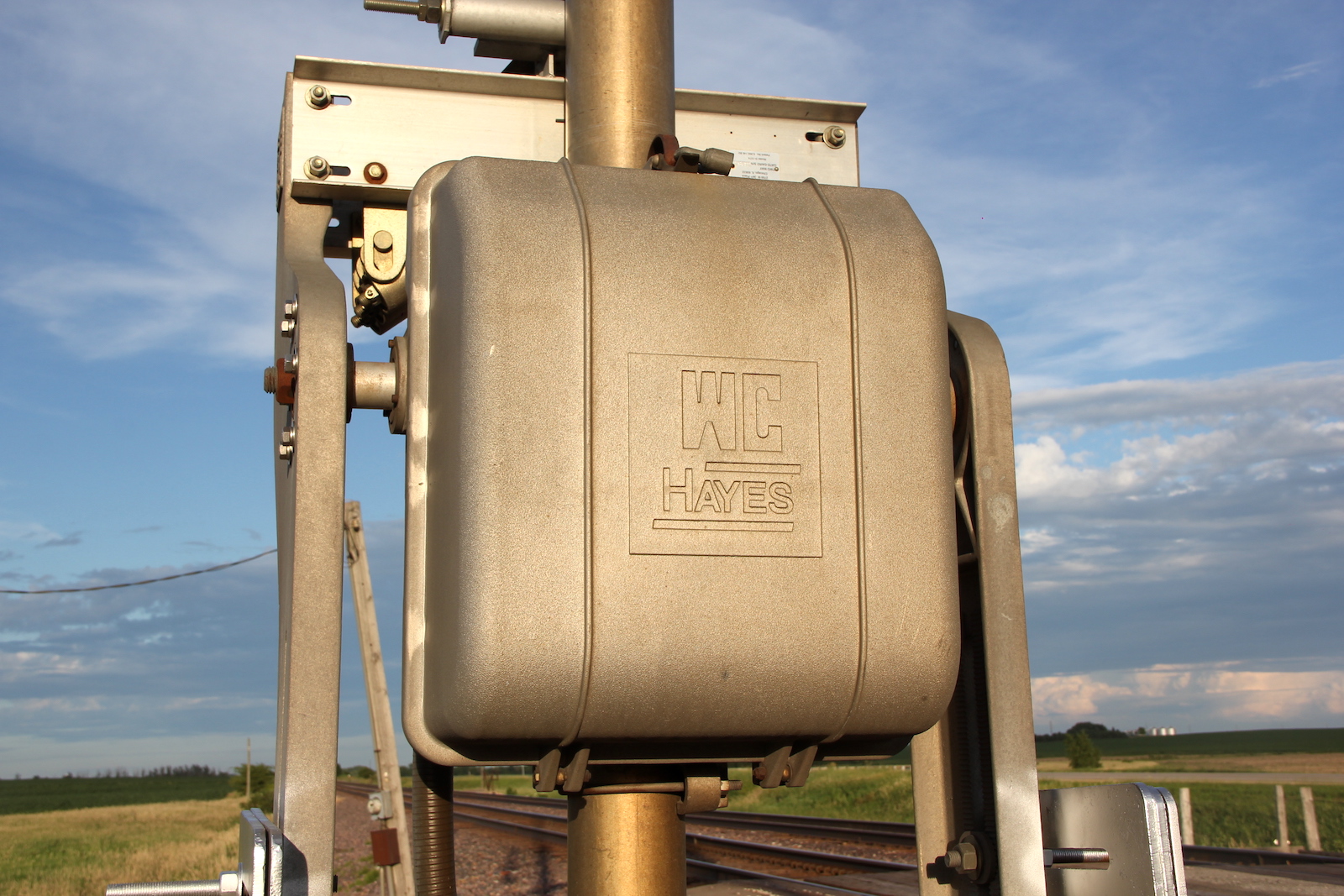

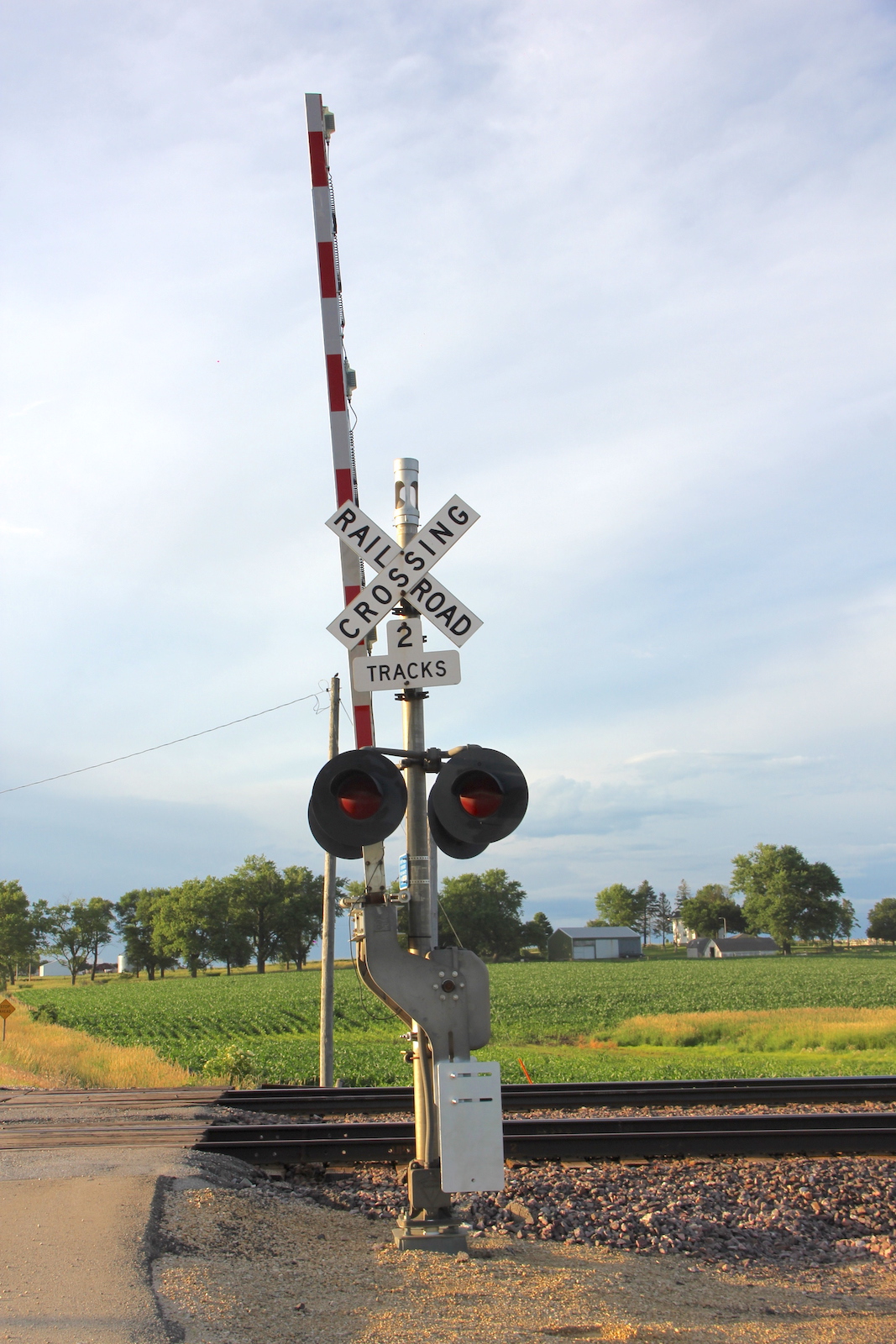

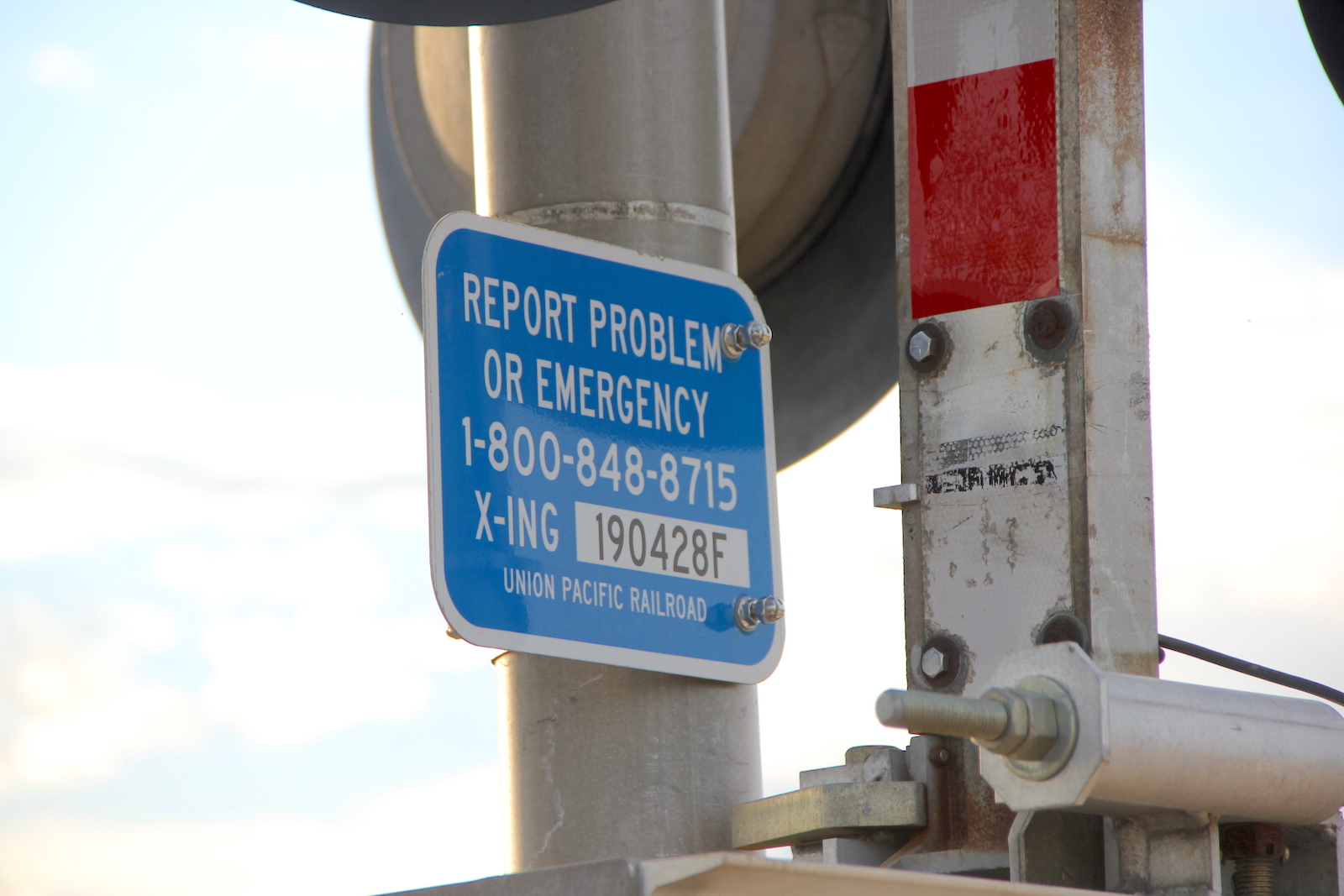

The northern signal.
12 13 14
15 16 17
18 19 20
21

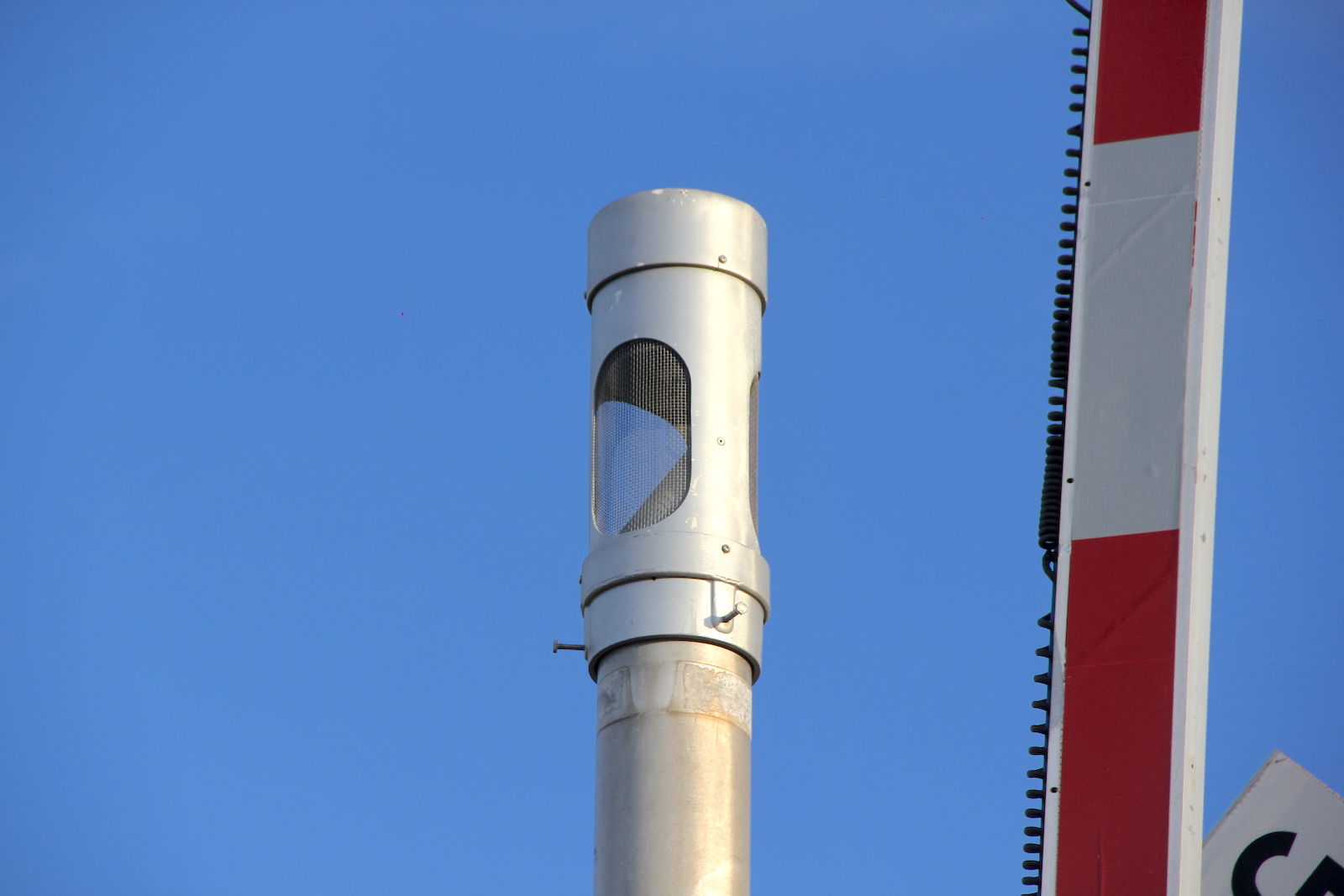

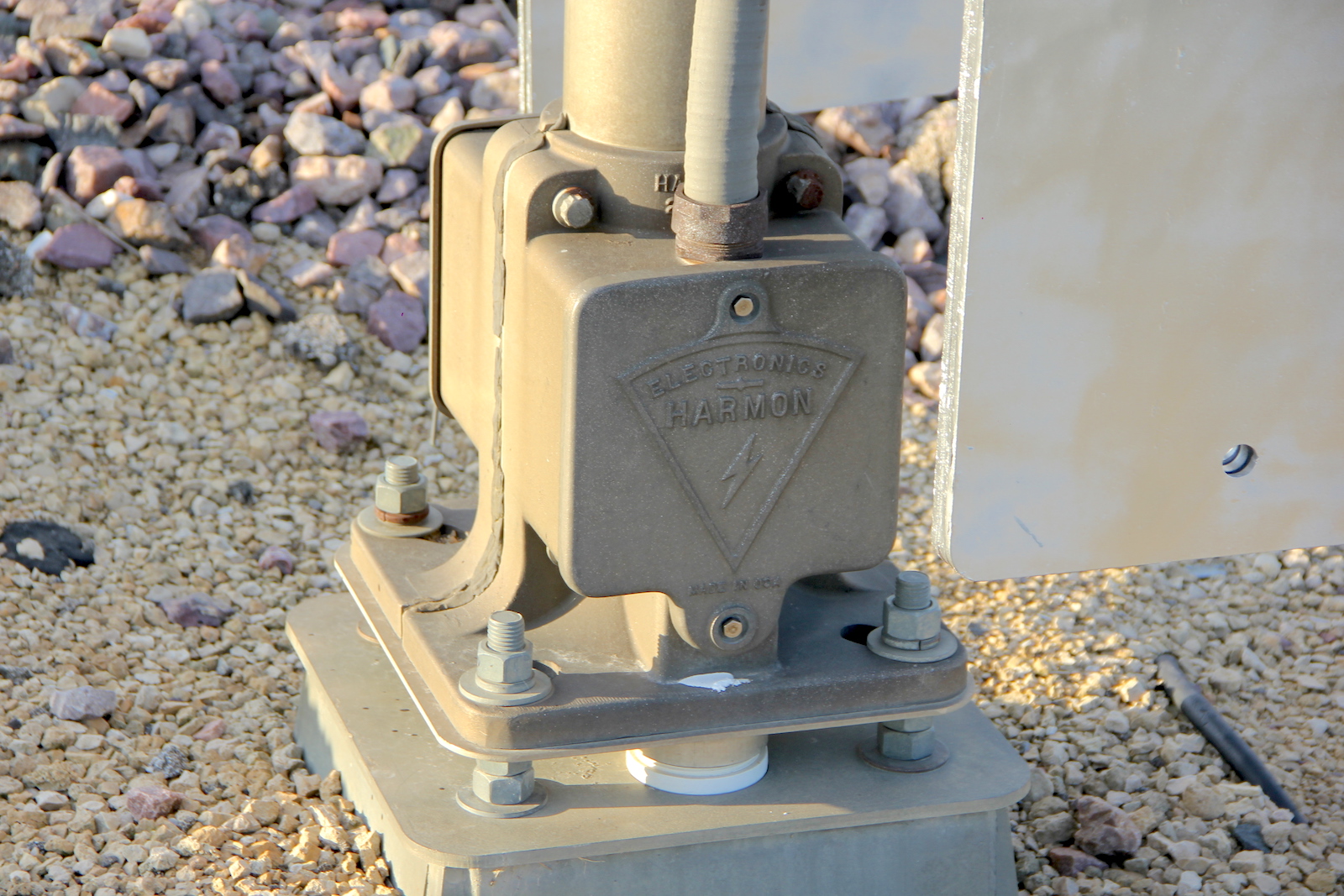

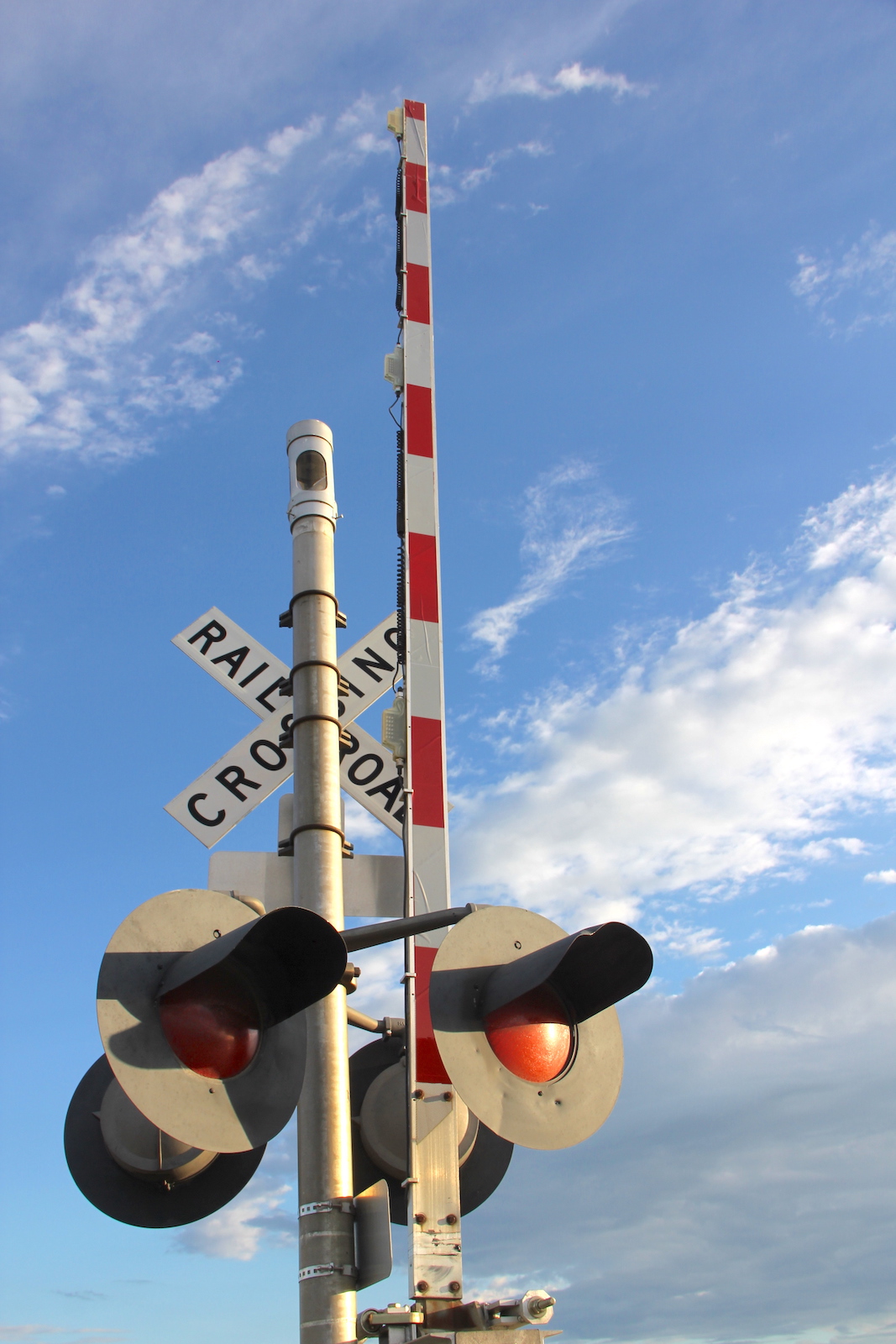

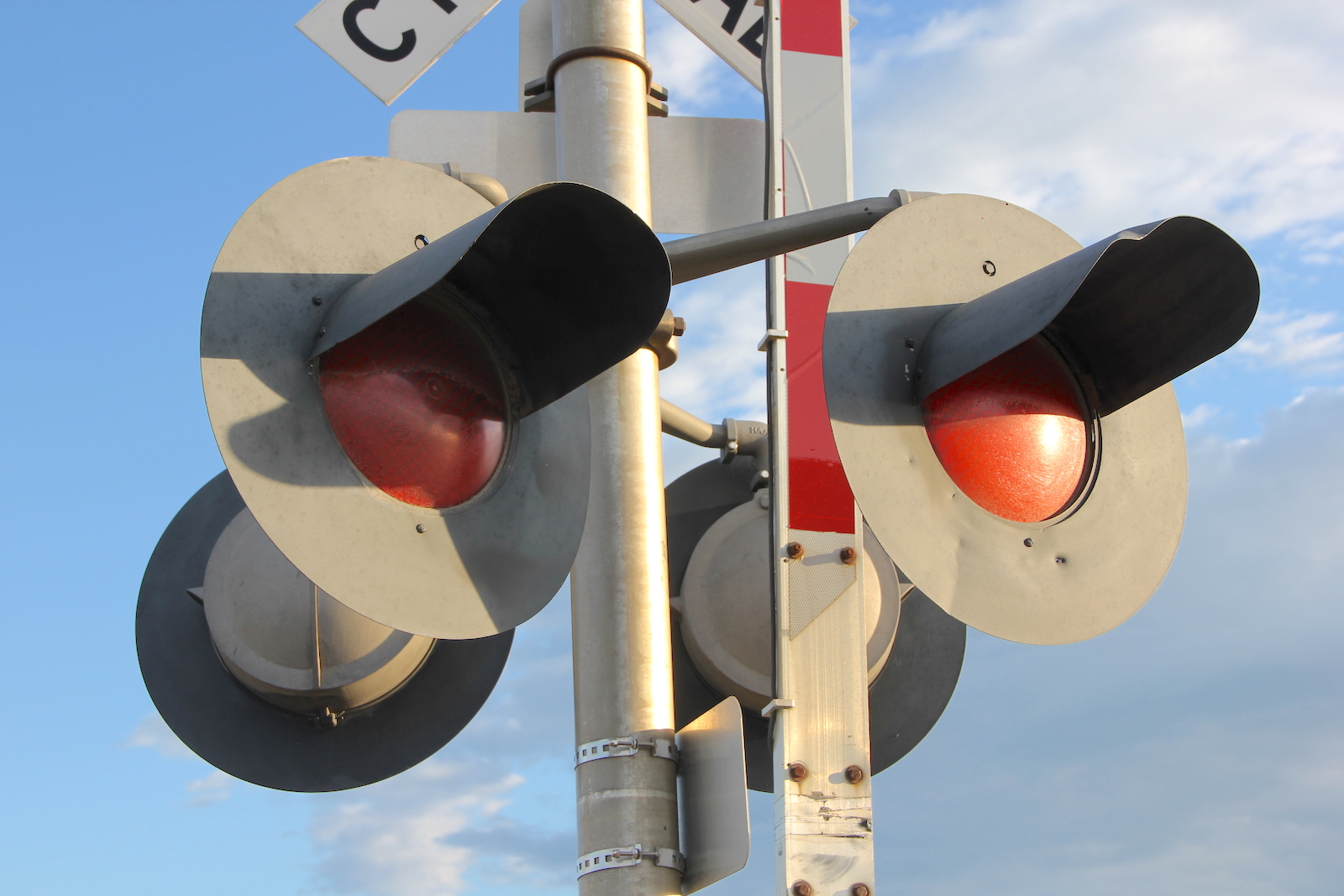

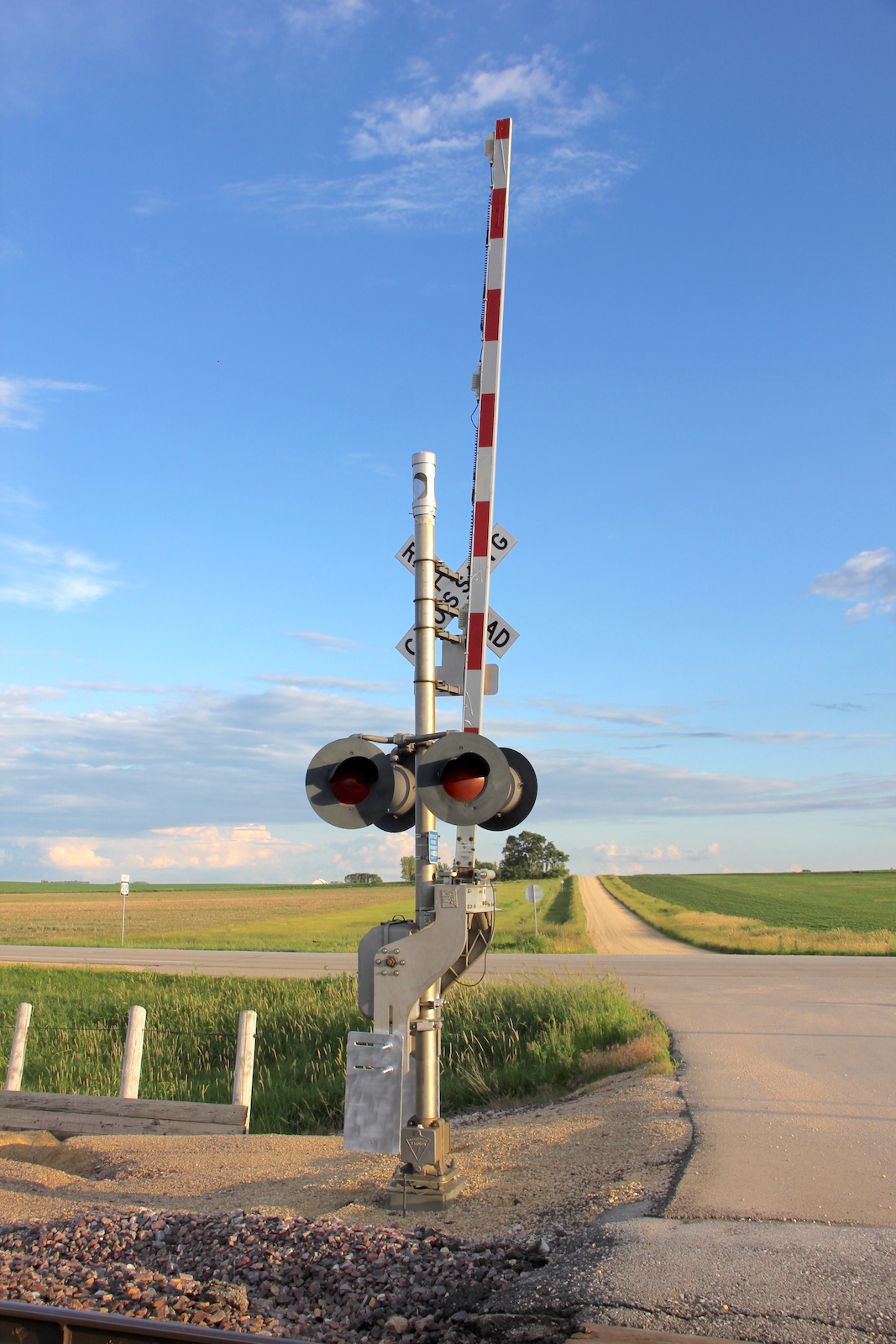

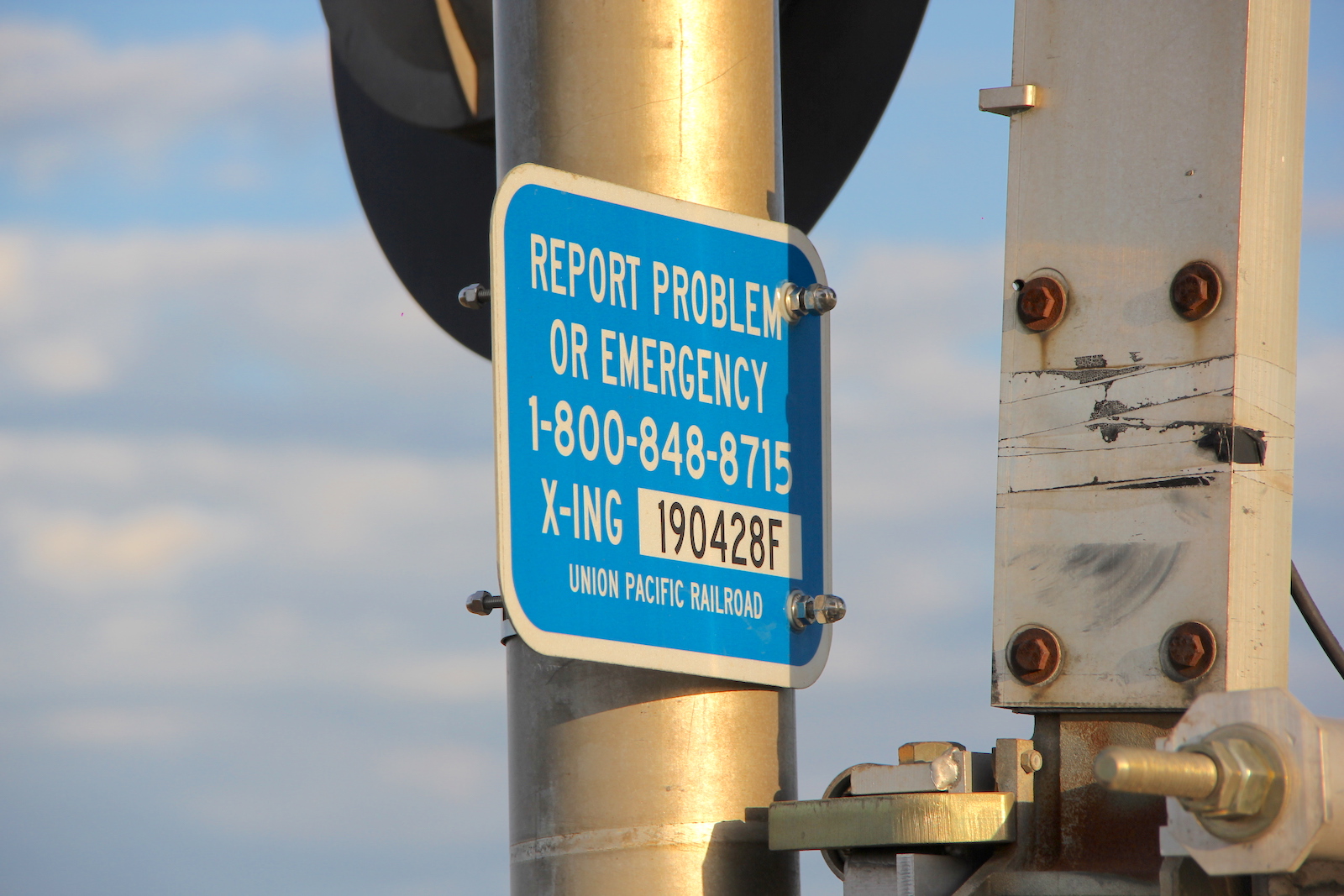

The southern signal.
22 23 24 25

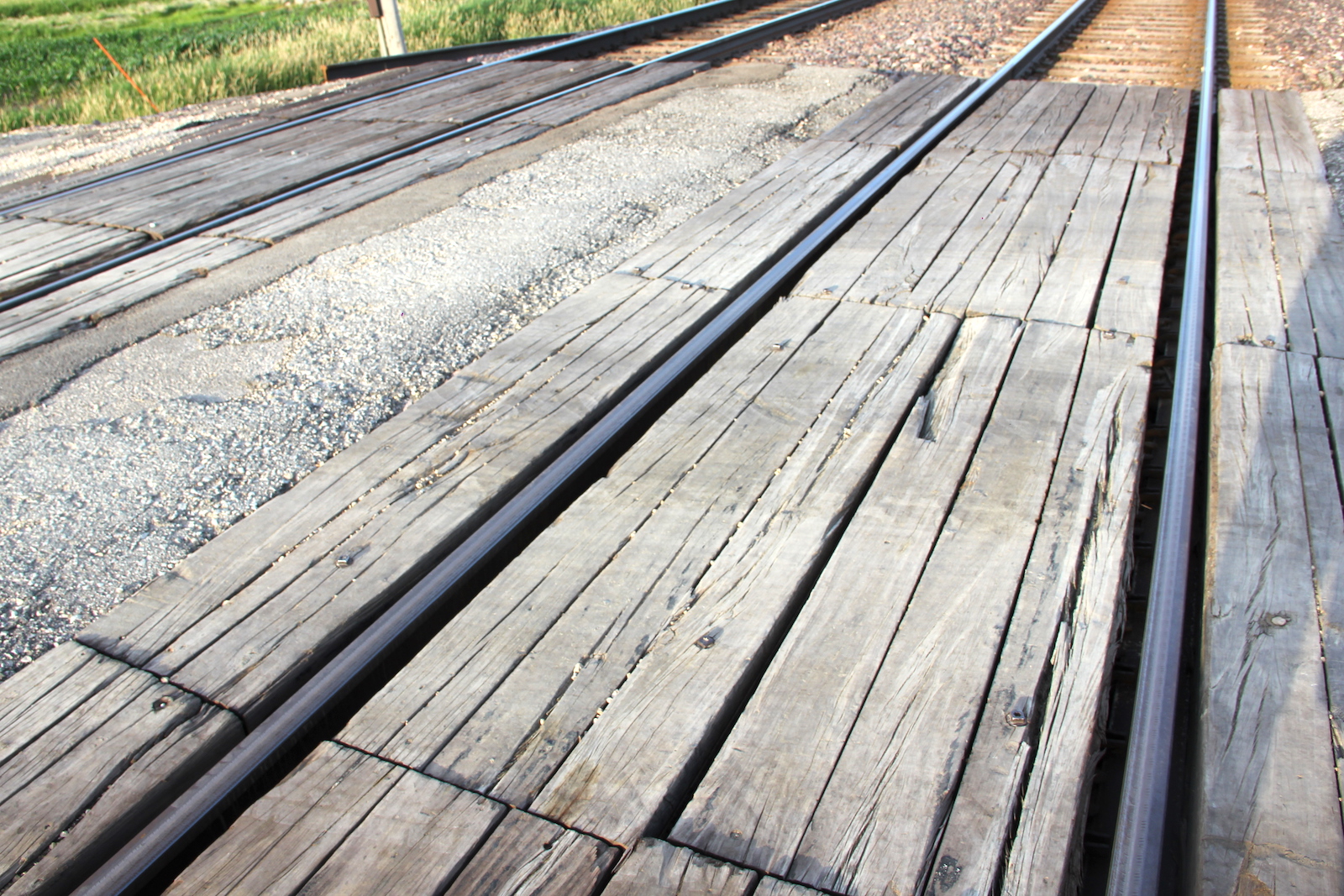

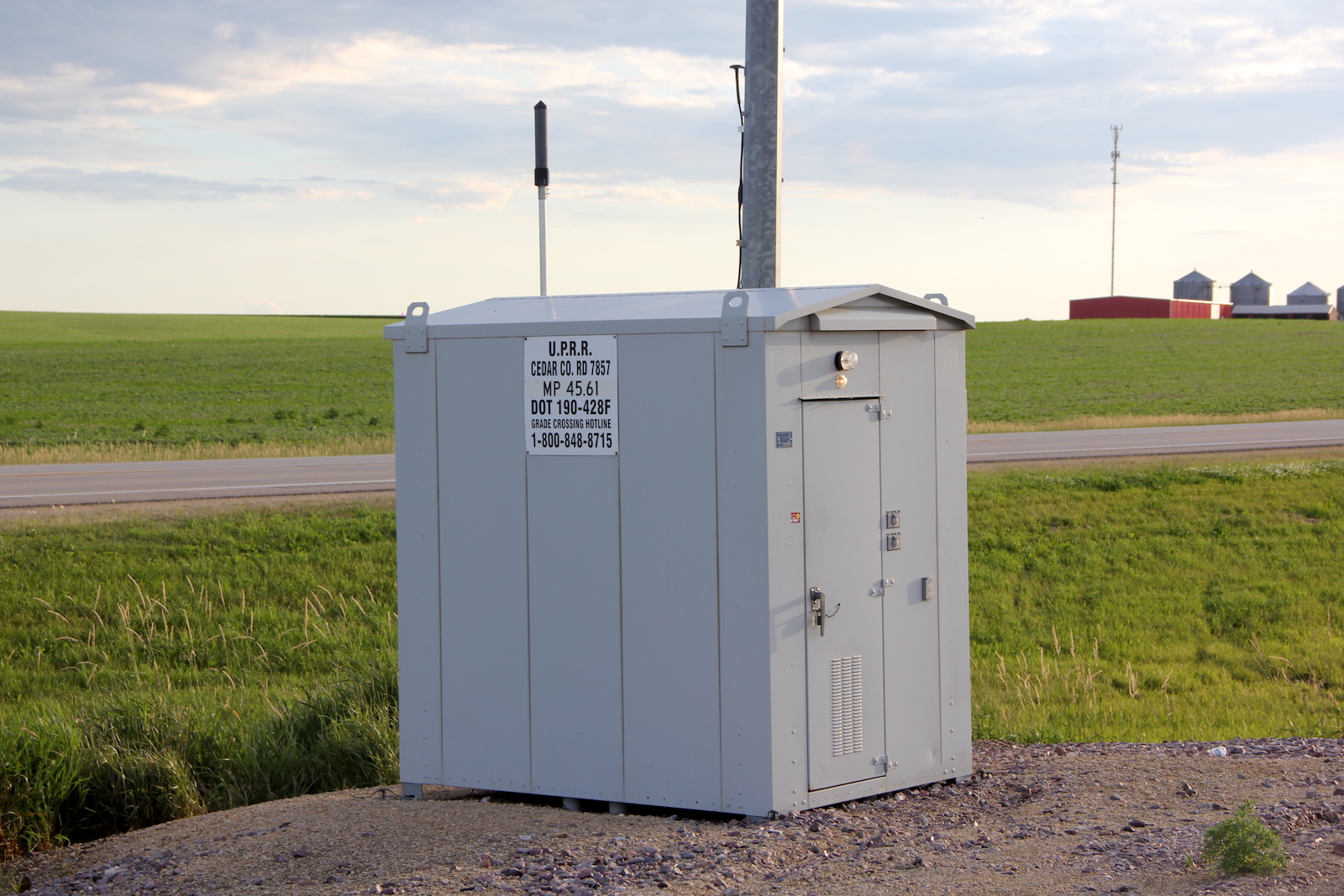

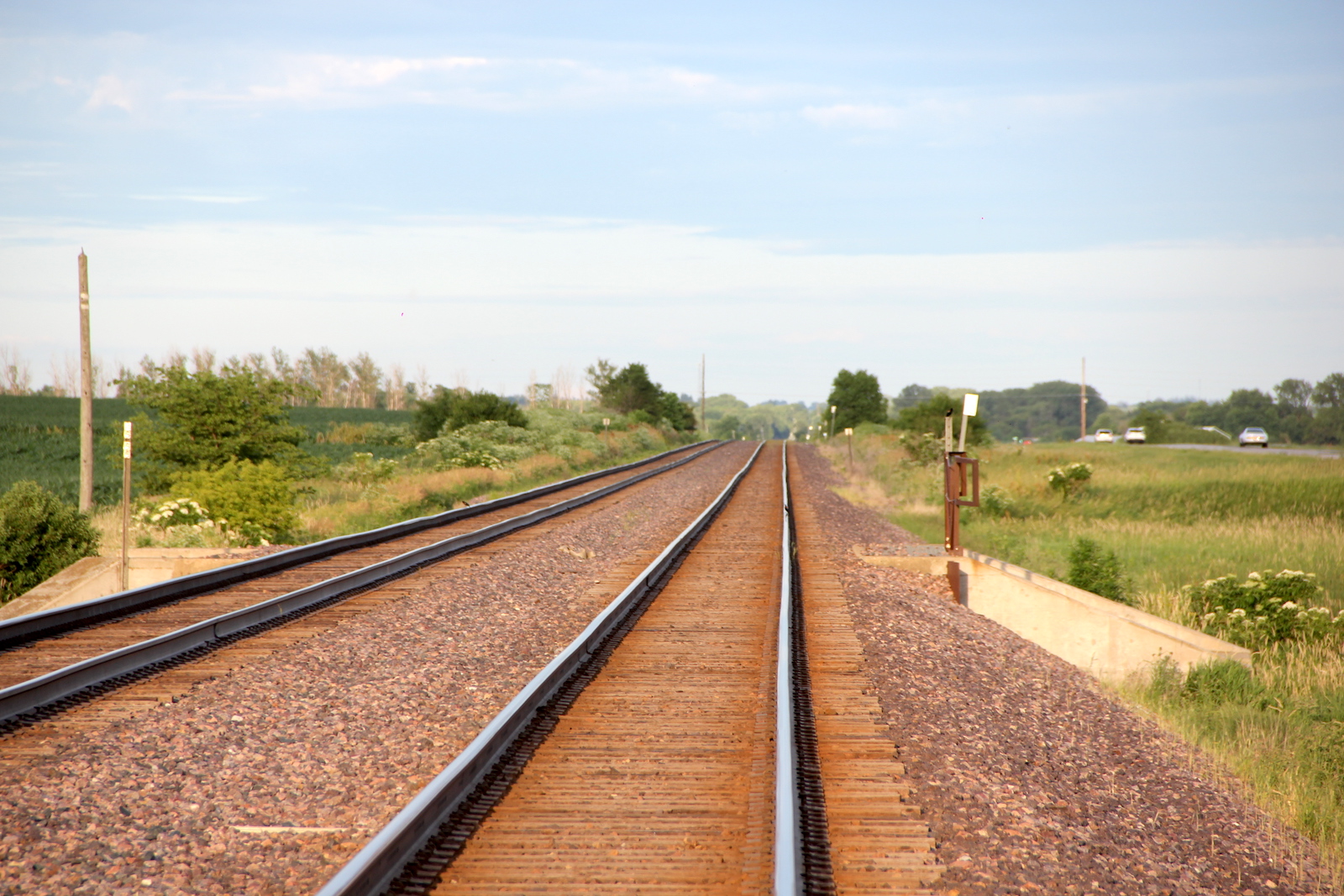

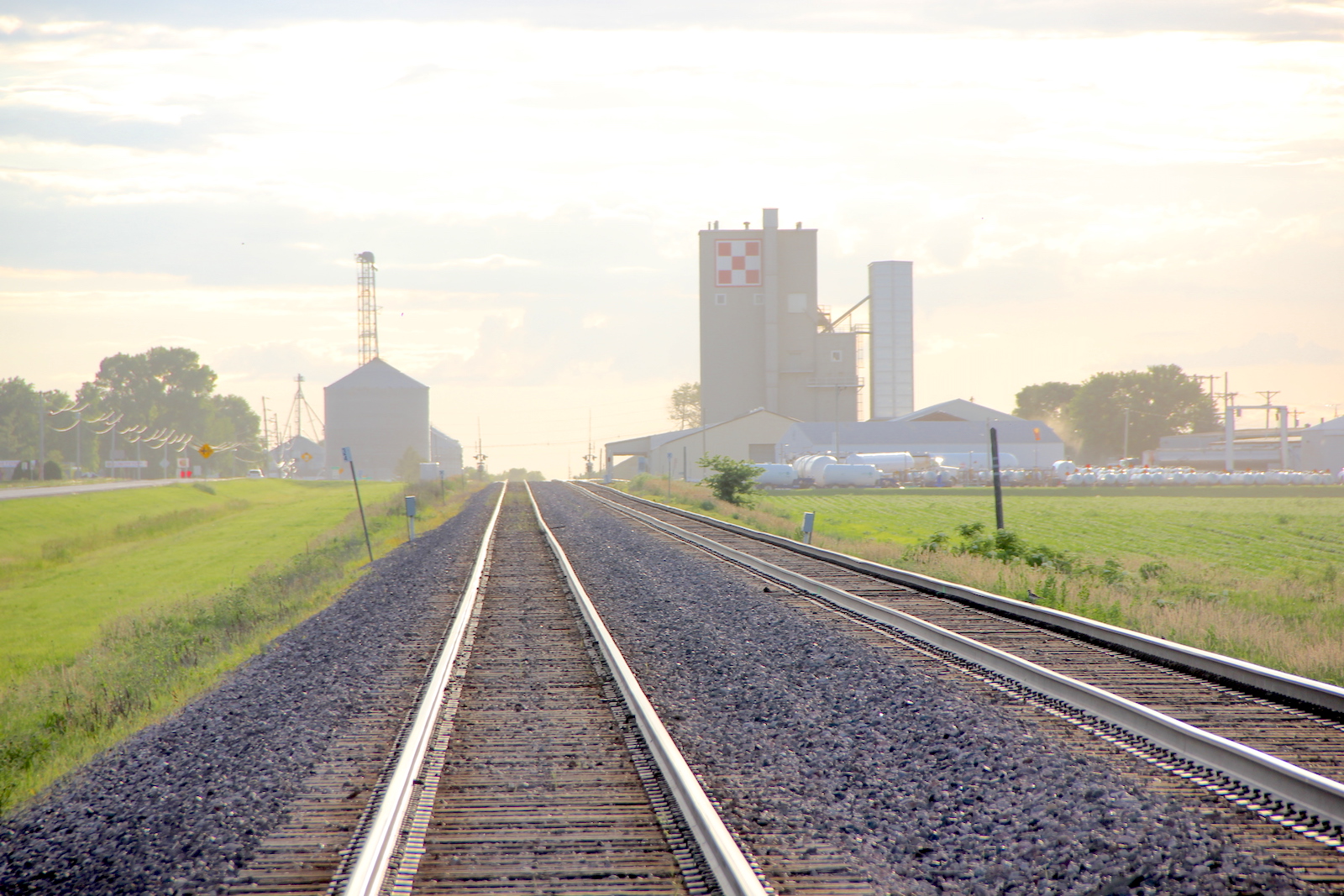

The relay bungalow in the southwest quadrant. The grade is all wood. Track view facing west towards CR 7860 #1. Track view facing east towards Taylor Ave.
26

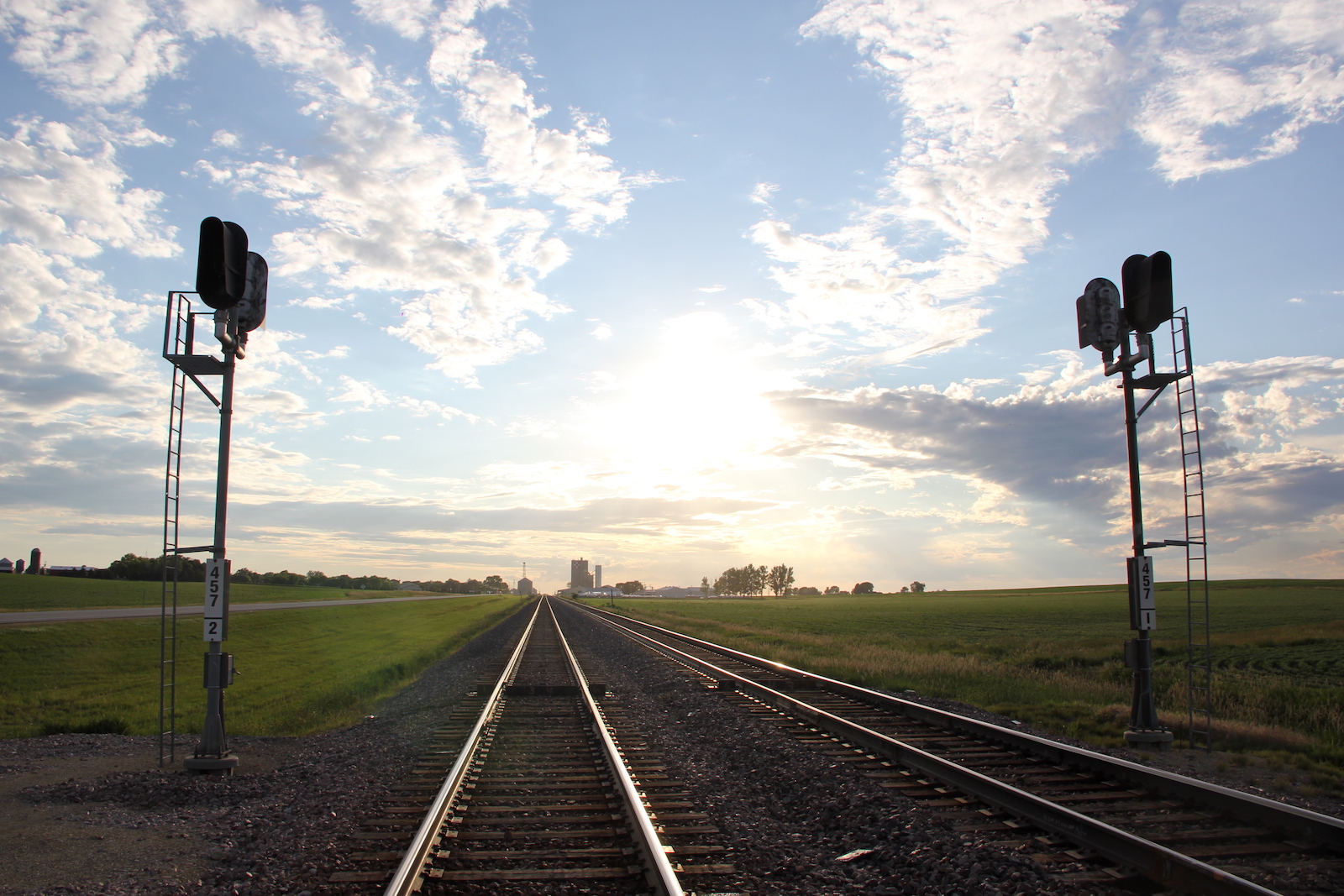

Somewhat newer wayside signals next to the crossing.
