17.77


190385P

>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: None NEG E Bell
Base: Safetran Single Sided Safetran Single Sided
LED Types: Three Harmon Fading LEDs
One Electro-Tech's LED		 Four GE Pixelated Look LEDs
Light Frames: Four 12"x24" Harmon frames Four 12"x24" Safetran frames
Junction Box: Harmon Safetran
Gate Lights: Alstom Aurora LEDs NEG Clear LEDs
Gate Mechanism: Safetran 1990s Invensys Rail
Gate Saver: GSI Gate Saver GSI Gate Saver
Gate Striping: ////////////////////////////////////////////////////////// ||||//////////////////////////////////////////////////////
Crossbuck font: Older WCH single sided NEG, double sided
Bell Cycle: N/A Unknown

All pictures were taken on June 23, 2020, by Tommy McGowan.
This crossing is located on the UP Clinton Sub.

1
 2

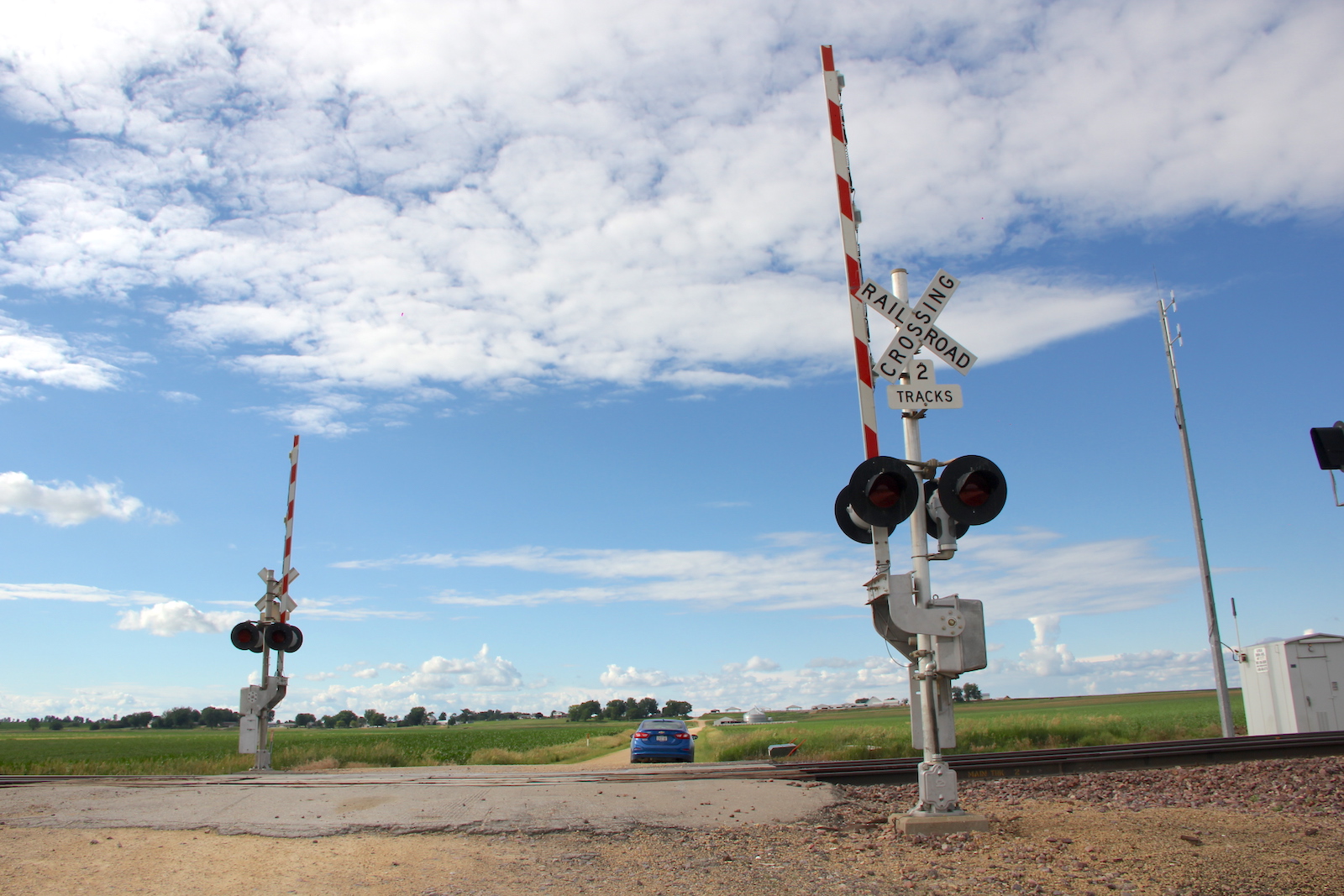

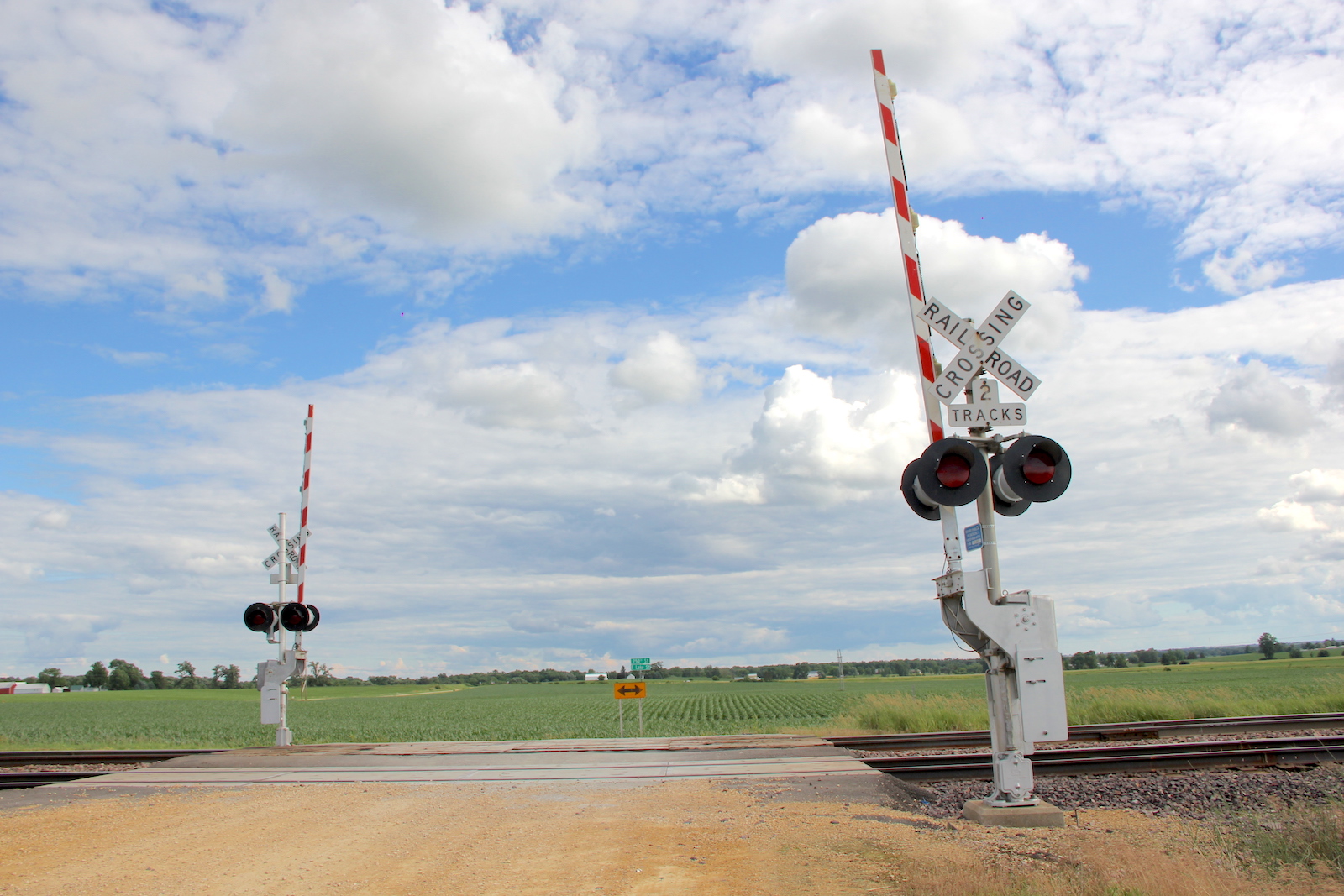

Overview of 2 gated signals facing south. Overview facing north.
3 4 5
6 7 8
9 10 11

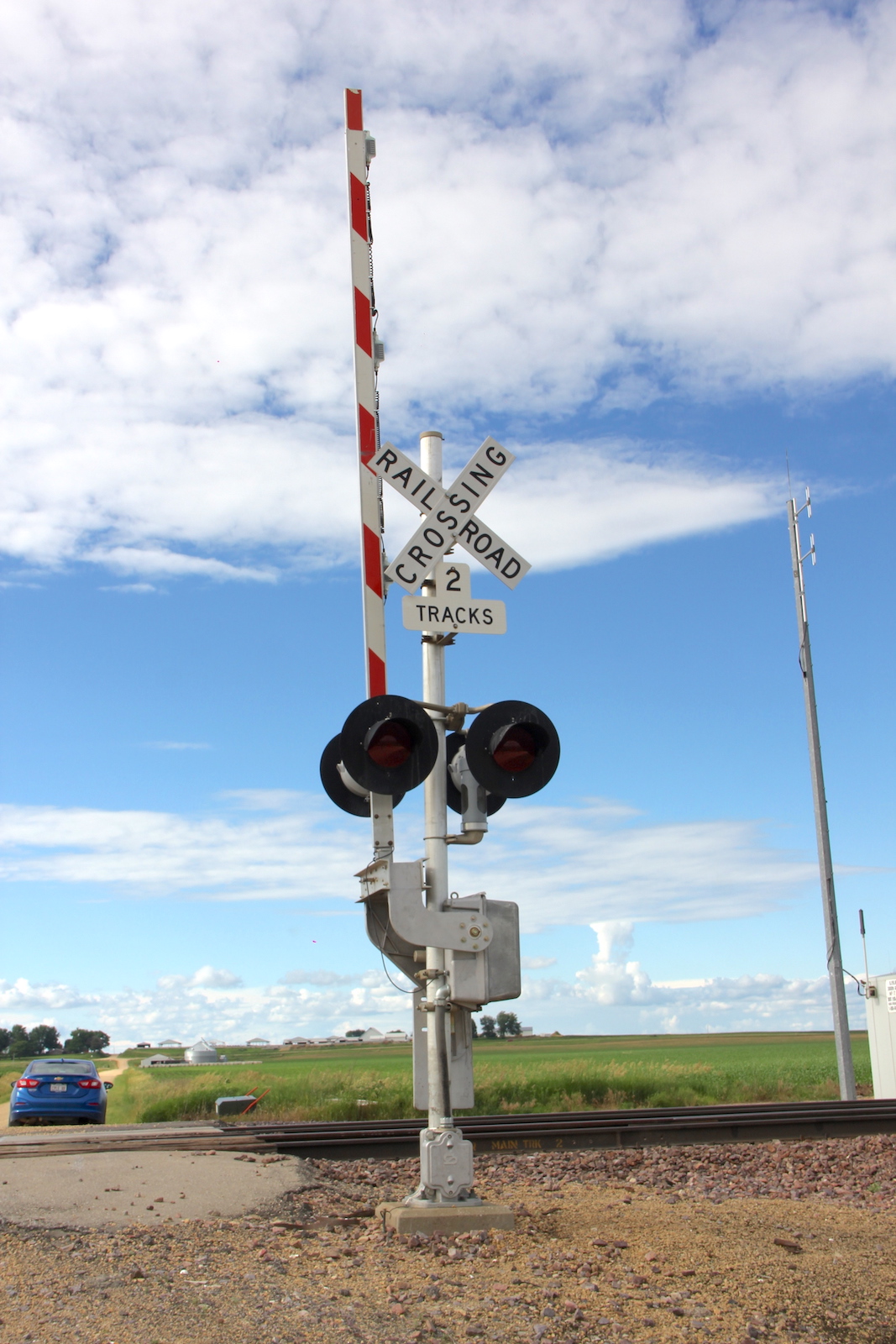

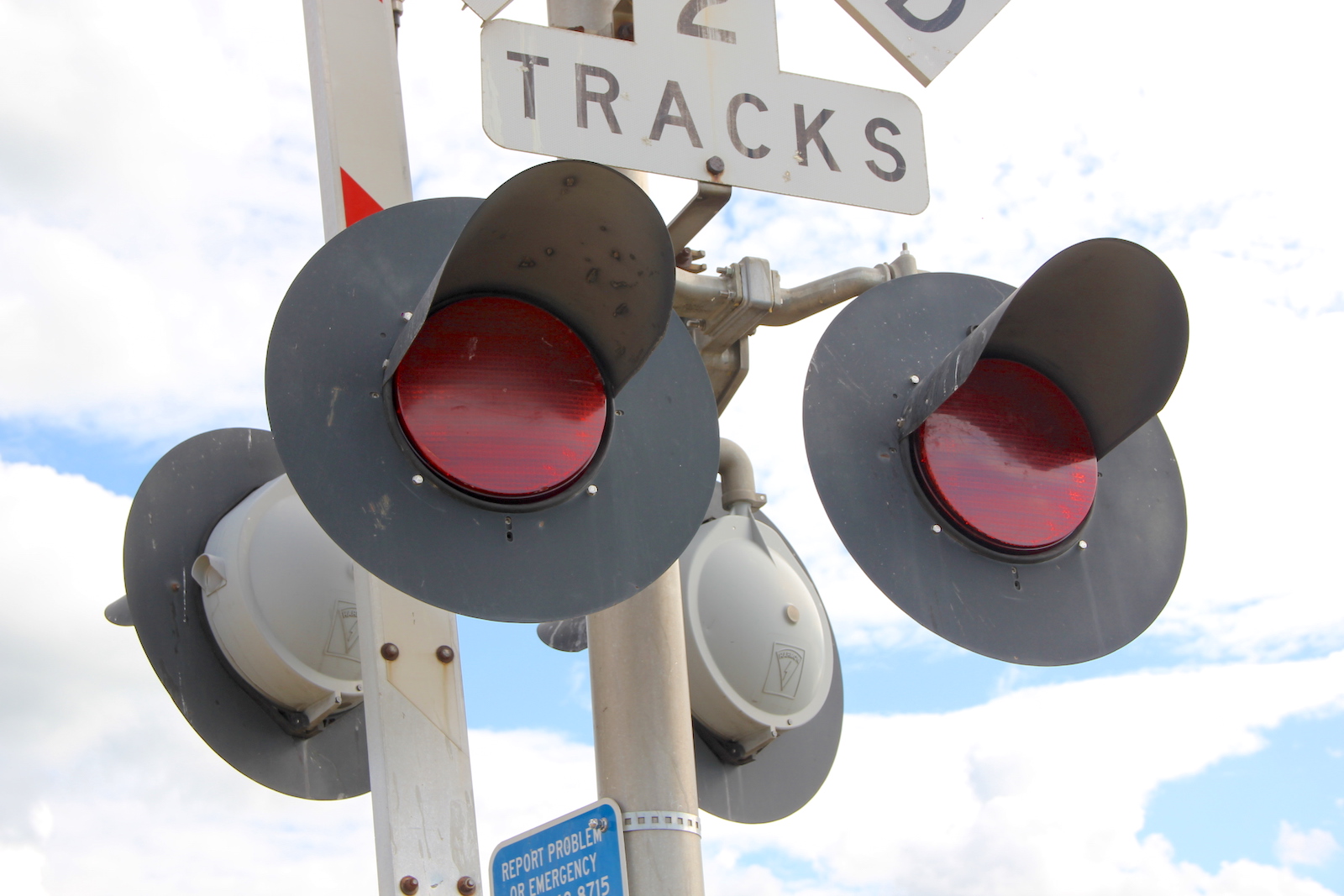

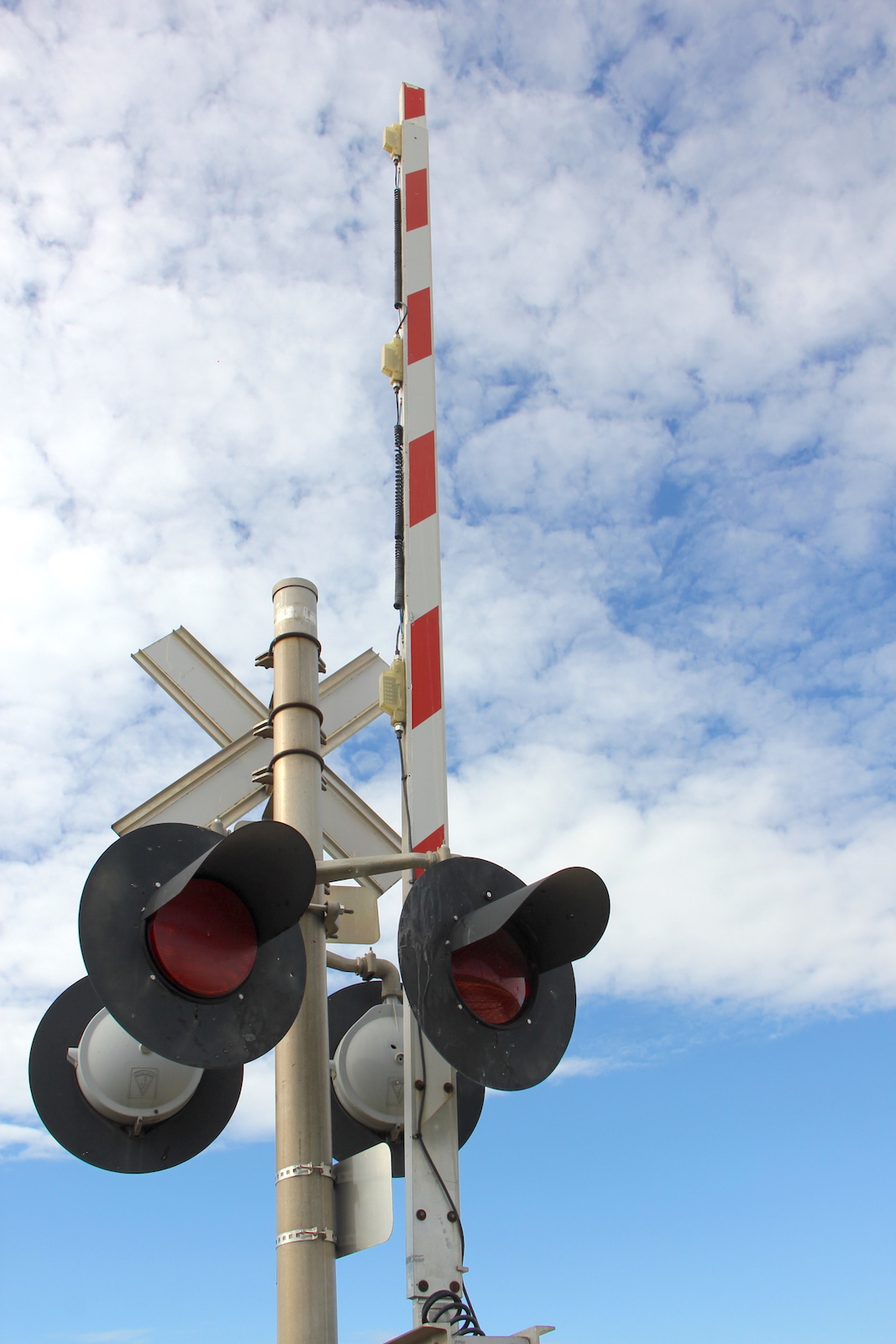

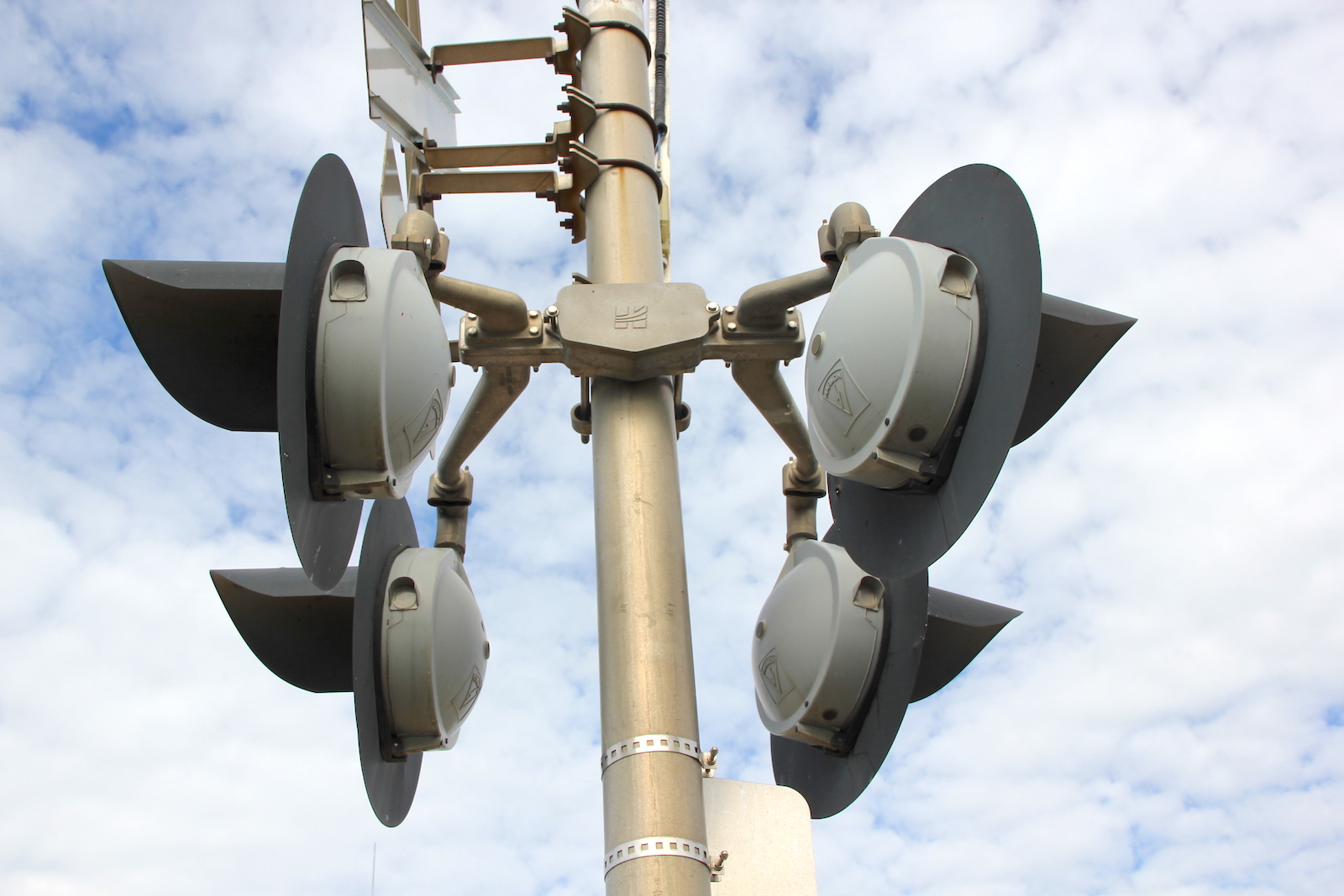

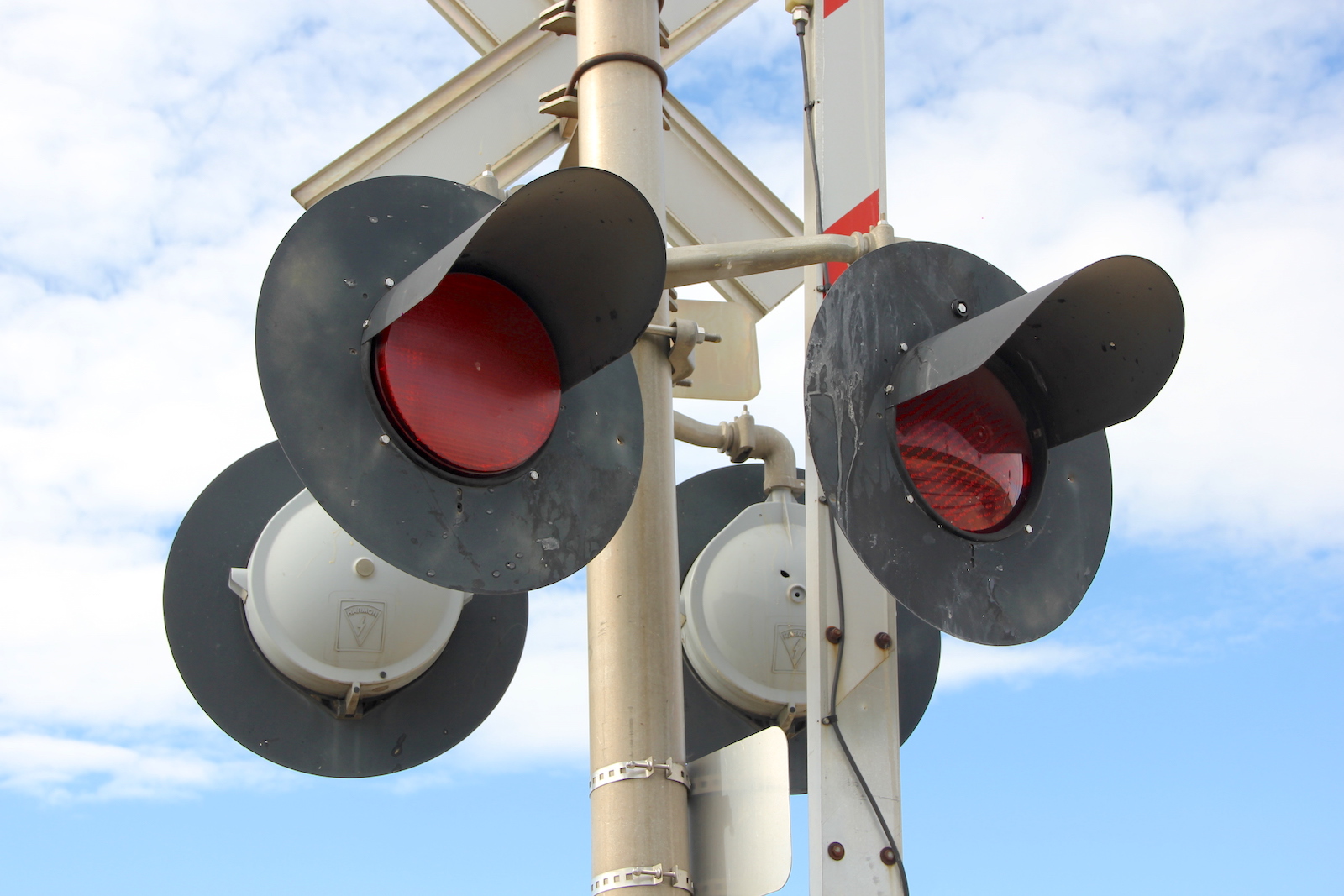

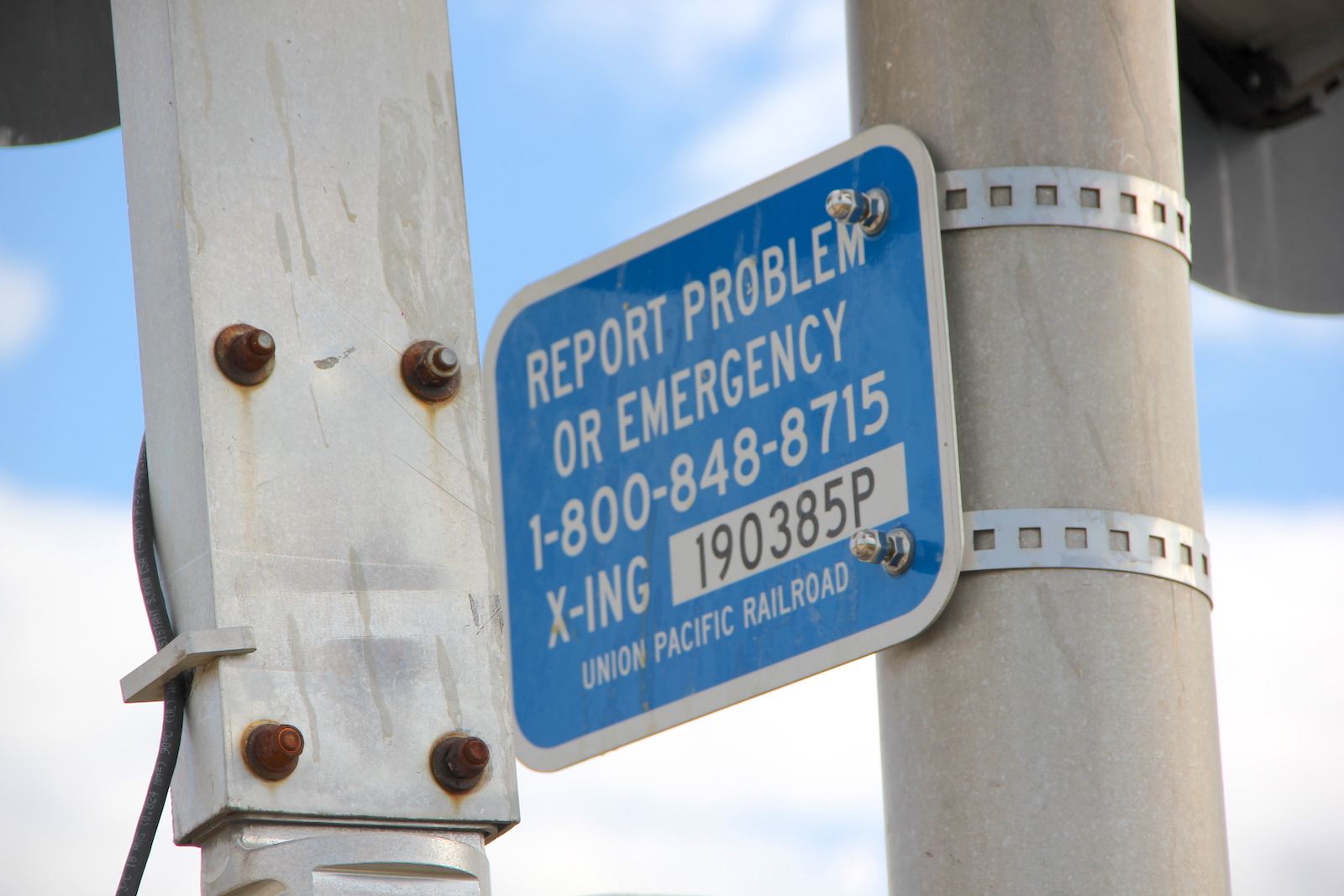

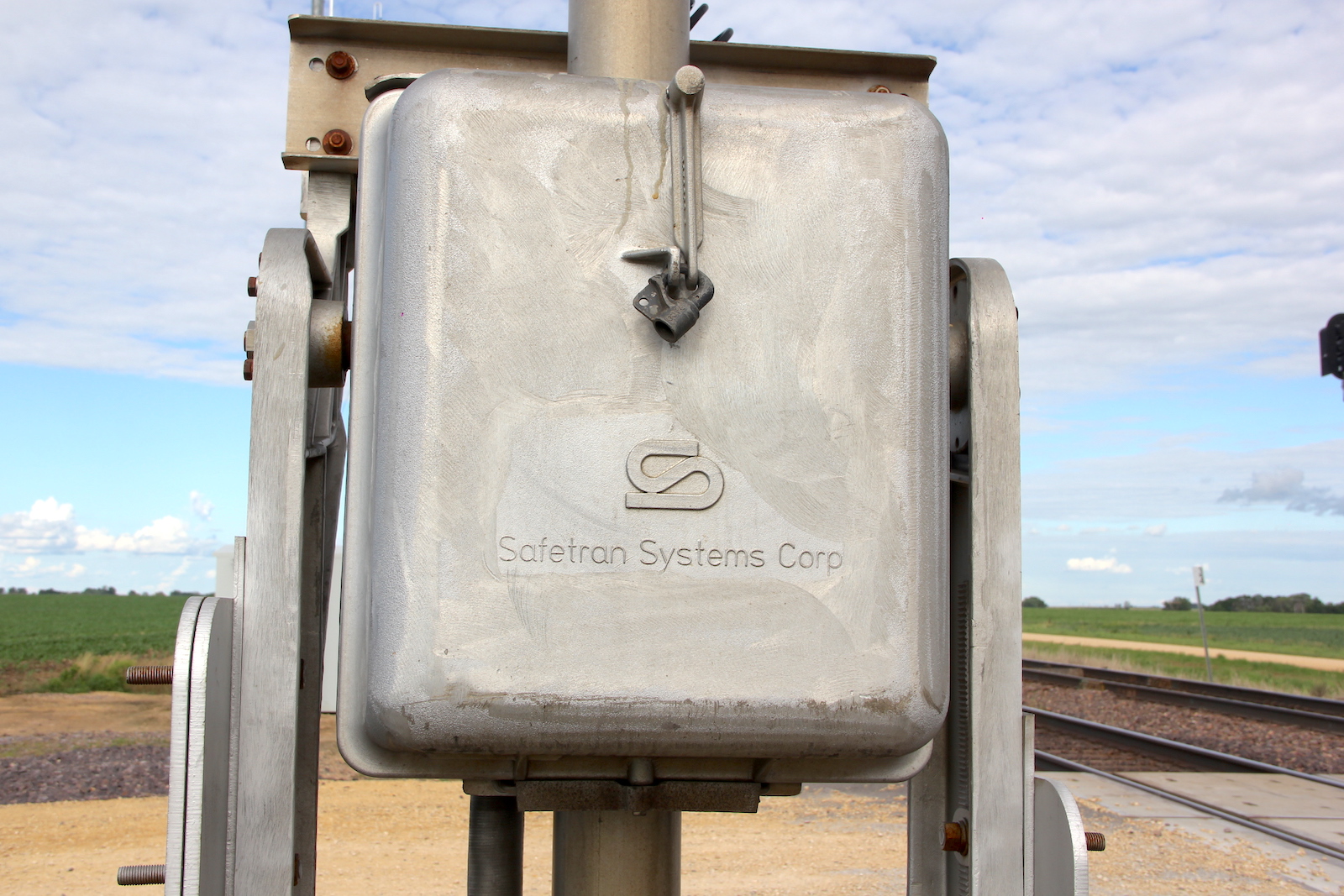

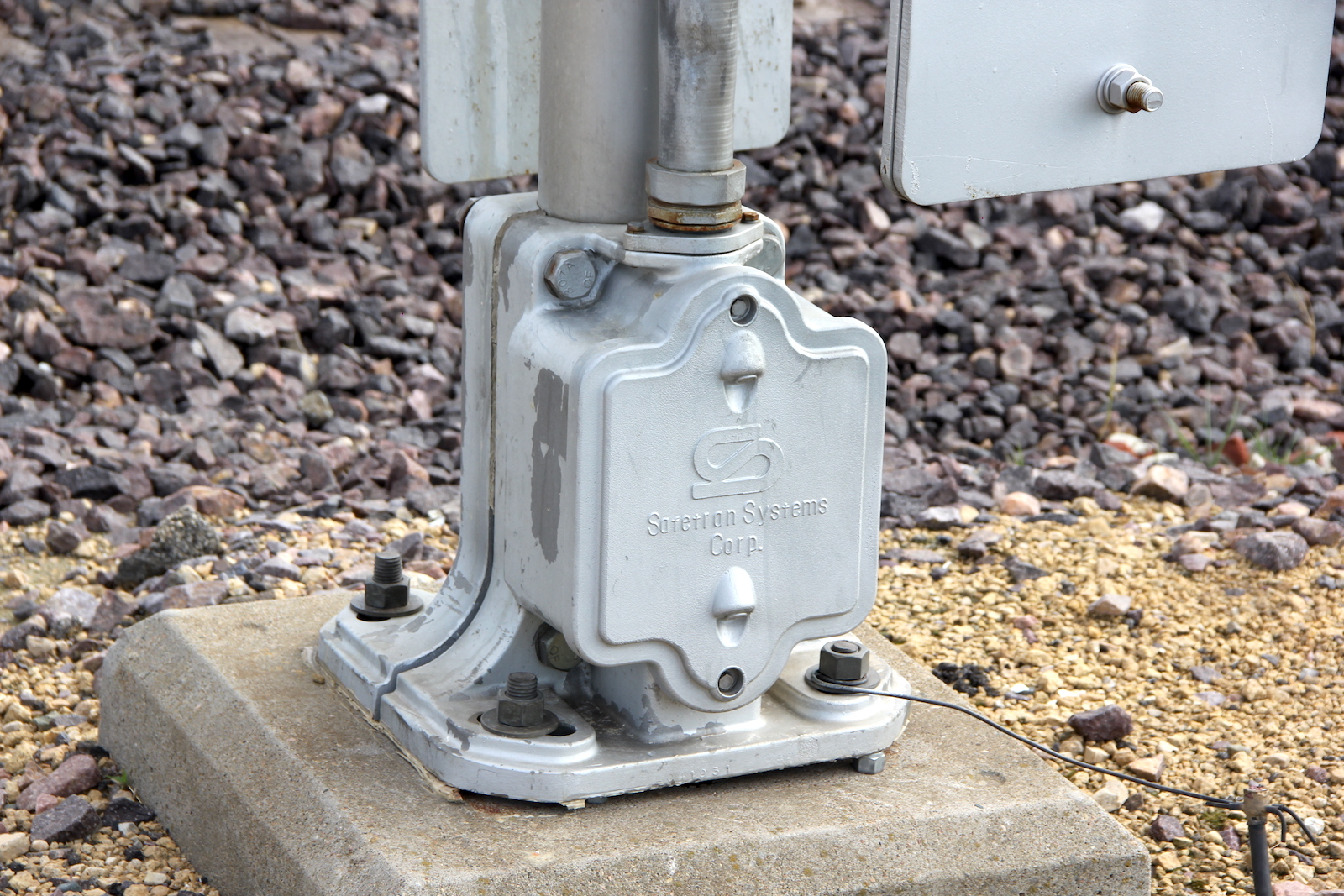

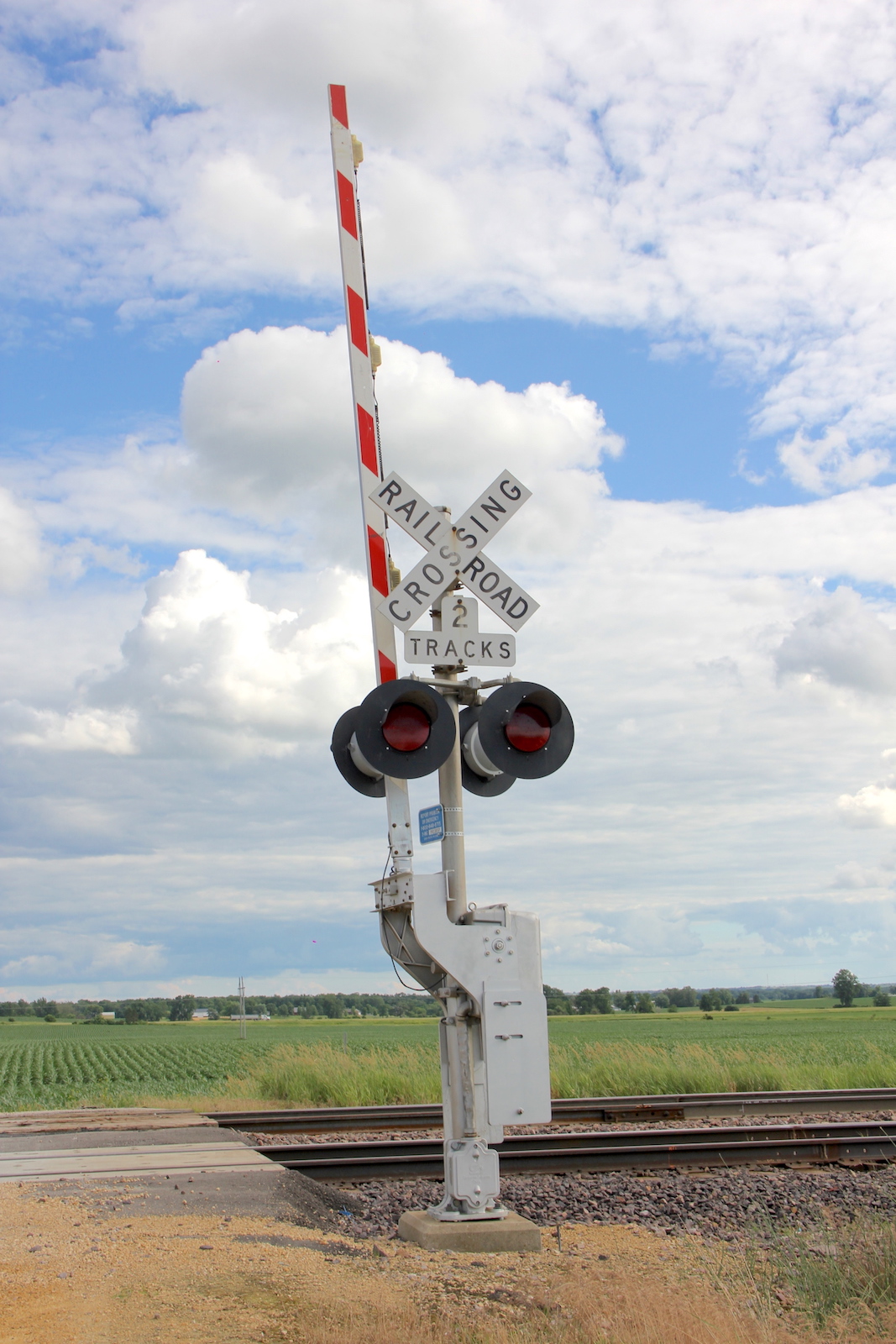

The northern signal. This was installed in the 90s replacing crossbucks.
12 13 14
15 16 17
18 19 20

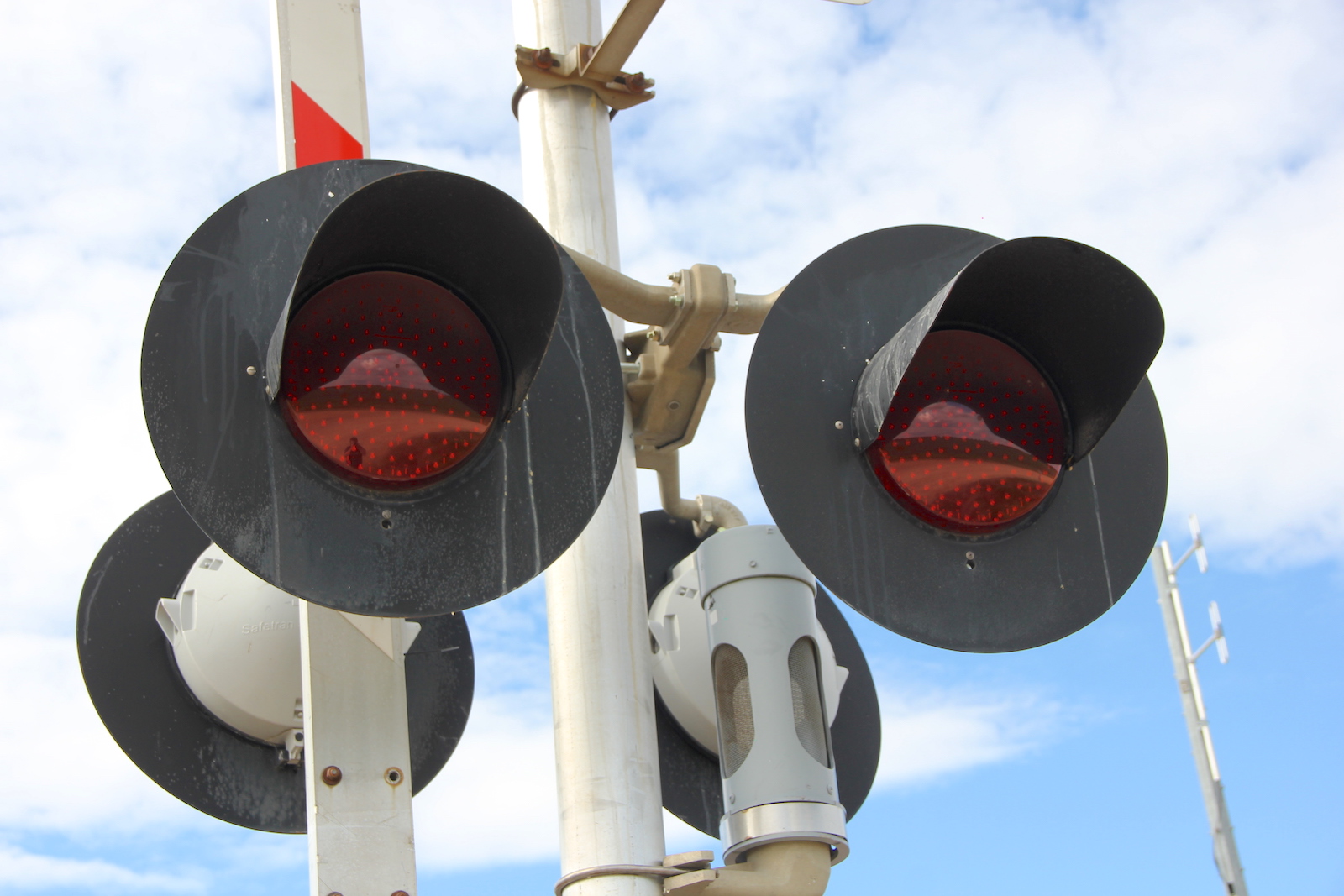

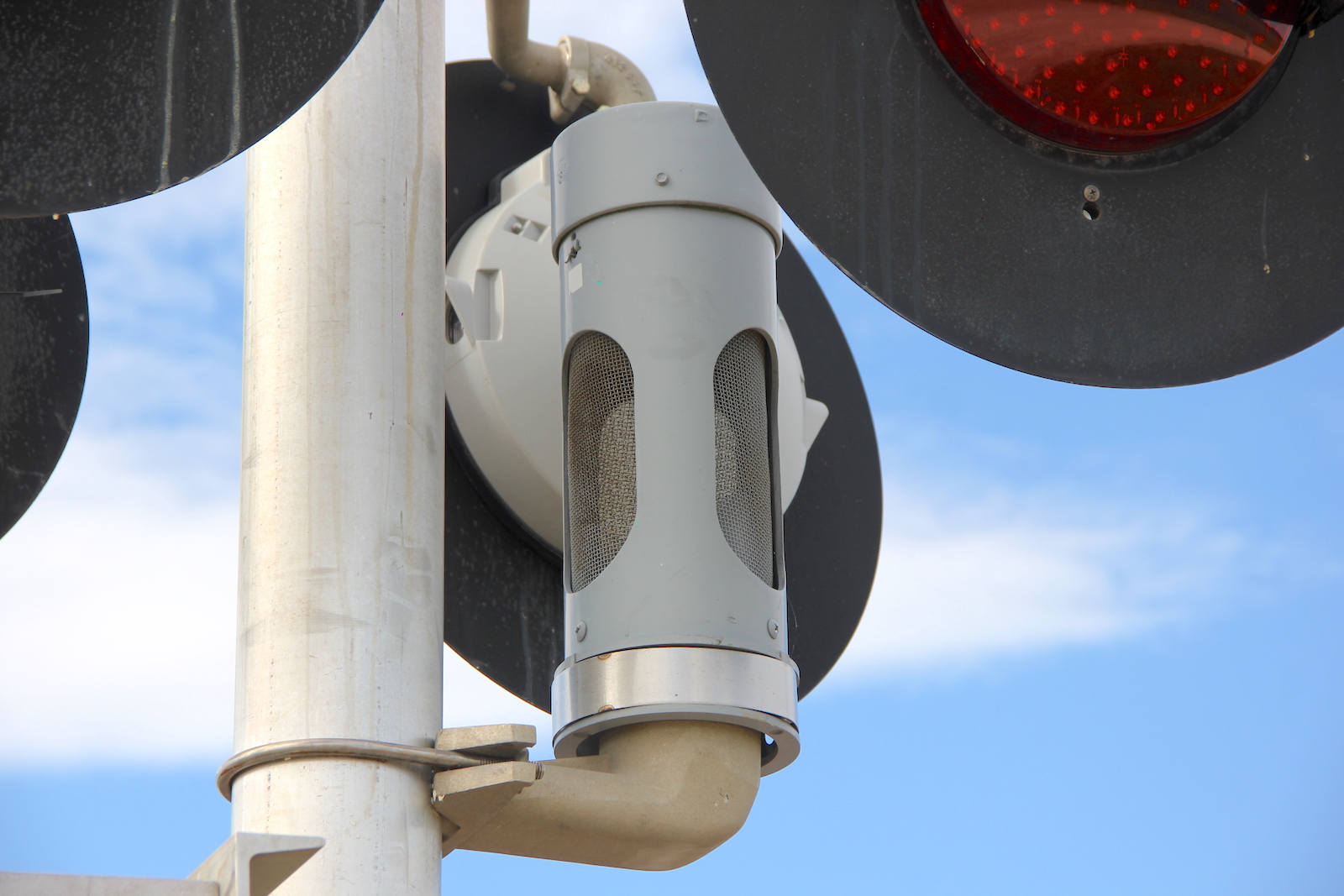

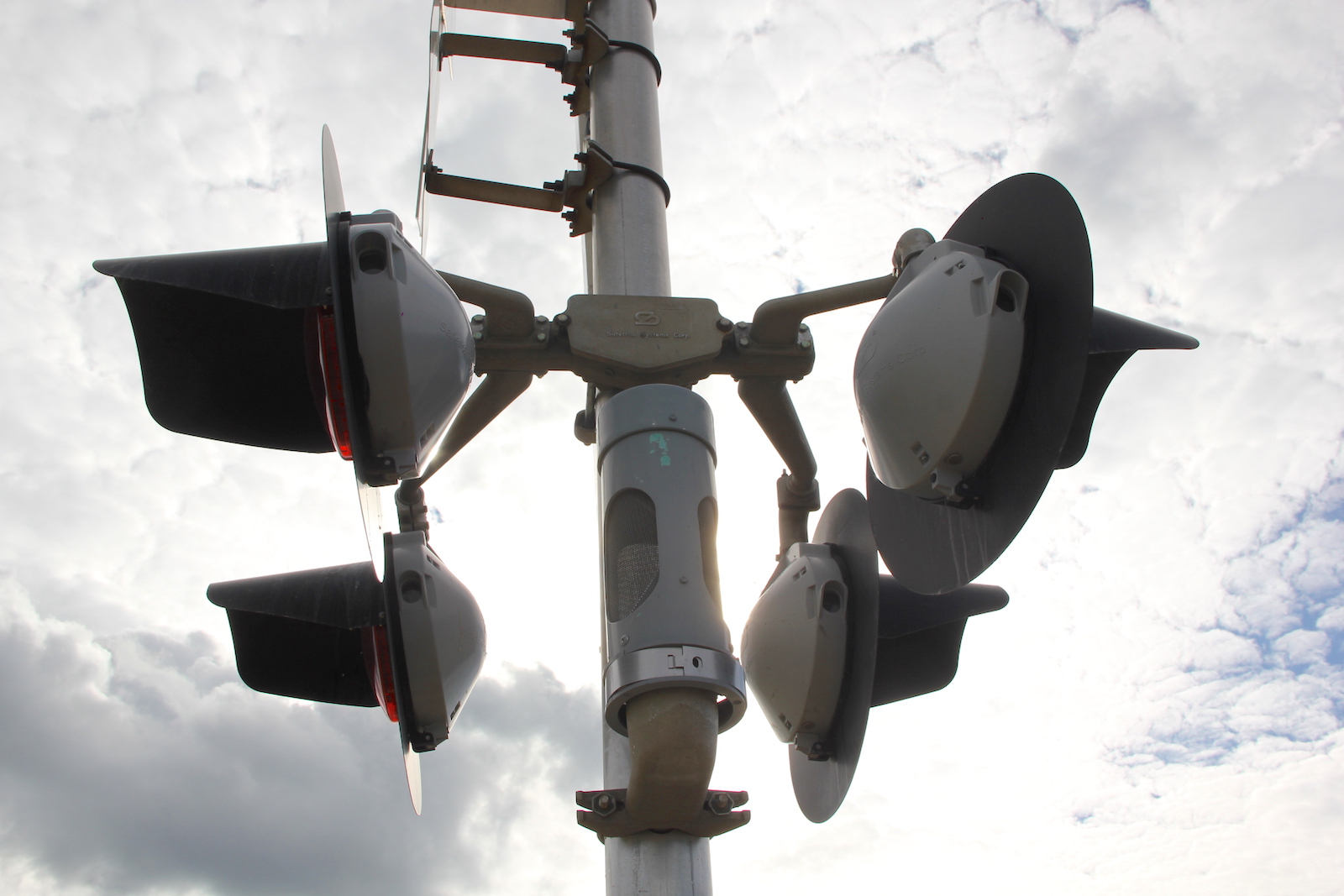

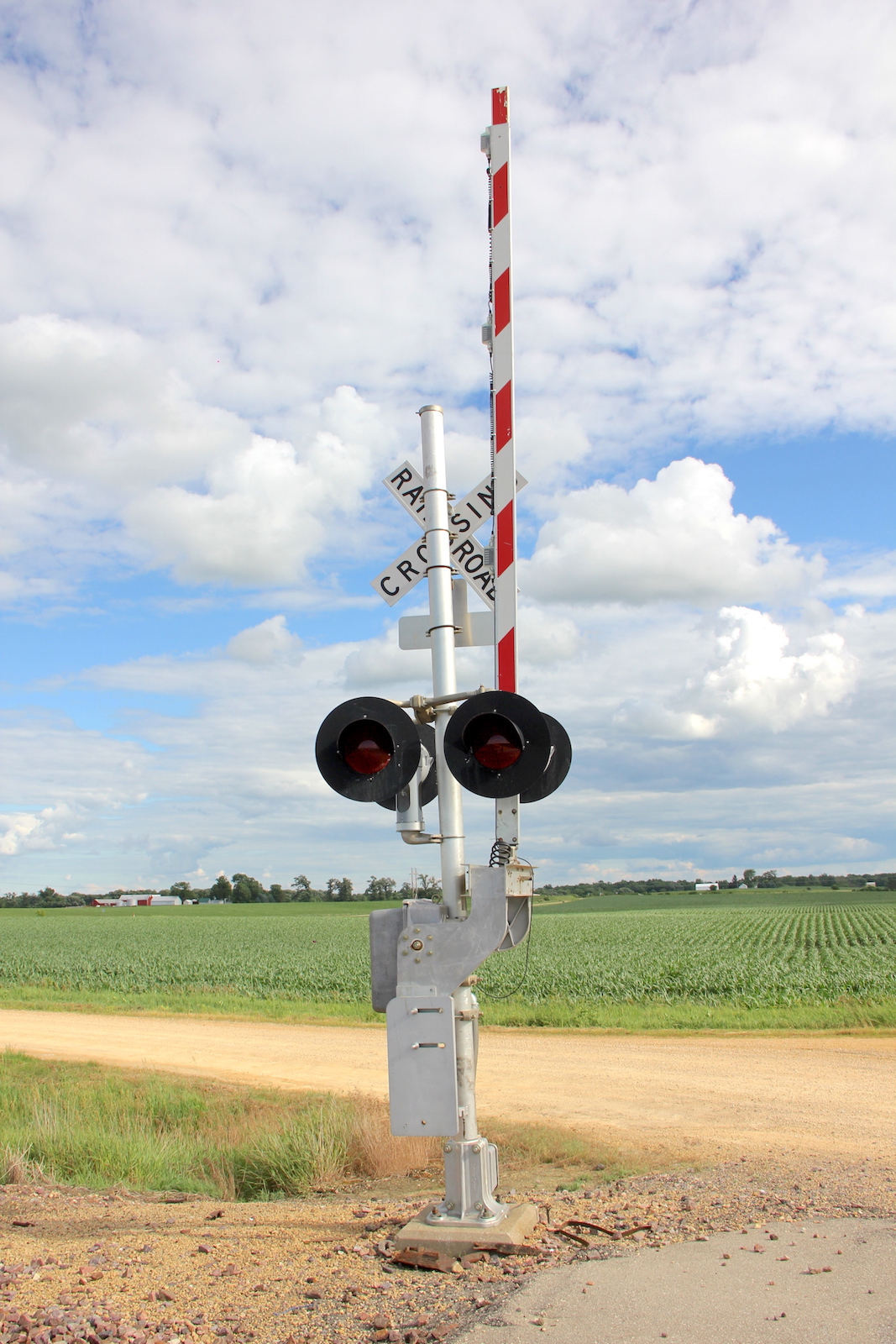

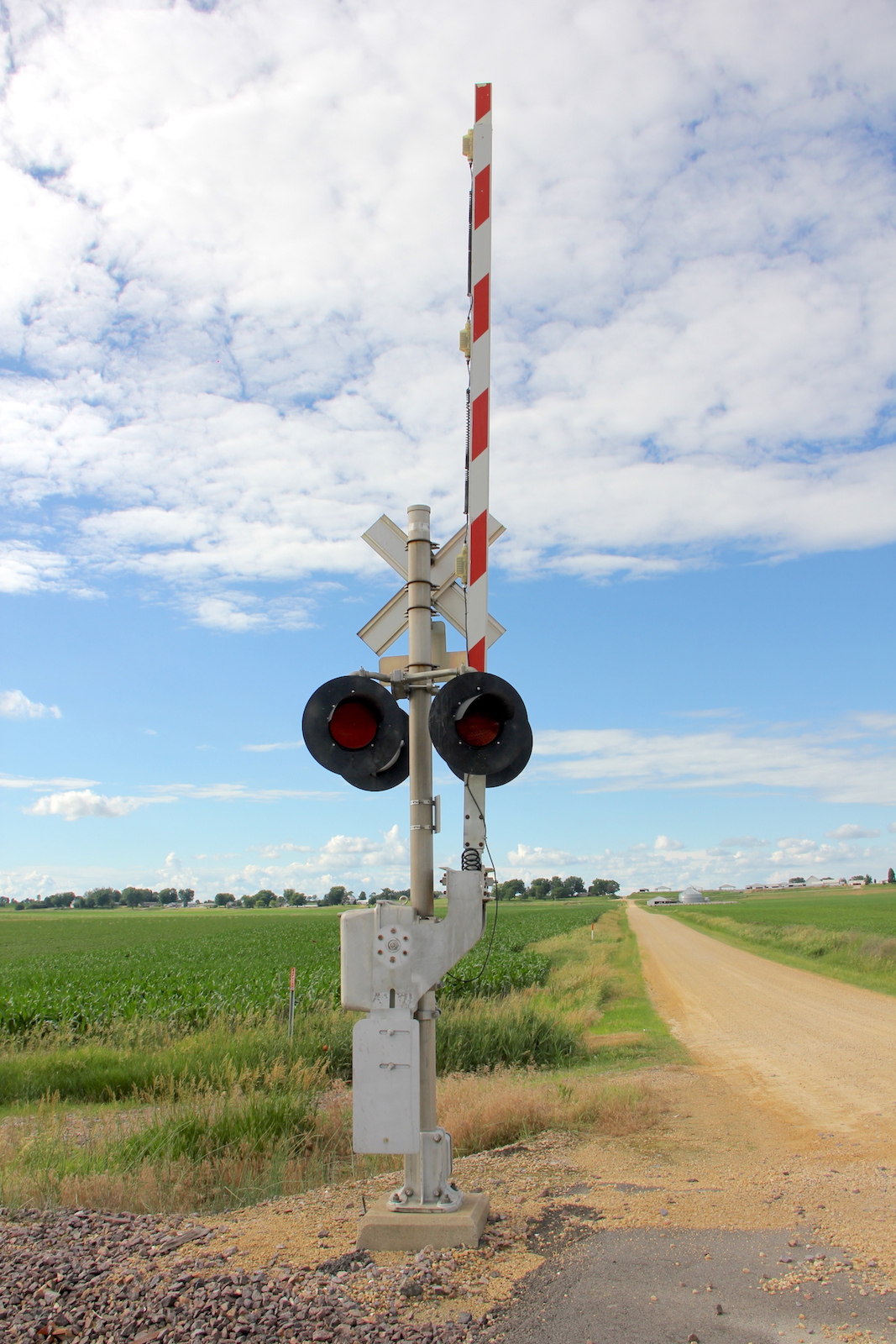

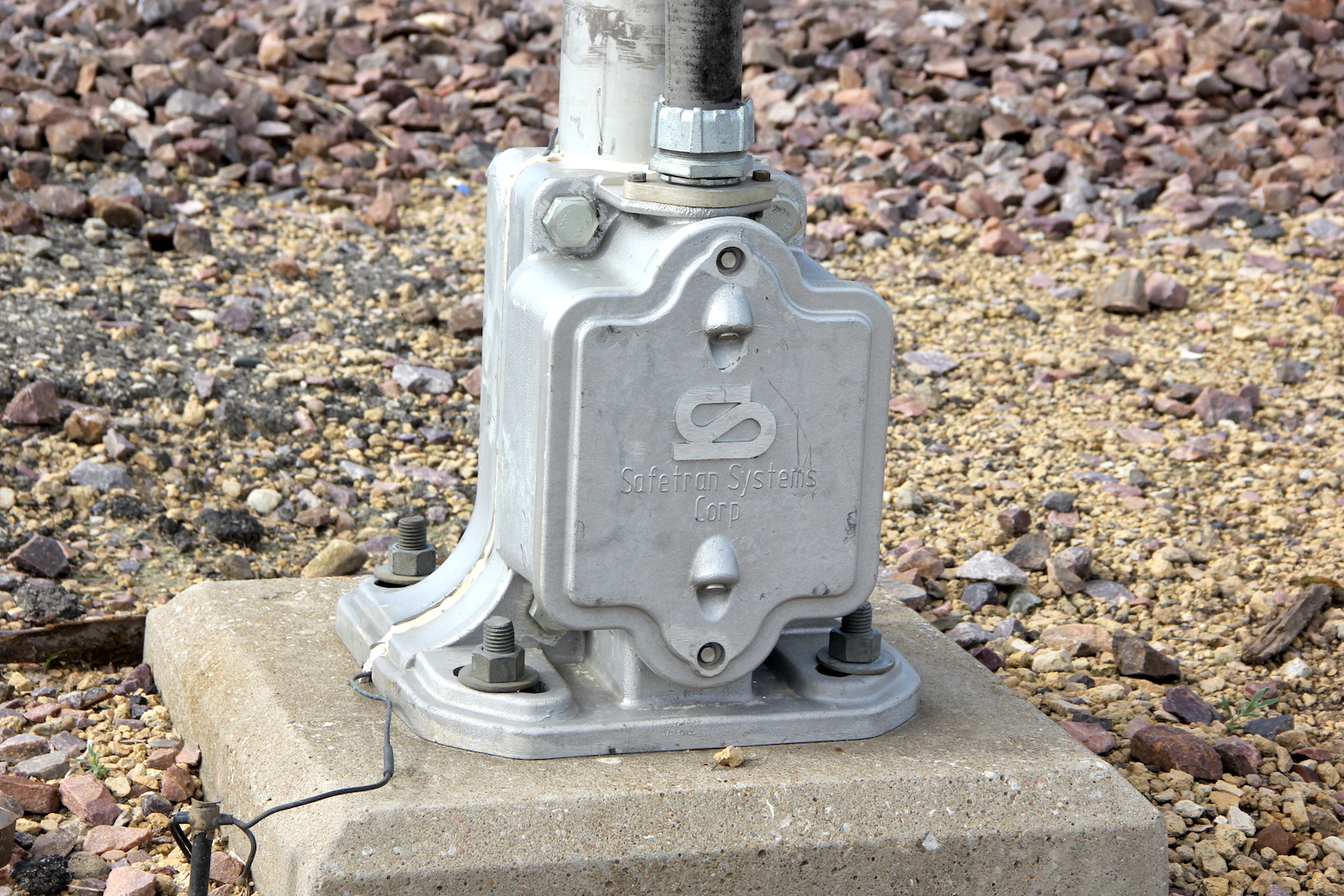

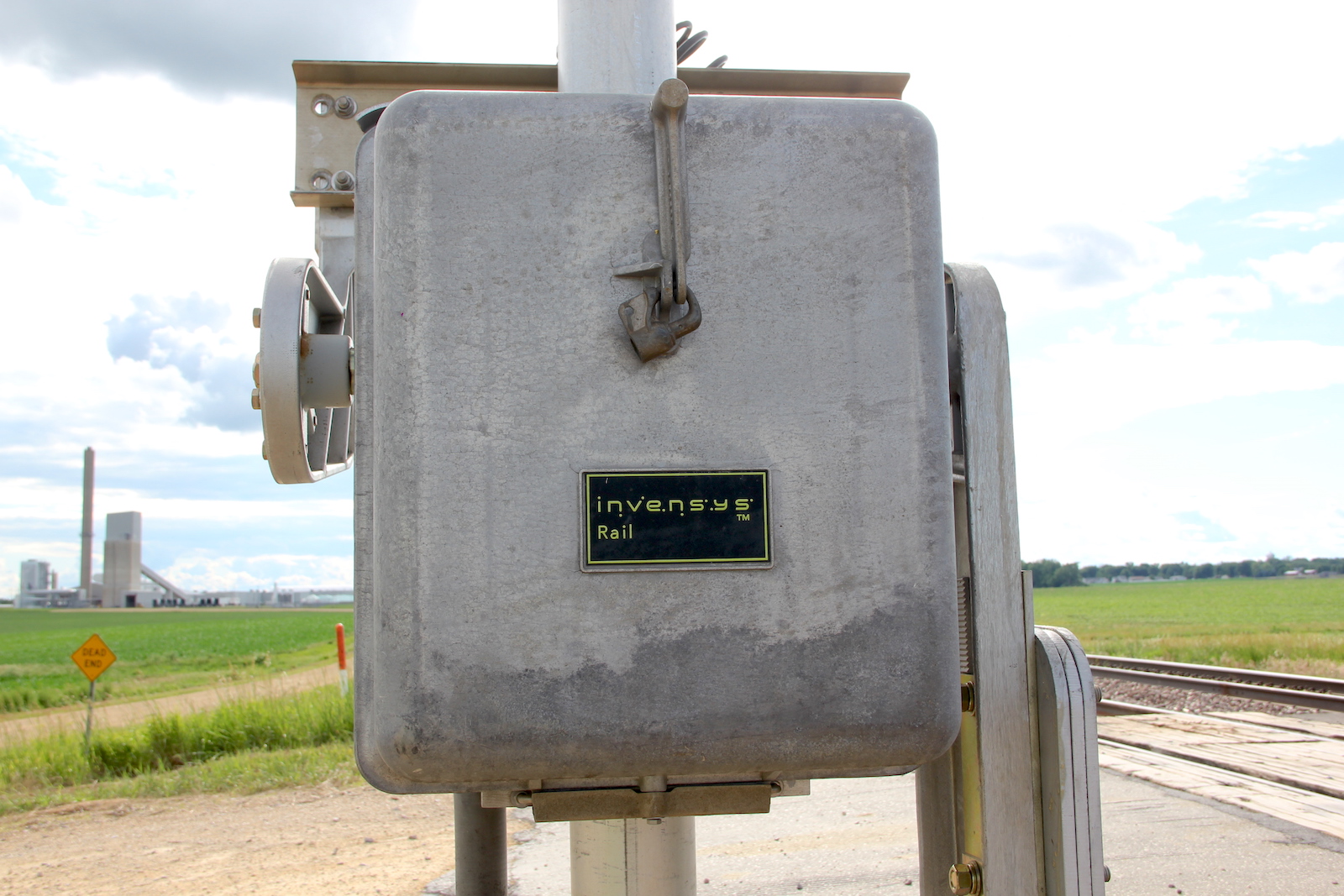

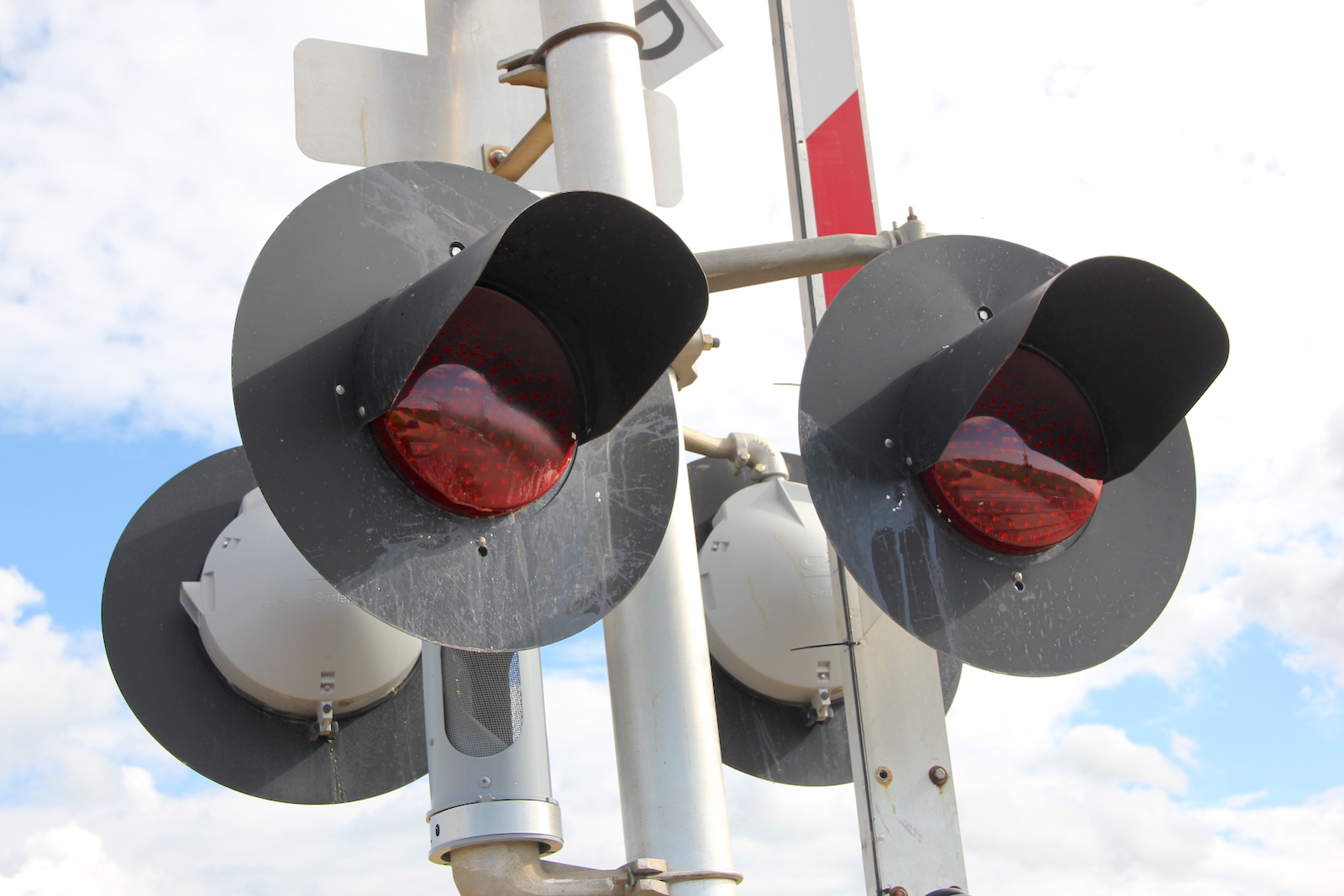

The southern signal. This replaced a signal similar to the northern signal sometime in the early to mid 2010s.
21 22 23 24

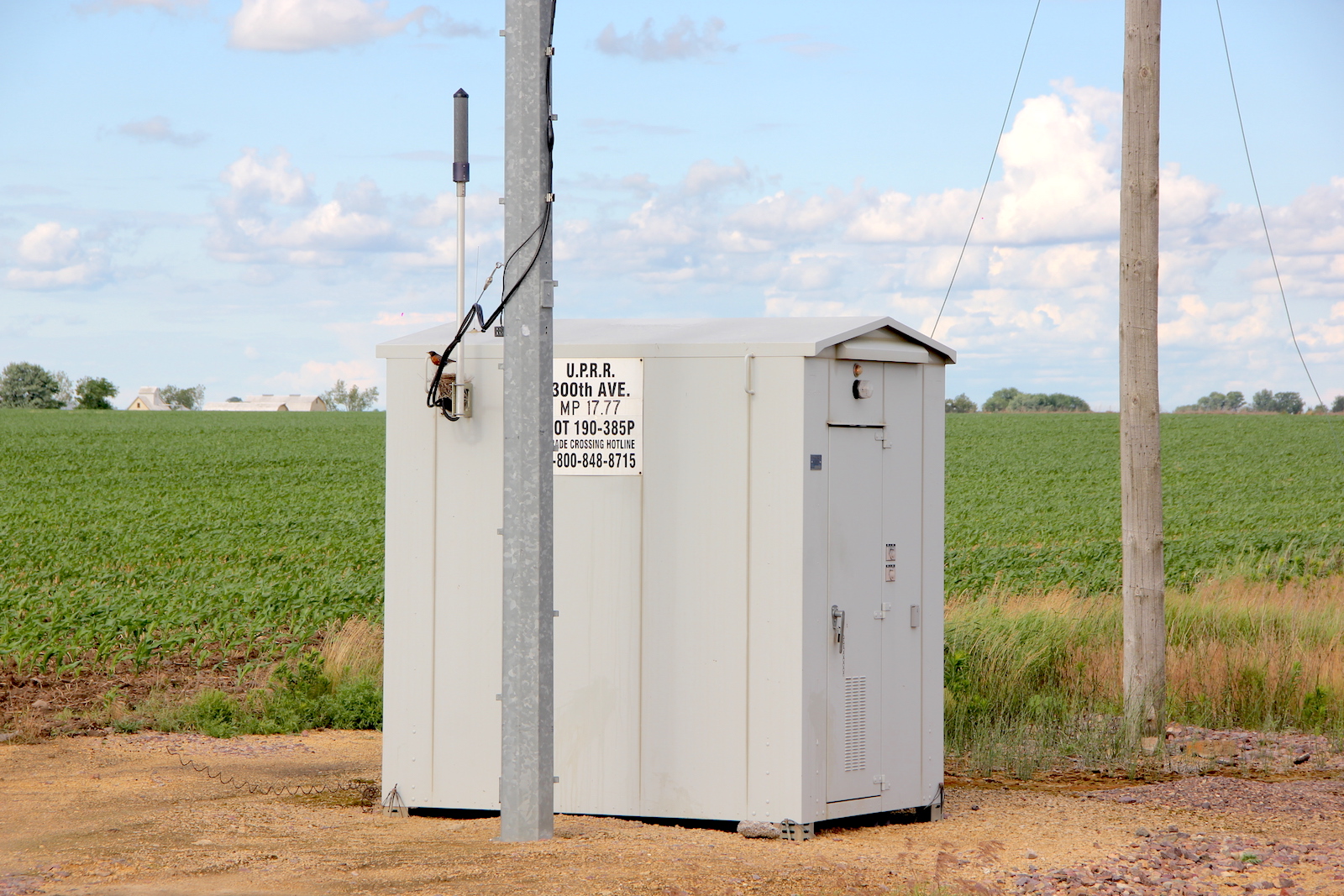

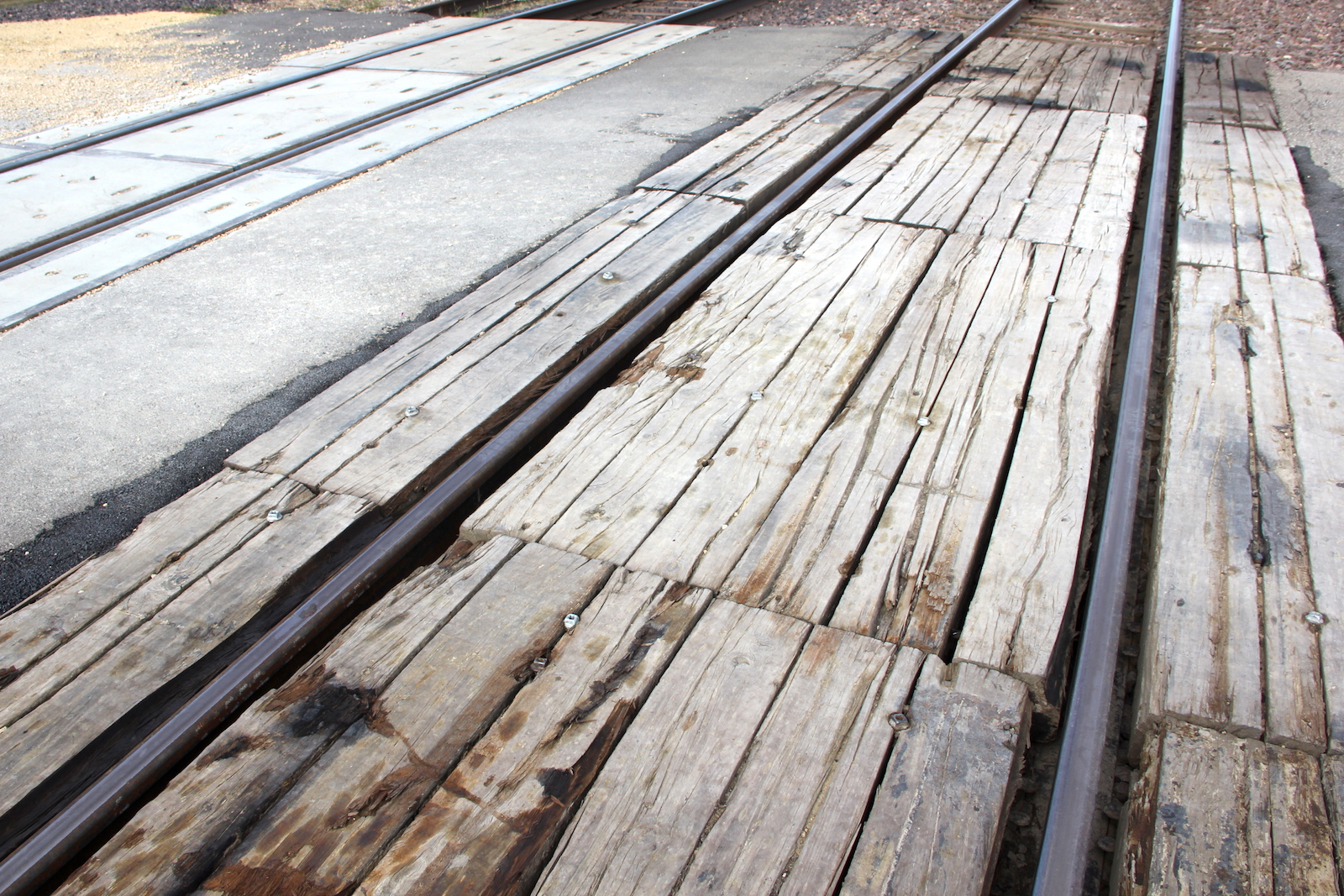

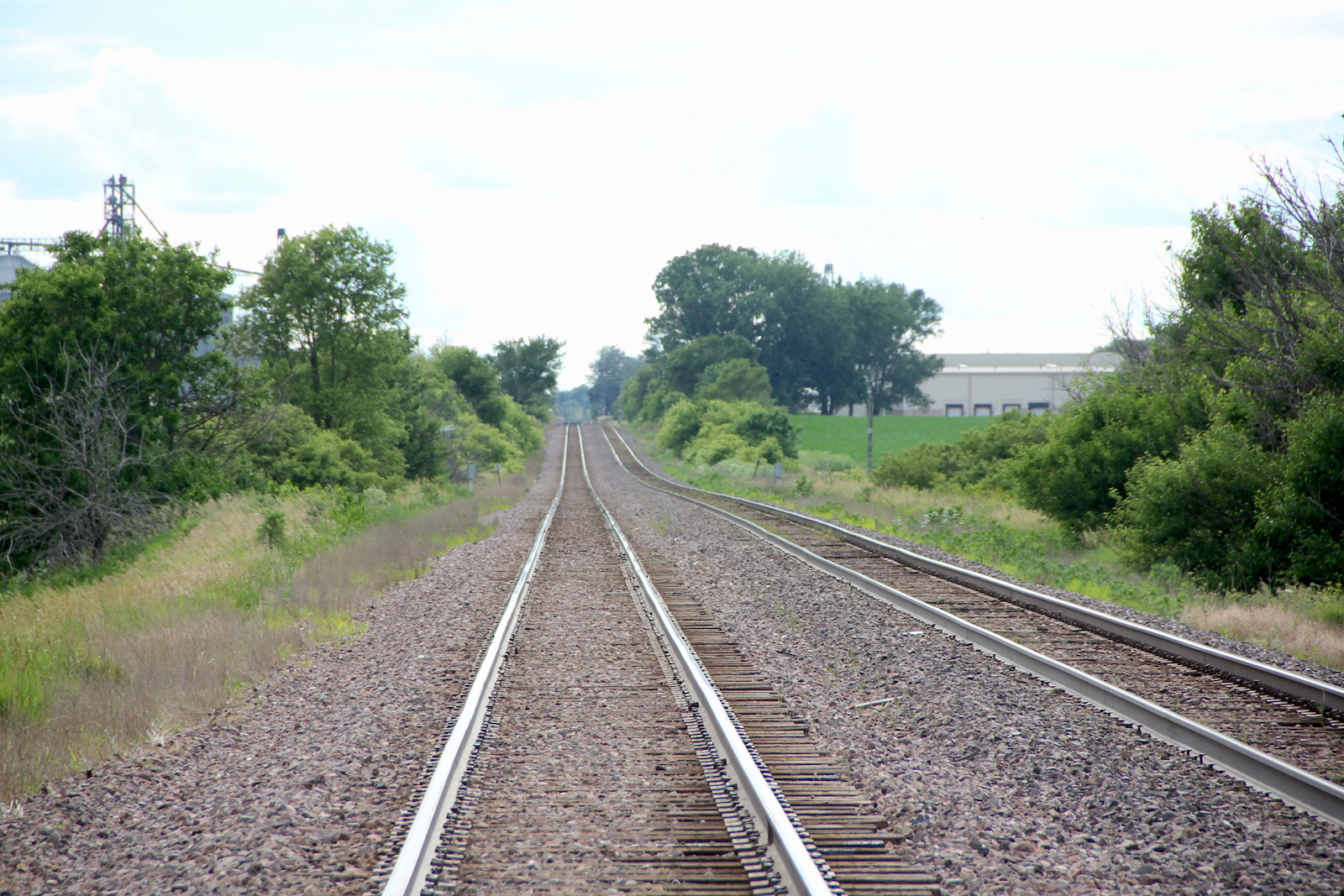

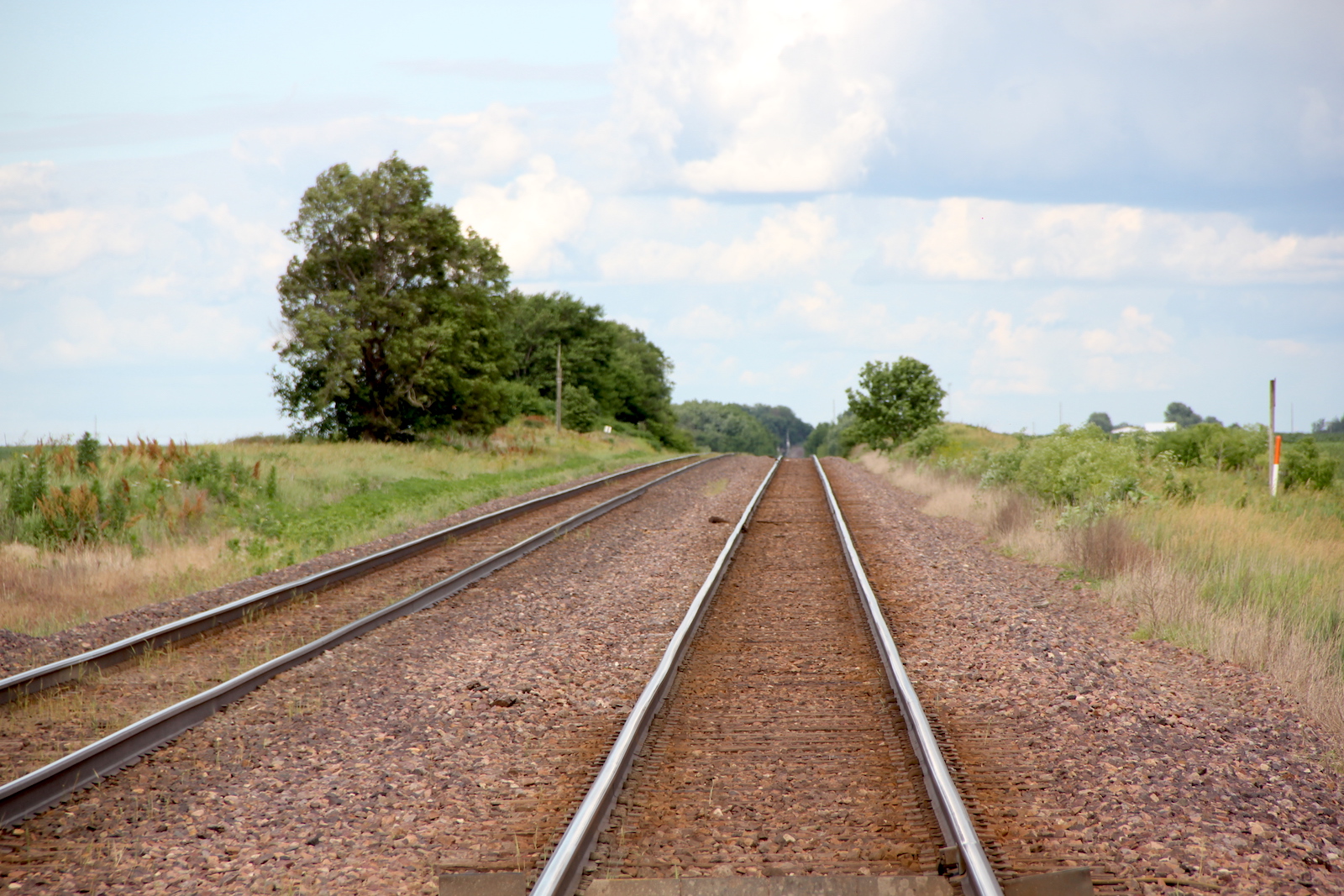

The relay bungalow in the northeast quadrant. The grade is concrete and wood. Track view facing west towards 3rd Ave. Track view facing east towards 320th Ave.
25

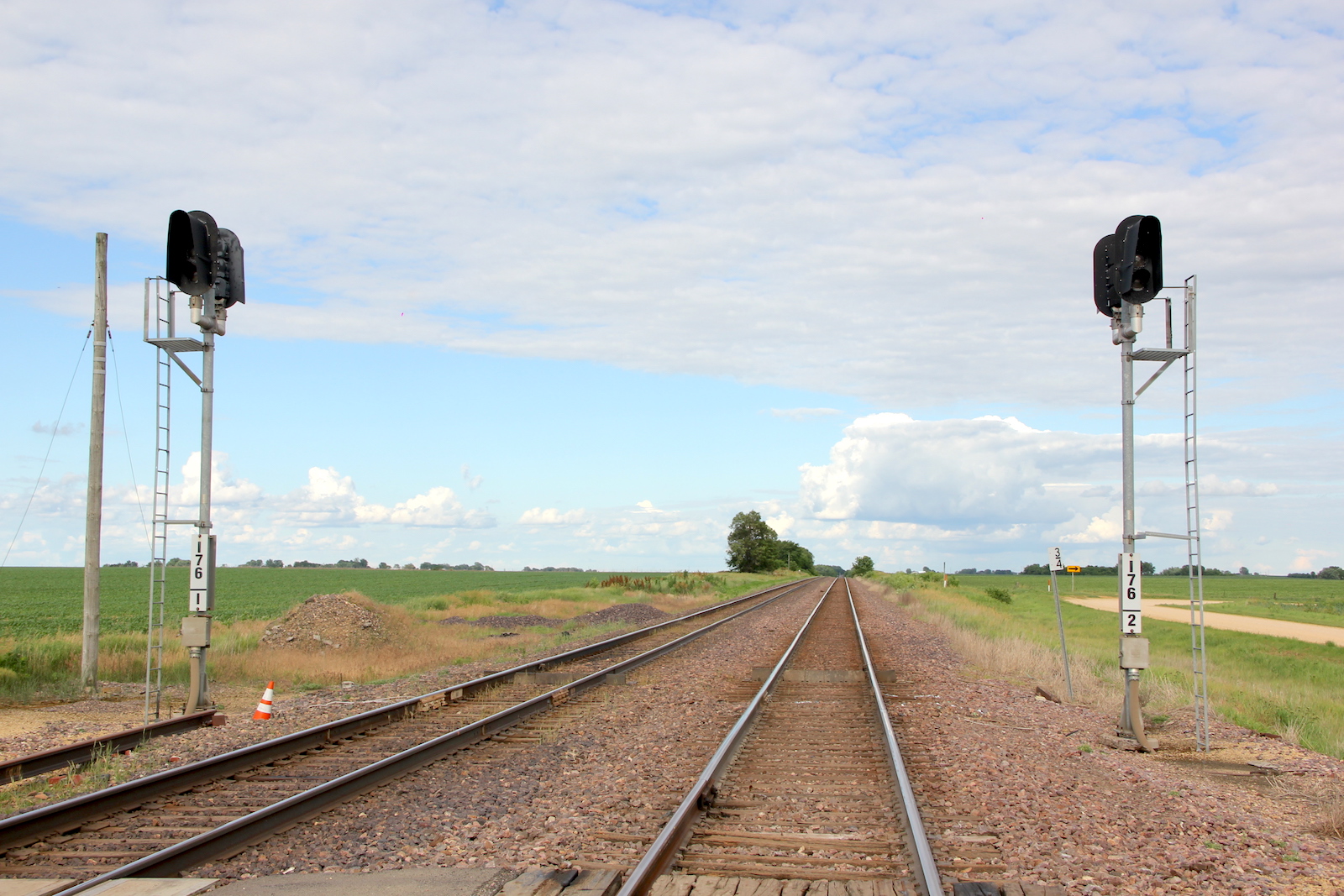

Somewhat newer wayside signals next to the crossing.

.
