>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: None NEG E Bell
Base: Siemens 5" Single Sided ^ Siemens 5" Single Sided ^
Lights: 4 - 12"x24" Safetran w/ GE Pixelated Look LEDs 4 - 12"x24" Safetran w/ GE Pixelated Look LEDs
Junction Box: Safetran Safetran
Gate Lights: NEG Clear LEDs NEG Clear LEDs
Gate Mechanism: Siemens Imprinted w/ Old NEG 2 Way Siemens Imprinted w/ Old NEG 2 Way
Gate Striping: Vertical Striping Vertical Striping

All pictures were taken on June 23, 2020, by Tommy McGowan.
This crossing is located on the UP Clinton Sub.

G1

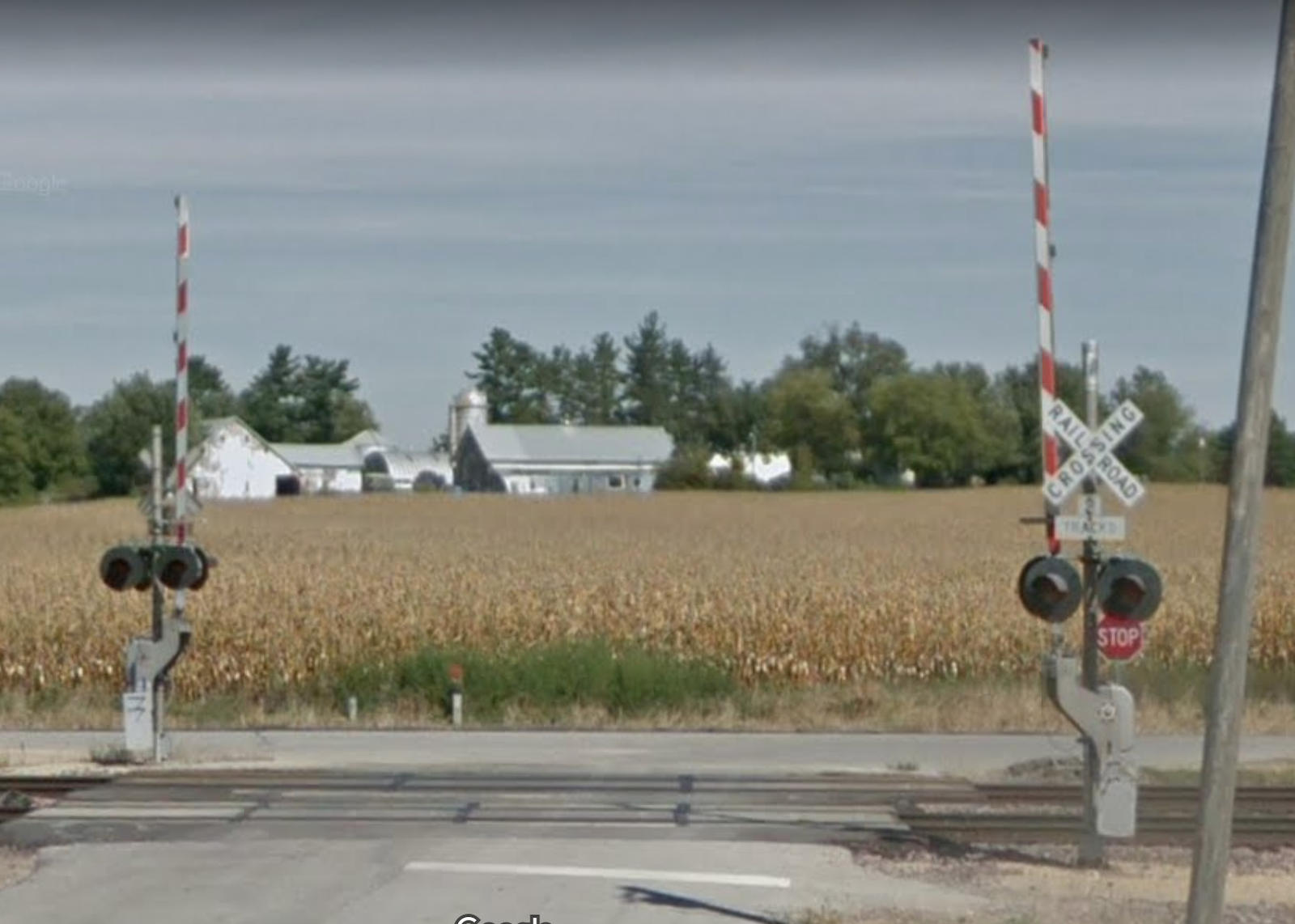

Streetview images from 2013 showing older gated signals. These appear to have Harmon light frames, WCH gate mechanisms, and a GS E Bell, likely Type 2. By 2018, these signals were replaced with new Siemens signals.
1
 2

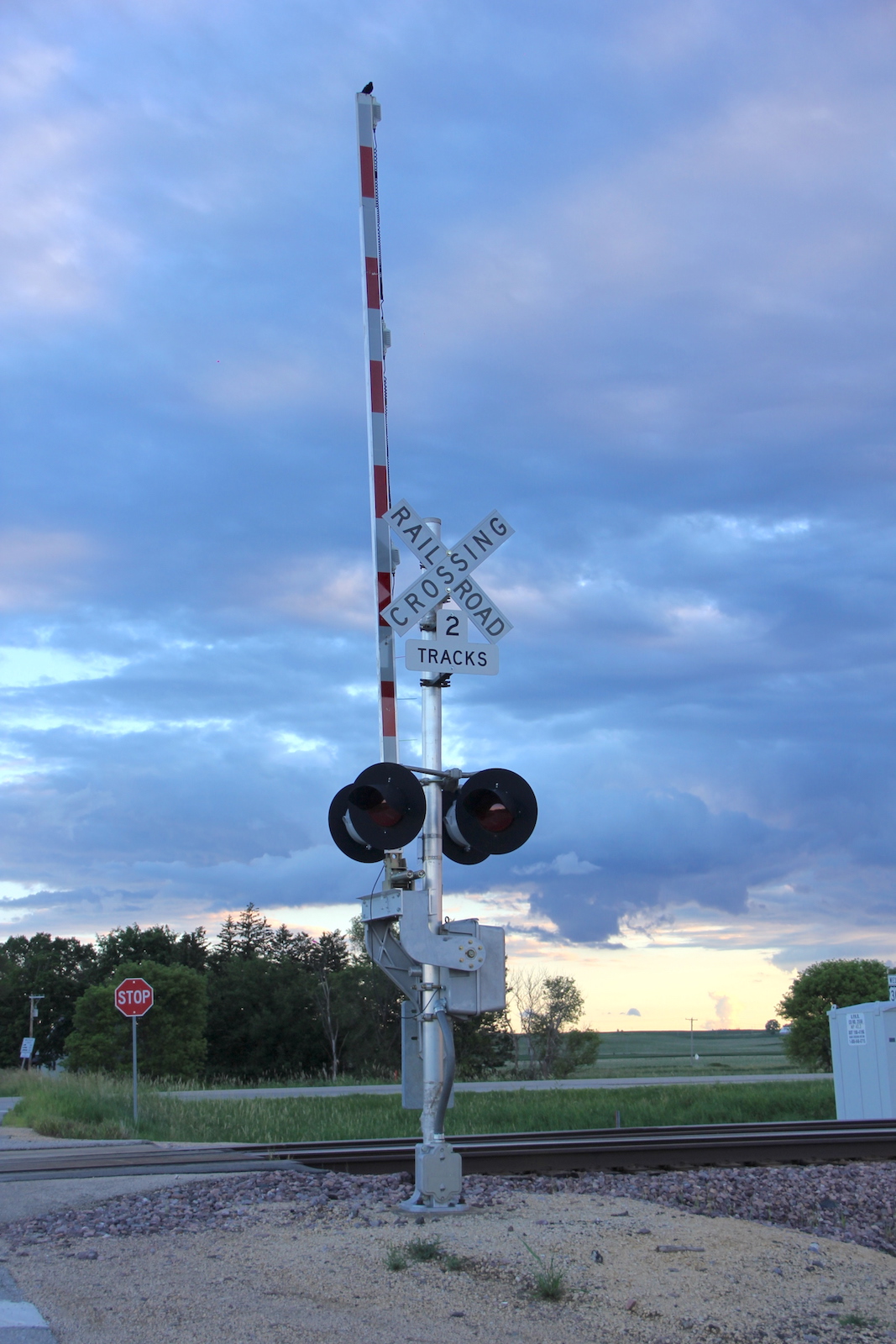

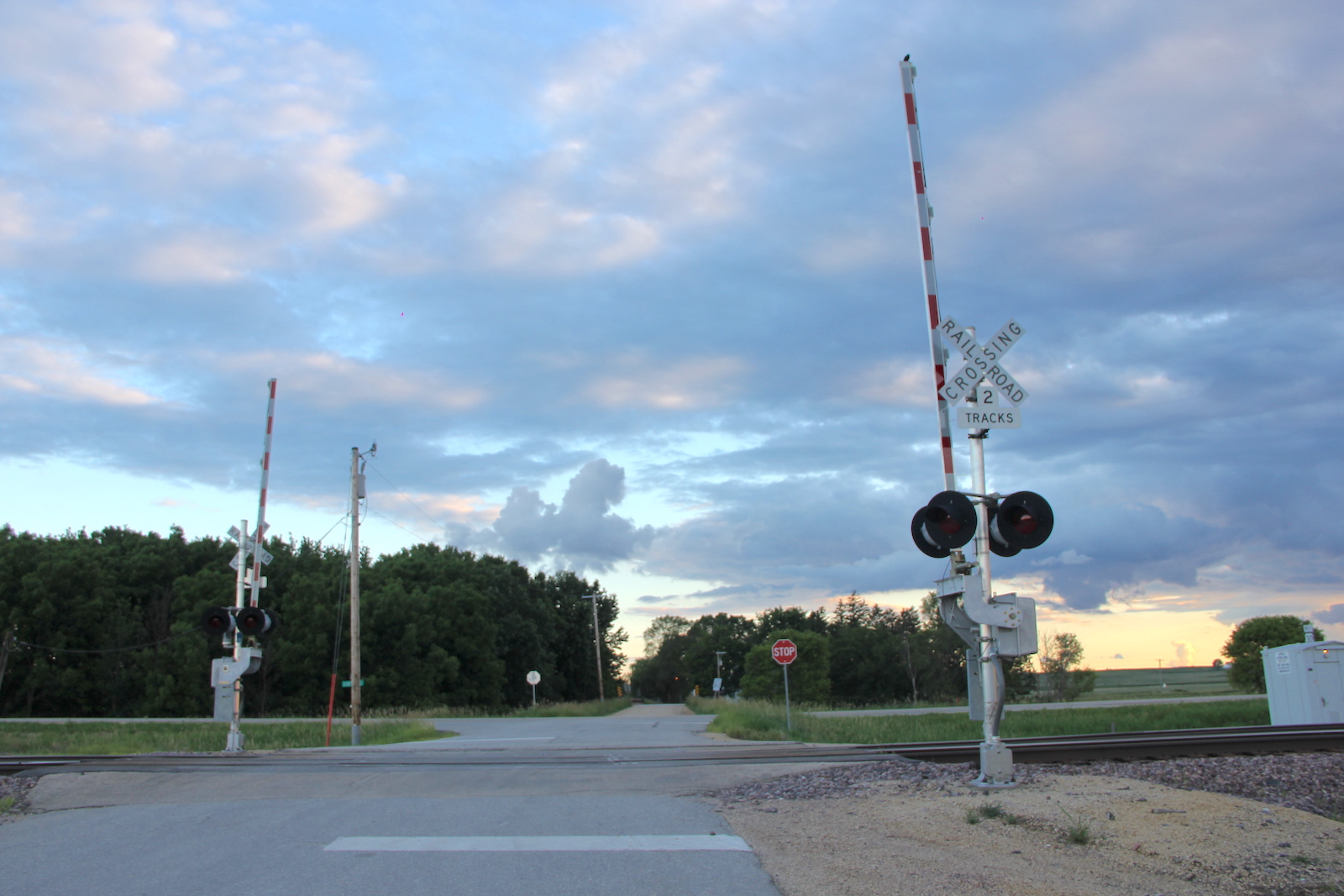

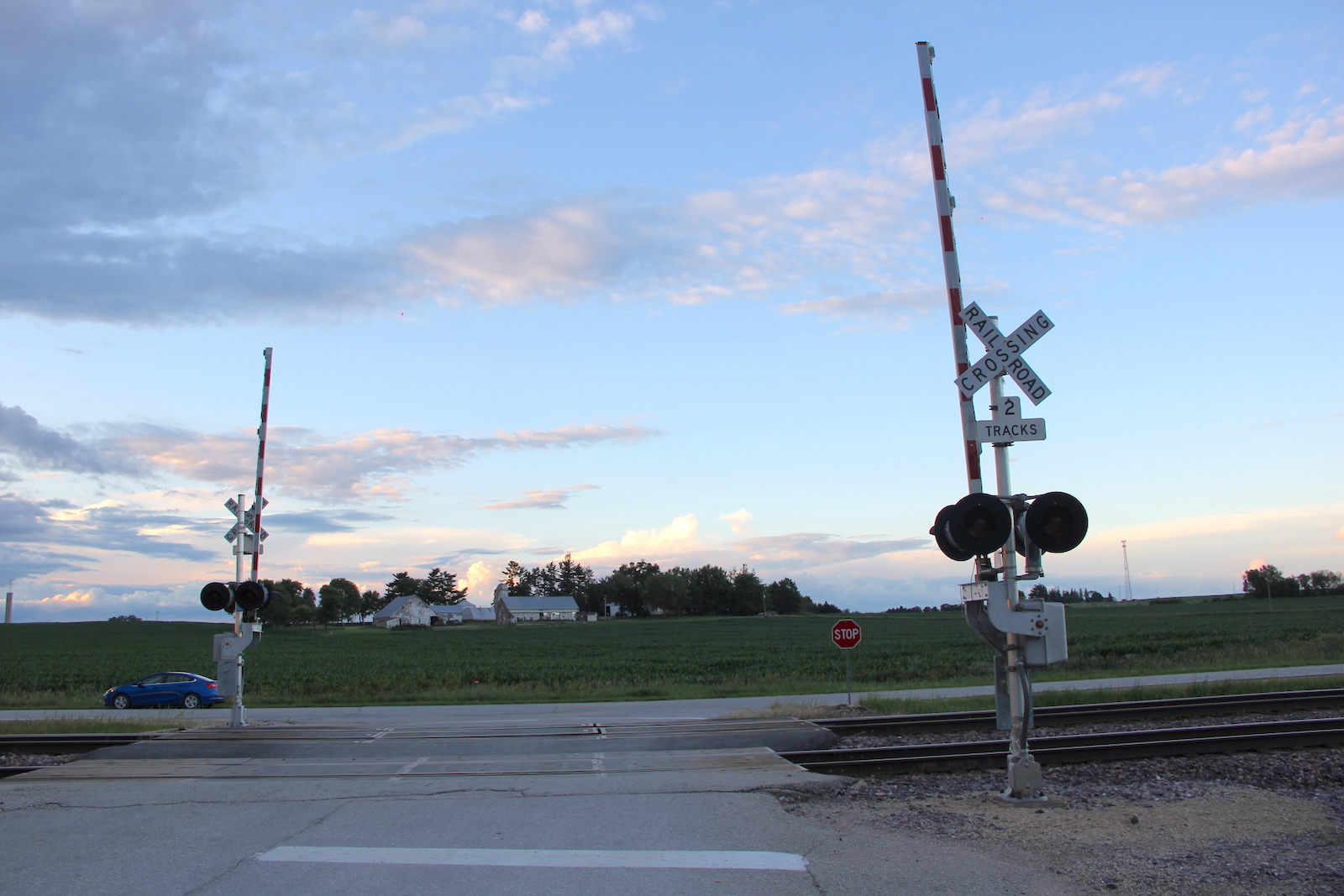

Overview of the newer signals facing south. Overview facing north.
3 4 5
6 7 8
9 10 11

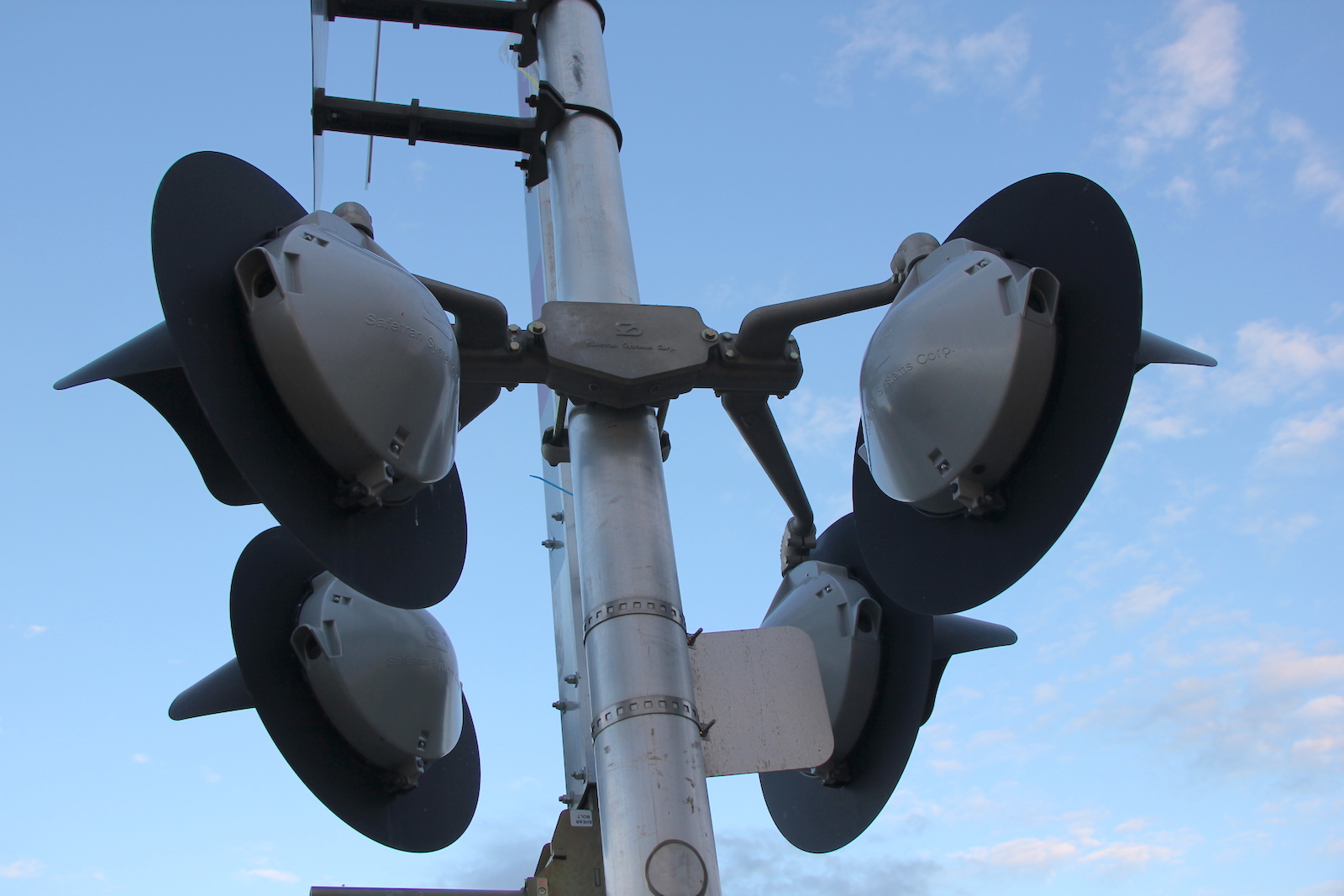

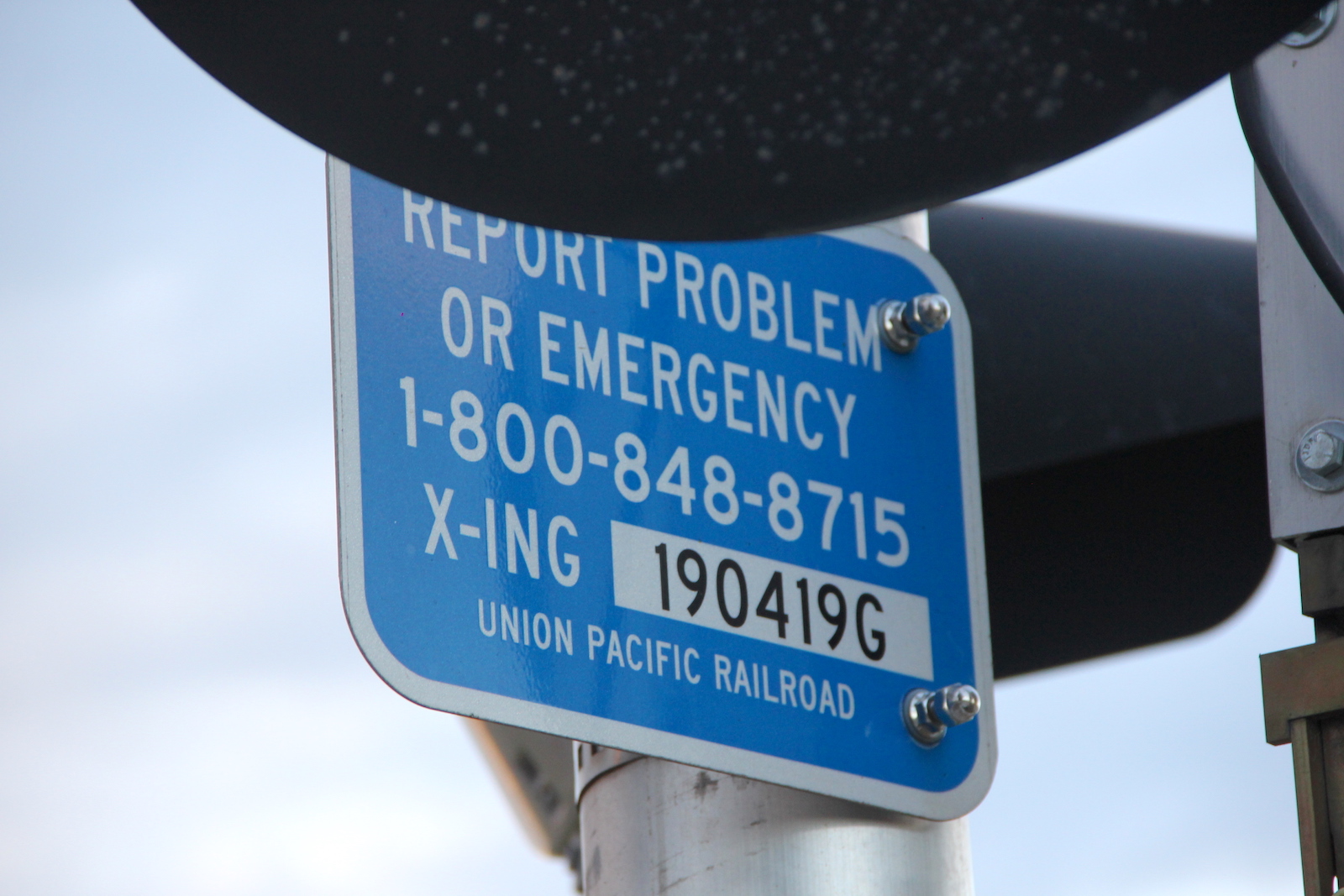

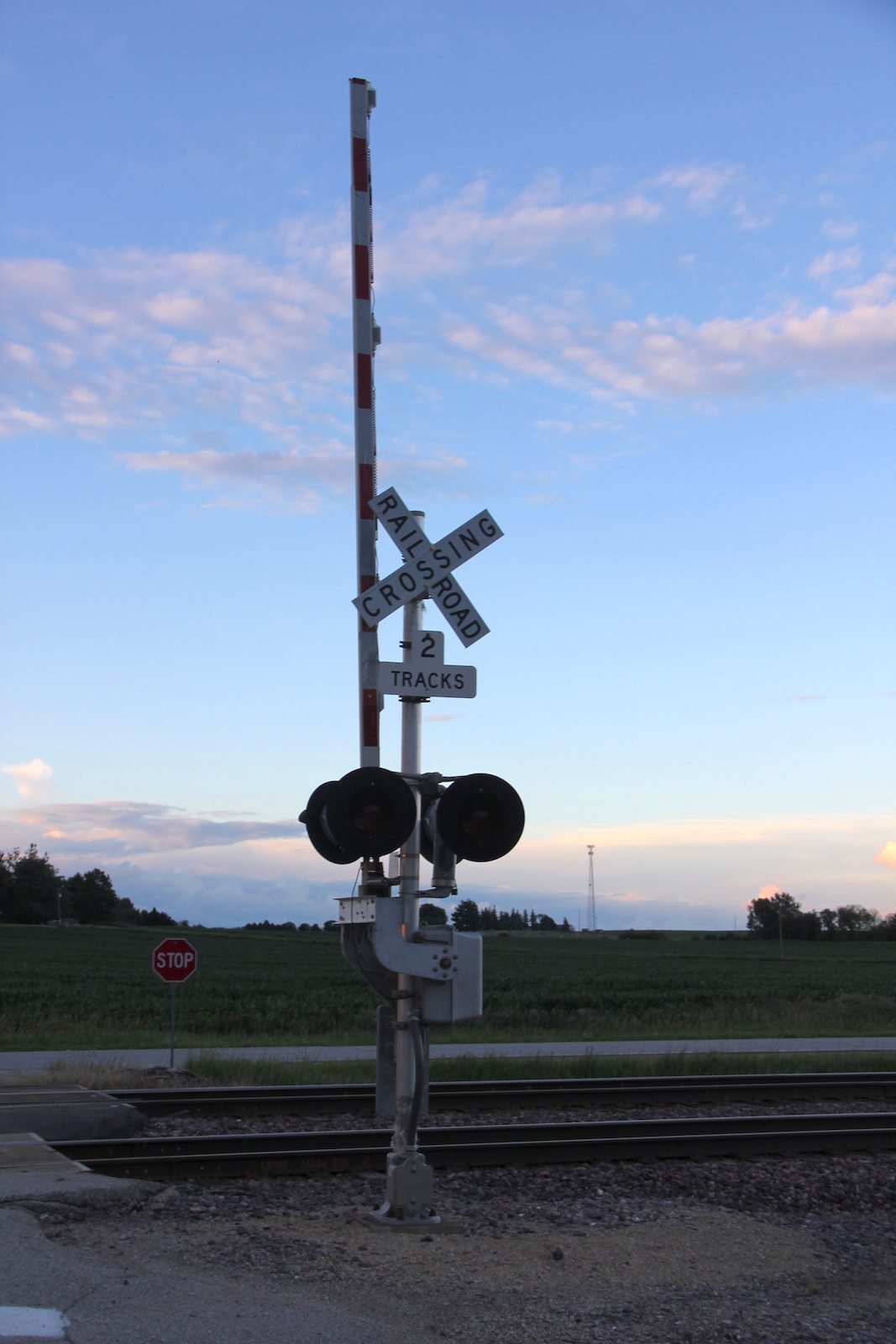

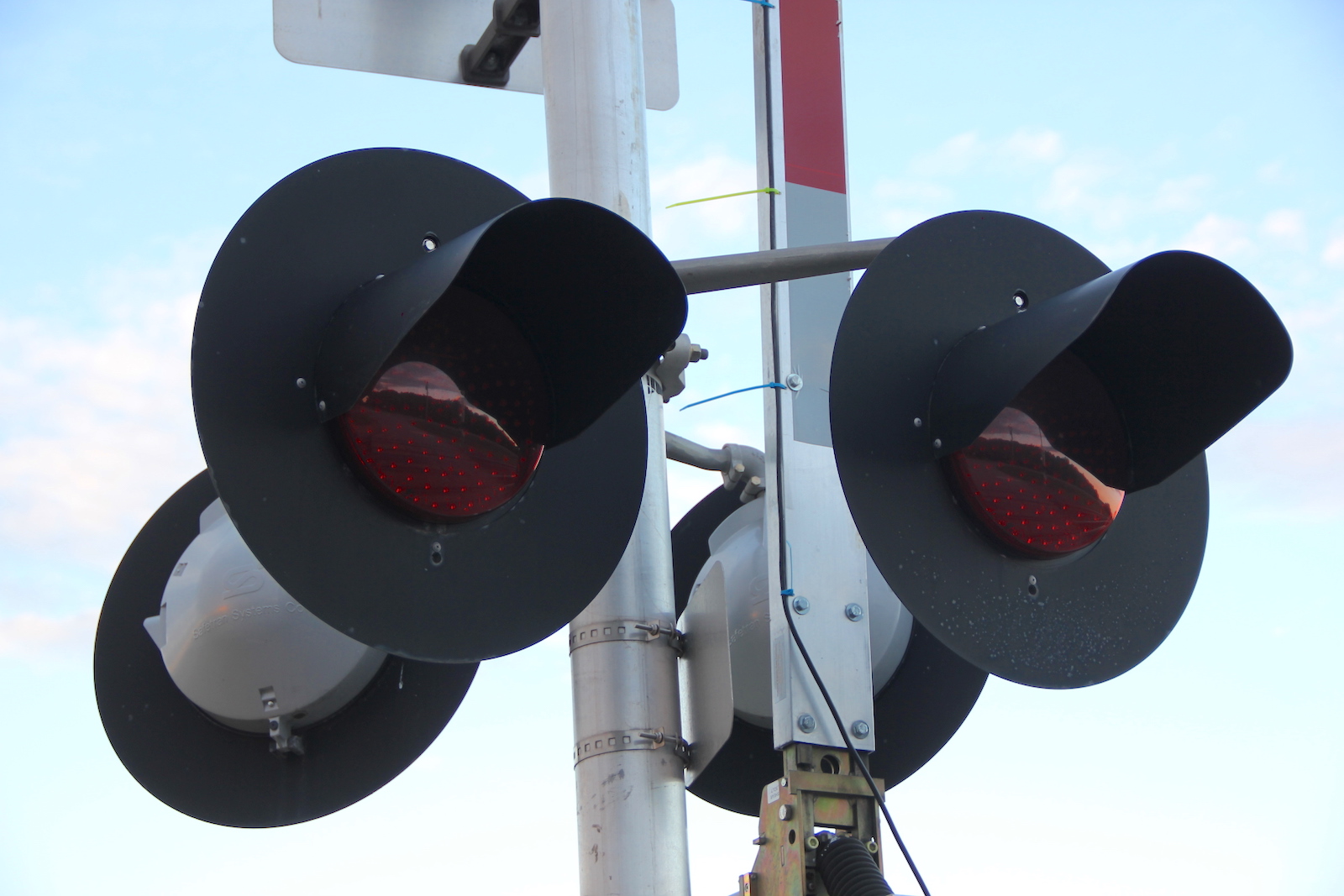

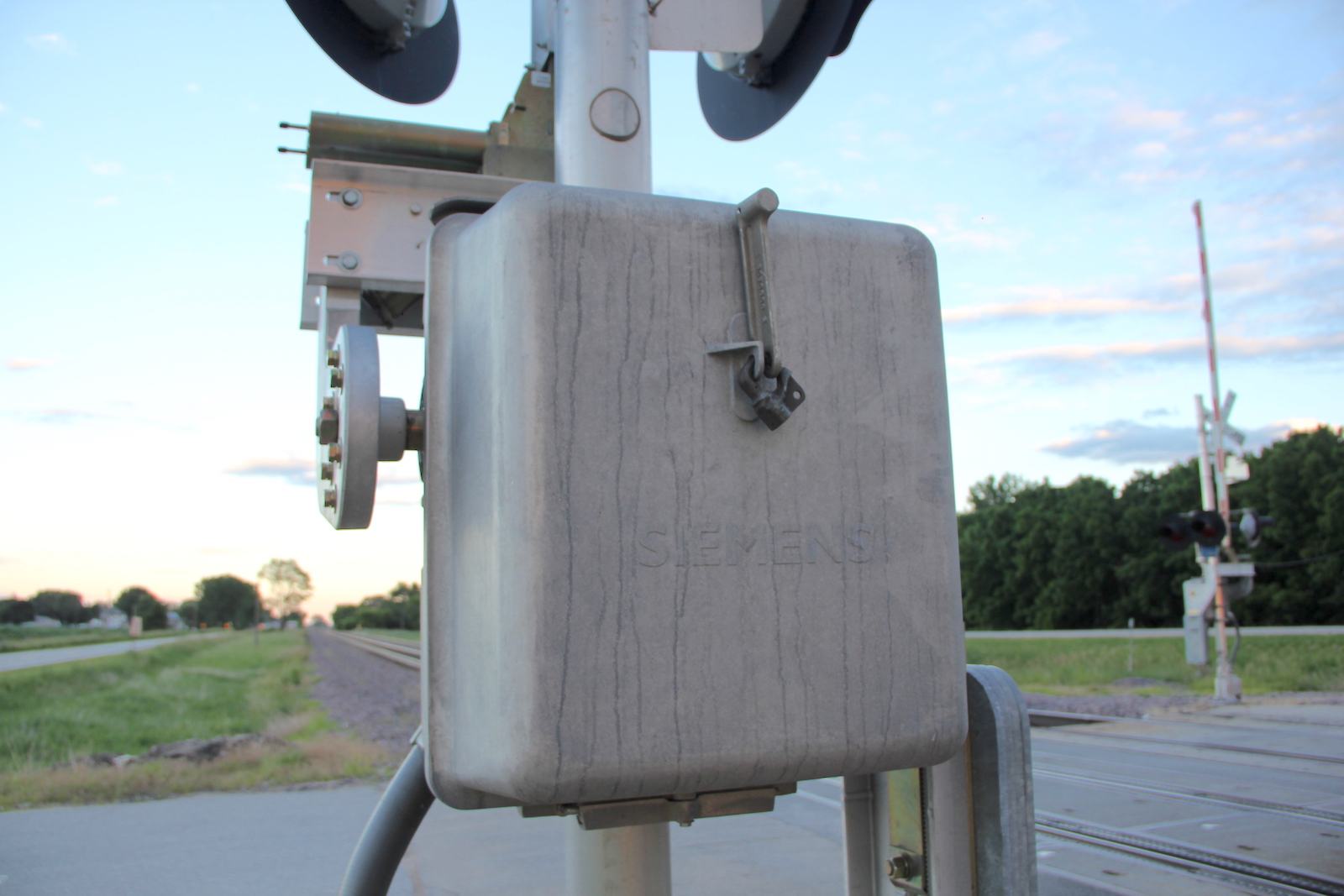

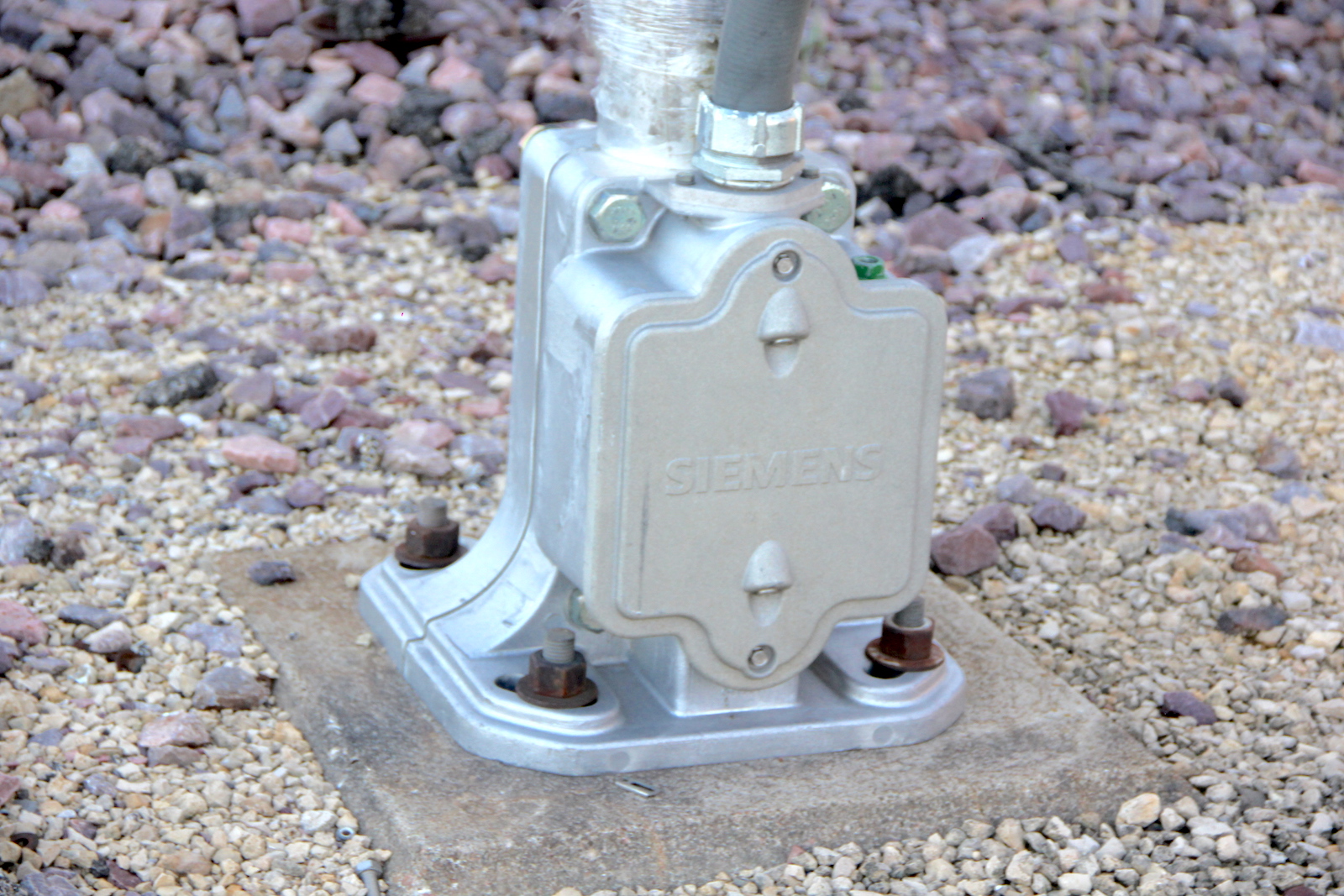

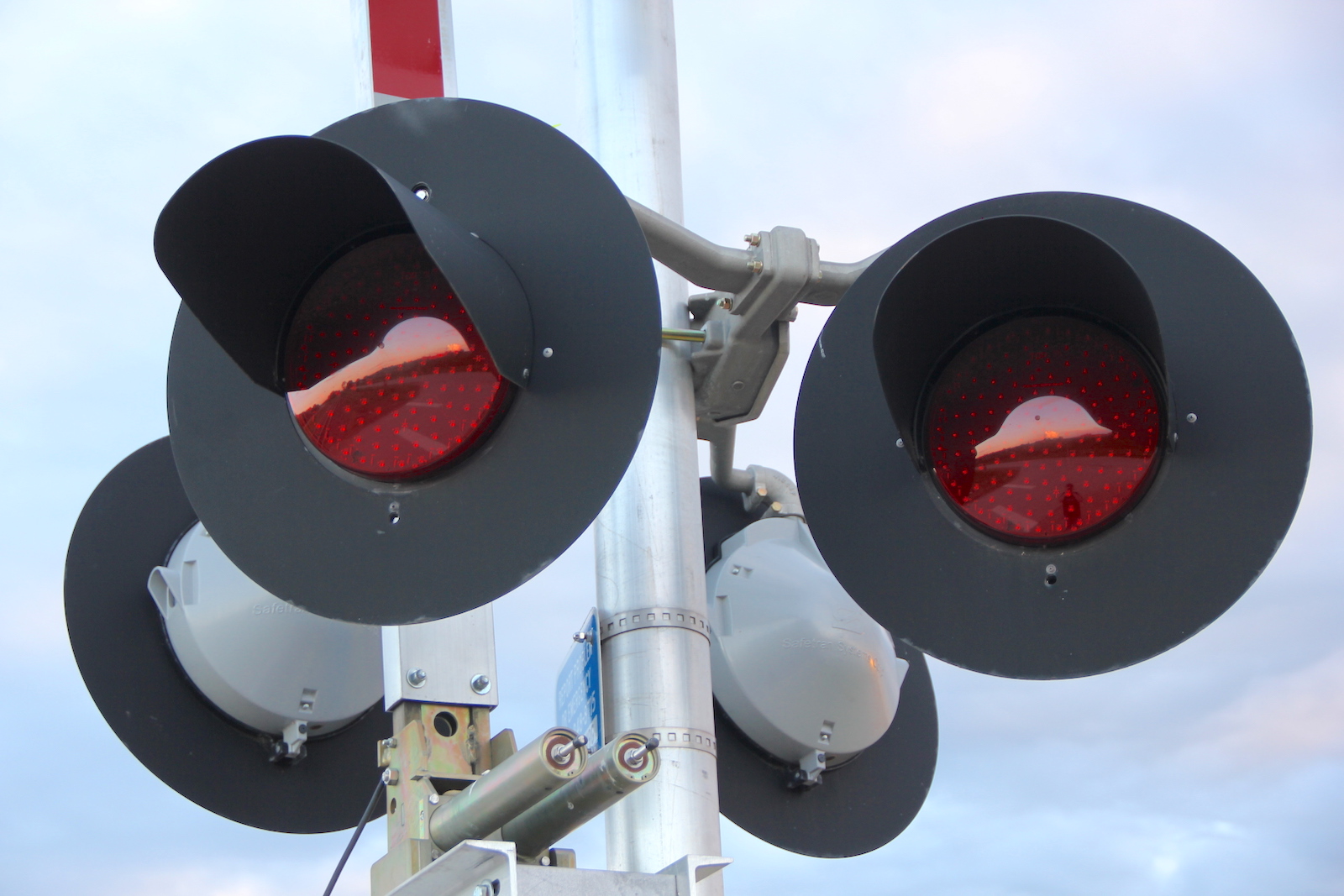

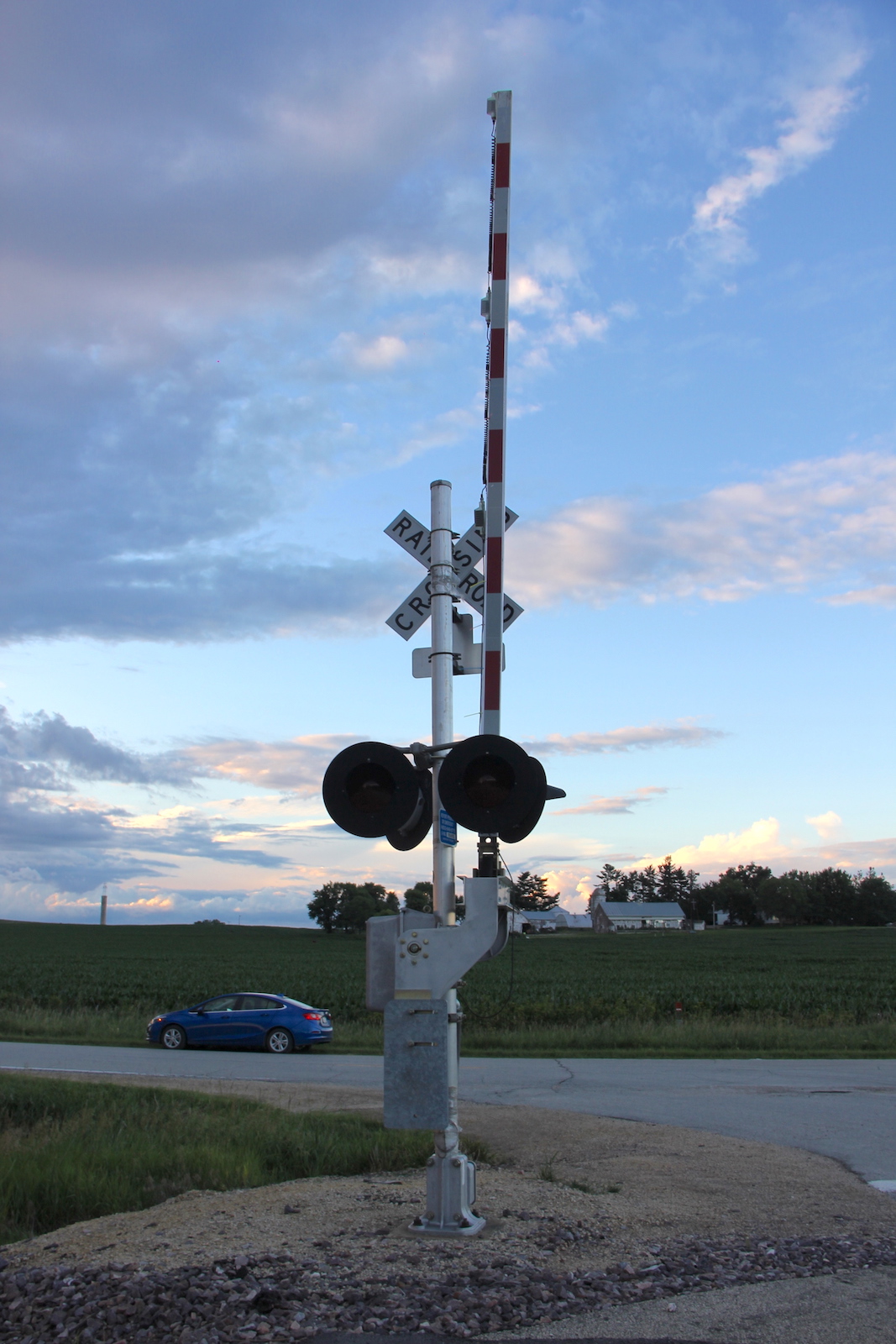

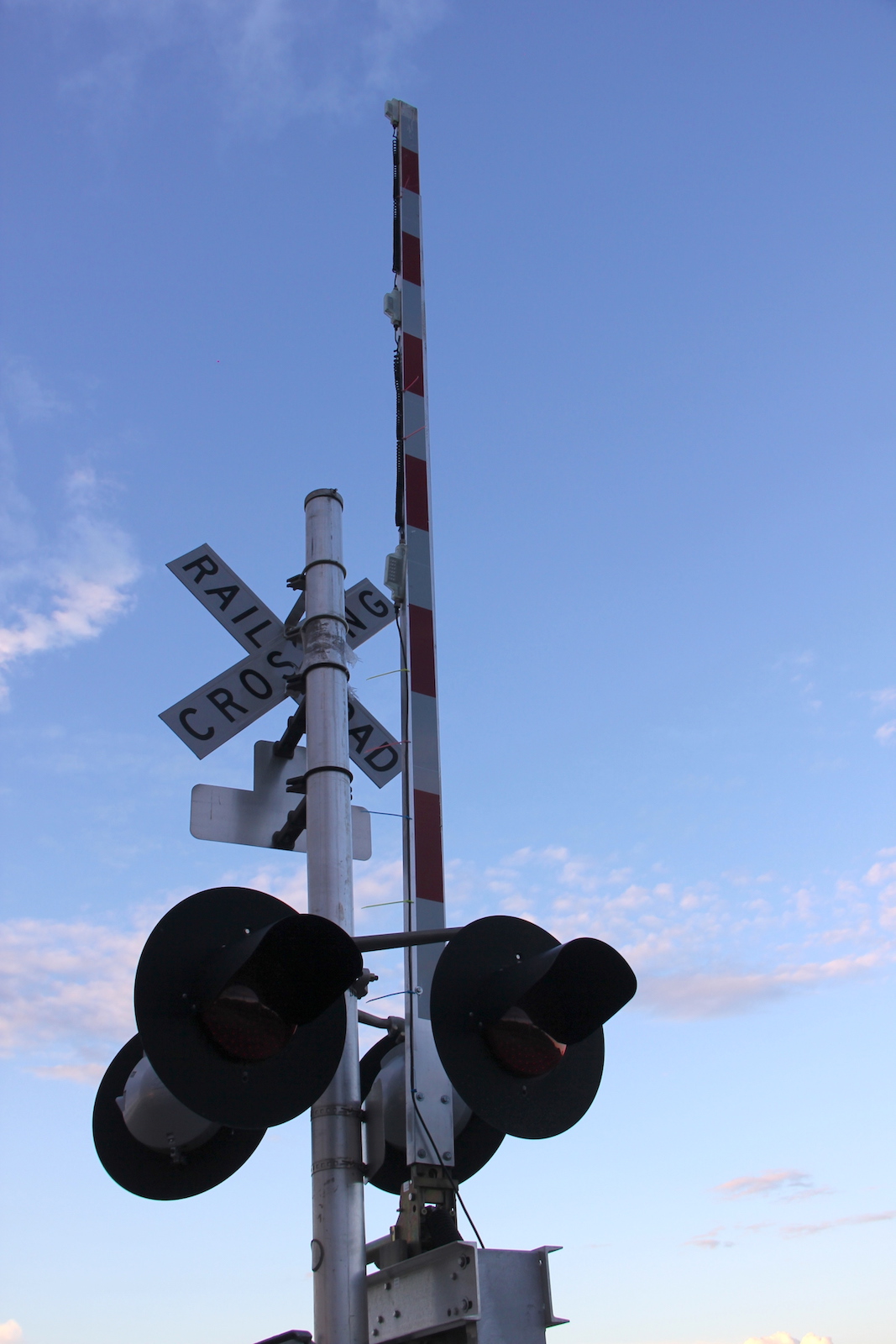

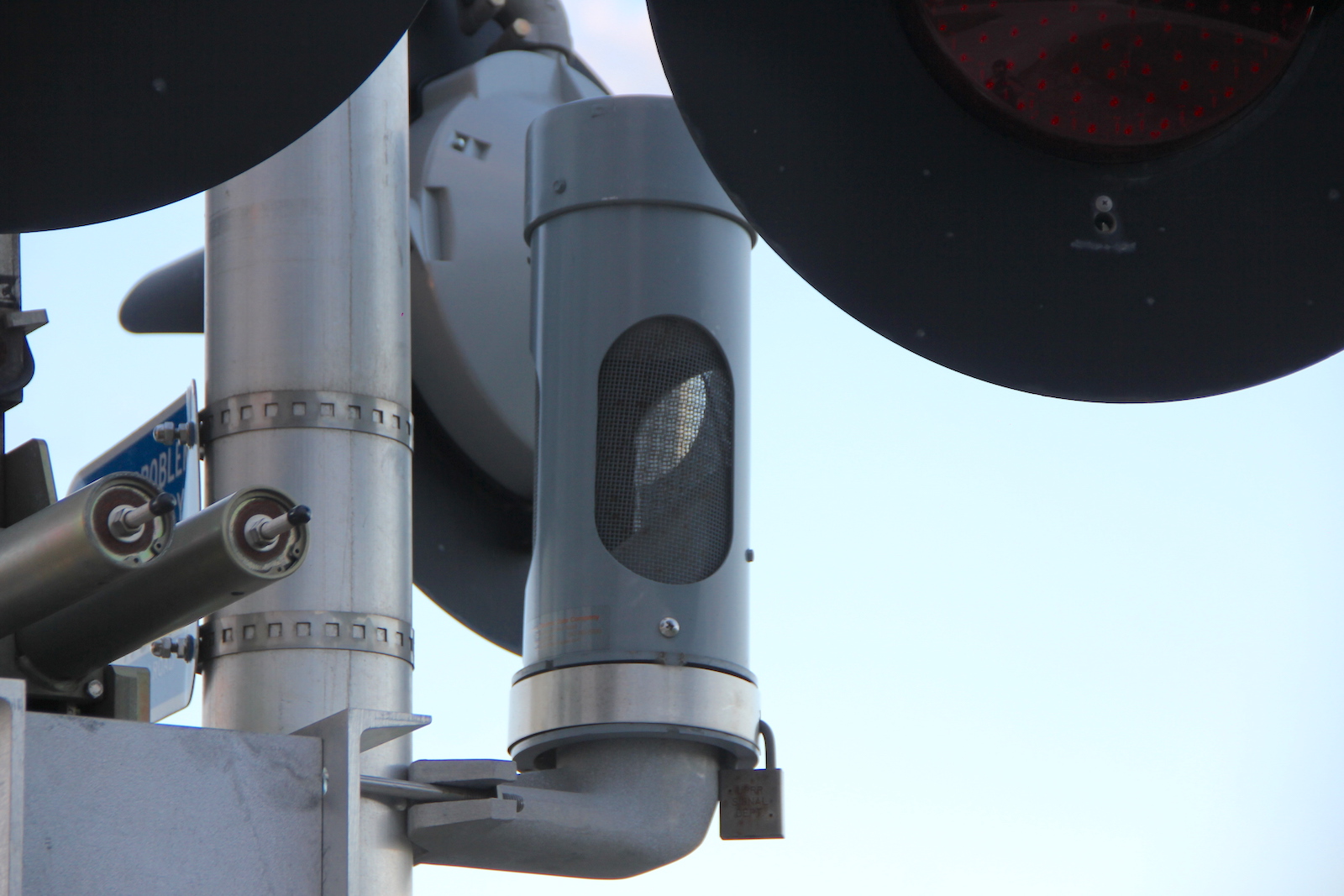

The northern signal.
12 13 14
15 16 17
18 19 20
21

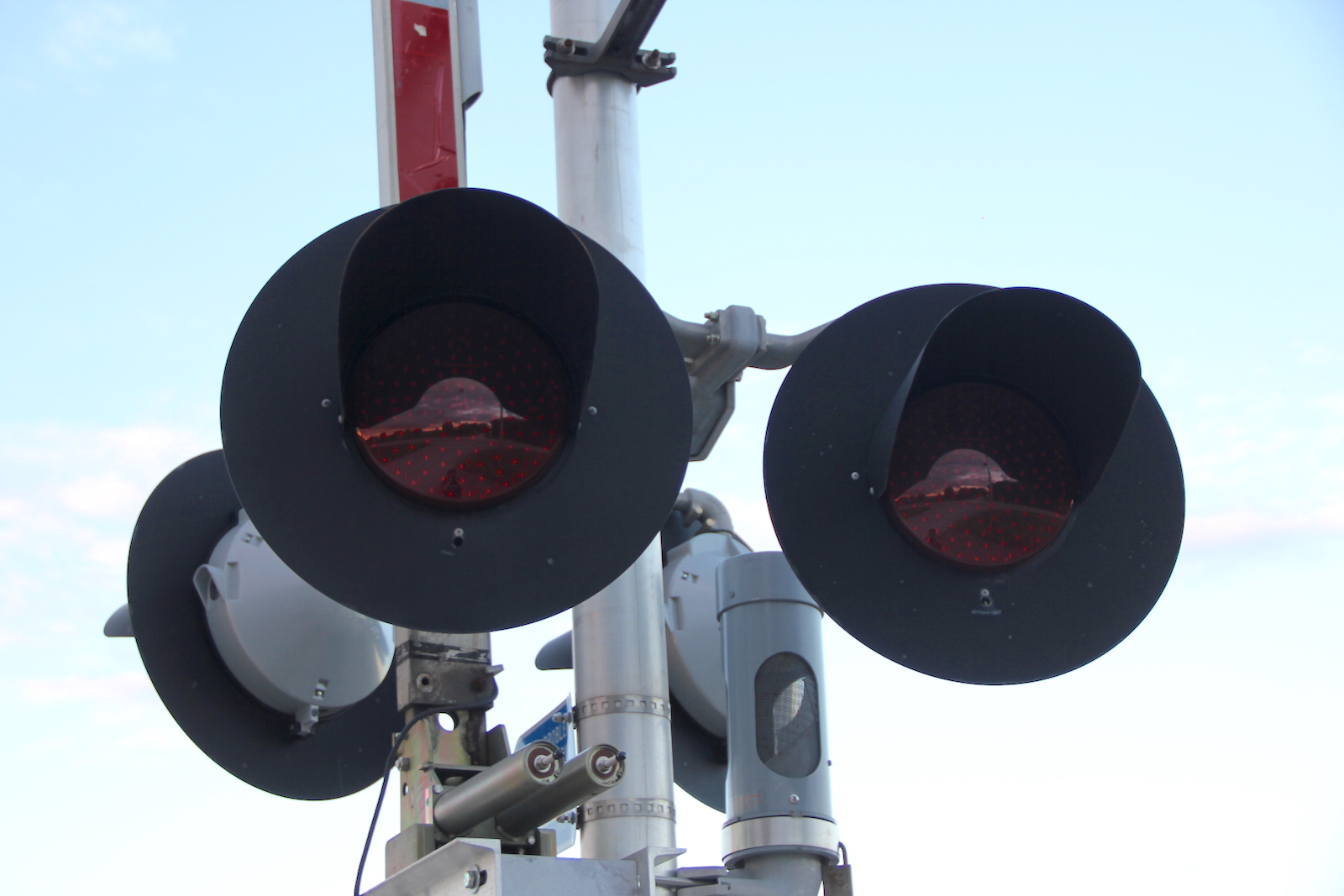

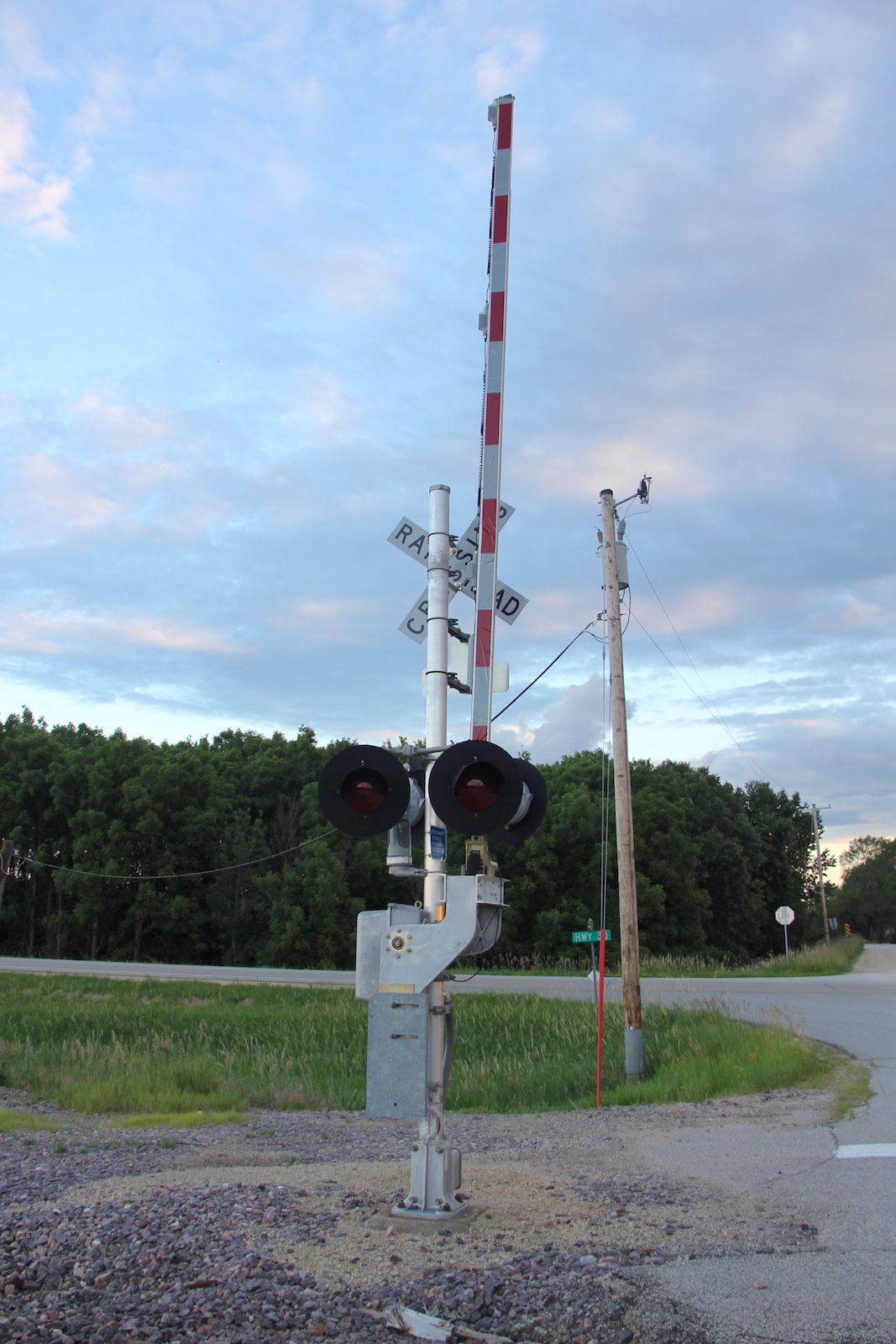

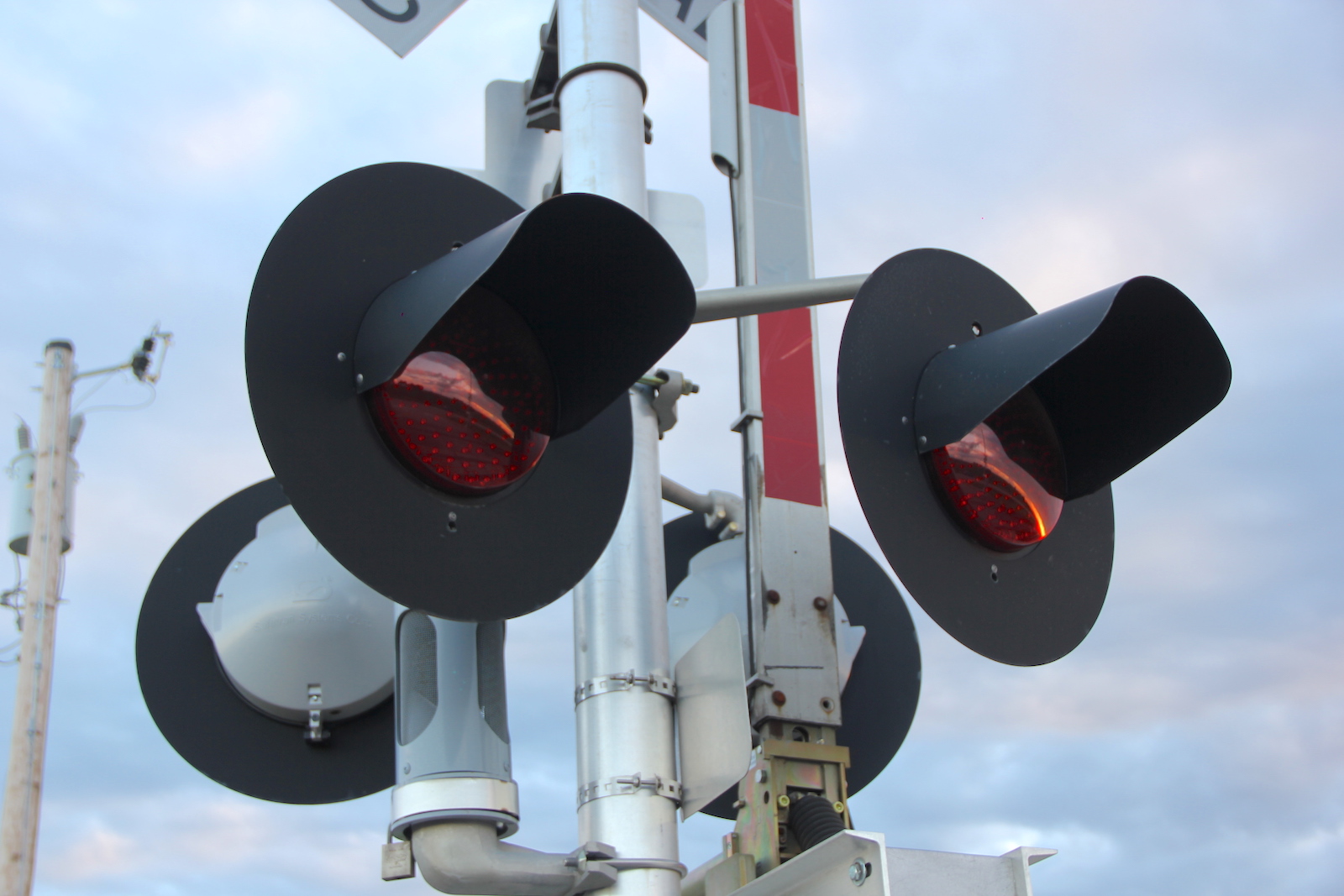

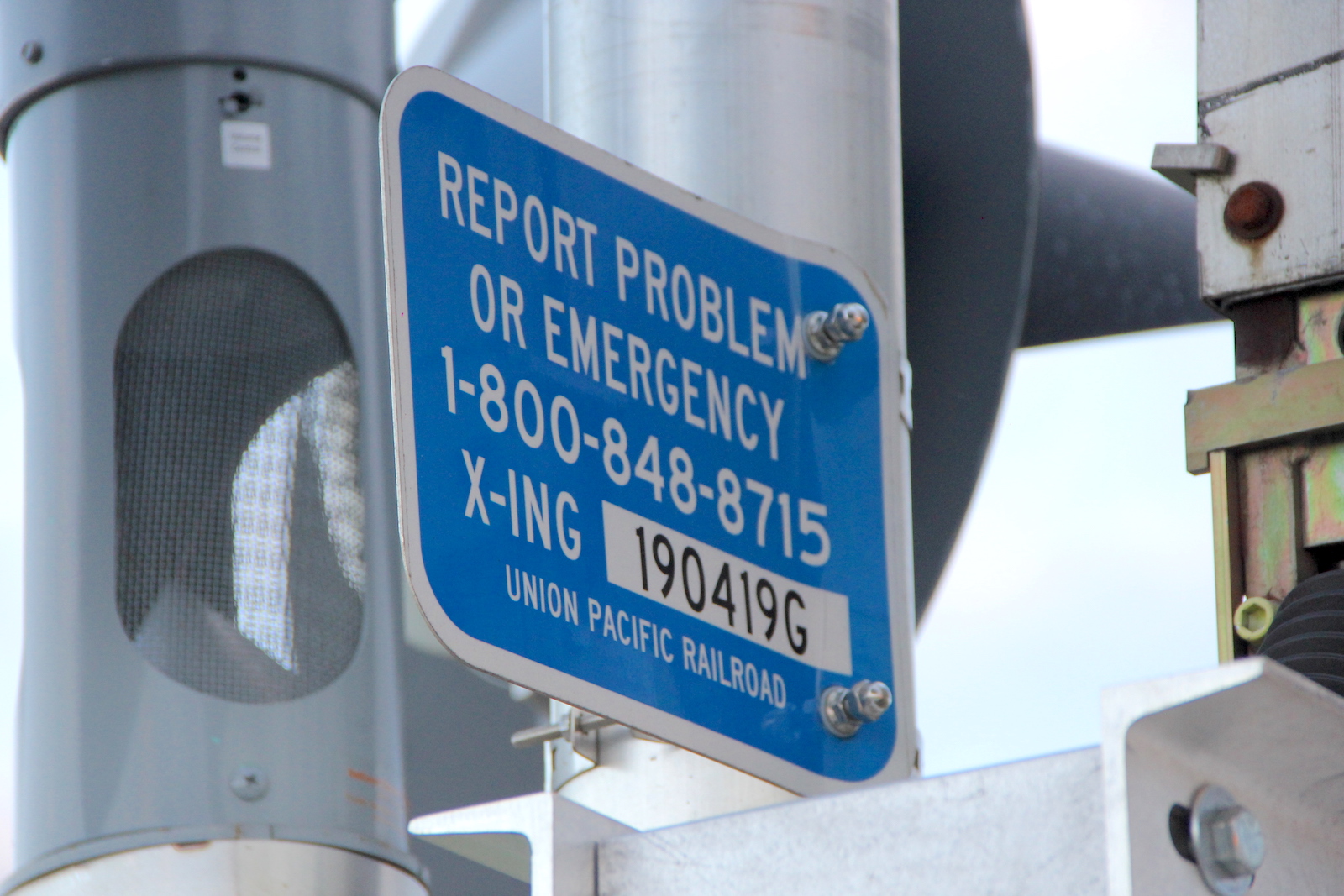

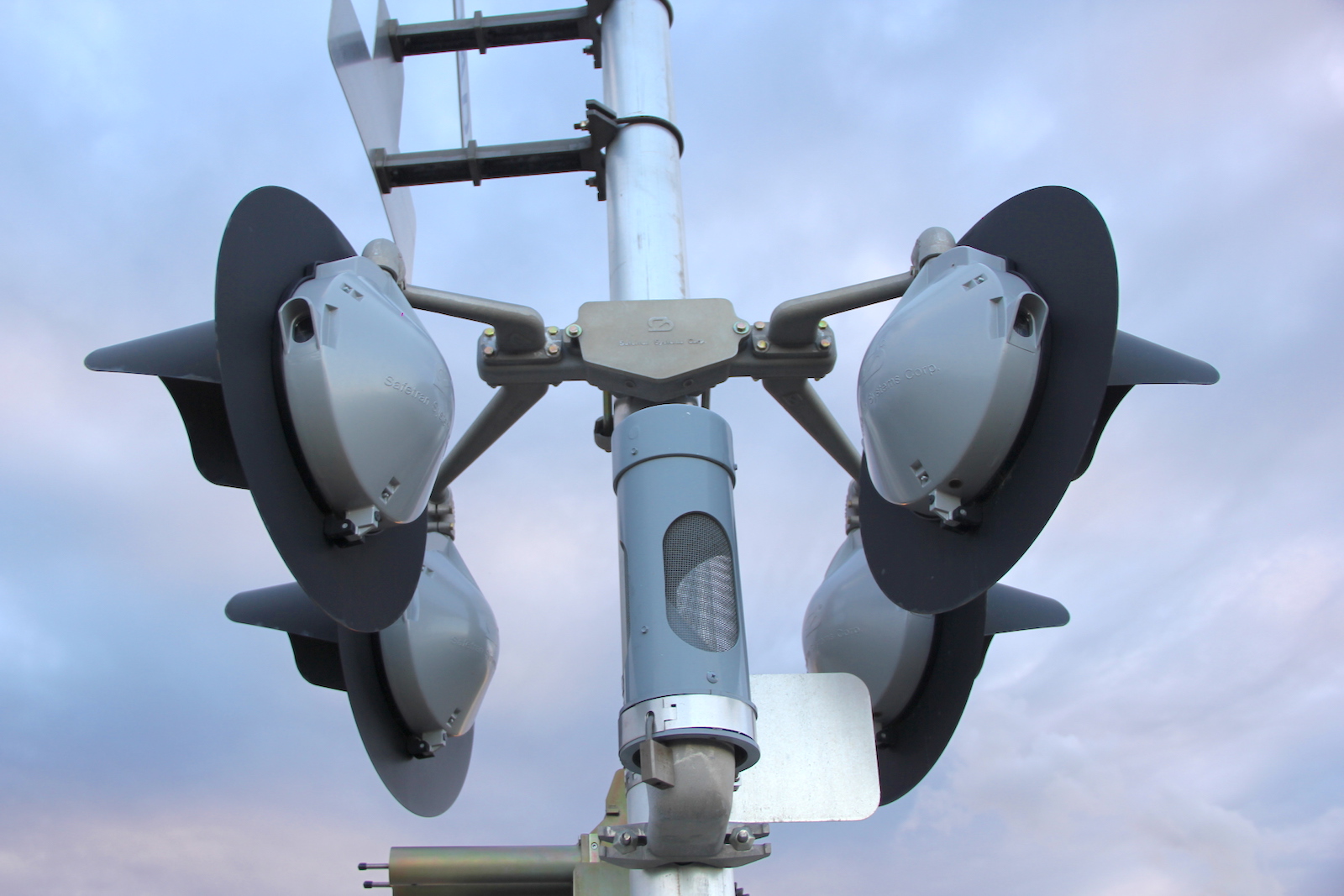

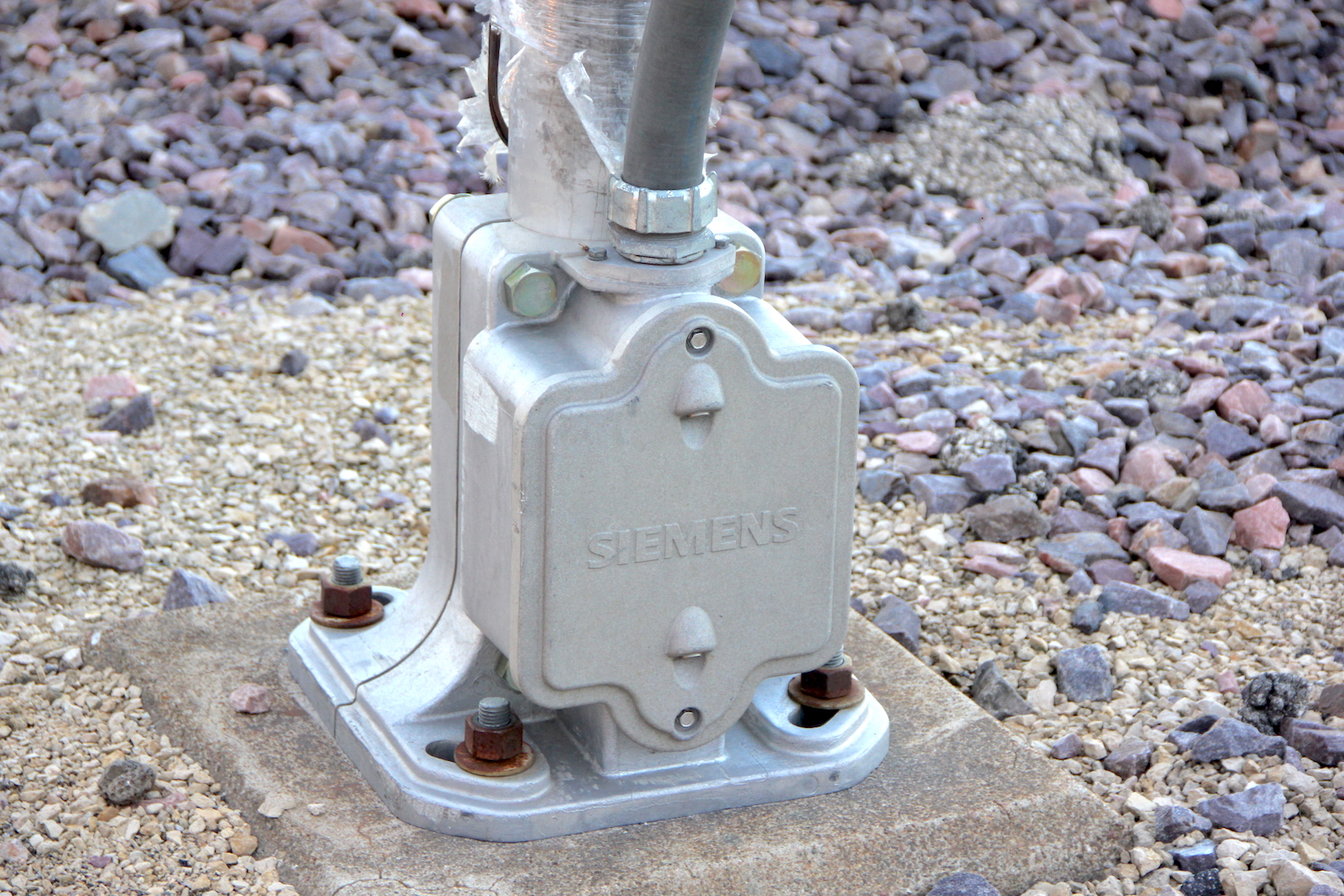

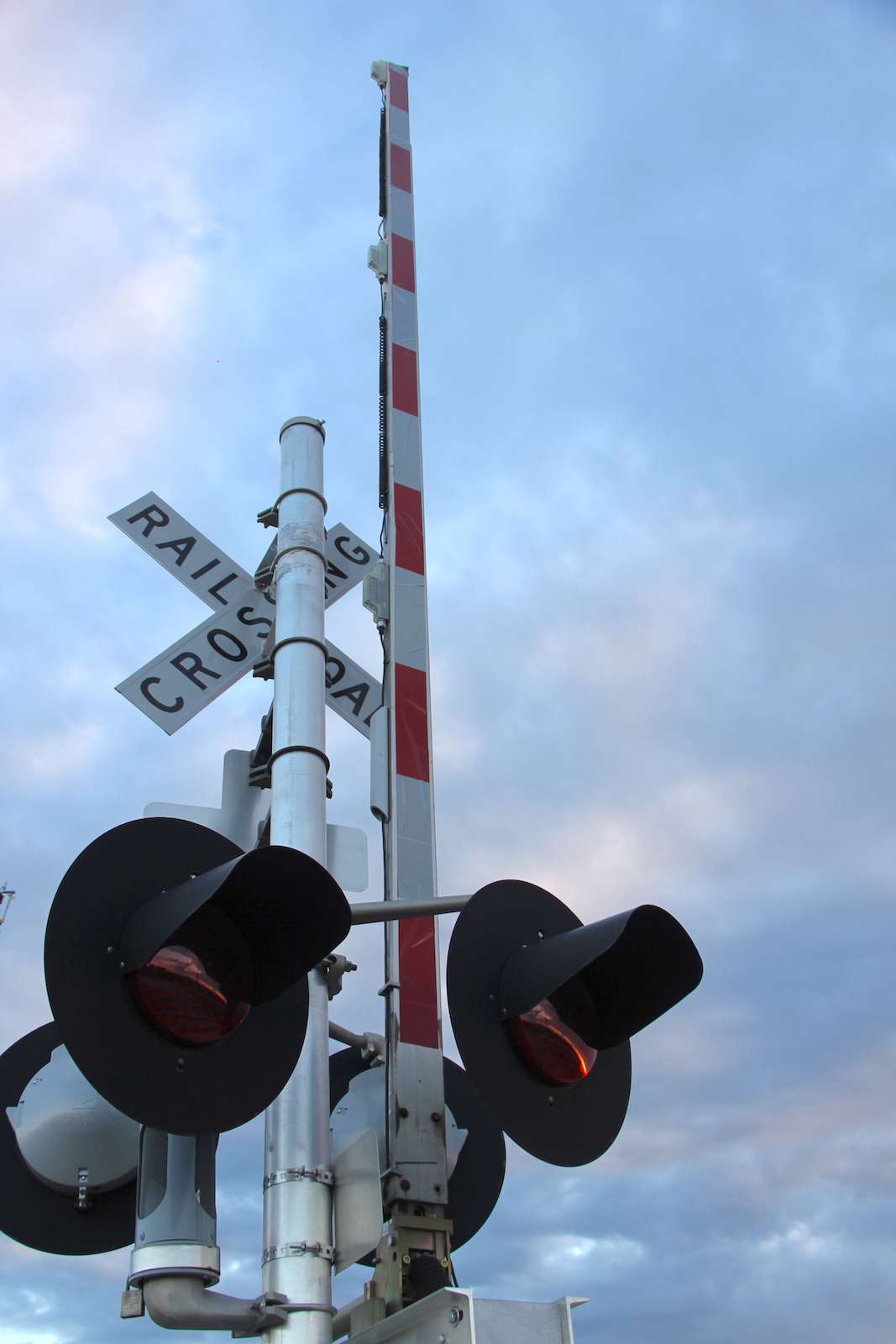

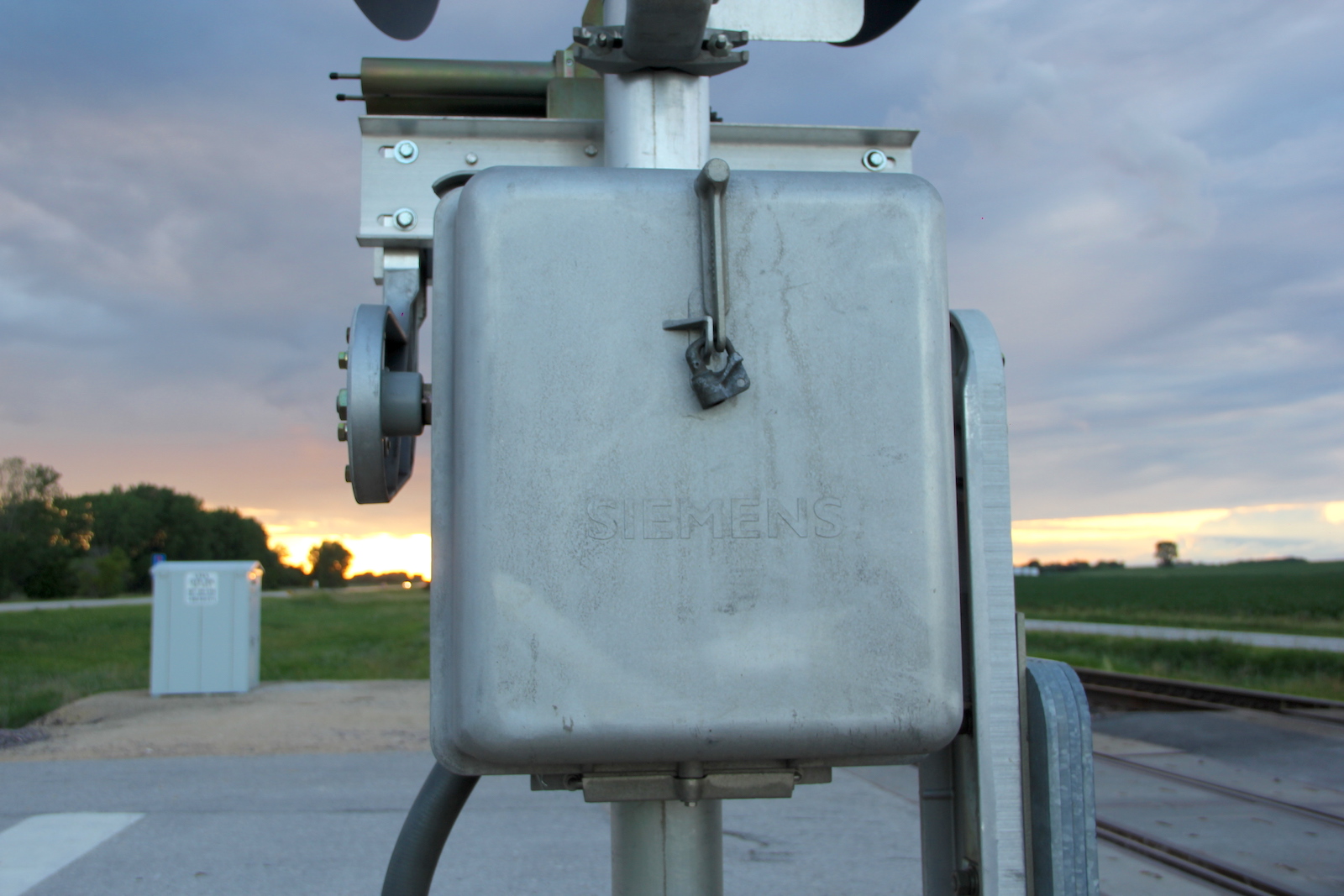

The southern signal.
22 23 24 25

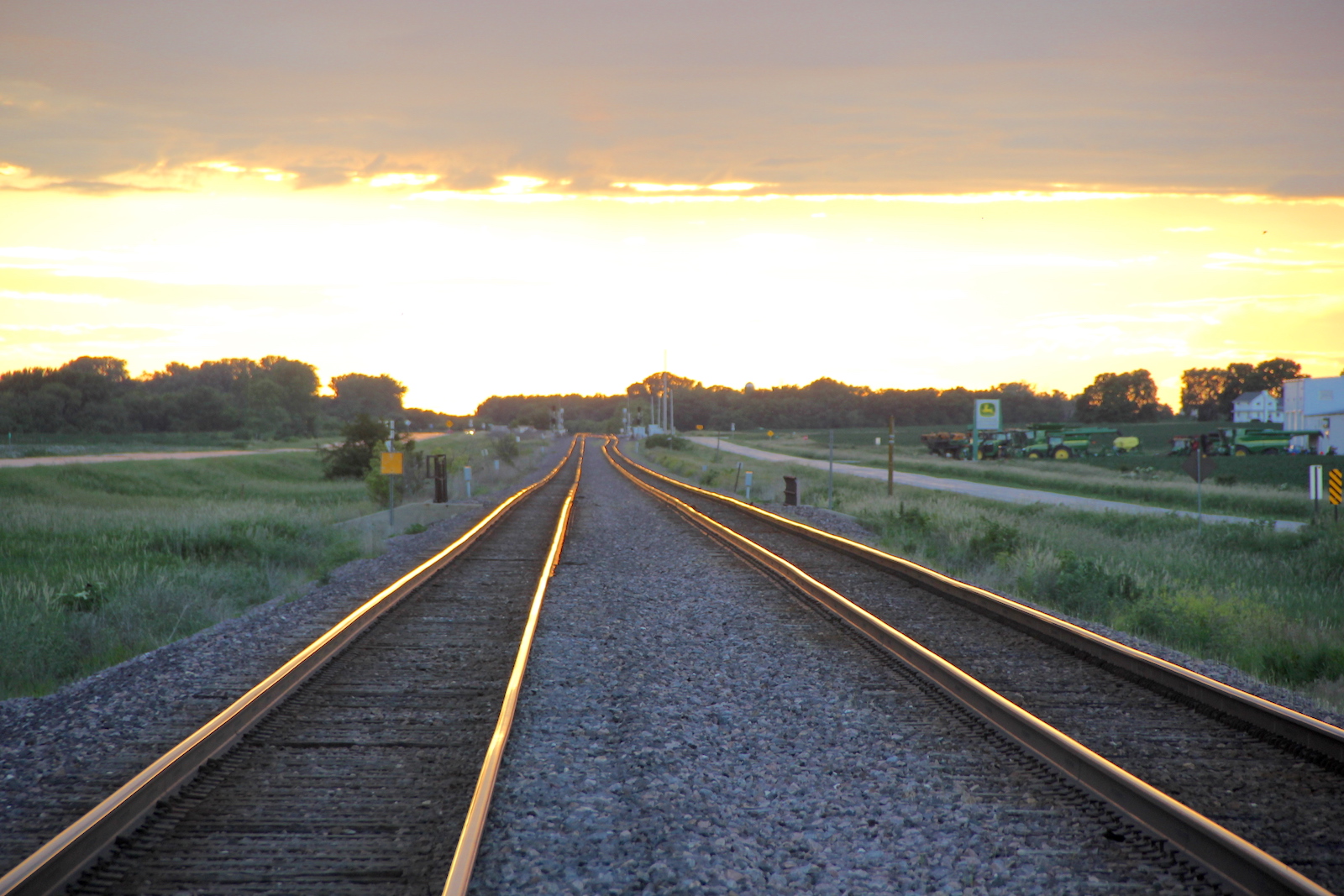

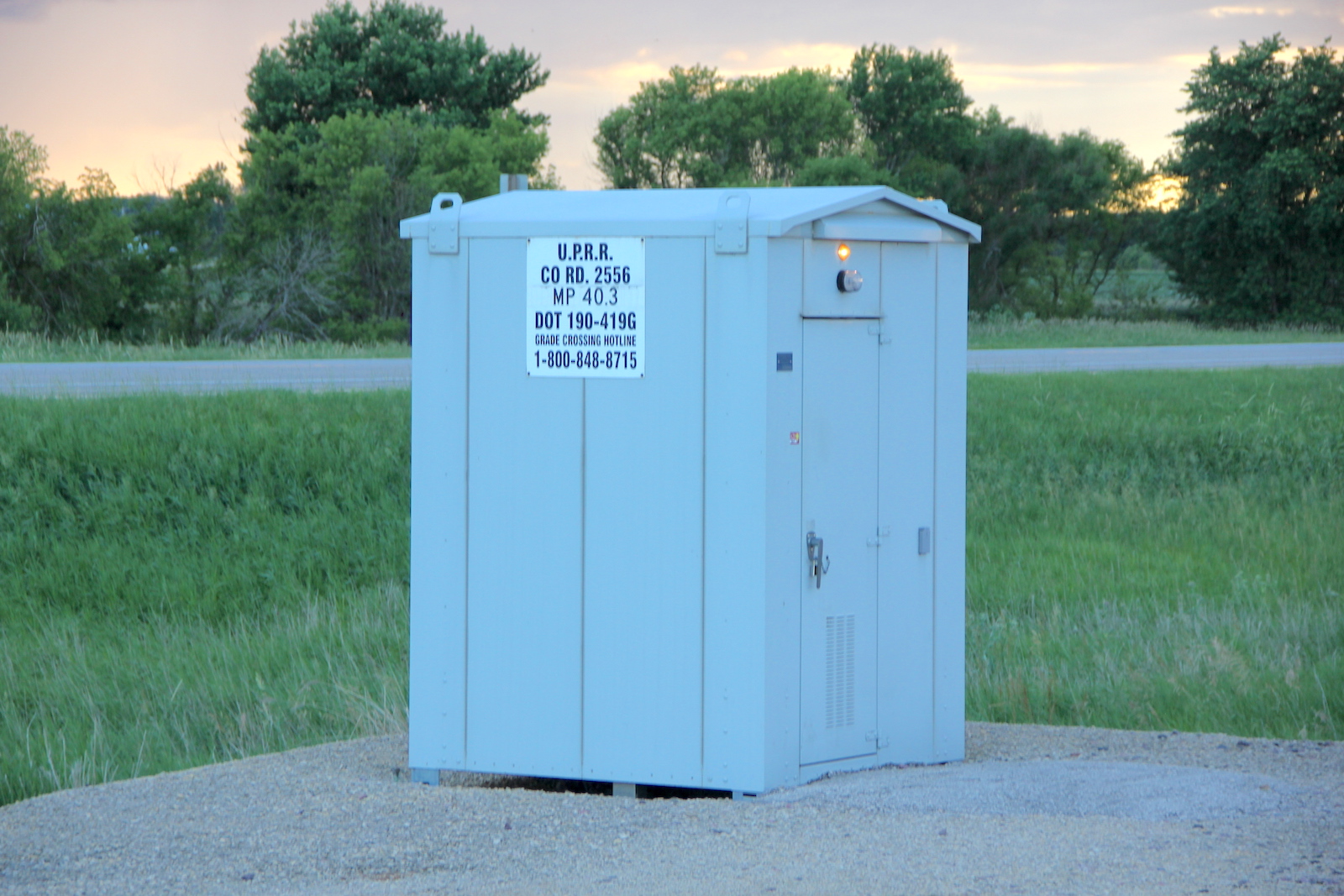

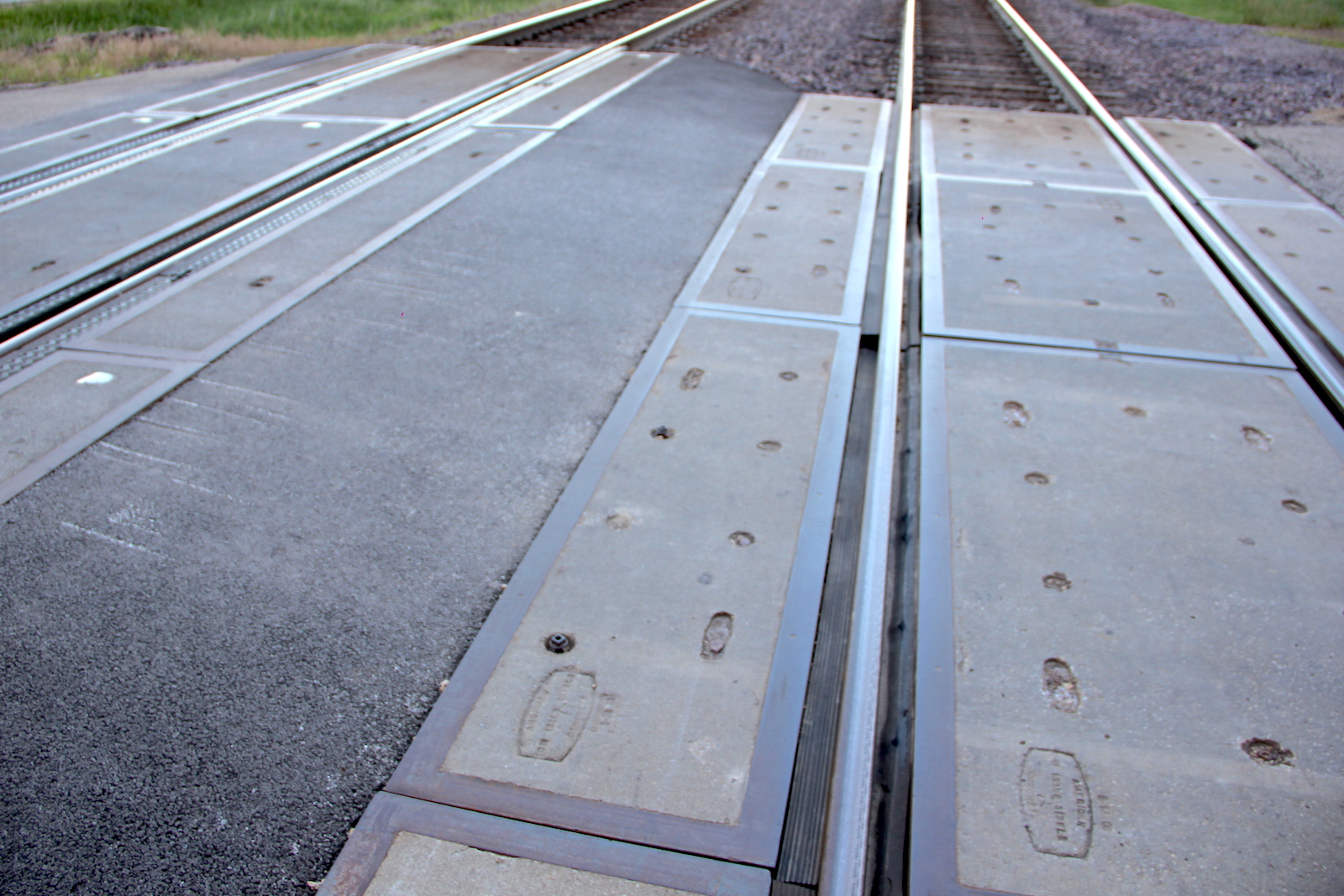

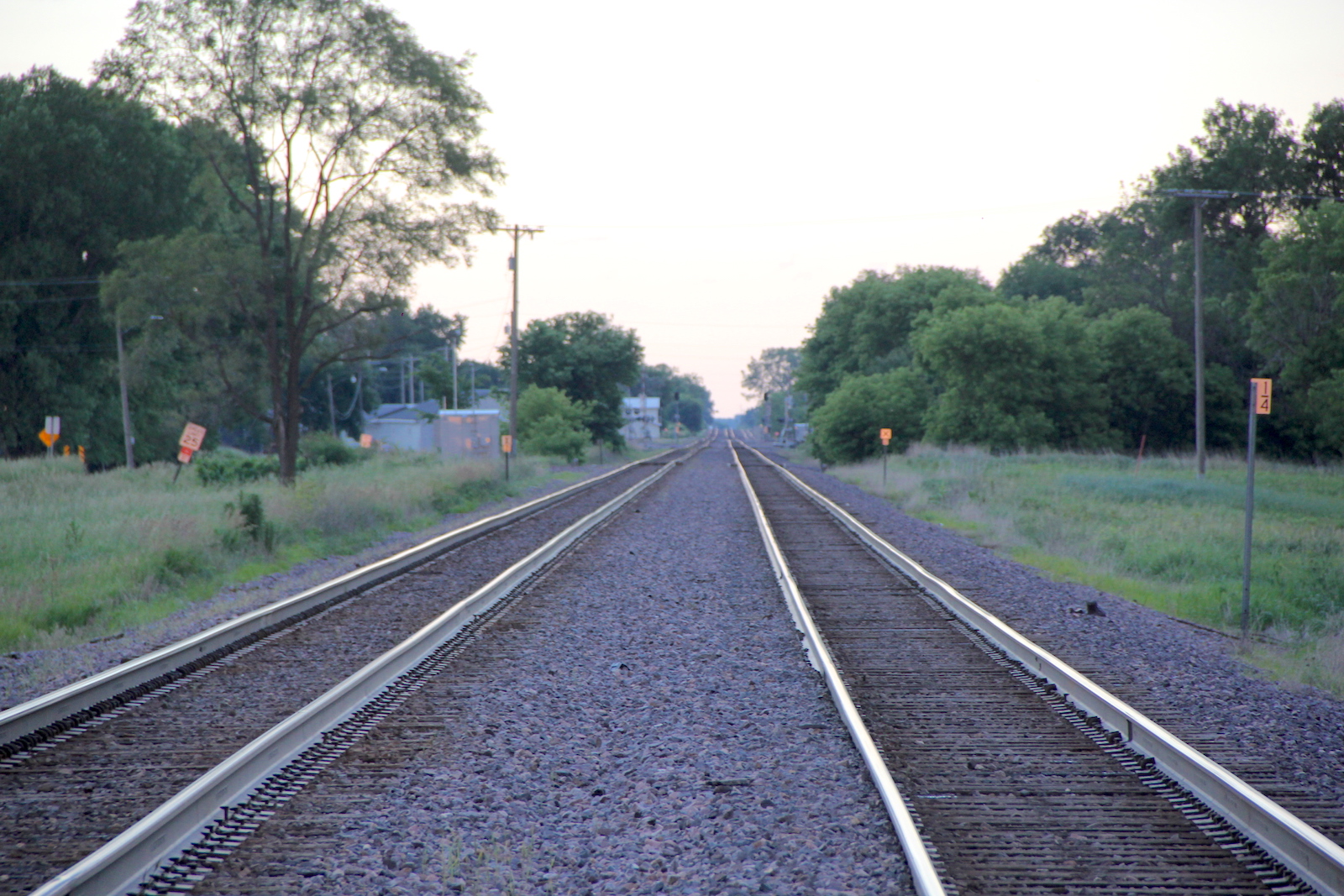

The relay bungalow in the southwest quadrant. The grade is all concrete. Track view facing west towards Vermont Ave. Track view facing east towards Harding Ave.

.
