37.42


190408U

>>>>>>>>>>>>>> Northern Signal Southern Signal

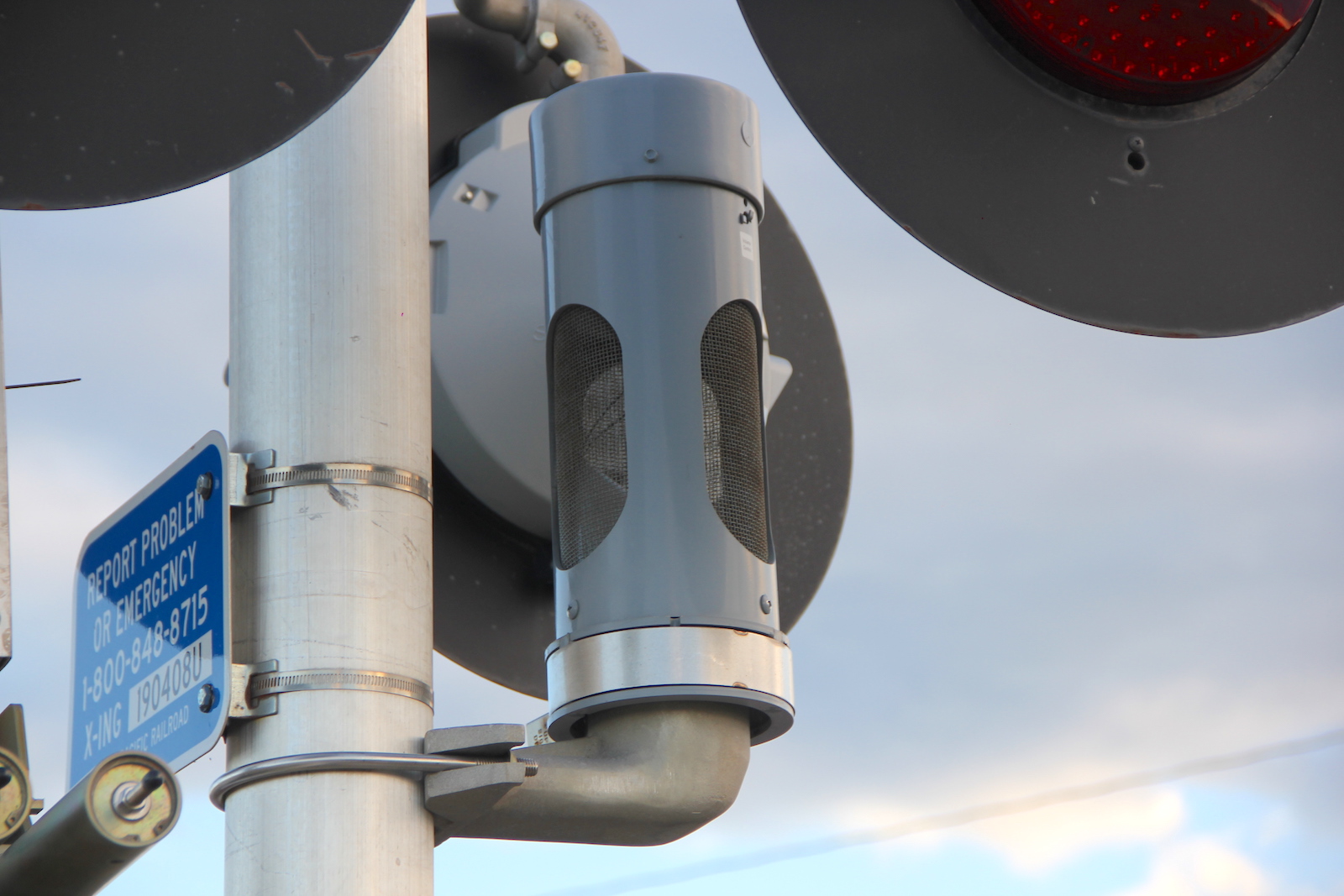

Bell: NEG E Bell NEG E Bell
Base: Siemens Single Sided Siemens Single Sided
LED Types: Four GE Pixelated Look LEDs Eight GE Pixelated Look LEDs
Light Frames: Four 12"x24" Safetran frames Eight 12"x24" Safetran frames

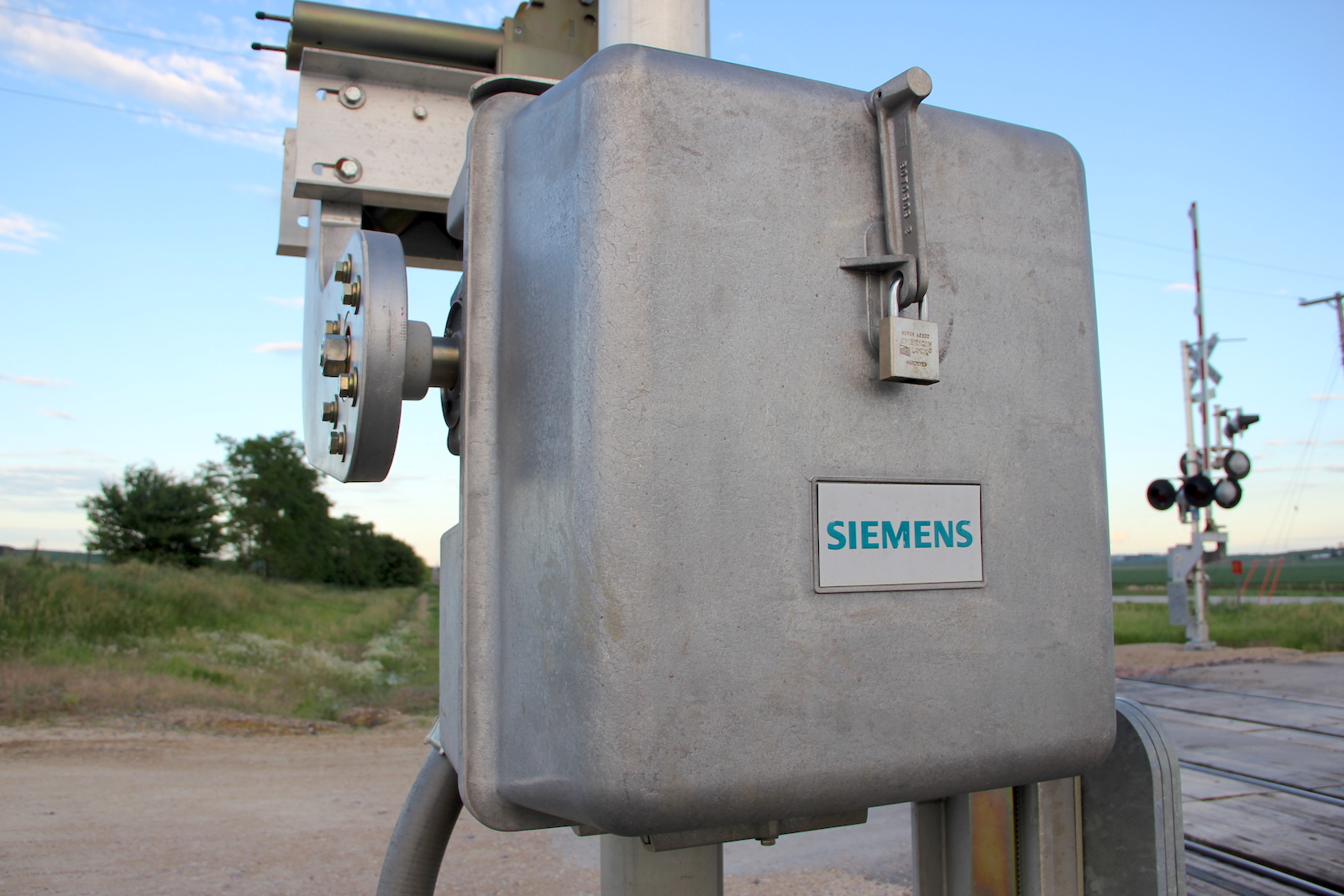

Junction Boxes: Safetran Safetran
Gate Lights: NEG Clear LEDs NEG Clear LEDs

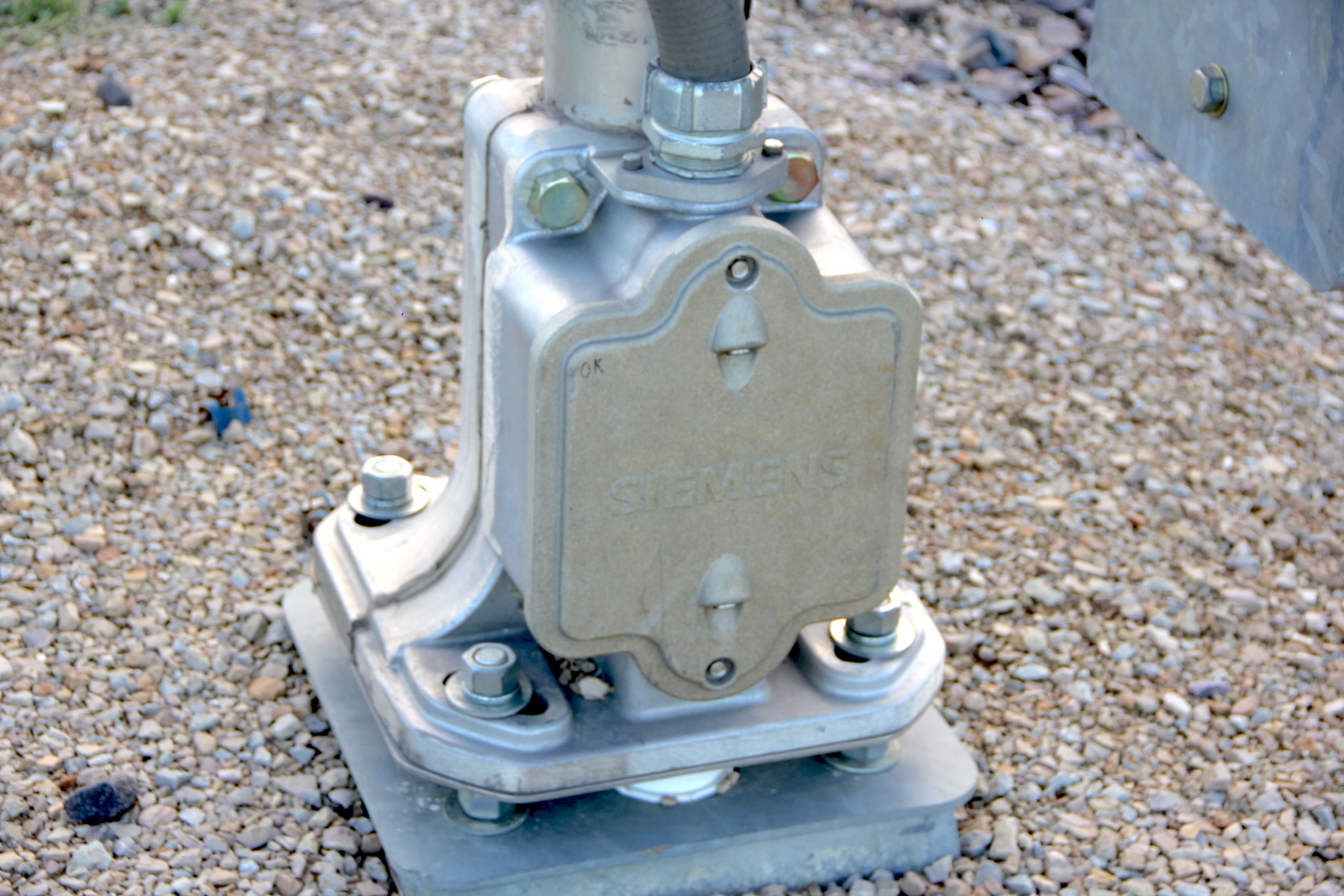

Gate Mechanism: Siemens Sticker Style 2 Siemens Sticker Style 2
Gate Striping: ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Crossbuck font: Normal font, double sided Normal font, double sided
Bell Cycle: Unknown Unknown

All pictures were taken on June 23, 2020, by Tommy McGowan.
This crossing is located on the UP Clinton Sub.

G1

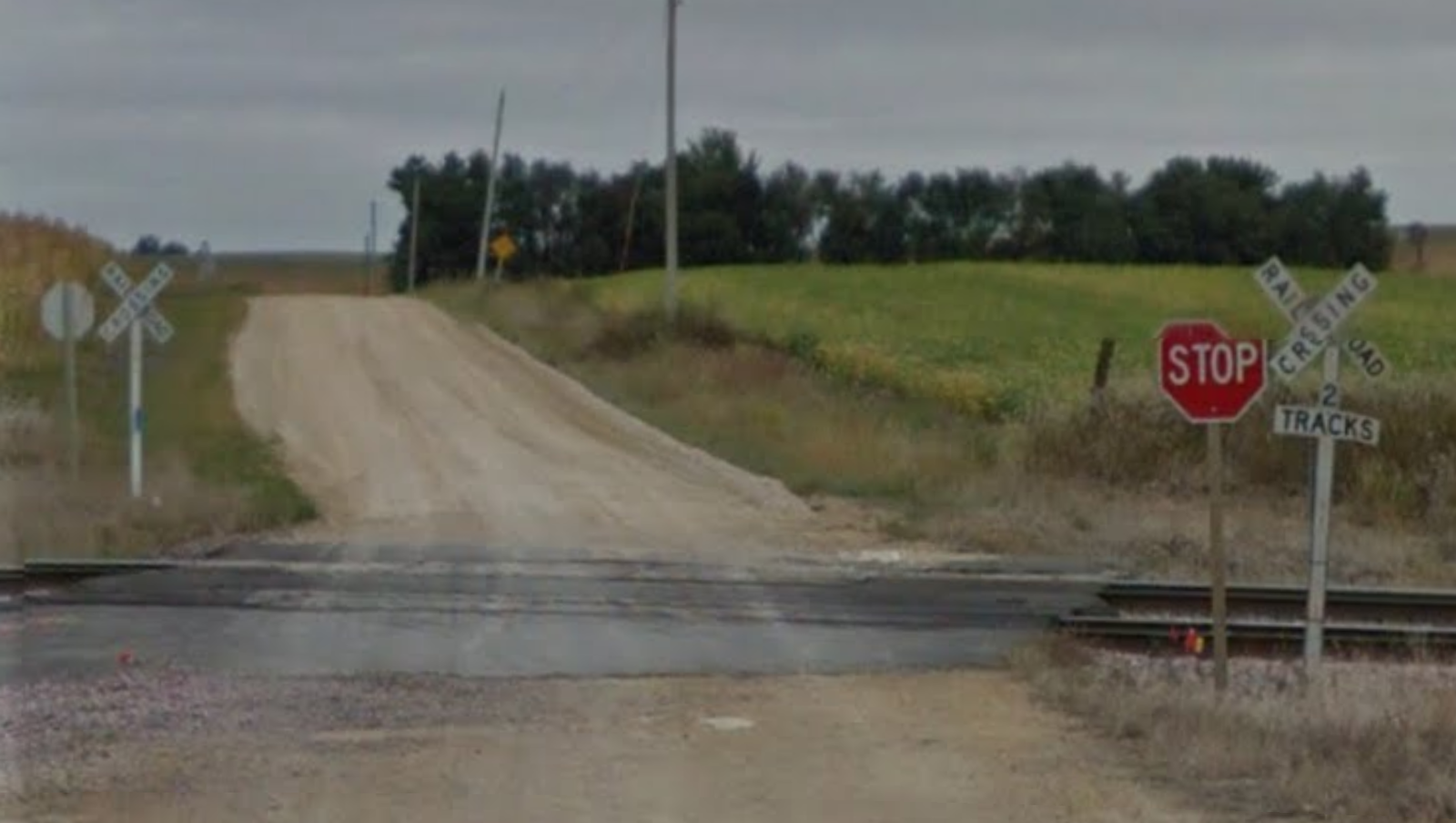

Streetview photo from 2013 showing the old crossbucks with stop signs. Between 2014 and 2016, these were replaced with new Siemens signals.
1
2

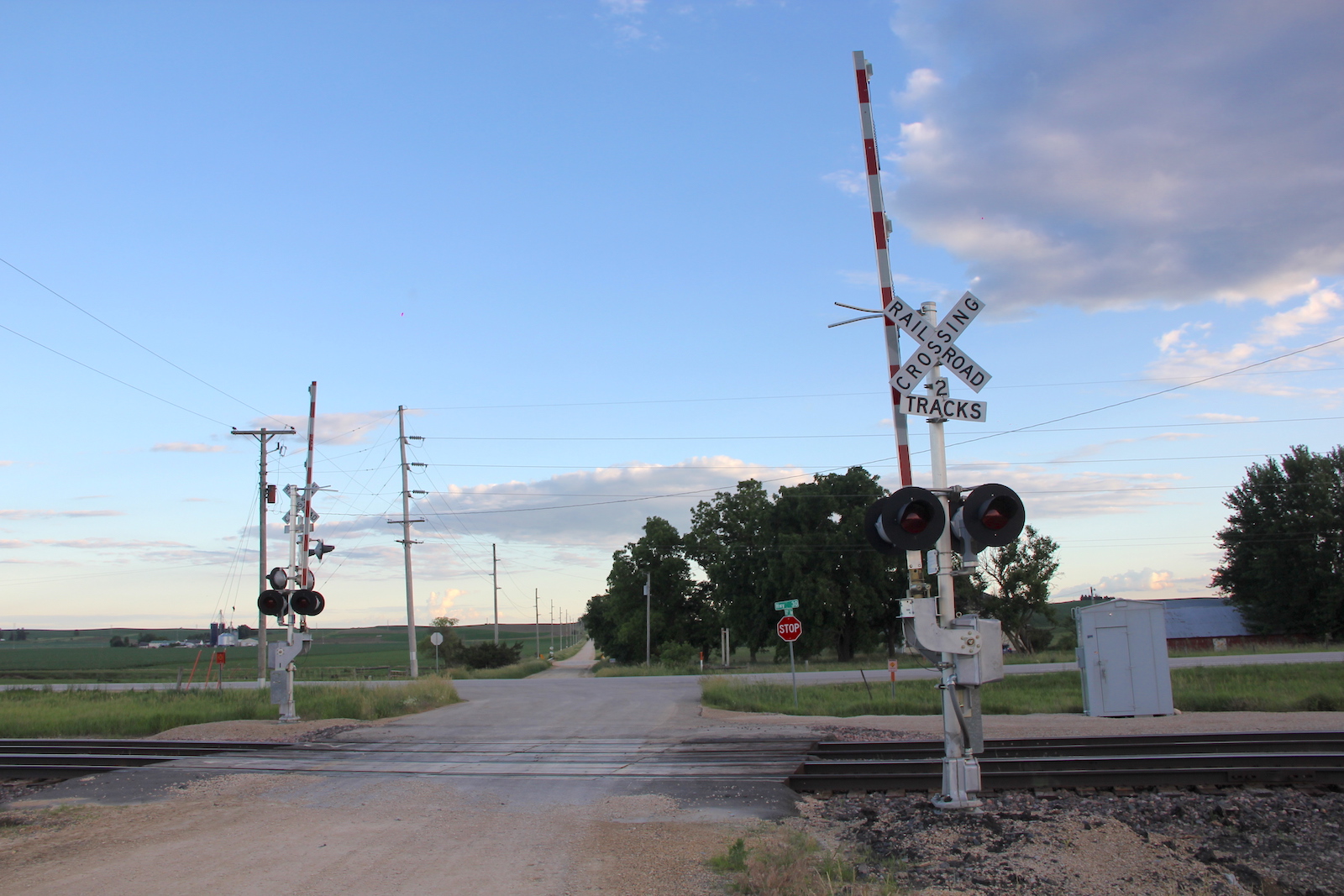

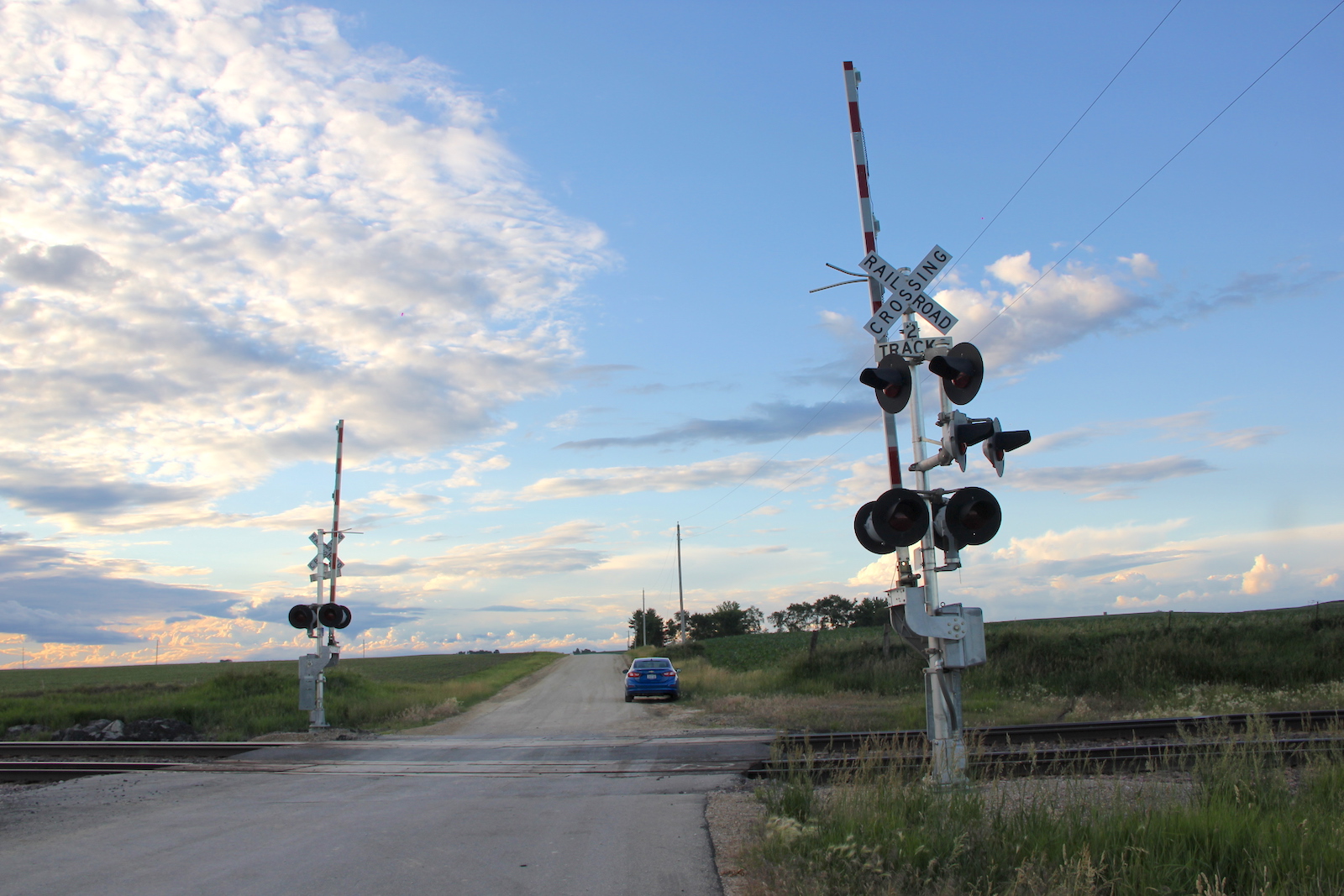

Overview of the newer signals facing south. Overview facing north.
3 4 5
6 7 8
9 10 11 12

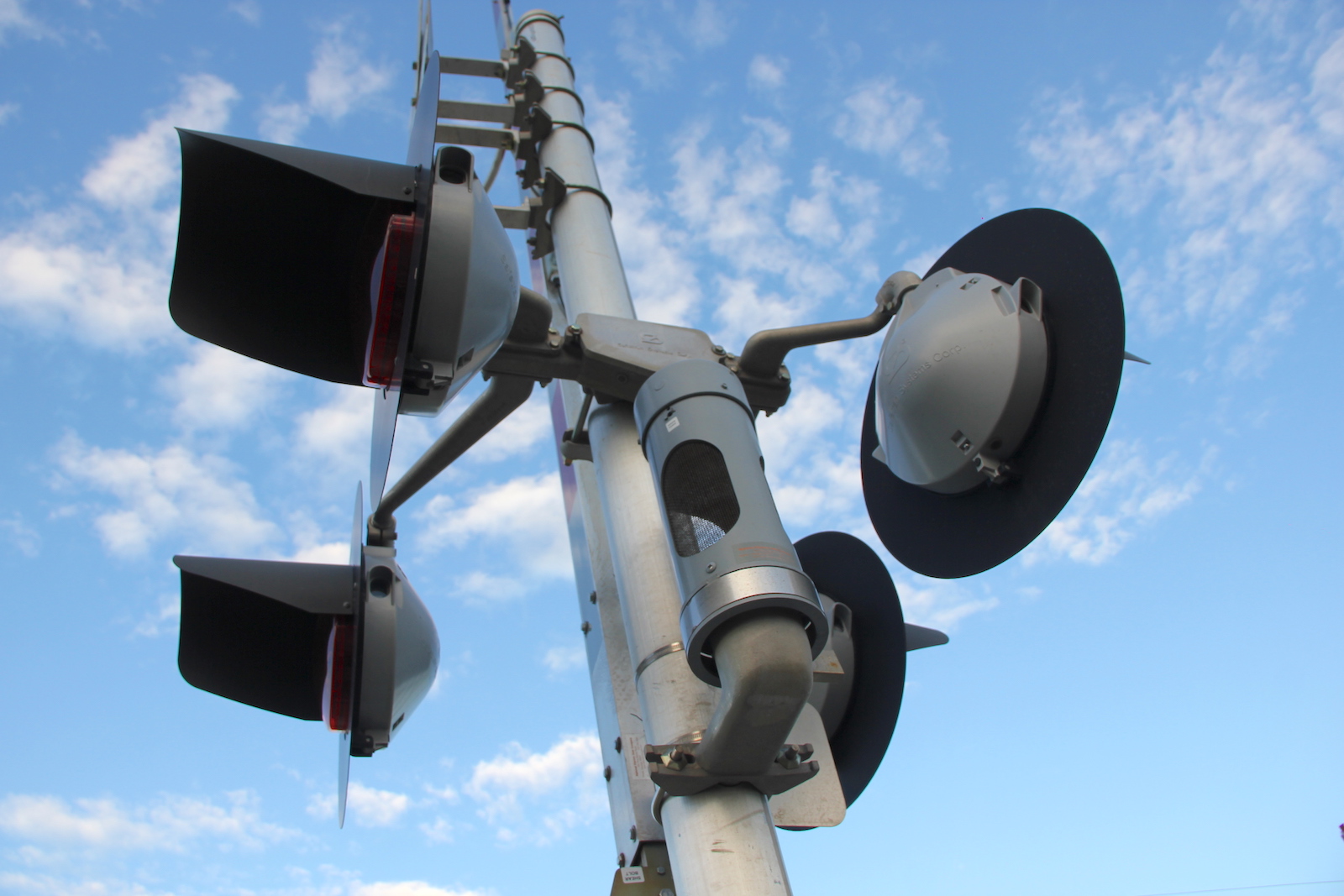

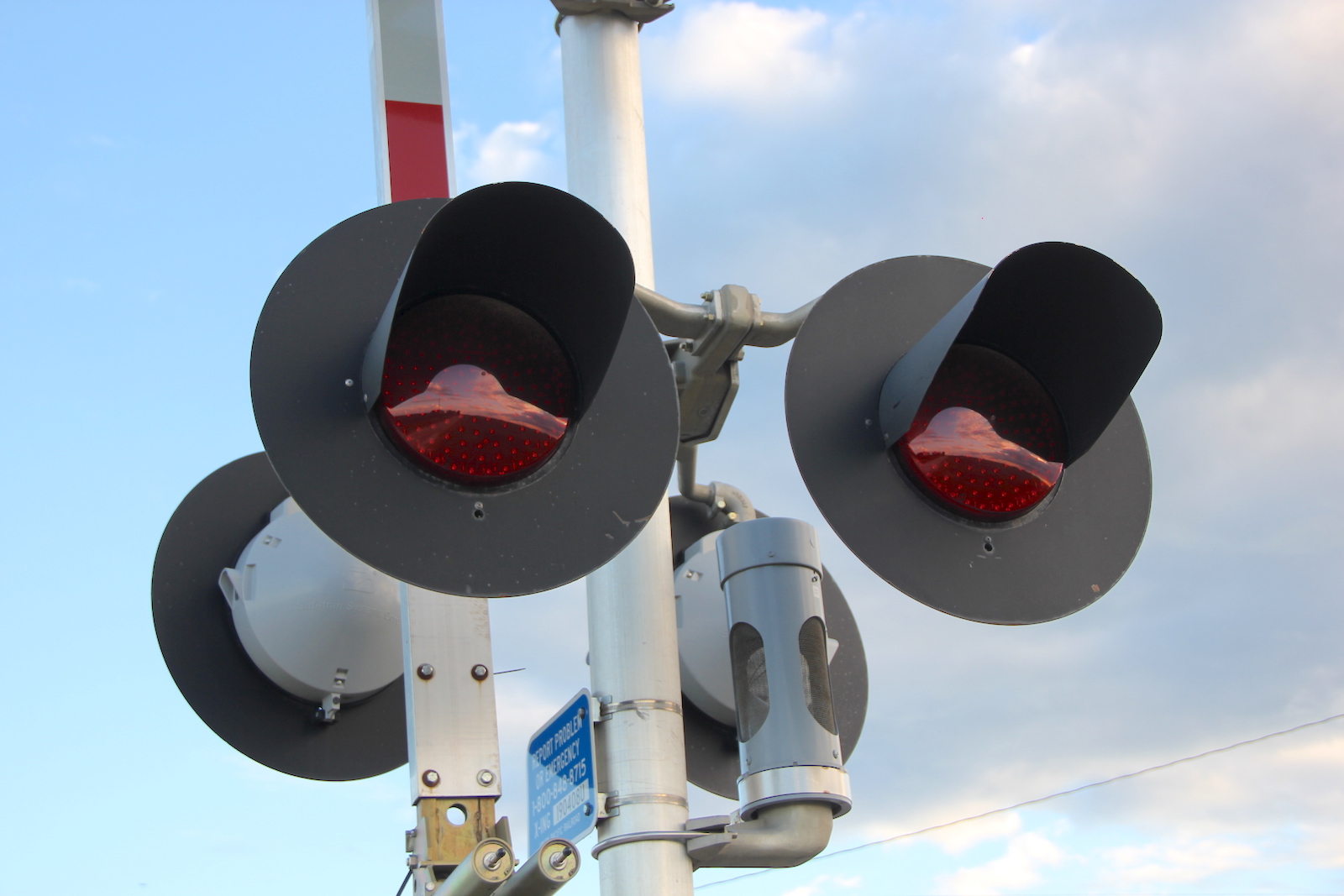

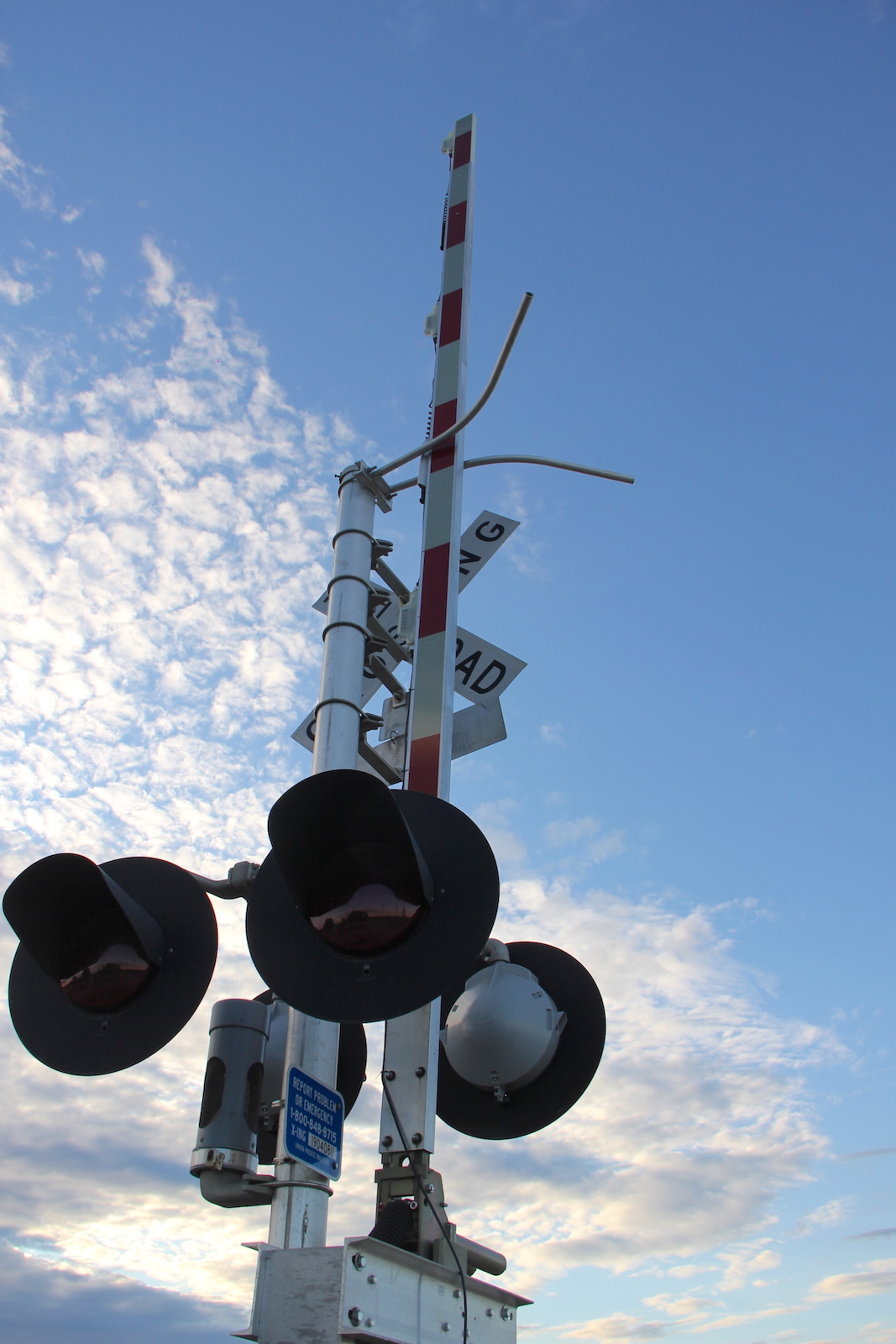

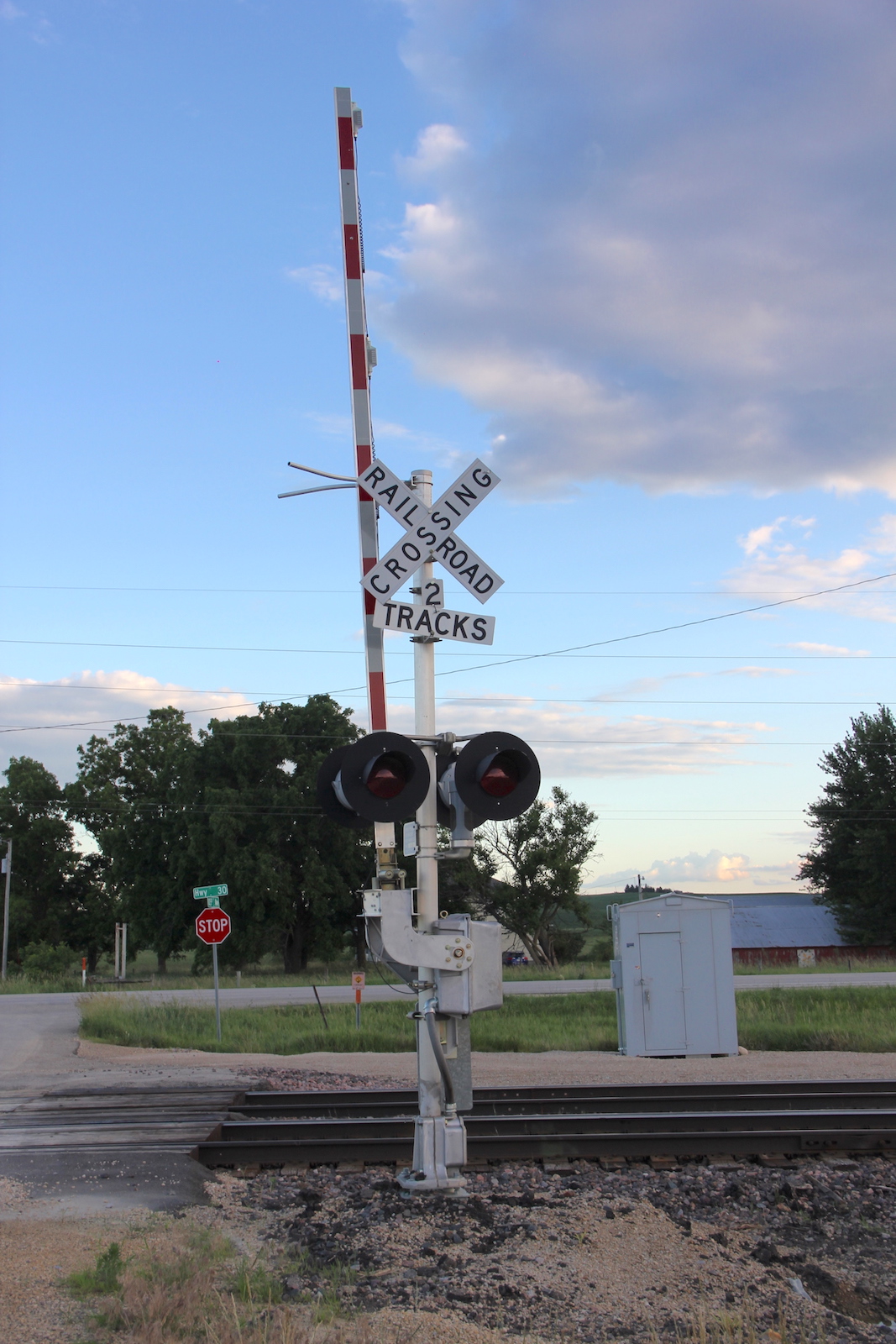

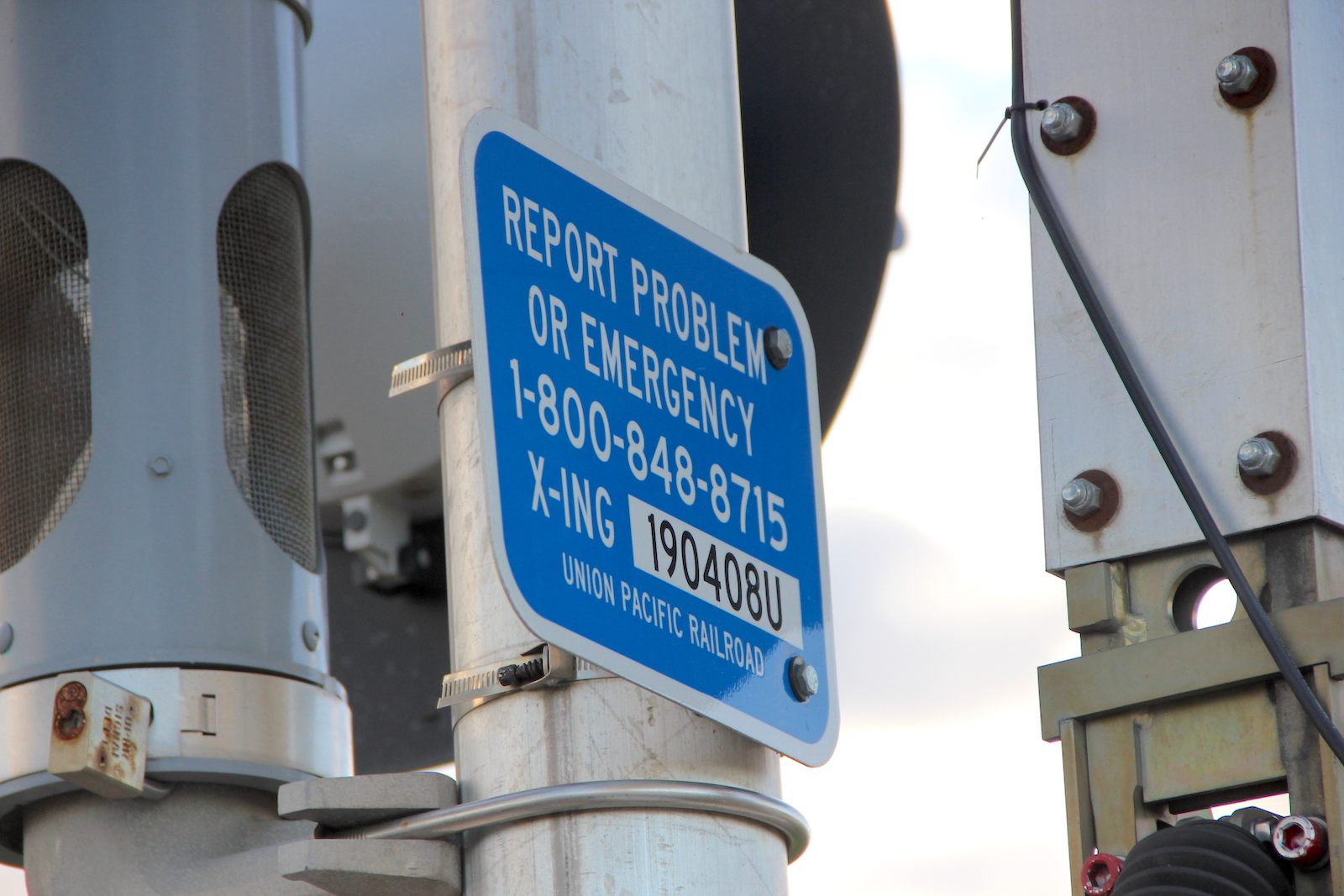

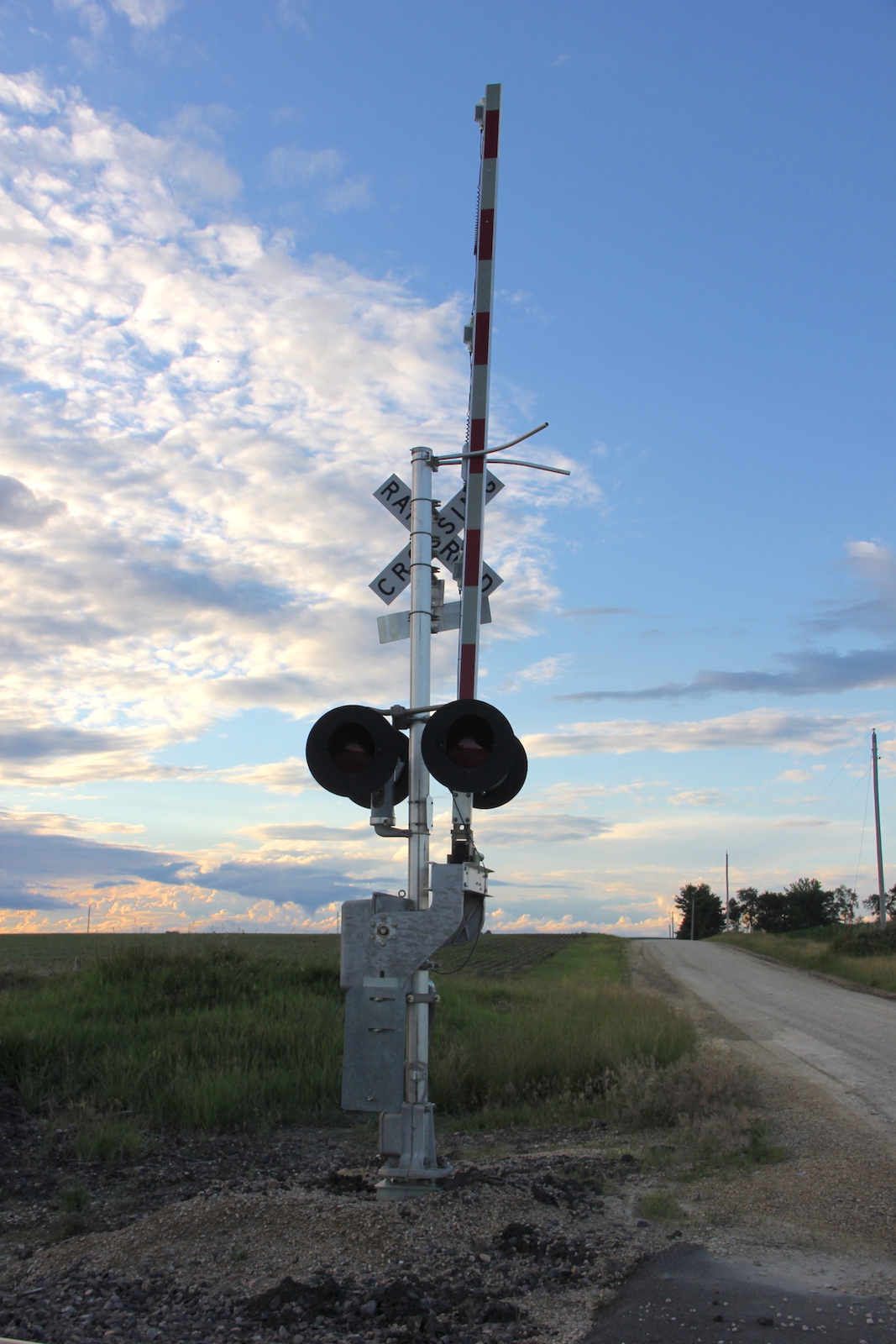

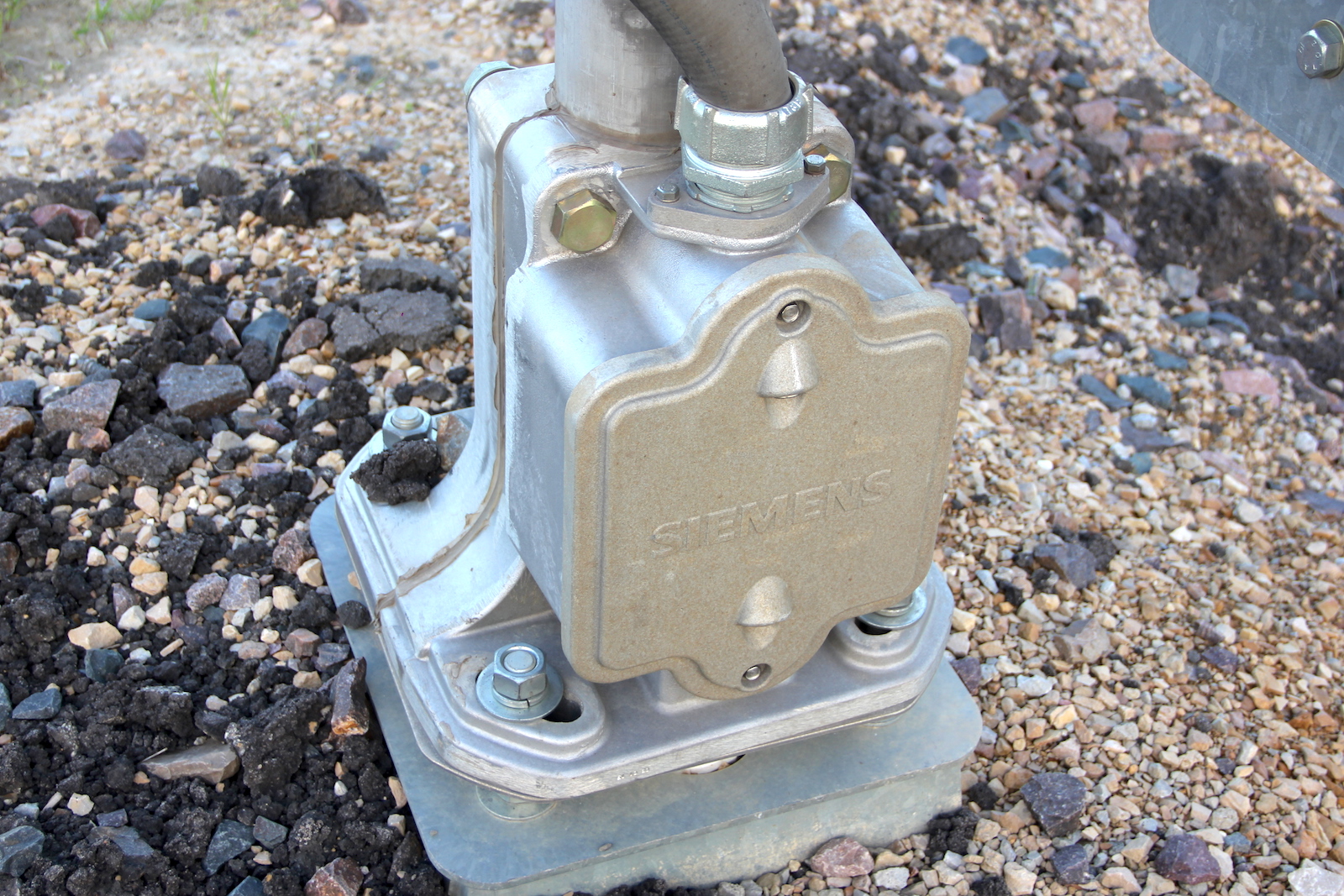

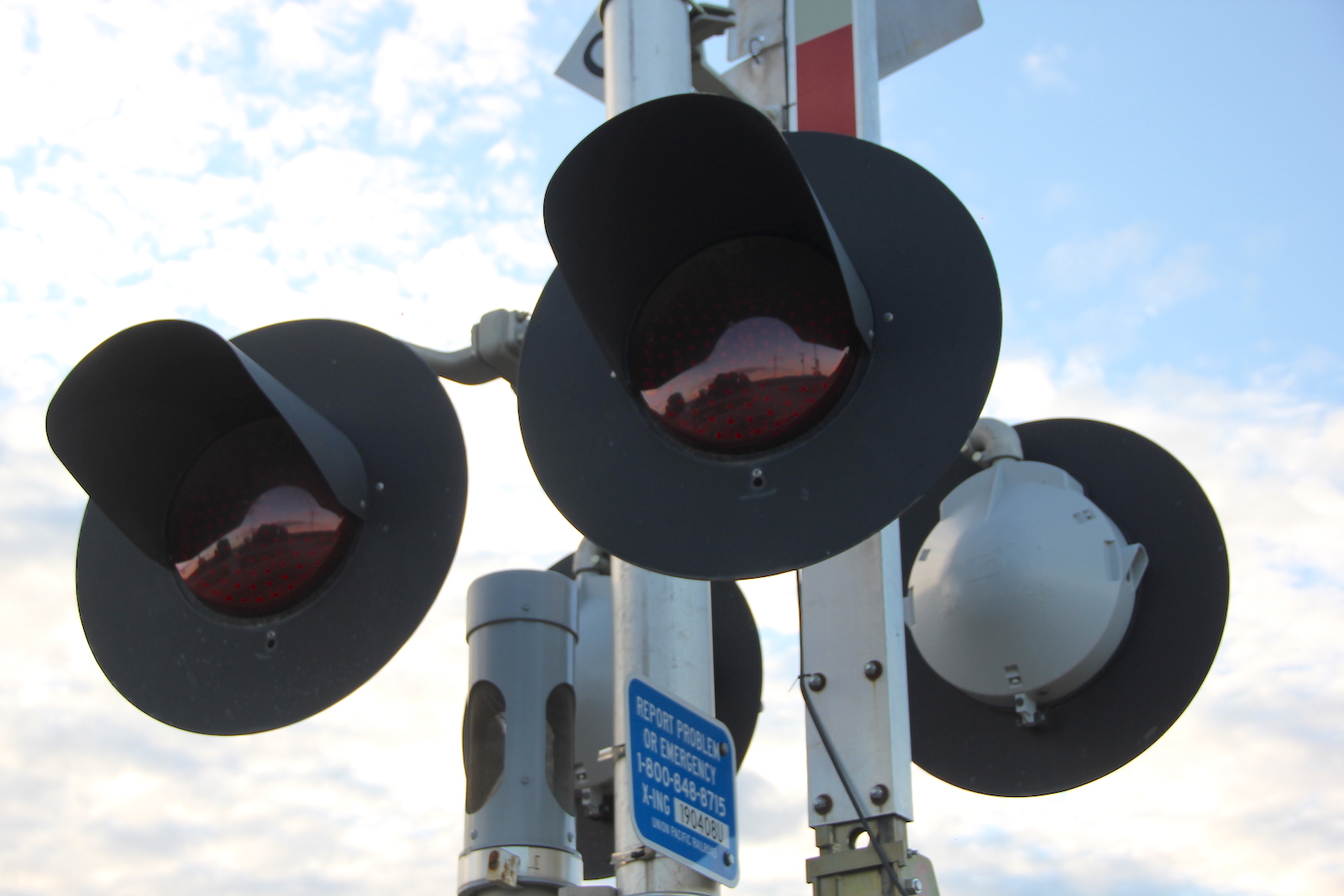

The northern signal.
13 14 15
16 17 18
19 20 21 22
23 24 25 26

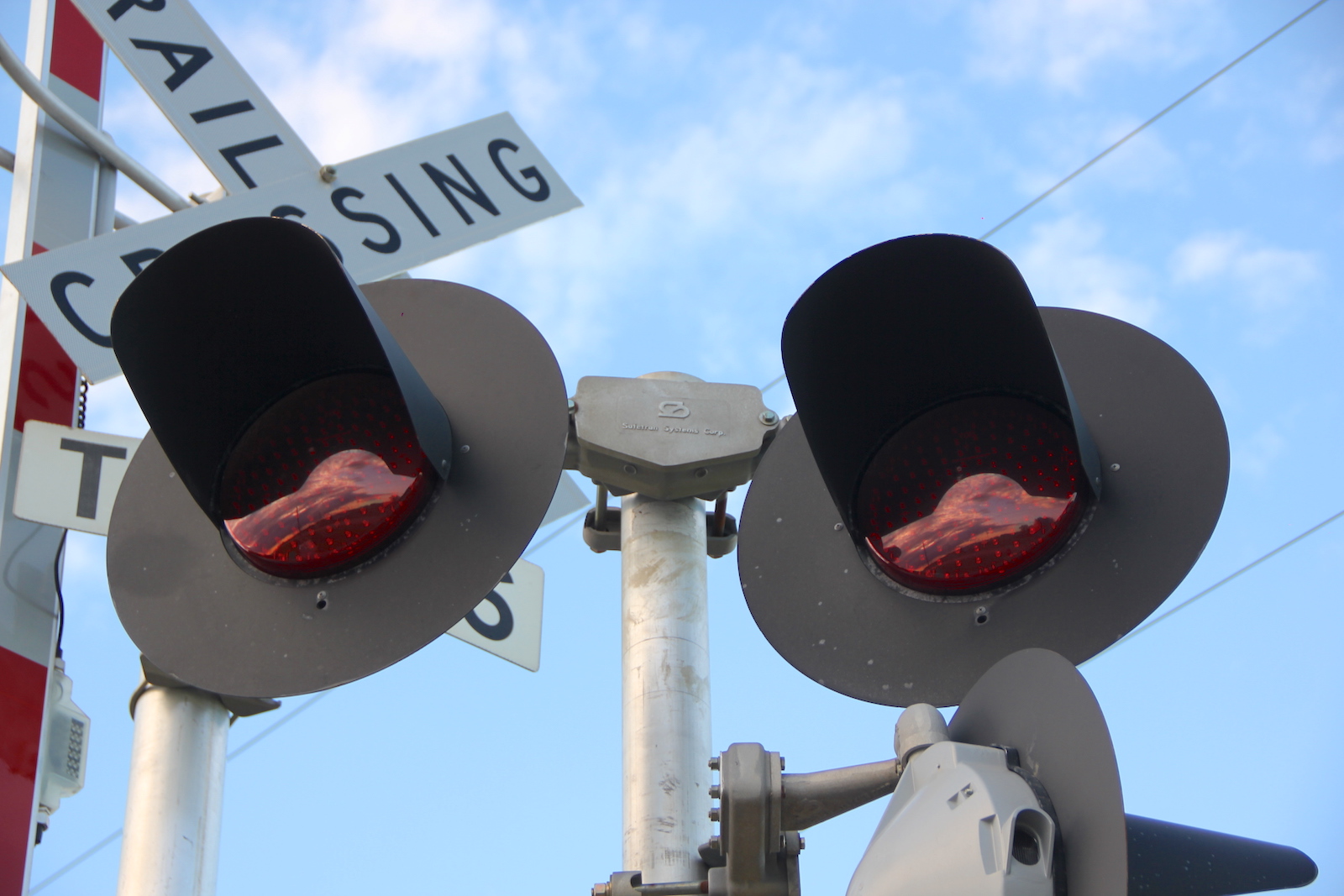

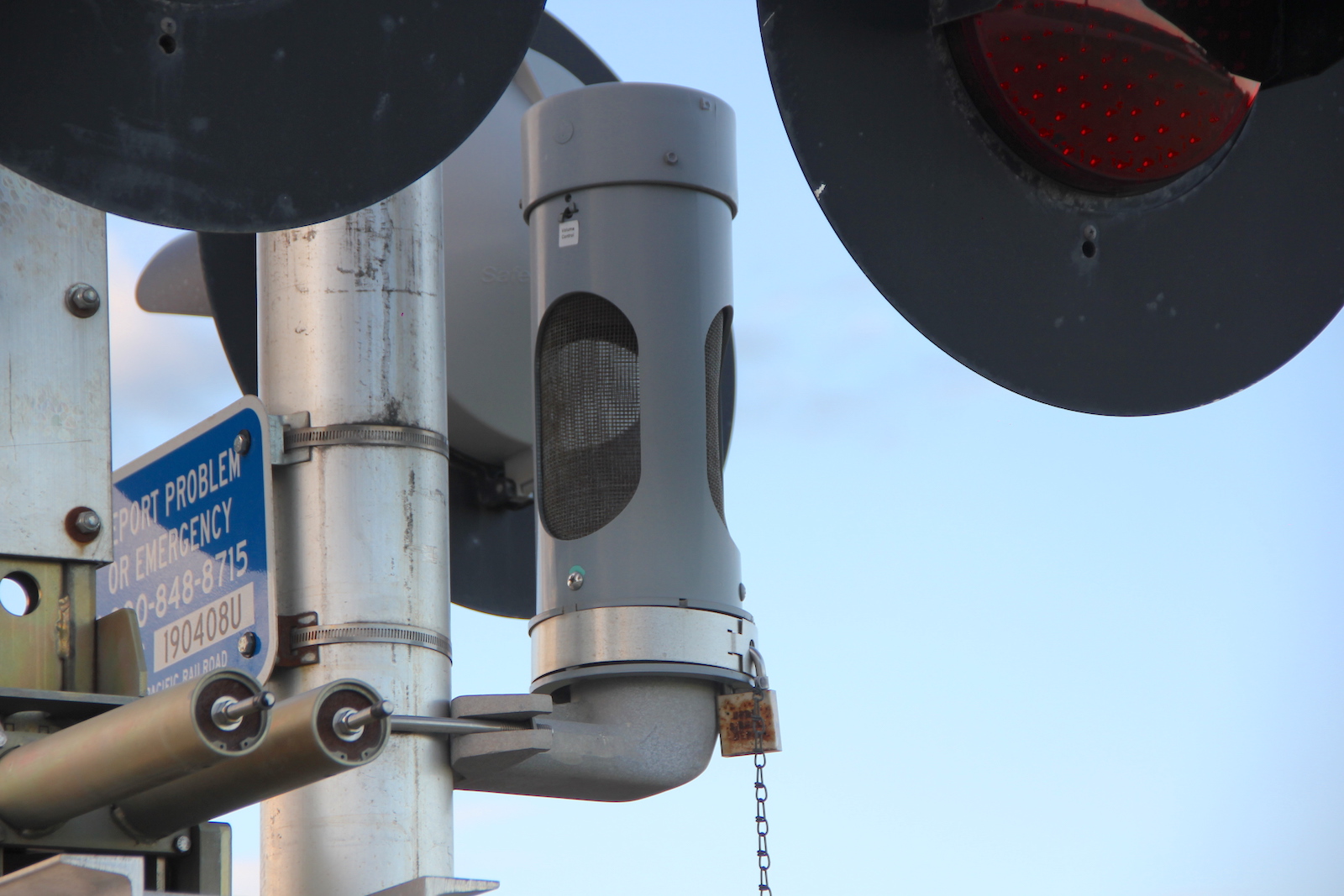

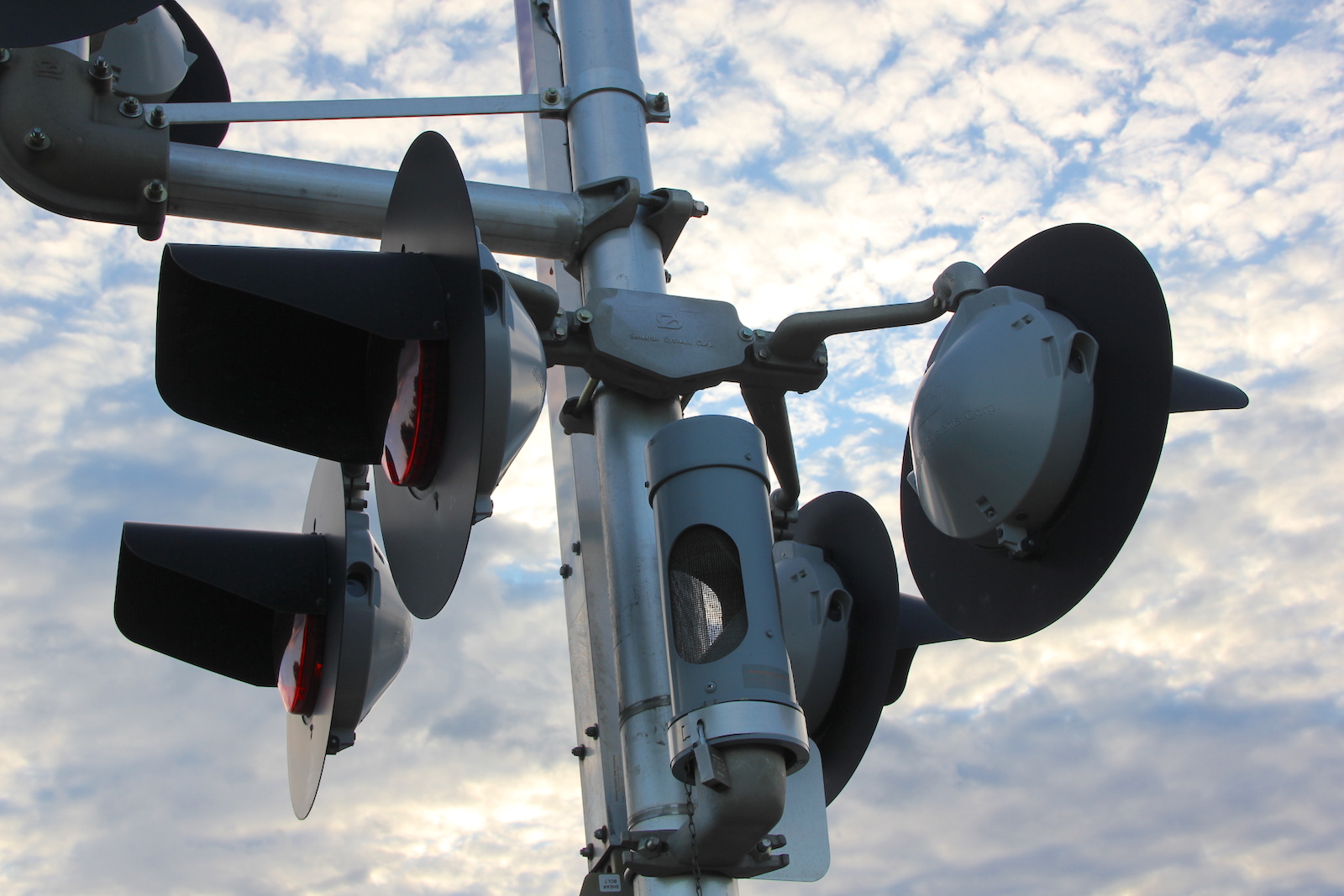

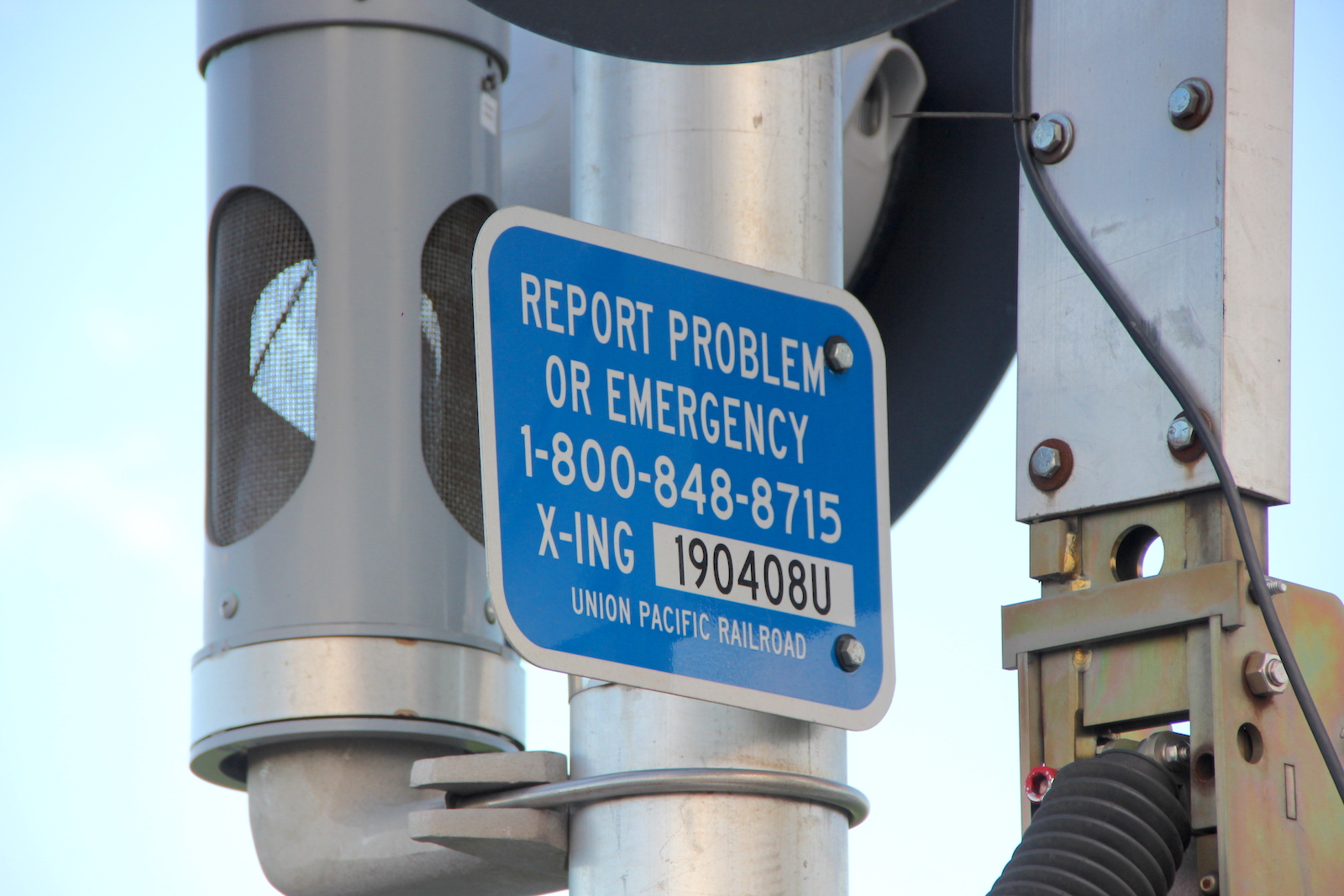

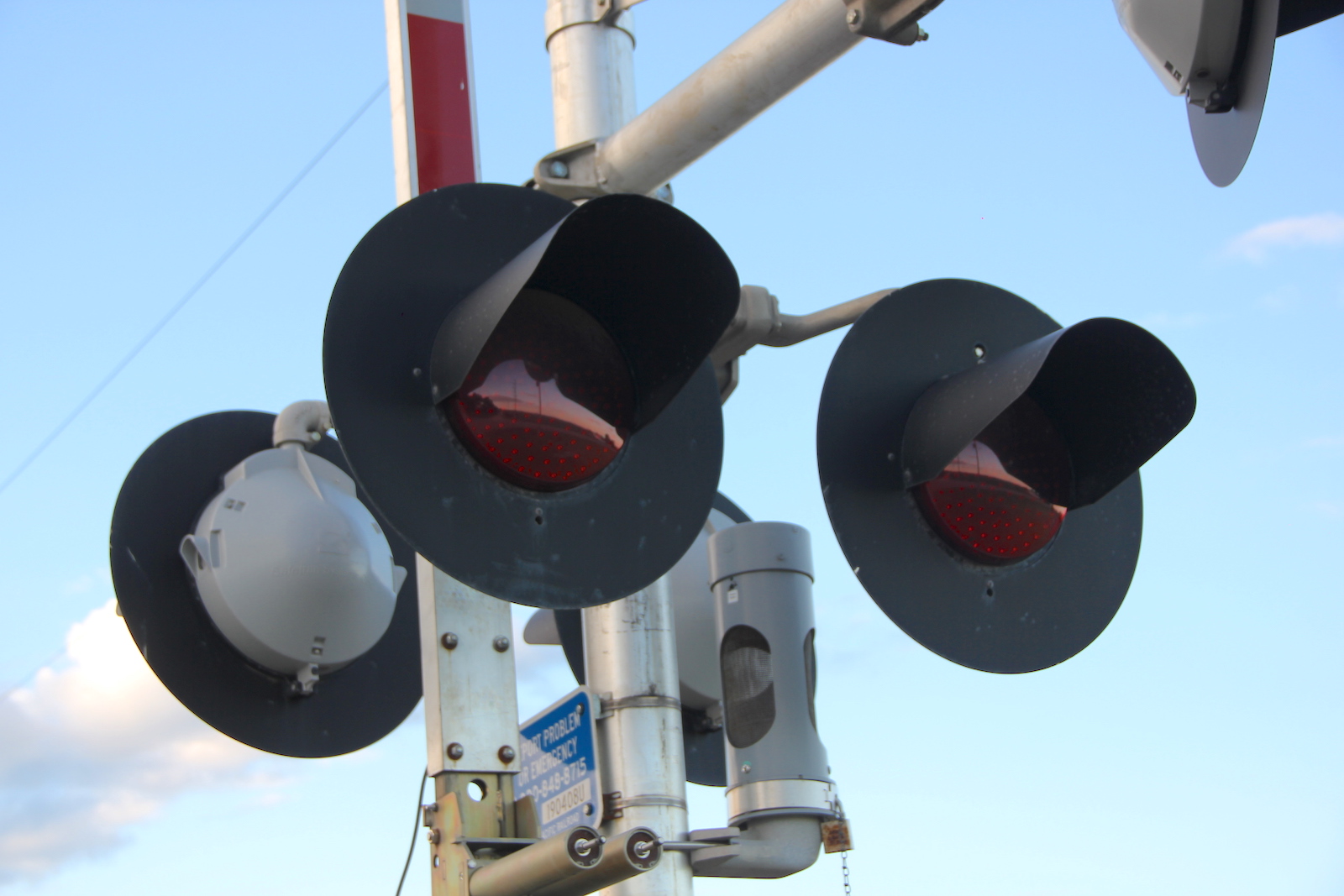

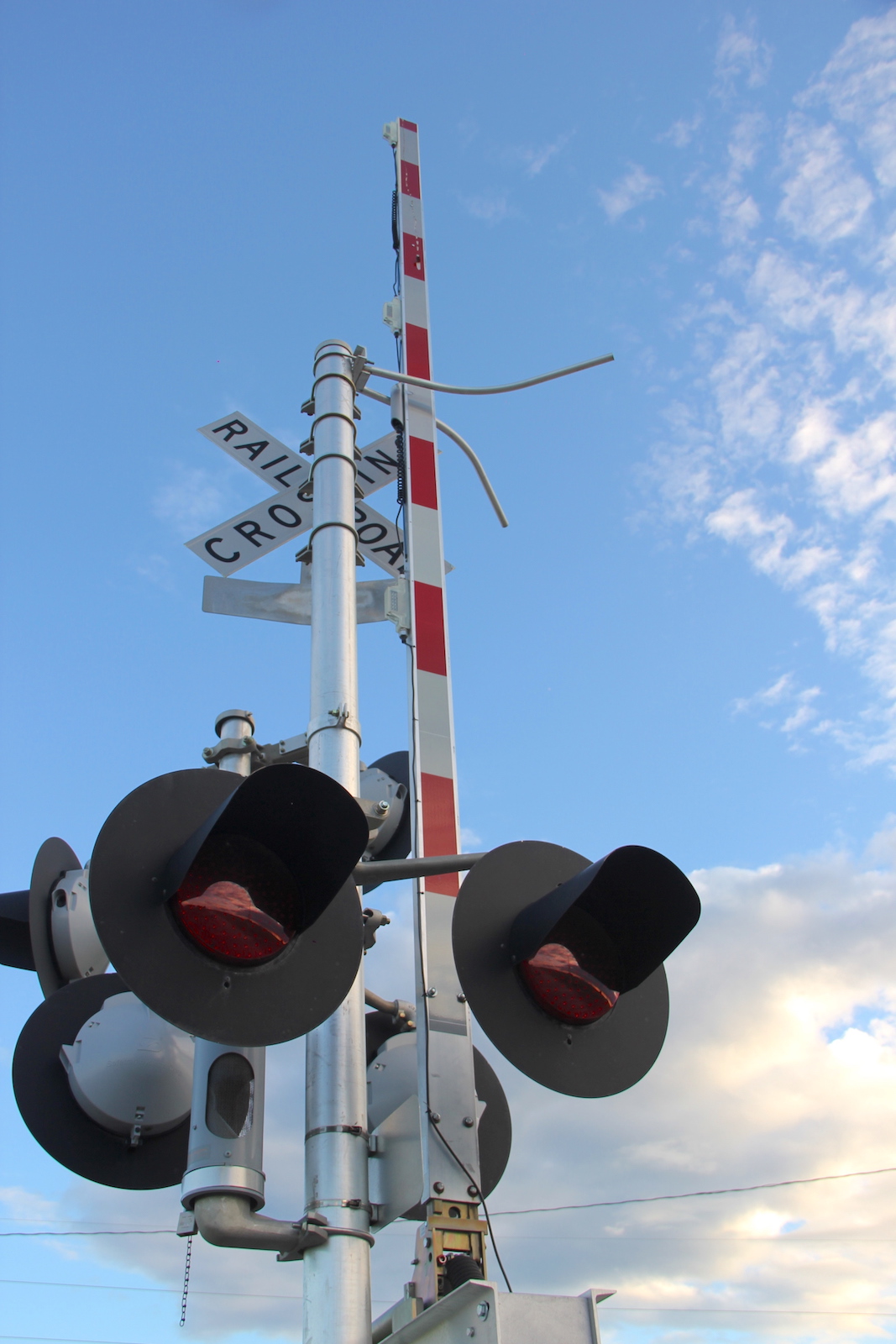

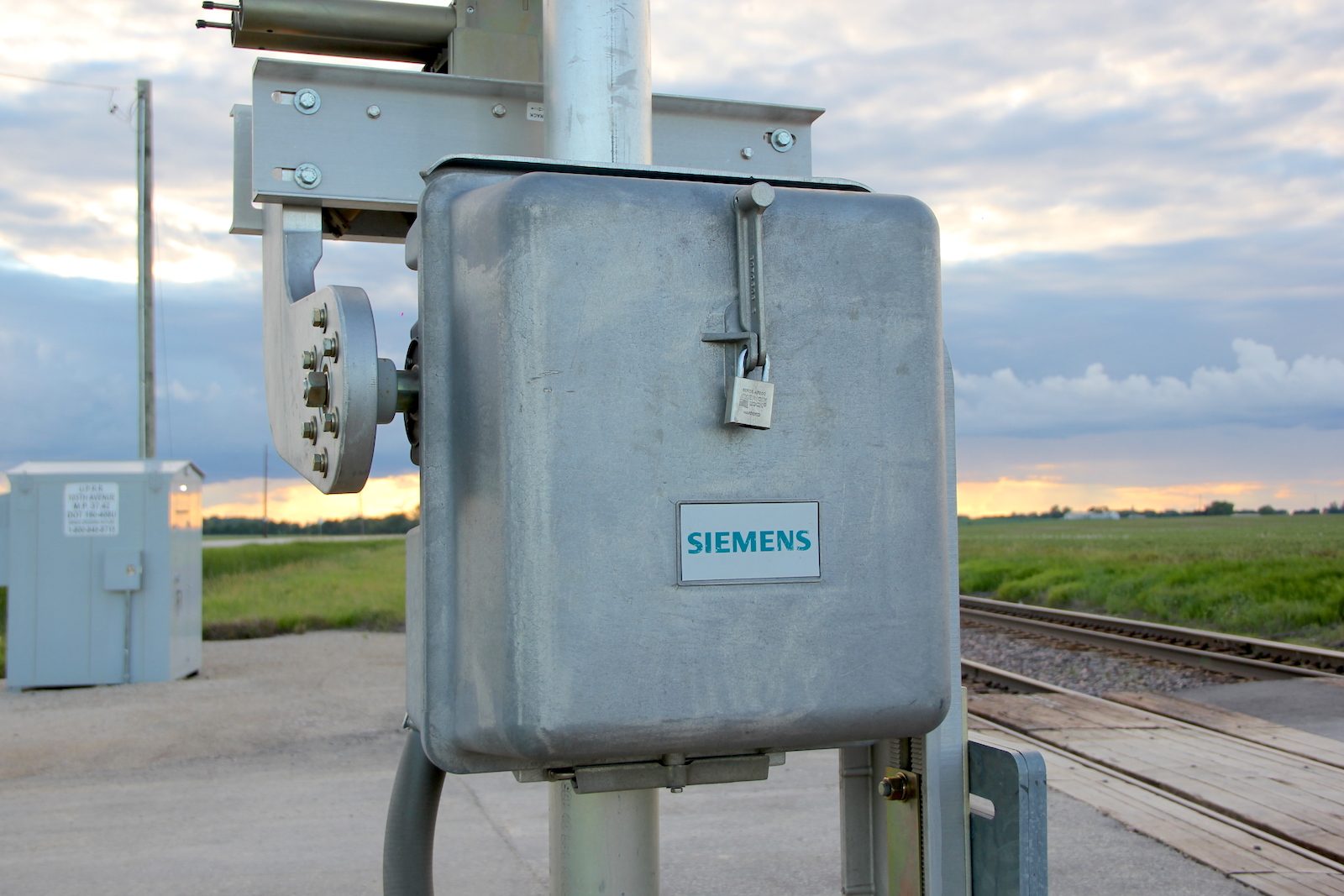

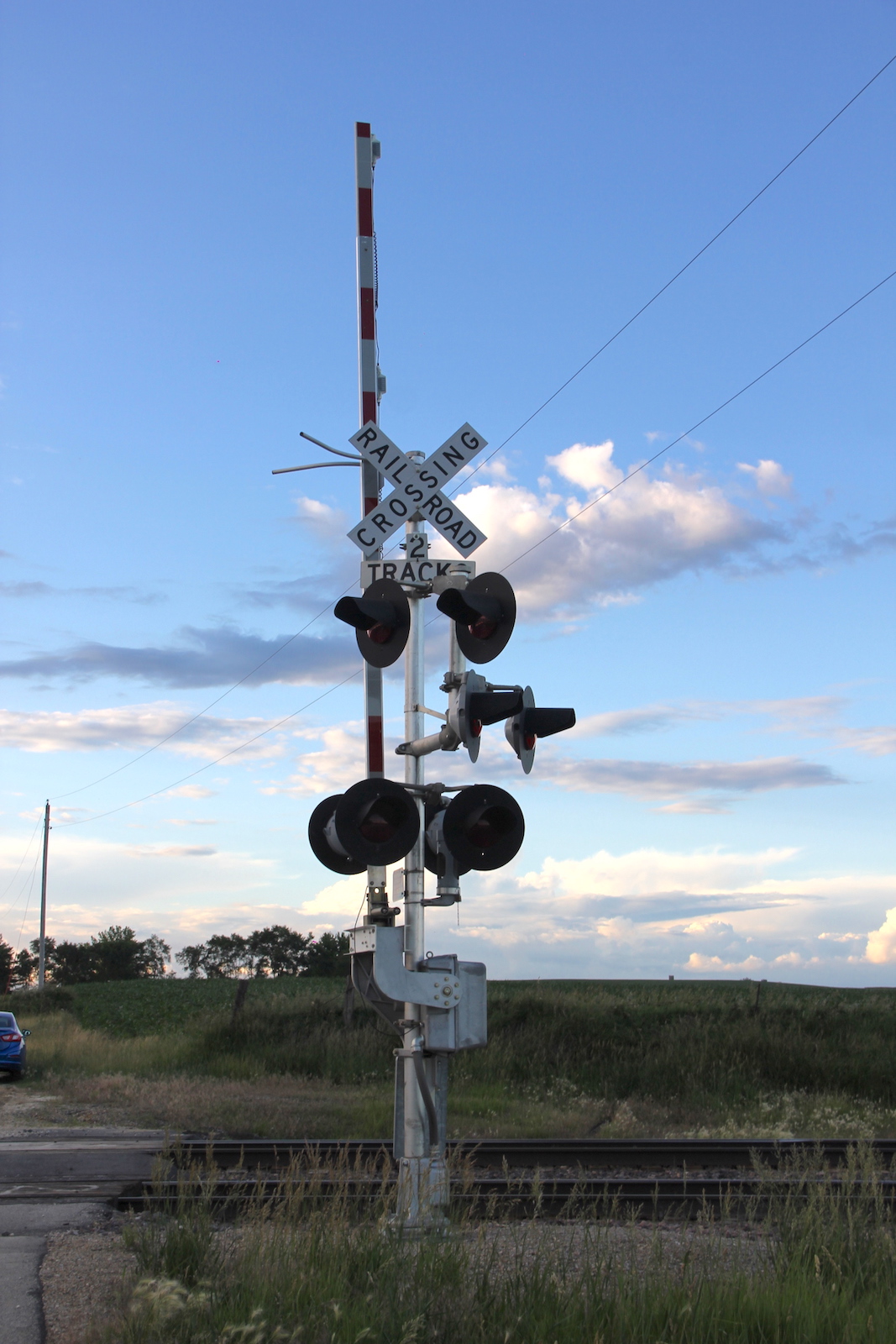

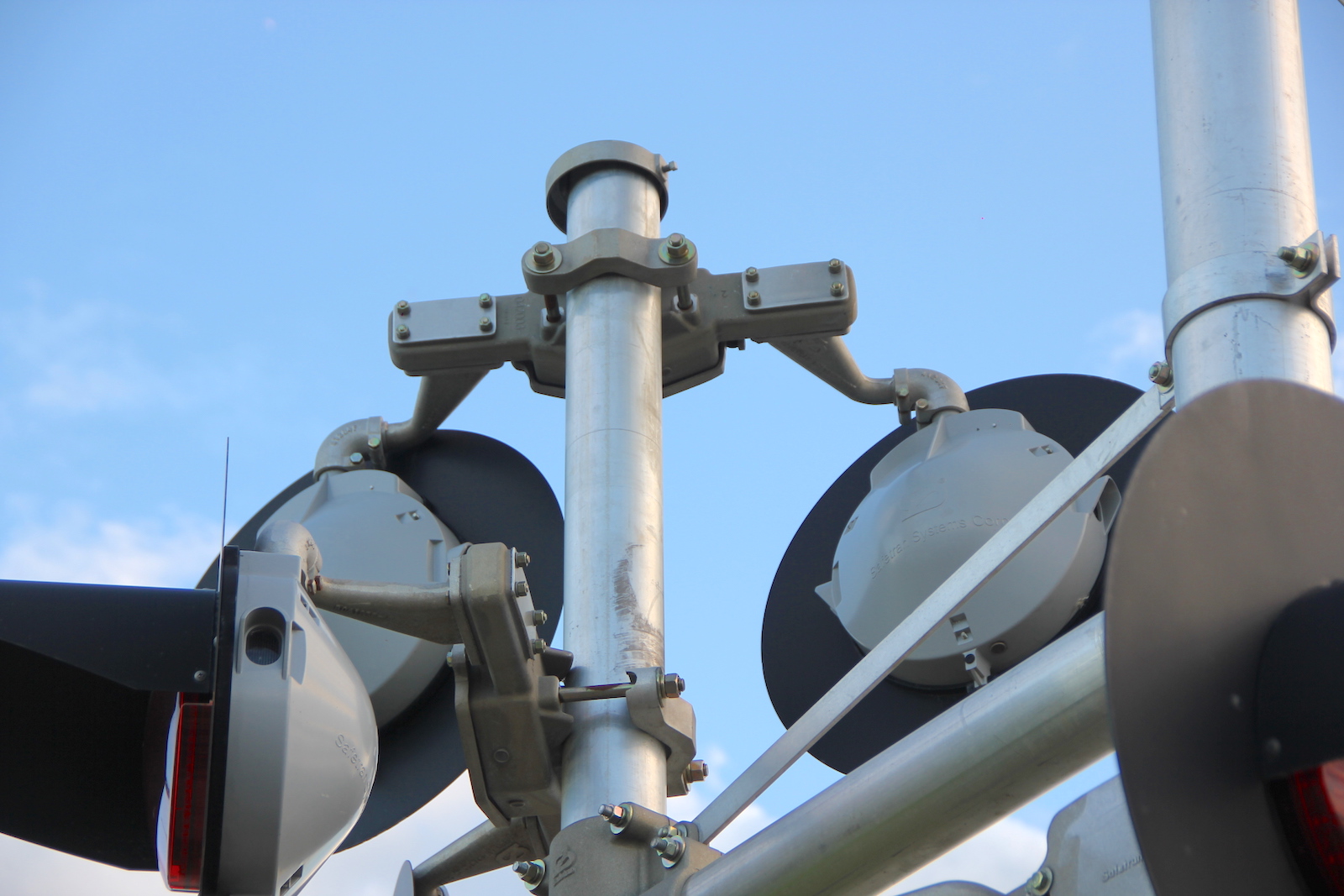

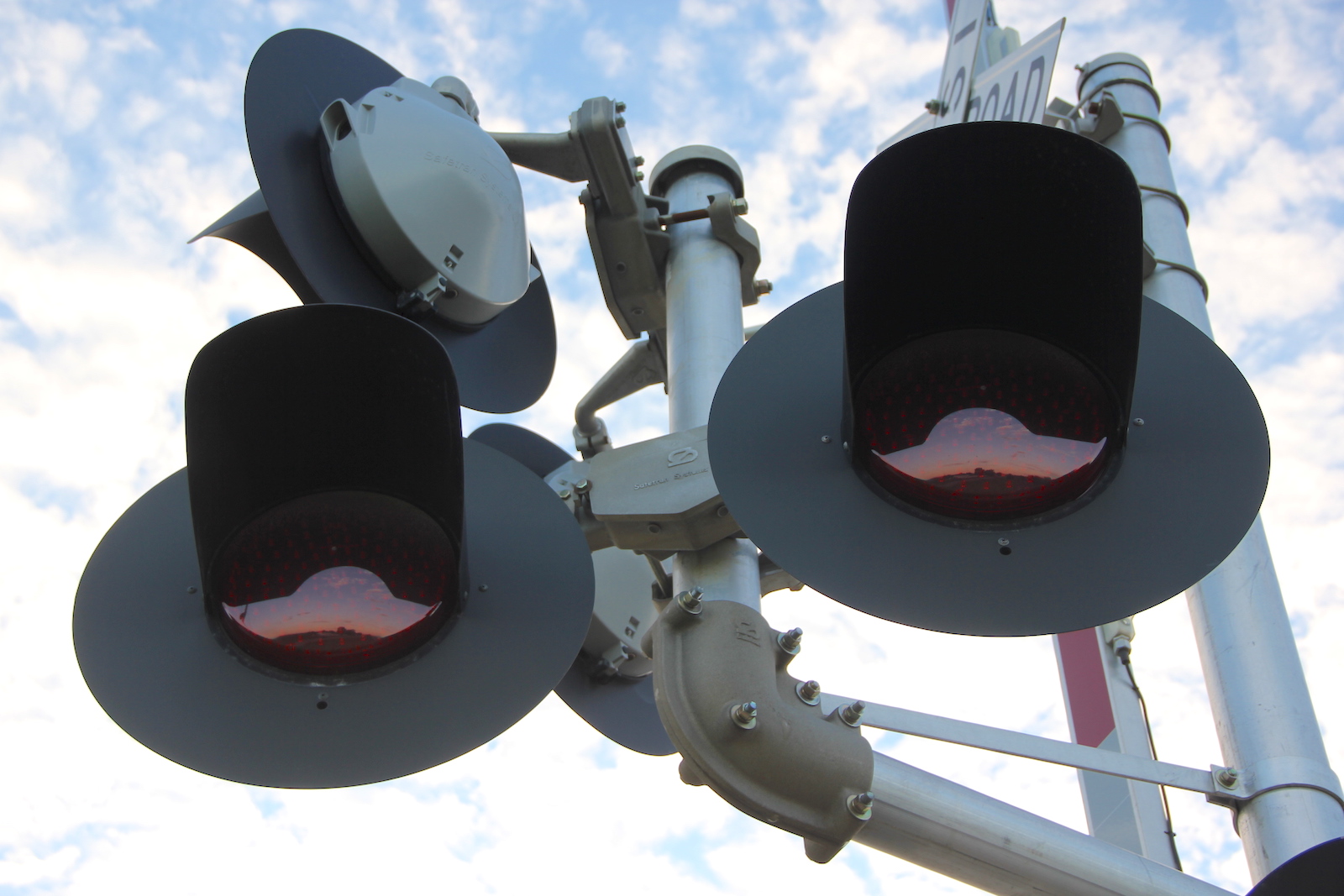

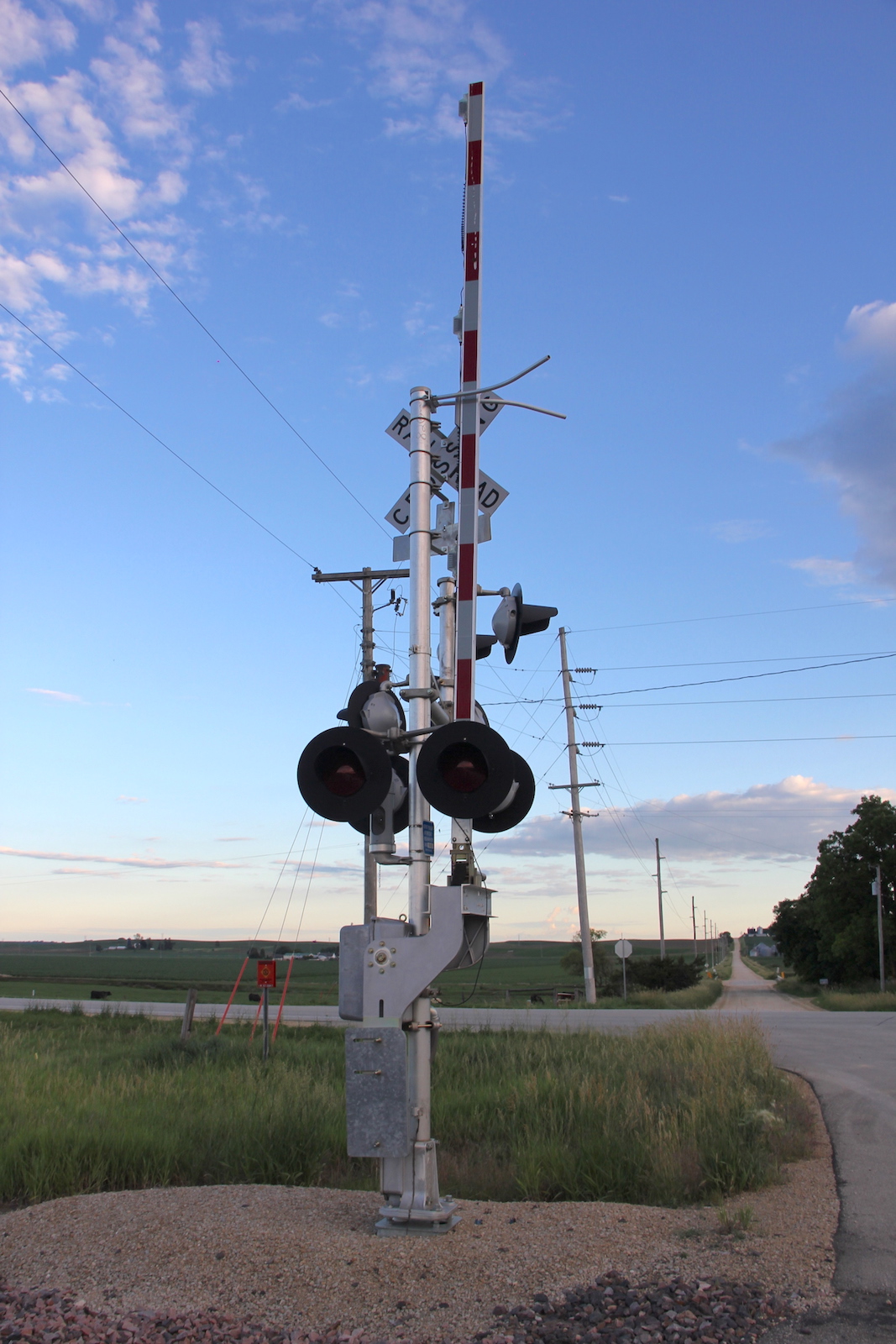

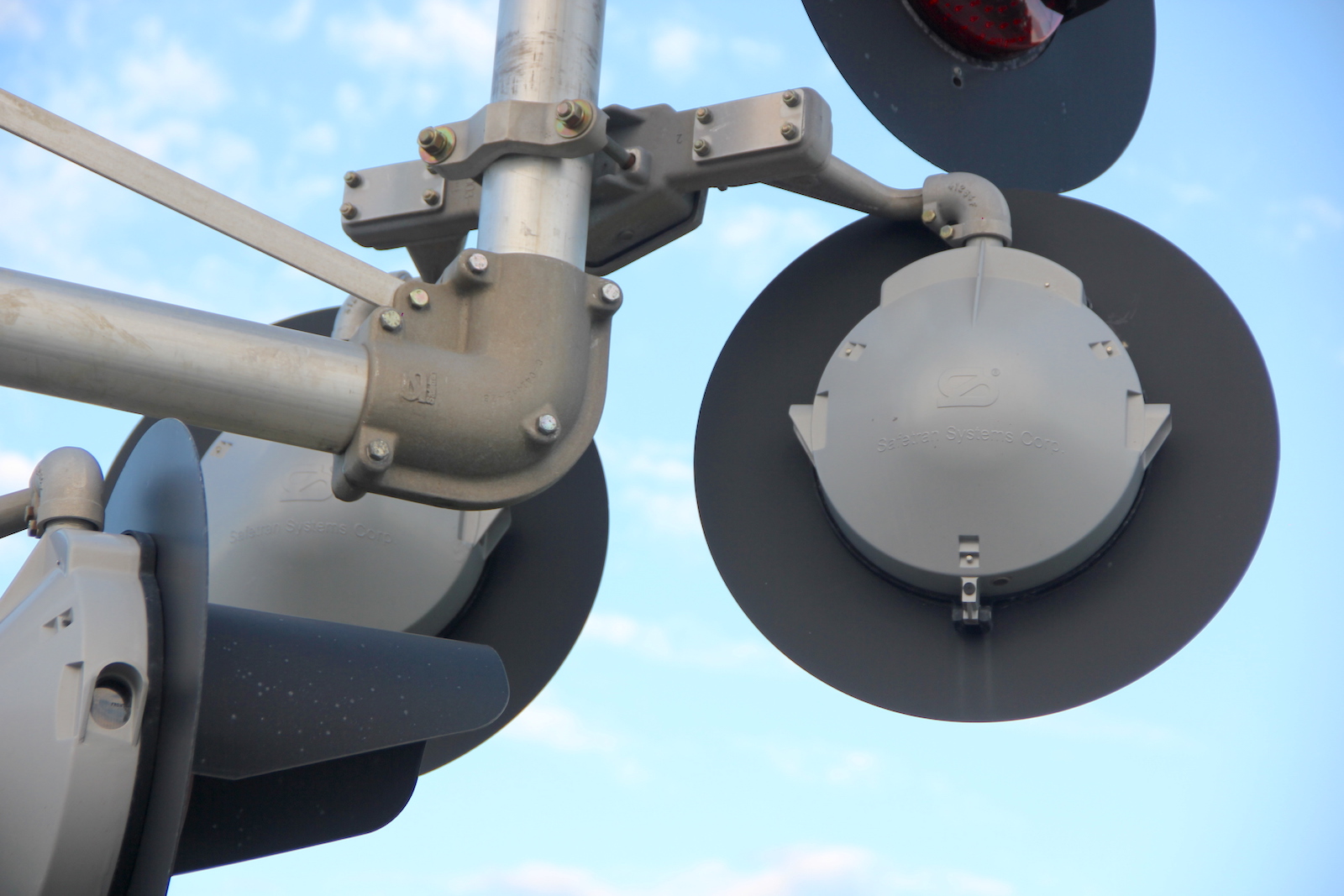

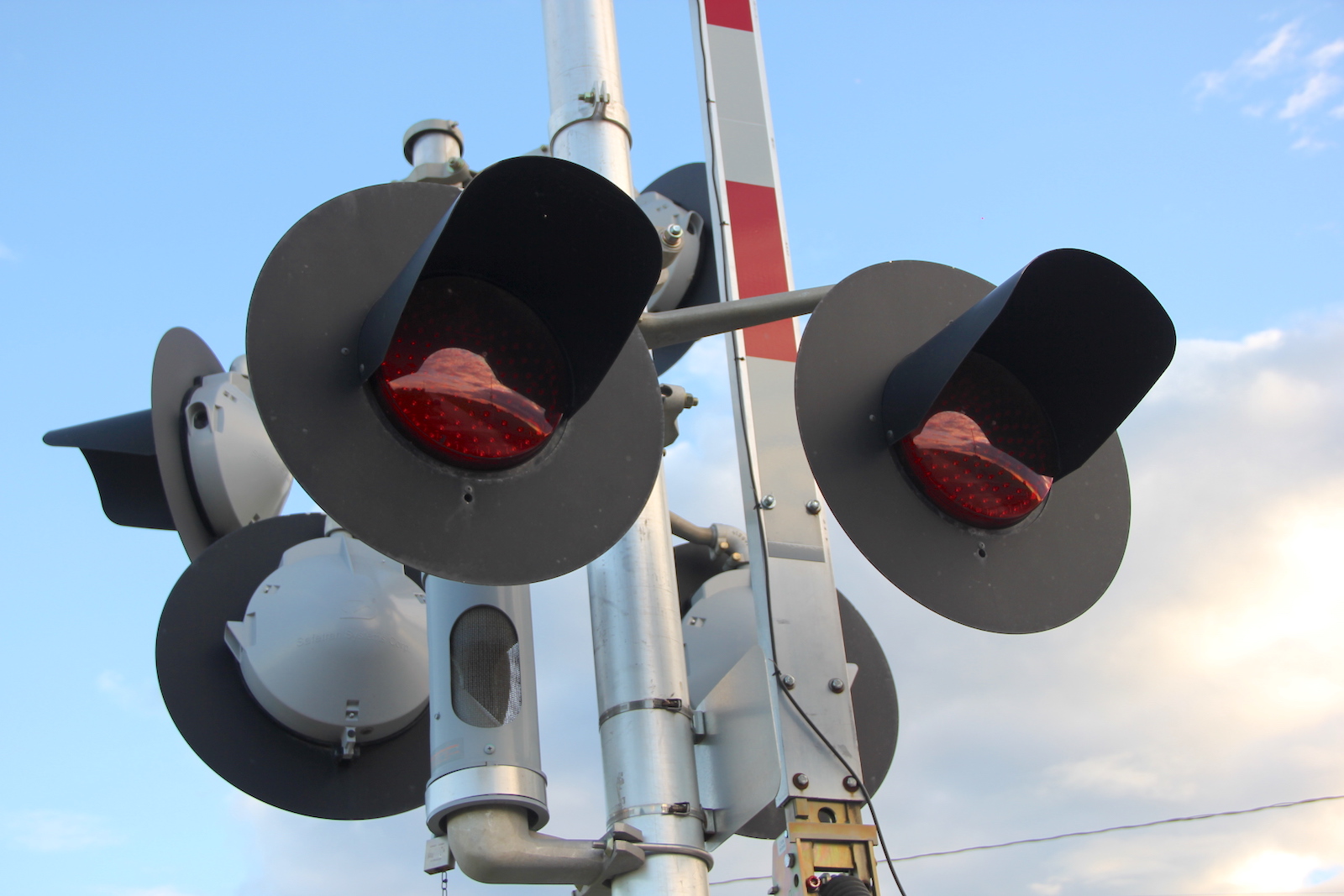

The southern signal.
27 28 29 30

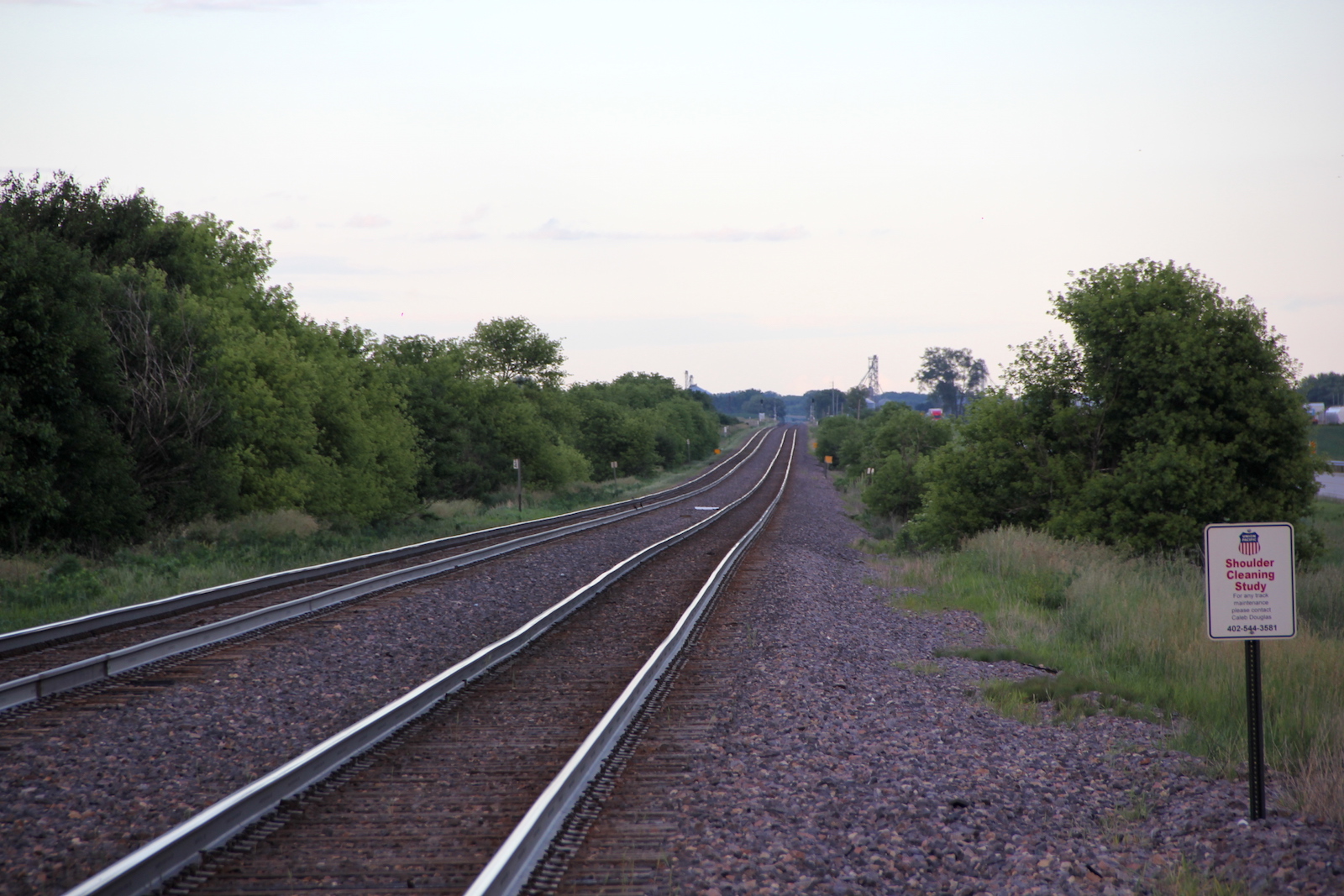

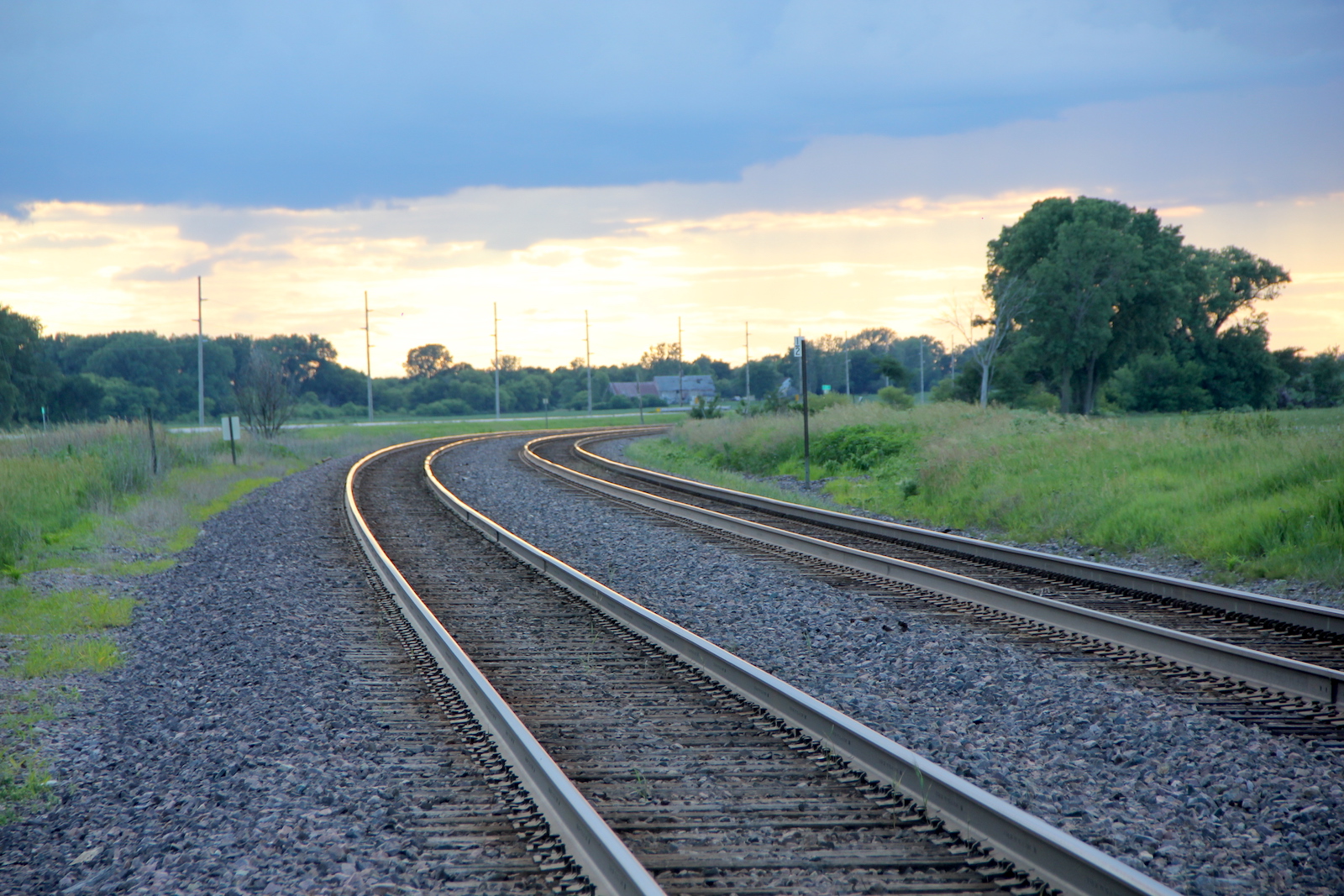

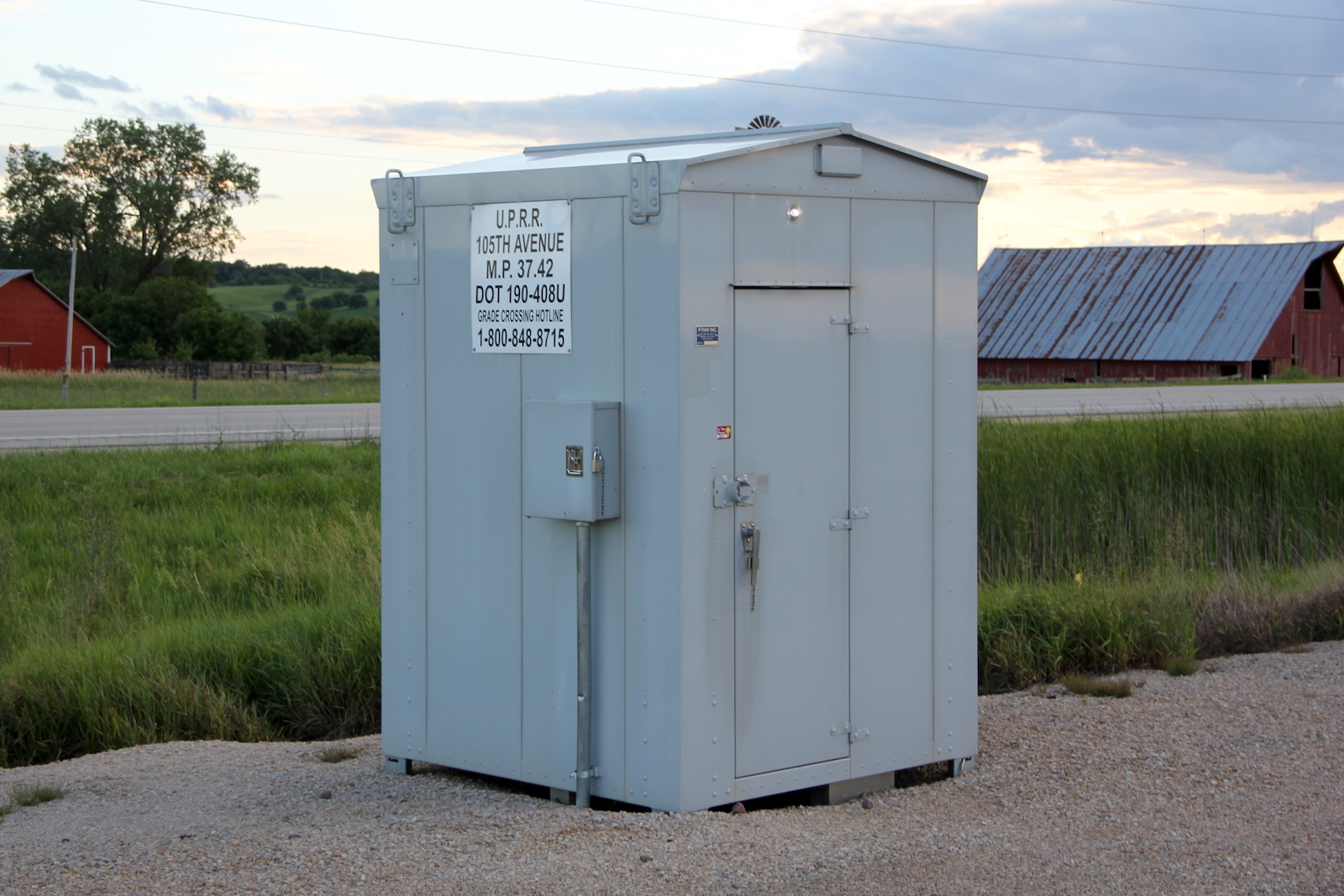

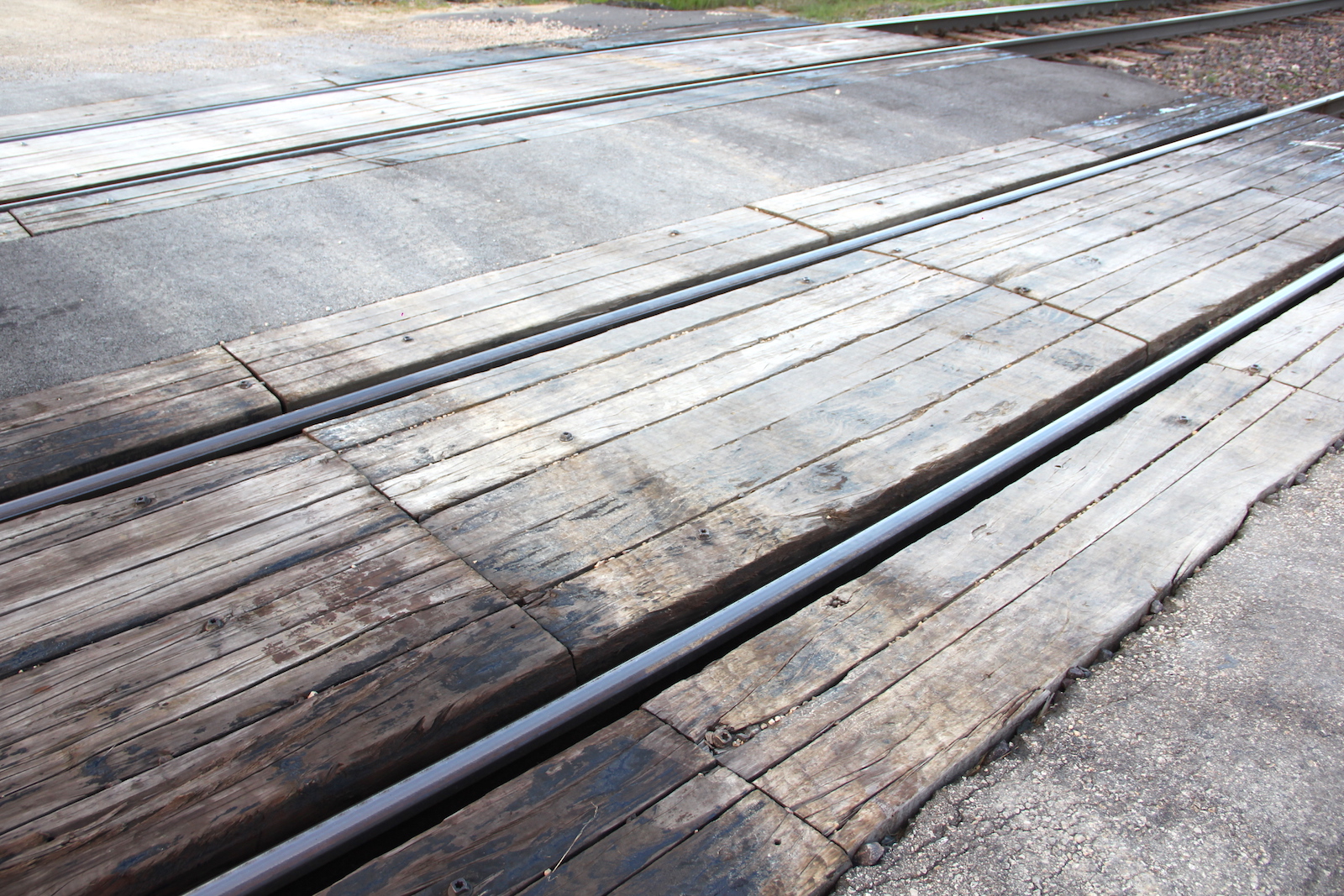

The relay bungalow in the southwest quadrant. The grade is all wood. Track view facing west towards Washington Ave. in Lowden. Track view facing east towards 122nd Ave.

.
