MP: 0600.52 |
Created July 18, 2023
Total Accidents: 0
Crossing

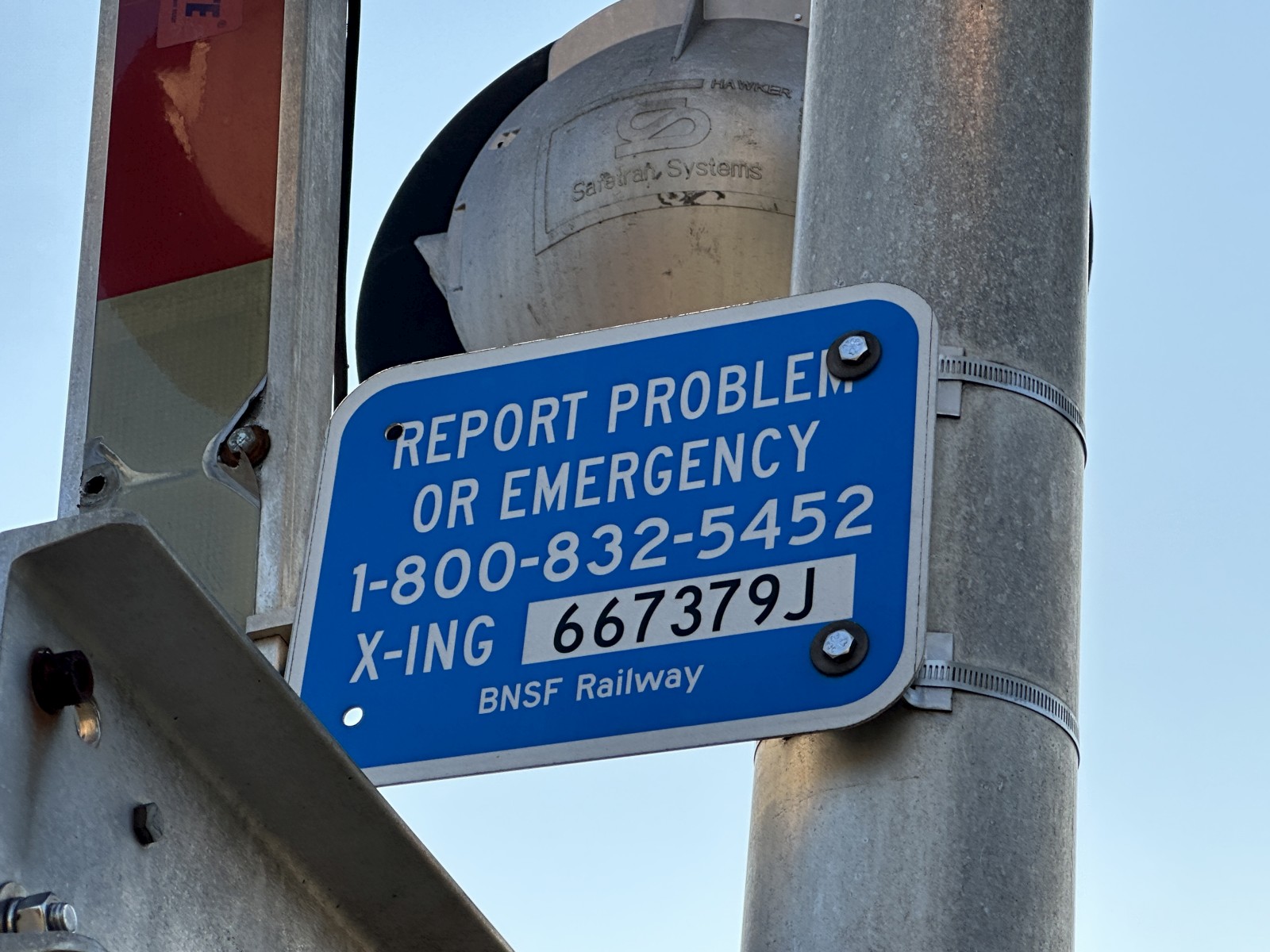

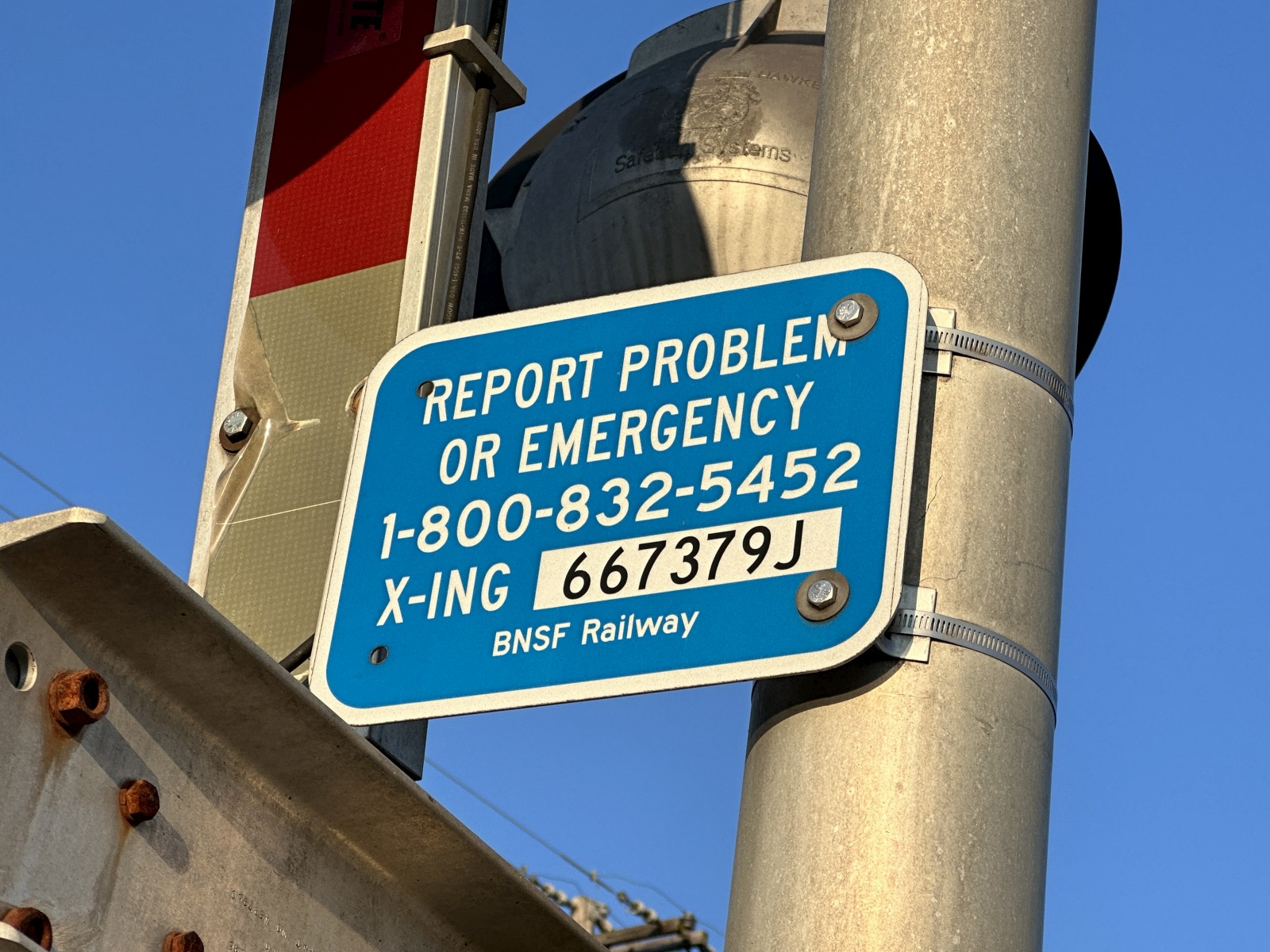

DOT #: 667379J
TOTAL
DAILY TRAINS: 20 (AS OF 2021)
| >>>>>>>>>>>>>> | Western Signal | Eastern Signal |

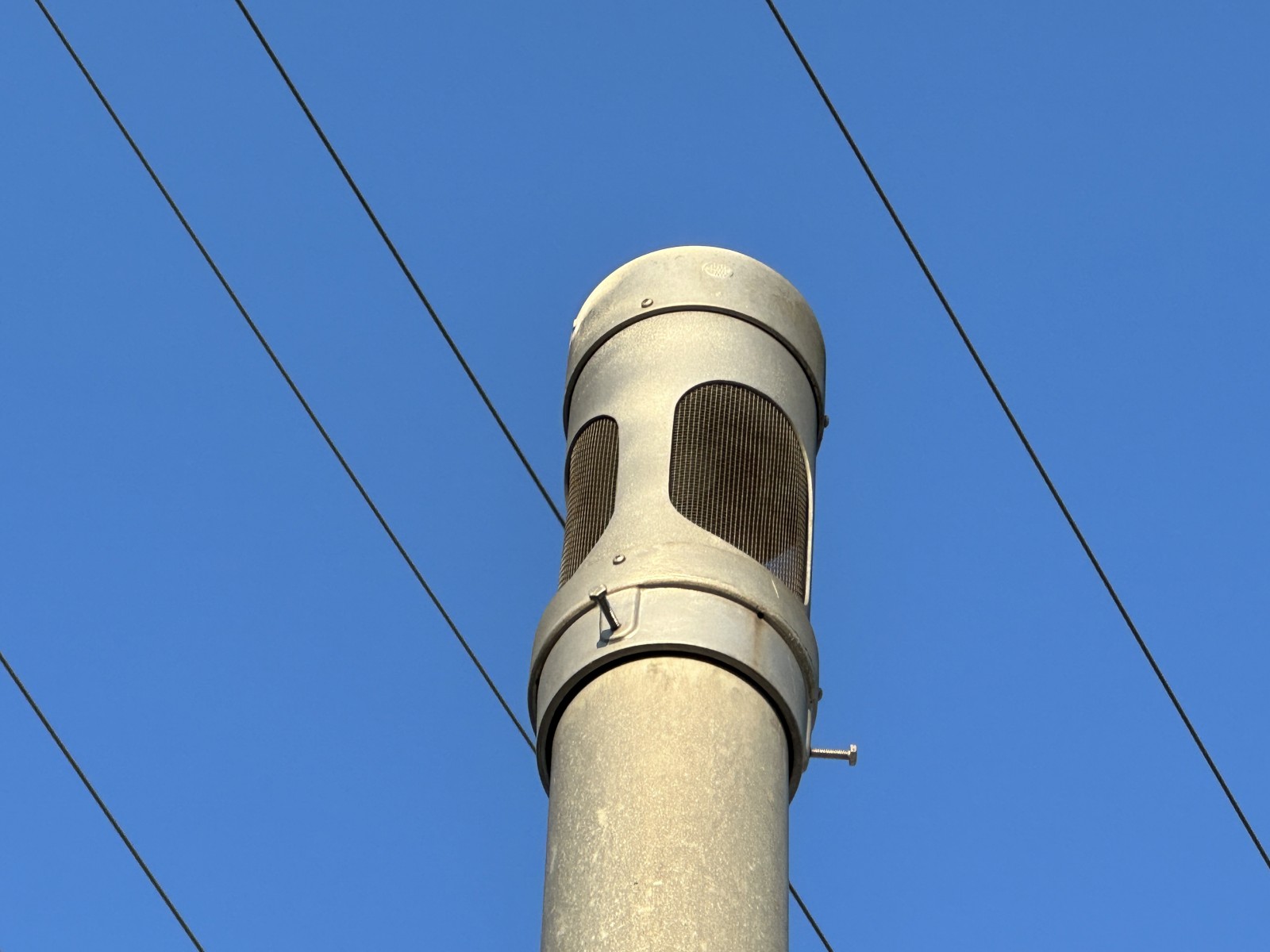

| Bell: | N/A | General Signals E-Bell |

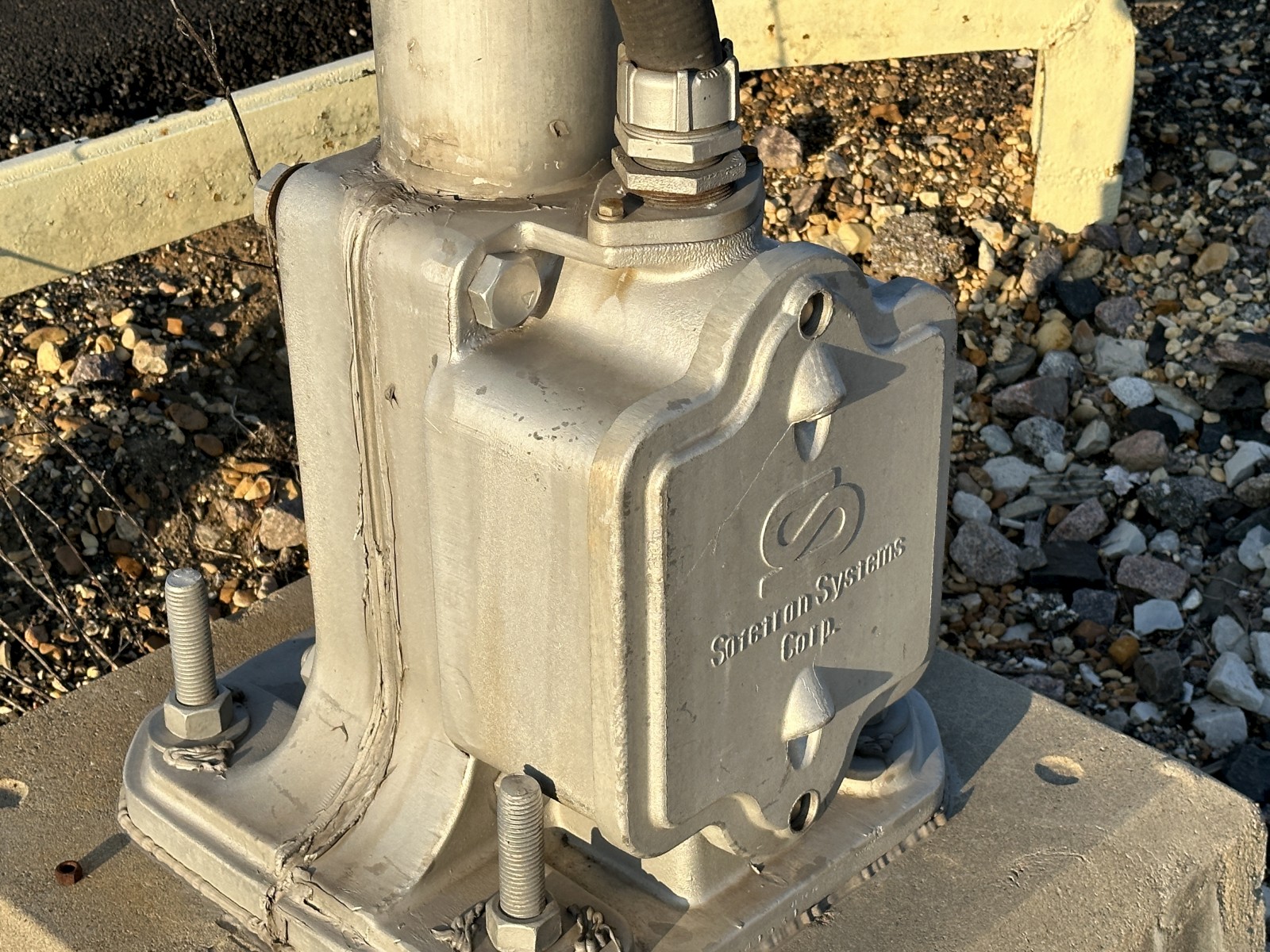

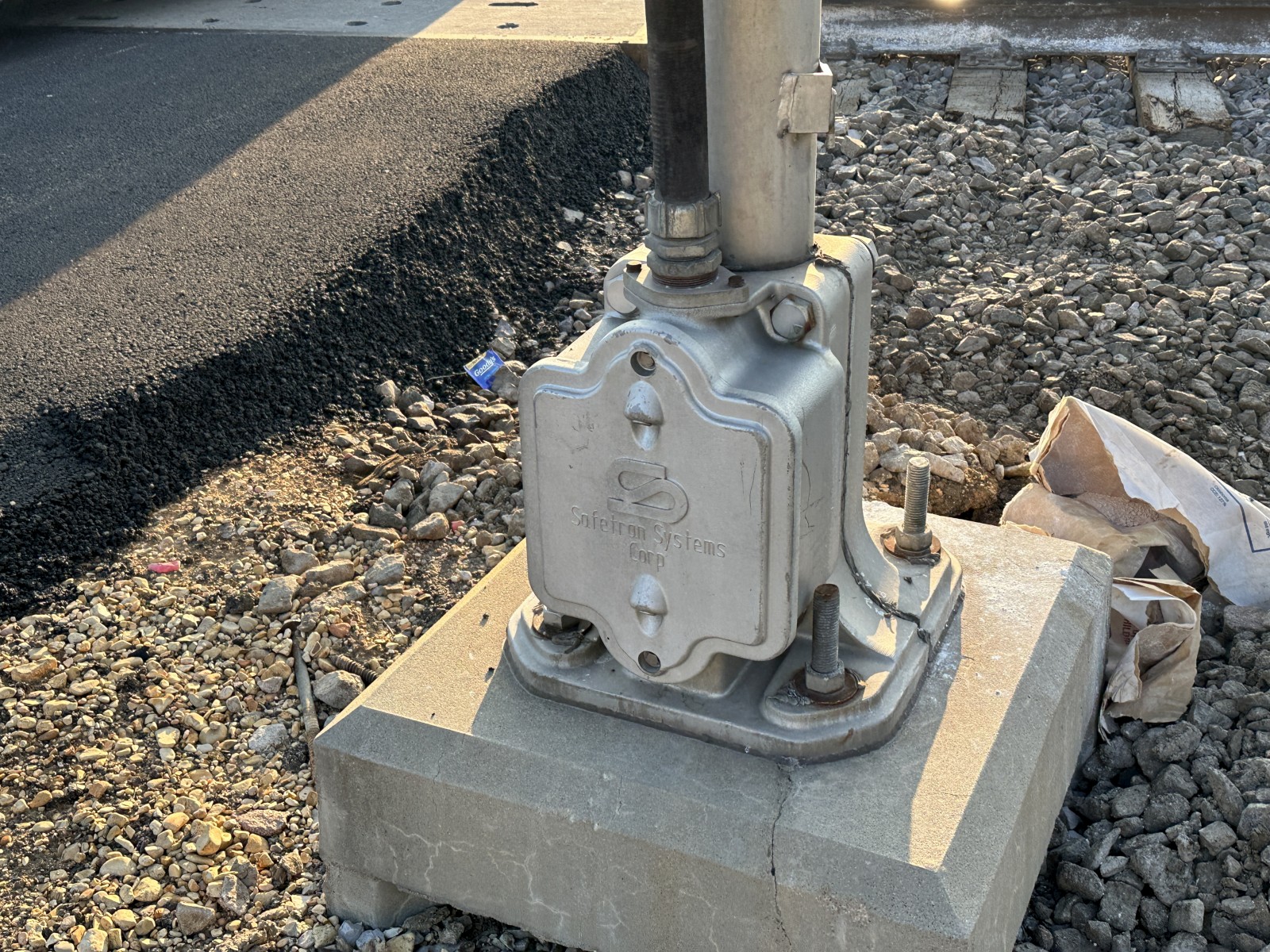

| Base: | US&S | US&S |

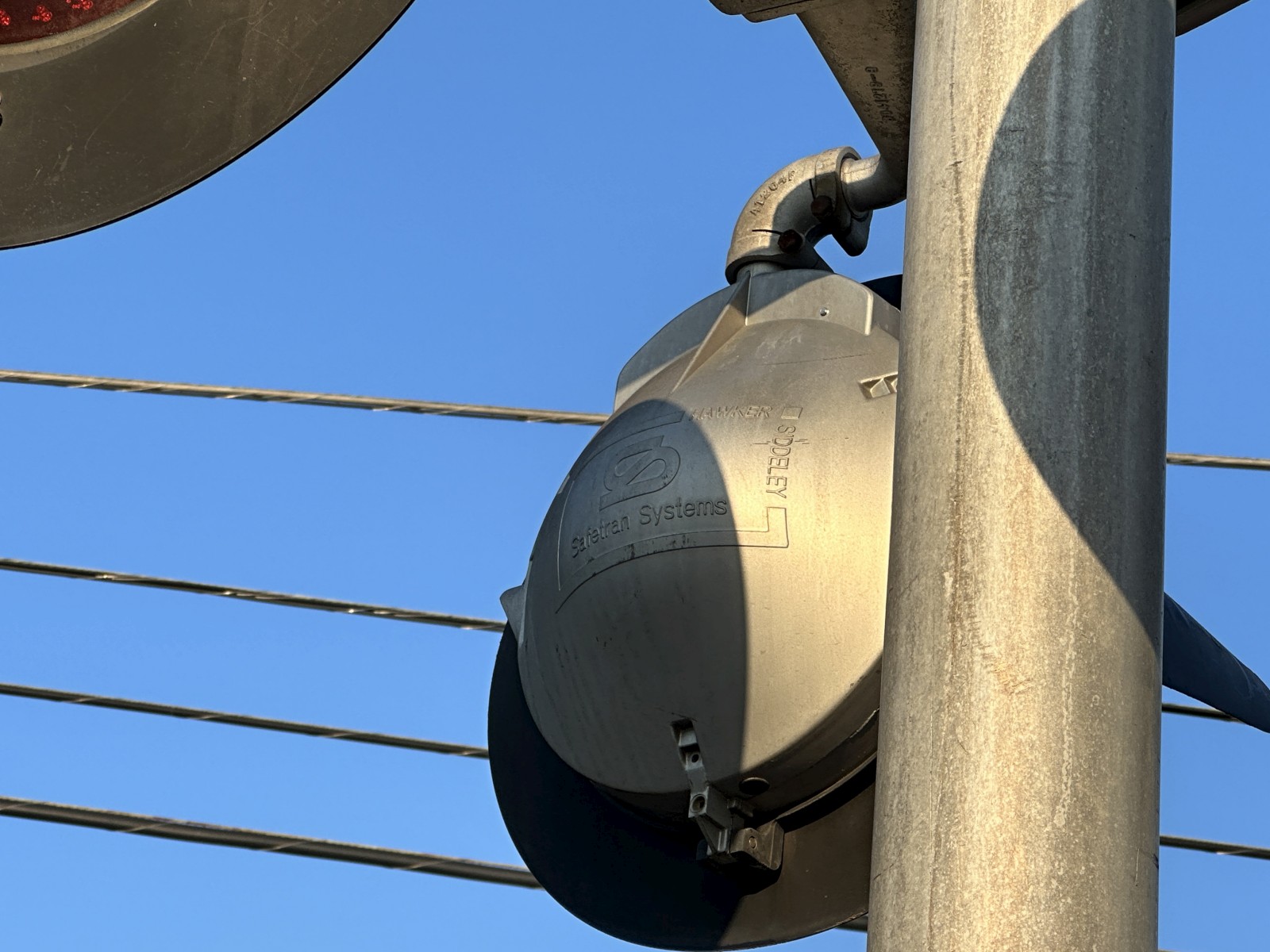

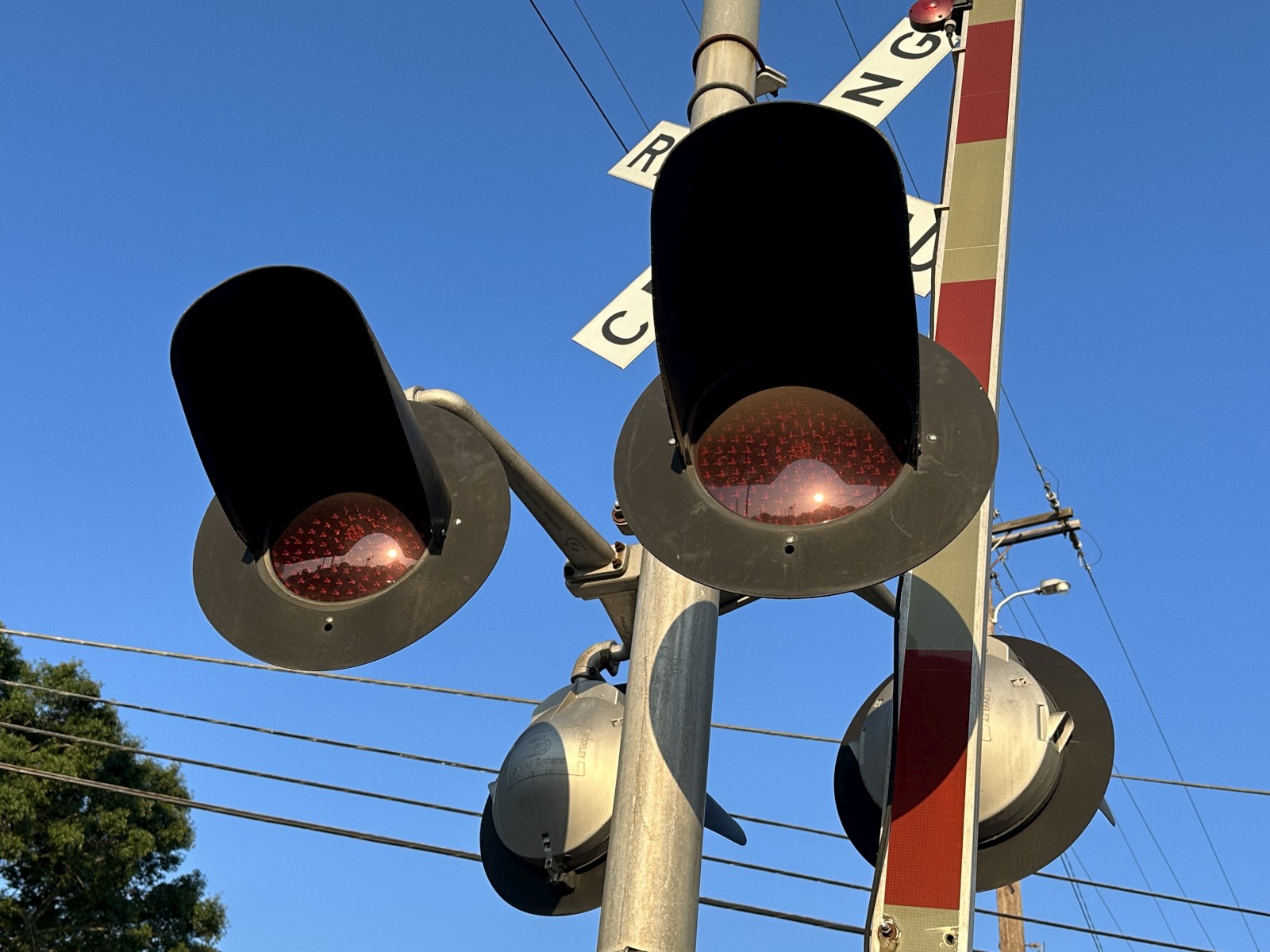

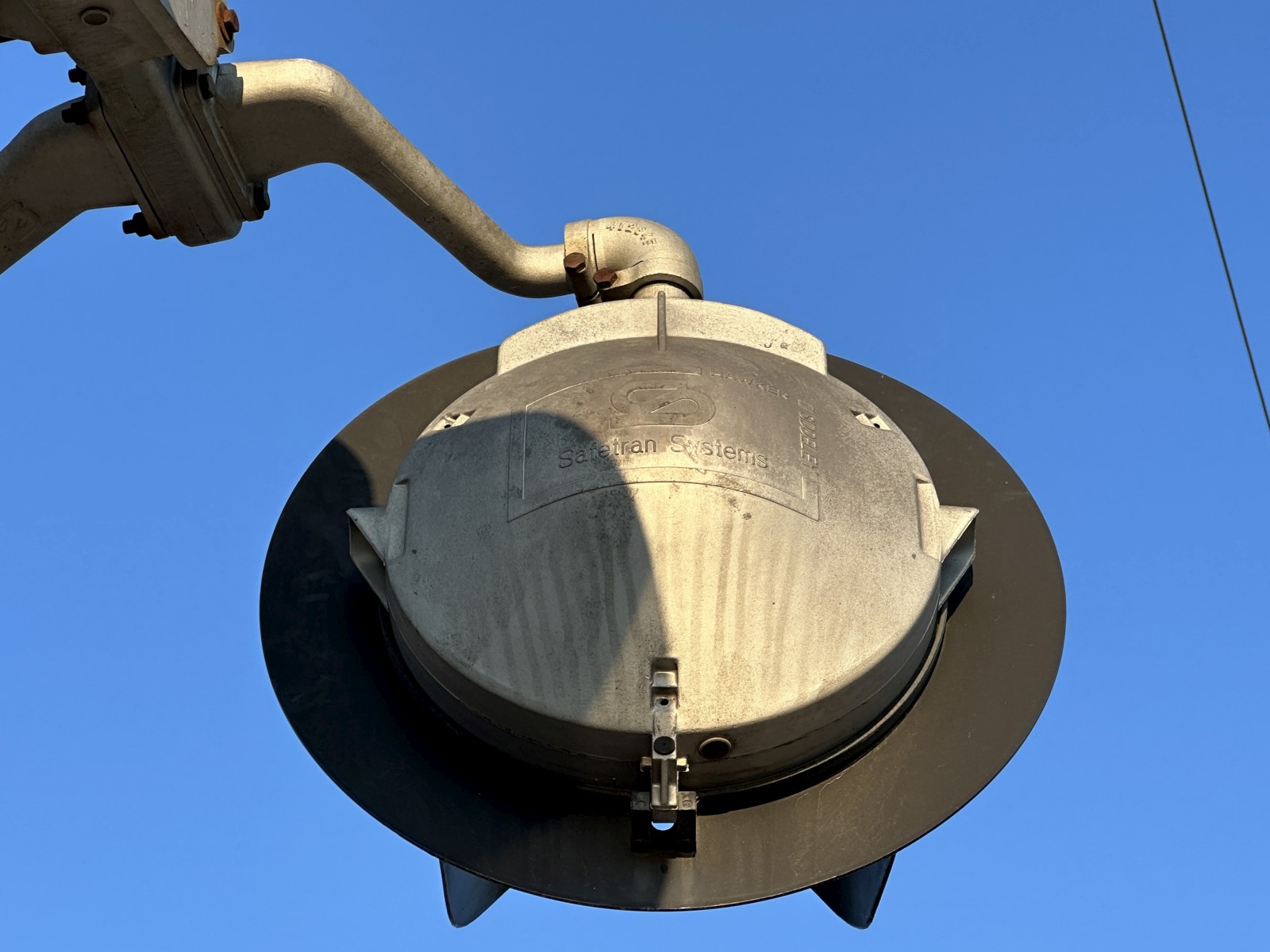

| Lights: | 4 - 12"x20 Safetran w/ GS MAX LEDs |
4 - 12"x20 Safetran w/ GS MAX LEDs |

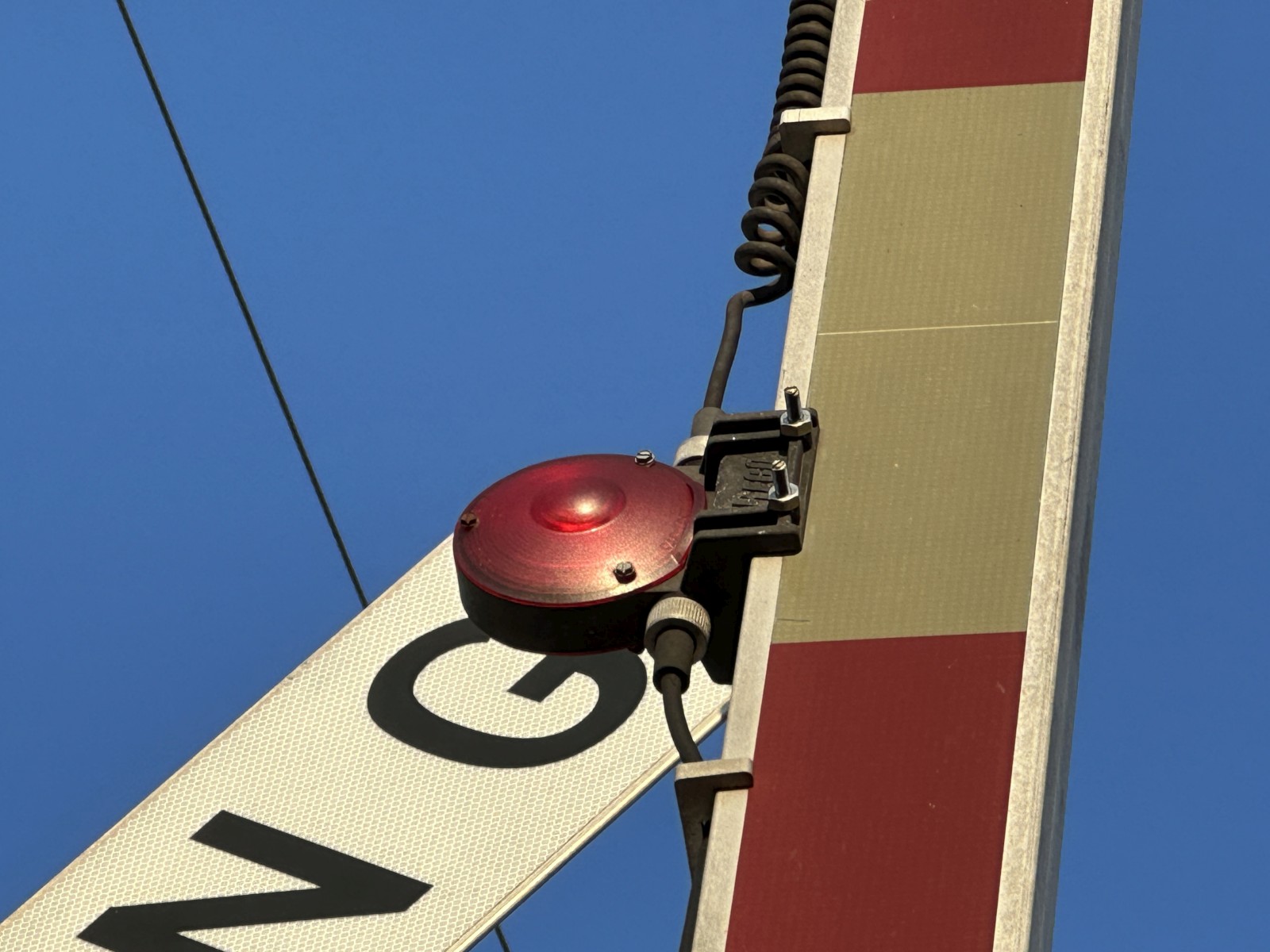

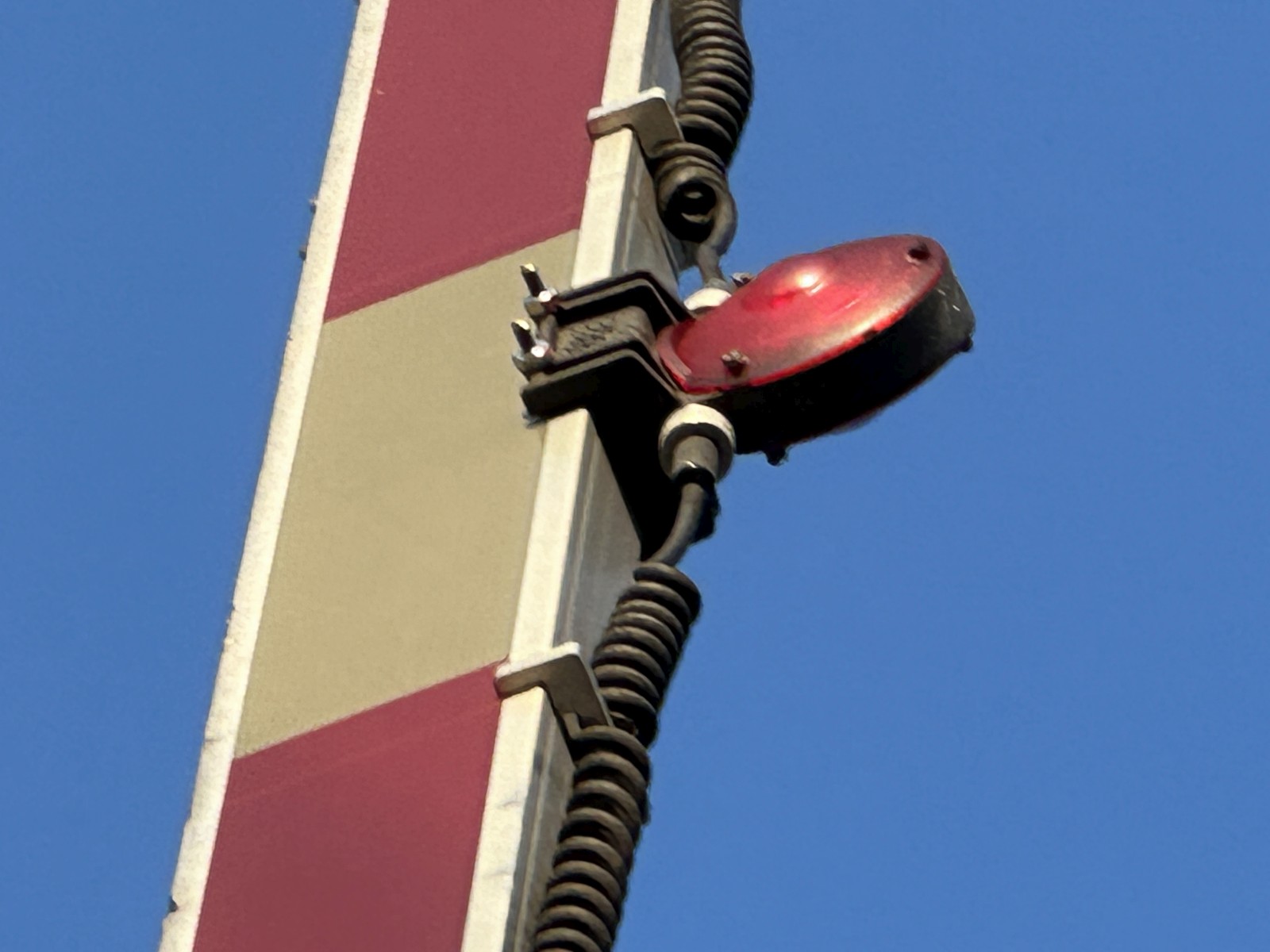

| Gatelights: | 4" NEG LEDs | 4" NEG LEDs |

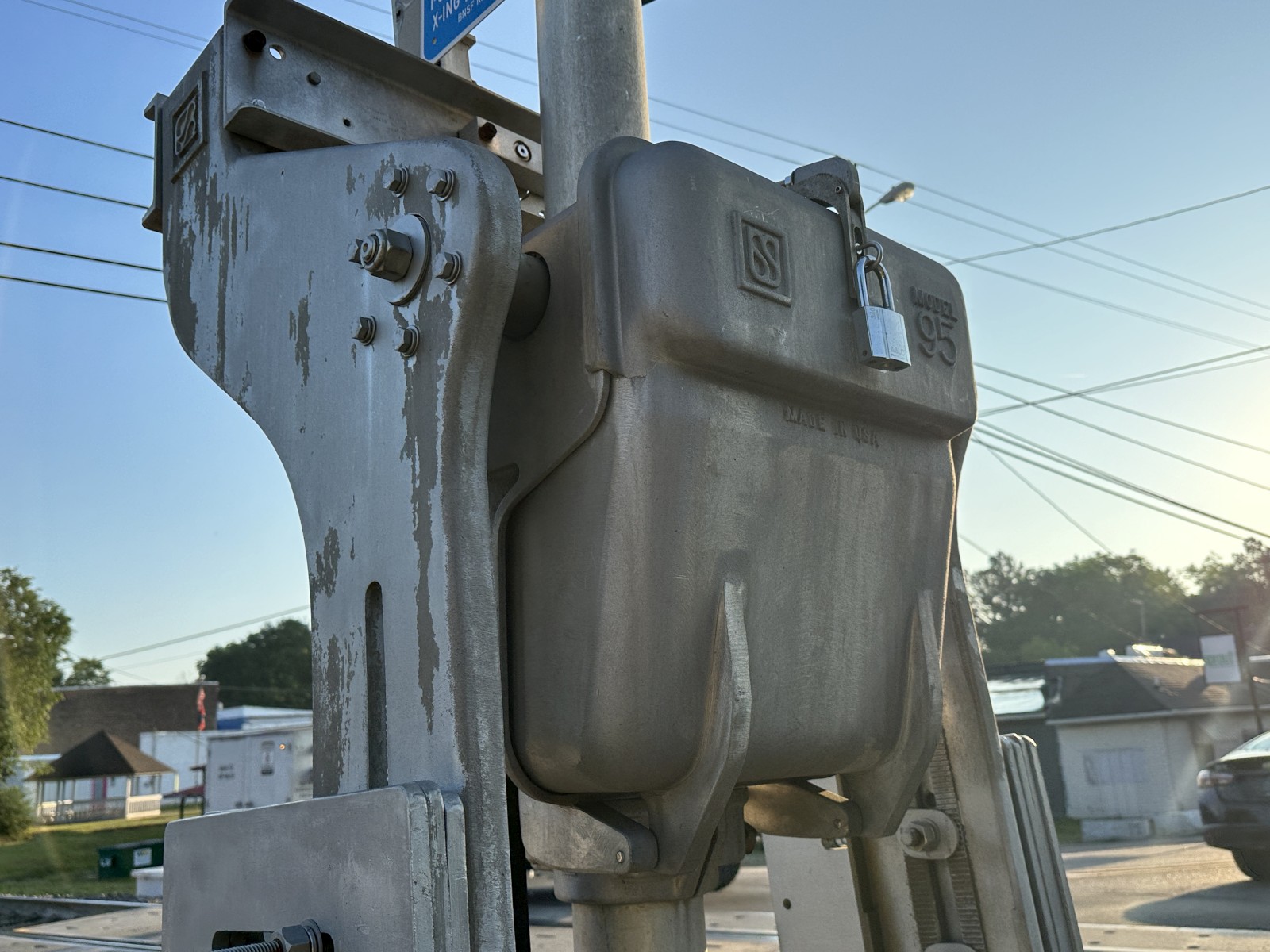

| Gate Mechanism: | US&S Model 95 Type 1 | US&S Model 95 Type 1 |
| Gate Striping: | Vertical Striping | Vertical Striping |
Page created by: Ethan the Railfanner
This crossing is located on the BNSF Birmingham Subdivision.
1 |
2 |

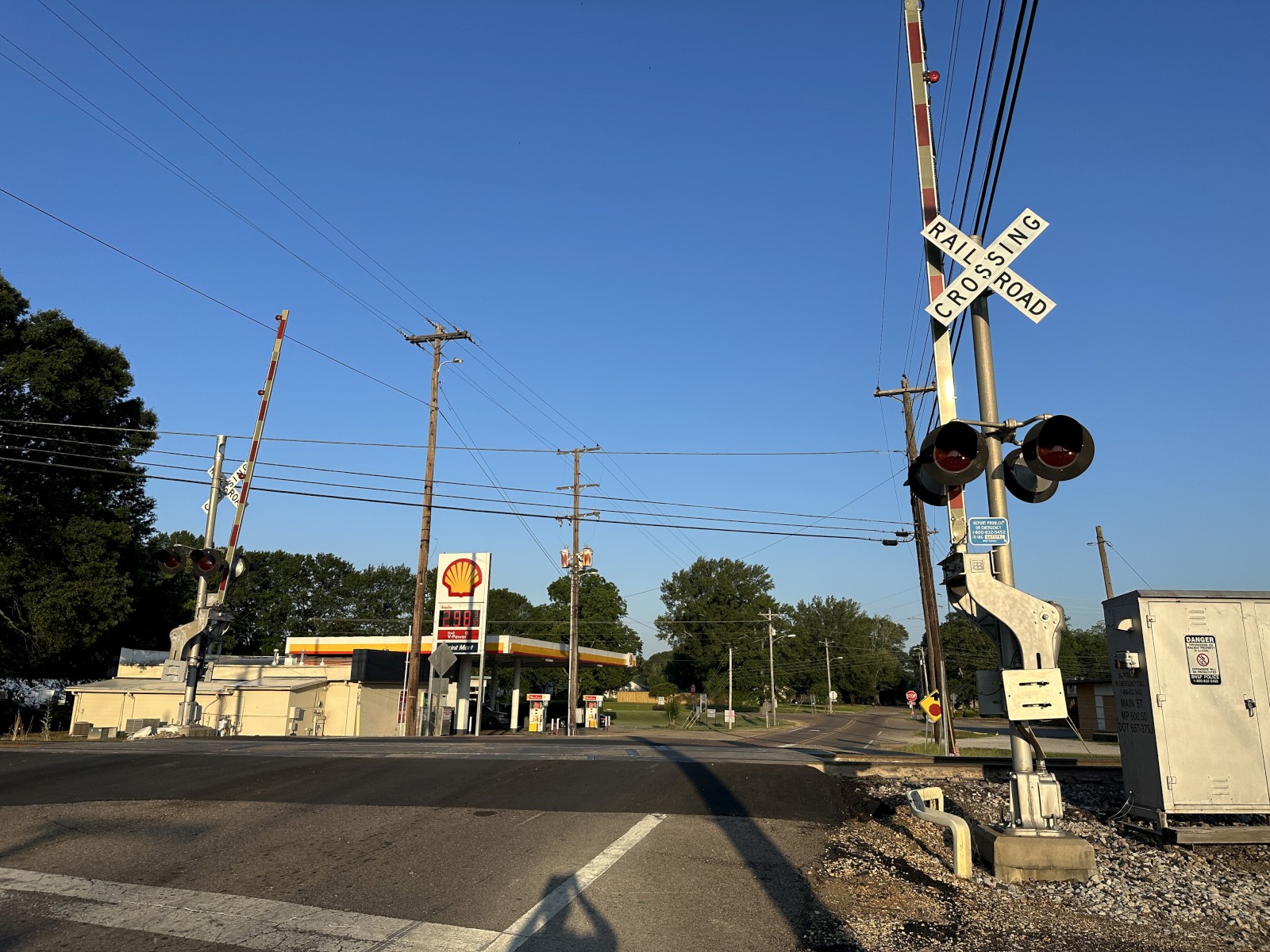

Overview of 2 gated signals facing west. |

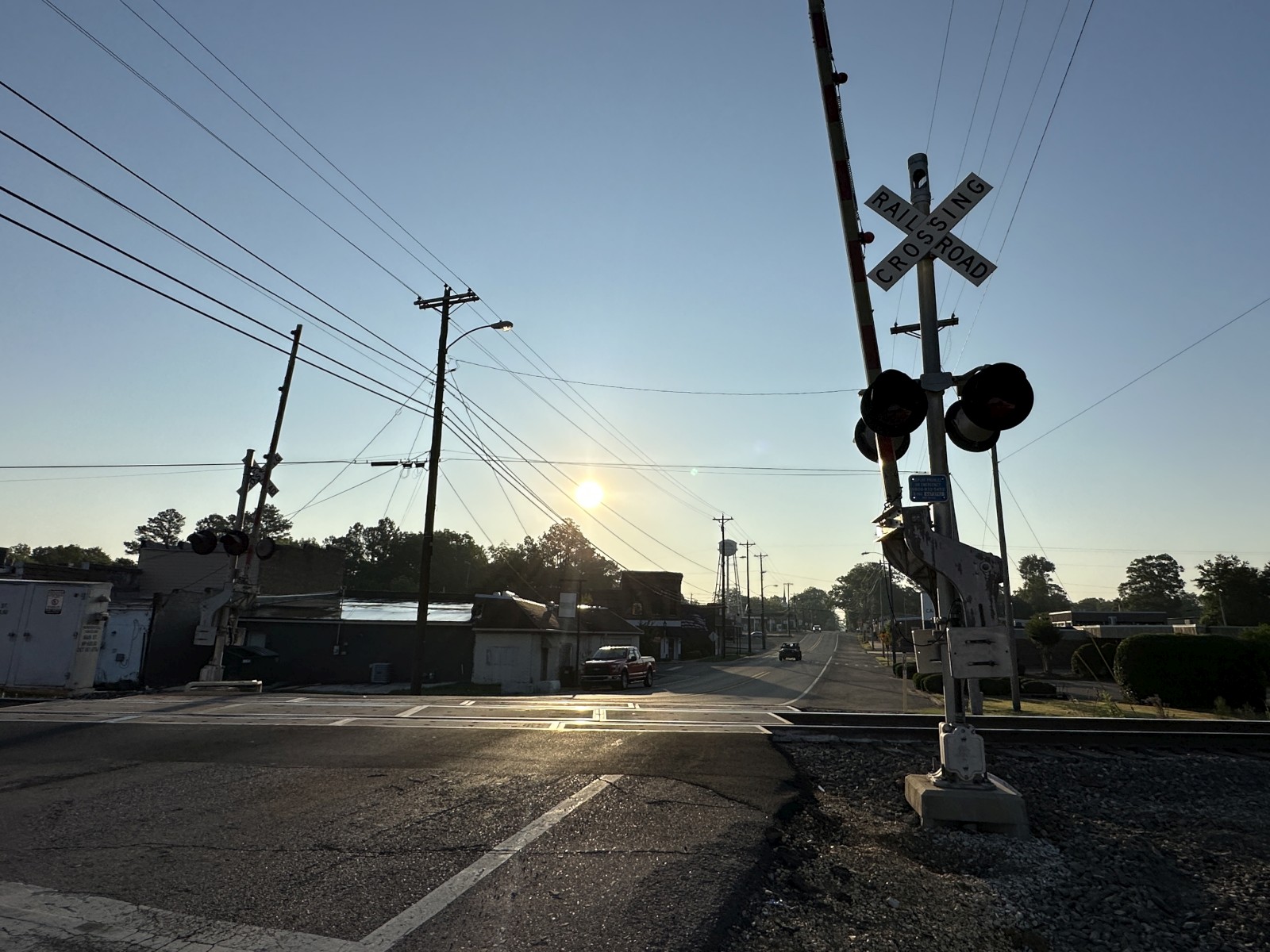

Overview facing east. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |

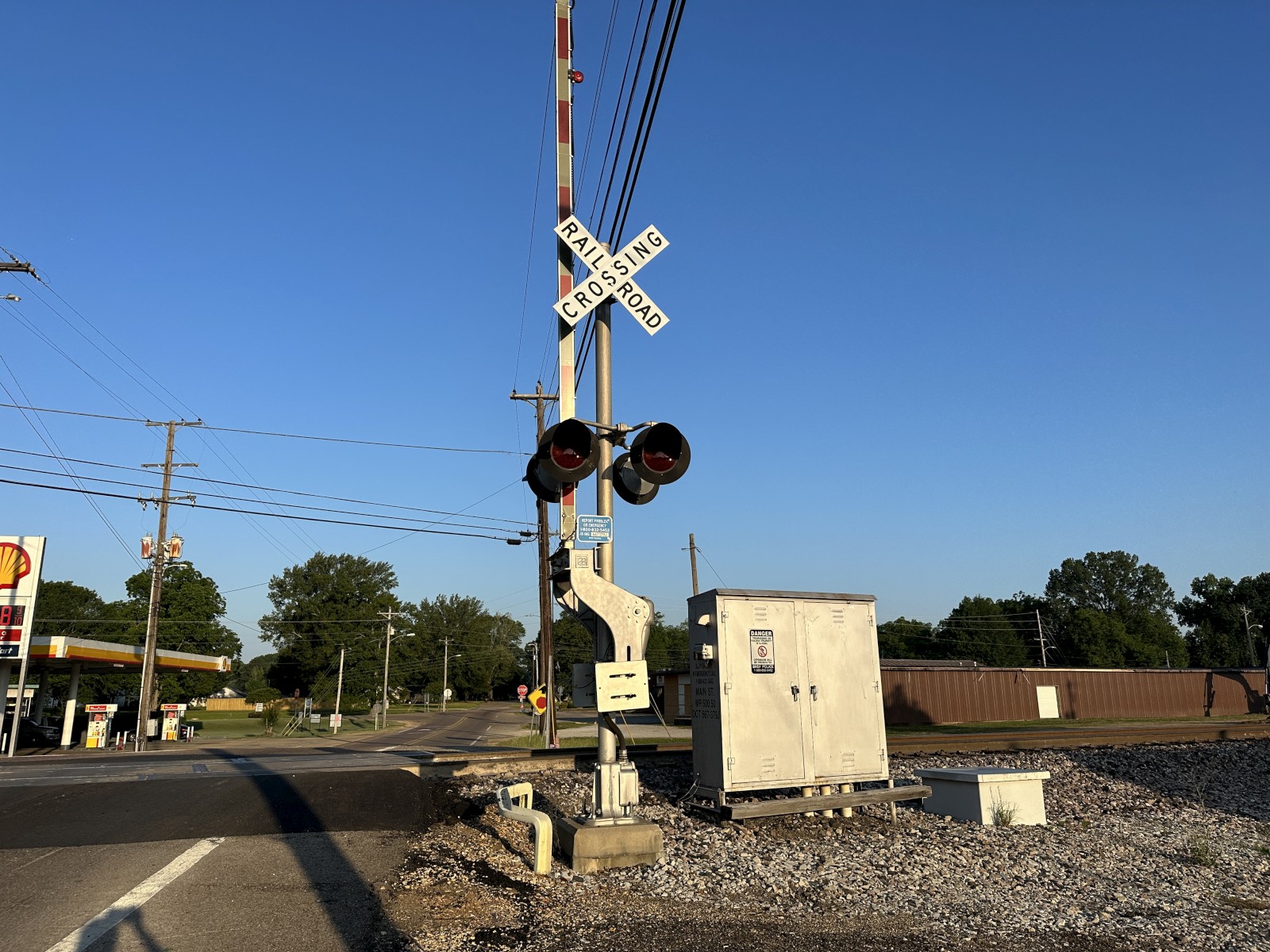

The eastern signal.
|
|||
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |

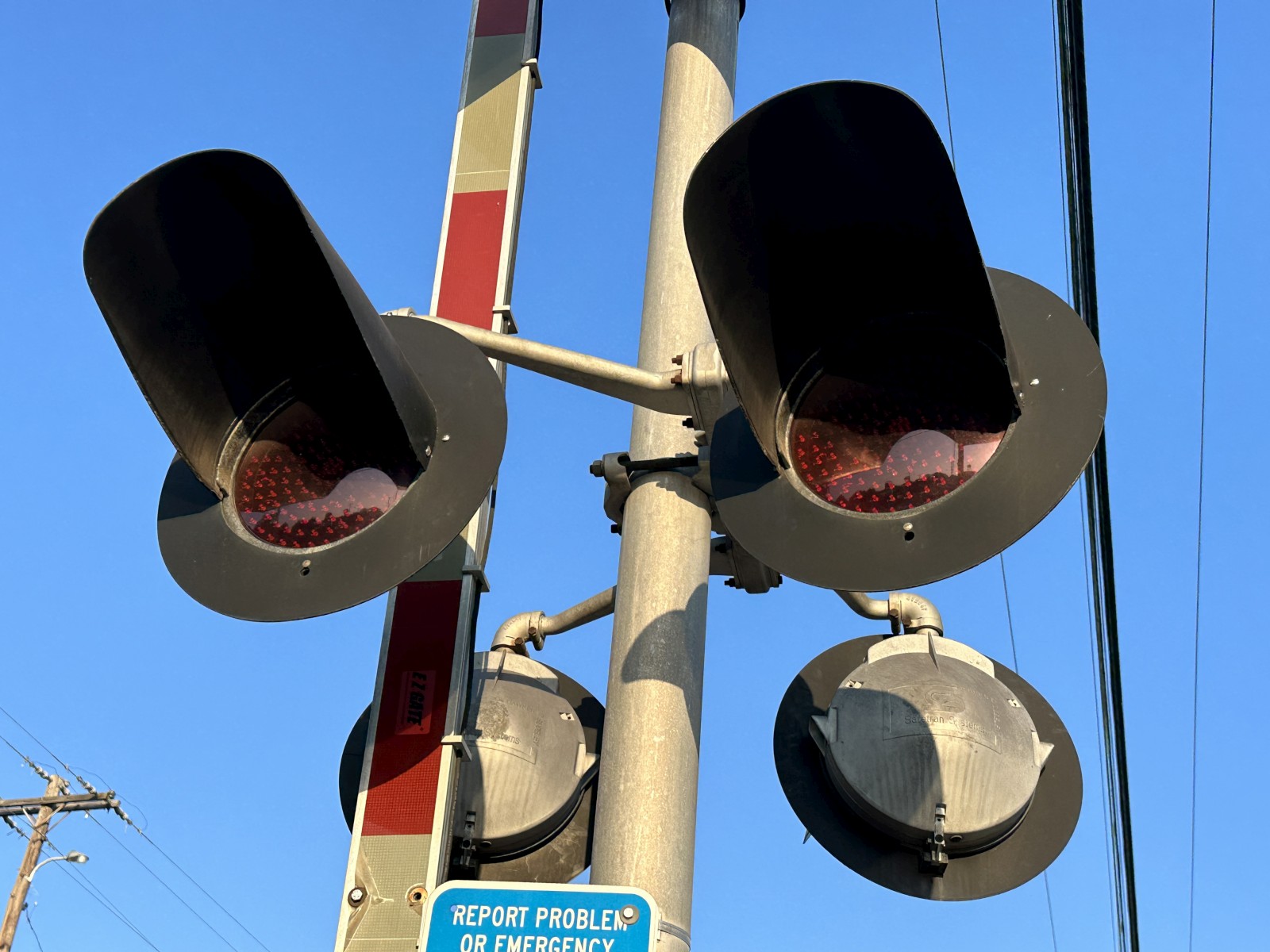

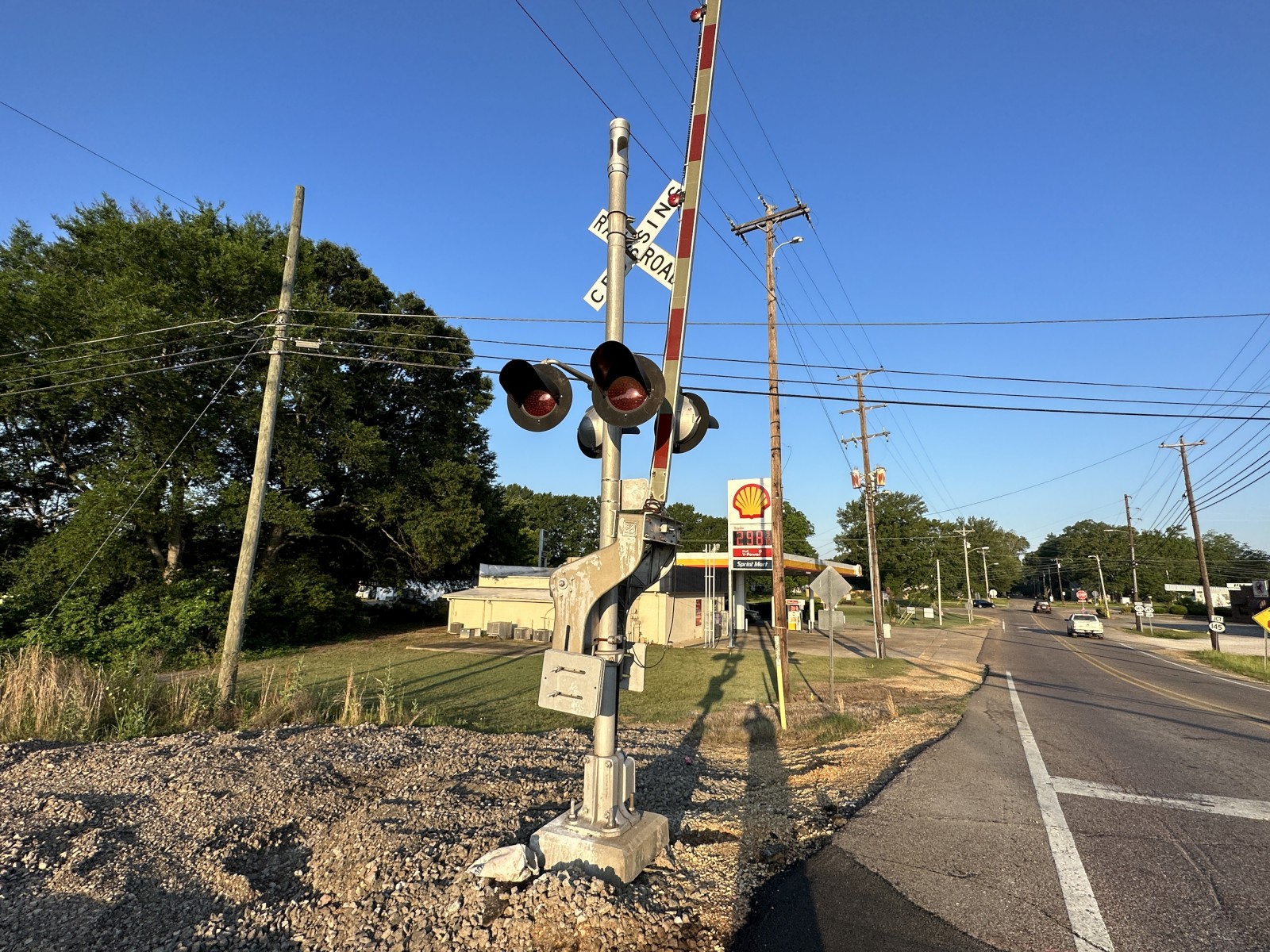

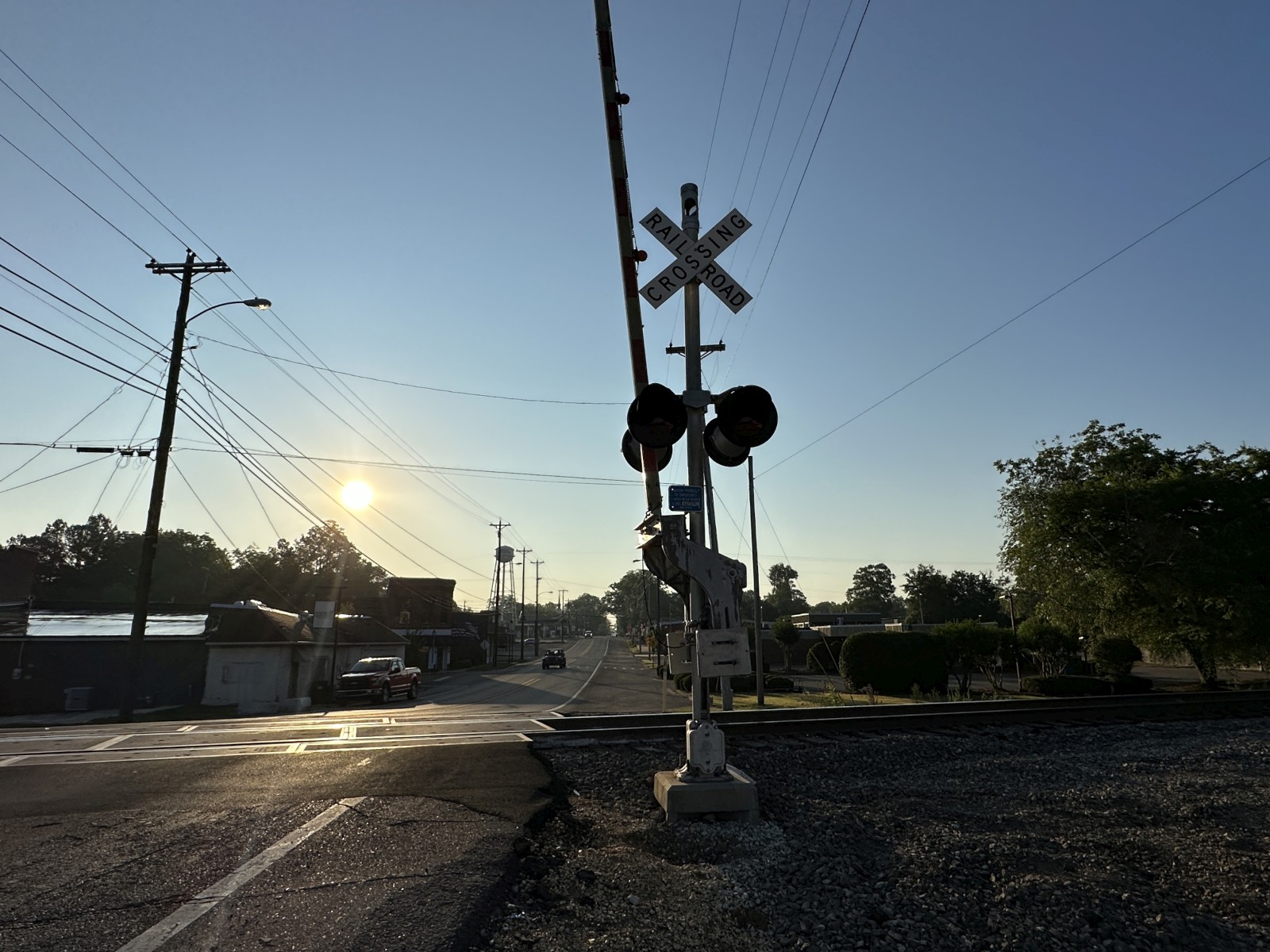

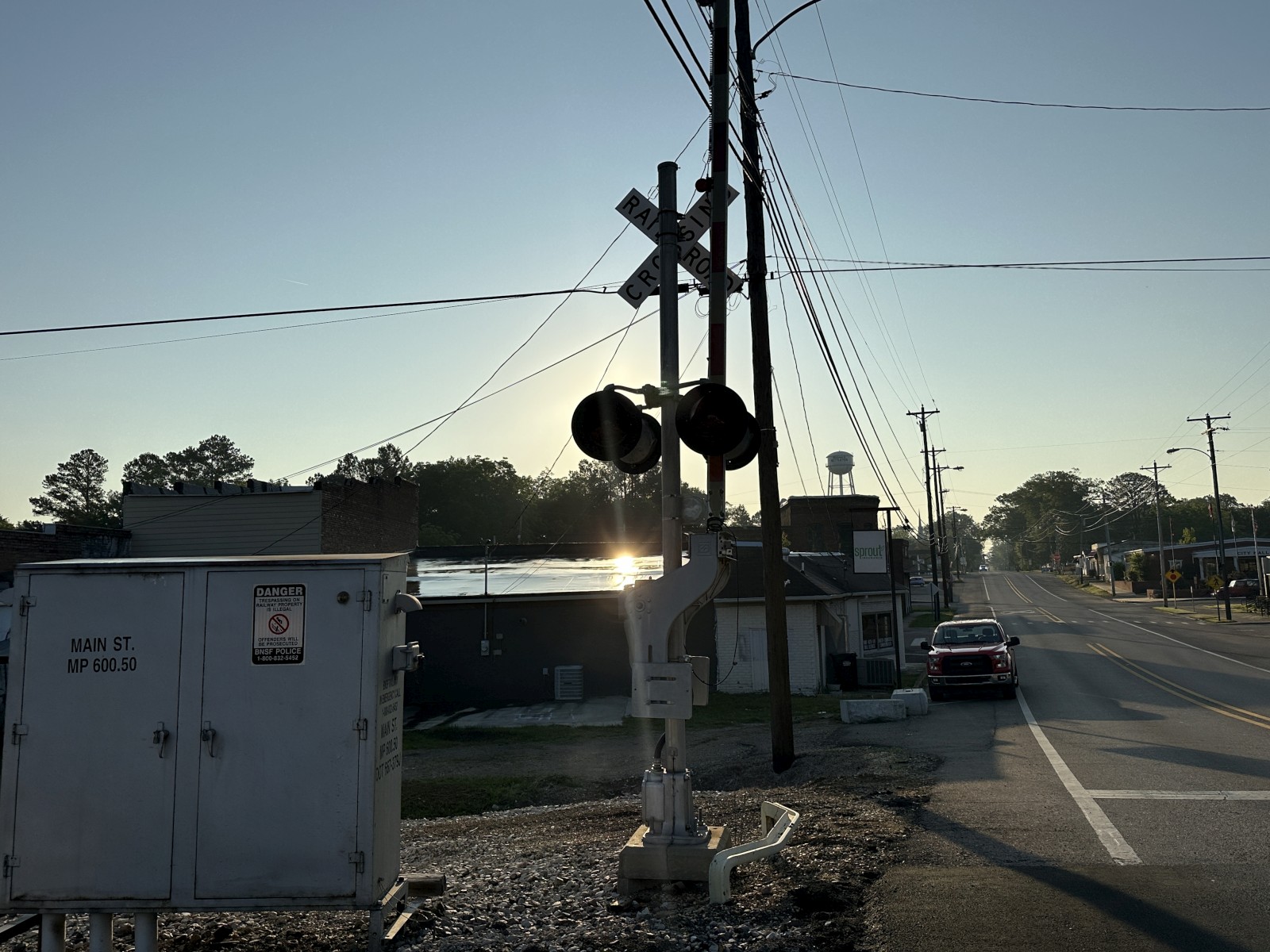

The western signal. This is the first time I've seen GE MAX LEDs on a BNSF crossing. |
||
20 |
21 |
22 |

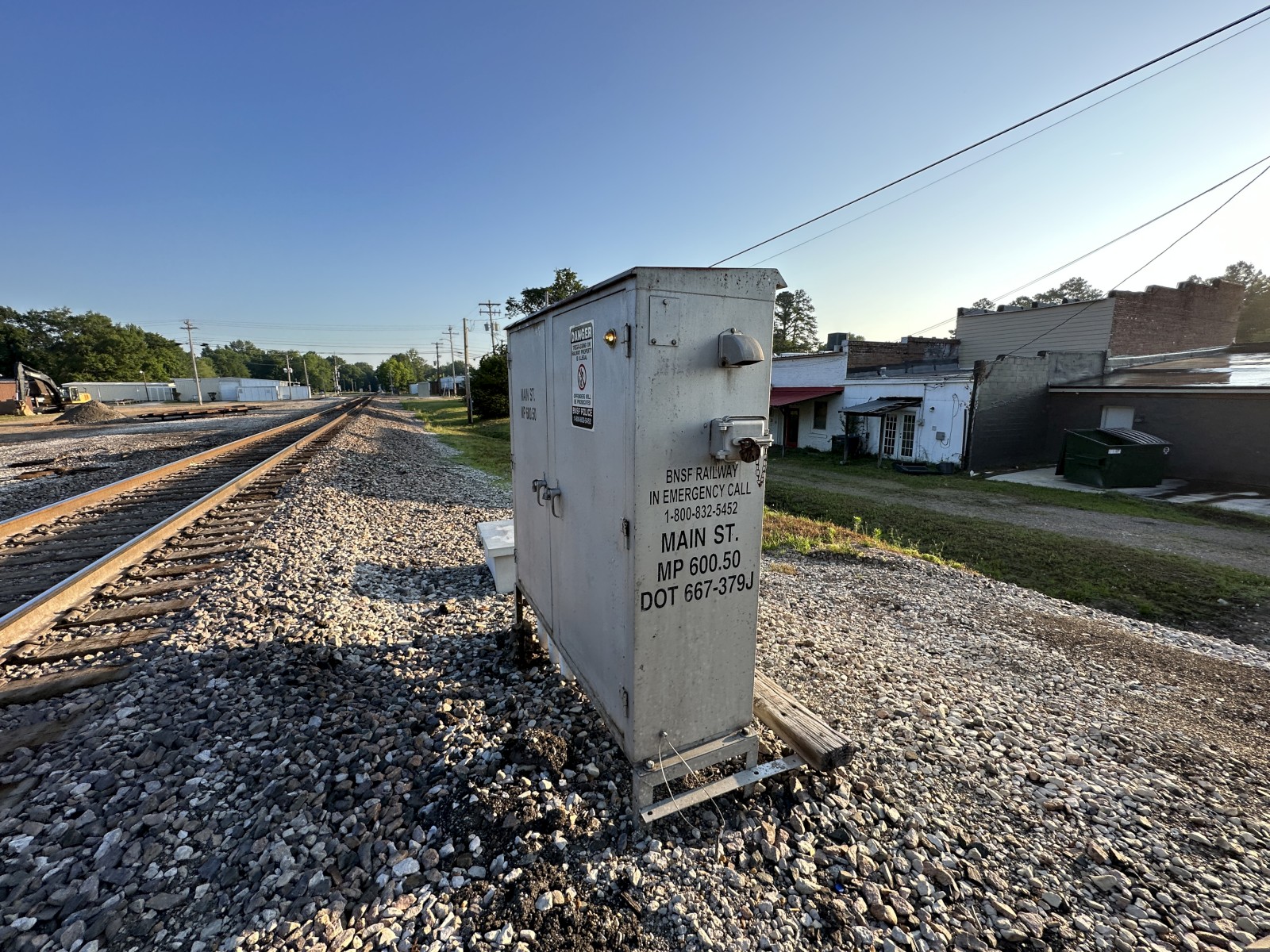

The relay case. |

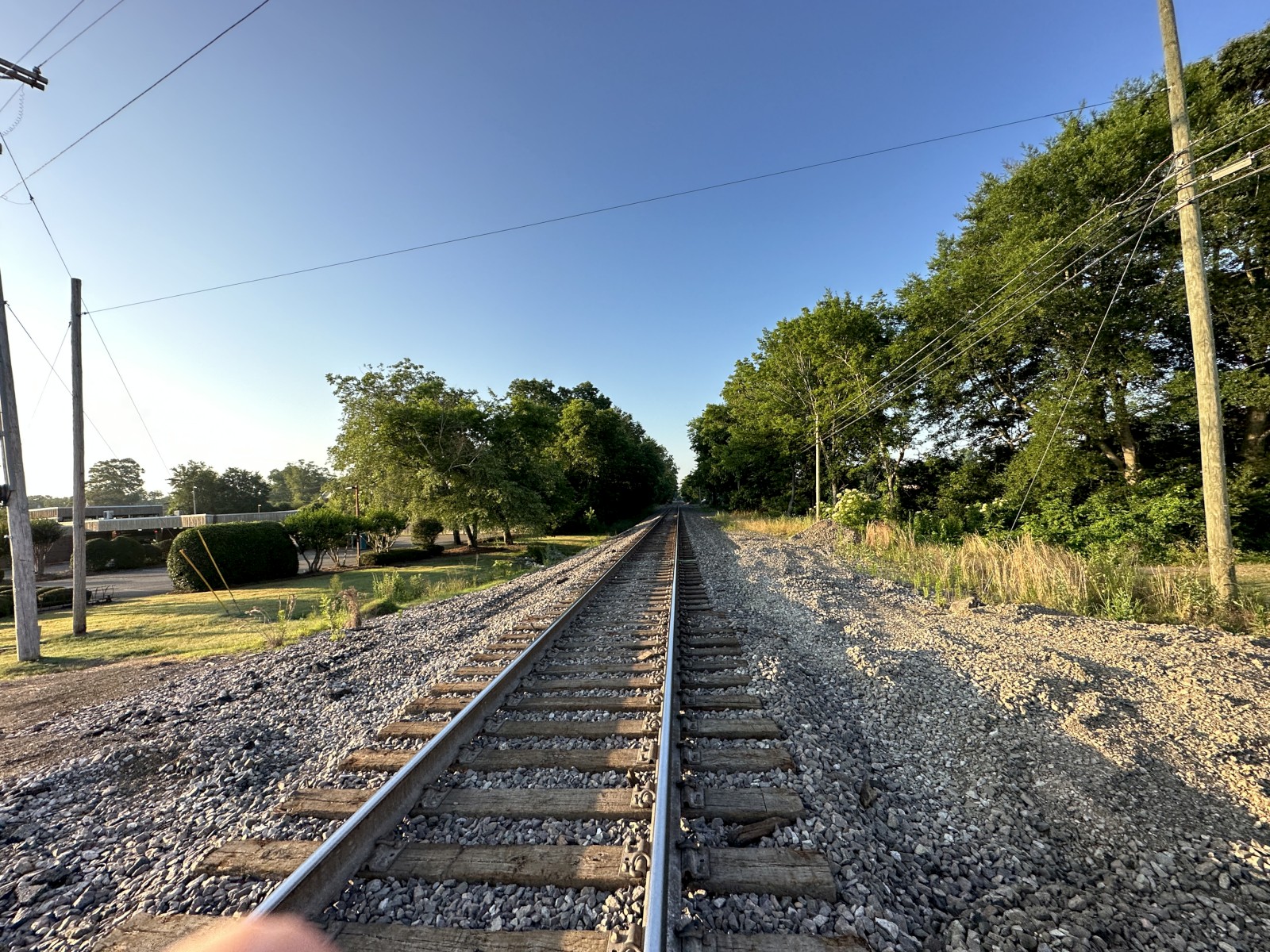

Track view facing north towards Pine Street. |
Track view facing south towards Buchanan Avenue. |
All pictures were taken on 6-3-23.
