75.03


473611V

>>>>>>>>>>>>>> Western Signal Eastern Signal
Bell: WCH Type 2 E Bell None
Base: Safetran 5" Single Sided ^ Safetran 5" Single Sided ^
Lights: 4 - 12"x24" Safetran w/ Safetran Fading LEDs 4 - 12"x24" Safetran w/ Safetran Fading LEDs
Junction Box: Safetran Safetran
Gate Lights: 4" RECO incandescents 4" RECO incandescents
Gate Mechanism: Safetran 2000s w/ GSI Gate Saver Safetran 2000s w/ GSI Gate Saver
Gate Striping: Diagonal Striping Upside Down Diagonal Striping

Pictures 1-25 and the video were taken on October 29, 2015.
Pictures 26-29 were taken on August 30, 2017.
All pictures and video were taken by Tommy McGowan.
This crossing is located on the W&LE Hartland Sub.

1
 2

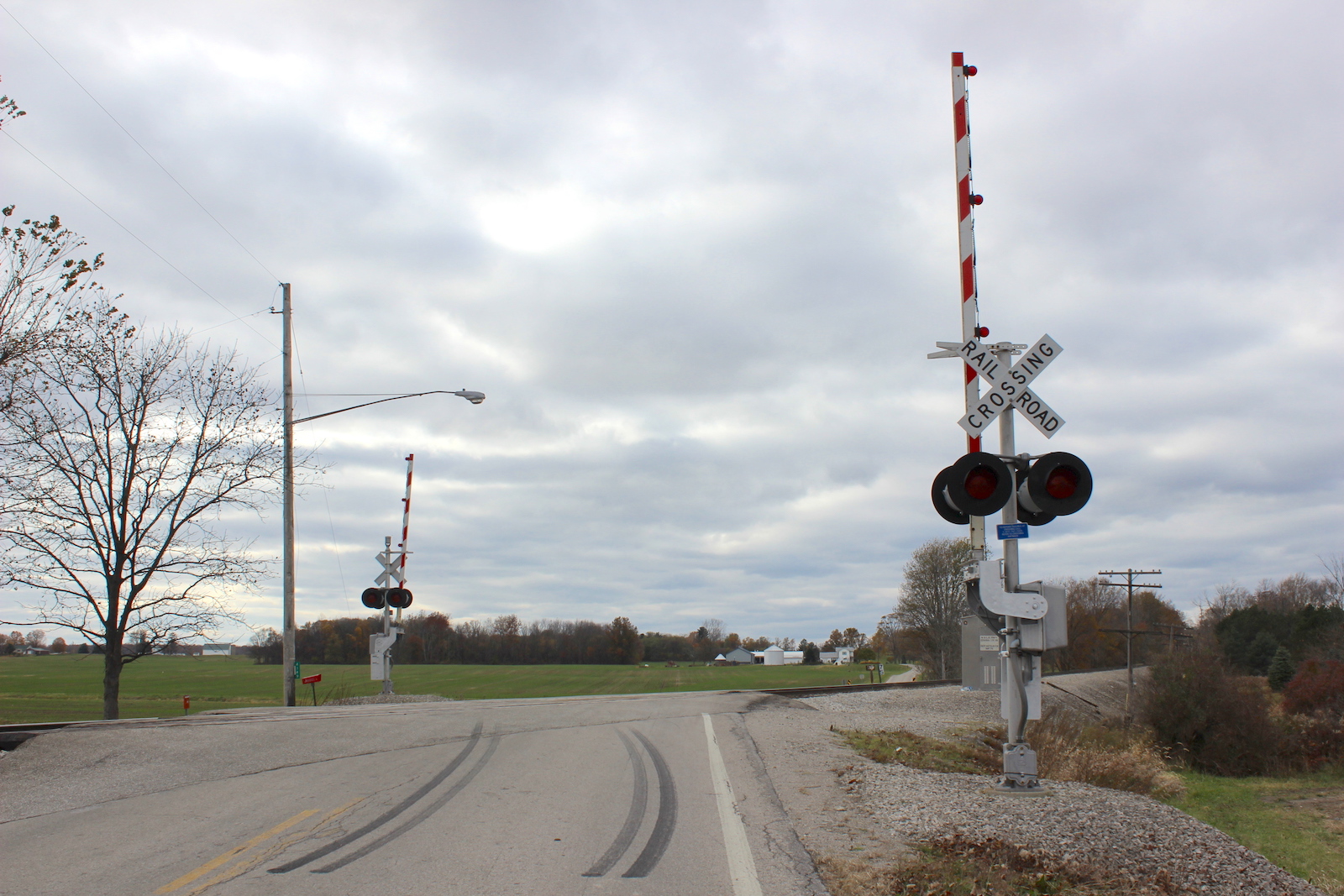

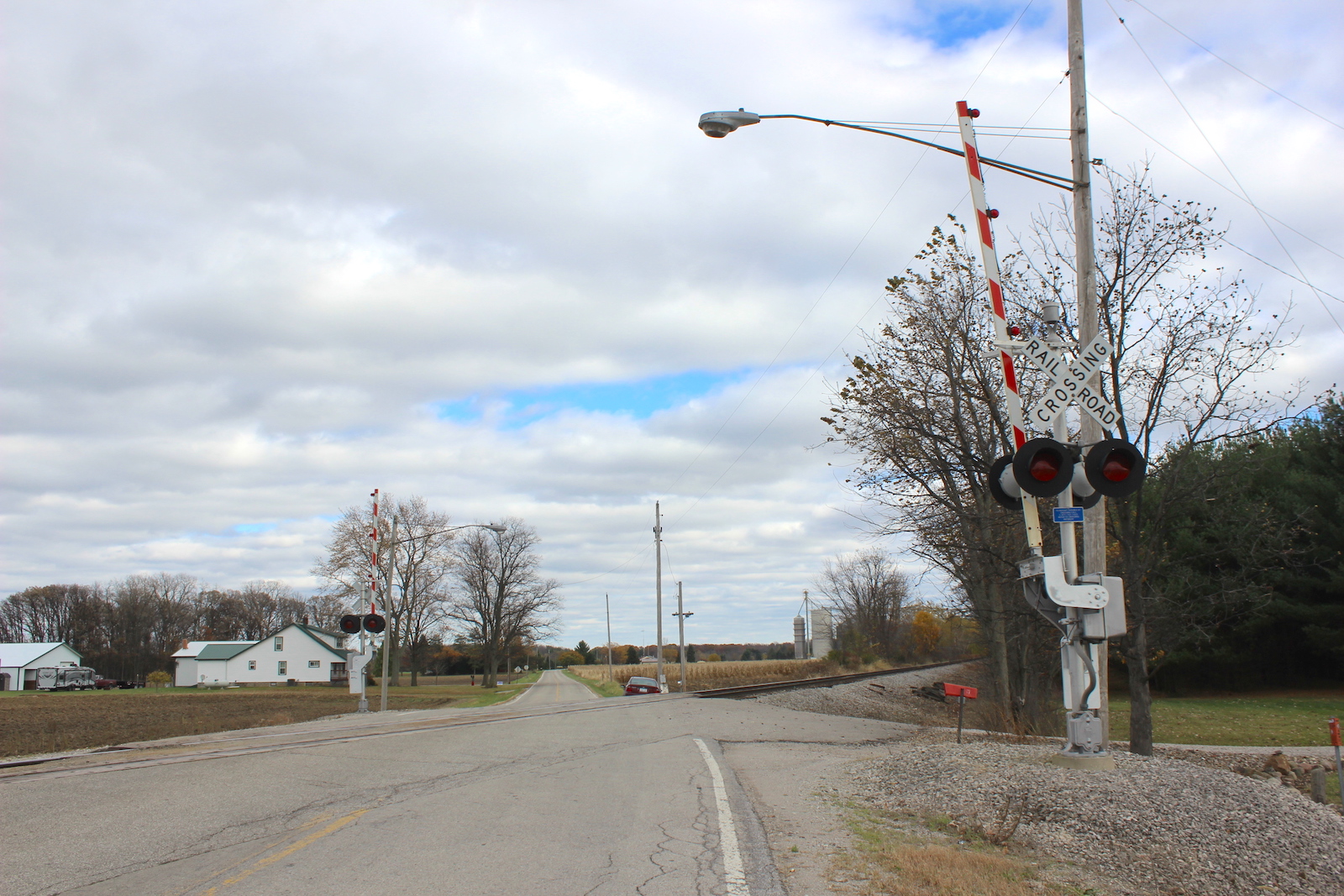

Overview of 2 gated signals facing west.
 Overview facing east.
3 4 5
6 7 8
9 10 11

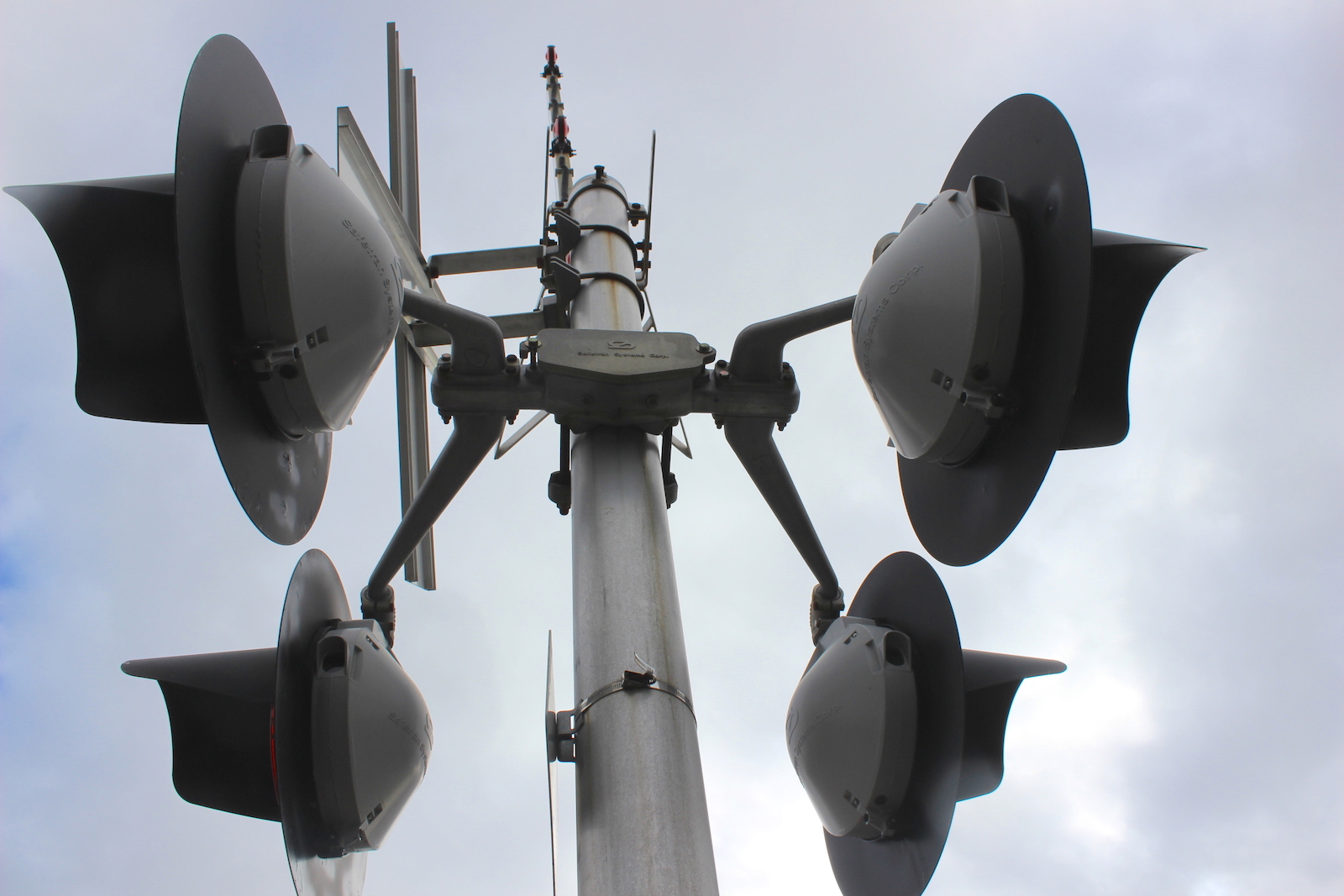

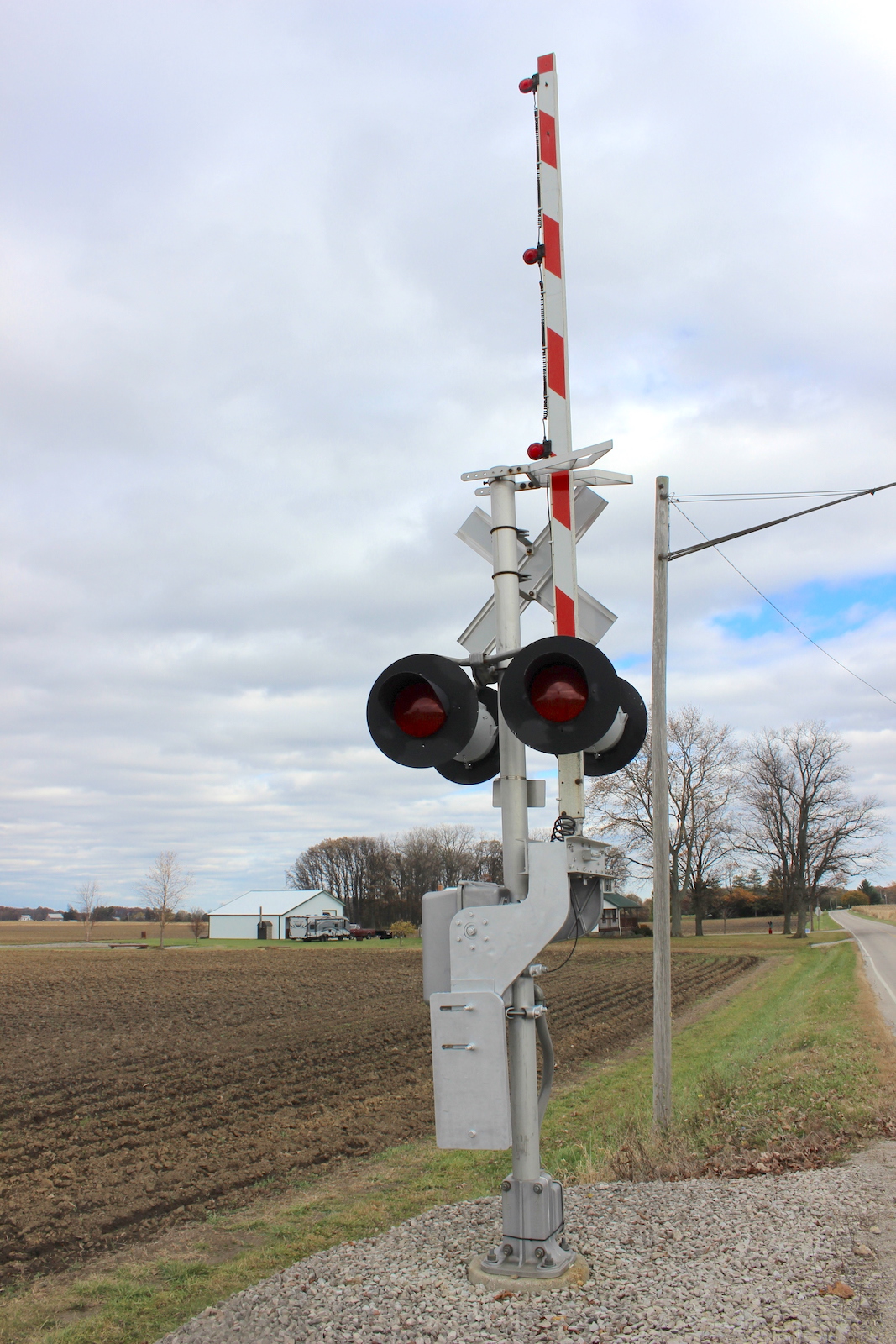

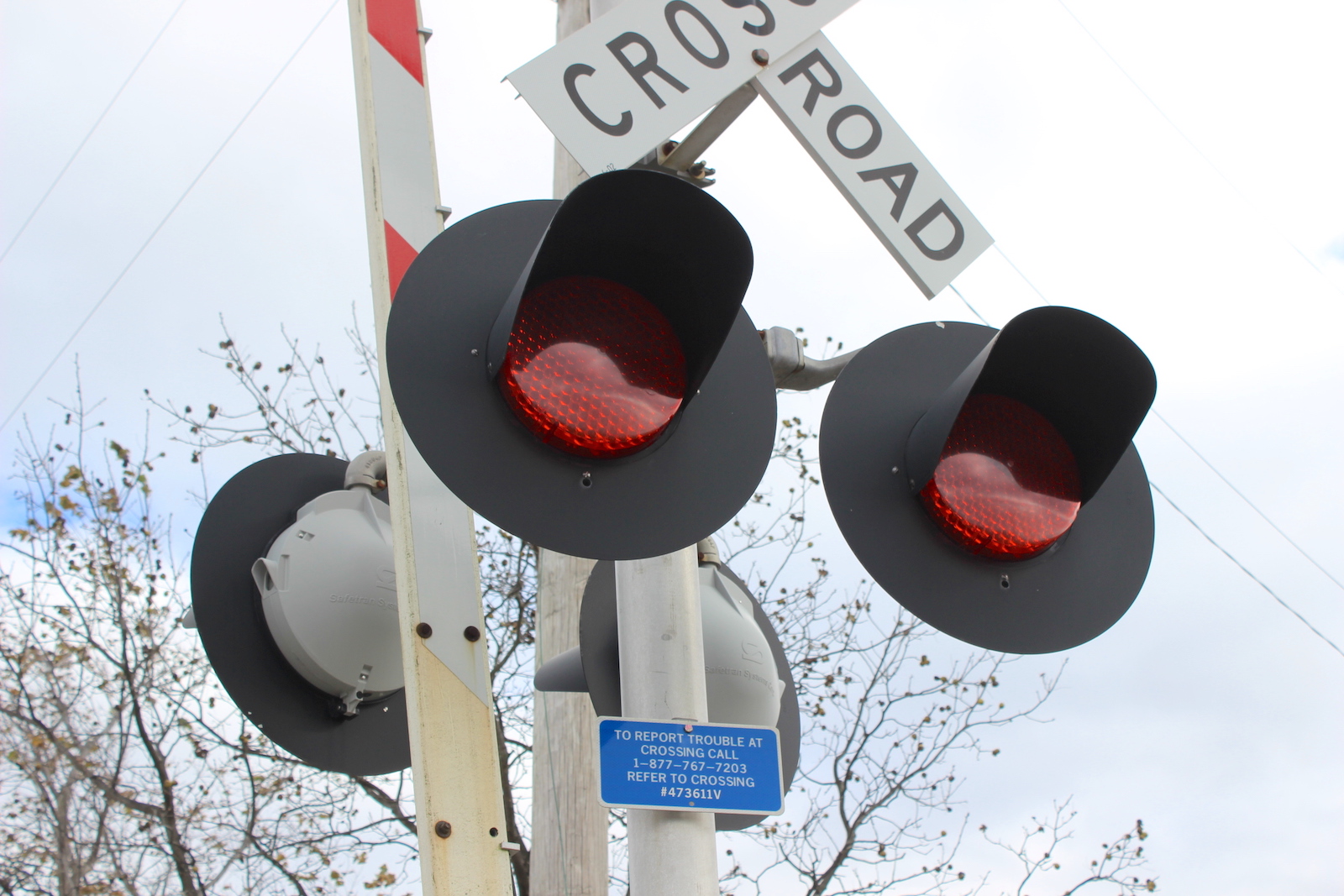

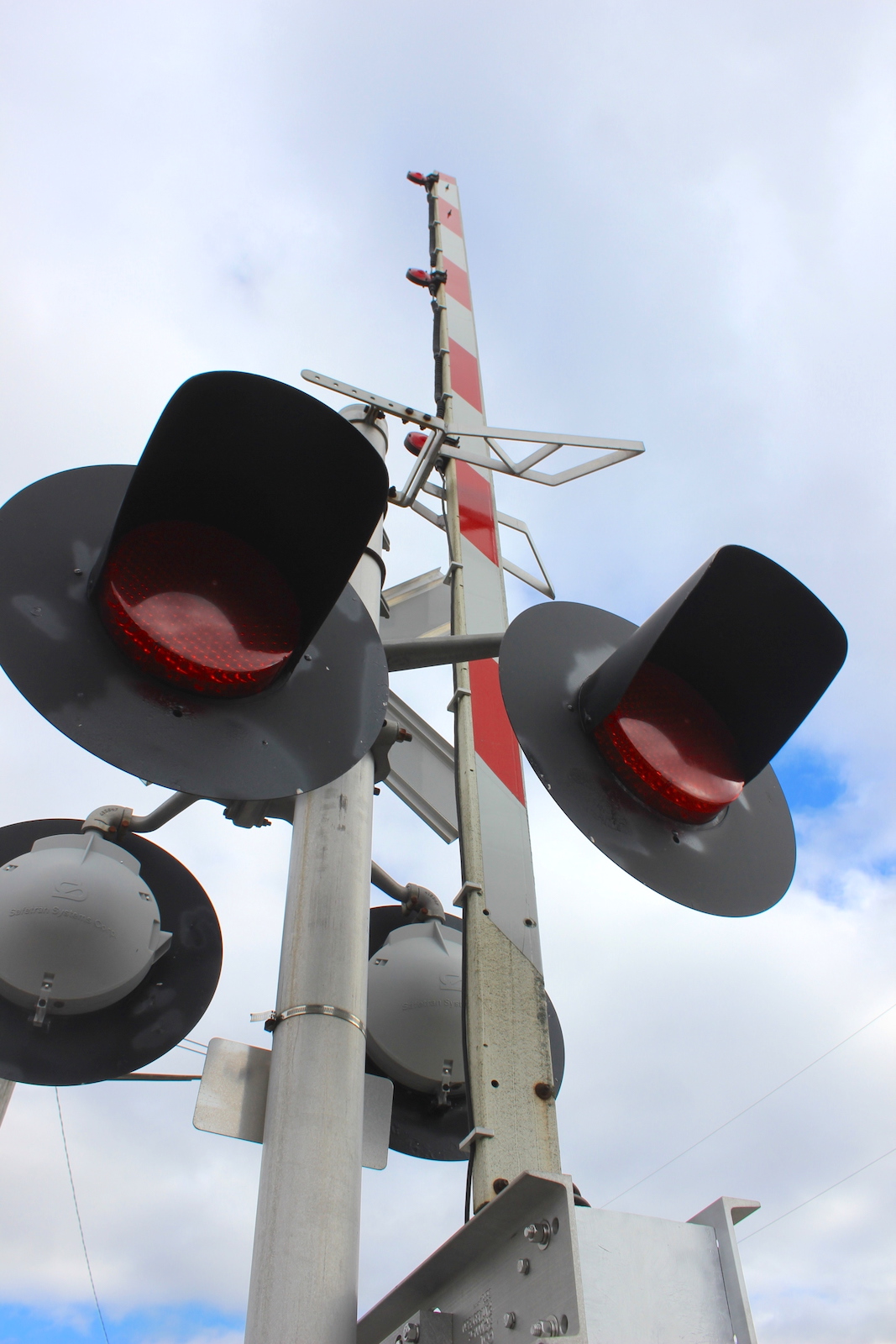

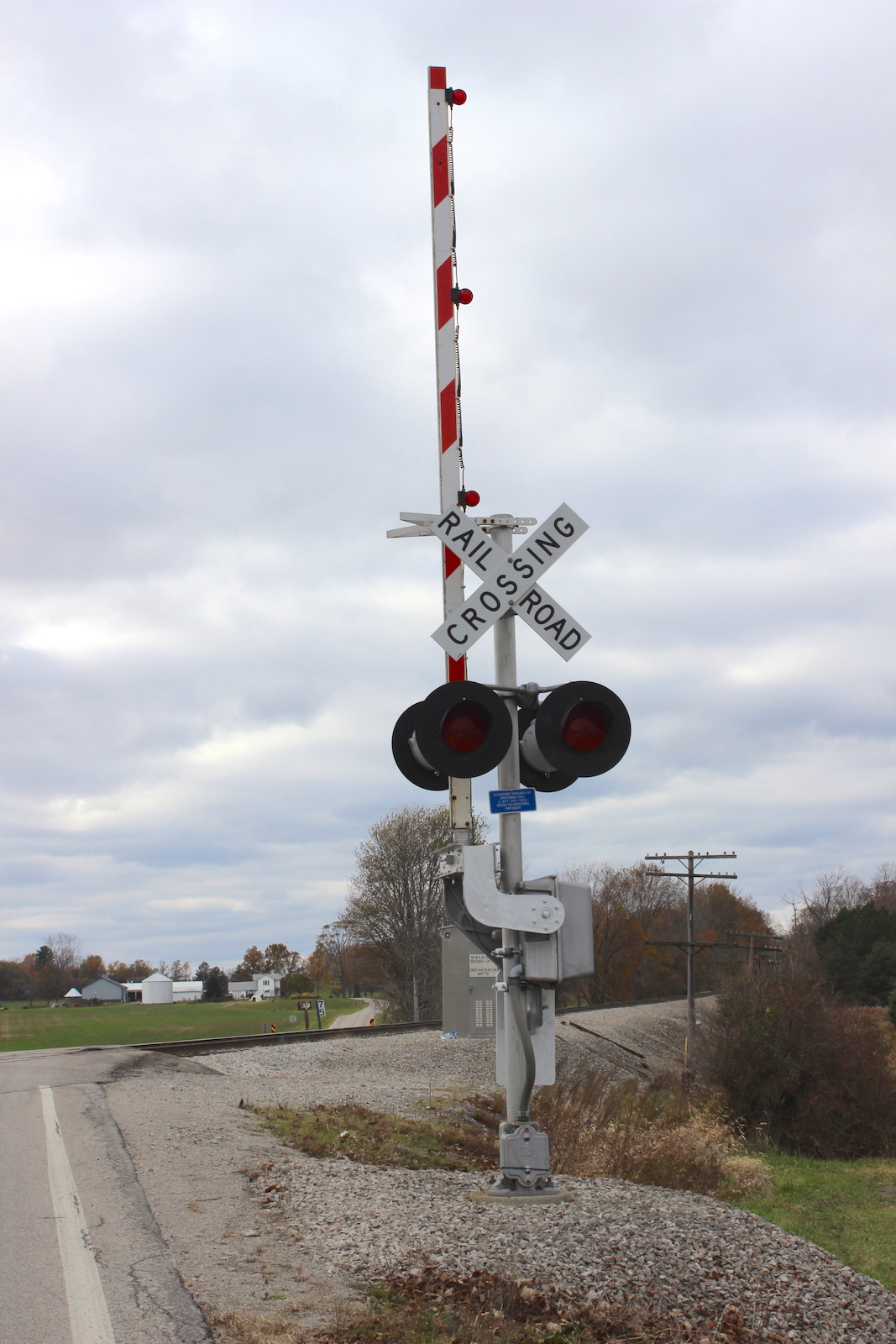

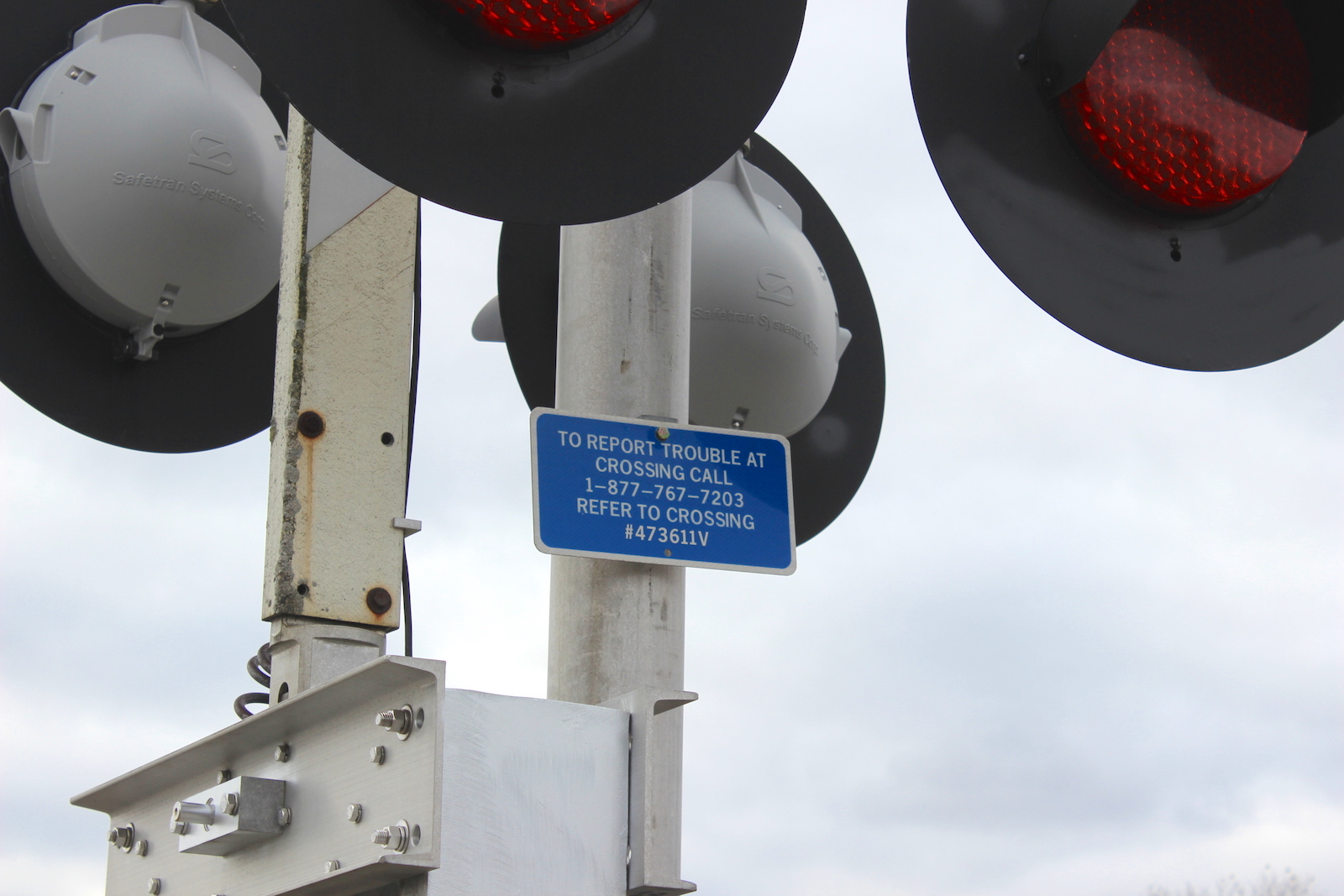

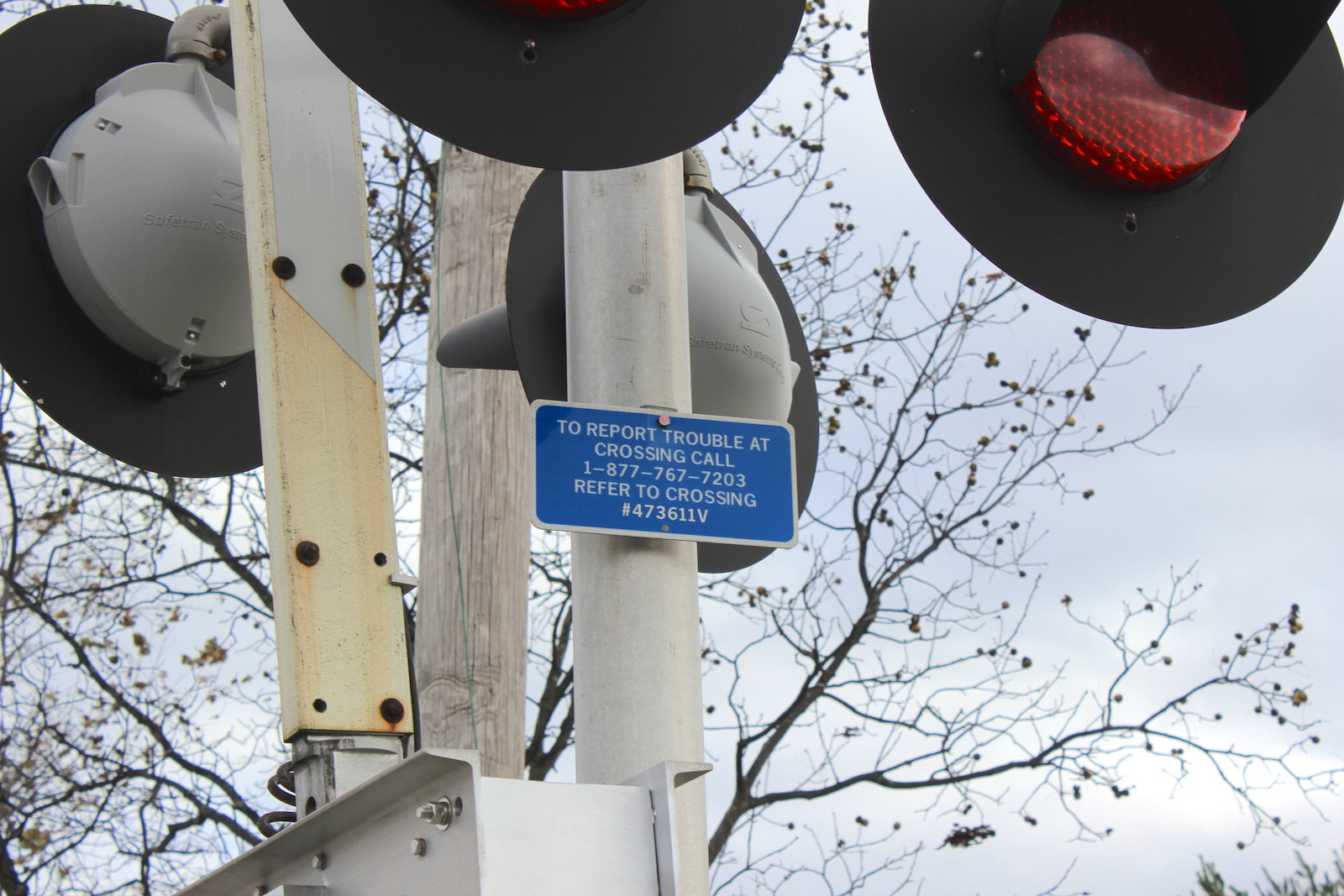

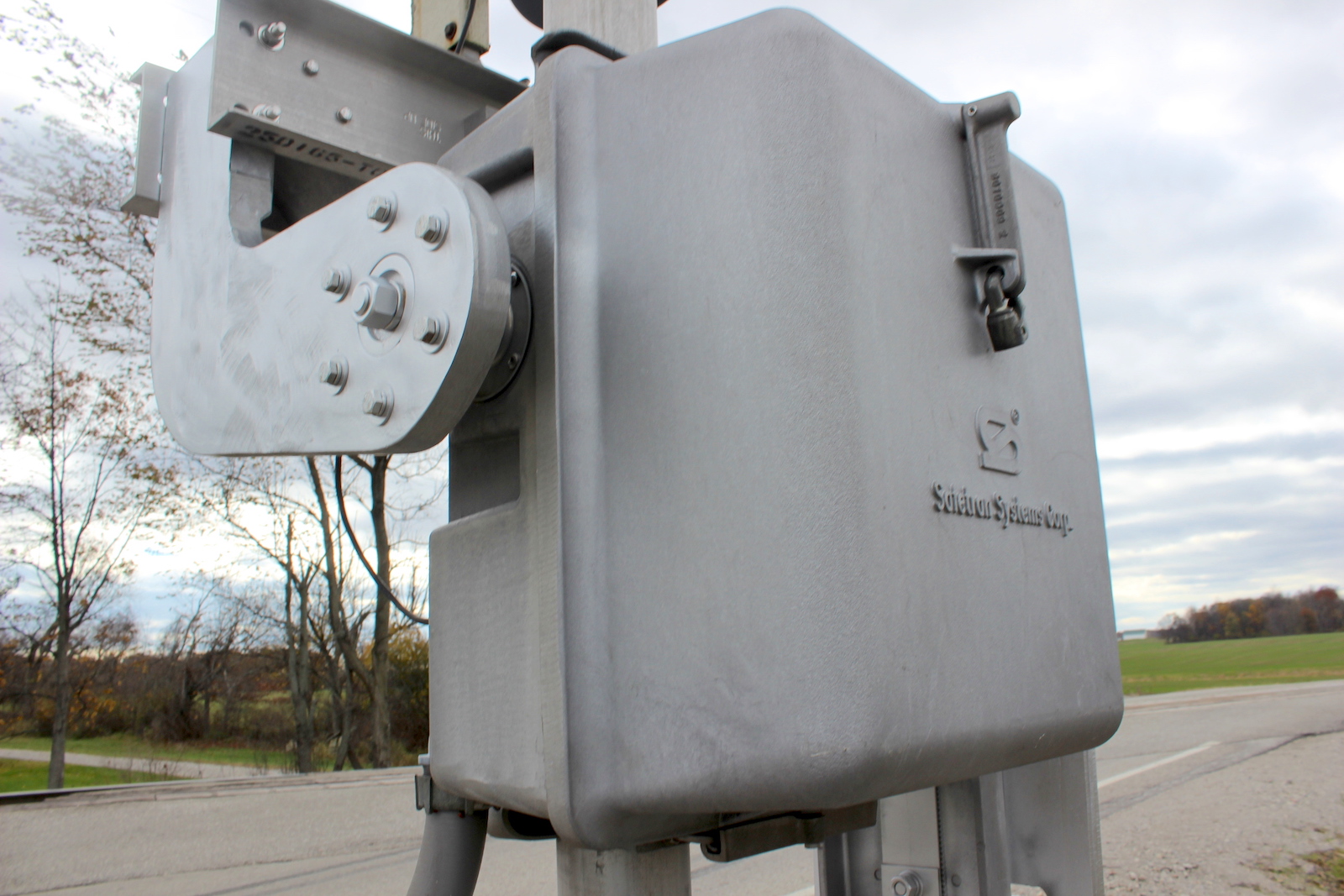

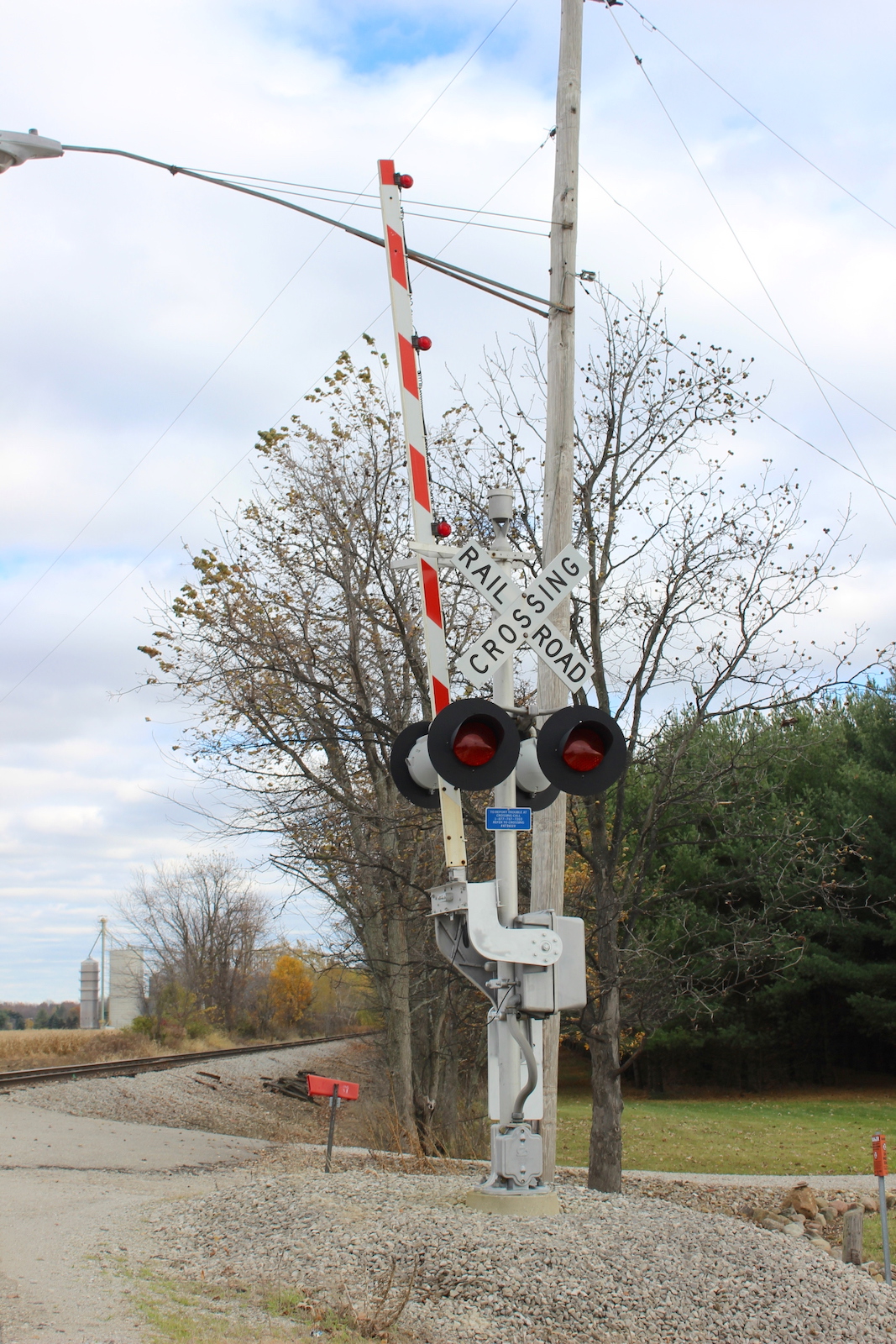

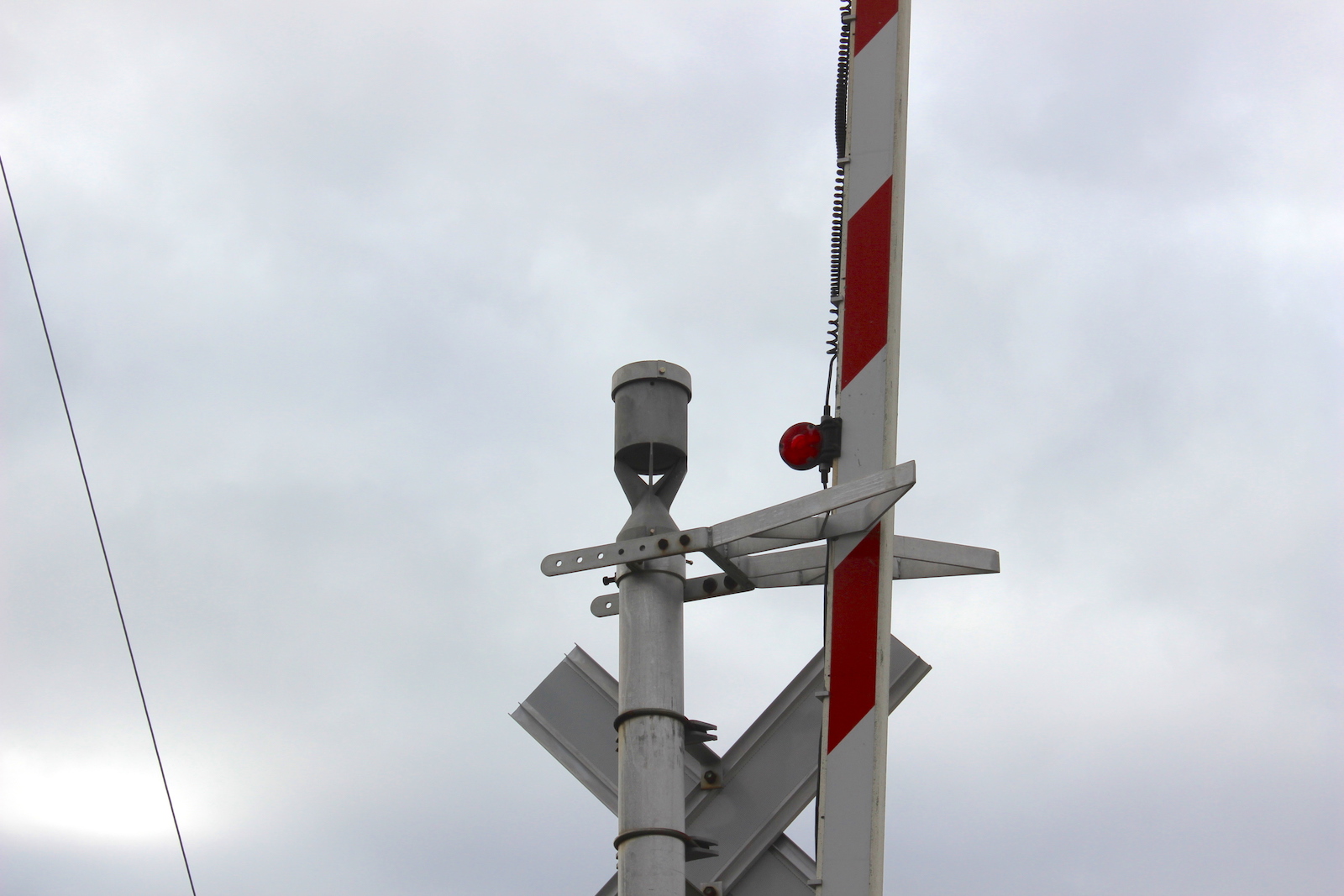

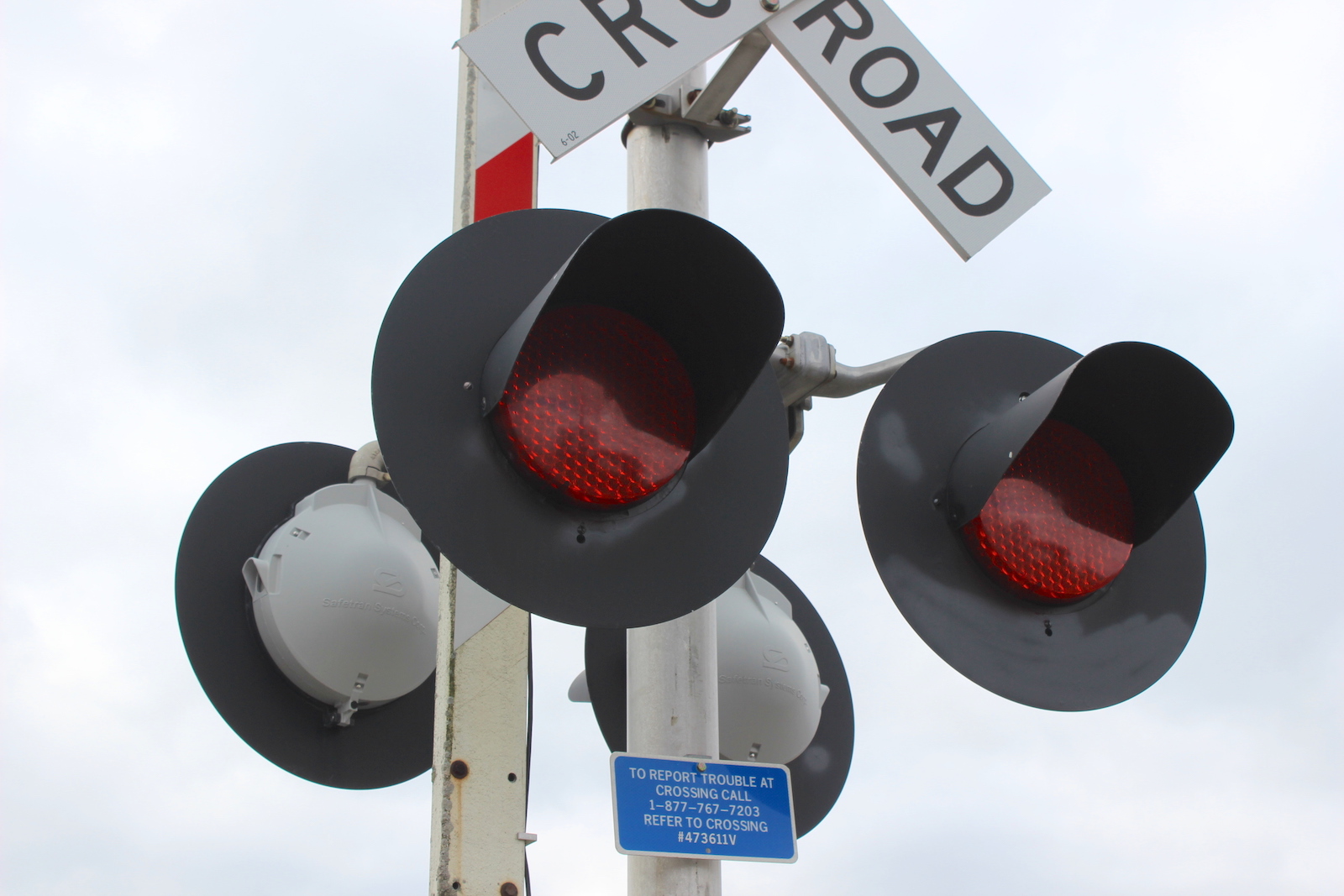

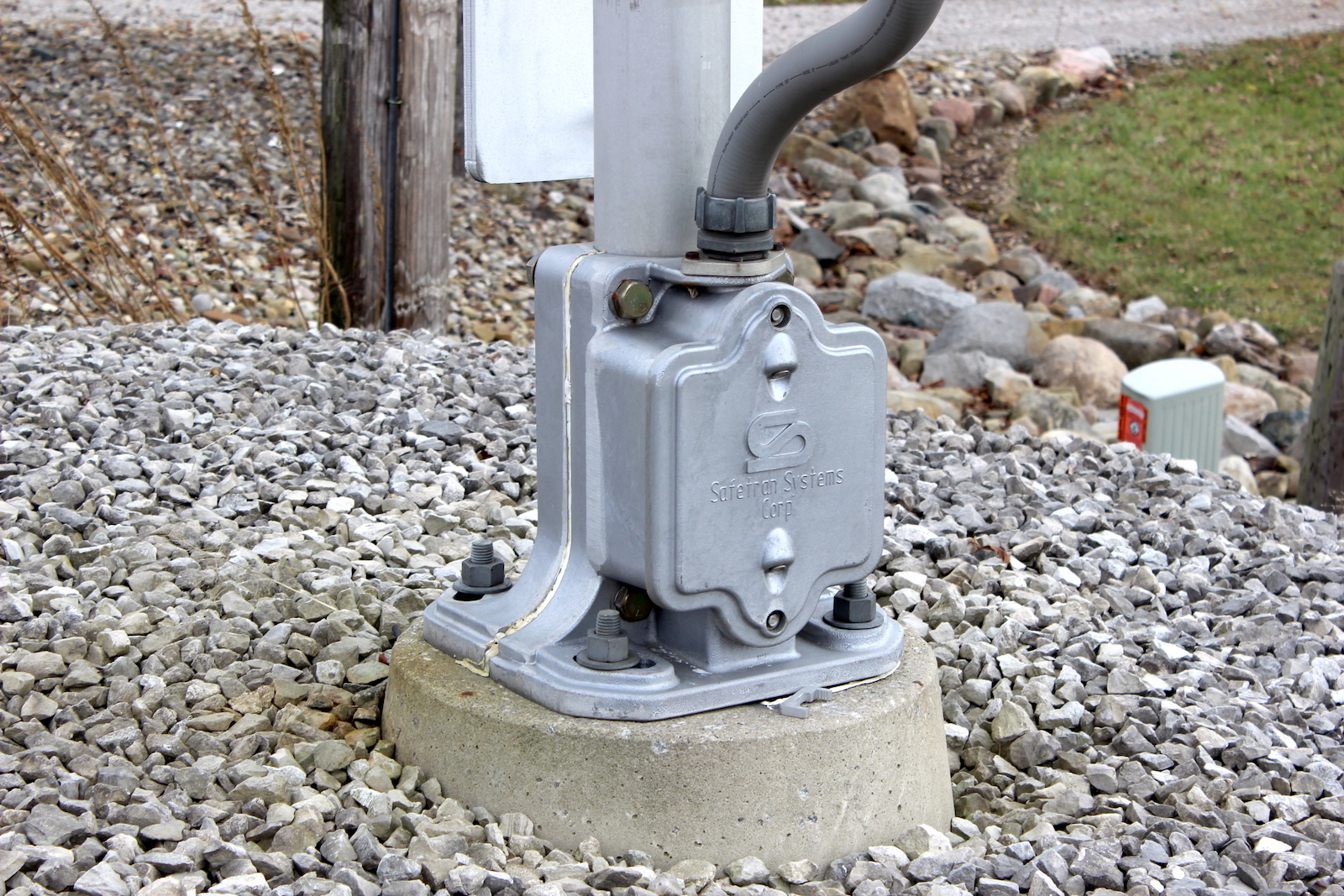

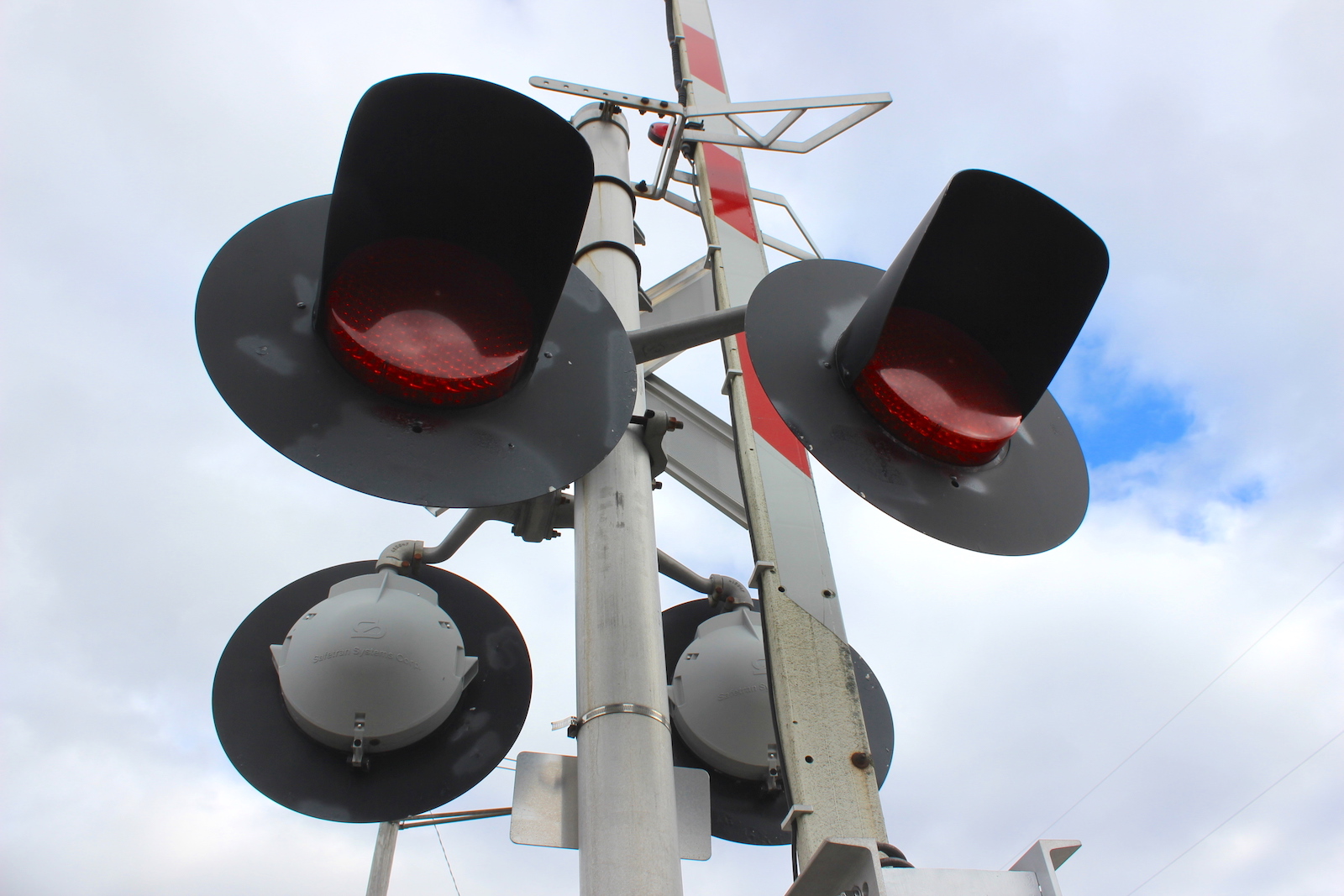

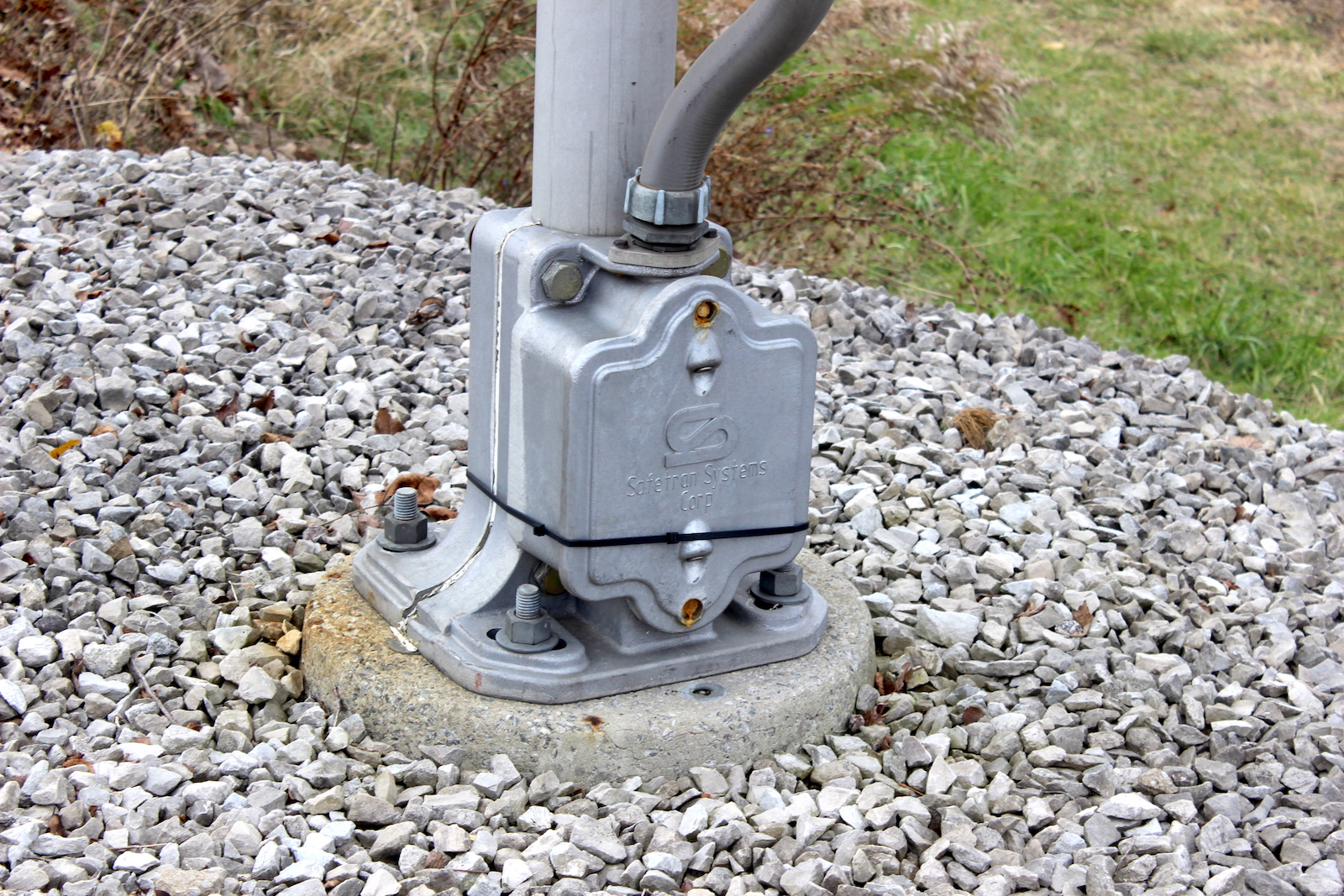

The eastern signal.
12 13 14
15 16 17
18 19 20
21

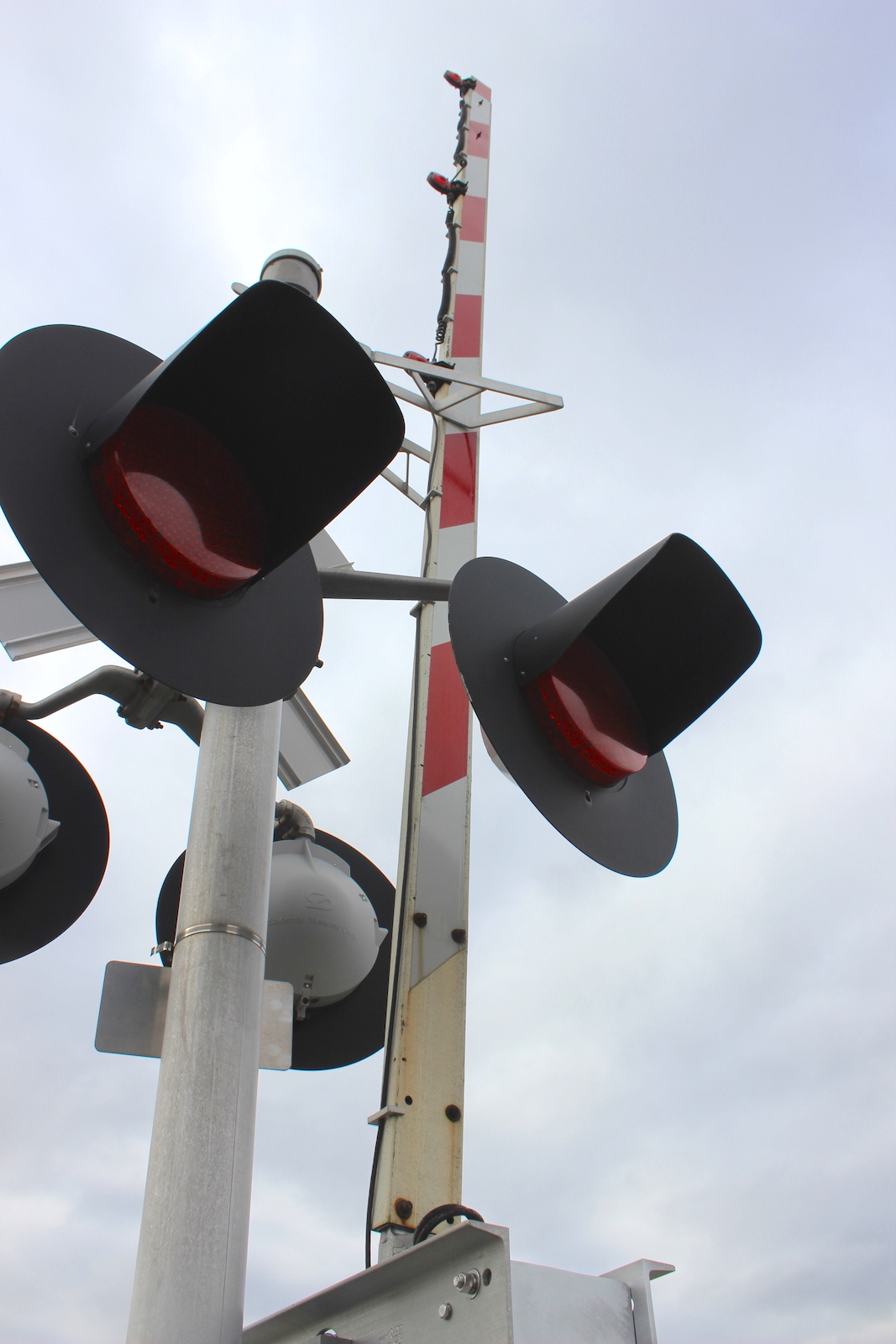

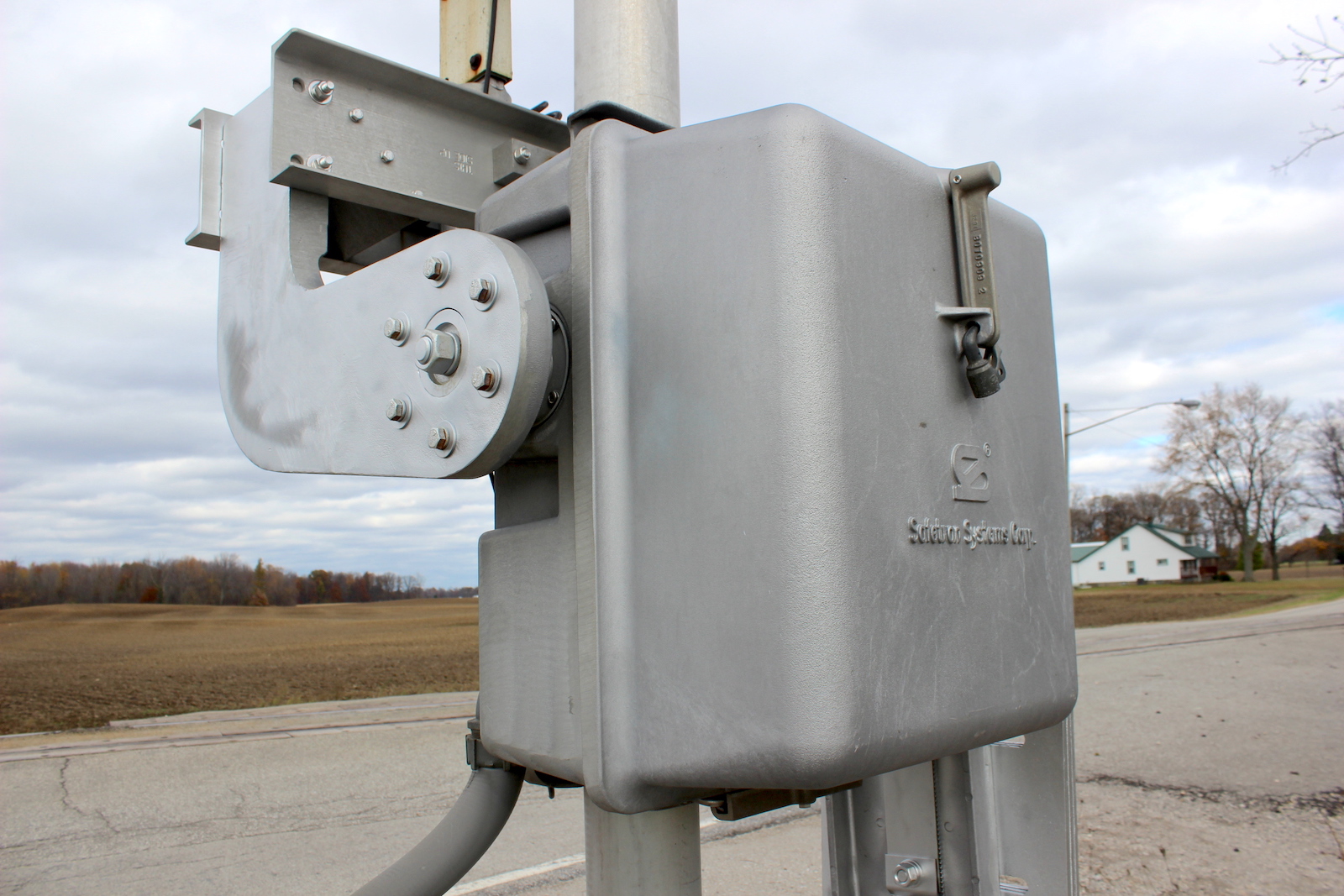

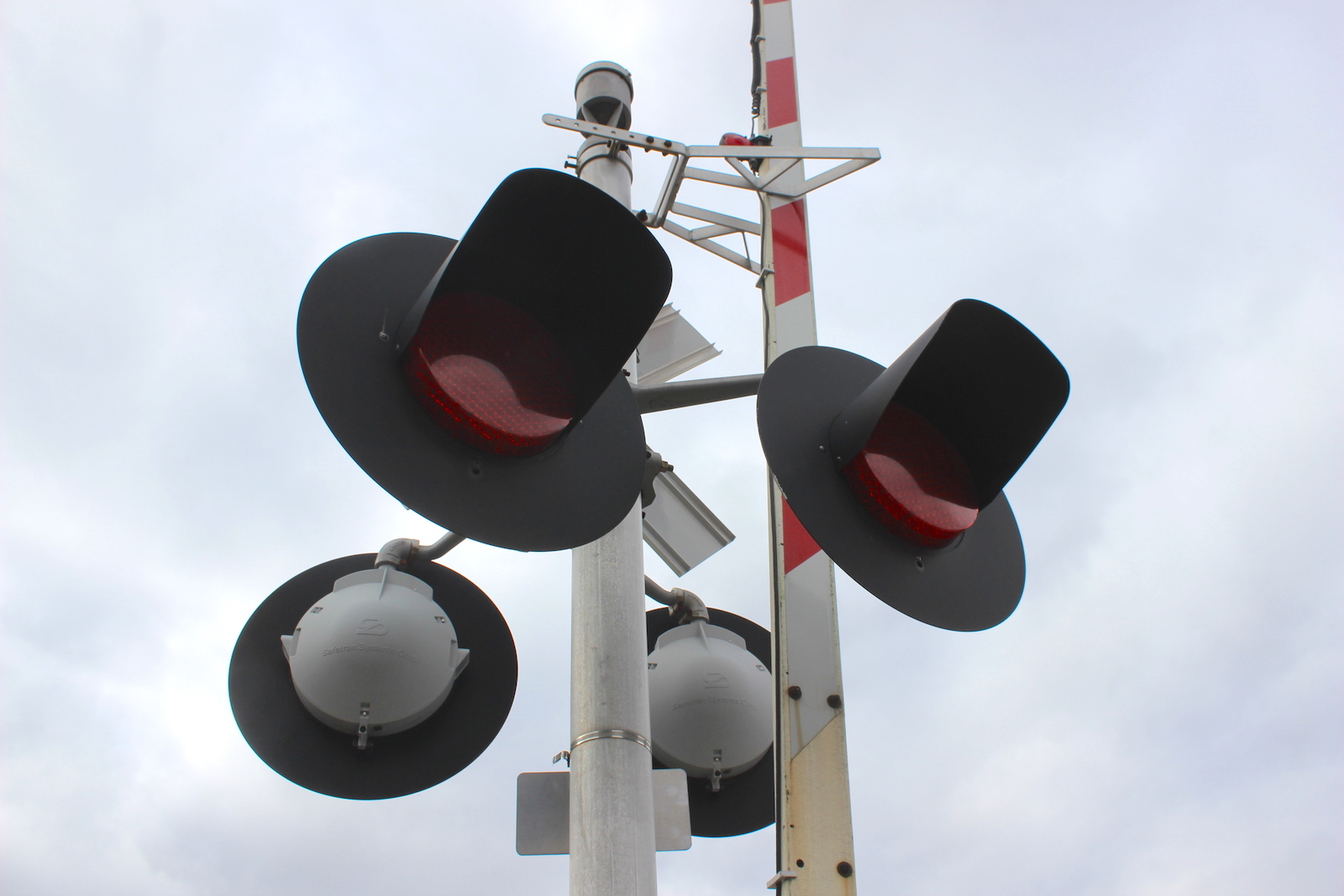

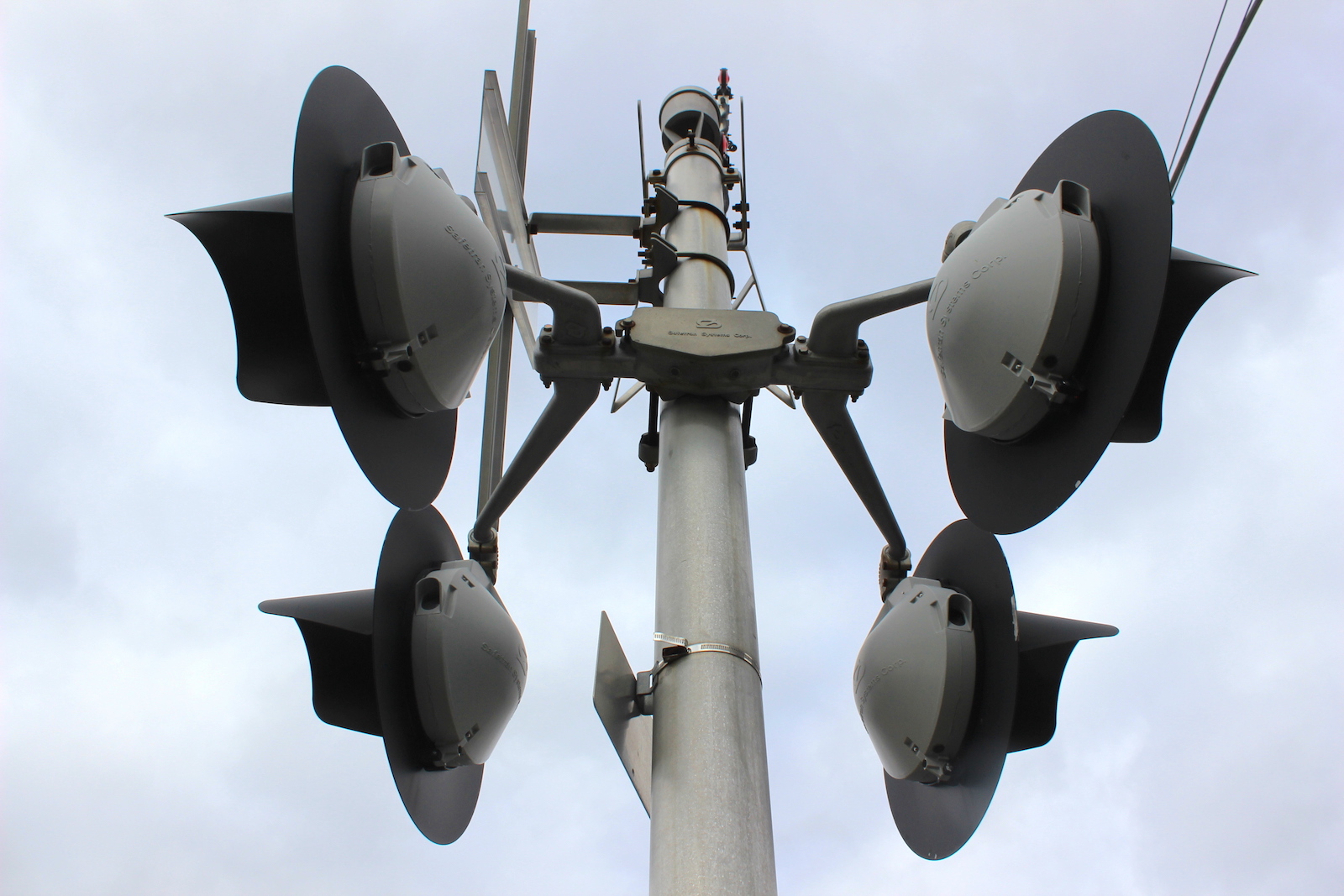

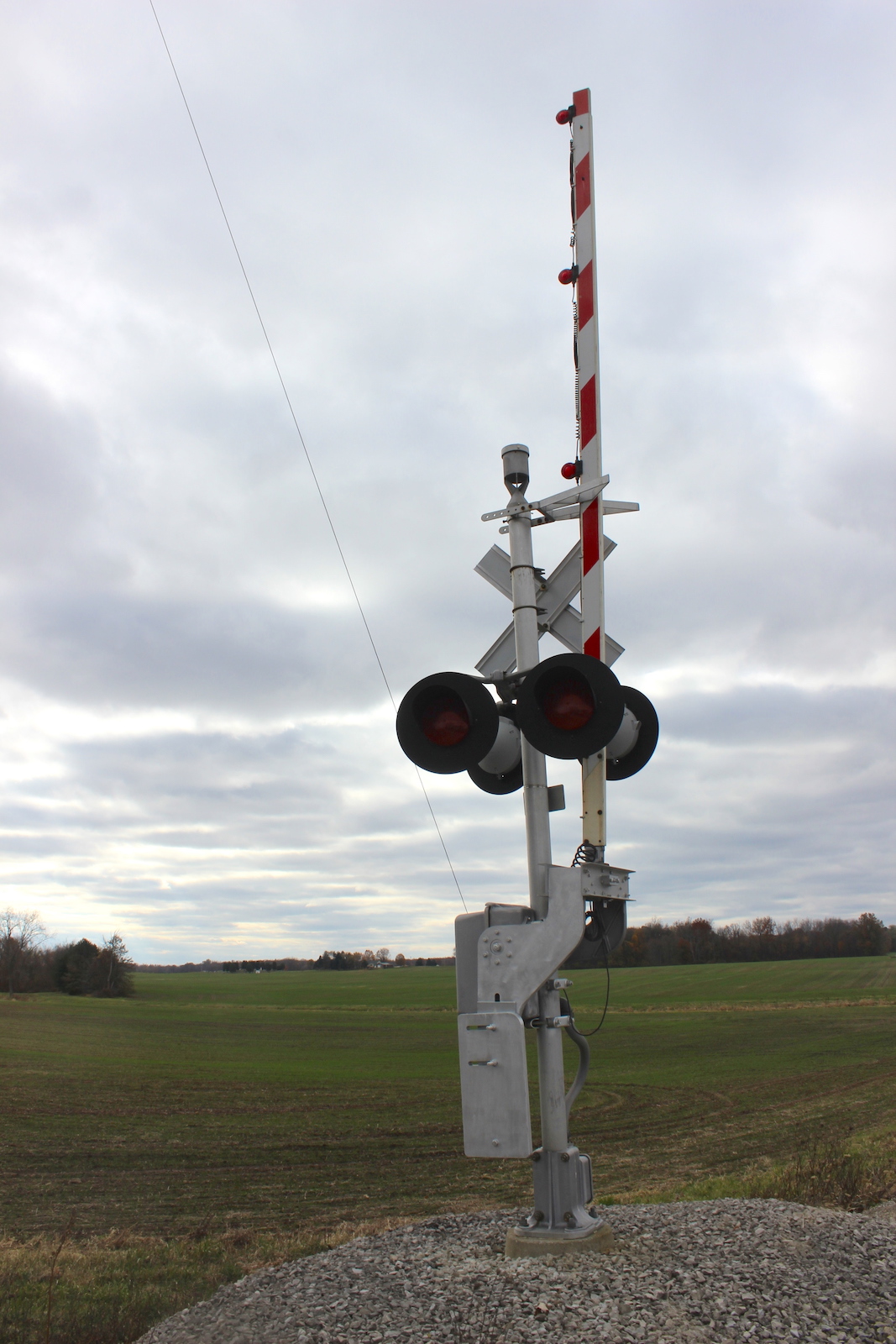

The western signal.
22 23 24 25

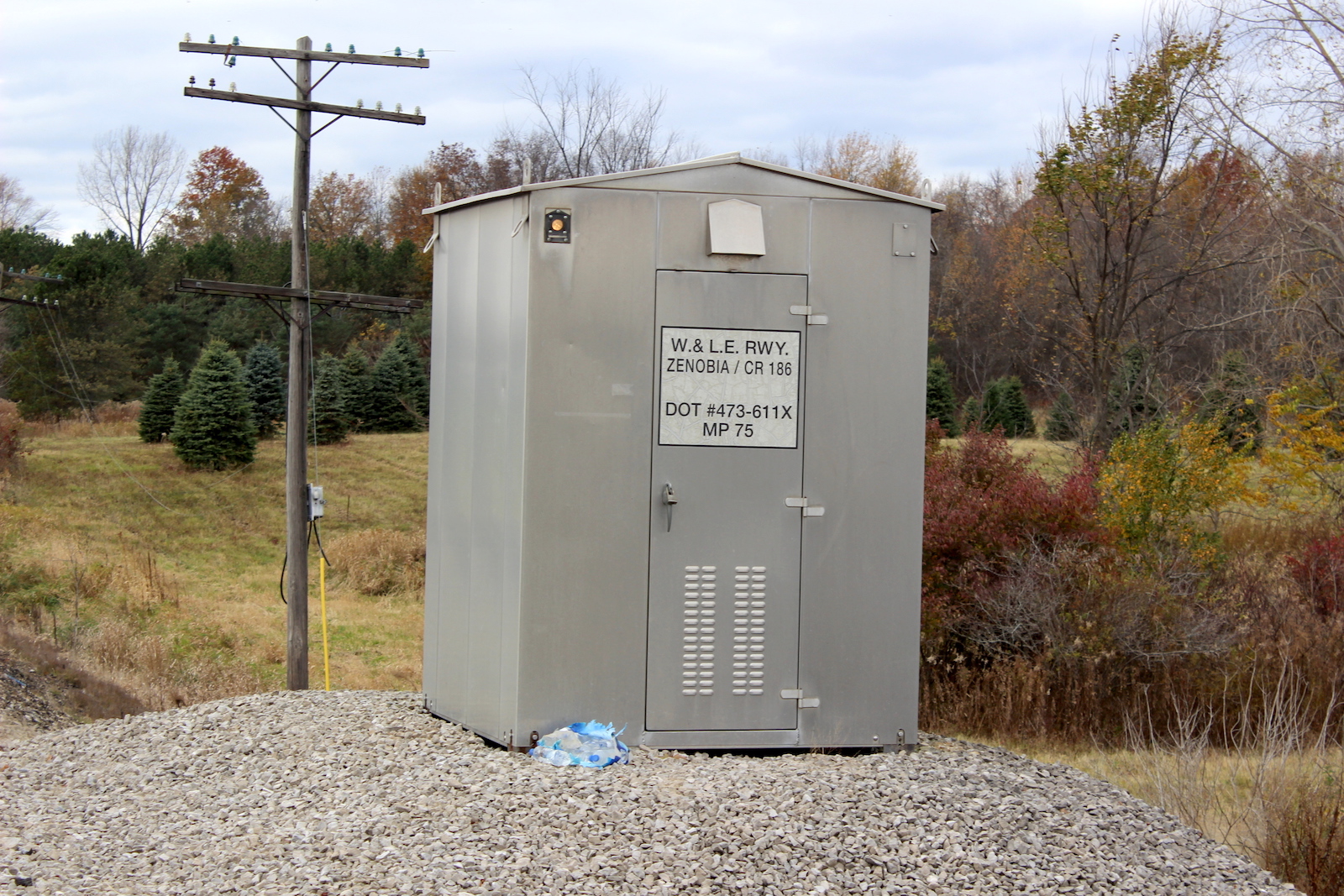

The relay bungalow in the northeast quadrant.

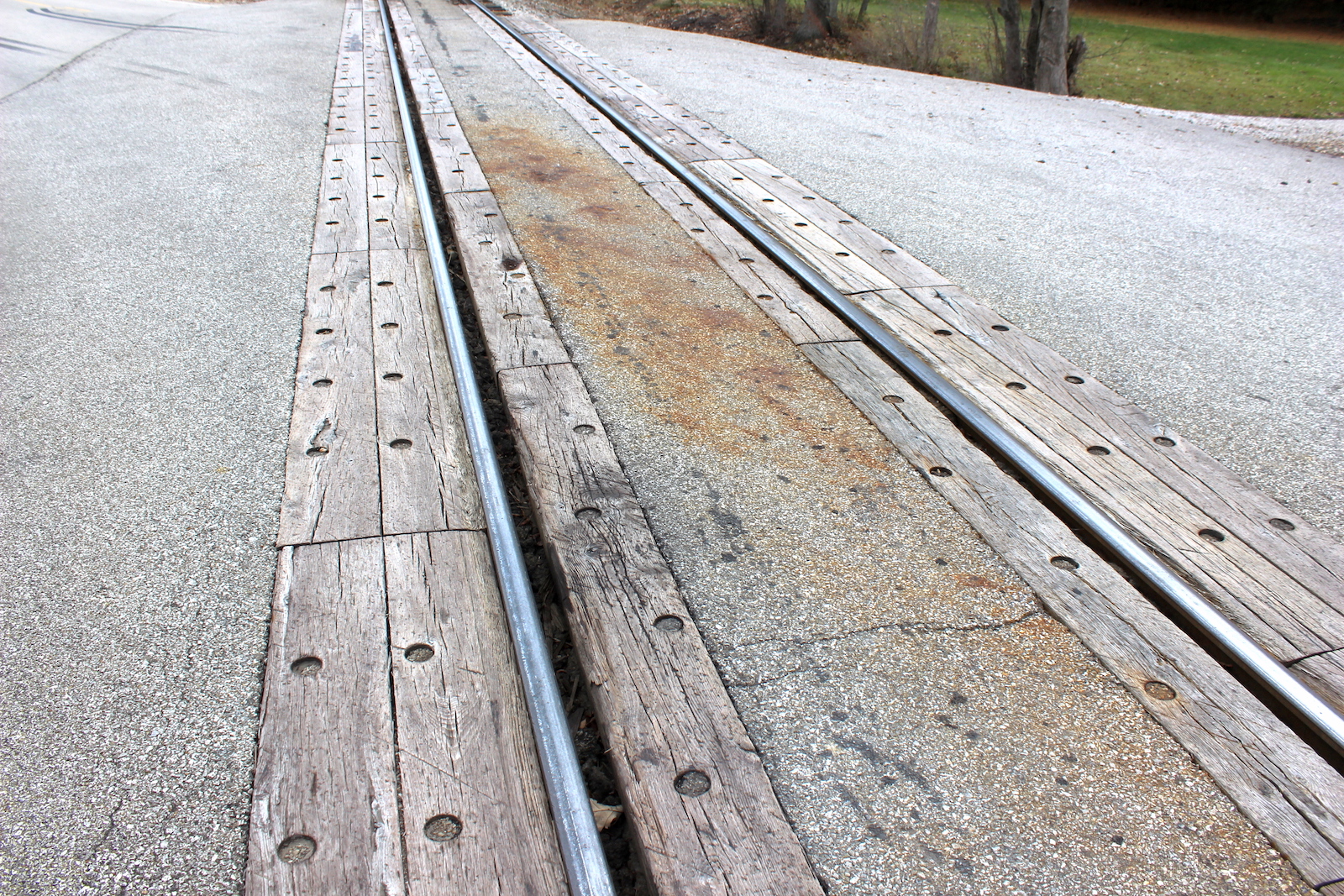

 The grade is wood and asphalt.

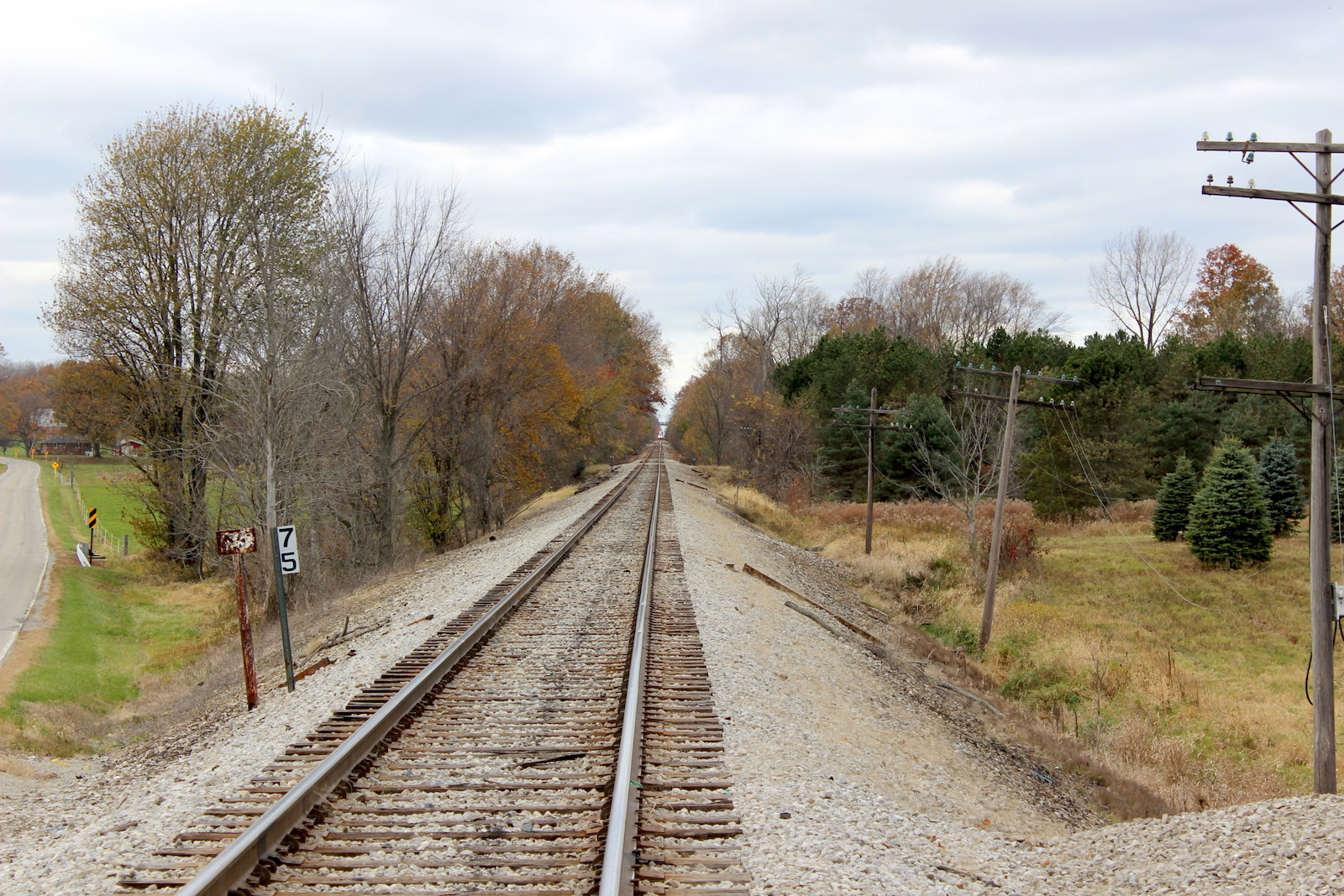

 Track view facing west towards Hartland Center Rd.

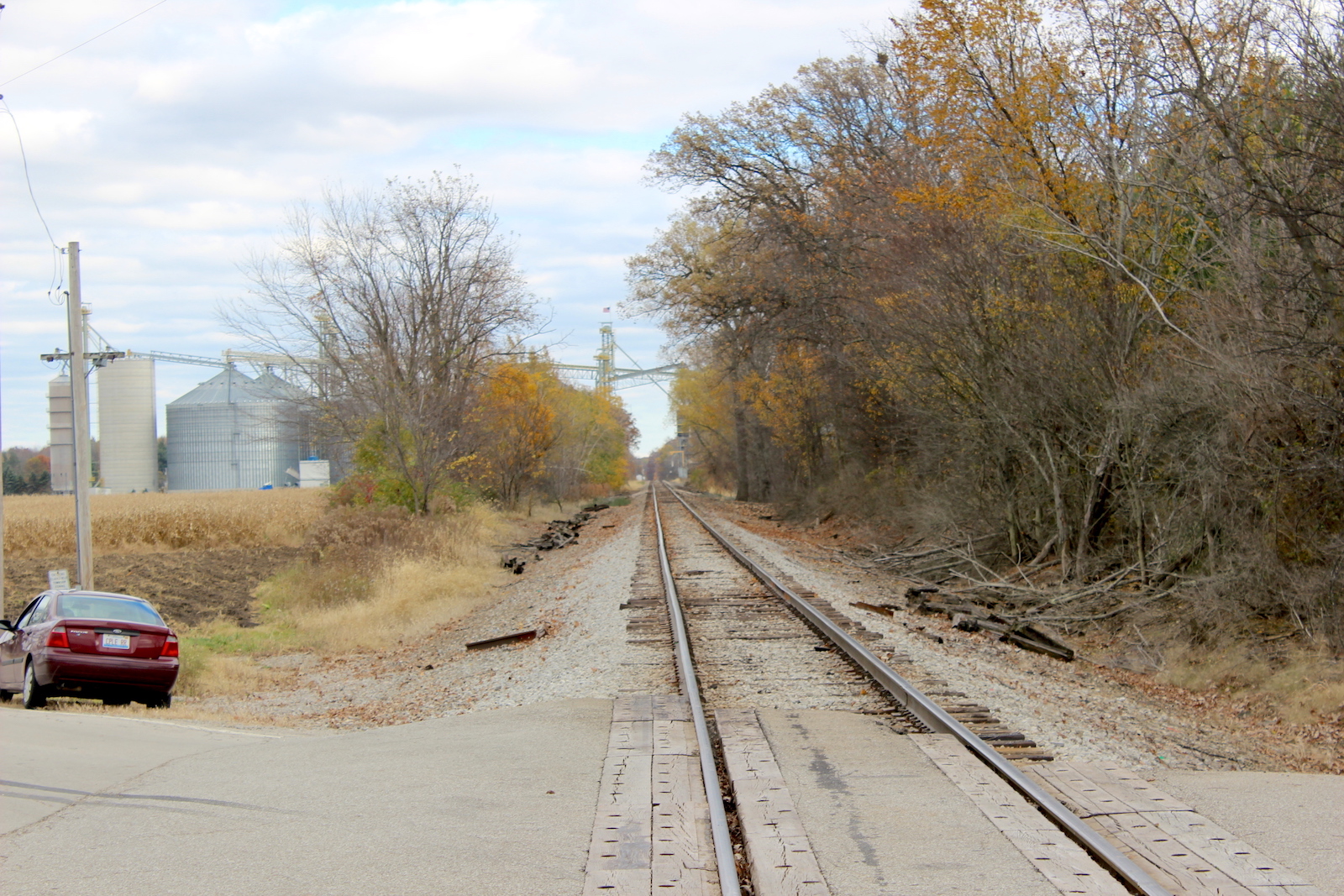

 Track view facing east towards Fitchville River Rd.
26 27 28 29

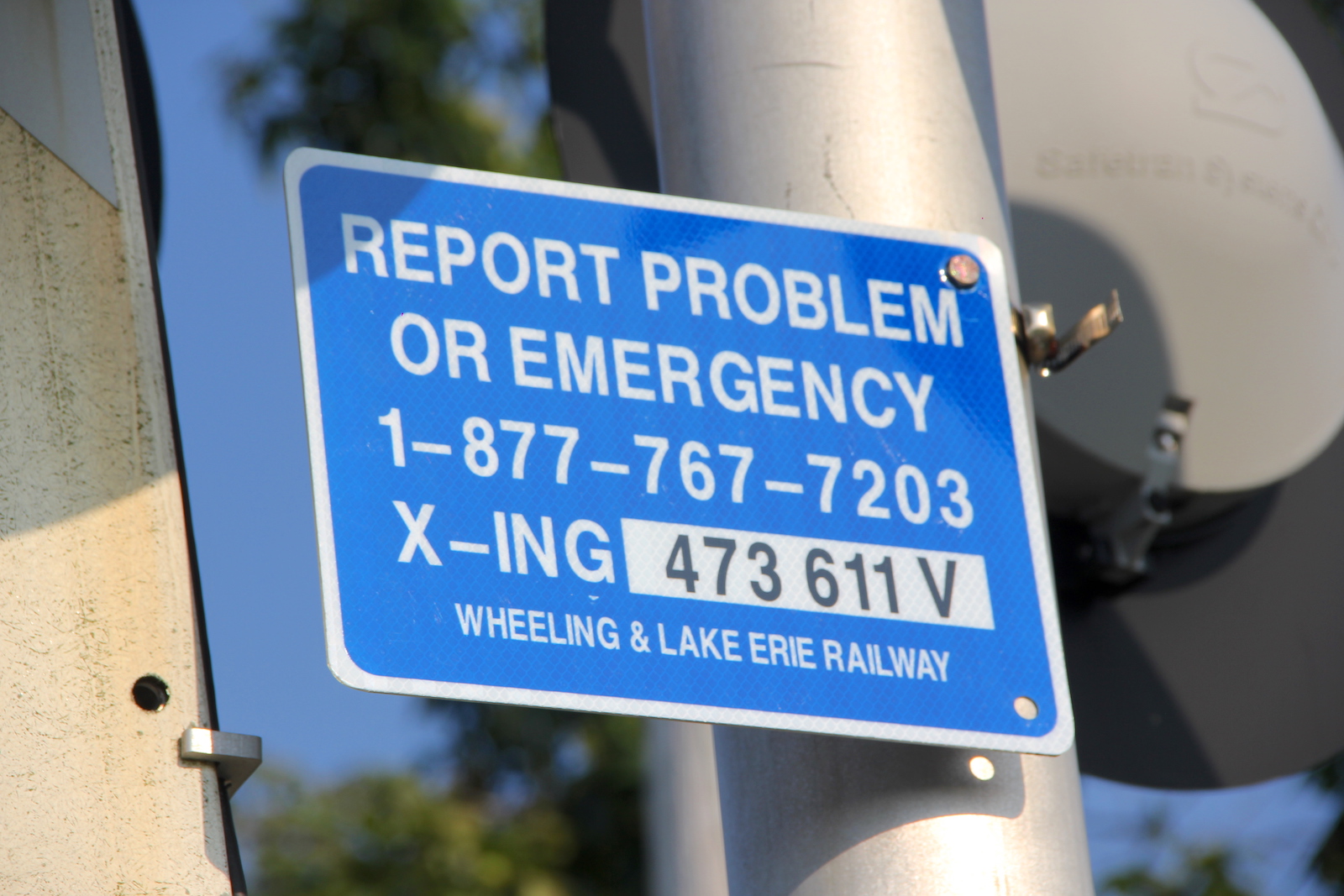

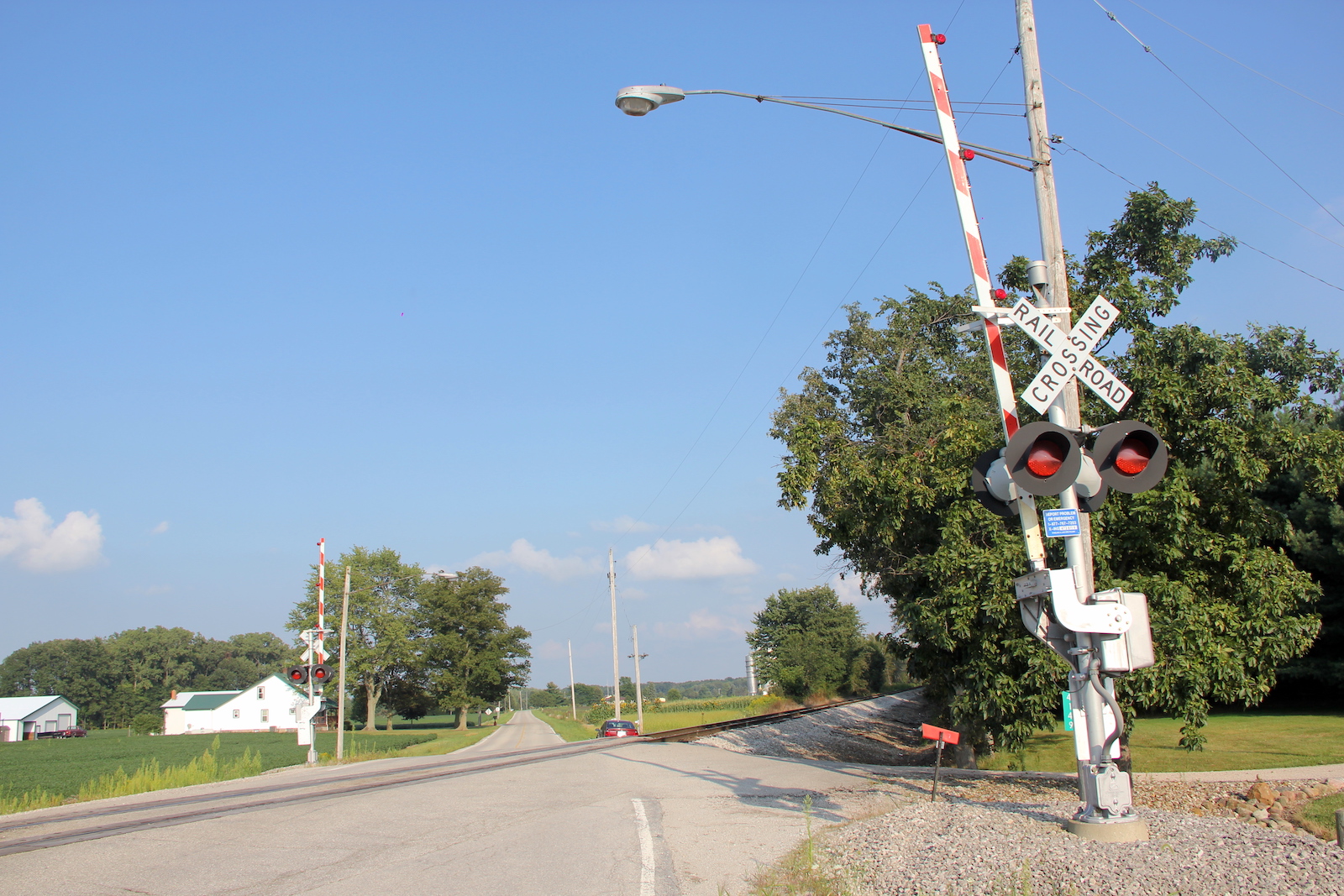

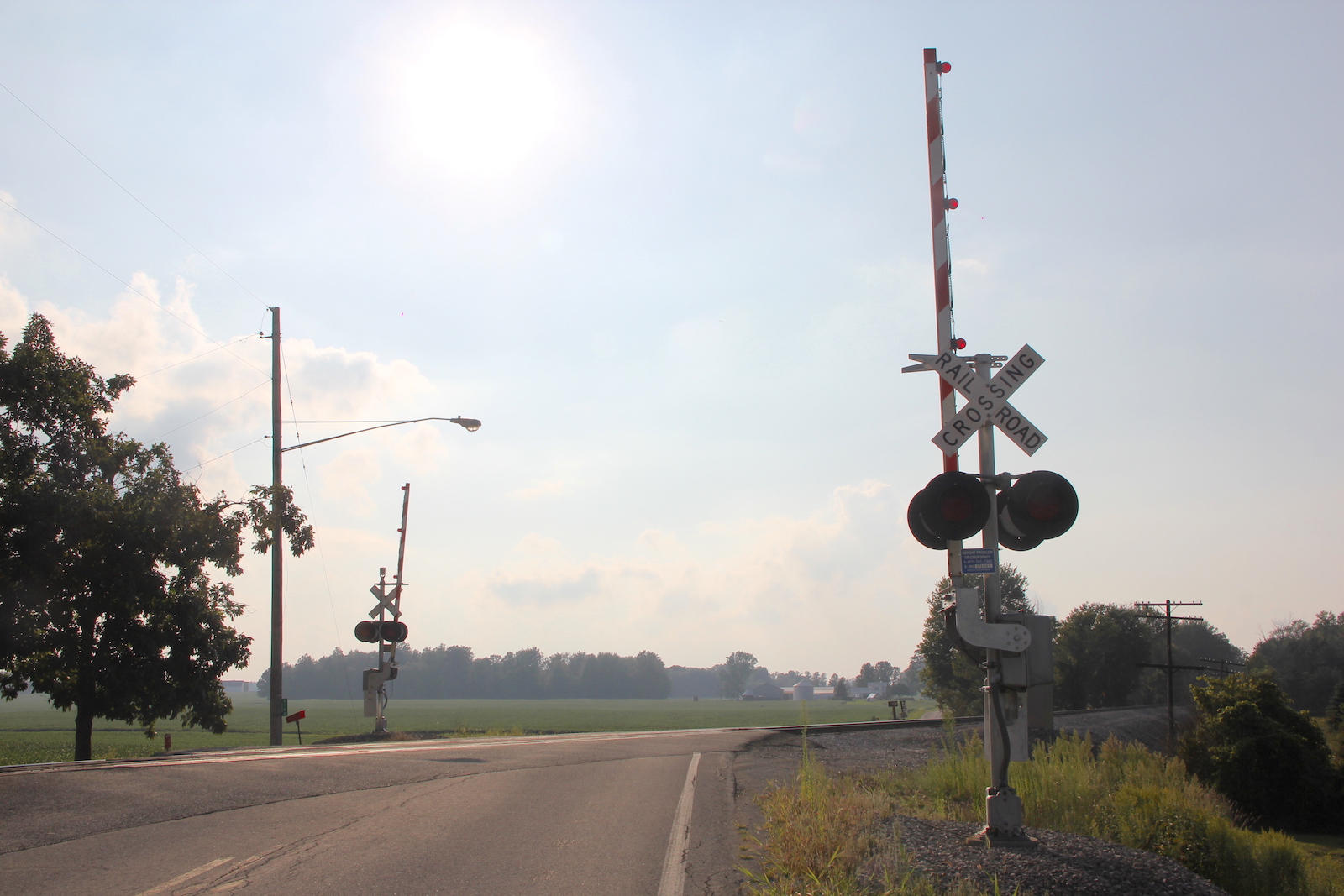

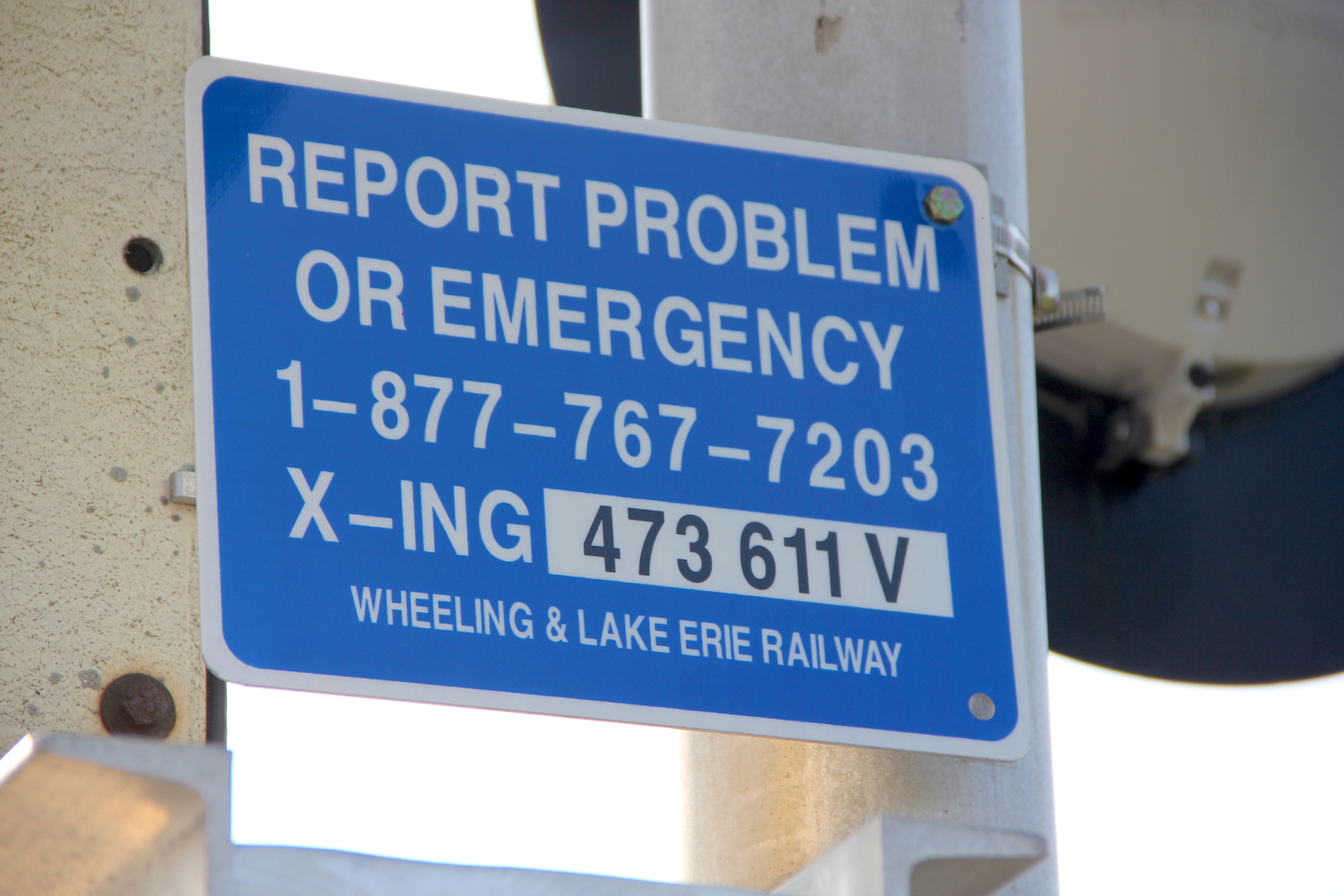

In August 2017, we see the DOT signs were replaced.
