| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | WCH Mechanical Bell 1st Gen | None |
| Base: | WCH 5" Double Sided ^ | MI Cantilever |
| Lights: | 4 - 12"x24" WCH w/ 2nd Gen WCH LEDs | 6 - 8"x20" MI incandescents 2 - 8"x20" WCH incandescents 1 - 8"x20" Safetran incandescent 1 - 8"x20" Harmon incandescent |
| Junction Box: | WCH w/ Bell Extension | Unknown |
| Gate Lights: | 4" RECO | 4" RECO |
| Gate Mechanism: | Invensys Rail w/ Old NEG 2 Way Saver | Safetran 2000s w/ Cantilever Moutn |
| Gate Striping: | Vertical Striping | Diagonal Striping |
1 |
2
|
| Overview of a newer mast signal and older cantilever facing south. |
Overview facing north. |
3
| 4
| 5
|
6
| 7
| 8
|
9
| 10
| 11
| 12
|

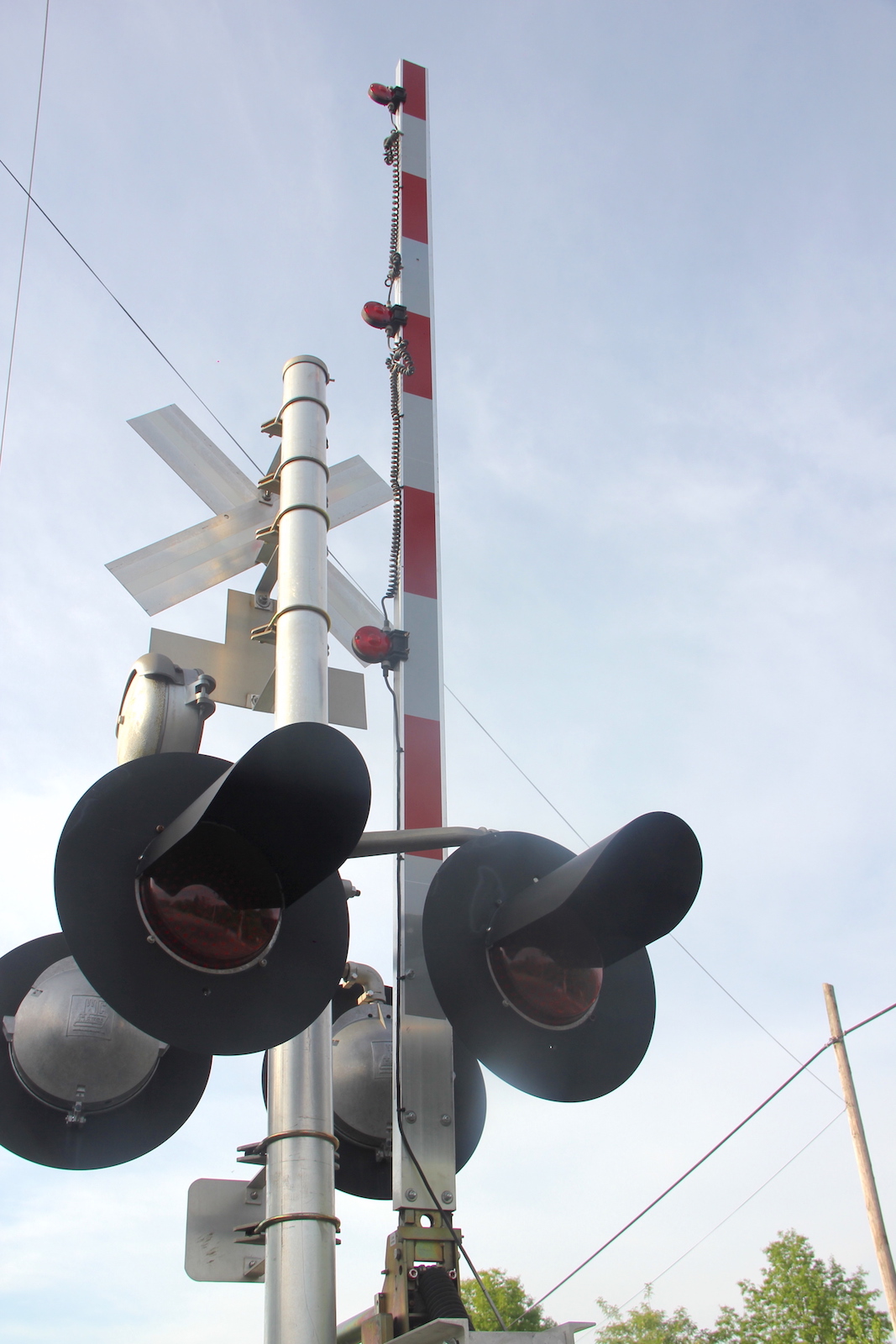

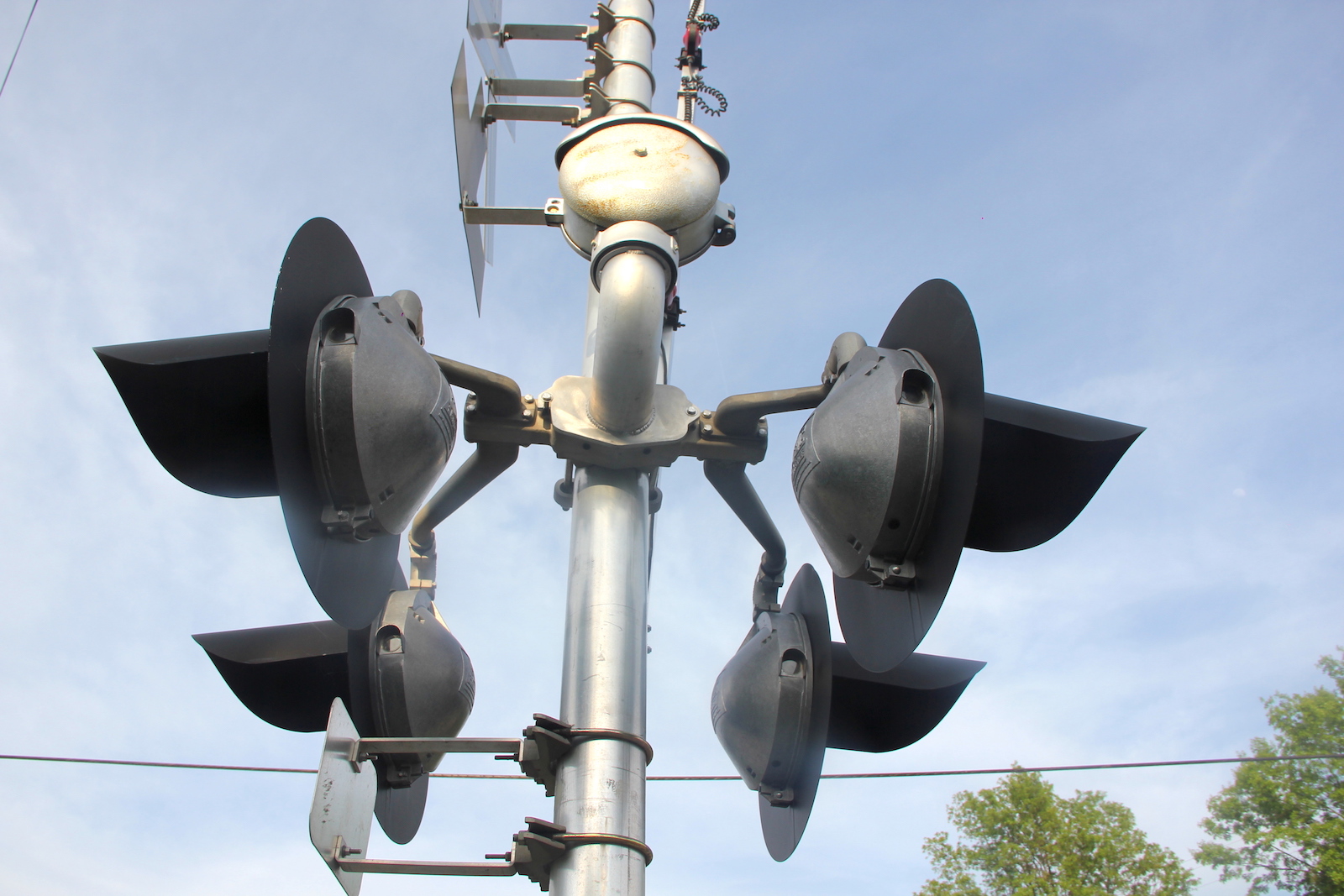

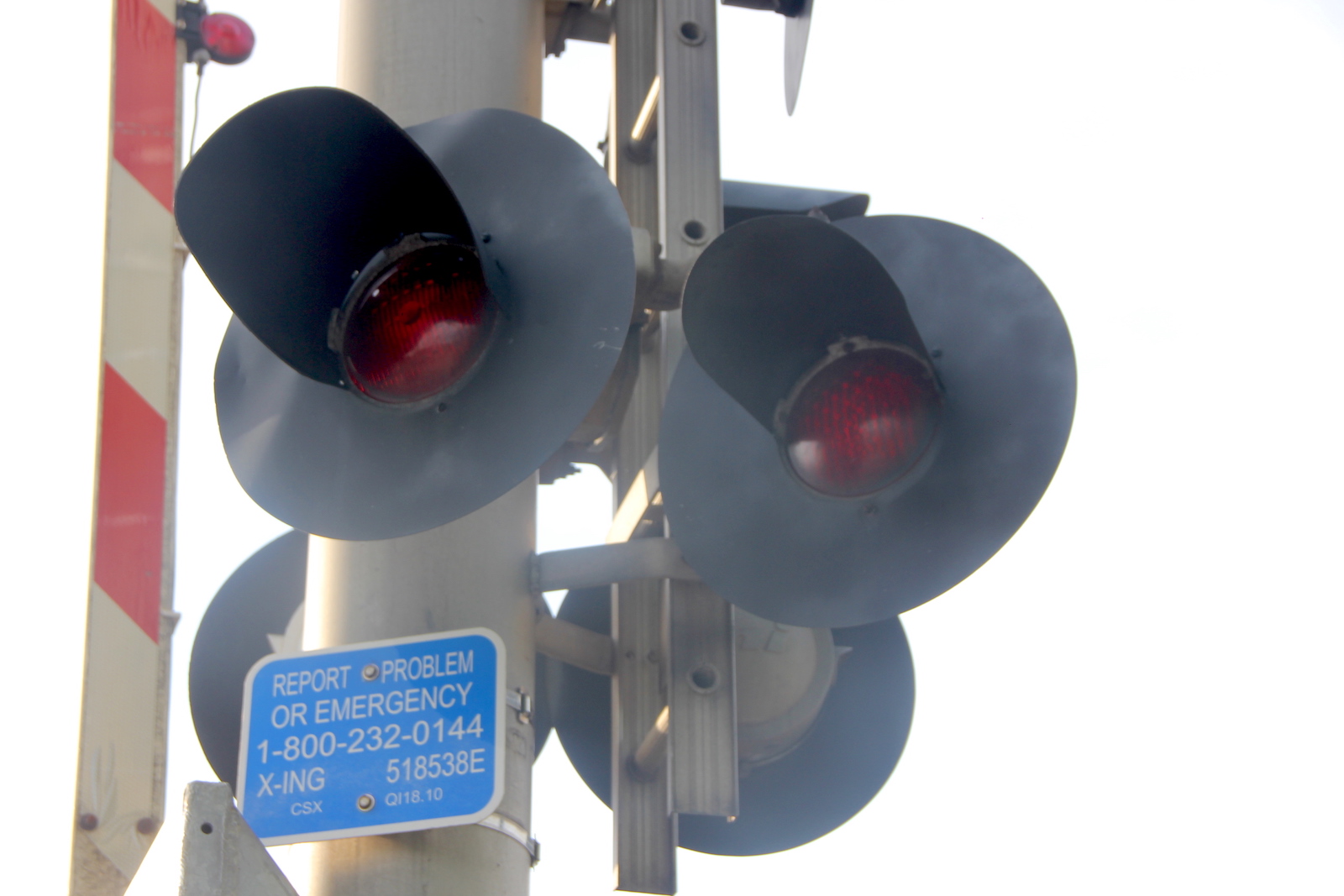

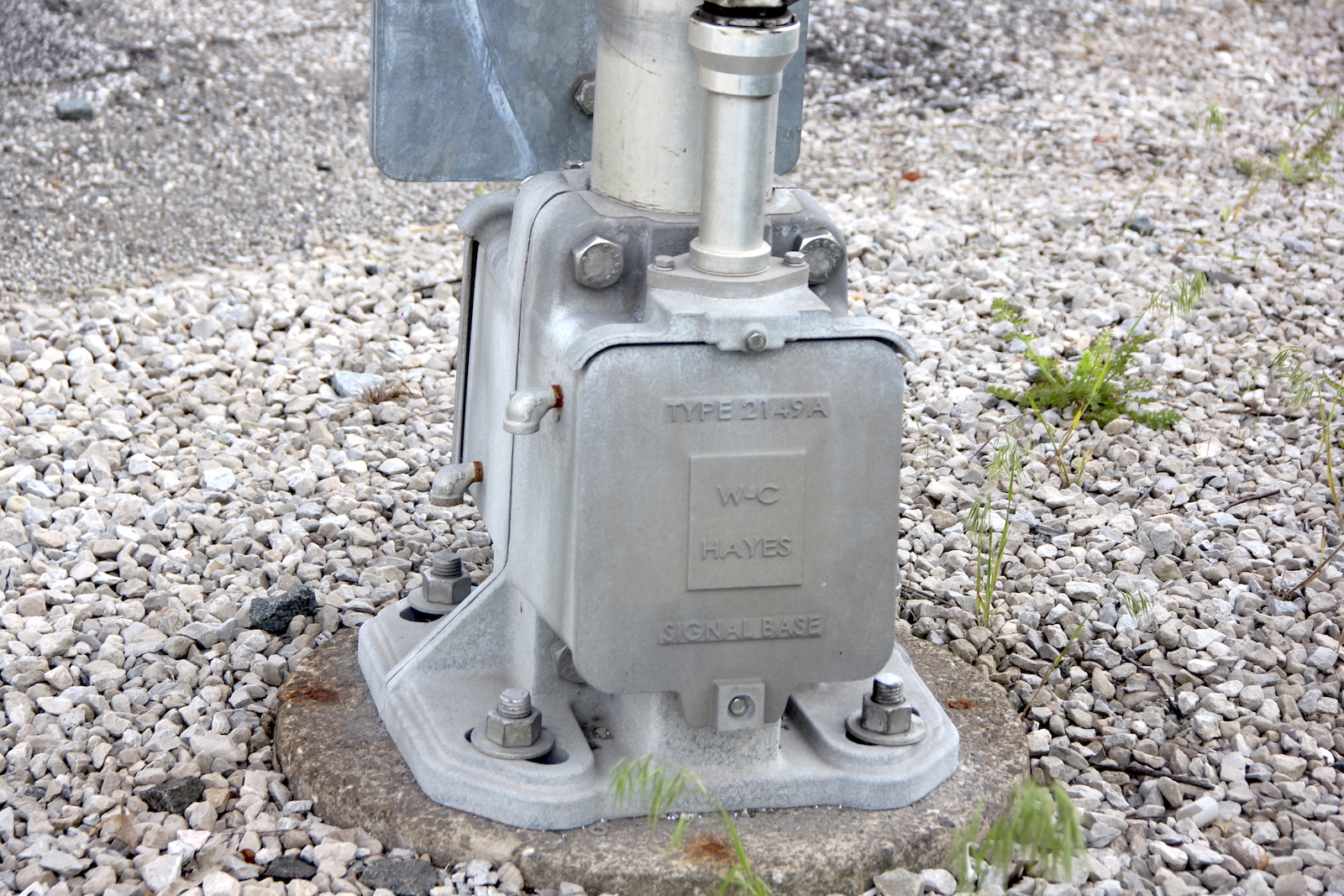

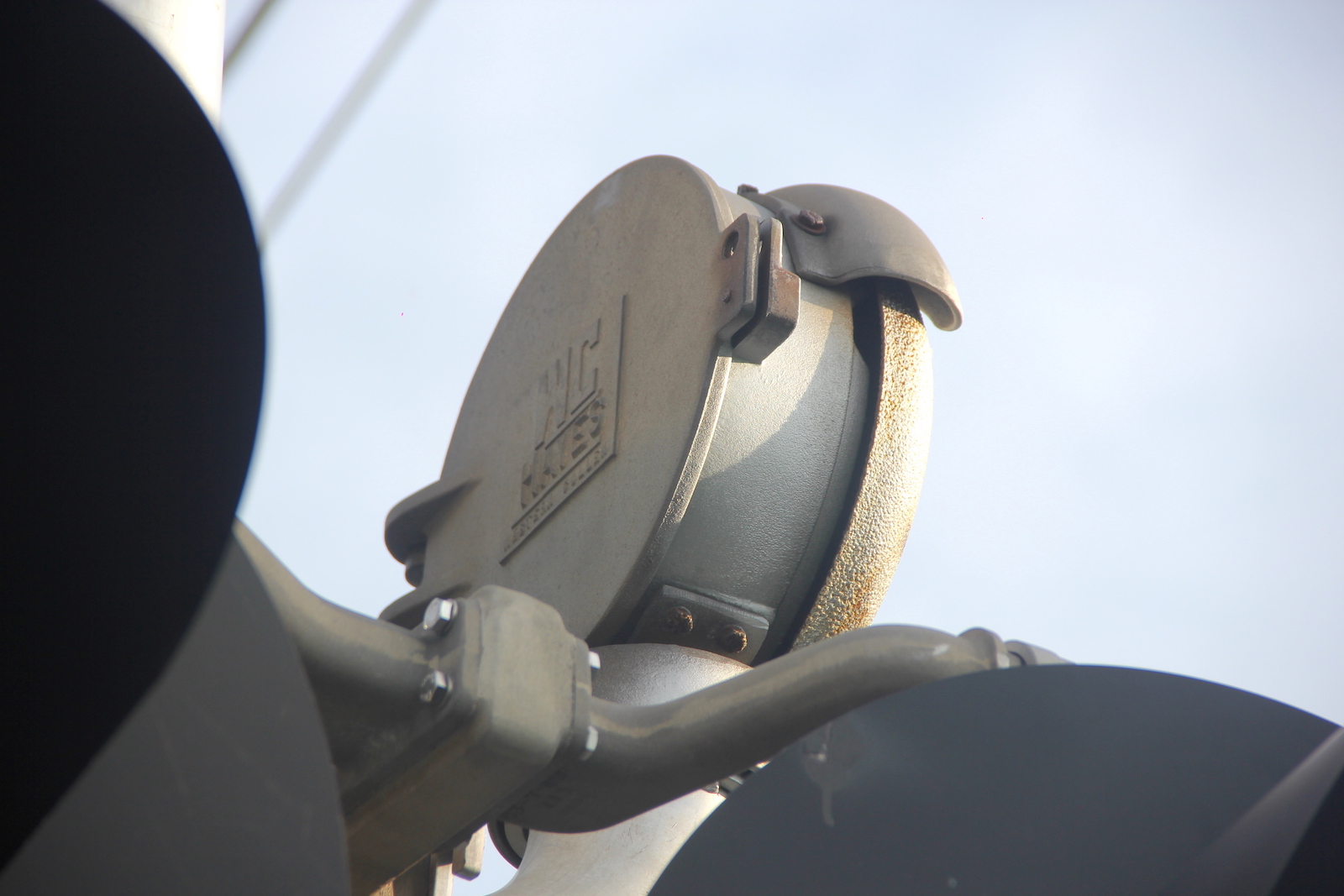

| The northern signal. This is a new signal with a reused WCH bell. |
13
| 14
| 15
|
16
| 17
| 18
|
19
| 20
| 21
|
22
| 23
| 24
| 25
|

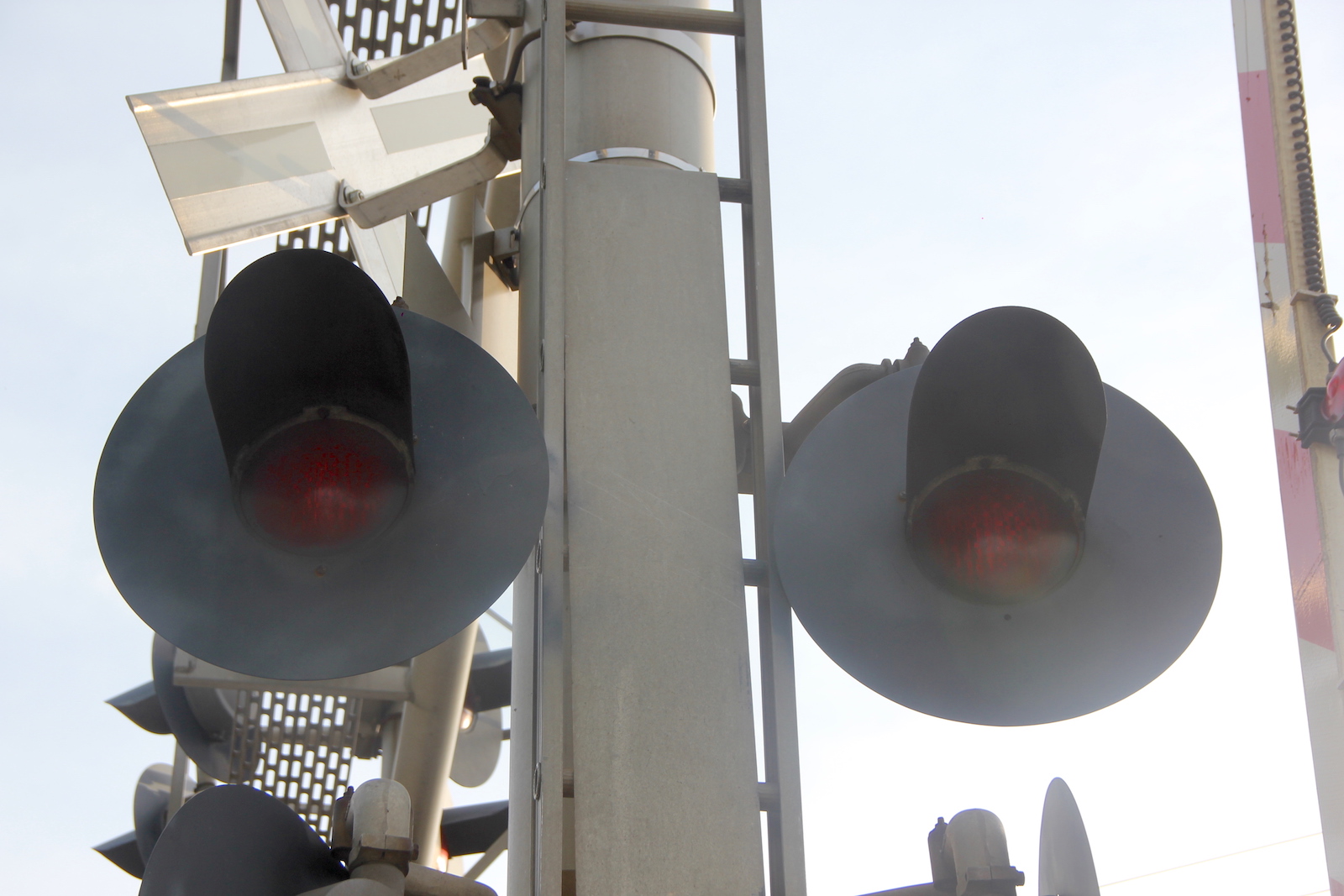

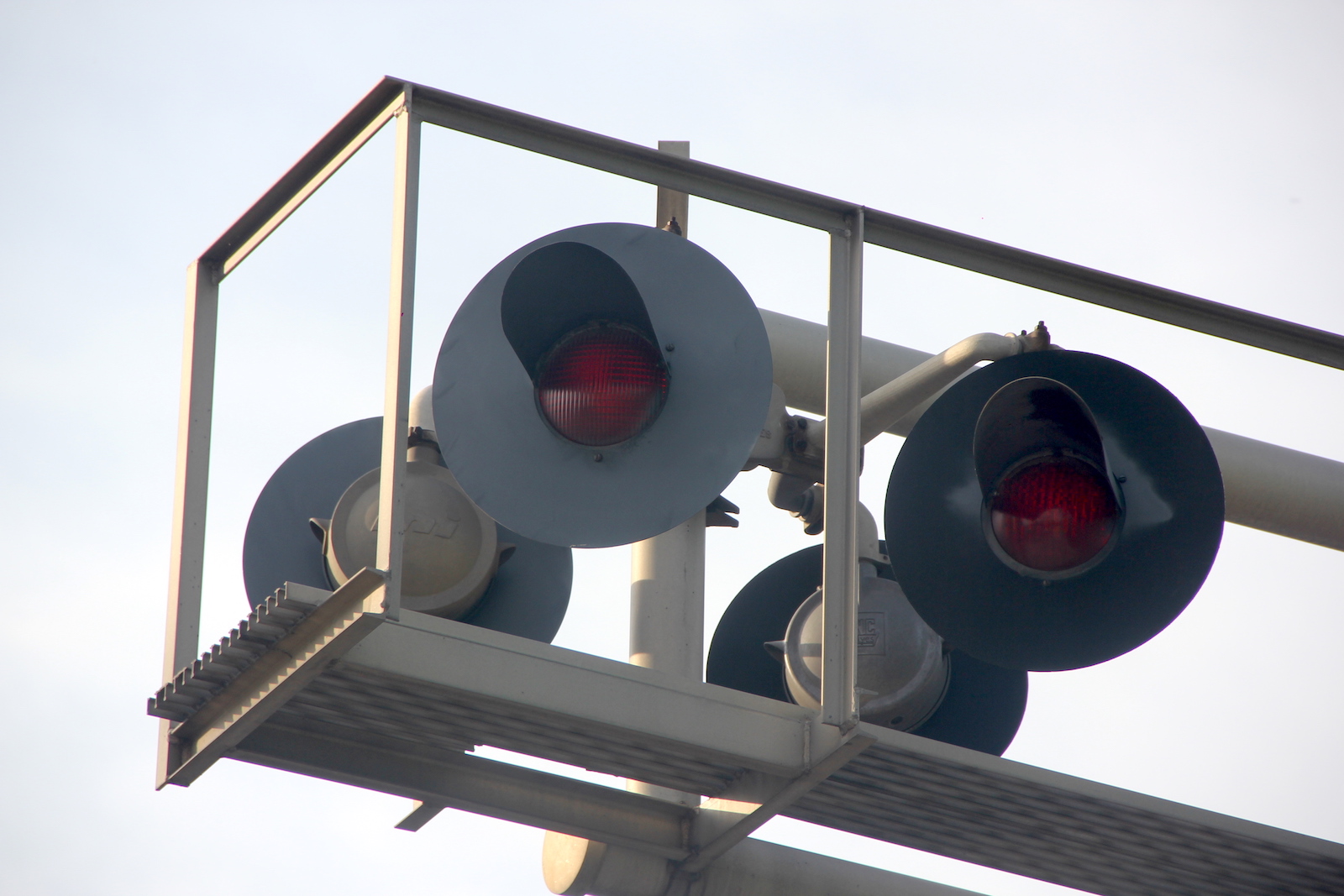

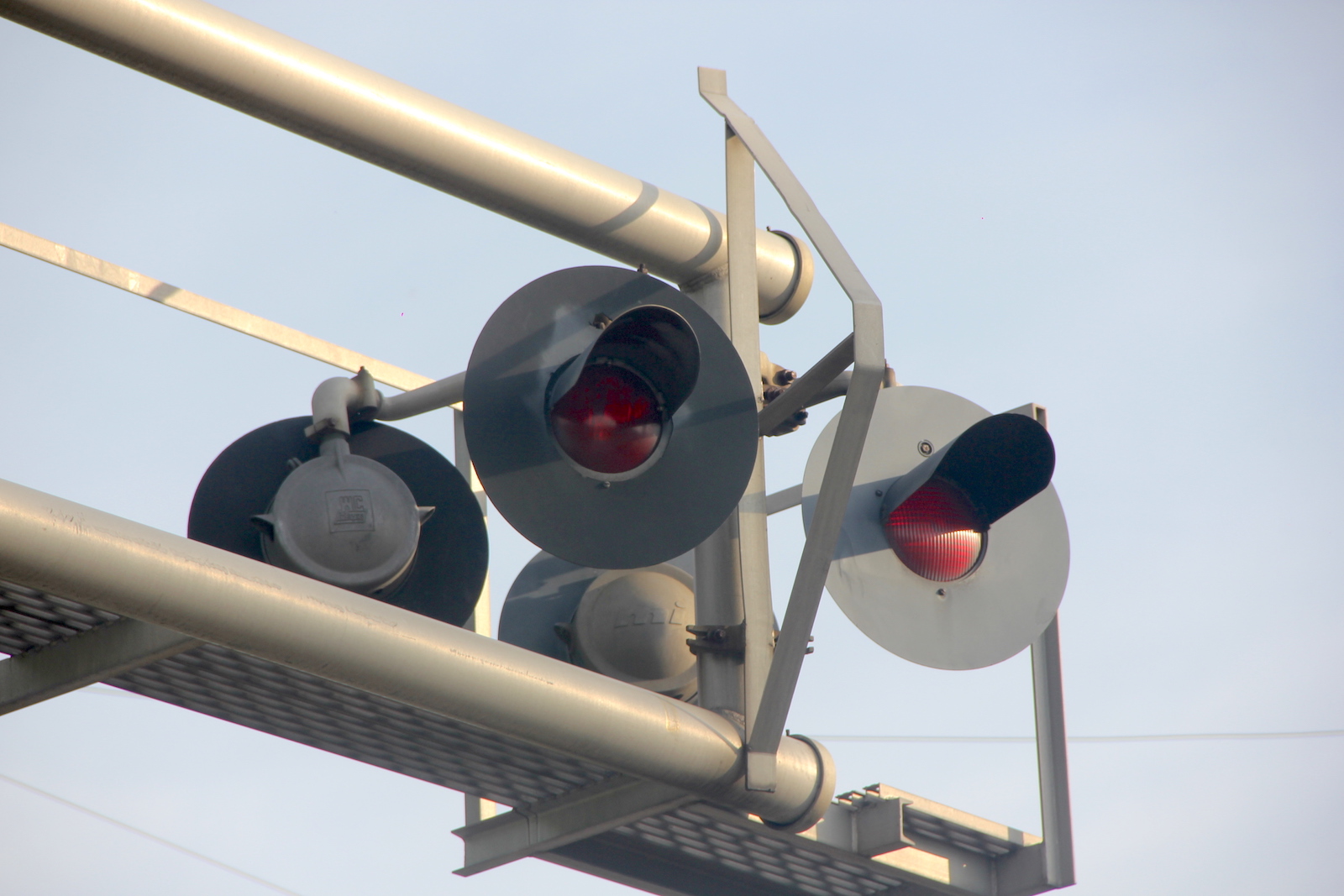

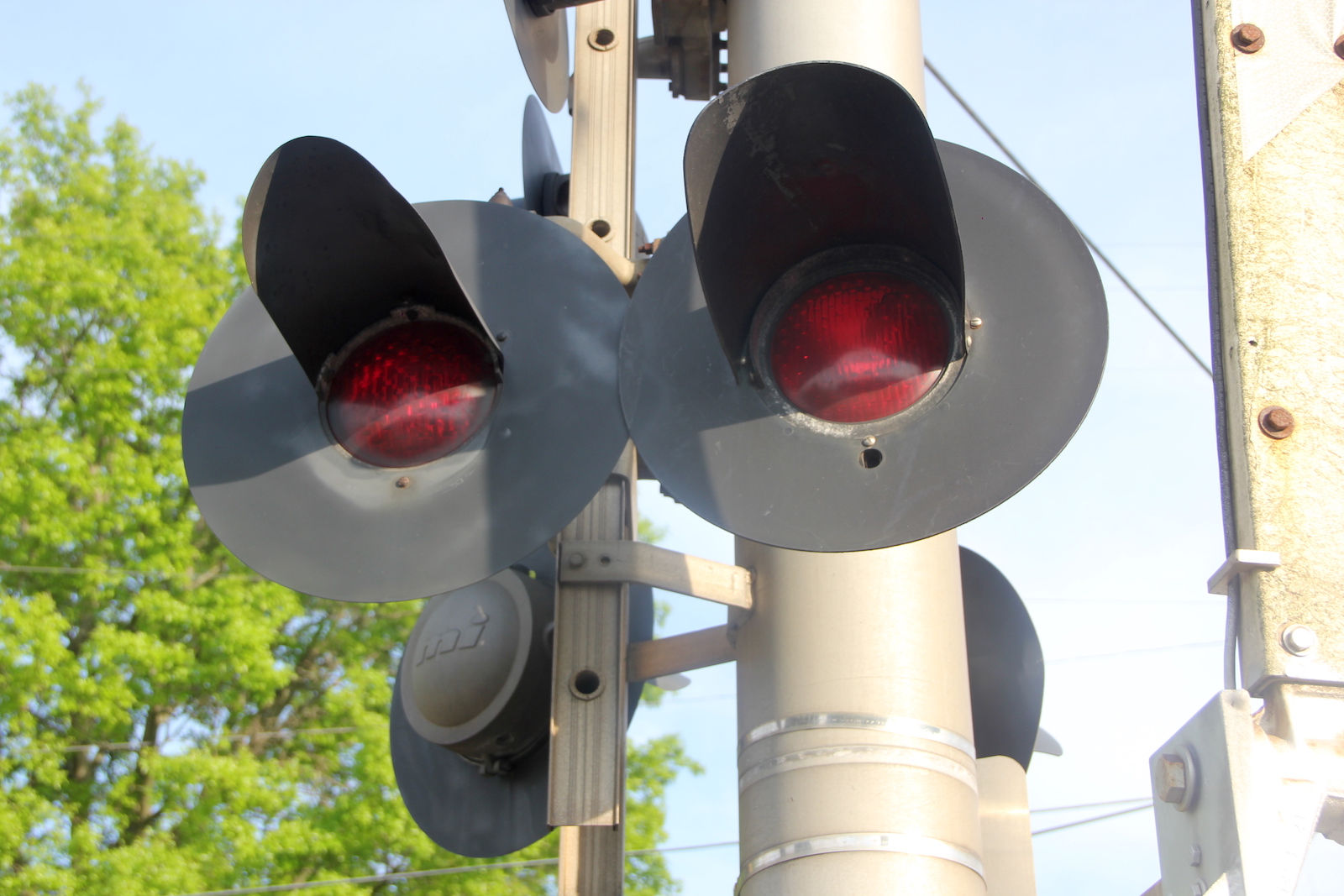

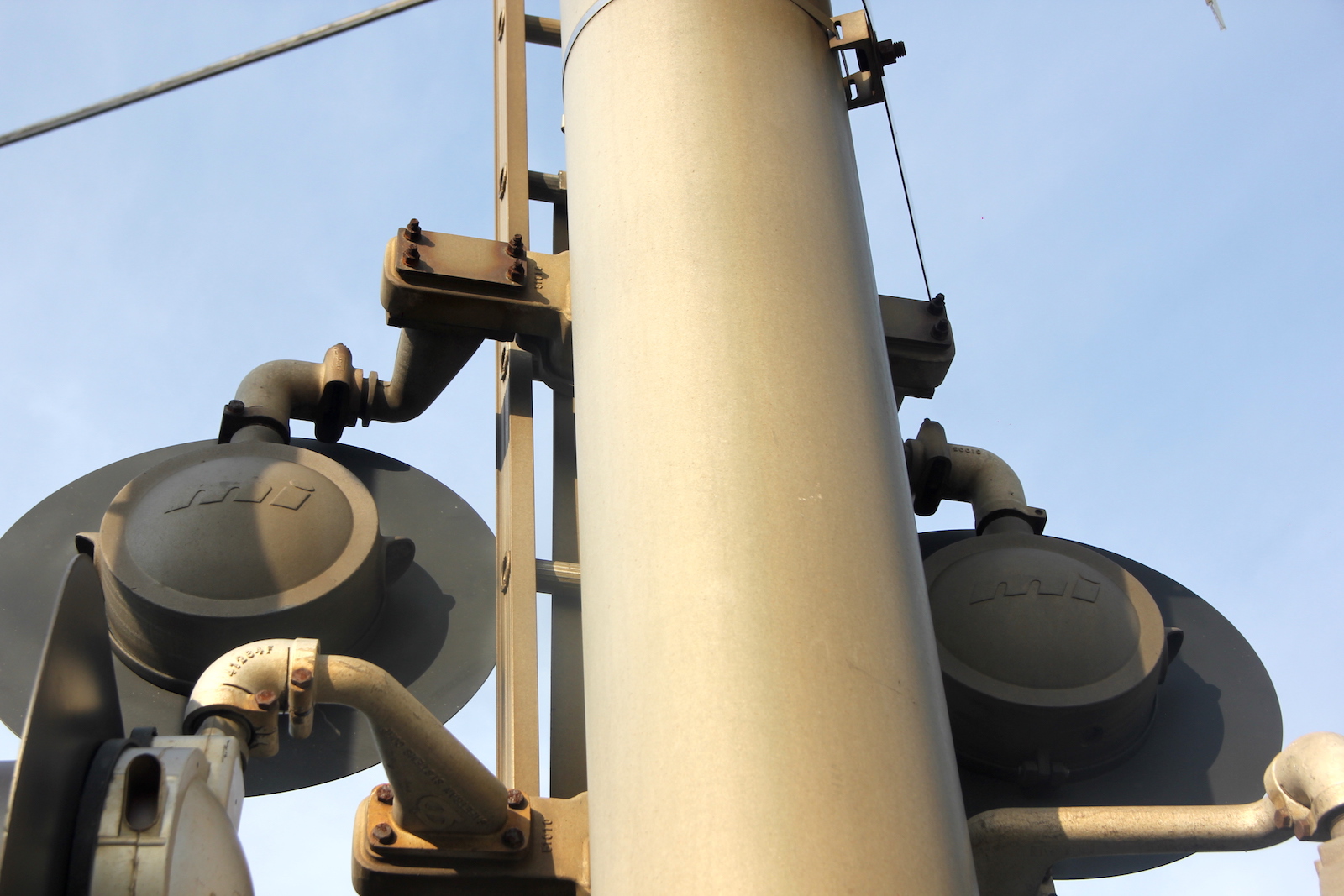

| The southern signal. I'm not sure why this didn't receive LEDs when the new northern signal was installed. |
26
|
27
|
28
|
29
|

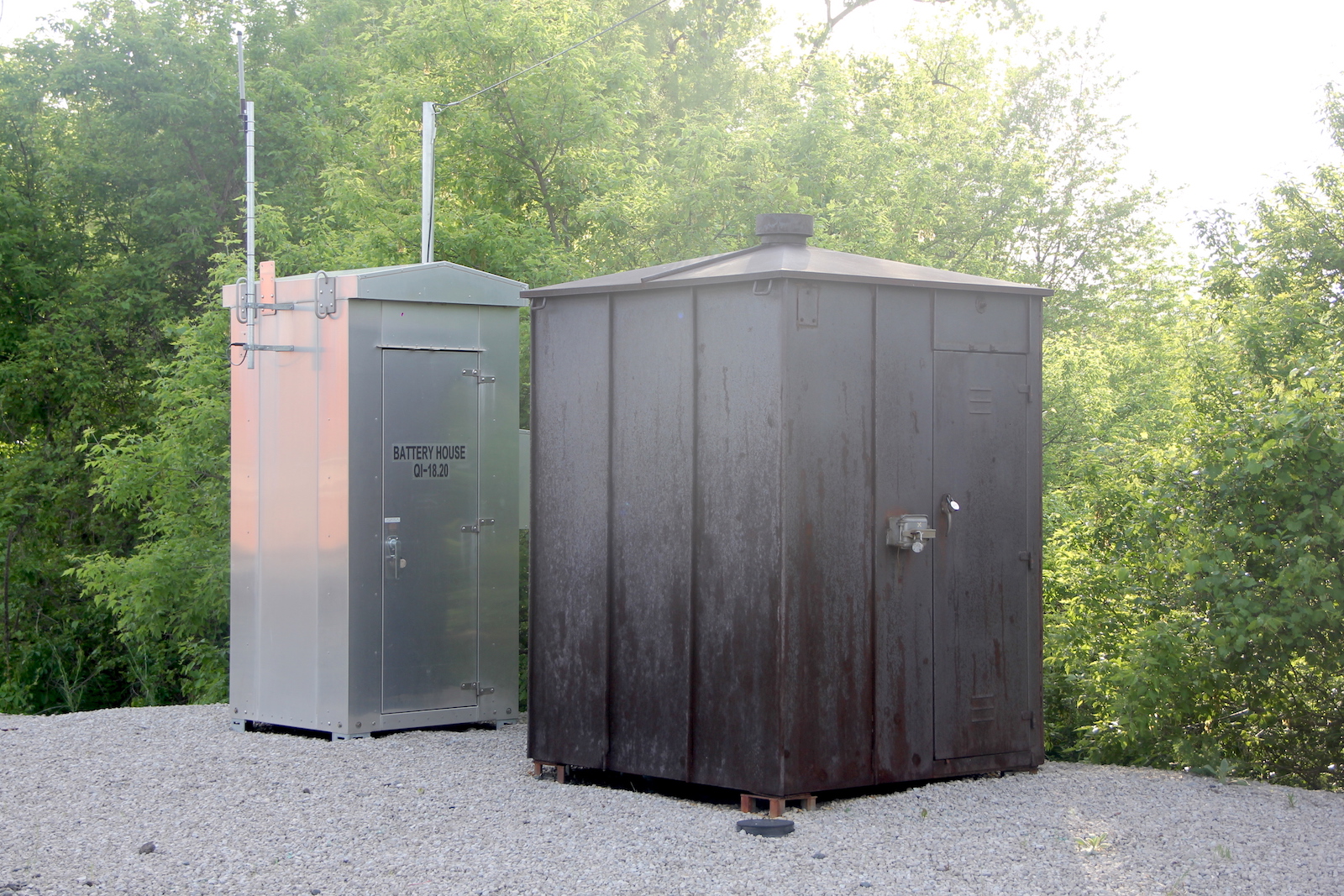

| The relay bungalow in the northwest quadrant. |

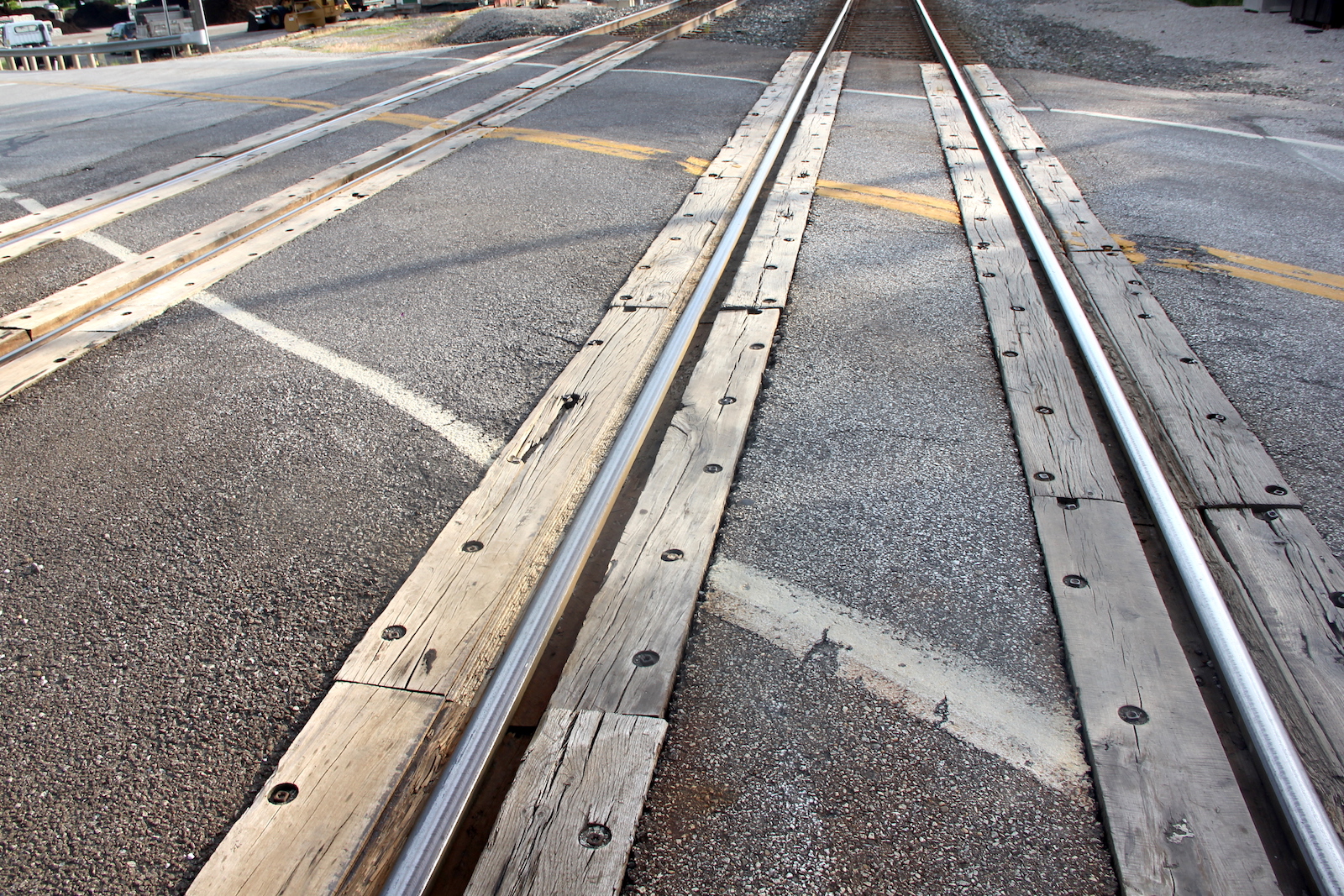

The grade is wood and asphalt. |

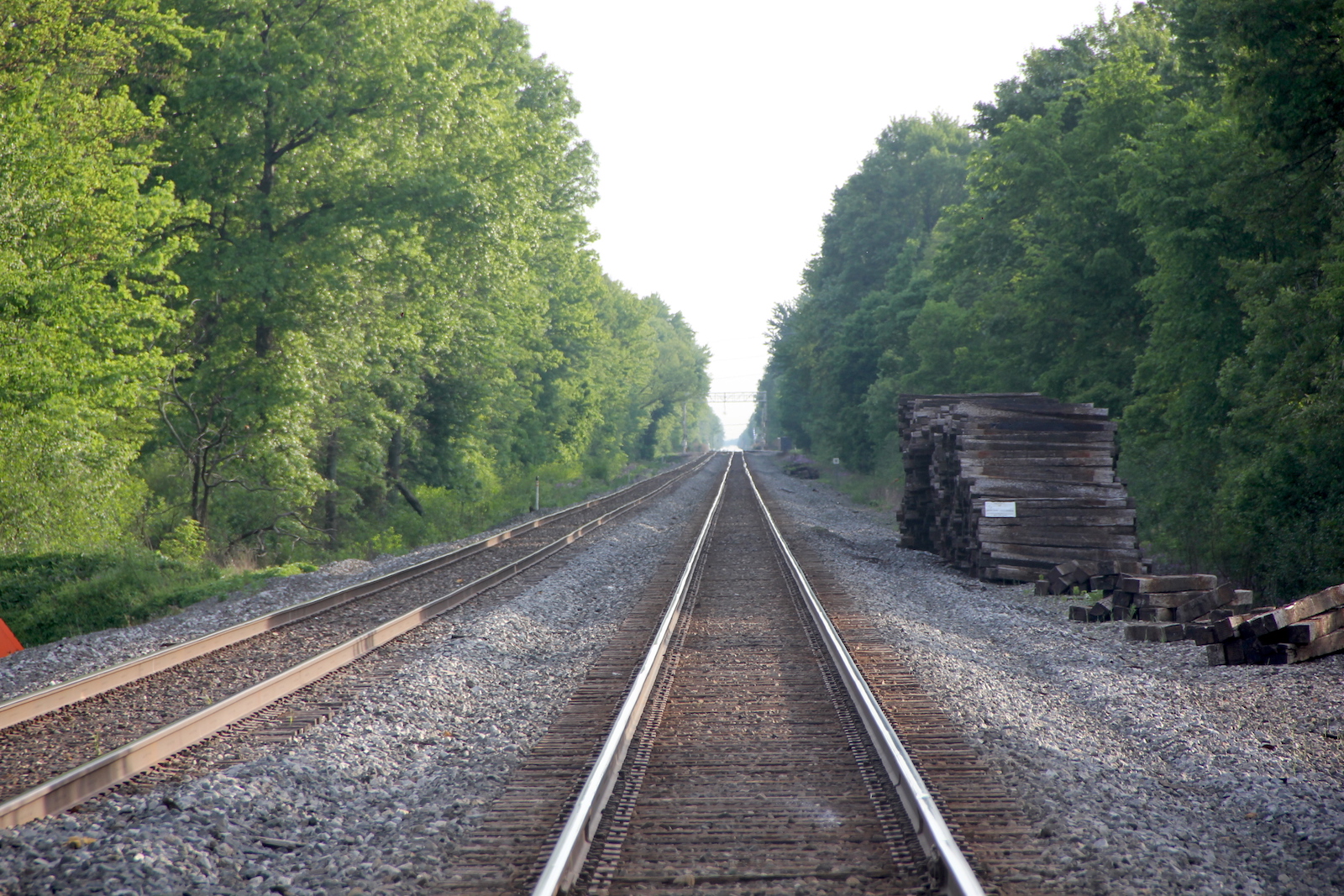

Track view facing west towards Root Rd. |
Track view facing east towards Jaquay Rd. |
30
|

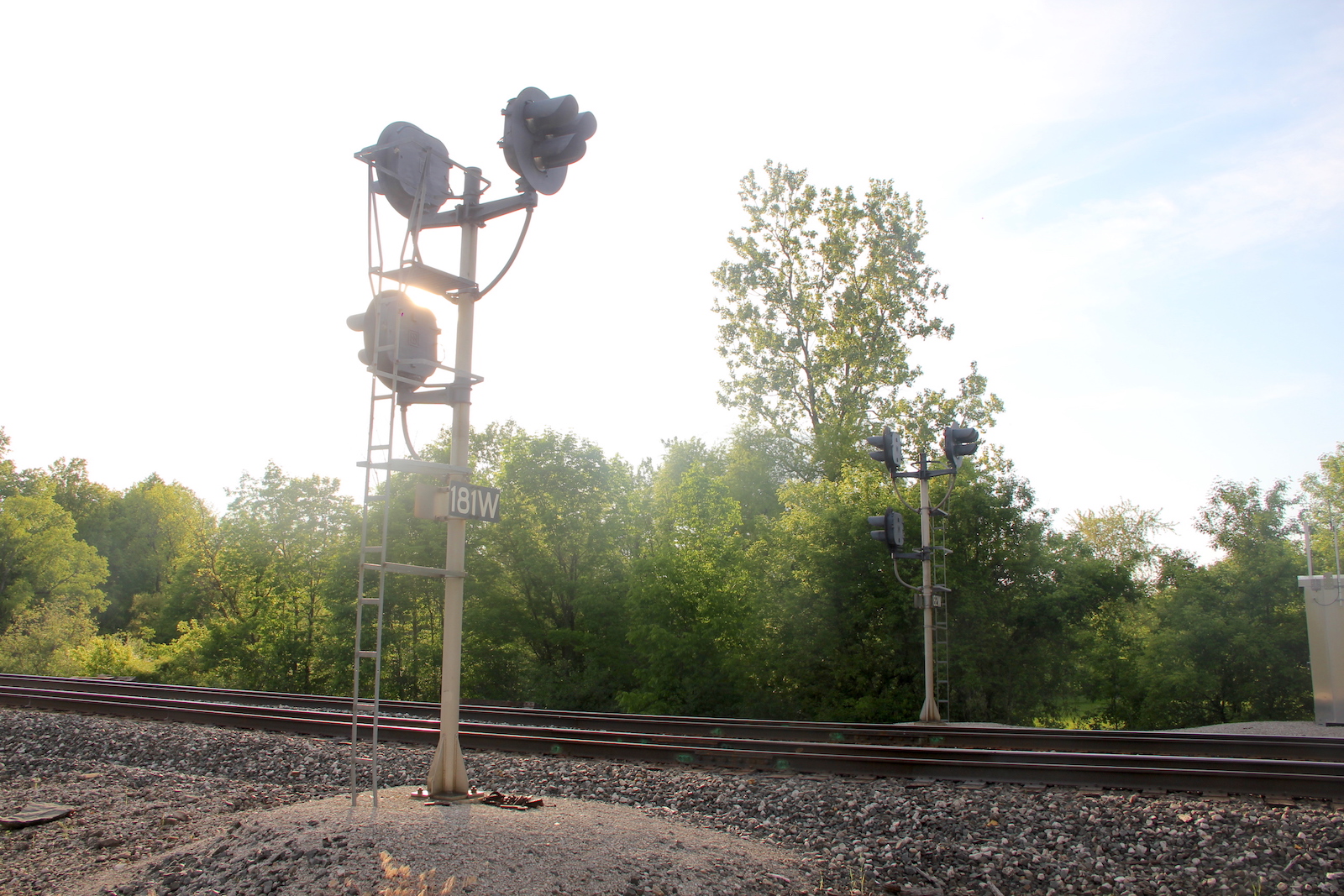

| Wayside signals next to the crossing. |
