Northern Signal
Southern Signal
Bell:None
NEG E Bell

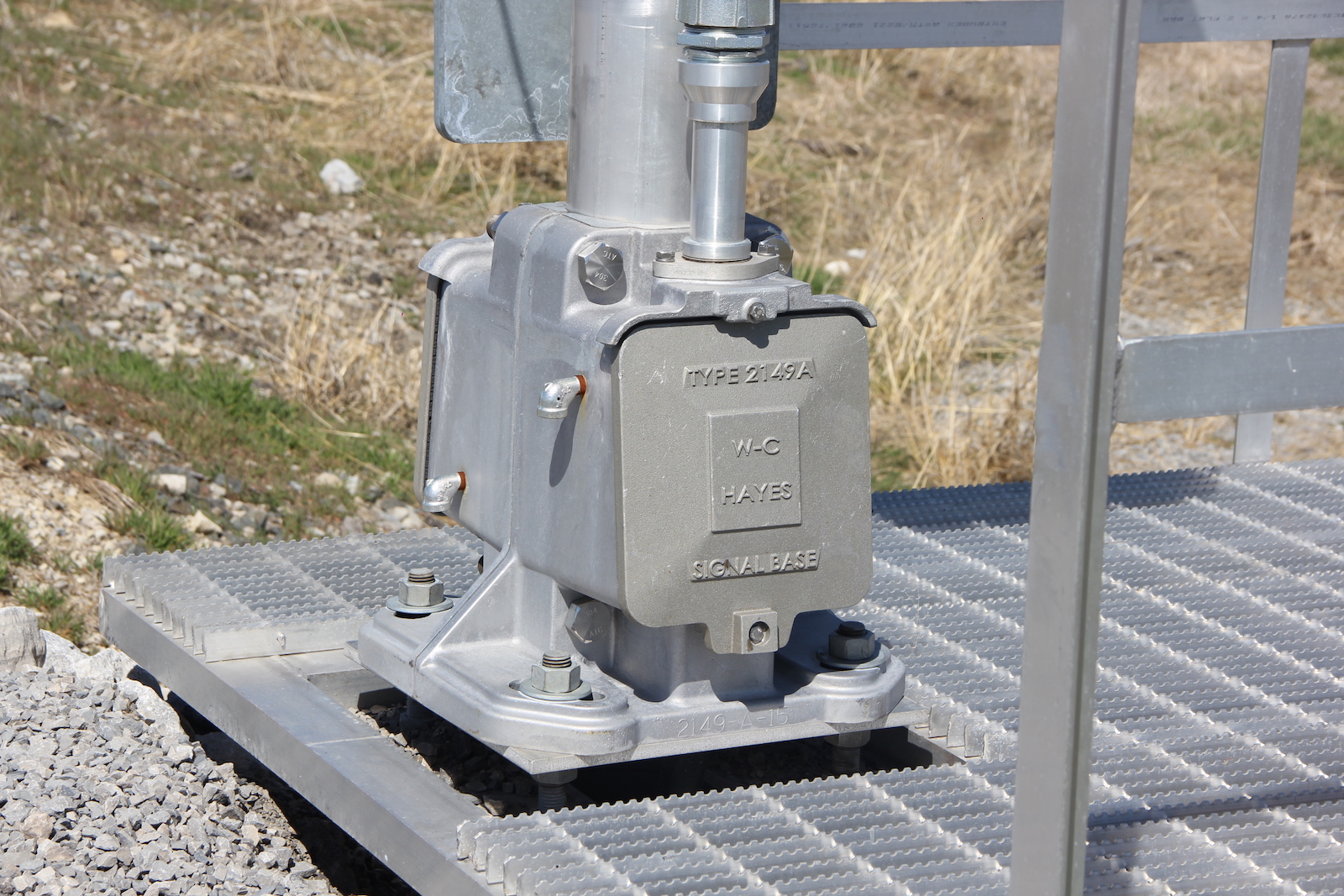

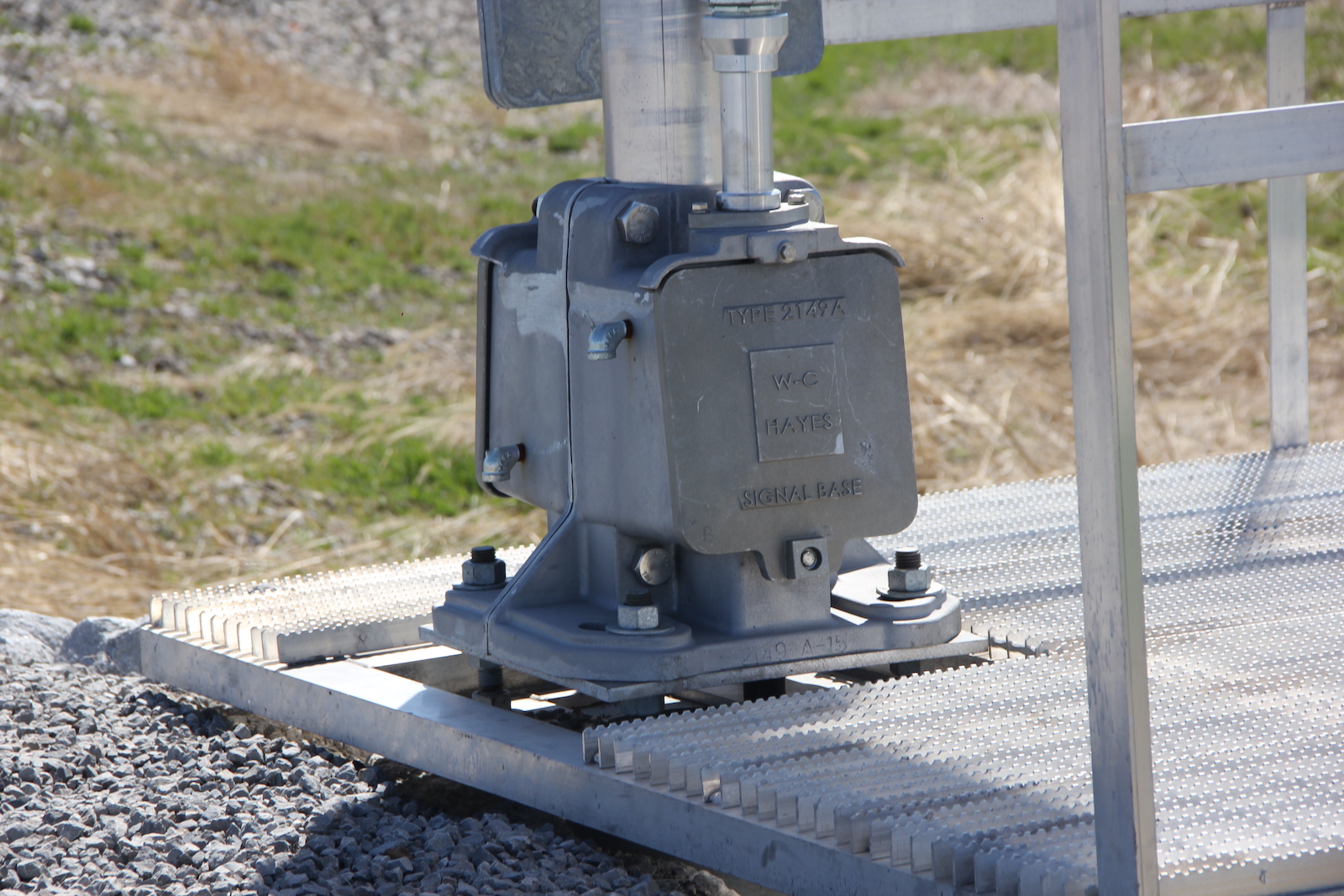

Base: WCH Double Sided
WCH Double Sided

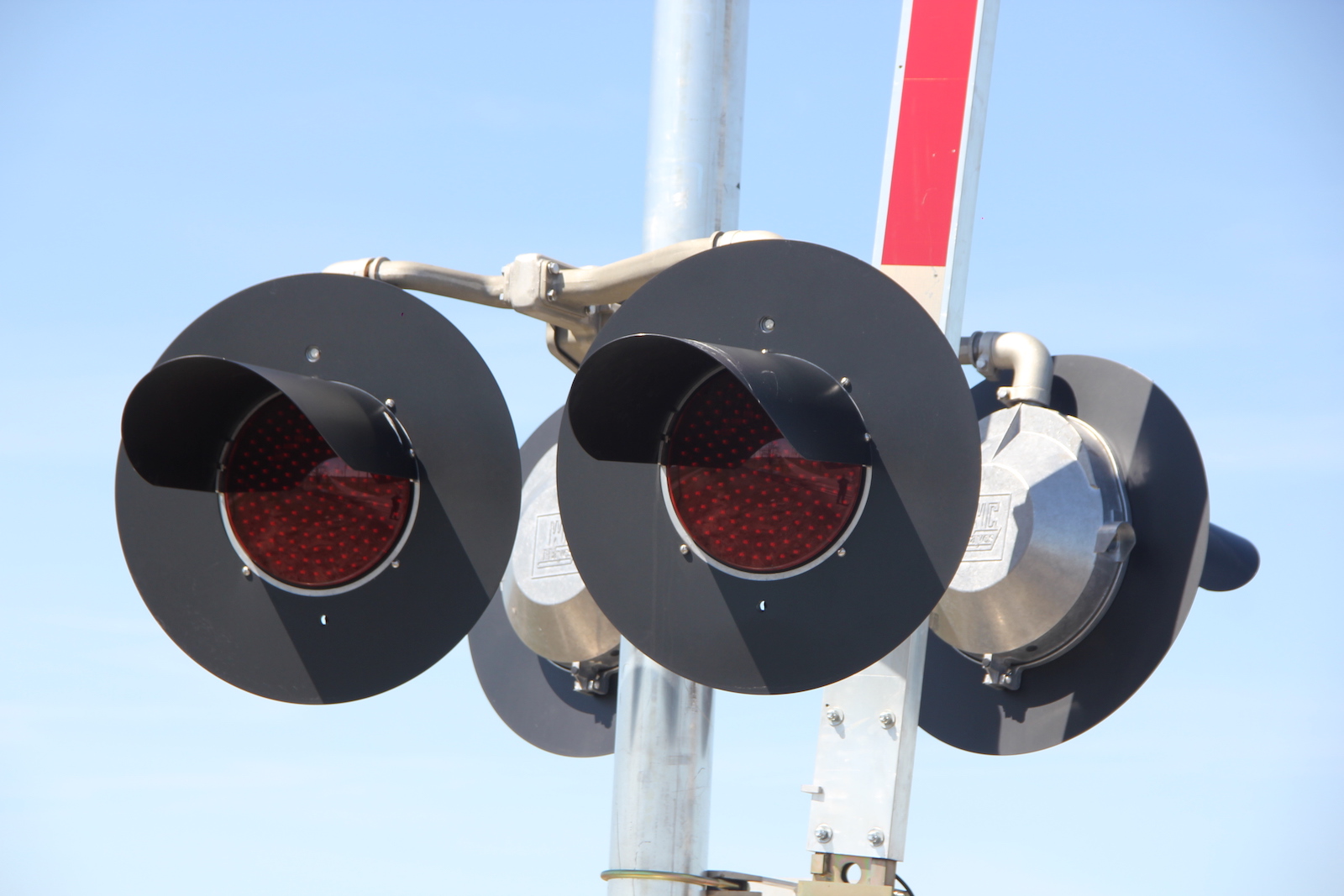

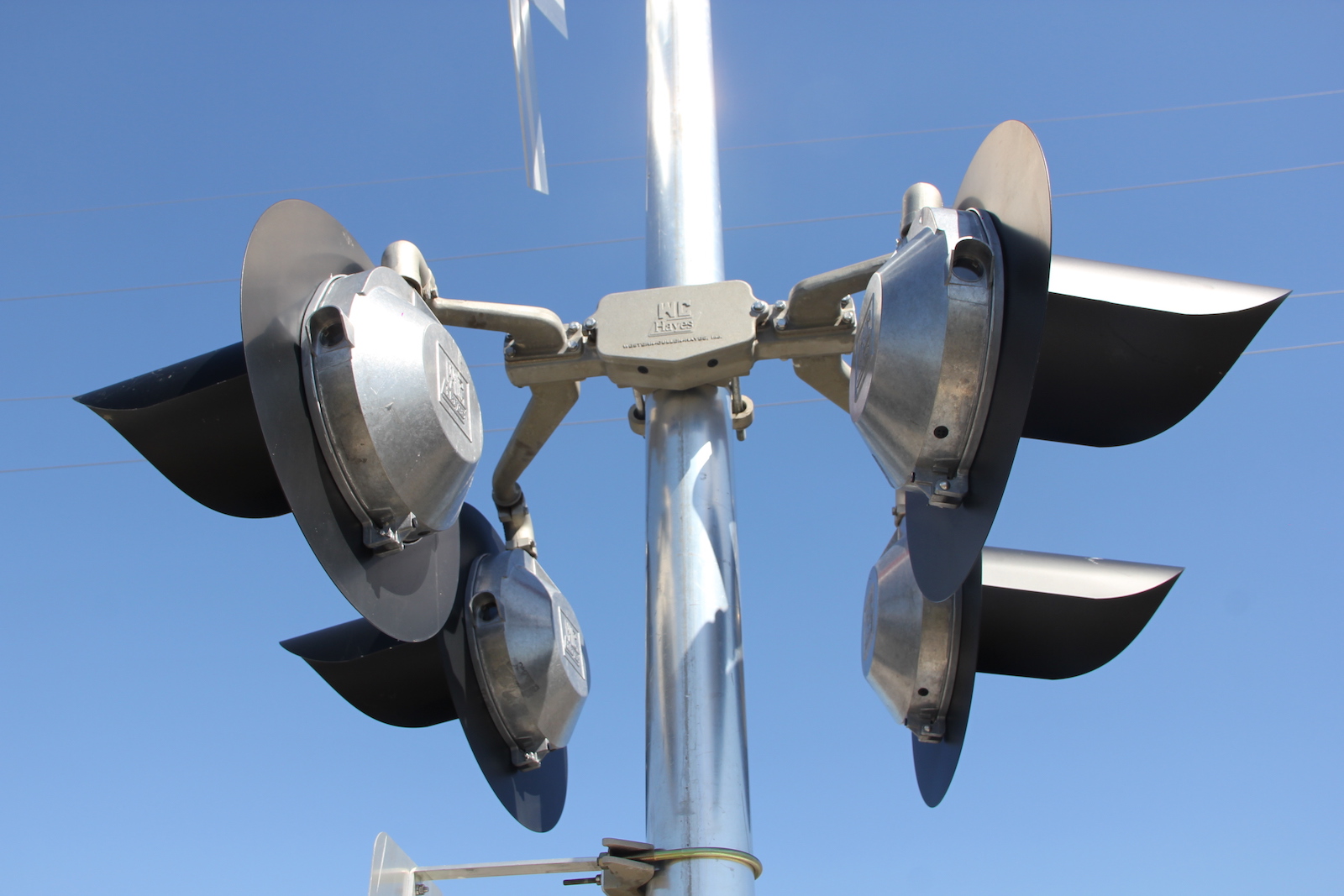

Main Lights: 2 pairs of 12"x24" Leotek EV LEDs in WCH frames
2 pairs of 12"x24" Leotek EV LEDs in WCH frames
Light Bracket:
WCH
WCH w/ Bell Extension
Gate Lights: 4" NEG LEDs
4" NEG LEDs

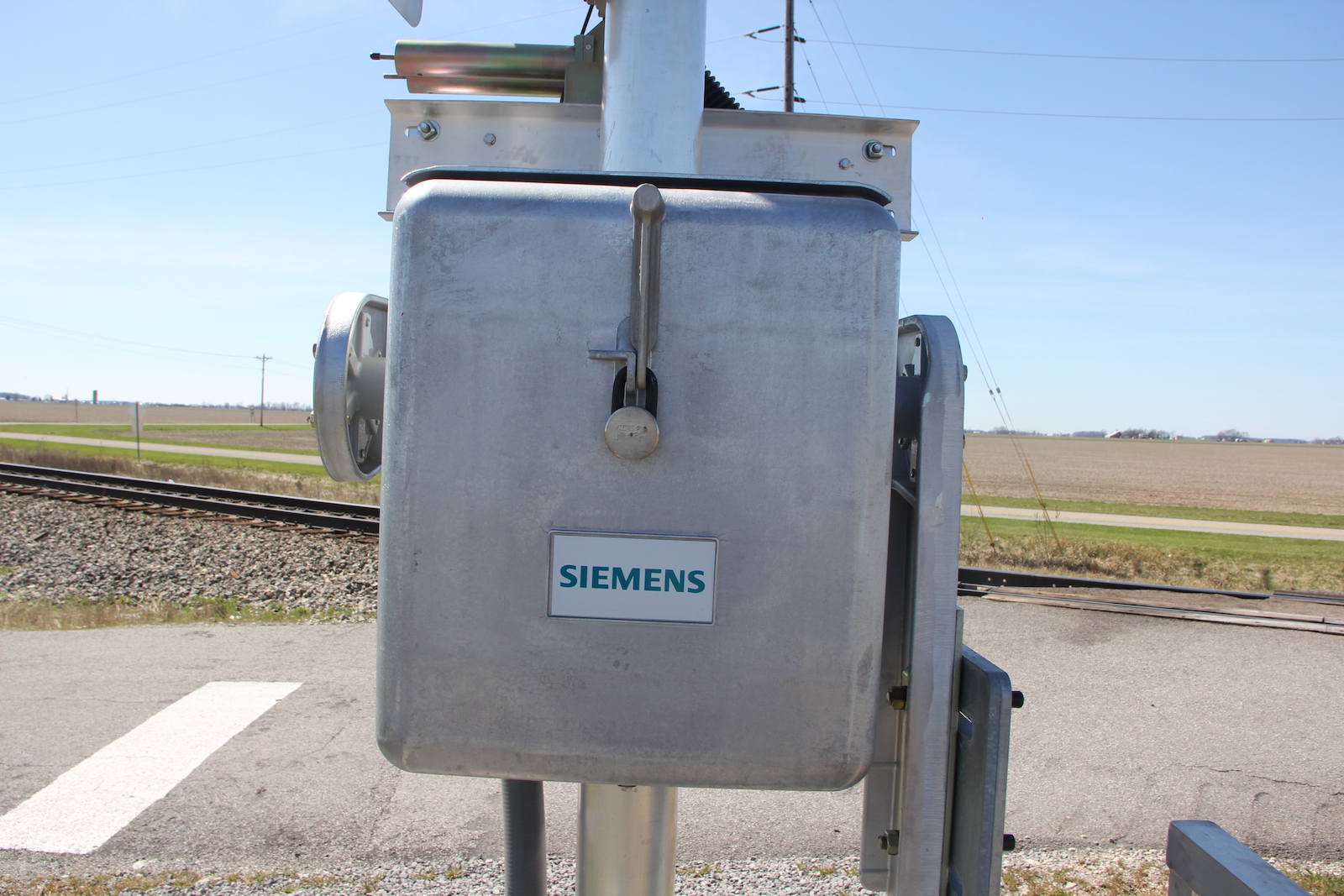

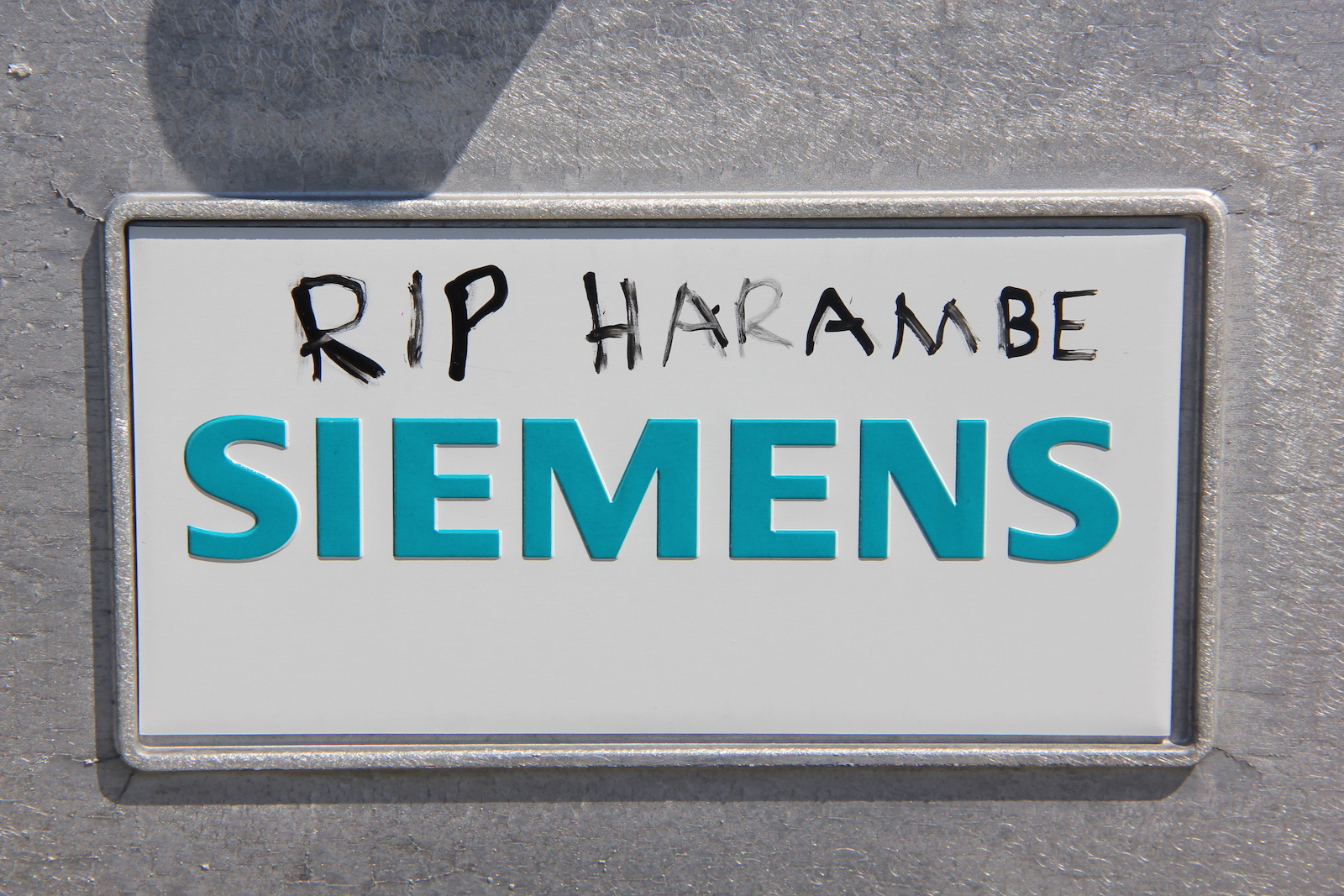

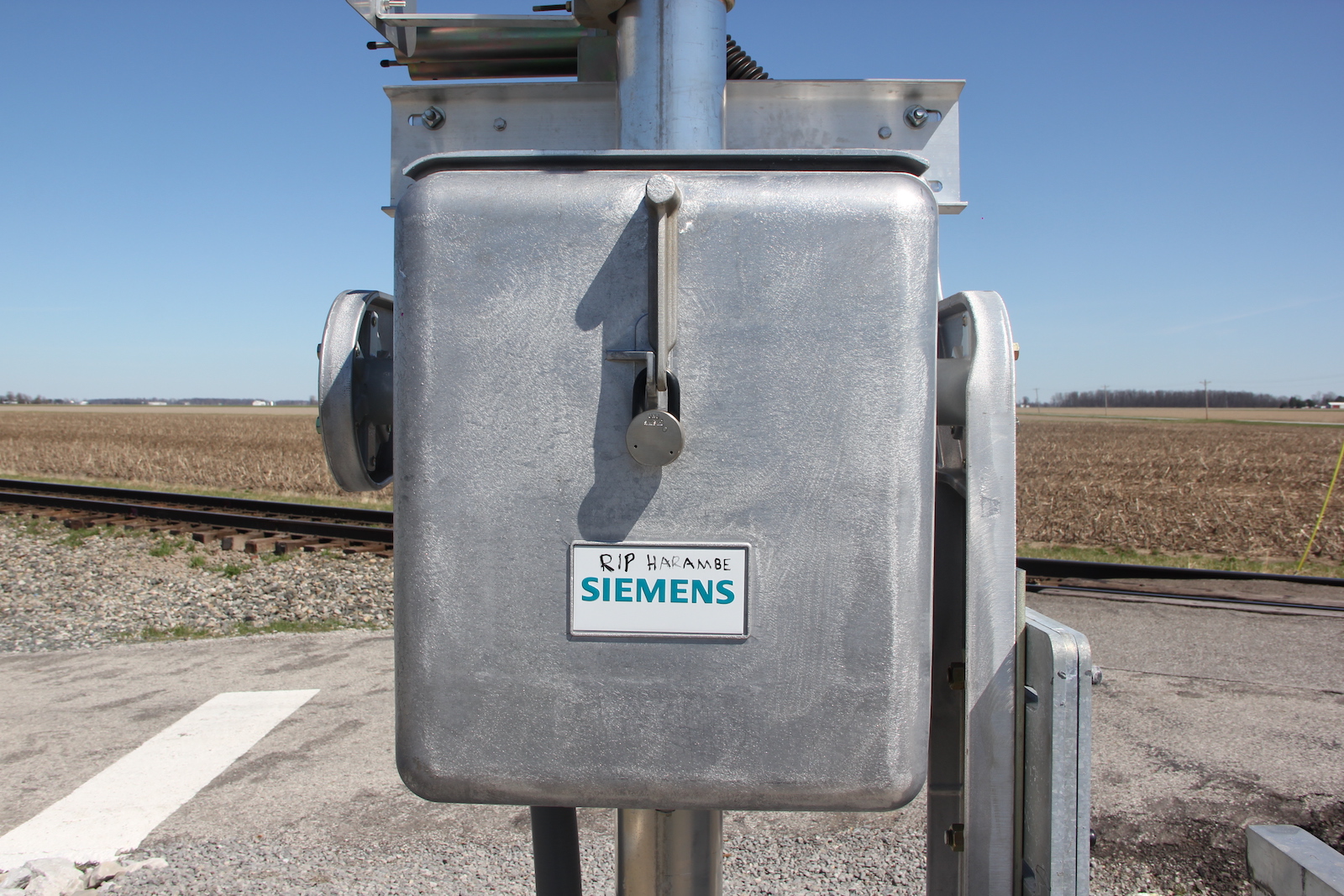

Gate Mechanism: Siemens
Siemens
Gate Striping: |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Crossbuck font:
Normal font
Normal font
Bell Cycle: N/A
Rings only while the gates are lowering

All pictures were taken on April 8, 2017, by Tommy McGowan.
The video was taken on November 11, 2017, by Tommy McGowan.
This crossing is located on the CSX Toledo Sub

These signals were installed in July 2016 replacing a pair of crossbucks.

1
2

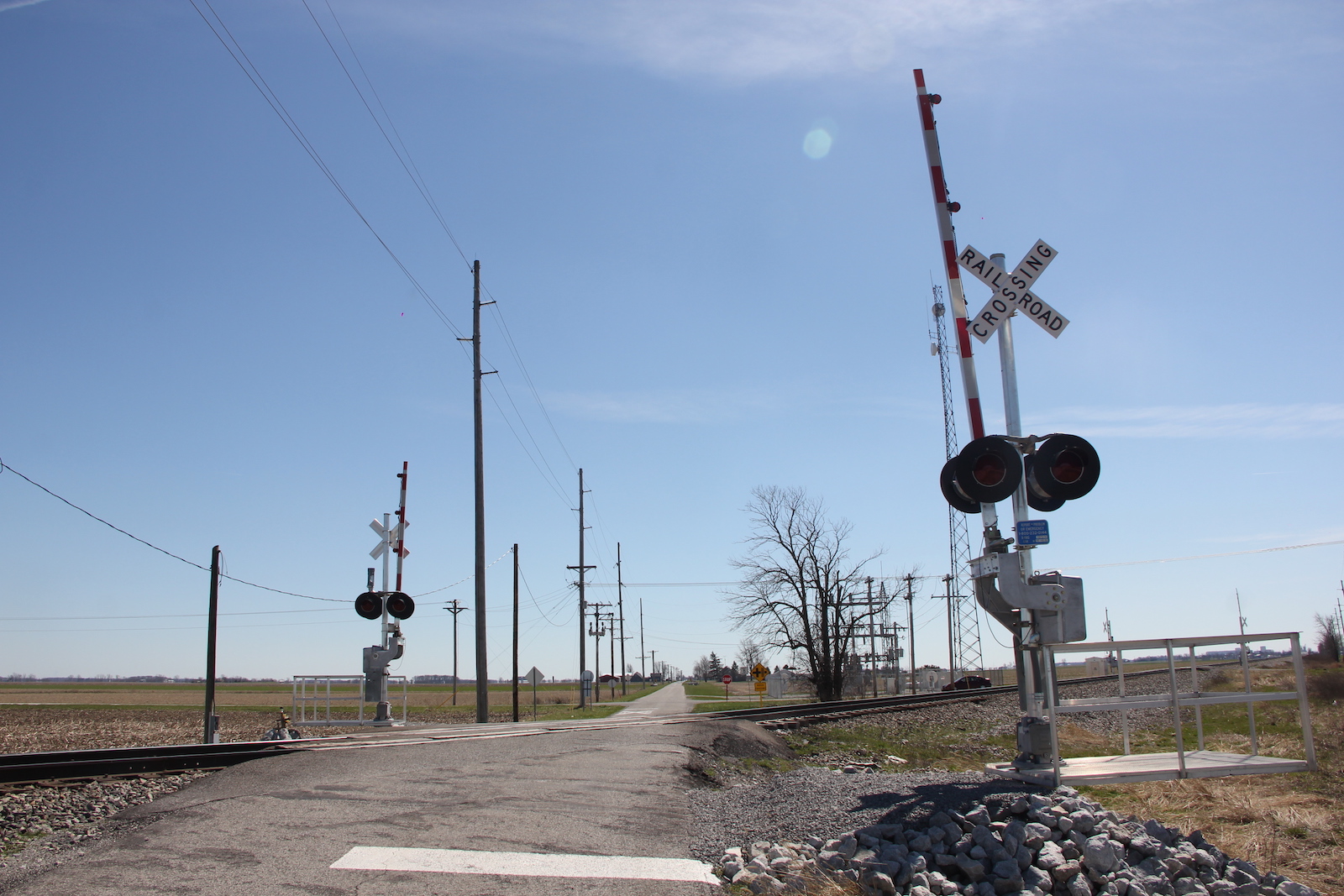

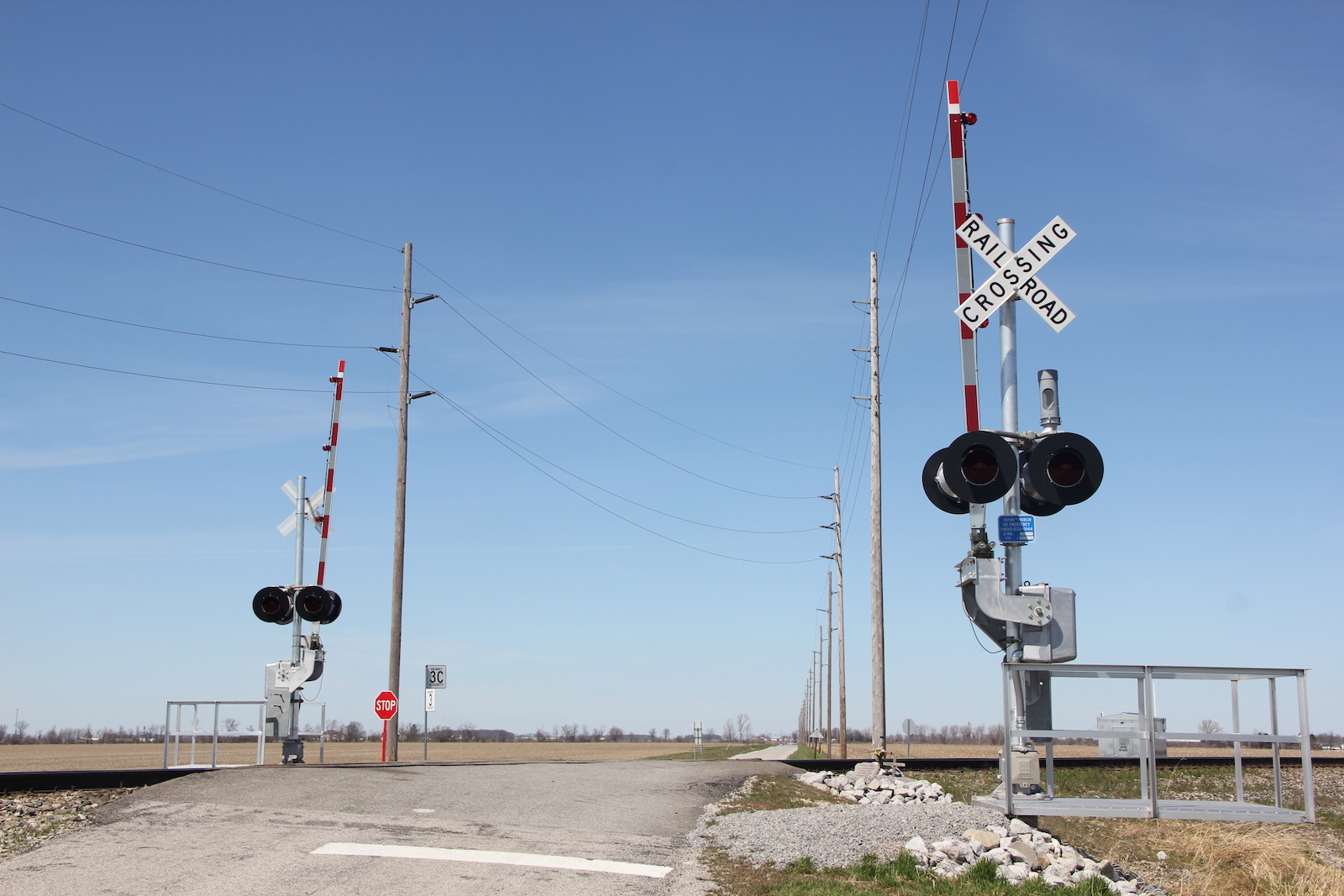

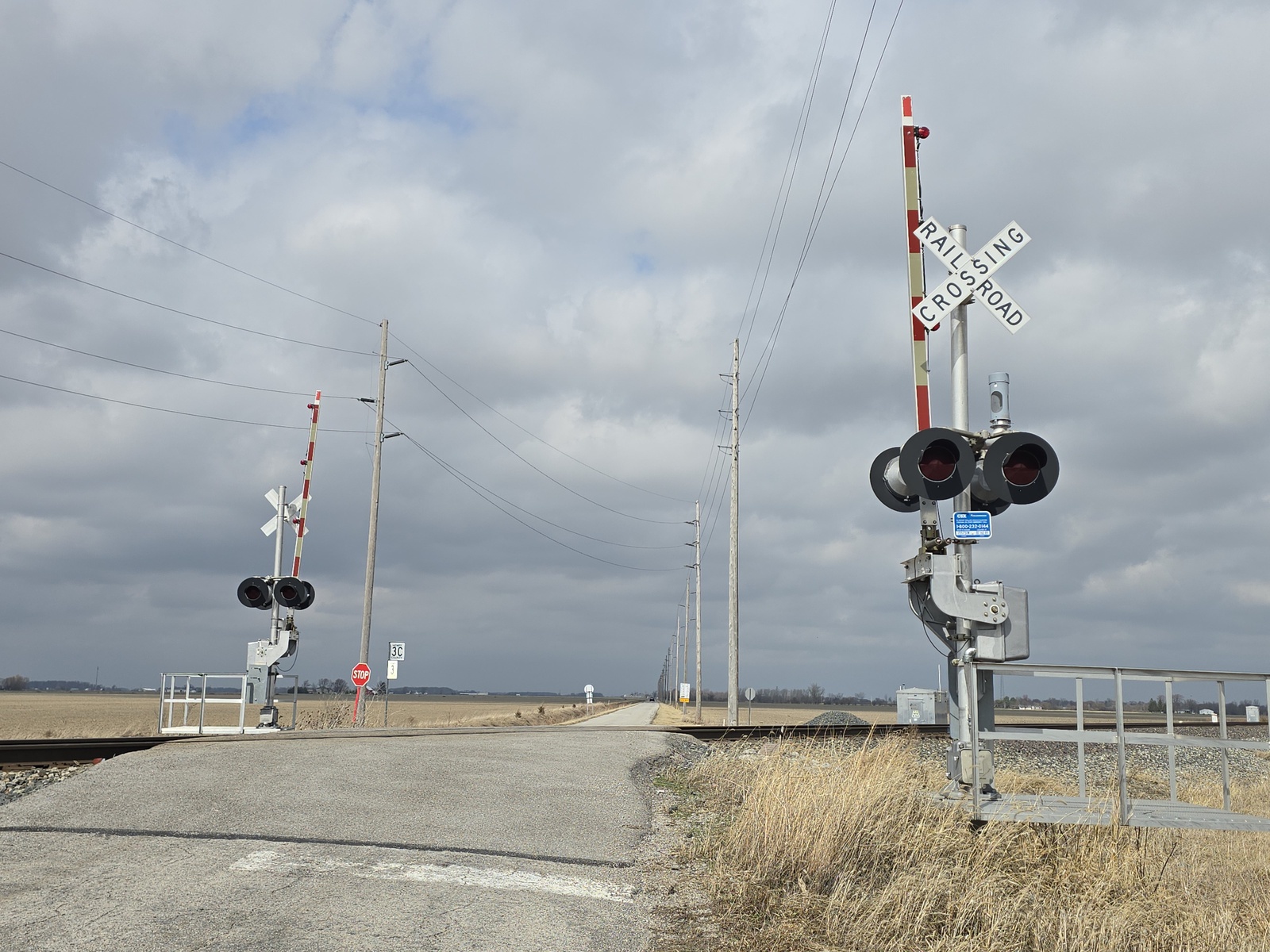

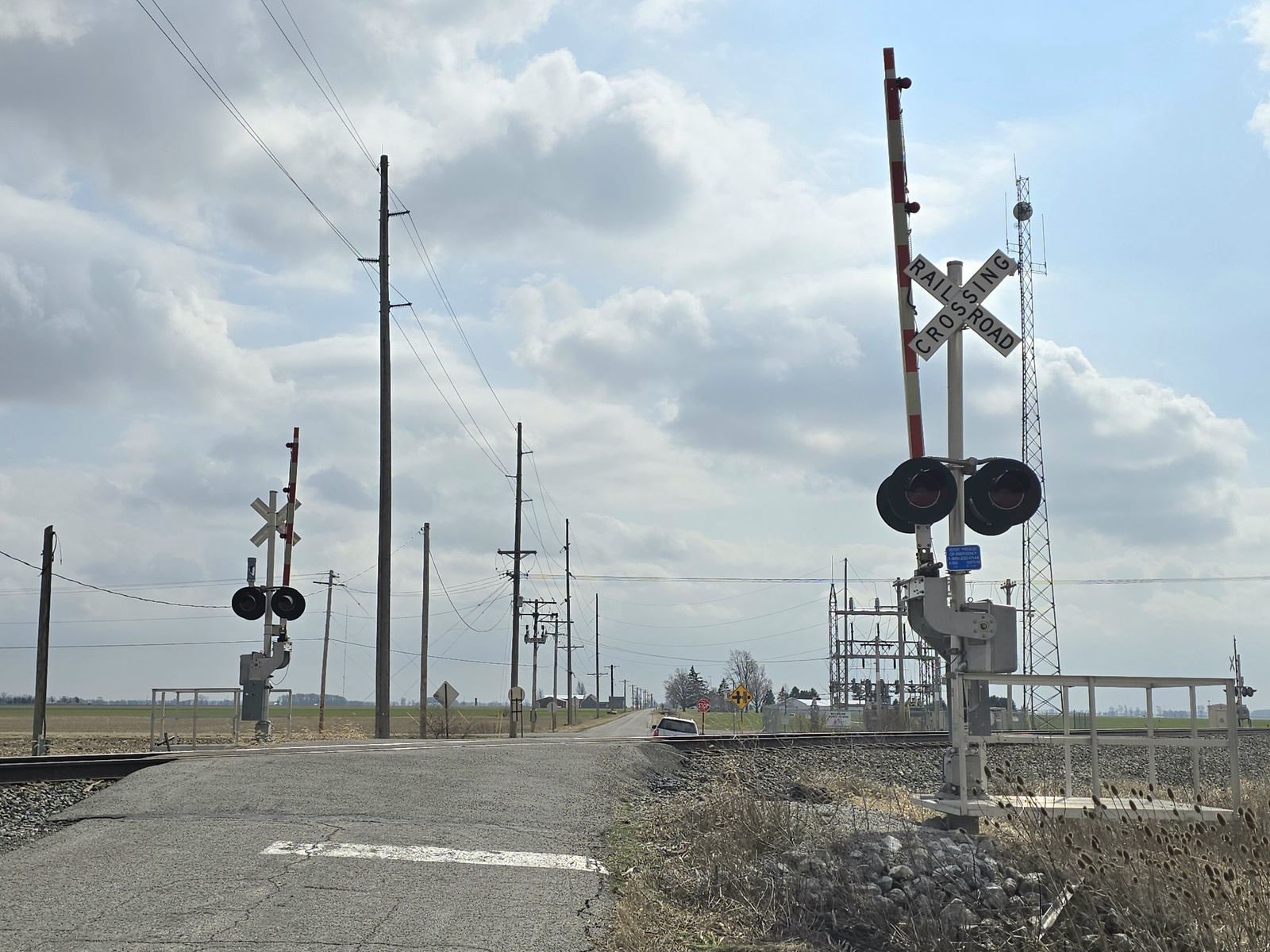

Overview of 2 new gated signals facing south.
Overview facing north.
3 4 5
6 7 8
9 10 11
12

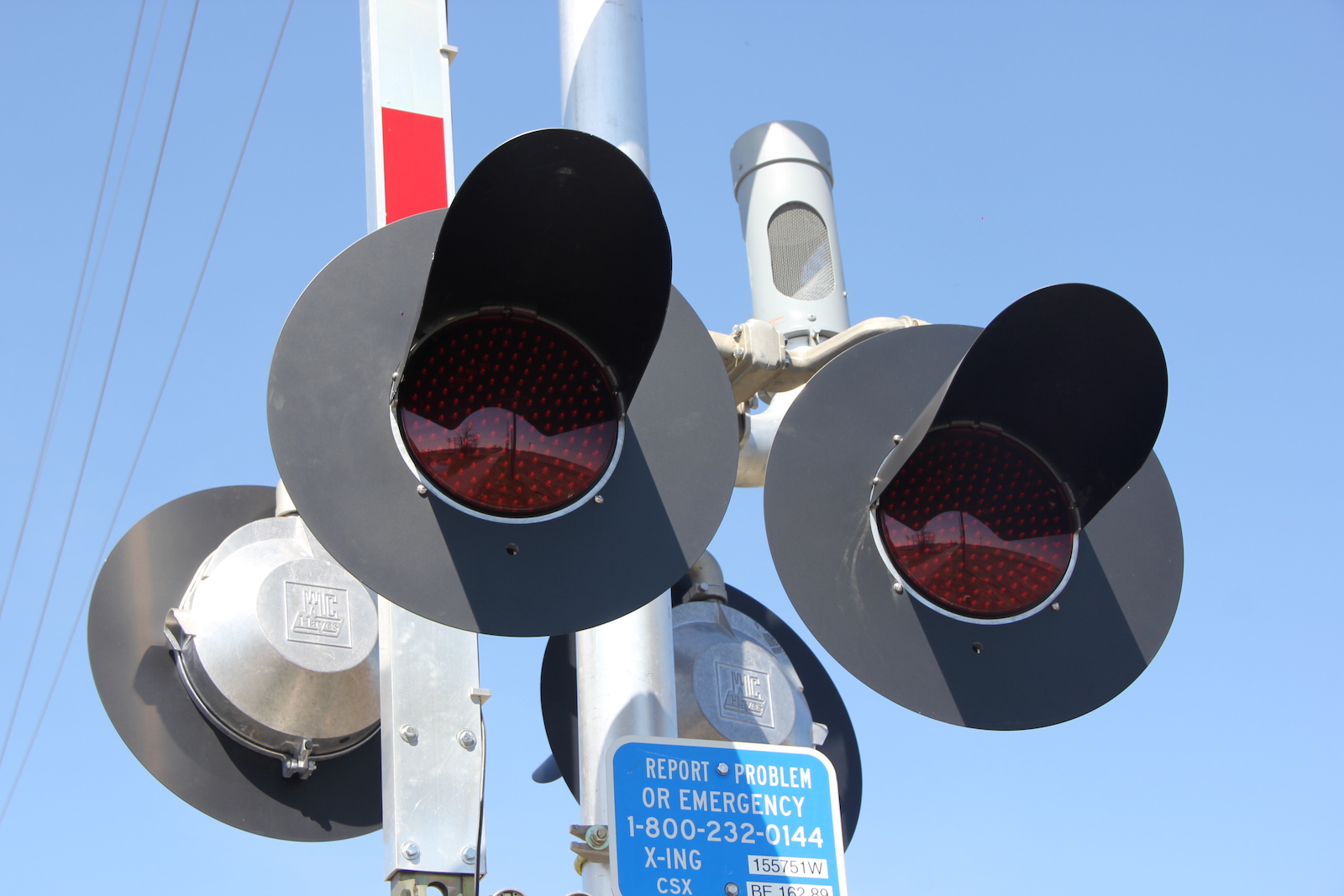

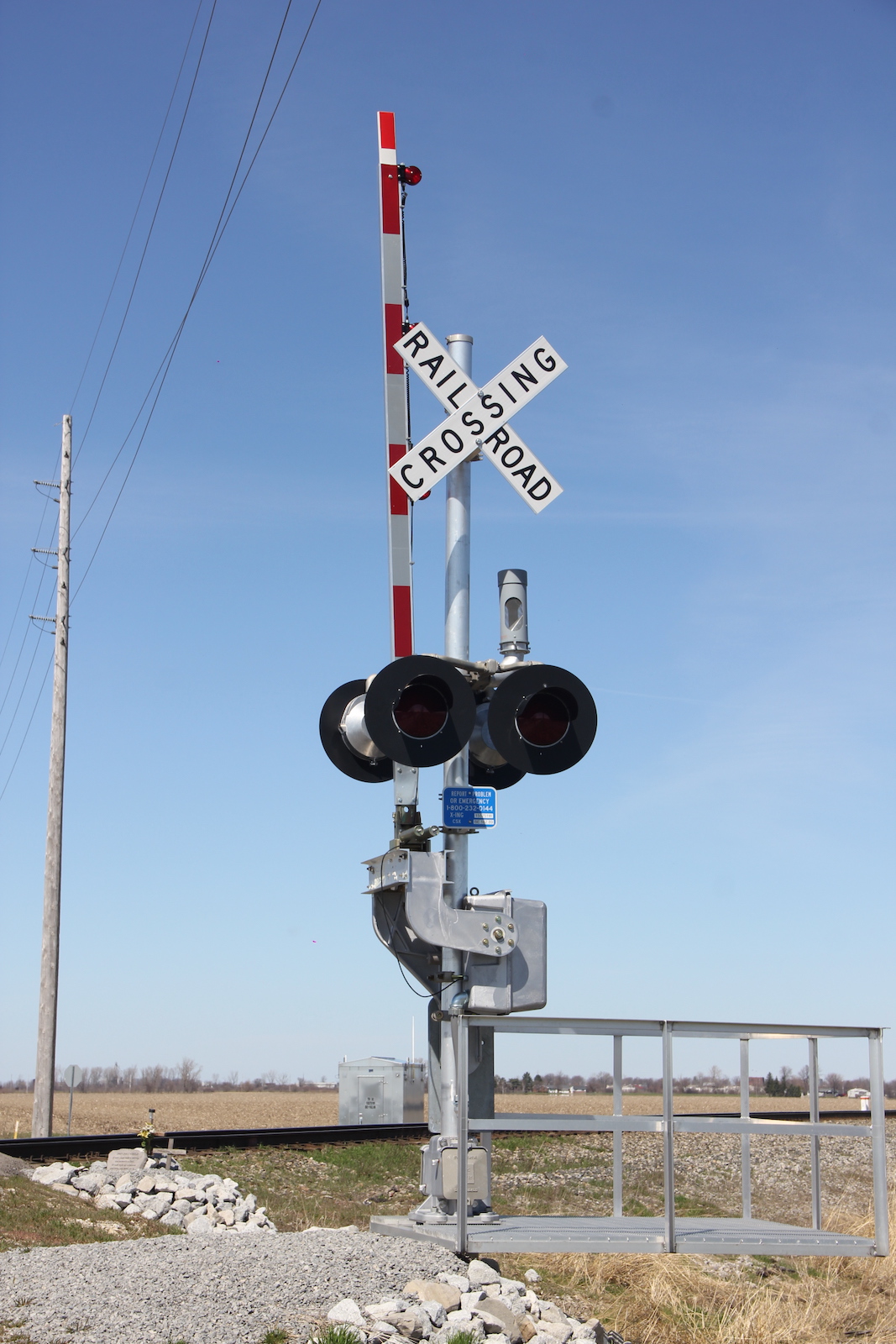

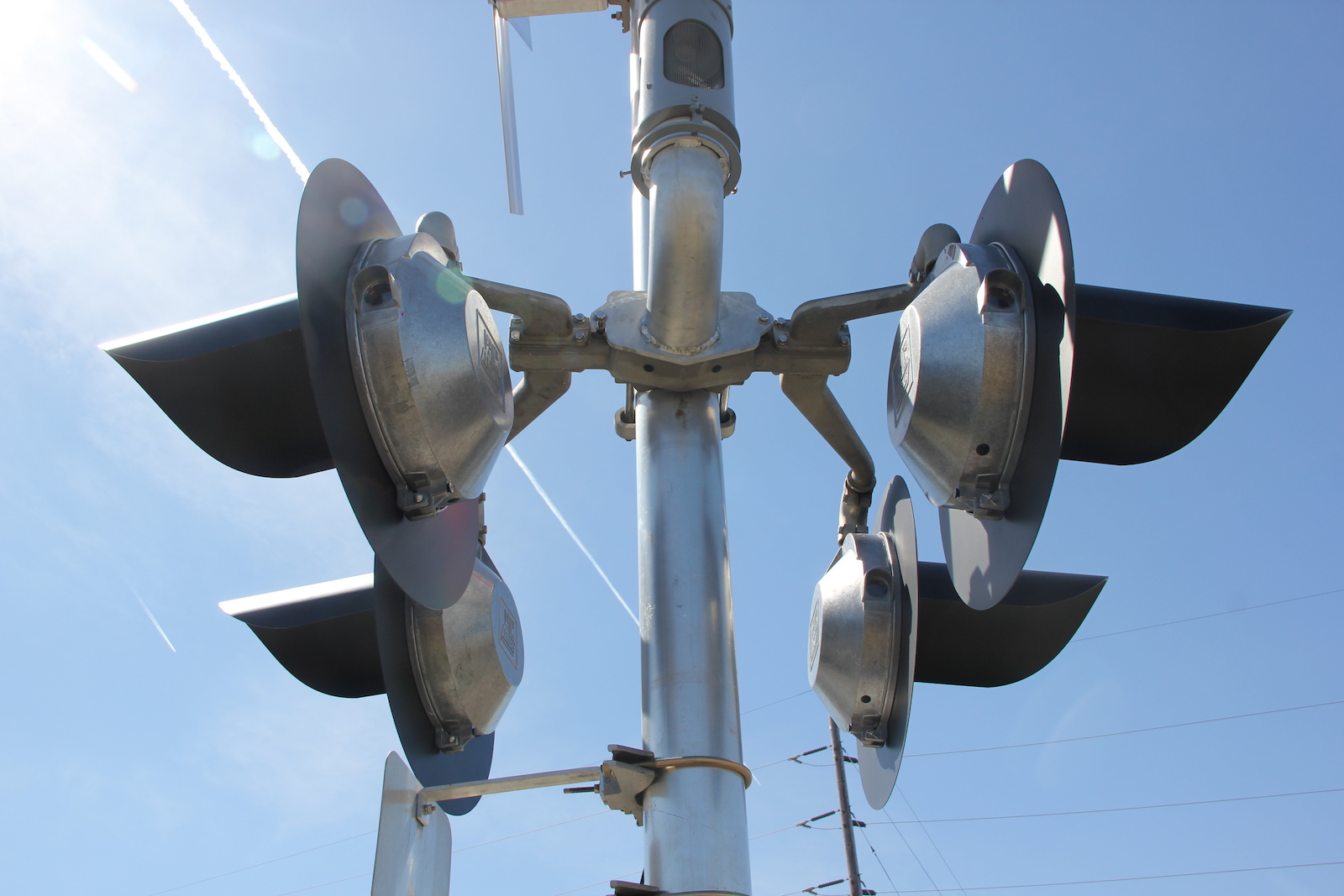

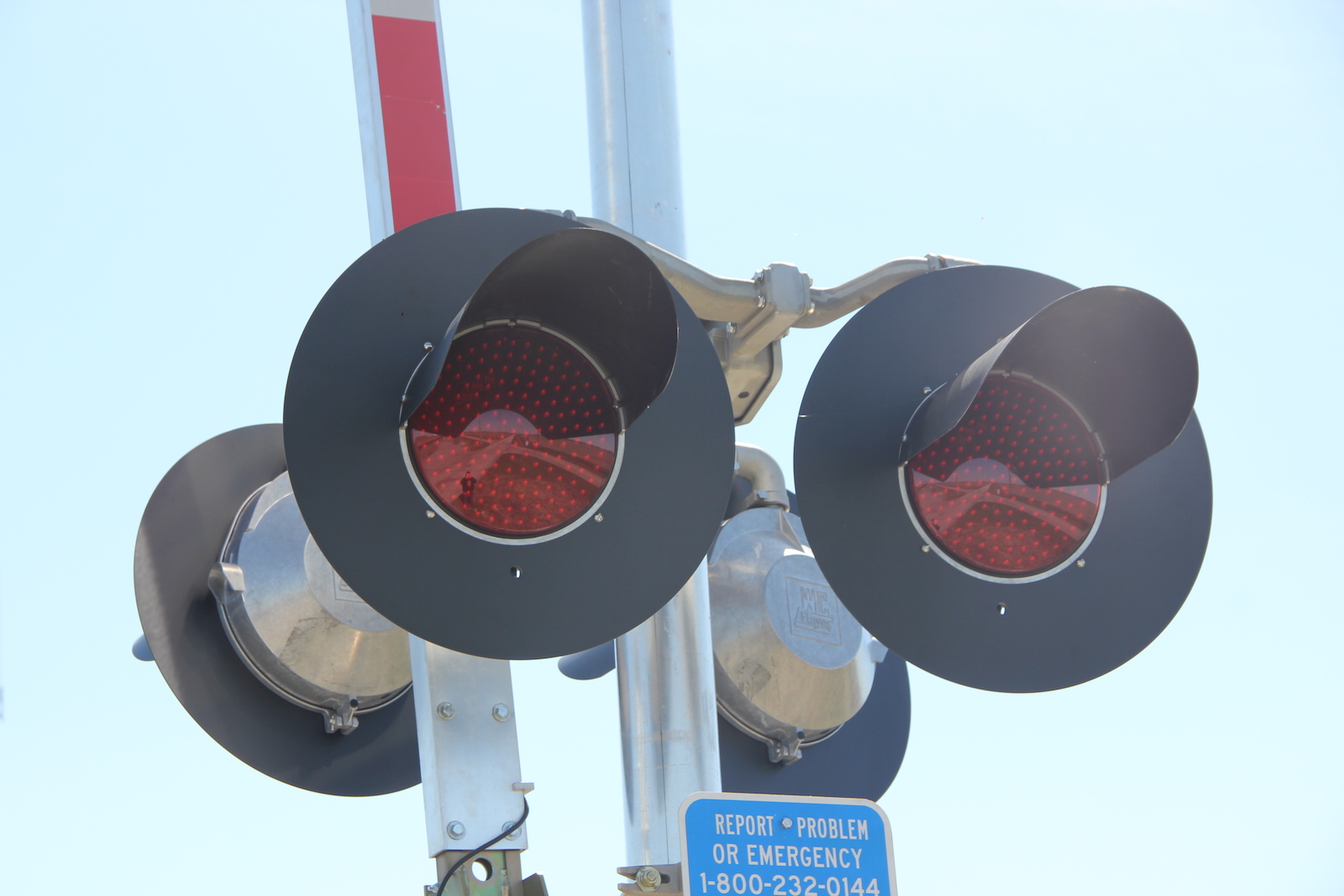

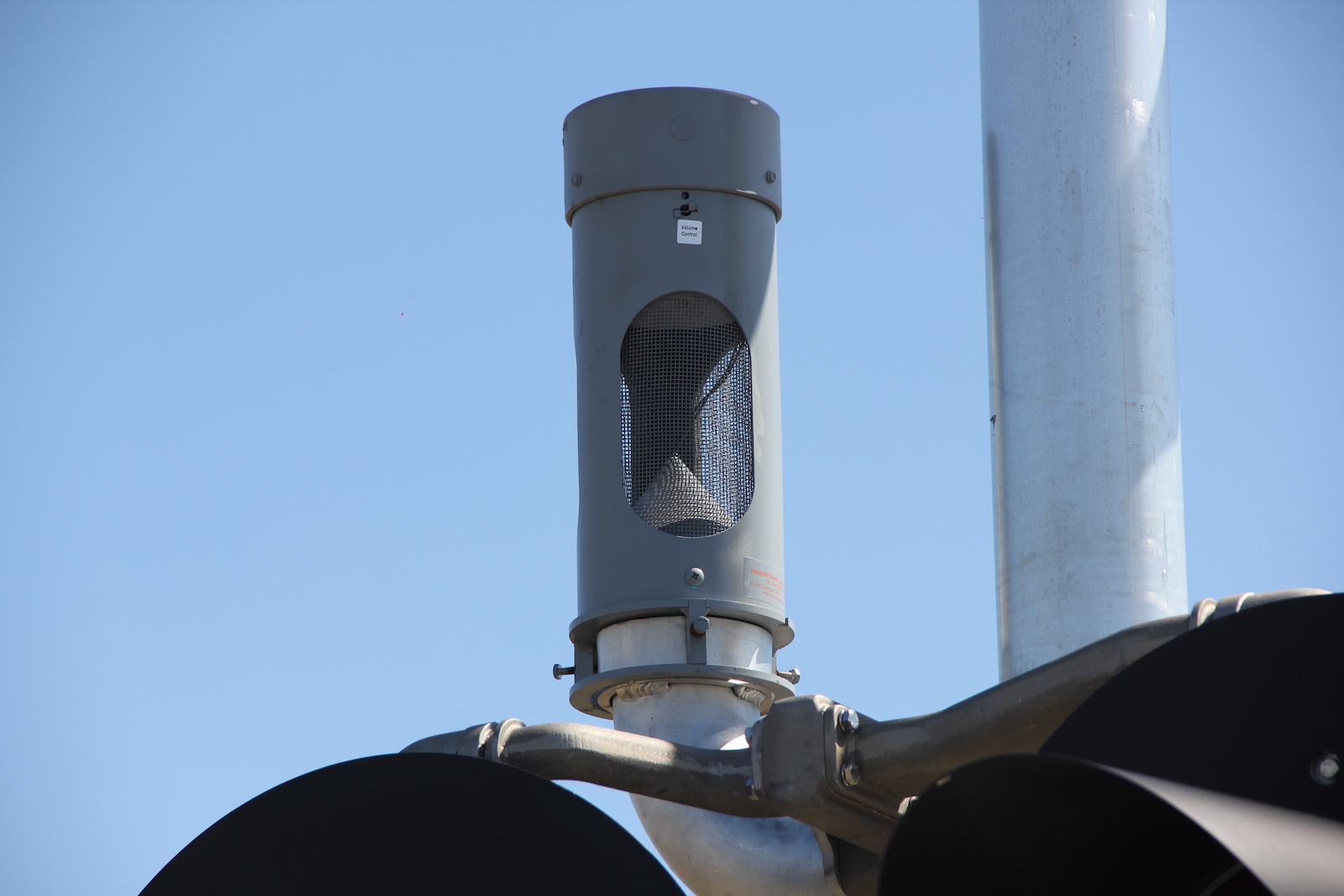

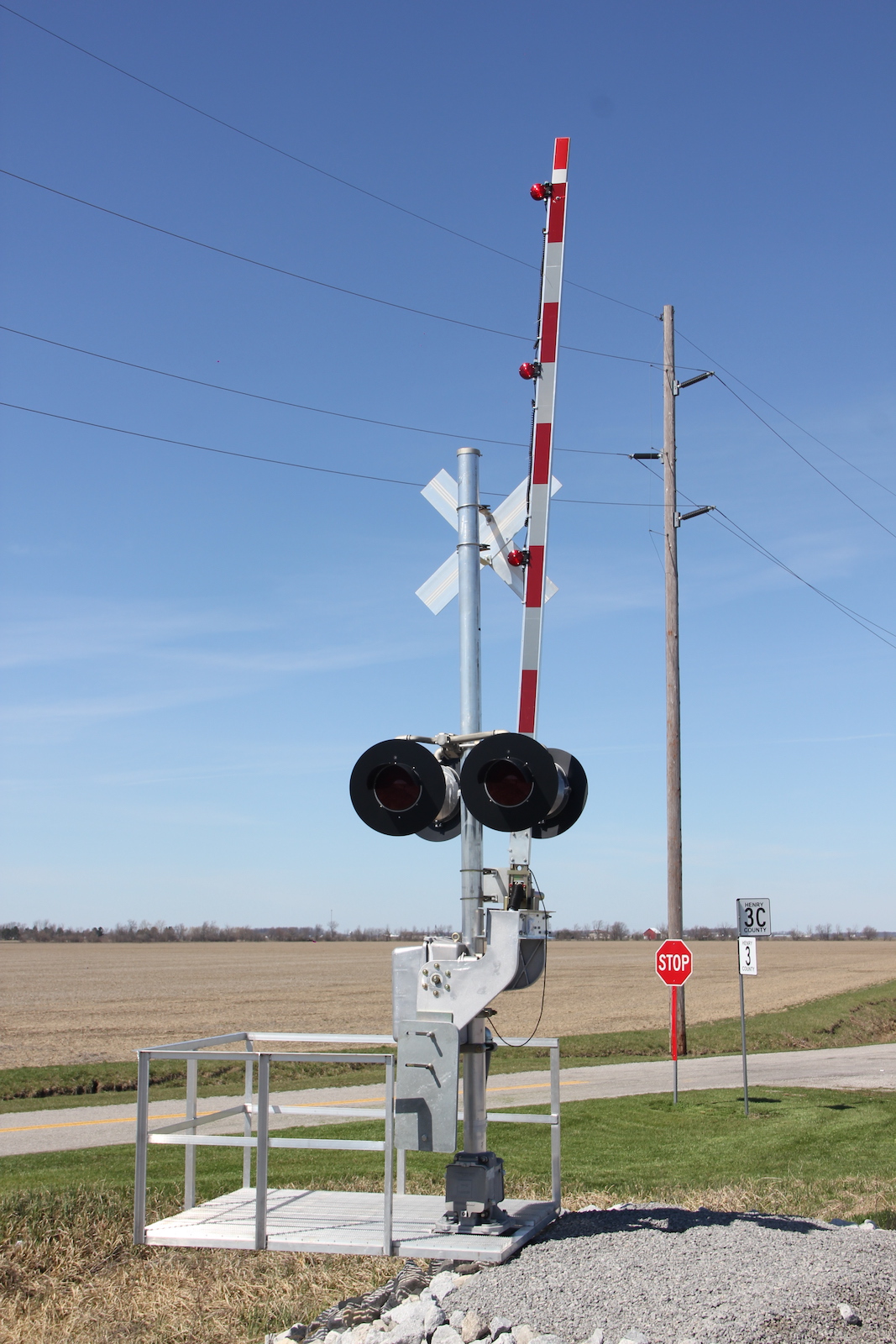

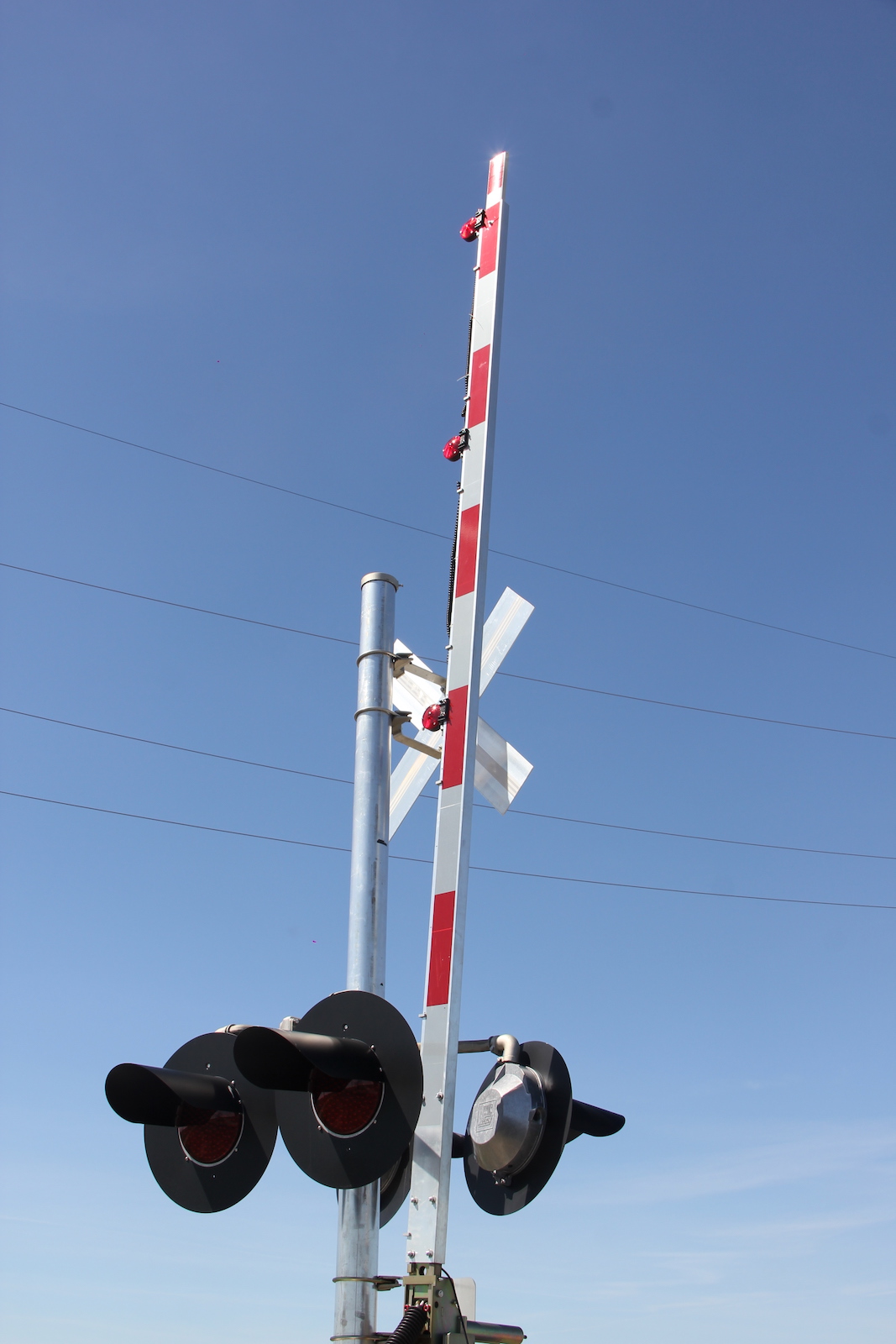

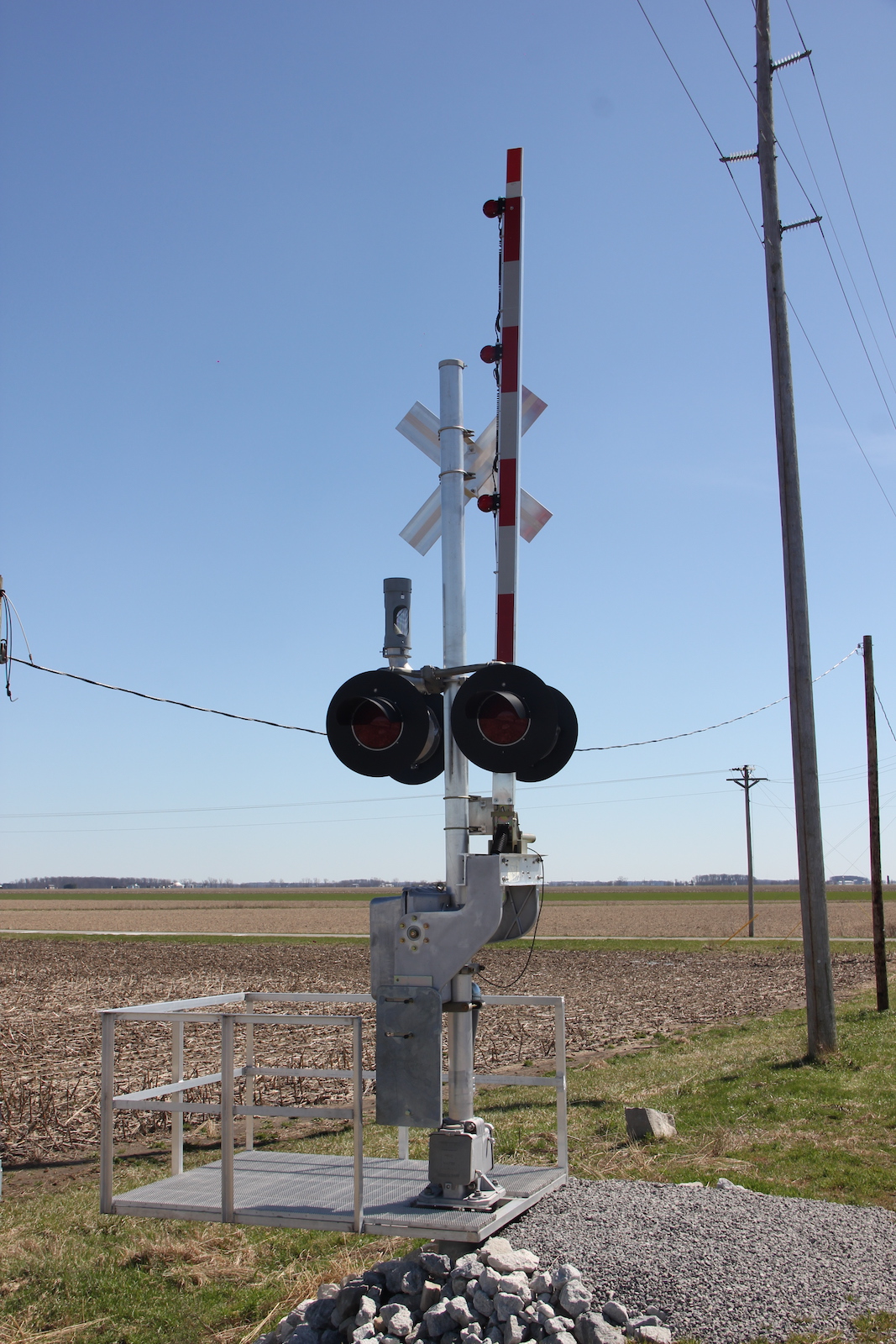

The northern signal.
13 14 15
16 17 18
19 20 21
22

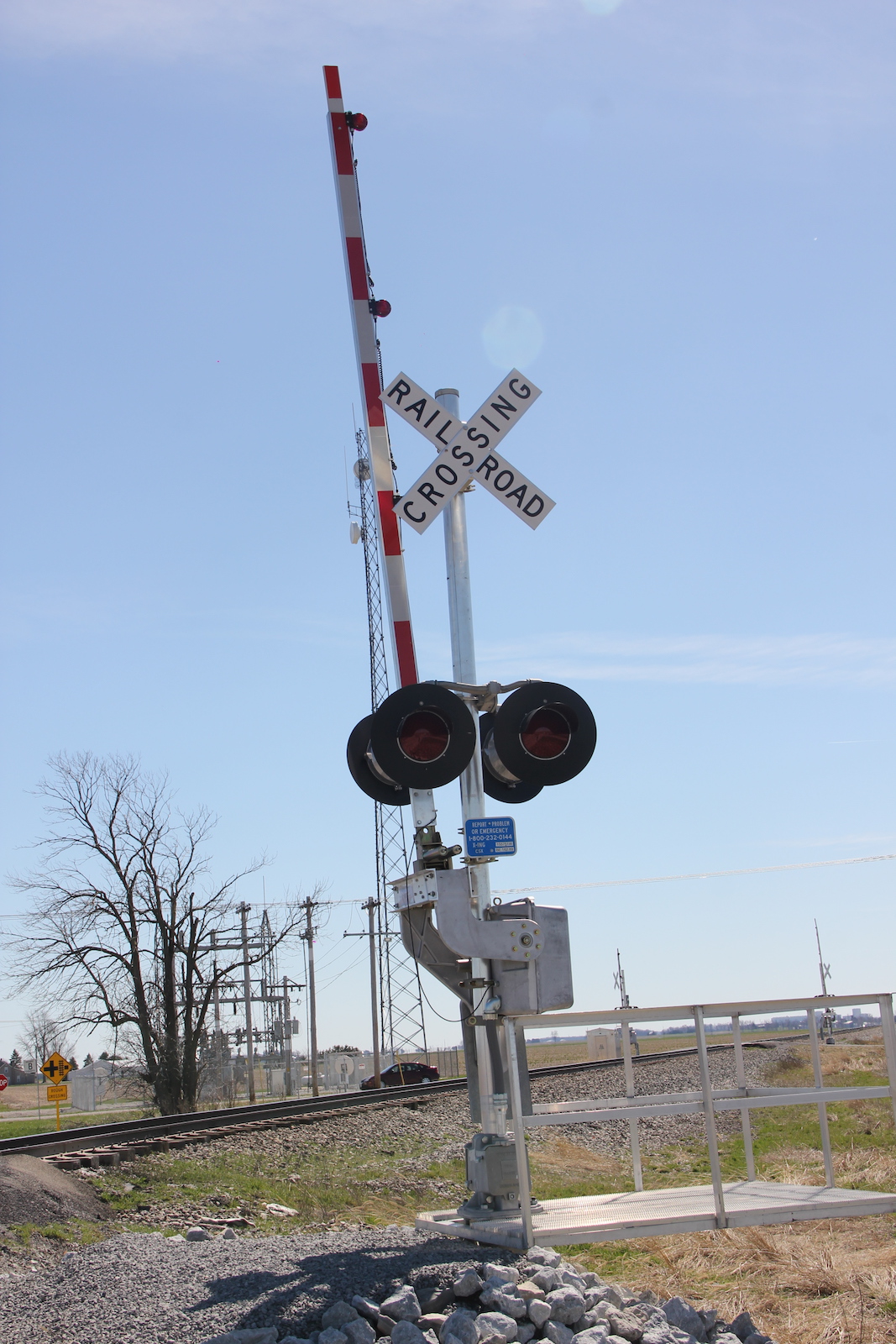

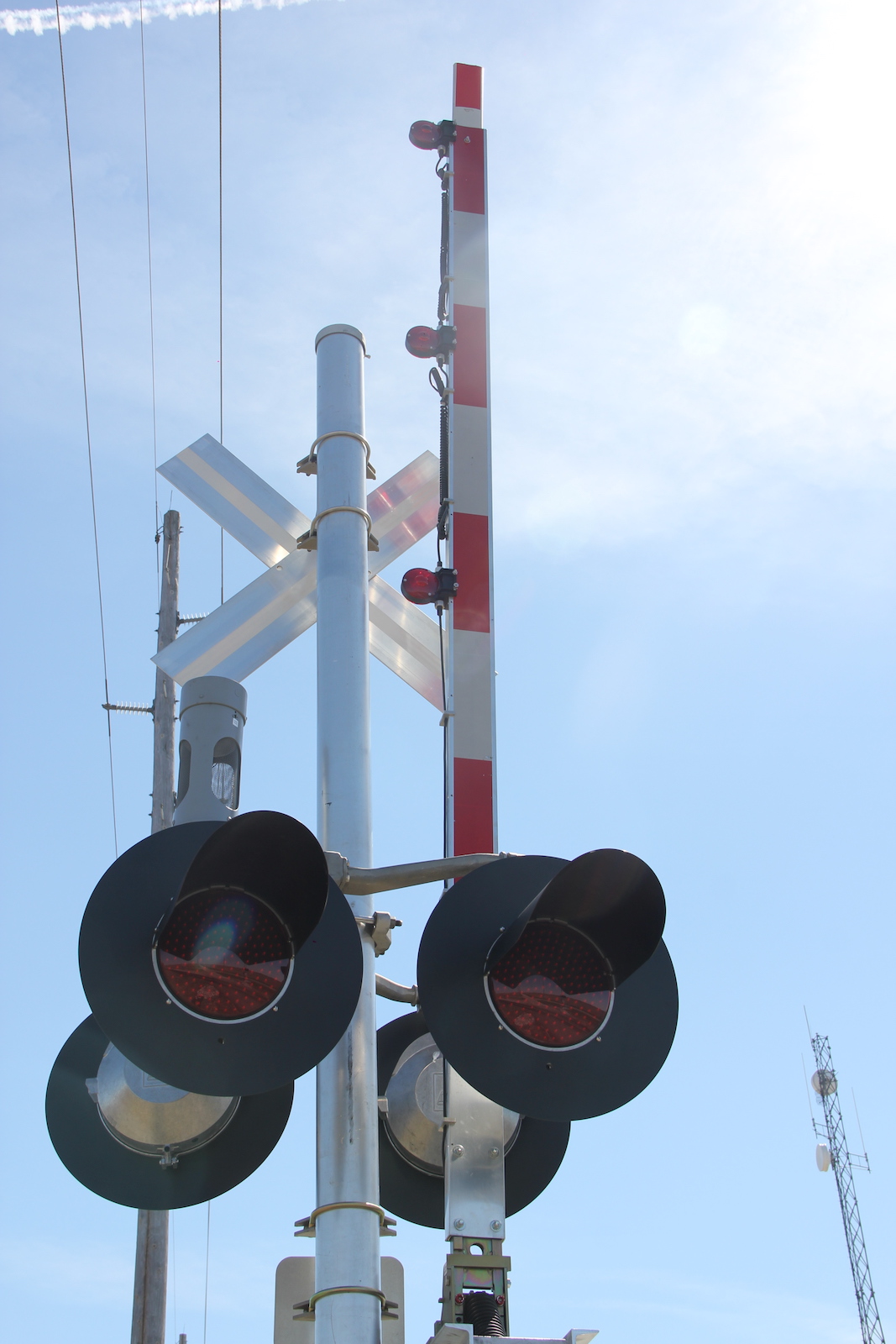

The southern signal.
23 24 25

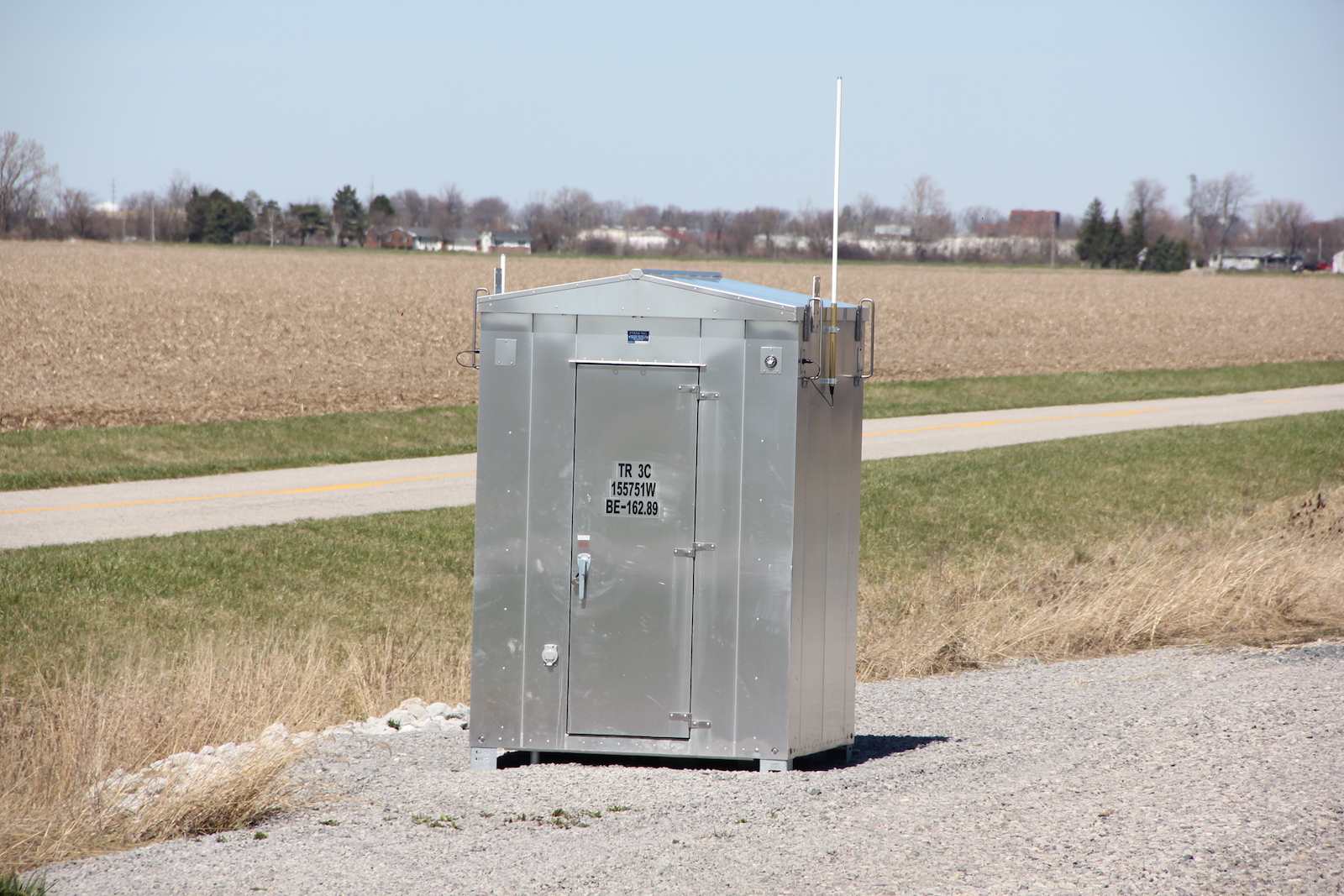

The relay bungalow in the northeast quadrant.

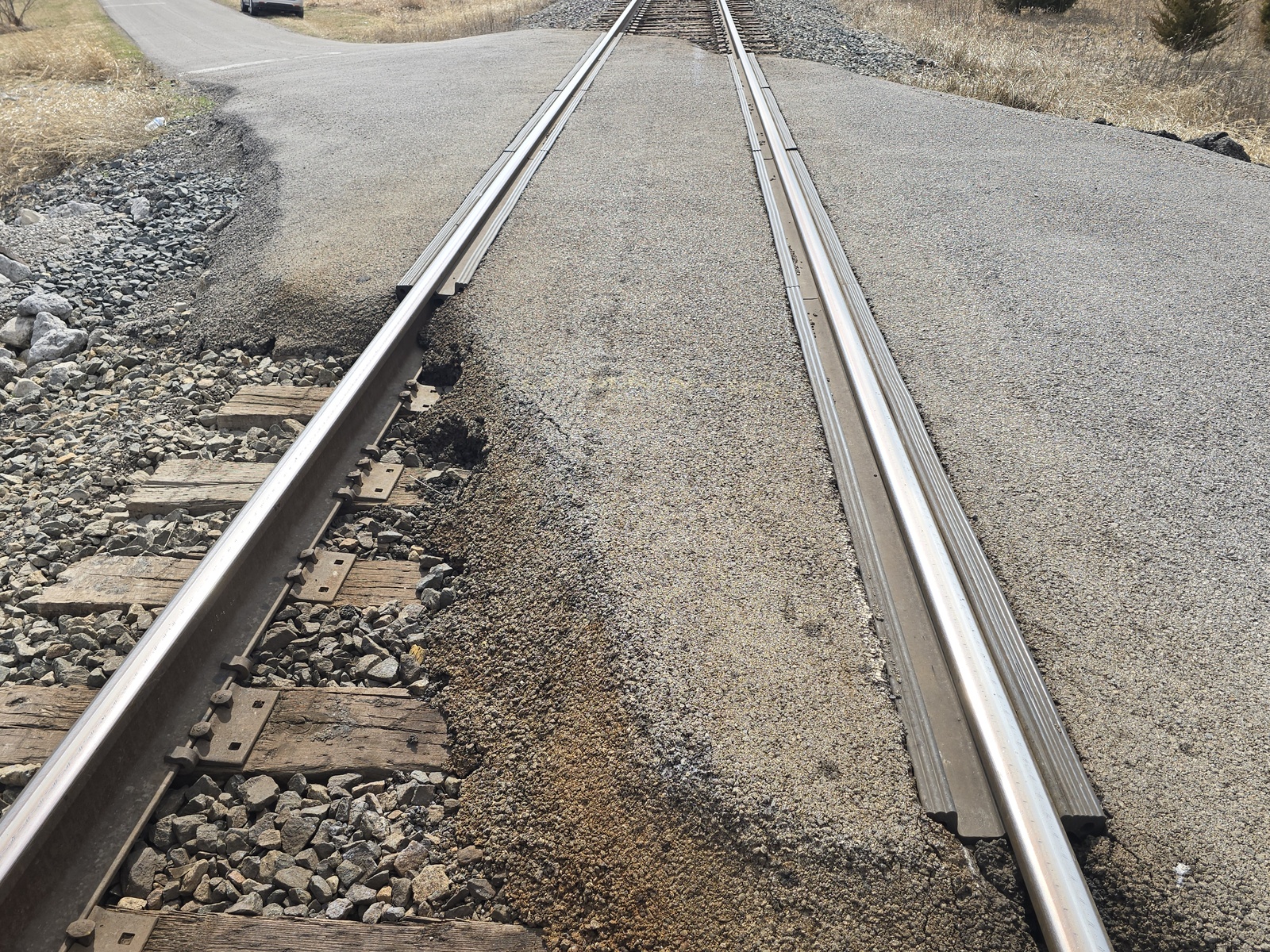

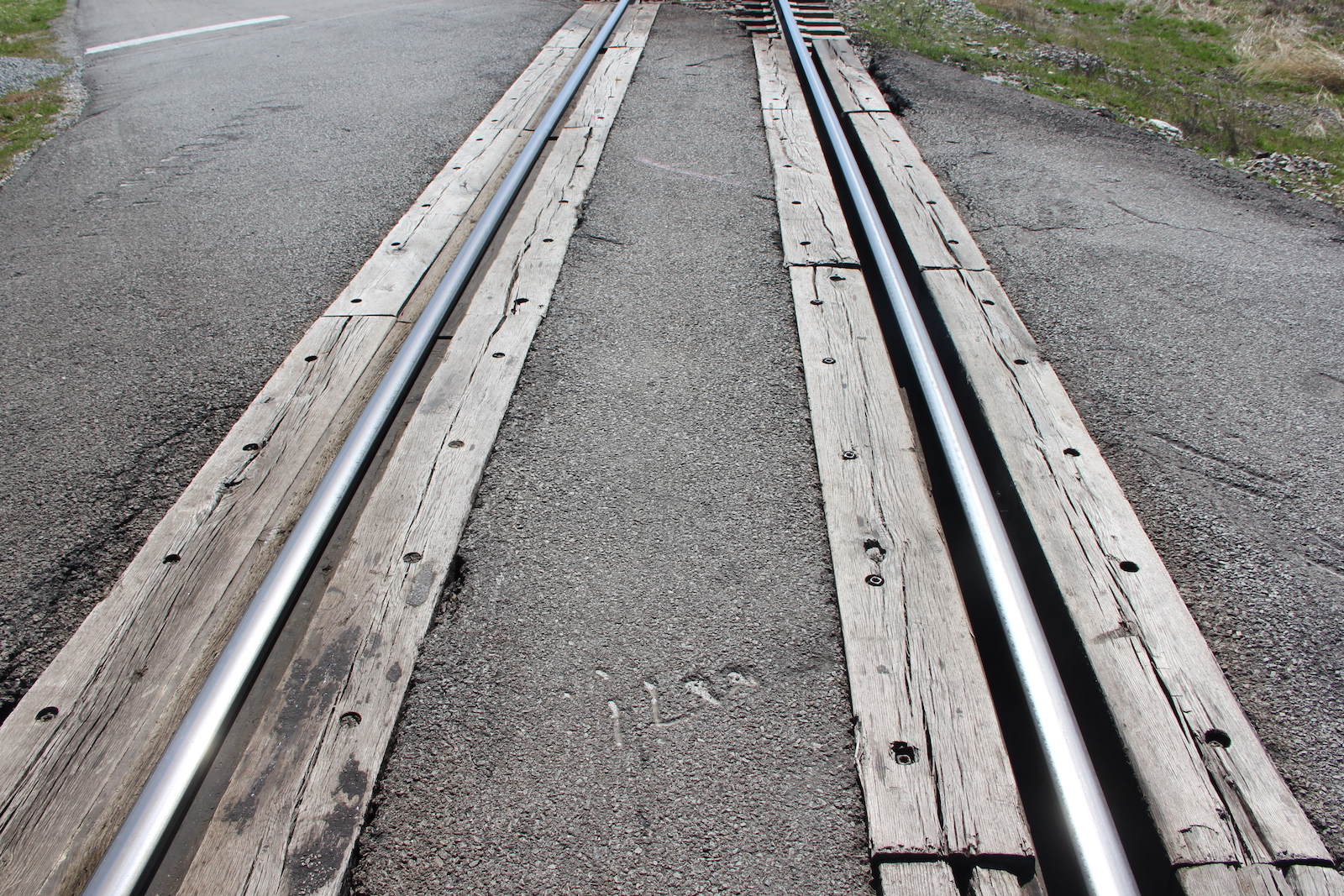

The grade is wood and asphalt.

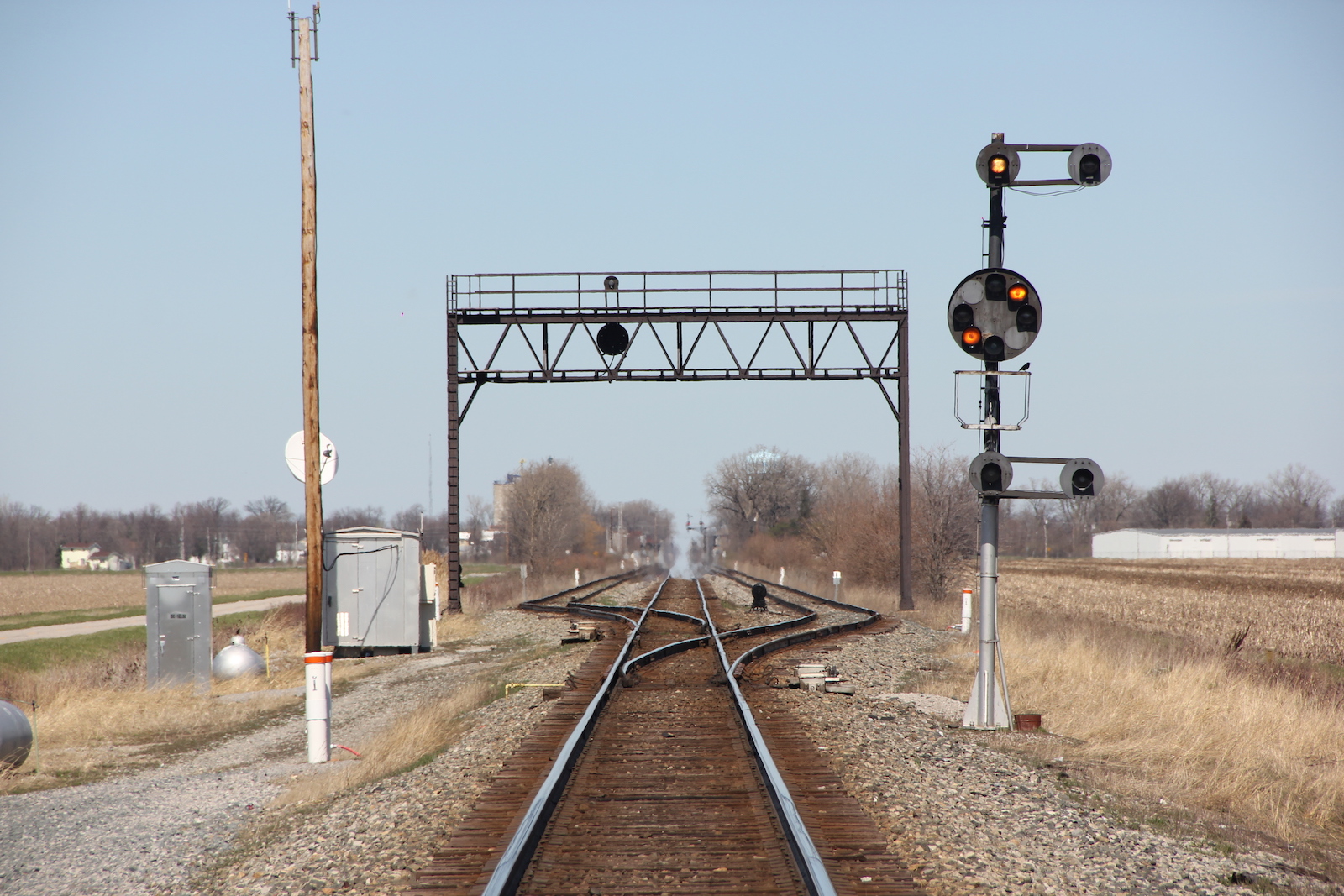

Track view facing north towards Road C.
Road B
is to the south.

Note in the video below that the grade was resurfaced and the DOT tag was replaced.
