Western Signal
Eastern Signal
Bell:None

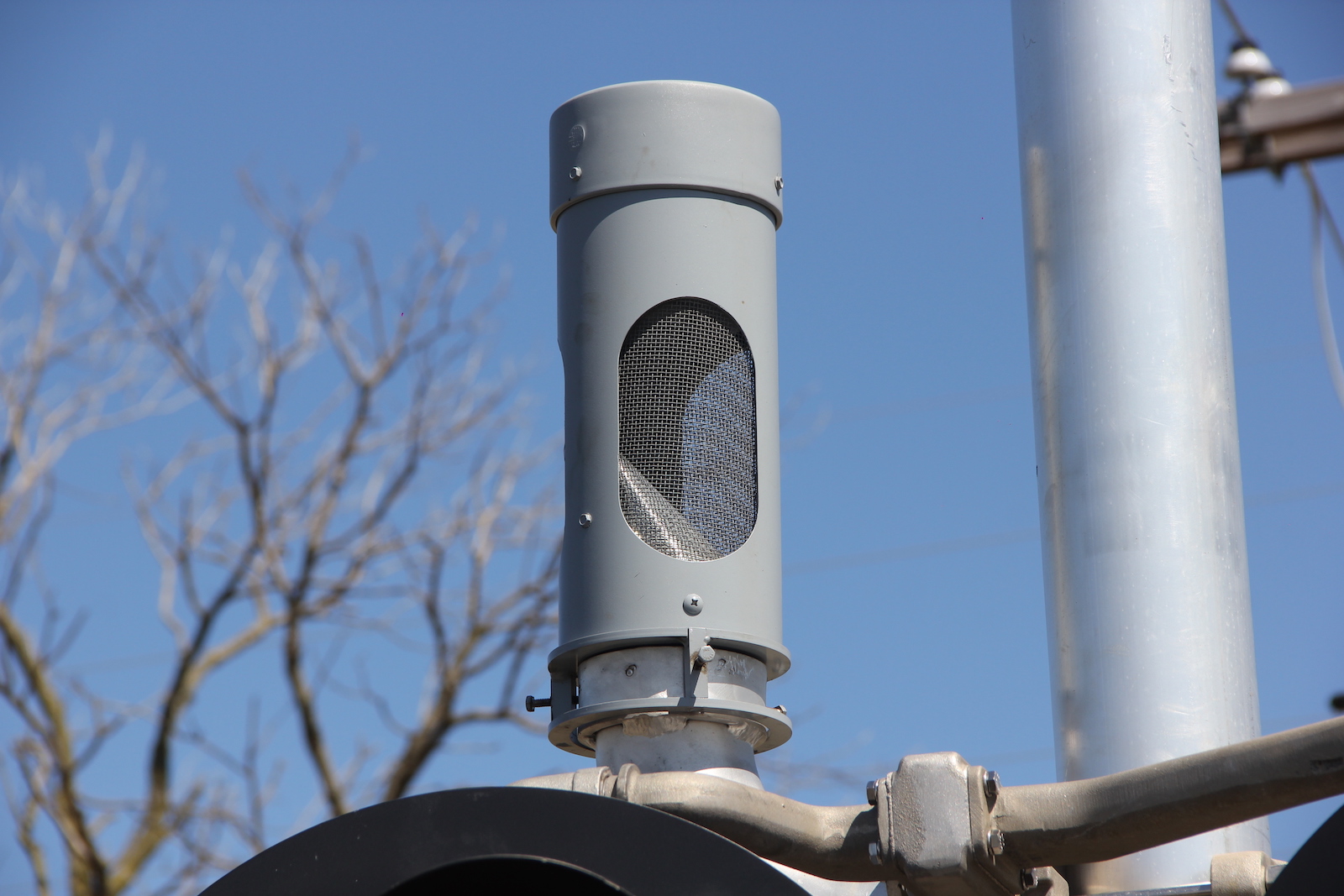

NEG E Bell
Base: WCH Double Sided
WCH Double Sided

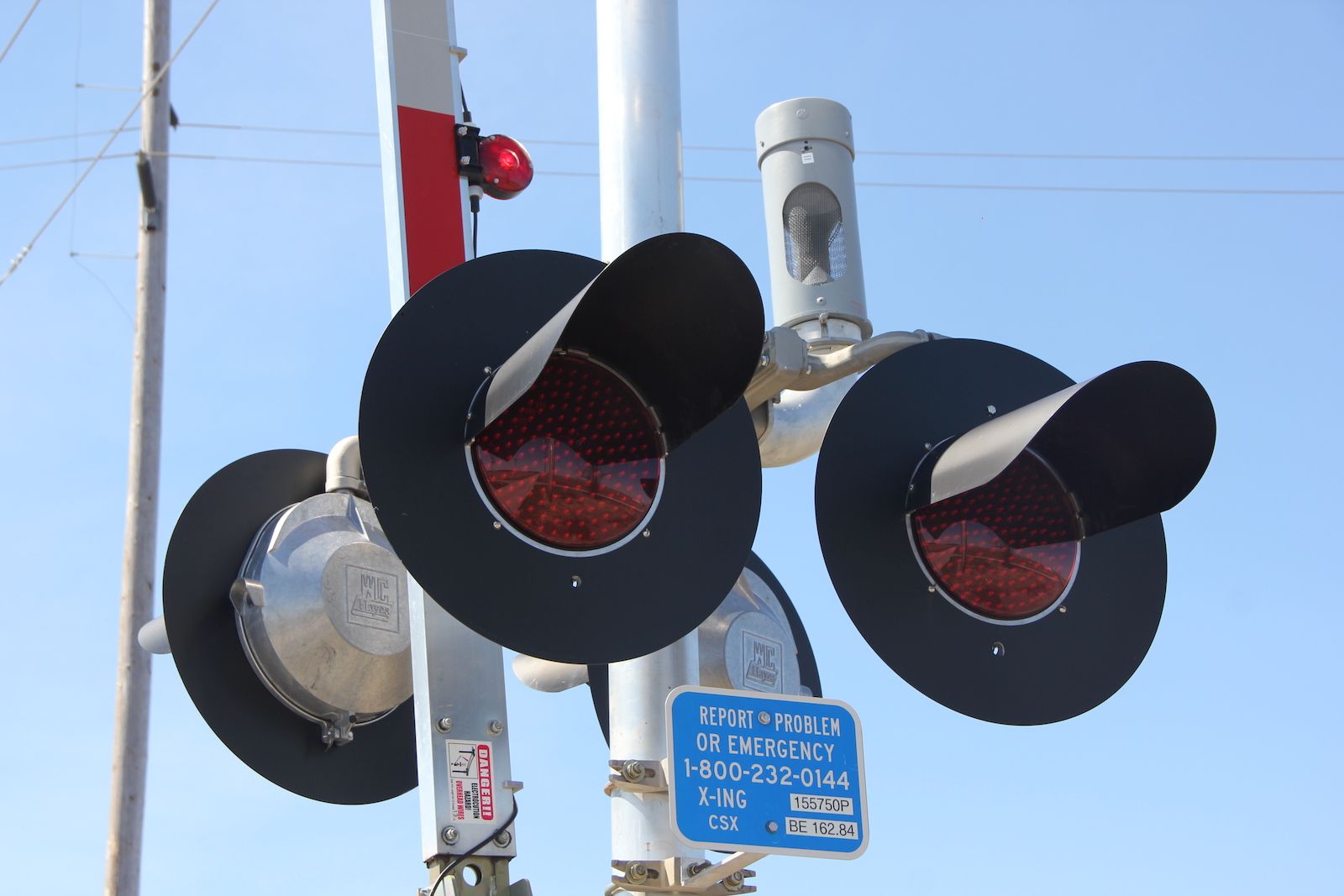

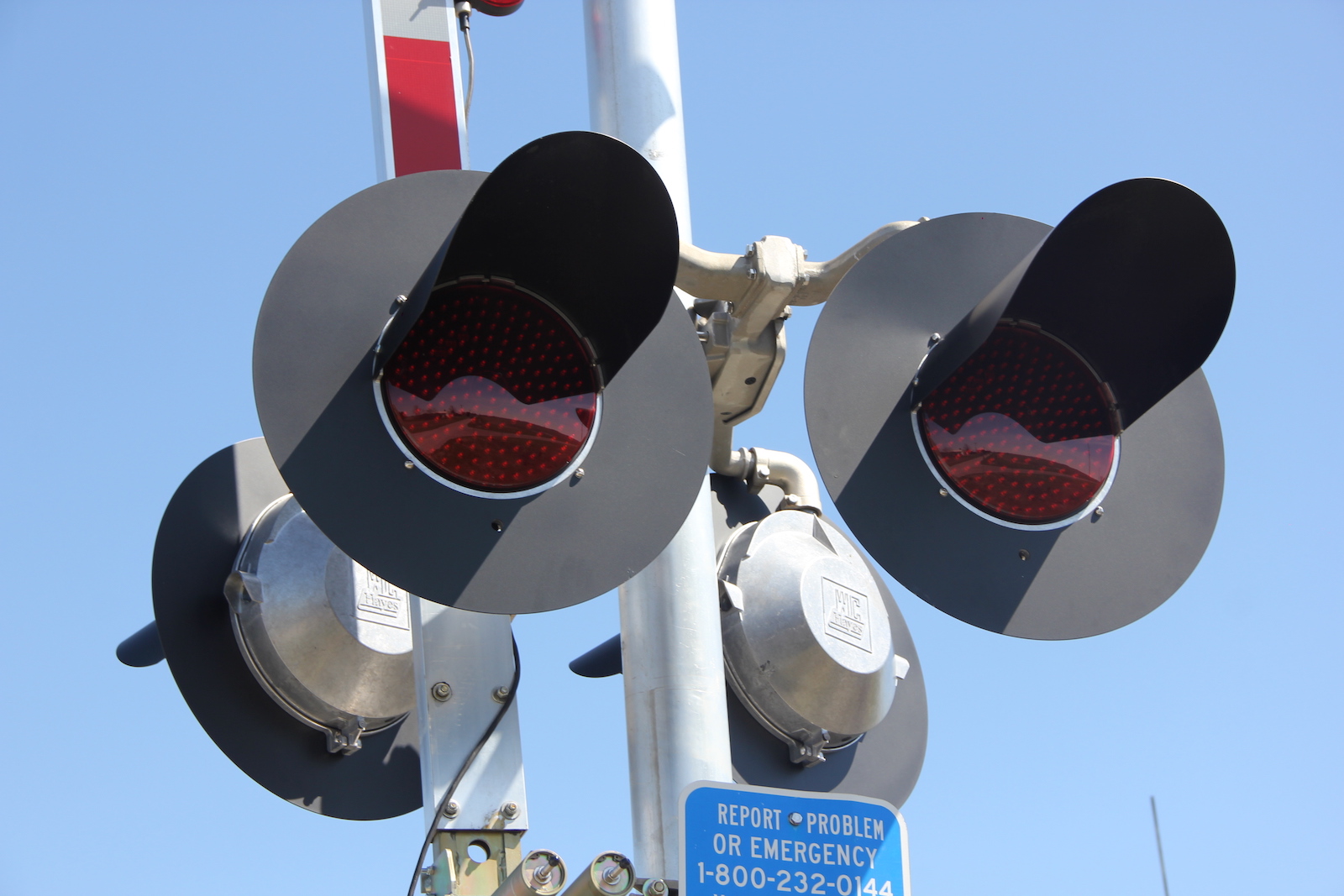

Main Lights: 2 pairs of 12"x24" Leotek EV LEDs in WCH frames 2 pairs of 12"x24" Leotek EV LEDs in WCH frames
Light Bracket:
WCH
WCH w/ Bell Extension
Gate Lights: 4" NEG LEDs
4" NEG LEDs

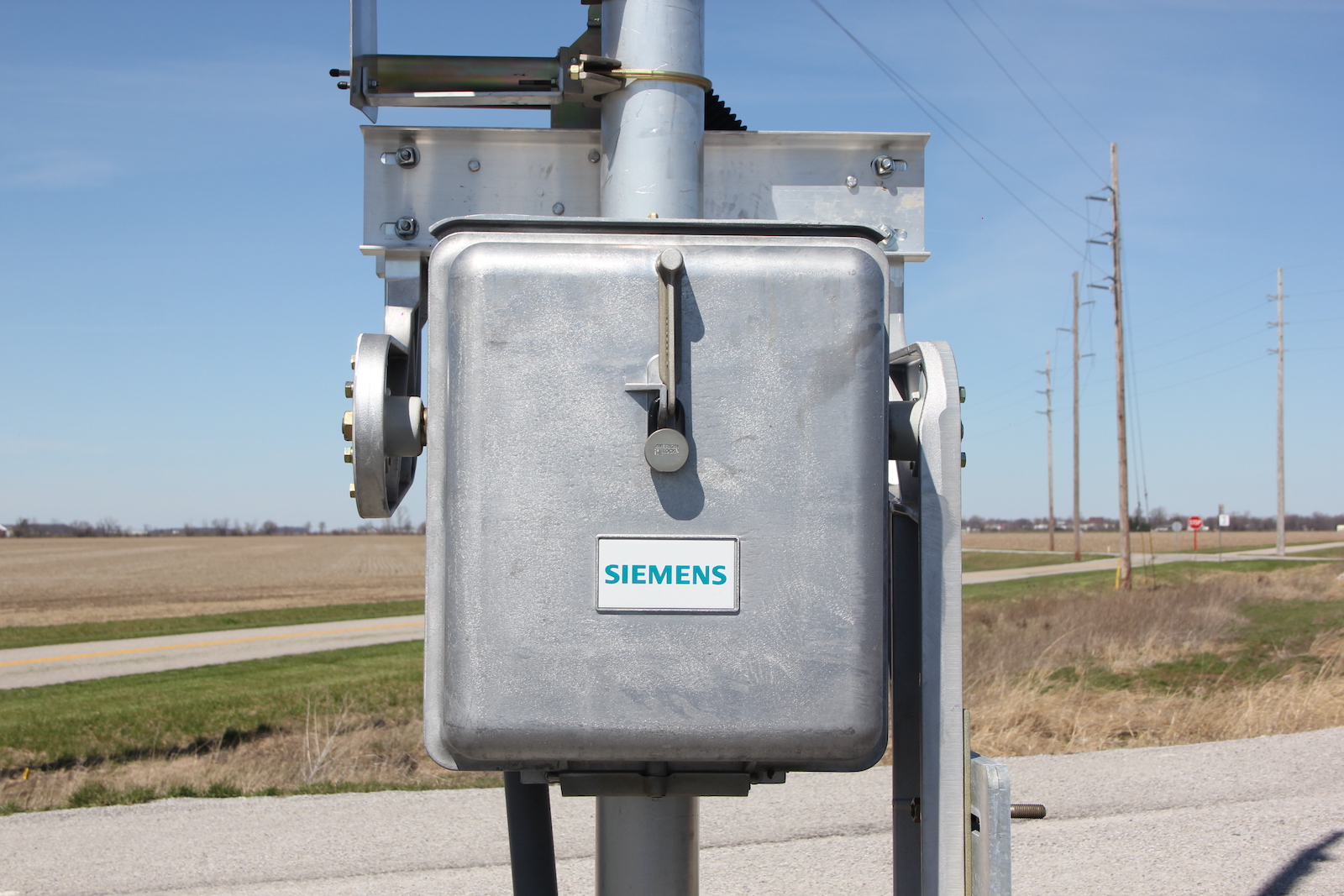

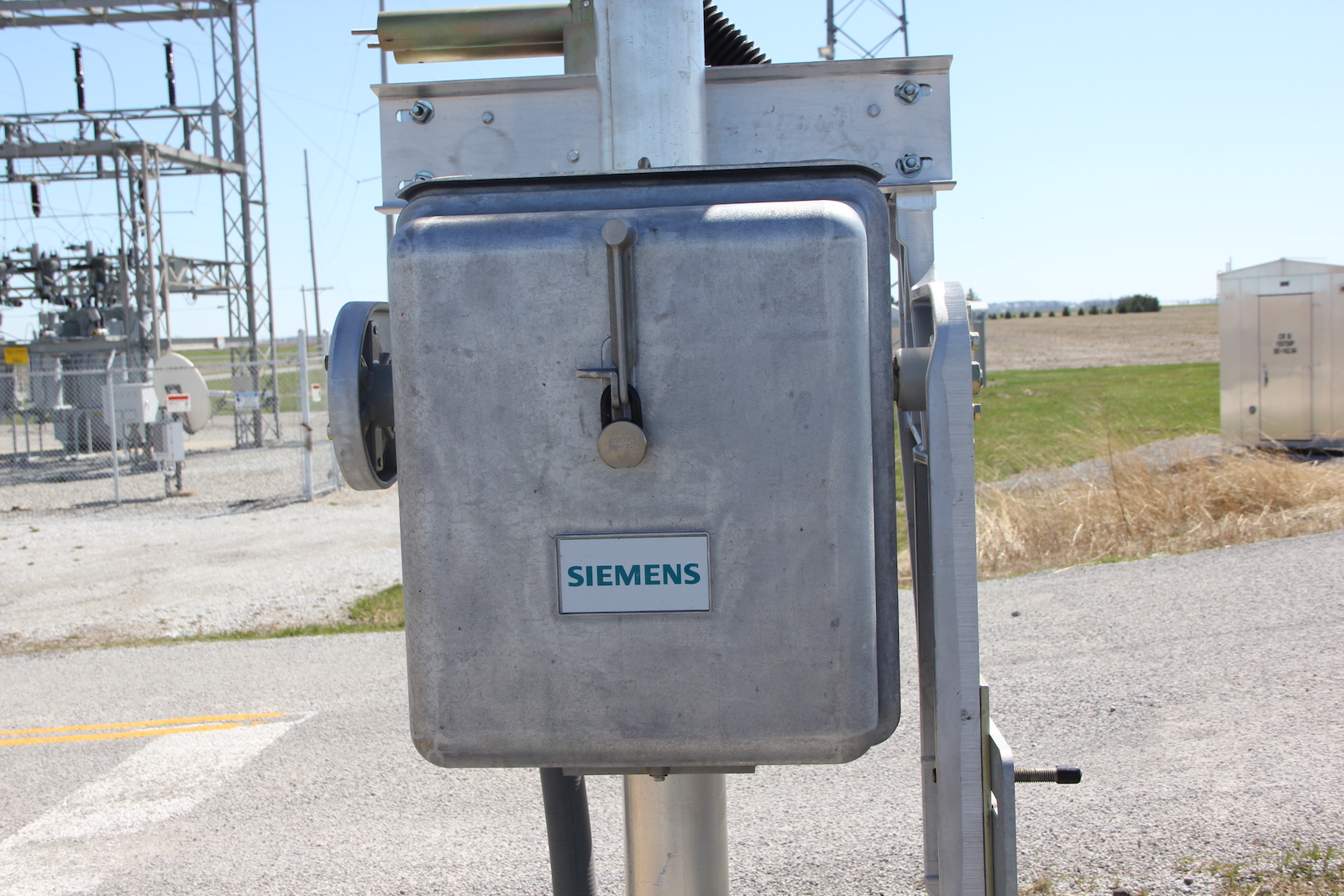

Gate Mechanism: Siemens
Siemens
Gate Striping: ///////||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| ////||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Crossbuck font:
Normal font
Normal font
Bell Cycle: N/A
Rings only while the gates are lowering

All pictures were taken on April 8, 2017, by Tommy McGowan.
The video was taken on November 11, 2017, by Tommy McGowan.
This crossing is located on the CSX Toledo Sub.

These signals replaced a pair of crossbucks in July 2016.

1
2

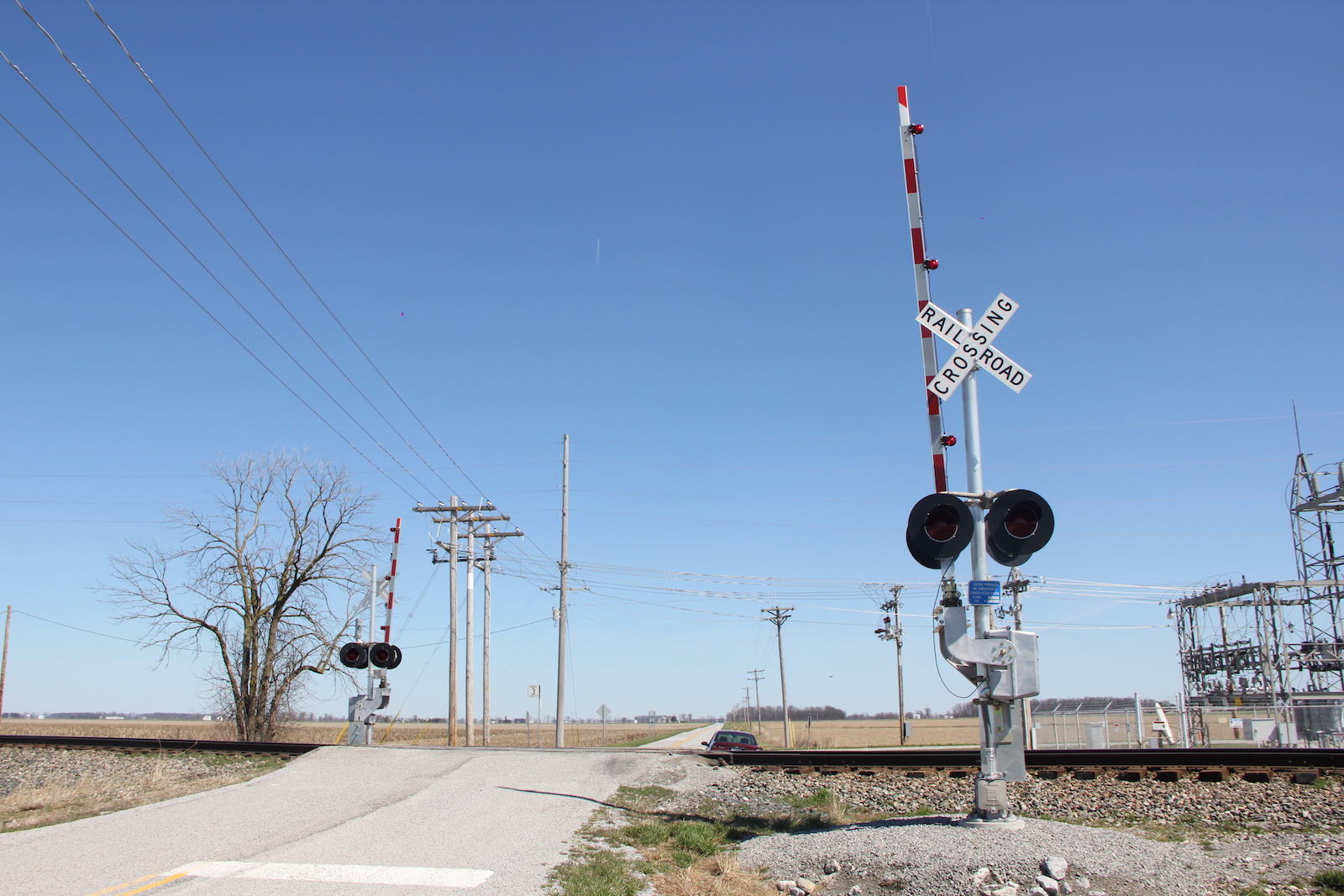

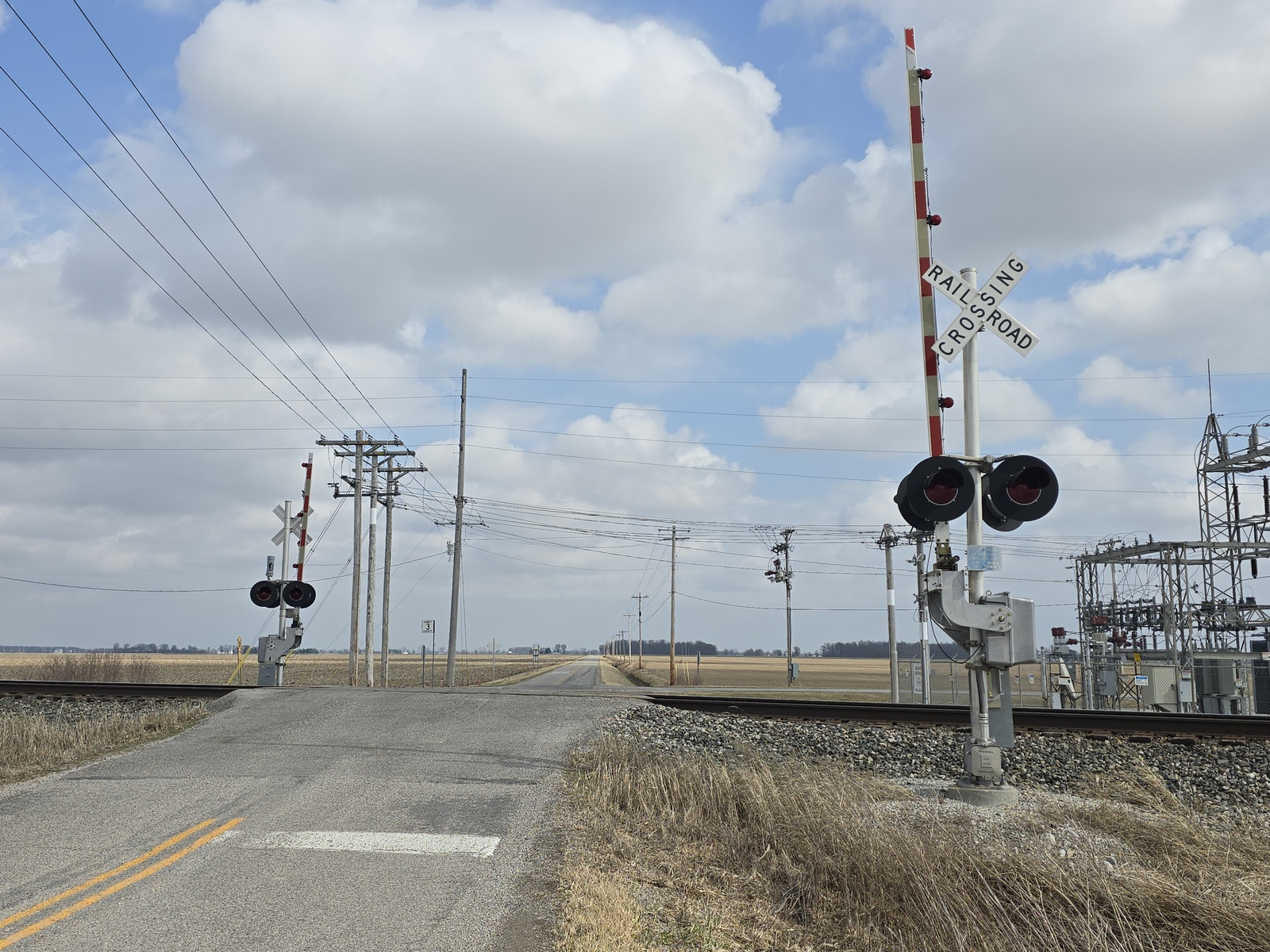

Overview of 2 new gated signals facing east.

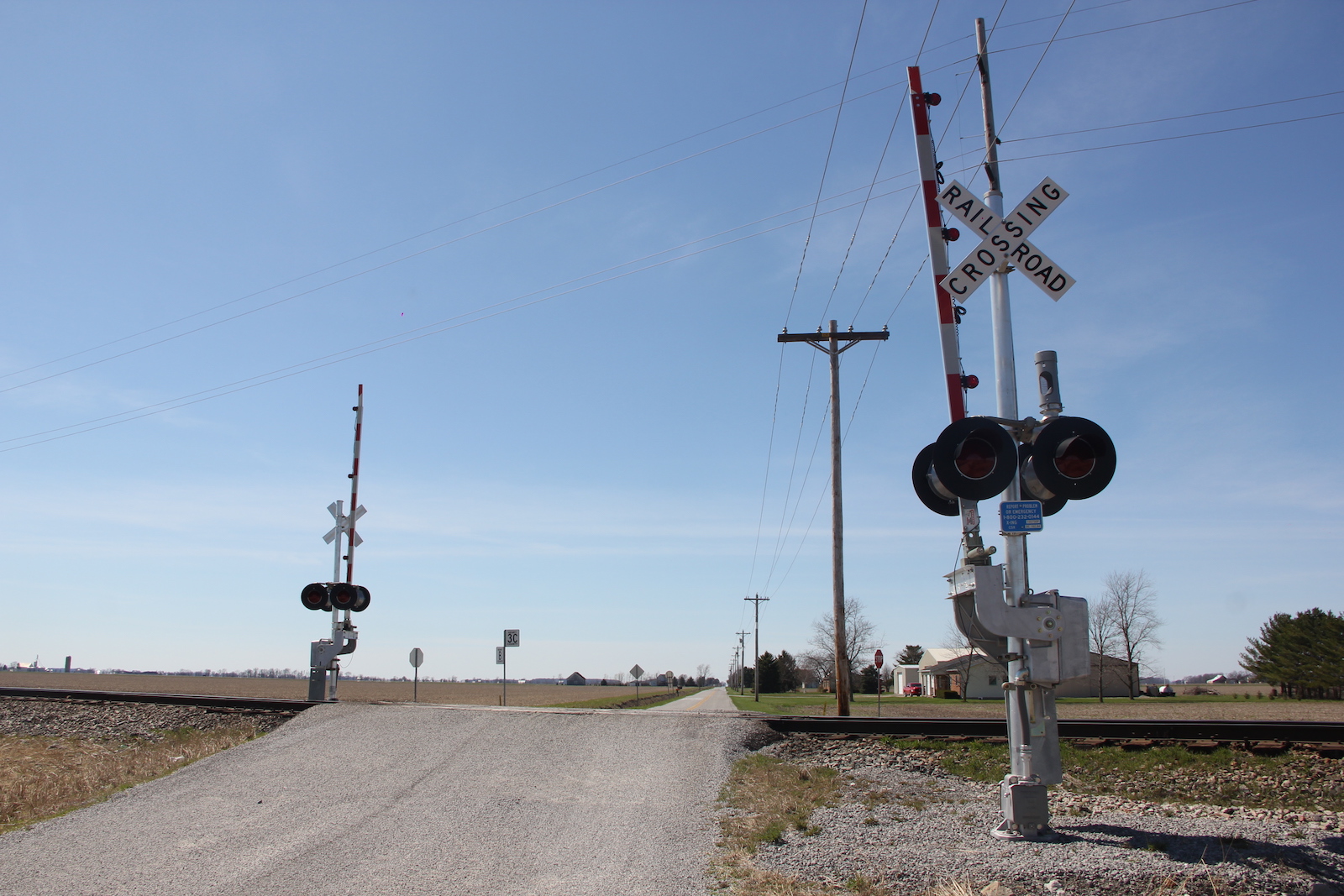

Overview facing west.
3 4 5
6 7 8
9 10 11

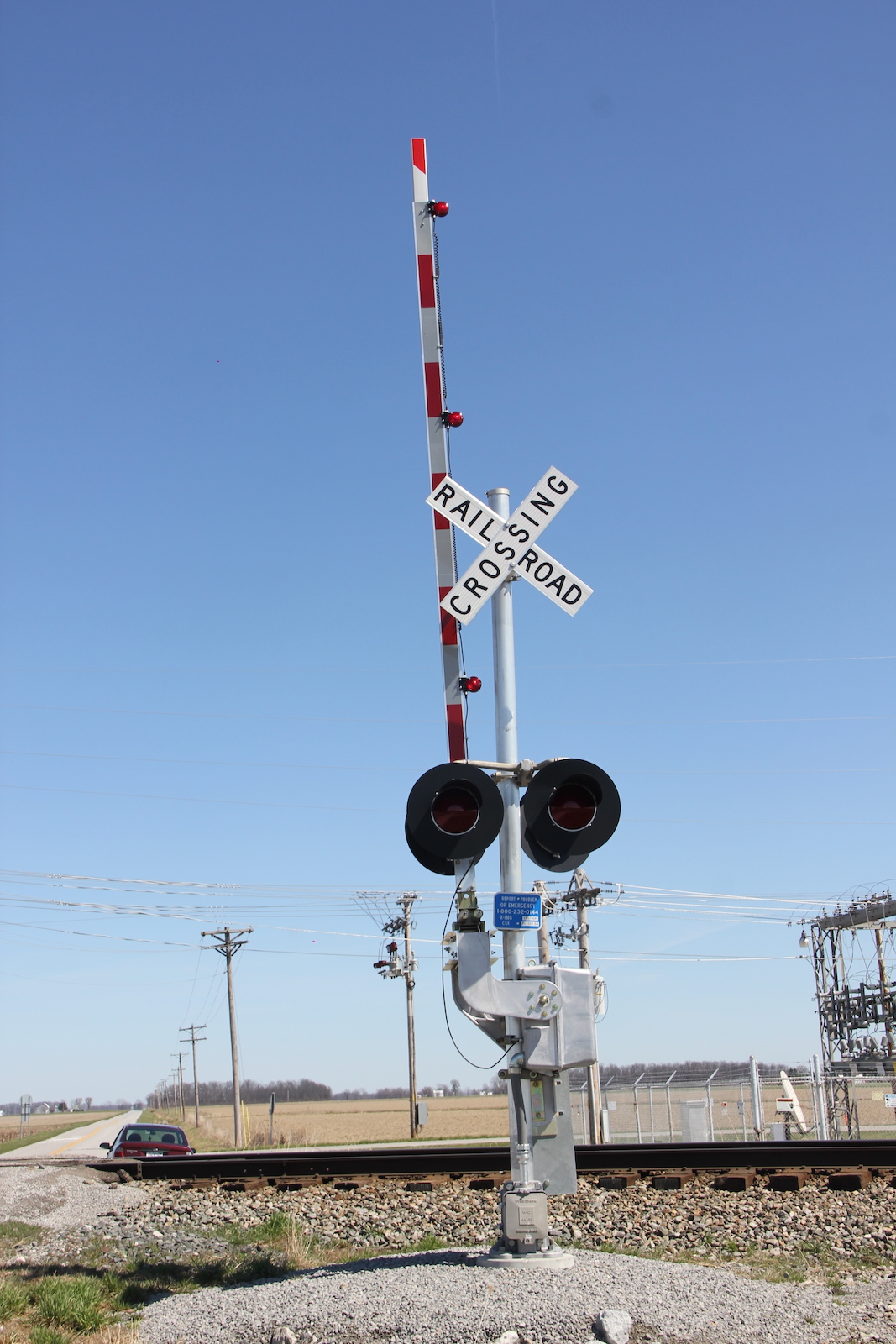

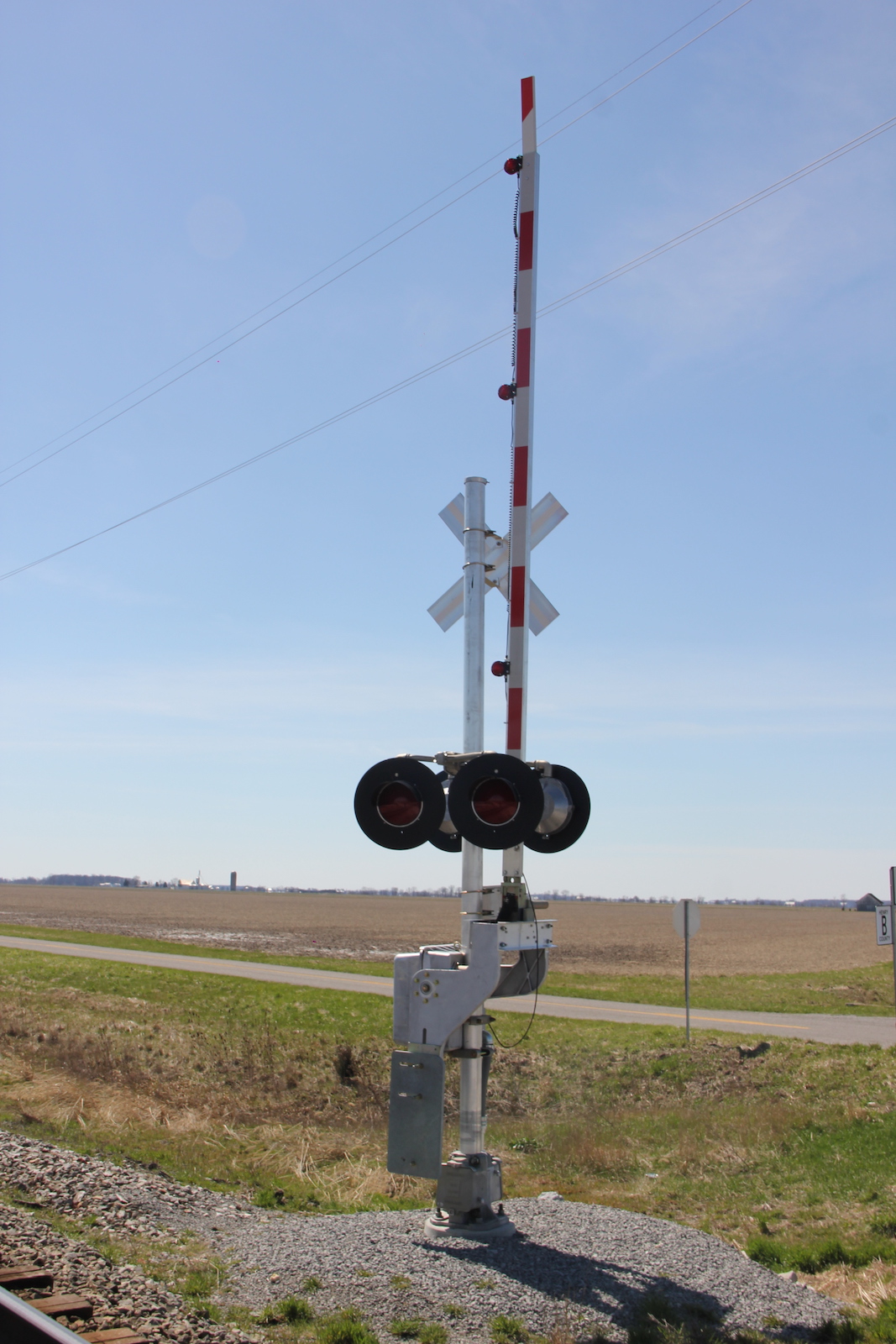

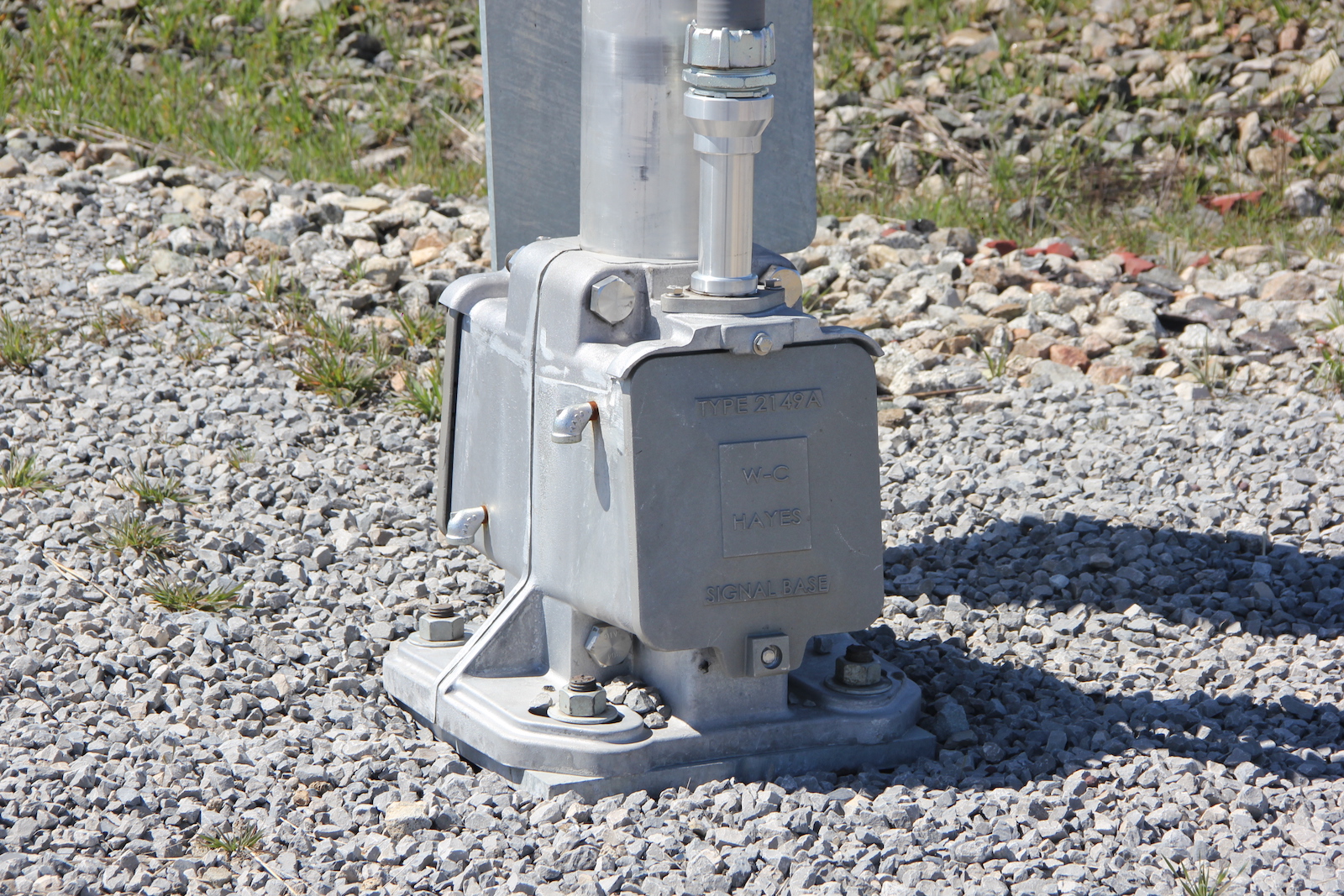

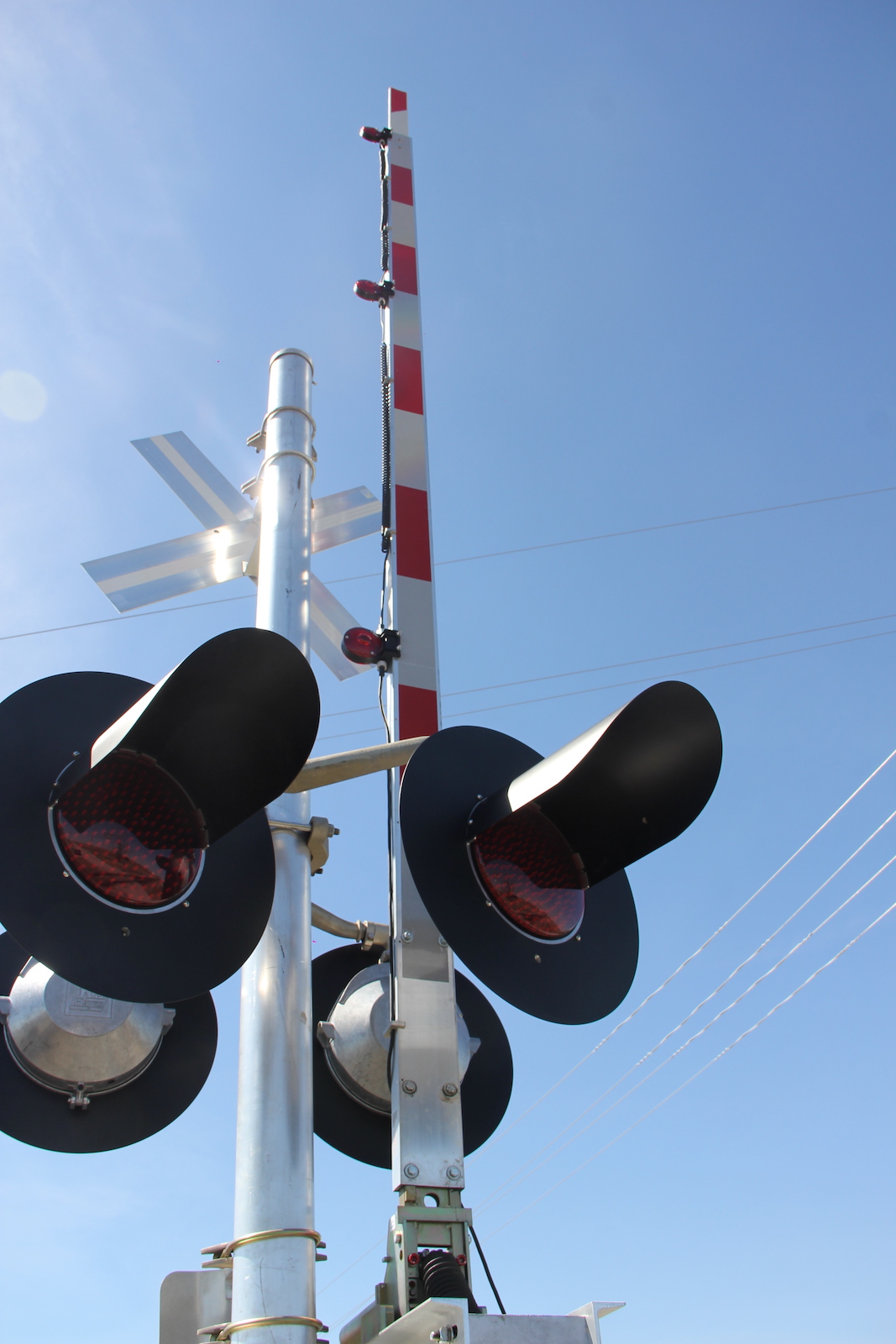

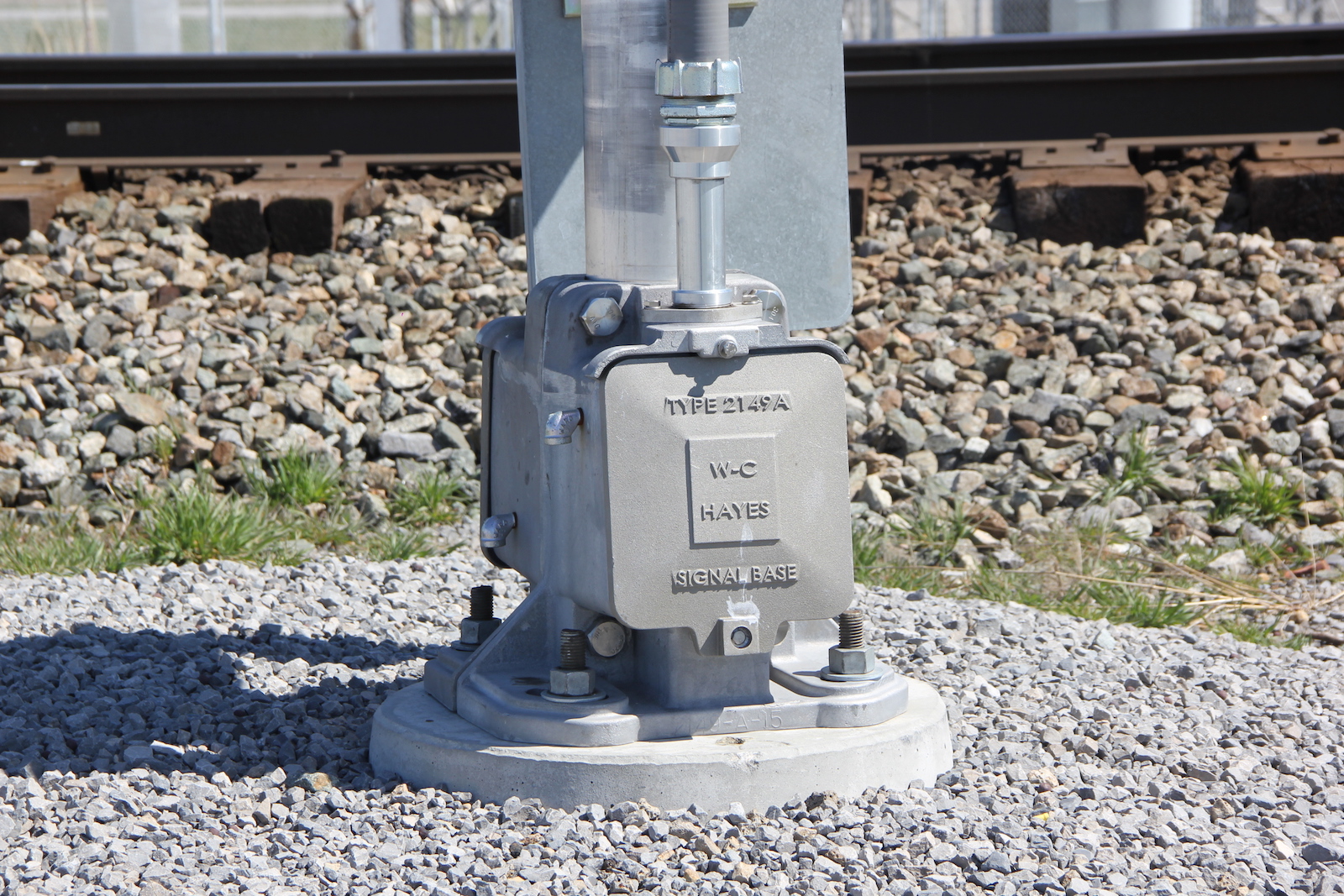

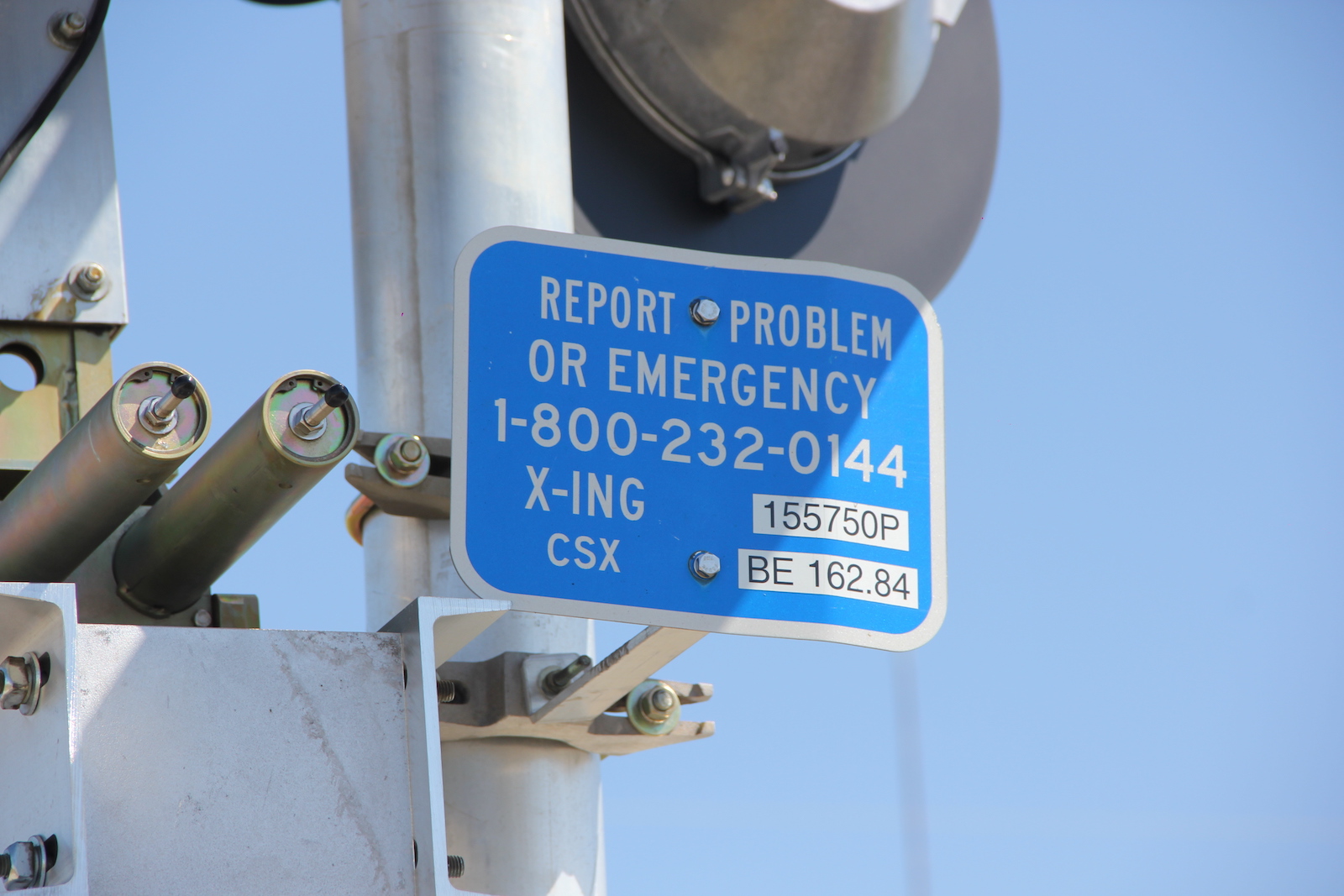

The western signal.
12 13 14
15 16 17
18 19 20
21

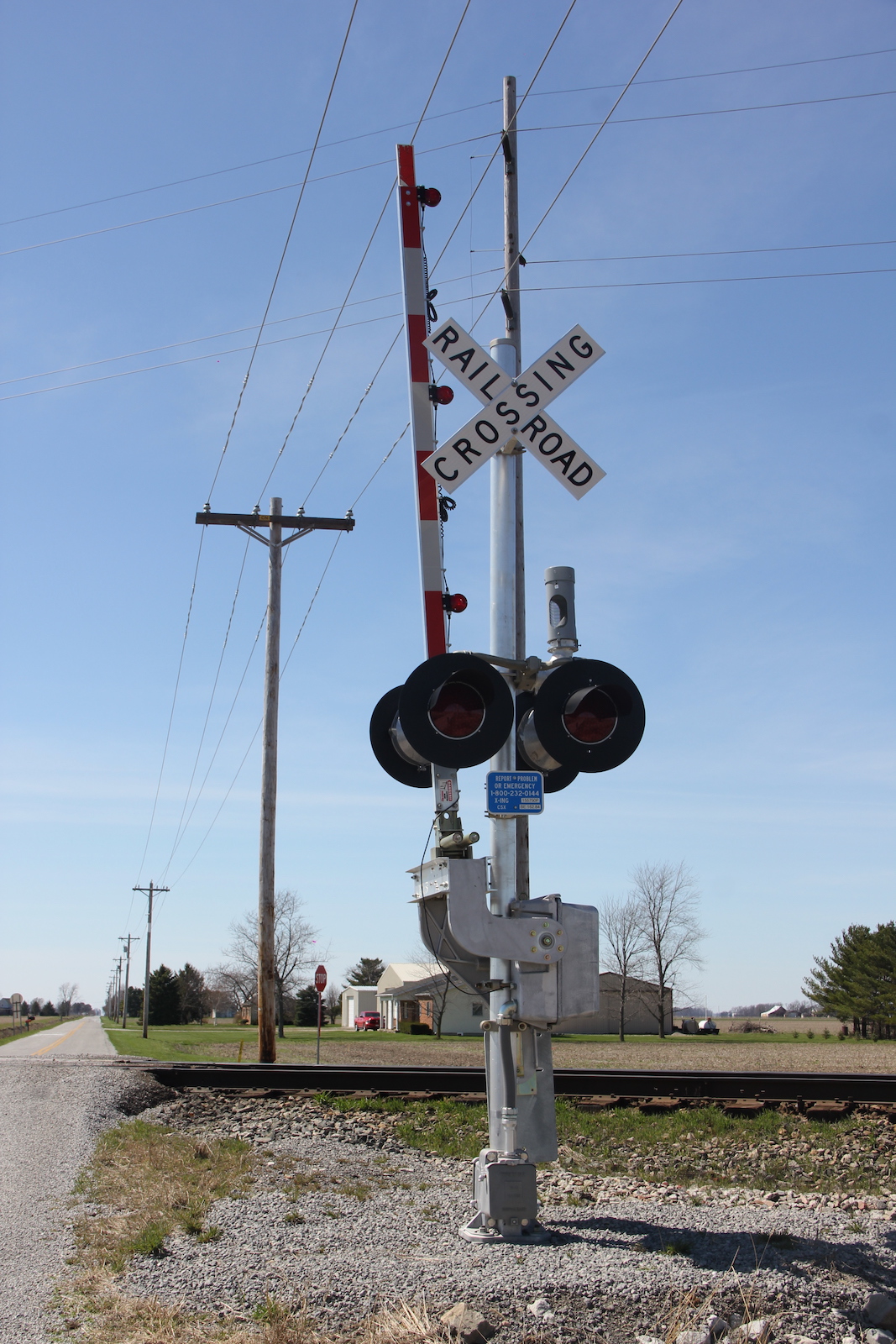

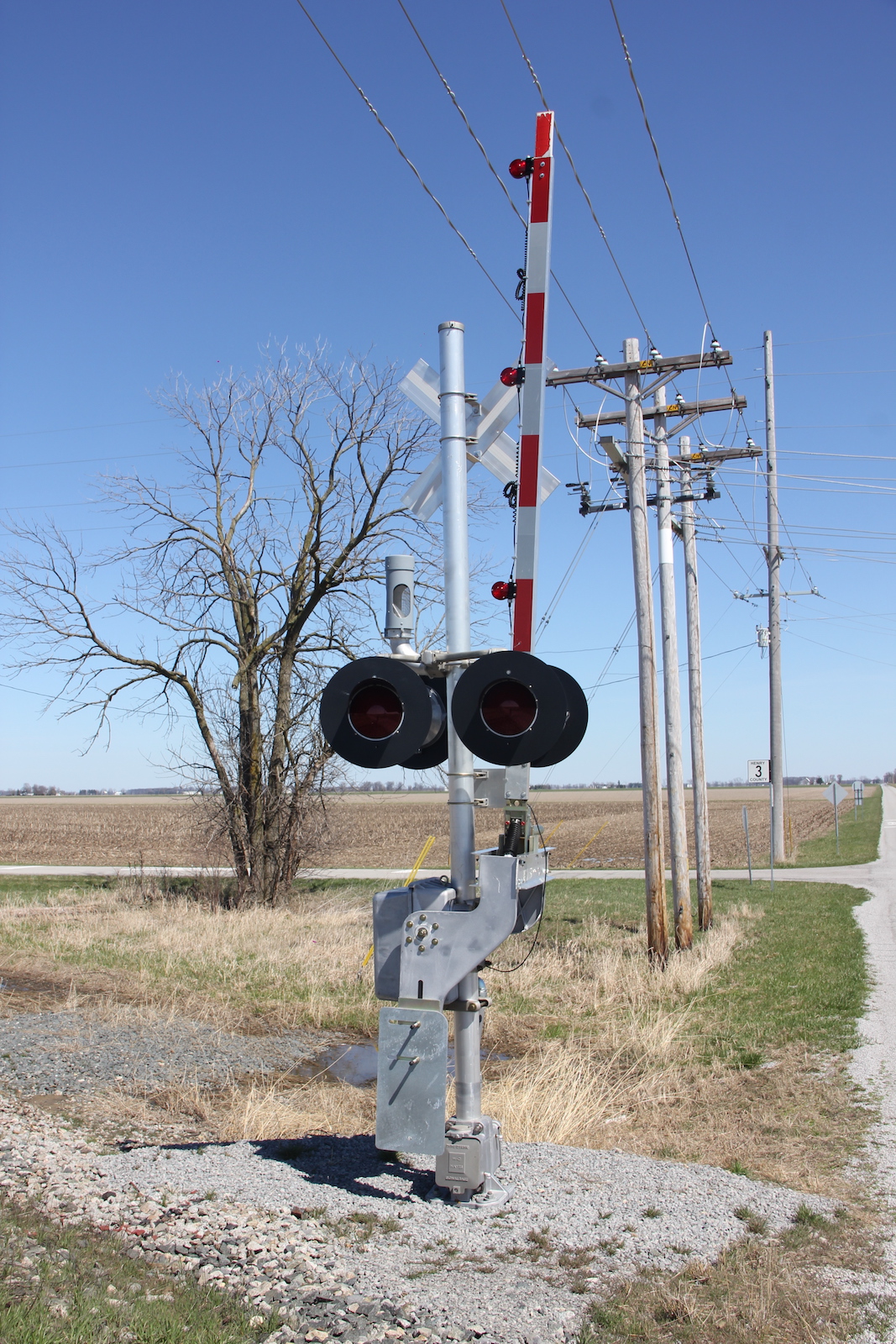

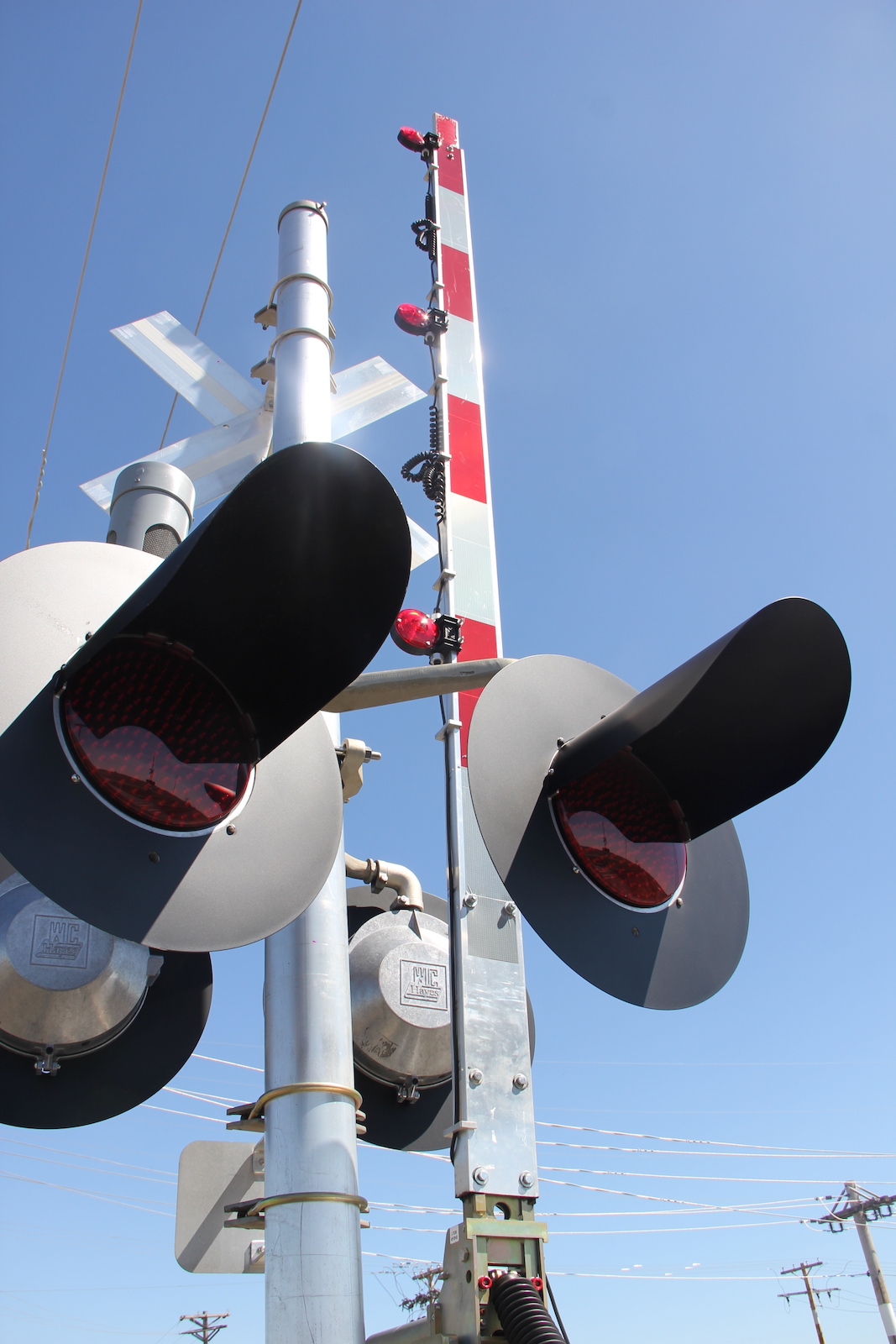

The eastern signal.
22 23 24

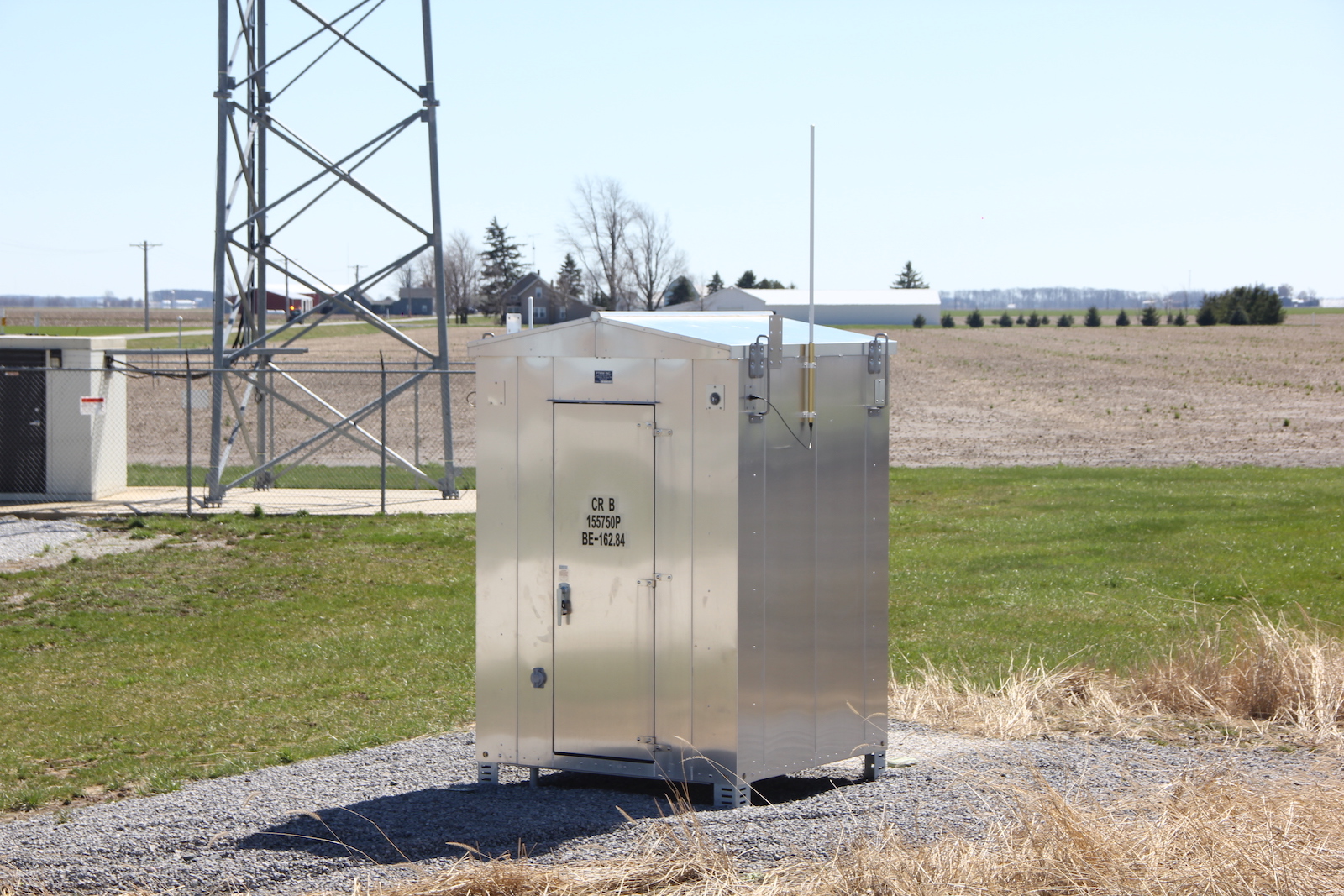

The relay bungalow in the southeast quadrant.

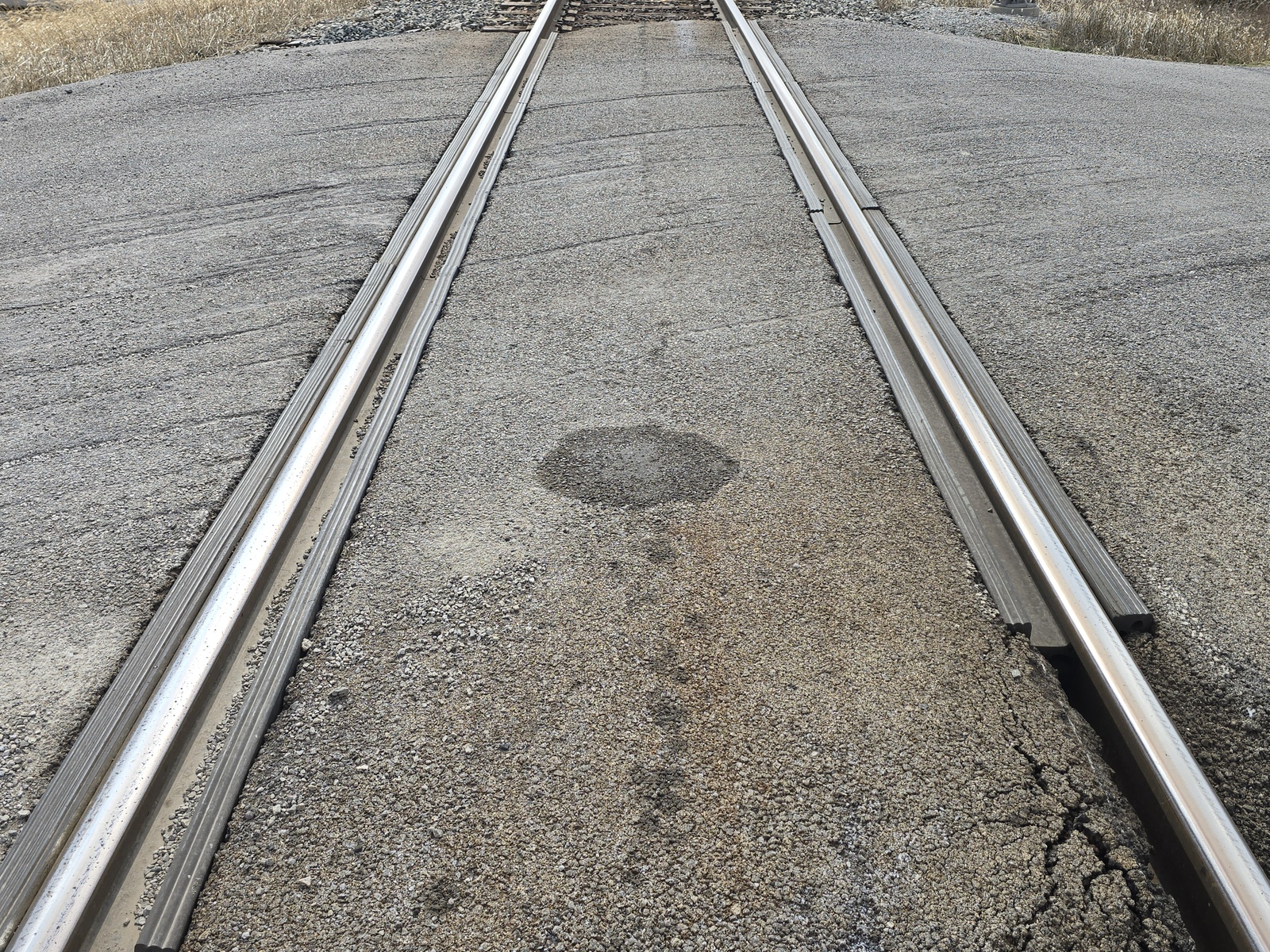

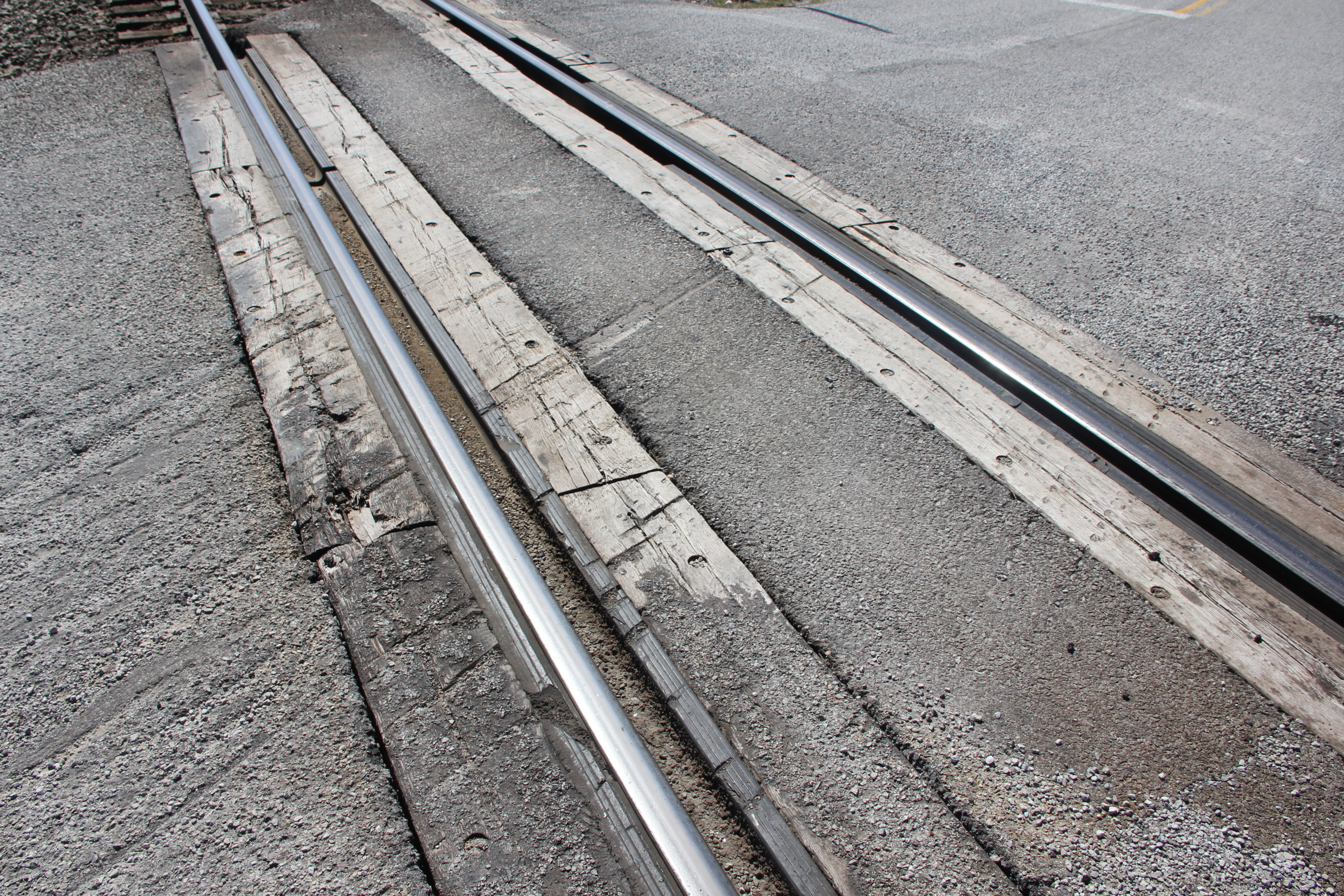

The grade is wood, rubber, and asphalt.

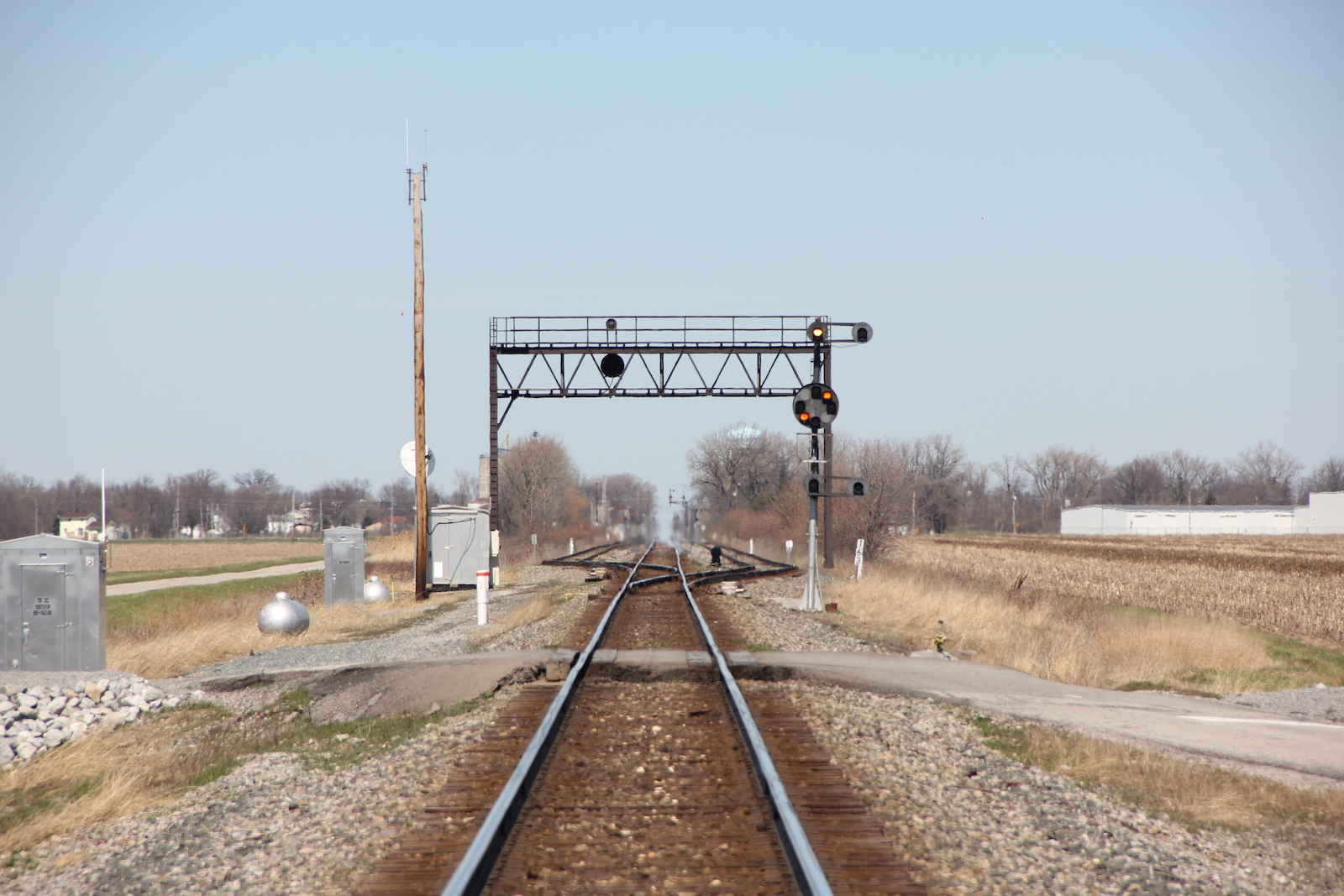

Track view facing north at Road 3 #2.
Road A in Belmore is to the south.

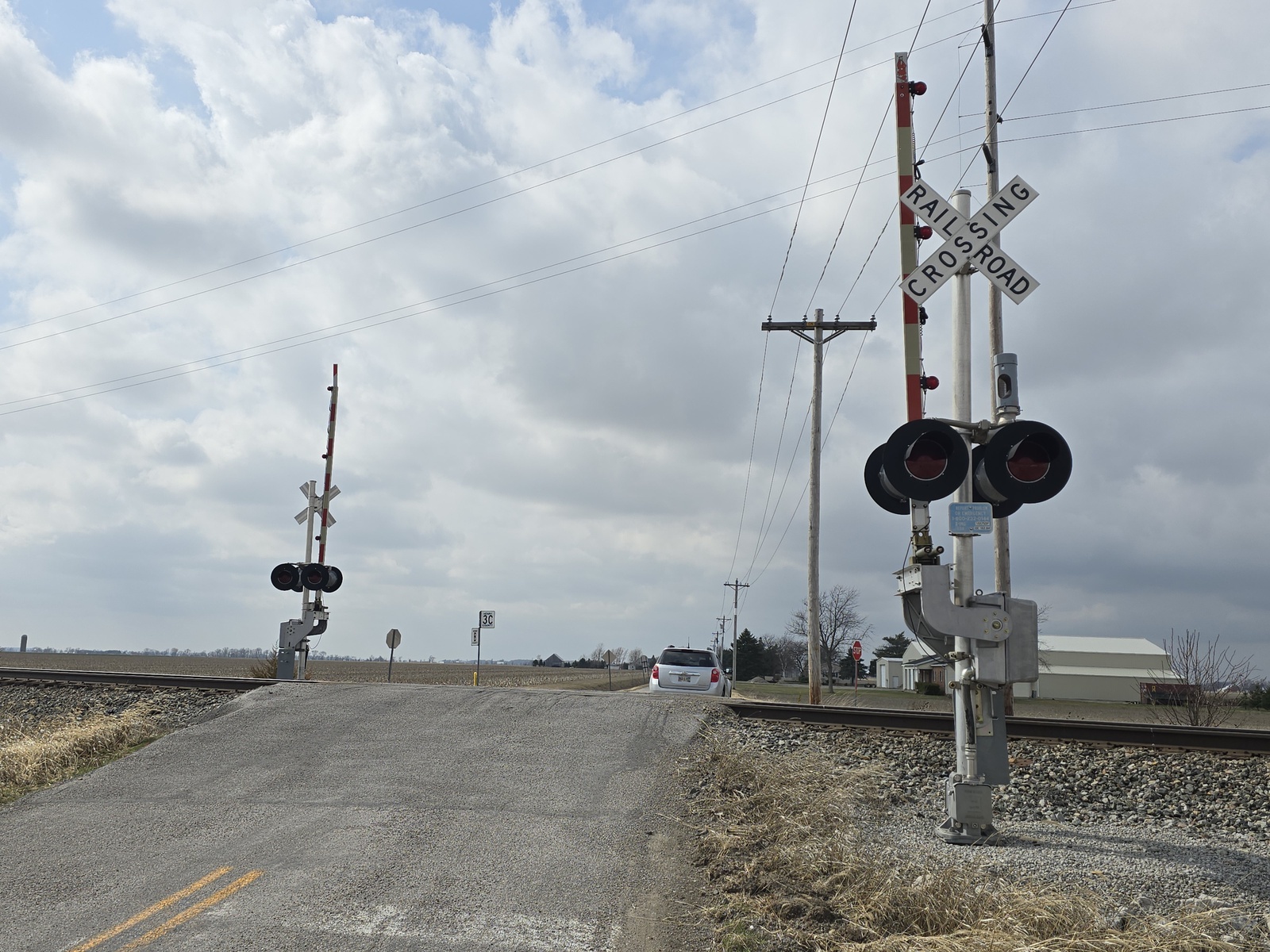

Note in the video below that the grade was resurfaced.
