Northern Signal
Southern Signal

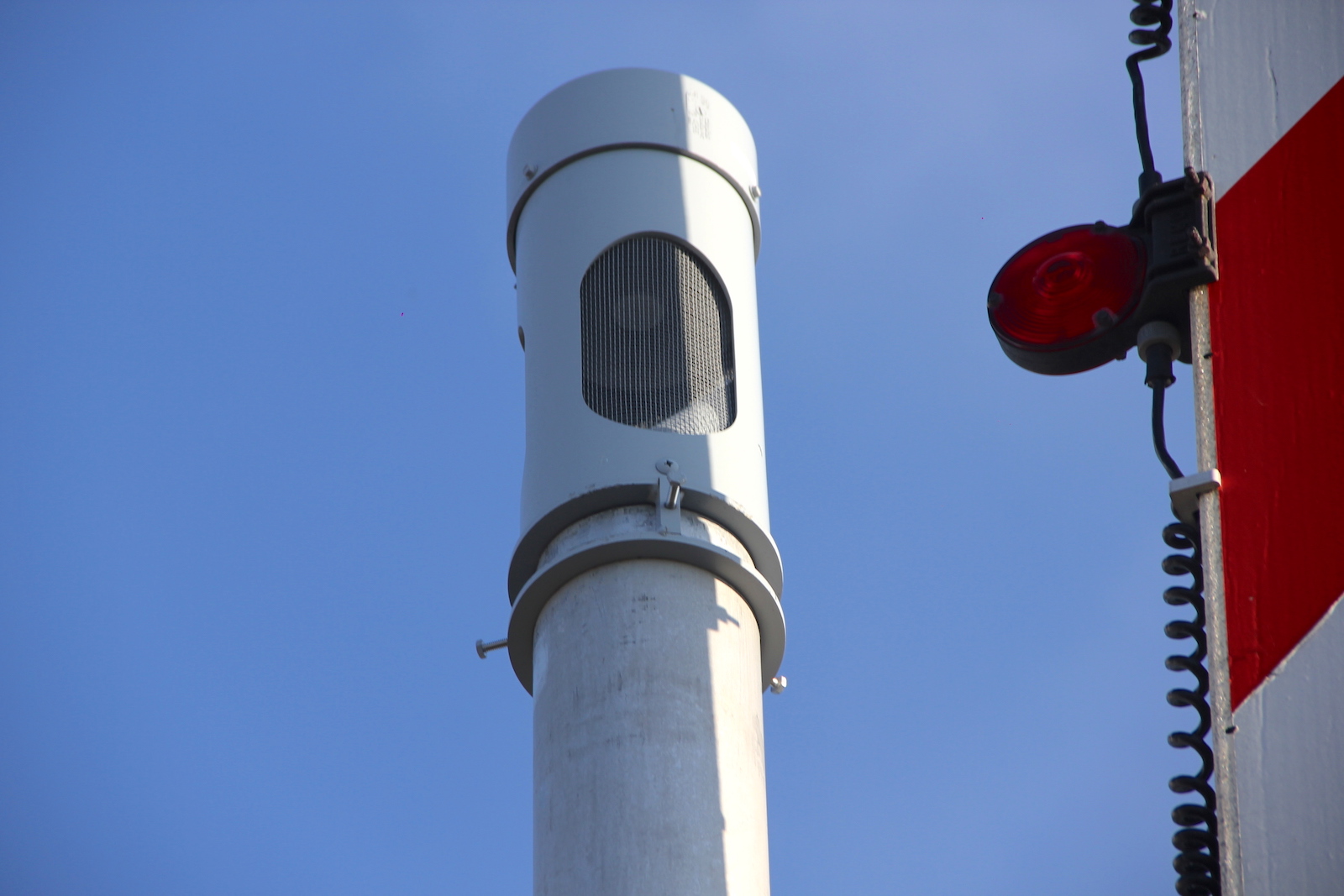

NEG E Bell

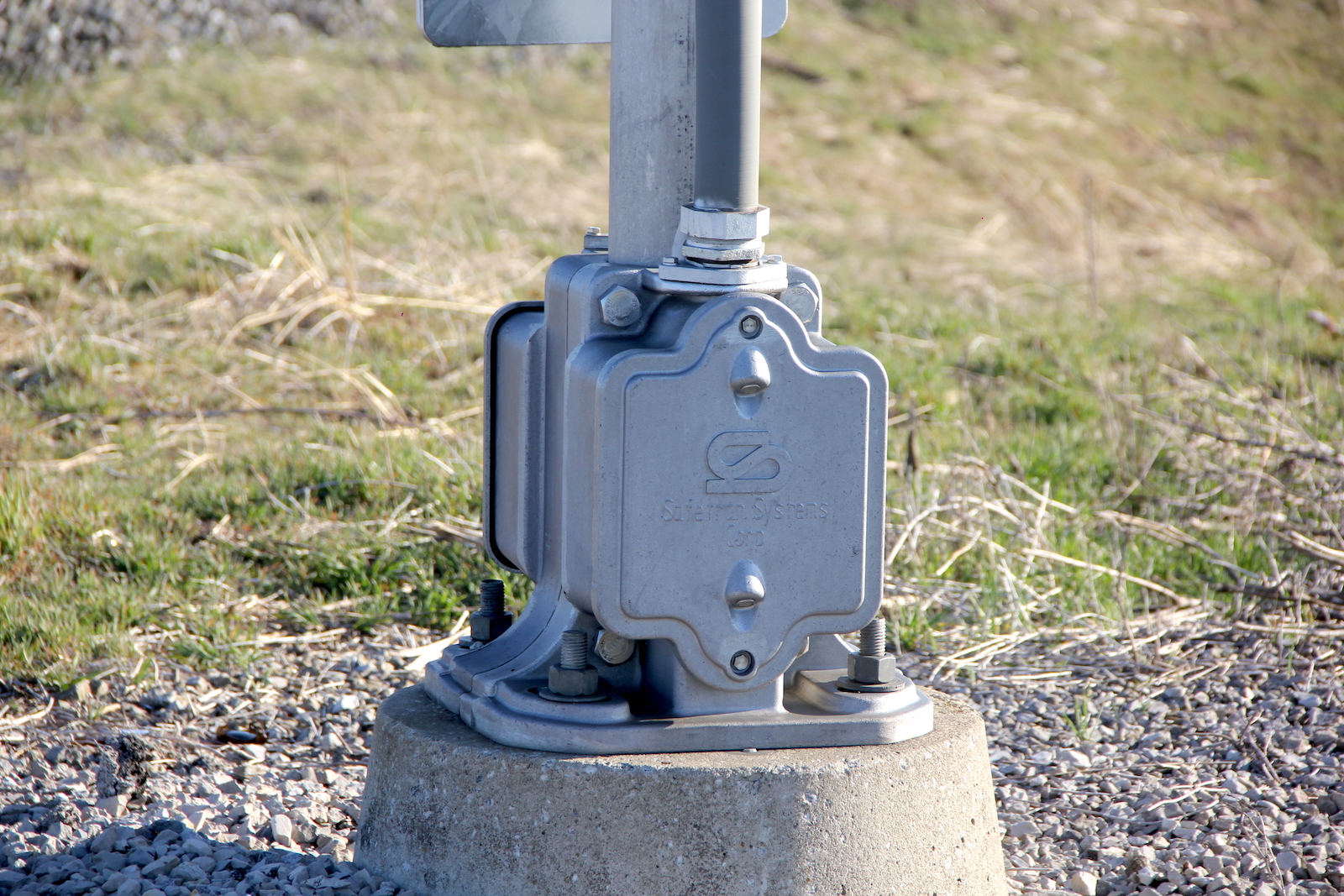

Base: Safetran Double Sided
Safetran Double Sided

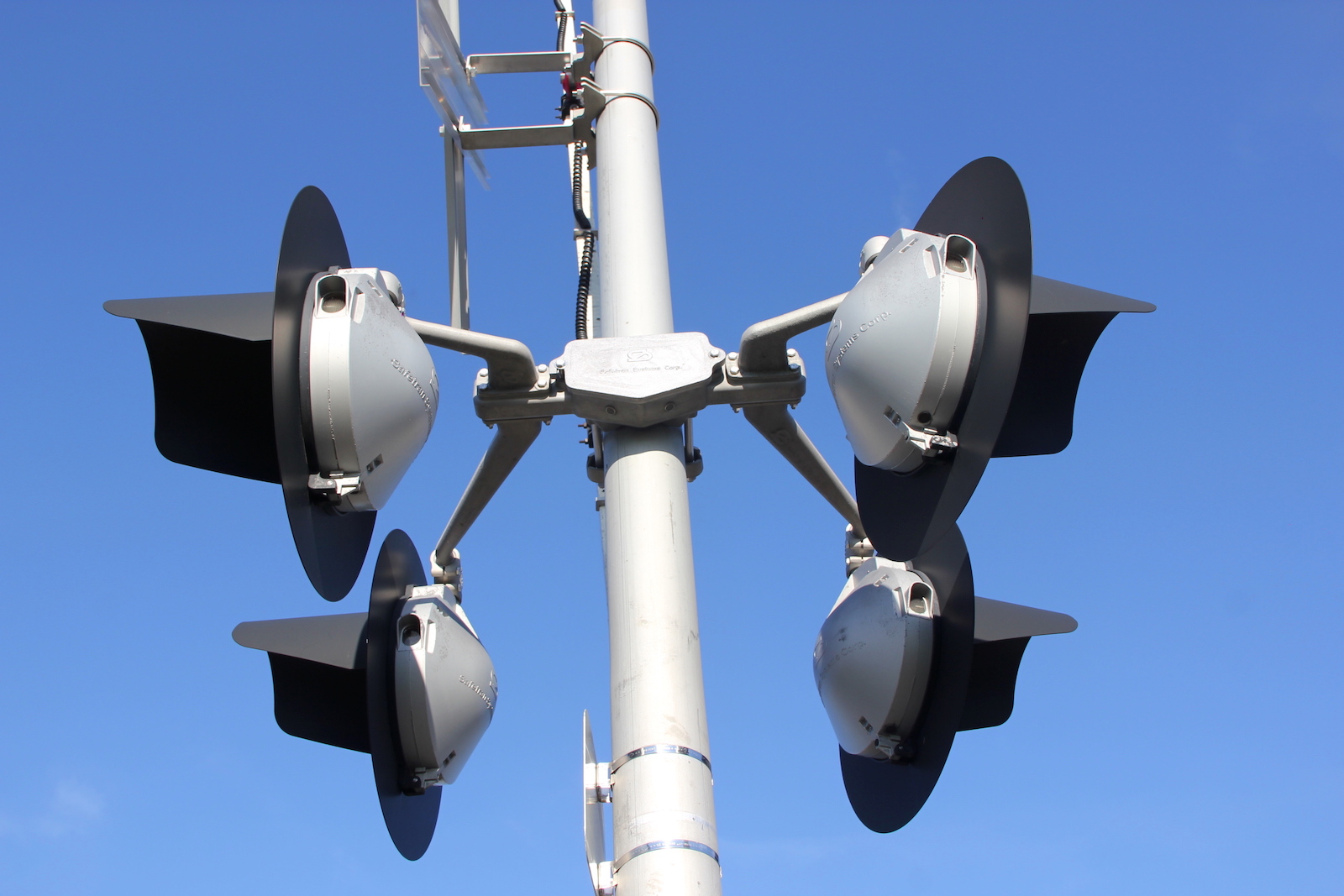

Main Lights: 2 pairs of 12"x24" Safetran incandescents
2 pairs of 12"x24" Safetran incandescents
Light Bracket:
Gate Lights: 4" RECO incandescents
4" RECO incandescents

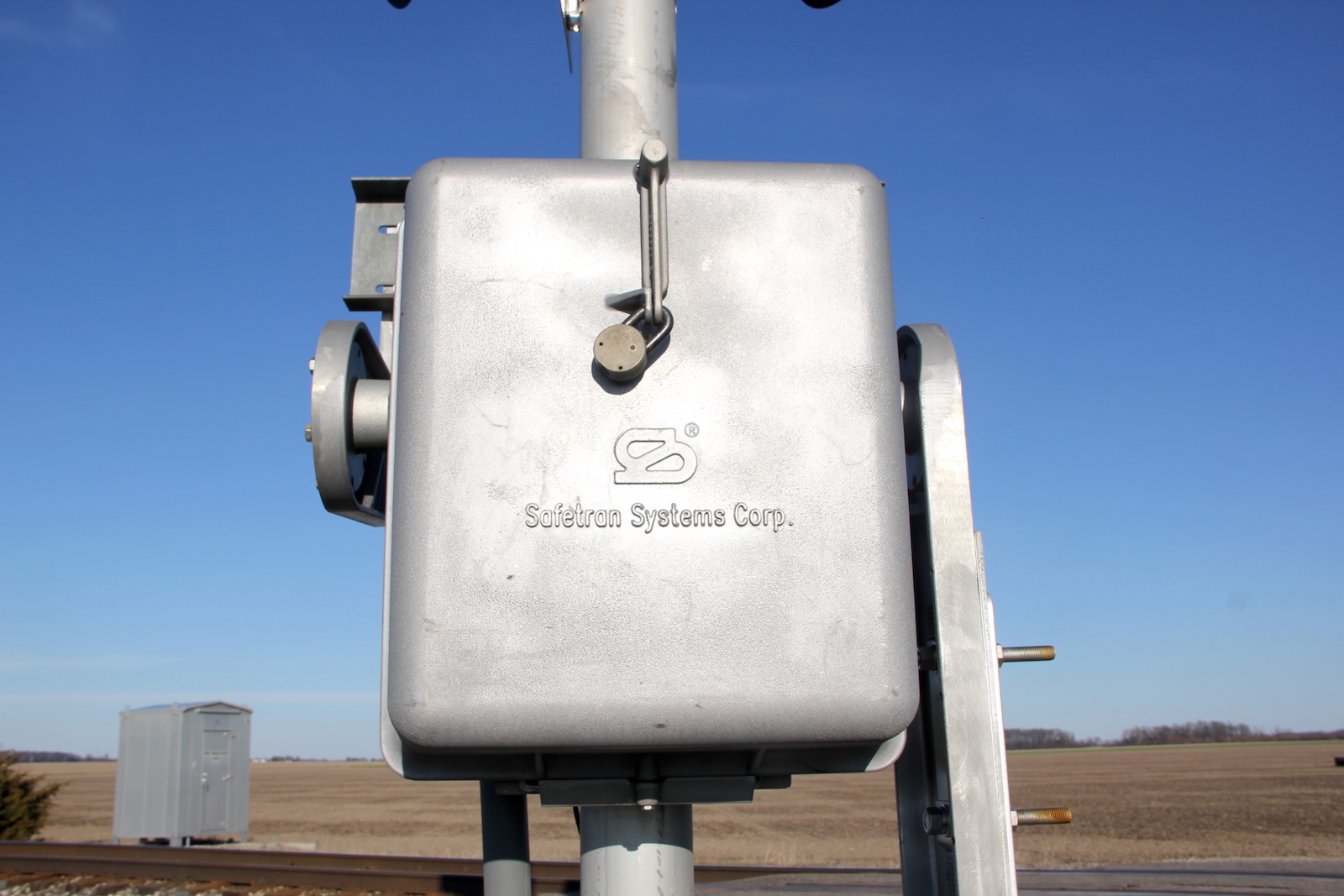

Gate Mechanism: Safetran
Gate Striping: |||||//////////////////////////////////////////////// |||||///////////////////////////////////////////////
Crossbuck font:
Normal font
Normal font
Bell Cycle: N/A
Rings only while the gates are lowering

All pictures and the video were taken on April 8, 2017, by Tommy McGowan.
This crossing is located on the CSX Toledo Sub.

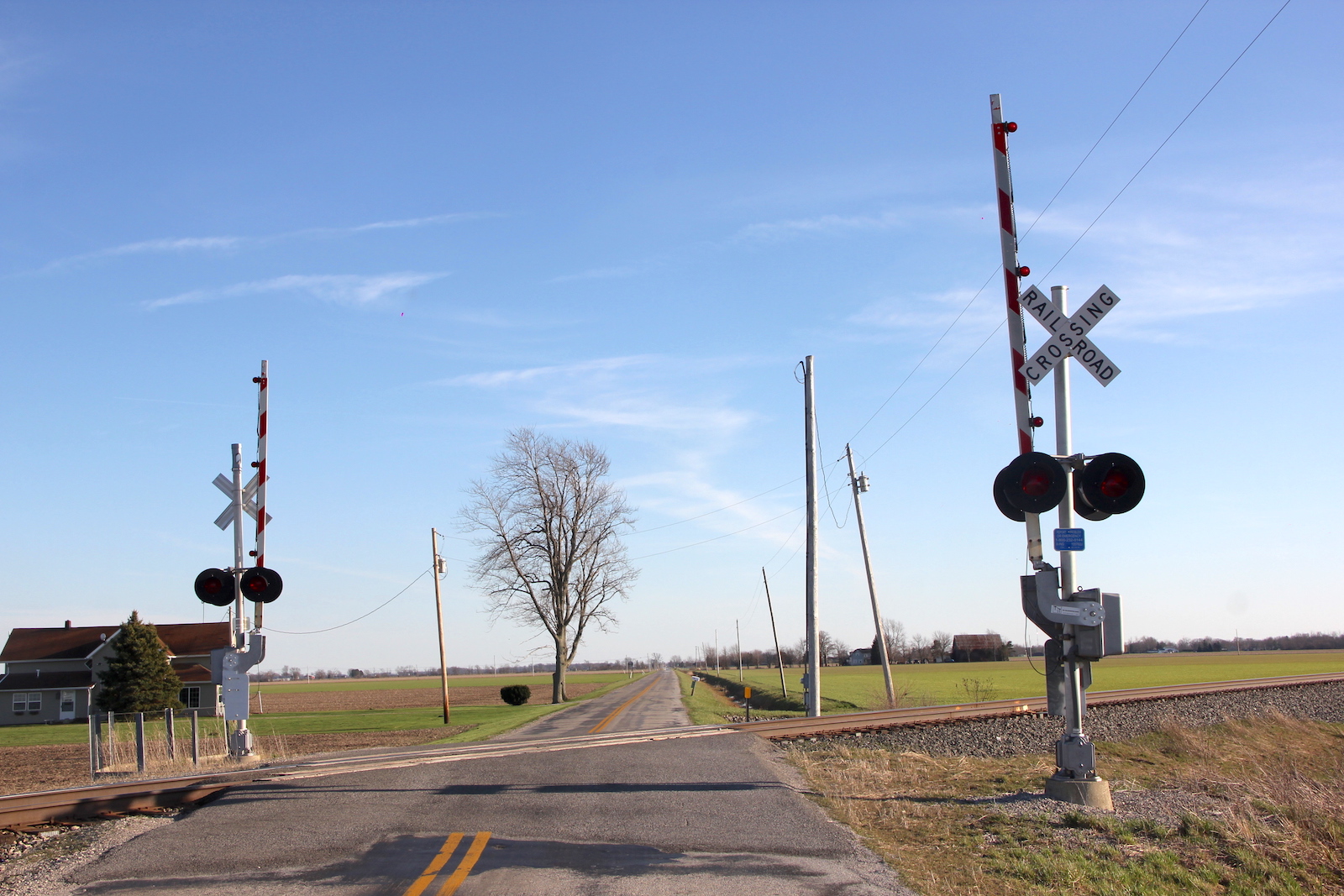

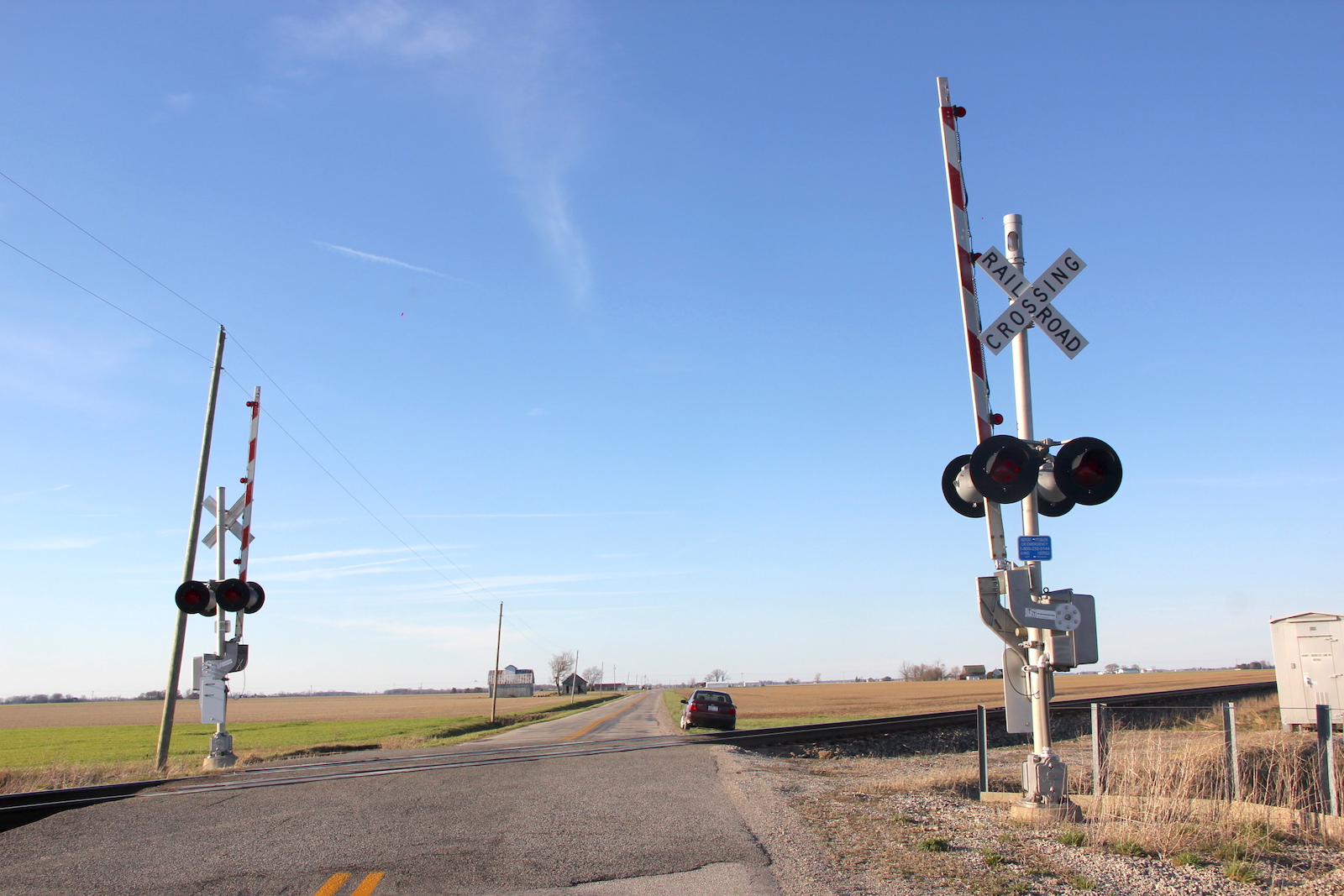

Overview of 2 gated signals facing south.
Overview facing north.
3 4 5
6 7 8
9 10 11

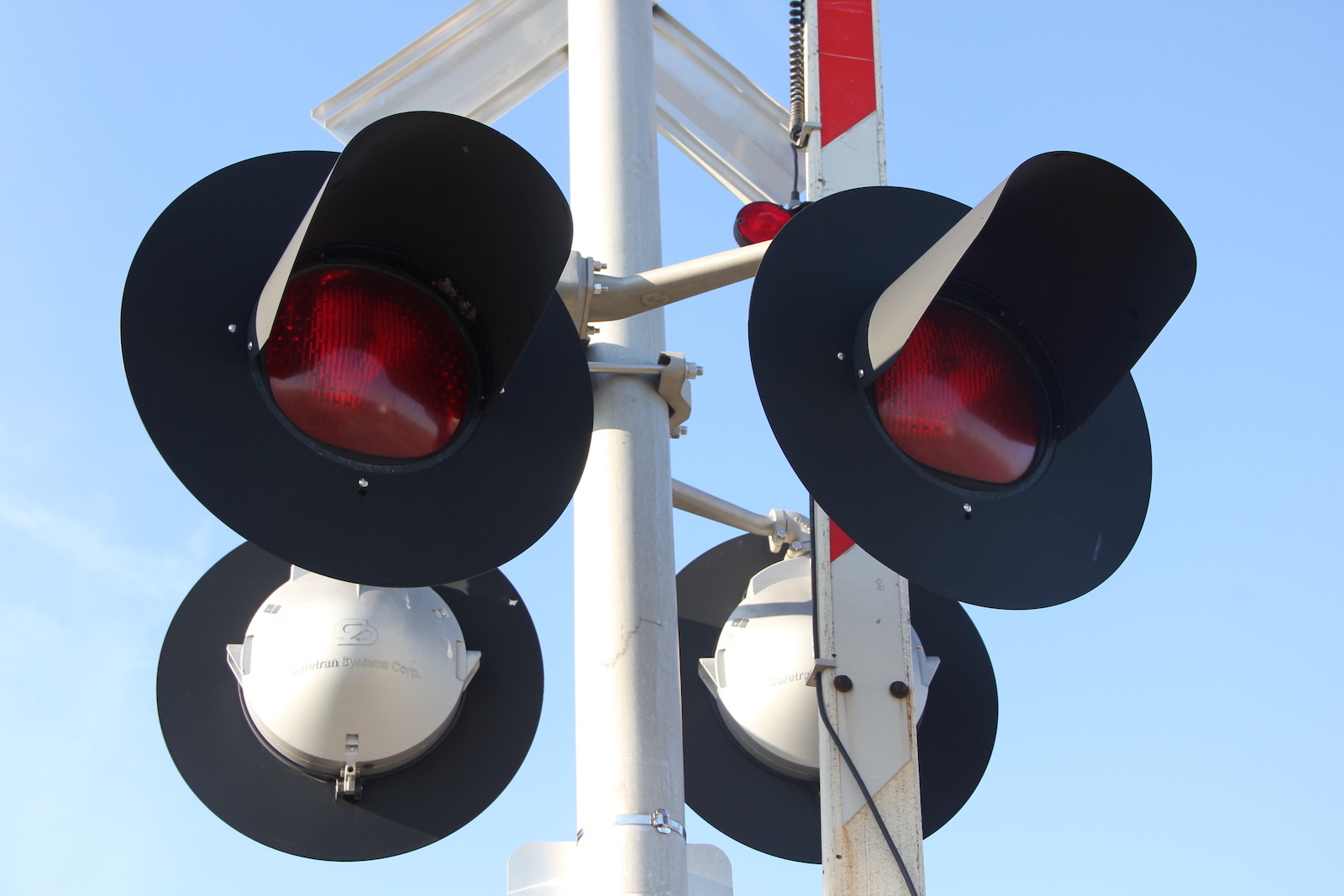

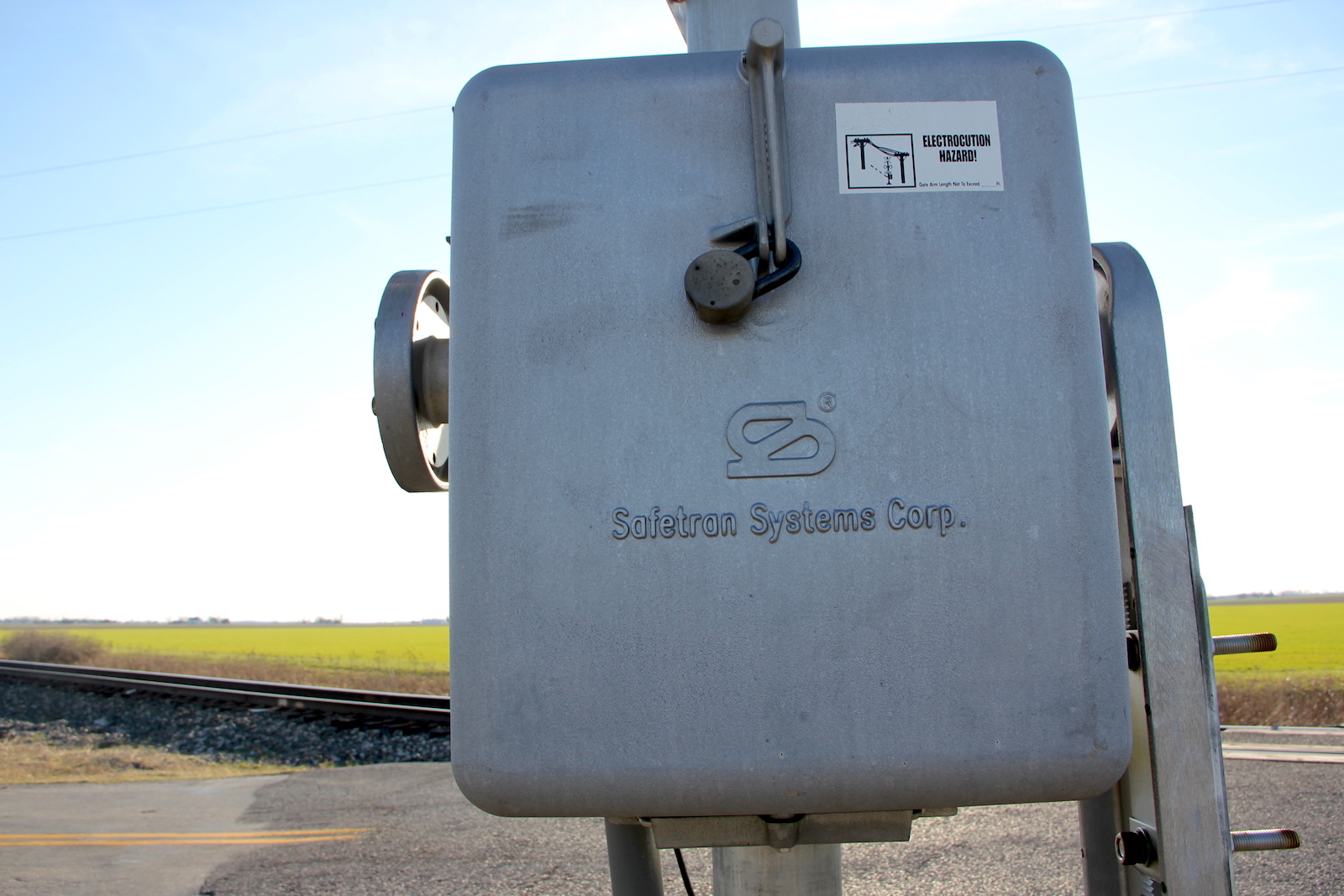

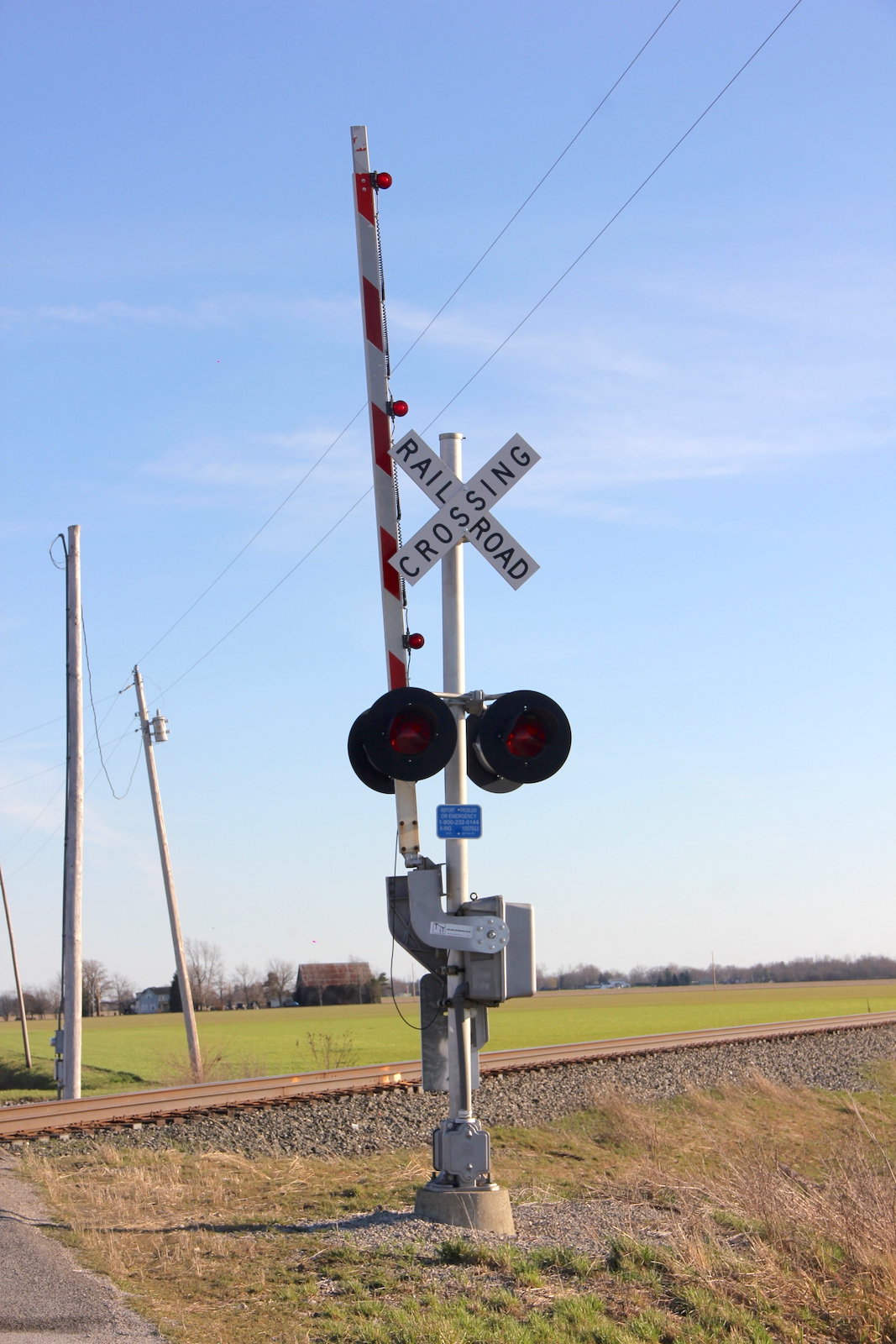

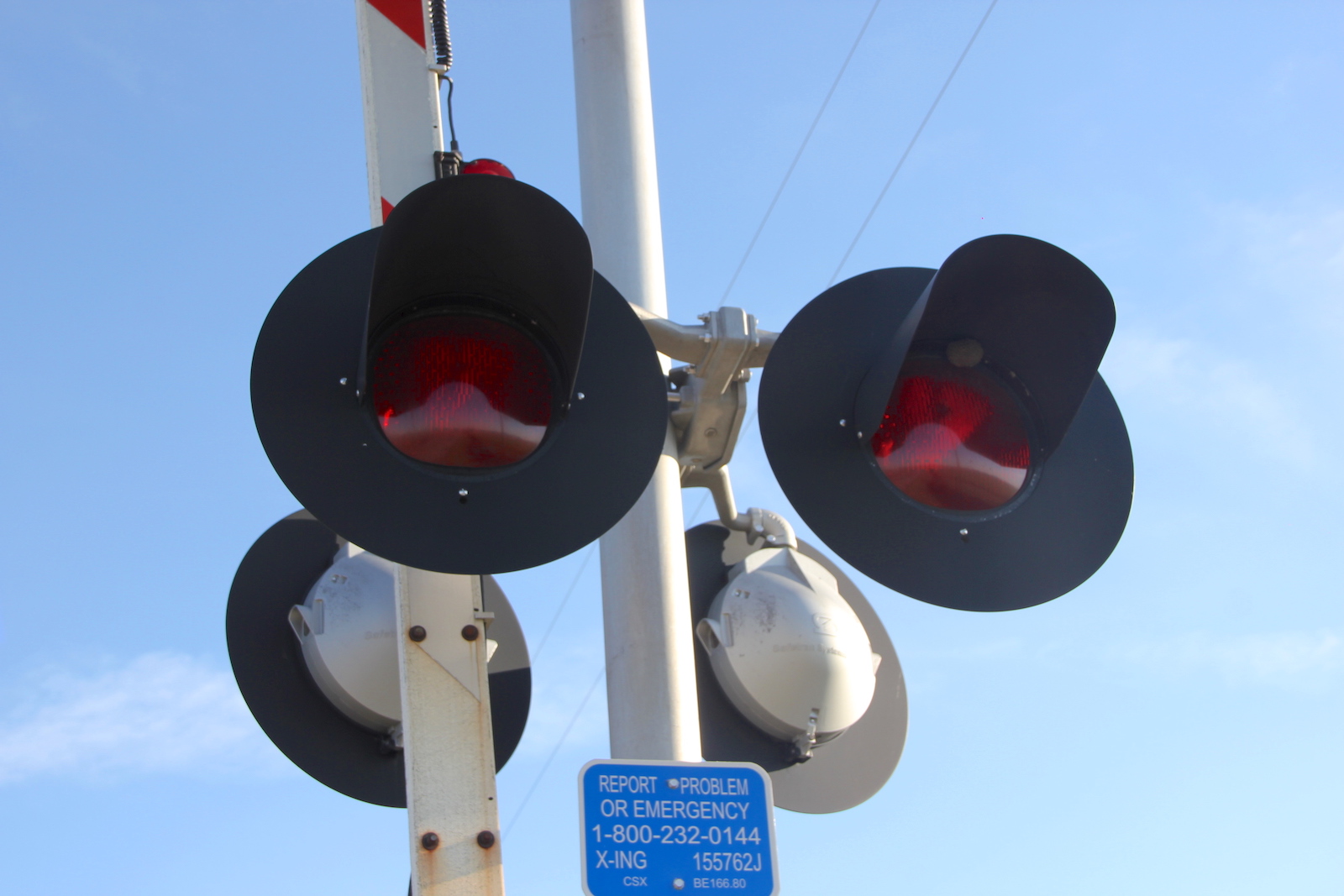

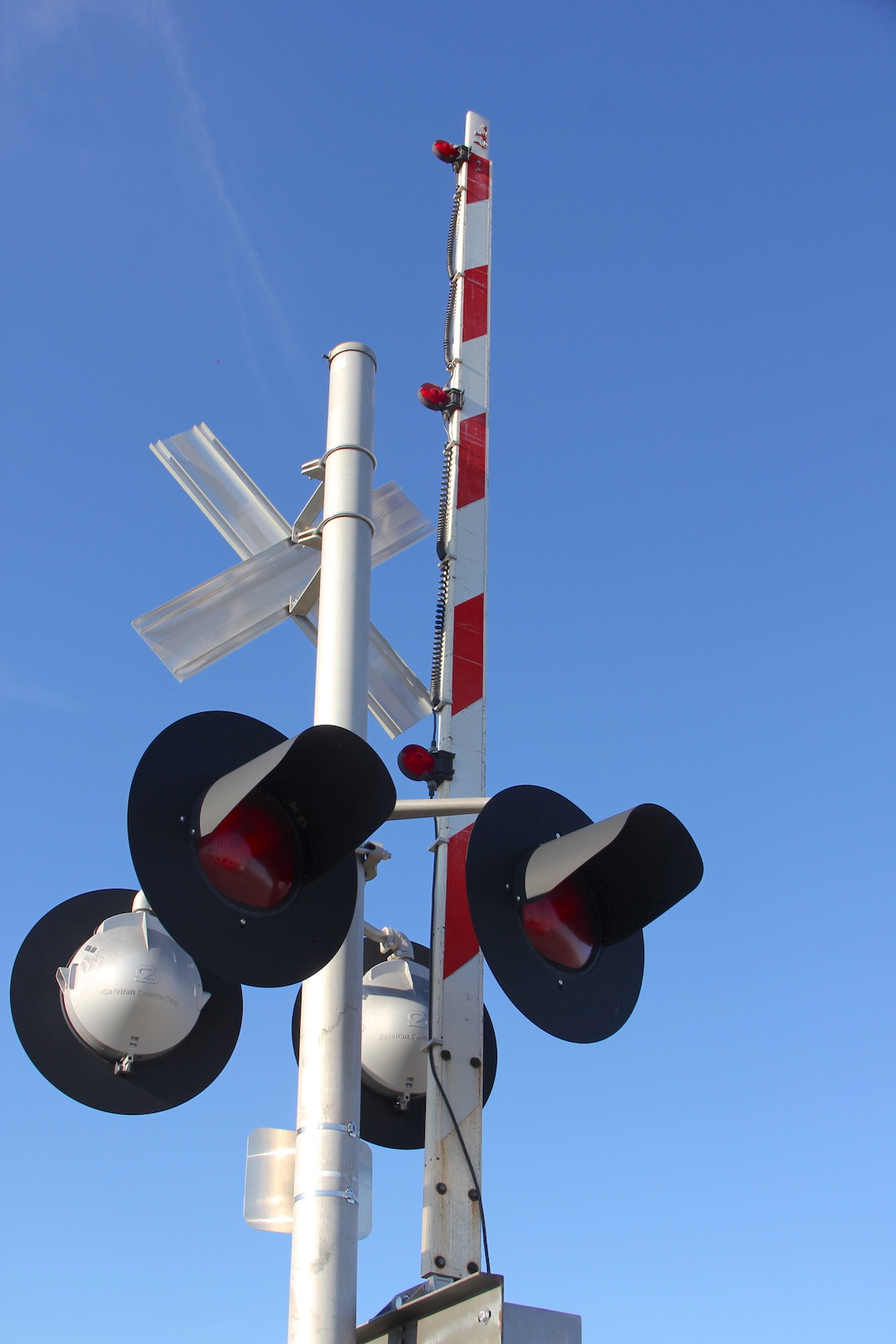

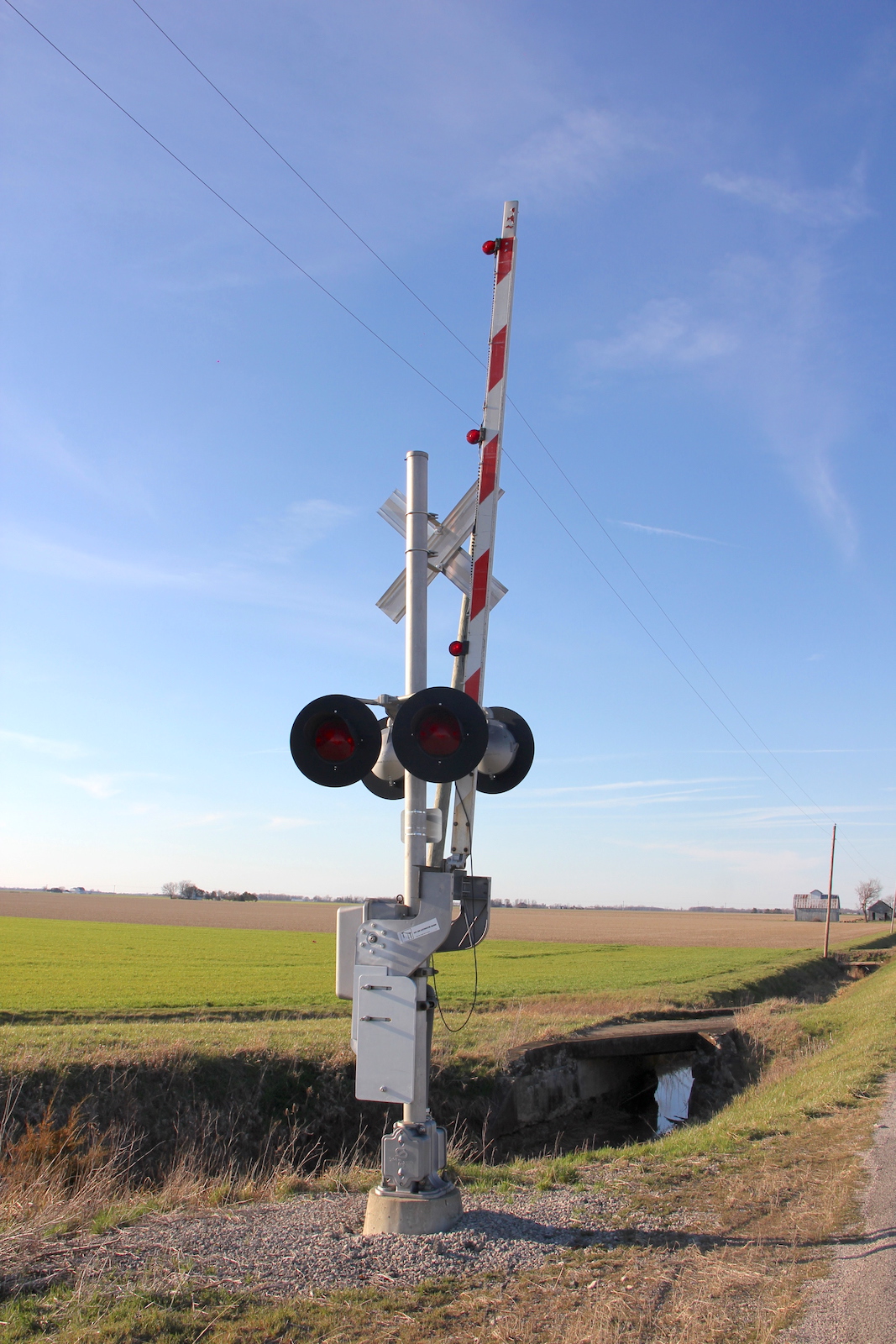

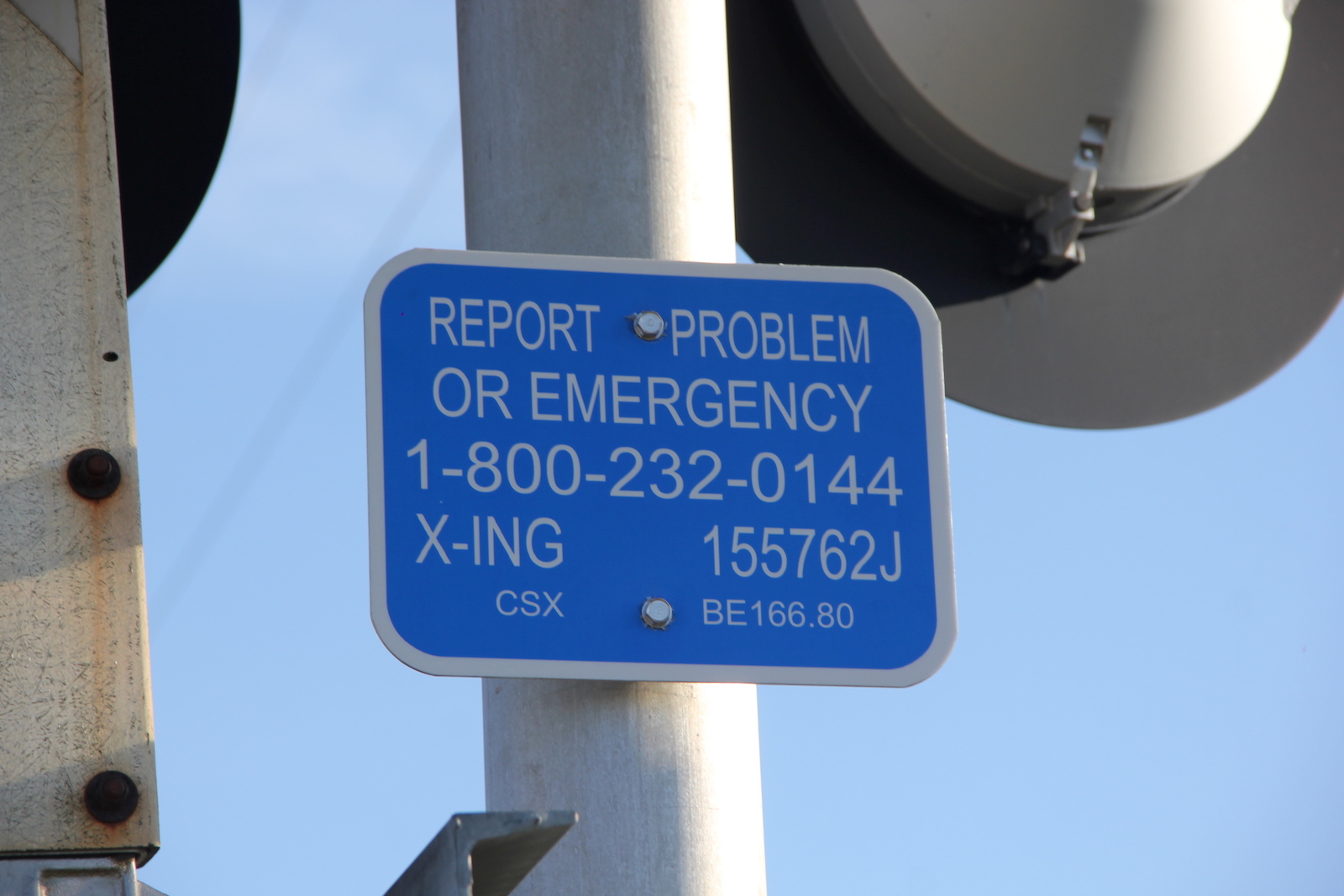

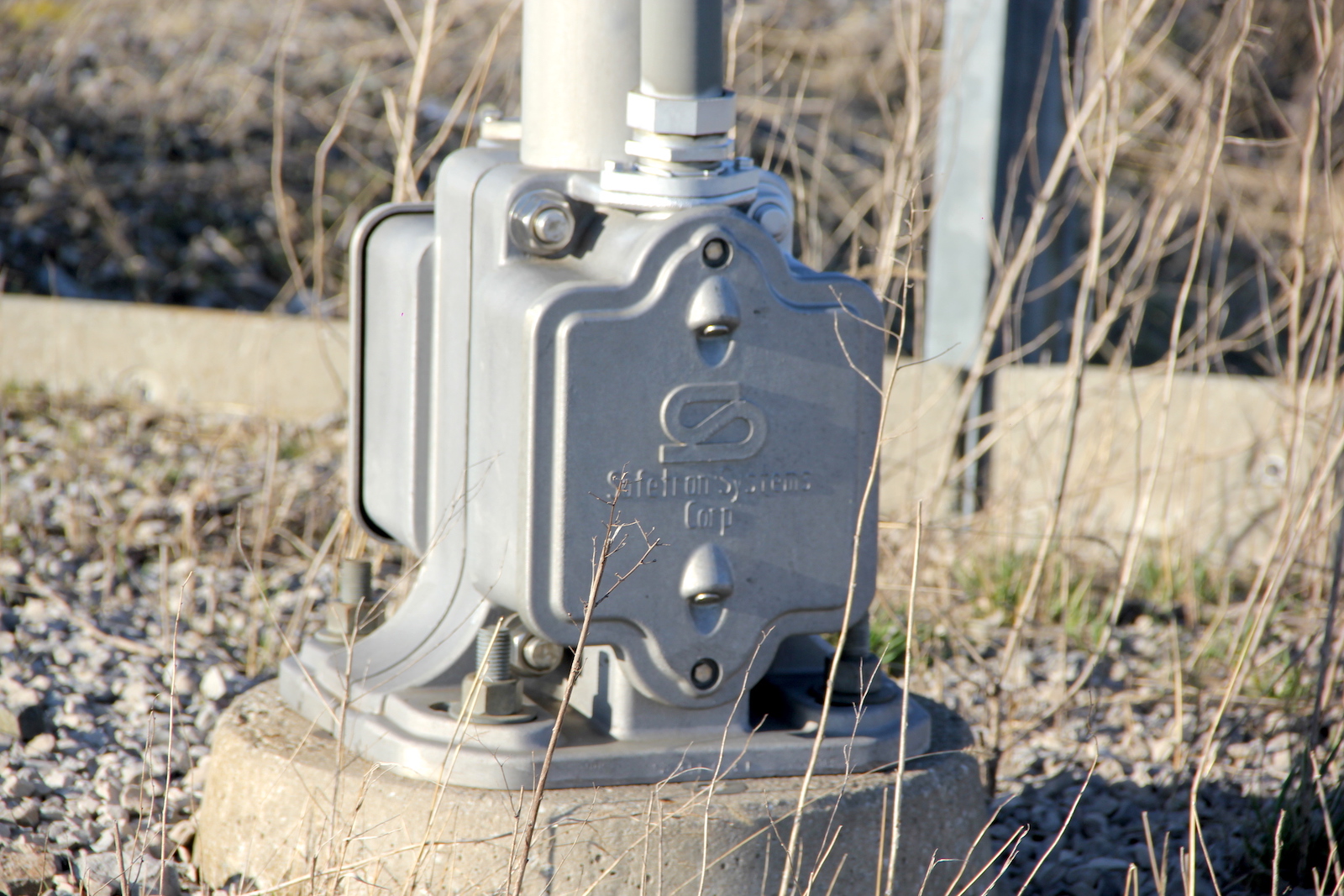

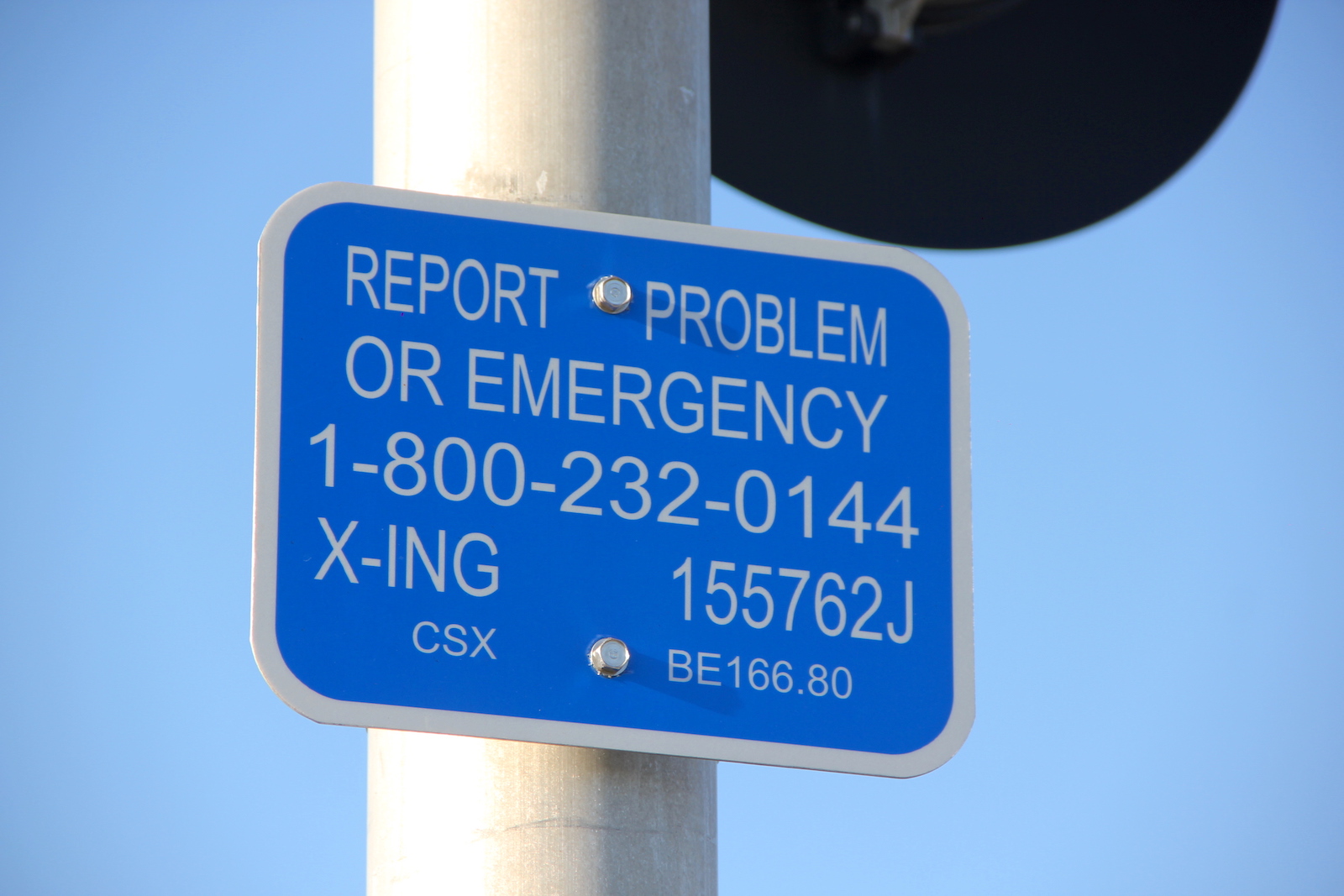

The northern signal.
12 13 14
15 16 17
18 19 20

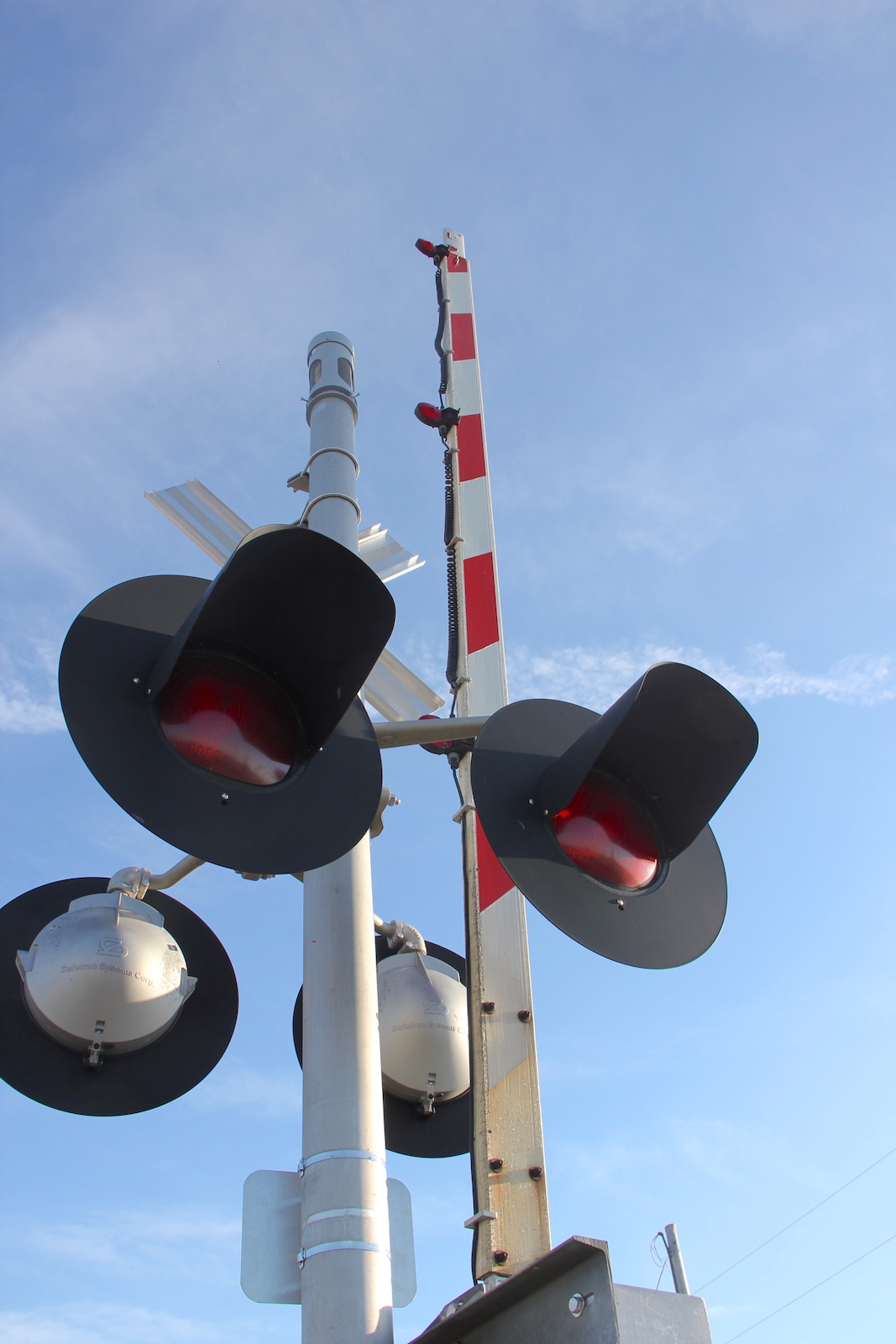

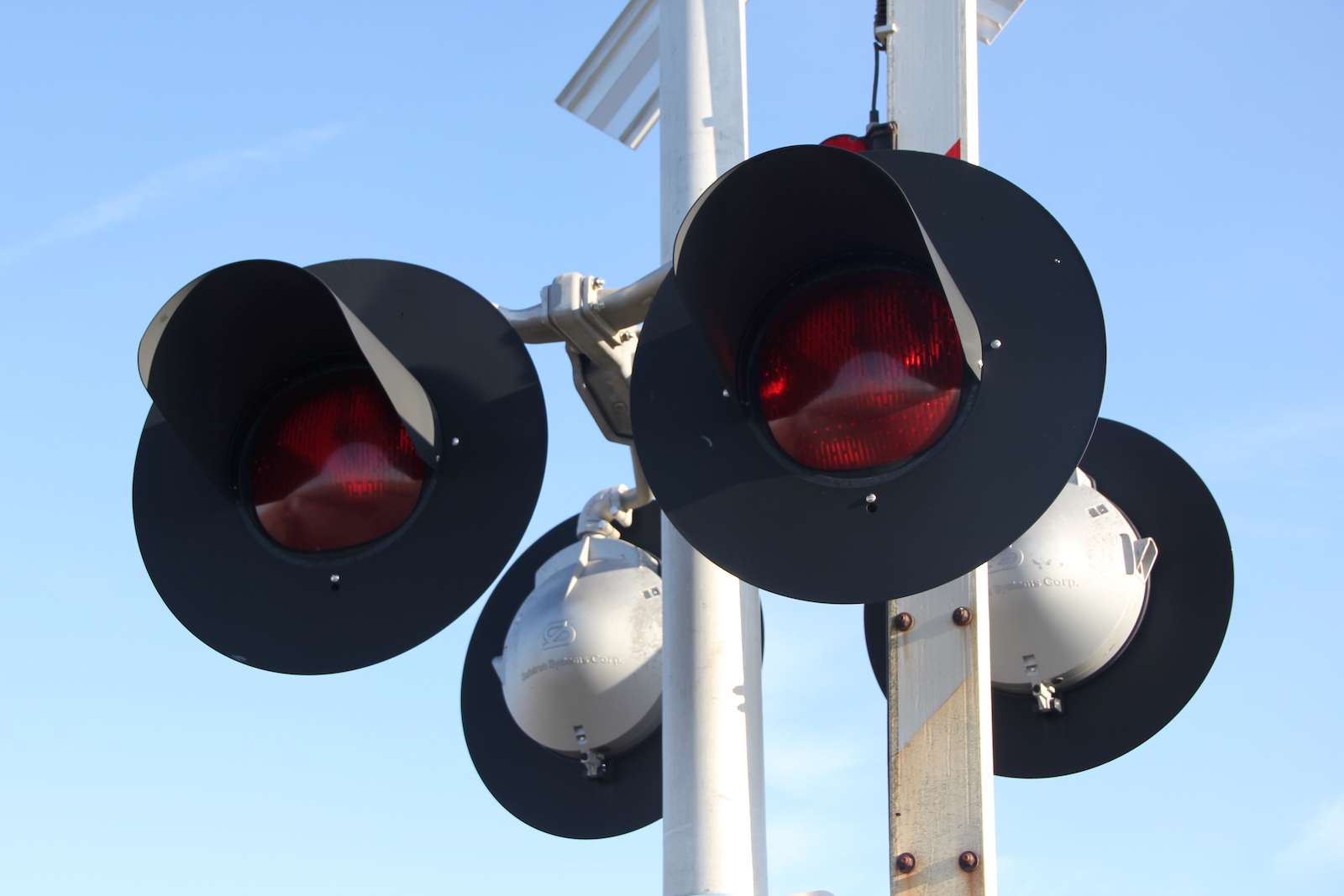

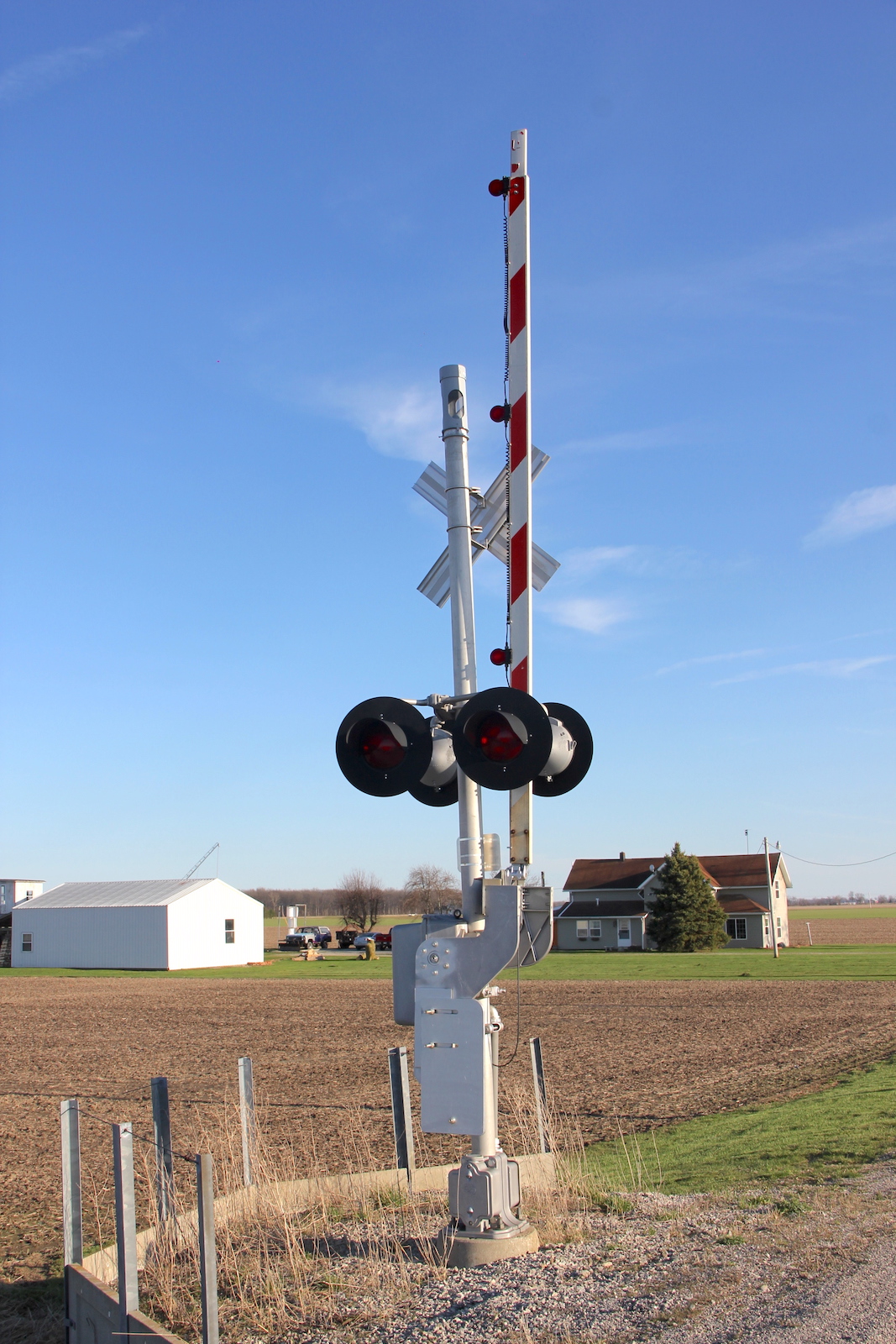

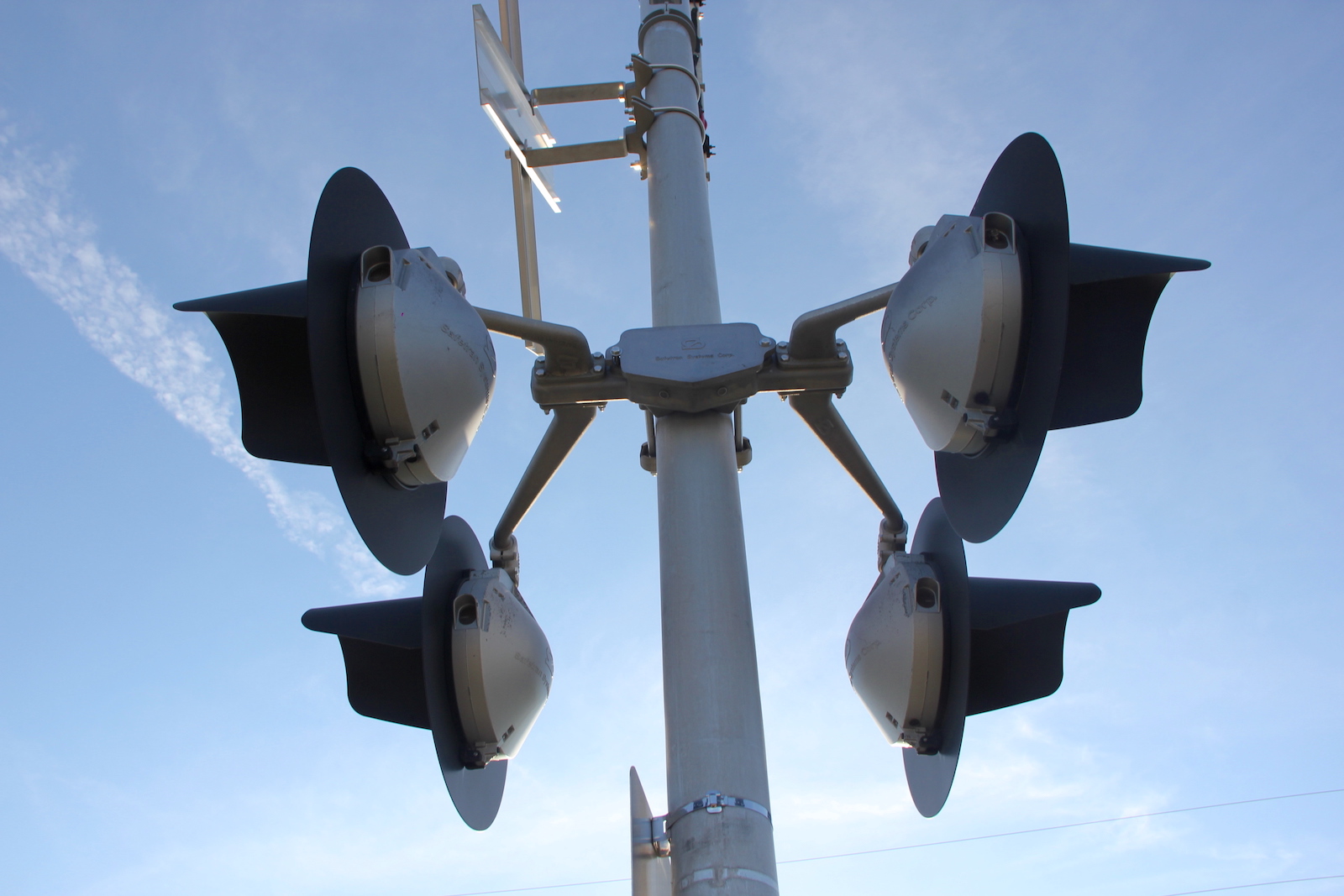

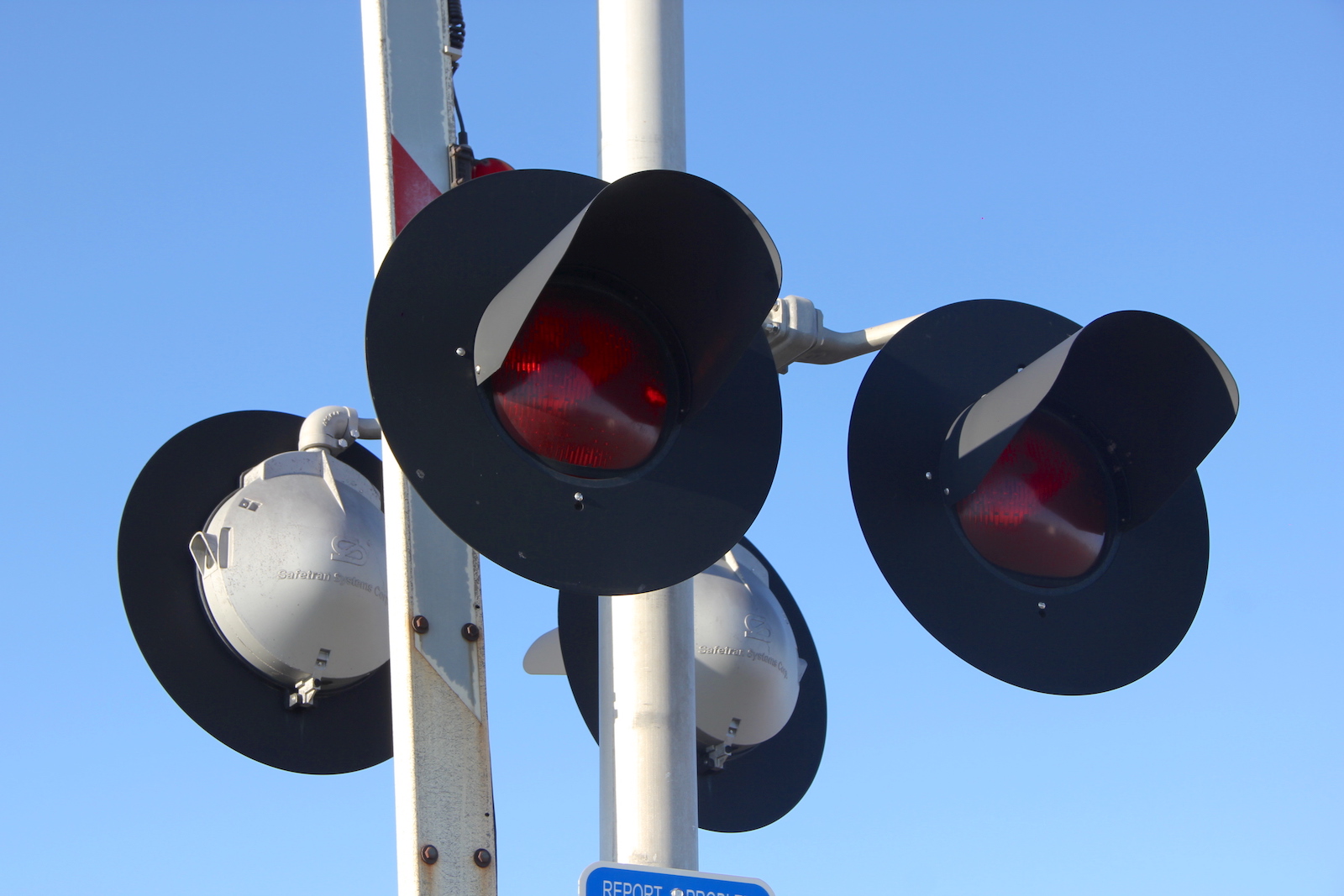

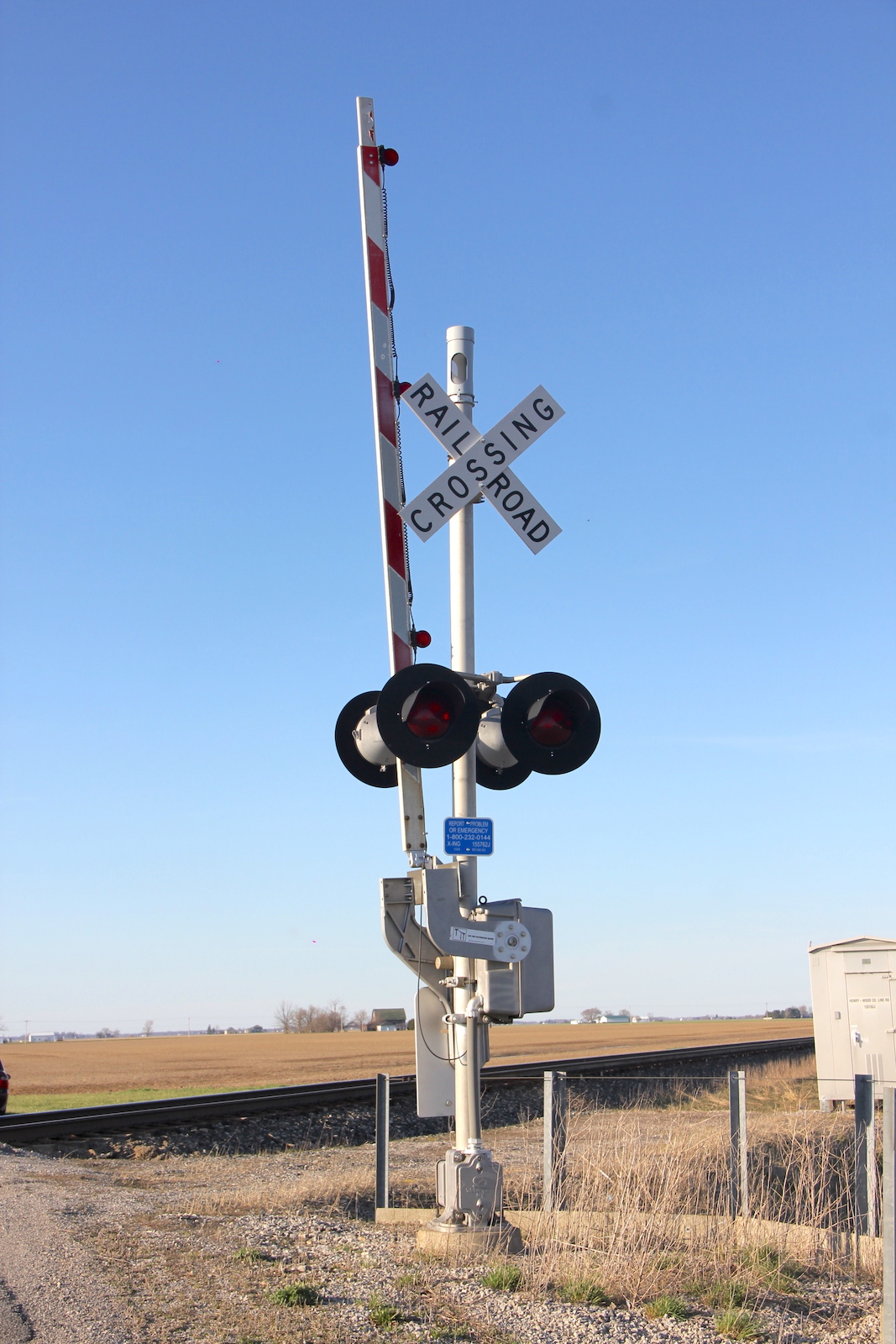

The southern signal.
22 23 24 25

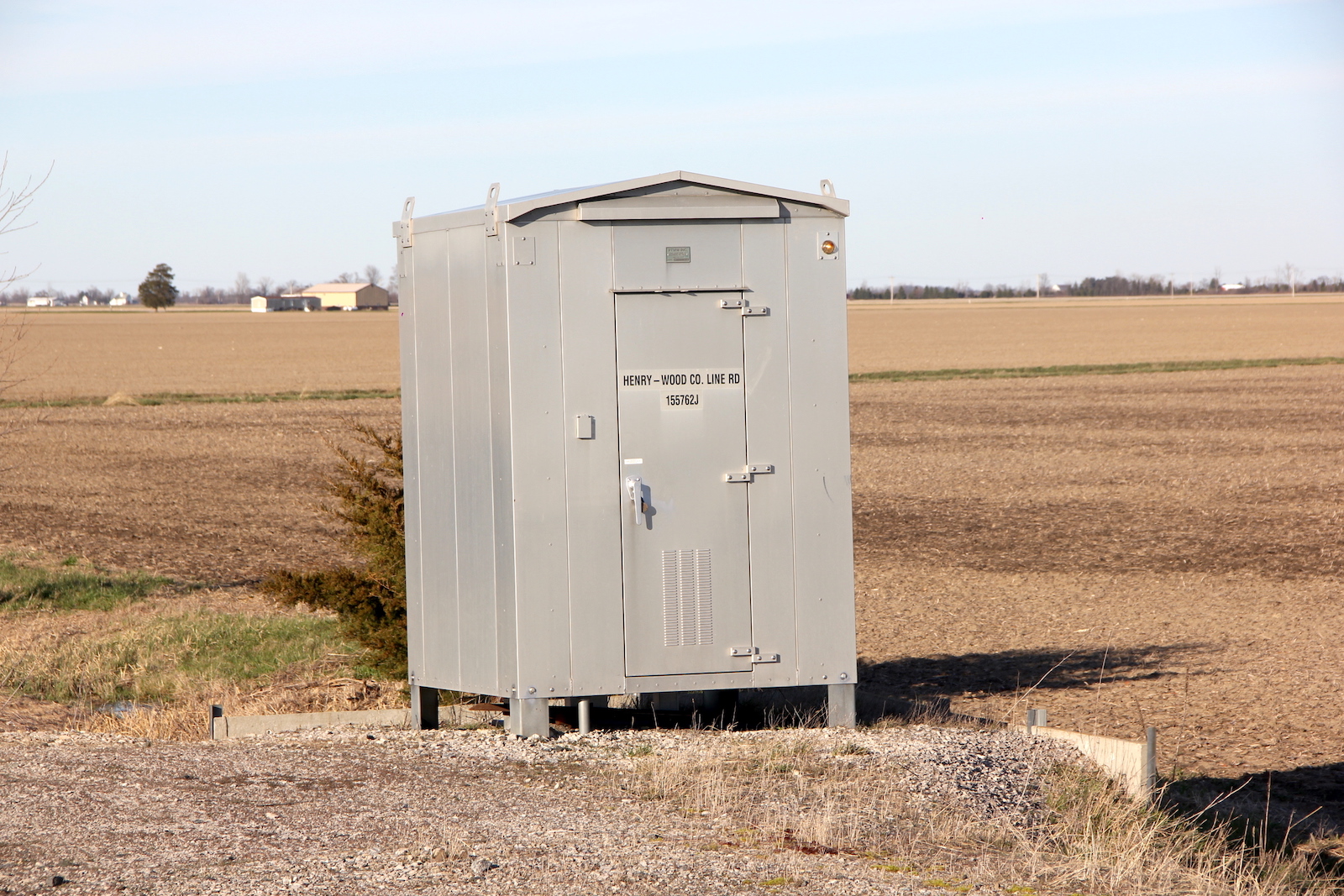

The relay bungalow in the southeast quadrant.

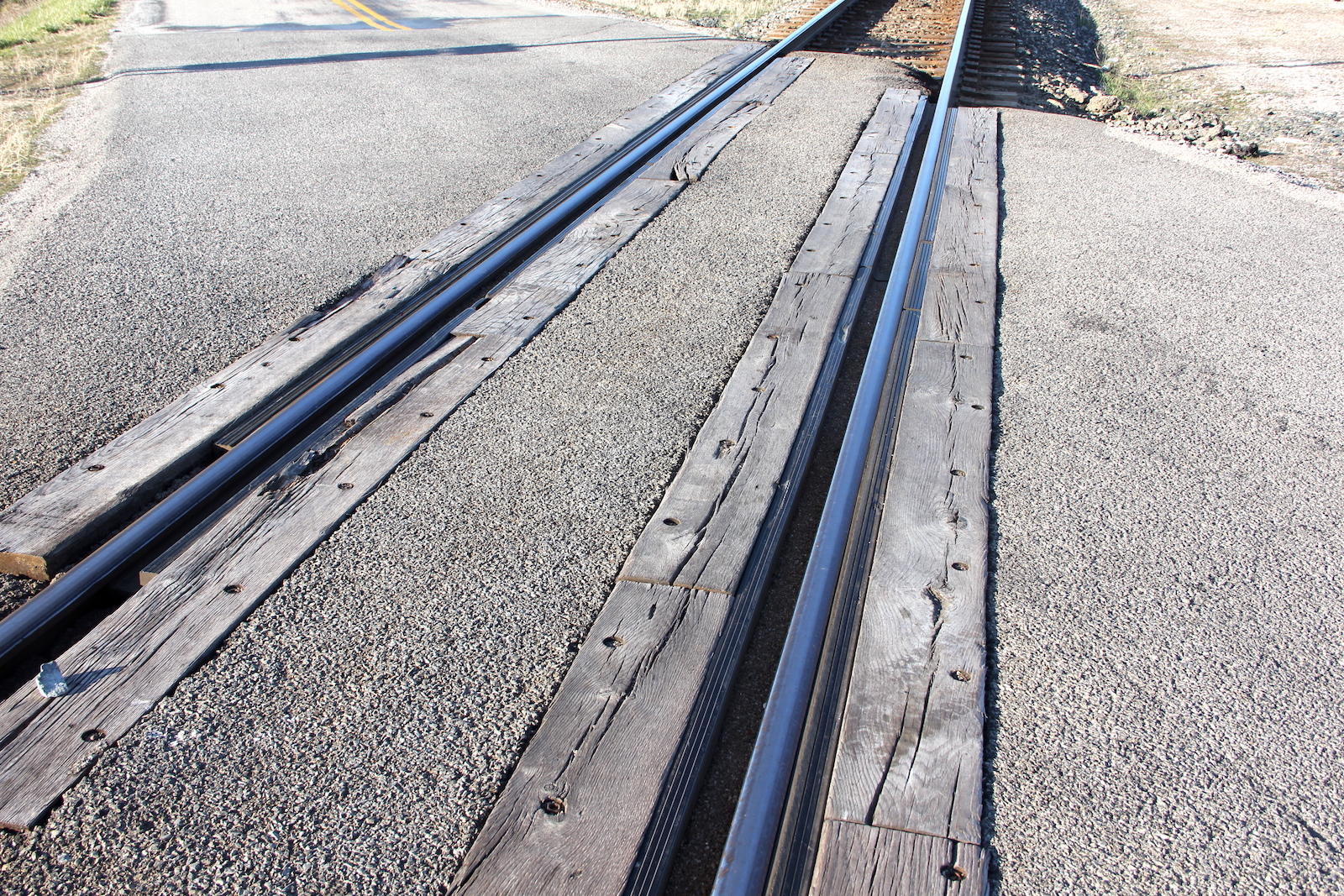

The grade is wood, rubber, and asphalt.

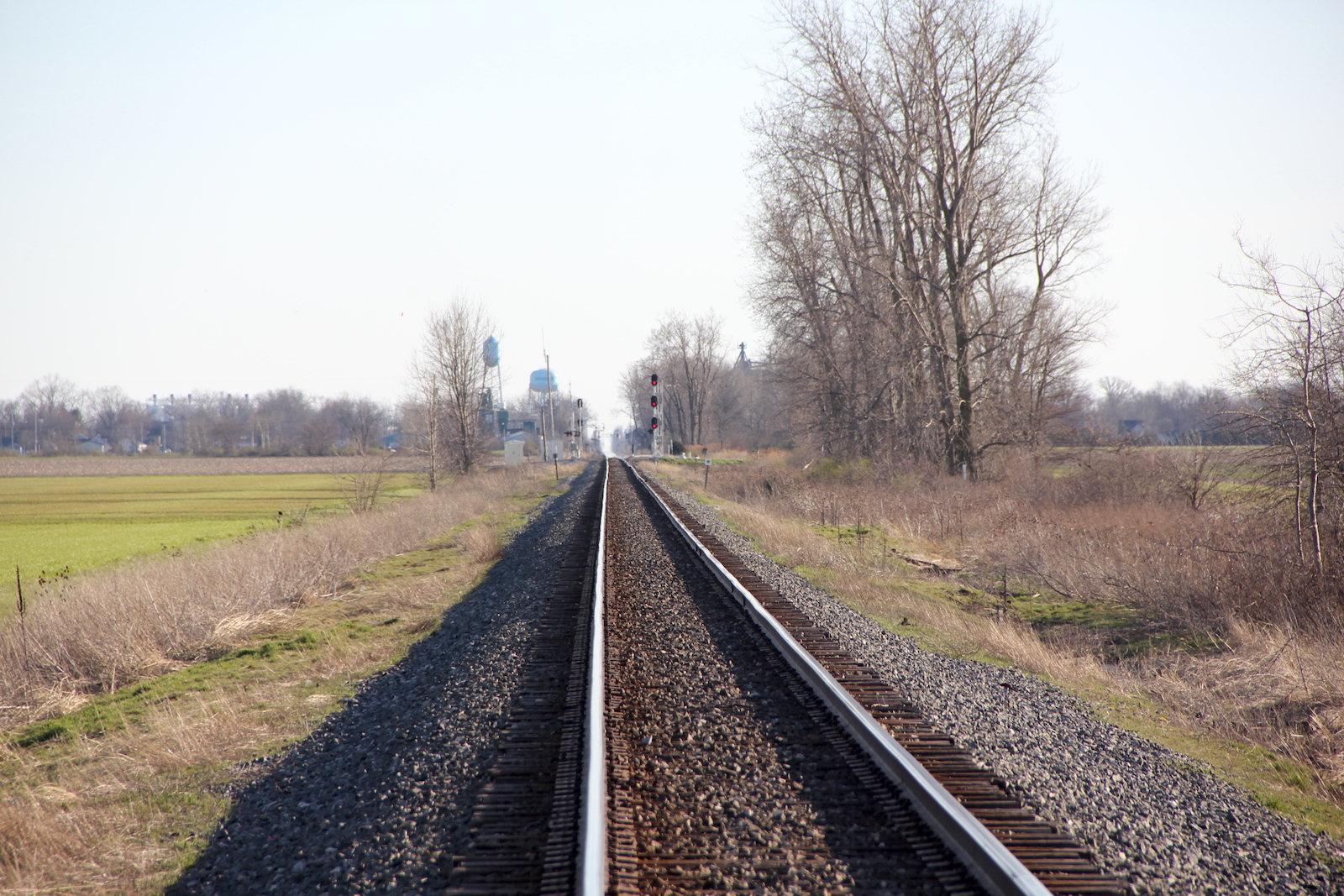

Track view facing north towards Cygnet Rd.

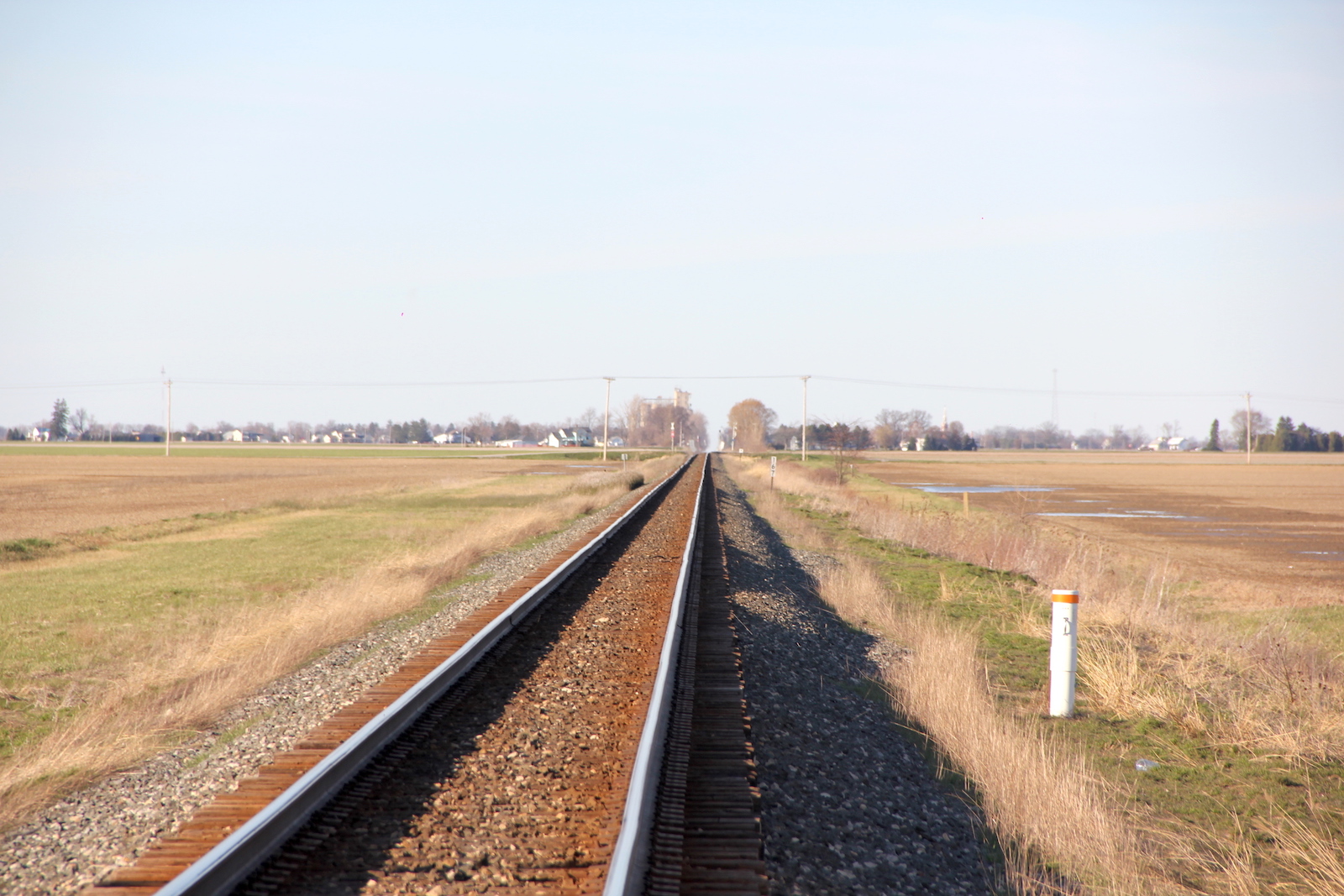

Track view facing south towards Road E.

During the entire time I was photographing, plus before and after I was here, the crossing was malfunctioning.  The signals would activate for about 20 seconds, deactivate for 20 seconds, and then start the whole process over again.  I have no idea why it was doing this, but I did call CSX about it, and I assume it was fixed shortly after.

26 27 28
29 30 31 32

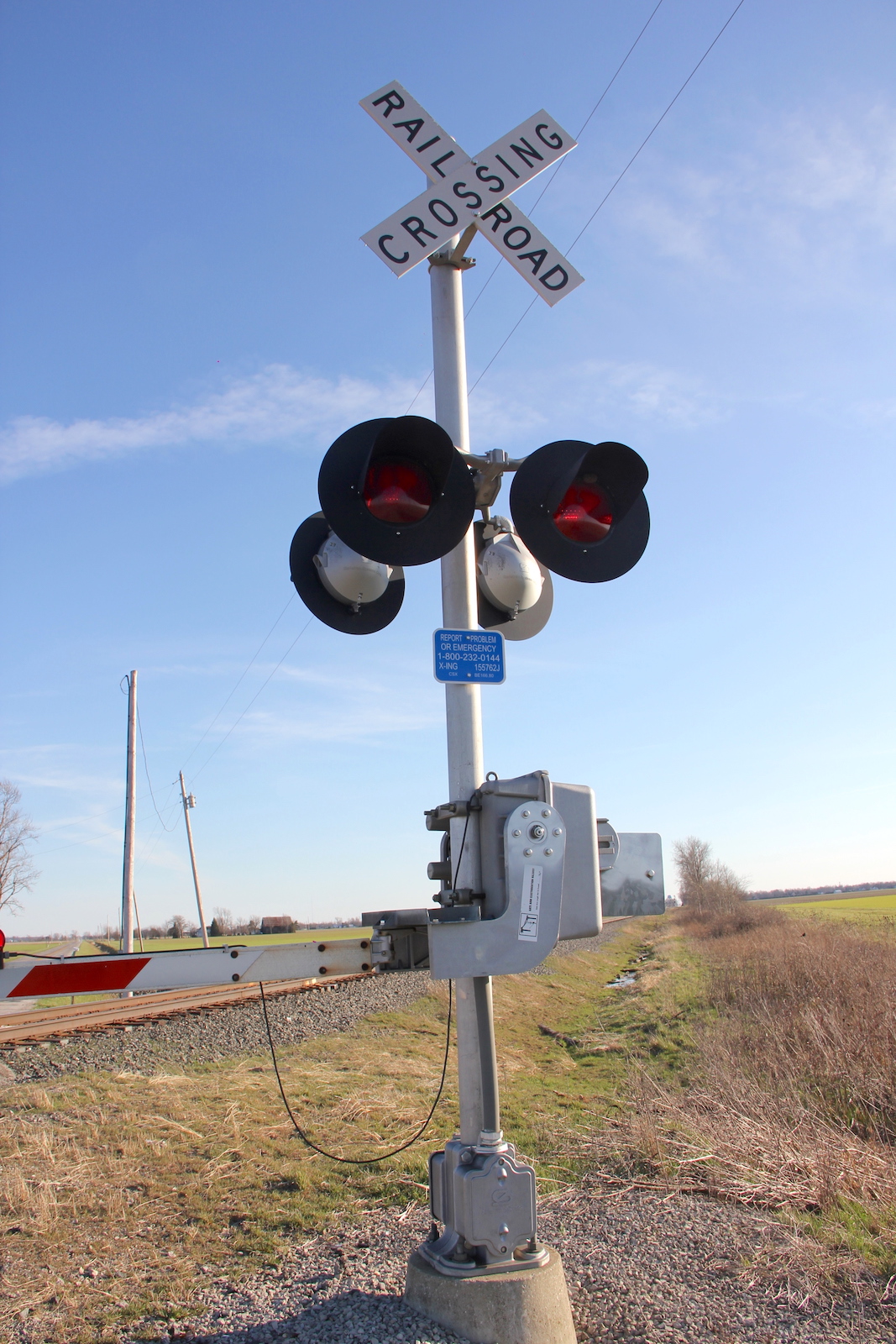

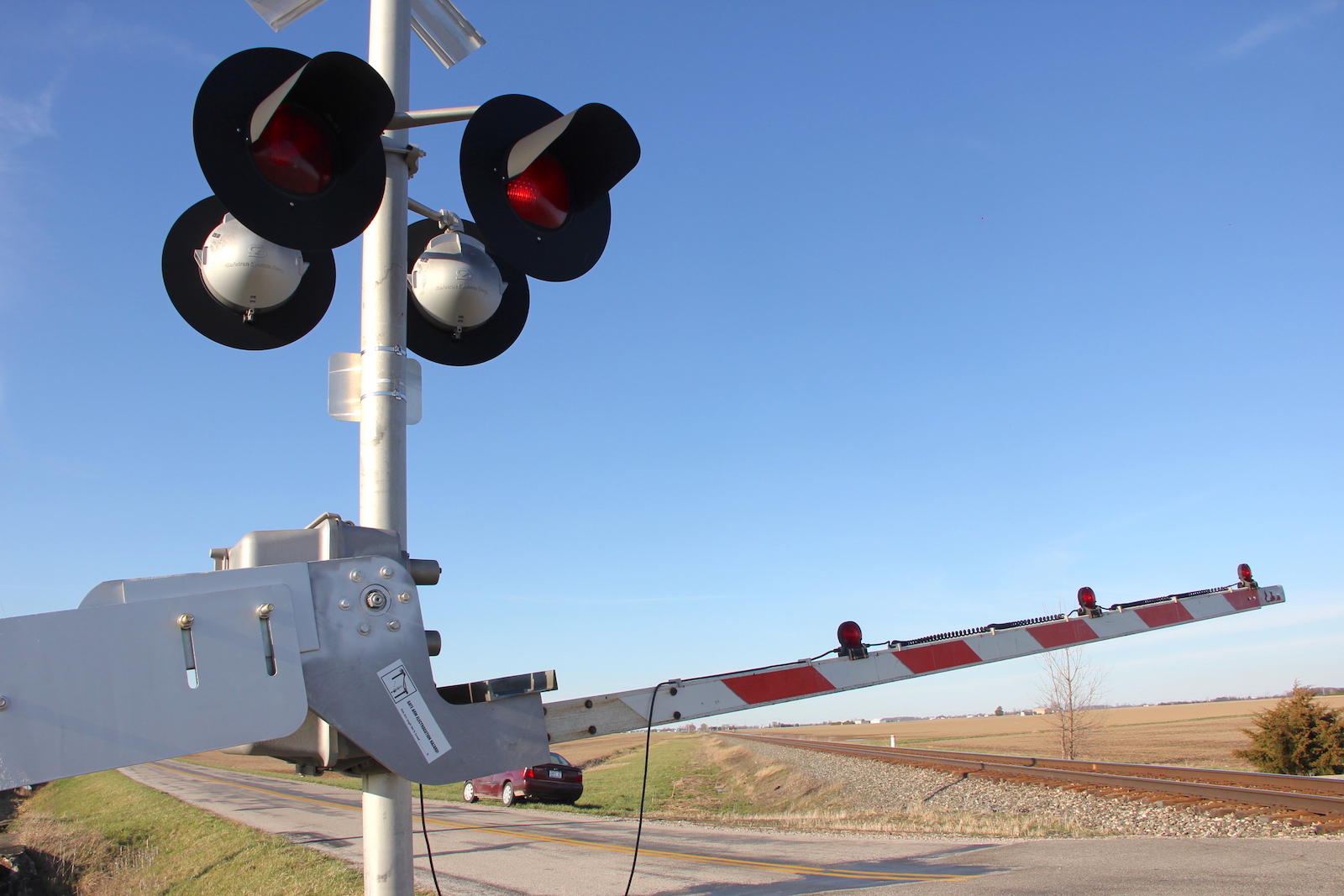

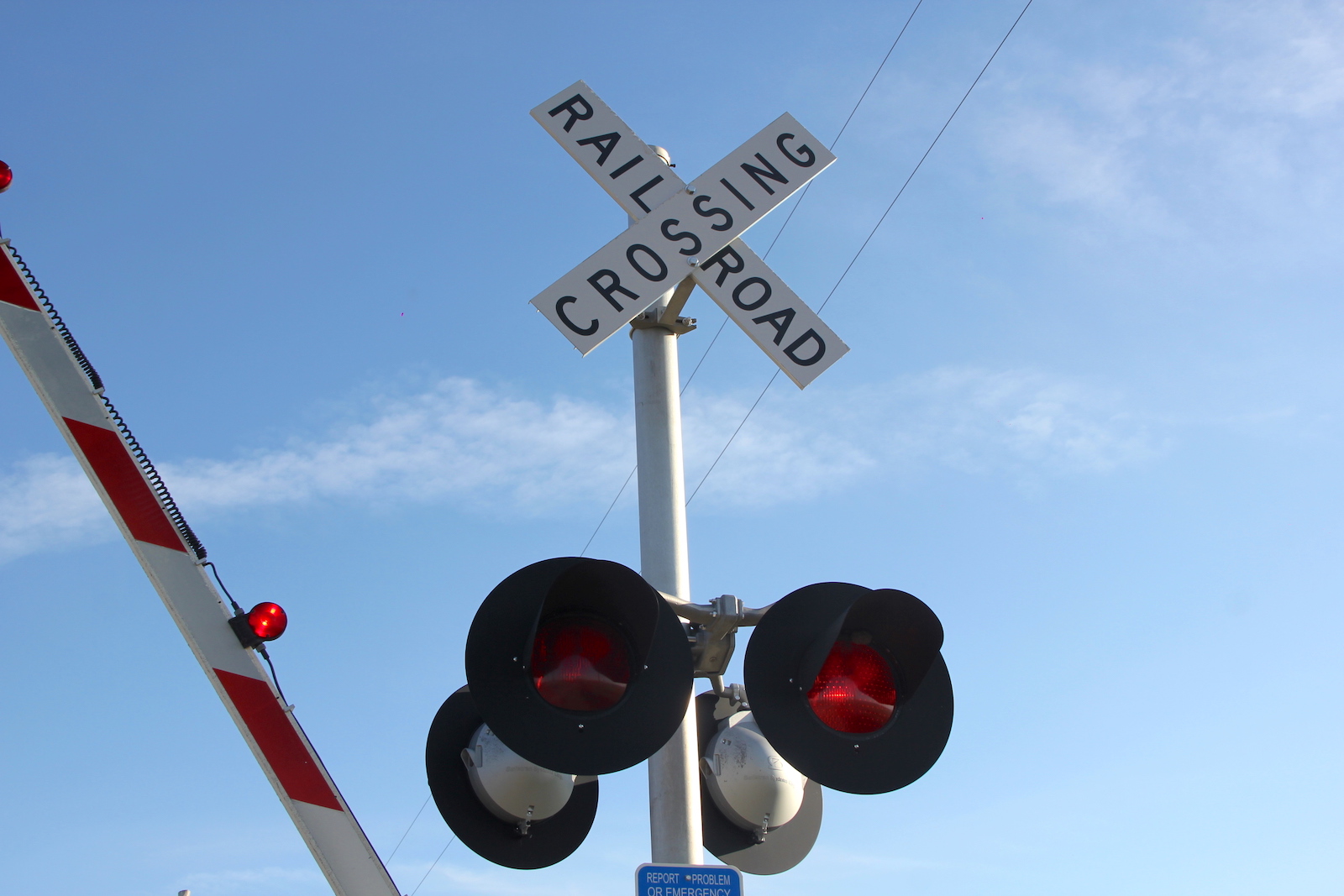

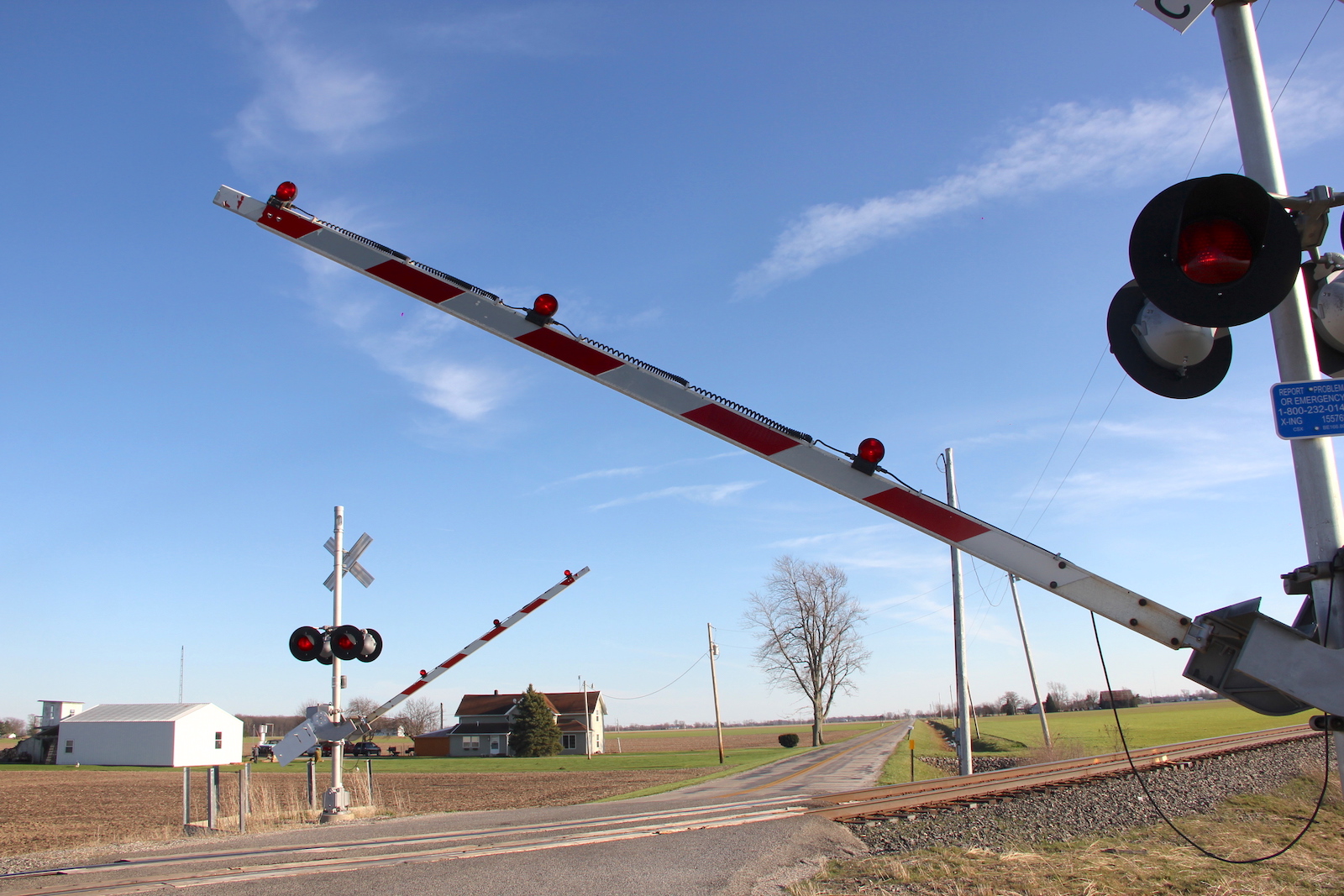

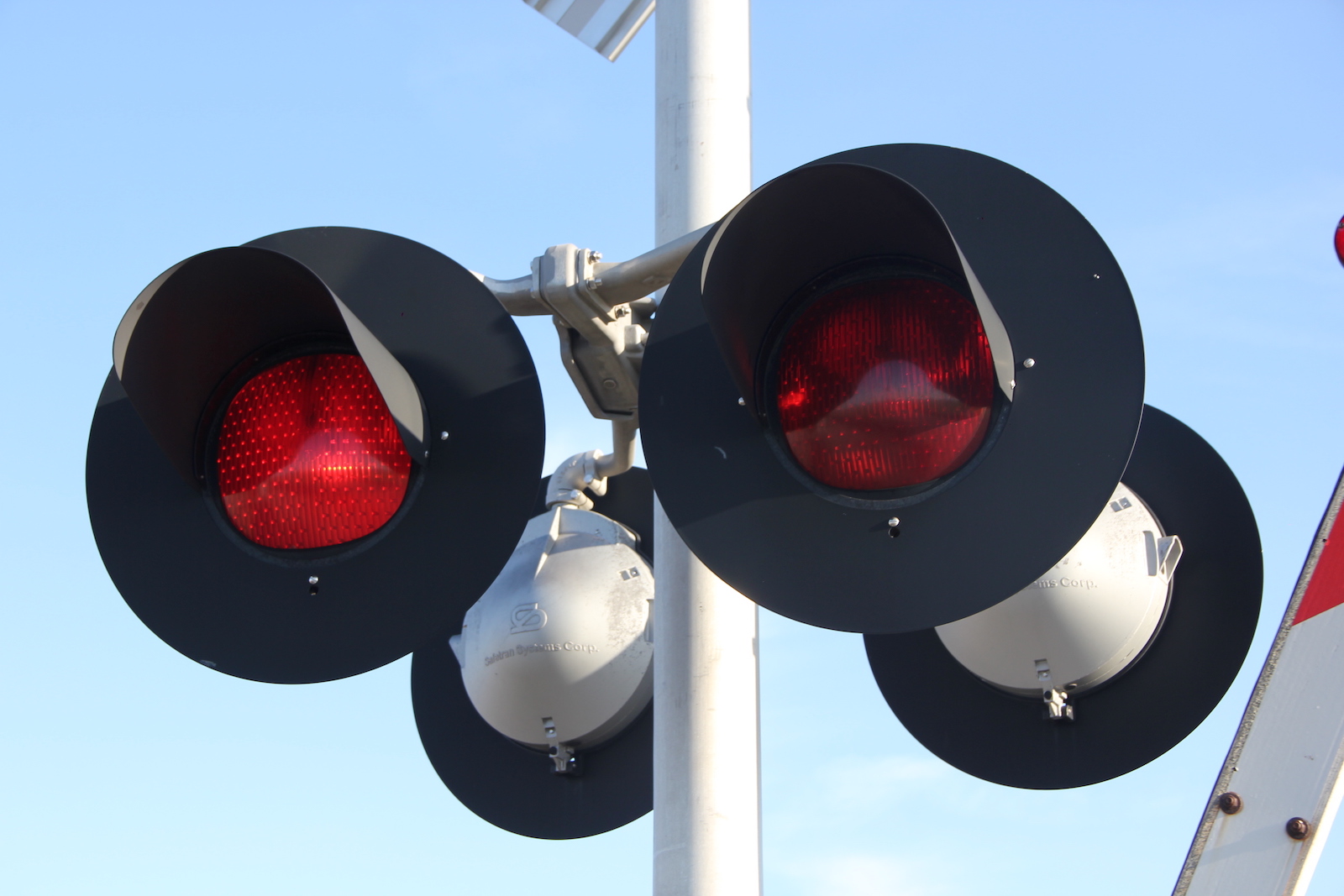

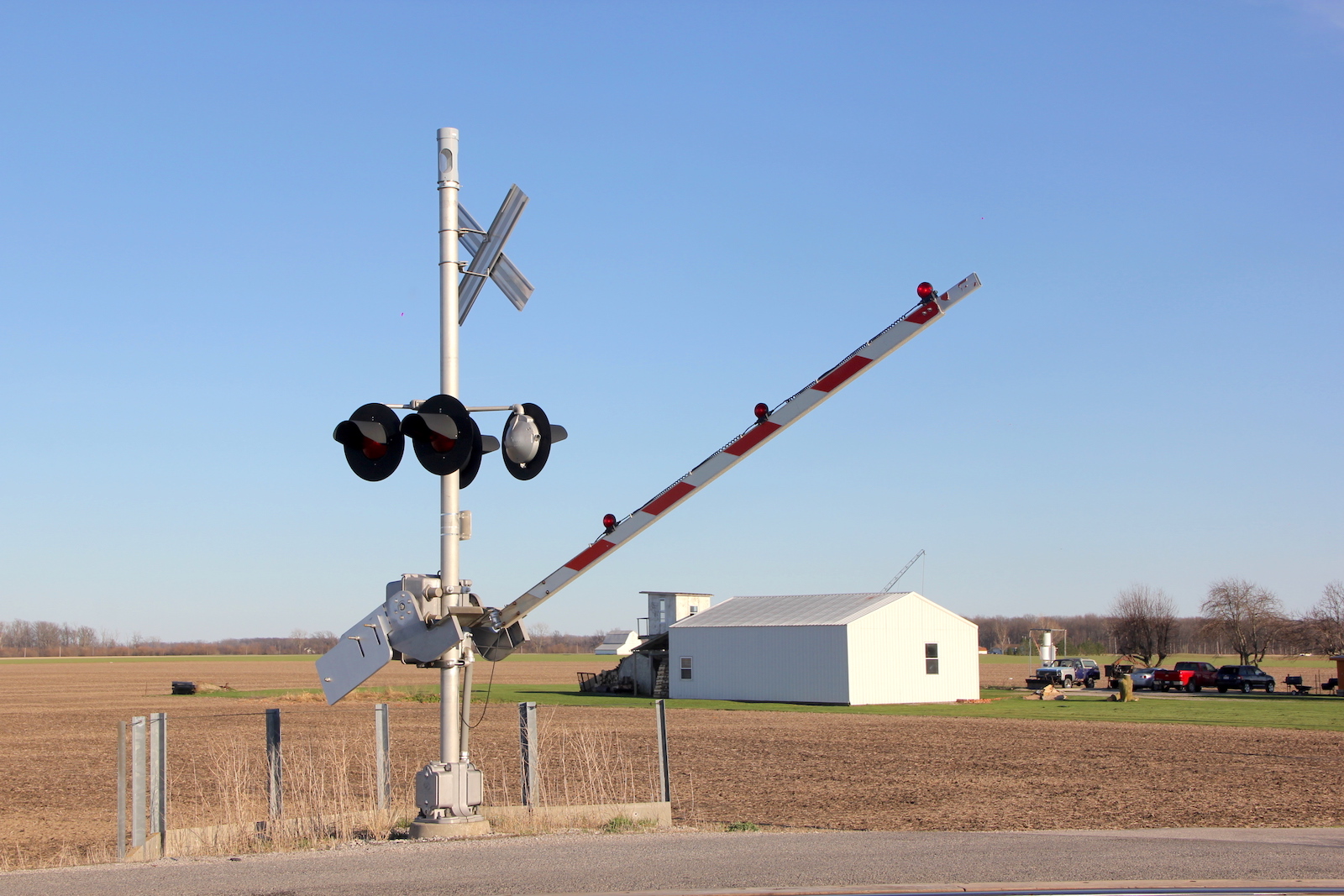

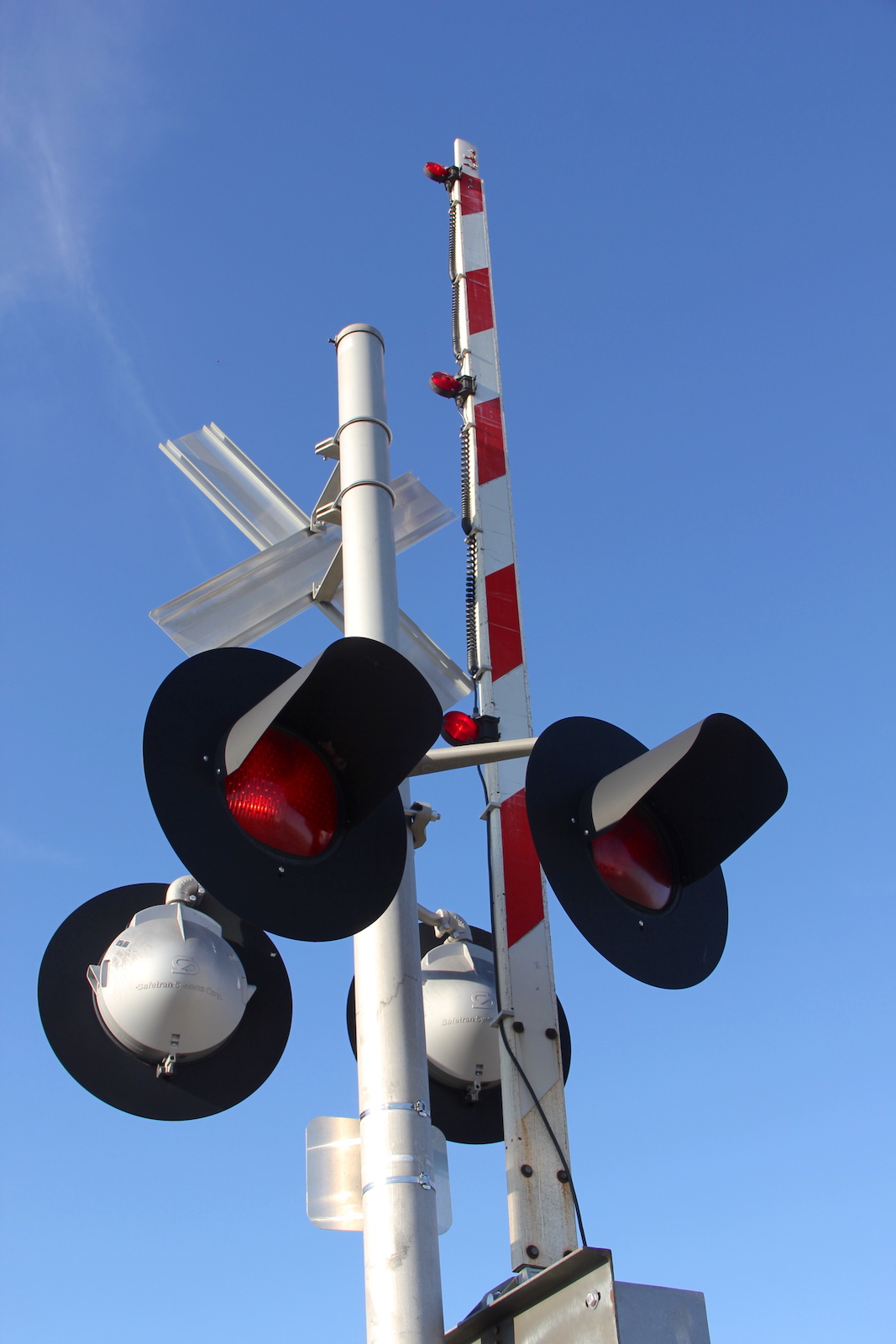

Action shots during the malfunction.
