280.14


472432B

>>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: NEG E Bell None

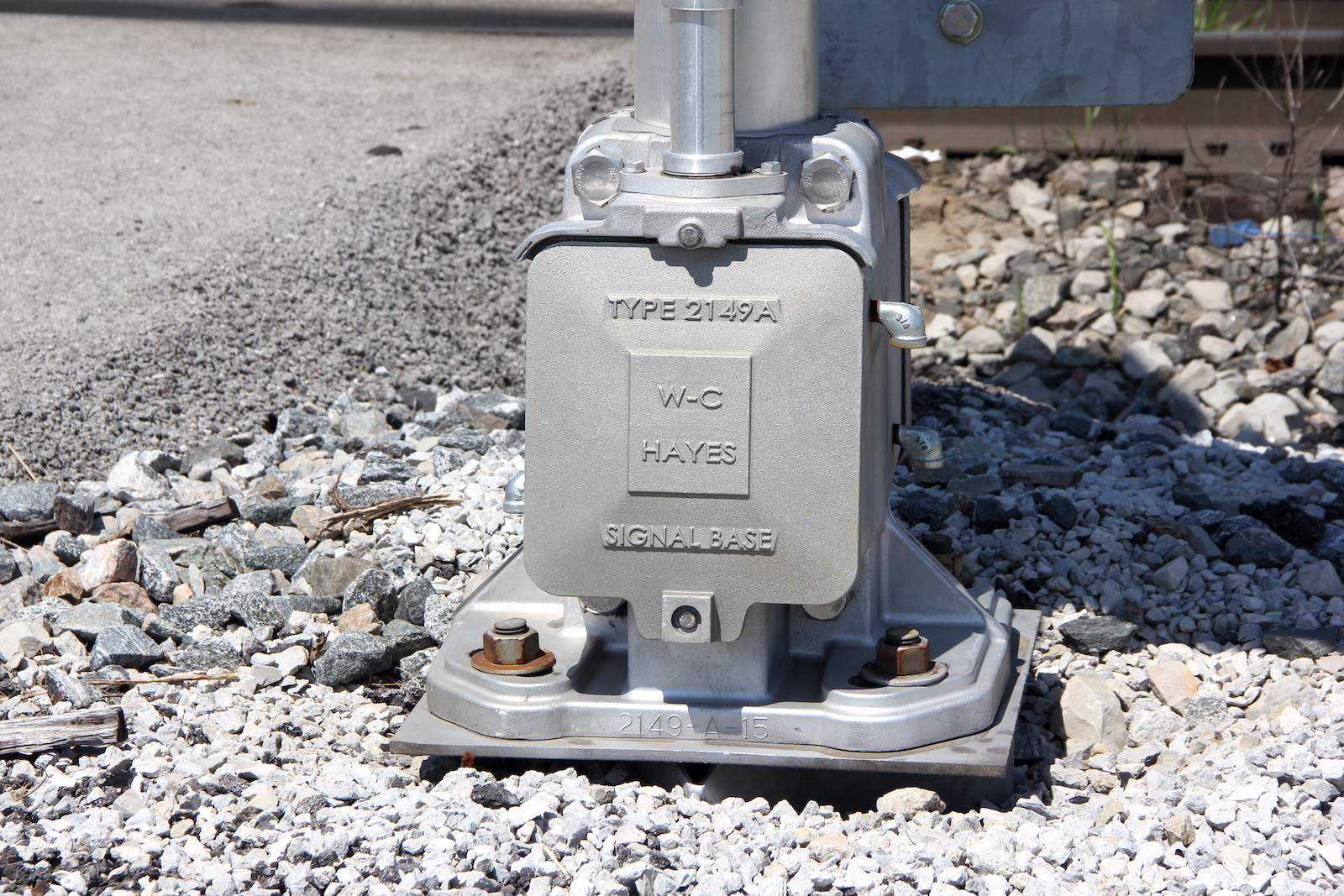

Base: WCH 5" Double Sided ^ WCH 5" Double Sided ^
Lights: 4 - 12"x24" WCH w/ Leotek EV LEDs 4 - 12"x24" WCH w/ Leotek EV LEDs
Junction Box: WCH WCH
Gate Lights: 4" NEG LEDs 4" NEG LEDs
Gate Mechanism: Siemens Imprinted w/ Old NEG 2 Way Saver Siemens Imprinted w/ Old NEG 2 Way Saver
Gate Striping: Vertical Striping Vertical Striping

Pictures 1-27 and the 1st video were taken on May 14, 2015.
Pictures 28-31 were taken on September 21, 2016.
Pictures 32-56 and the 2nd video were taken on April 26, 2021.
All pictures and video were taken by Tommy McGowan.
This crossing is located on the NS Fostoria District.

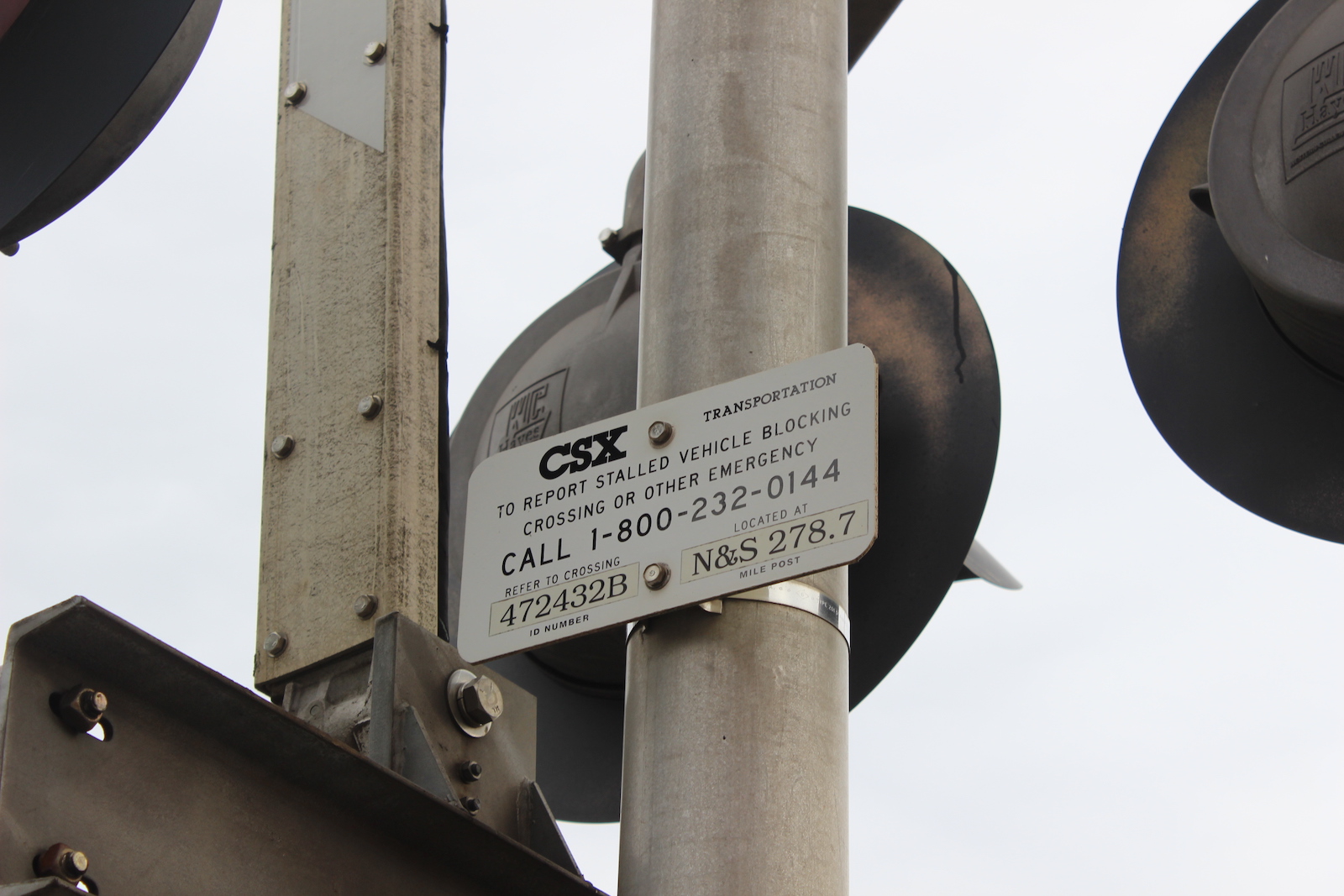

For some reason, this crossing has CSX DOT tags and is maintained by CSX, even though this is on the NS line, and CSX doesn't operate on this portion of the line.

1
 2

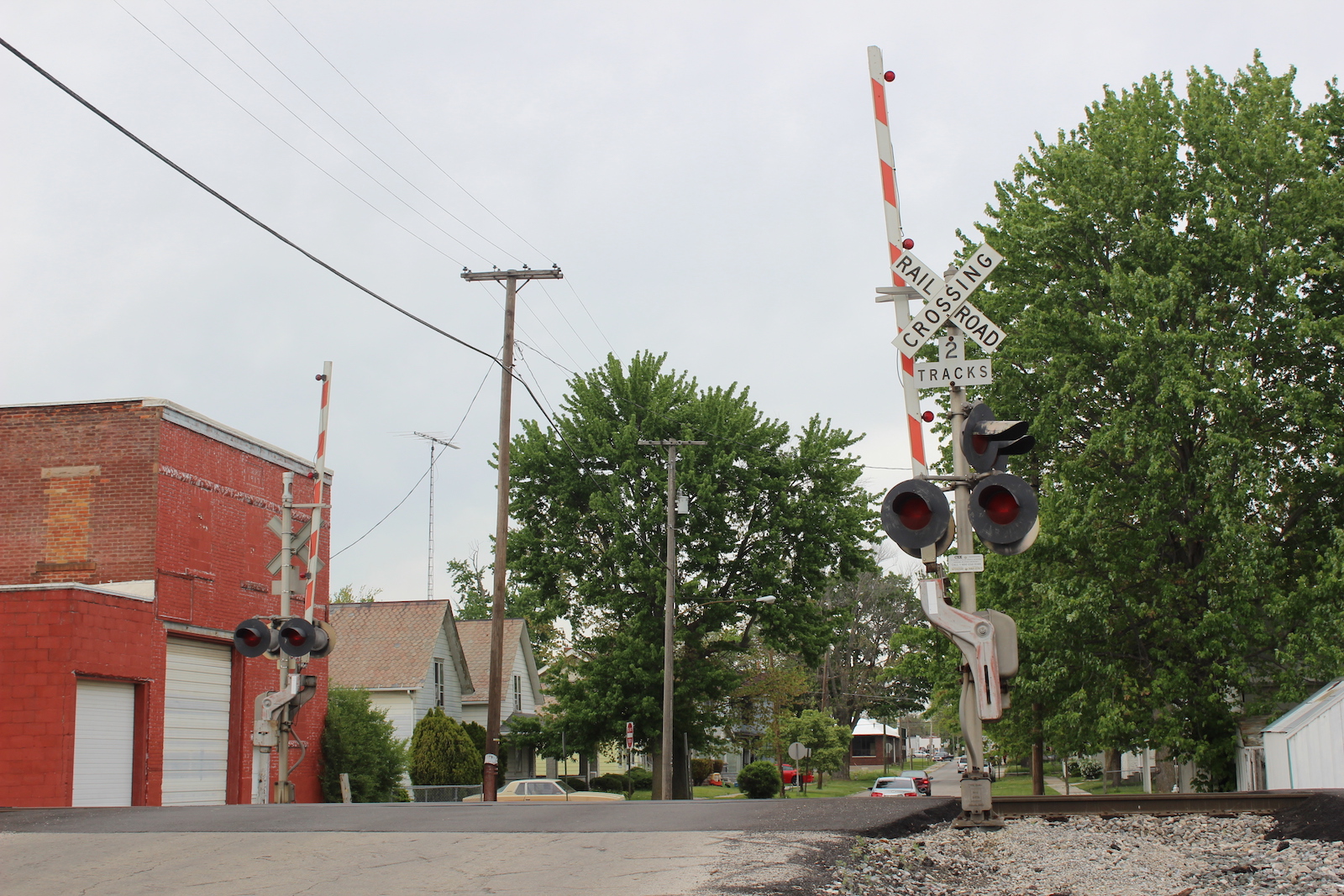

Overview of 2 gated signals facing north.

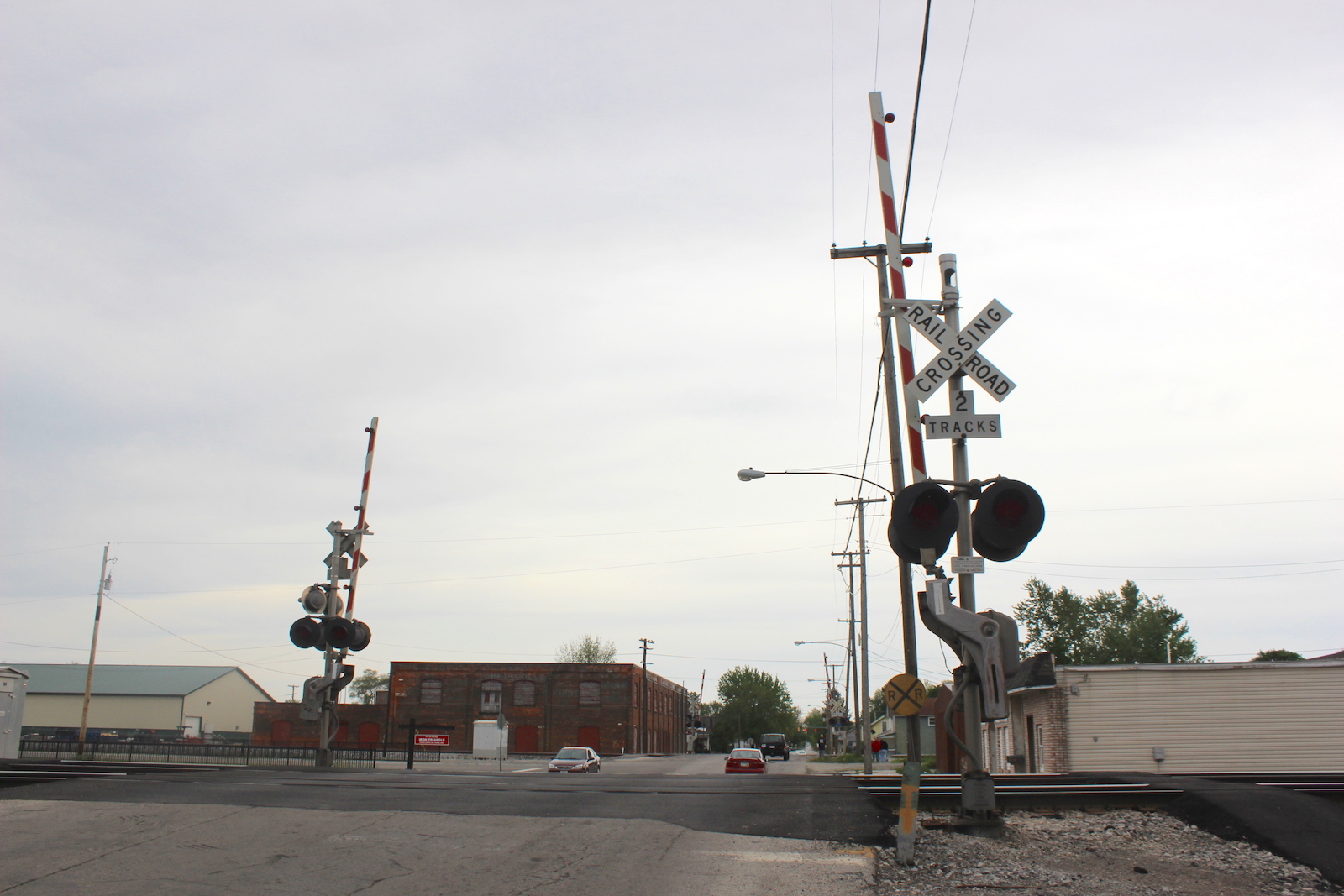

 Overview facing south.
3 4 5
6 7 8
9 10 11
12

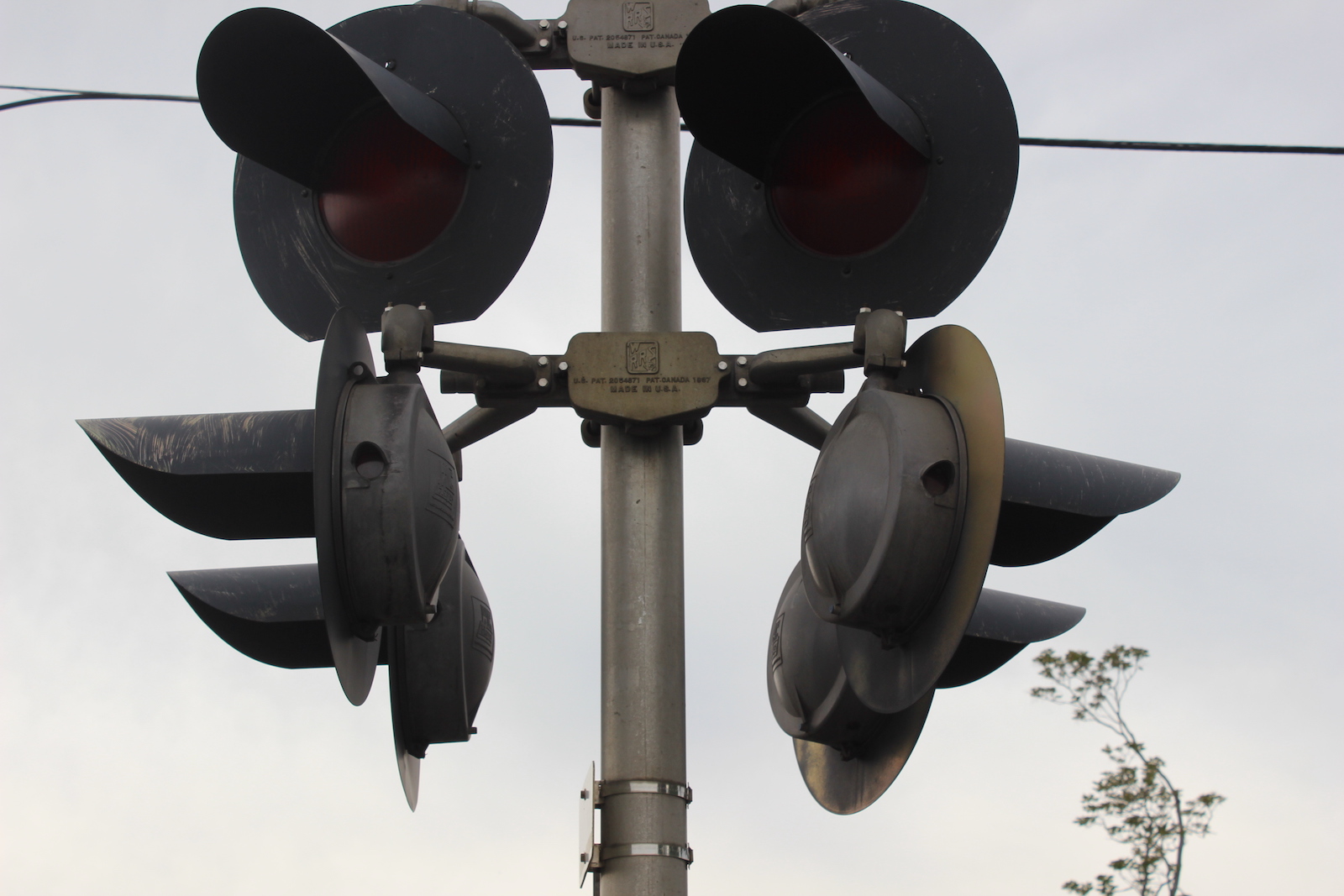

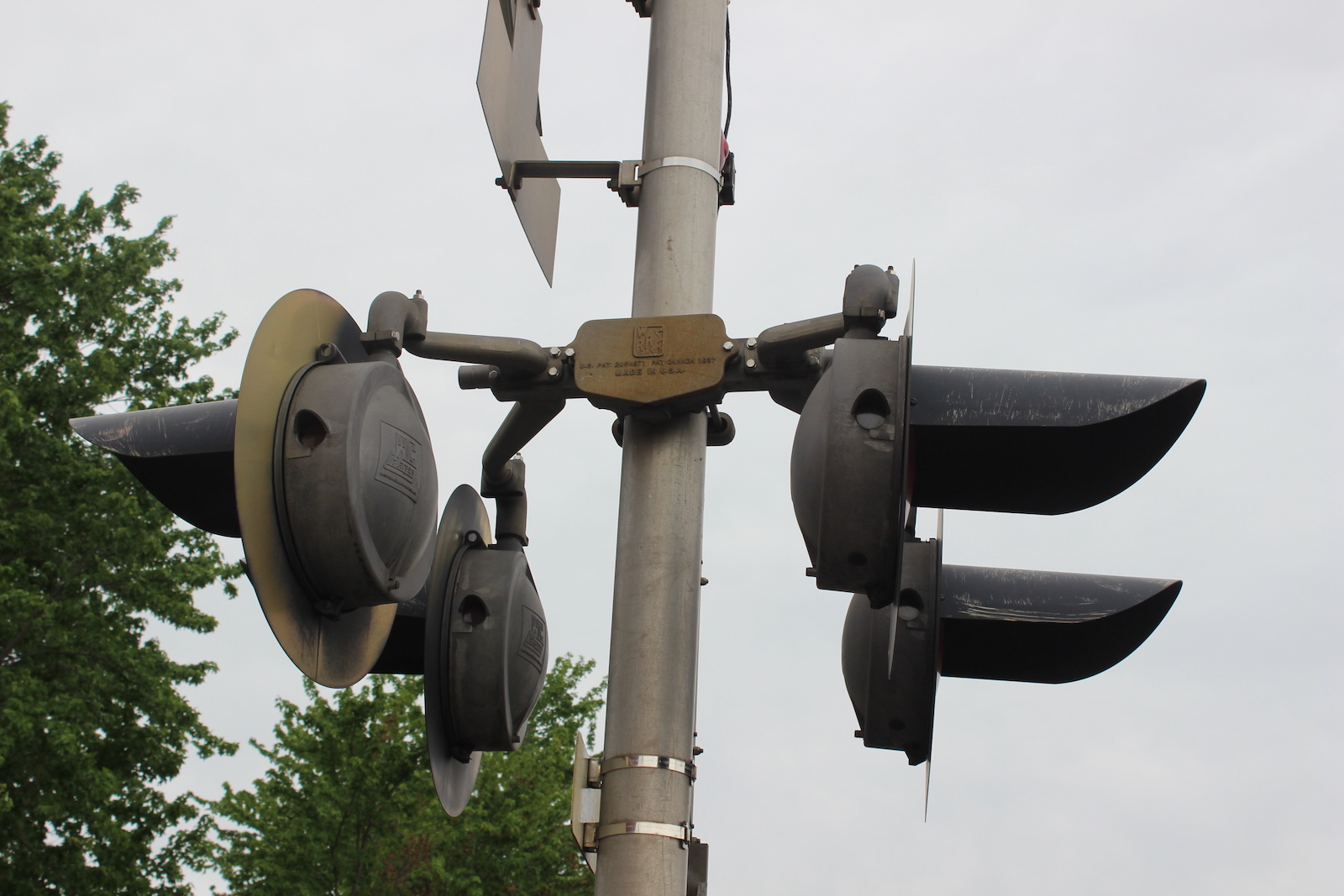

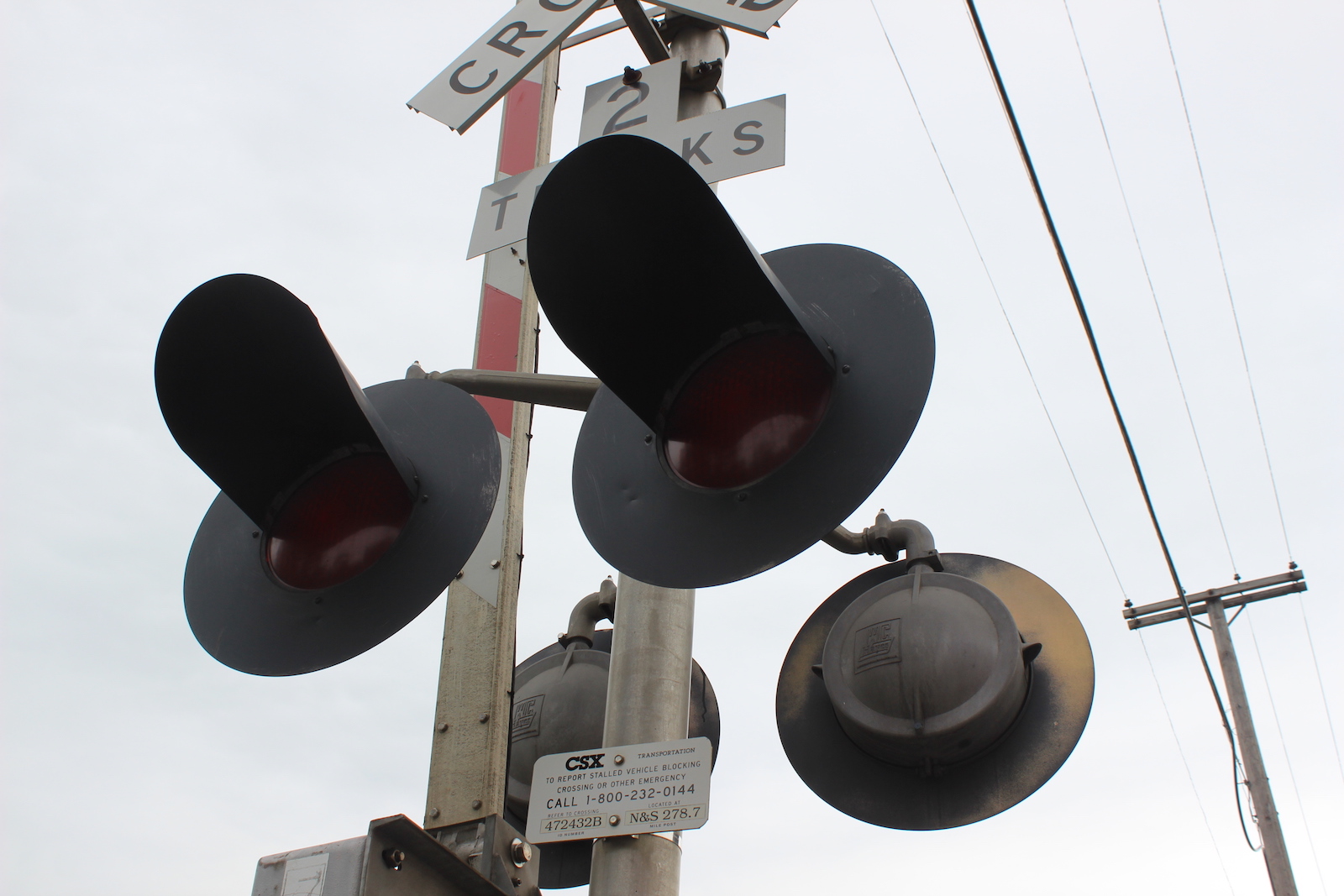

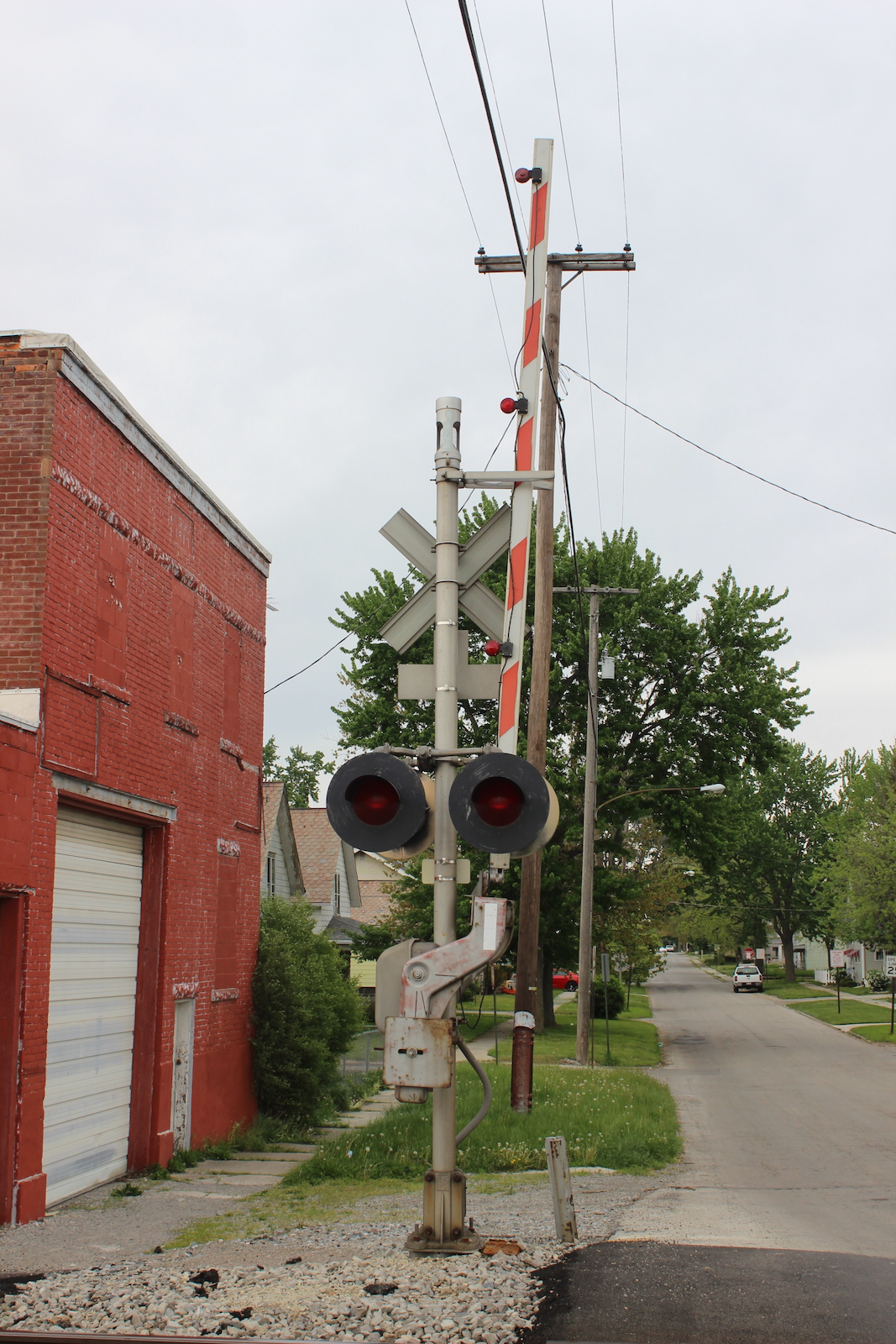

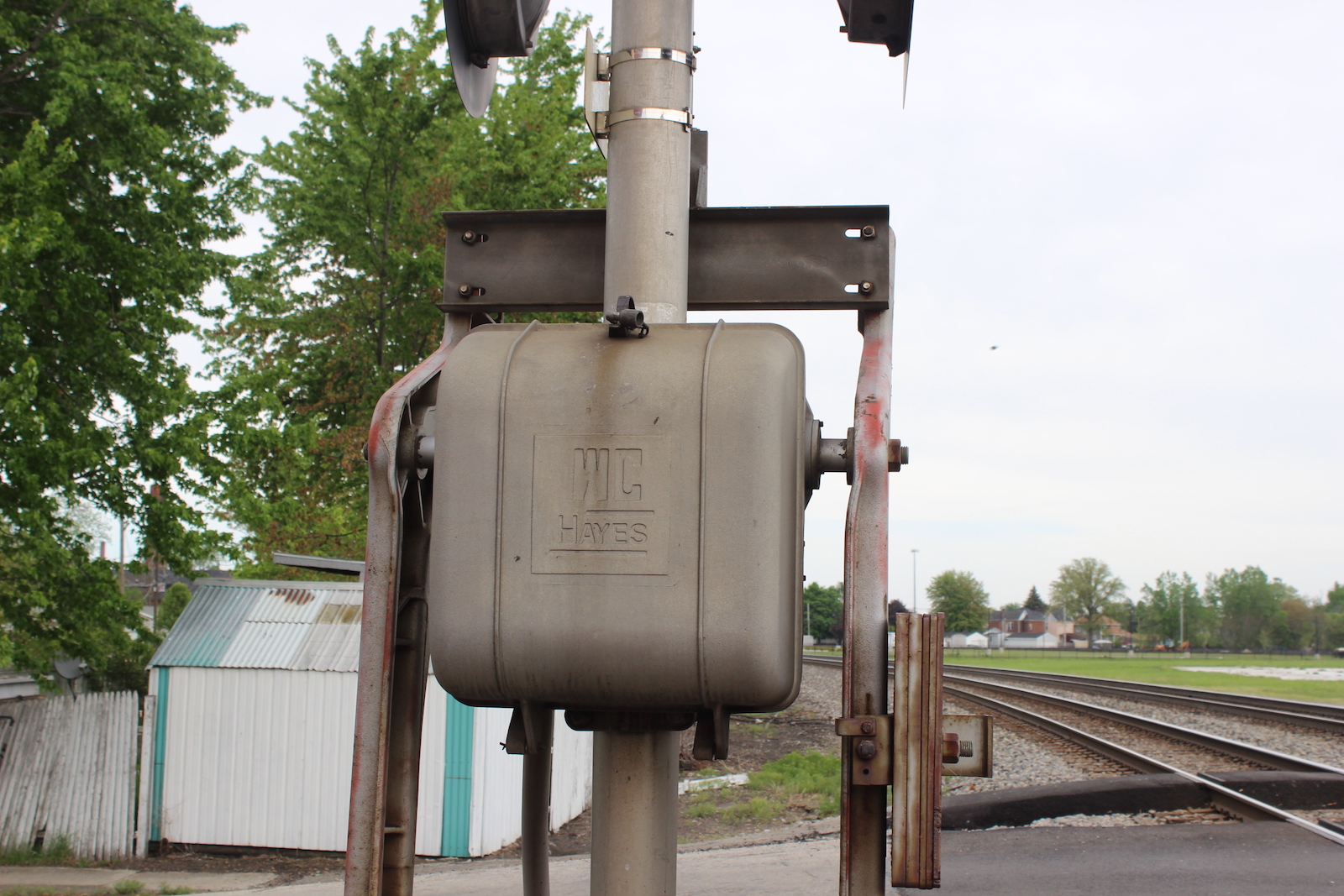

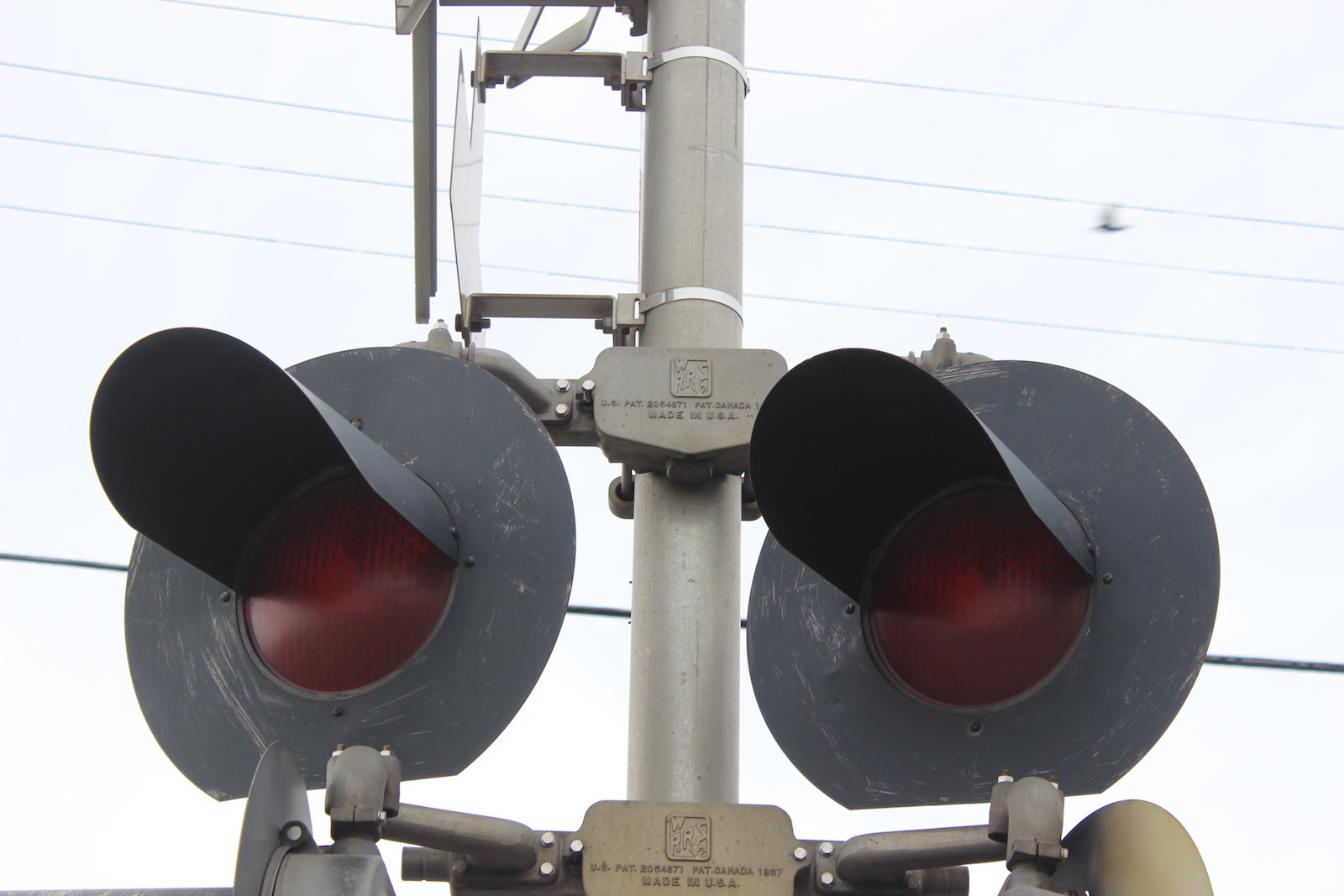

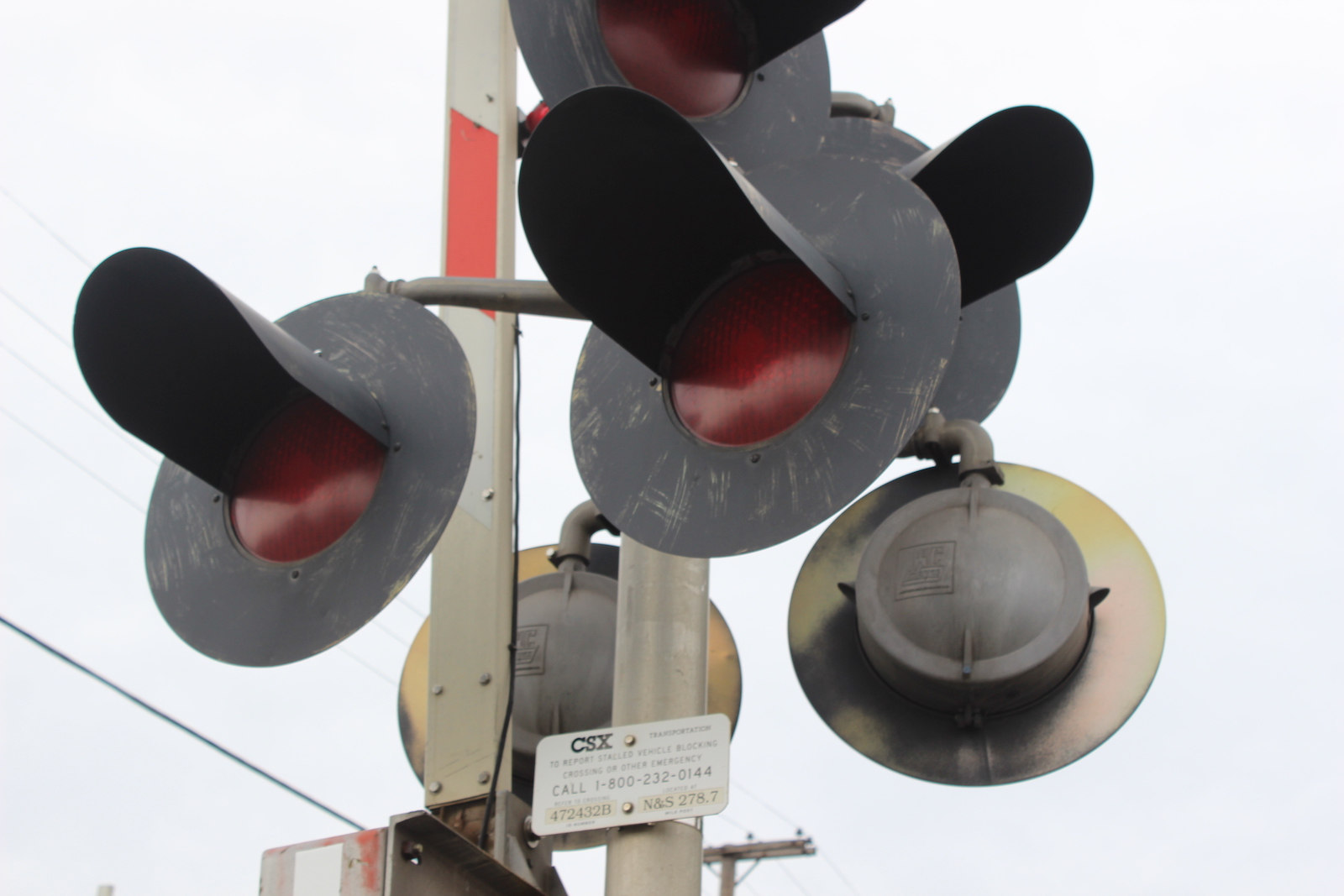

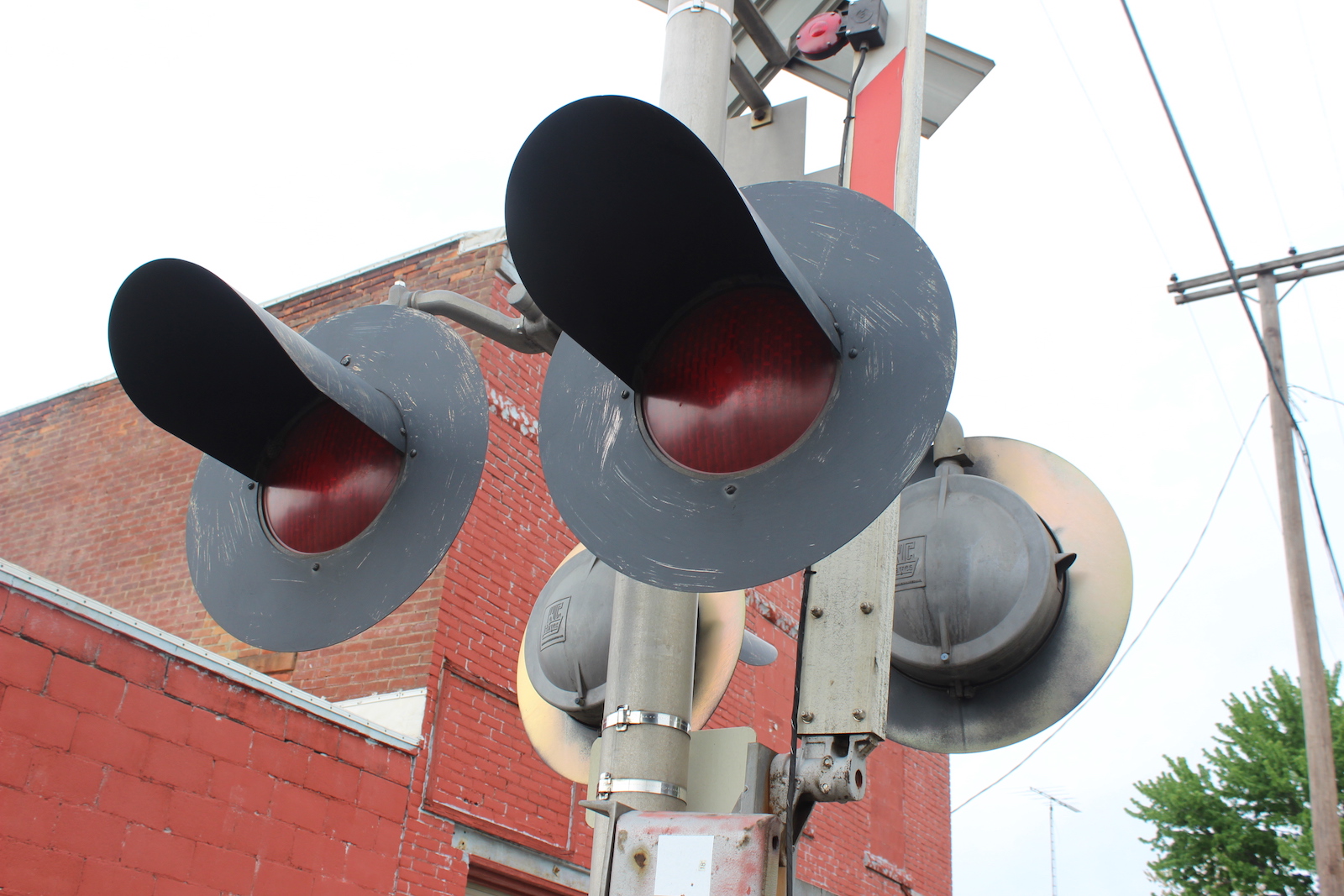

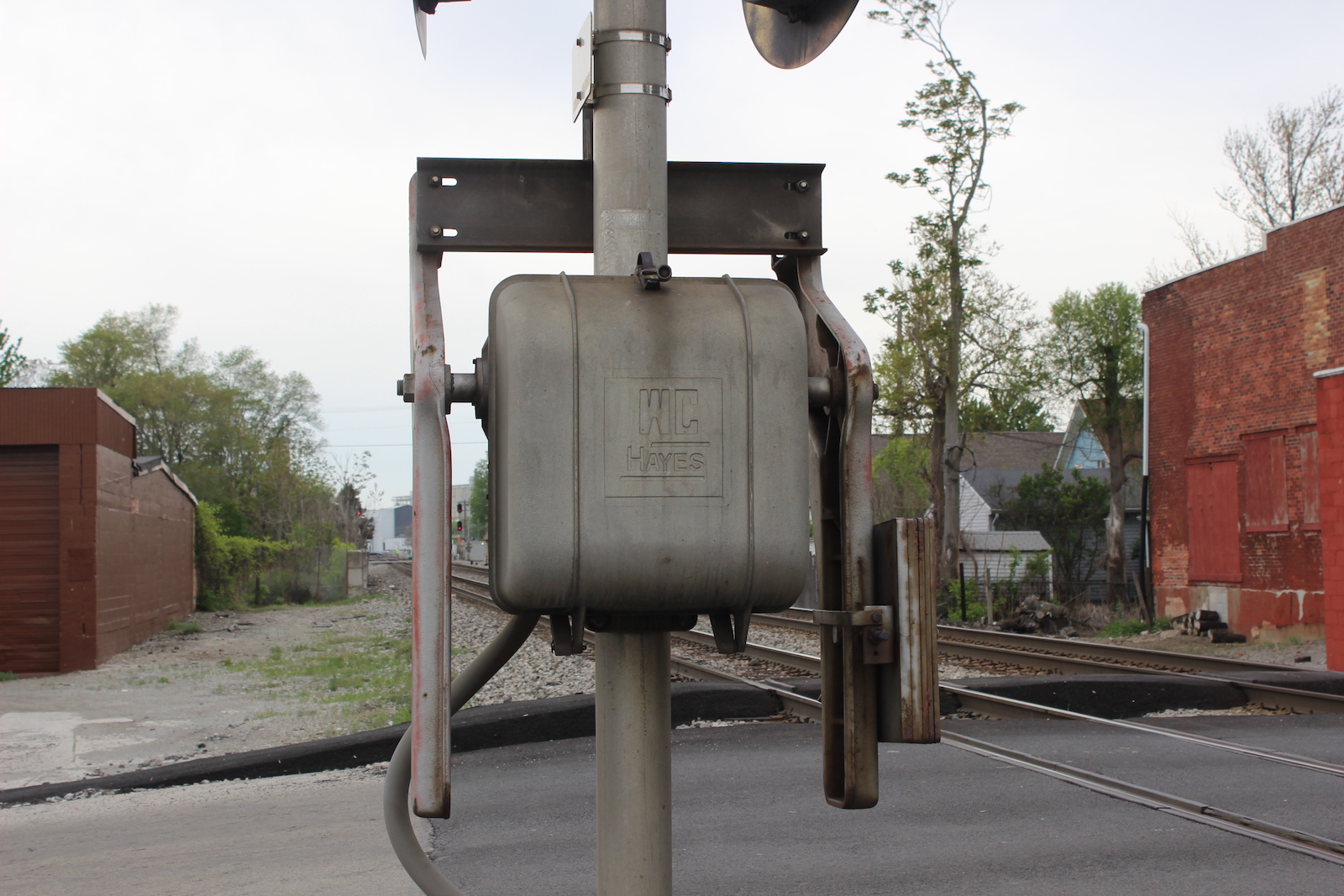

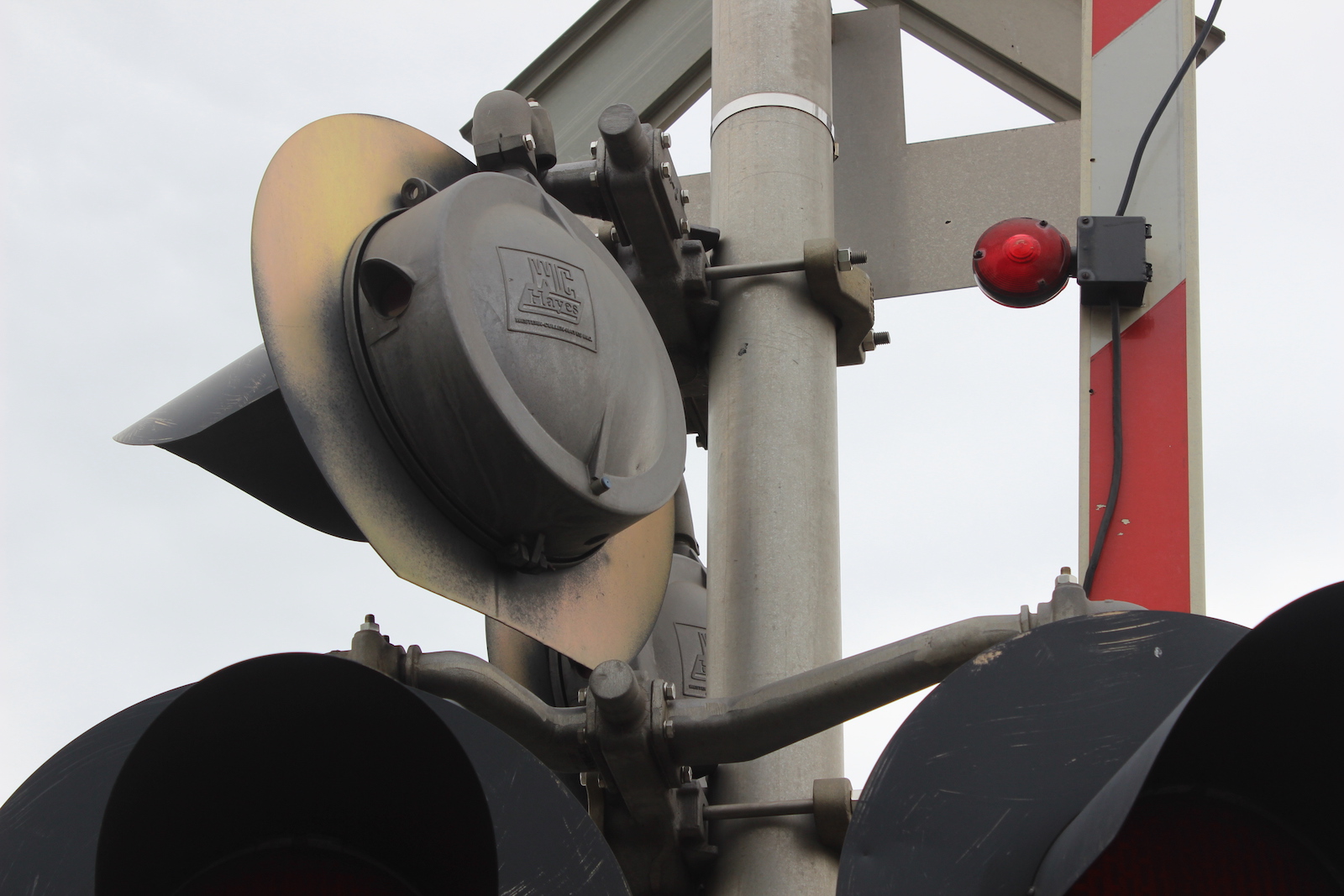

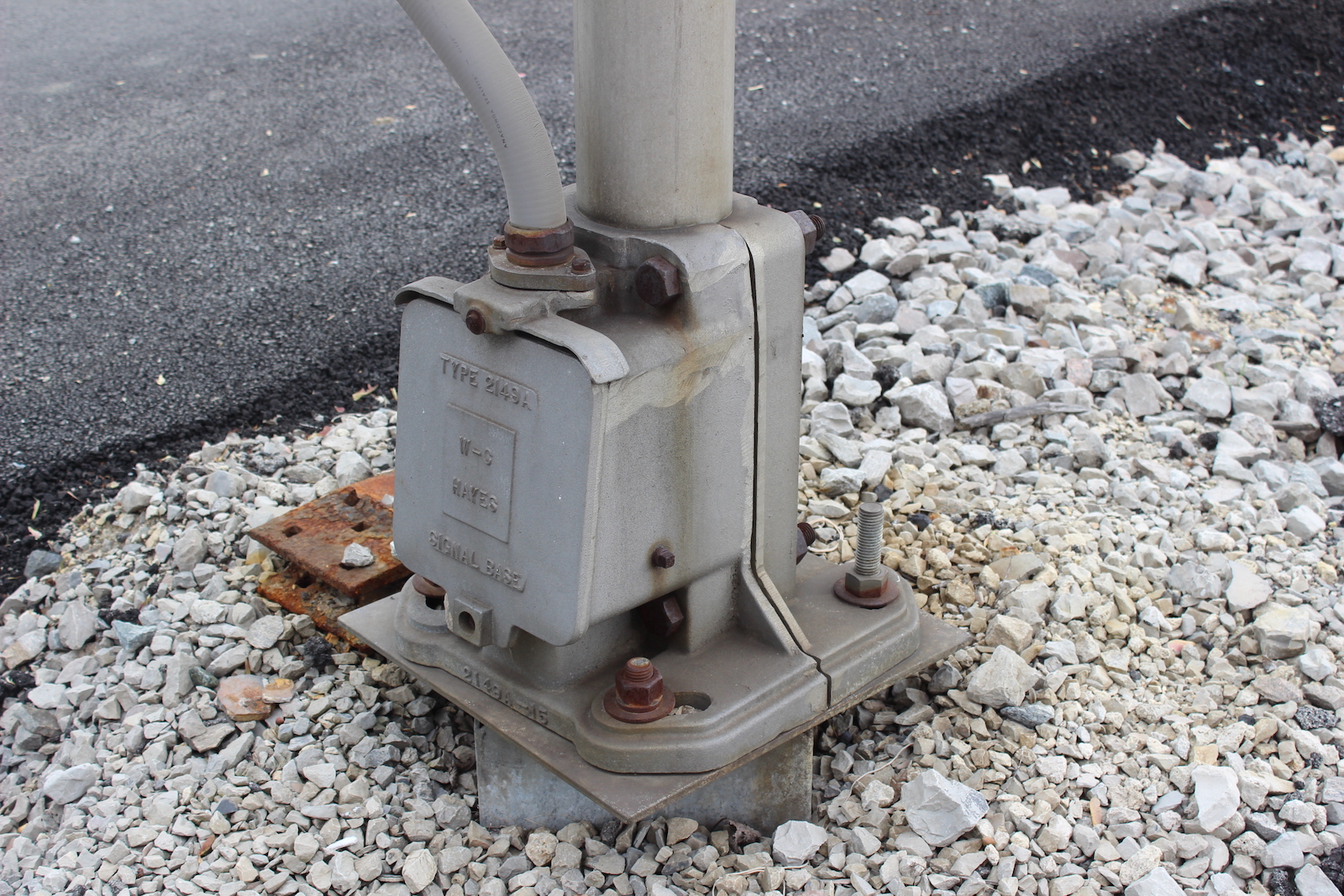

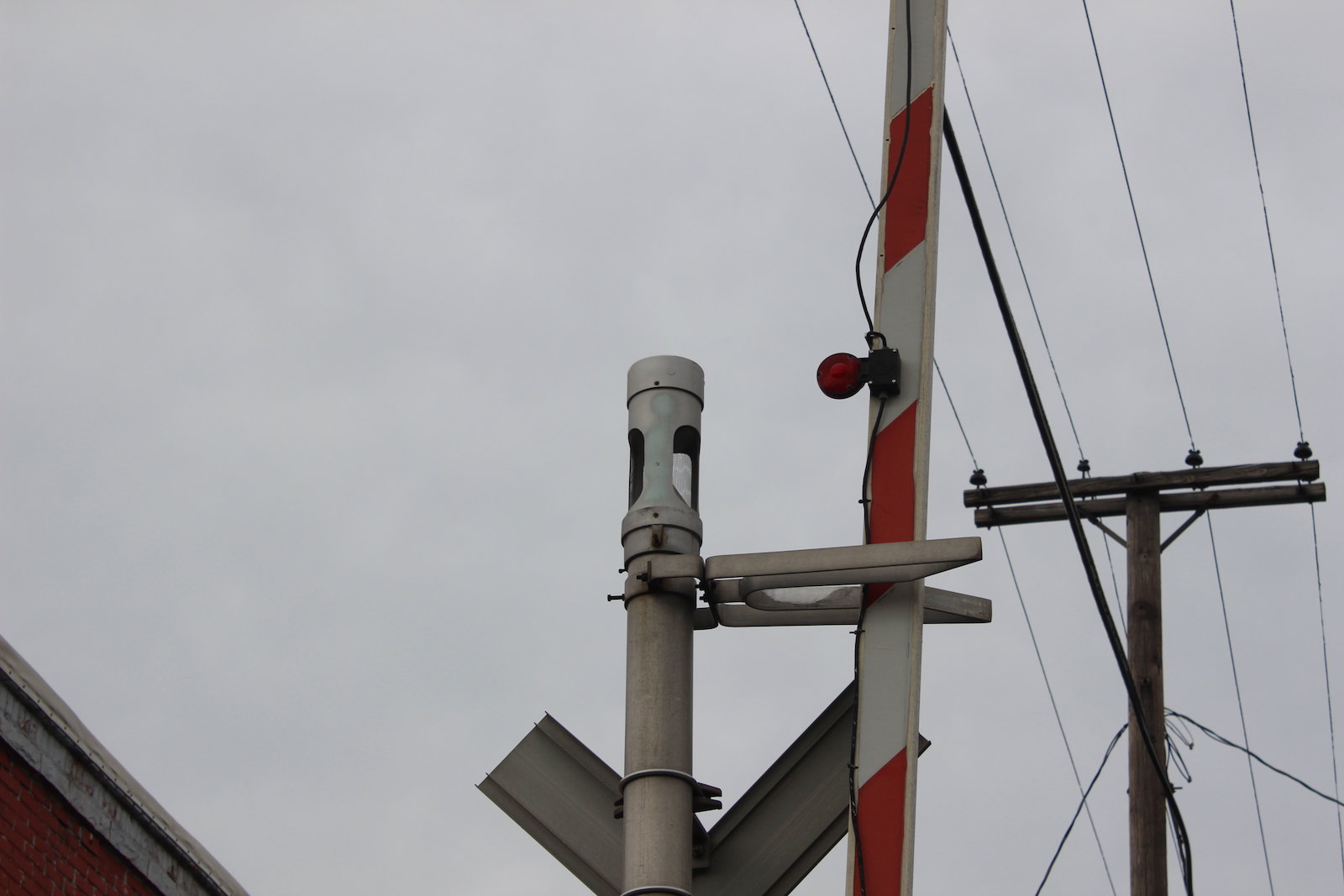

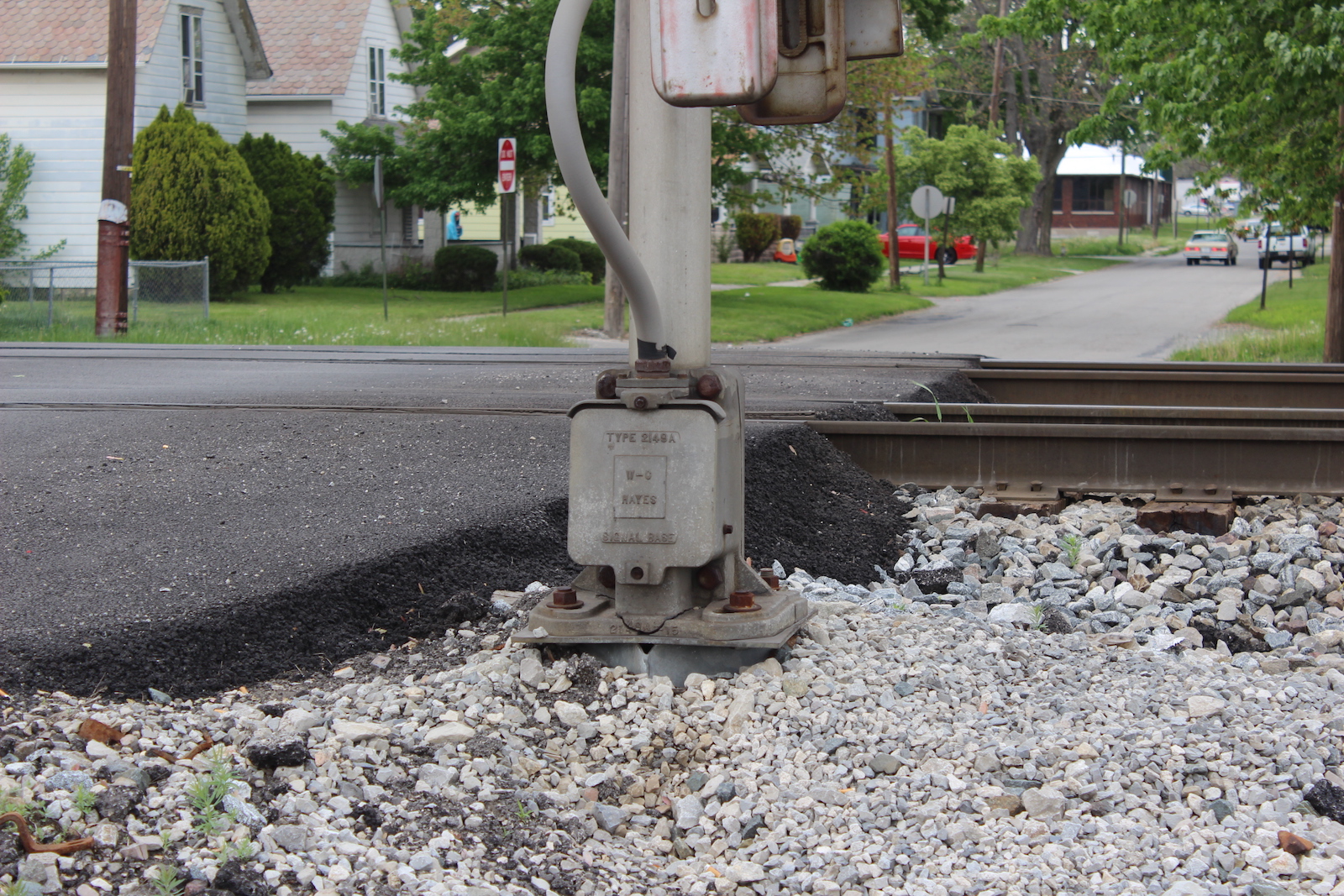

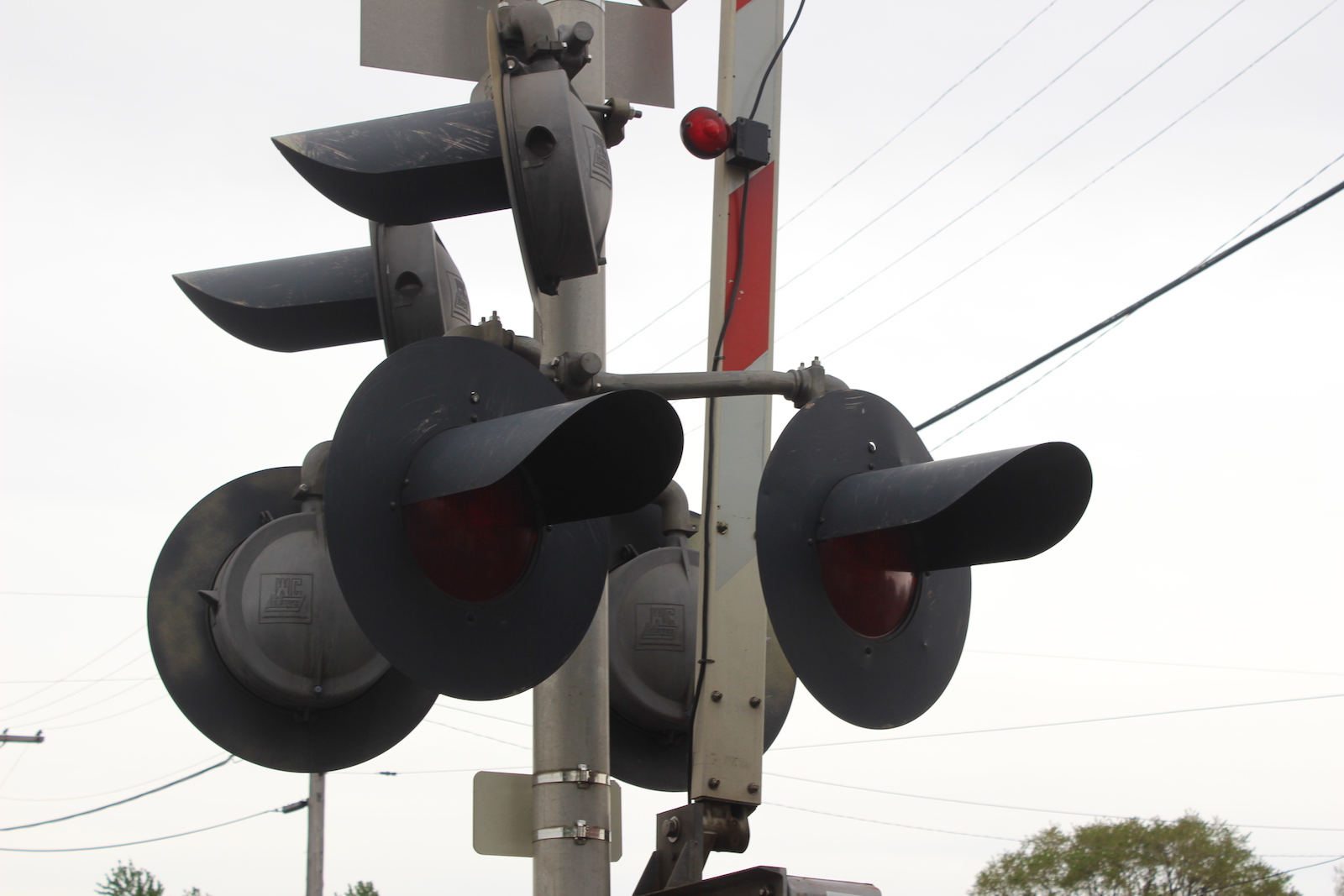

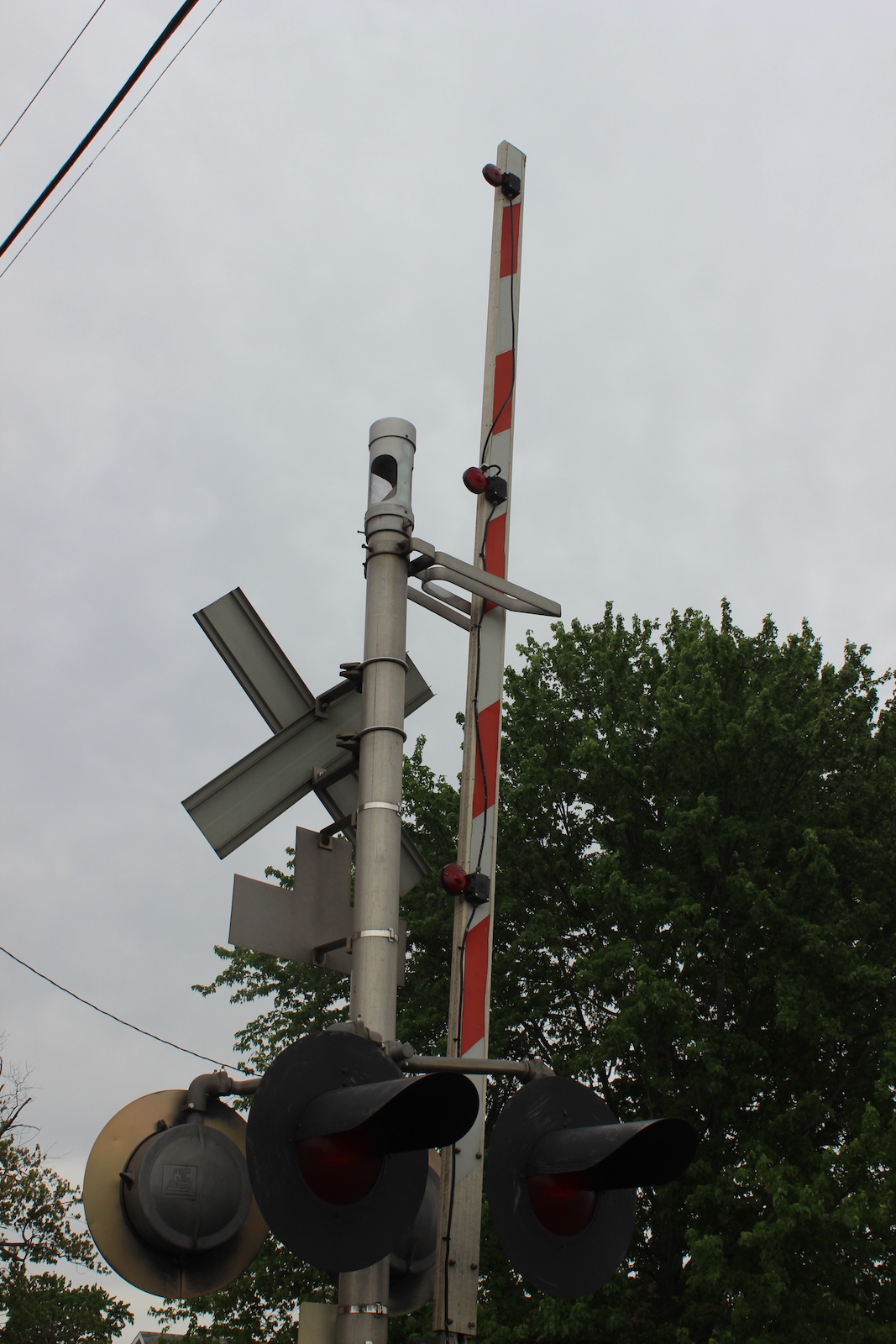

The northern signal.
13 14 15
16 17 18 19
20 21 22
23

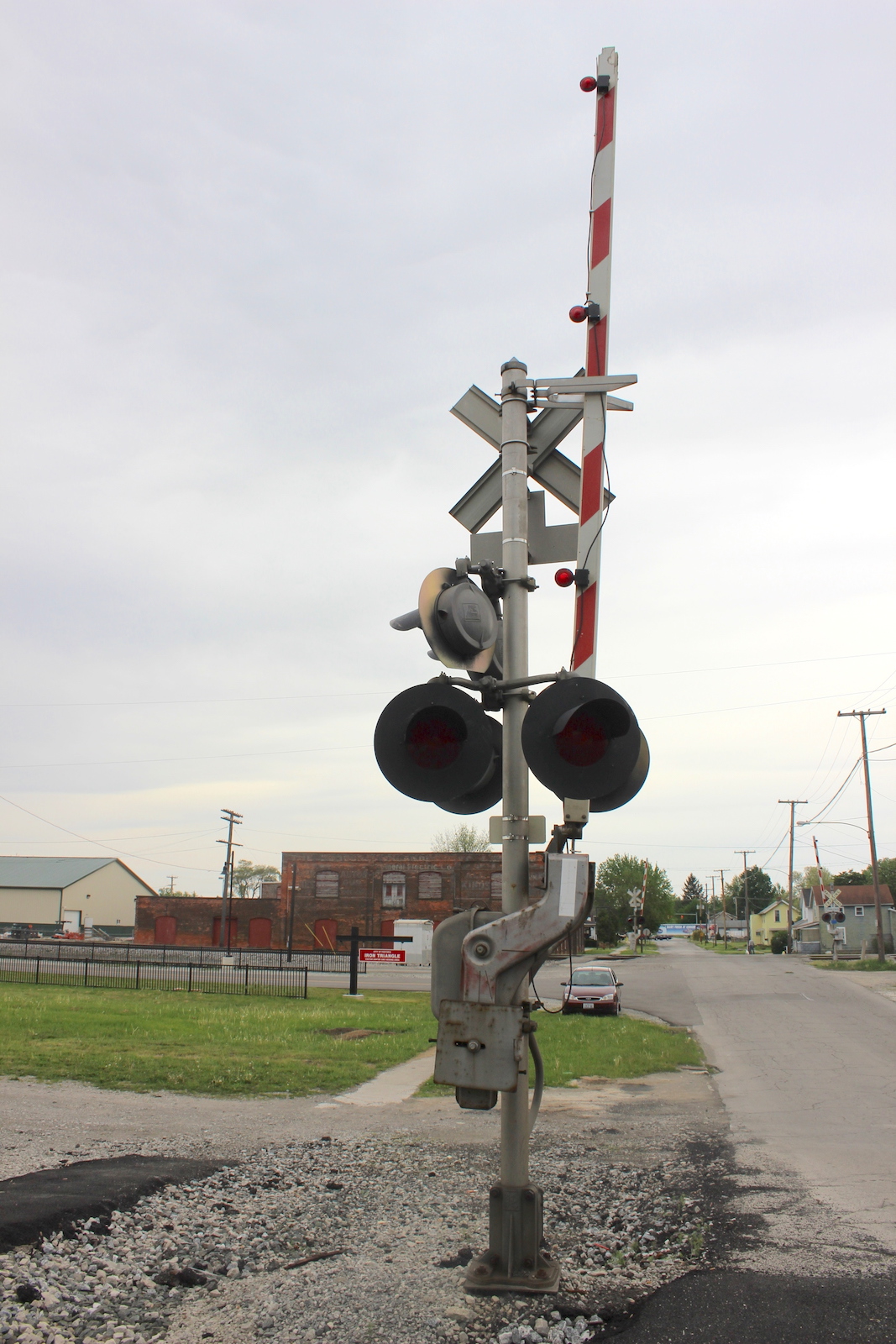

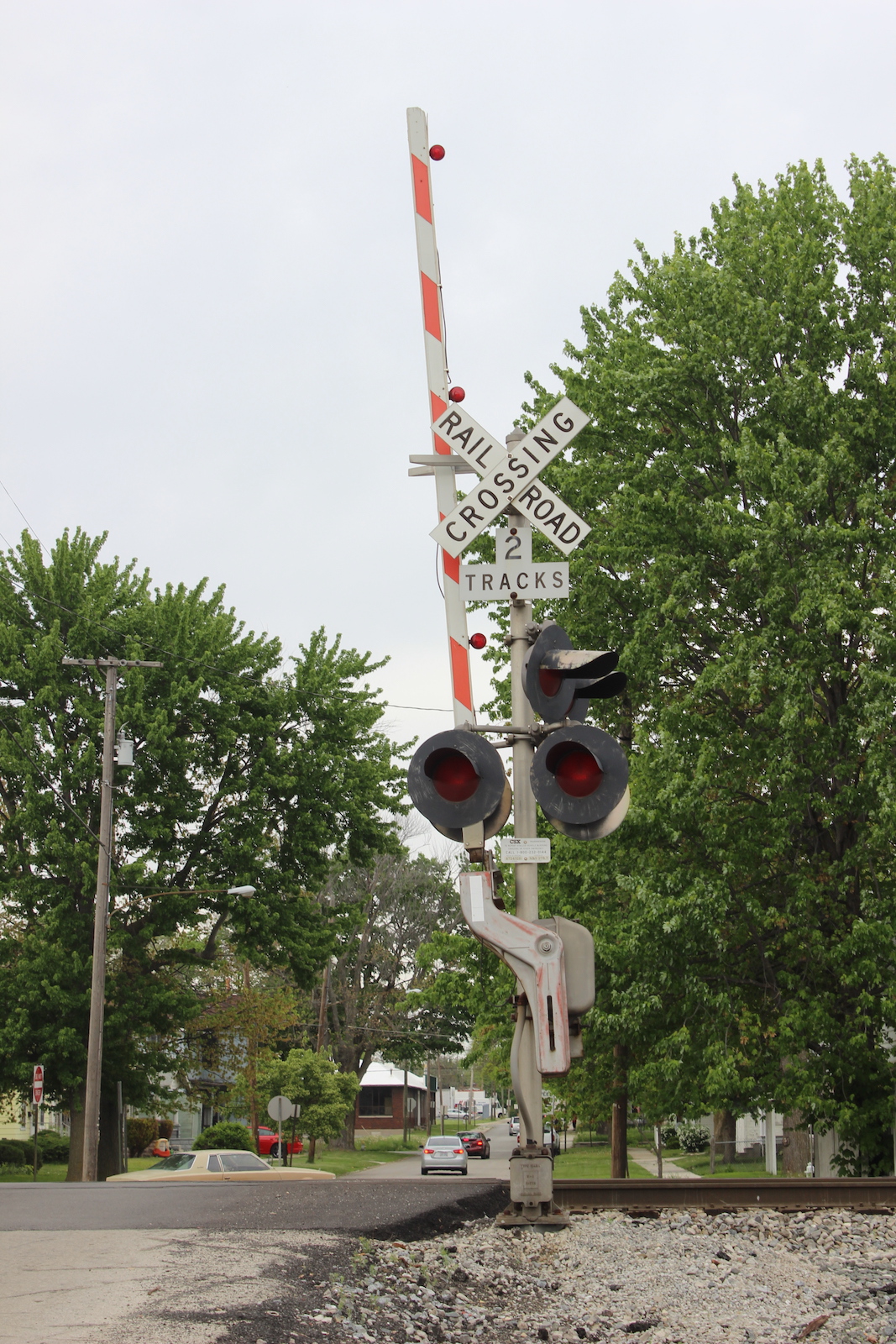

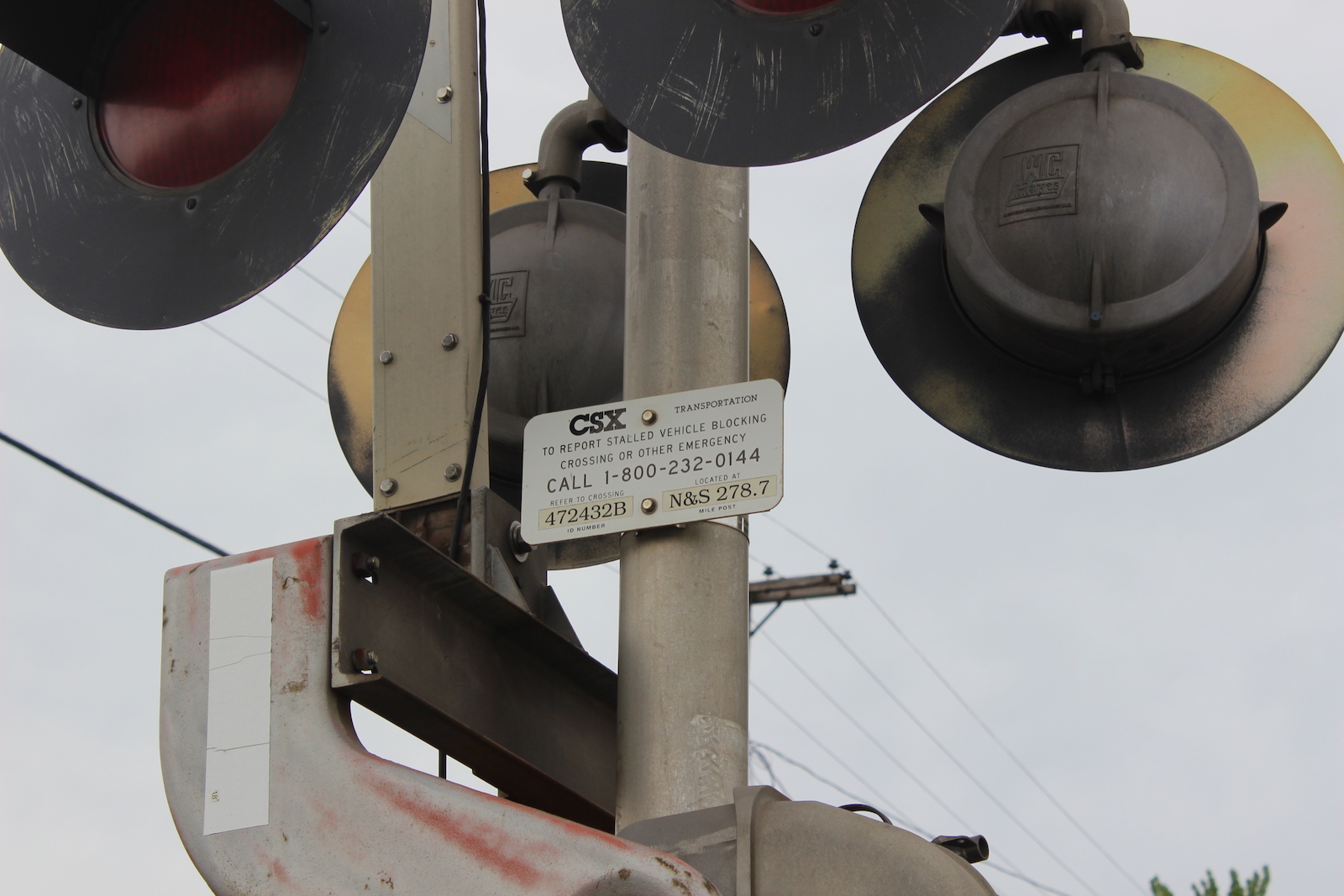

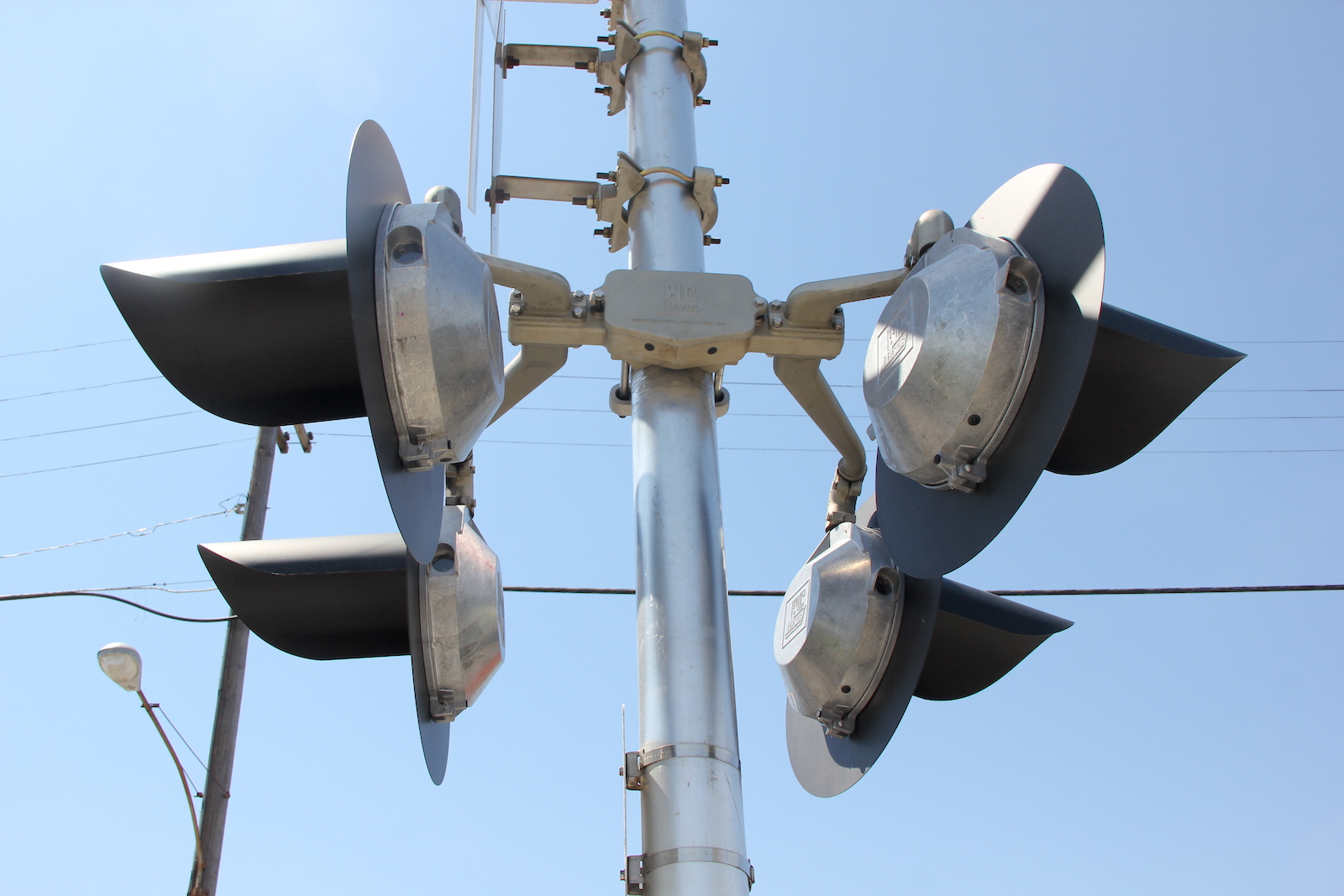

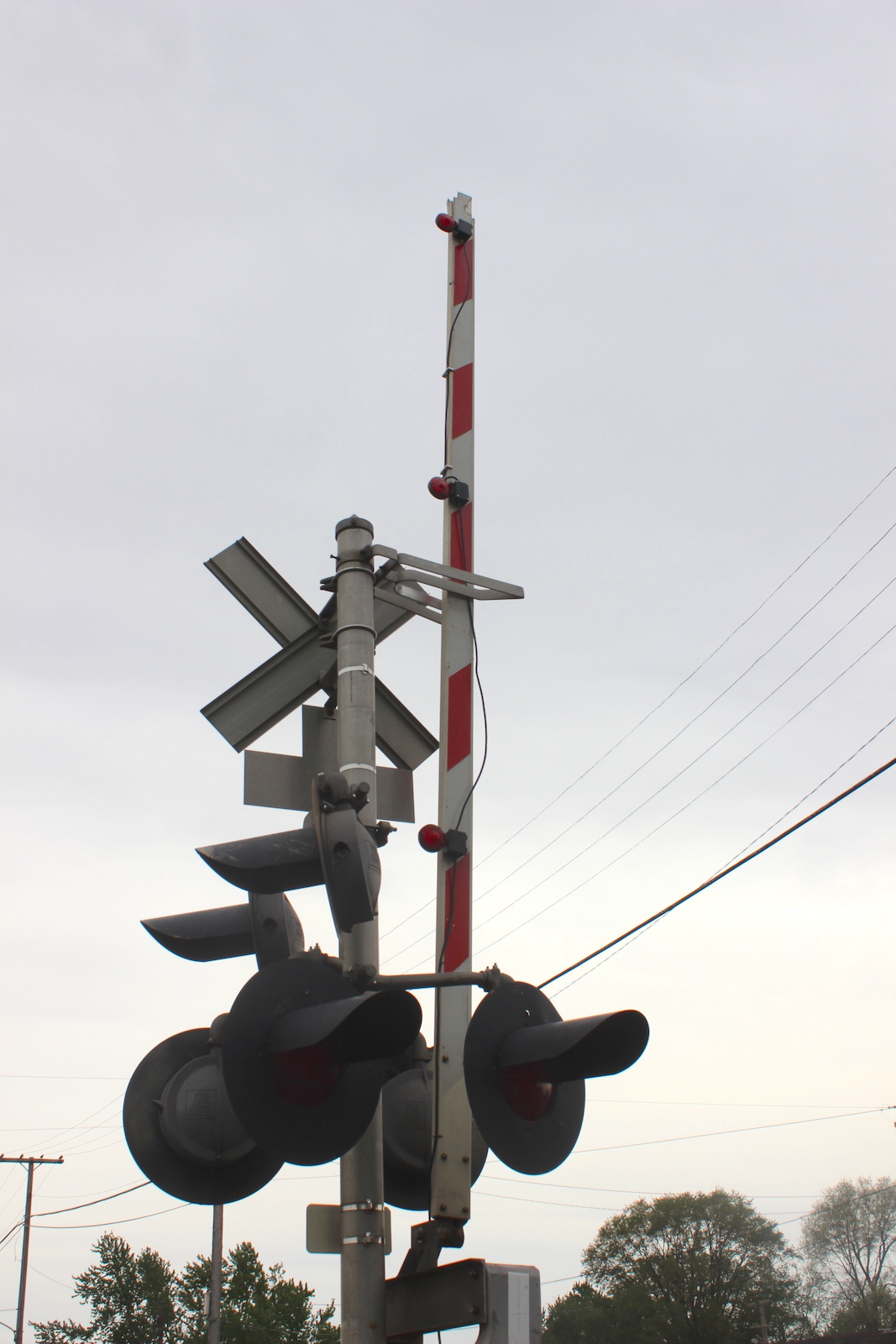

The southern signal.
24 25 26 27

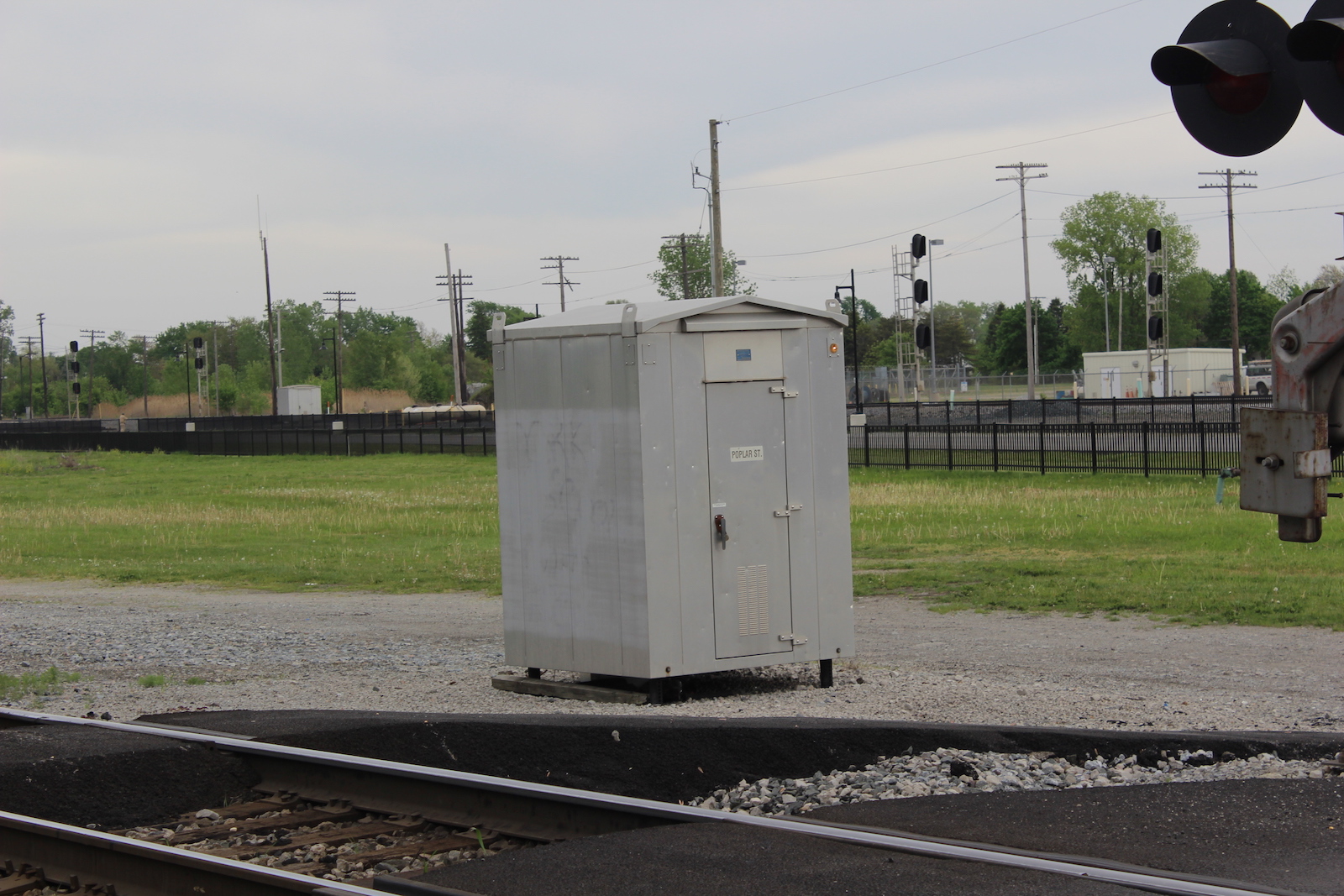

The relay bungalow in the southeast quadrant.

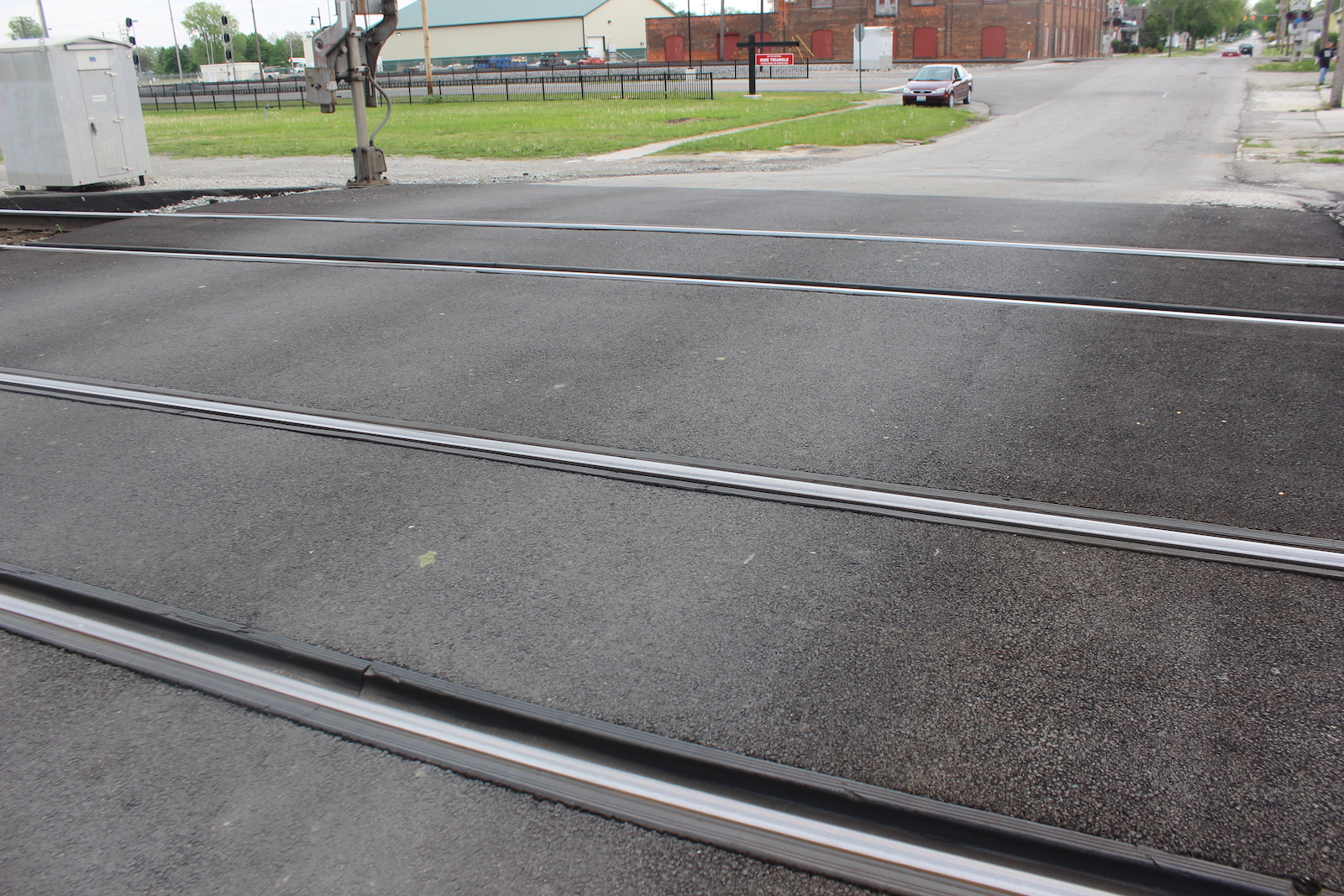

 The grade is rubber and asphalt.

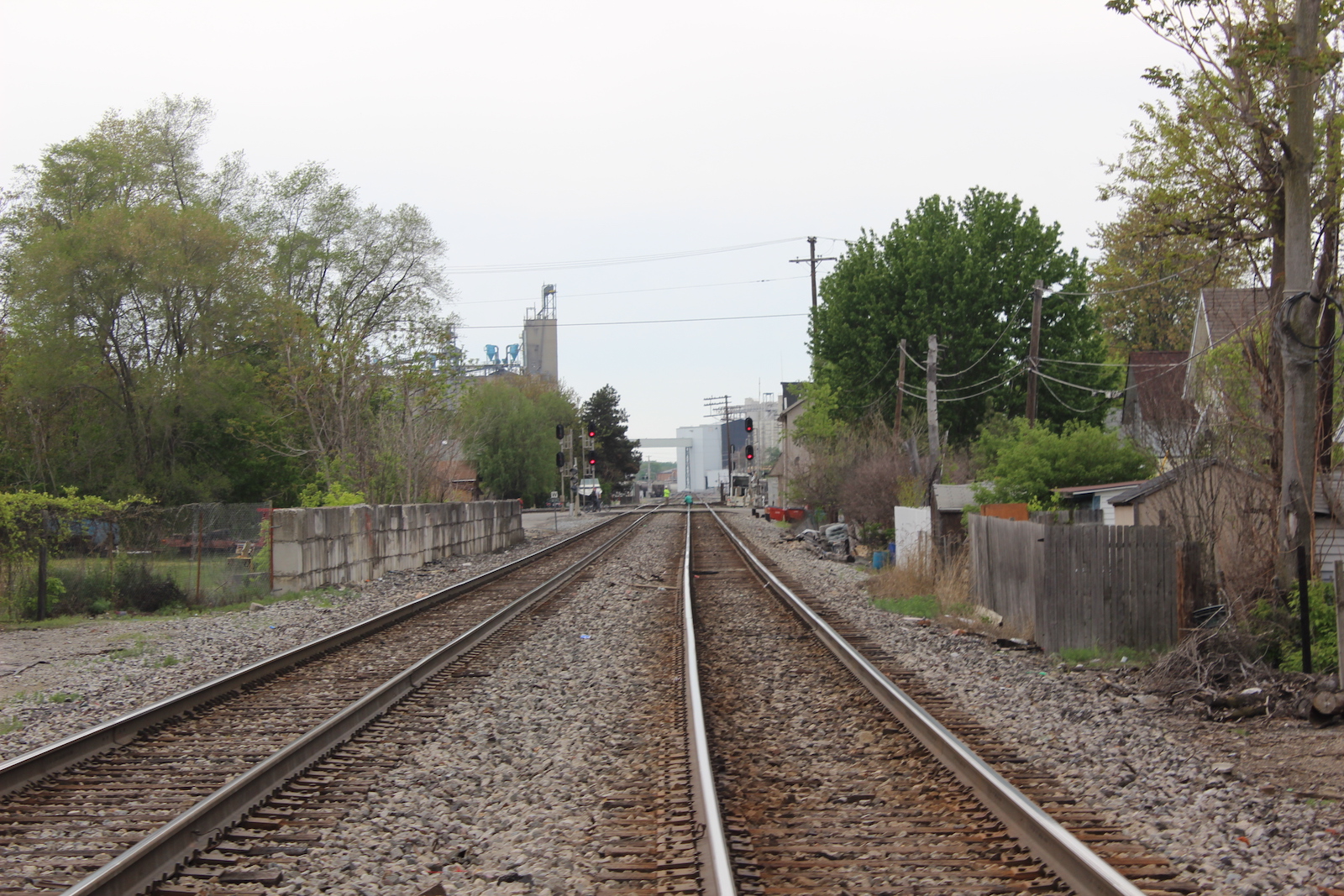

 Track view facing west at Main St.

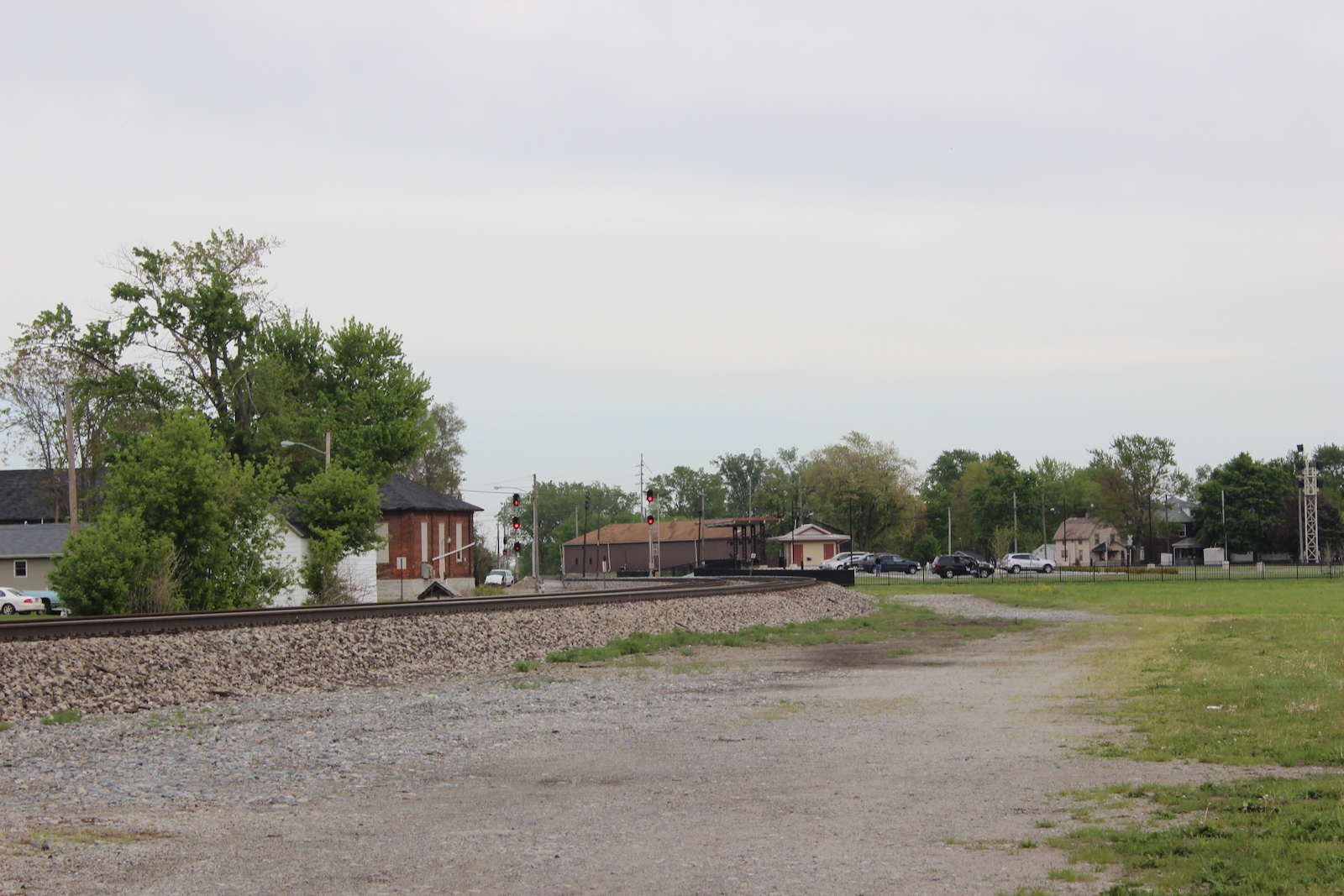

 Track view facing east towards Columbus Ave. #1.
28 29 30 31

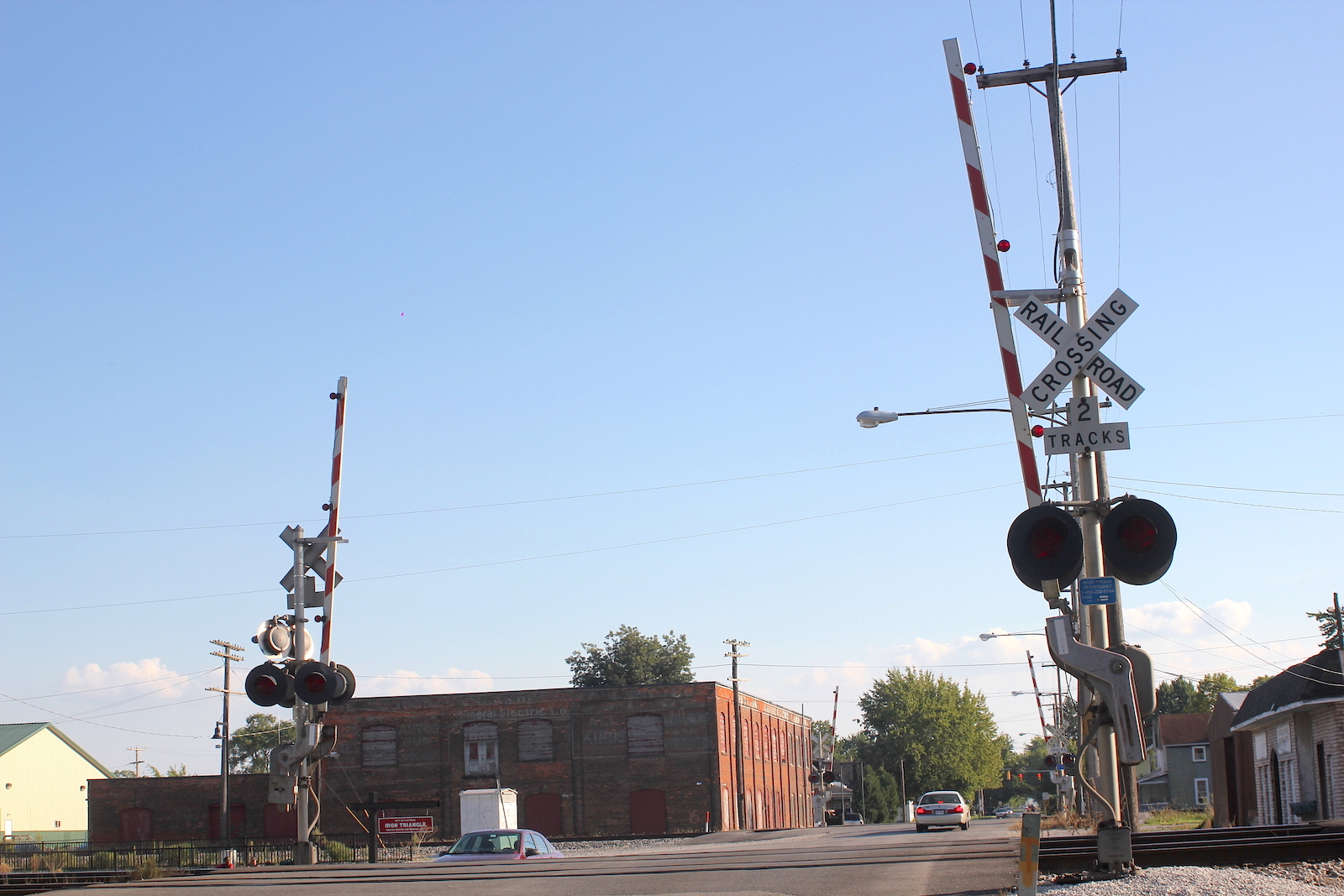

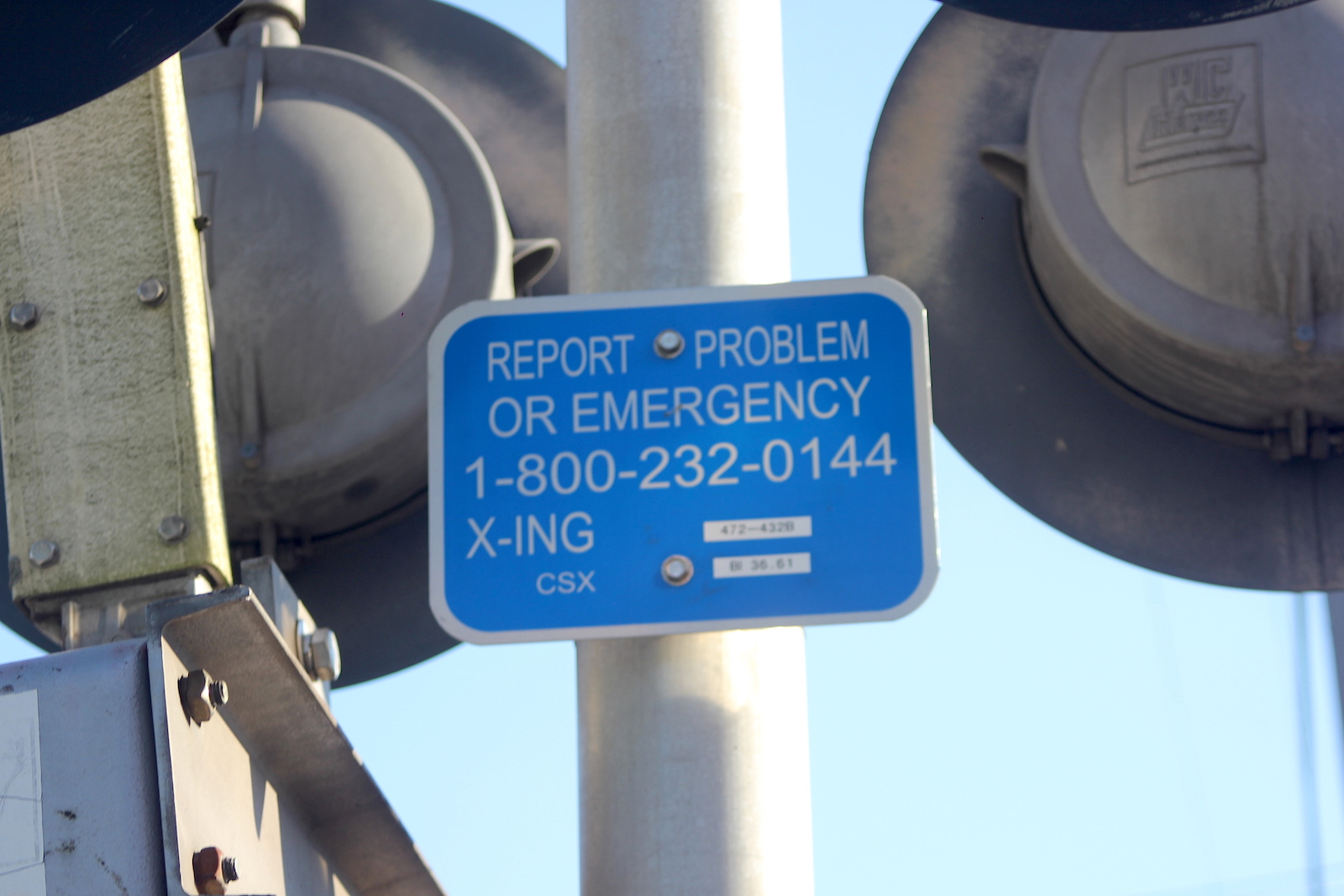

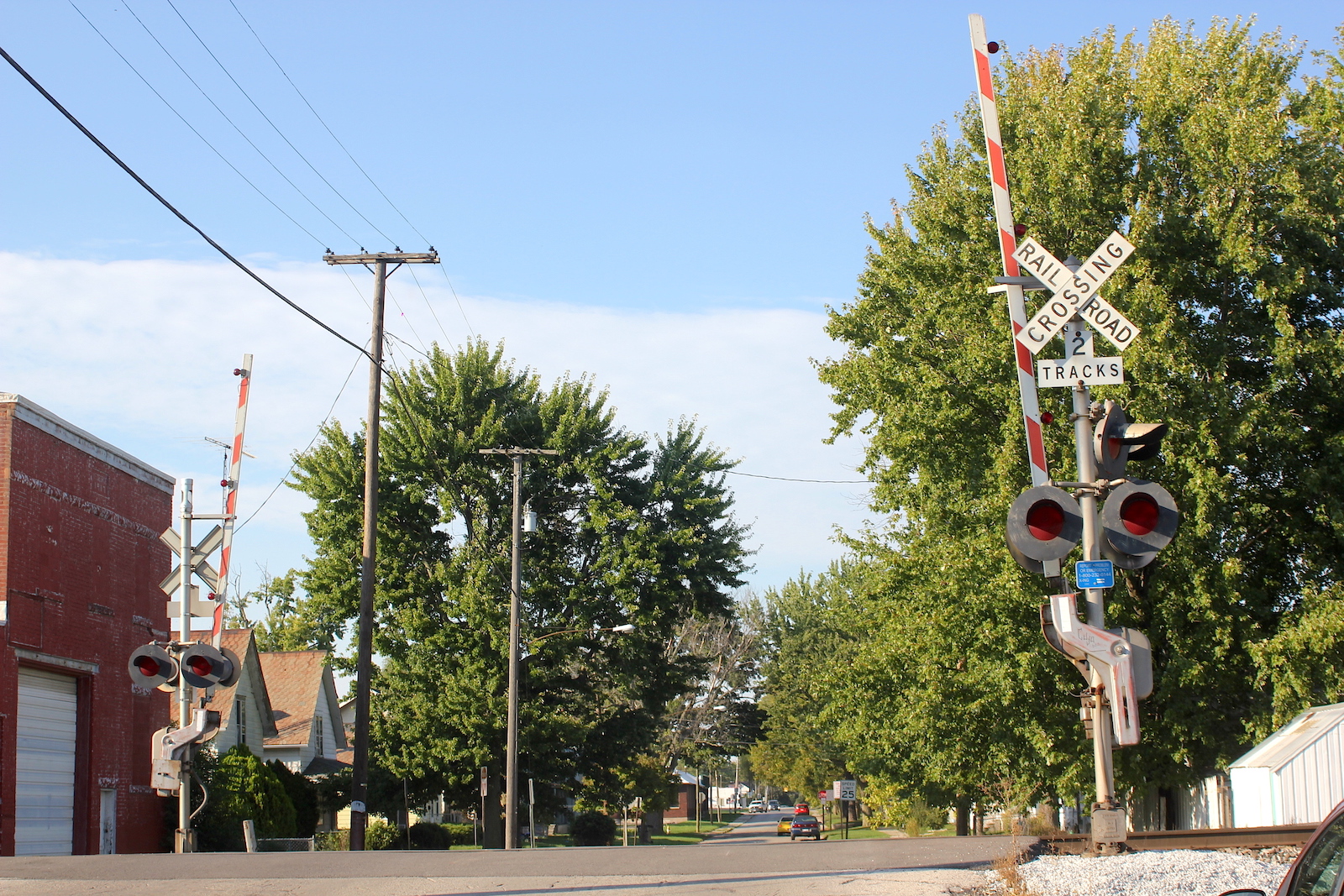

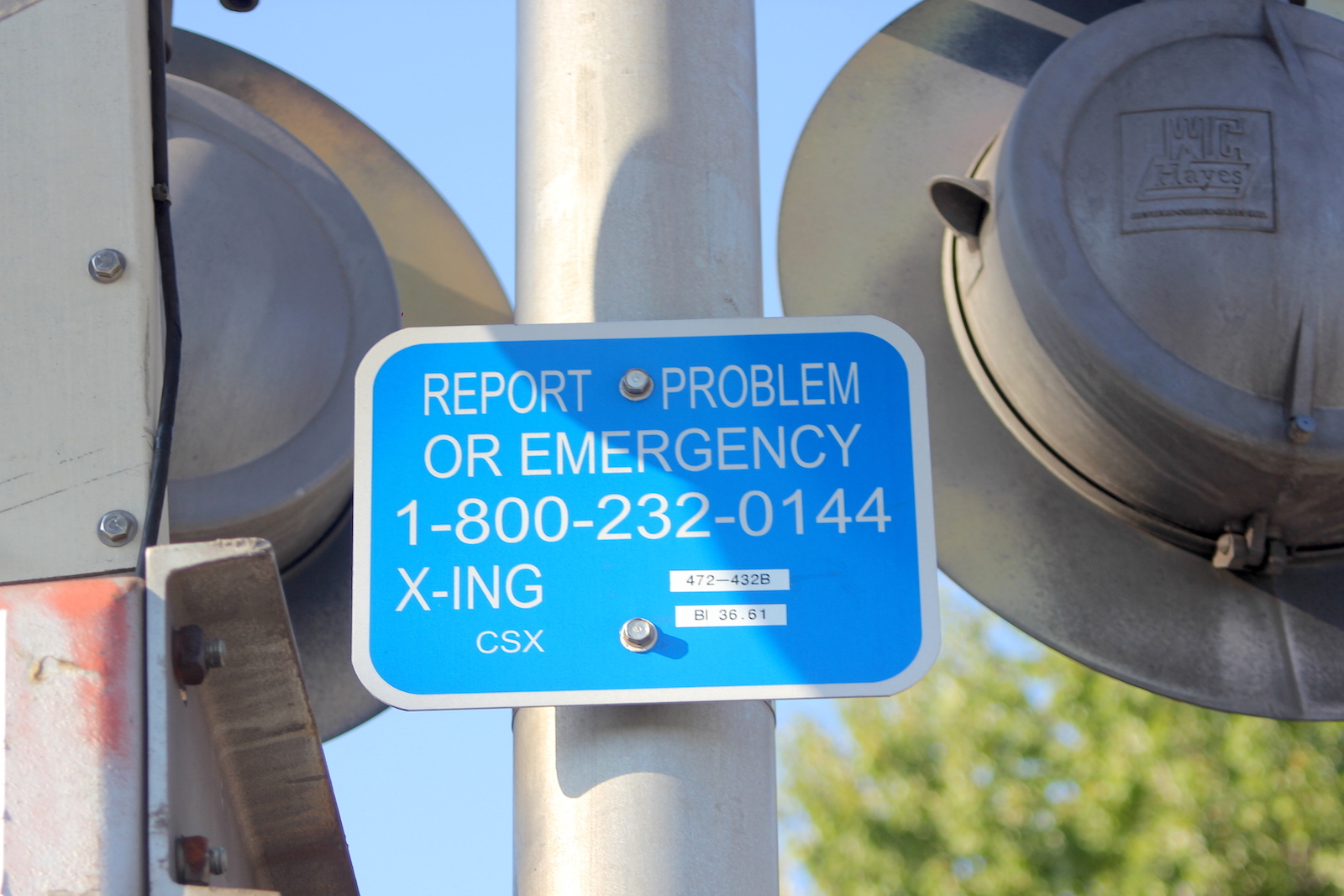

In September 2016, we see the white DOT signs were replaced with blue ones.

In late 2019, brand new signals were installed here replacing the old ones..

32
 33

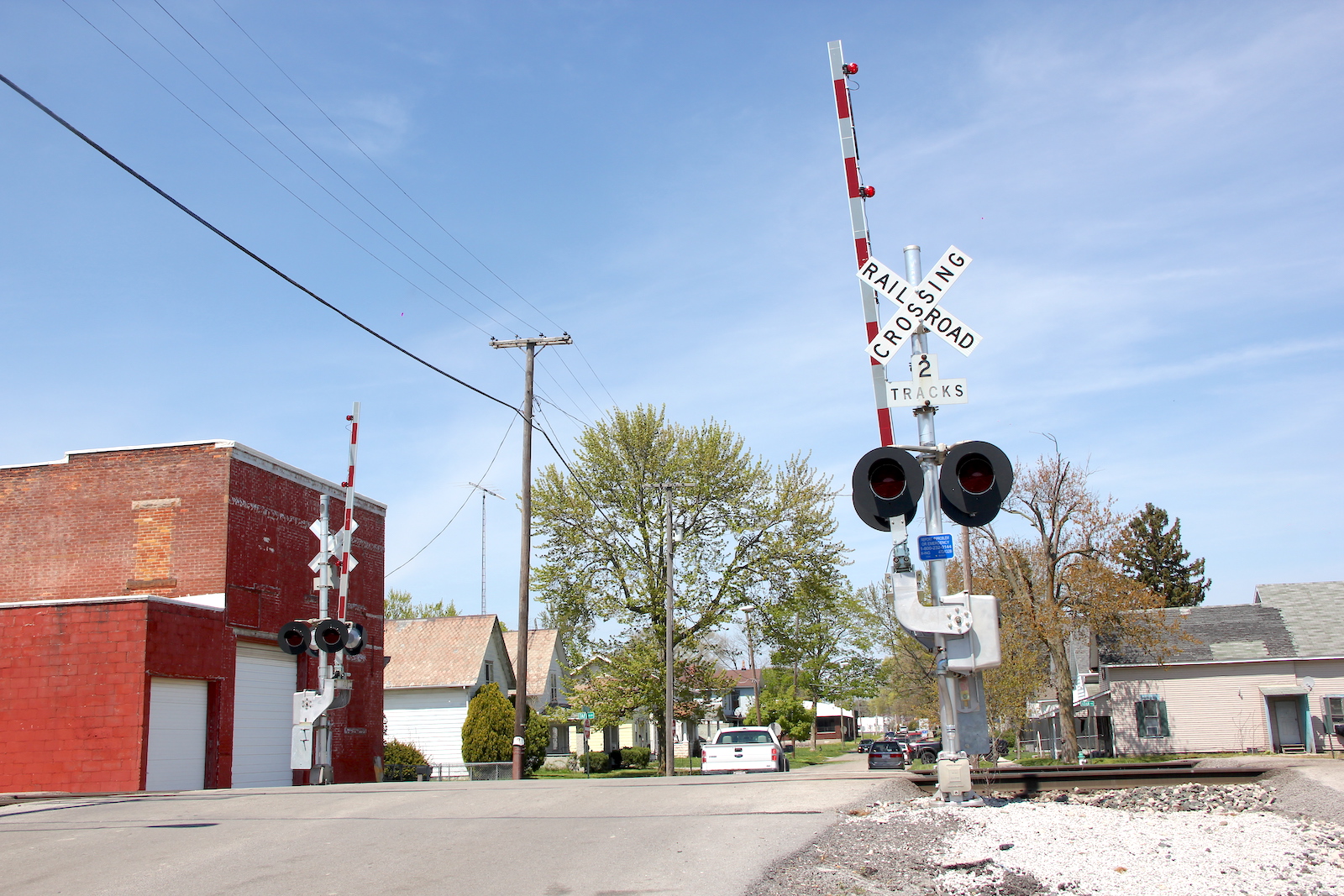

Overview of the new signals facing north.

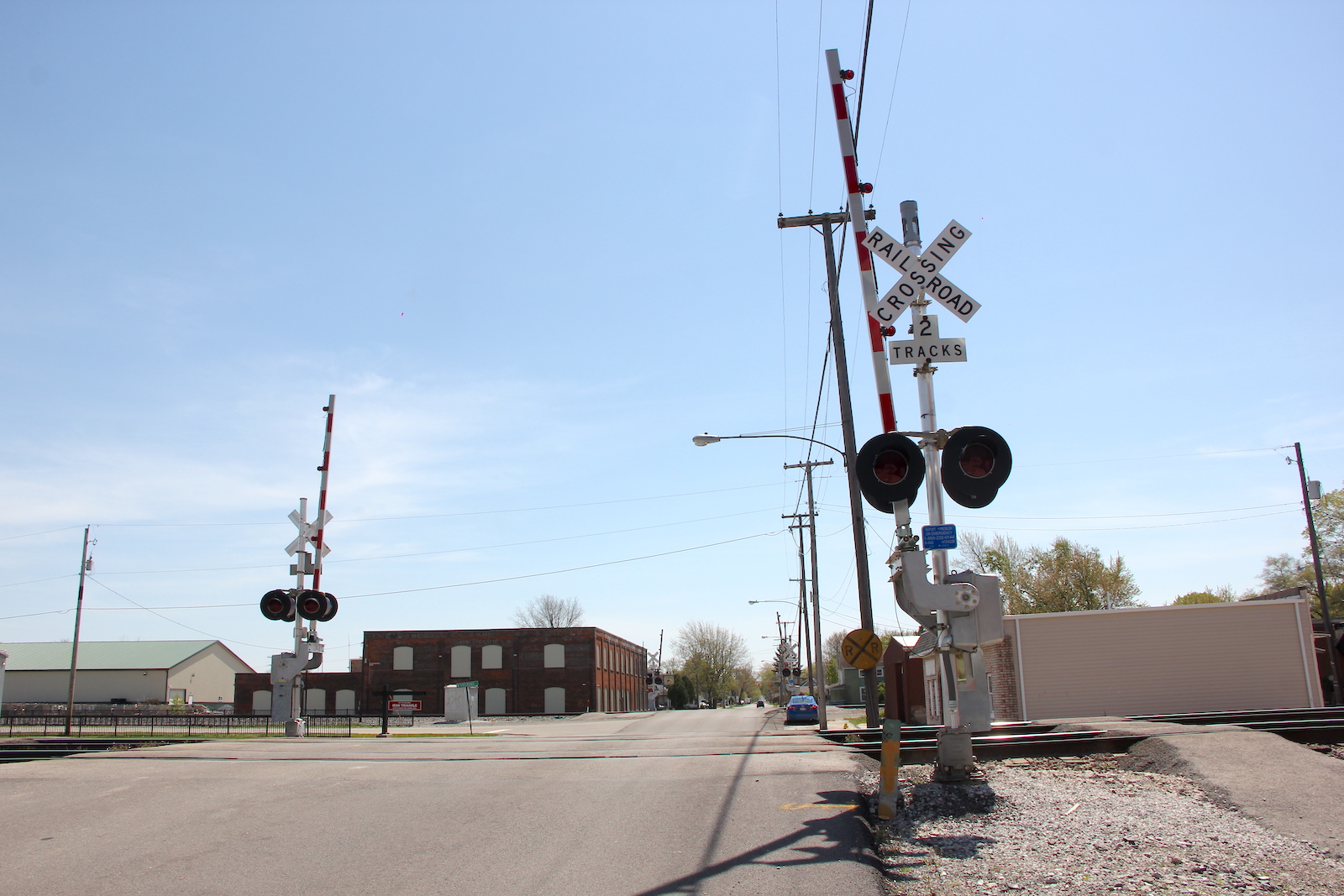

 Overview facing south.
34 35 36
37 38 39
40 41 42

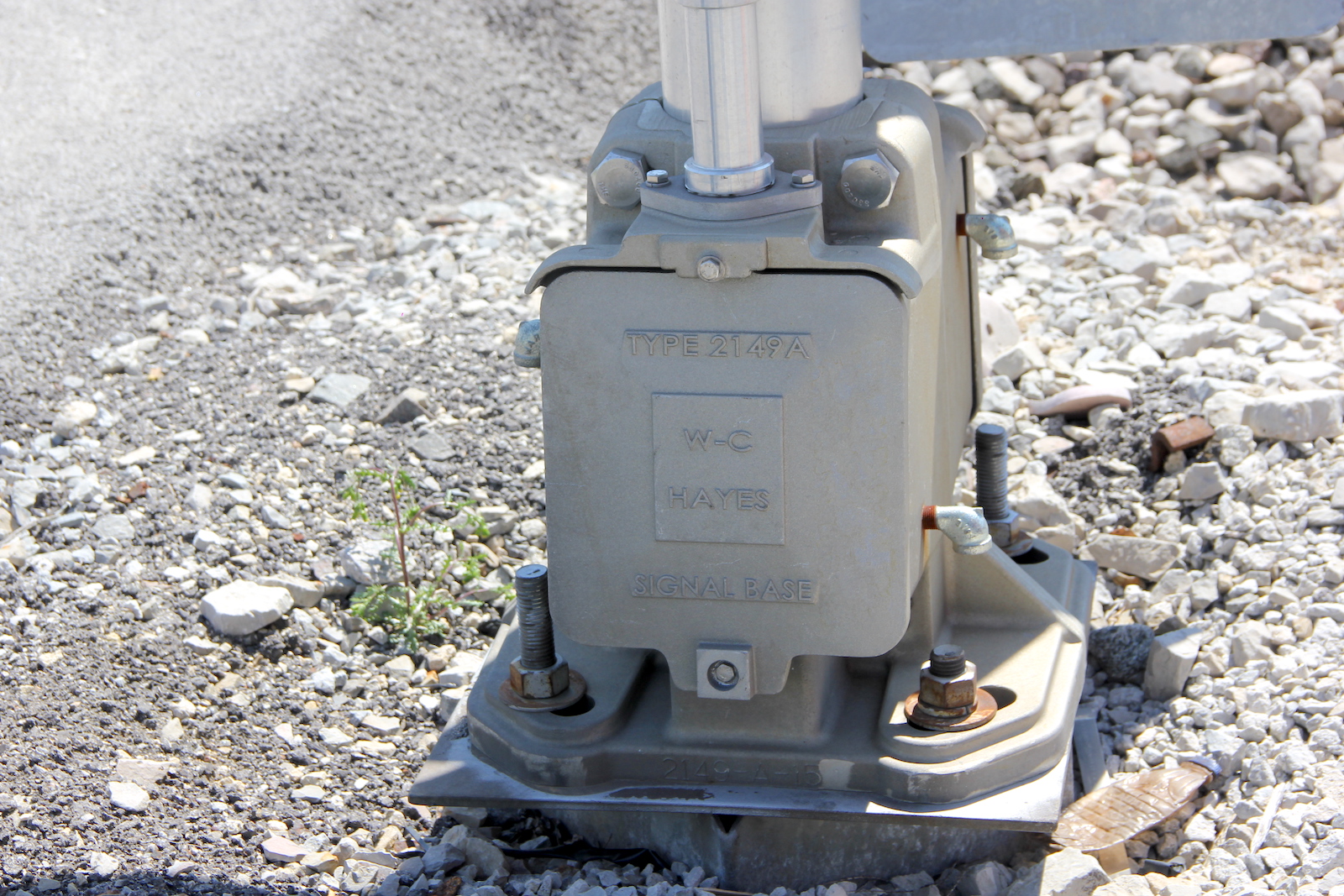

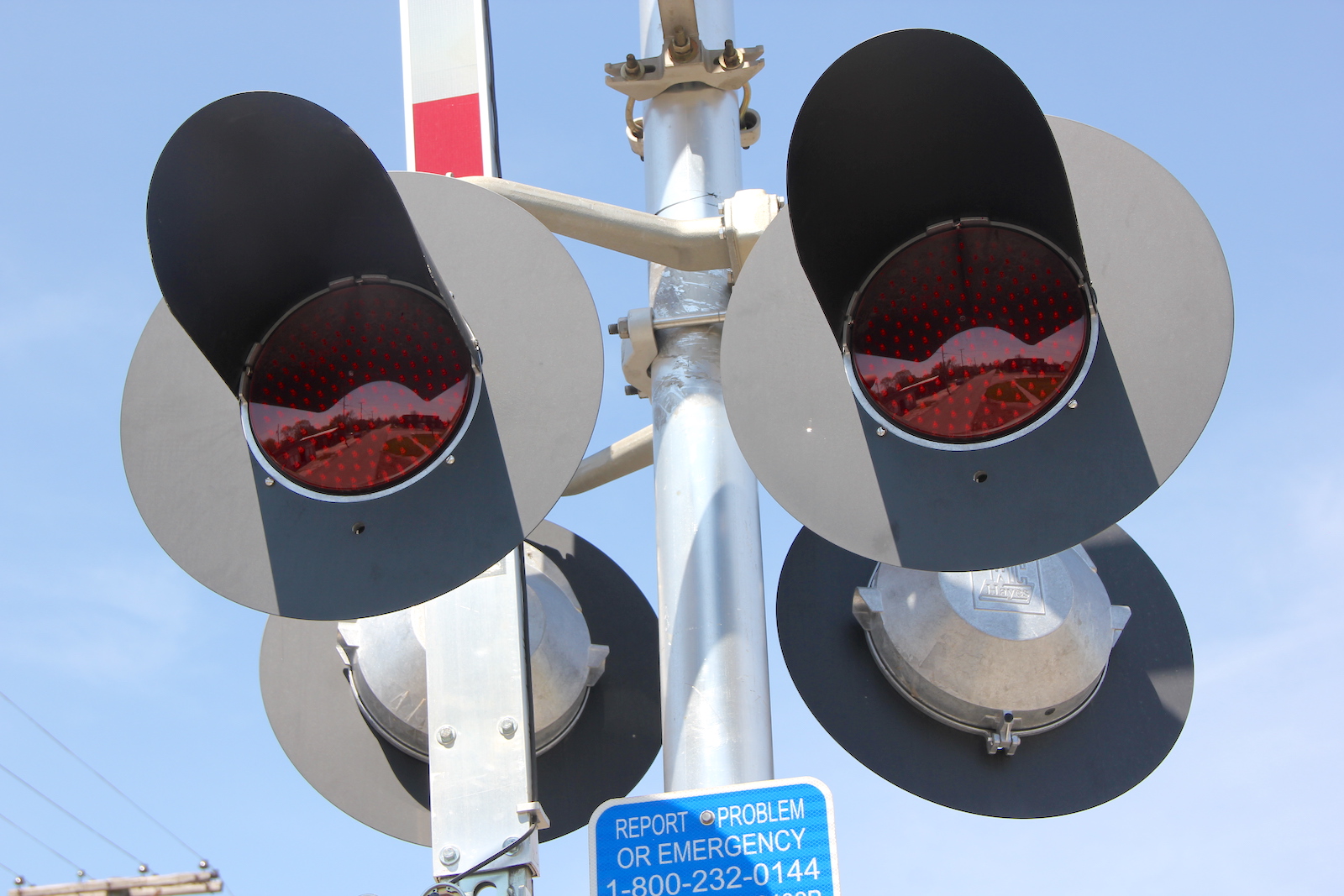

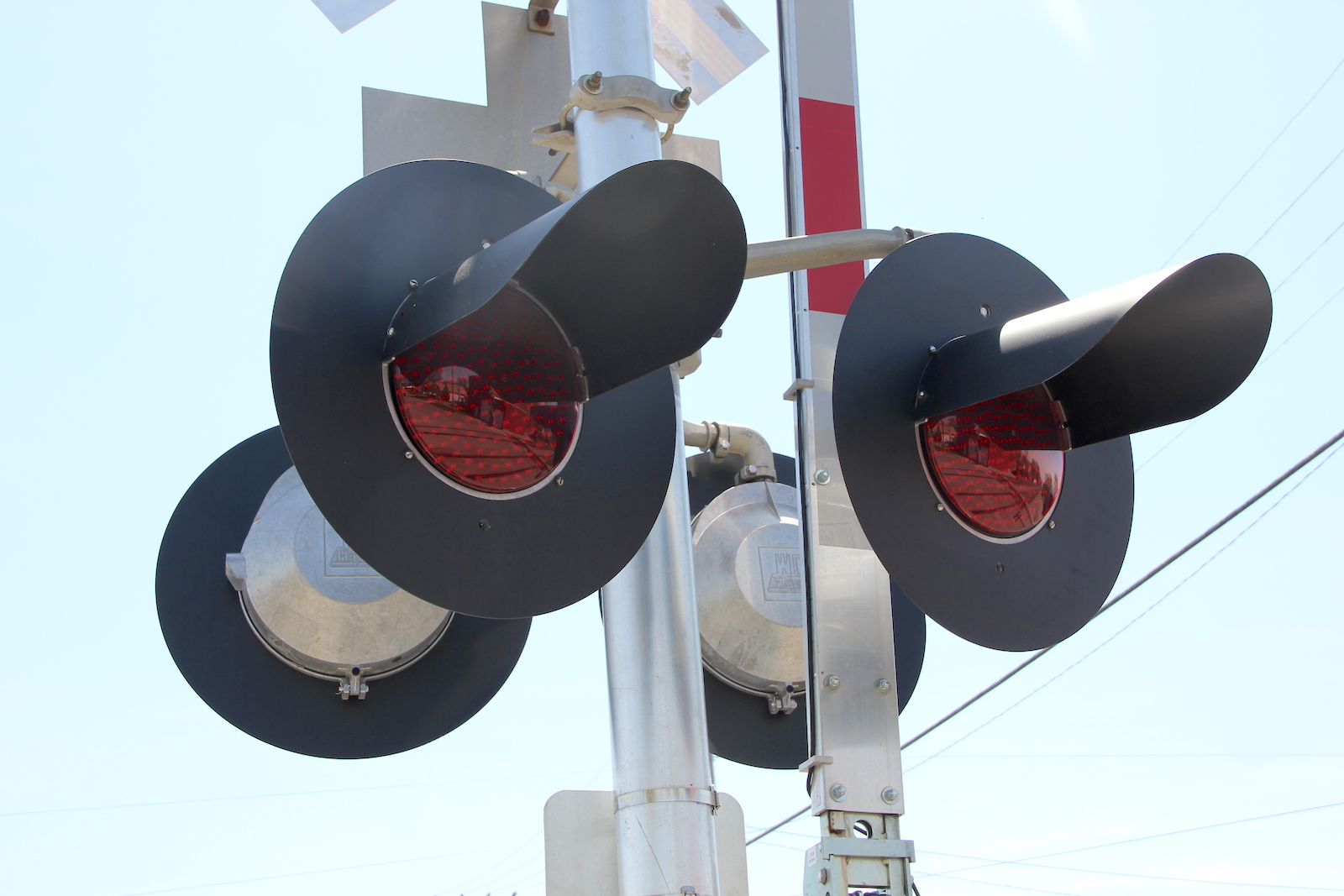

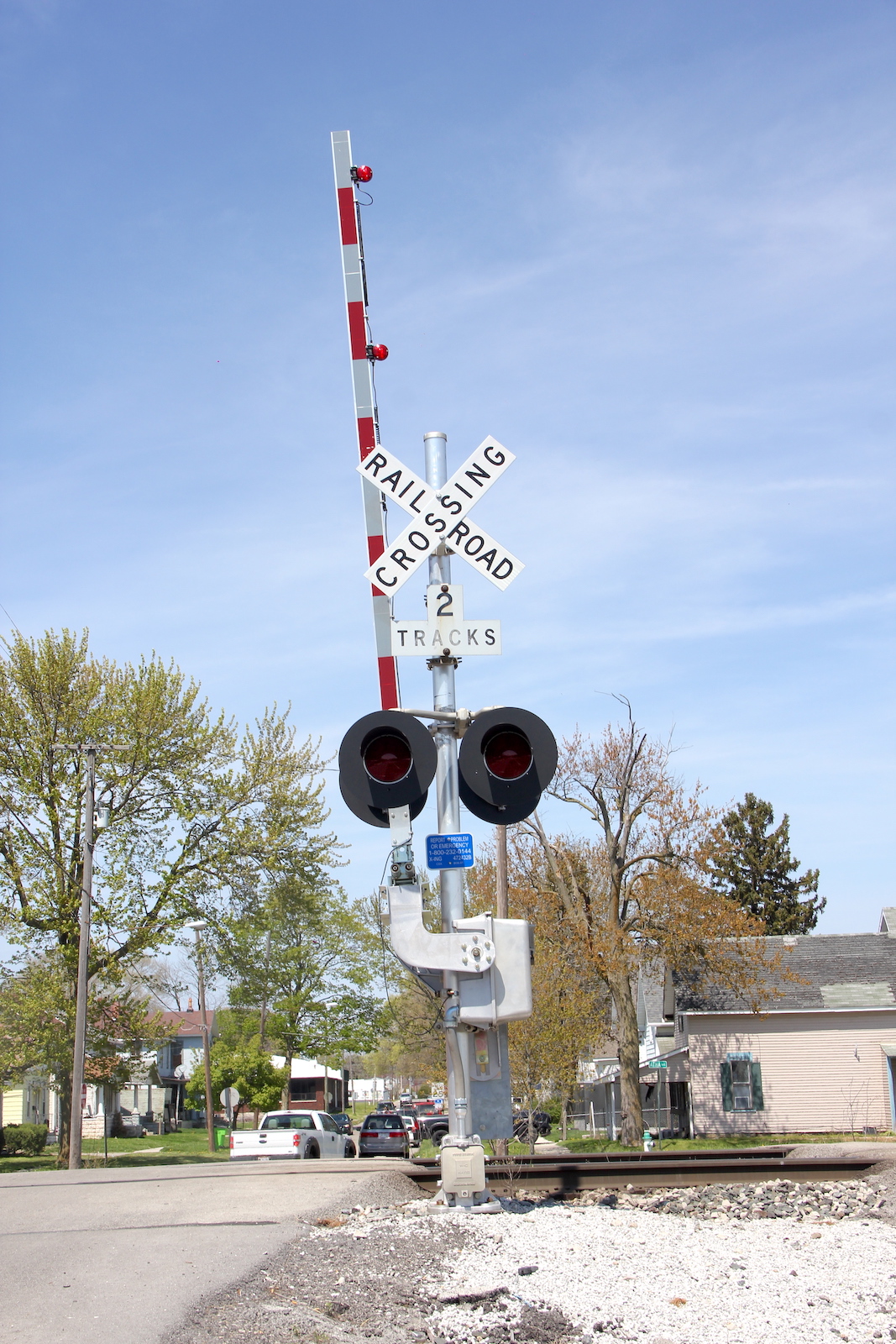

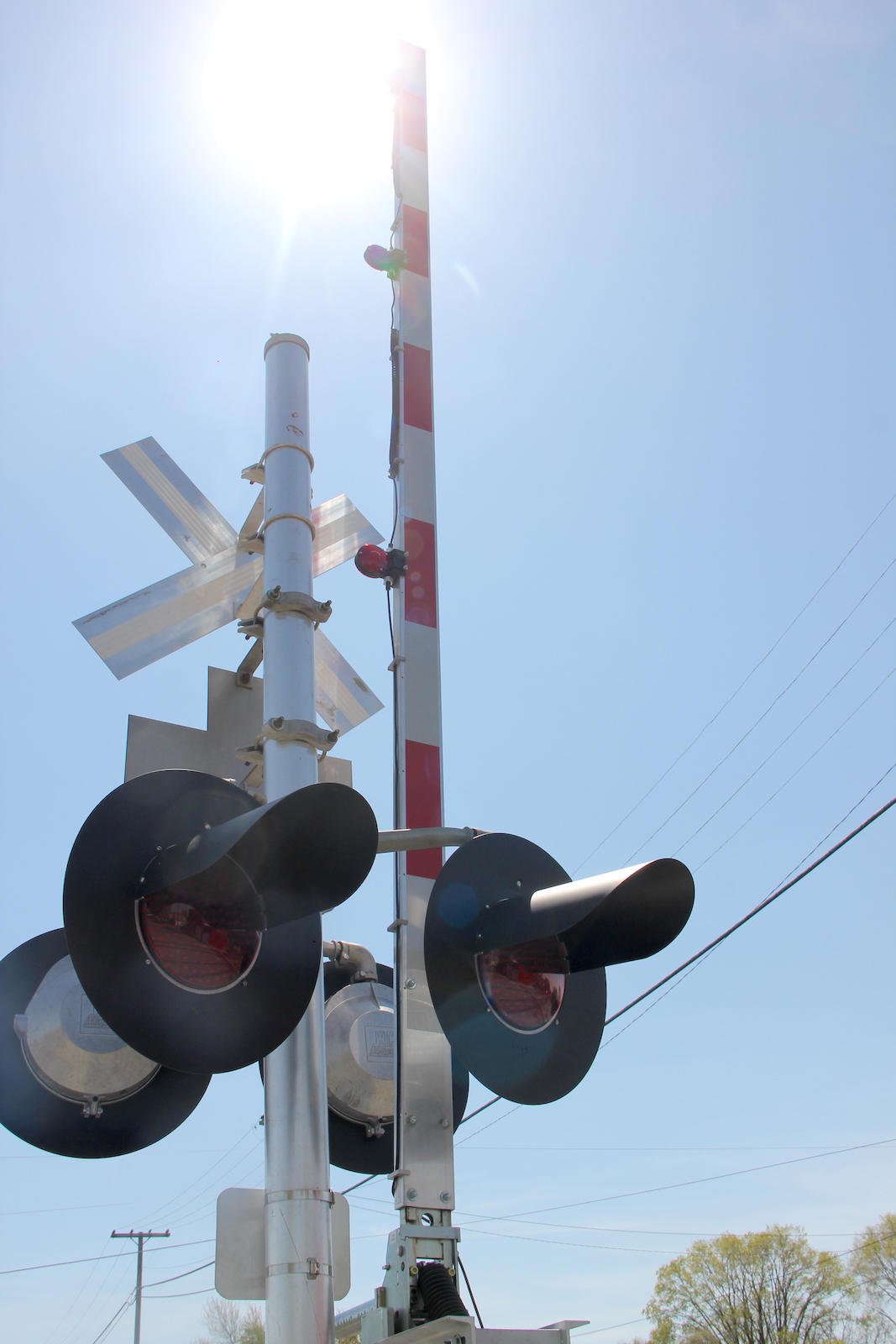

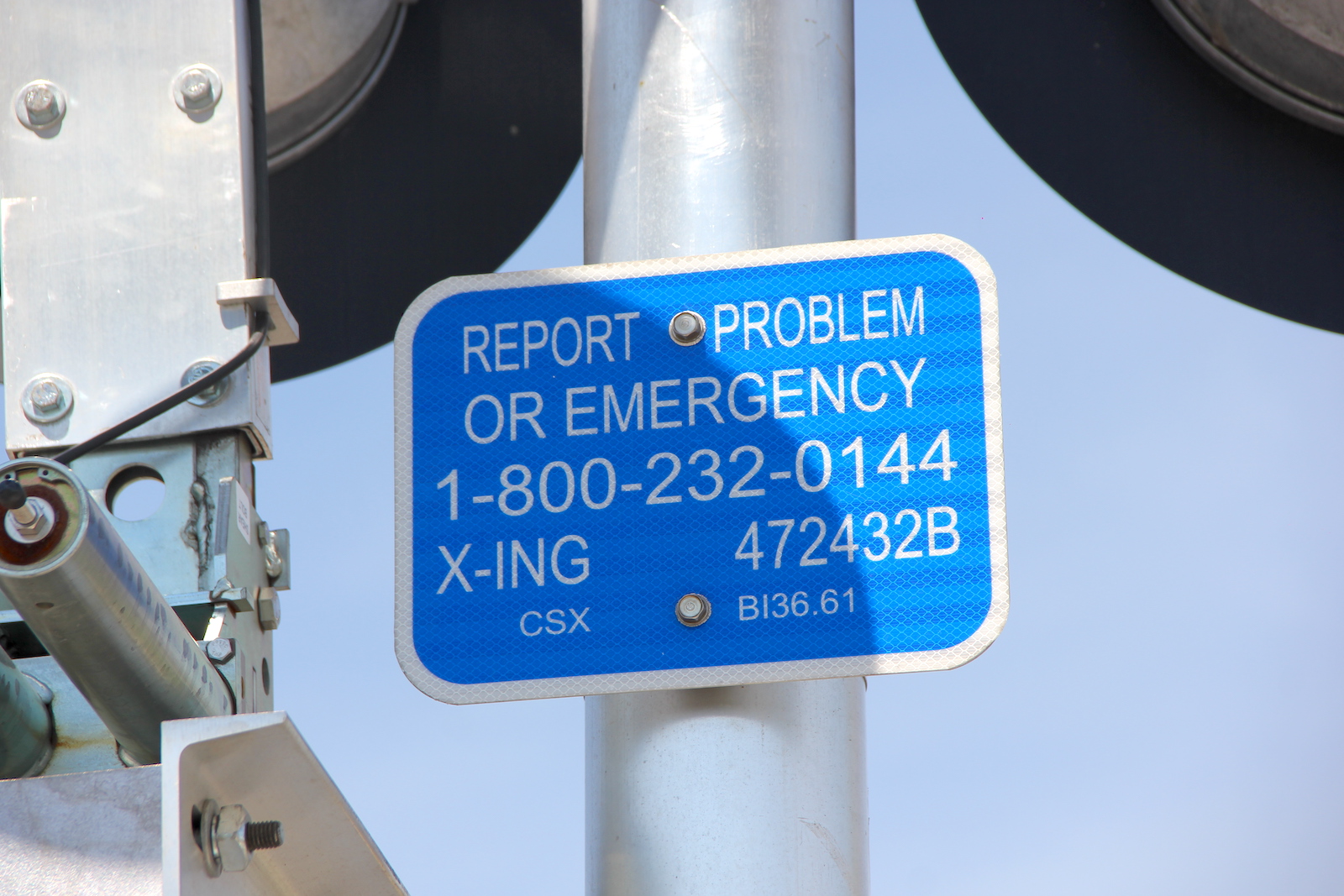

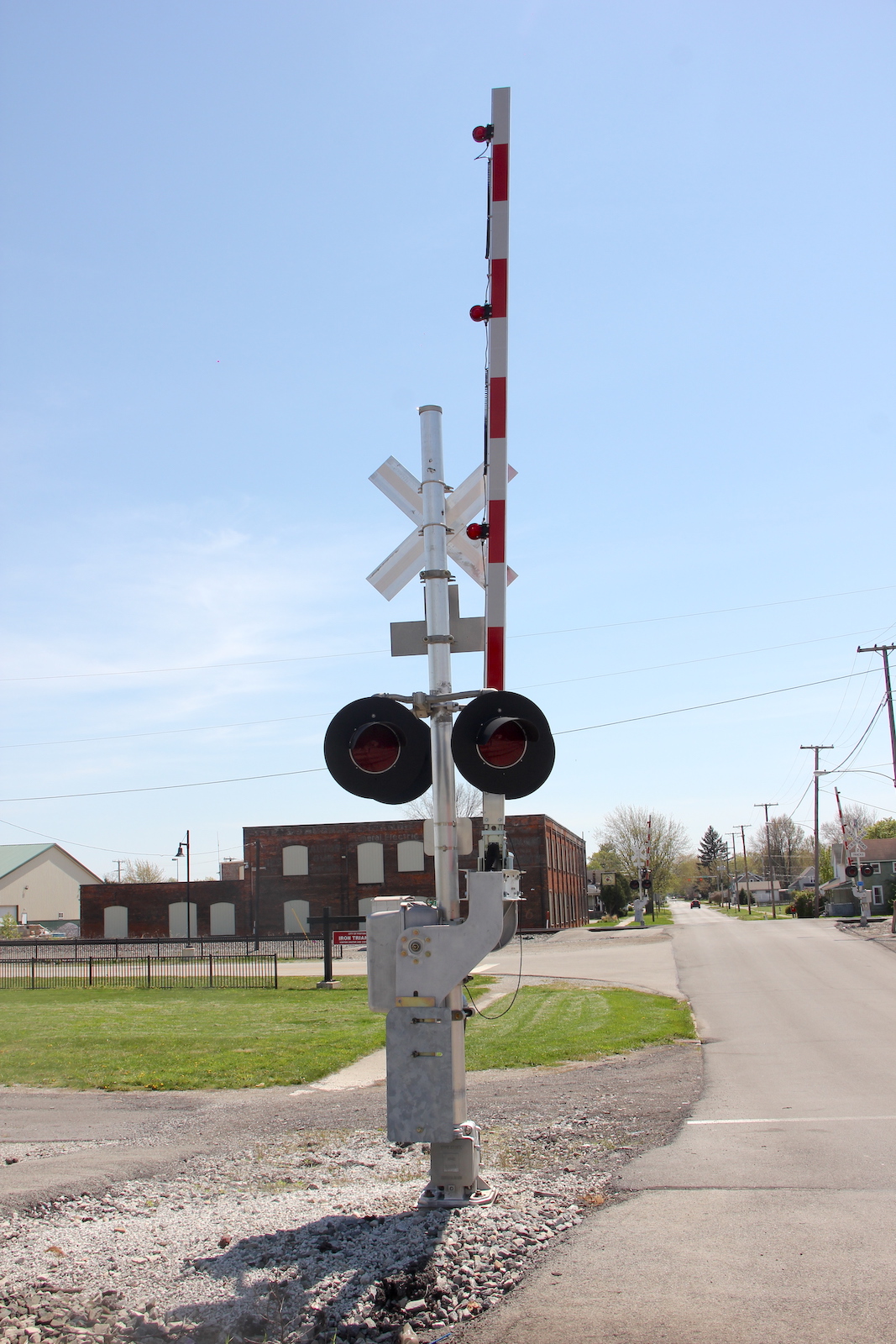

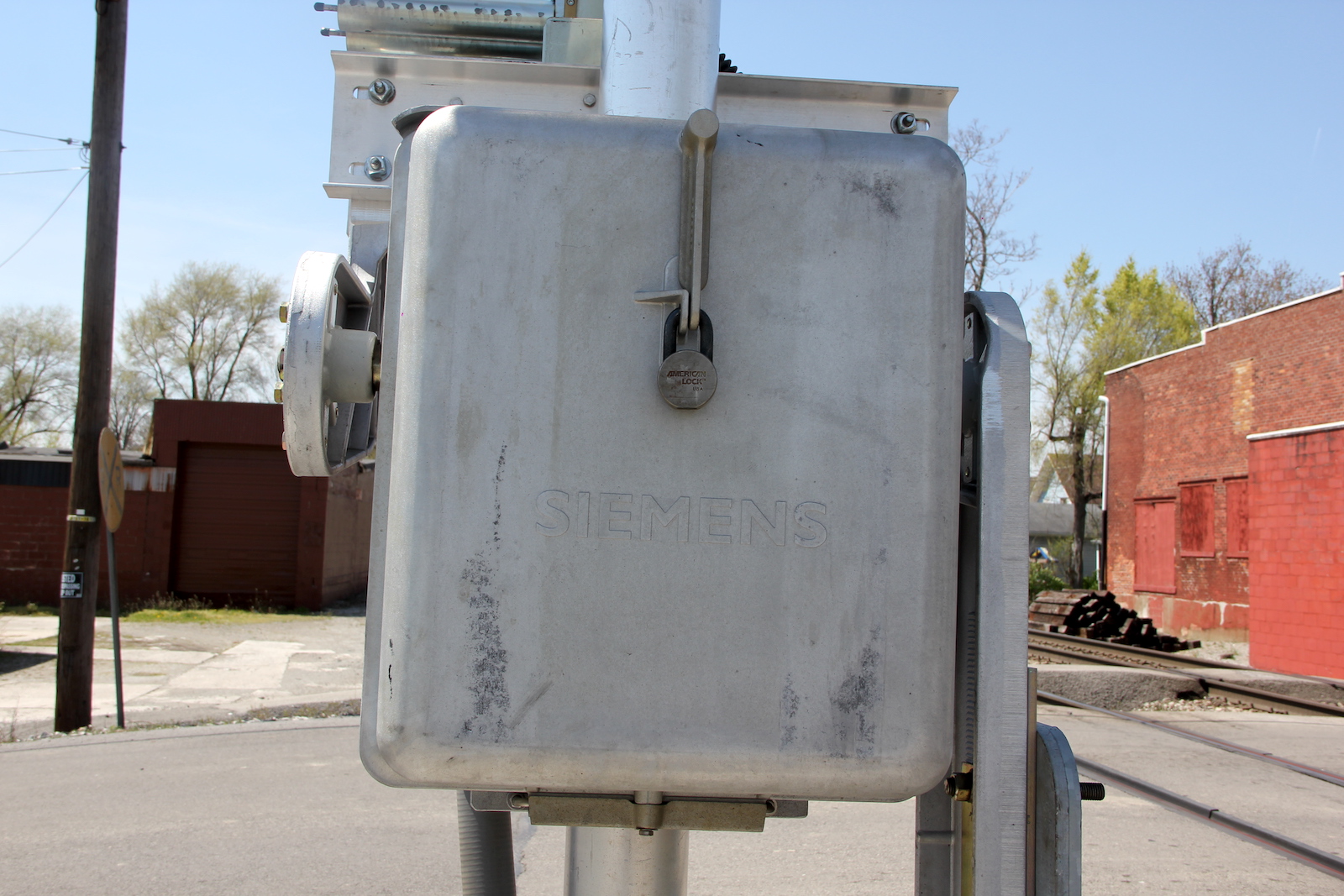

The new southern signal. The new one no longer has side lights.
43 44 45
46 47 48
49 50 51 52

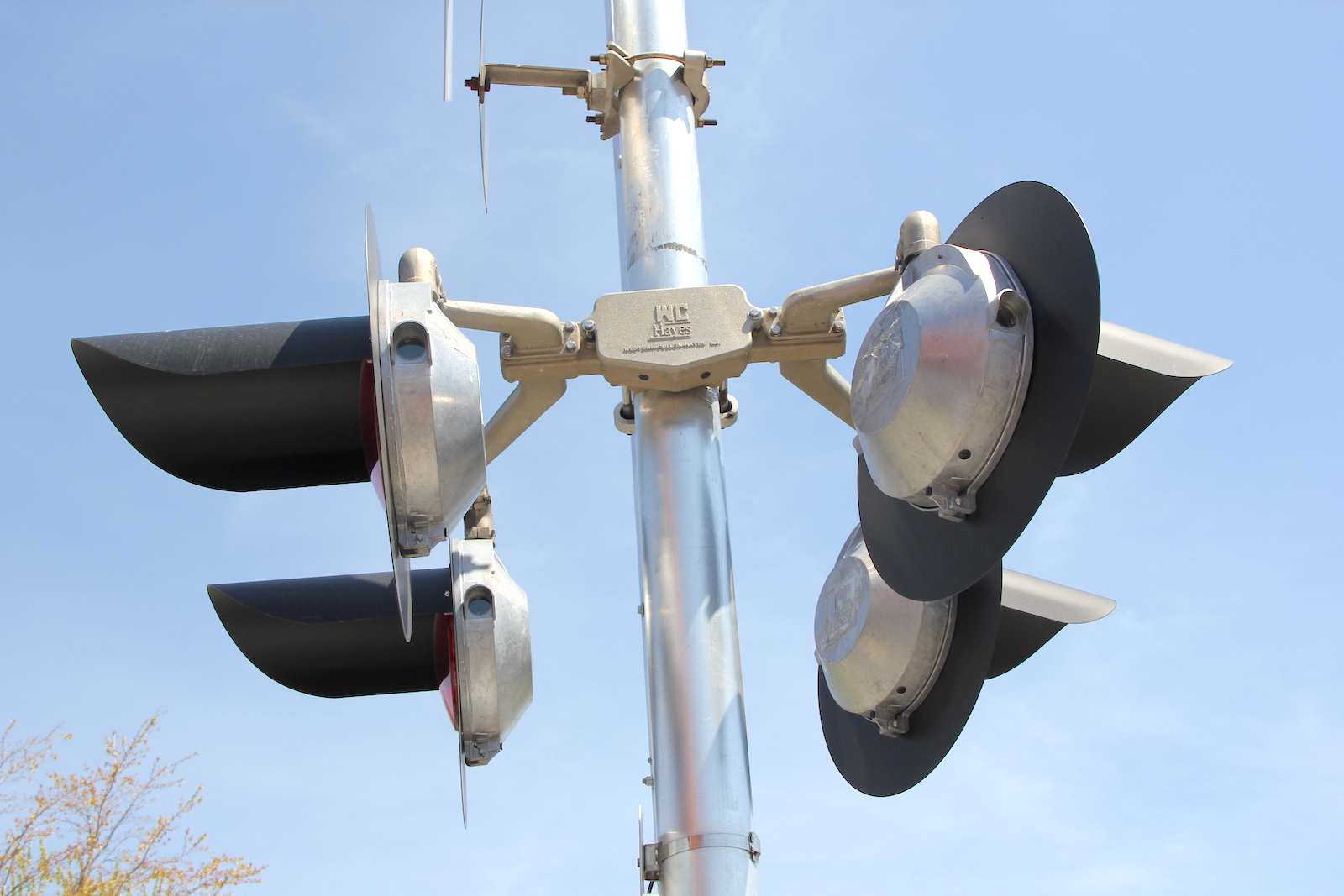

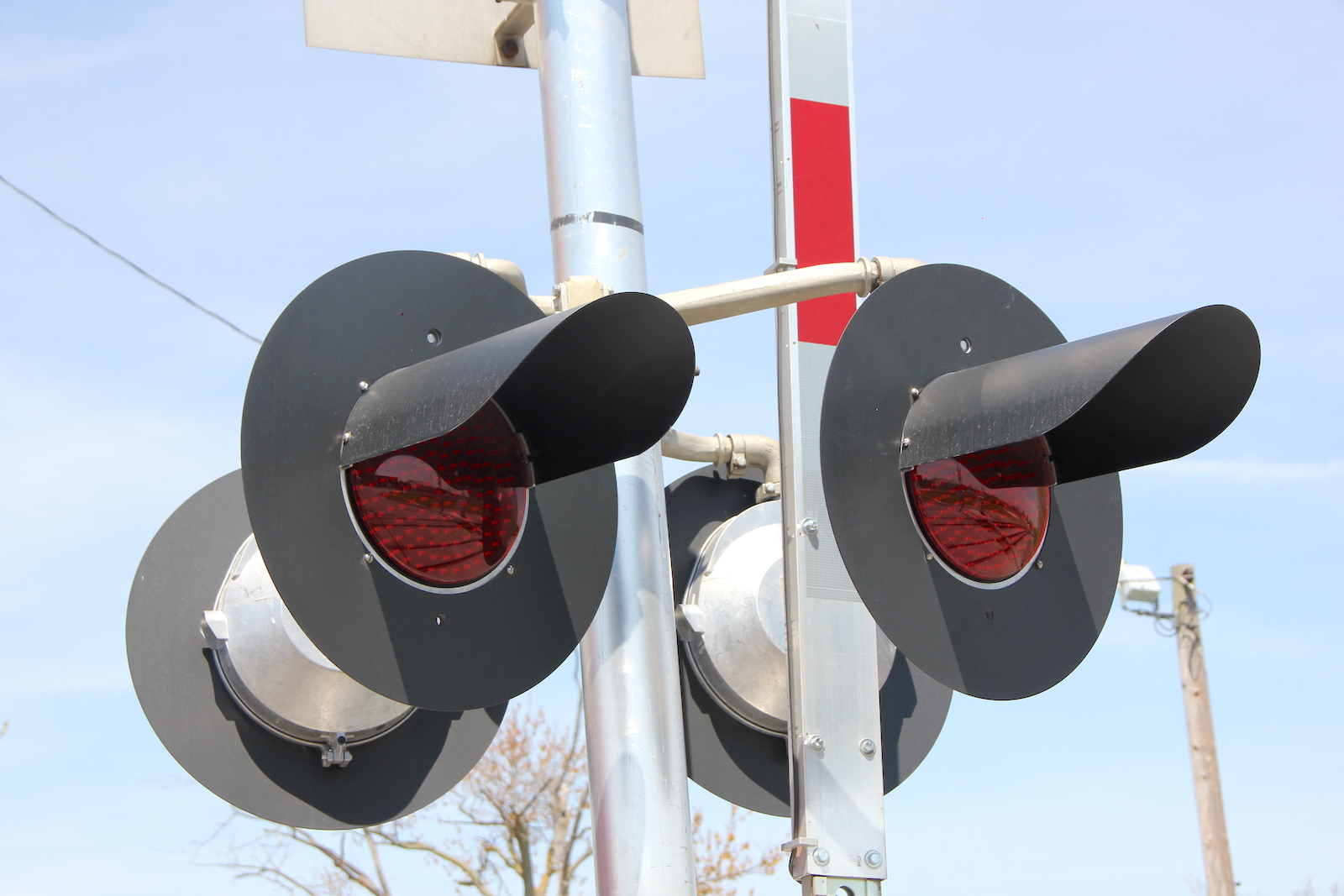

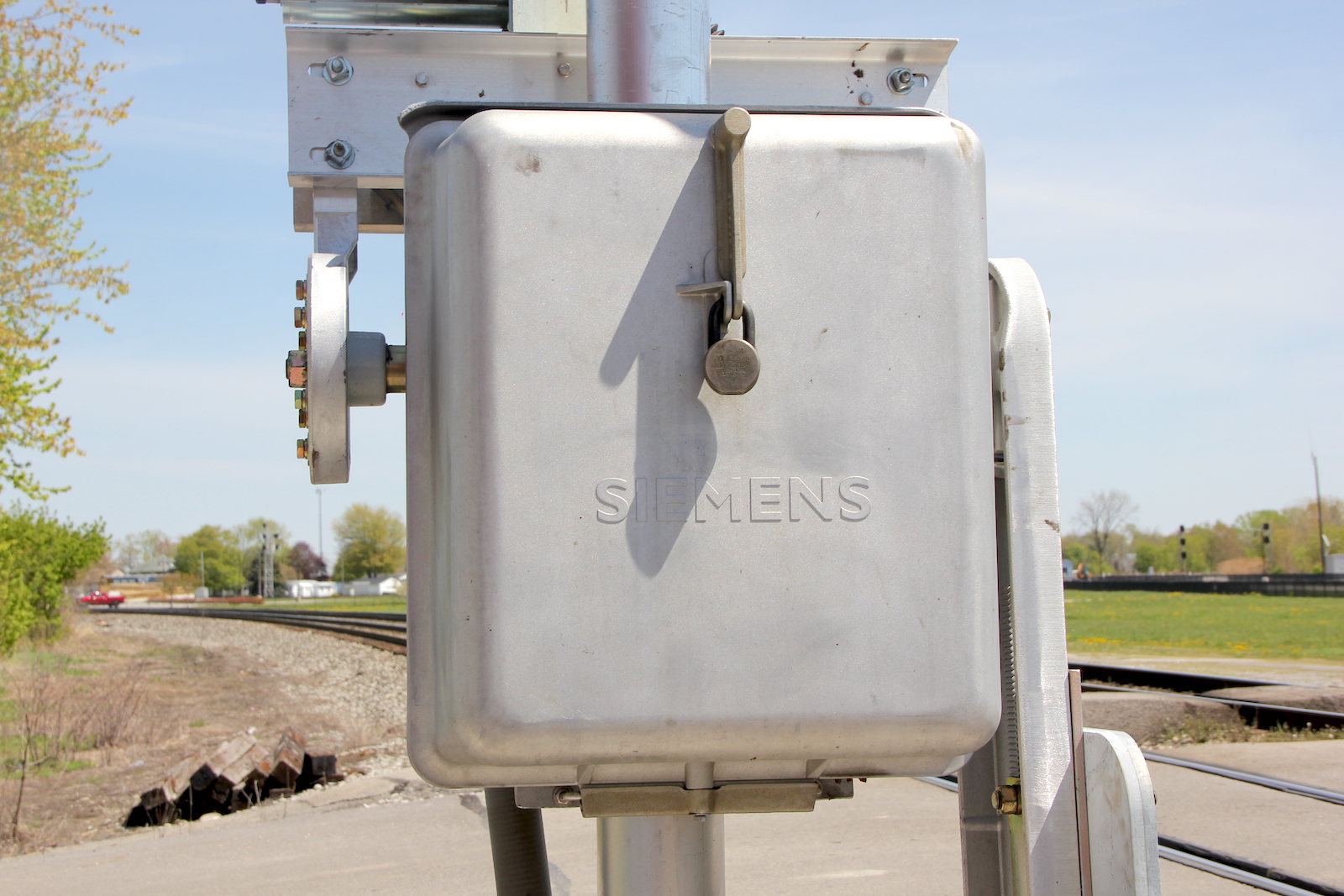

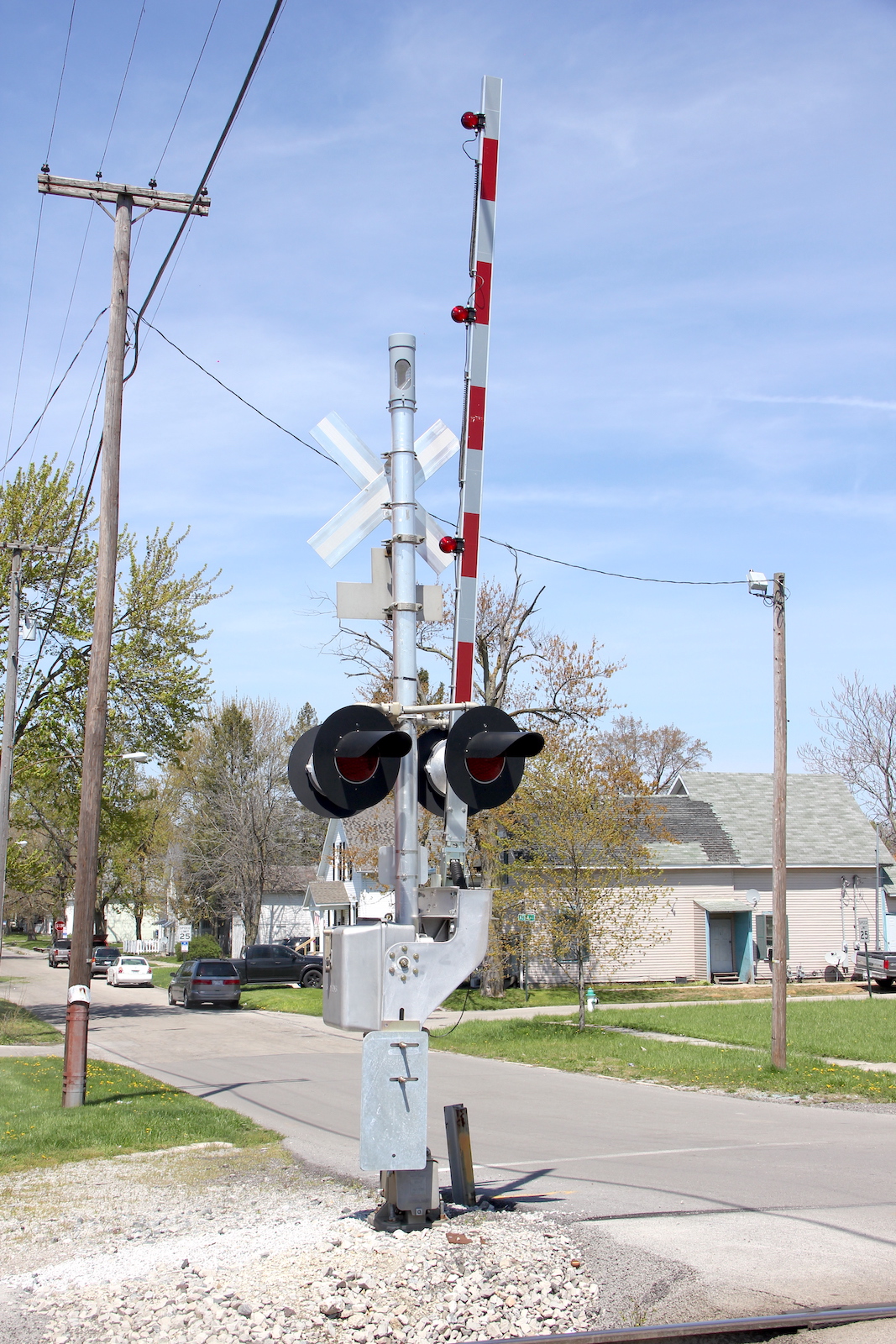

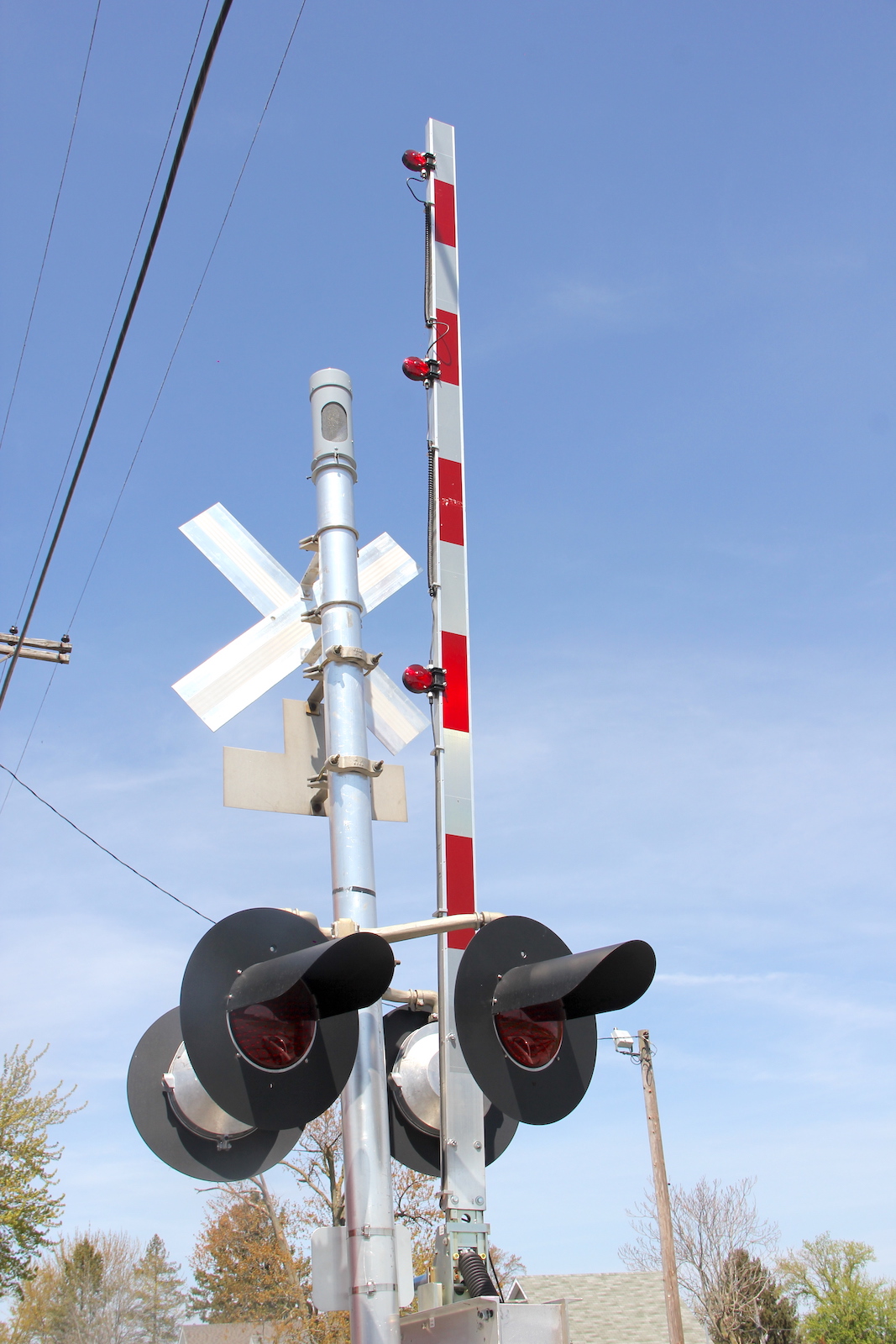

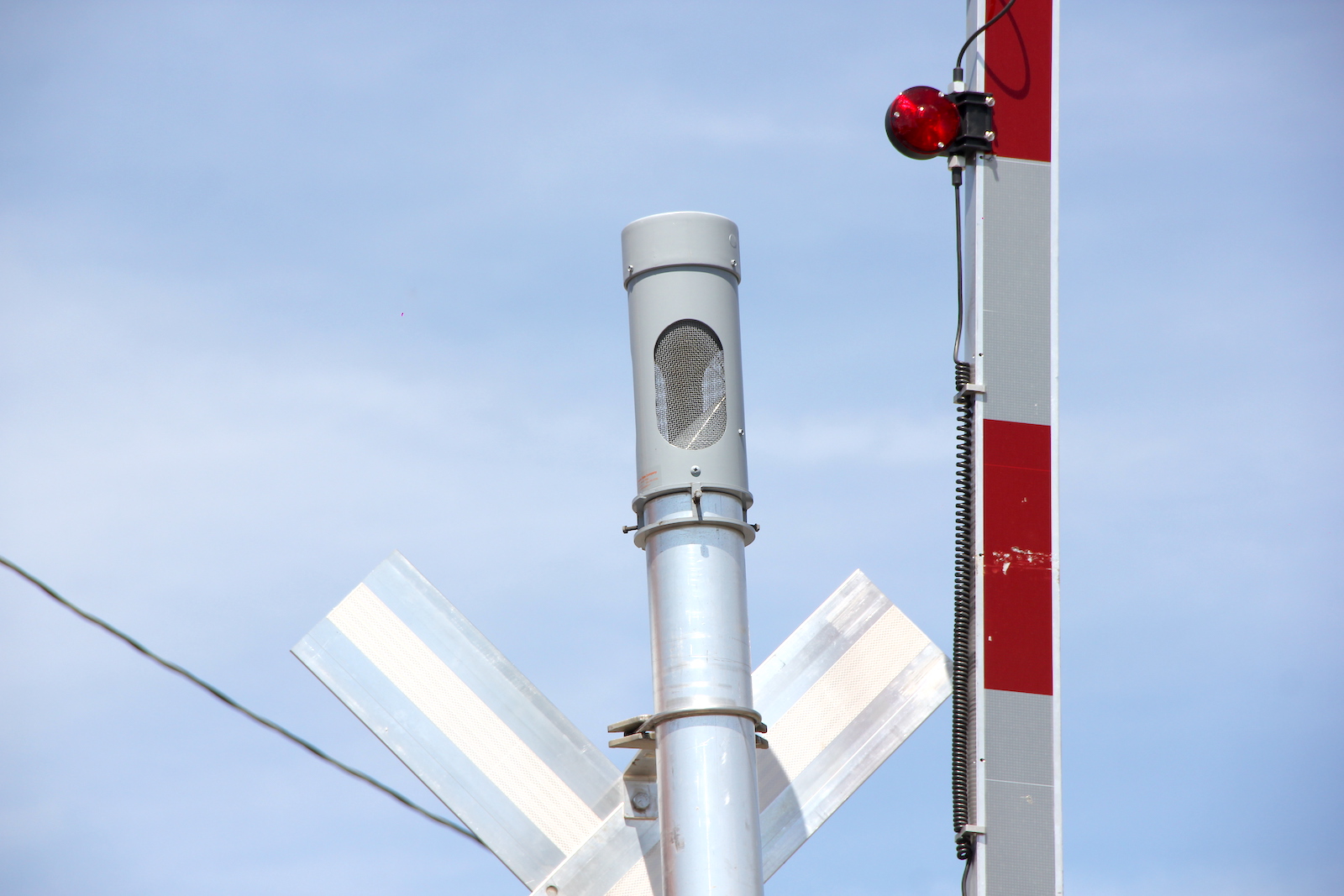

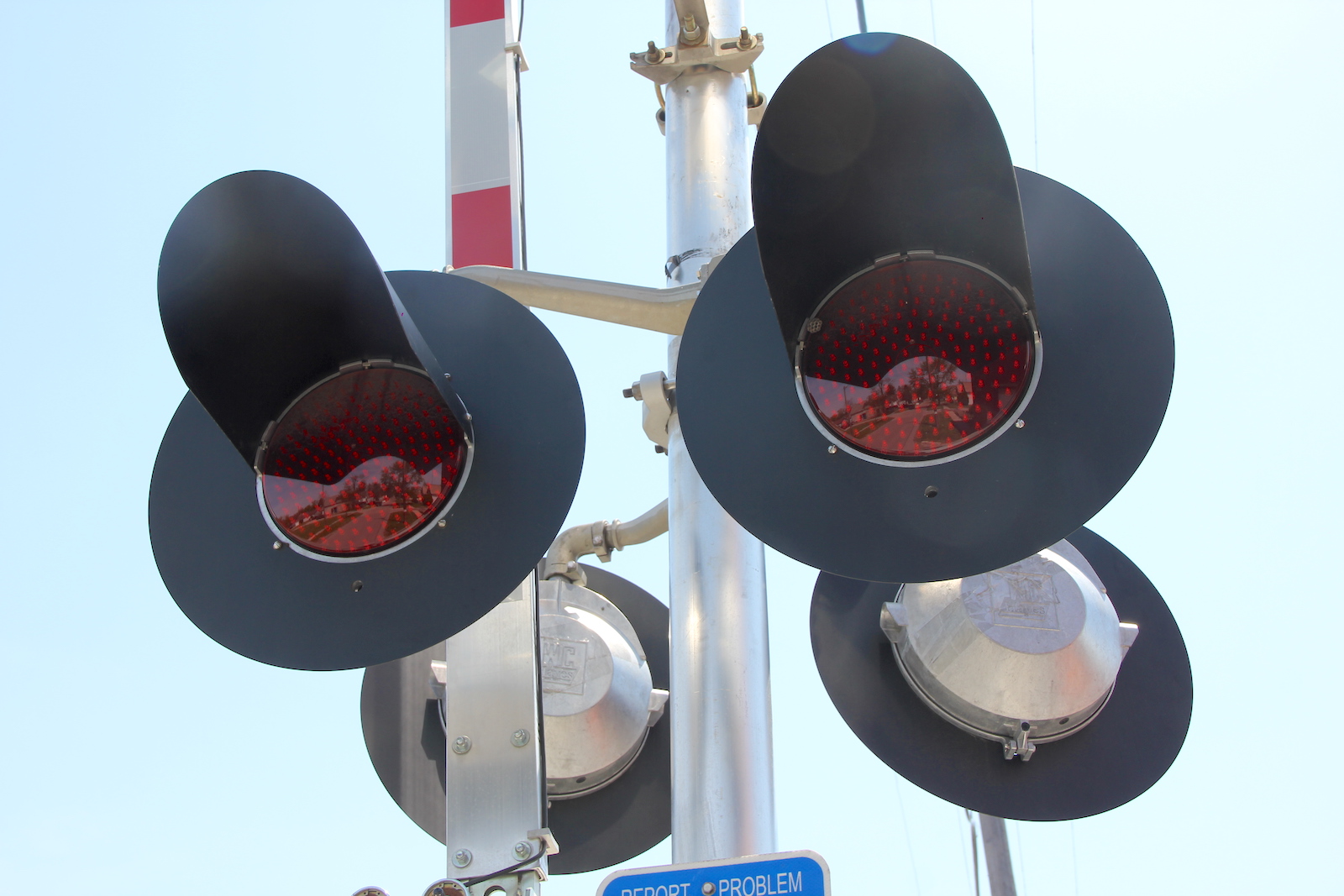

The new northern signal.
53 54 55 56

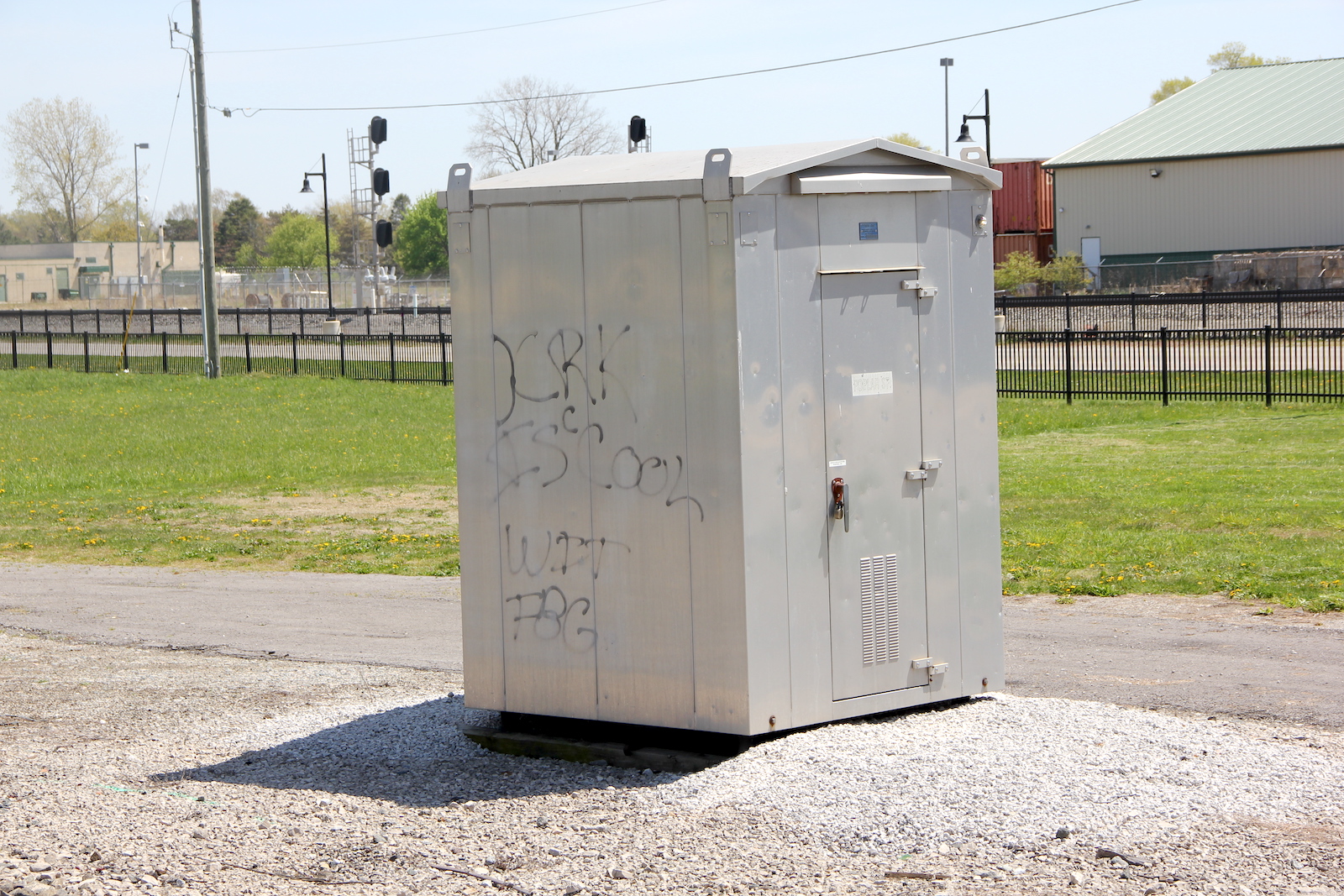

The same relay bungalow in the southeast quadrant.

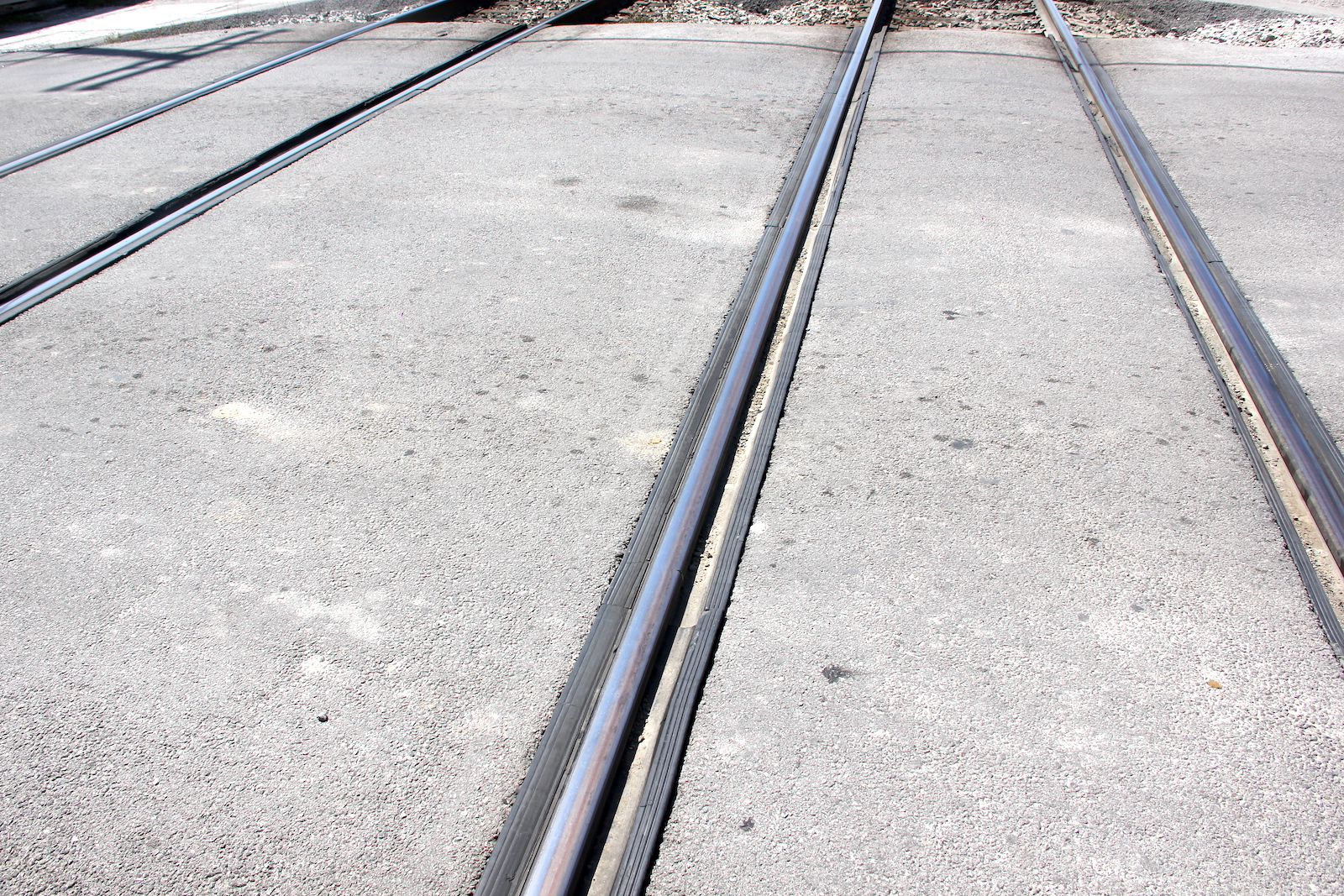

 The grade is rubber and asphalt.
 Track view facing west at Main St.

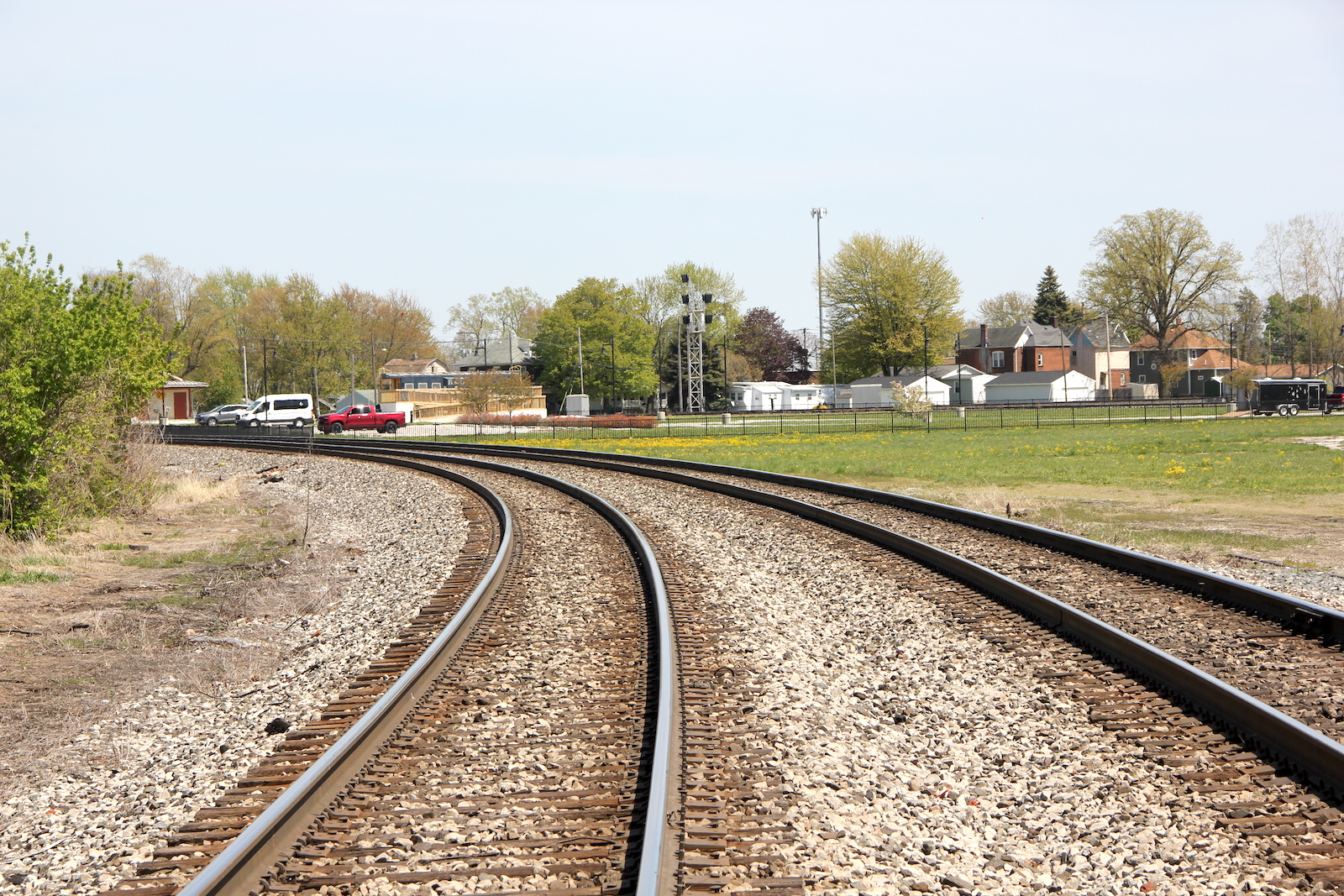

 Track view facing east towards Columbus Ave. #1.
