| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | None | None |

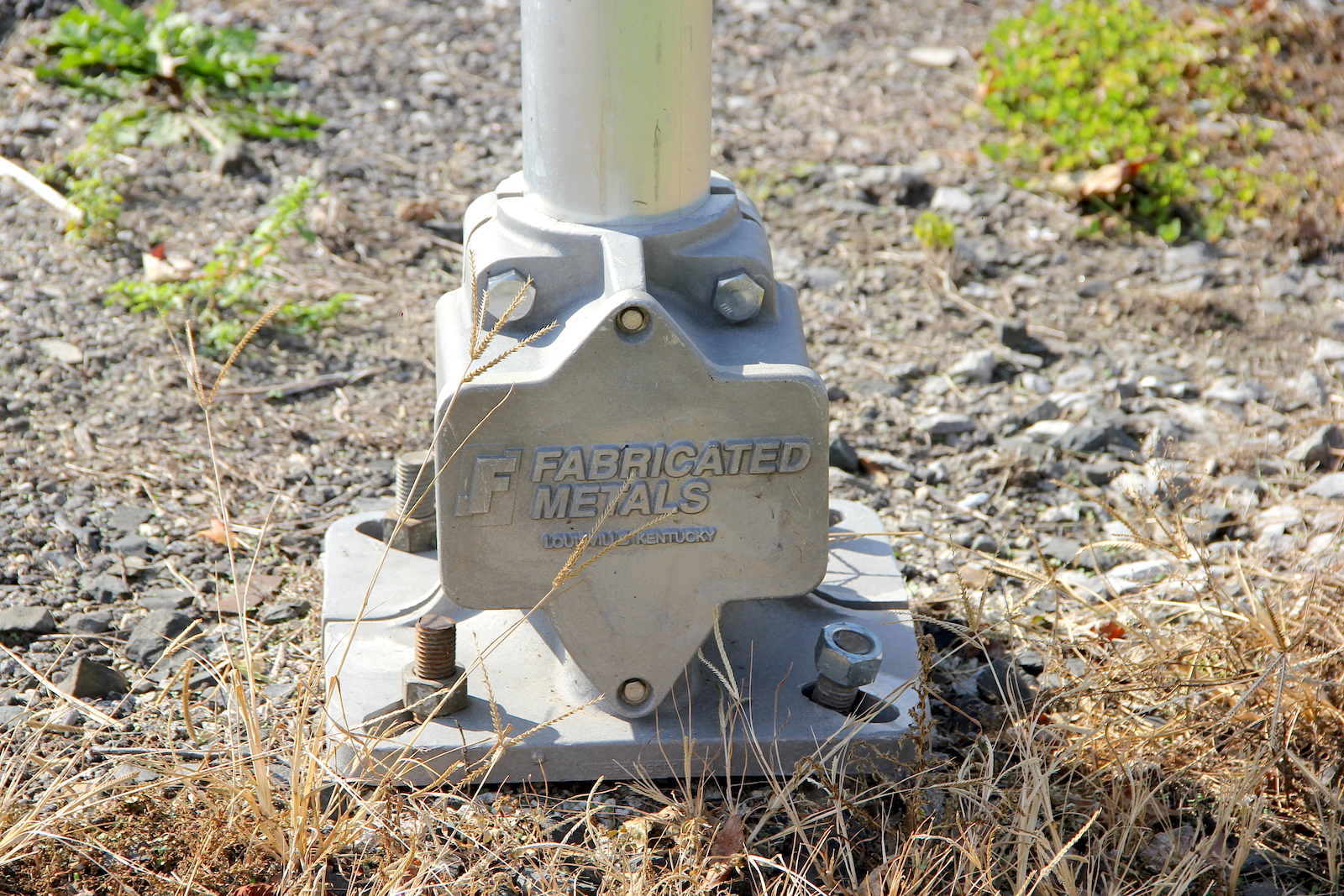

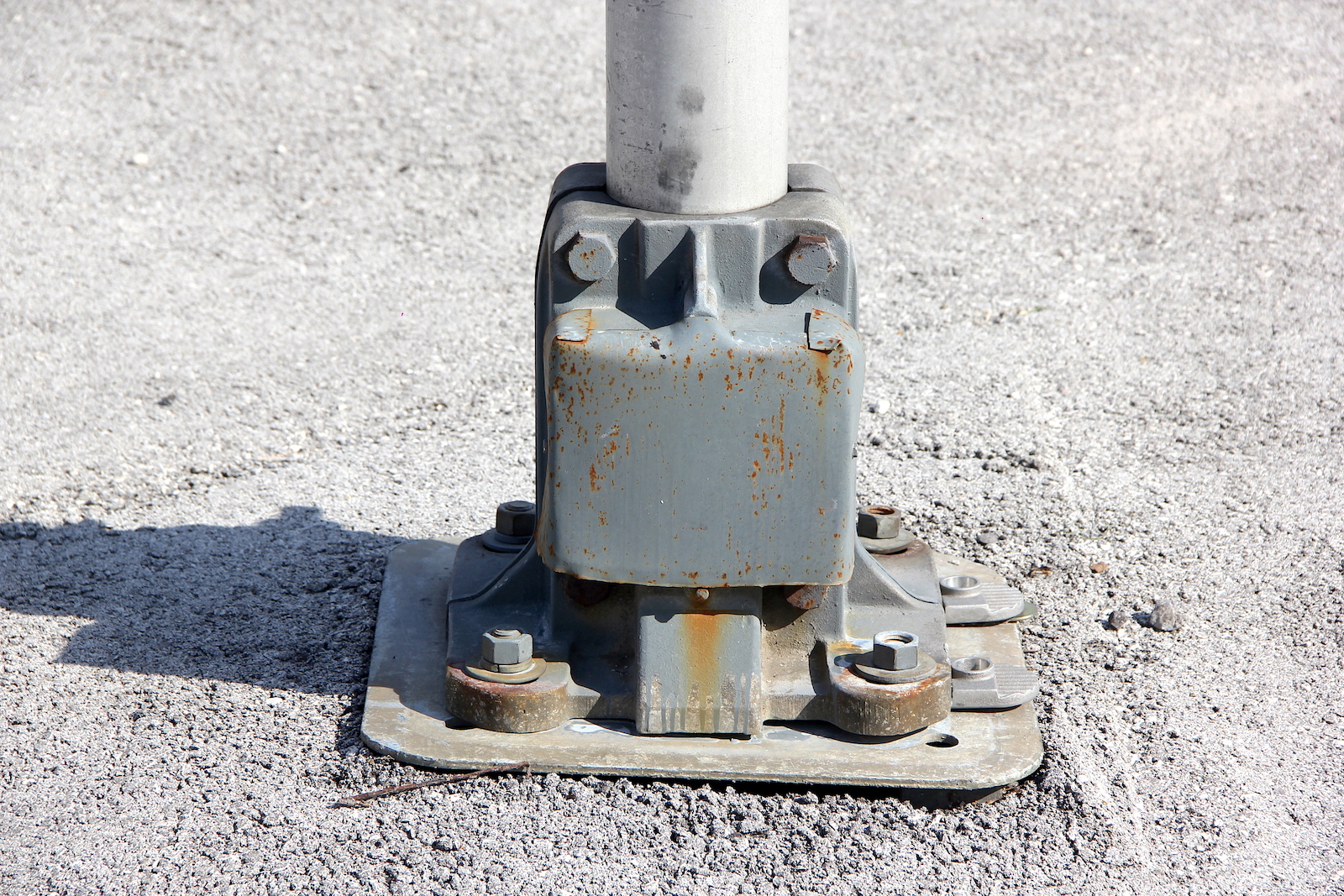

| Base: | Unmarked 4" Single Sided ^ | Fabricated Metals 4" Single Sided ^ |

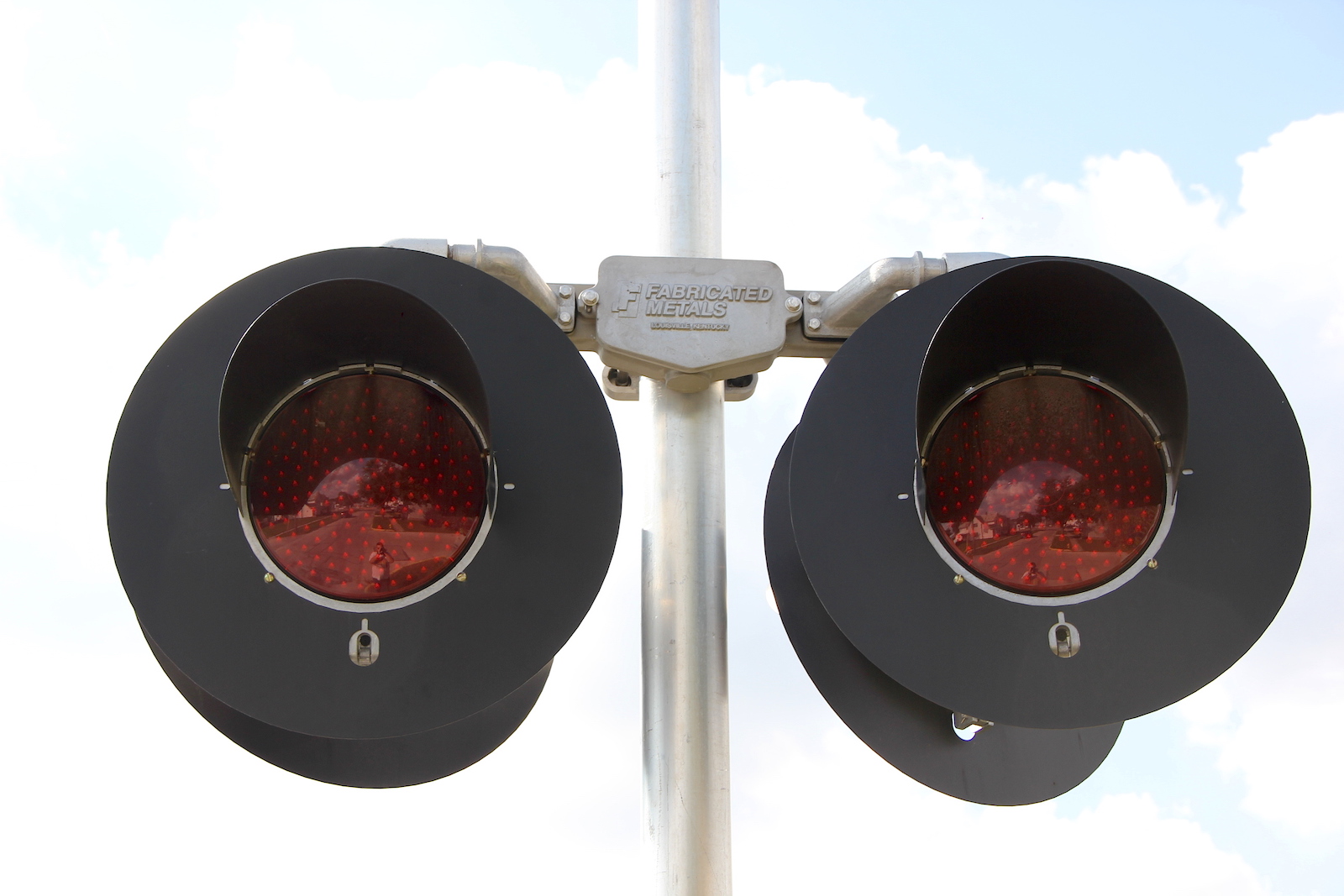

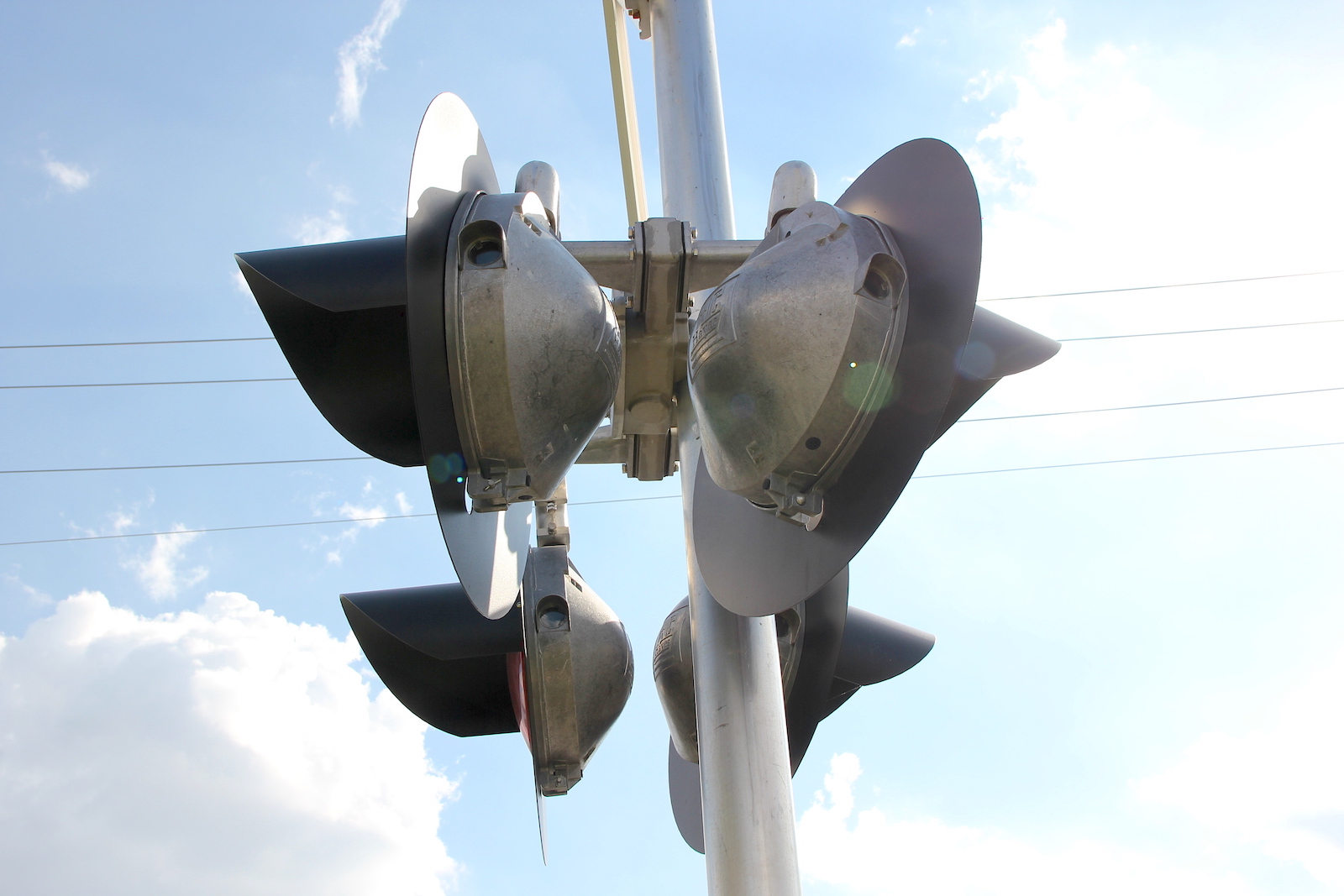

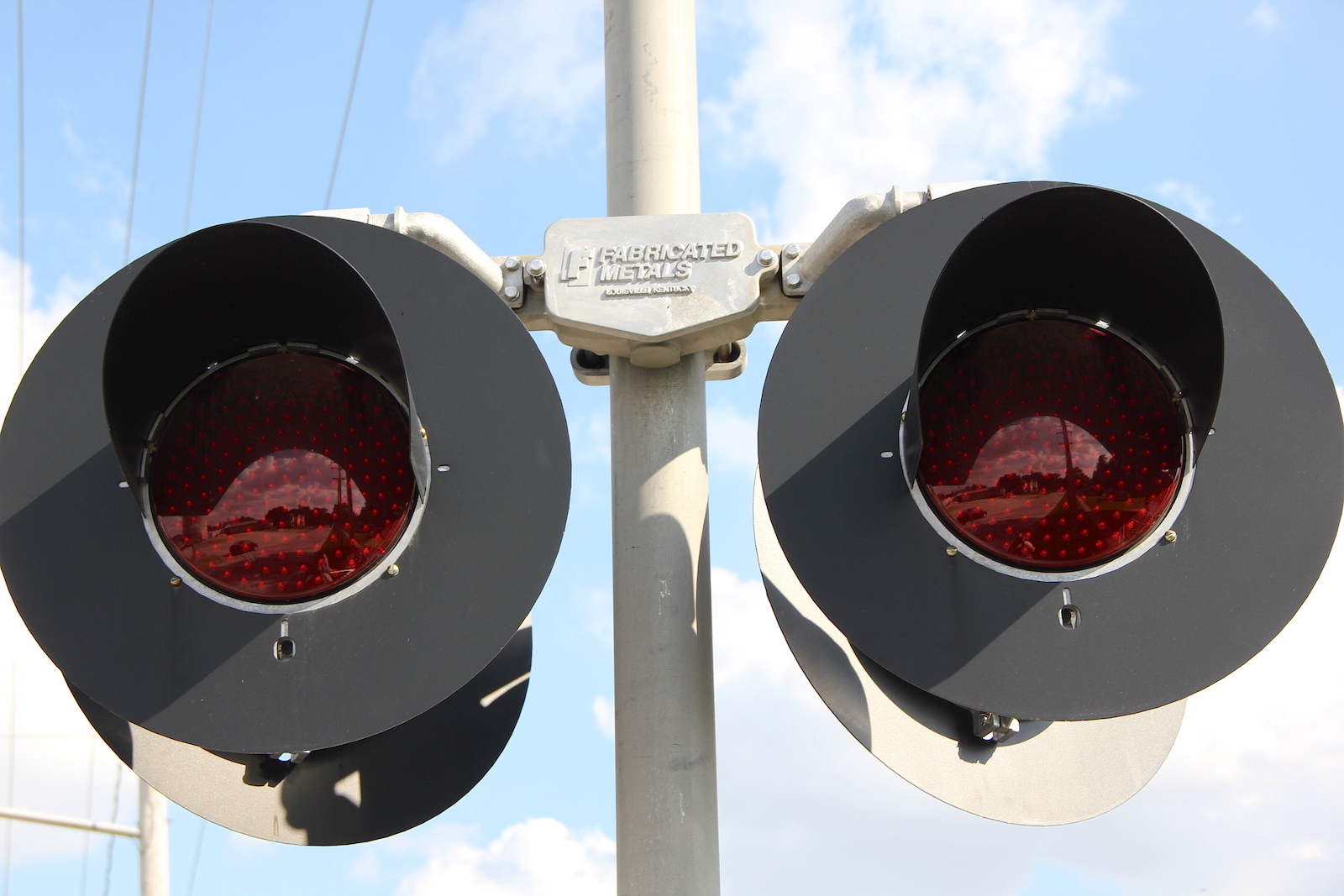

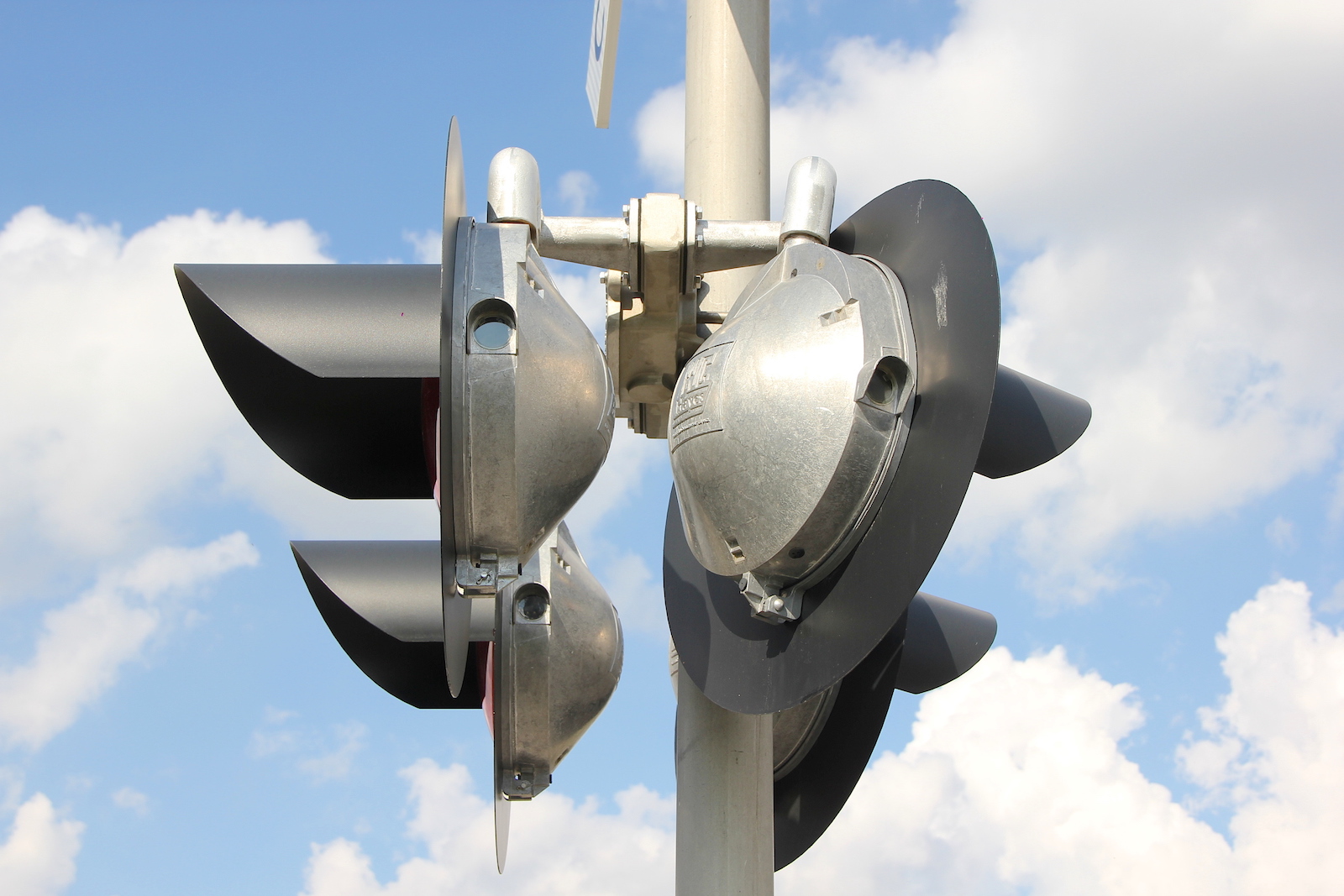

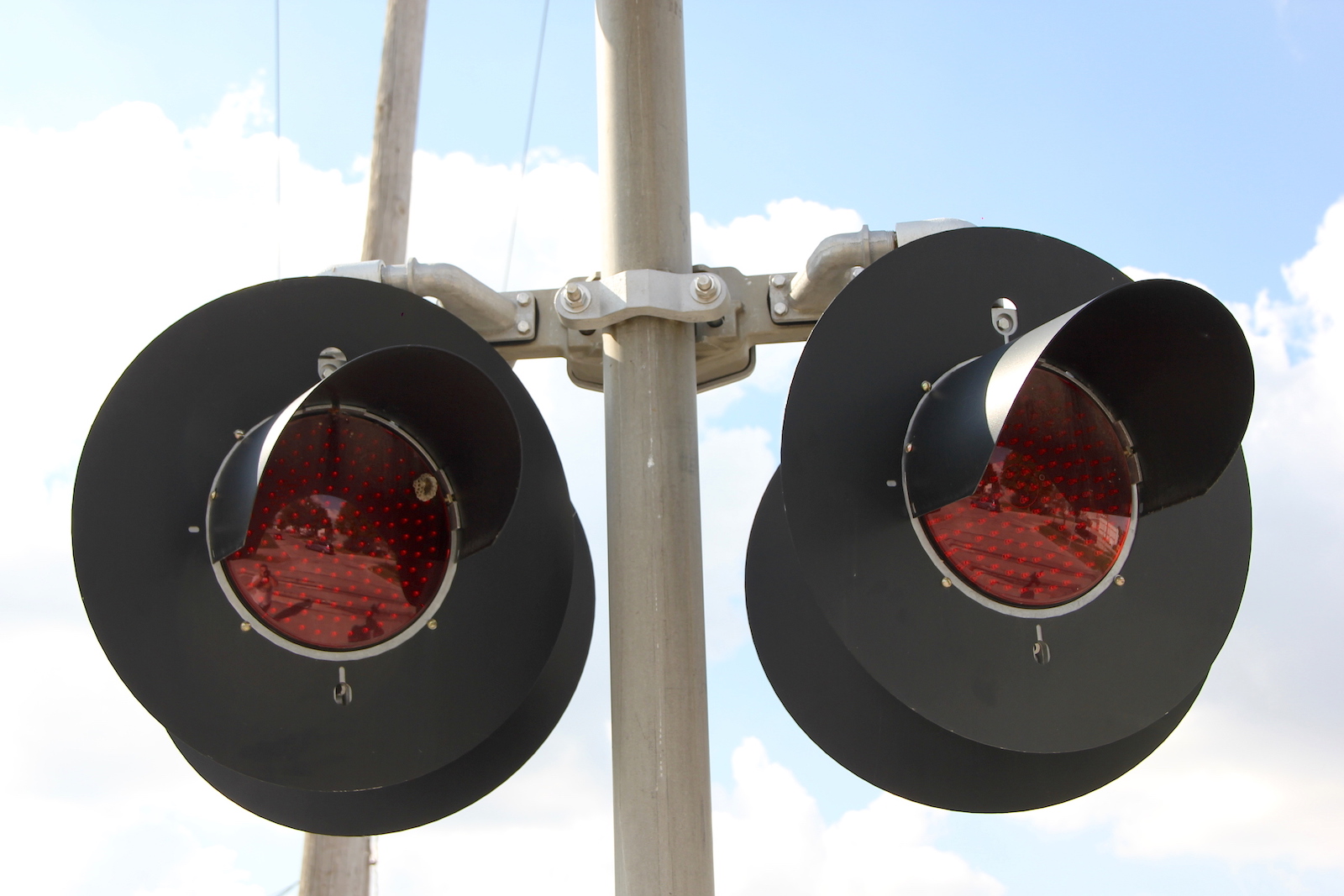

| Lights: | 4 - 12"x24" WCH w/ Leotek EV LEDs | 4 - 12"x24" WCH w/ Leotek EV LEDs |
| Junction Box: | Fabricated Metals | Fabricated Metals |
1
|
2 |

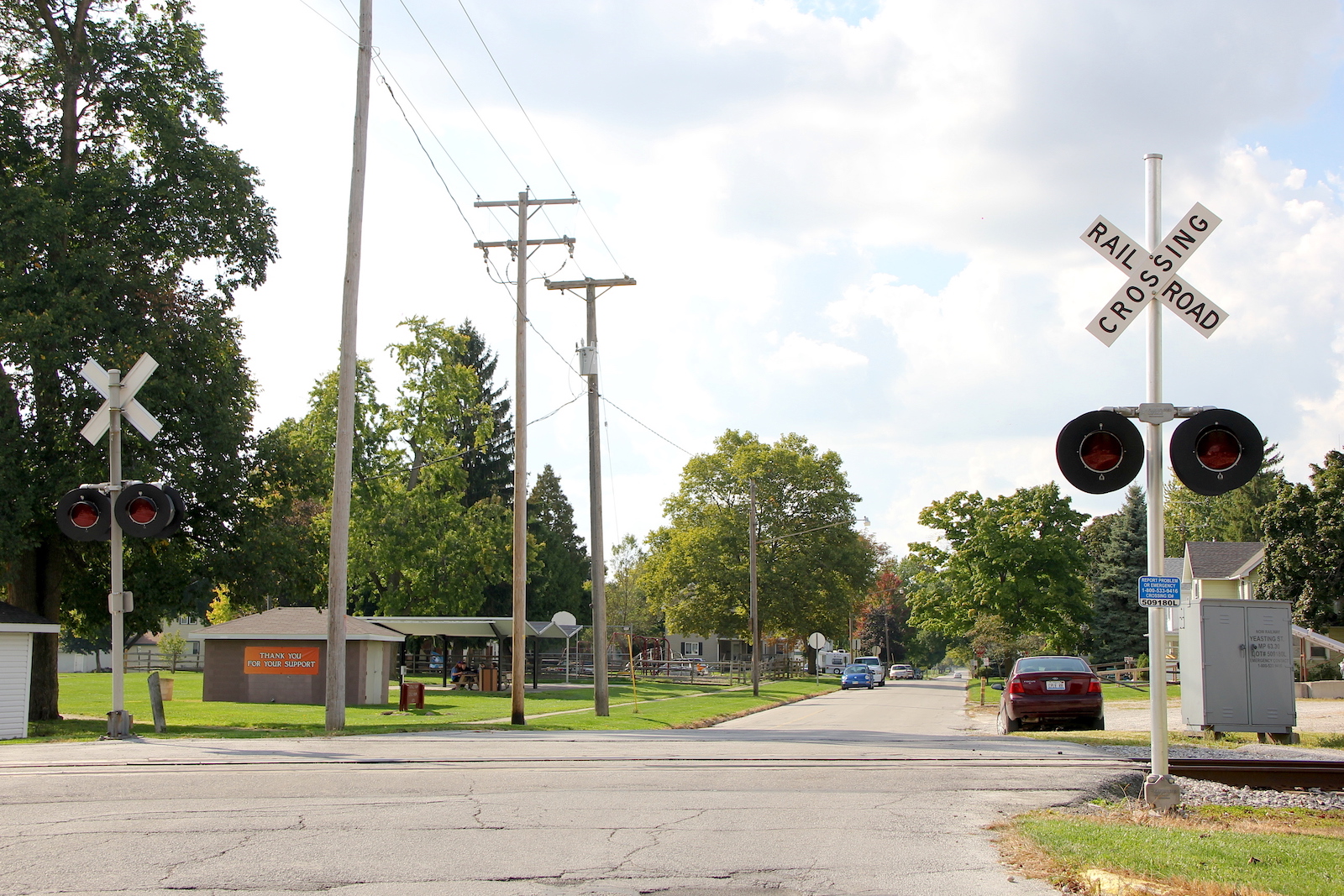

| Overview of 2 bell-less gateless signals facing east. |

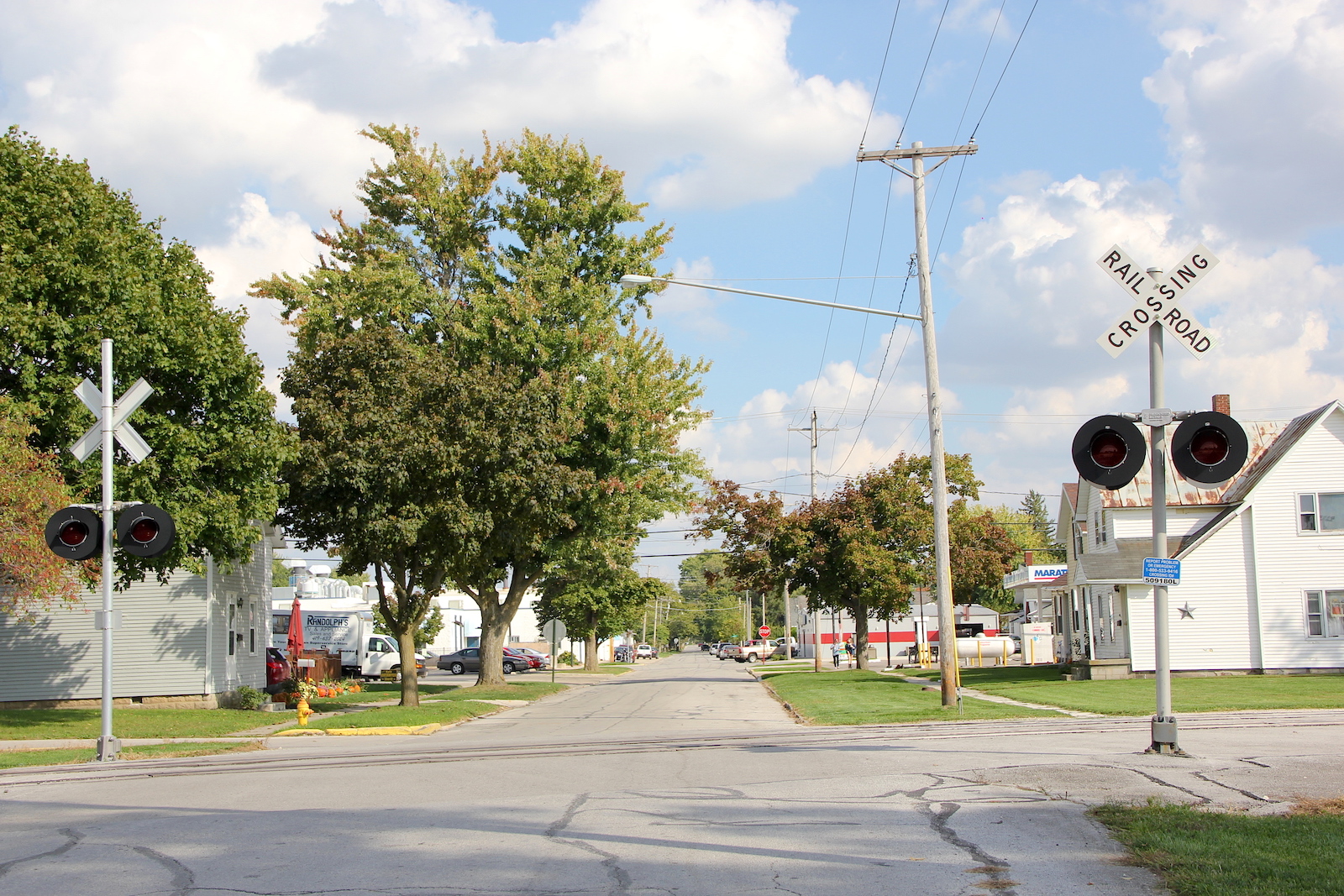

Overview facing west. |
3 | 4
| 5
|
6
| 7
| 8
| 9
|

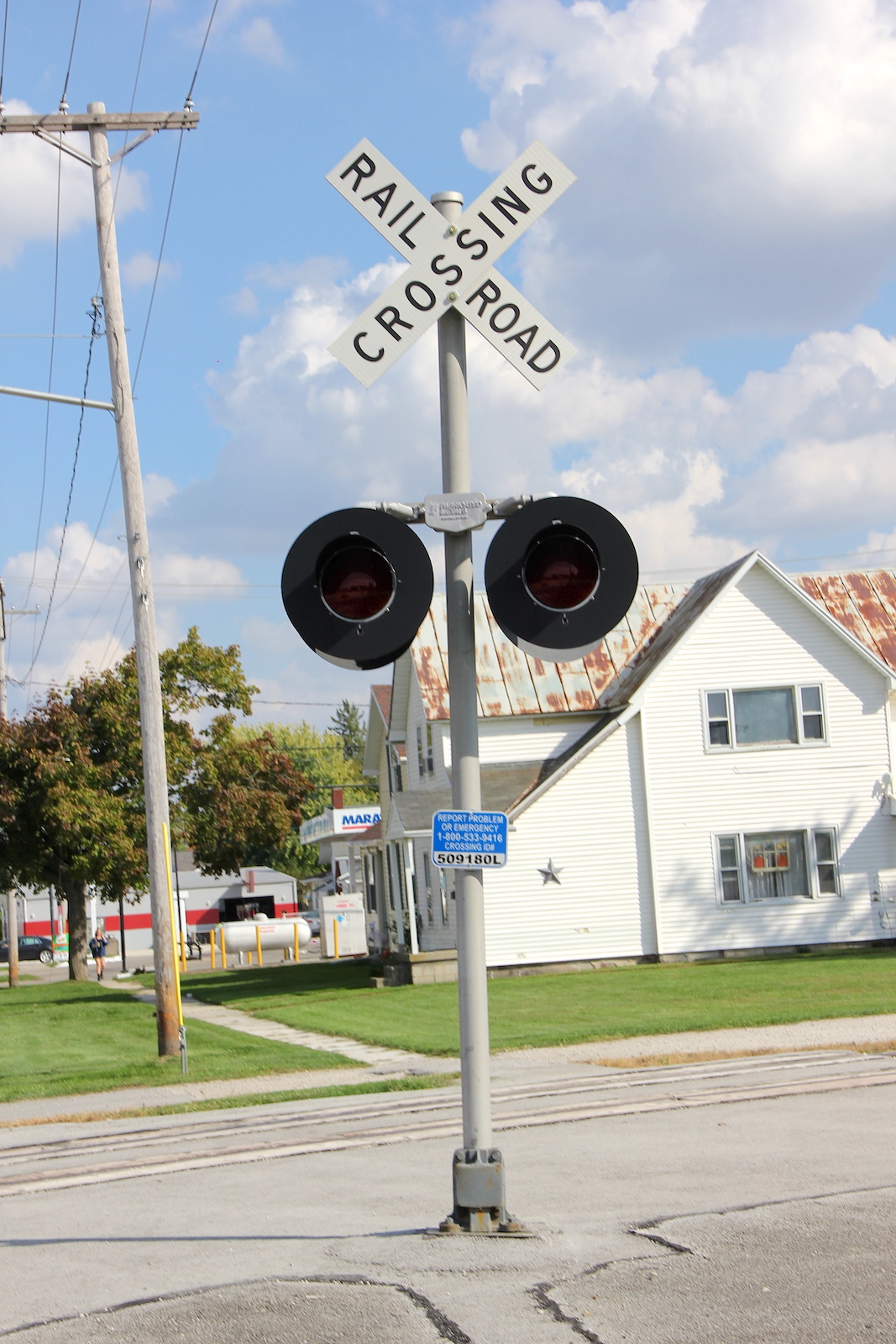

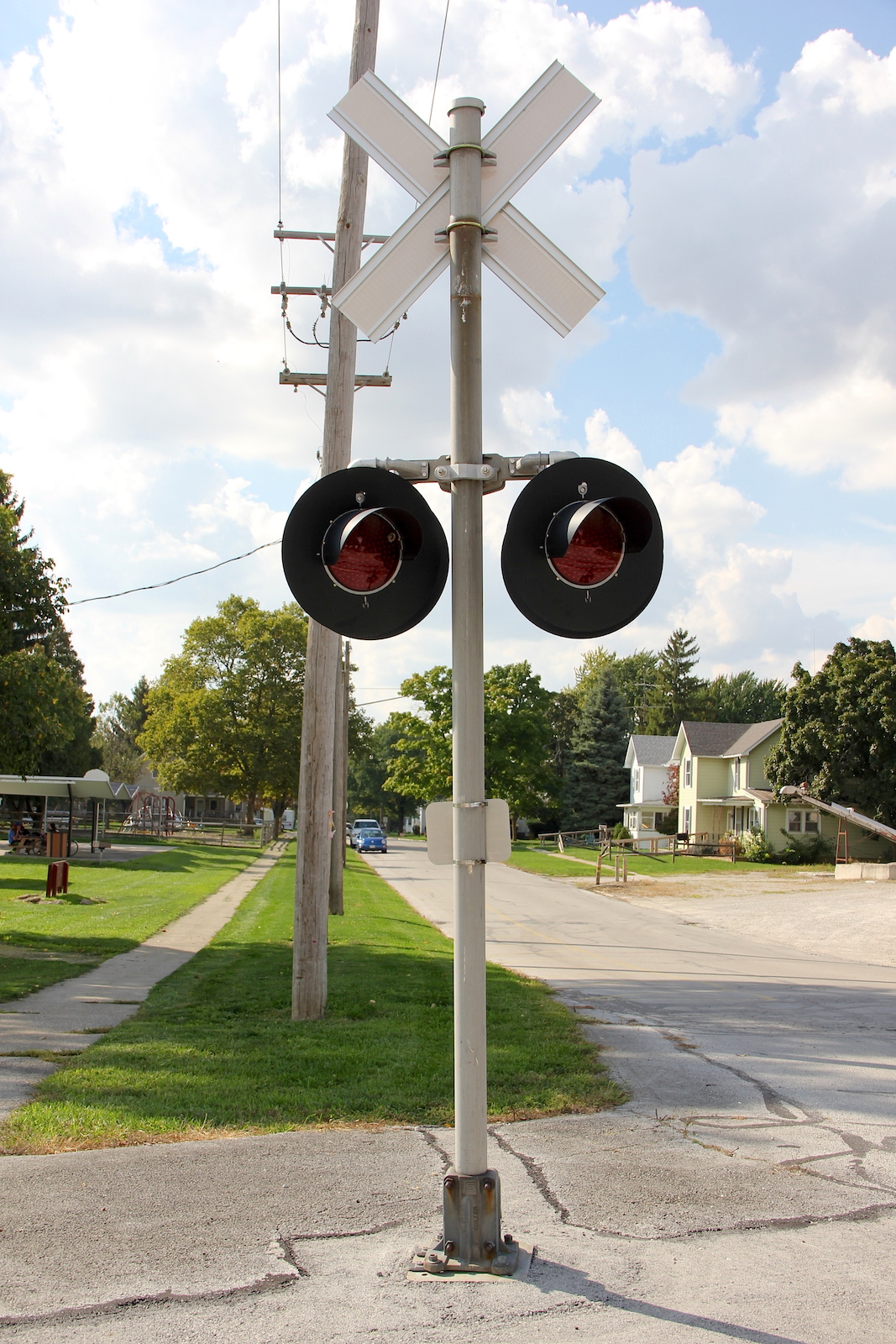

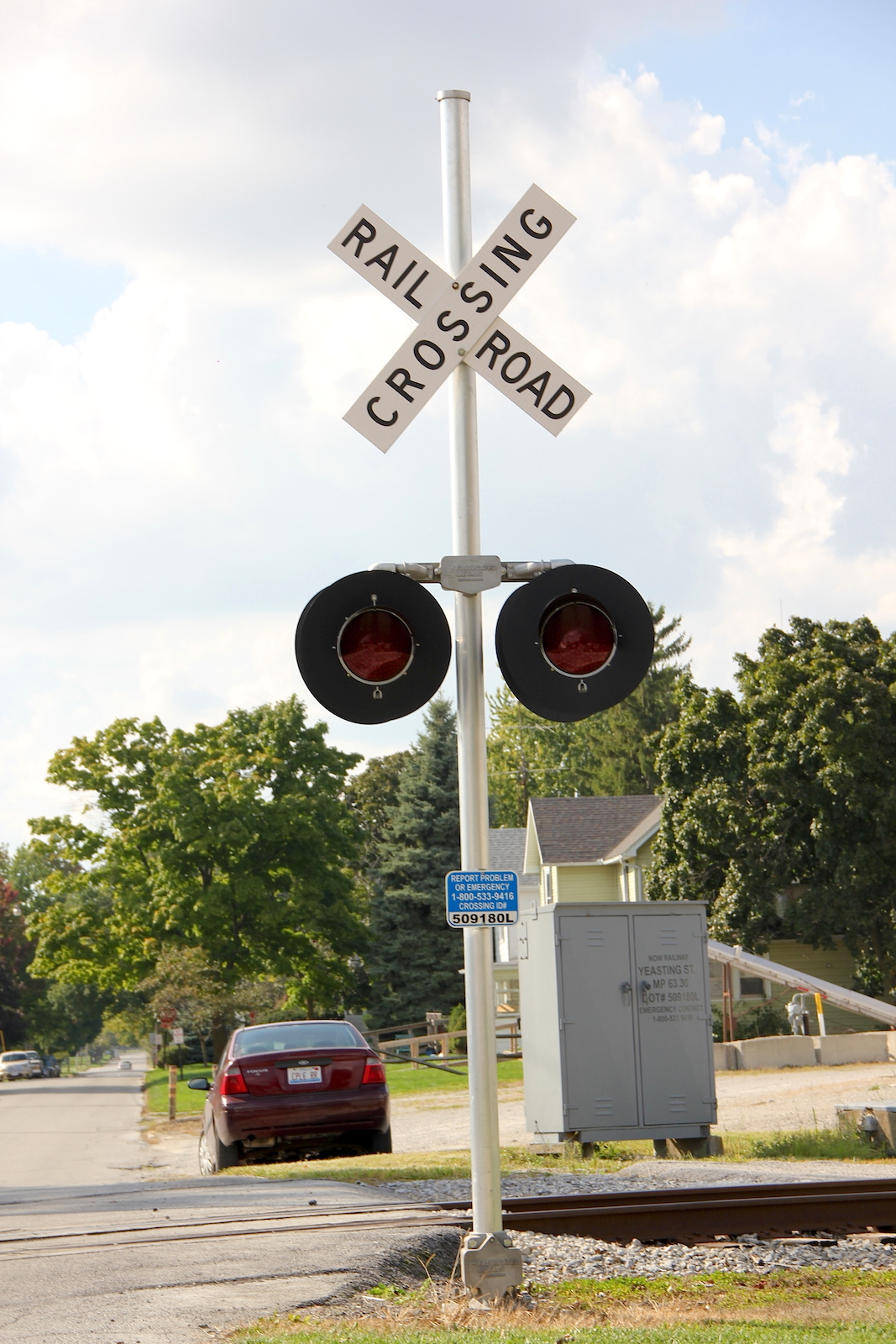

| The western signal. |
10
| 11
| 12
|
13
| 14
| 15
| 16
|

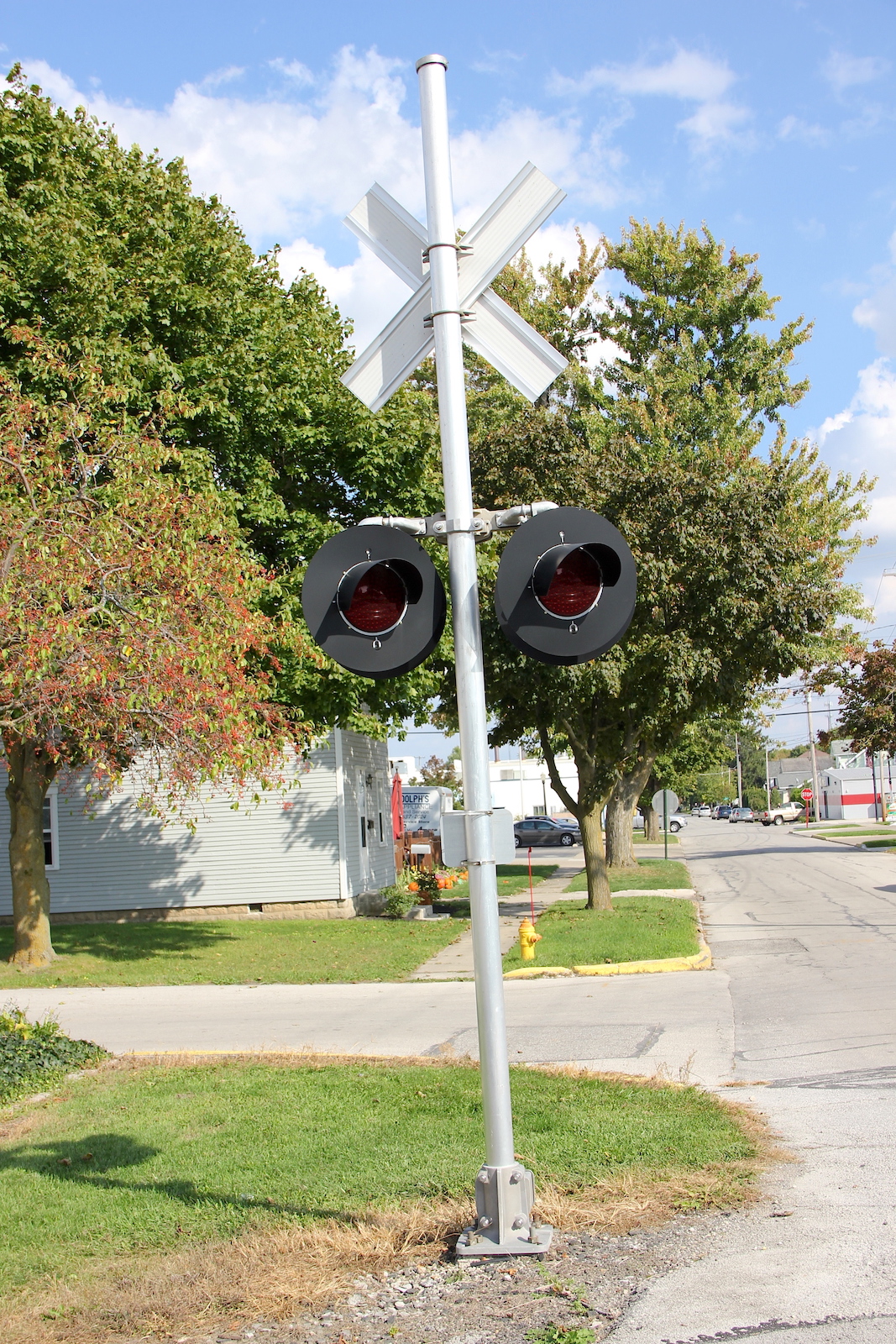

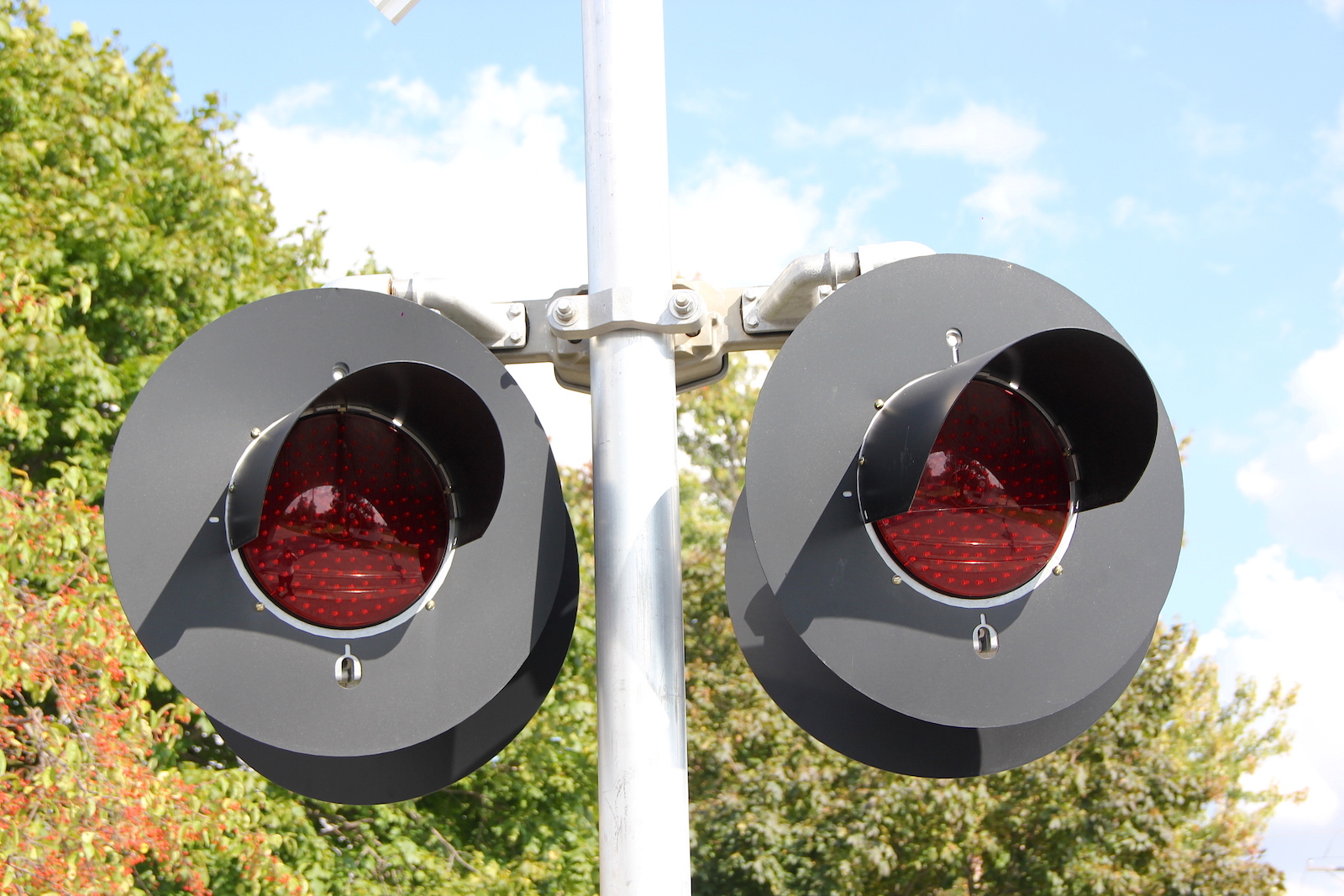

| The eastern signal. |
17
|
18
|
19
|
20
|

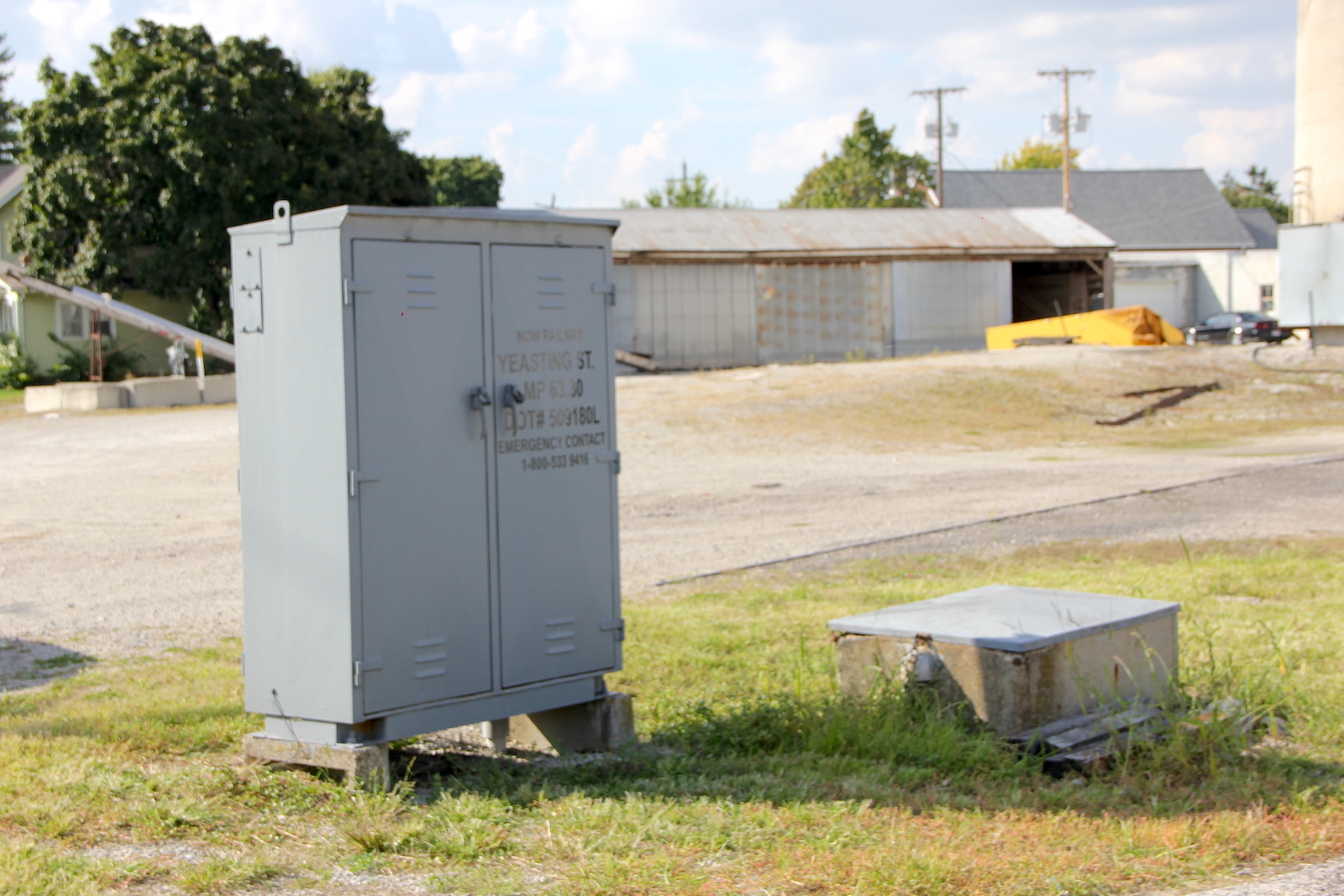

| The relay case in the northwest quadrant. |

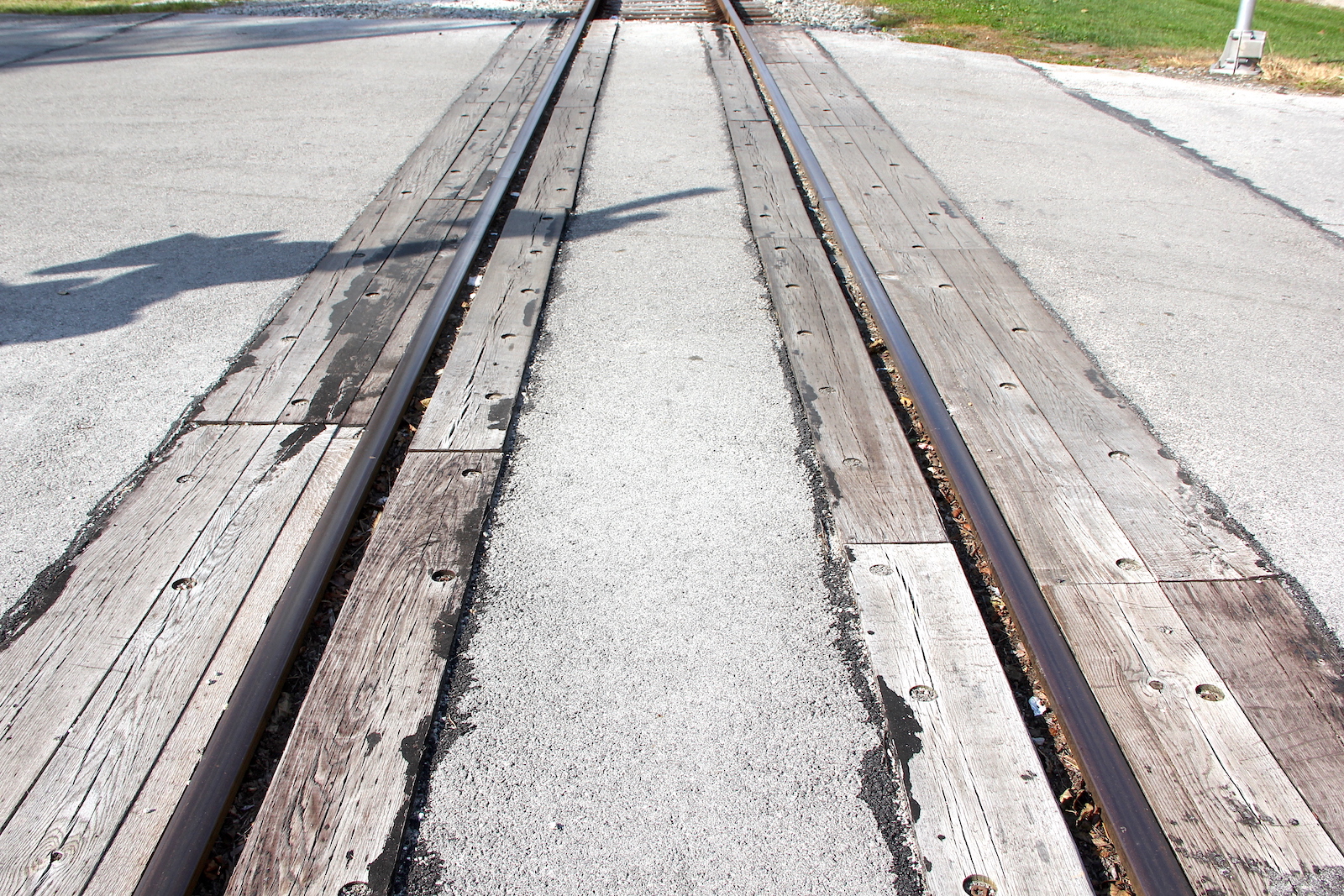

The grade is wood and asphalt. |

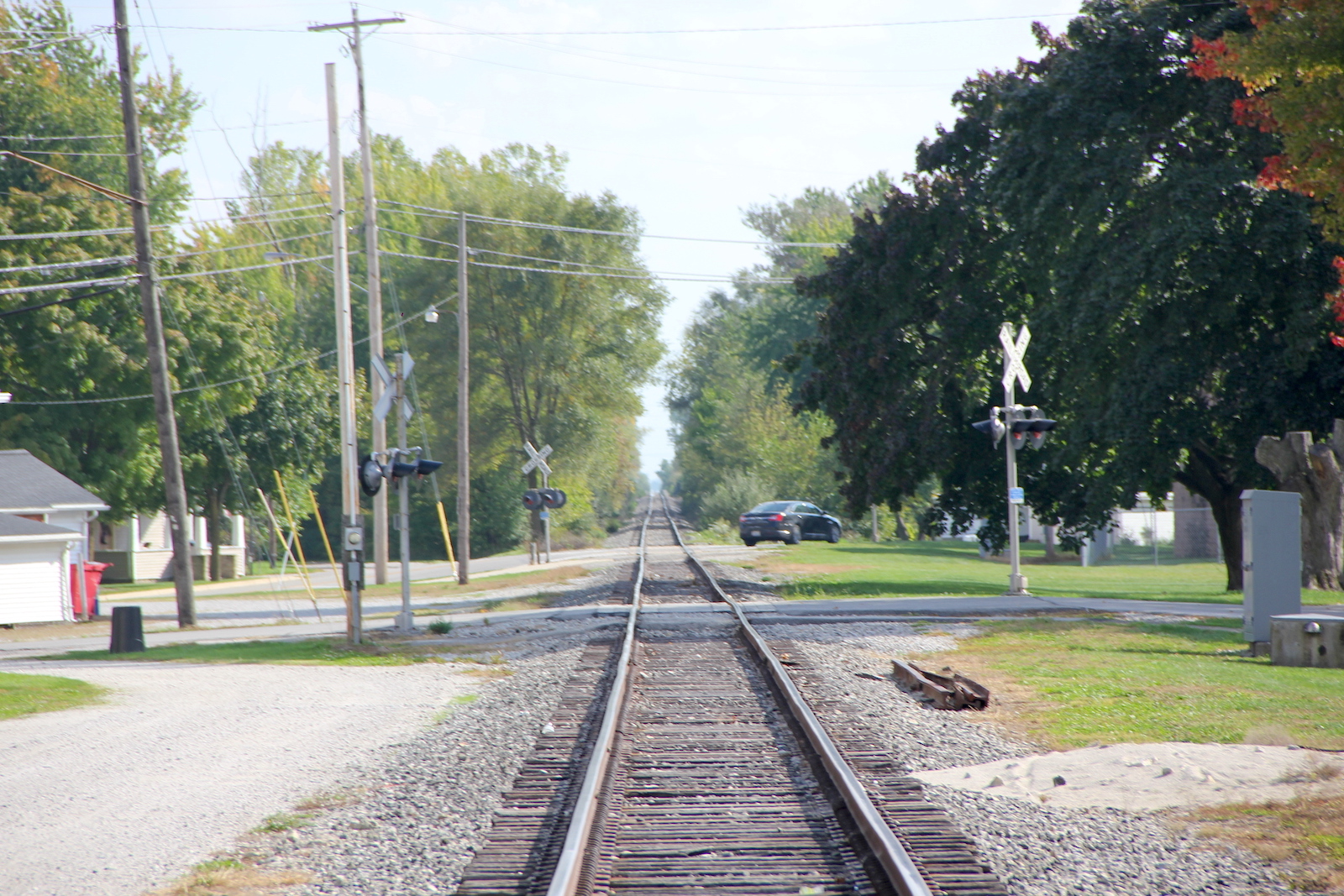

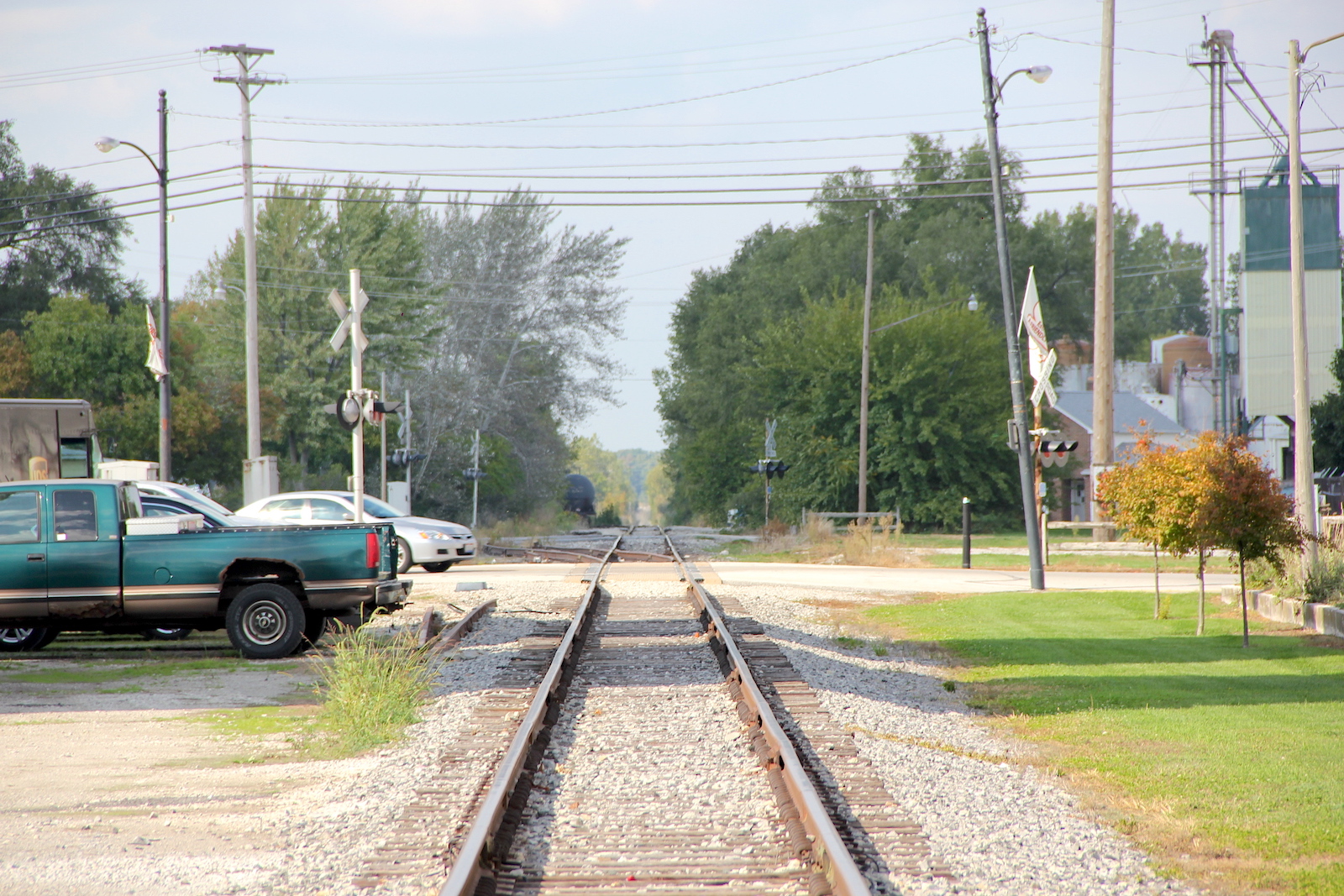

Track view facing north at Route 600. |
Track view facing south at Kemmerling St. |
