57.50


509193M

>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: WCH E Bell WCH E Bell

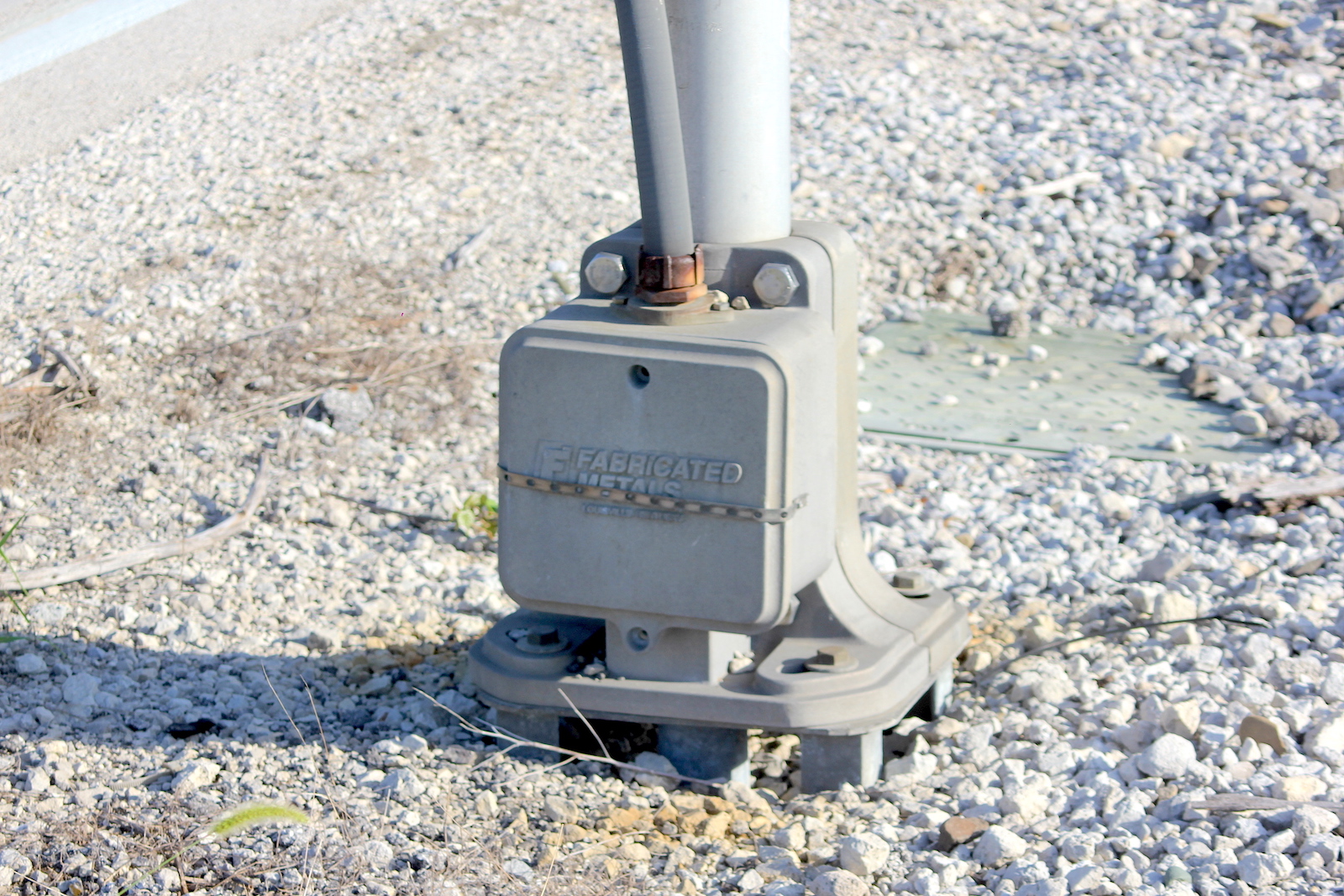

Base: Fabricated Metals 5" Single Sided ^ Fabricated Metals 5" Single Sided ^
Lights: 4 - 12"x24" WCH w/ 1st Gen WCH LEDs 4 - 12"x24" WCH w/ 1st Gen WCH LEDs

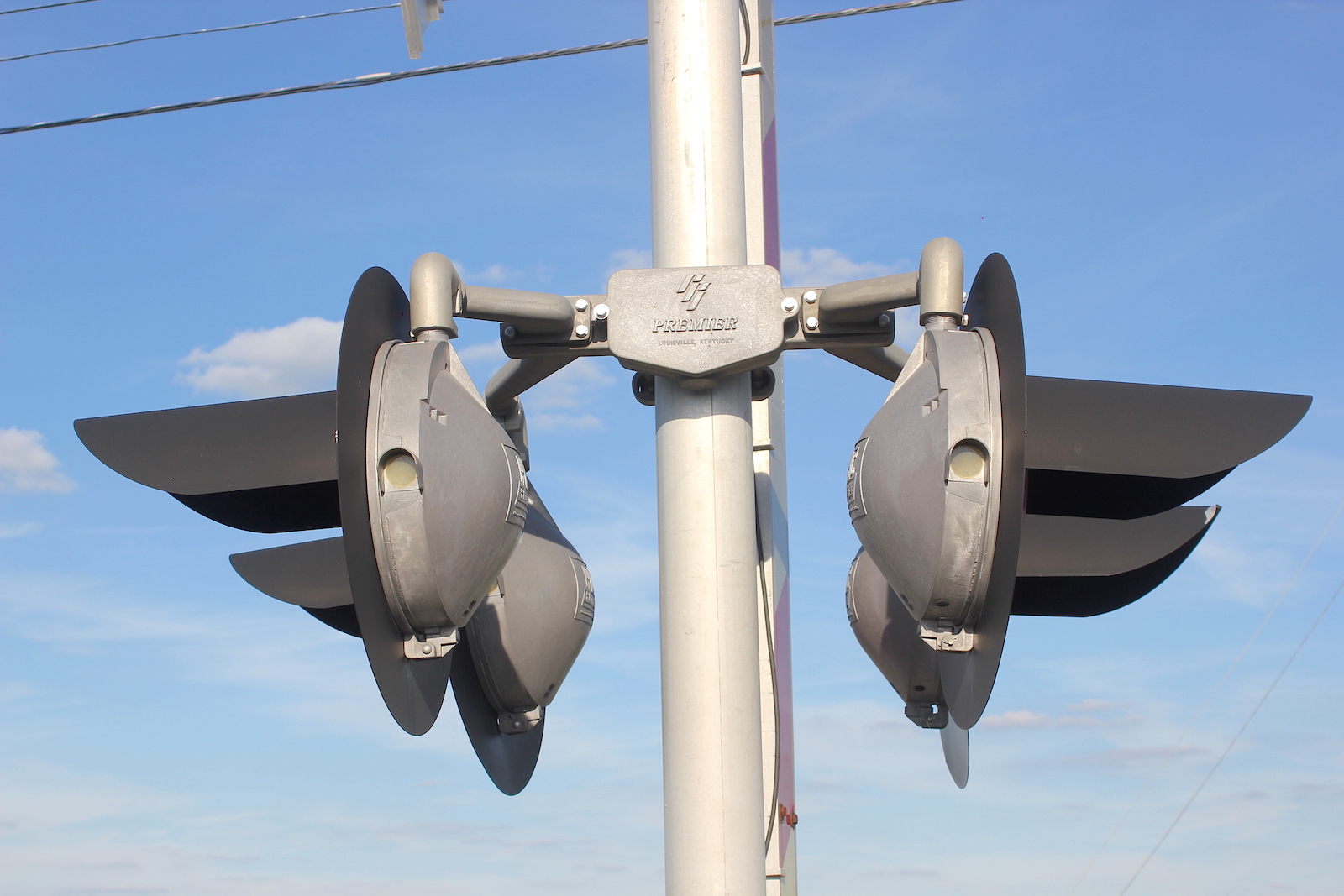

Junction Box: Premier Premier
Gate Lights: 4" RECO 4" RECO
Gate Mechanism: WCH Style 3 w/ GSI Gate Saver WCH Style 3 w/ GSI Gate Saver
Gate Striping: Diagonal Striping Diagonal Striping

All pictures were taken on August 23, 2016, by Tommy McGowan.
This crossing is located on the Northern Ohio and Western Railway mainline running from Tiffin to Woodville.

The listed MP is 59.70, but is definitely wrong since the next crossing to the south is 57.25 and you can clearly see it from this crossing.  The 57.50 MP is my best guess.

1
 2

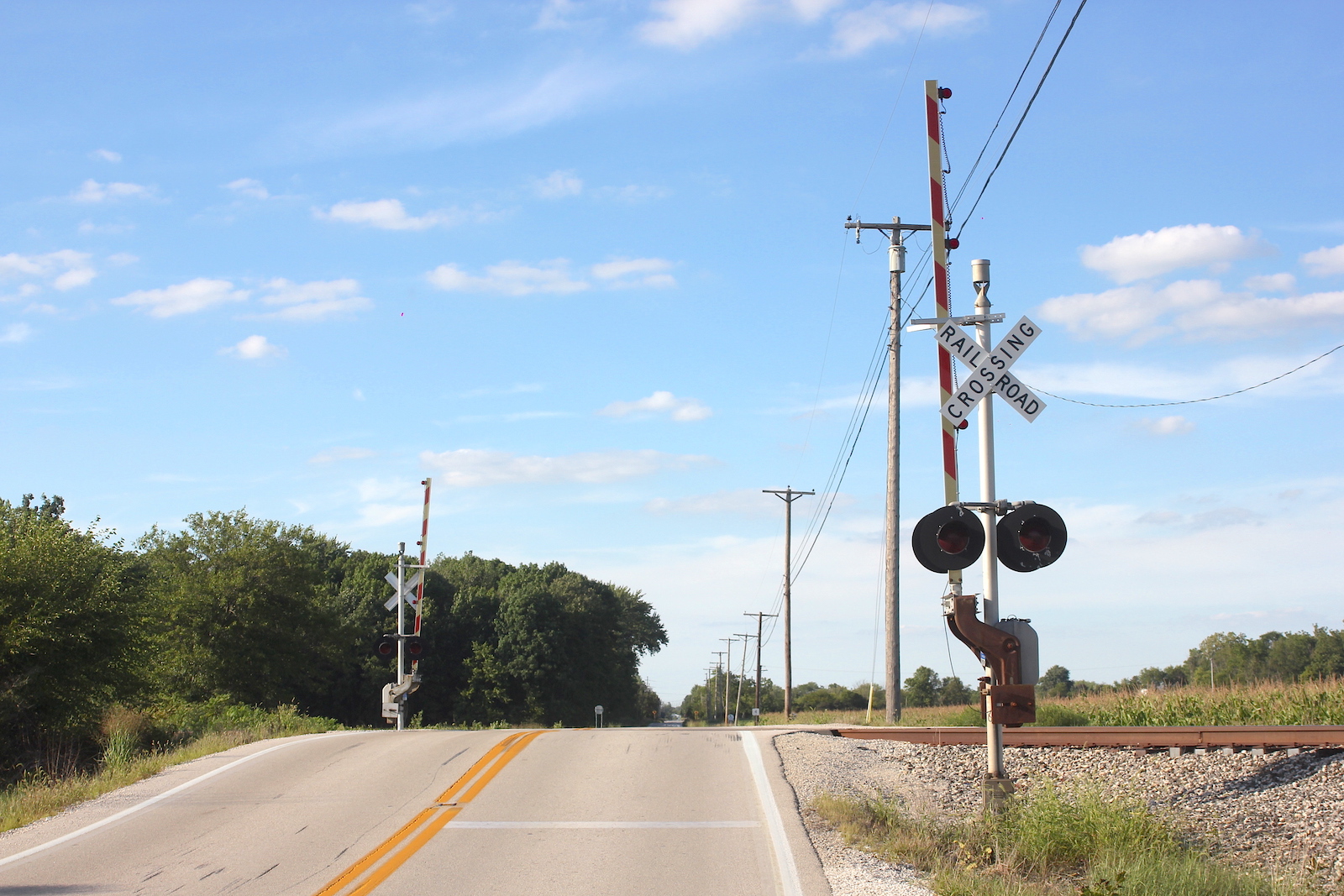

Overview of 2 WCH gated siganls facing north.
 Overview facing south.
3 4 5
6 7 8
9 10 11
12

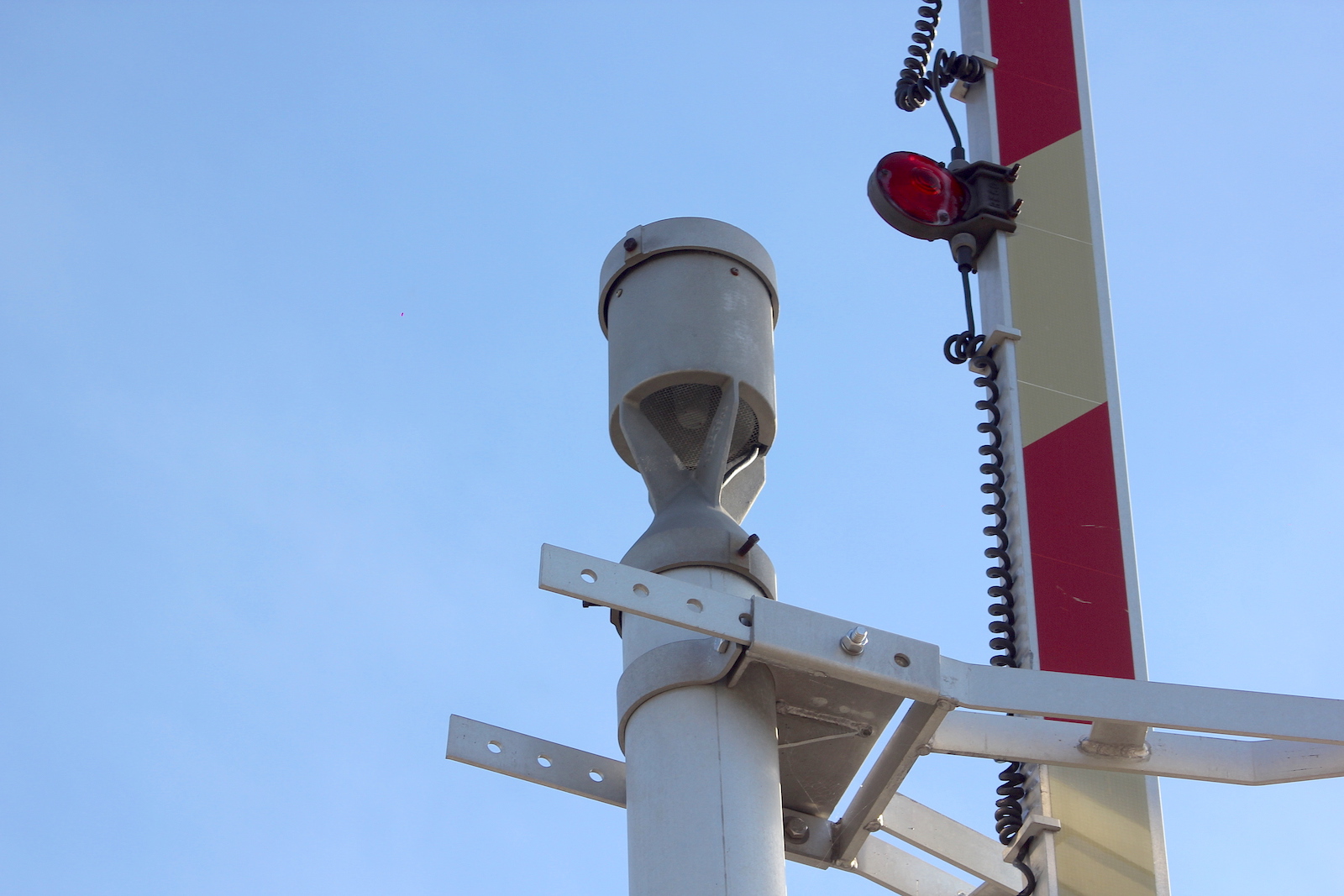

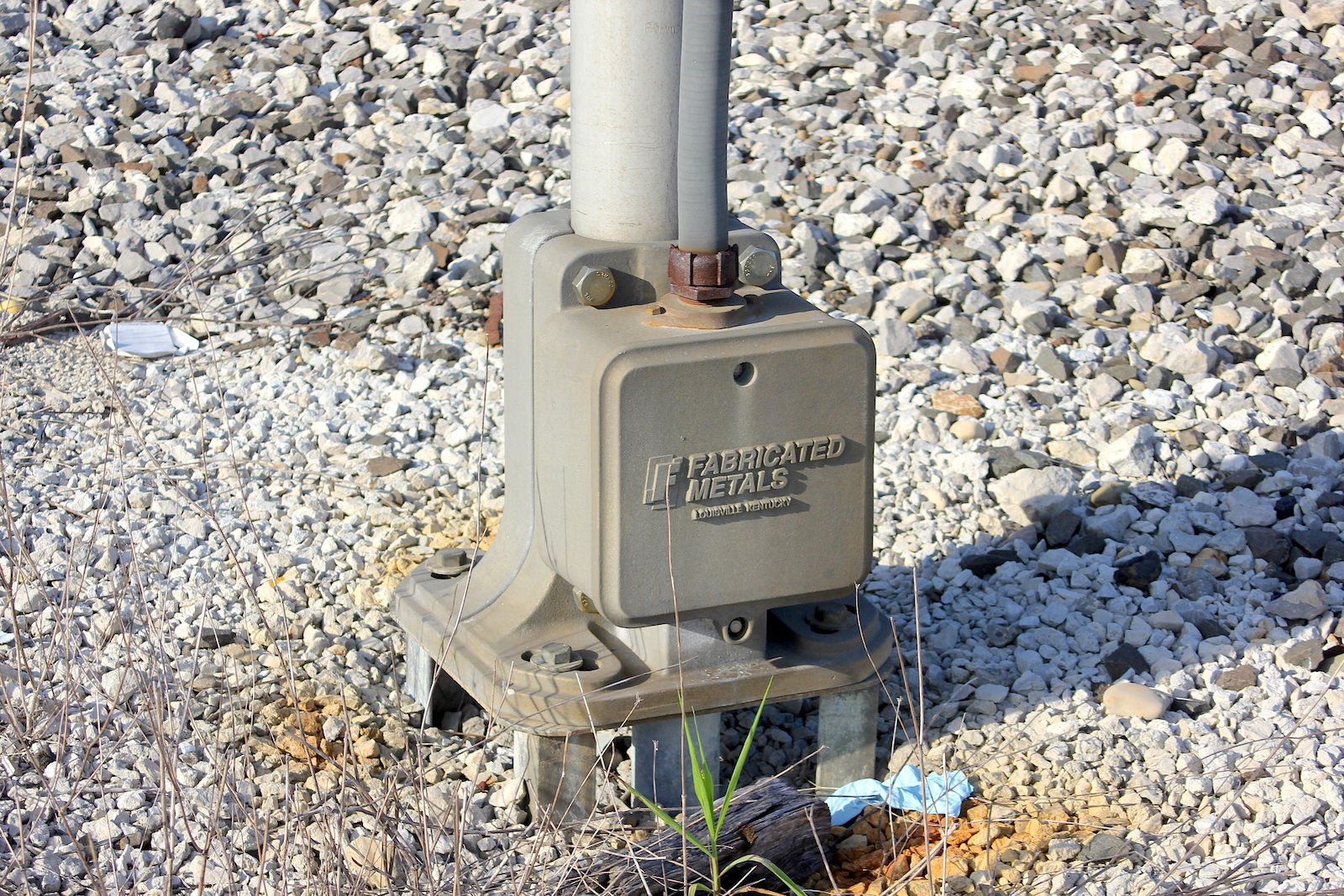

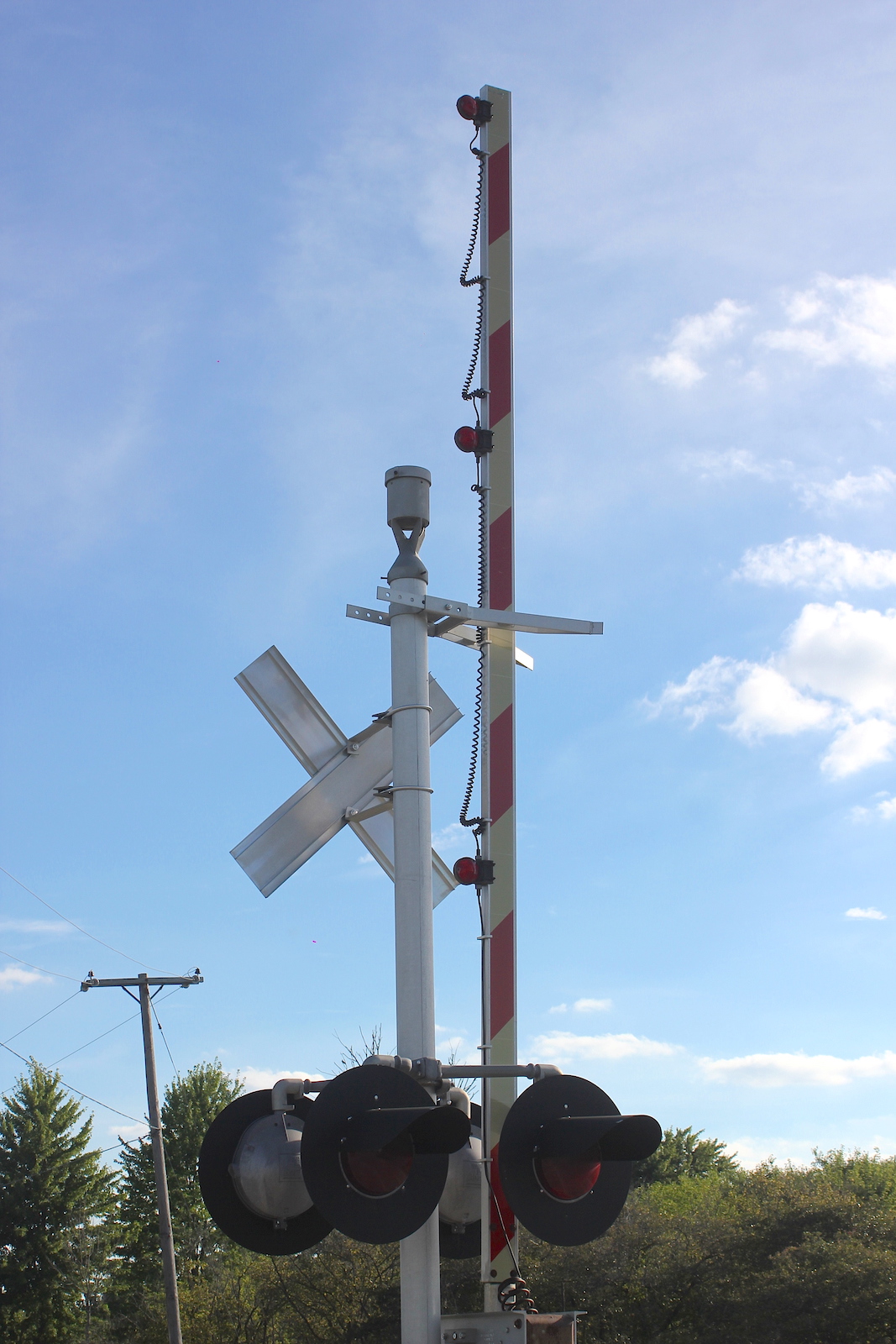

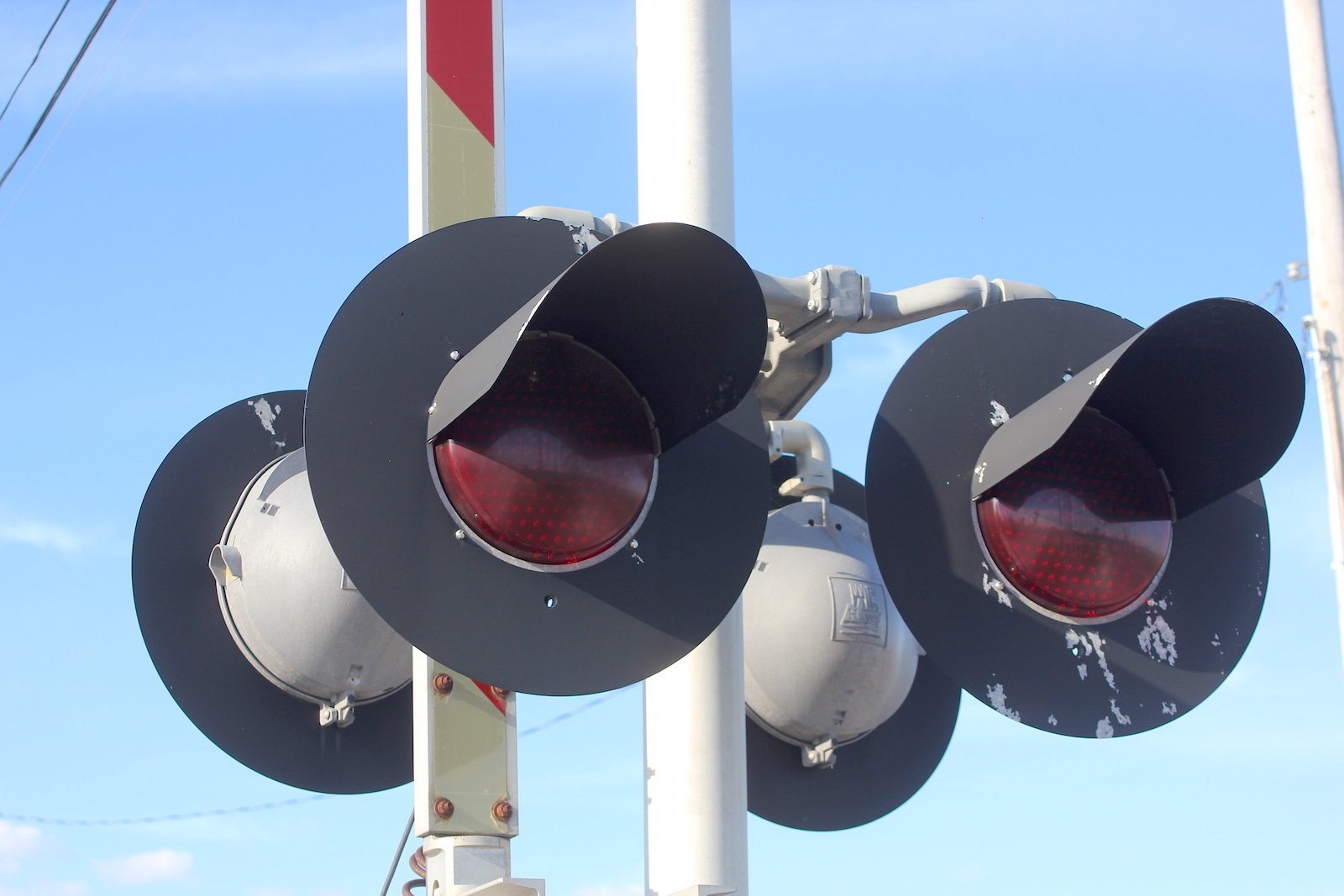

The southern signal.
13 14 15
16 17 18
19 20 21
22

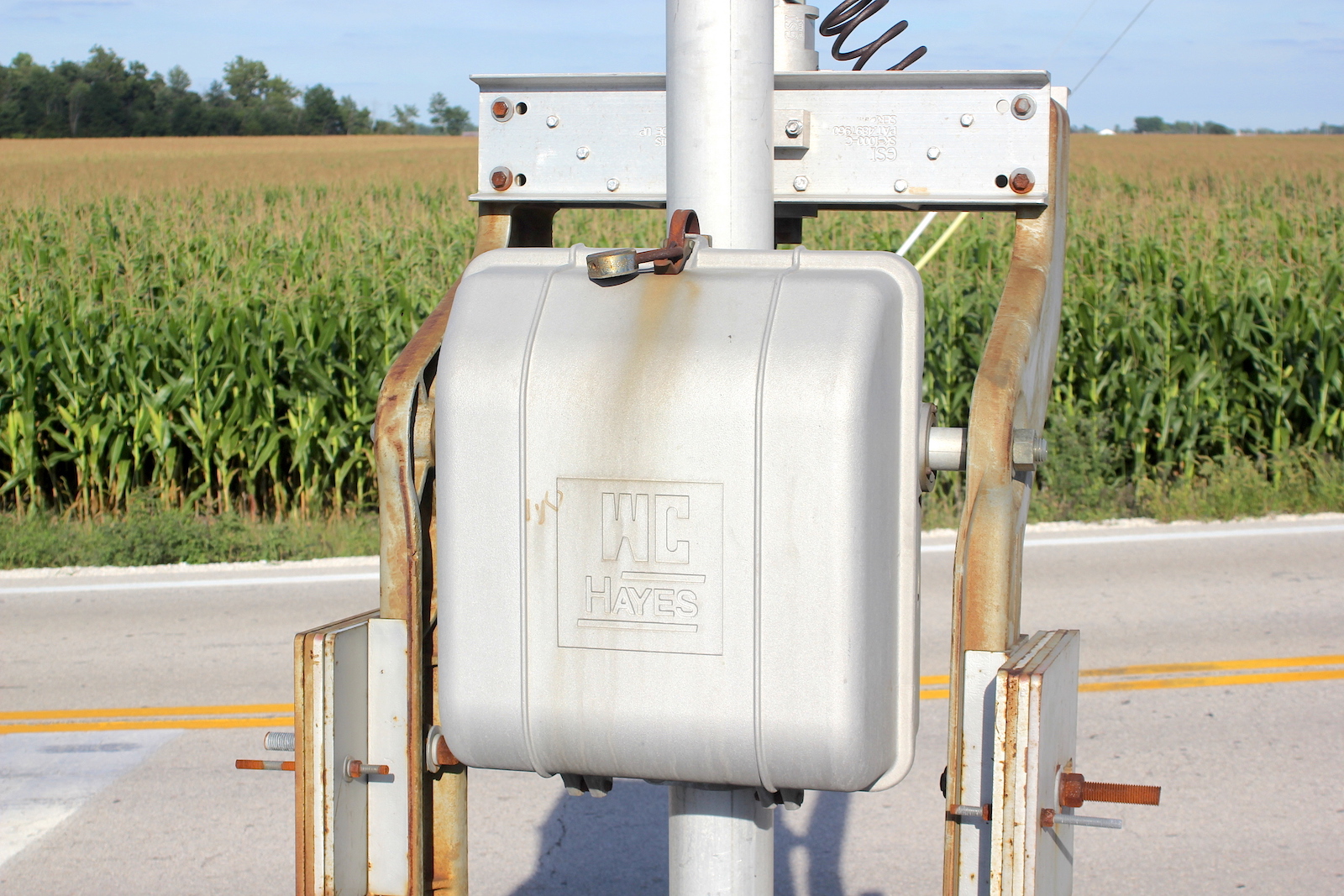

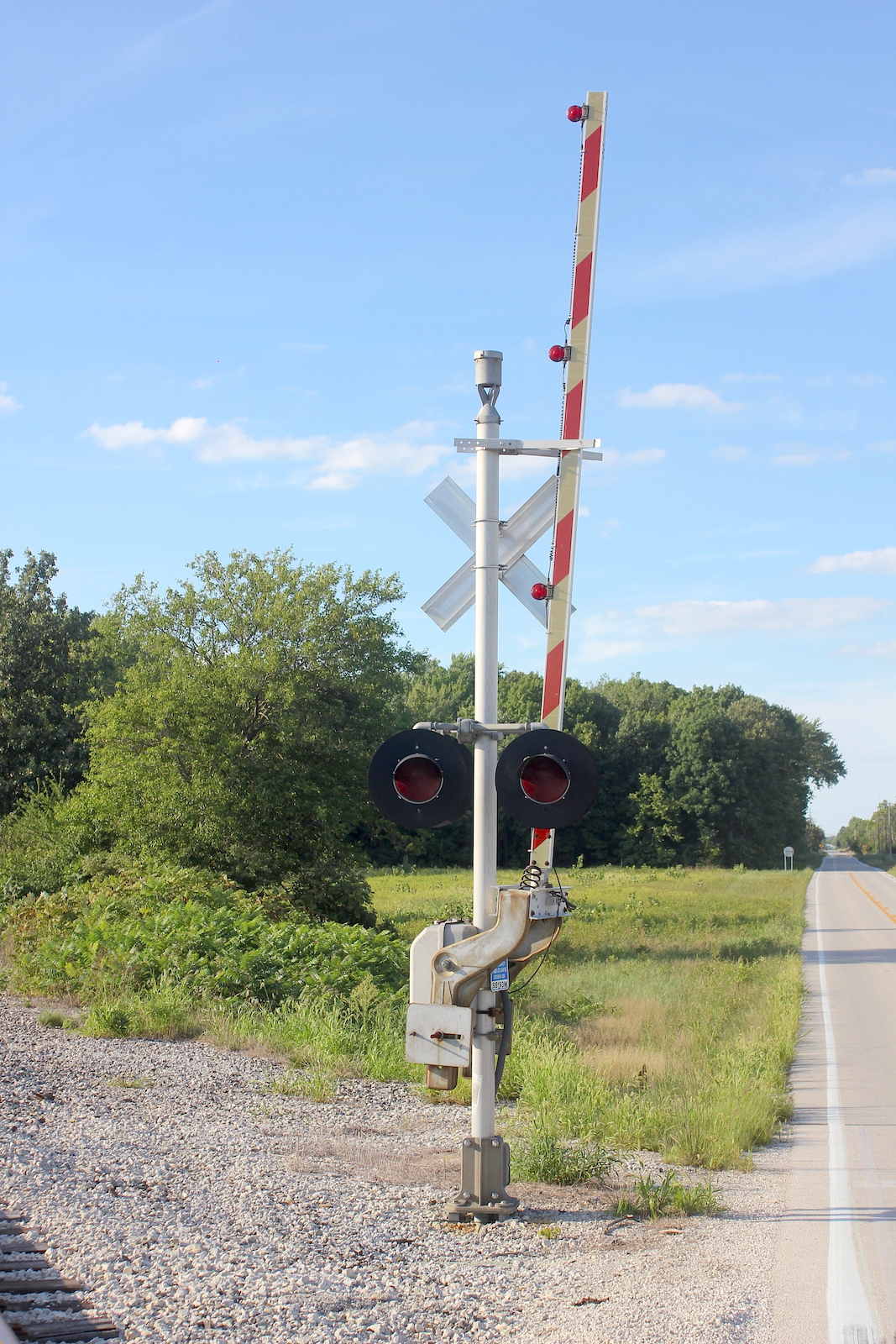

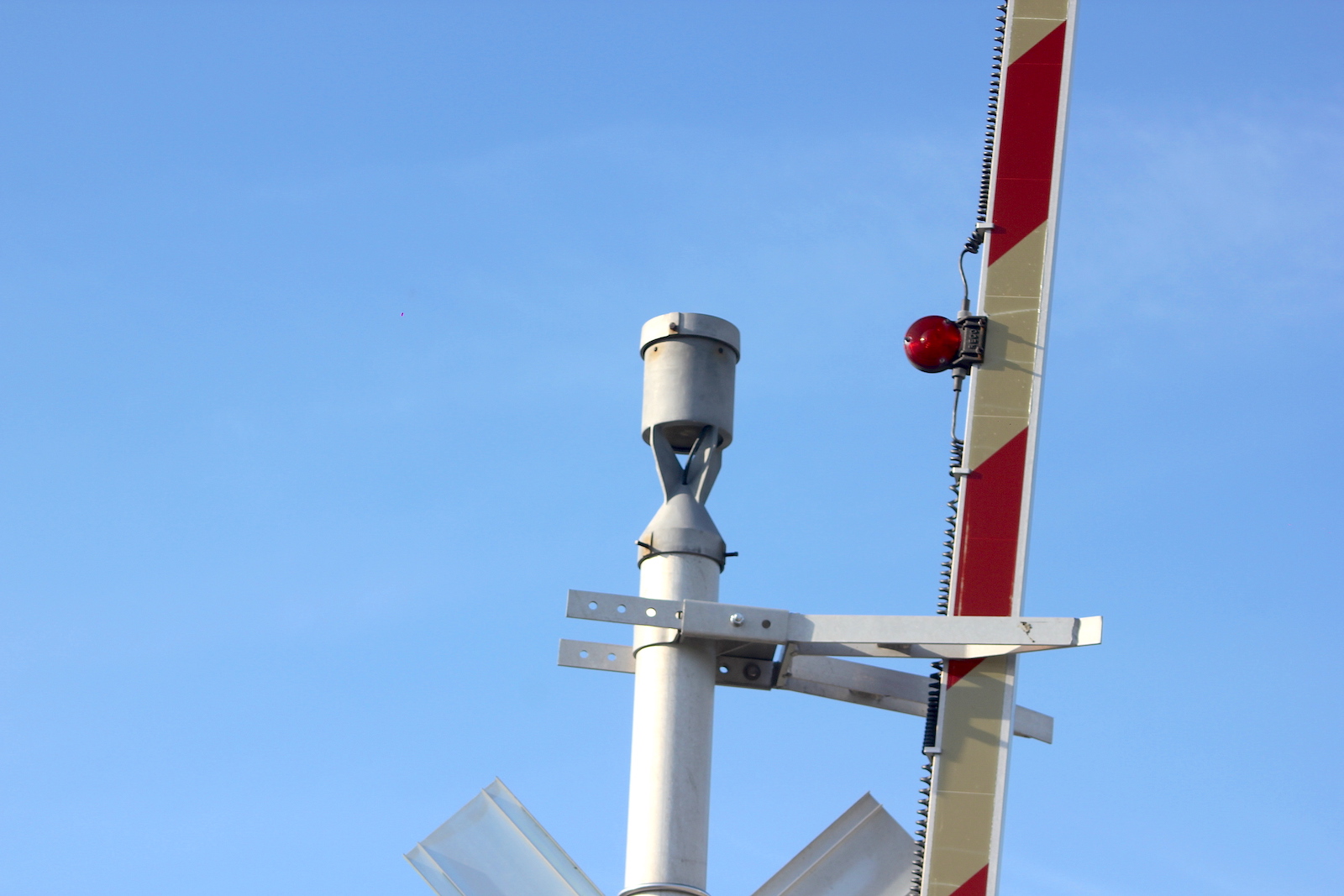

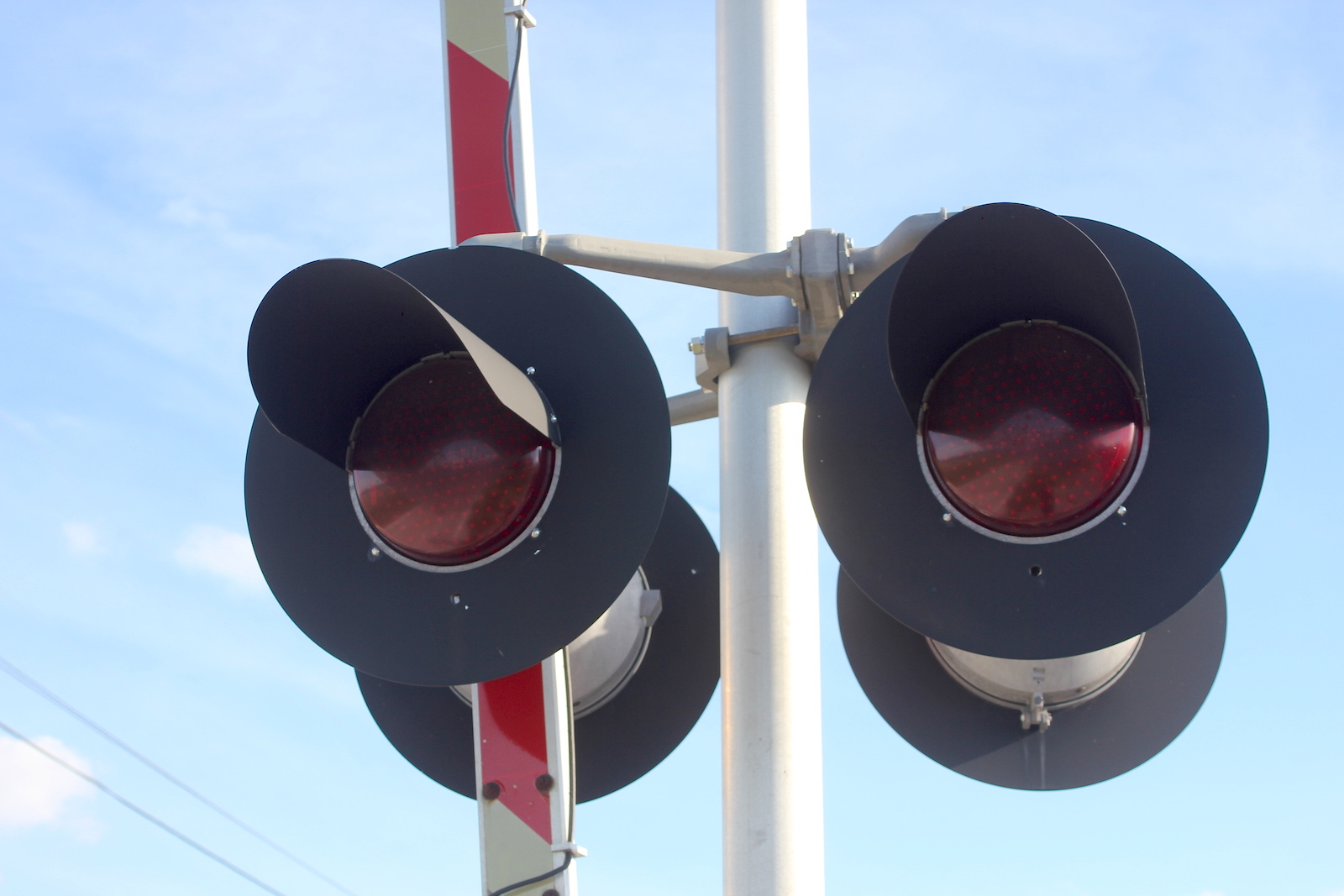

The northern signal.
23 24 25 26

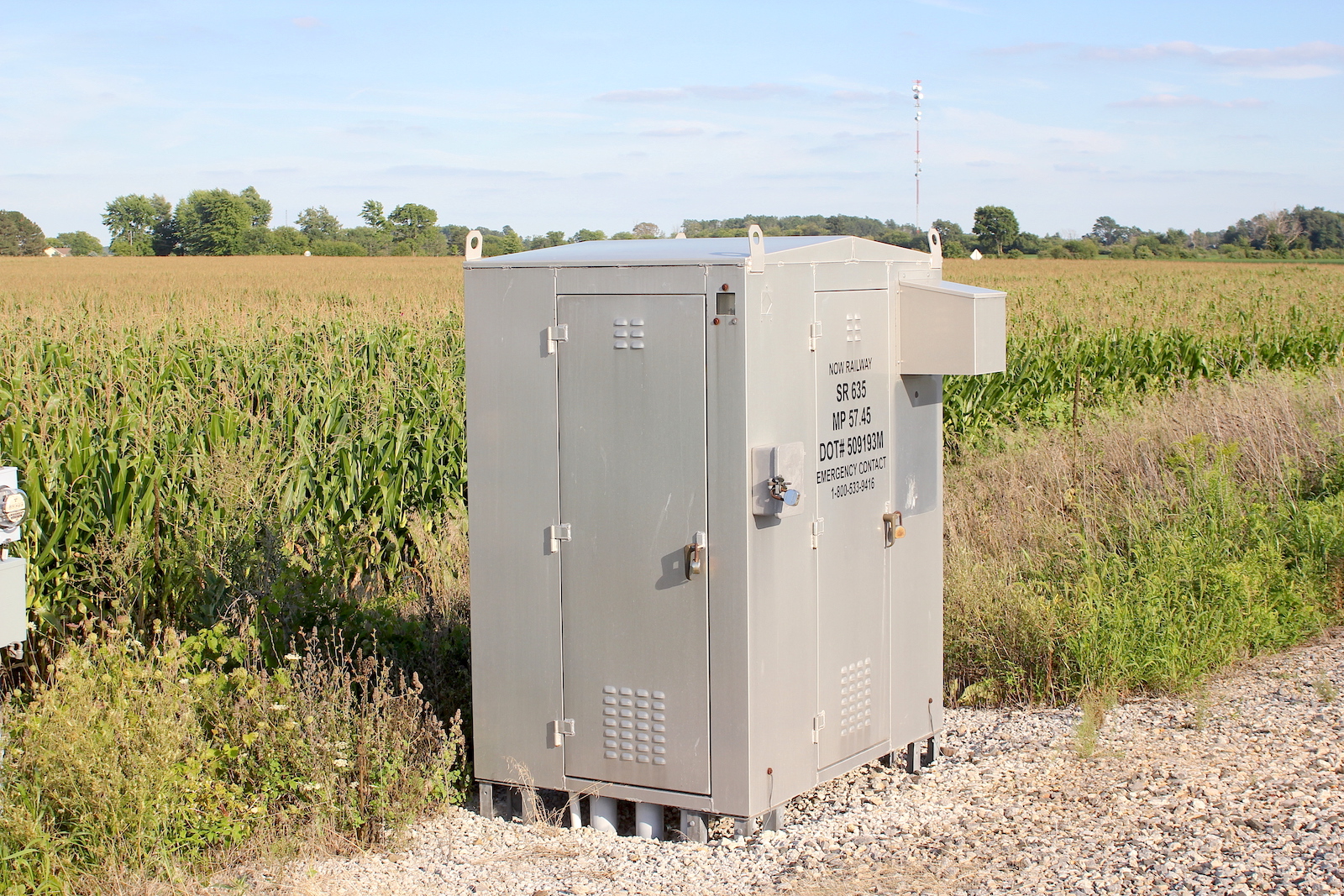

The relay bungalow in the northeast quadrant.

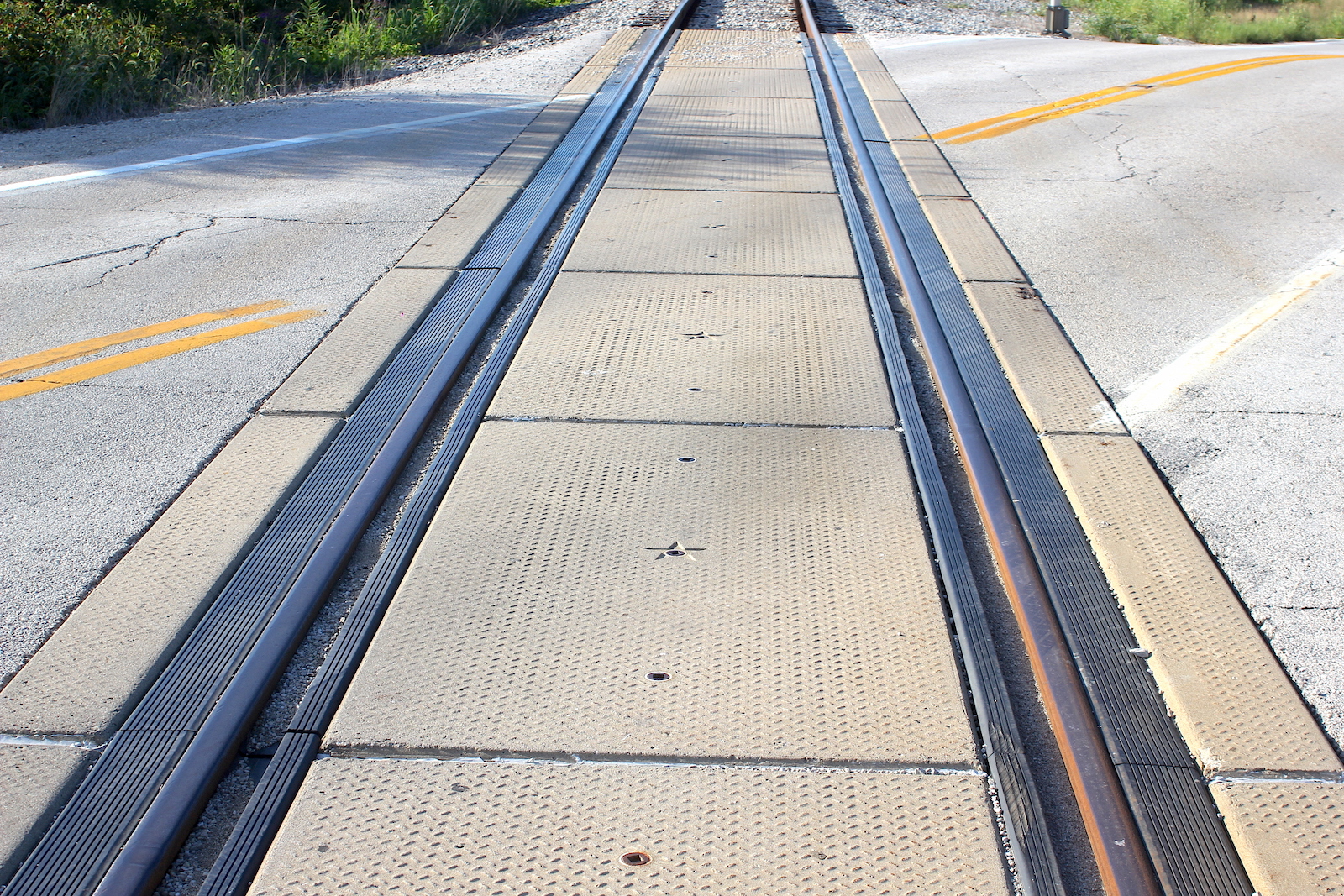

 The grade is older concrete and rubber.

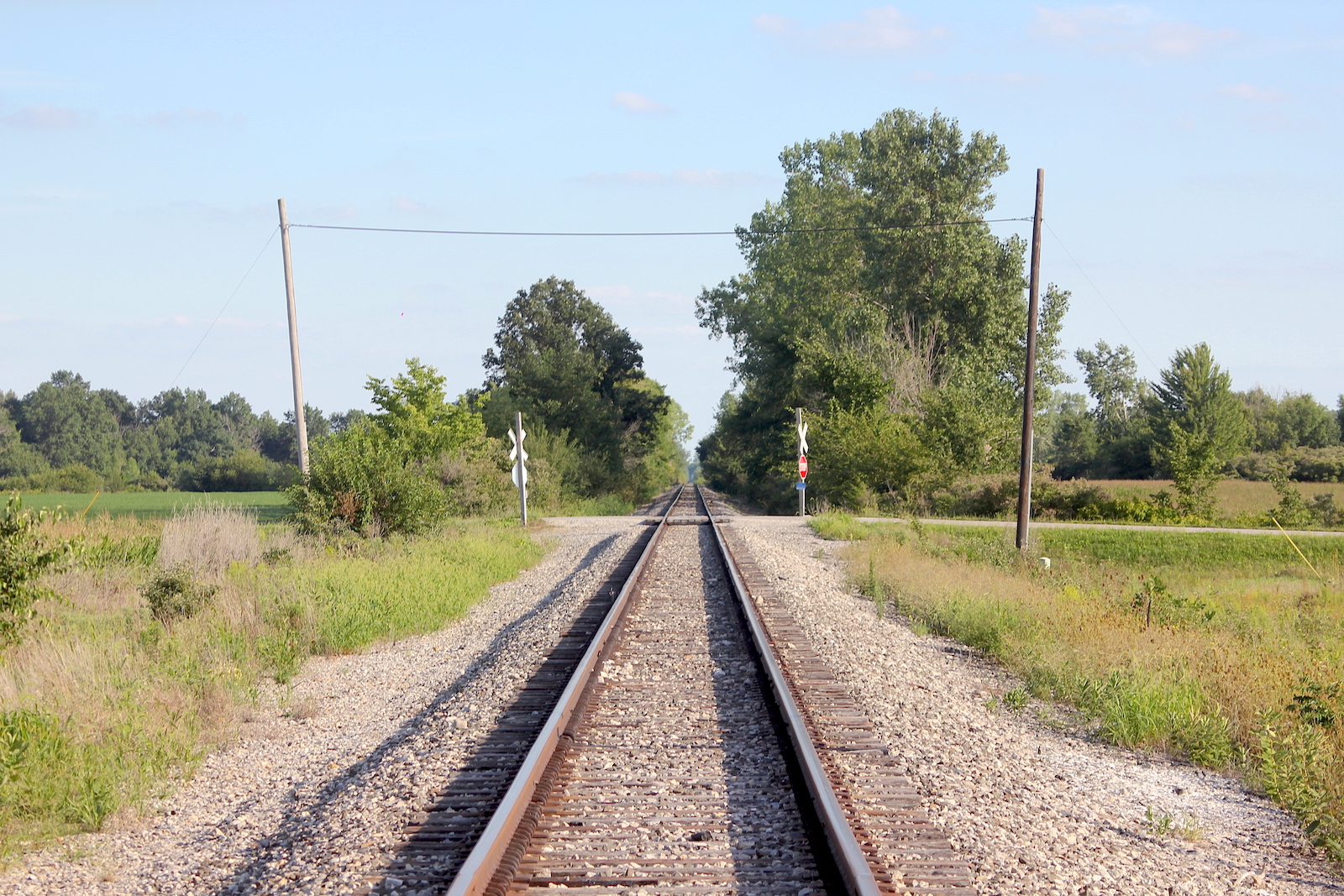

 Track view facing north towards Greensburg Pike.
 Track view facing south at Havens Station Rd.
