Total Accidents:
4 Crossing DOT #: 524061P TOTAL DAILY
TRAINS: 94 (AS OF 2014)
>>>>>>>>>>>>>>
Northern Signal
Southern Signal
Bell:
GS Type 2 E-Bell
None
Base:
Safetran 5" Double Sided ^
Safetran 5" Single Sided >
Lights:
4 - 12"x20" Safetran w/ GE Uniform Look LEDs
4 - 12"x20" Safetran w/ GE Uniform Look LEDs
Junction Box:
Safetran
Safetran
Gate Lights:
3 - 4" RECO
3 - 4" RECO
Gate Mechanism:
Siemens Sticker Style 2 w/ NEG 1 Way Saver
WCH Style 3 w/ Standard Mount
Gate Striping:
Vertical Striping
Vertical Striping
Pictures 1-24 and the 1st video were taken on April 20, 2014.
Pictures 25-26 were taken on September 25, 2014.
Pictures 27-31 were taken on June 10, 2015.
Pictures 32-56 were taken on October 1, 2015.
The 2nd video was taken on October 8, 2015.
Pictures 57-60 and the 3rd video were taken on November 6, 2016.
Pictures 61-74 were taken on April 24, 2023.
All pictures and videos were taken by Tommy McGowan.
This crossing is located on the NS Chicago Line.
O1
O2
O3
O4

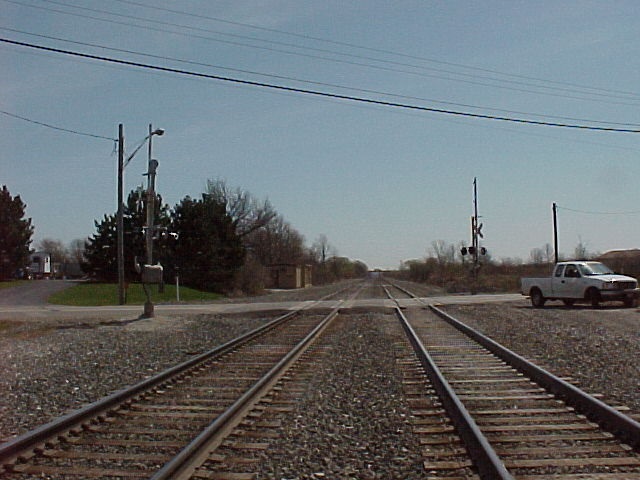

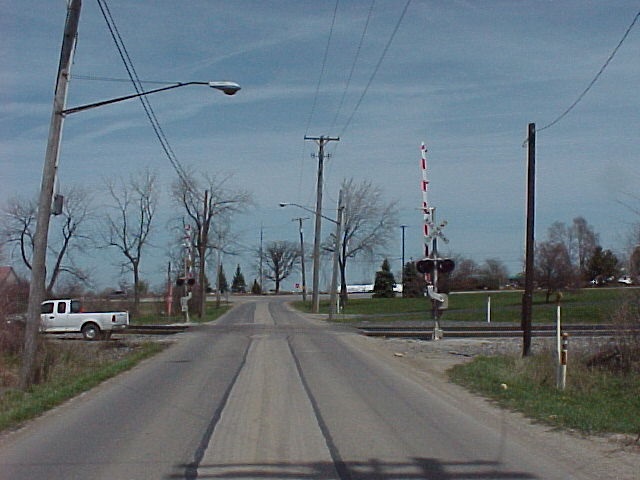

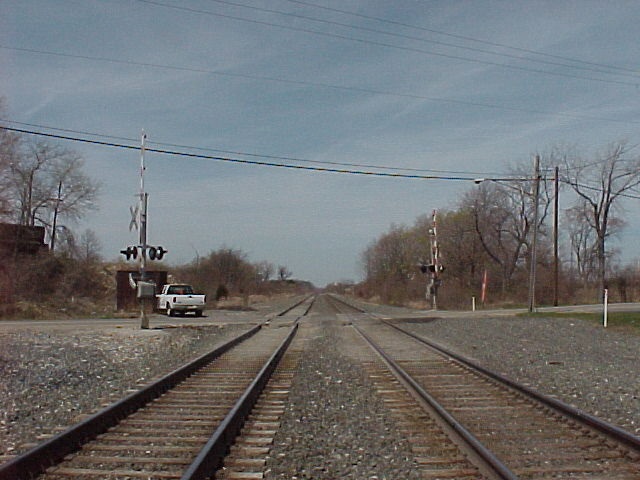

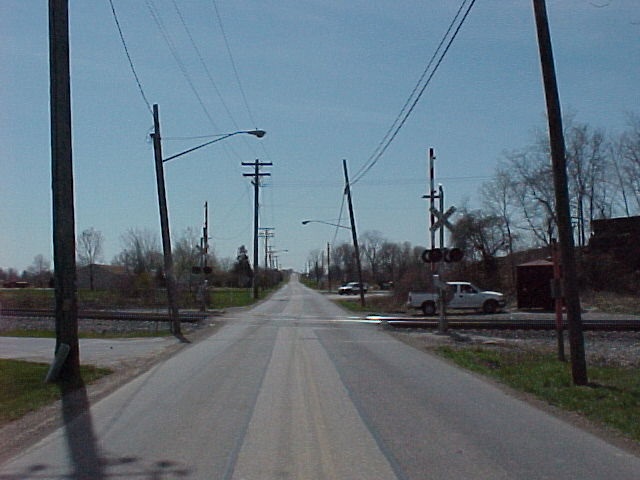

PUCO pictures from the late 90s or early 2000s showing a Conrail setup with 8" lights, WCH gate mechanisms, and a Safetran Hybrid Bell. By 2014, both gates were replaced, and the southern signal may have been remounted.
1
2

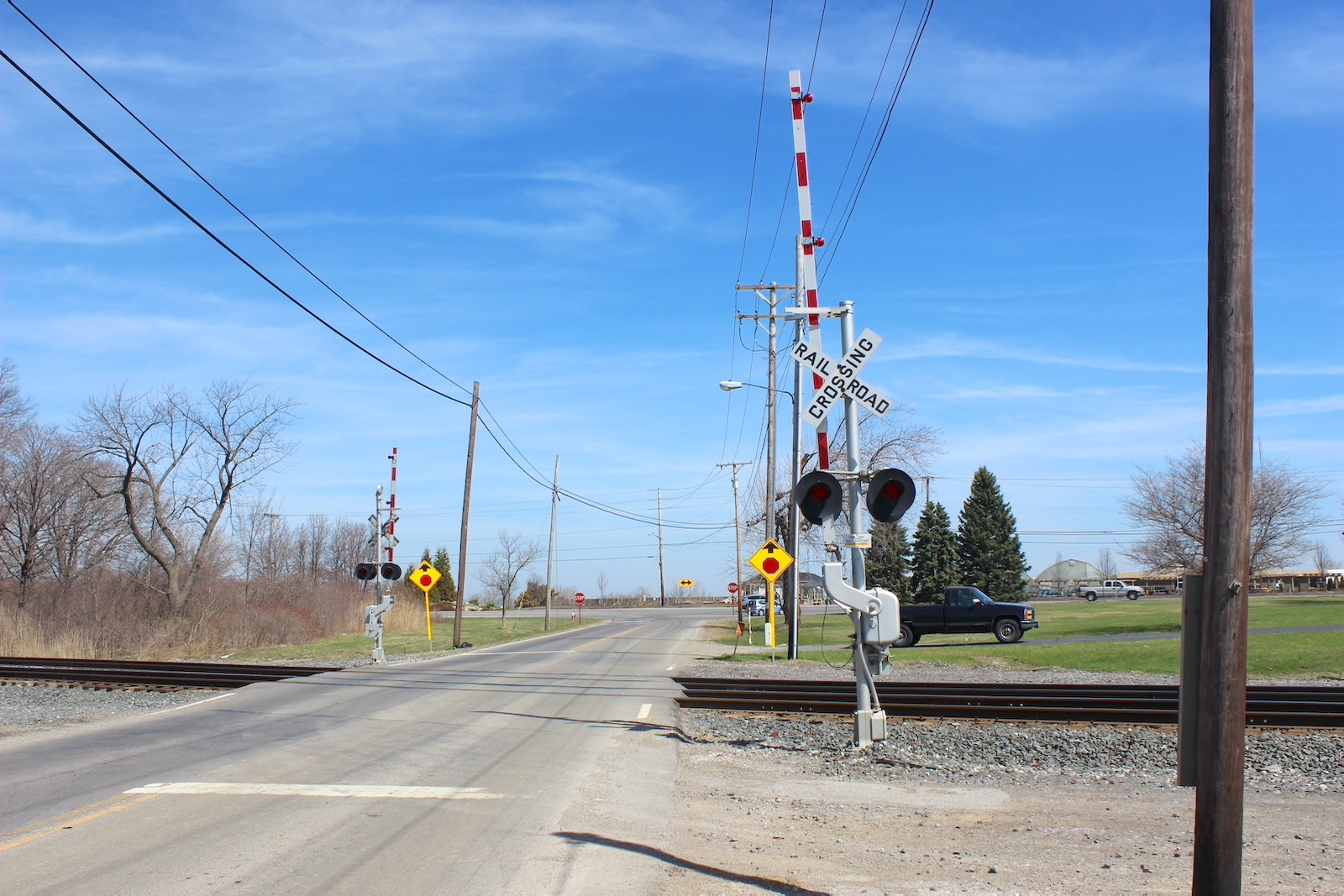

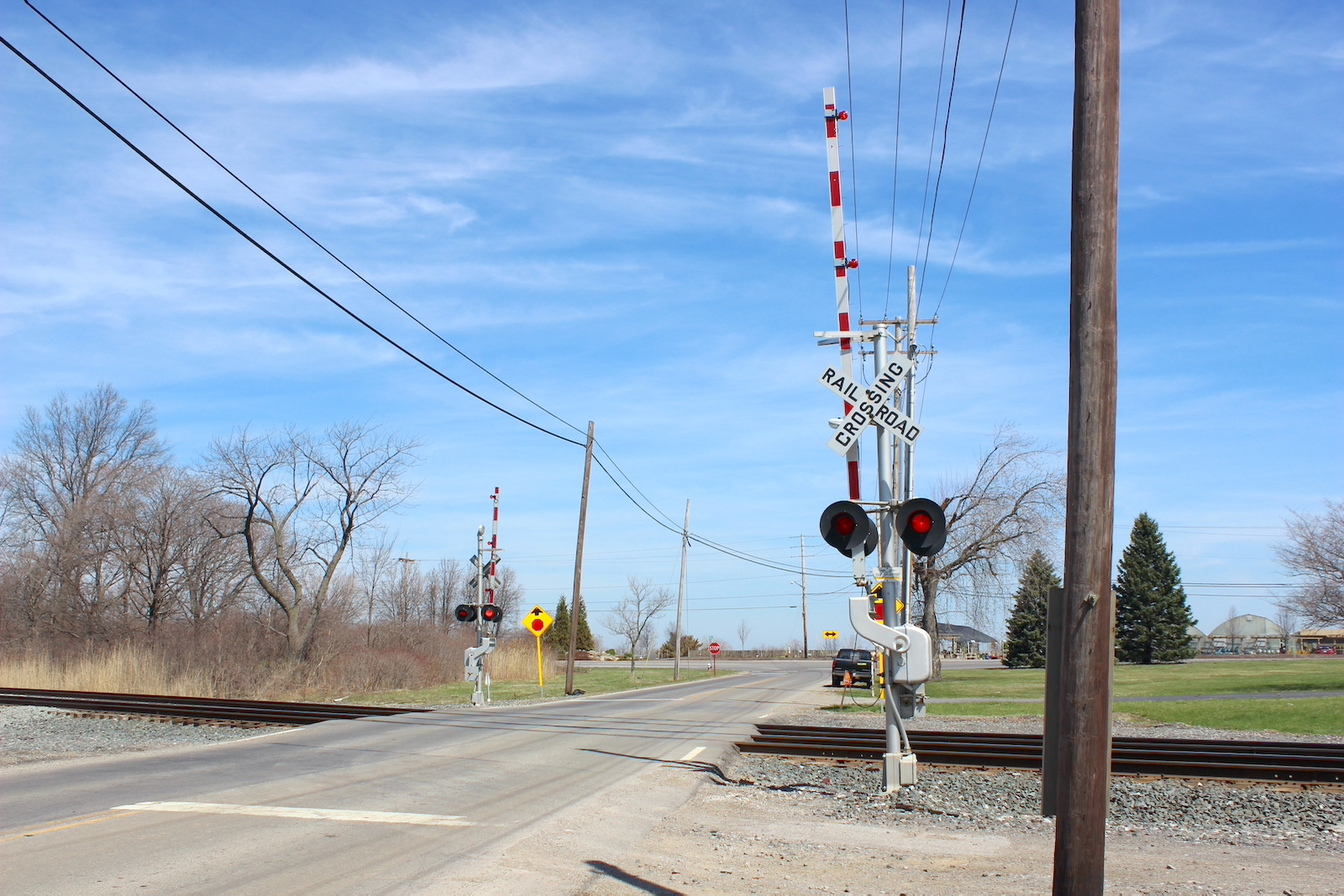

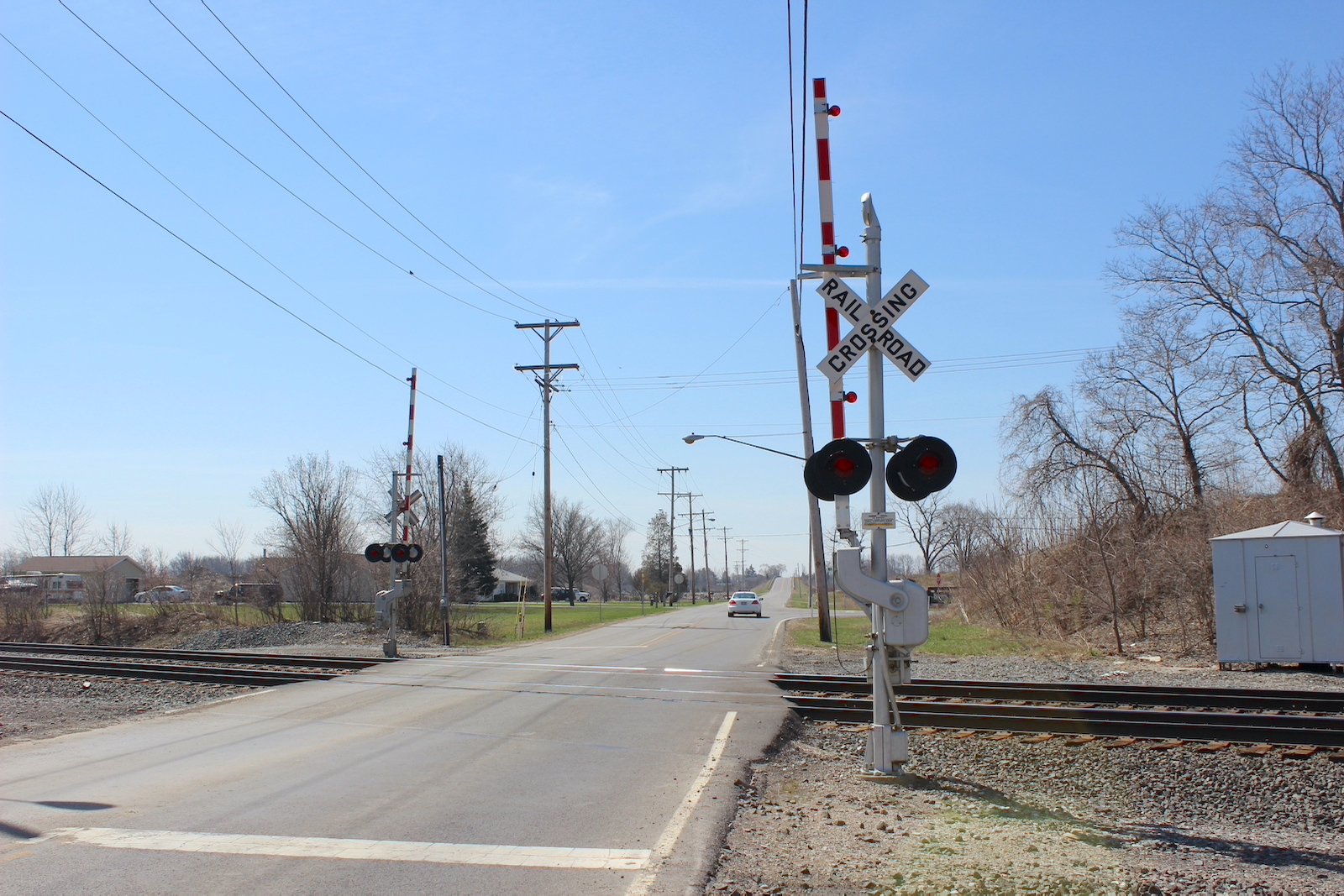

Overview of 2 gated signals facing south.

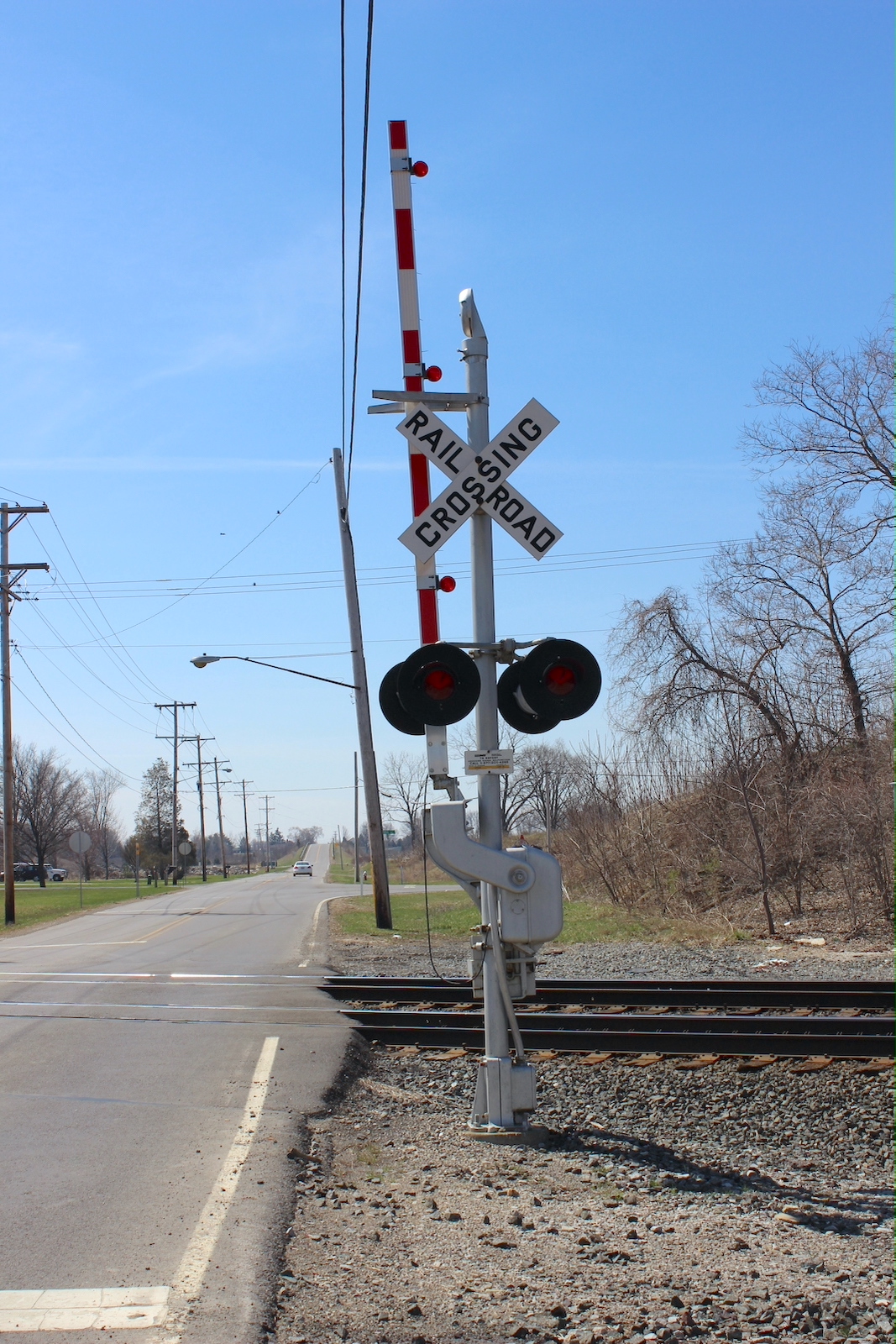

Overview looking north.
3
4
5
6
7
8
9

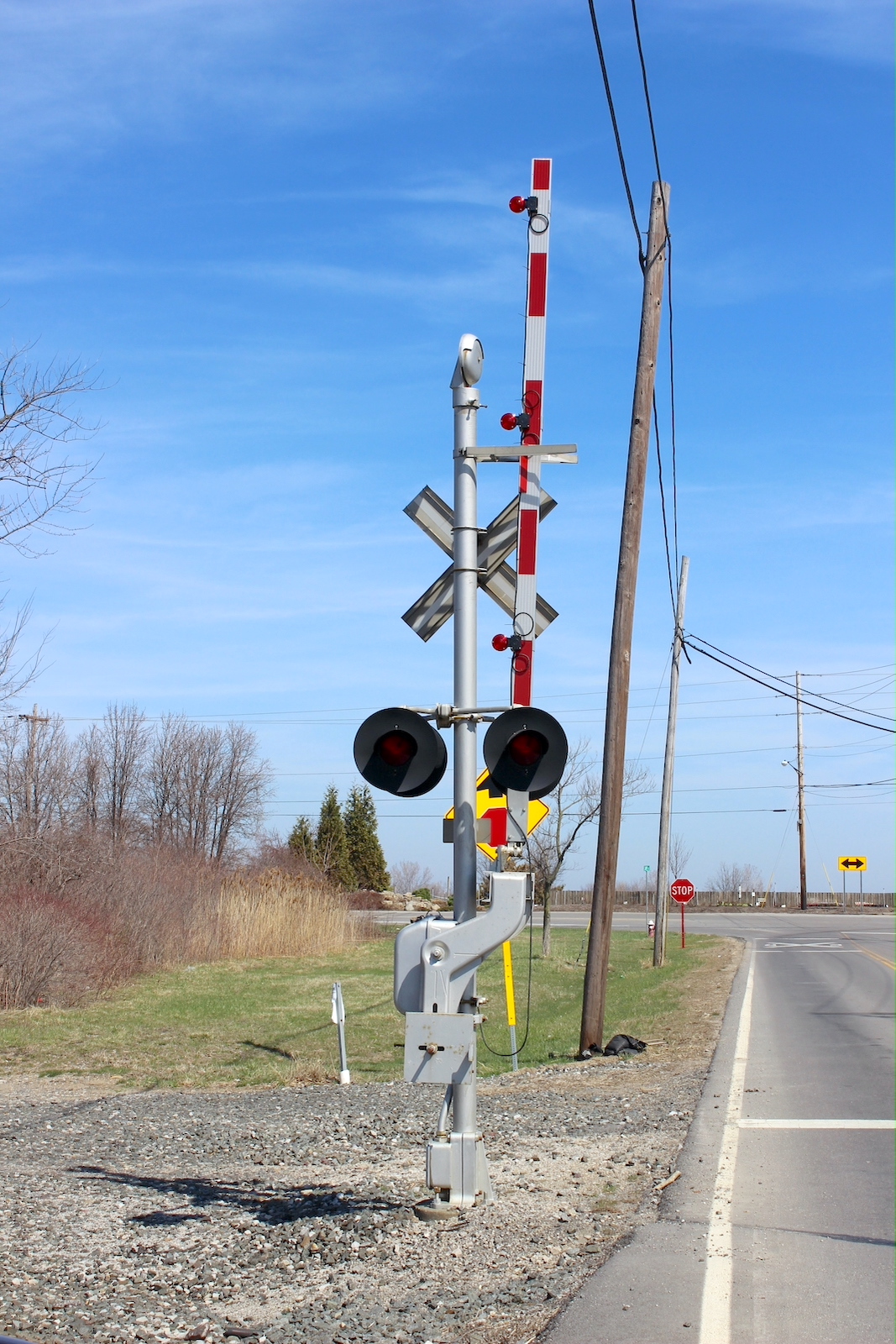

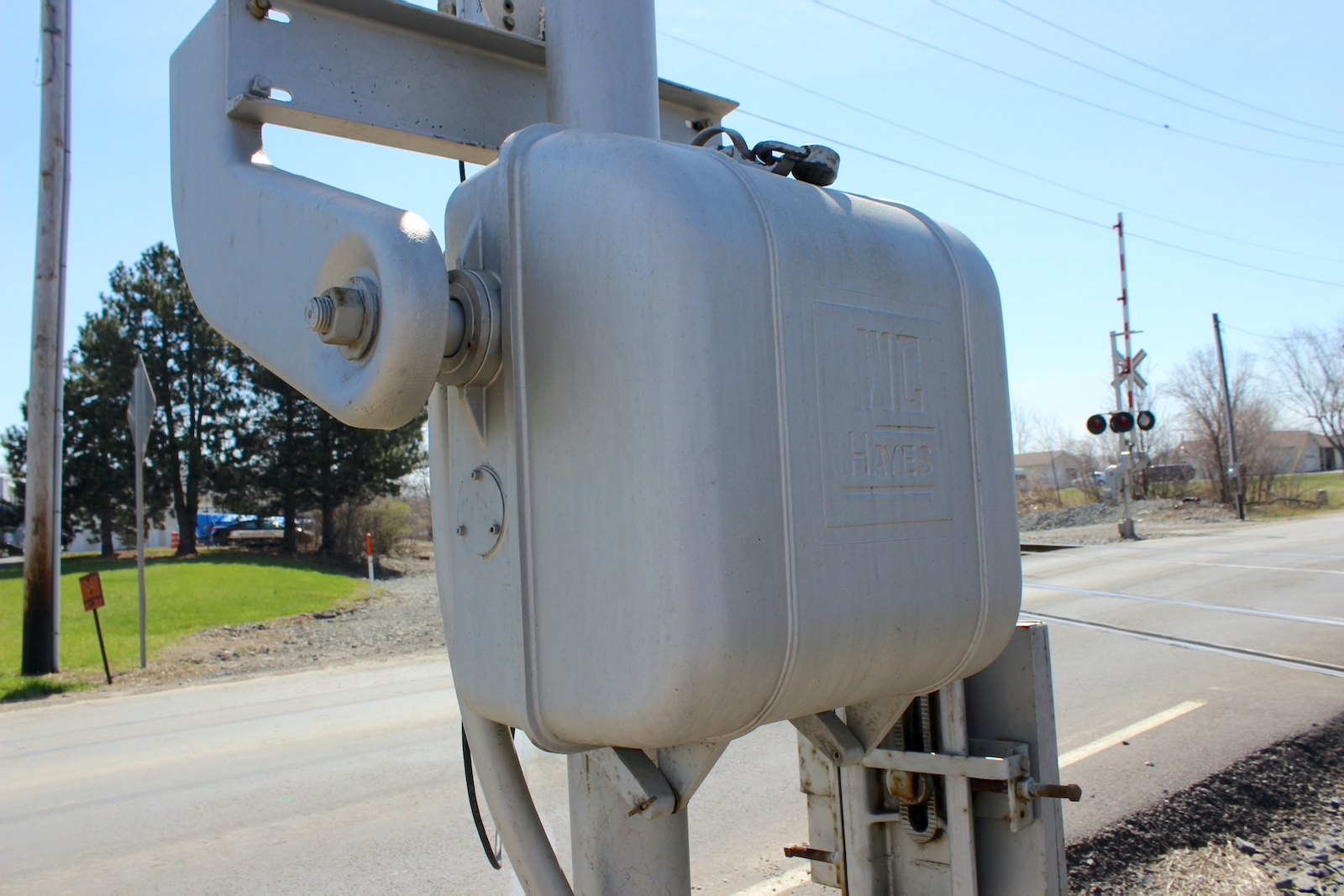

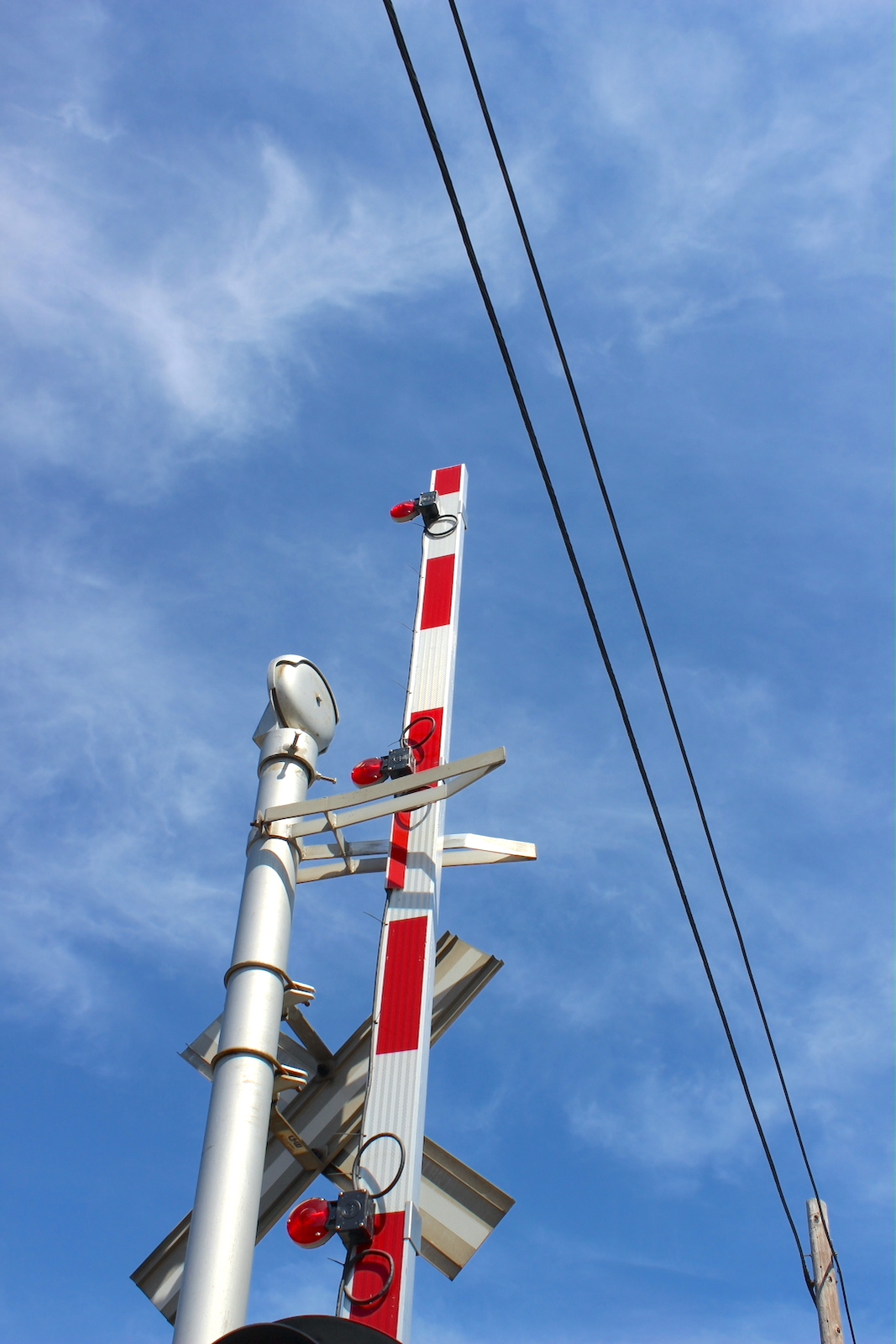

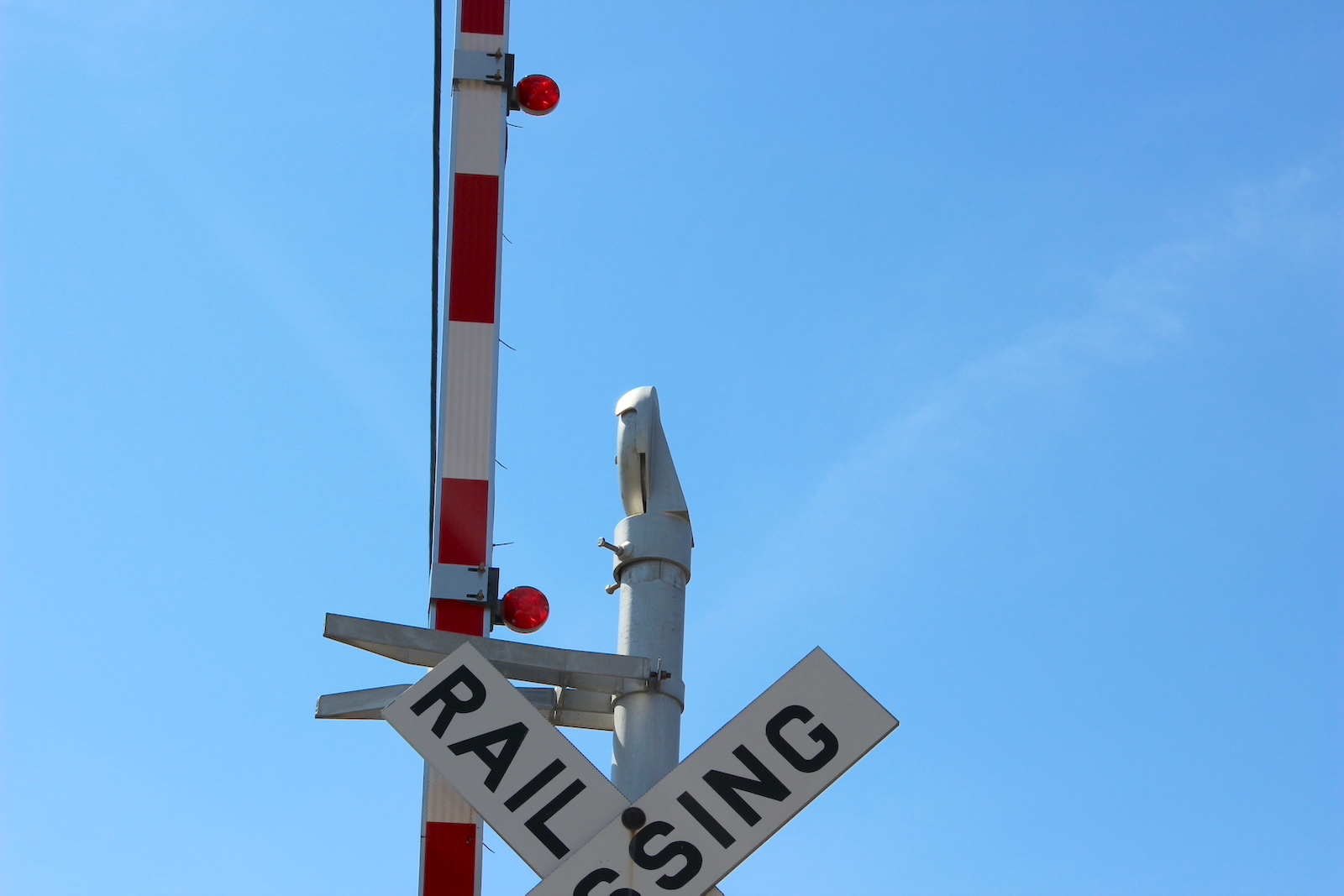

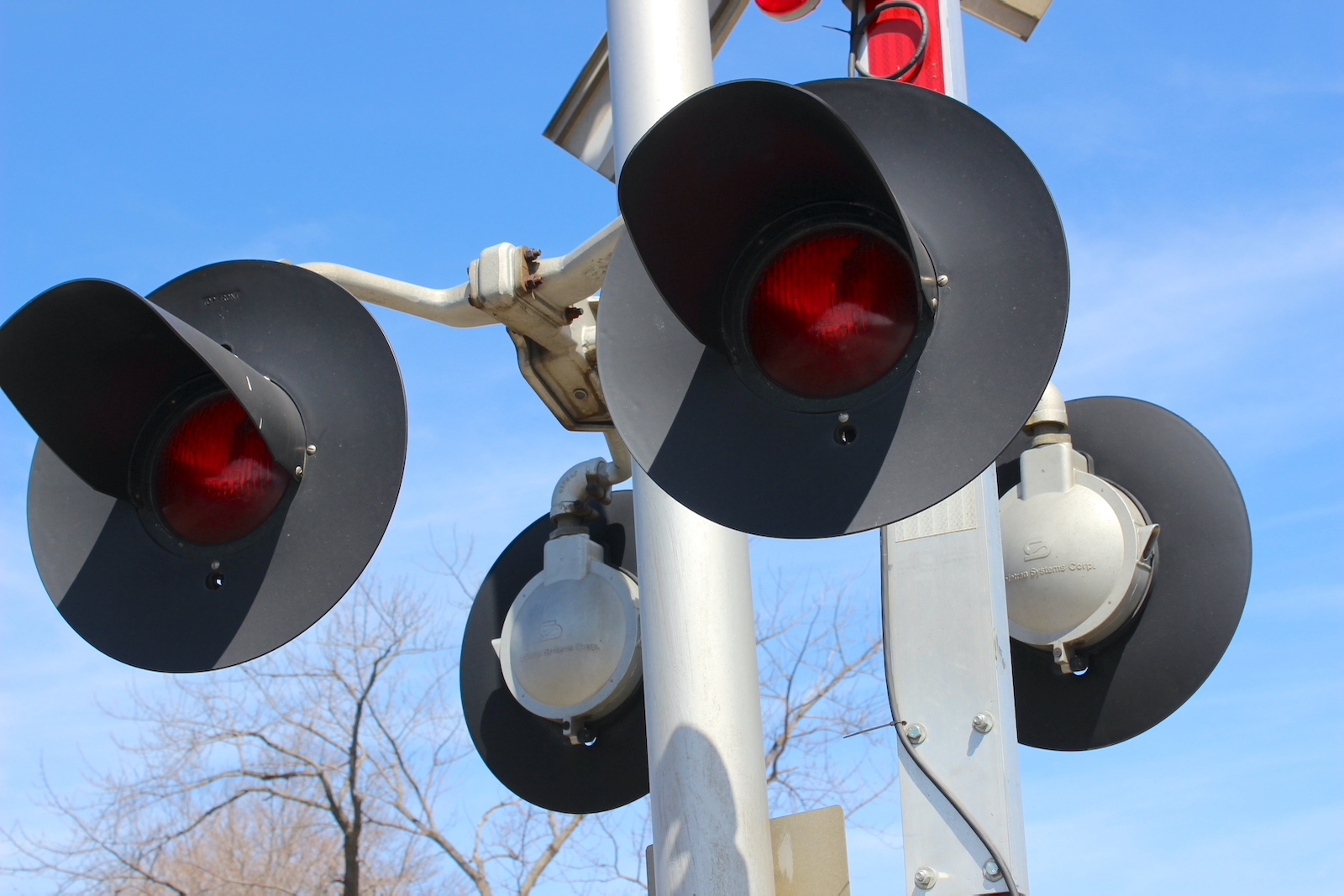

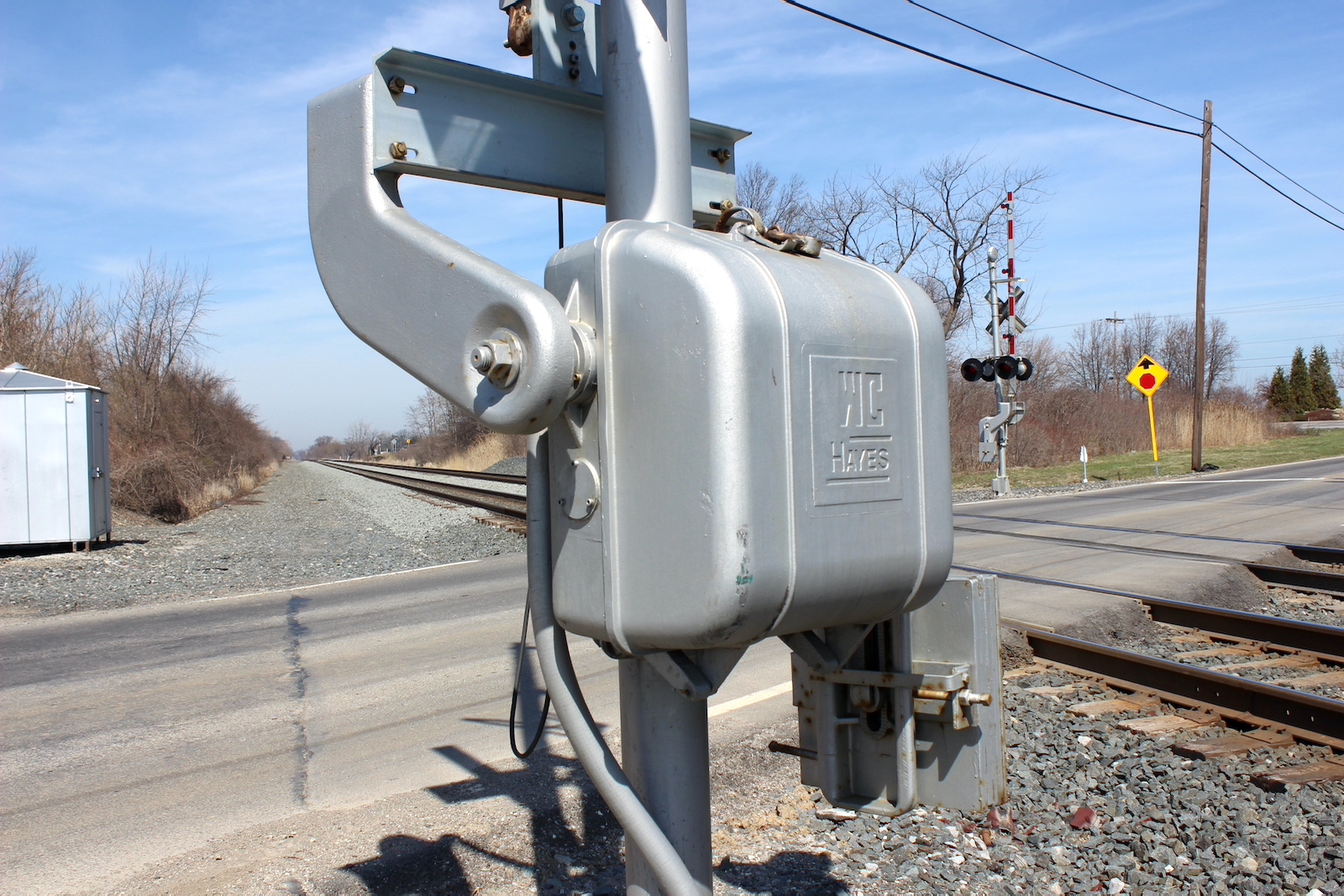

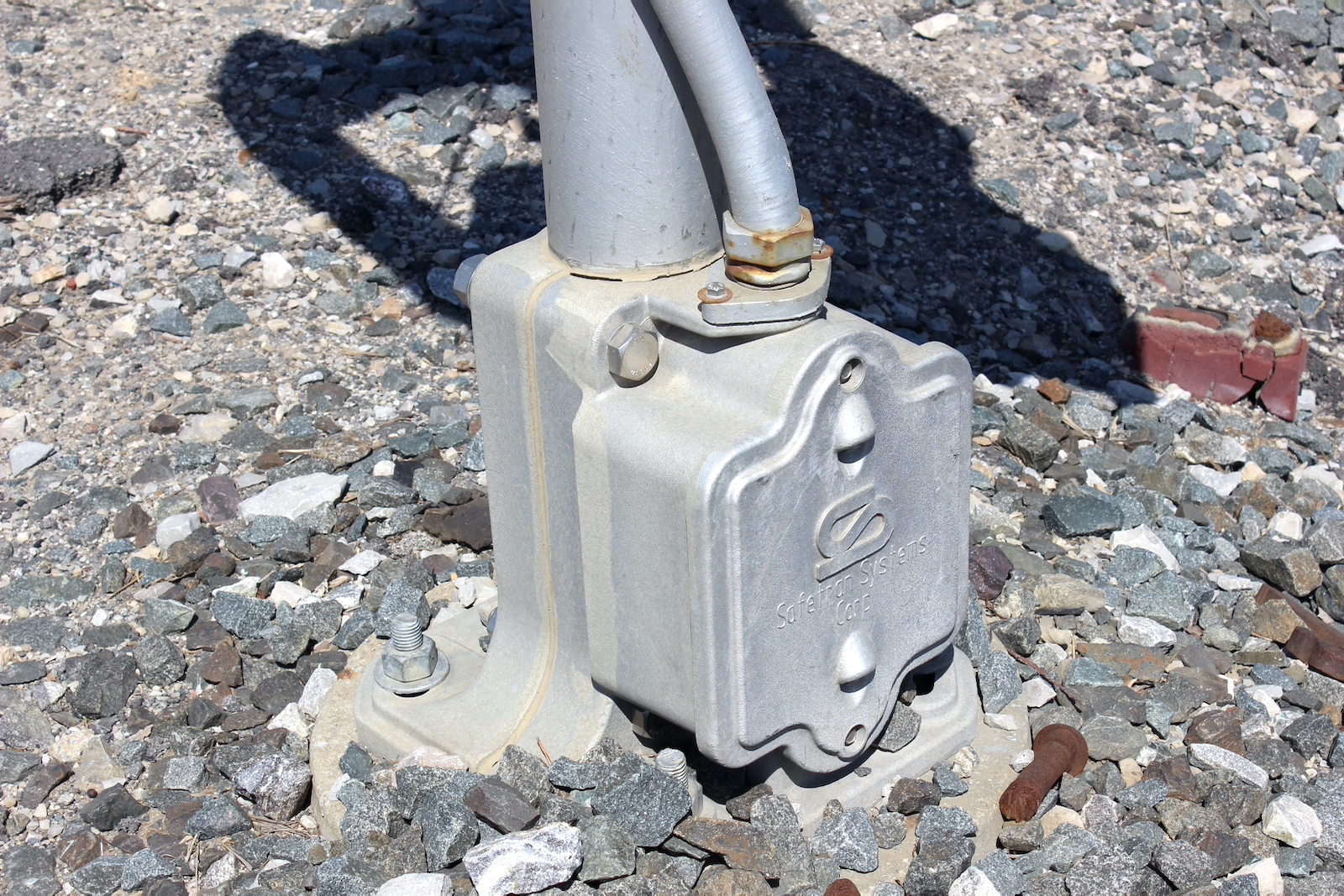

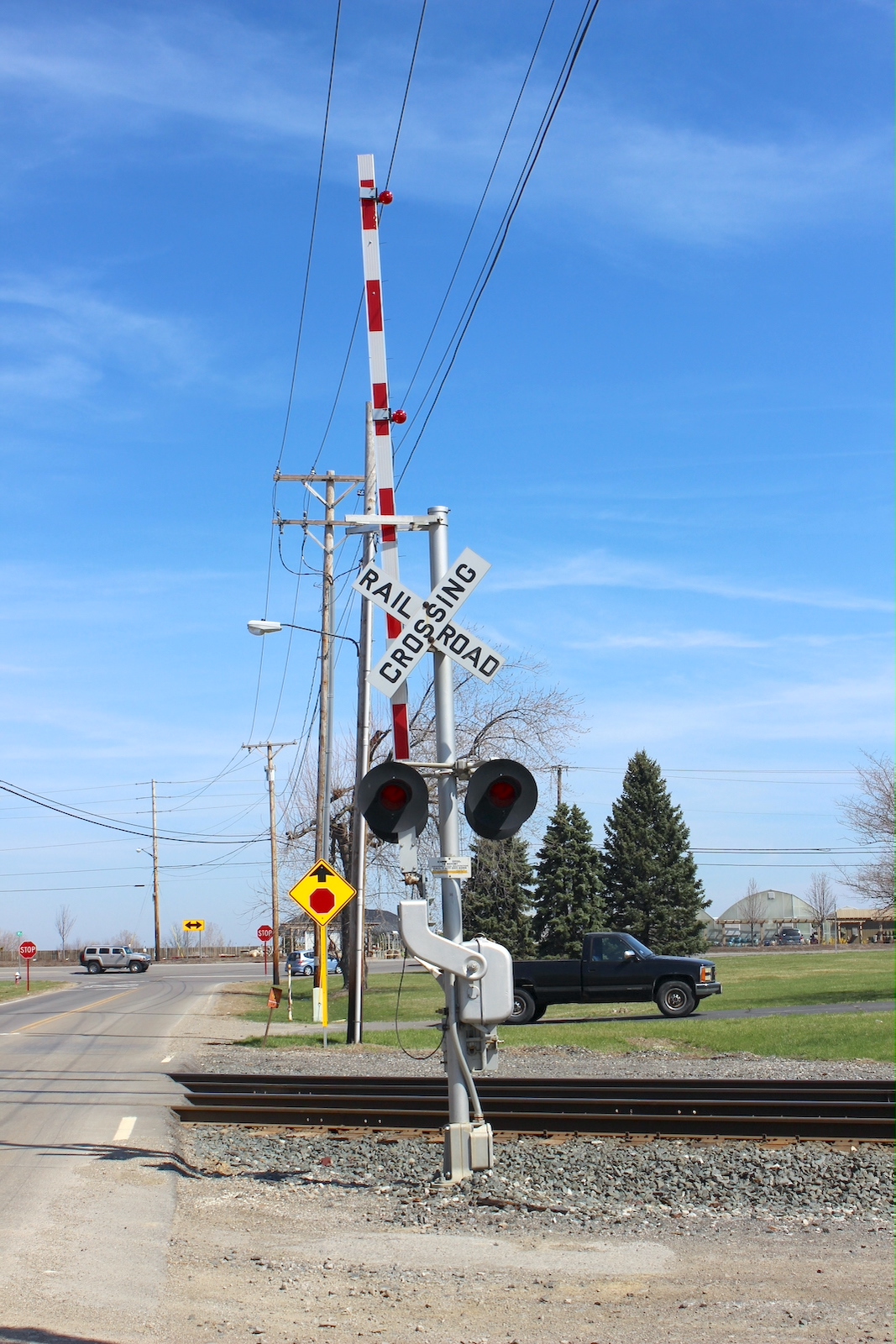

The northern signal. This had a Harmon base, 8" Safetran incandescents, WCH Style 3 gate mechanism, 4" NEG incandescents, and a Safetran Hybrid Bell.
10
11
12
13
14
15

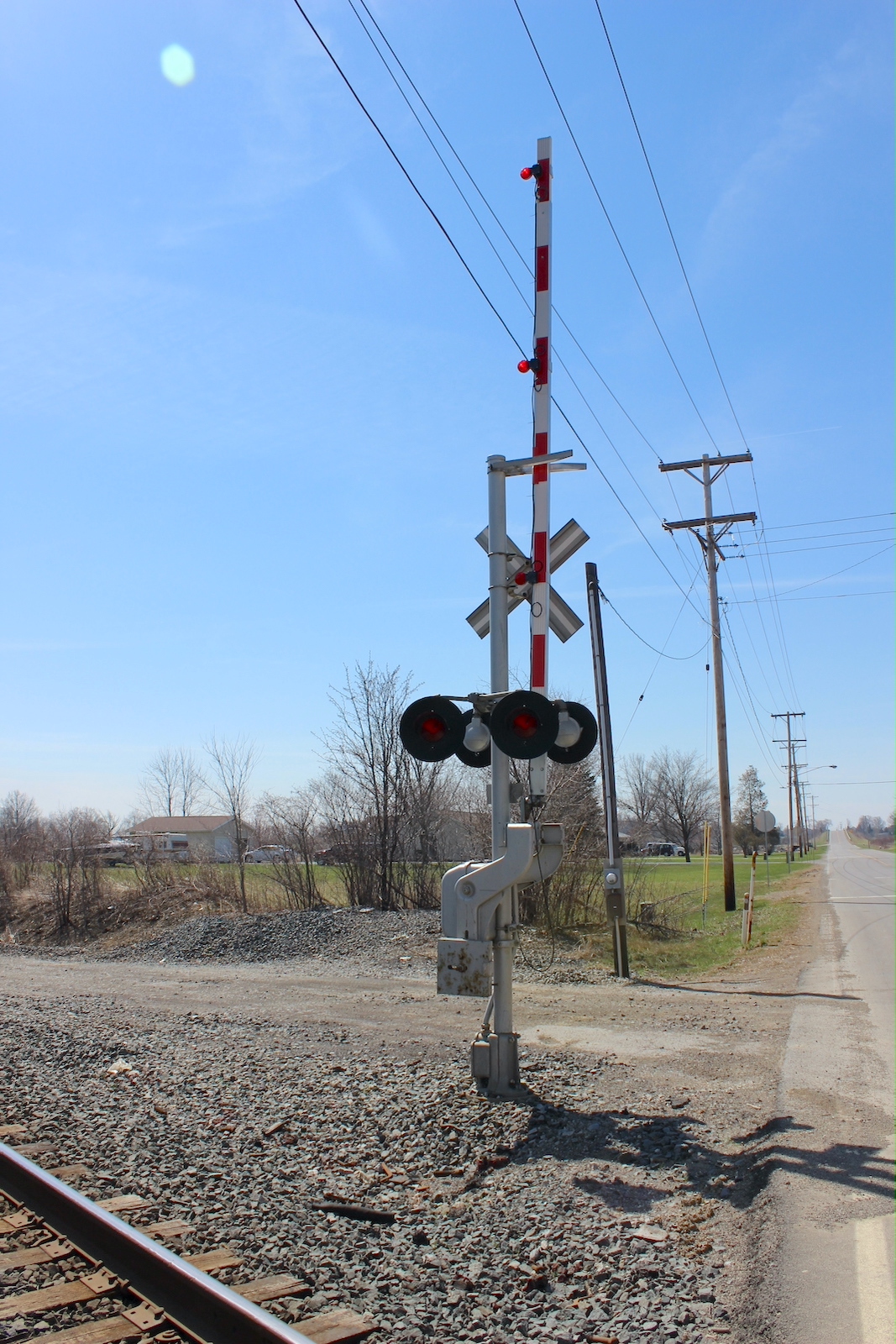

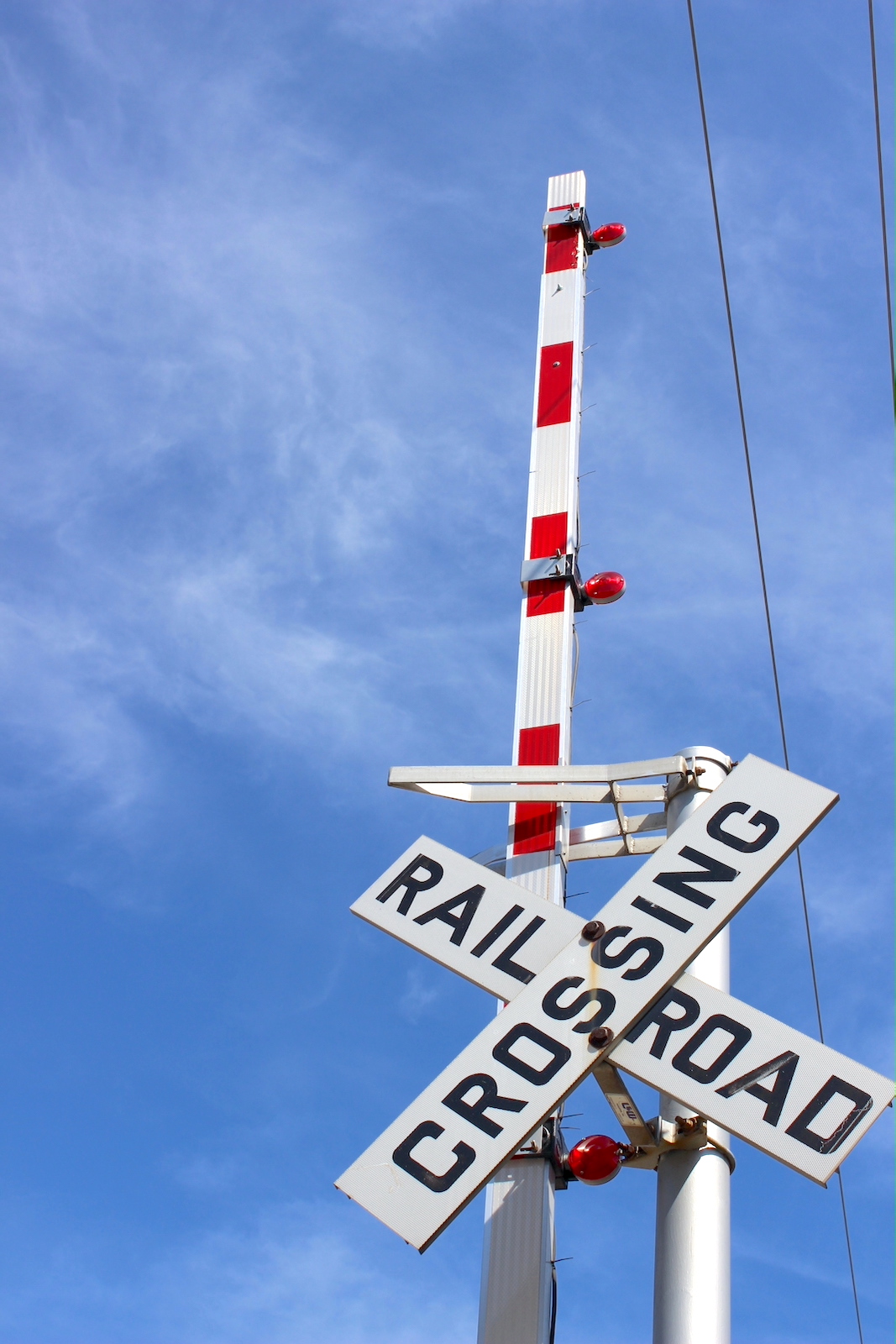

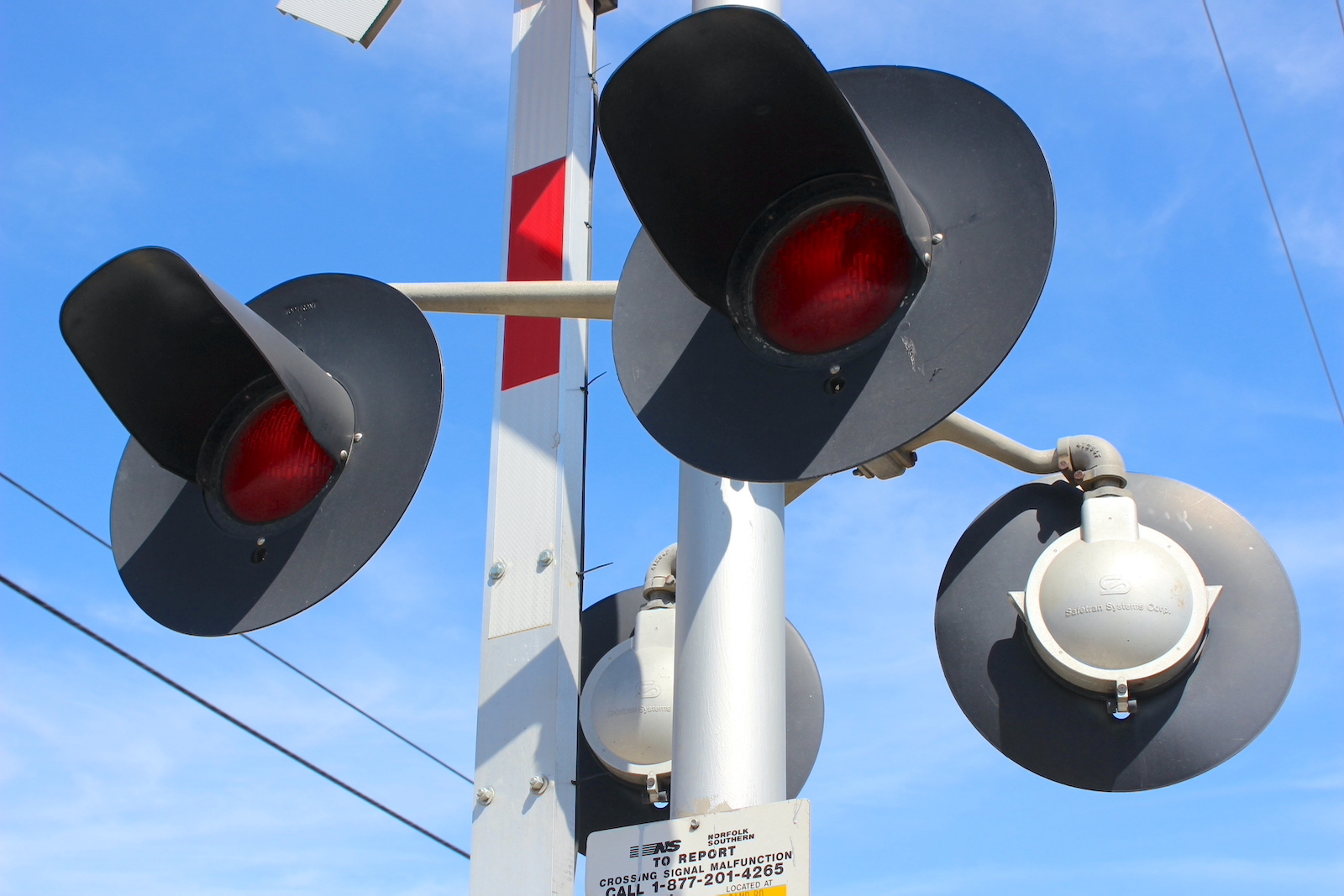

The southern signal. This had 8" Safetran incandescents and 4" NEG incandescents at the time.

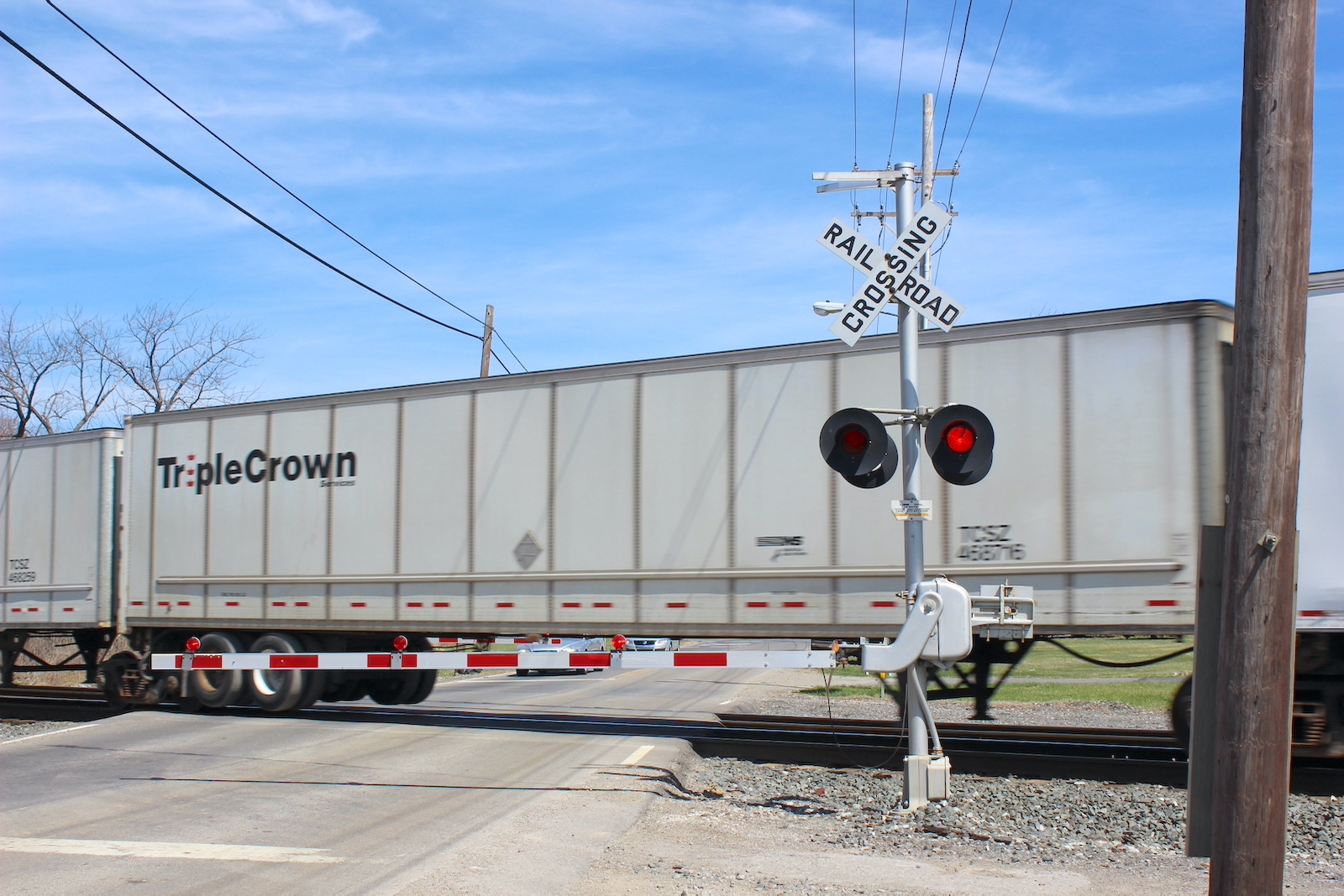

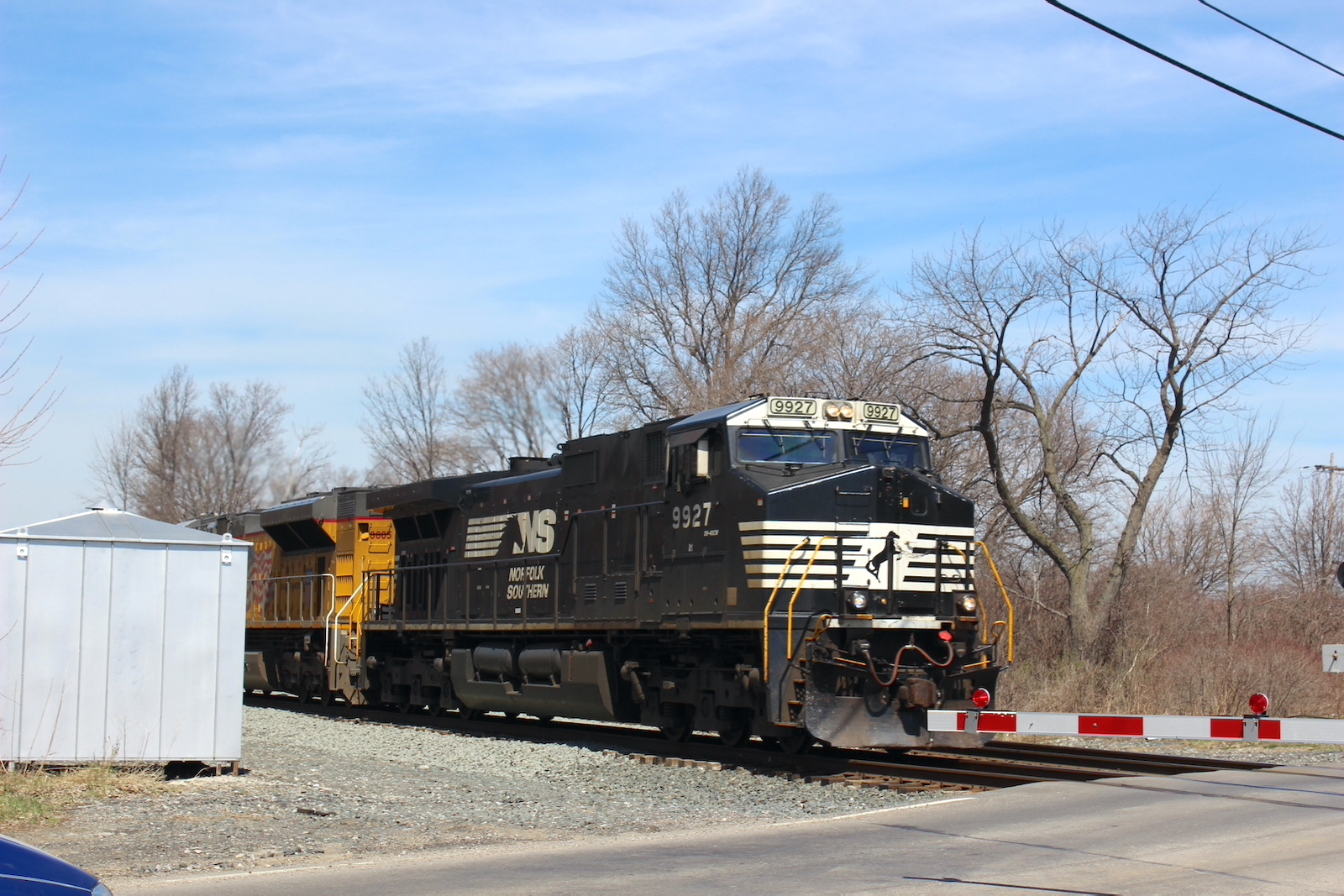

Action shots from the eastbound roadrailer seen in the 1st video below.
25
26

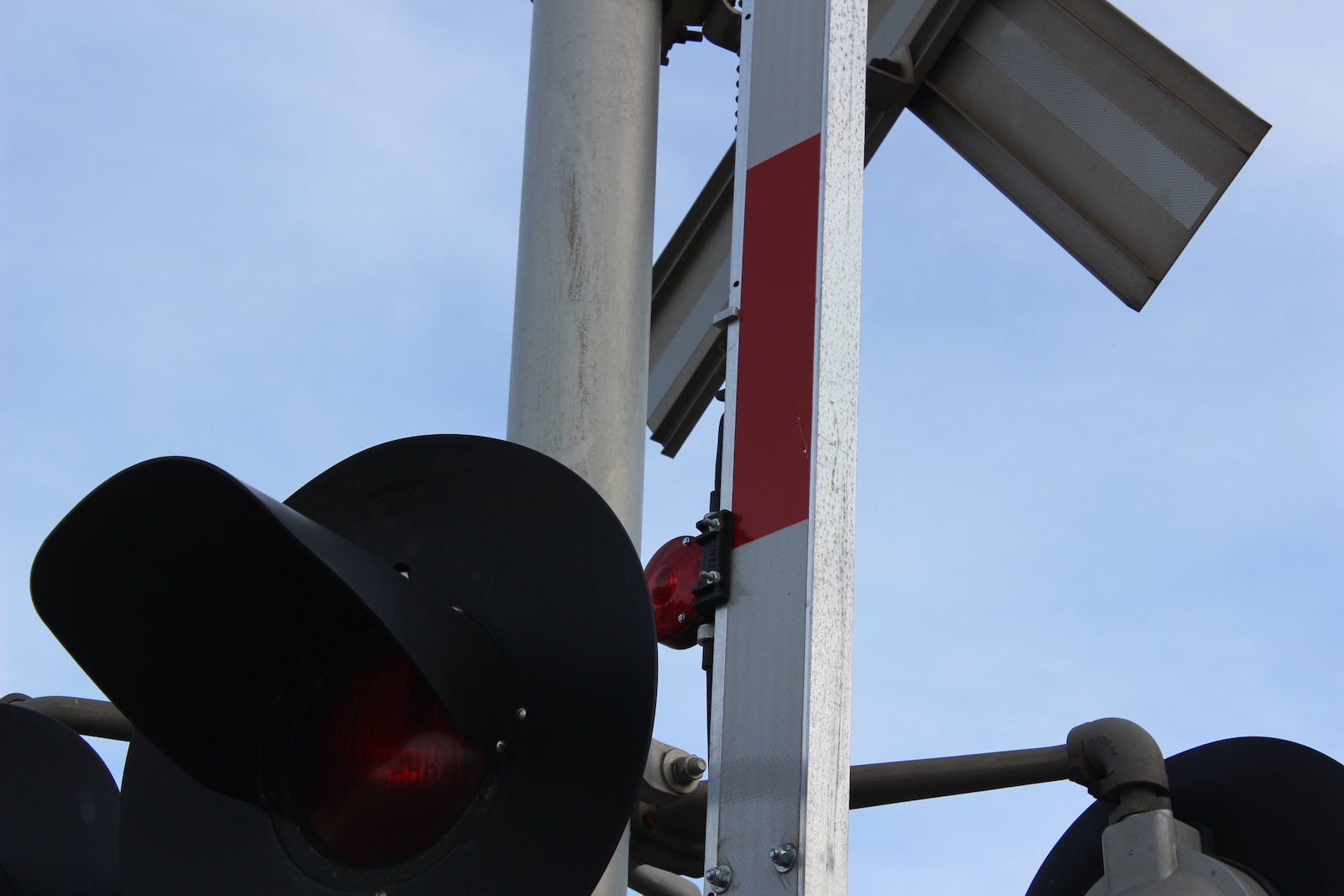

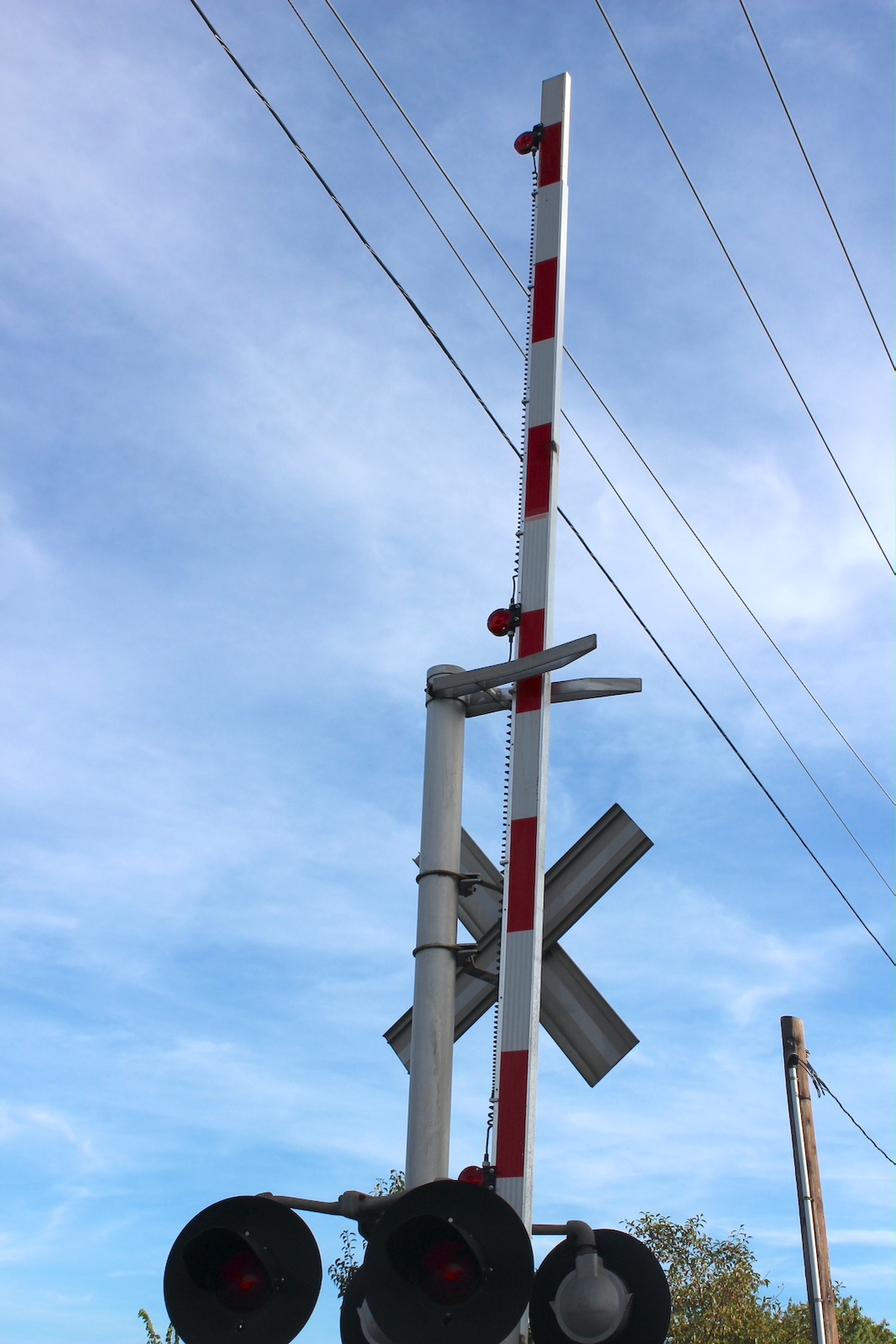

On September 25,
2014, it was discovered that the gate was replaced and now has 4" RECO
incandescents instead of NEGs. Nothing else has changed with the
crossing.
27
28
29
30
31

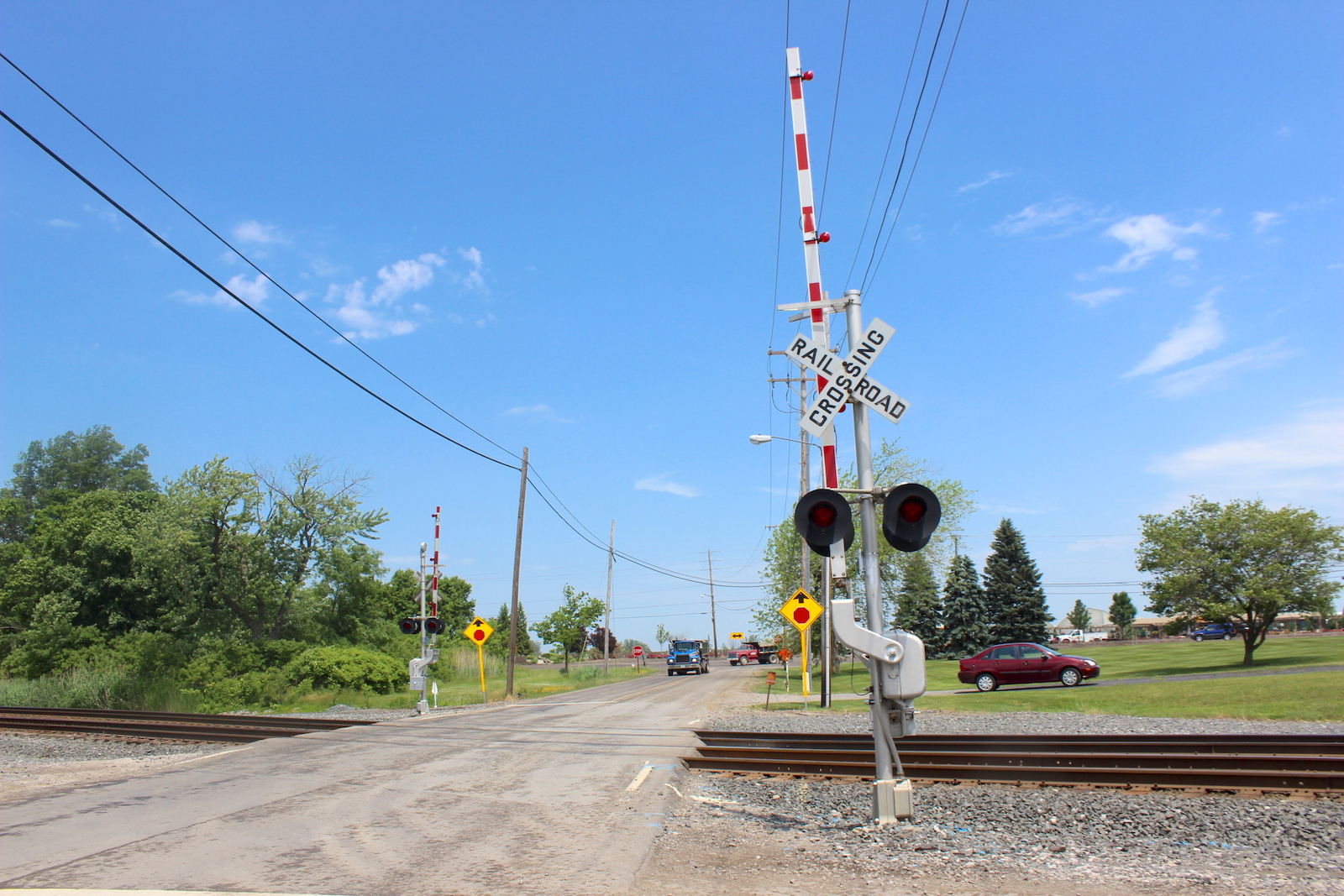

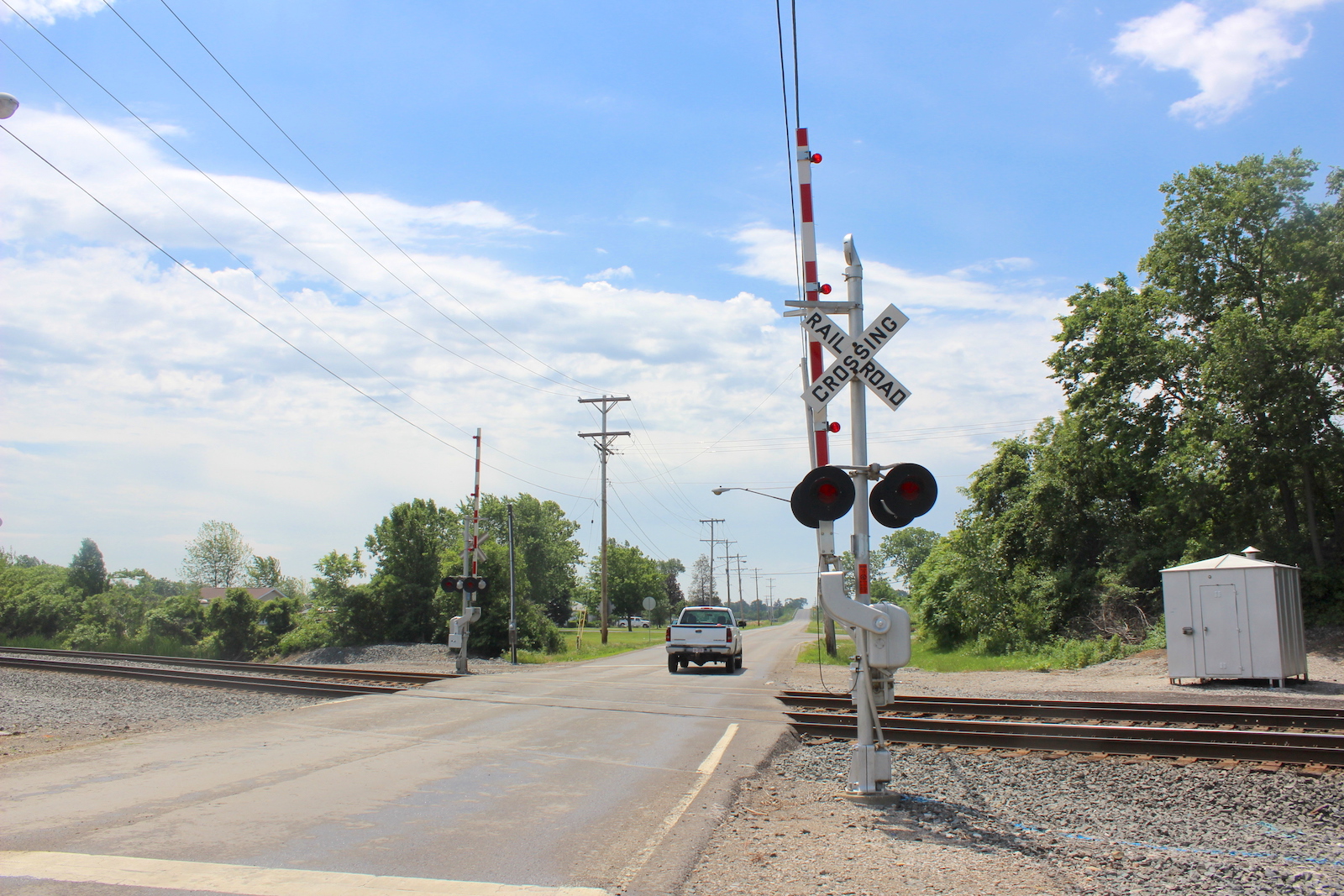

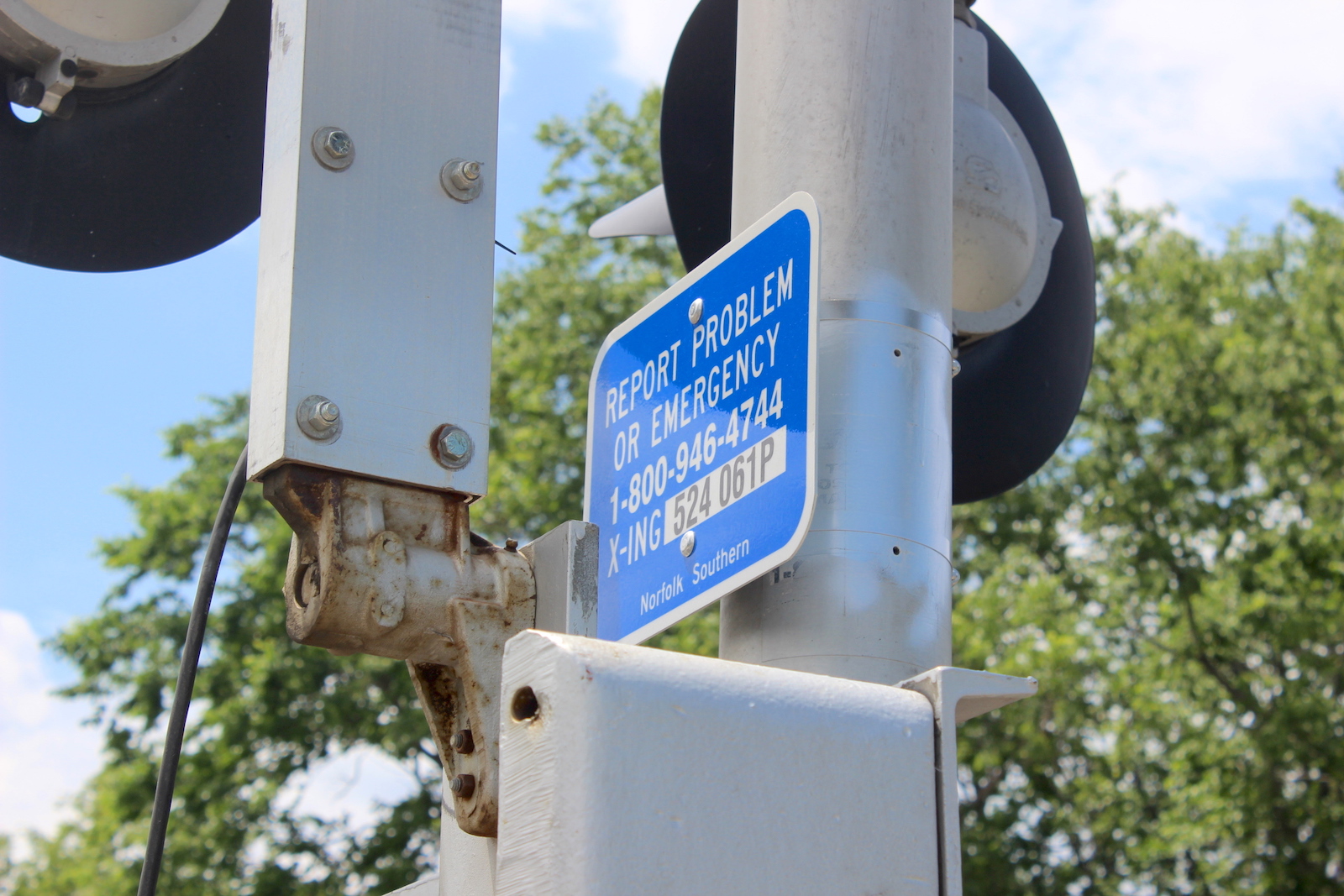

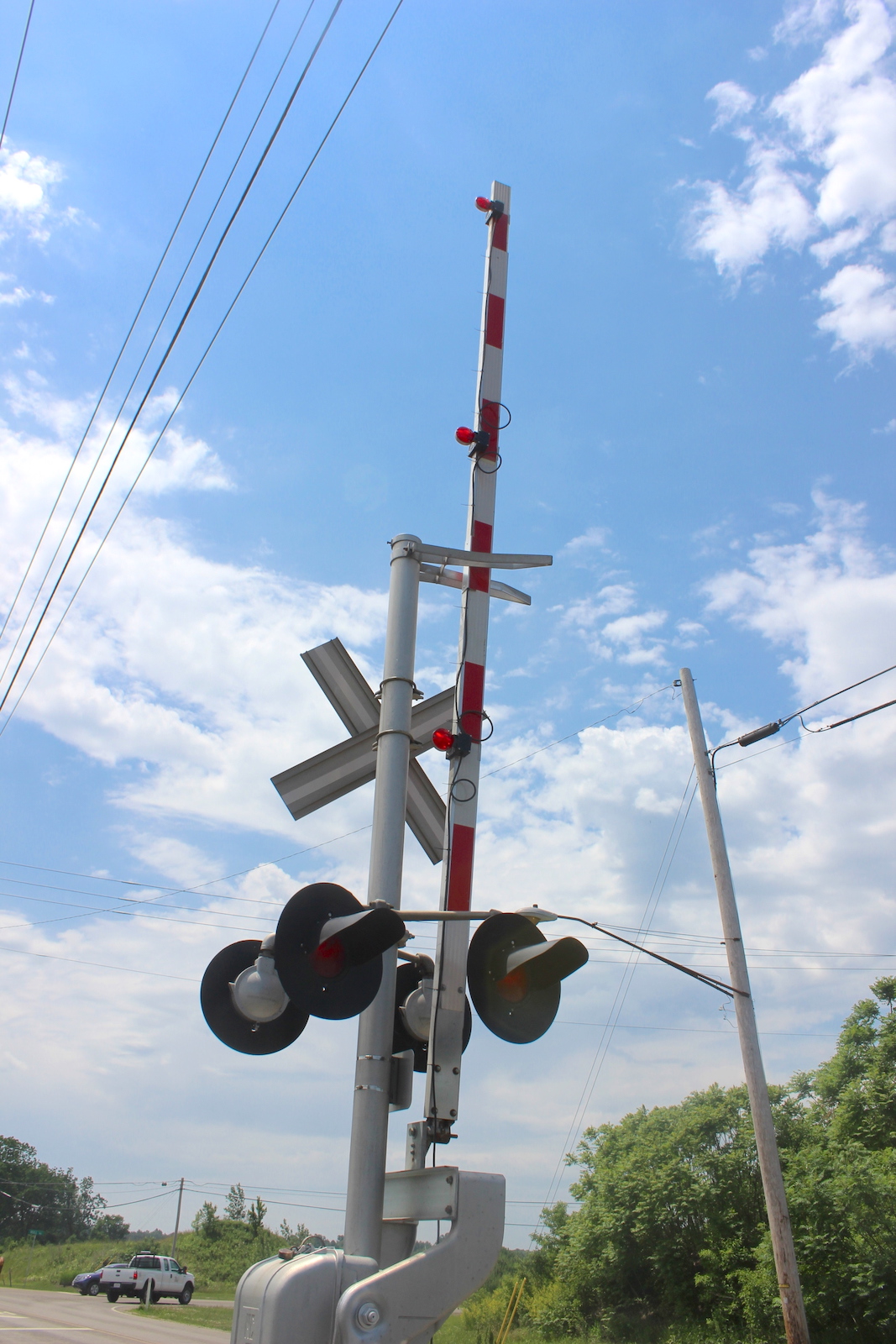

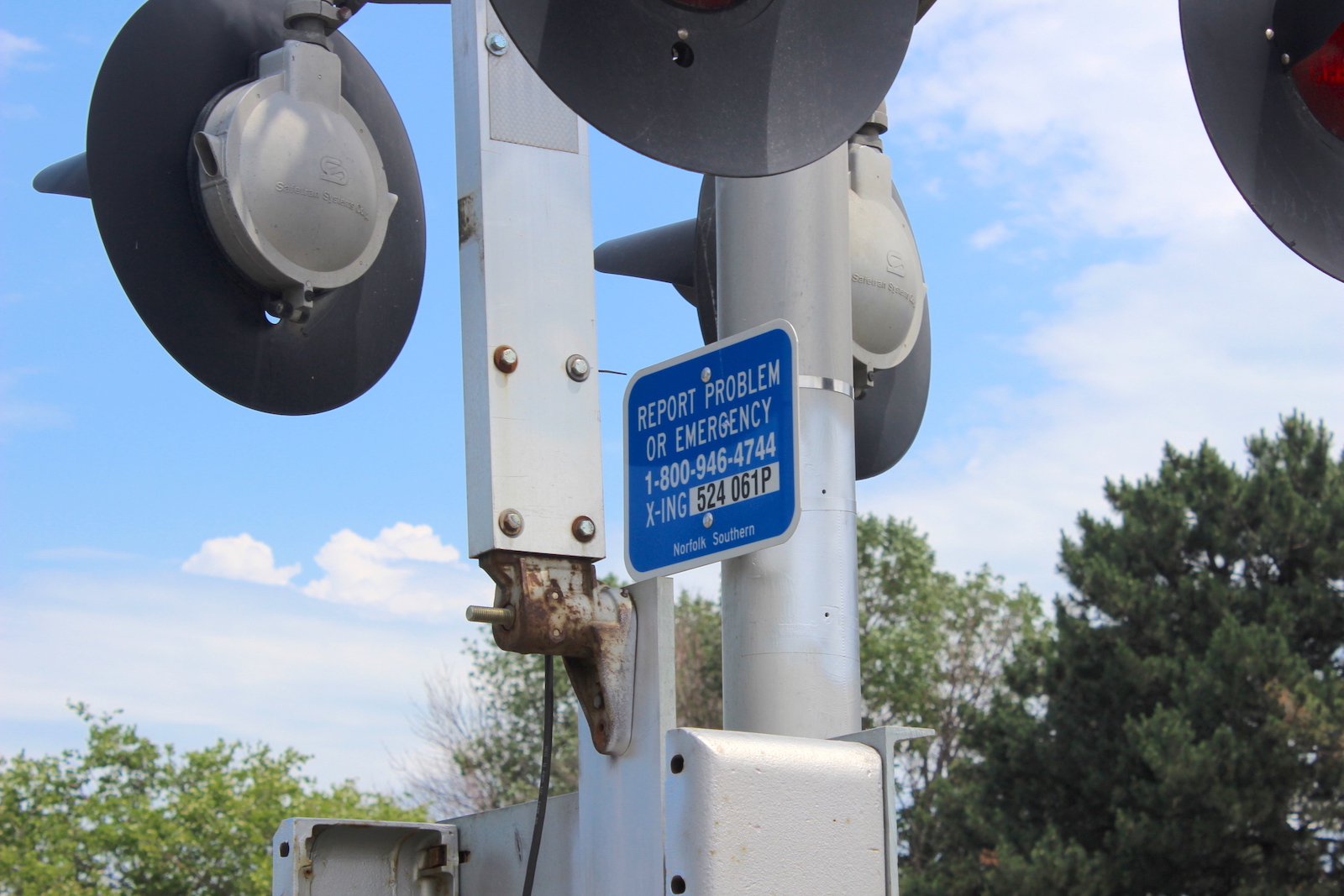

In June 2015, we
see the white DOT signs were replaced with new blue ones. Also
the gate lights on the southern signal were switched back to NEGs for
some reason.
In September 2015, the northern signal
was replaced entirely. The southern signal was not for some
reason. I don't know if NS has plans to replace it too, but for
now, it still protects the crossing.
32
33

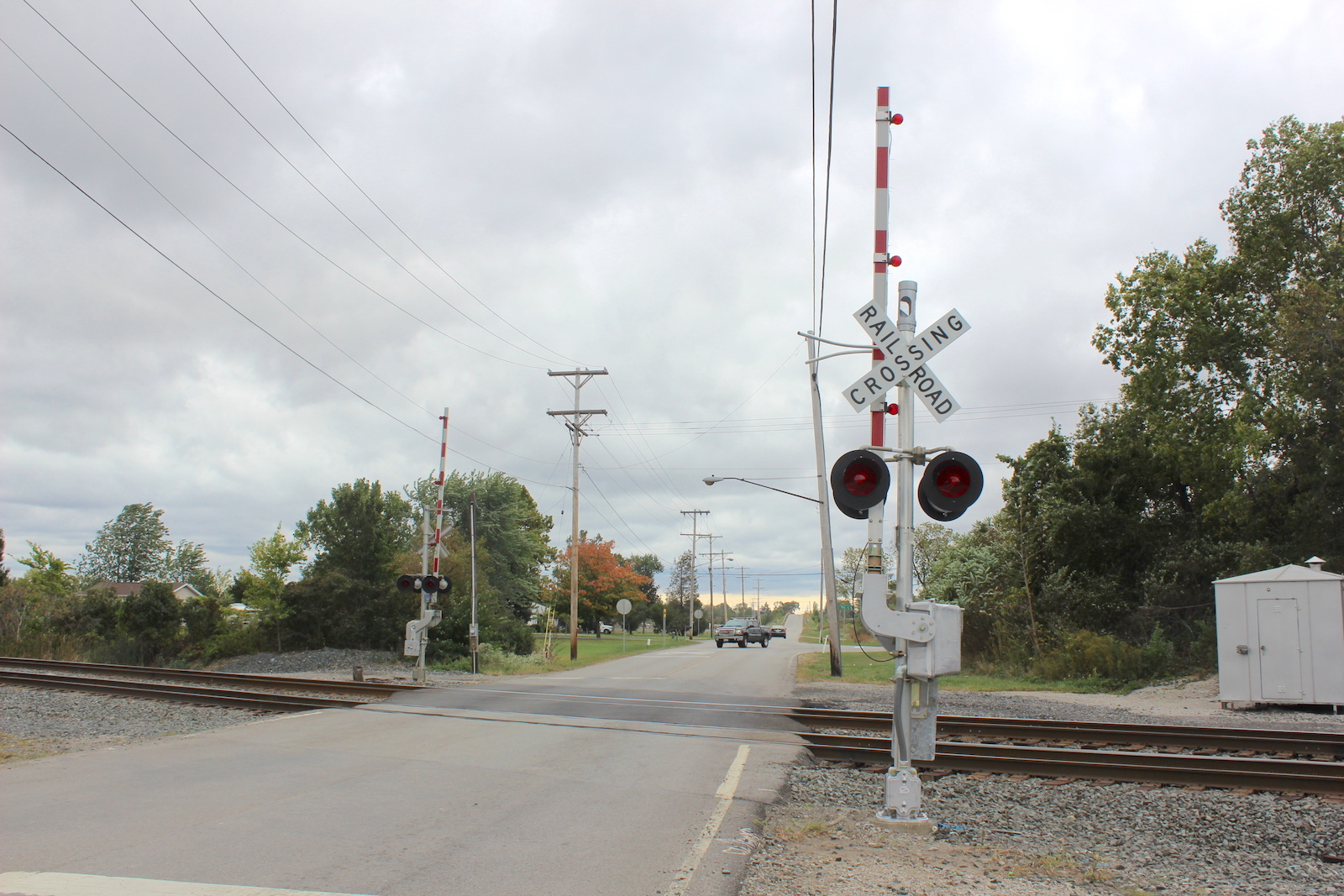

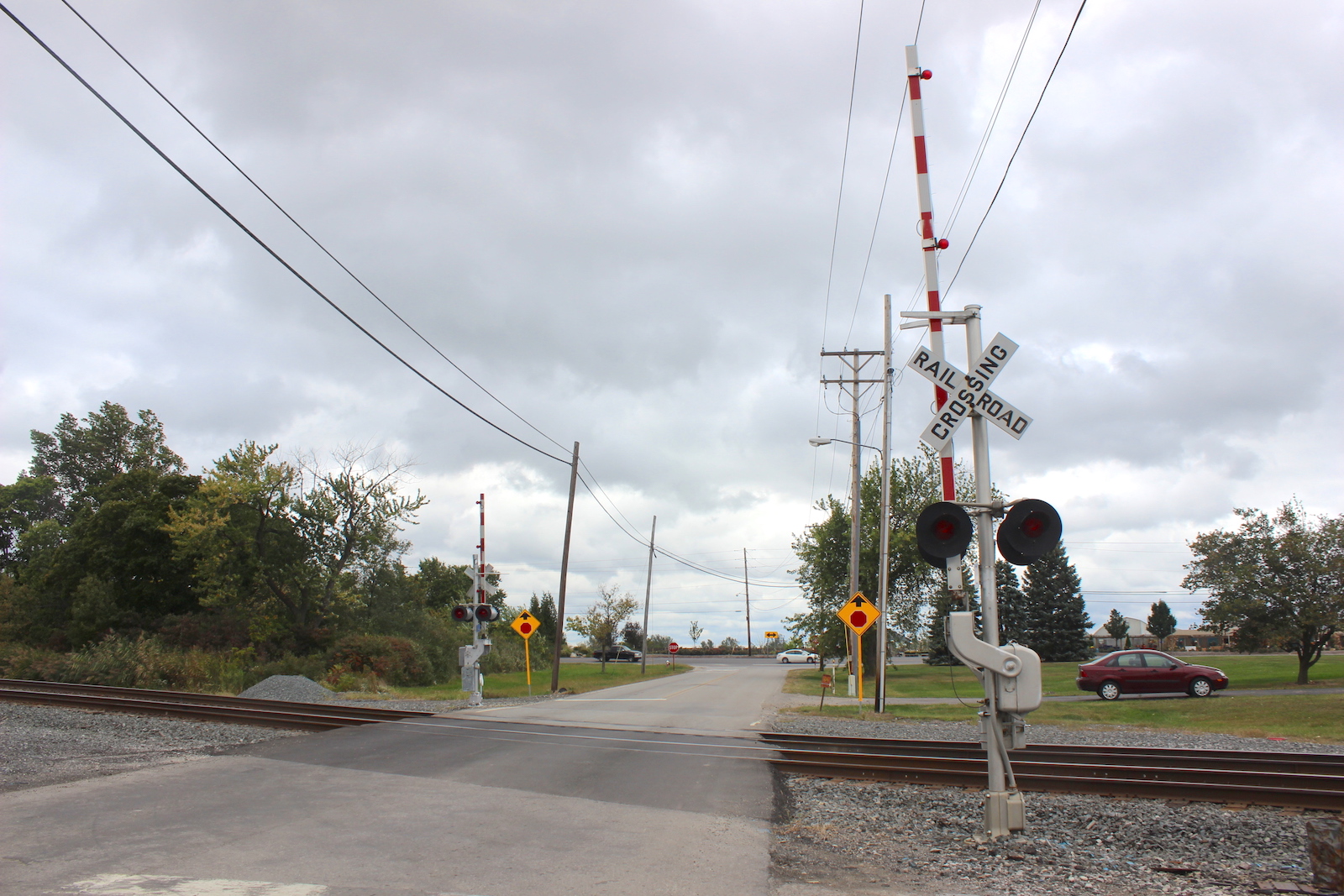

Overview of the updated setup facing south.
Overview facing north.
34
35
36
37
38
39
40
41
42
43

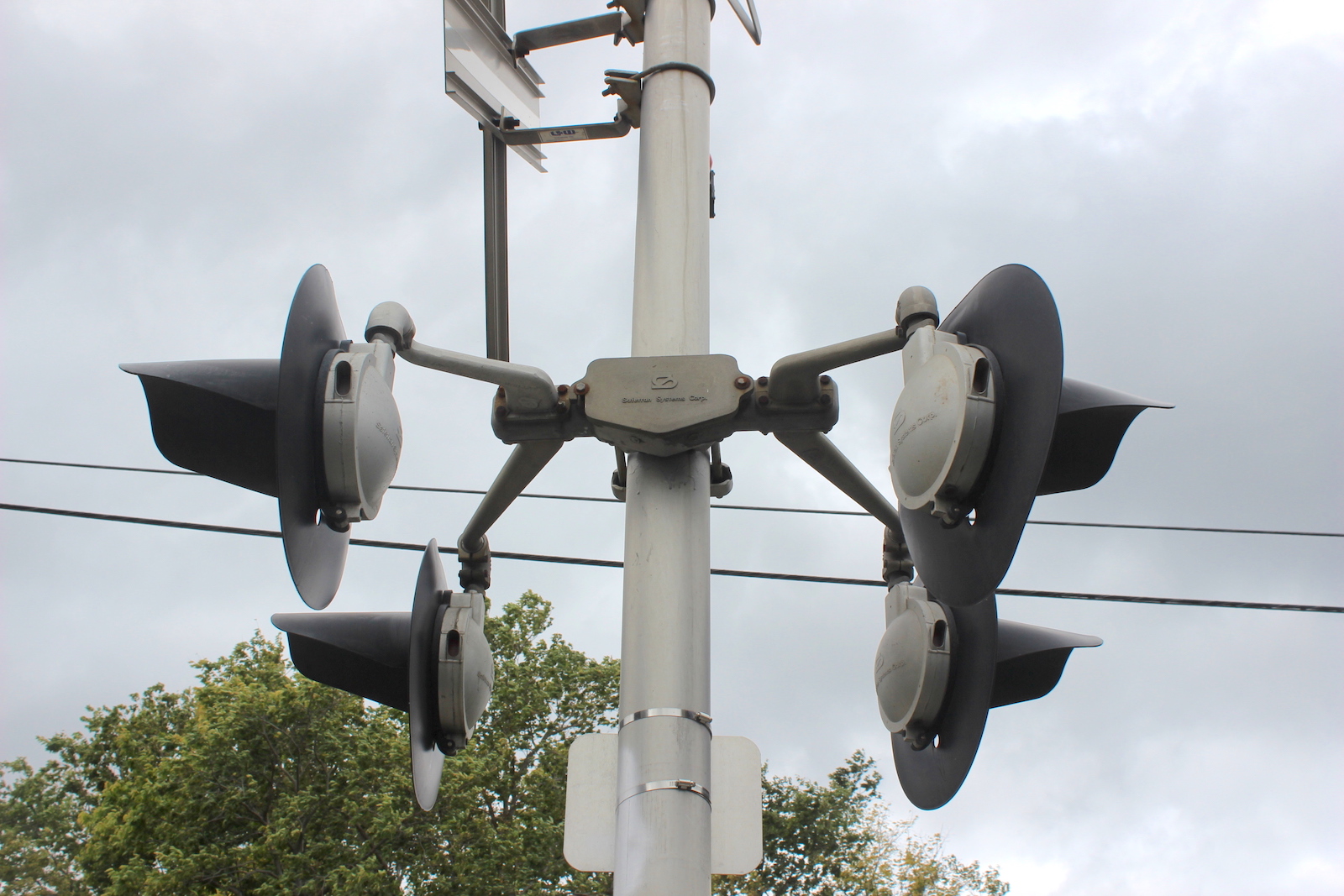

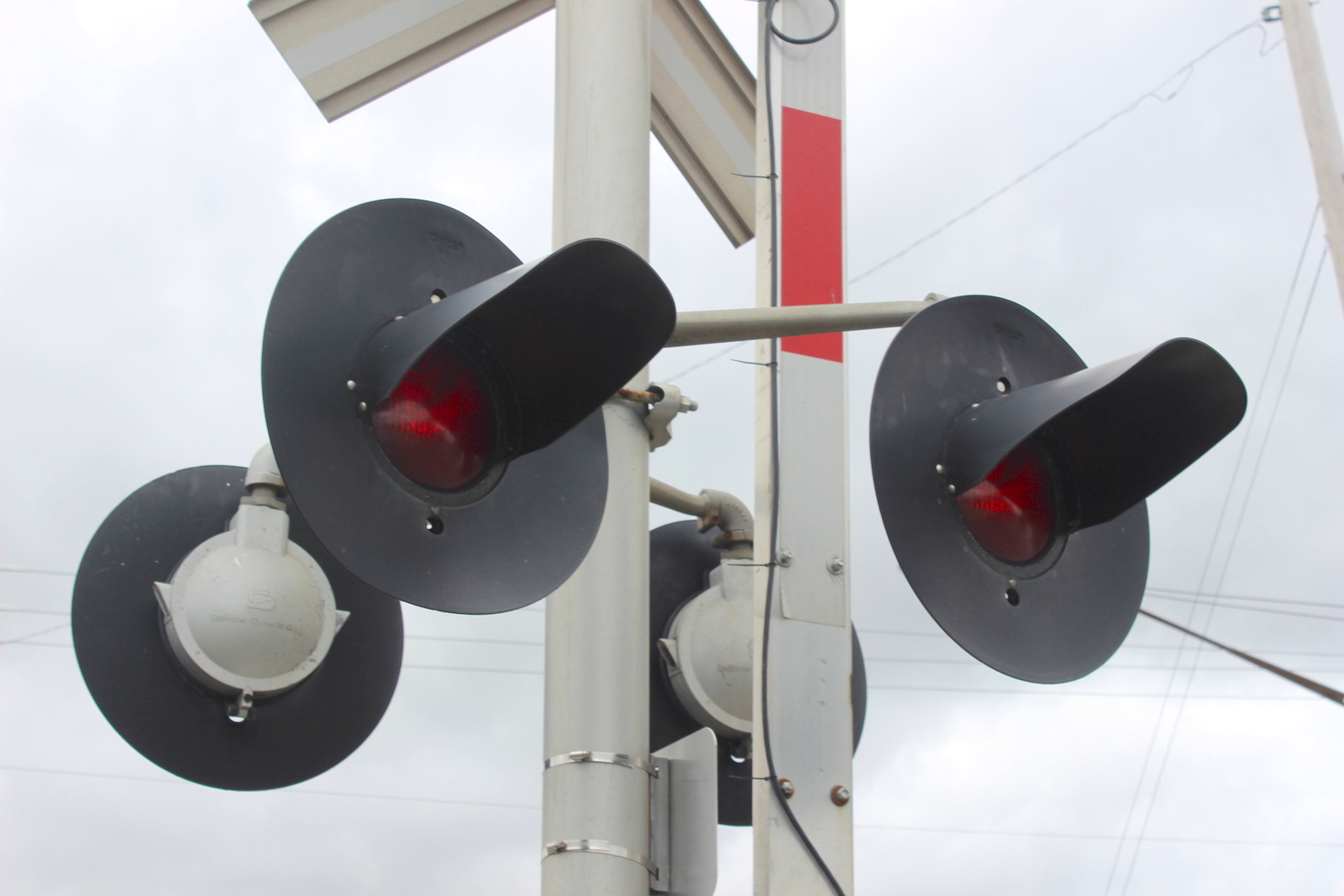

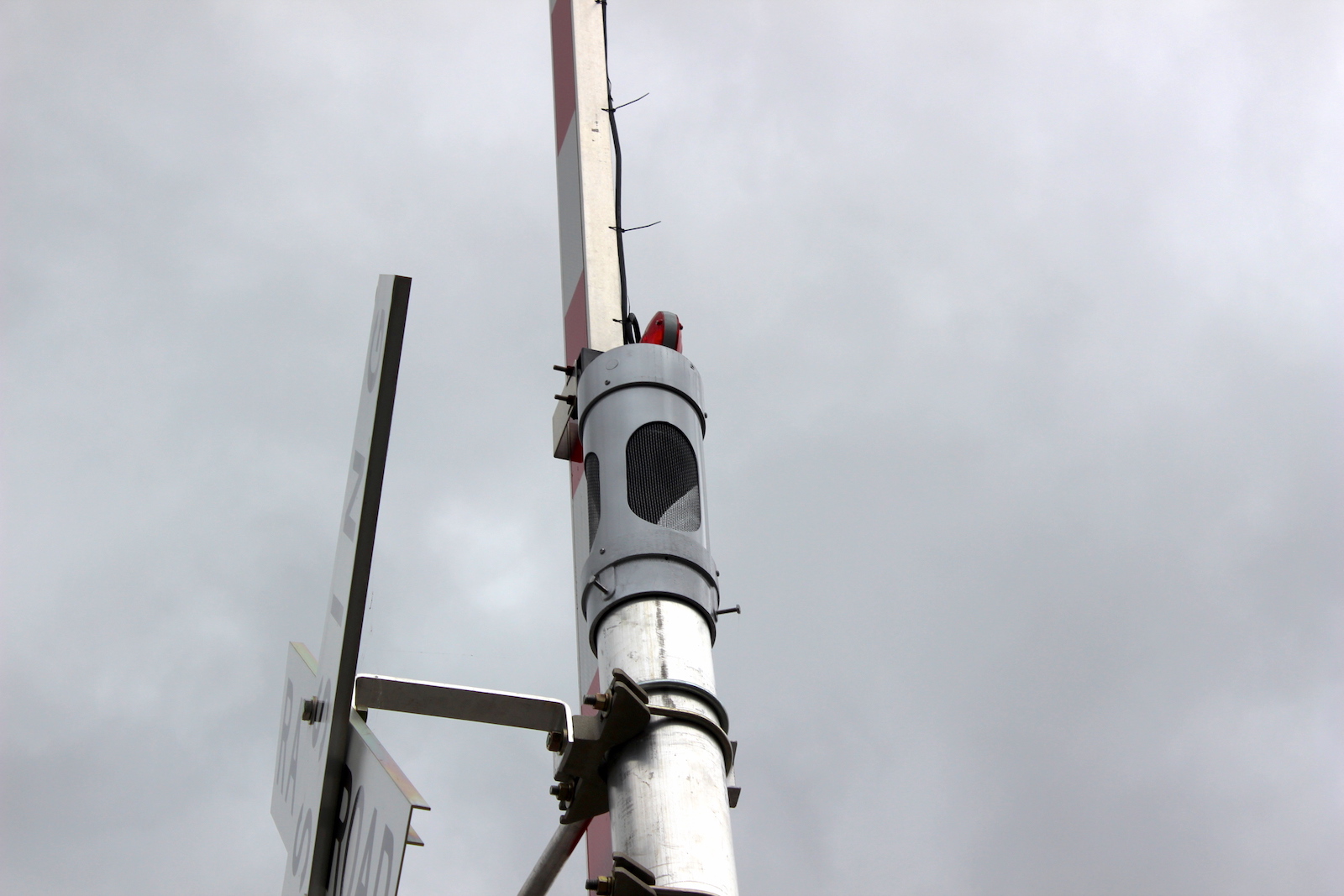

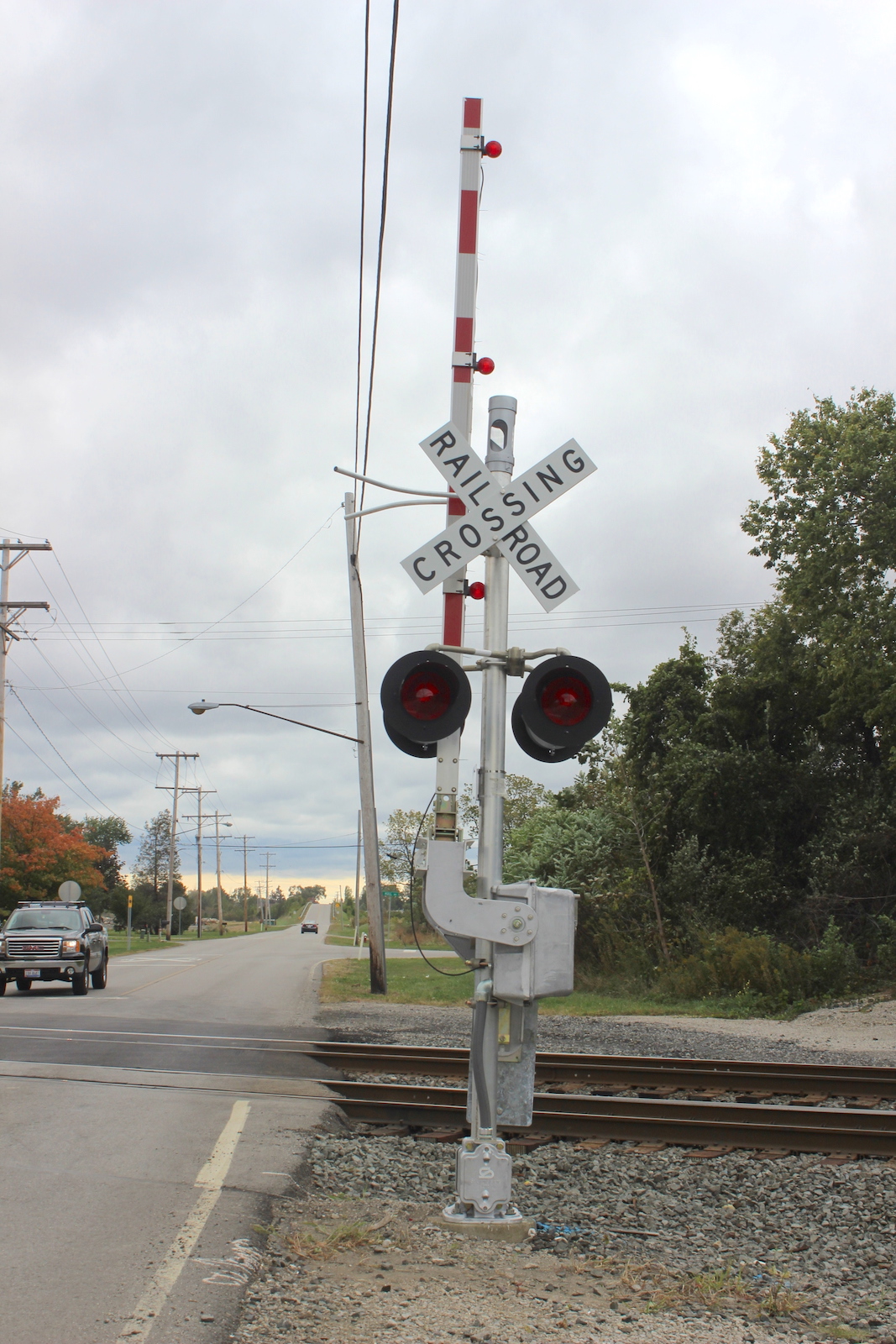

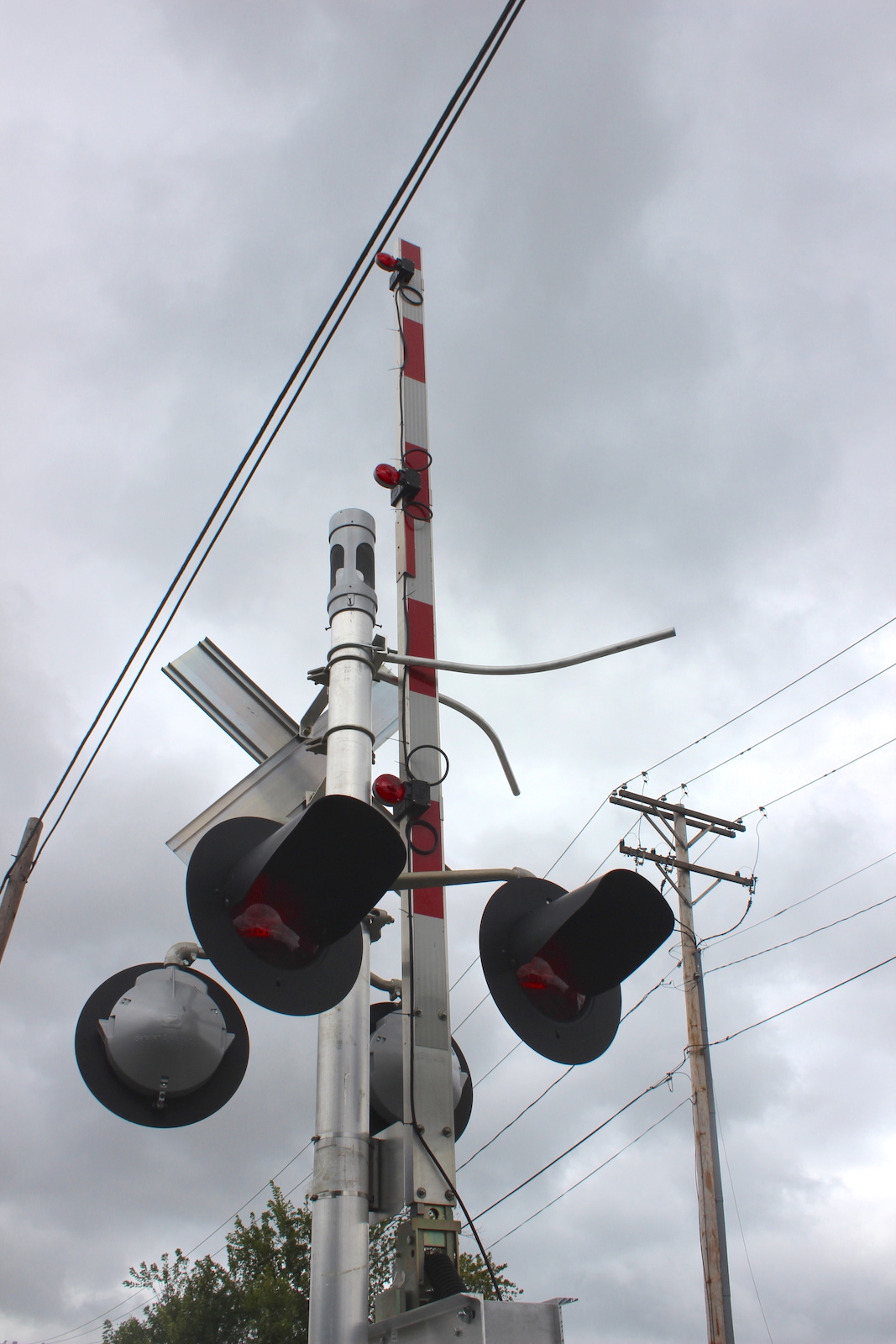

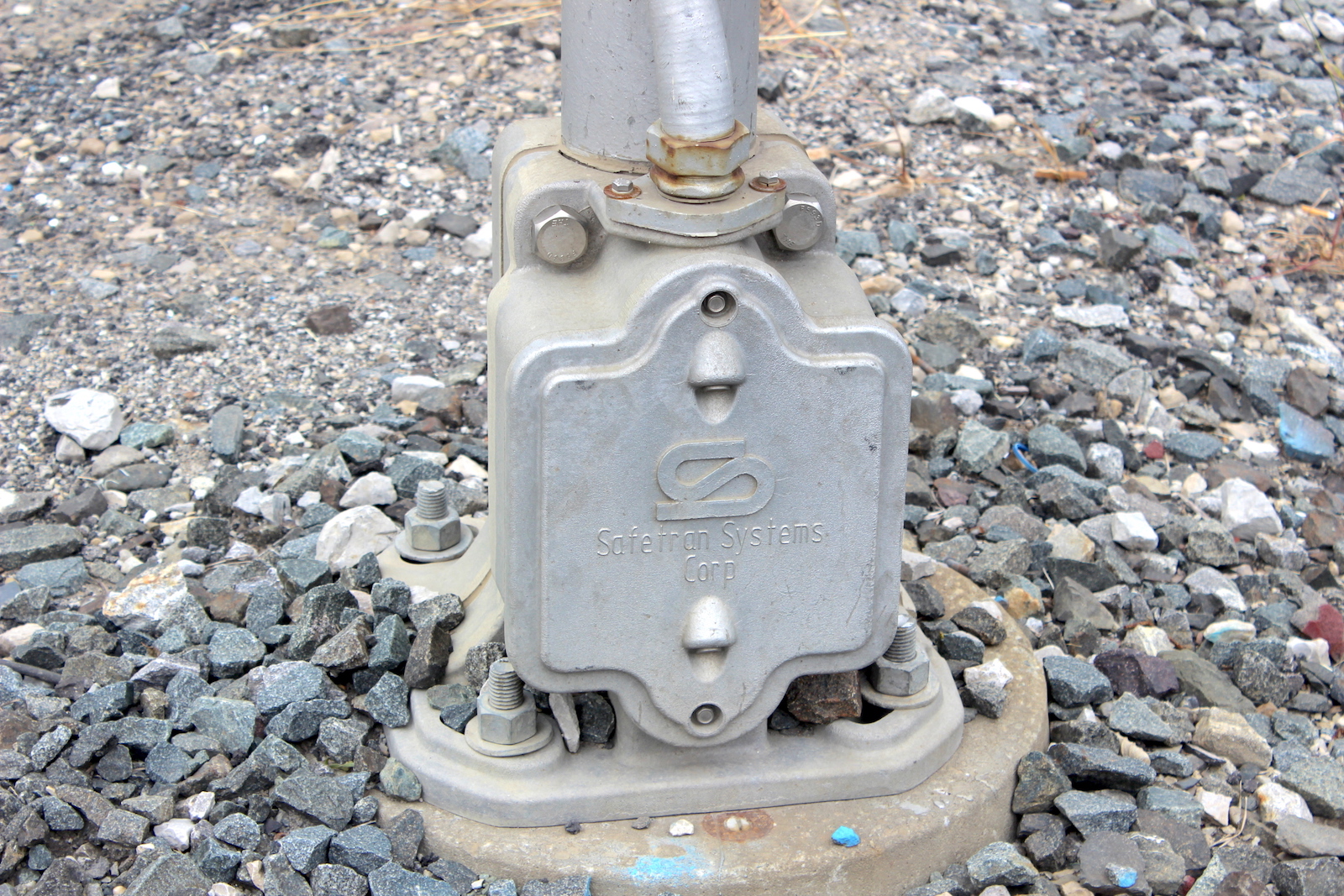

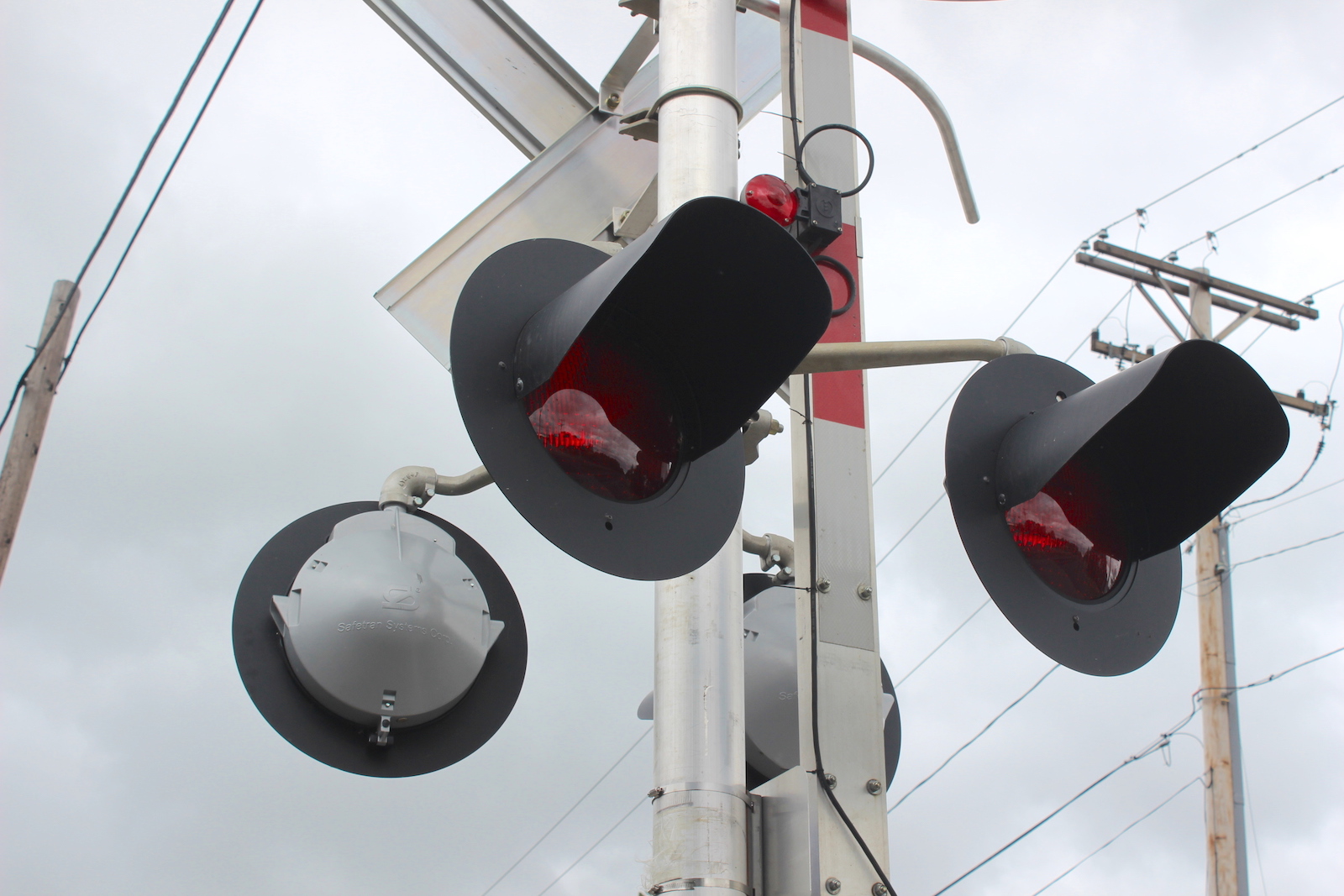

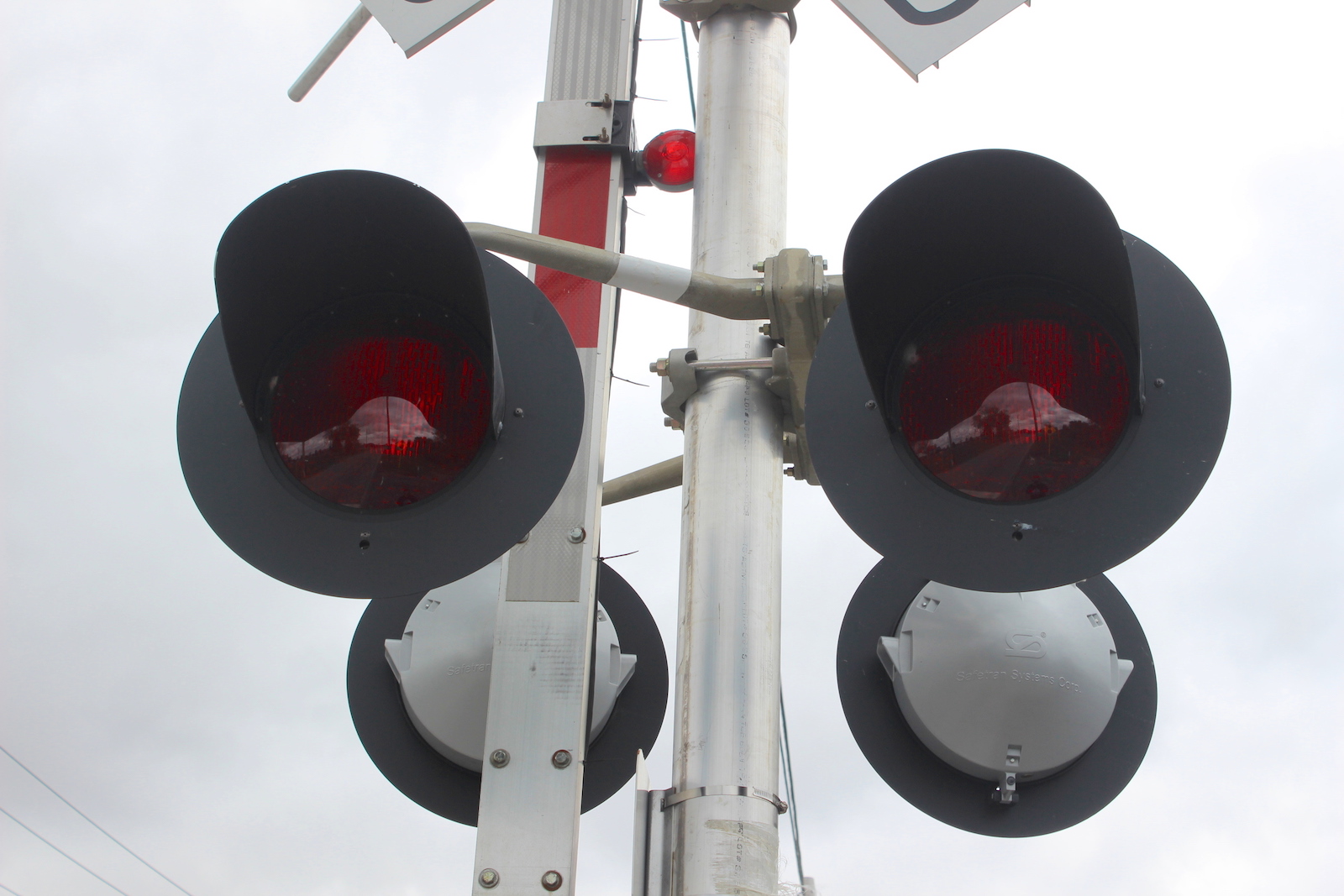

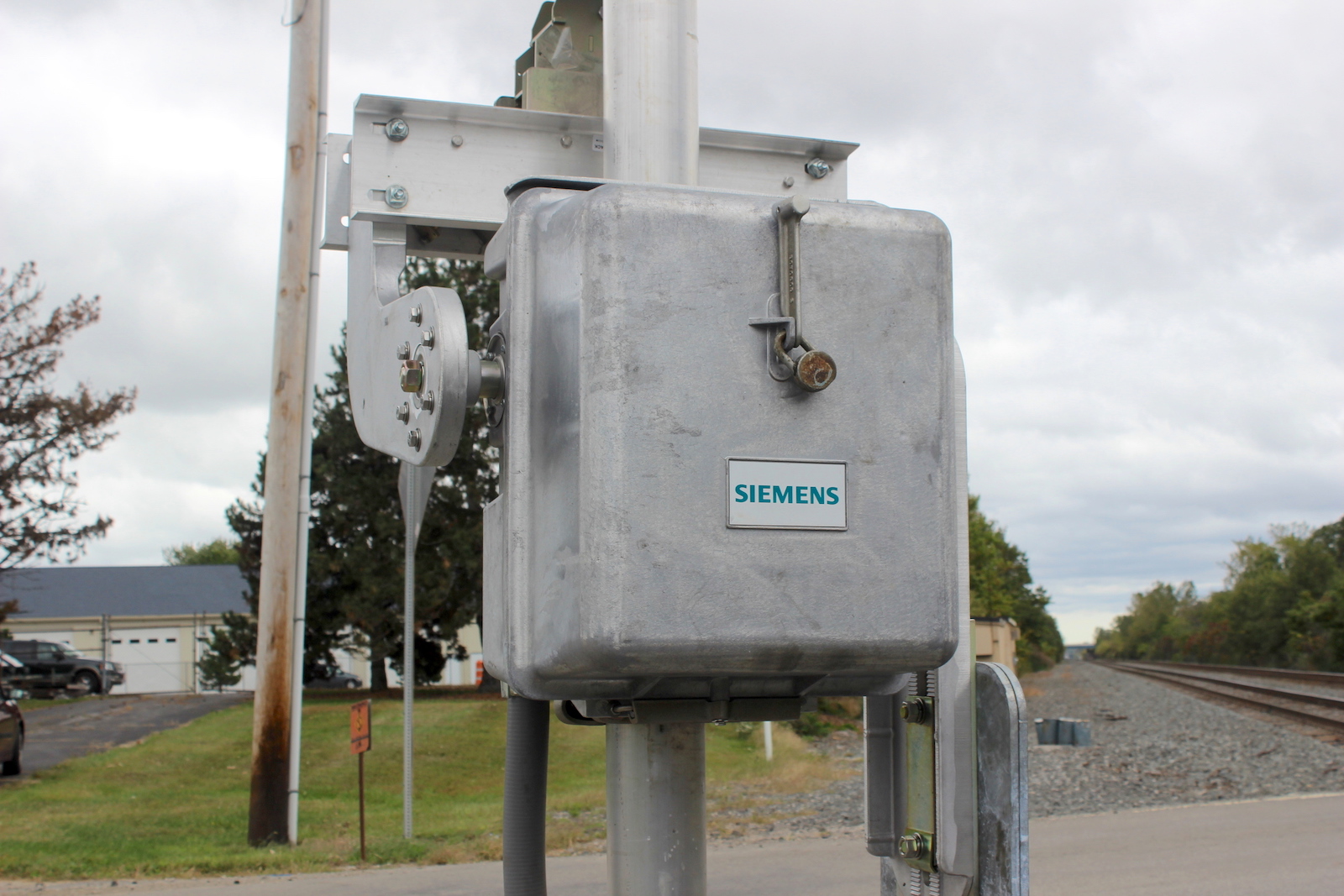

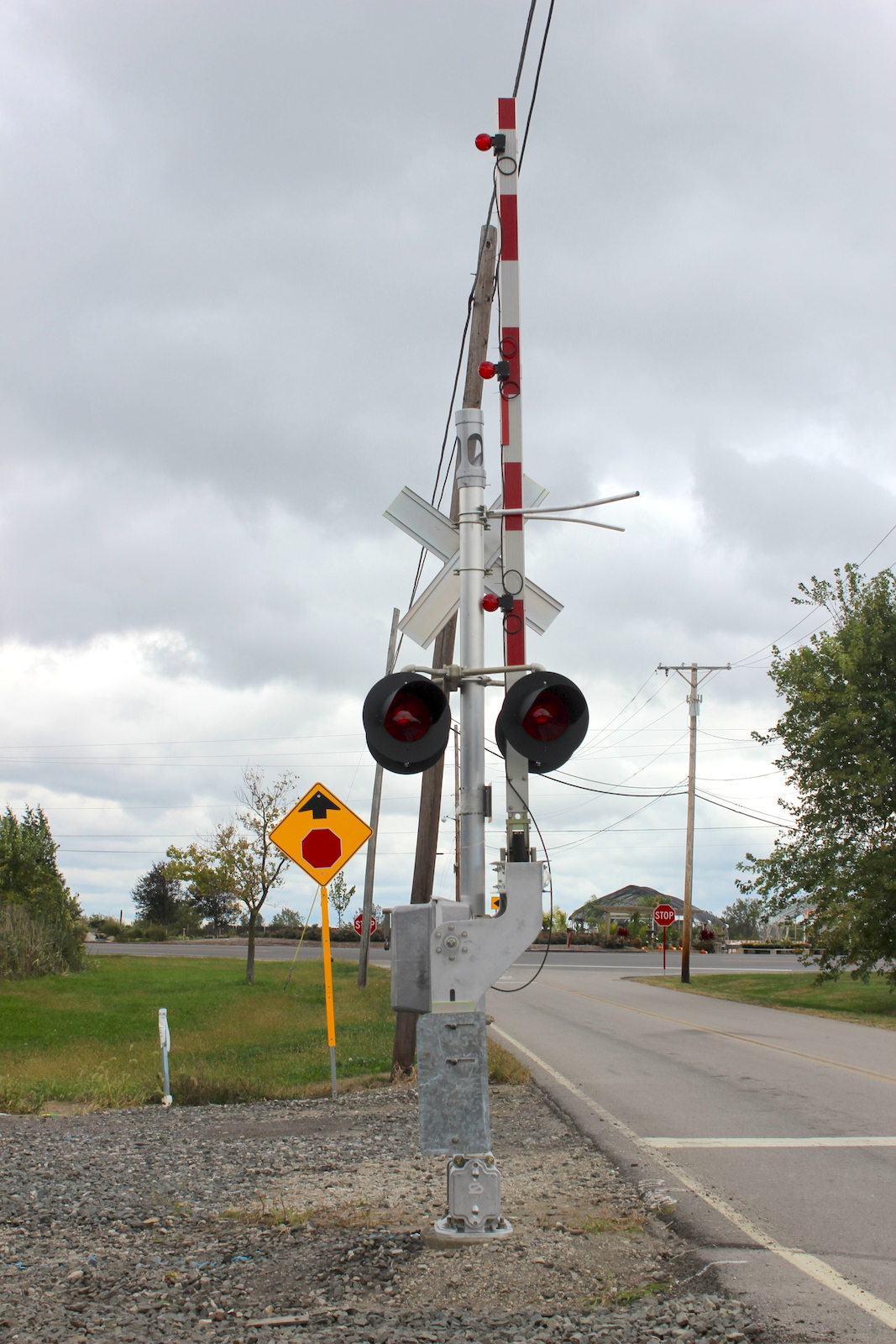

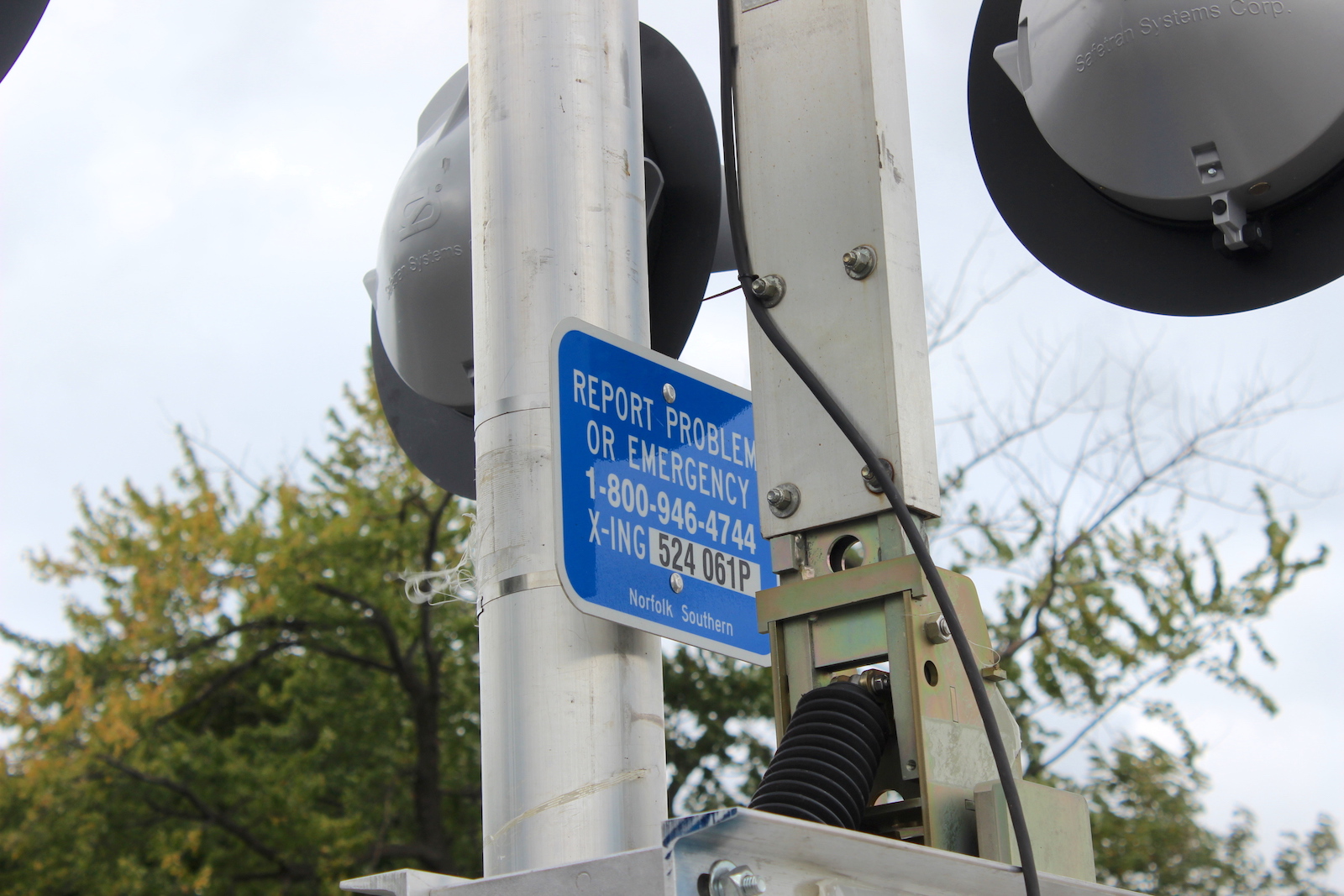

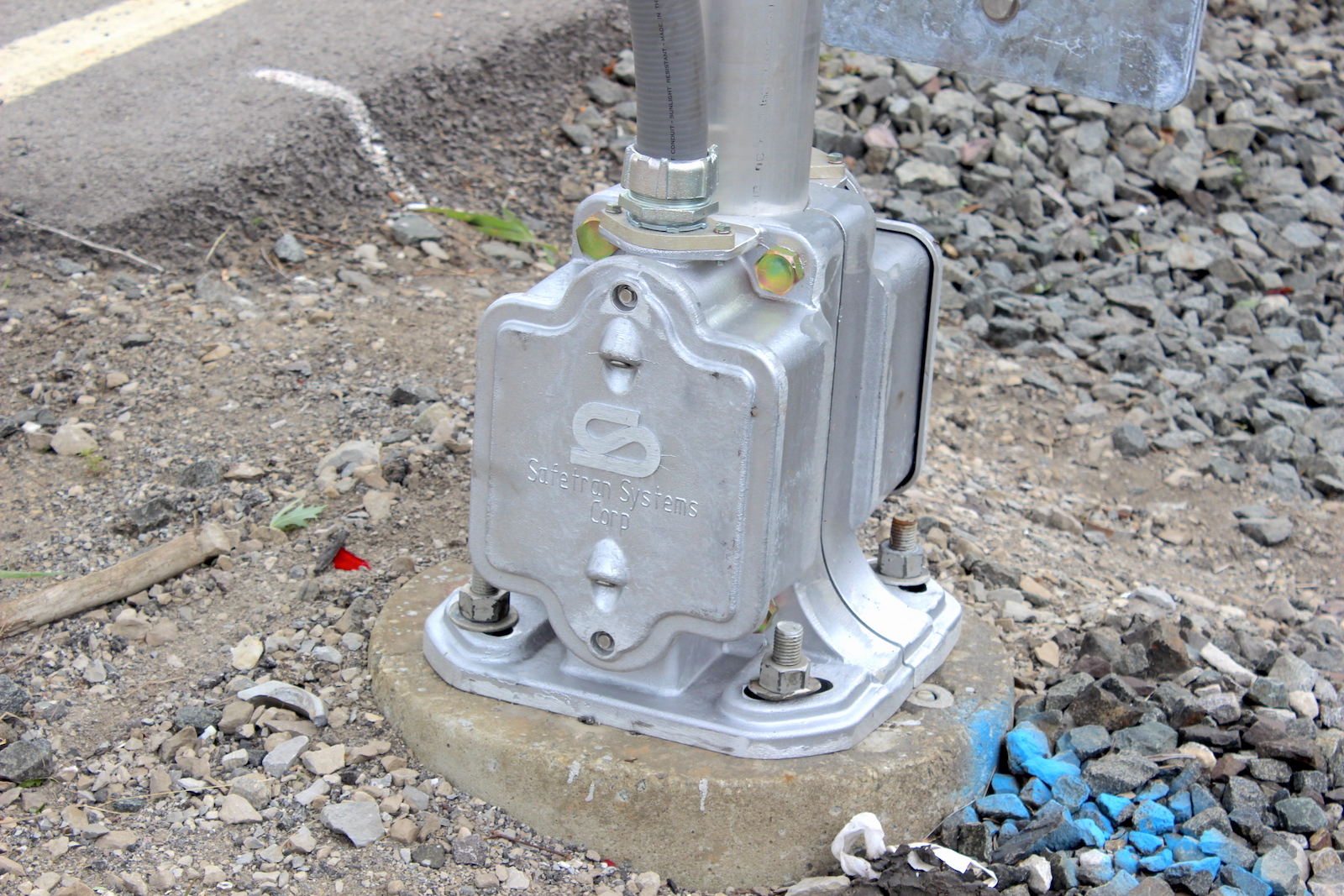

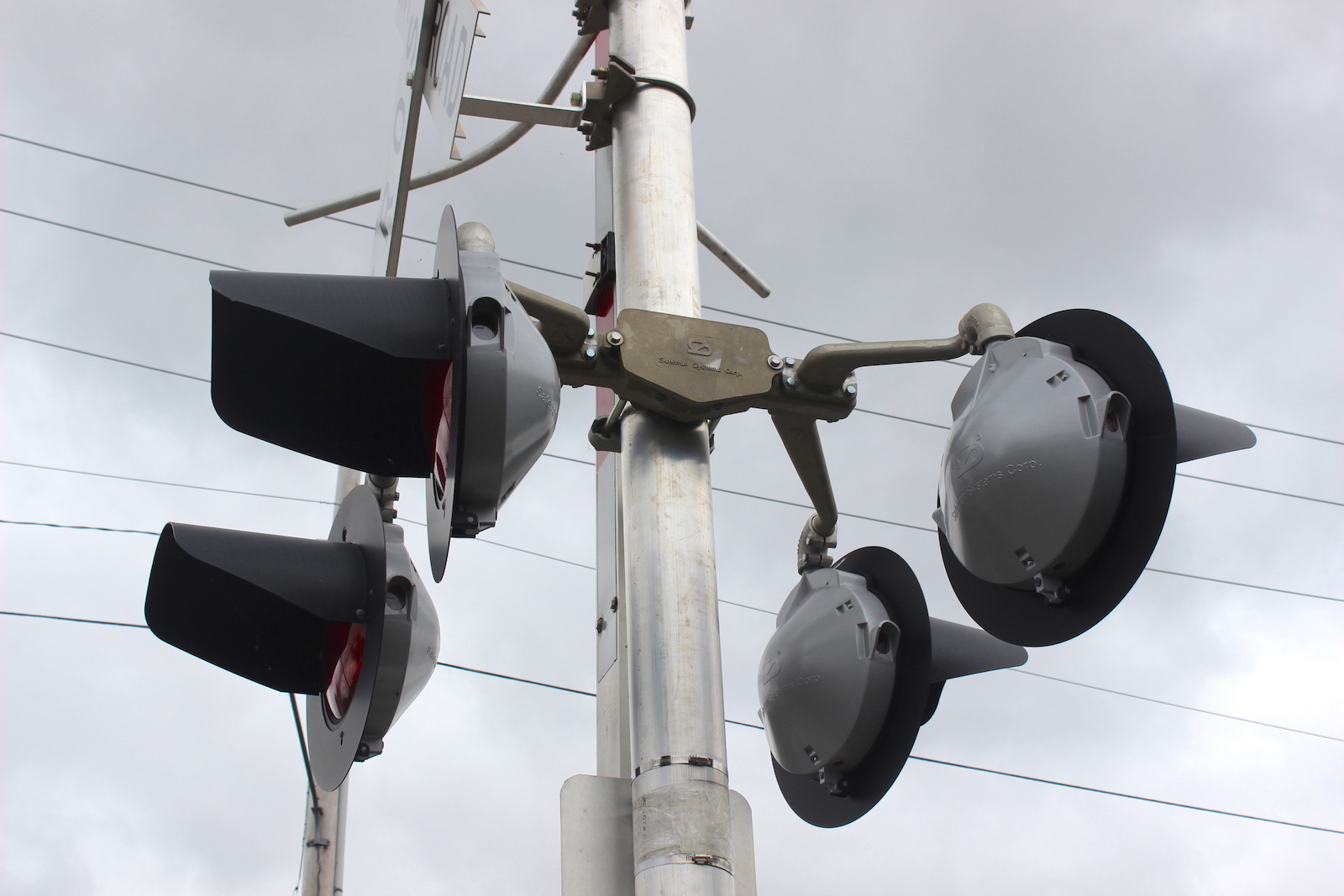

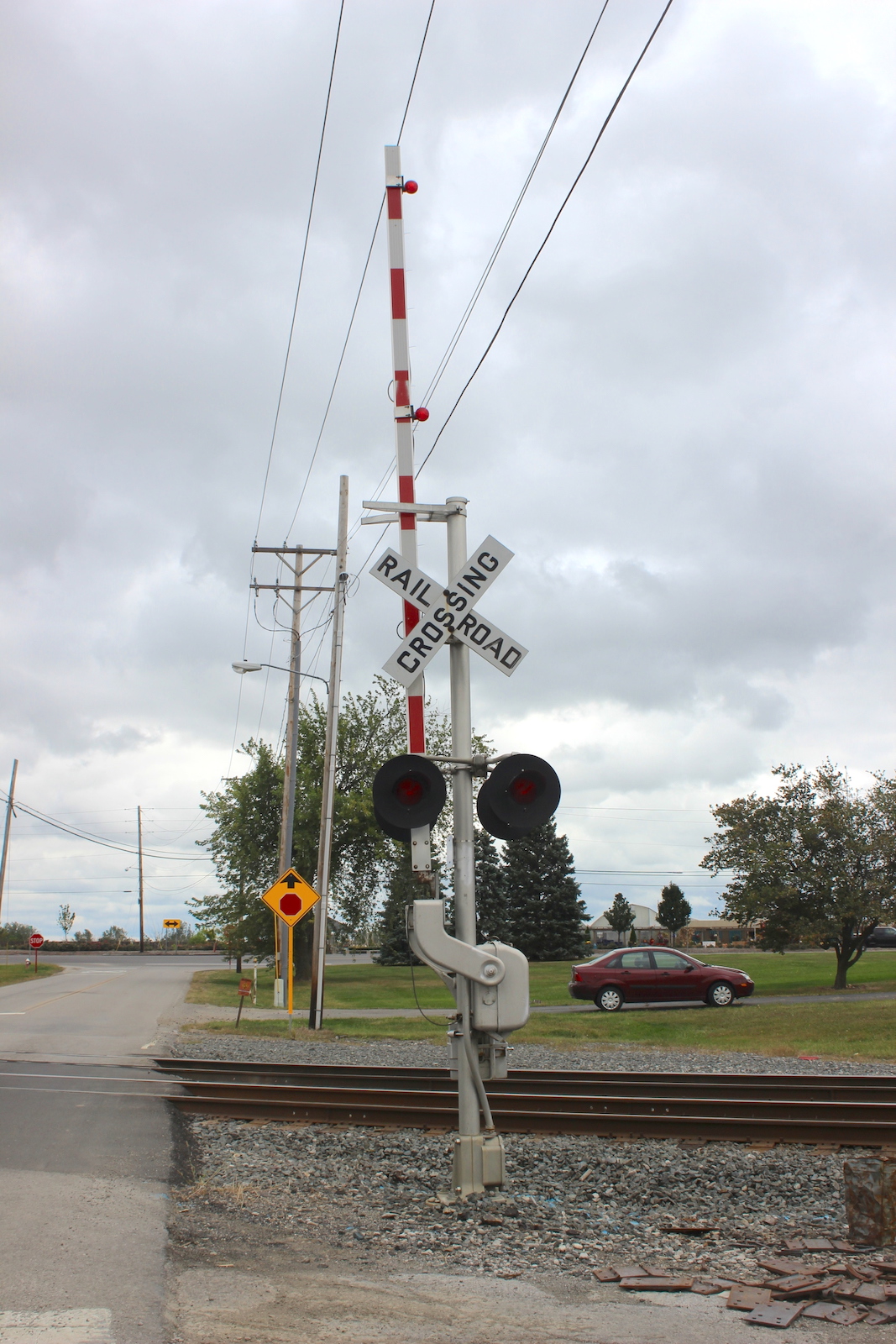

The new northern signal.
44
45
46
47
48
49
50
51
52

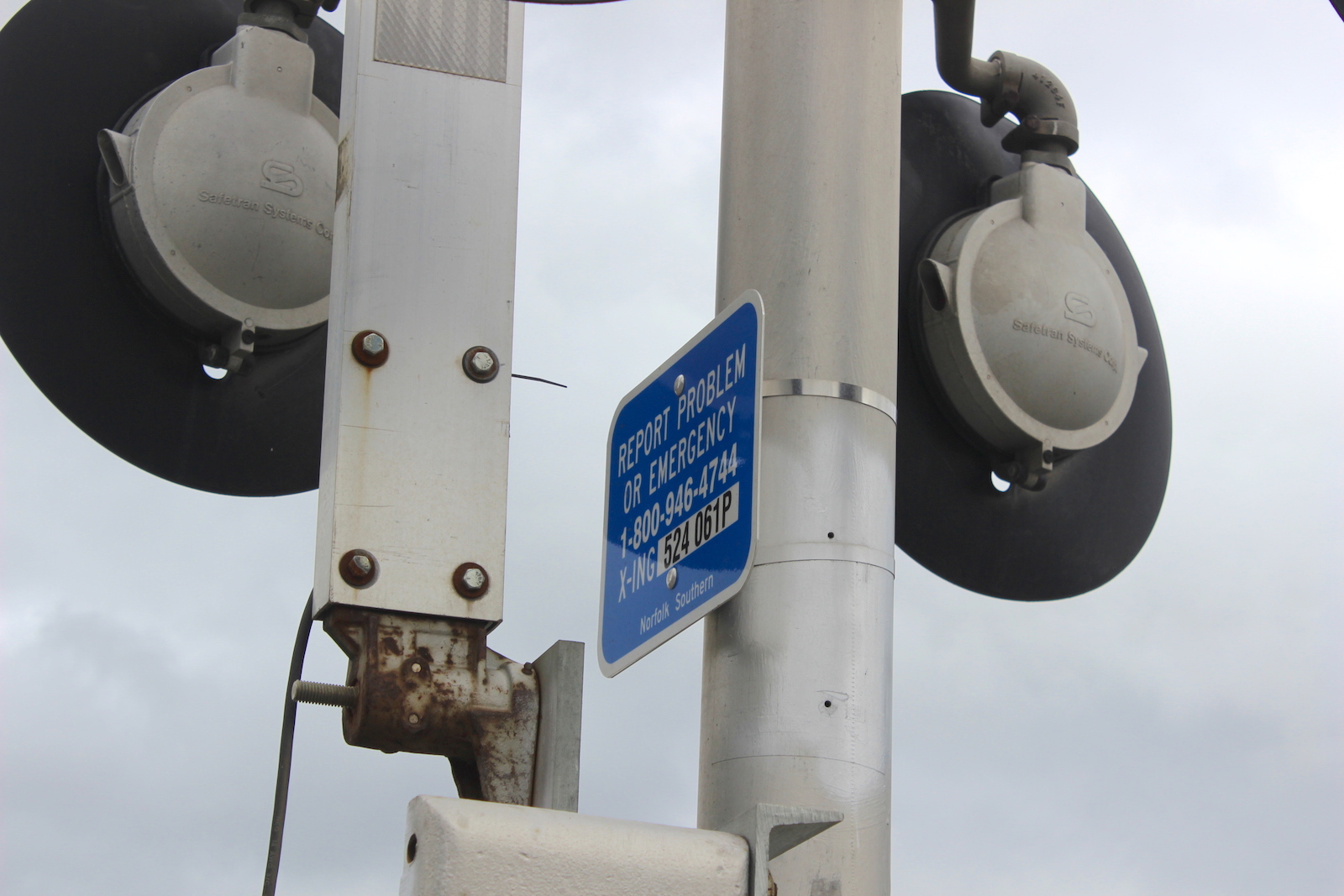

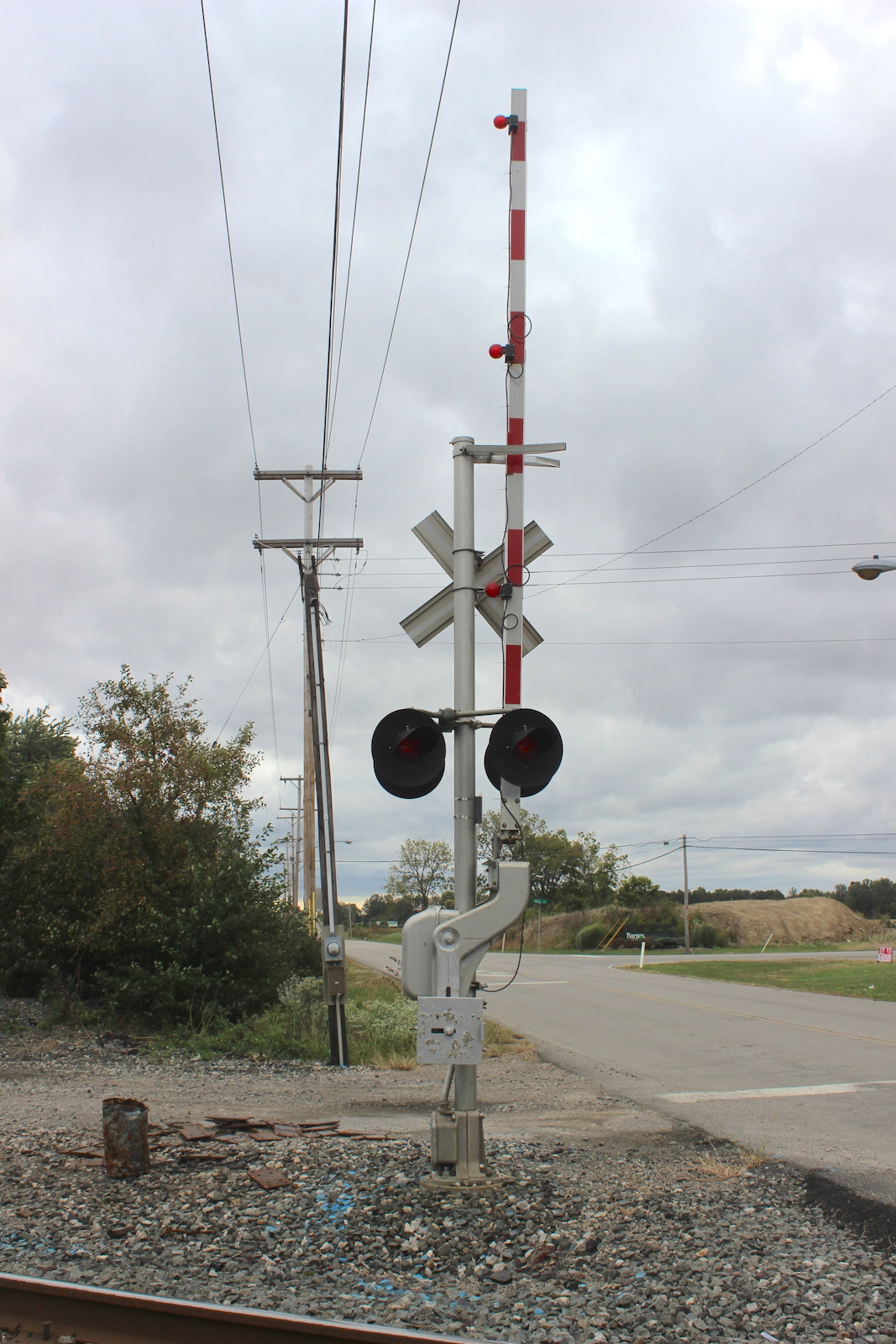

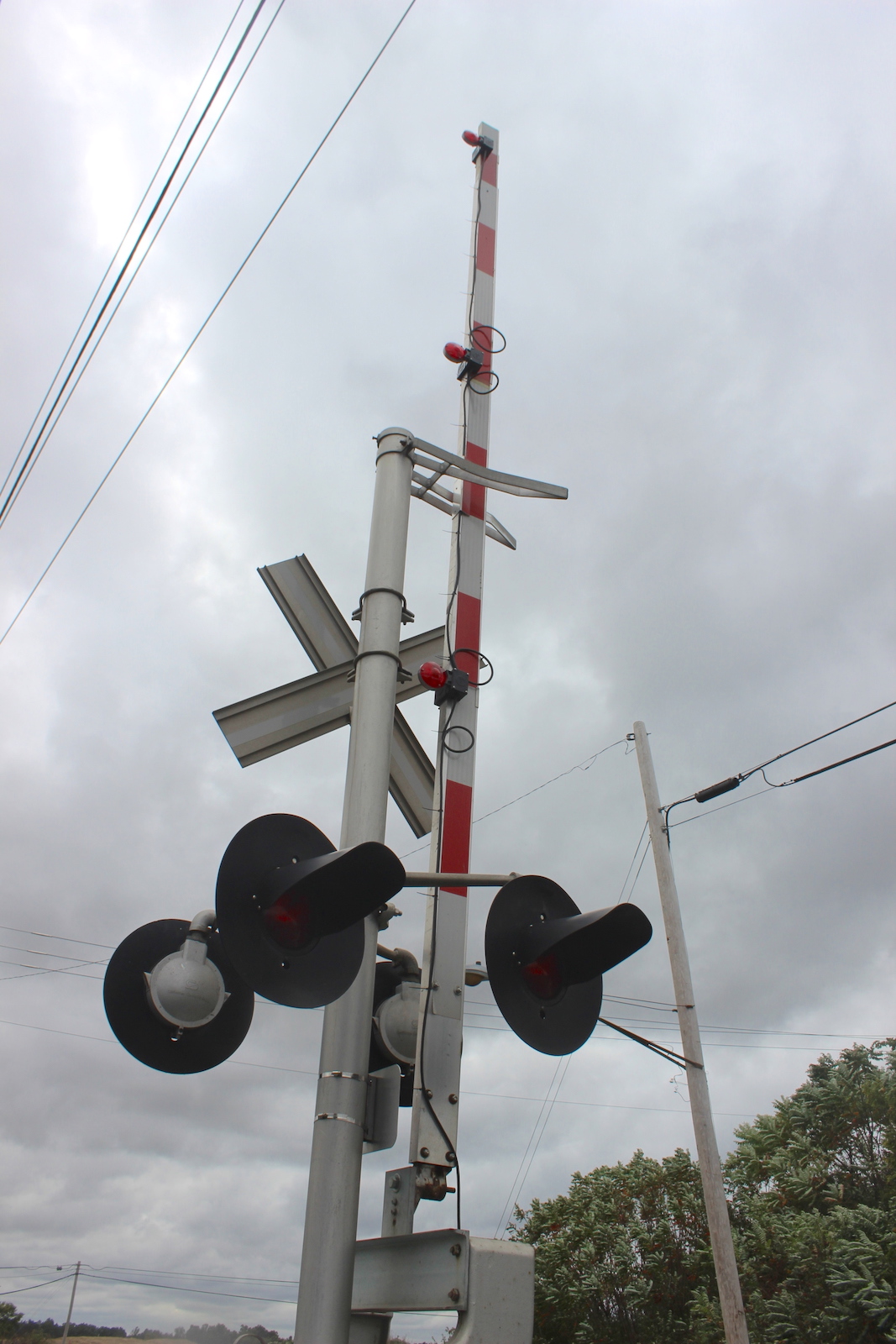

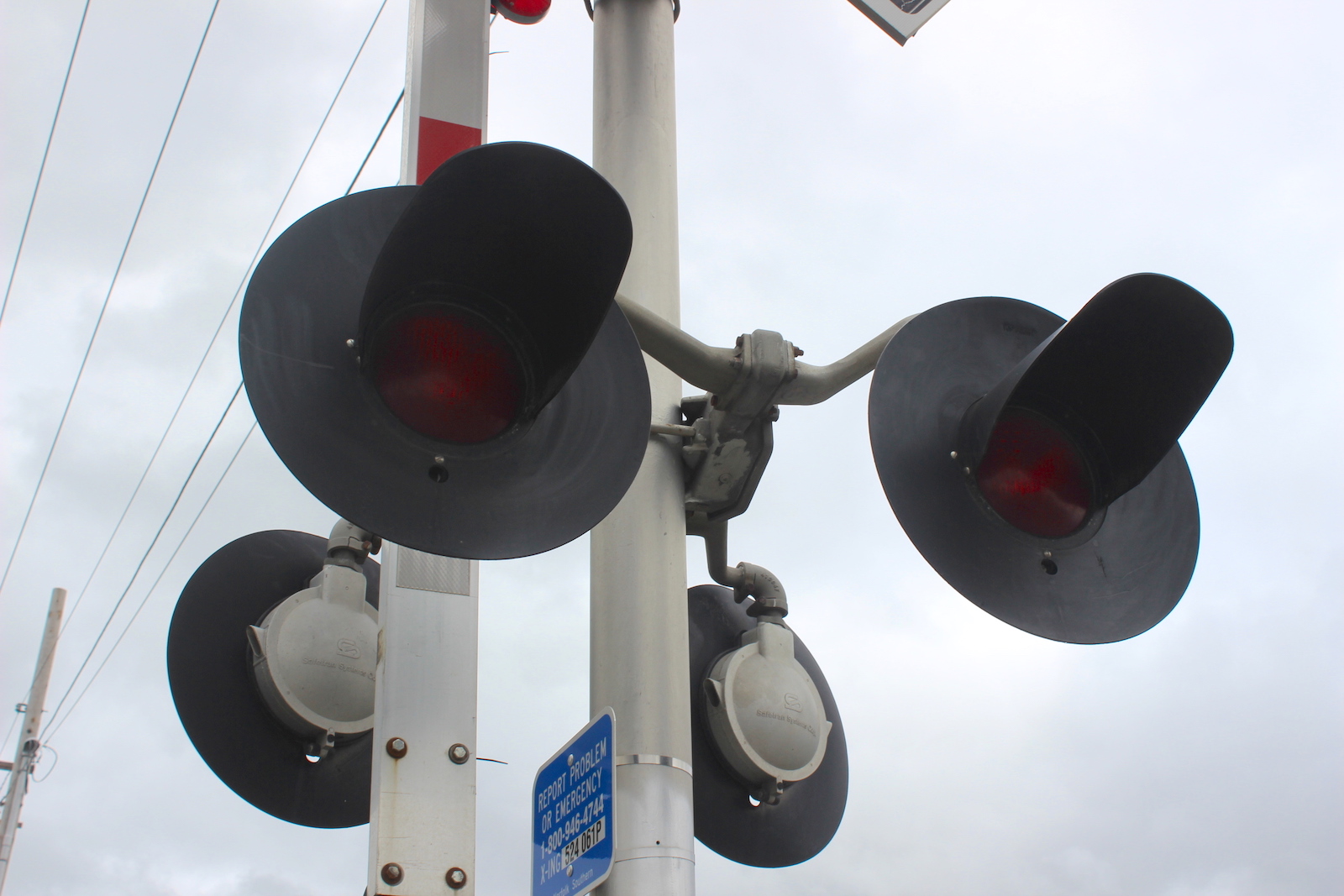

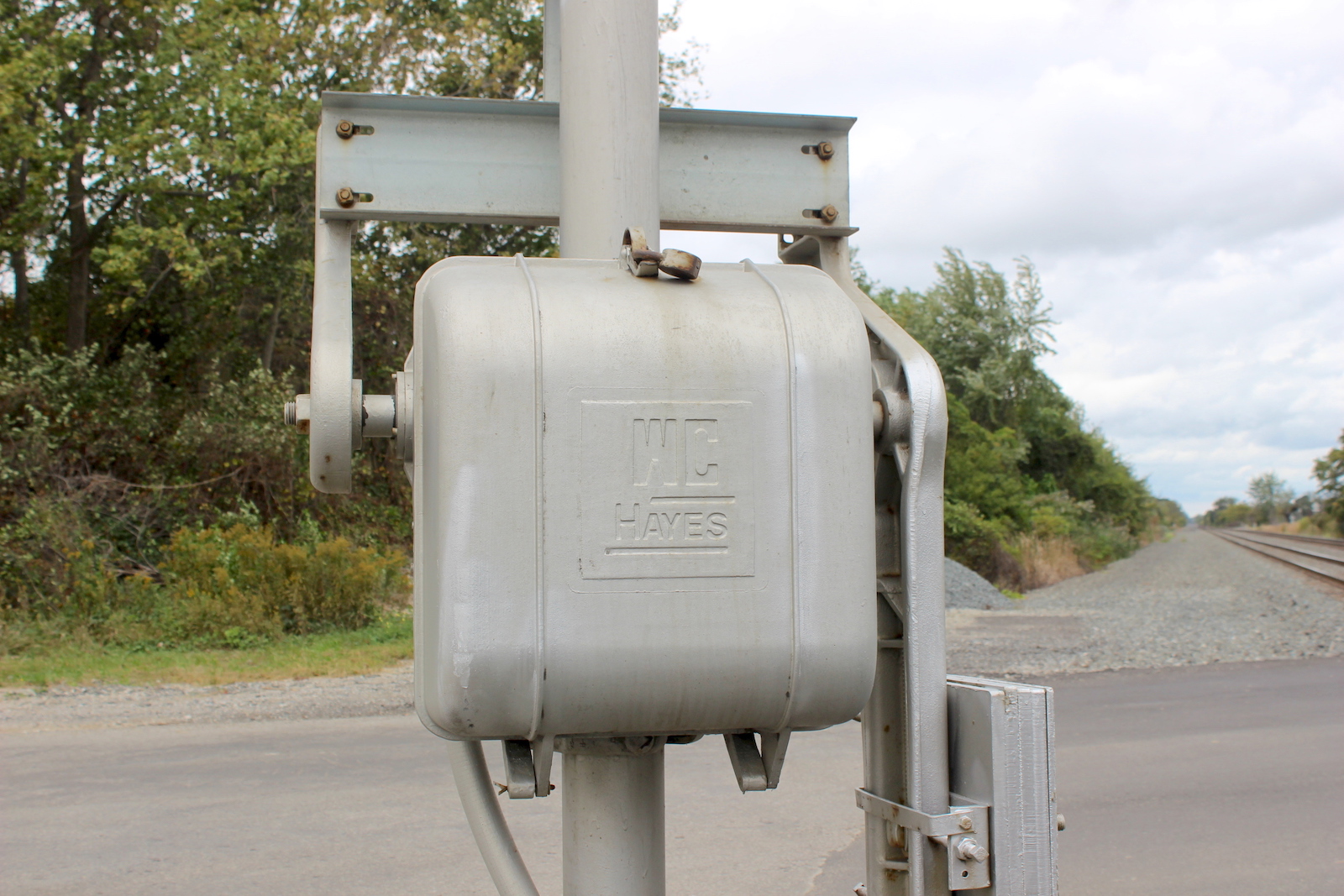

The old southern signal.
53
54
55
56

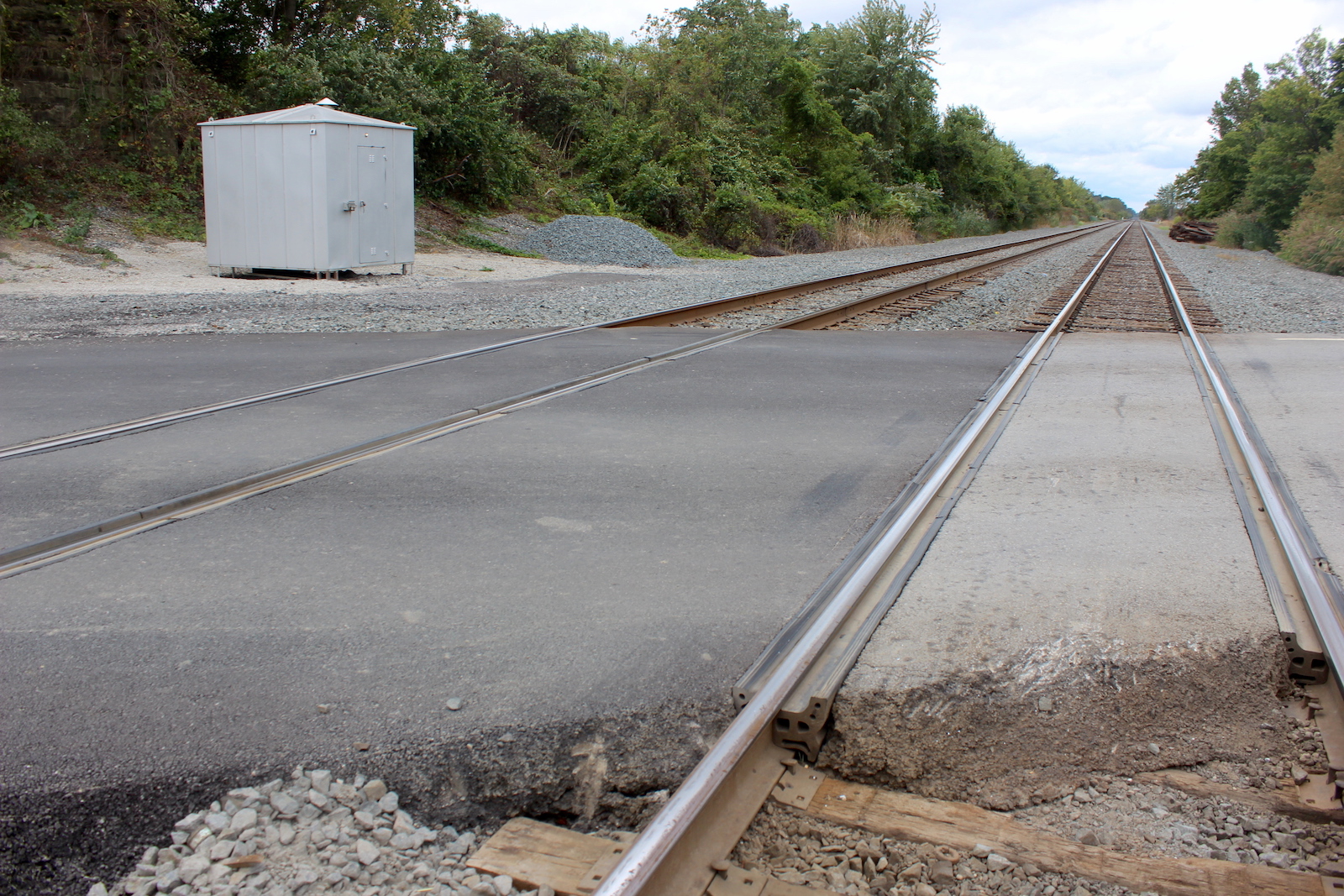

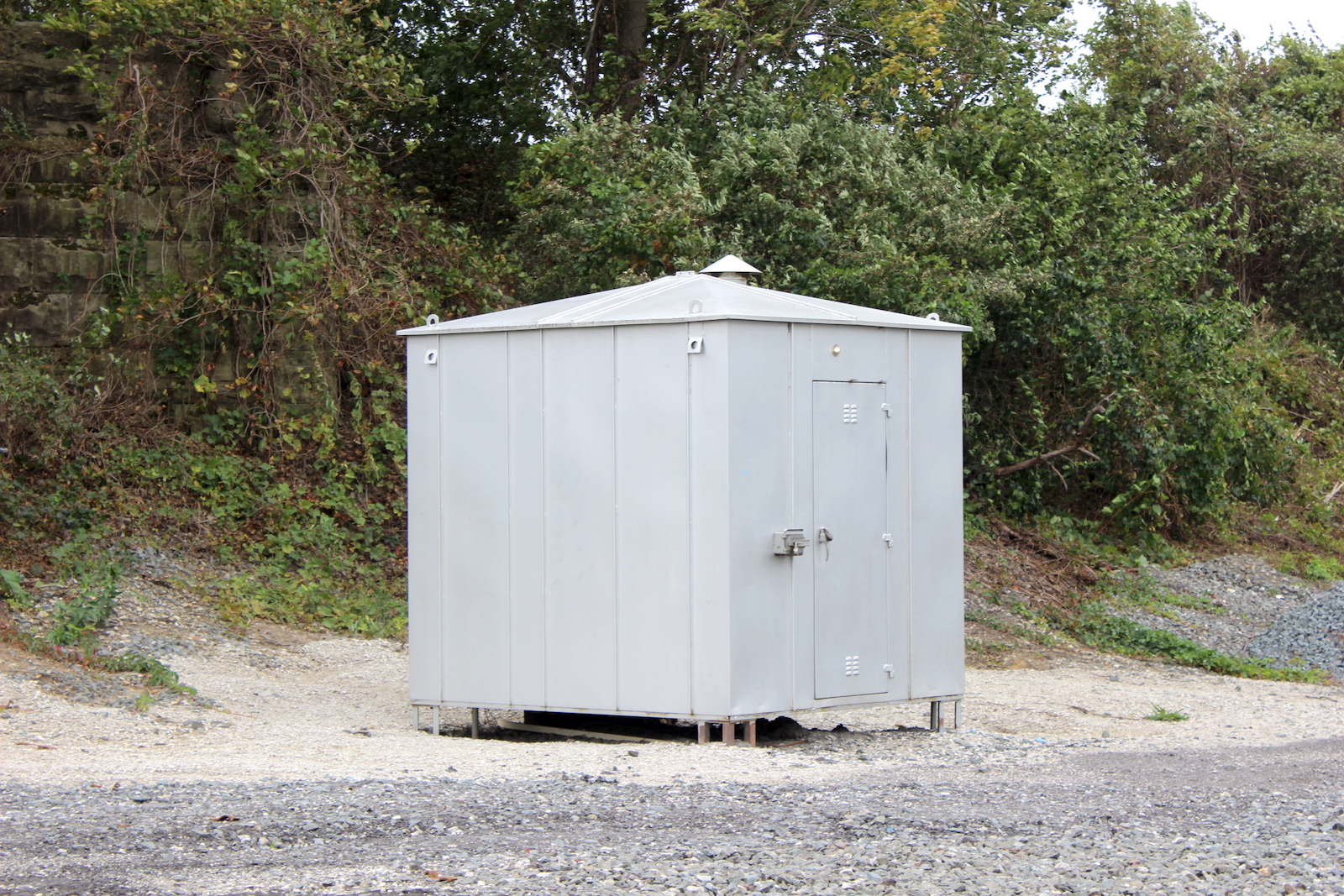

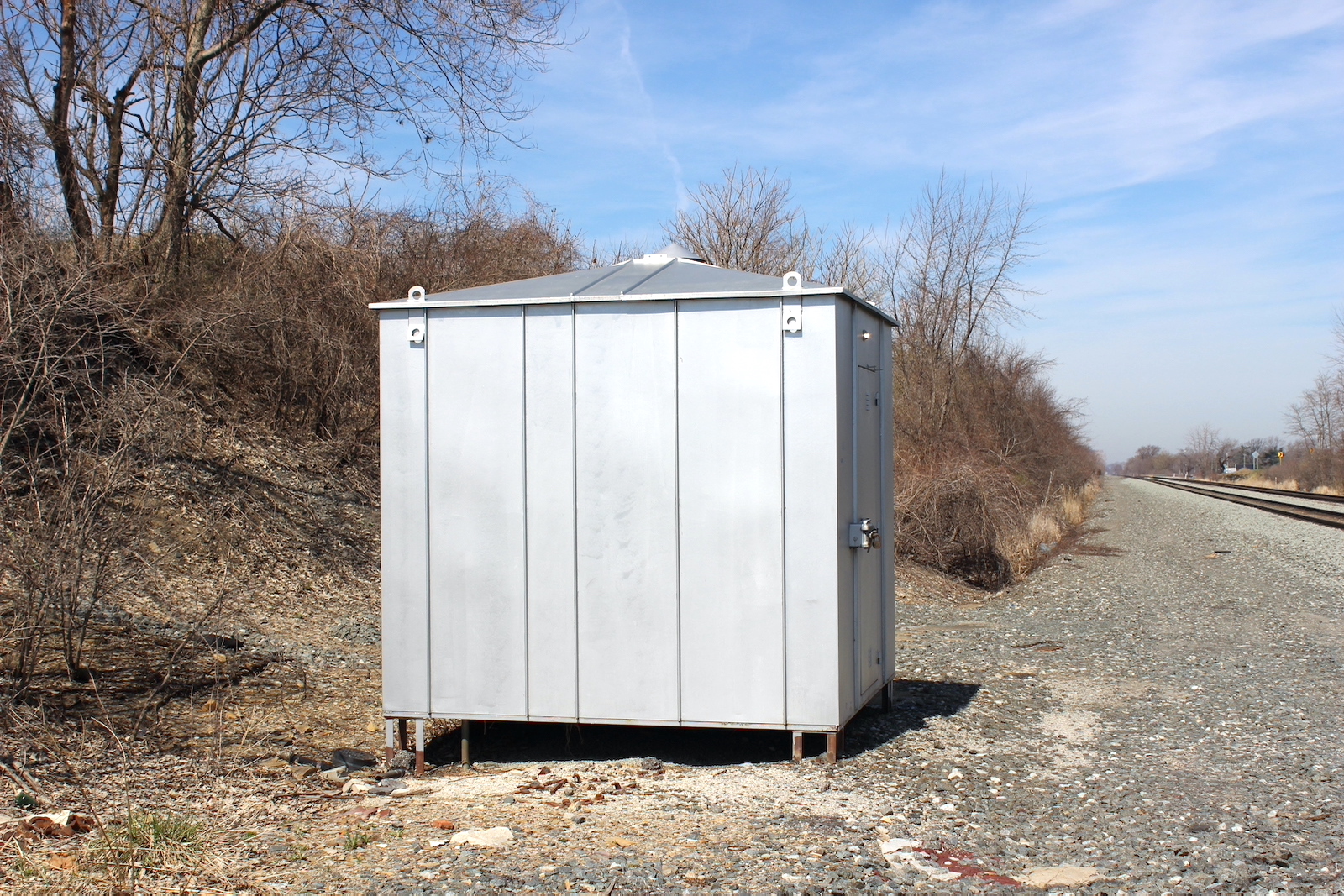

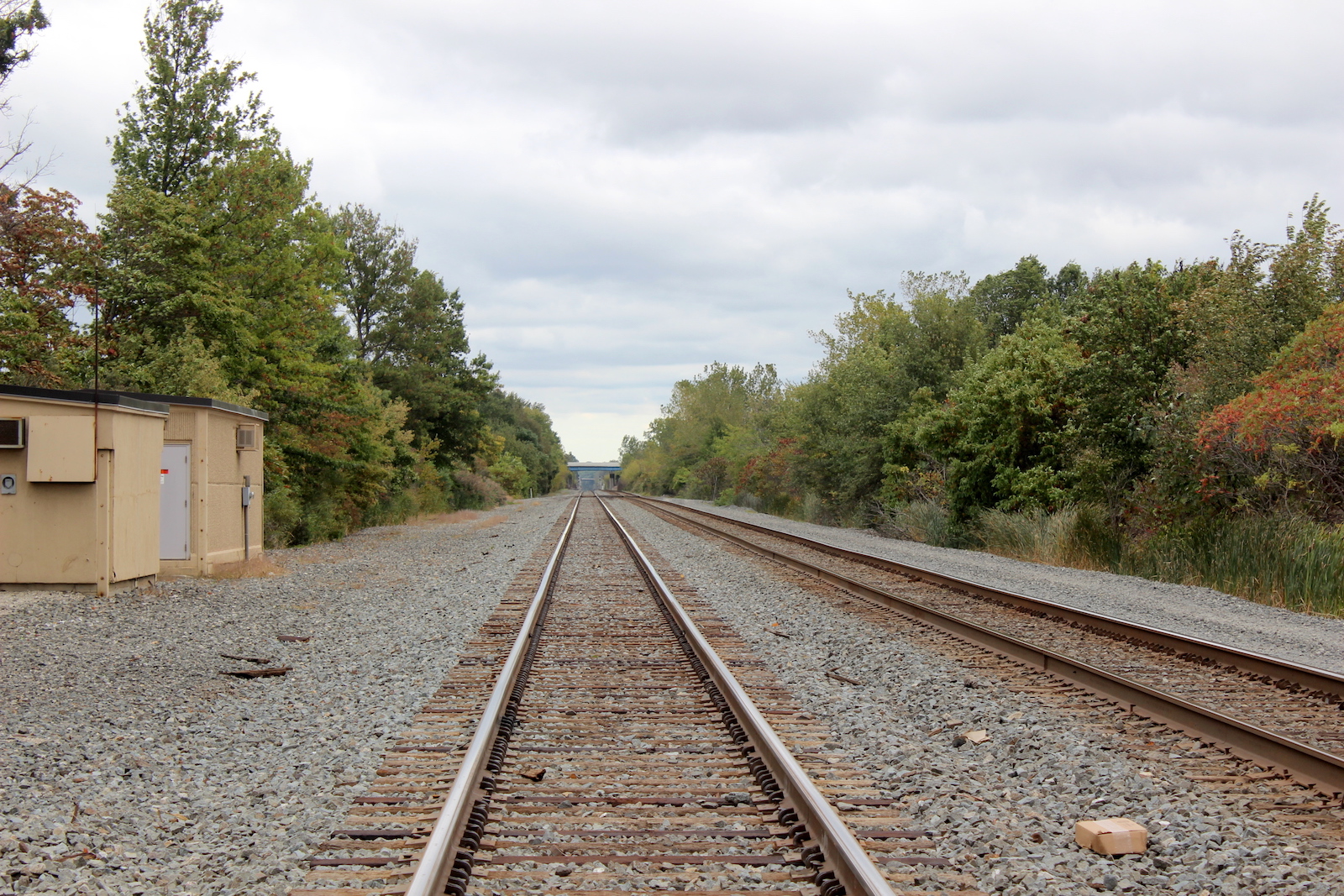

The same relay bungalow on the southwest quadrant.

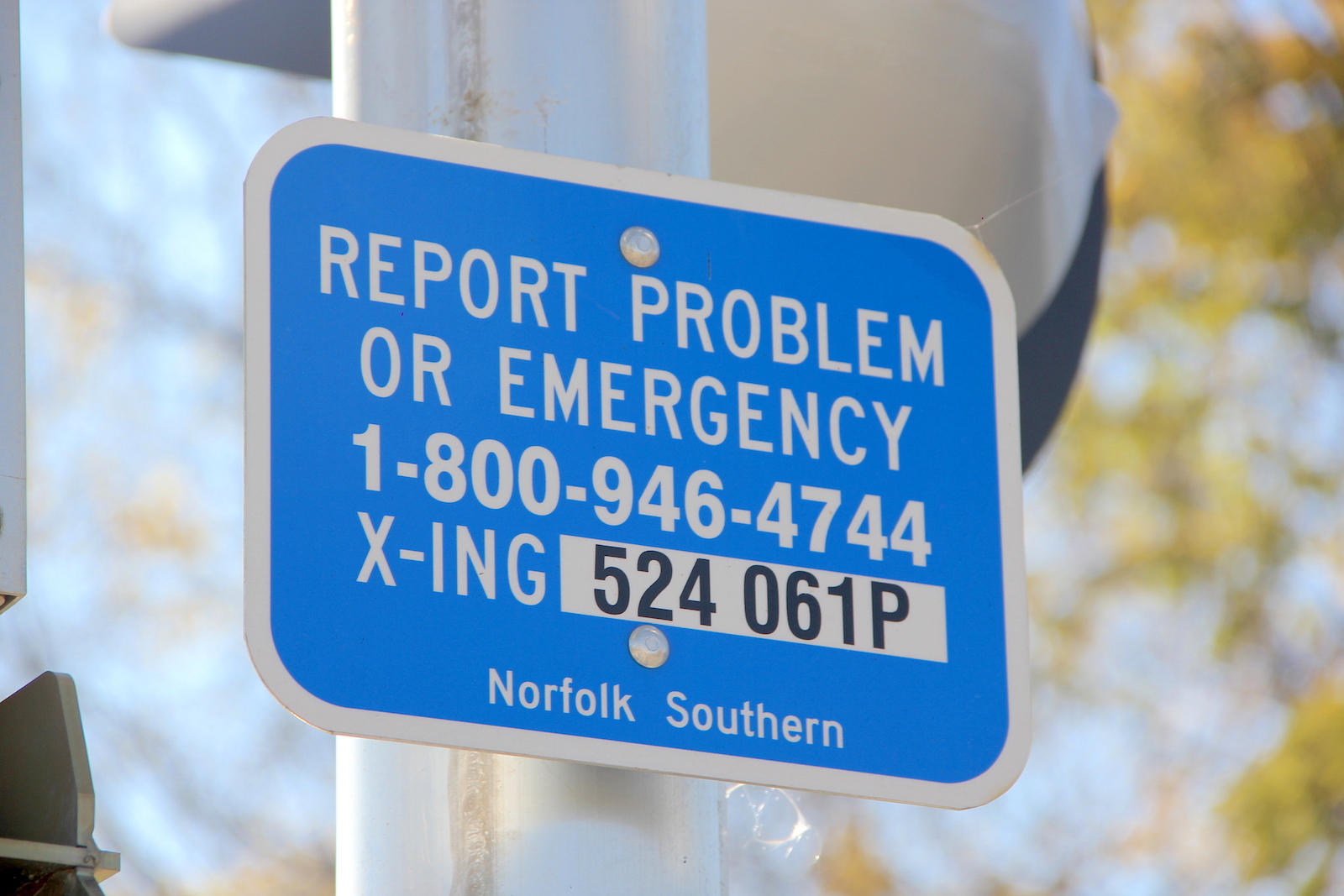

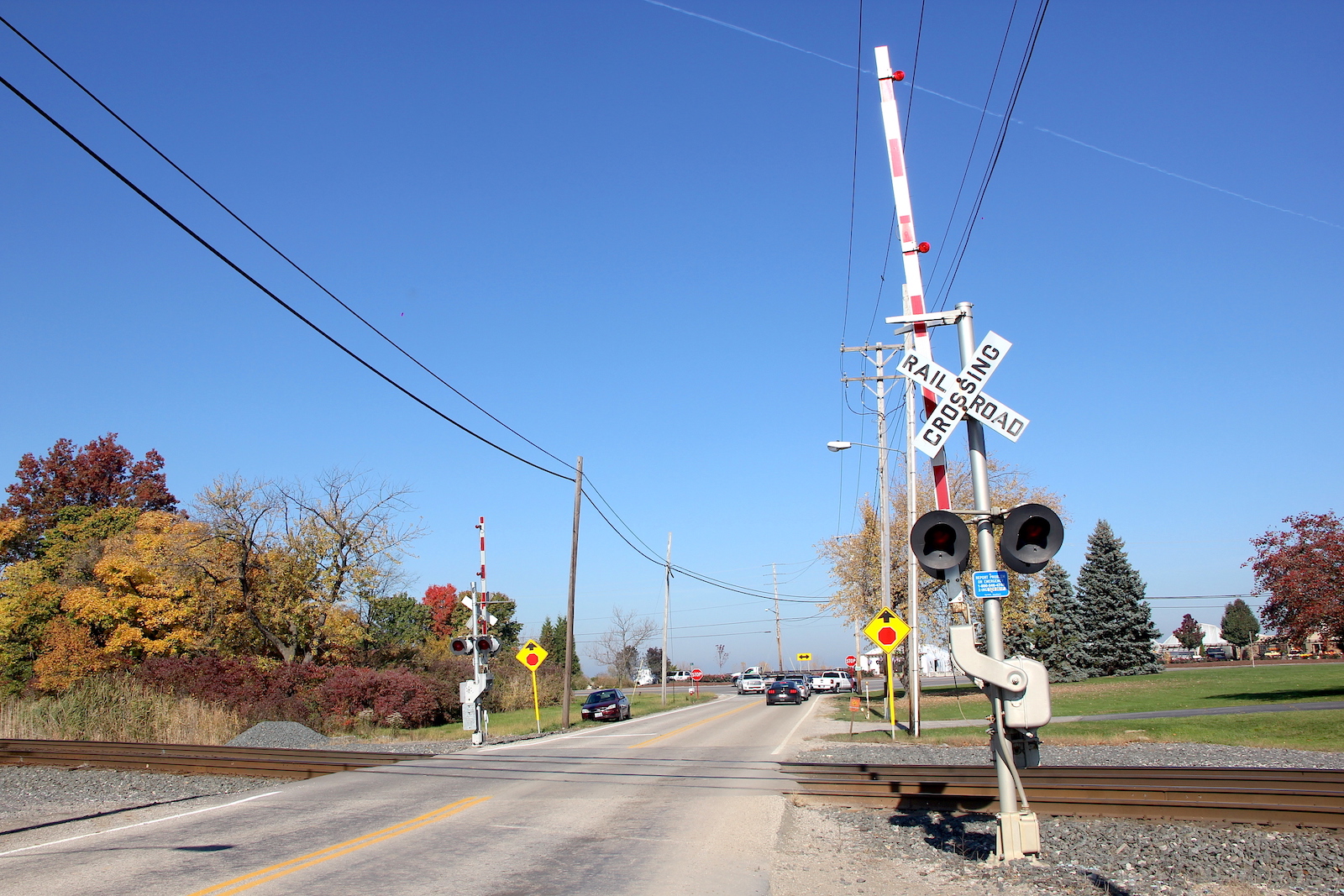

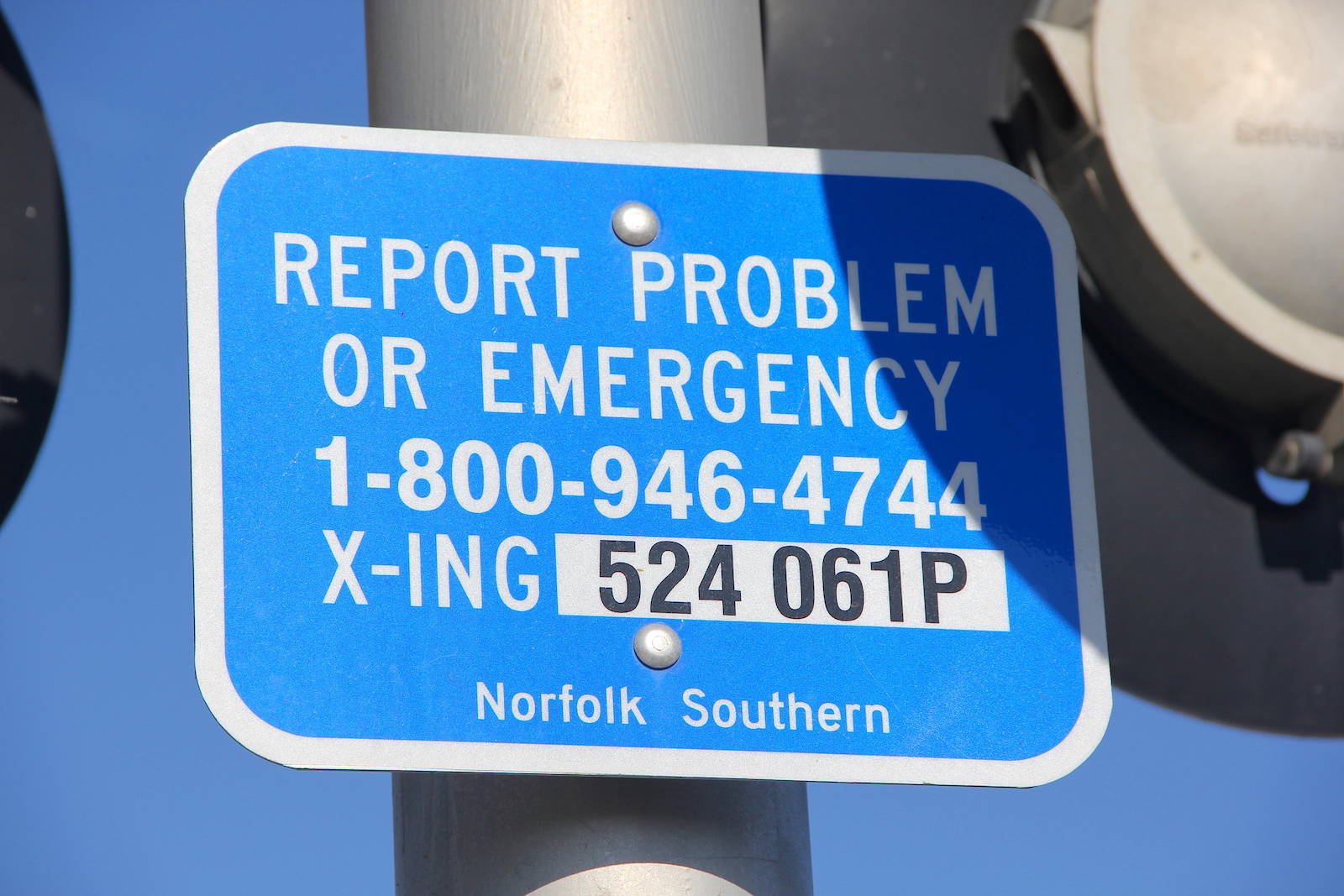

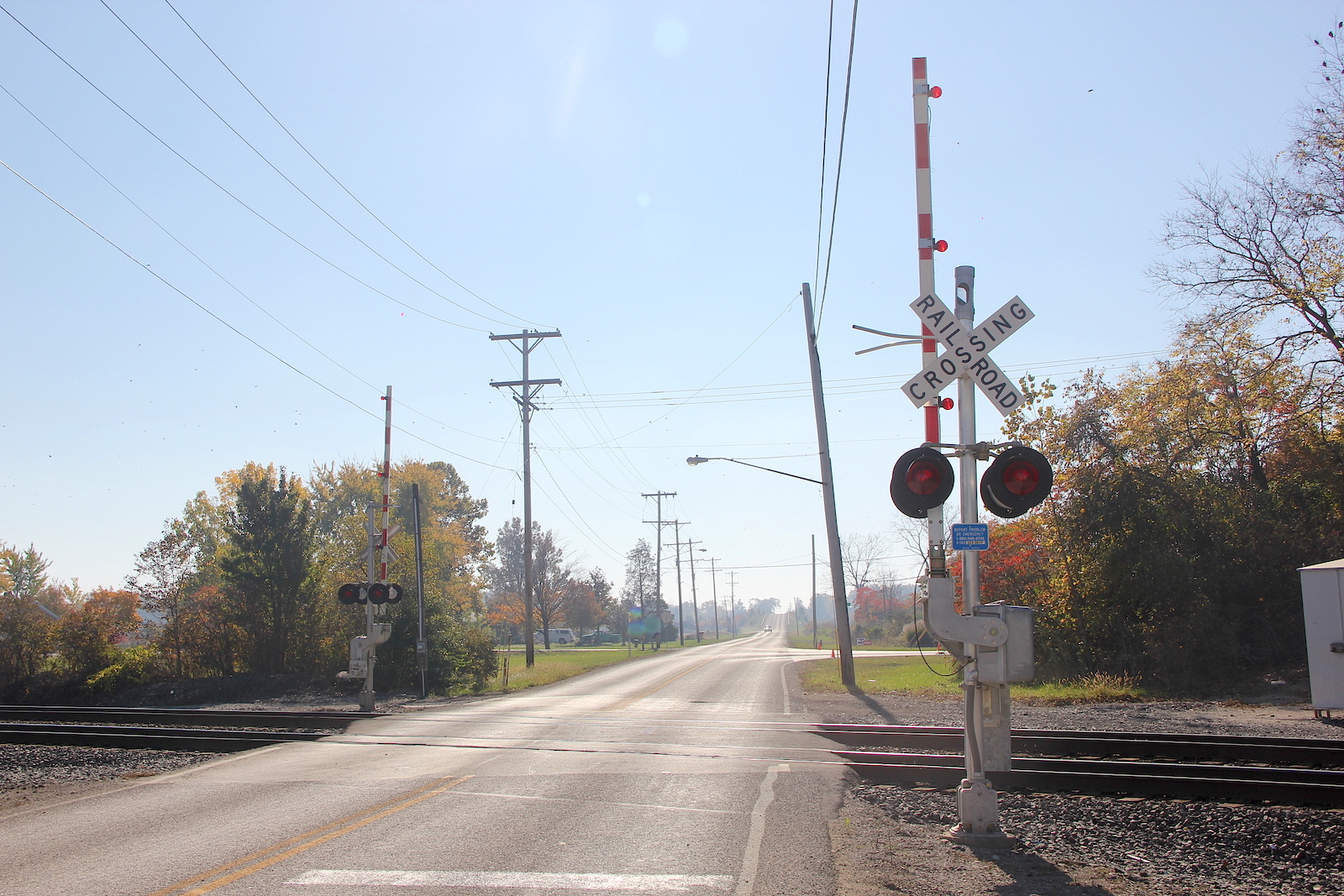

In November 2016, we see the DOT tags were turned to face forward.
61
62
63
64
65
66
67
68
69
70
71
72
73
74

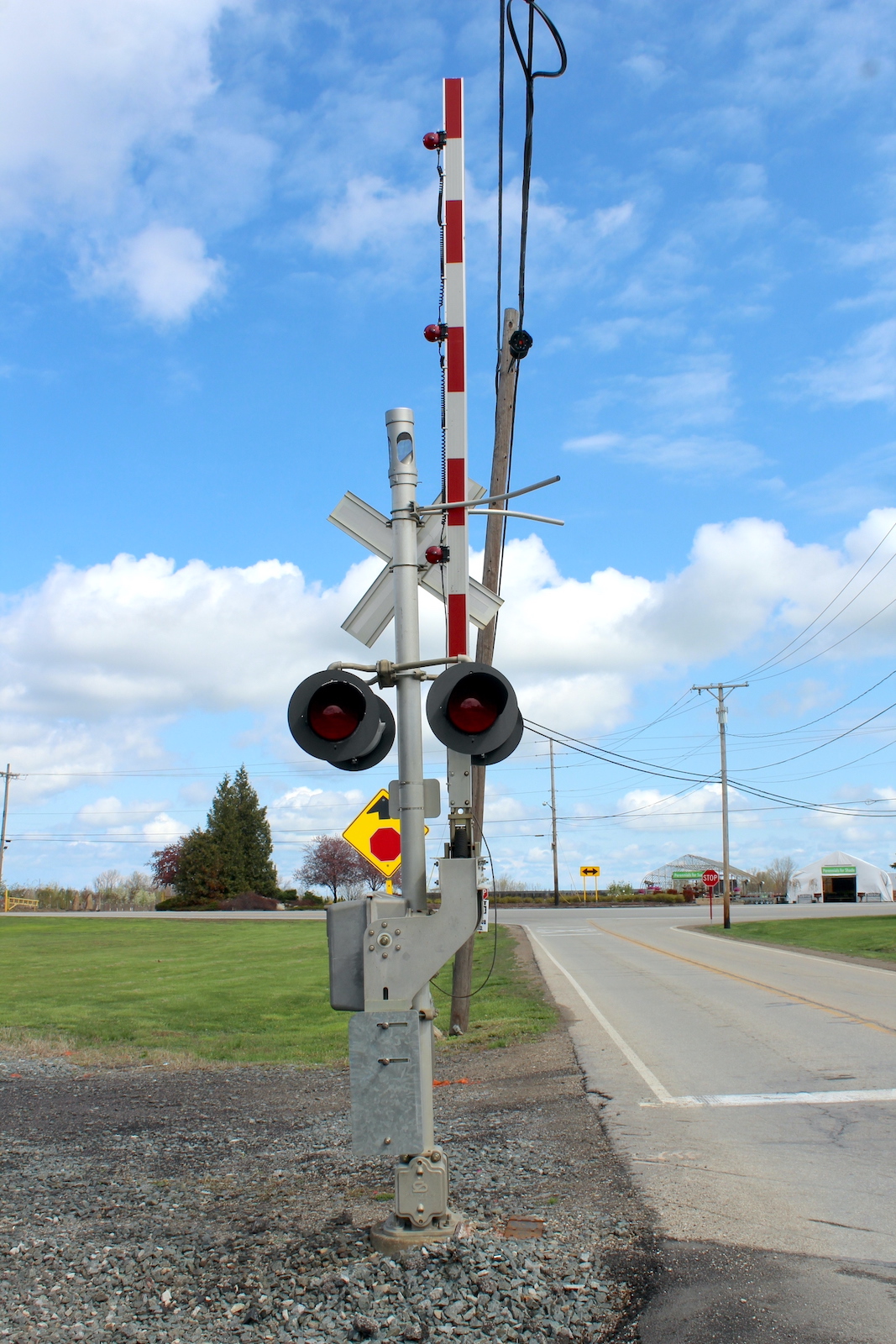

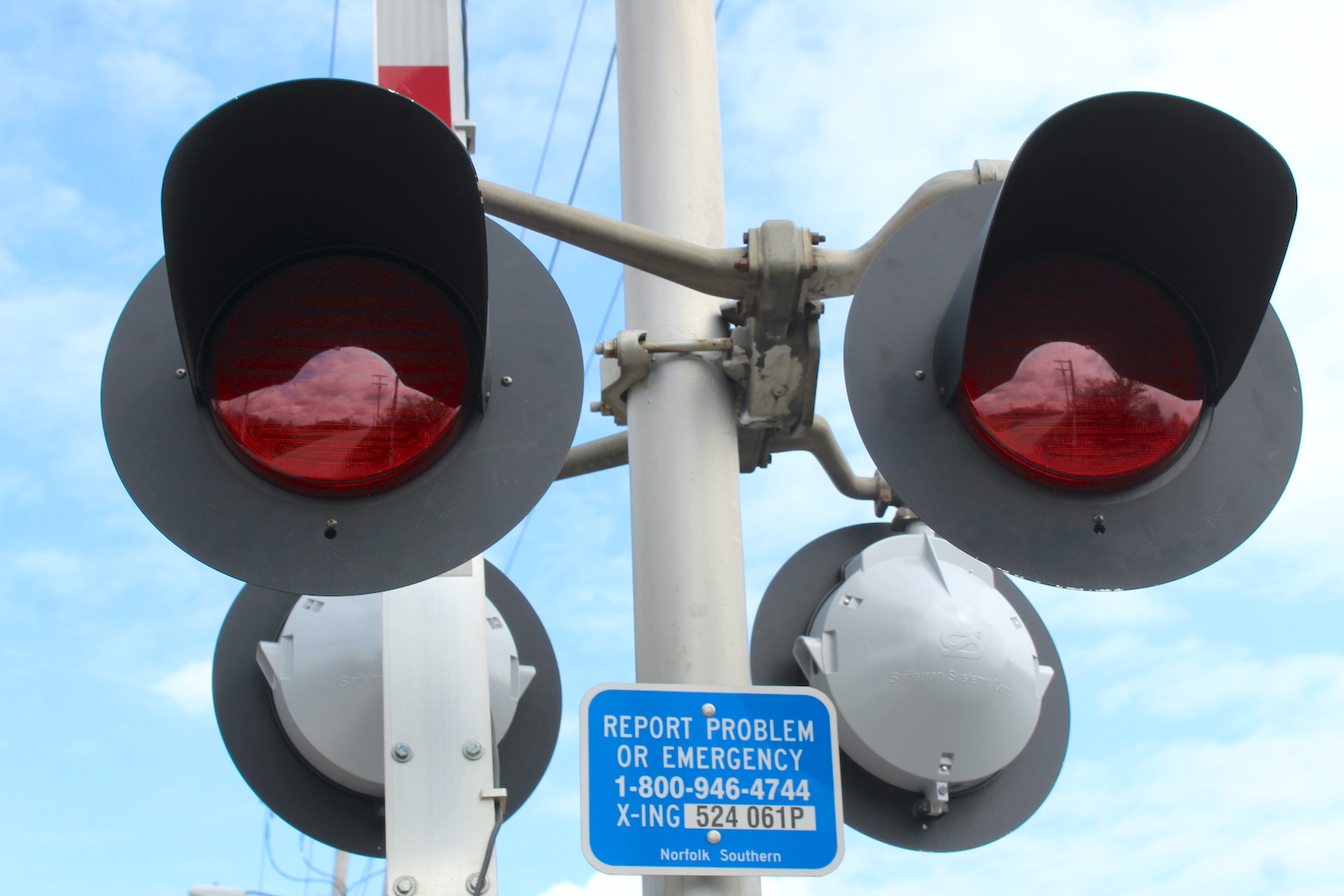

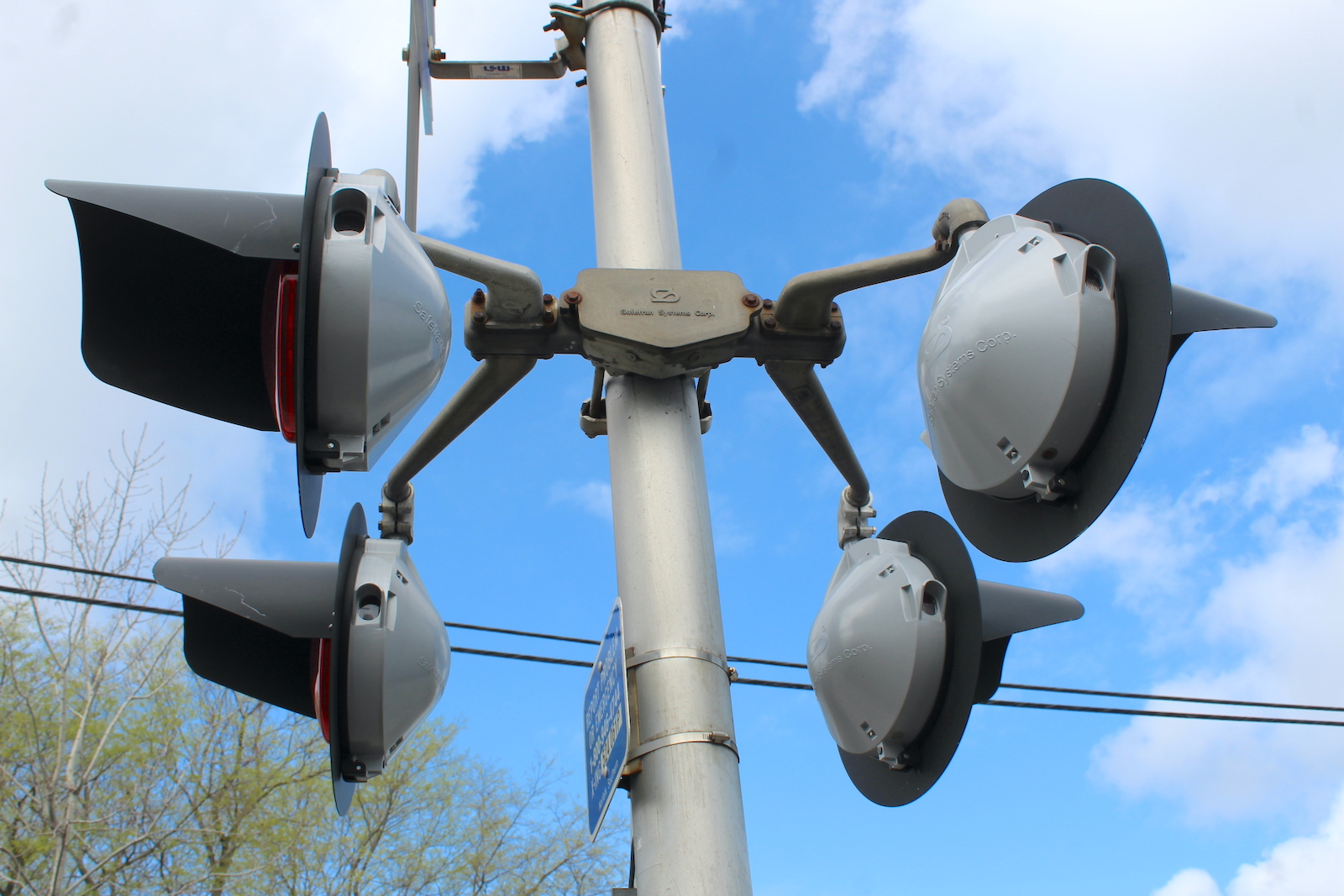

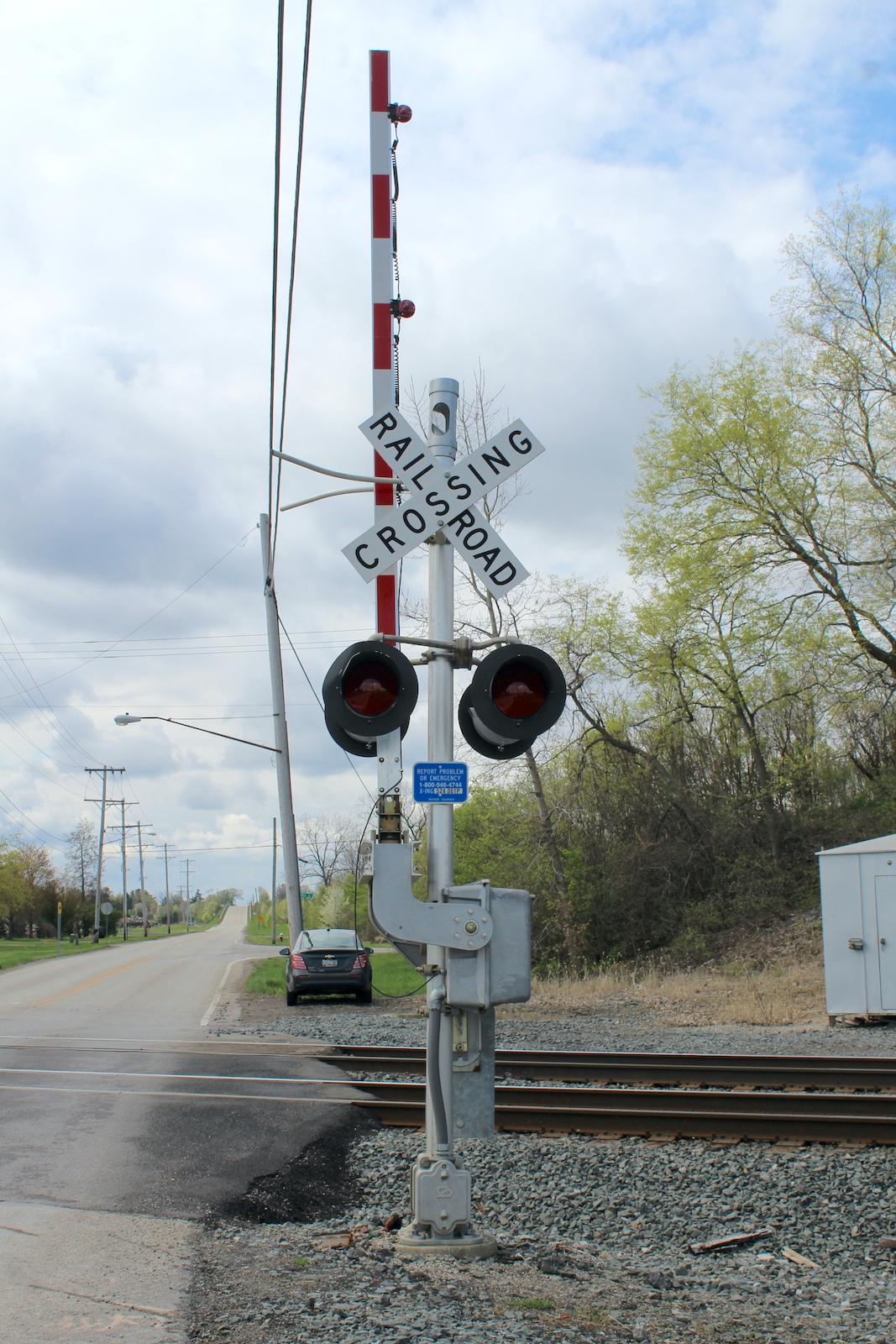

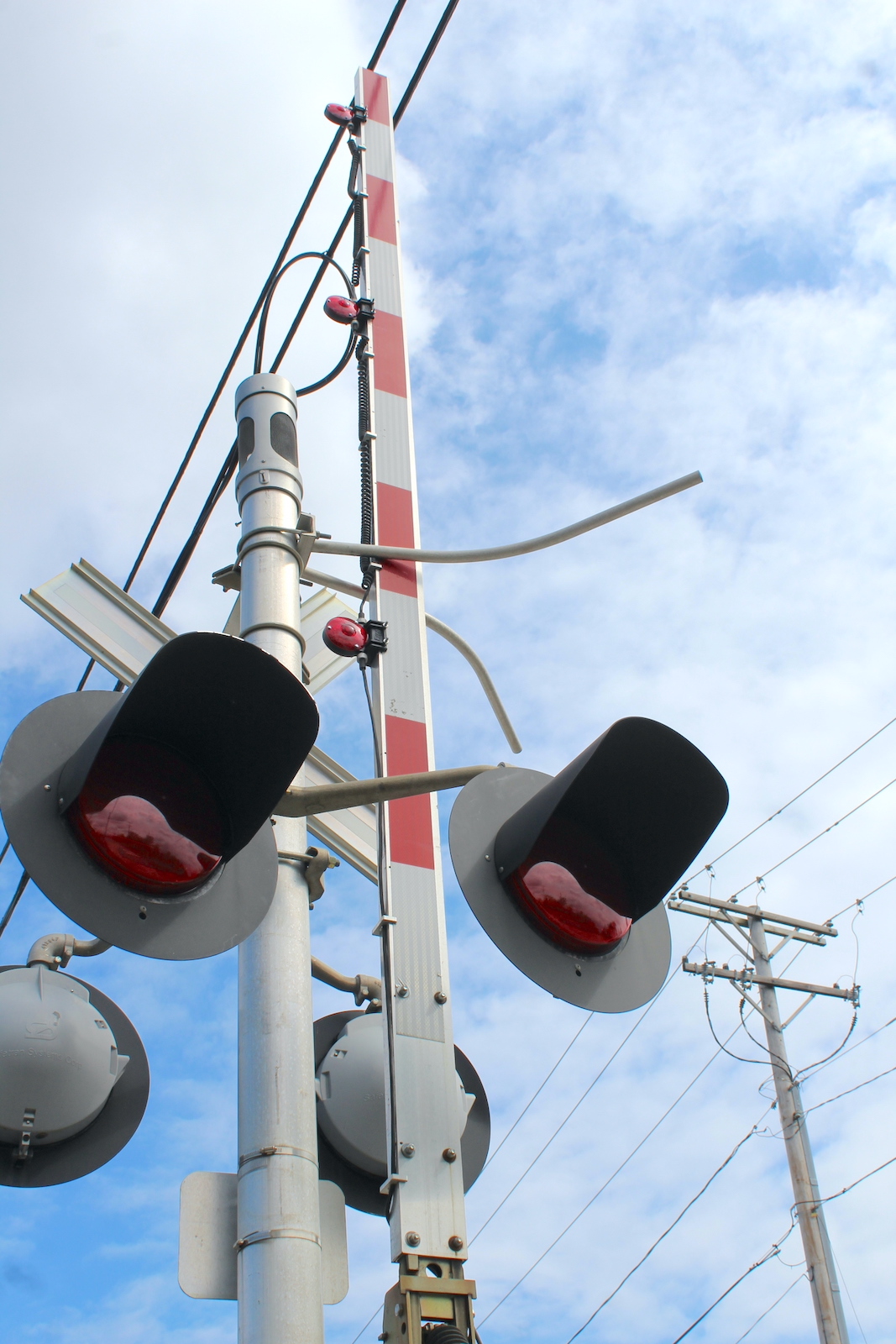

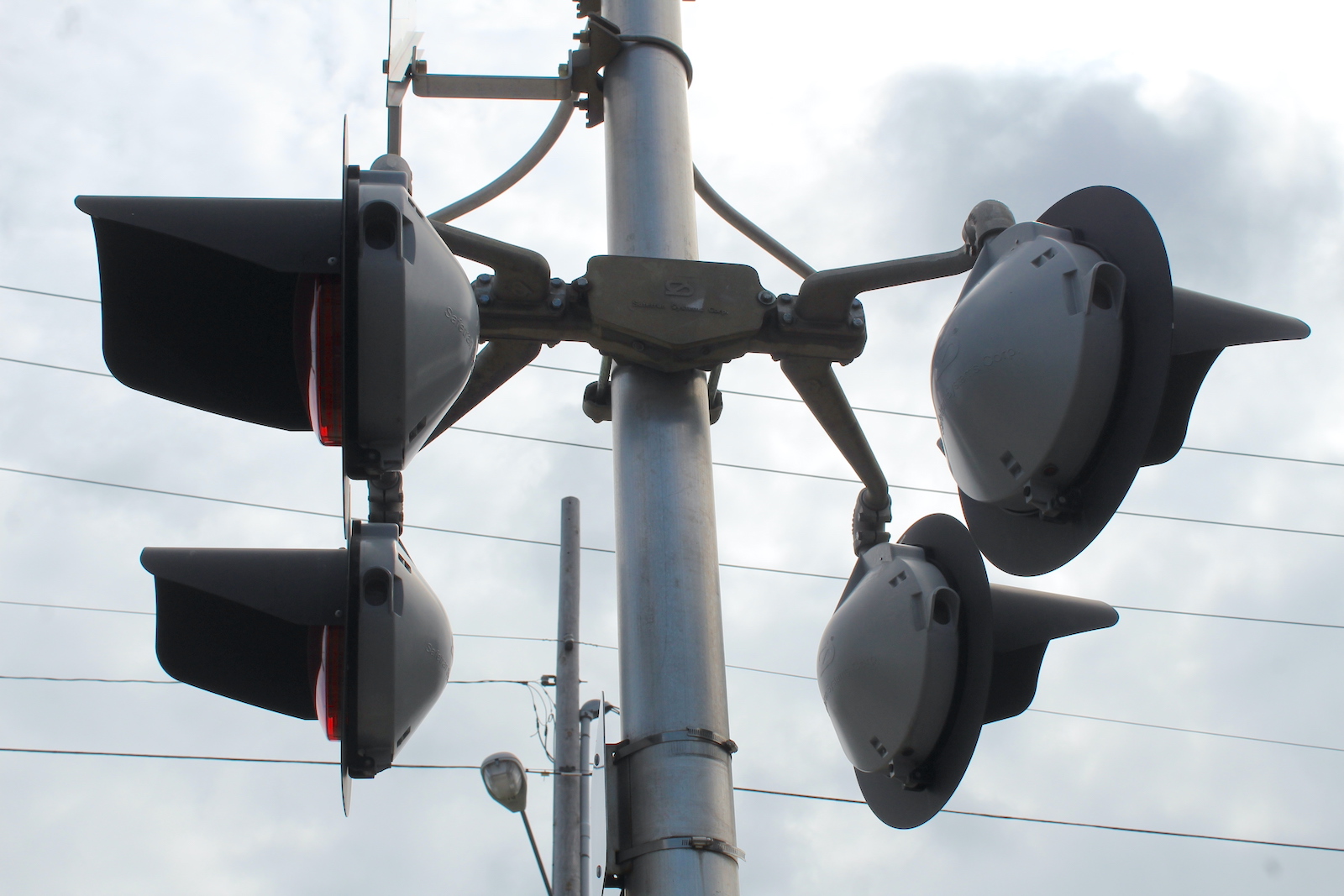

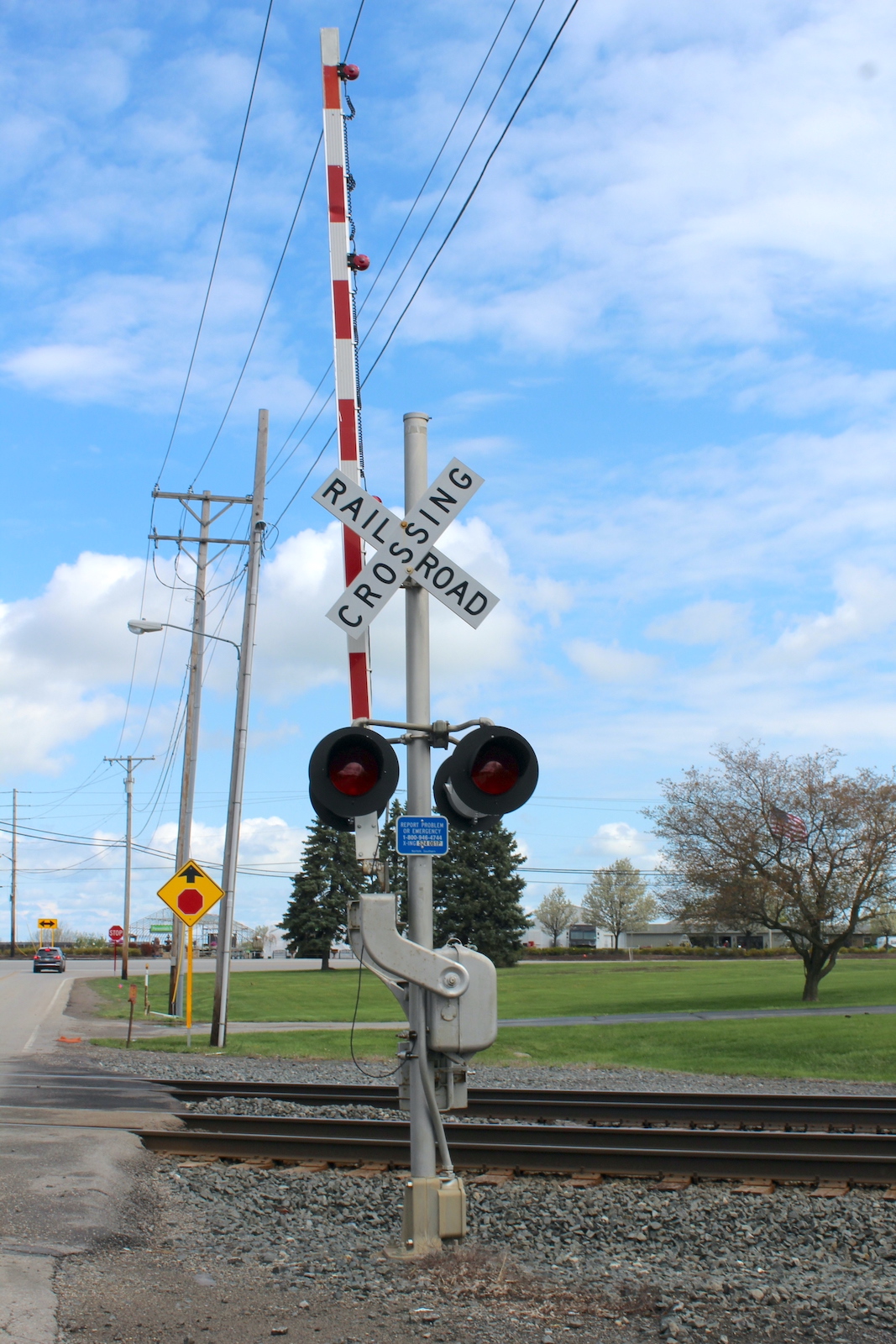

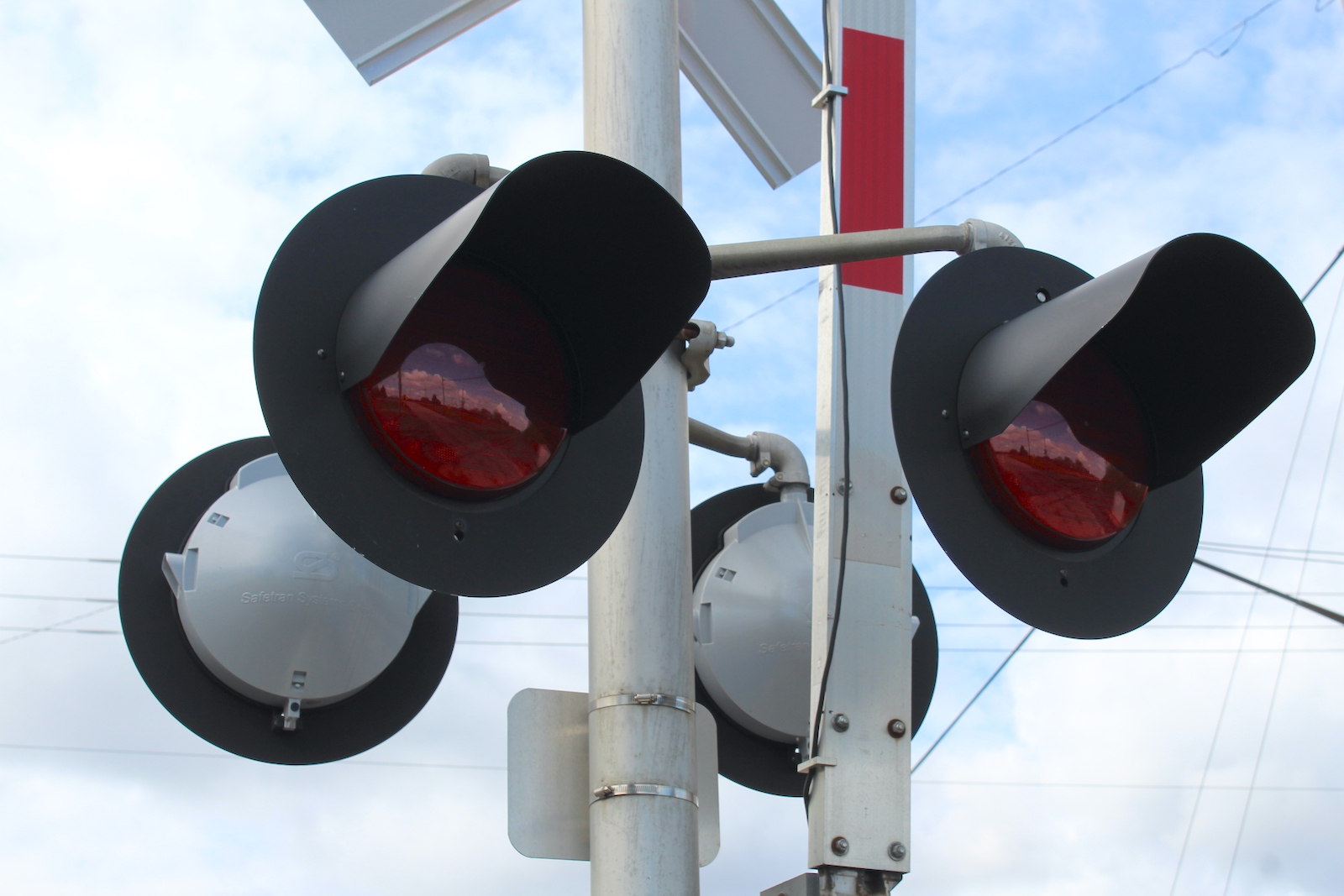

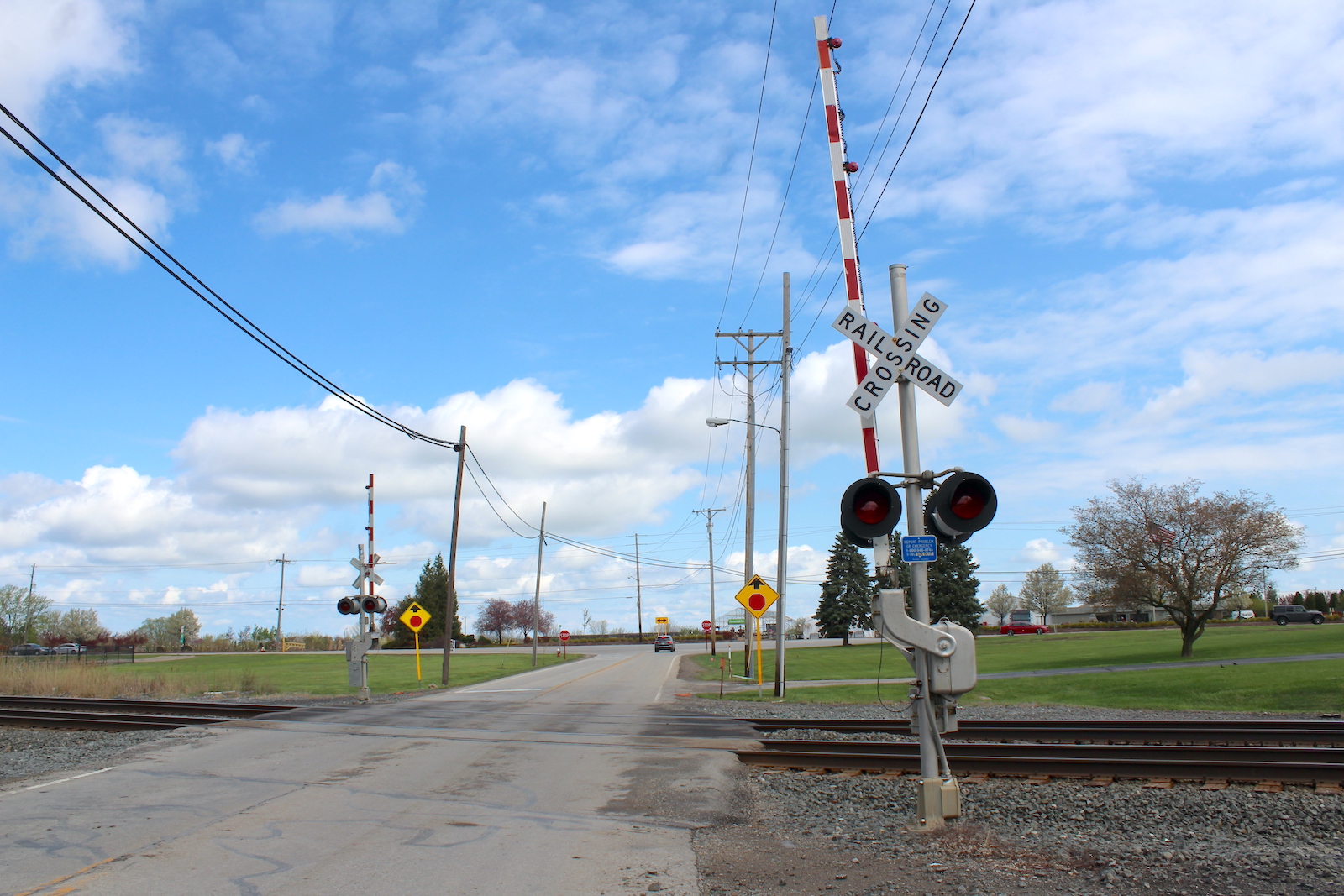

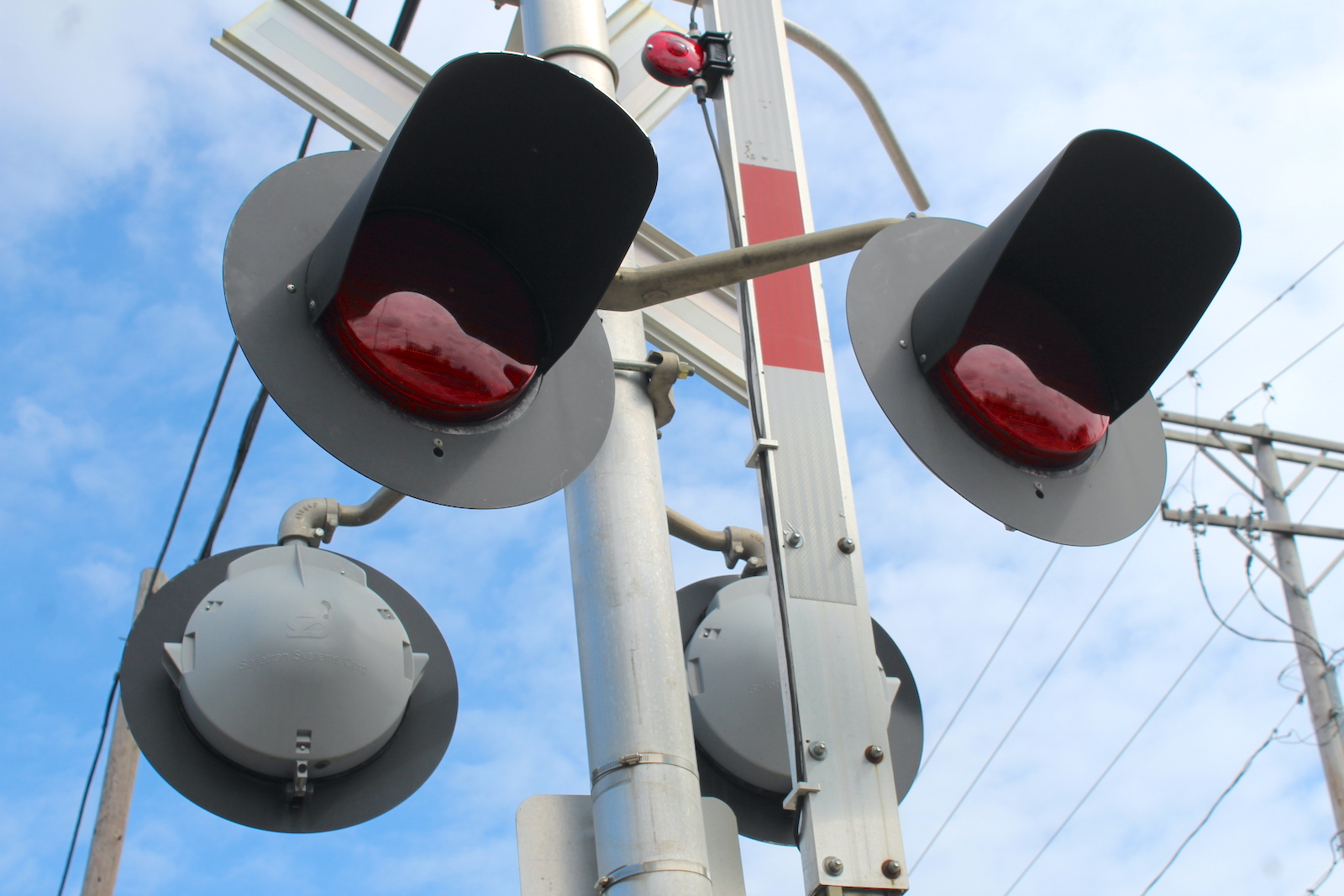

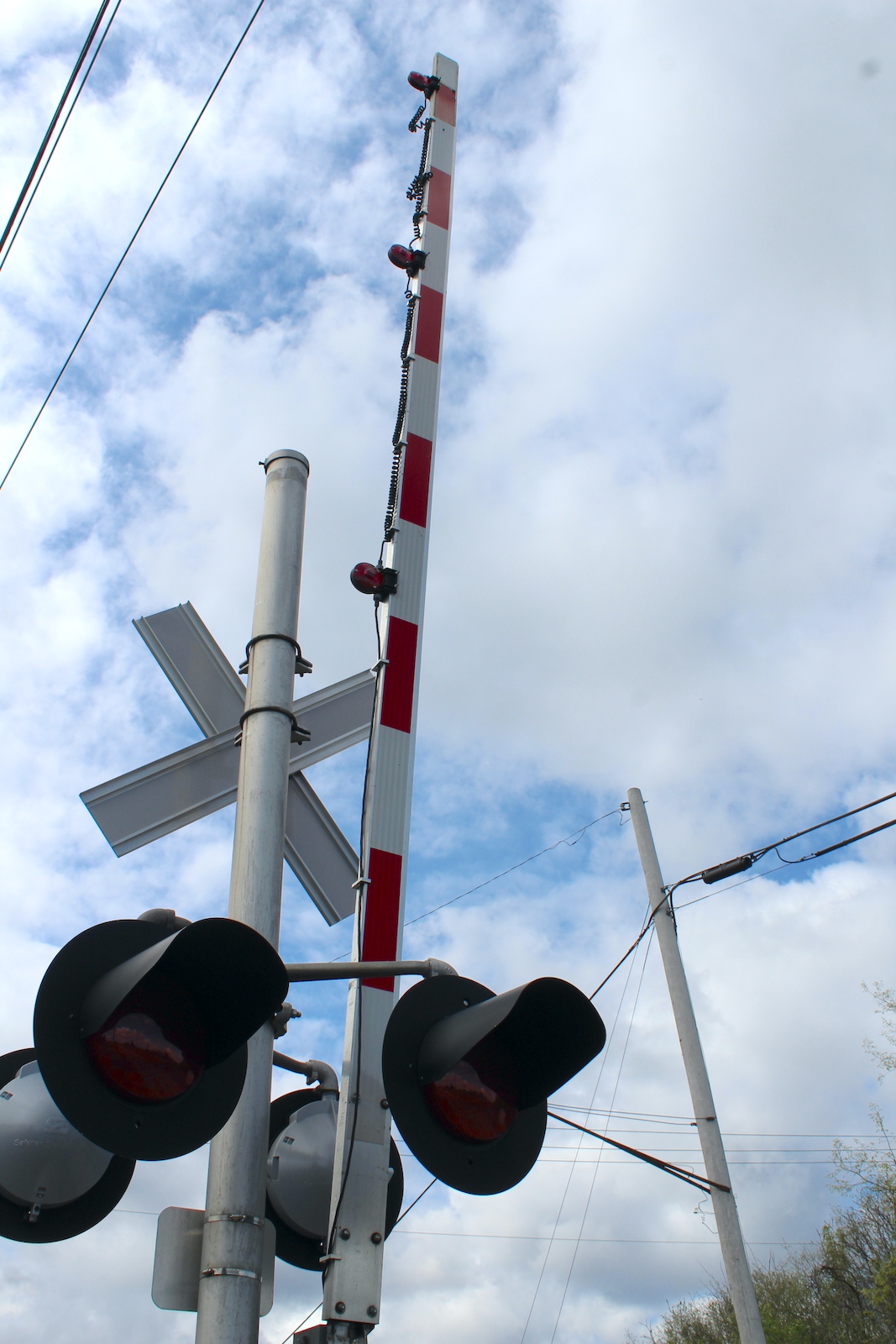

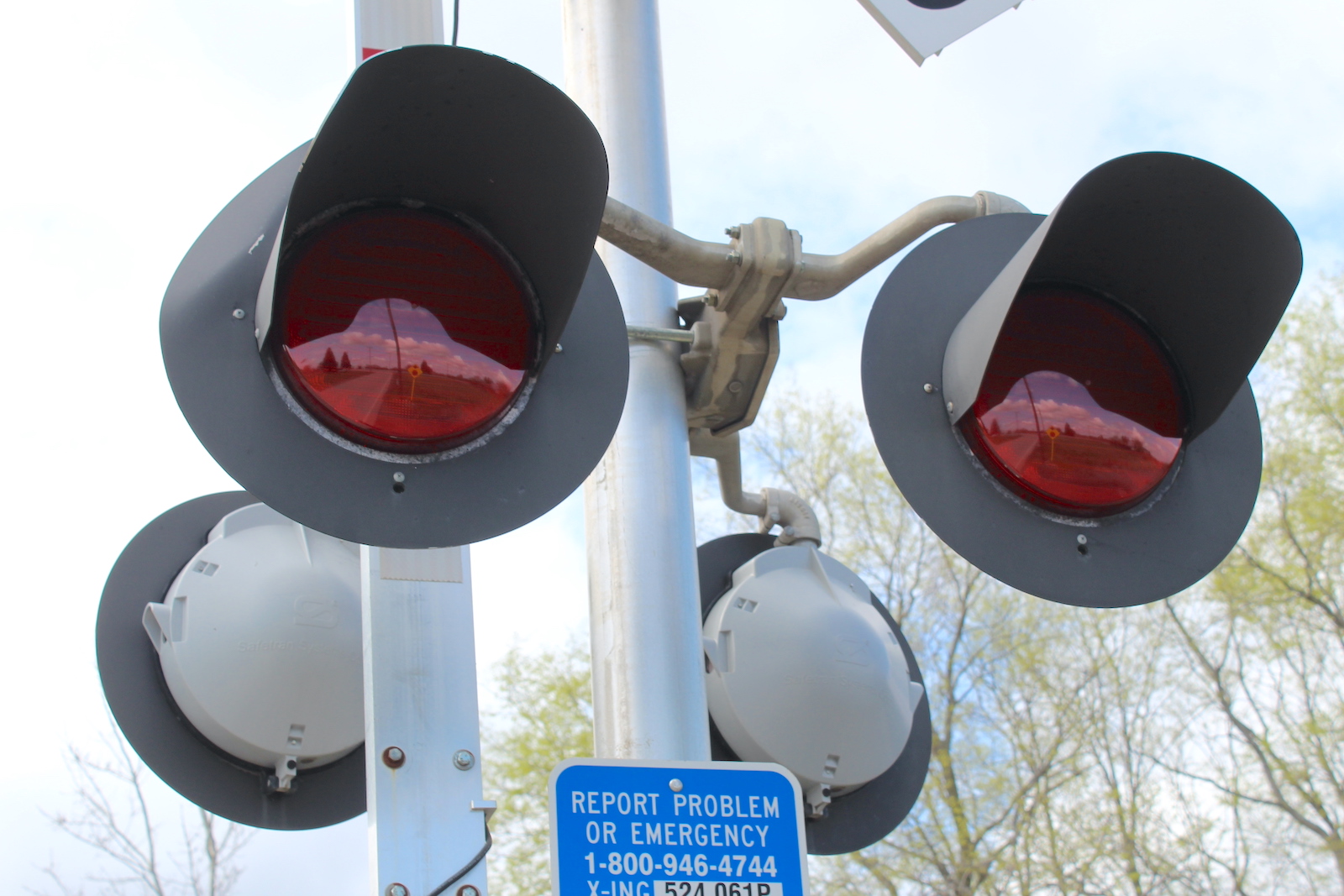

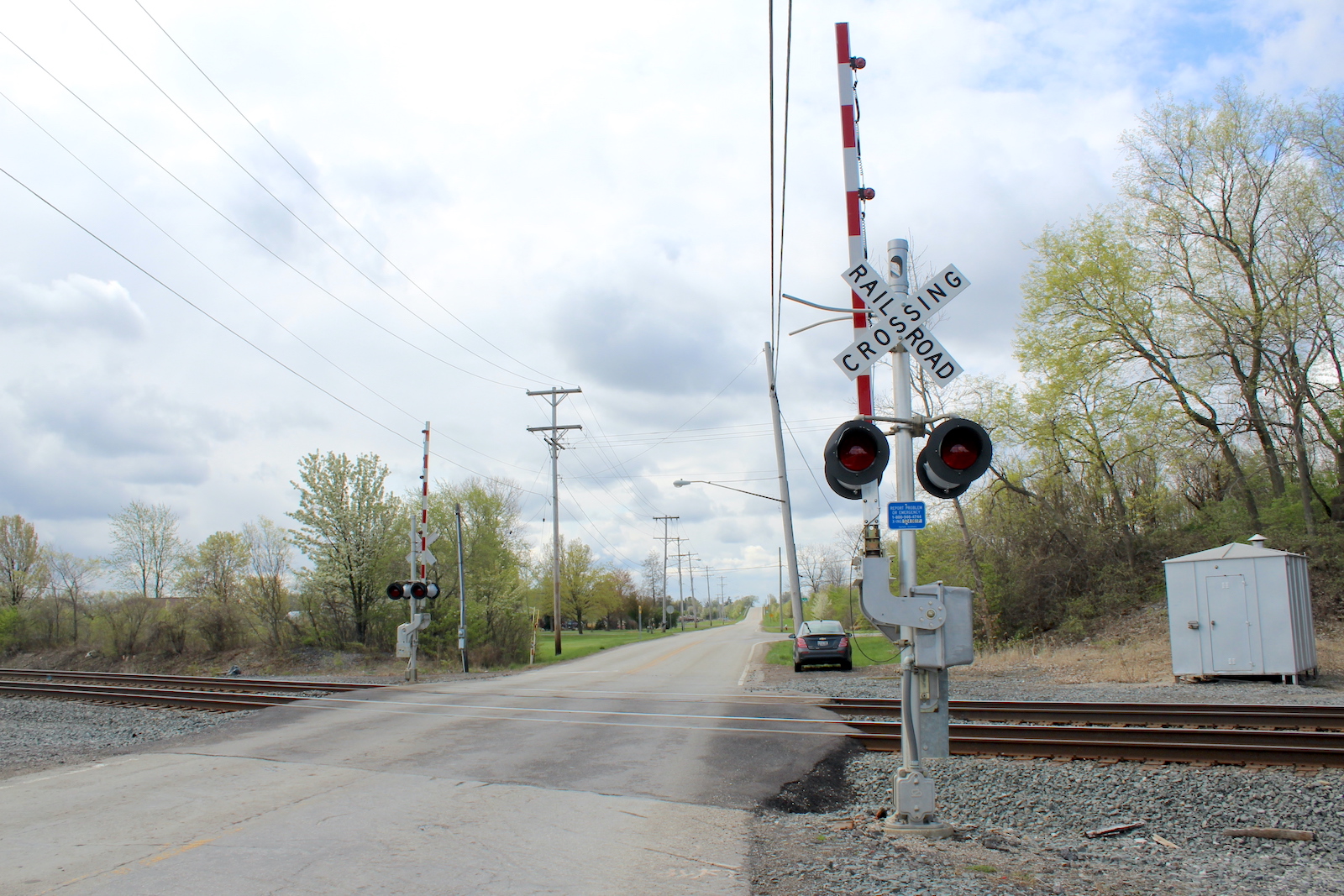

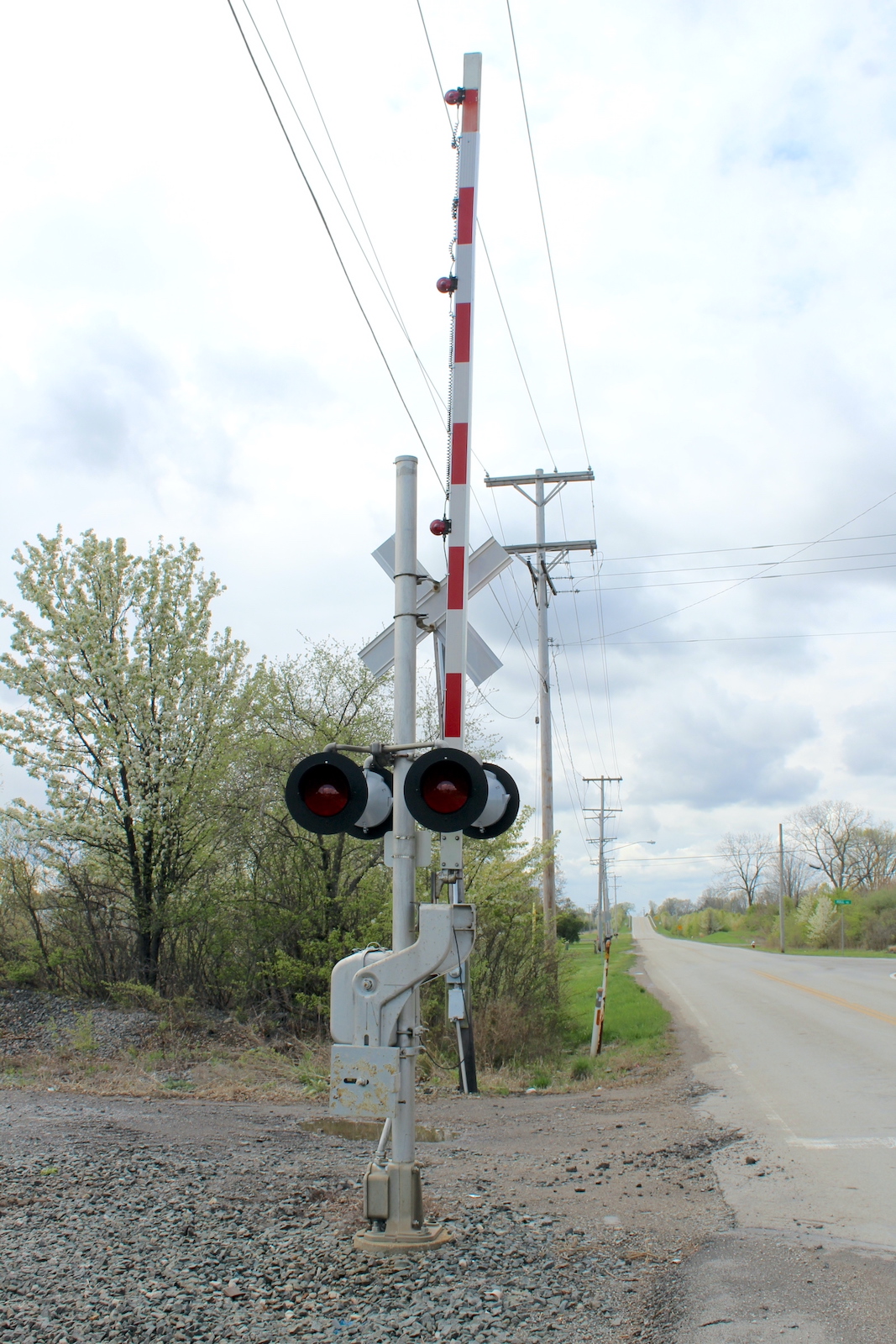

In April 2023, we see the lights were upgraded to LED. Surprisingly, the Conrail signal is still in place, however it had its wind guard removed for some reason.
