| >>>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | Safetran Mechanical Bell | Safetran Mechanical Bell |

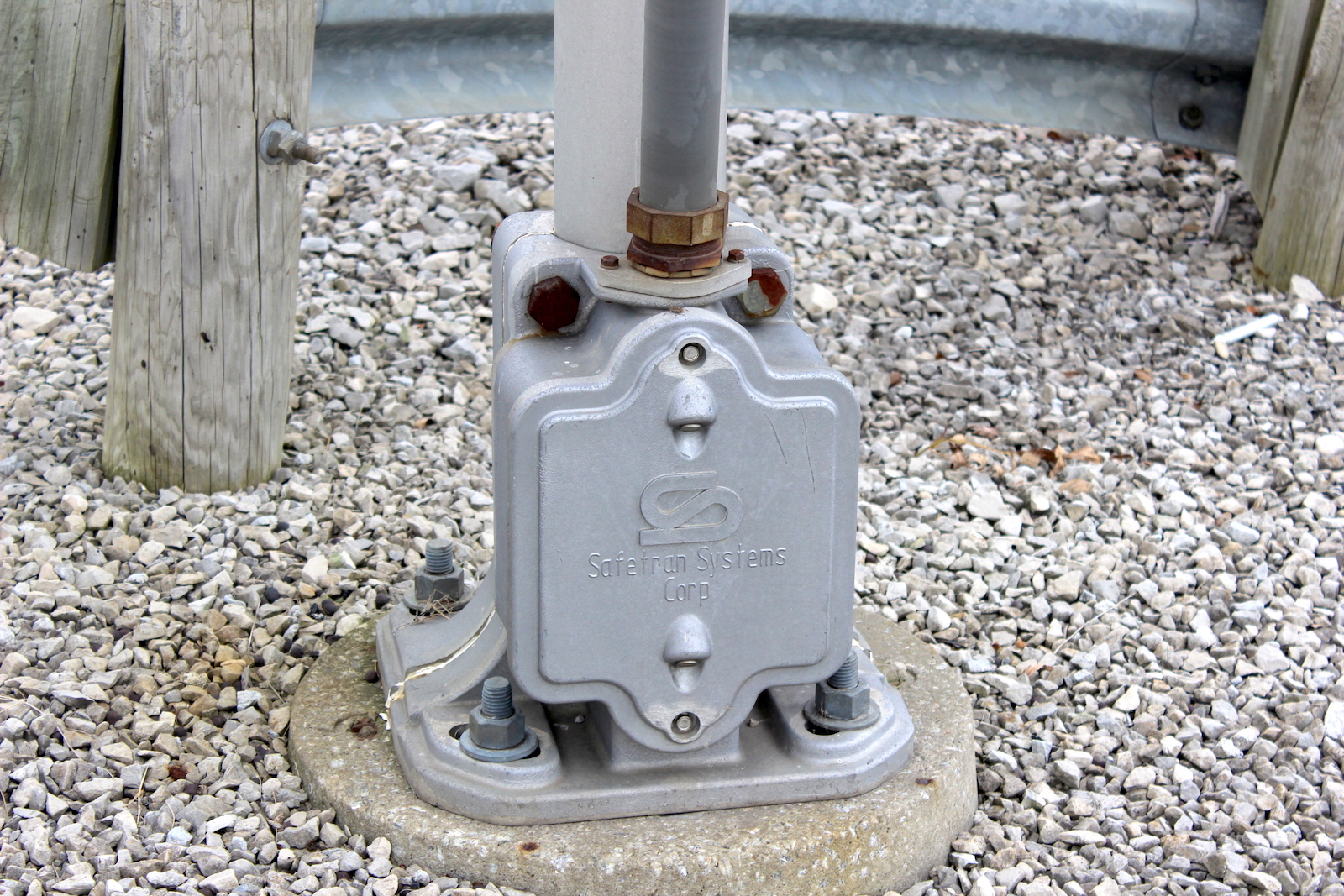

| Base: | Safetran 5" Single Sided ^ | Safetran 5" Single Sided ^ |

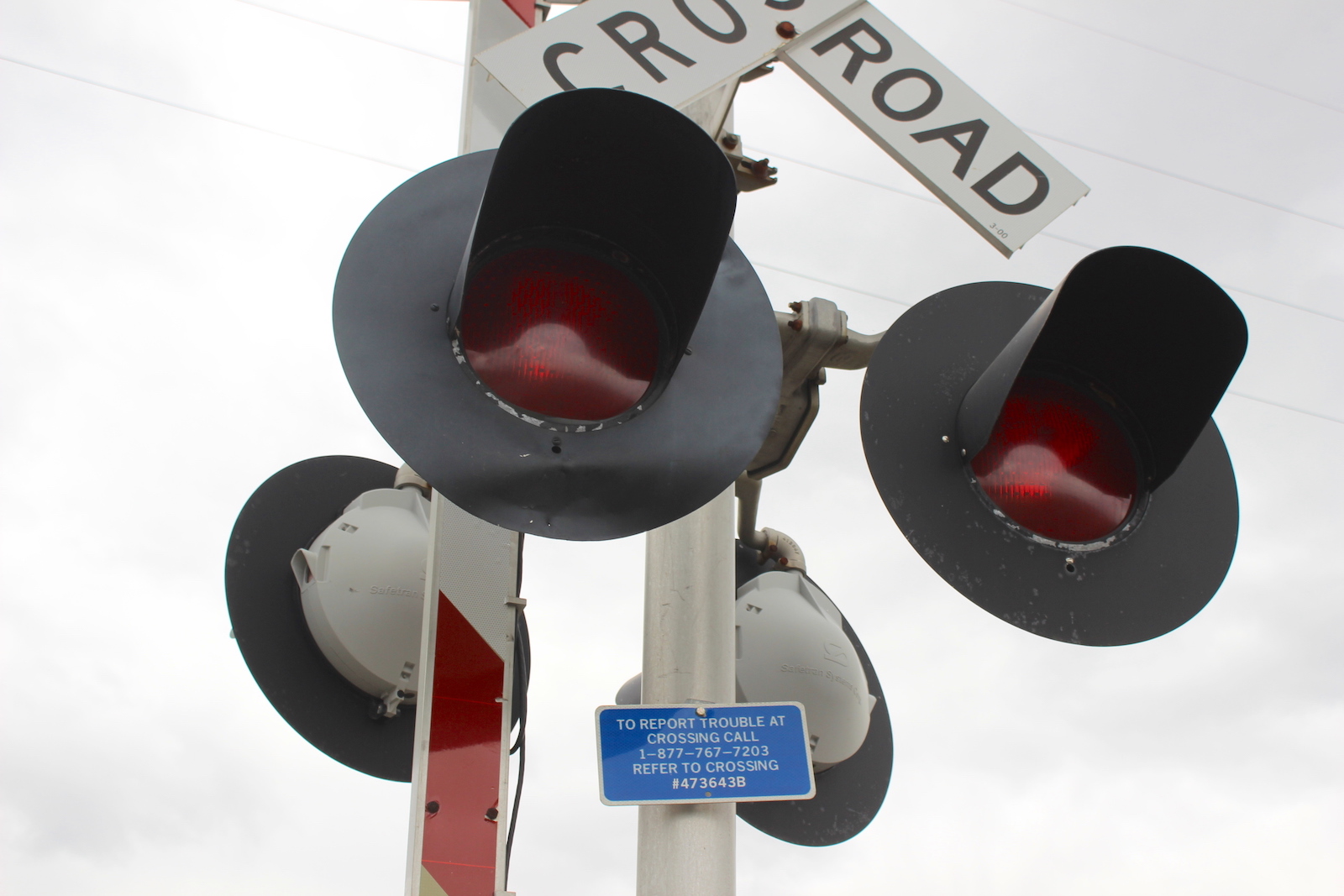

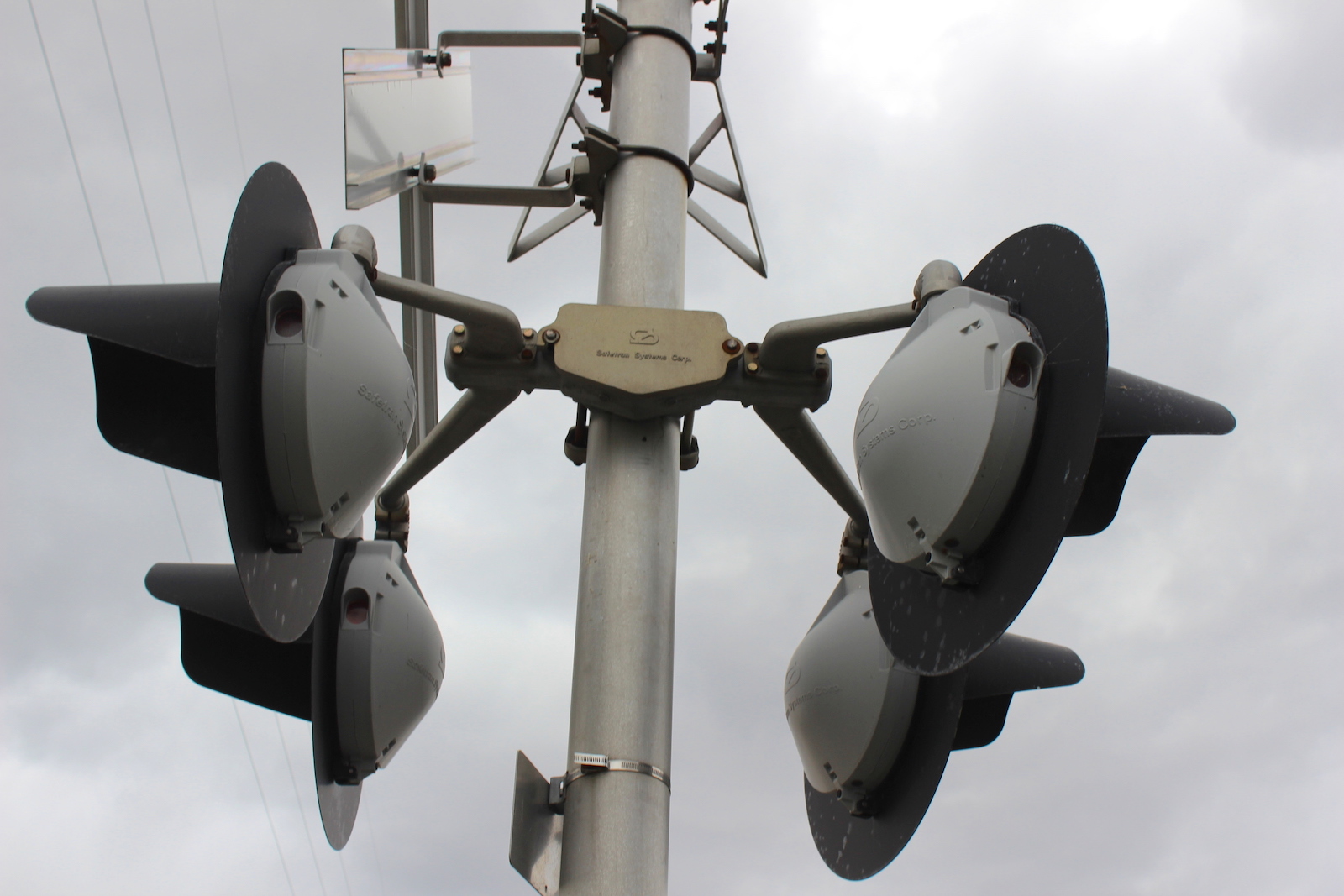

| Lights: | 4 - 12"x24" Safetran incandsecents | 4 - 12"x24" Safetran incandsecents |

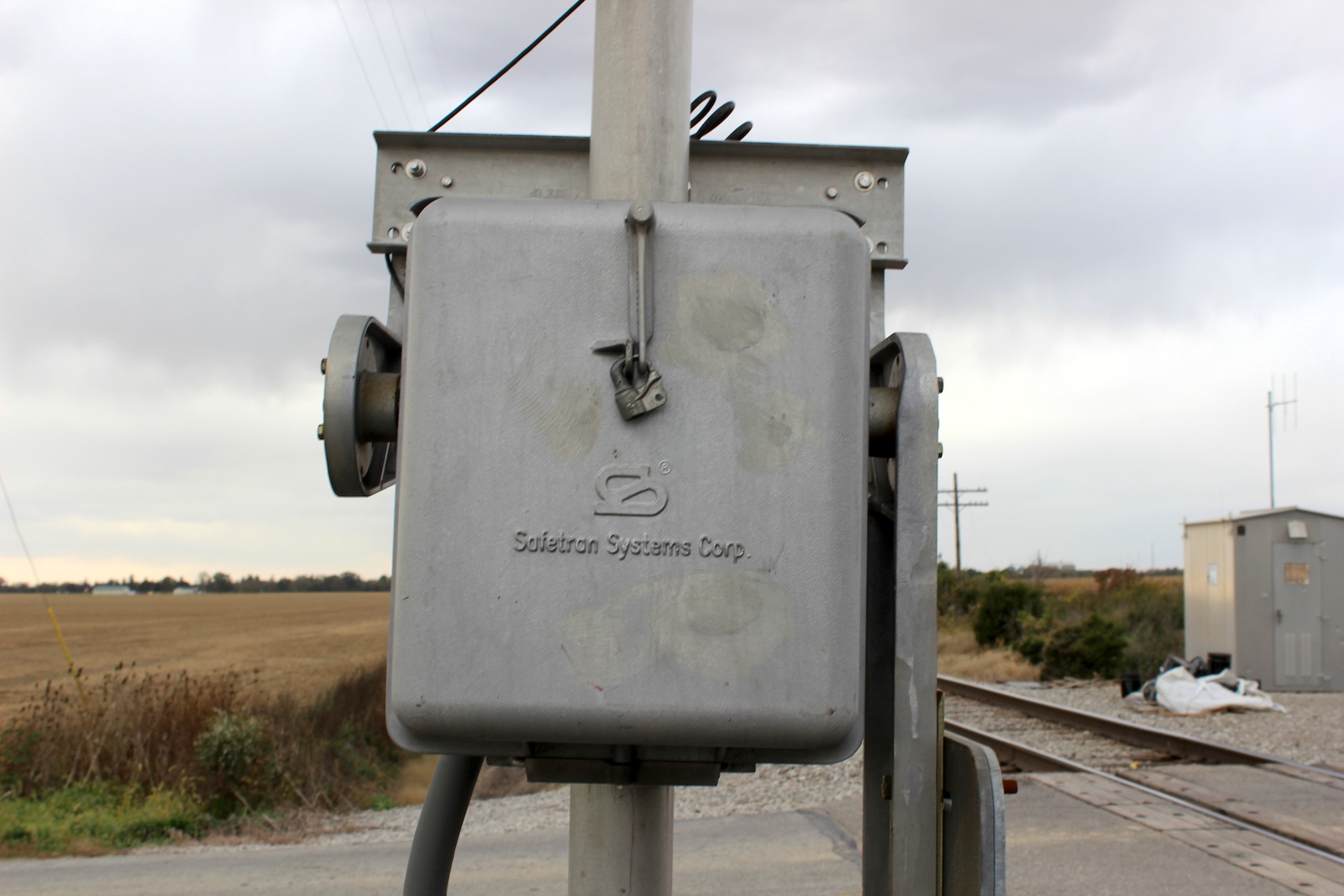

| Junction Box: | Safetran | Safetran |
| Gate Lights: | 4" RECO incandescents | 4" RECO incandescents |
| Gate Mechanism: | Safetran 2000s w/ GSI Gate Saver | Safetran 2000s w/ GSI Gate Saver |
| Gate Striping: | Diagonal Striping | Diagonal Striping |
1 |
2
|

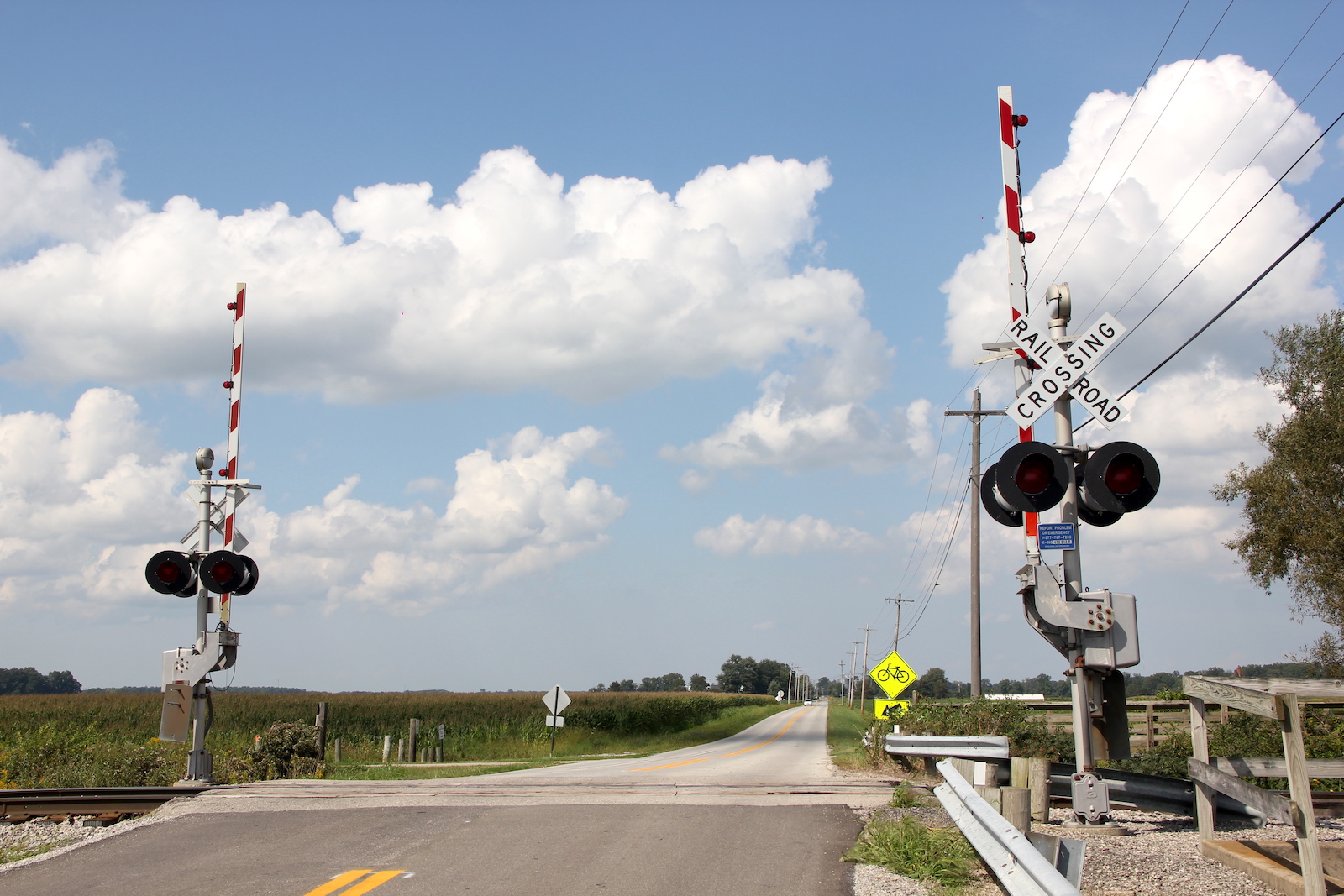

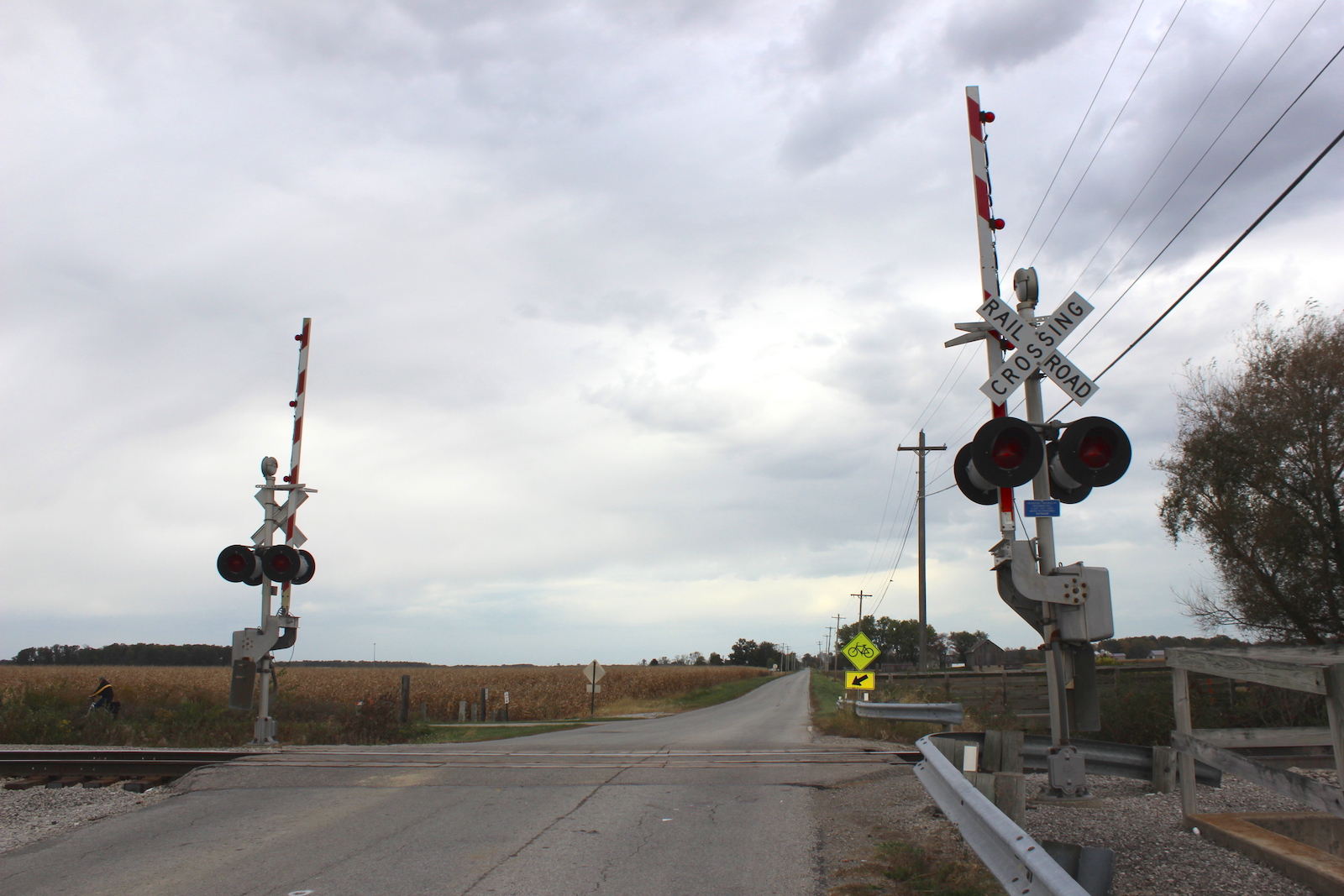

| Overview of 2 gated signals facing north. |

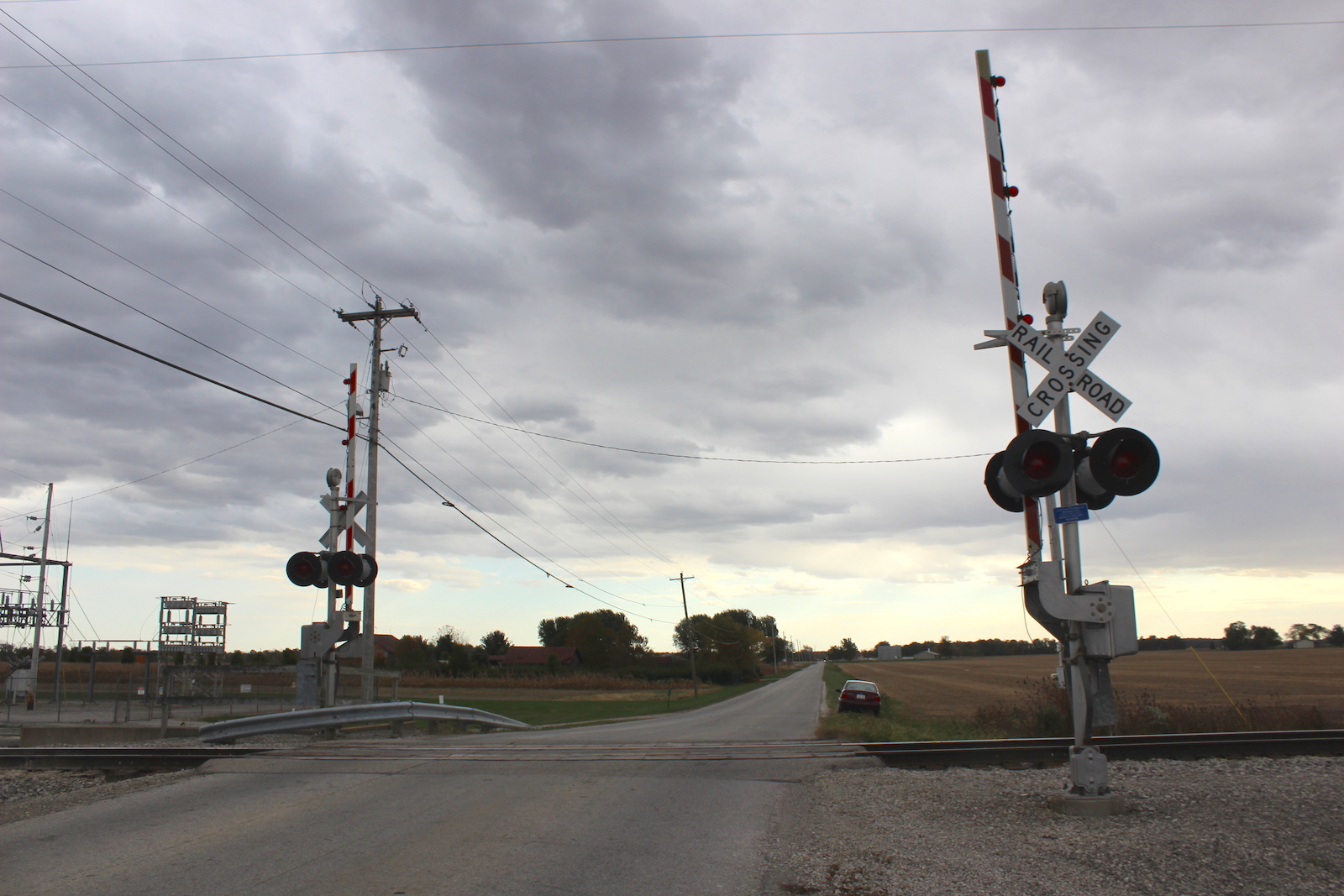

Overview facing south. |
3
| 4
| 5
|
6
| 7
| 8
|
9
| 10
| 11 | 12
|

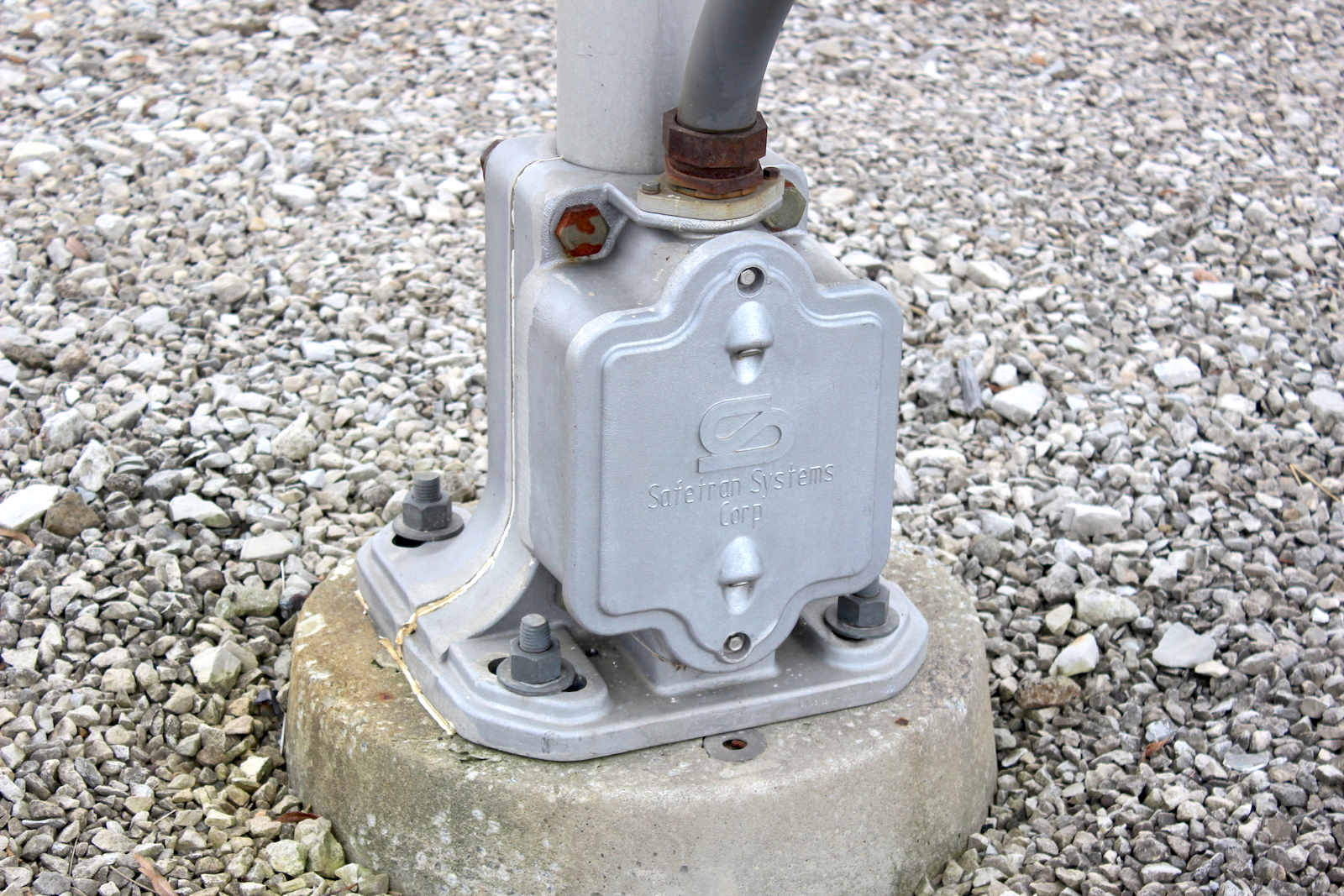

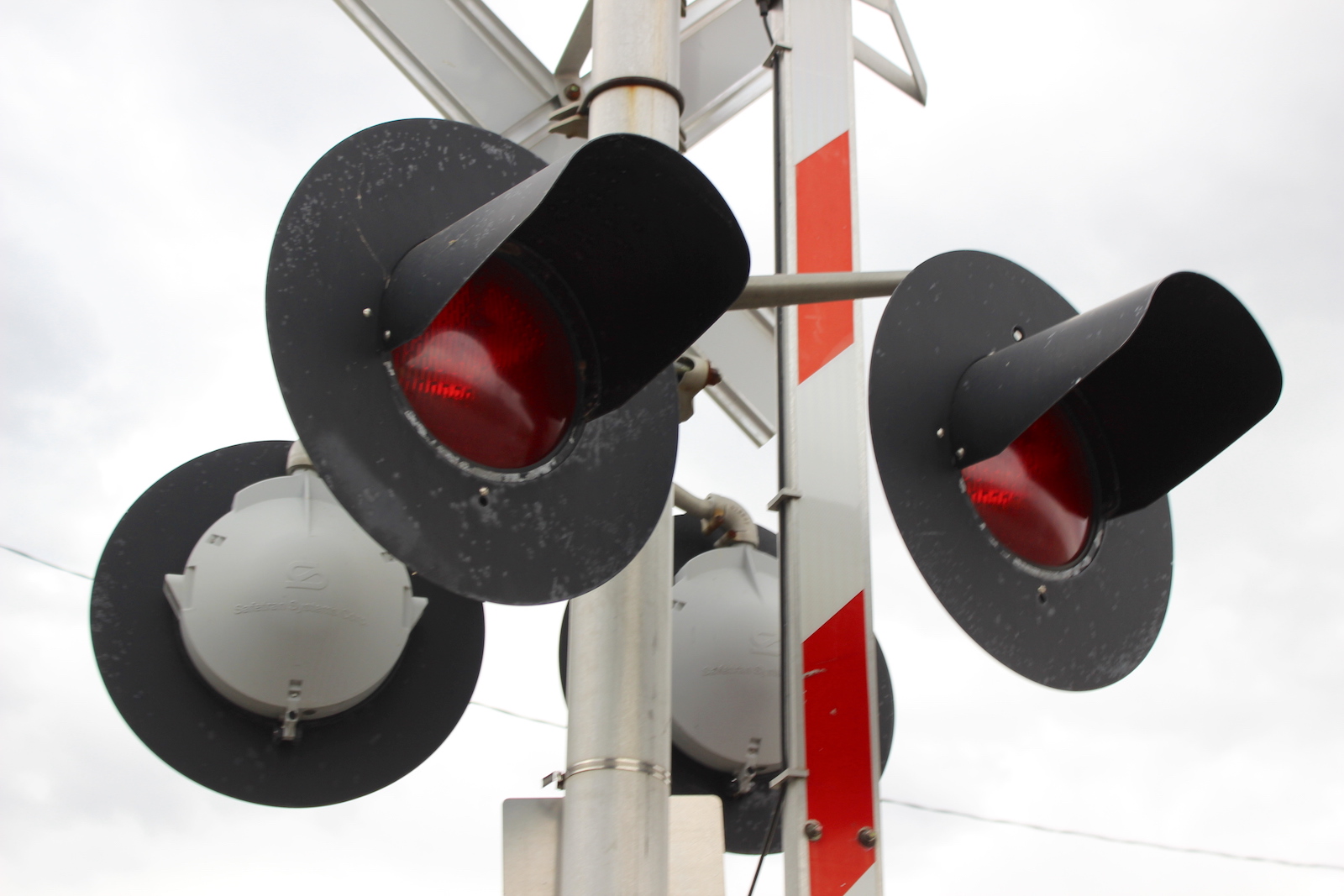

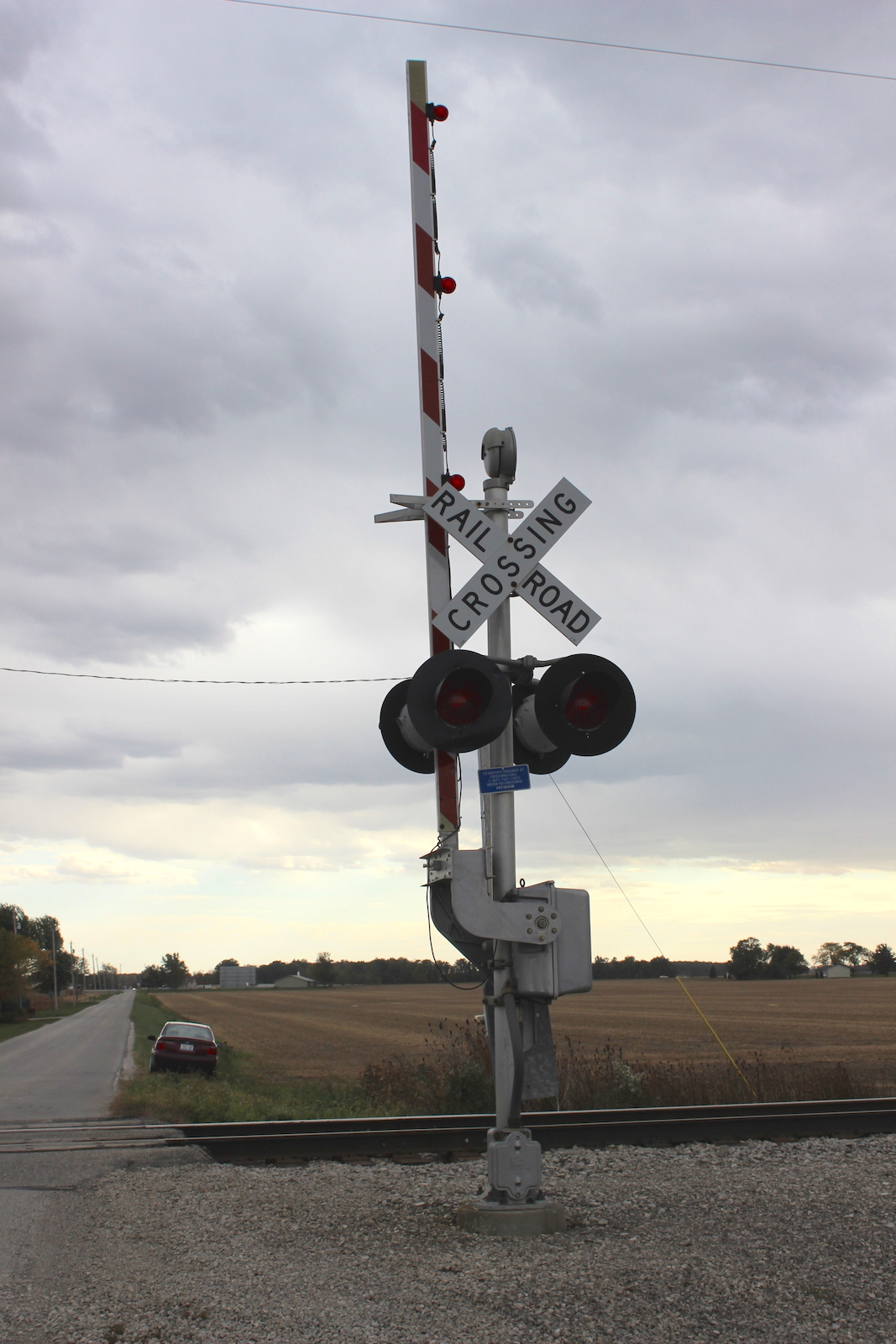

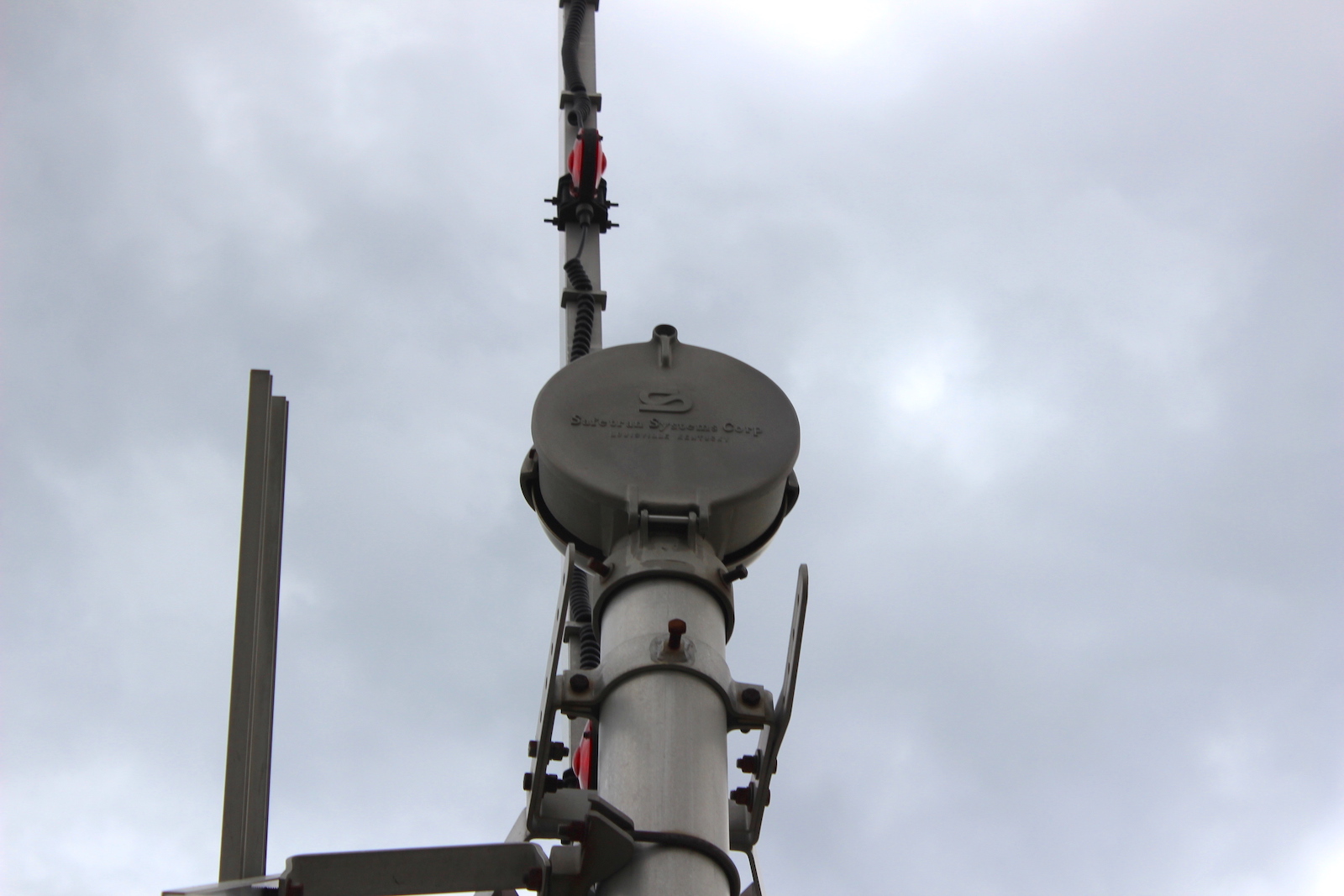

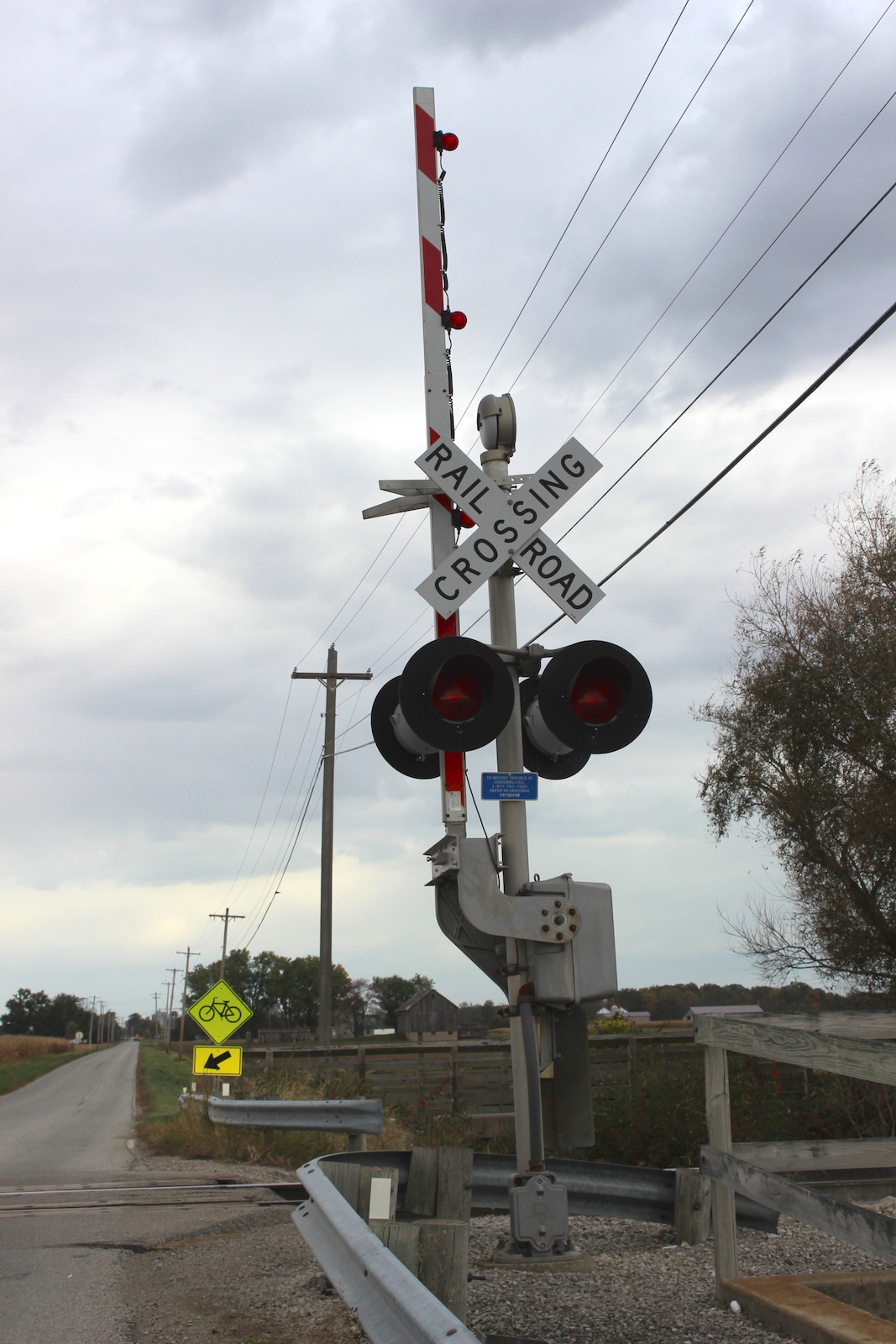

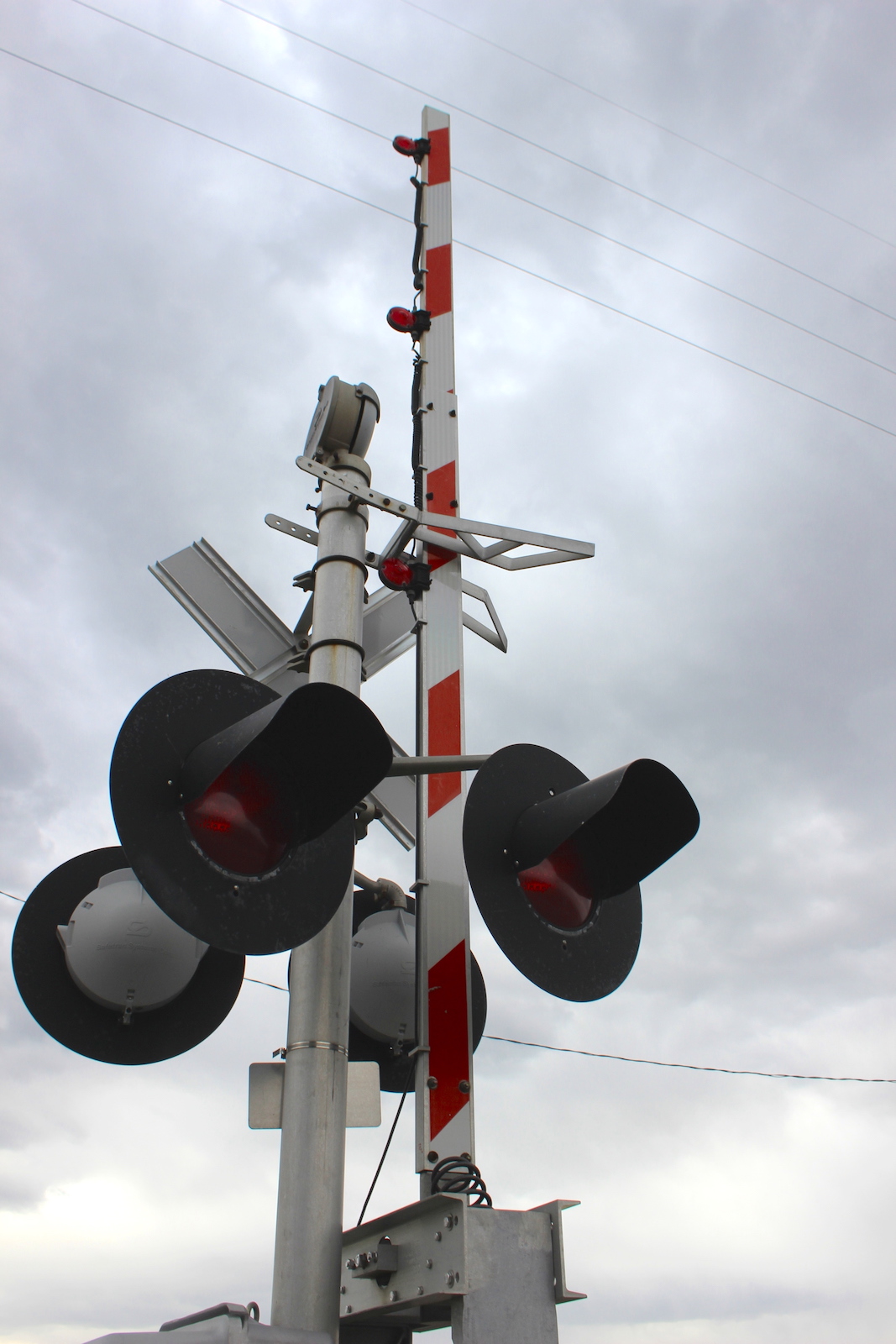

| The southern signal. |
13
| 14
| 15
|
16
| 17
| 18
|
19
| 20
| 21 | 22
|

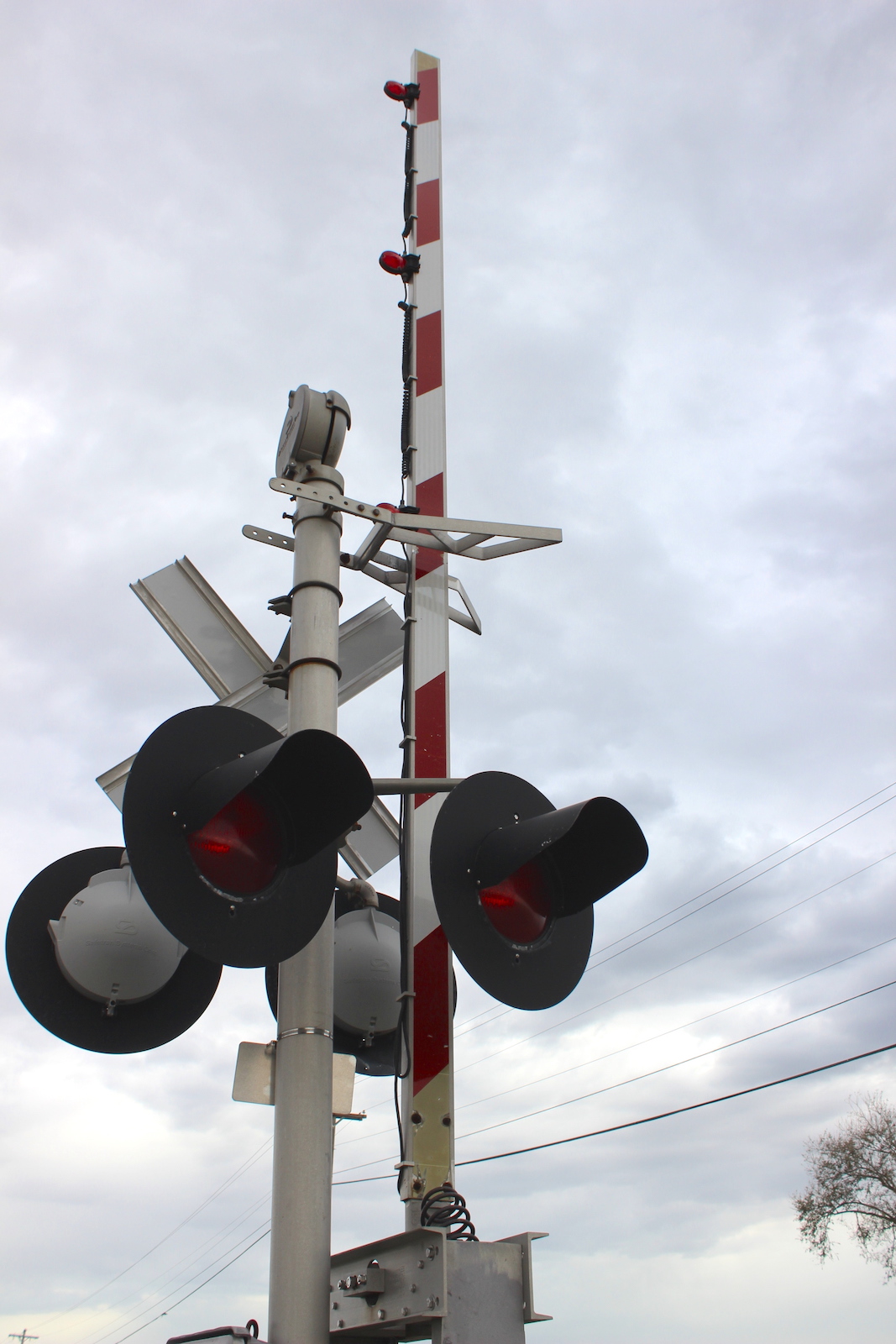

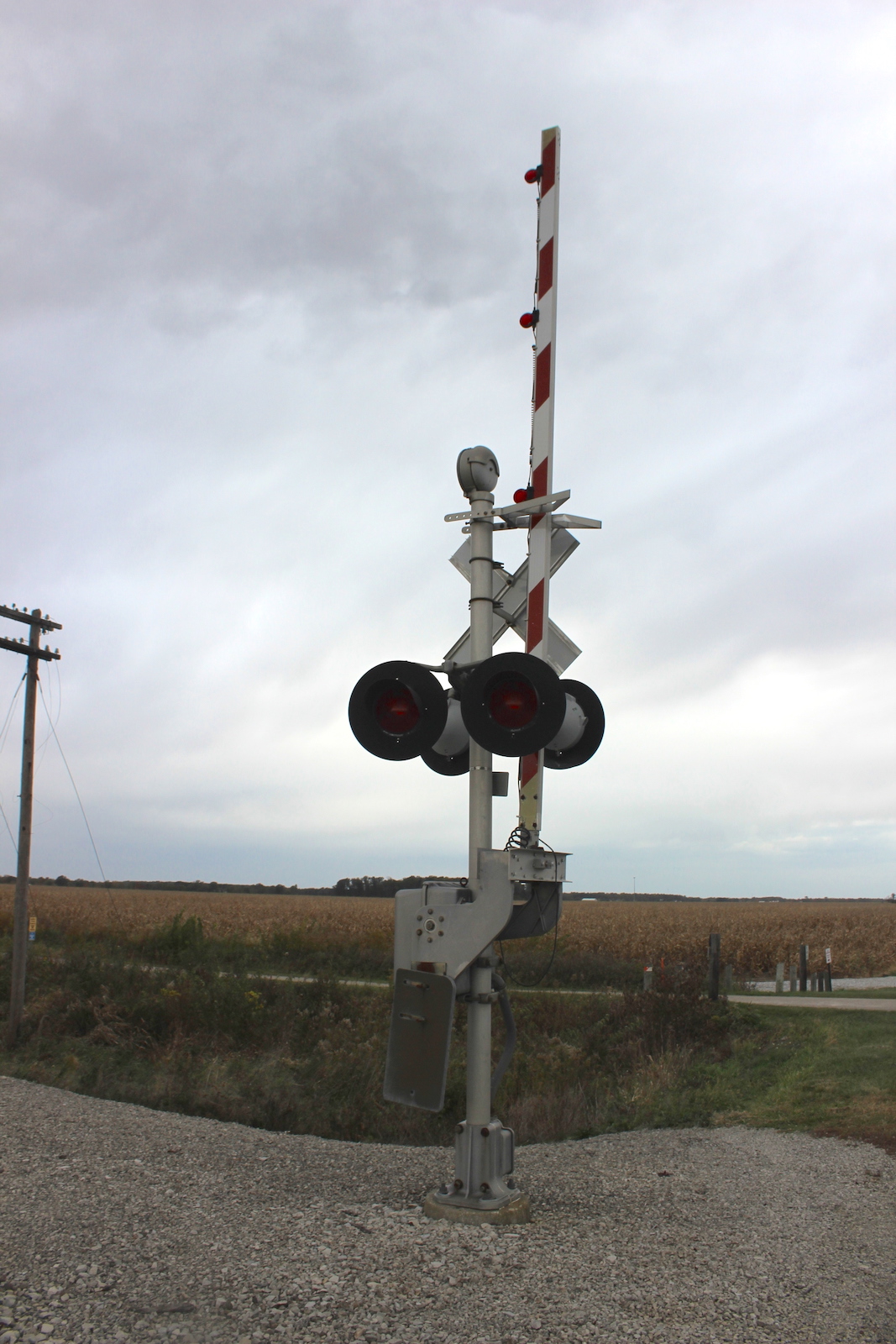

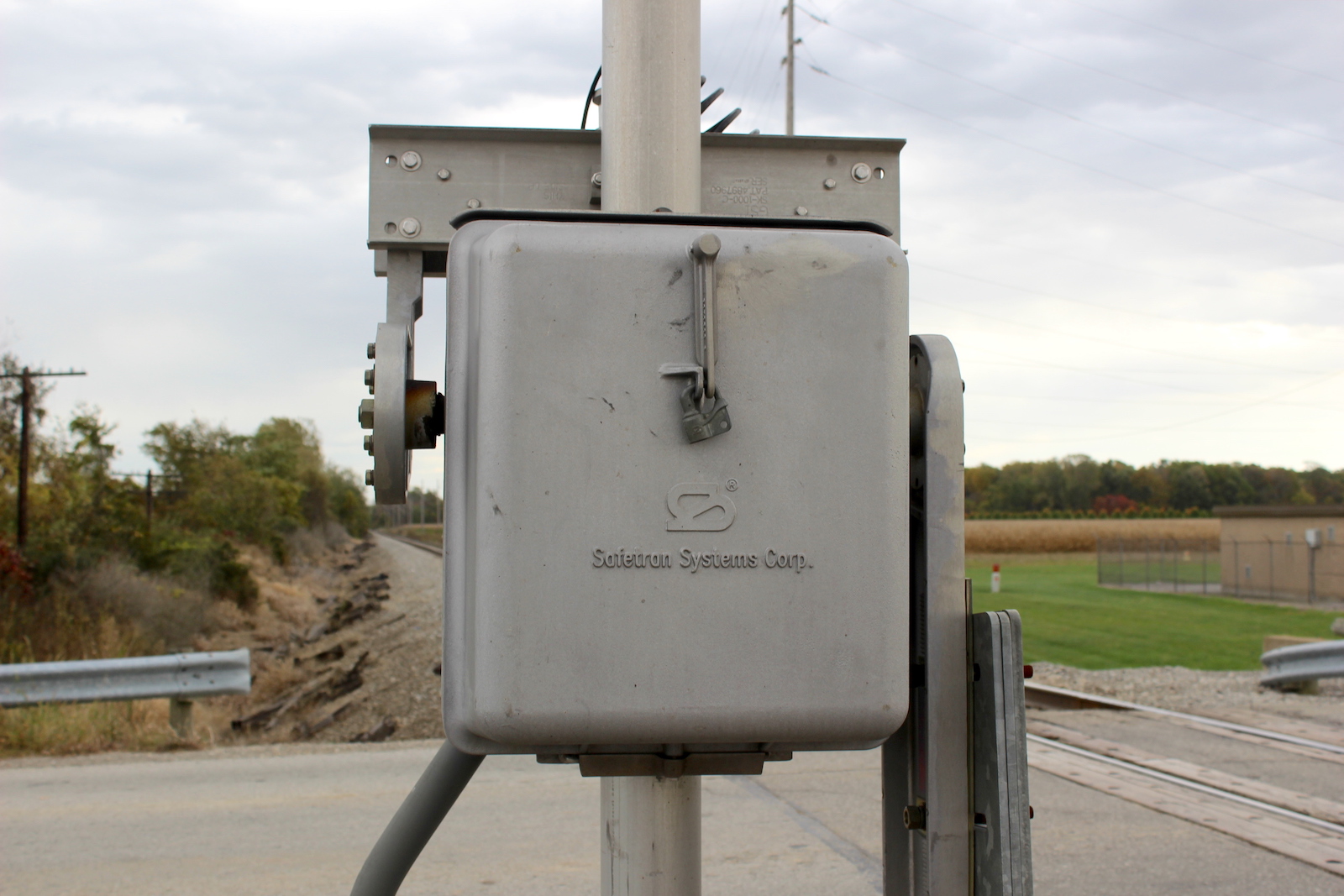

| The northern signal. |
23
|
24
|
25
|
26
|

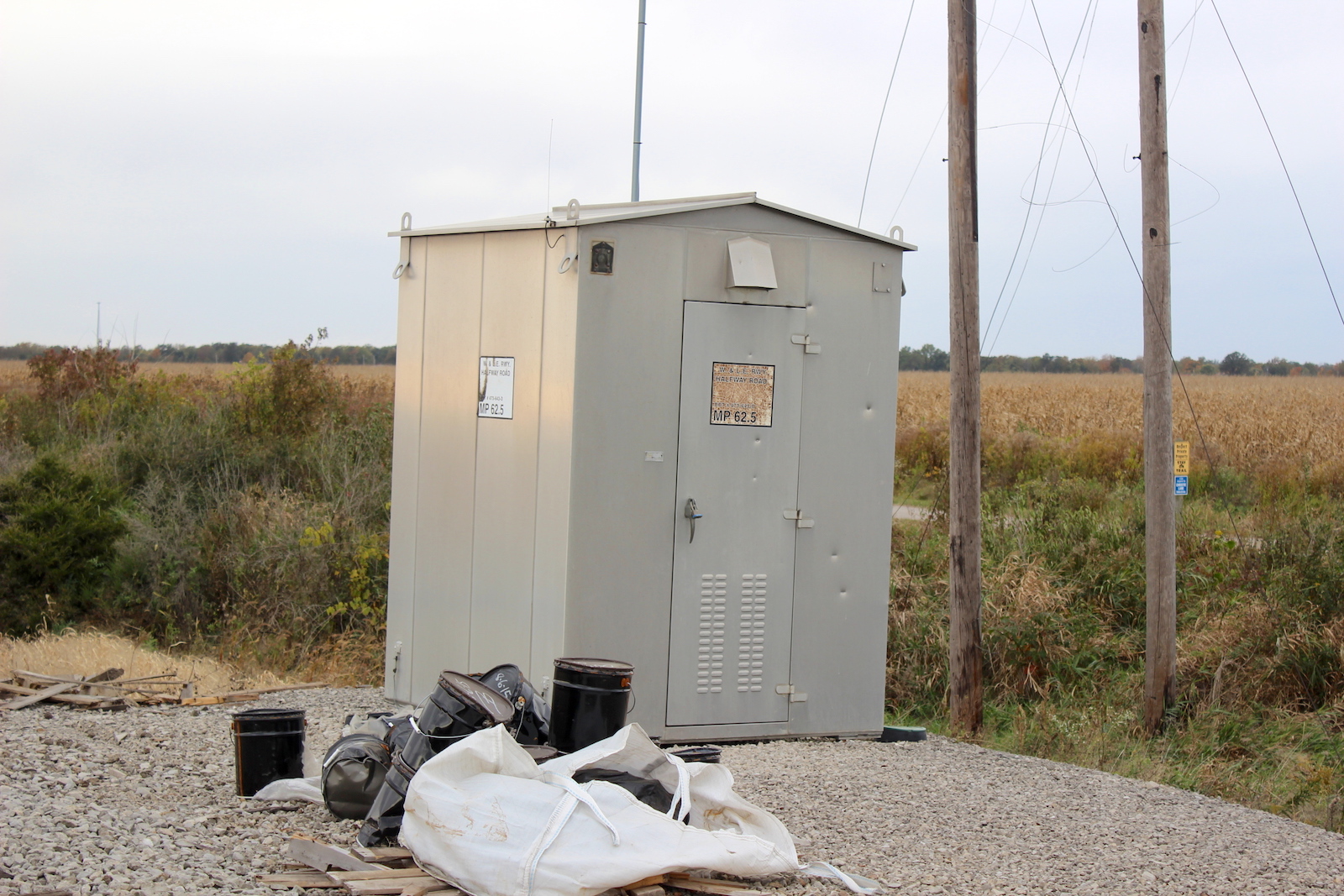

| The relay bungalow in the northwest quadrant. |

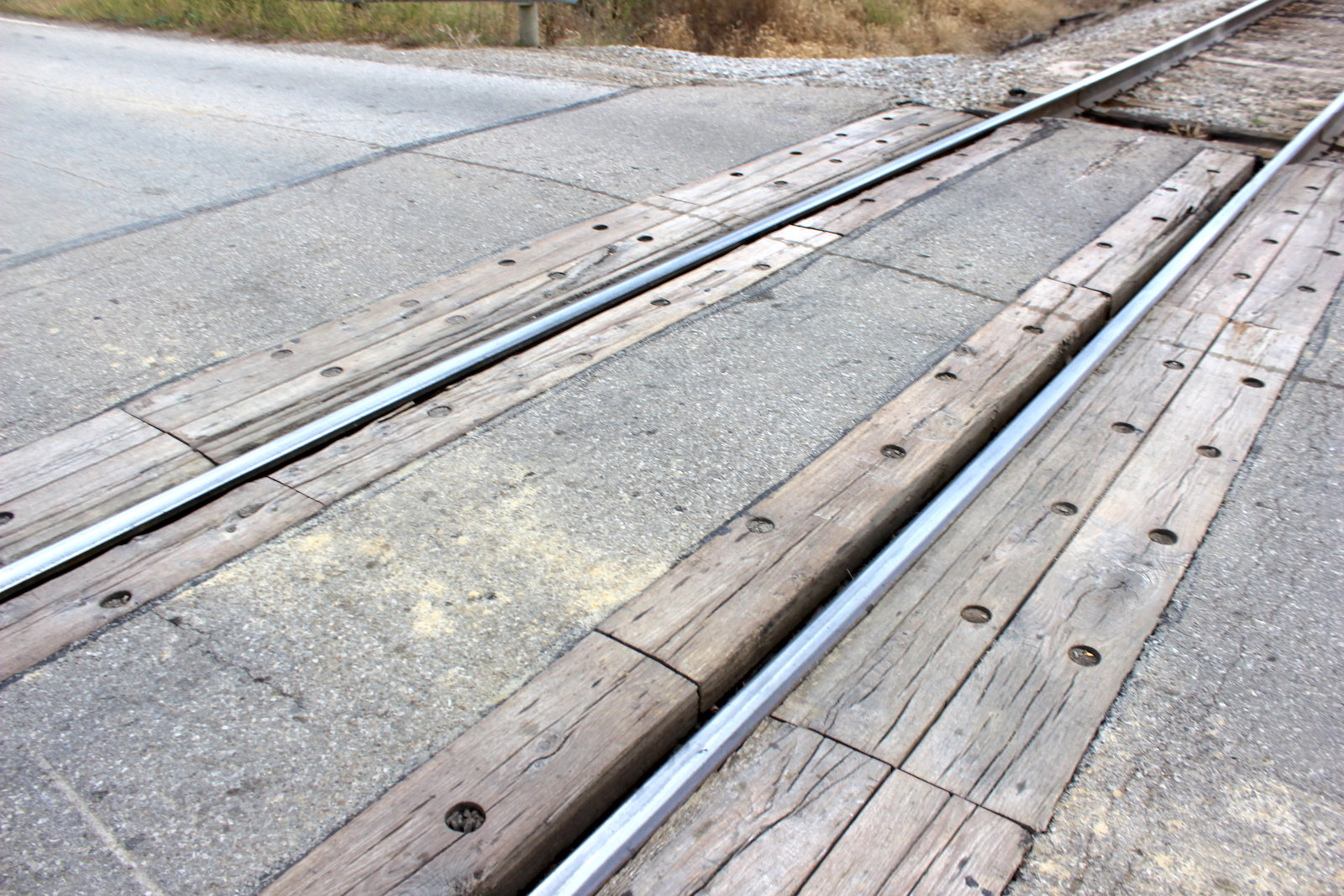

The grade is wood and asphalt. |

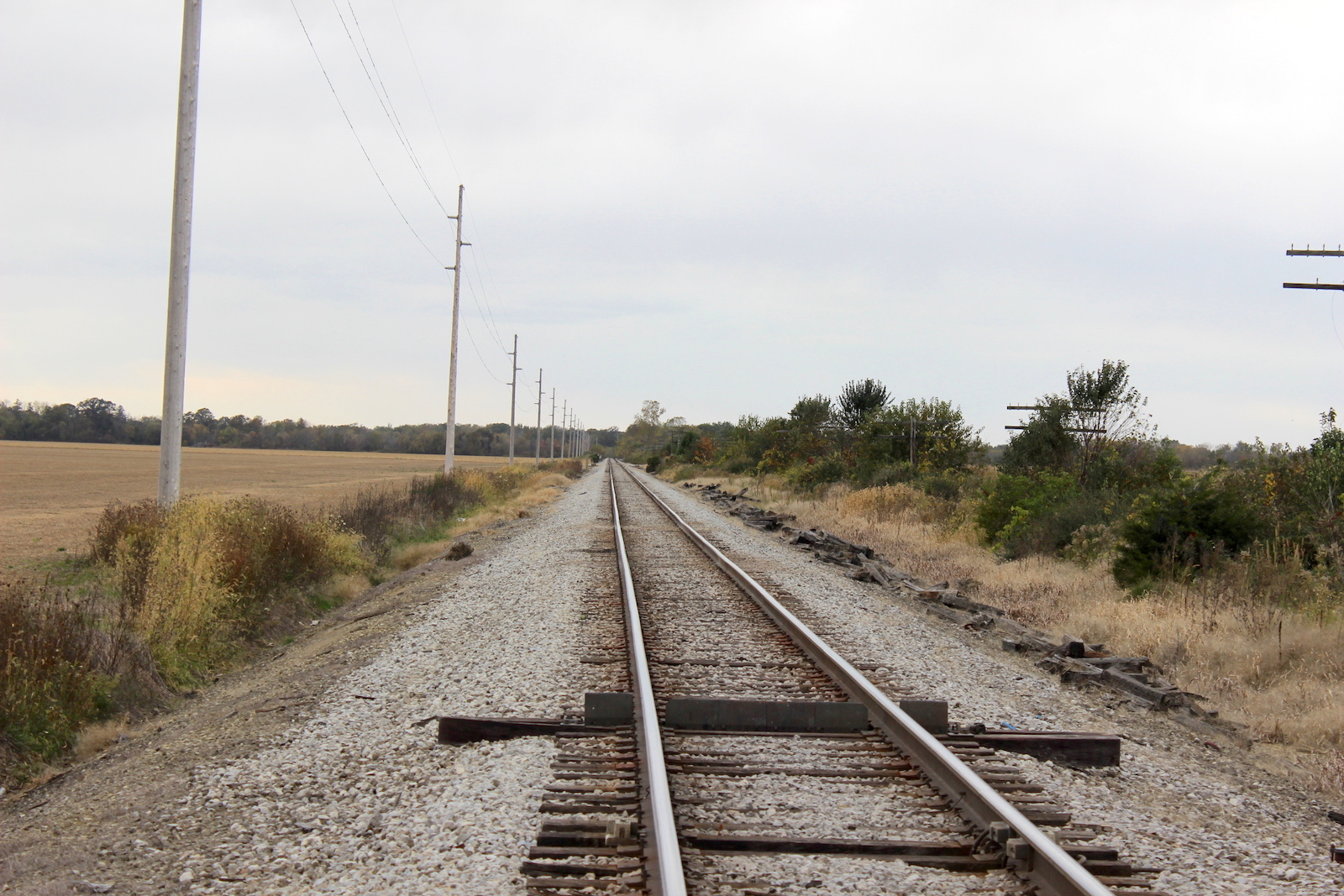

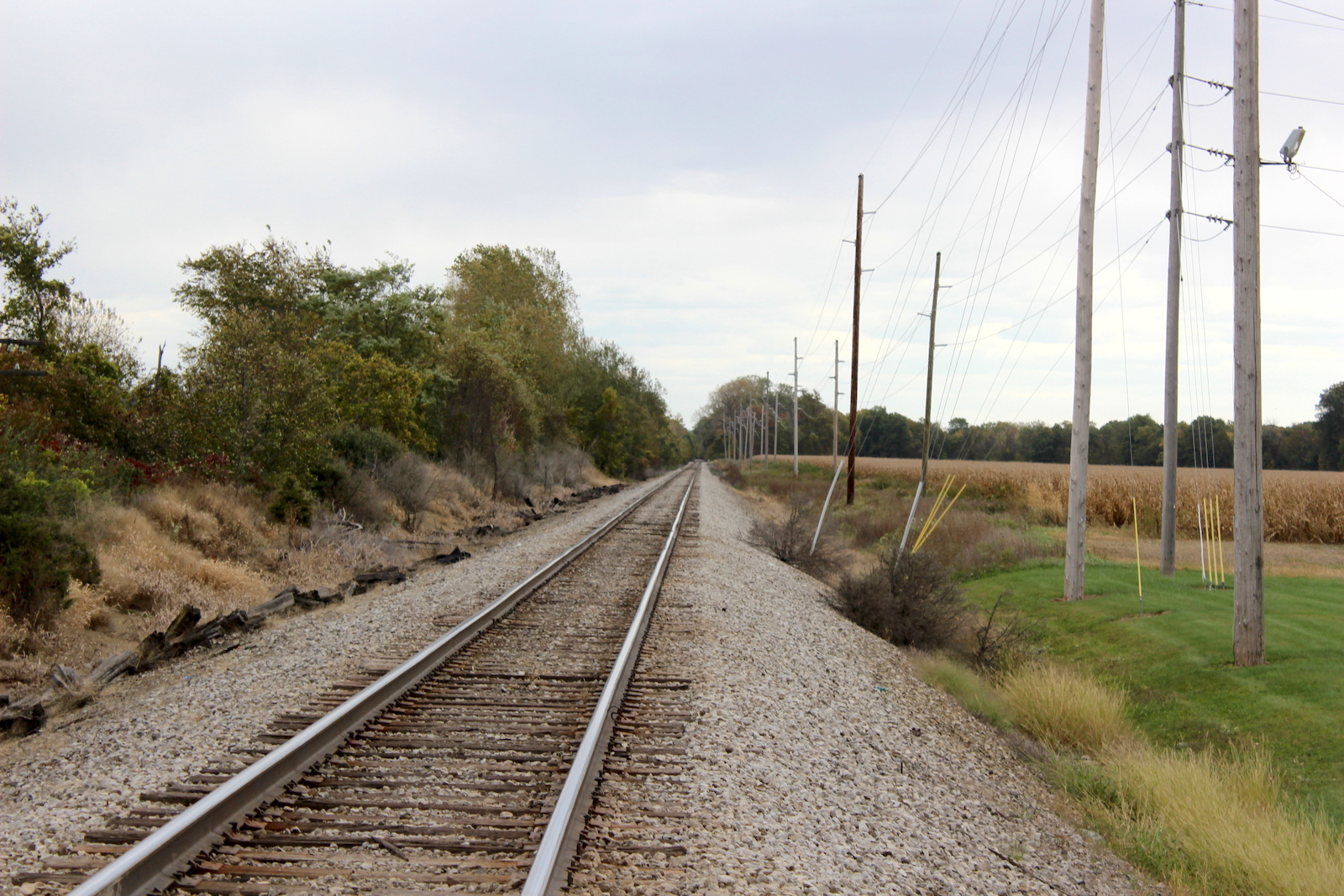

Track view facing east towards West St. in Norwalk. |
Track view facing west towards Main St. |
27
| 28
| 29
| 30
|

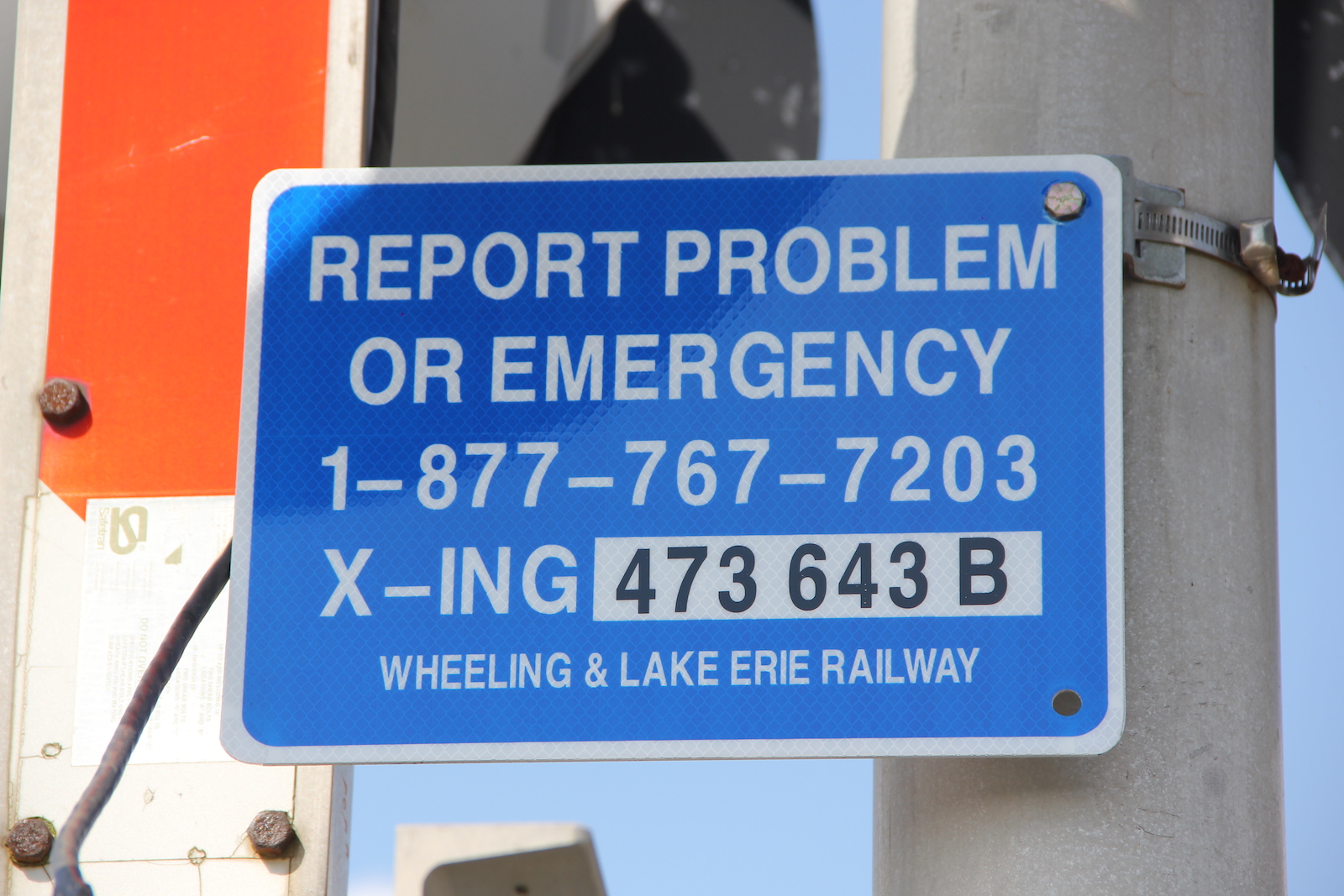

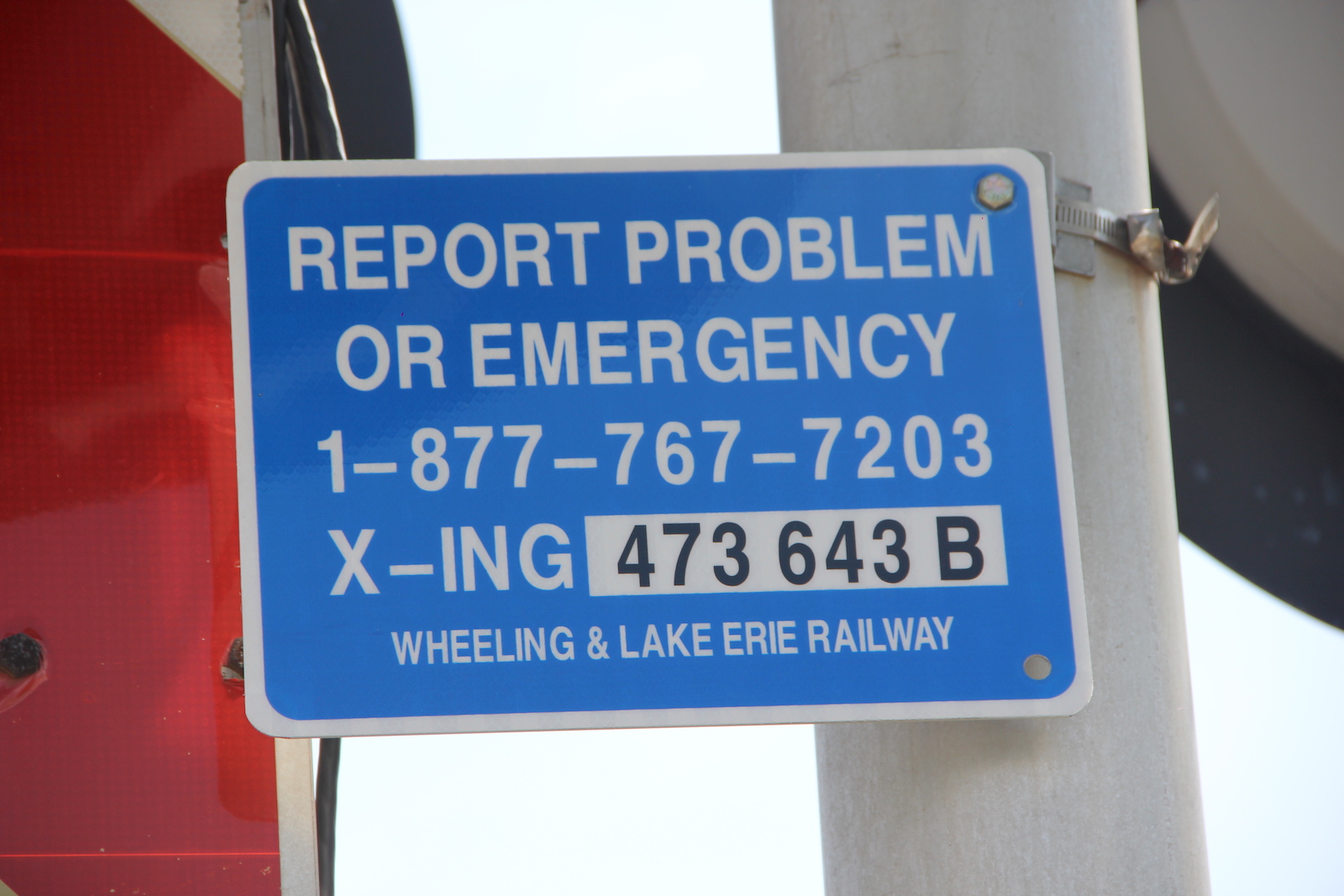

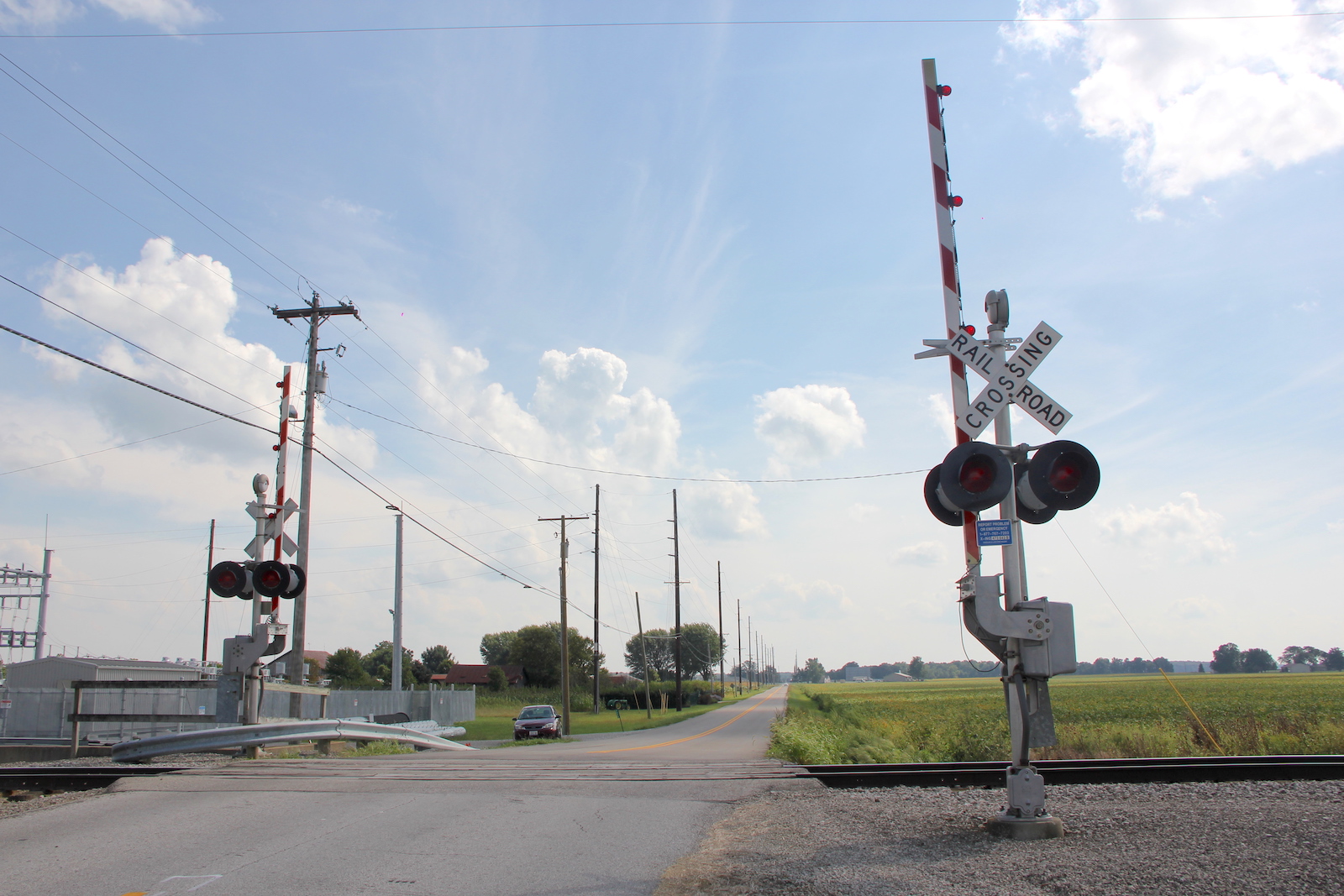

| In September 2017, we see the DOT signs were replaced. |
