Western Signal
Eastern Signal
GS Type 2 E Bell

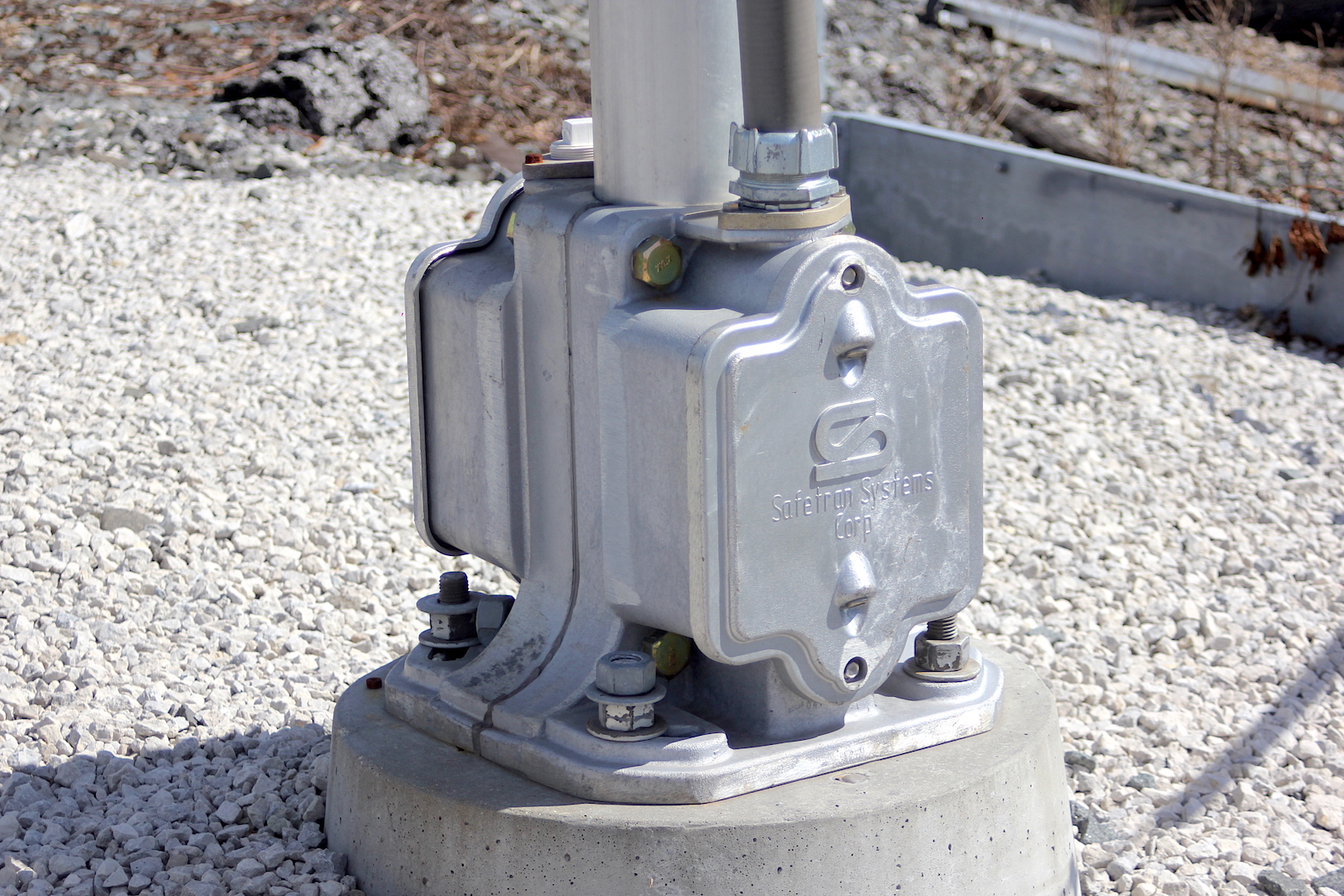

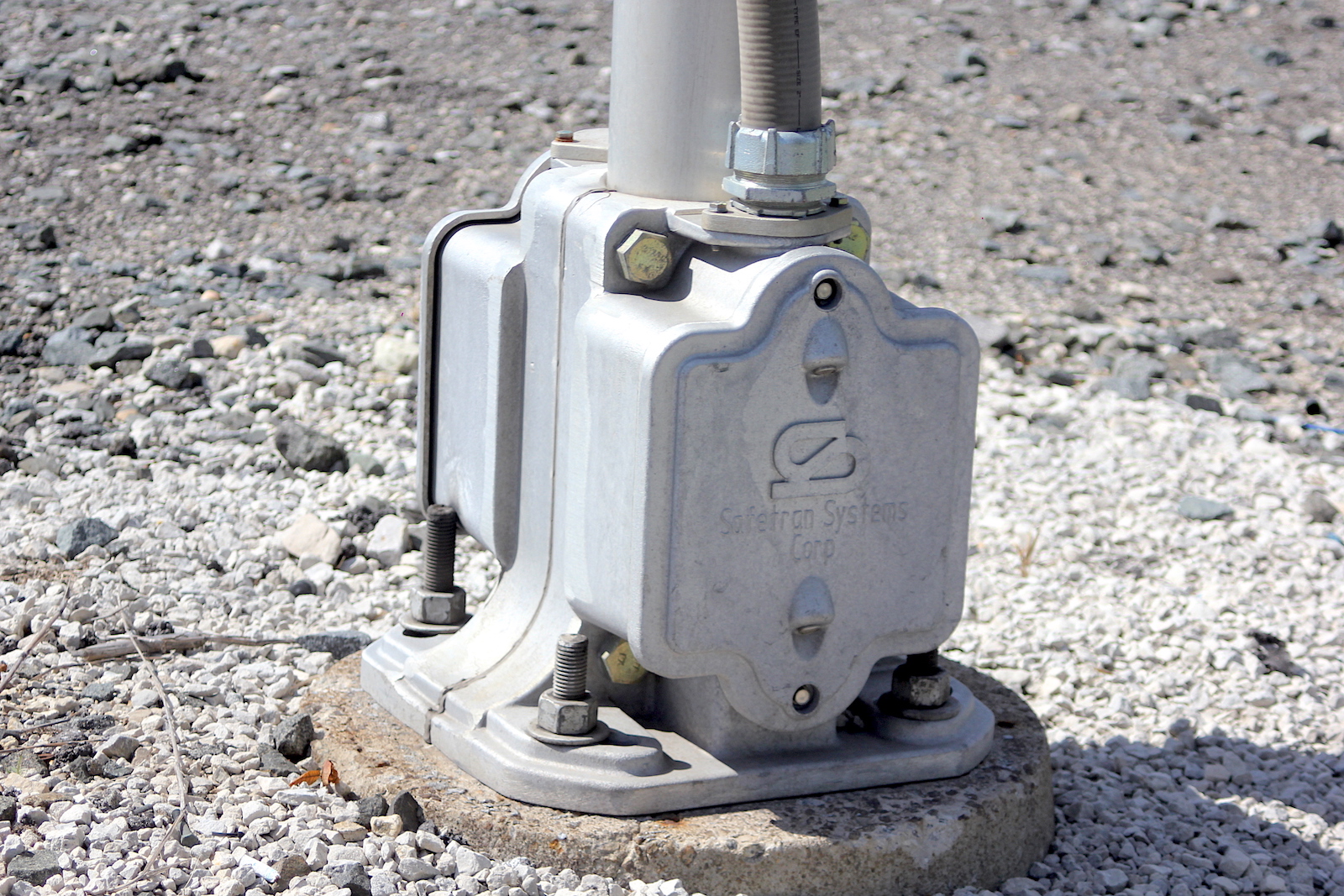

Base: Safetran
Main Lights: 2 pairs of 12"x20" Safetran incandescents
2 pairs of 12"x20" Safetran incandescents

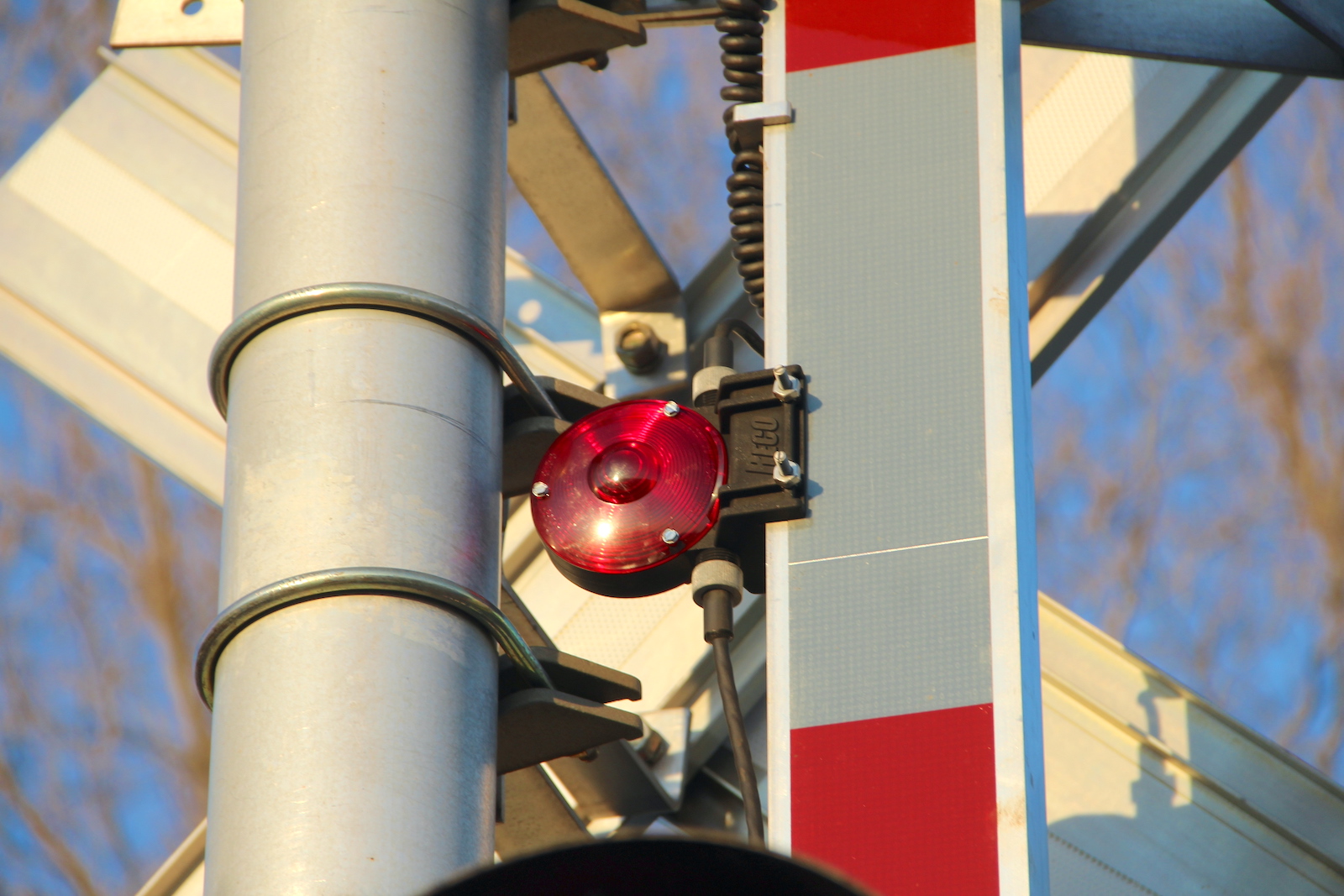

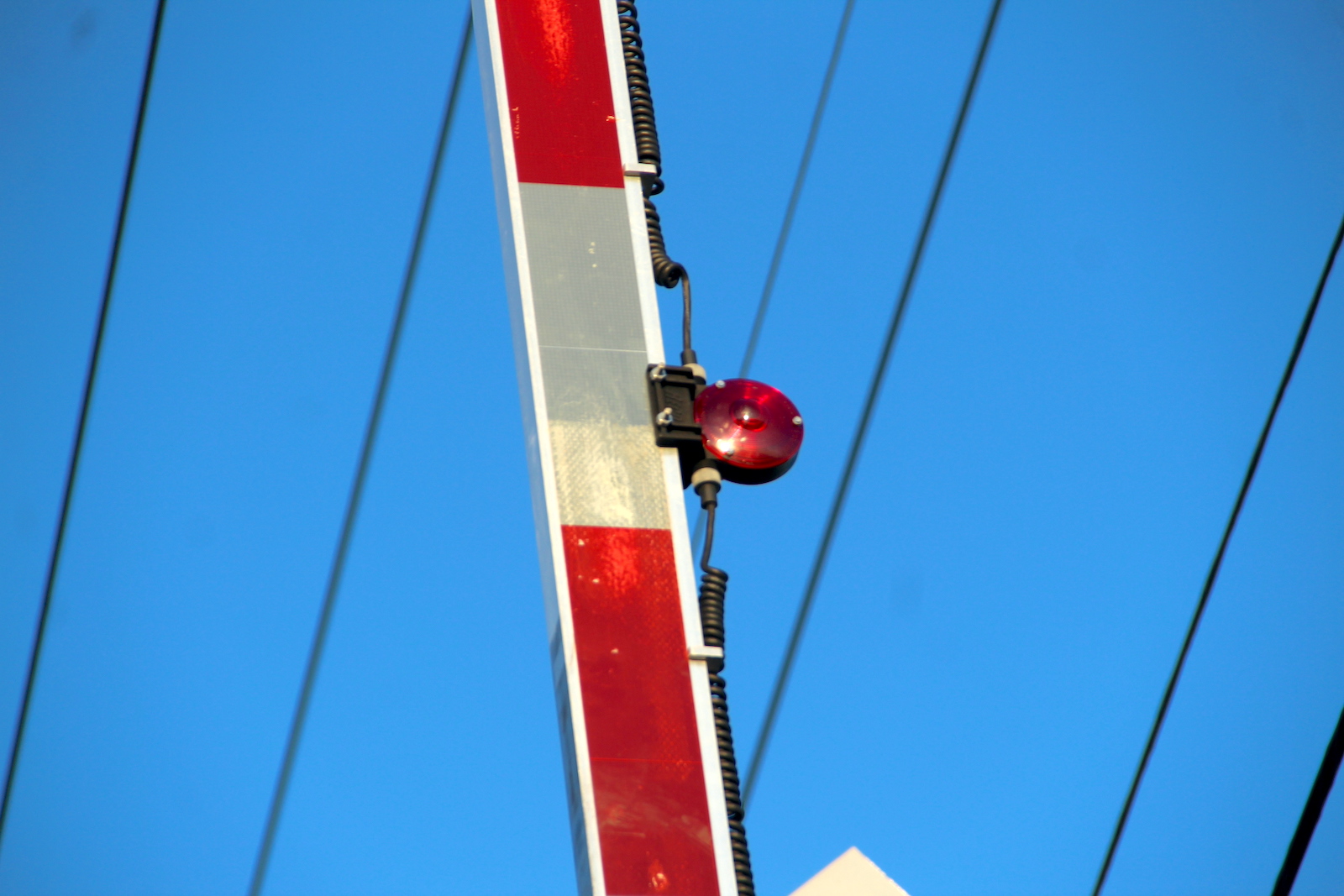

Gate Lights: 4" NEG incandescents
4" NEG incandescents
Gate Mechanism: Invensys Rail
Invensys Rail
Gate Striping: /////////////////////////////////////////////// ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Crossbuck font
Normal font
Normal font
Bell Cycle: N/A
Rings only while the gates are lowering (sort of)

All pictures and the video were taken on September 15, 2016, by Tommy McGowan.
This crossing is located on the NS Chicago Line.

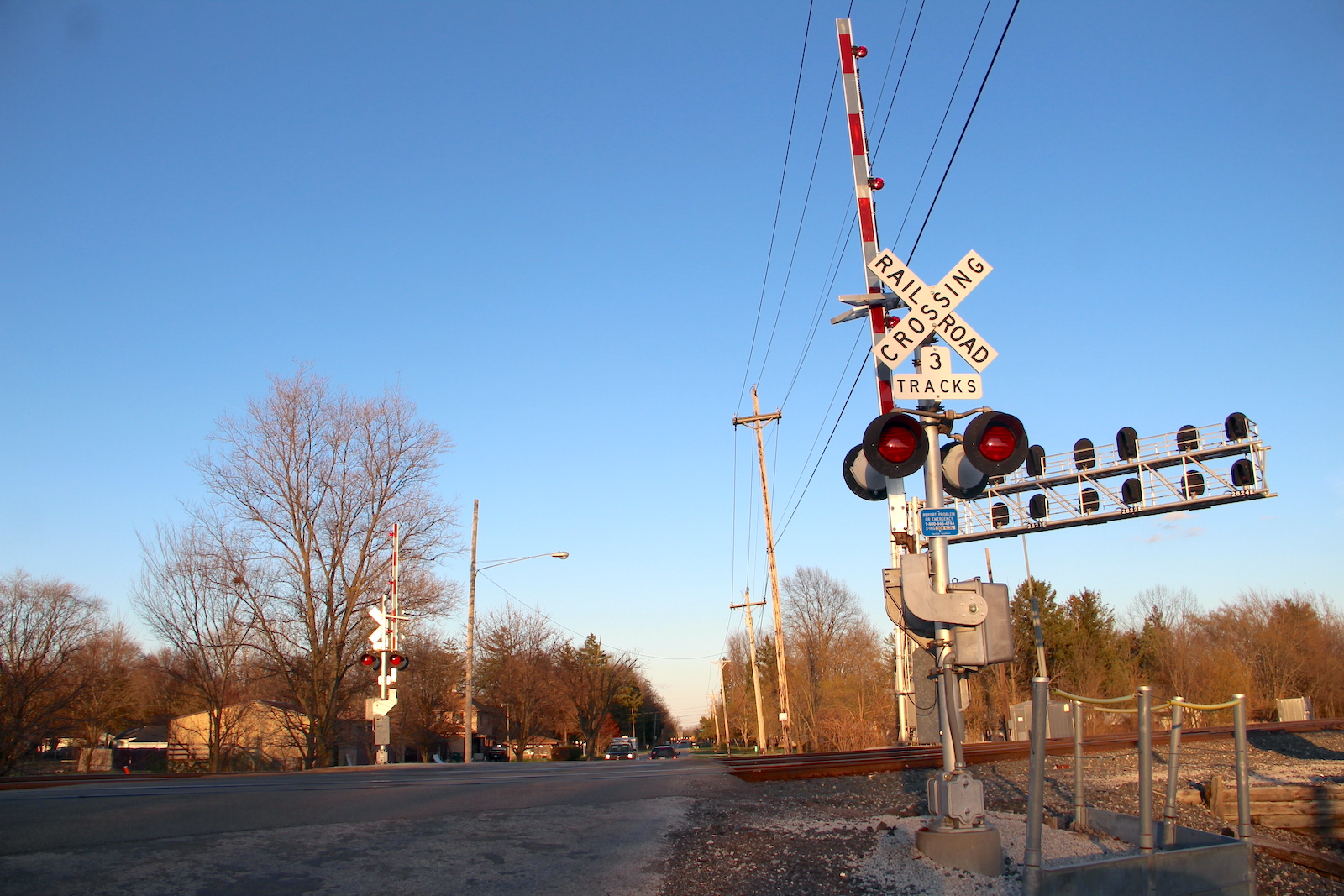

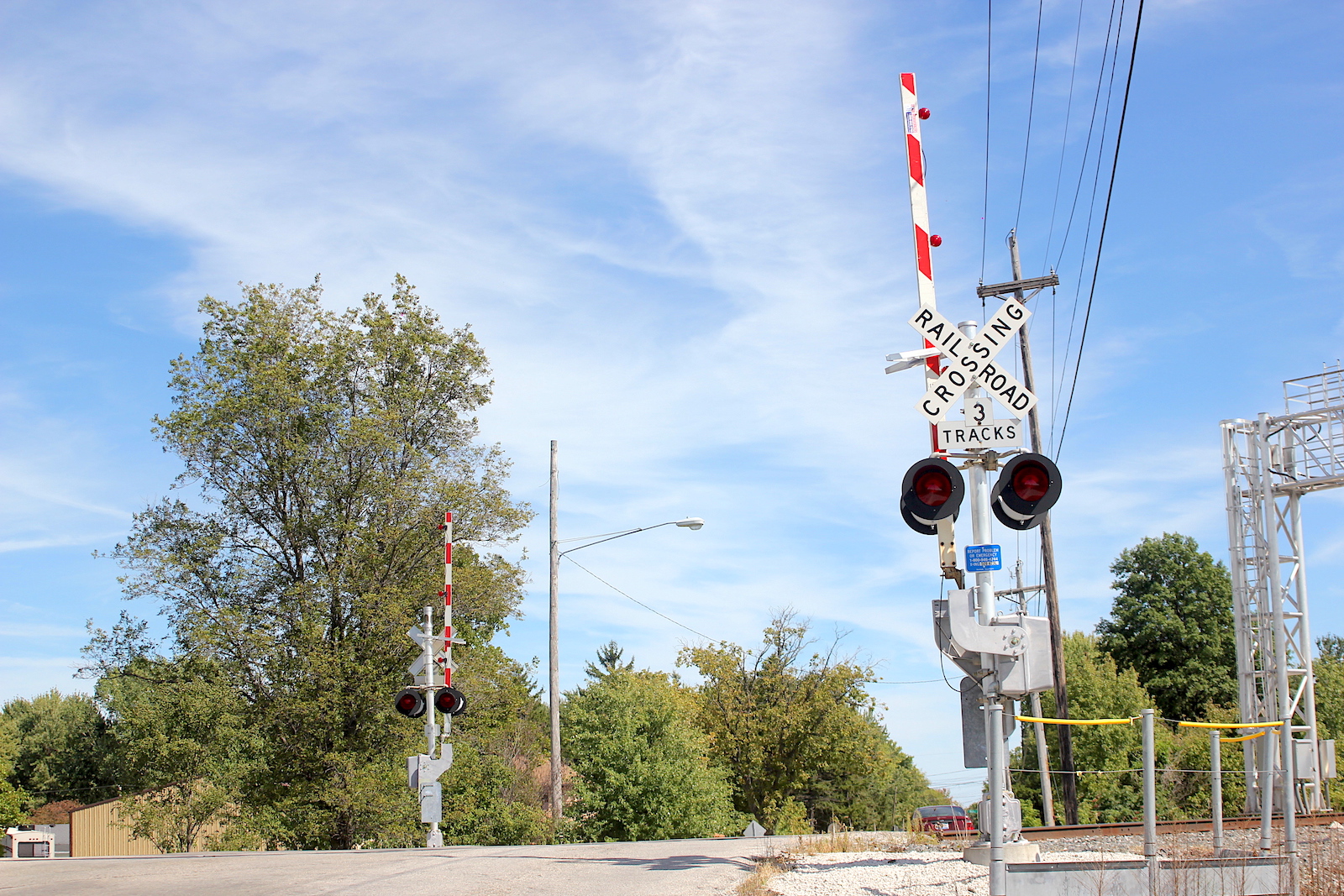

Overview of 2 gated signals facing east.

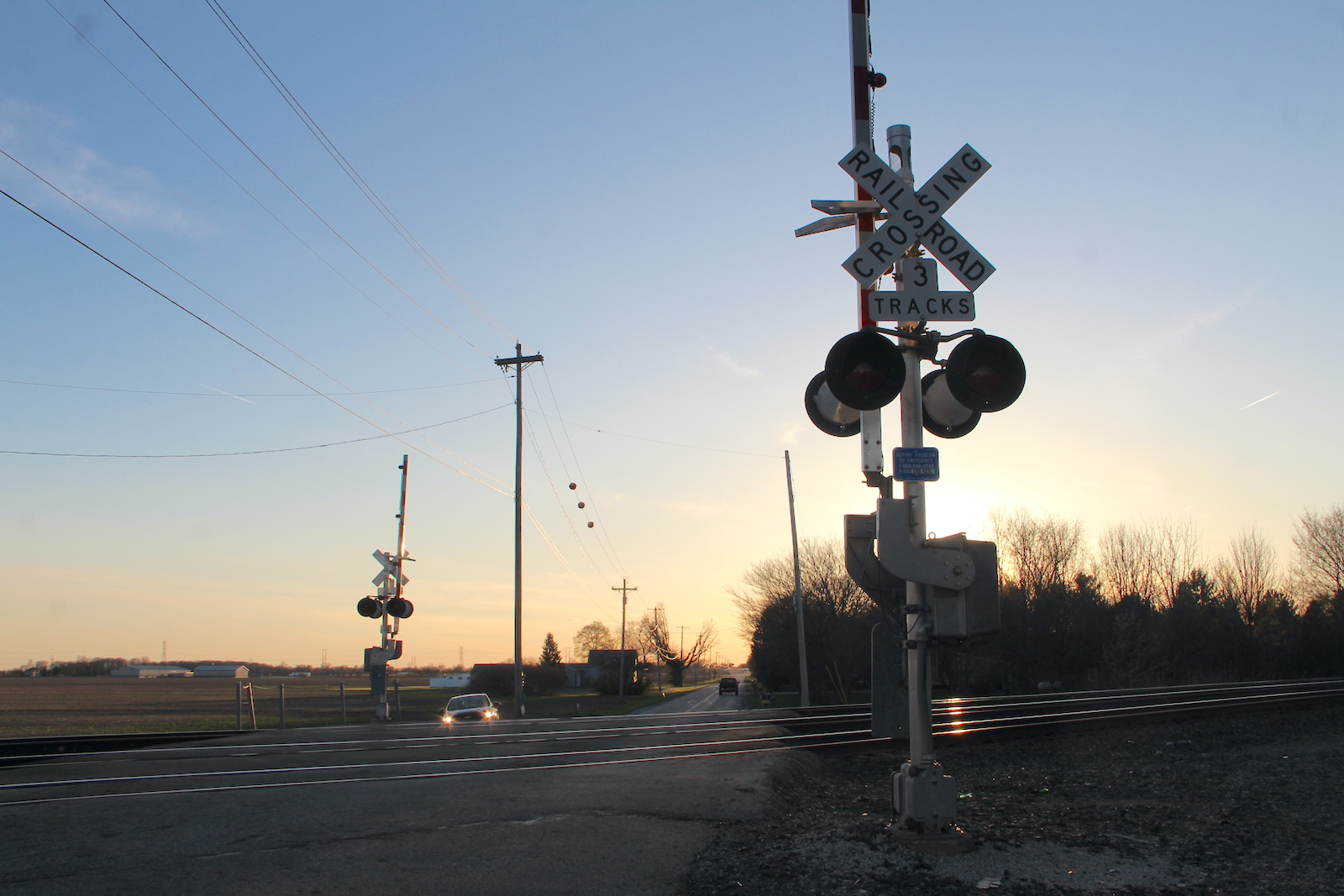

Overview facing west.
3 4 5
6 7 8
9 10 11

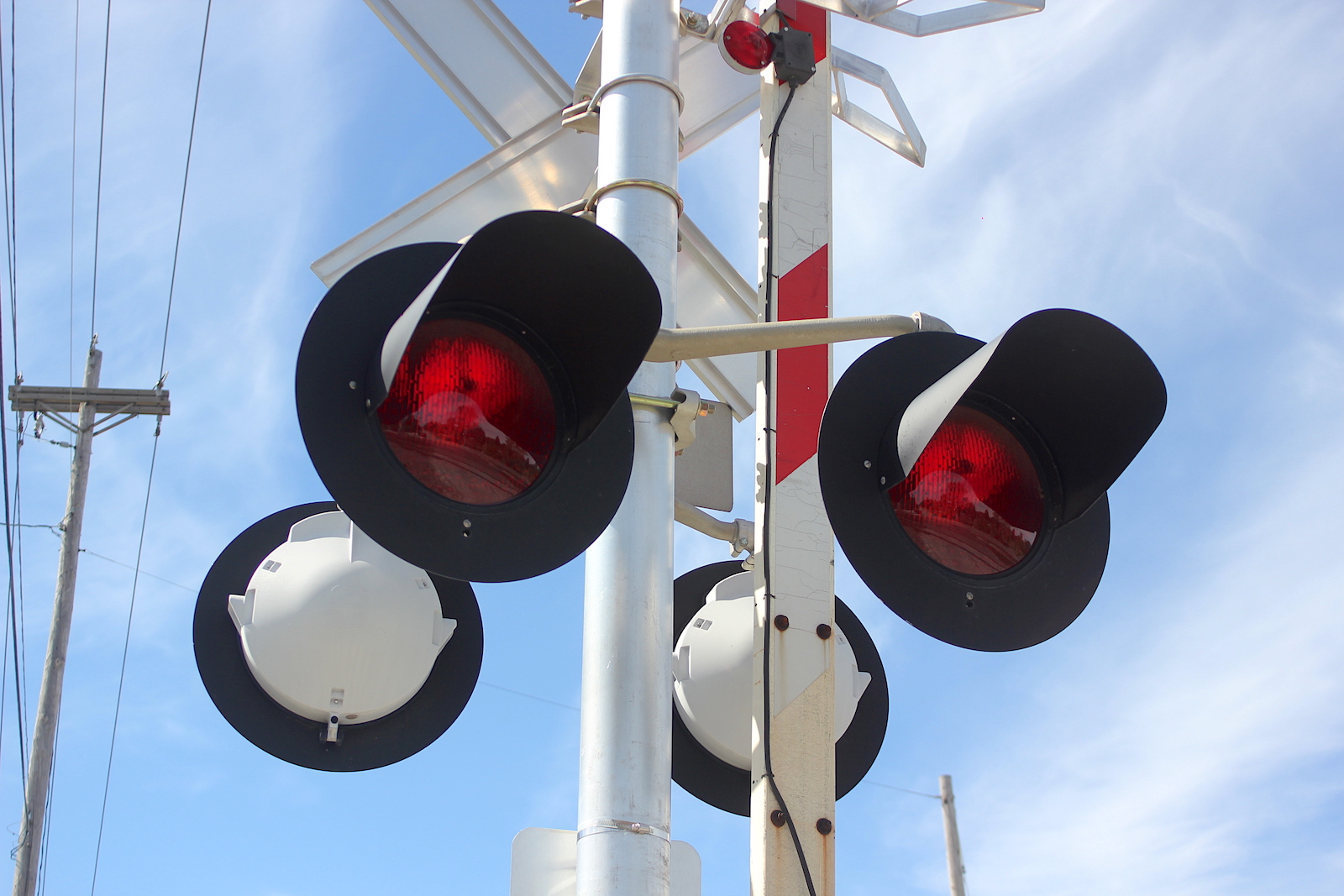

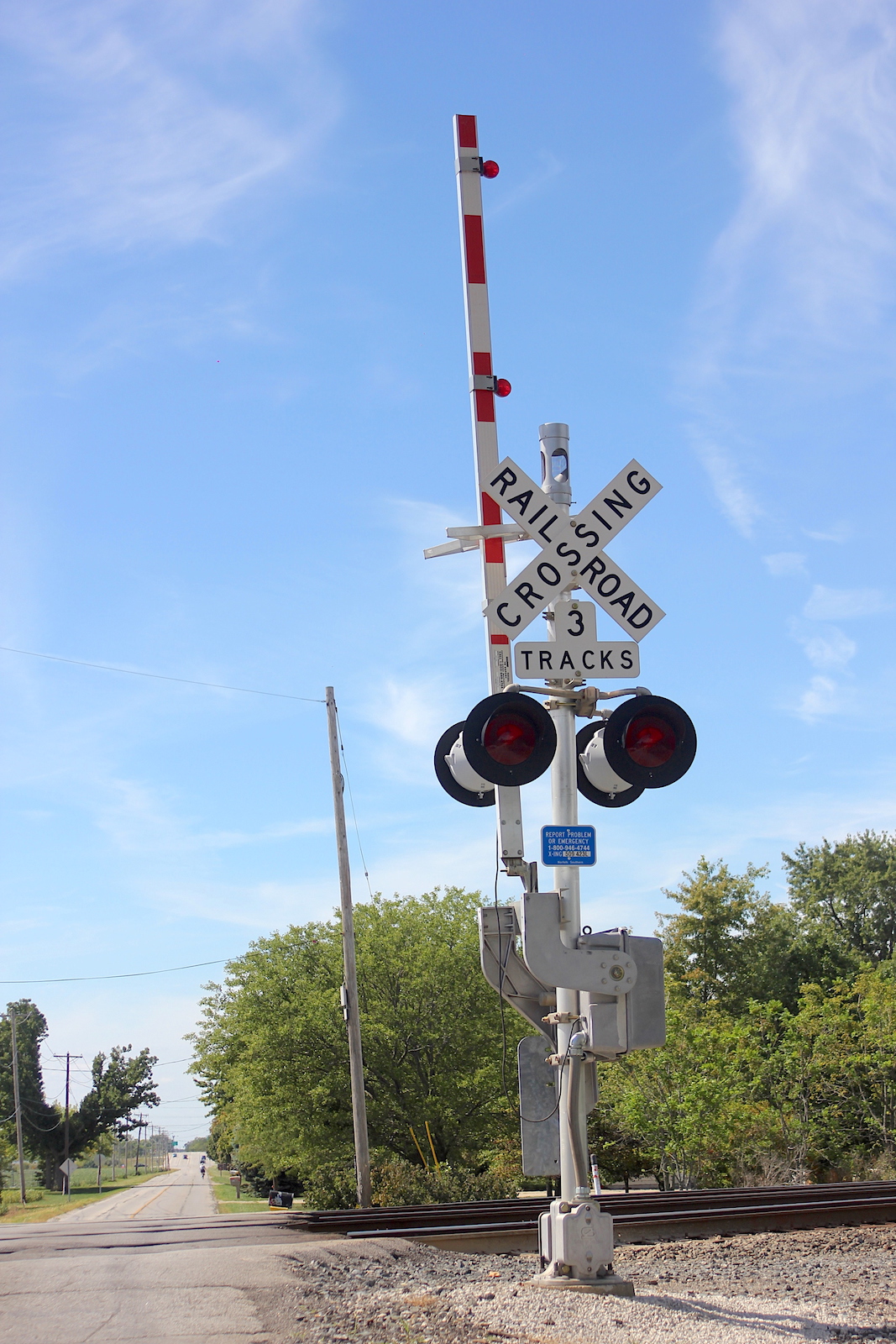

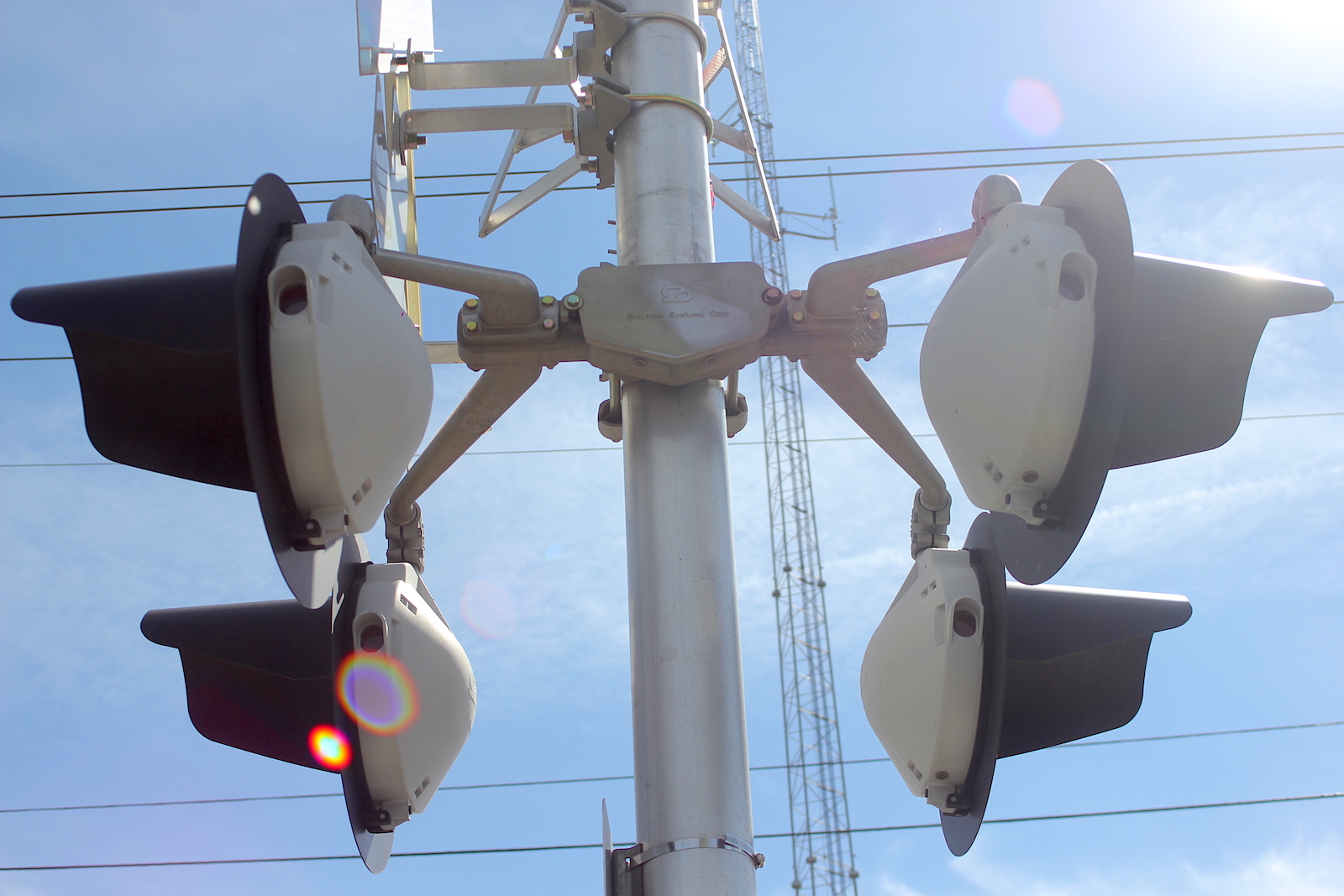

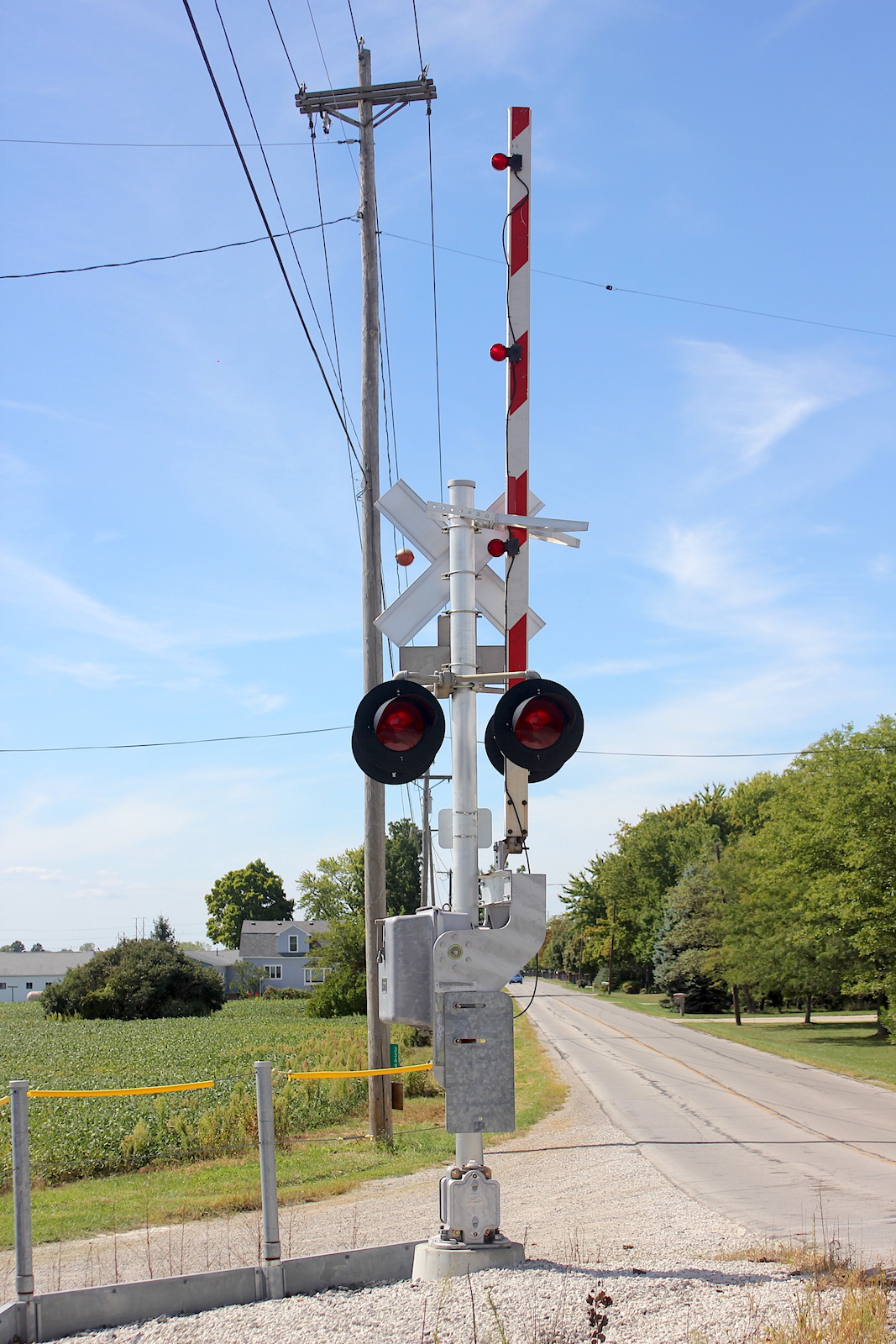

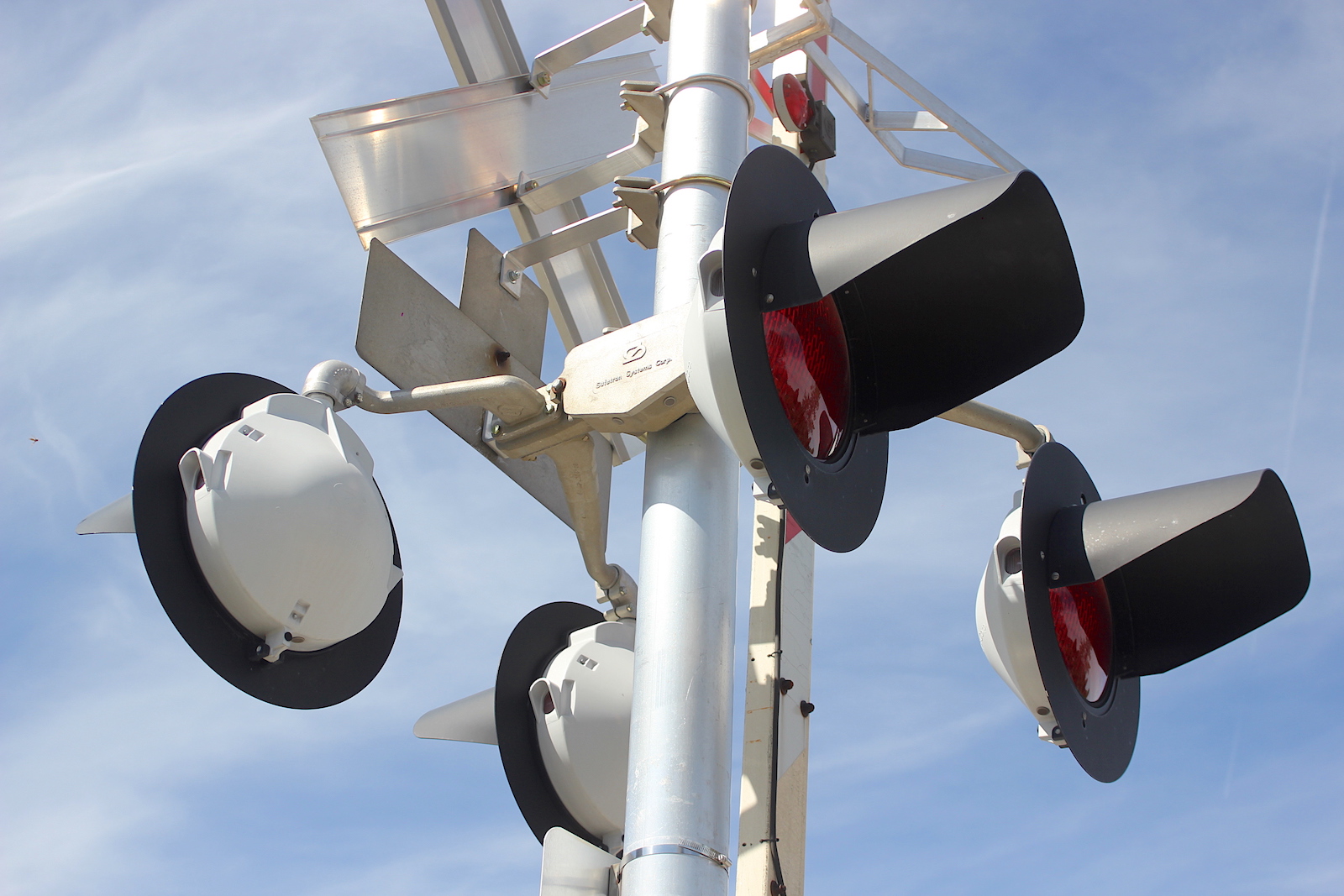

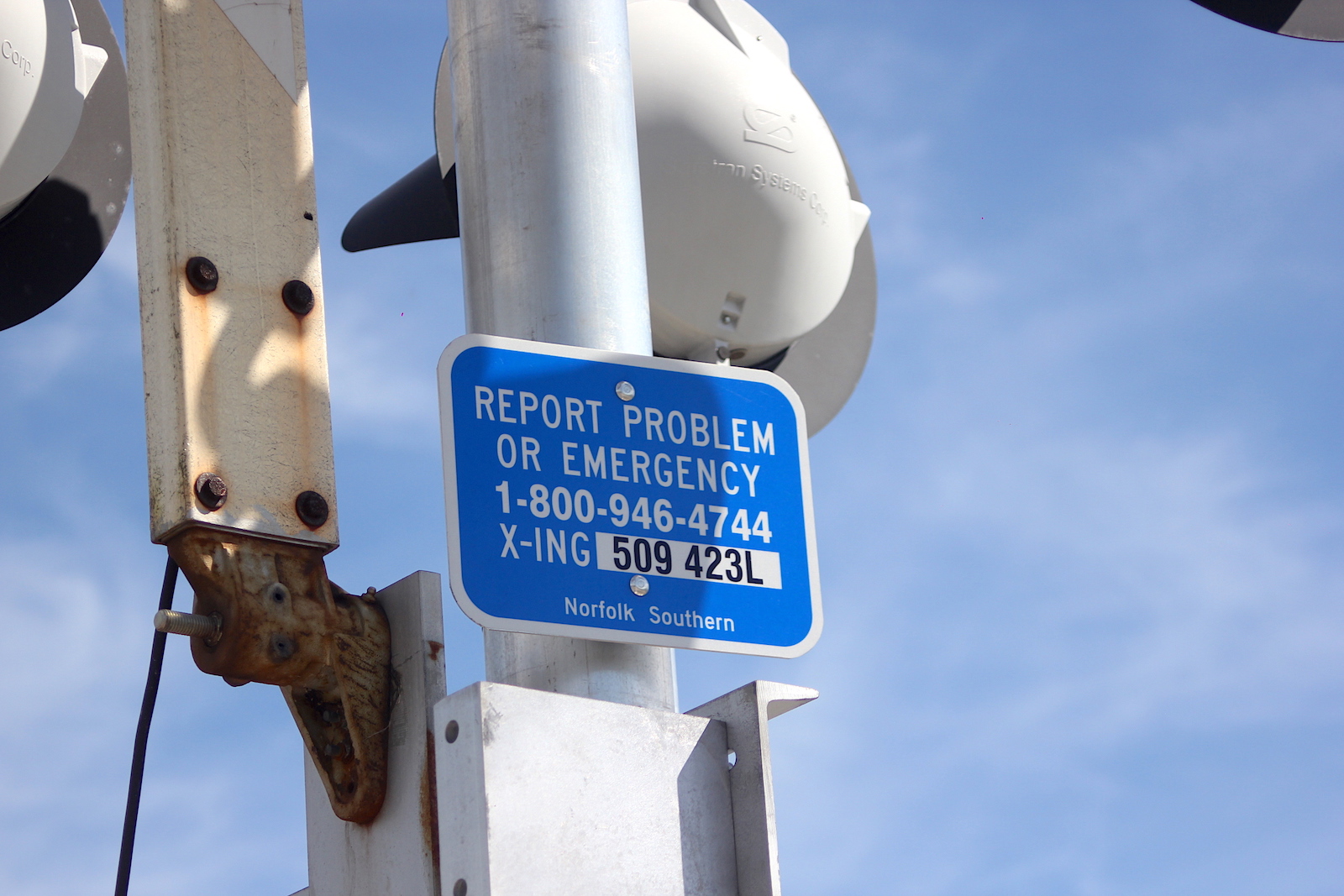

The western signal.
12 13 14
15 16 17
18 19 20

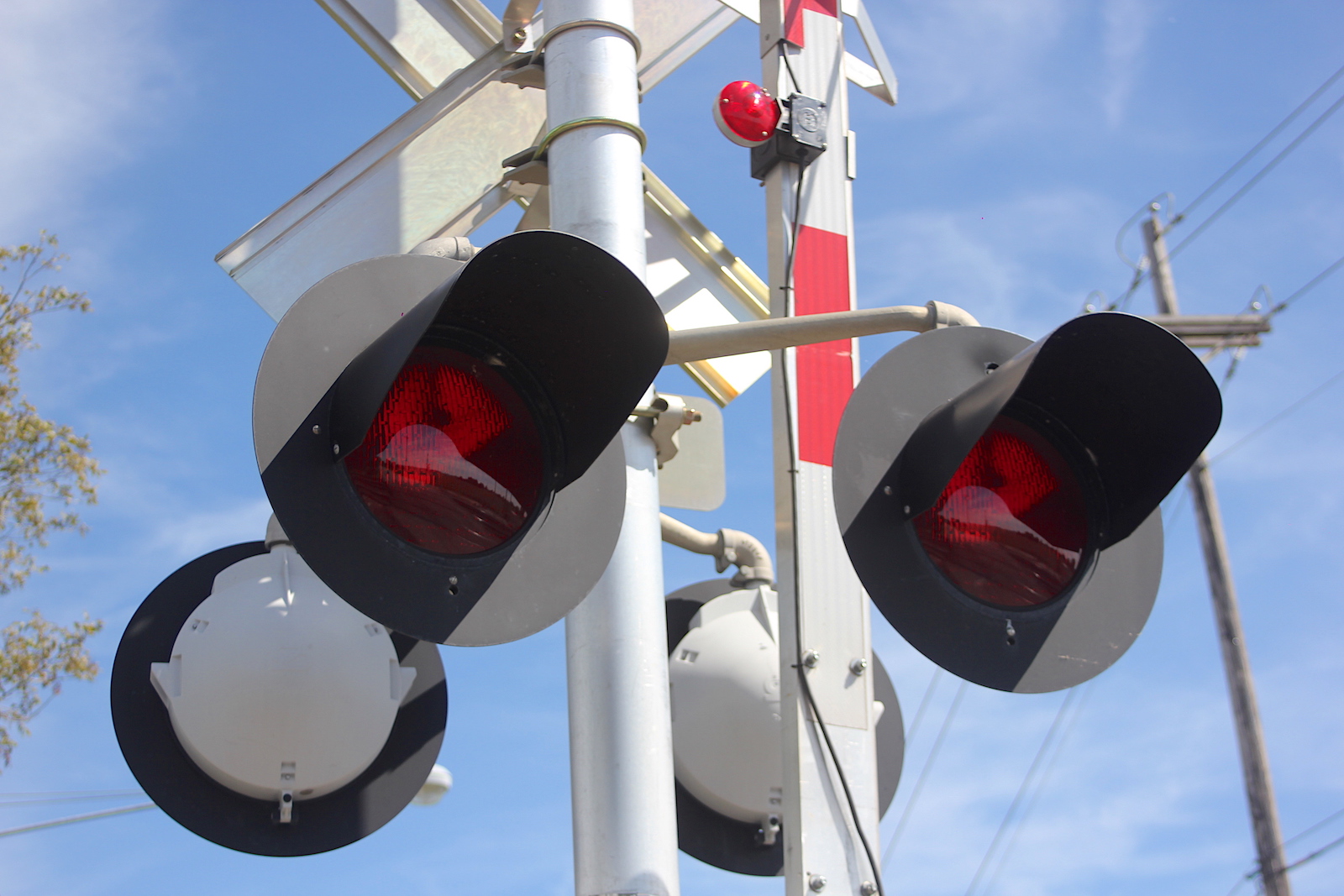

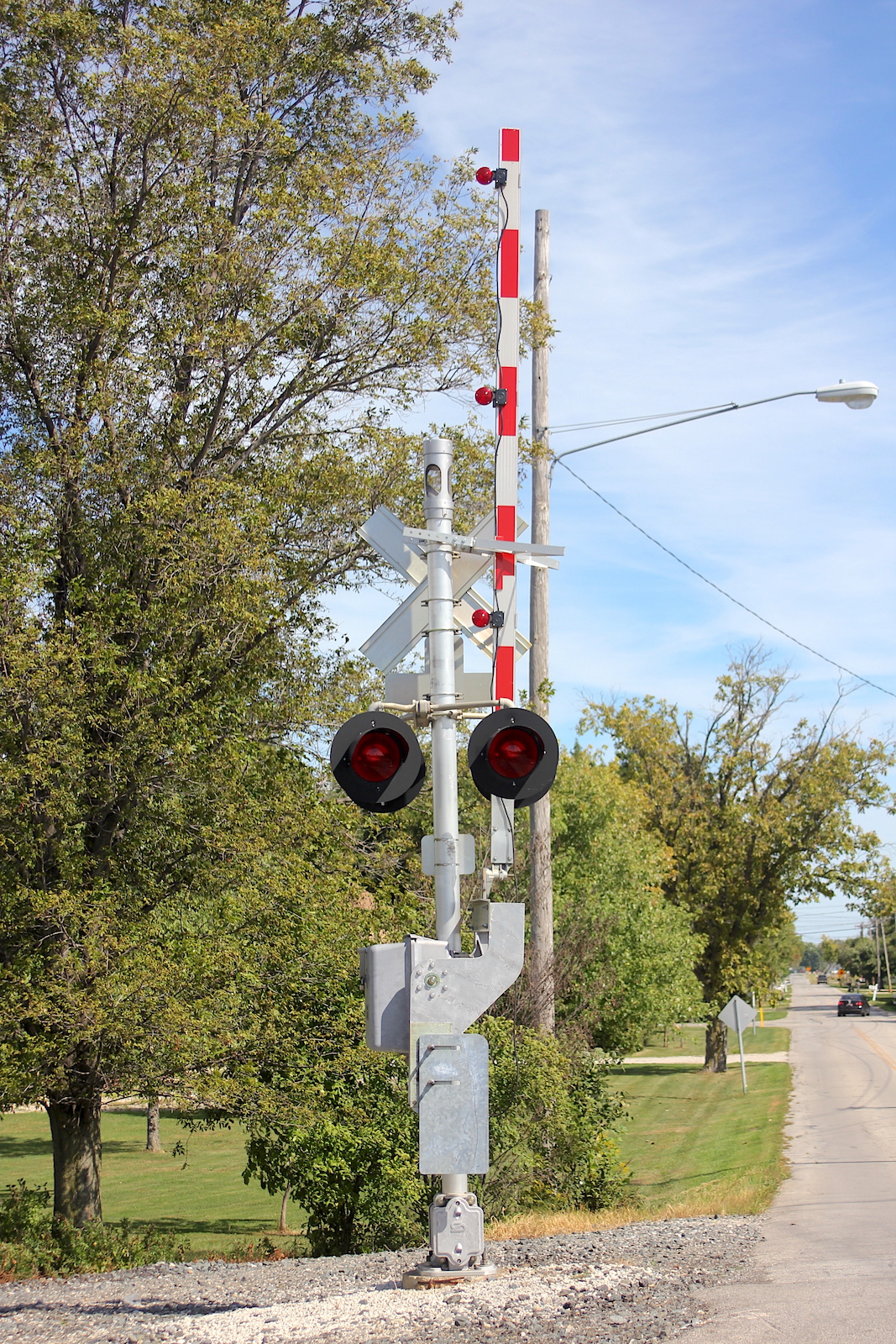

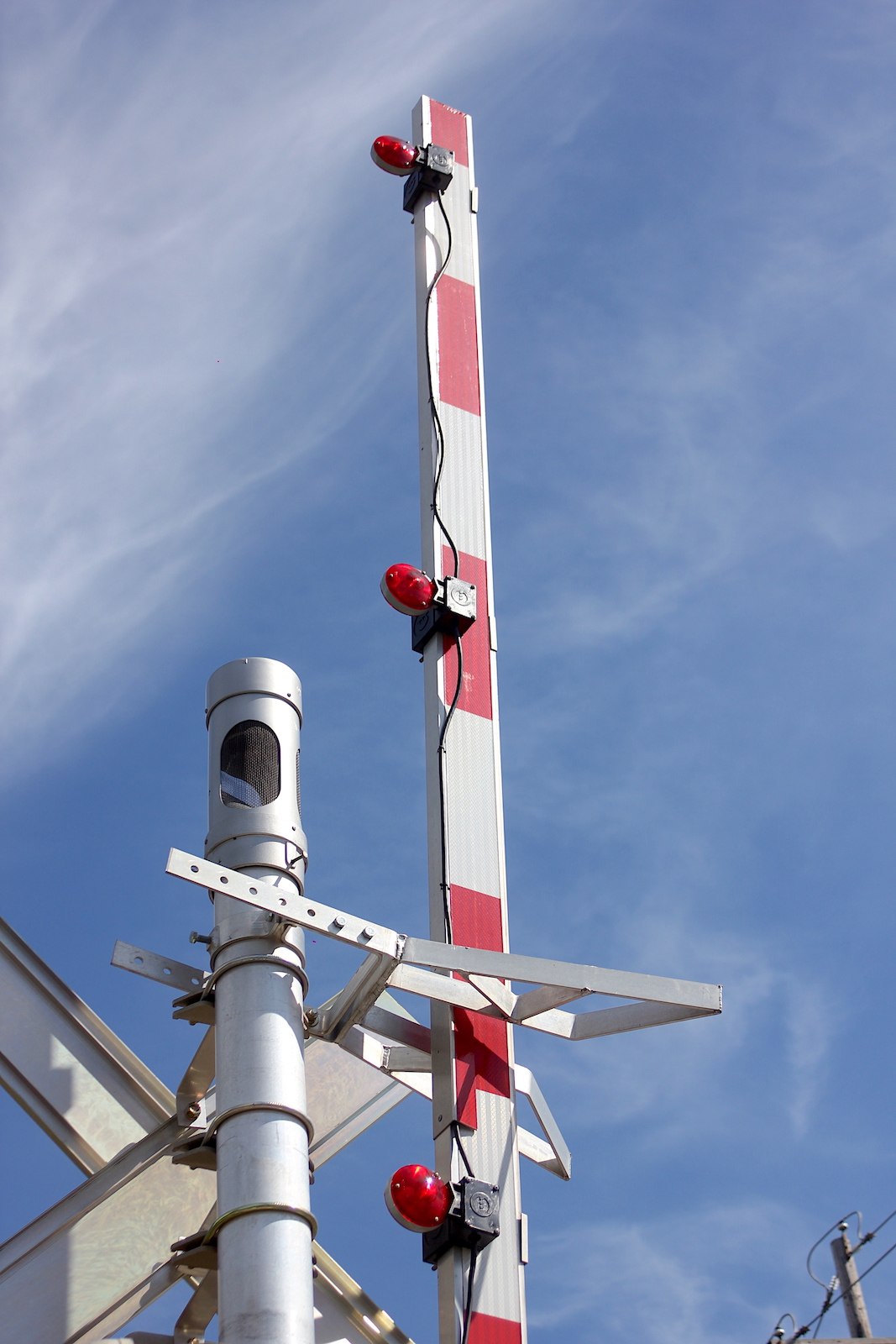

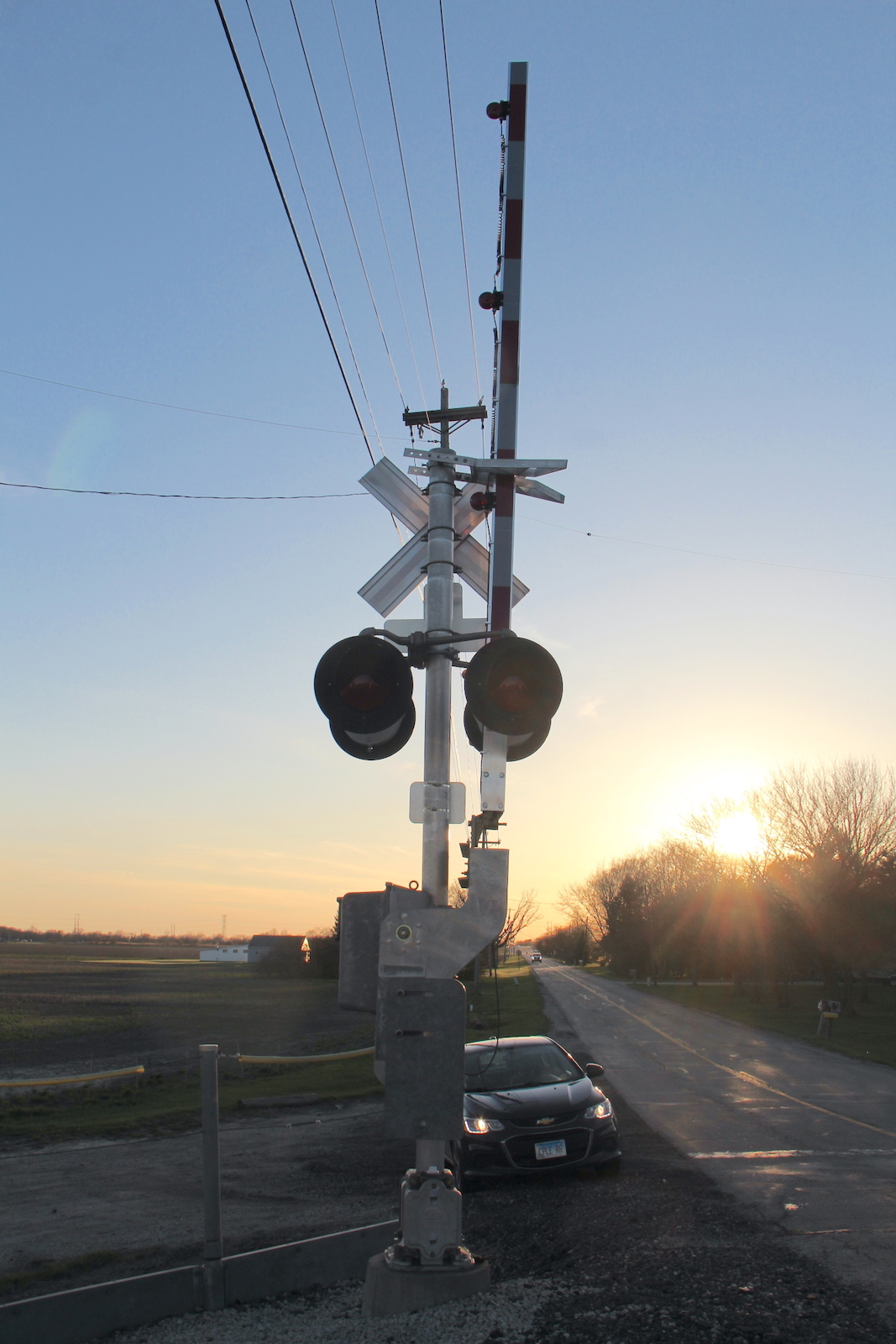

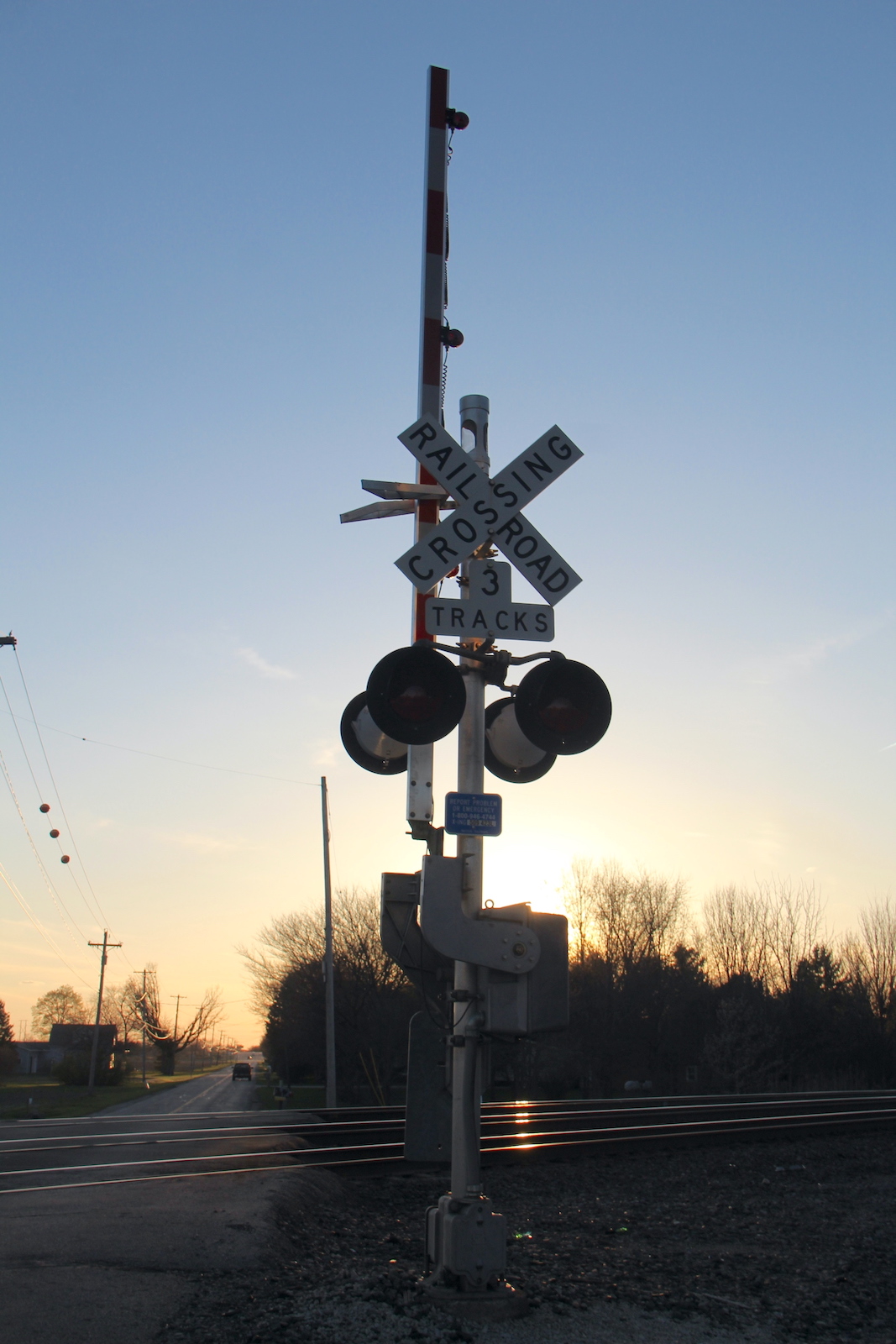

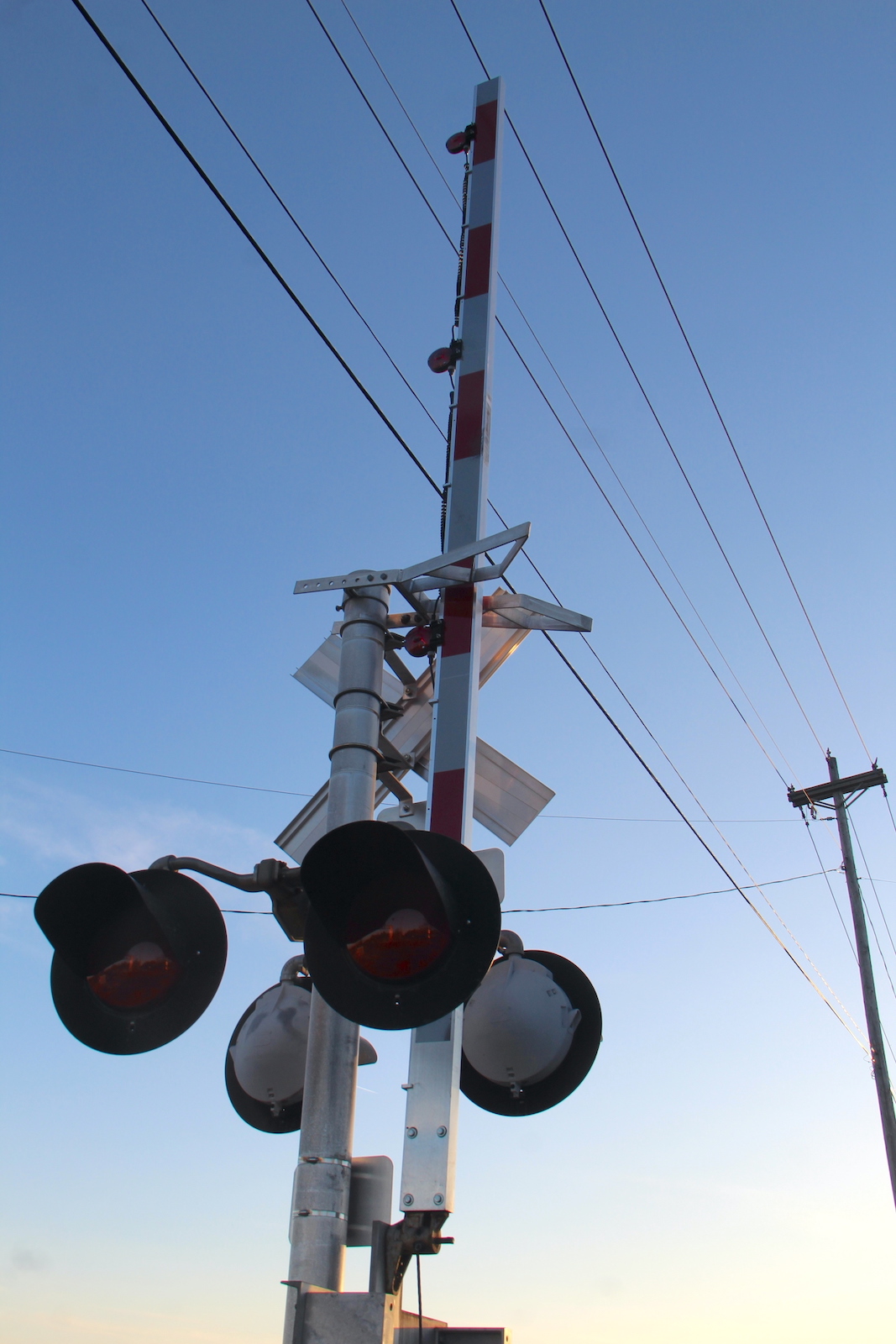

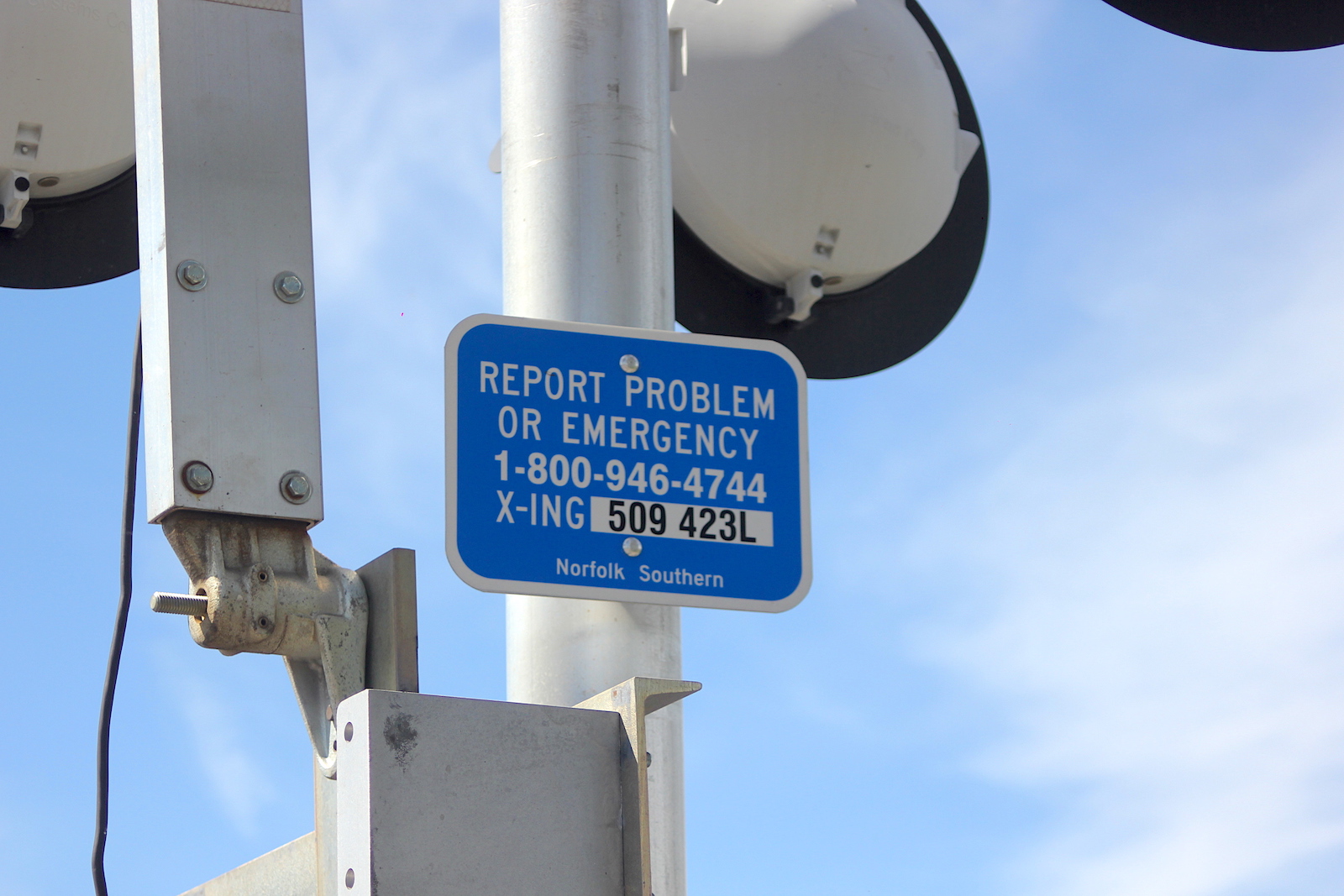

The eastern signal.  For some reason, the bell cuts out when the gates are halfway lowered instead of when they are completely lowered.
22 23 24 25

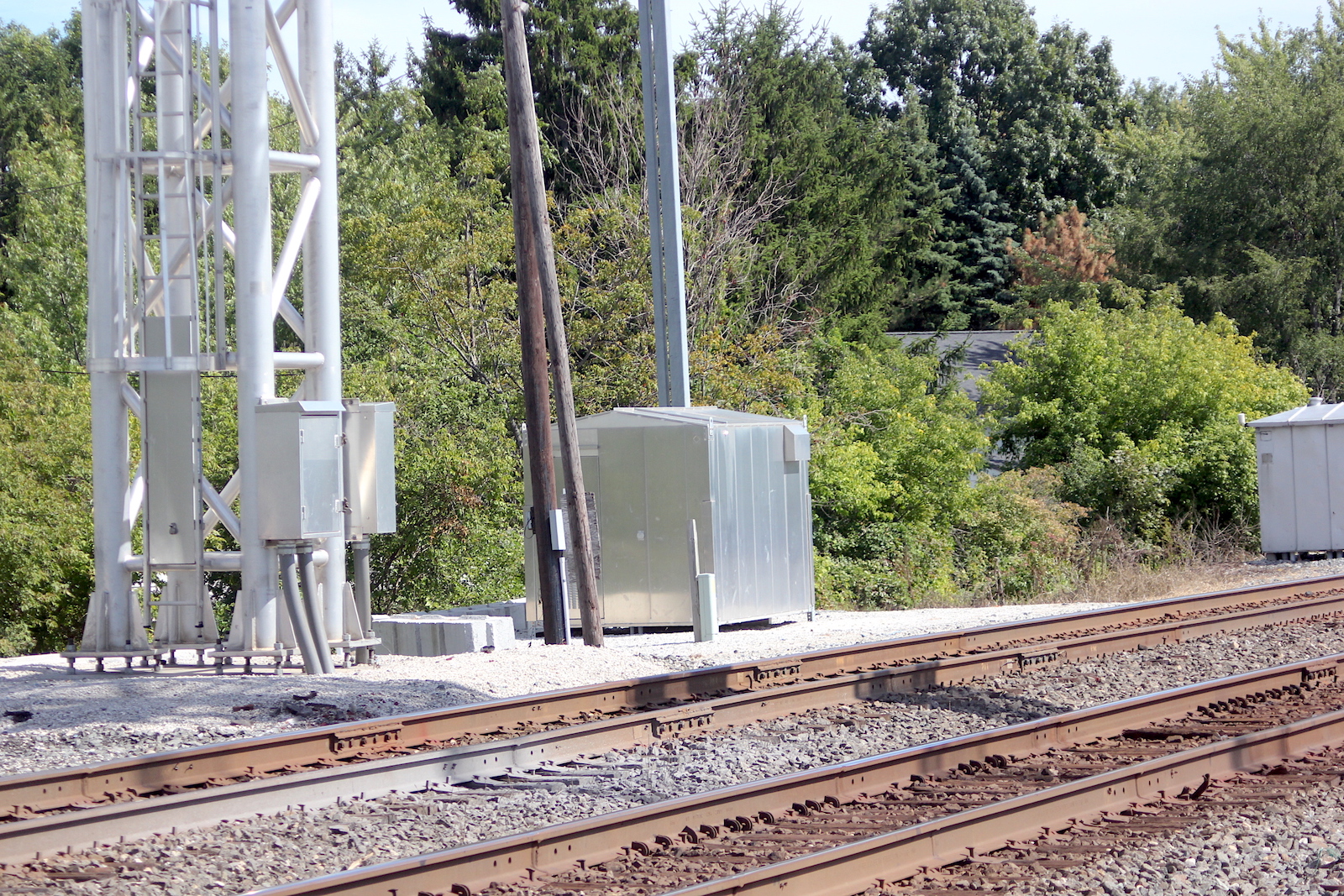

The relay bungalow in the southeast quadrant.

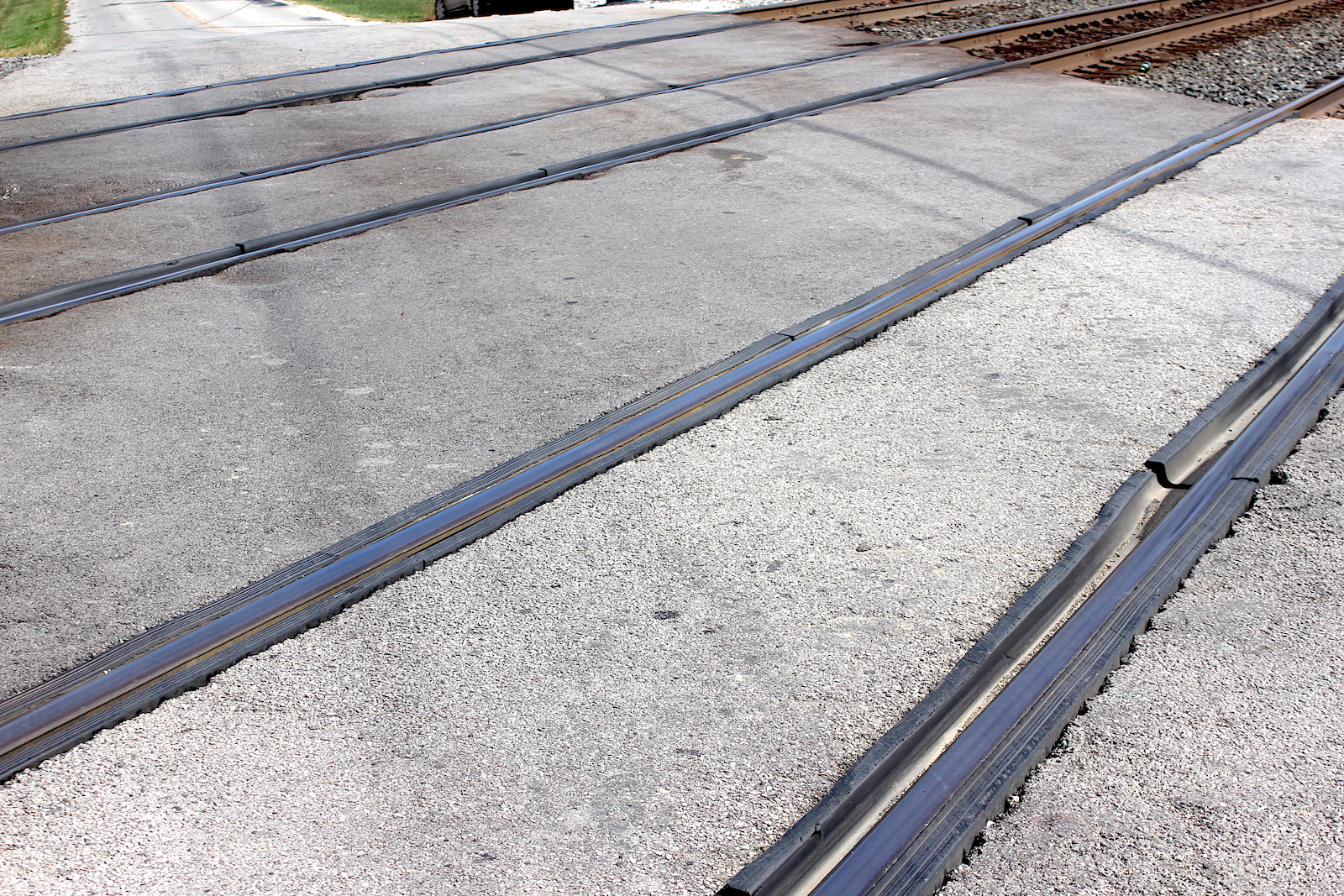

The grade is rubber and asphalt.

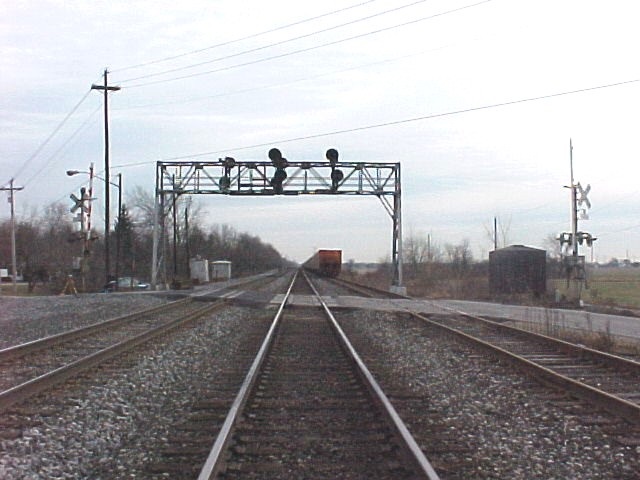

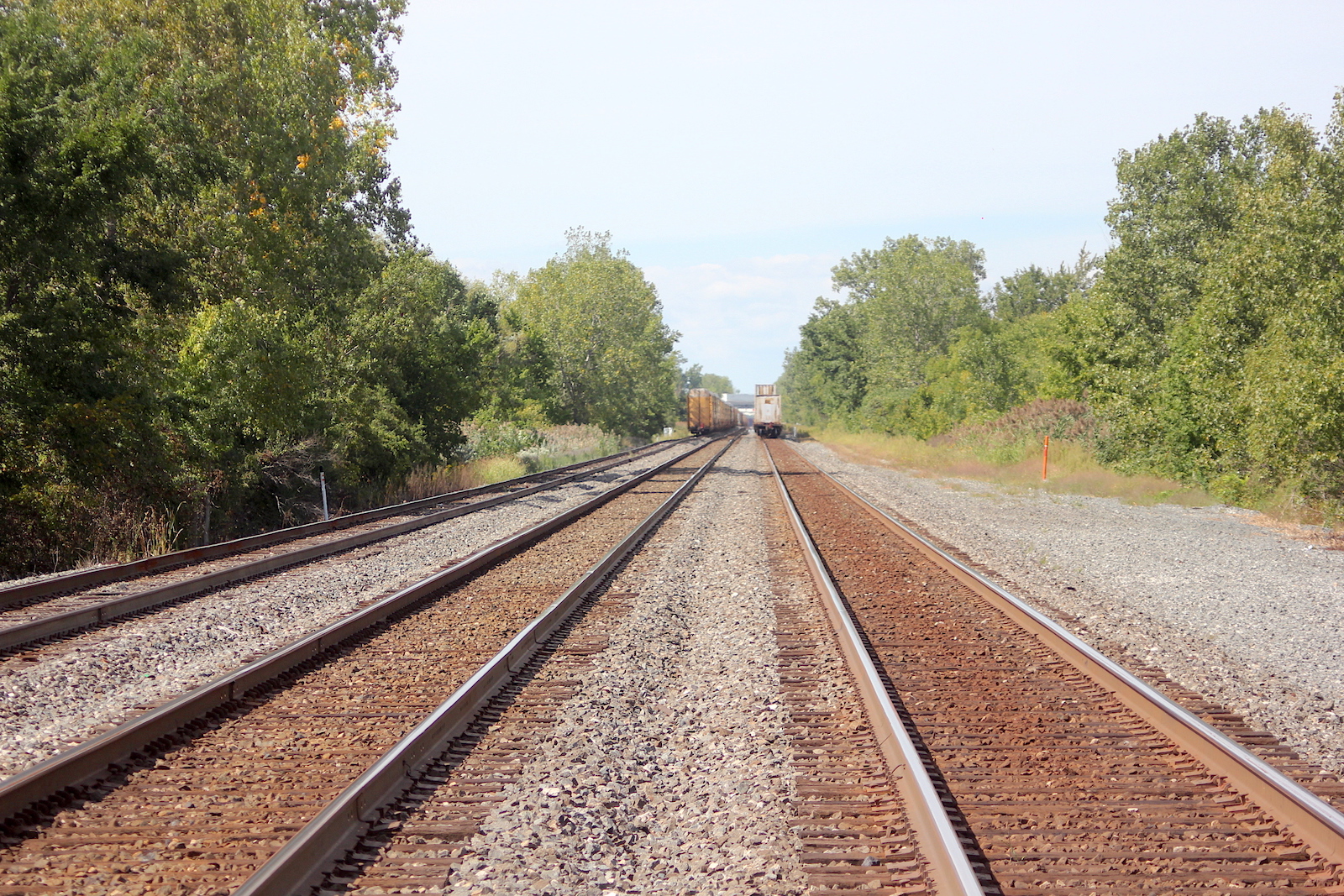

Track view facing west towards Lemoyne Rd.
Track view facing east towards Pemberville Rd.

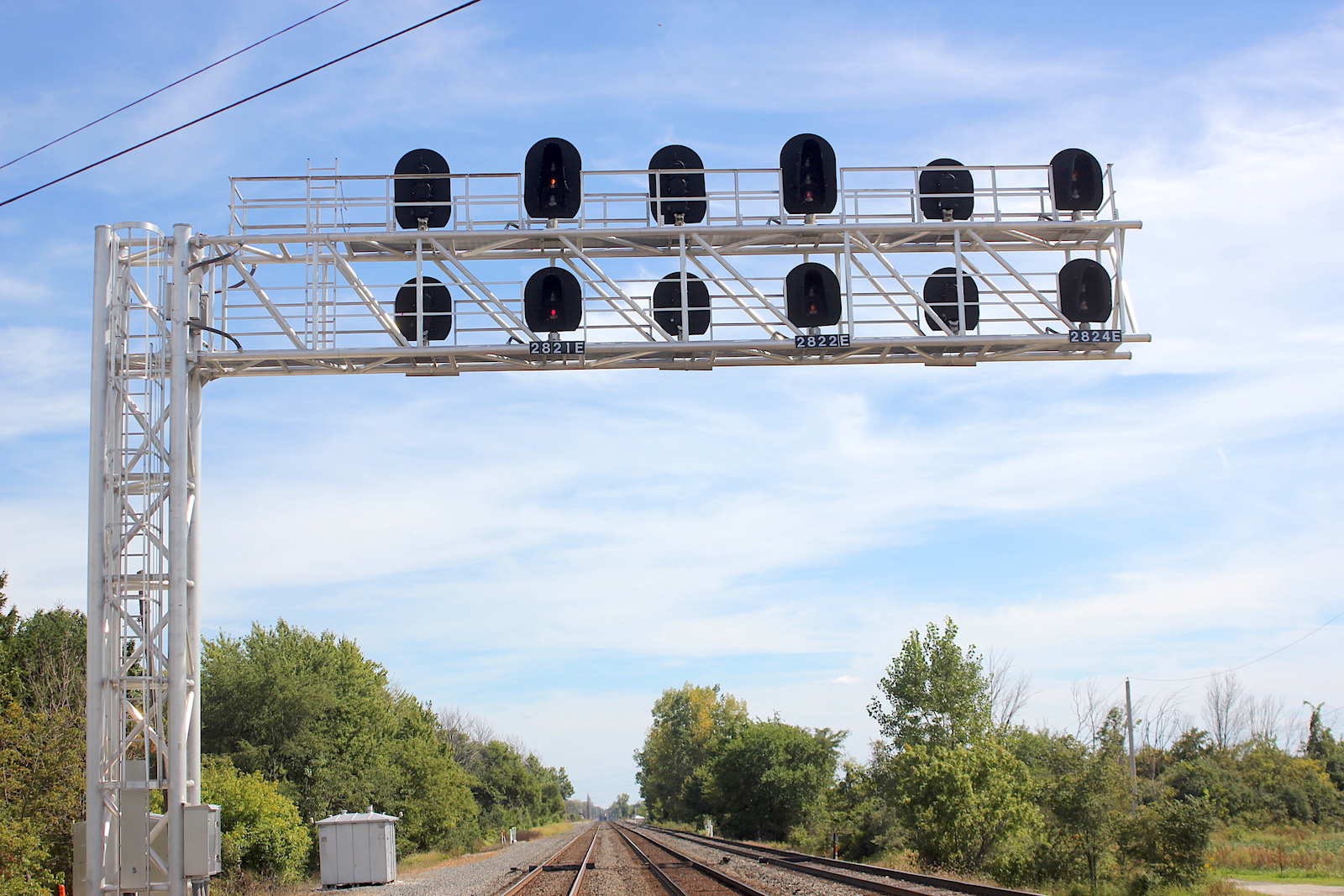

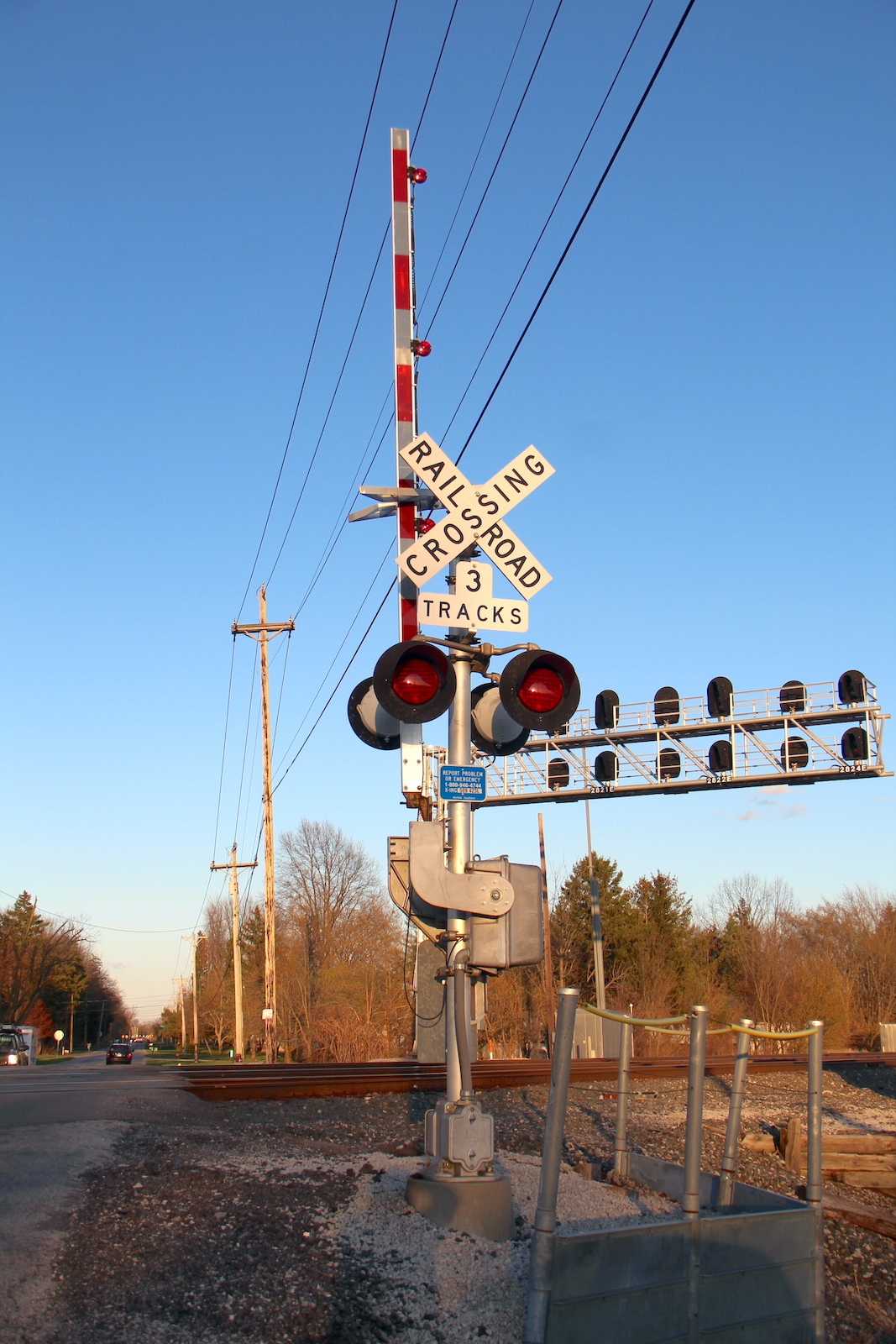

A newer wayside cantilever right next to the crossing.
