MP: 5.79
|
MP: 5.79 |
| Created January 2017 |
| Total Accidents:

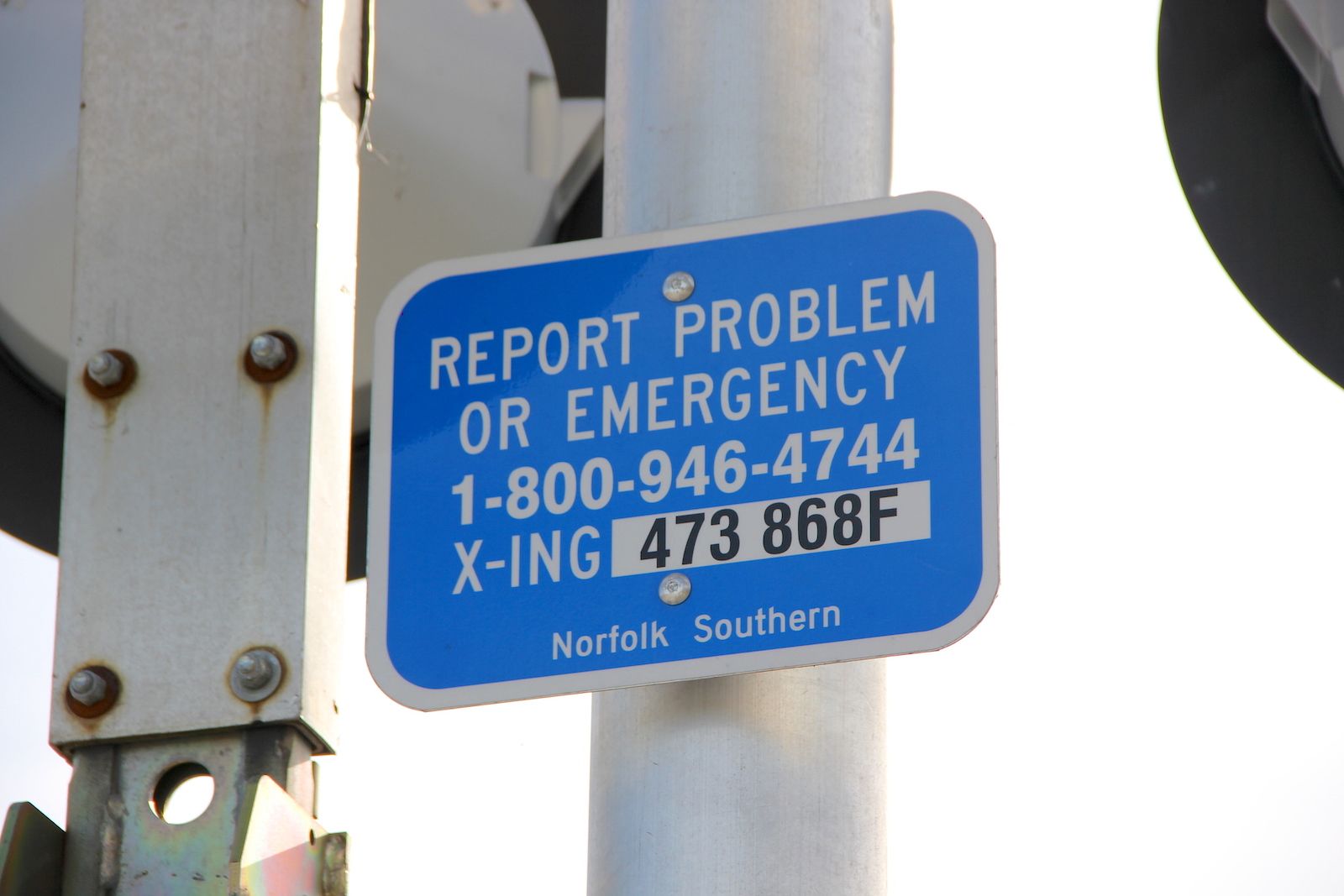

1 Crossing DOT #: 473868F TOTAL DAILY TRAINS: 20 (ESTIMATED) |
| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |

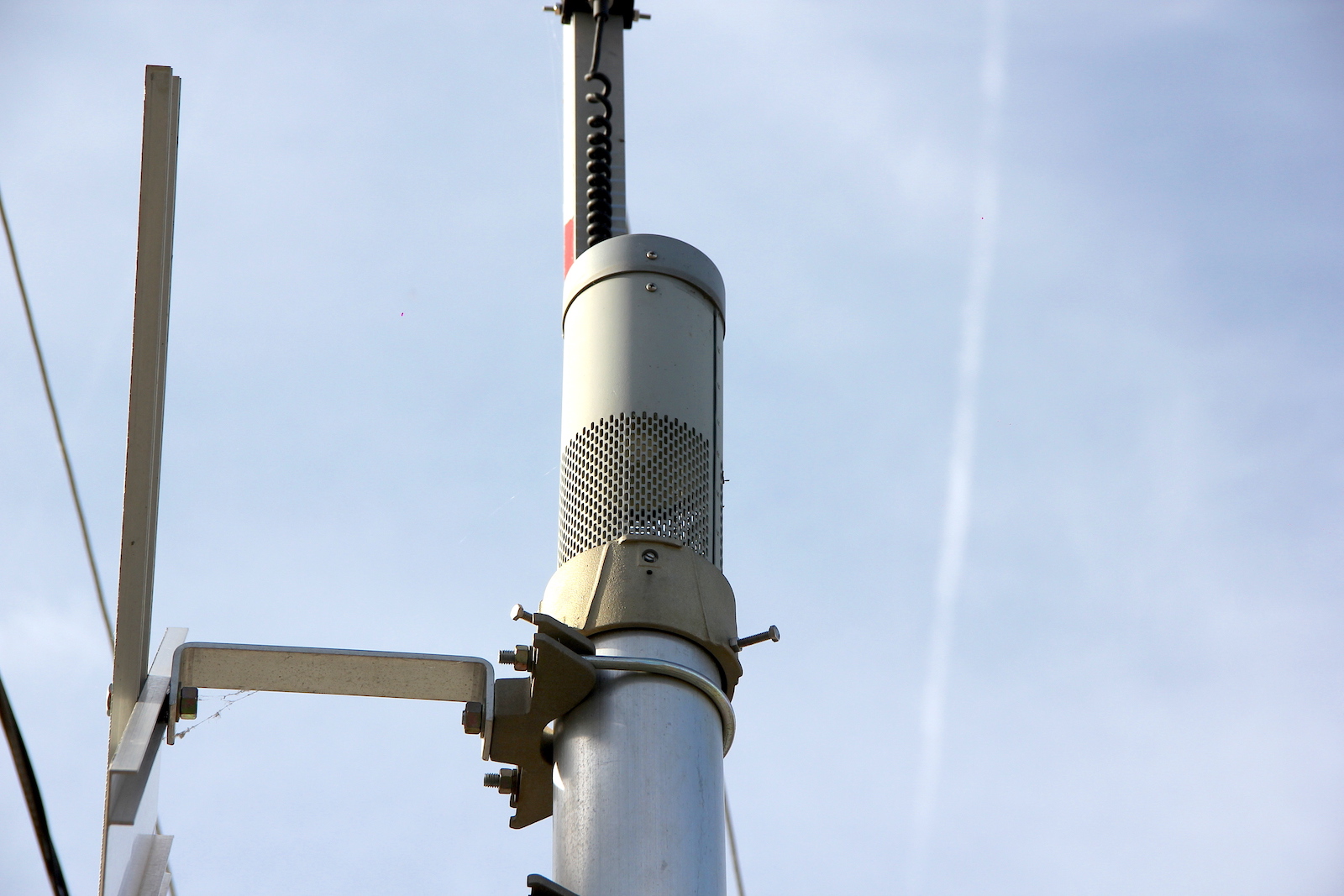

| Bell: | Siemens E-Bell | Siemens E-Bell |

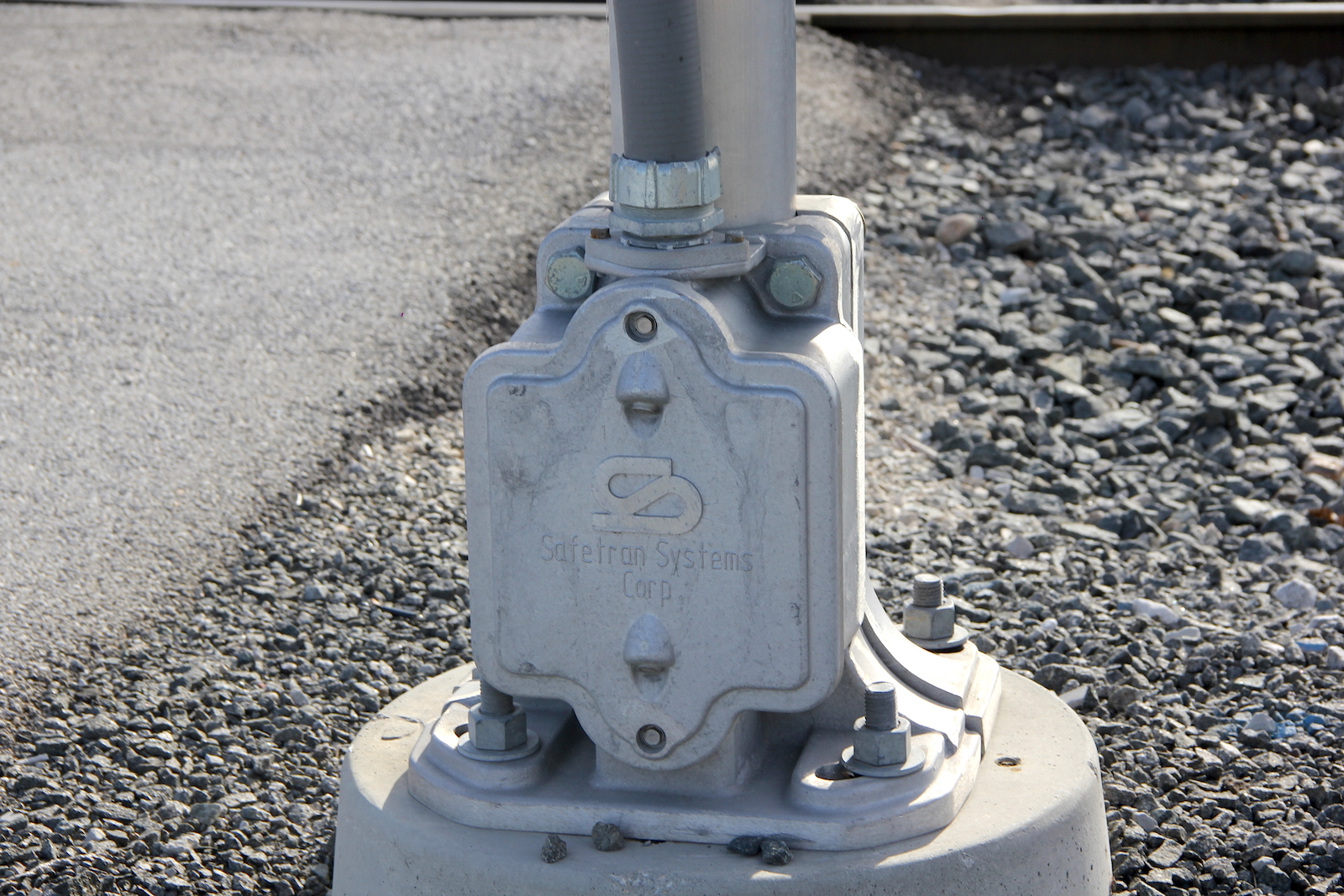

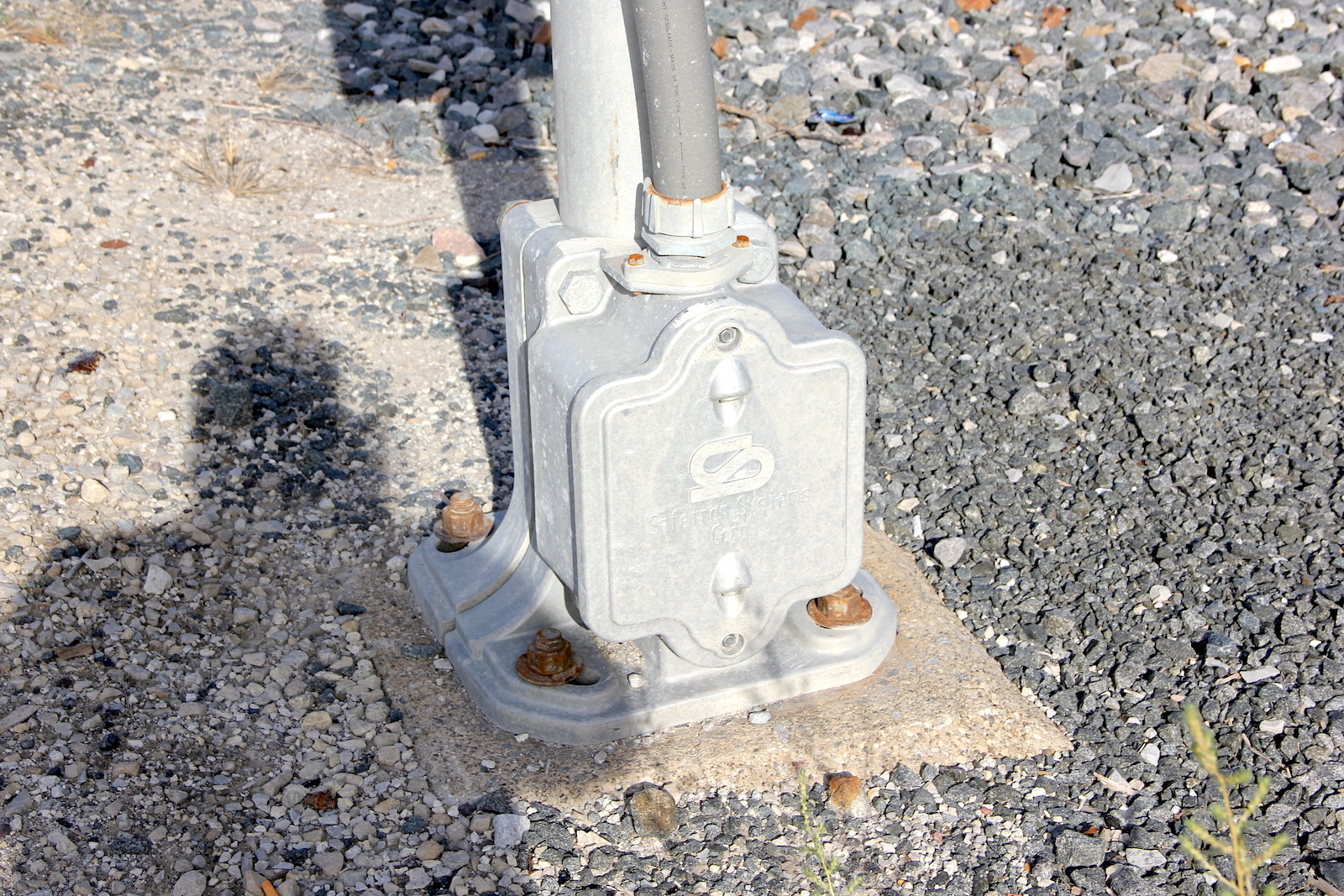

| Base: | Safetran 5" Single Sided ^ | Safetran 5" Single Sided ^ |

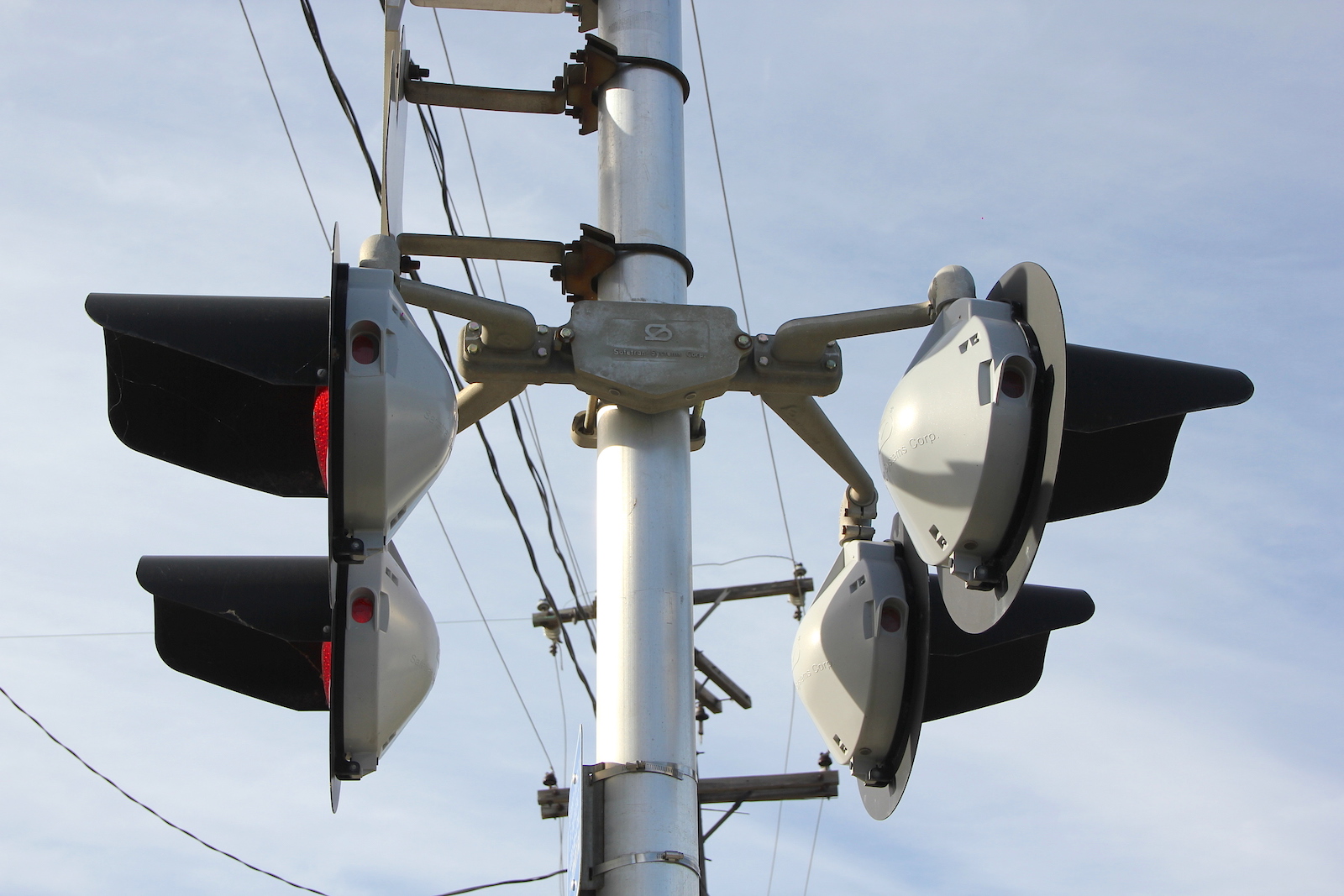

| Lights: | 4 - 12"x20" Safetran incandescents | 4 - 12"x20" Safetran incandescents |
| Junction Box: | Safetran | Safetran |
| Gate Lights: | 3 - 4" NEG incandescents | 3 - 4" RECO |
| Gate Mechanism: | Invensys Rail w/ NEG 1 Way Saver | Invensys Rail w/ NEG 1 Way Saver |
| Gate Striping: | Diagonal Striping | Diagonal Striping |
G1 |
G2 |

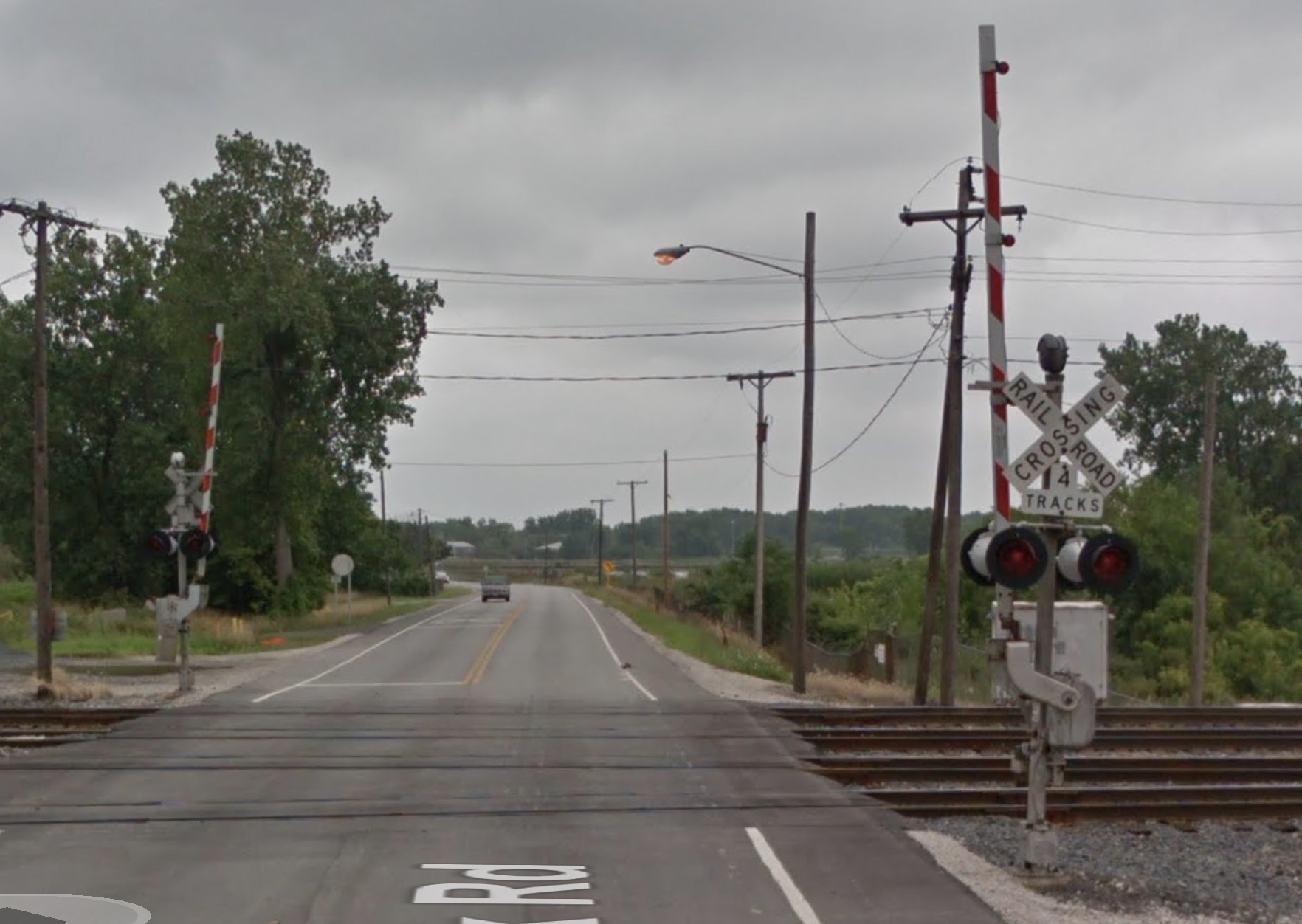

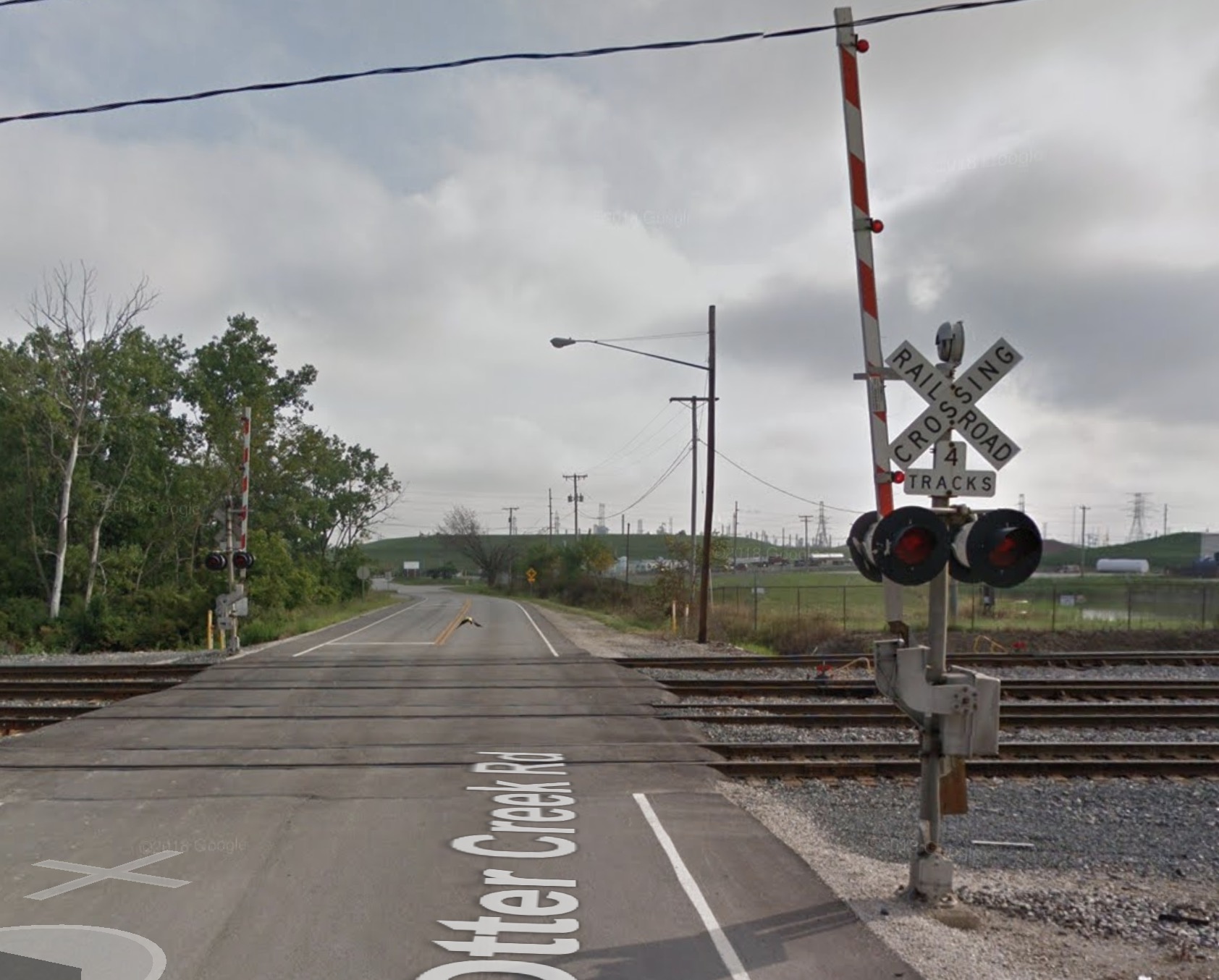

| Streetview images from 2011 showing two older gated signals, one with 12"x20" lights, a WCH gate mechanism, and likely a 1st Gen WCH Mechanical Bell, and the other having 12"x24" lights, a Safetran gate mechanism, and a 2nd Gen Safetran Mechanical Bell. By 2014, these were replaced with newer Safetran signals. |
1 |
2 |
| Overview of 2 gated signals facing south. |
Overview facing north. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |

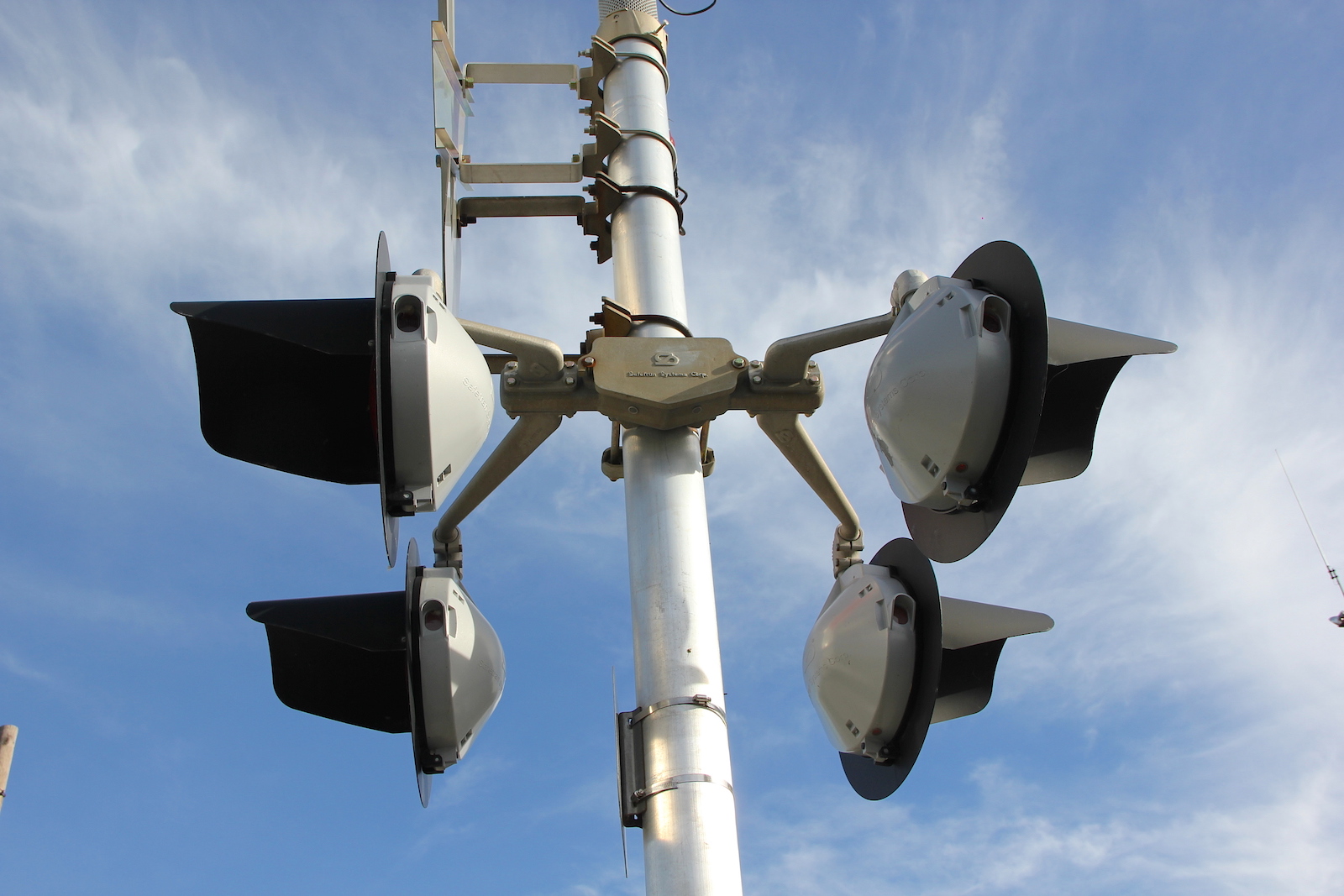

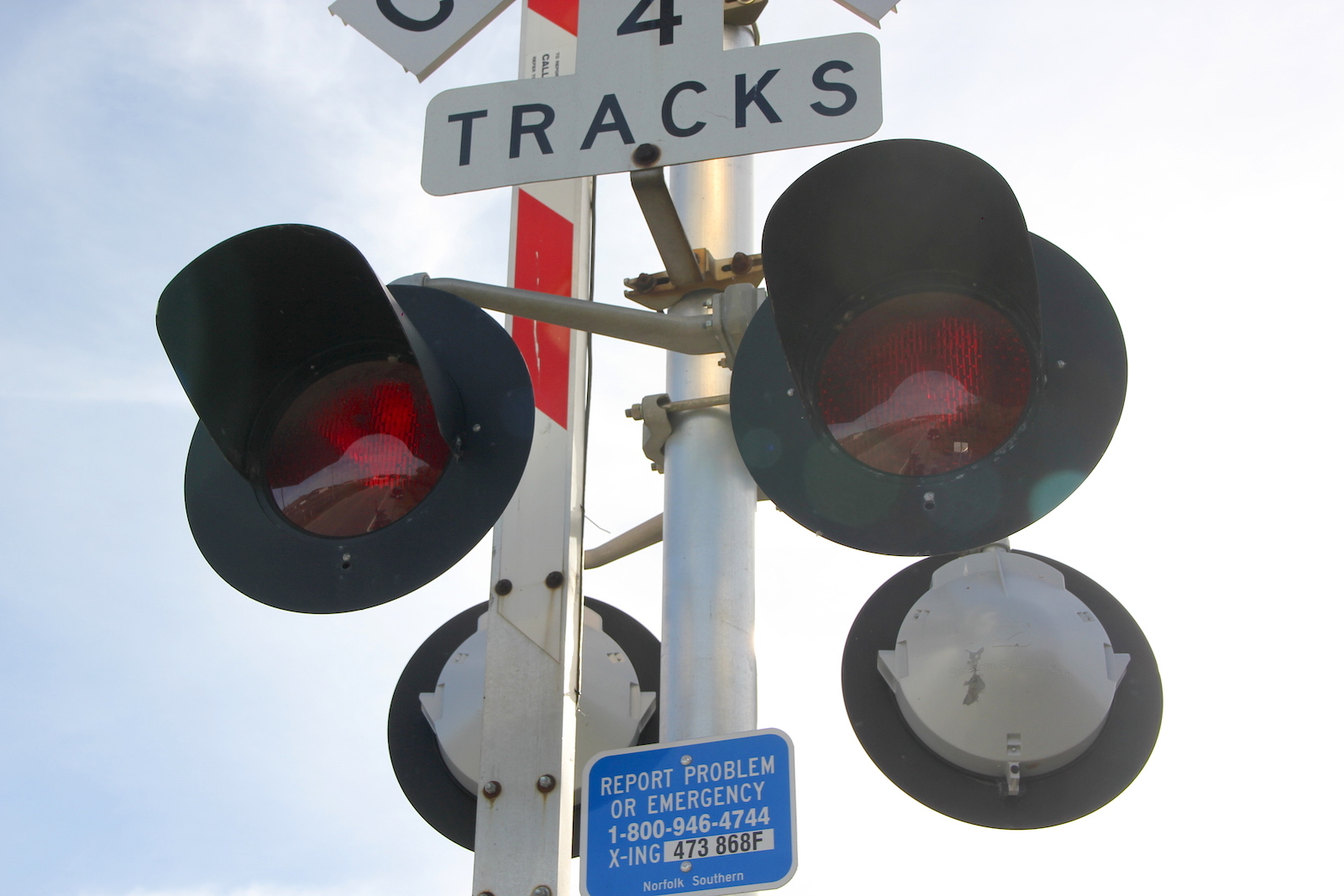

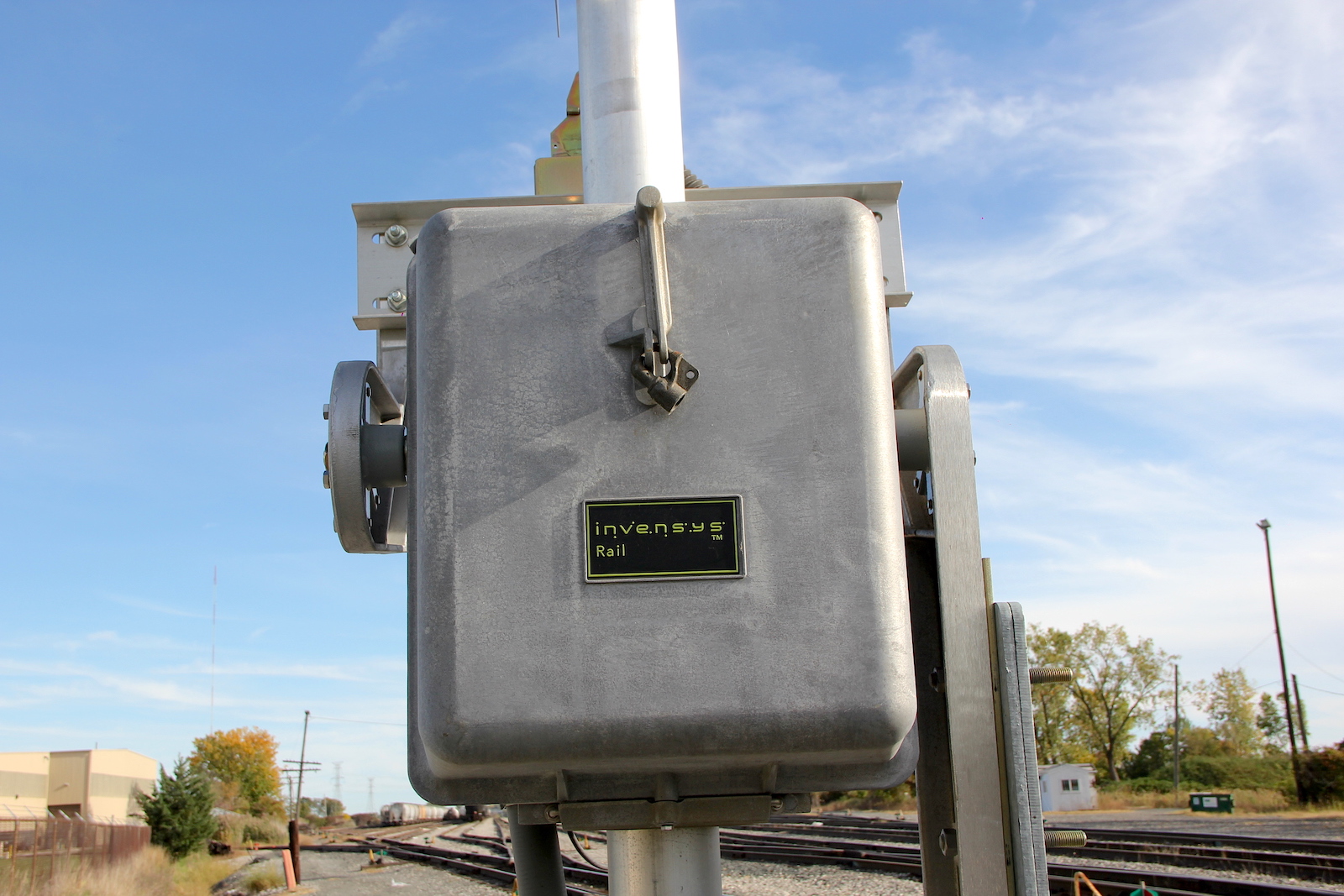

| The northern signal. |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |

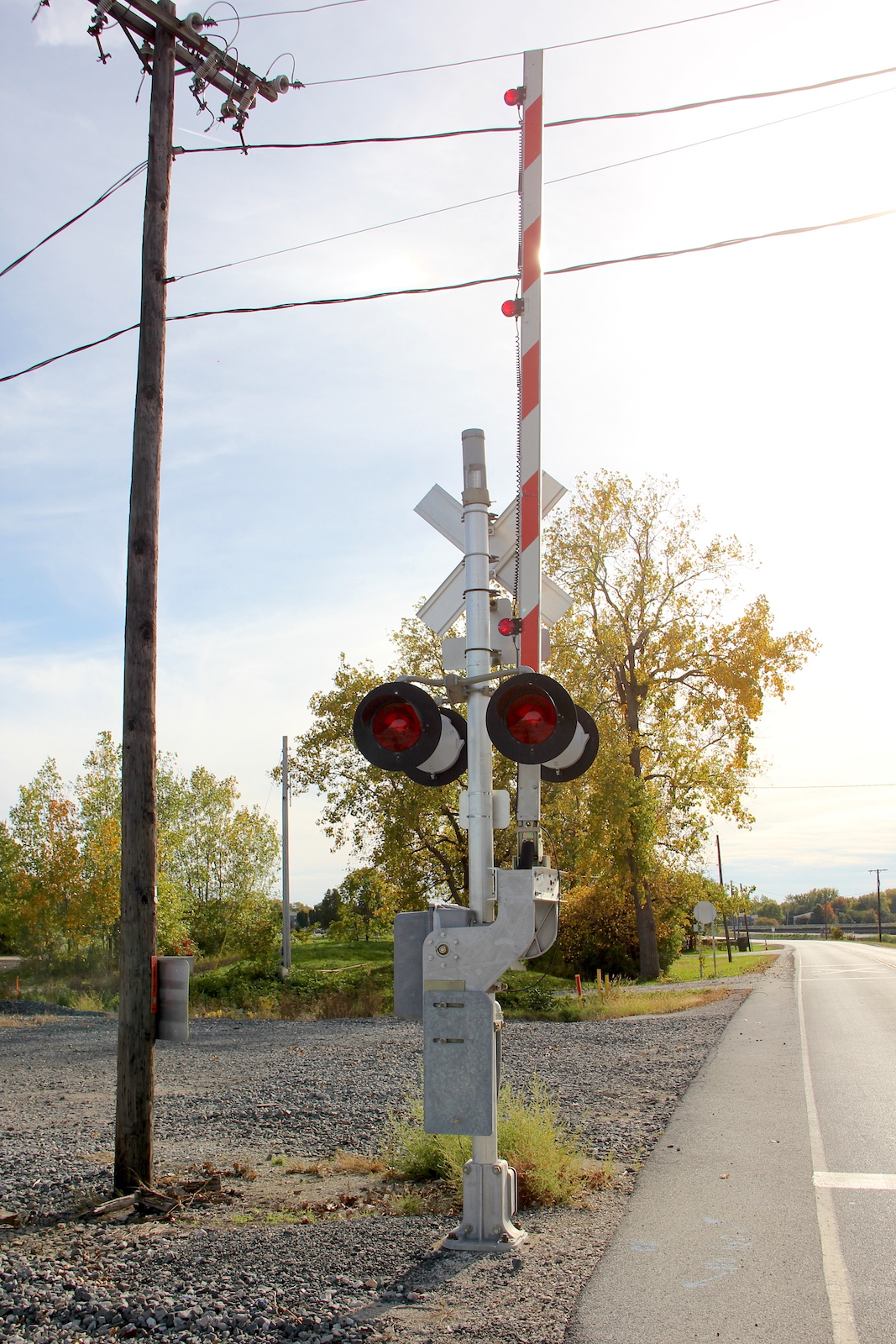

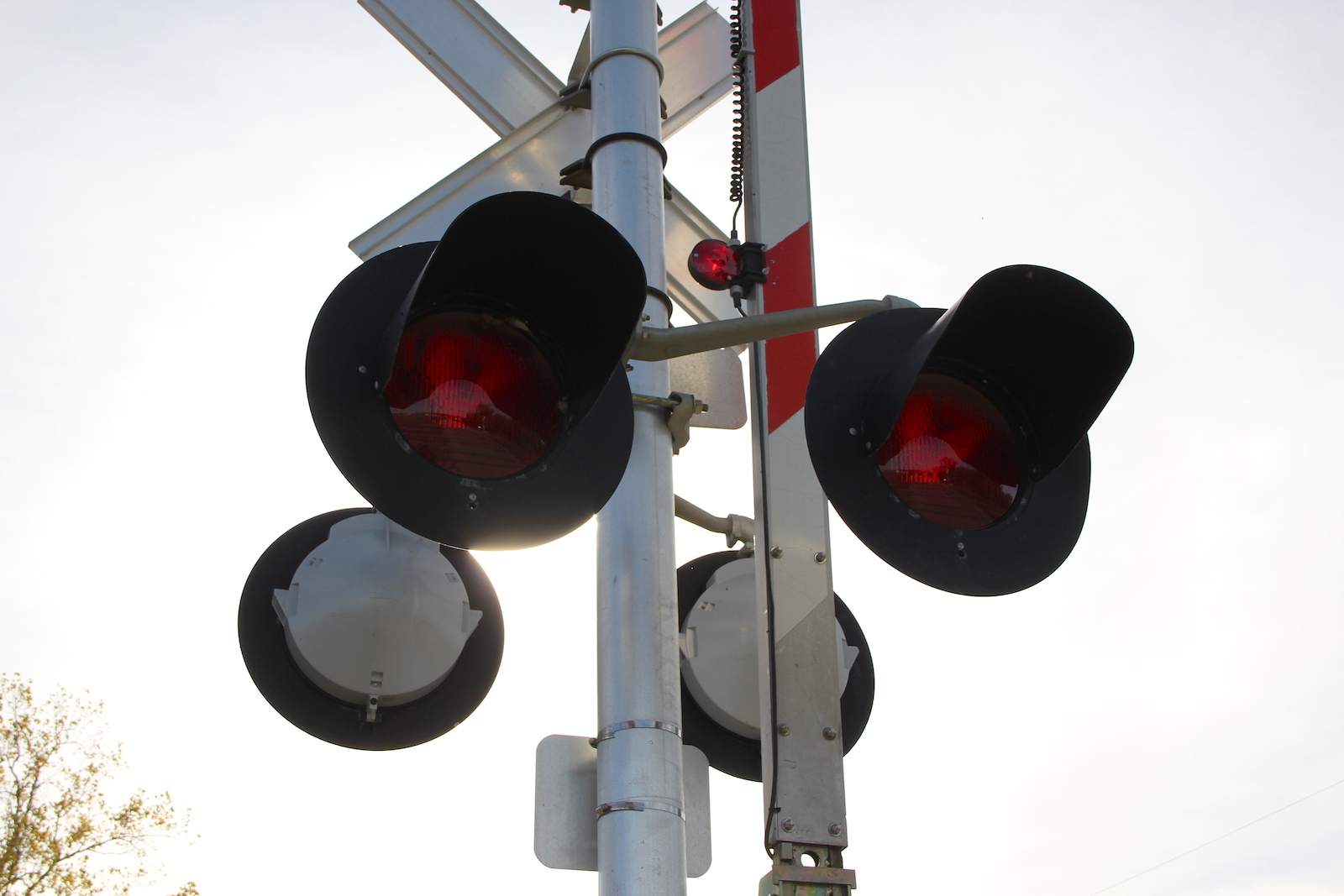

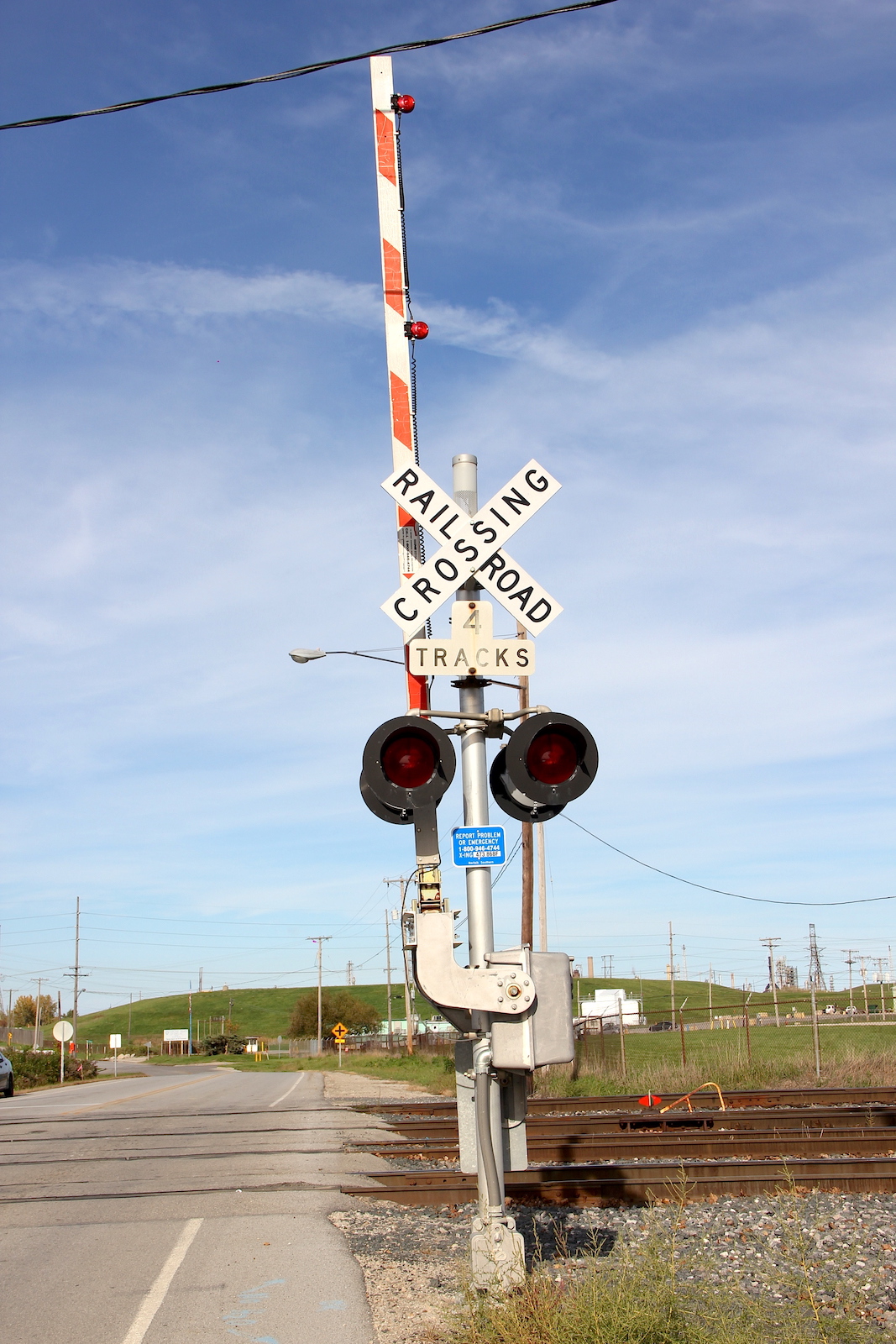

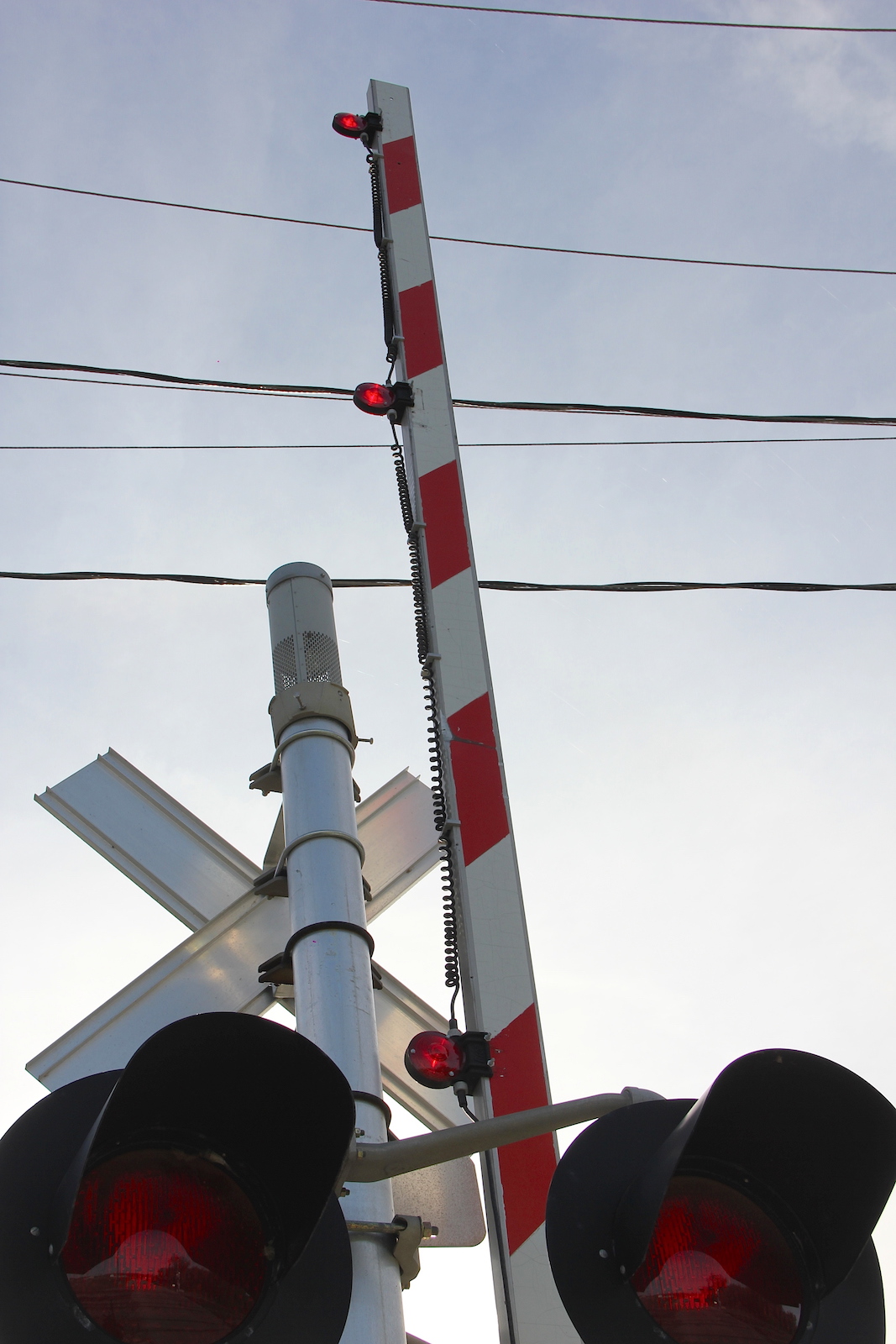

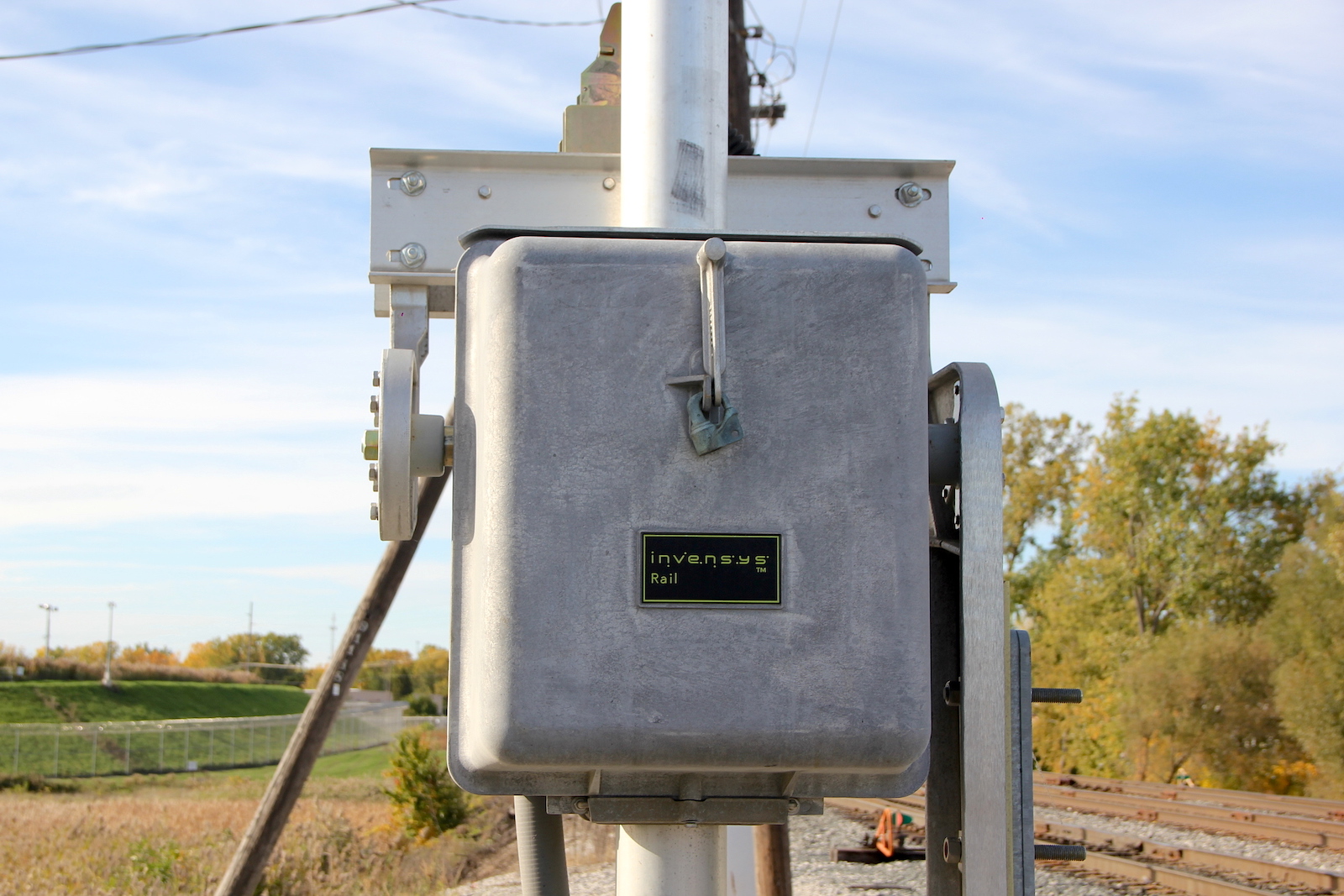

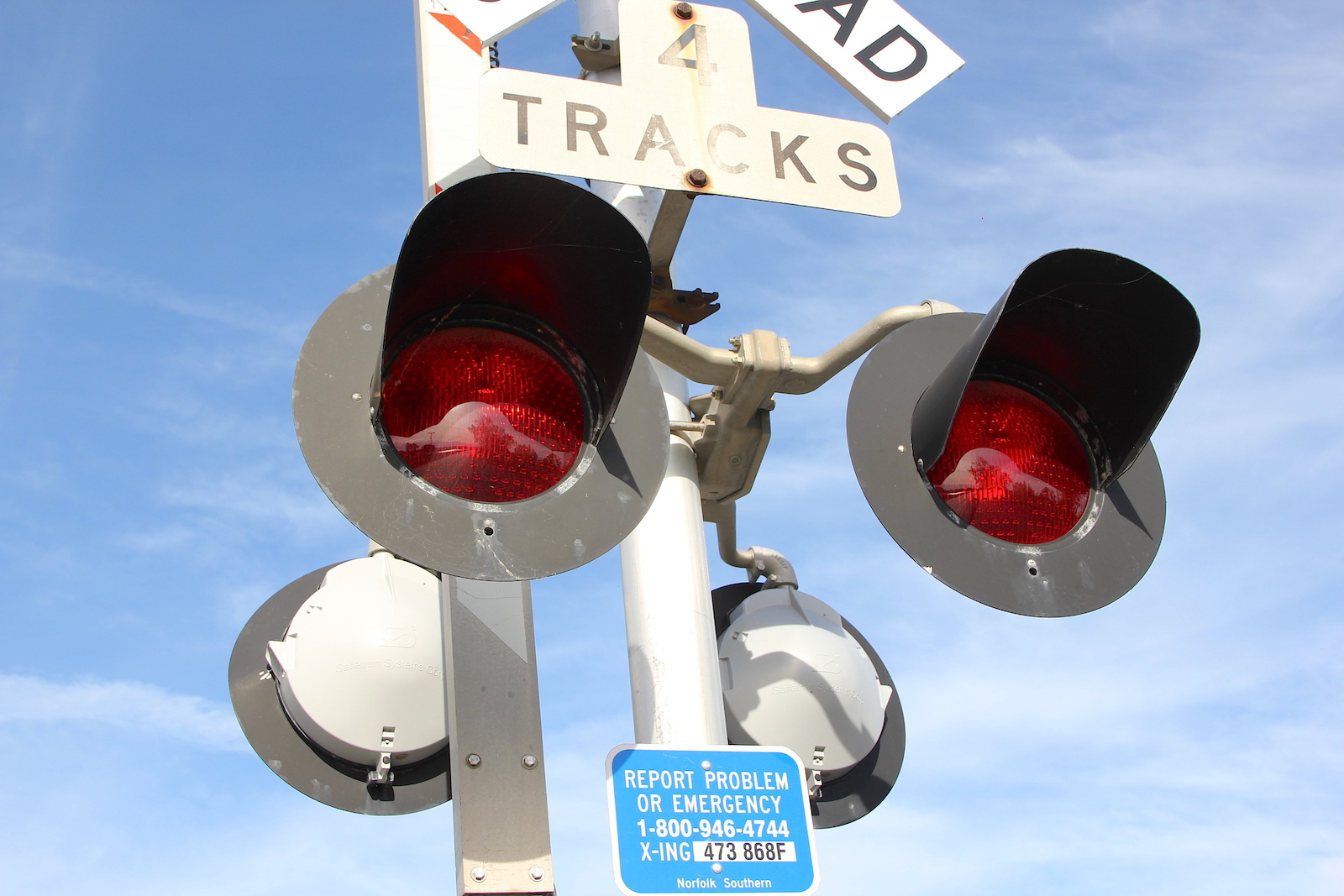

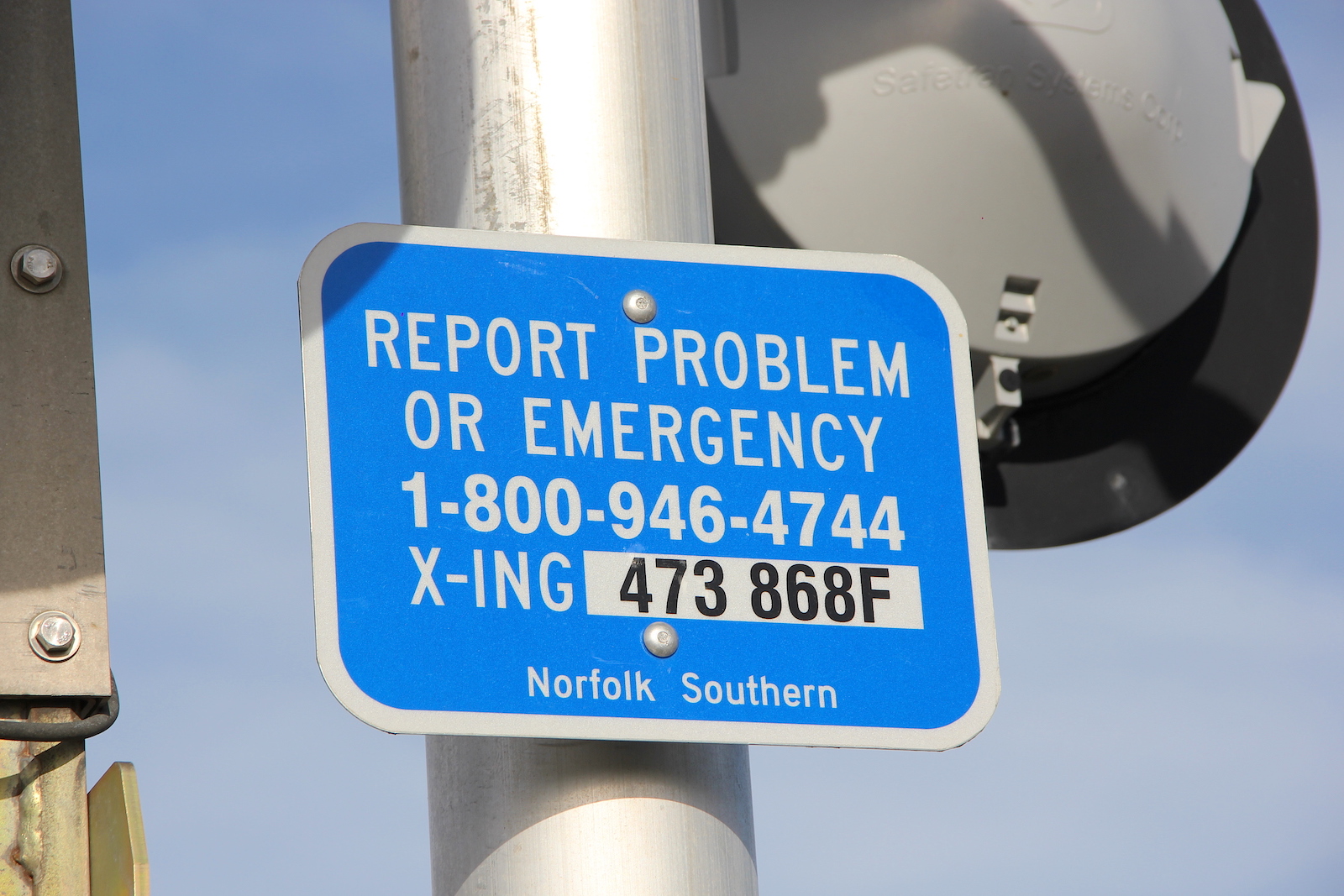

| The southern signal. |
23 |
24 |
25 |
26 |

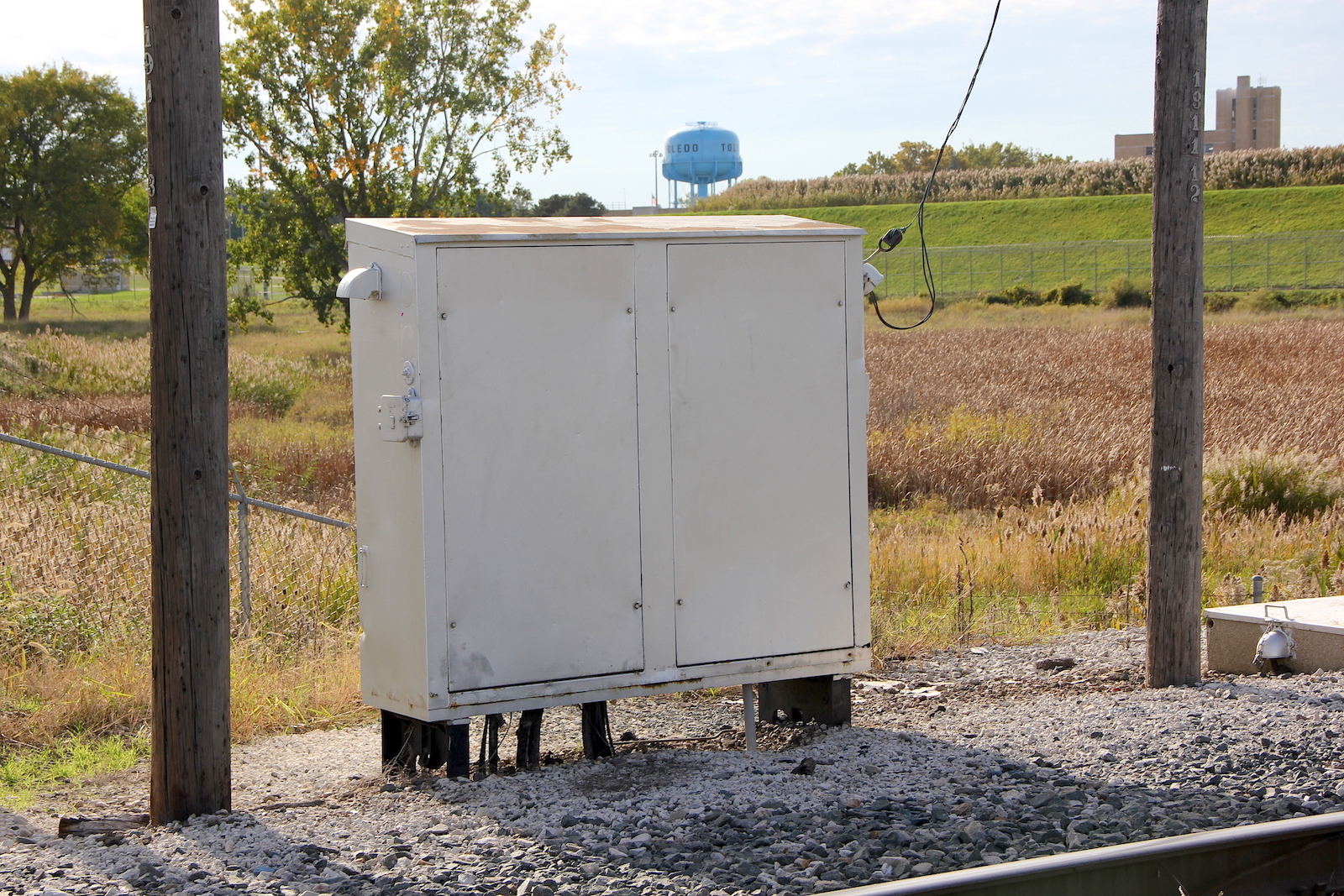

| The relay case in the southwest quadrant. |

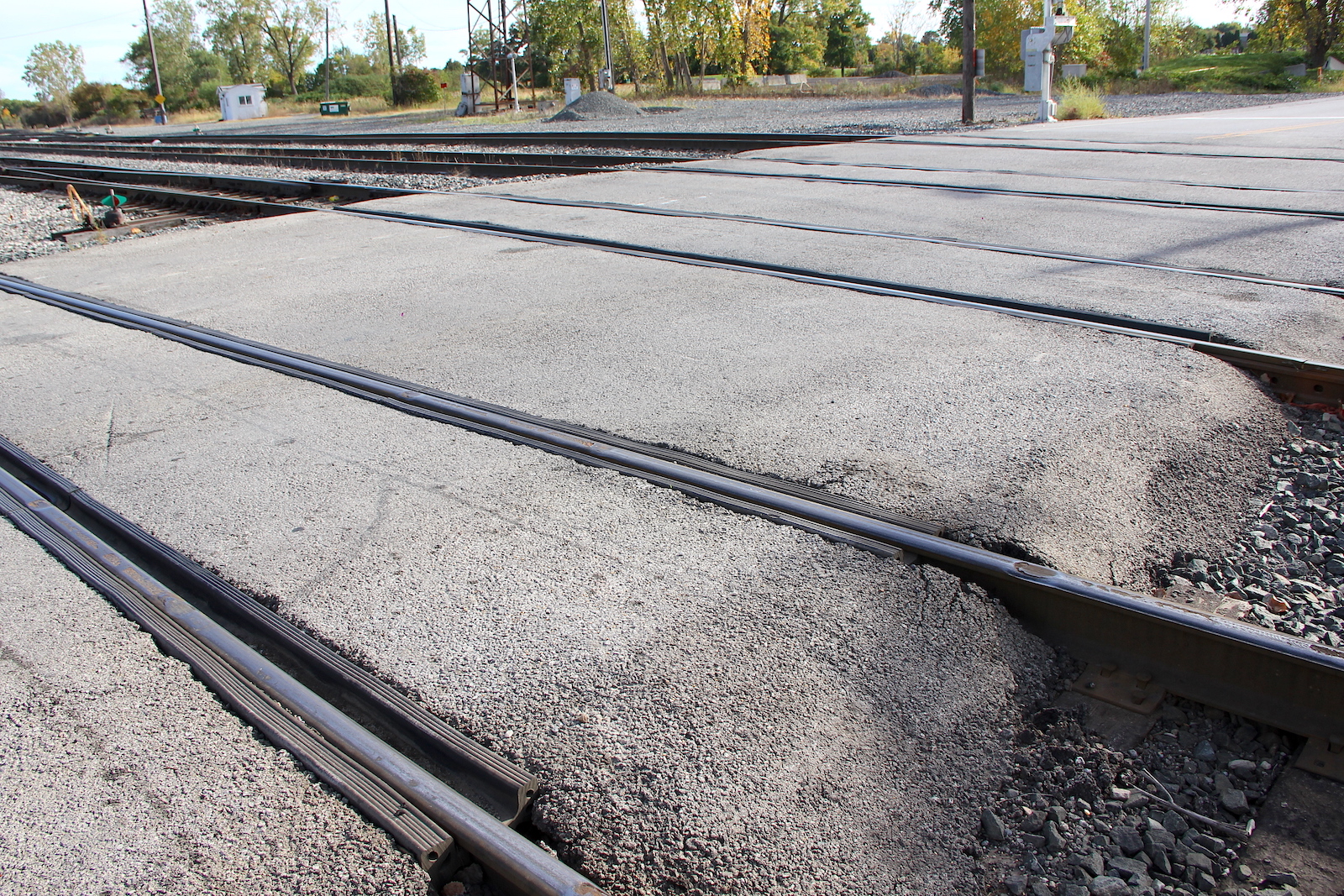

The grade is rubber and asphalt. |

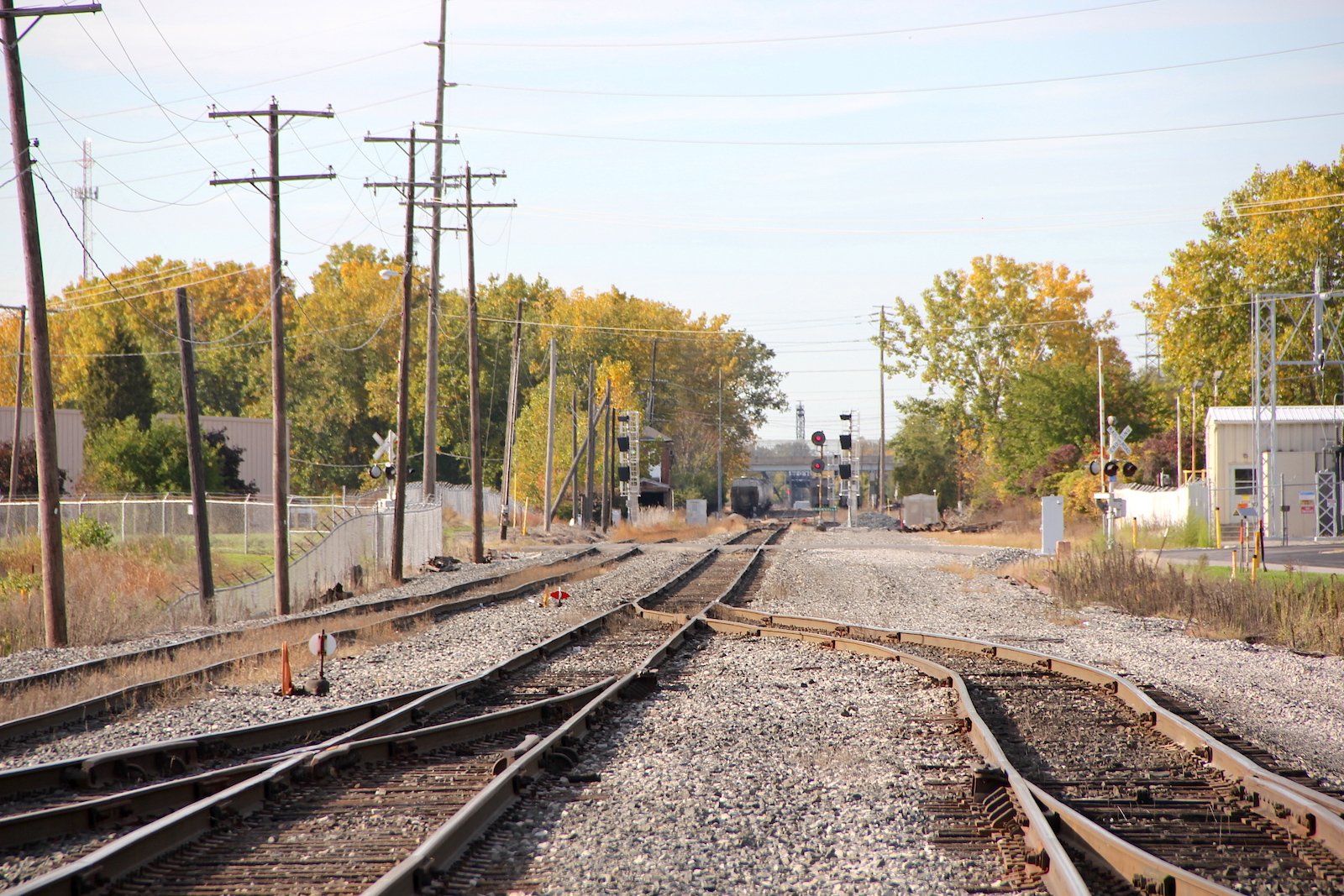

Track view facing west at York St. |

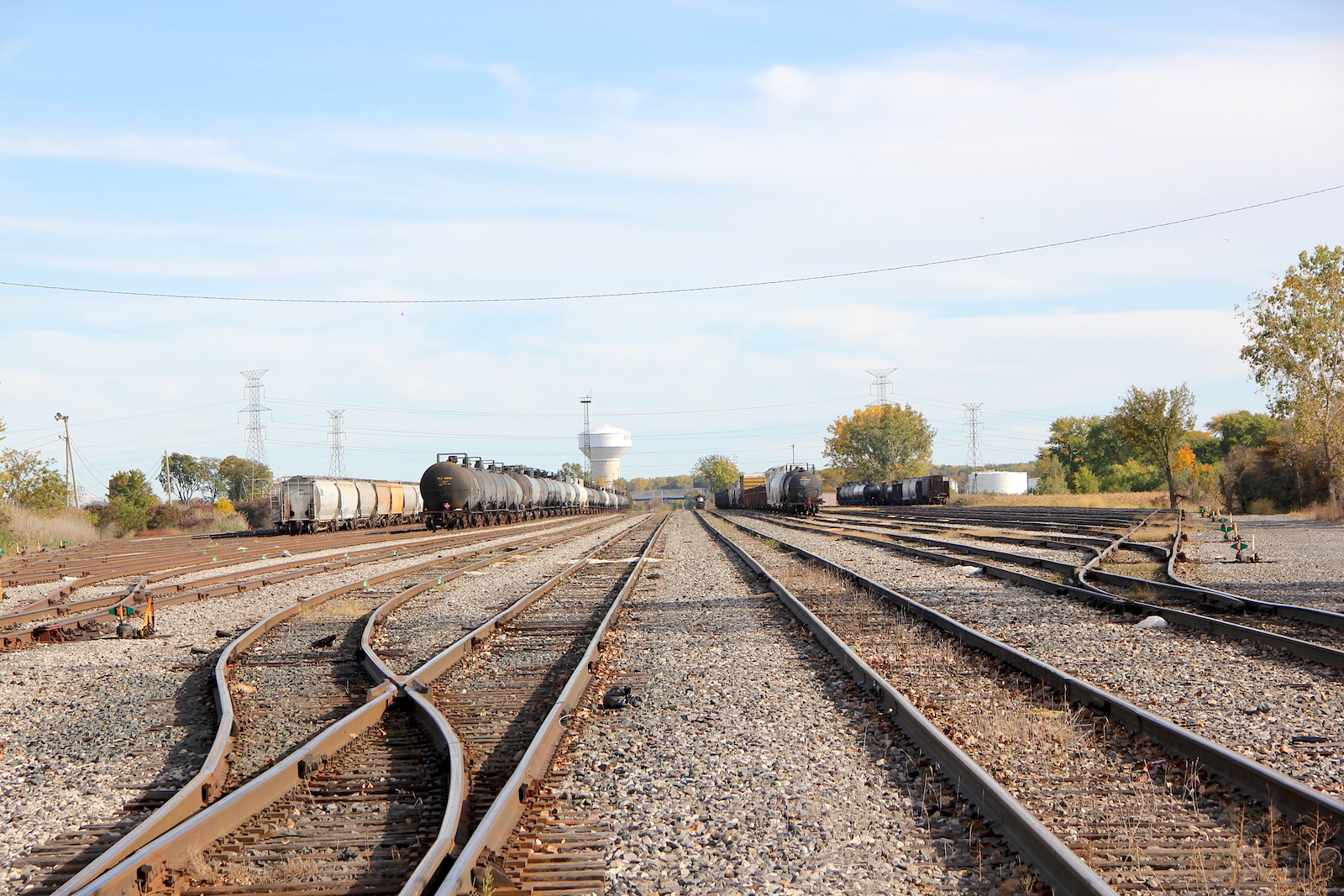

Track view facing east towards Corduroy Rd. |
