| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |

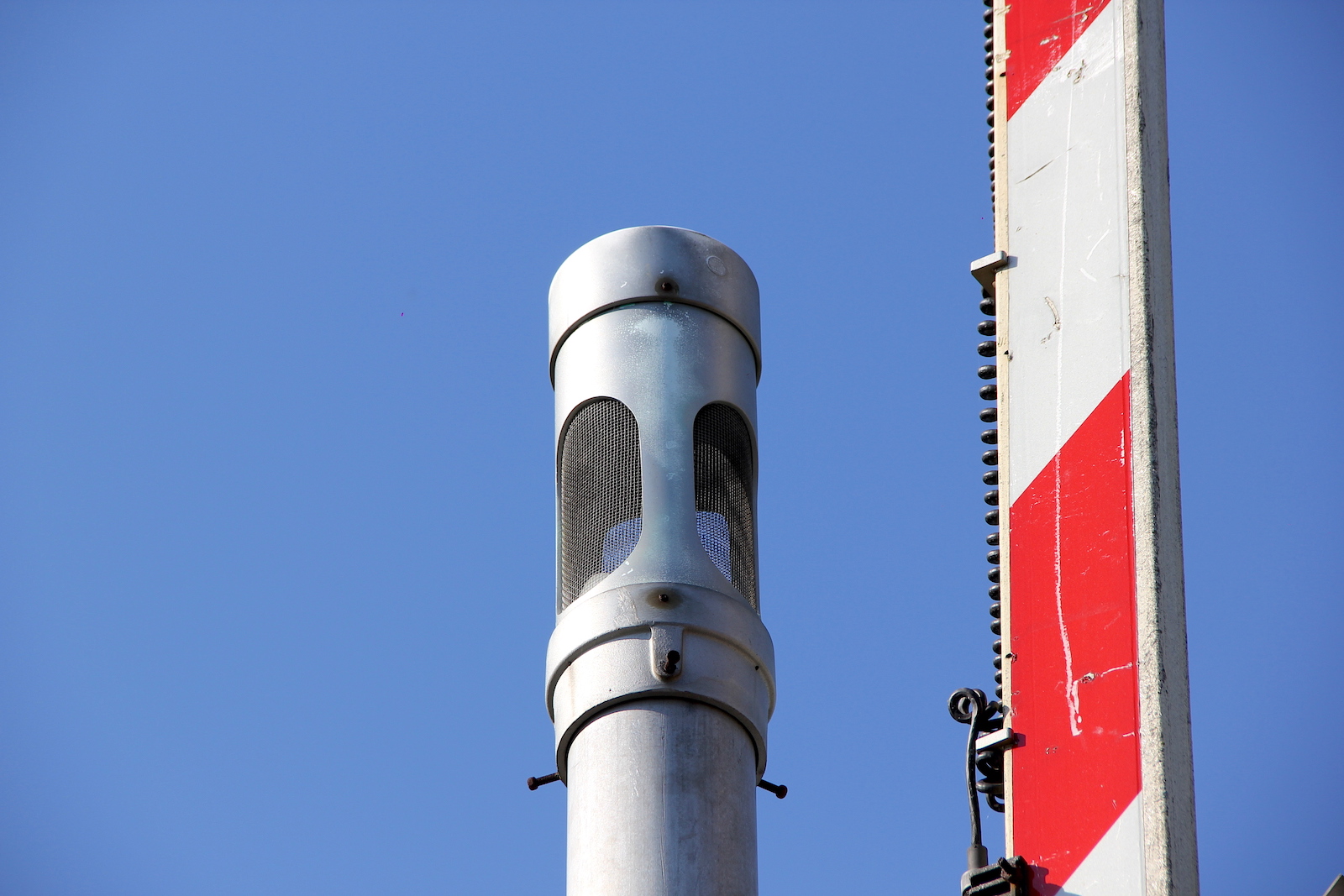

| Bell: | GS Type 2 E Bell | None |

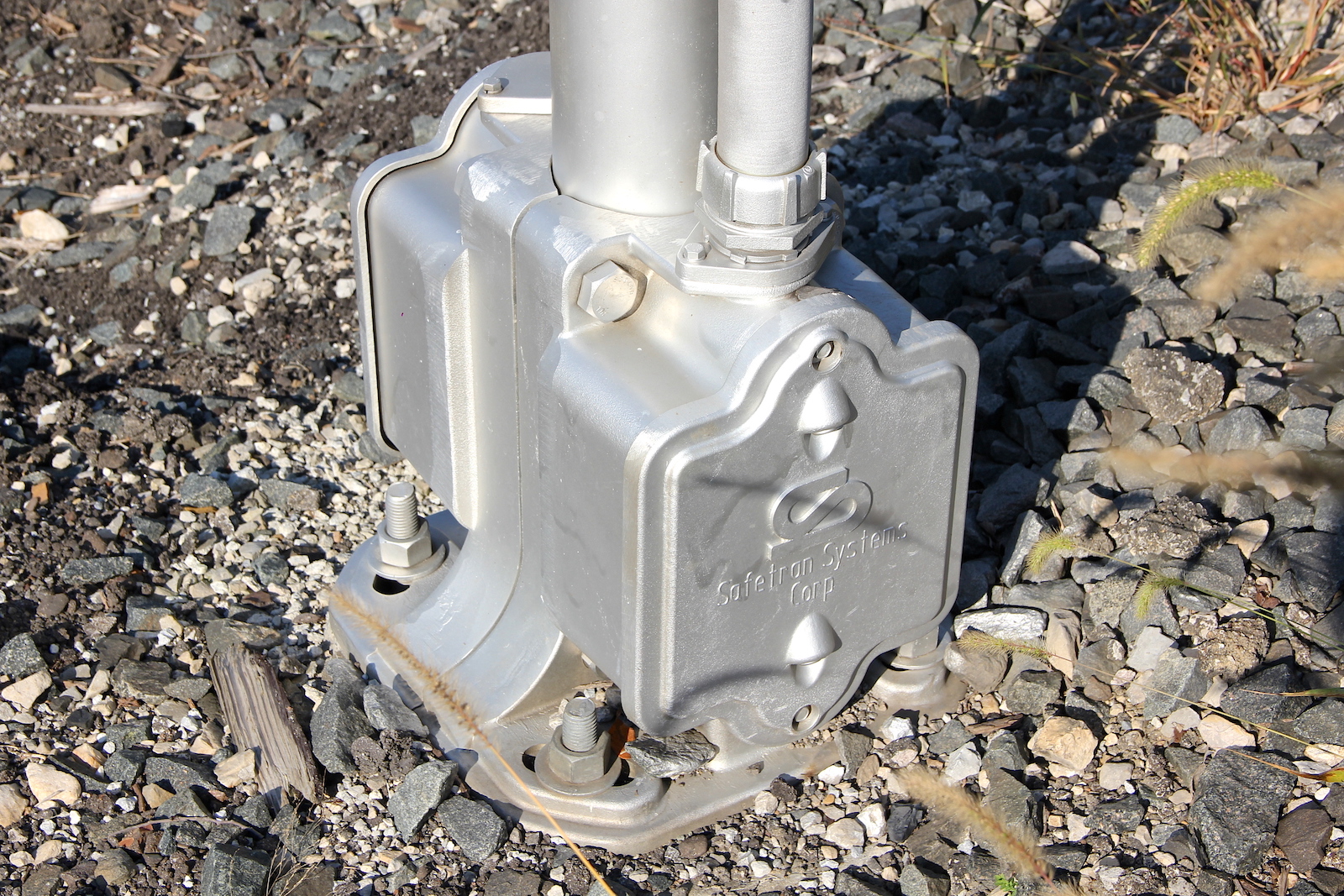

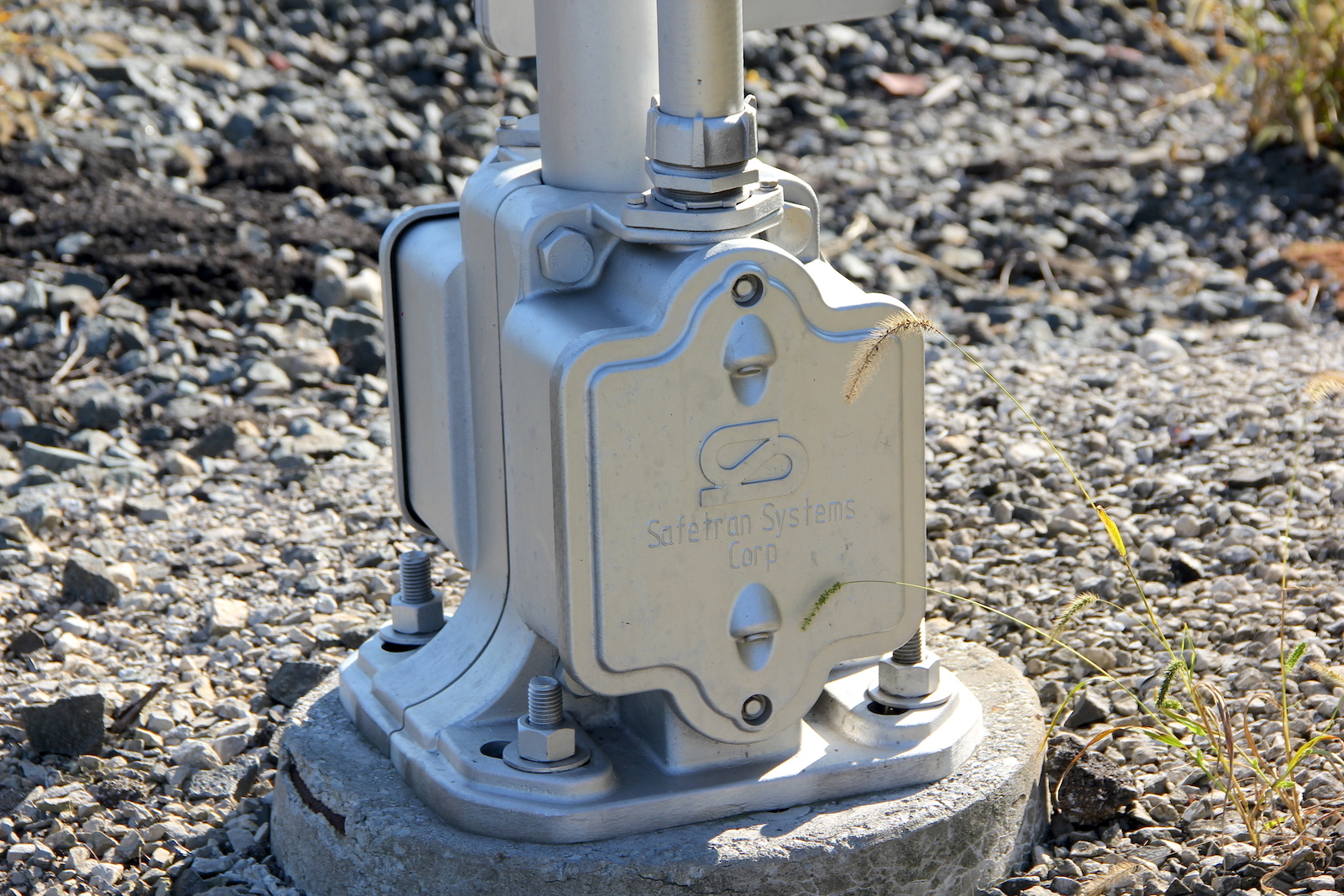

| Base: | Safetran 5" Double Sided ^ | Safetran 5" Double Sided ^ |

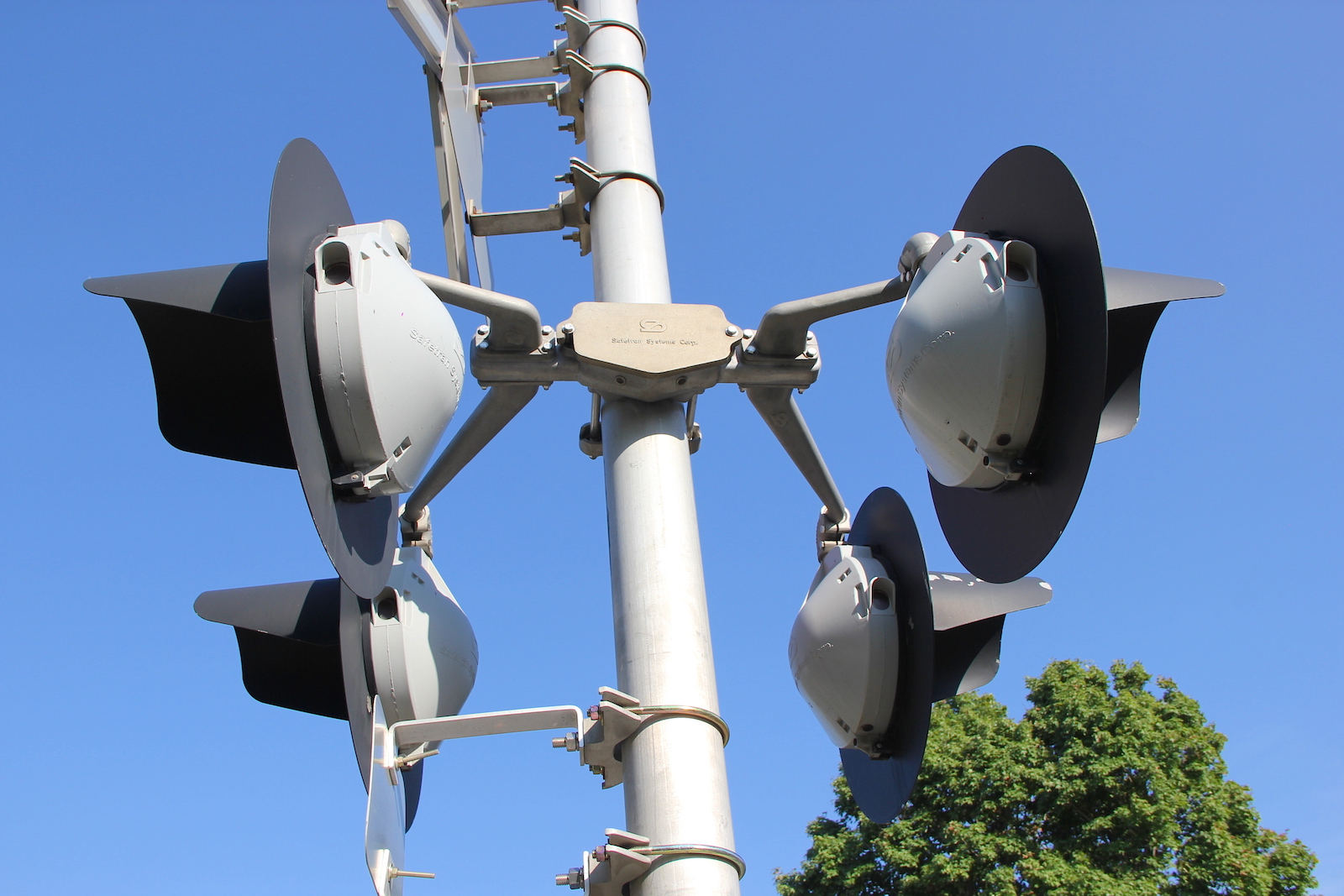

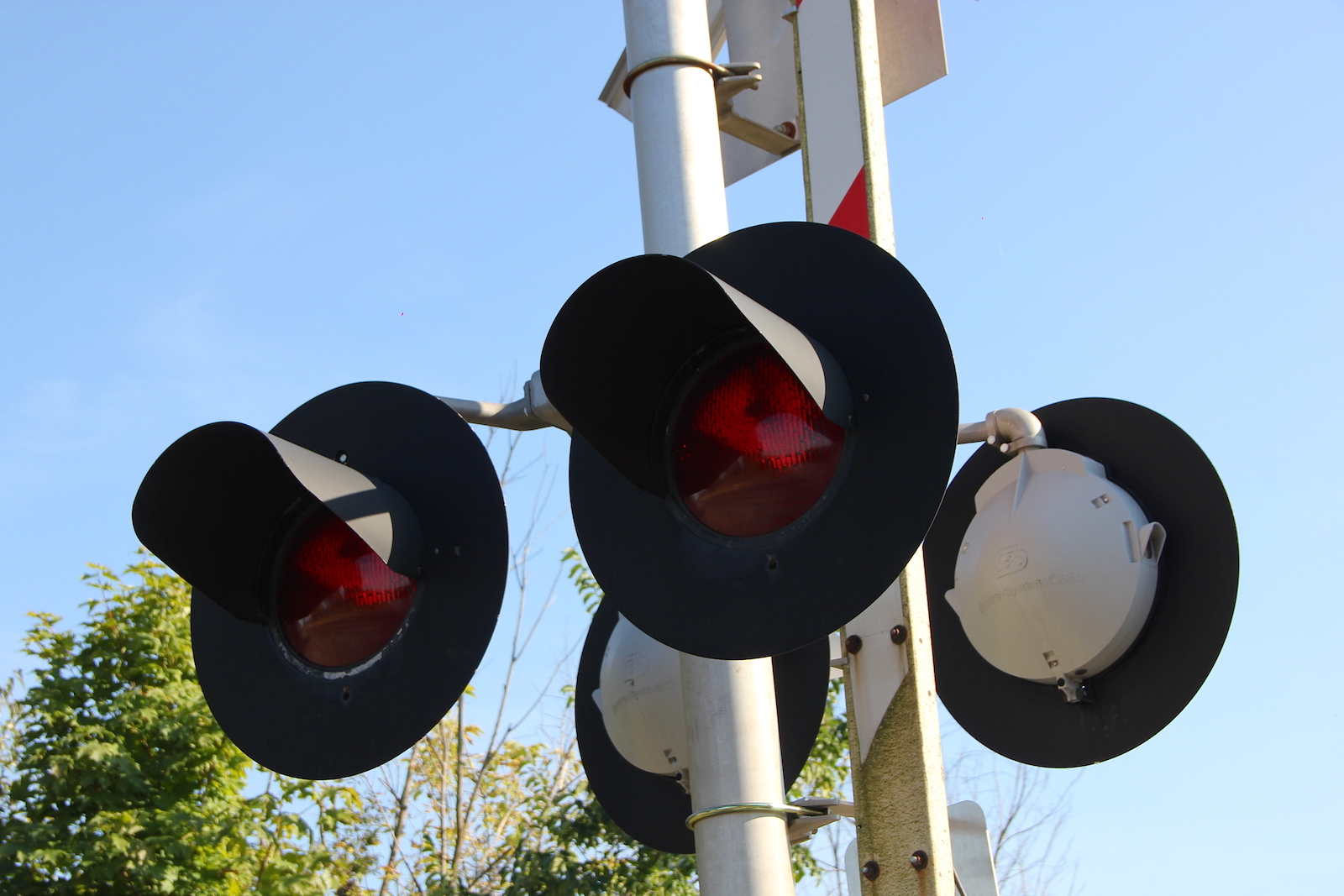

| Lights: | 4 - 12"x24" Safetran incandescents | 4 - 12"x24" Safetran incandescents |

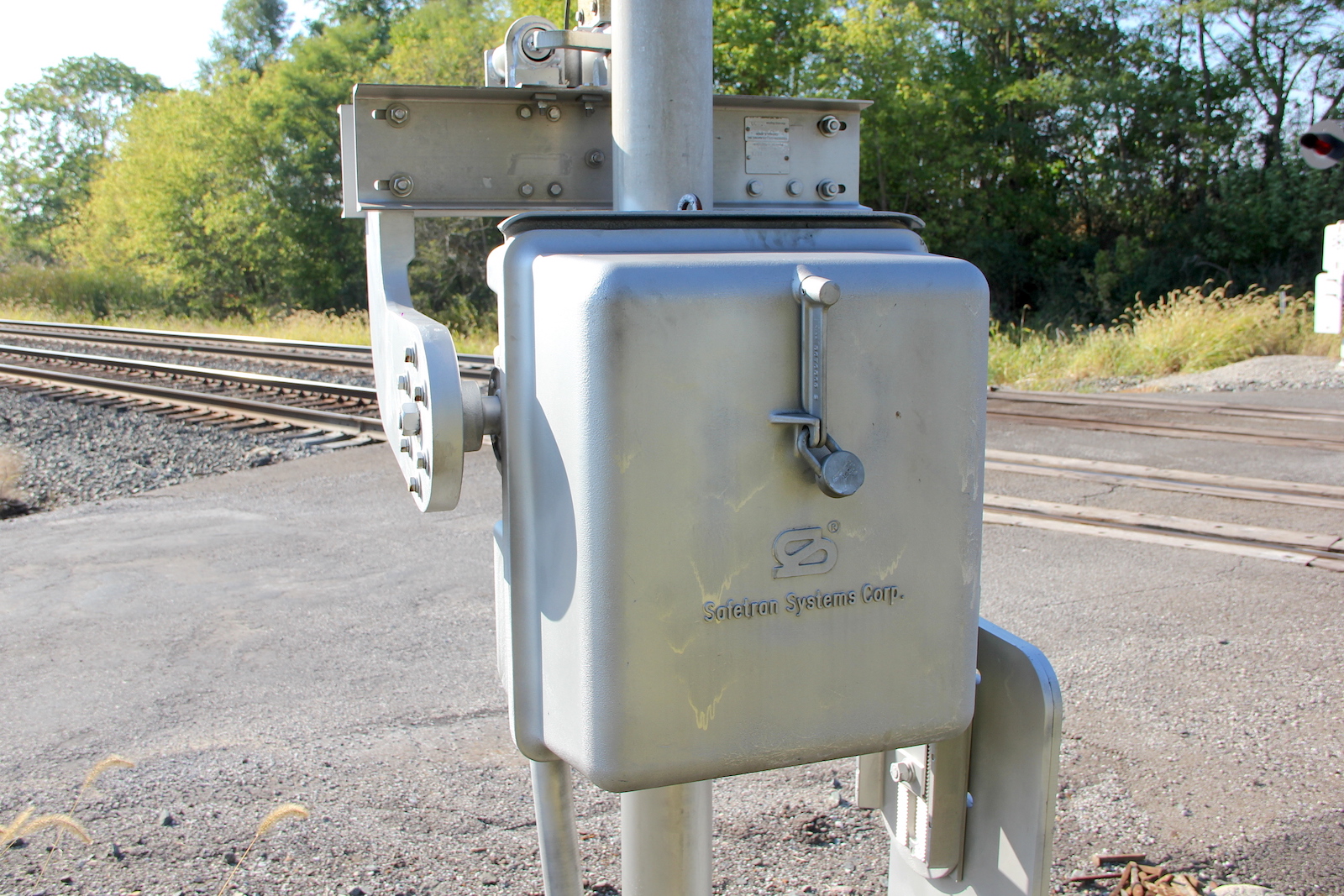

| Junction Box: | Safetran | Safetran |
| Gate Lights: | 2 - 4" RECO LEDs 1 - 4" RECO incandescent |
4" RECO incandescents |
| Gate Mechanism: | Safetran 2000s w/ Old WCH Gate Saver | Safetran 2000s w/ Old WCH Gate Saver |
| Gate Striping: | Diagonal Striping | Diagonal Striping |
1 |
2
|

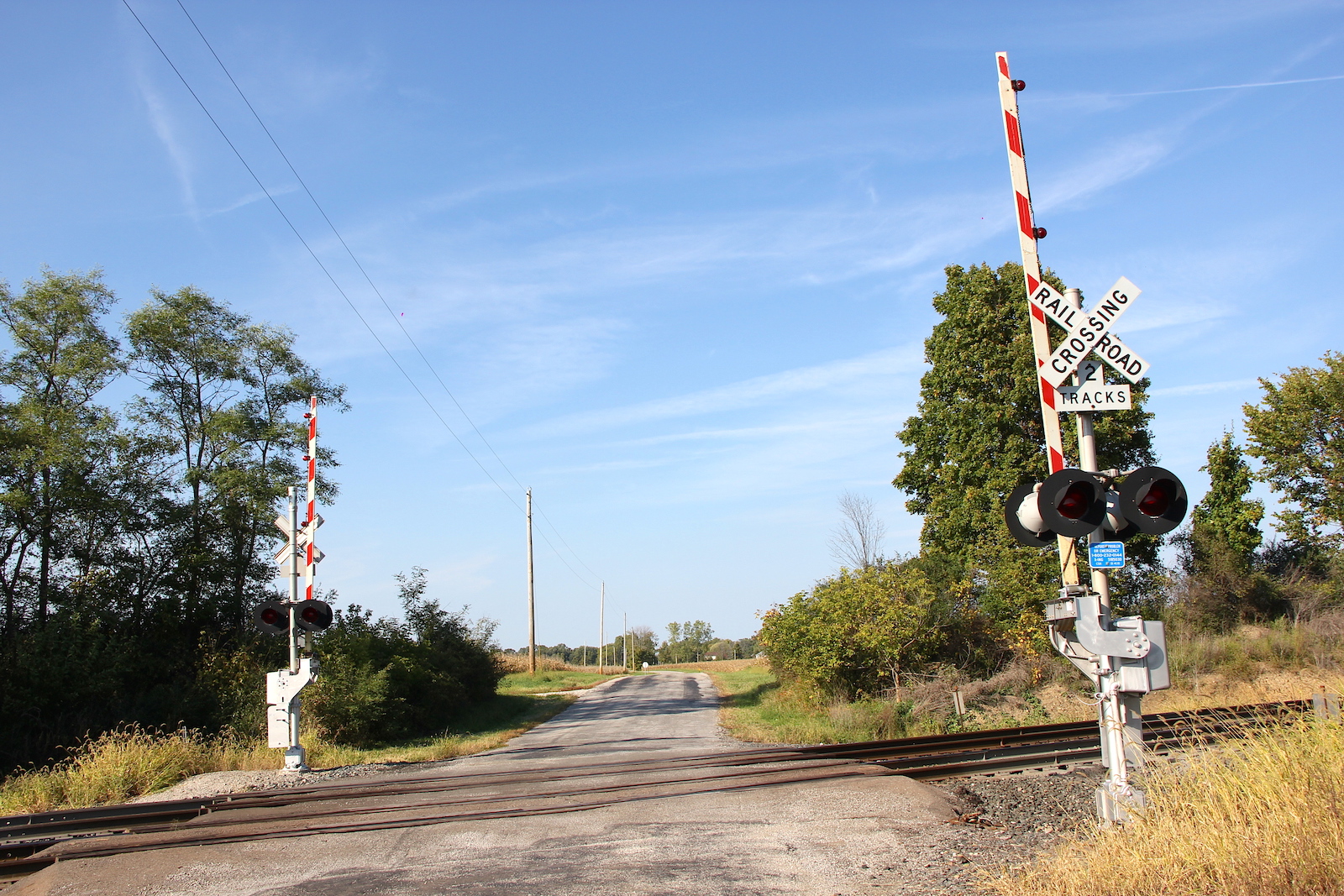

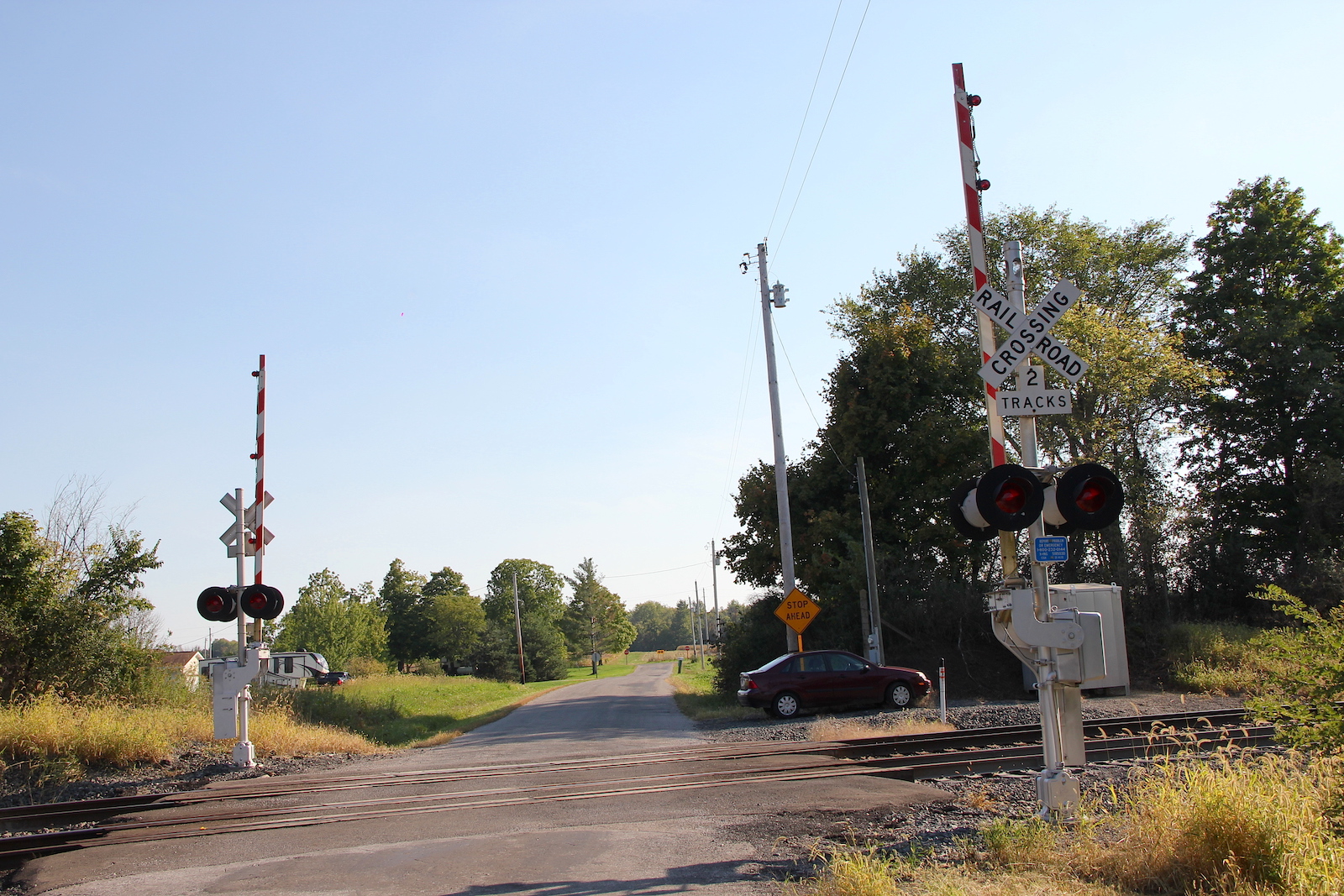

| Overview of 2 gated signals facing north. |
Overview facing south. |
3
| 4
| 5
|
6
| 7
| 8
|
9
|
10
|
11
|

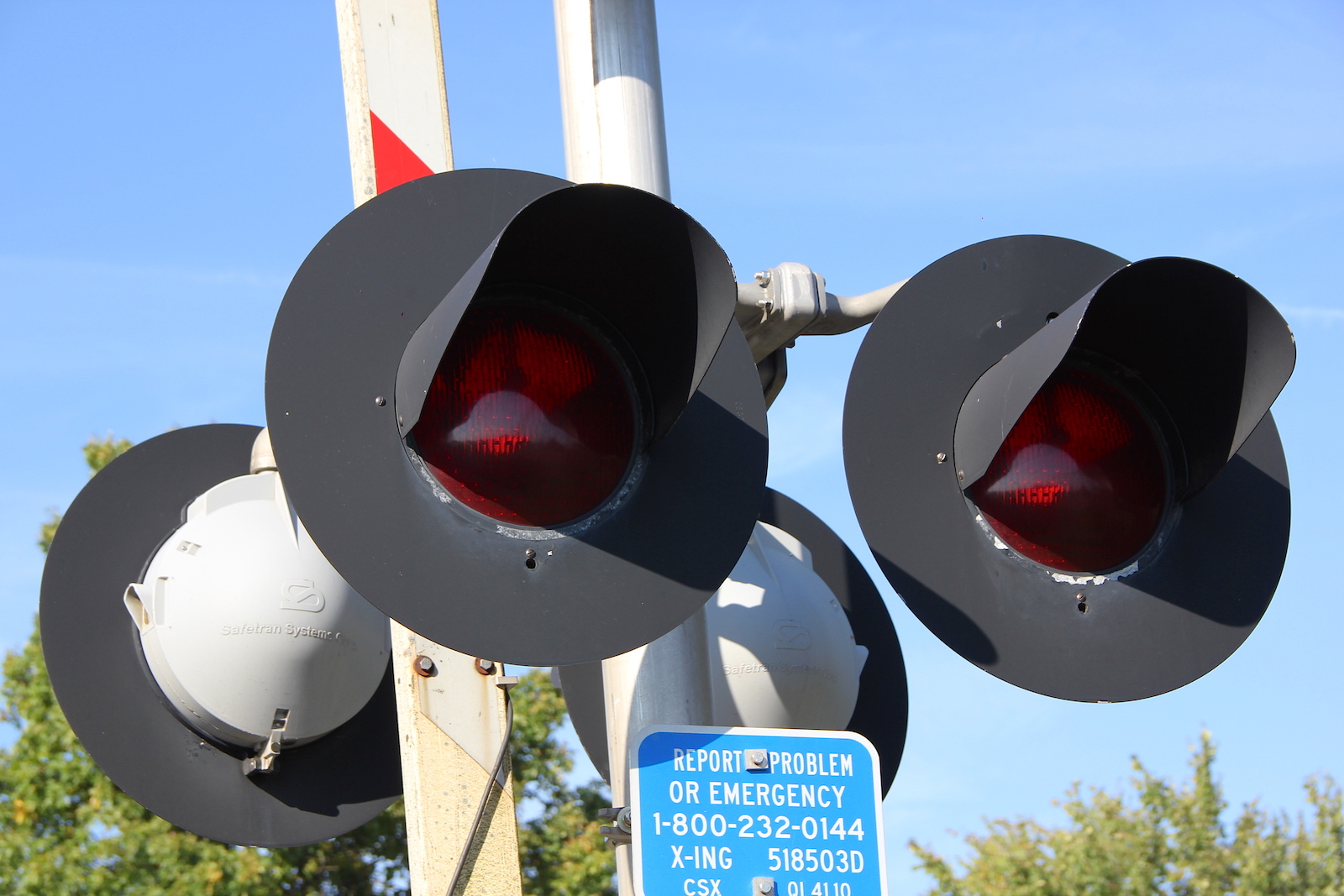

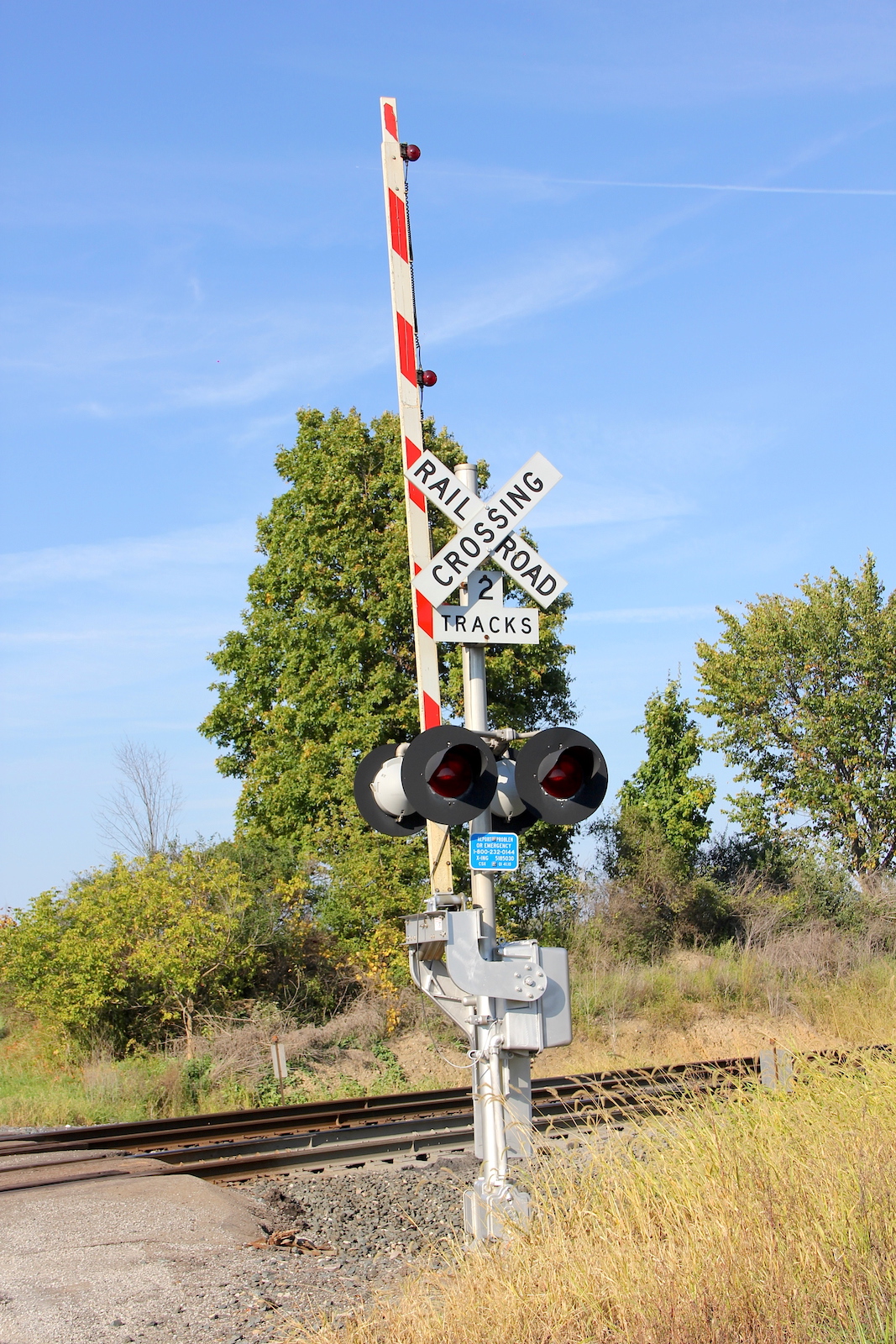

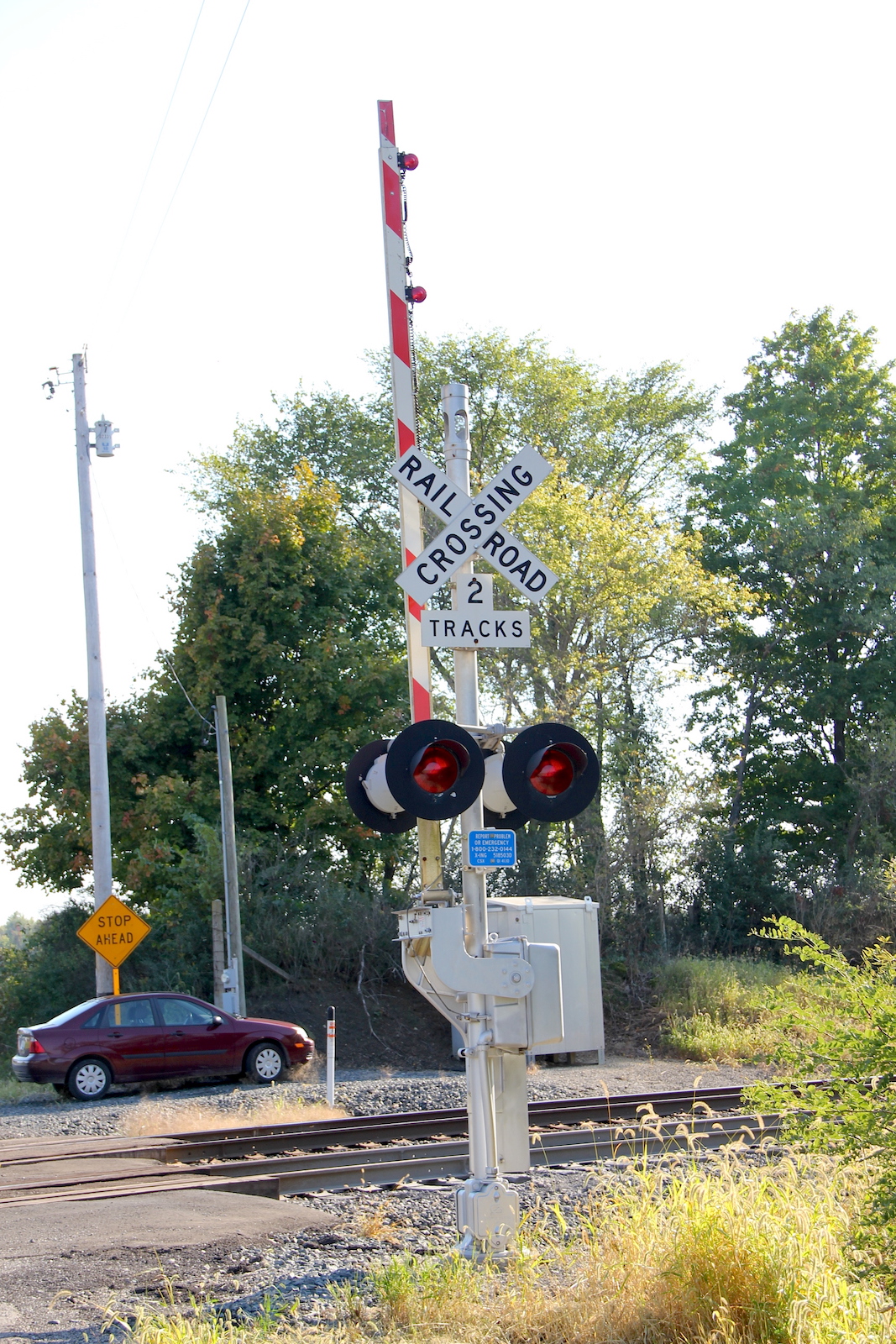

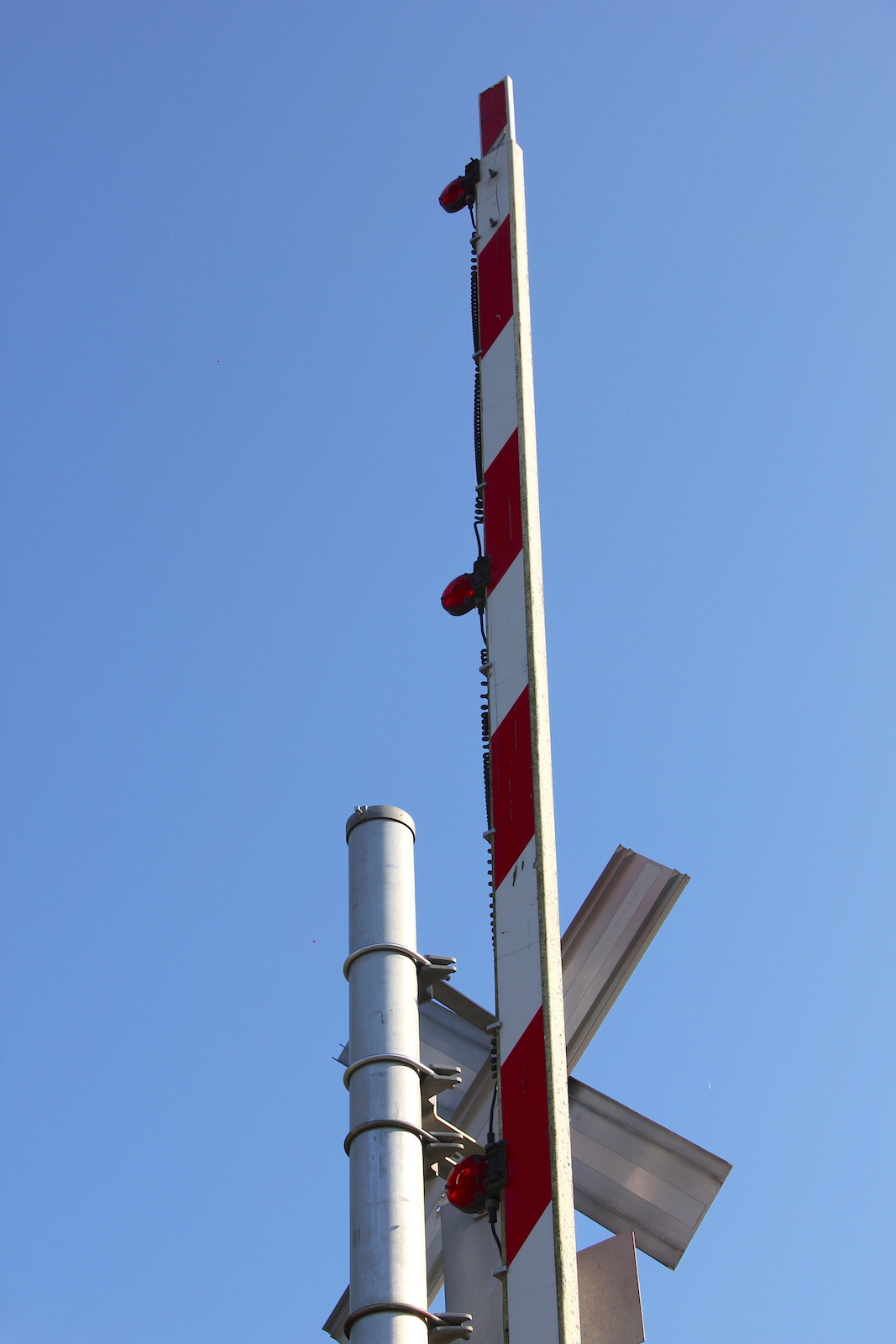

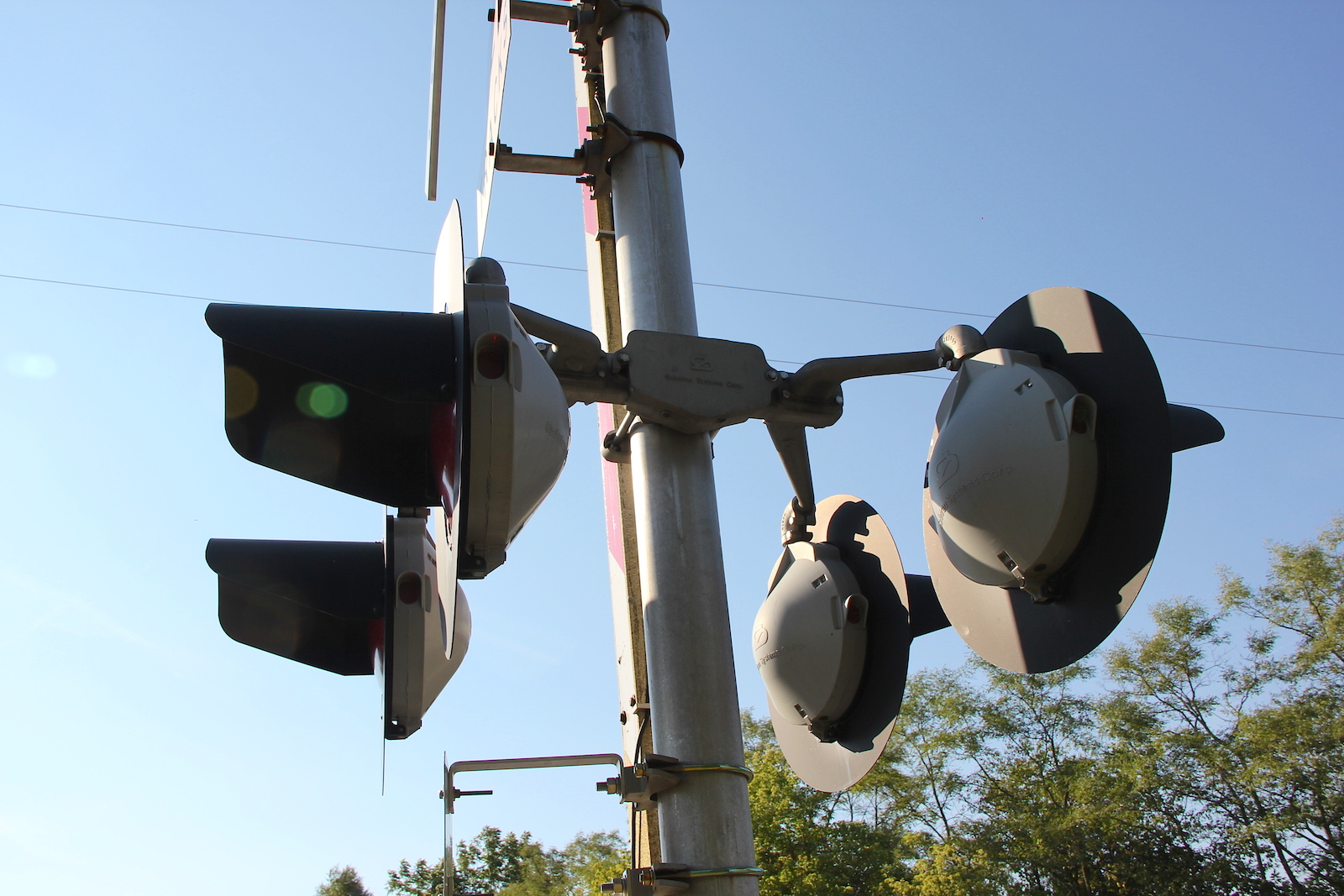

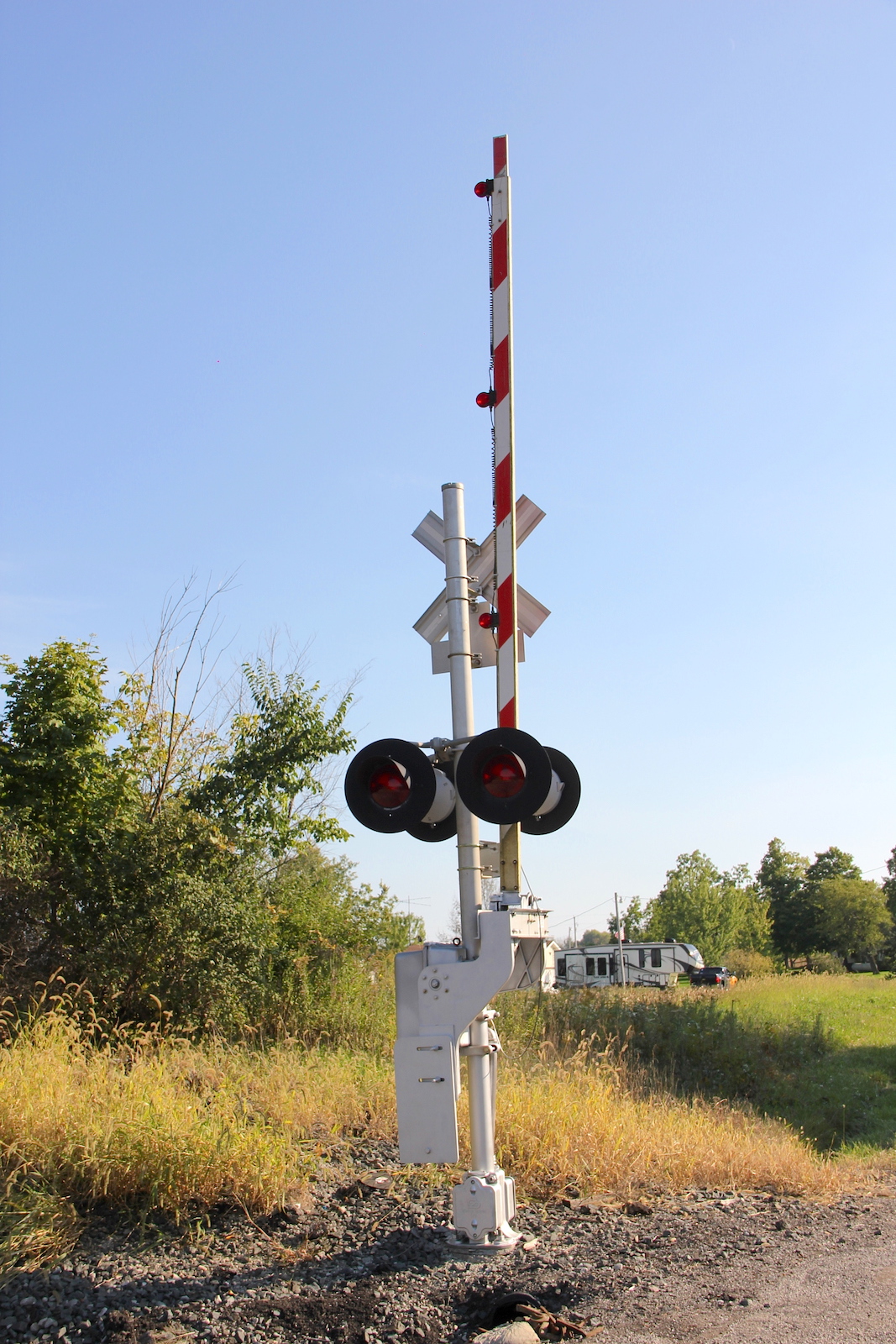

| The southern signal. |
||
12
| 13
| 14
|
15
| 16
| 17
|
18
| 19
| 20 | 21
|

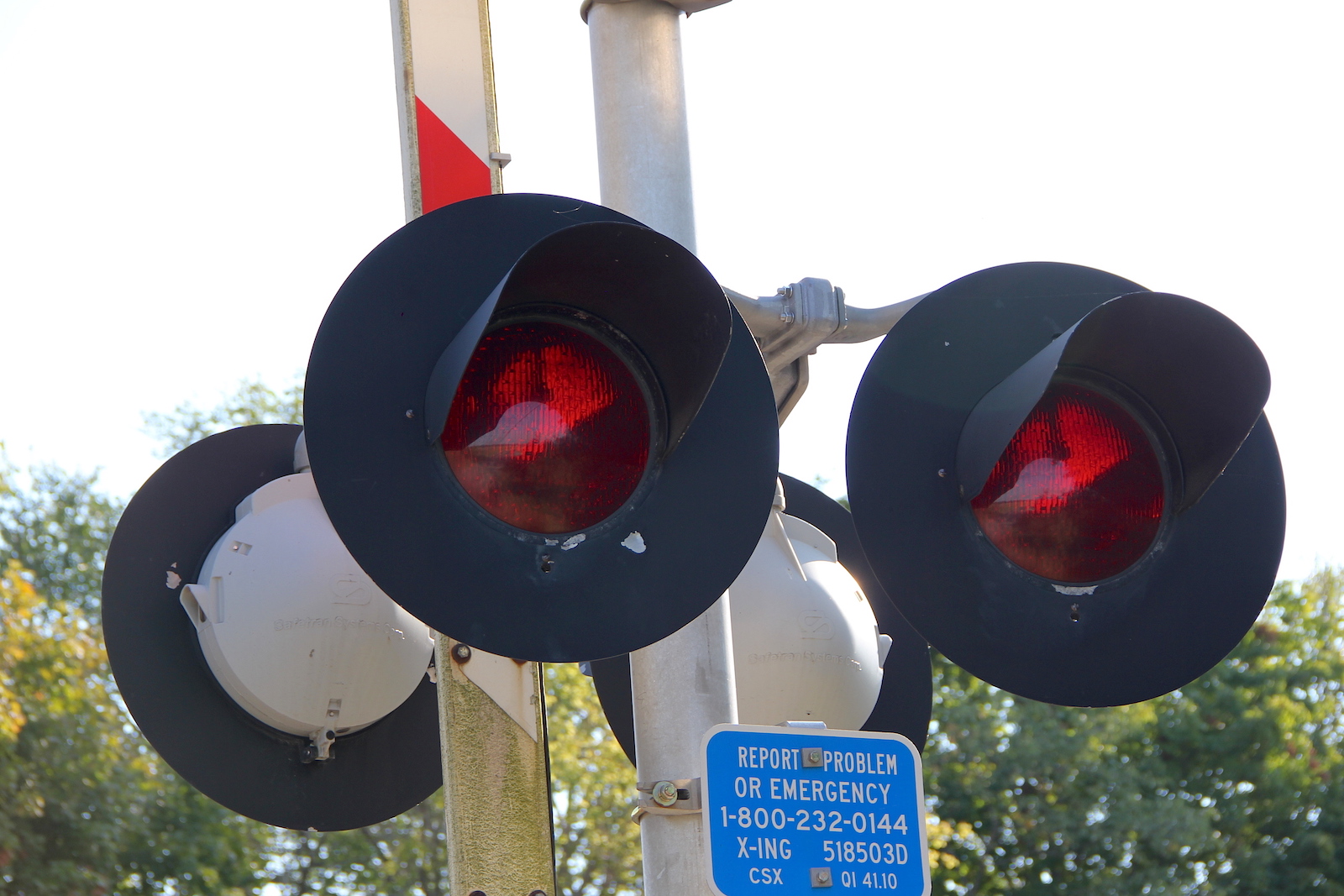

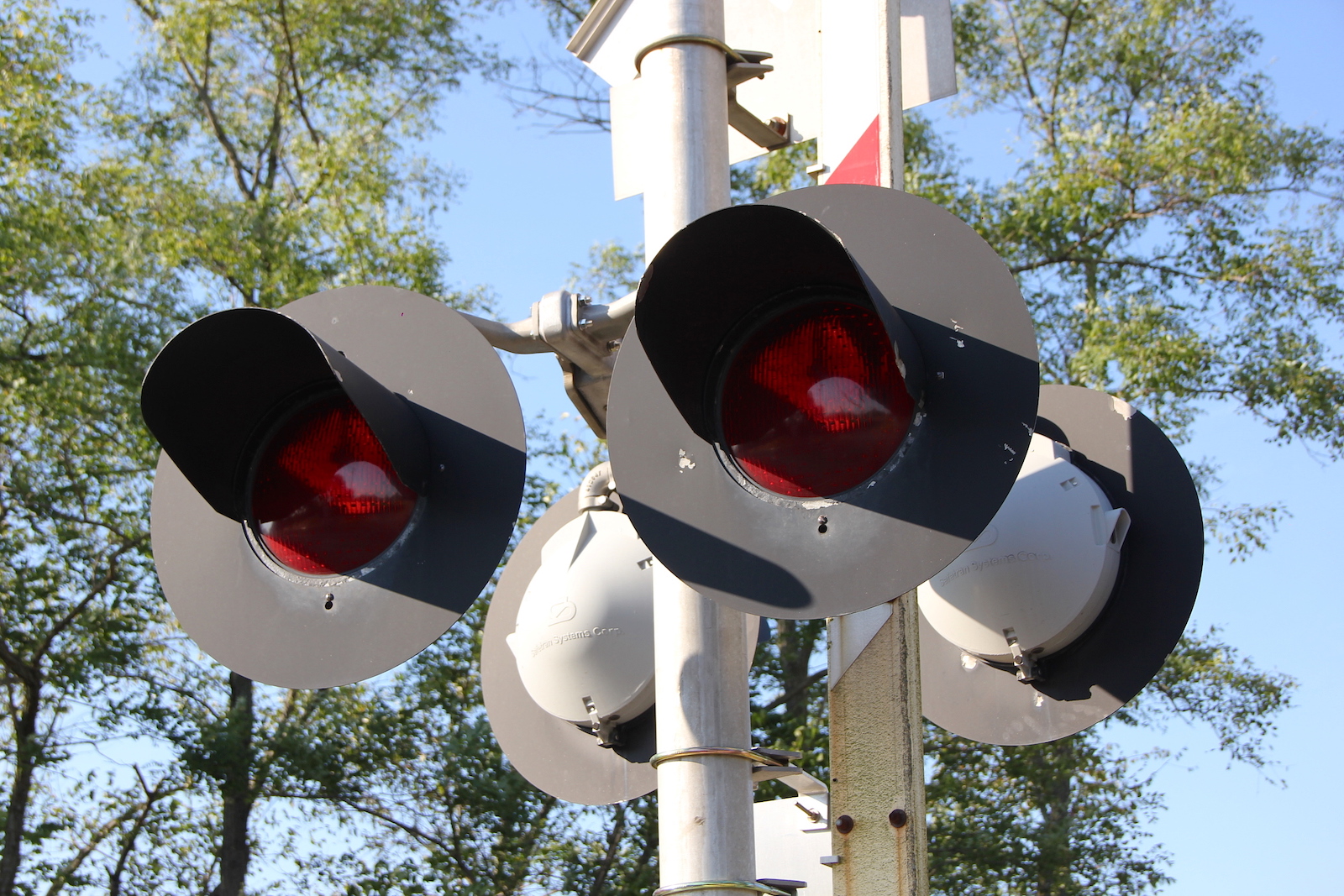

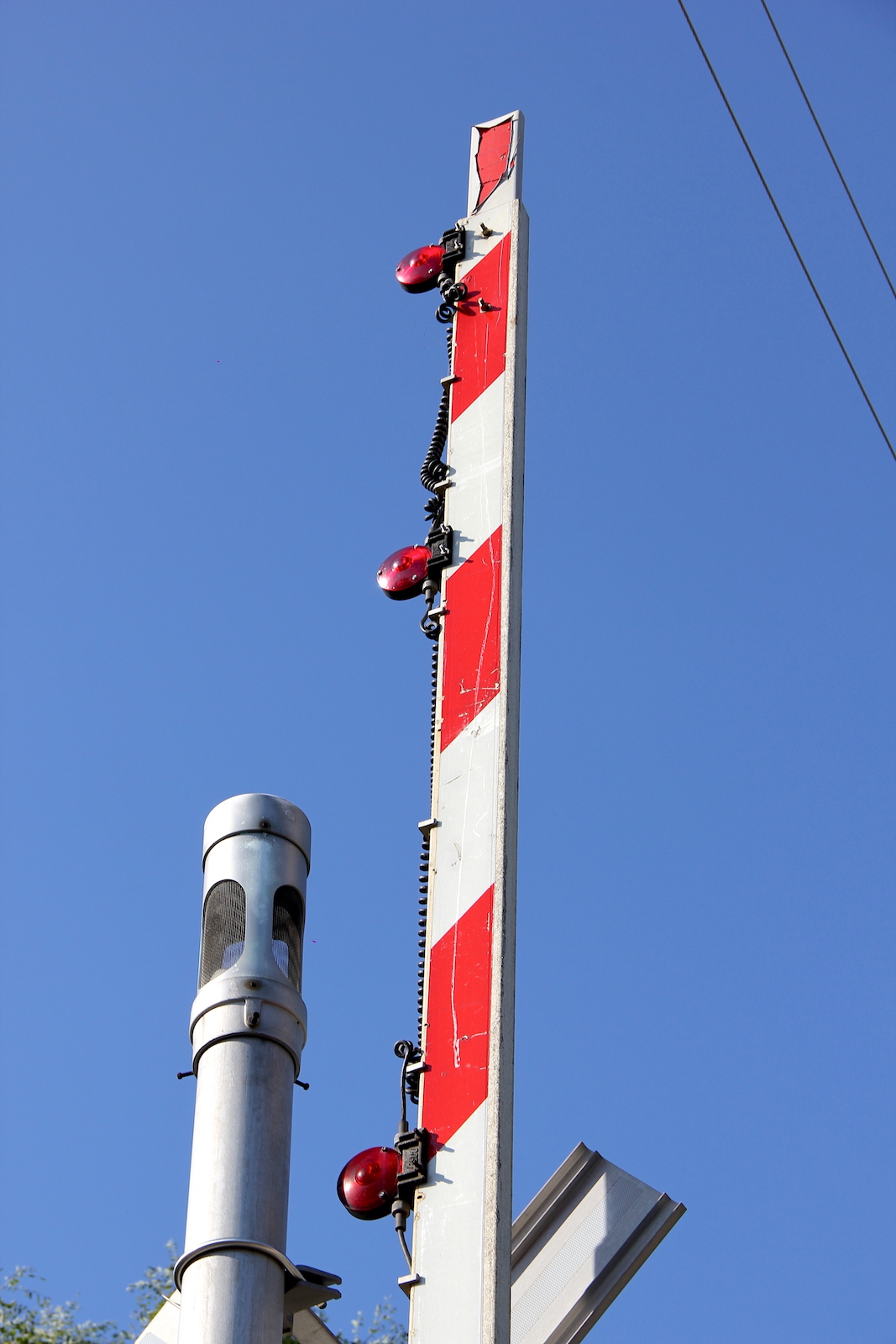

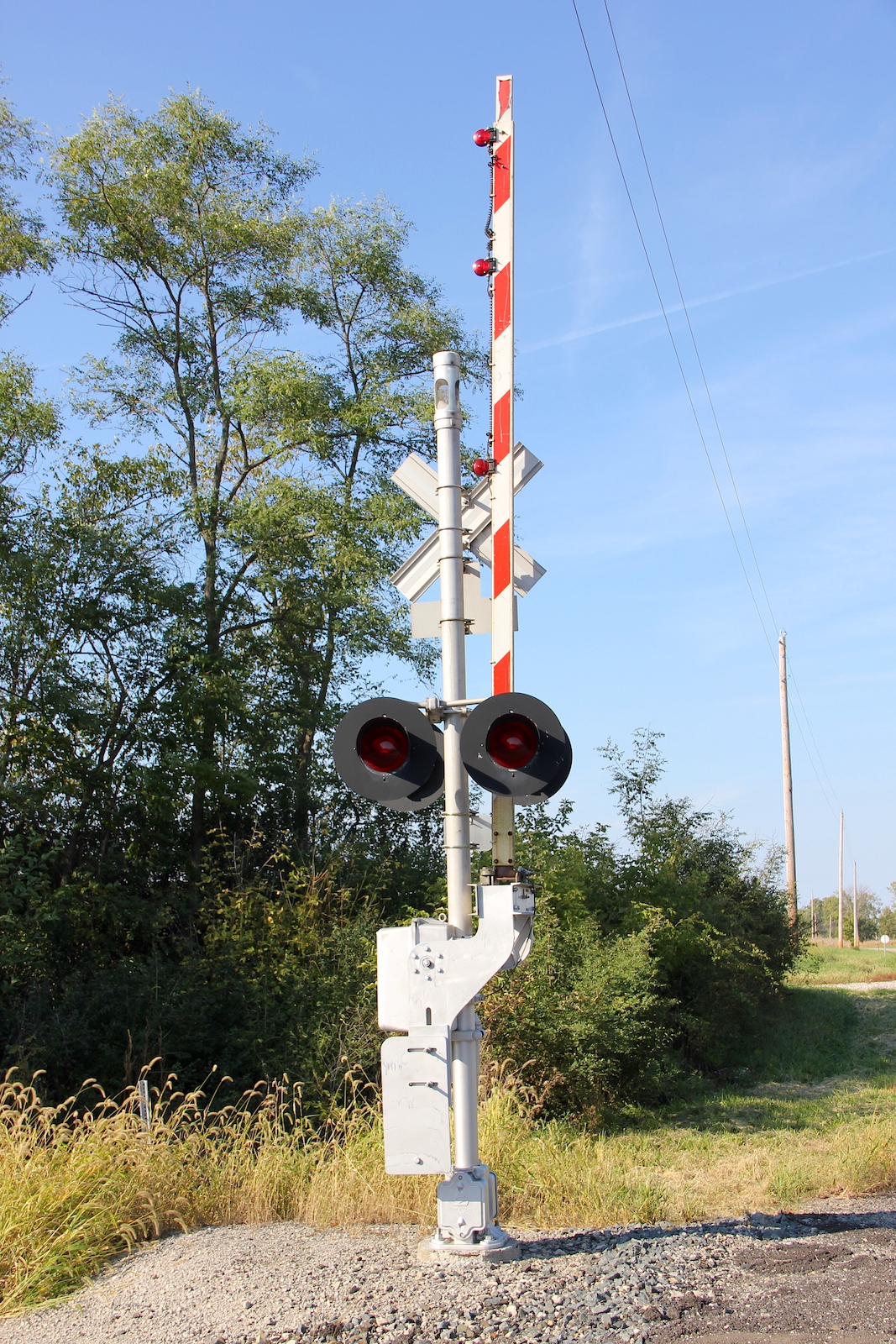

| The northern signal. The gate light closest to the gate mech is incandescent, and the other 2 are LED. |
22
|
23
|
24
|
25
|

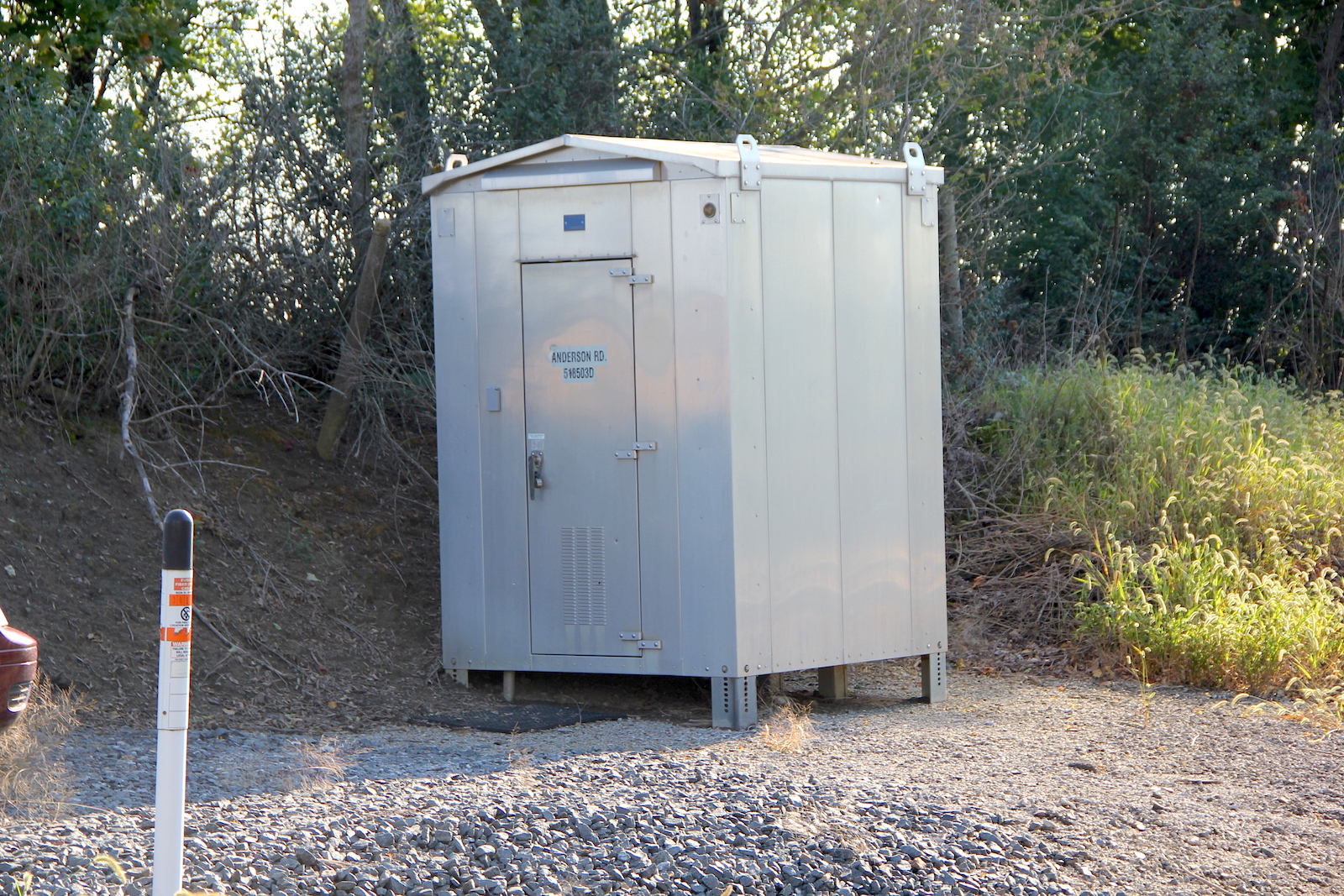

| The relay bungalow in the southwest quadrant. |

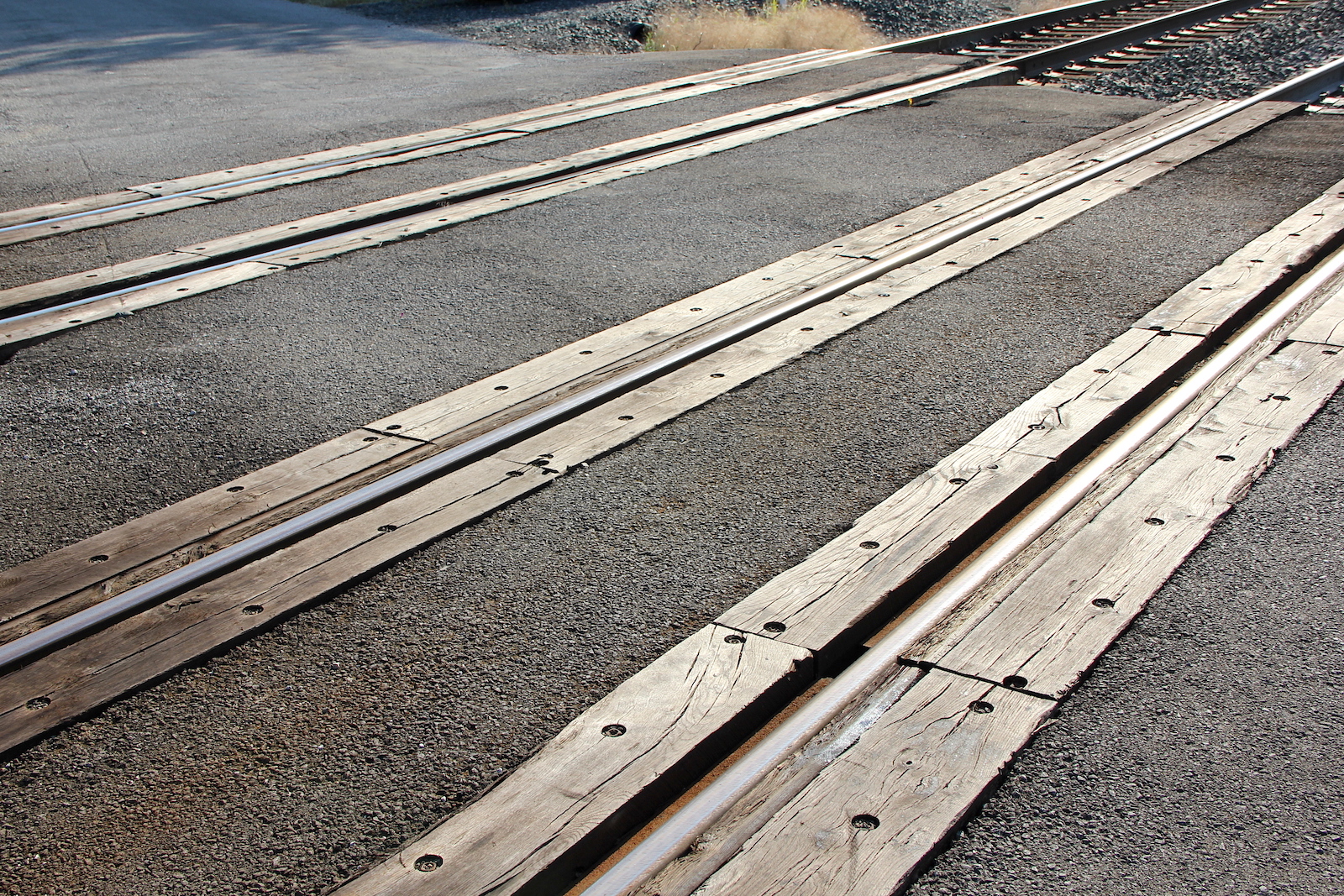

The grade is wood and asphalt. |

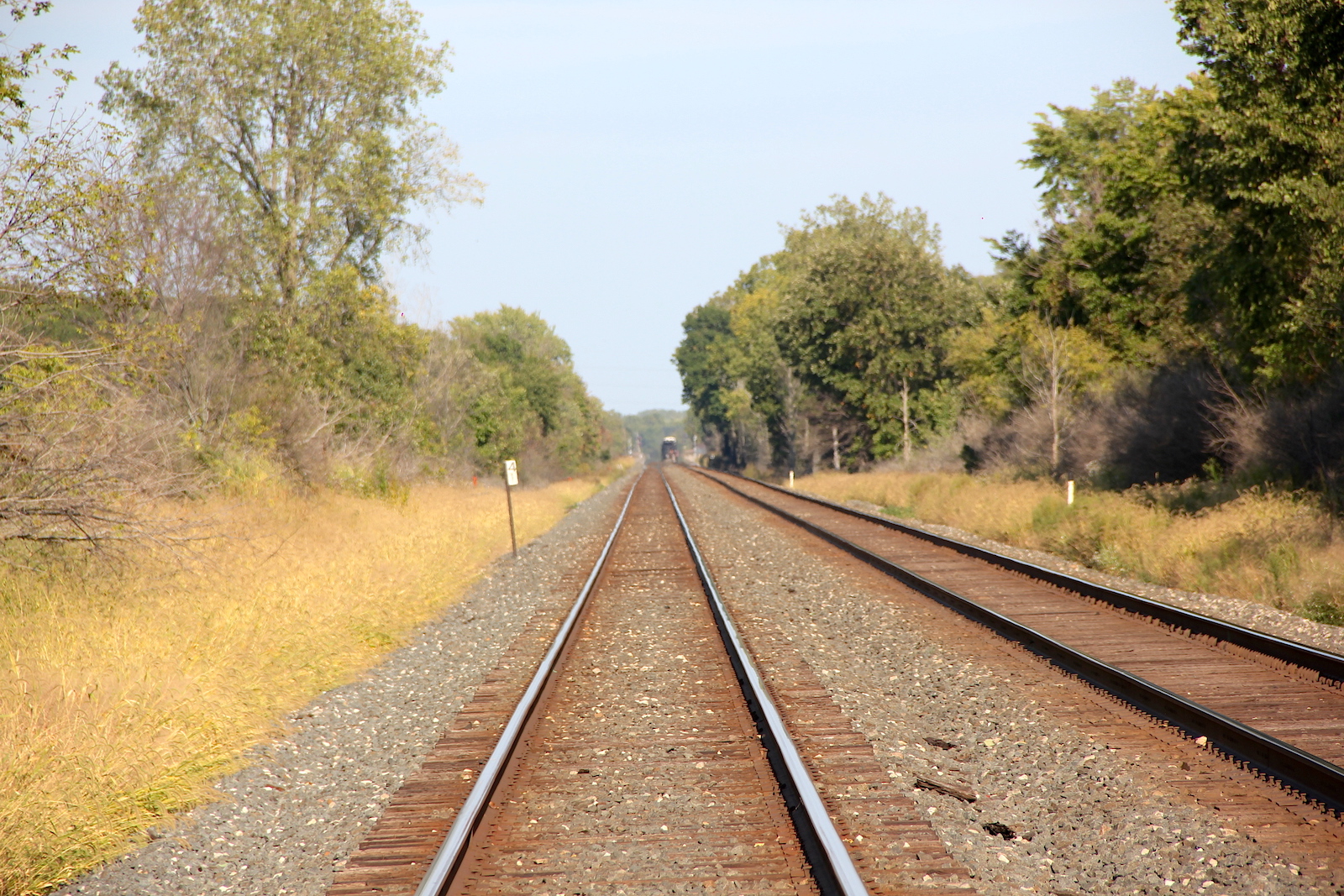

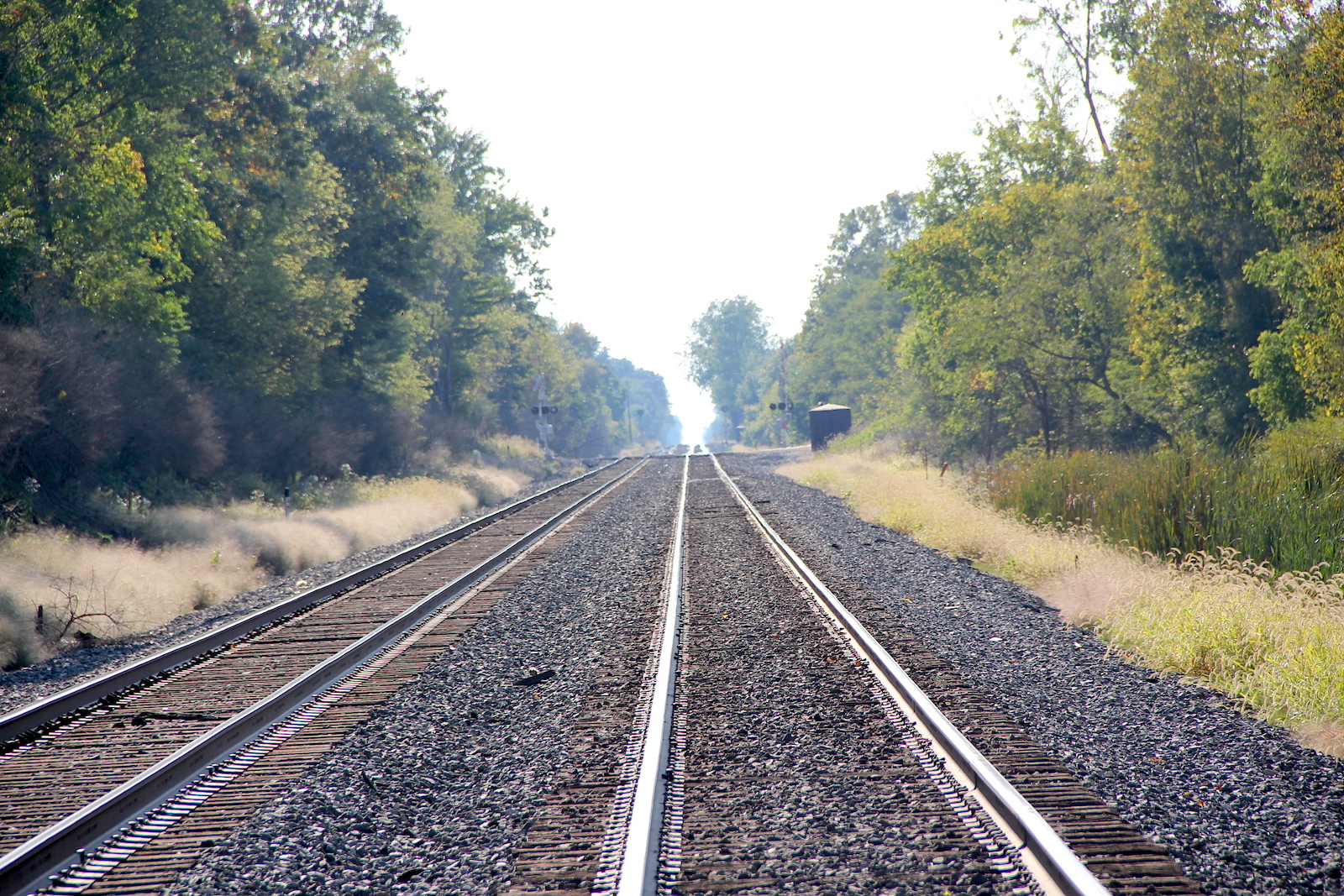

Track view facing west towards Griggs Rd. |
Track view facing east towards Quarry Rd. #2 in Wellington. |
