| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | None | None |
| Base: | Transport Products 4" Single Sided ^ | WRRS 4" Clamp Base |
| Lights: | 4 - 12"x24" WCH w/ 2nd Gen WCH LEDs | 4 - 12"x24" WCH w/ 2nd Gen WCH LEDs |
| Junction Box: | Progress Rail | Progress Rail |
1
|
2 |

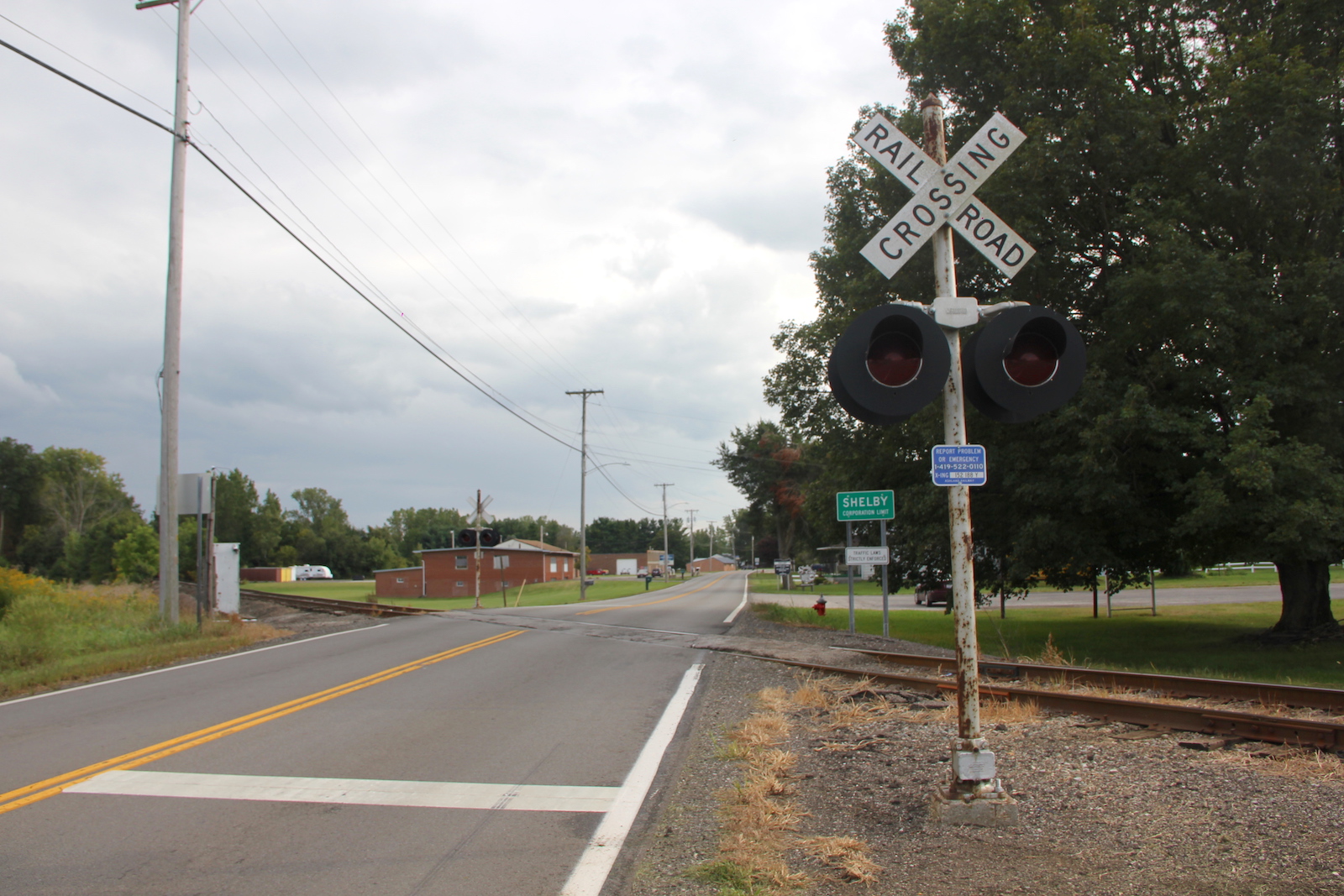

| Overview of 2 gateless and bell-less signals facing north. |
Overview facing south. |
3 | 4
| 5
|
6
| 7
| 8
| 9
|

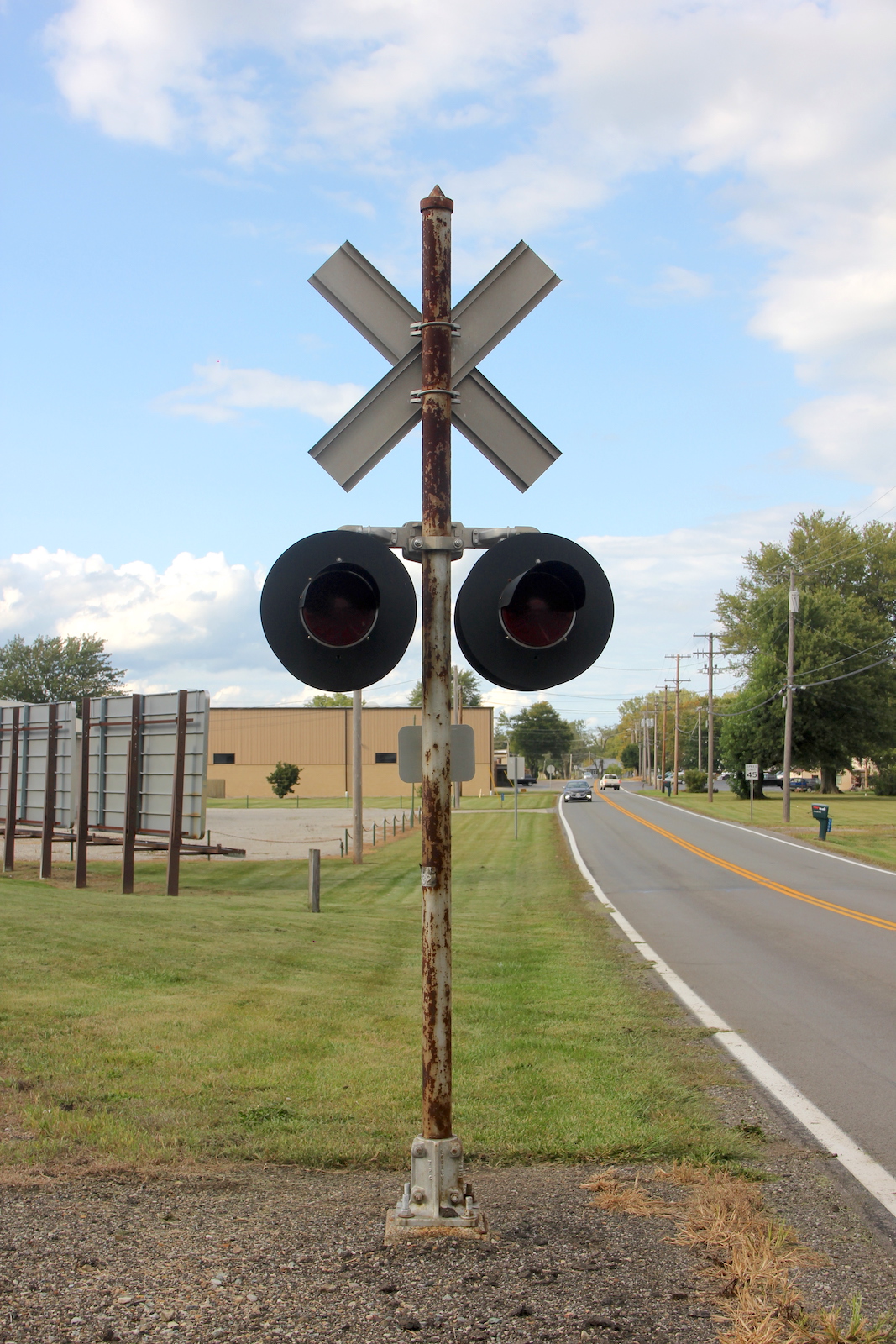

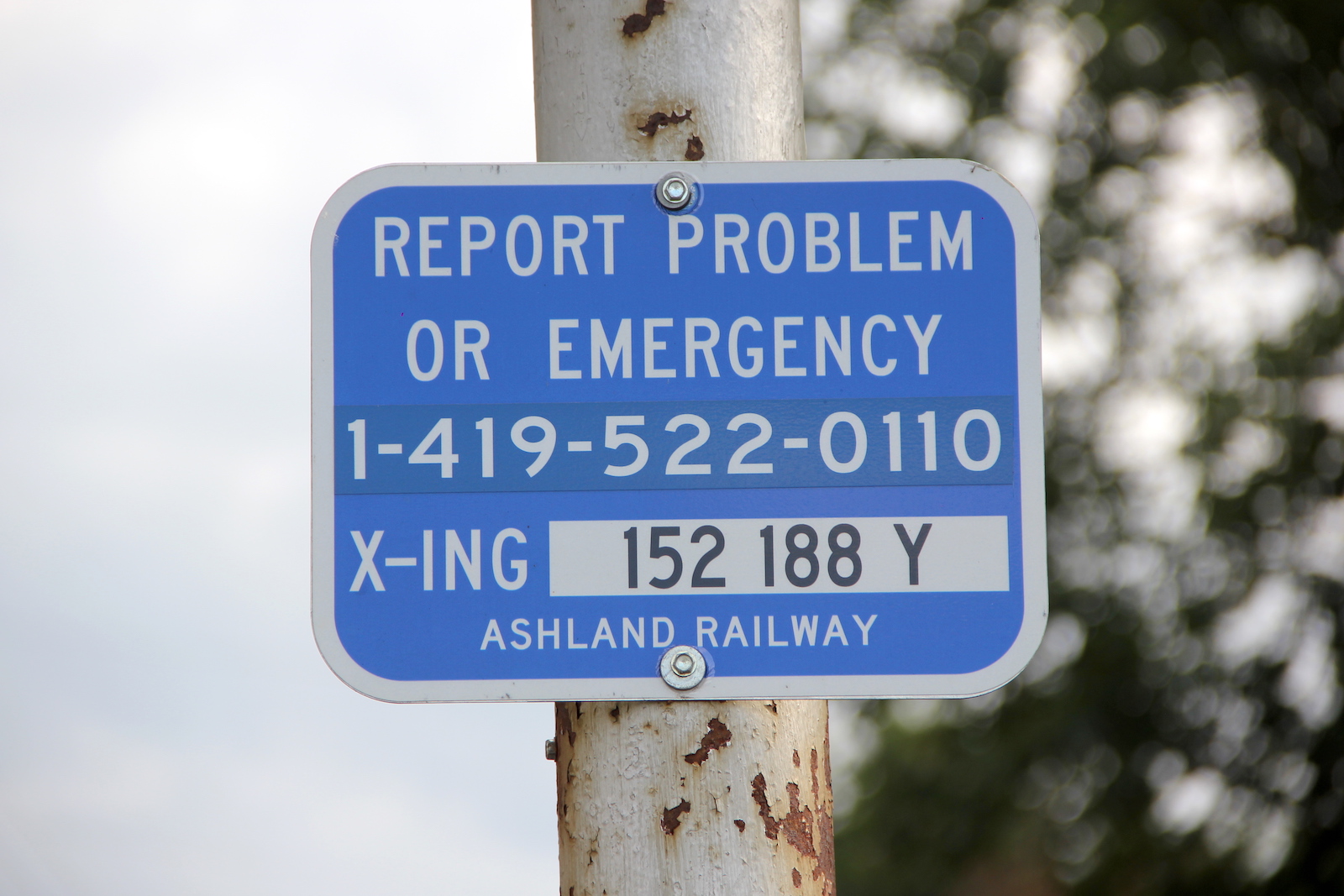

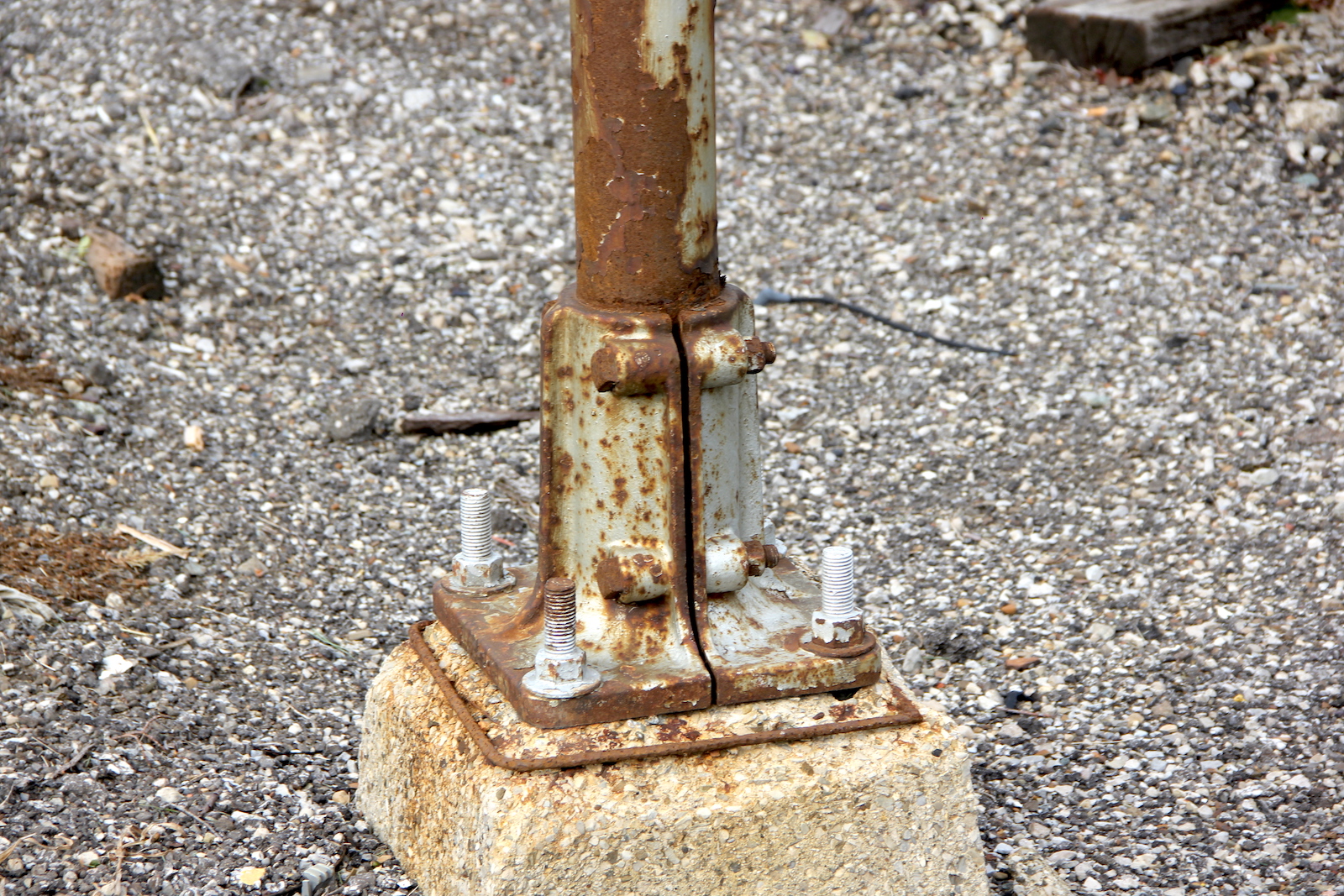

| The southern signal. |
10
| 11
| 12
|
13
| 14
| 15
| 16
|

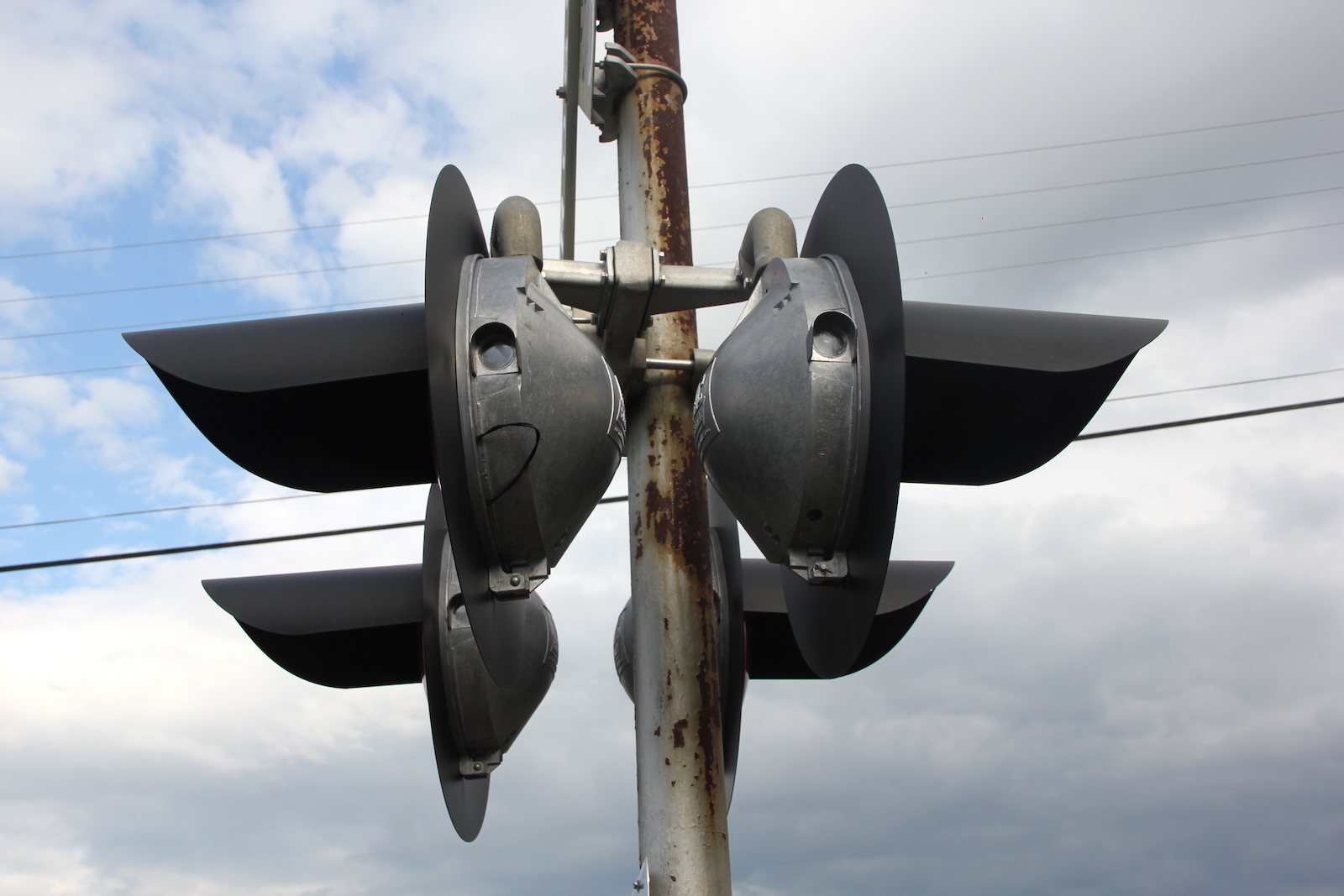

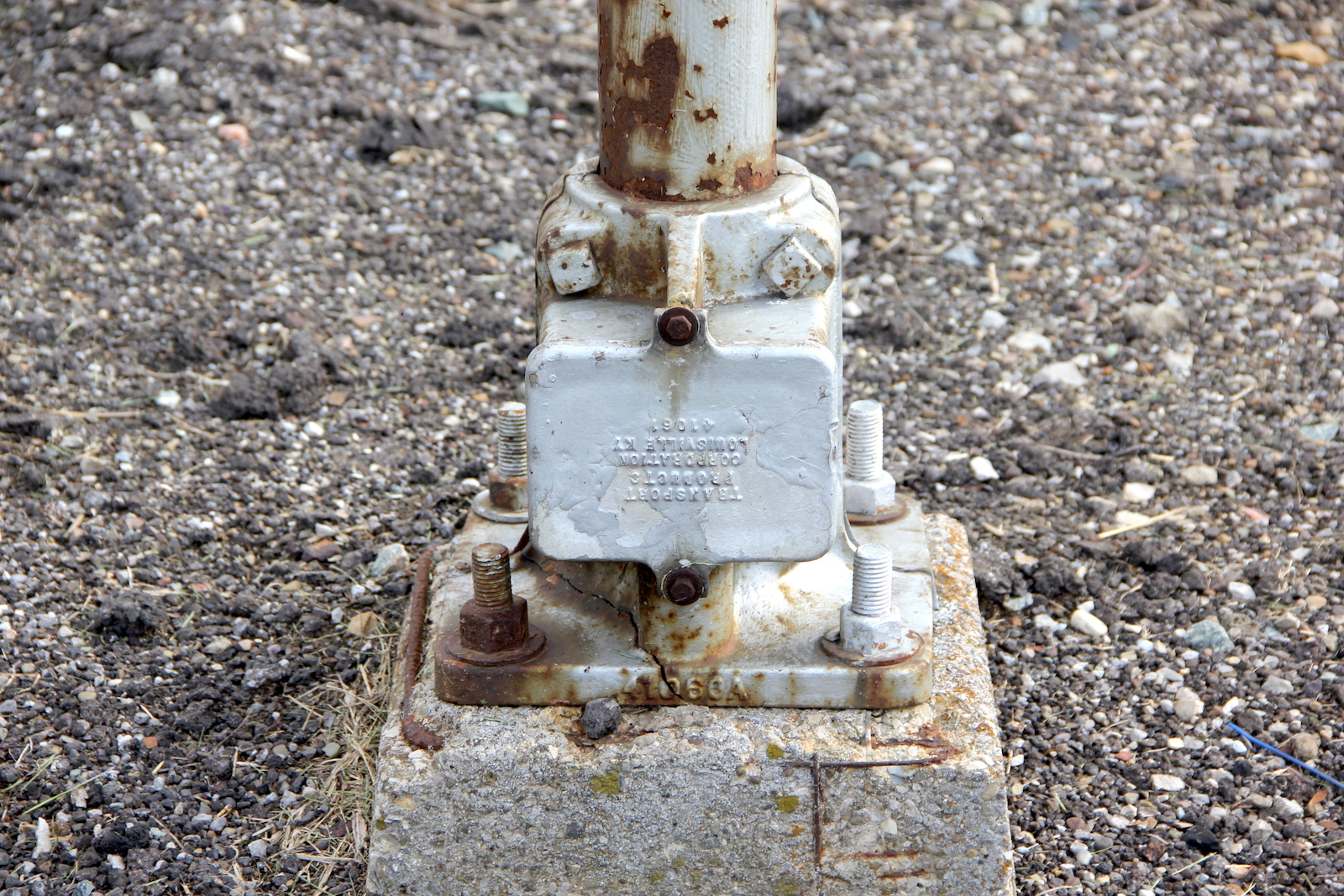

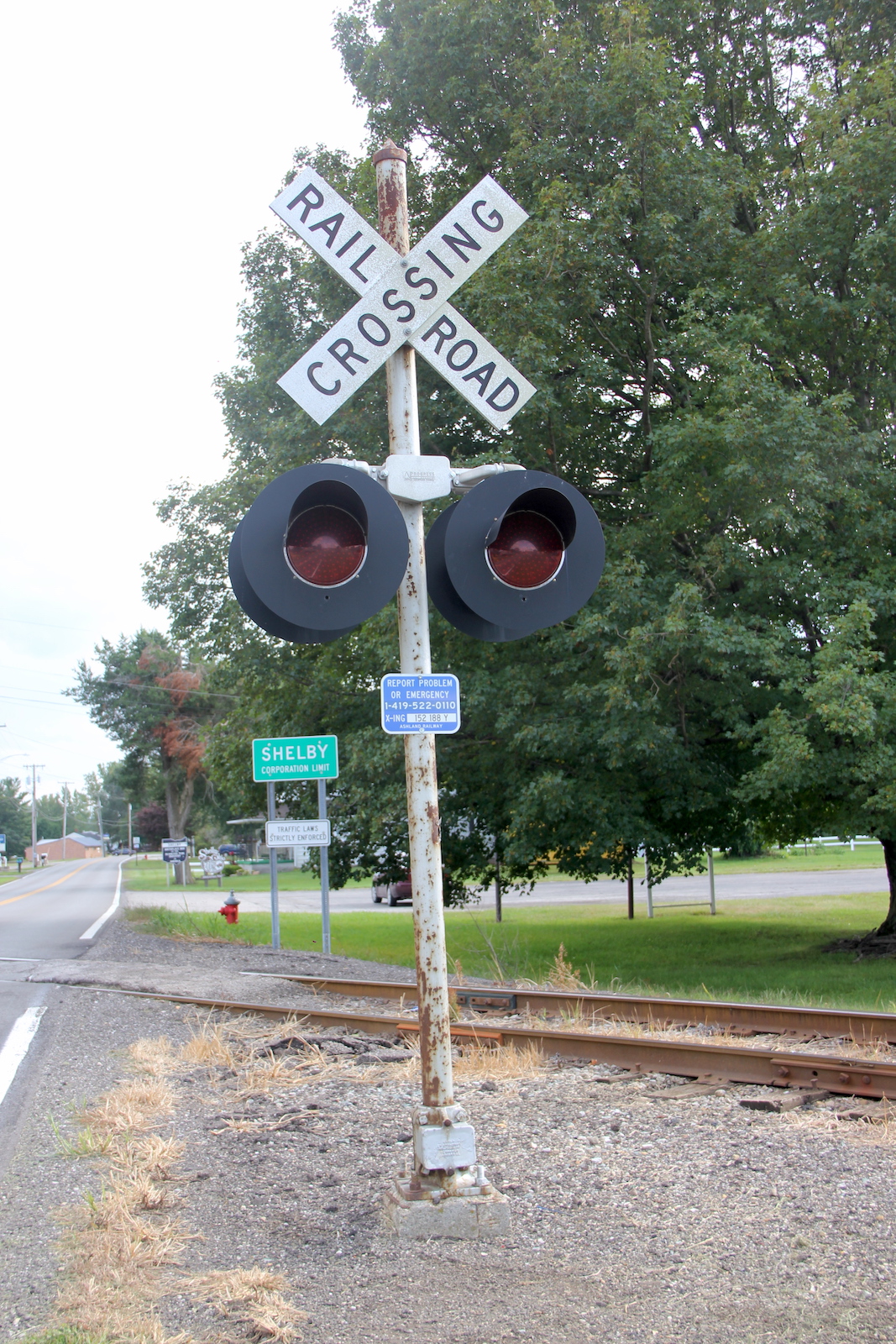

| The northern signal. |
17
|
18
|
19
|
20
|

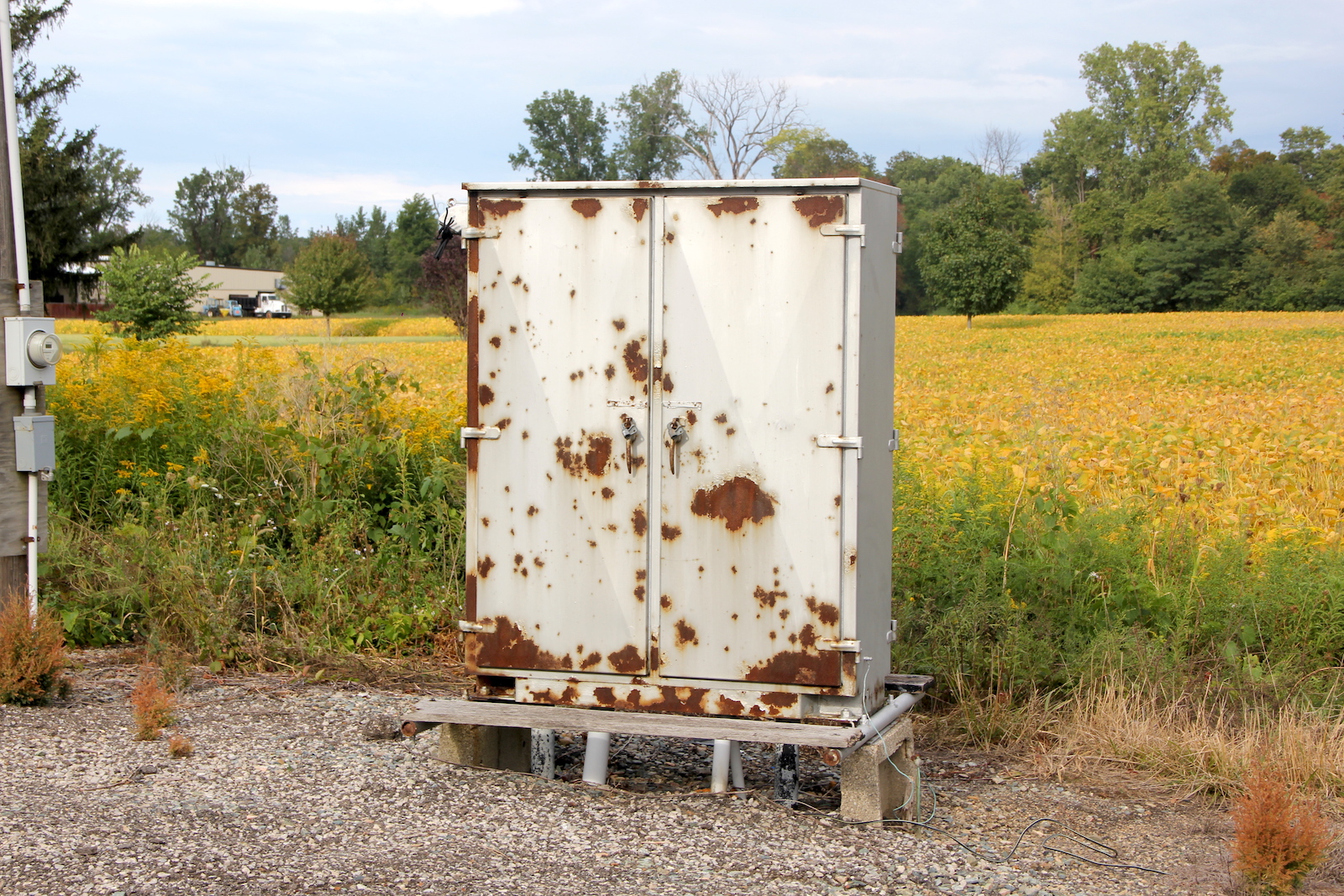

| The relay case in the northeast quadrant. |

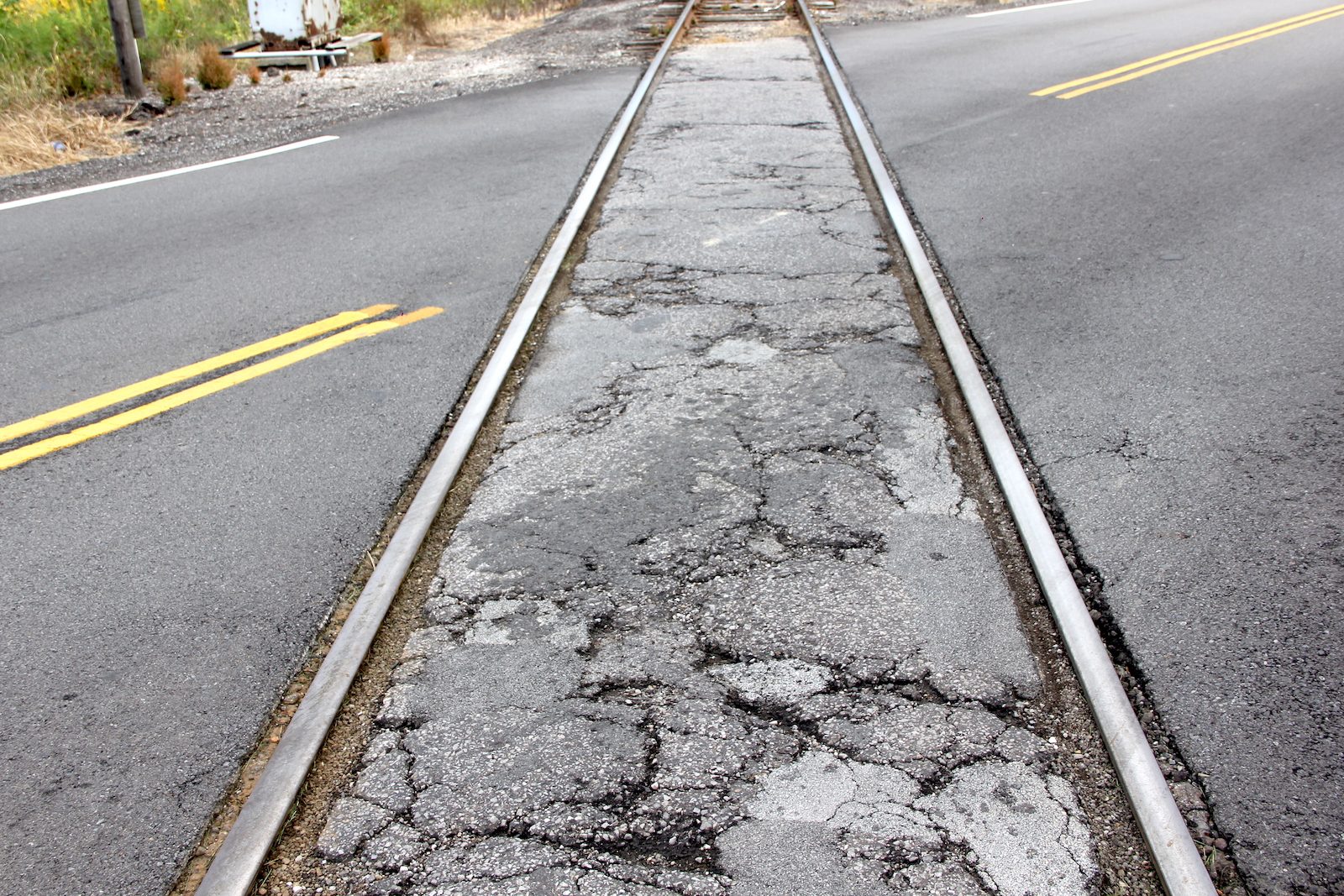

The grade is all asphalt. |

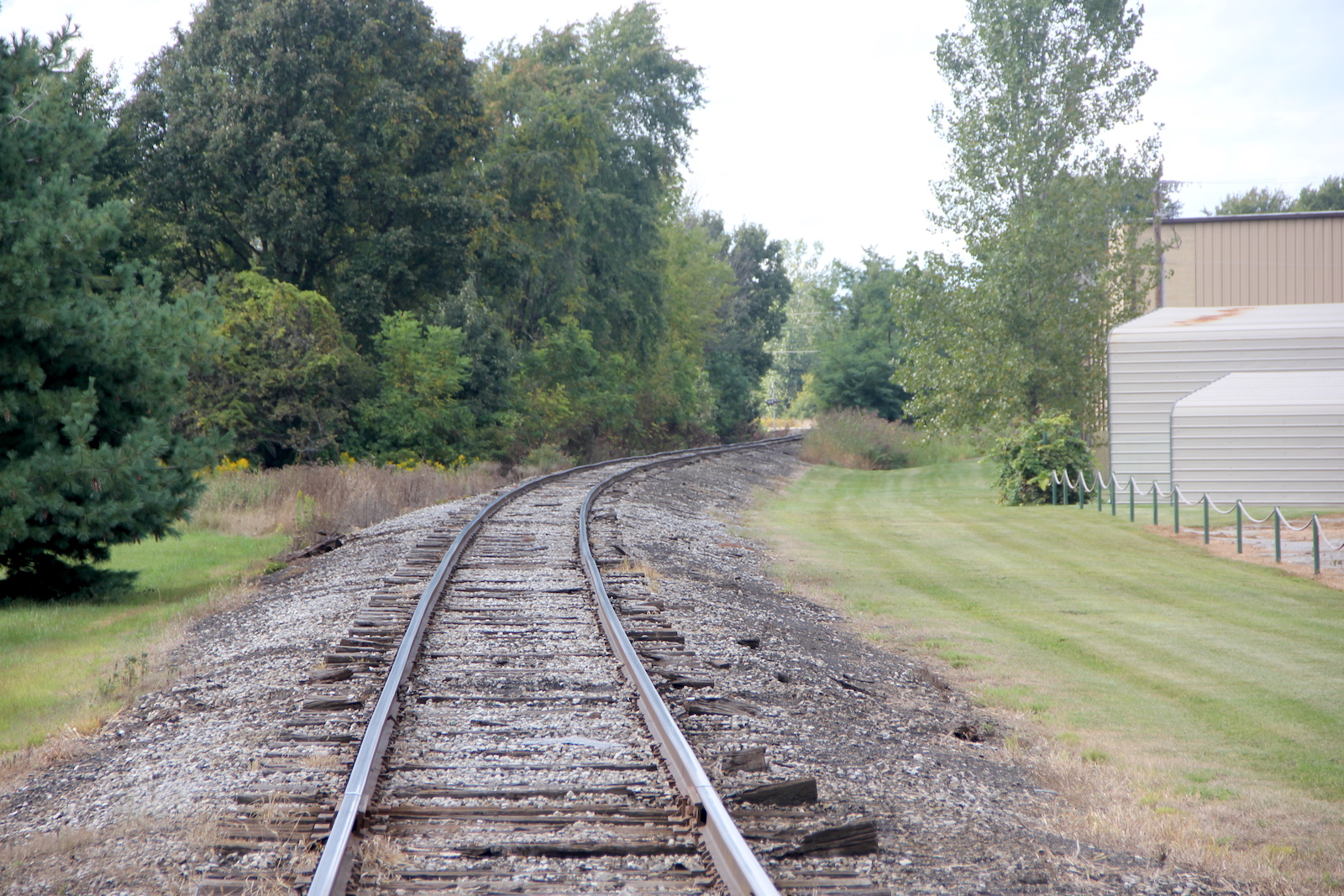

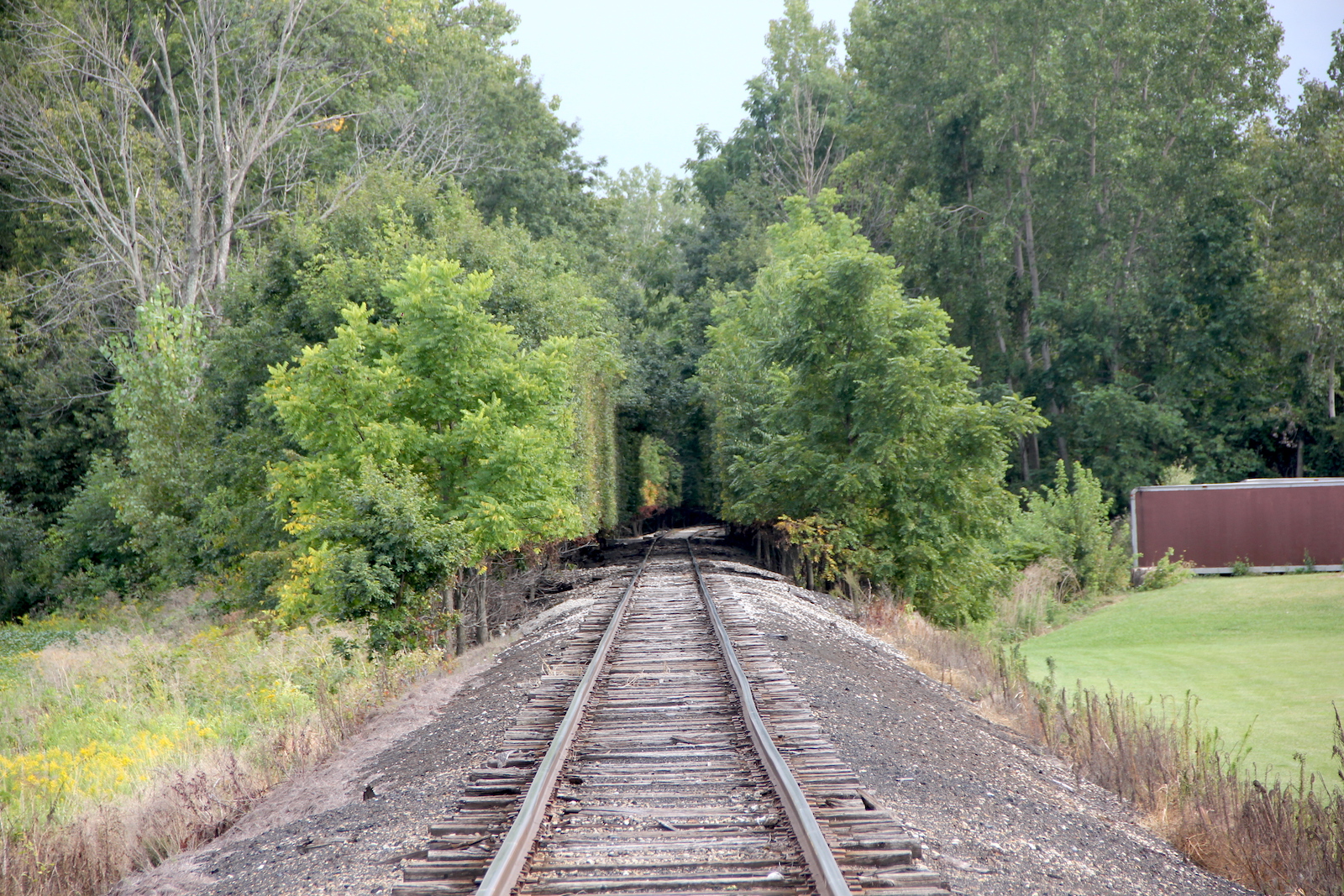

Track view facing north towards London West Rd. #2. |
Track view facing south towards State St. #2. |
