Western Signal
Eastern Signal

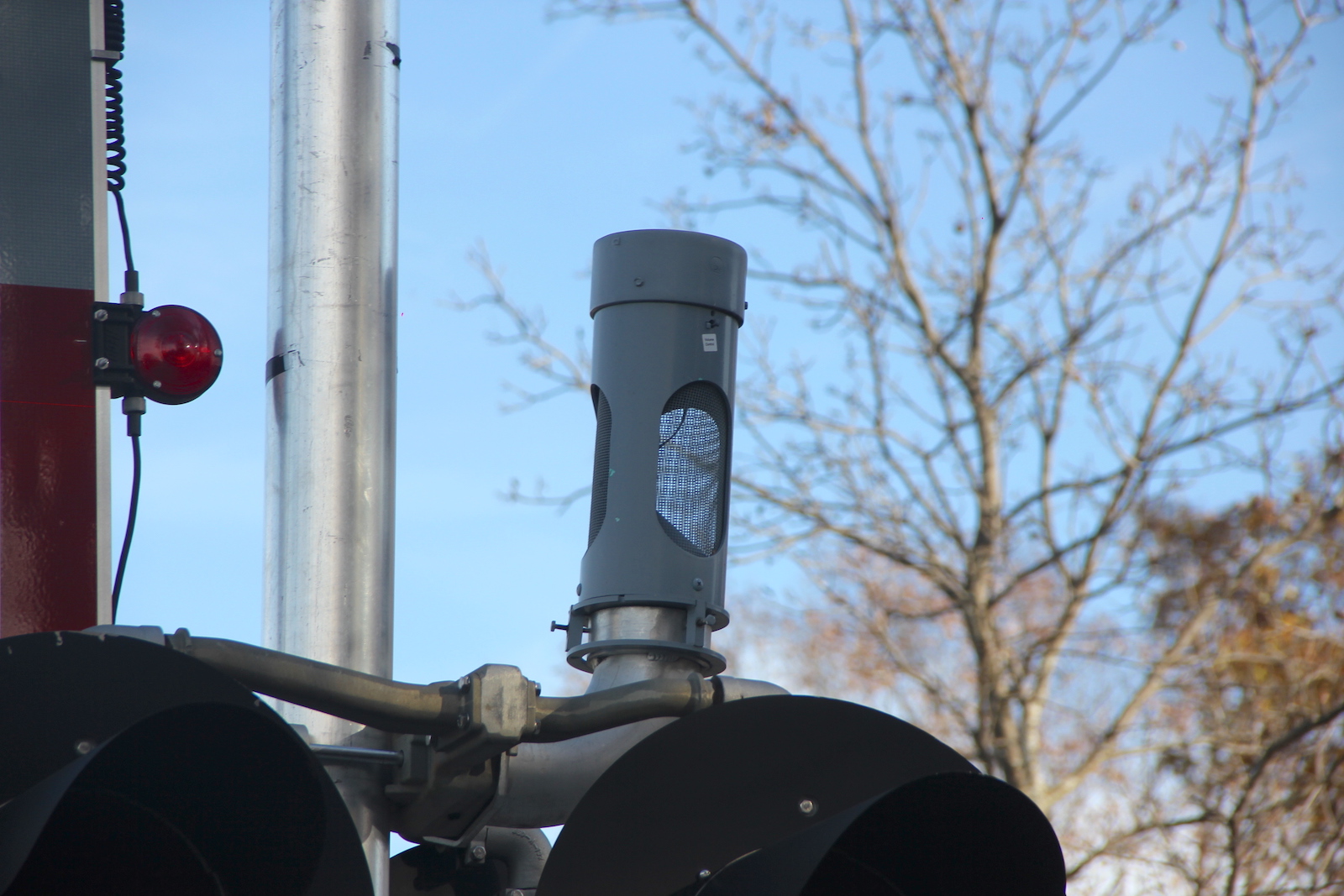

Bell:NEG E Bell
NEG E Bell

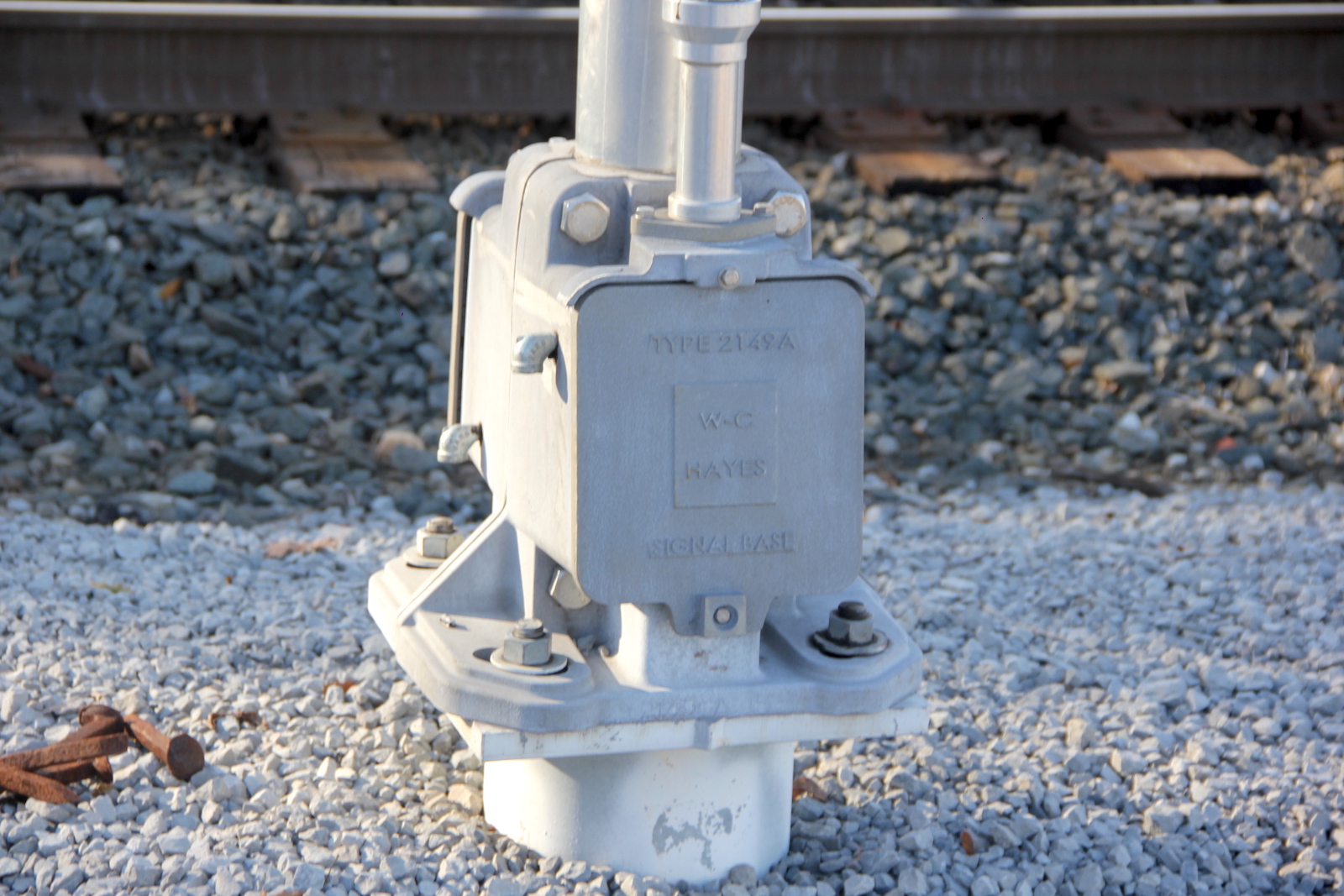

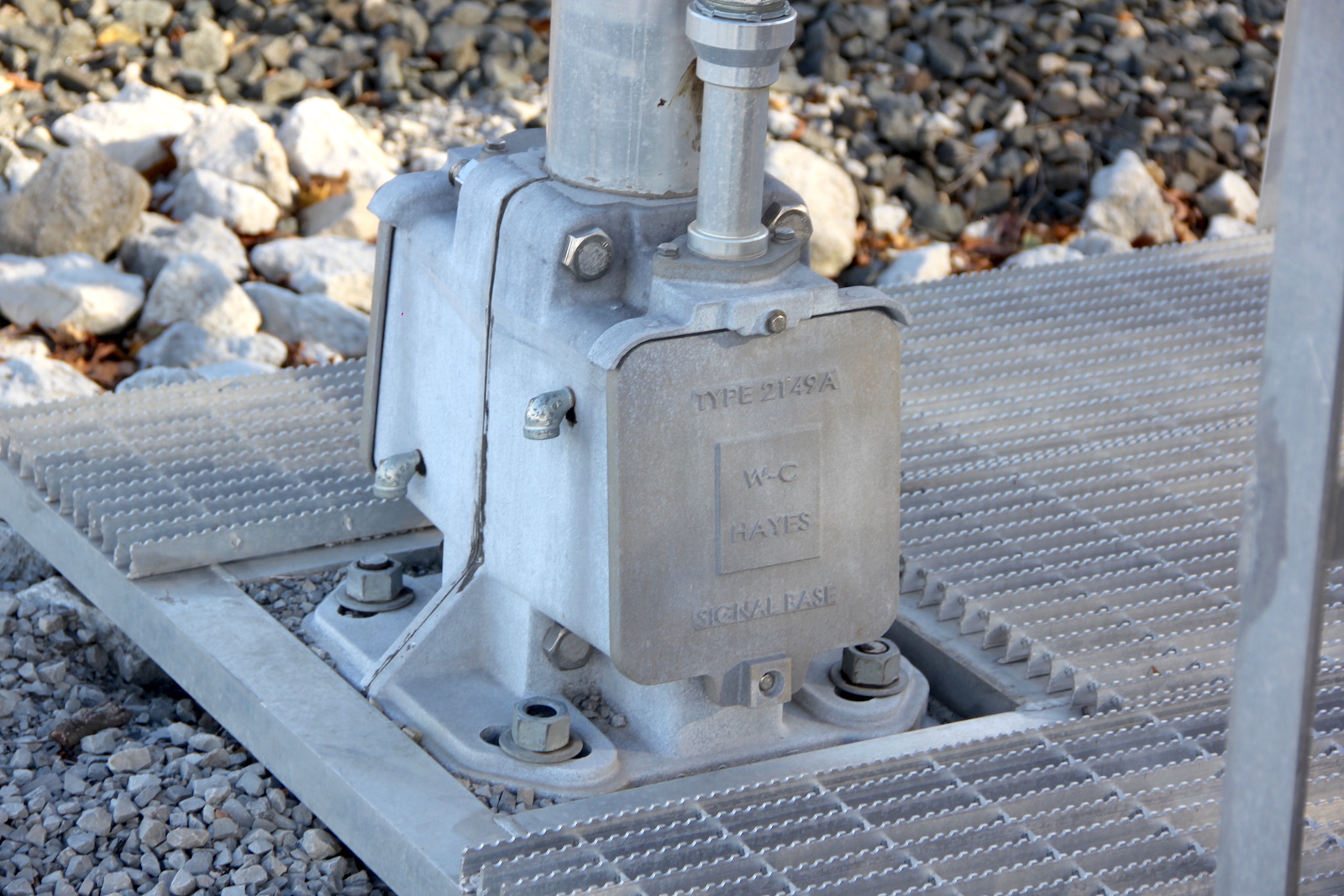

Base: WCH
WCH

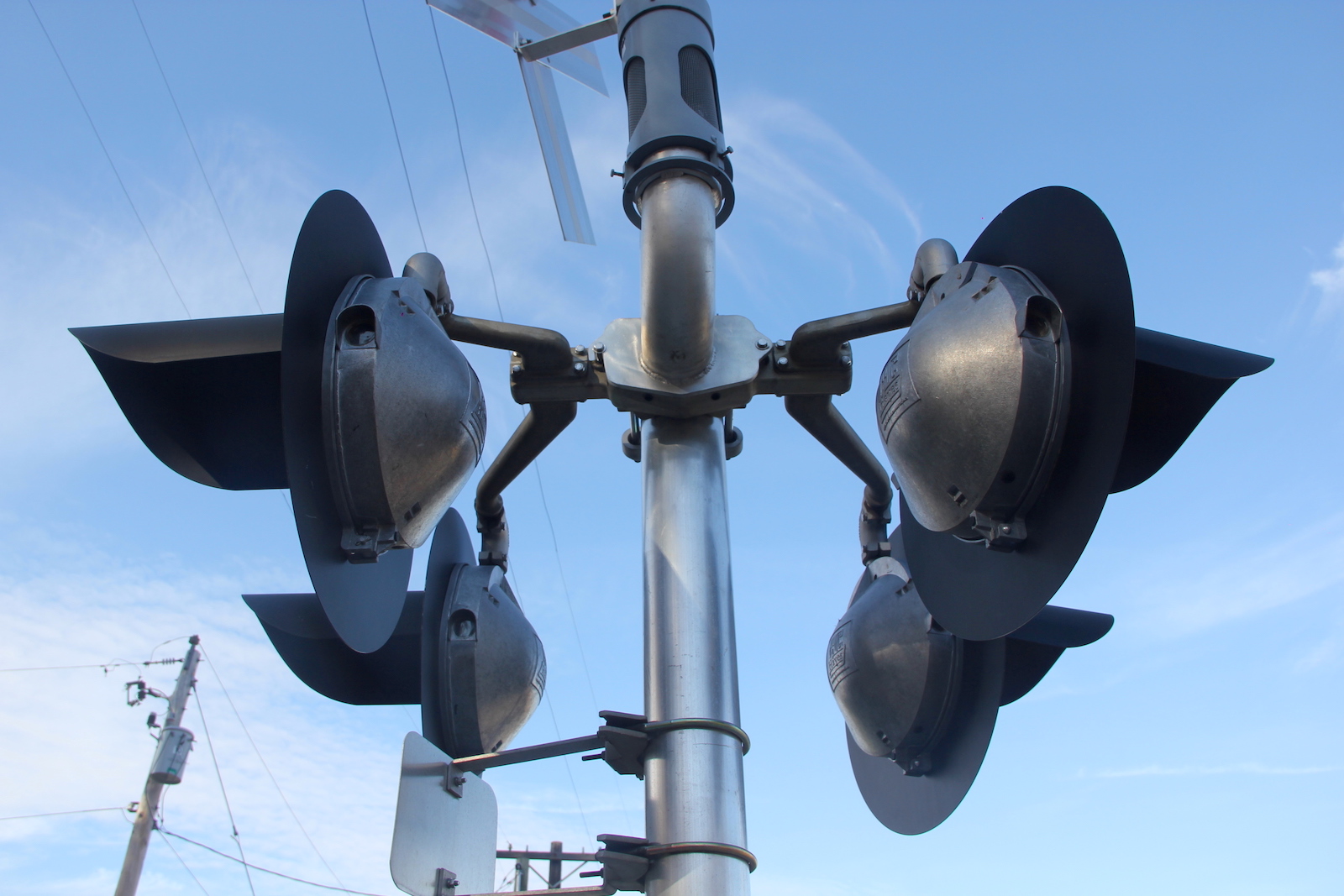

Main Lights: 2 pairs of 12"x24" 2nd Gen WCH LEDs
2 pairs of 12"x24" 2nd Gen WCH LEDs
Gate Lights: 4" RECO
4" RECO

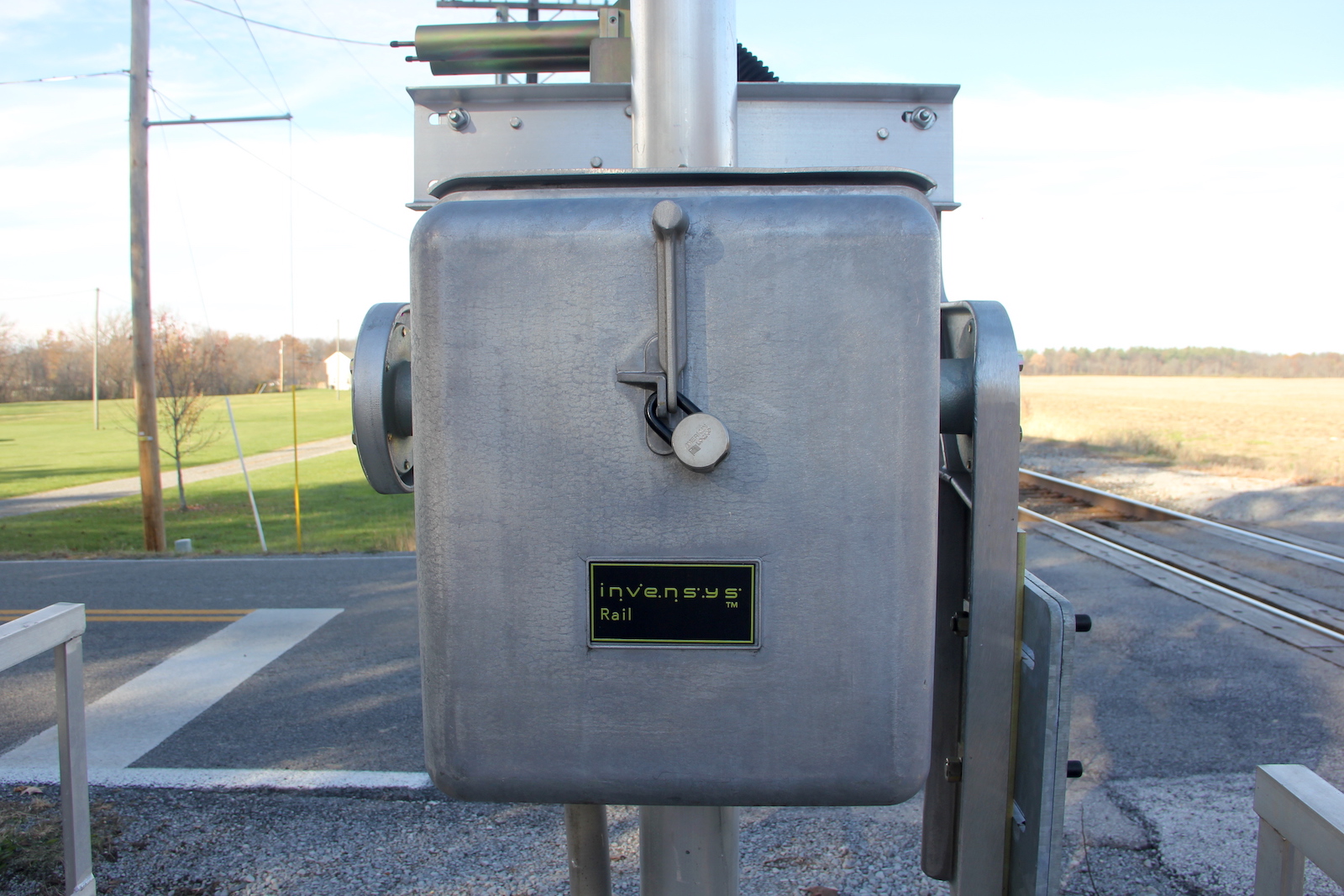

Gate Mechanism: Invensys Rail
Invensys Rail
Gate Striping: ////||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| ////||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Crossbuck font:
Normal font
Normal font
Bell Cycle: Unknown
Unknown

All pictures were taken on November 11, 2017, by Tommy McGowan.
This crossing is located on the CSX Toledo Branch.

1
2

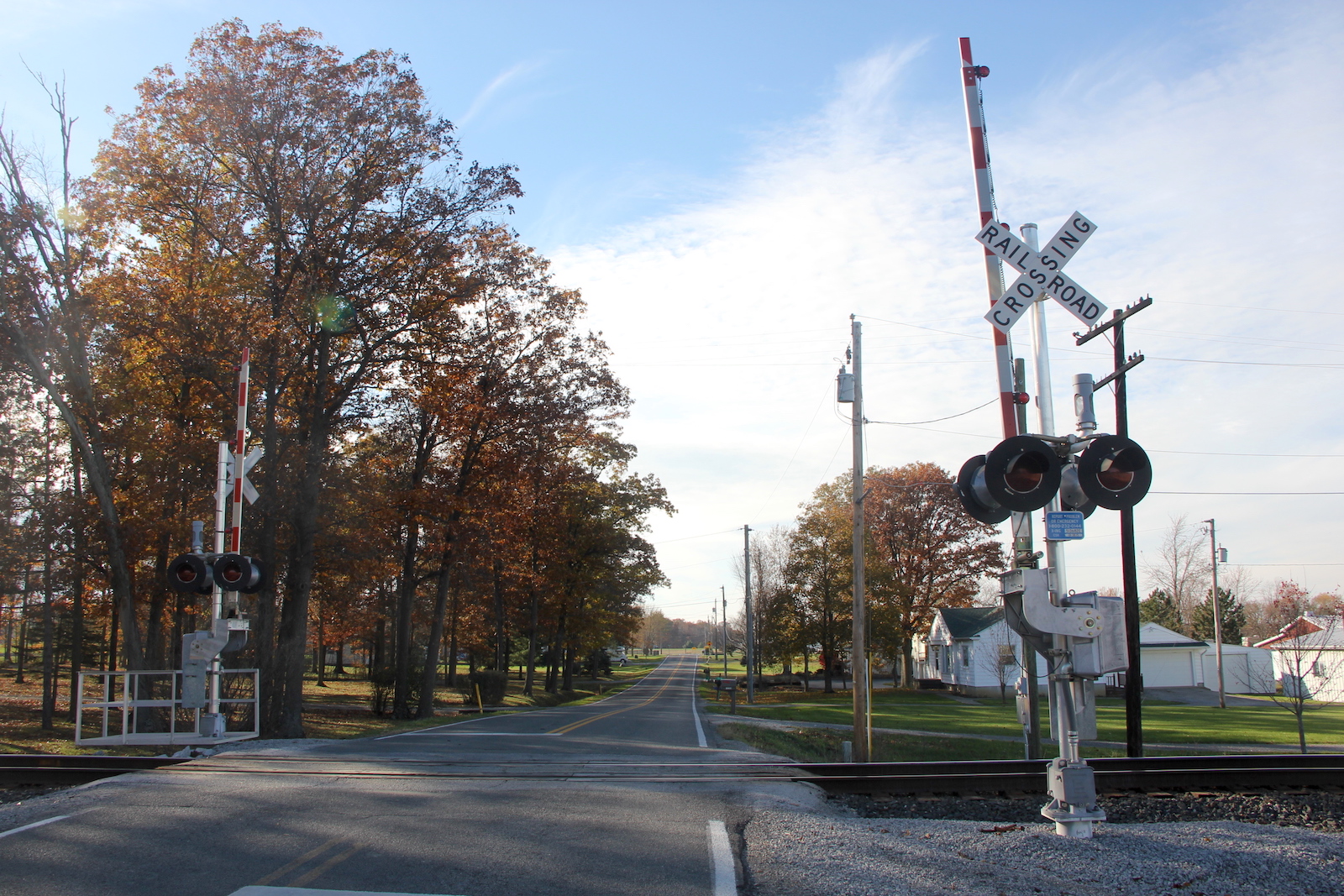

Overview of 2 newer gated signals facing west.
Overview facing east.
3 4 5
6 7 8
9 10 11
12

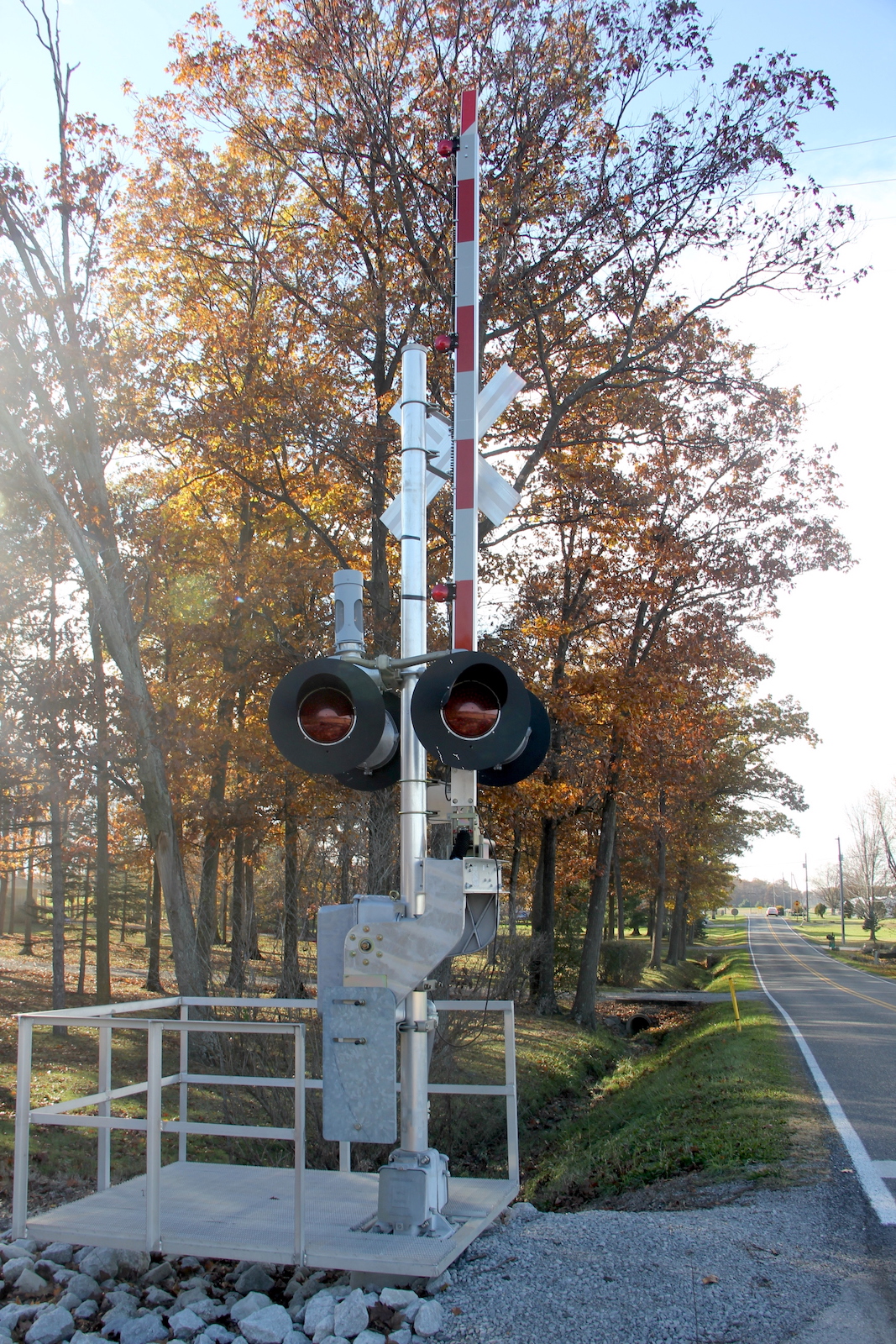

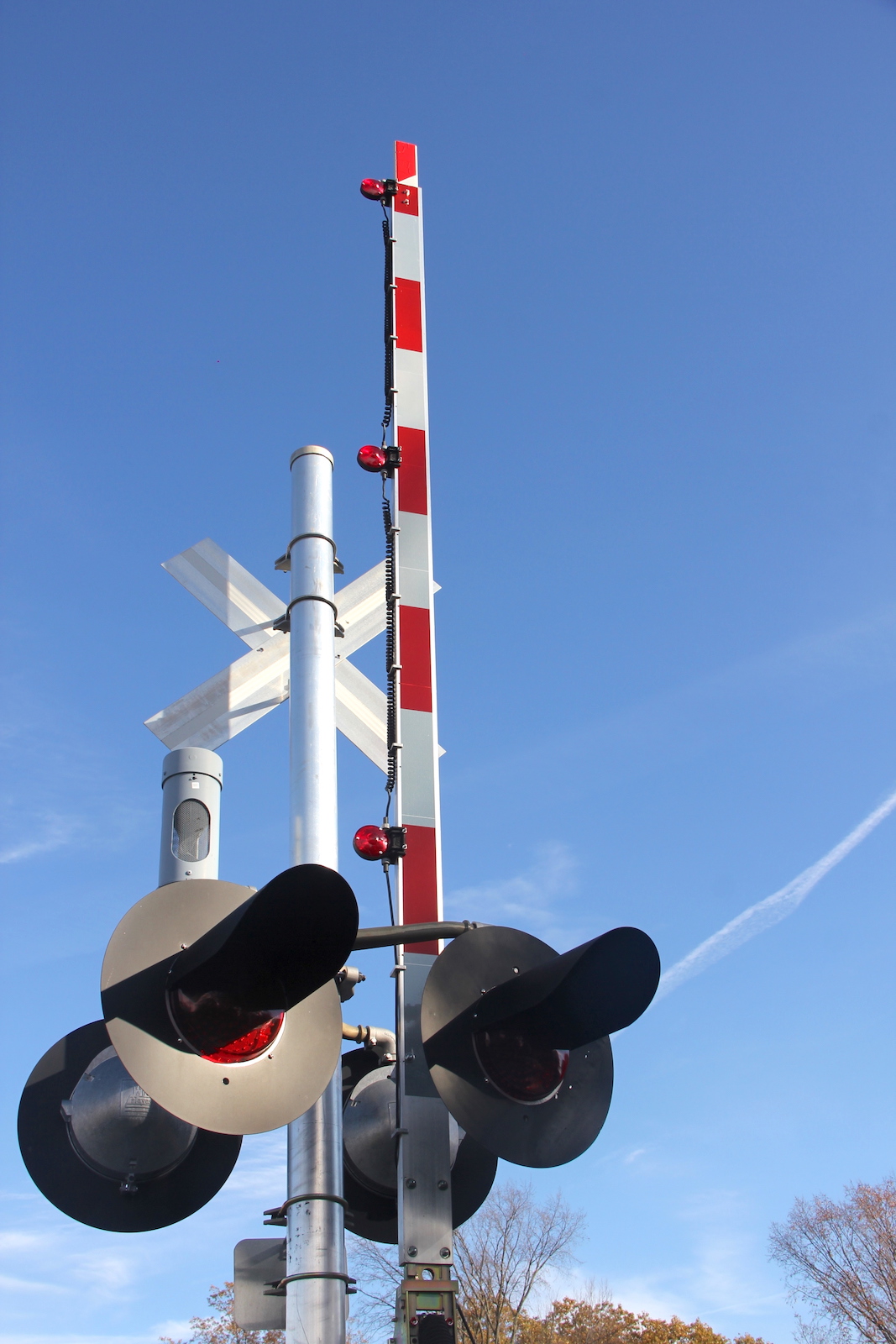

The eastern signal.
13 14 15
16 17 18
19 20 21
22
The western signal.
23 24 25 26
The relay bungalow in the southeast quadrant.
The grade is wood and asphalt.

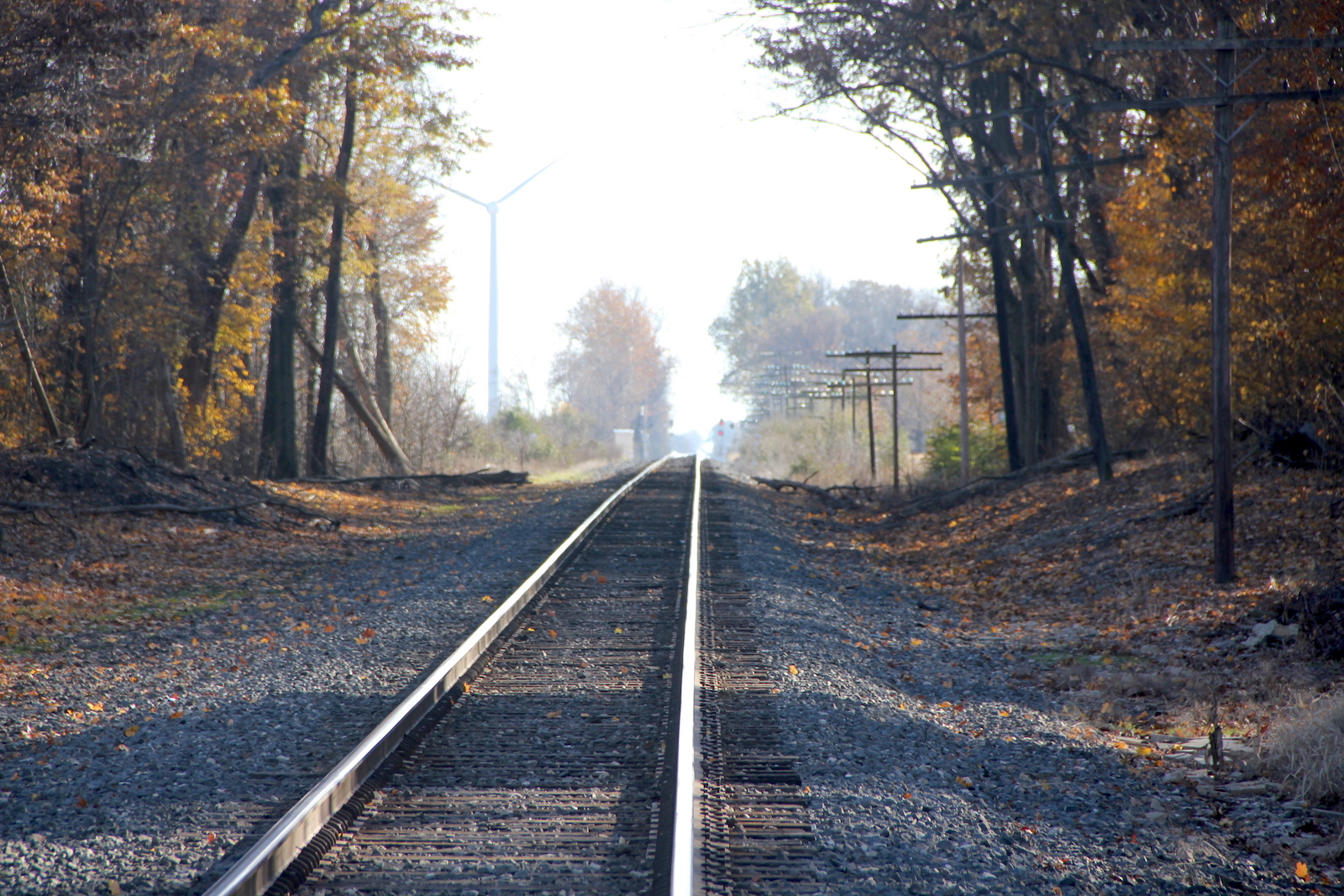

Track view facing north towards Route 613.
Track view facing south towards Township Rd. 108.
