MP: 221.68

Updated December 2024

Total Accidents:  5
Crossing DOT #:  524045F
TOTAL DAILY TRAINS:  94   (AS OF 2014)

>>>>>>>>>>>>>>> Northern Entrance Signal Northern Exit Signal Southern Entrance Signal Southern Exit Signal
Bell: Safetran Type 3 E-Bell Low Tone None None None
Base: Safetran 5" Double Sided ^ Safetran 5" Double Sided ^ Safetran 5" Double Sided ^ Safetran 5" Double Sided ^
Lights: 4 - 12"x20" Safetran w/ GE Uniform Look LEDs 2 - 12"x20" Safetran w/ GE Uniform Look LEDs 4 - 12"x20" Safetran w/ GE Uniform Look LEDs 2 - 12"x20" Safetran w/ GE Uniform Look LEDs
Junction Box: Safetran Safetran Safetran Safetran
Gate Lights: 3 - 4" RECO 3 - 4" RECO 3 - 4" RECO 3 - 4" RECO

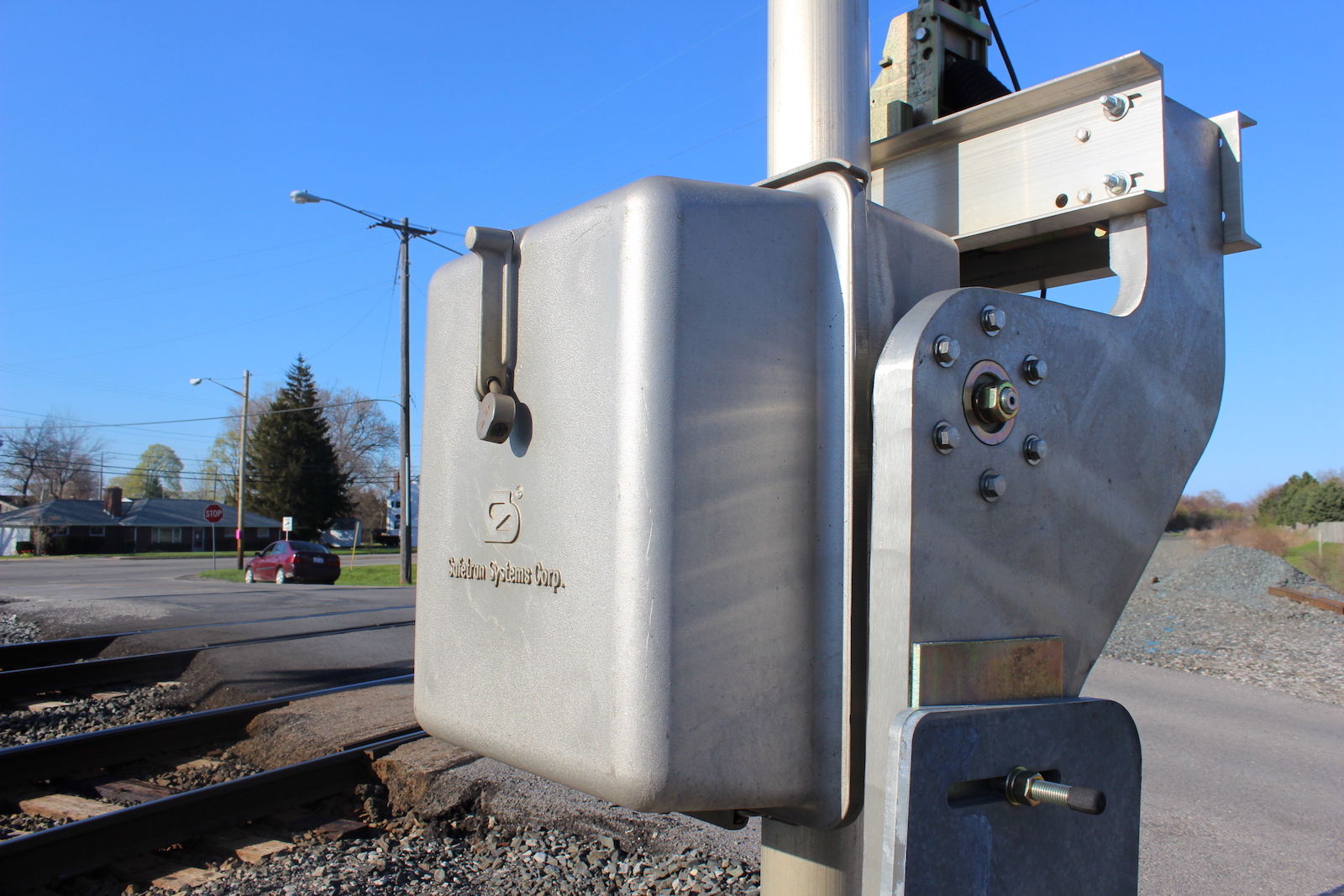

Gate Mechanism: Safetran 2000s w/ NEG 1 Way Saver Safetran 2000s w/ NEG 1 Way Saver Safetran 2000s w/ NEG 1 Way Saver Safetran 2000s w/ NEG 1 Way Saver
Gate Striping: Vertical Striping Vertical Striping Vertical Striping Vertical Striping

Pictures 1-39 and the video were taken May 1, 2015.
Pictures 40-43 were taken on May 26, 2016.
Pictures 44-65 were taken on October 23, 2023.
All pictures and video were taken by Tommy McGowan.
This crossing is located on the NS Chicago Line.

O1 O2 O3 O4

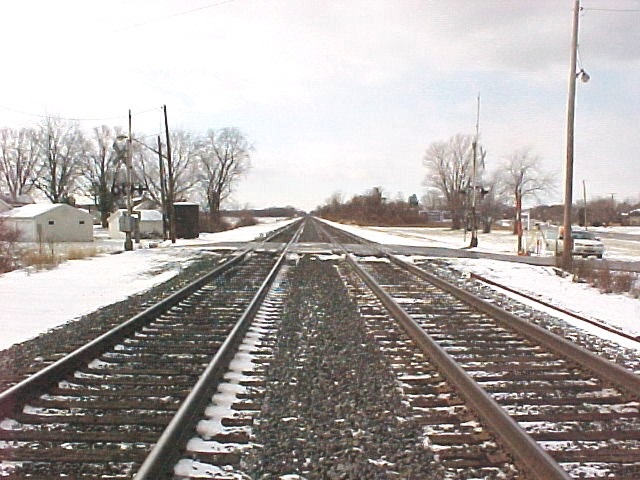

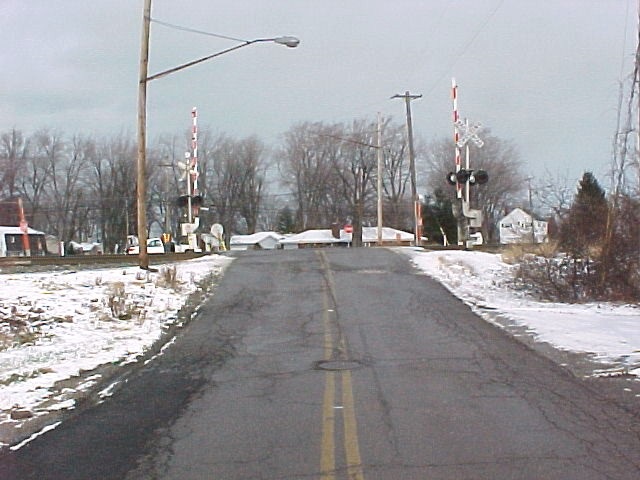

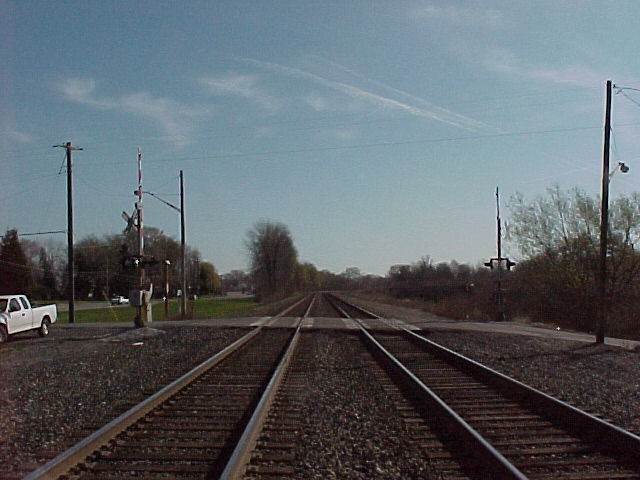

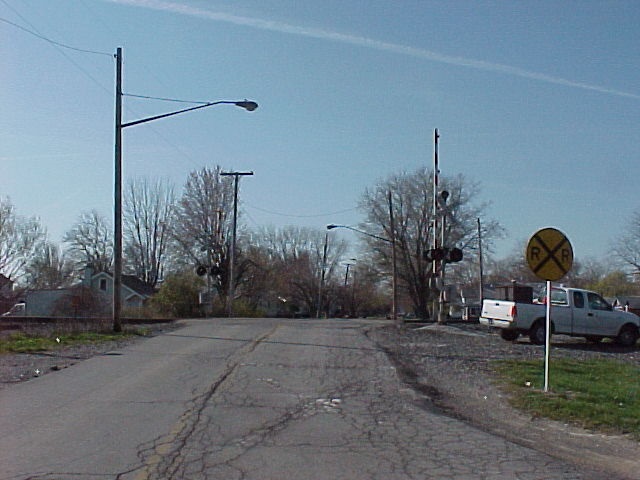

PUCO pictures from the late 90s or early 2000s showing an early Conrail setup with 8" lights, older Safetran gate mechanisms, and a WCH Mechanical Bell. In the late 2000s, this crossing was completely replaced, now featuring a full quad gated setup.
1 2

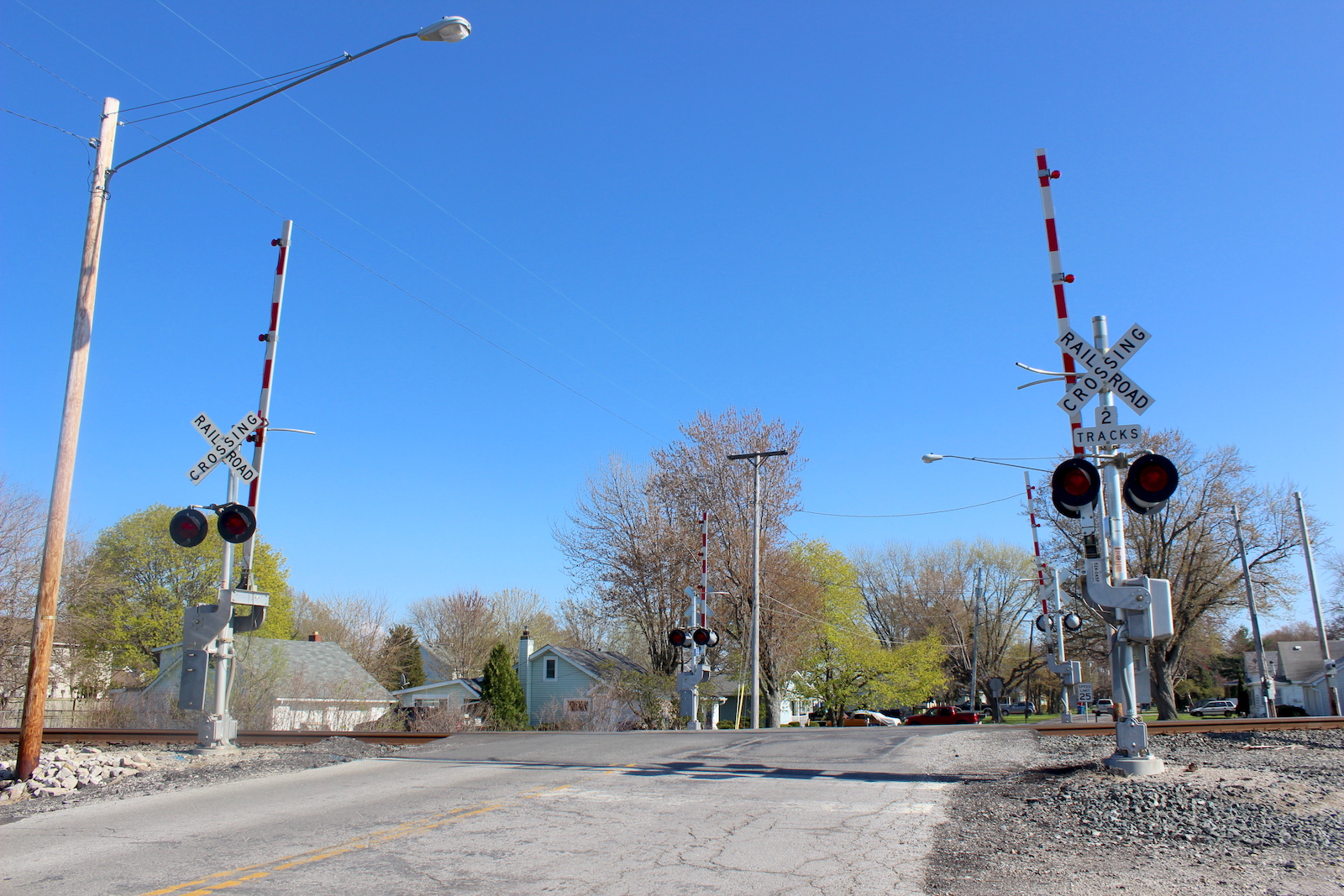

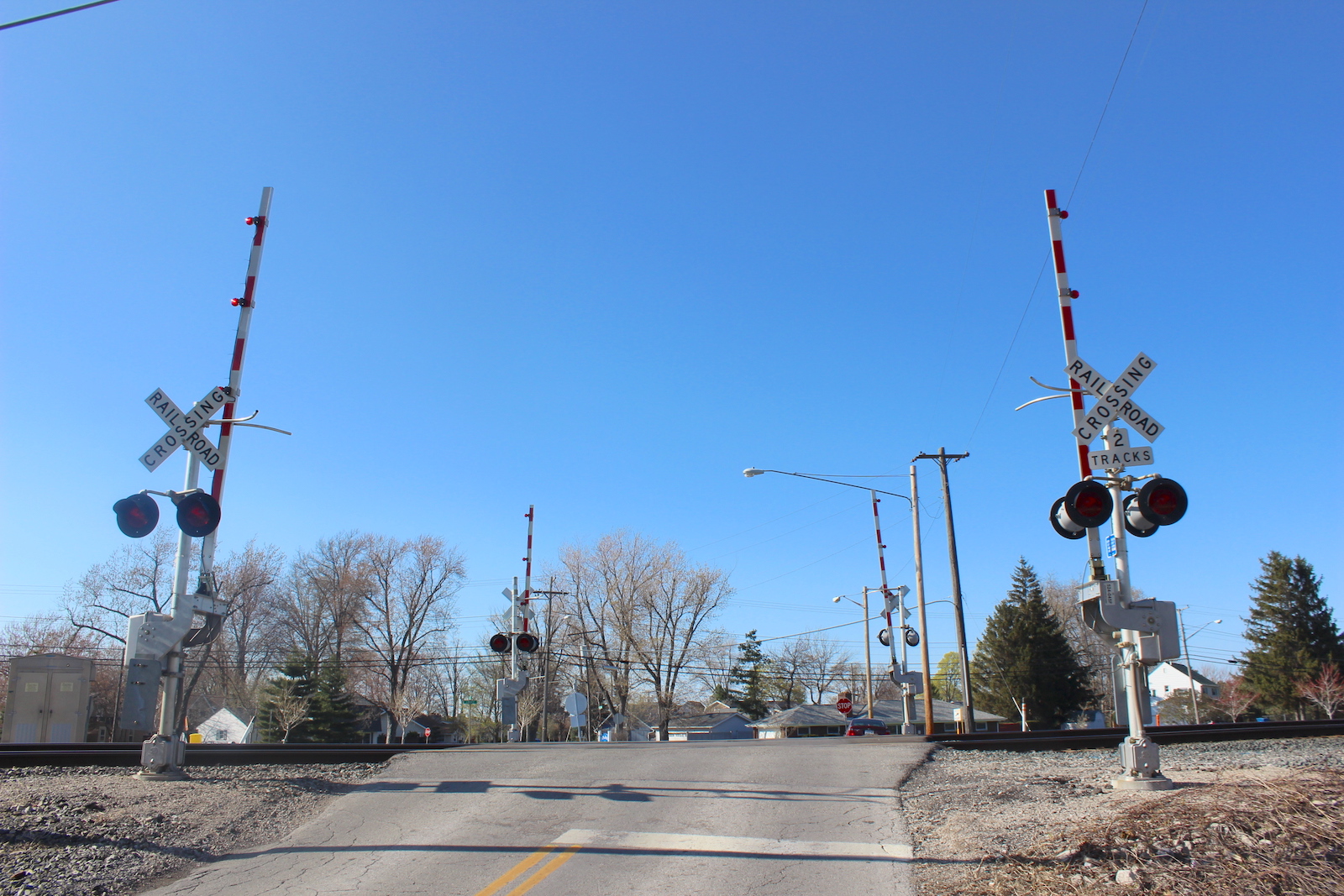

Overview of a newer quad gate installation facing south.
 Overview looking north.
3 4 5
6 7 8
9 10 11 12

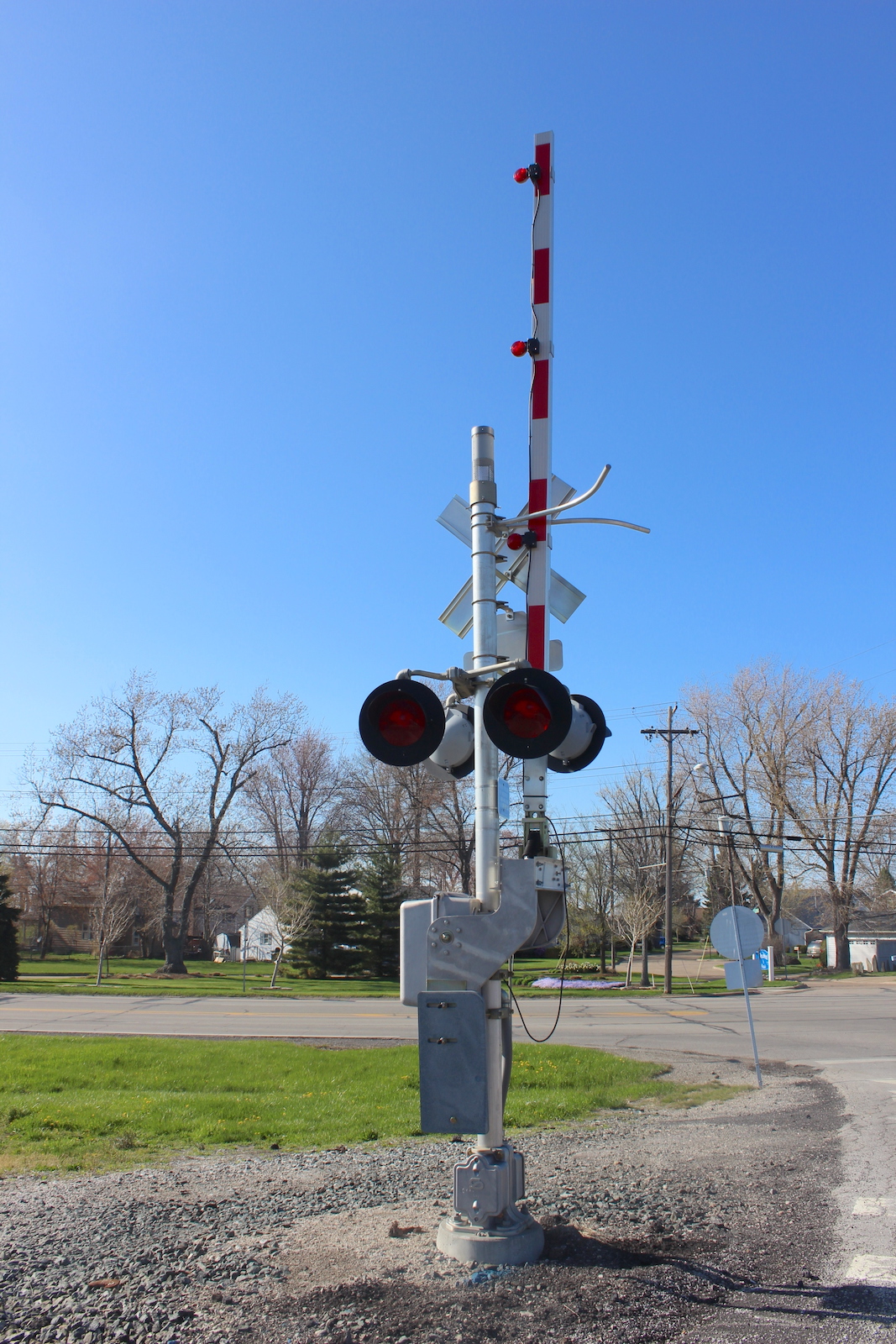

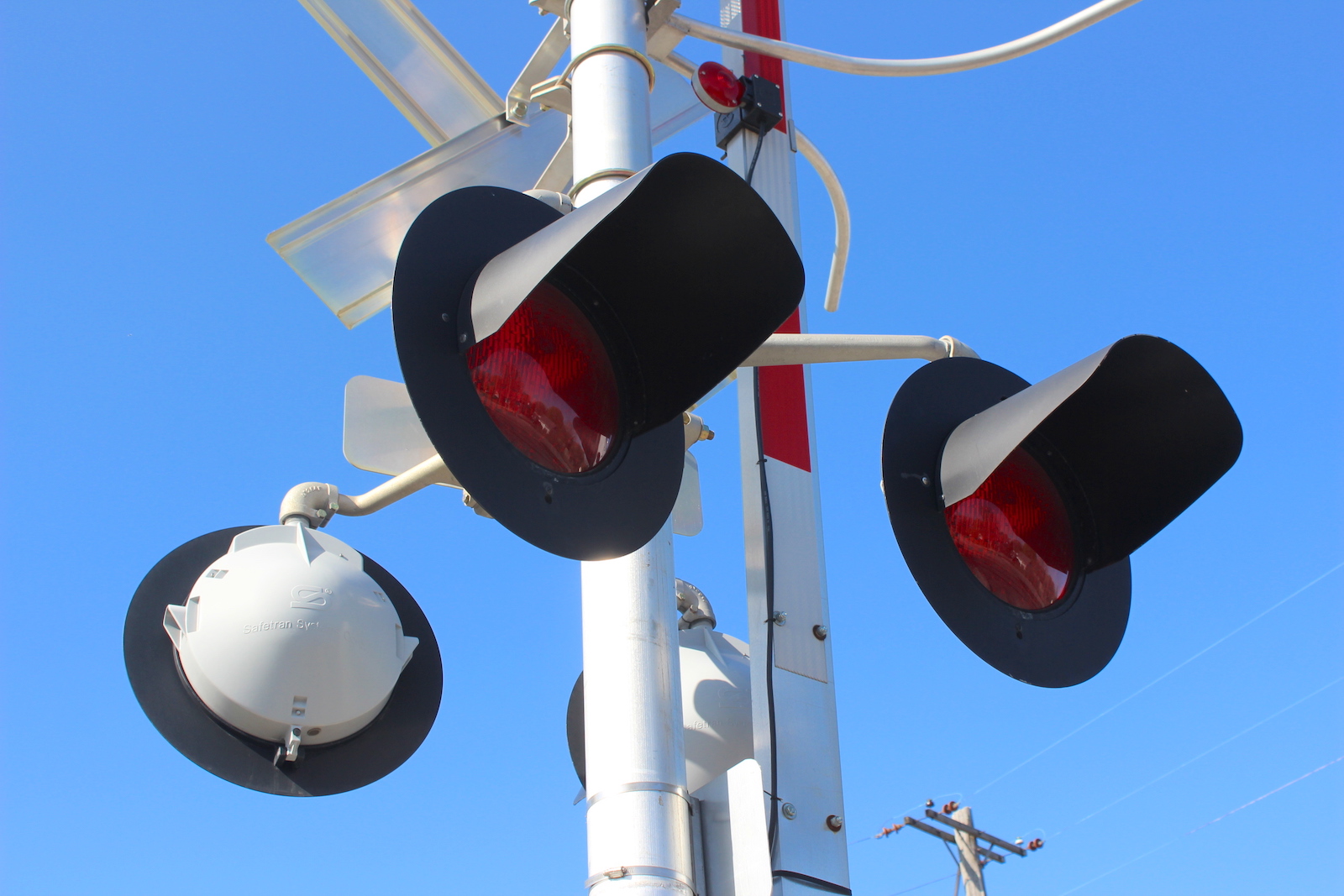

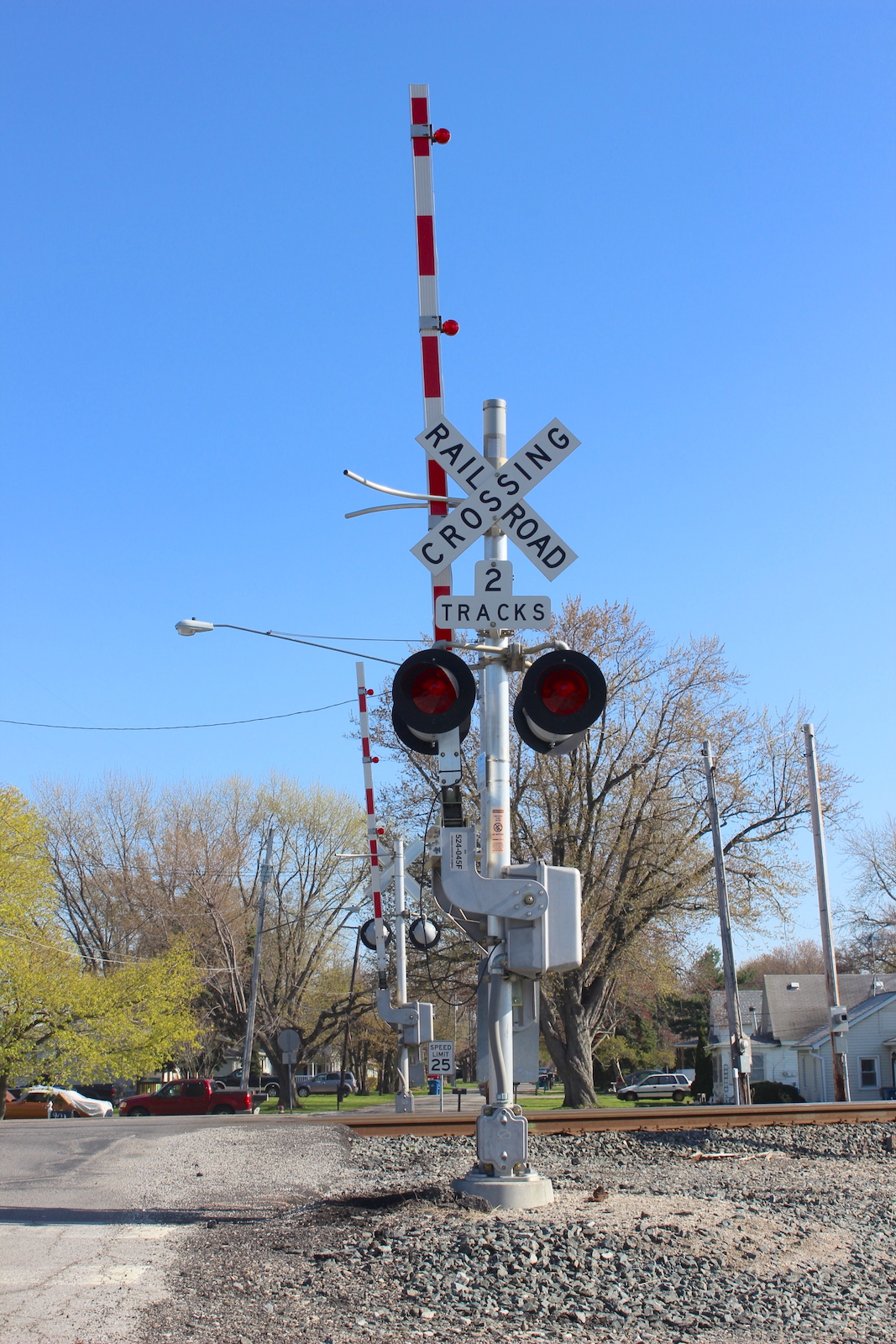

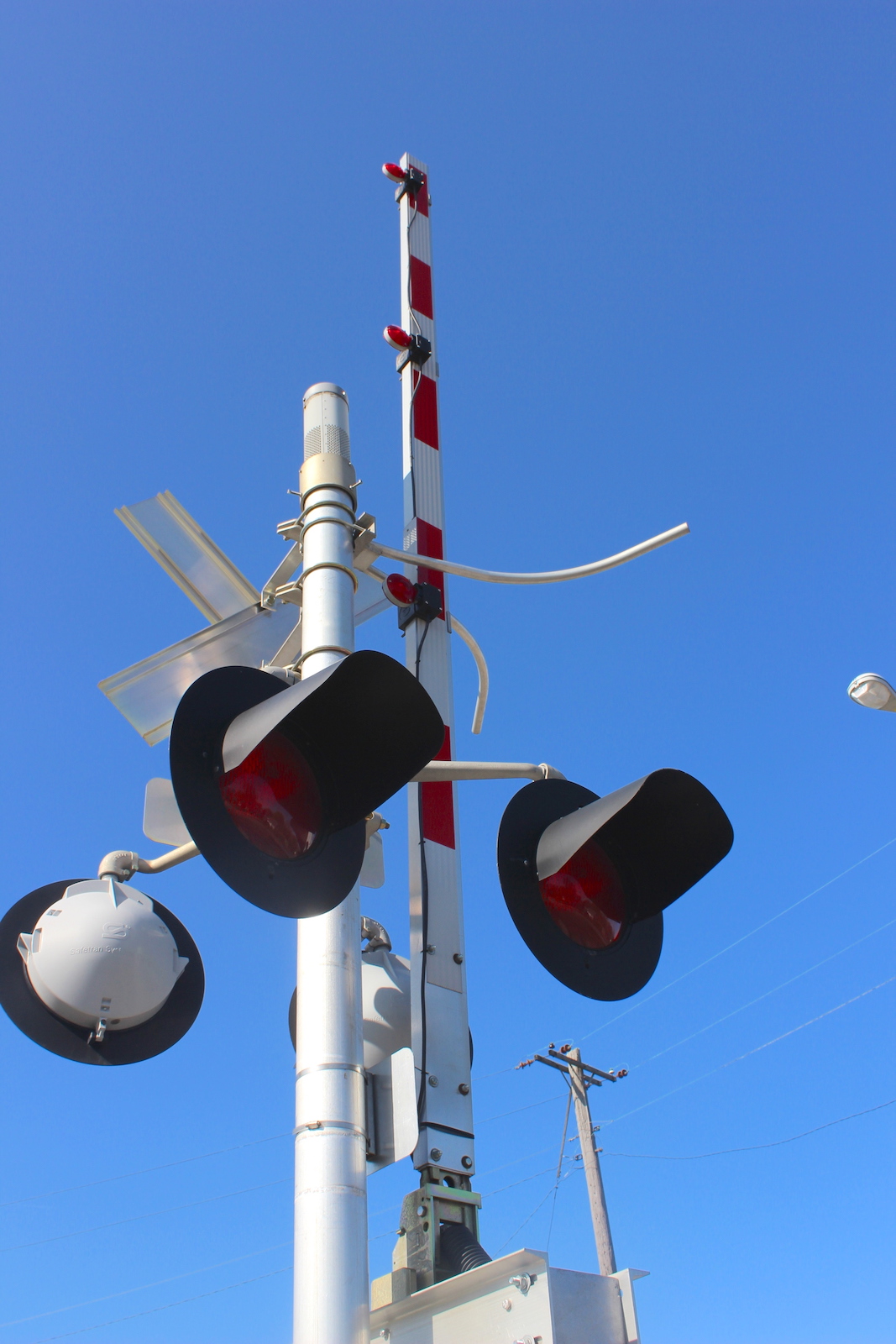

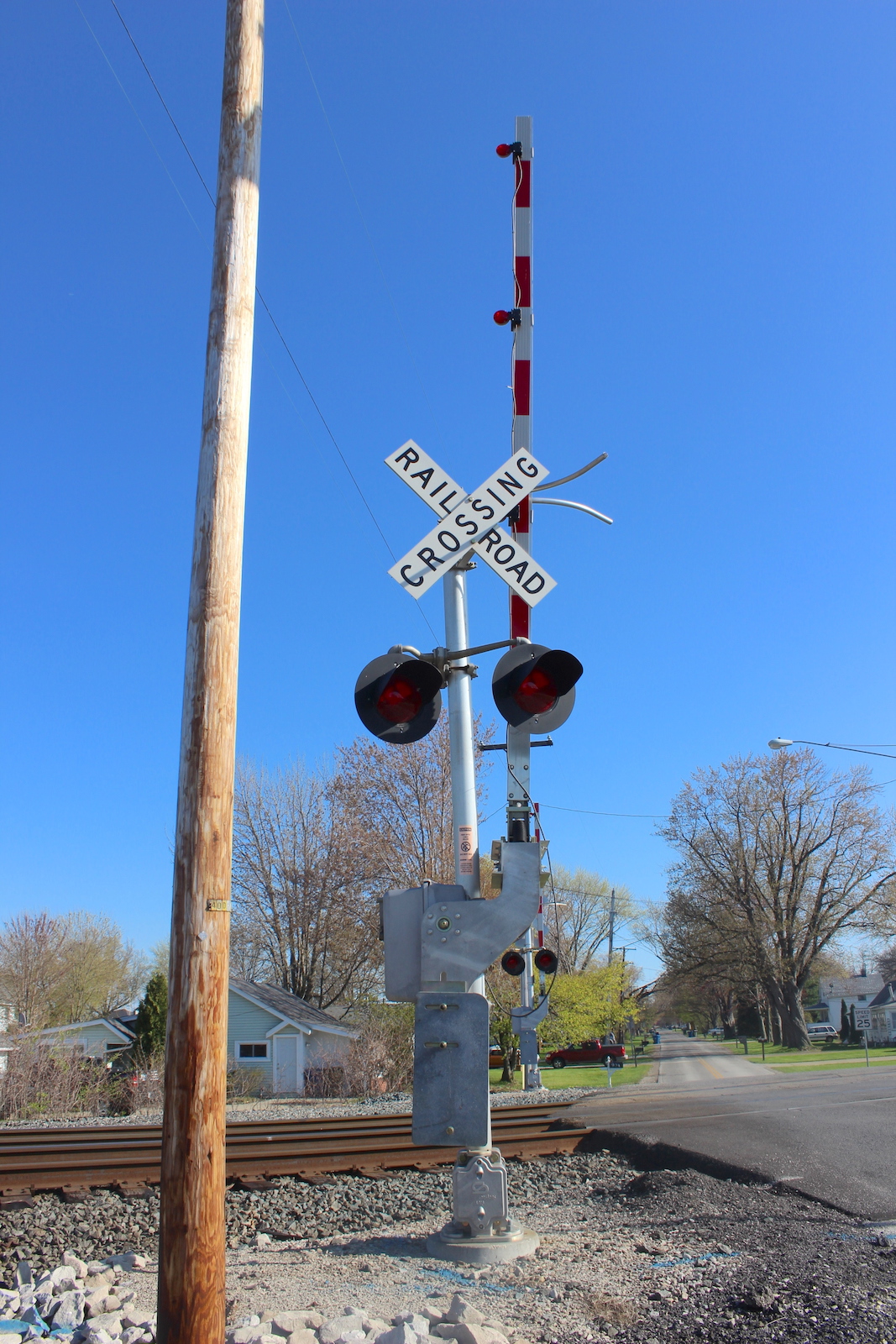

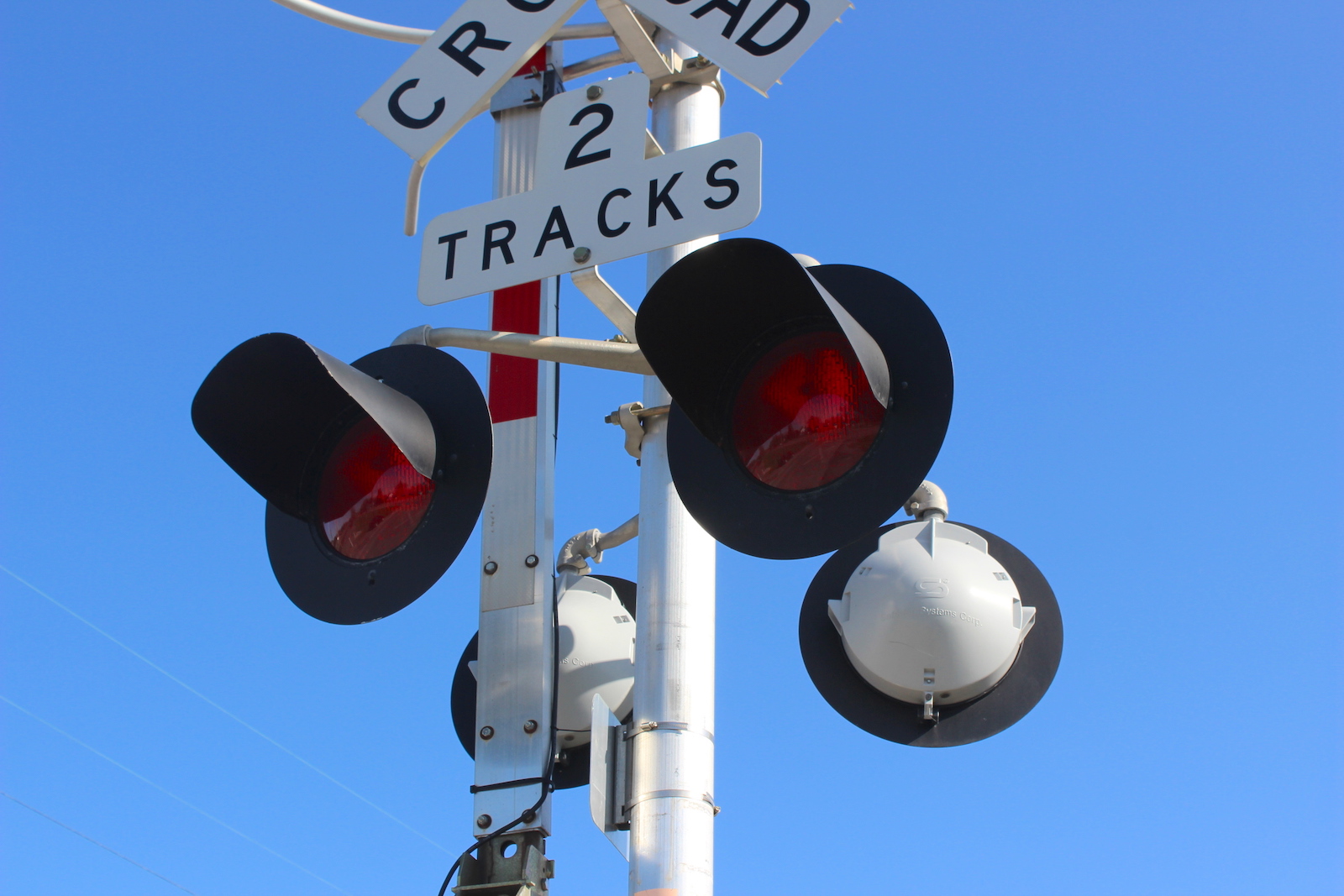

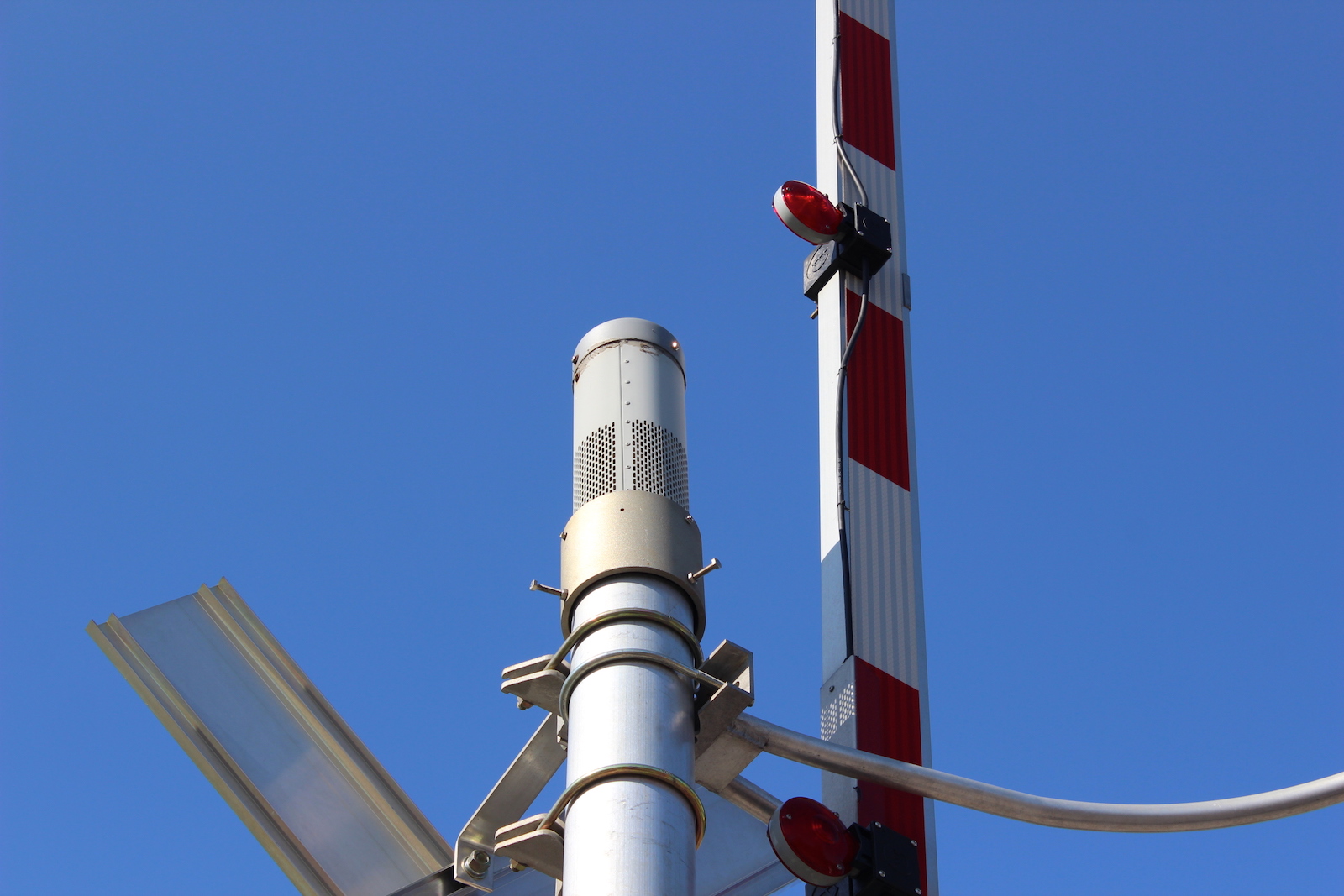

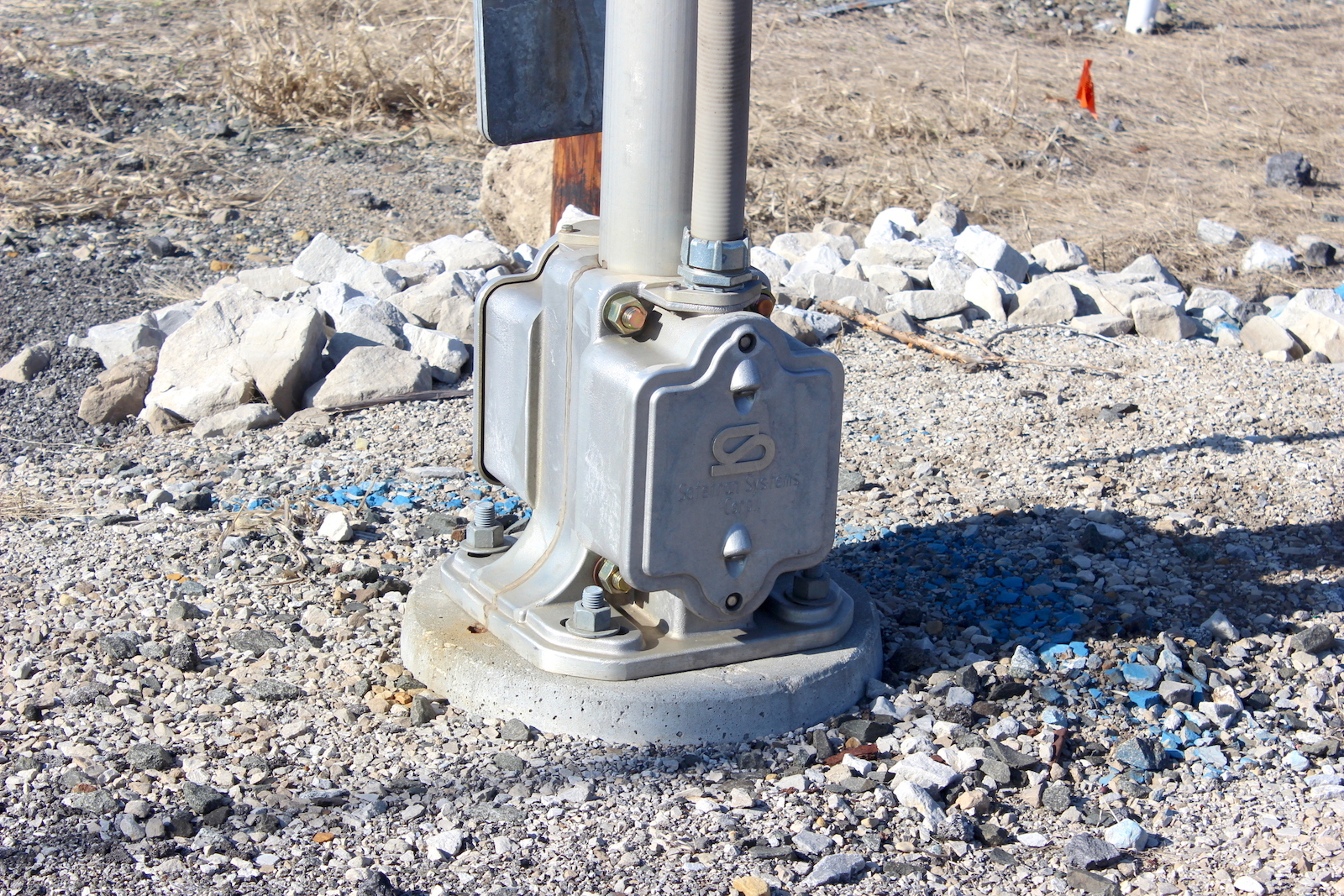

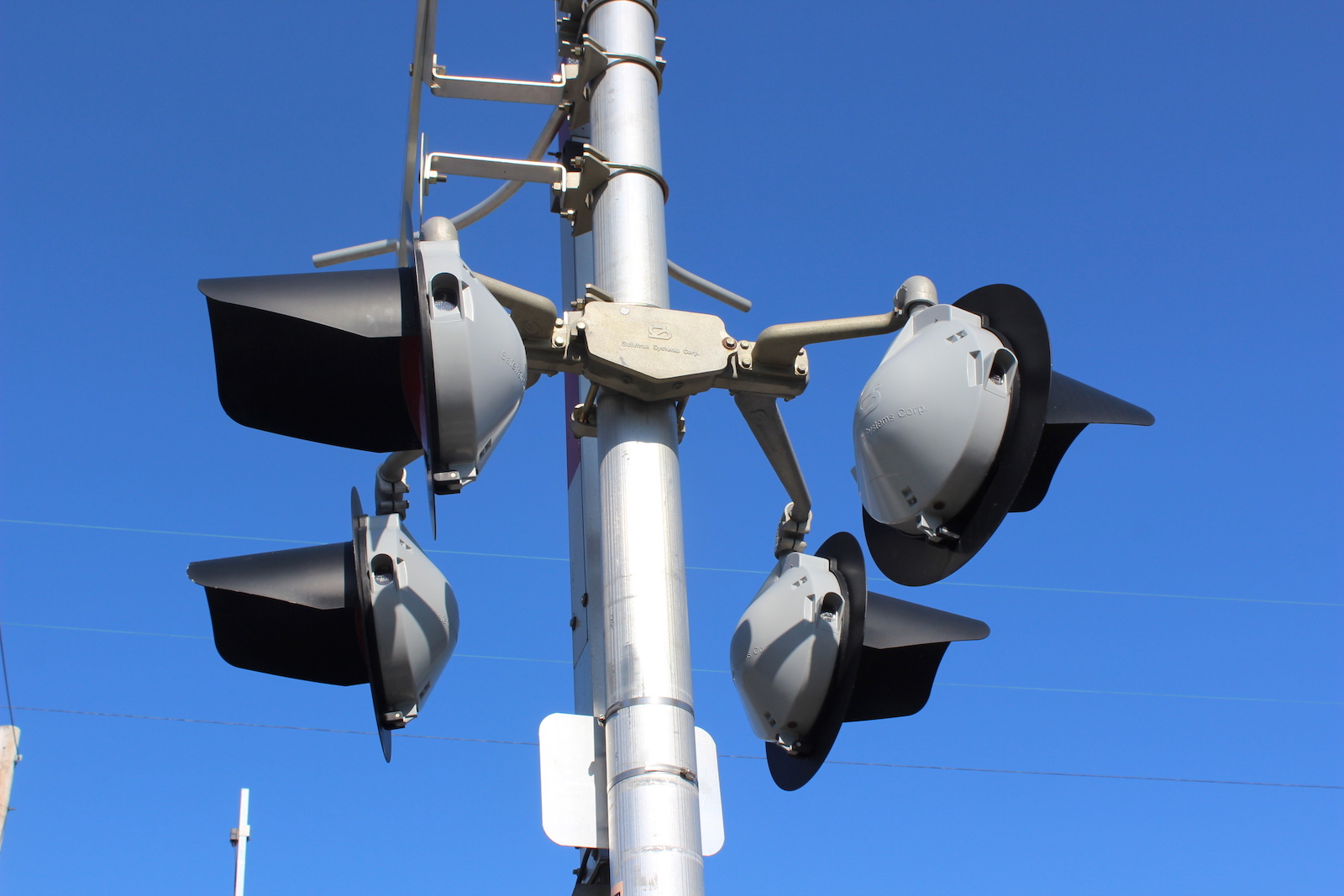

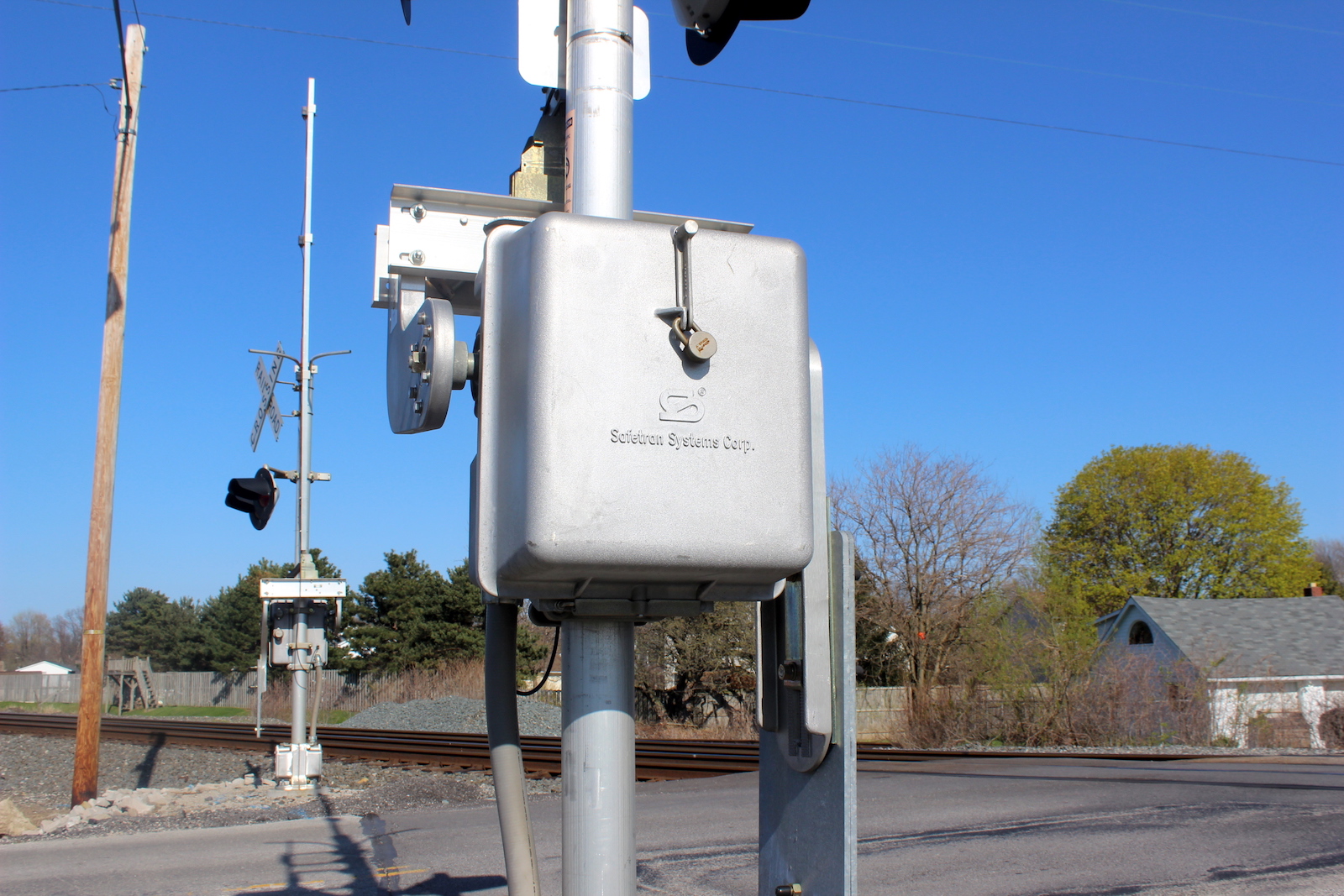

The northern entrance signal.
13 14 15
16 17 18 19

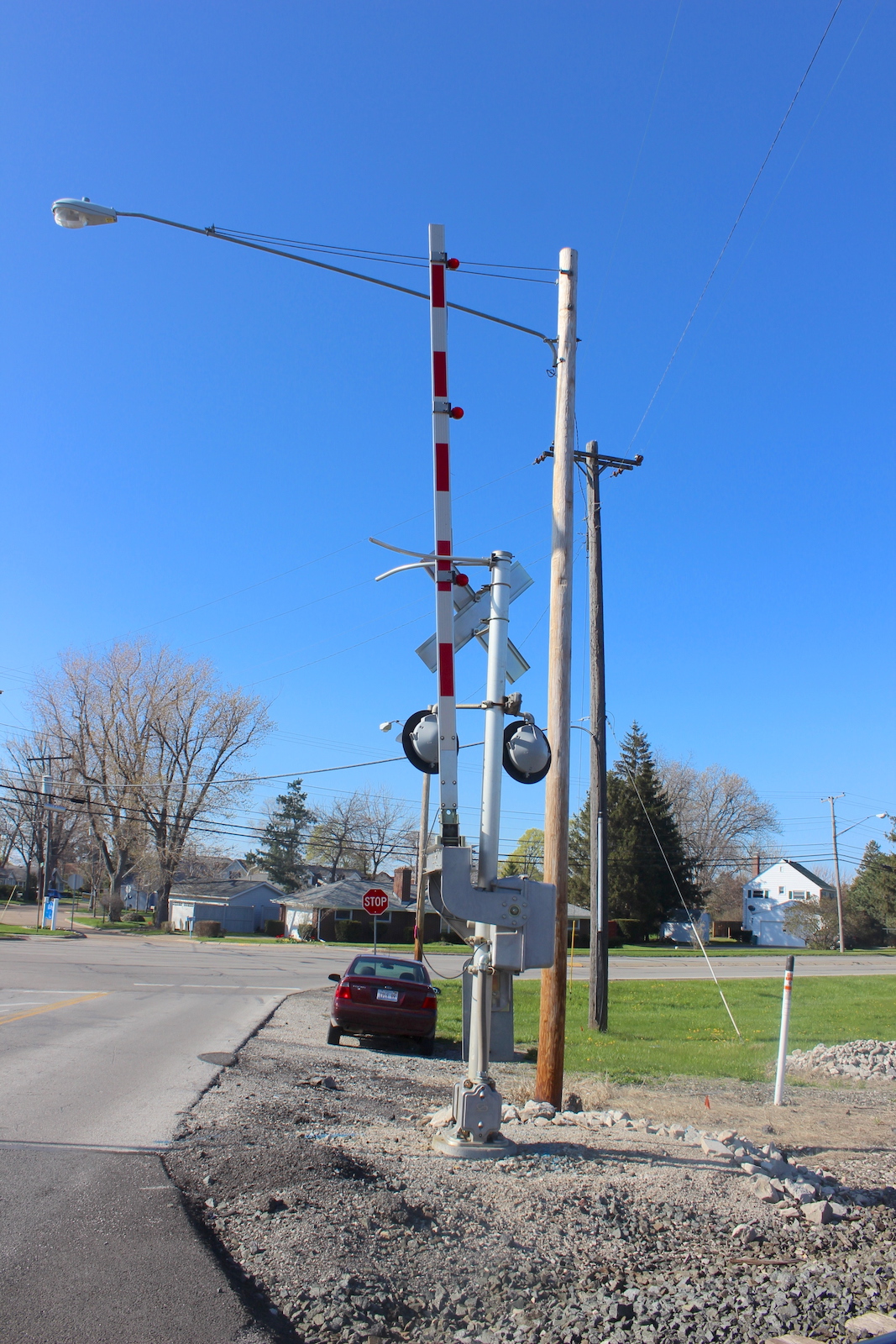

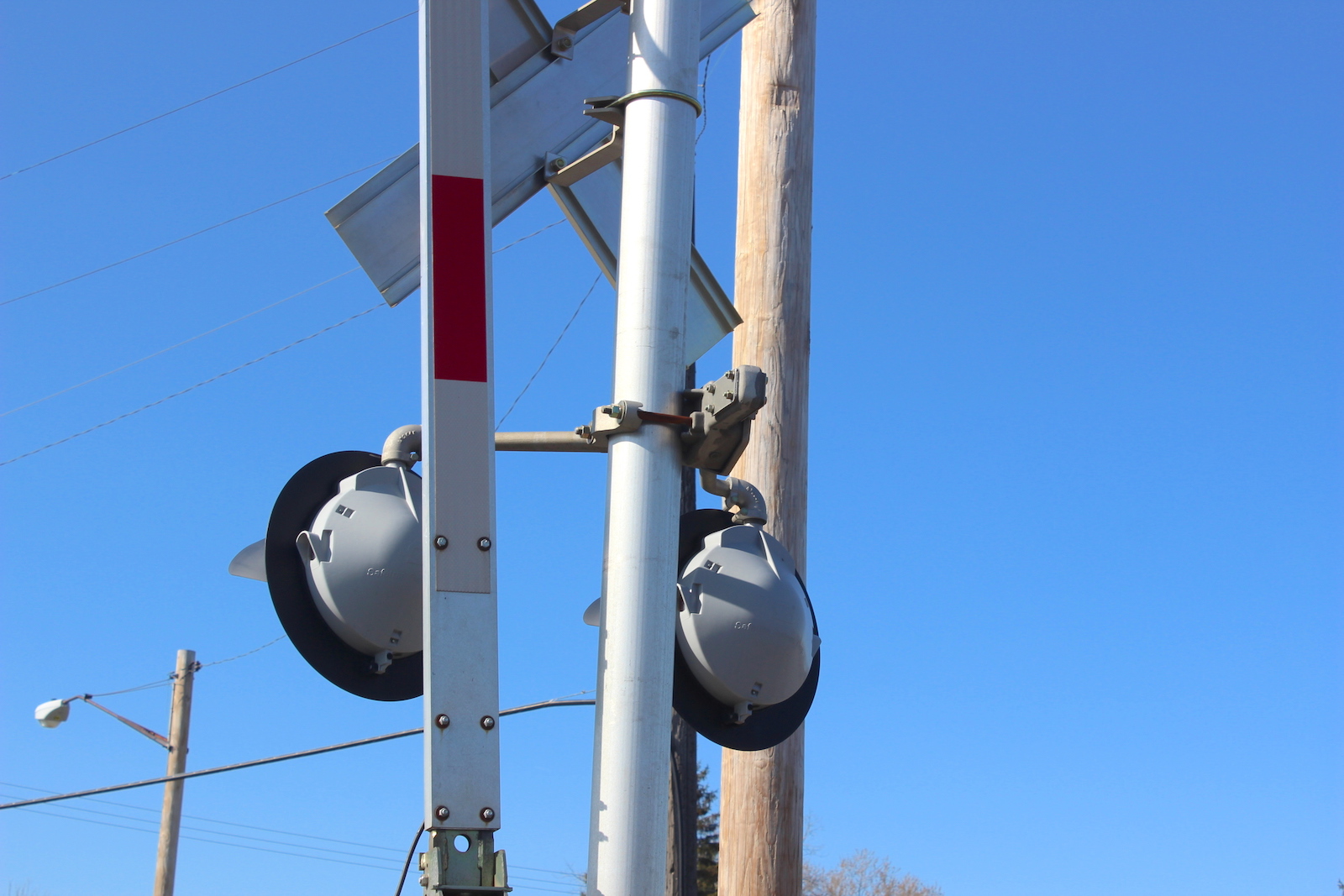

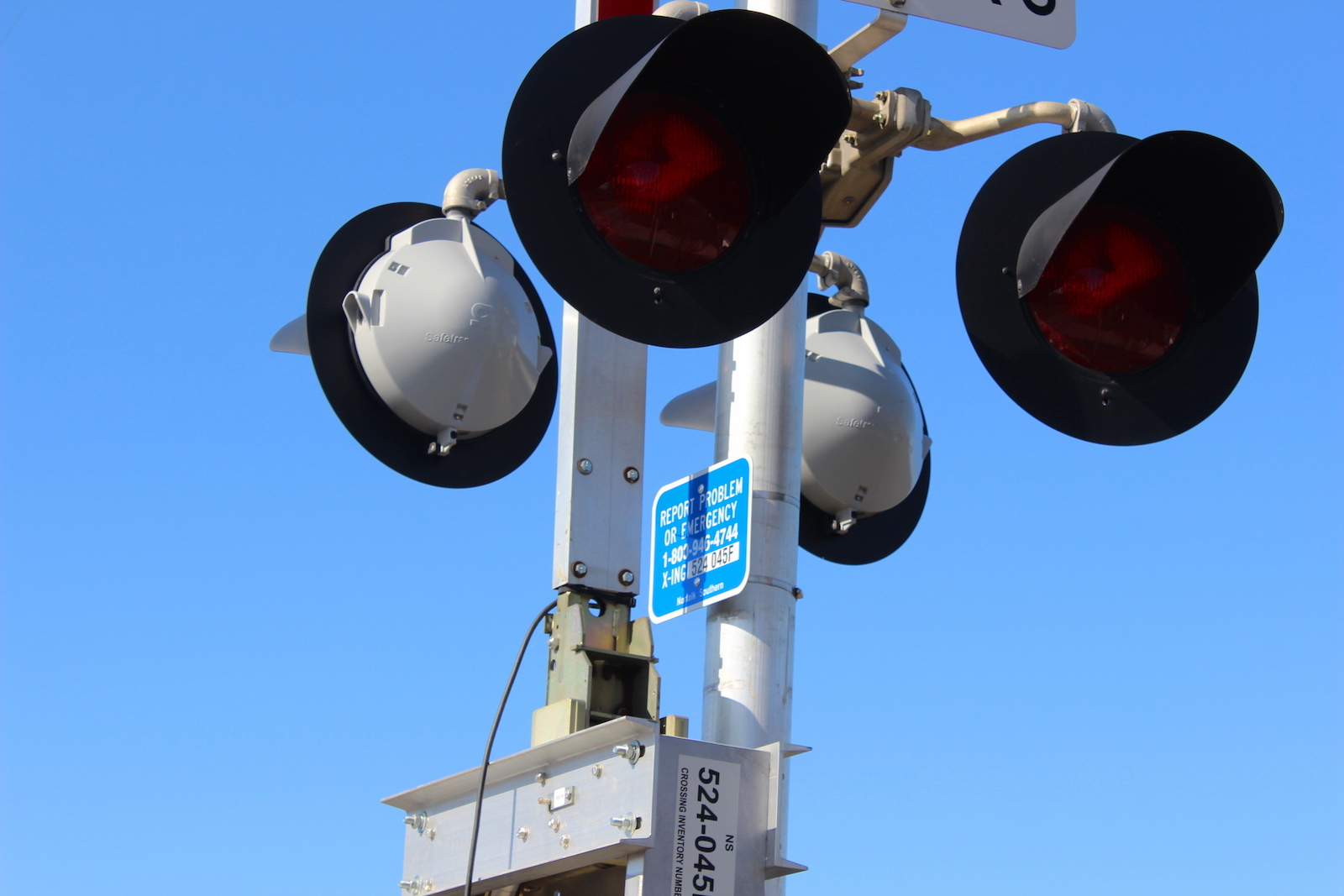

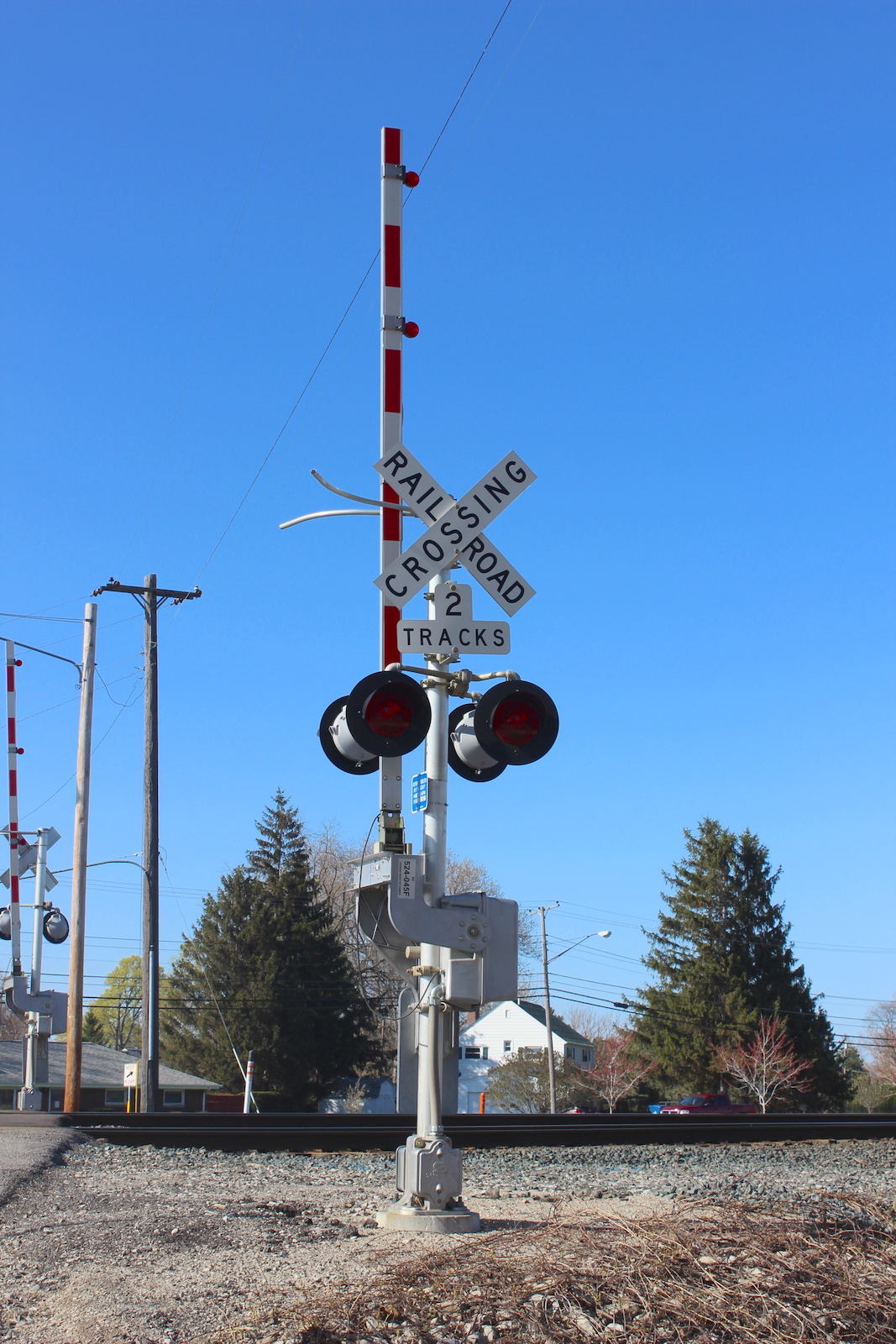

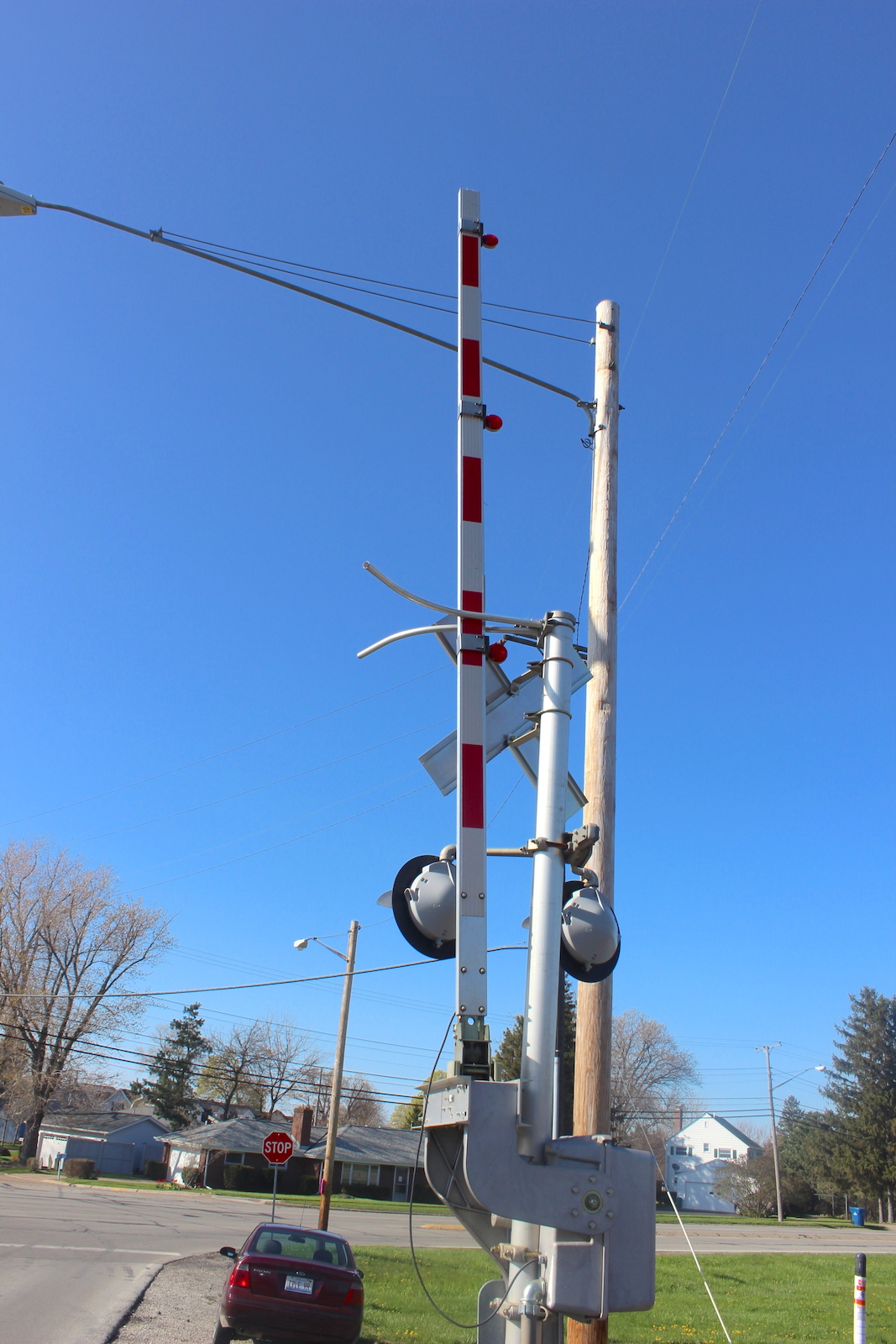

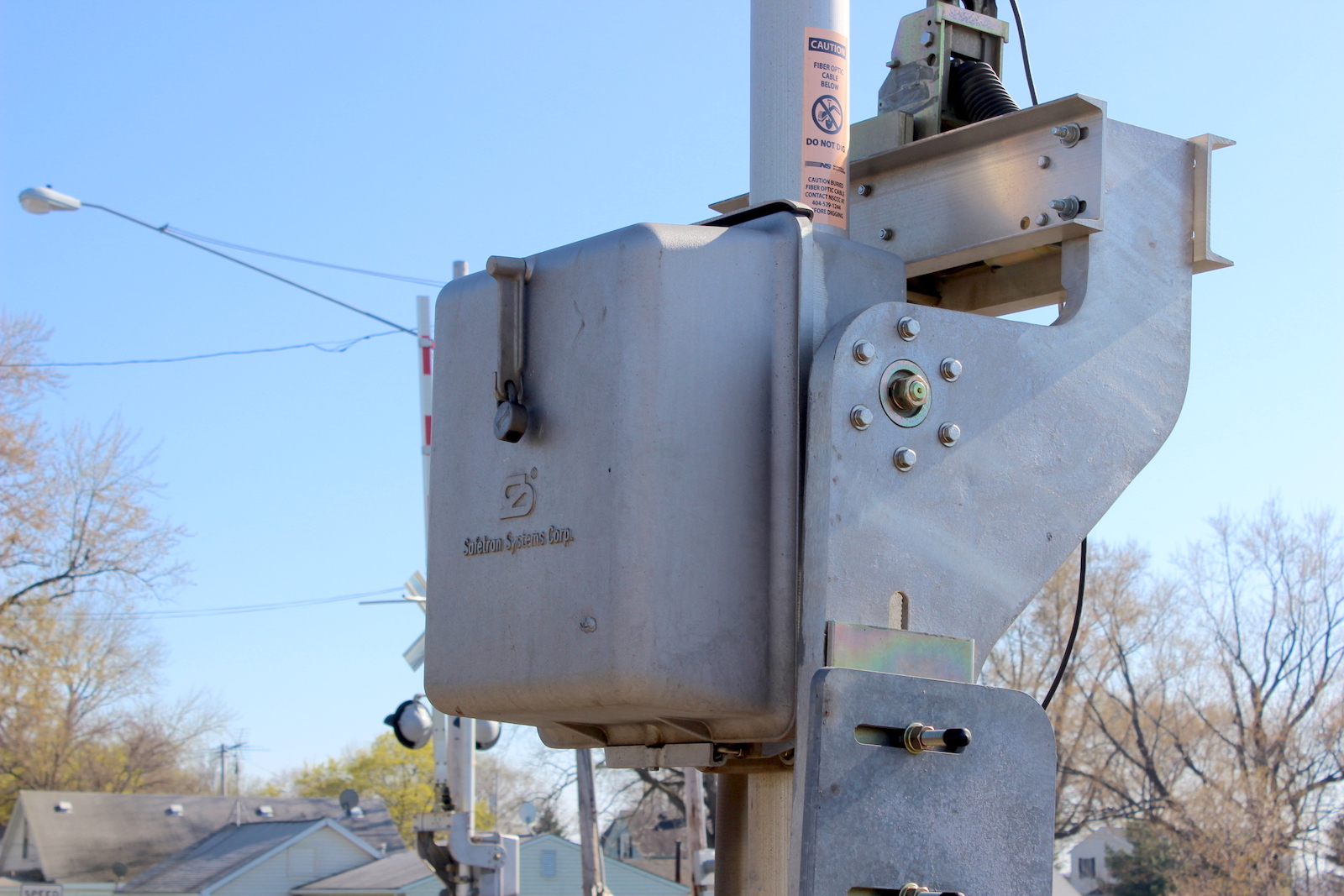

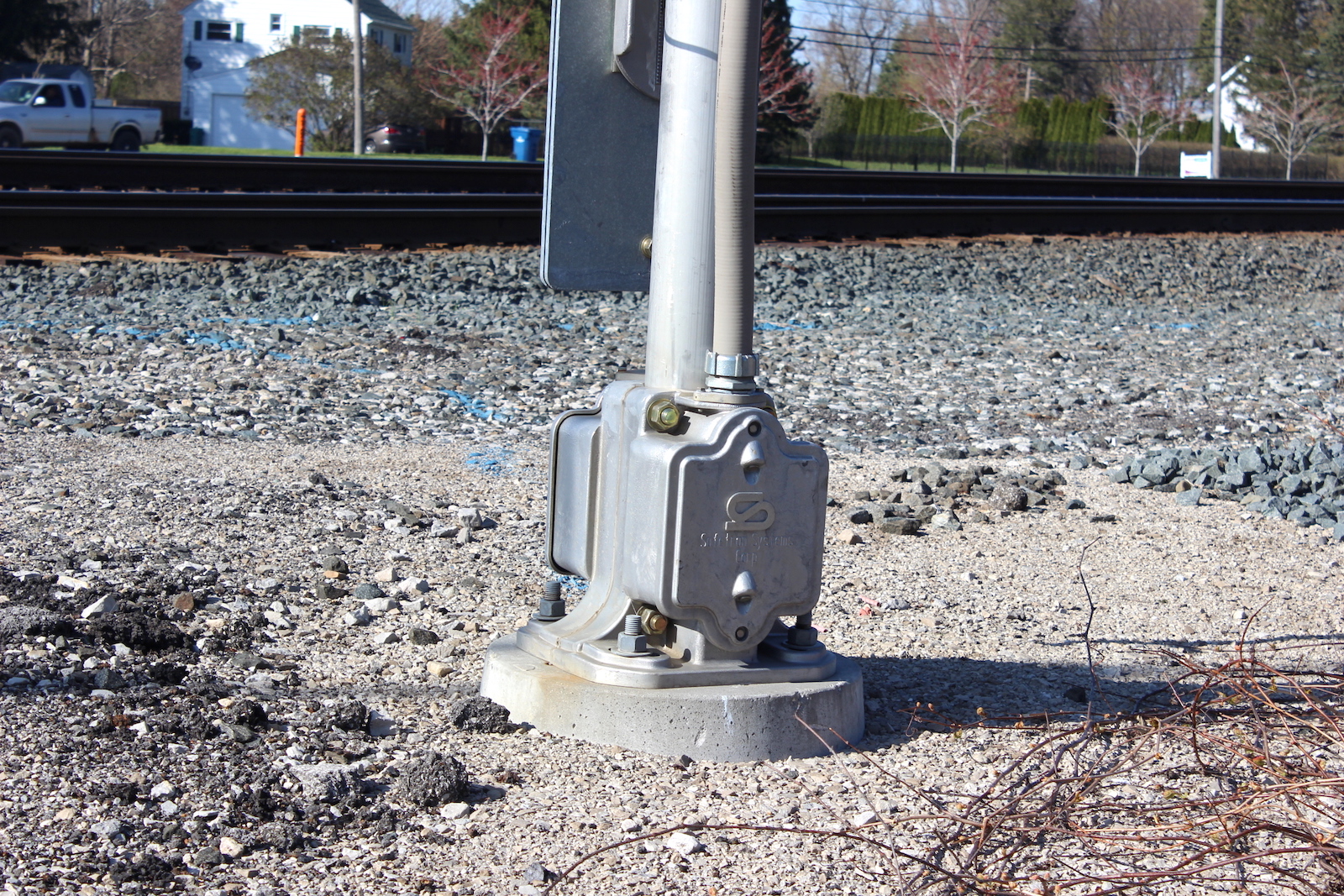

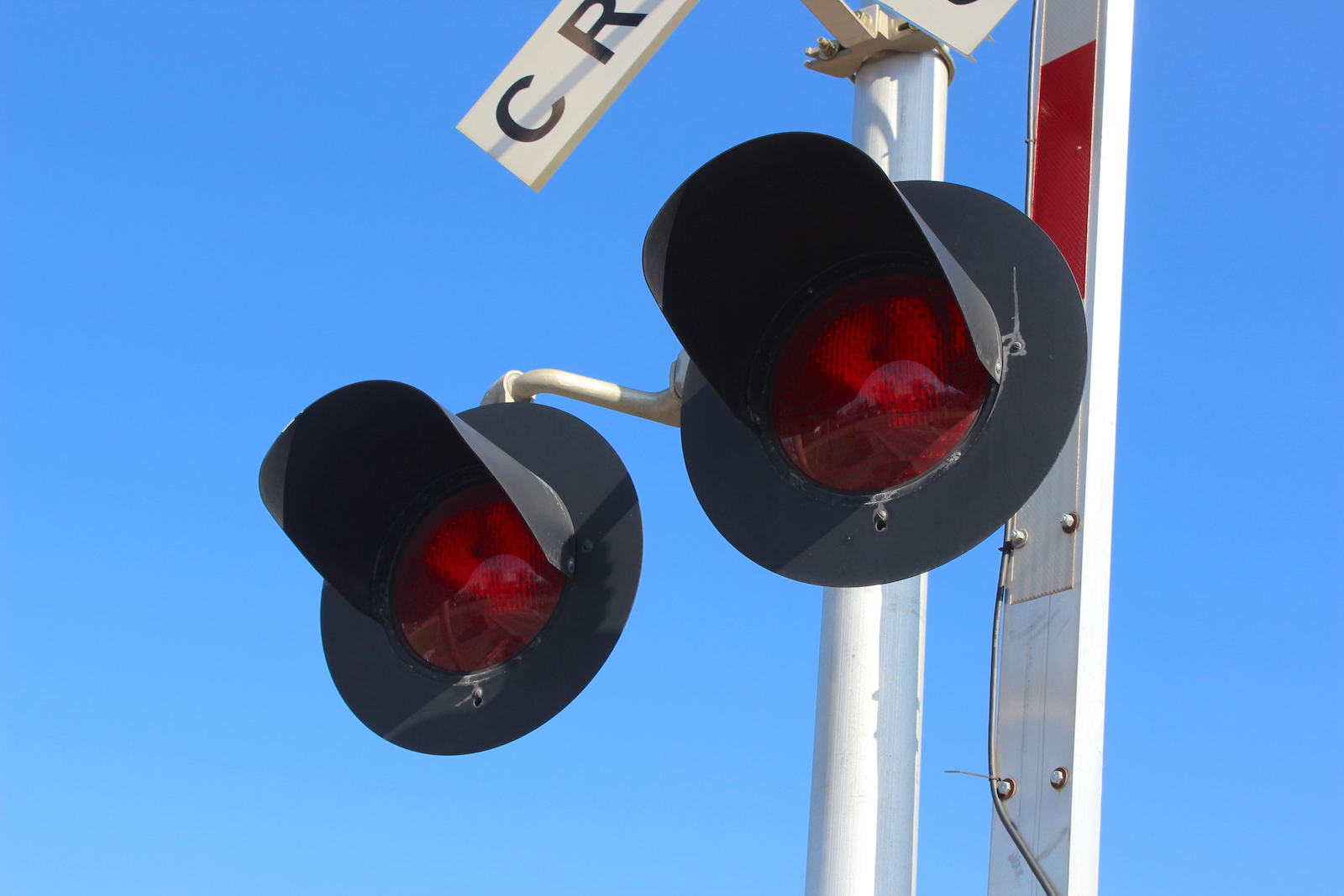

The northern exit signal.
20 21 22
23 24 25
26 27 28

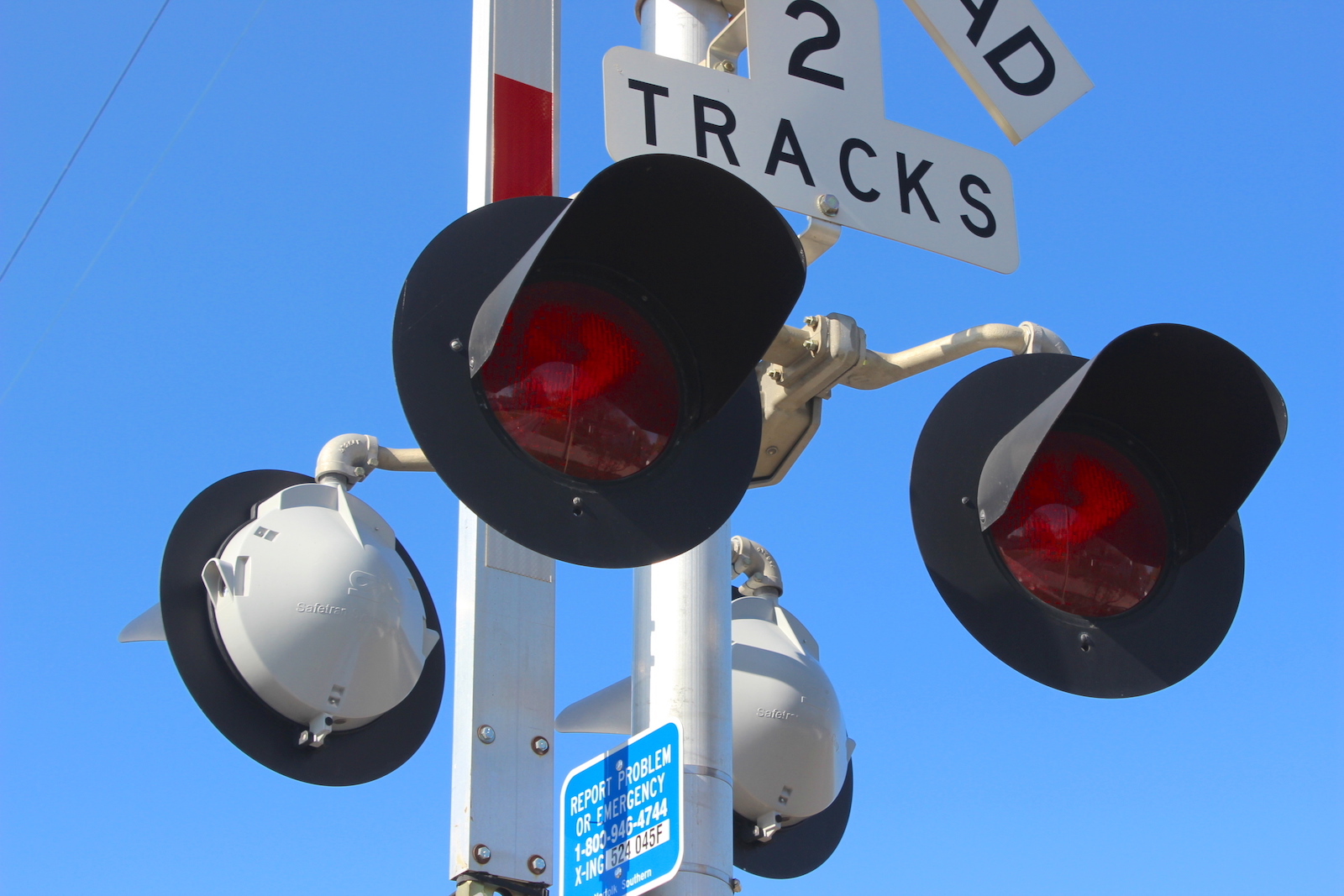

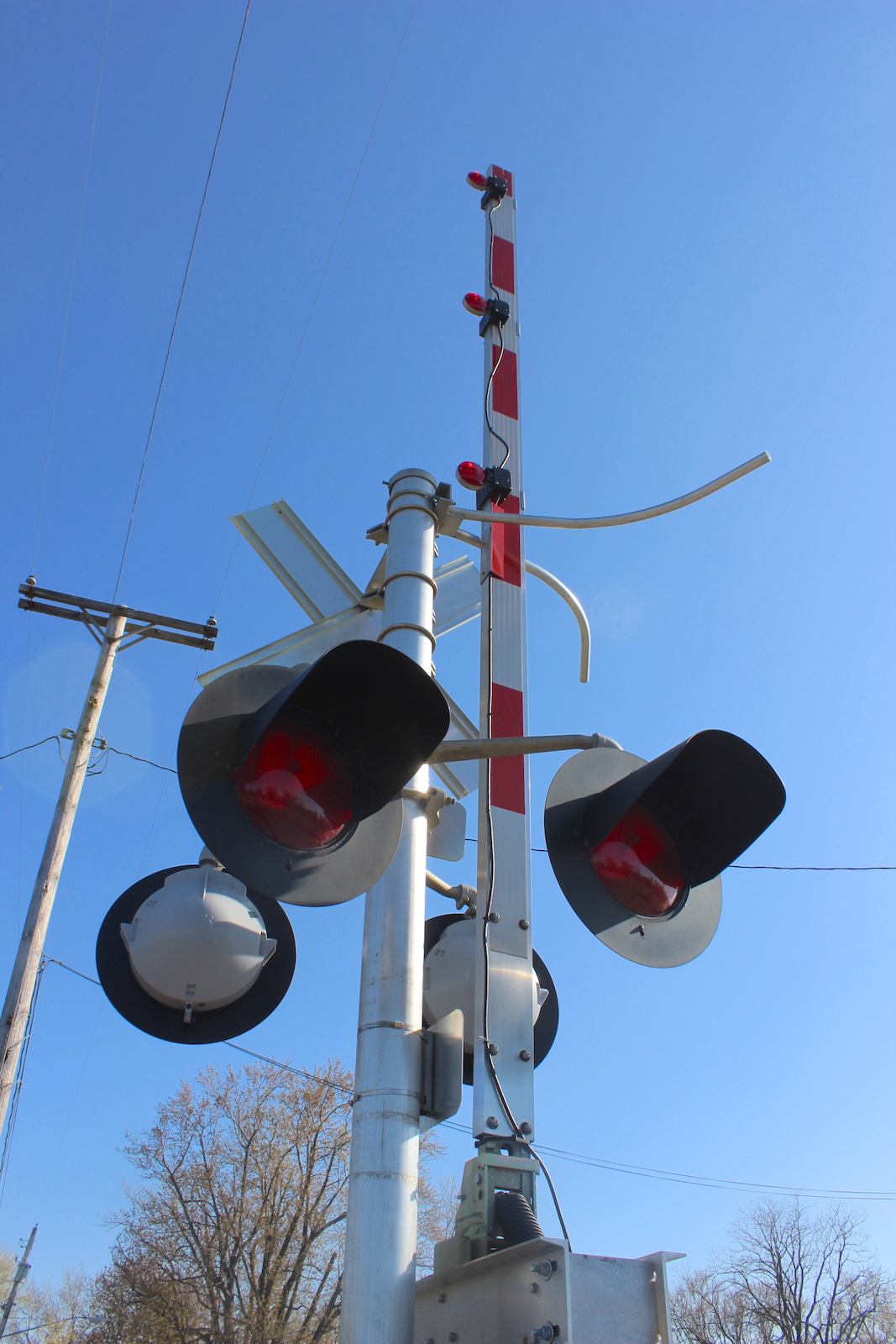

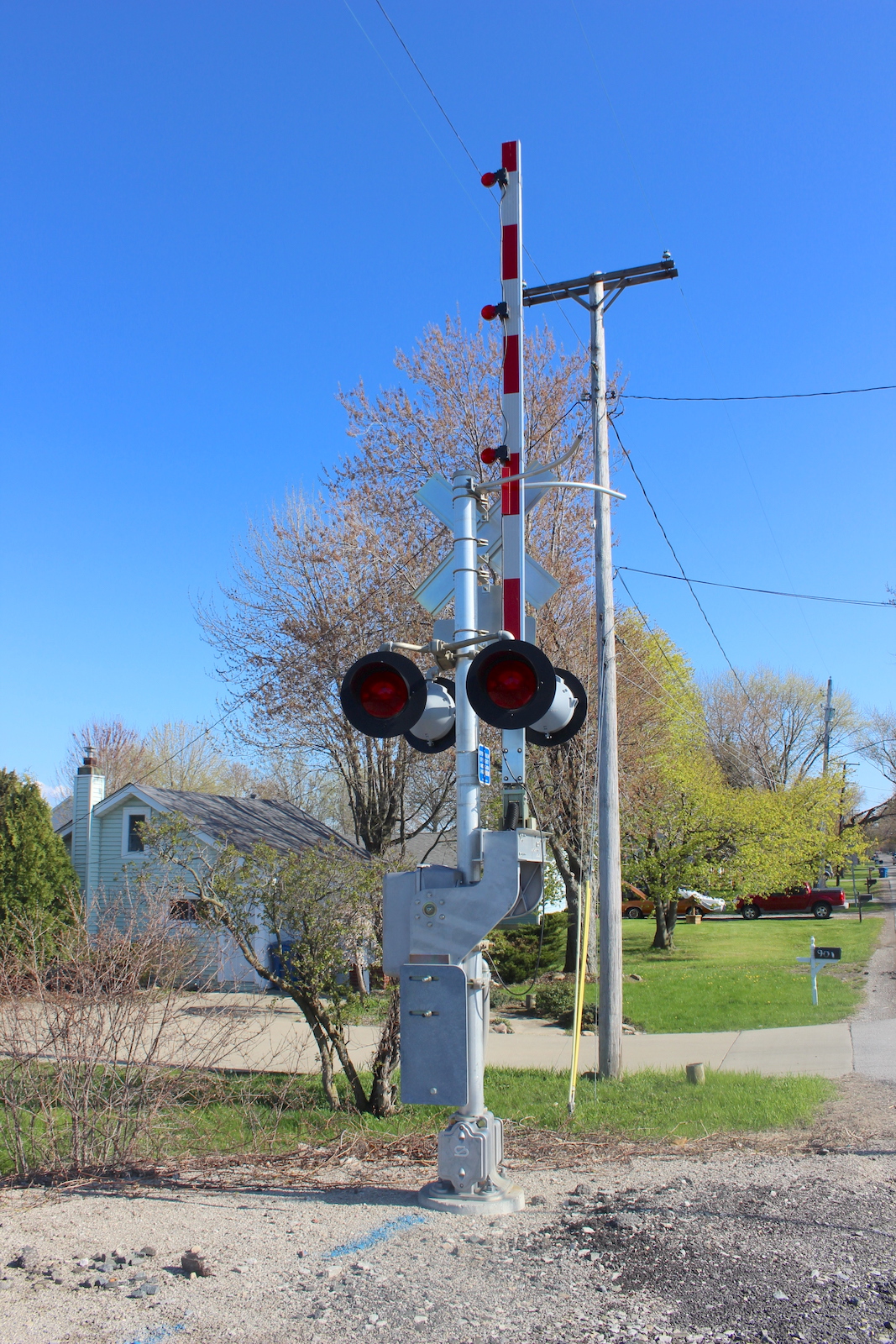

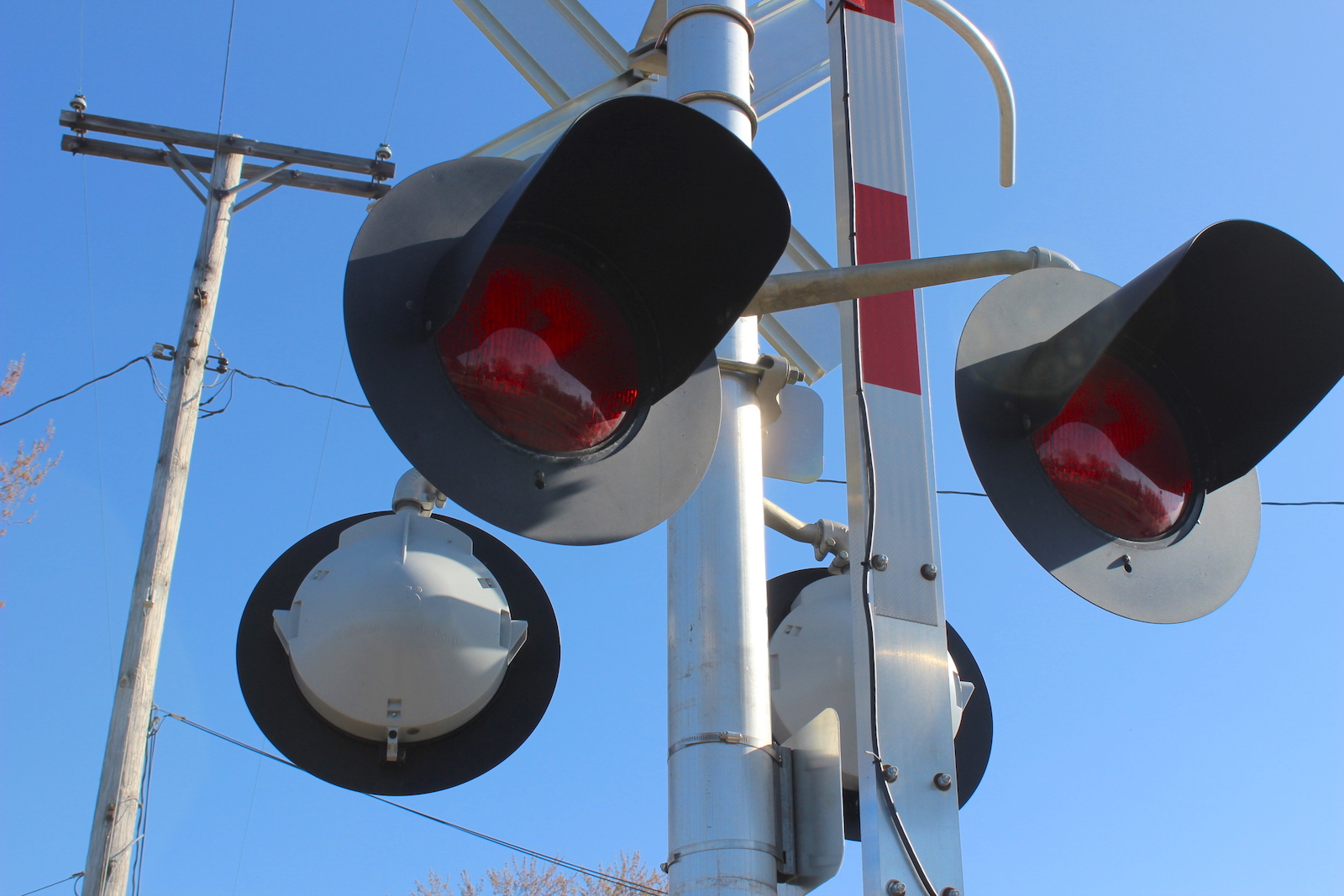

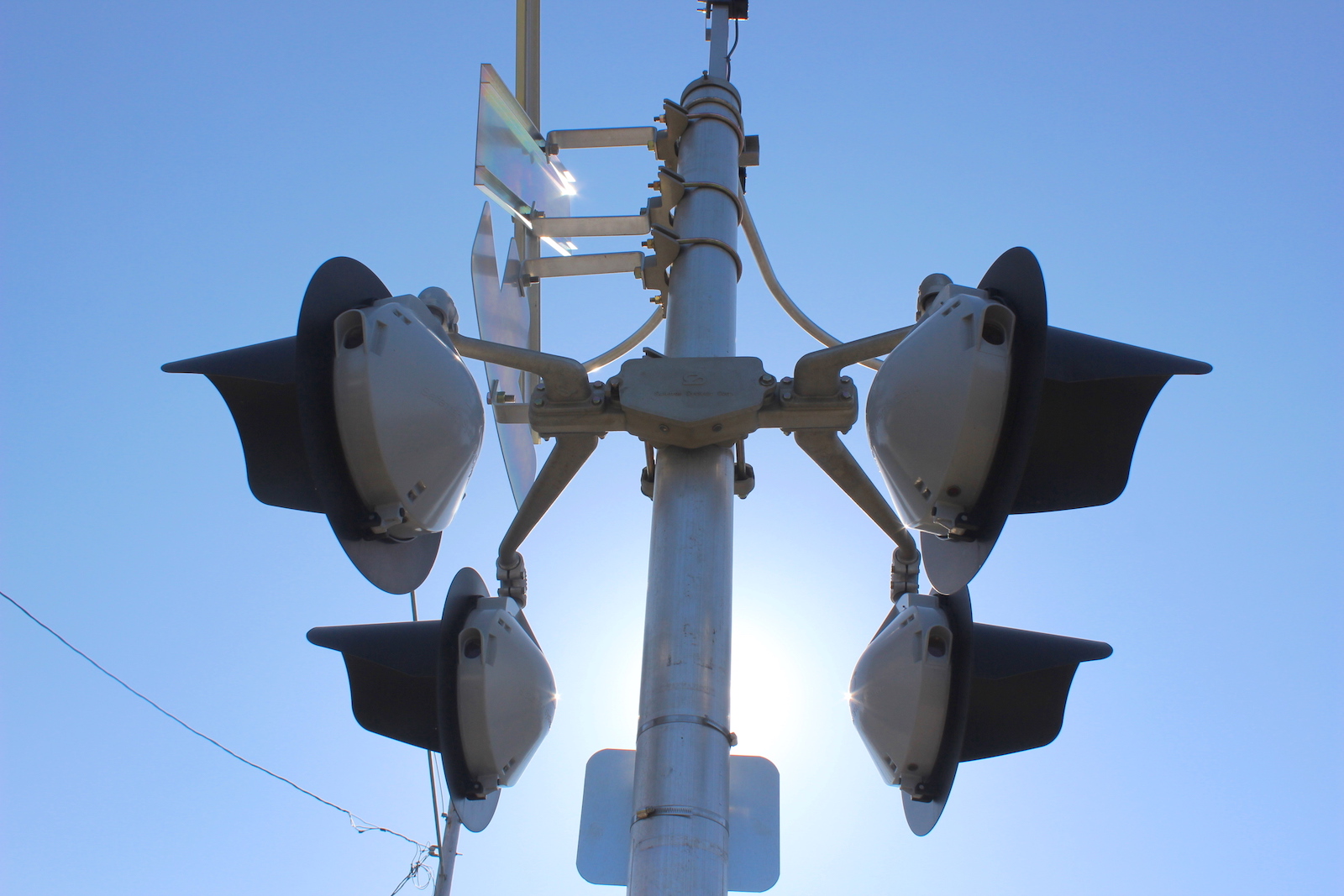

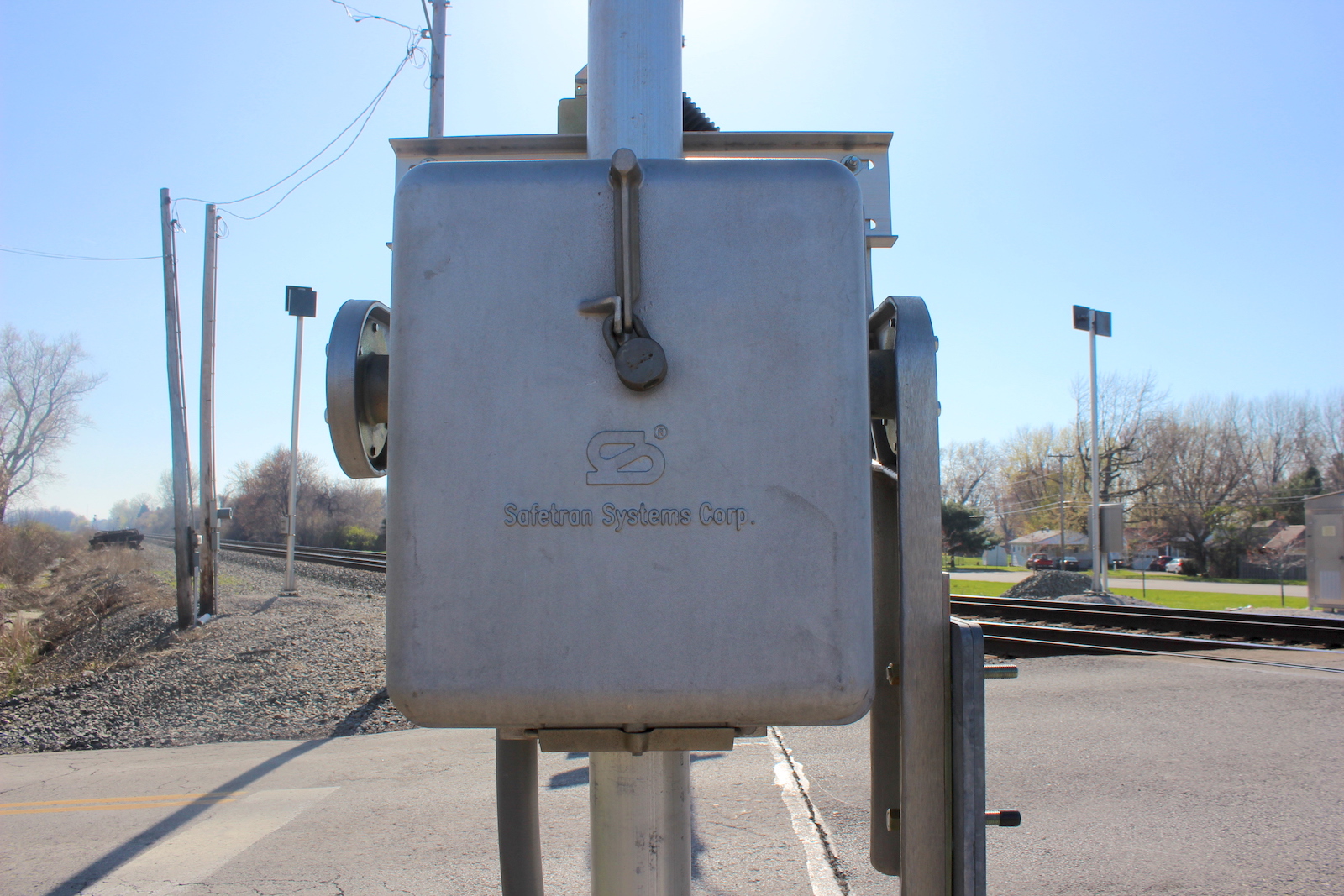

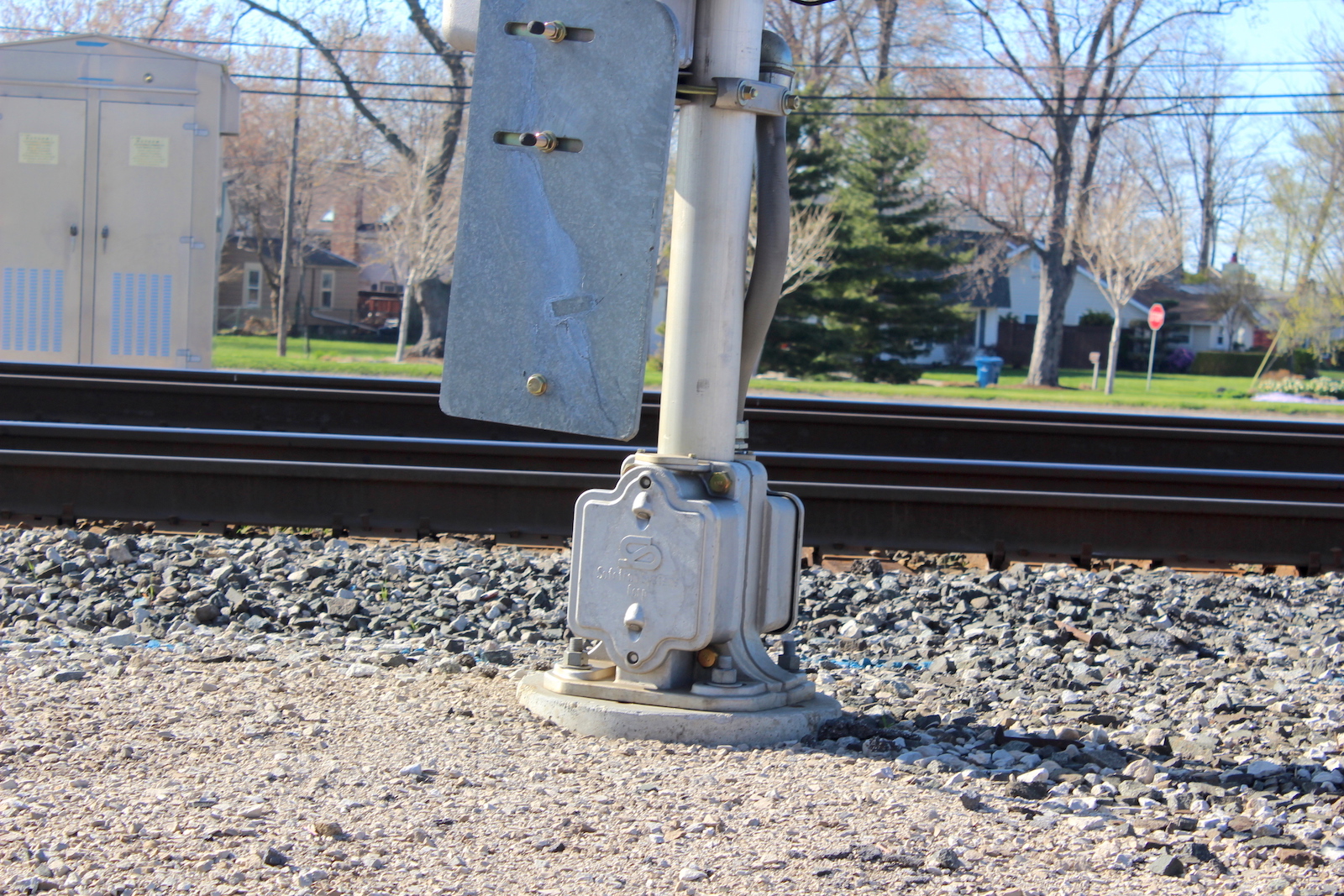

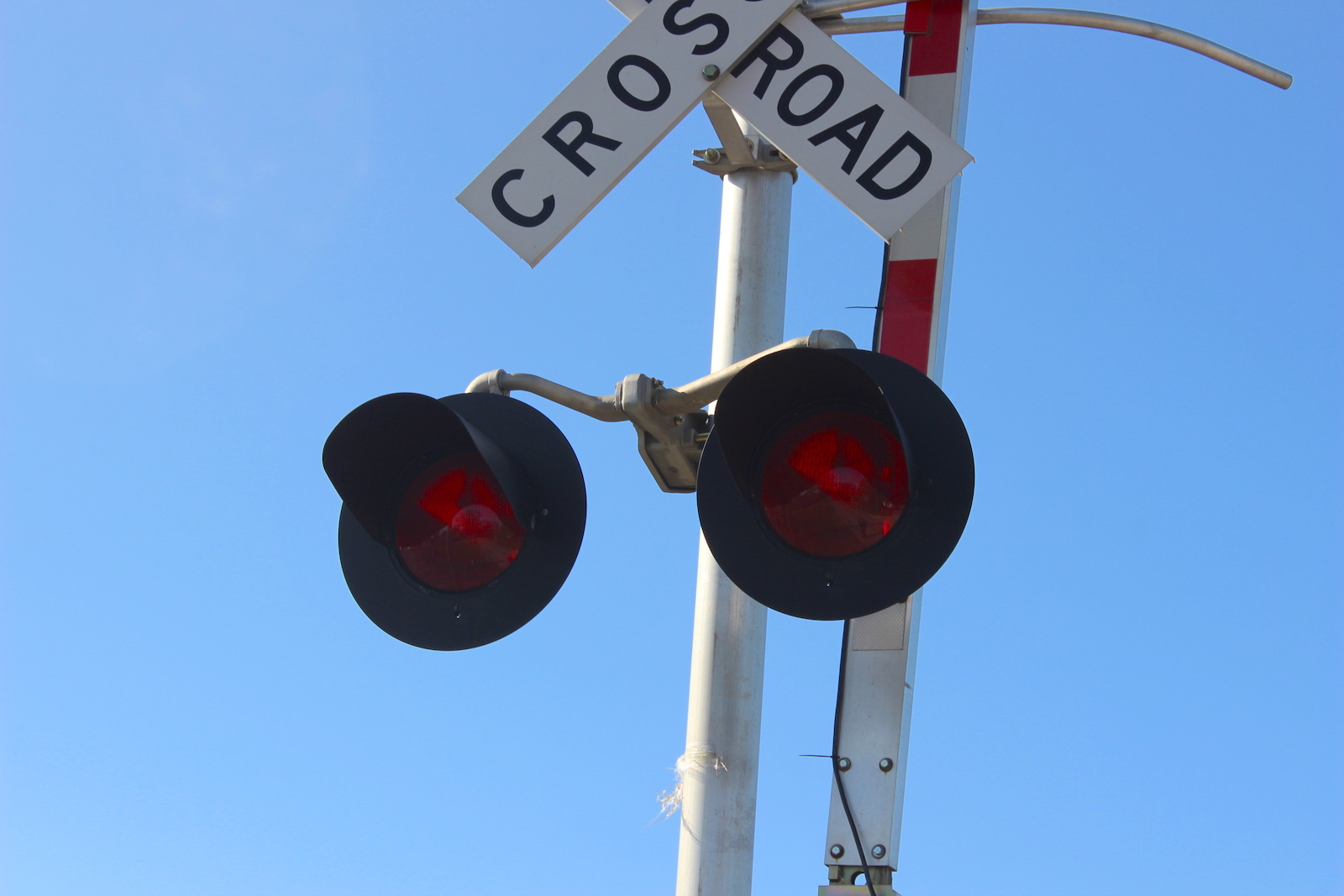

The southern entrance signal.
29 30 31
32 33 34 35

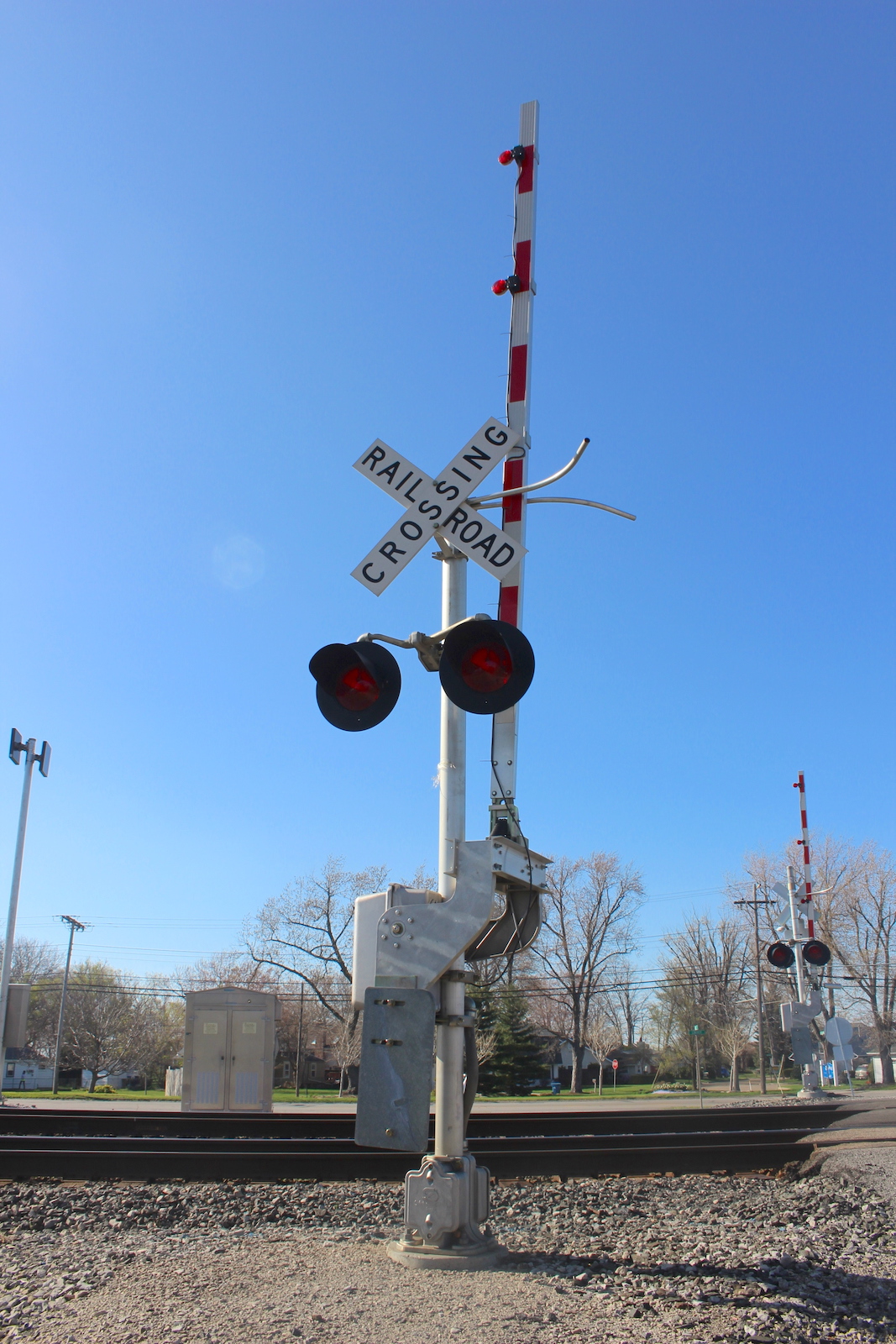

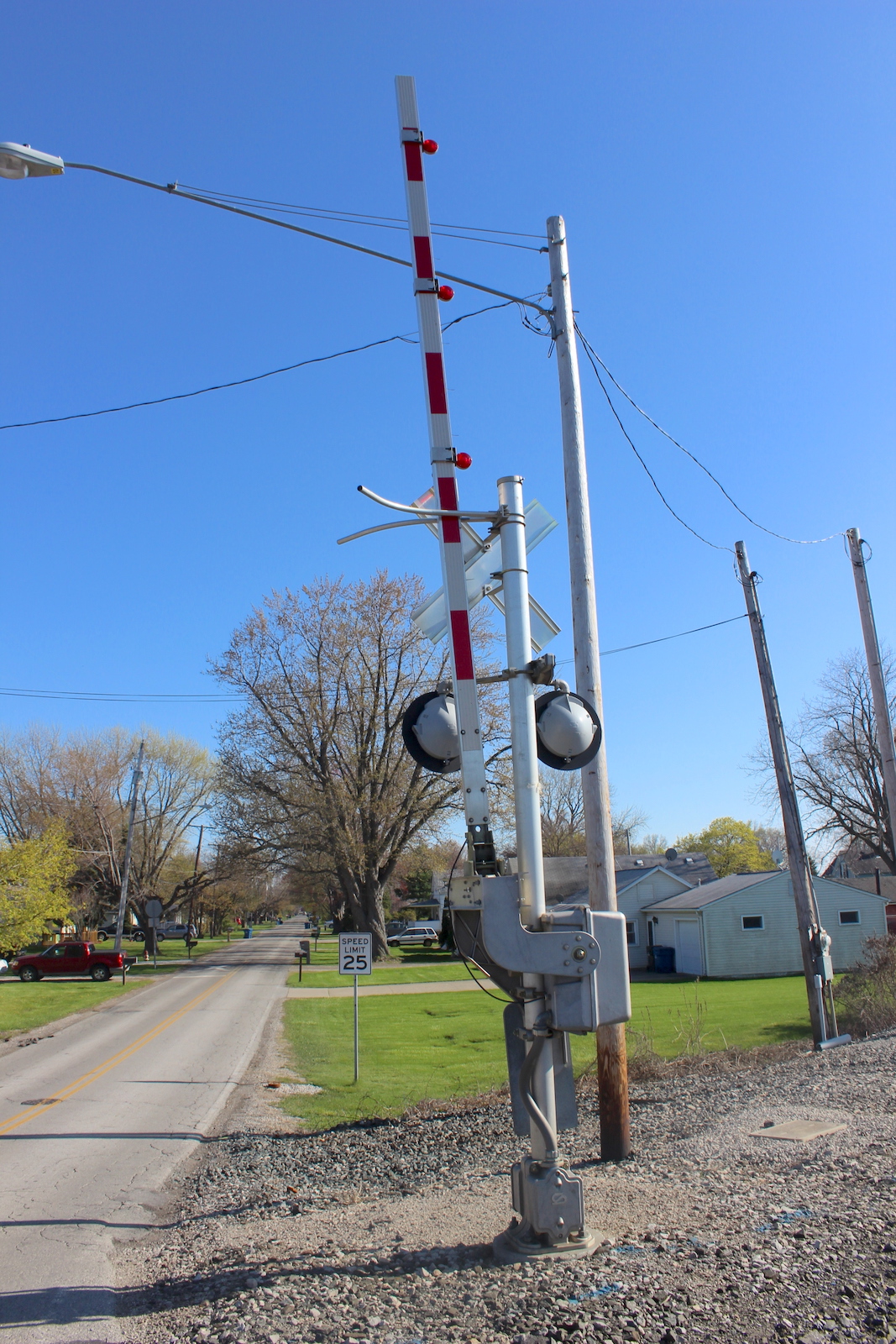

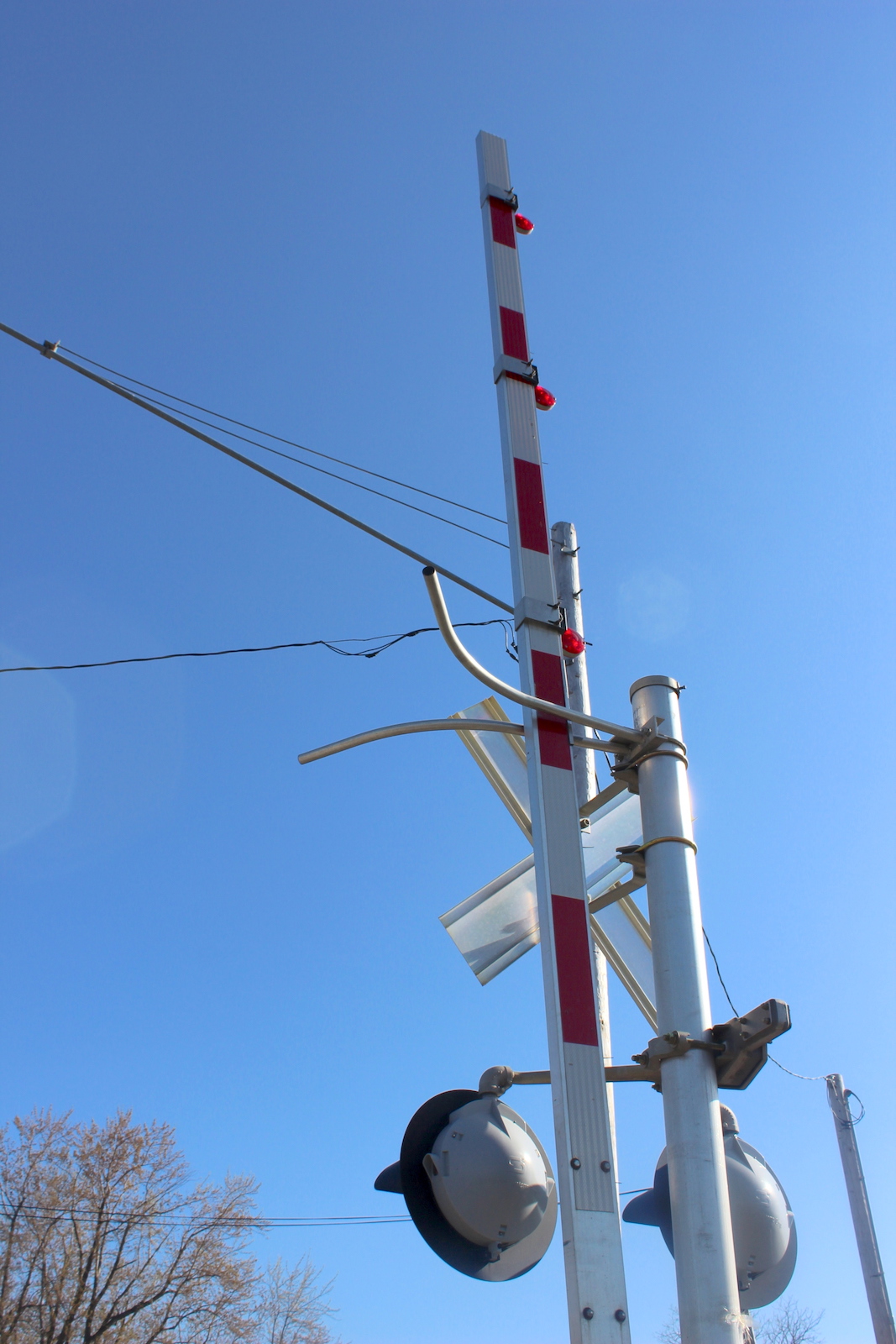

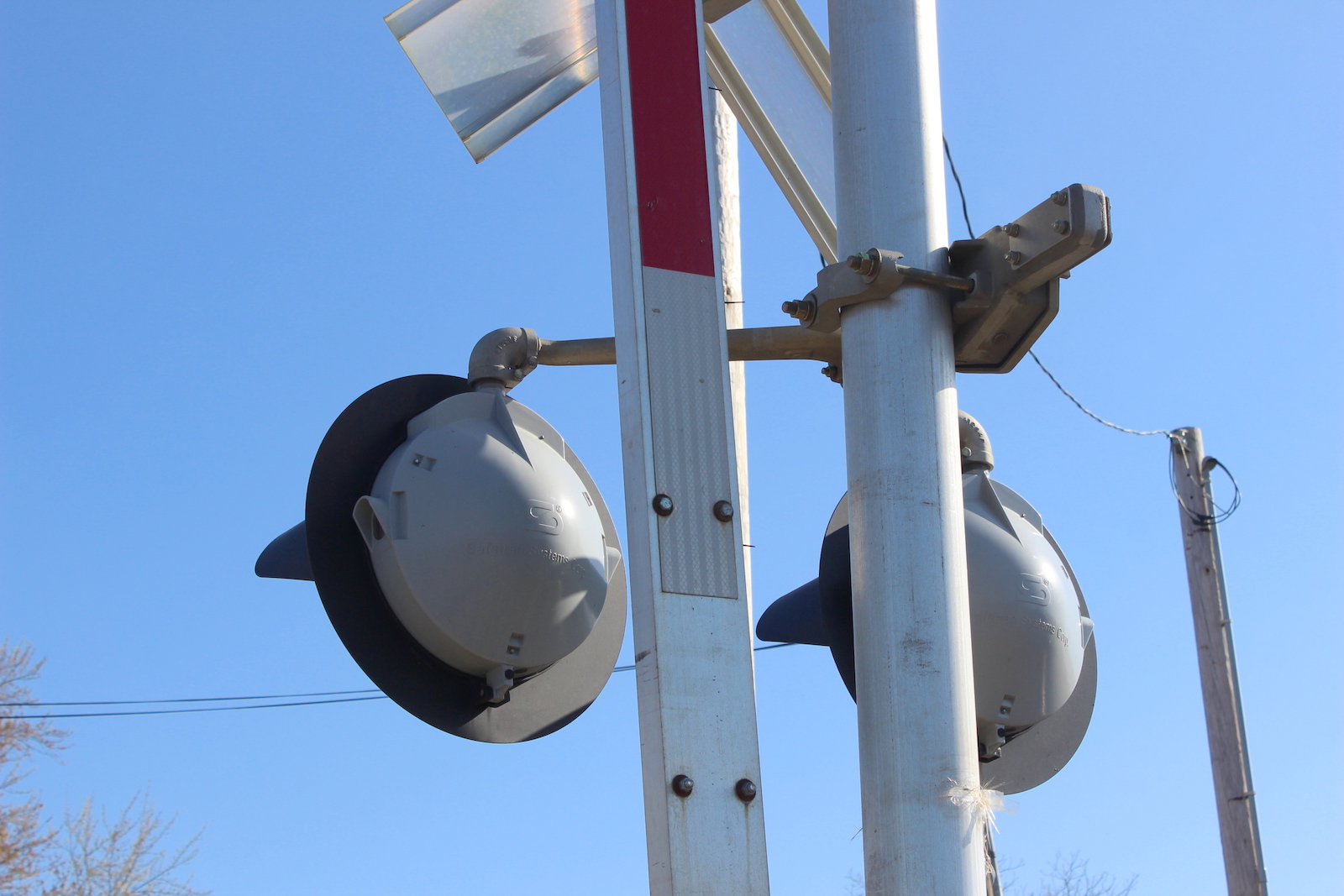

The southern exit signal. All of the lights were incandescent at this point.
36 37 38 39

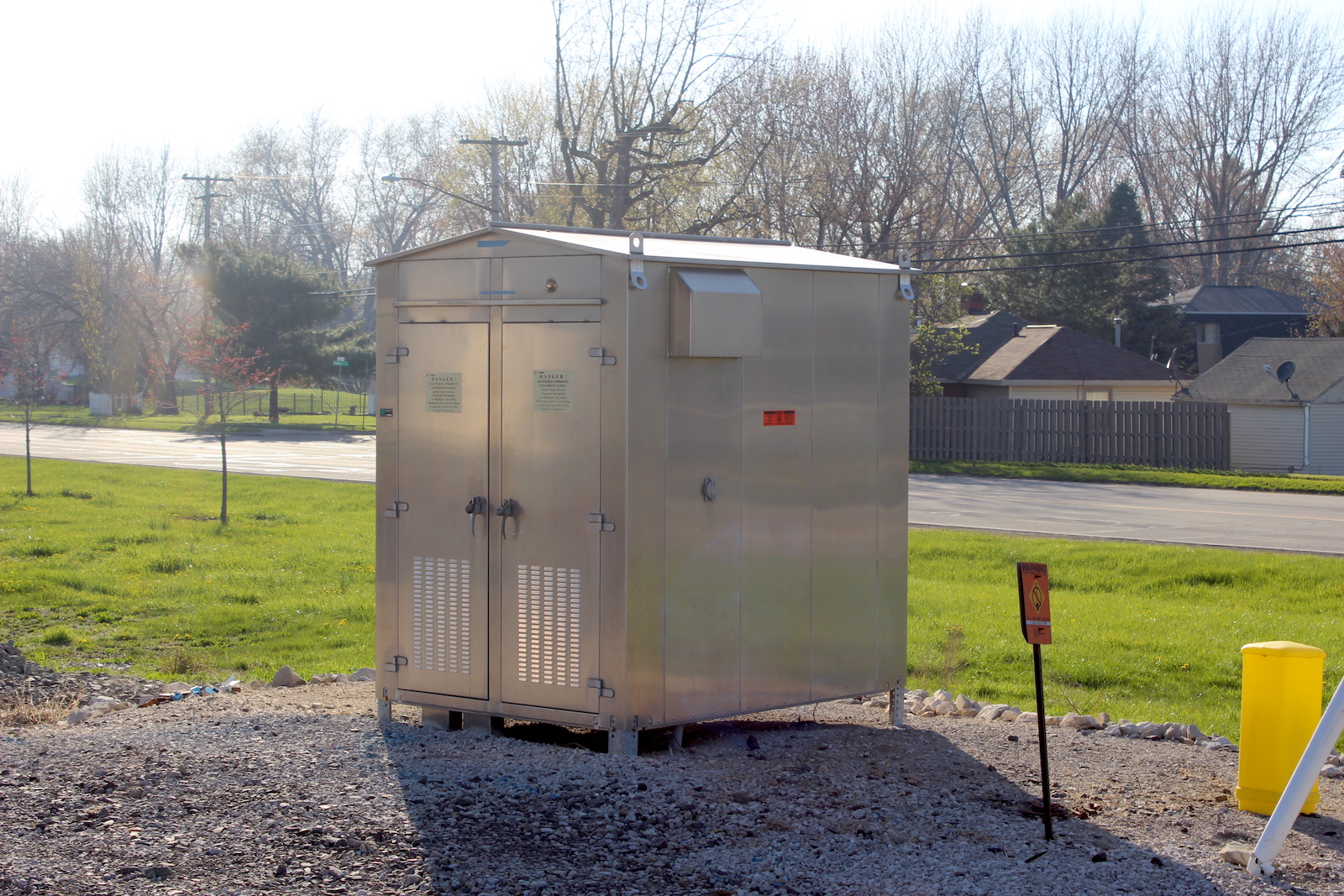

The relay bungalow in the northwest quadrant.

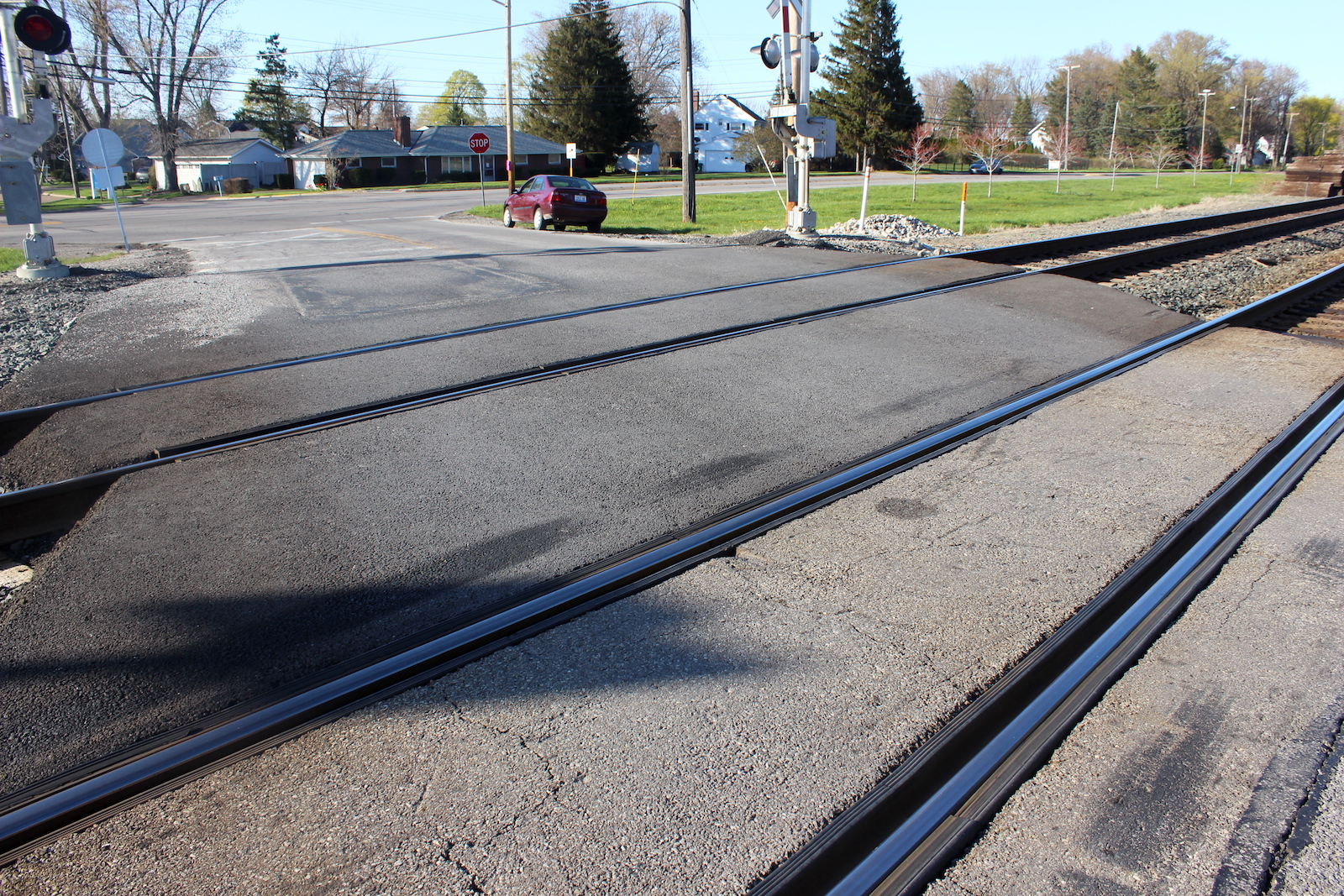

 The grade is rubber and asphalt.

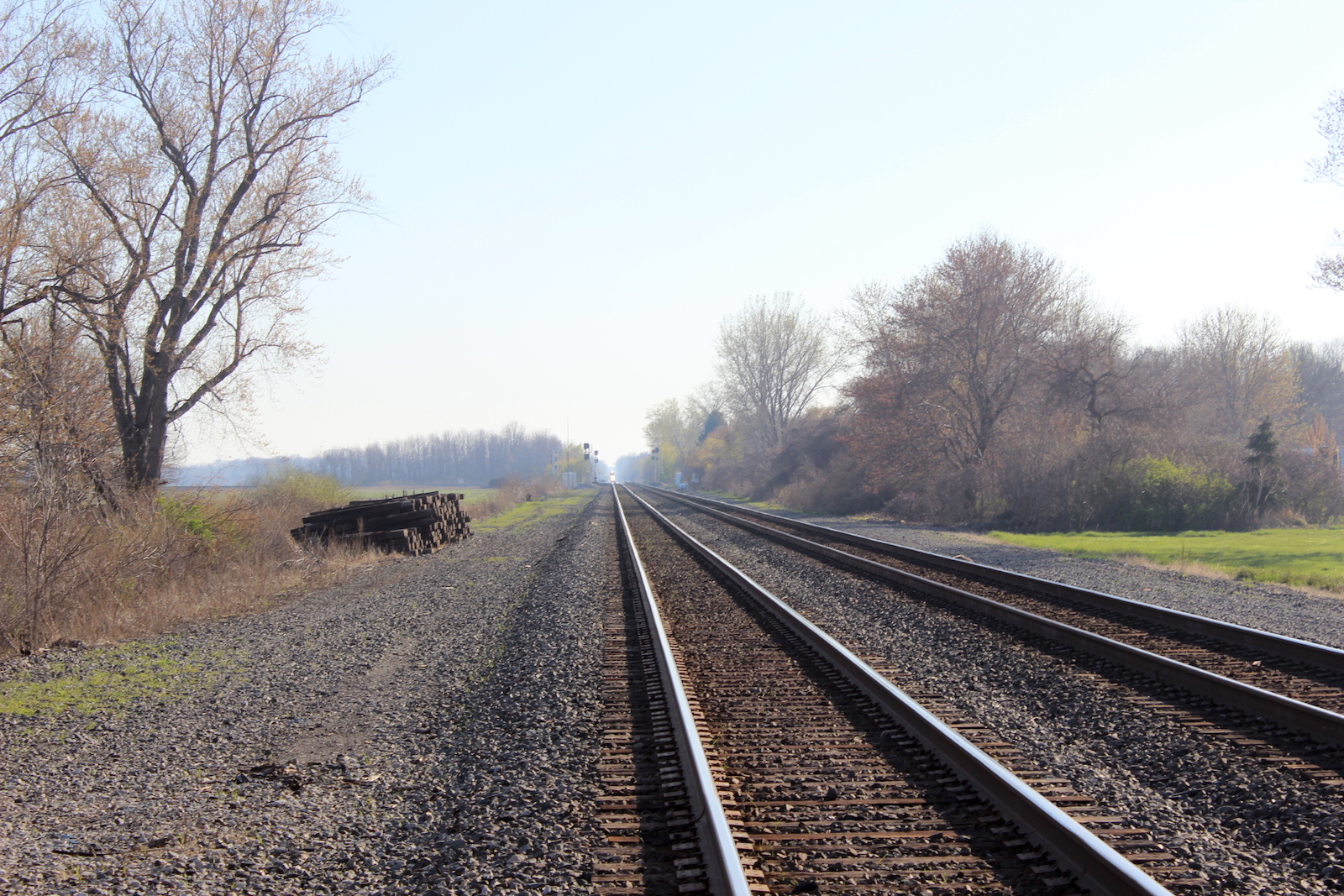

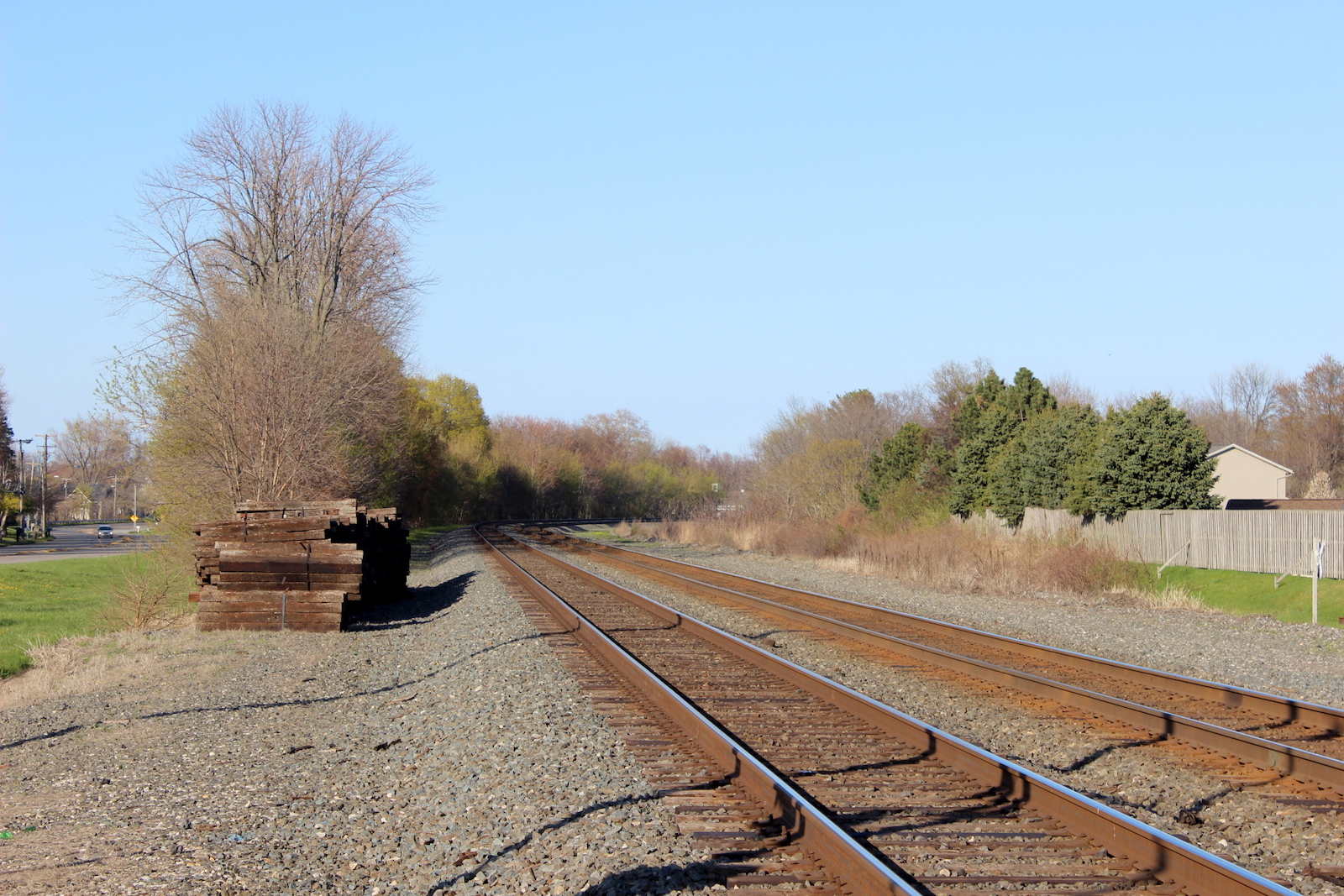

 Track view facing west towards Coen Rd. #1.
 Track view facing east towards Grand St.
40 41 42 43

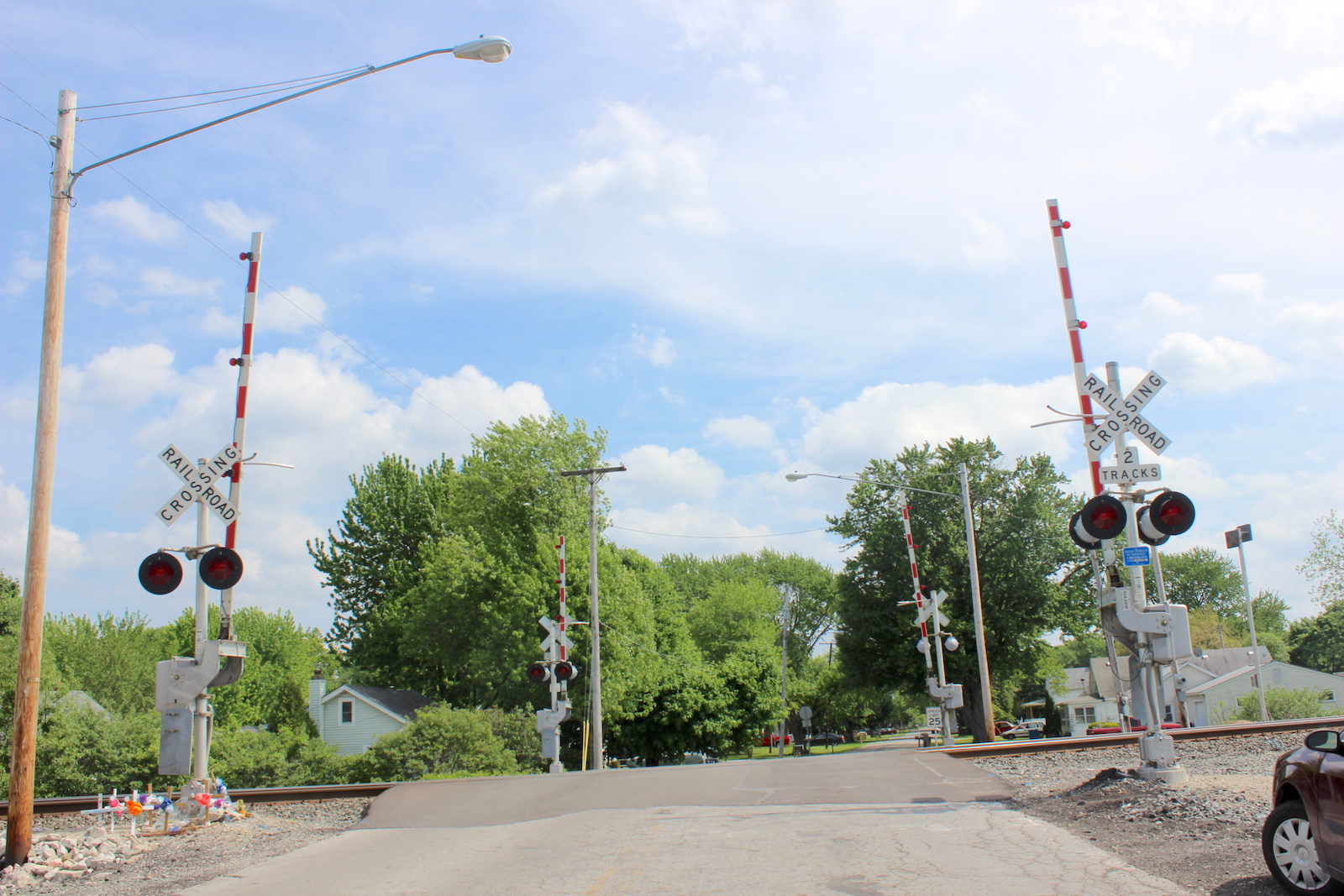

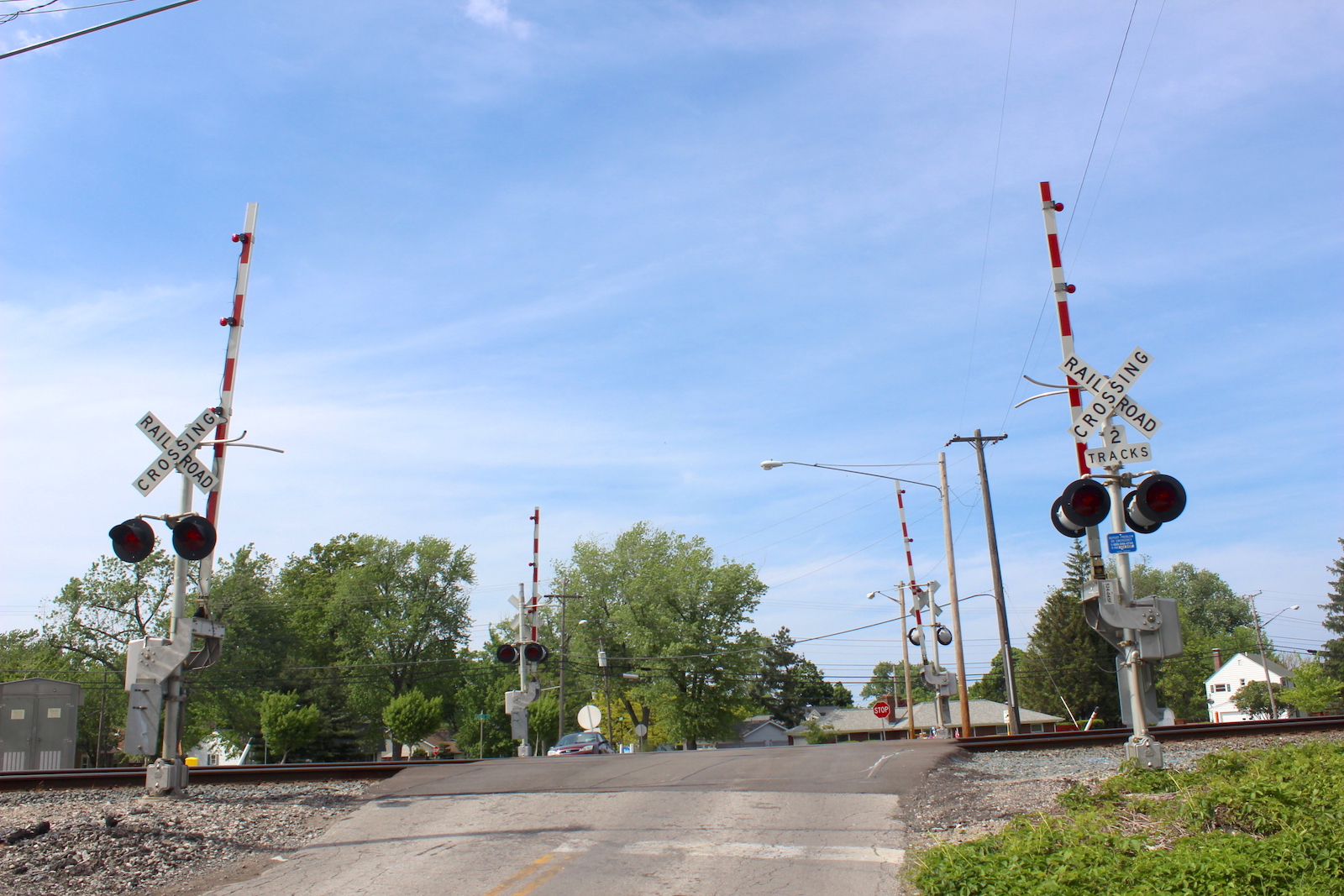

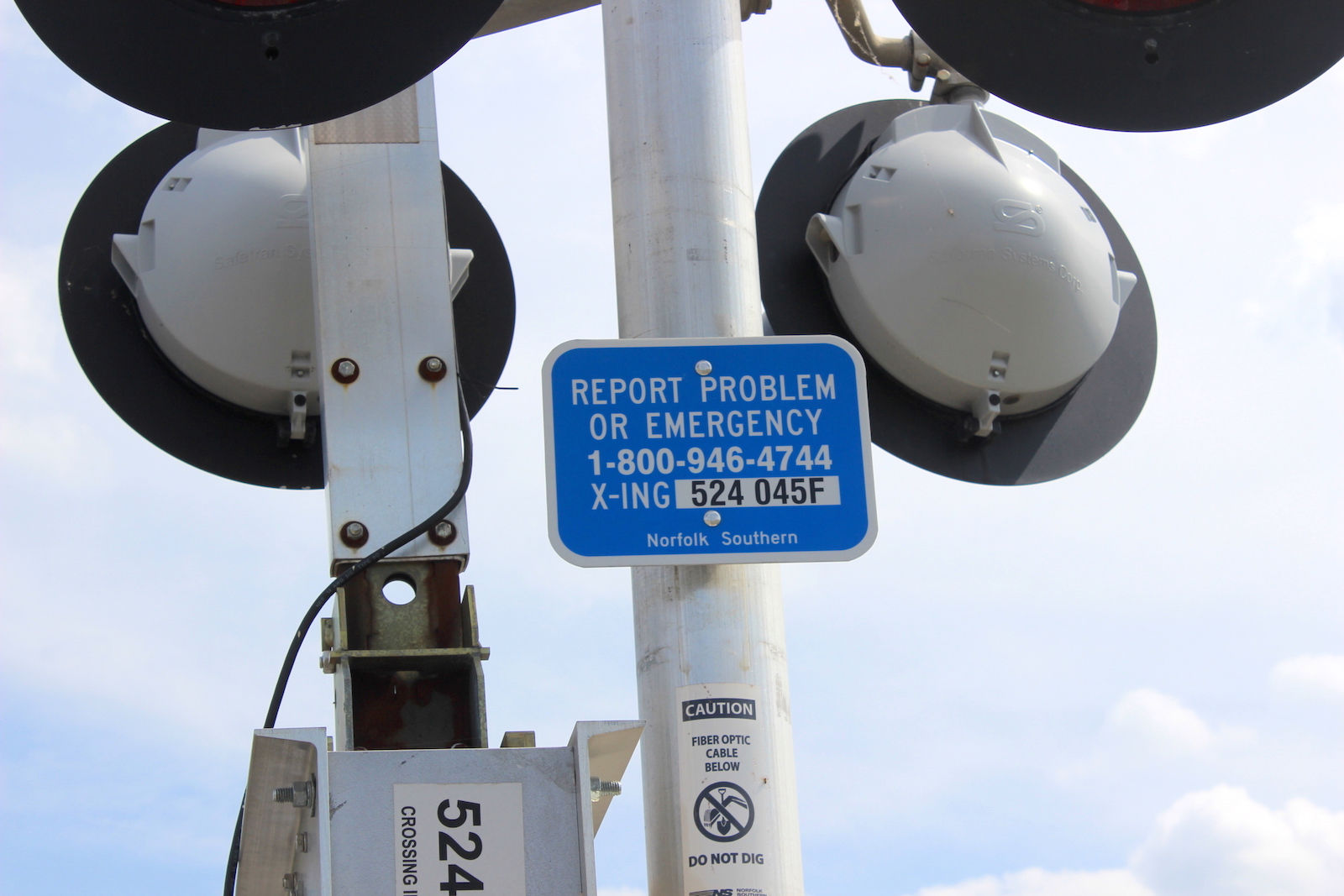

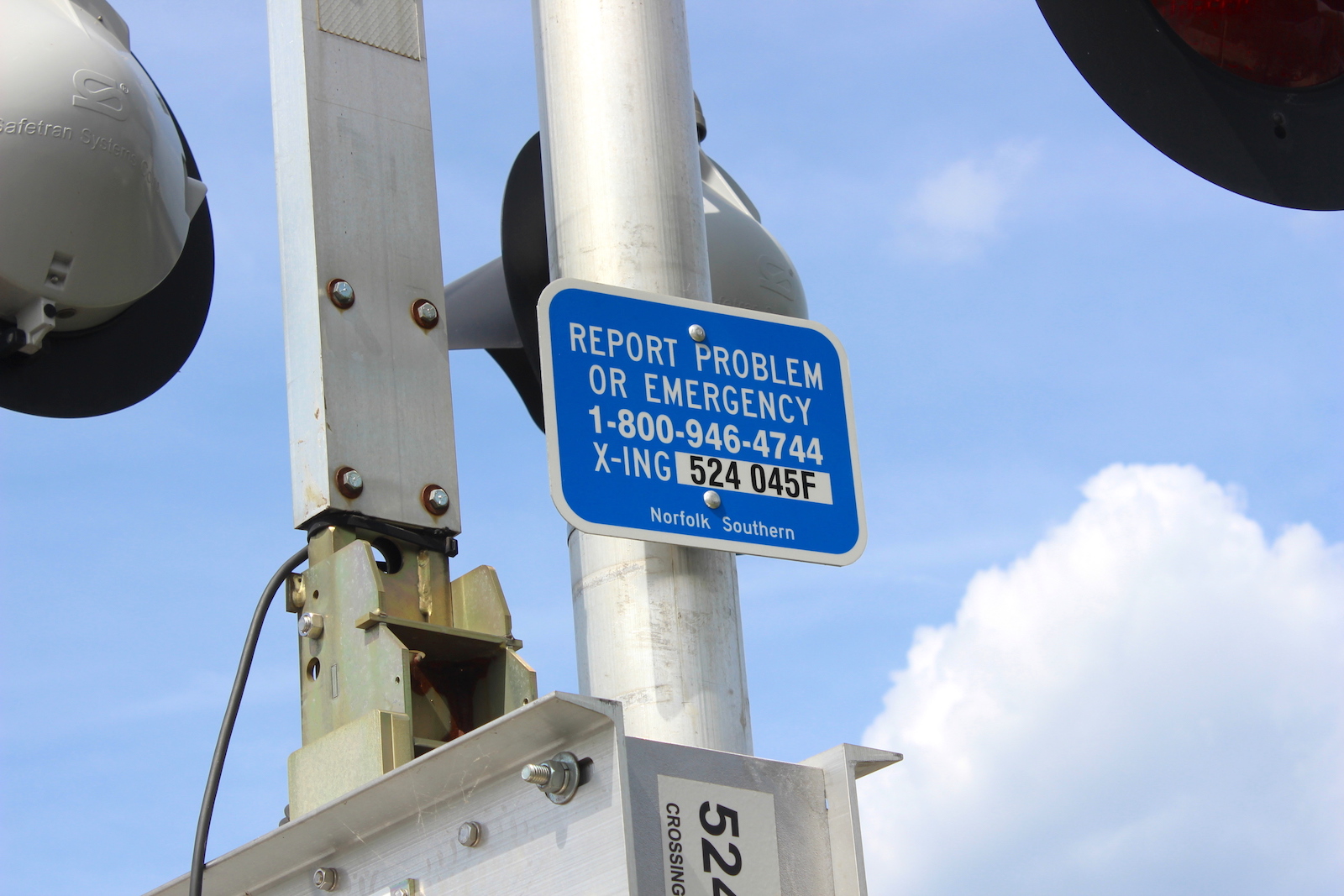

In May 2016, we see the DOT signs were turned to face forward.  The grade was also resurfaced.
44 45
46 47 48
49 50 51
52 53 54 55
56 57 58
59 60 61
62 63 64 65

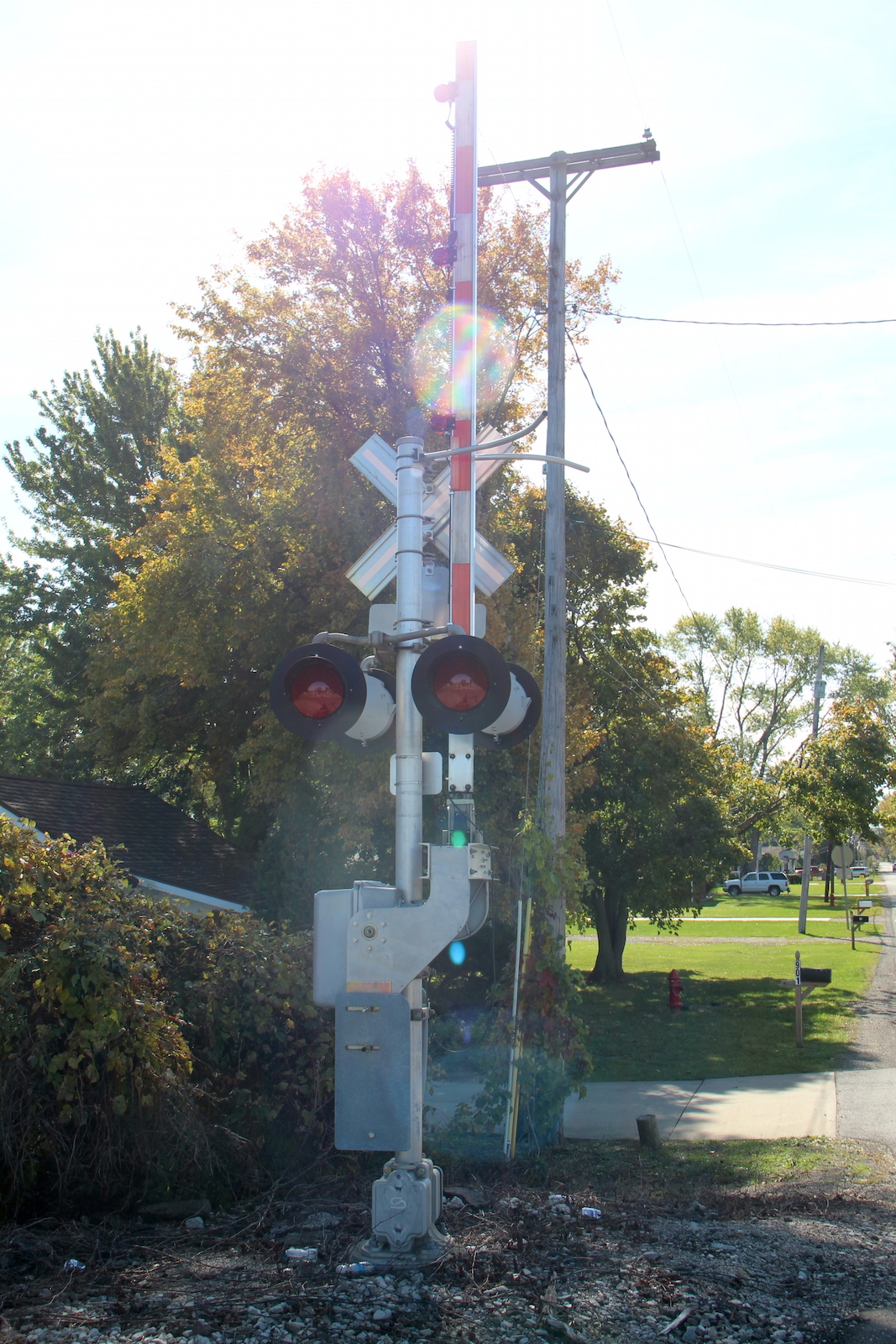

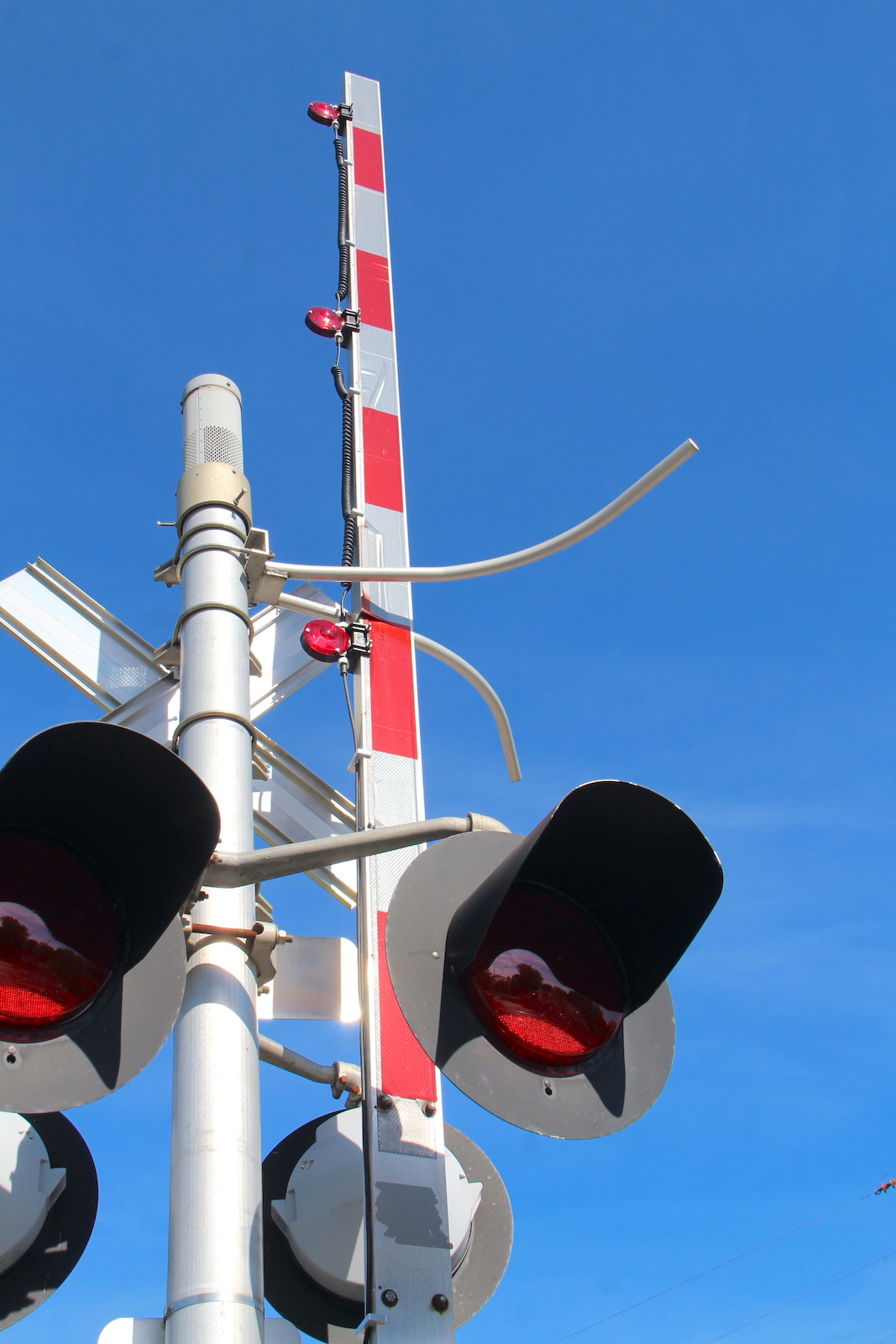

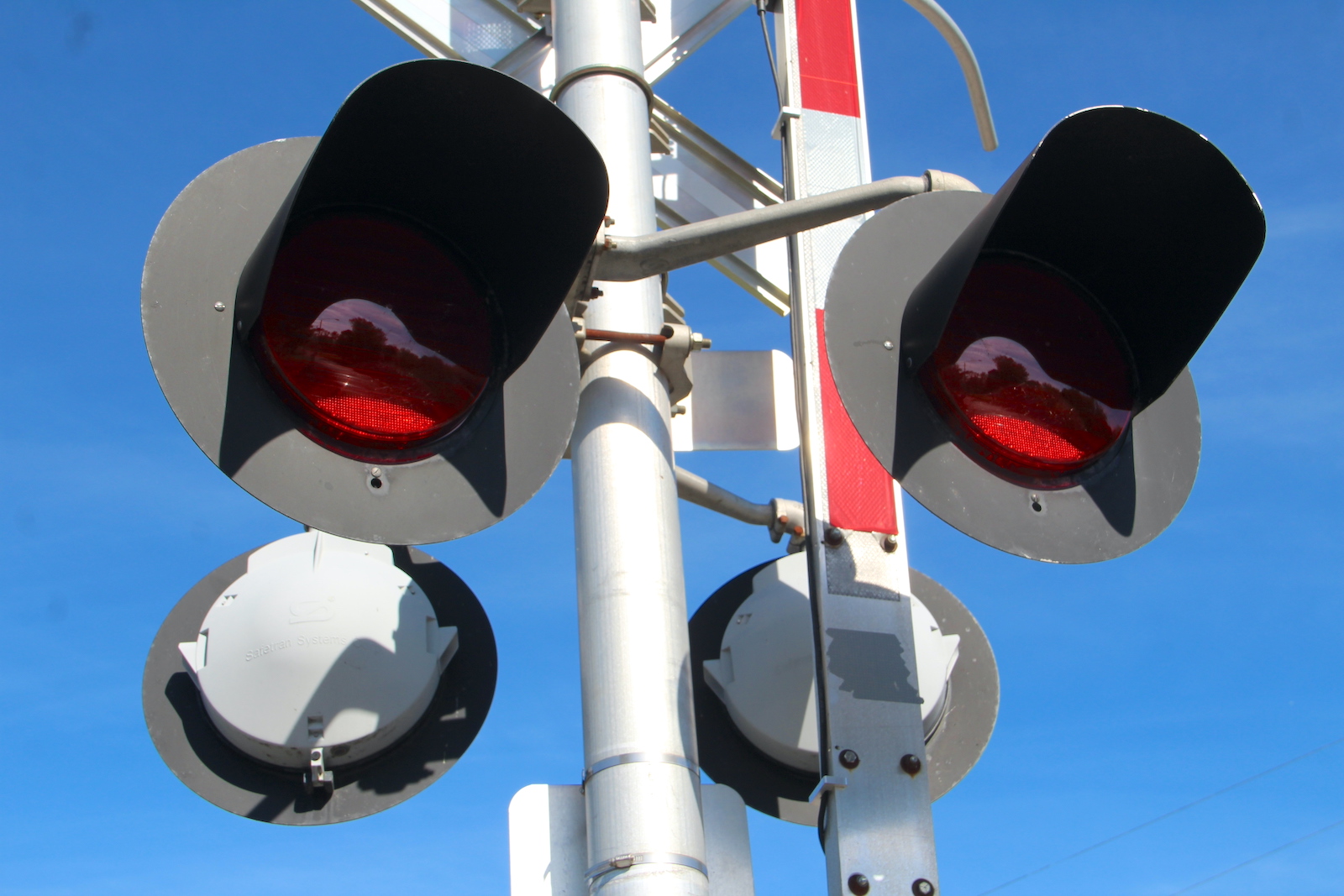

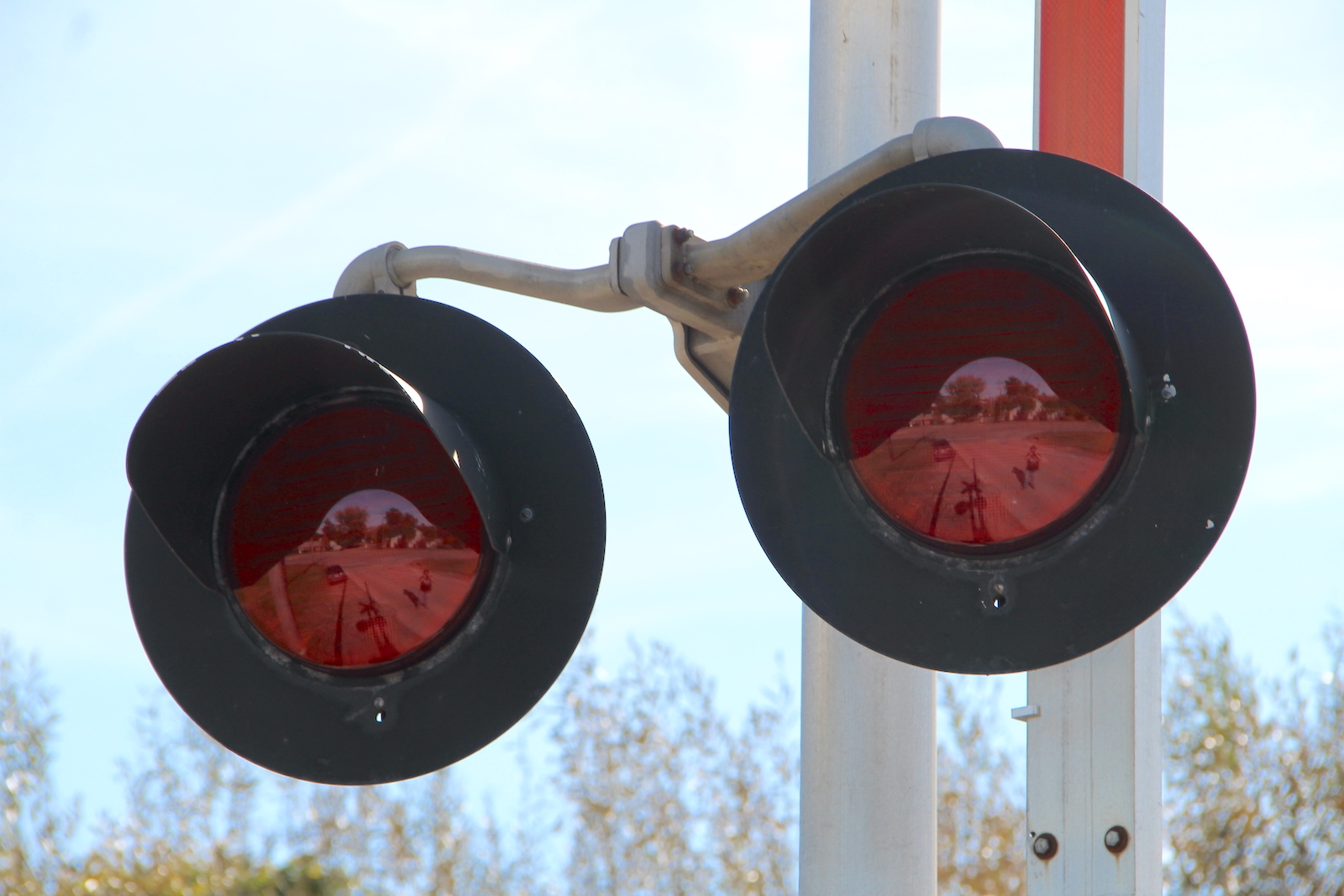

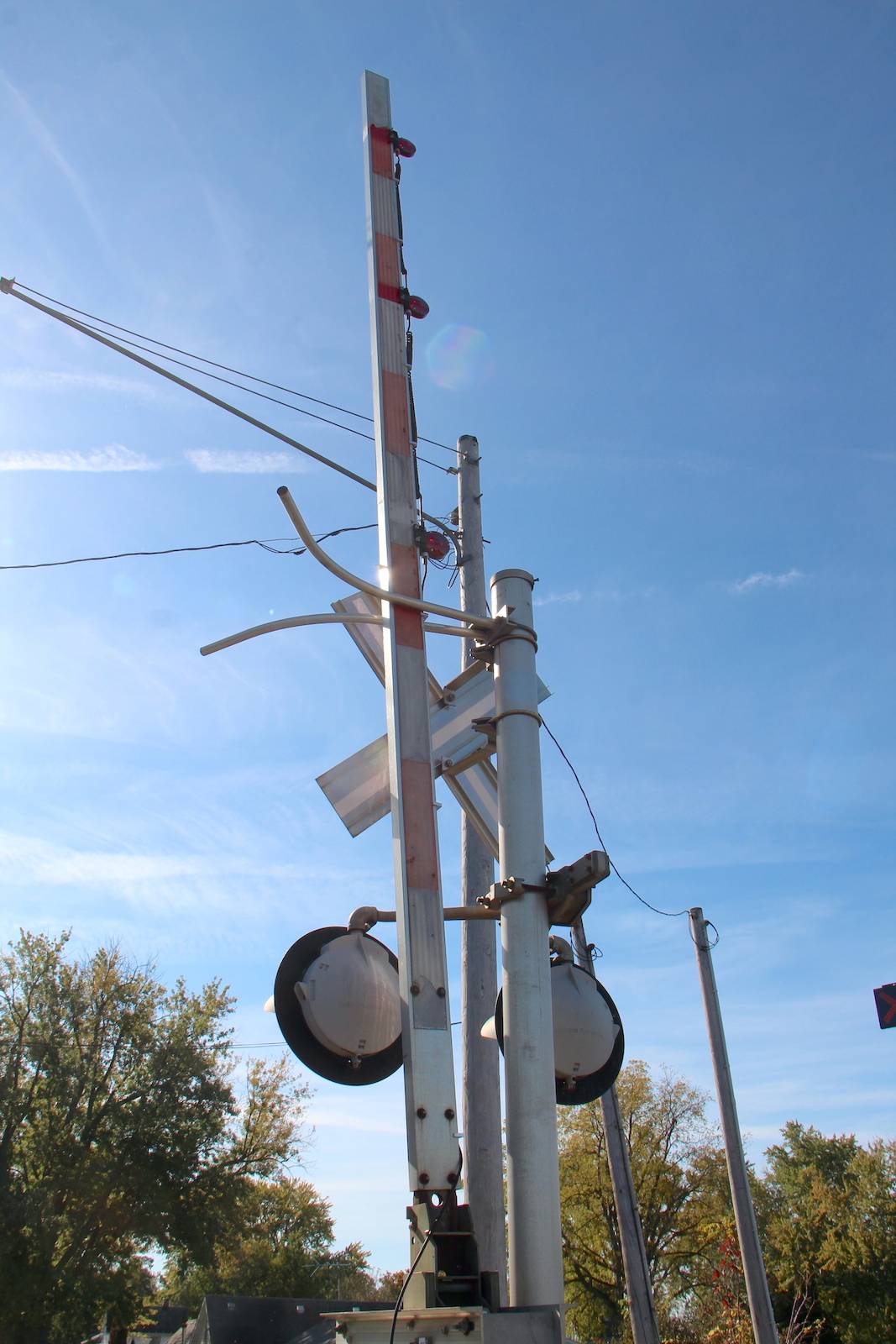

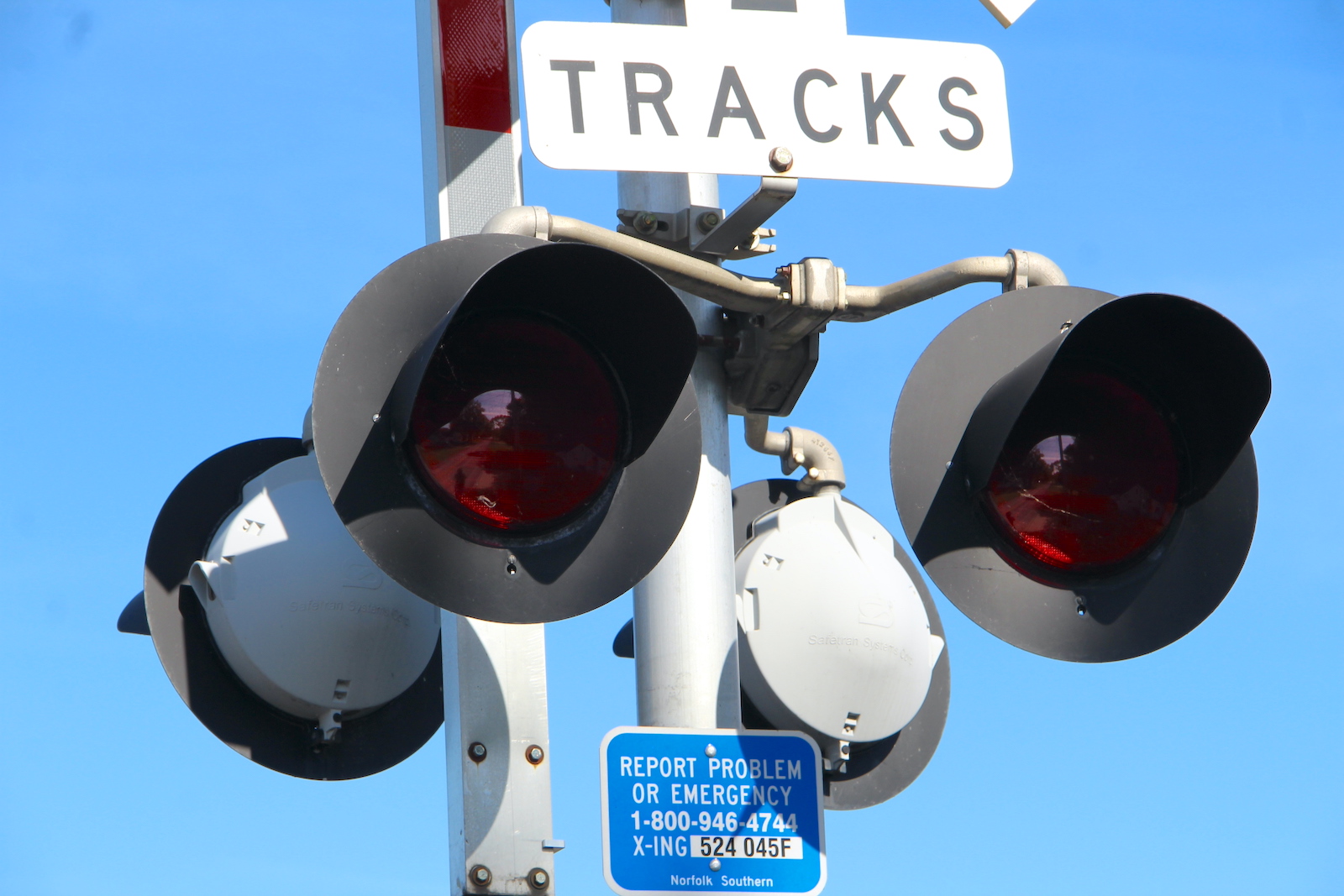

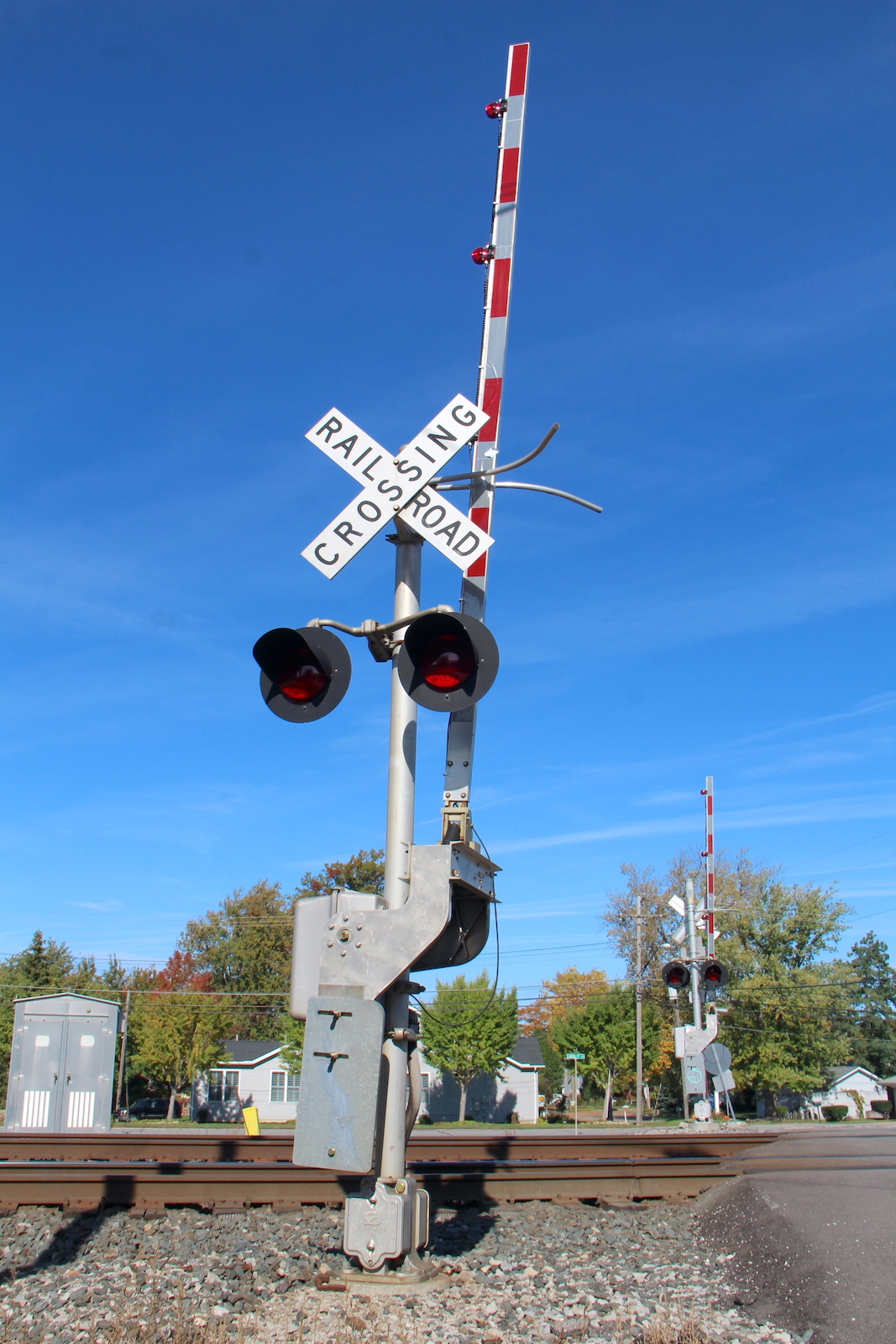

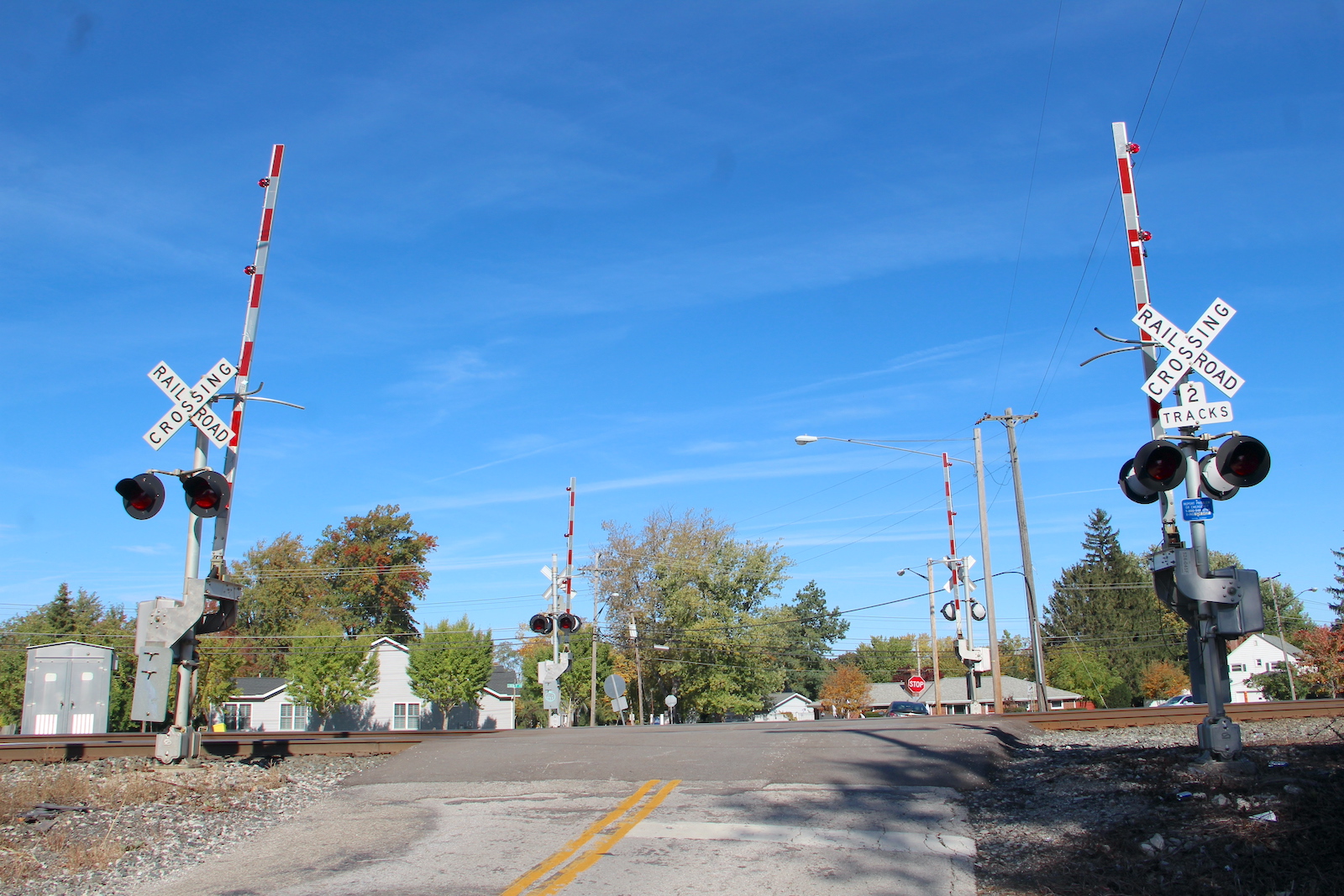

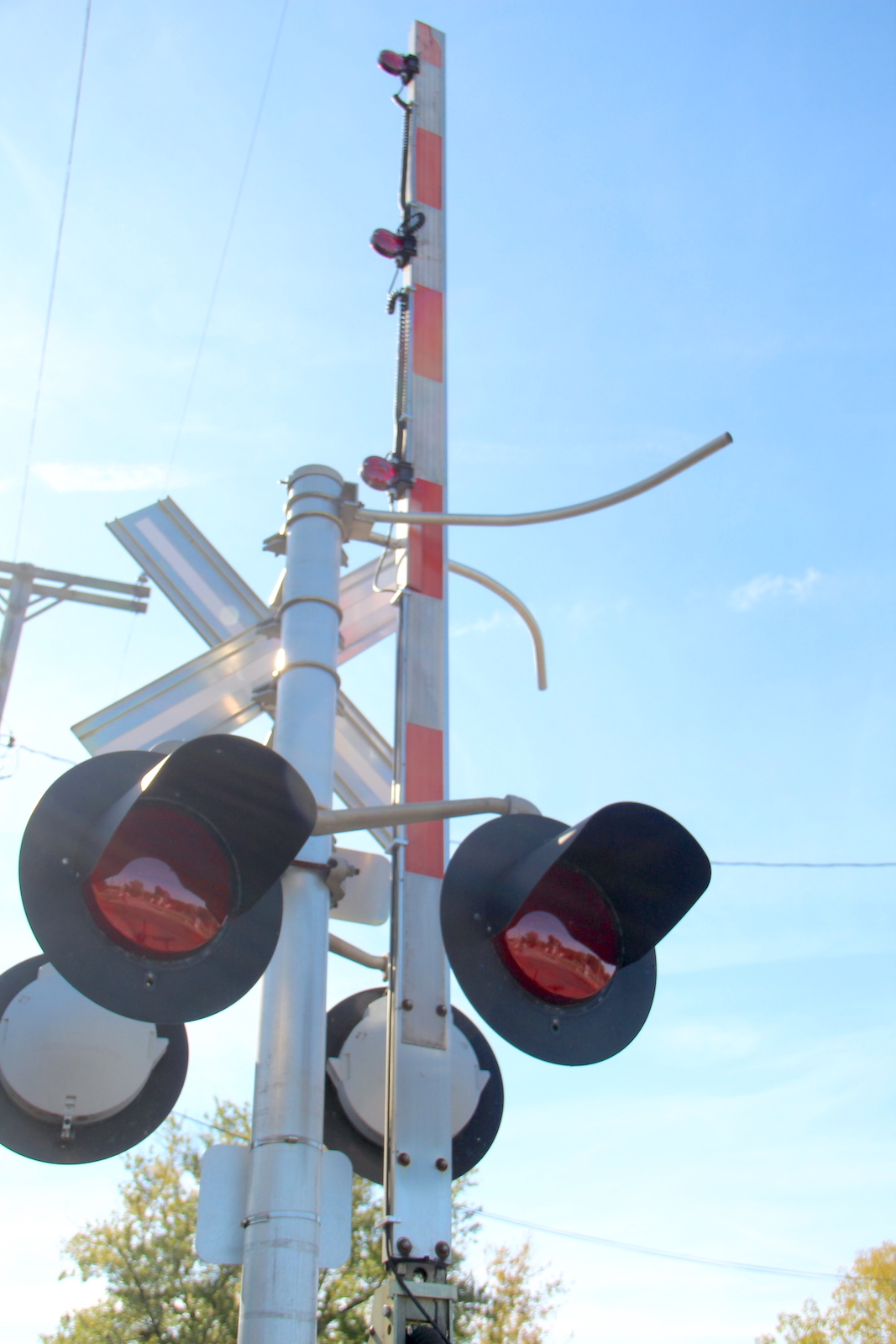

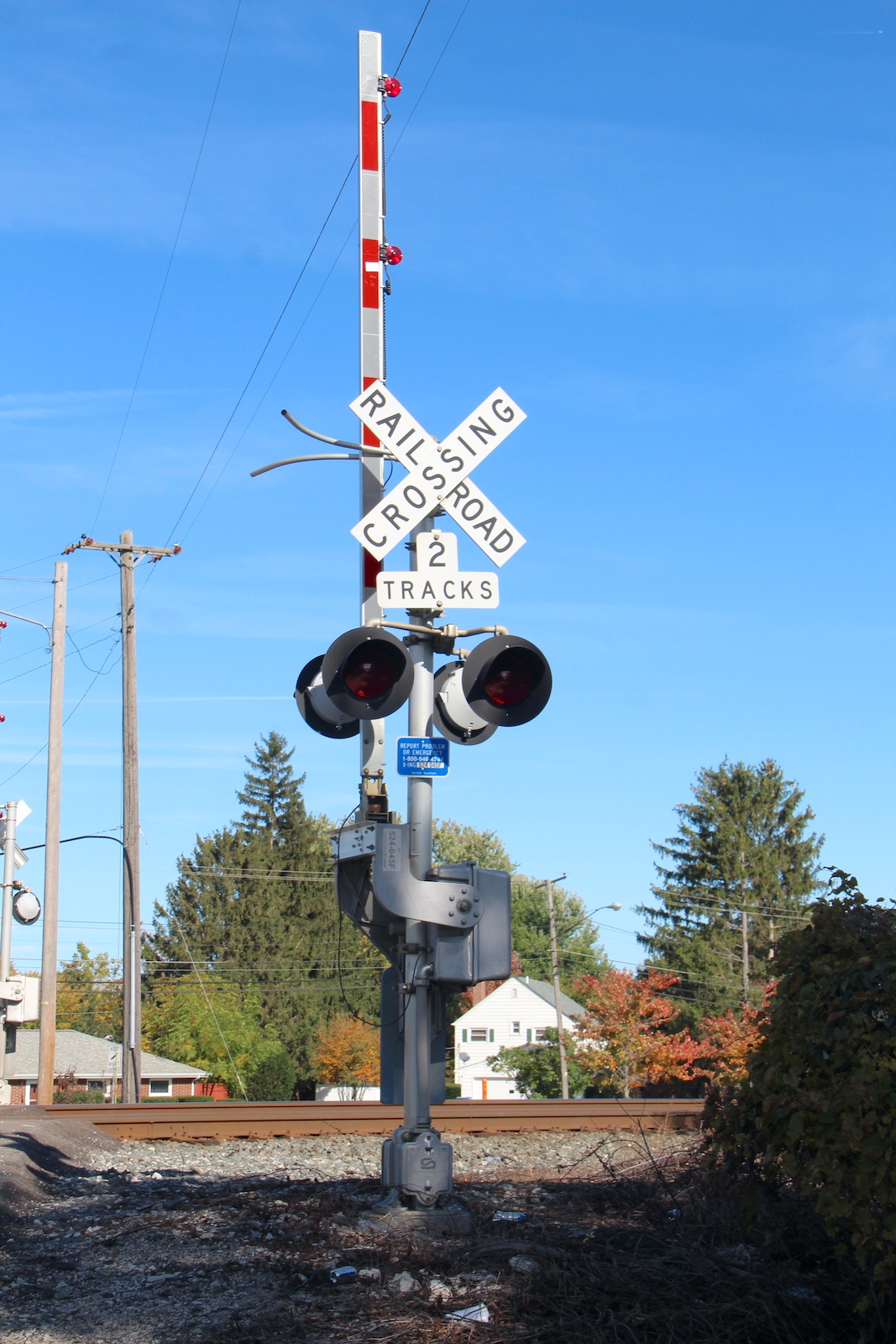

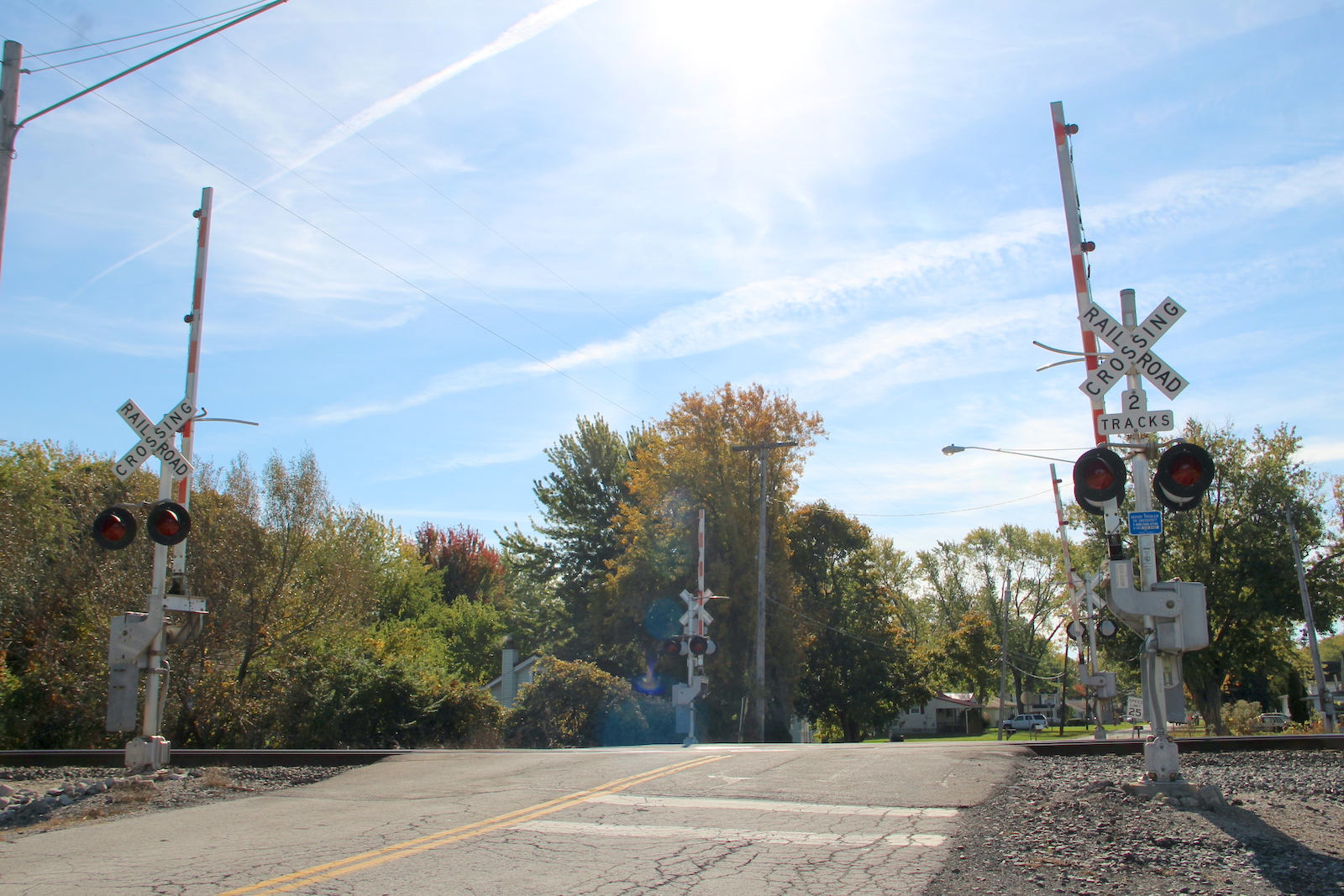

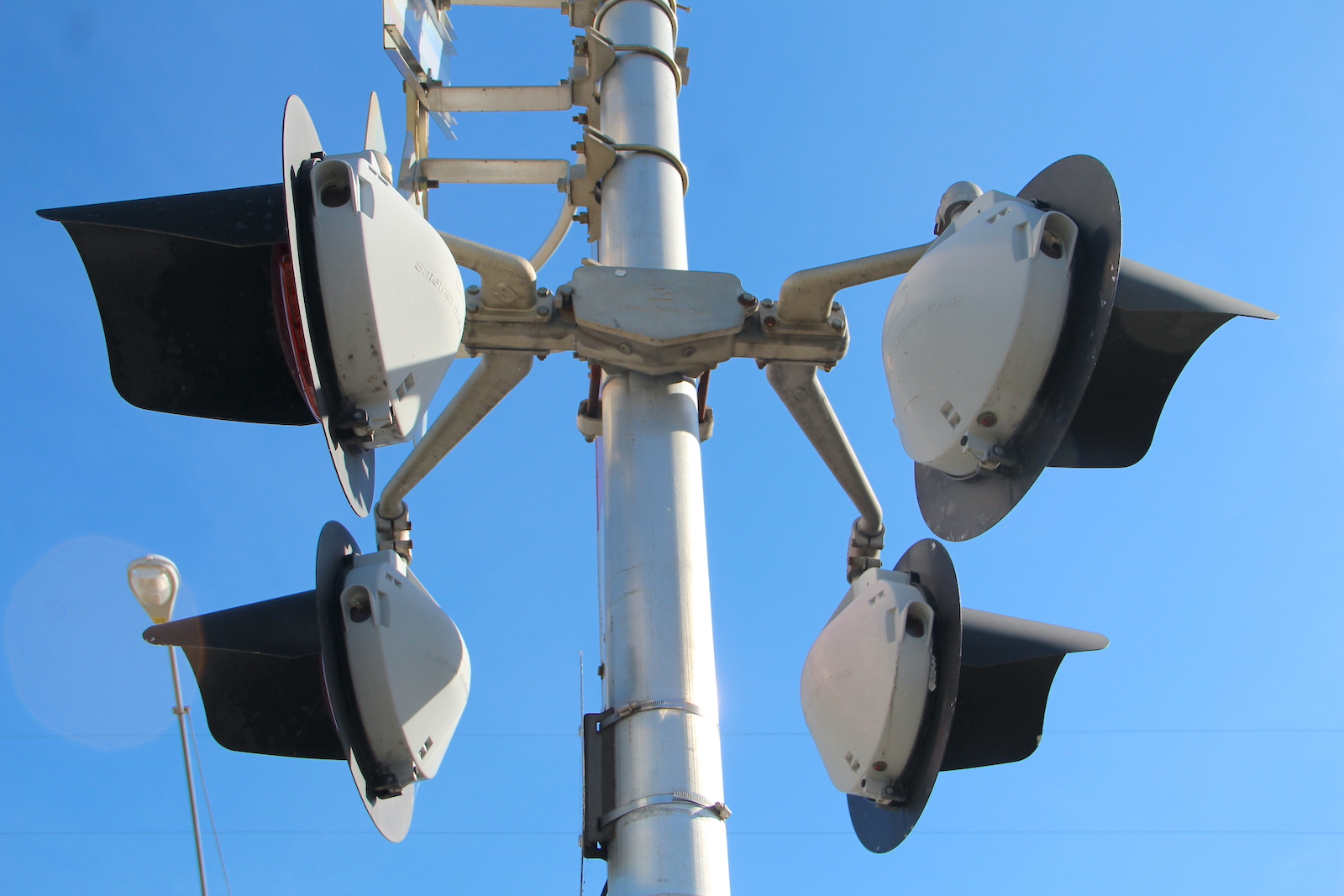

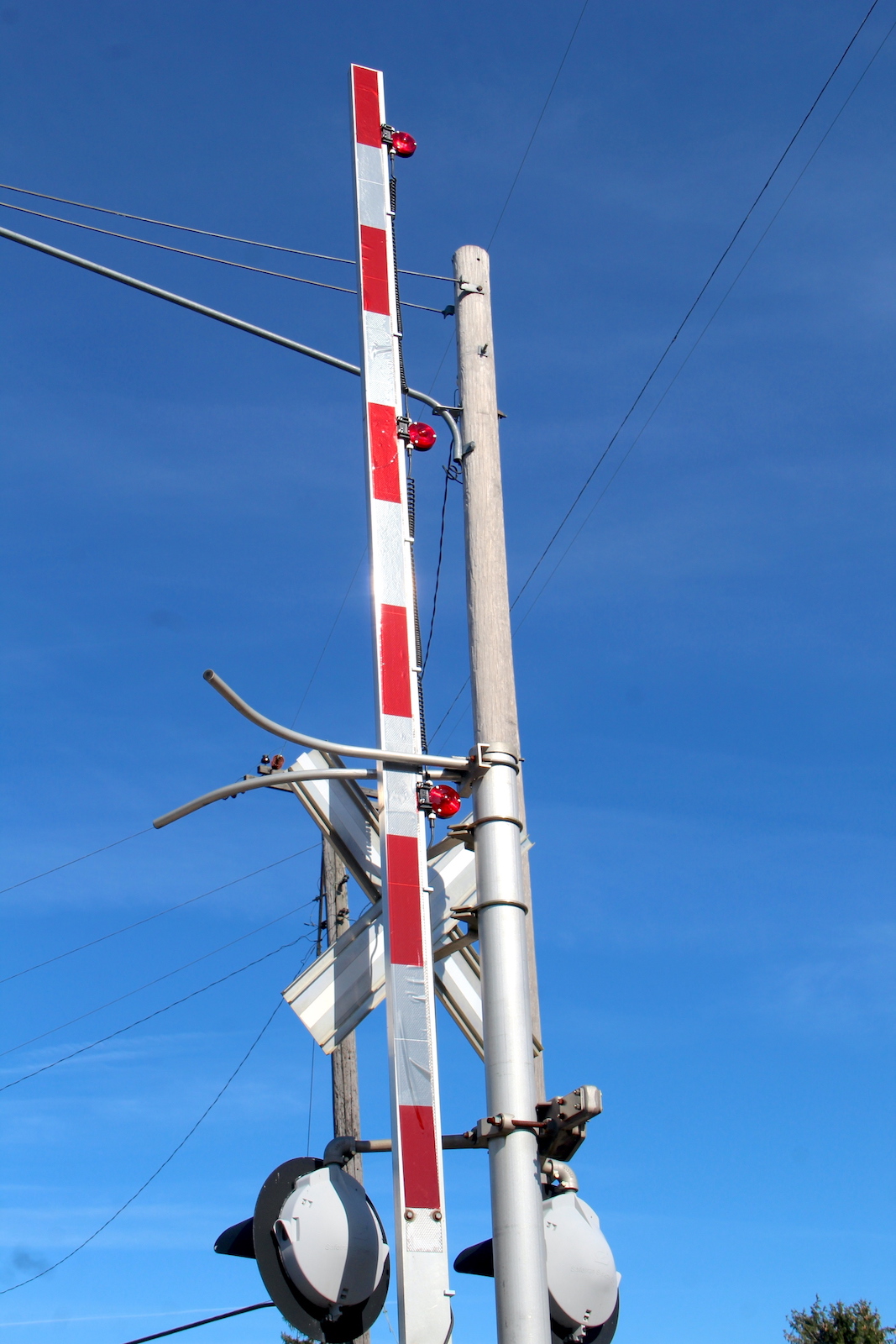

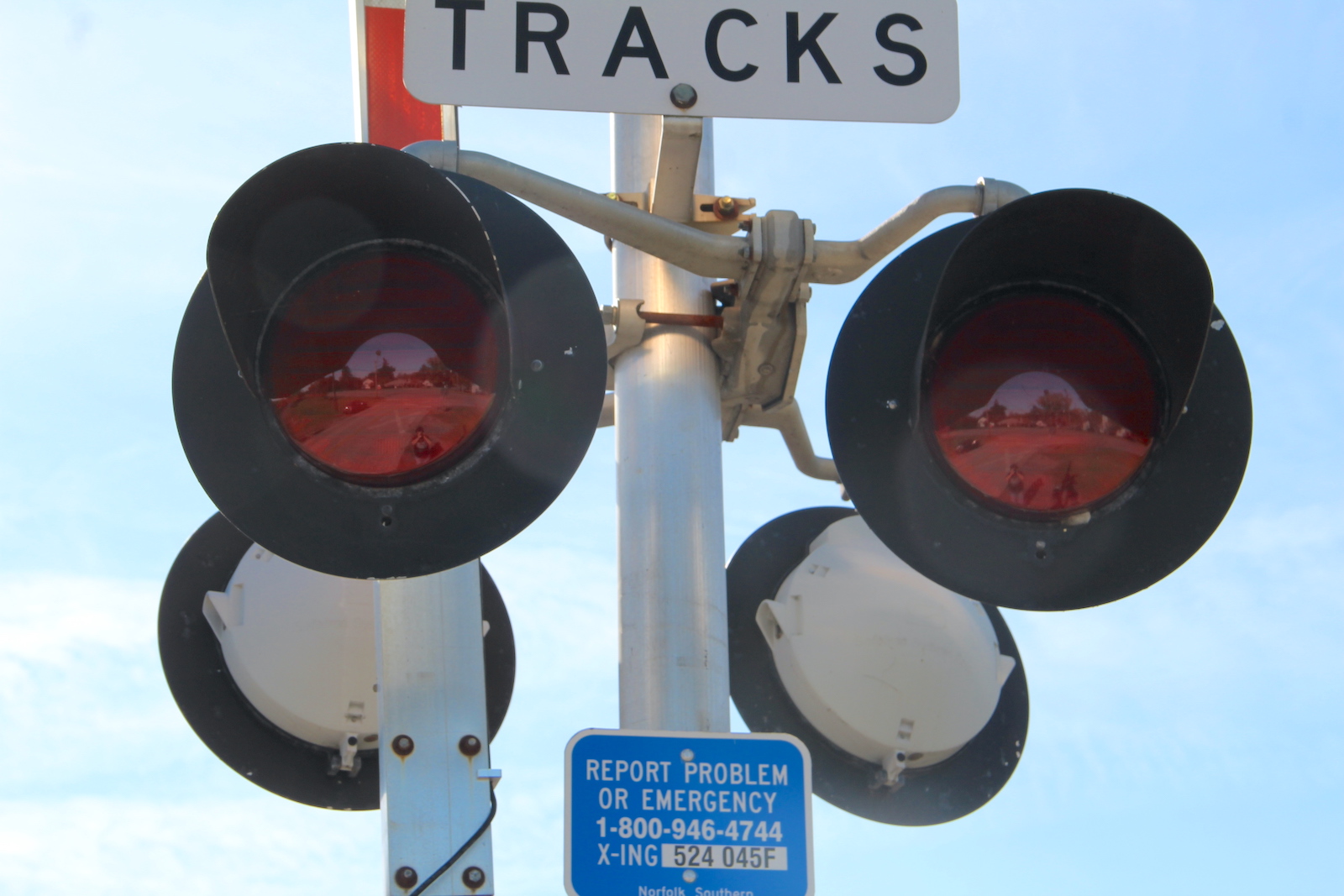

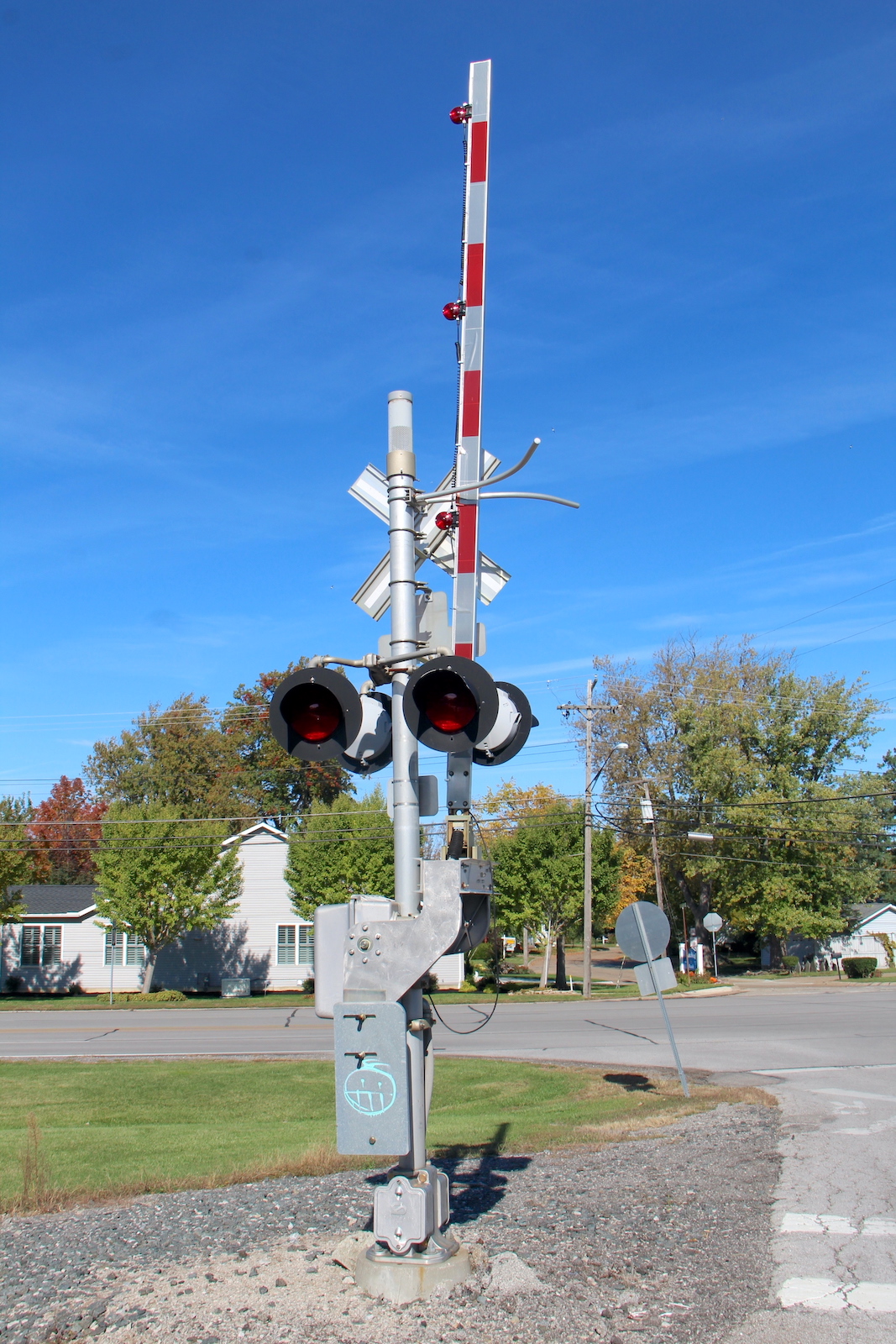

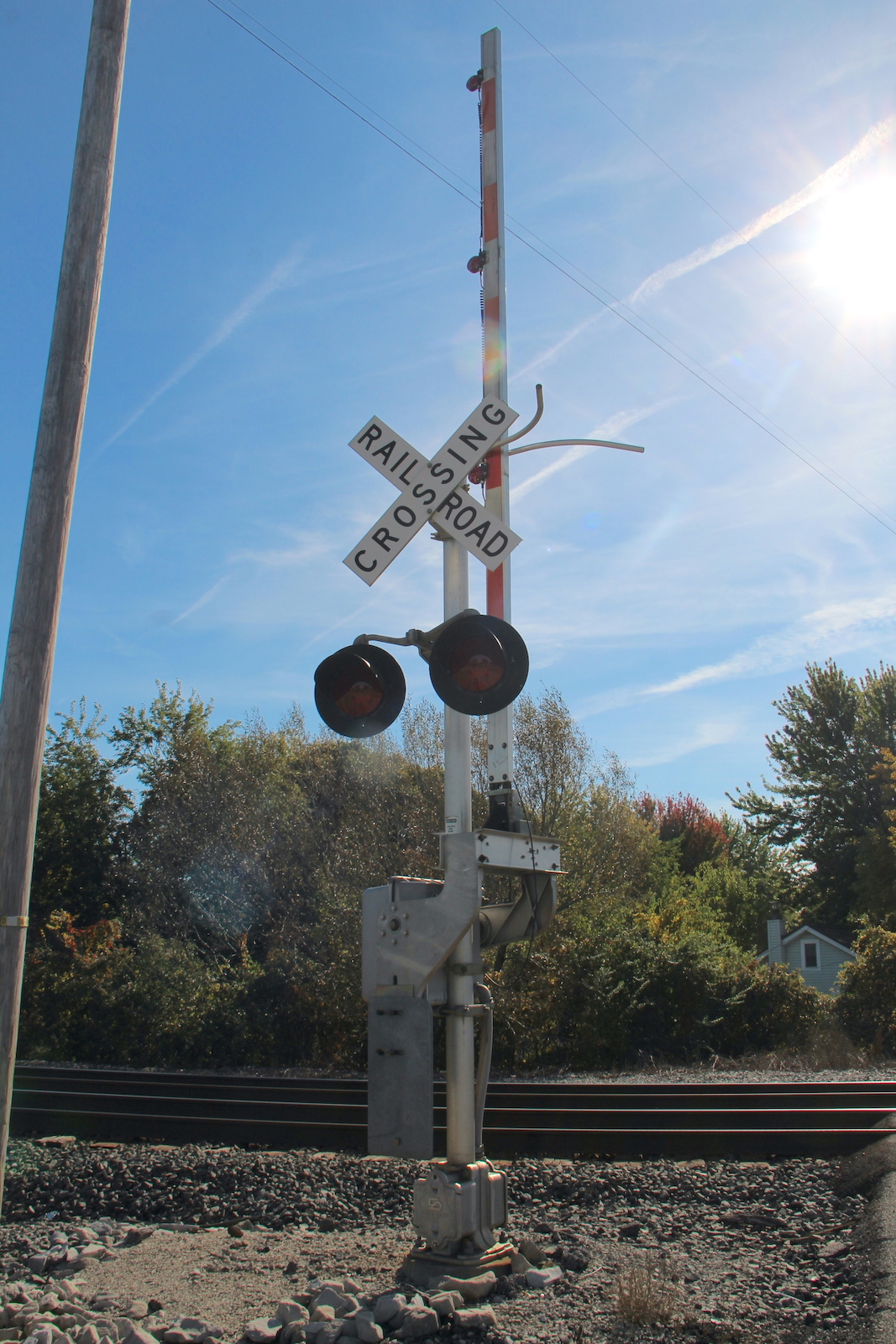

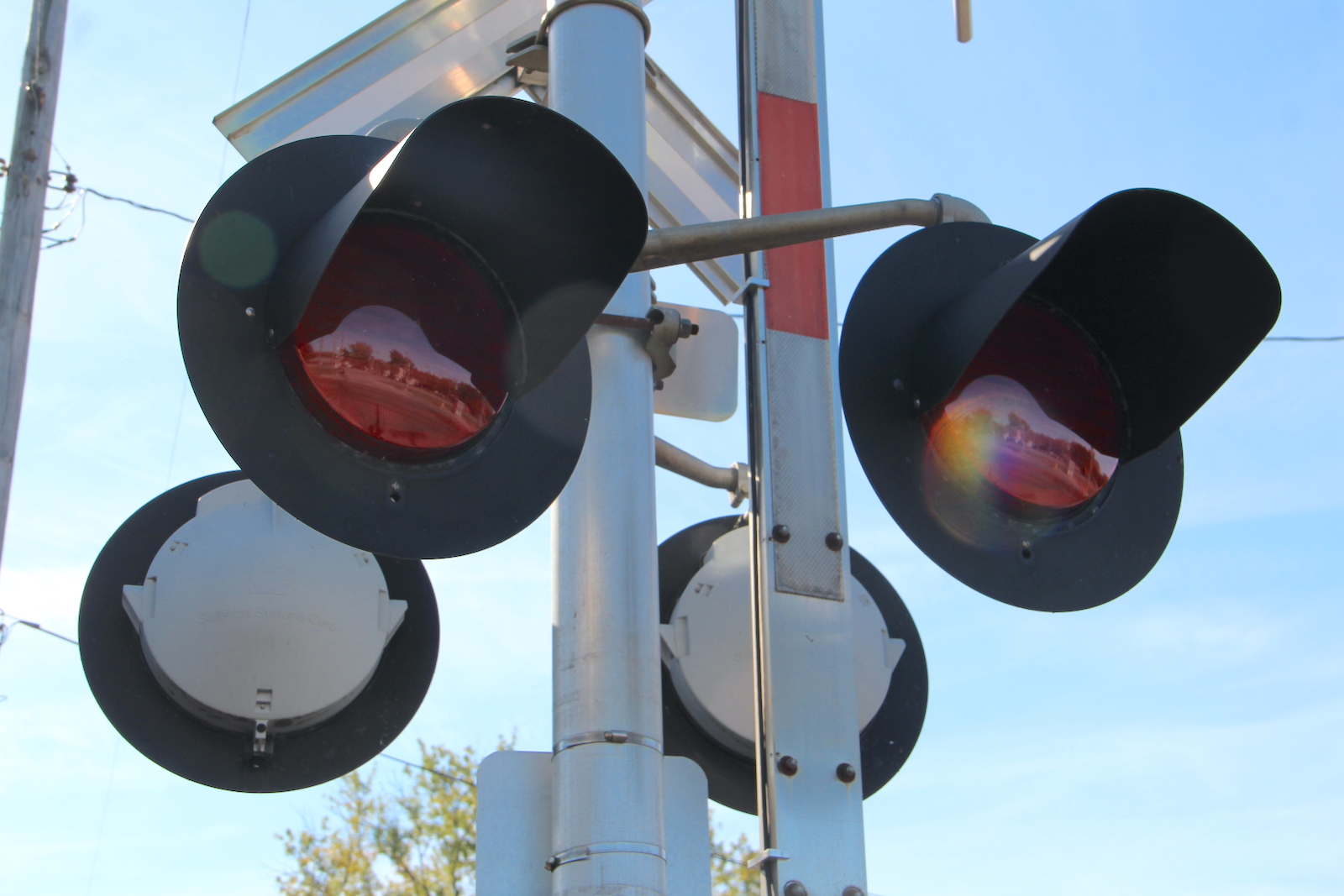

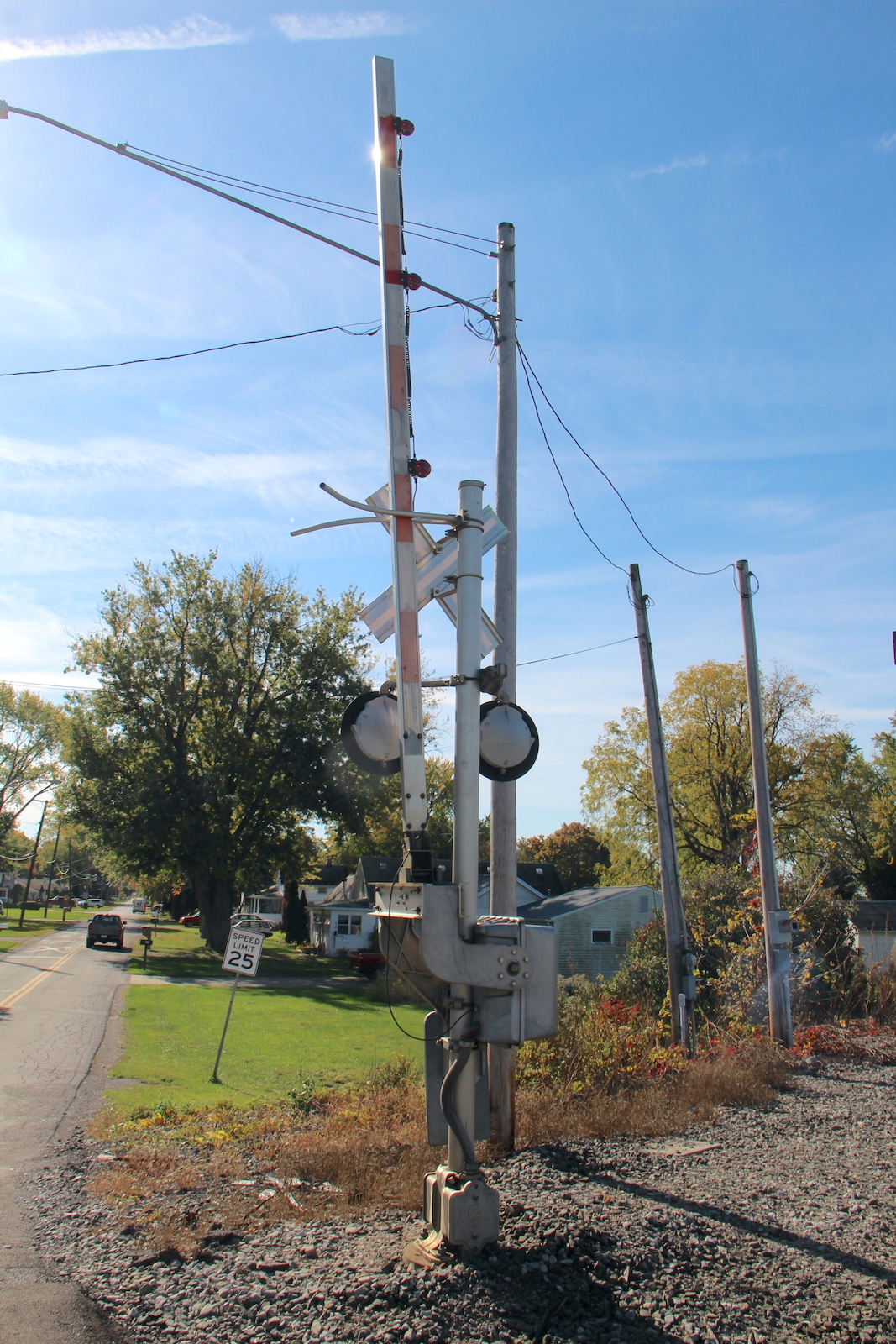

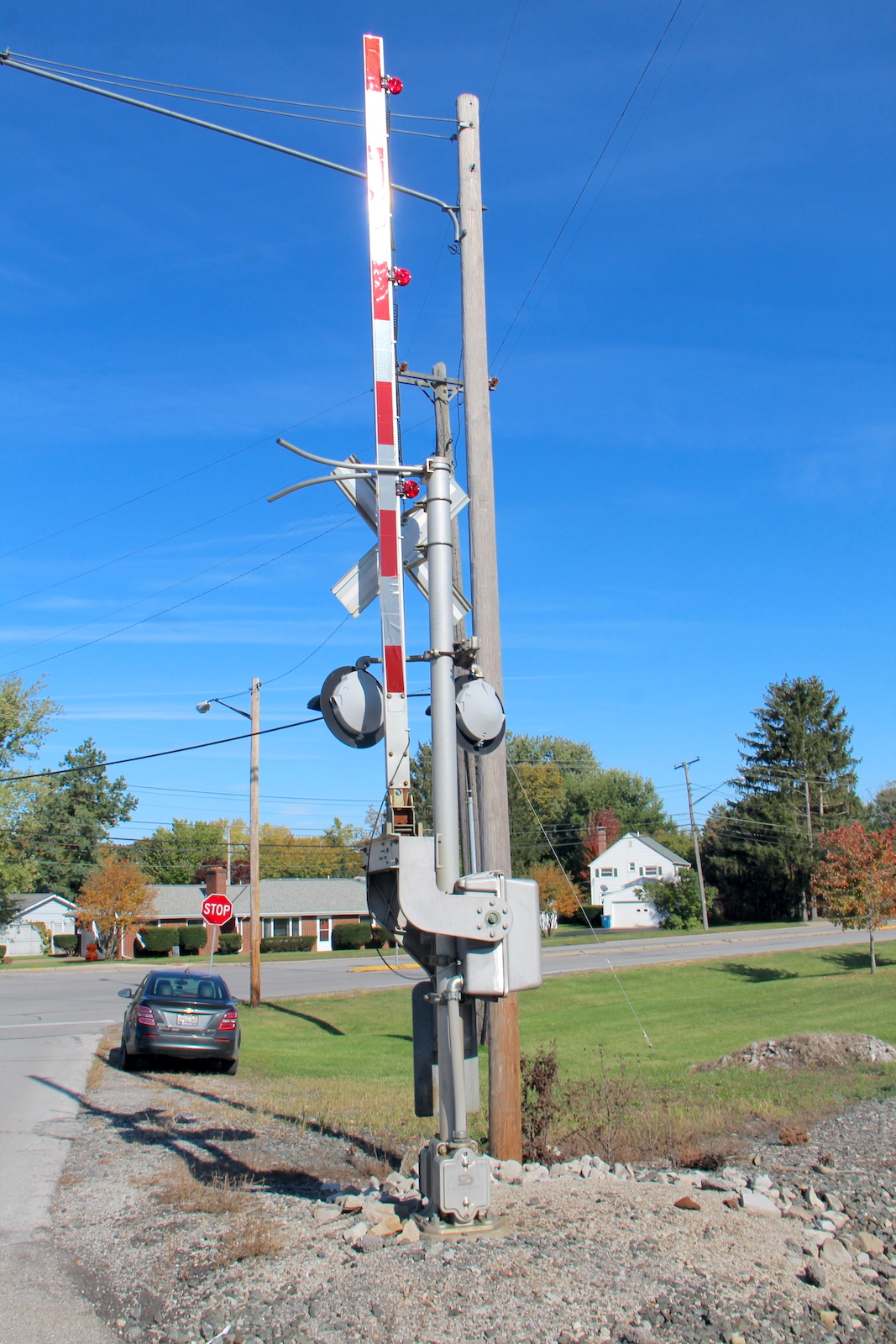

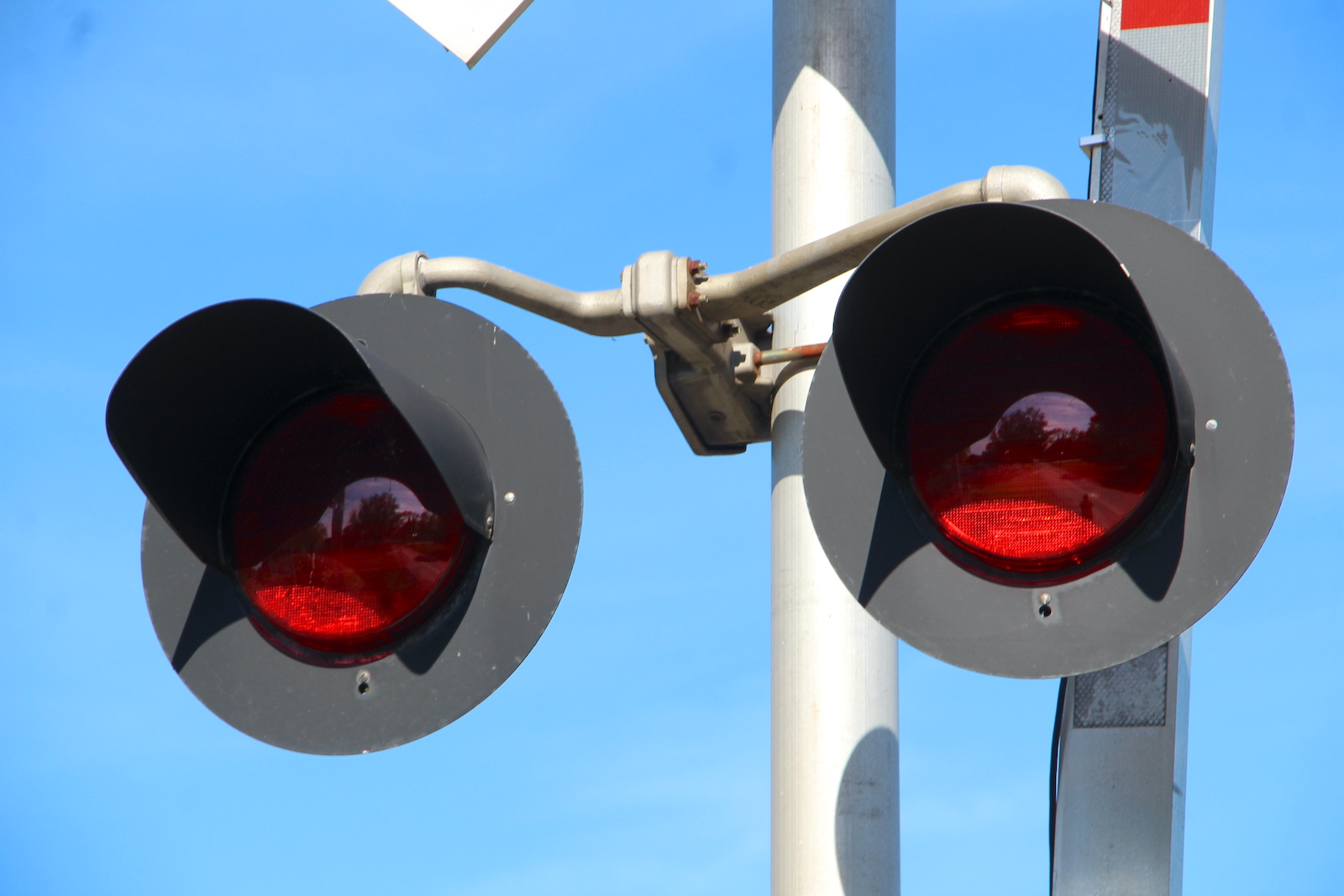

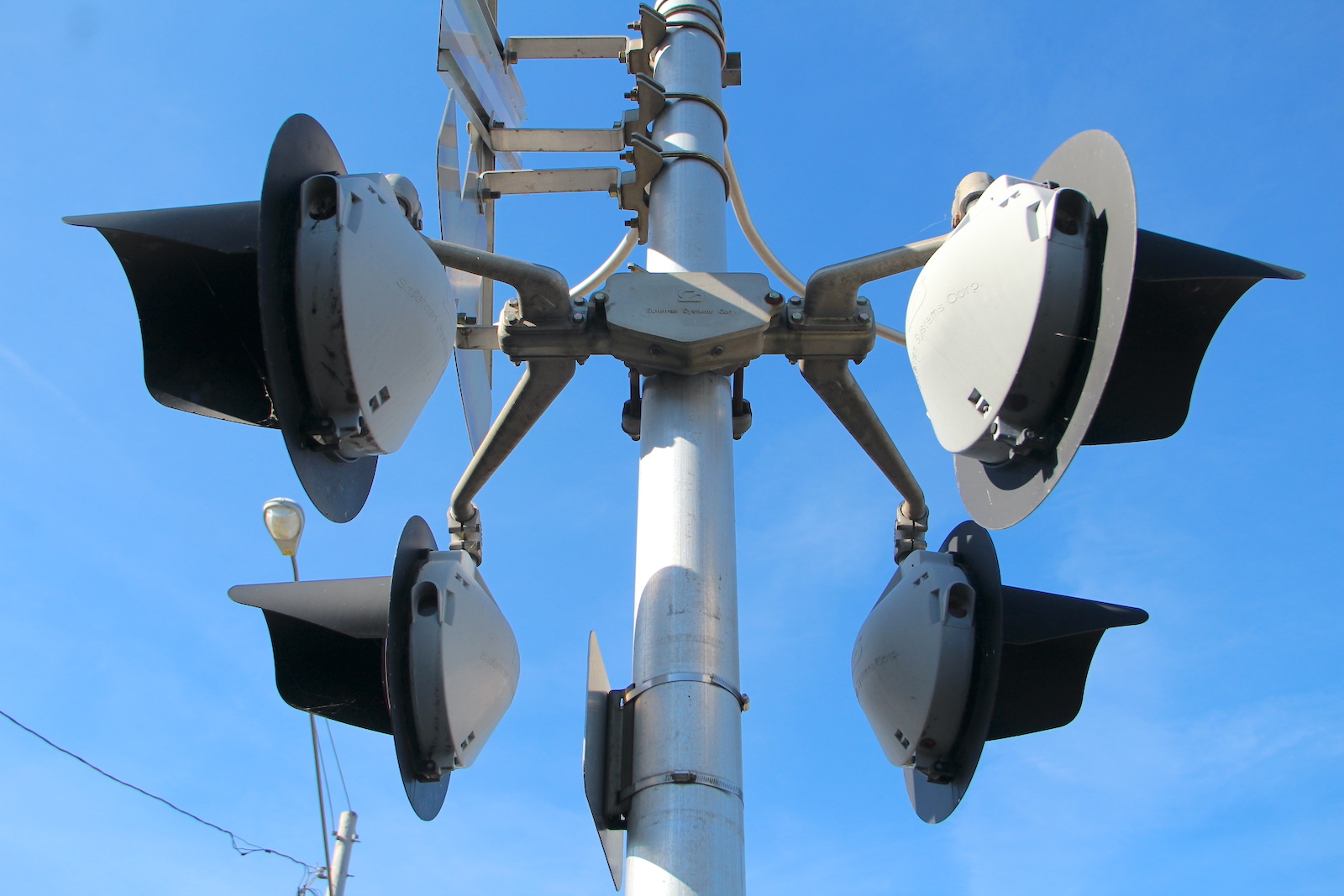

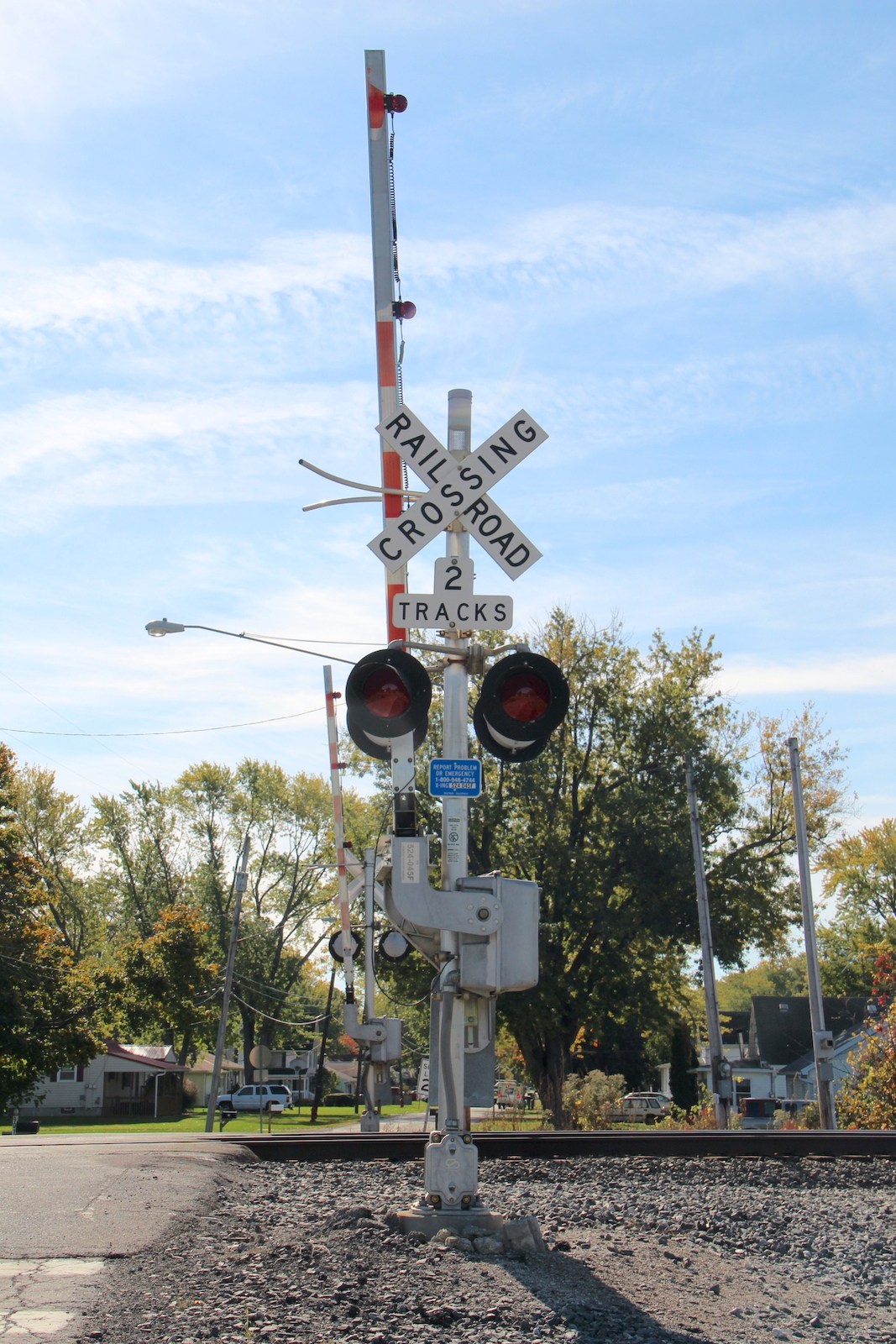

In October 2023, we see all of the lights were upgraded to LED.
