MP: 217.70
|
MP: 217.70 |
| Created June 2016 |
| Total Accidents:

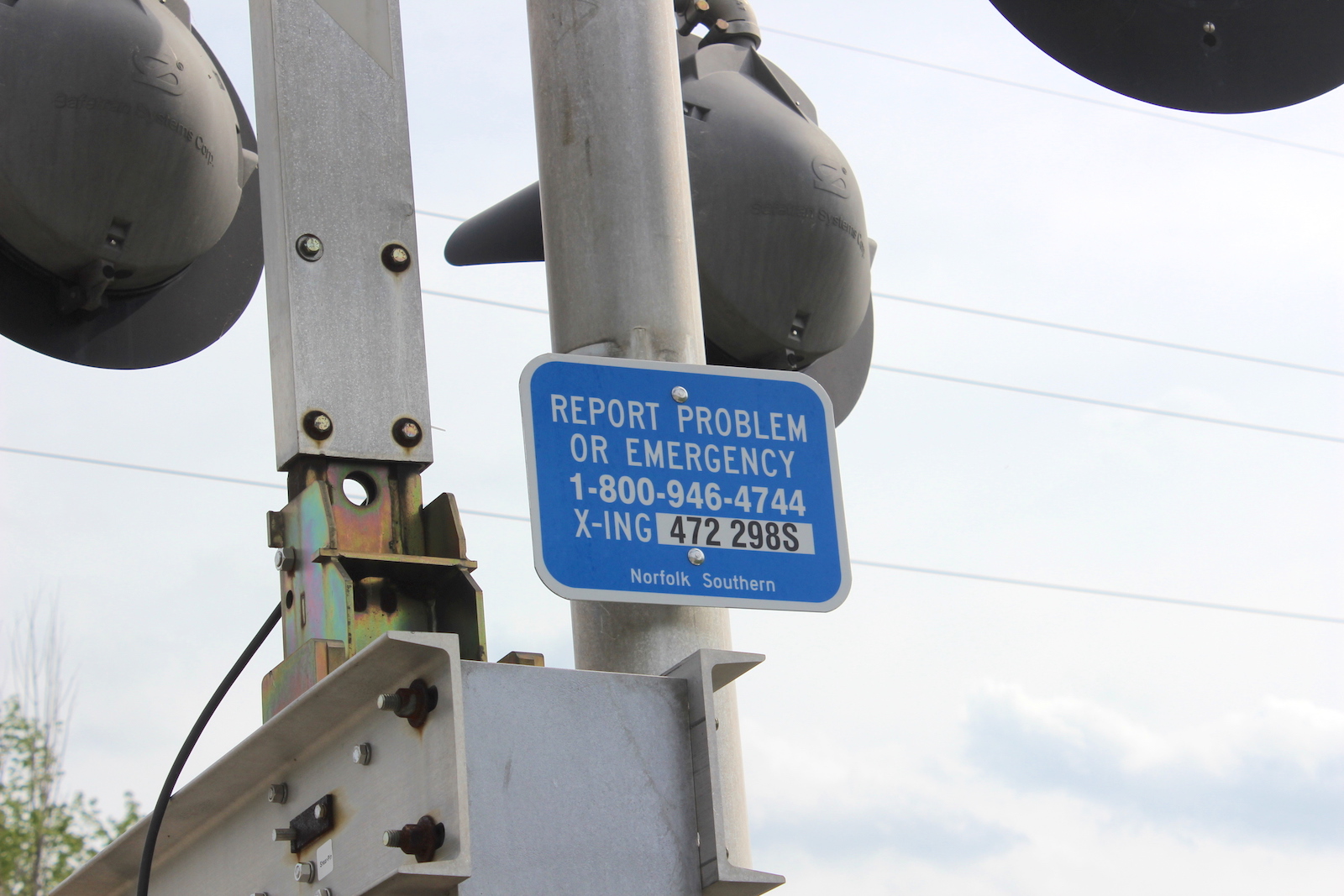

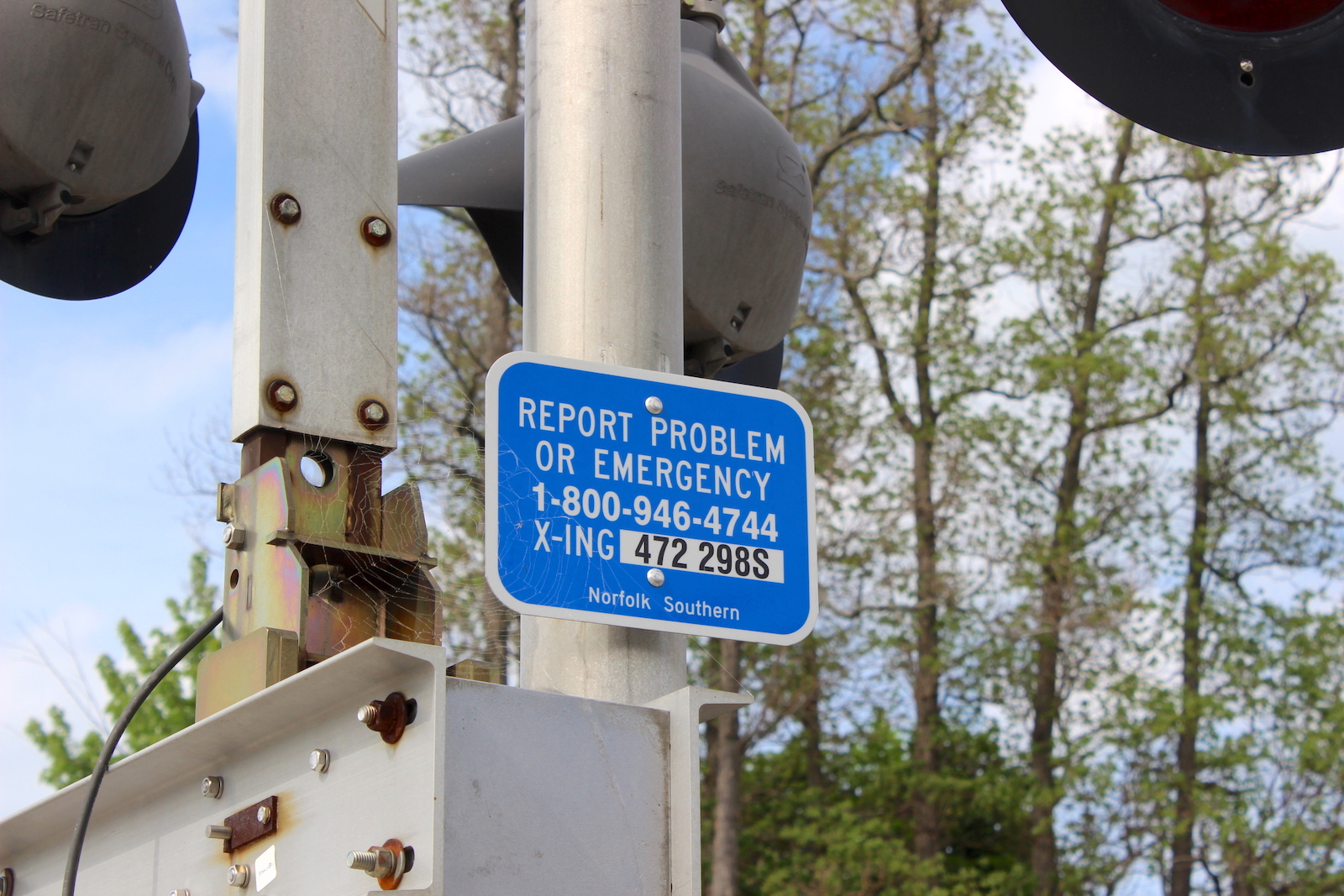

0 Crossing DOT #: 472298S TOTAL DAILY TRAINS: 6 (ESTIMATED) |
| >>>>>>>>>>>>>>> | Northern Signal | Southern Signal |

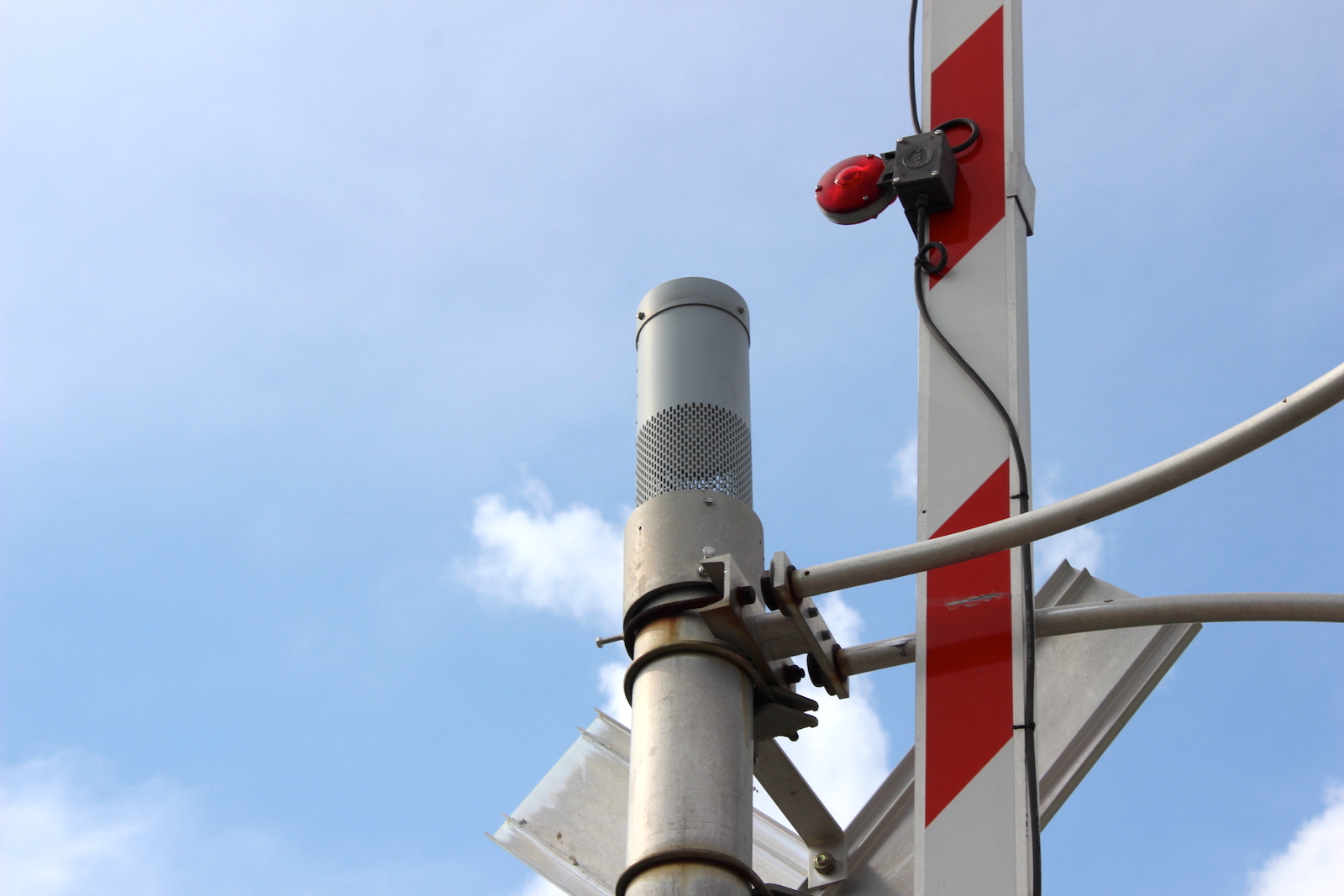

| Bell: | Safetran Type 3 E-Bell | None |

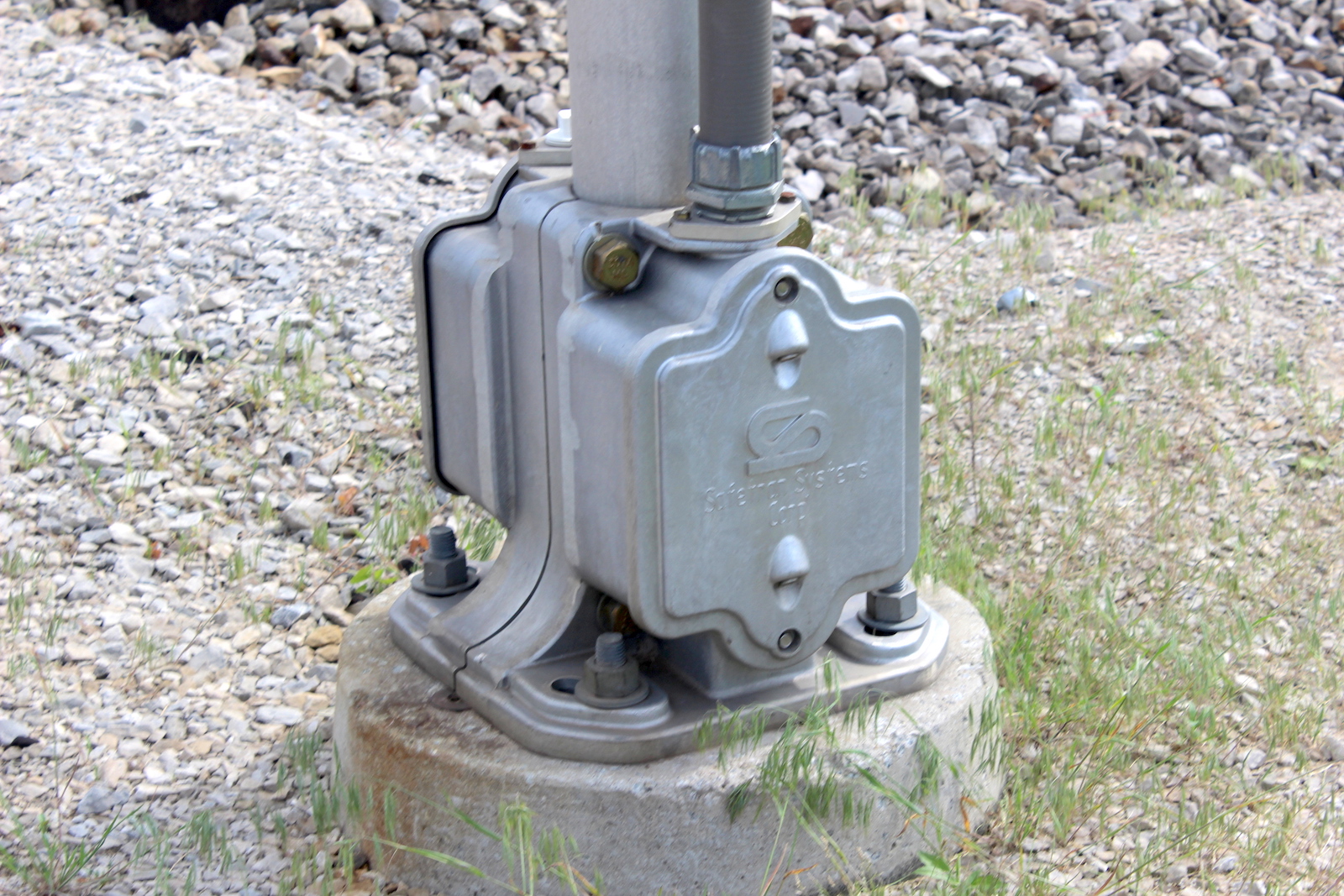

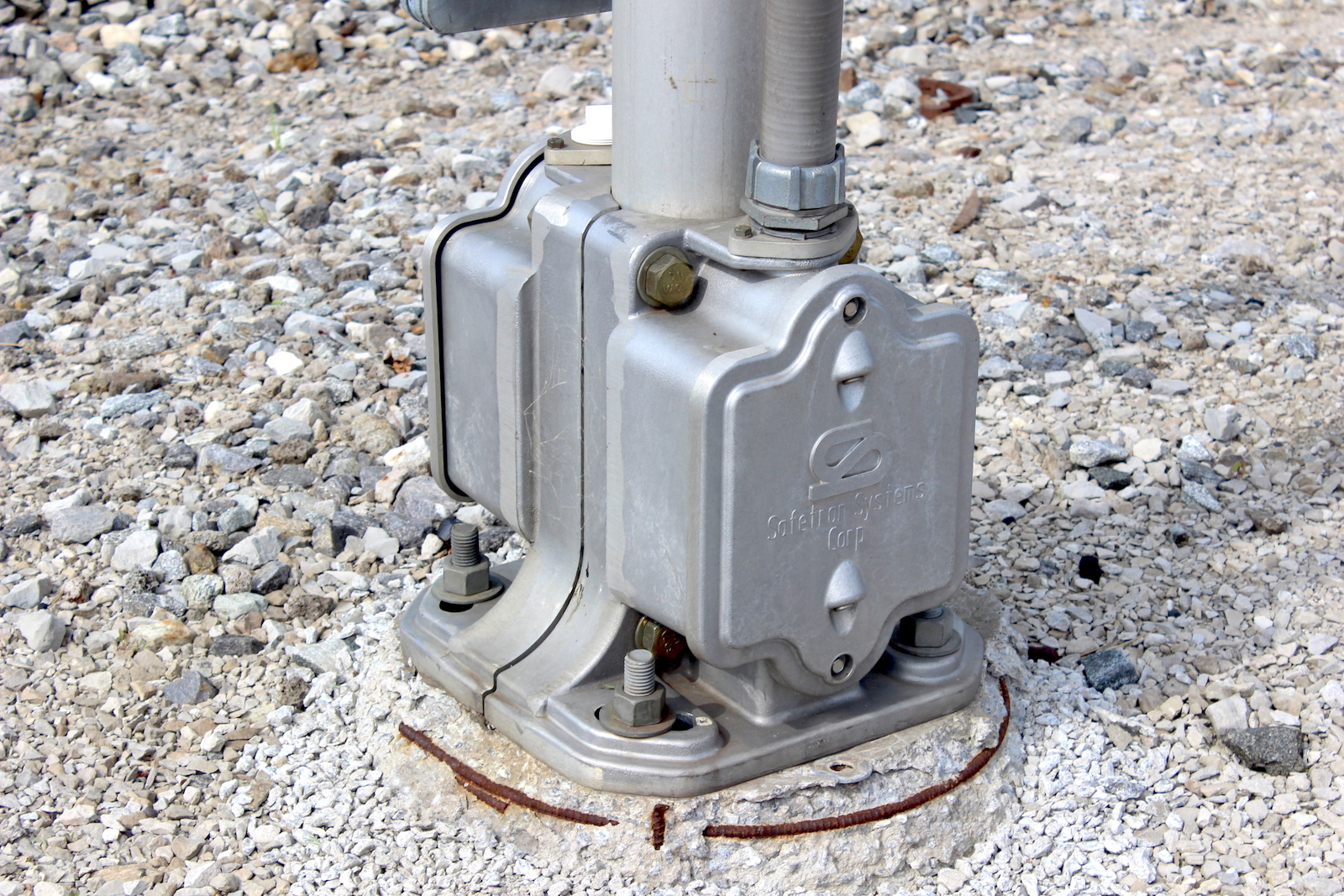

| Base: | Safetran 5" Double Sided ^ | Safetran 5" Double Sided ^ |

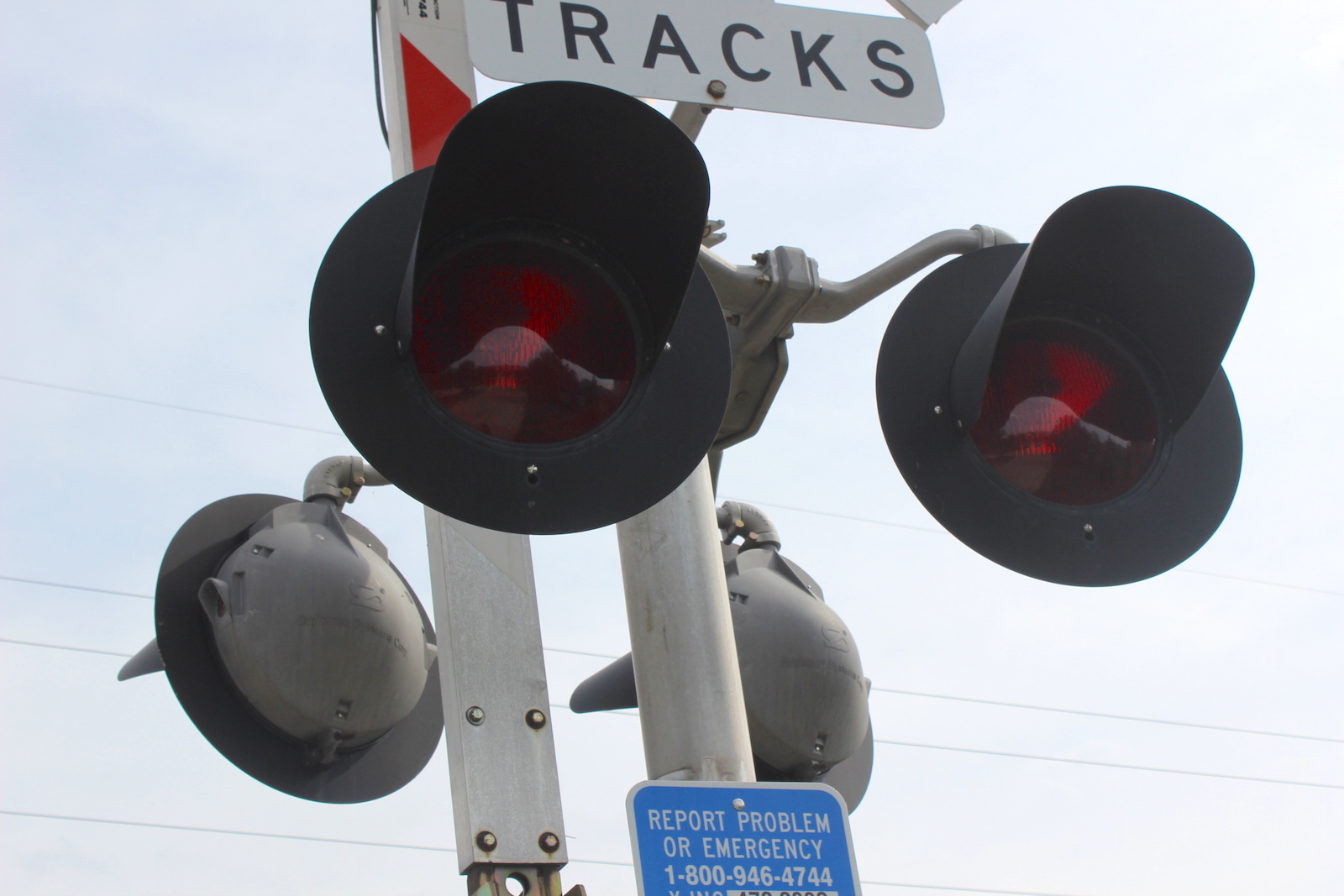

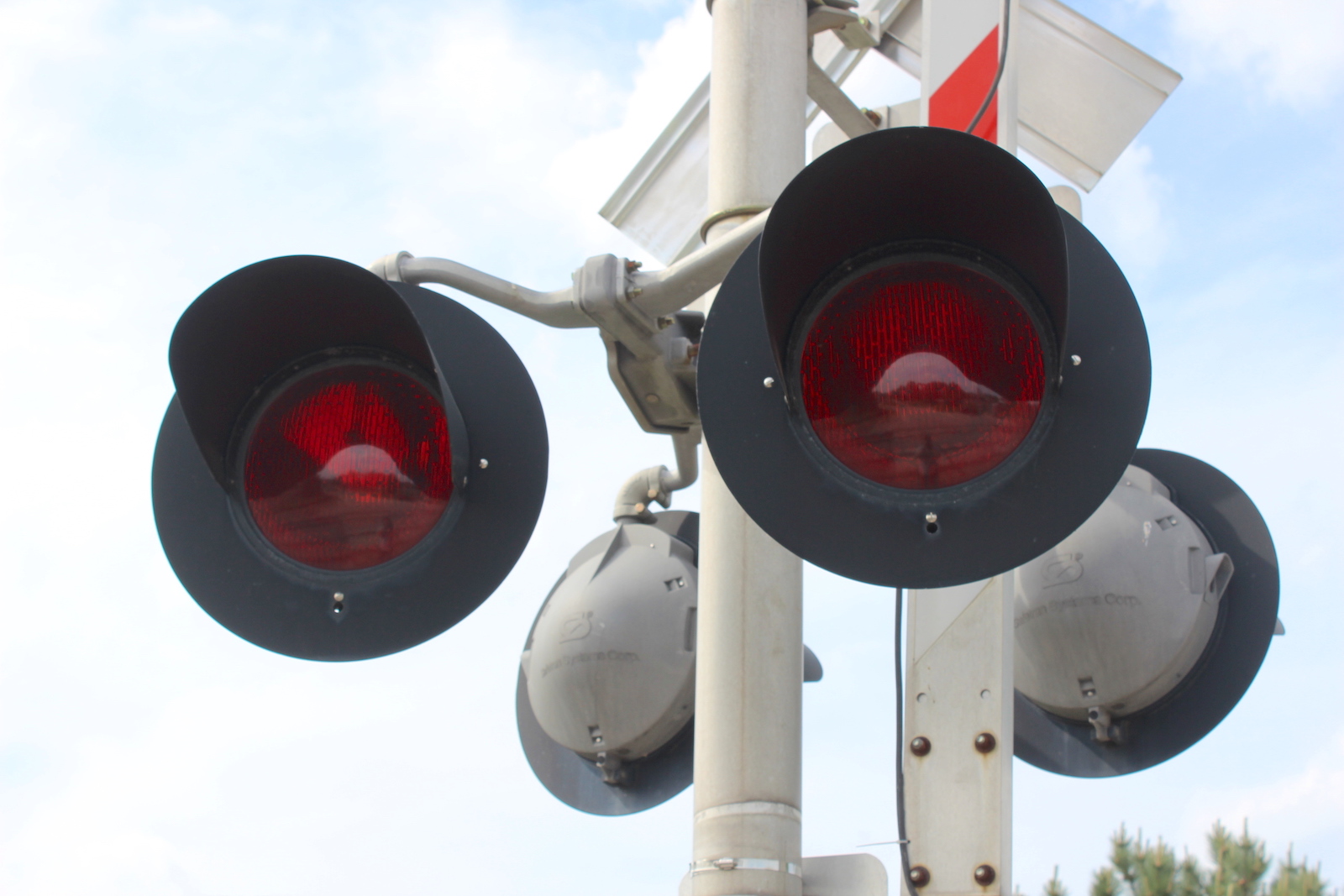

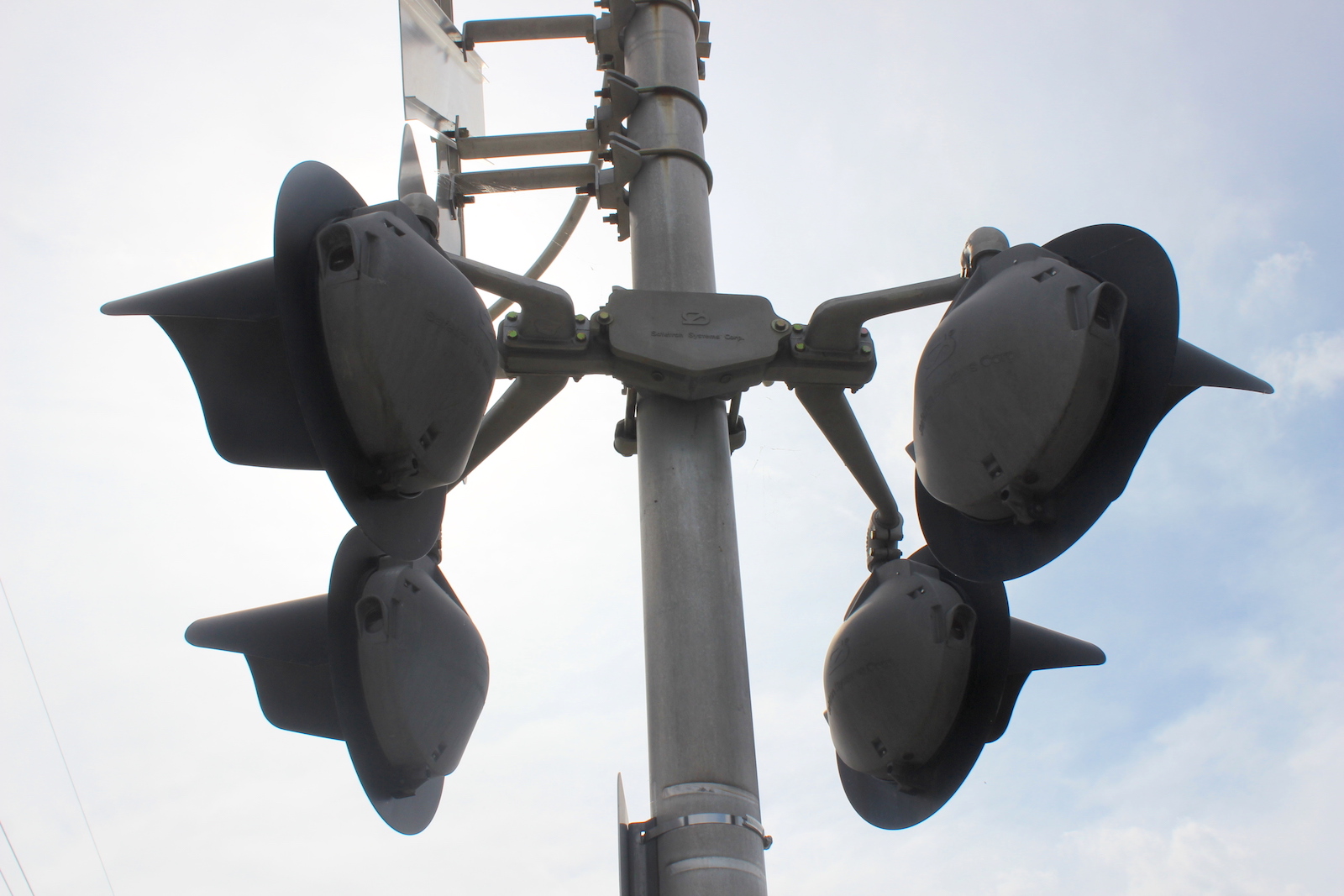

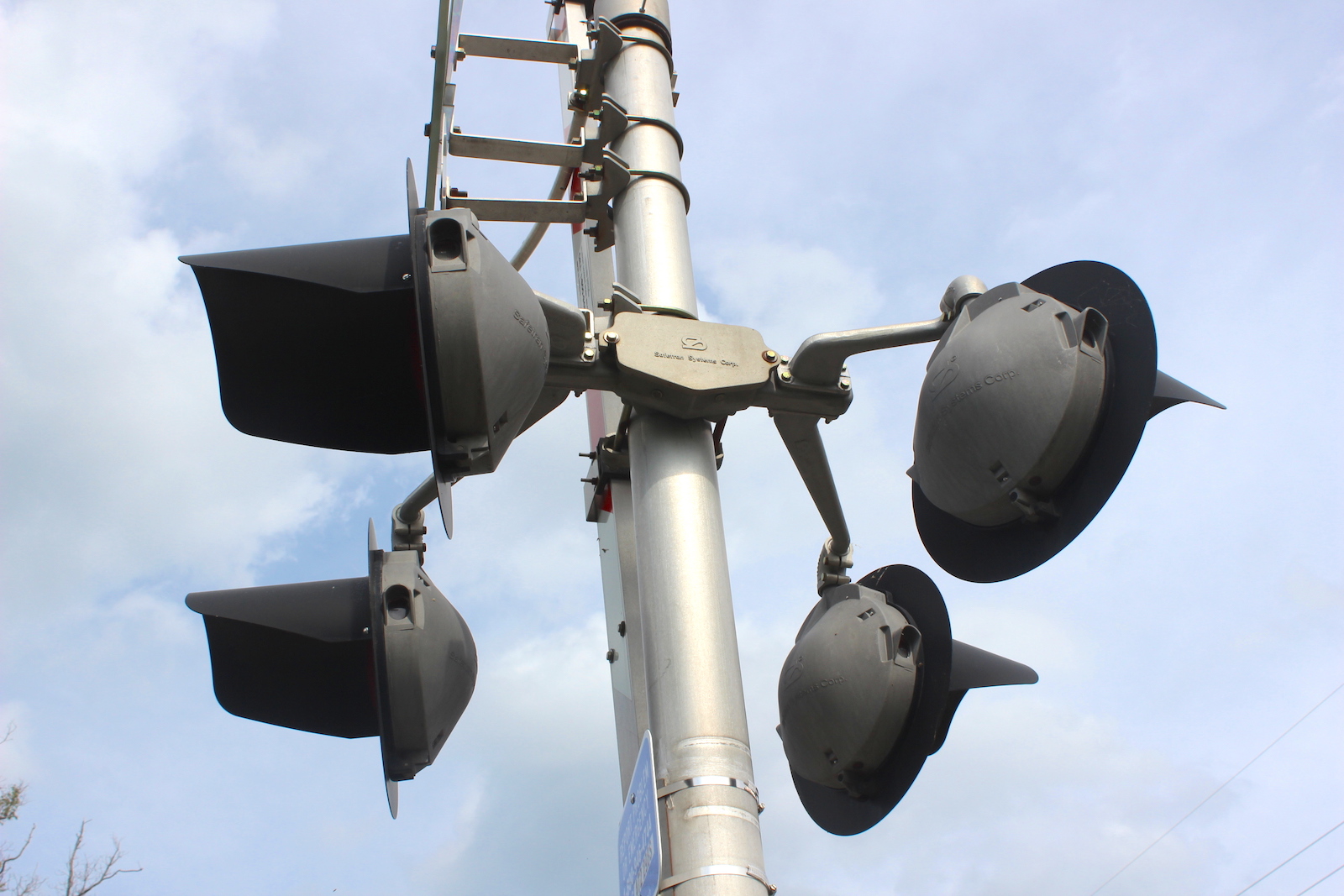

| Lights: | 4 - 12"x20" Safetran incandescents | 4 - 12"x20" Safetran incandescents |

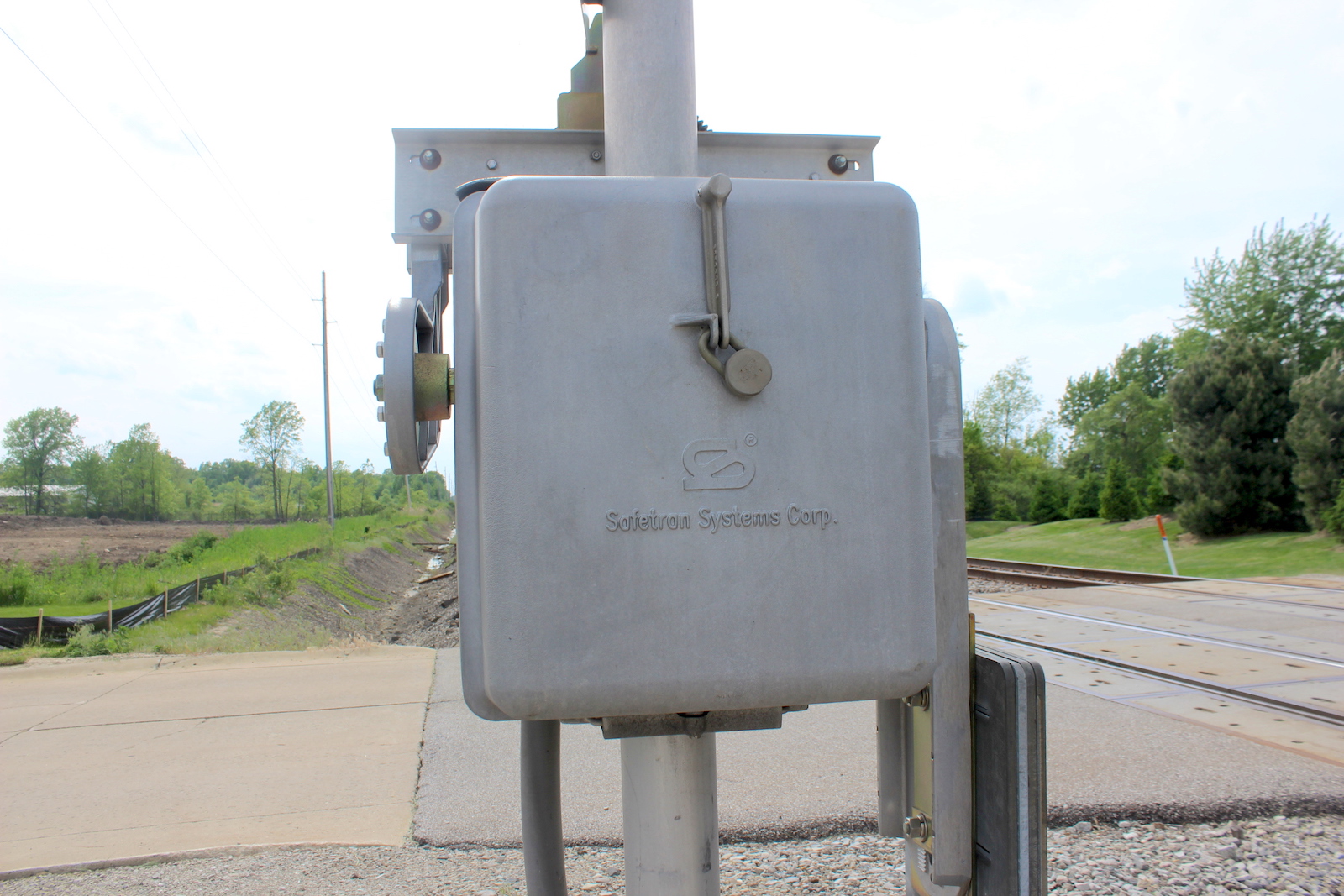

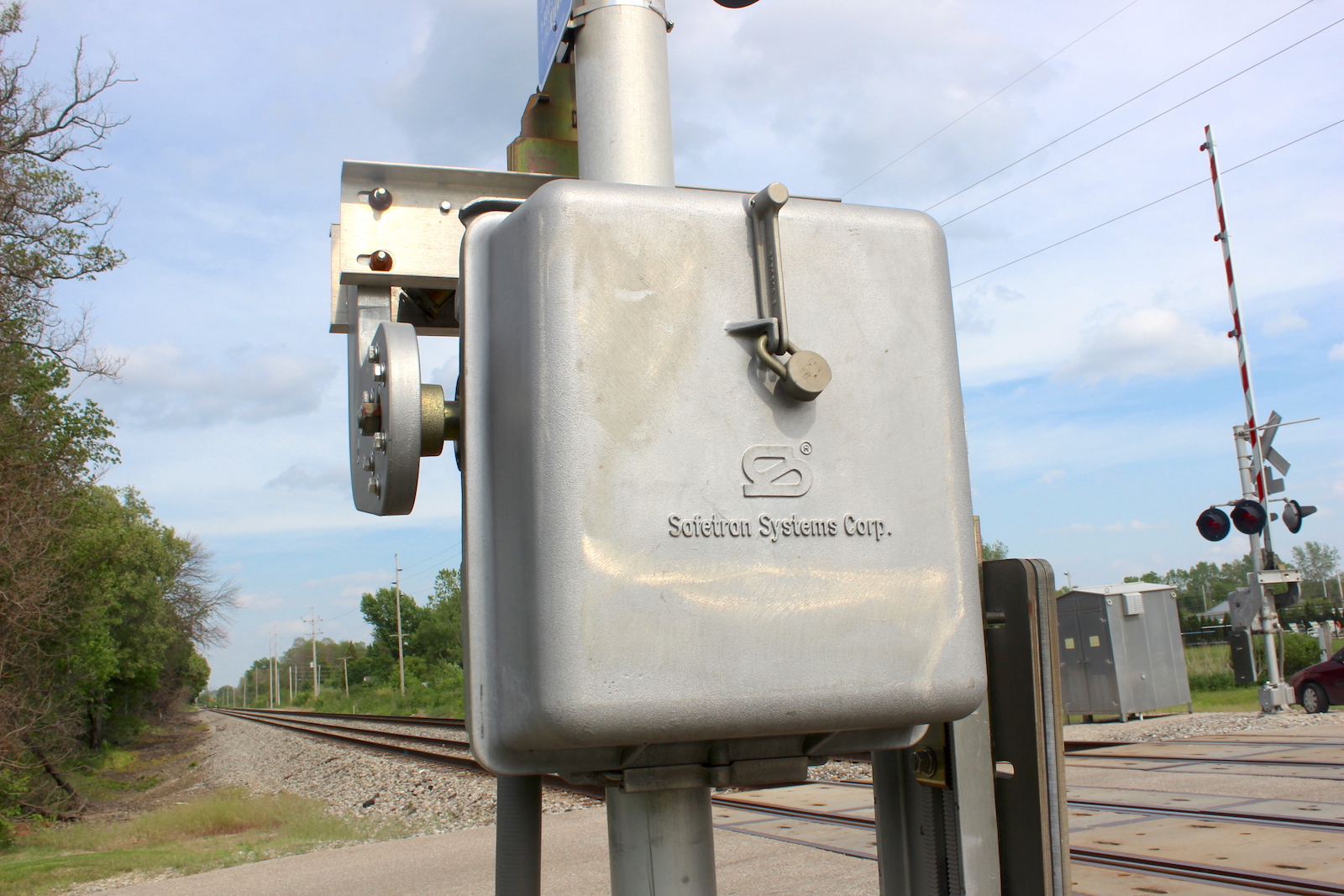

| Junction Box: | Safetran | Safetran |
| Gate Lights: | 3 - 4" NEG incandescents | 3 - 4" NEG incandescents |

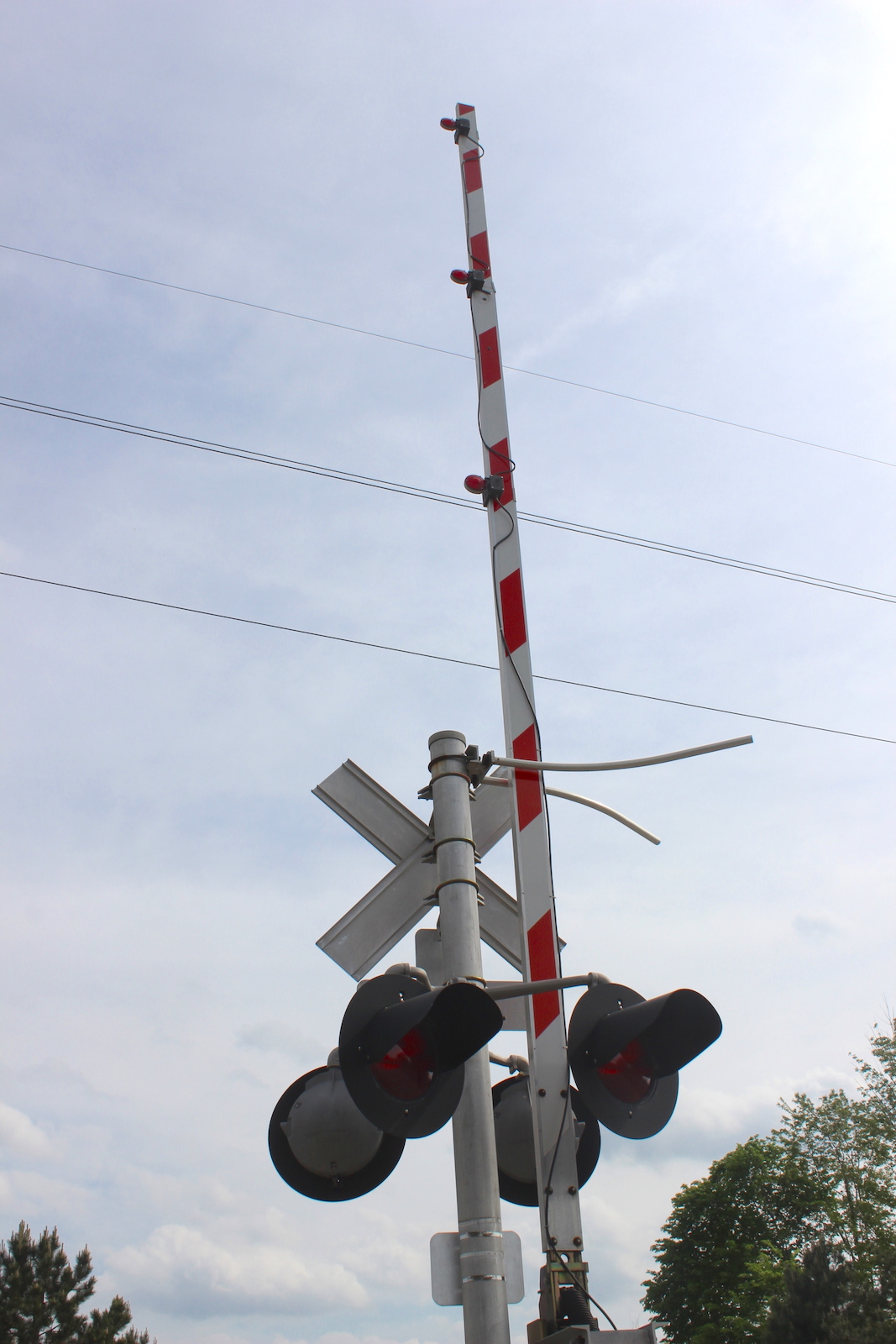

| Gate Mechanism: | Safetran 2000s w/ NEG 1 Way Saver | Safetran 2000s w/ NEG 1 Way Saver |
| Gate Striping: | Diagonal Striping | Diagonal Striping |
1 |
2 |

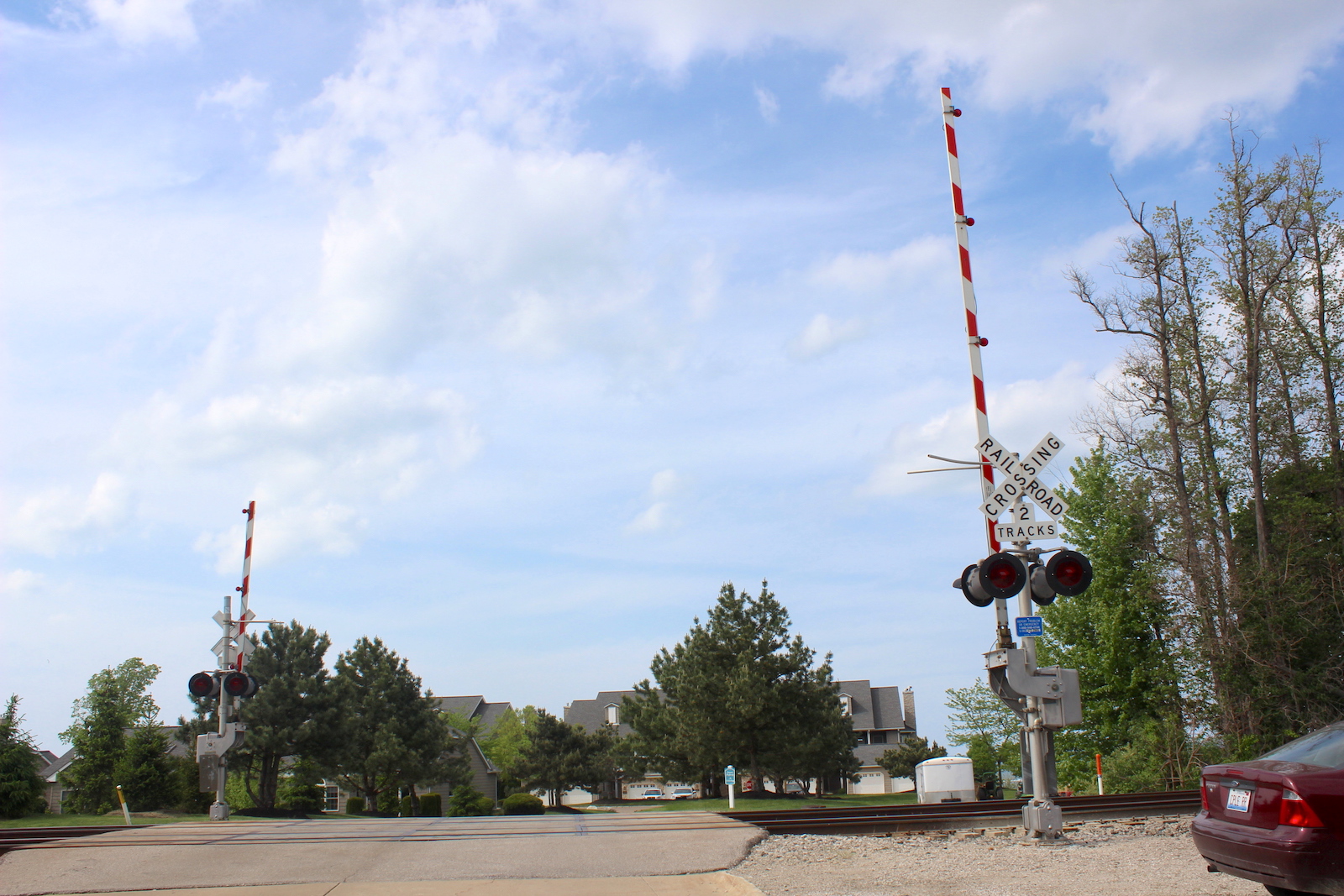

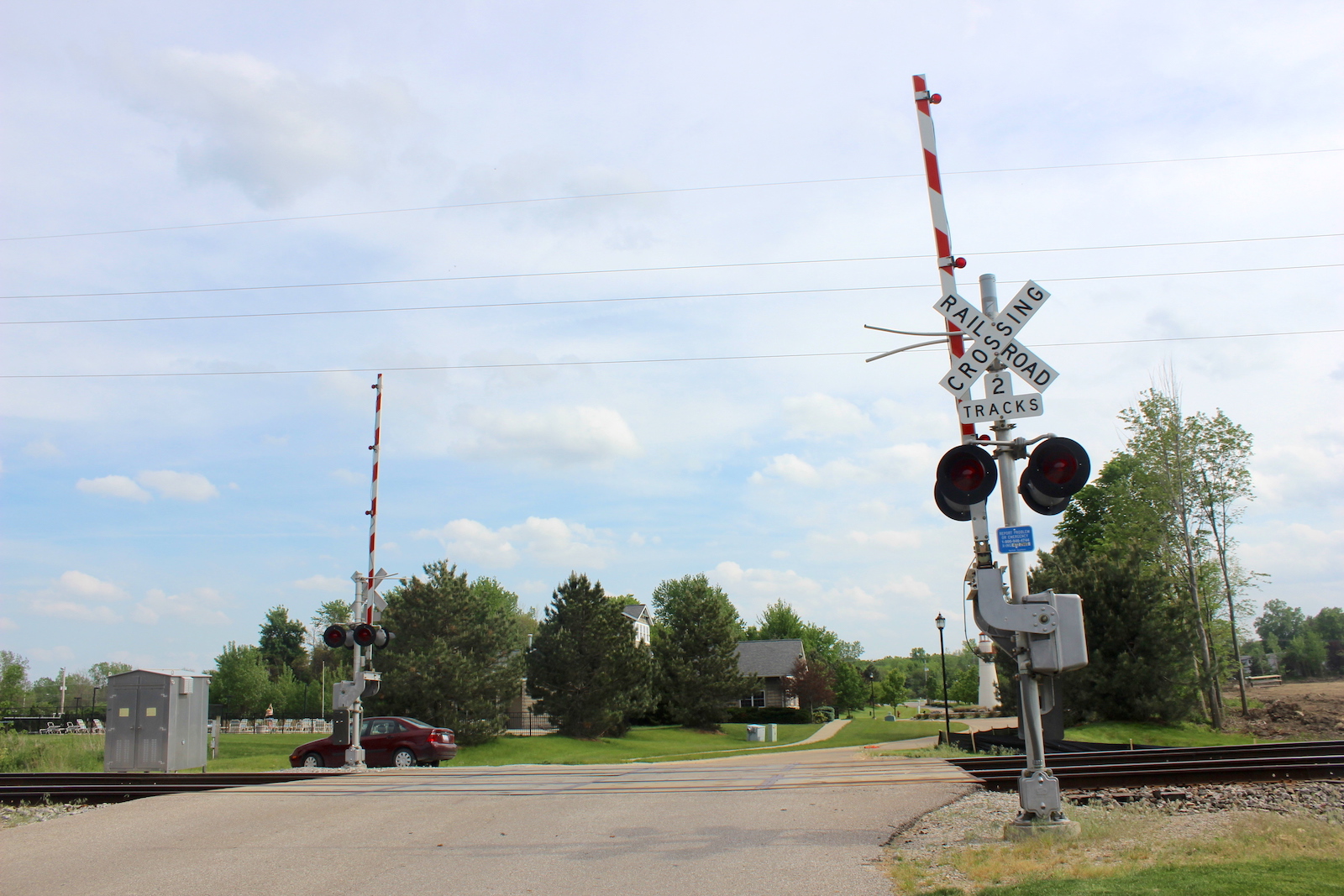

| Overview of 2 gated signals facing south. |
Overview facing north. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |

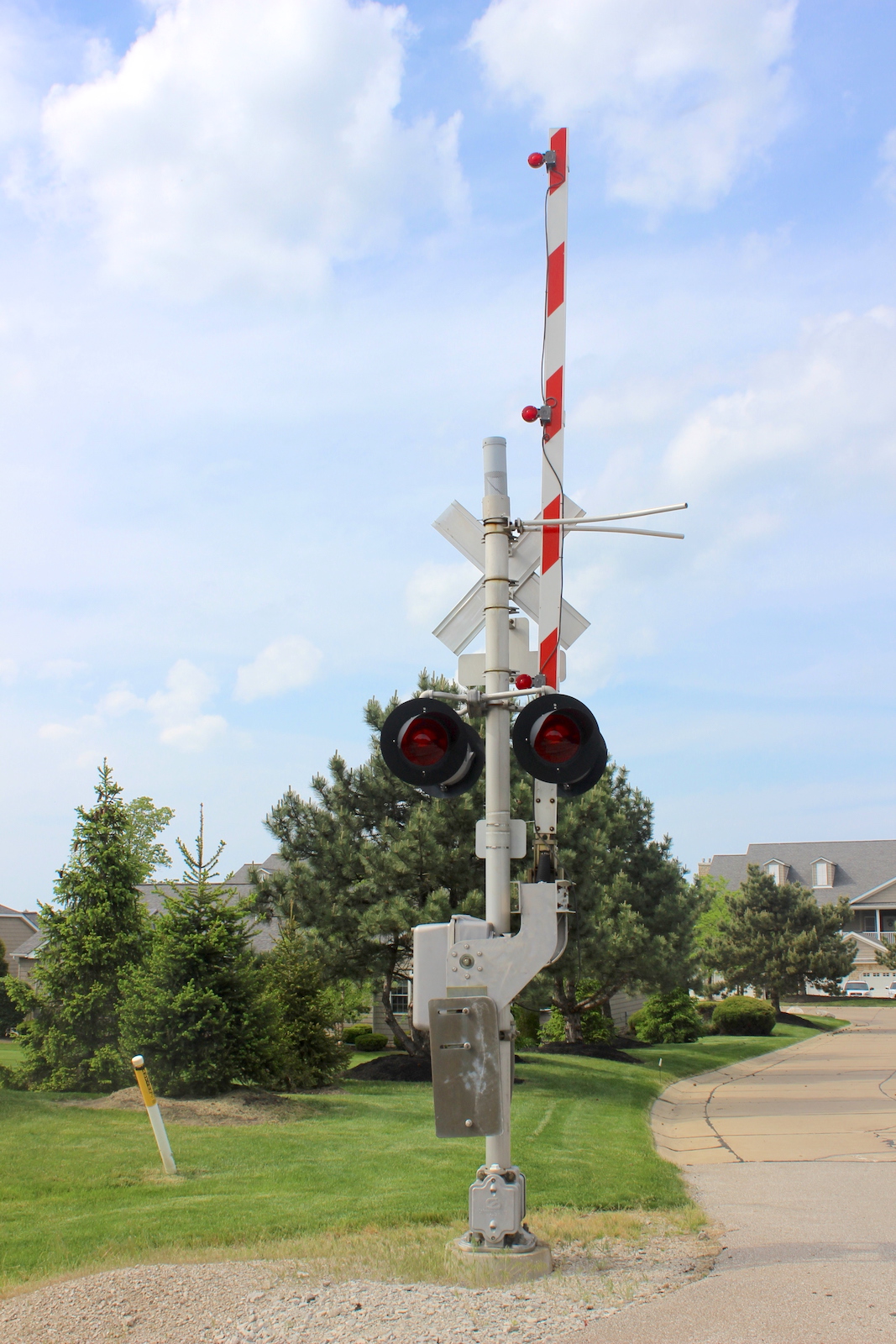

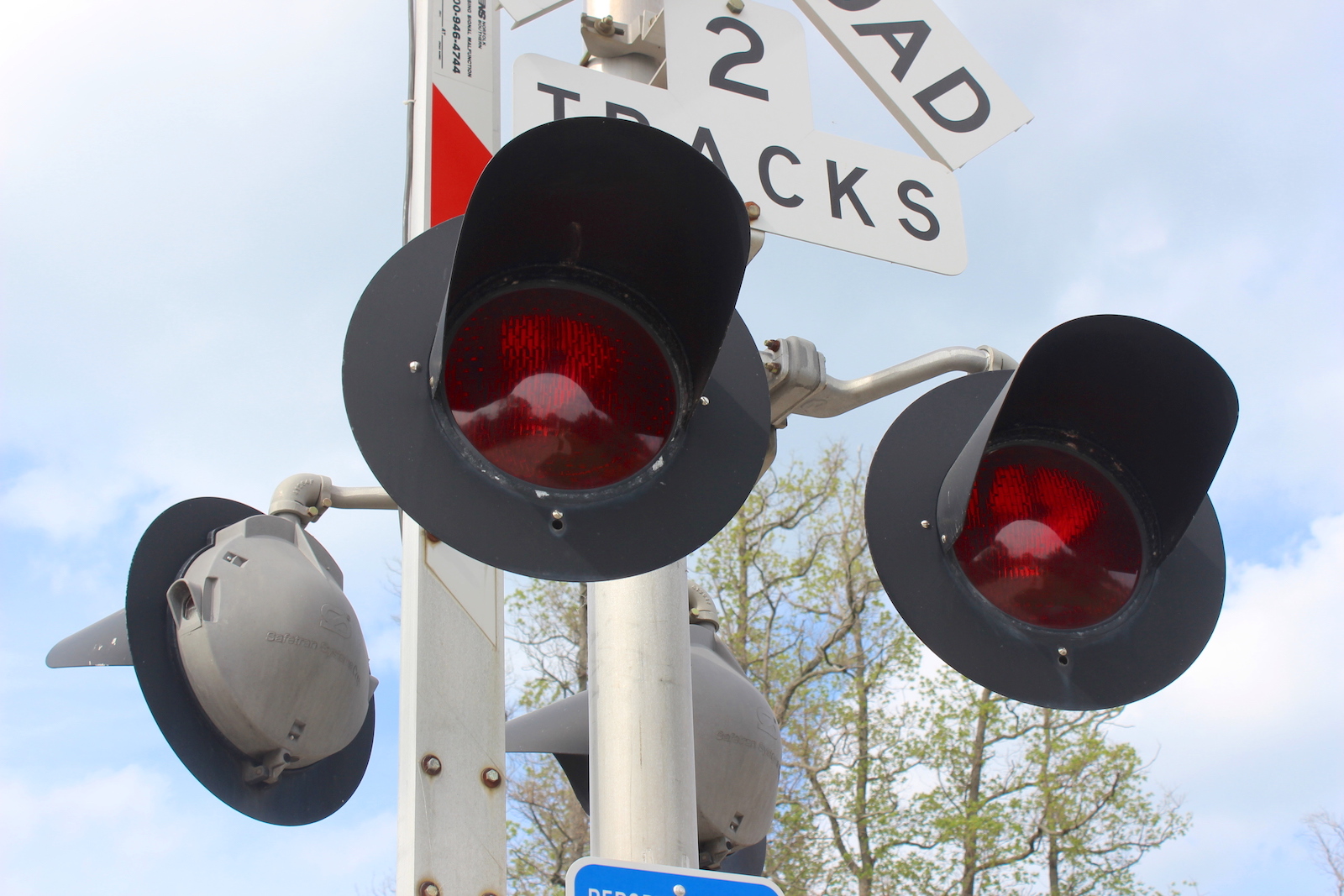

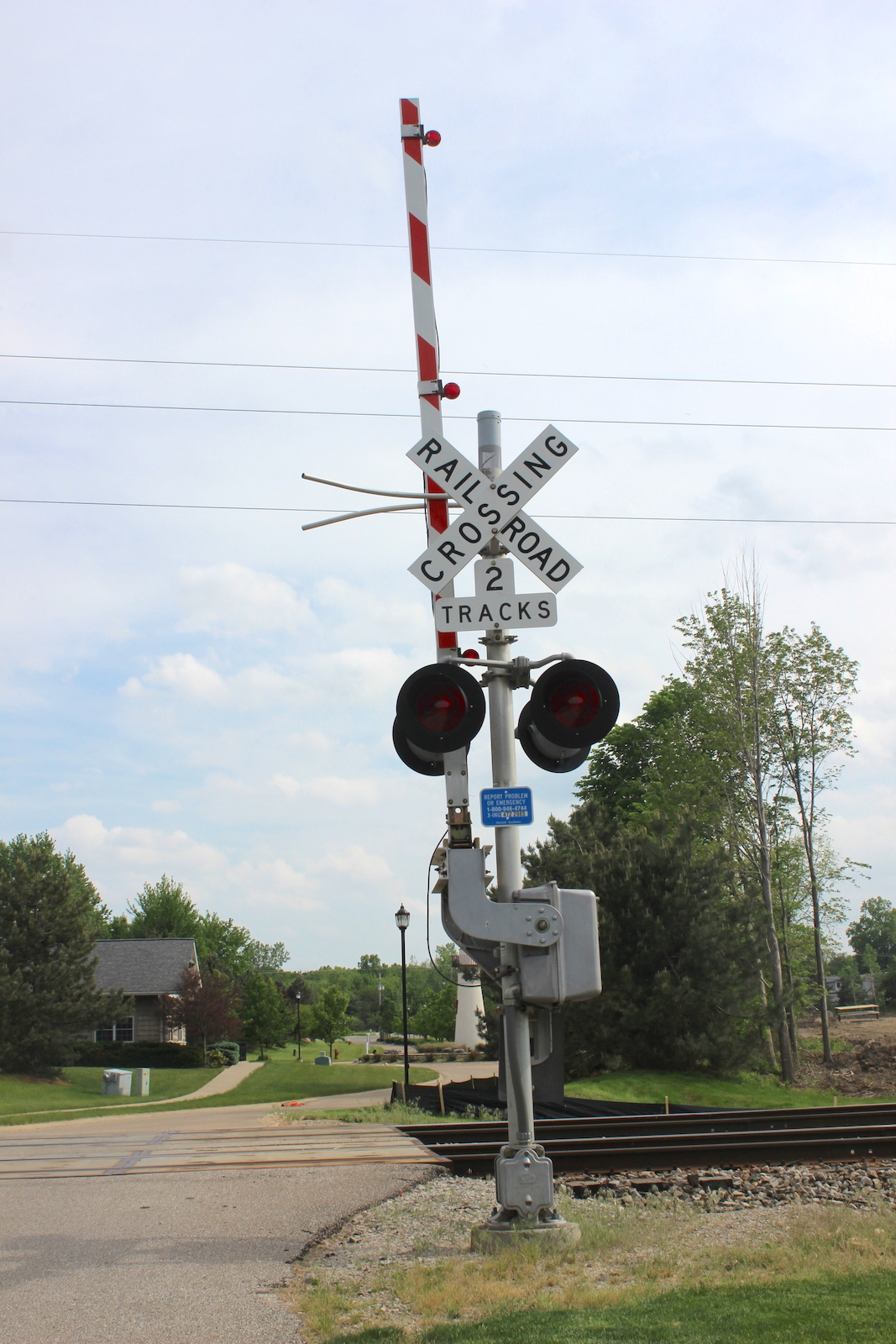

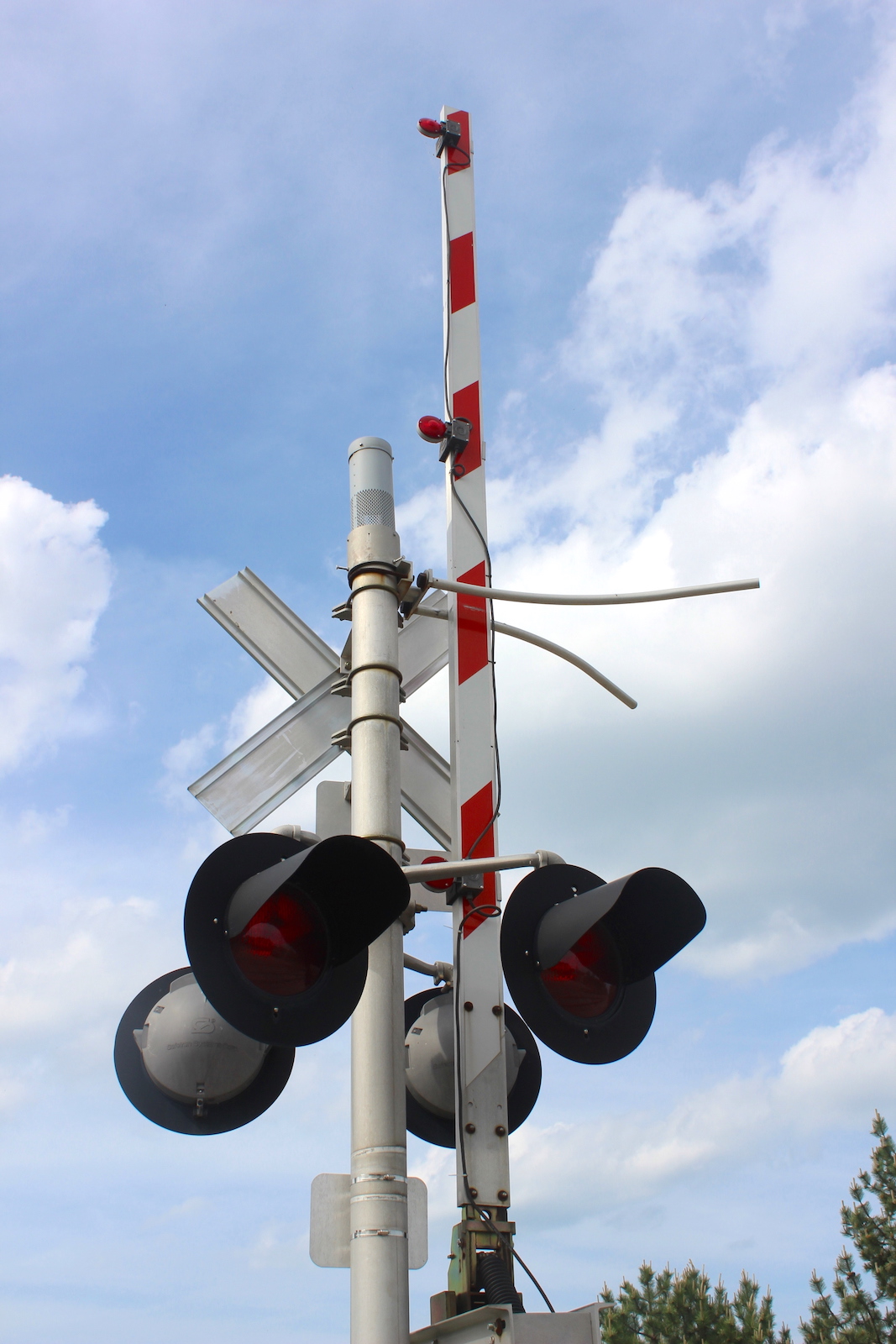

| The northern signal. |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |

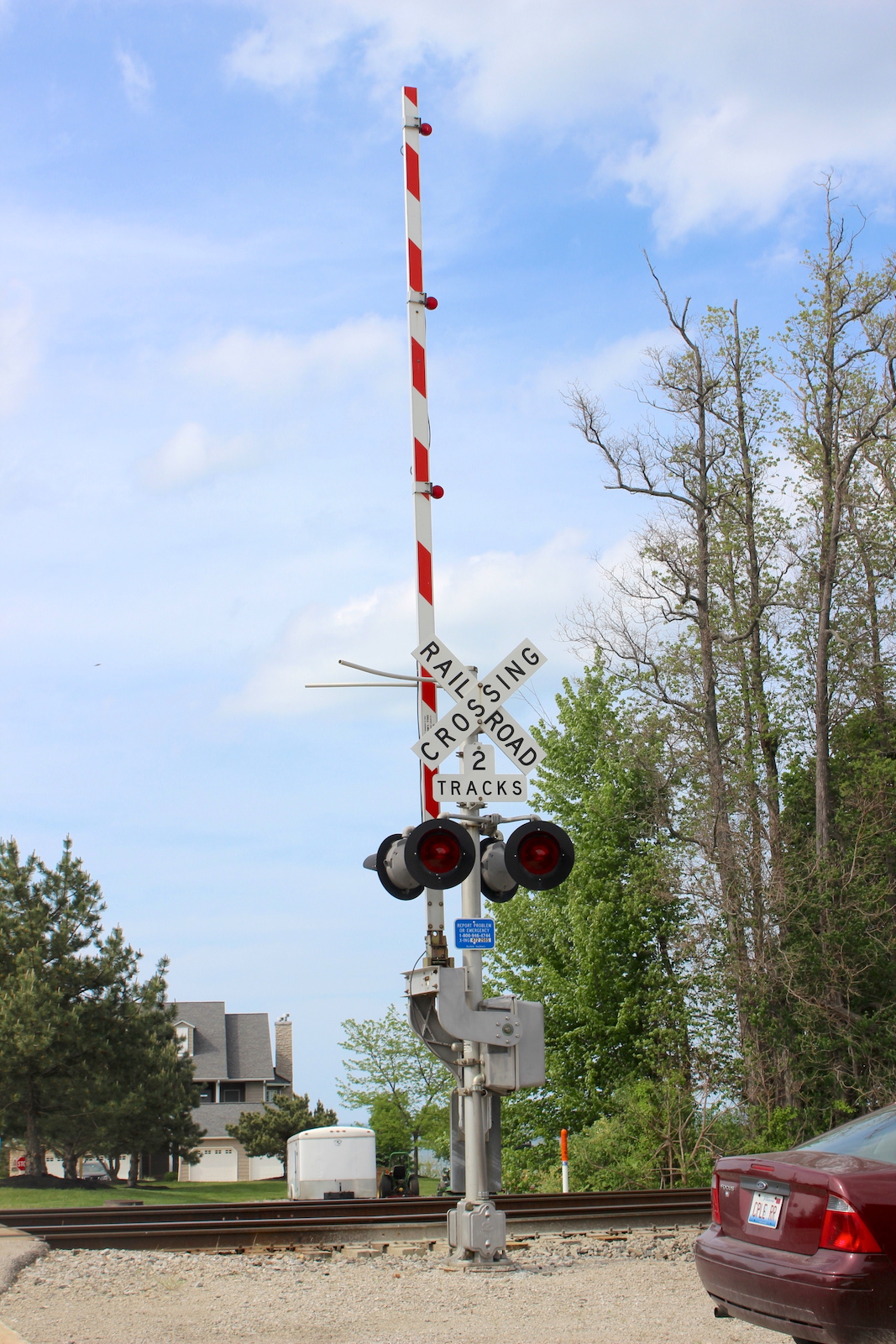

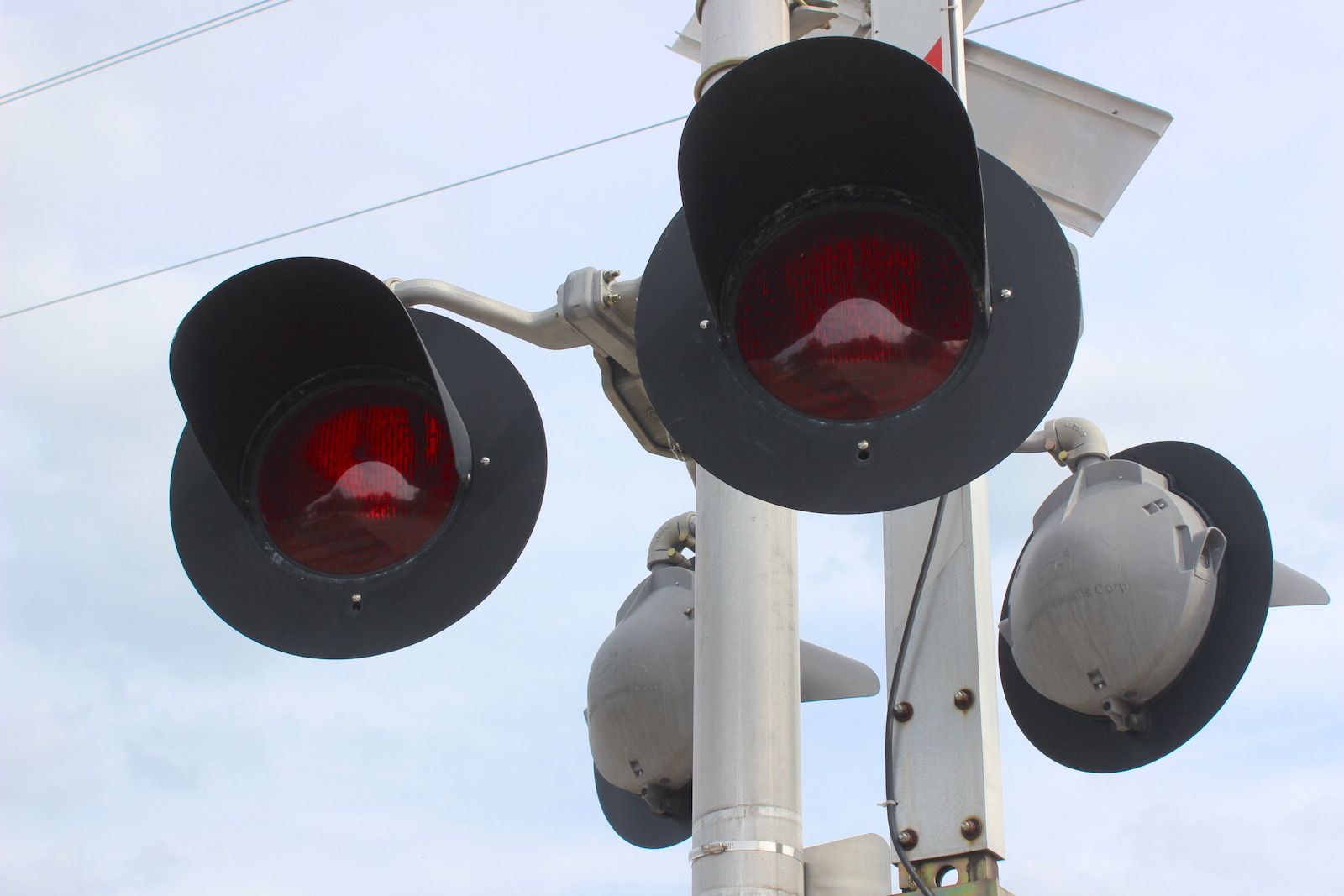

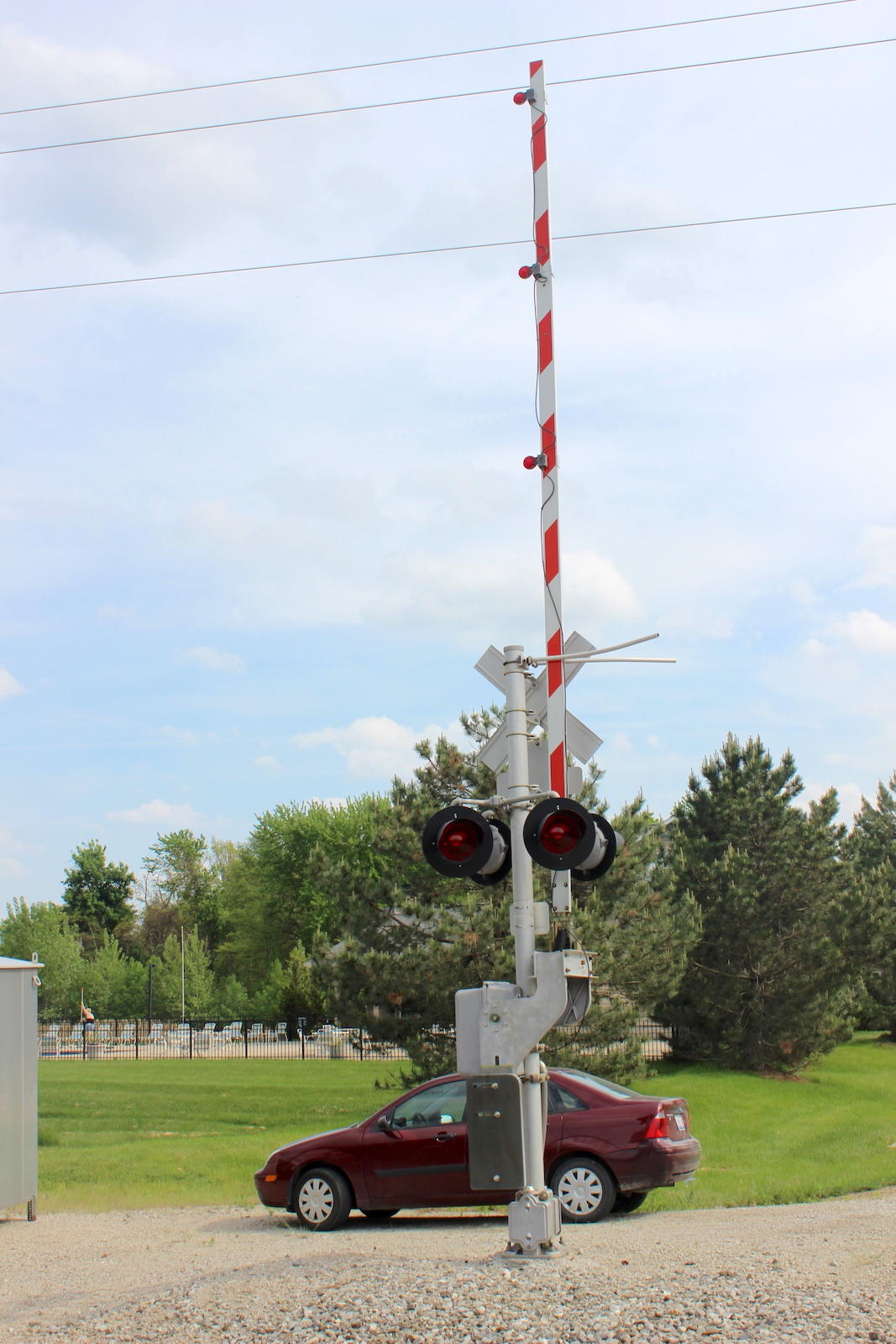

| The southern signal. |
22 |
23 |
24 |
25 |

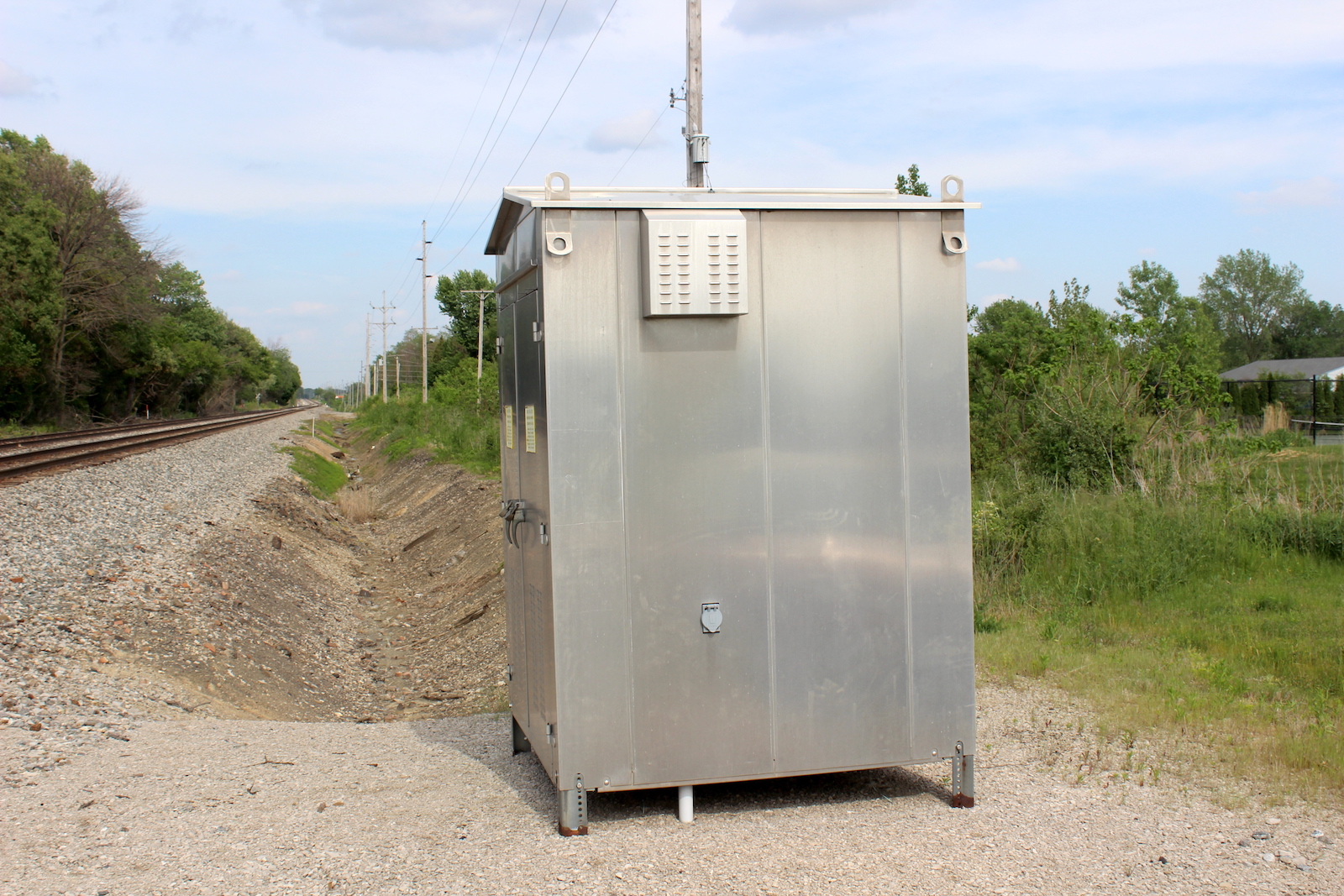

| The relay bungalow in the southeast quadrant. |

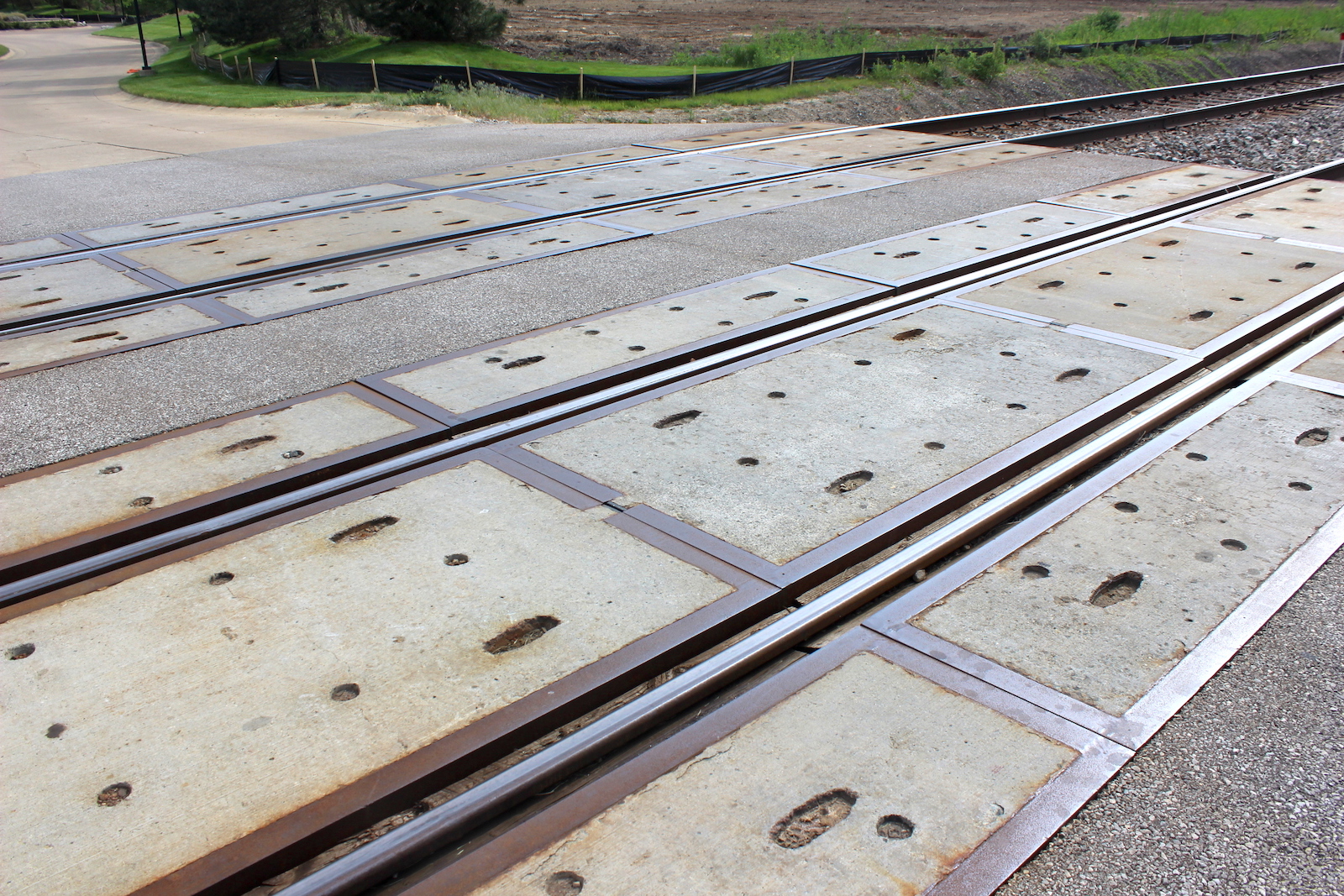

The grade is all concrete. |

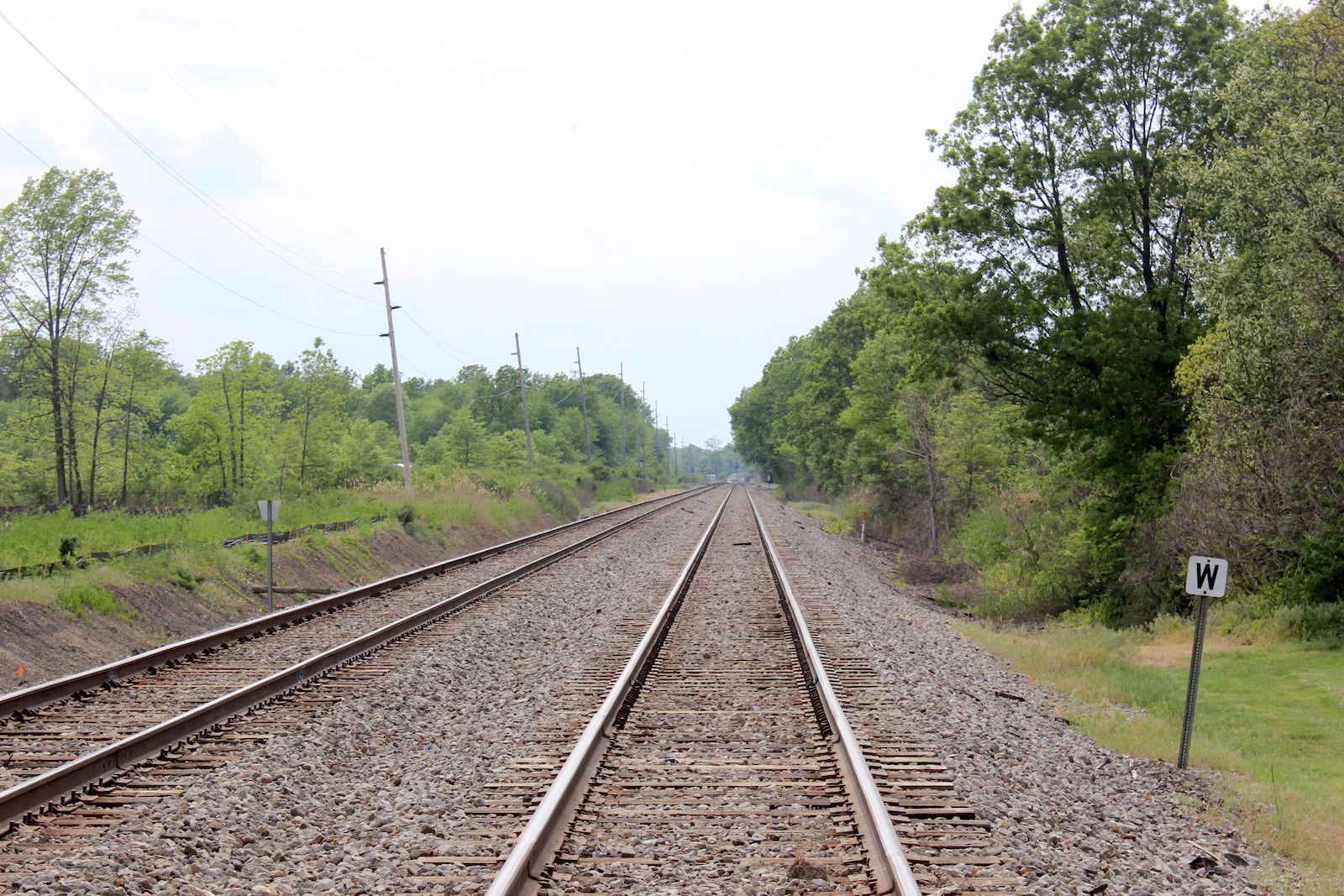

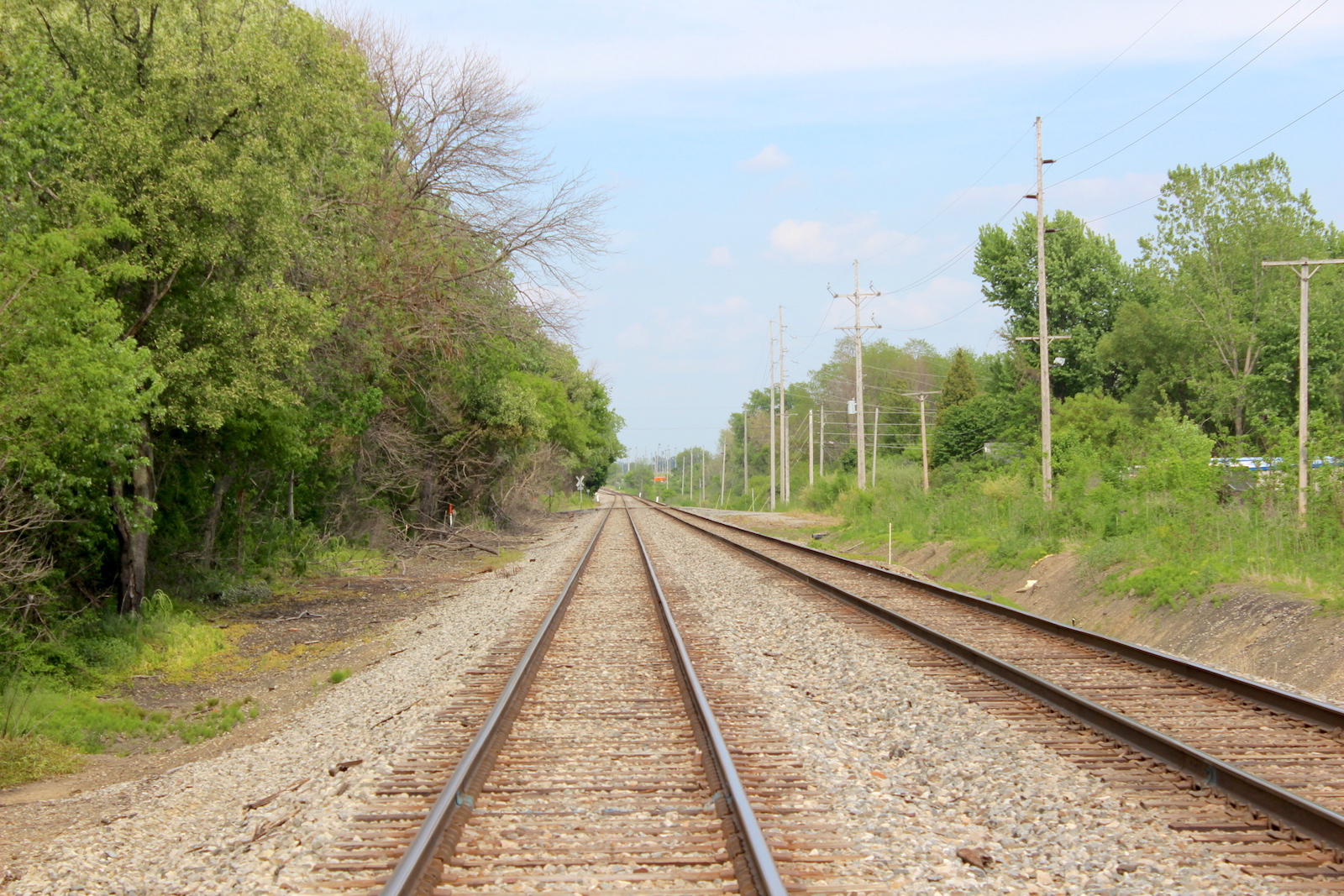

Track view facing west towards Woodside Ave. |
Track view facing east at Helen Dr. |
