Total Accidents:
7 Crossing DOT #: 524037N TOTAL DAILY
TRAINS: 94 (AS OF 2016)
>>>>>>>>>>>>>>>
Northern Signal
Southern Signal
Bell:
None
Siemens E-Bell Low Tone
Cantilever:
None
Safetran Cantilever
Mast Base:
Safetran 5" Single Sided ^
Safetran 5" Single Sided ^
Lights:
4 - 12"x20" Safetran w/ GE Uniform Look LEDs
8 - 12"x20" Safetran w/ GE Uniform Look LEDs
Junction Boxes:
Safetran
Safetran
Gate Lights:
3 - 4' RECO LEDs
3 - 4' RECO LEDs
Gate Mechanism:
Siemens Sticker Style 1 w/ NEG 1 Way Saver
Siemens Sticker Style 1 w/ NEG 1 Way Saver
Gate Striping:
Vertical Striping
Vertical Striping
Pictures 1-26 were taken on May 26, 2016.
The 1st video was taken on April 9, 2017.
Pictures 27-53 were taken on October 20, 2017.
The 2nd video was taken on November 10, 2017.
All pictures and videos were taken by Tommy McGowan.
This crossing is located on the NS Chicago Line.
O1
O2
O3
O4
PUCO pictures from the late 90s or early 2000s showing a Conrail setup with 8" lights, WABCO Model 75 gate mechanisms, and likely a WCH Mechanical Bell. In the mid 2010s, these were replaced with new Siemens signals.
1
2
Overview of 2 newer gated signals facing south.
Overview facing north.
3
4
5
6
7
8
9
10
11

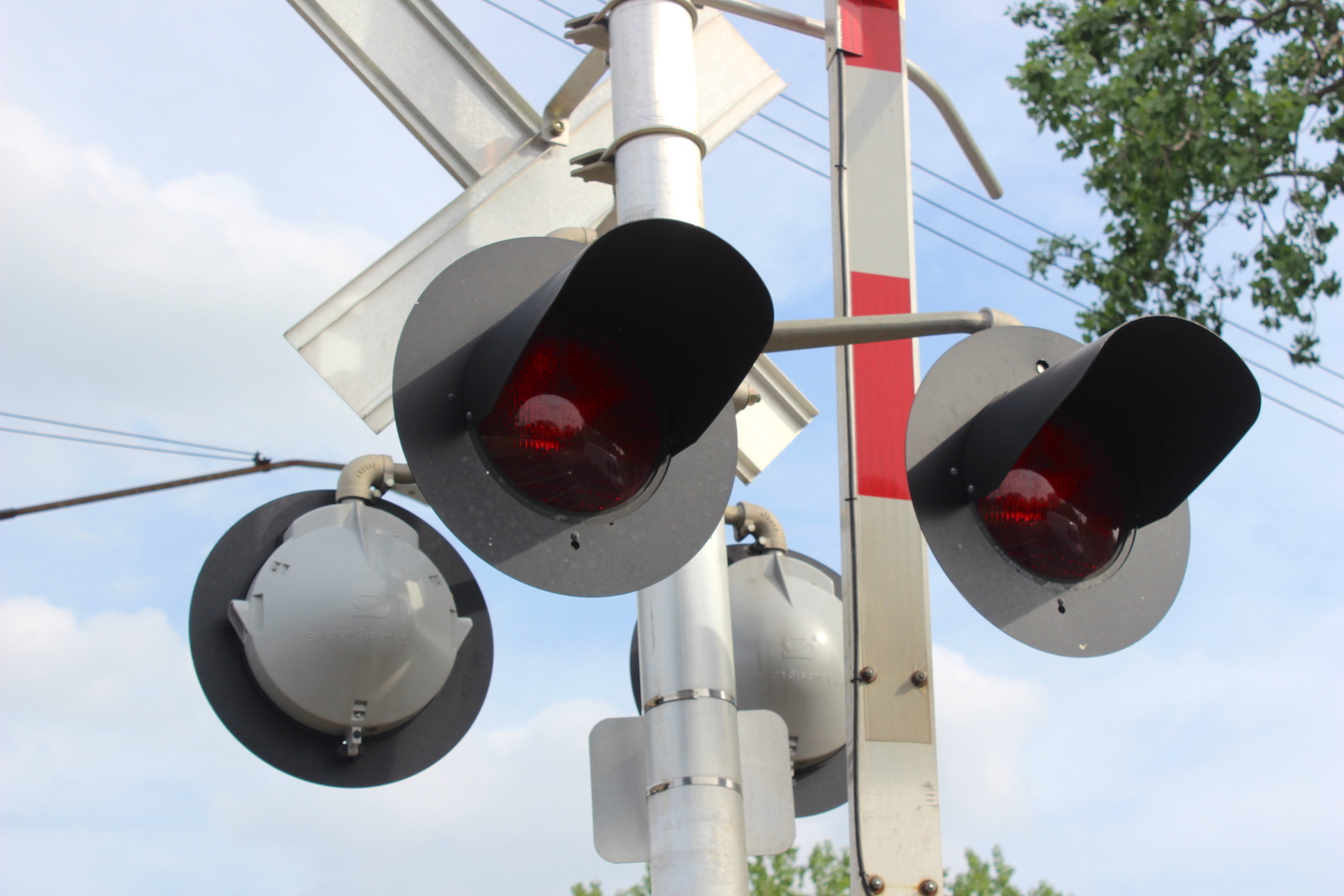

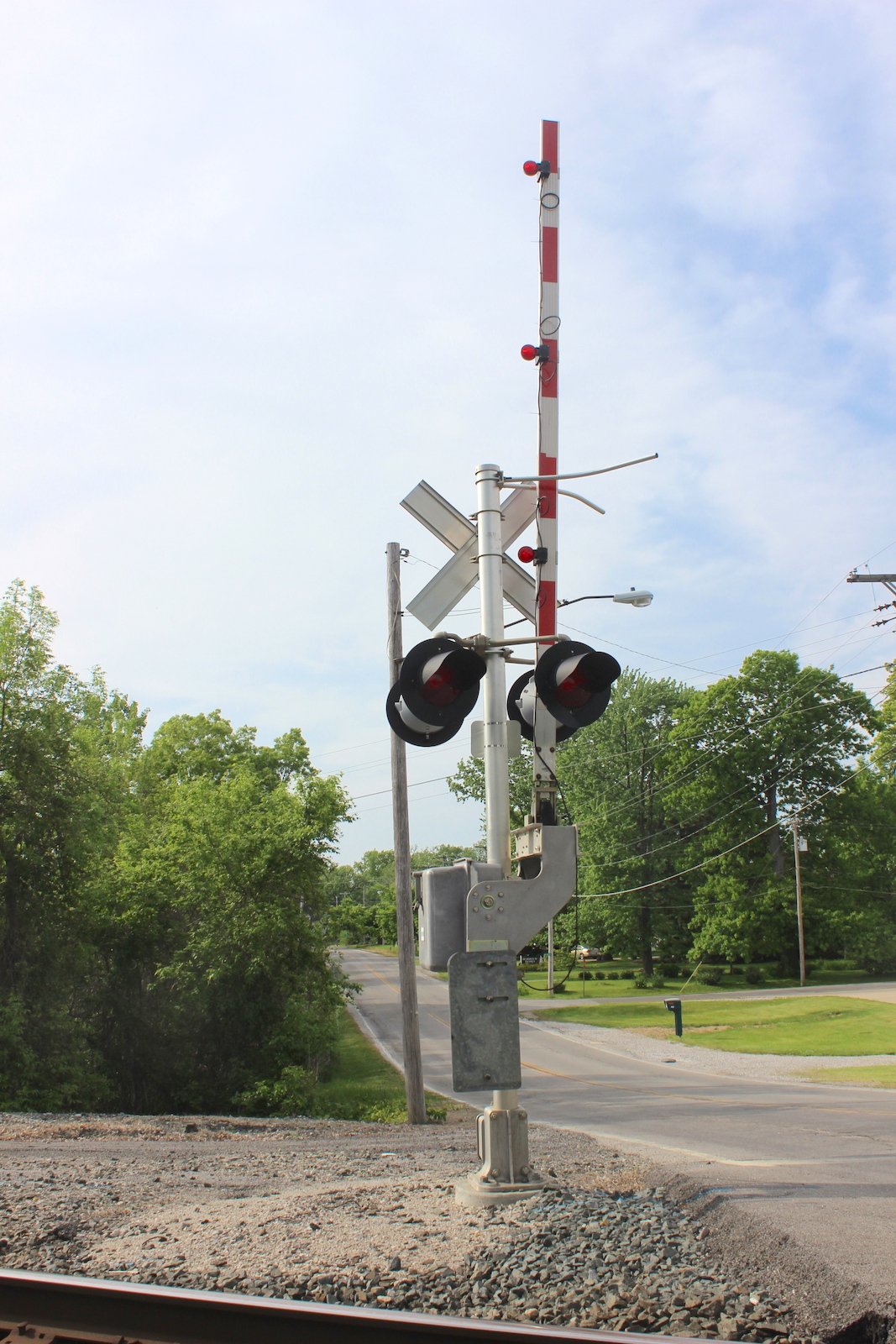

The northern signal. Both signals were mast signals with 12"x20" Safetran incandescents at this time.
Looking further east at a WB sitting at the crossovers just east of the crossing.
In mid 2017, the crossing received an
overhaul. The northern signal had its lights upgraded to LED and
the southern signal had a cantilever added to it, and the mast signal
was moved onto a new base.
This is the first crossing on the NS Chicago Line in Ohio to receive a full set of LED lights.
27
28

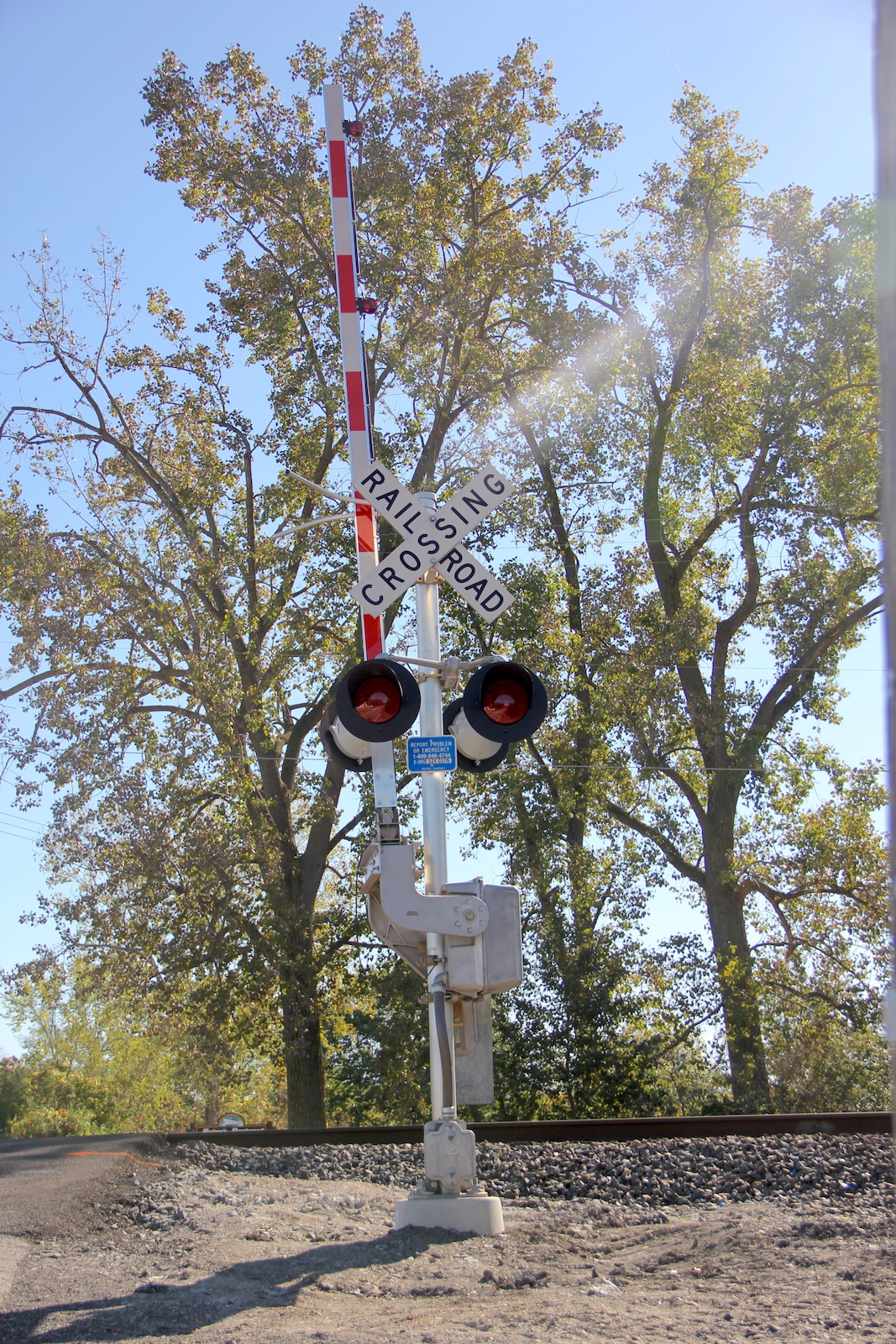

Overview of the upgraded setup facing south.
Overview facing north.
29
30
31
32
33
34
35
36
37

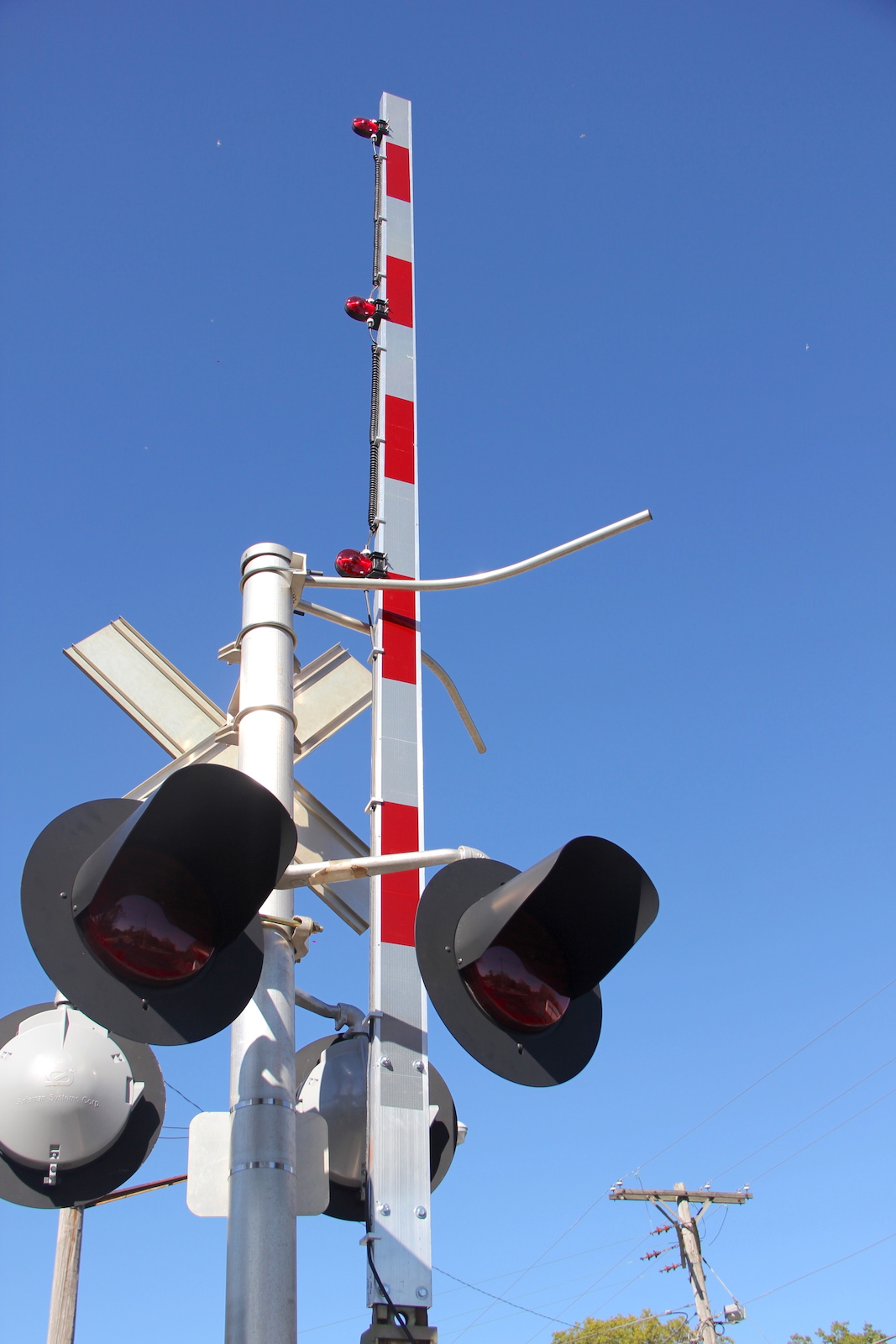

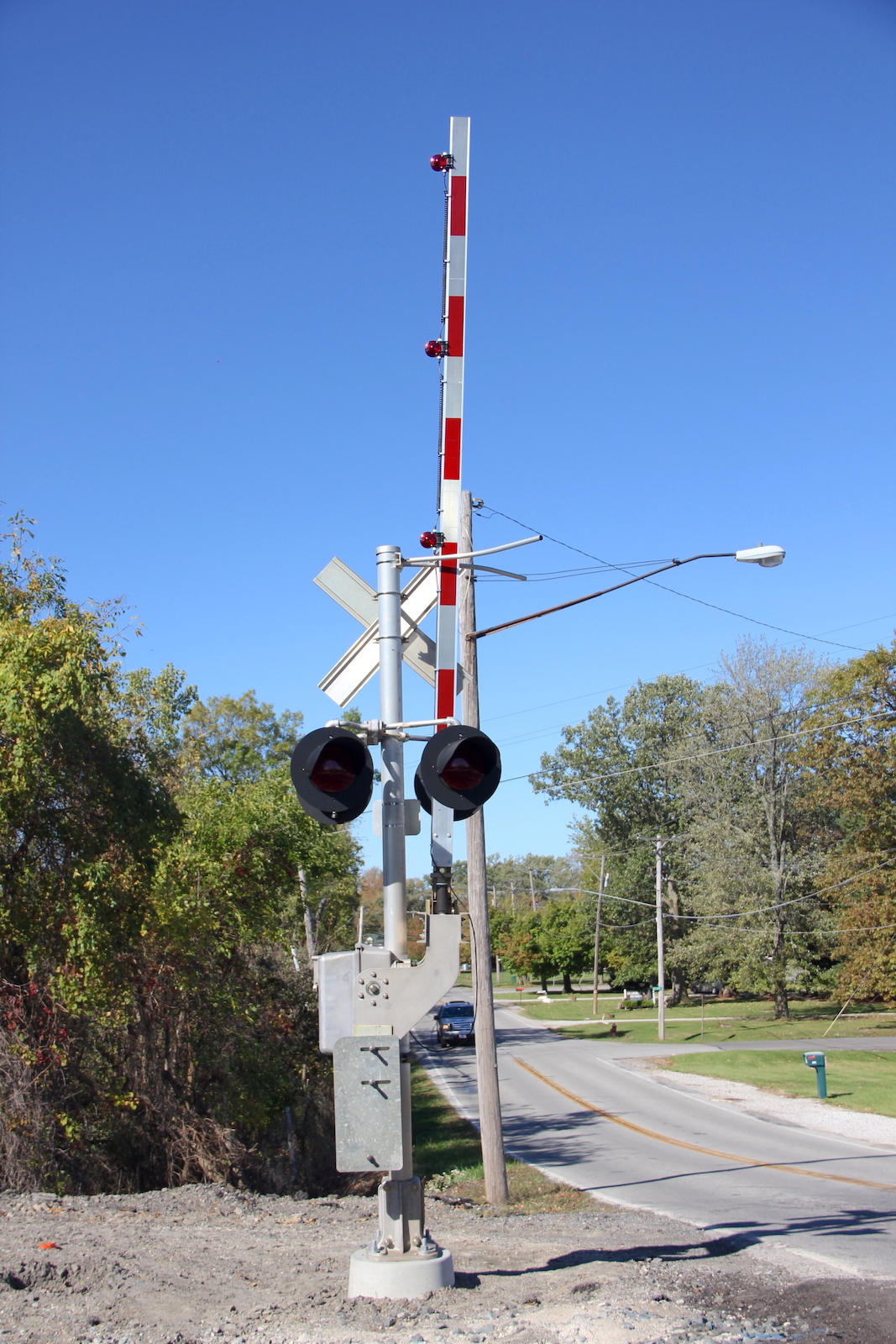

The slightly updated
northern signal. Not long after I took these photos a track sign
was added to it, but I didn't documet that.
38
39
40
41
42
43
44
45
46
47
48
49

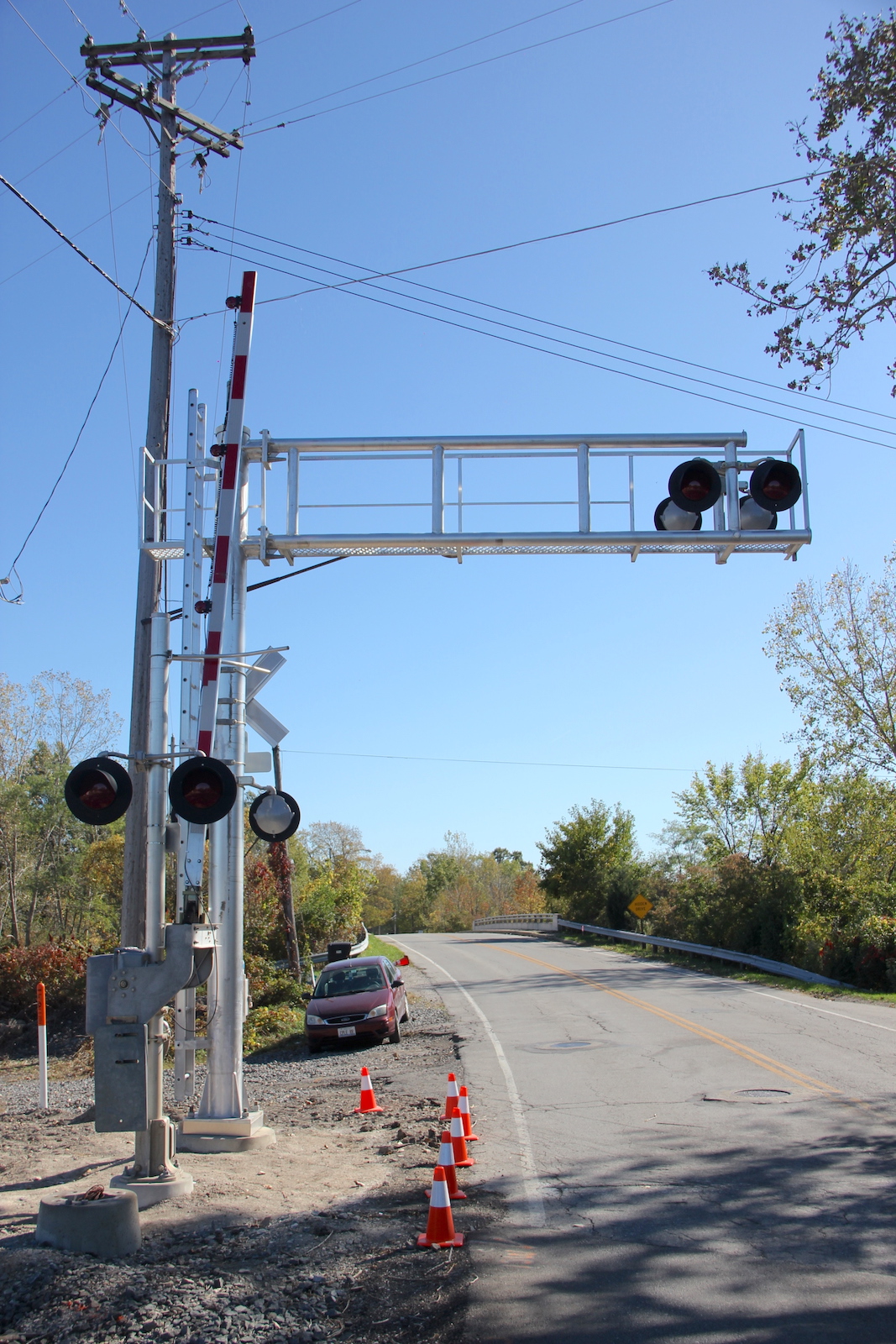

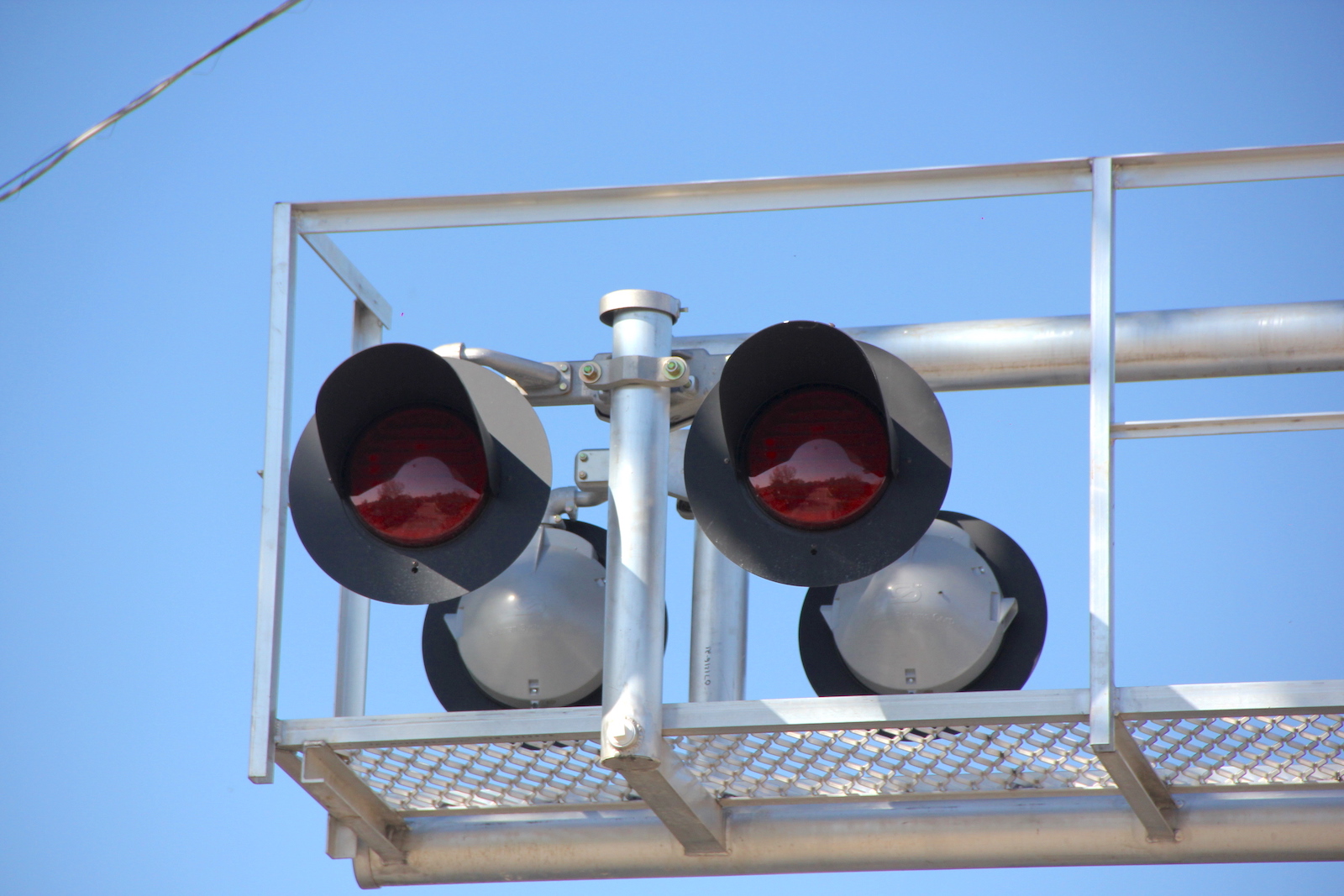

The overhauled southern signal.
50
51
52
53
The same relay bungalow in the northeast quadrant.
