Northern Signal
Southern Signal
Bell:None
GS Type 2 E Bell

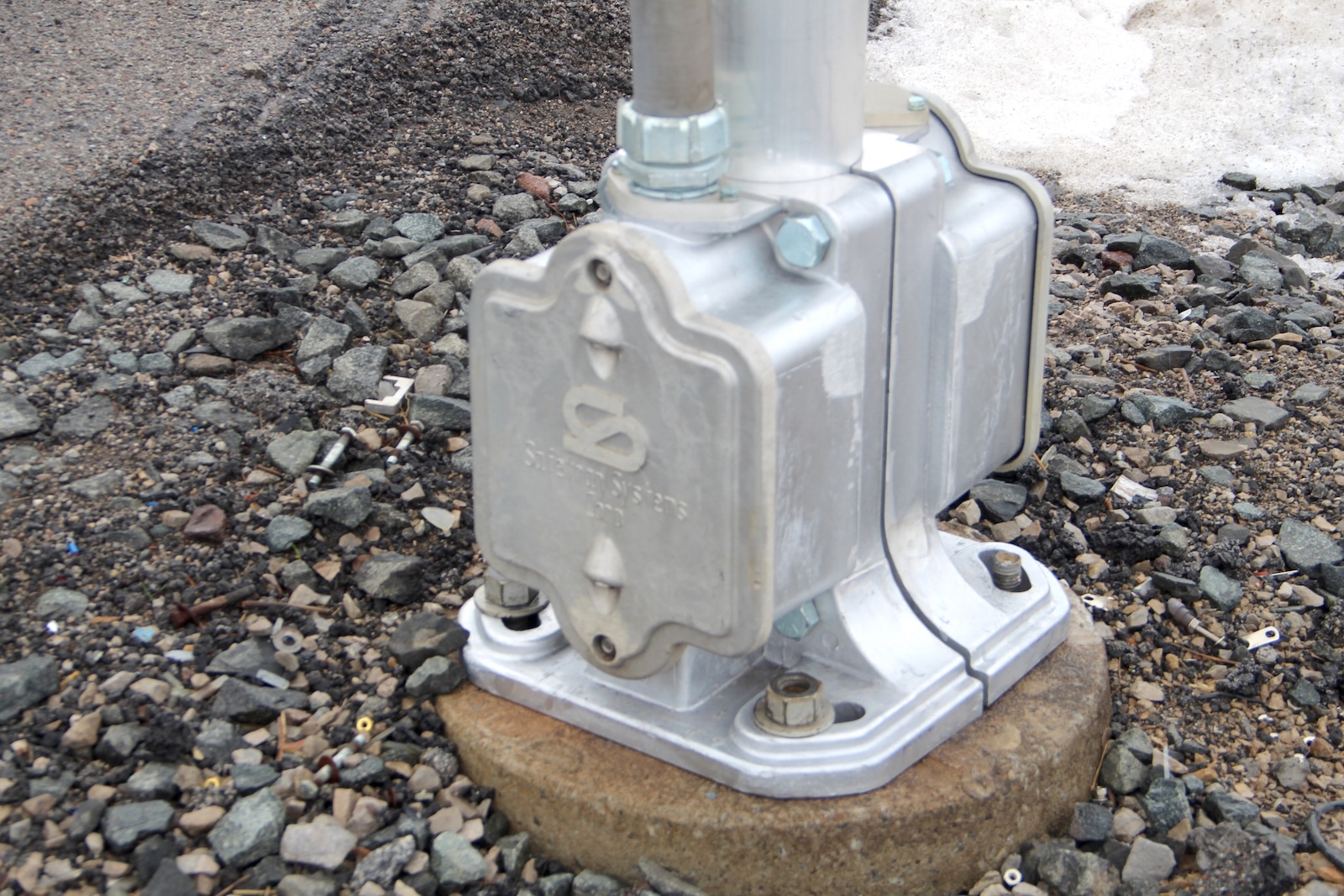

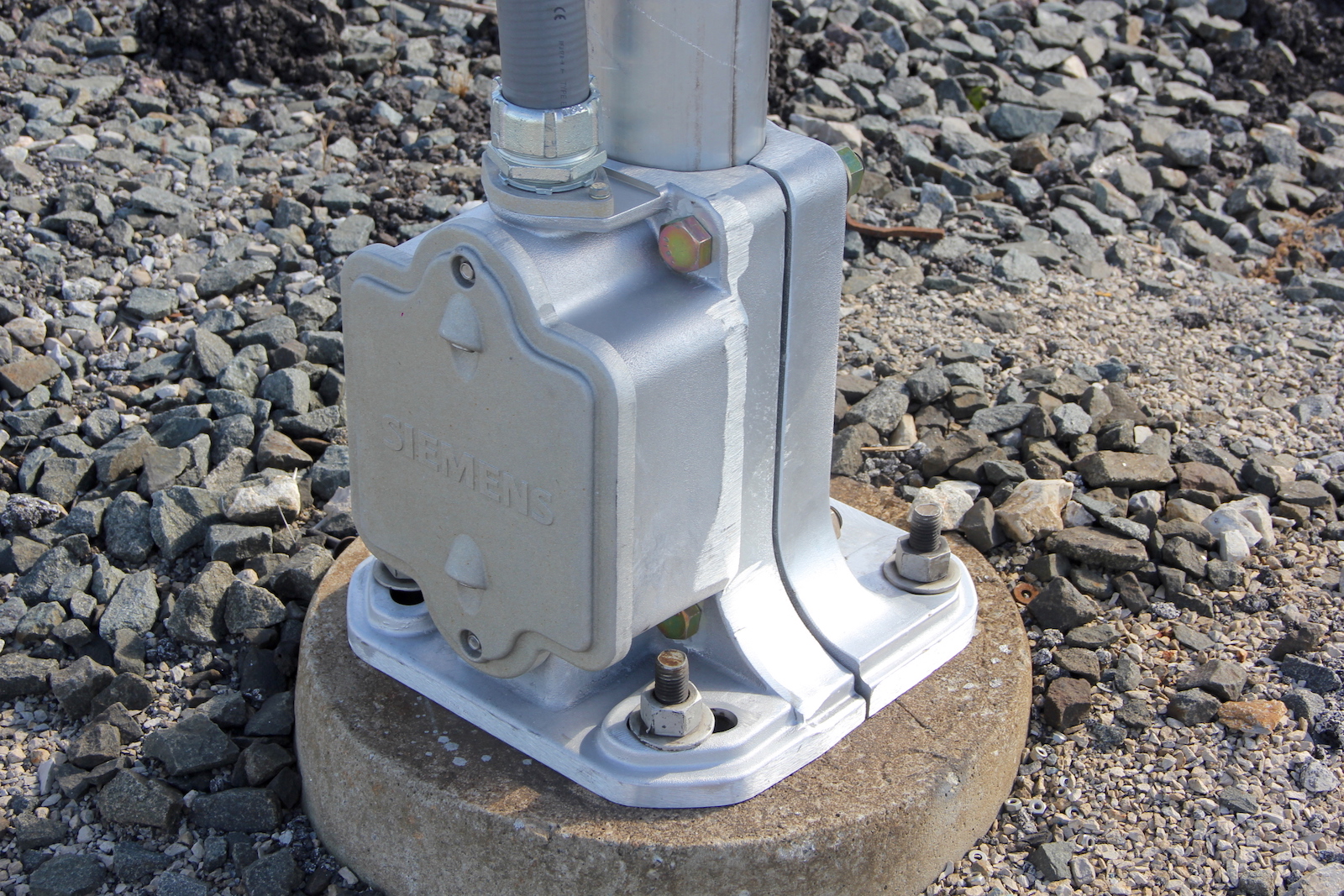

Base: Siemens Single Sided

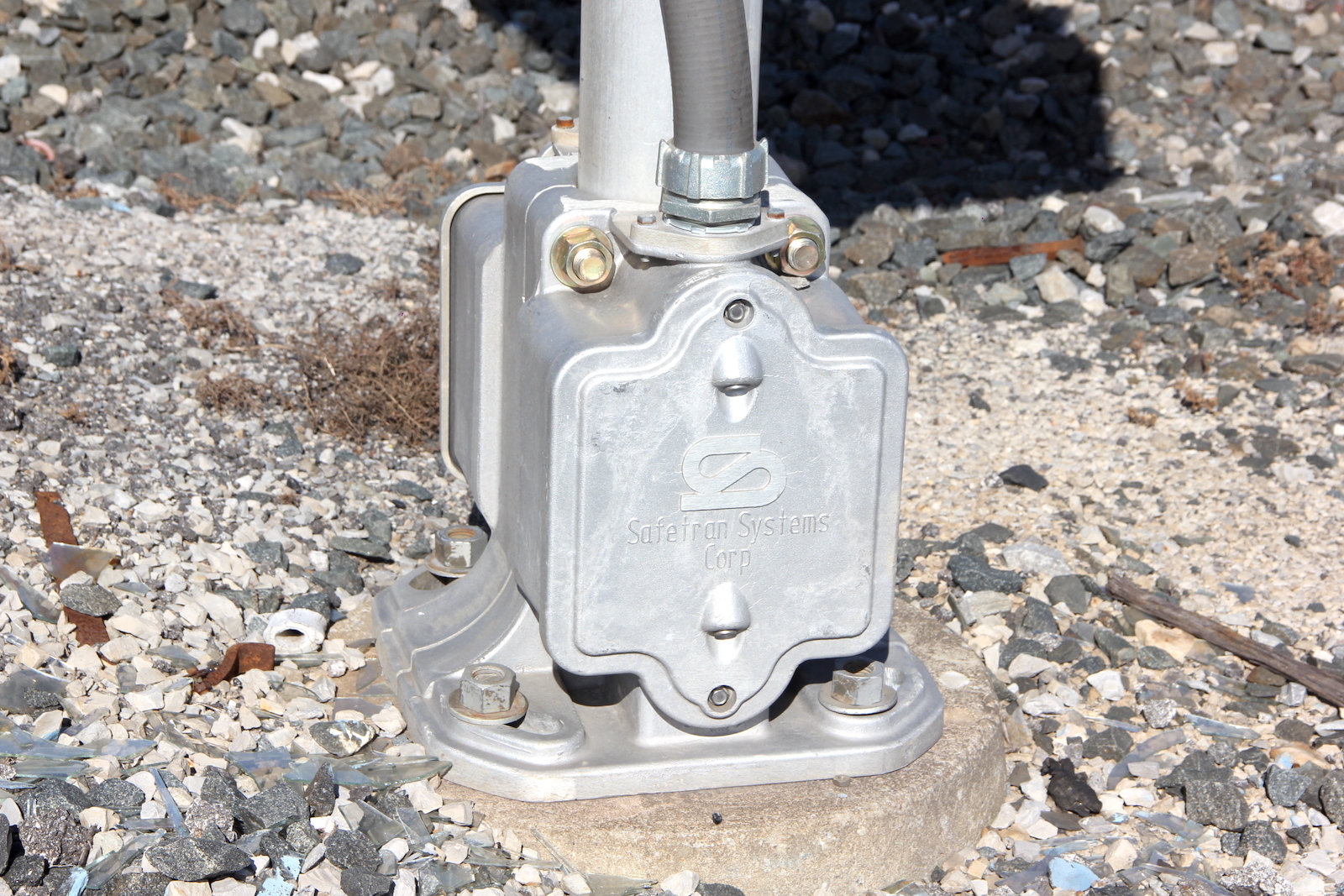

Safetran Double Sided

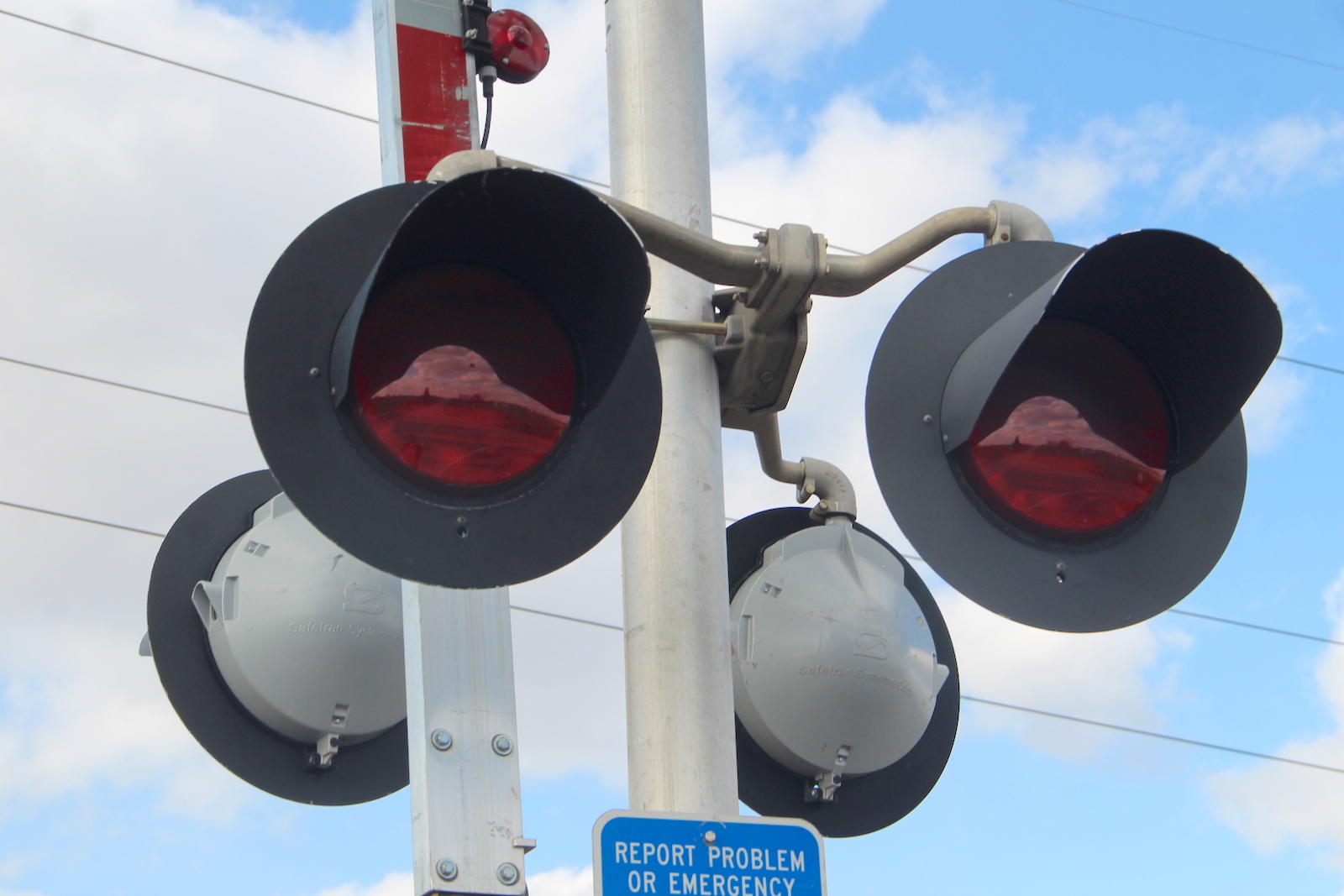

Main Lights: 2 pairs of 12"x20" Safetran incandescens
2 pairs of 8"x20" Safetran incandescents
Light Bracket:
Safetran
Safetran

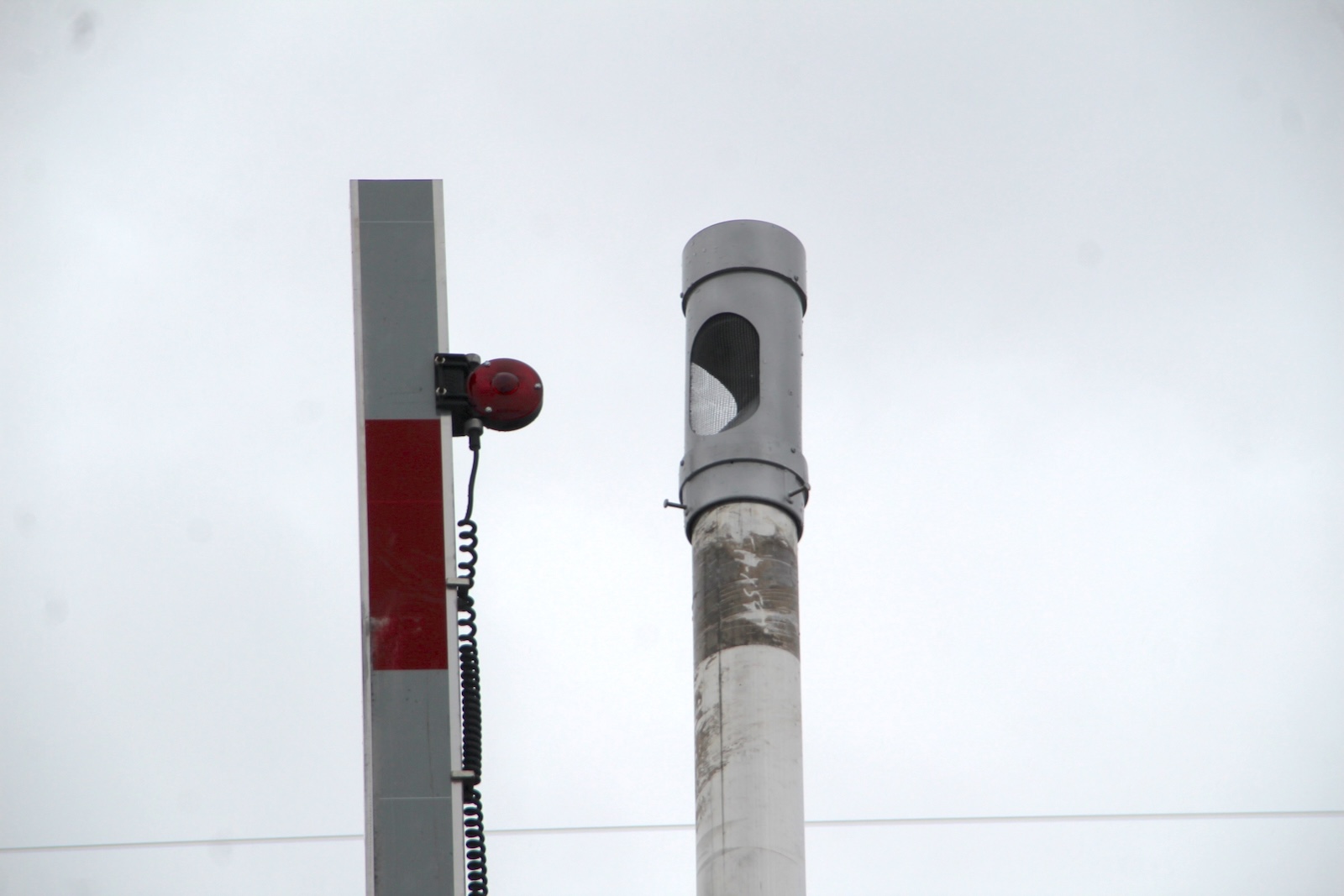

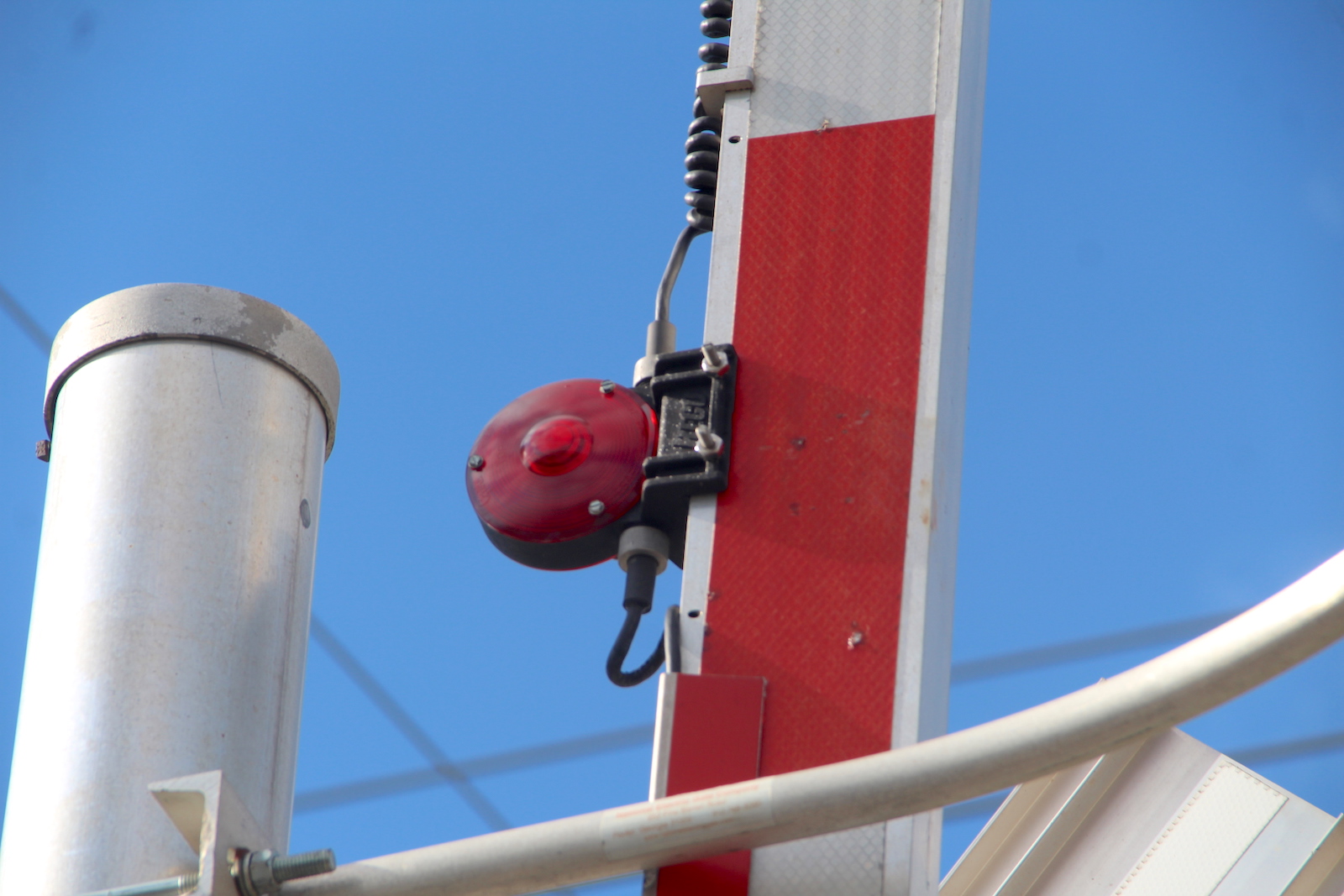

Gate Lights: 4" RECO
4" RECO

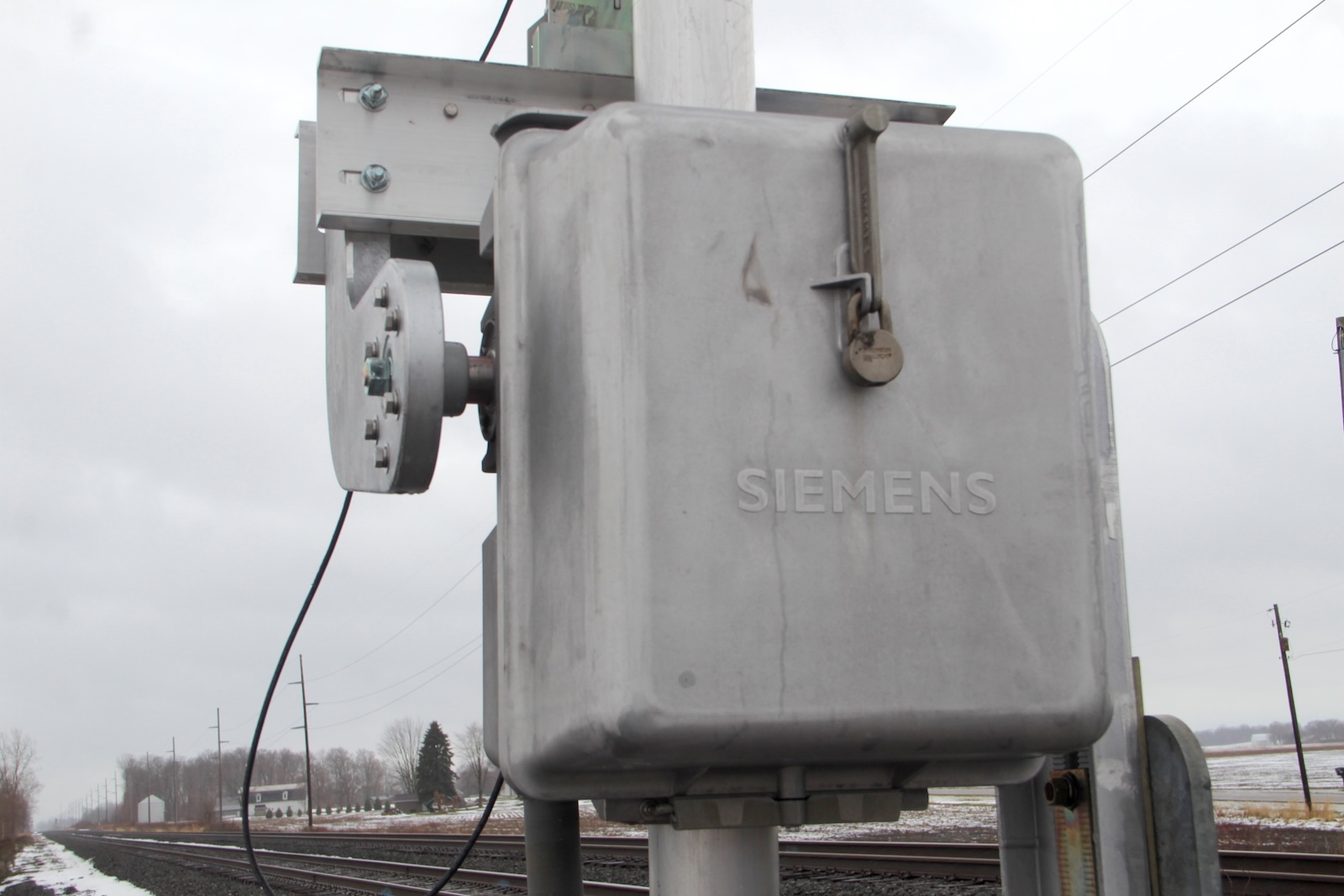

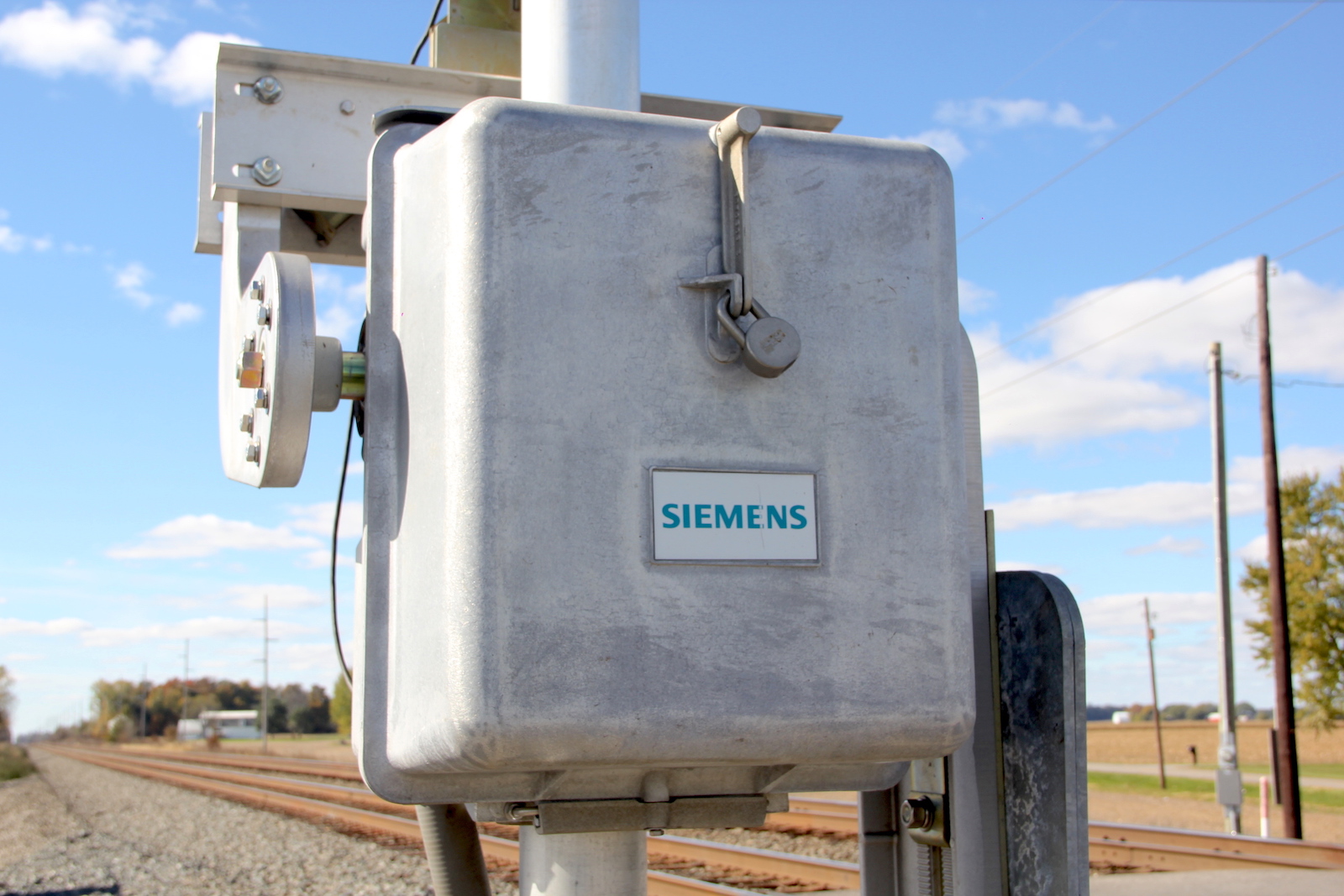

Gate Mechanism: Siemens
Siemens
Gate Striping: ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

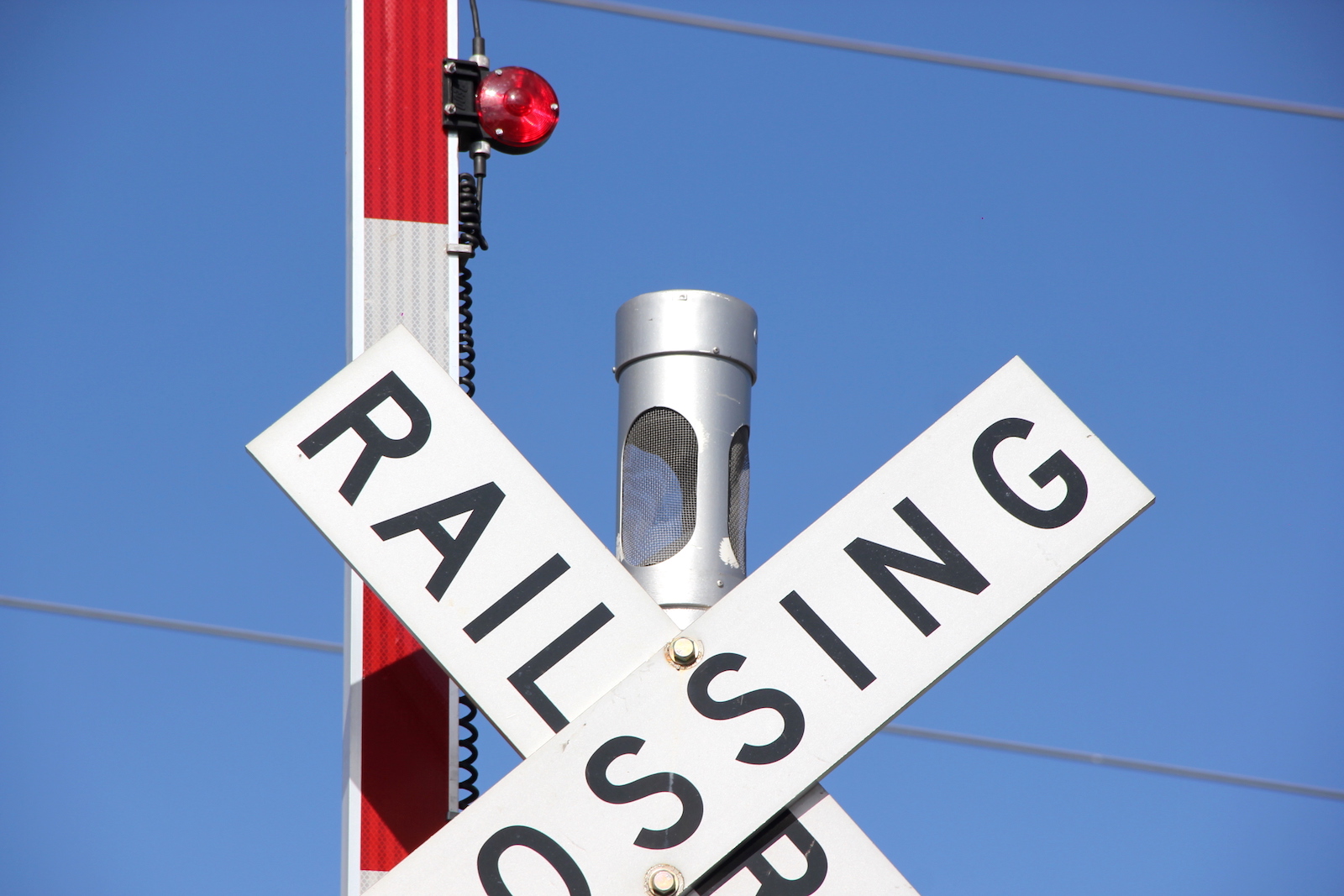

Crossbuck font:
Normal font
Normal font
Bell Cycle: N/A
Rings only while the gates are lowering

All pictures were taken on October 24, 2018, by Tommy McGowan.
This crossing is located on the NS Chicago Line.

1
2

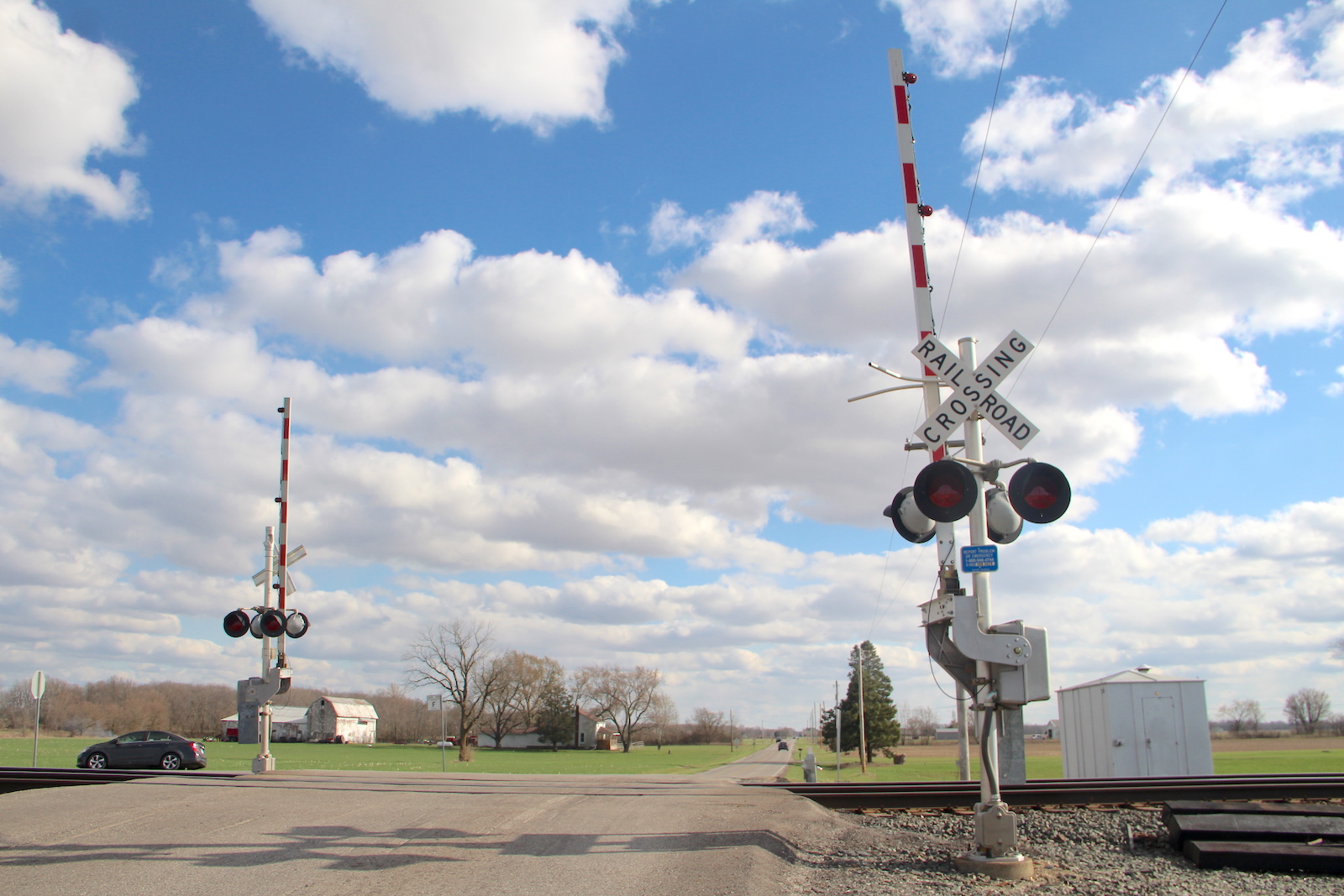

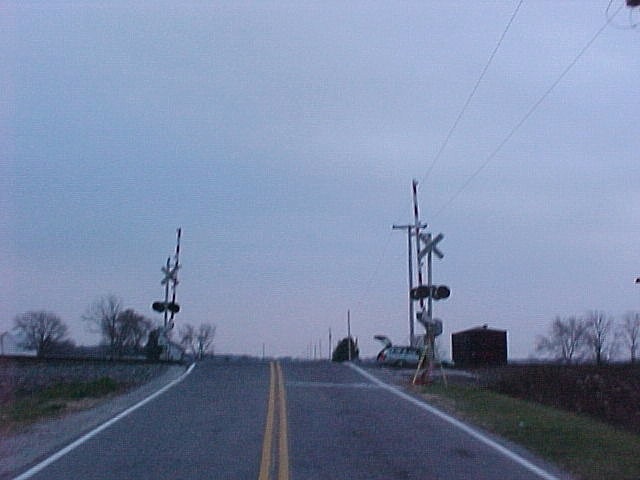

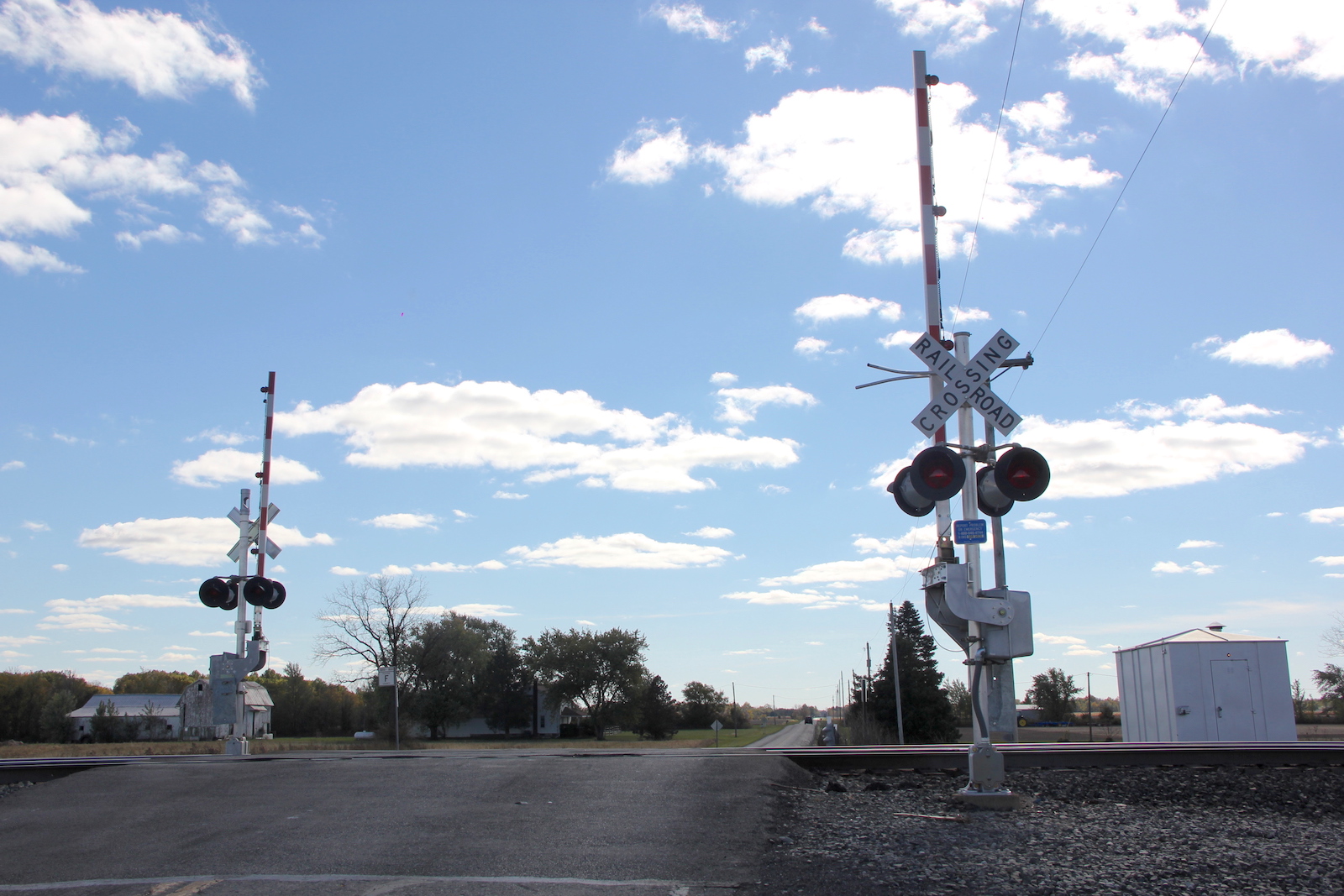

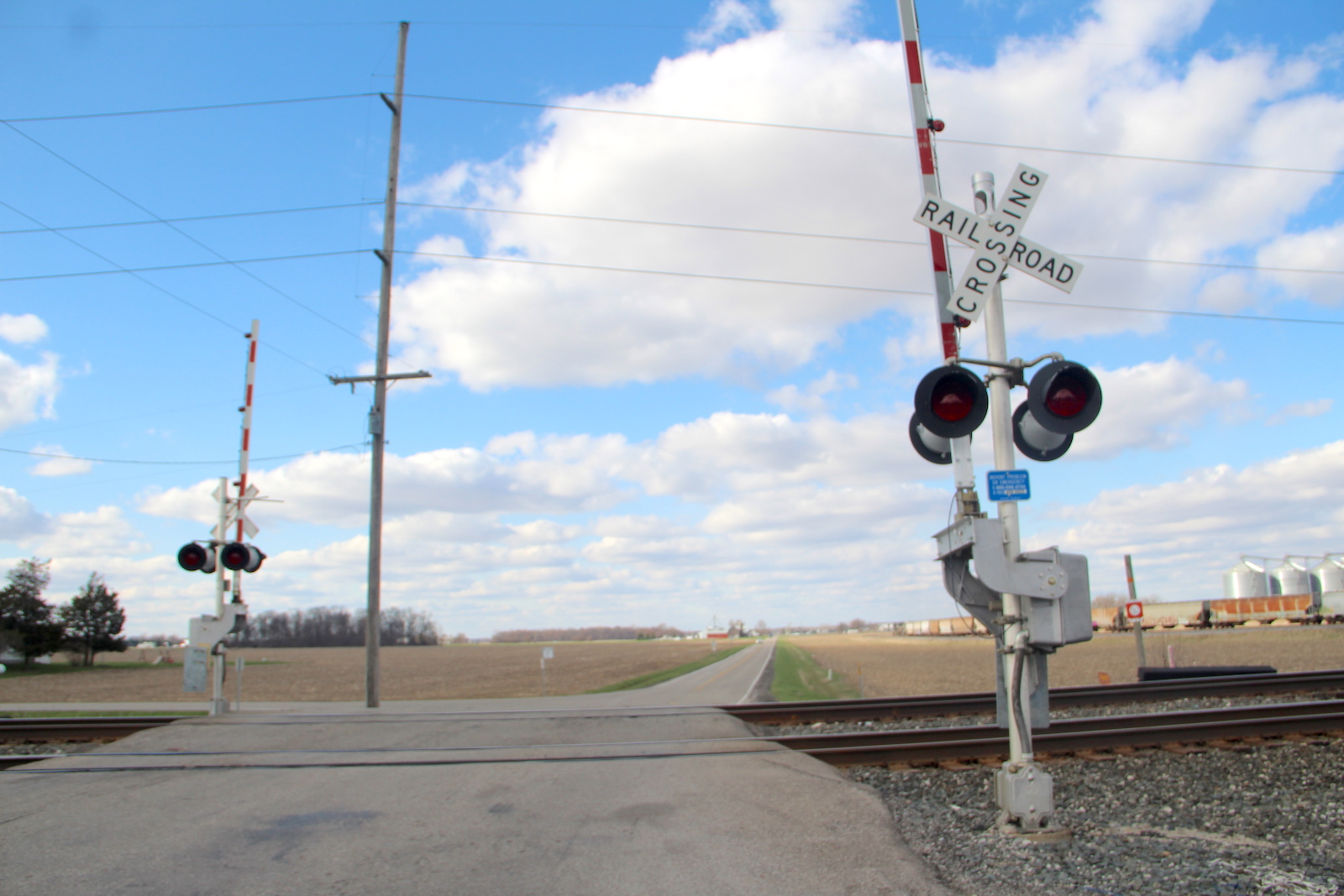

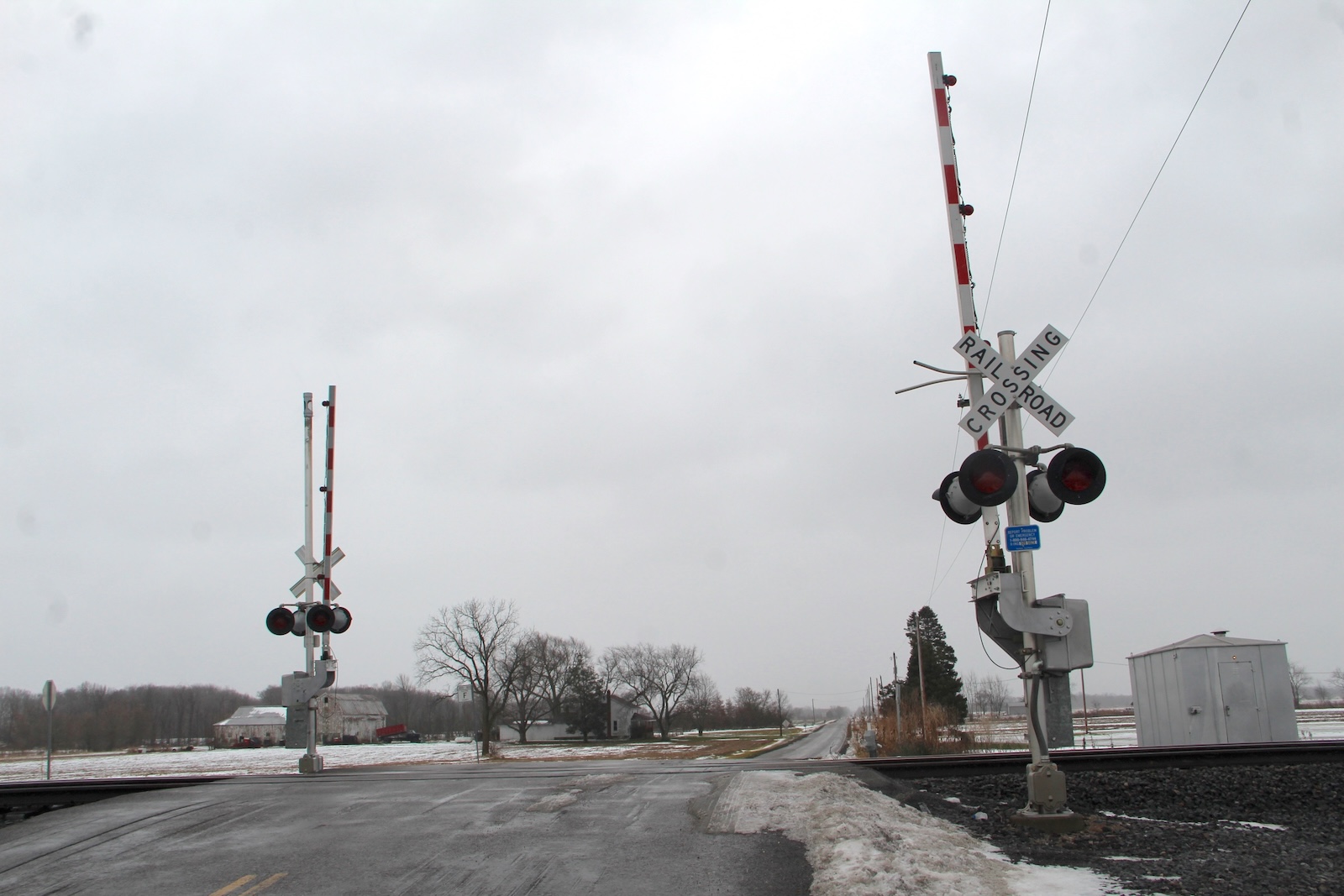

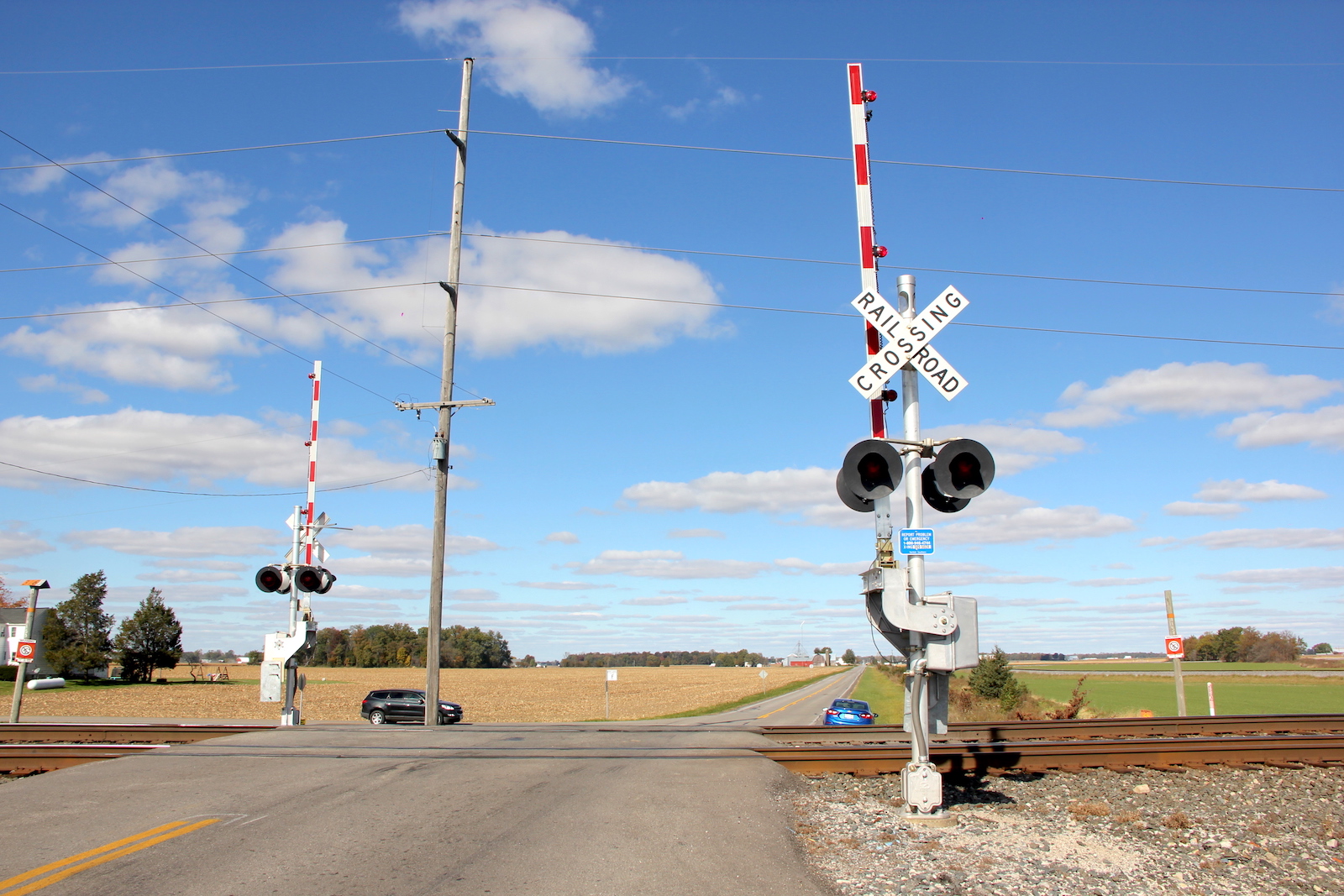

Overview of 2 gated signals facing south.

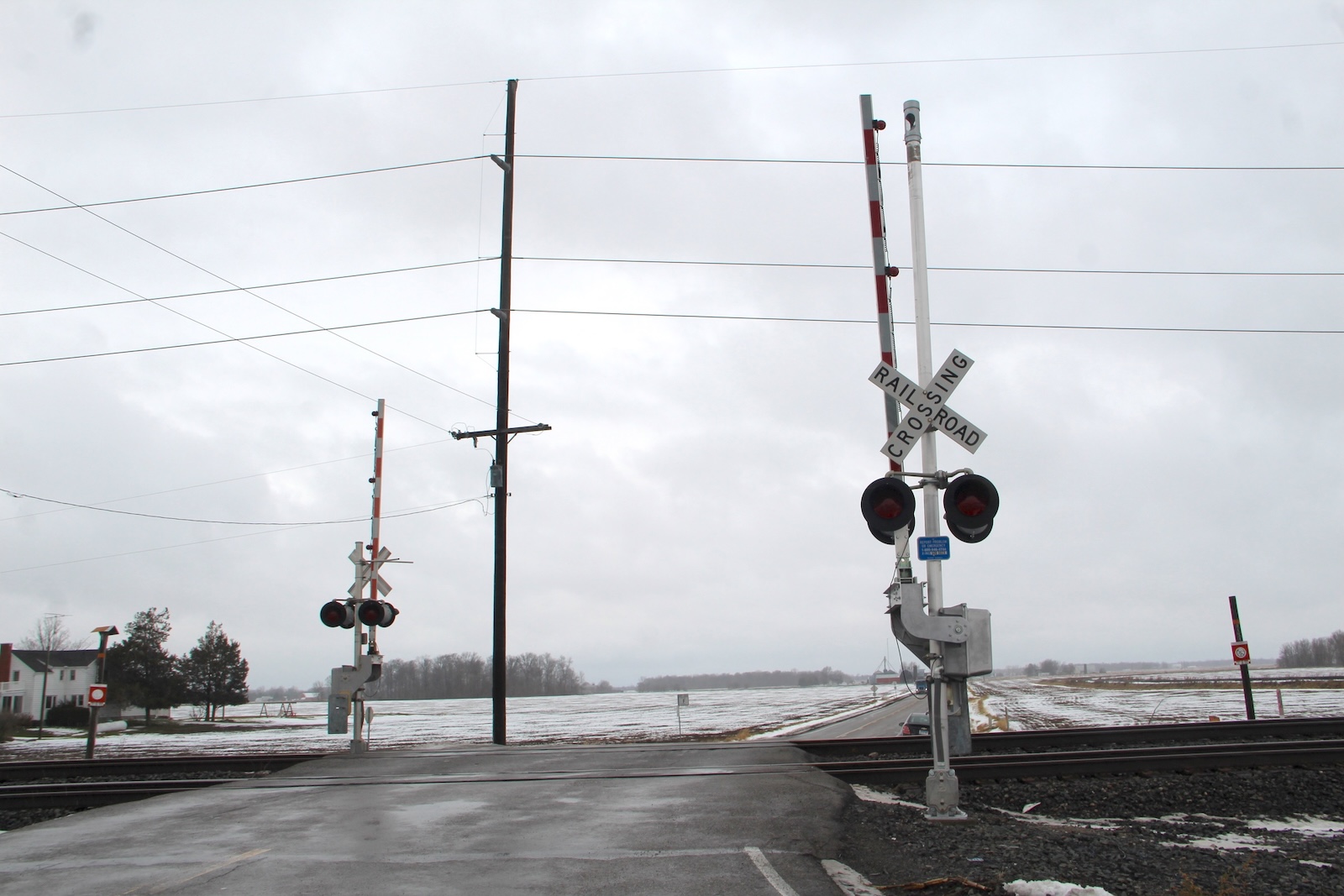

Overview facing north.
3 4 5
6 7 8
9 10 11

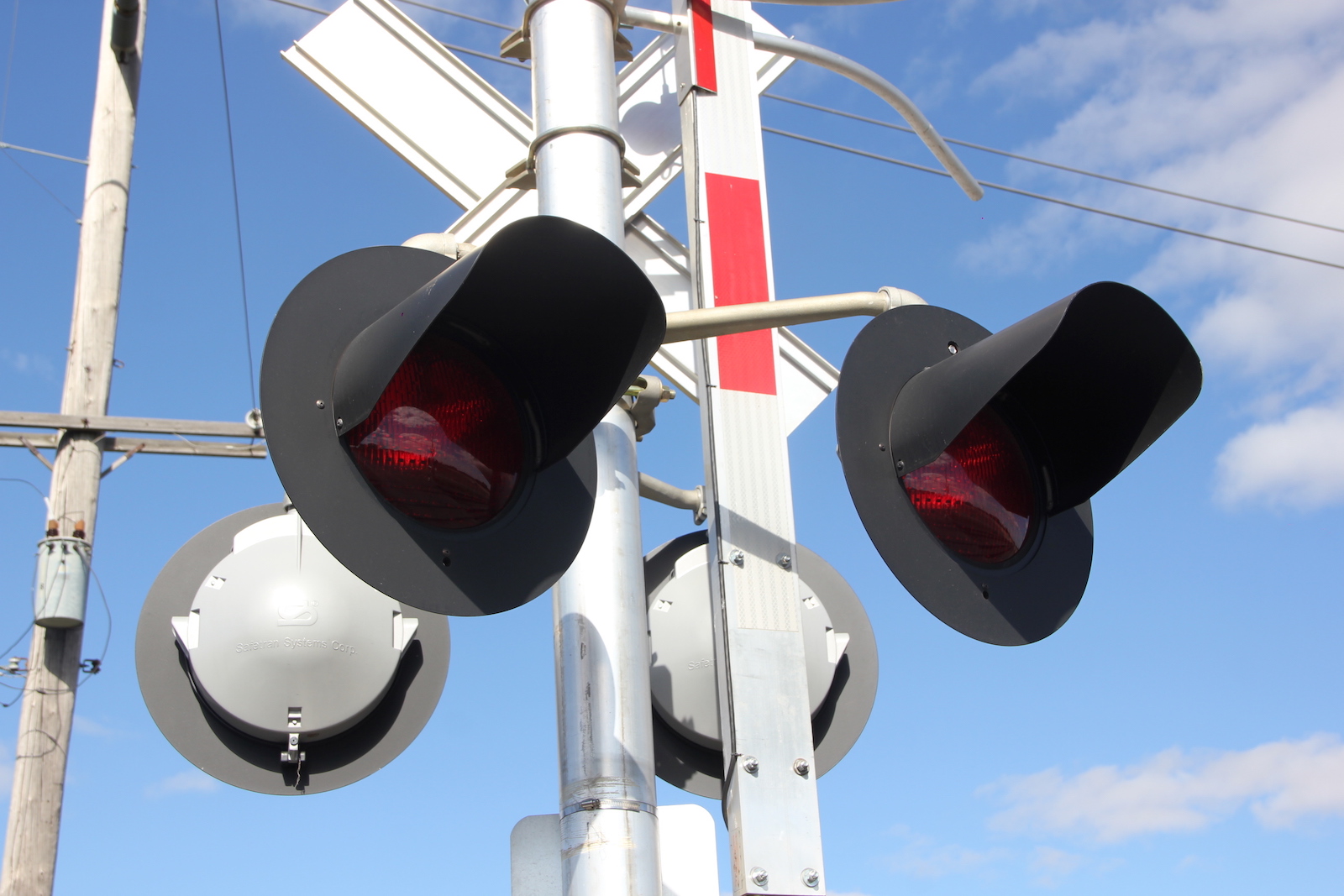

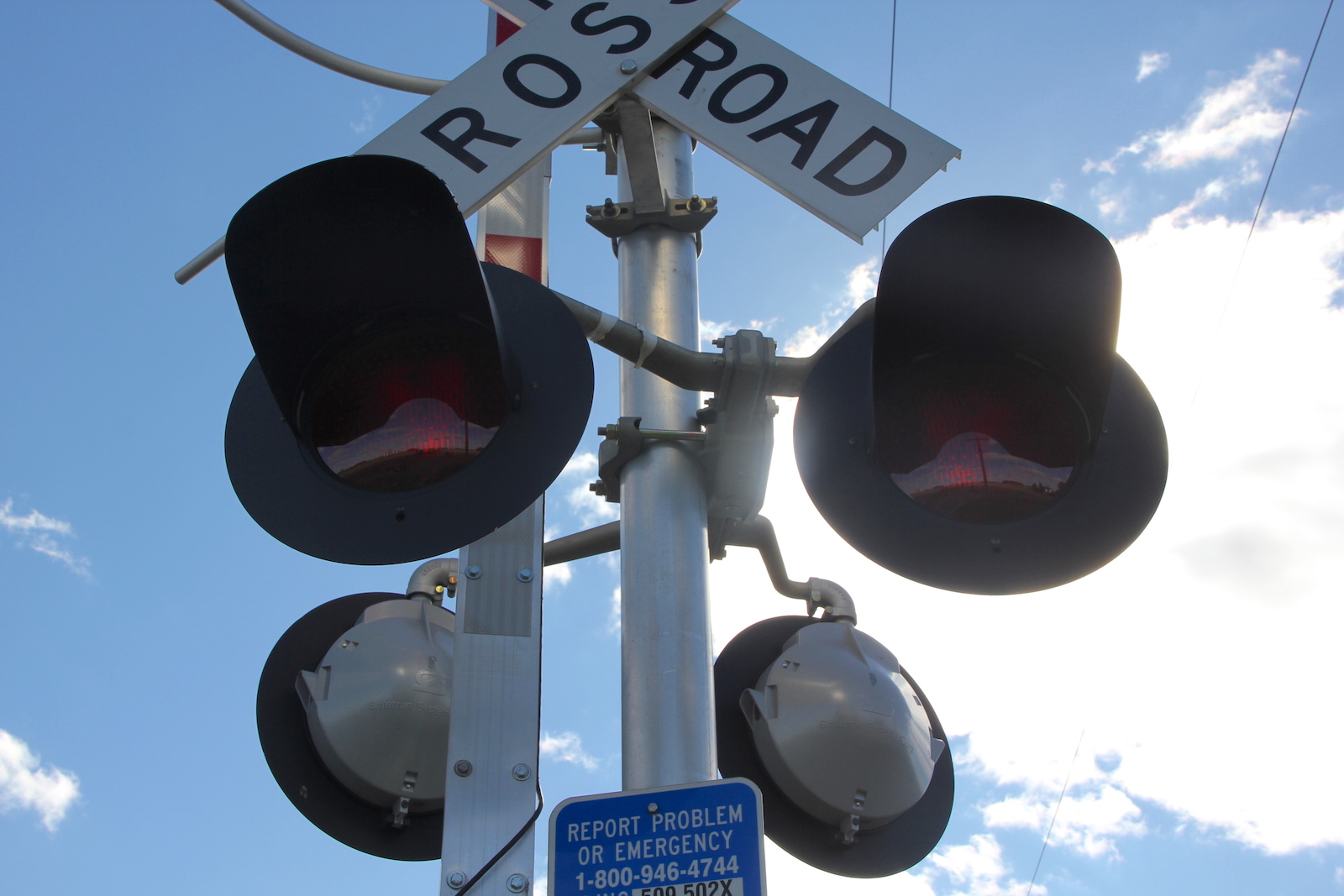

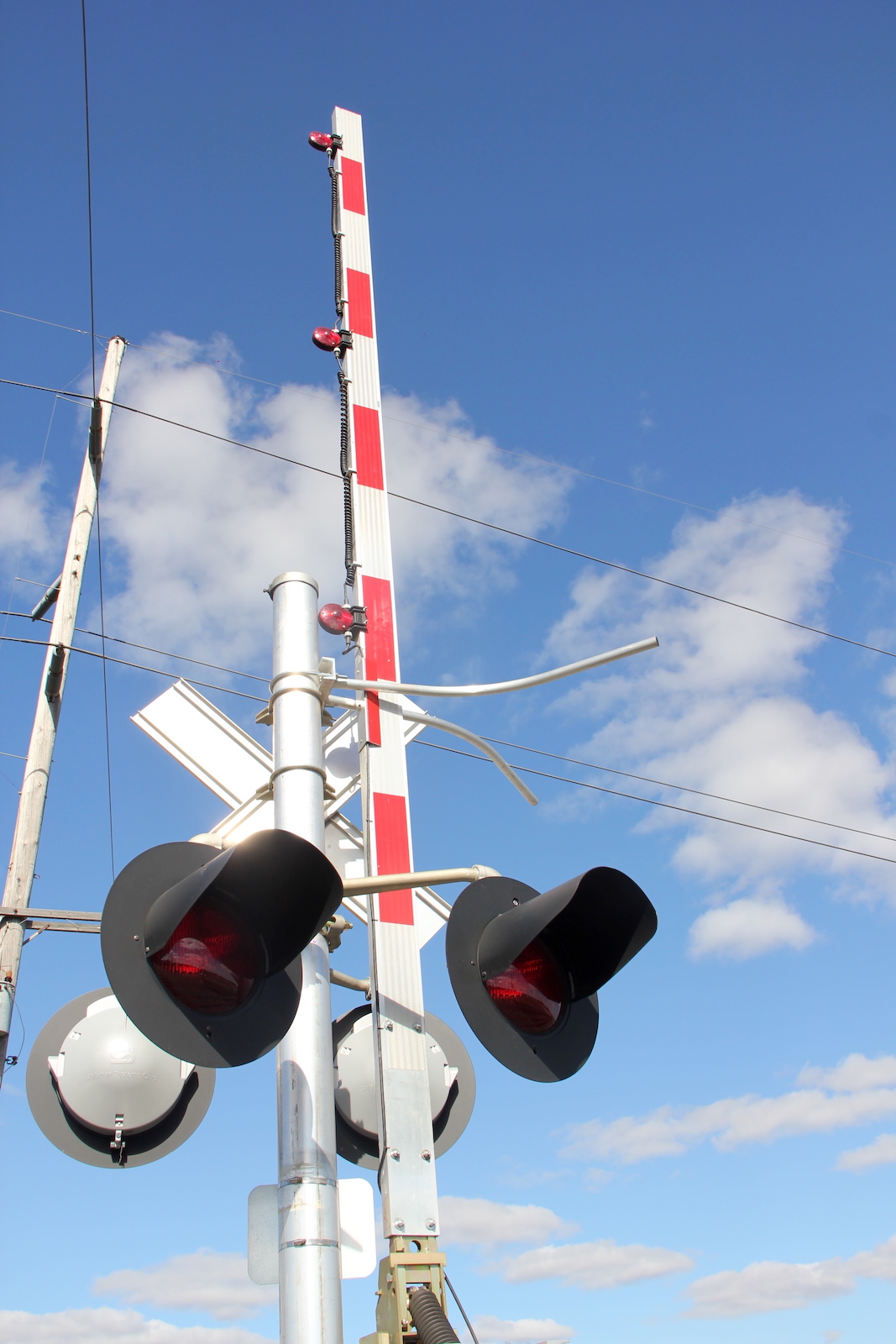

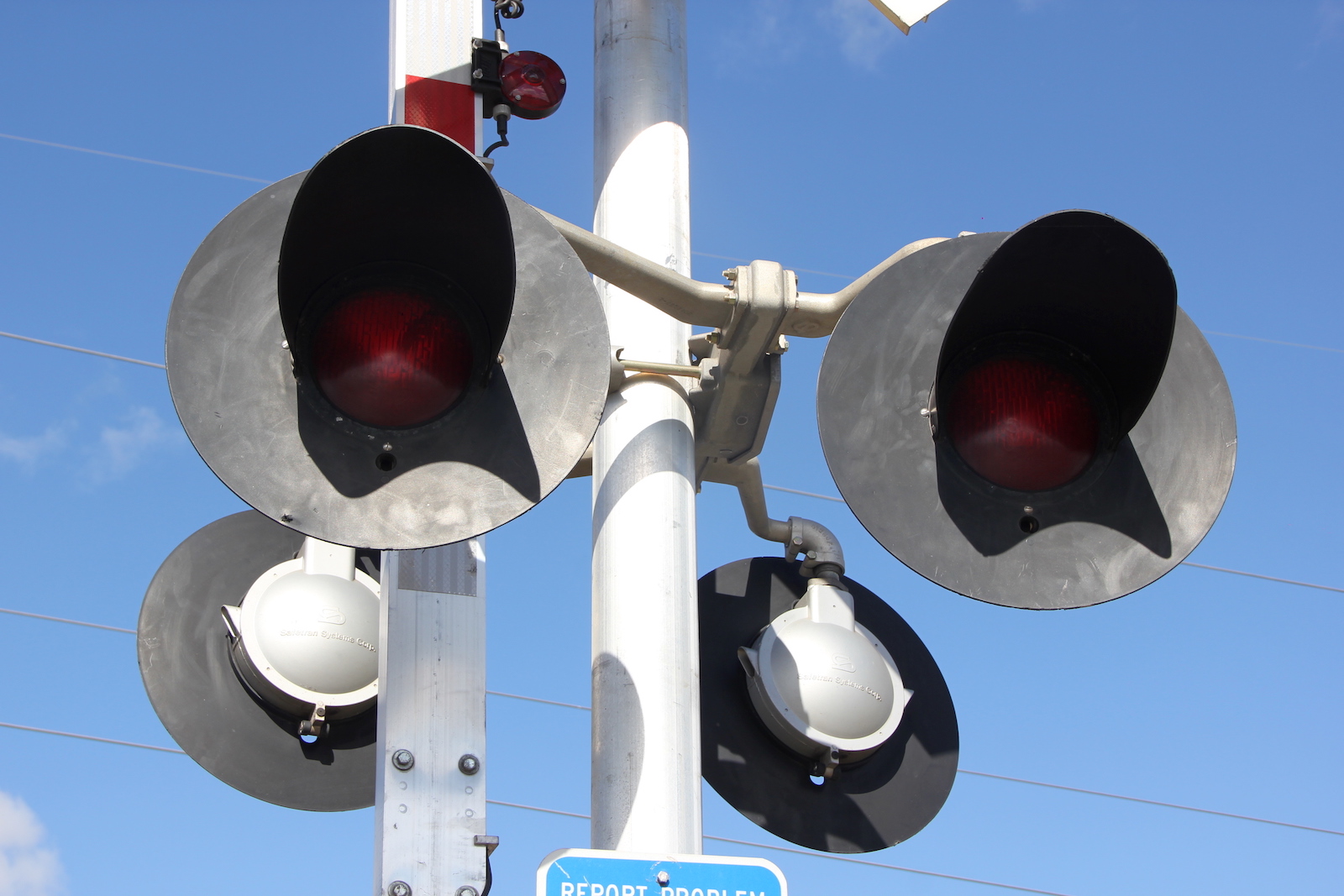

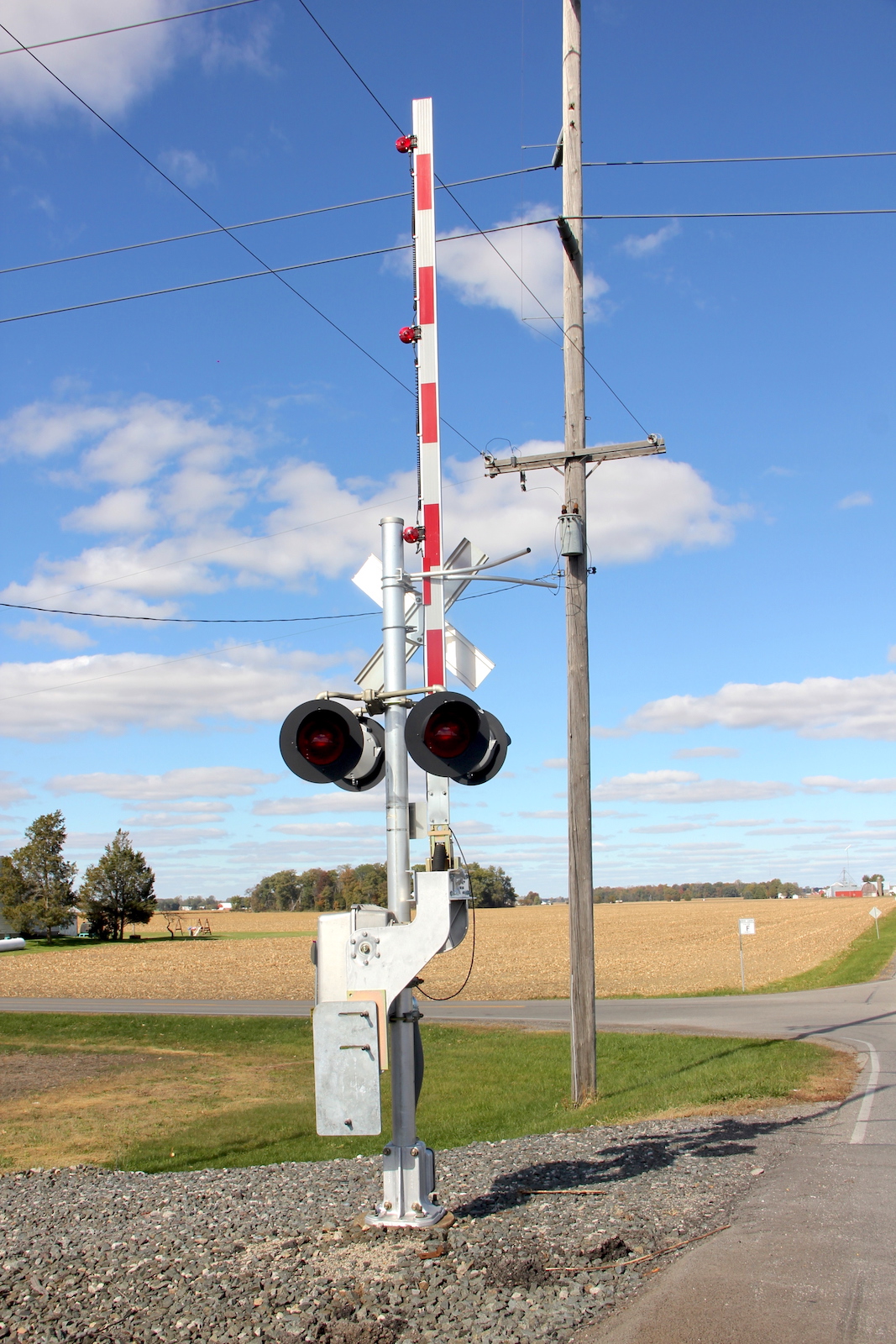

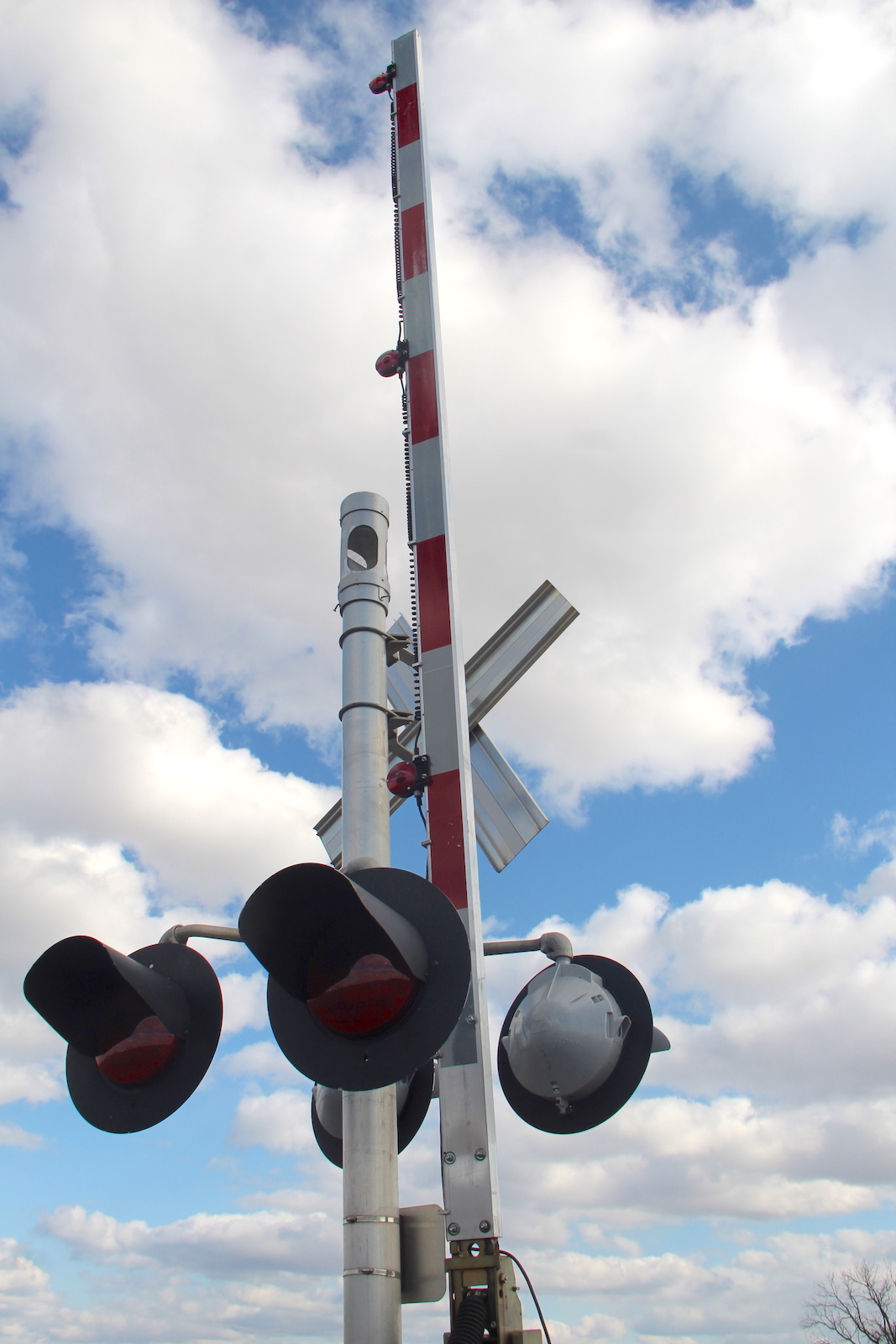

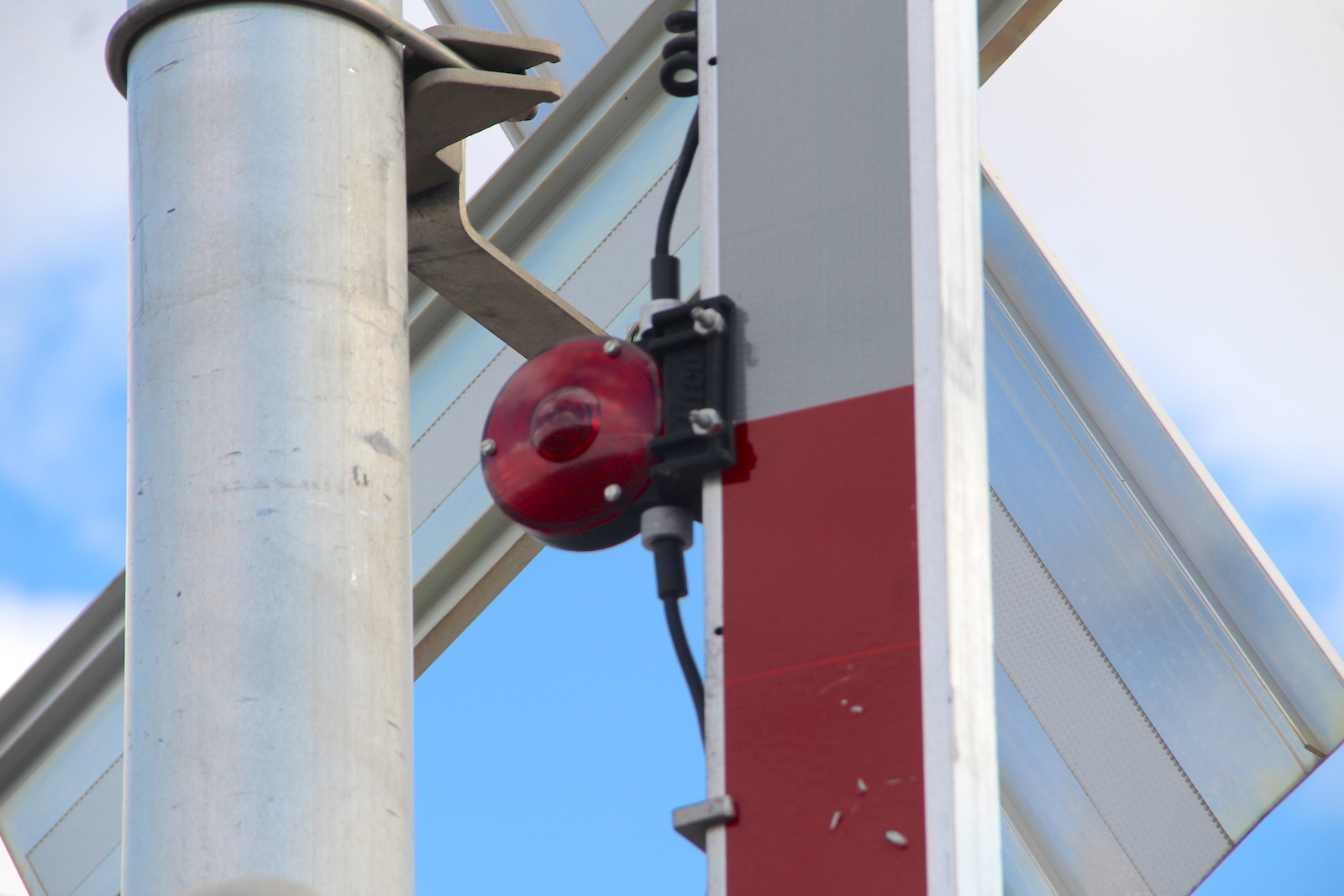

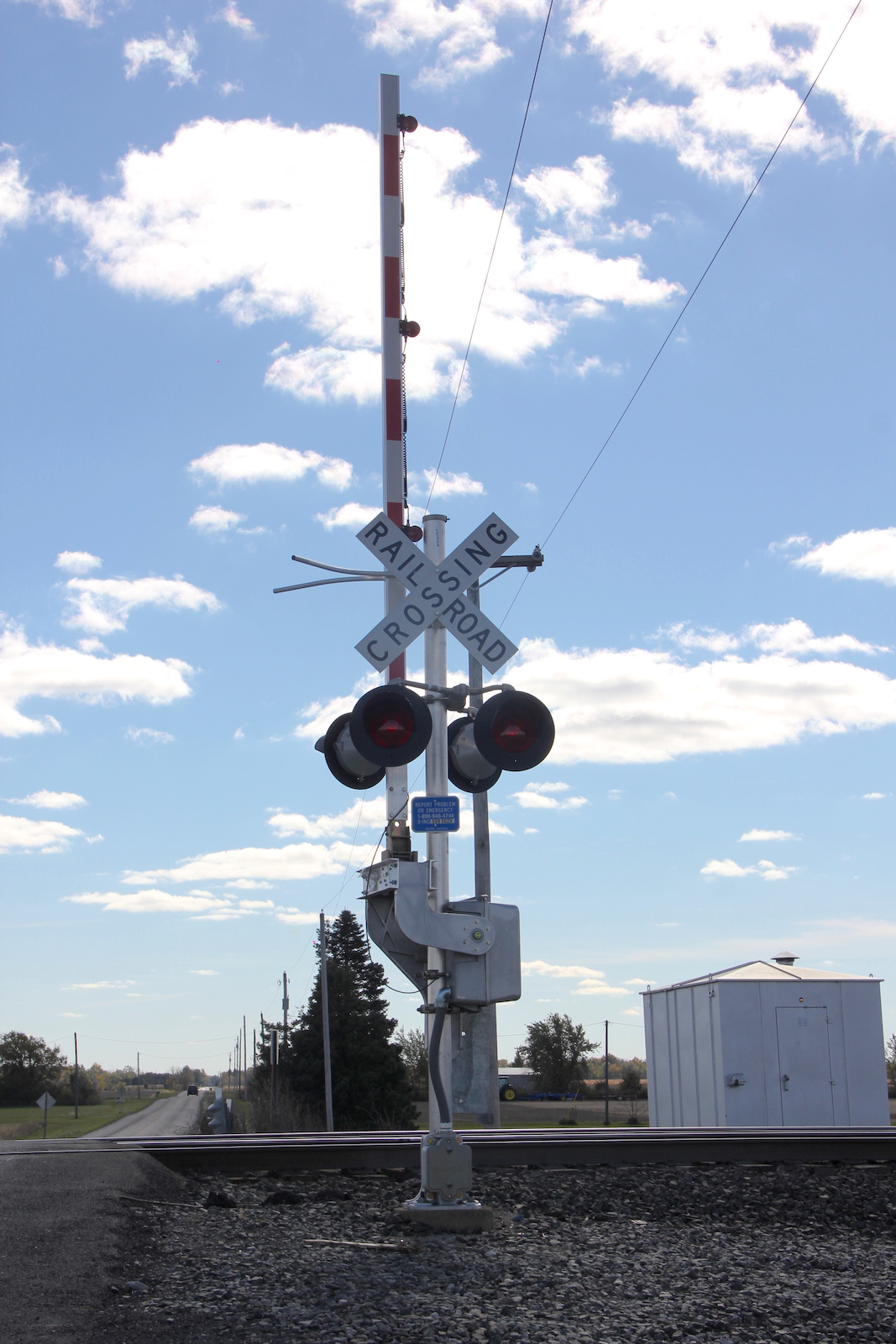

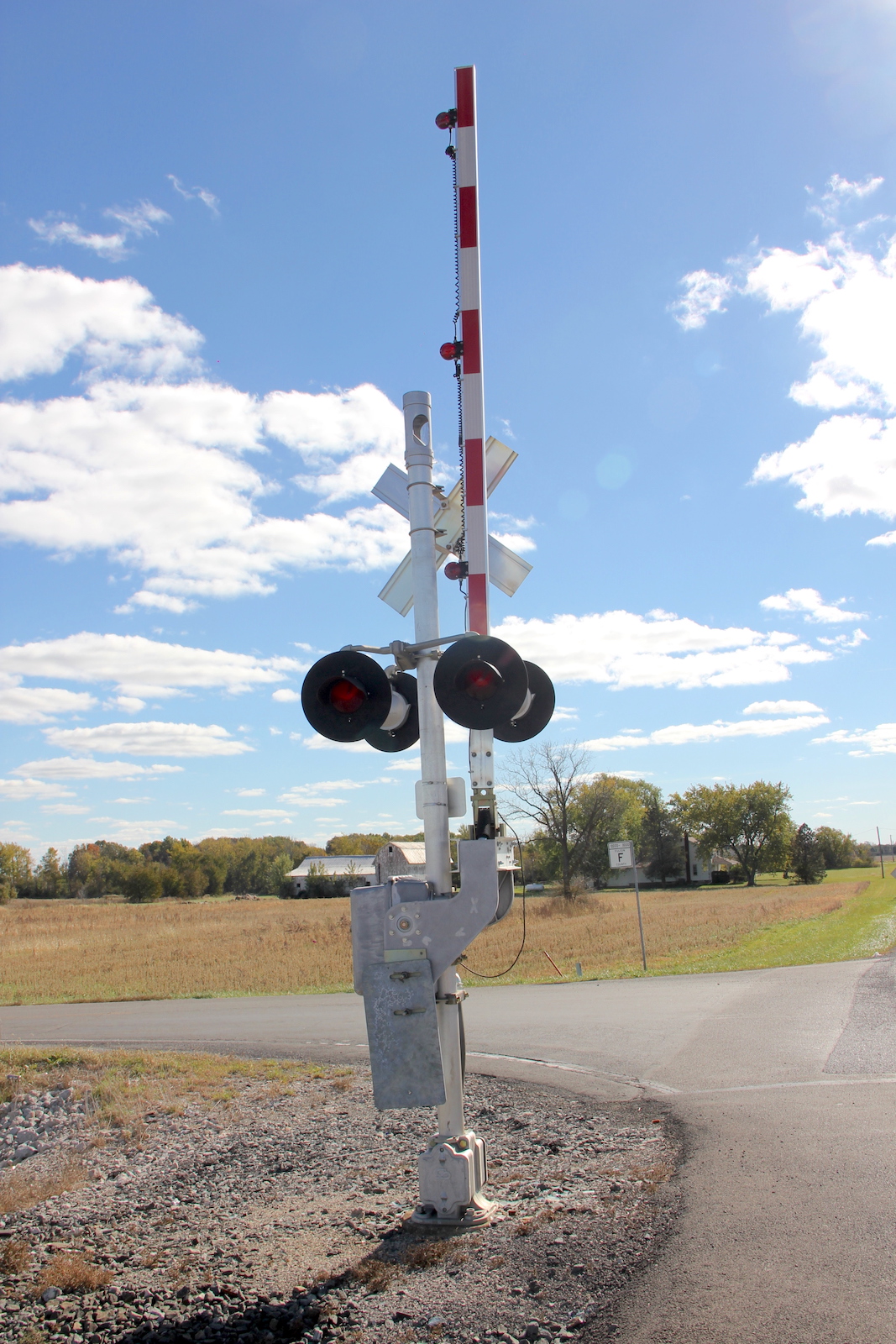

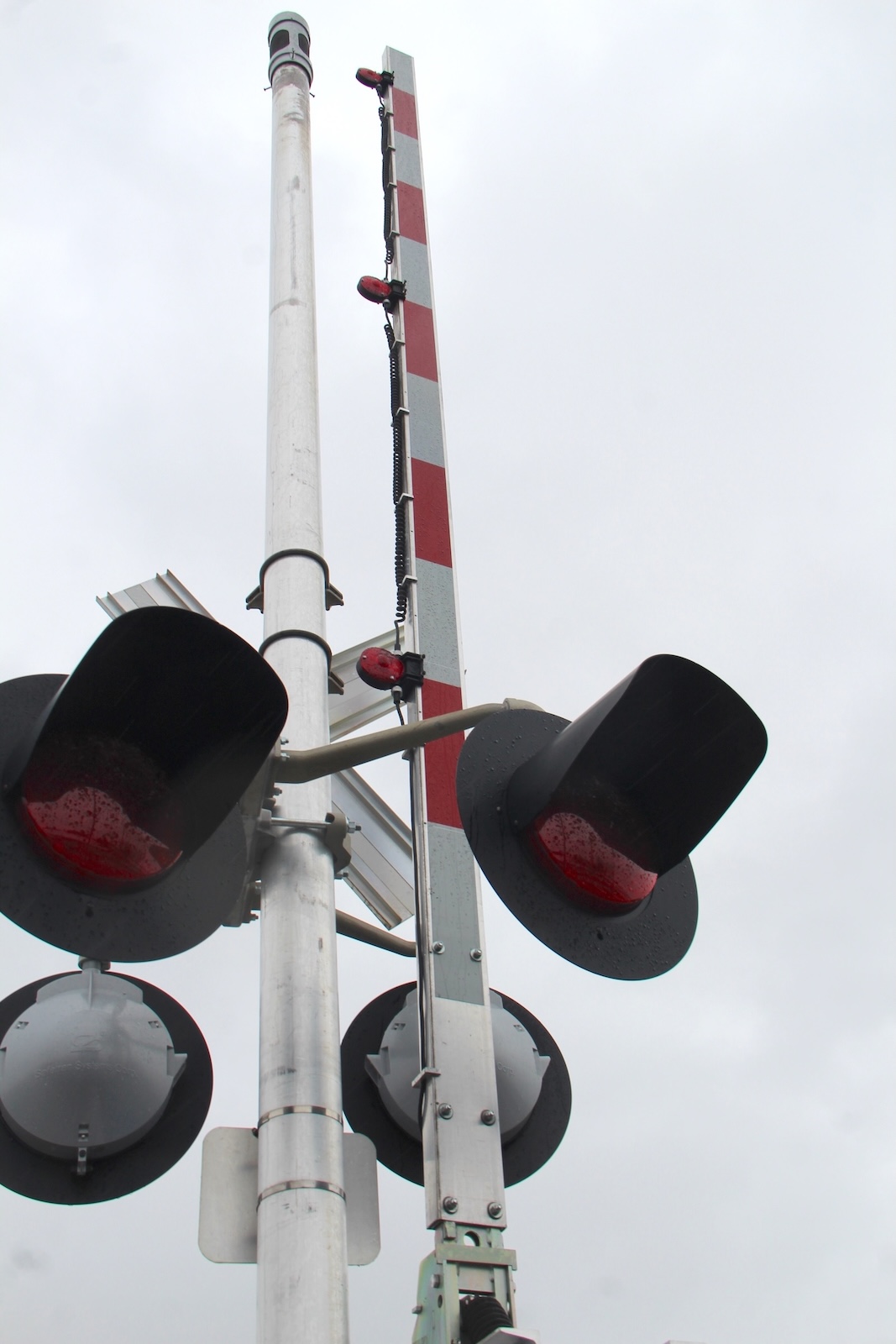

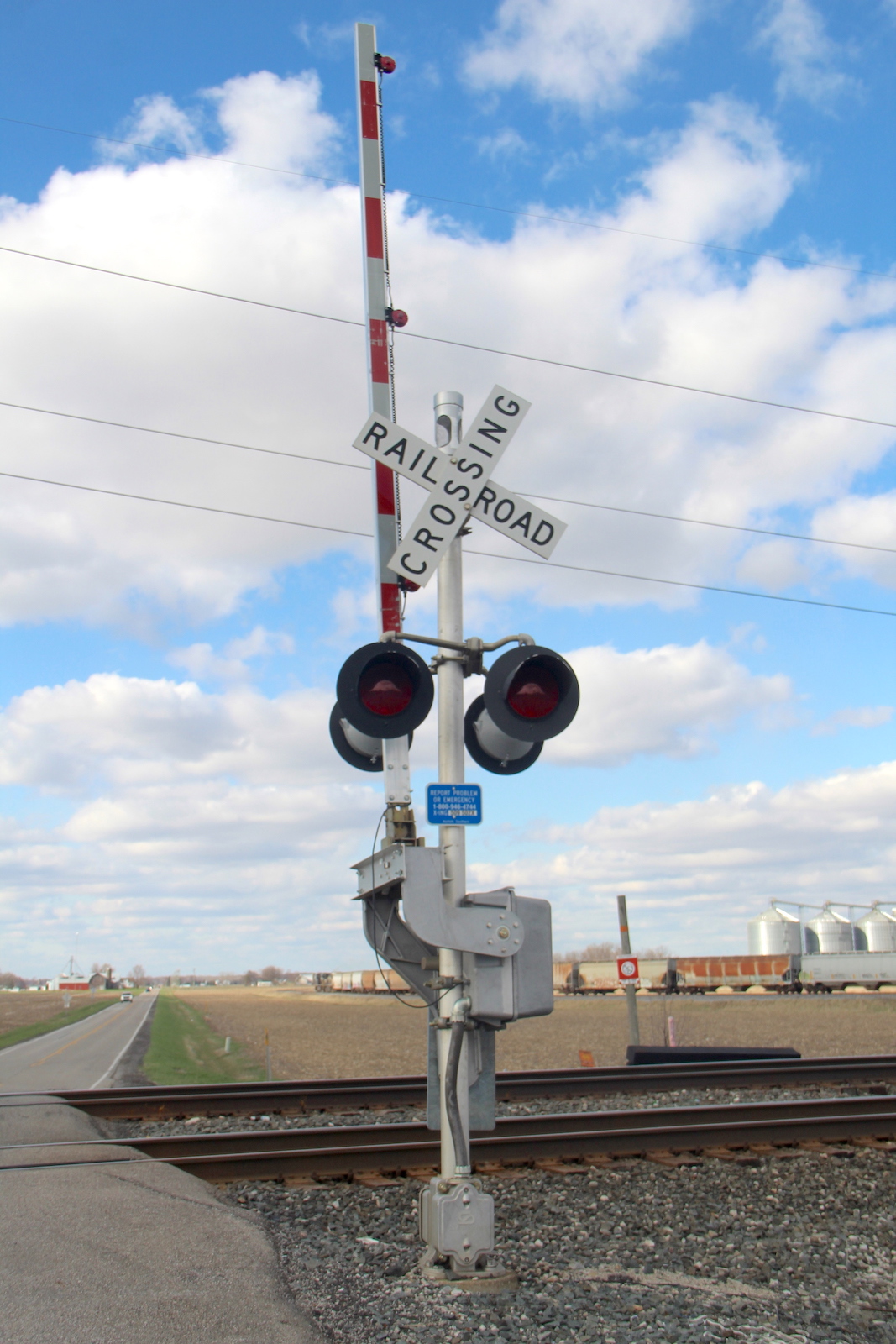

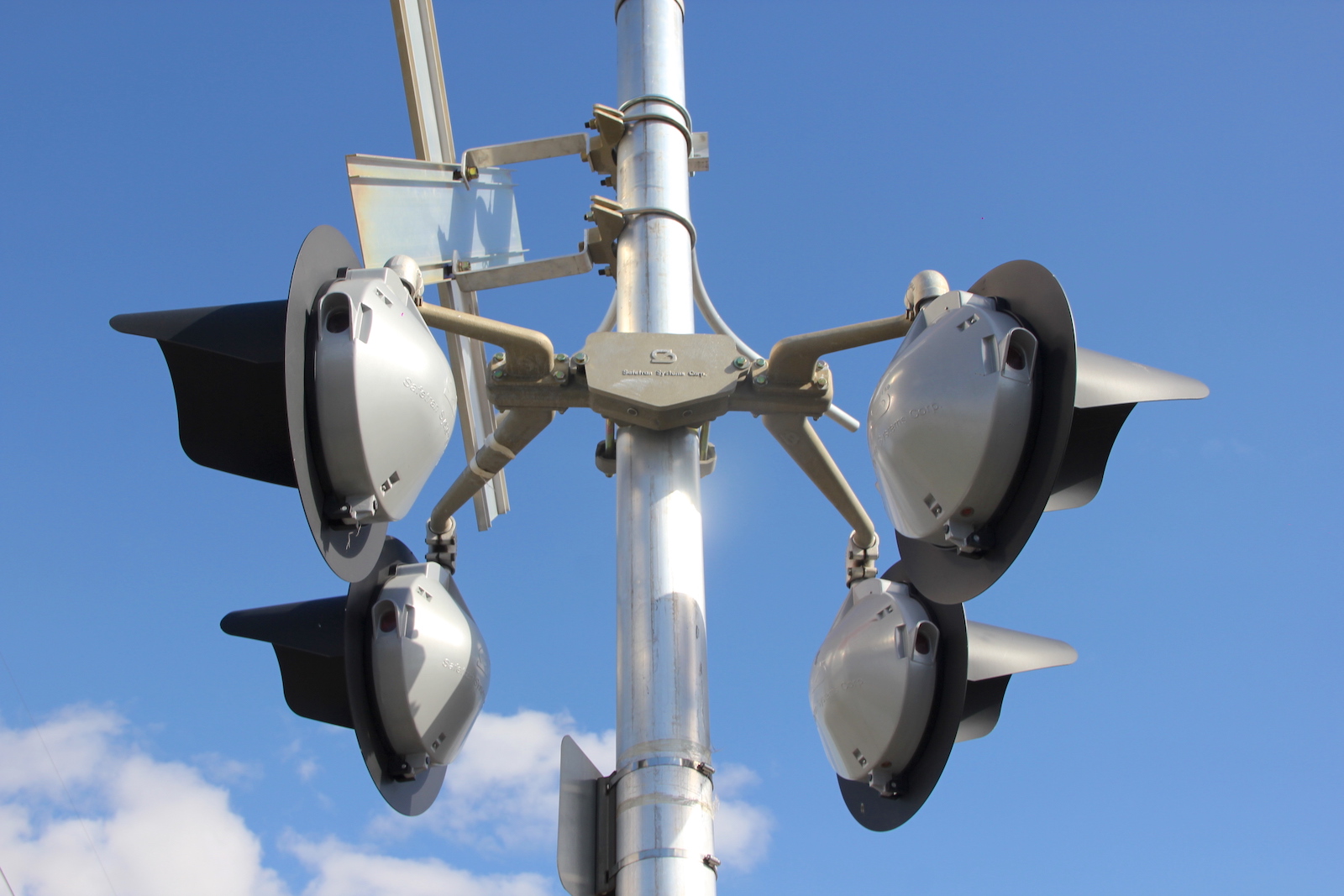

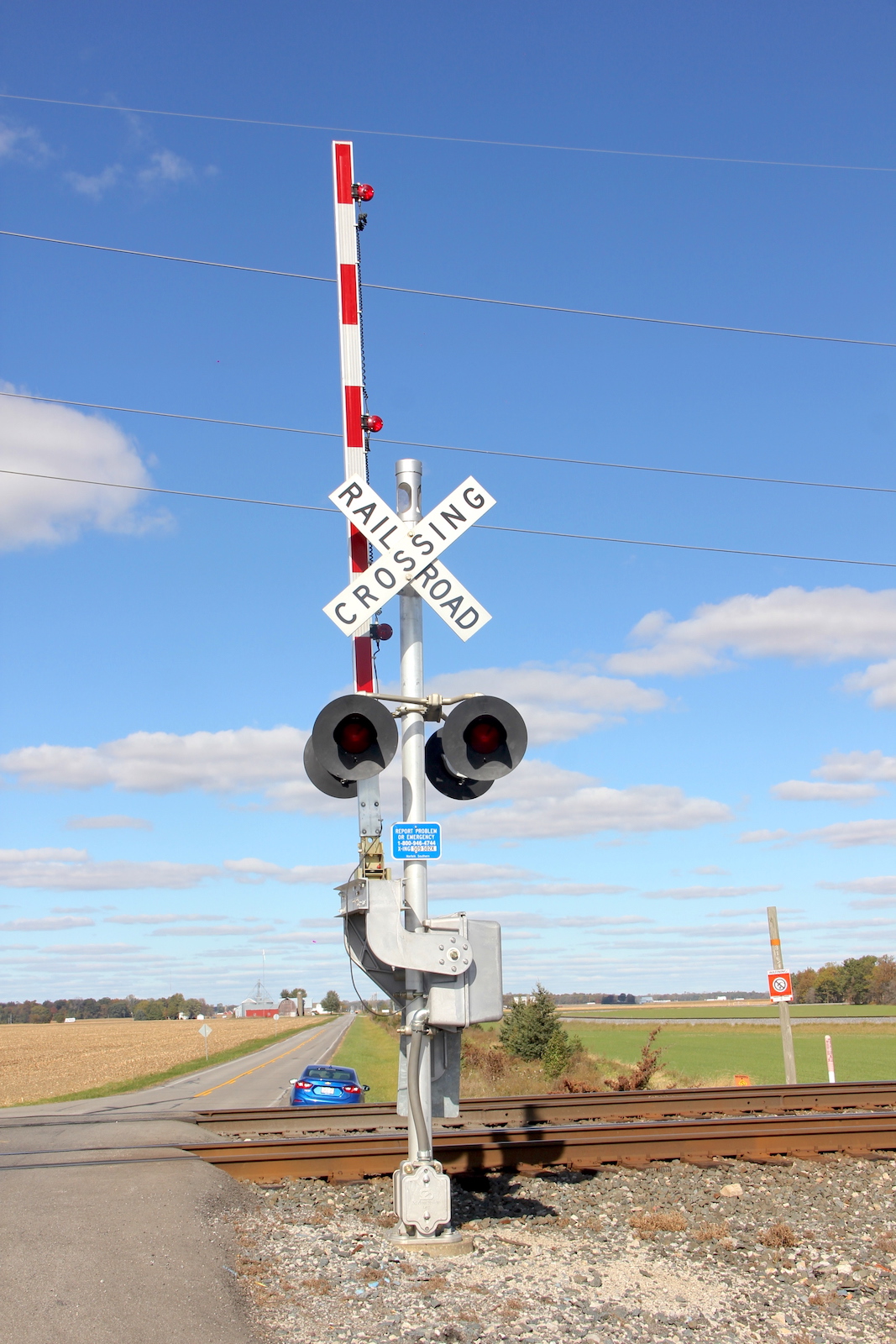

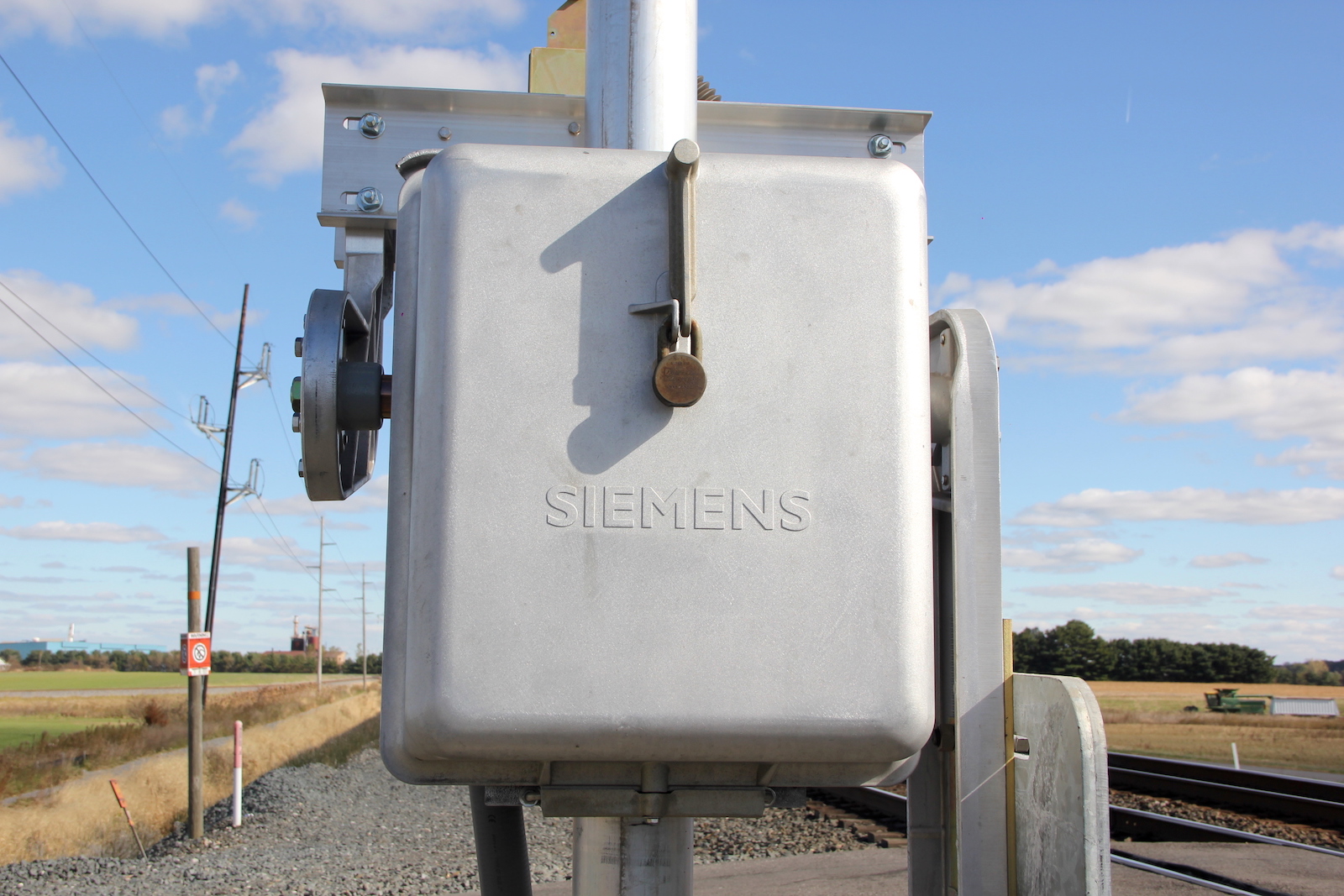

The northern signal.
12 13 14
15 16 17
18 19 20
21

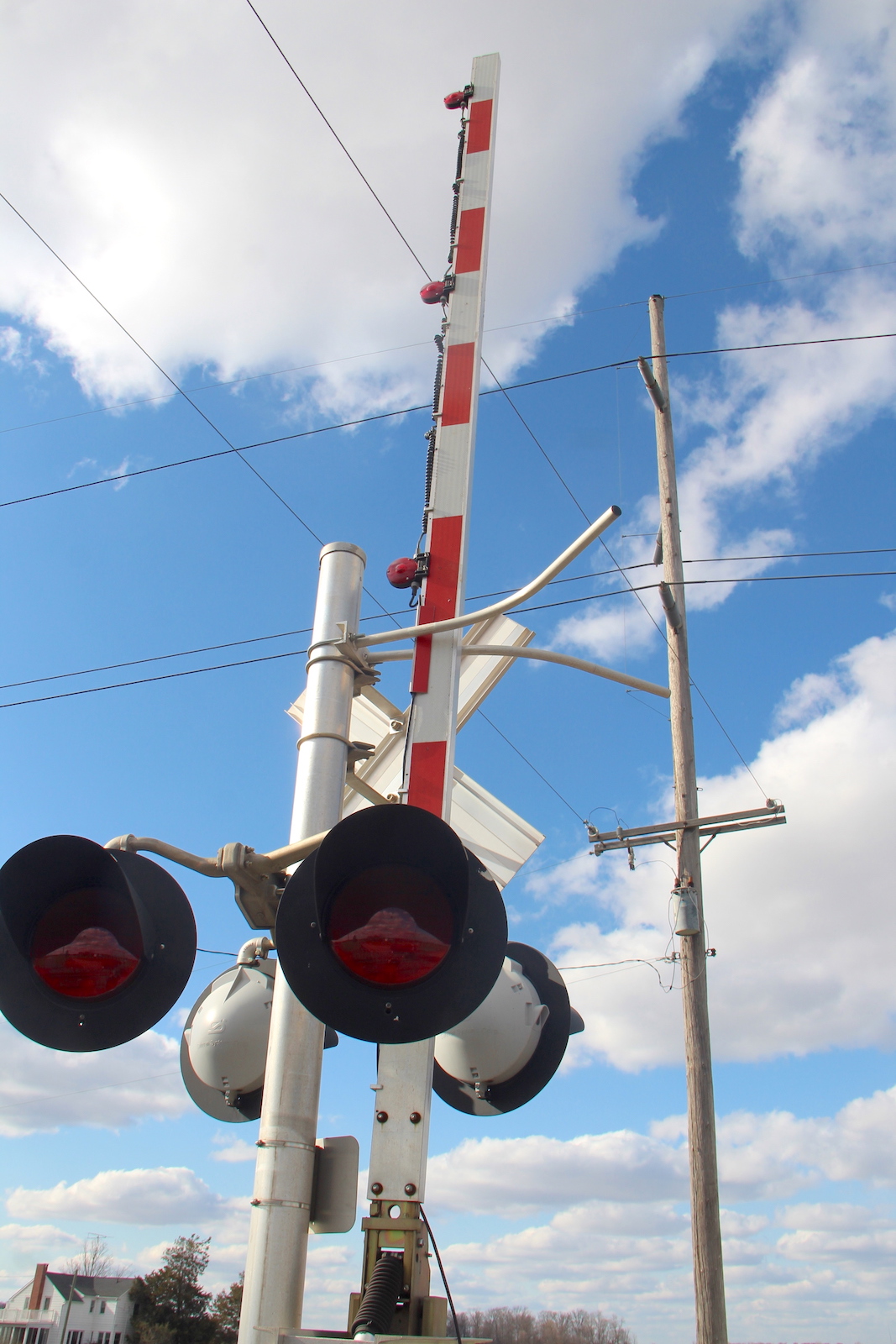

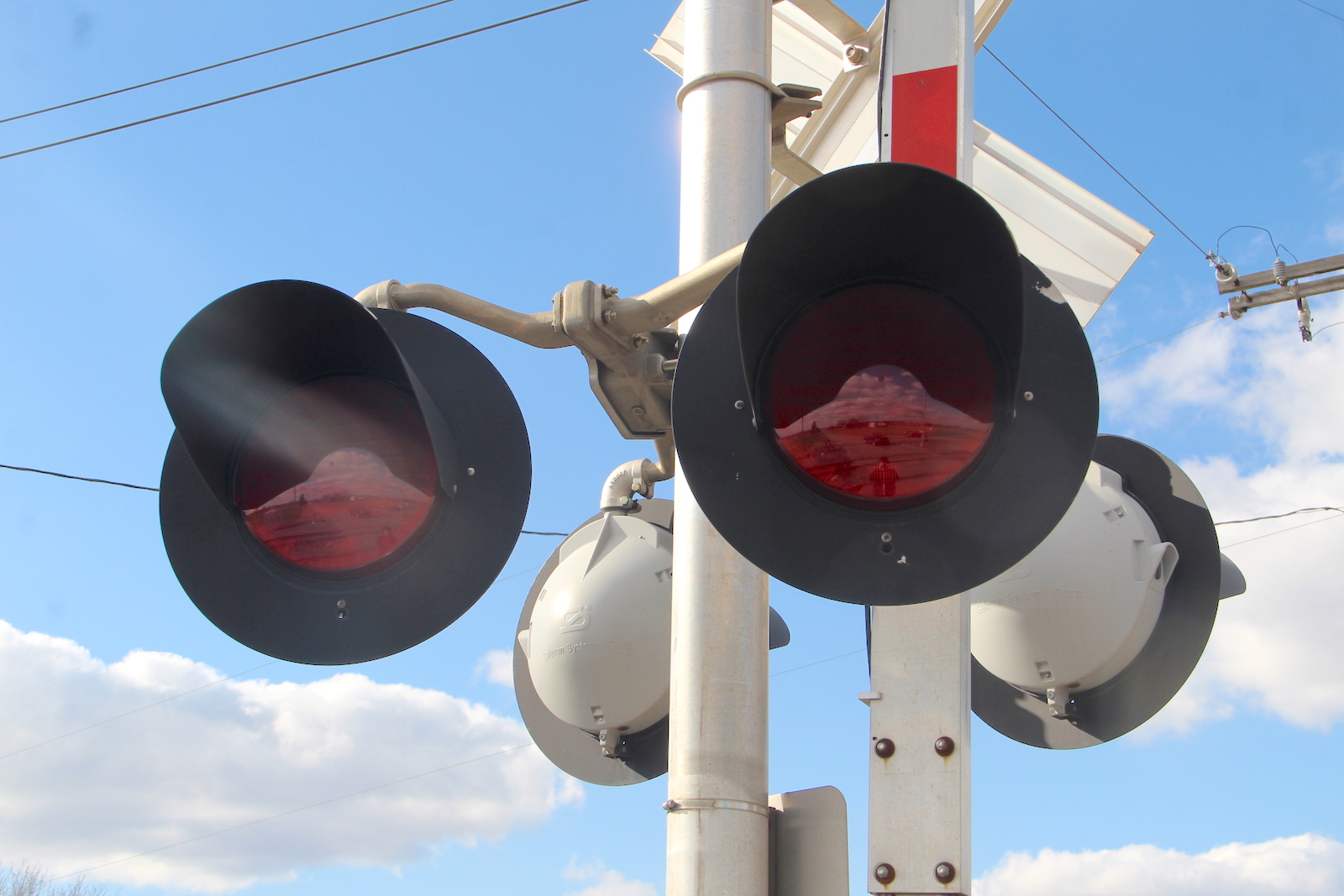

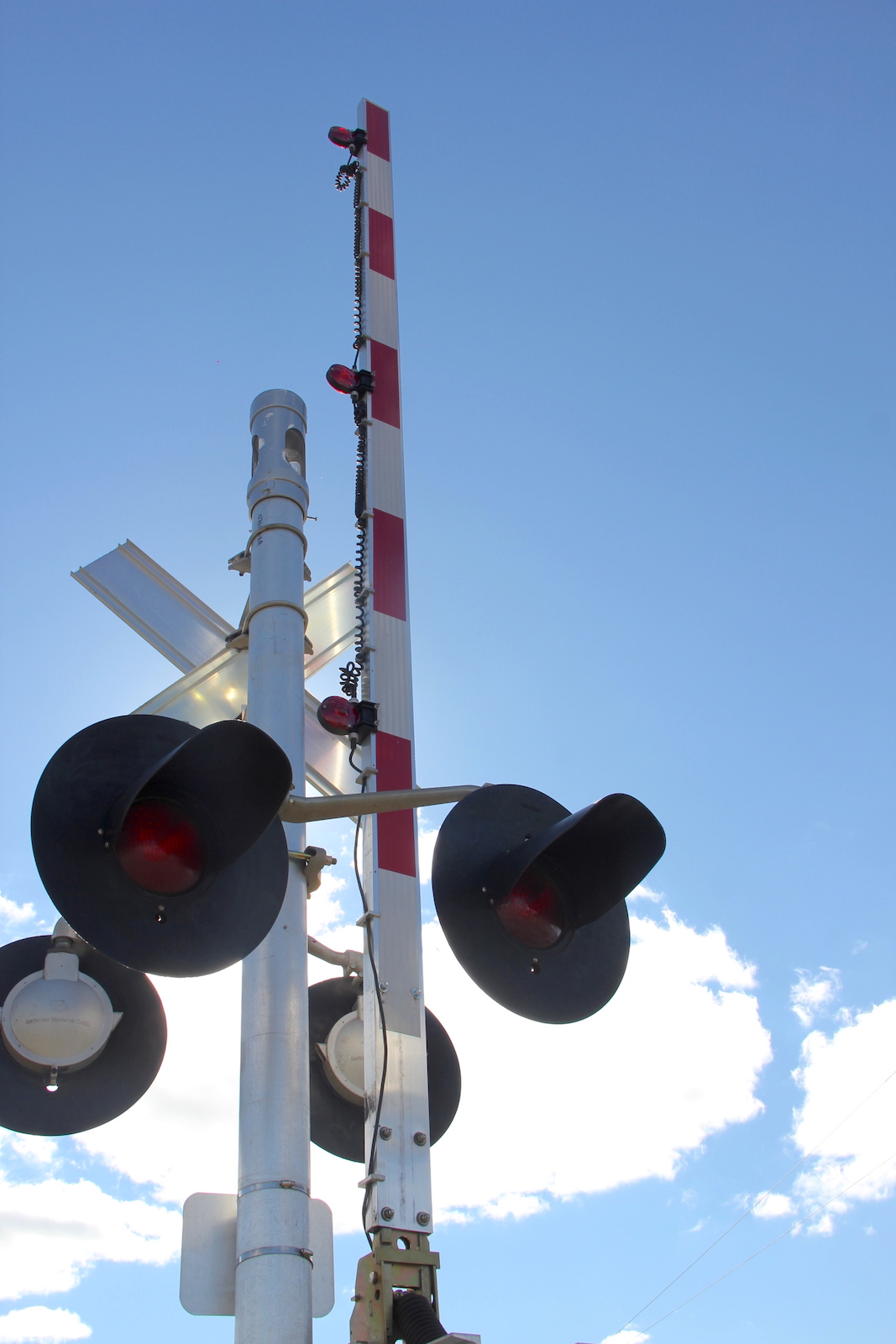

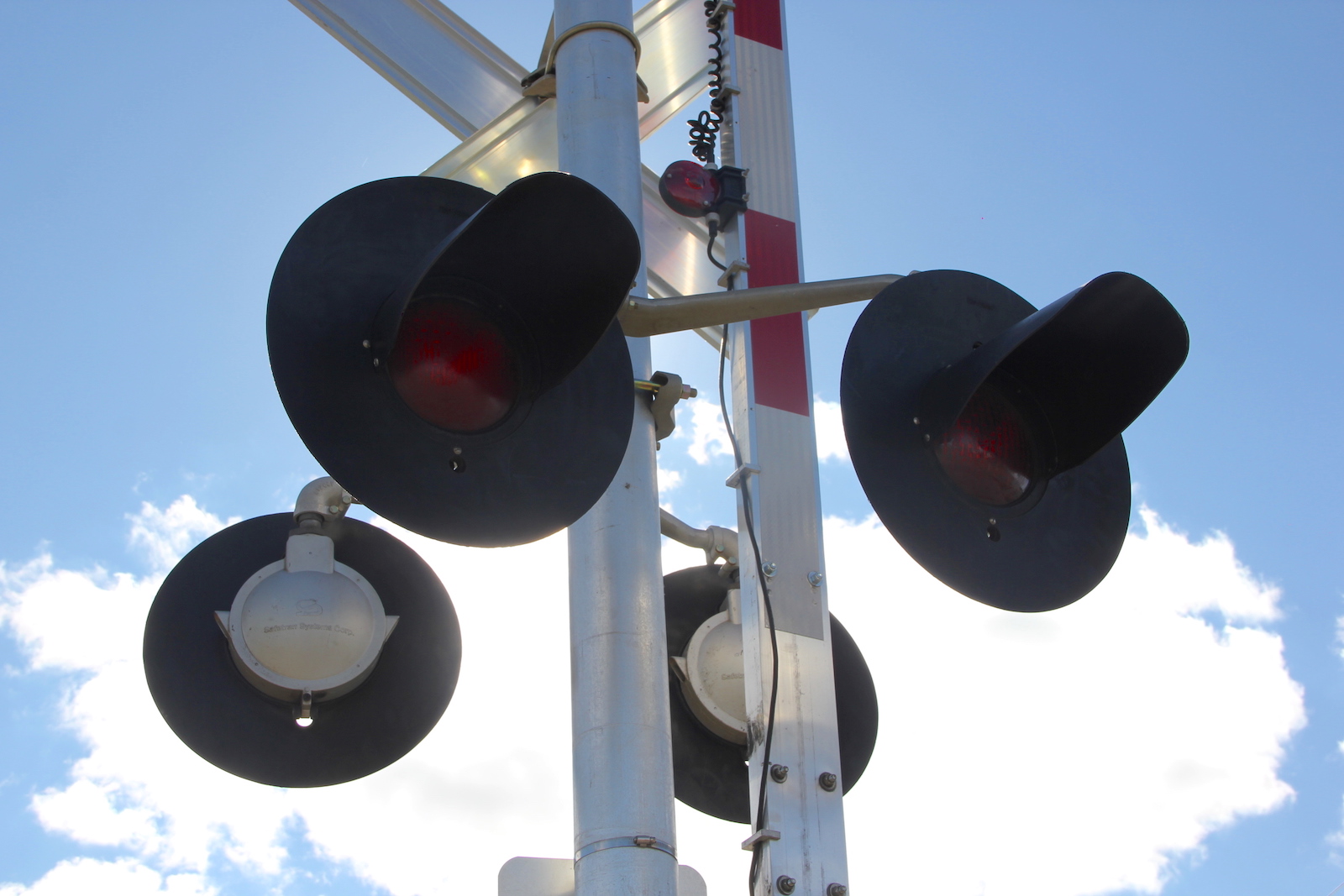

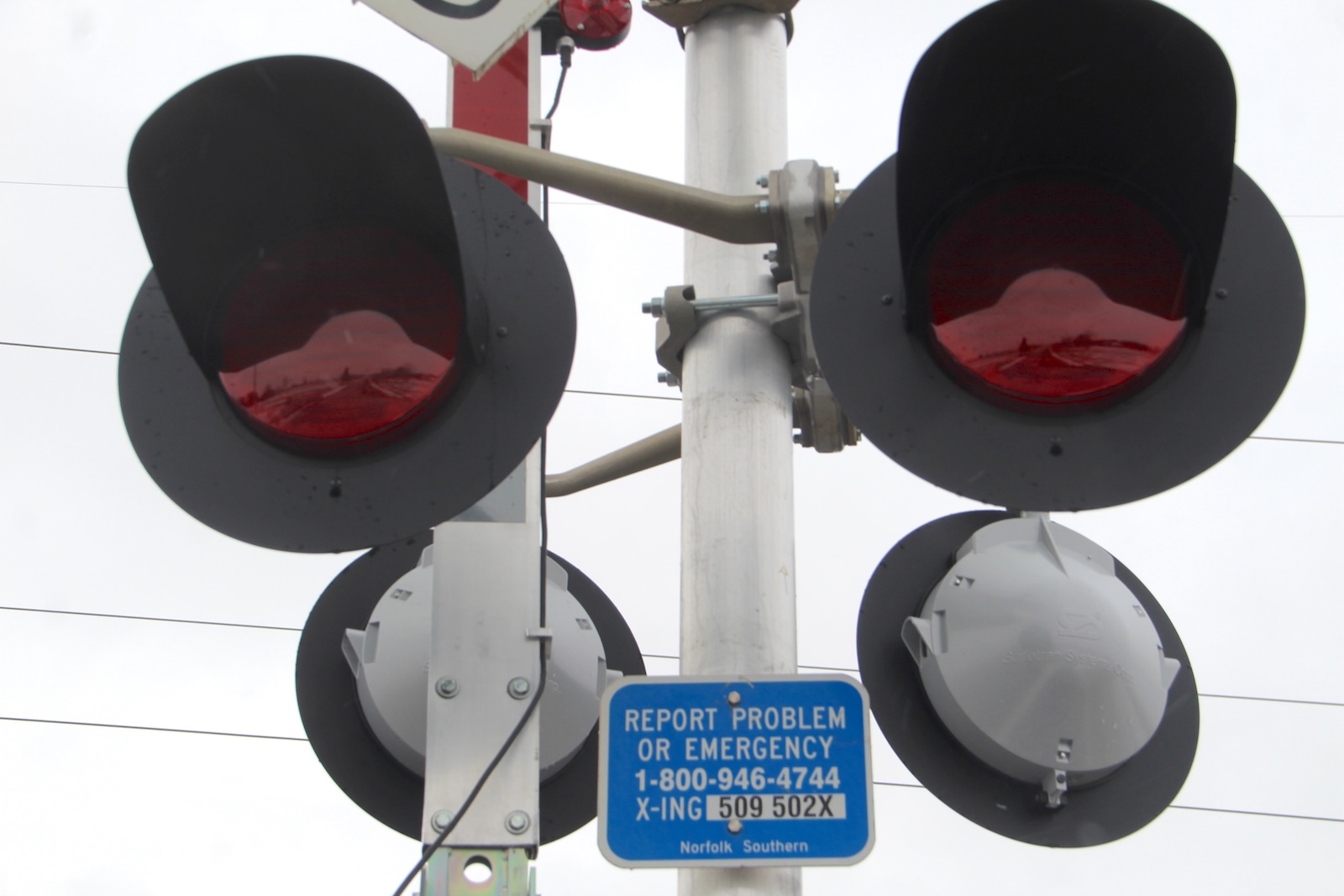

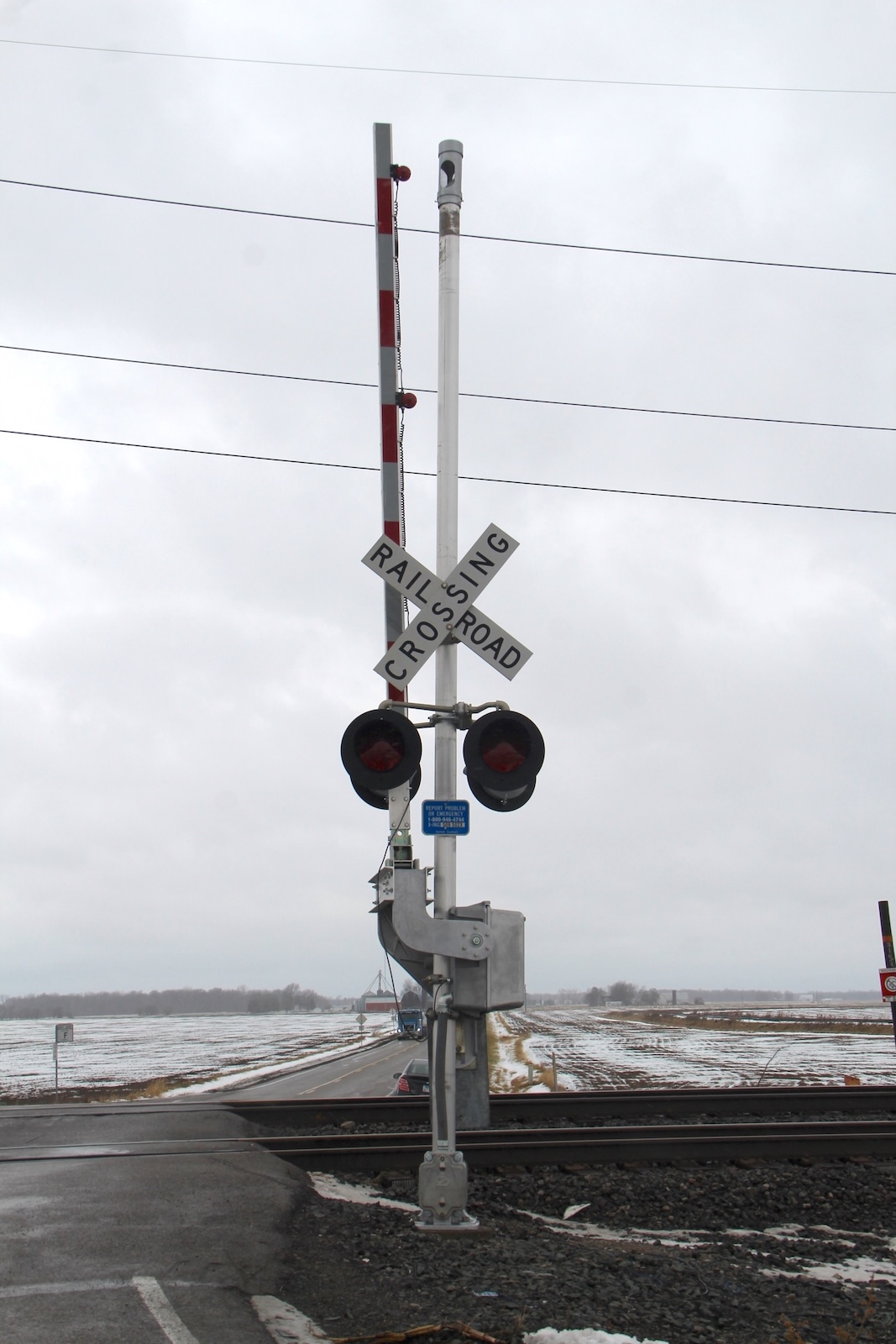

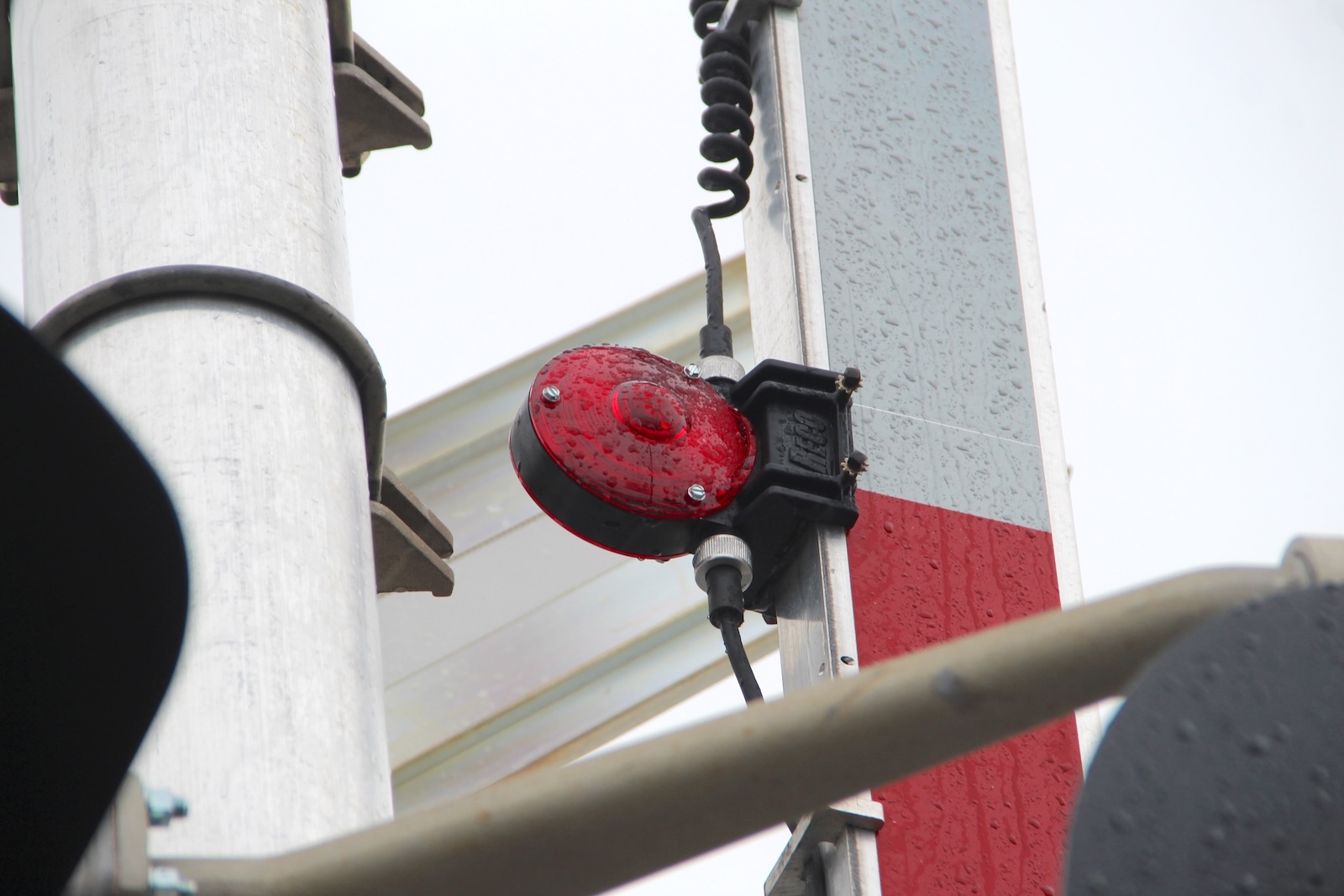

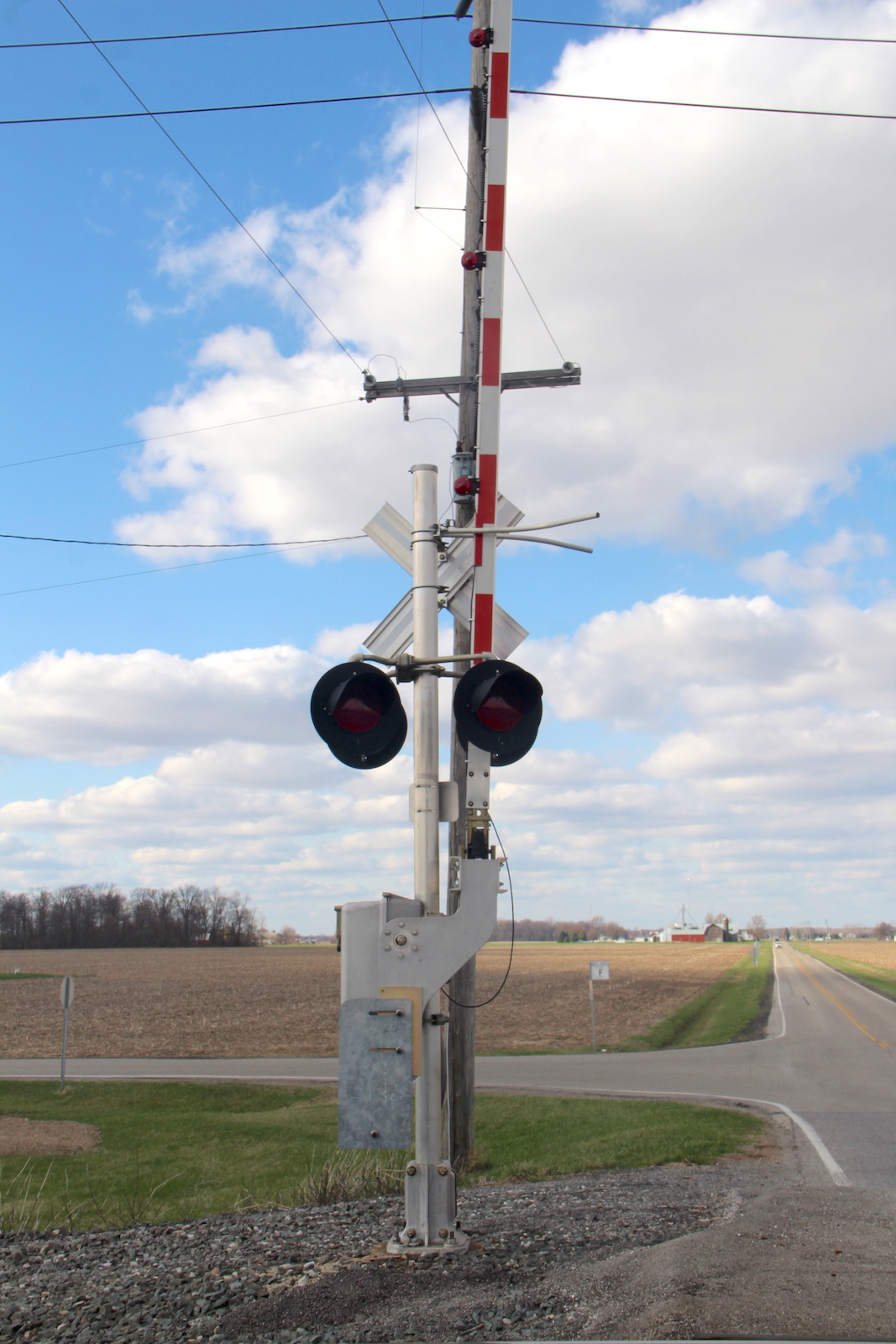

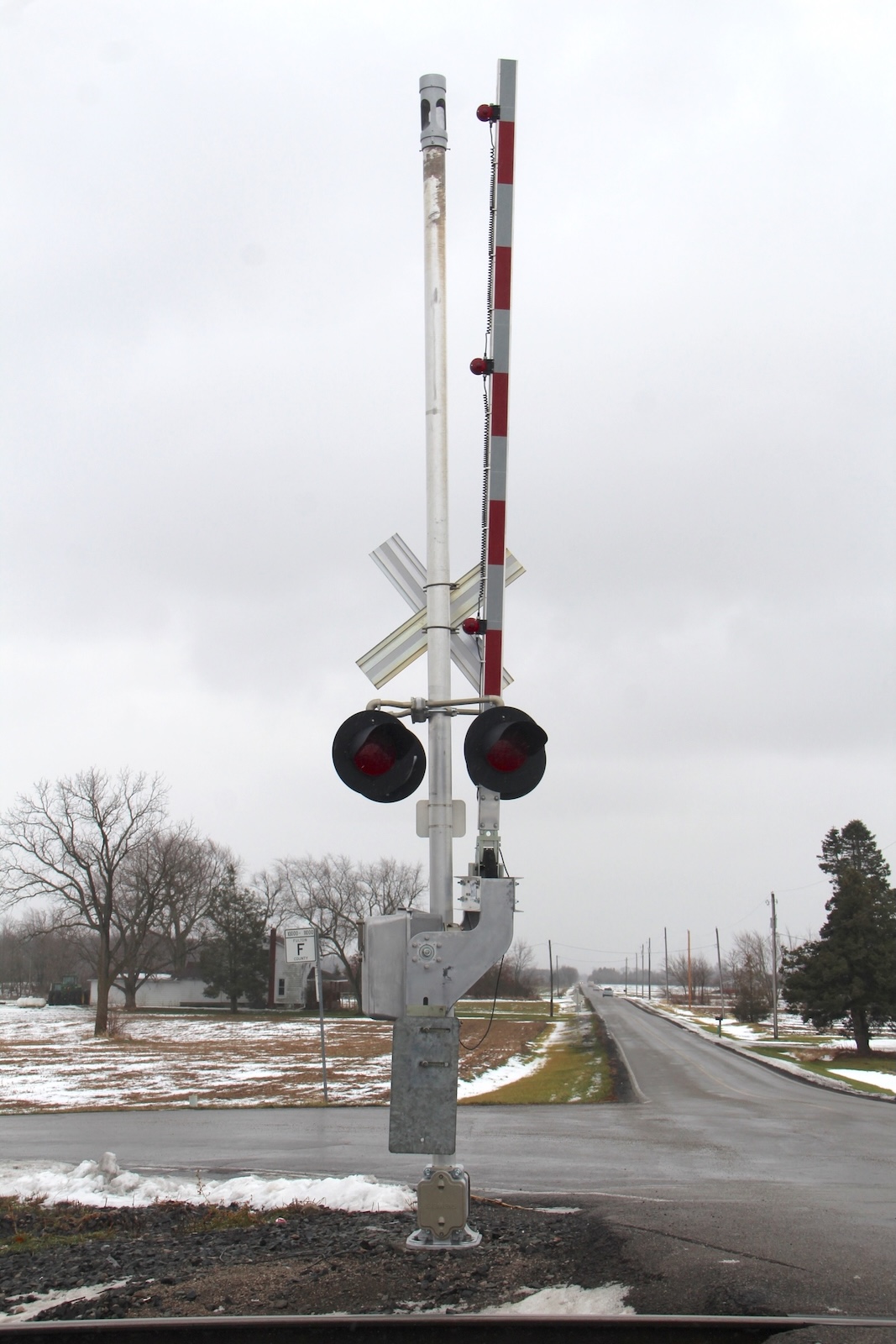

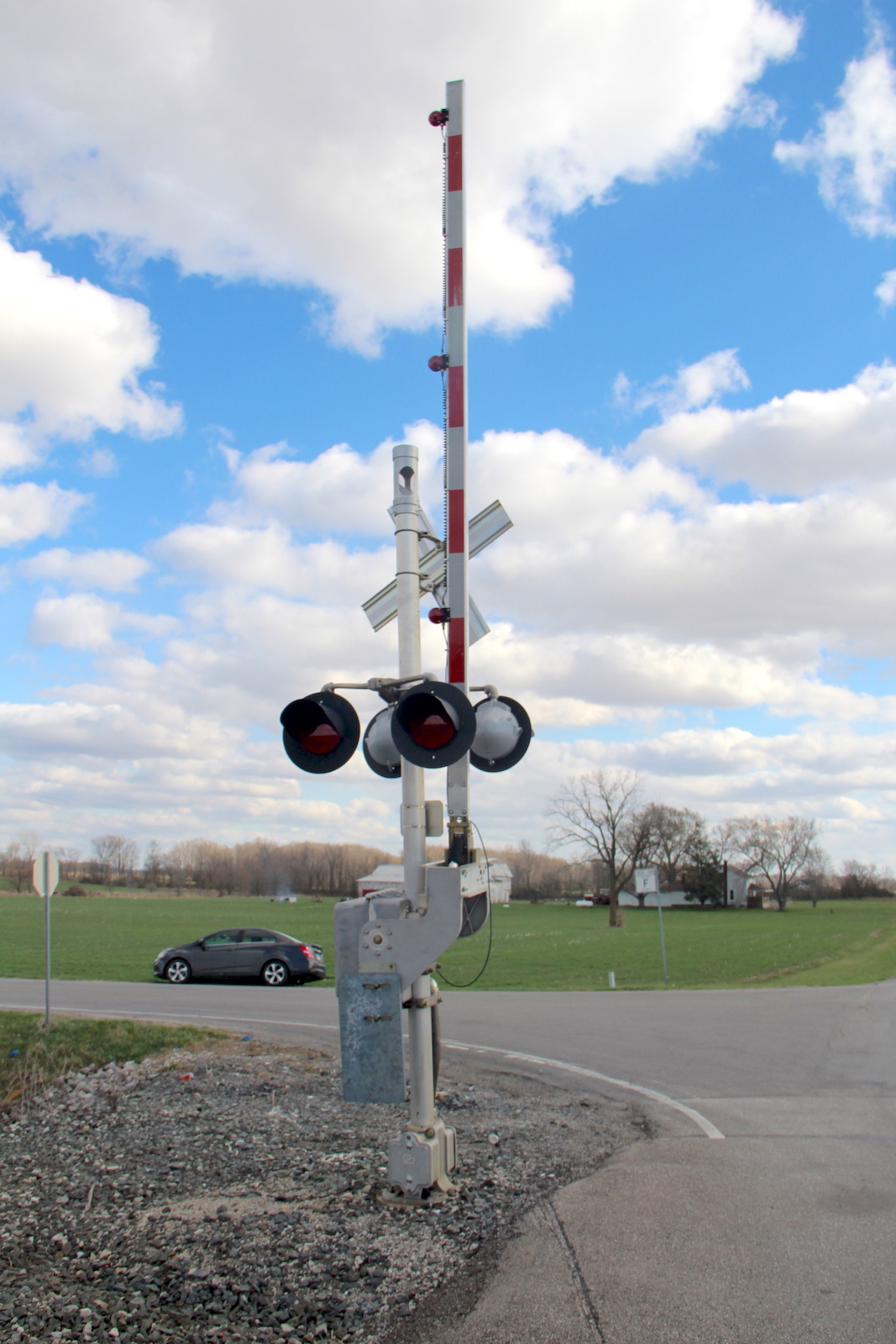

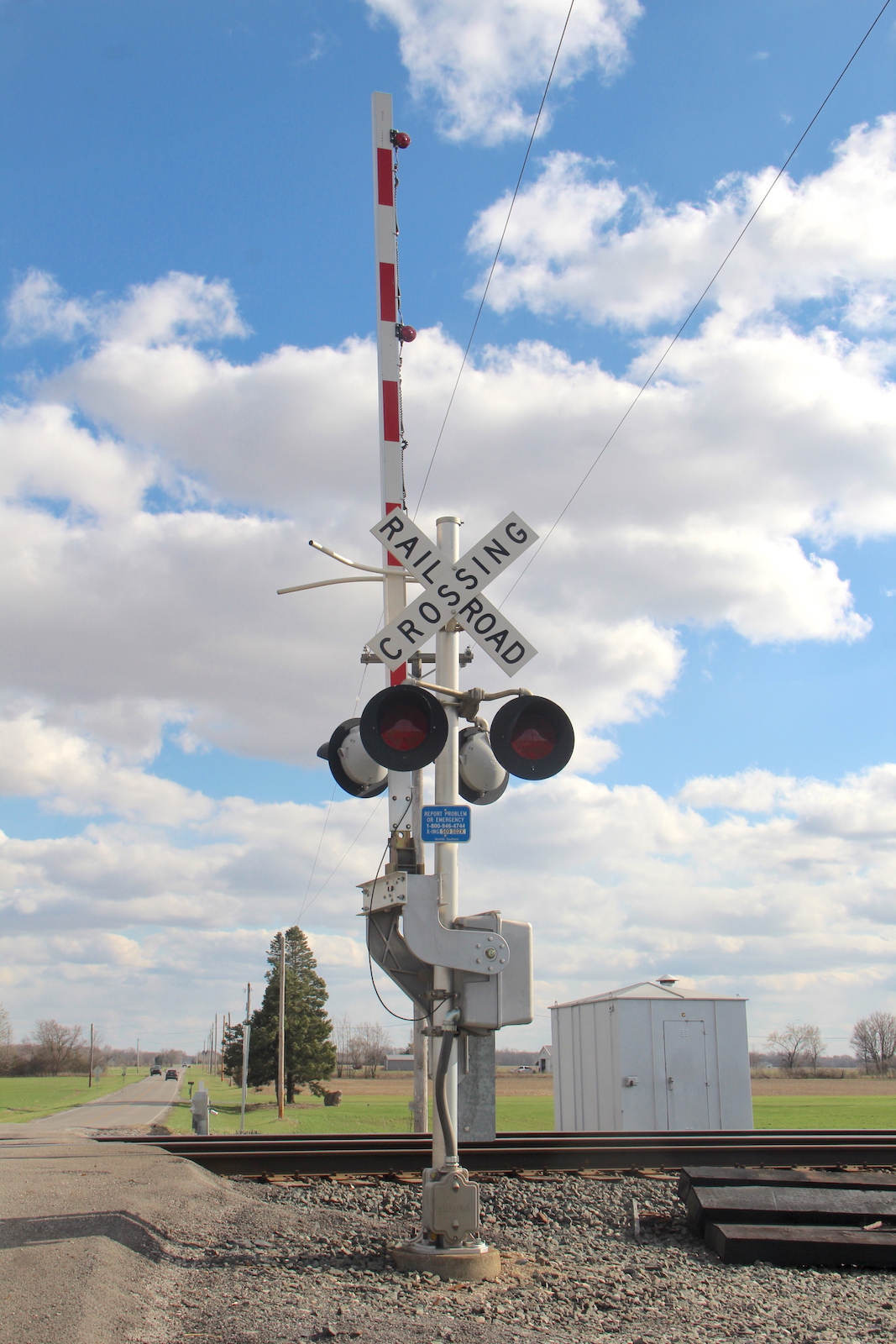

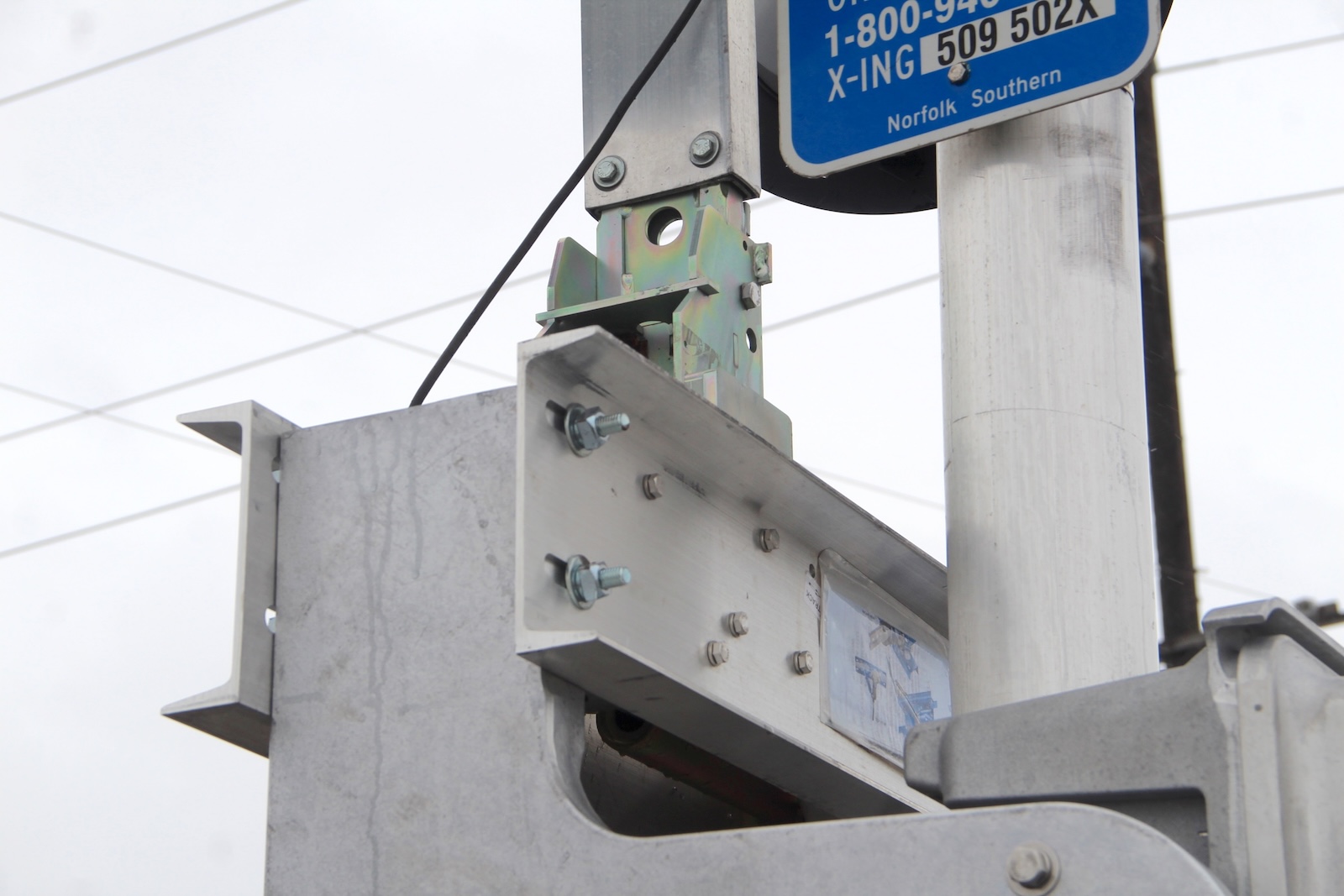

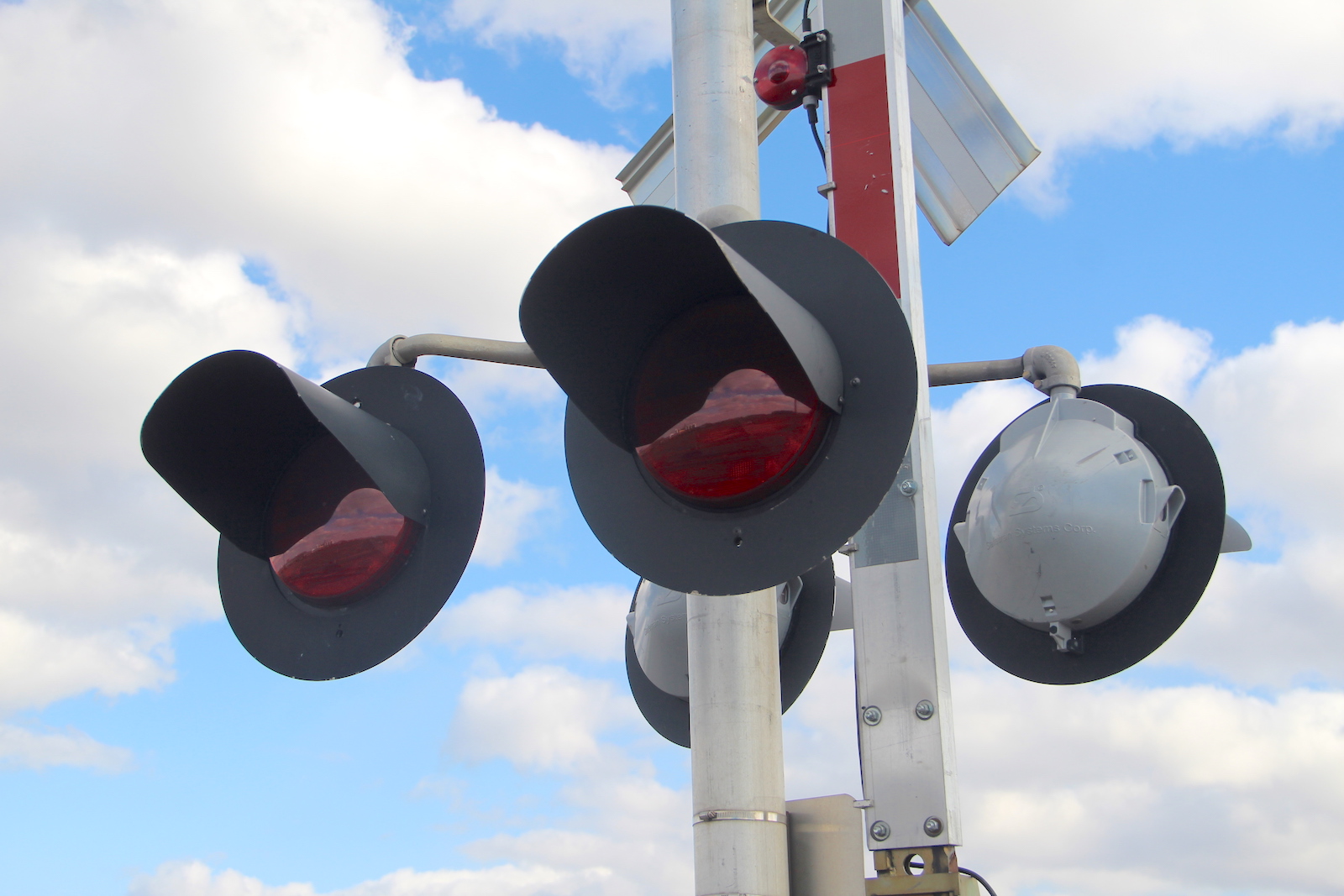

The southern signal.  I don't know how this signal is new, but has 8" lights.
22 23 24 25

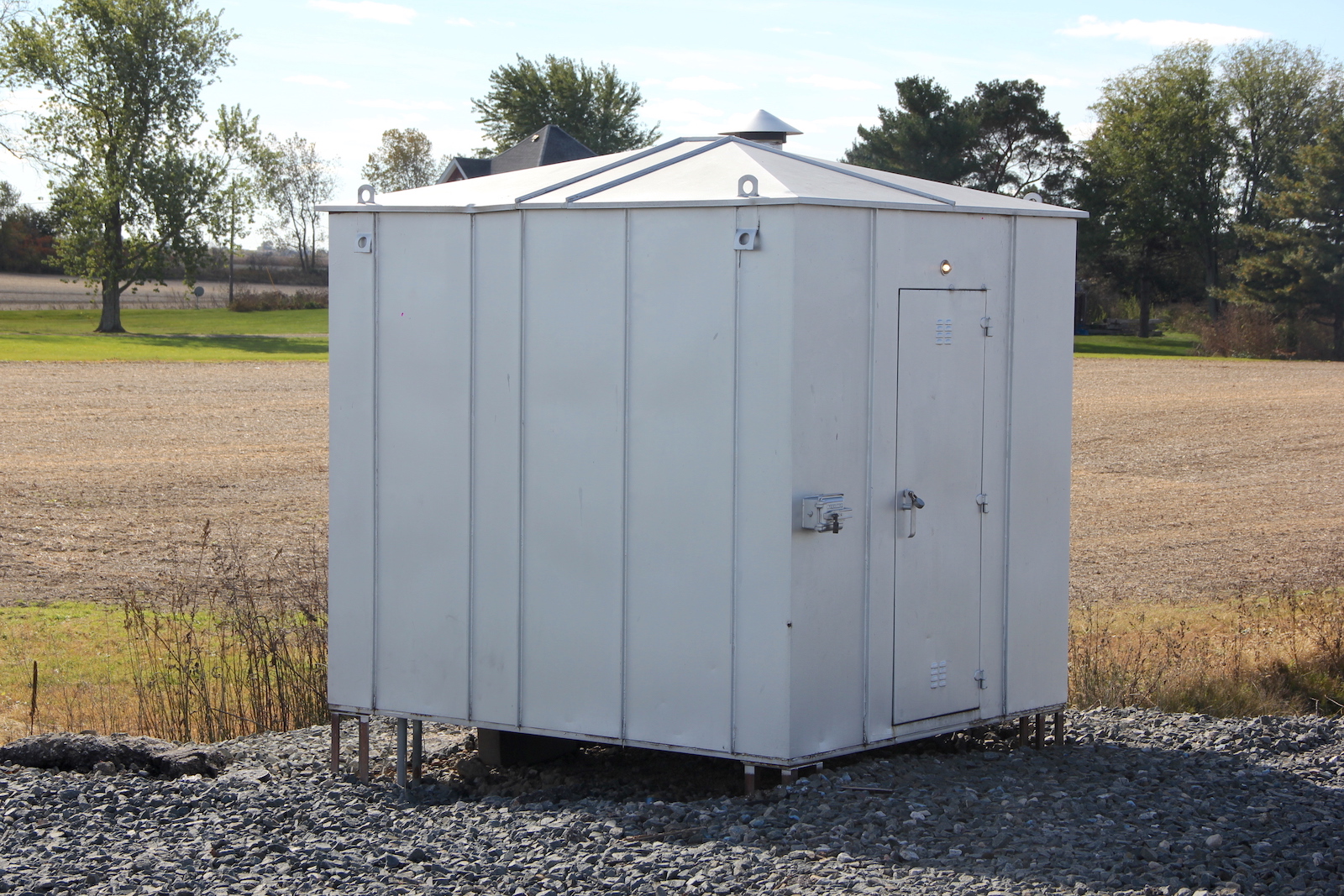

The relay bungalow in the southwest quadrant.

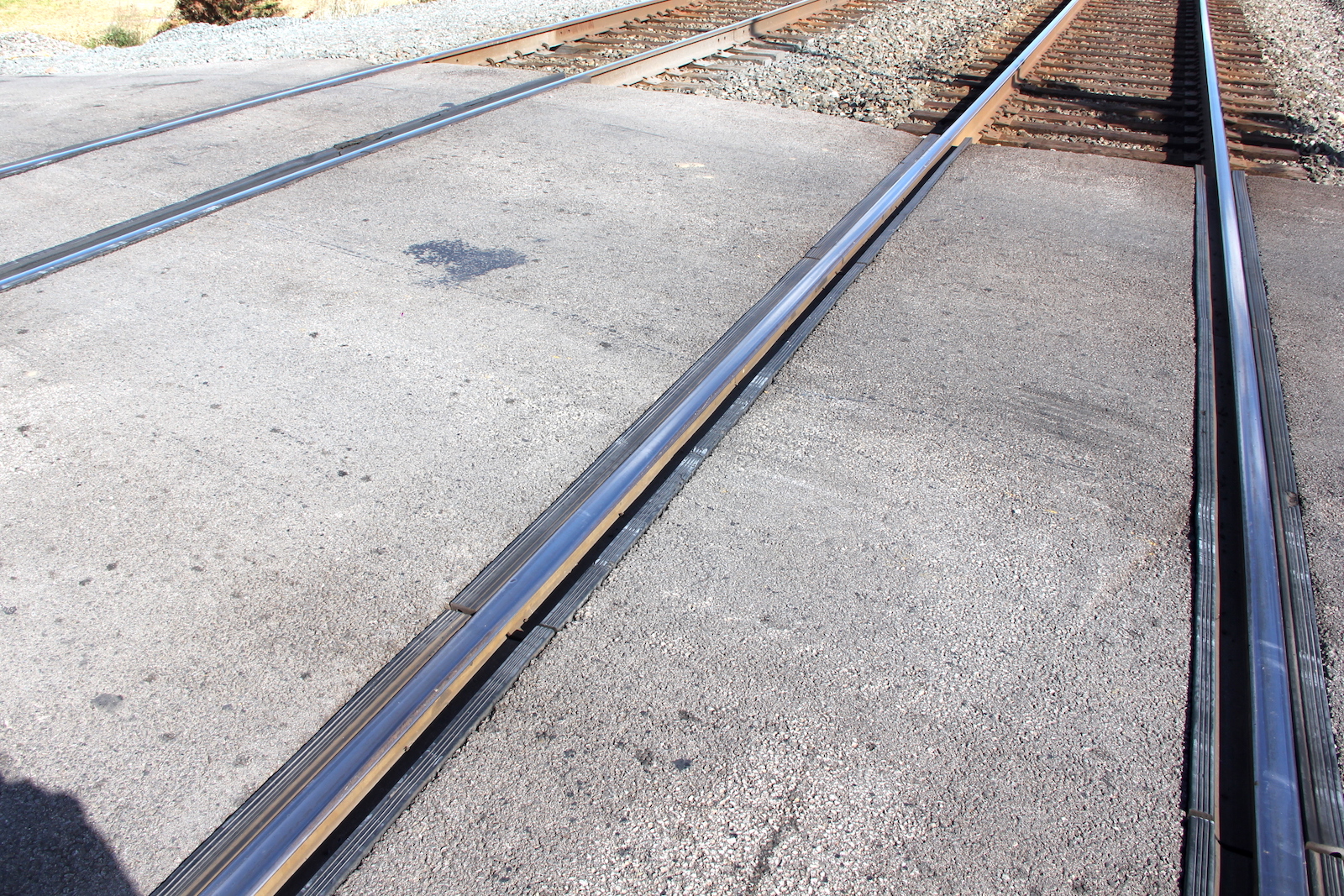

The grade is rubber and asphalt.

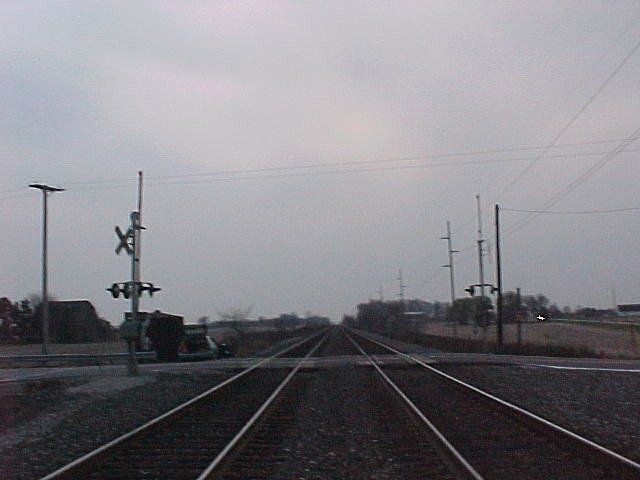

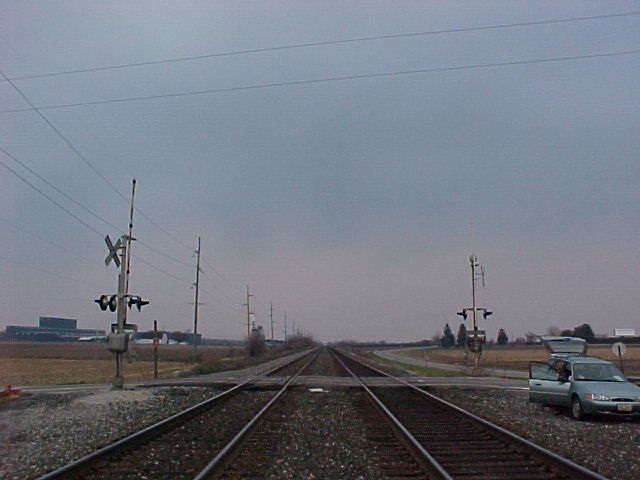

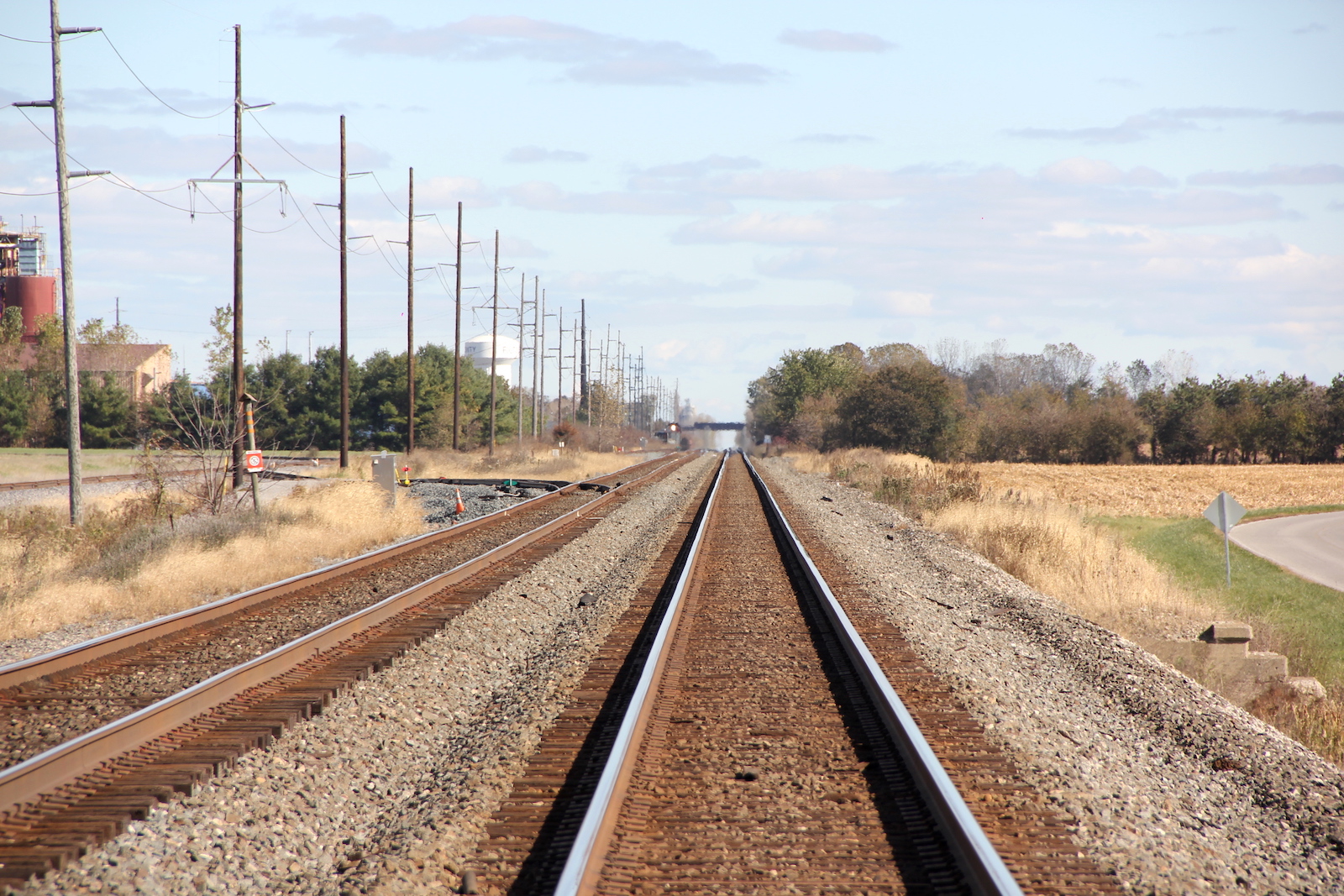

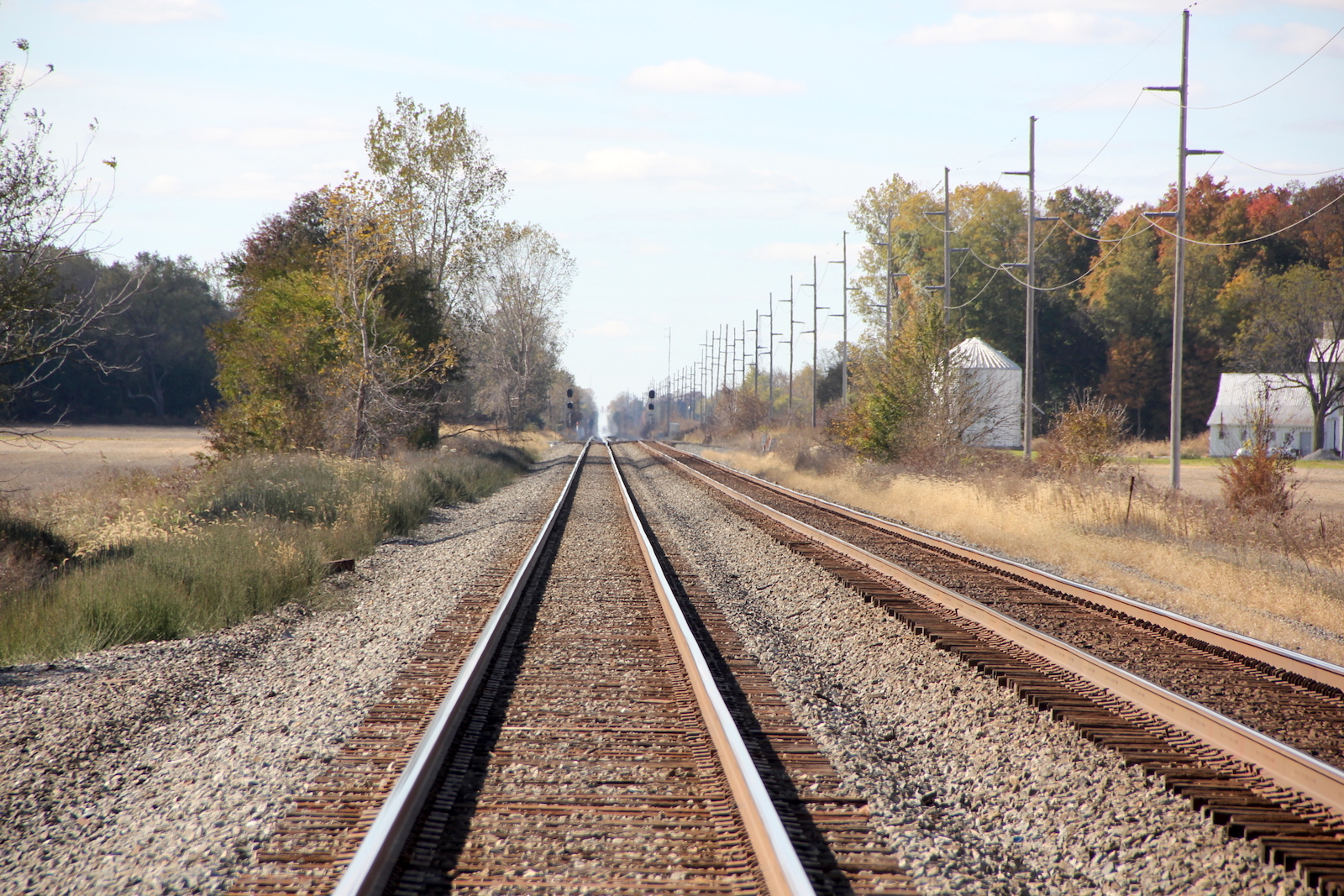

Track view facing west towards County Road 13.
Track view facing east towards County Road 10 in Delta.
