Northern Signal
Southern Signal

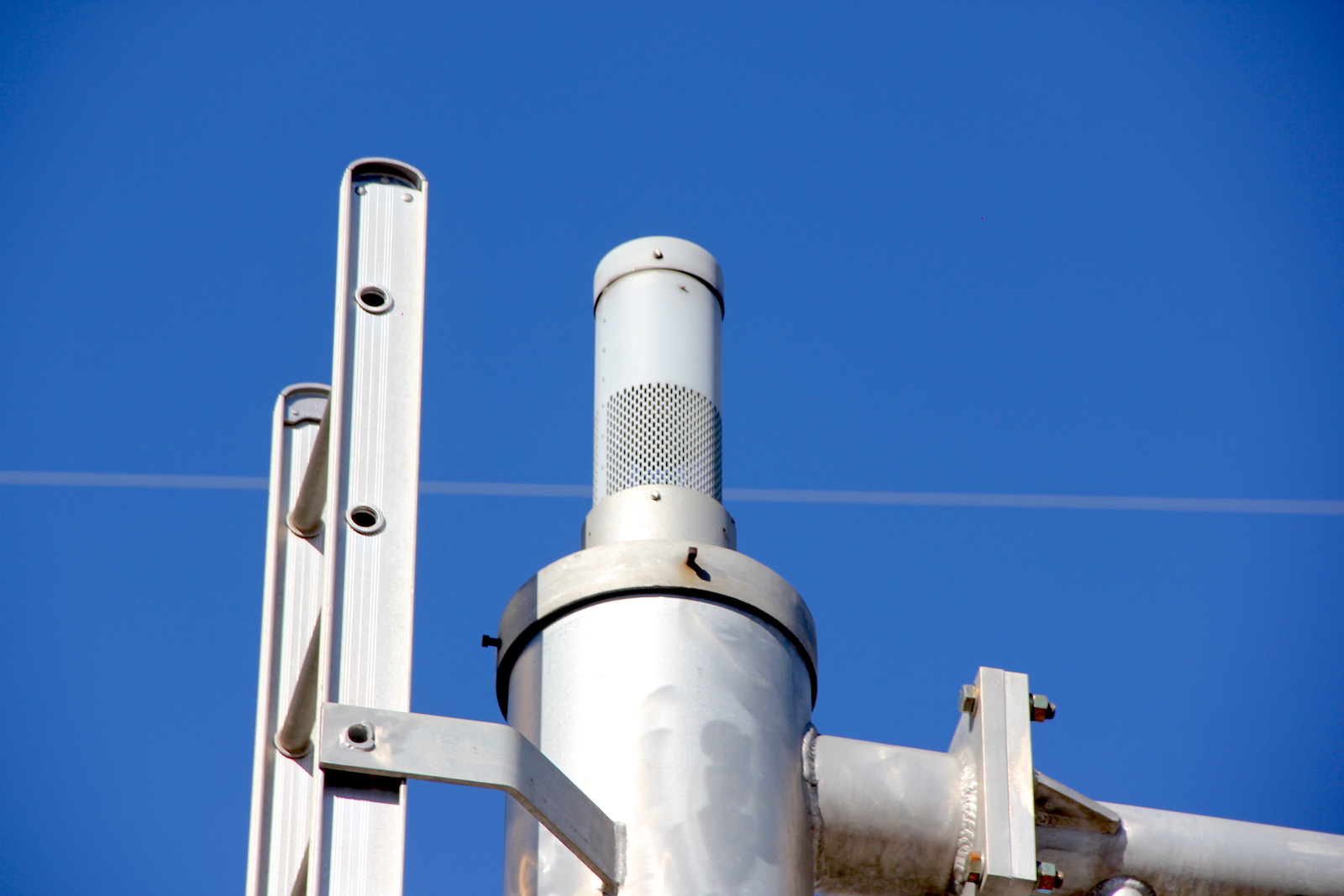

Bell:Safetran Type 3 E Bell Low Tone
Safetran Type 3 E Bell Low Tone

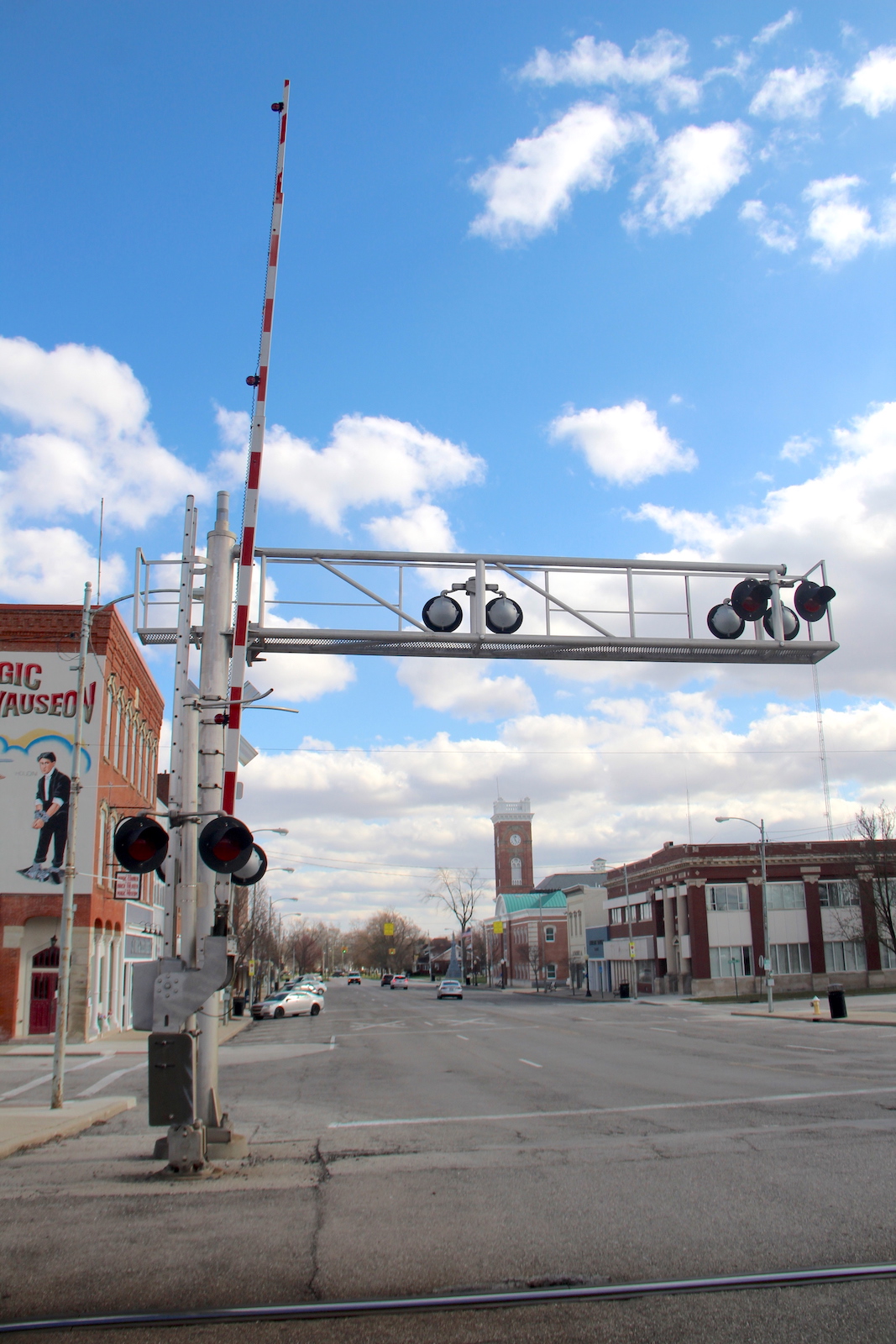

Base: Safetran Cantilever and Mast (Double Sided)
Safetran Cantilever and Mast (Double Sided)

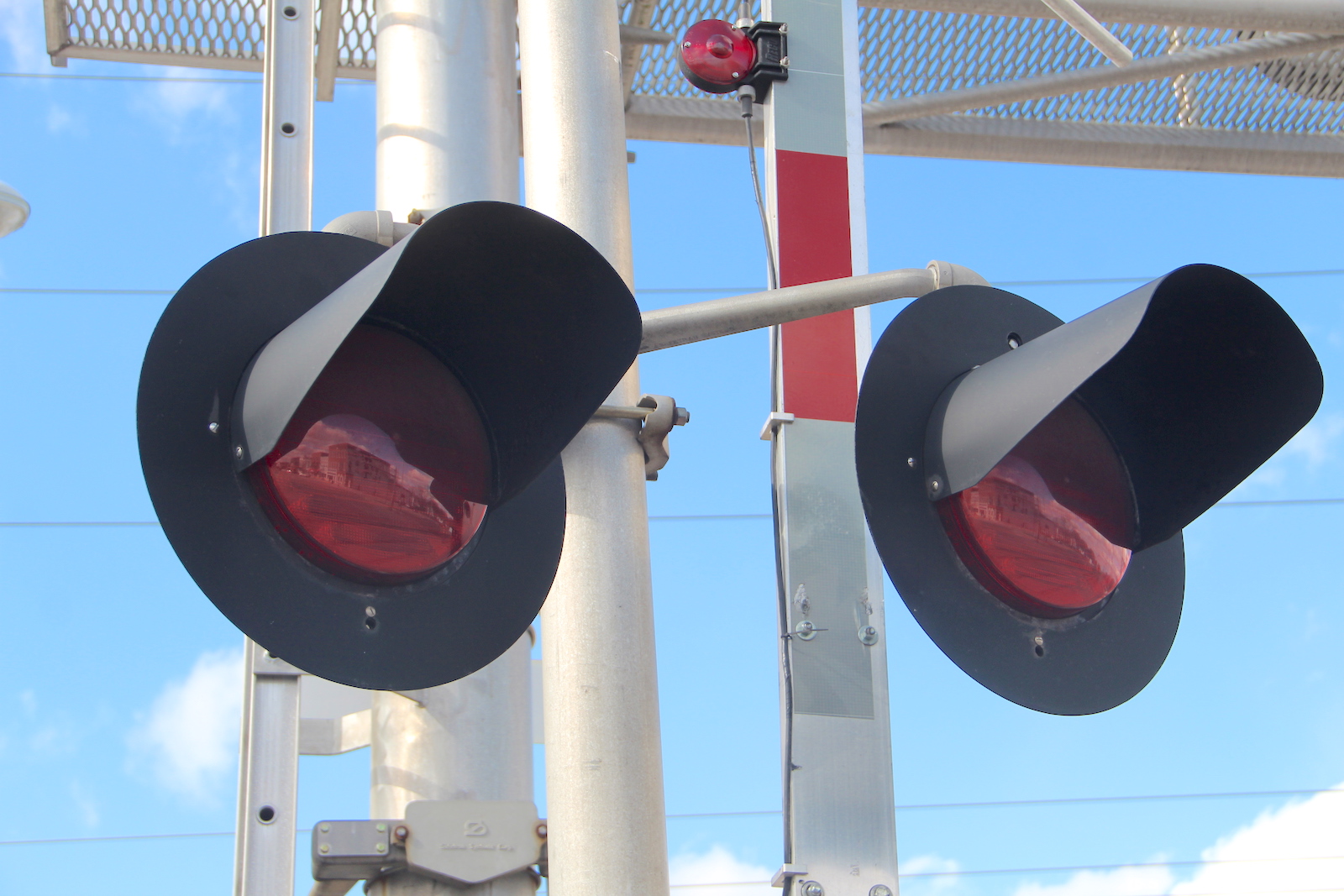

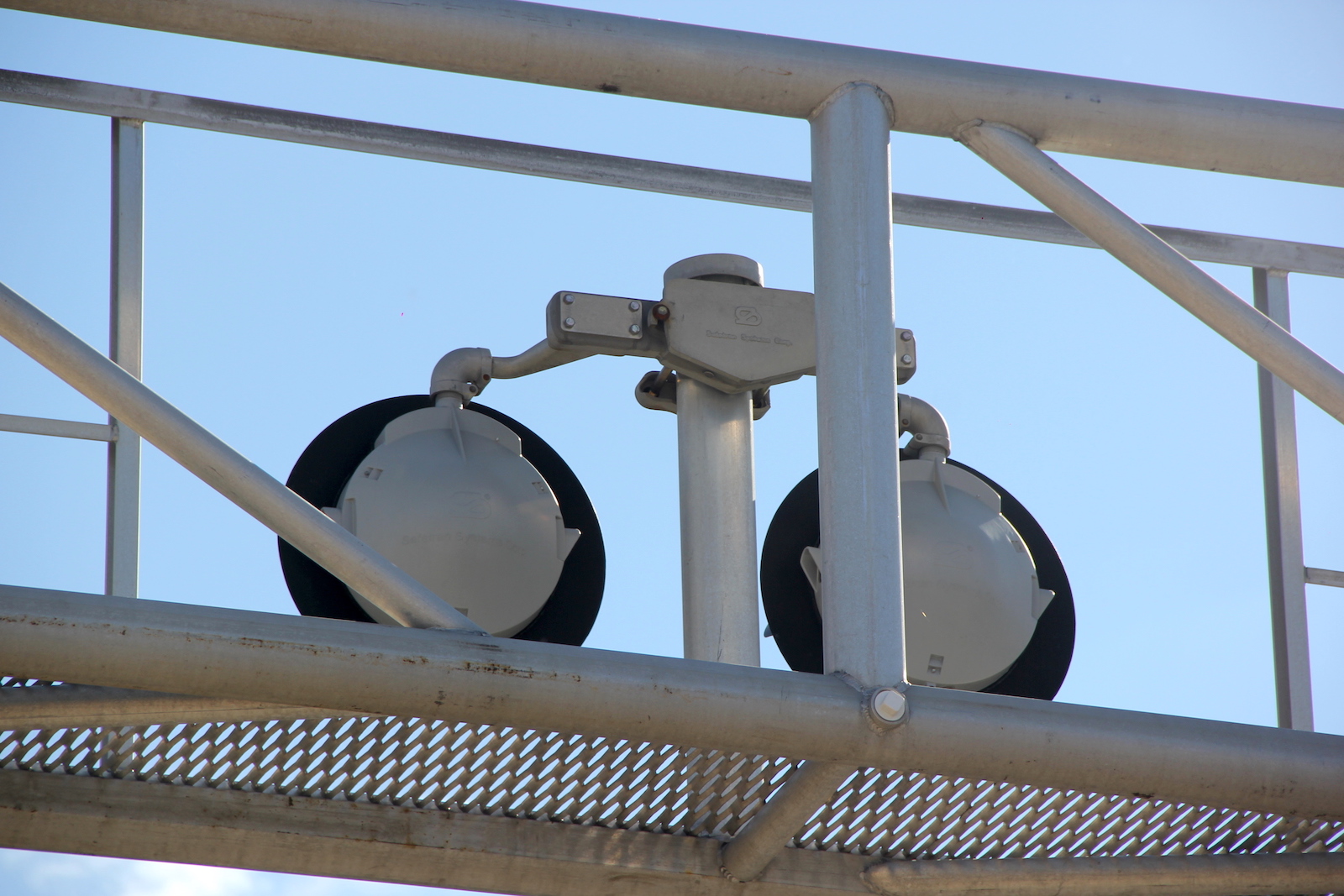

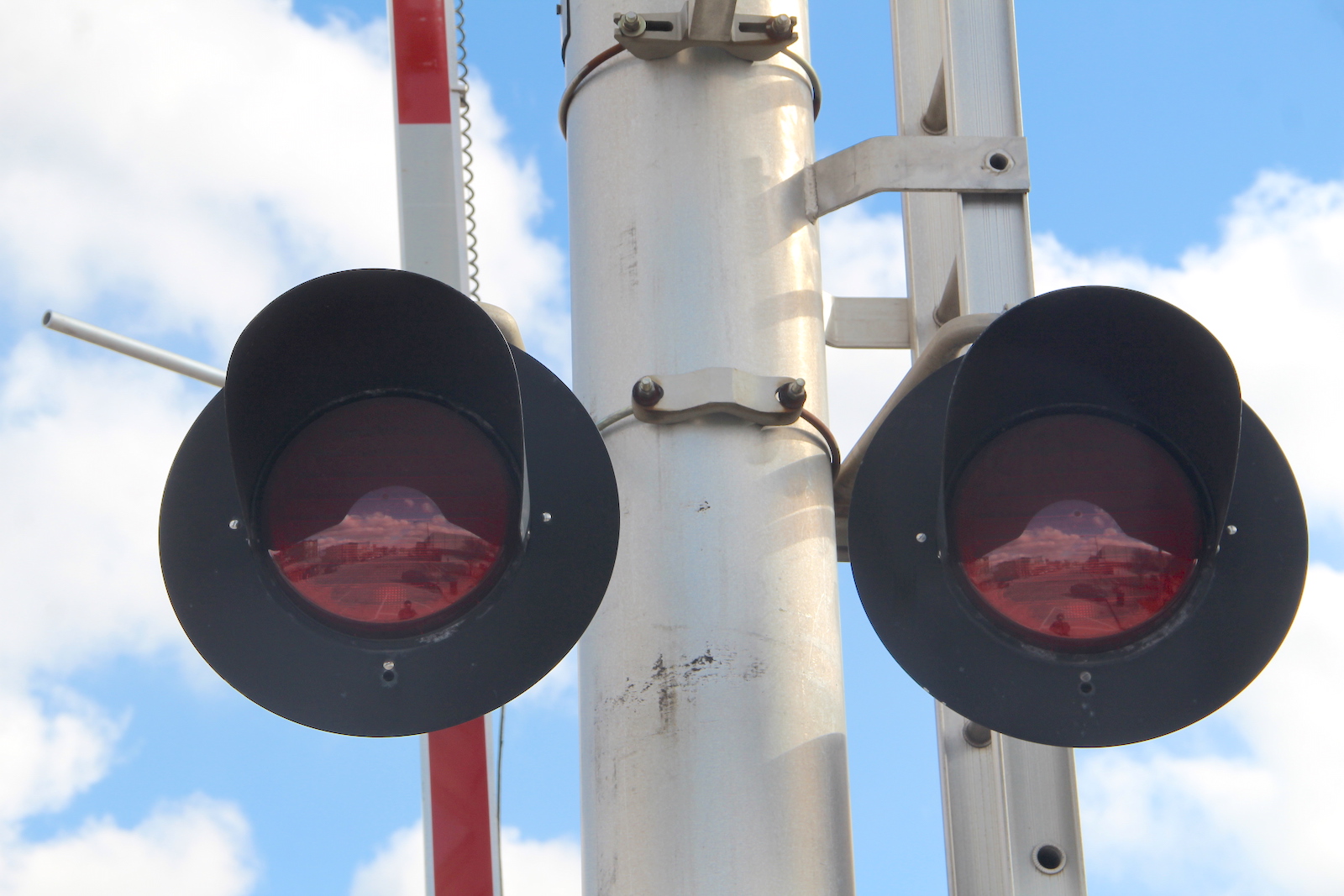

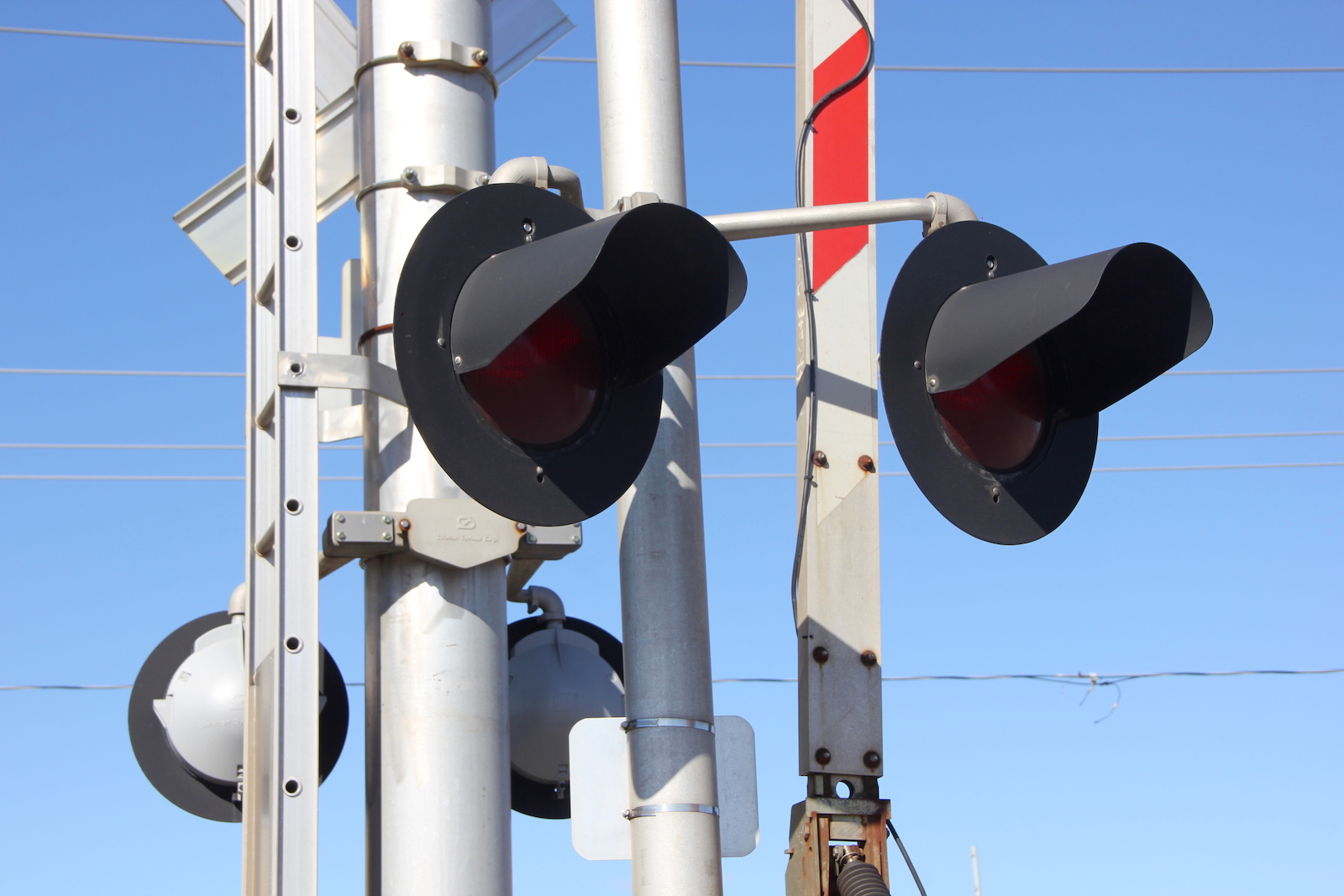

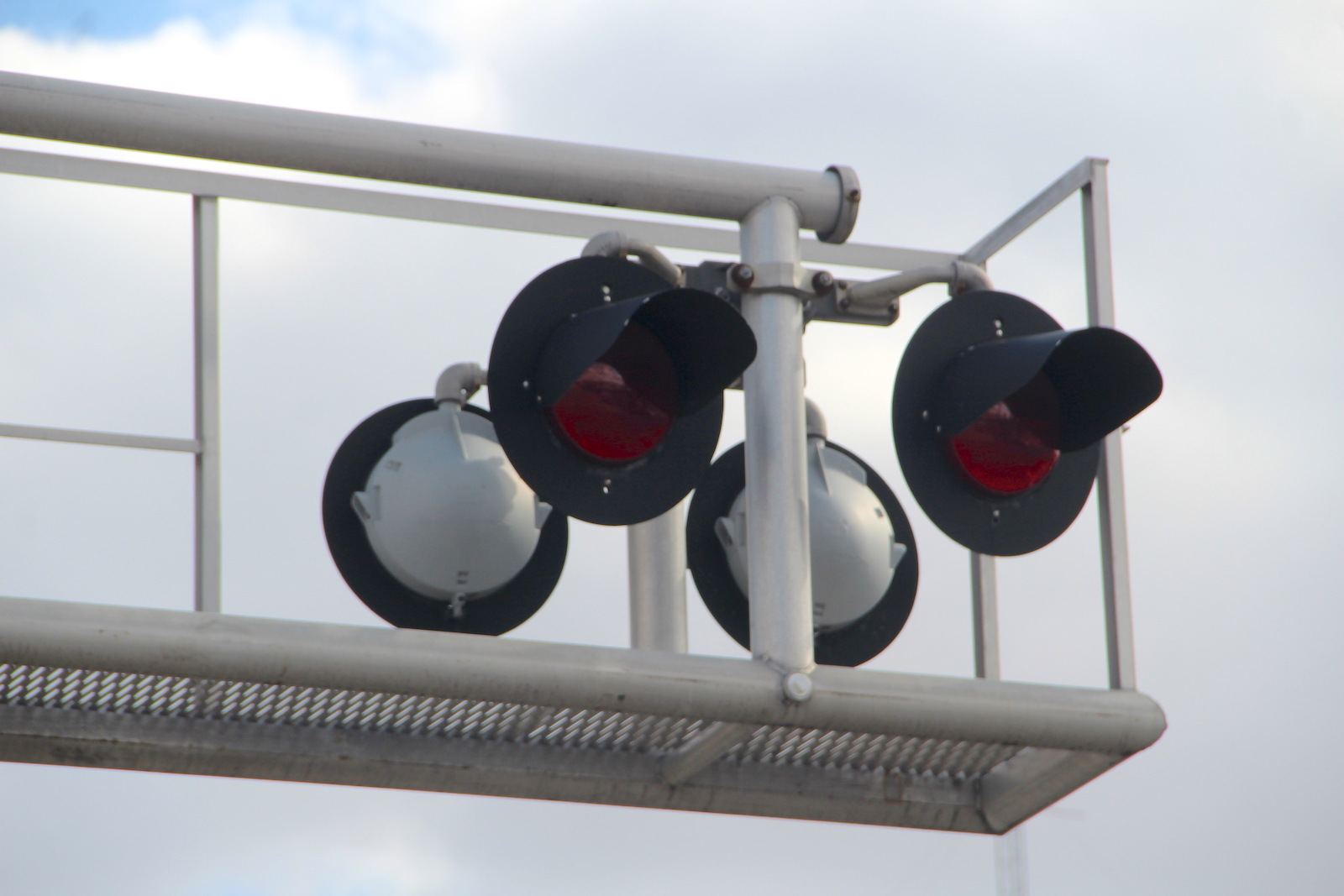

Main Lights: 5 pairs of 12"x20" Safetran incandescents
5 pairs of 12"x20" Safetran incandescents

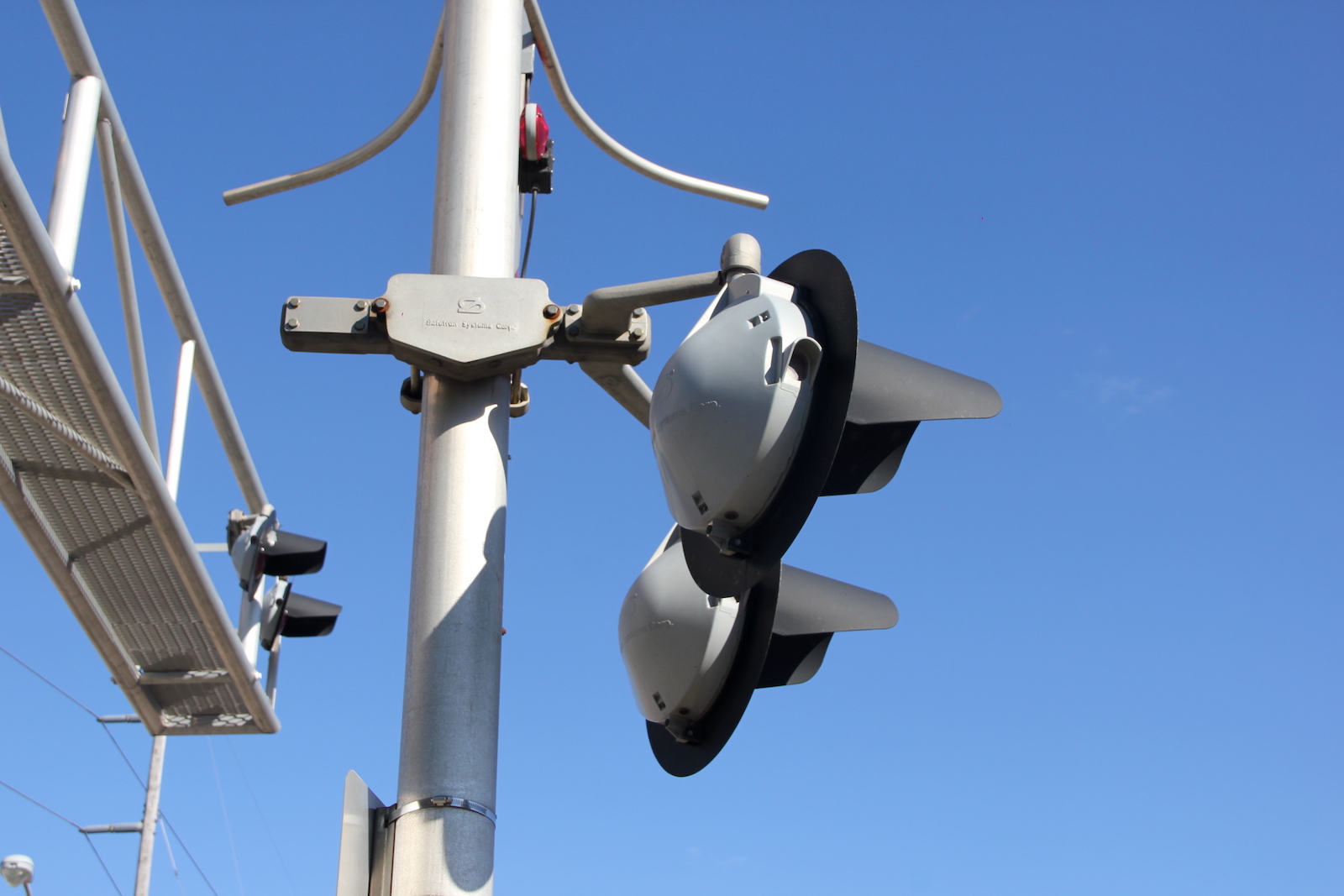

Light Brackets:
Safetran
Safetran

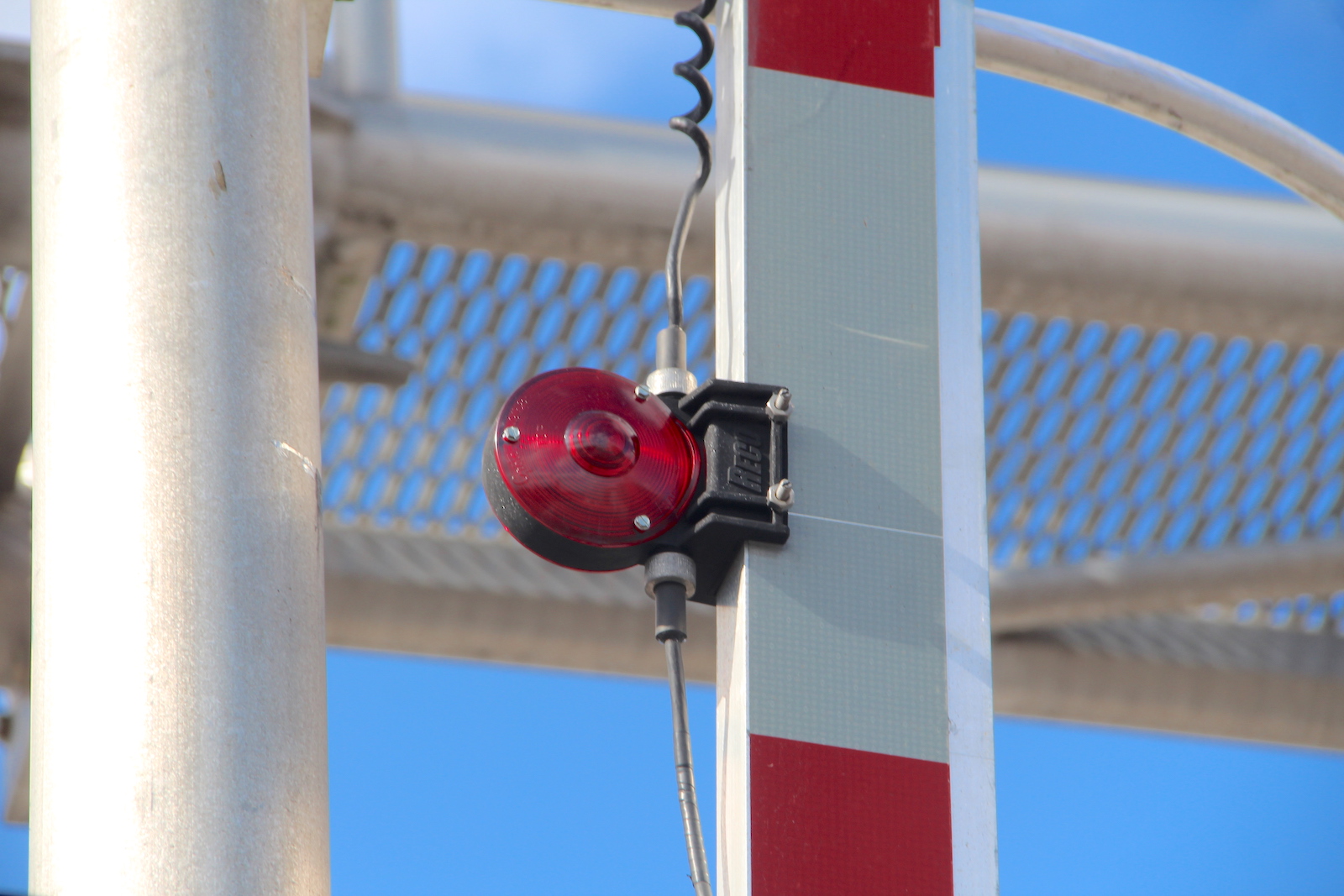

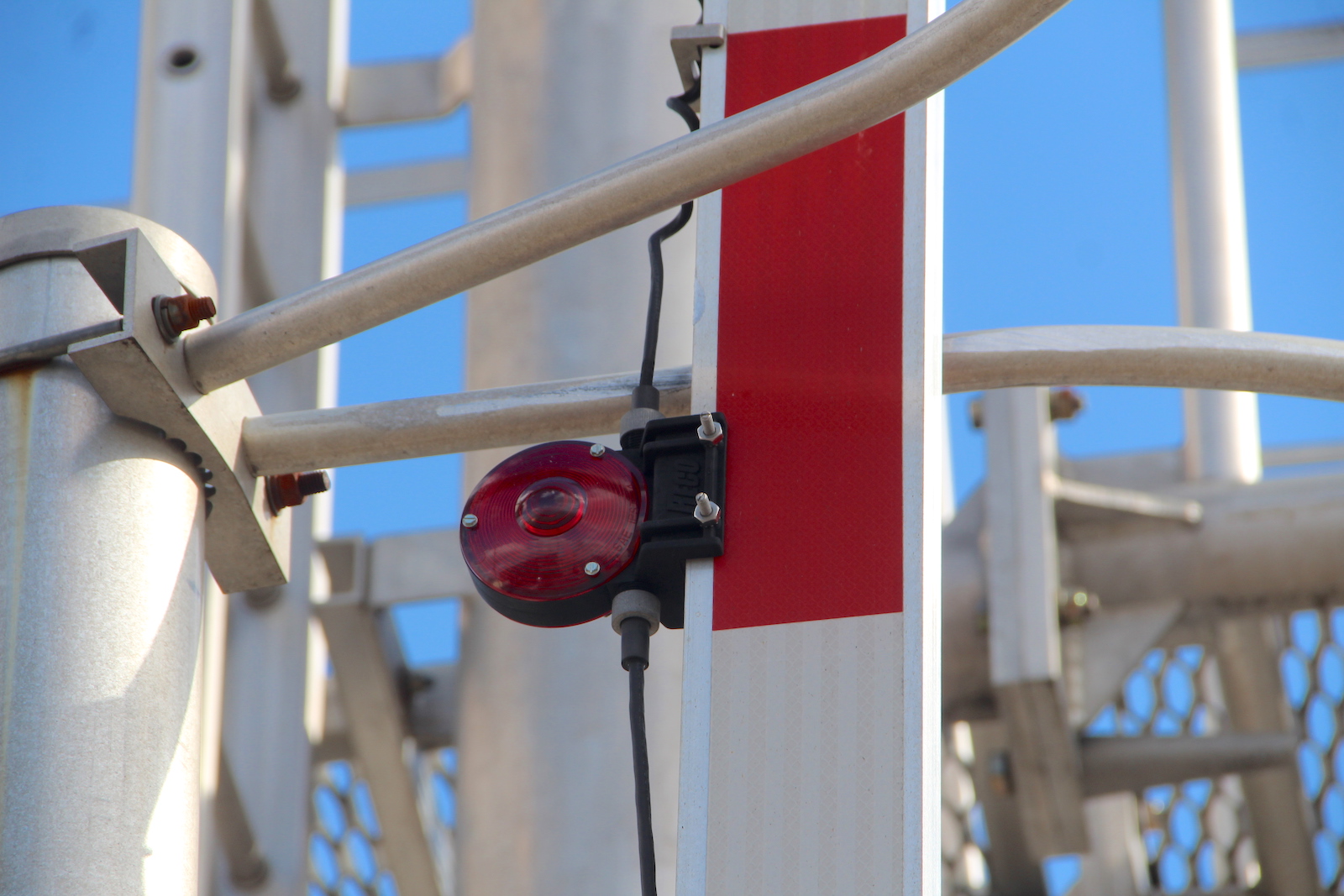

Gate Lights: 4" NEG incandescents
4" RECO

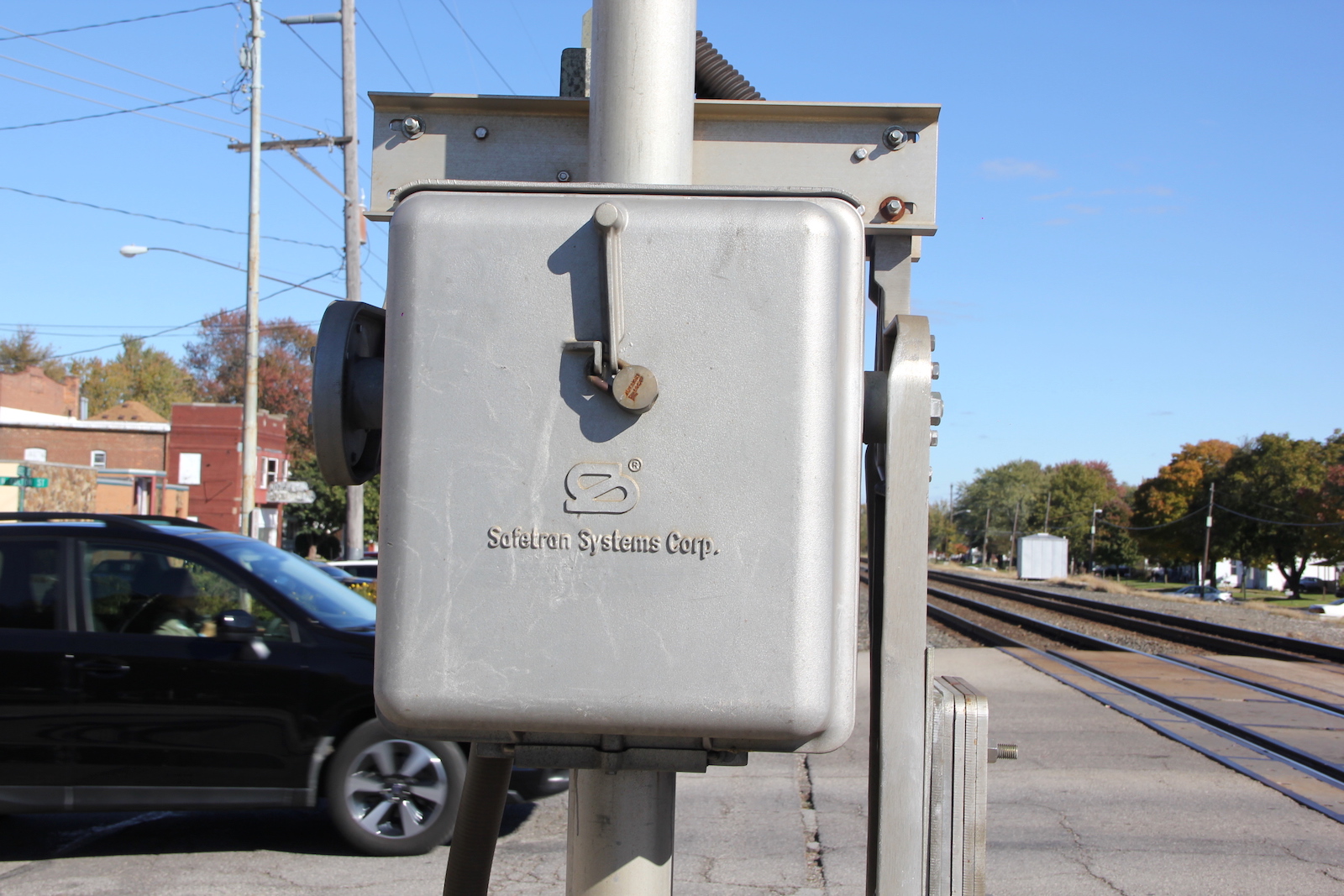

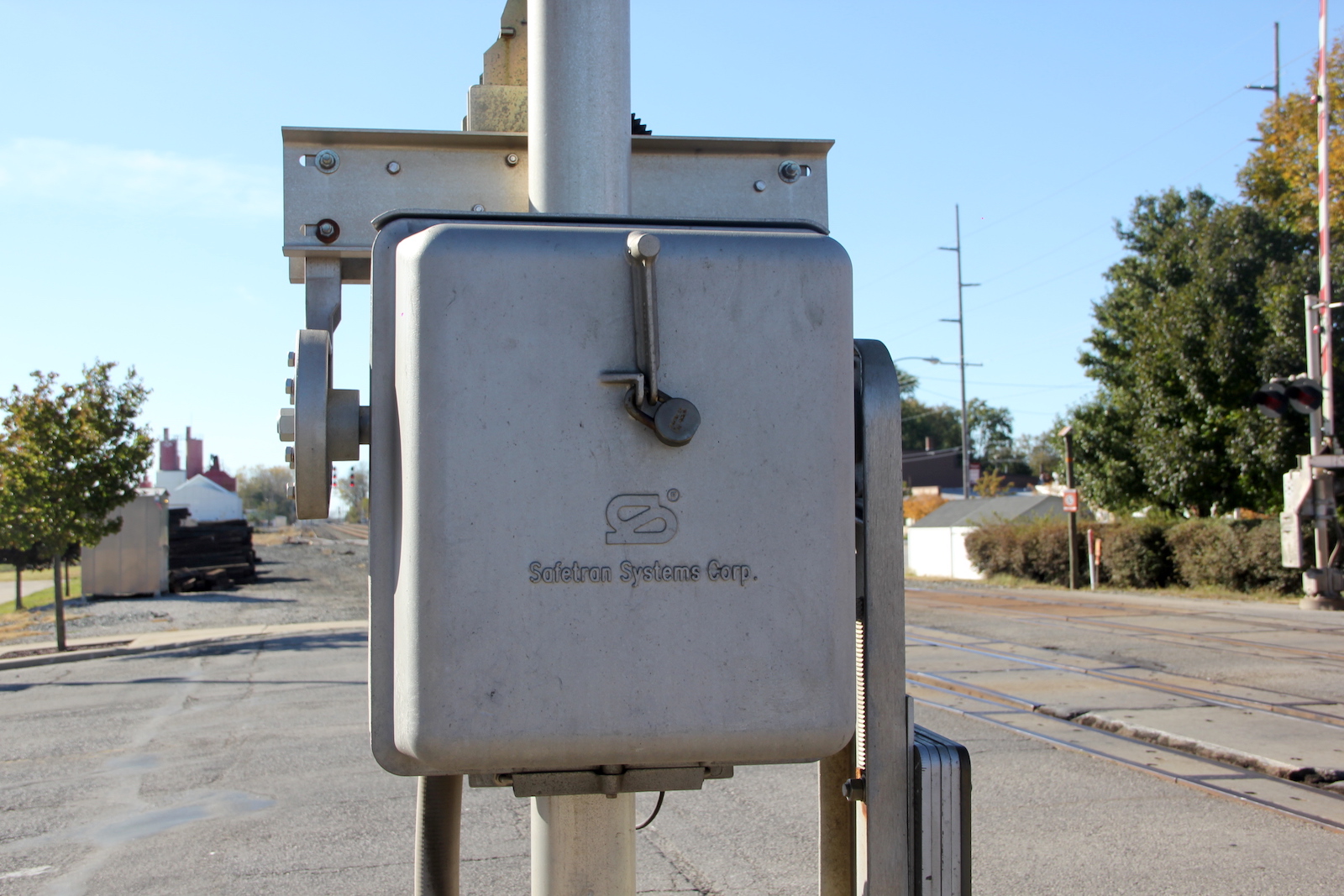

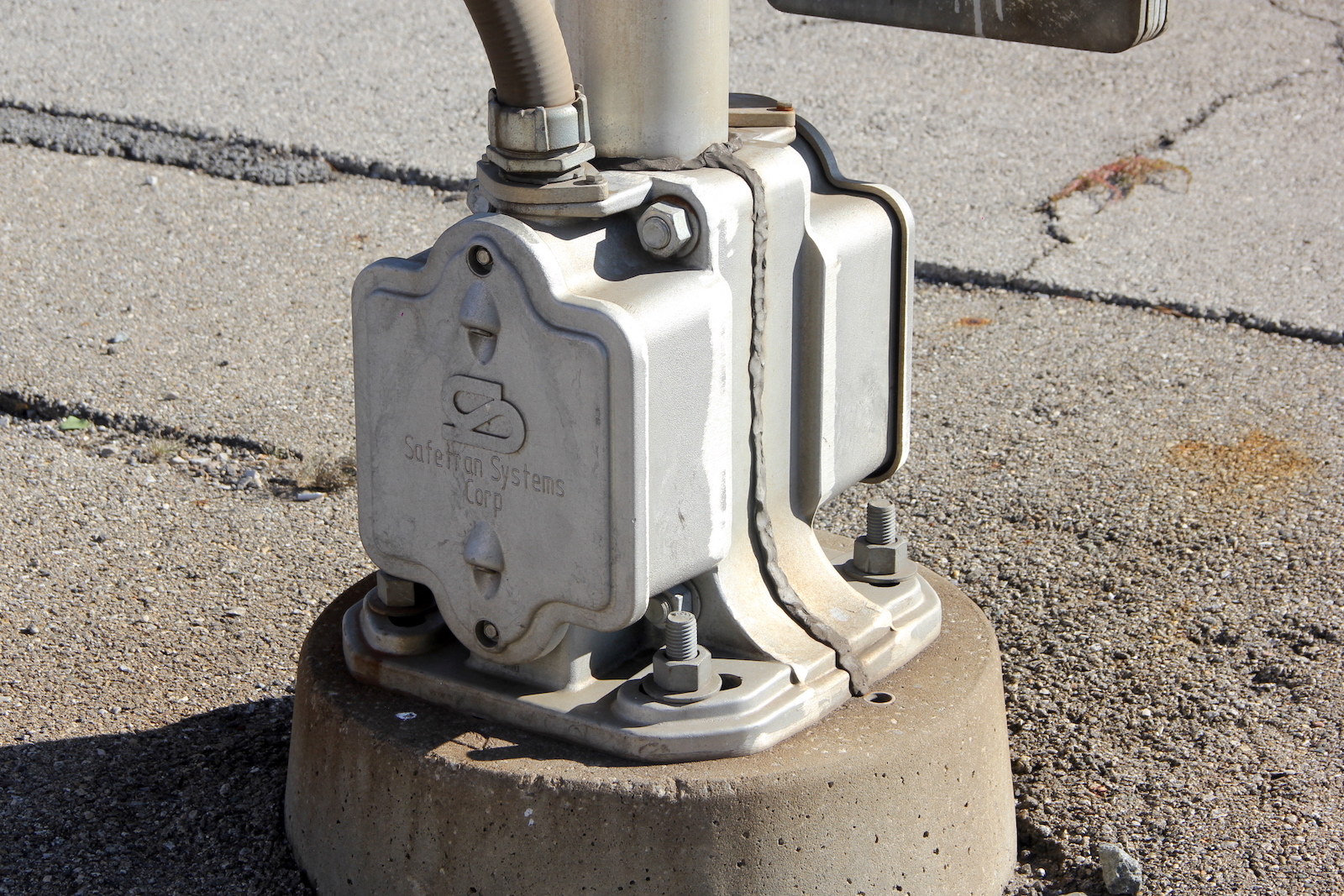

Gate Mechanism: Safetran
Safetran
Gate Striping: ////////////////////////////////////////////////////////////////////////////////////////////////// ////////////////////|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Crossbuck font:
Normal font
Normal font
Bell Cycle: Rings only while the gates are lowering
Rings only while the gates are lowering

All pictures were taken on October 24, 2018, by Tommy McGowan.
This crossing is located on the NS Chicago Line.

1
2

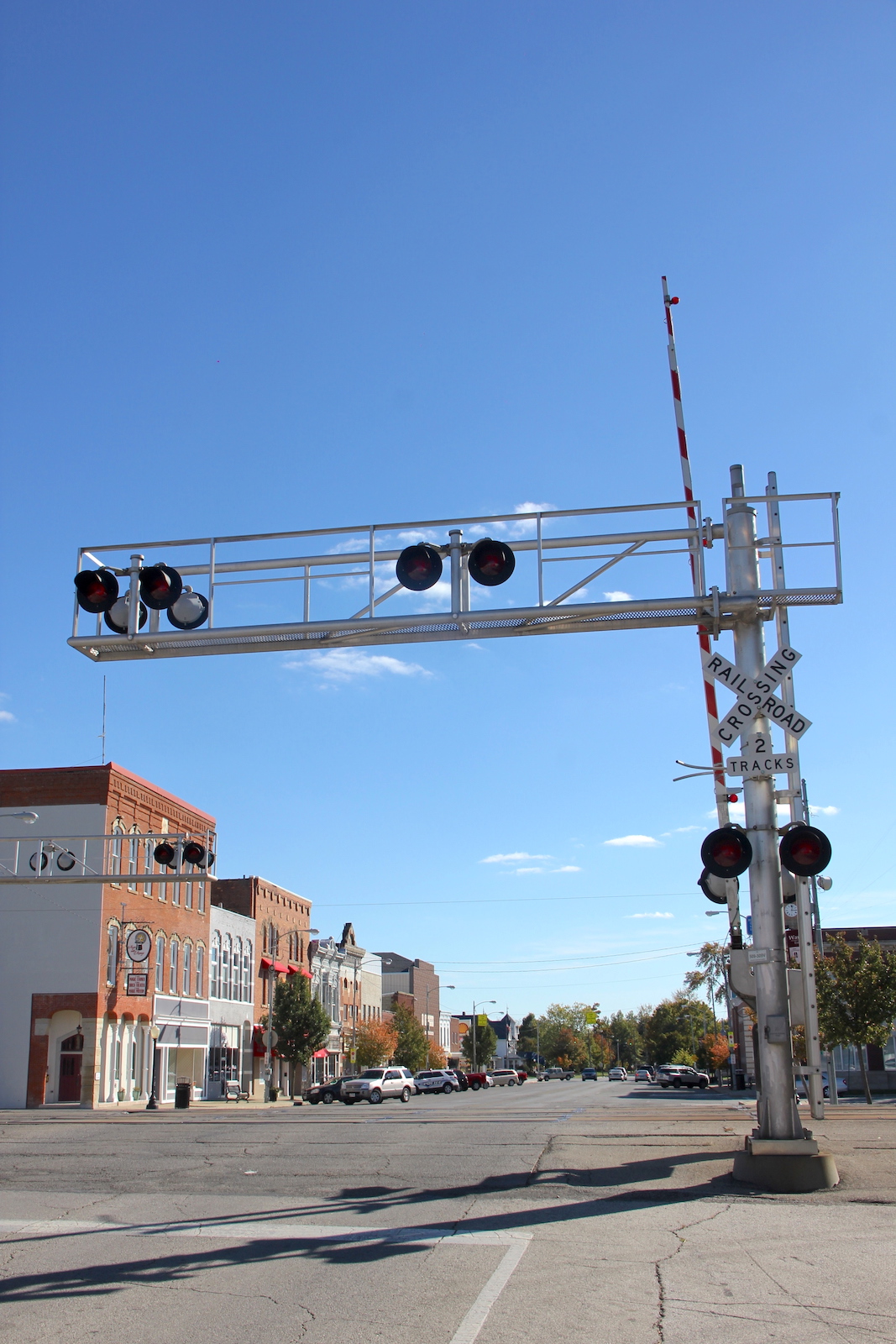

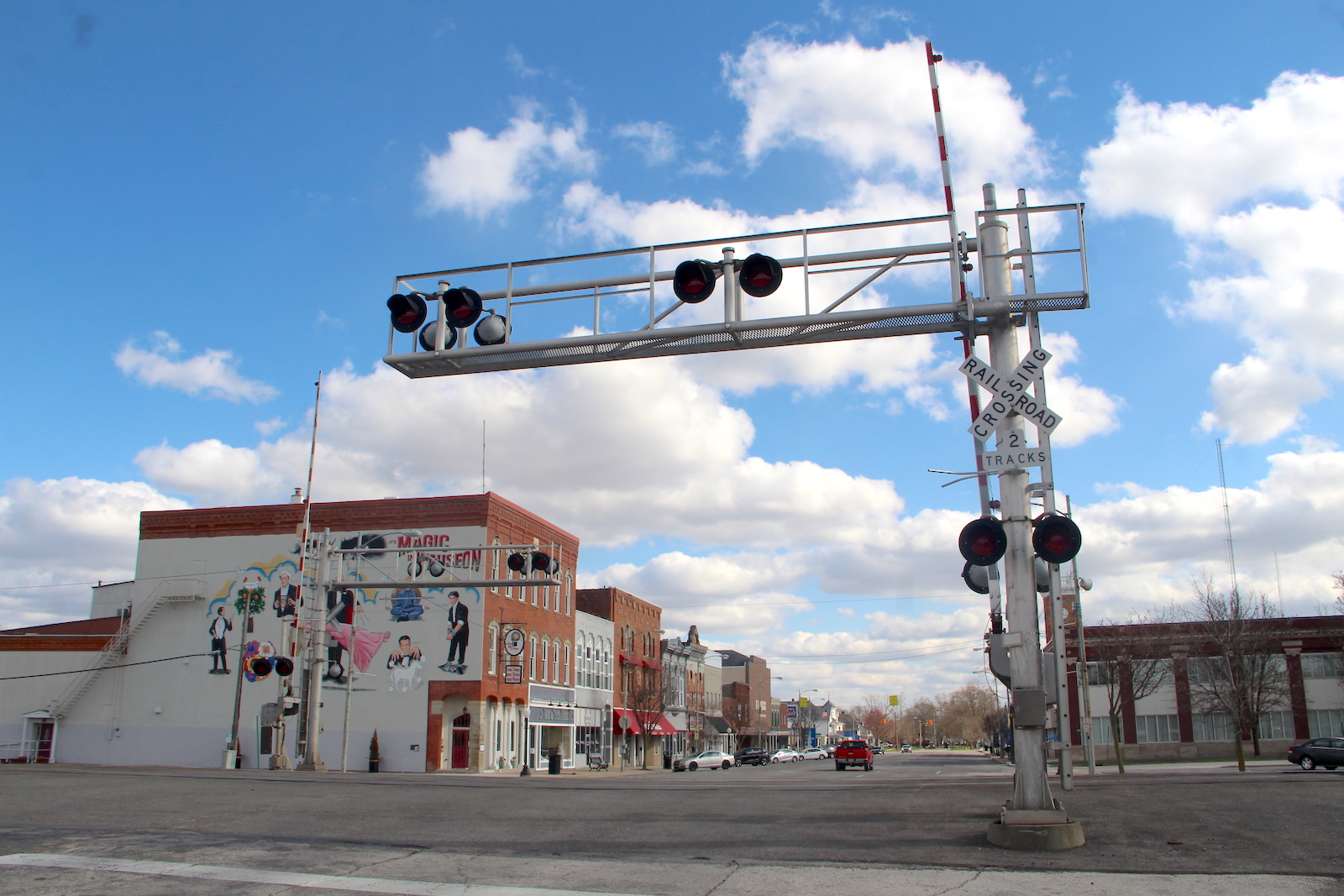

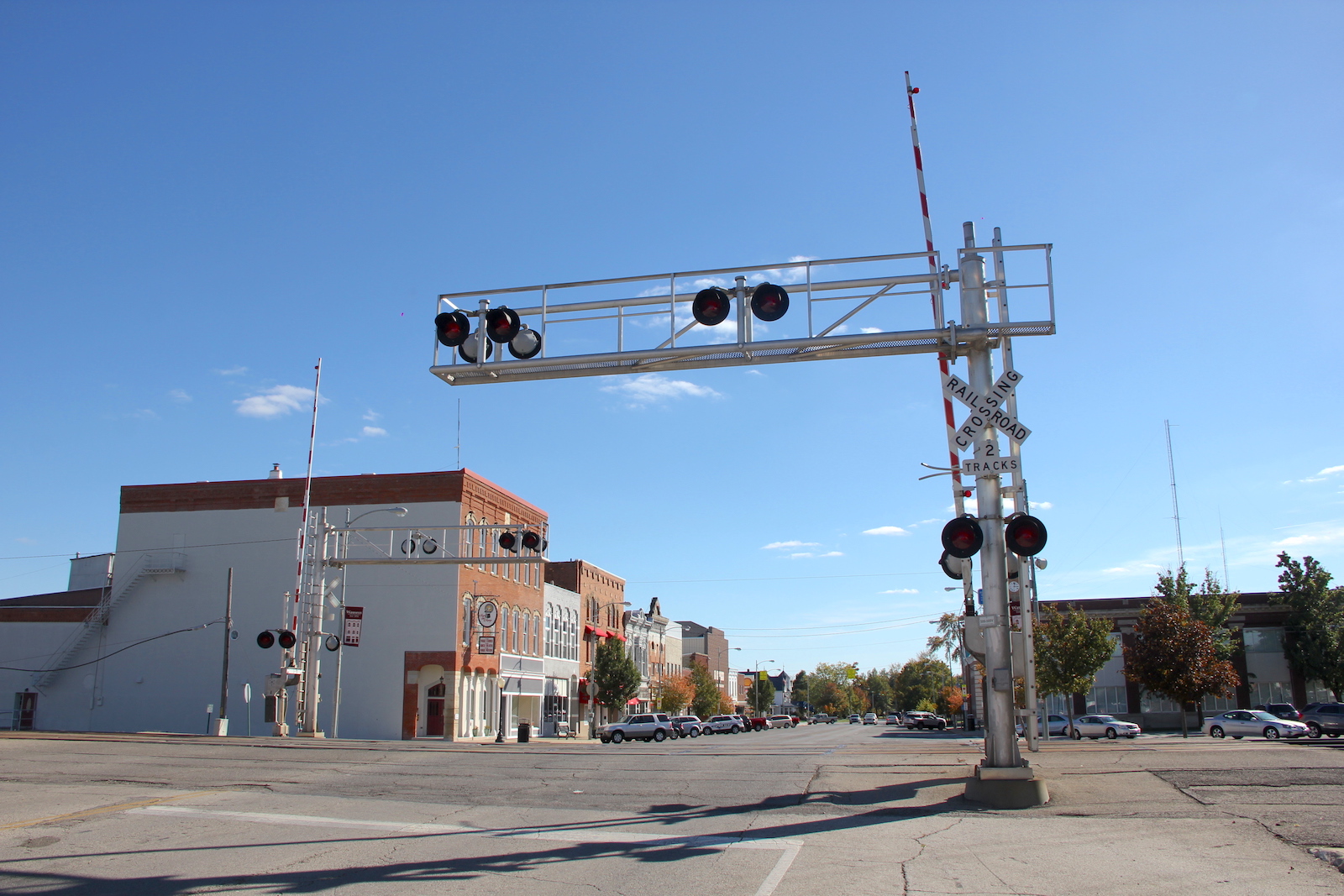

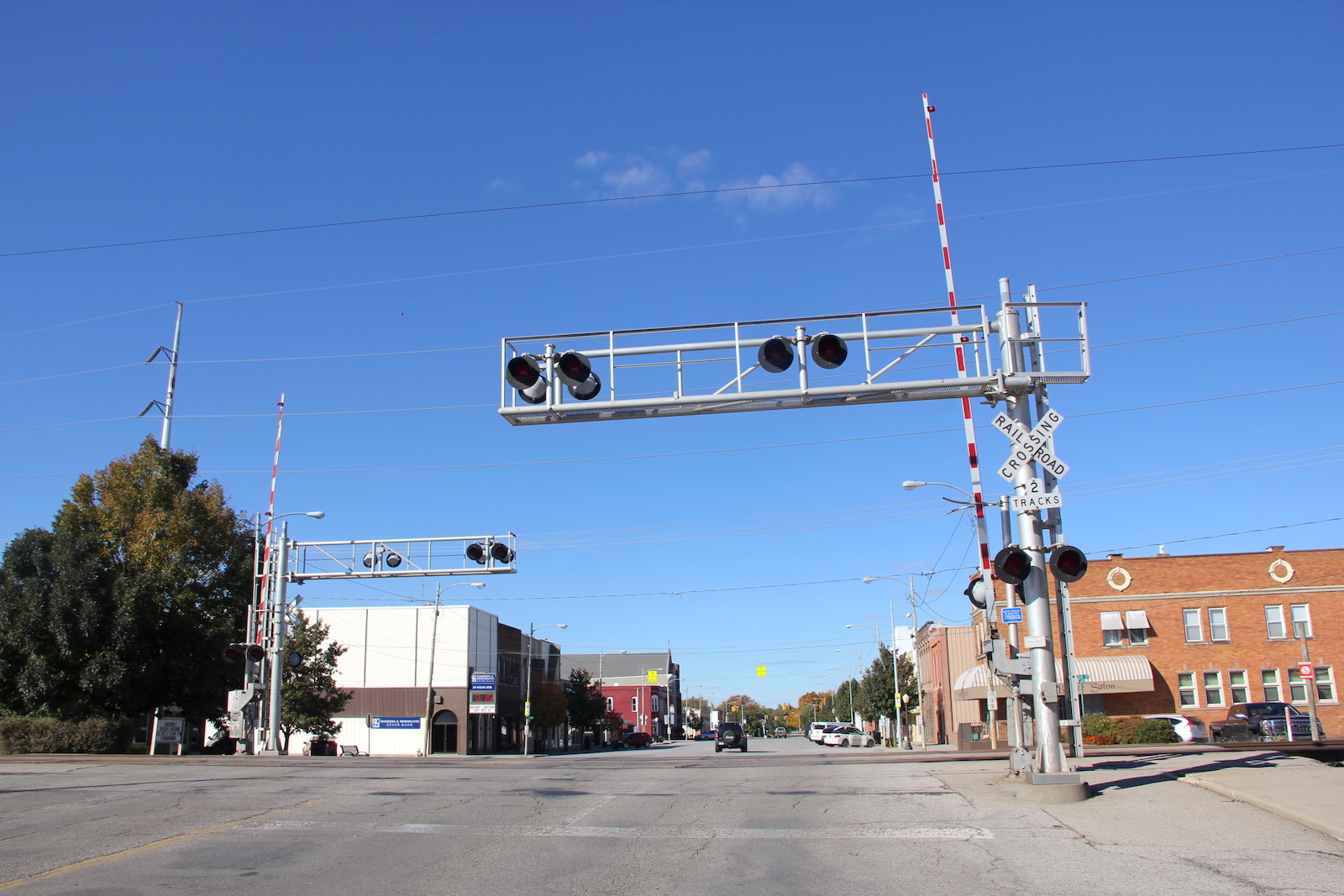

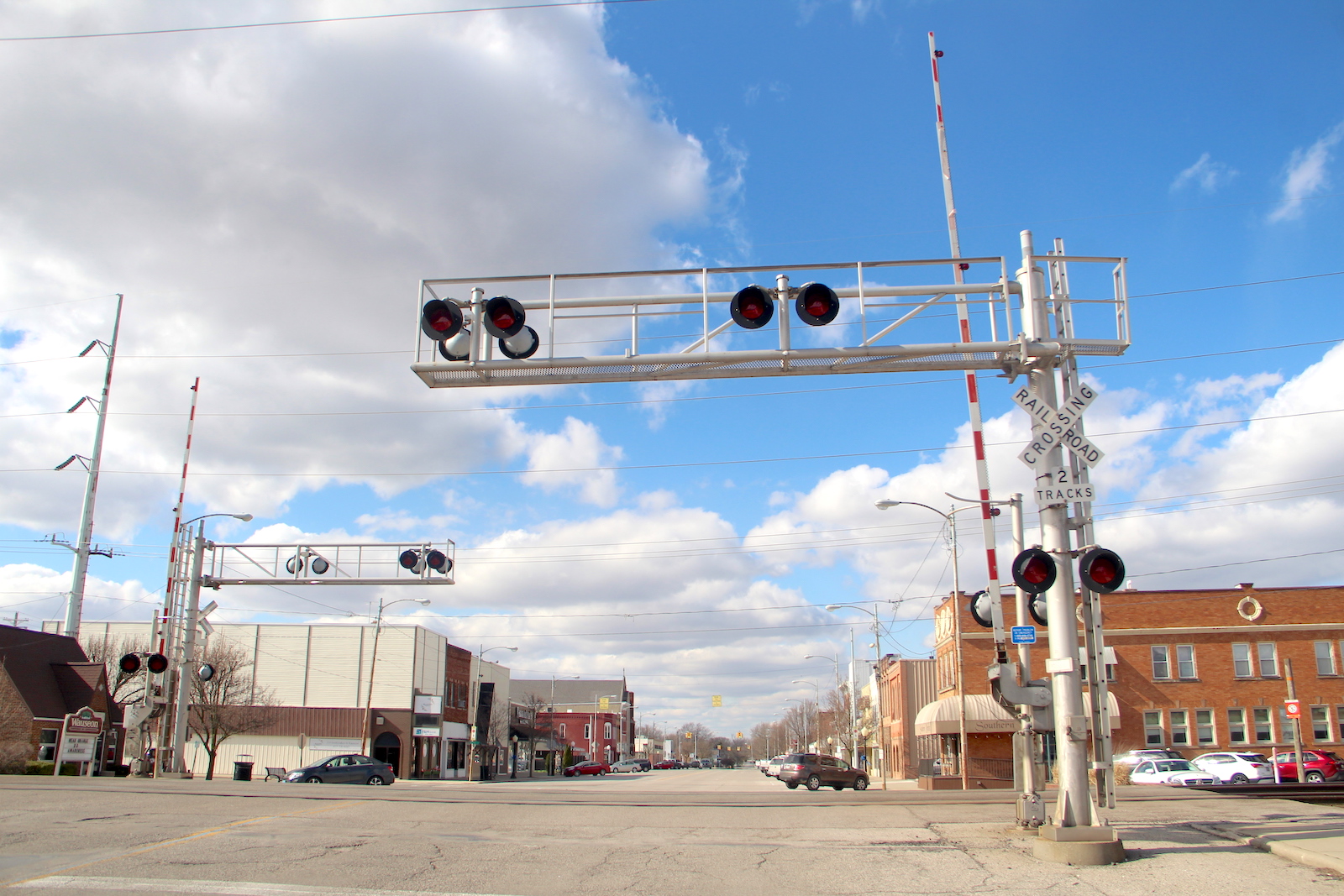

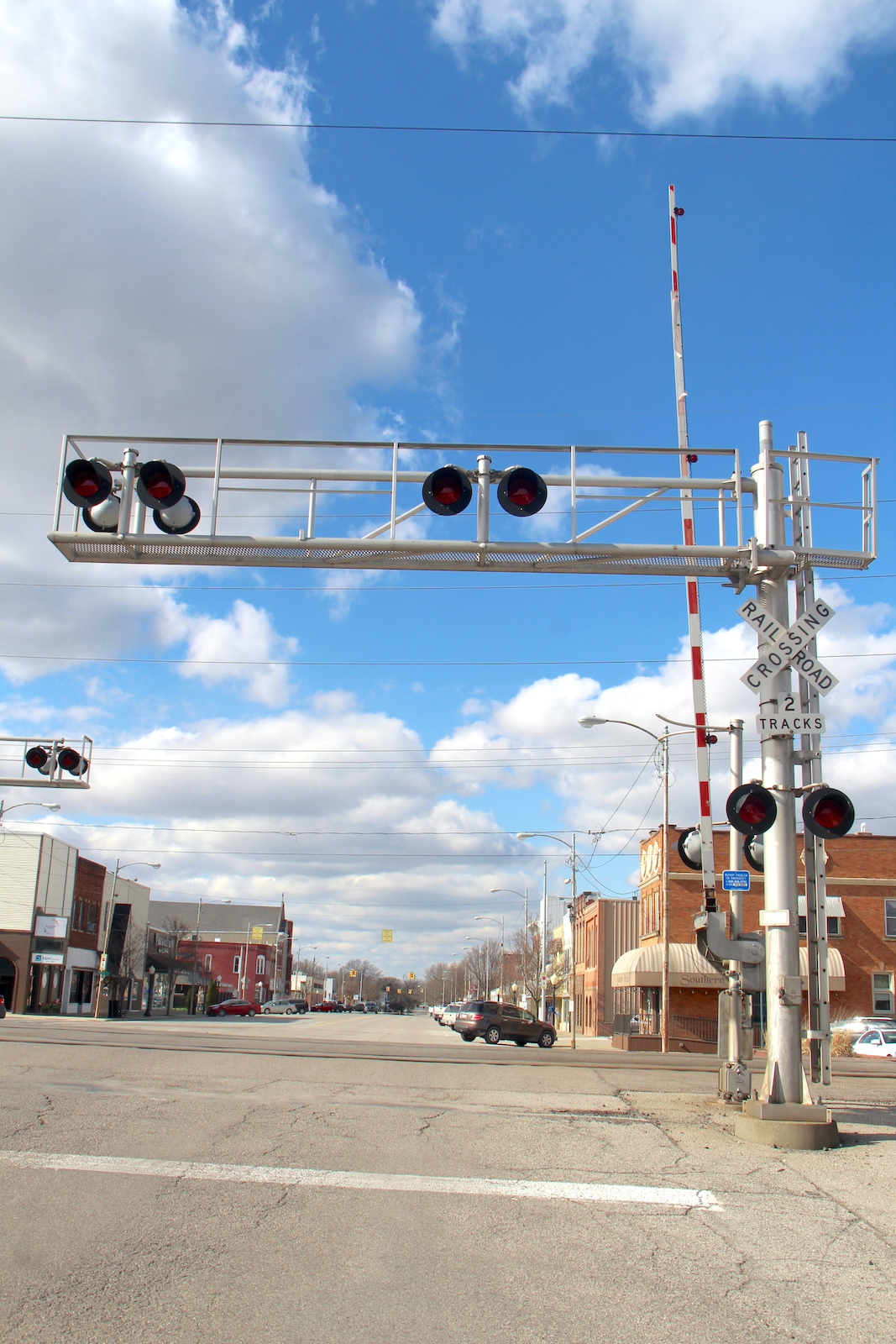

Overview of 2 gated signals facing south.

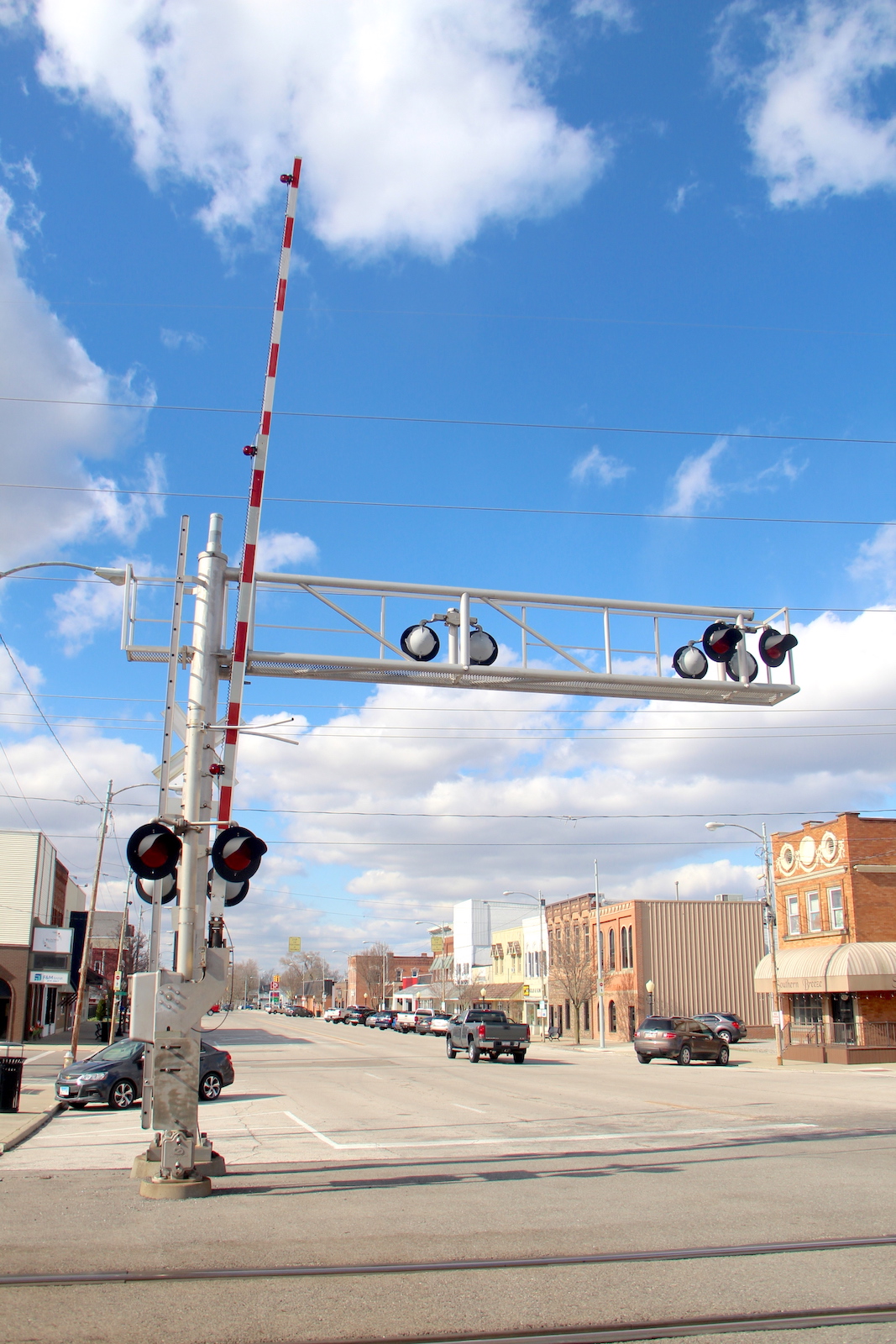

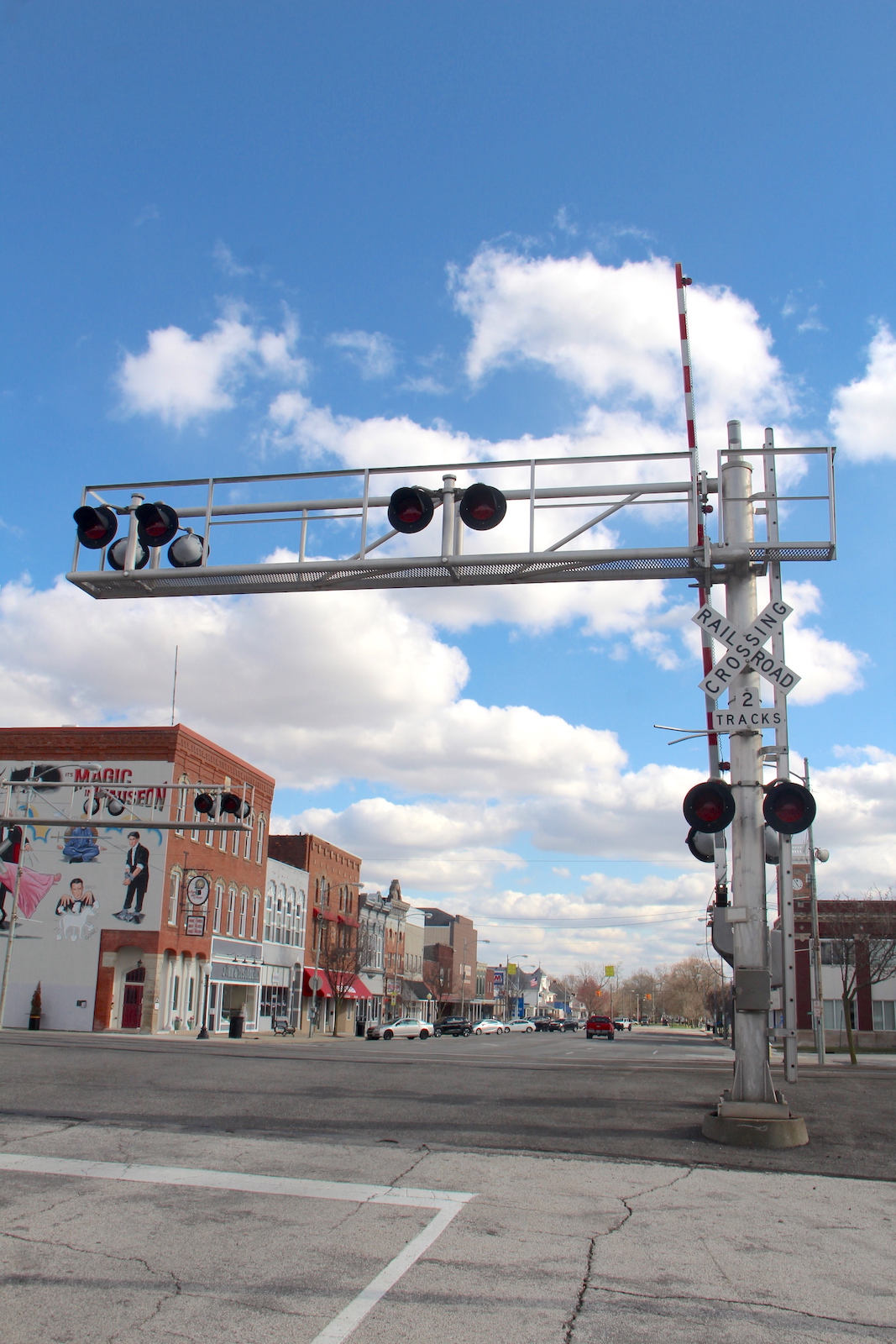

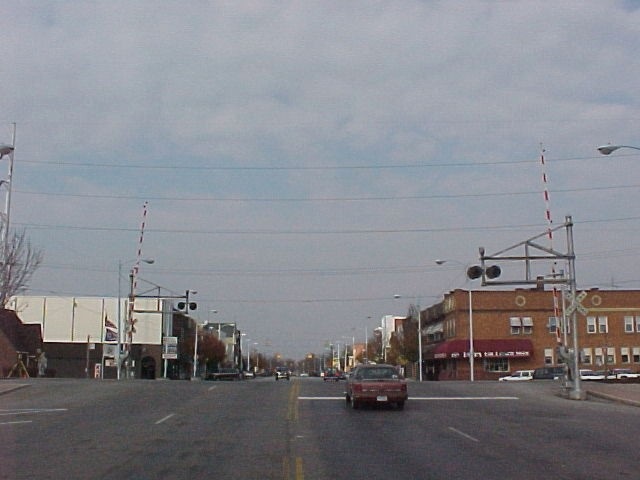

Overview facing north.
3 4 5 6
7 8 9 10
11 12 13 14
15 16 17 18

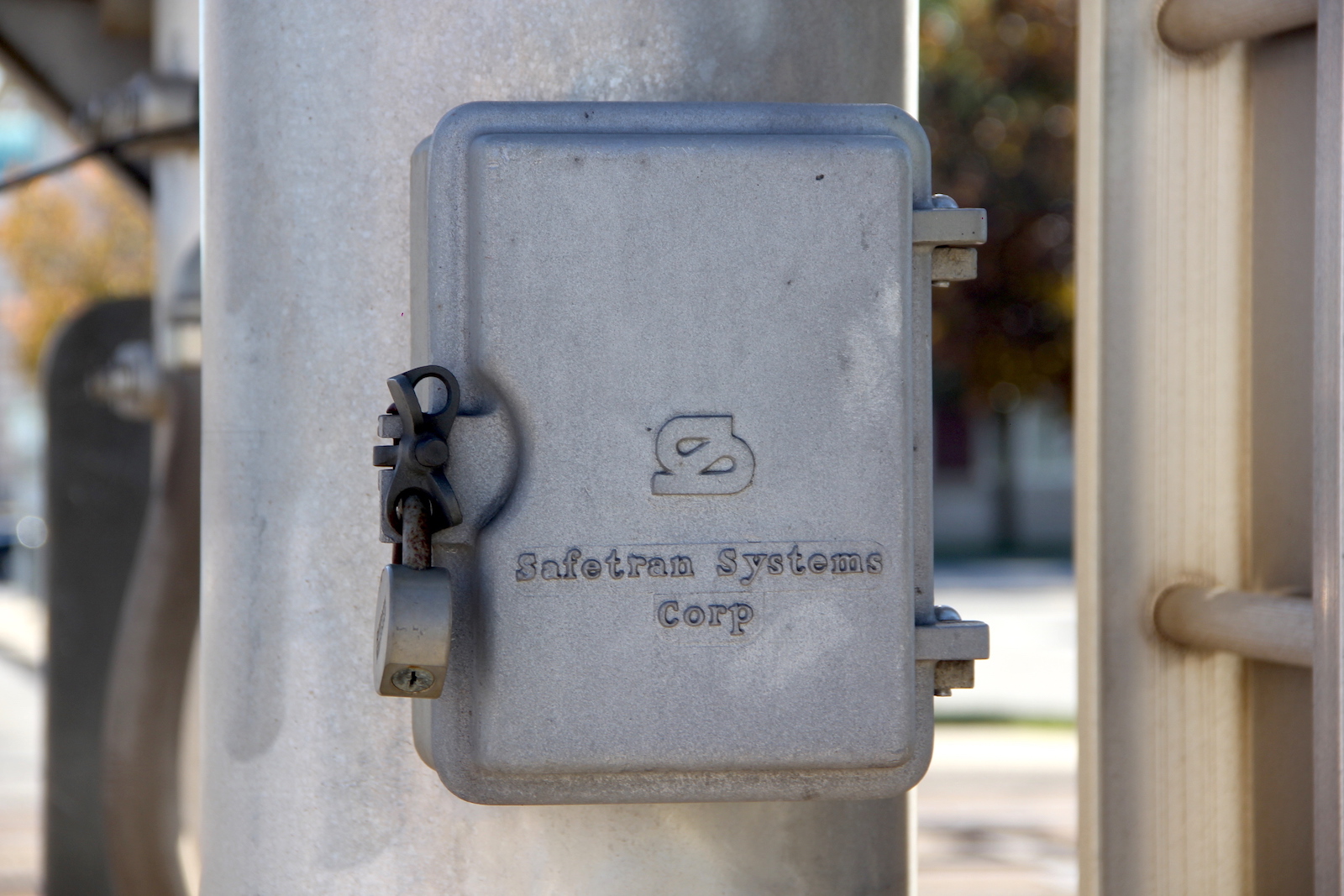

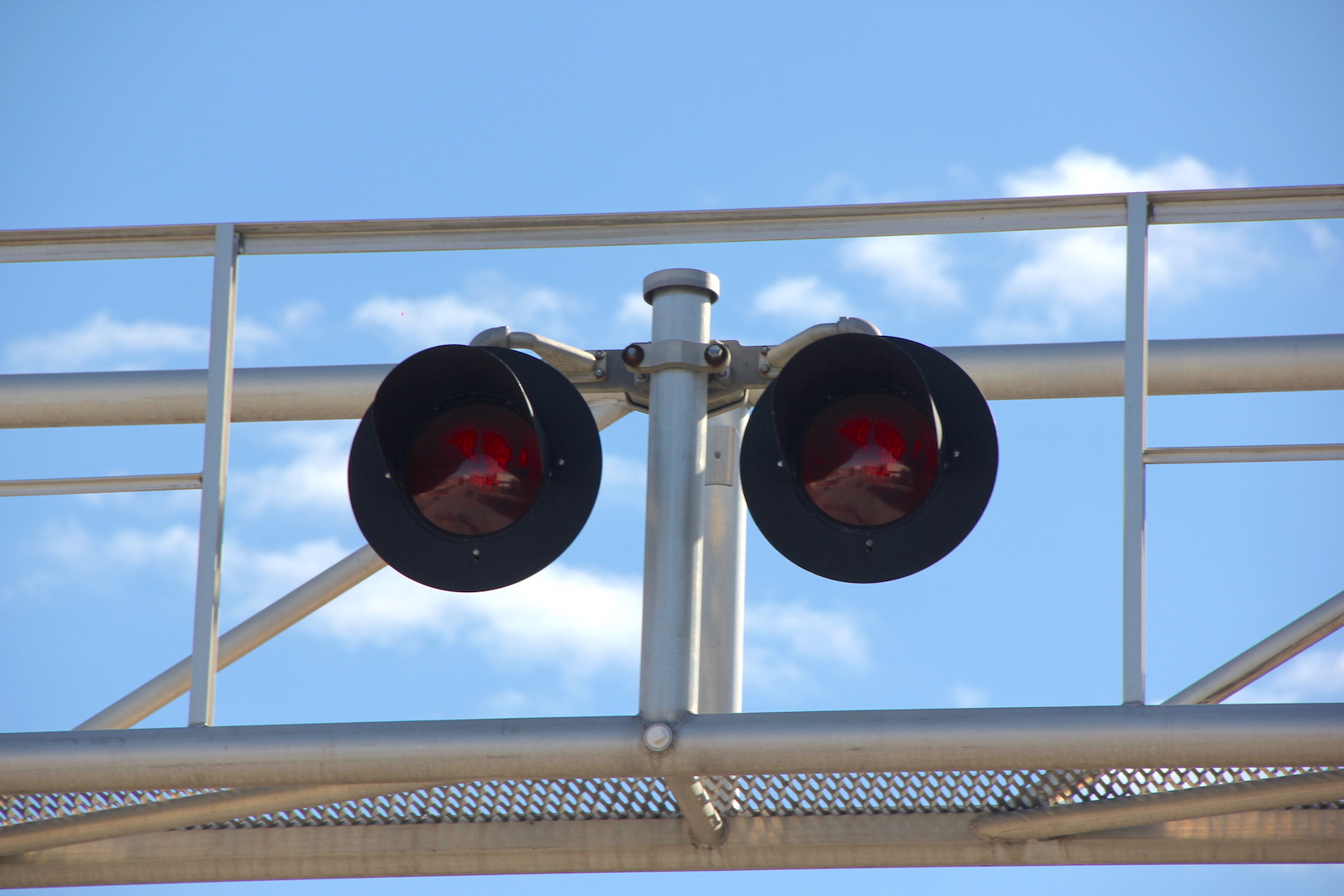

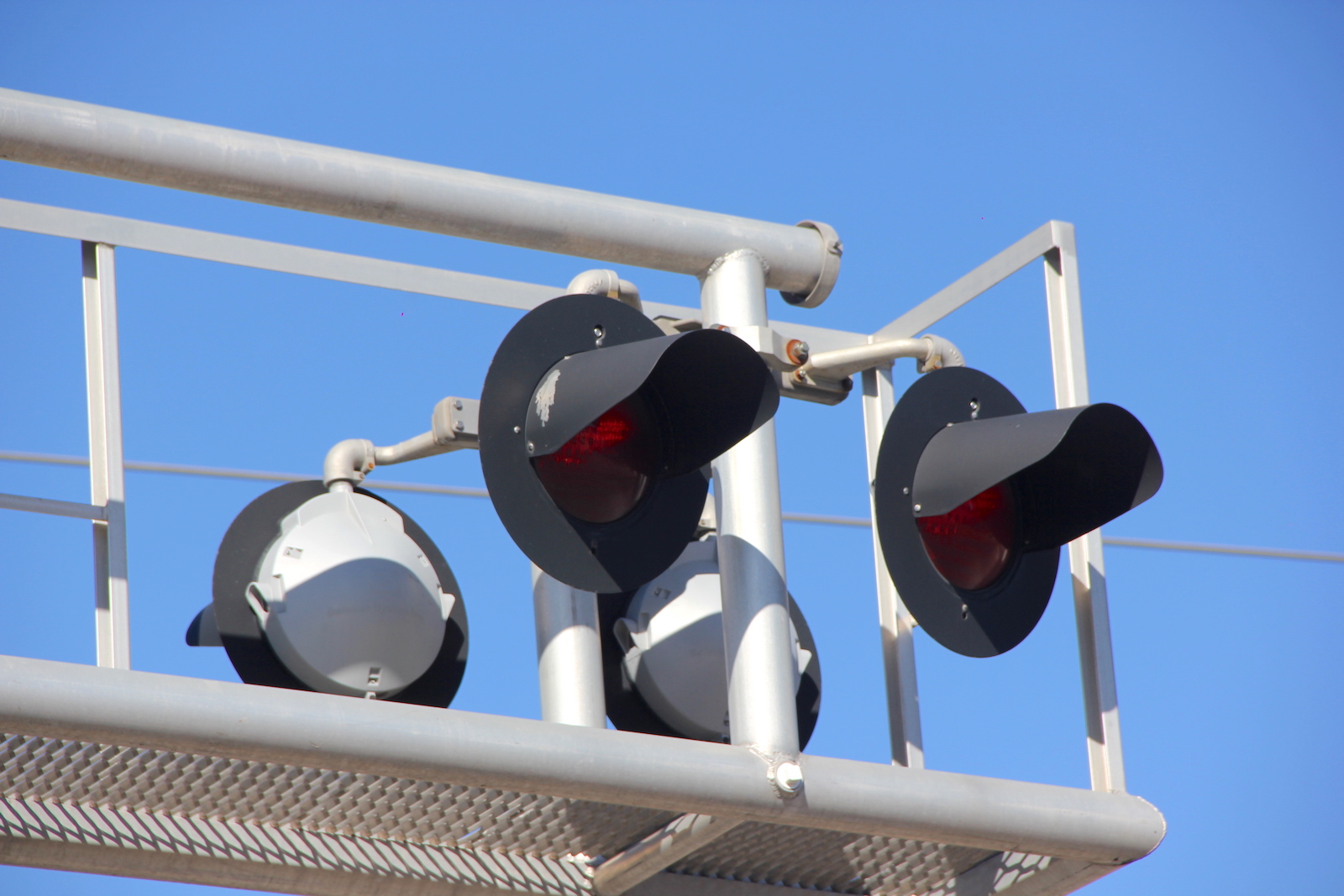

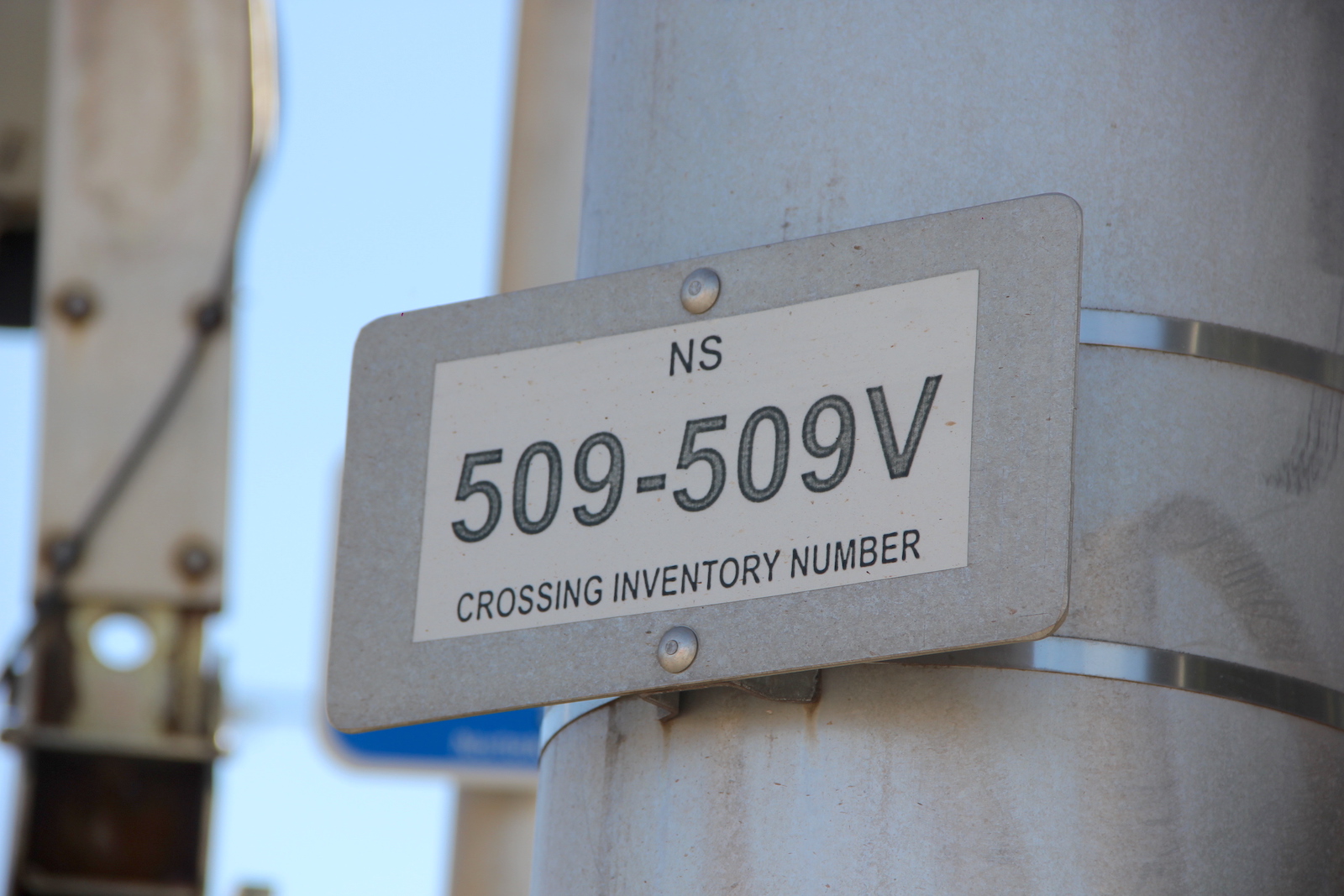

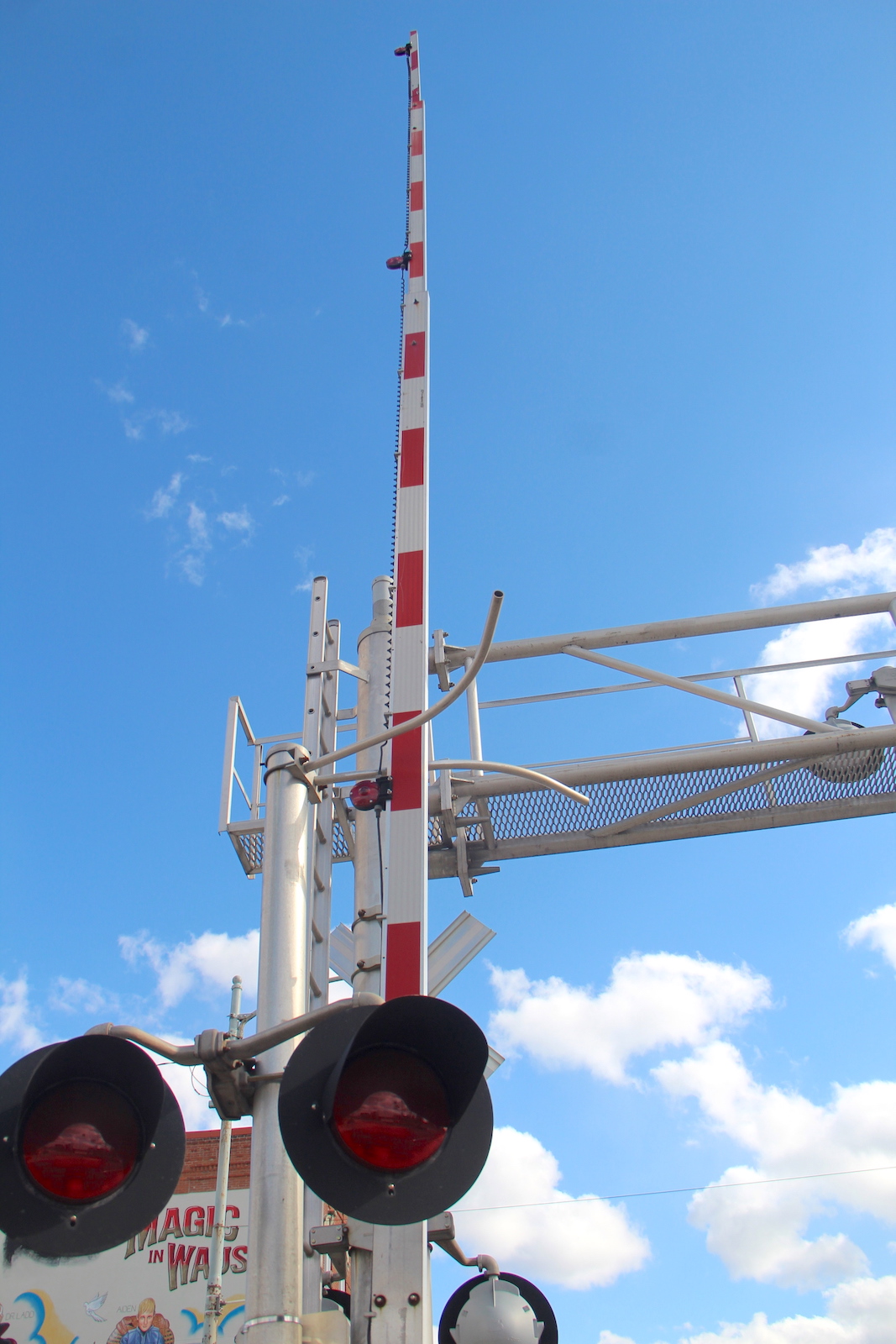

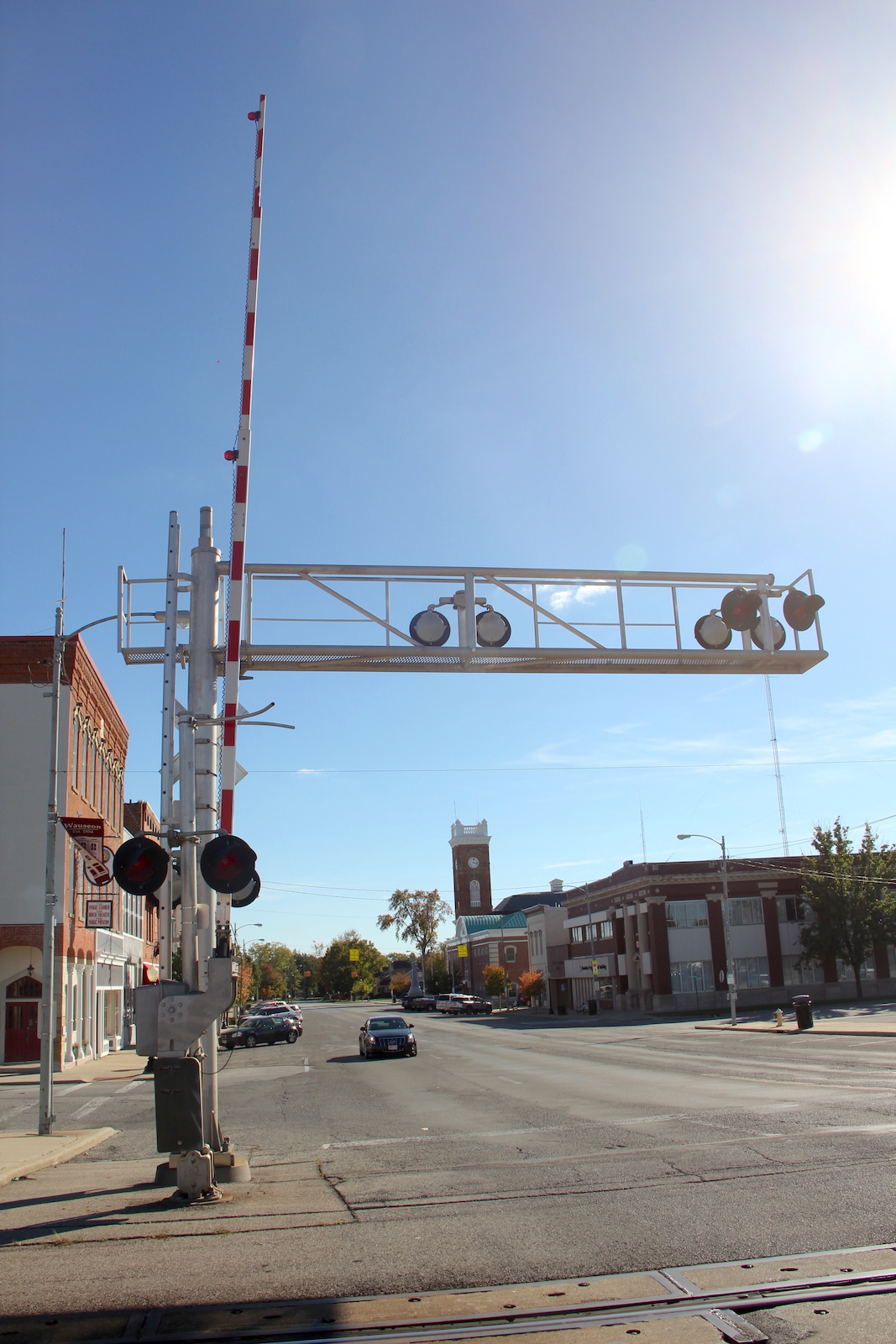

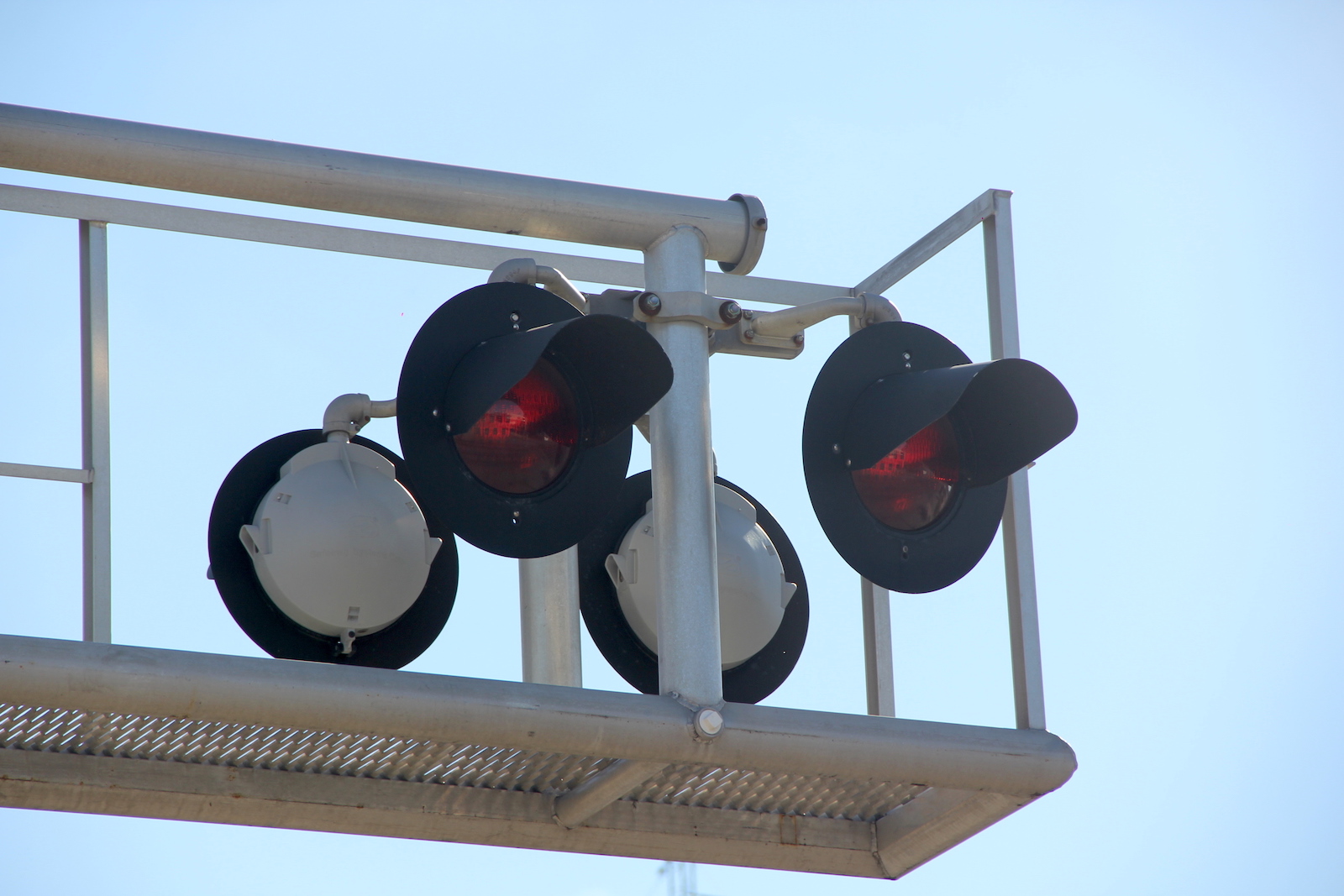

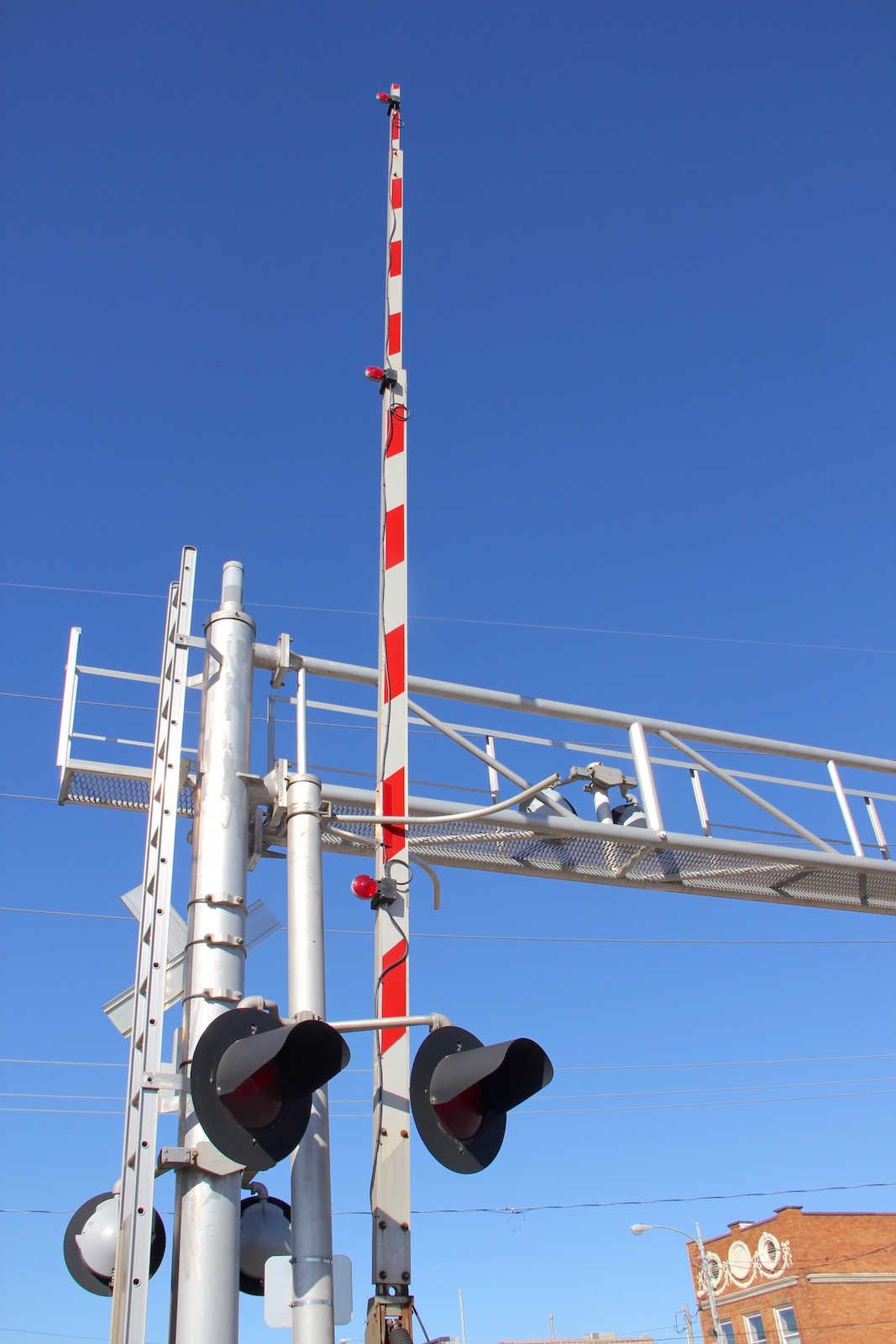

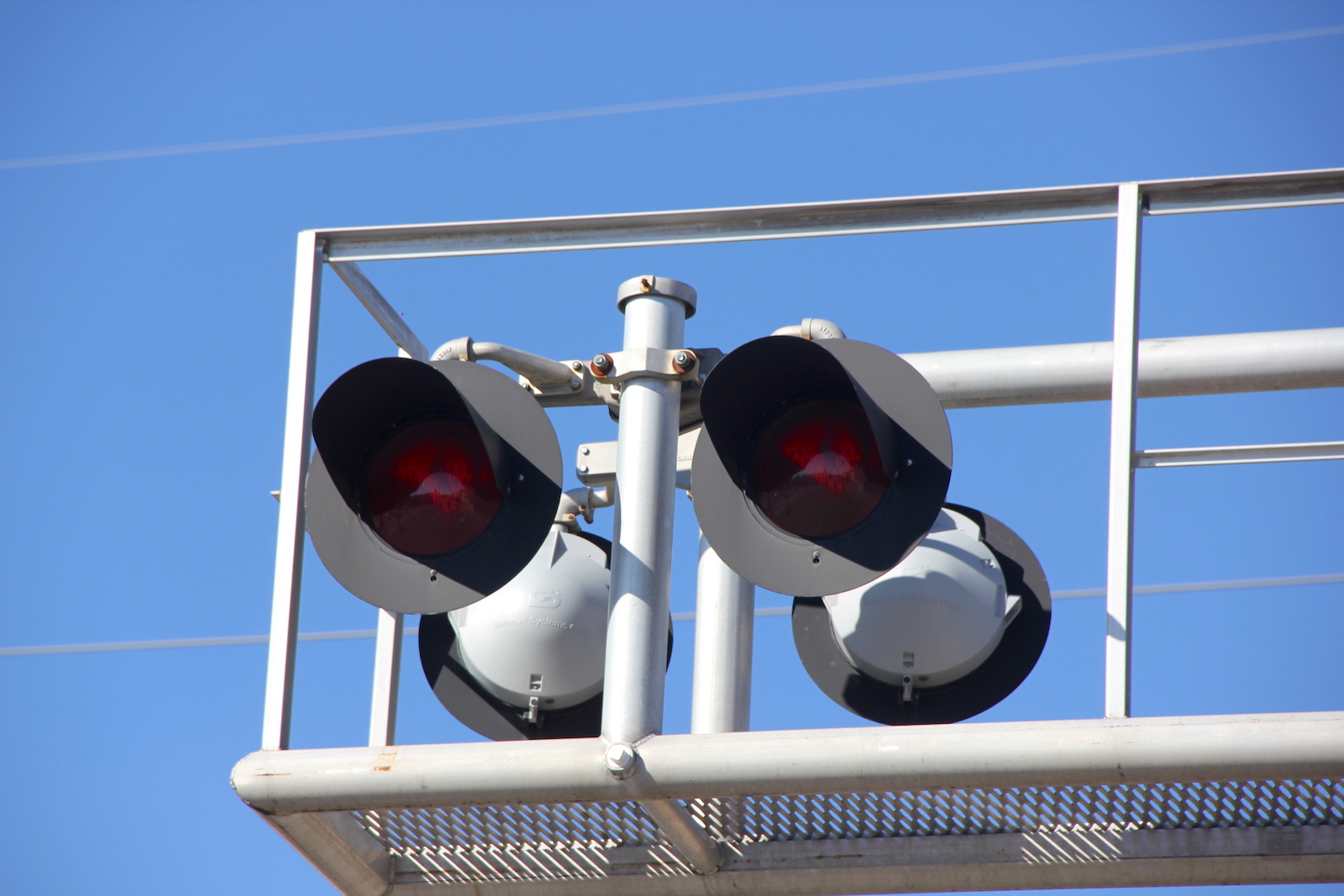

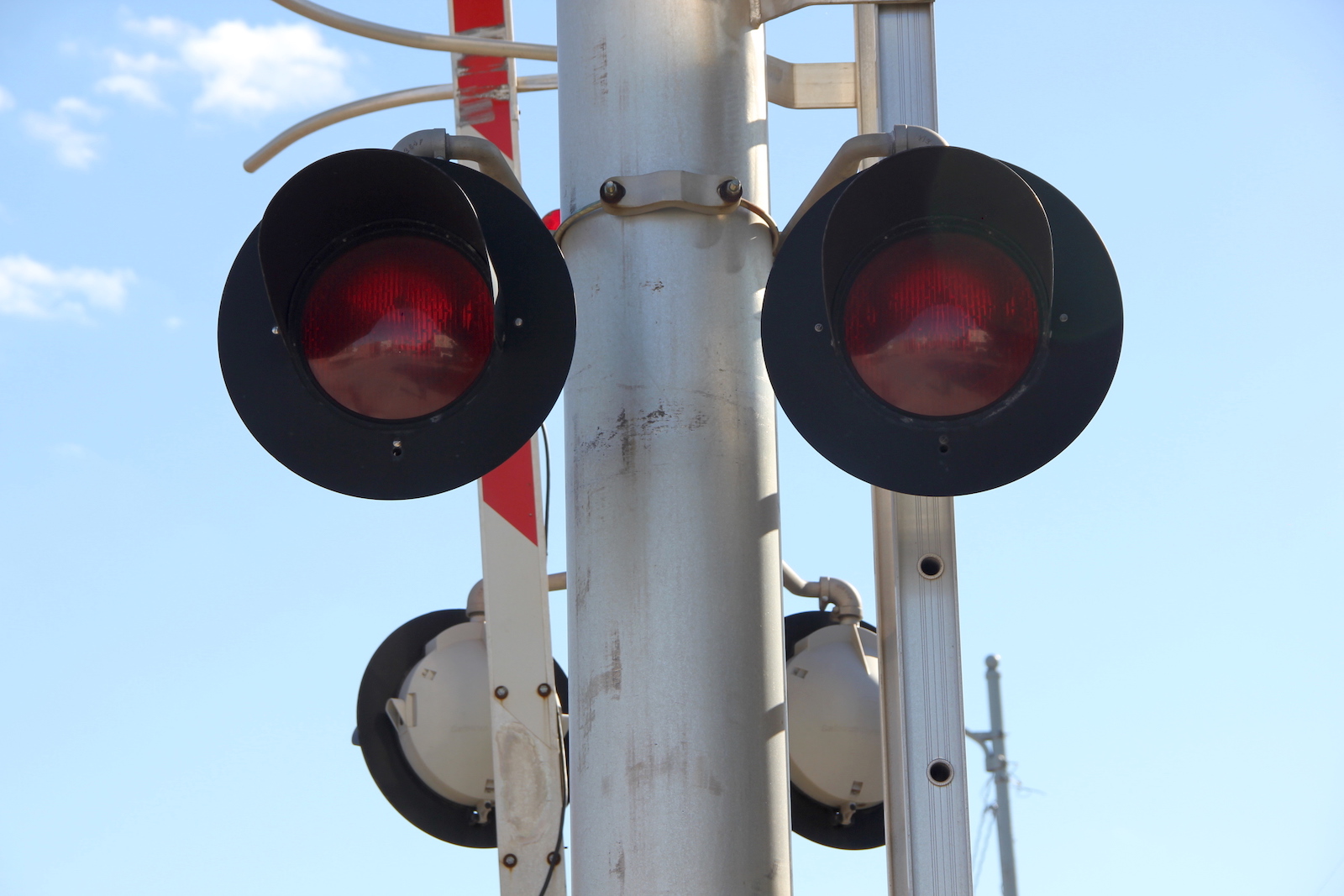

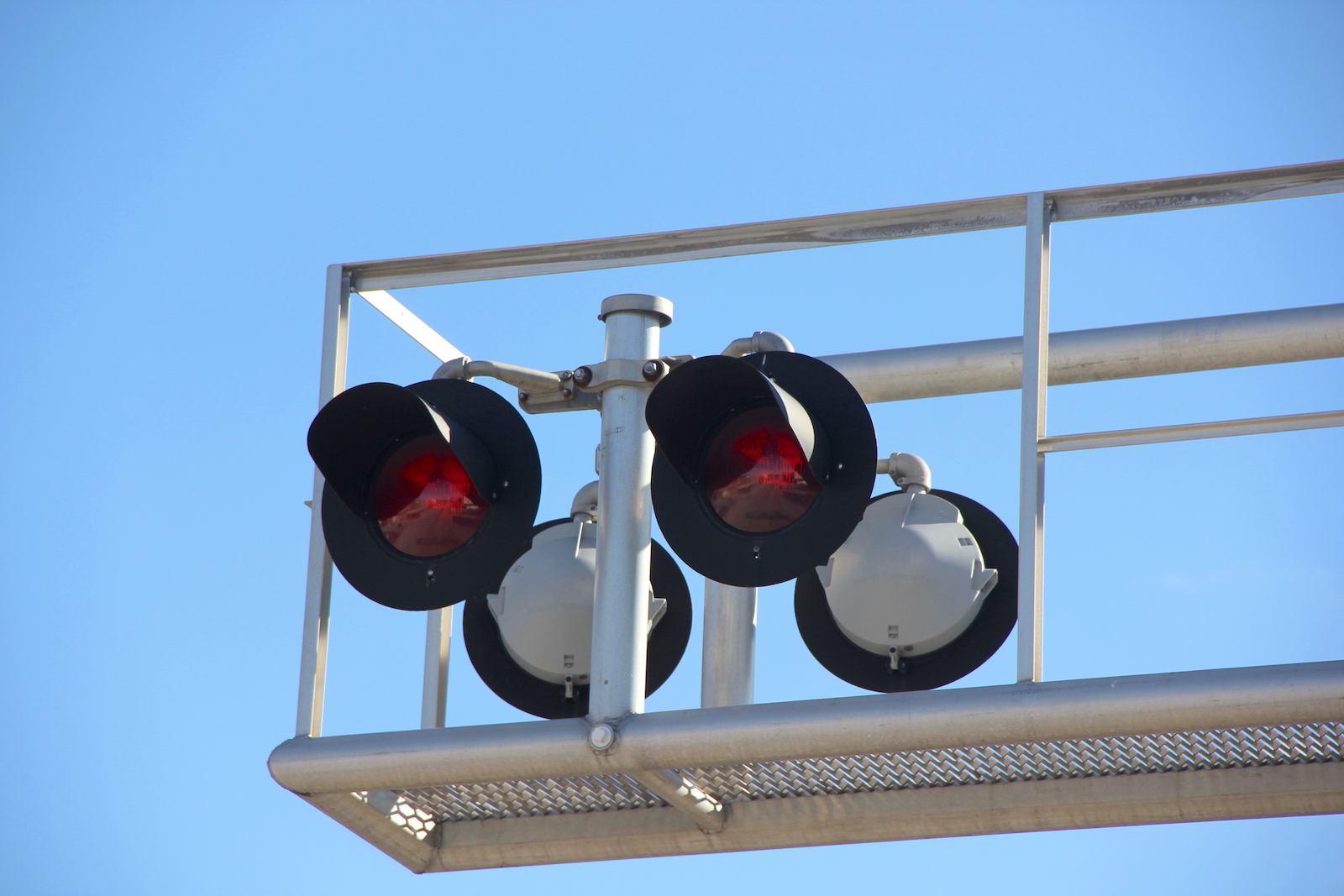

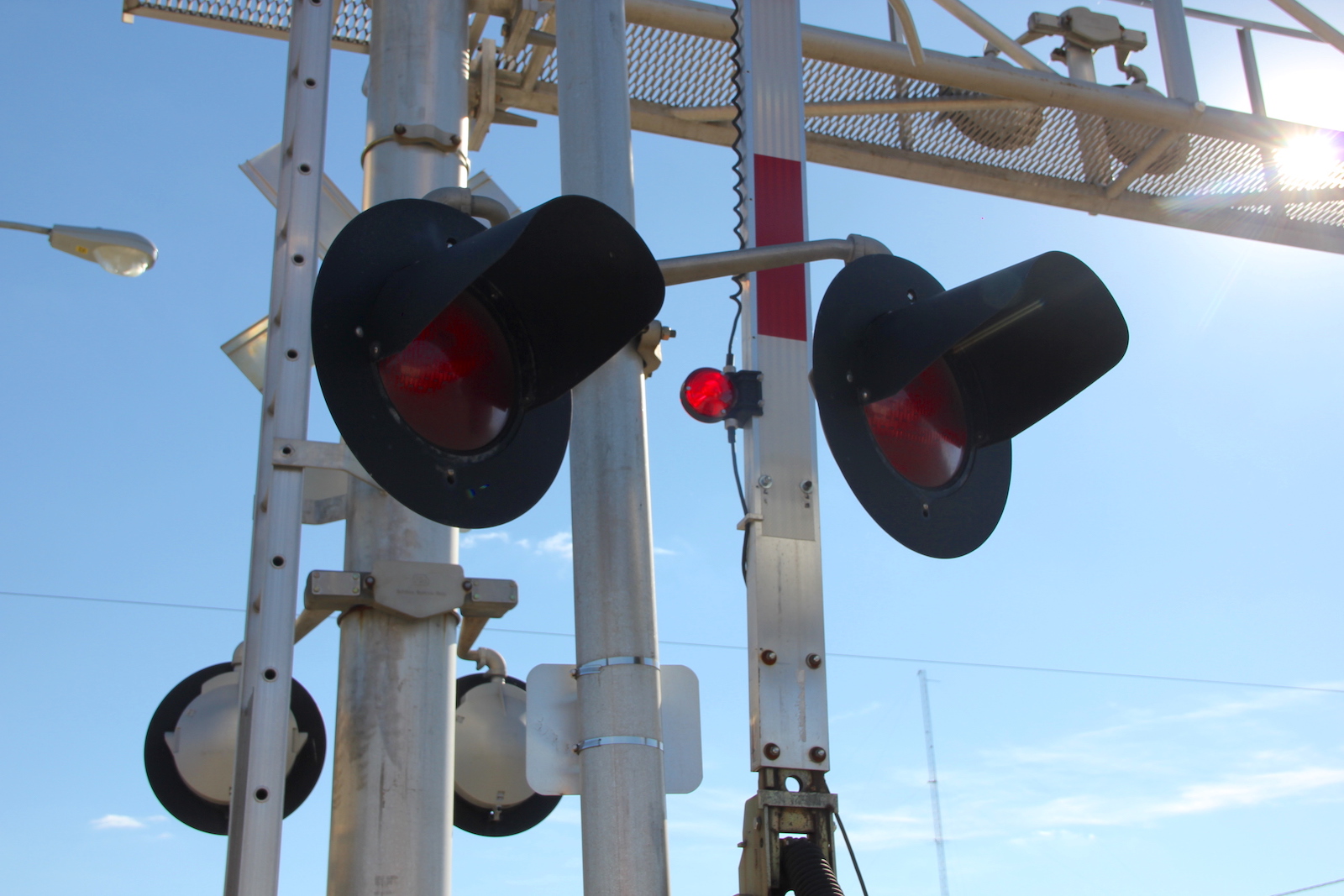

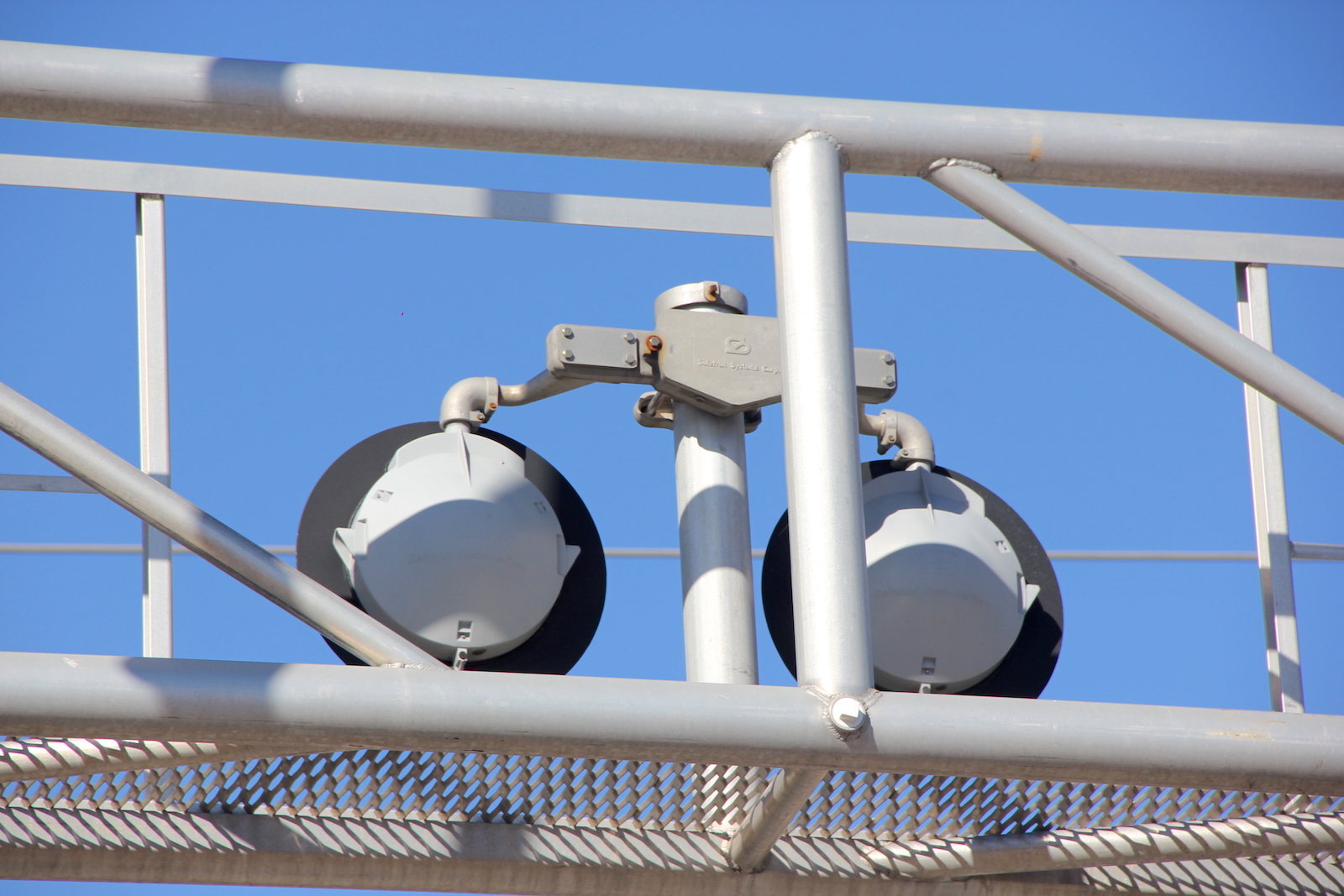

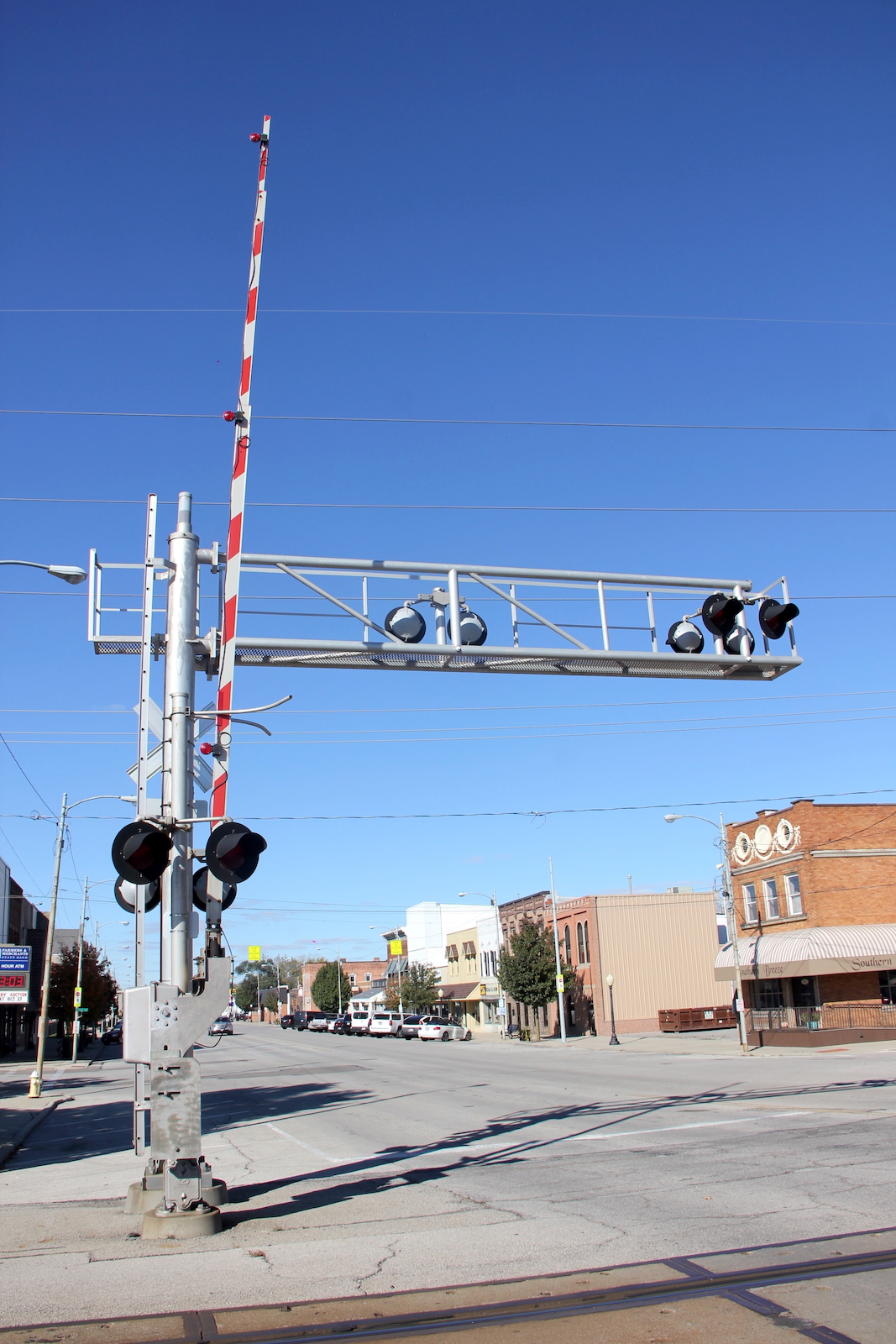

The northern signal.
19 20 21 22
23 24 25 26
27 28 29 30
31 32 33 34

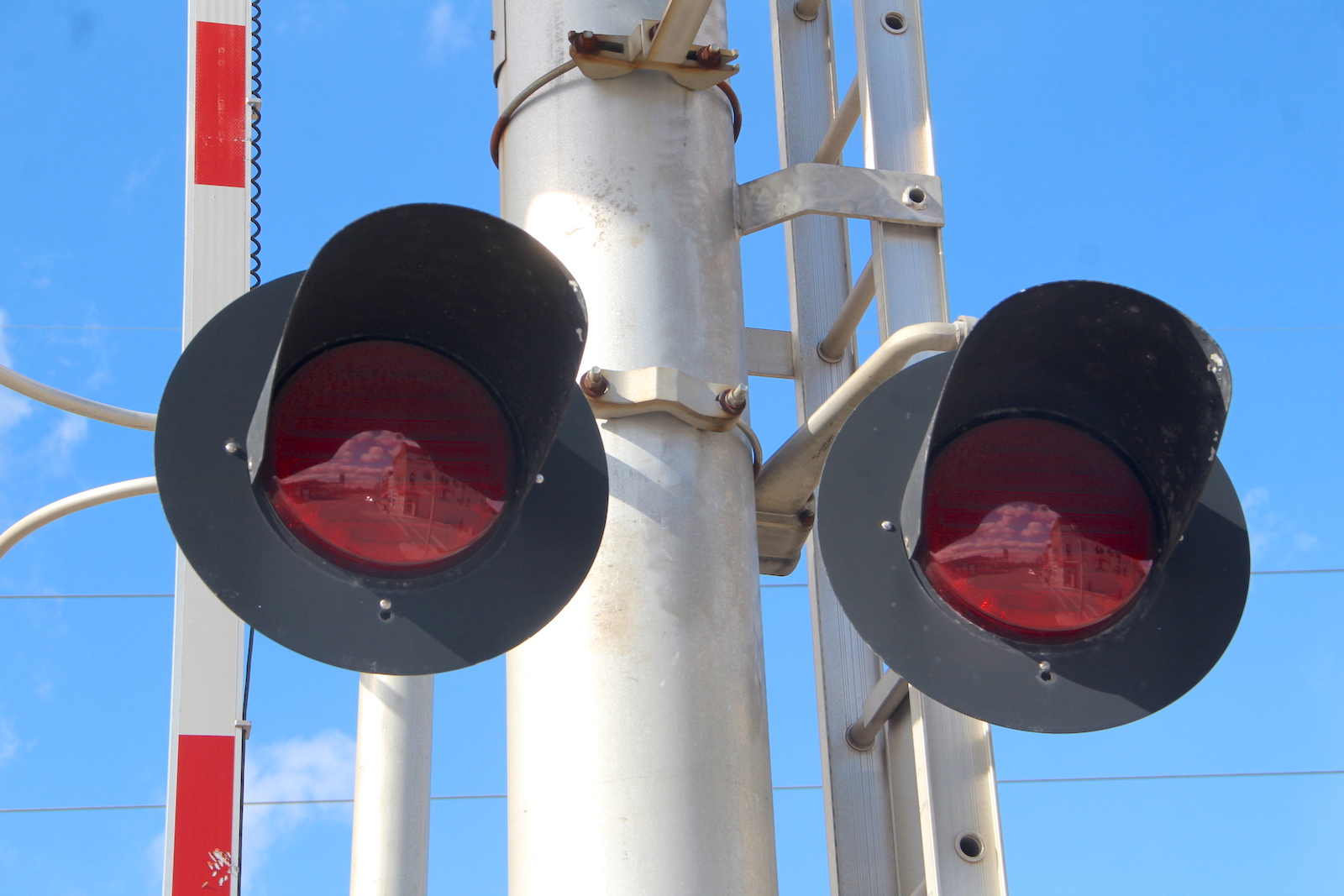

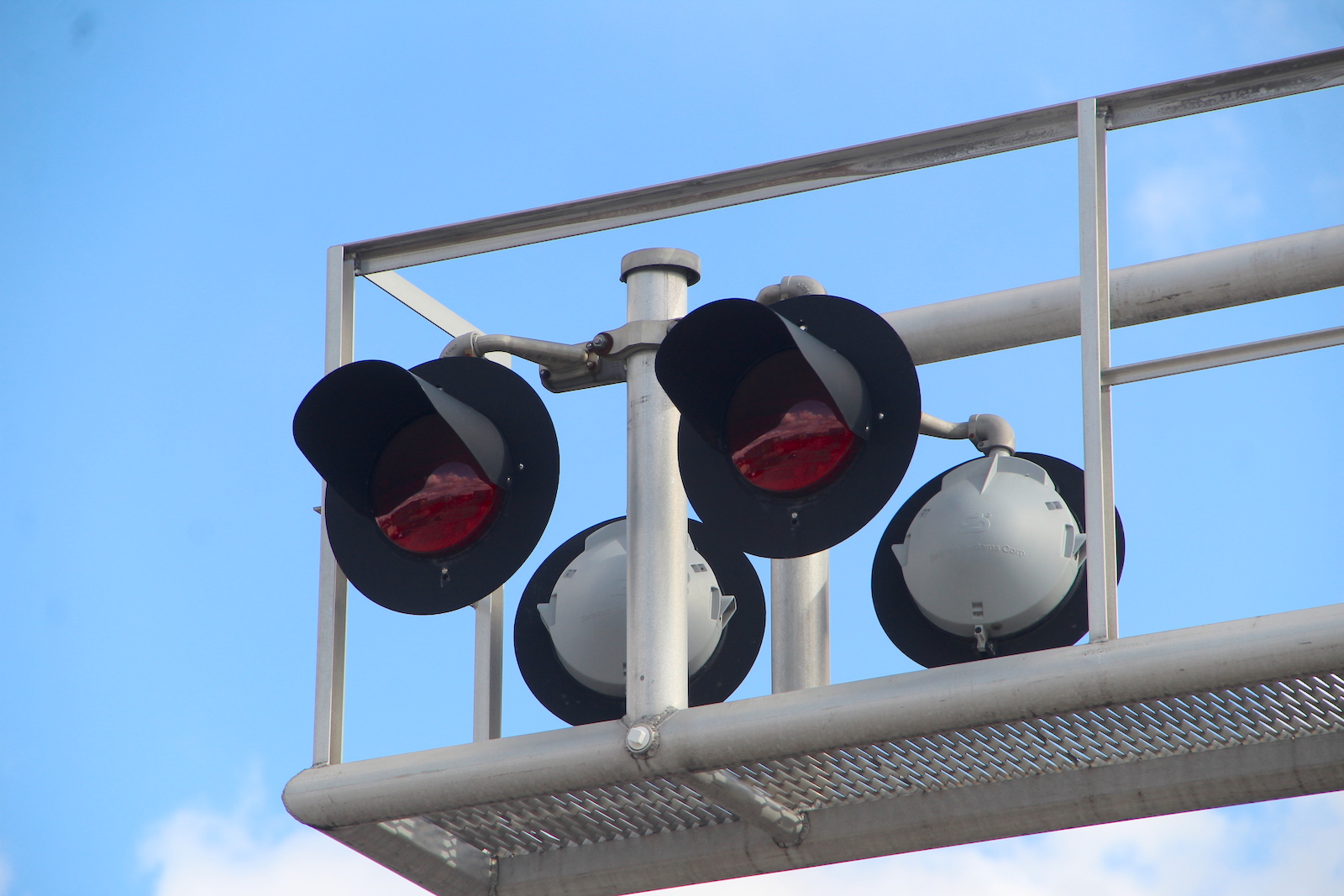

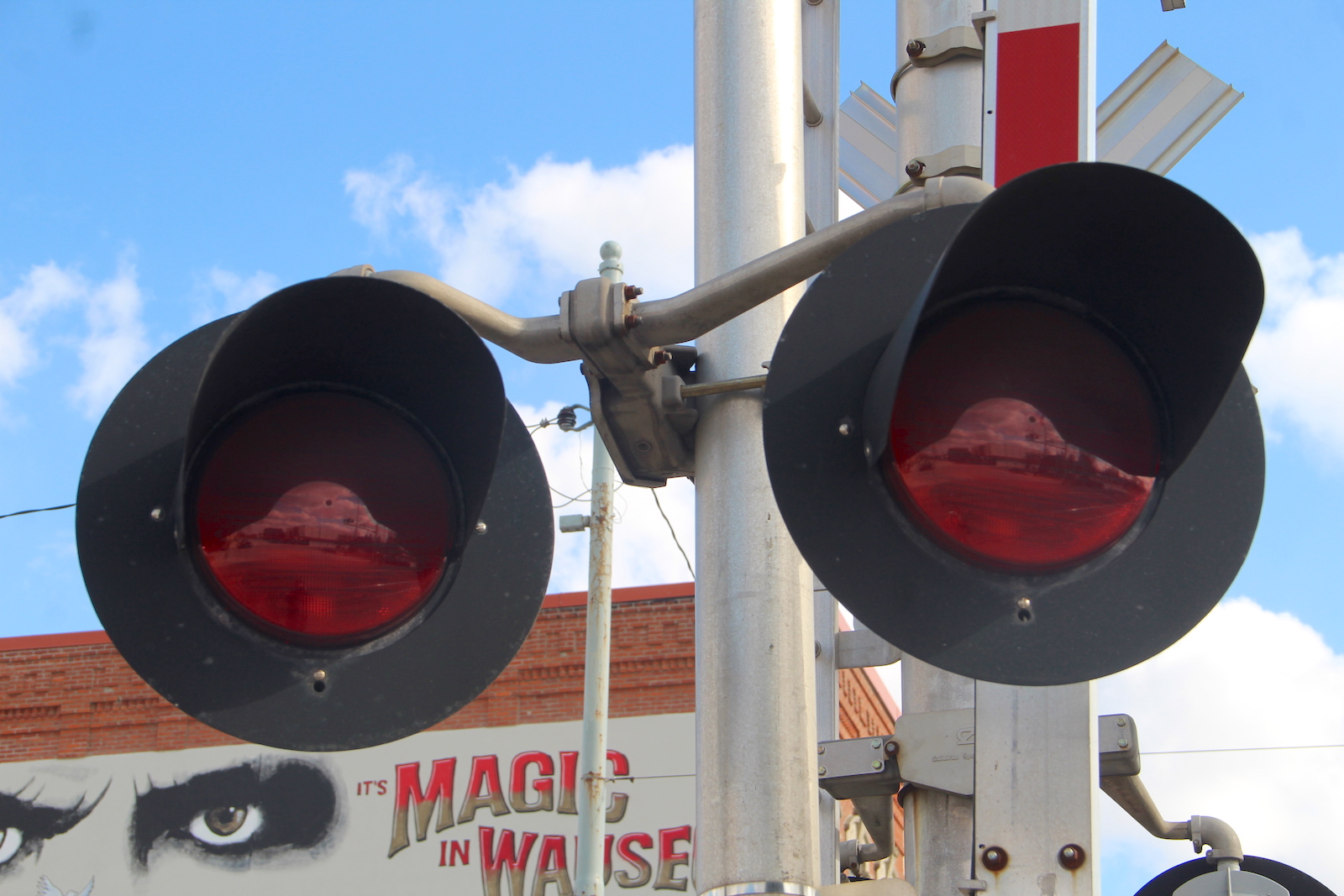

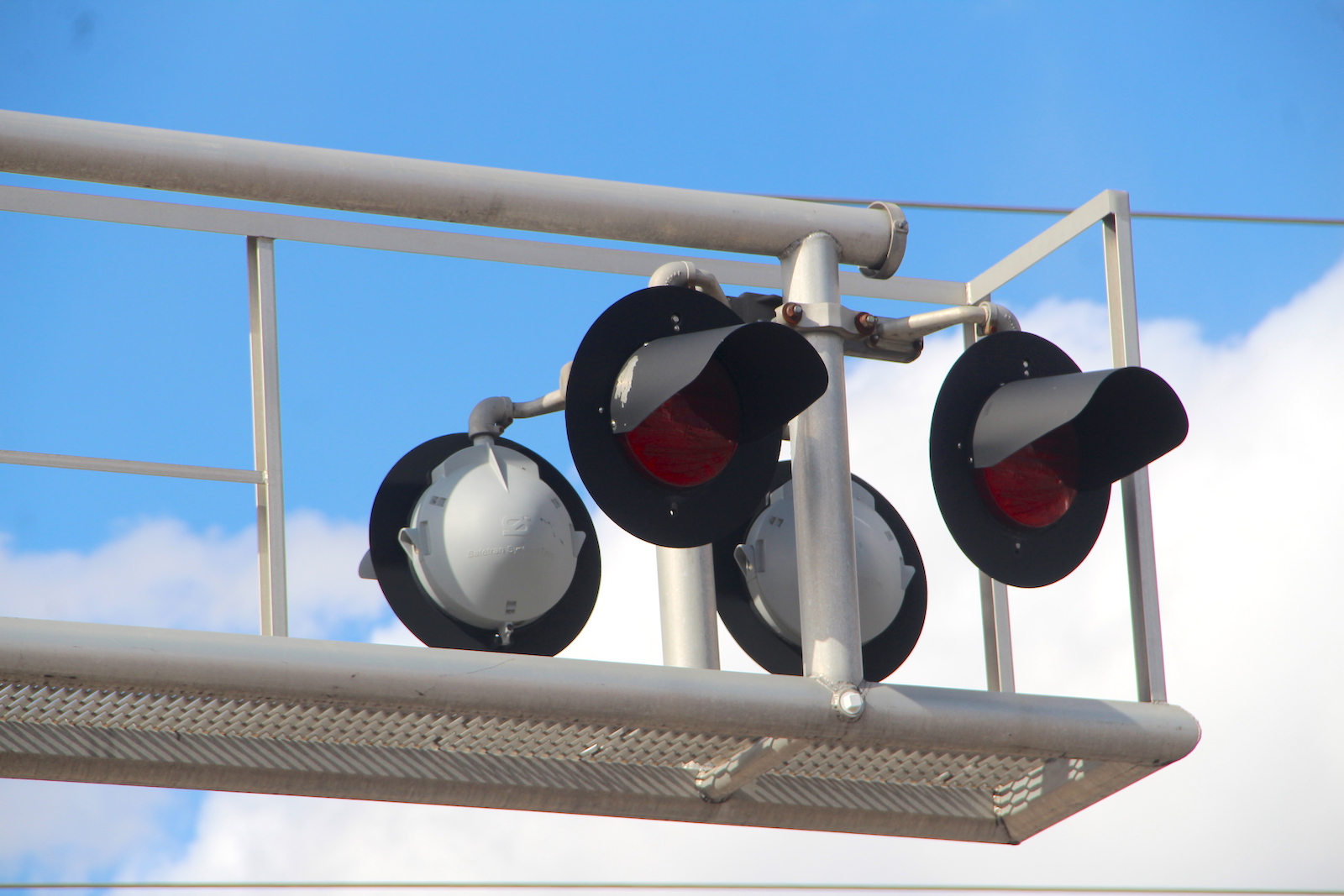

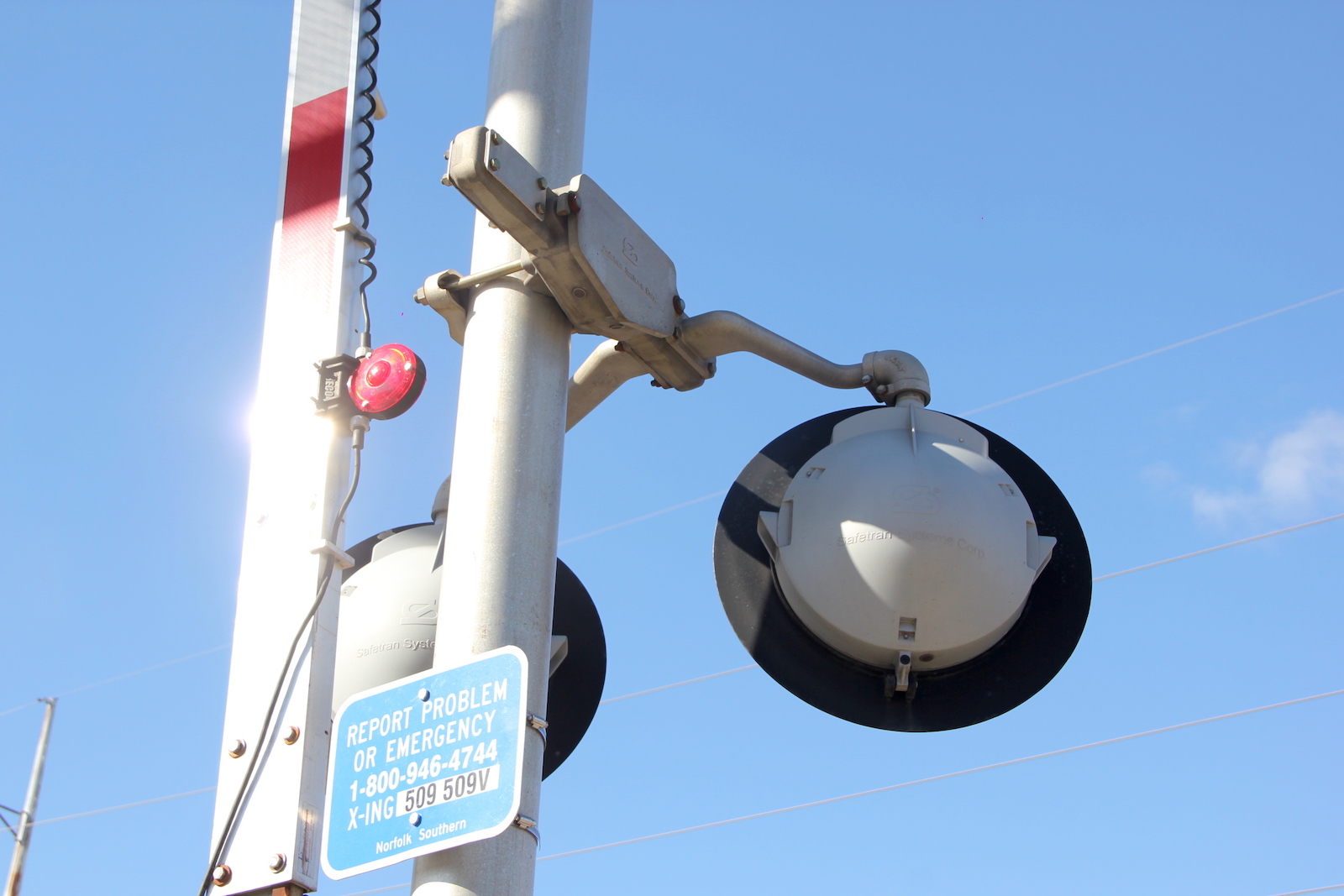

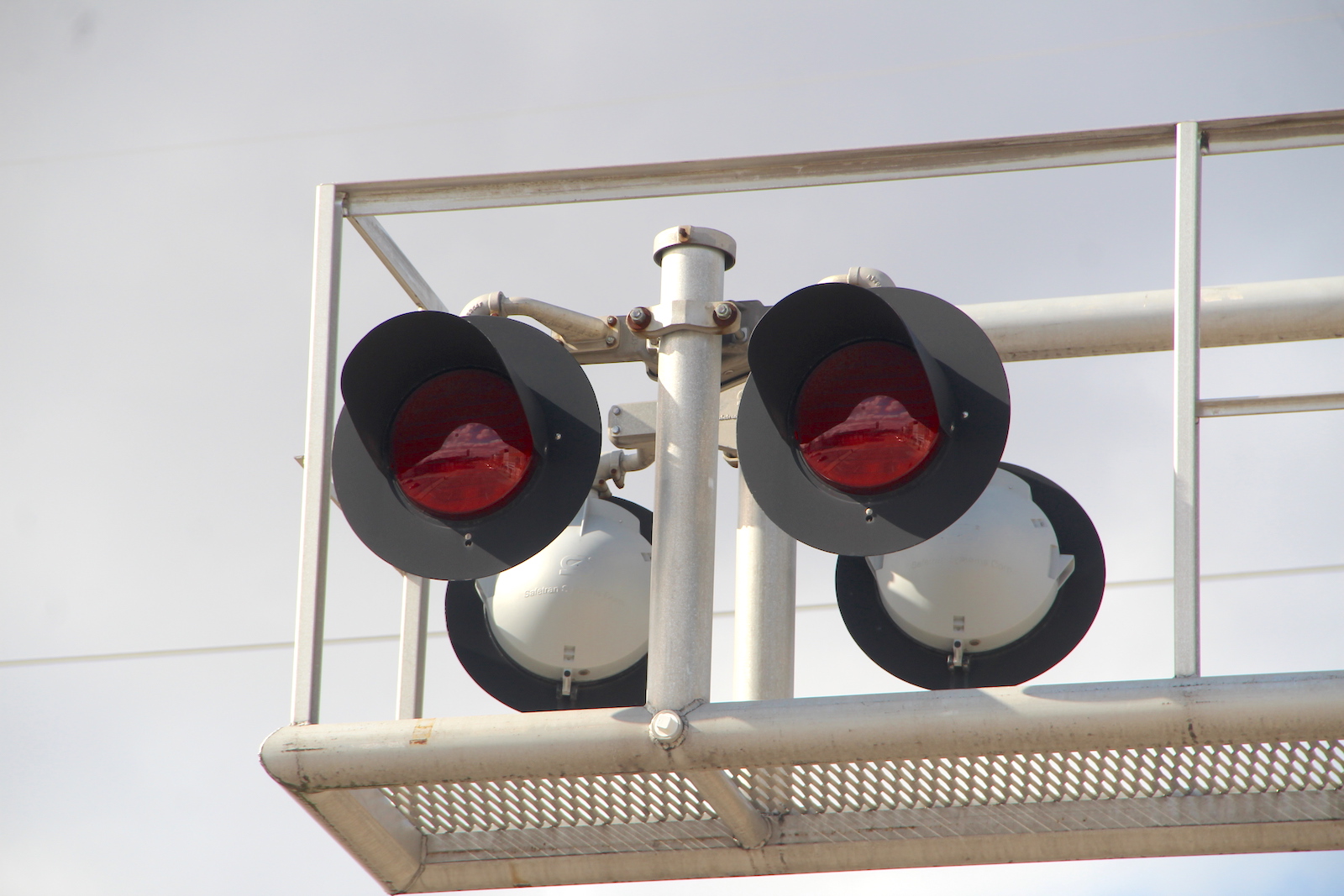

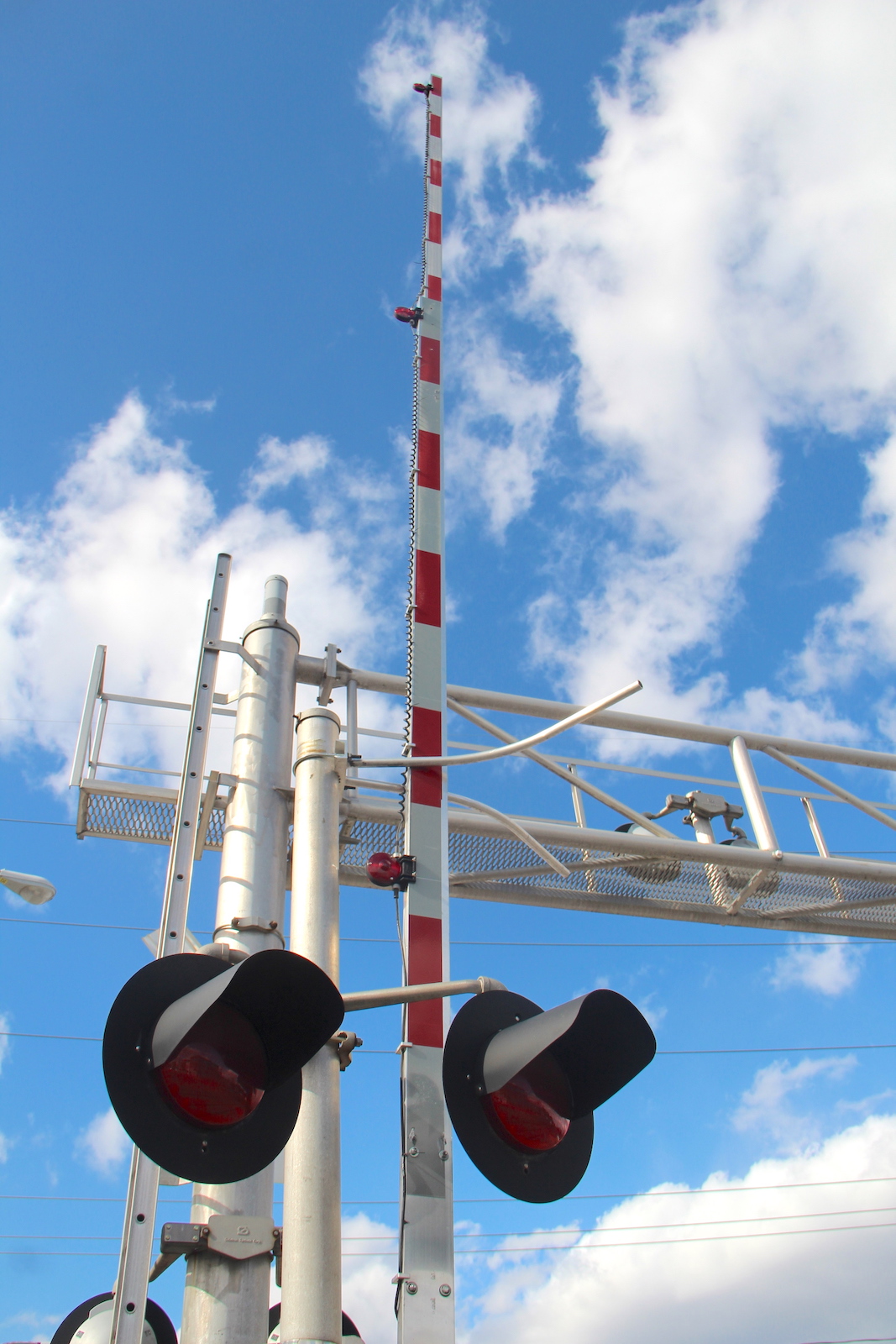

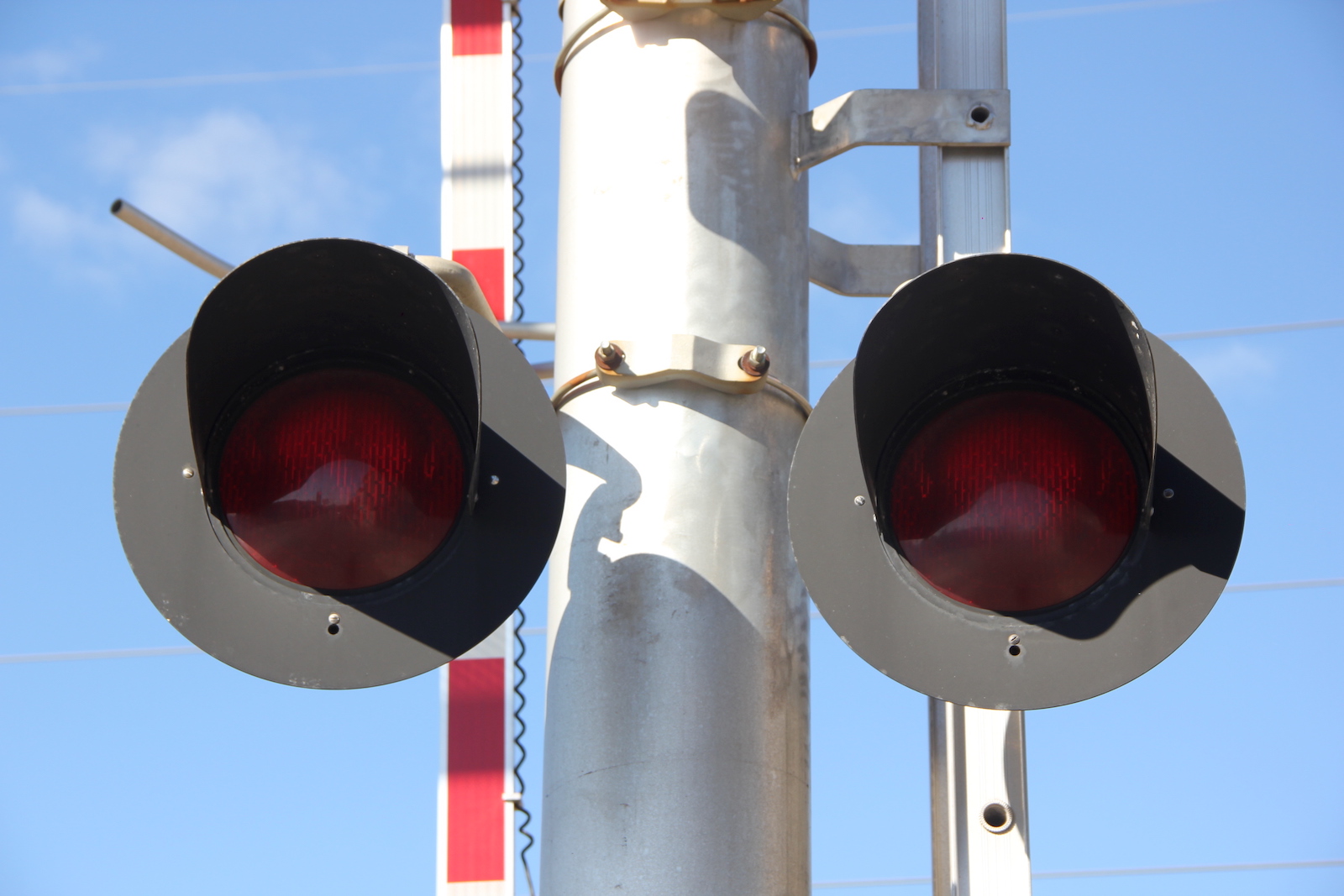

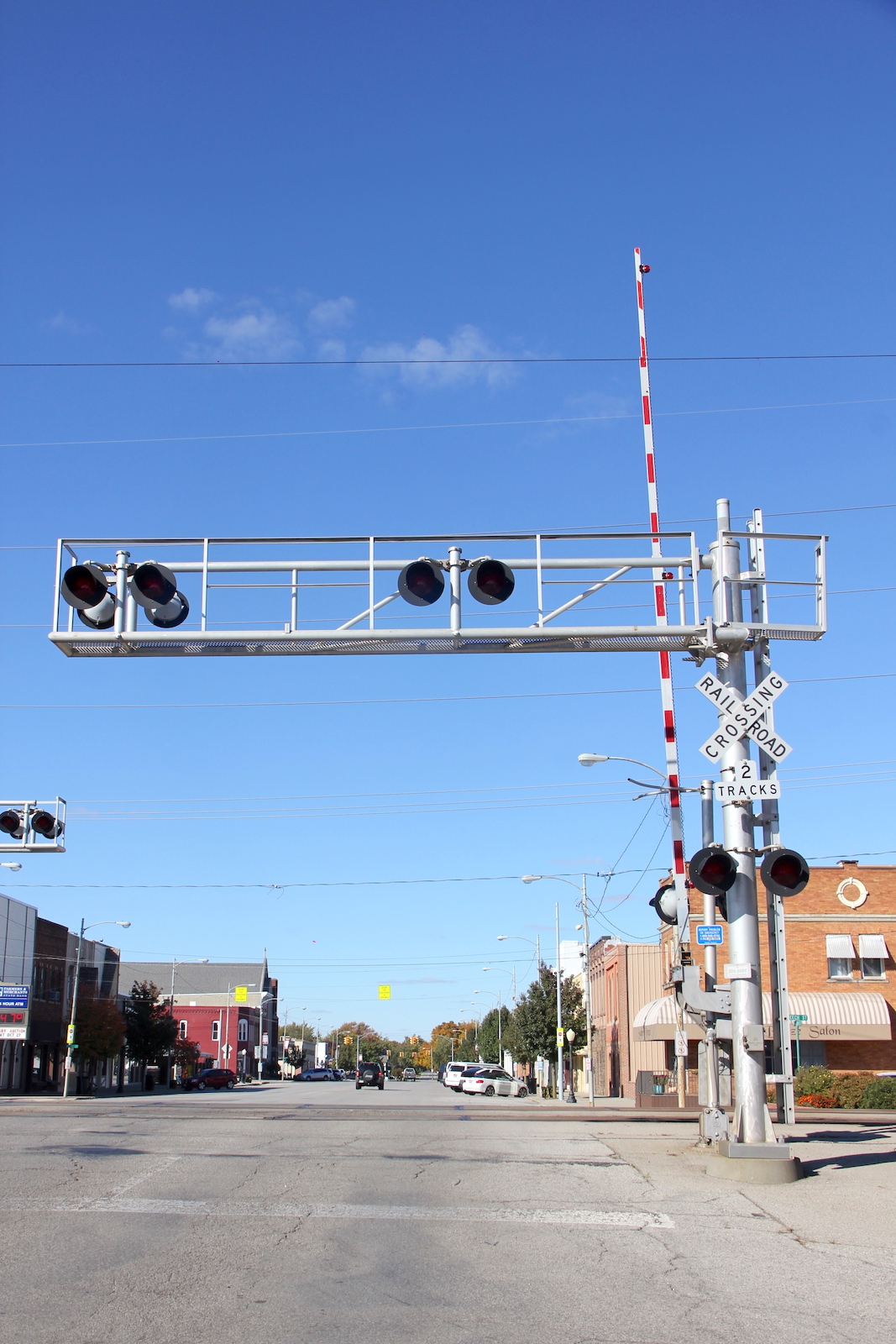

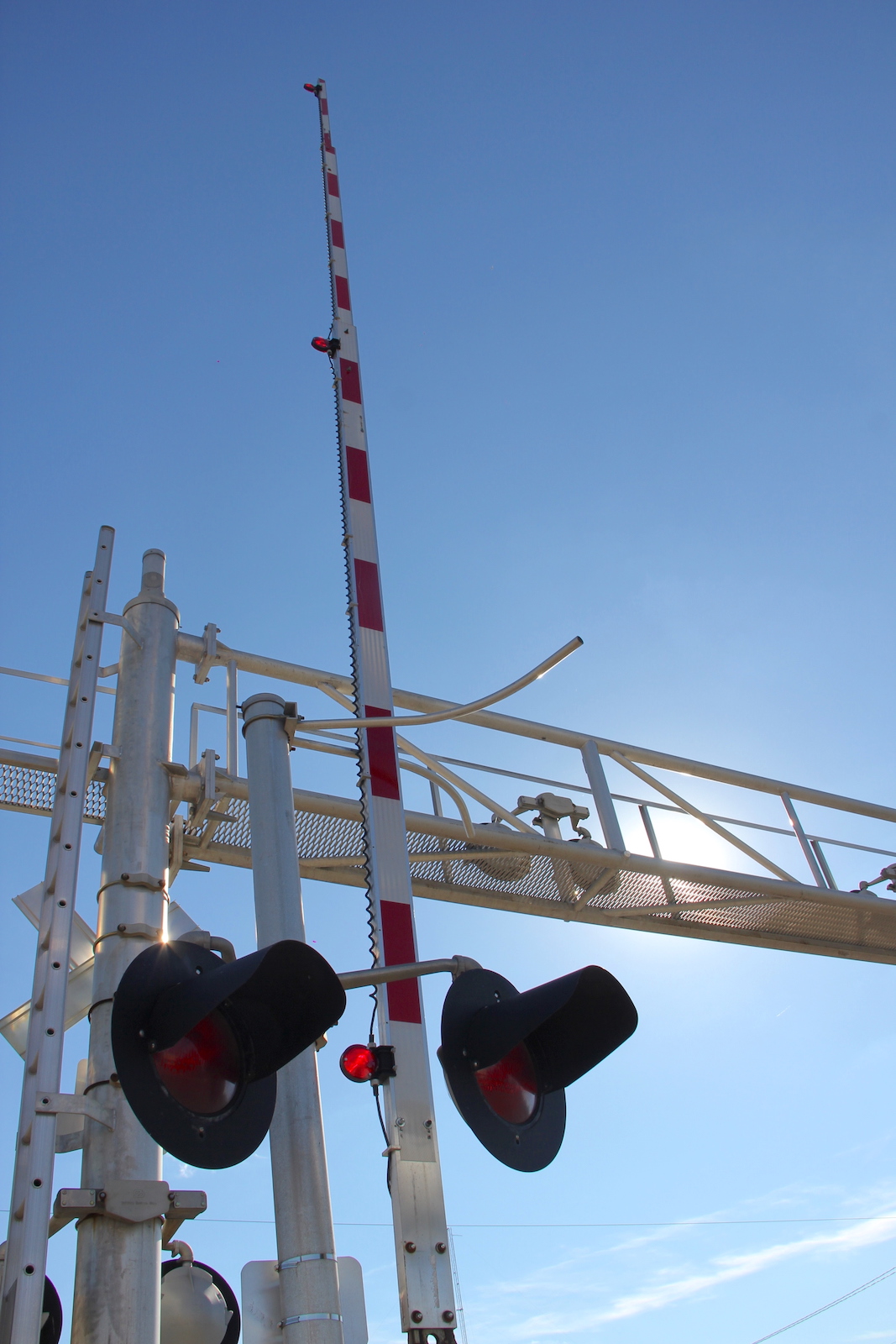

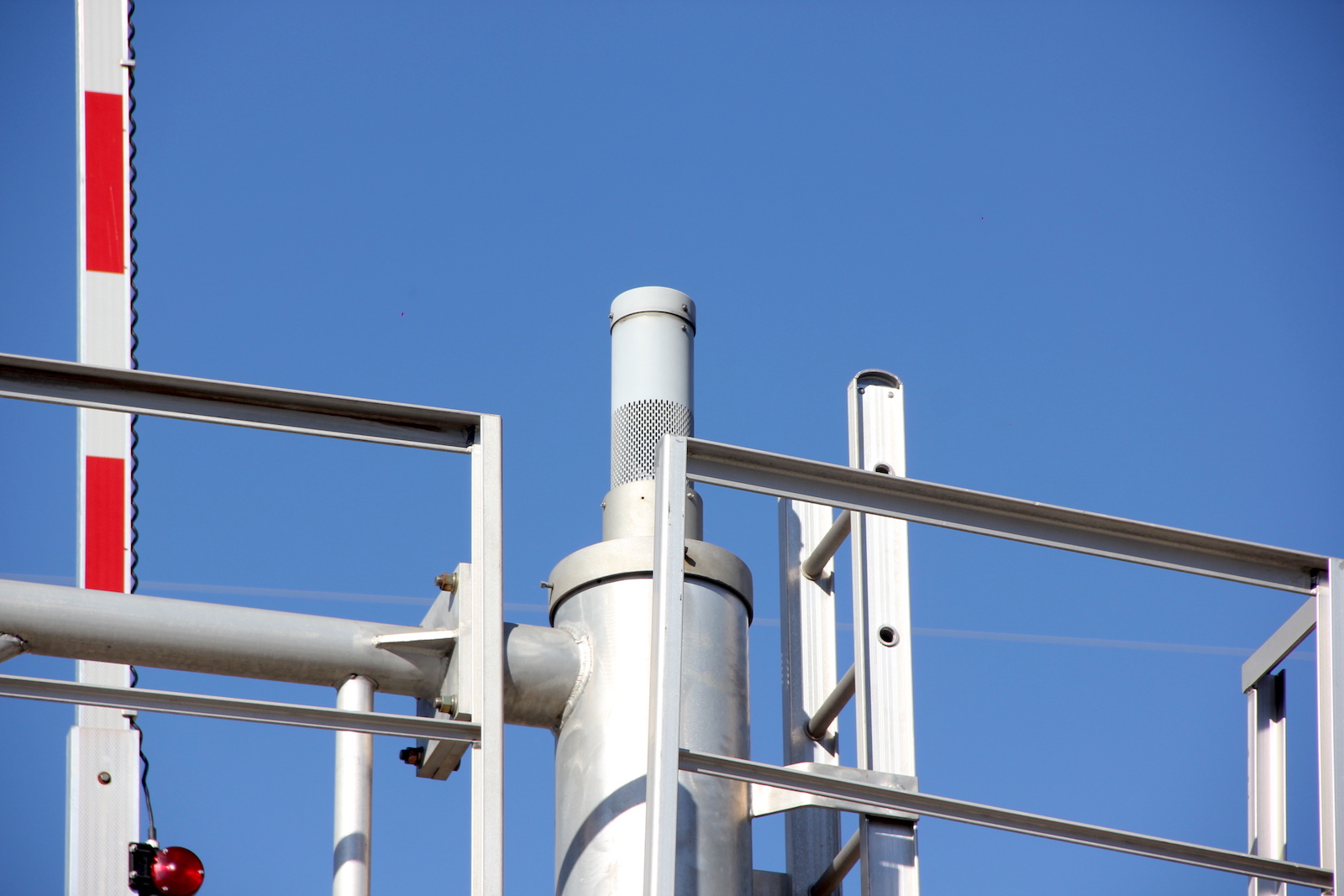

The southern signal.
35 36 37 38

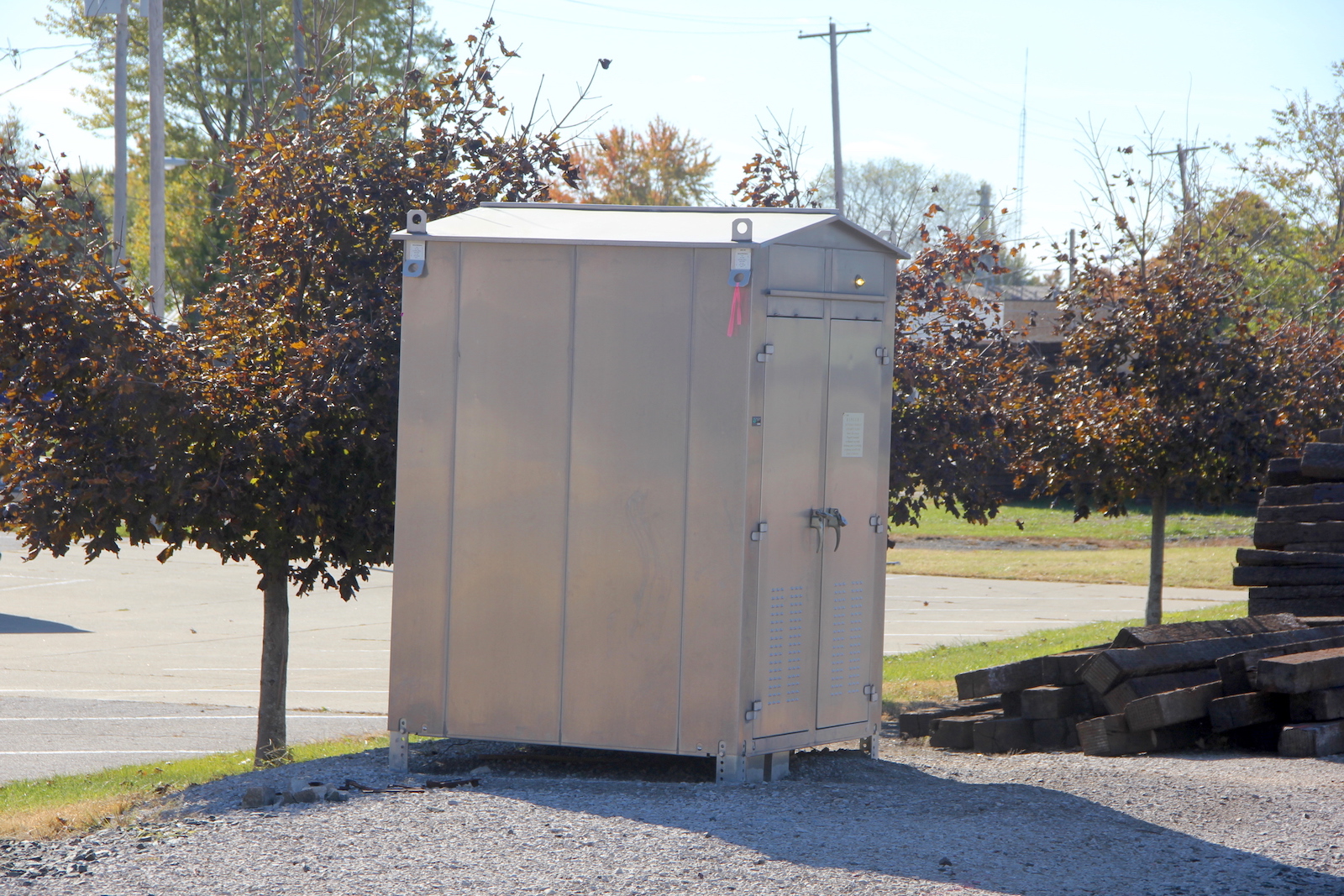

The relay bungalow in the southwest quadrant.

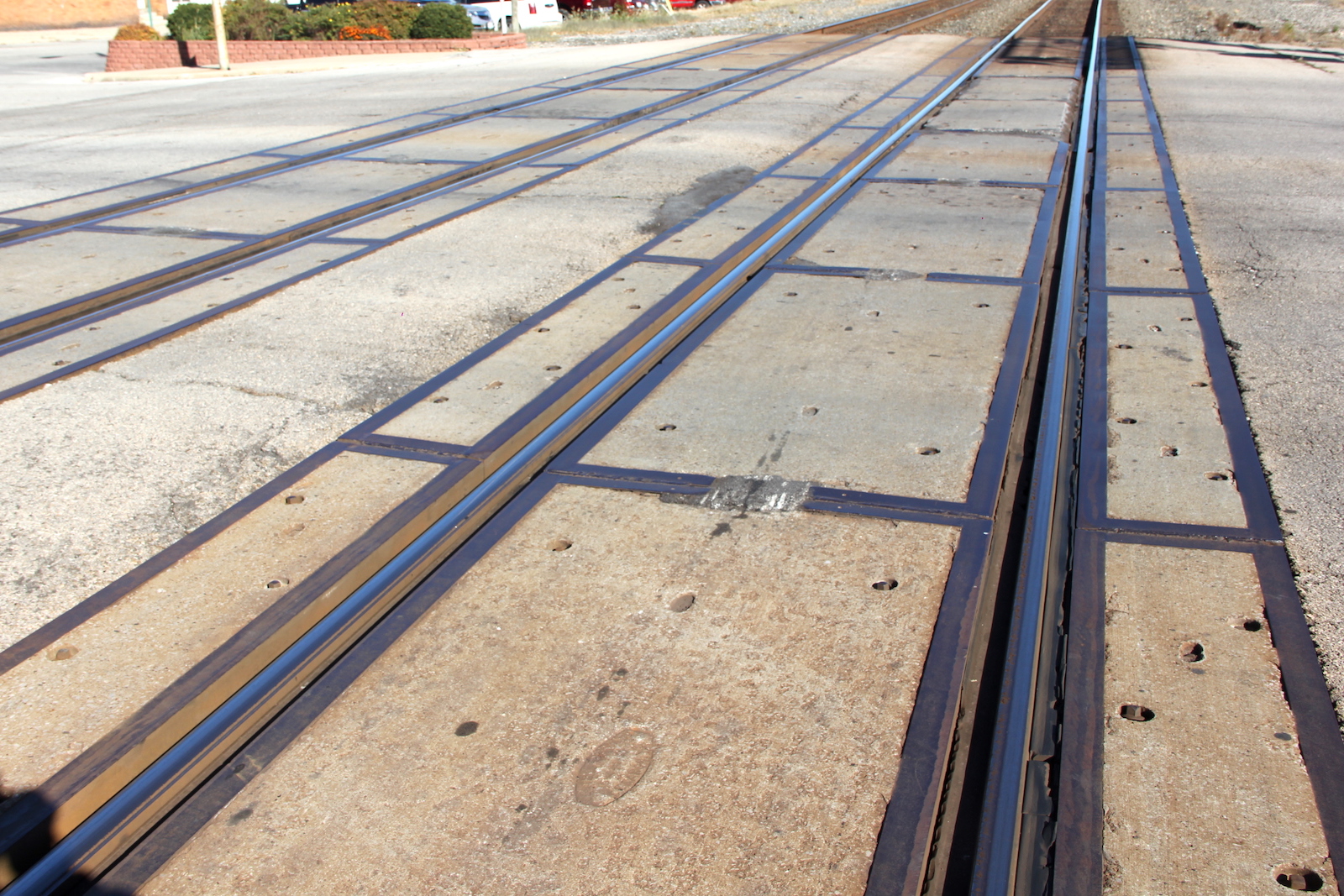

The grade is all concrete.

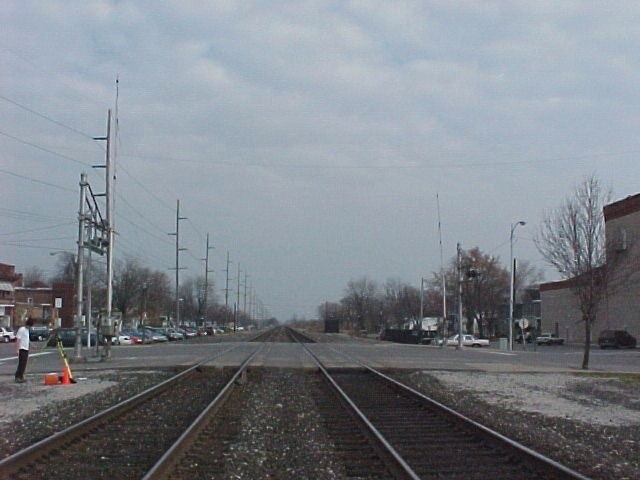

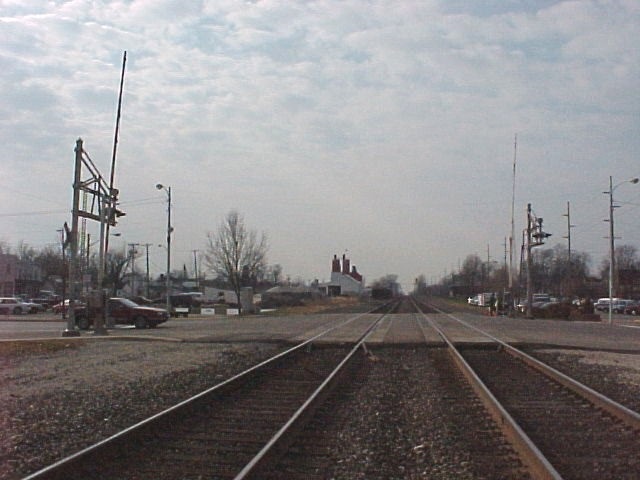

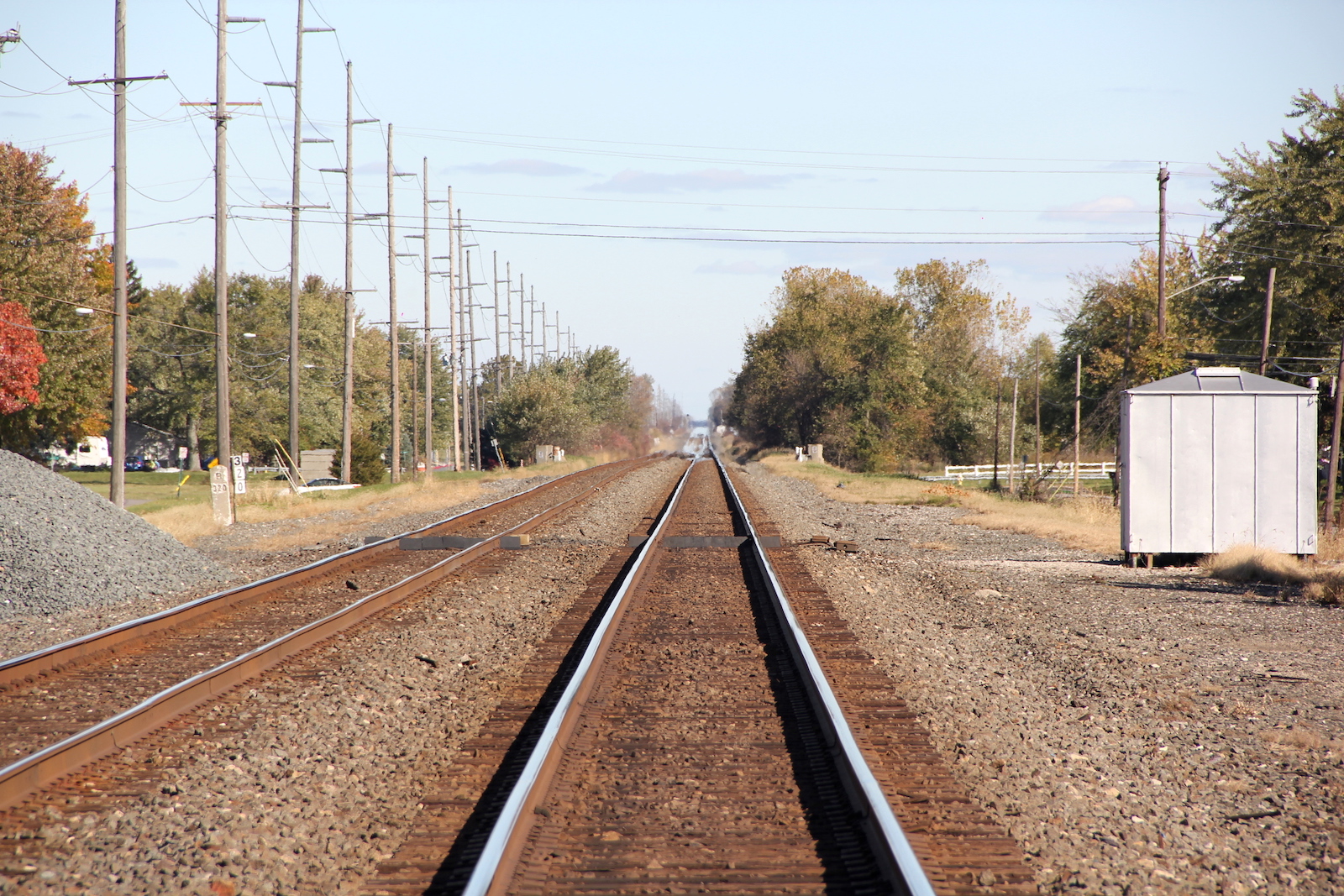

Track view facing west at Brunell St.

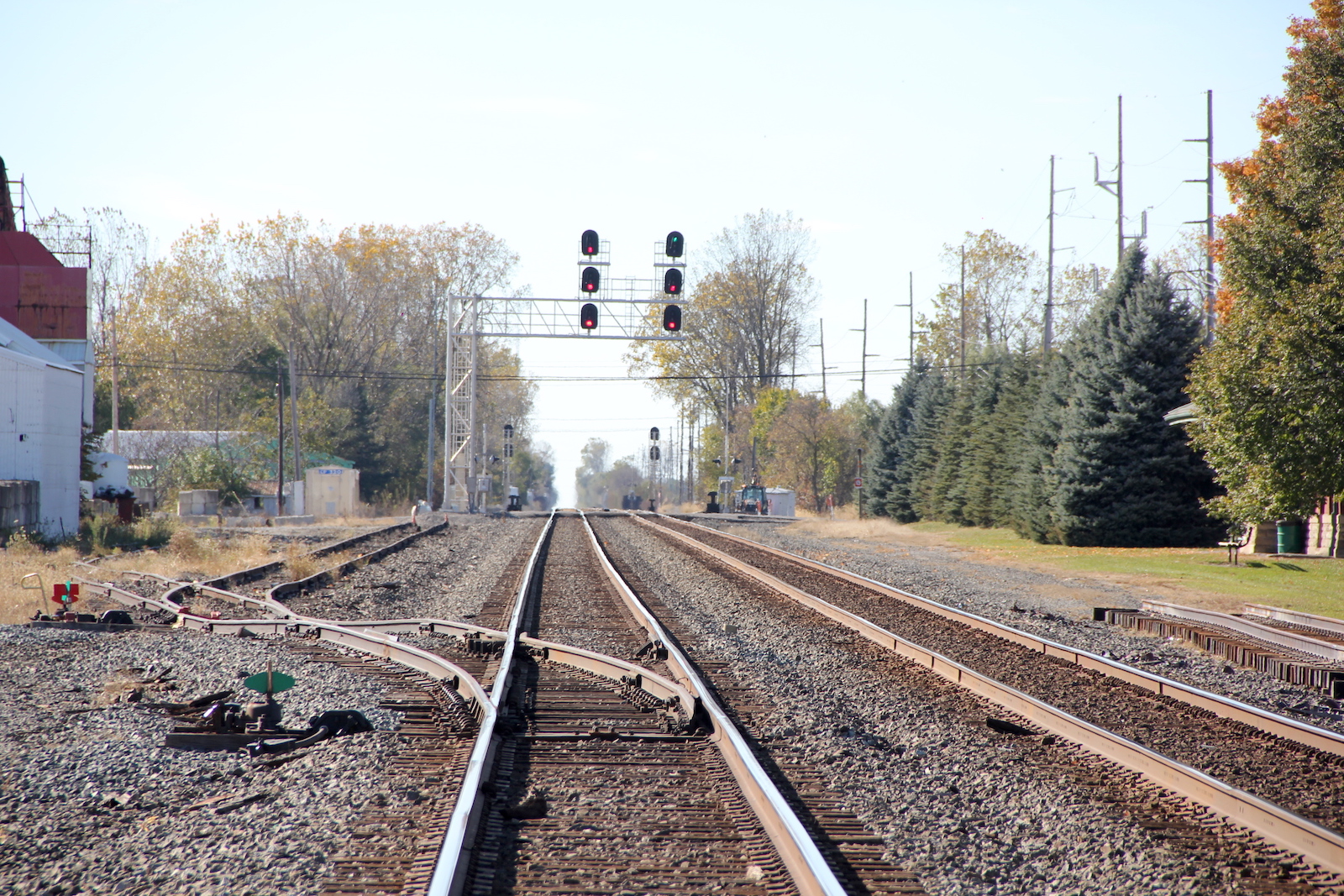

Track view facing east towards County Rd. 13.
