Northern Signal
Southern Signal
Bell:None

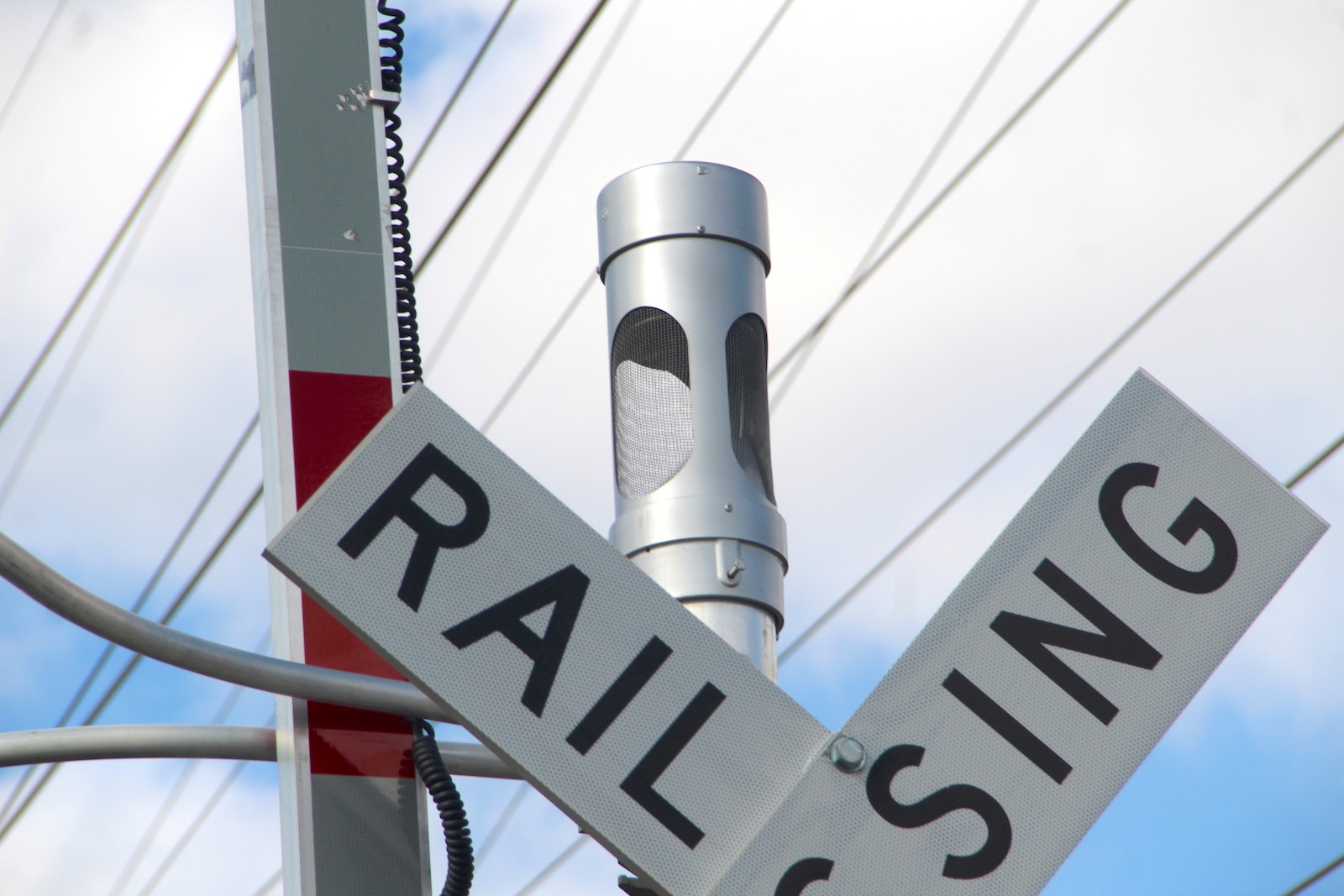

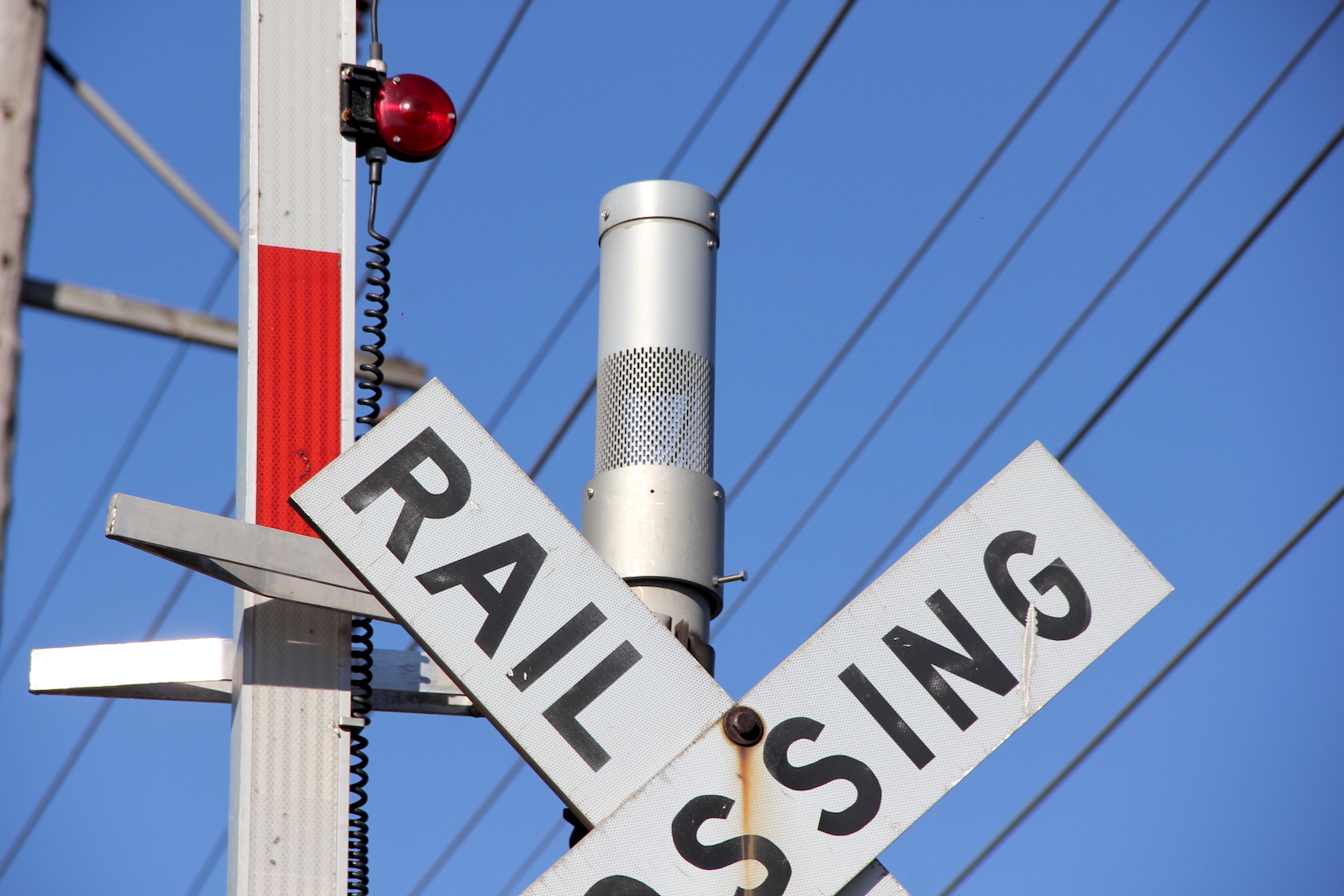

Safetran Type 3 E Bell Low Tone

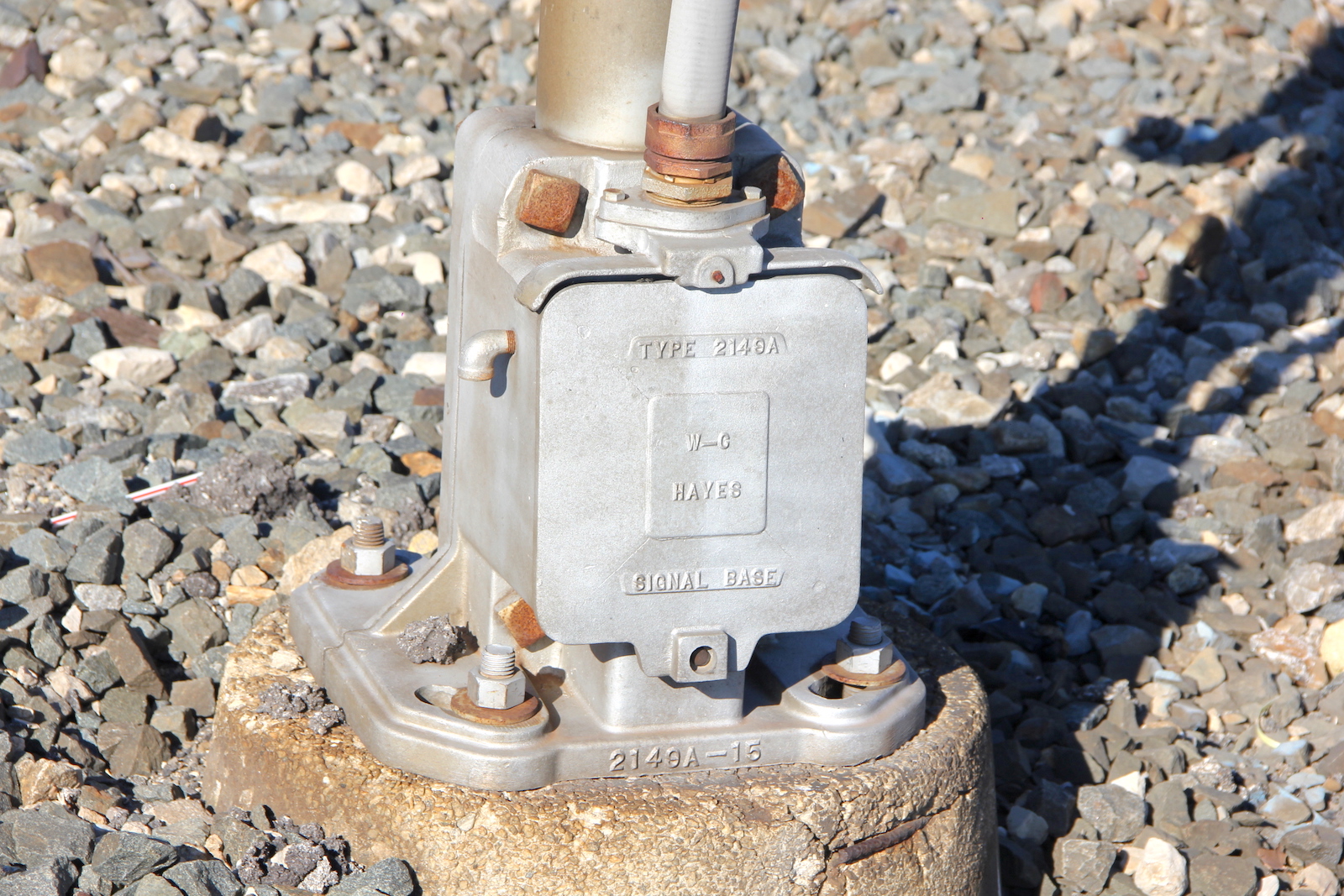

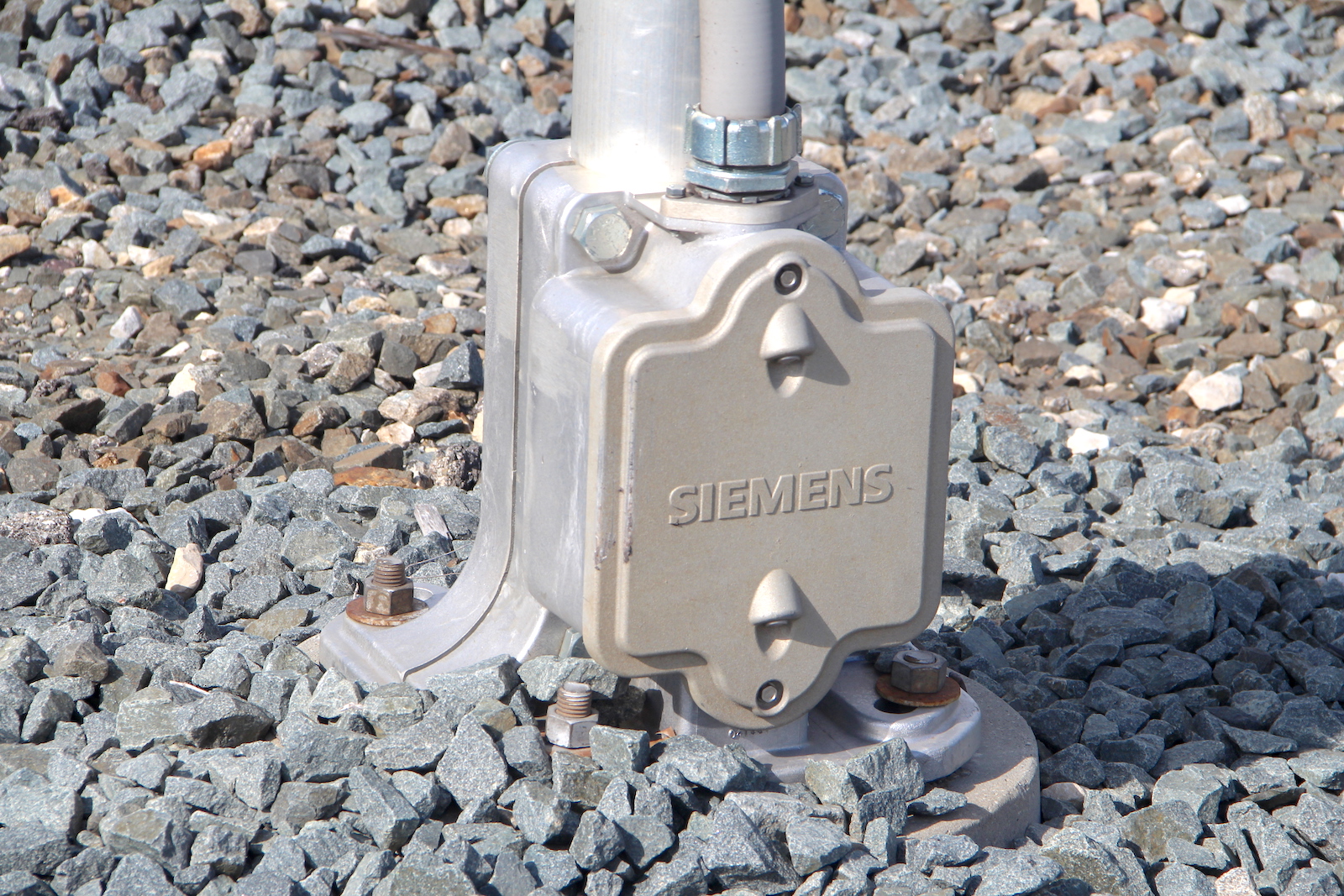

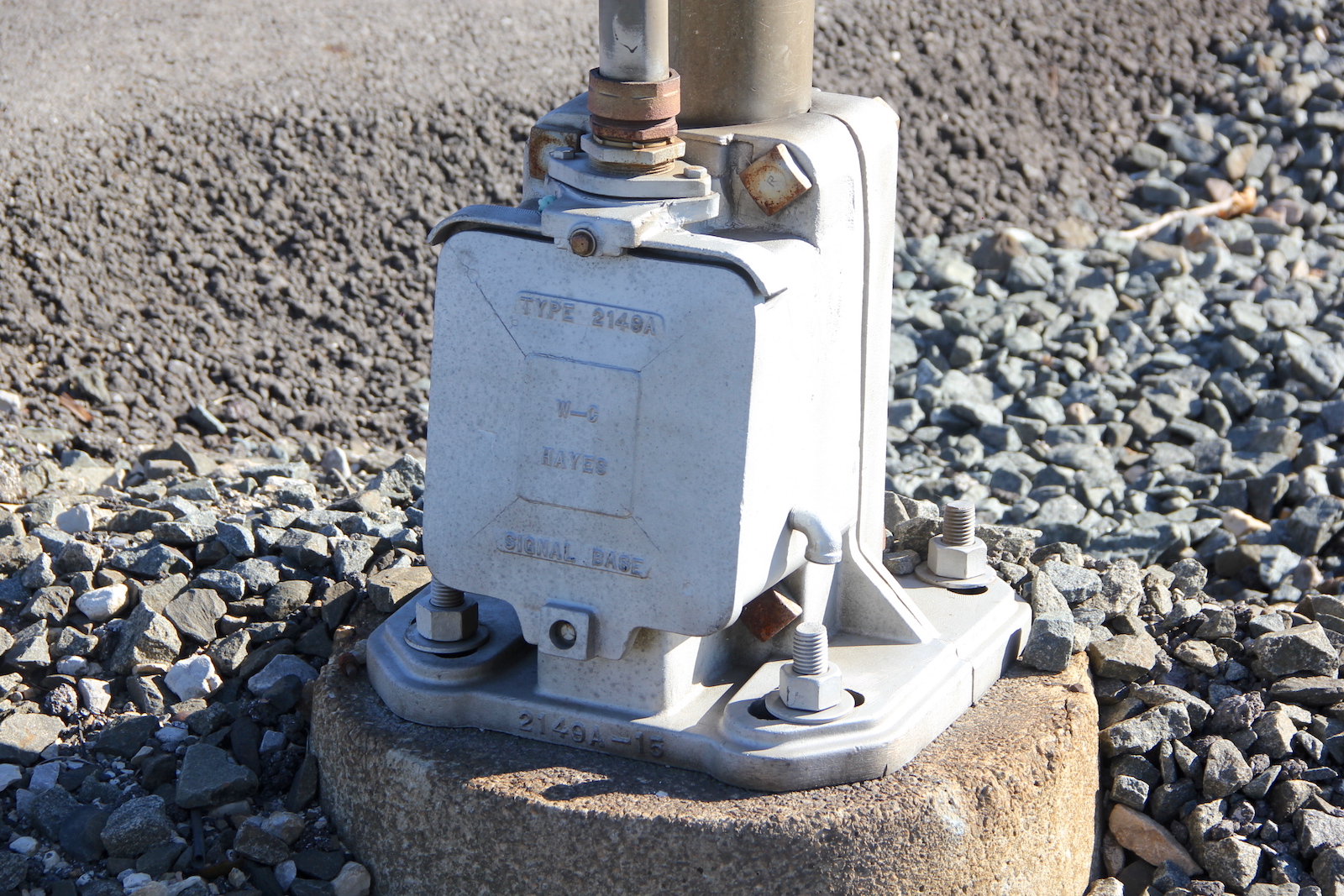

Base: WCH Single Sided
WCH Single Sided

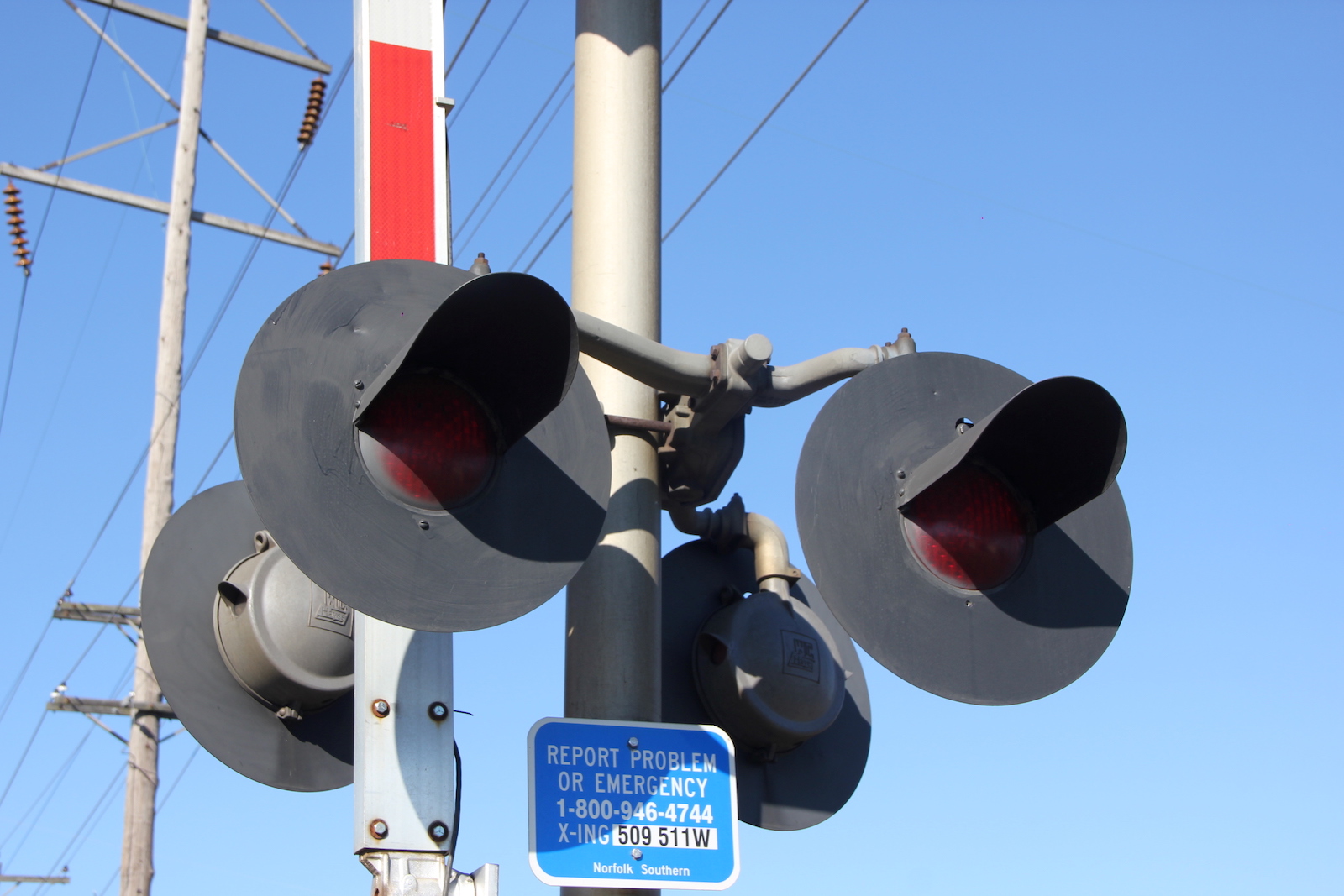

Main Lights: 2 pairs of 8"x20" WCH incandescents
2 pairs of 8"x20" WCH incandescents

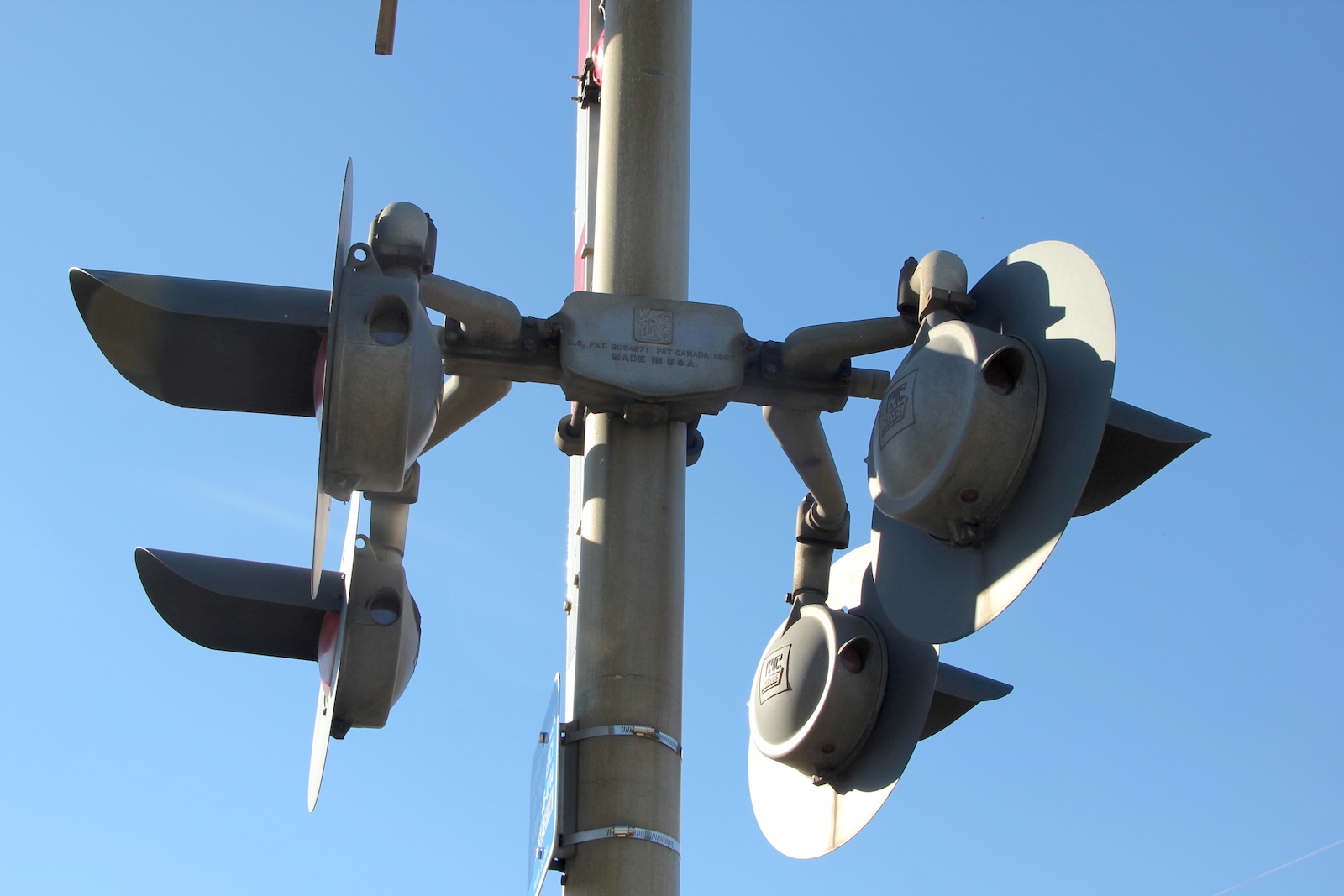

Light Bracket:
WRRS
WRRS

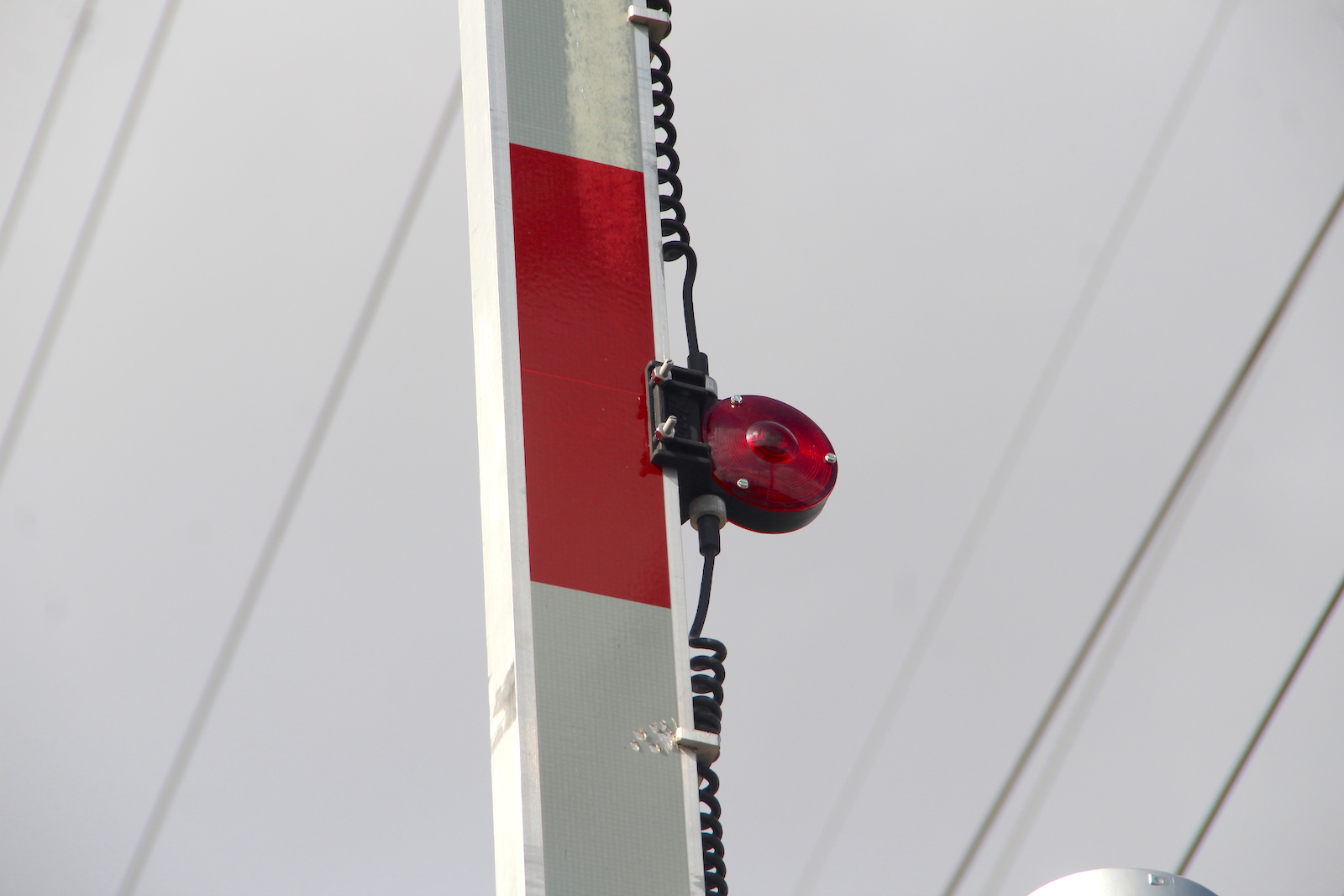

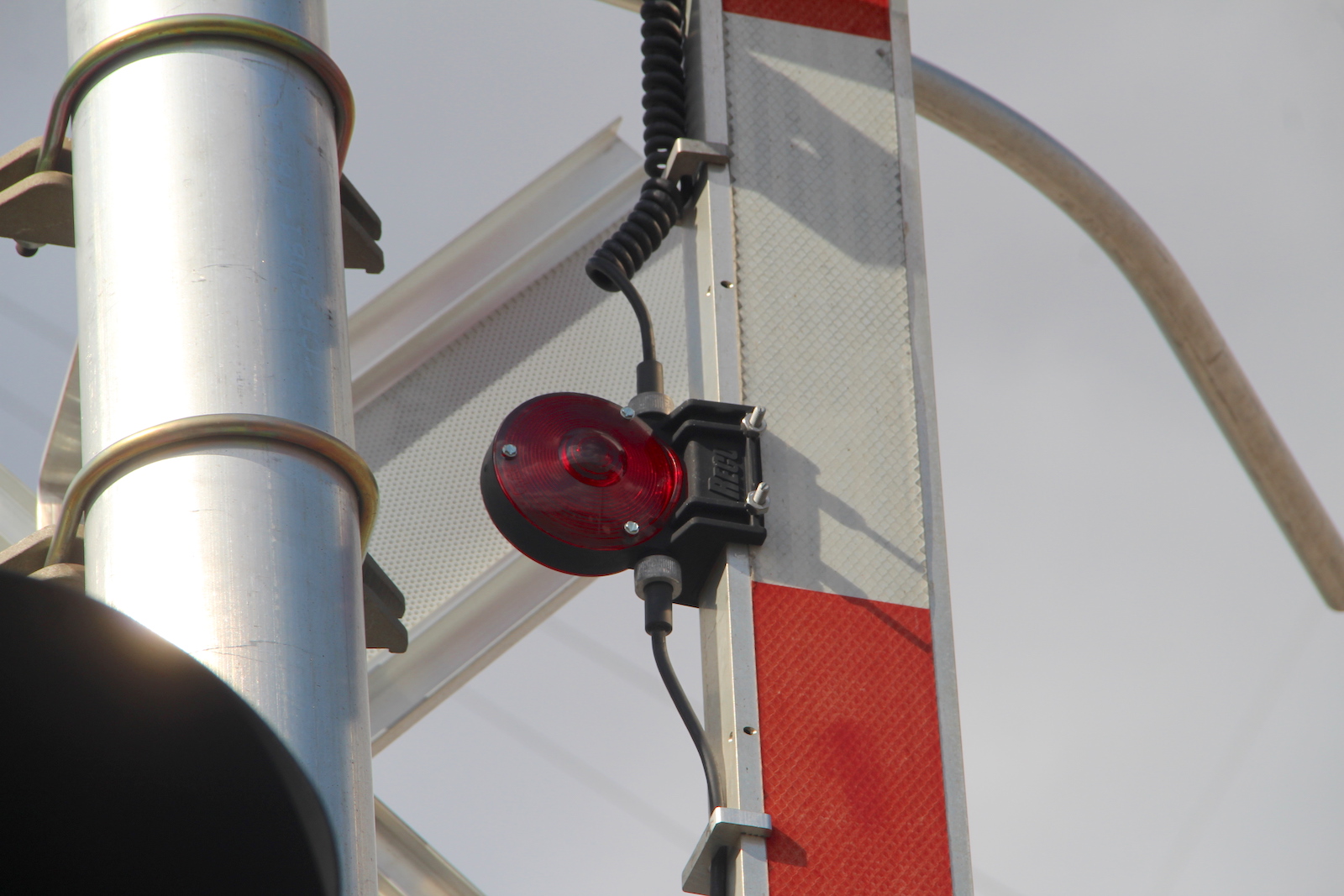

Gate Lights: 4" RECO incandescents
4" RECO incandescents

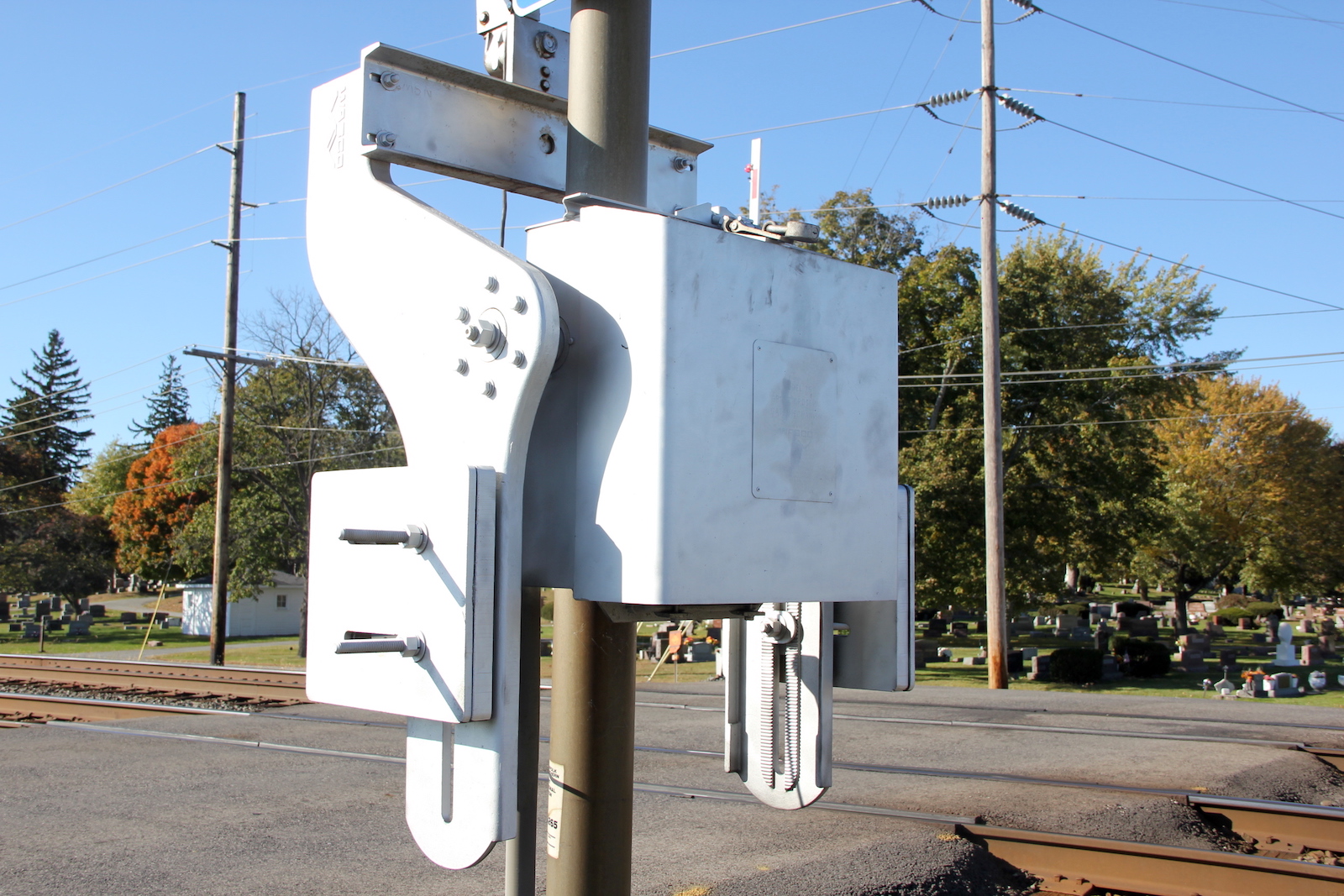

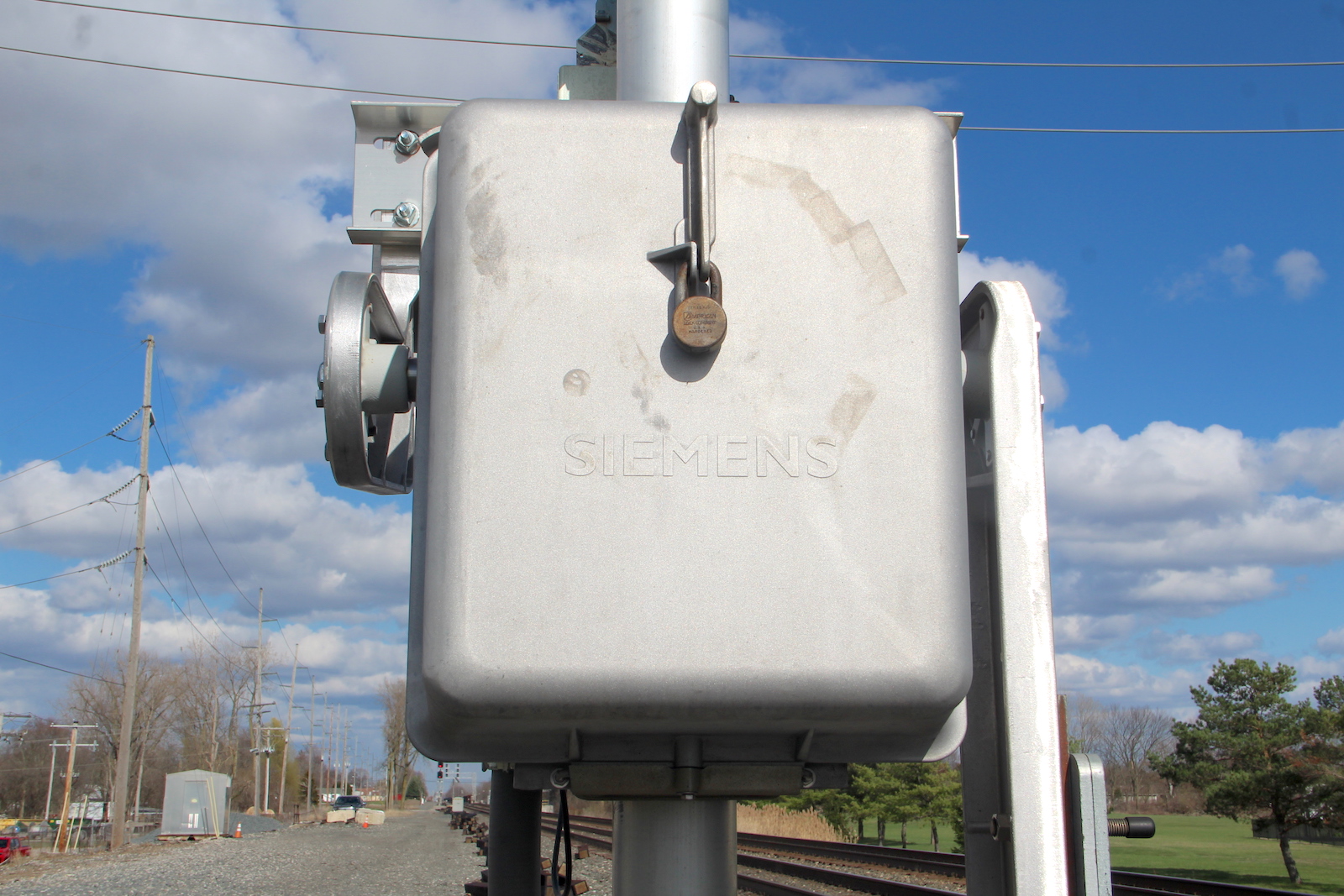

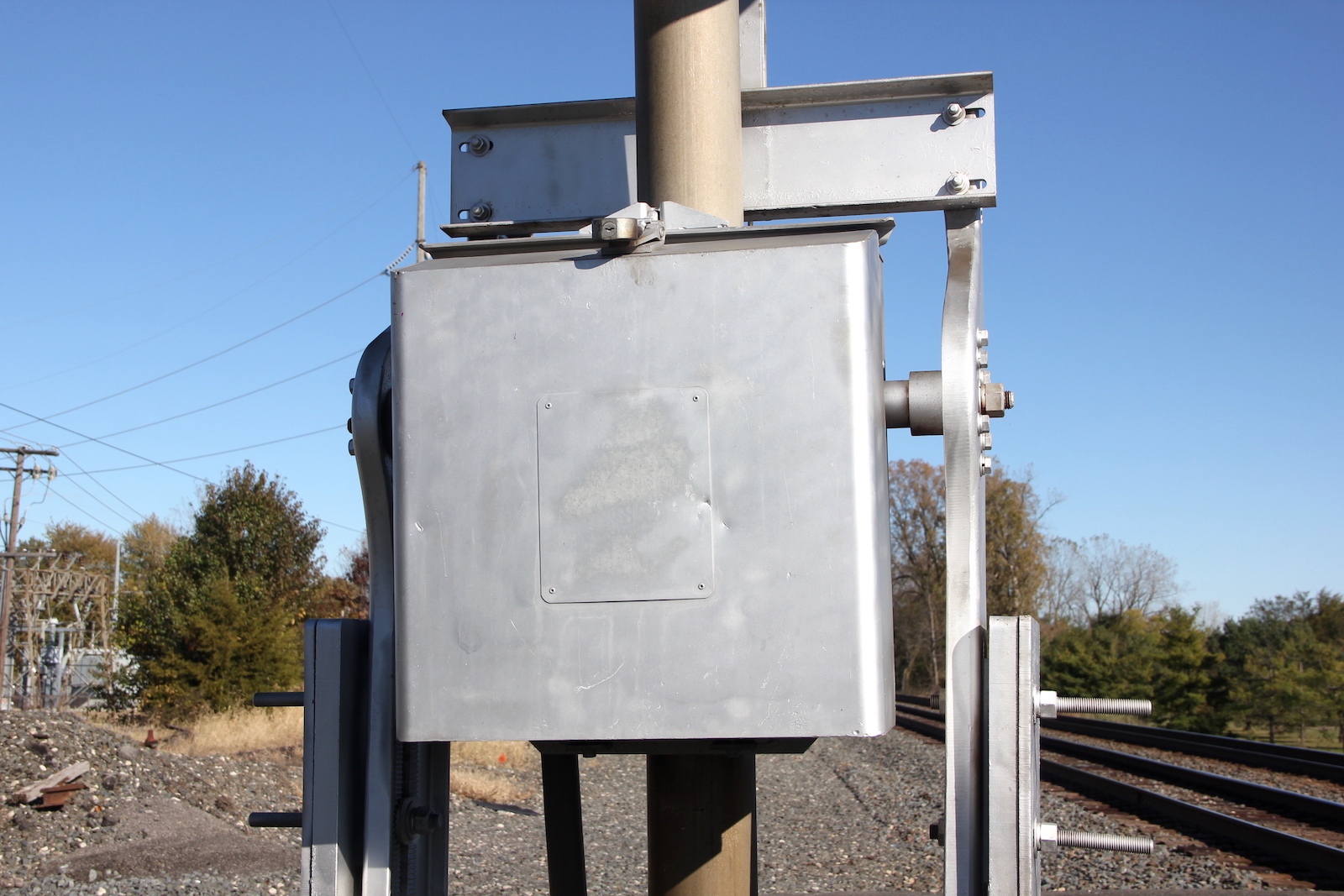

Gate Mechanism: WABCO Model 75
WABCO Model 75
Gate Striping: ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Crossbuck font:
Normal font
Normal font
Bell Cycle: N/A
Rings only while the gates are lowering

All pictures and the video were taken on October 24, 2018, by Tommy McGowan.
This crossing is located on the NS Chicago Line.

1
2

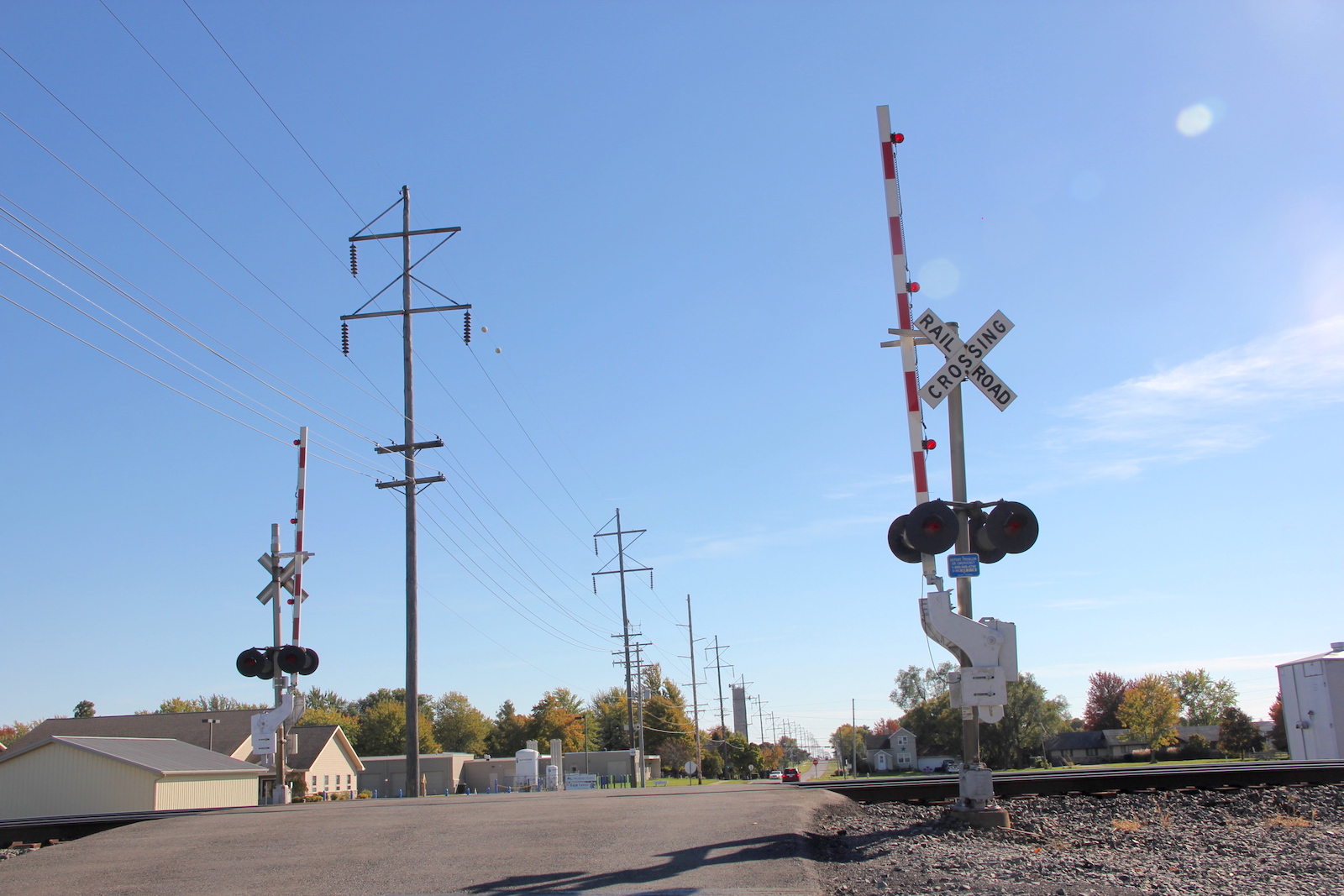

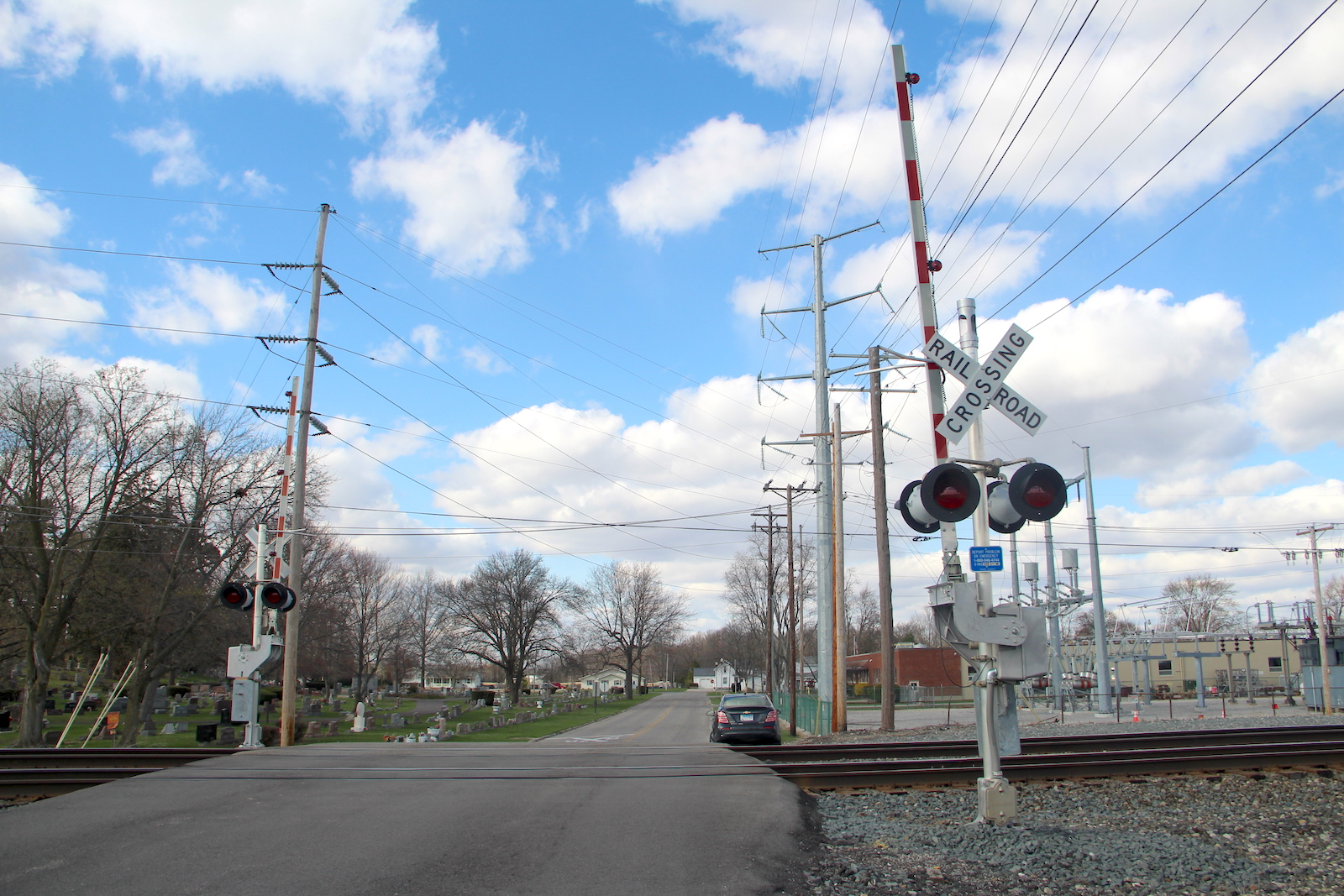

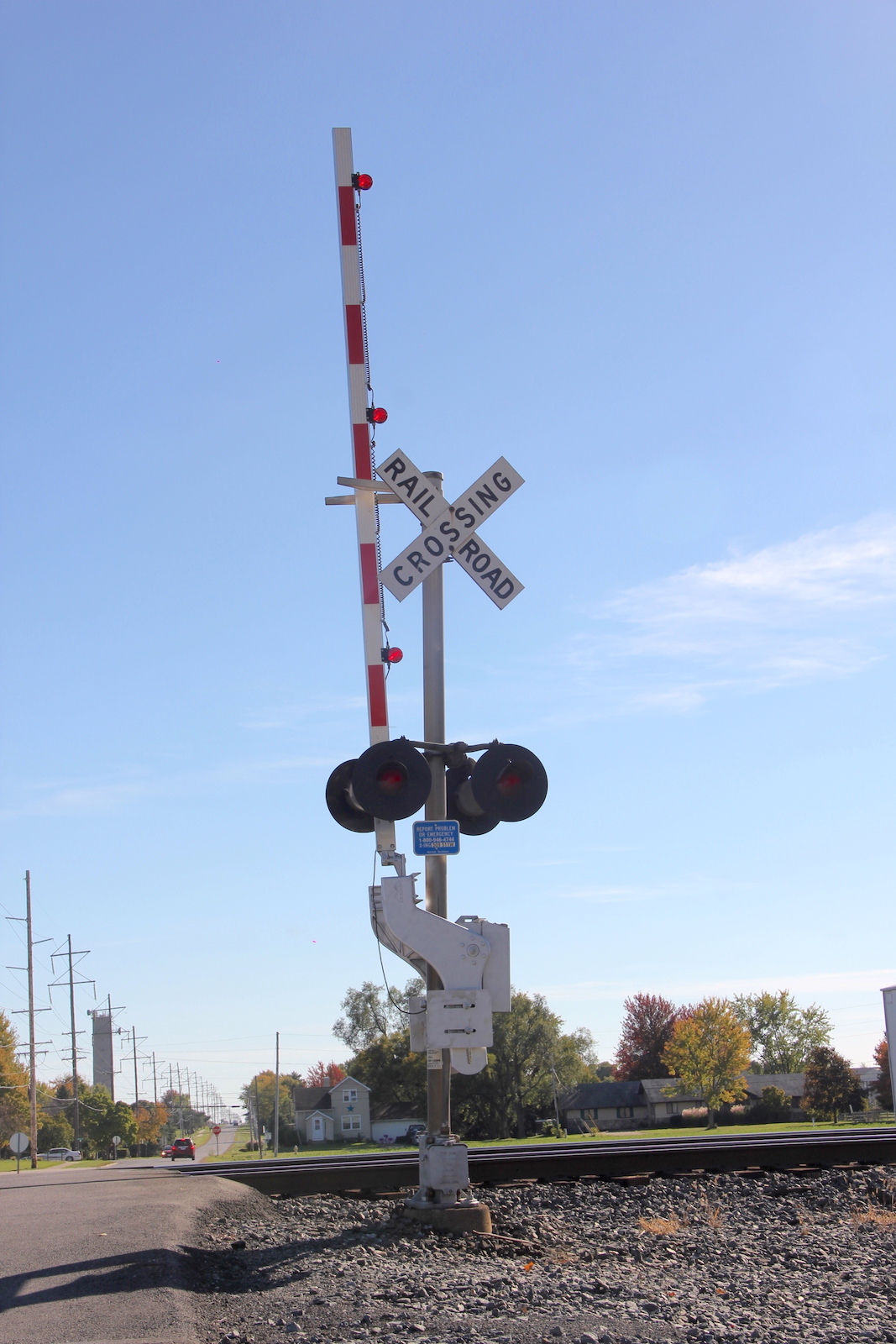

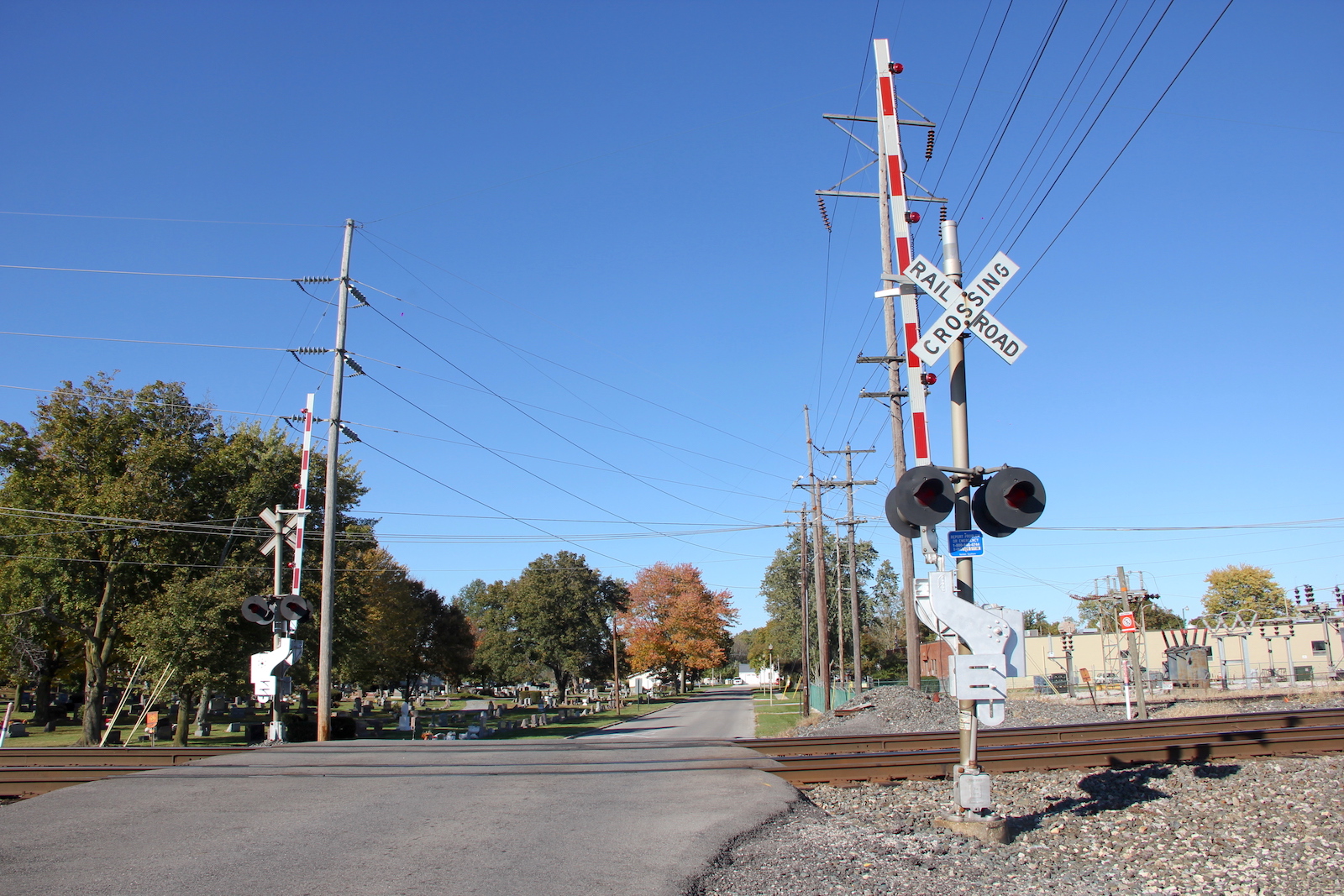

Overview of old Conrail gated signals facing south.

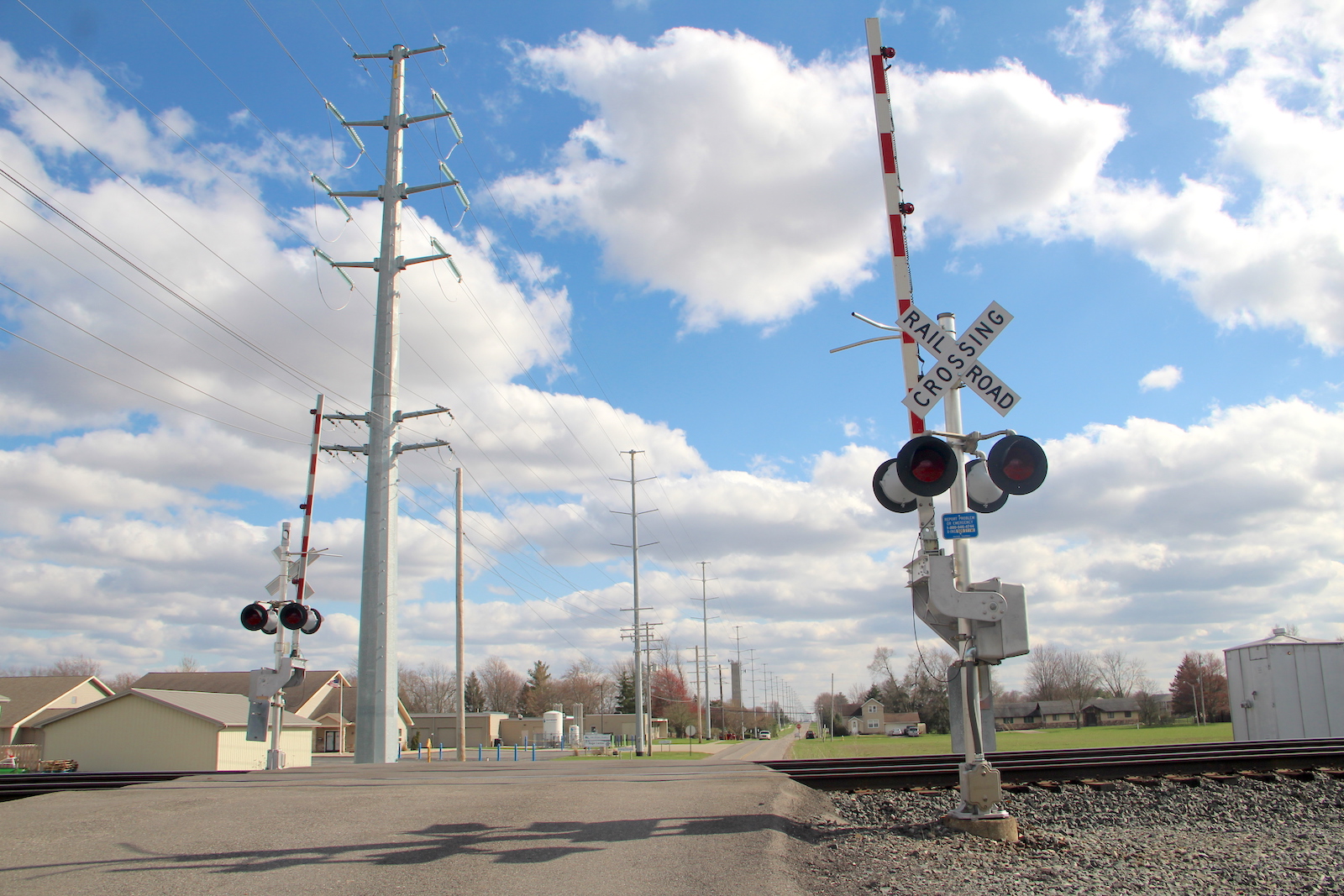

Overview facing north.
3 4 5
6 7 8
9 10 11

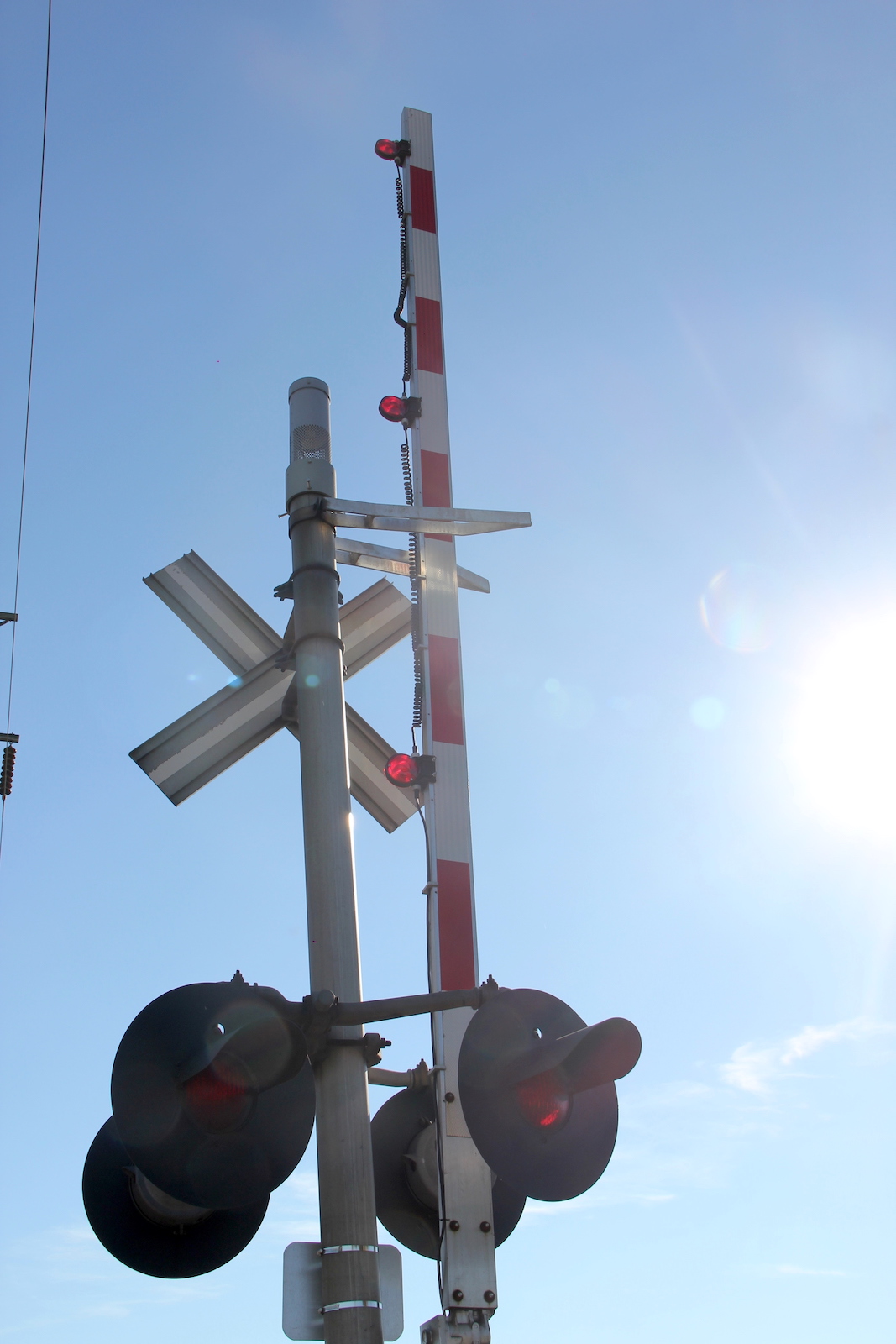

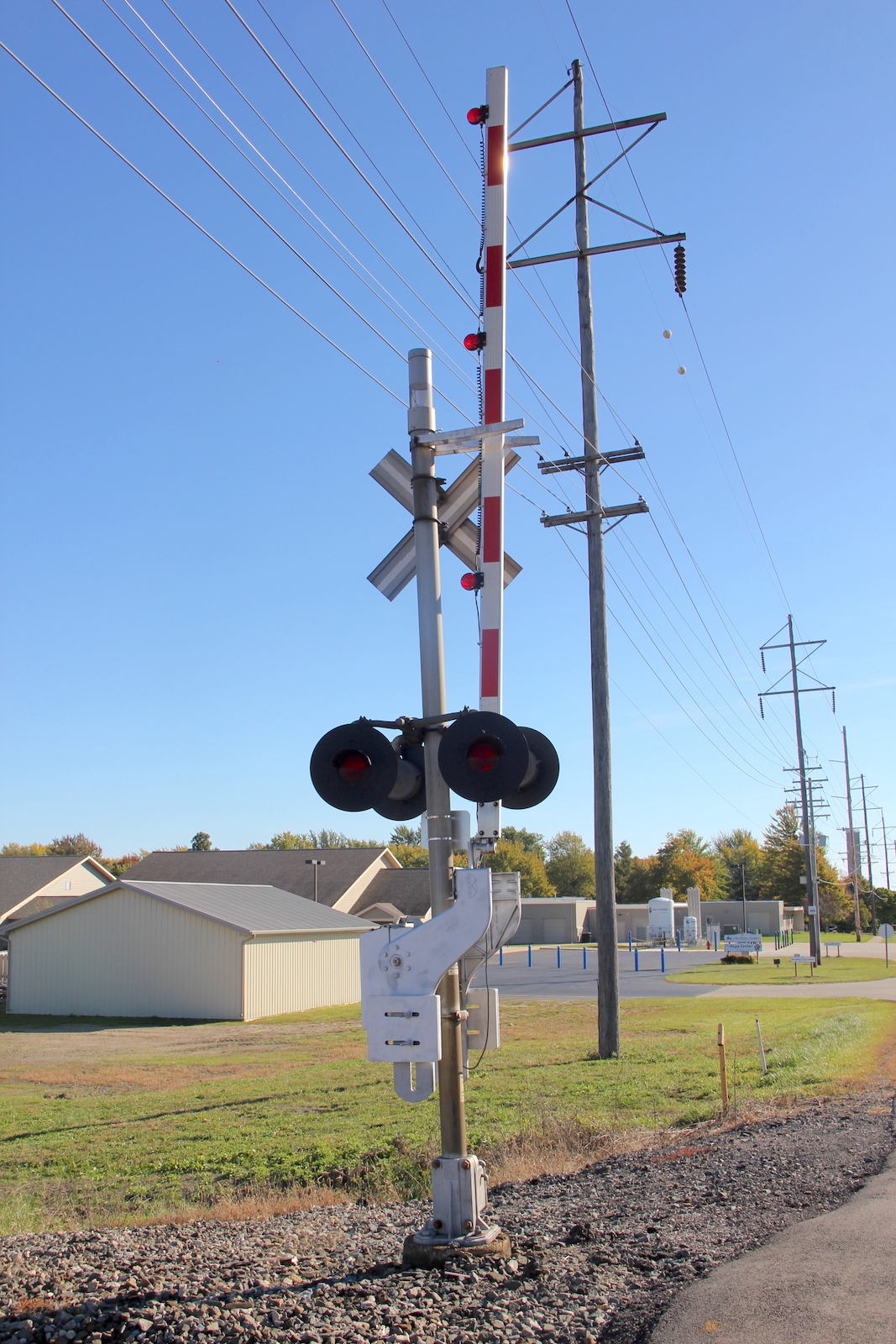

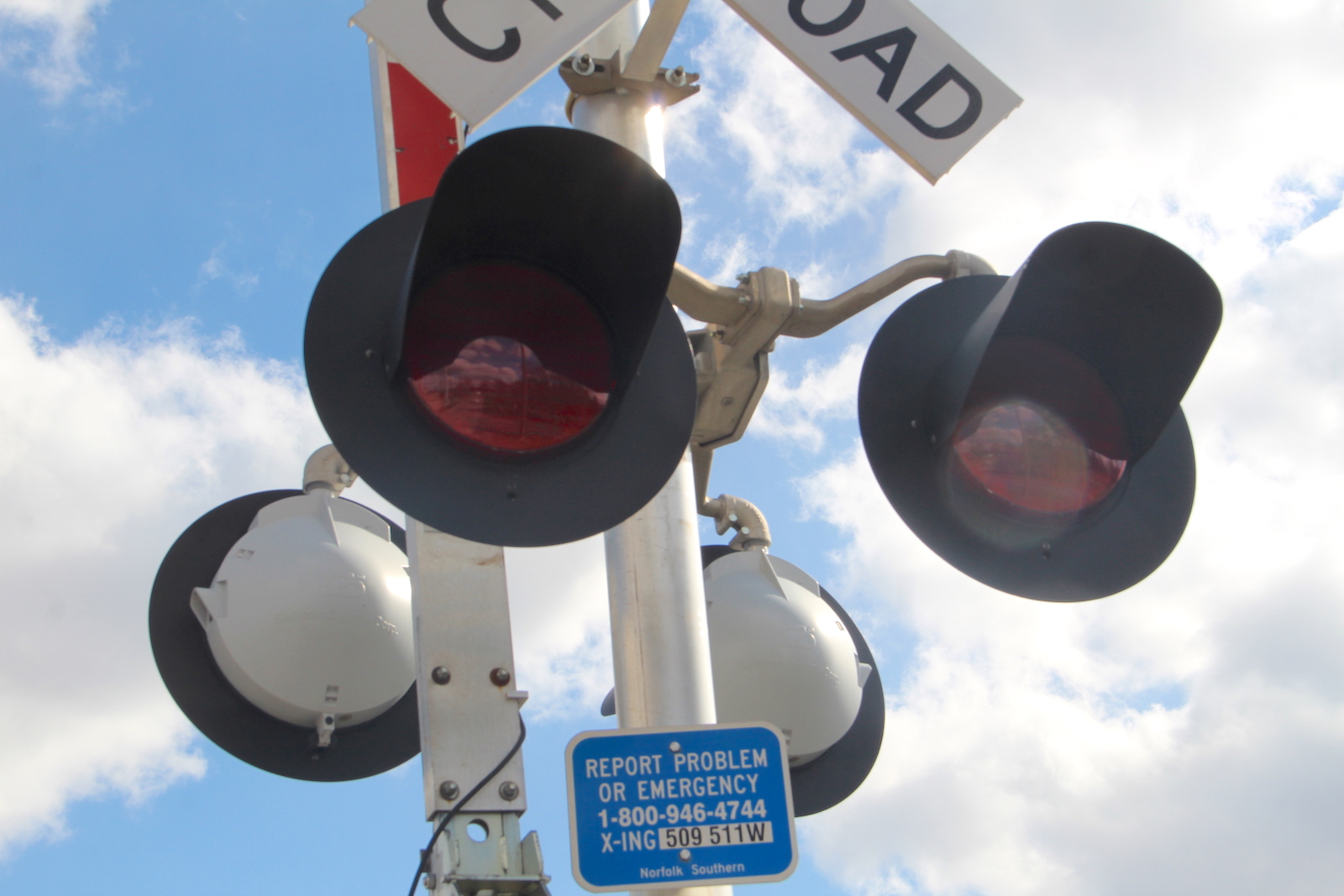

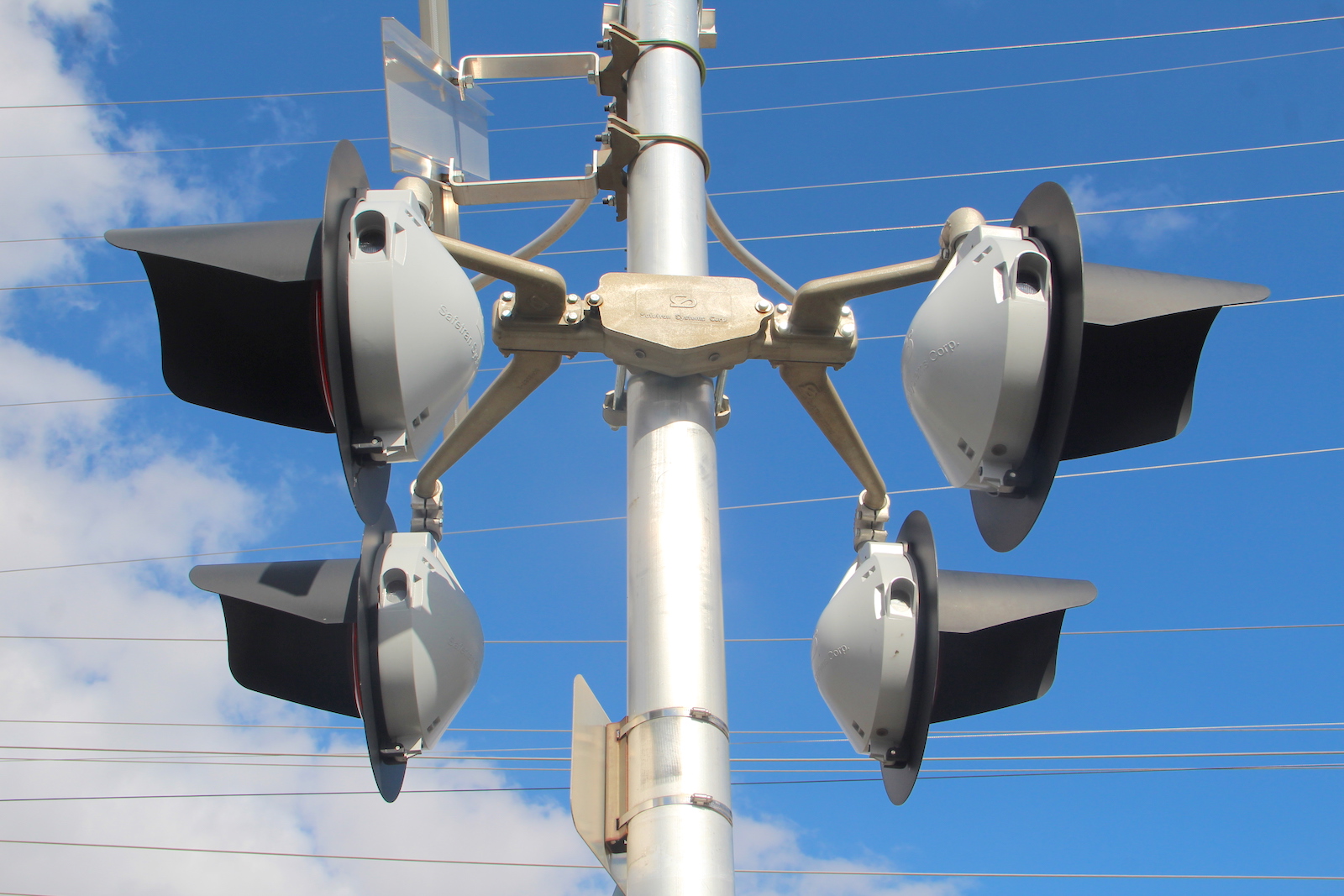

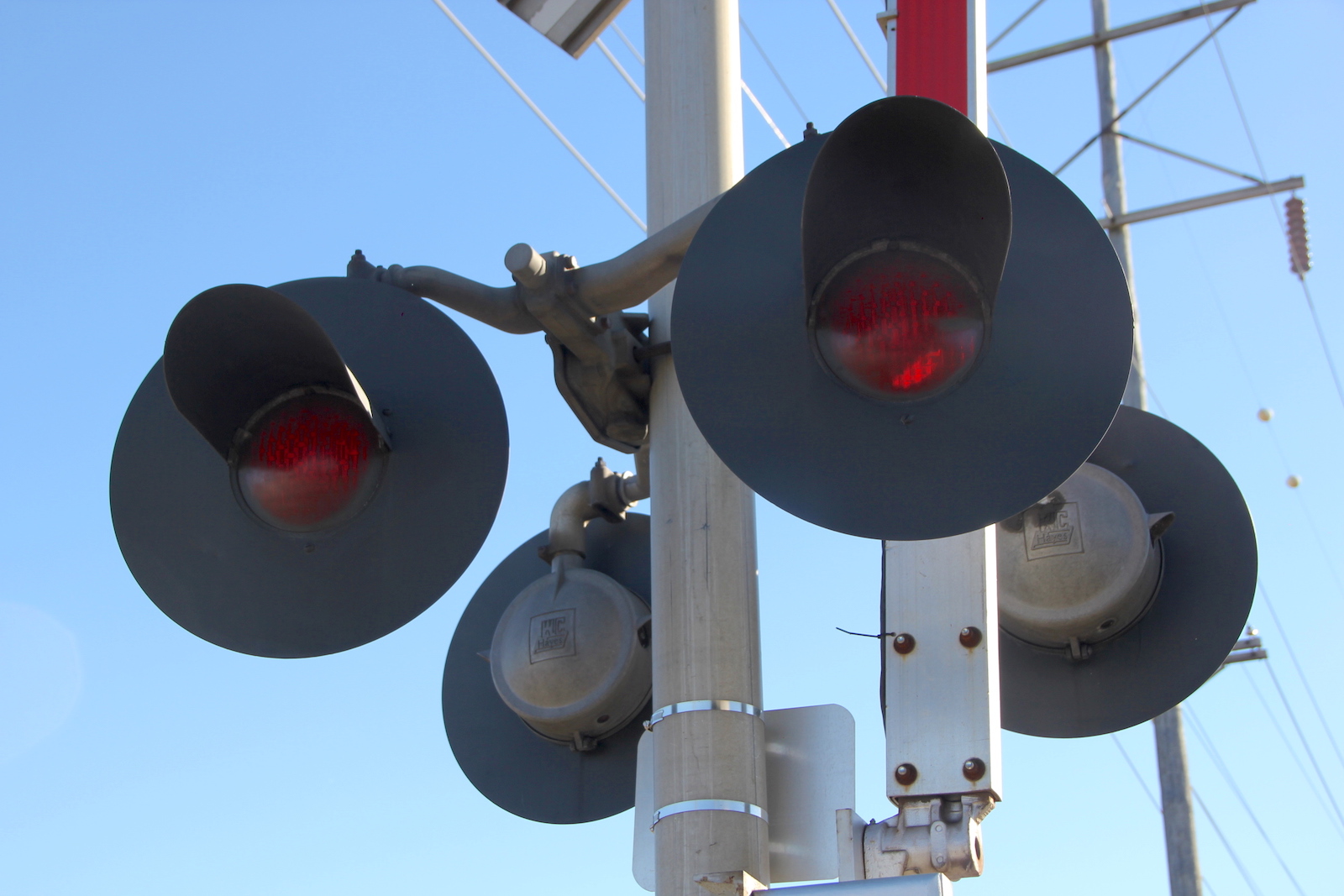

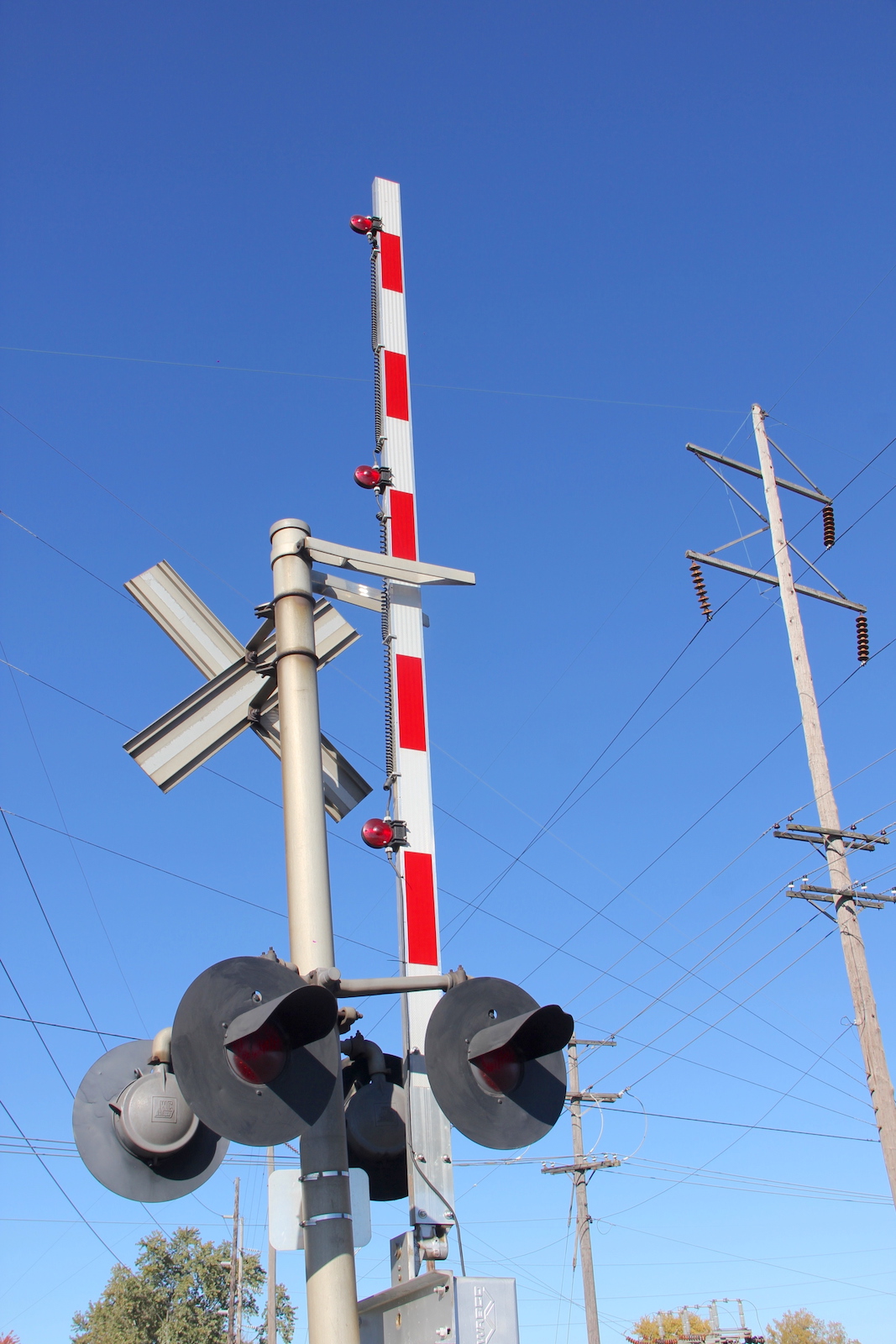

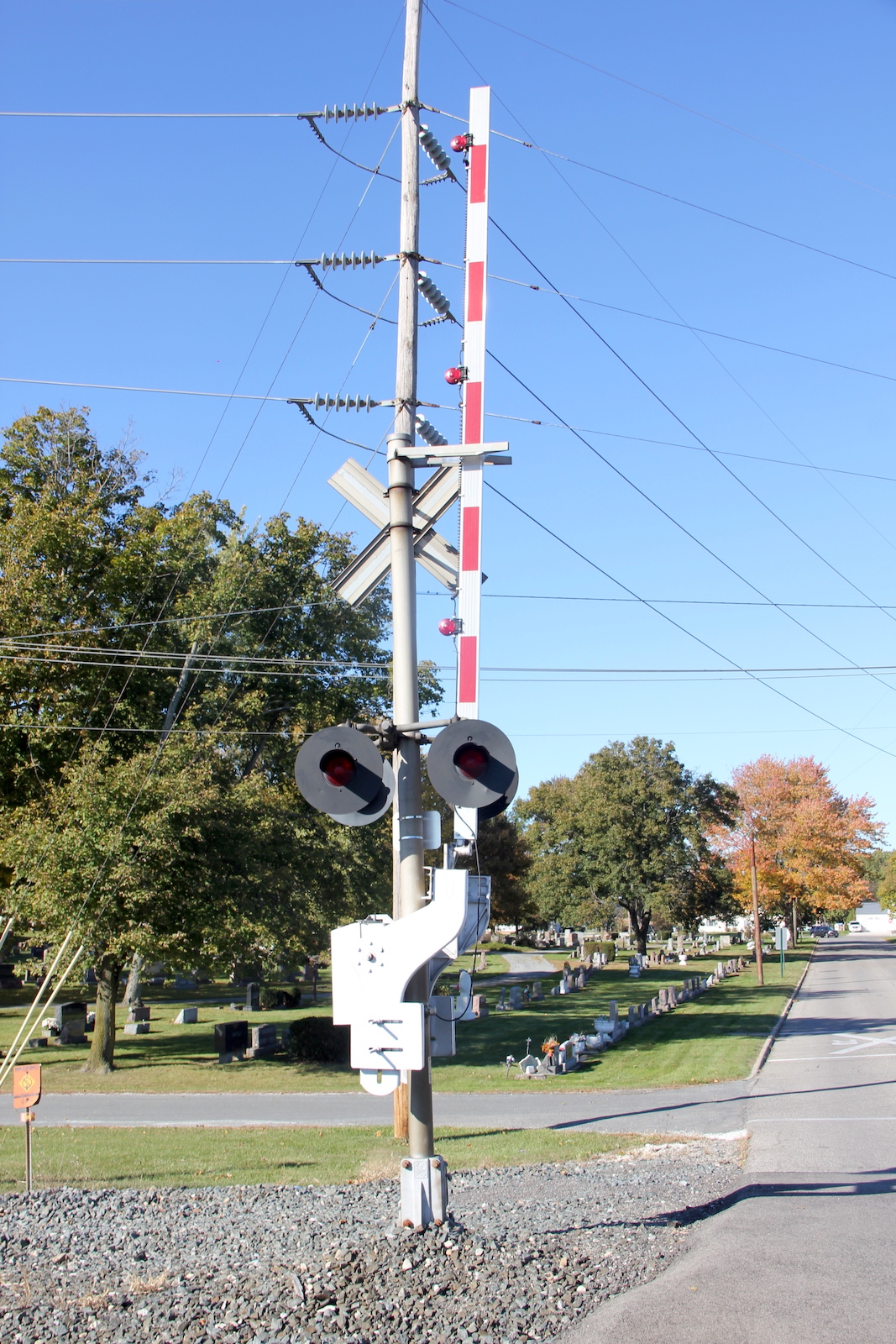

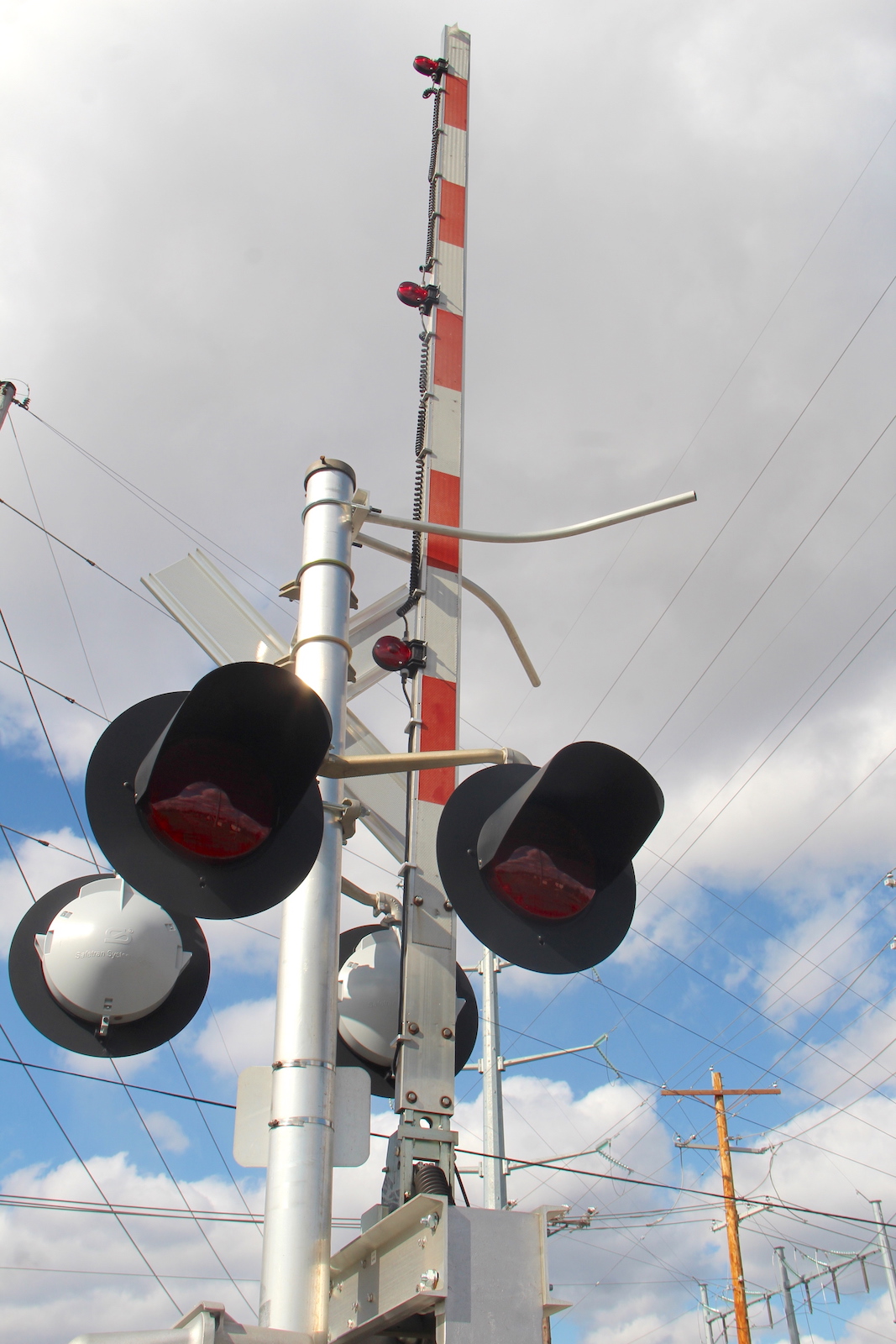

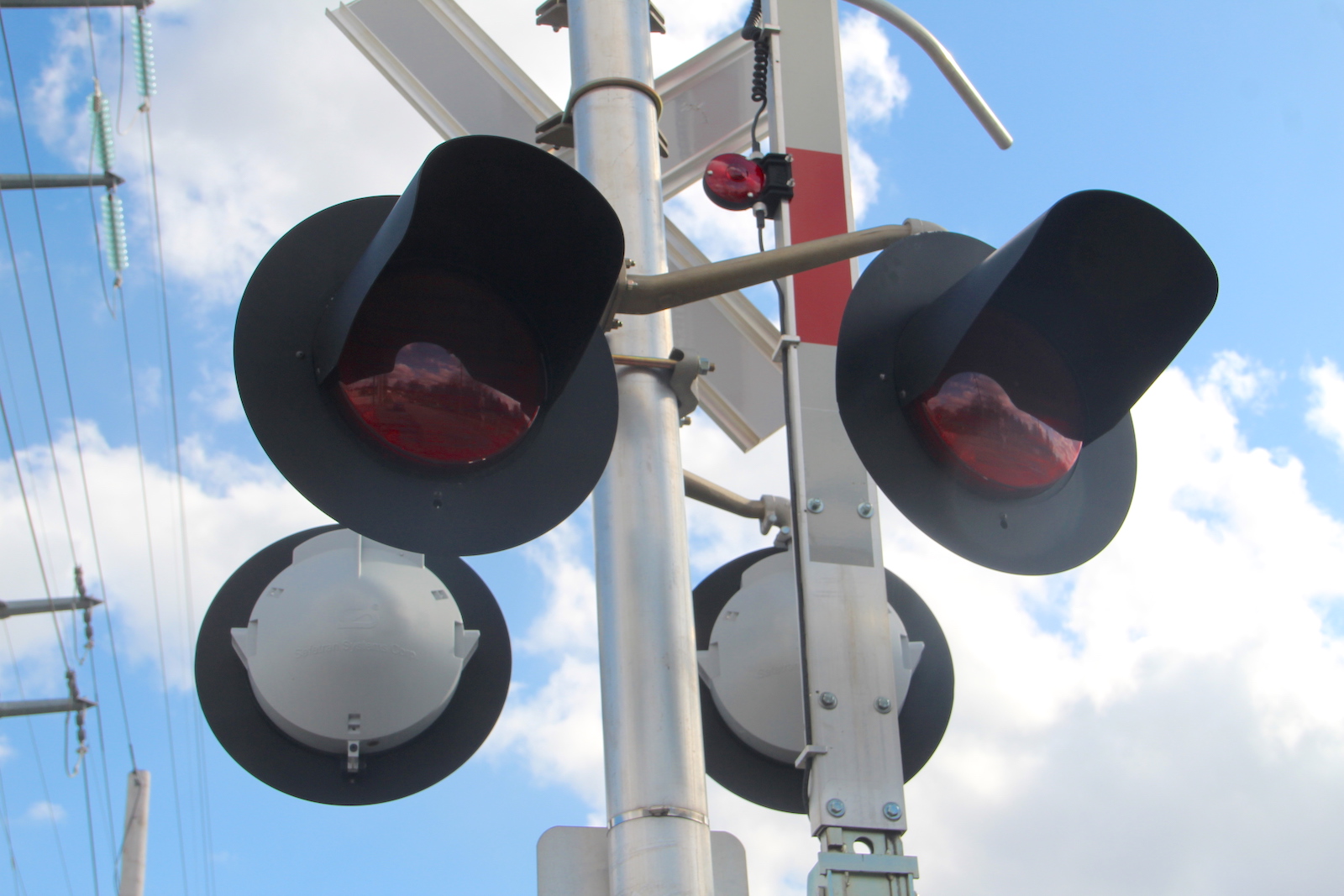

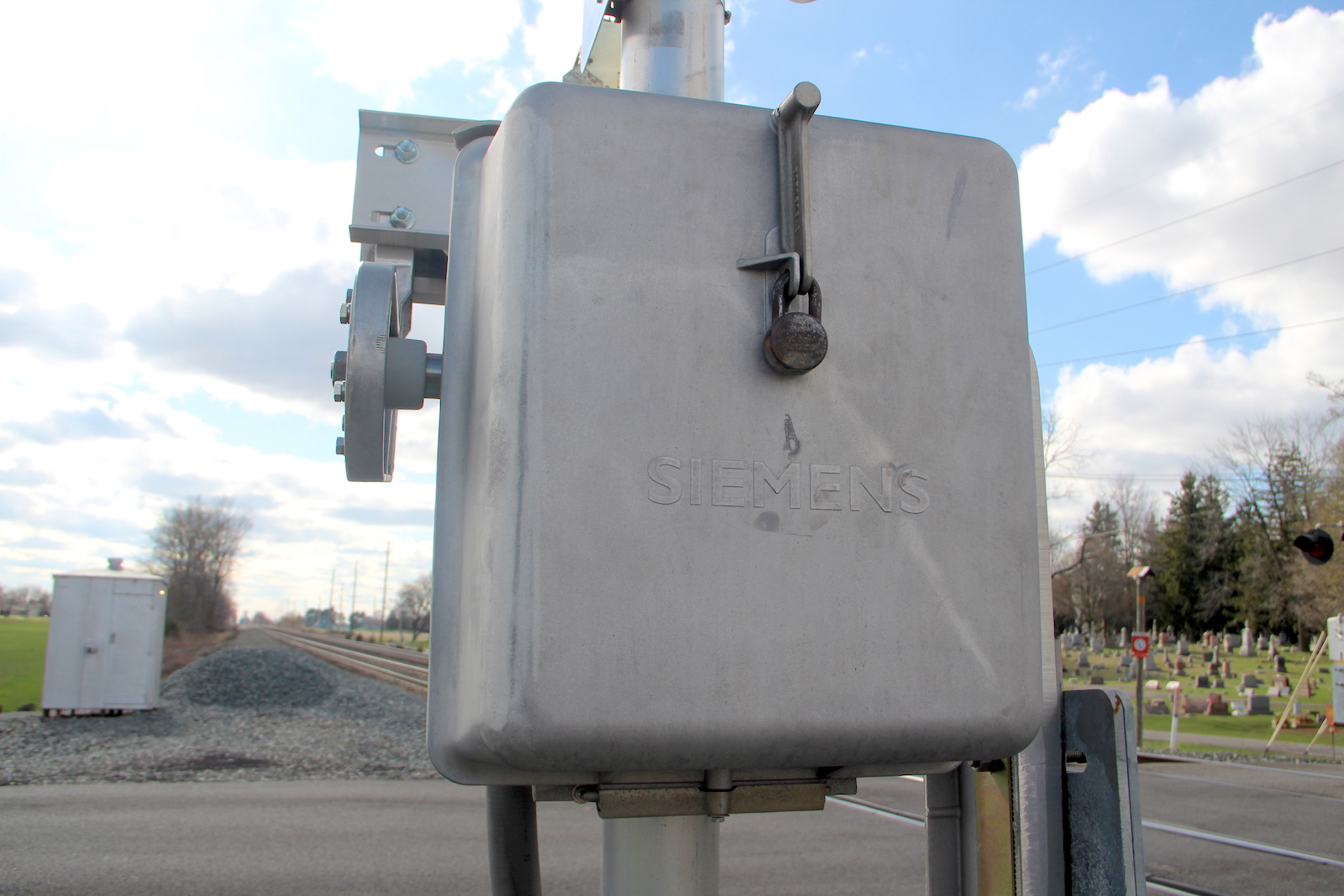

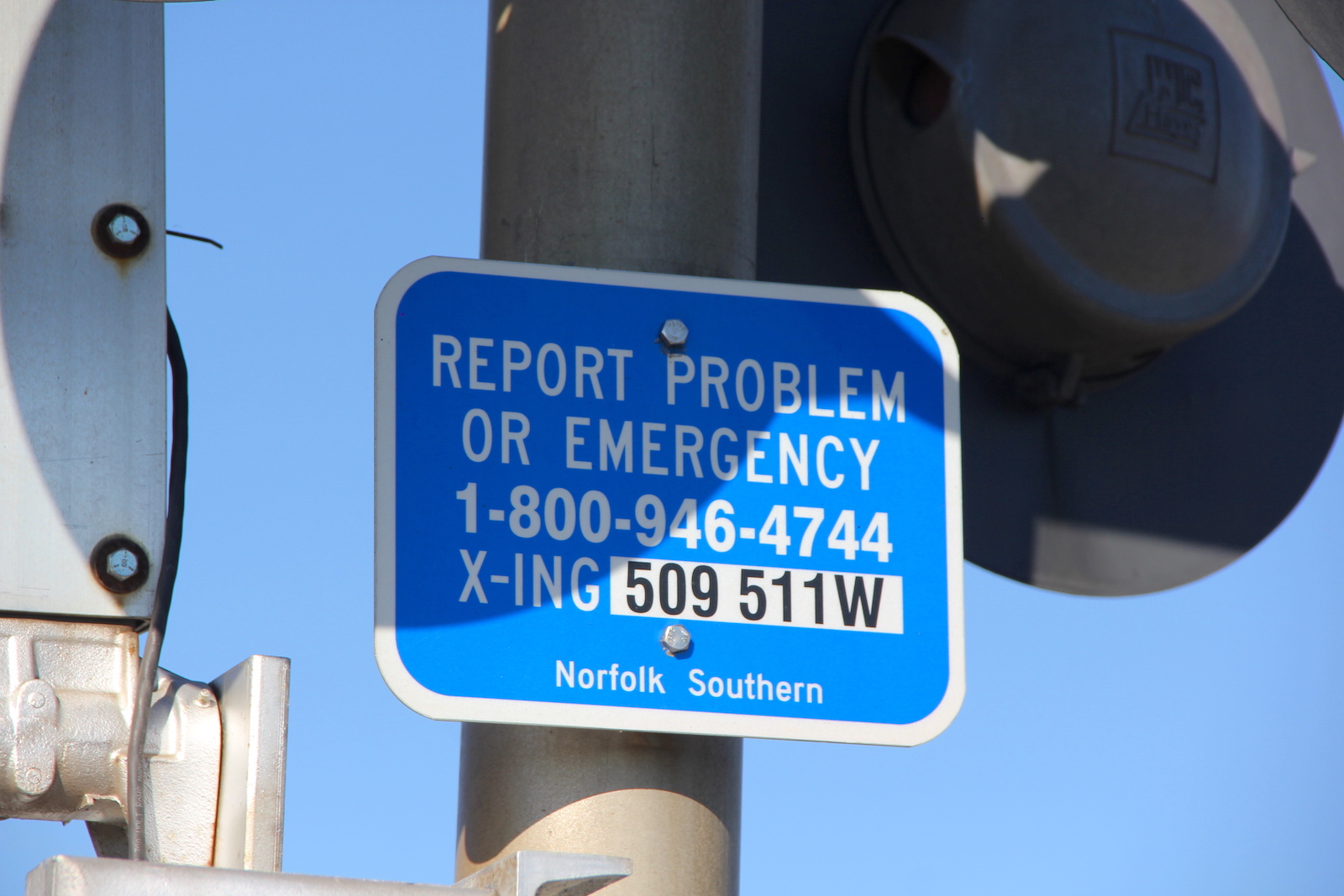

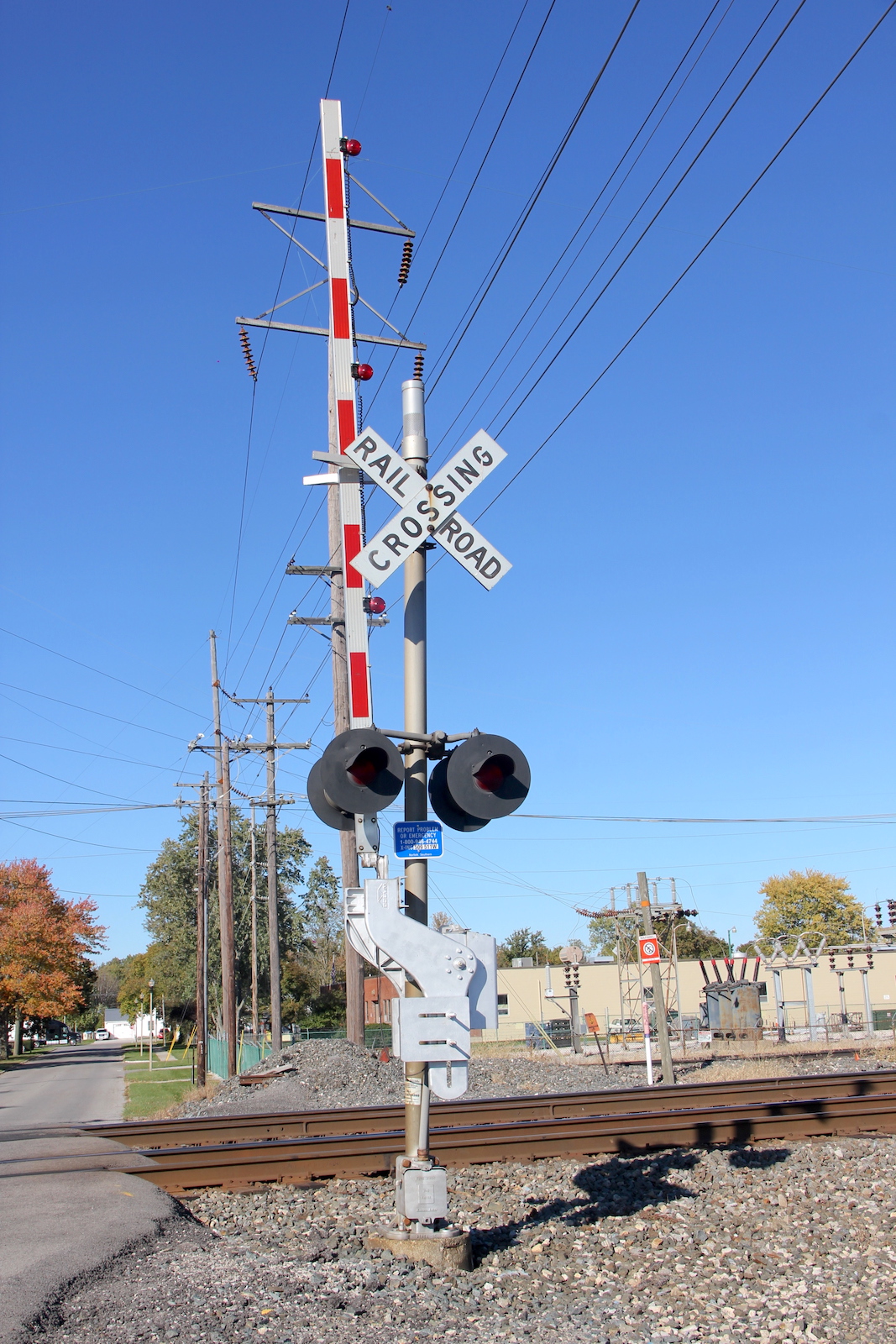

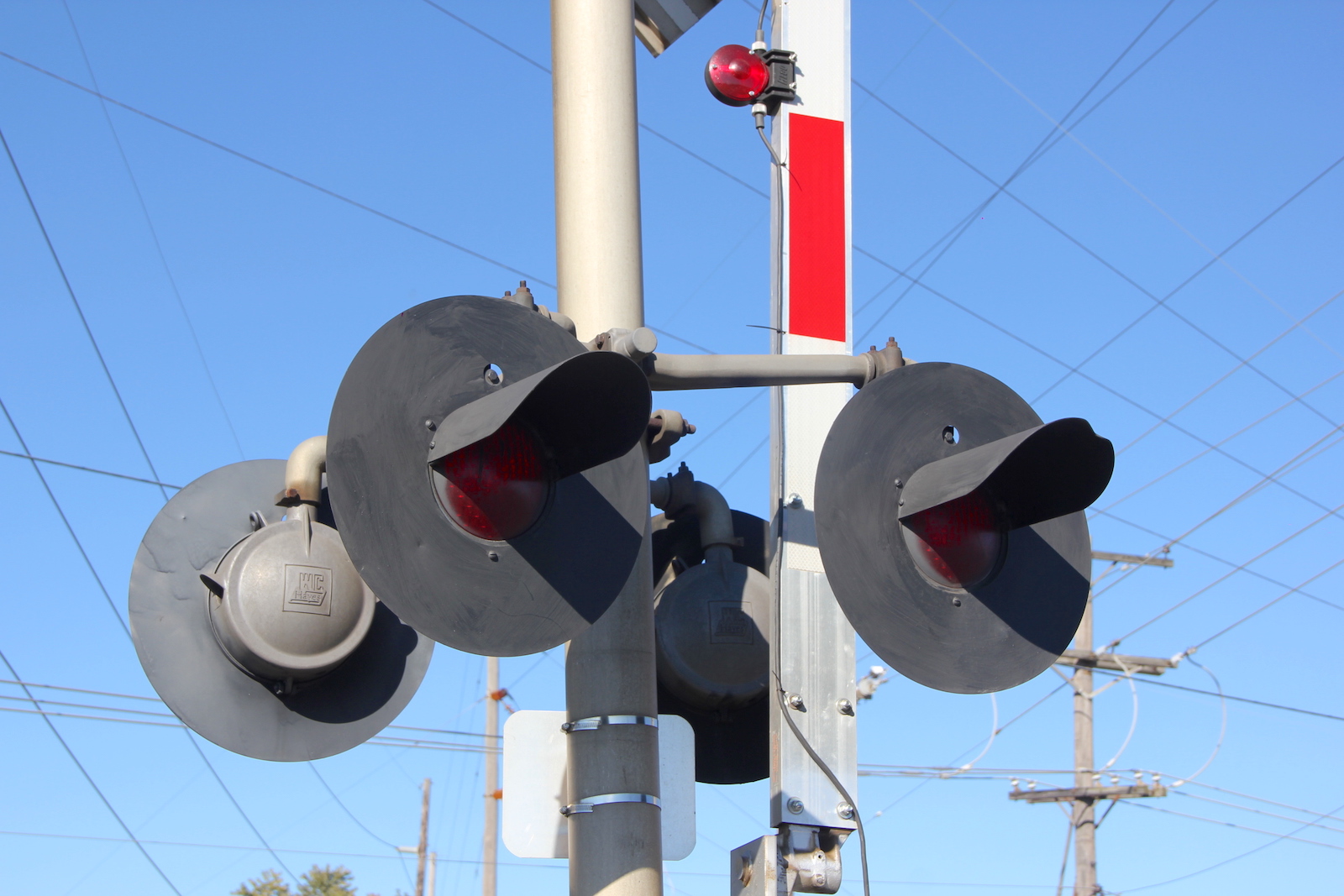

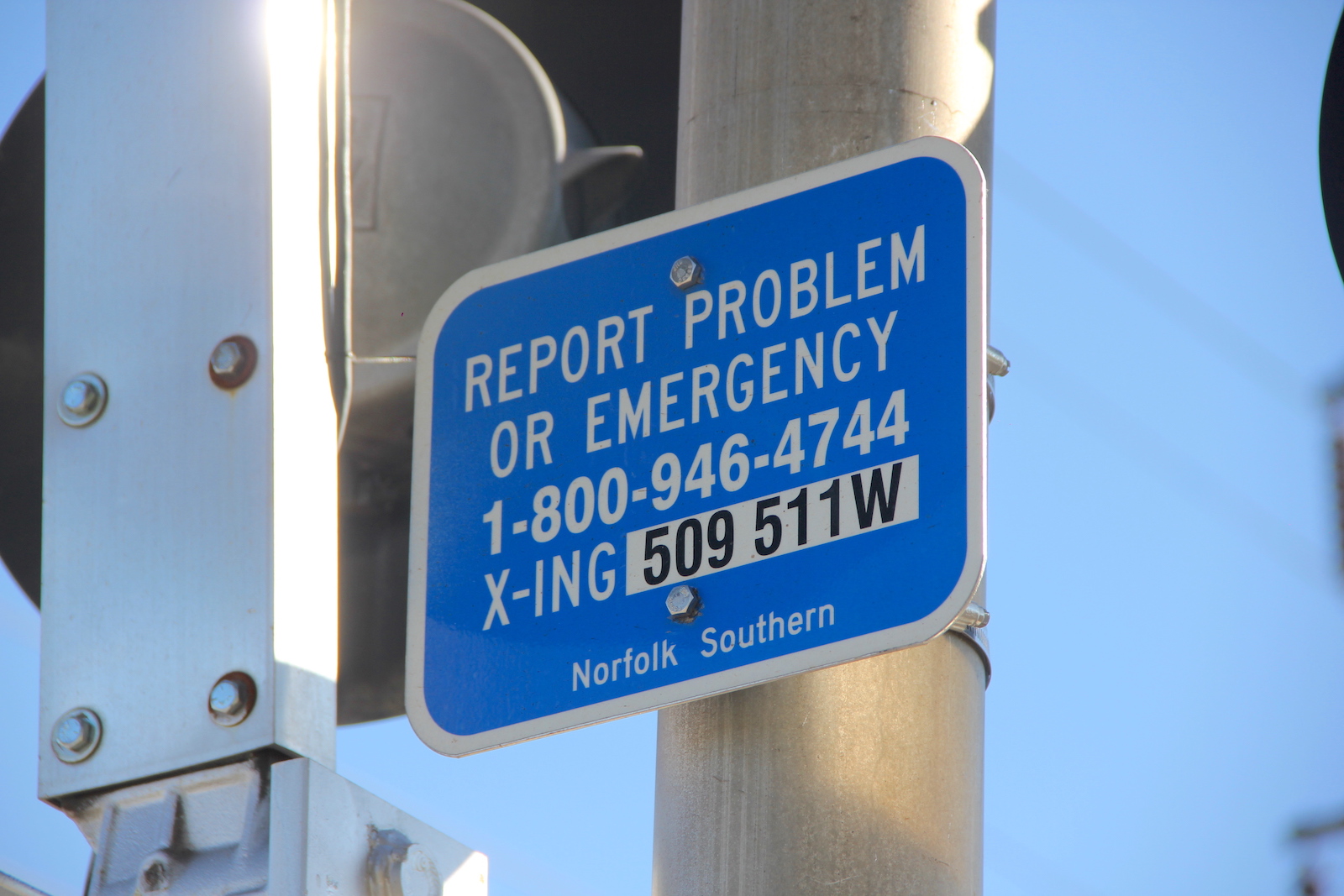

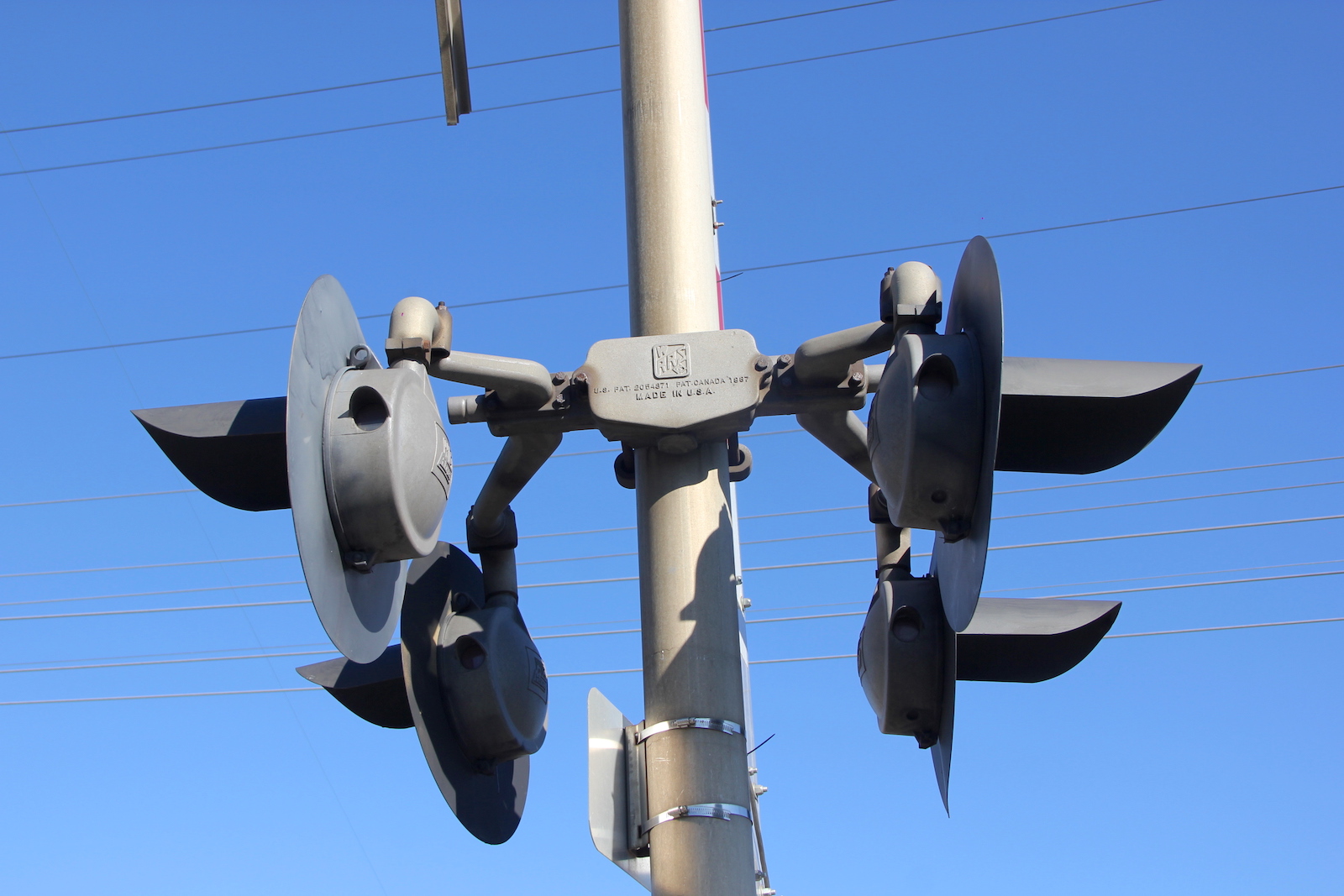

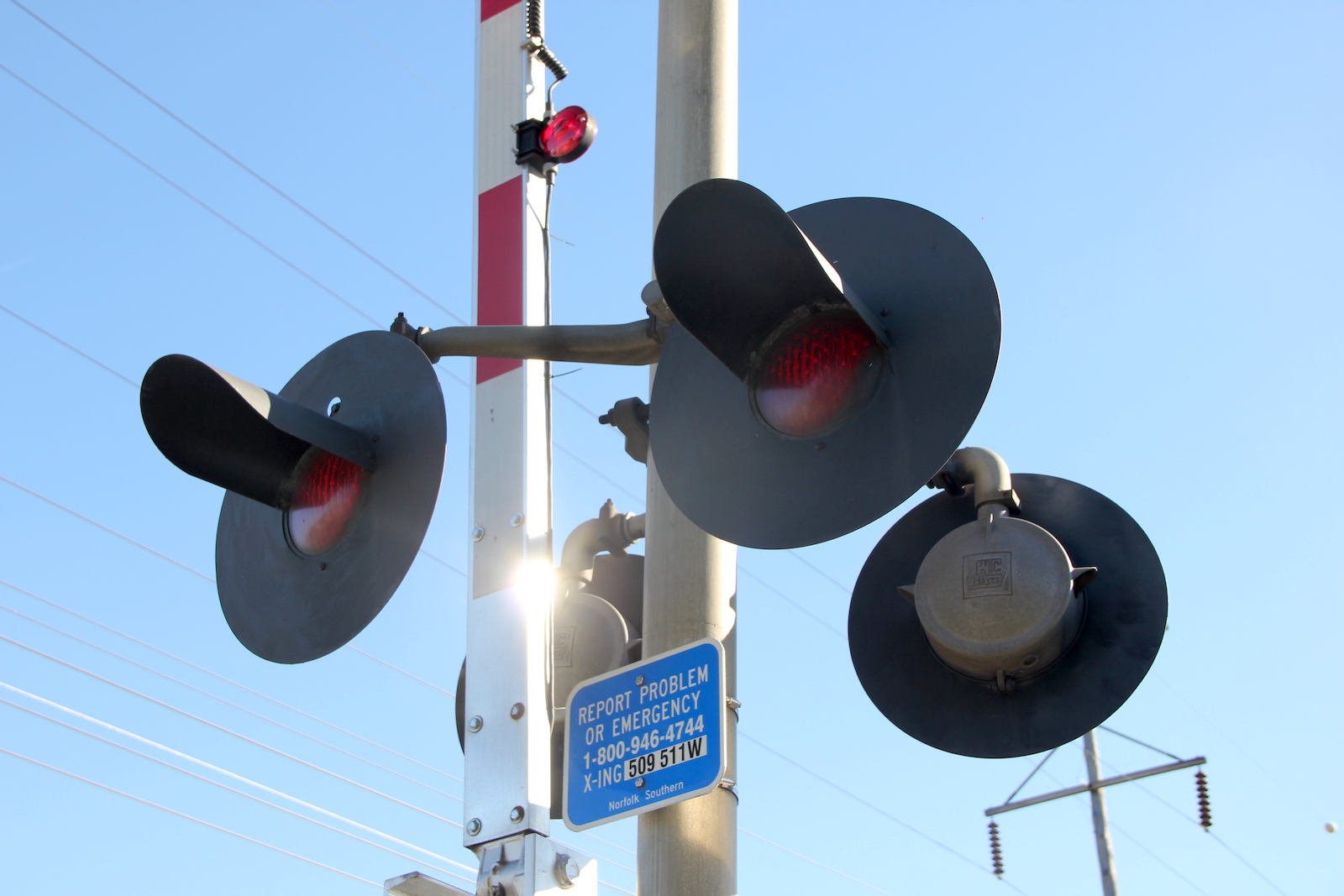

The northern signal.
12 13 14
15 16 17
18 19 20
21

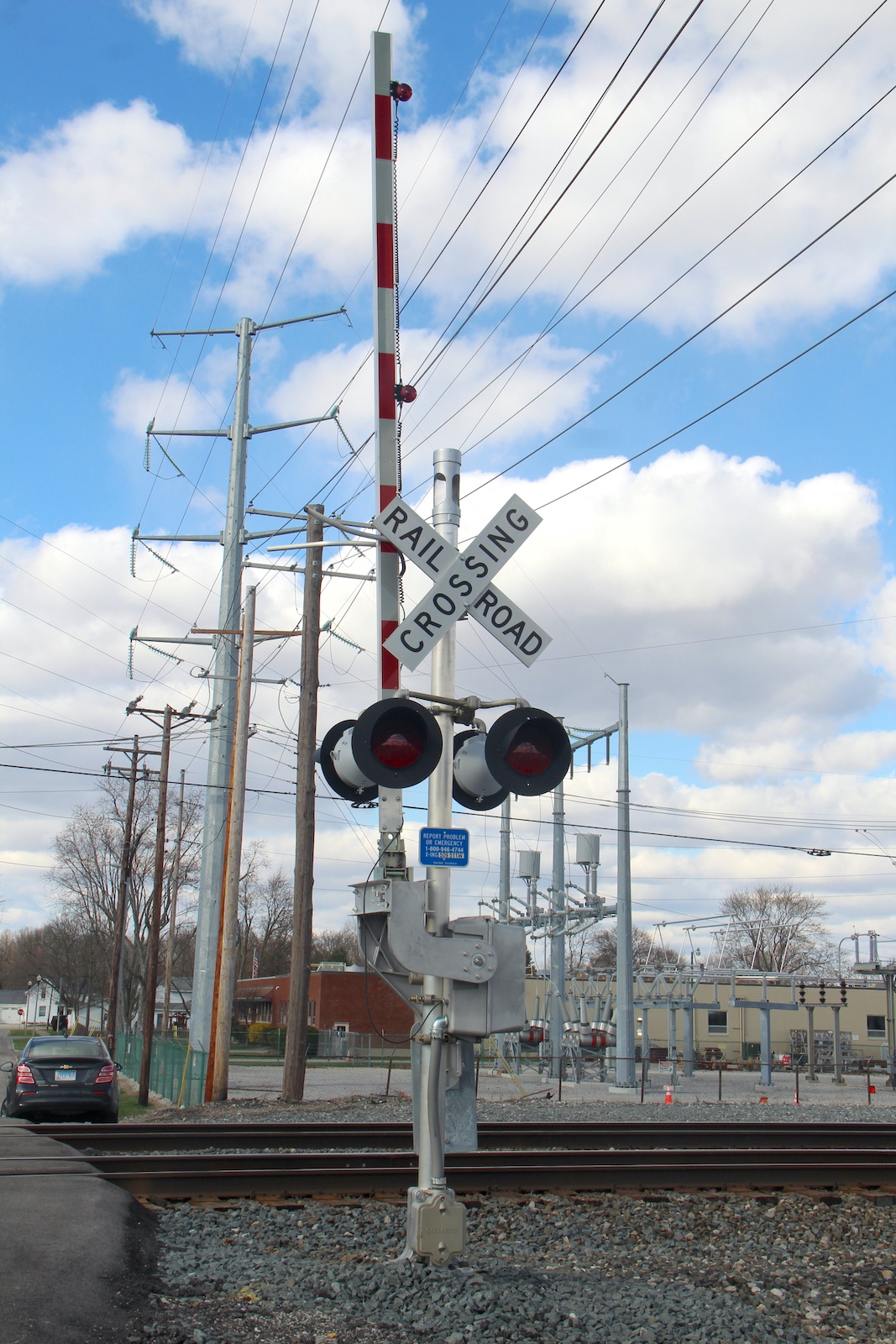

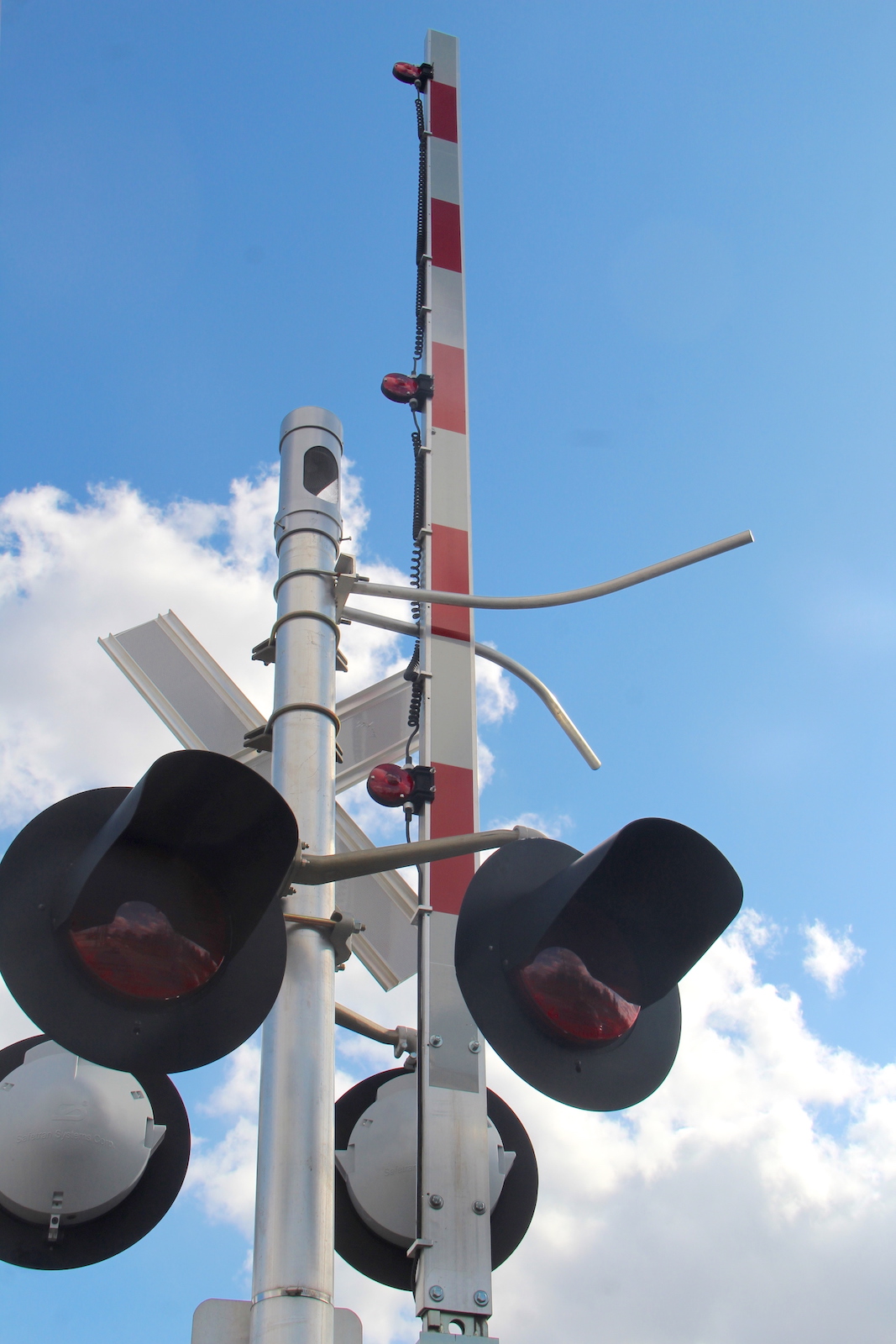

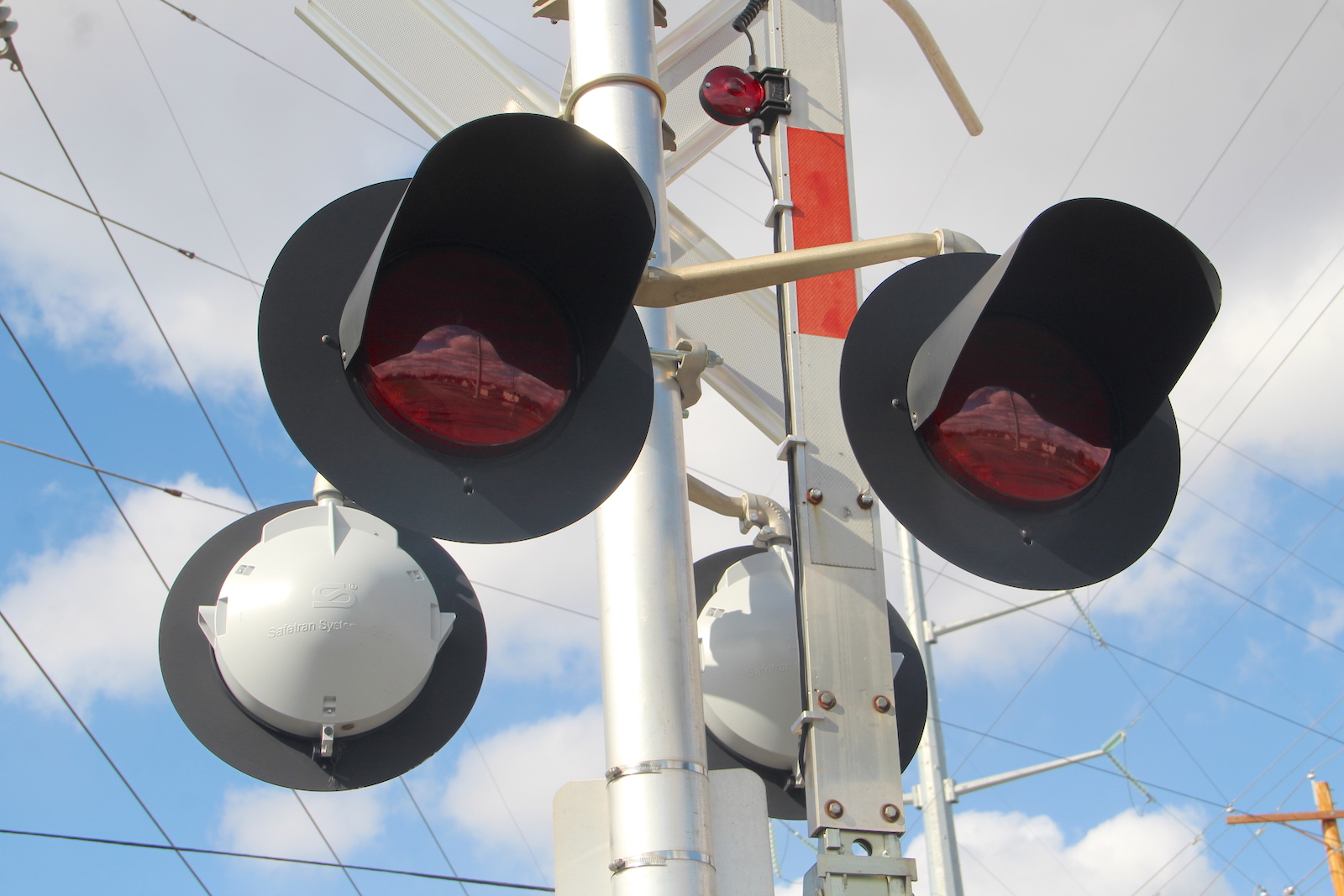

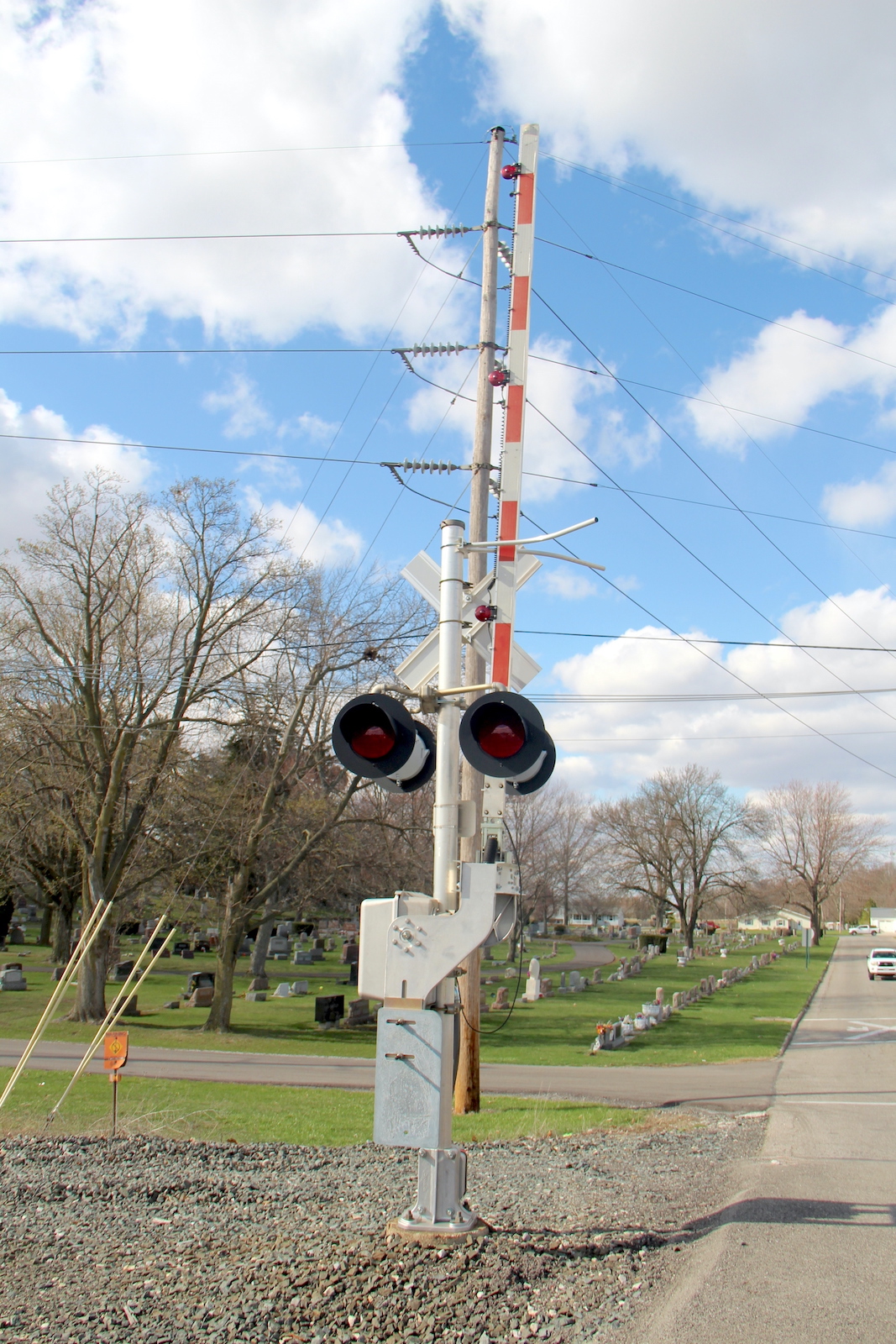

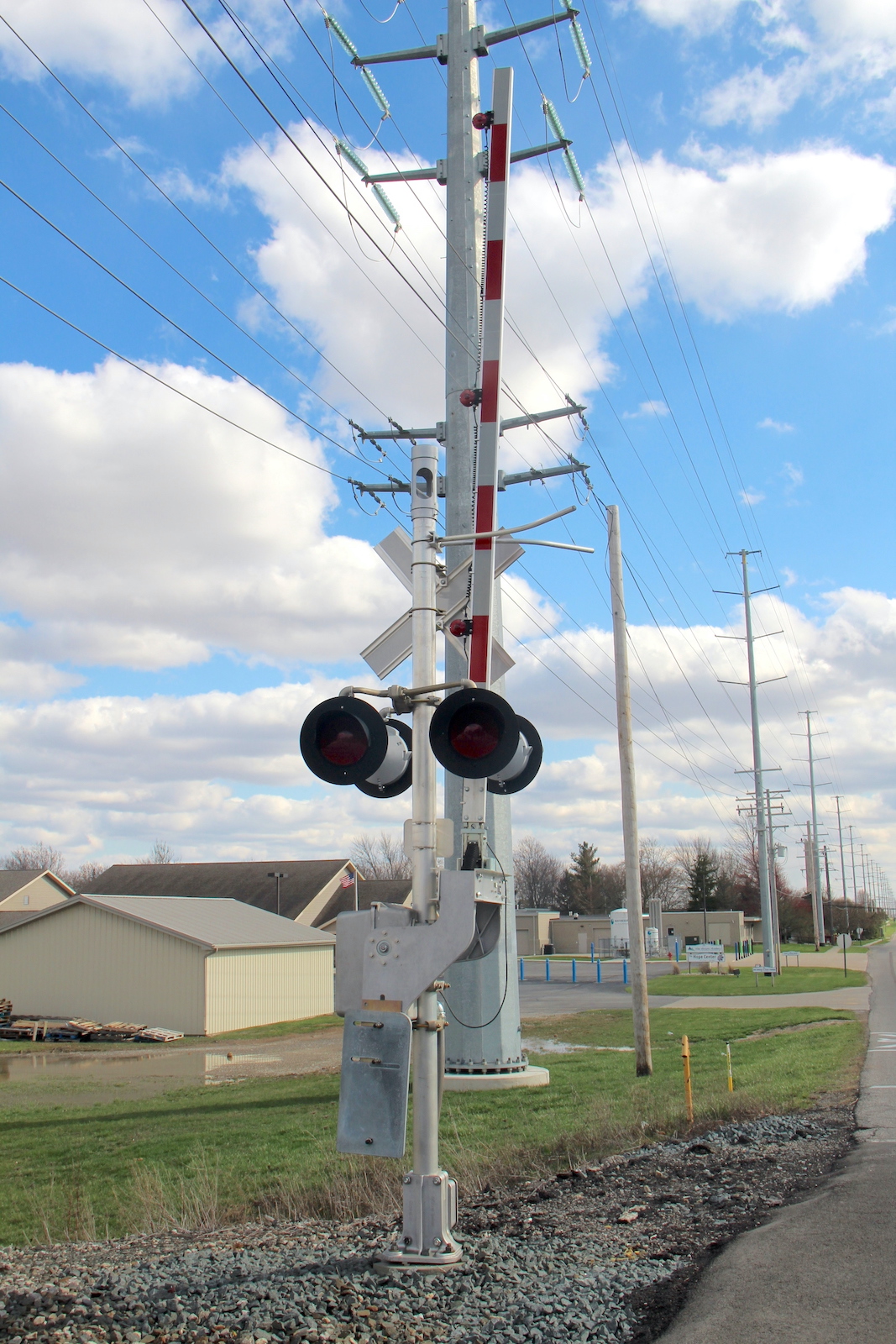

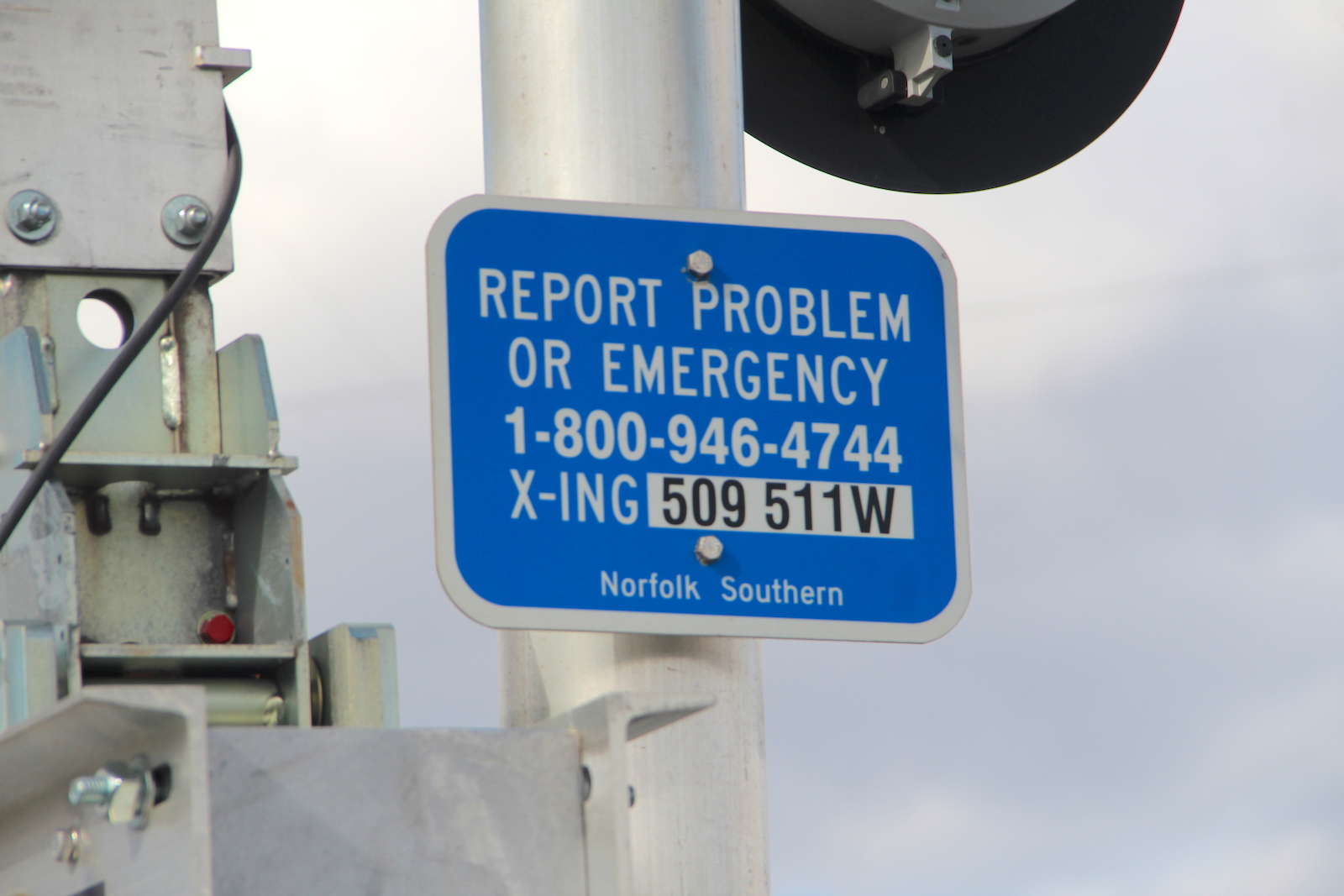

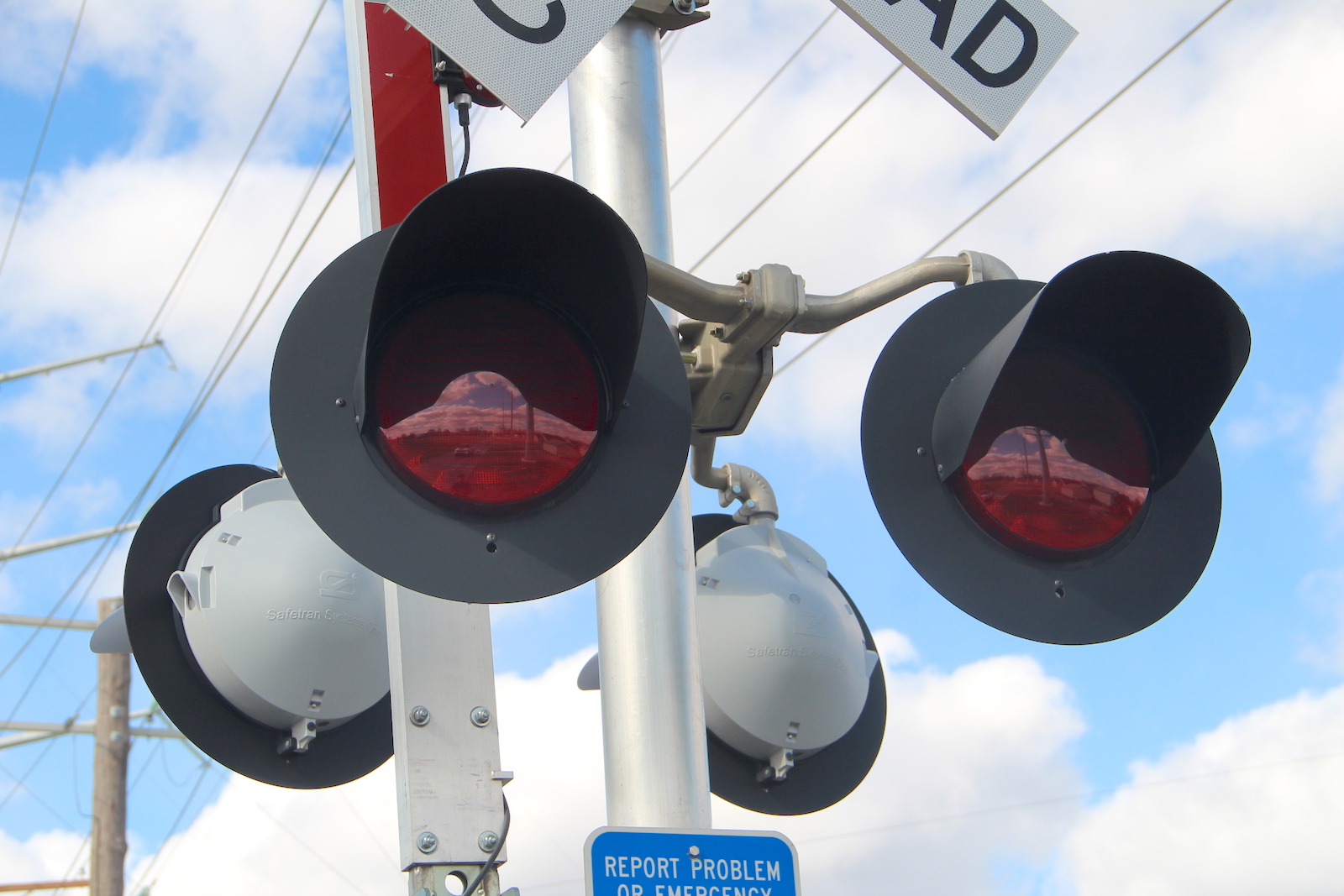

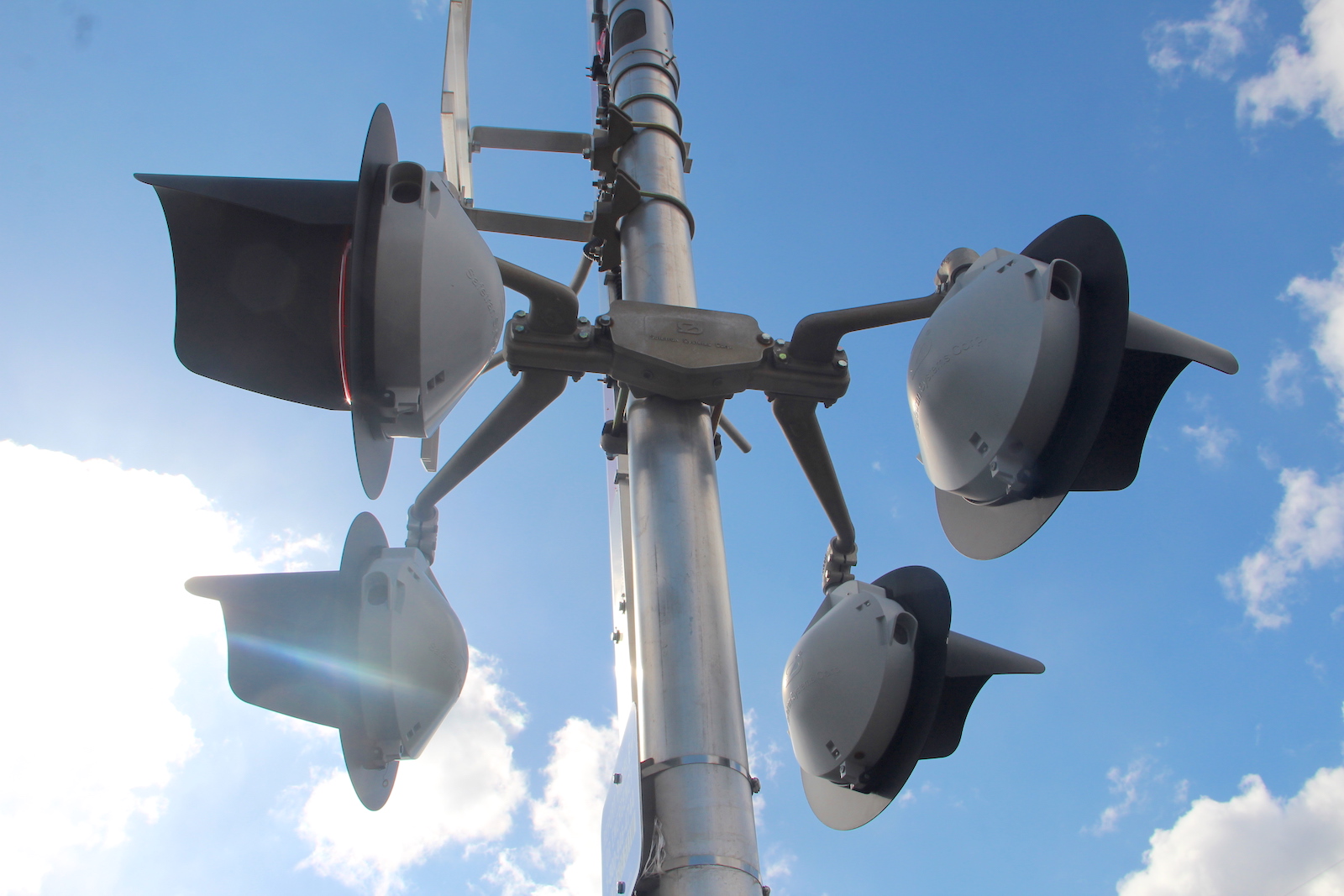

The southern signal.
22 23 24 25

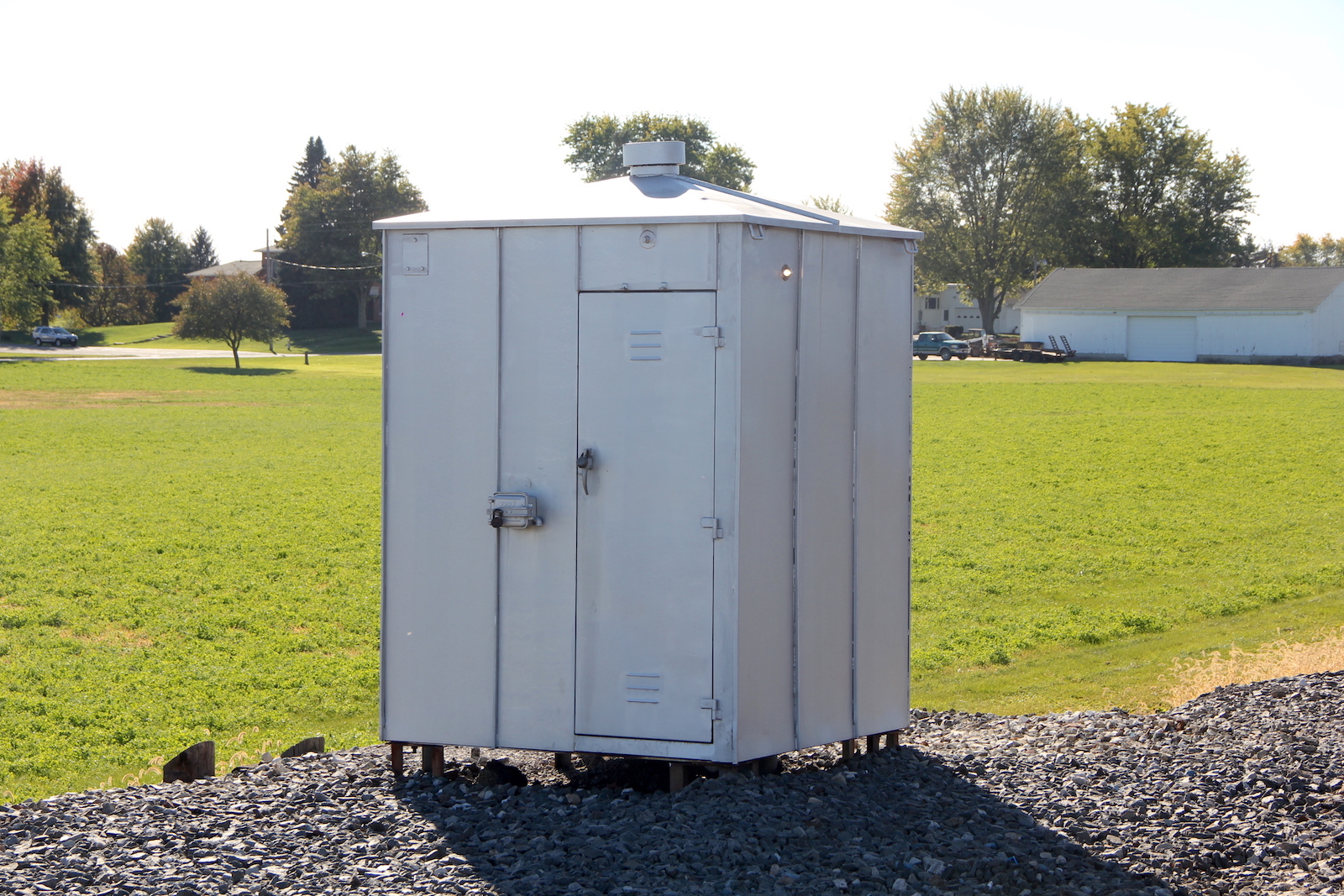

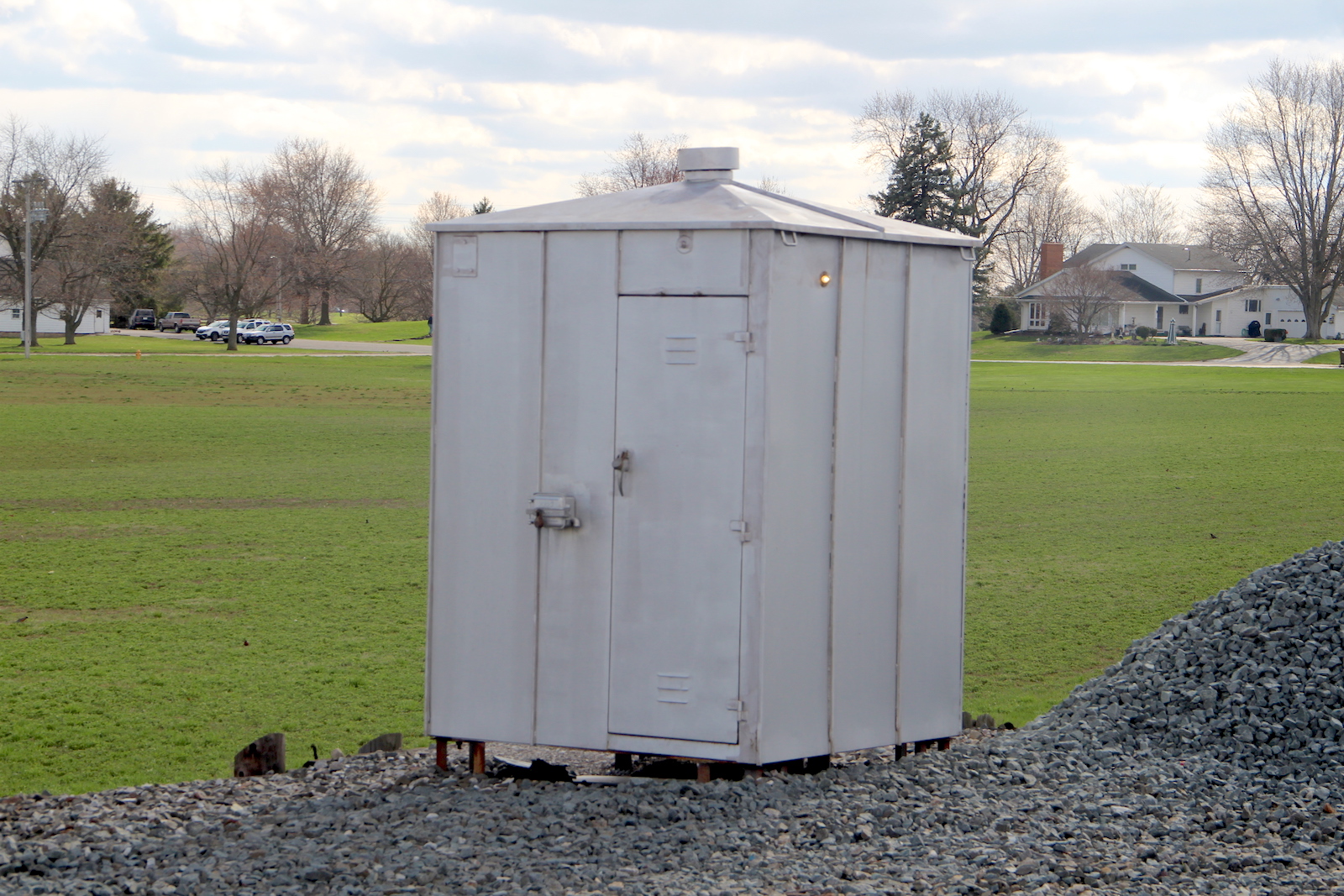

The relay bungalow in the southwest quadrant.

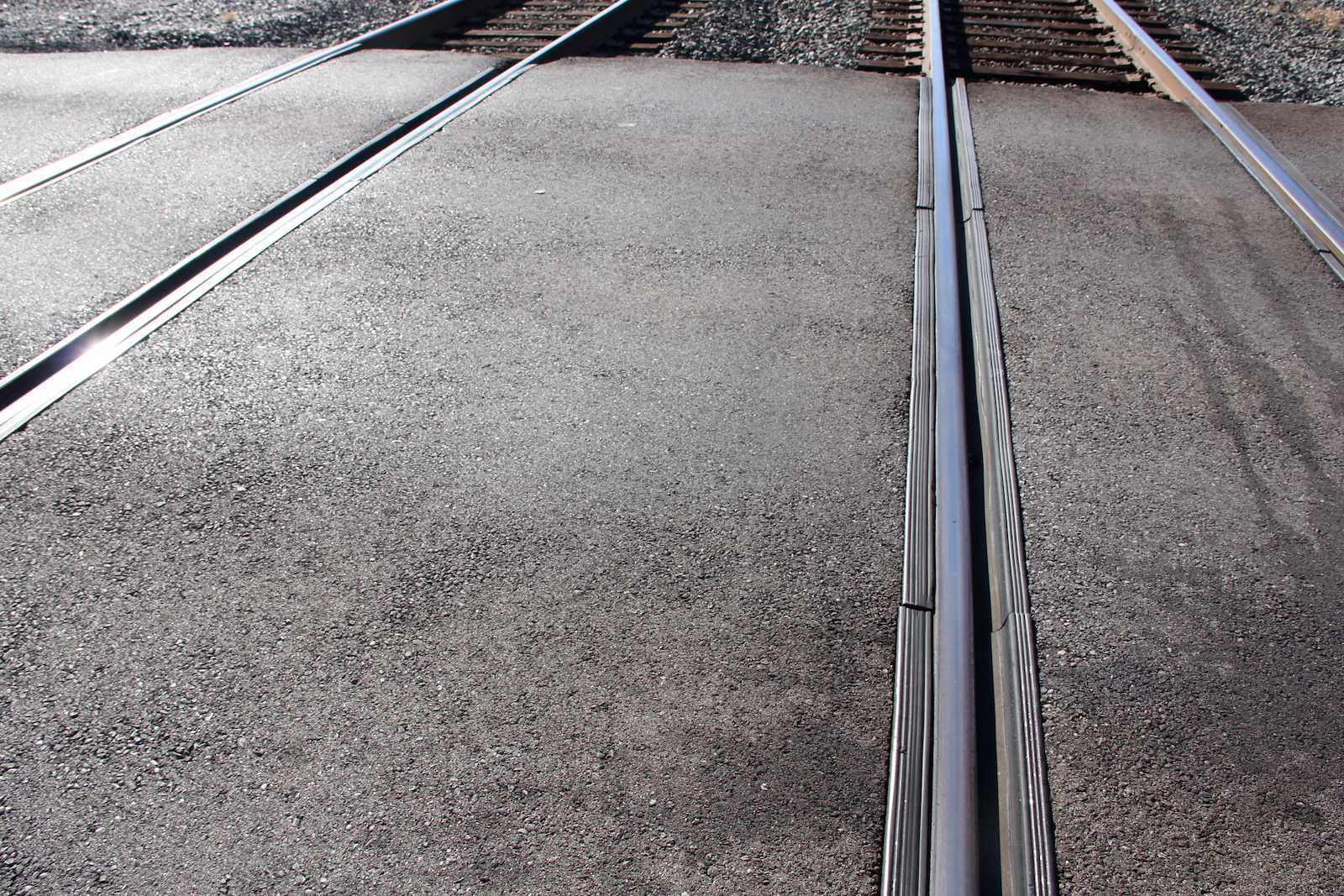

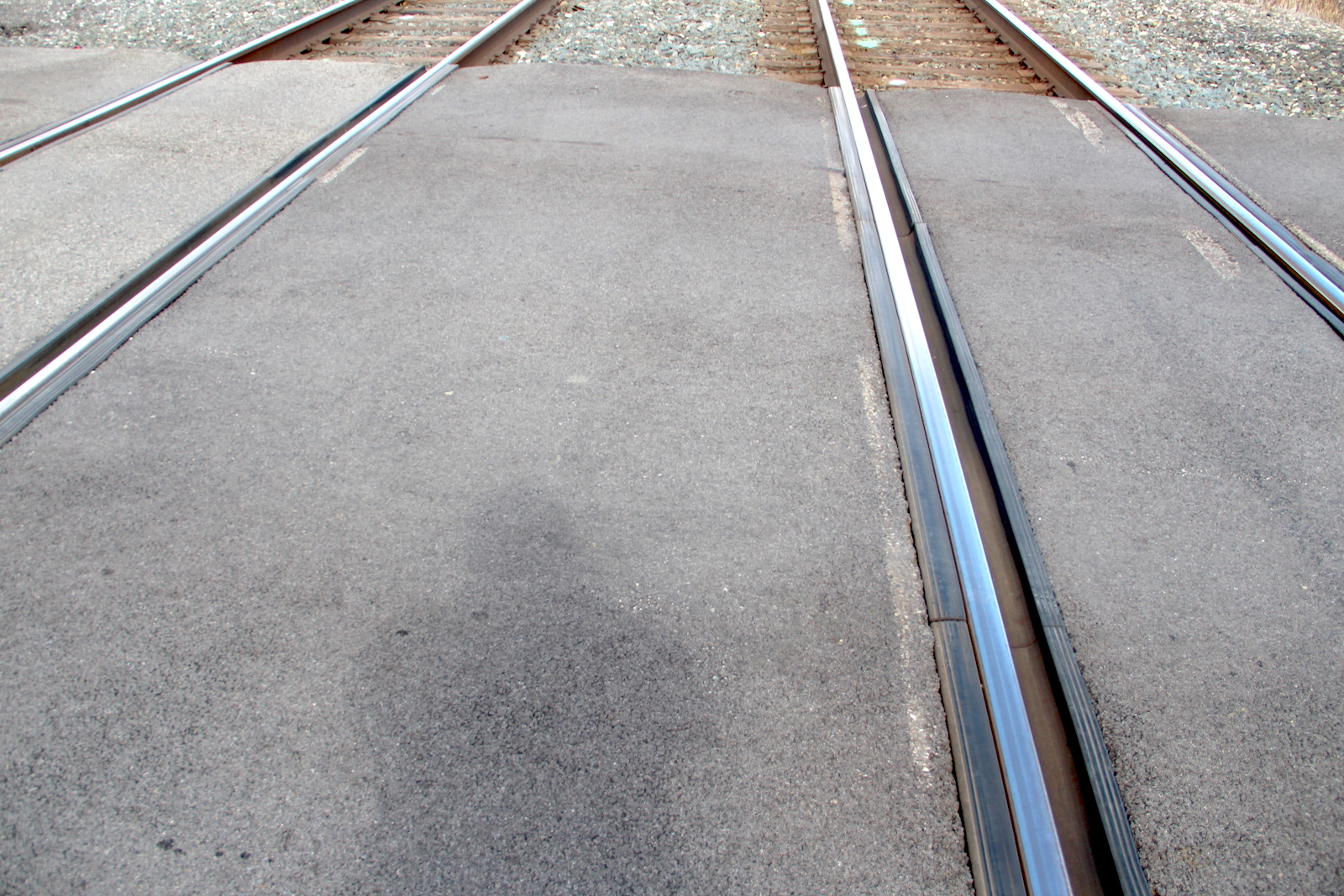

The grade is rubber and asphalt.

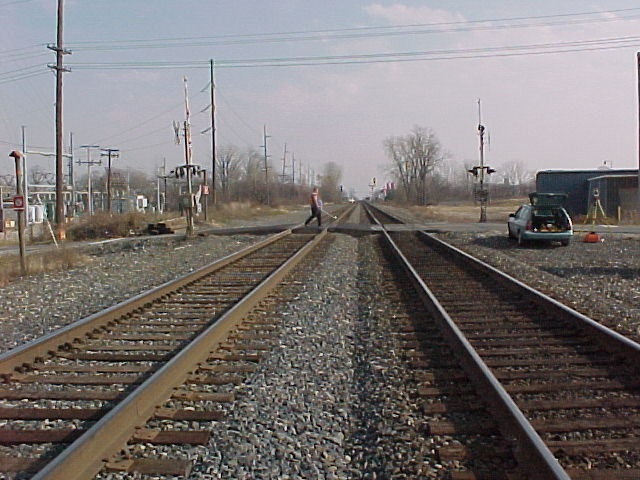

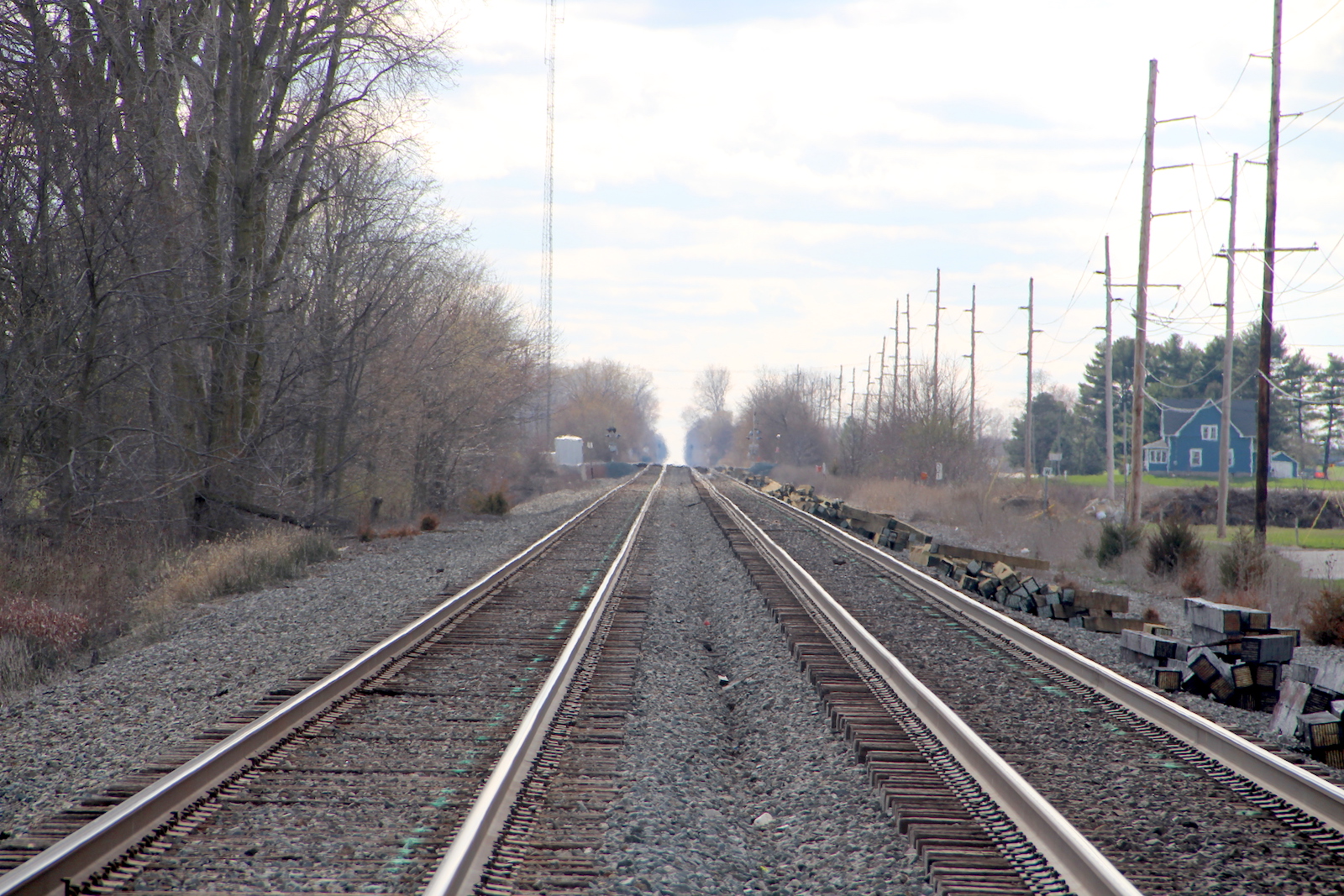

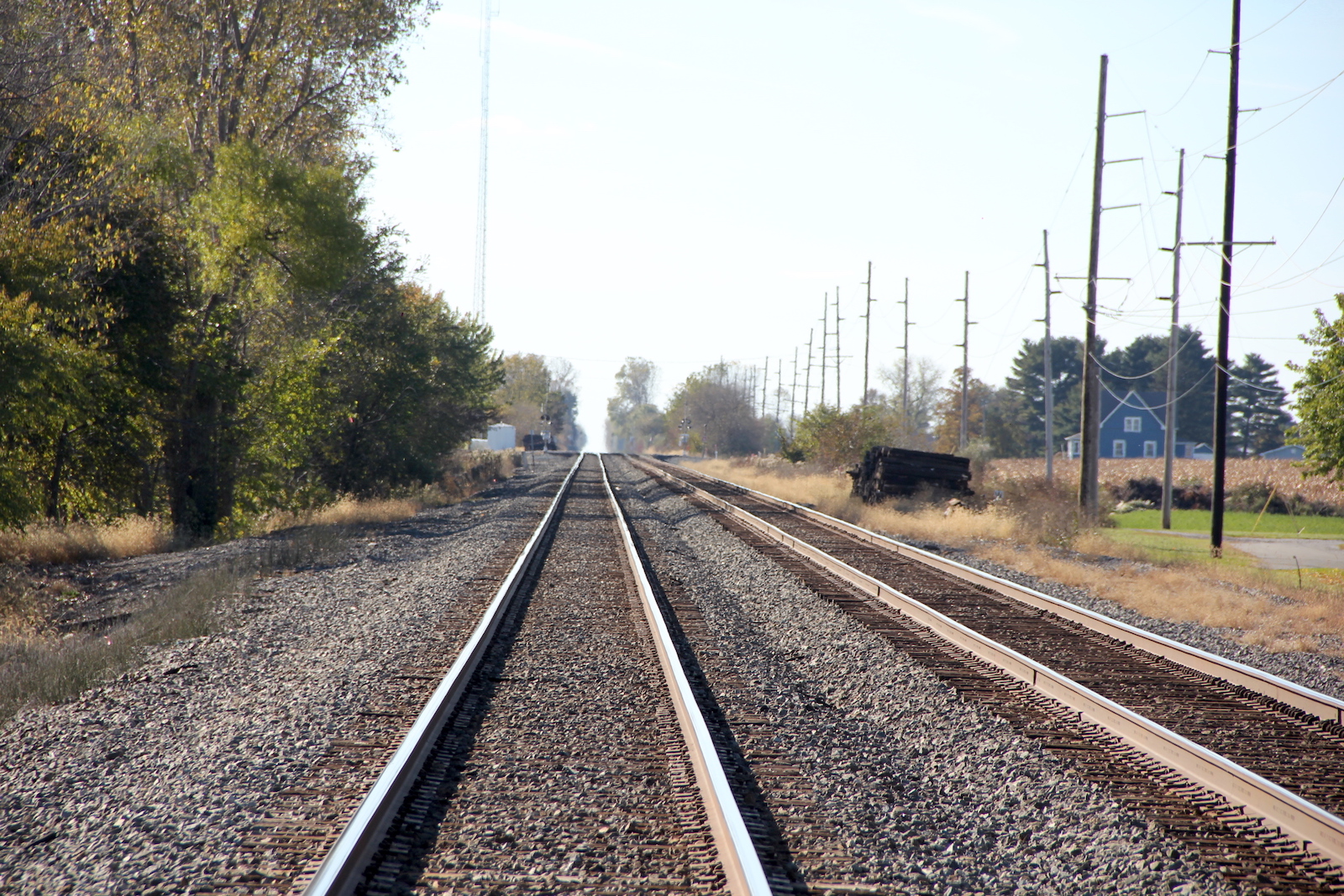

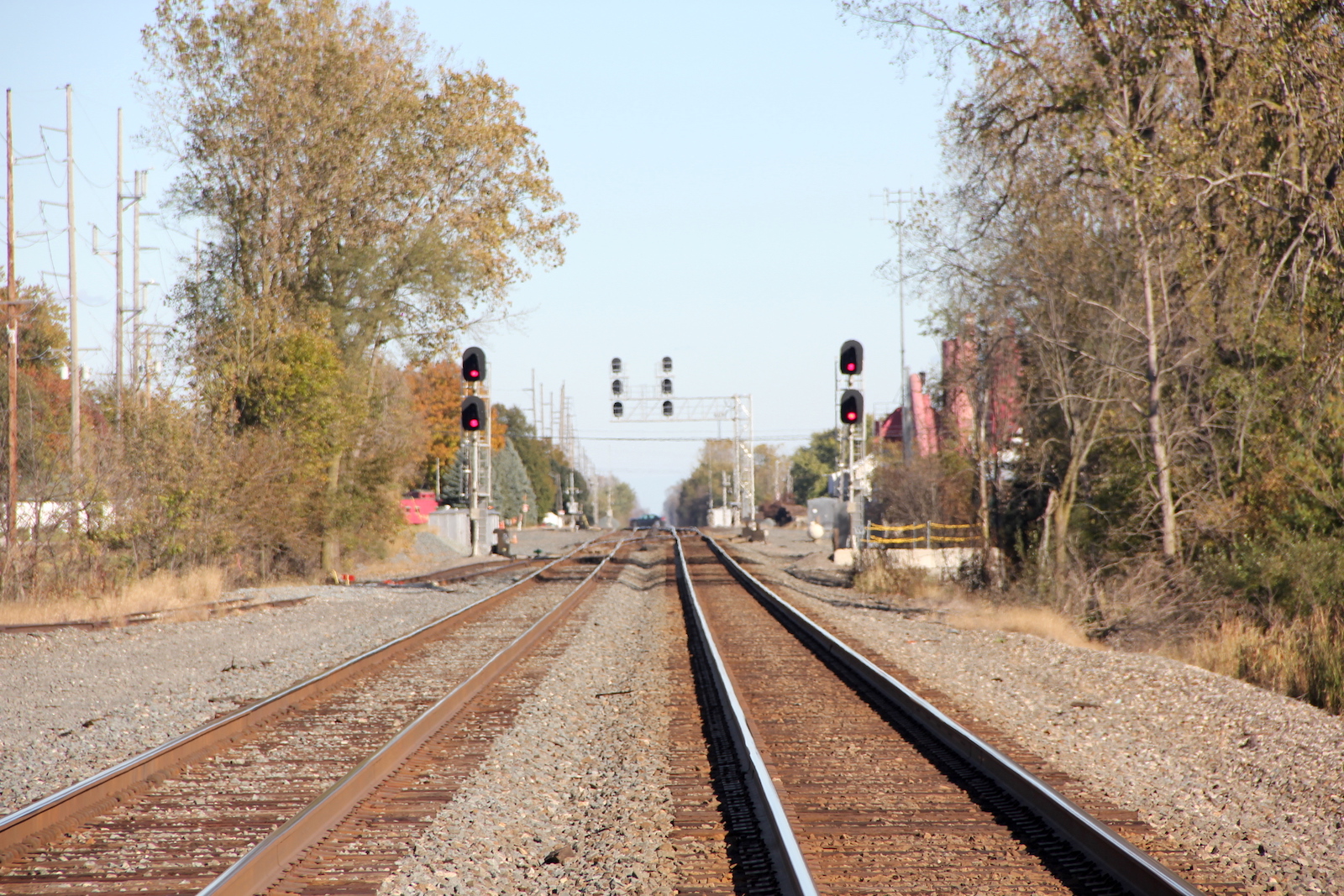

Track view facing west towards Leggett St.

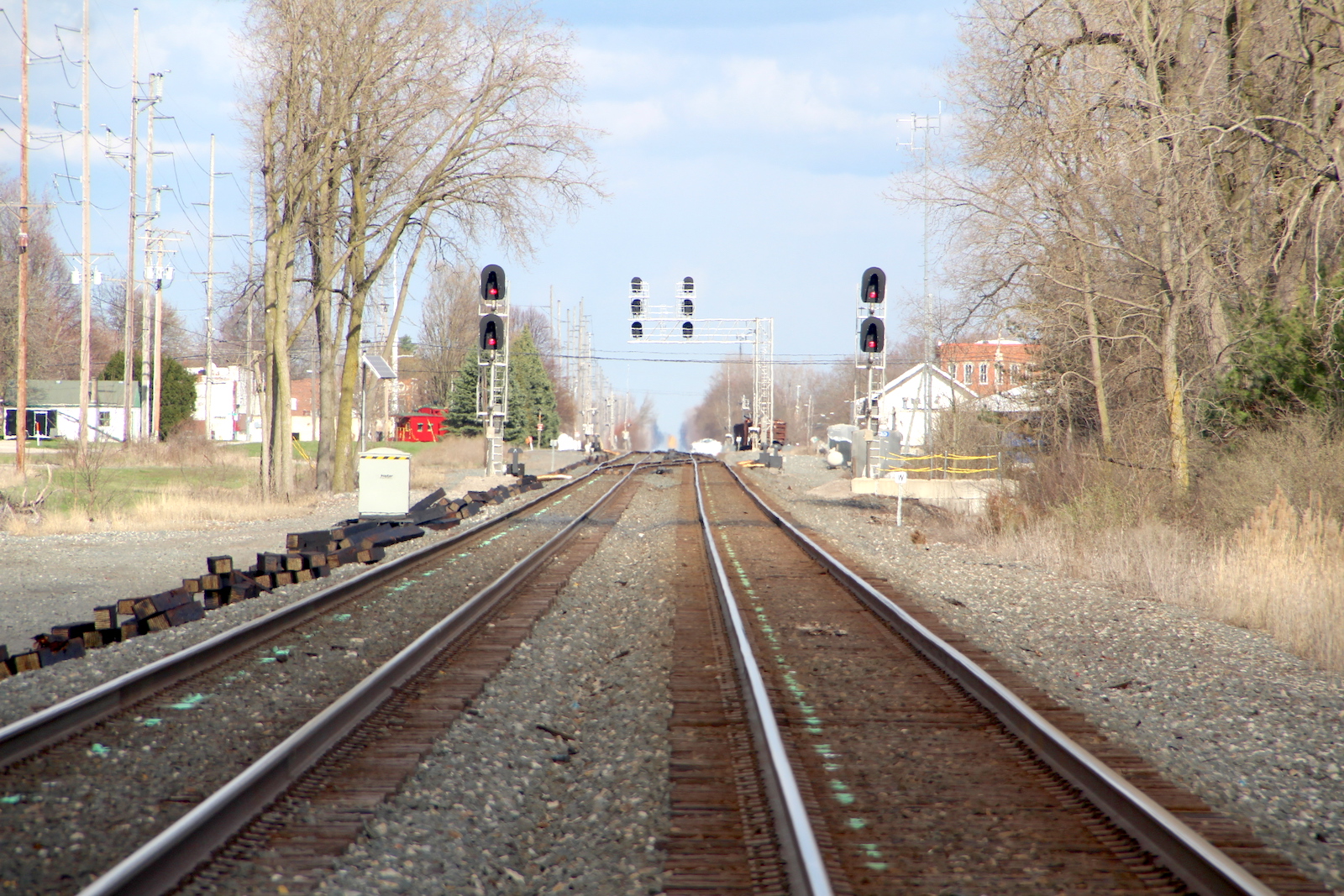

Track view facing east at Brunell St.
