MP:  0BA221.420



Created September 25, 2020



Total Accidents:   2
Crossing DOT #:  350392T
TOTAL DAILY TRAINS:   21   (AS OF 2019)



Page created by: freebrickproductions



This crossing is located on the CSX S&NA North Subdivision.



>>>>>>>>>>>>> Signal #1 Signal #2
Bell: Dead NEG electronic NEG electronic
Base: WCH WCH
Light Frames: 4 - 12x24" WCH w/ Leotek EV Series LEDs 4 - 12x24" WCH w/ Leotek EV Series LEDs
Gate Lights: 3 - NEG LEDs

2 - NEG LEDs

1 - RECO LED

Gate Mechanism: Siemens Sticker Style 2 Safetran-branded Siemens
Gate Striping: Vertical Vertical



1

2

3

4

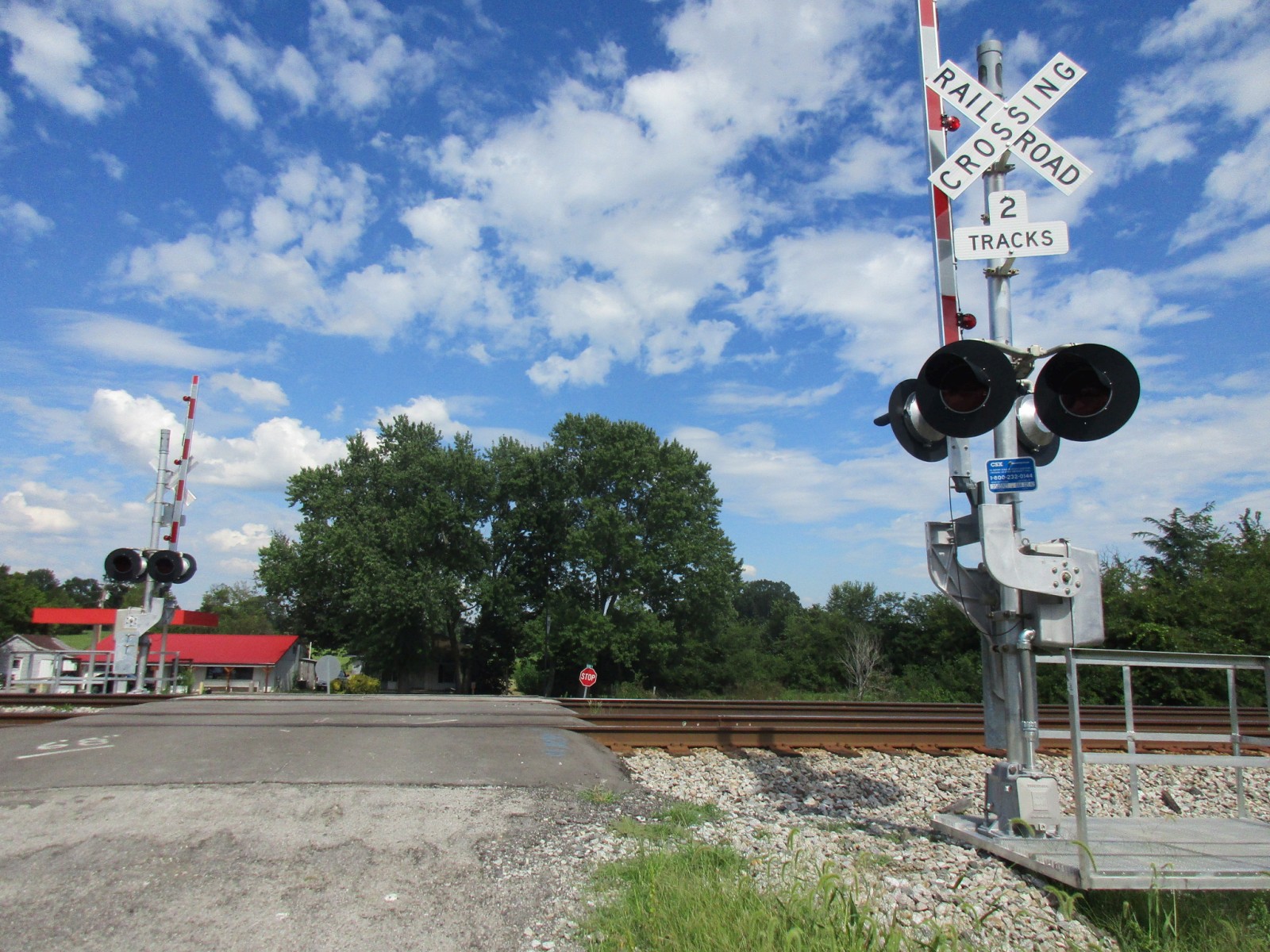

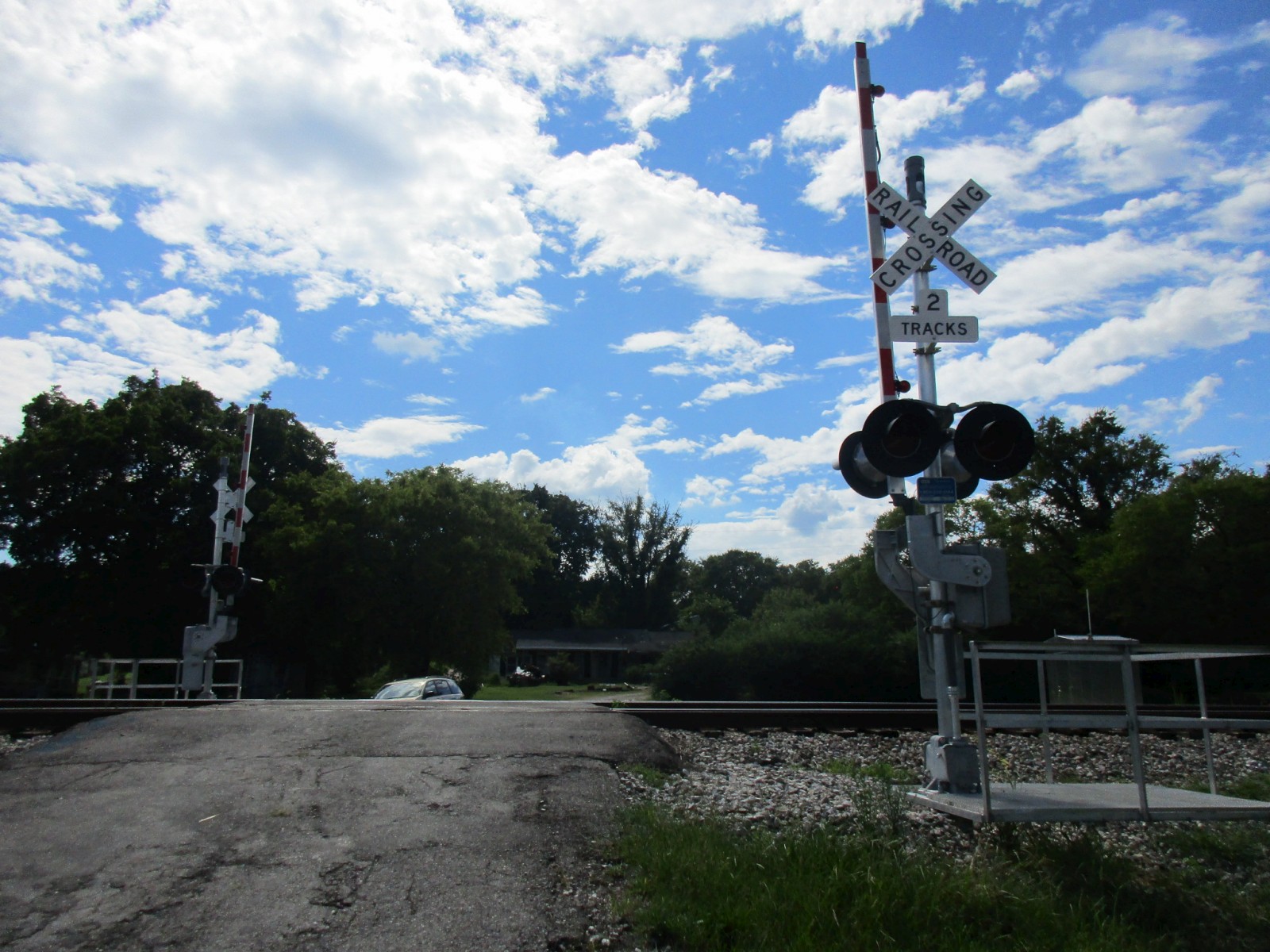

Overviews of the crossing.

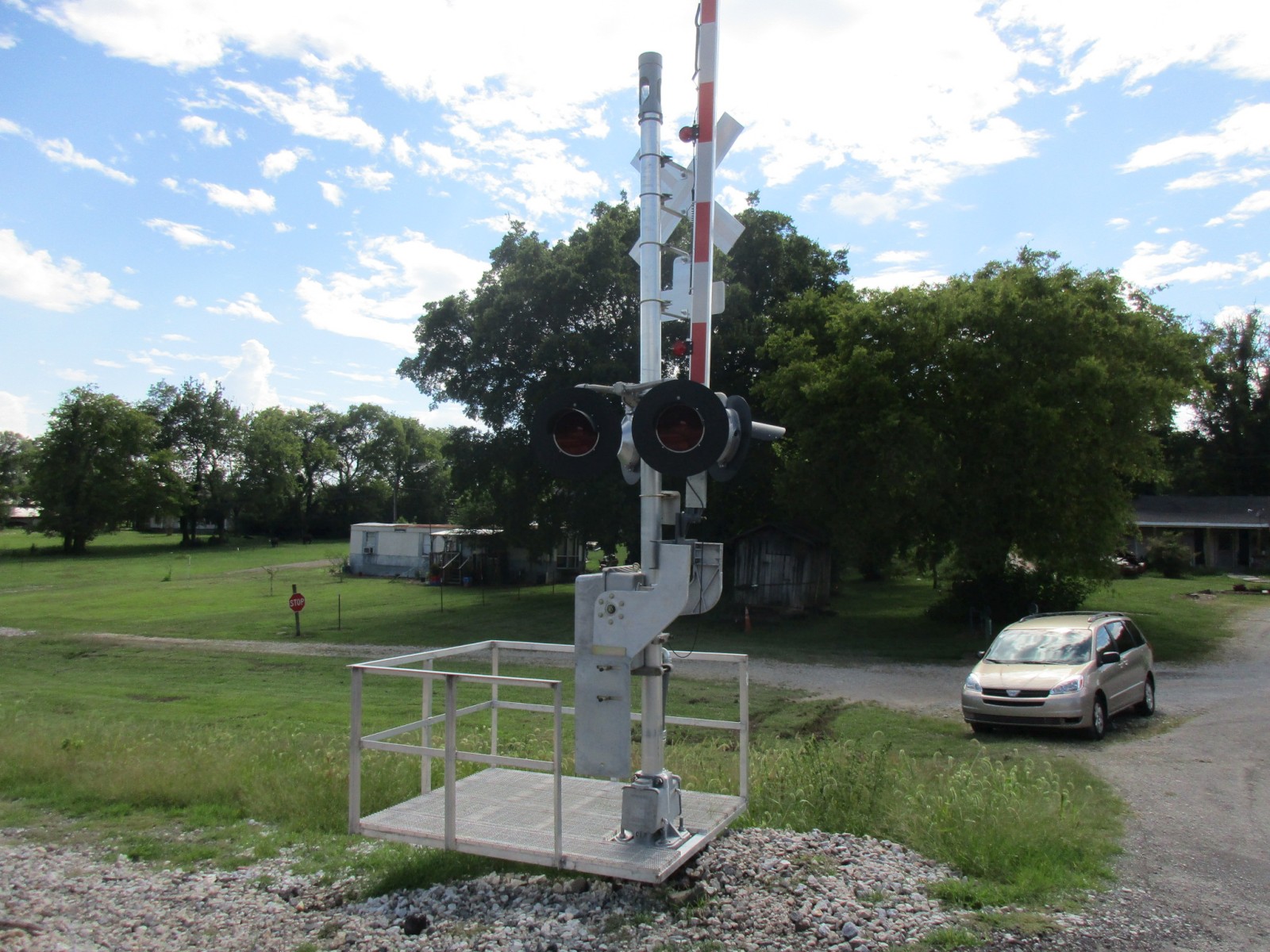

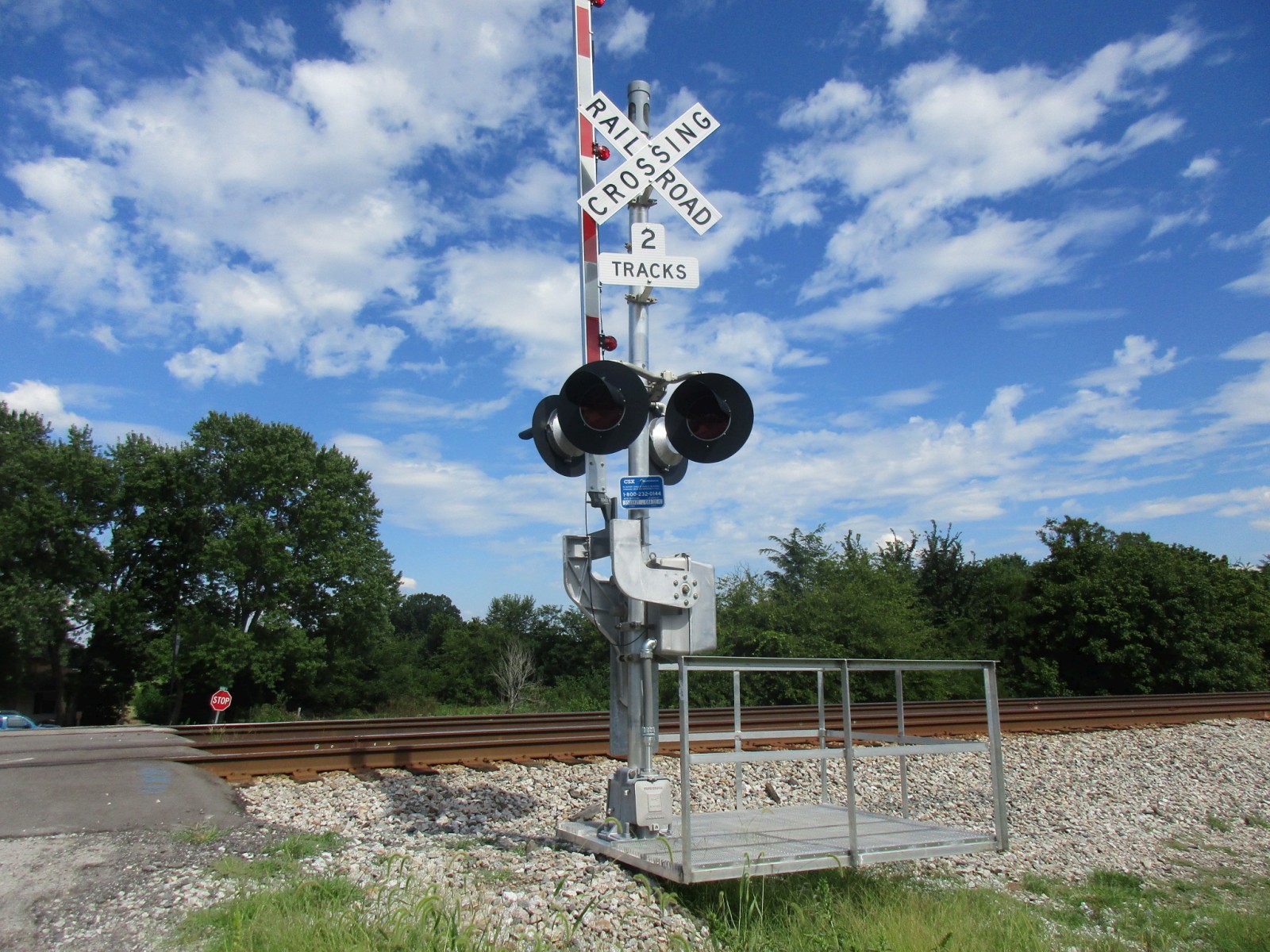

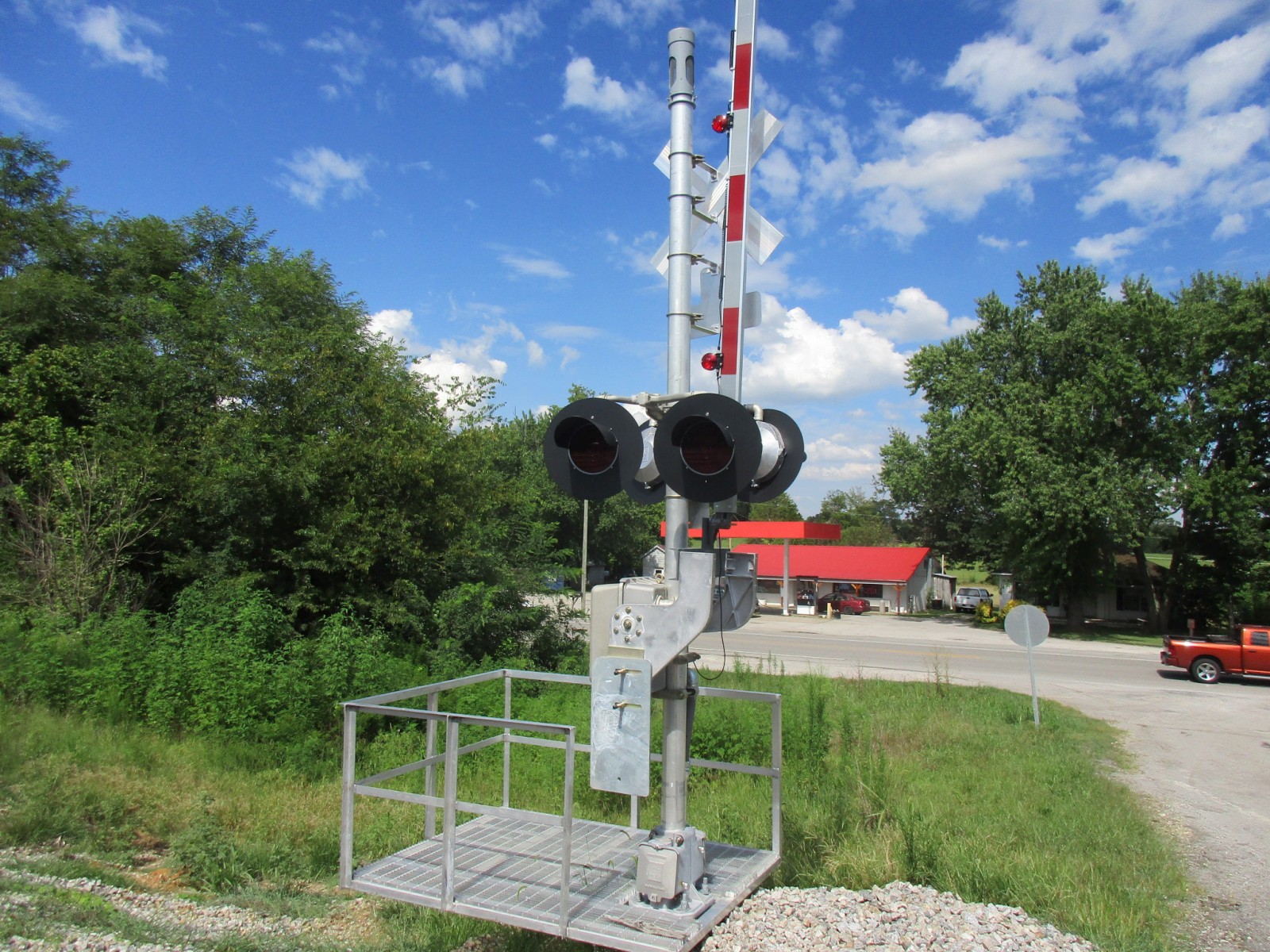

The first signal.

5

6

7

8

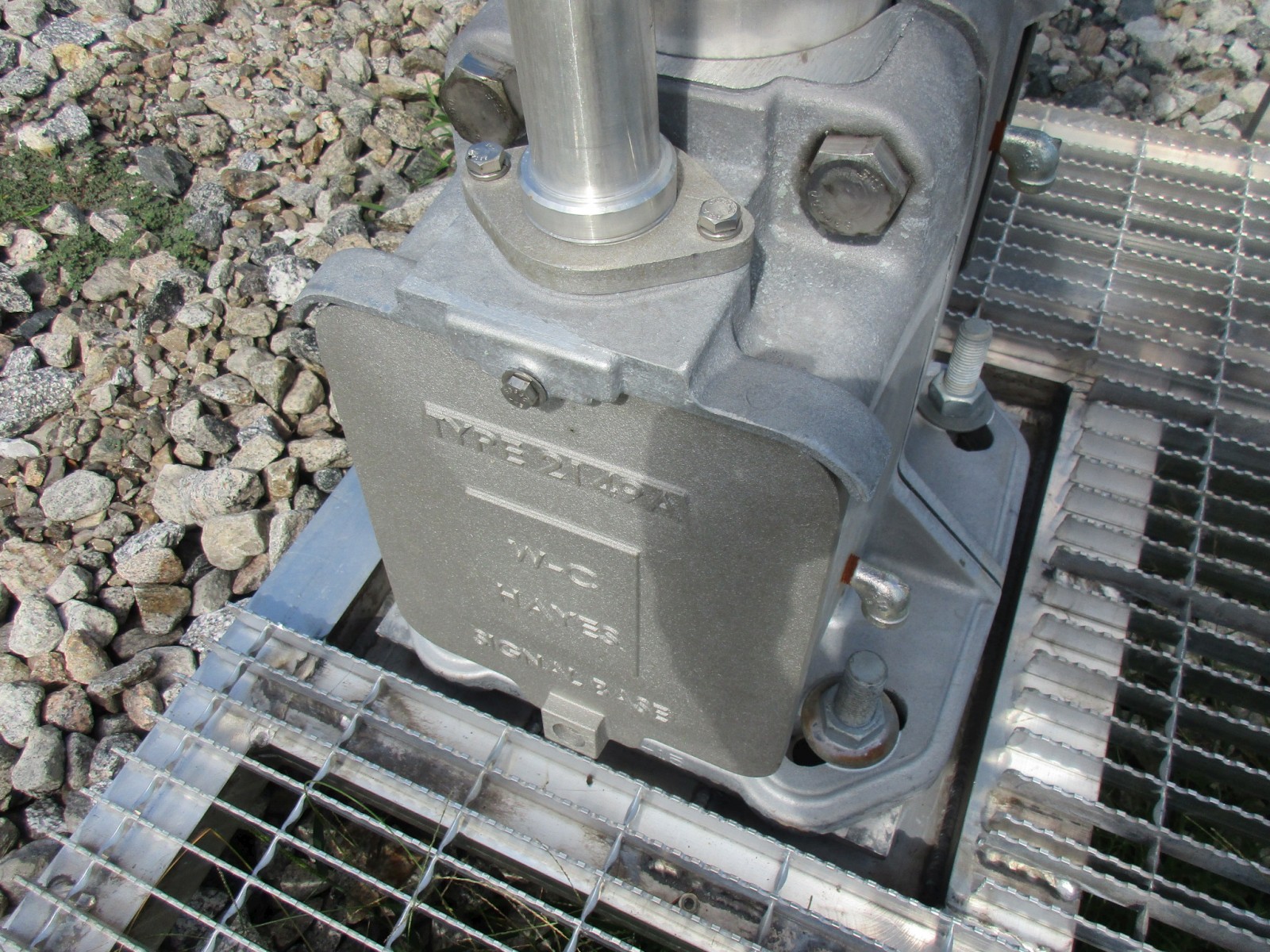

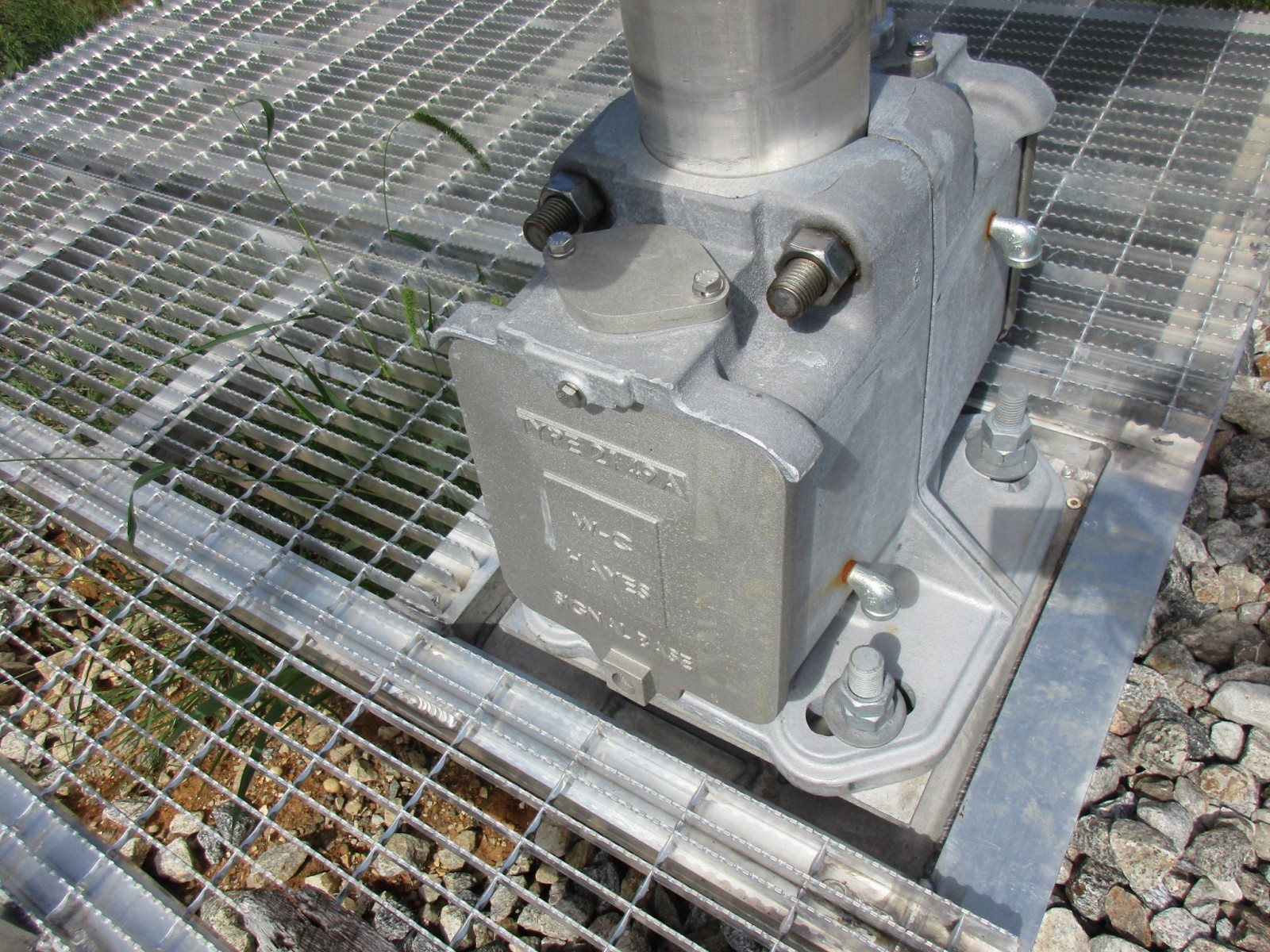

It has a WCH base.

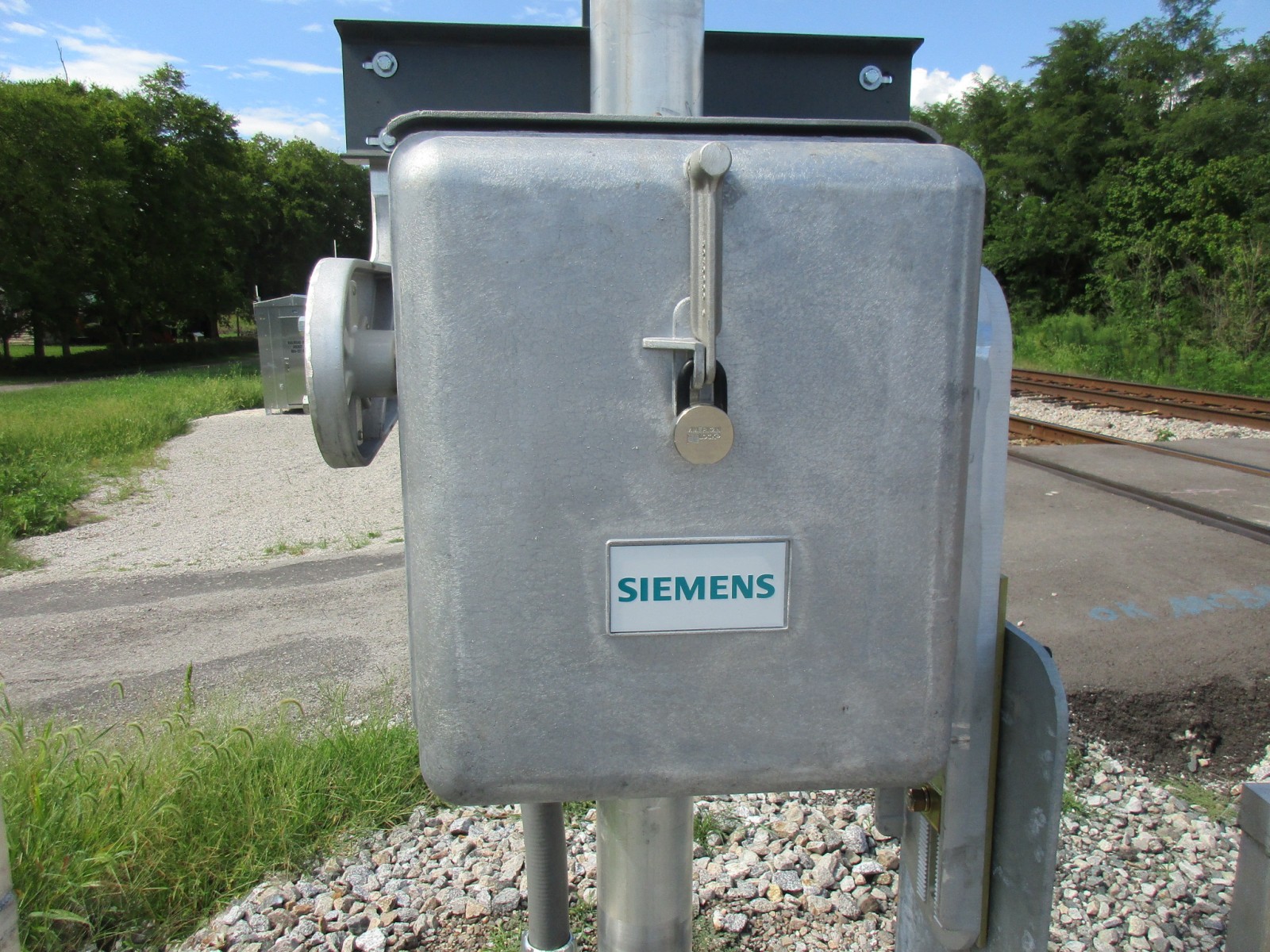

A Siemens gate mechanism.

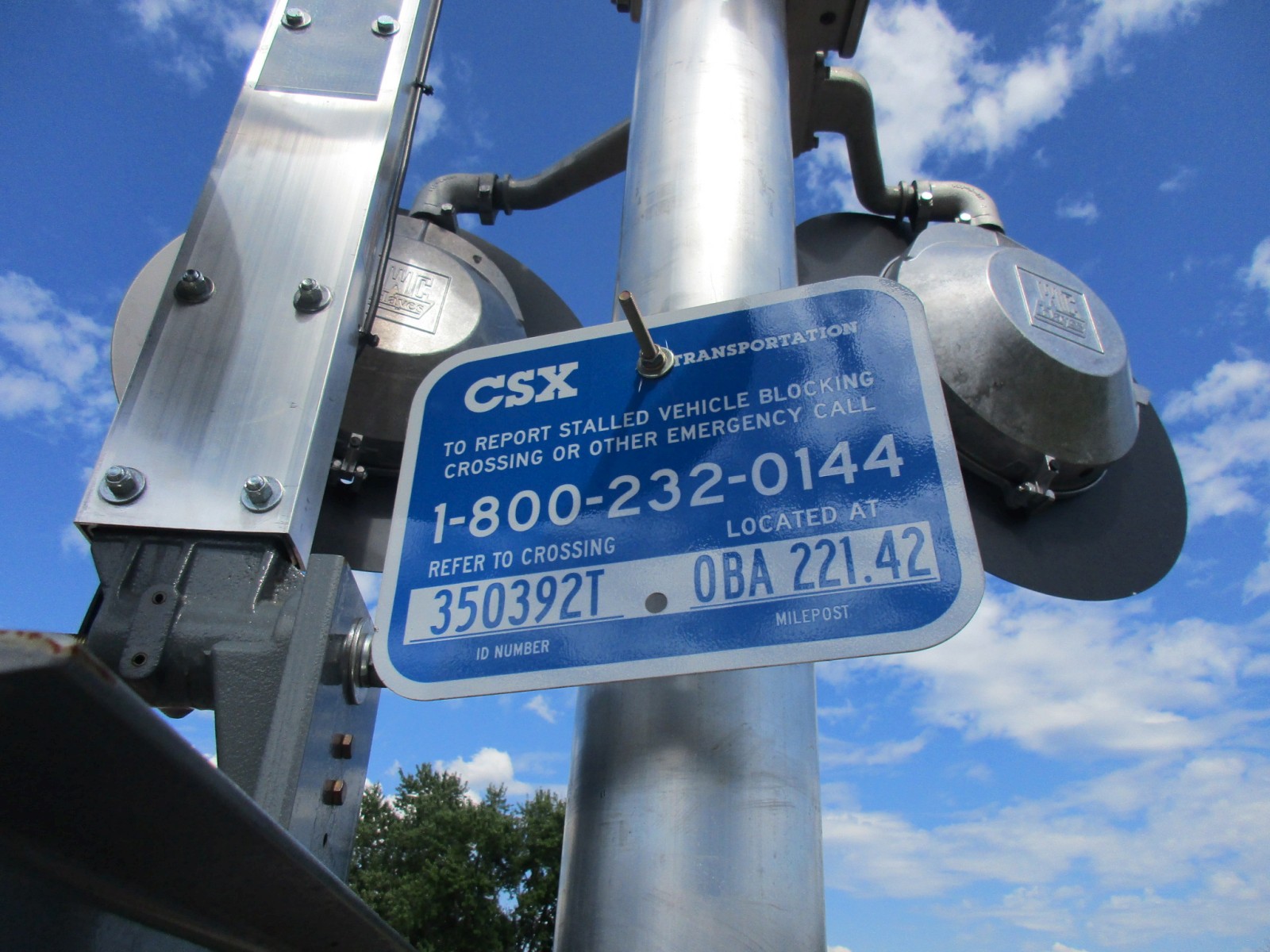

The emergency information.

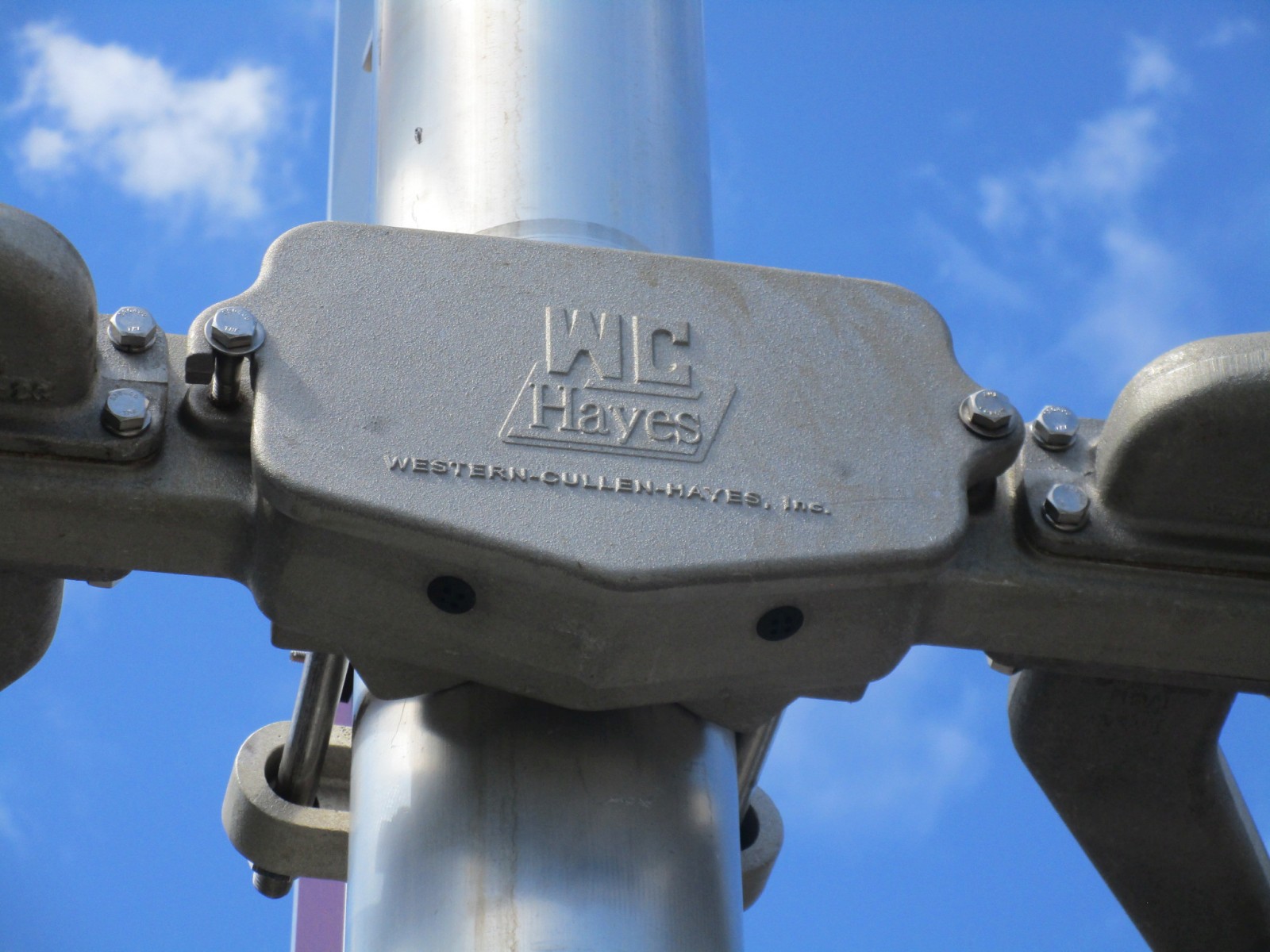

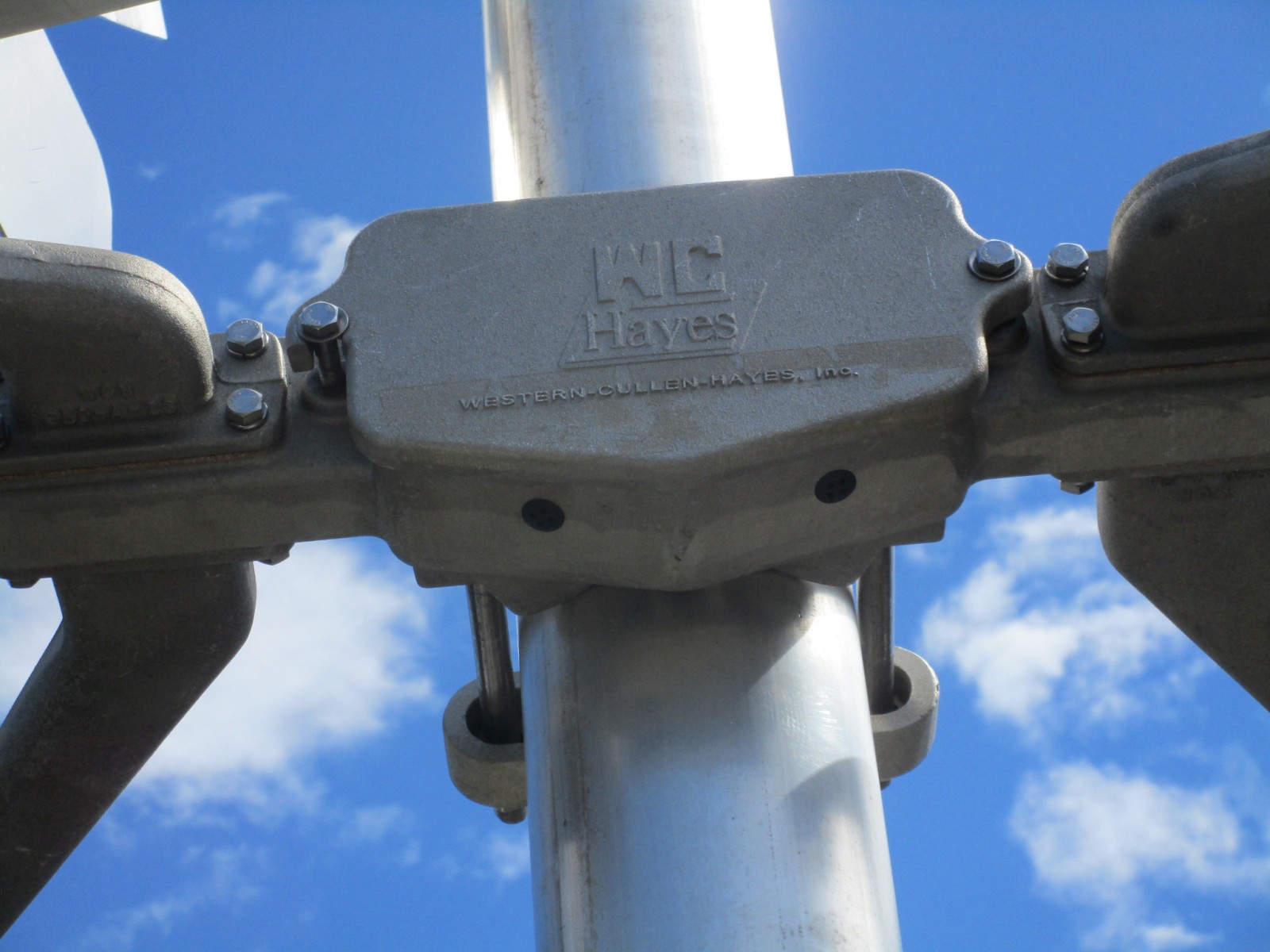

A WCH bracket.

9

10

11

12

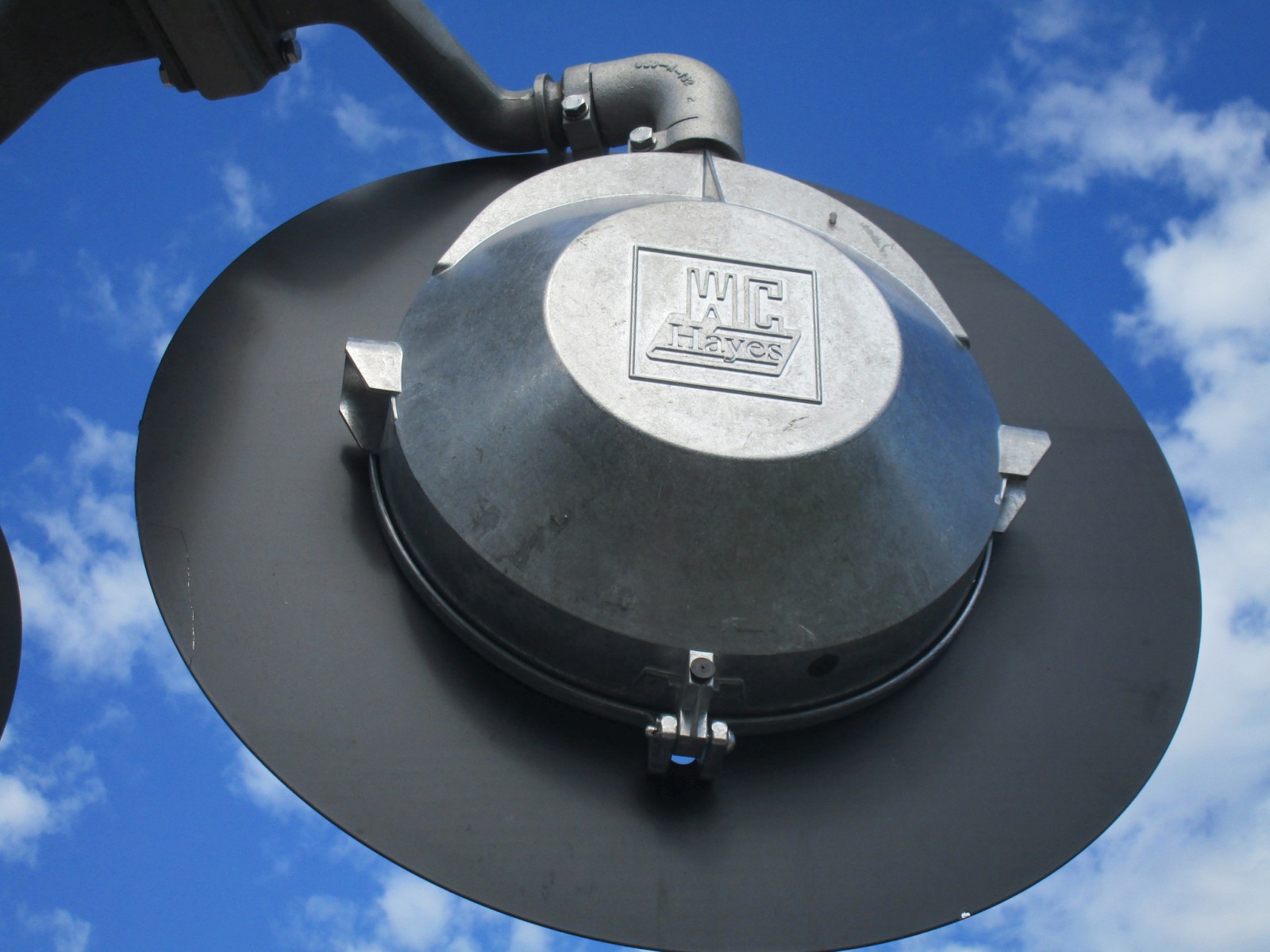

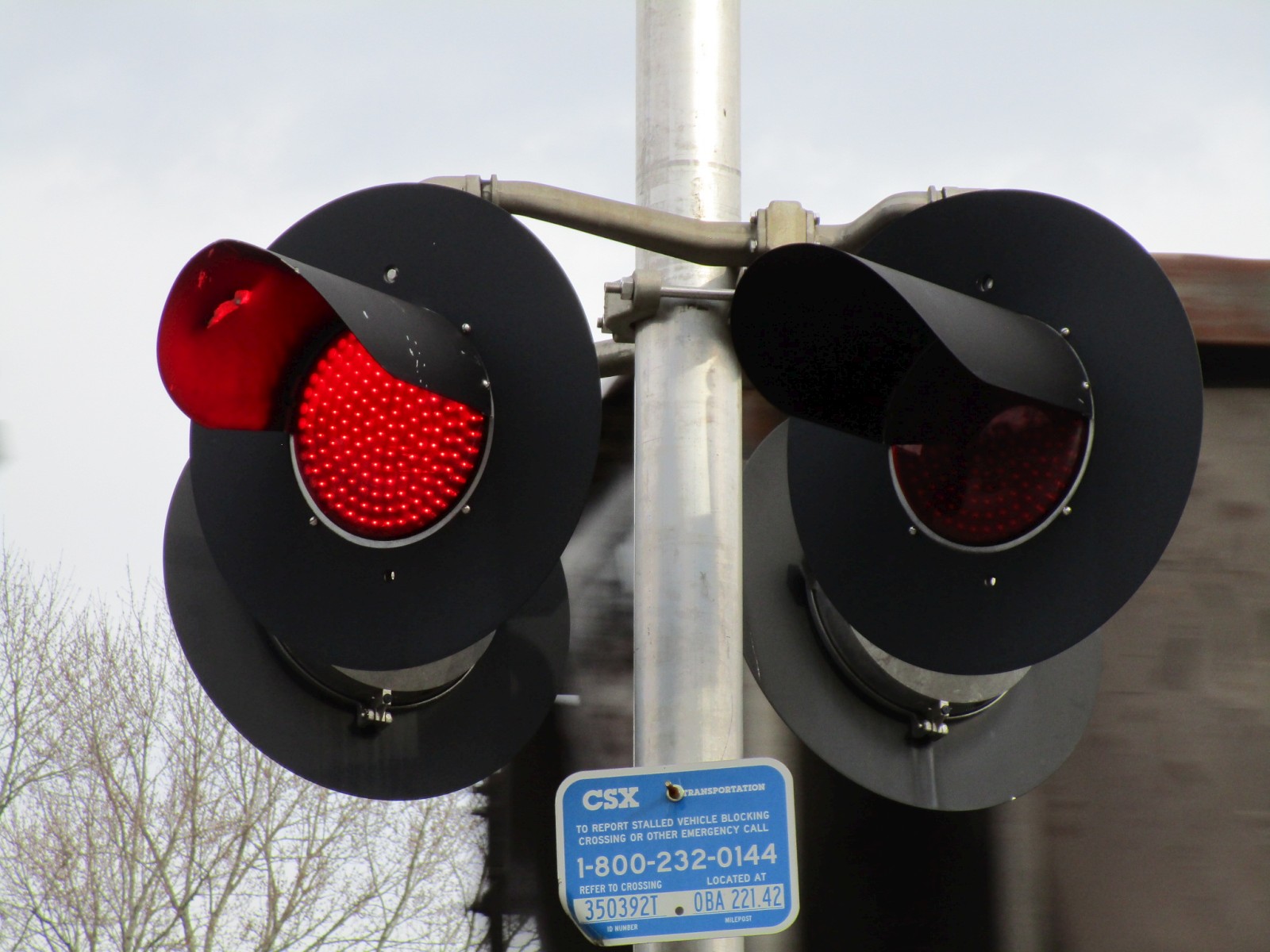

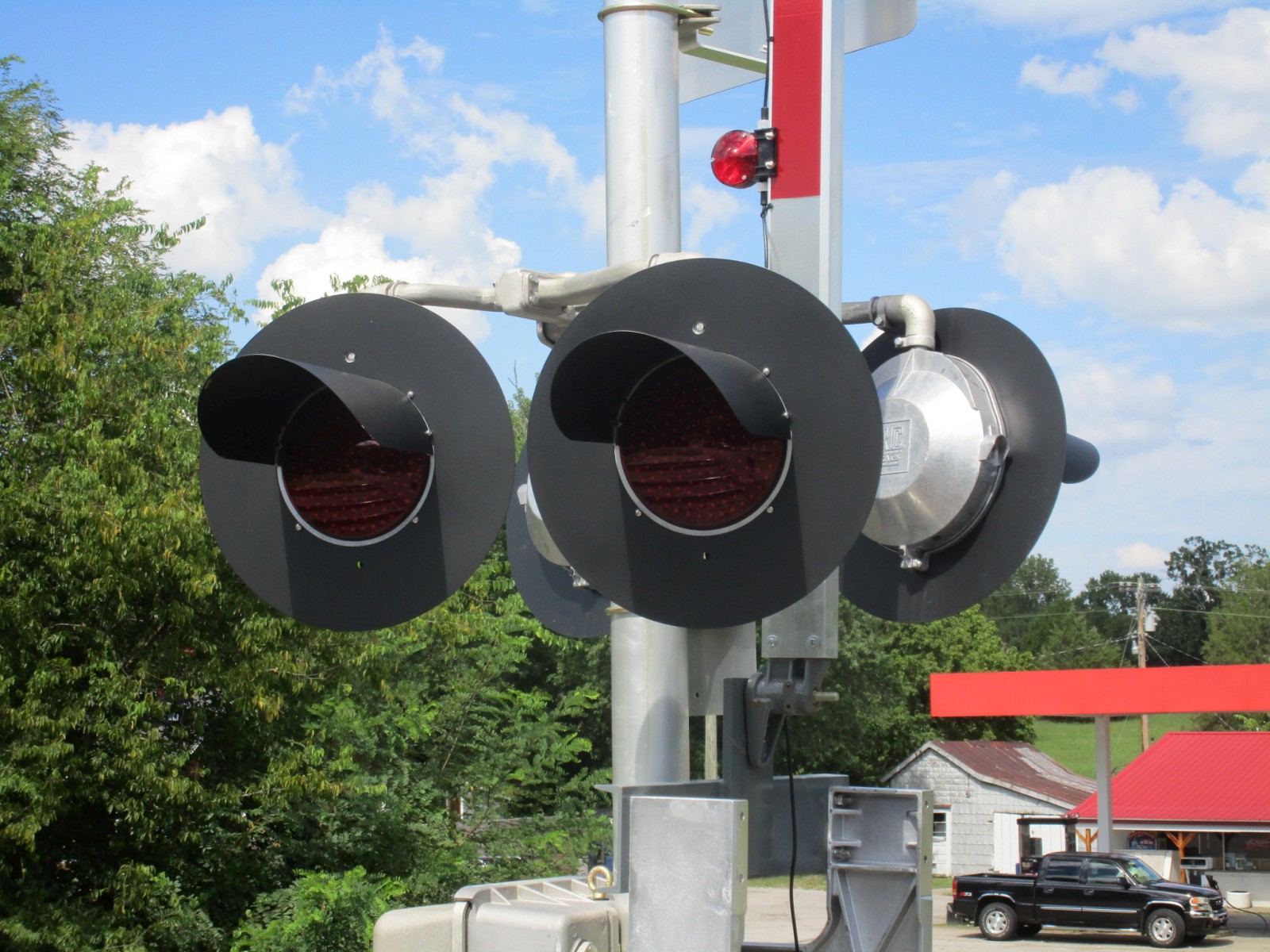

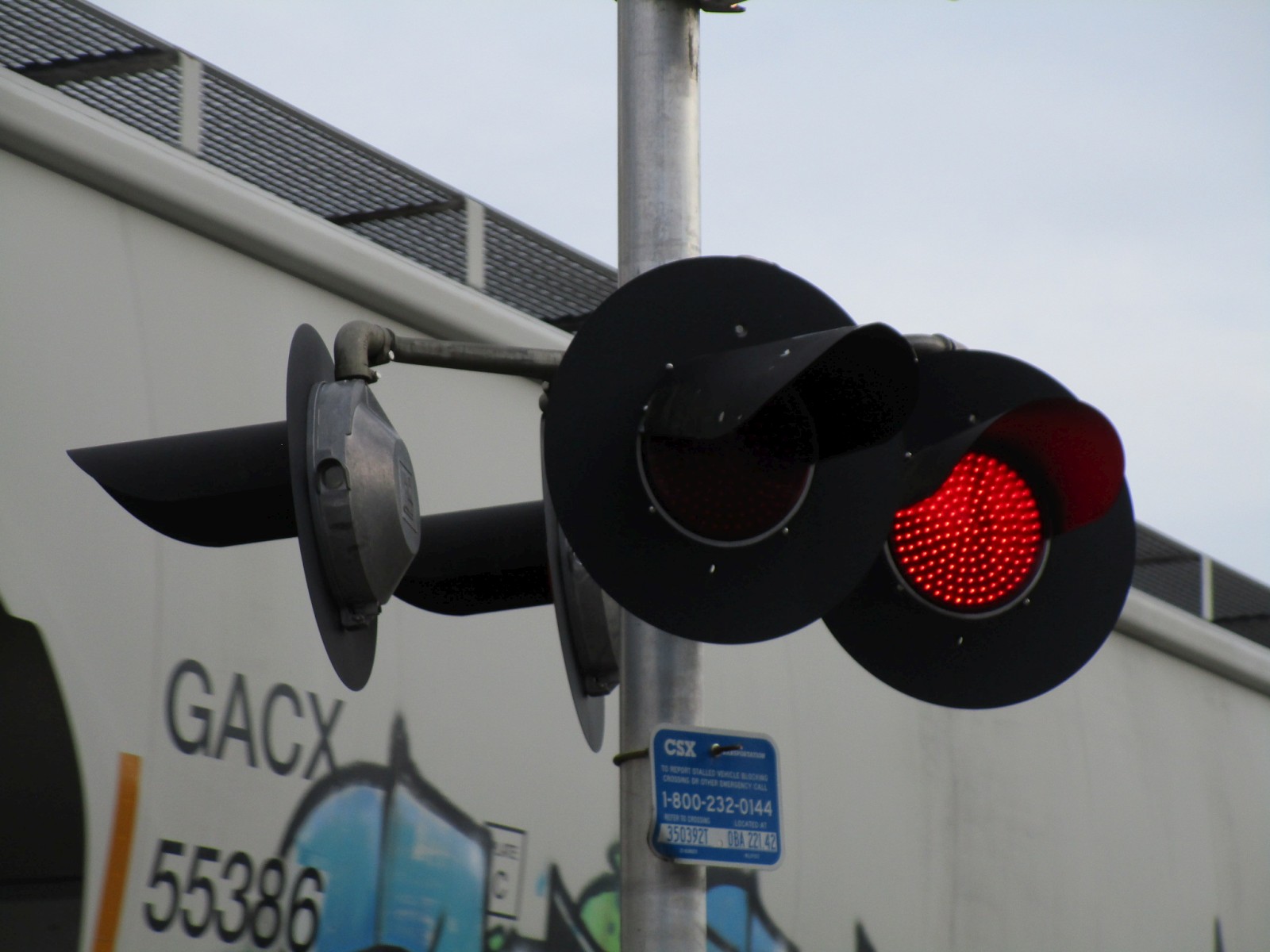

This signal has all WCH 12x24 inch lights with Leotek EV Series LEDs.

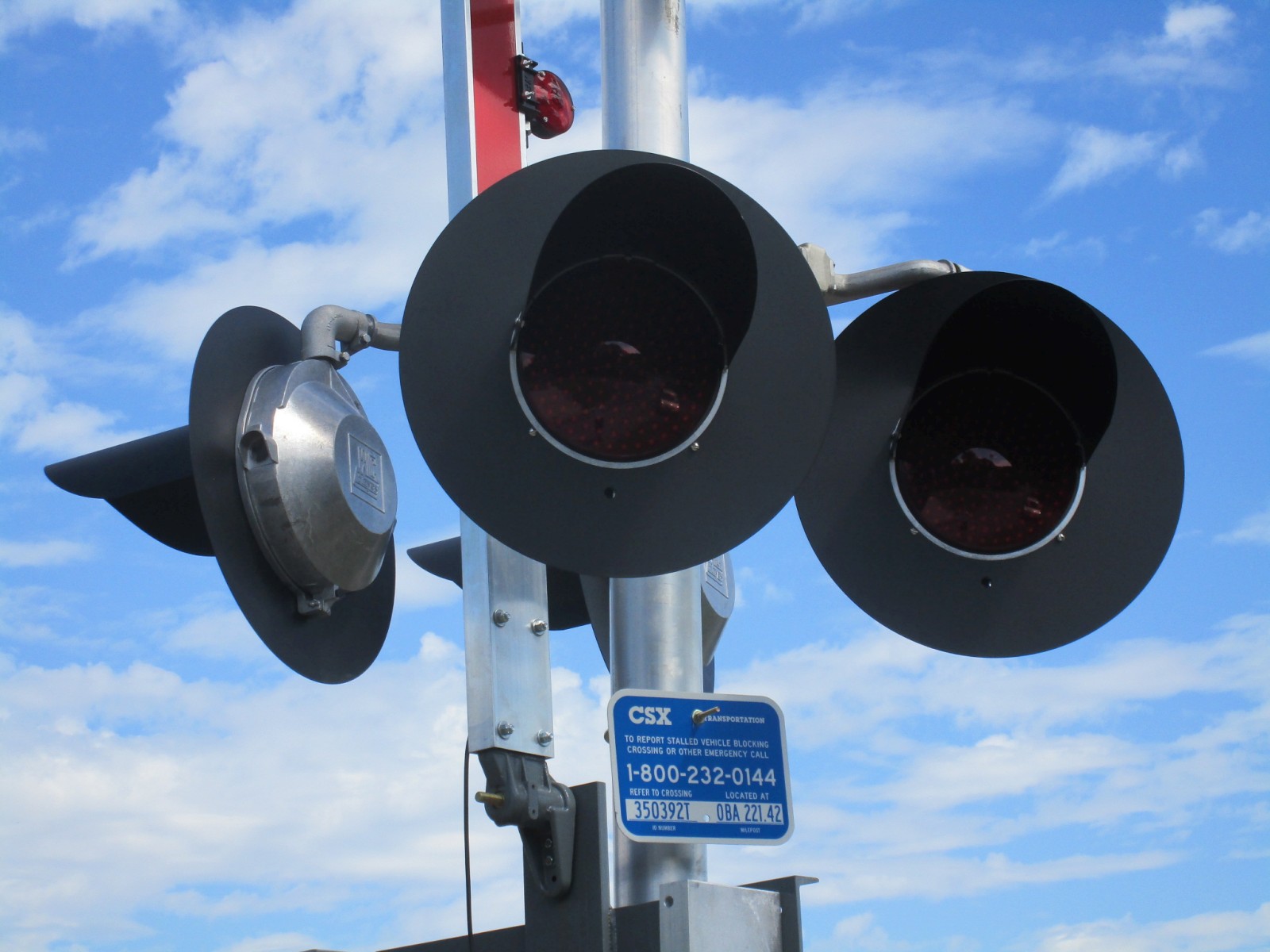

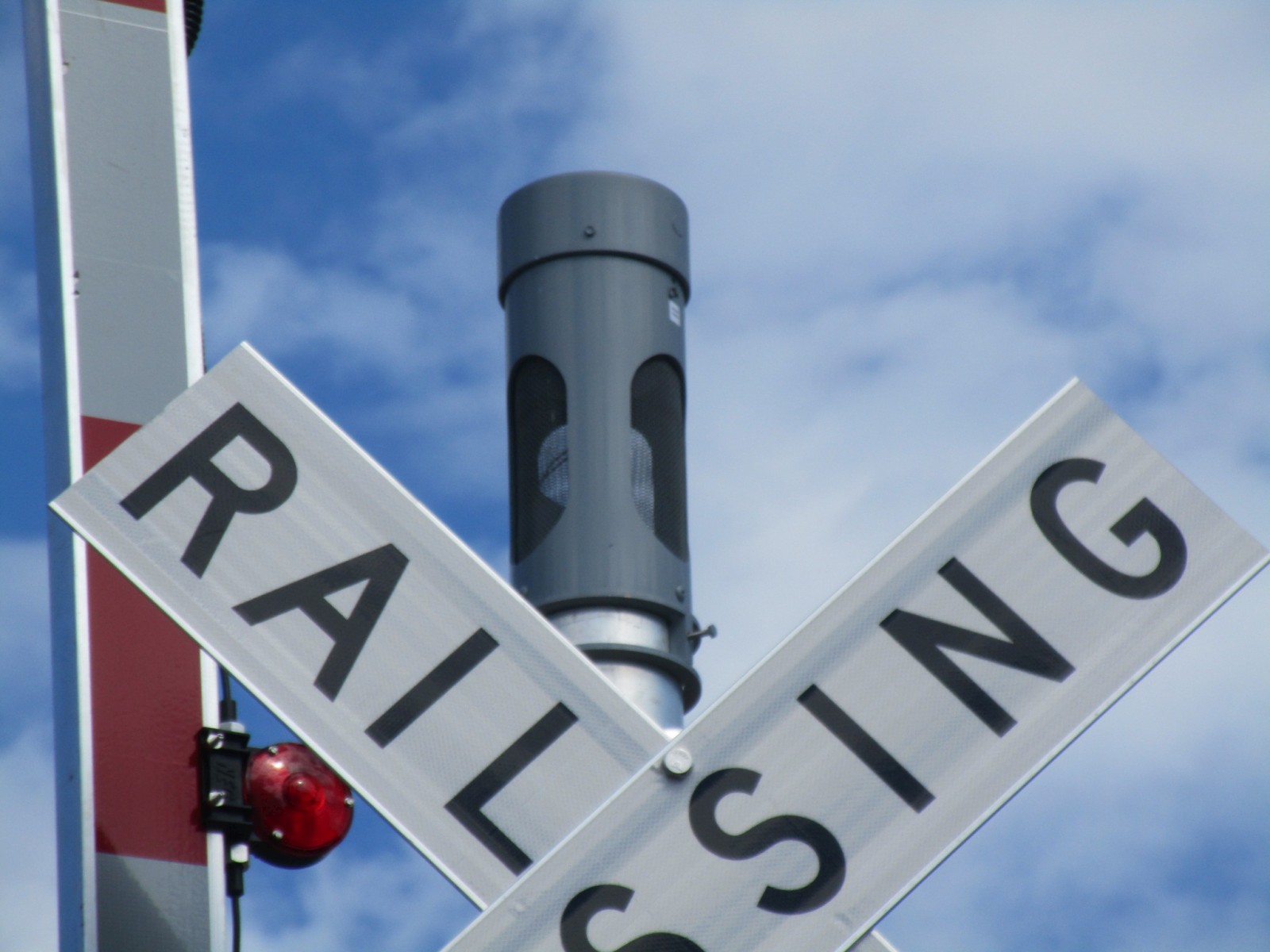

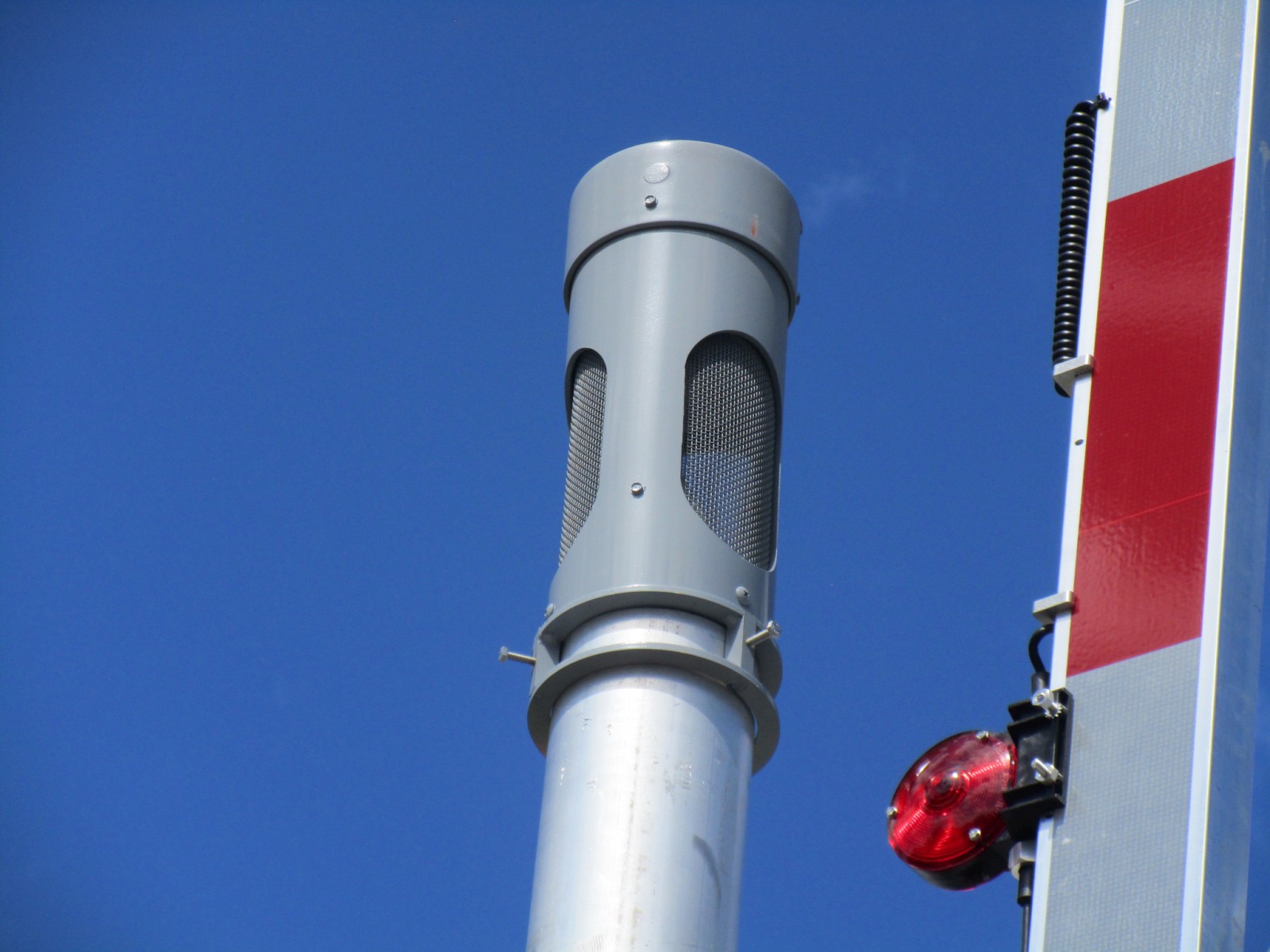

This signal uses an NEG e-bell.

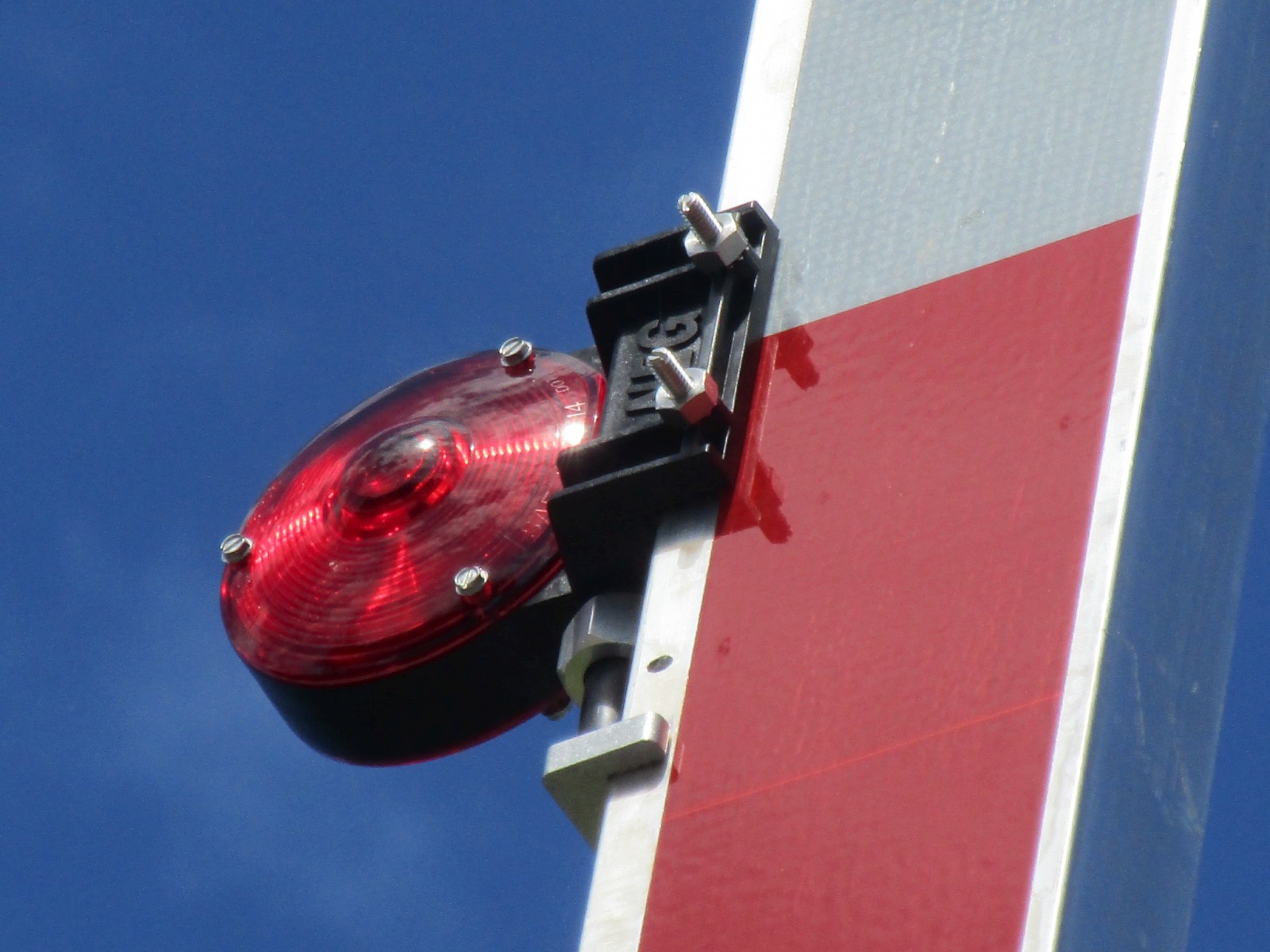

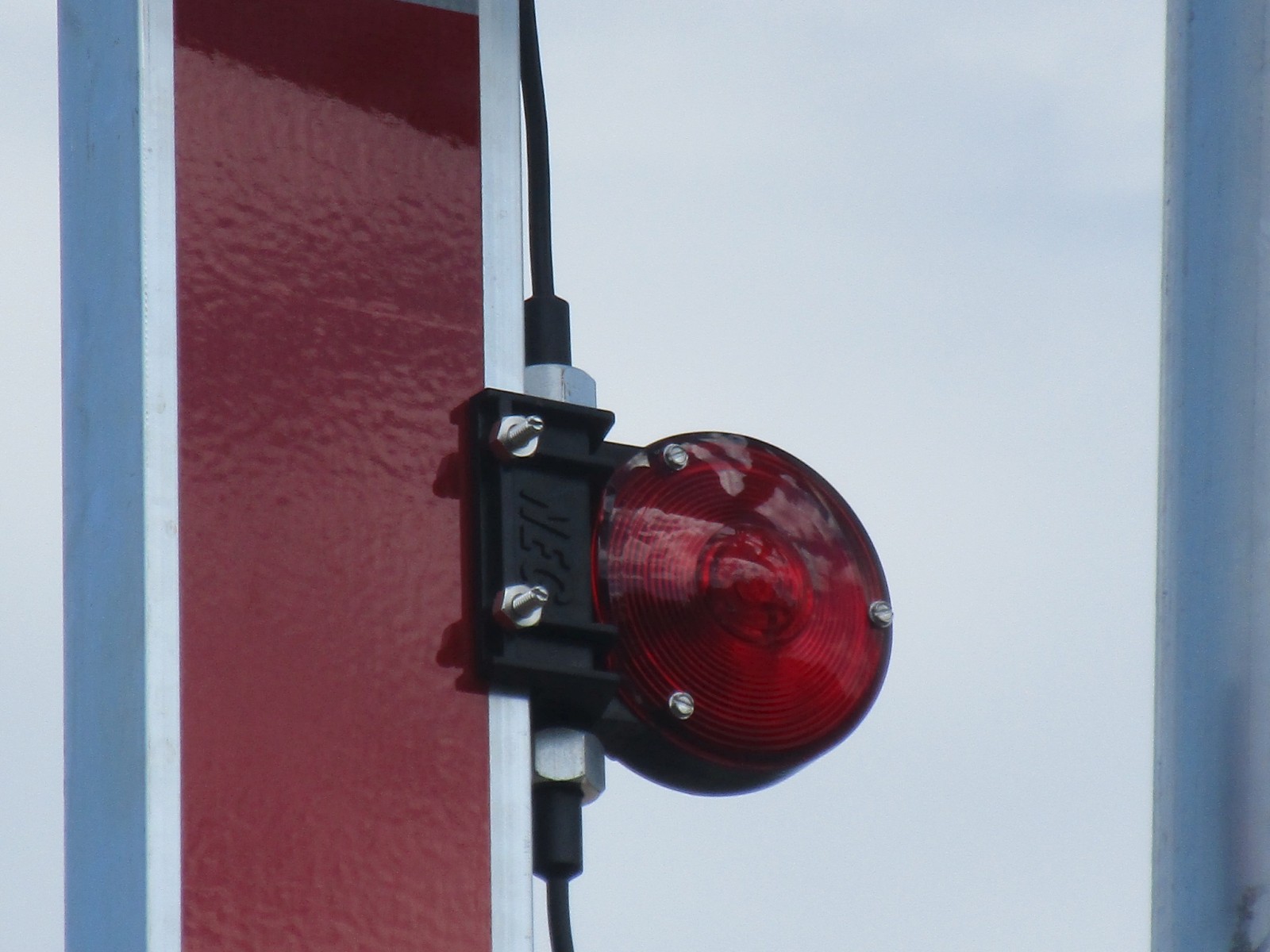

The gate lights here are NEG LEDs.

13

14

15

16

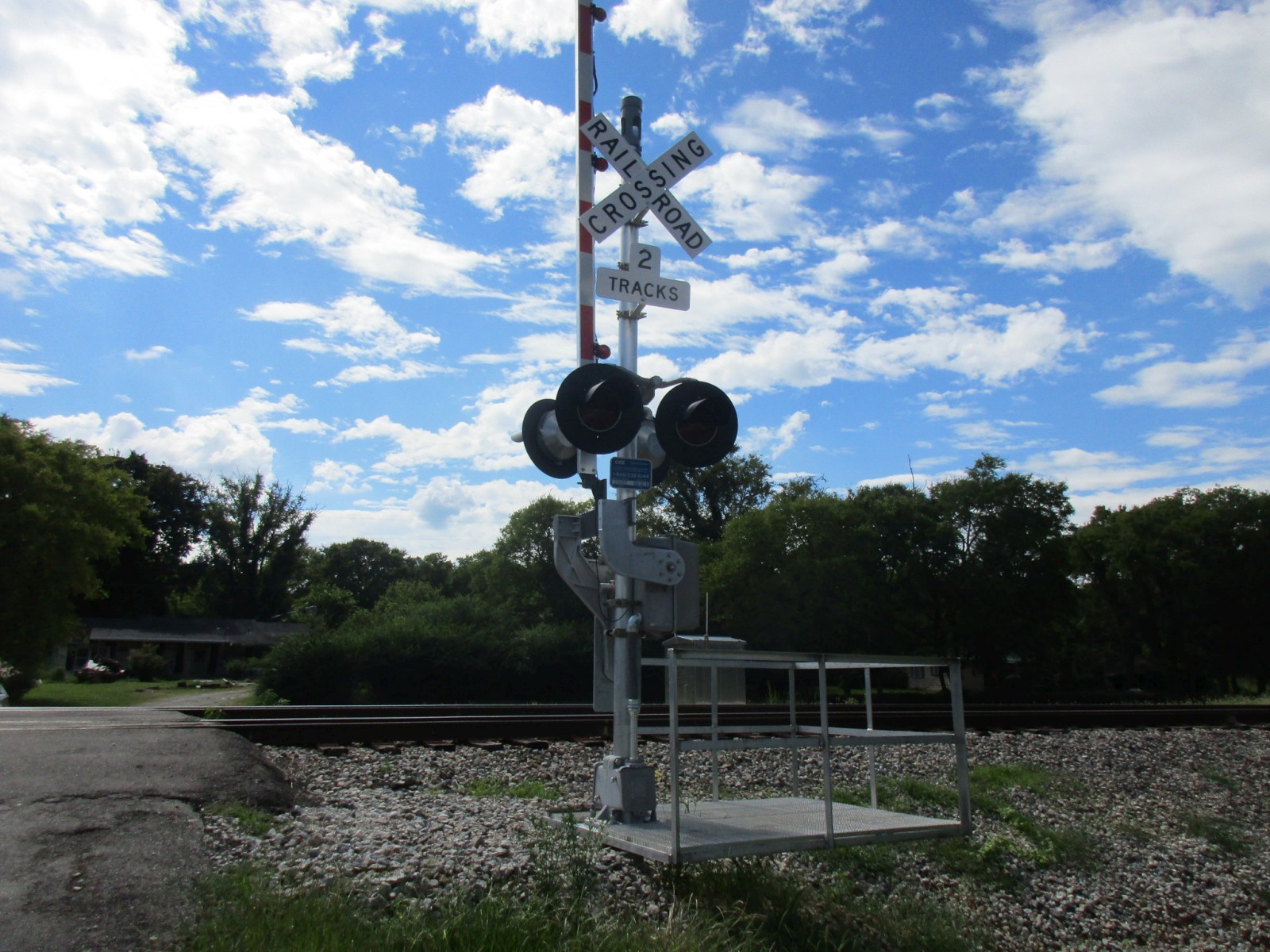

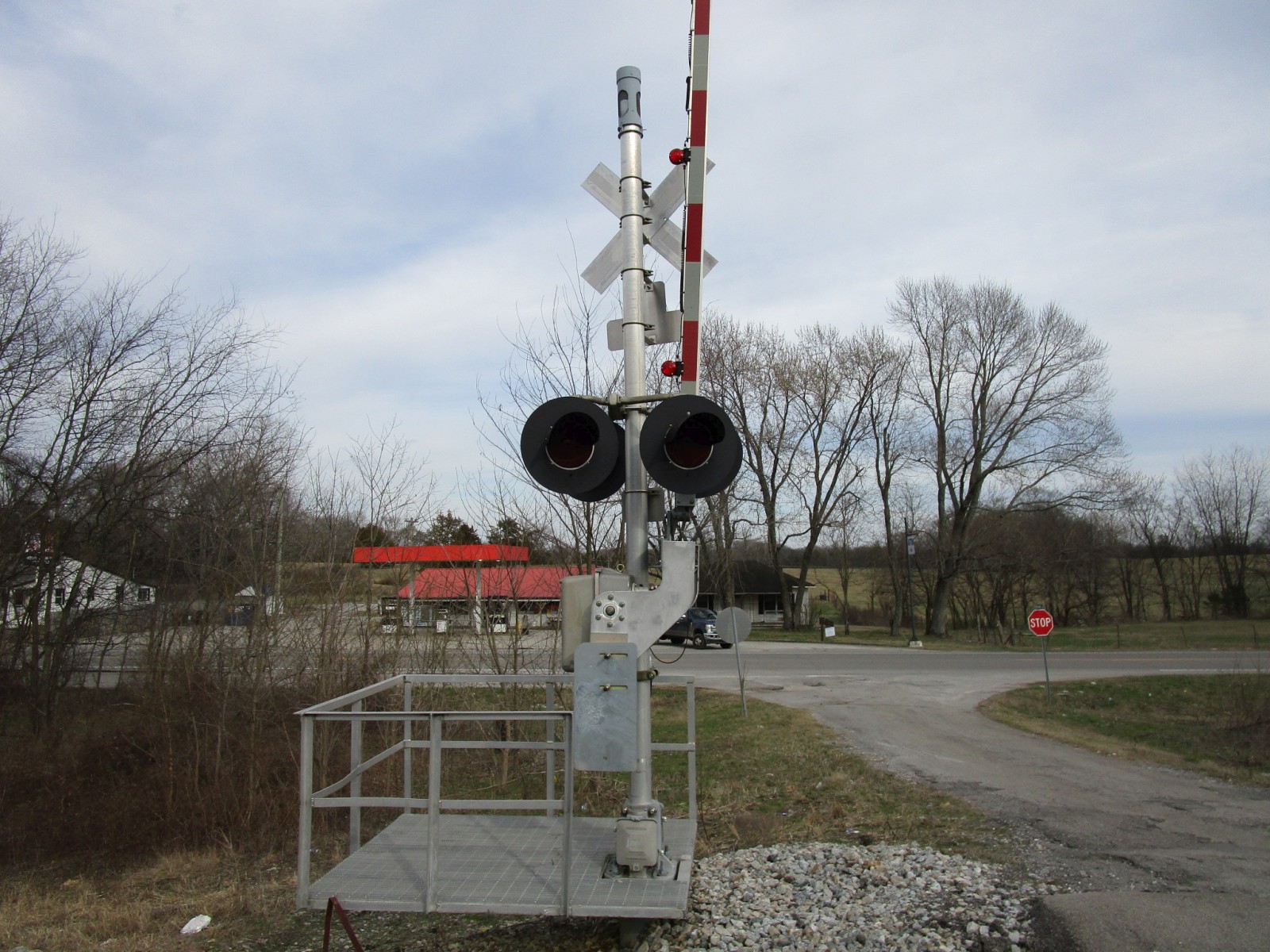

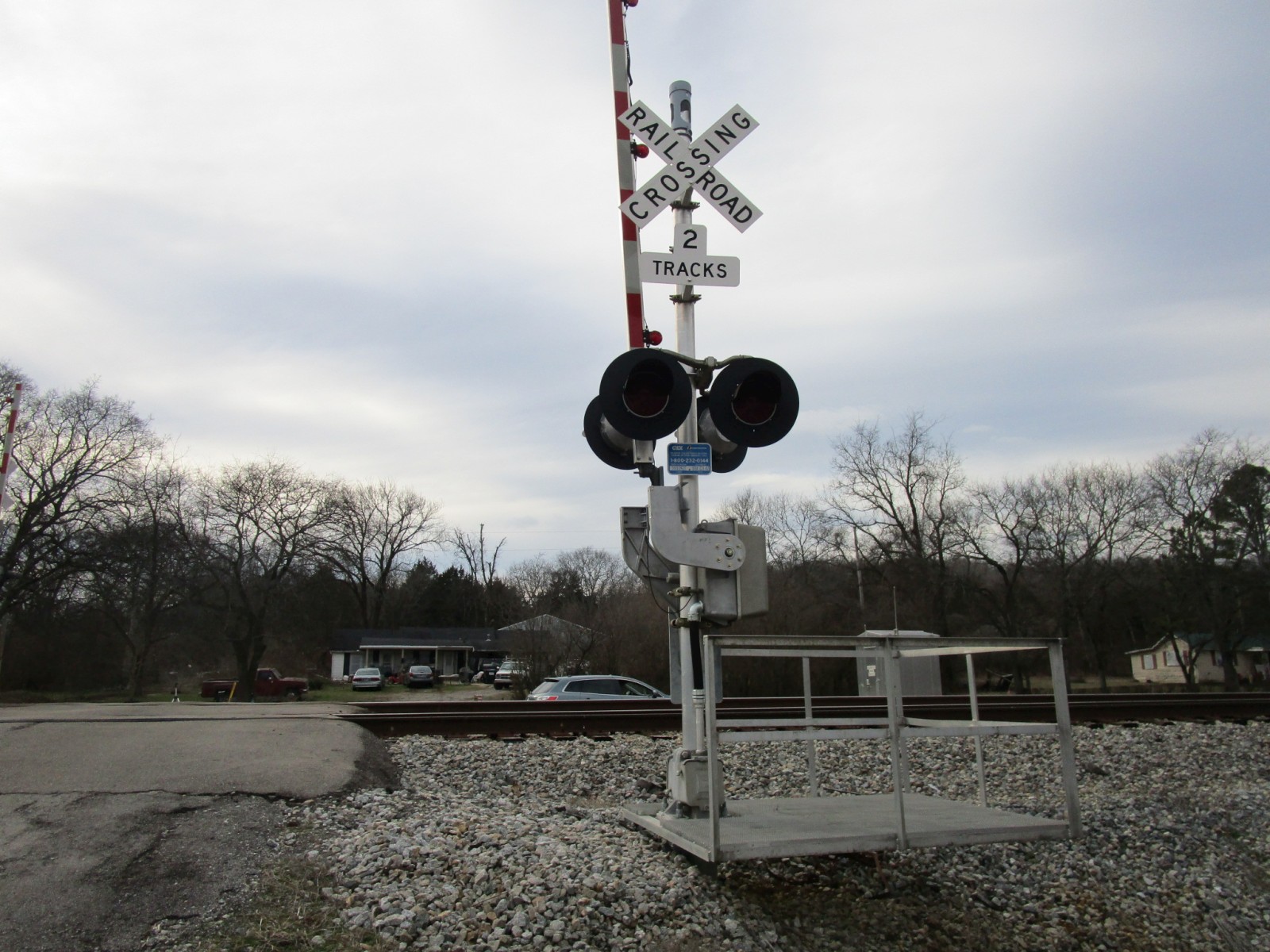

The second signal.
It has another WCH base.

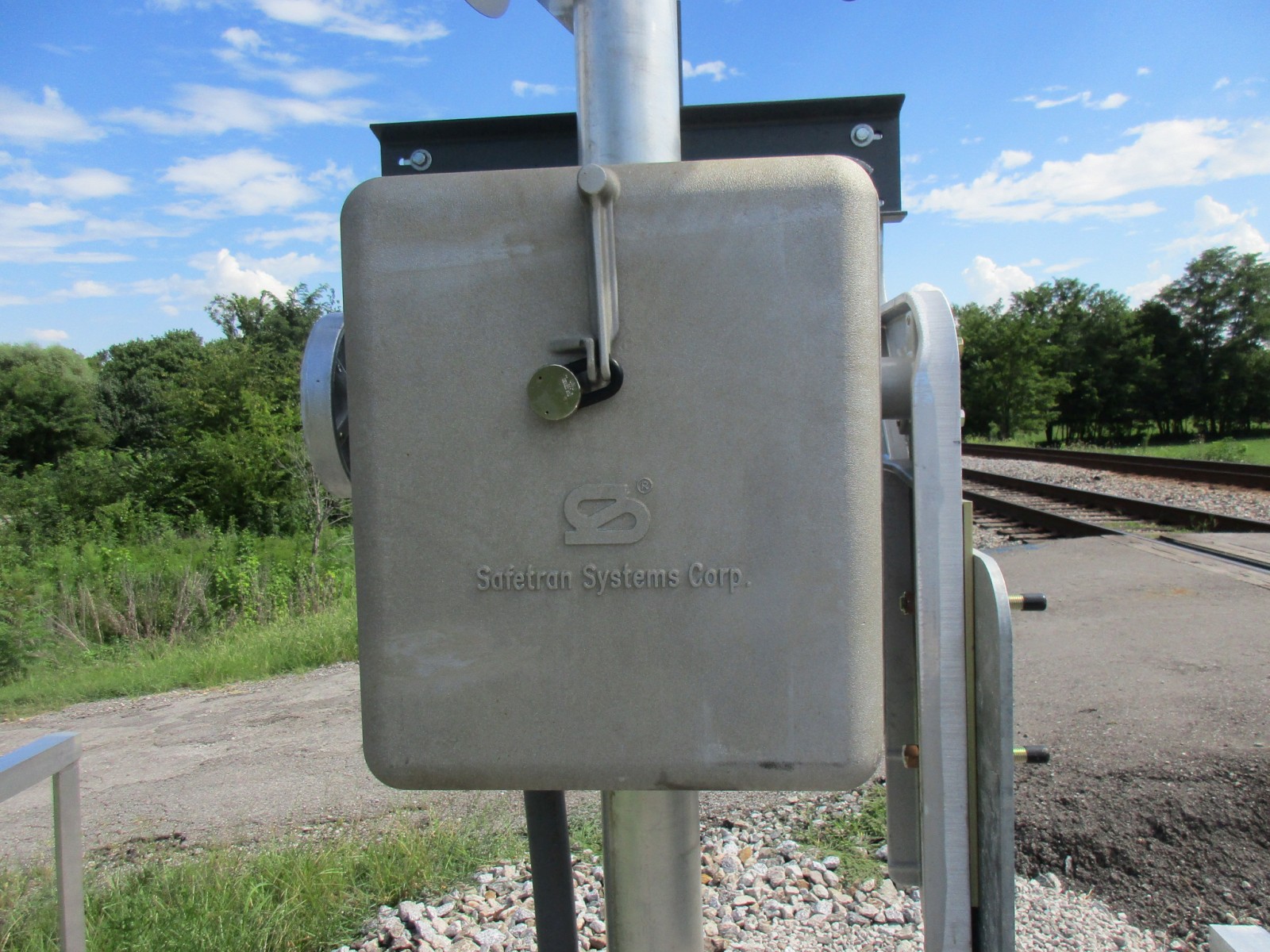

A Safetran-branded Siemens gate mechanism.

17

18

19

20

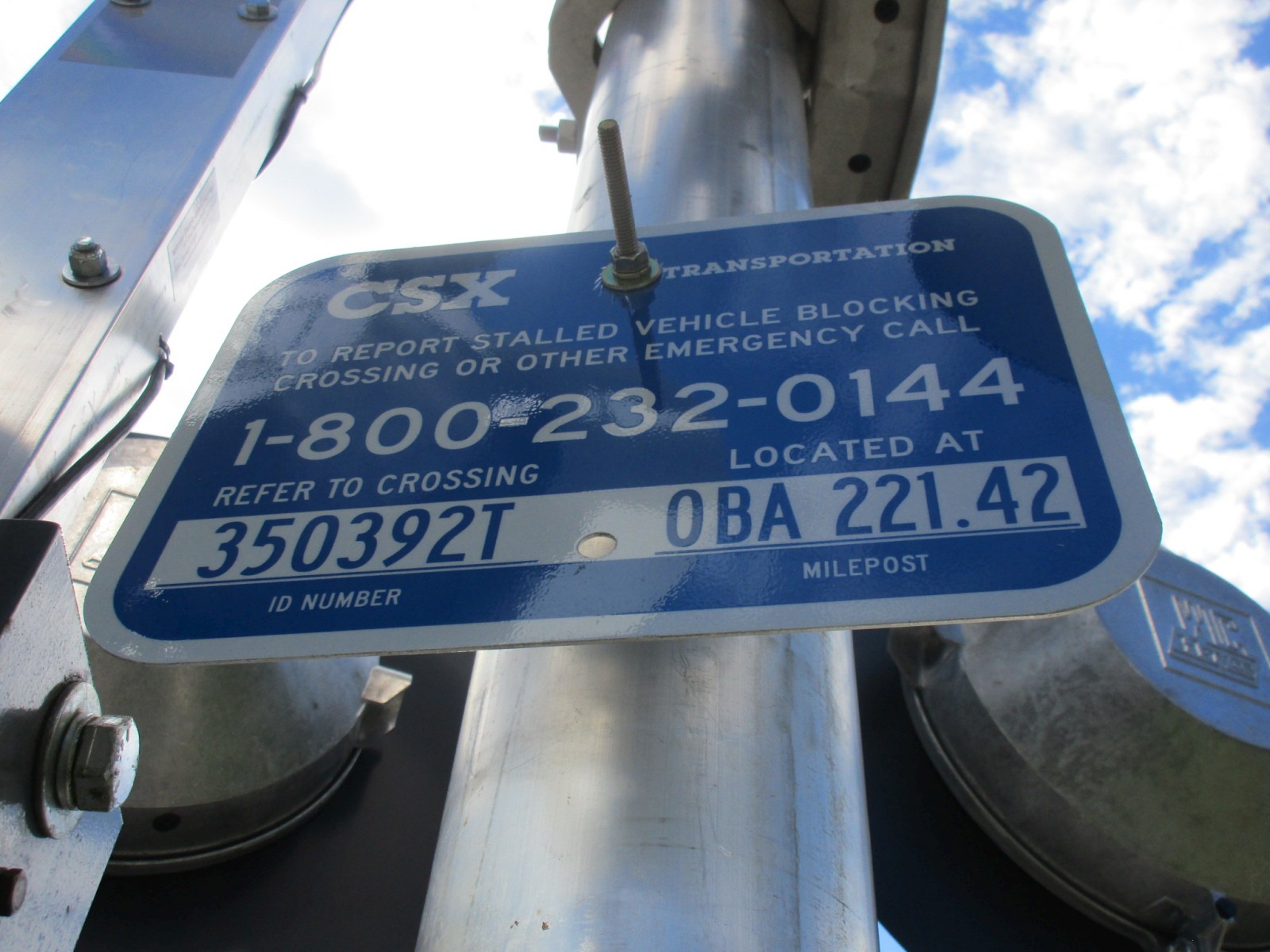

The emergency information.

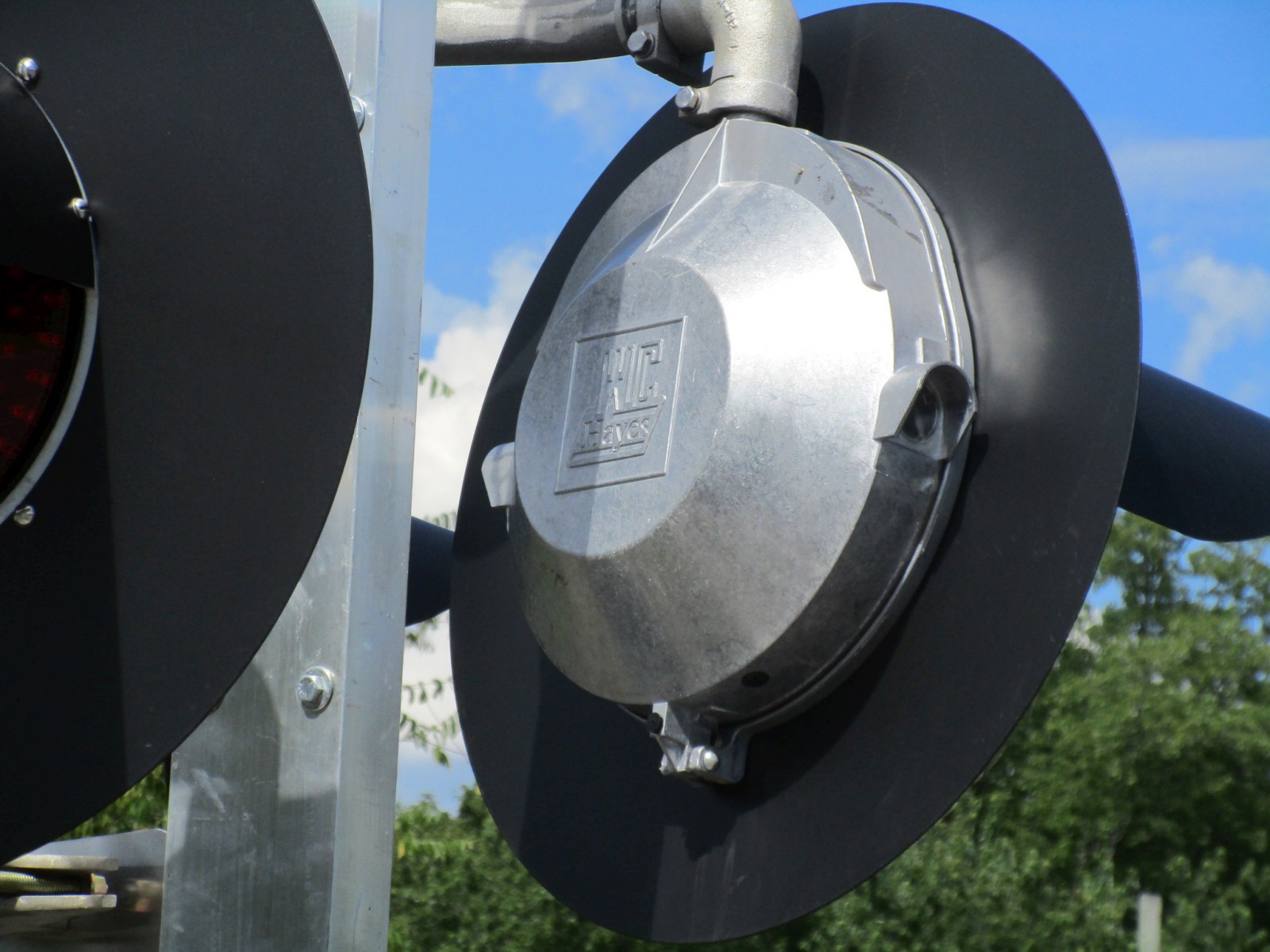

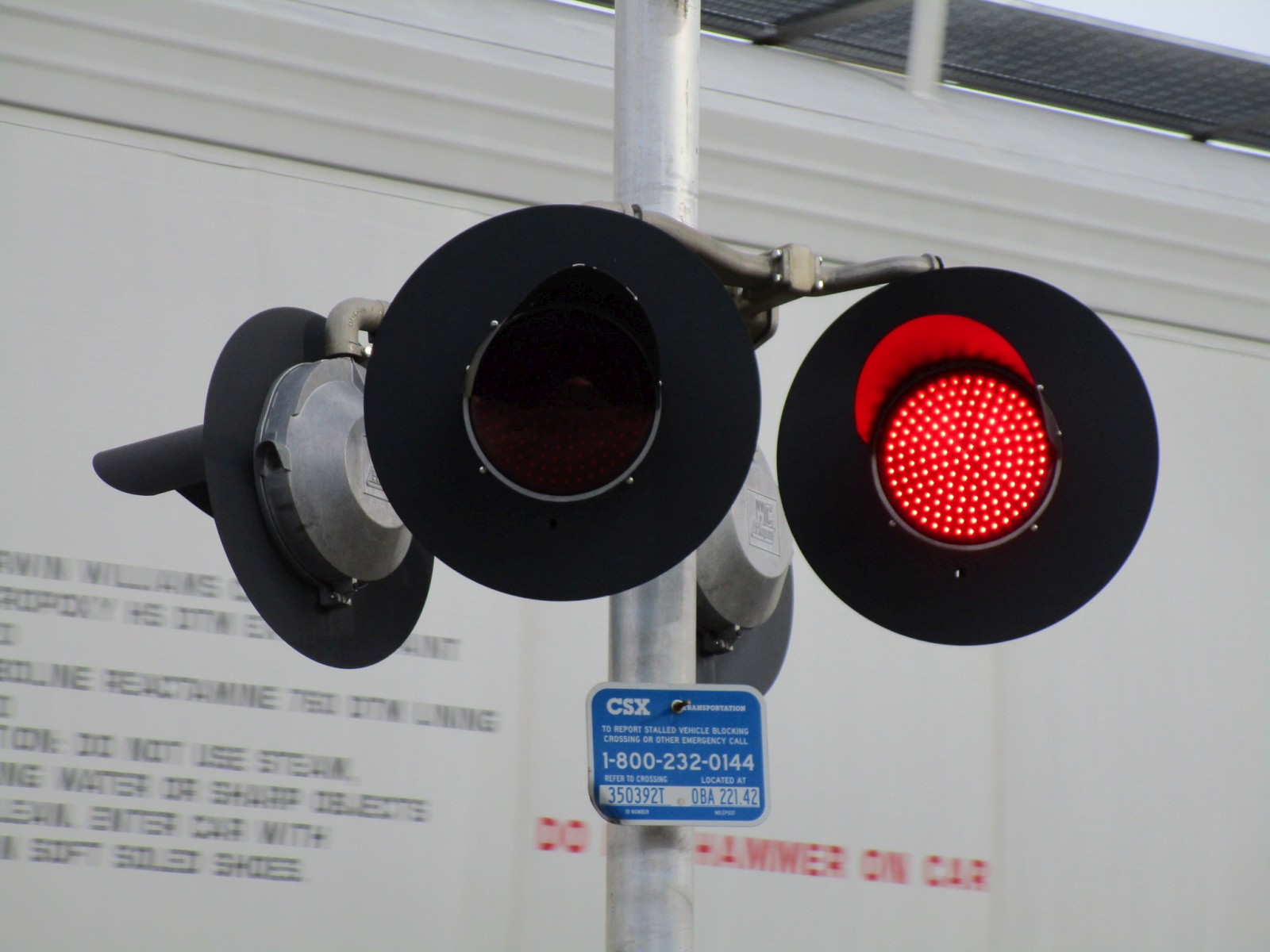

It has more WCH 12x24 inch lights with Leotek EV Series LEDs on another WCH bracket.

21

22

23

24

Another NEG e-bell over here.
More NEG LED gate lights on this signal.

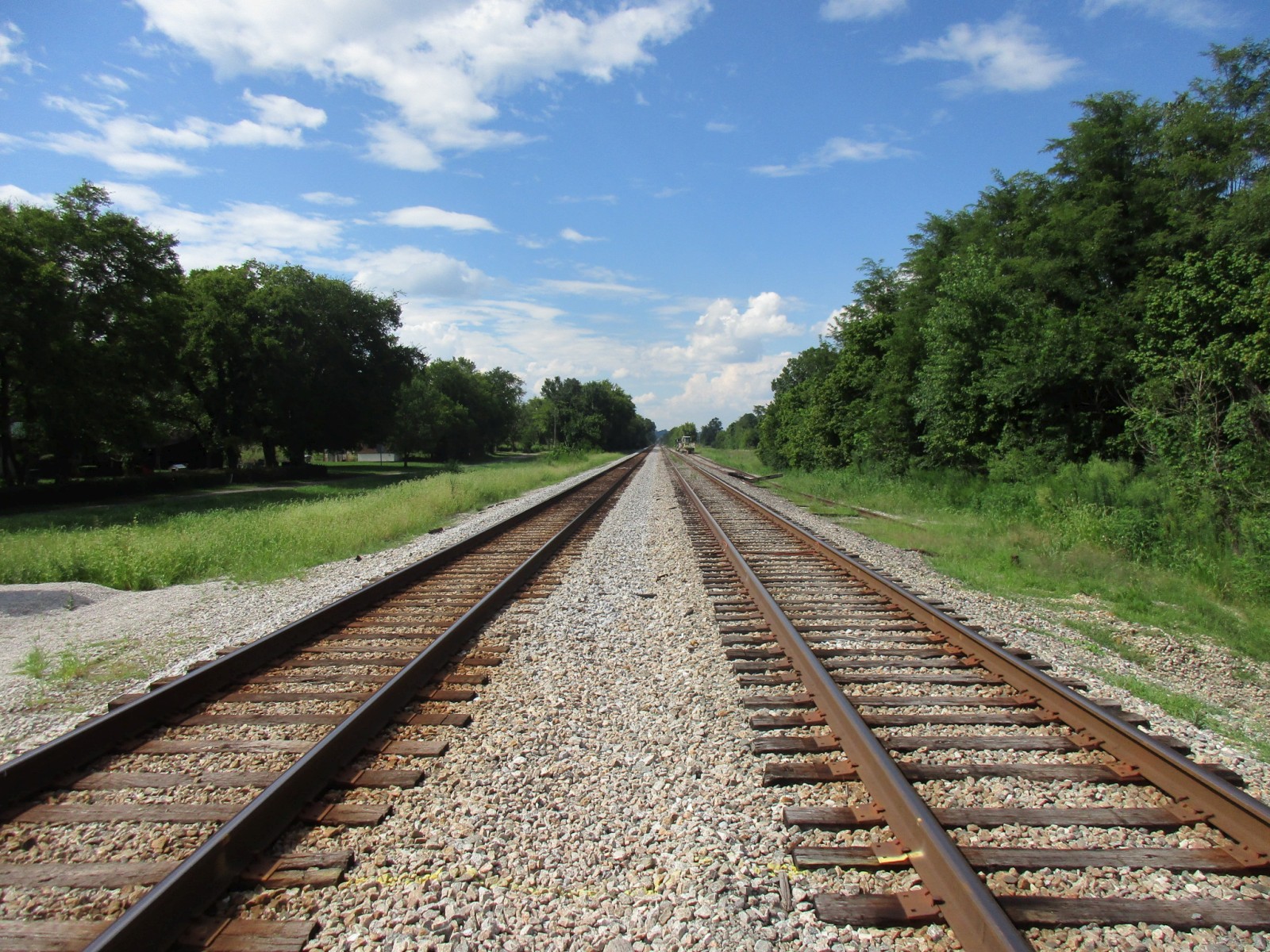

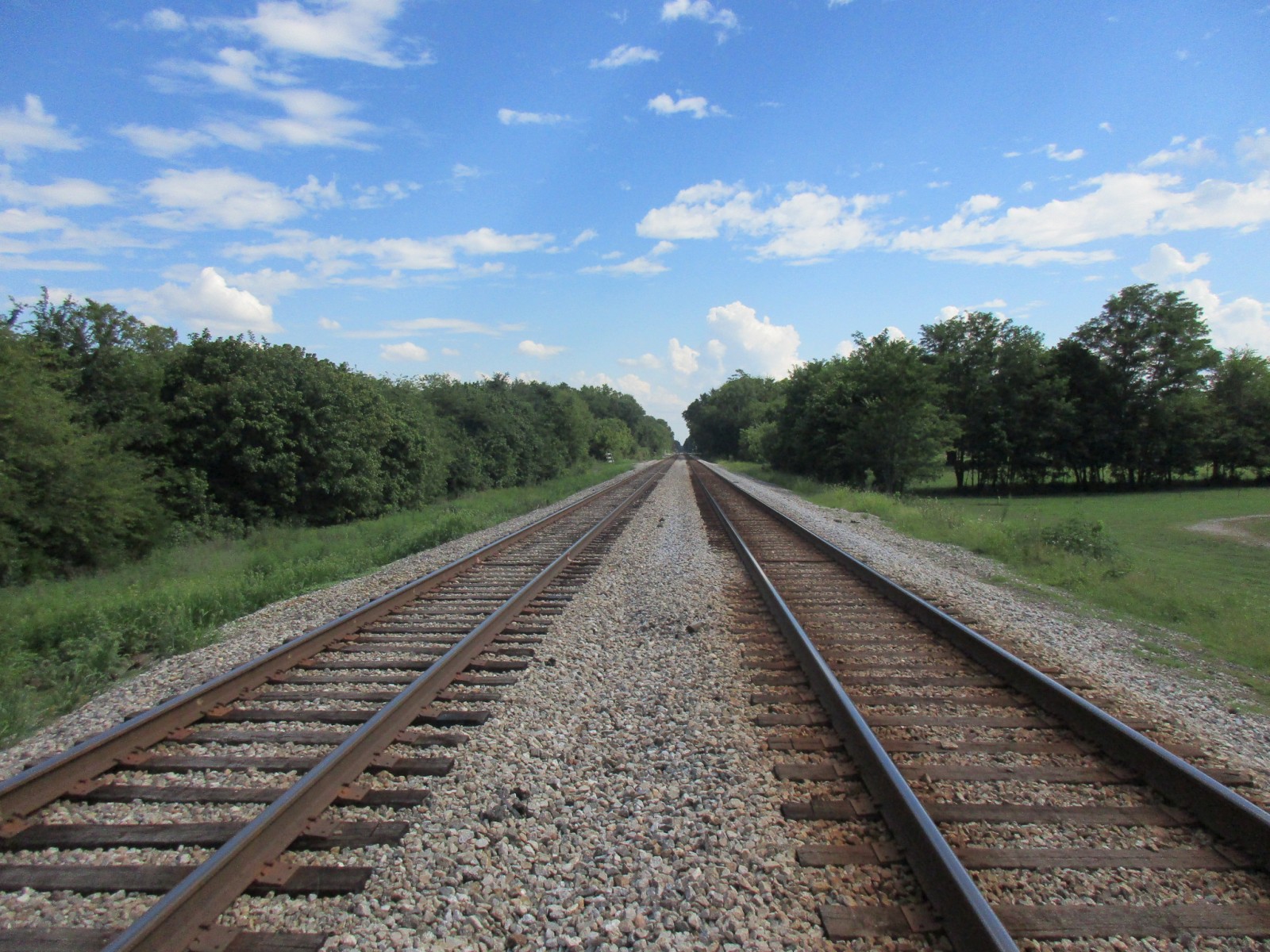

Looking southeast towards Thick Road.
Looking northwest towards Flat Creek Road.

25

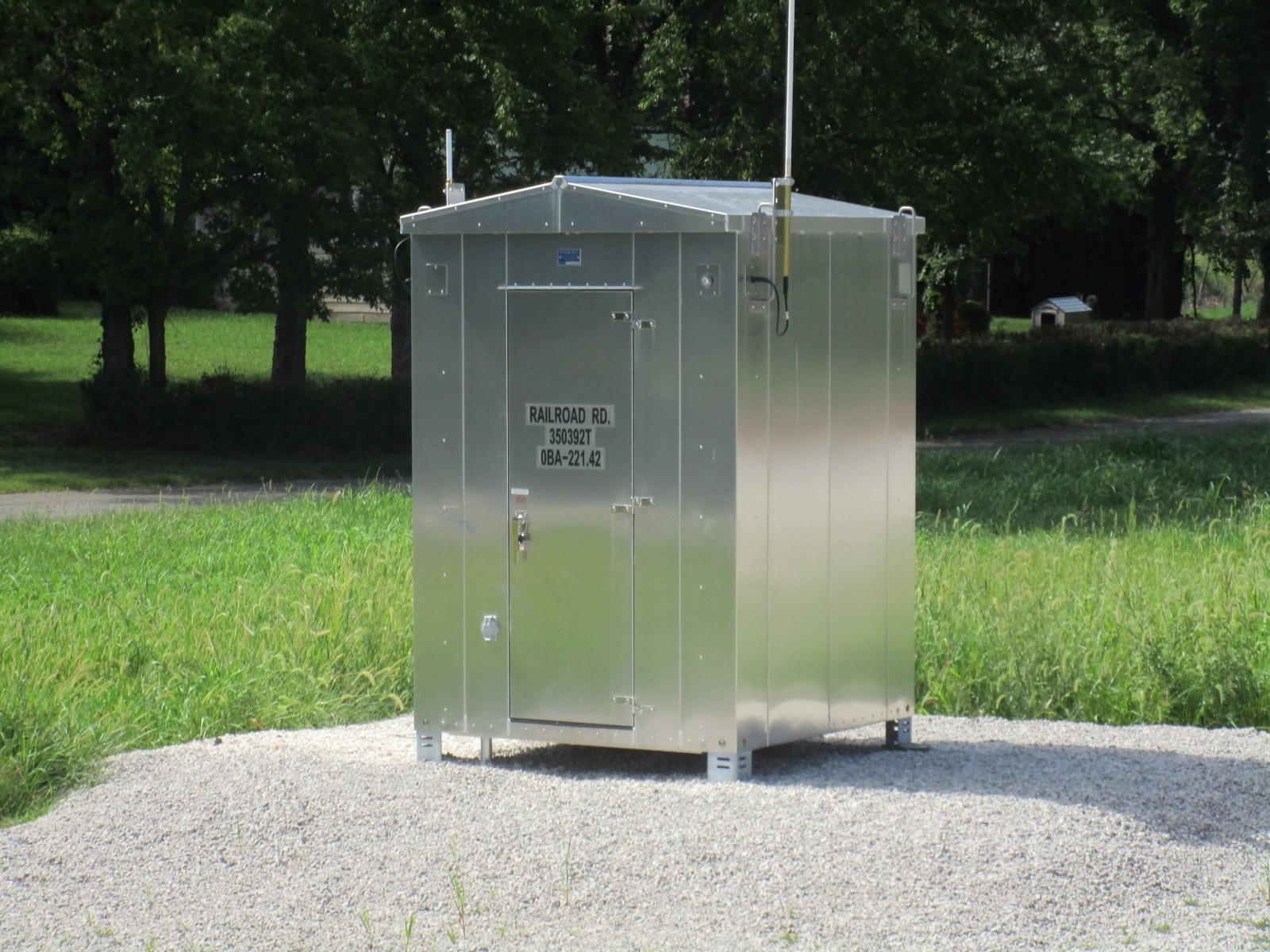

The relay case.

26

27

28

29

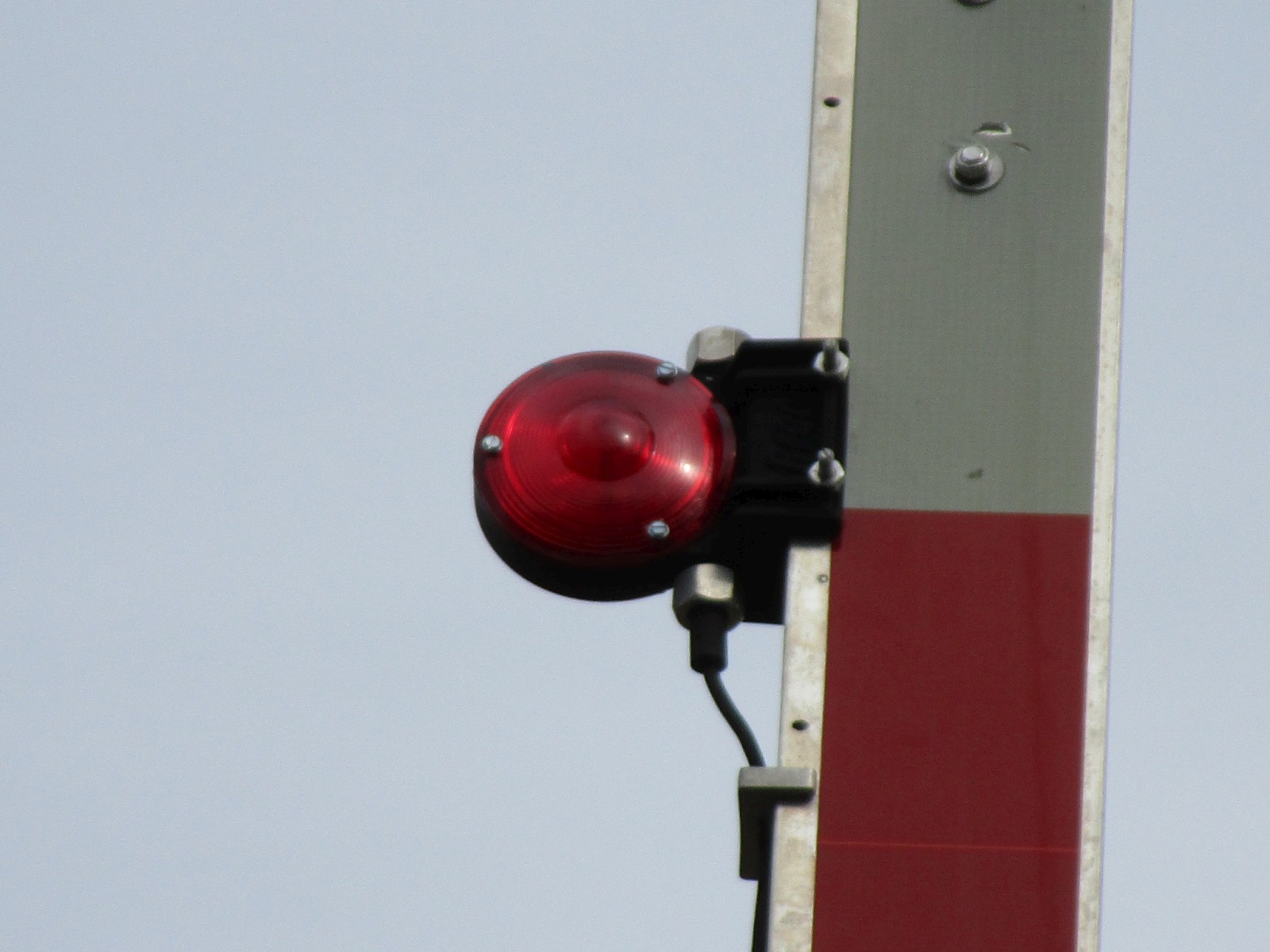

A return trip to the crossing on 2-10-23 finds that the second signal had the tip gate light replaced with a RECO LED.

30

31

32

33

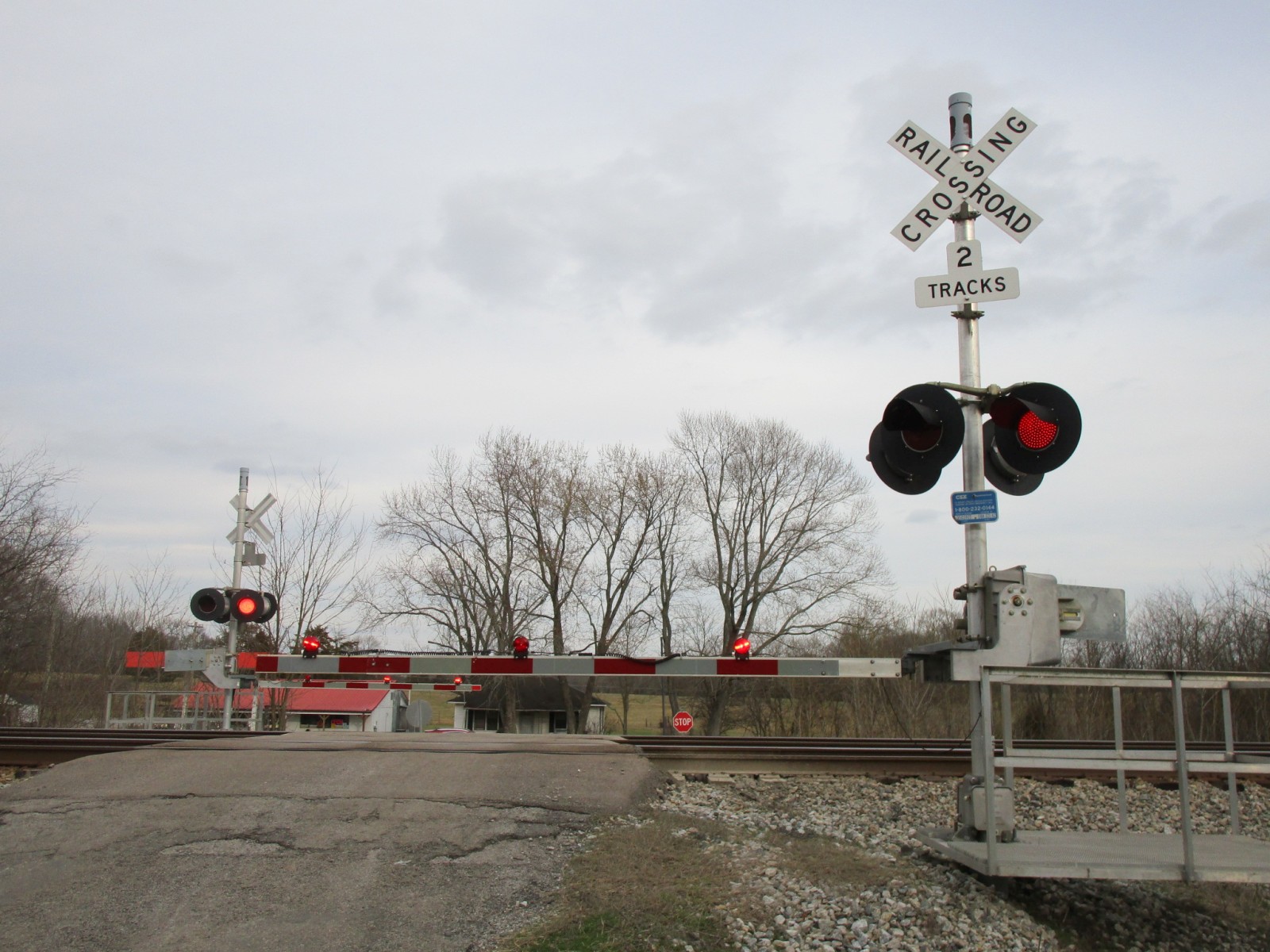

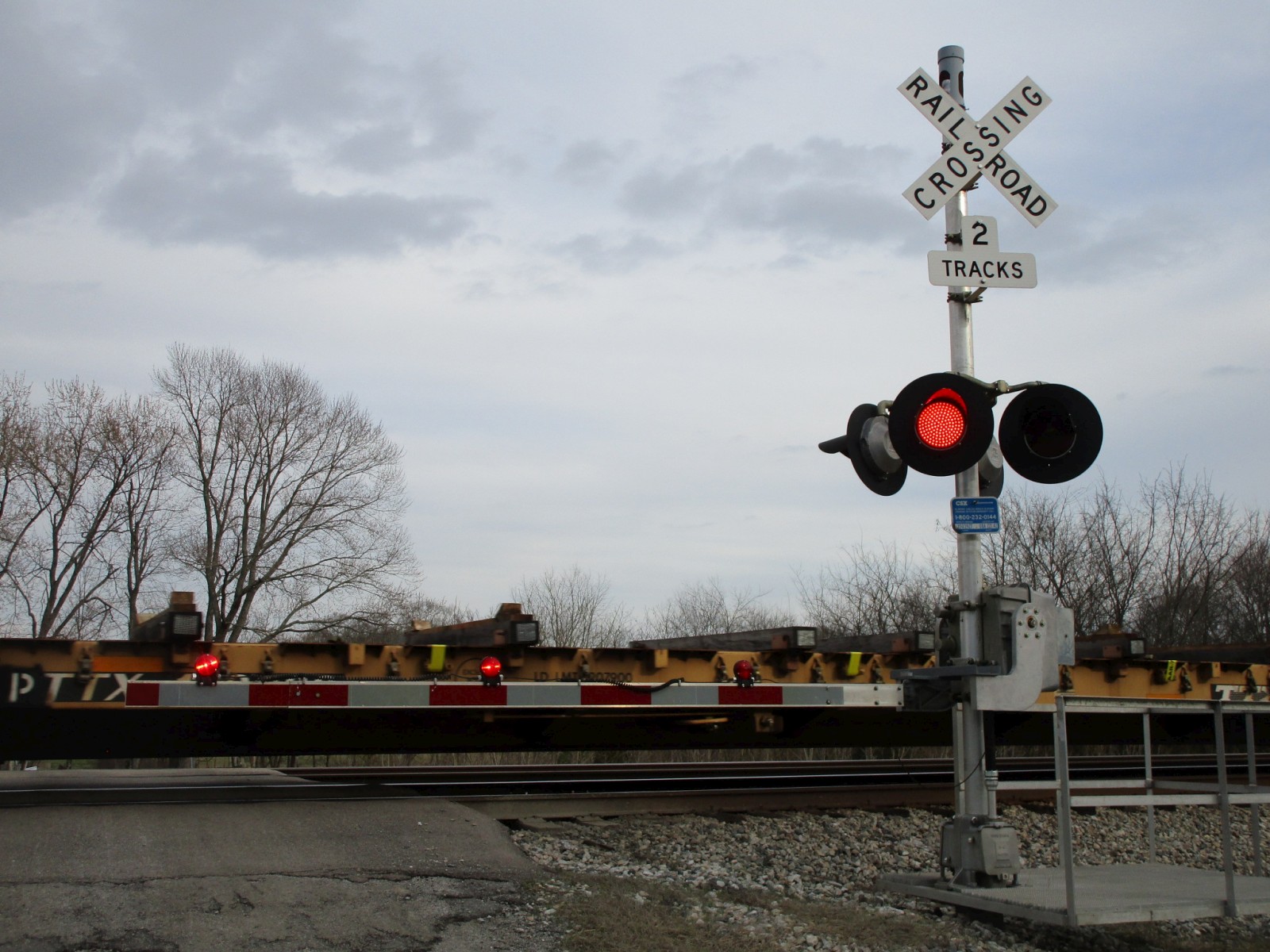

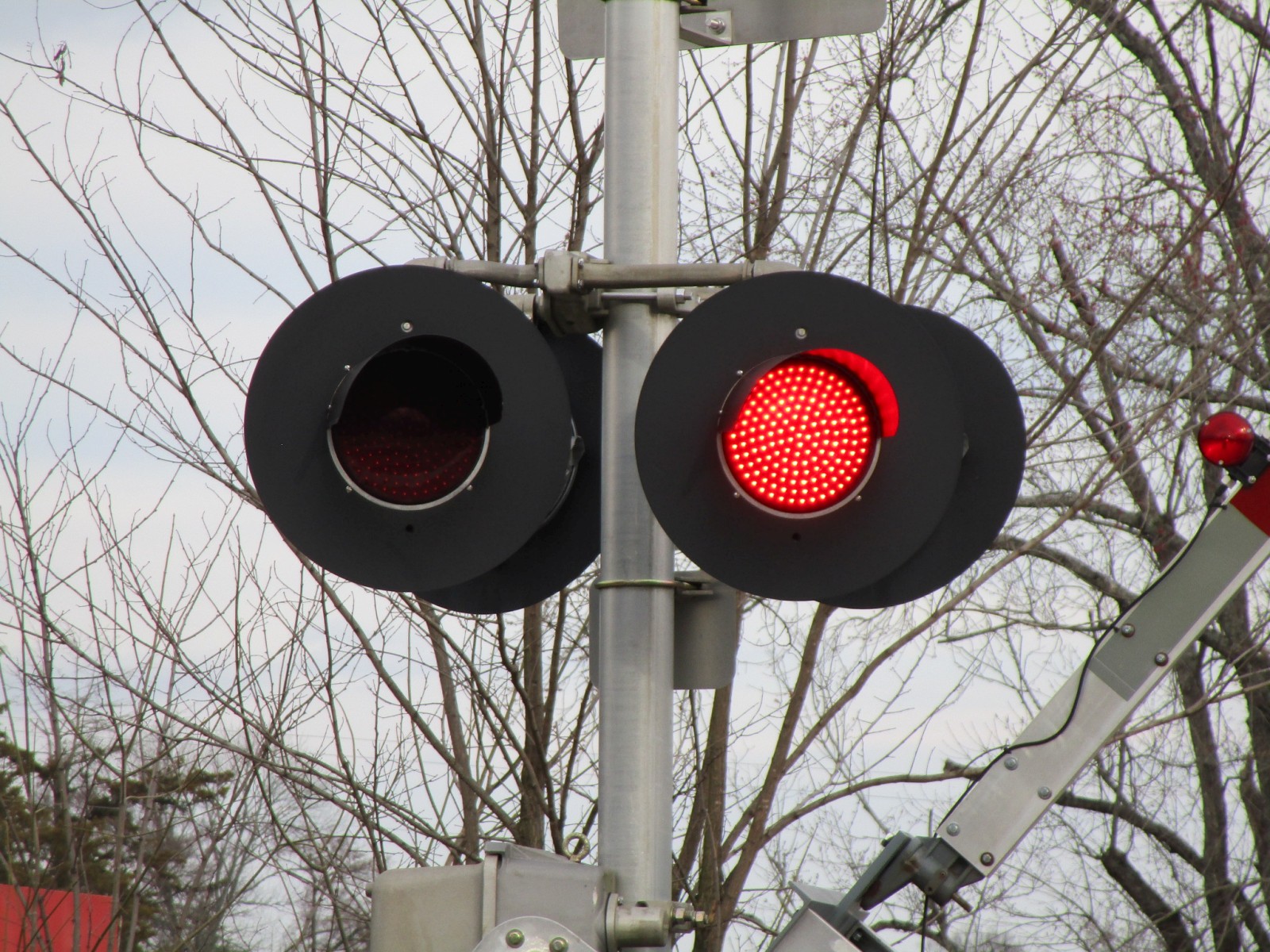

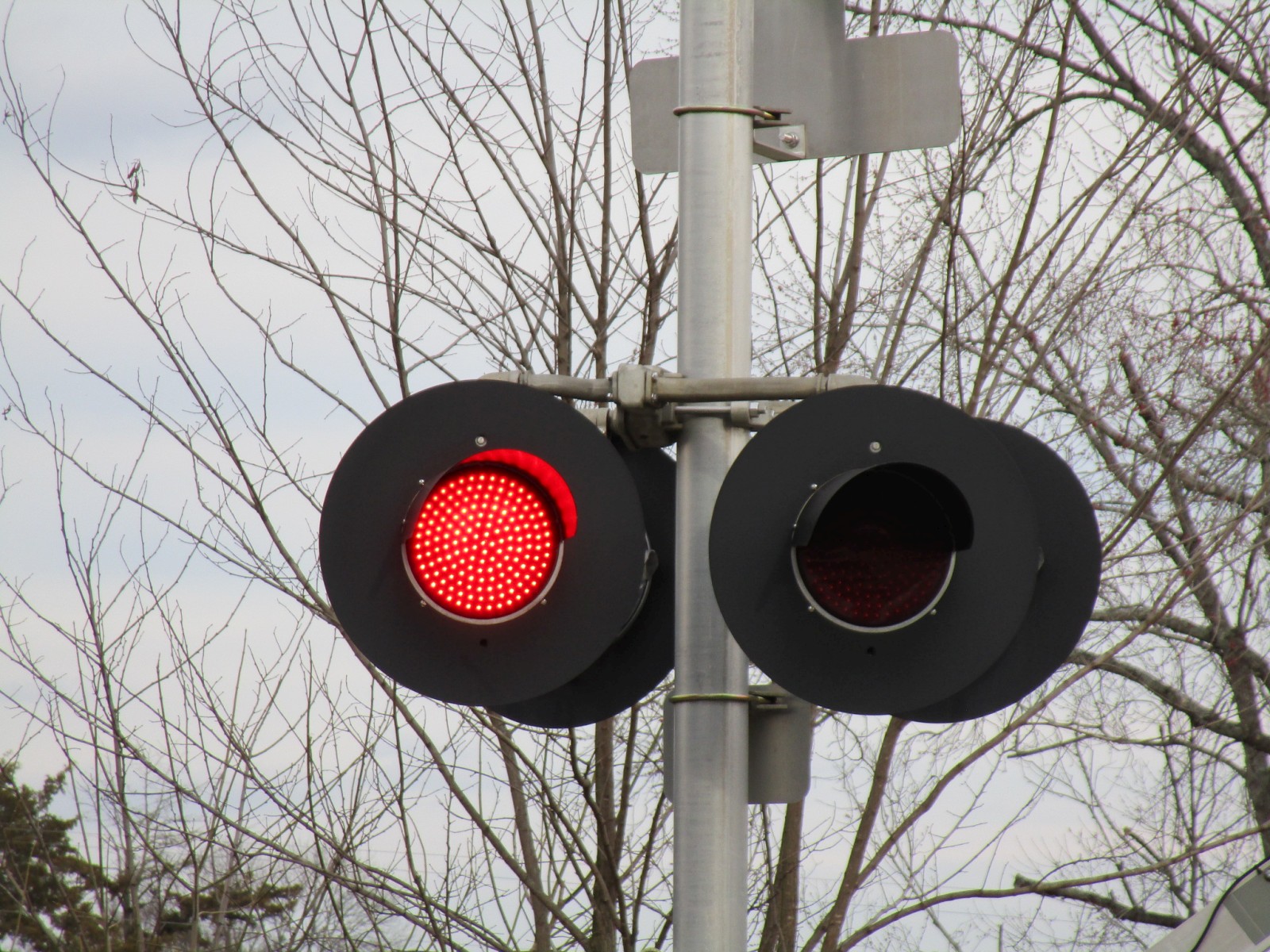

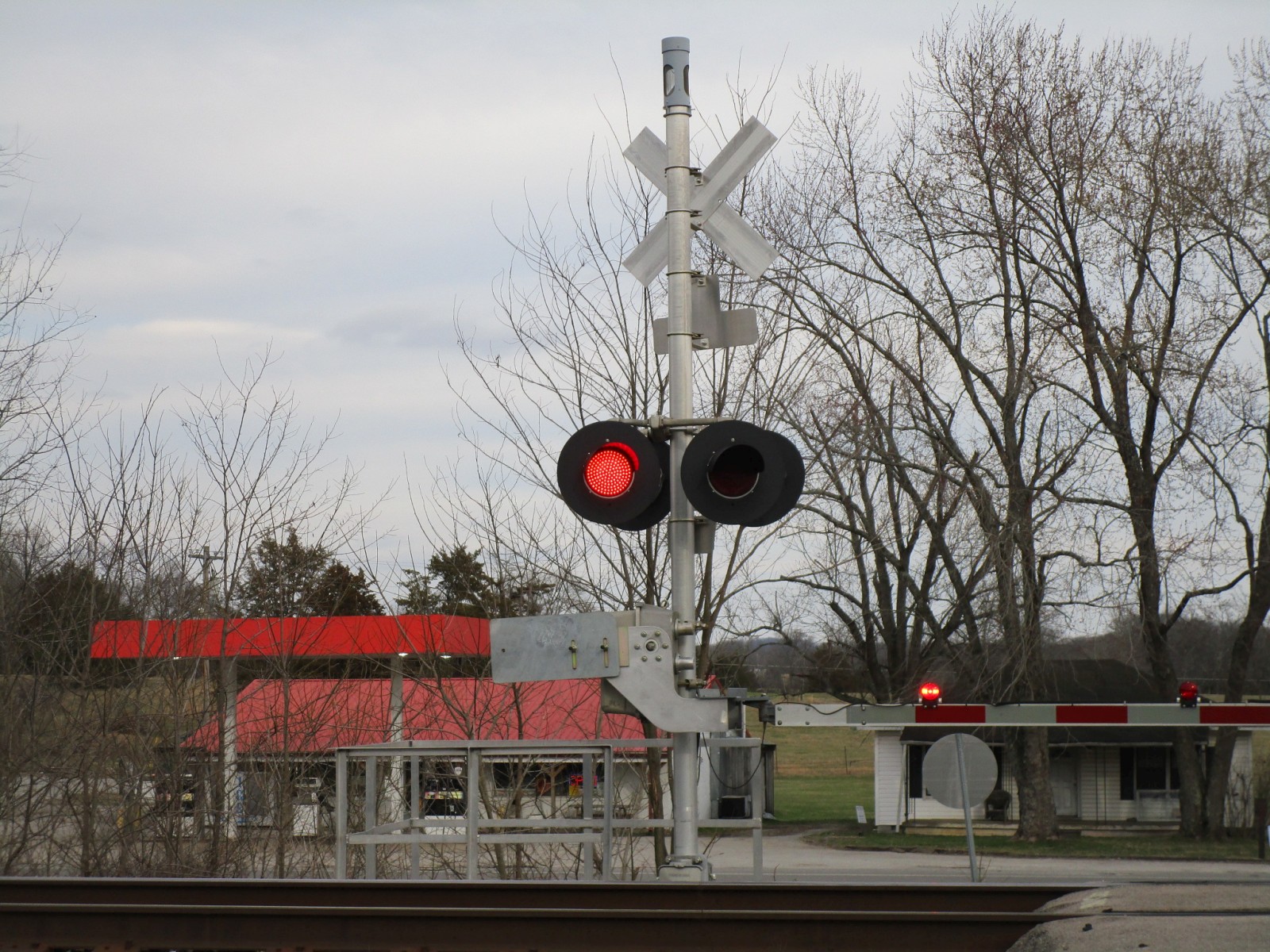

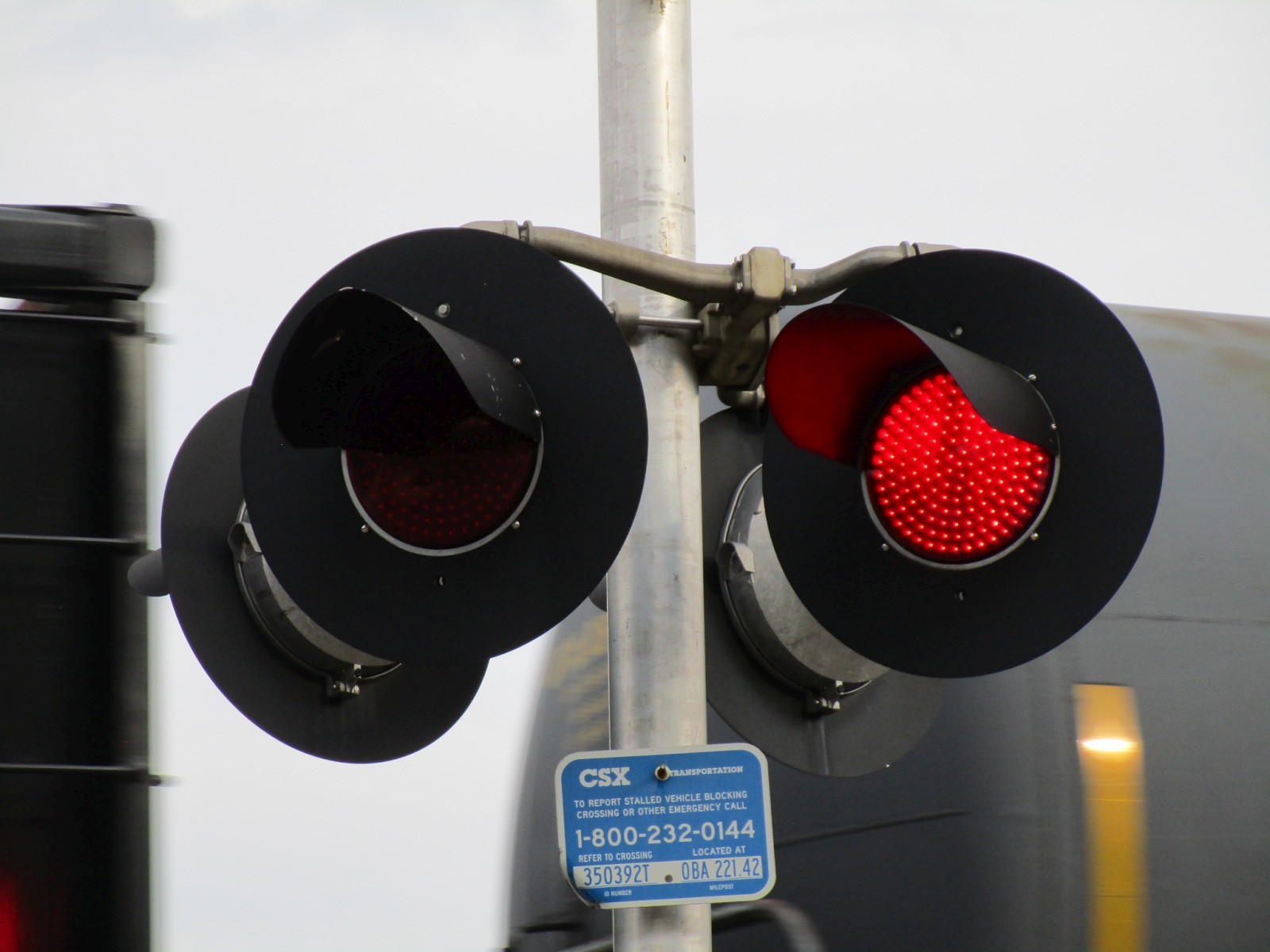

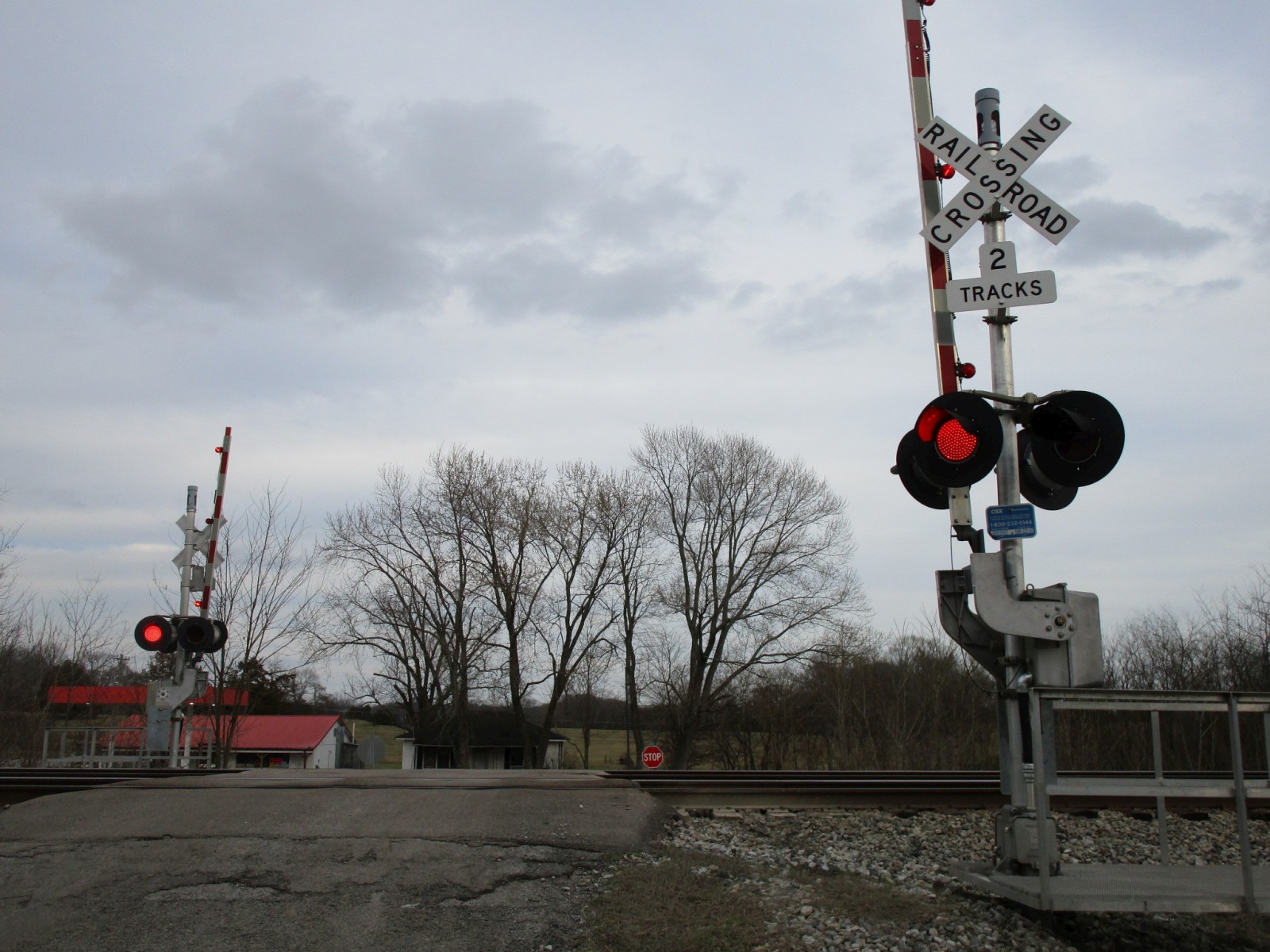

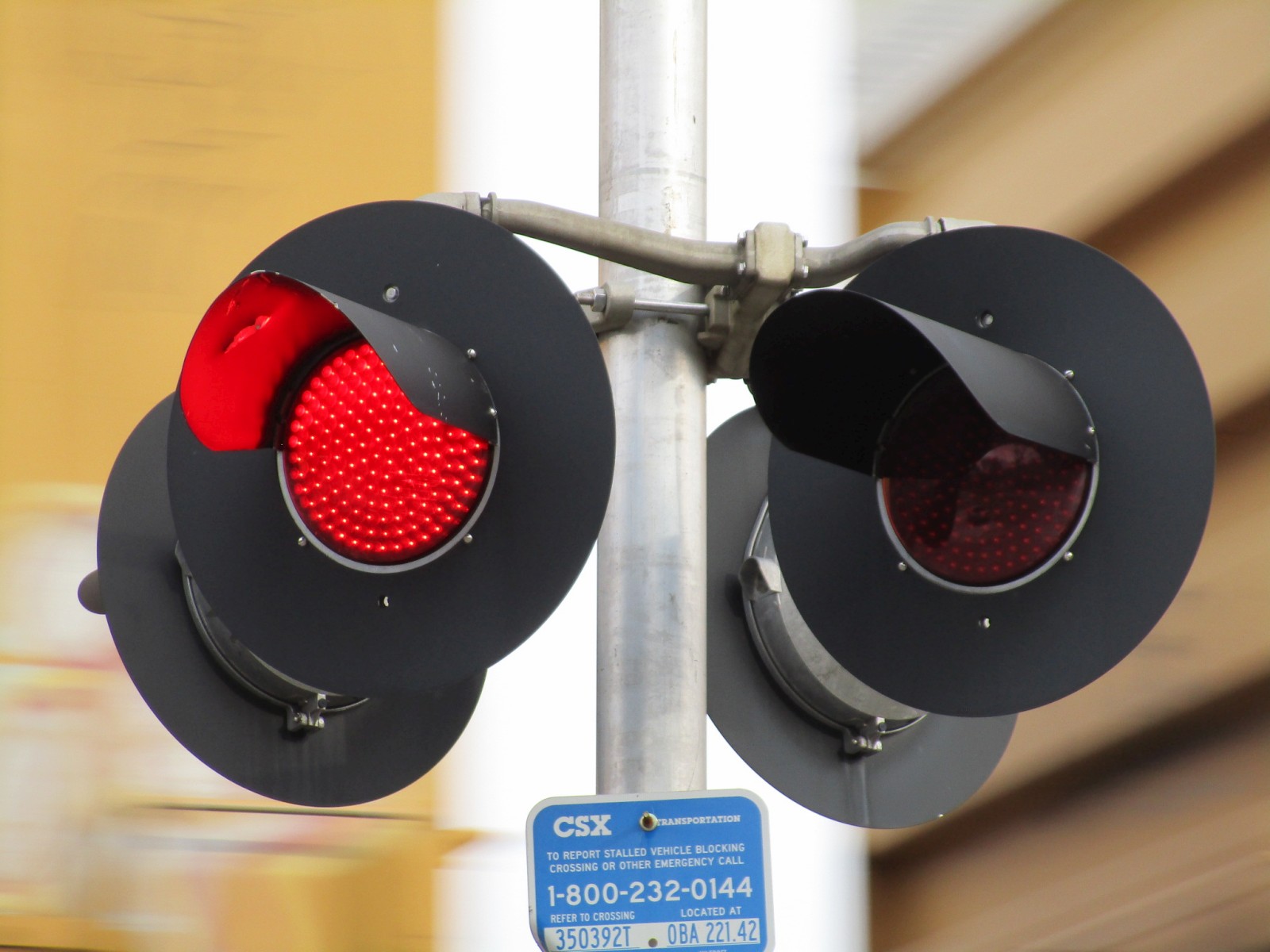

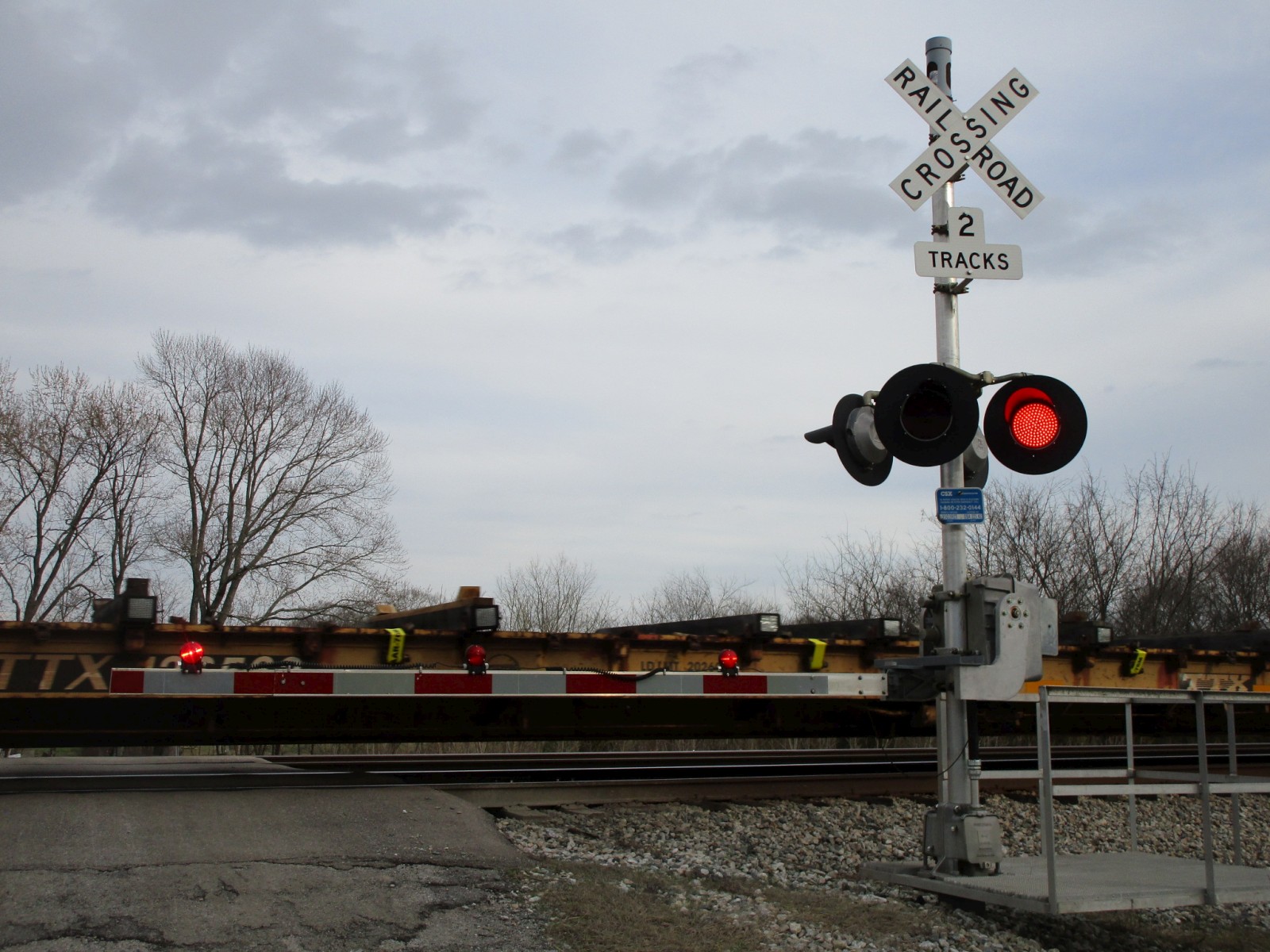

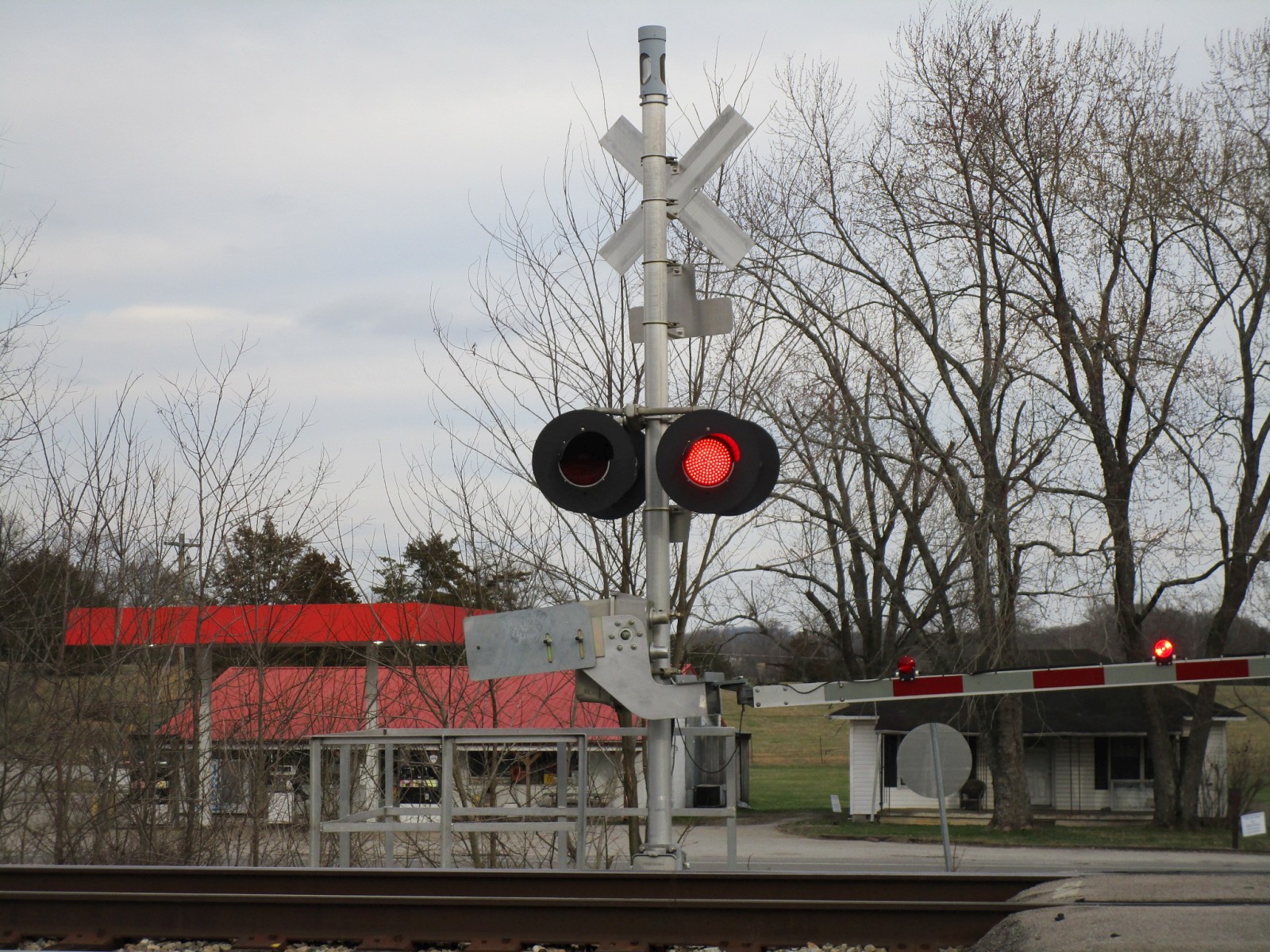

The crossing activates!

34

35

36

37

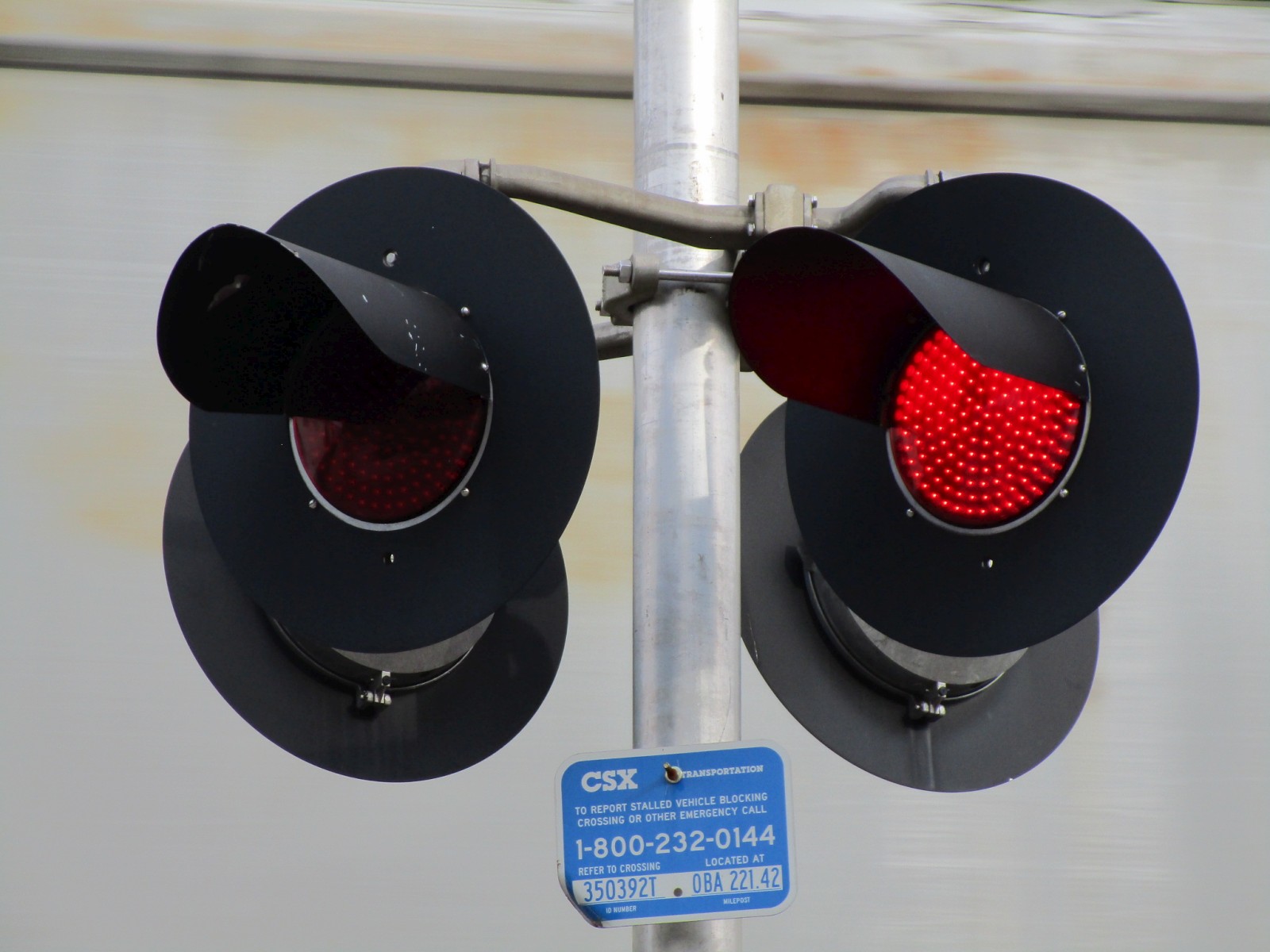

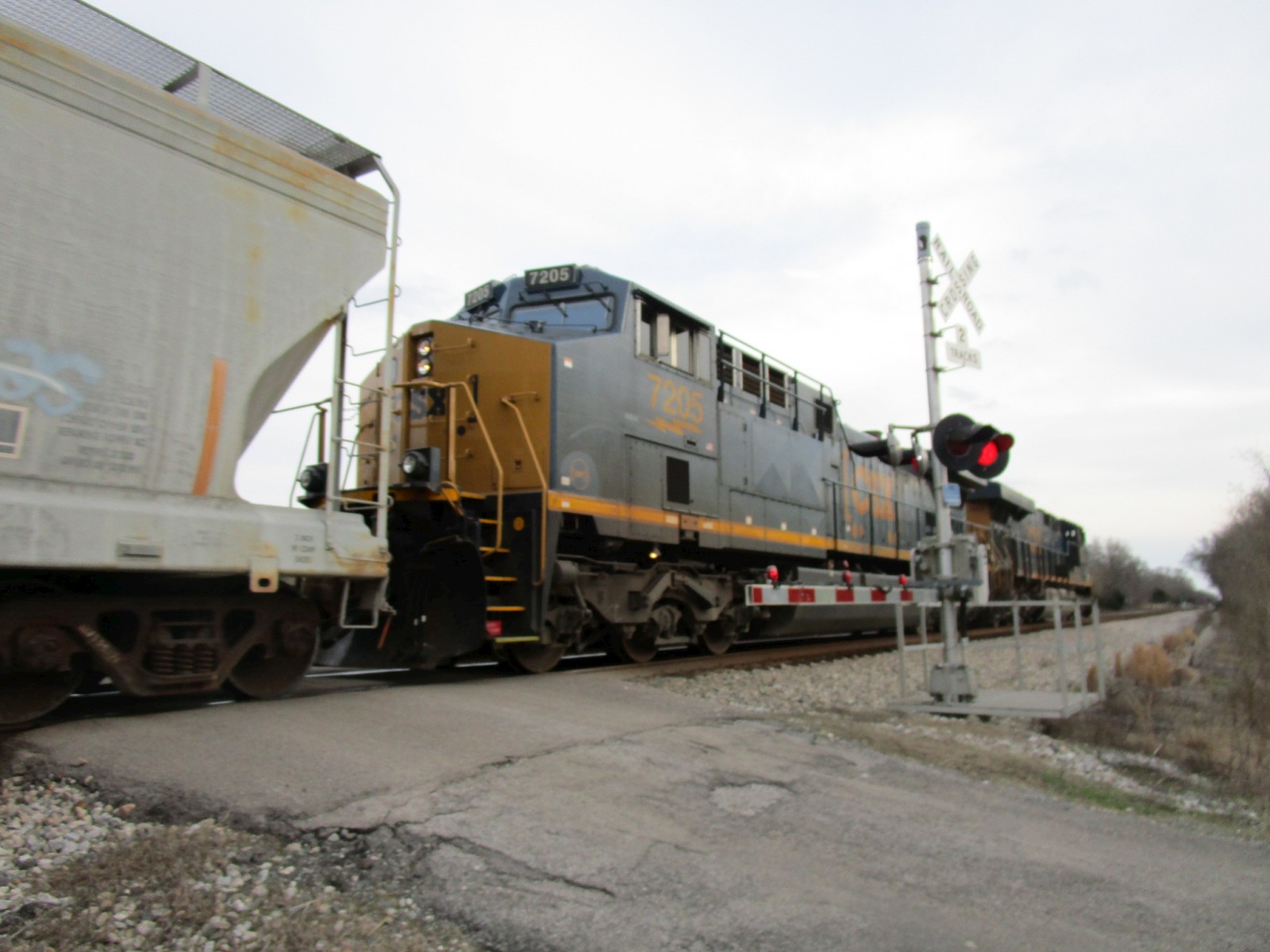

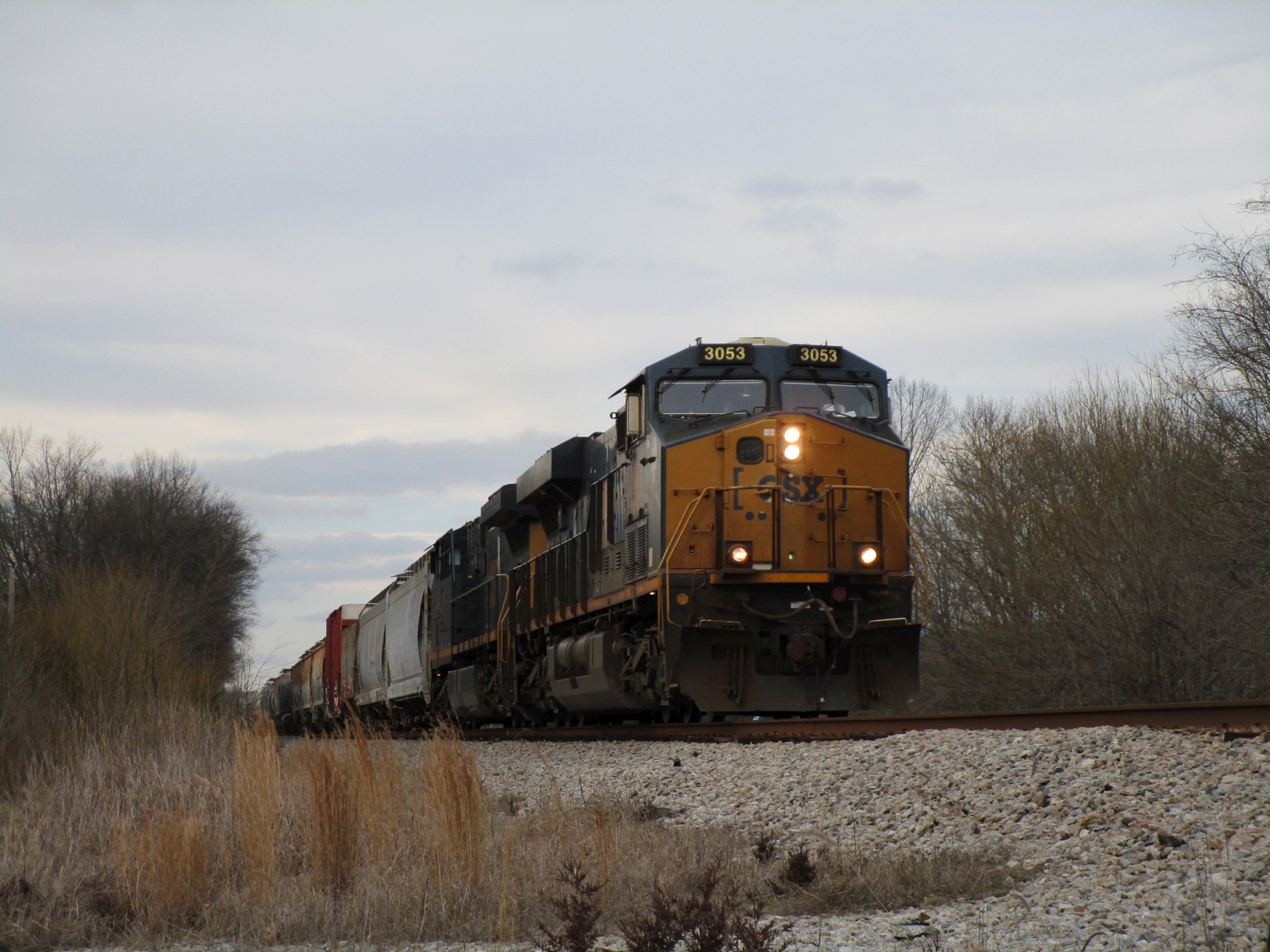

CSX M521 flies south through the crossing with an ES44AH leading a CM44AC for power.

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

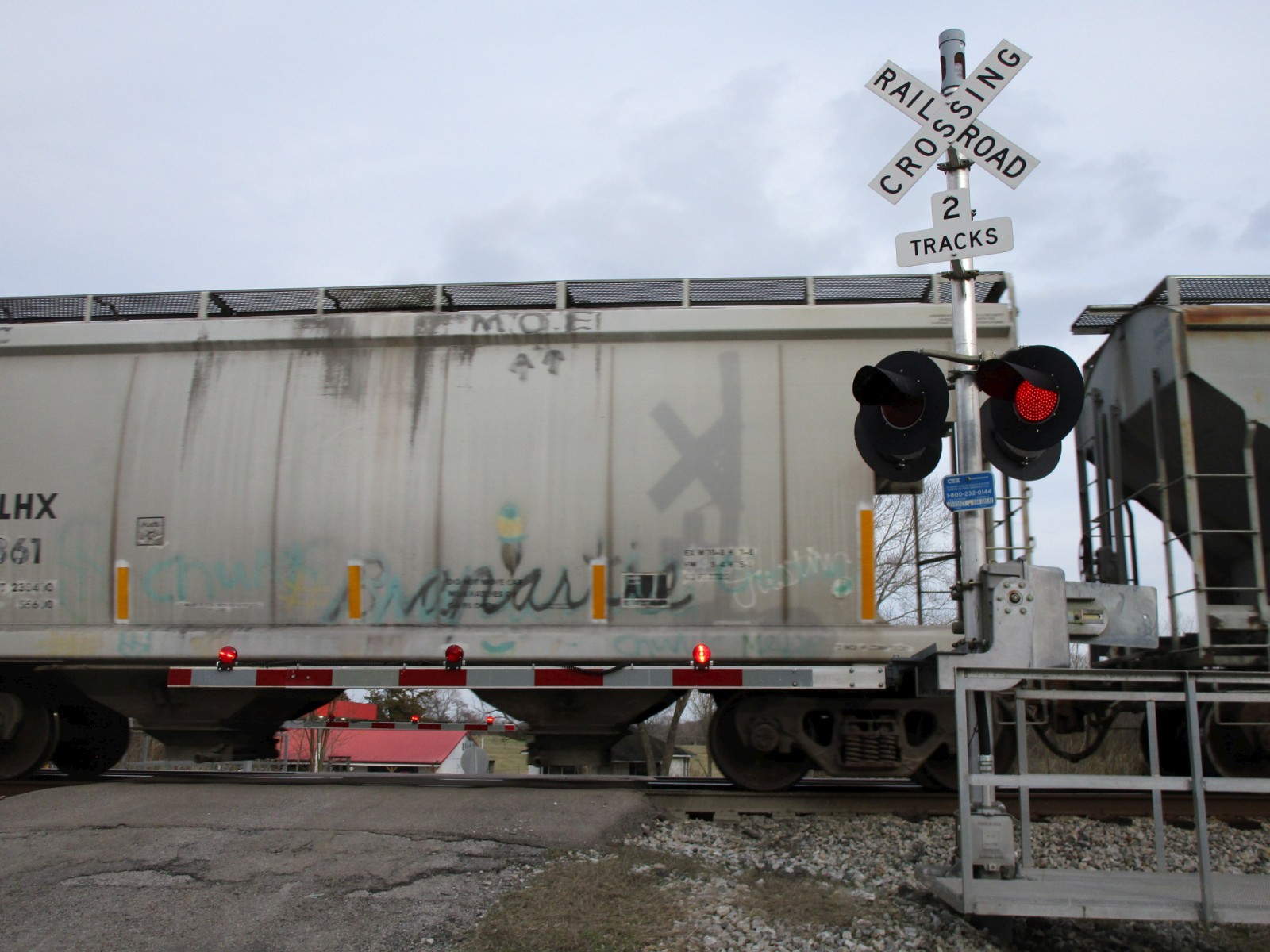

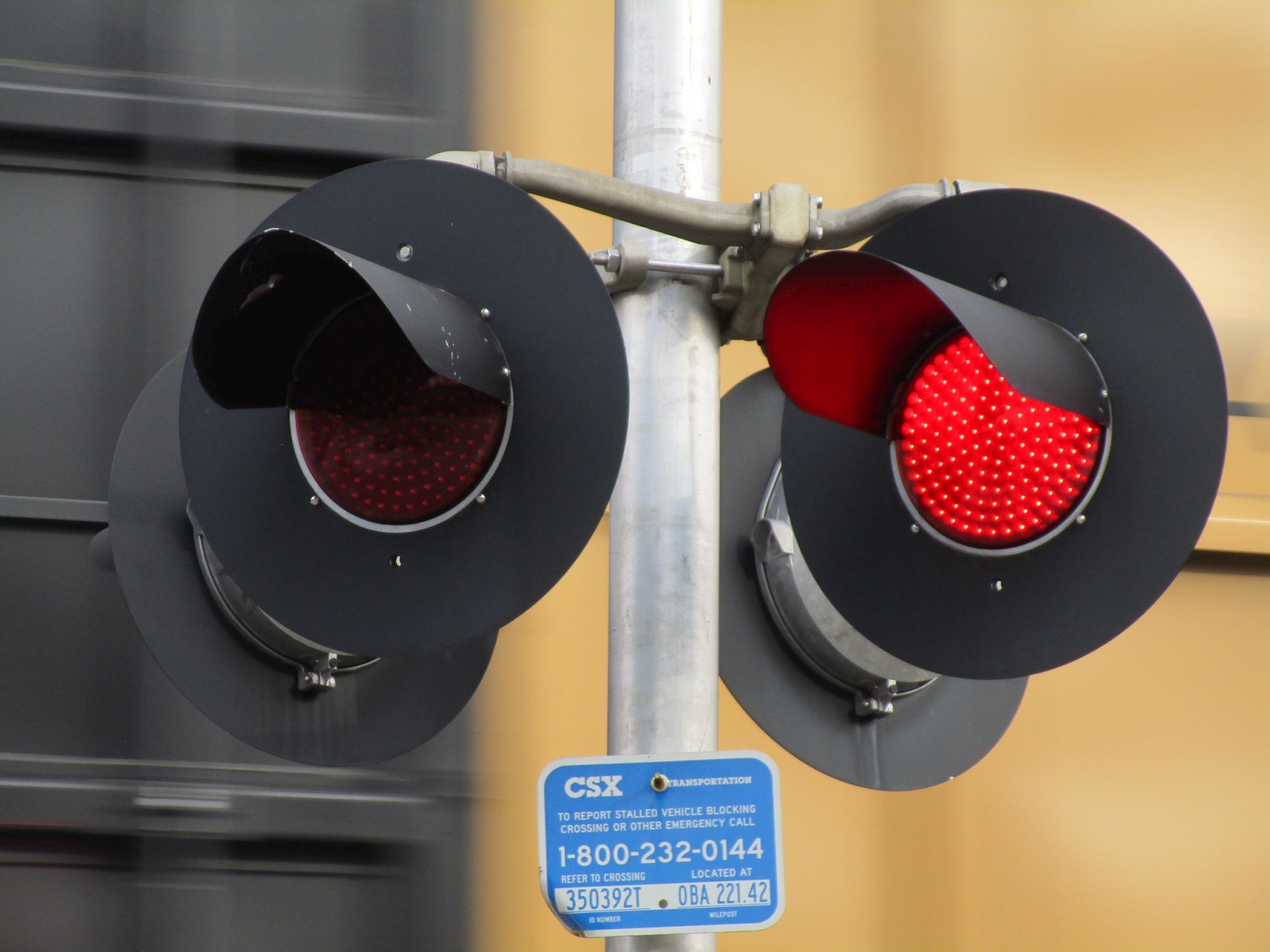

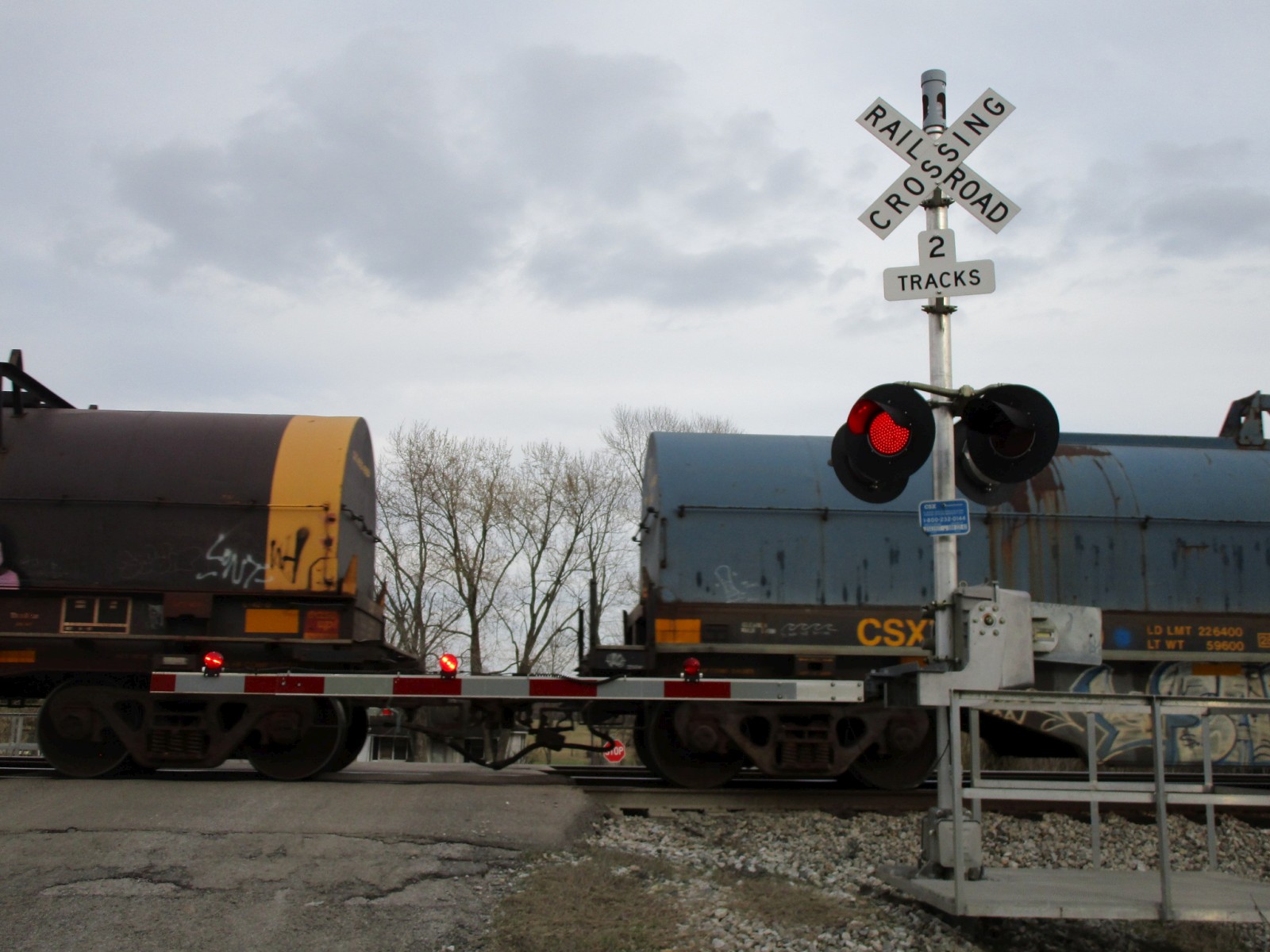

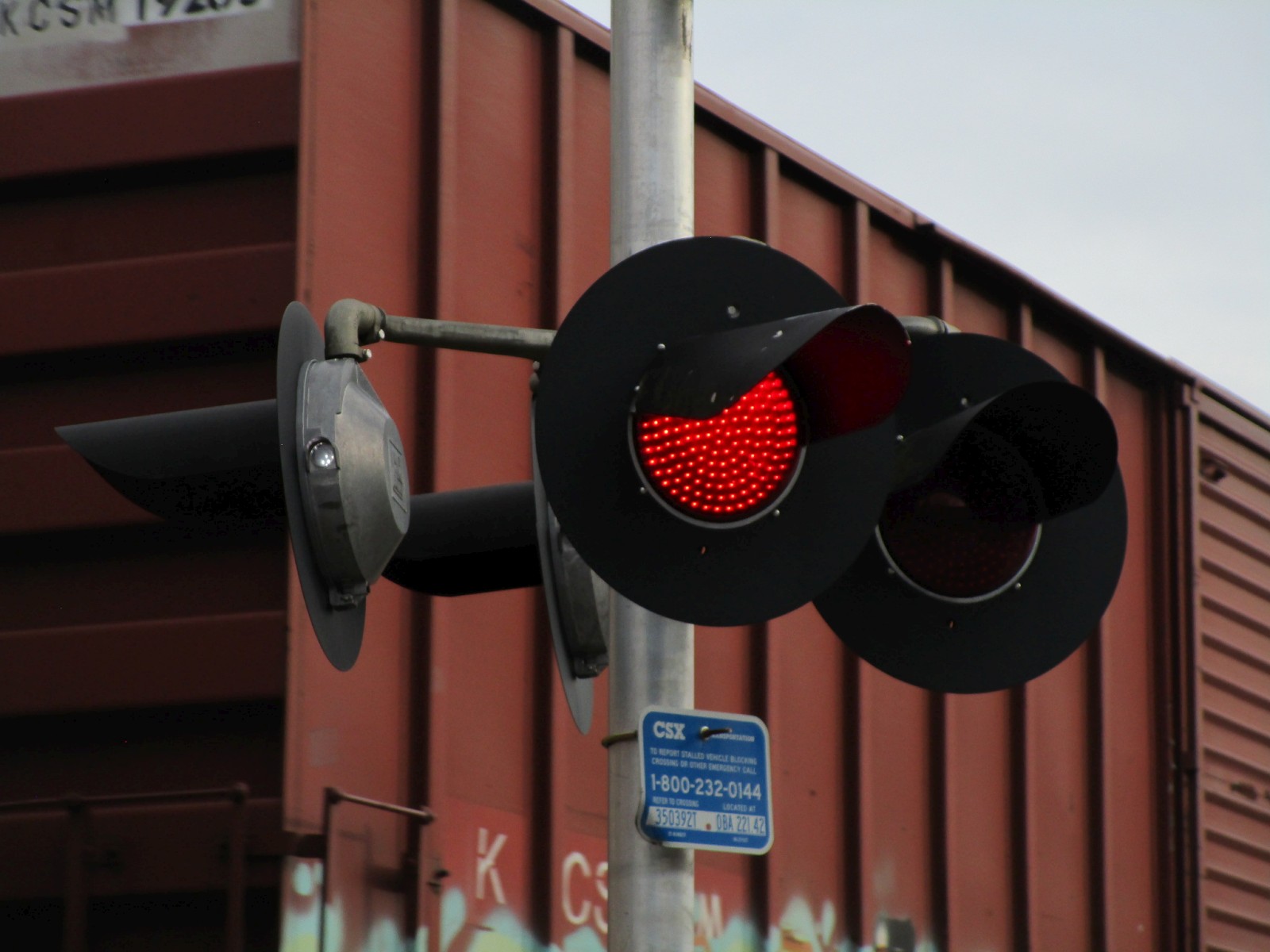

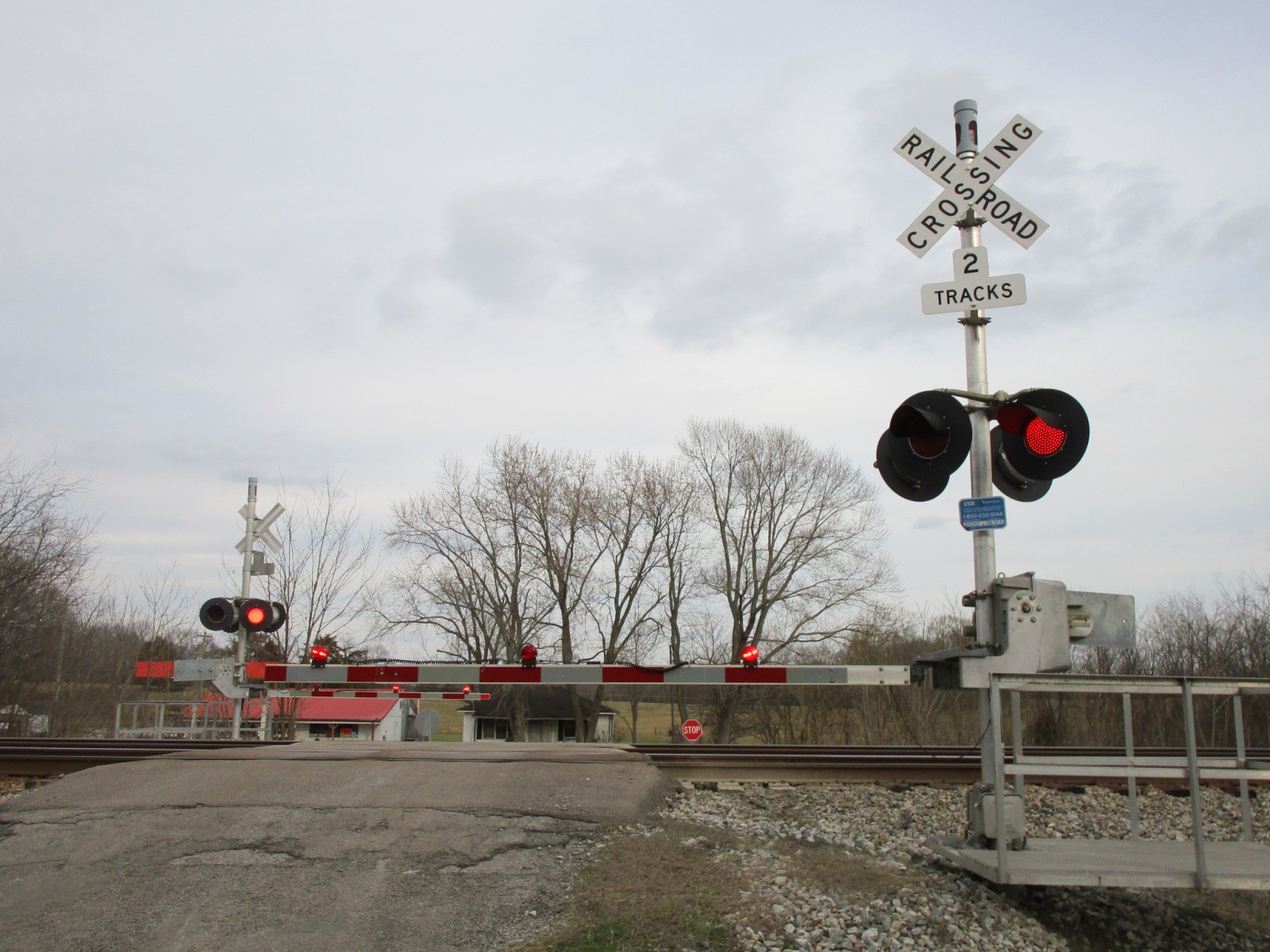

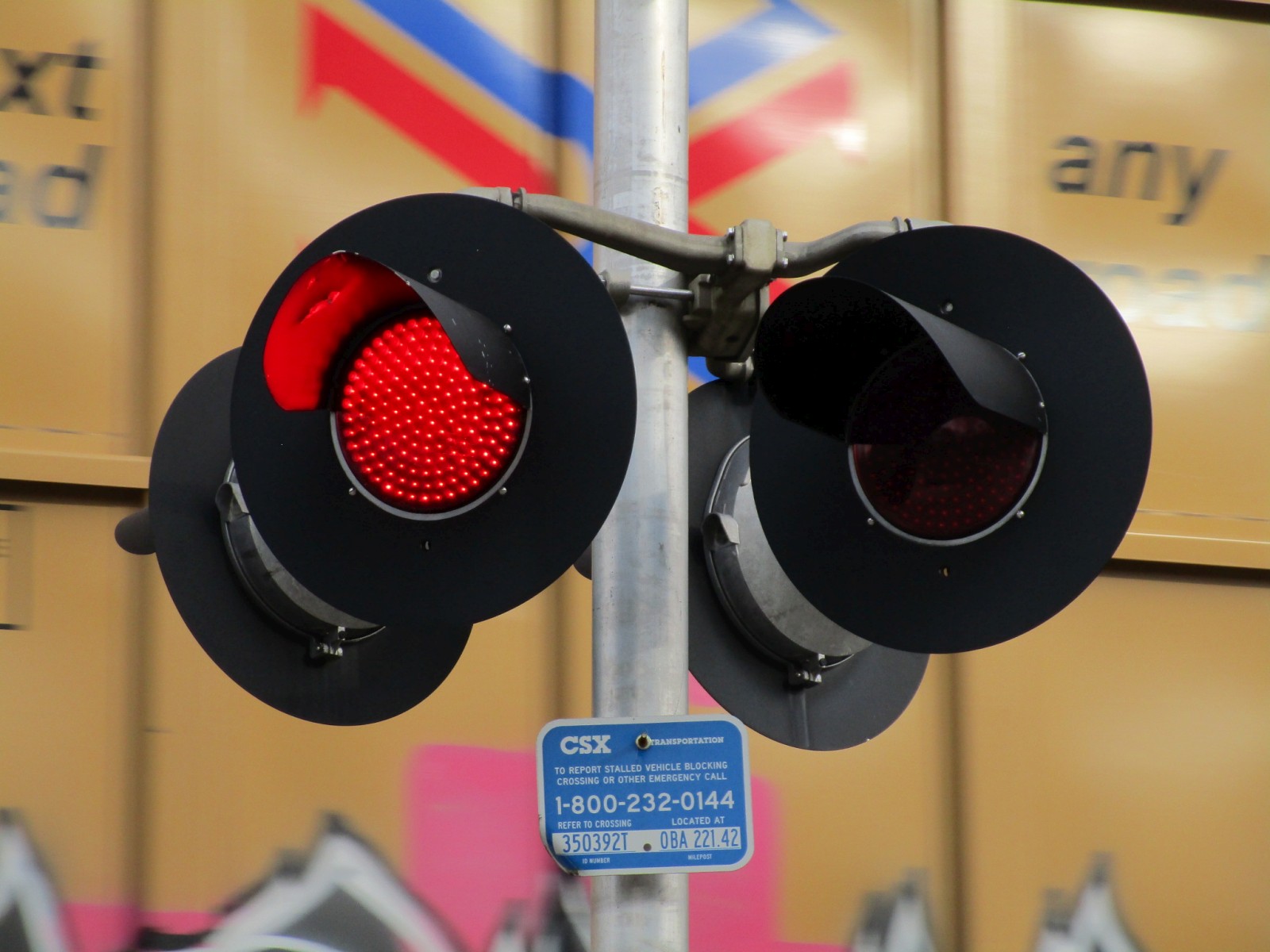

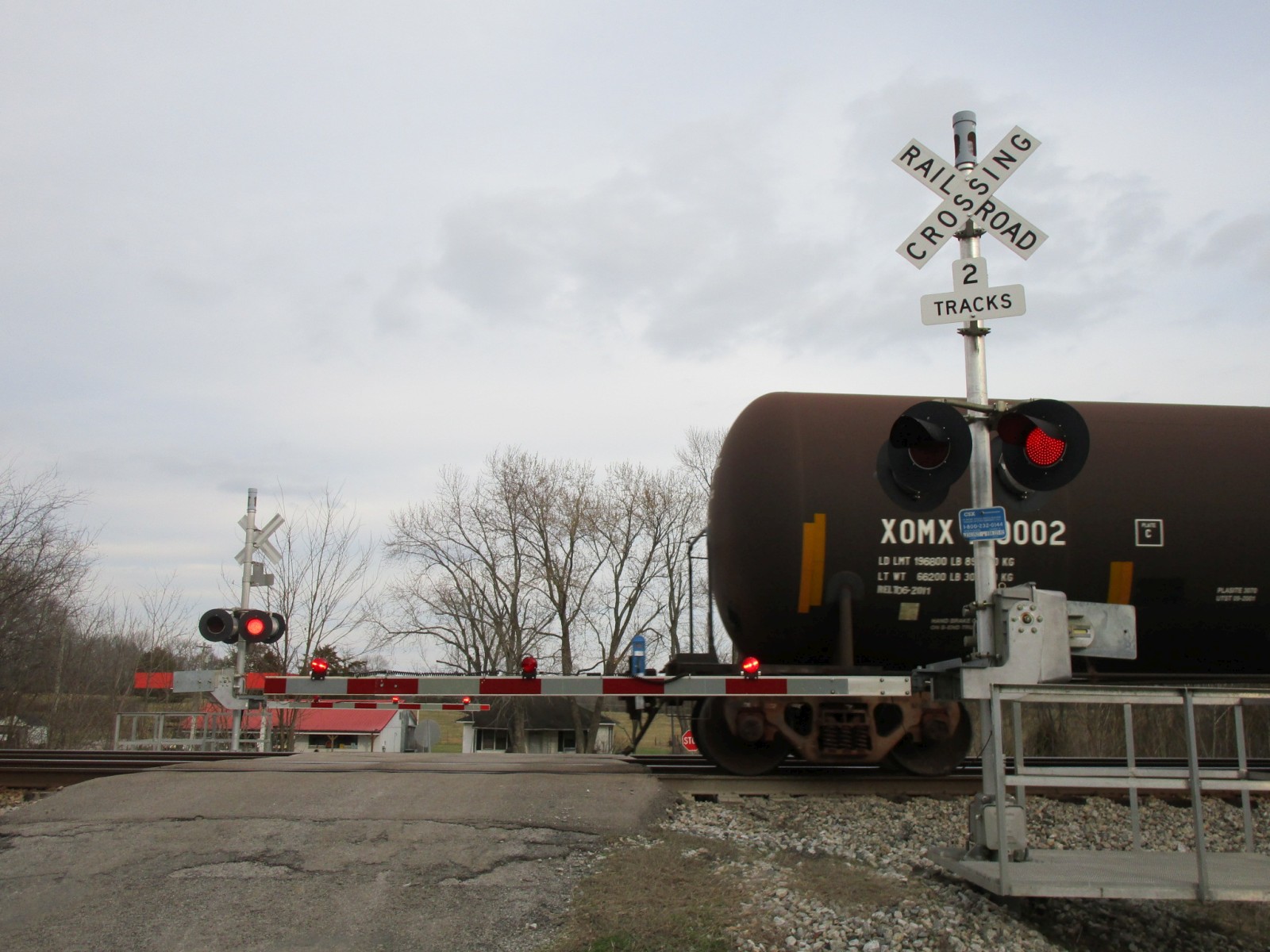

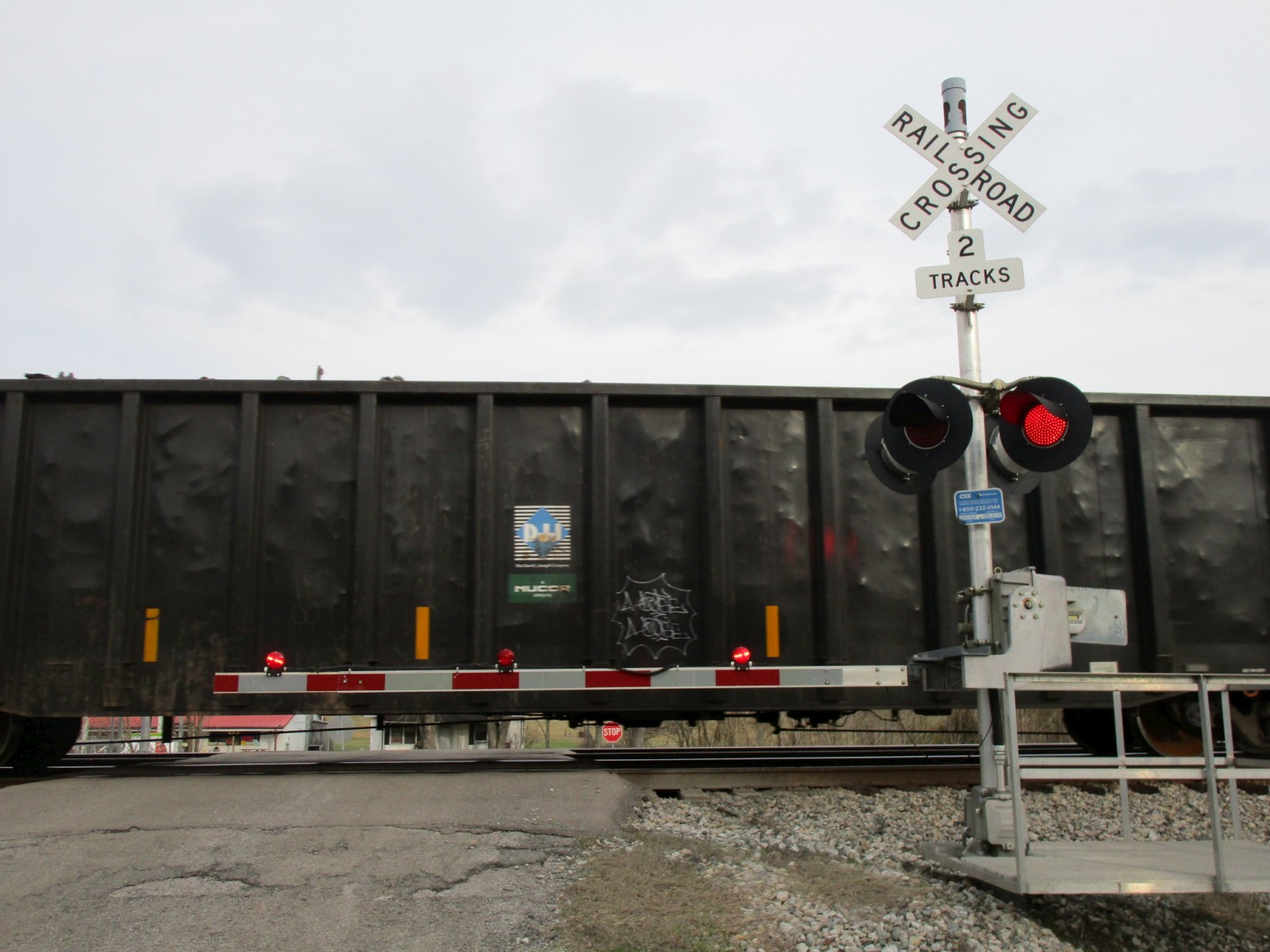

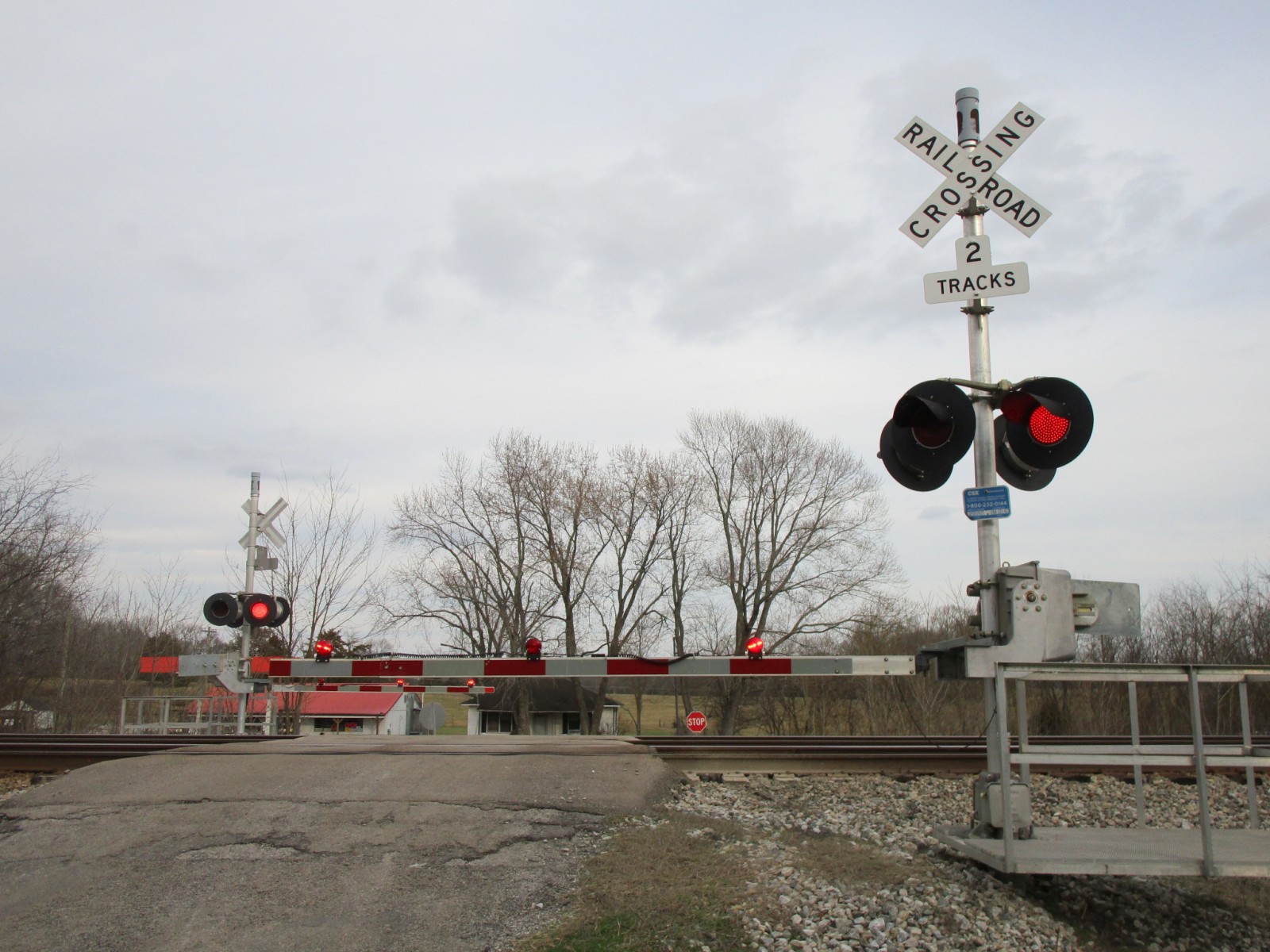

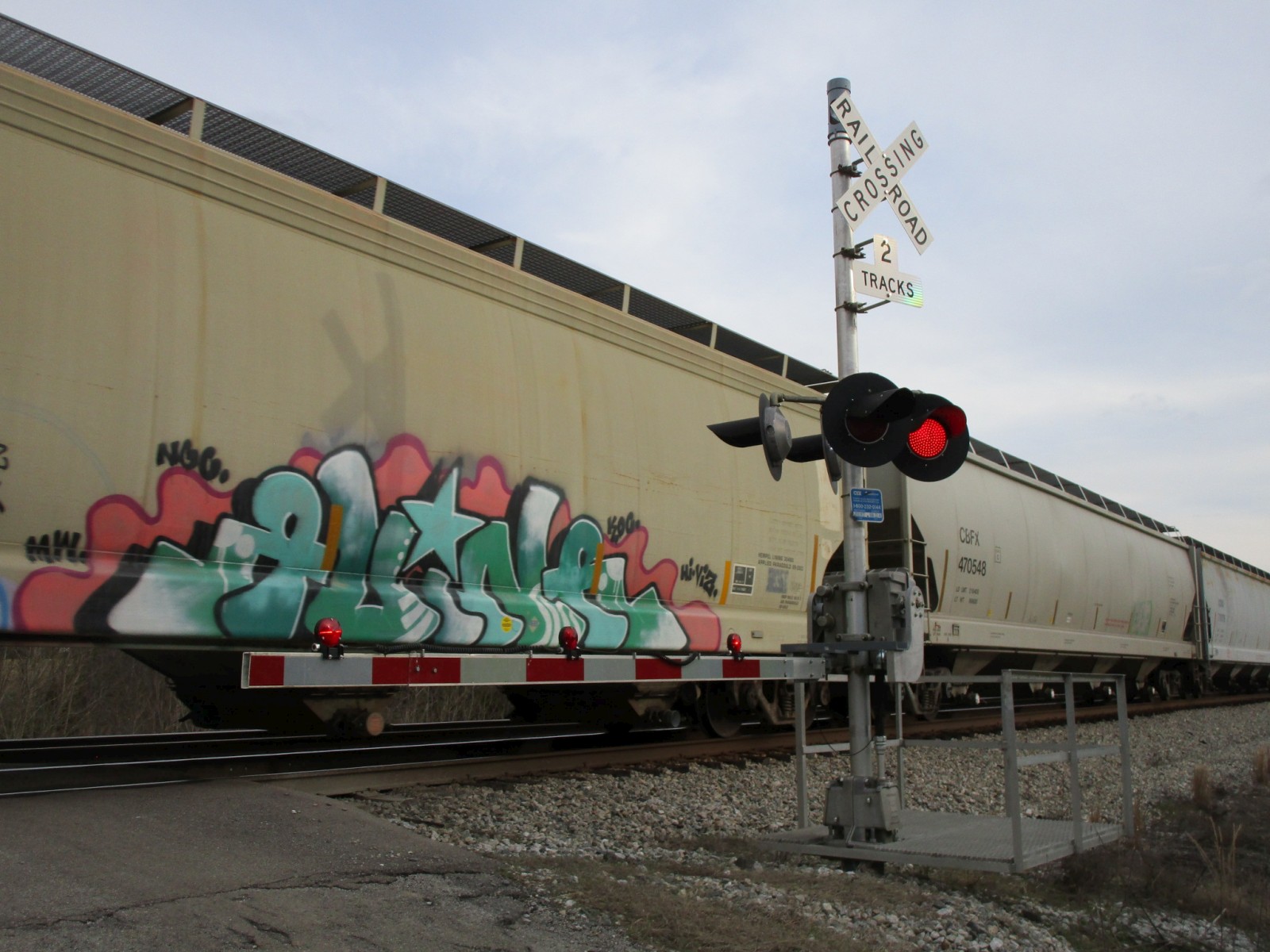

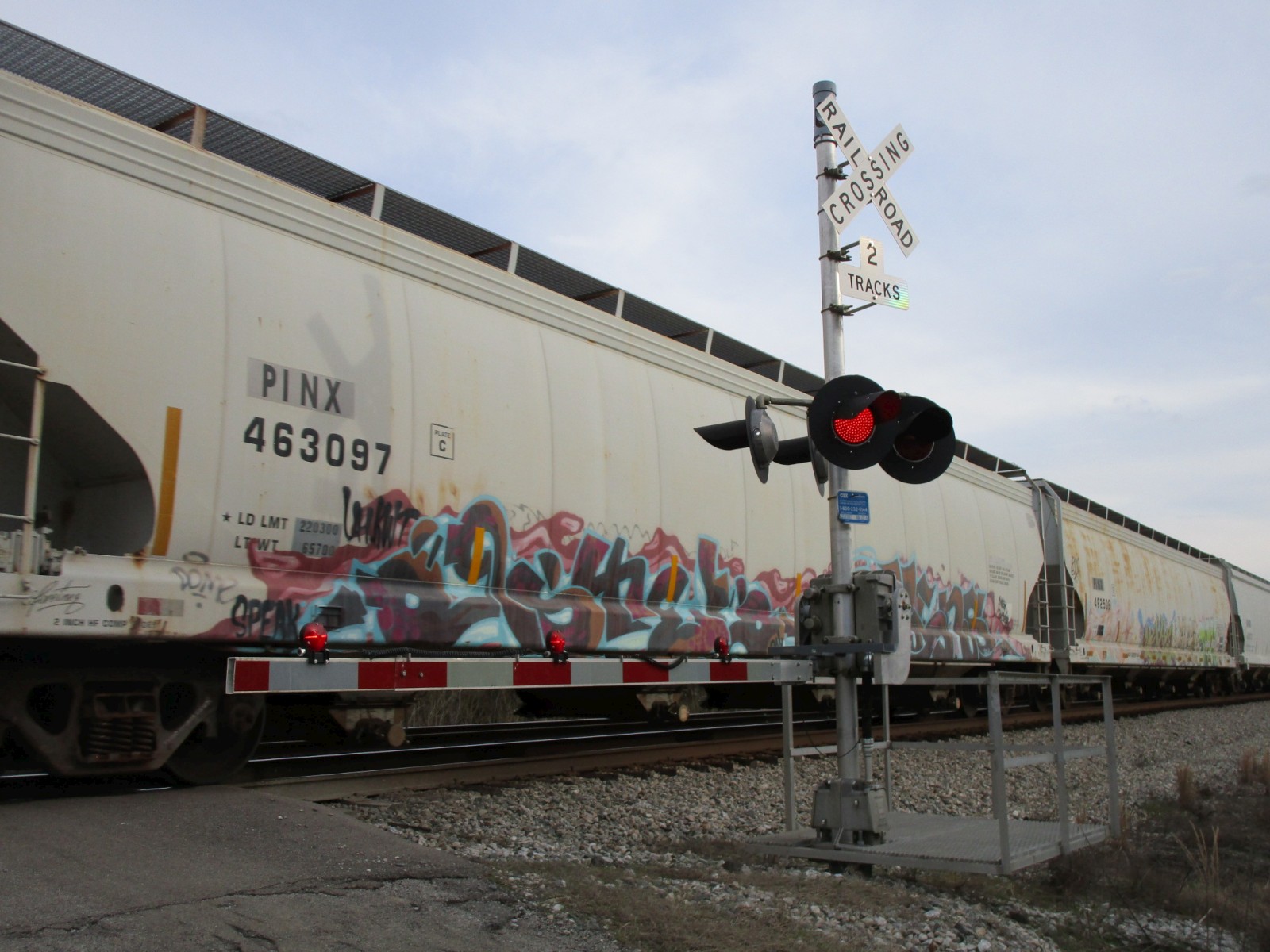

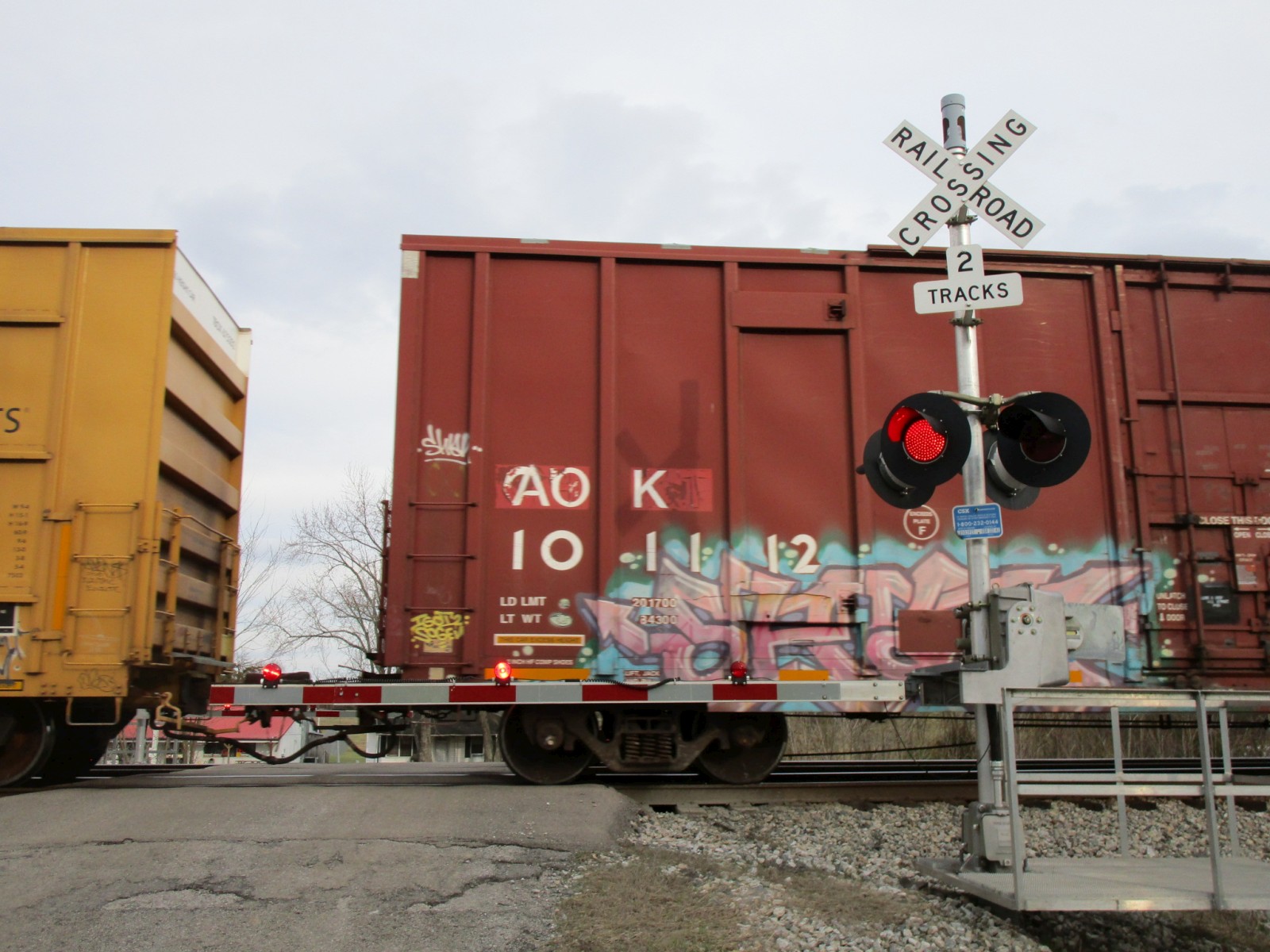

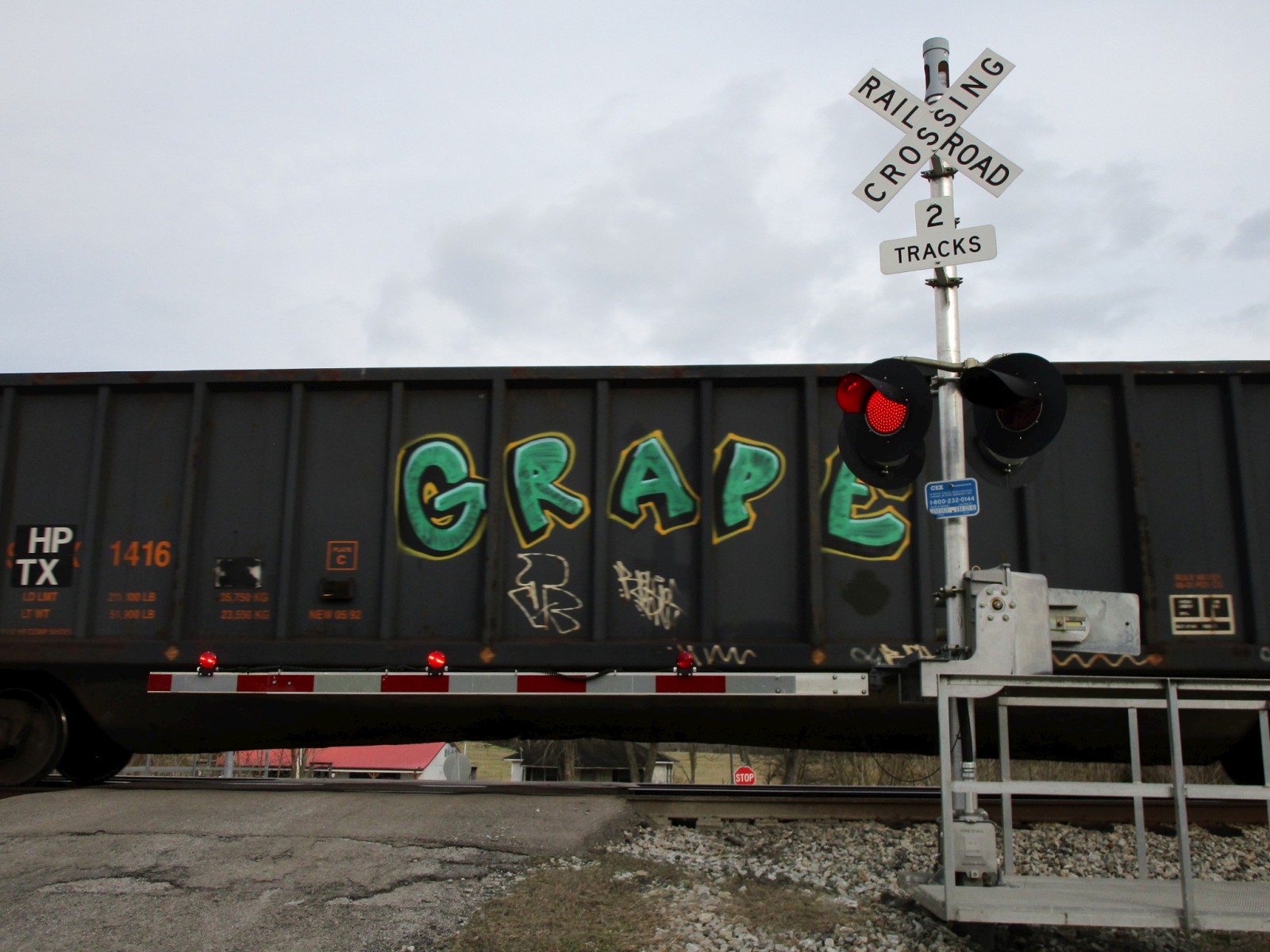

The train passes...

60

61

62

63

64

65

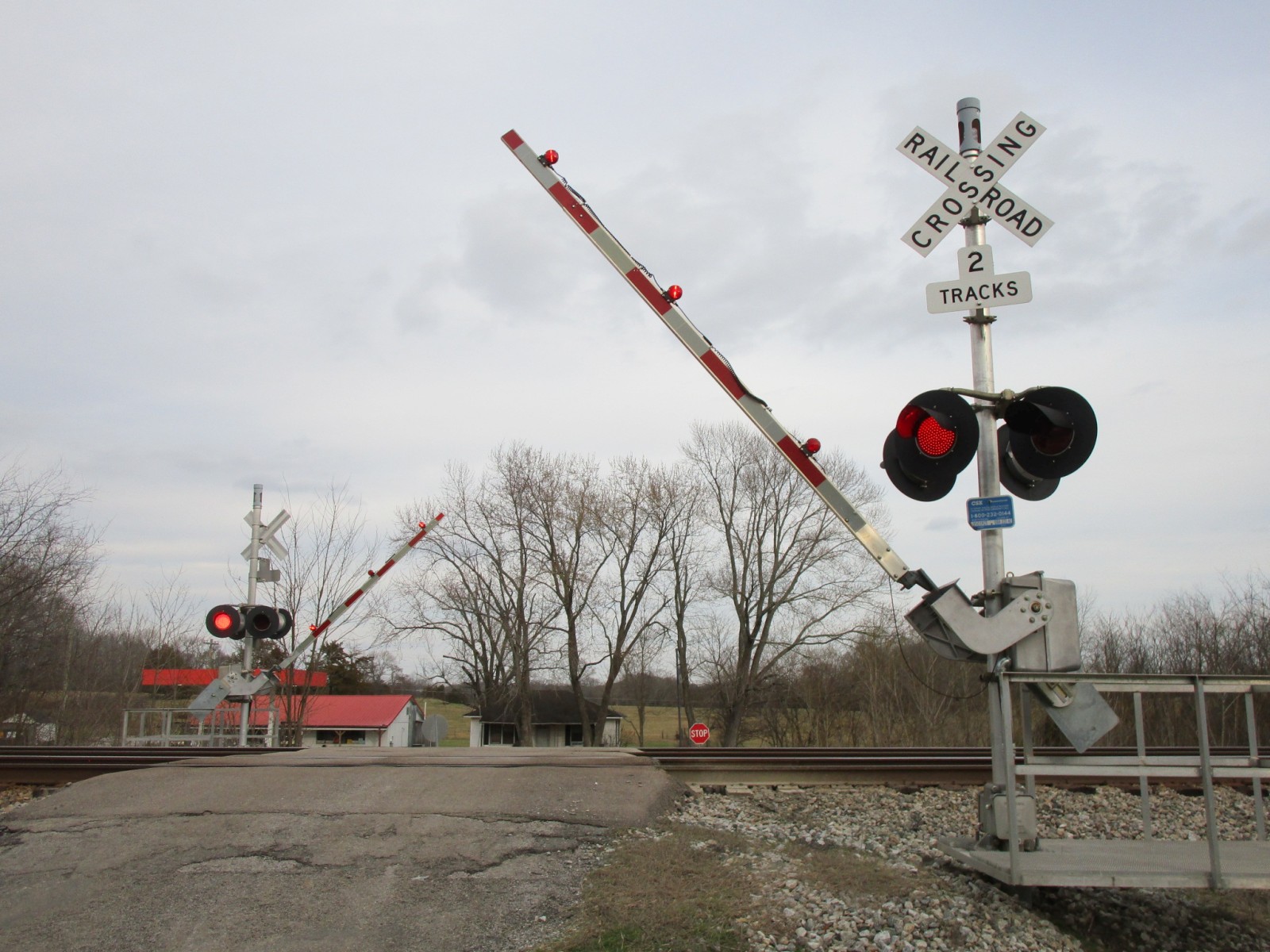

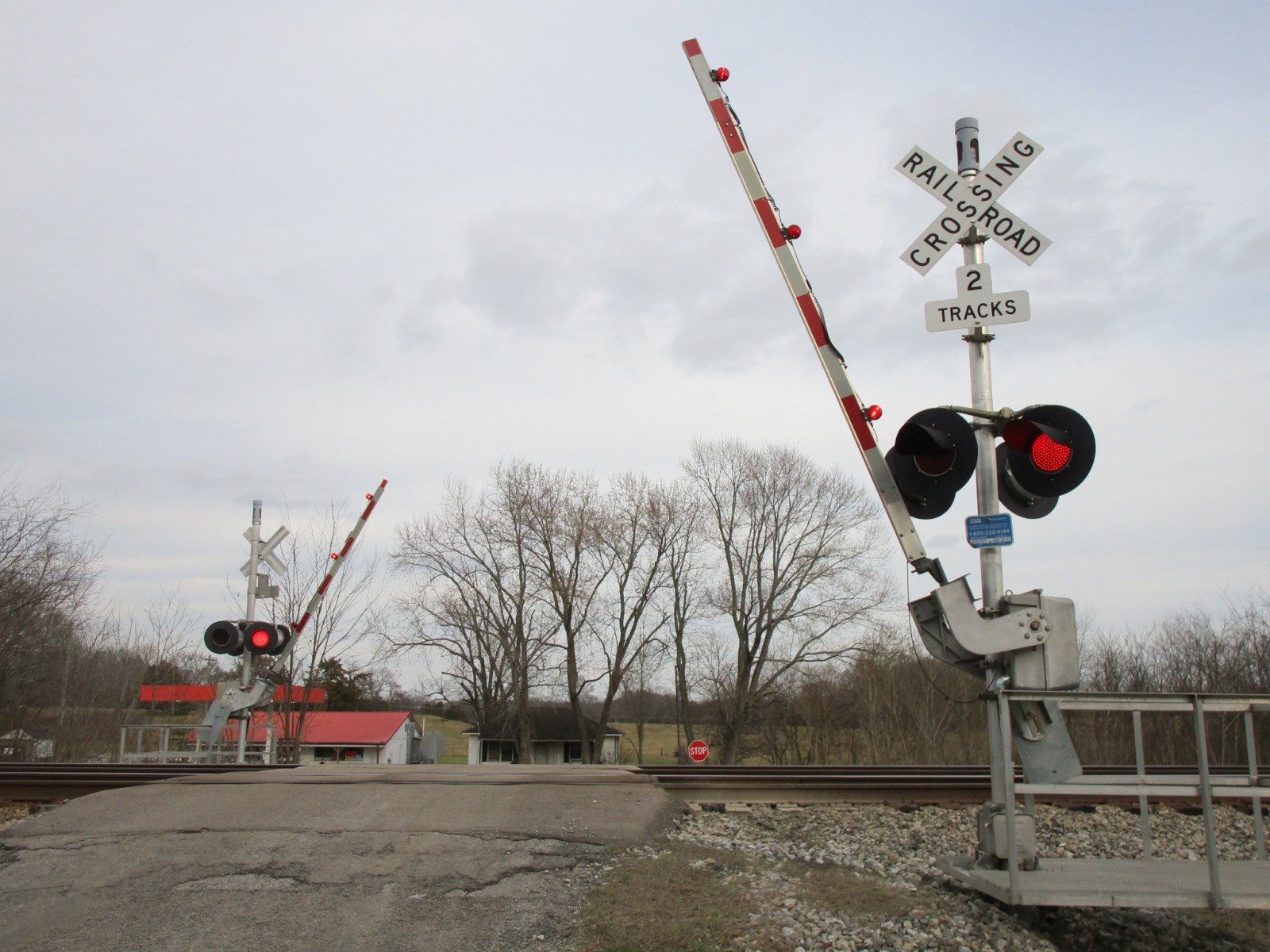

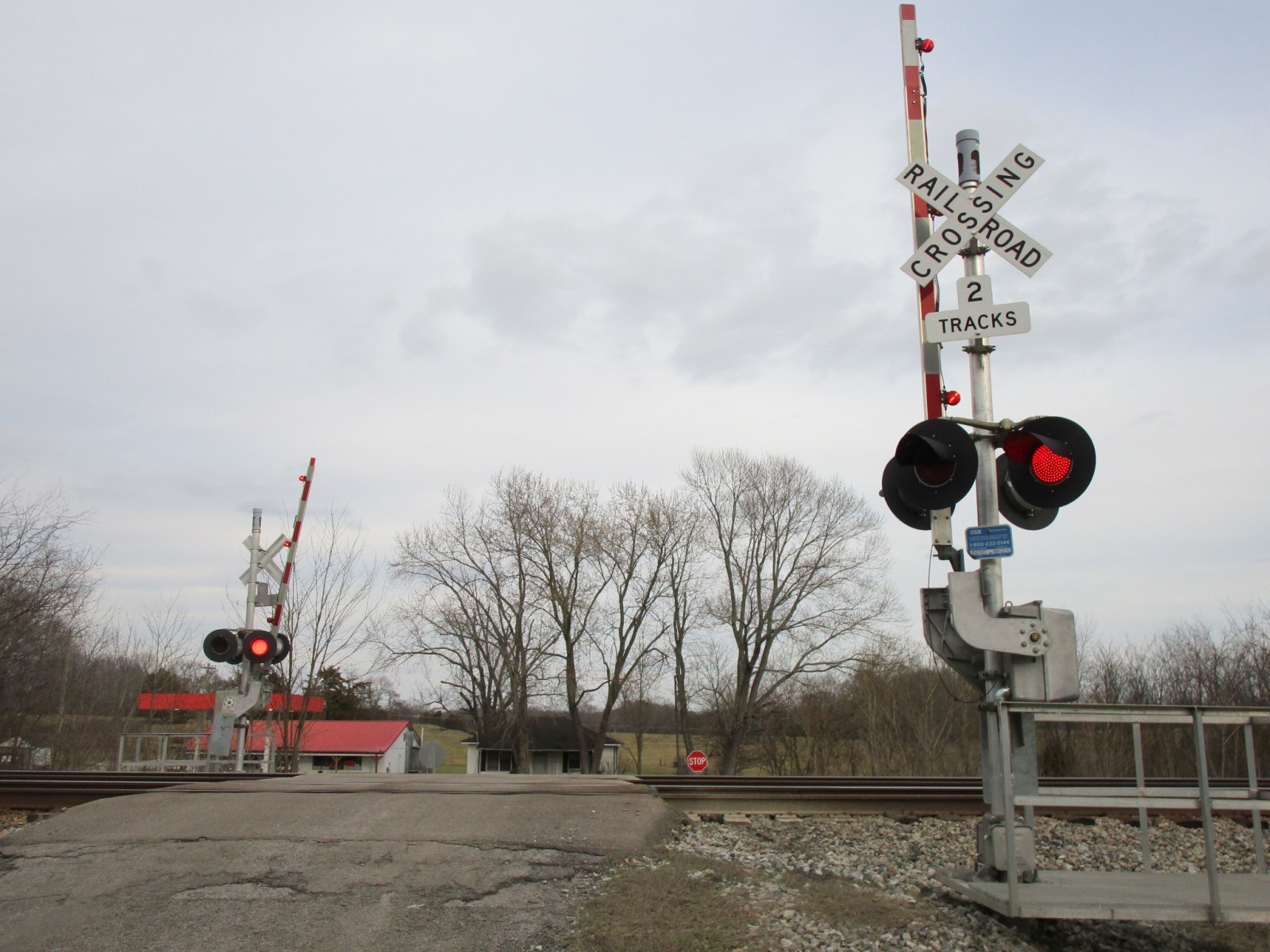

...and the gates rise.





Pictures 1-25 were taken on 8-3-17.

Pictures 26-65 and the video were taken on 2-10-23.
