| >>>>>>>>>>>>>> | Eastern Signal | Eastern Median Signal | Western Signal | Western Median Signal |
| Bell: | Safetran 2nd Gen Mechanical | N/A | WCH 1st Gen Mechanical | N/A |
| Base: | WRRS 5" Double Sided | WRRS 5" Double Sided | WRRS 5" Double Sided | WRRS 5" Double Sided |
| Light Brackets: | WRRS | WRRS | WRRS | WRRS |
| Lights: | 4 - 12"x20" MI incandescents | 2 - 12"x20" FS/WCH incandescents | 4 - 12"x20" FS/WCH incandescents | 2 - 12"x20" FS/WCH incandescents |
| Gate Lights: | 3 - GS 4" incandescents | 3 - RECO 4" LEDs | 3 - RECO 4" LEDs | 3 - RECO 4" LEDs |
| Gate Mechanism: | US&S Model 95 Style 1 | Harmon | Harmon | Harmon |
| Gate Striping: | Diagonal Striping | Vertical Striping | Vertical Striping | Vertical Striping |
Pictures 1-19 were taken on August 22, 2009, by Josh Baumann.
Pictures 20-60 were taken on September 6, 2025, by Morrison & Friends.
This crossing is located on the Fort Worth & Western Railroad.
|
1
|
2
|
3
|
||||||
|

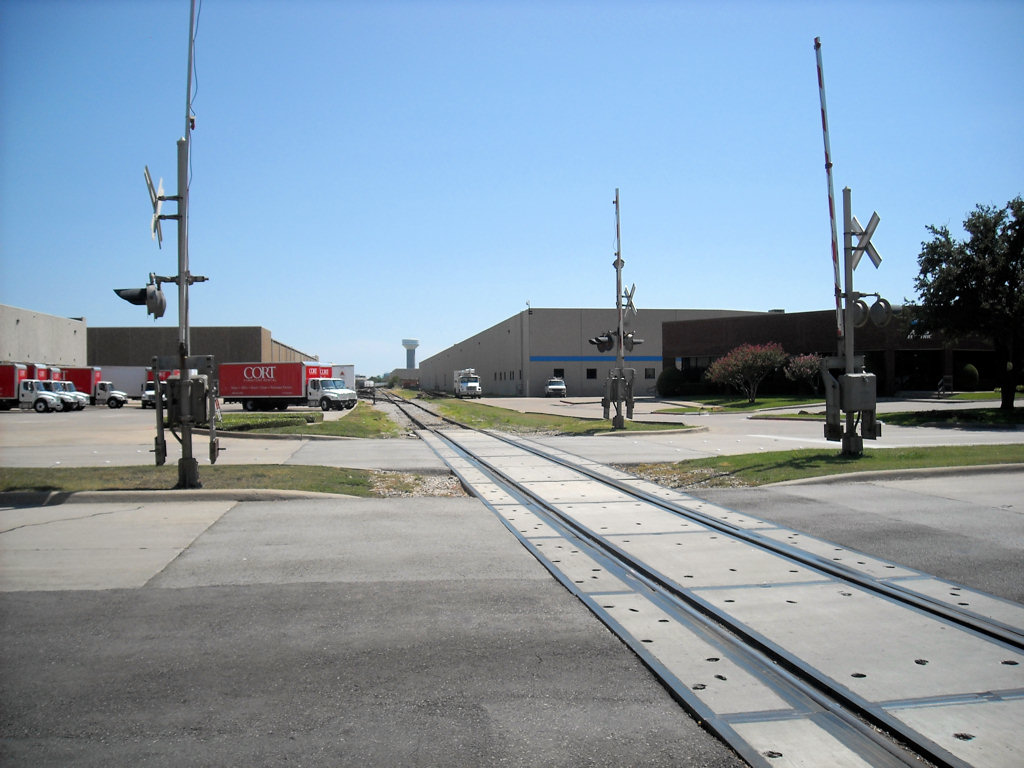

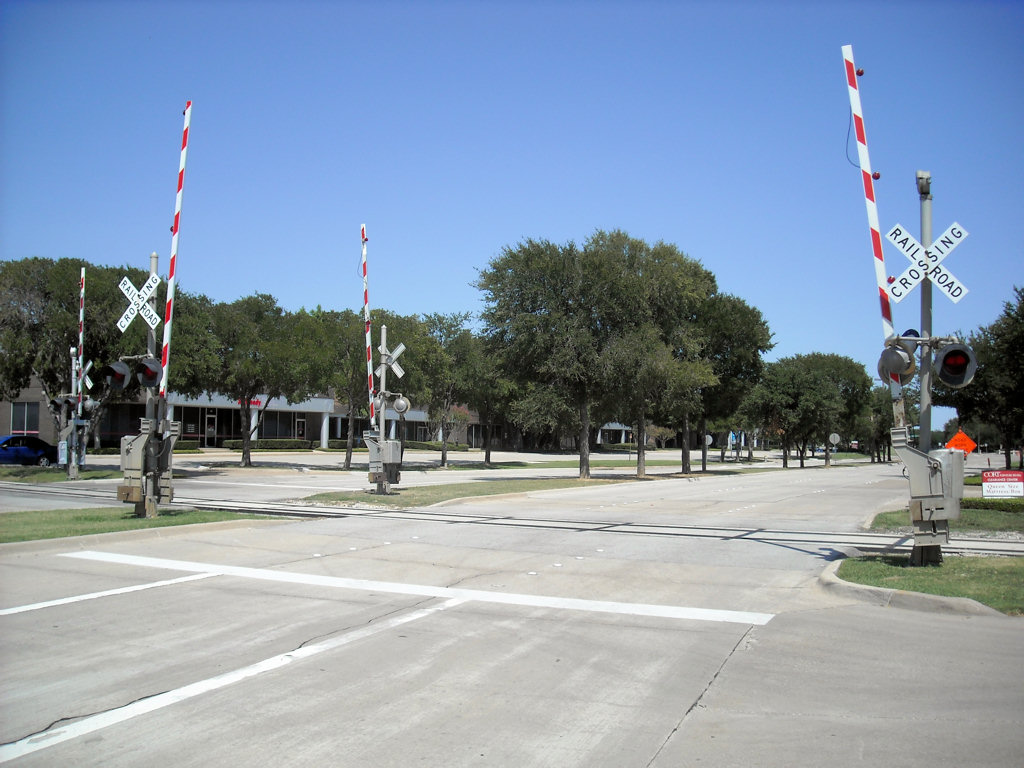

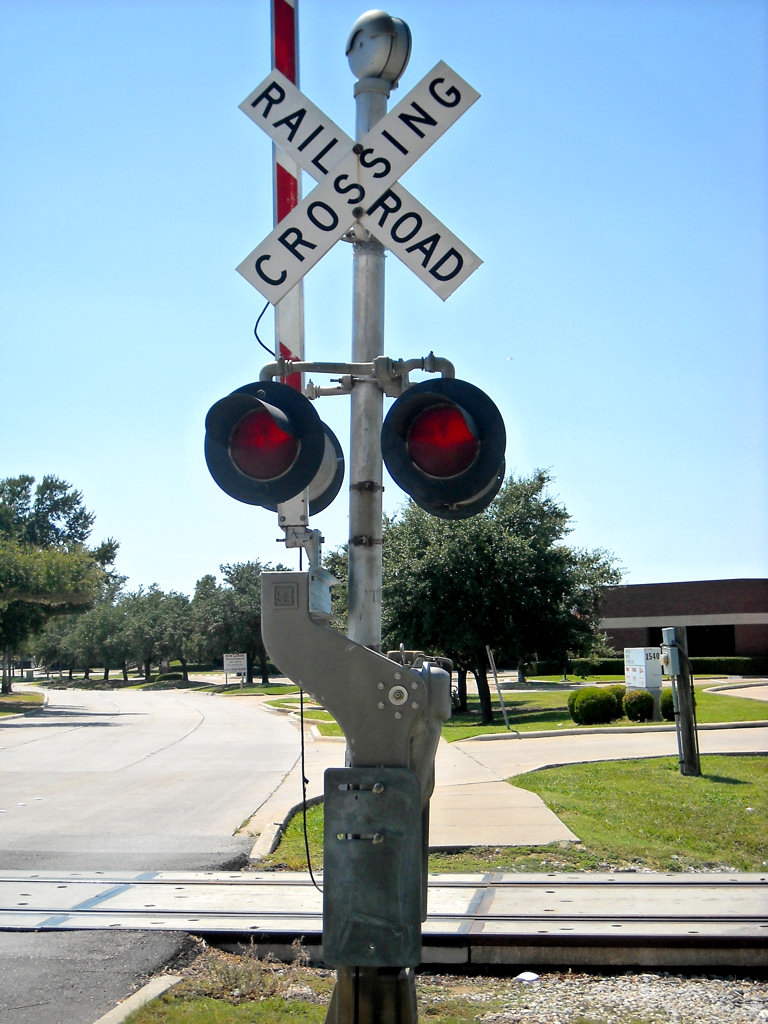

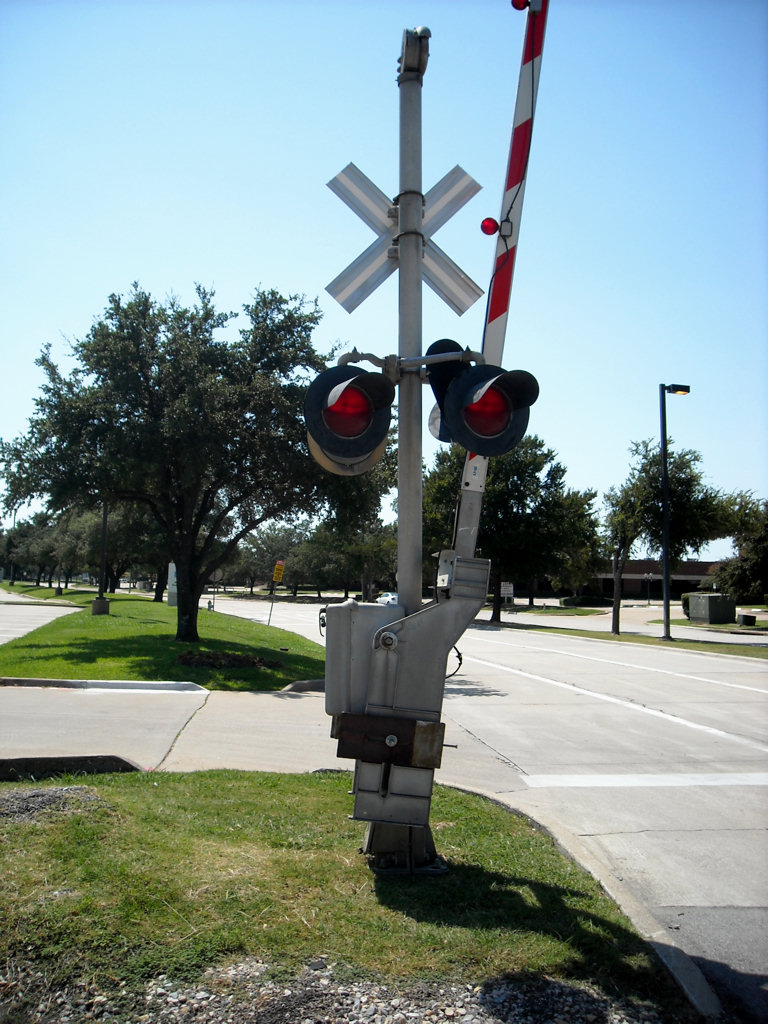

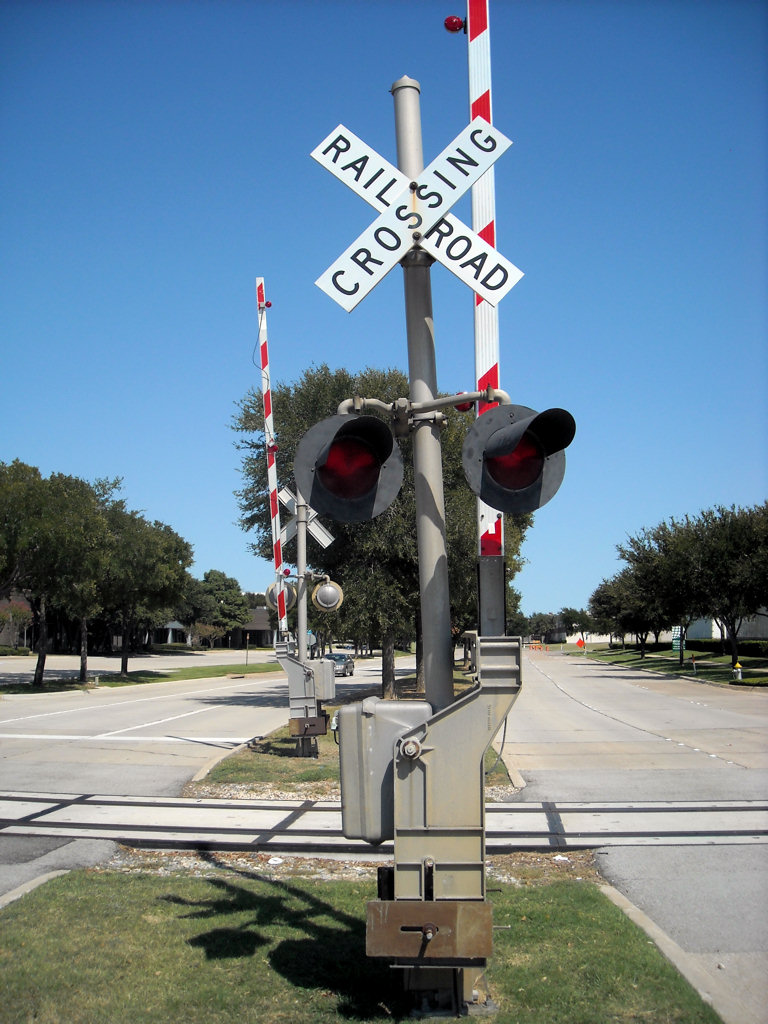

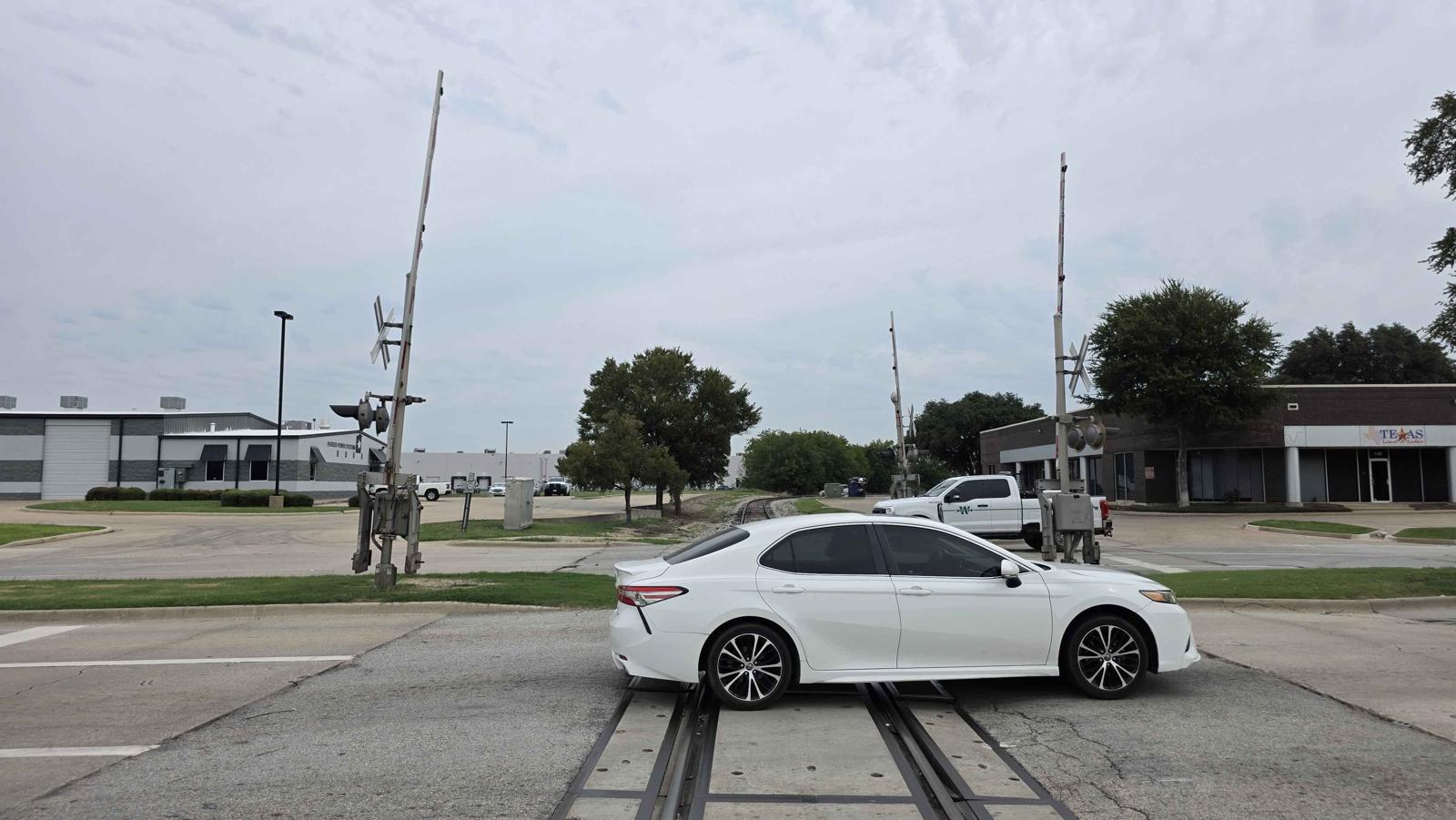

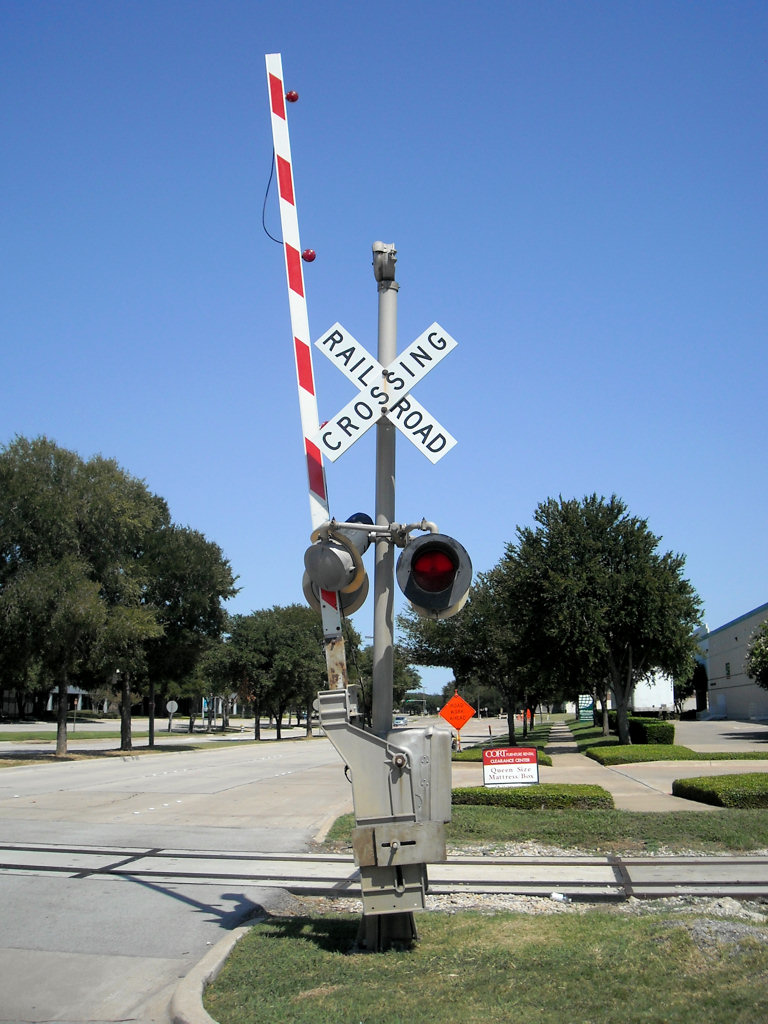

Overall view looking east.
|

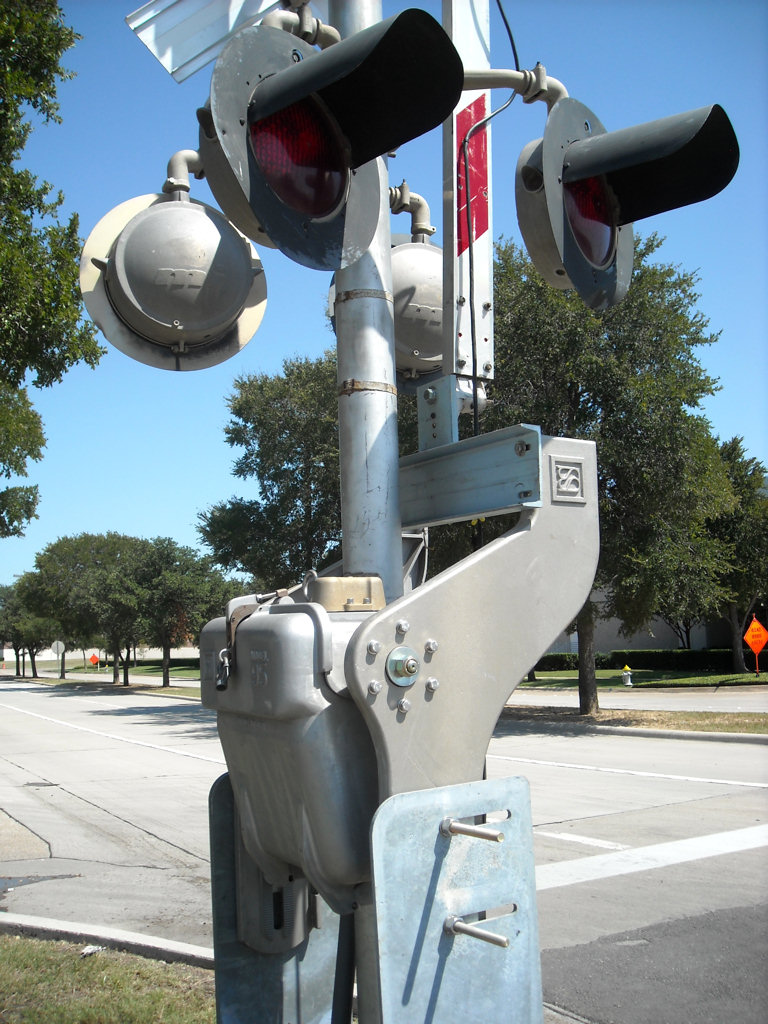

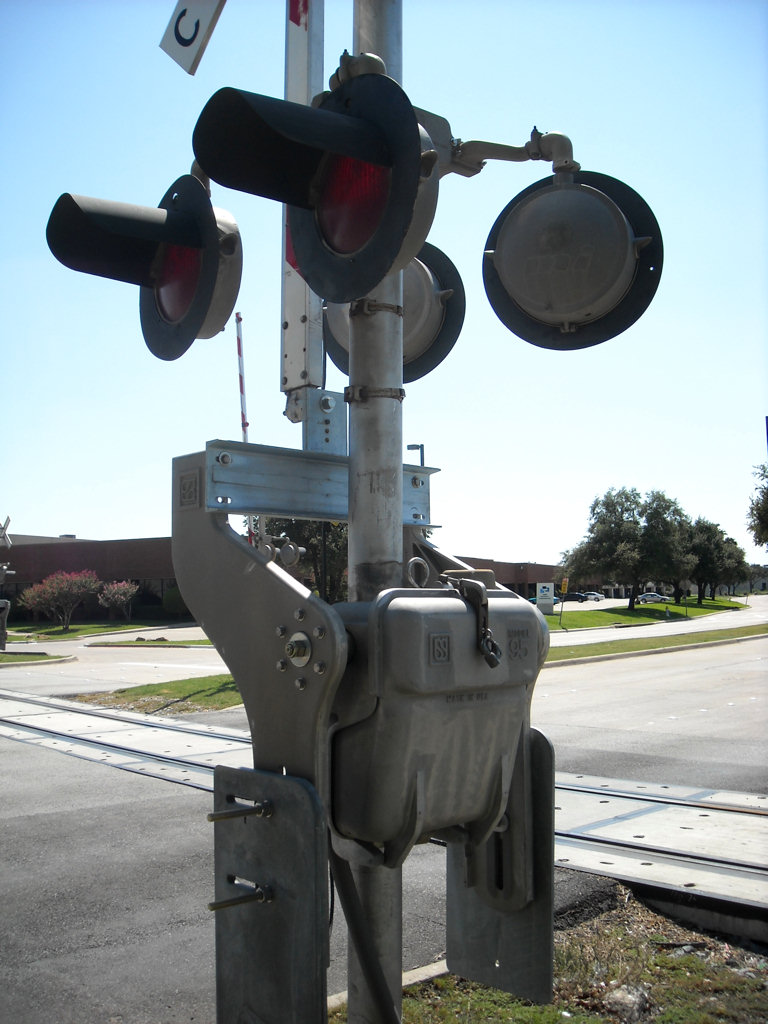

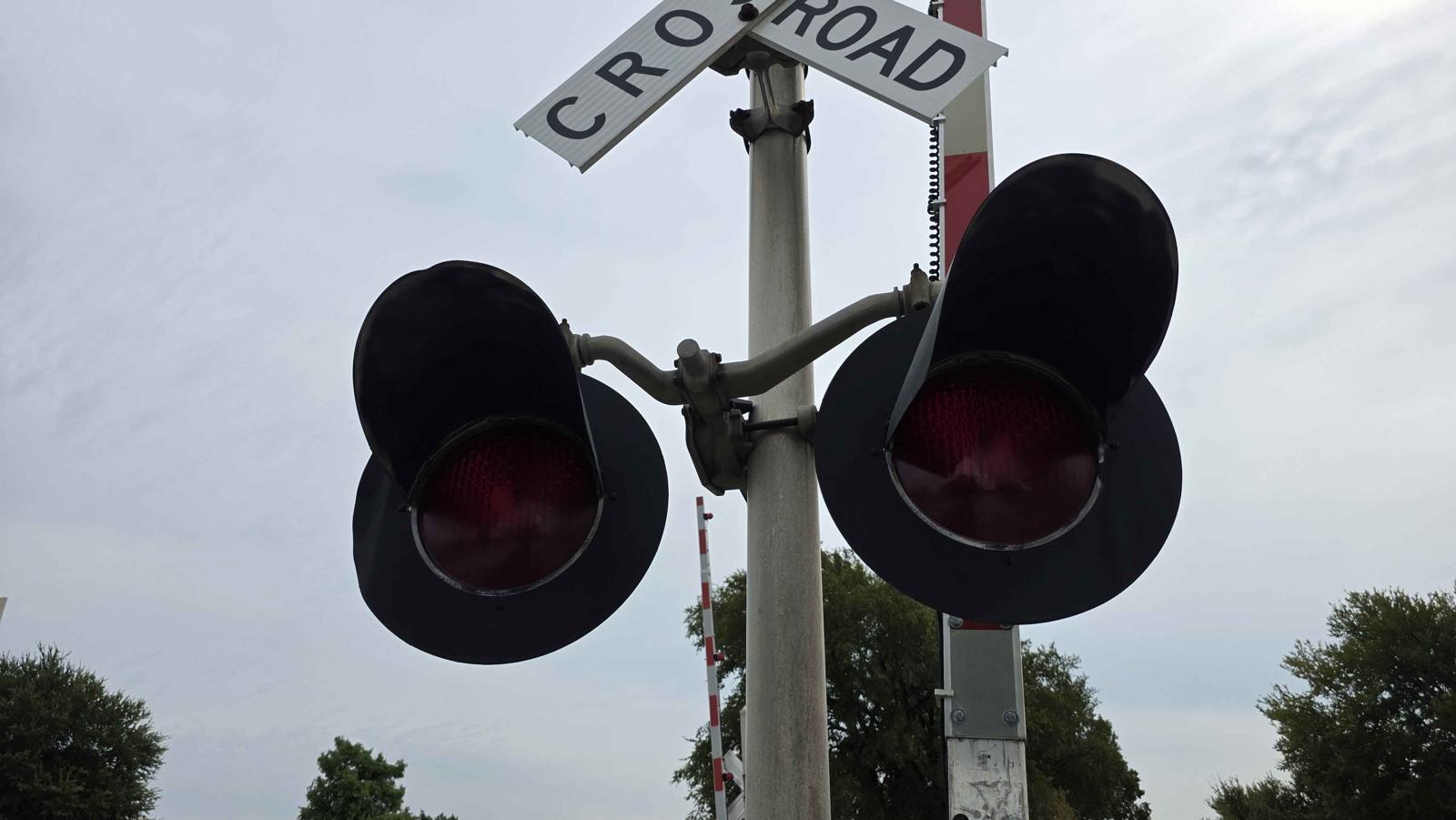

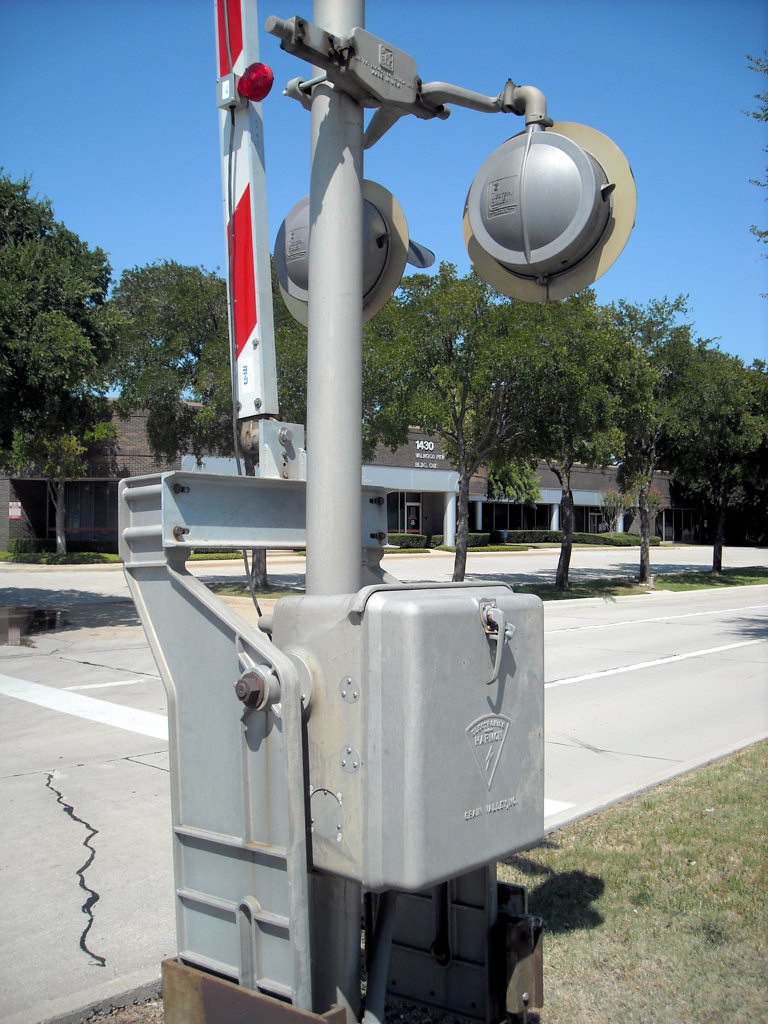

The front and back of the eastbound shoulder
signal.
|
|||||||
|
4
|
5
|
6
|
7
|
||||||||
|

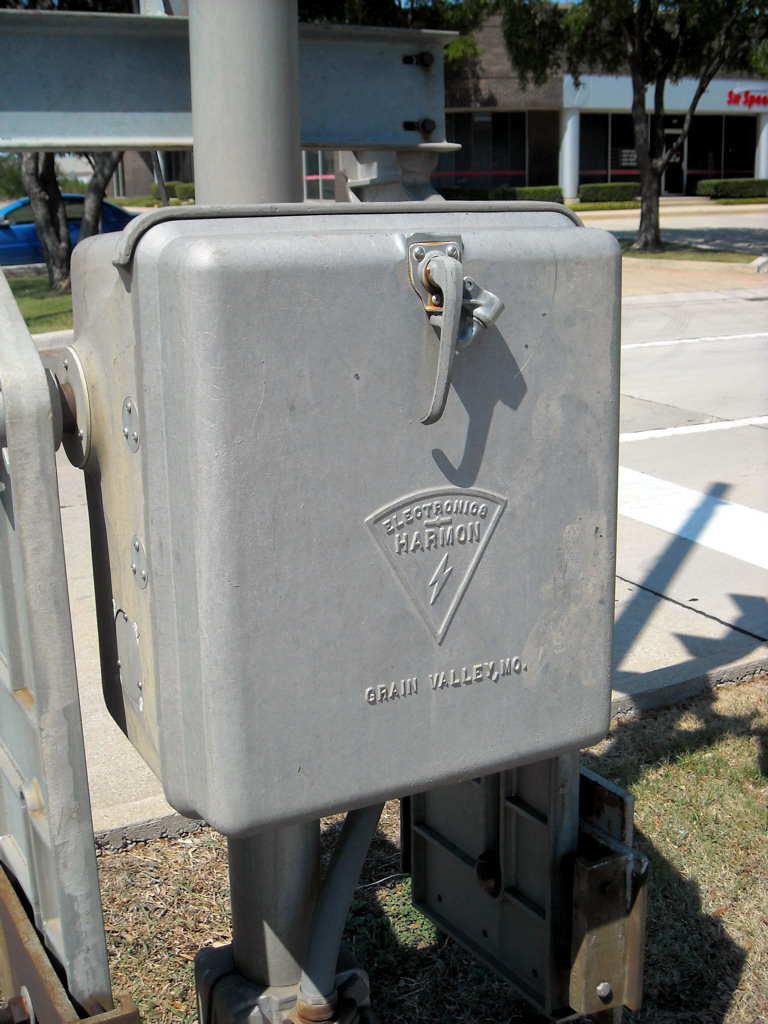

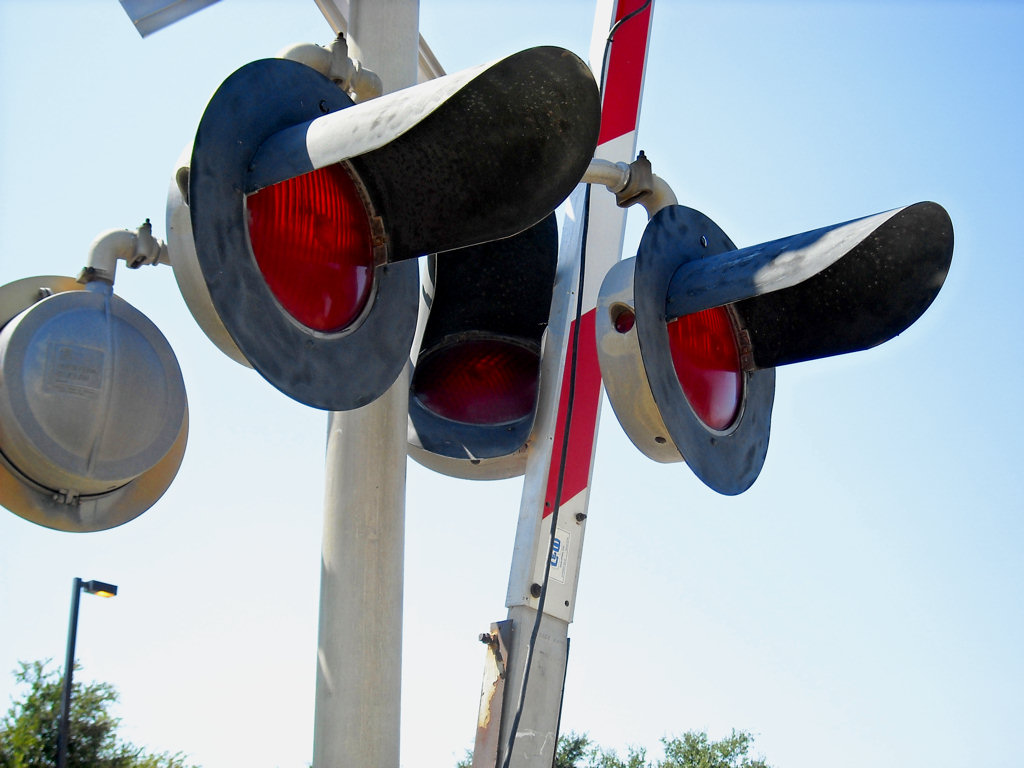

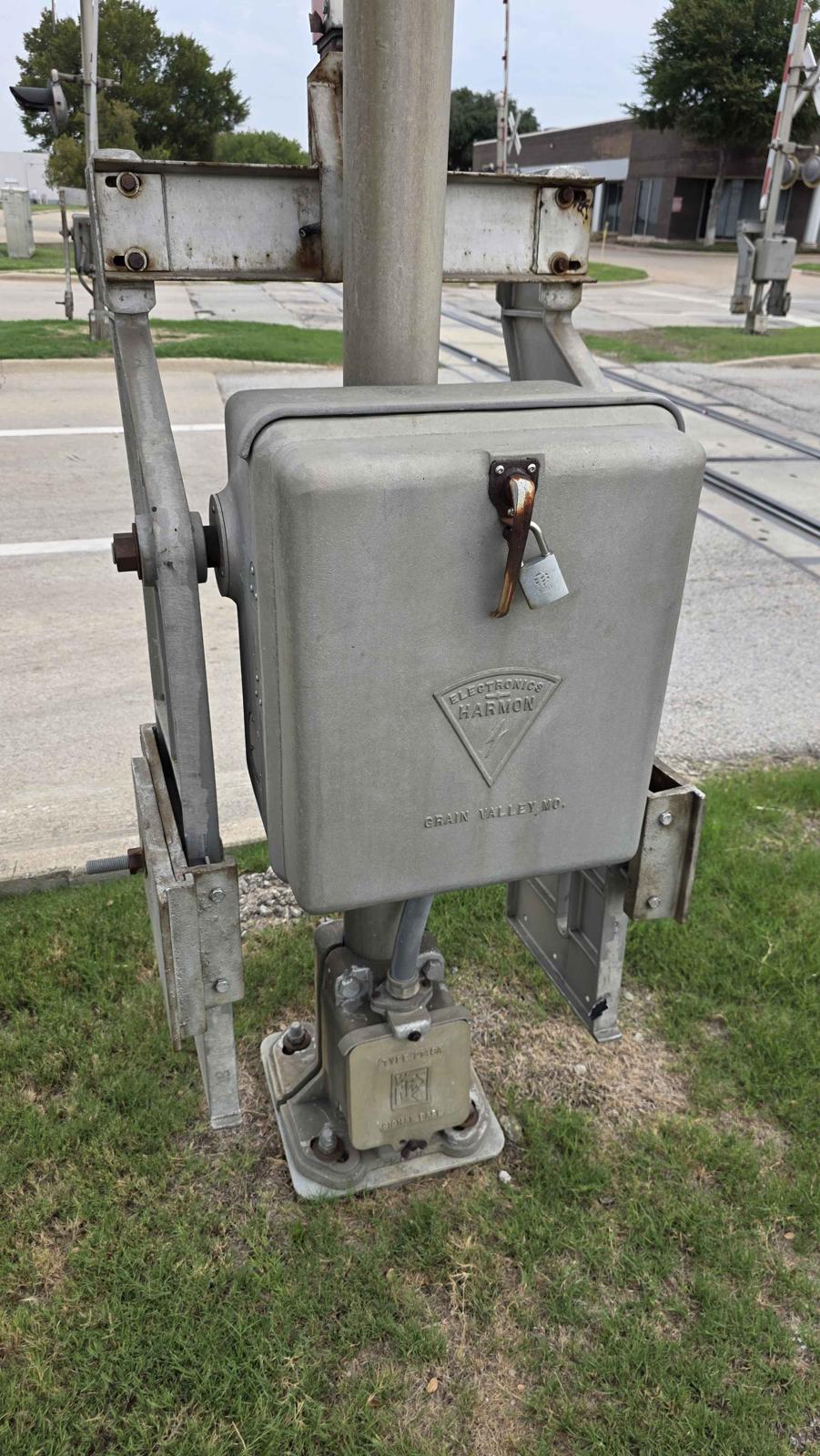

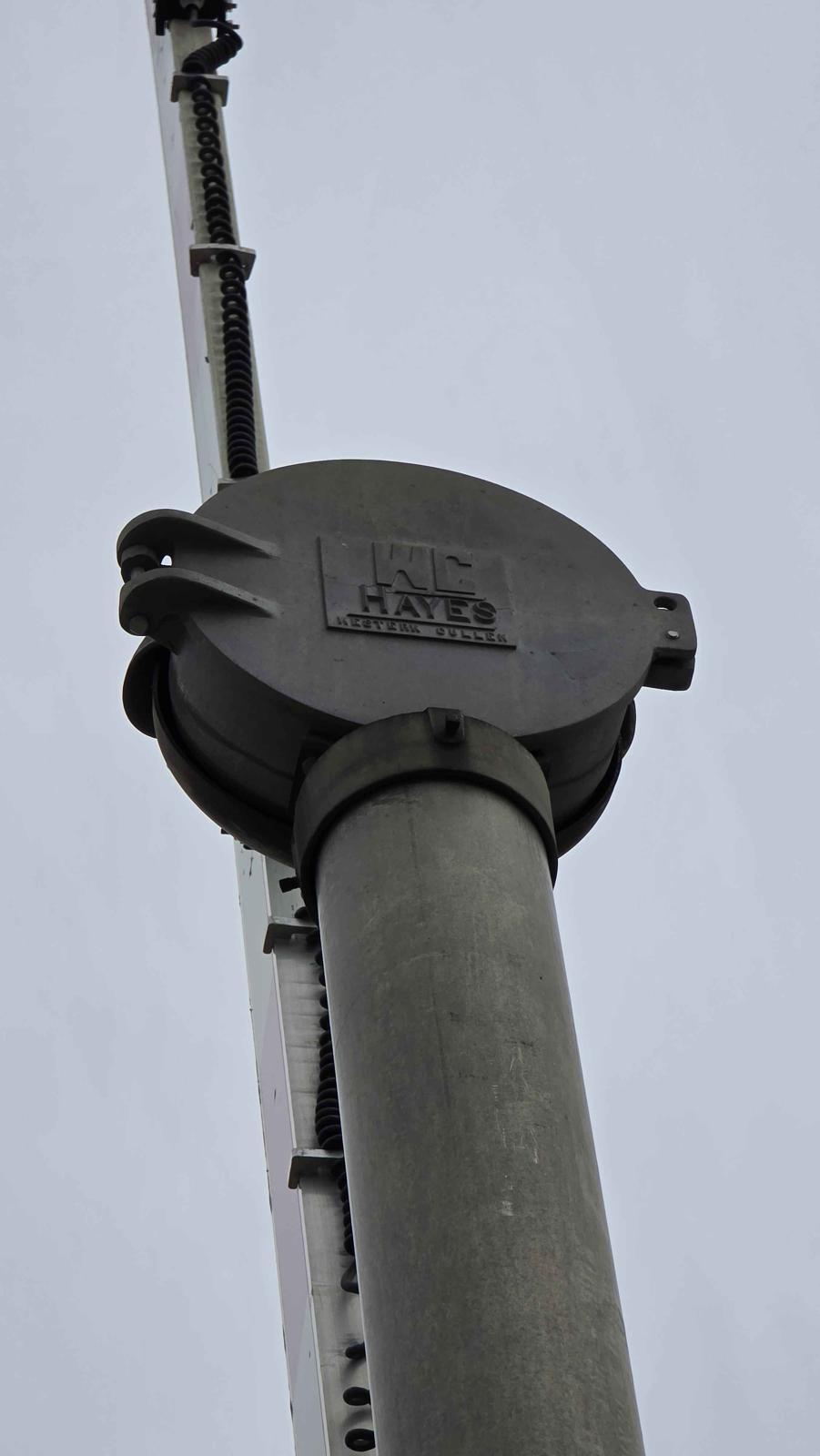

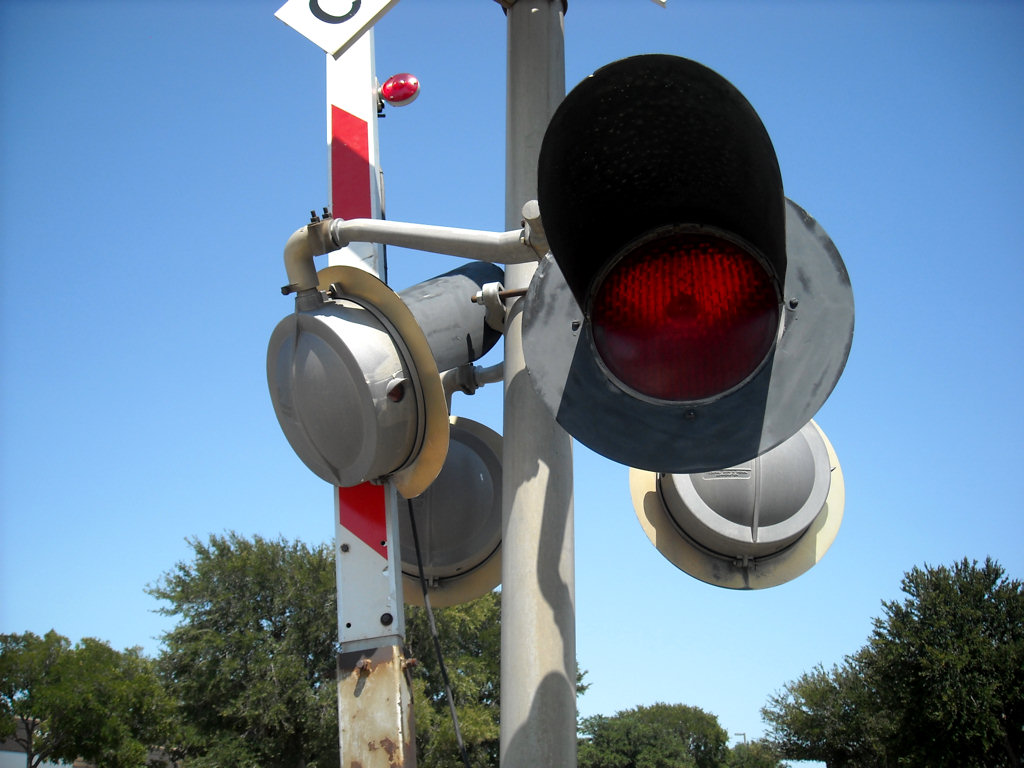

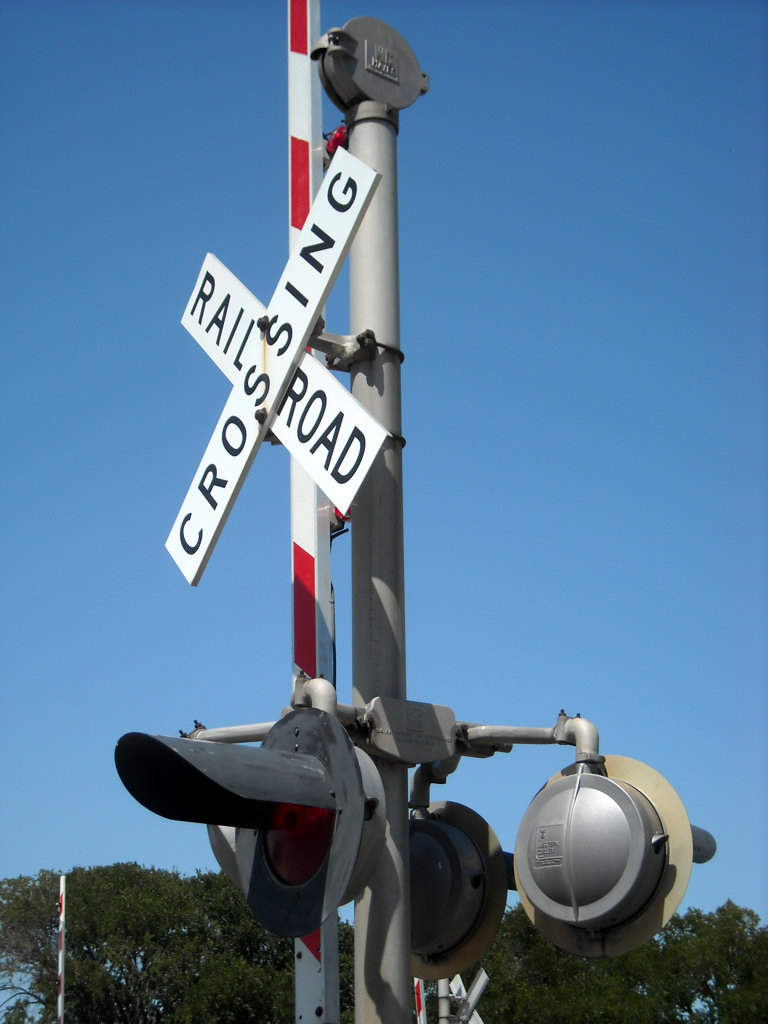

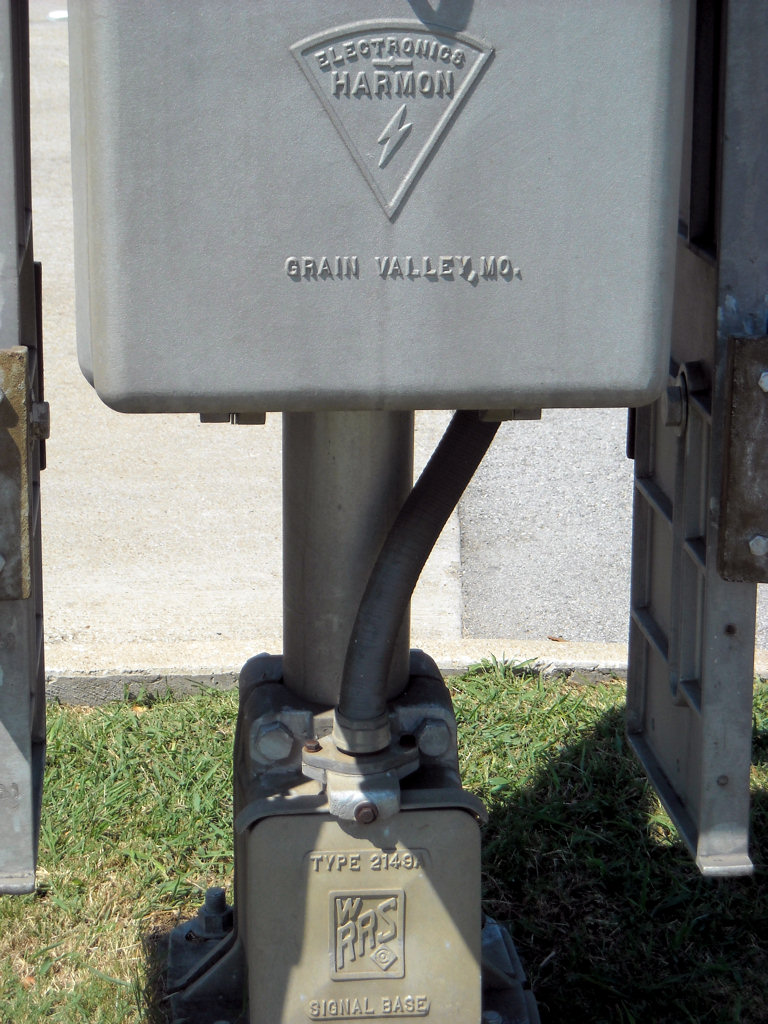

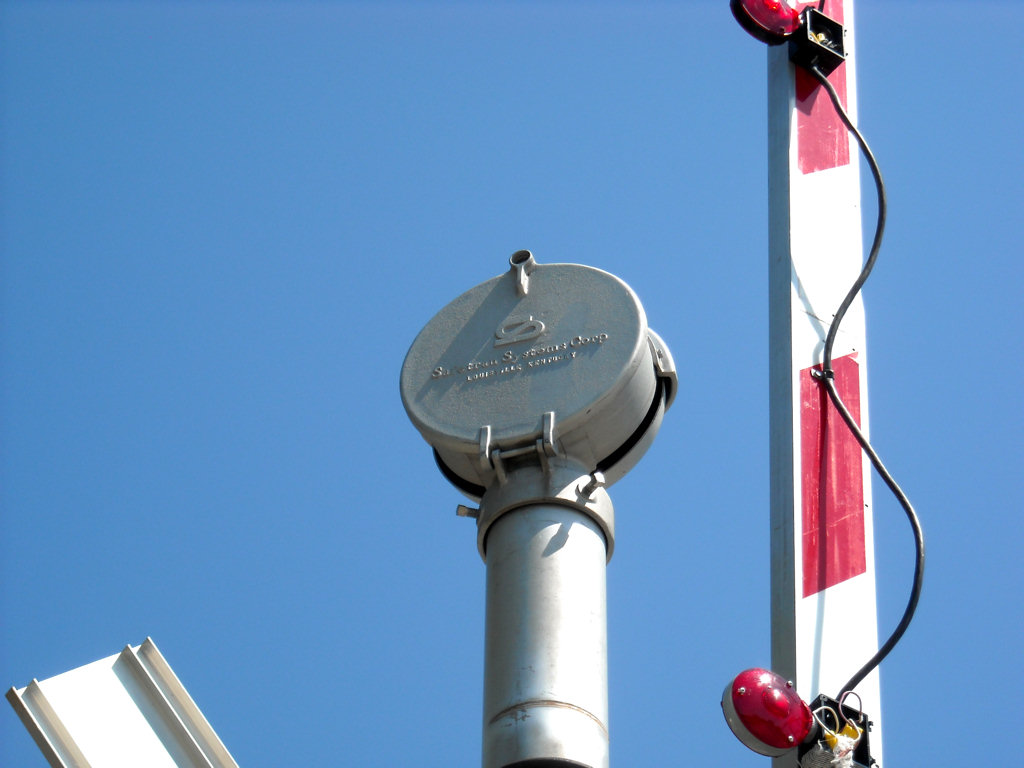

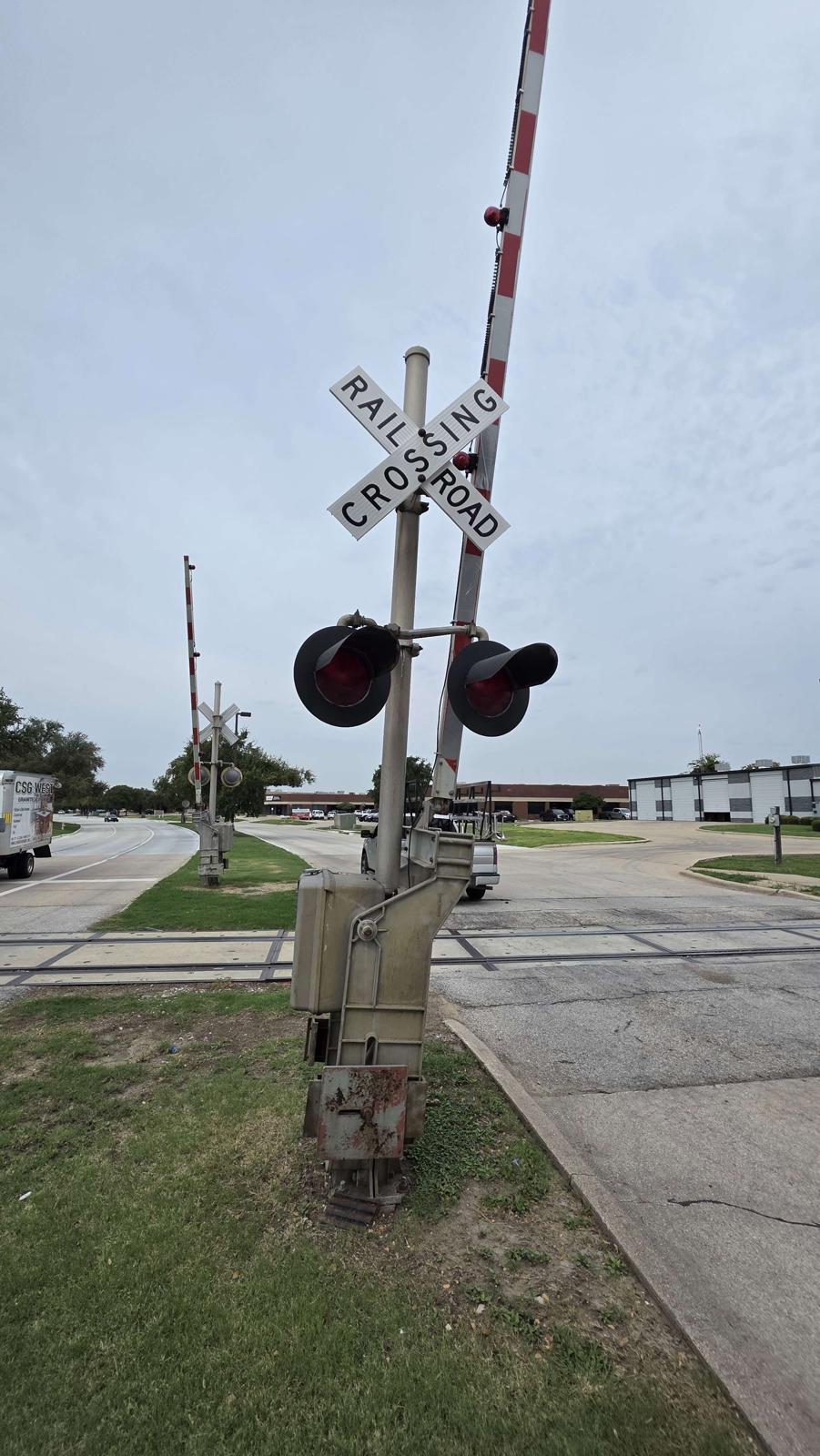

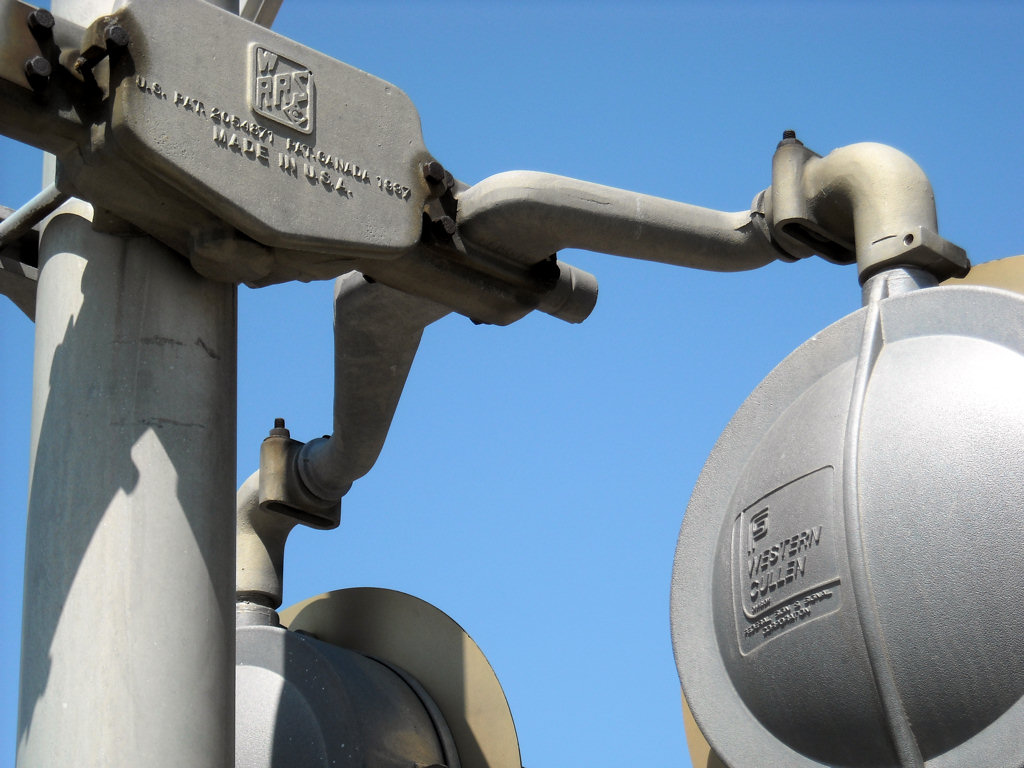

The eastbound shoulder signal has a WC Hayes
mechanical bell, a Harmon Electronics gate mechanism, and Federal
Signal/Western Cullen 12"x20" incandescent lights. One of the lights
got turned backwards, it was most likely hit by a passing truck since
there are so many driving around in this industrial area.
|
|||||||||||
|
8
|
9
|
10
|
11
|
12
|
||||||||||
|

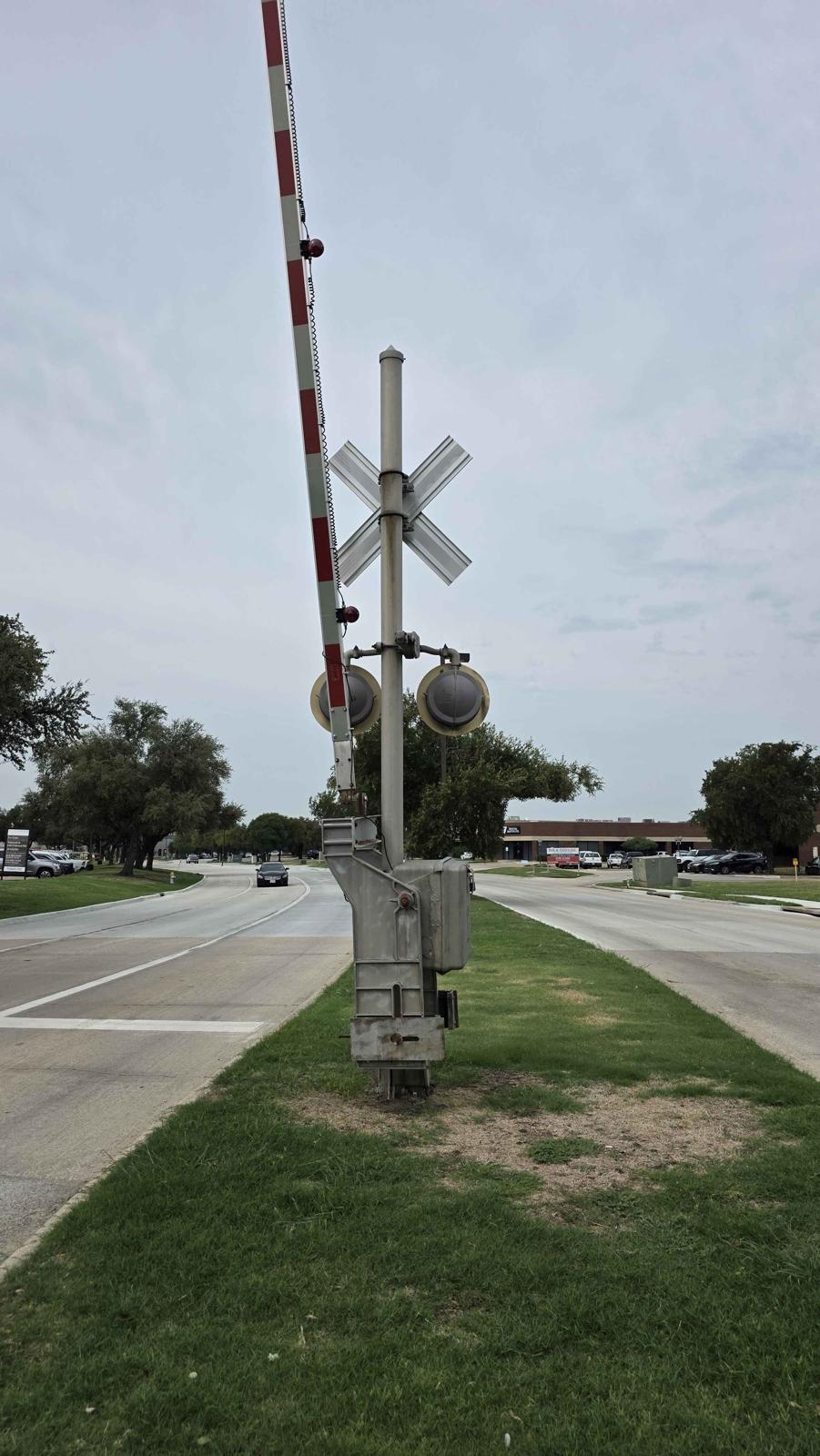

The eastbound median signal. Notice that both
median signals do not have bells.
|

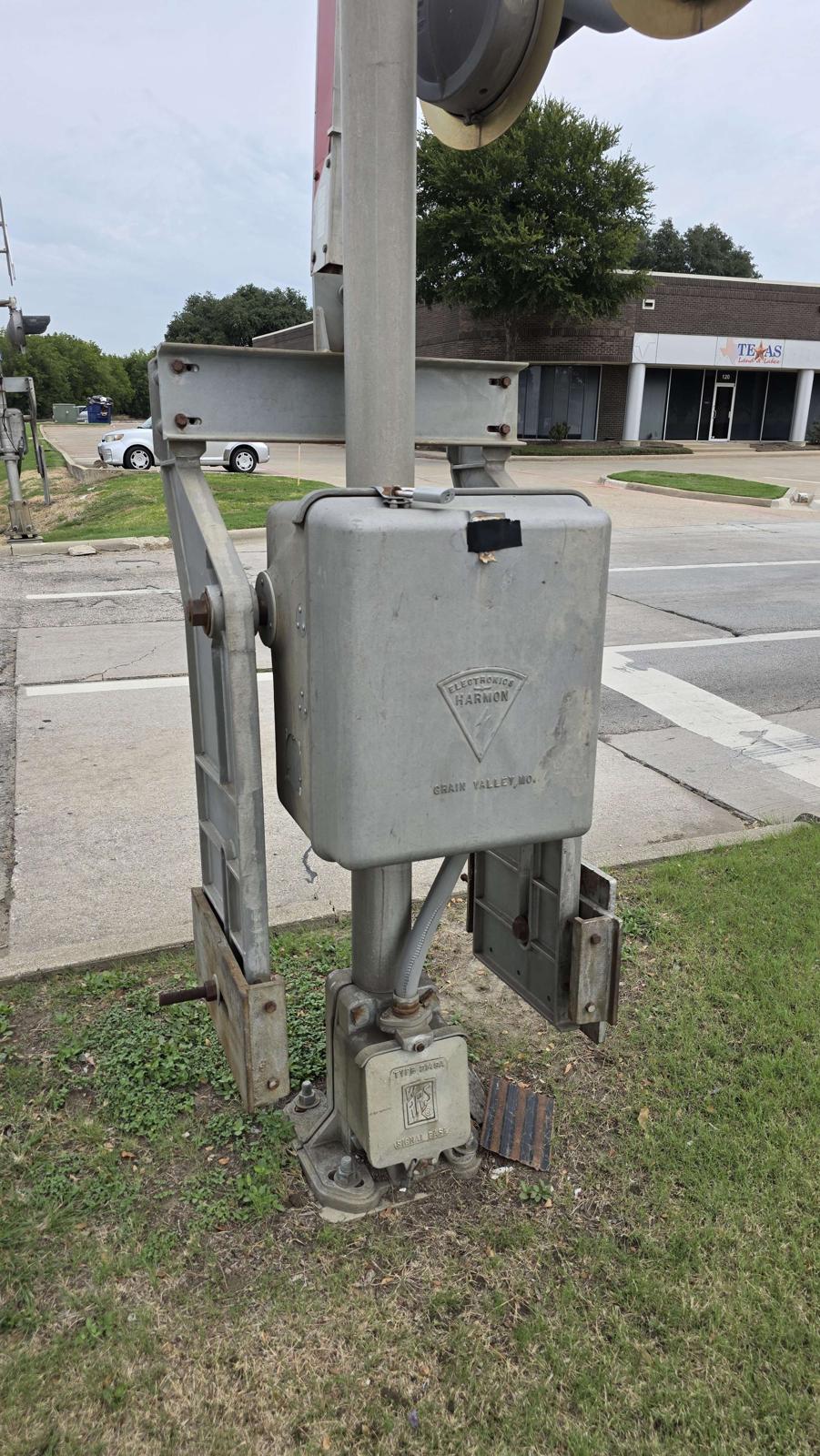

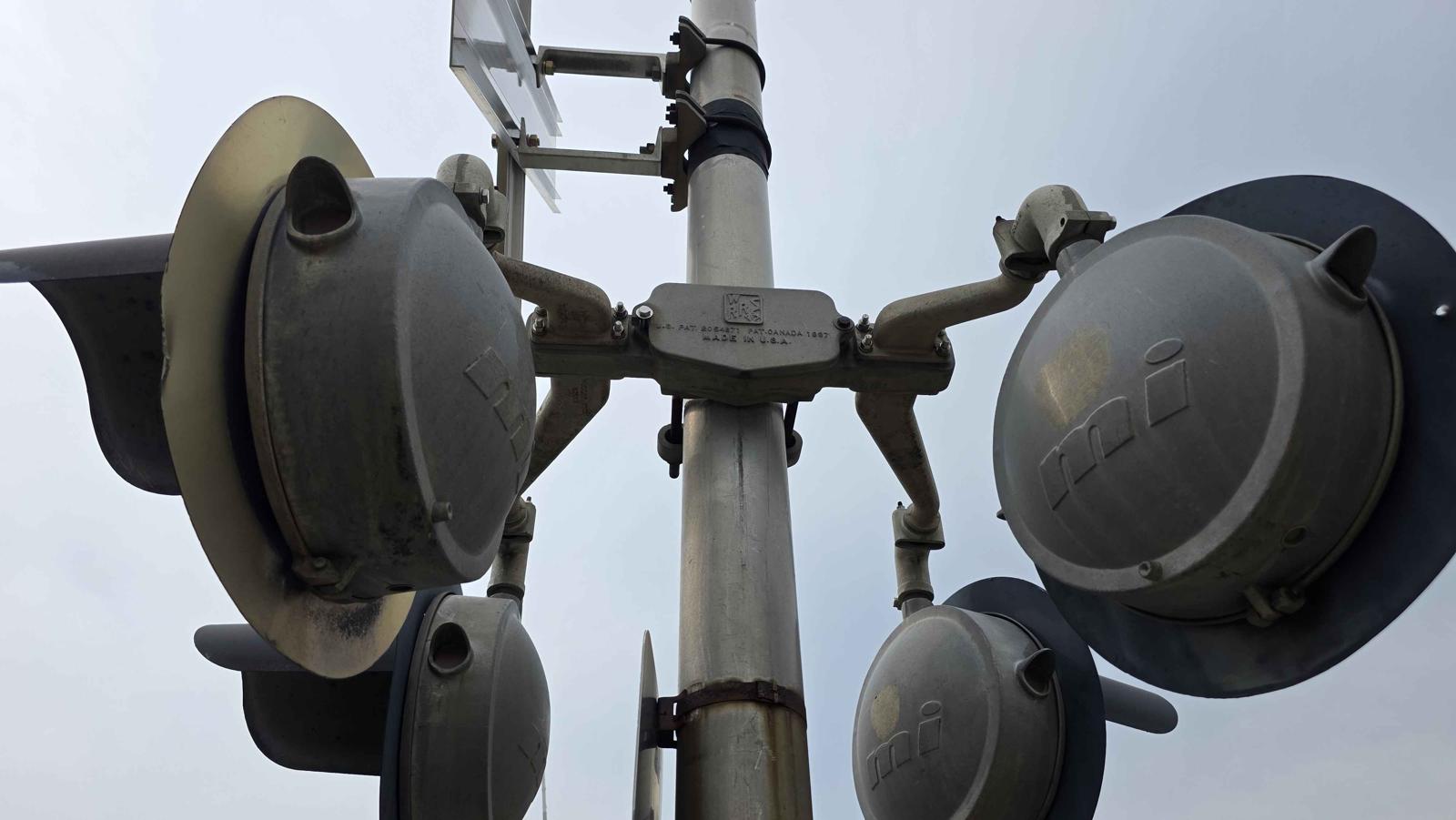

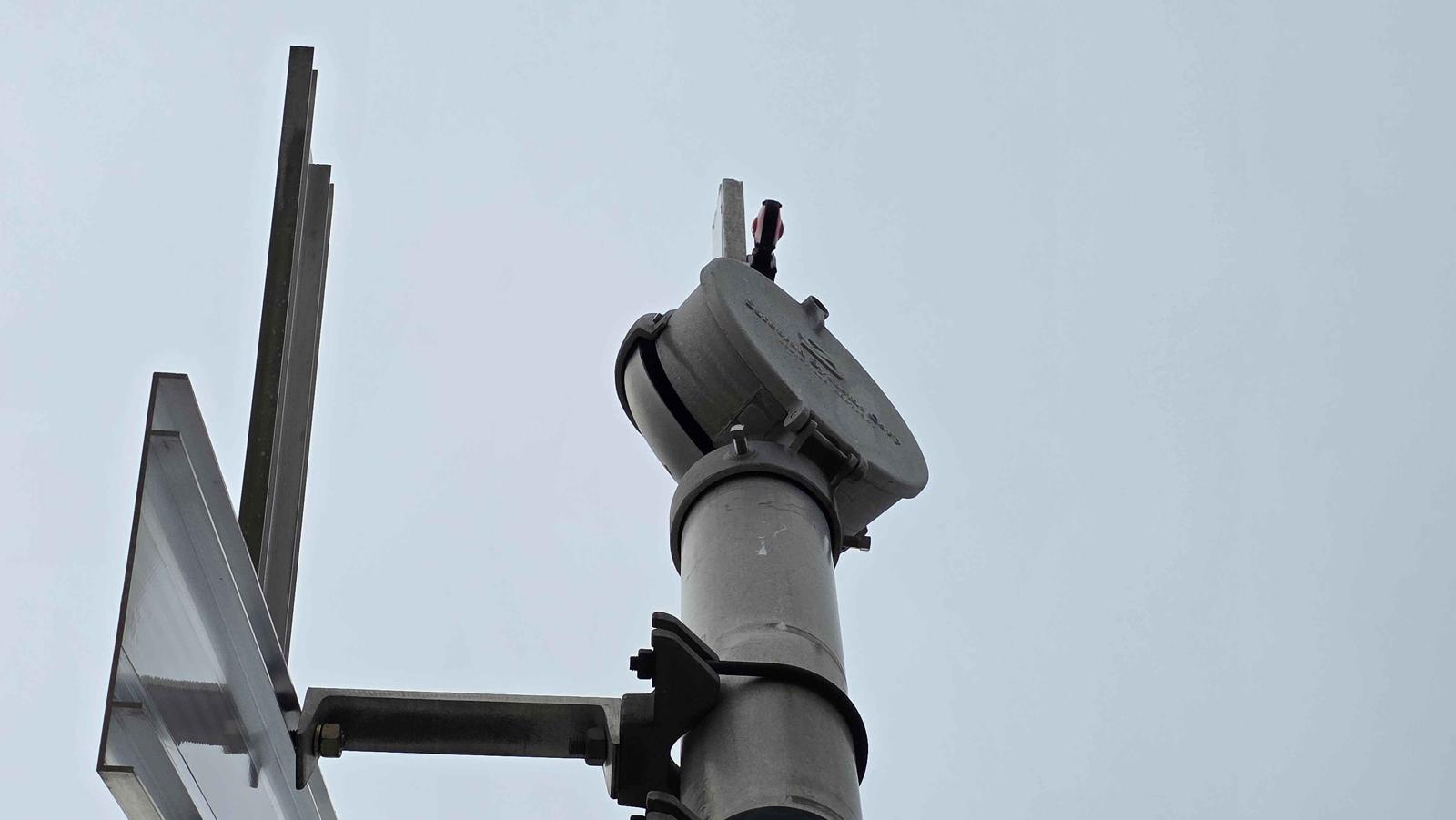

The westbound shoulder signal is equipped
differently than the other 3 signals: it has MI 12"x20" incandescent
lights, a US&S model 95 gate mechanism, and a Safetran mechanical
bell.
|
|||||||||||||
|
13
|
14
|
15
|
||||||
|

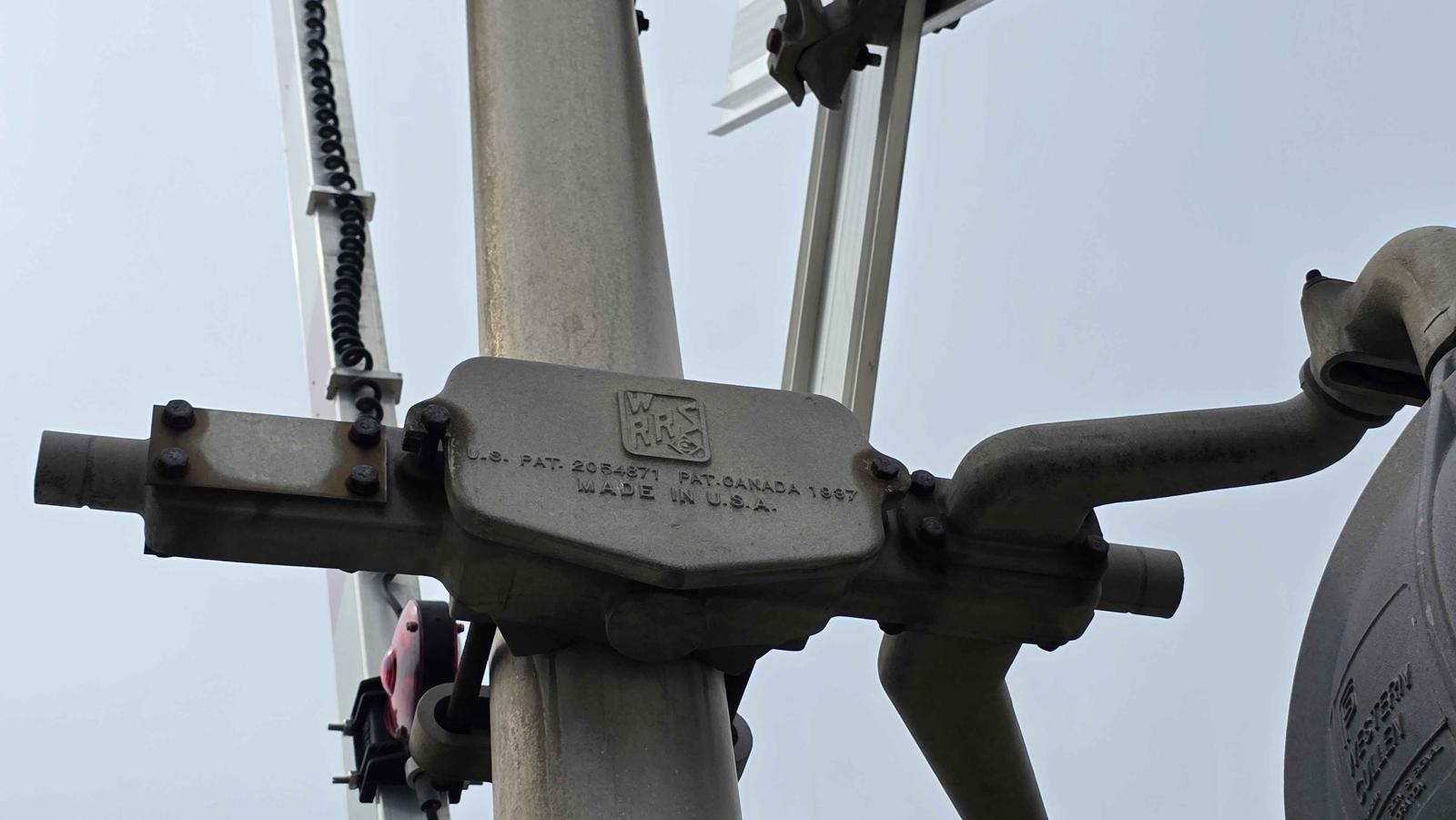

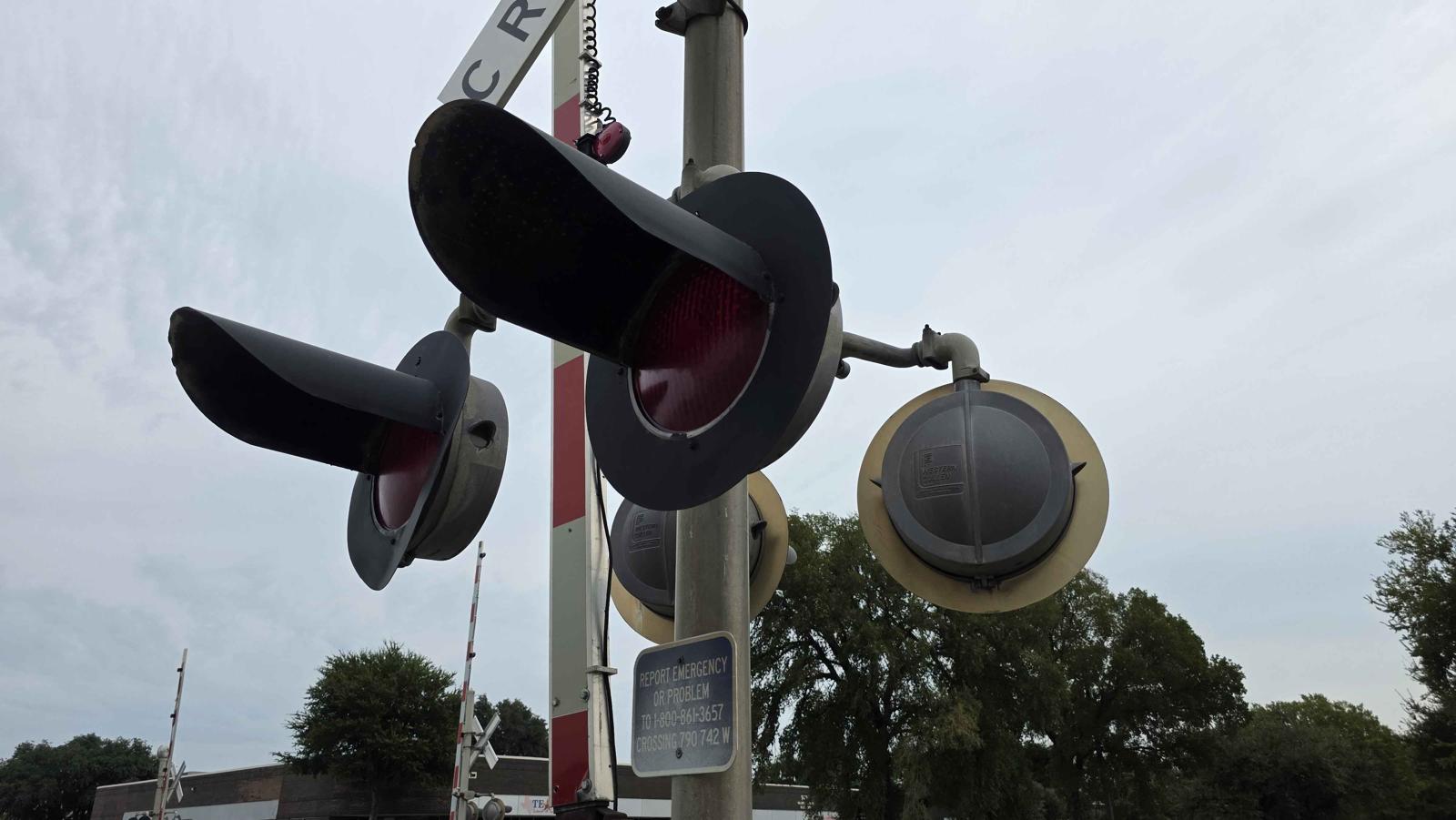

The westbound median signal also has a Harmon
gate mechanism and Federal Signal lights on a WRRS bracket.
|
||||||||
|
16
|
17
|
18
|
19
|
||||||||
|

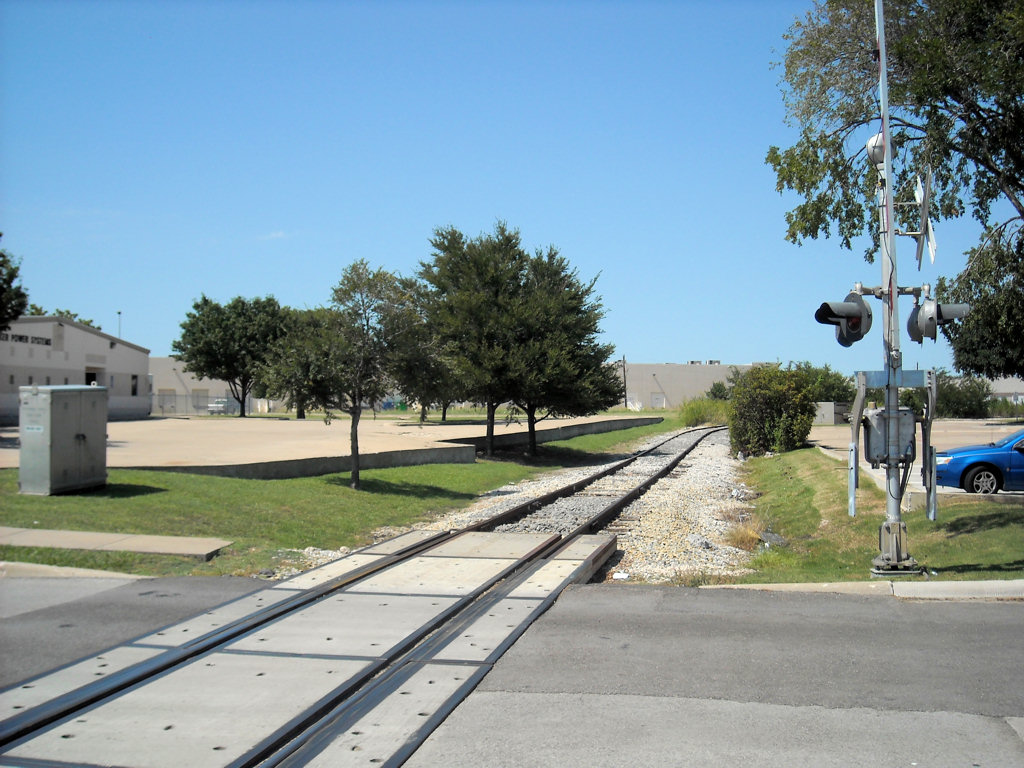

Track view looking north (towards the Crosby
Rd. #3 crossing).
|

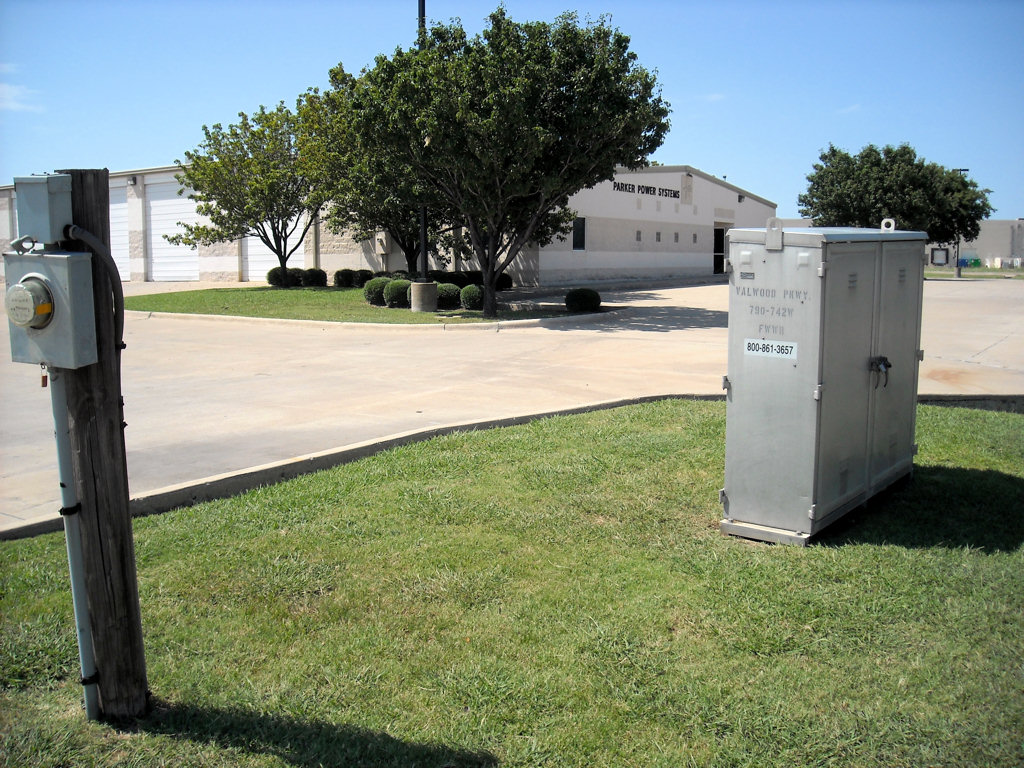

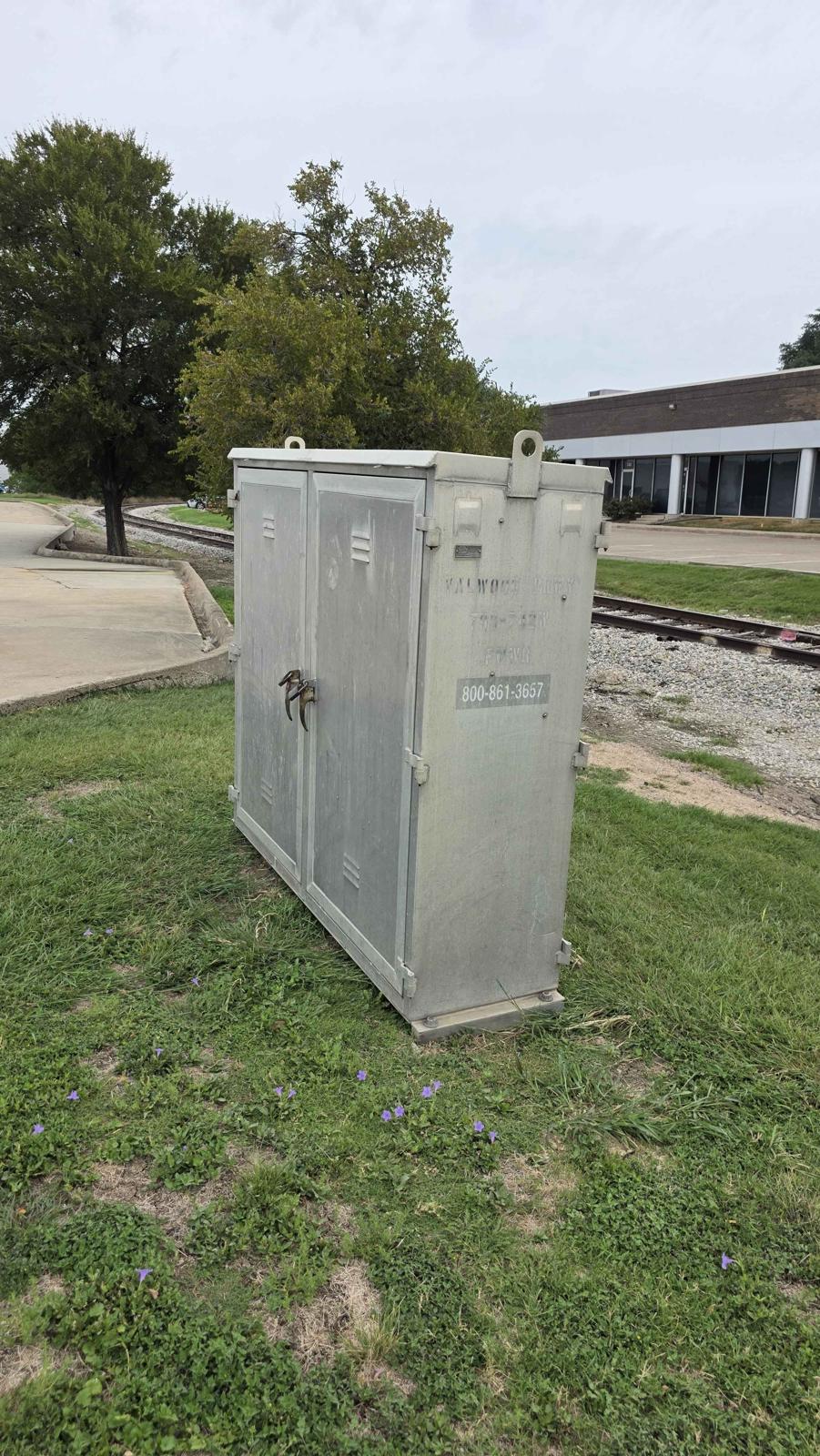

The relay case.
|
||||||||||
A return visit in May 2025 by Morrison & Friends shows that no major changes have occured to the crossing.
20 |
21 |

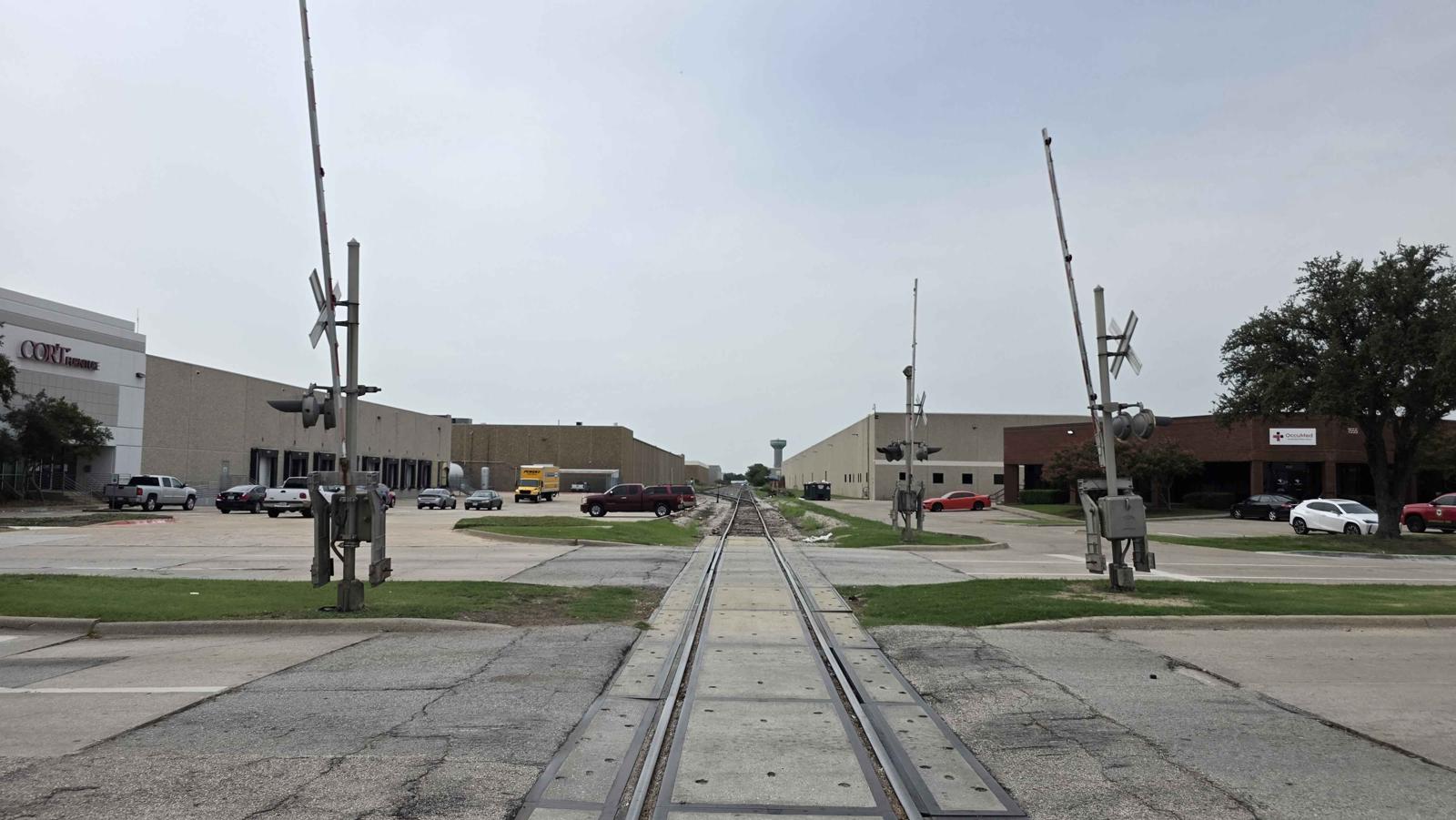

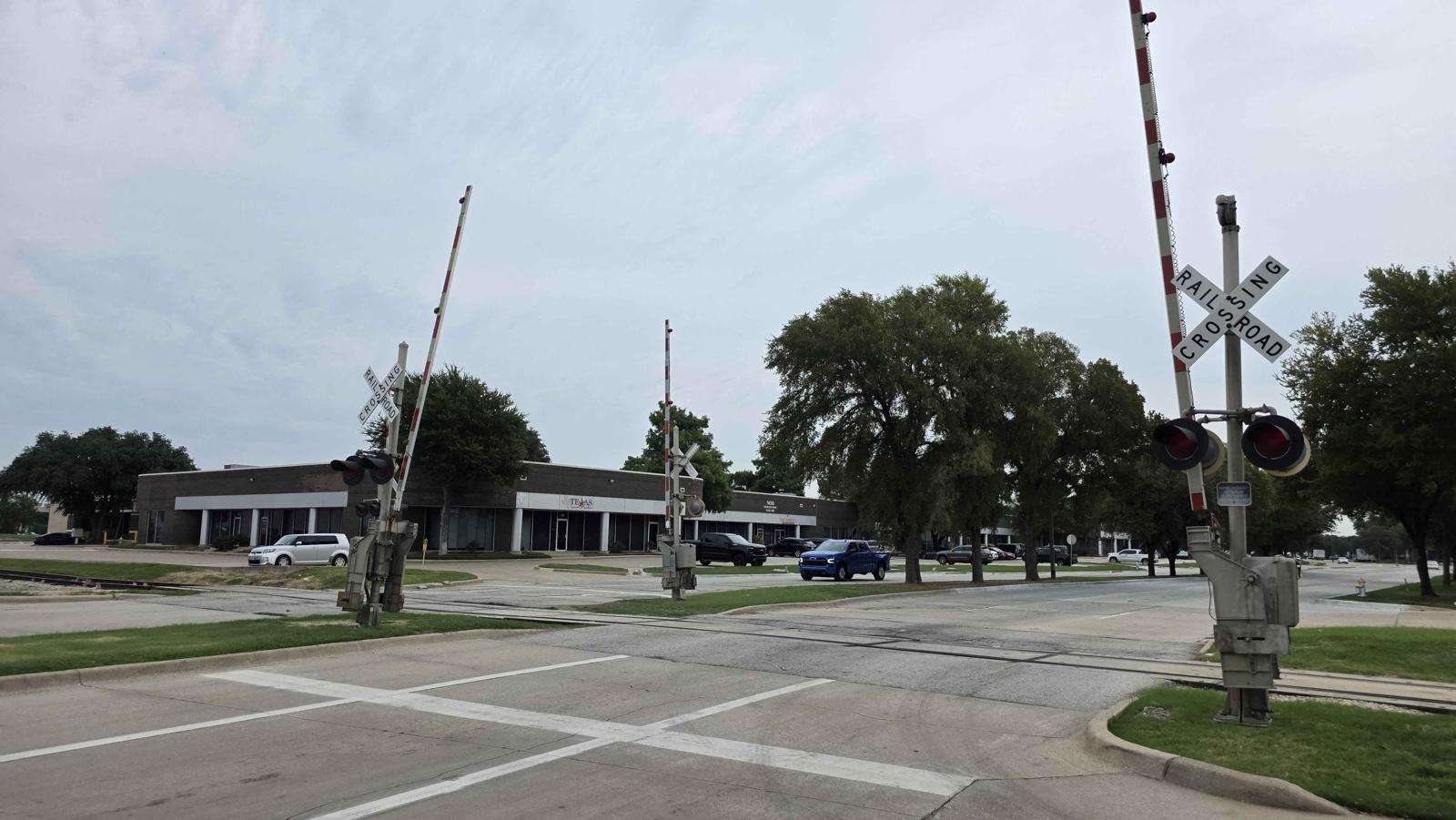

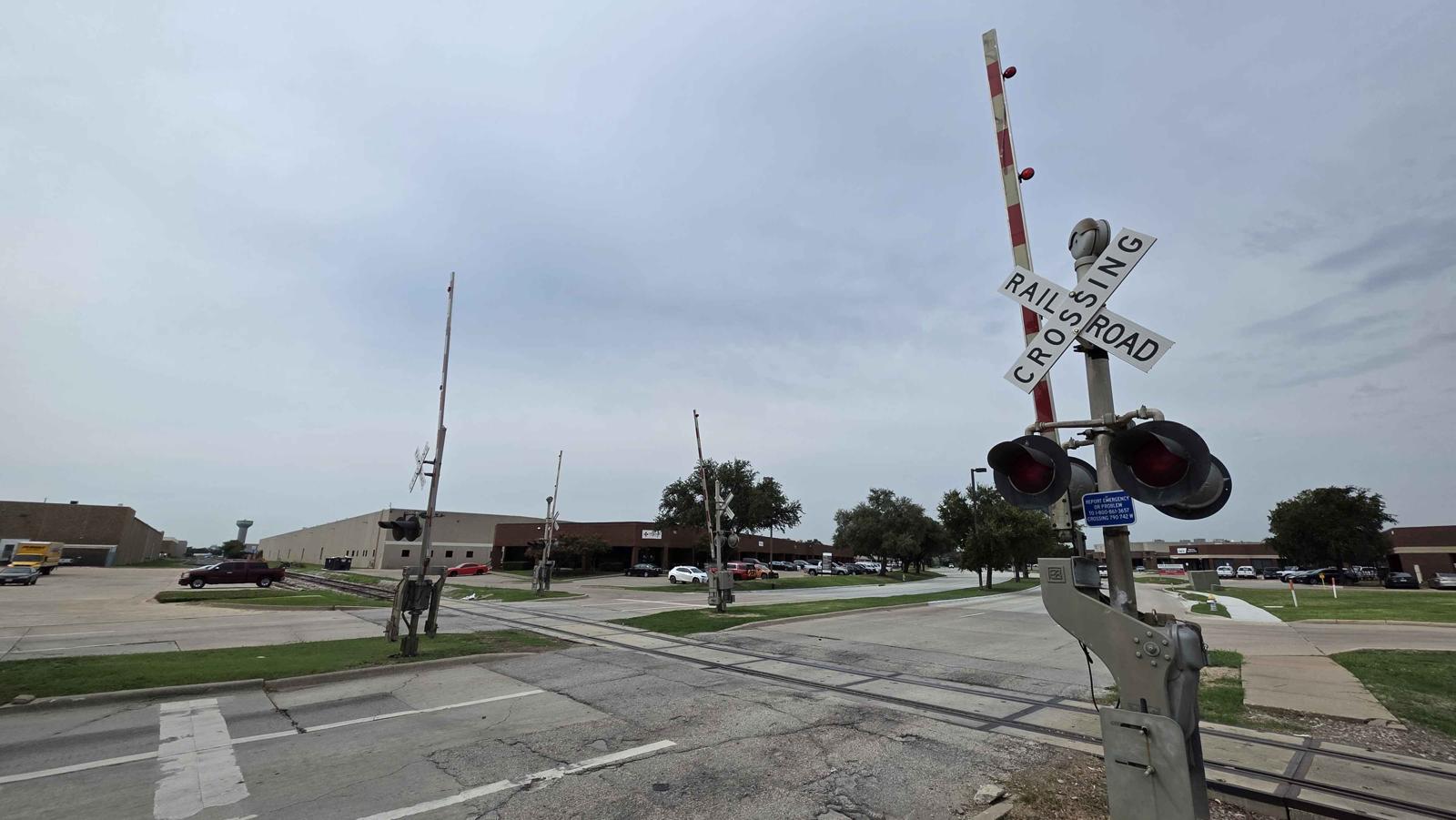

| Overview facing east. | Overview facing west. |
22 |
23 |
24 |
25 |
26 |
27 |
28 |
29 |

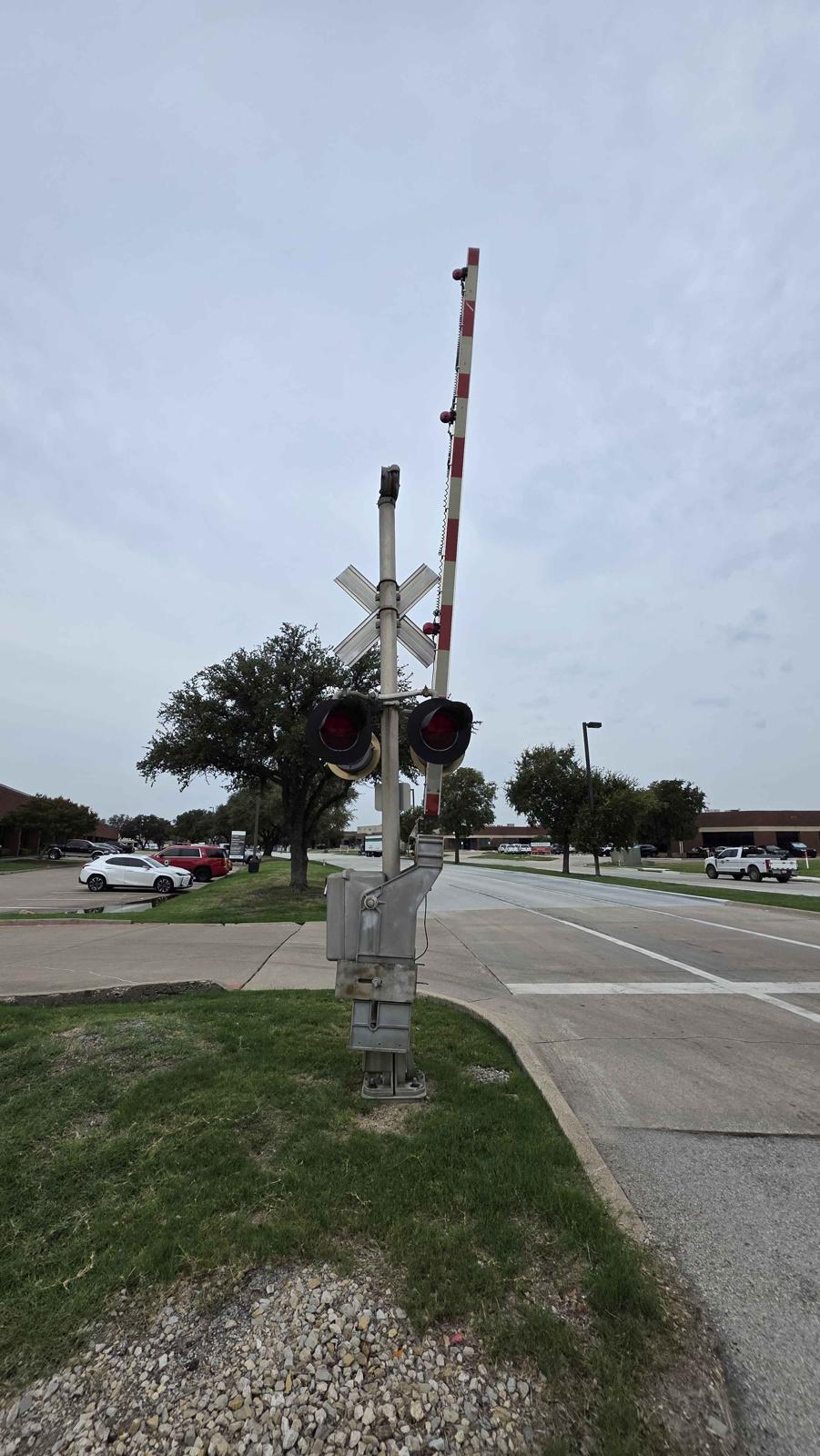

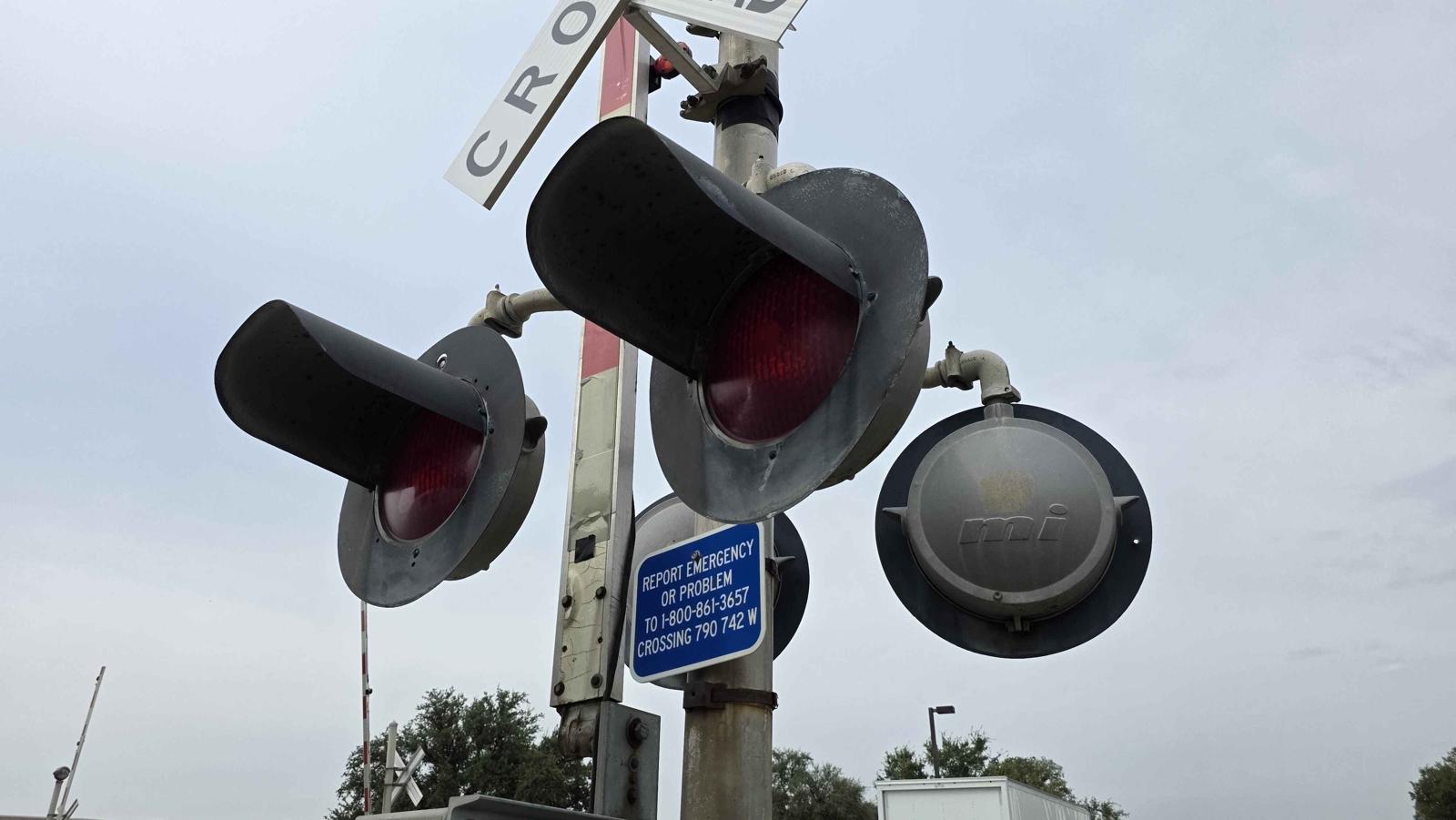

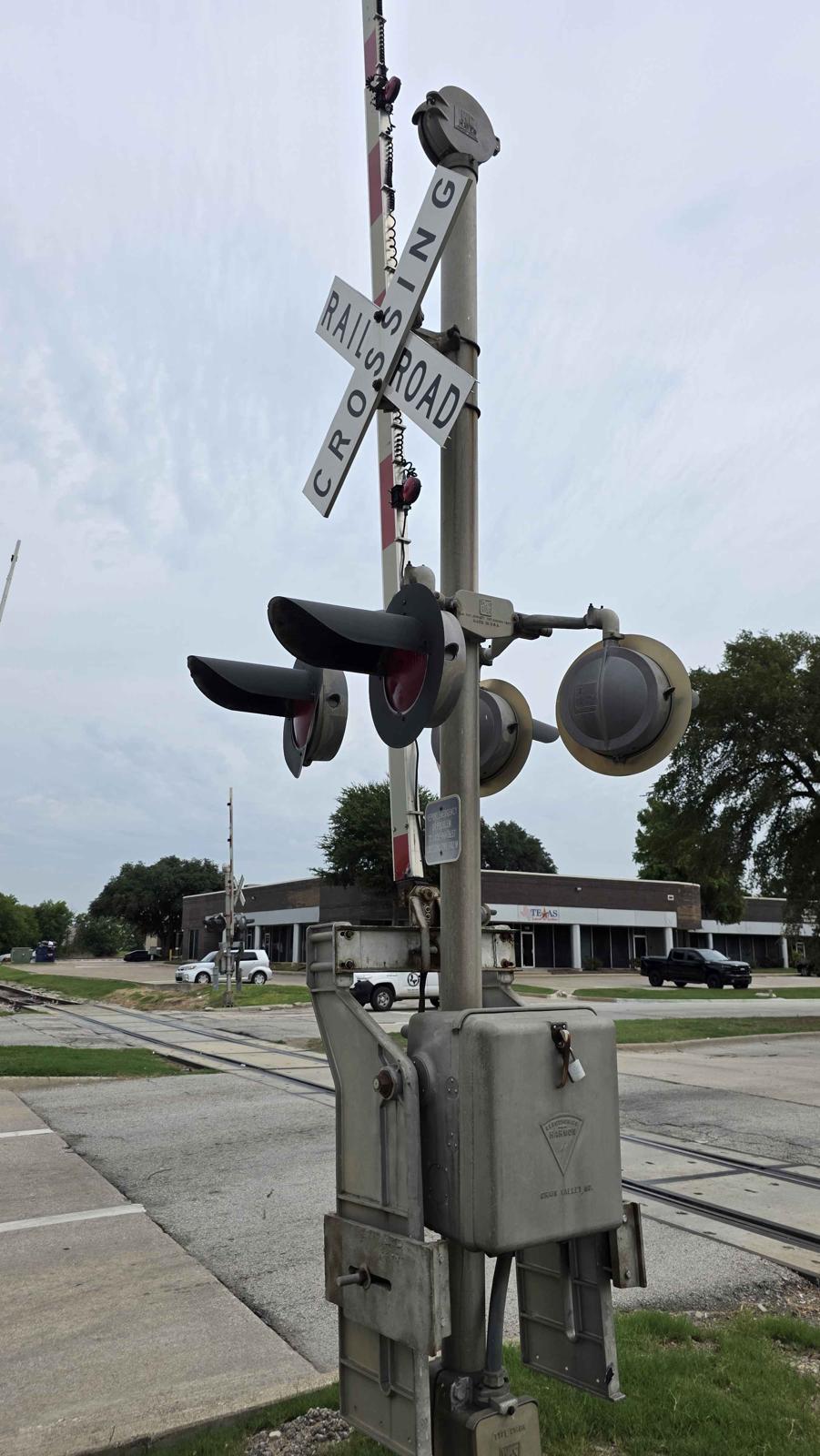

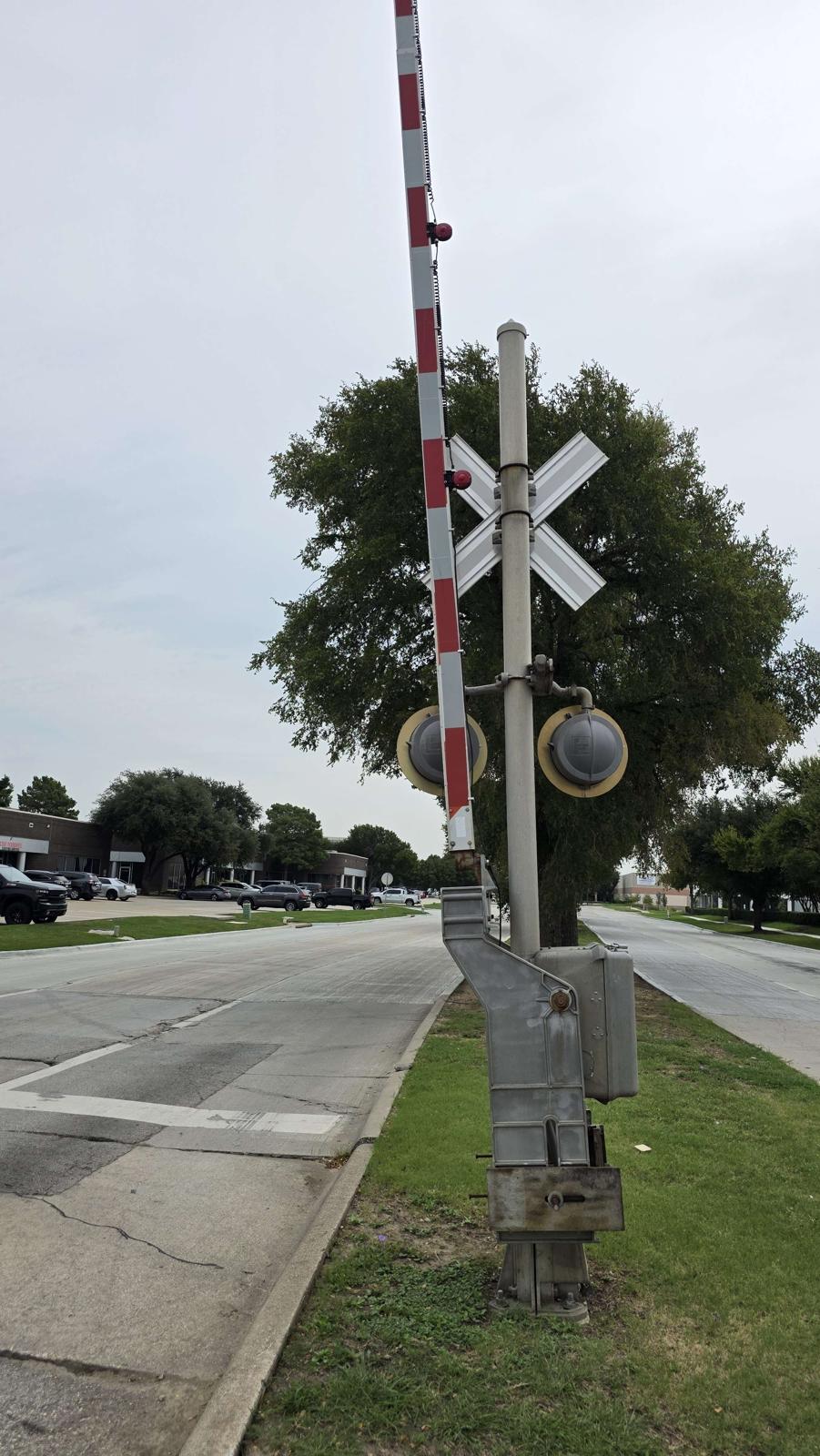

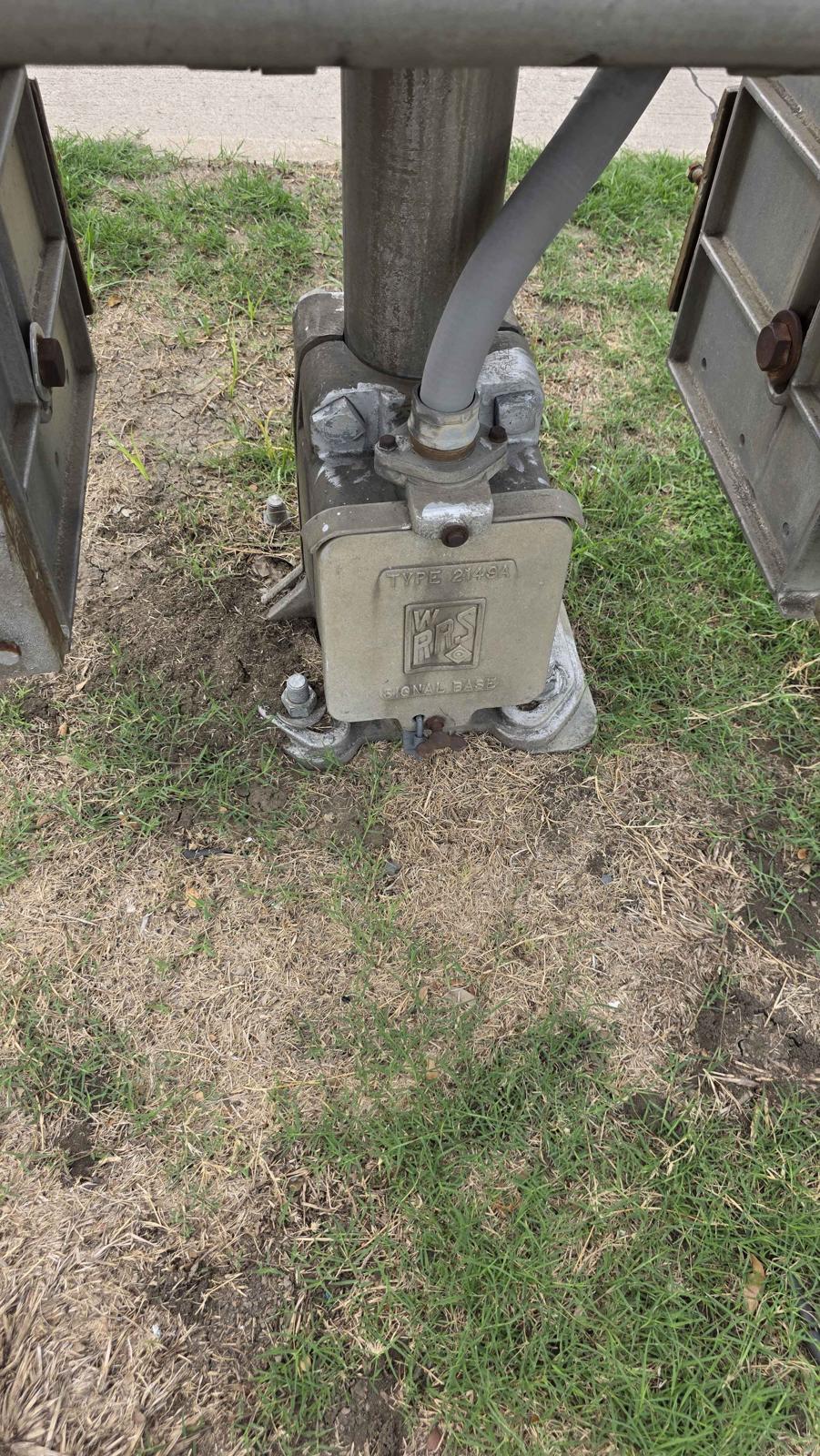

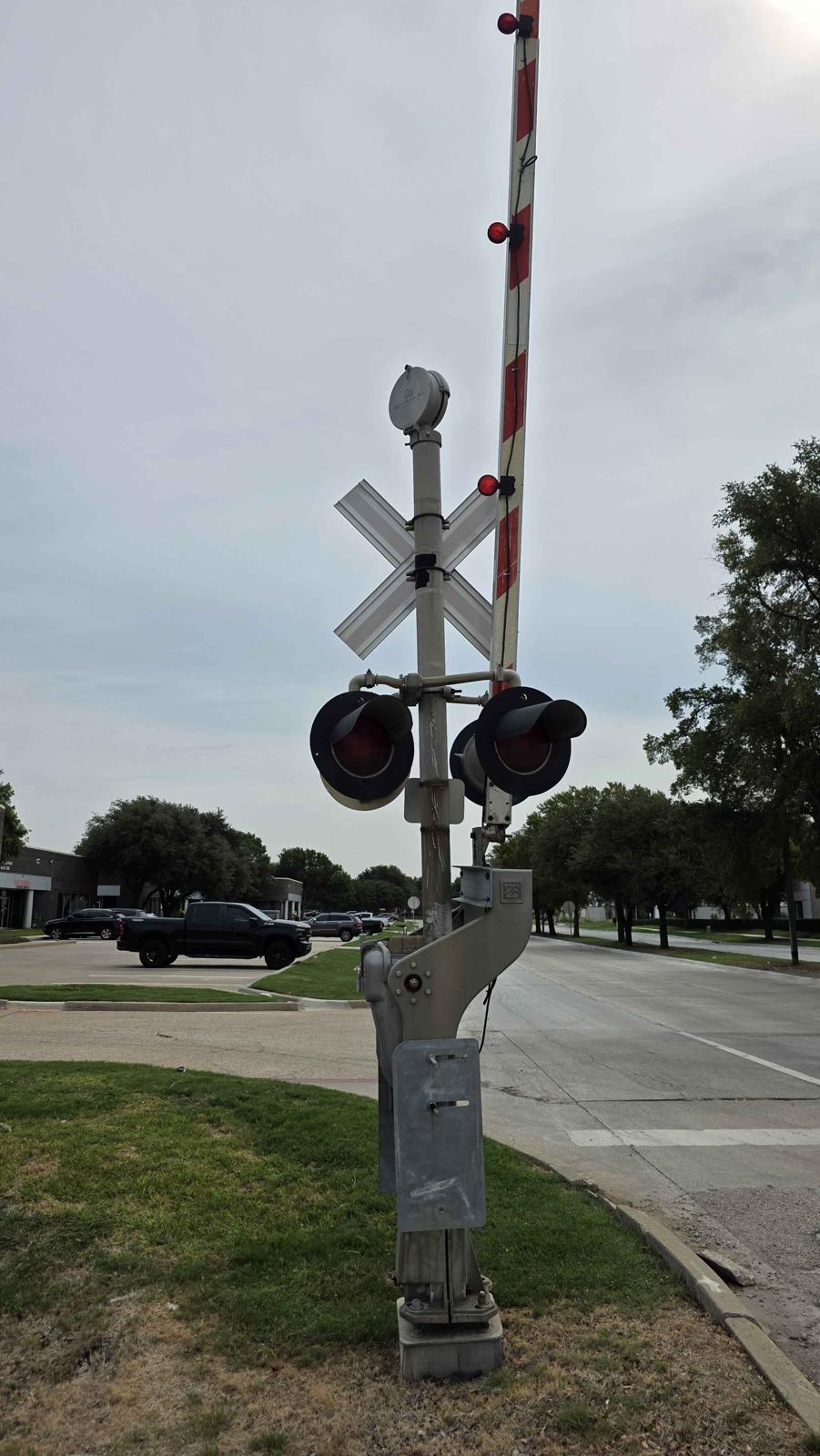

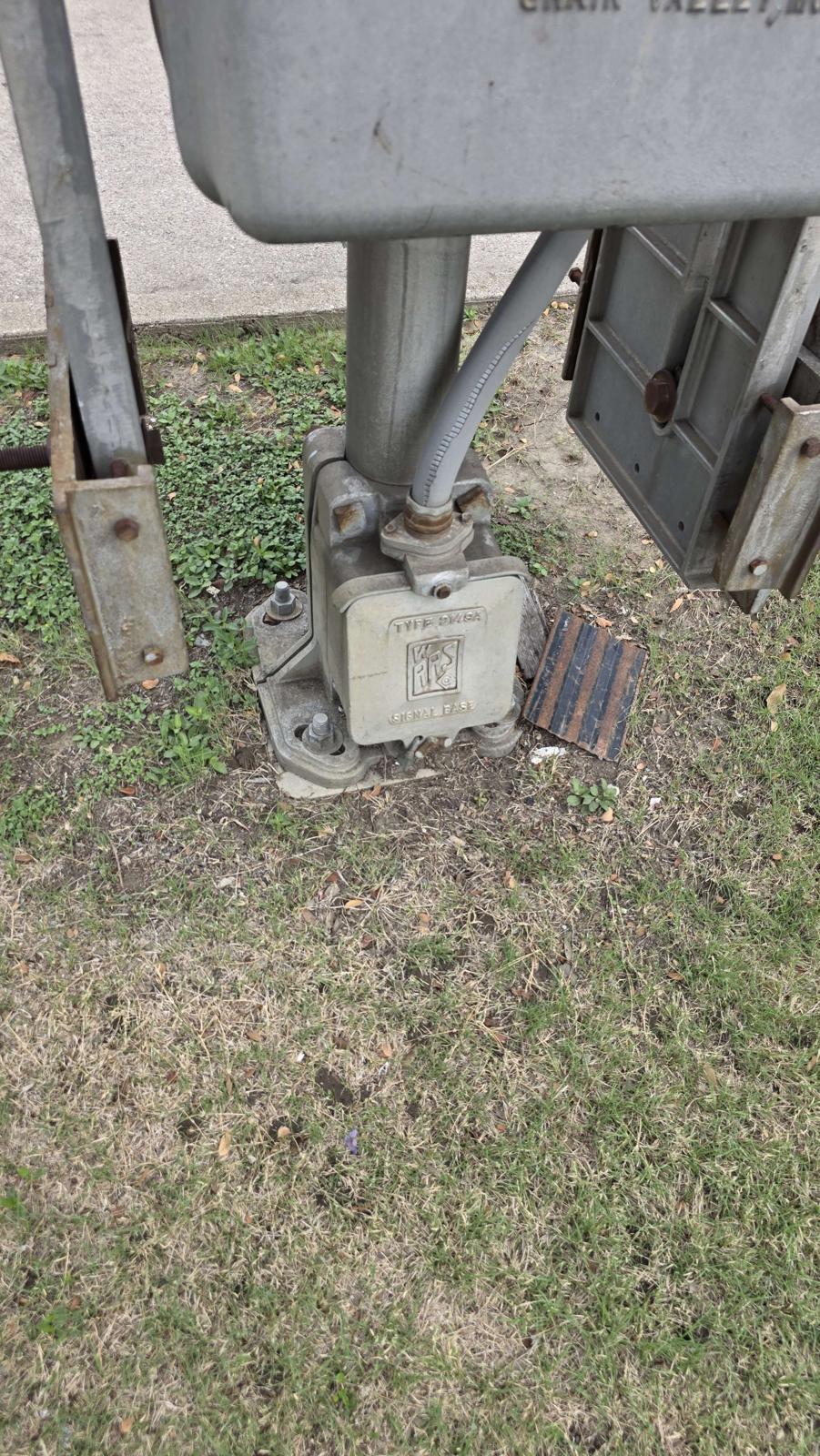

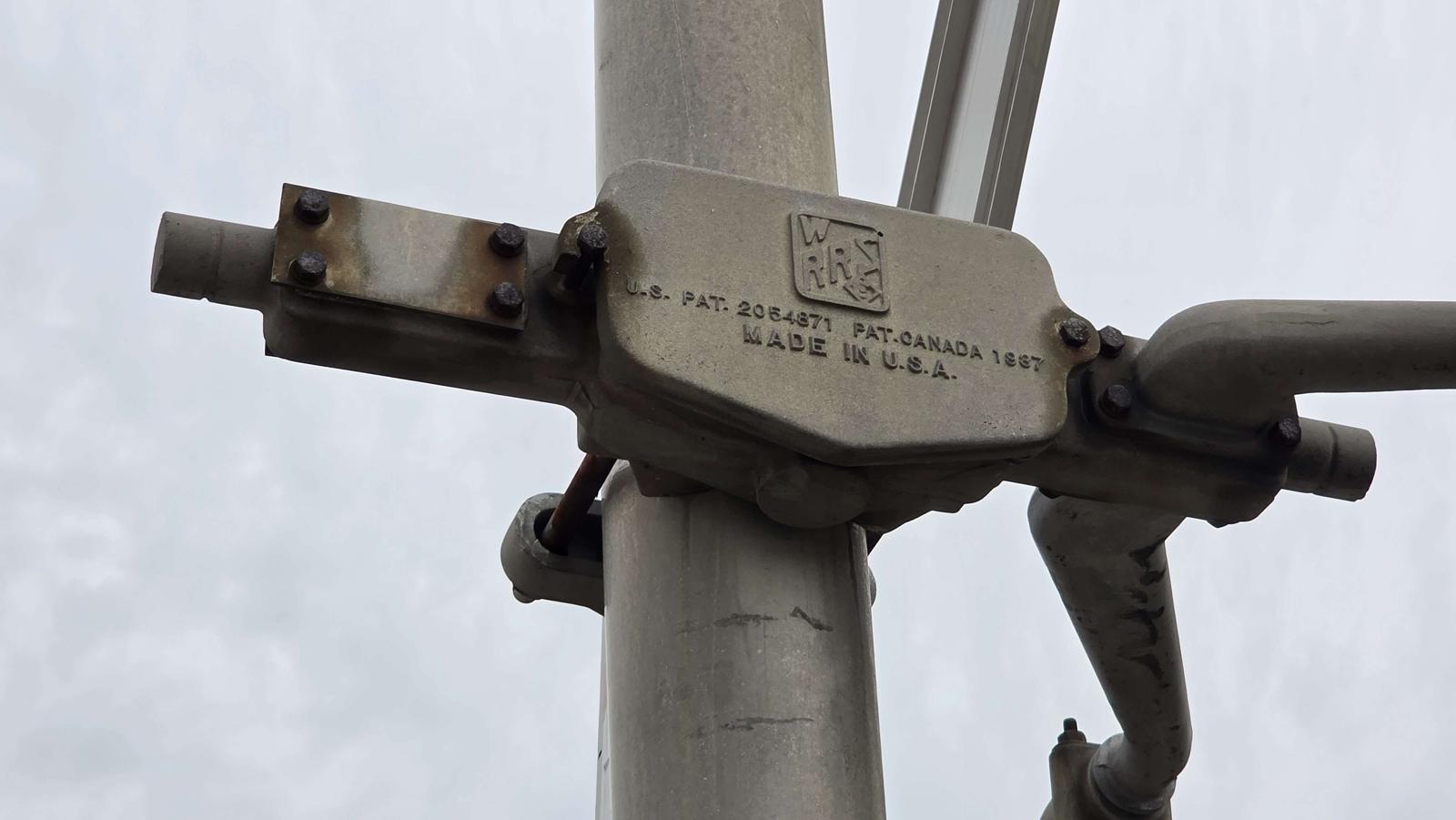

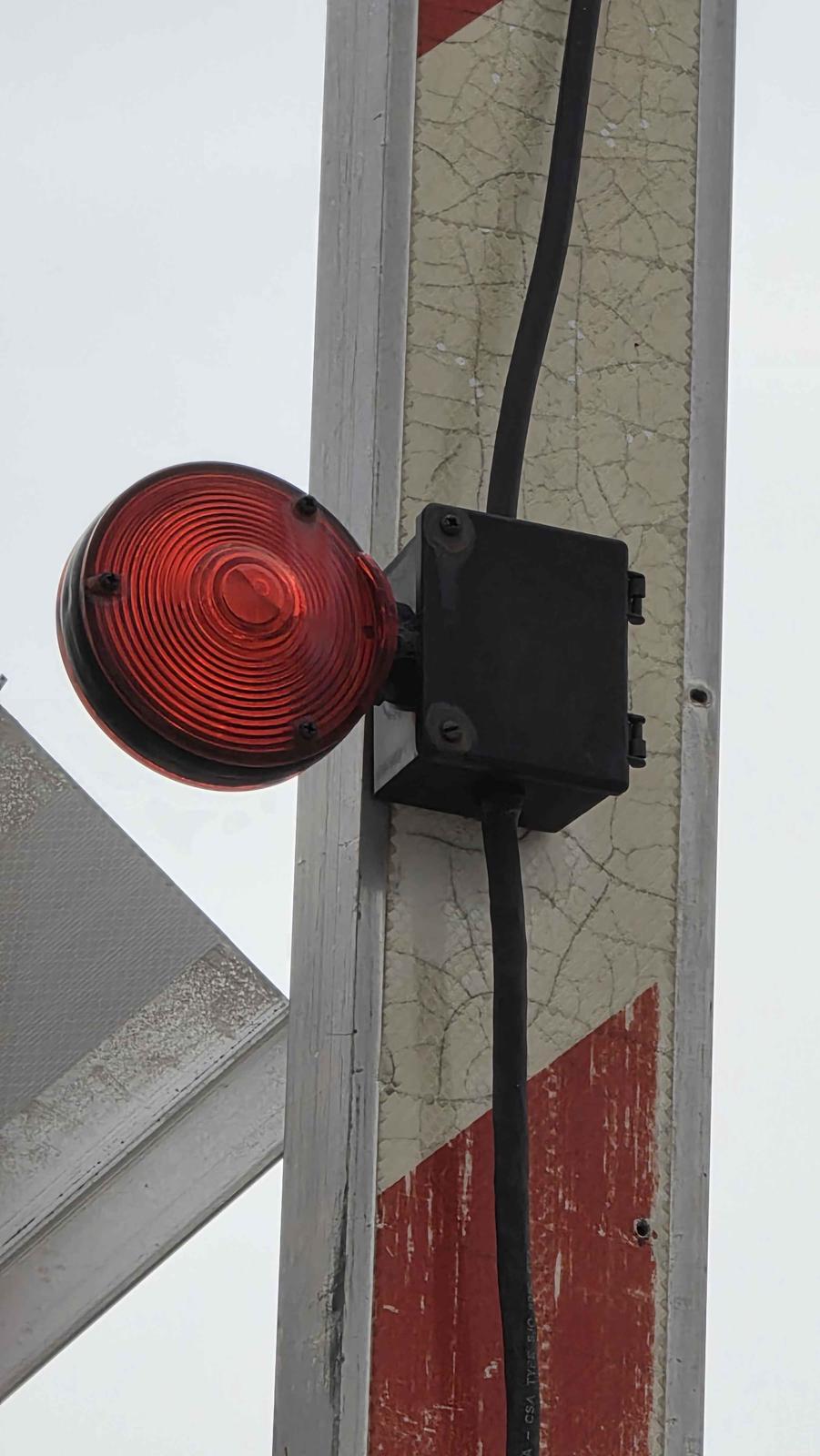

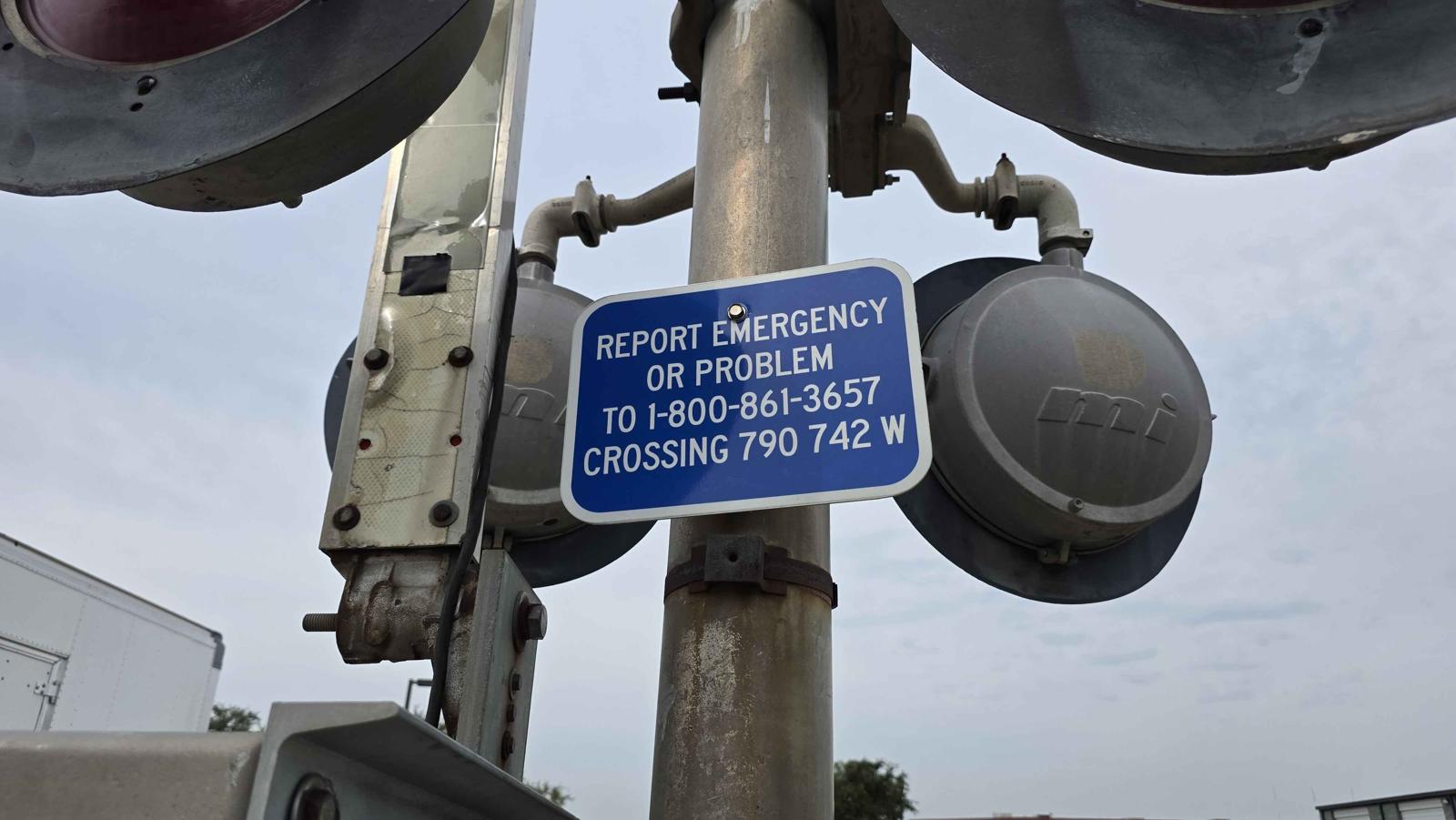

| The eastern signal. | |||
30 |
31 |
32 |
33 |
34 |
35 |
36 |
37 |
38 |

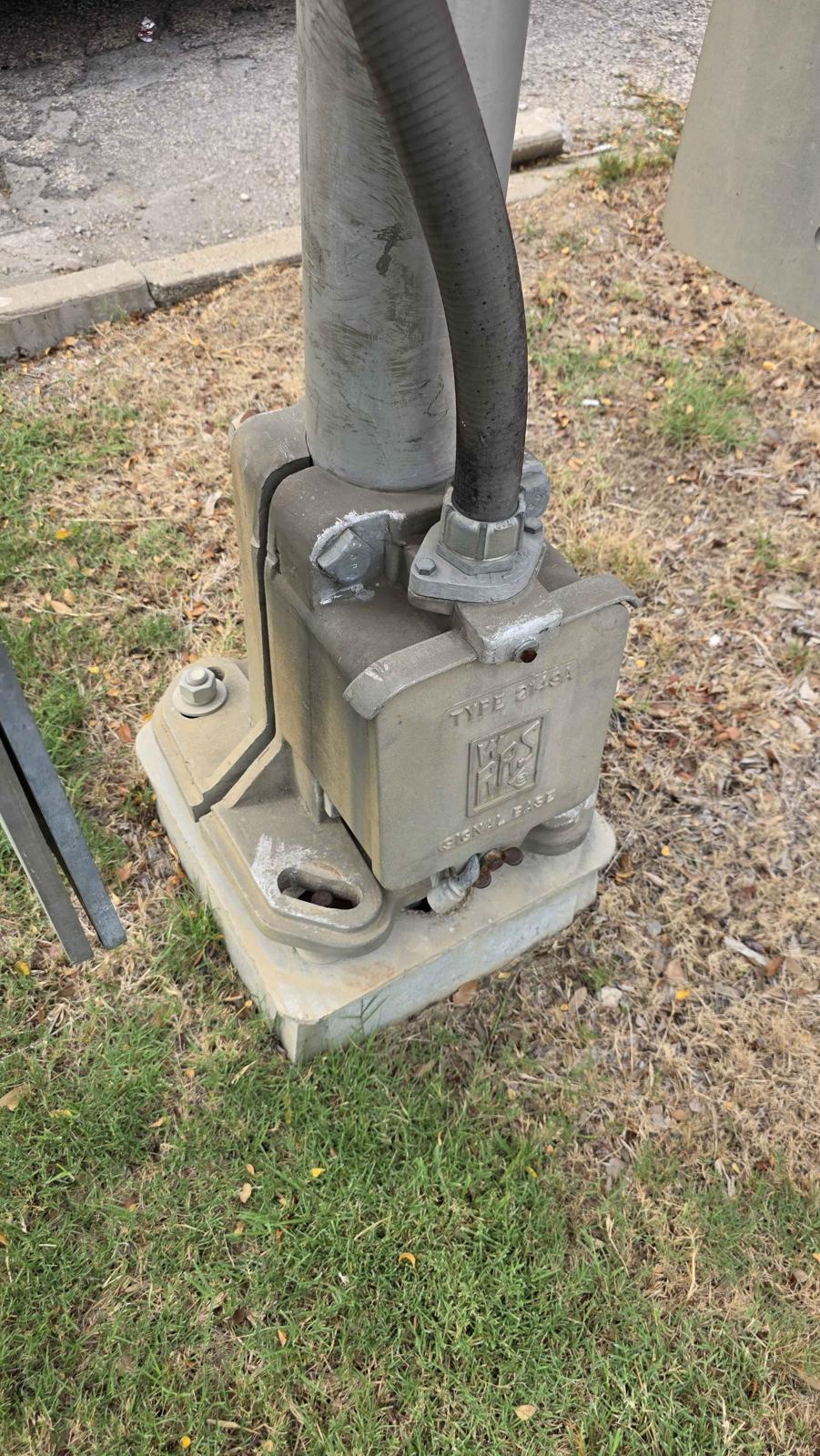

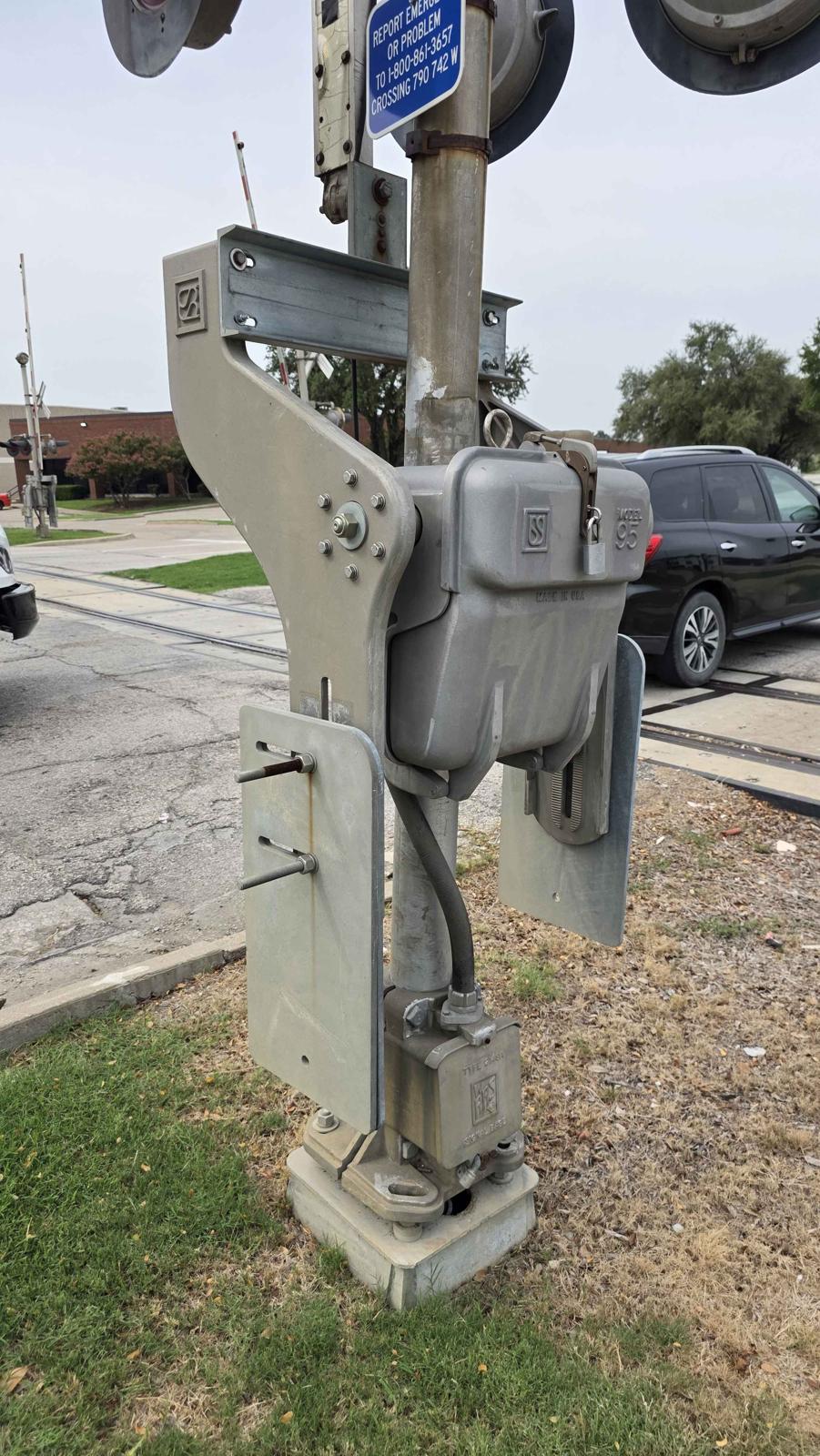

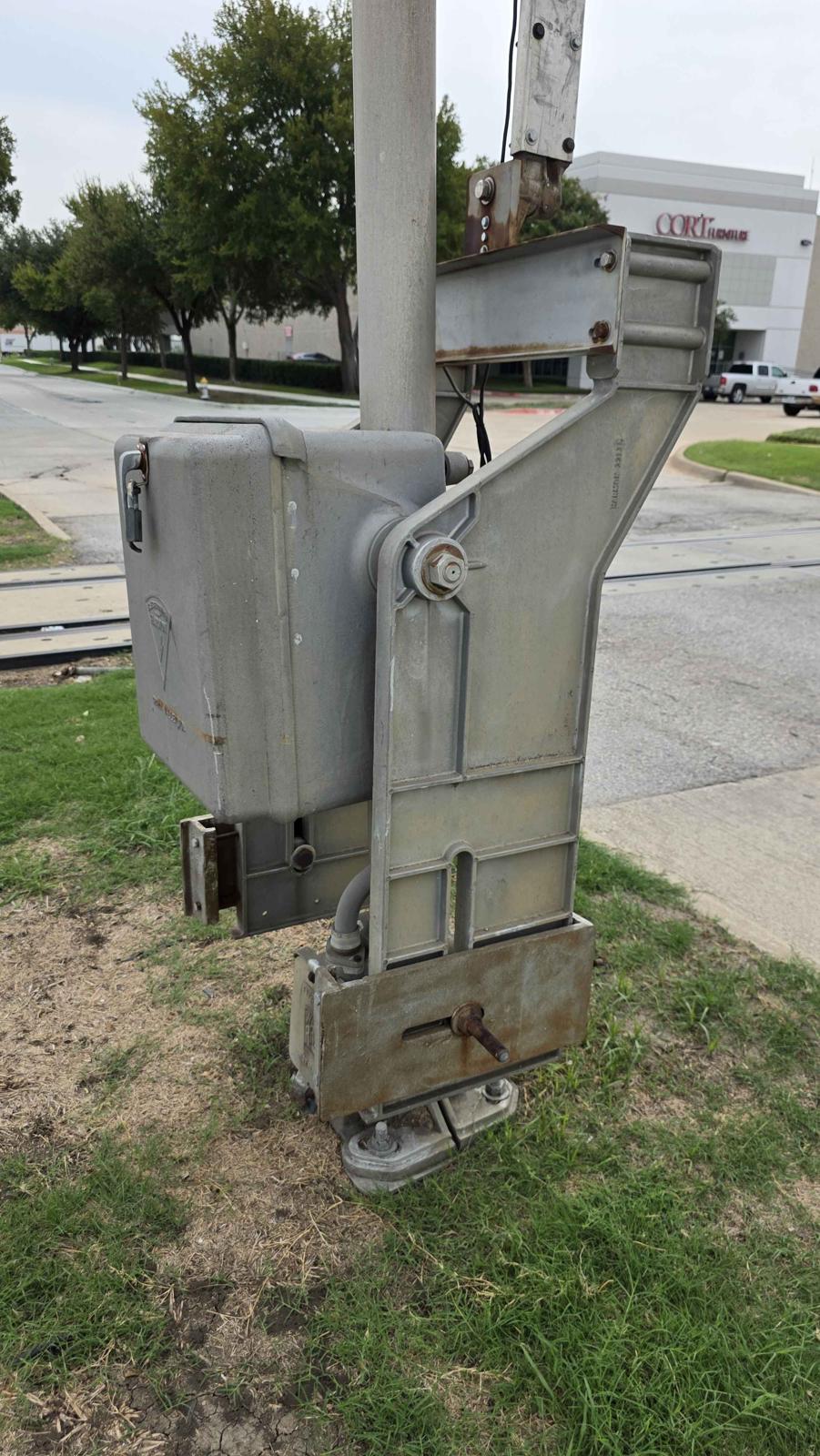

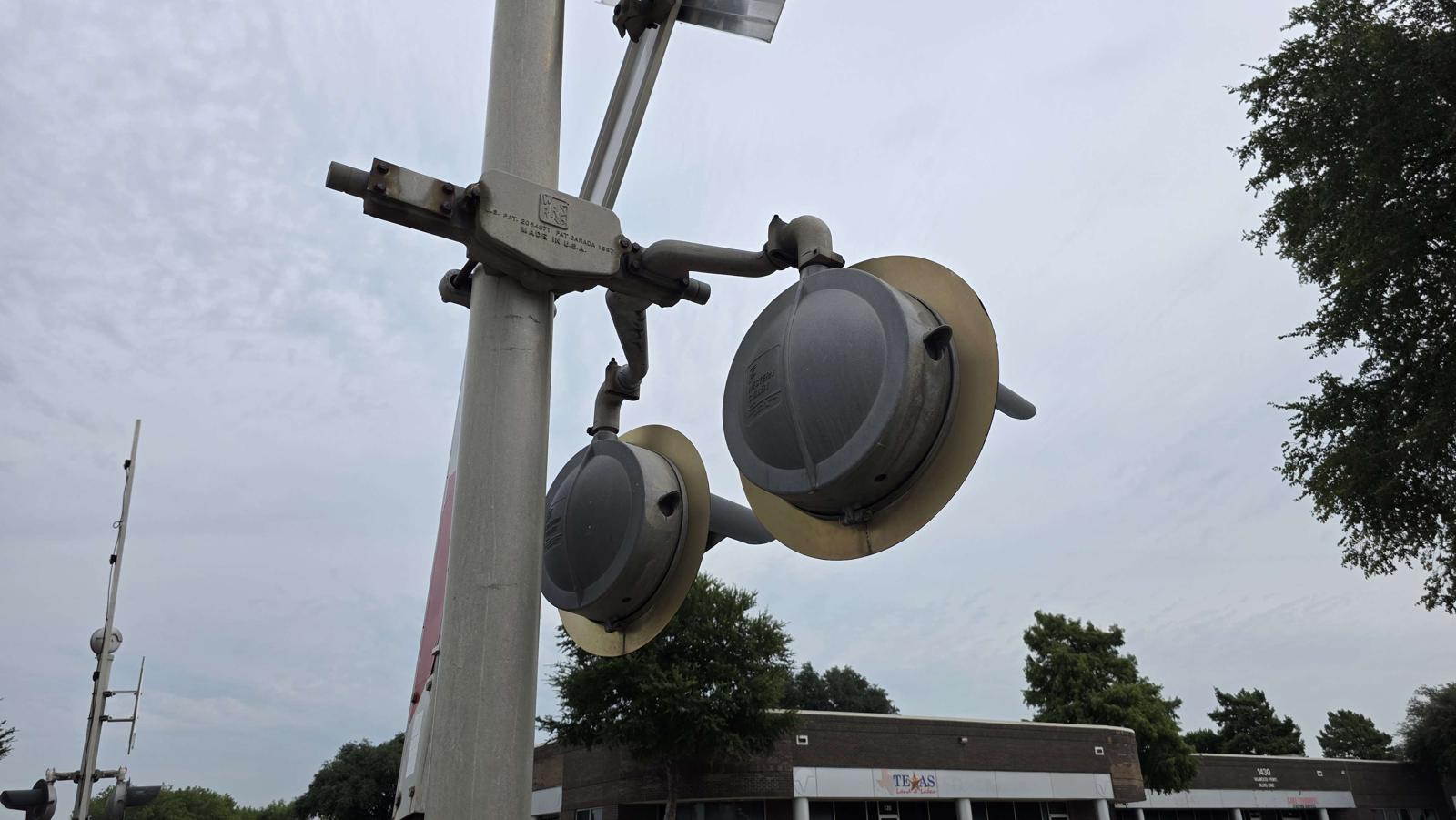

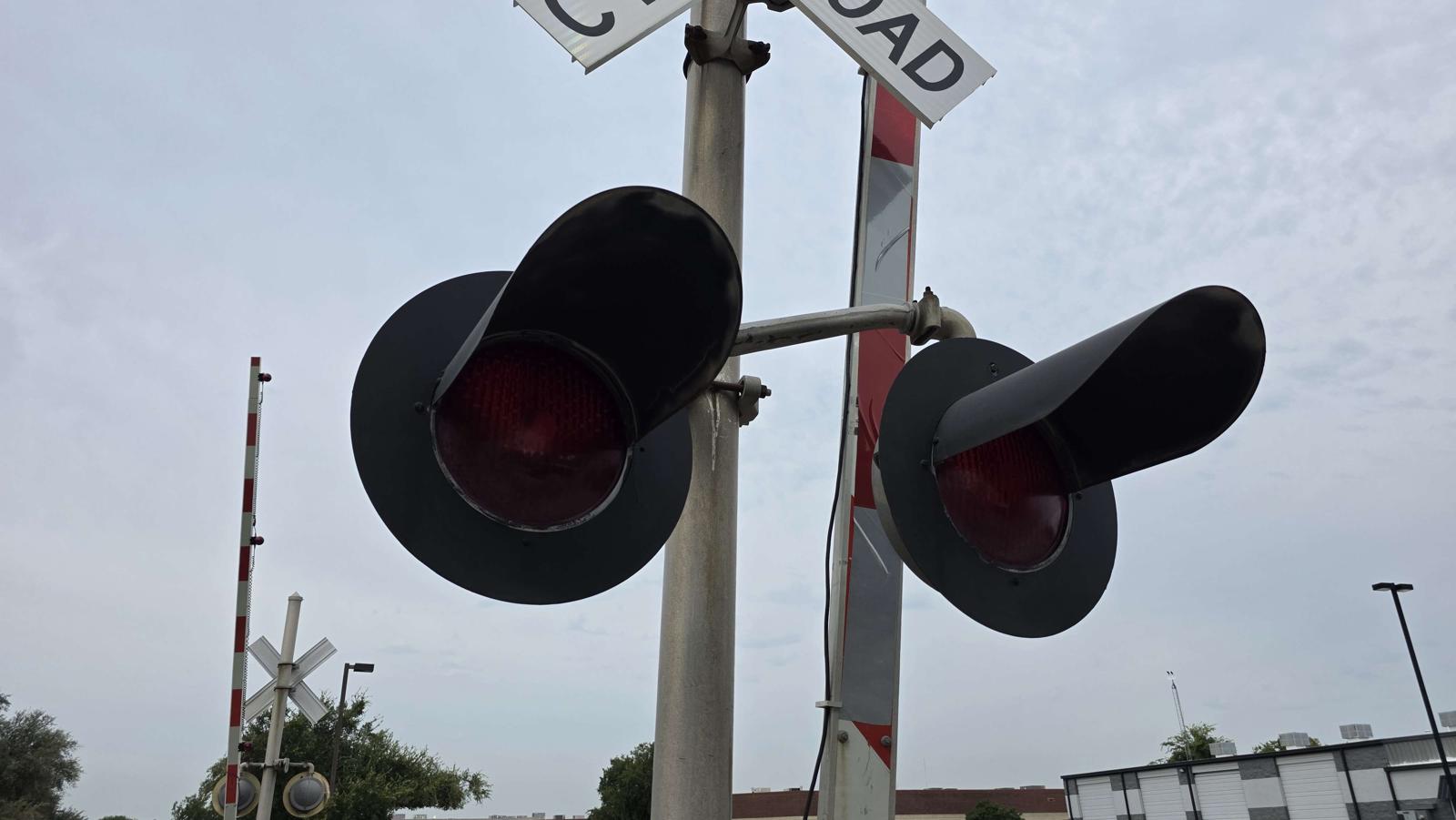

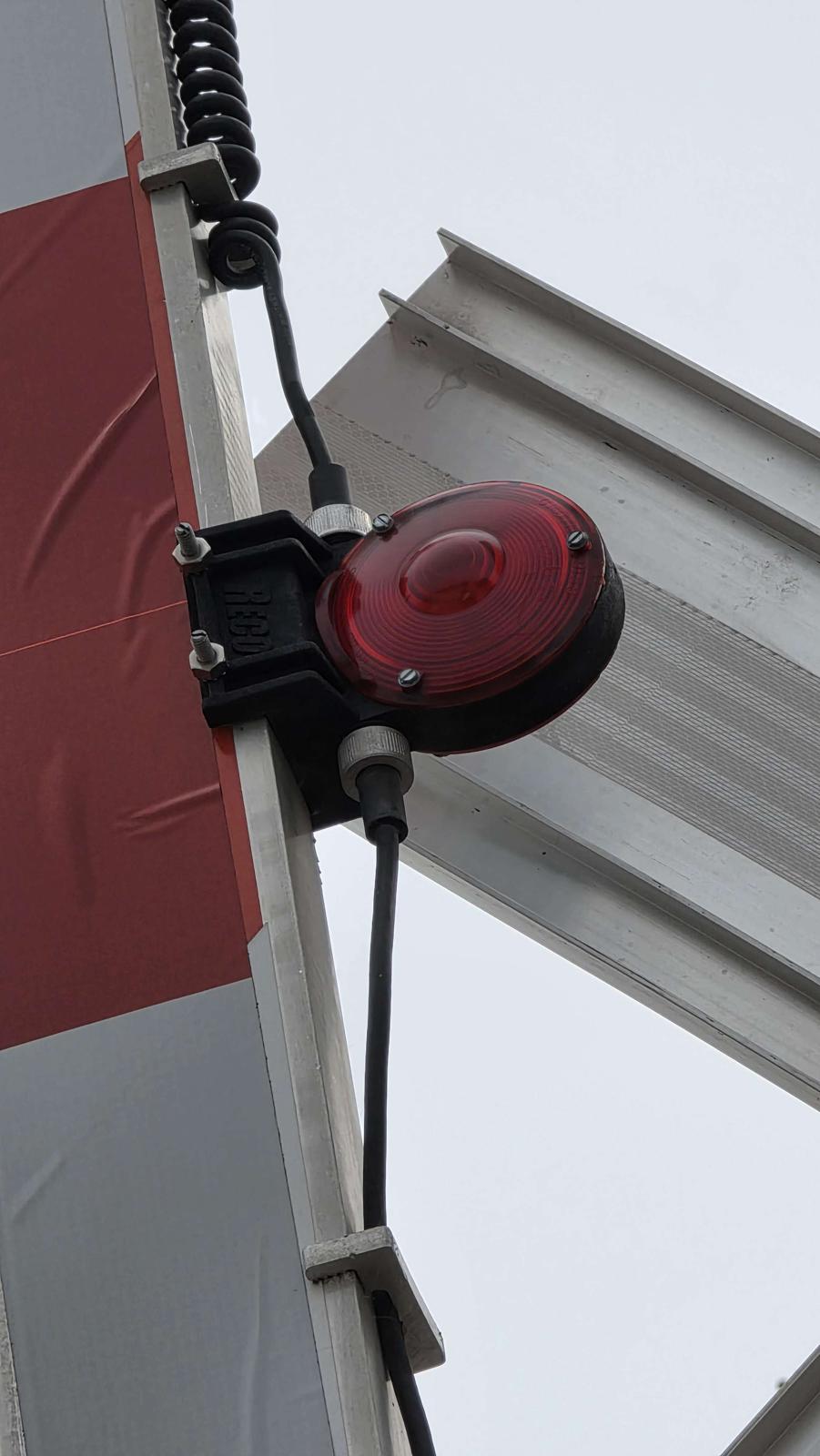

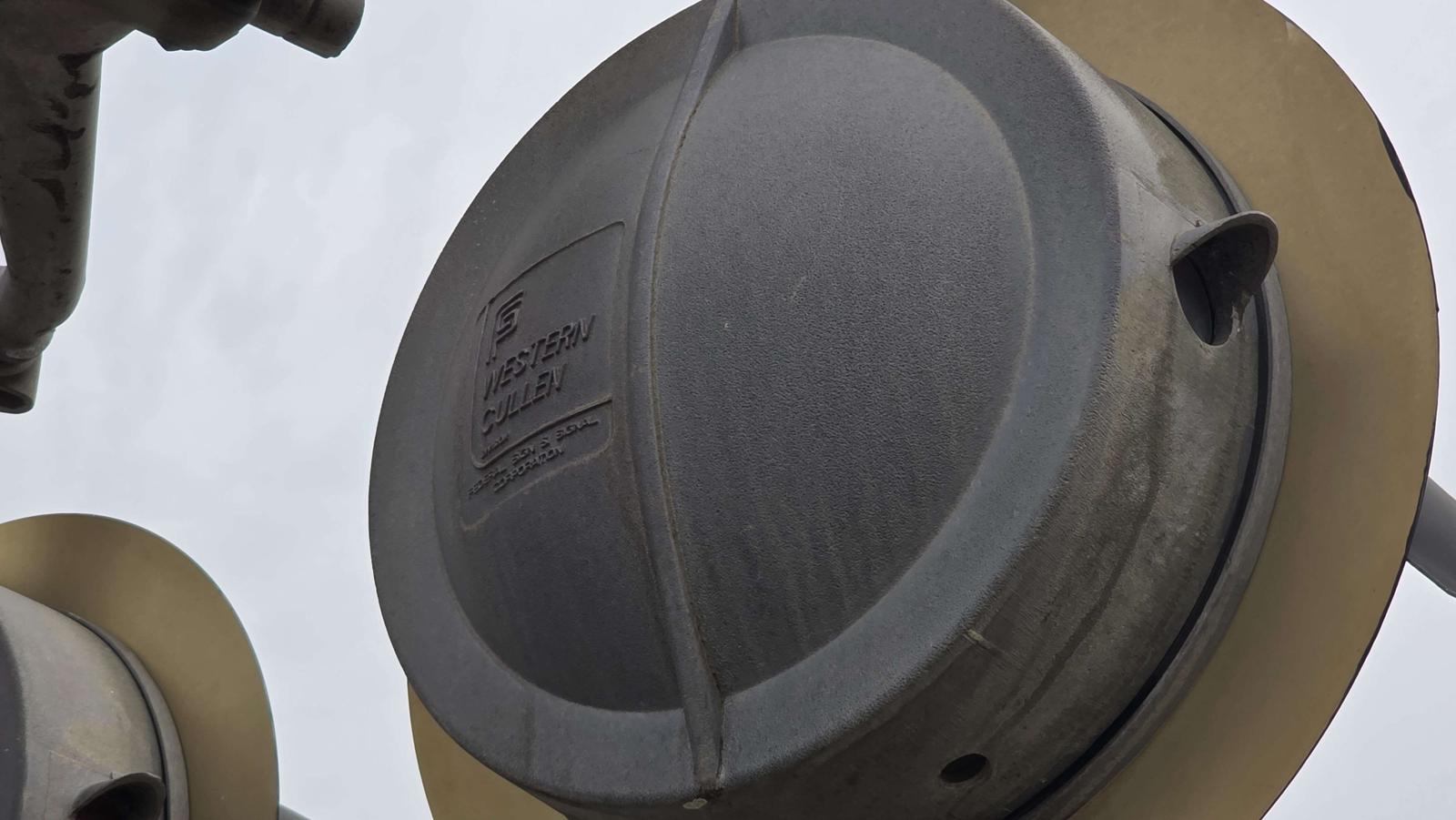

| The eastern median signal. | ||
39 |
40 |
41 |
42 |
43 |
44 |
45 |
46 |
47 |
48 |
49 |
50 |

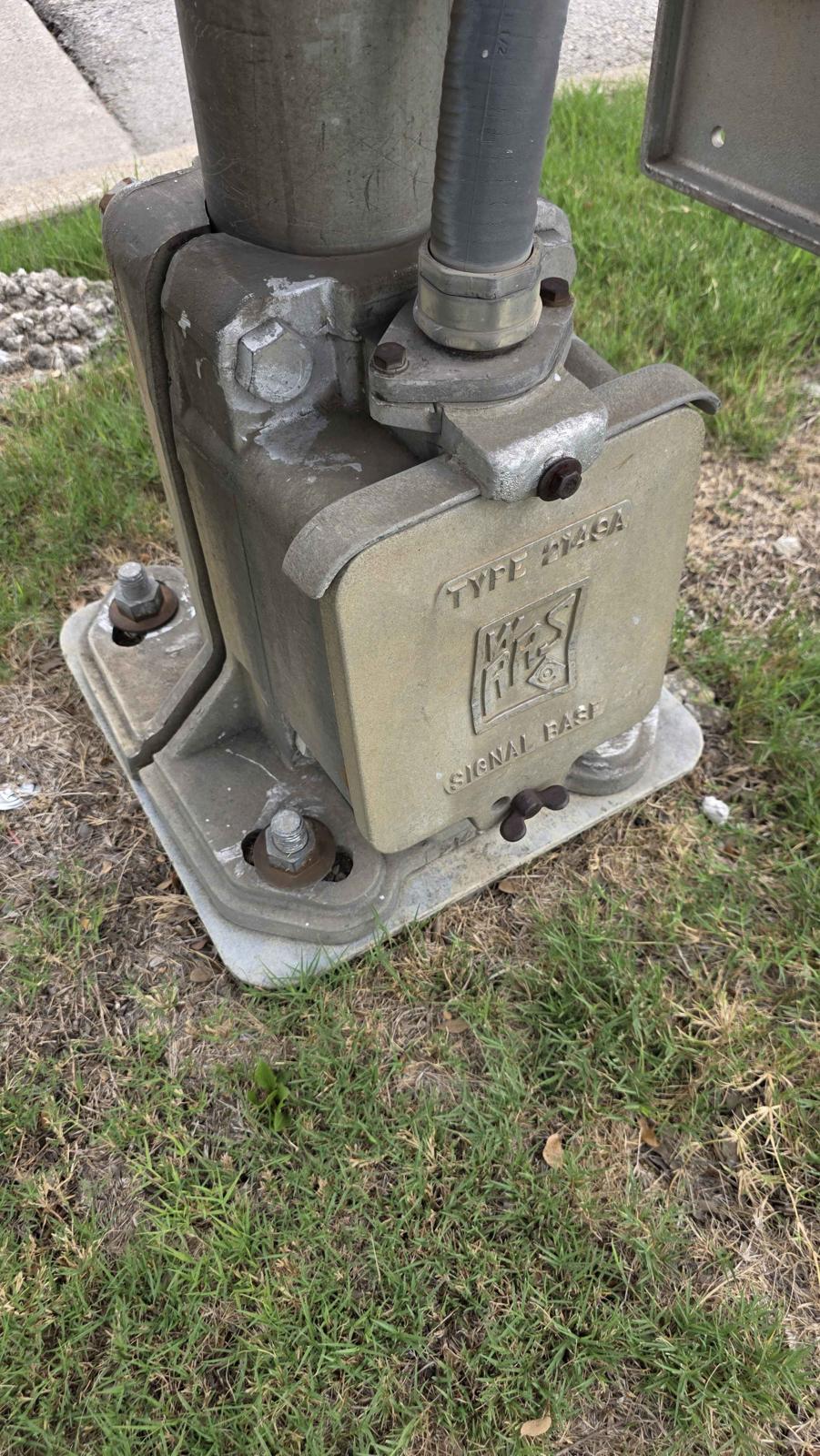

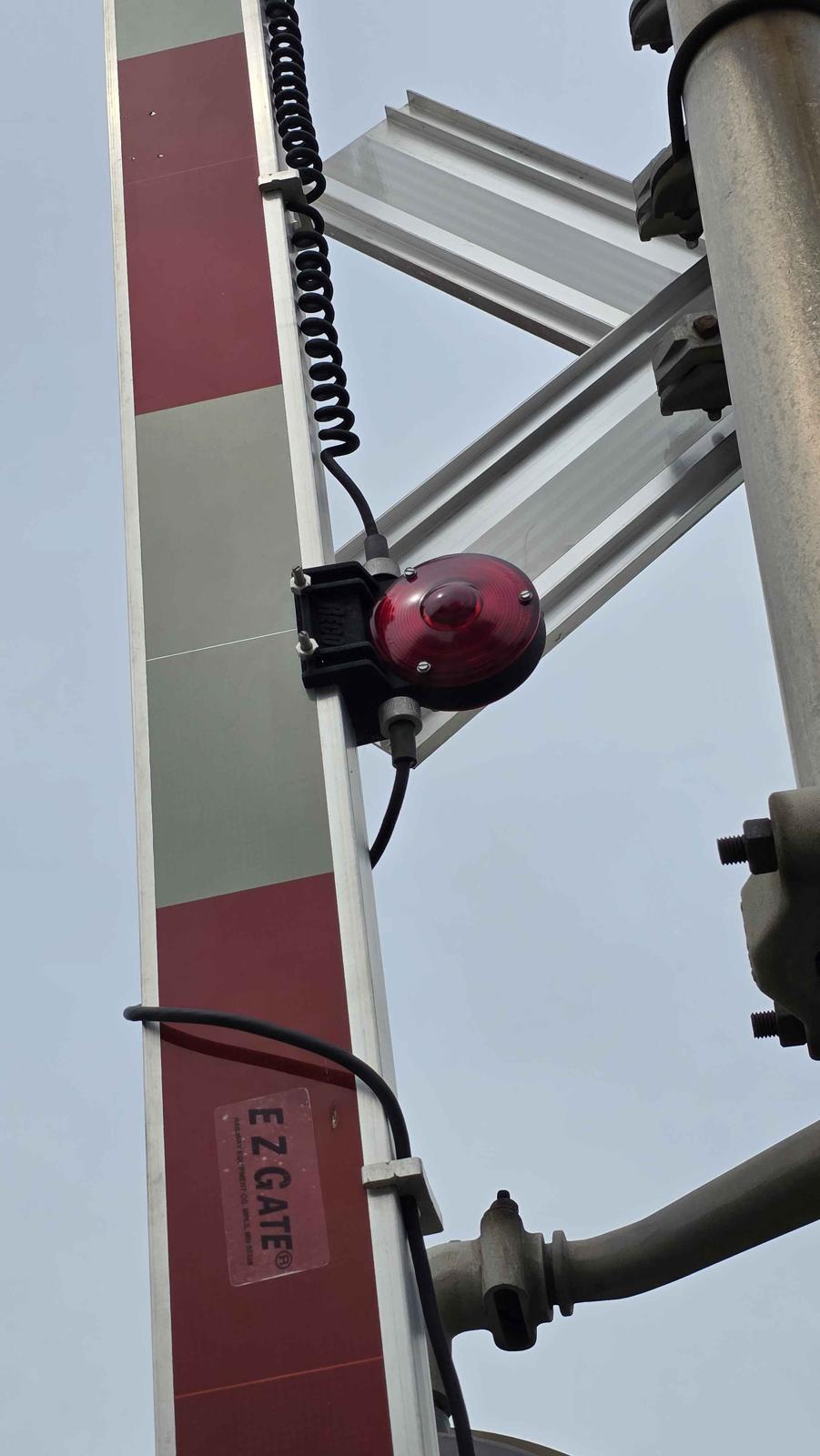

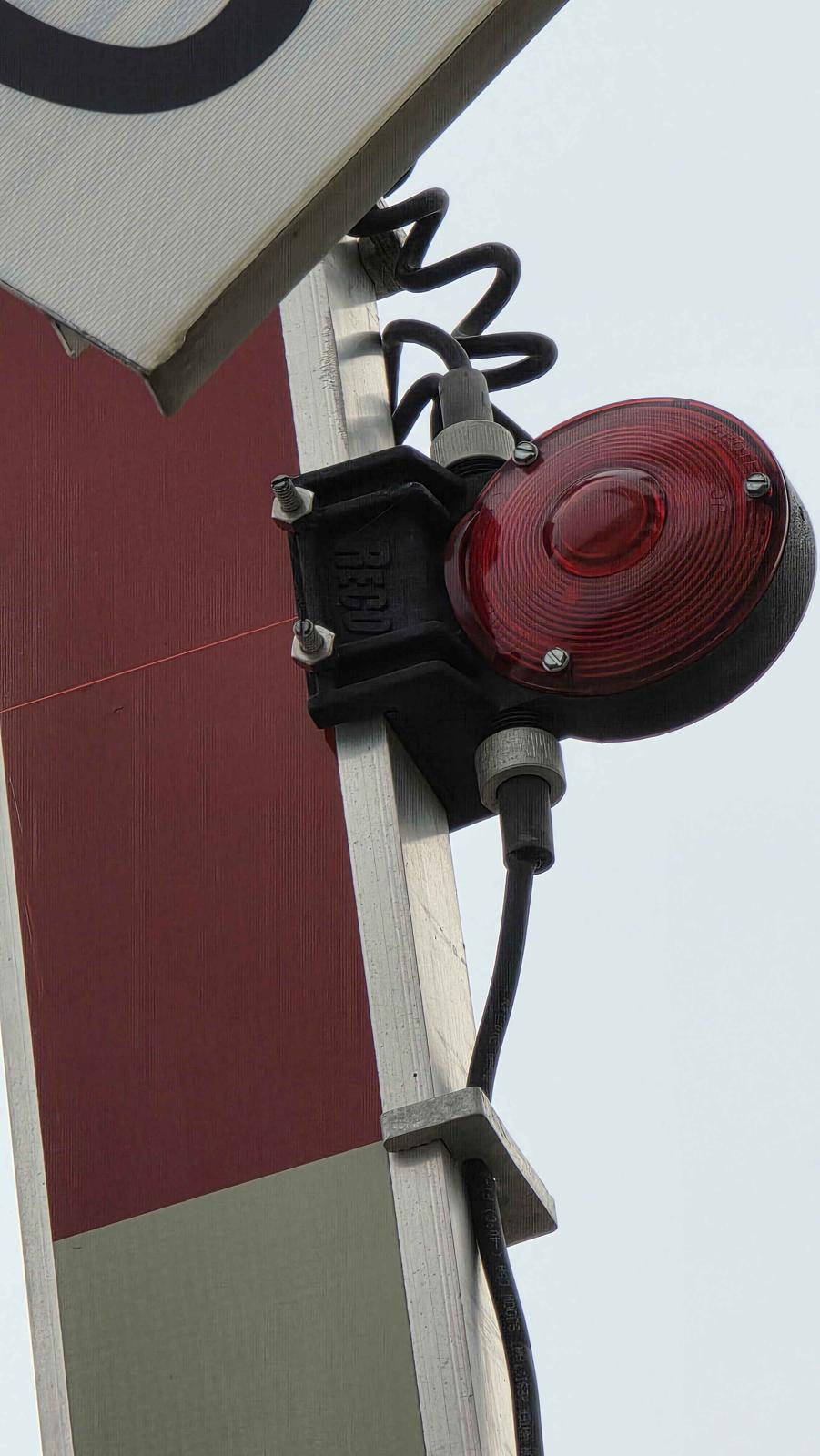

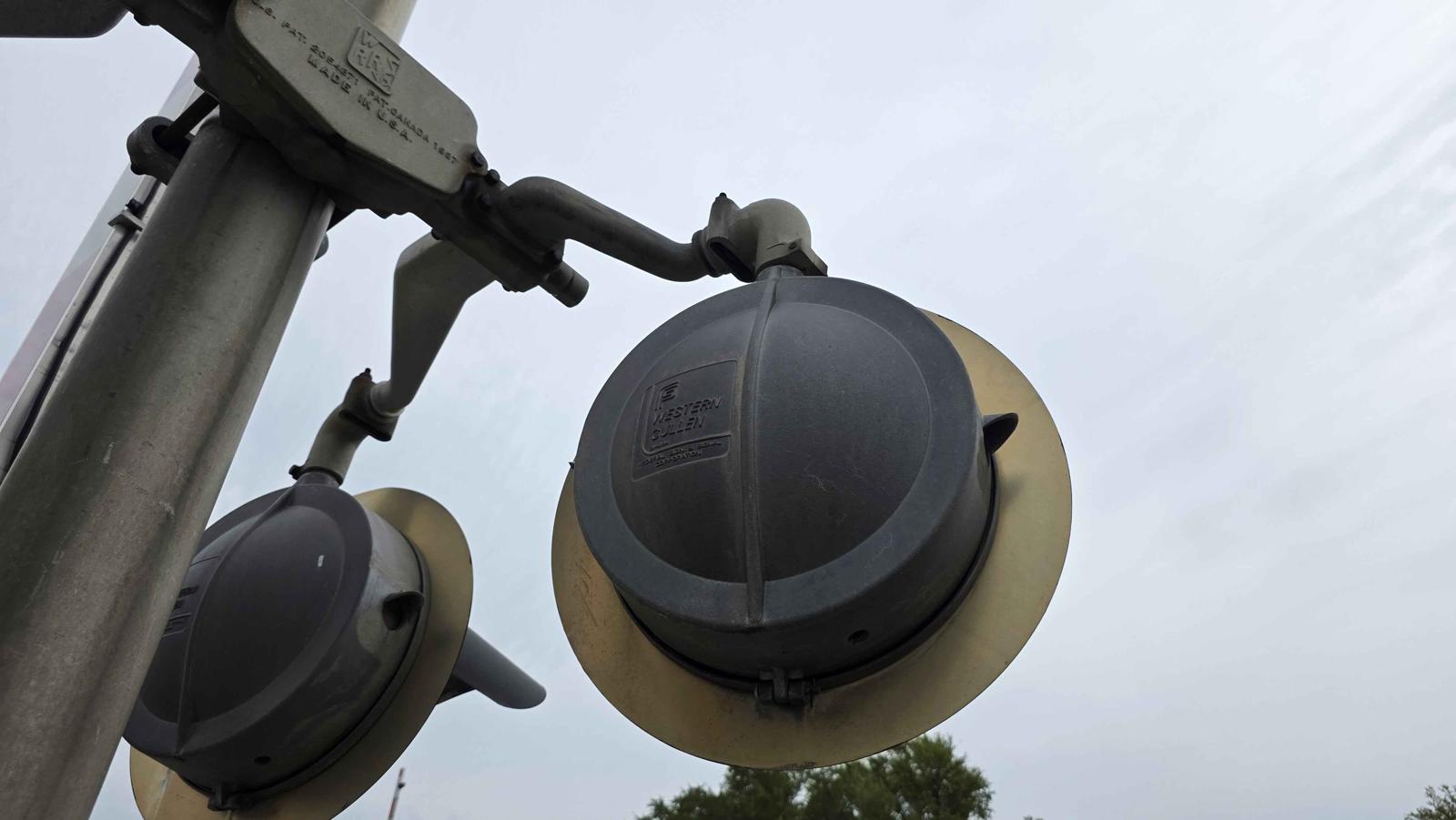

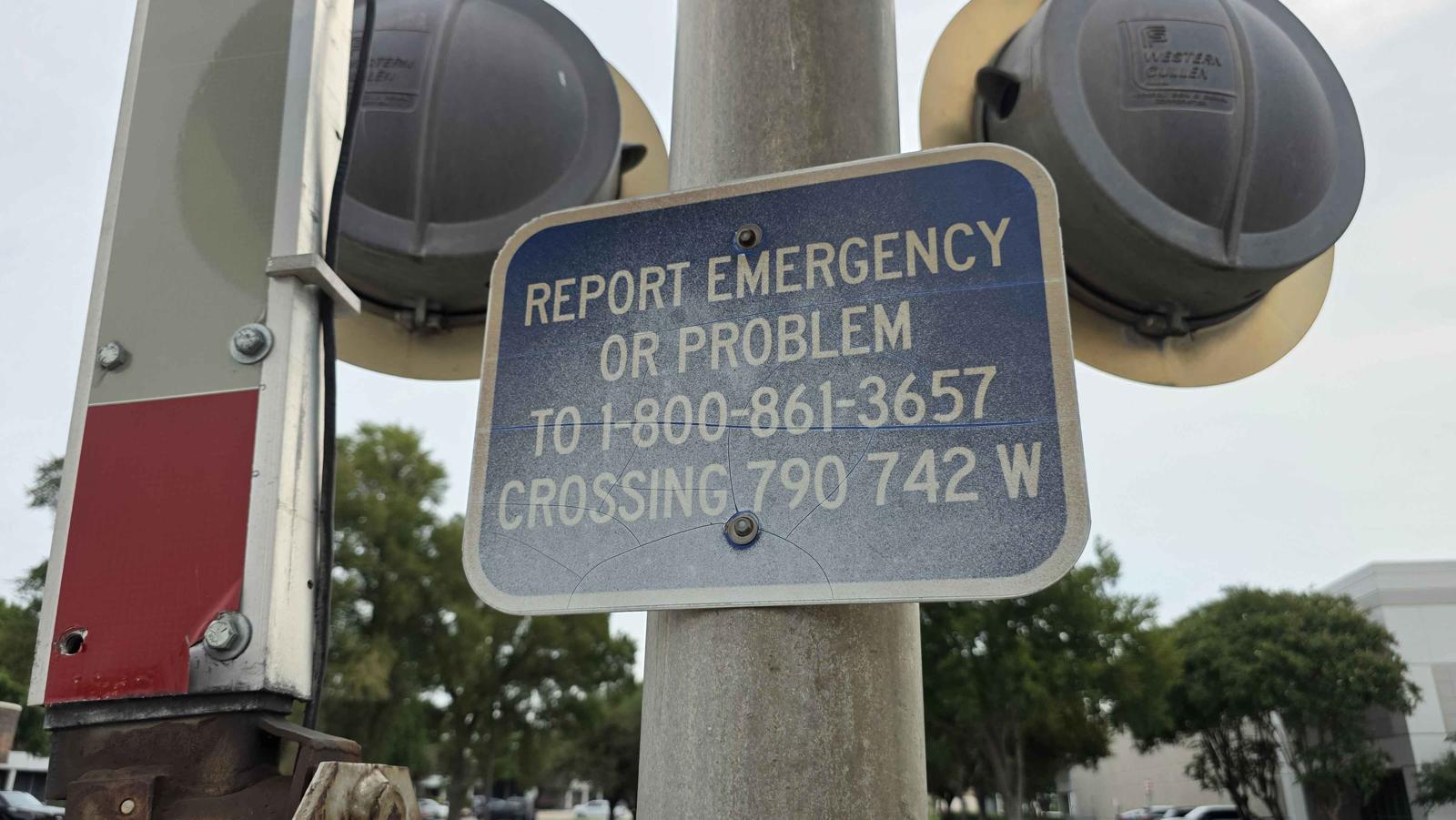

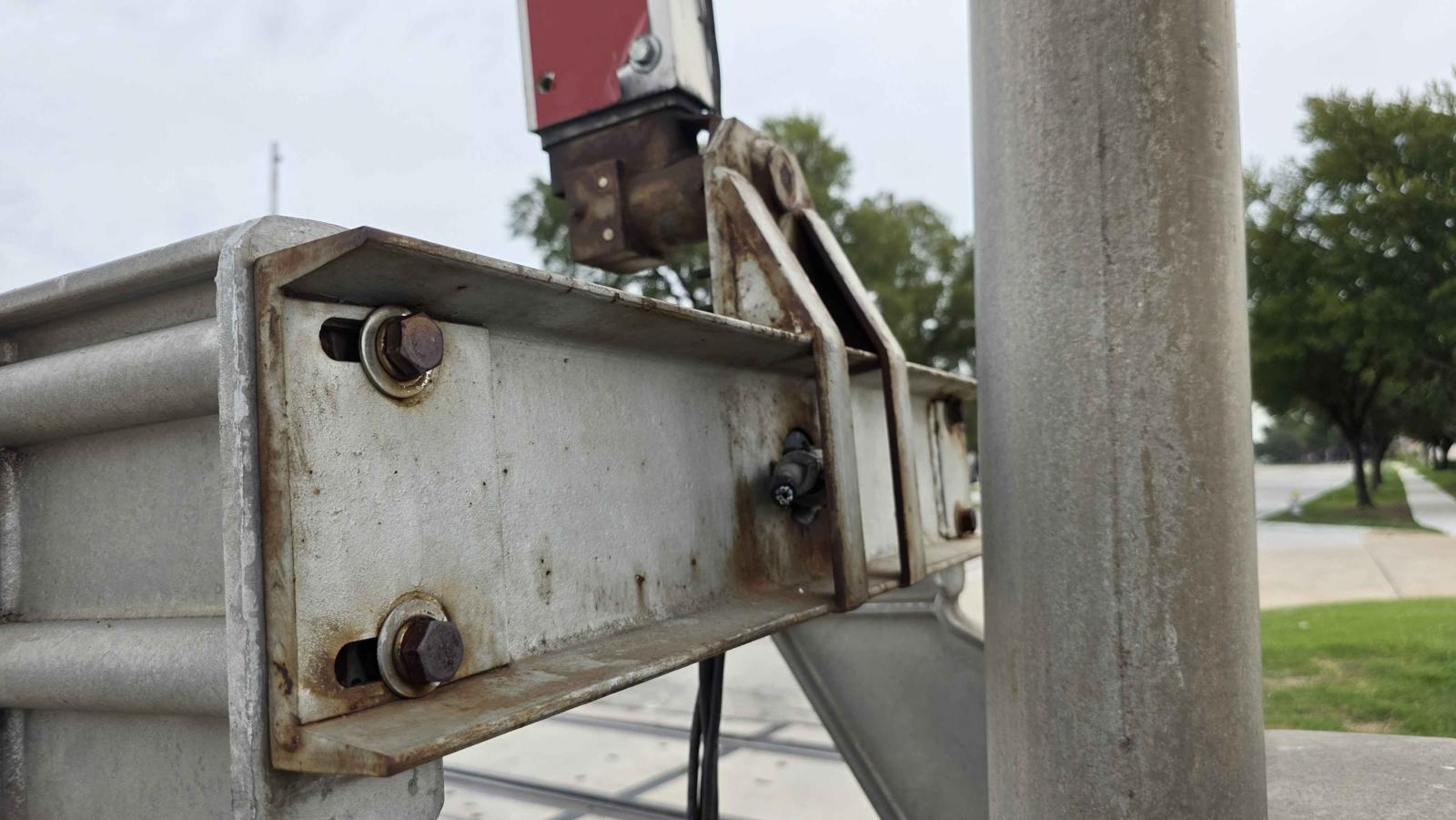

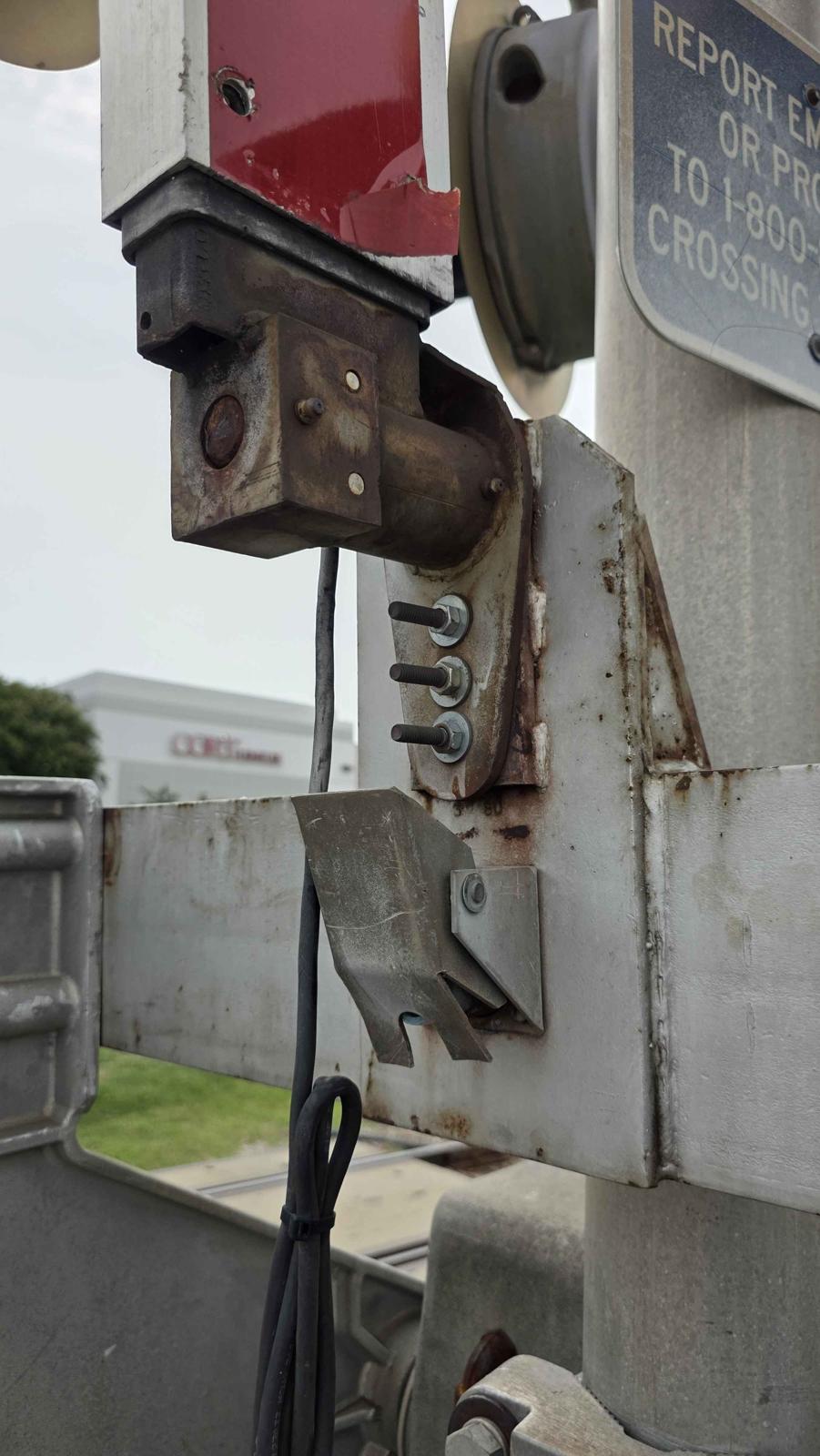

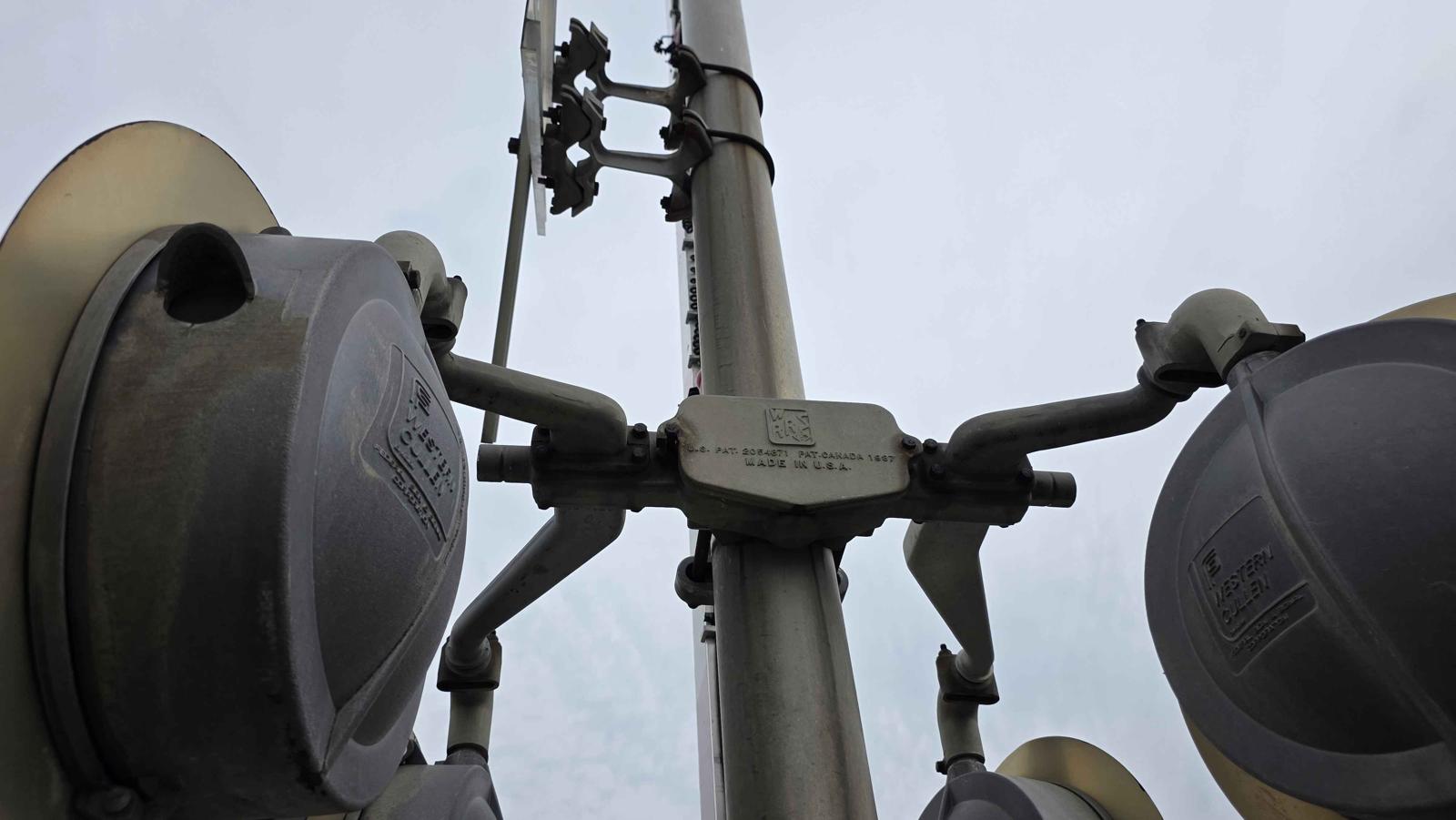

| The western signal. | |||
51 |
52 |
53 |
54 |
55 |
56 |
57 |

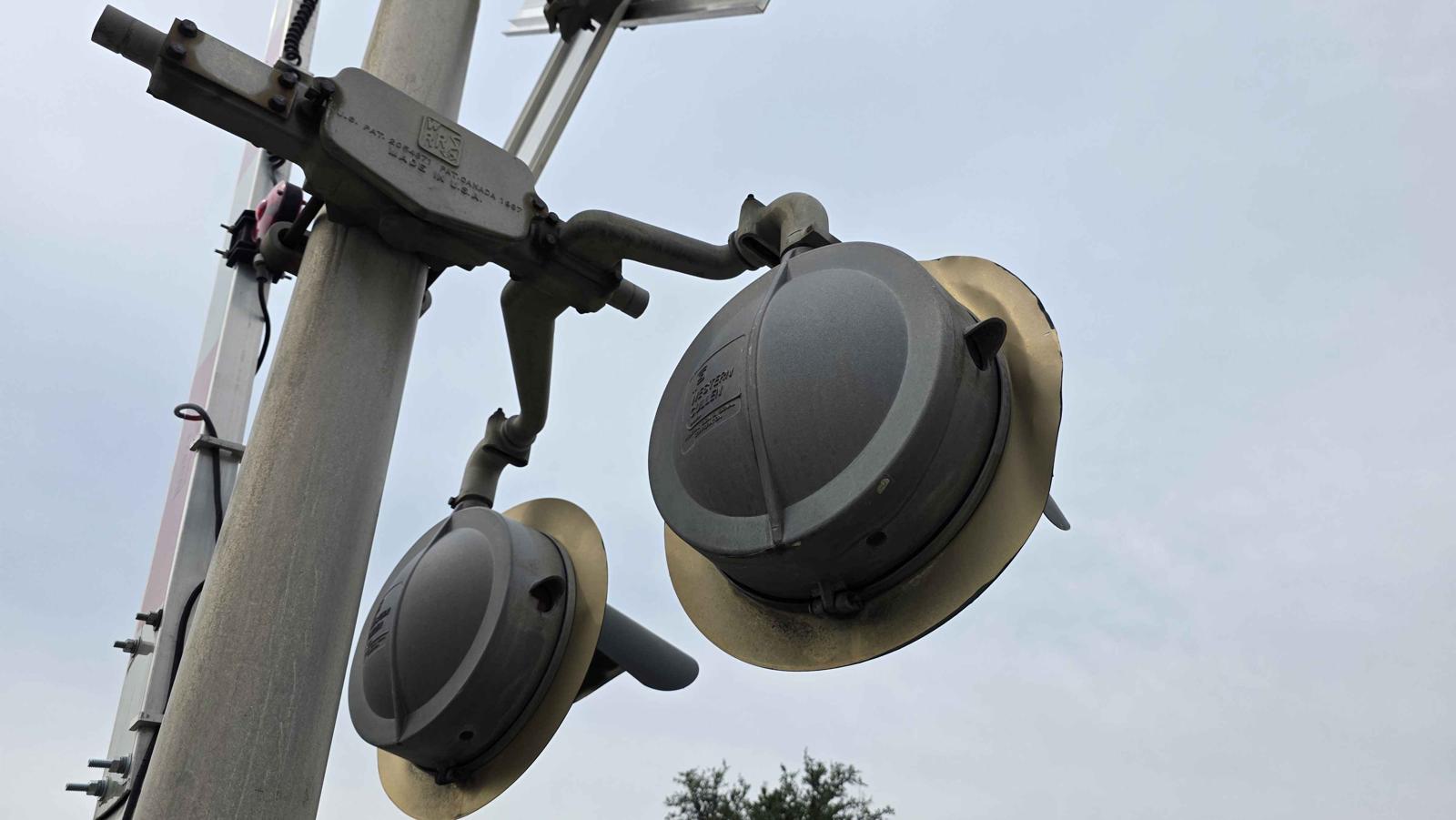

| The western median signal. | |||
58 |
59 |
60 |

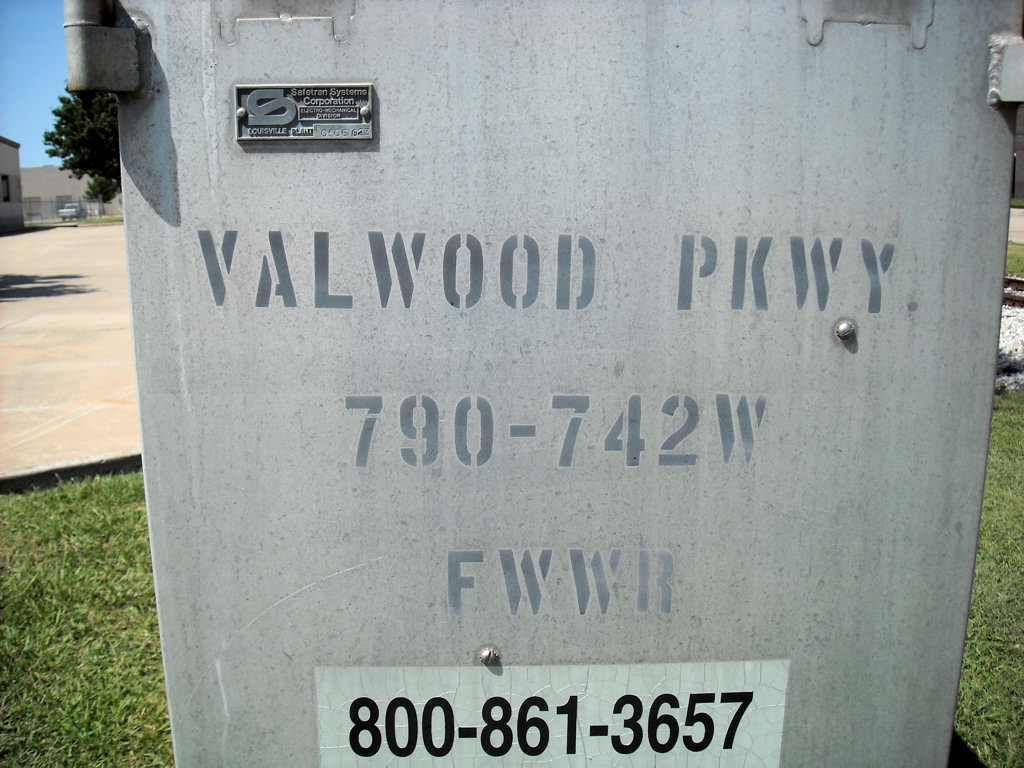

| The relay case. | Track view facing north towards Crosby Rd. #3. | Track view facing south towards Champion Dr. #2. |
