Northern Signal
Southern Signal

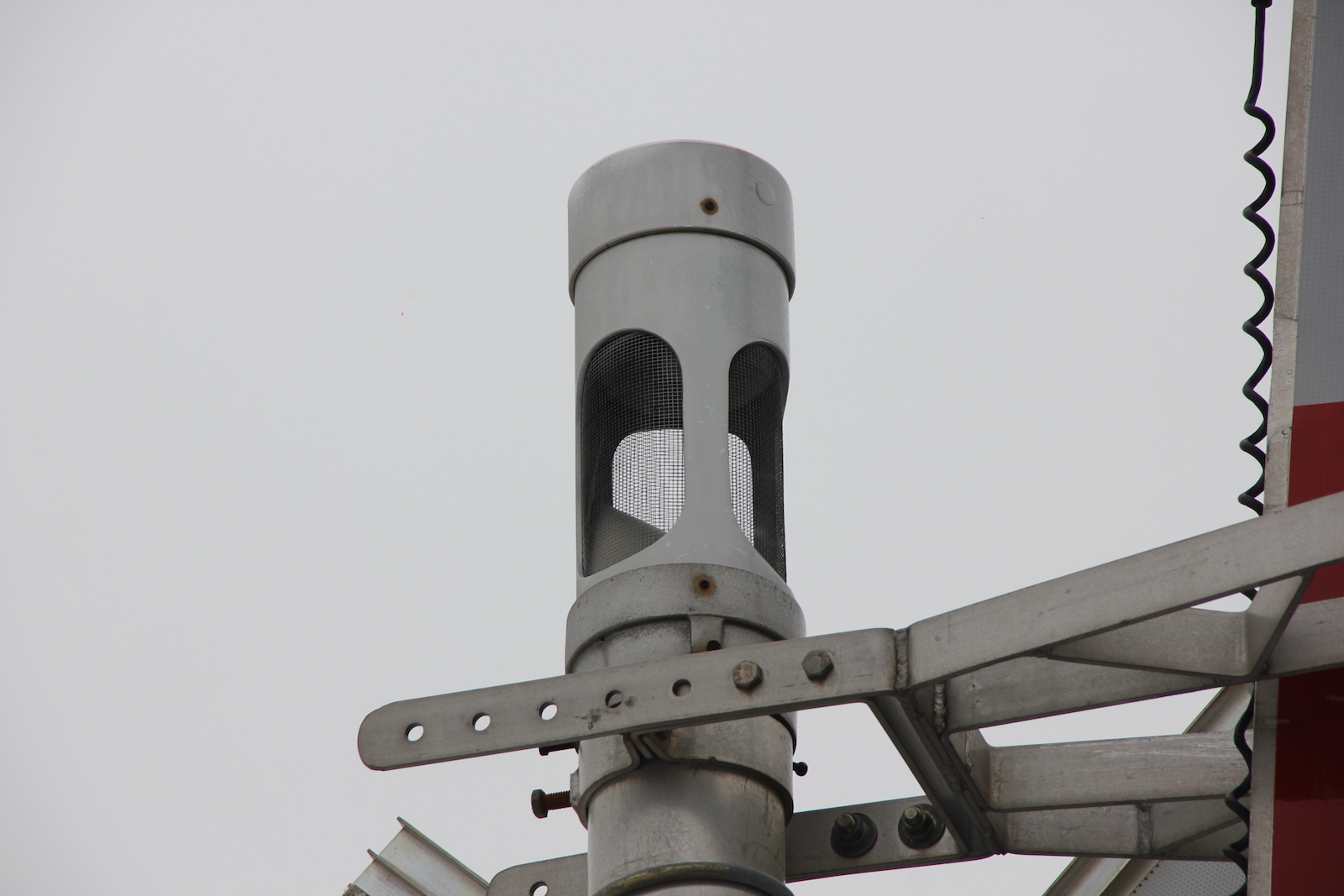

Bell:GS Type 1 E Bell
None

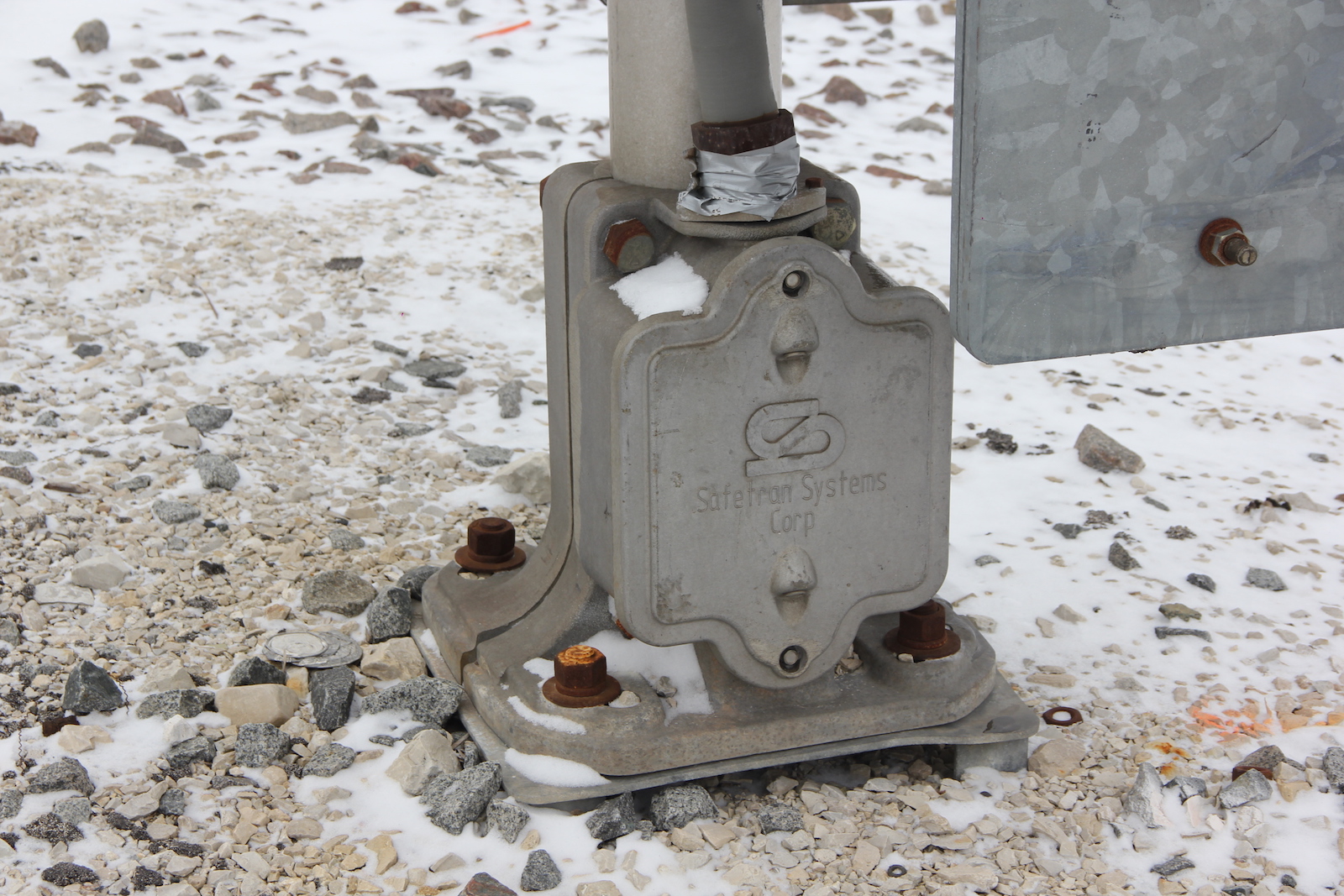

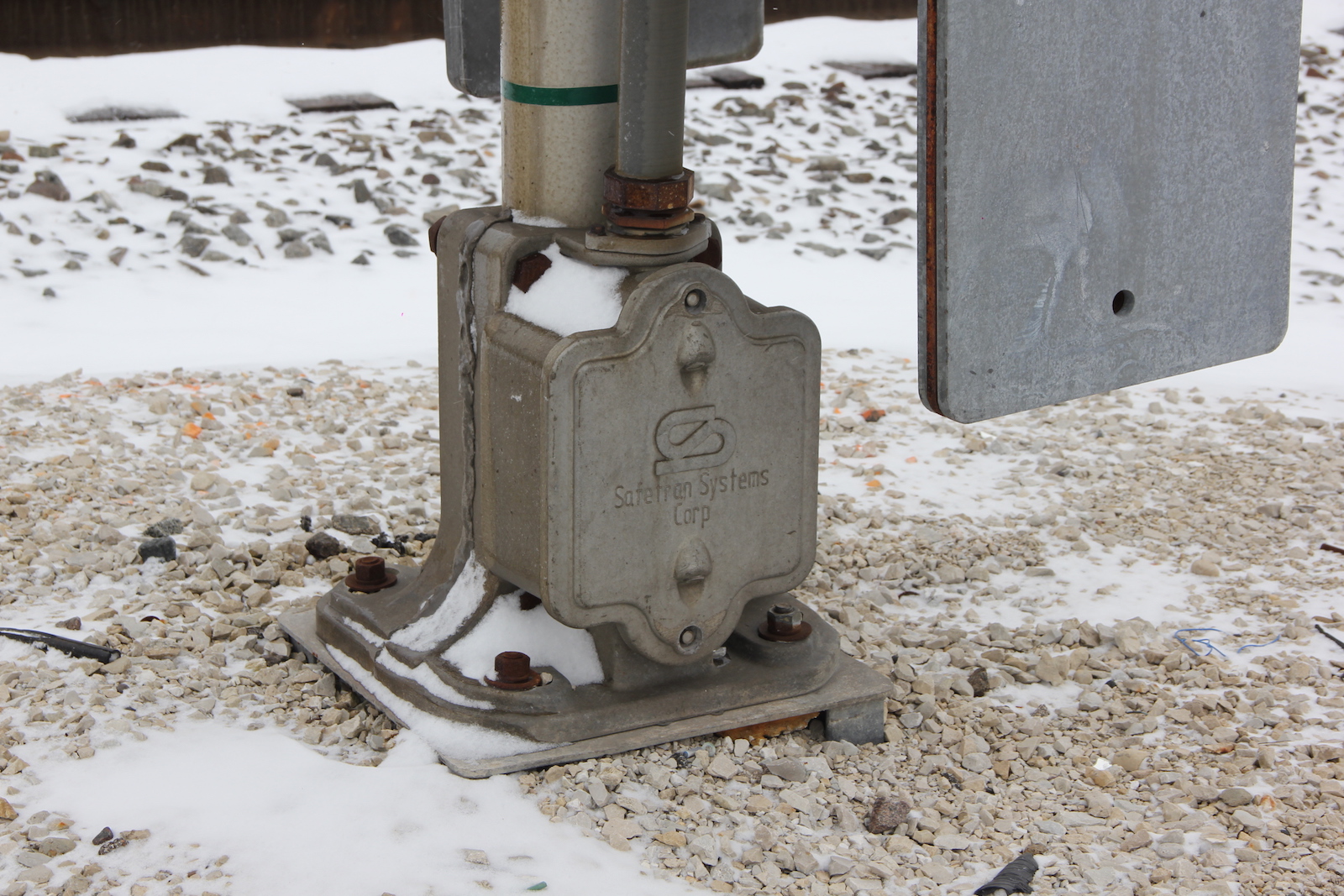

Base: Safetran
Safetran

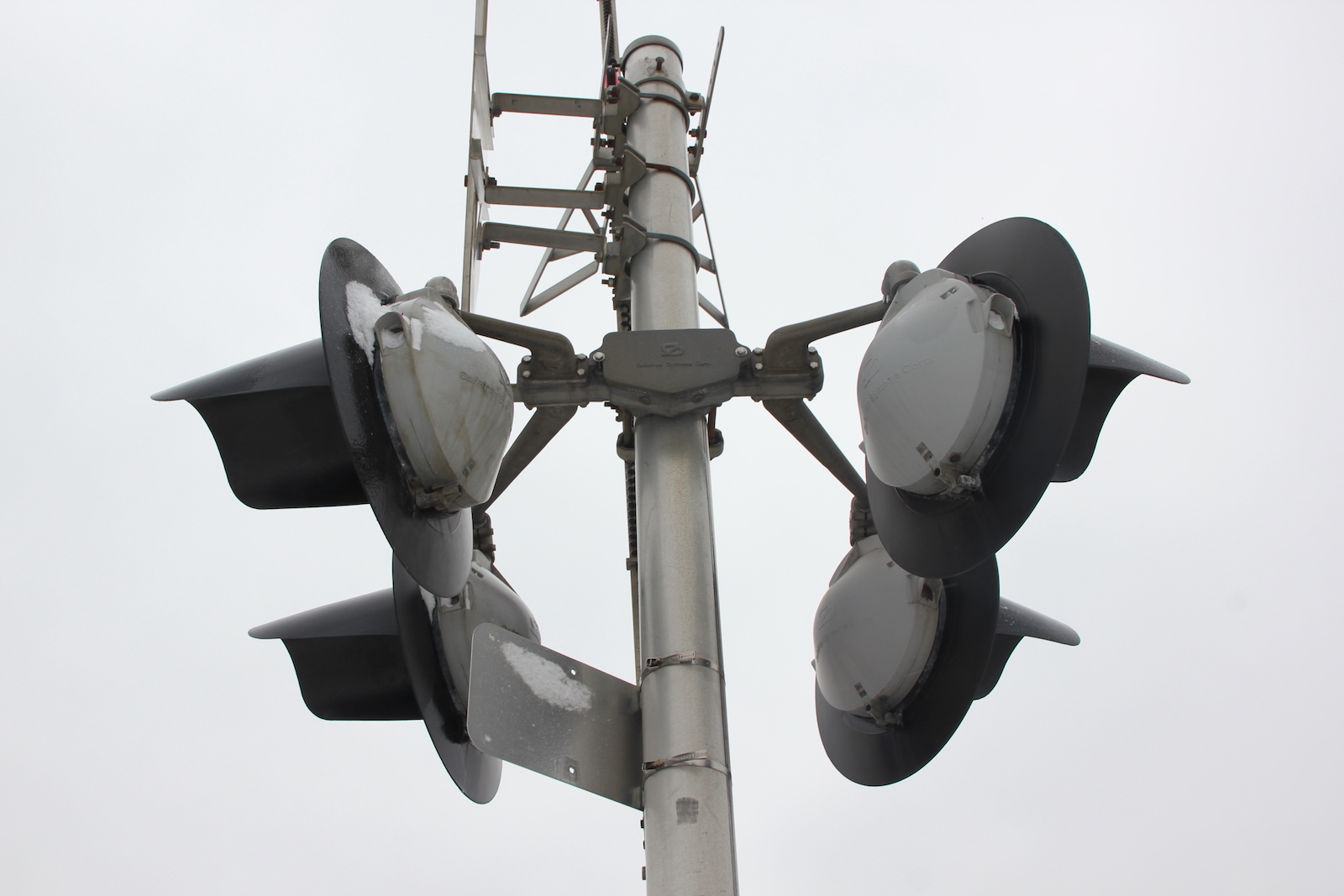

Main Lights: 2 pairs of 12"x24" GE Fading LEDs in older Safetran frames
2 pairs of 12"x24" GE Fading LEDs in older Safetran frames
Gate Lights: 4" RECO LEDs
4" RECO incandescents

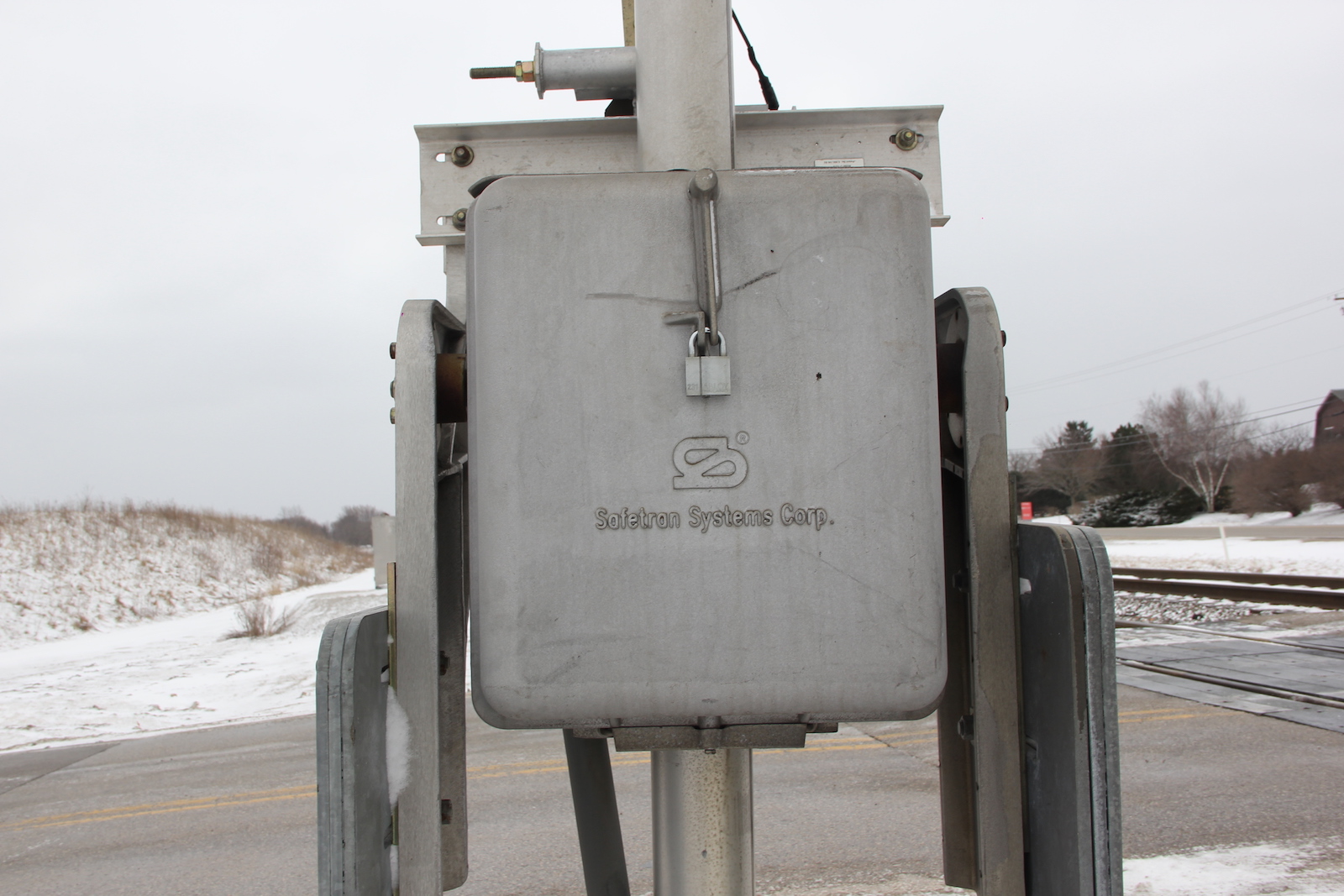

Gate Mechanism: Safetran
Safetran
Gate Striping: ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| ////////////////////////////////////////////////////////////////////
Crossbuck font:
Normal font
Normal font
Bell Cycle: Rings from startup to when the gates start rising
N/A

All pictures and the video were taken on February 25, 2017, by Tommy McGowan.
This crossing is located on the CN Waukesha Sub.

1
2

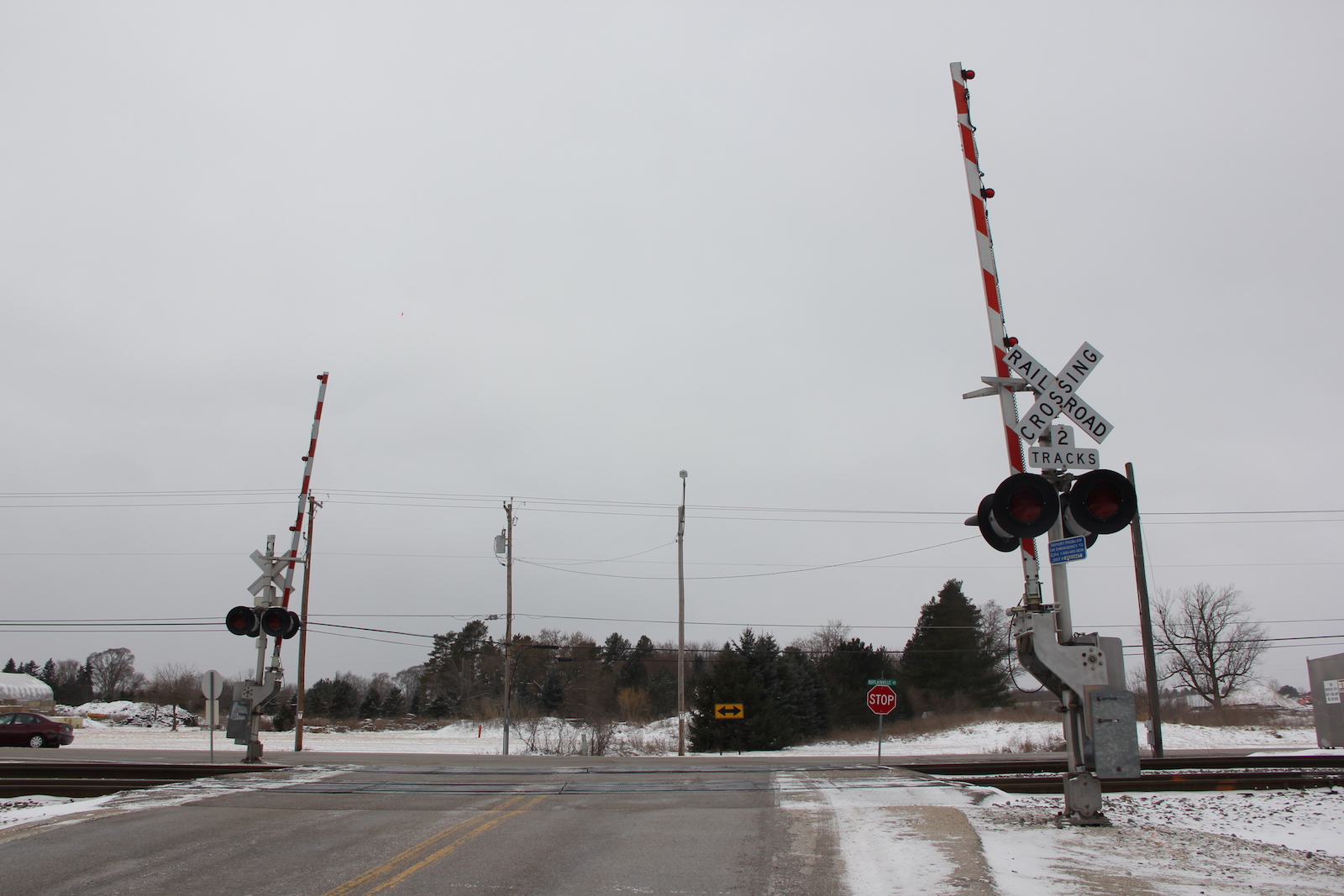

Overview of 2 gated signals facing west.

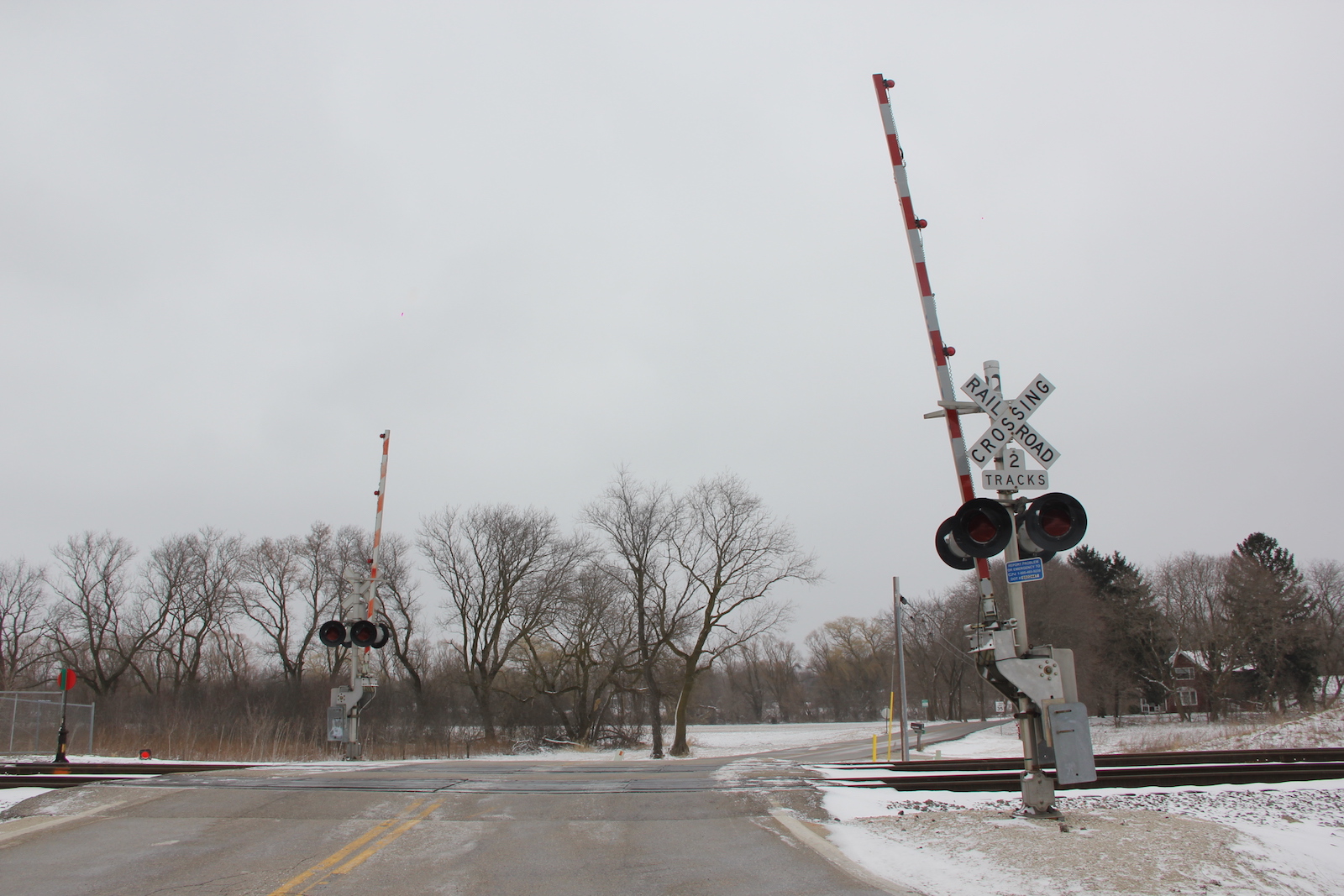

Overview facing east.
3 4 5
6 7 8
9 10 11

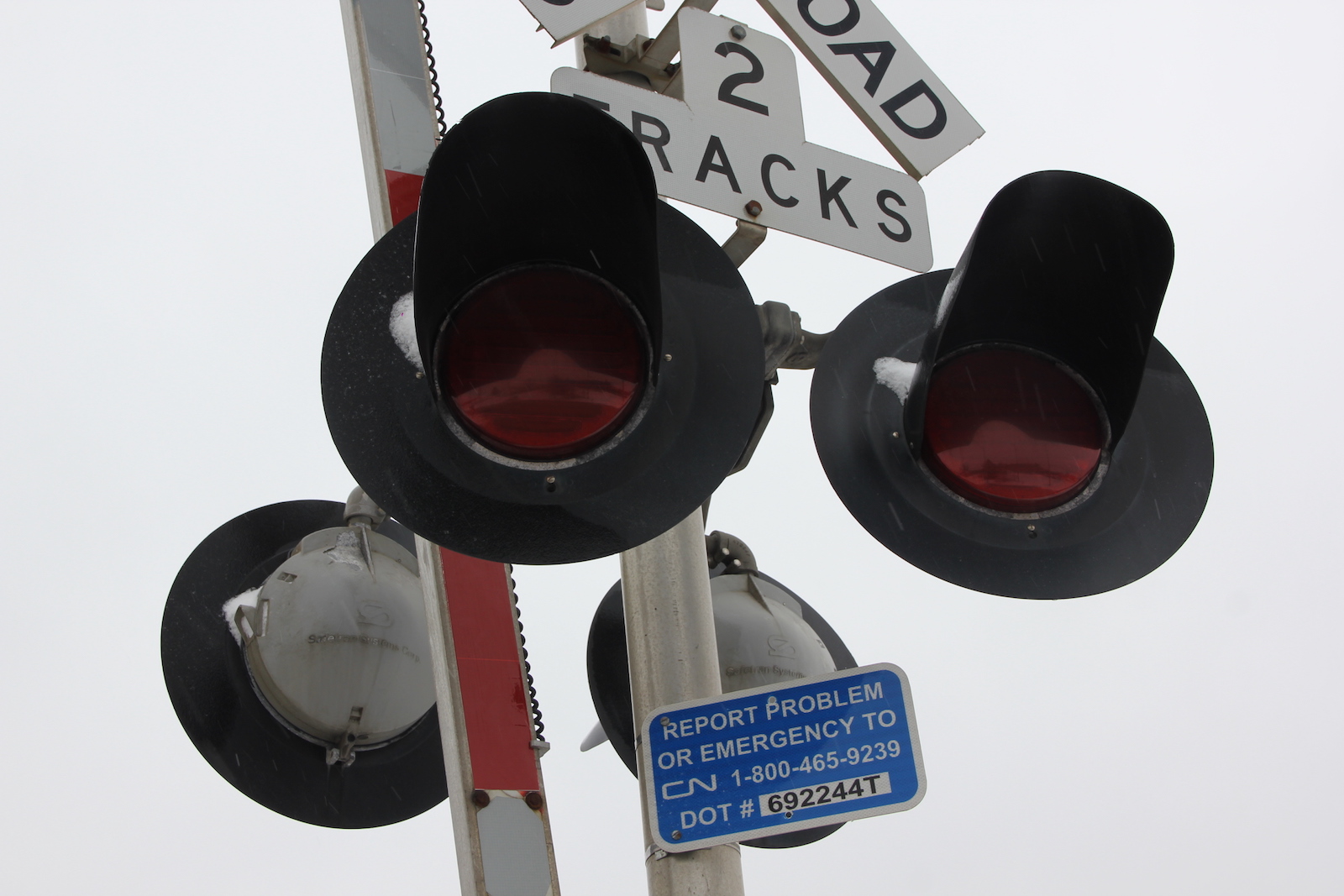

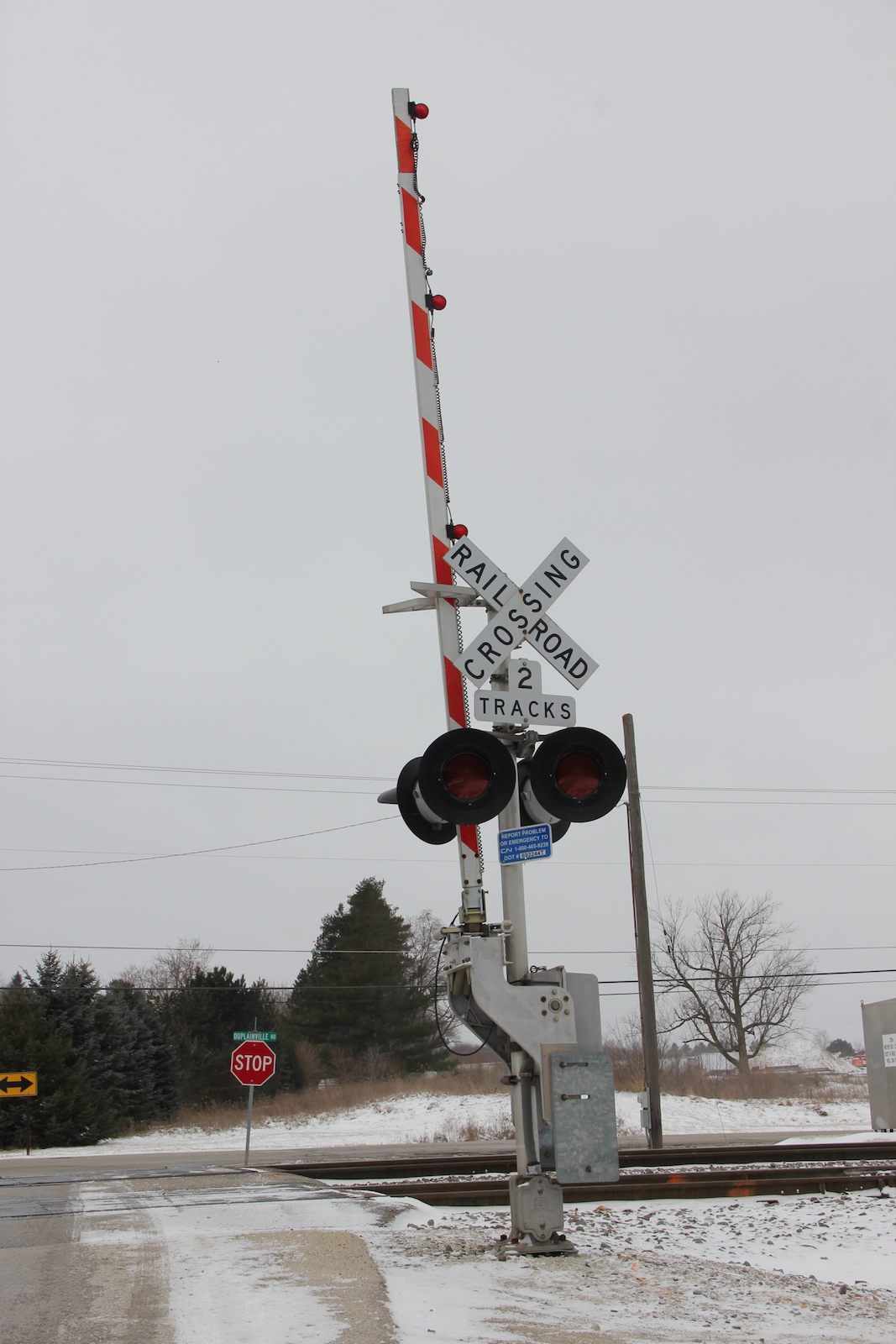

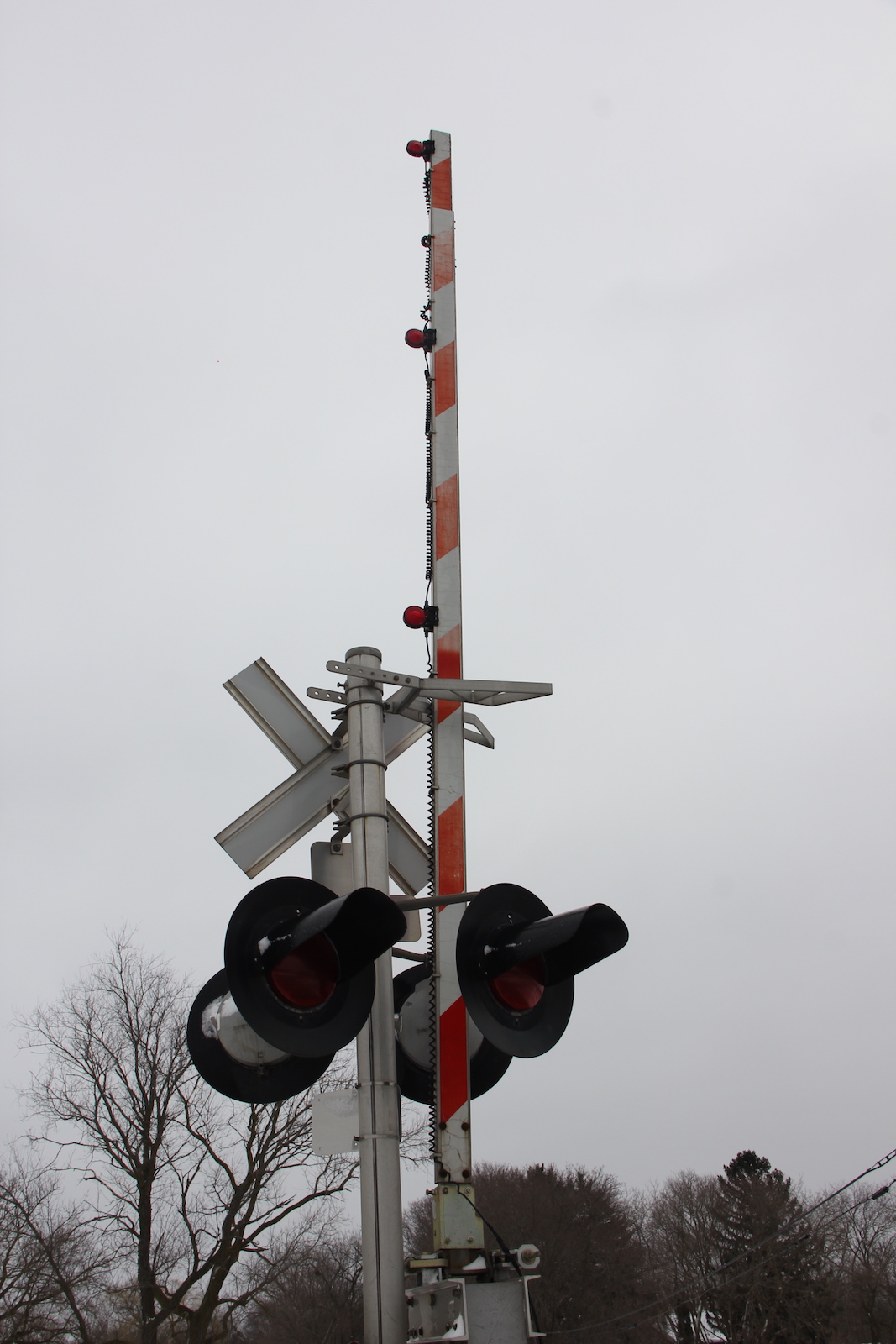

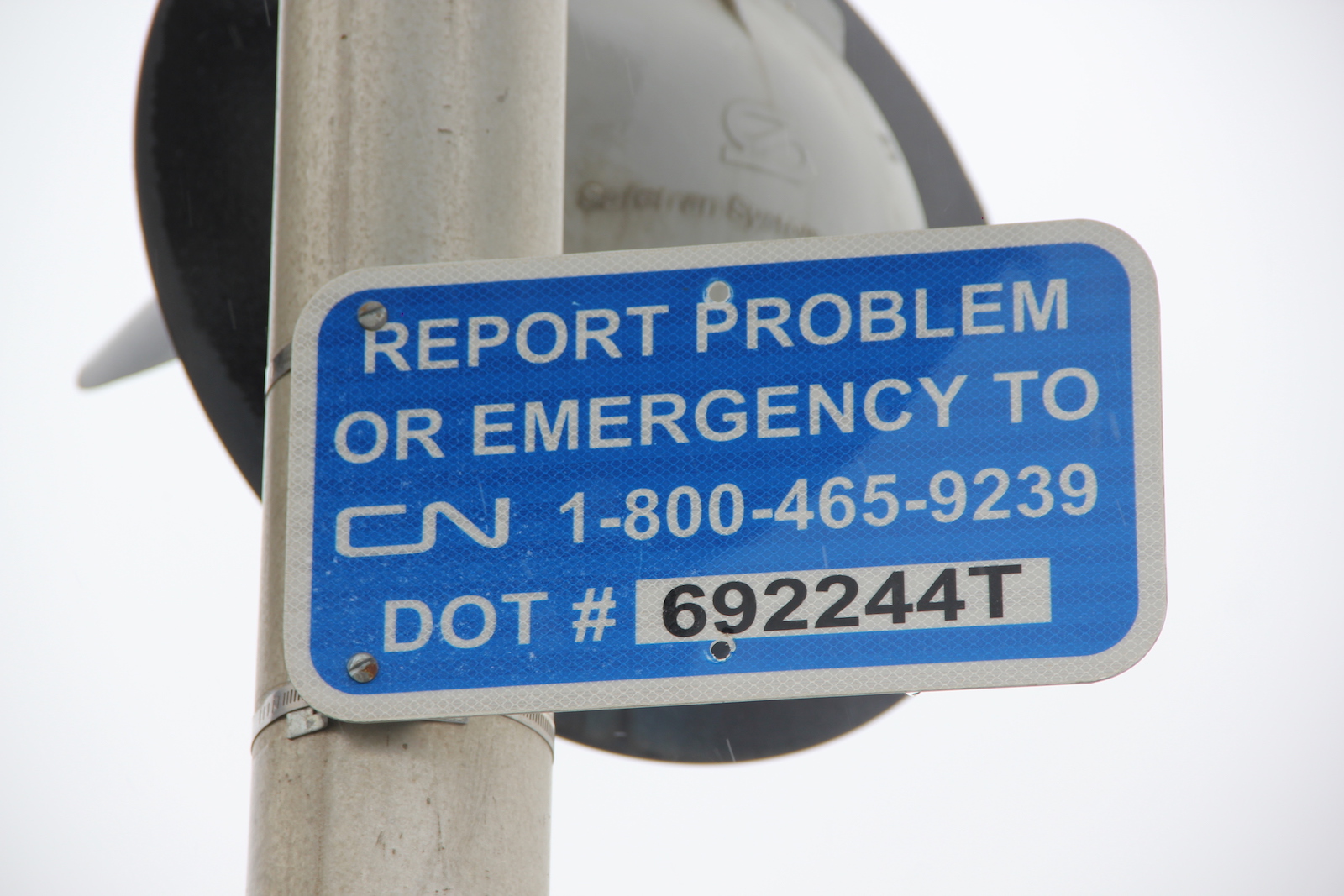

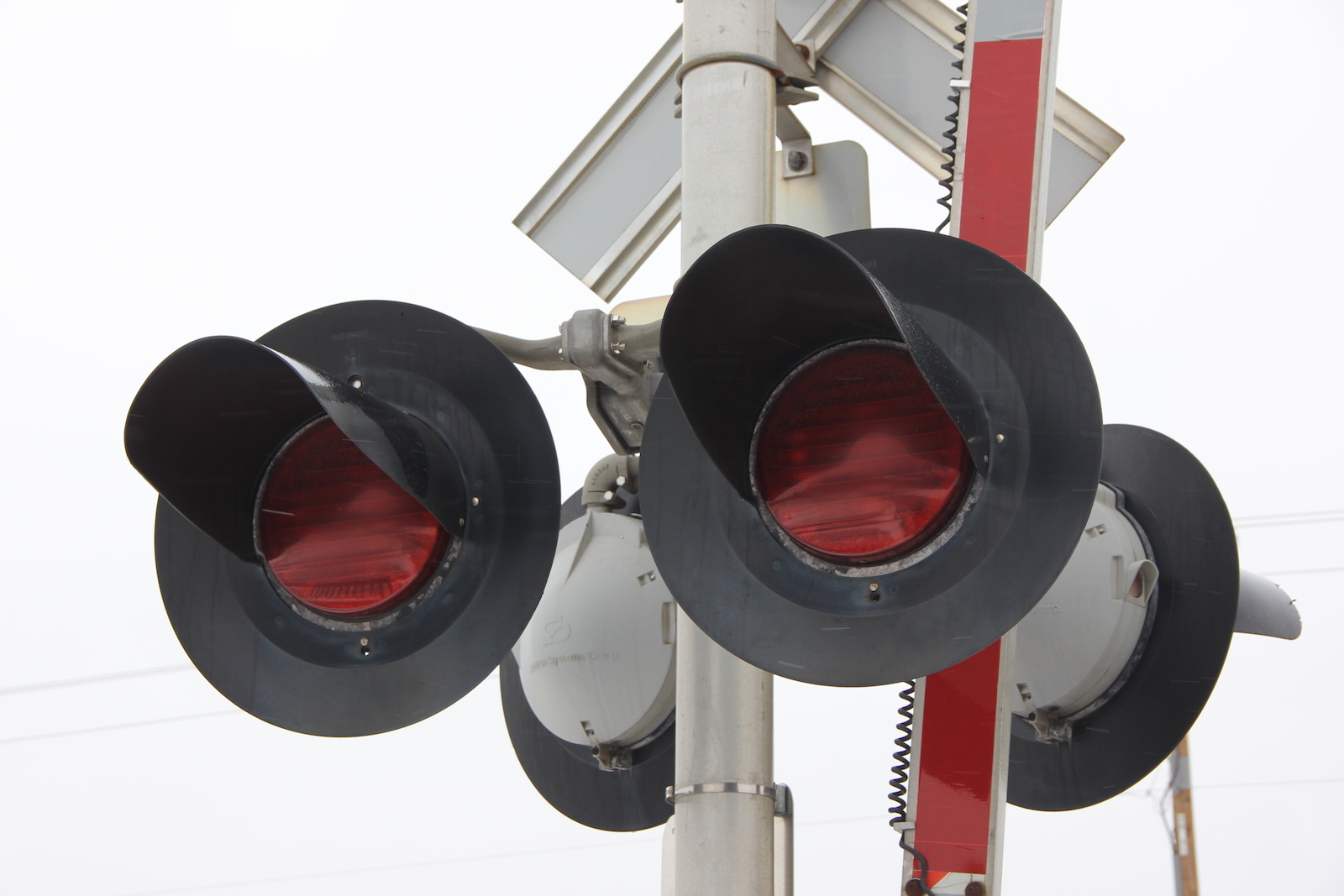

The eastern signal.
12 13 14
15 16 17
18 19 20
21

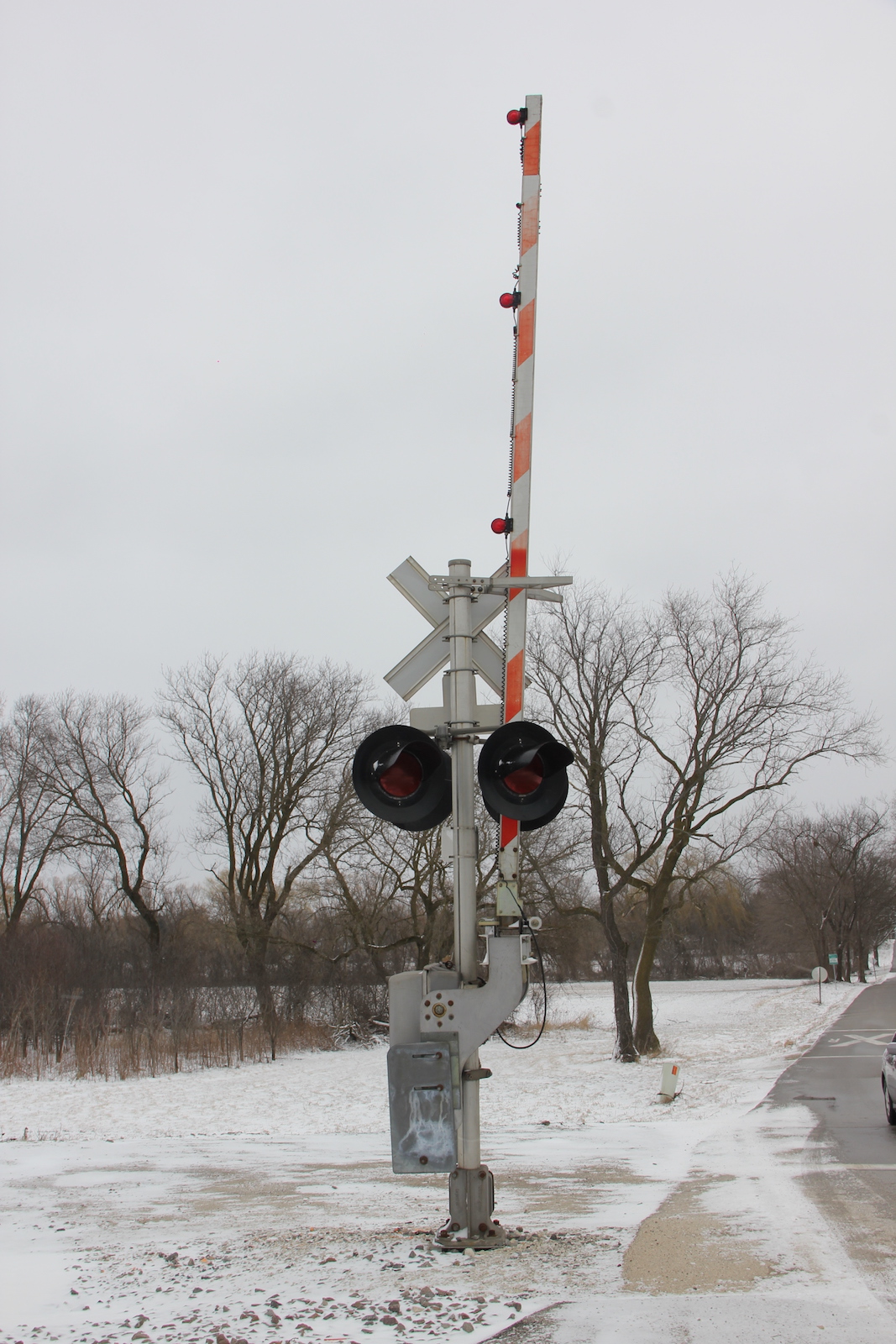

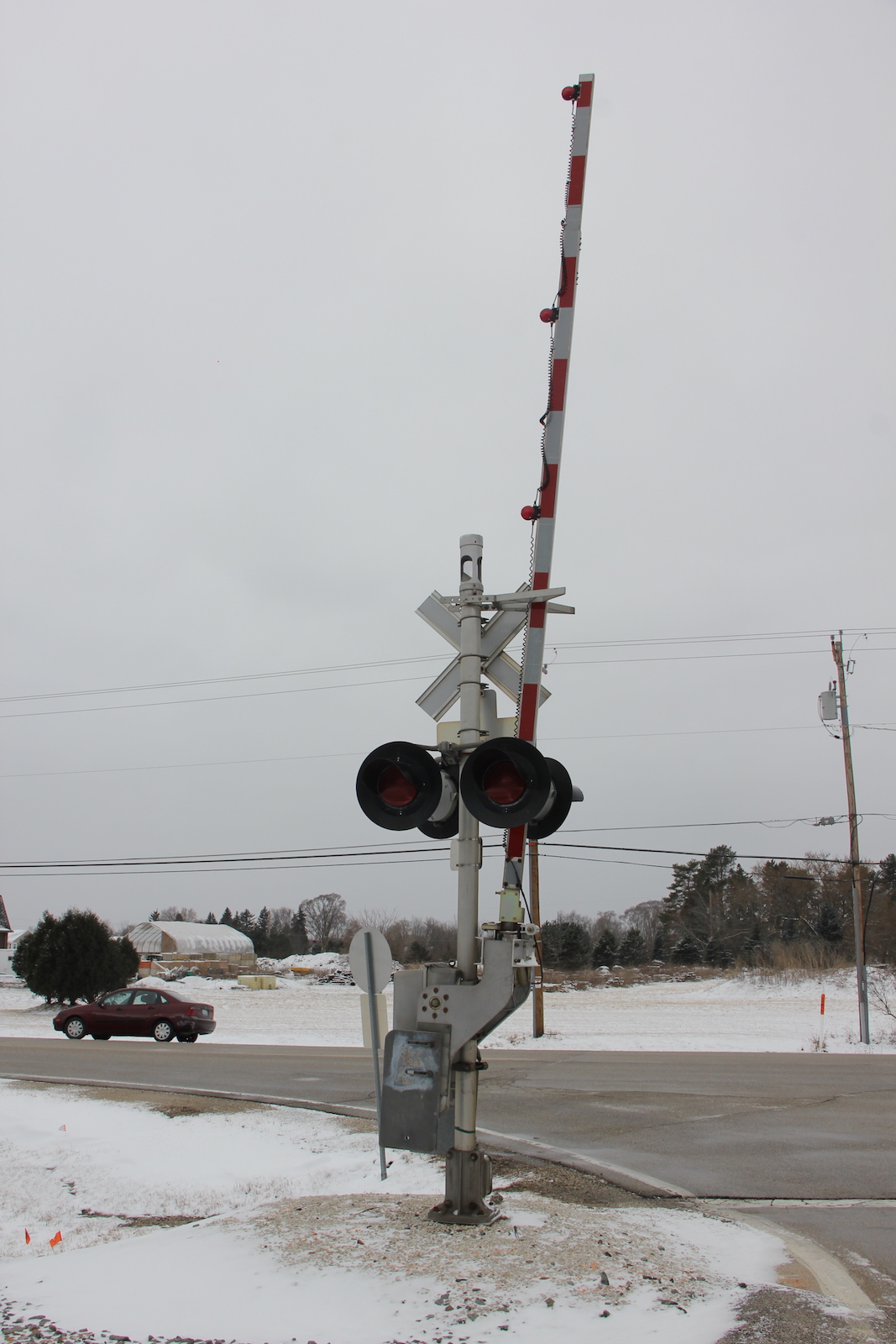

The western signal.
22 23 24 25

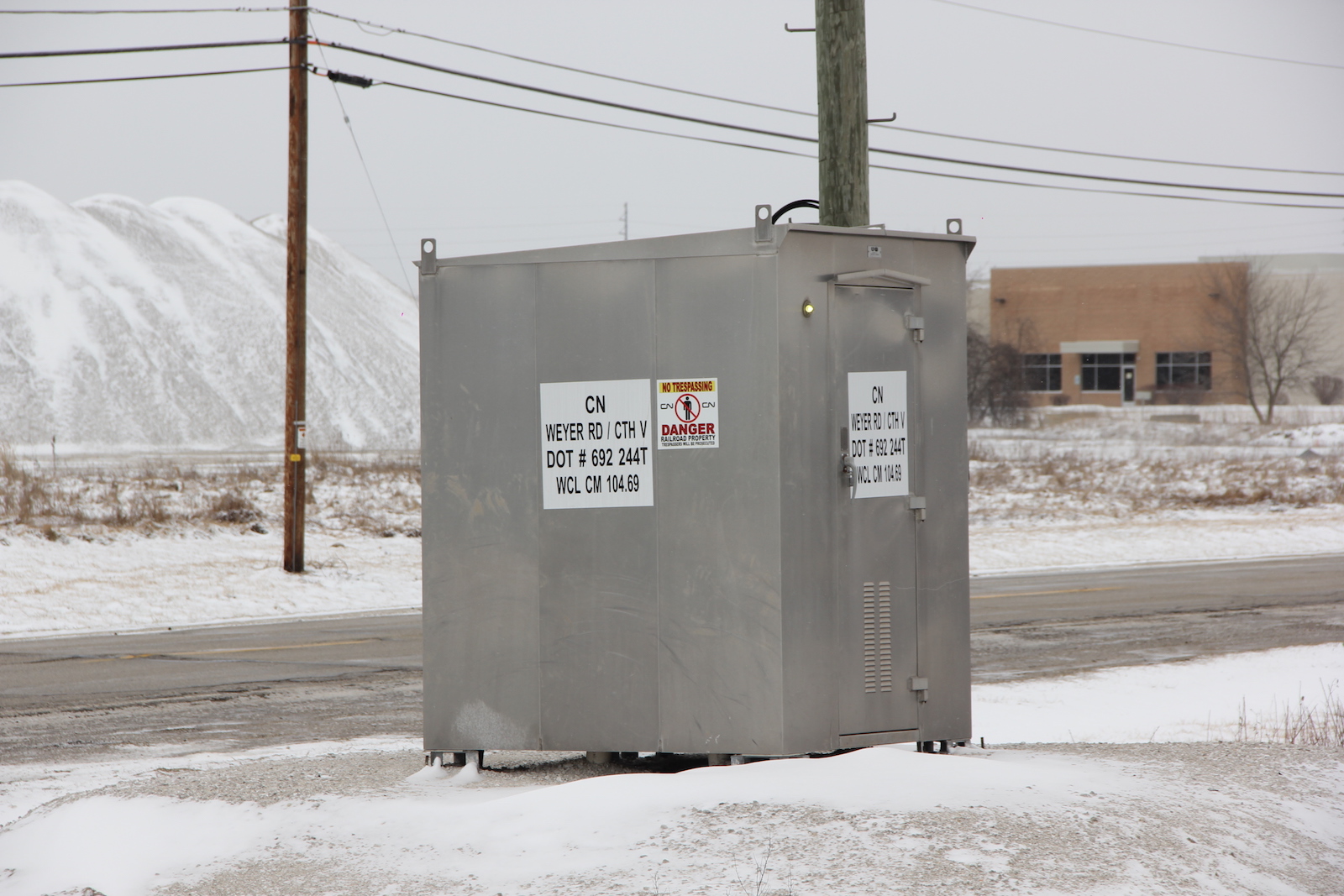

The relay bungalow in the northwest quadrant.

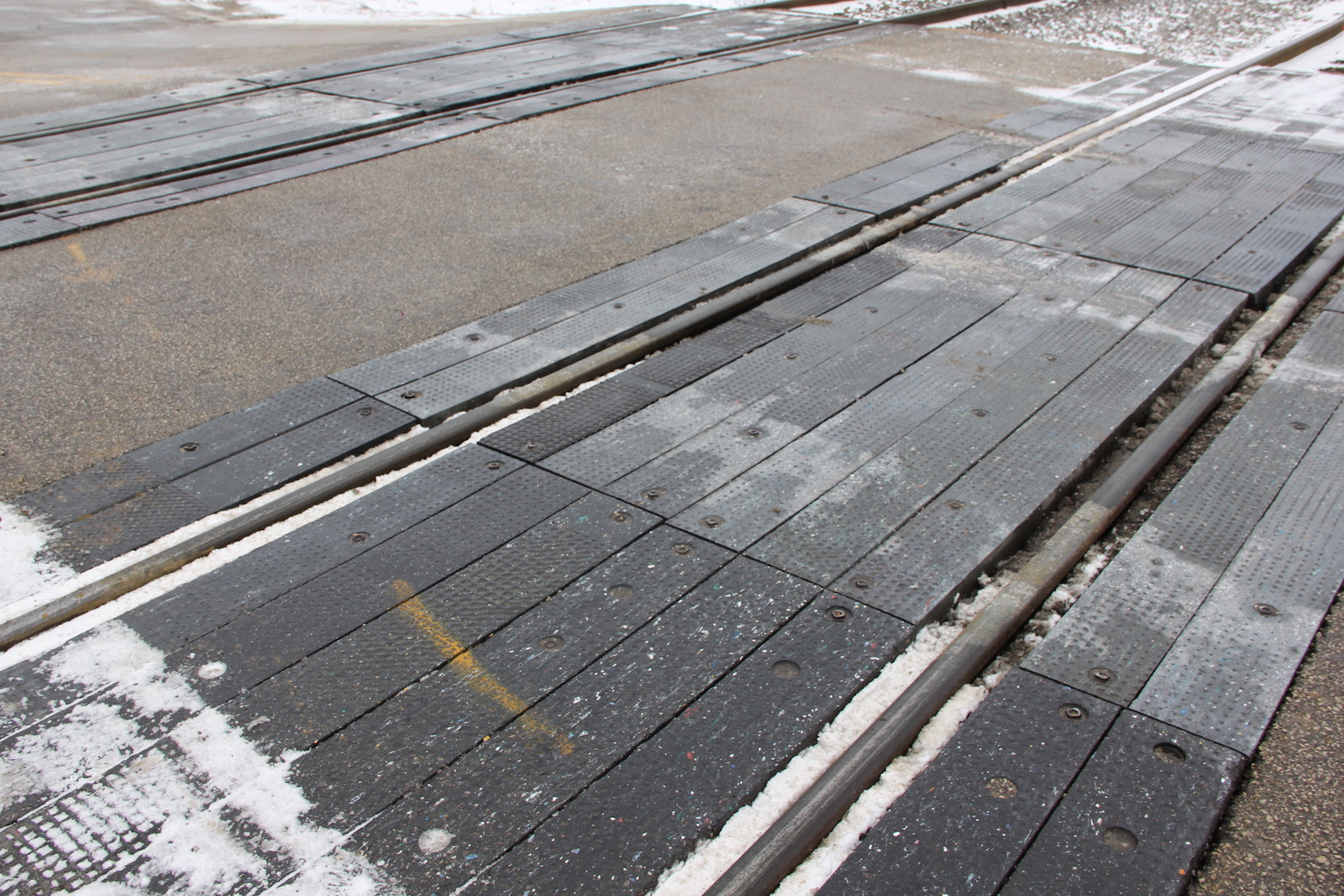

The grade is all rubber.

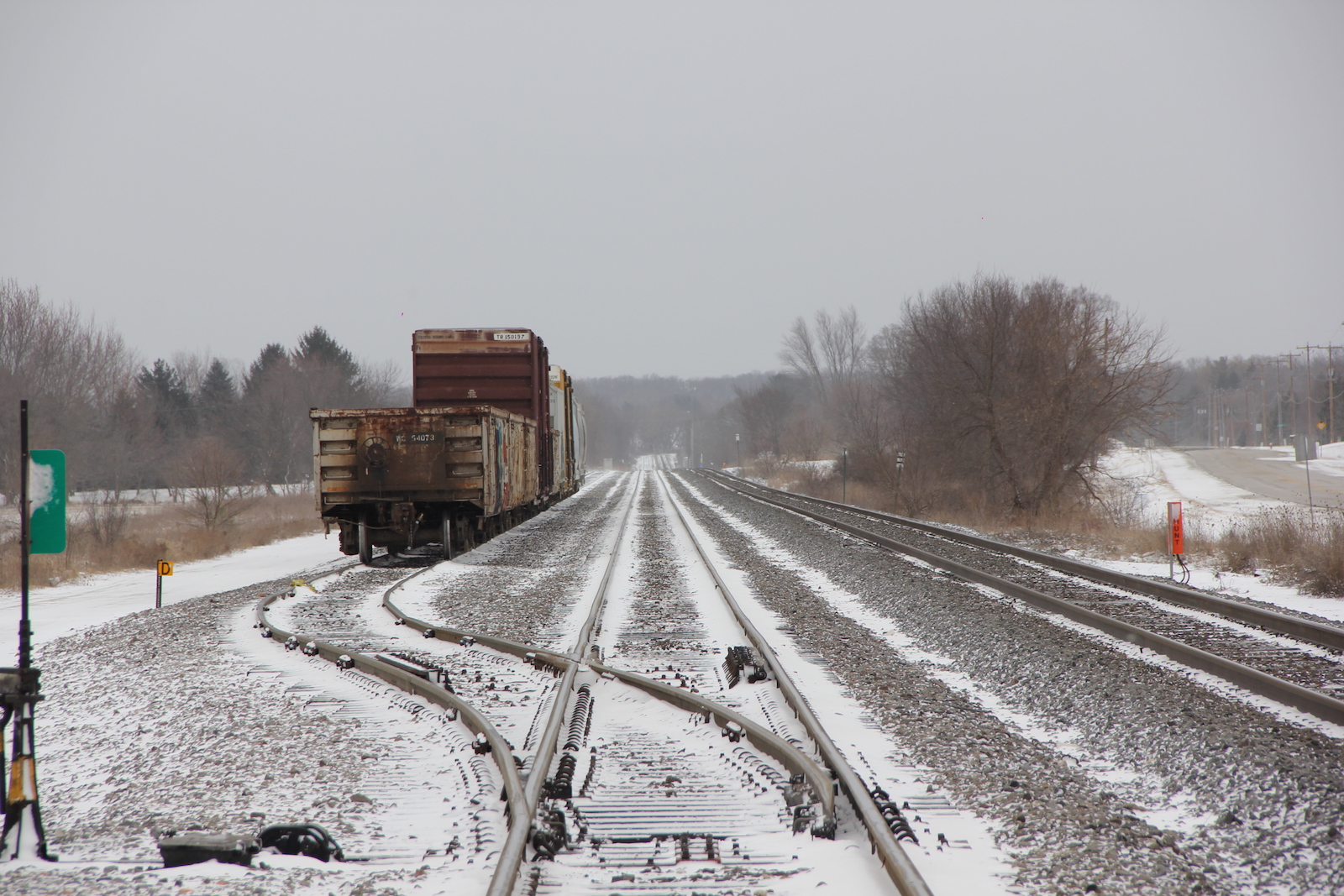

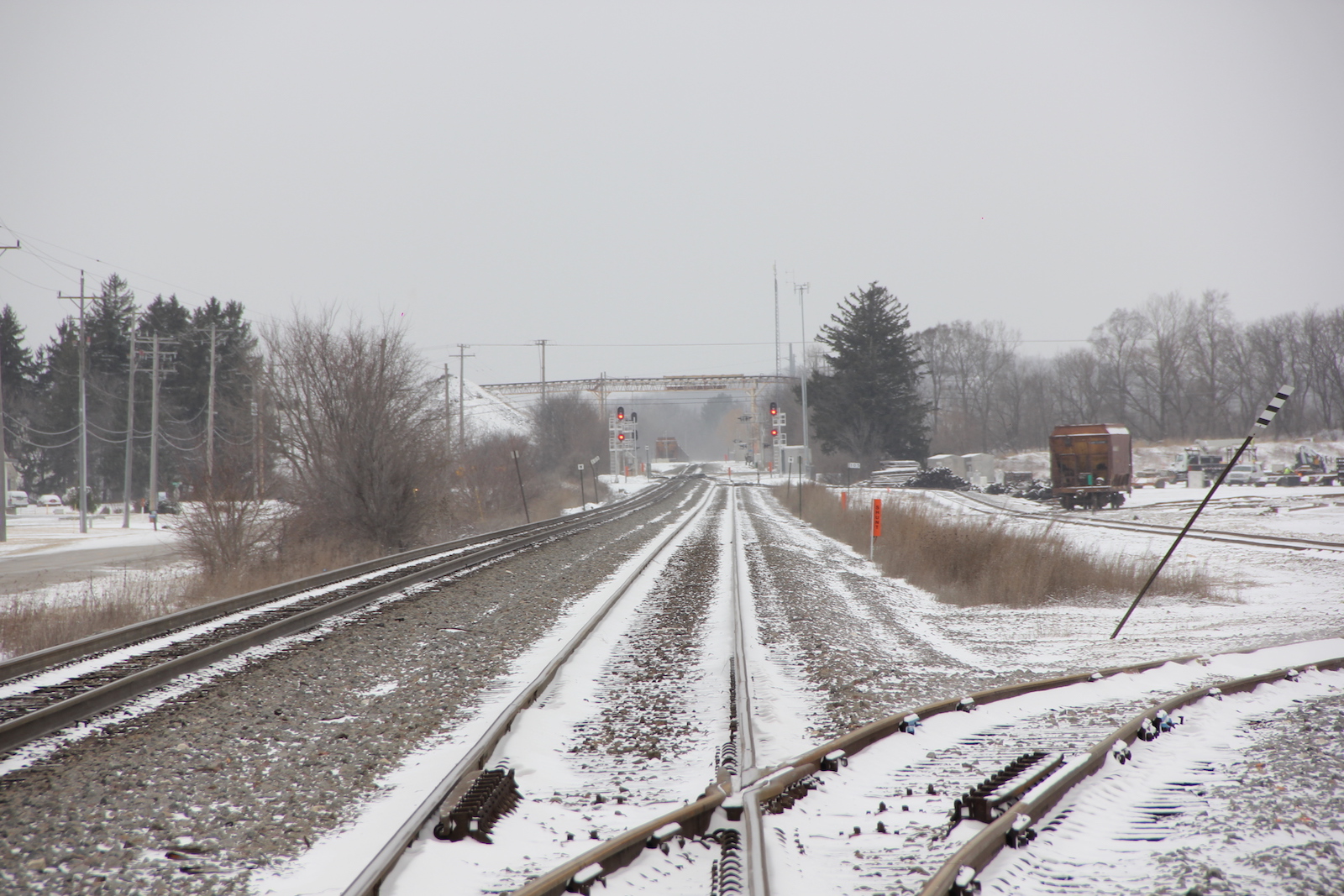

Track view facing north towards Lisbon Rd.
Track view facing south towards Green Rd.

I remember this crossing when it was brand new back in 2000.  It replaced a pair of gateless signals when the siding was extended north to Lisbon Rd.  I believe the signals were actually installed sometime in 1999, but didn't receive gates until early 2000.  This was one of the last installs by Wisconsin Central, and one of the few that didn't receive double sided crossbucks.  The lights were incandescent until 2015 I believe when CN installed the LEDs.
