Western Main Signal
Western Median Signal
Eastern Signal

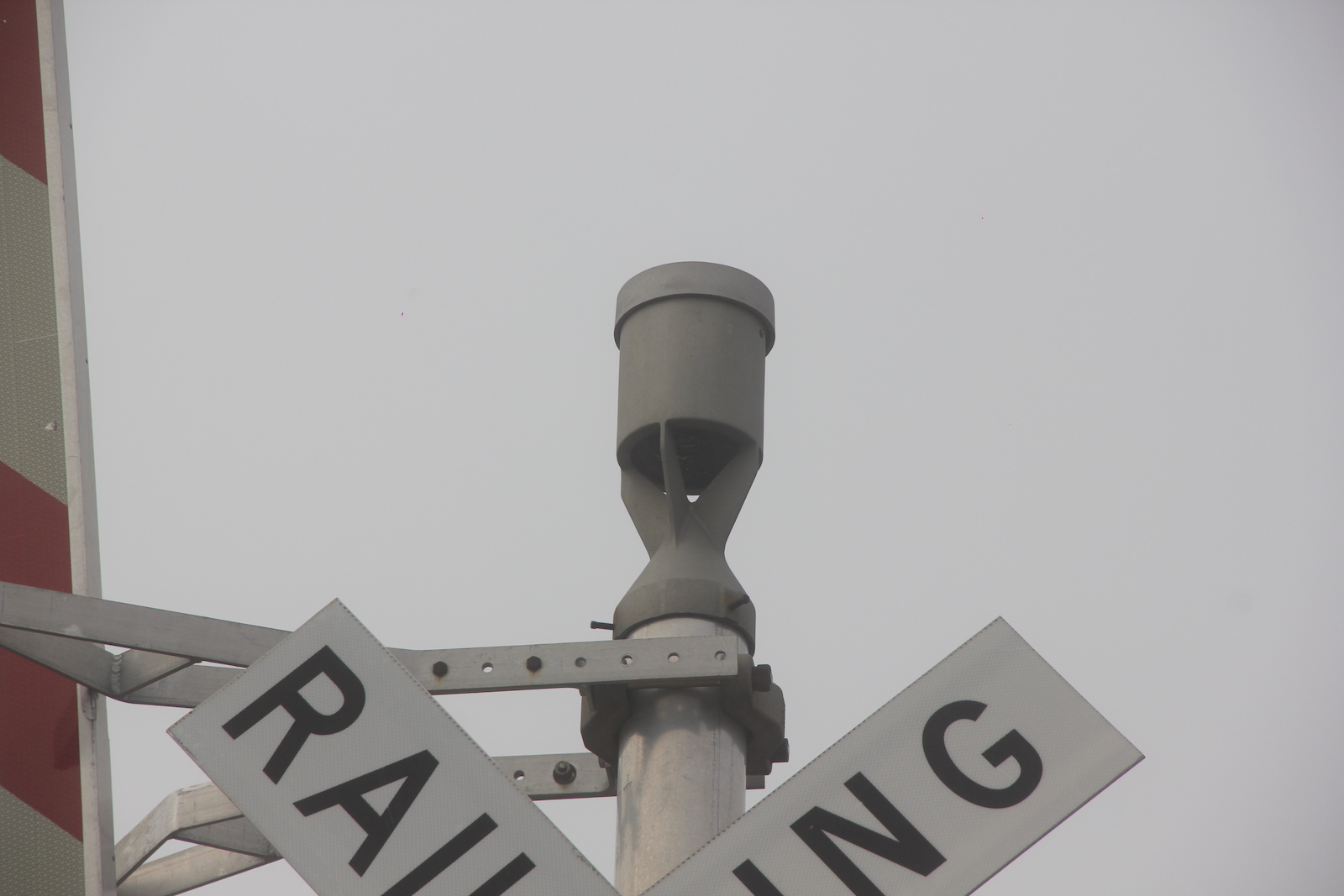

Bell:WCH E Bell
None
WCH E Bell

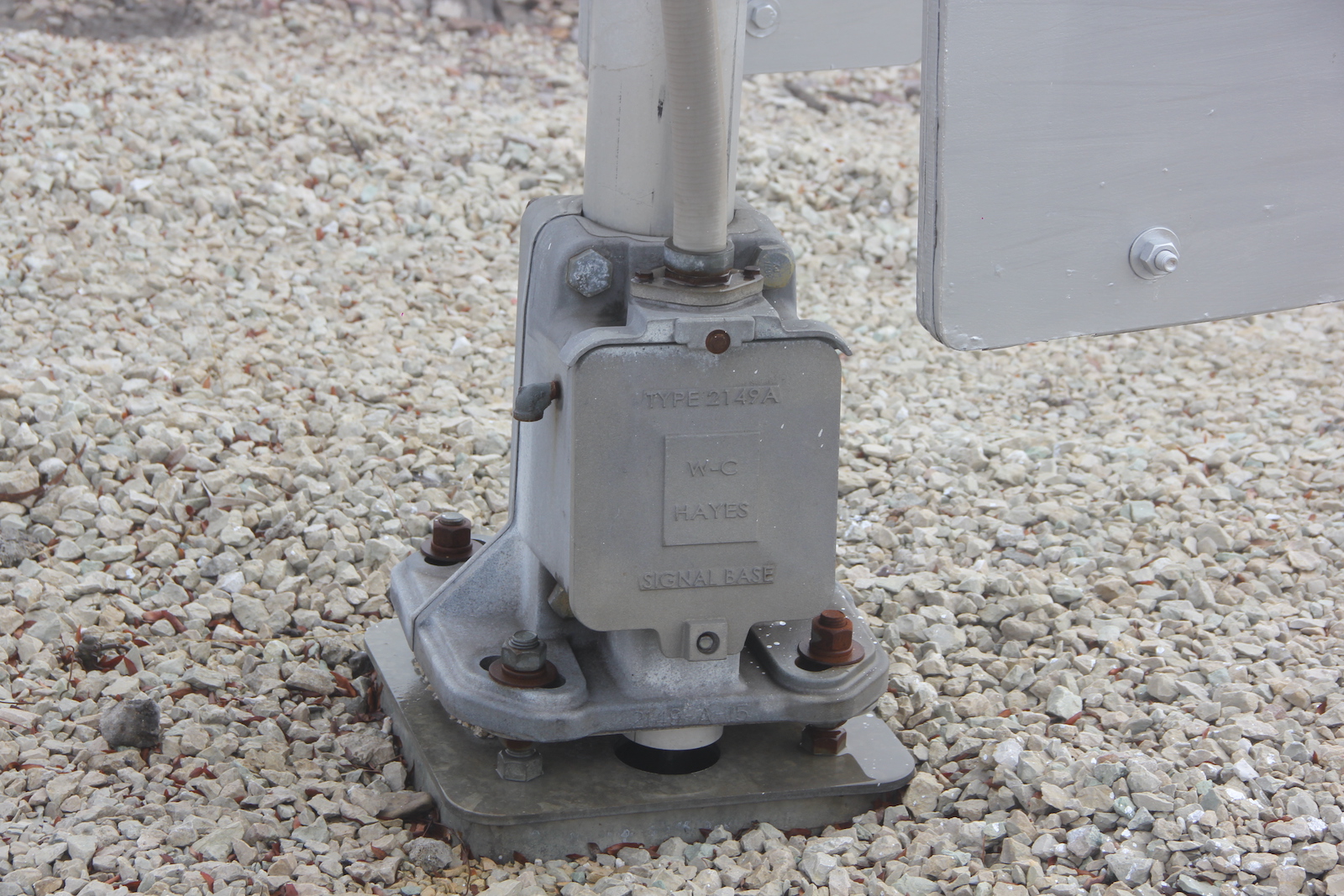

Base: Harmon Cantilever, WCH Gate
WCH
WCH
Main Lights: 2 pairs of 12"x24" Harmon Fading LEDs
2 pairs of 12"x24" 1st Gen WCH LEDs
4 pairs of 12"x24" 1st Gen WCH LEDs
Gate Lights: Aurora LEDs
Aurora LEDs
Aurora LEDs
Gate Mechanism: WCH
WCH
WCH
Gate Striping: /////////////////////////////////////////////////////////////////////////////////// \\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\ ///////////////////////////////////////////////////////////////////////////////////////////////////////////
Crossbuck font
Normal font, double sided
Normal font, double sided Normal font, double sided
Bell Cycle: Unknown
N/A
Unknown

Pictures 1-5 were taken in early 2006 by Brenton81.
Pictures 6-45 were taken on January 21, 2017, by Tommy McGowan.
This crossing is located on the UP Kenosha Sub.

1
2
3
4
5

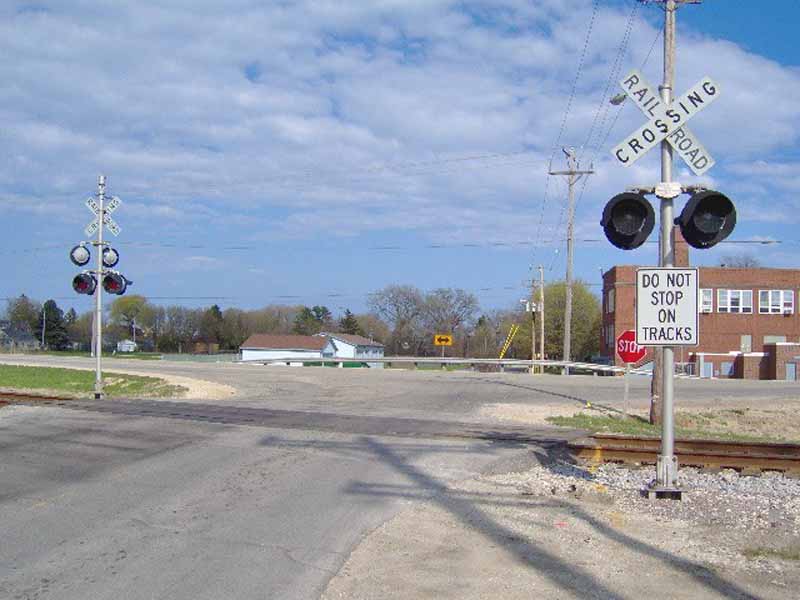

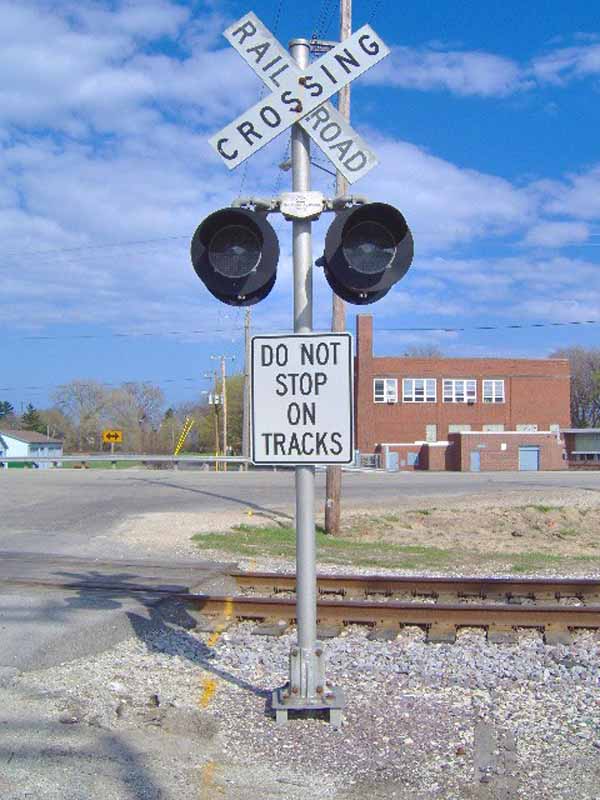

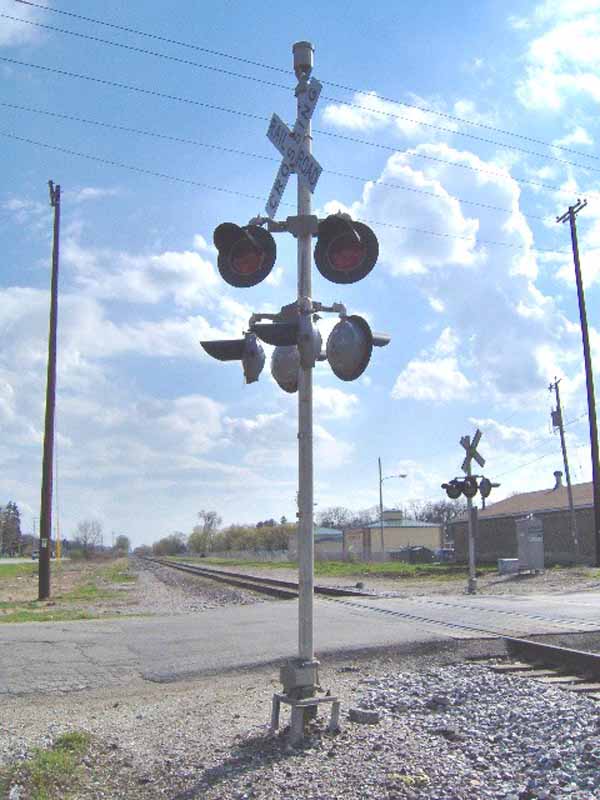

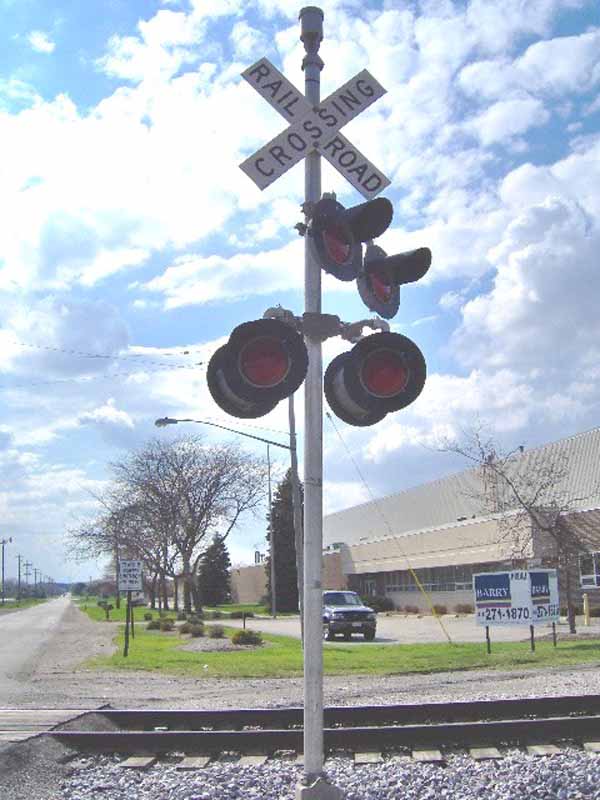

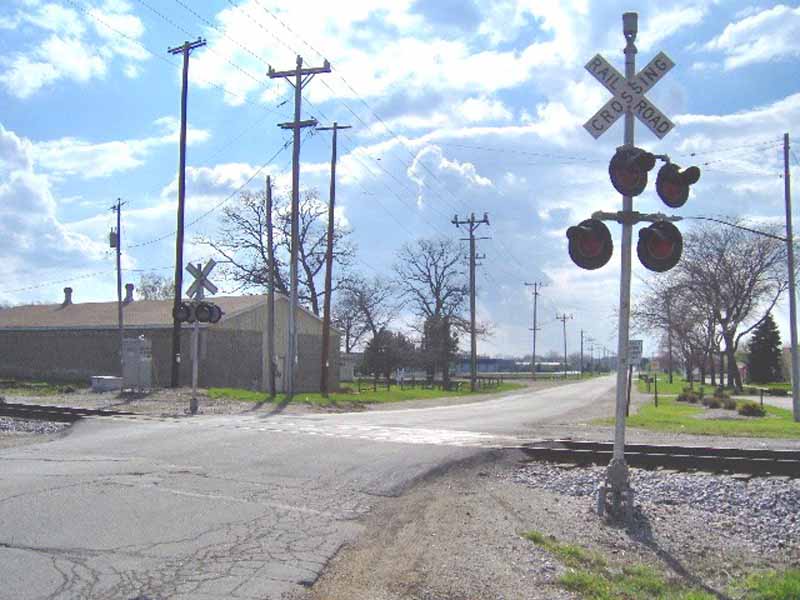

Photos from early 2006 by Brenton81.  At the time, this crossing had 2 gateless signals, one with presumably UP LEDs and the other with WCH Clear LEDs.  These 2 replaced a pair of wigwag signals back in the late 1980s.

By early 2008, the crossing was completely overhauled with the road being widened, traffic signals added at the intersection just east of the crossing, and most importantly, new crossing signals installed.  The newer setup now has 2 gated mast signals and a gated cantilever.

6
7

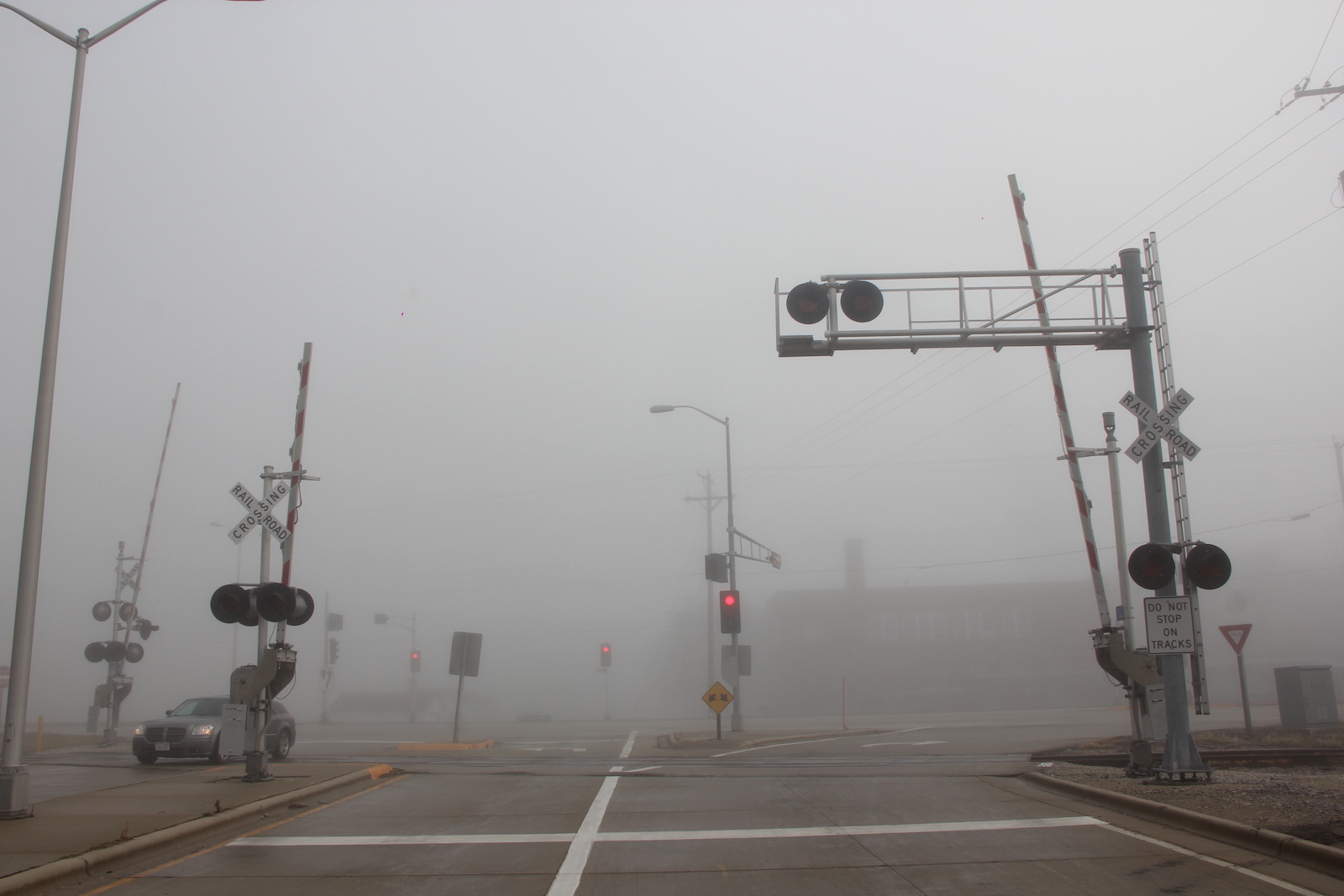

Overview of the newer setup facing east.

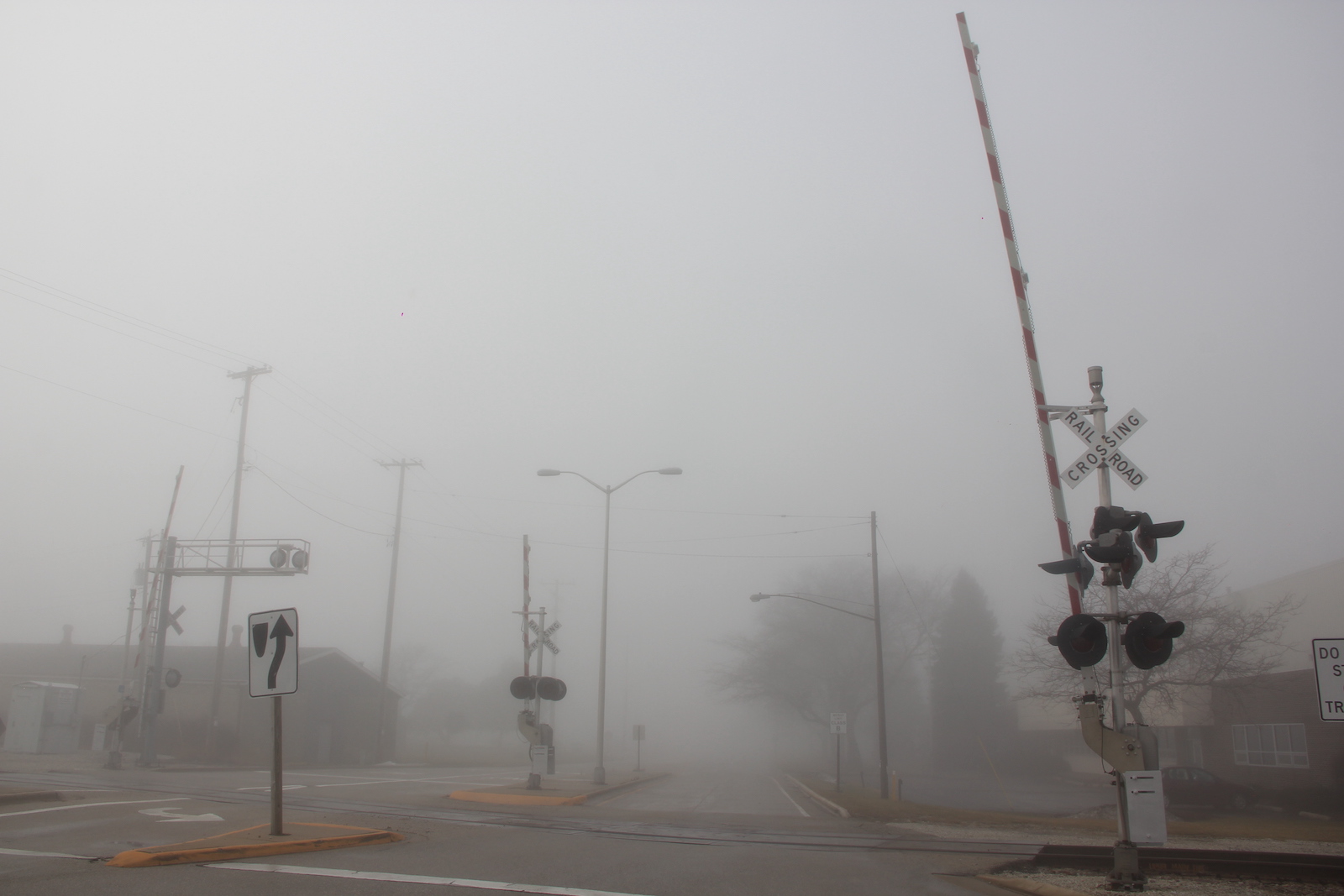

Overview facing west.

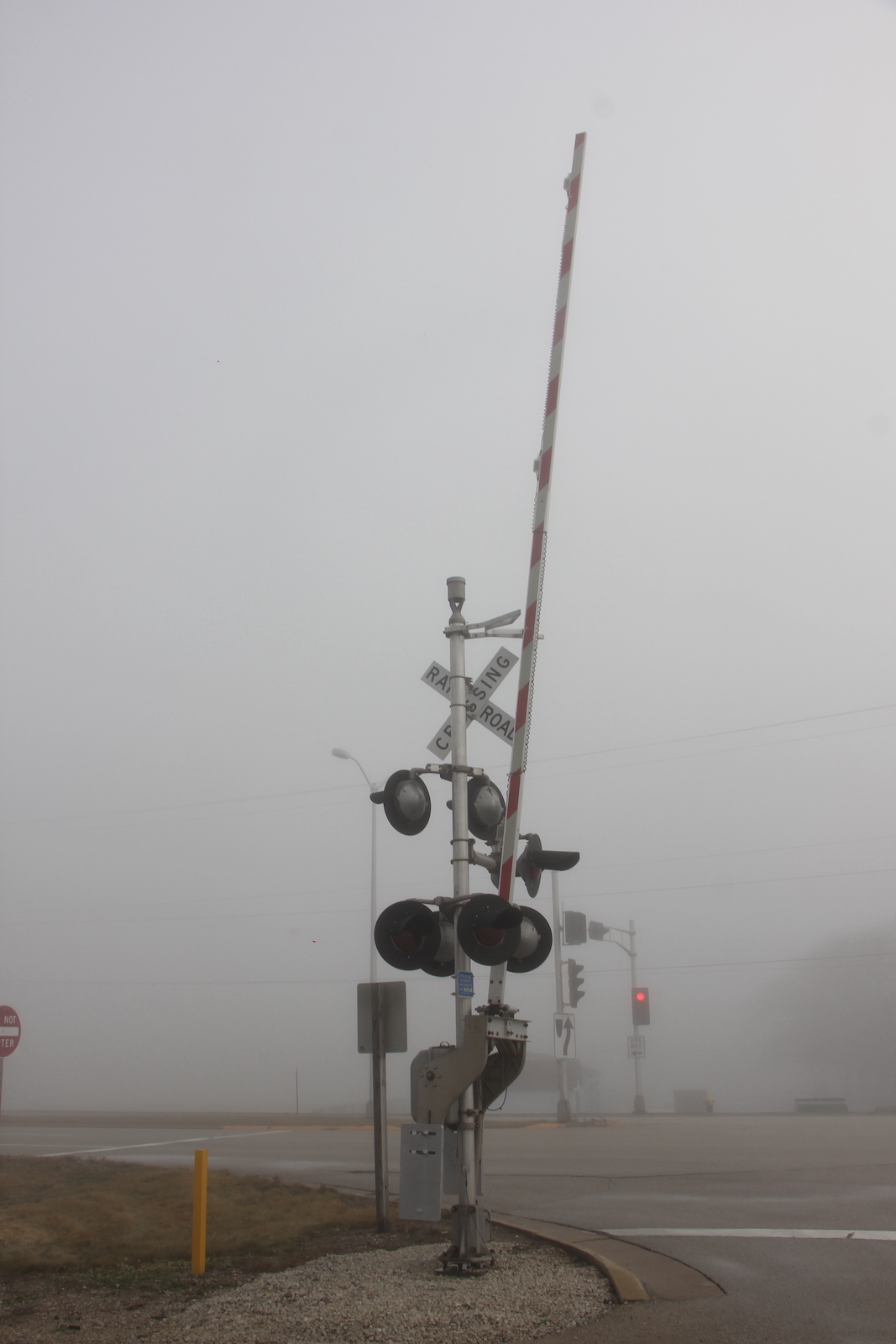

8 9 10 11
12 13 14 15
16 17 18 19

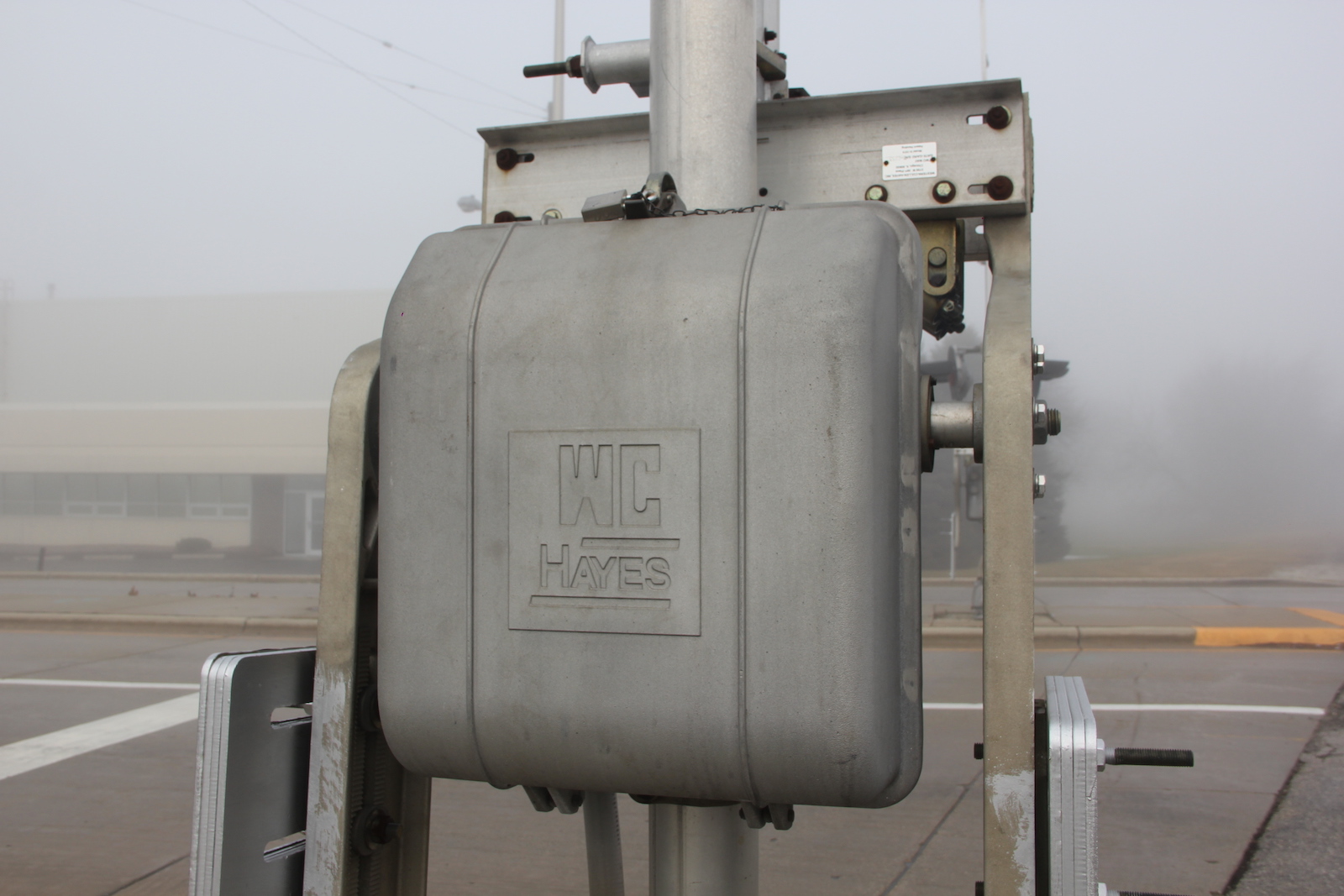

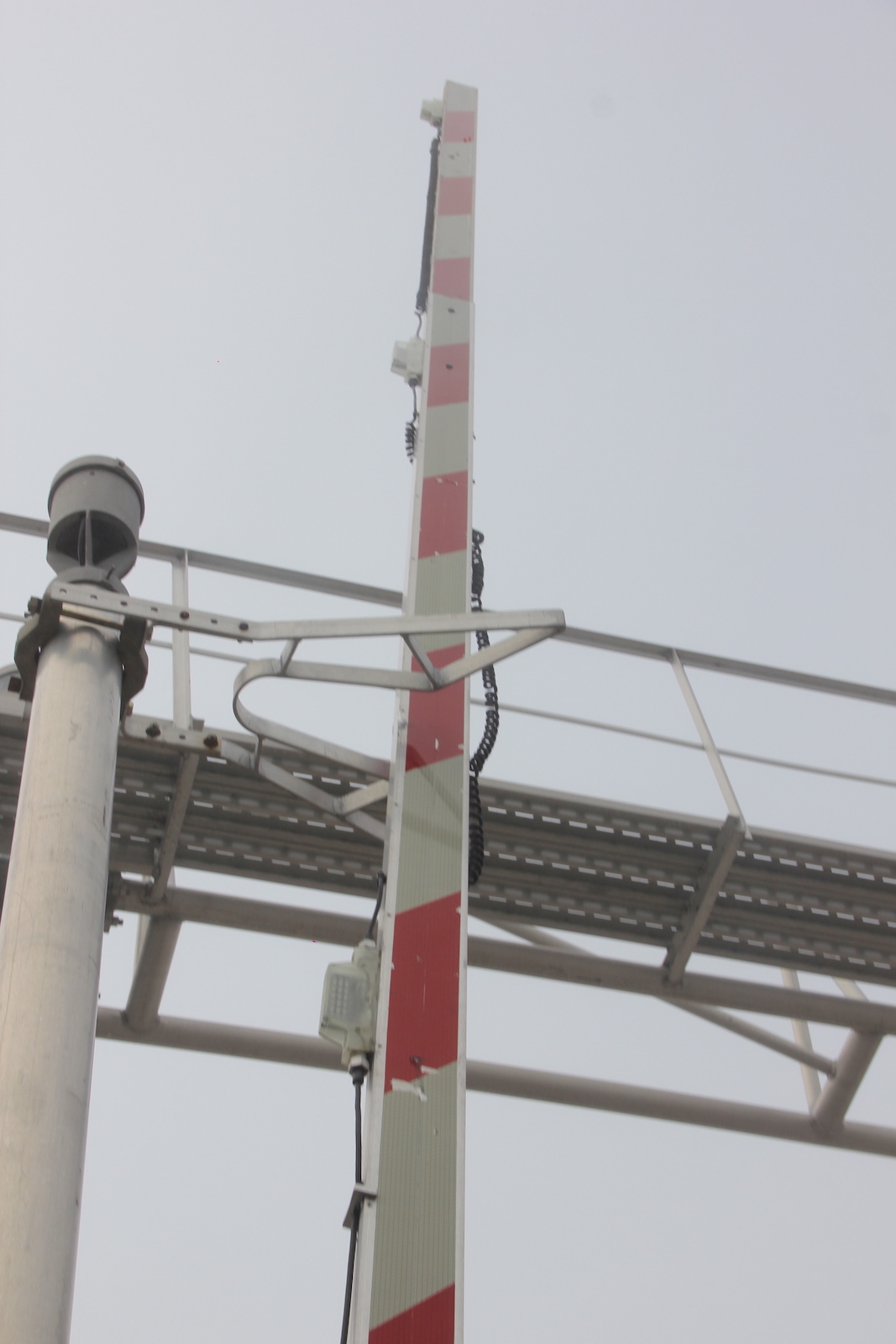

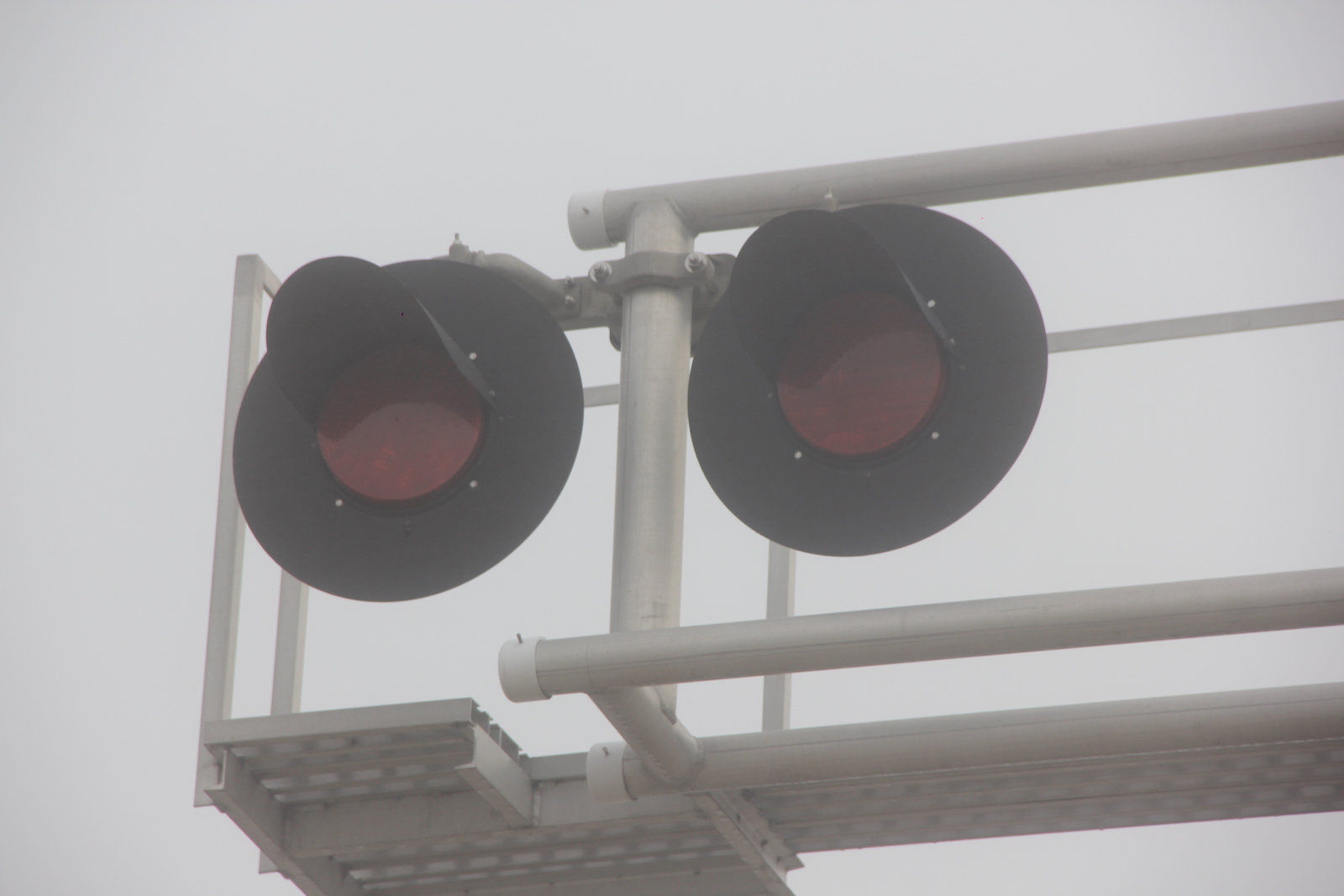

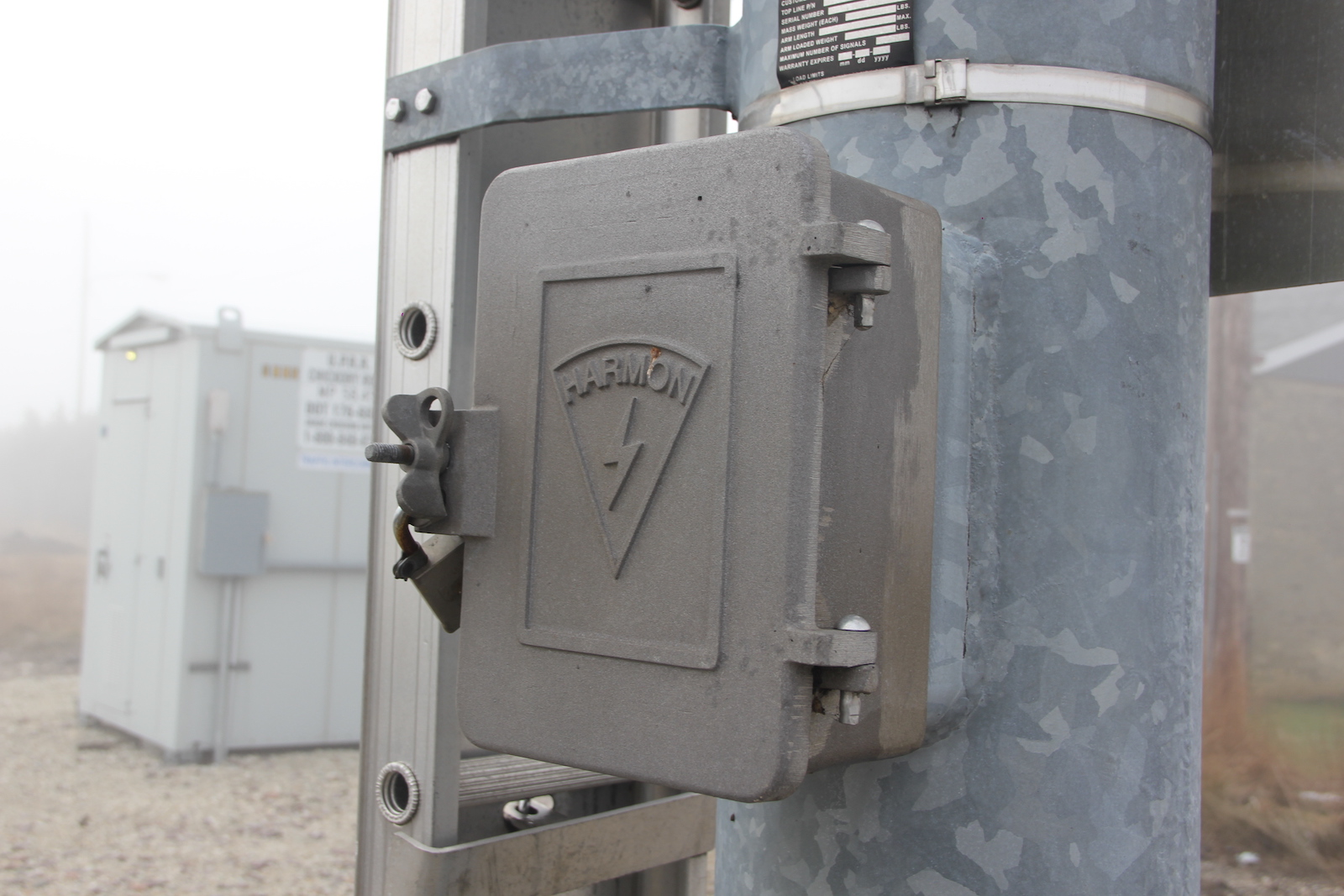

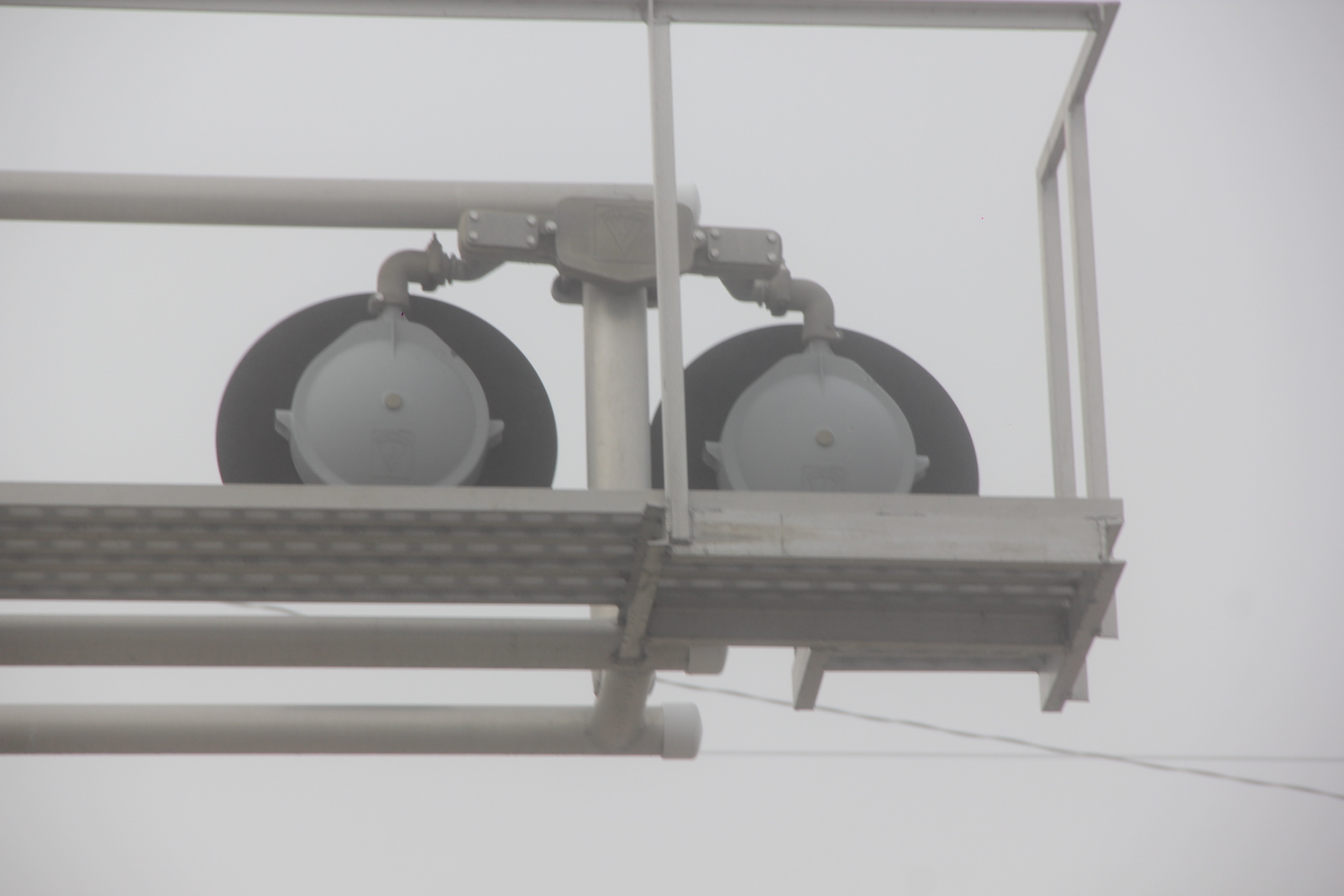

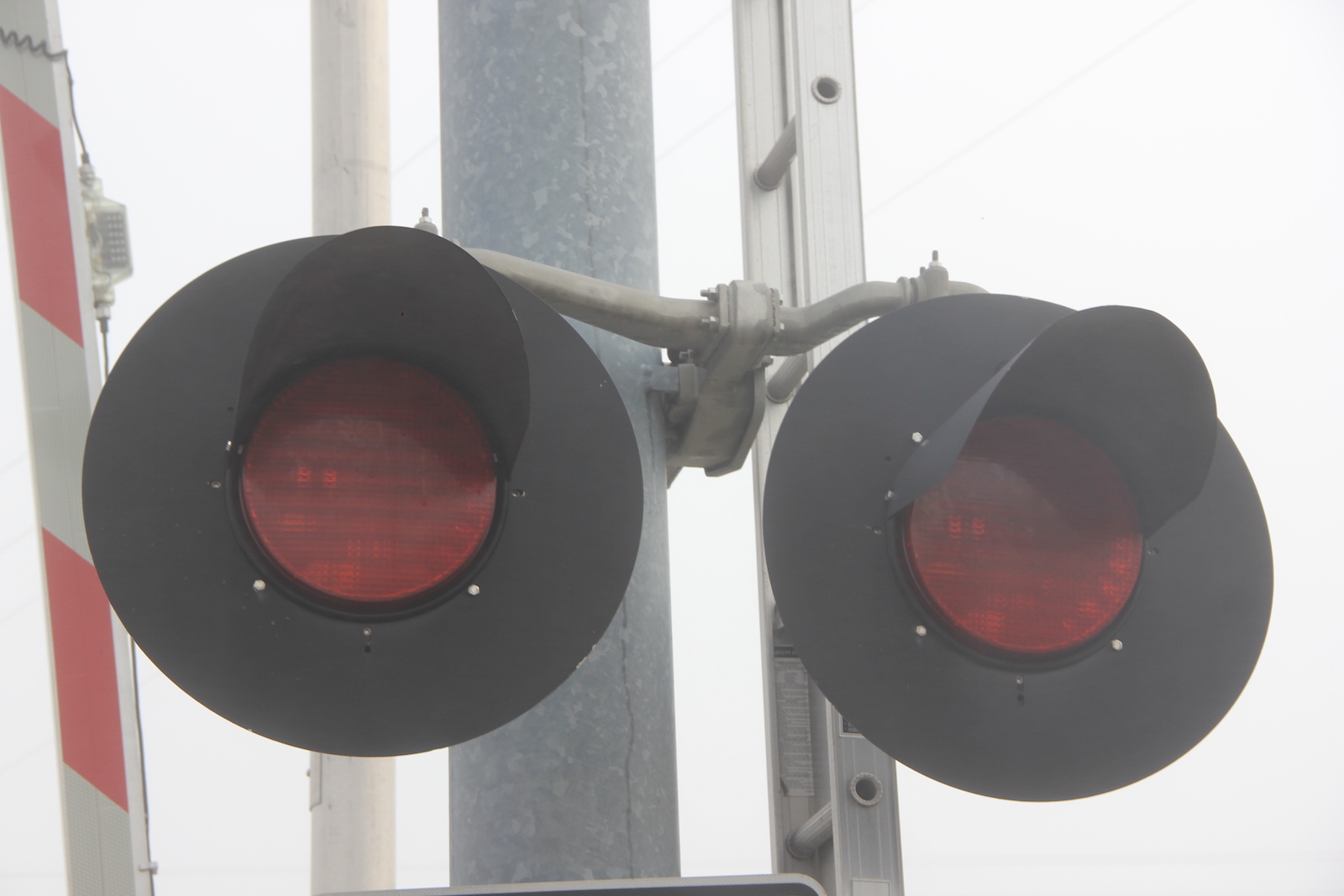

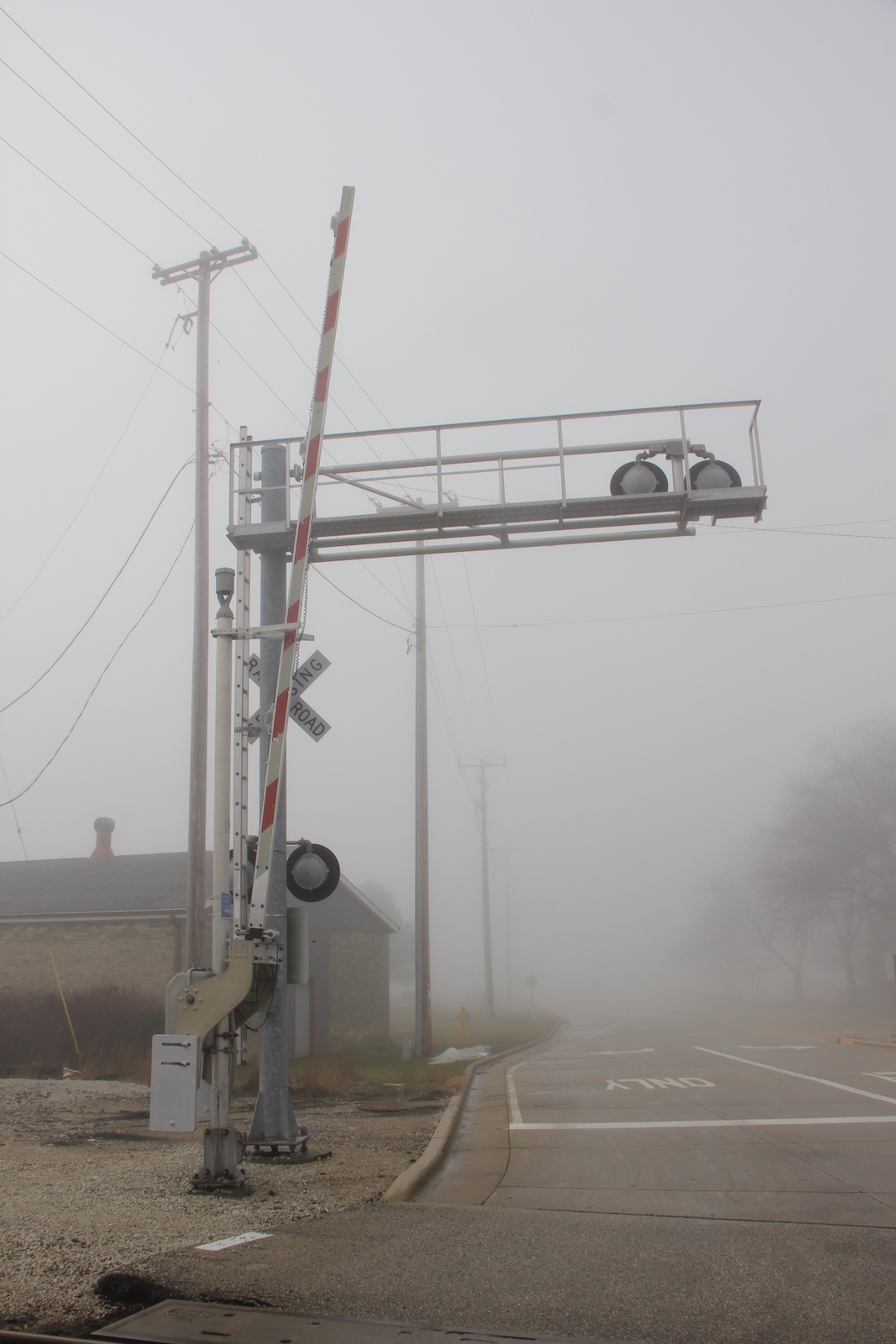

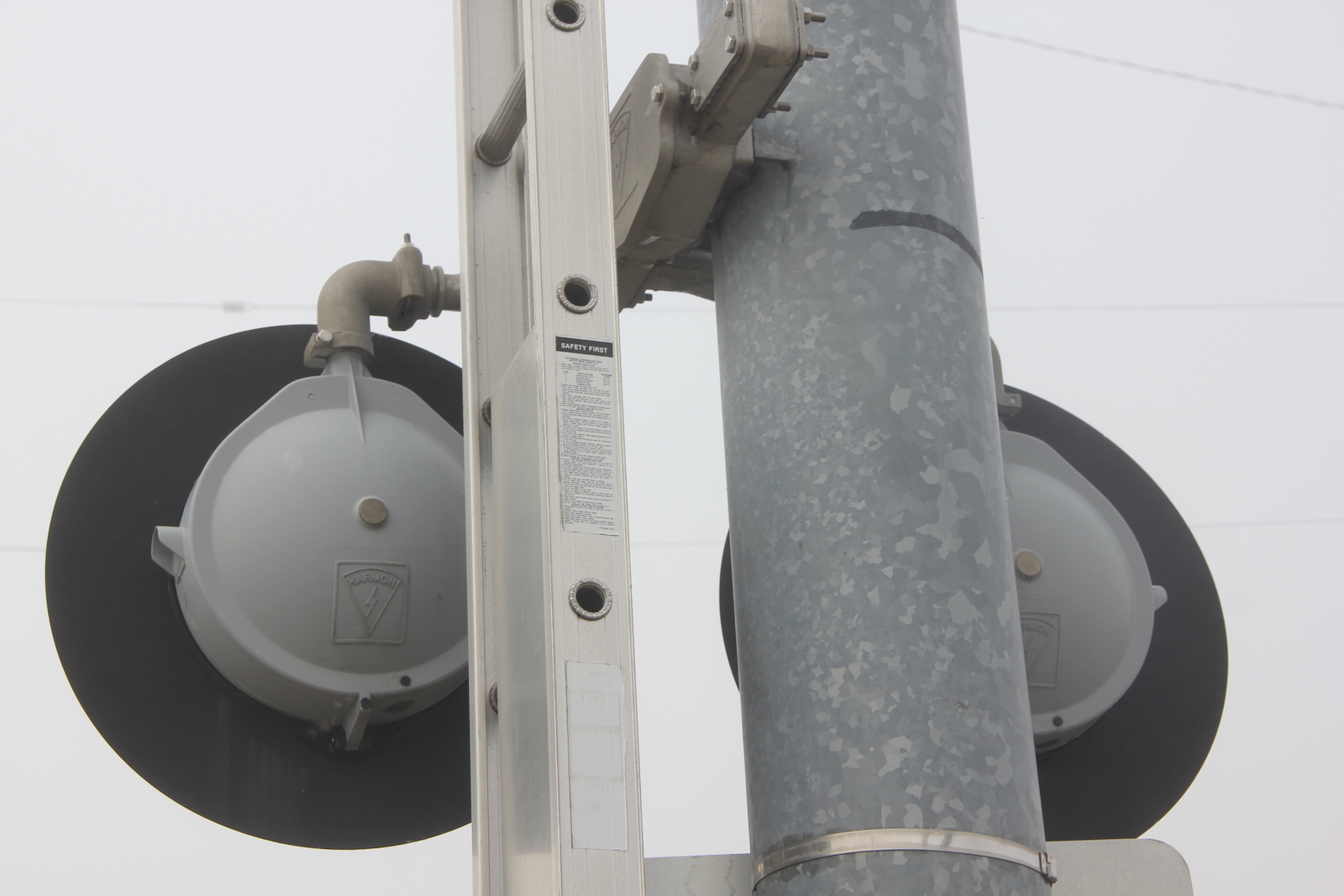

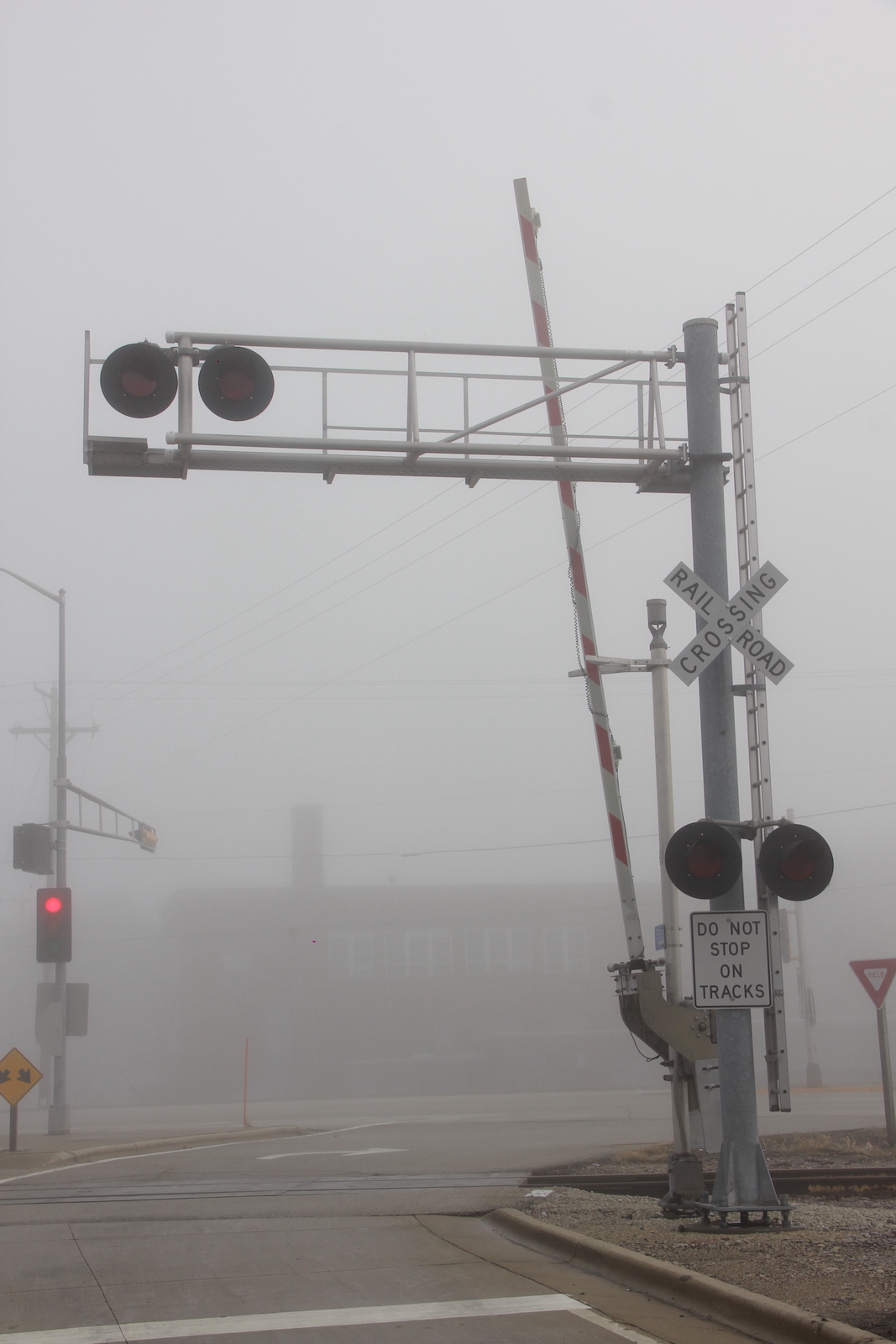

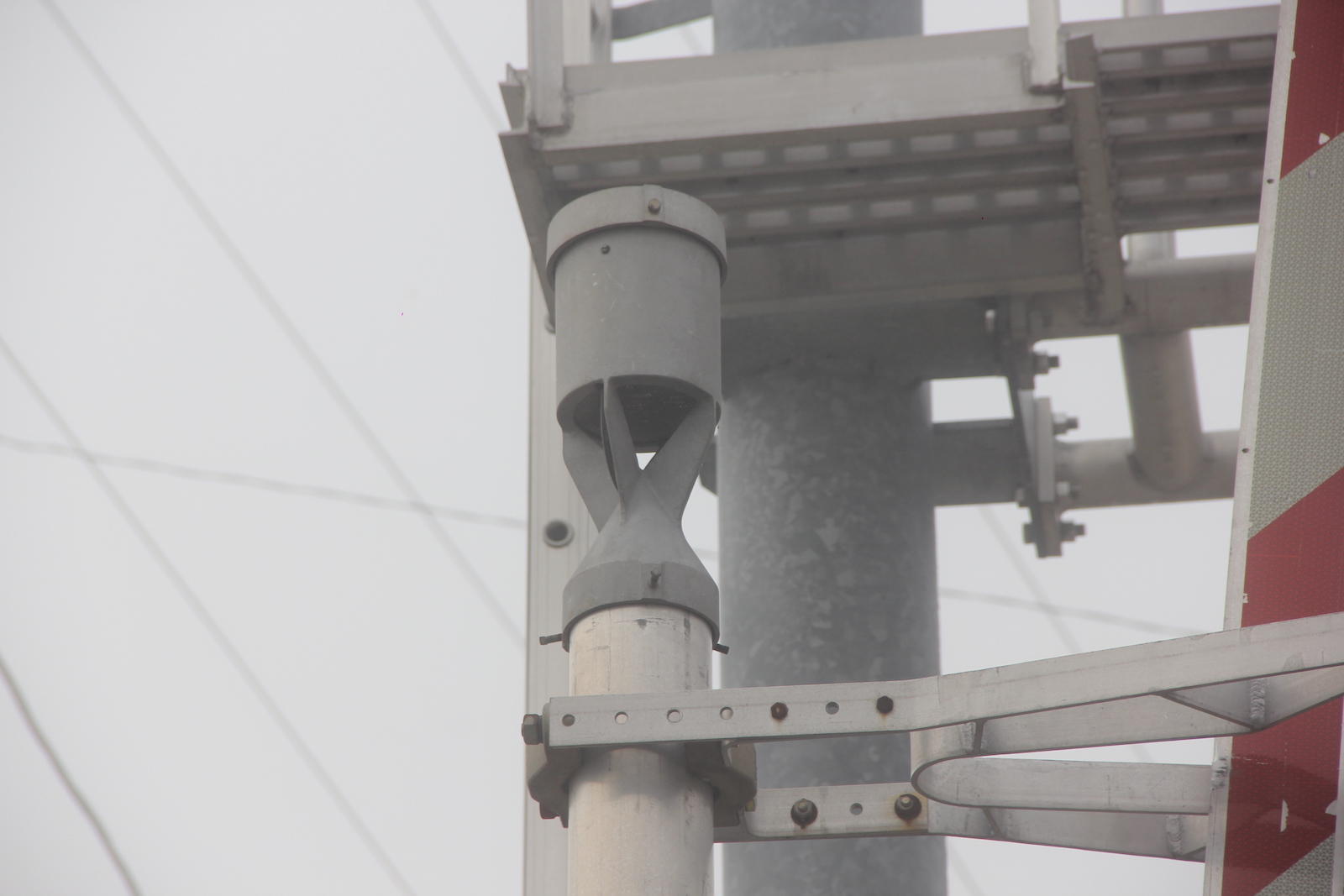

The western main signal.

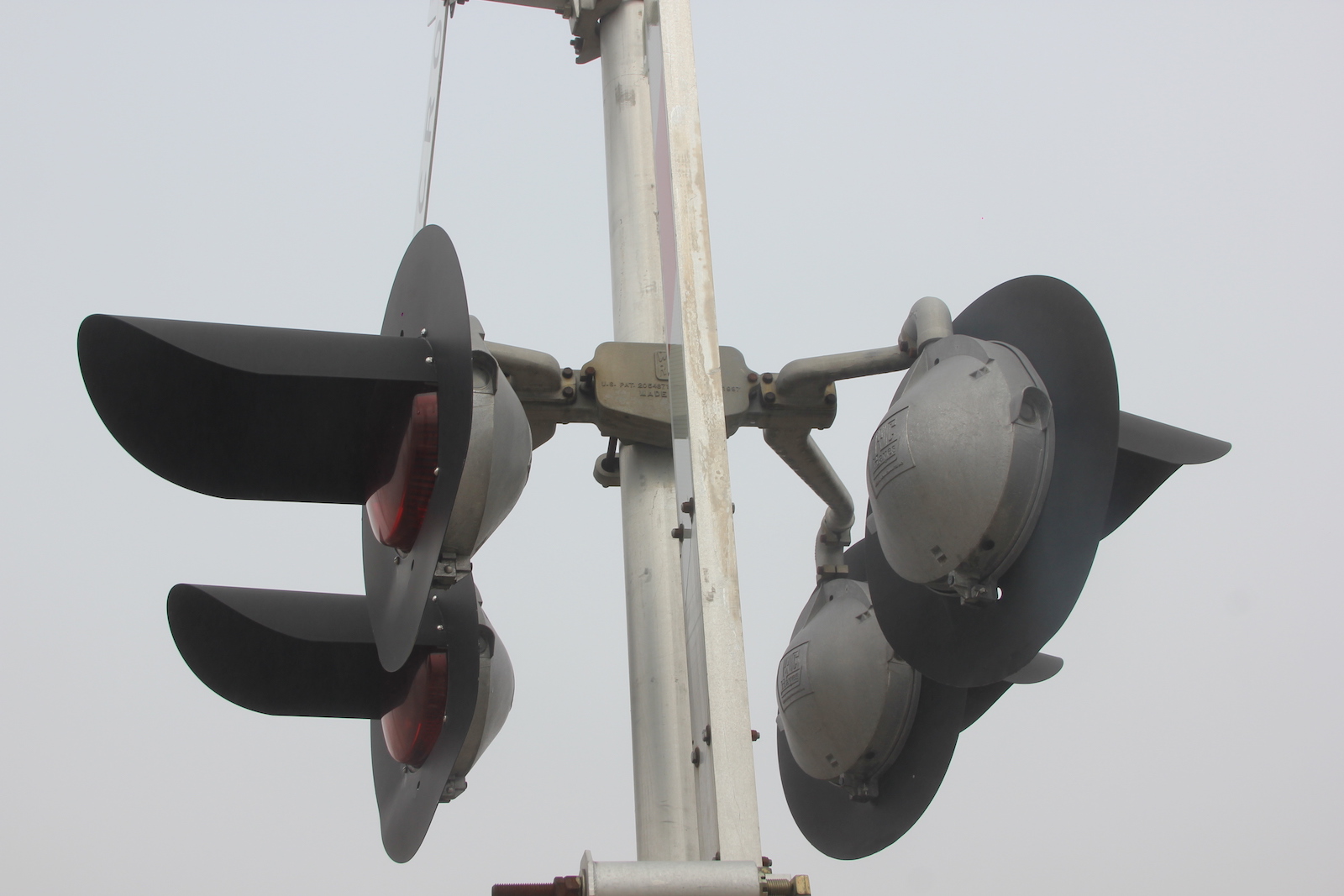

20 21 22 23
24 25 26 27

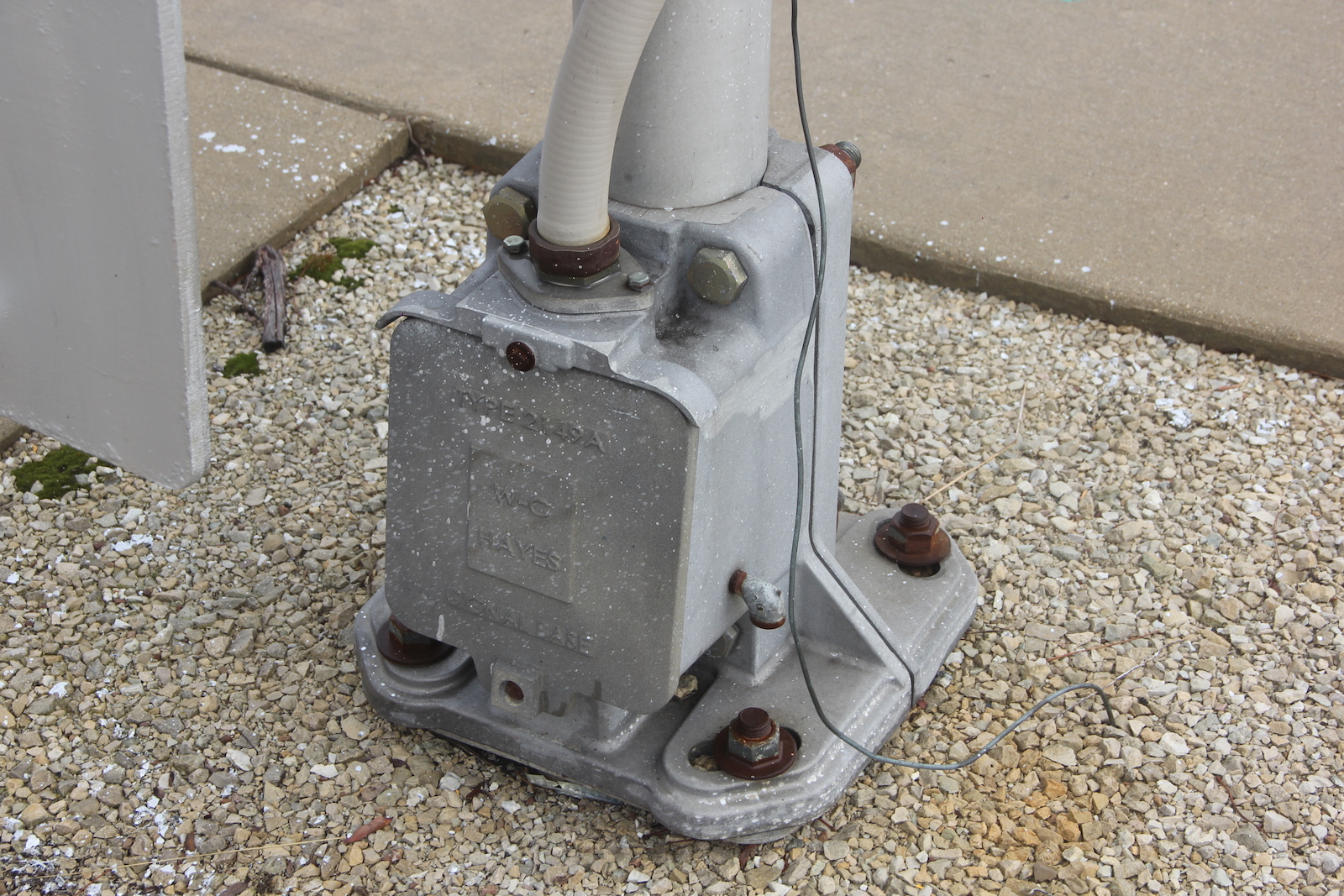

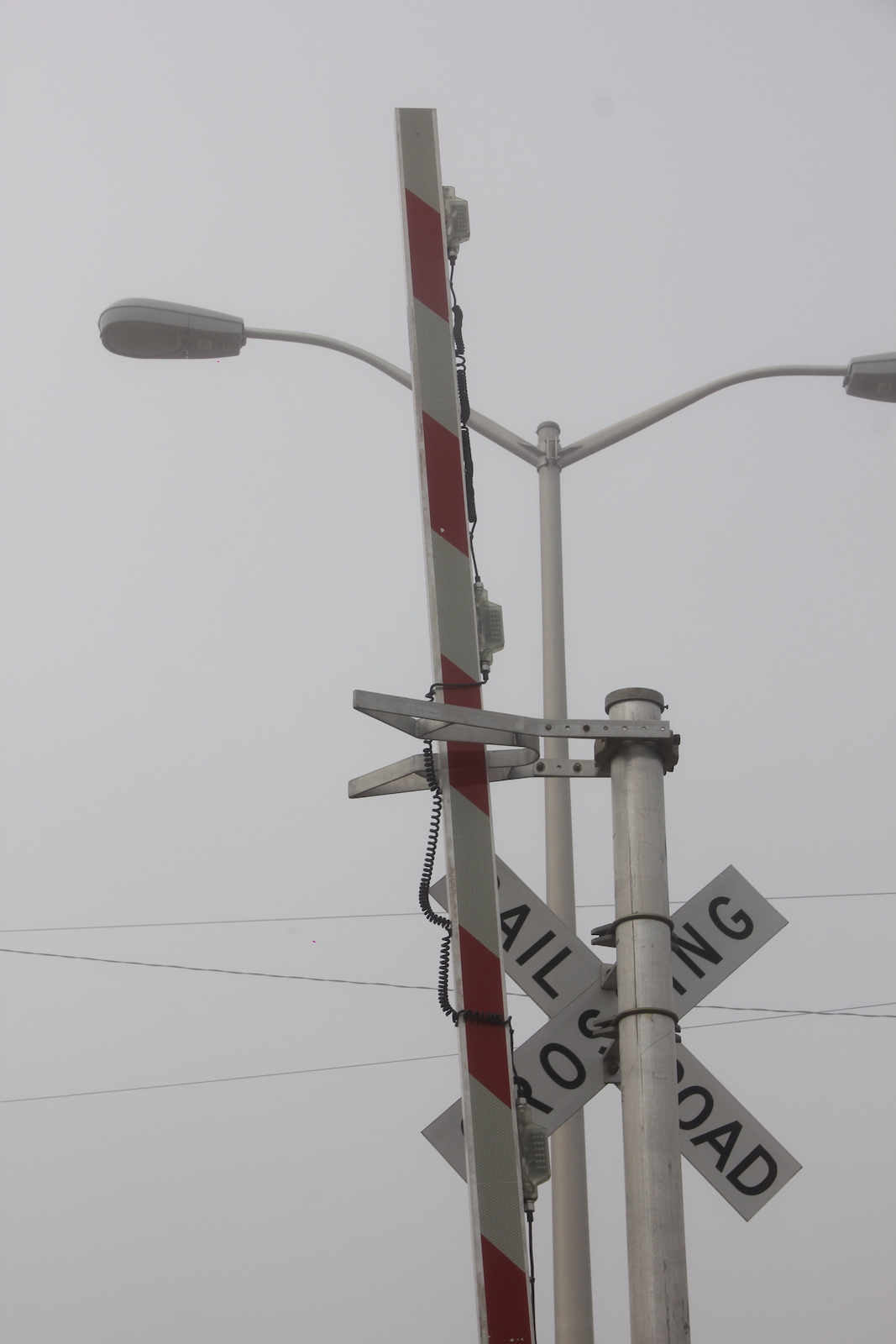

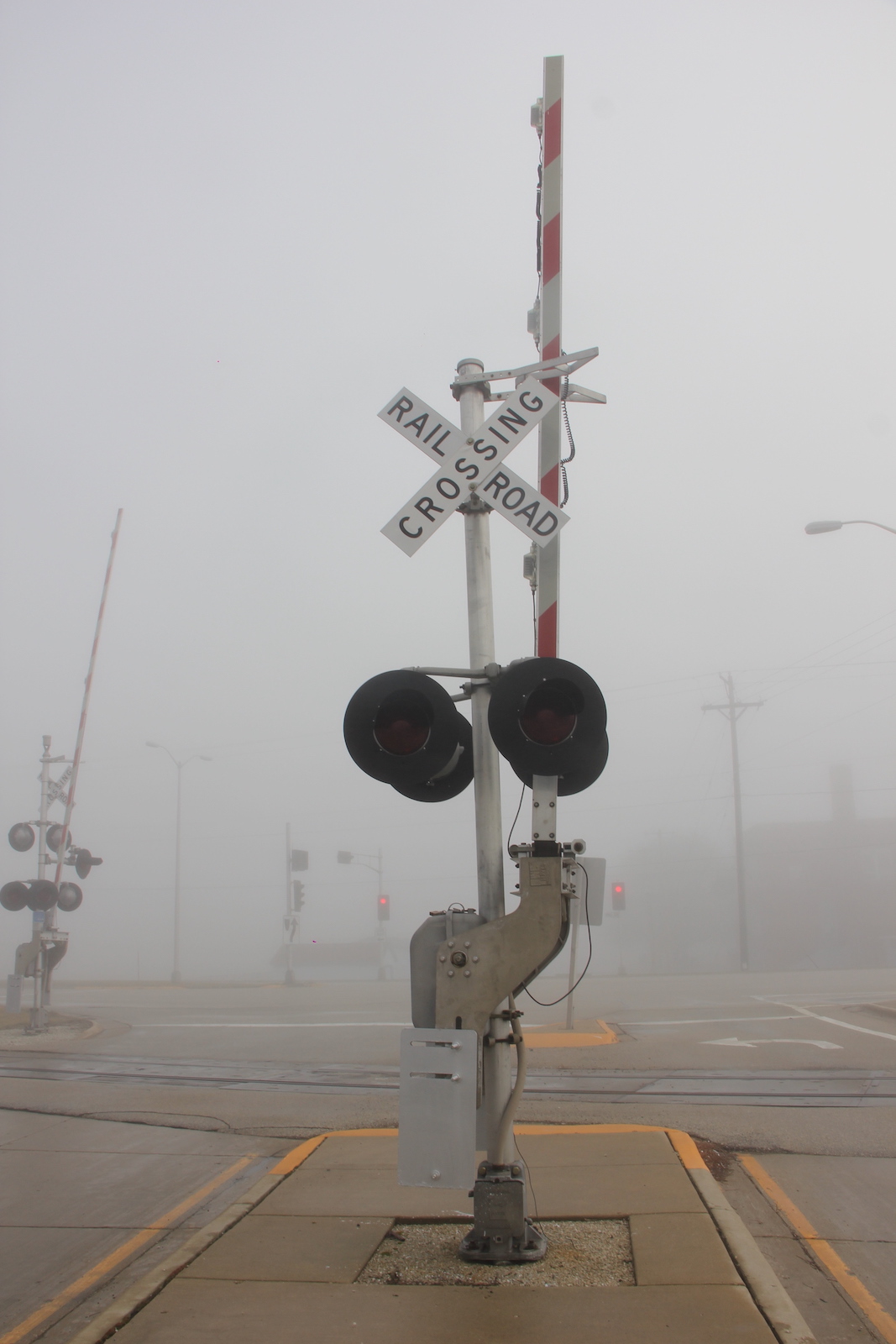

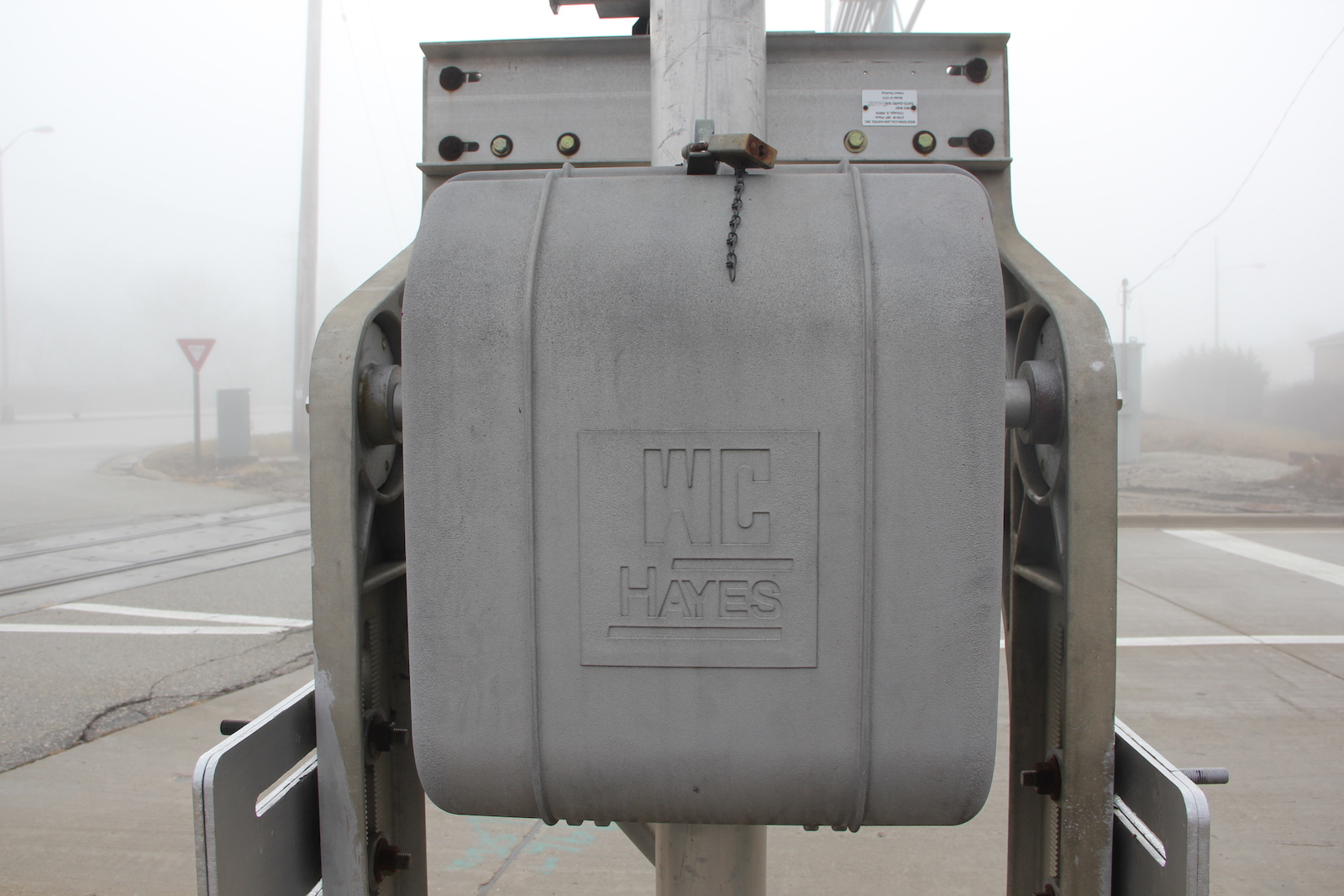

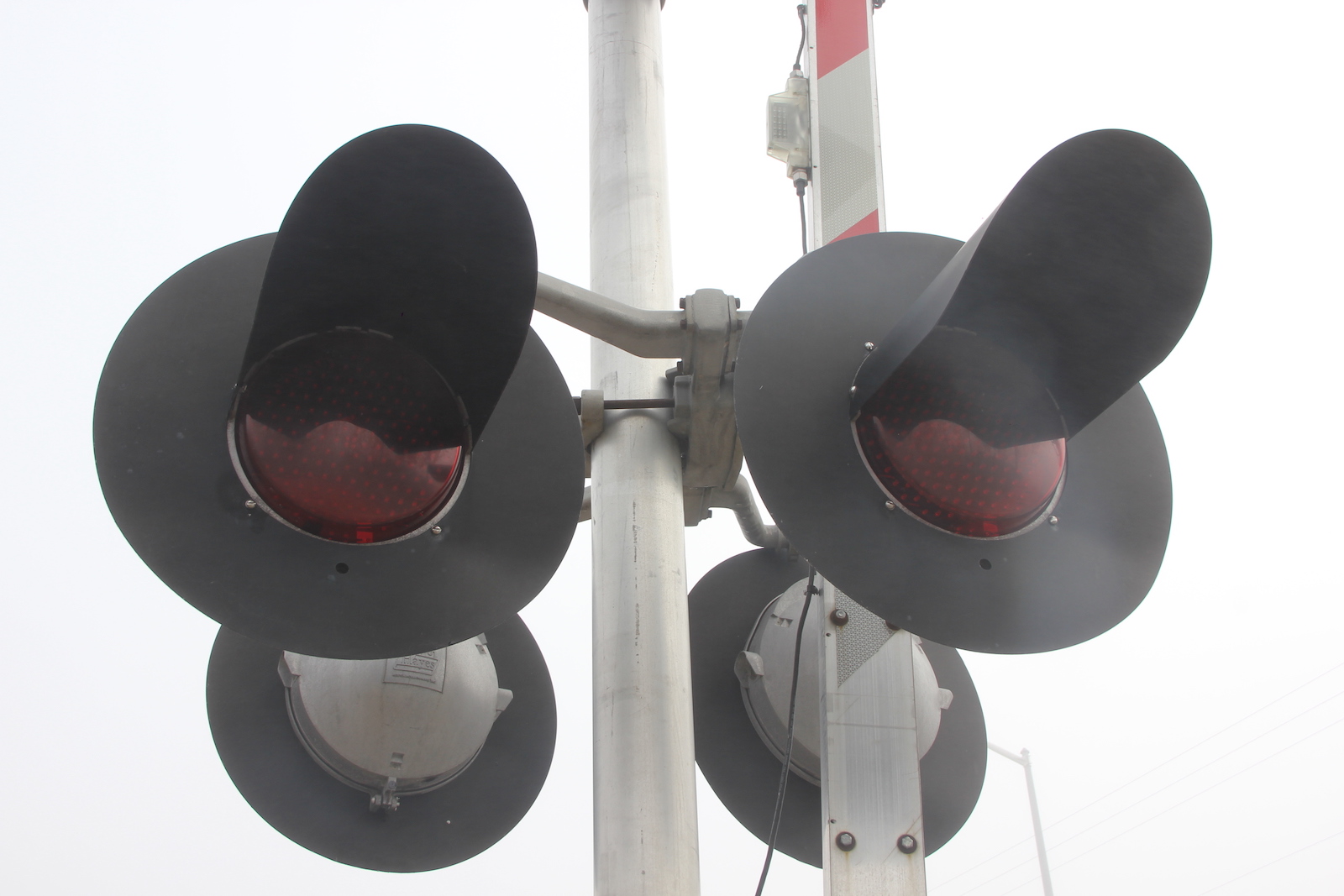

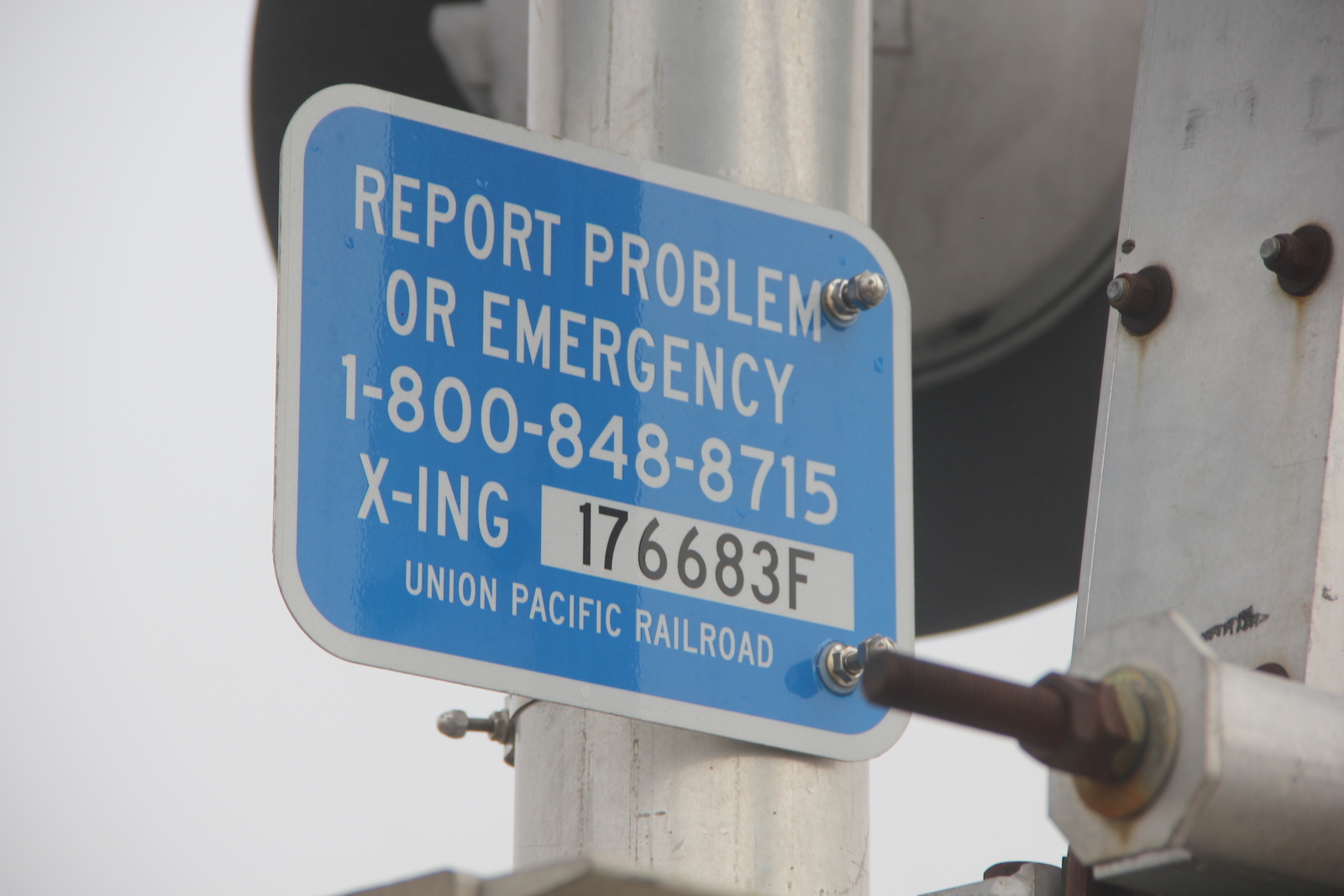

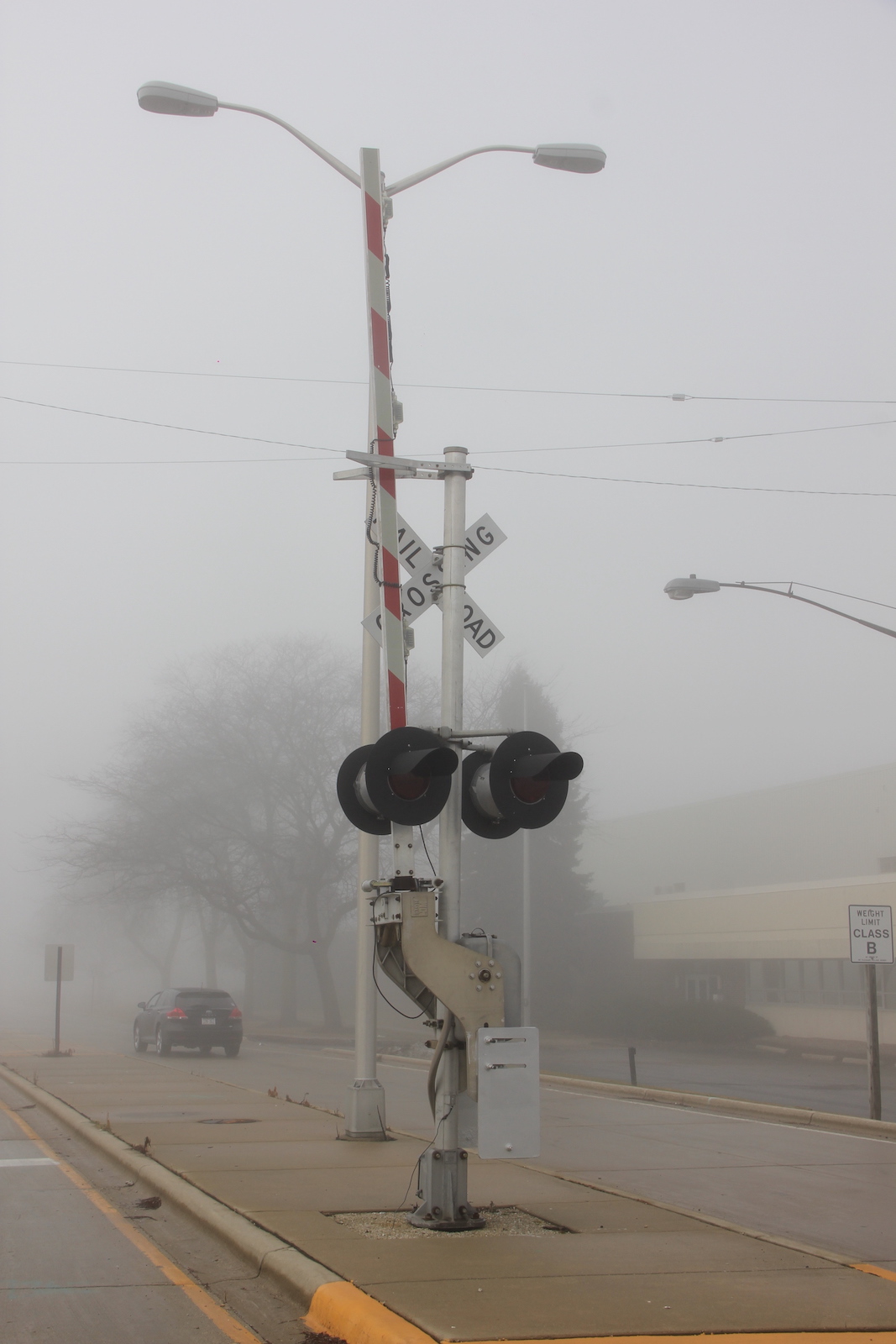

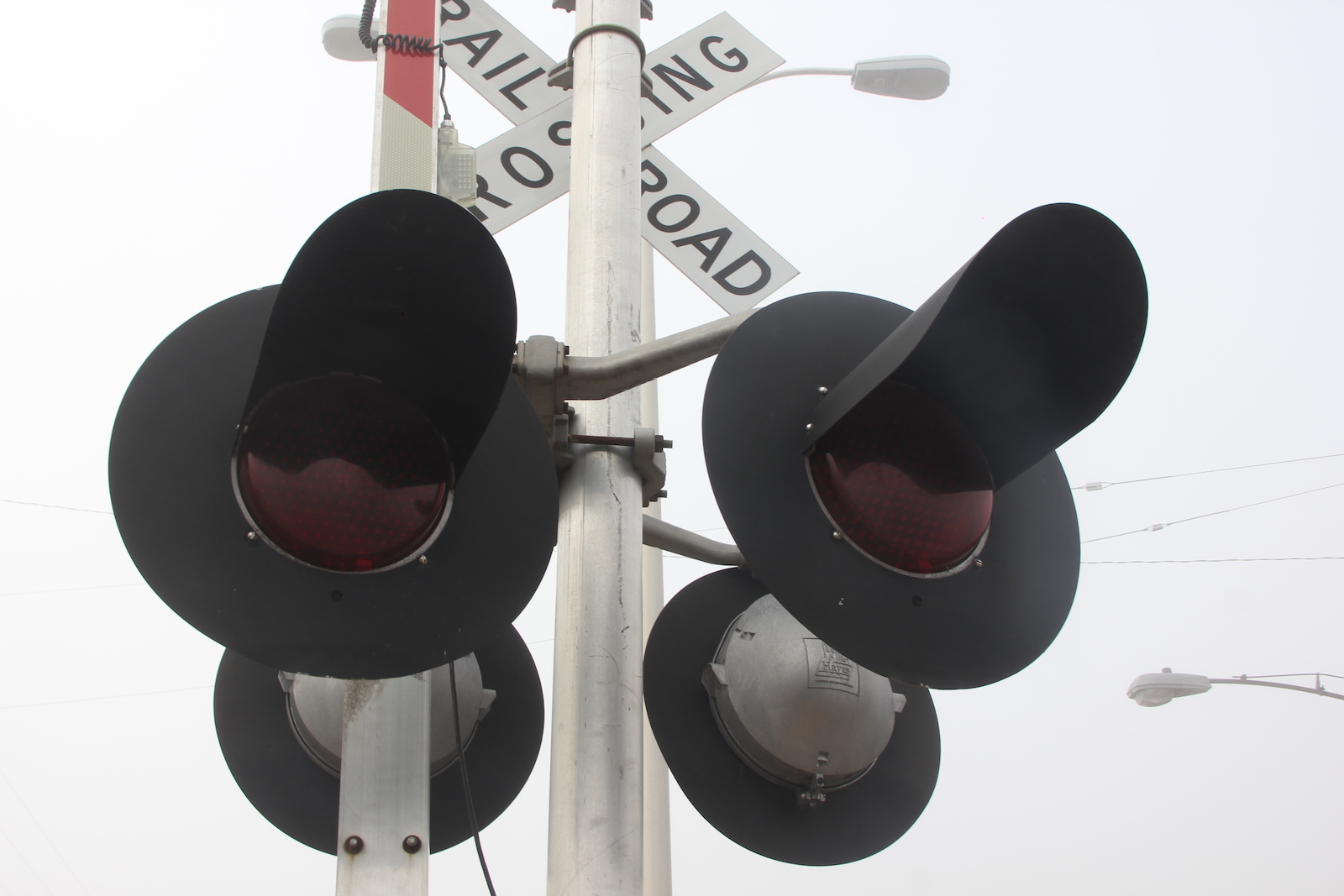

The western median signal.

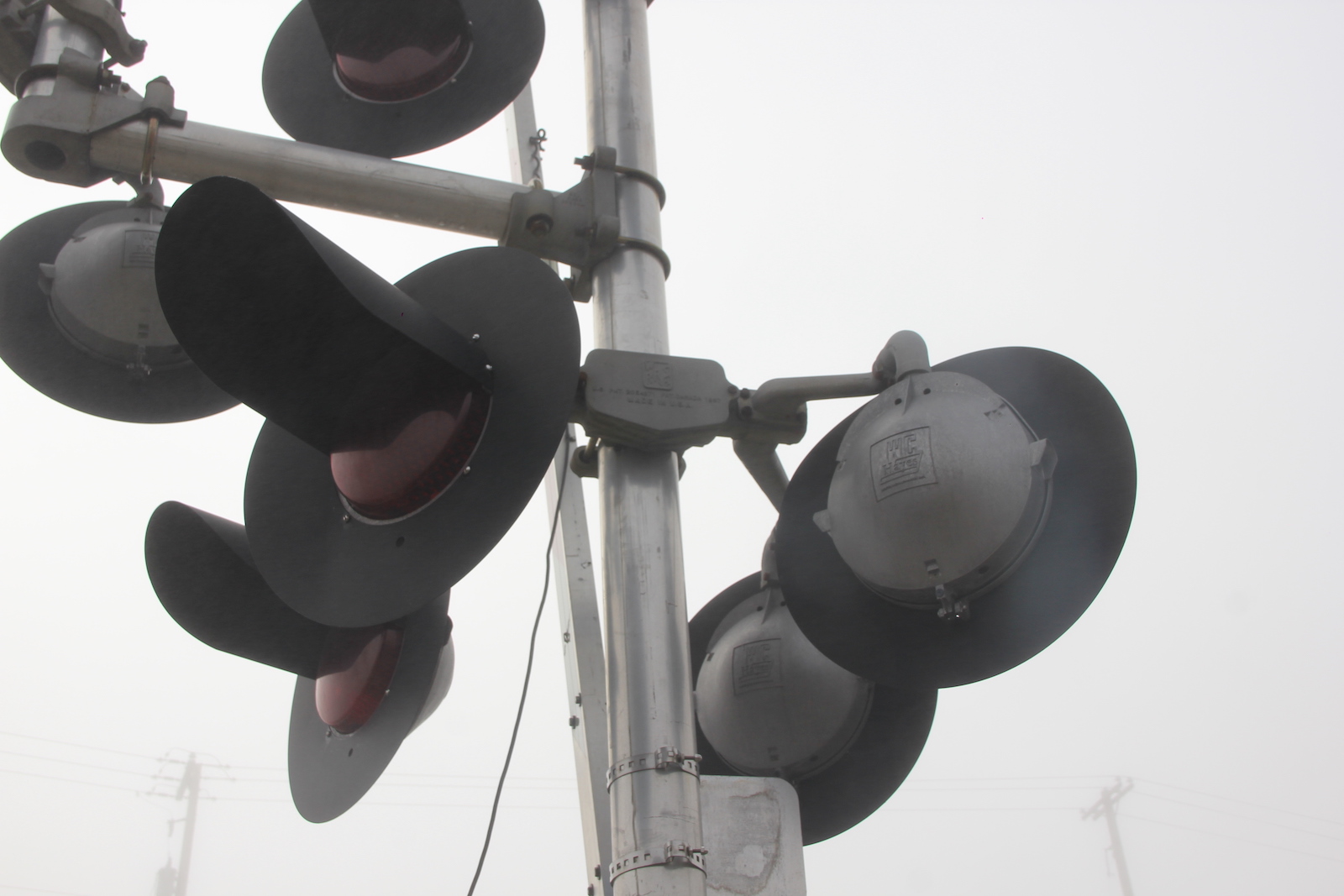

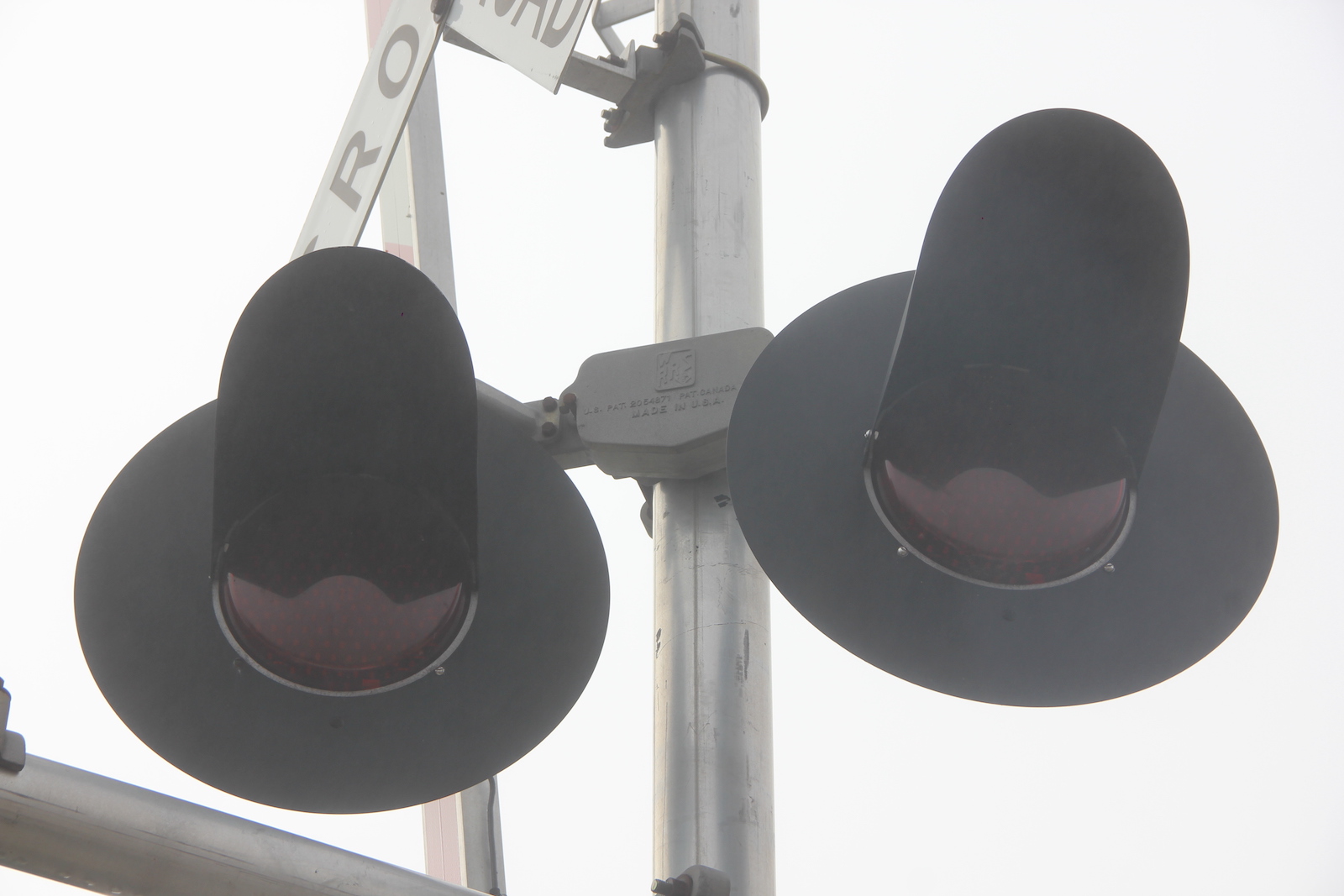

28 29 30
31 32 33

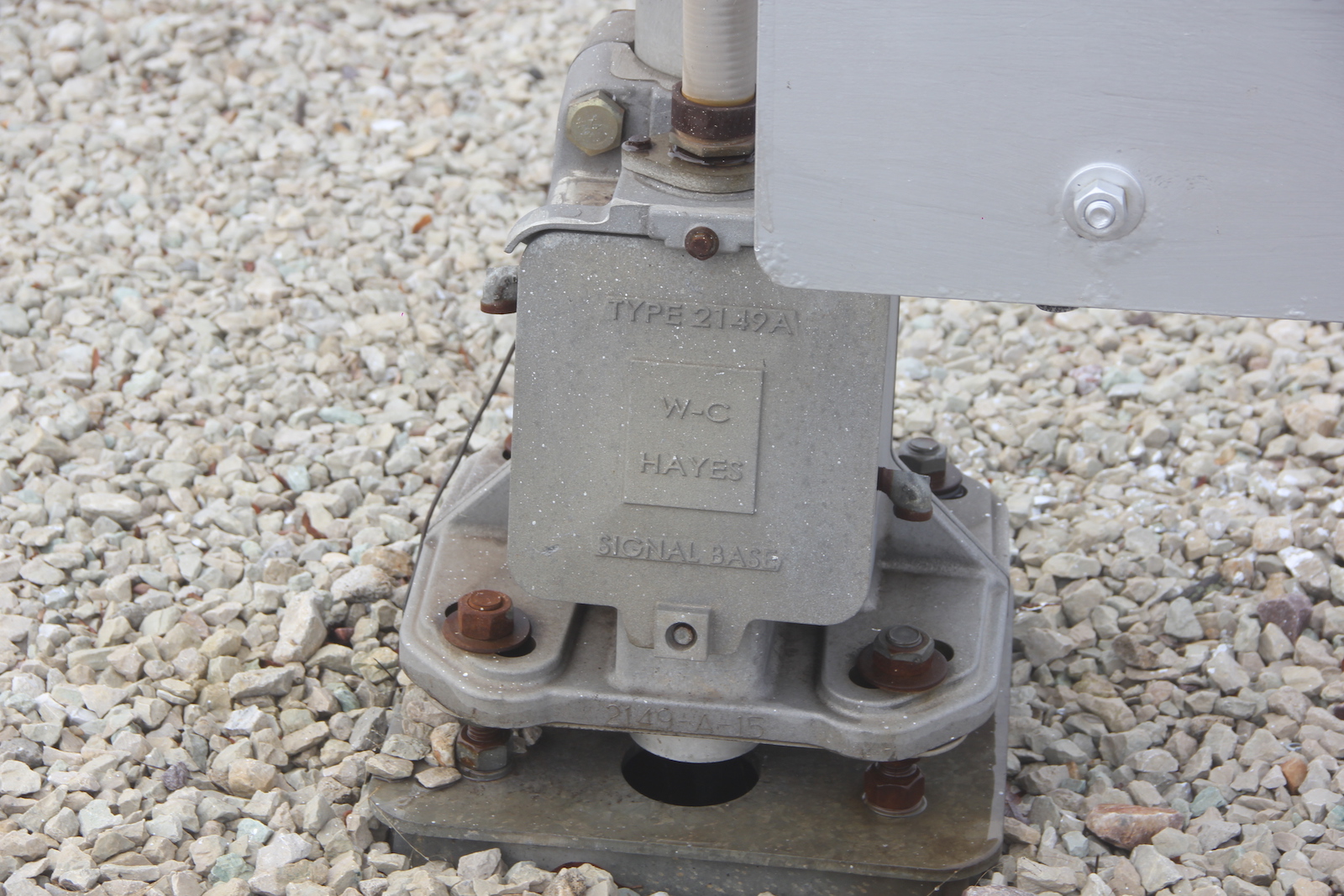

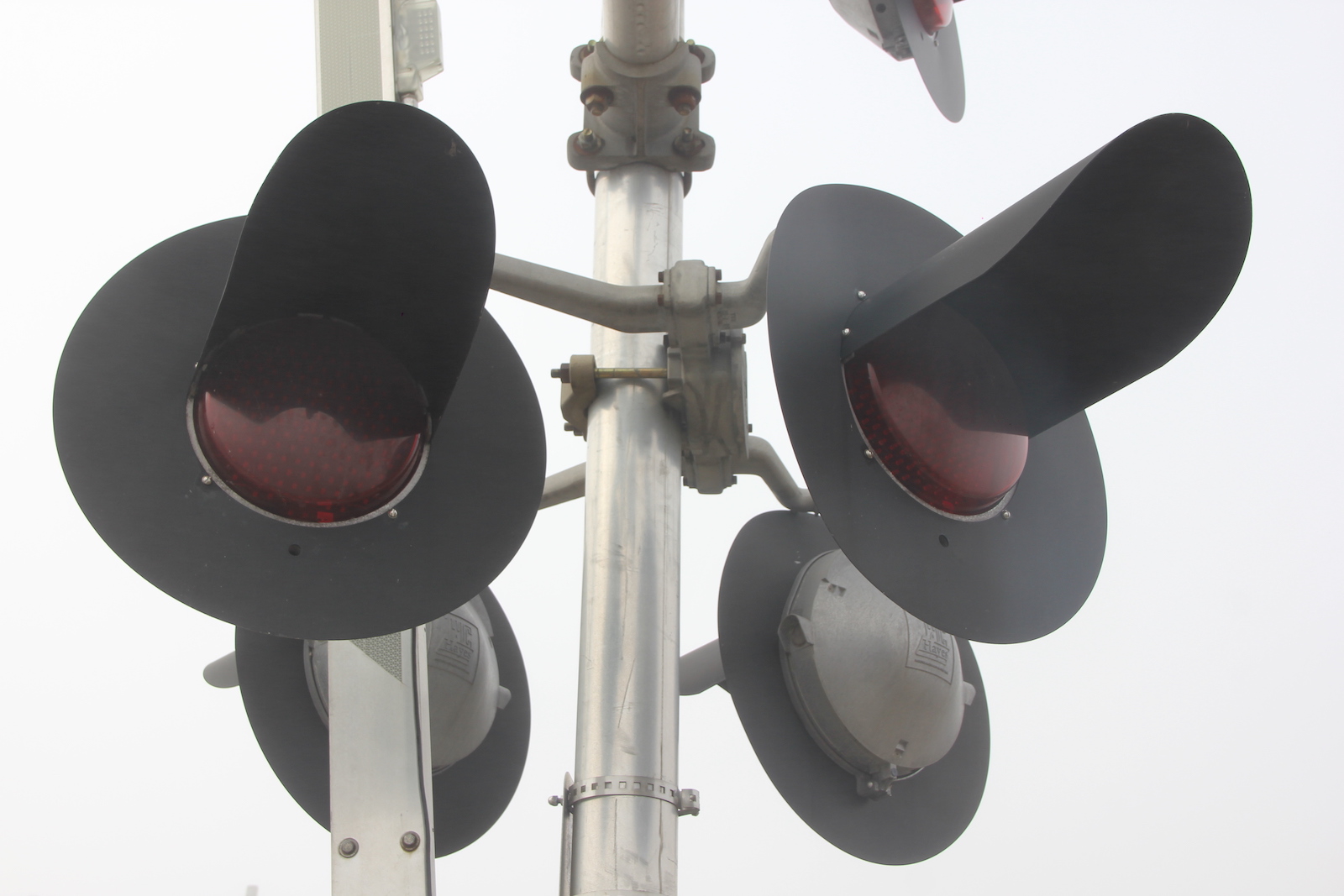

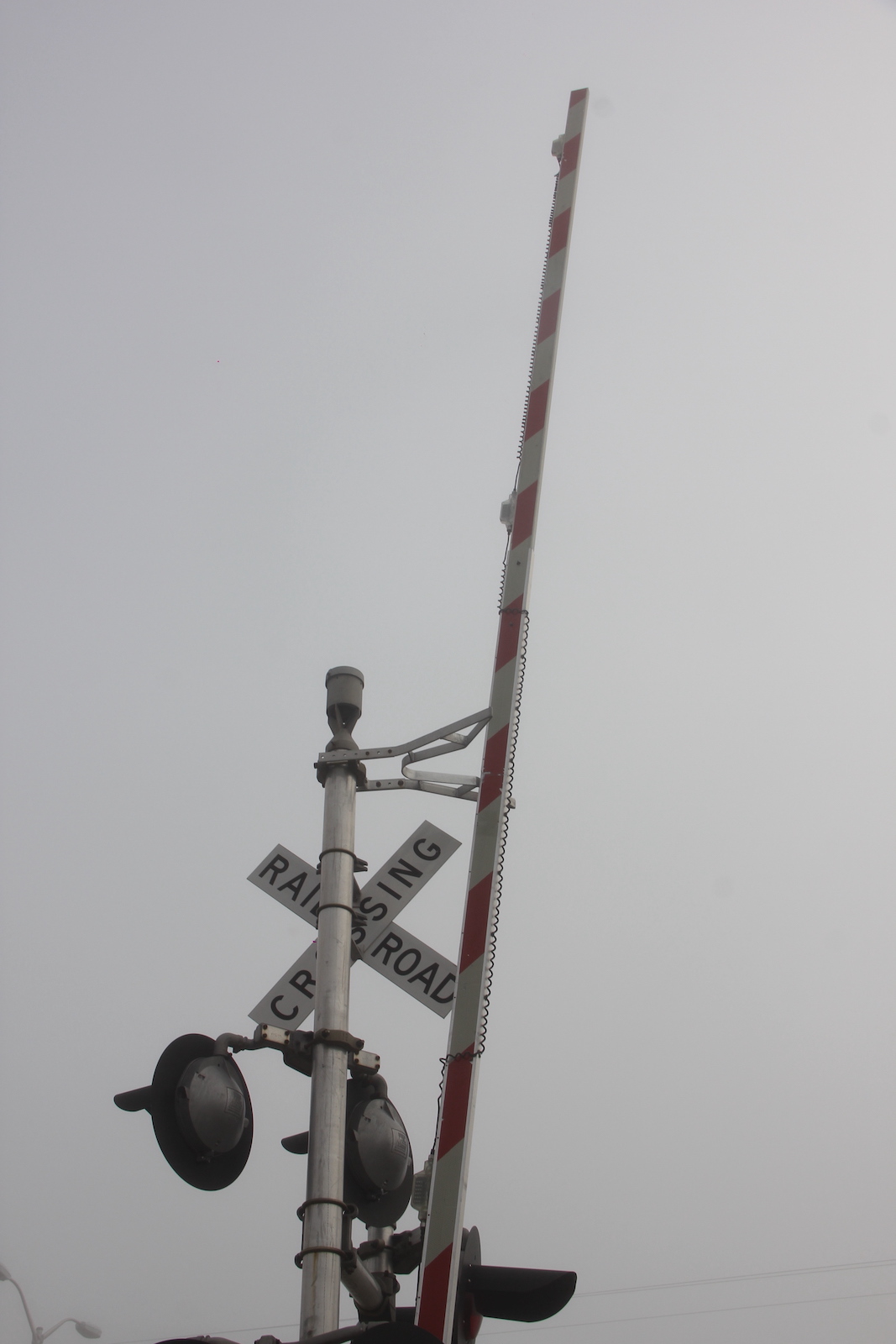

34 3536 37
38 39 40 41

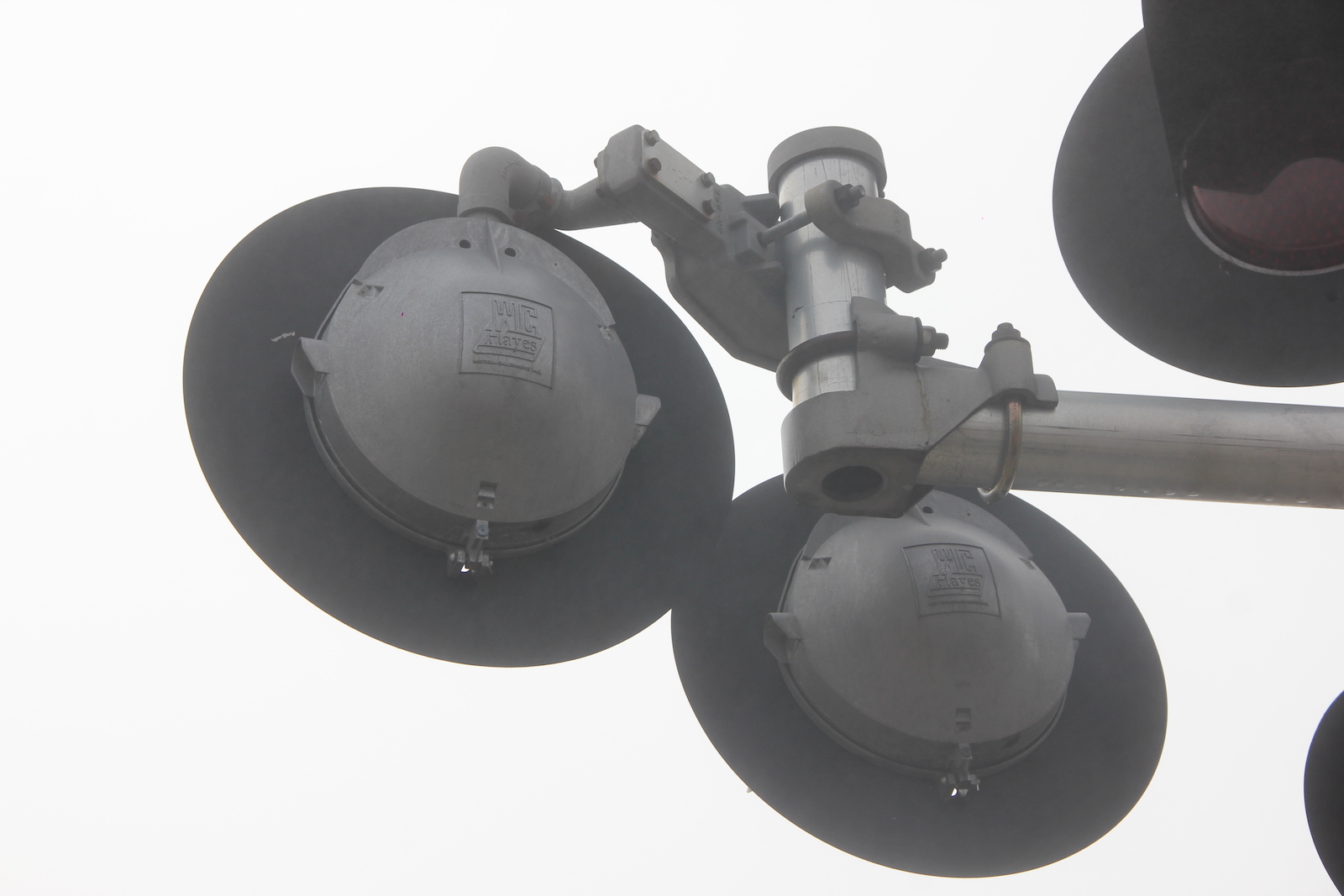

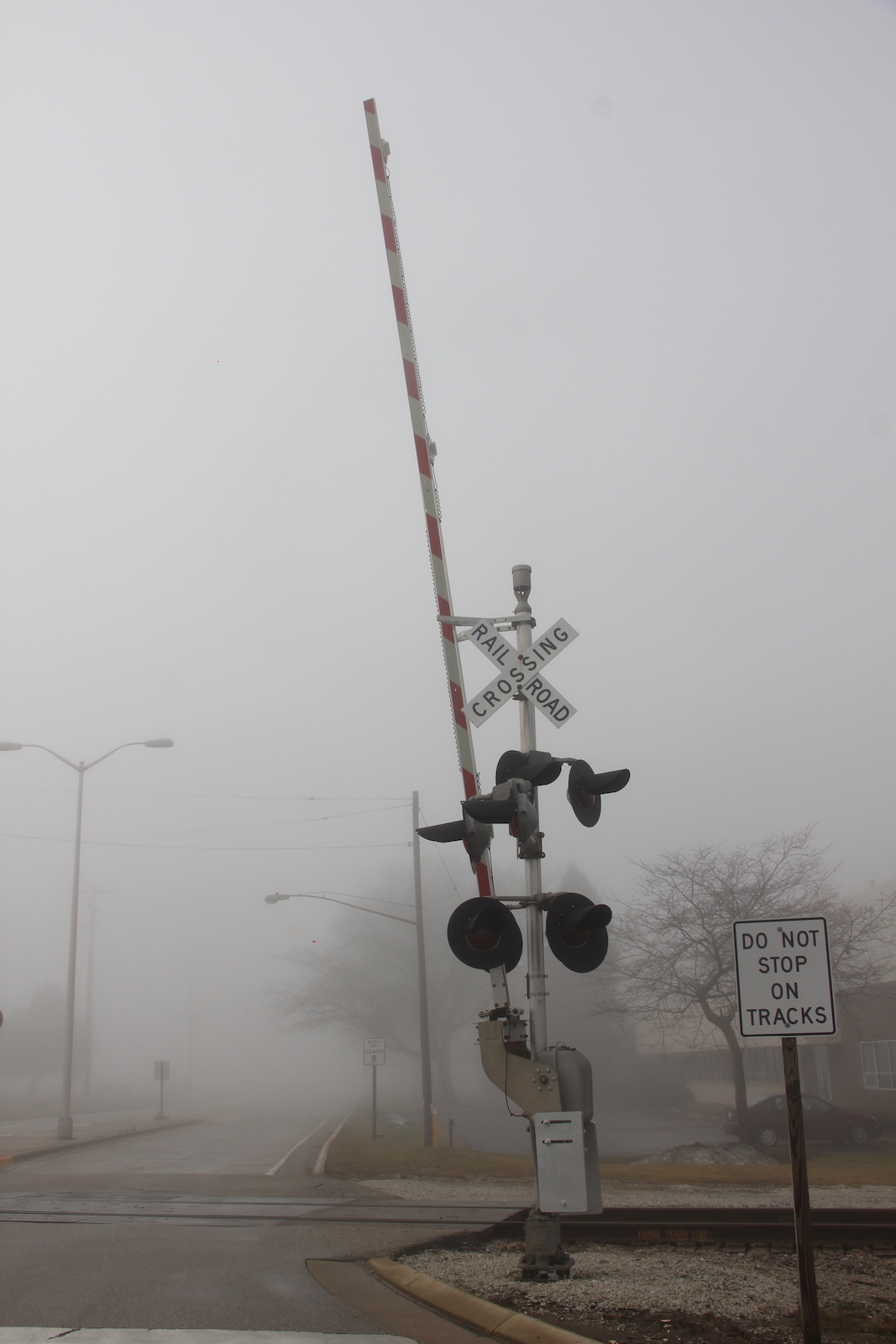

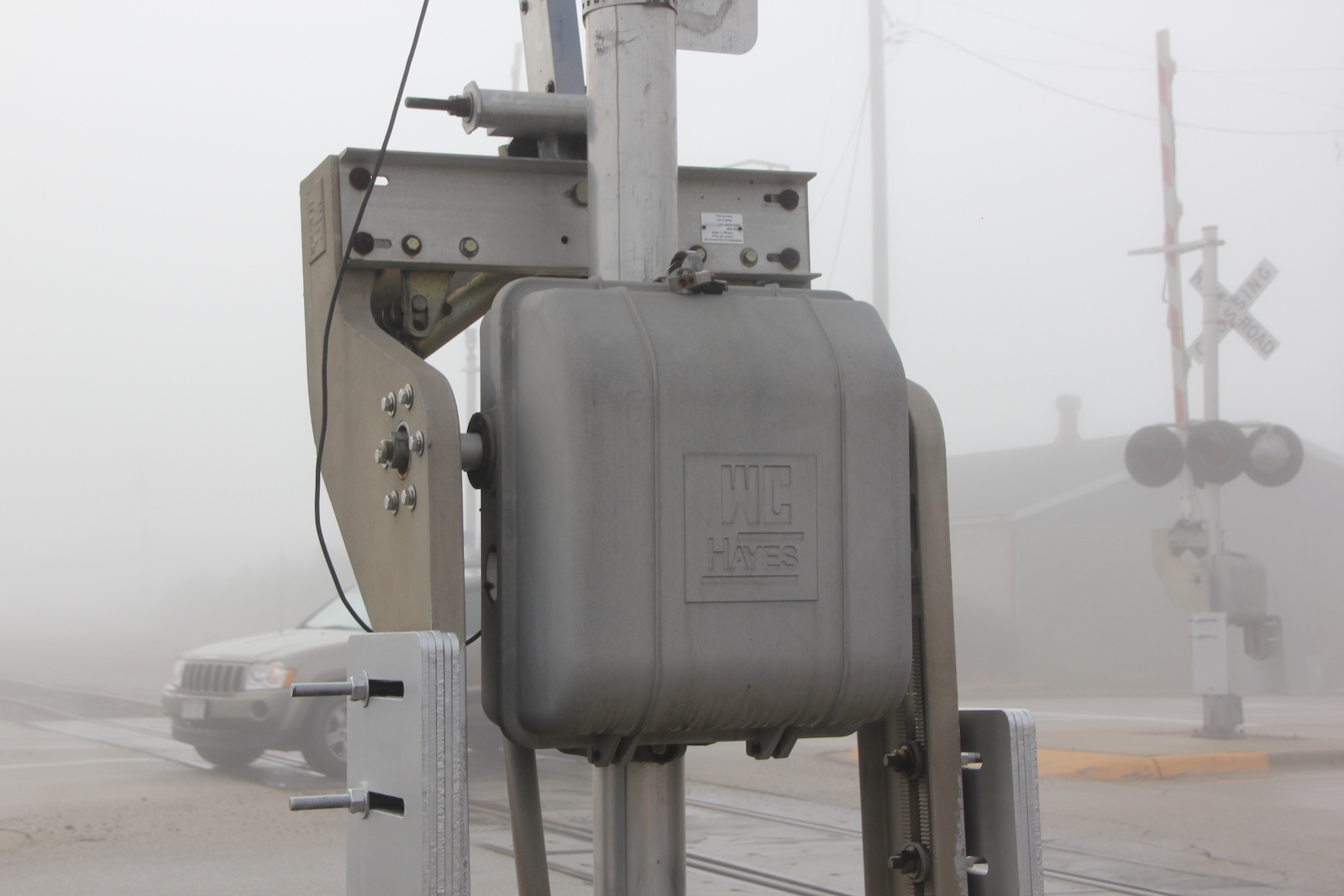

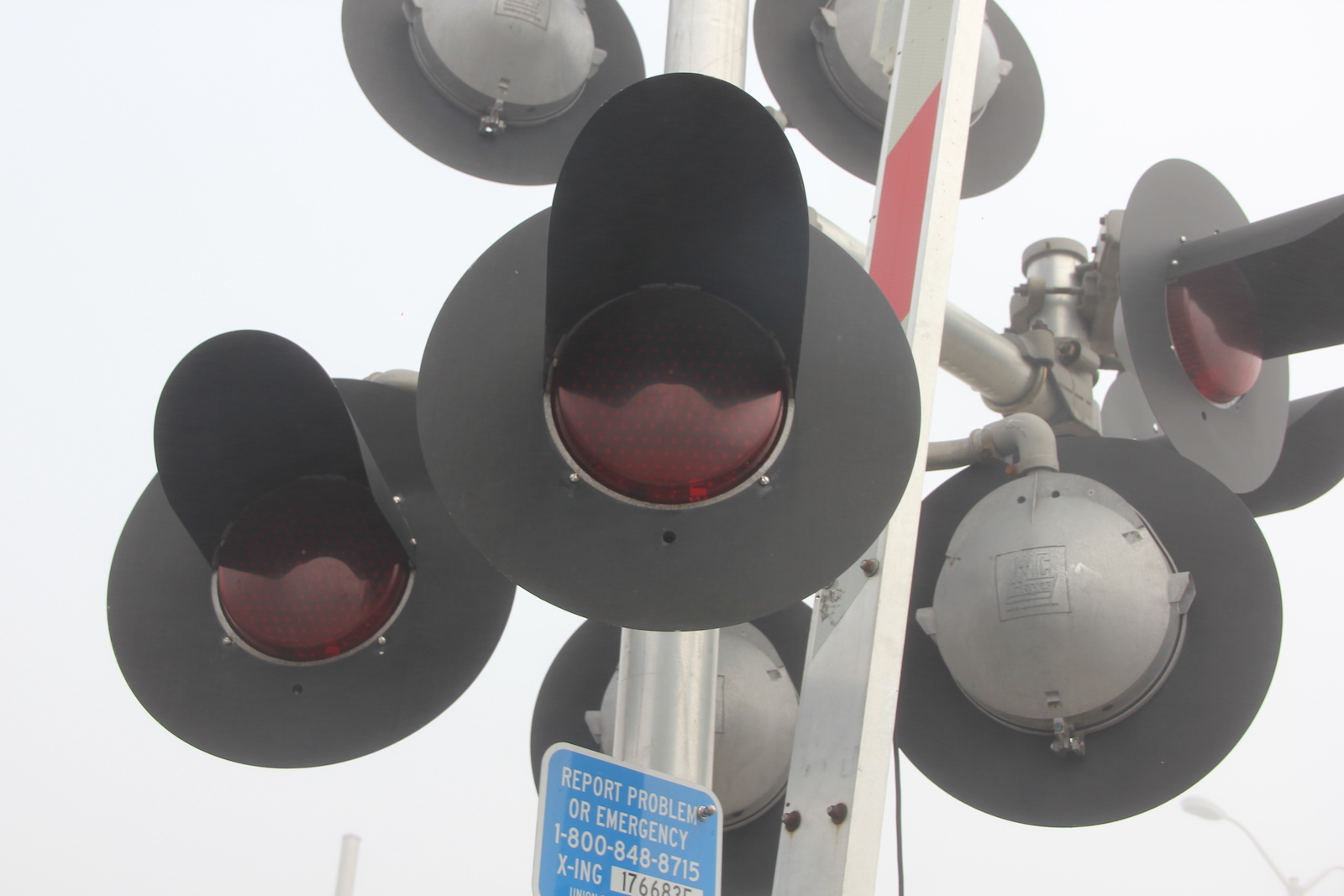

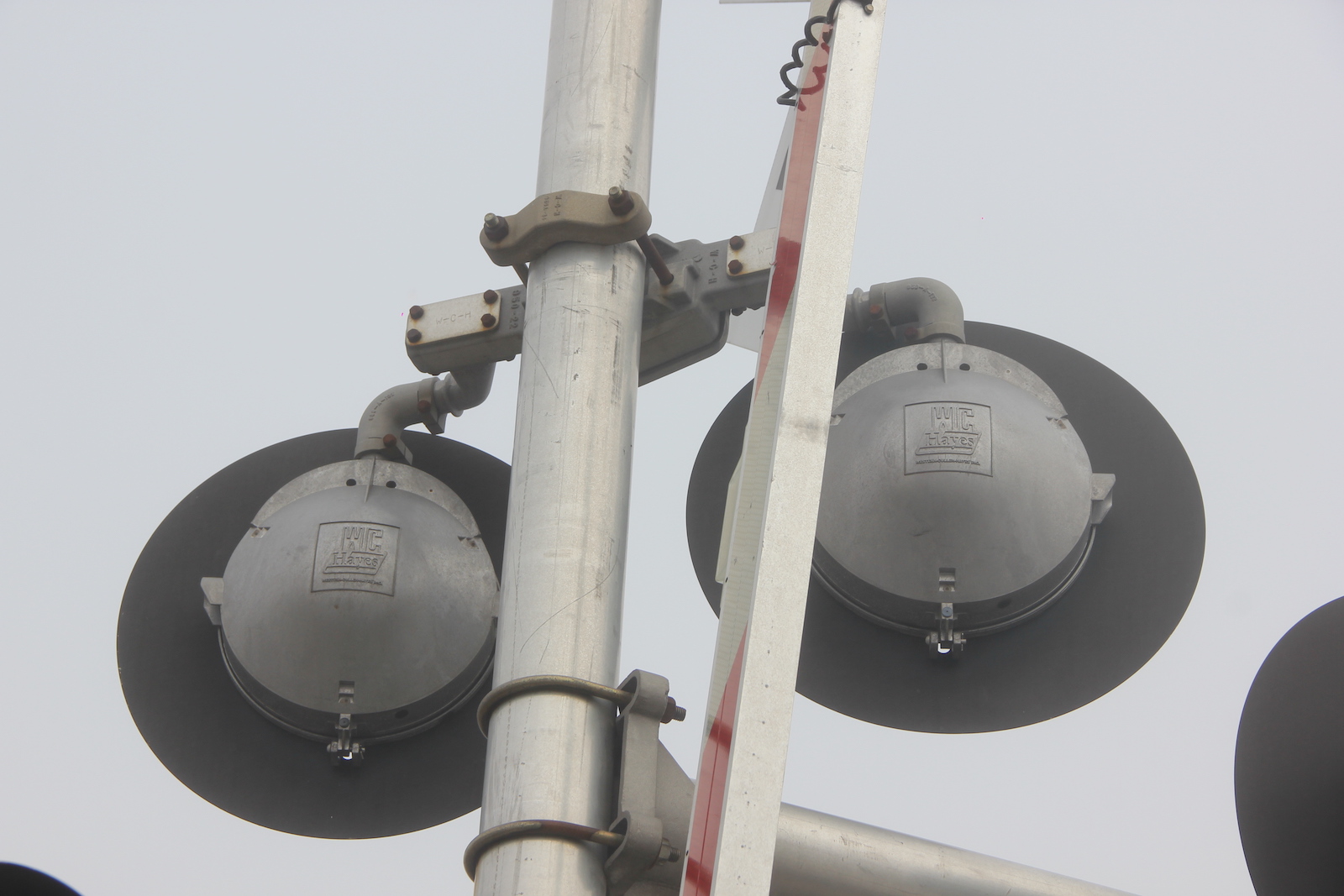

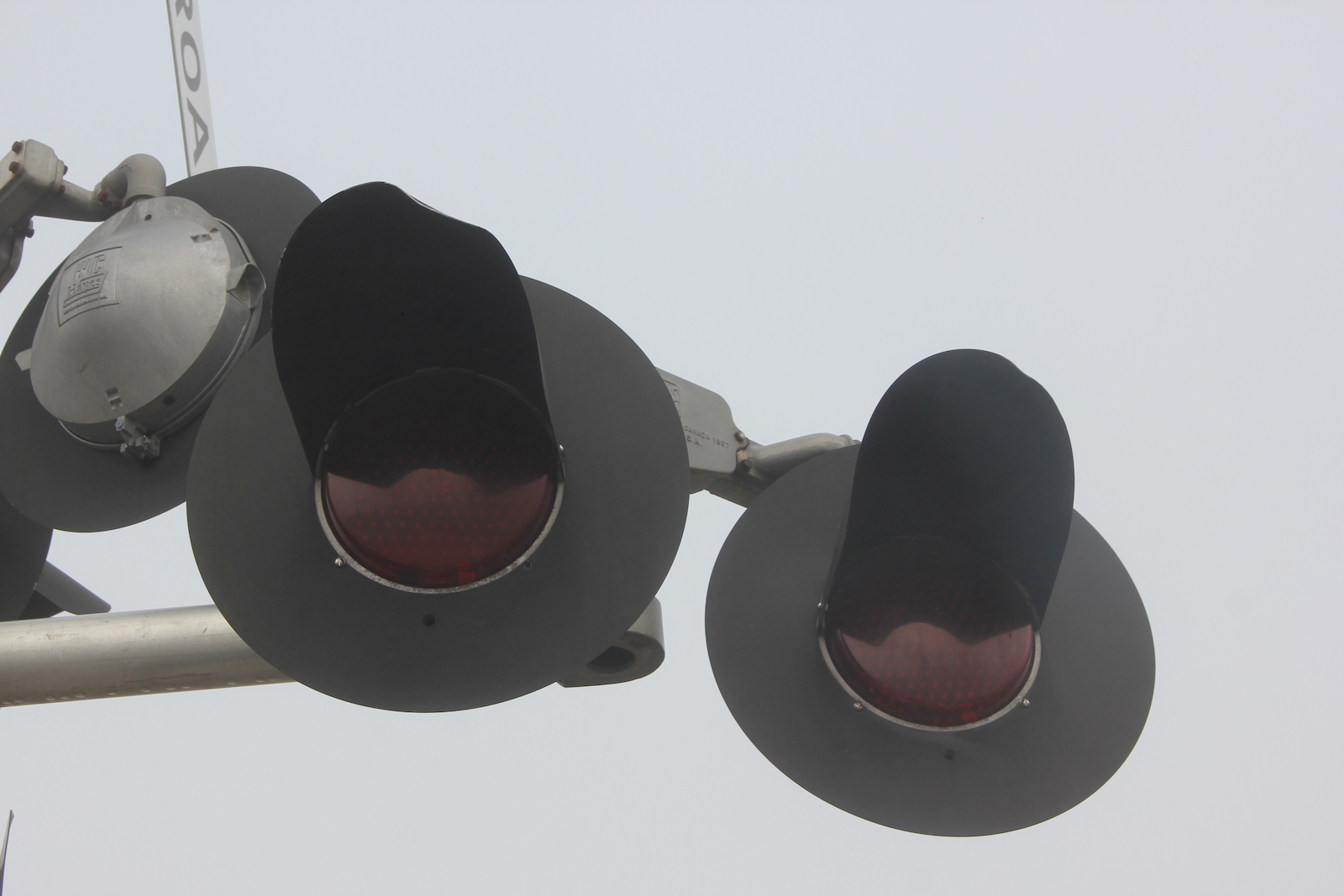

The eastern signal.
42 43 44 45

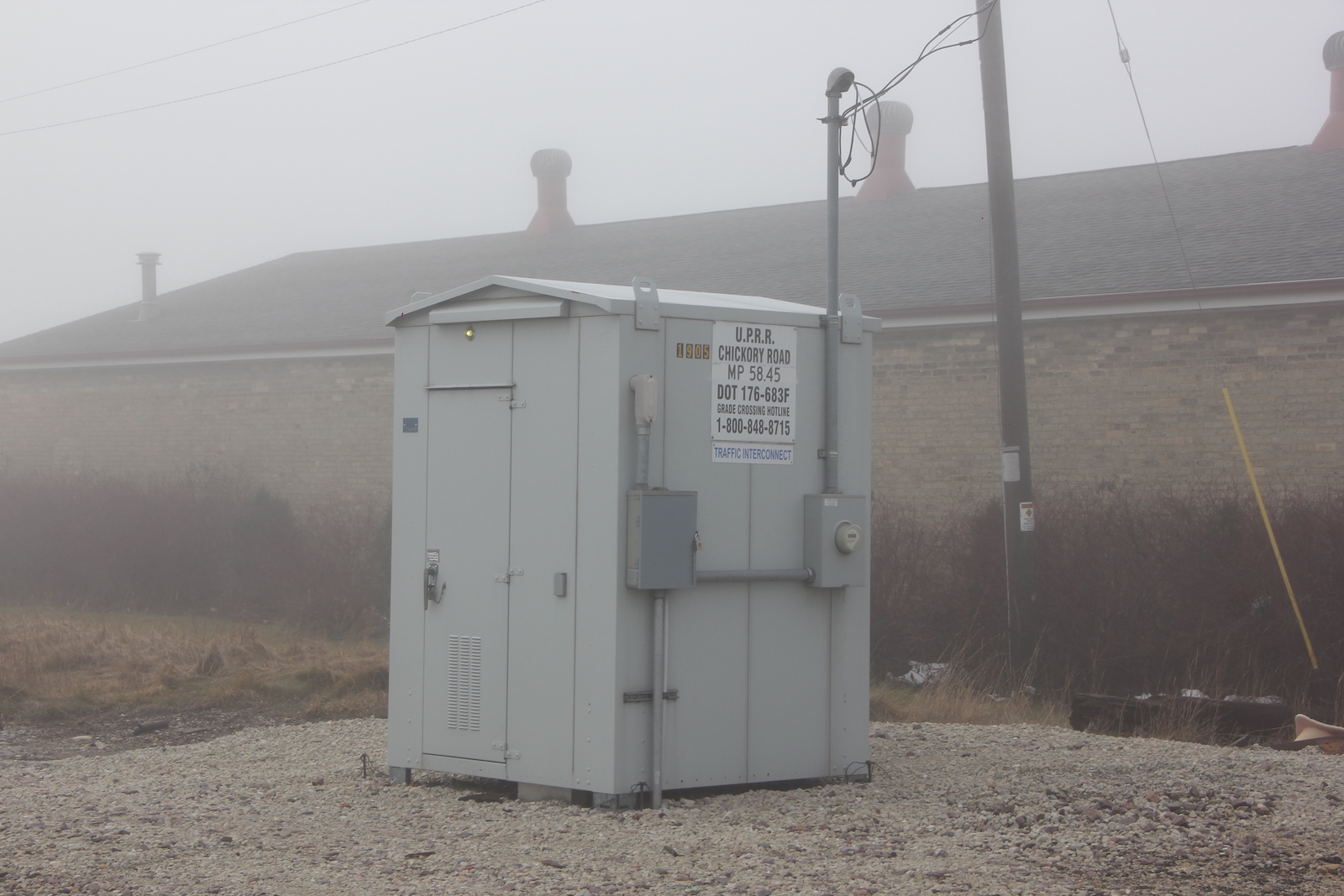

The relay bungalow in the southwest quadrant.

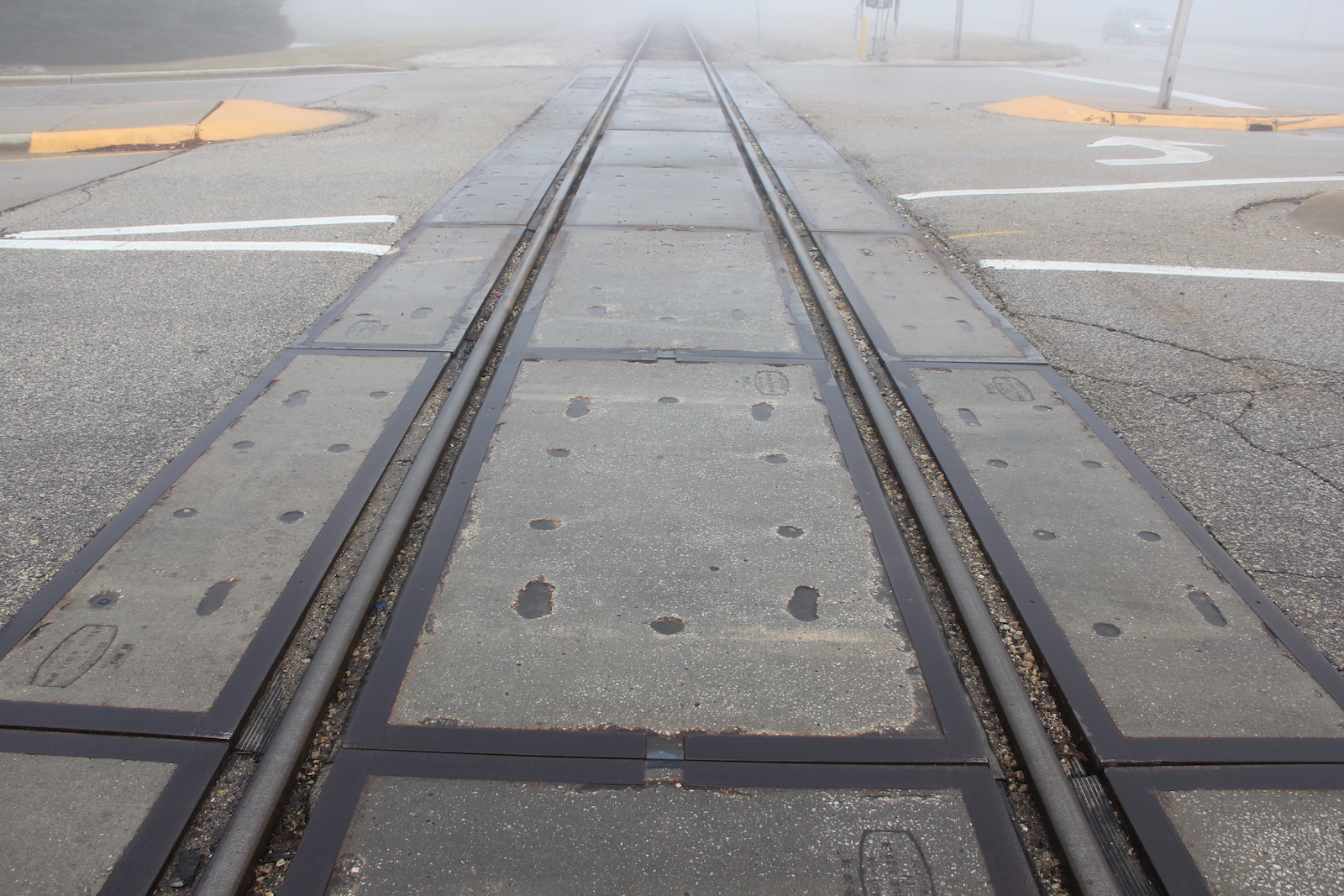

The grade is all concrete.

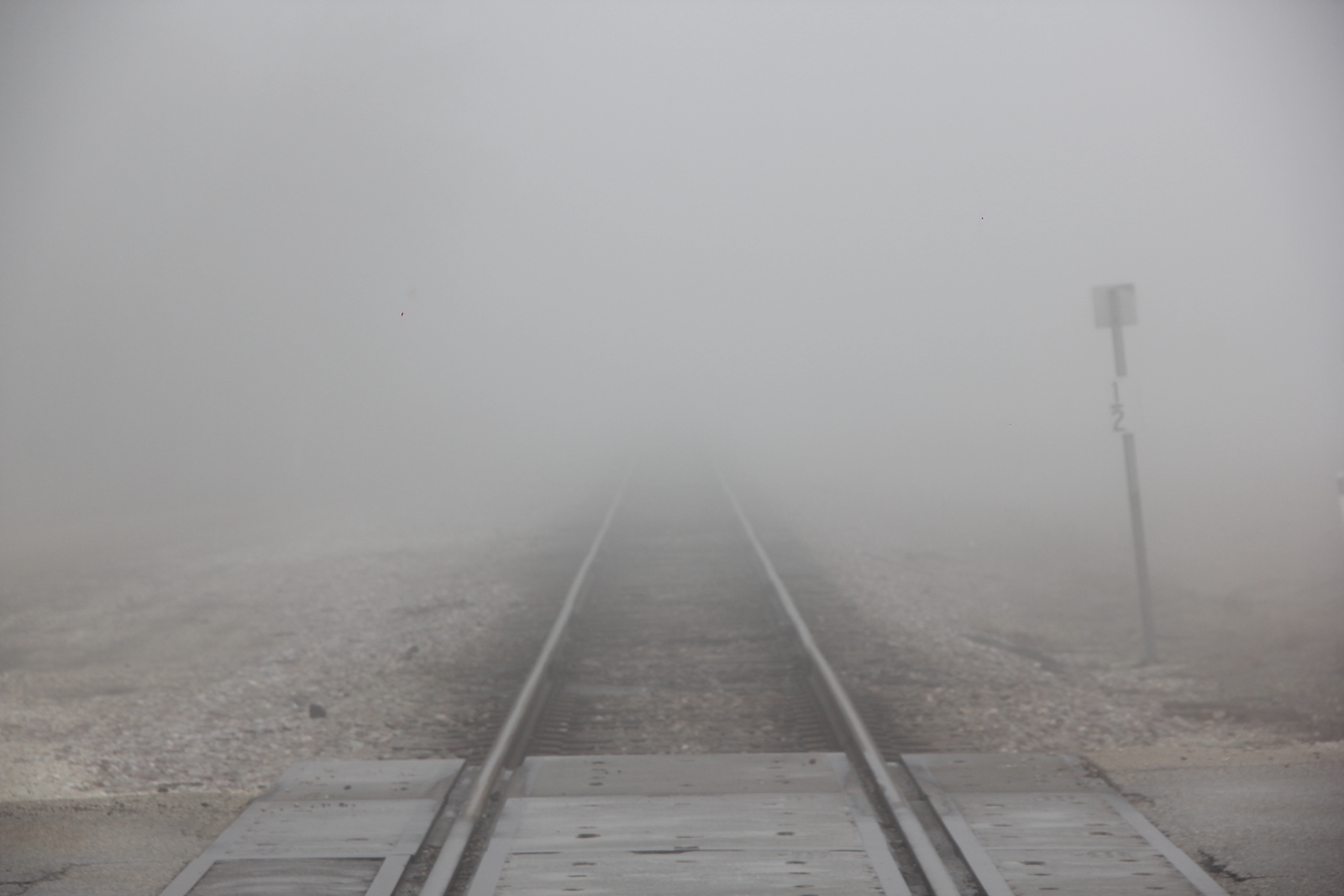

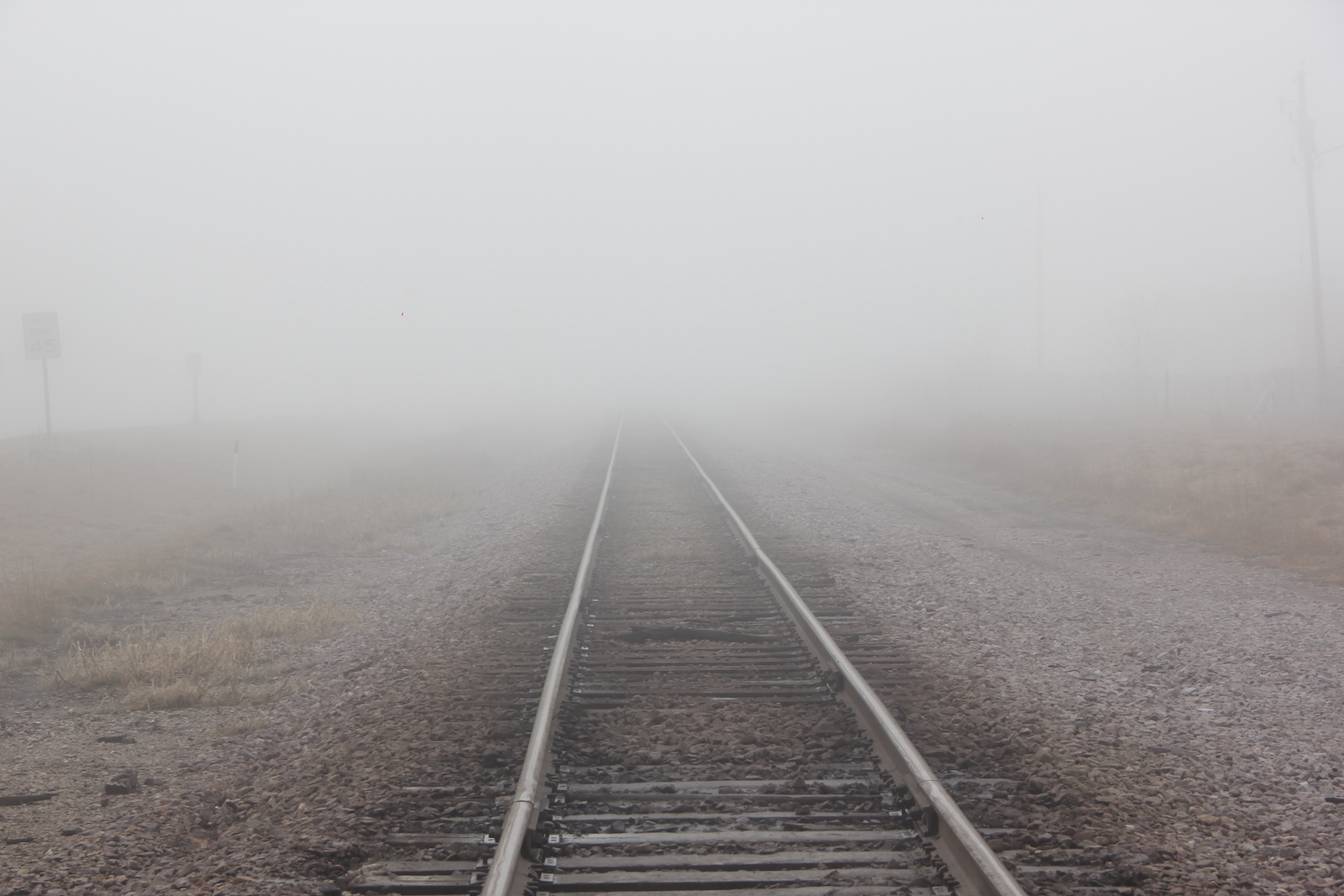

Track view facing north towards De Koven Ave.
Track view facing south towards Hansche Rd.
'
