Western Main Signal
Western Median Signal
Eastern Signal
Bell:GS E Bell
None
GS E Bell
Base: Harmon Cantilever, WCH Gate
WCH
WCH

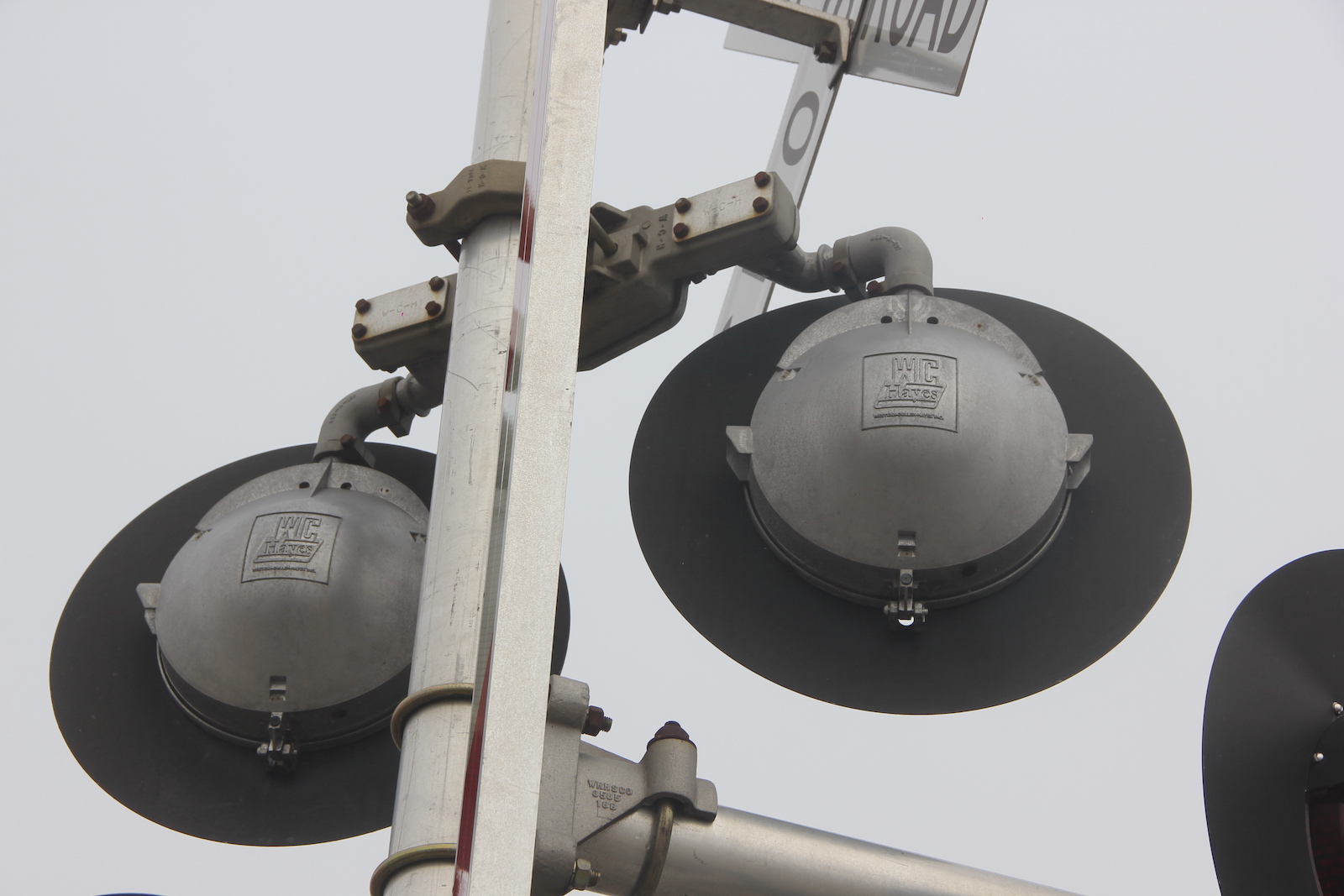

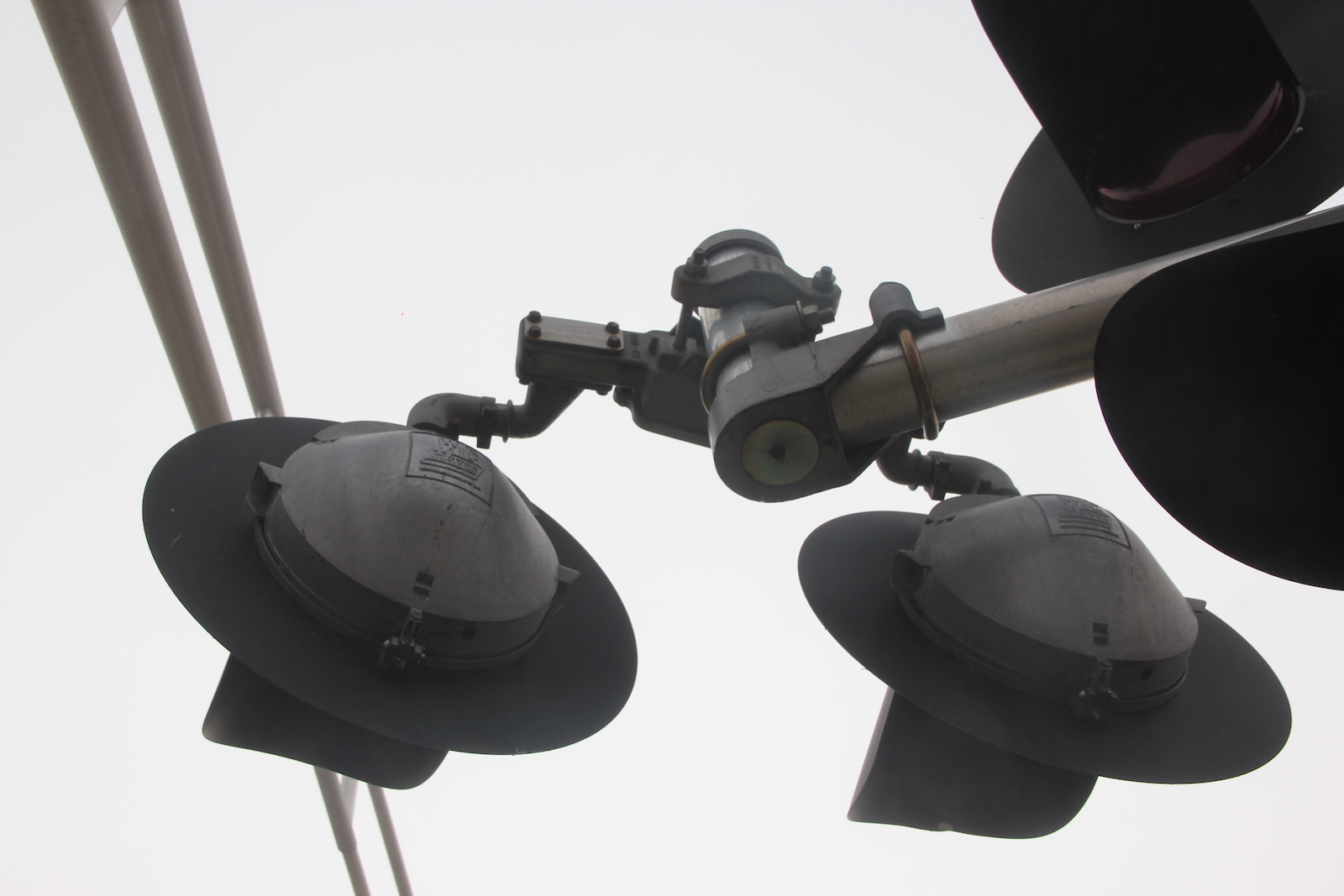

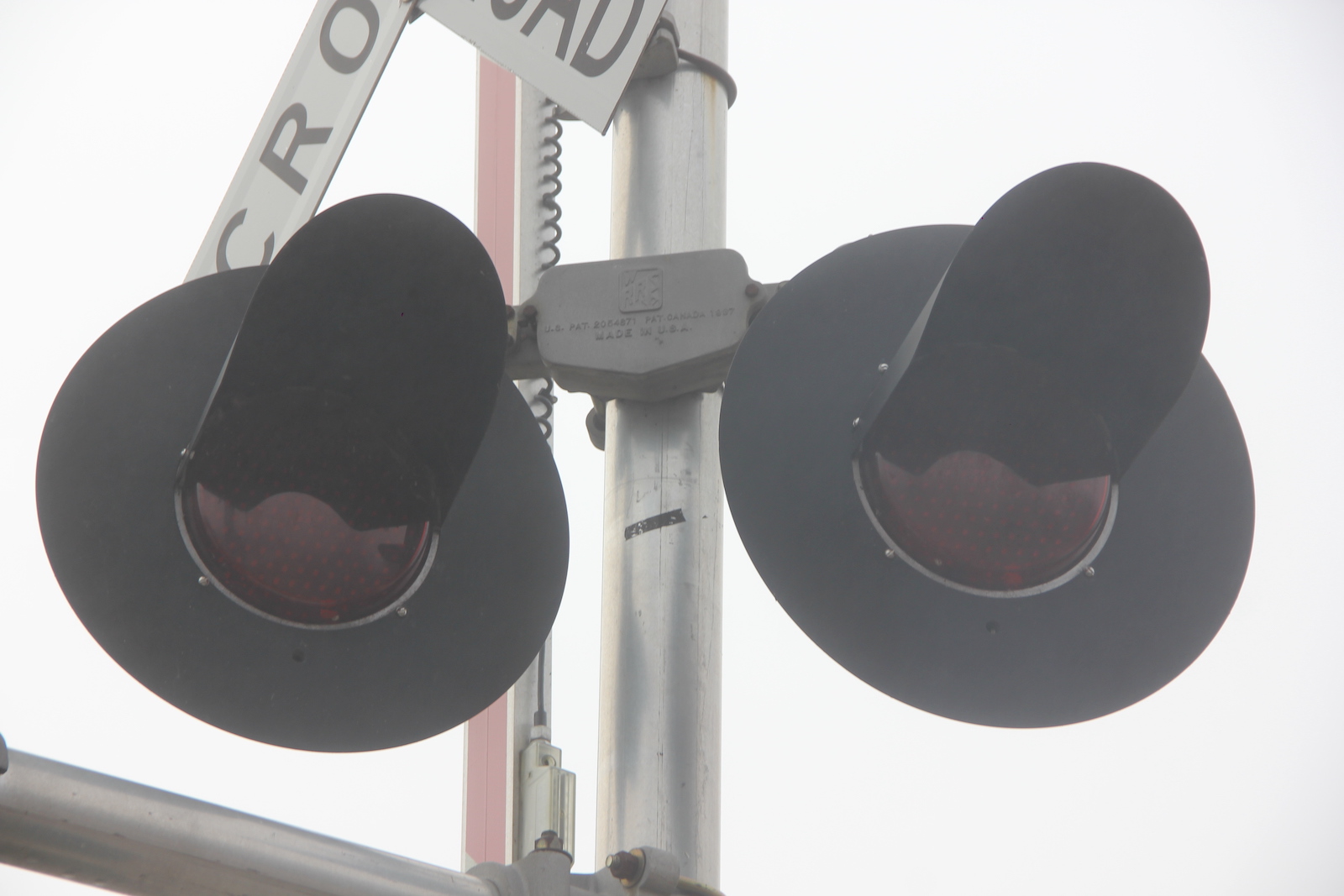

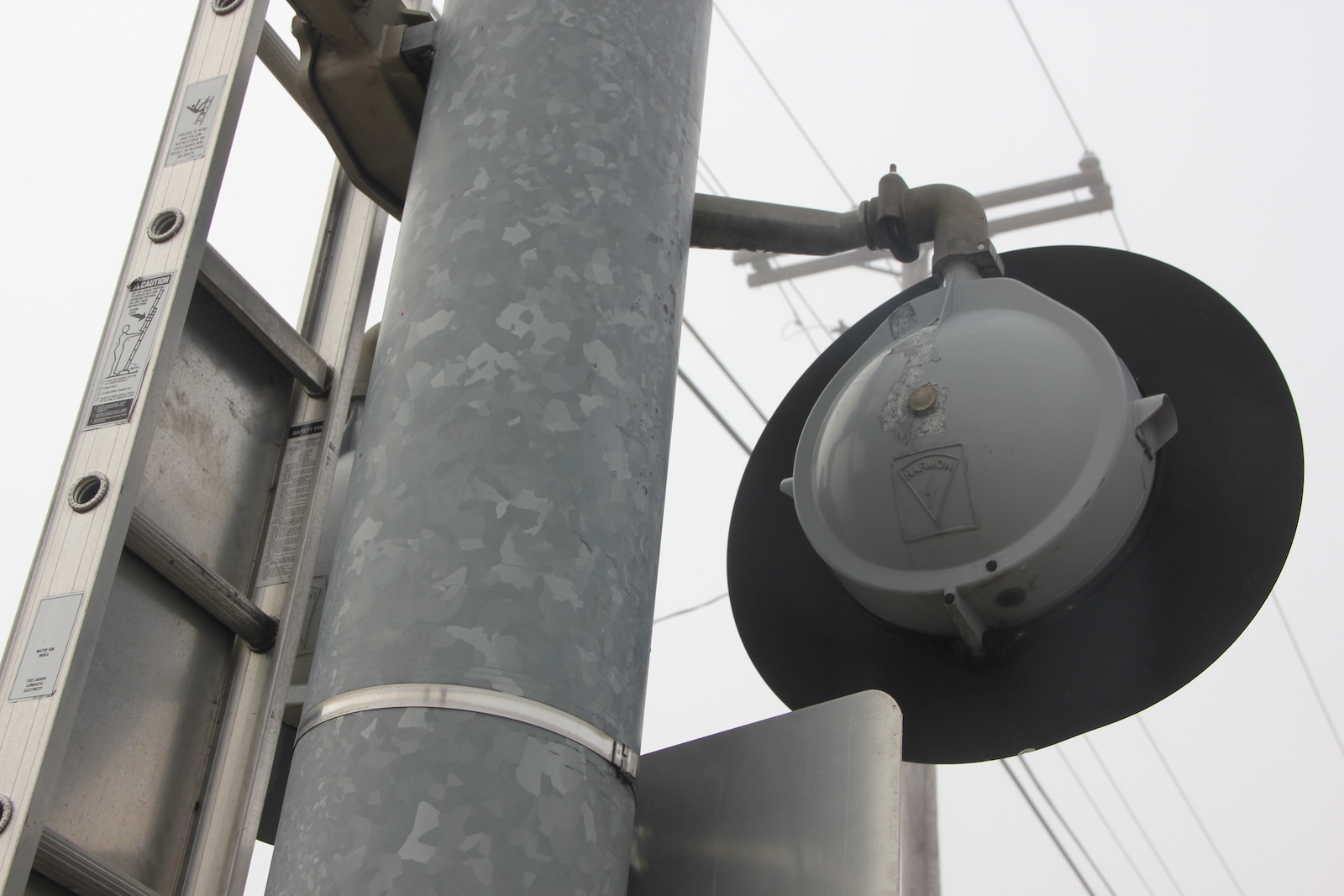

Main Lights: 2 pairs of 12"x24" Harmon Fading LEDs
2 pairs of 12"x24" 1st Gen WCH LEDs
2 pairs of 12"x24" 1st Gen WCH LEDs
Gate Lights: Aurora LEDs
Aurora LEDS
Aurora LEDs

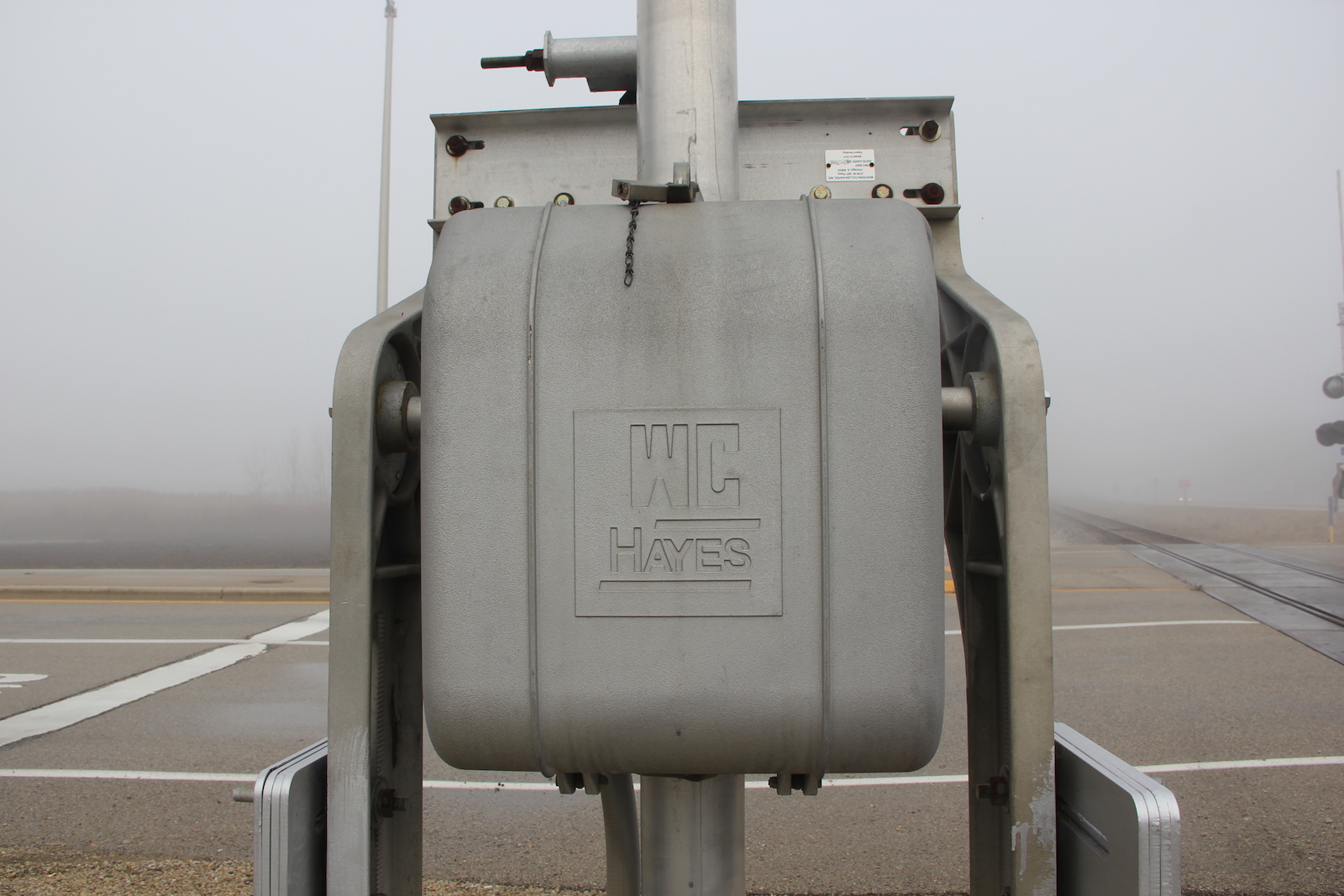

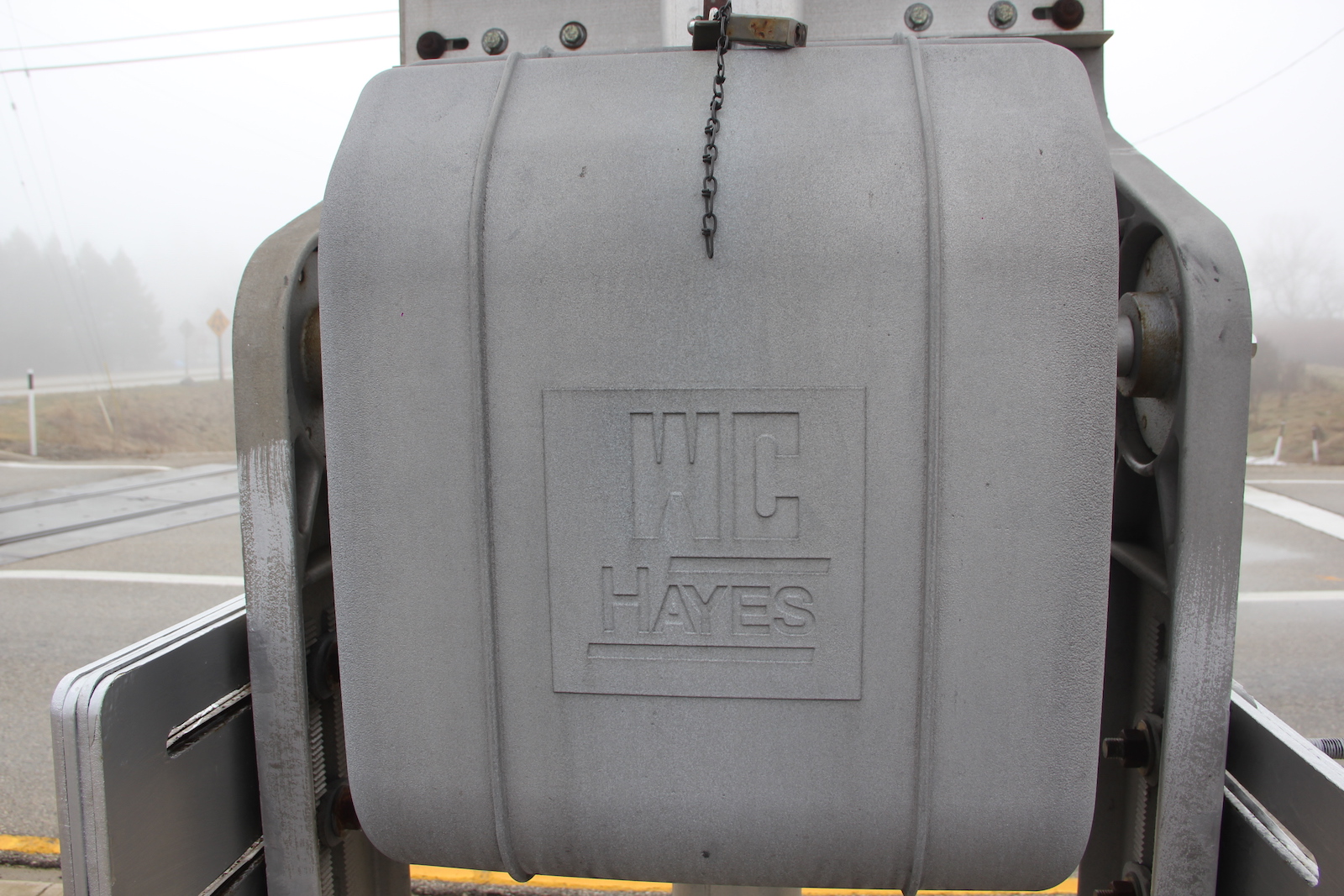

Gate Mechanism: WCH
WCH
WCH
Gate Striping: ///////////////////////////////////////////////////////////////////////////////////////// \\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\ ////////////////////////////////////////////////////////////////////////////////////
Crossbuck font
Normal font, double sided
Normal font, double sided
Normal font, double sided
Bell Cycle: Unknown
N/A
Unknown

Pictures 1-6 were taken in early 2006 by Brenton81.
Pictures 7-46 were taken on January 21, 2017, by Tommy McGowan.
This crossing is located on the UP Kenosha Sub.

1
2
3
4
5
6

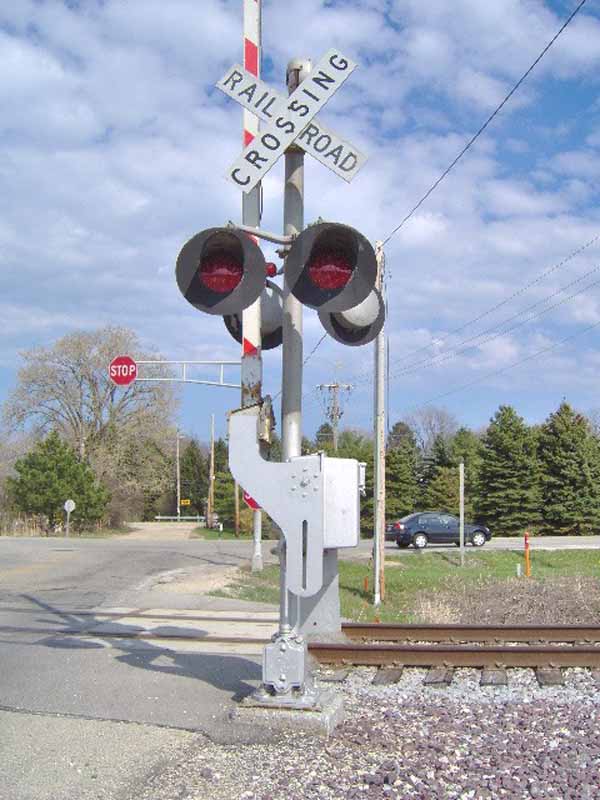

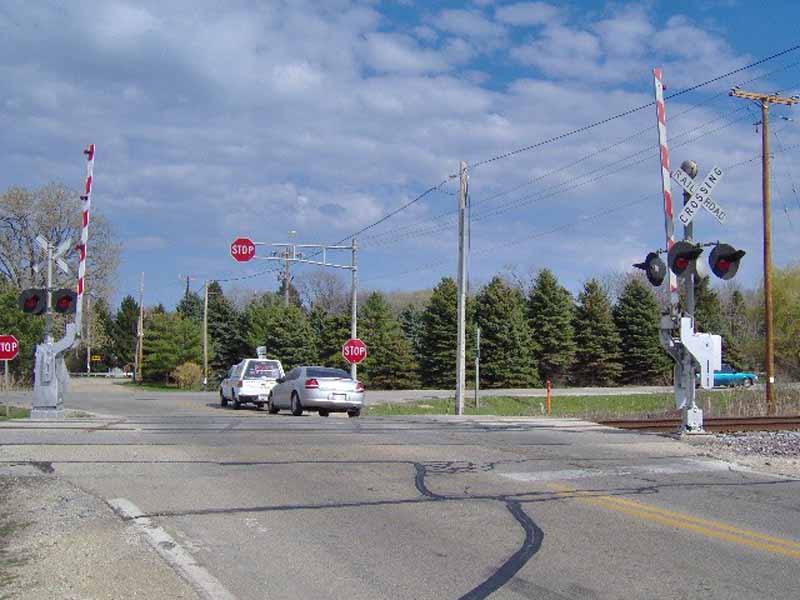

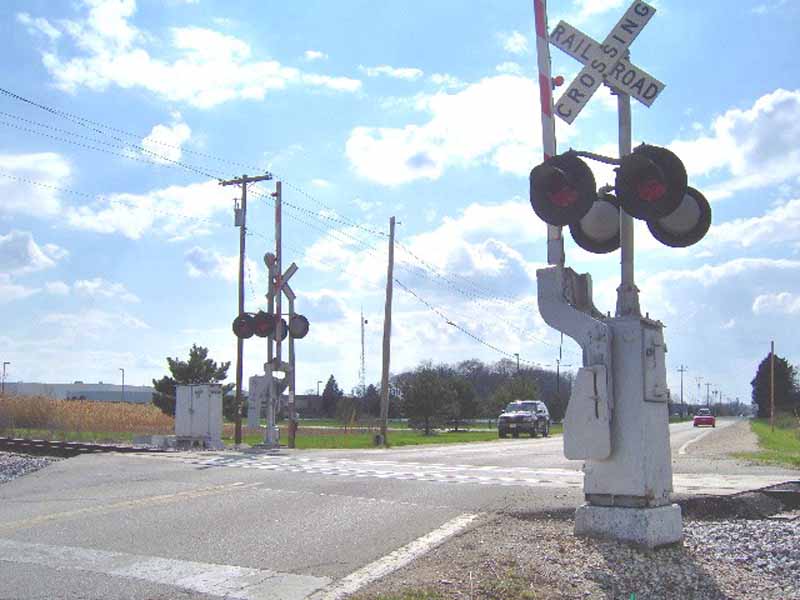

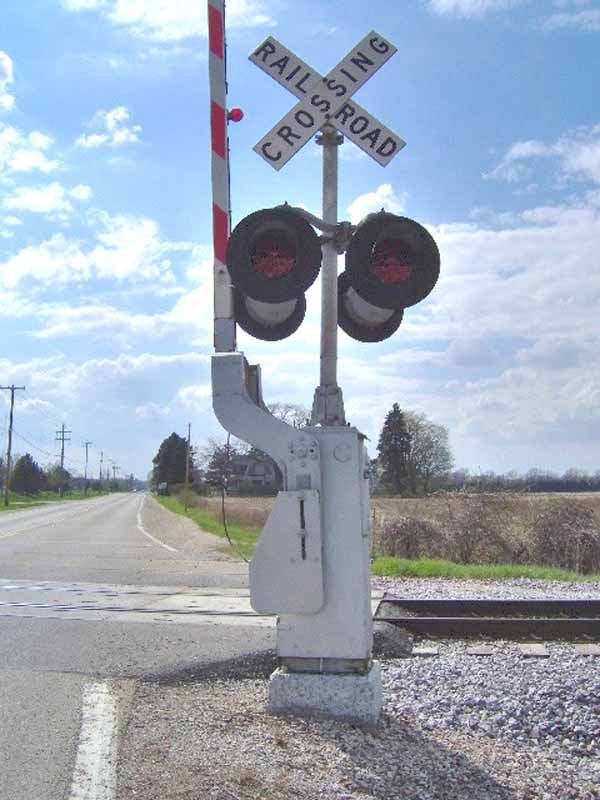

Photos from Brenton81 from early 2006.  At the time this crossing had an EM gated signal and a regular Safetran gated signal with a Safetran mechanical bell.  Both signals appeared to have 12"x24" UP LEDs in older L&W frames.  Note the odd stop sign cantilever in Picture 5.  I've never really seen that before.

By early 2008, this crossing was completely overhauled.  The road was widened to 3 lanes, traffic signals were installed at the intersection just east of the crossing, and new crossing signals were installed.  The crossing now has 2 regular gated signals and a gated cantilever with 2 WCH E Bells.
Sometime between 2013 and 2016, the WCH E Bells were replaced by GS E Bells.

7
8

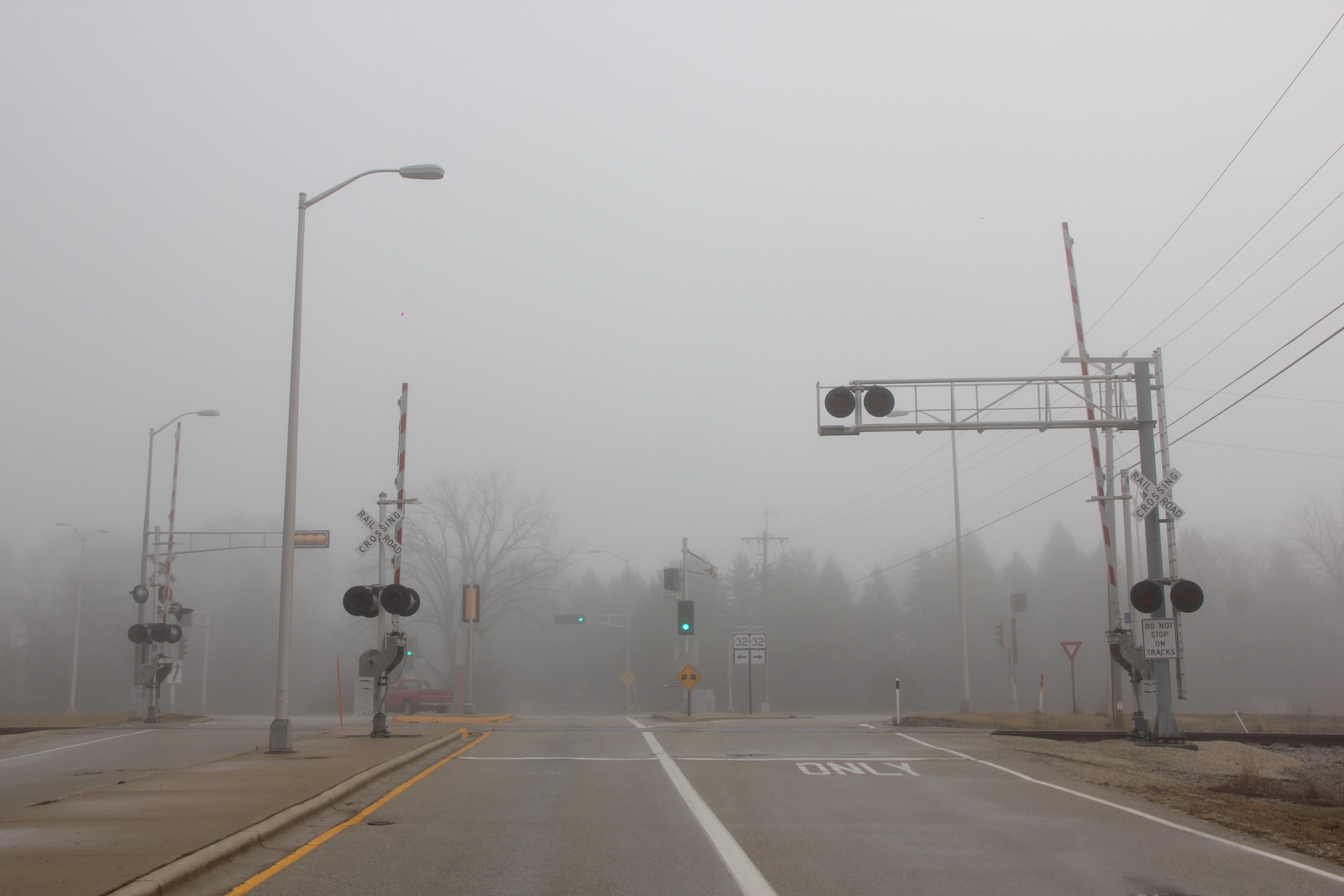

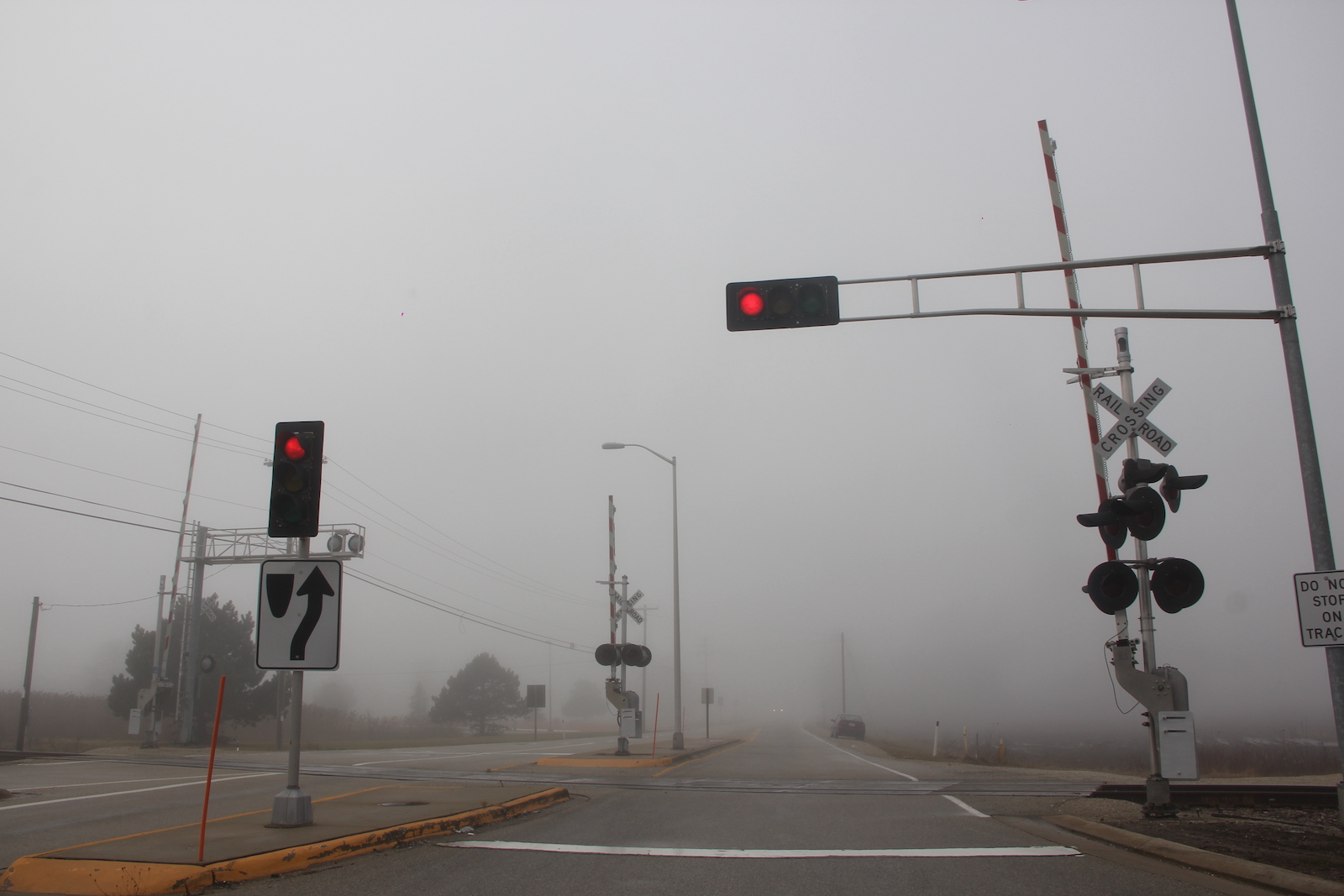

Overview of the newer setup facing east.
Overview facing west.
9 10 11 12
13 14 15 16
17 18 19 20

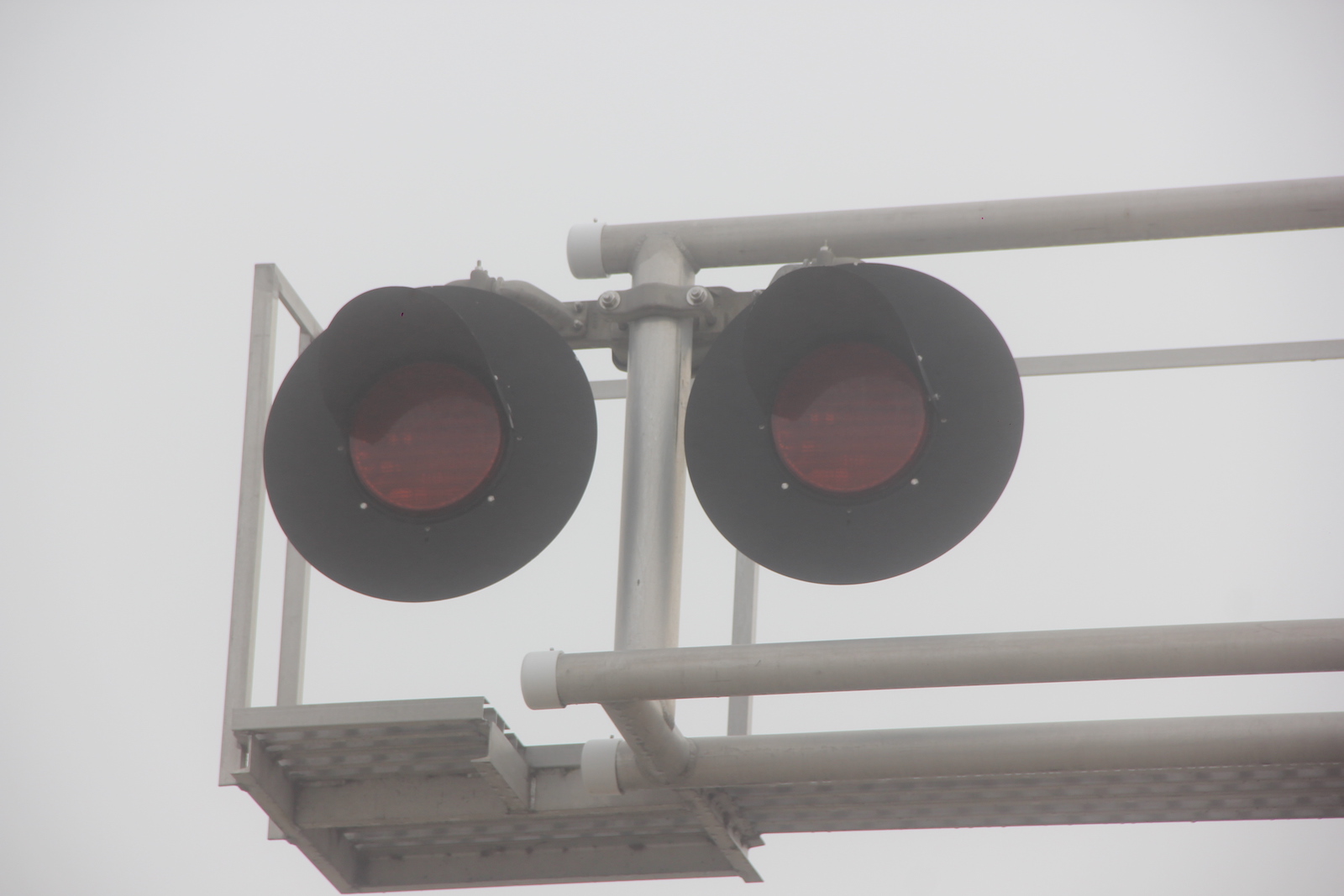

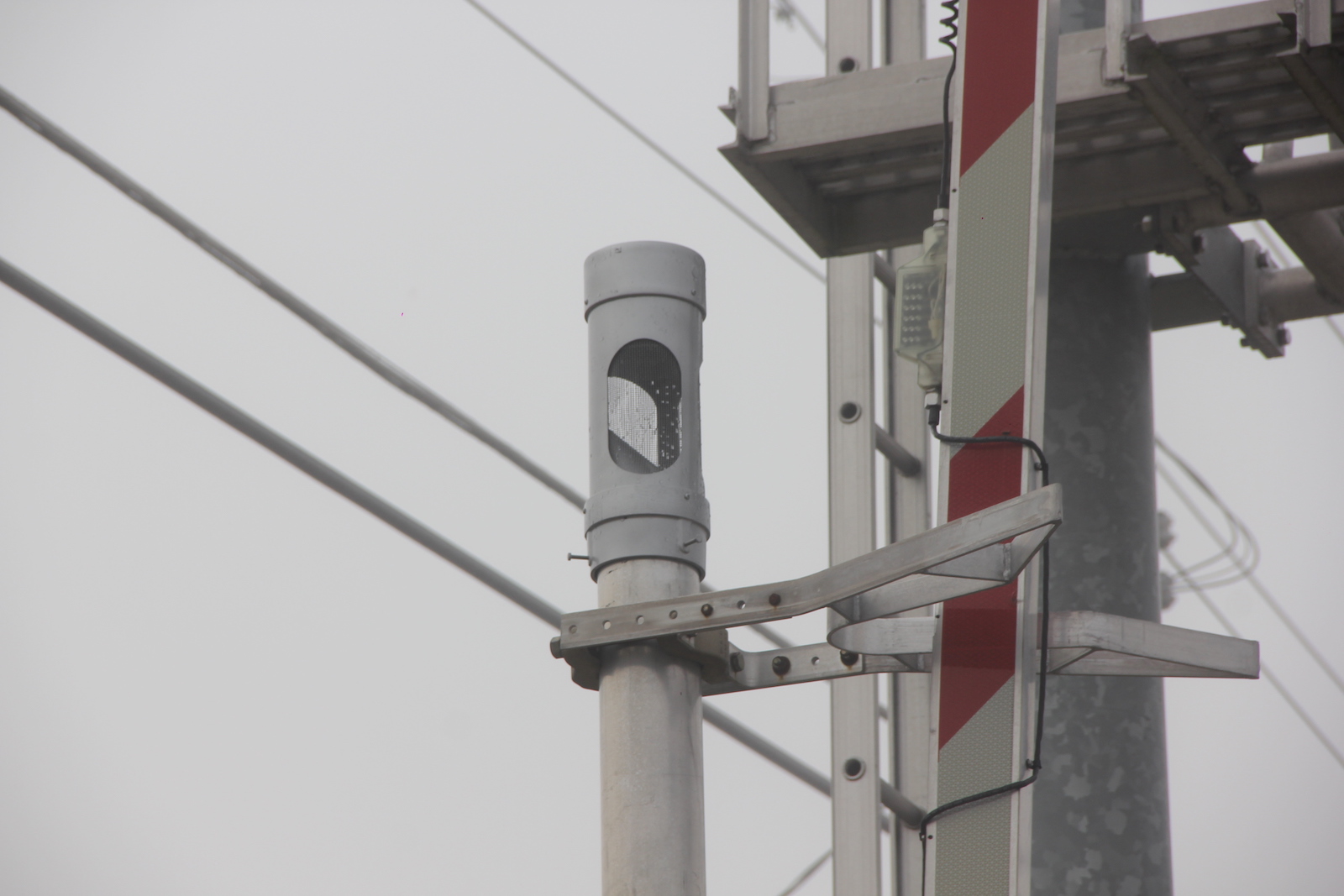

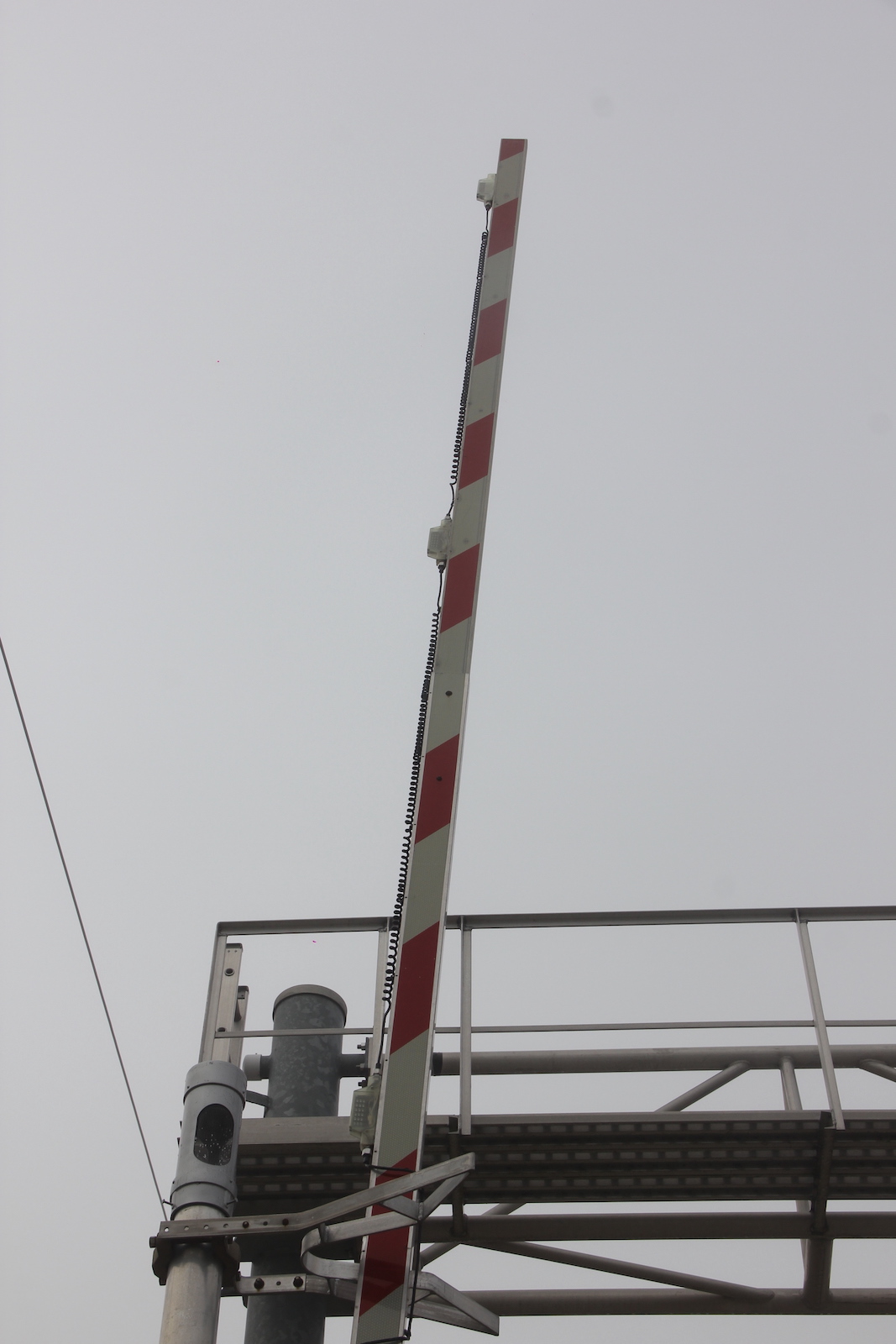

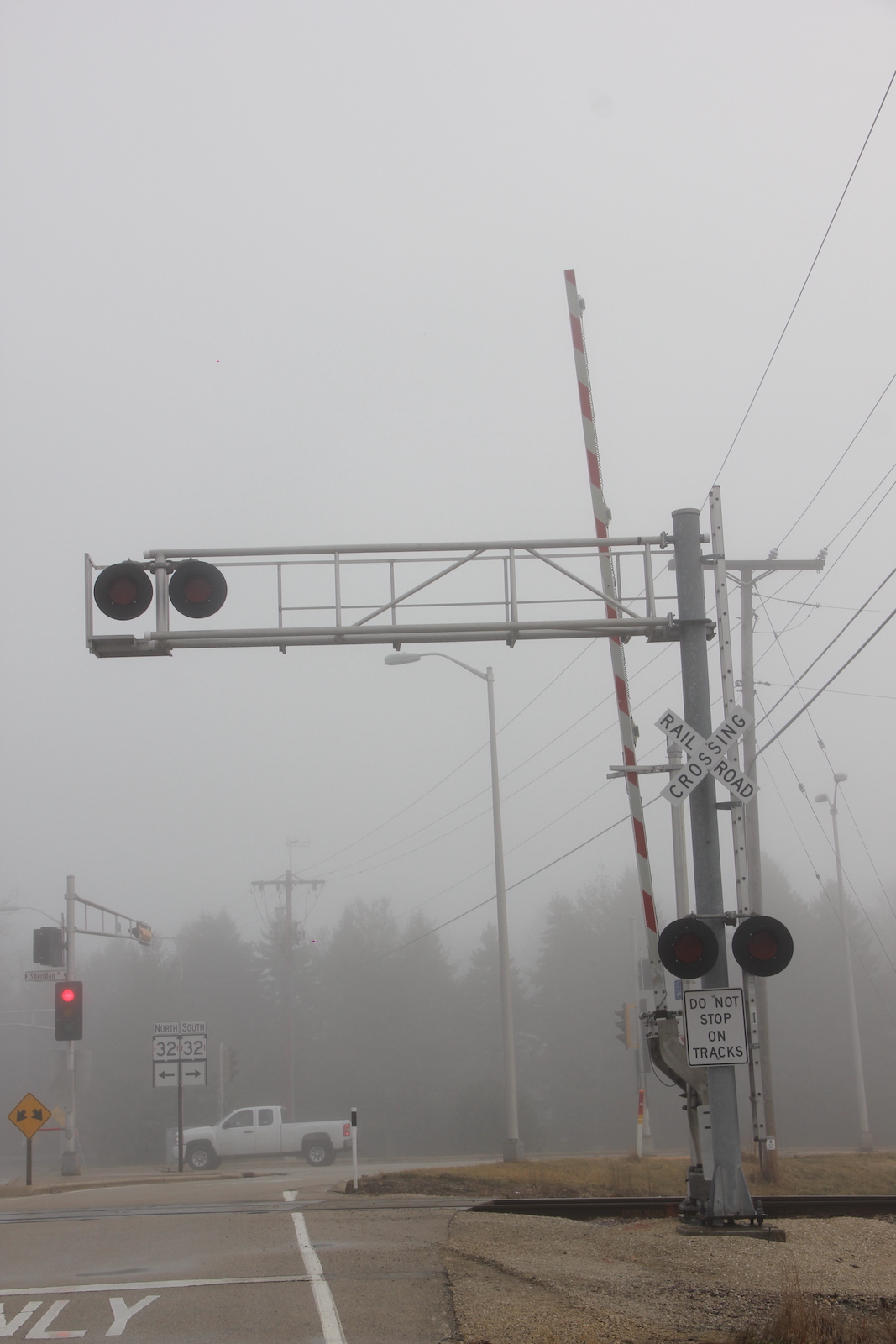

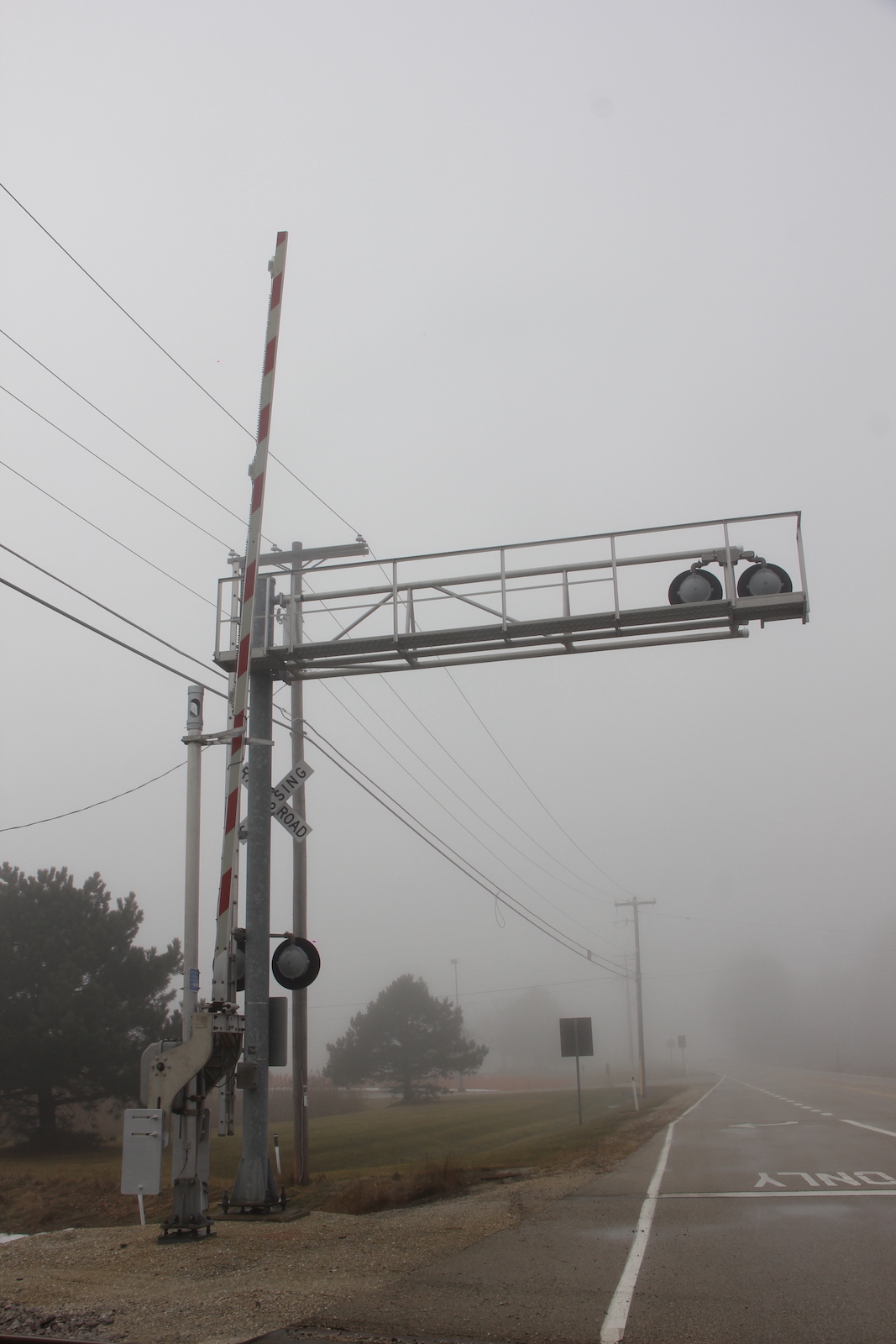

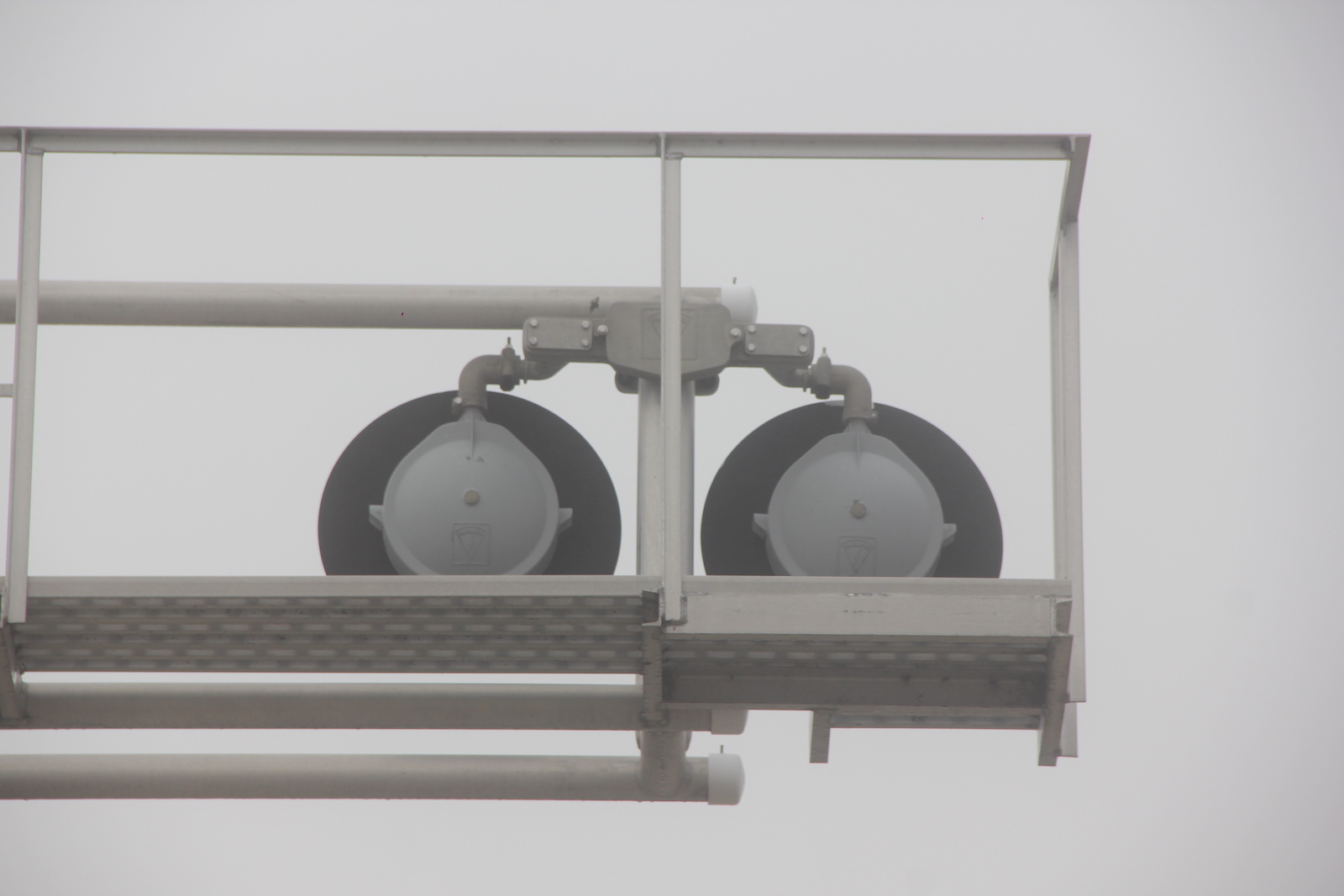

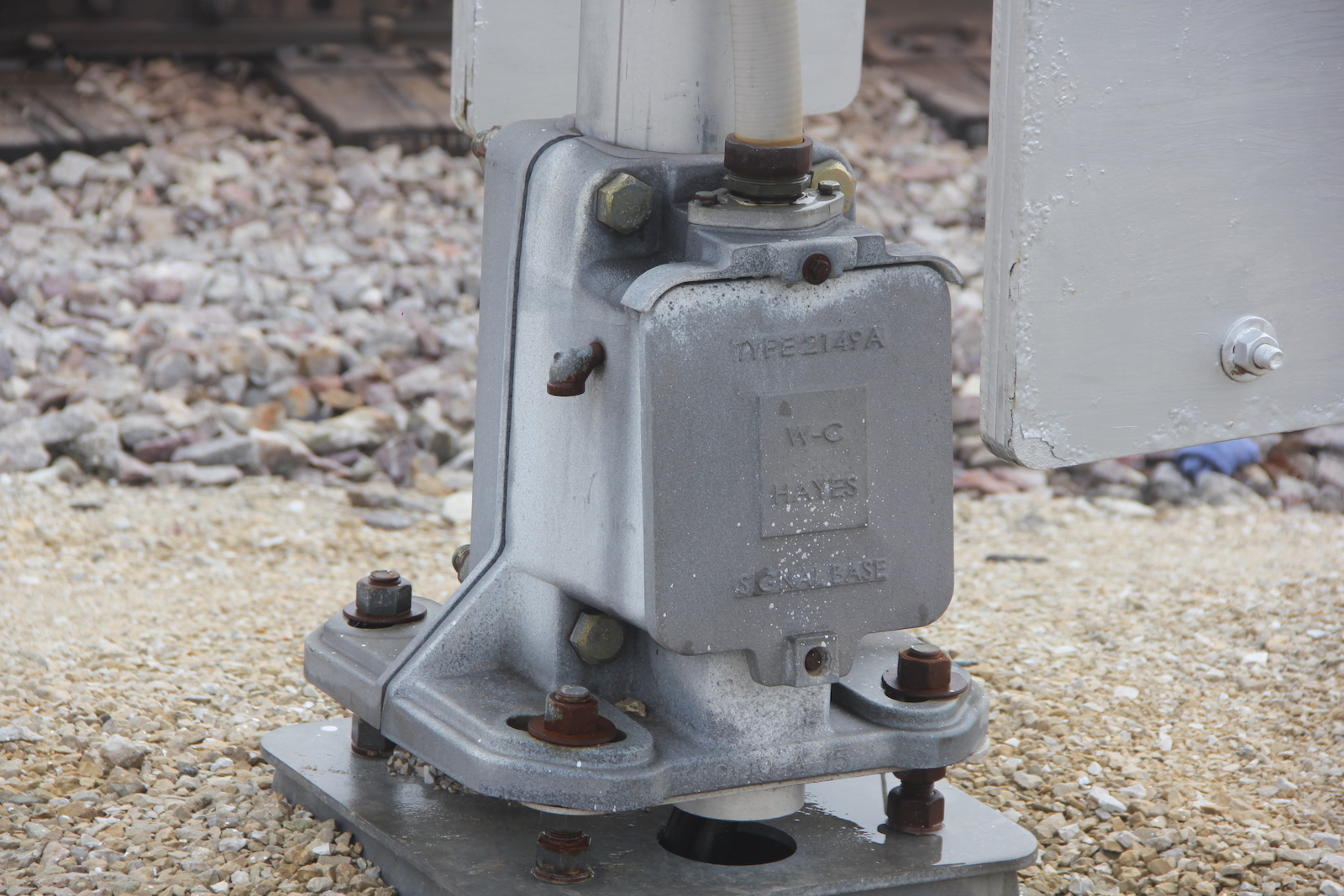

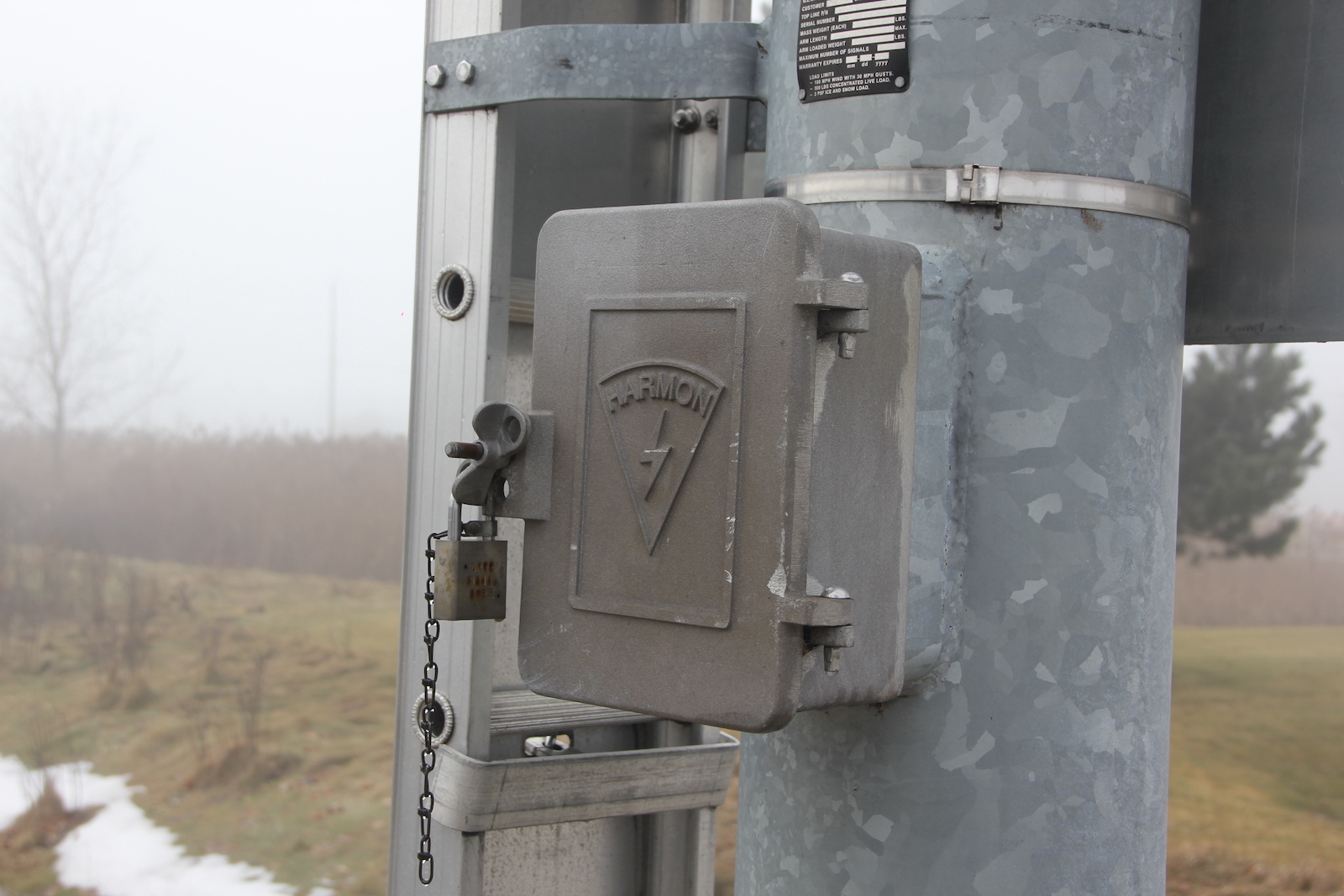

The western main signal.
21 22 23 24
25 26 27 28

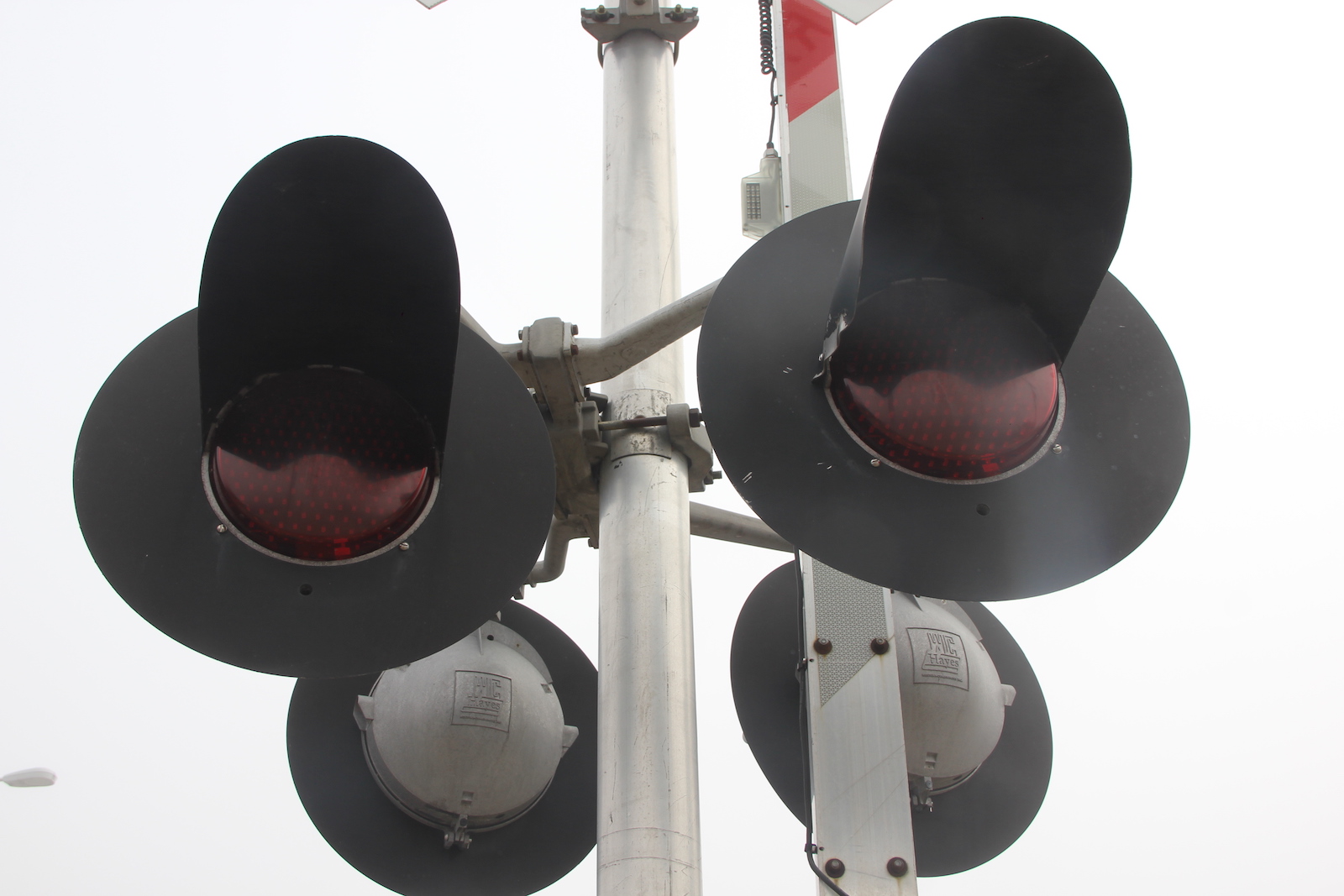

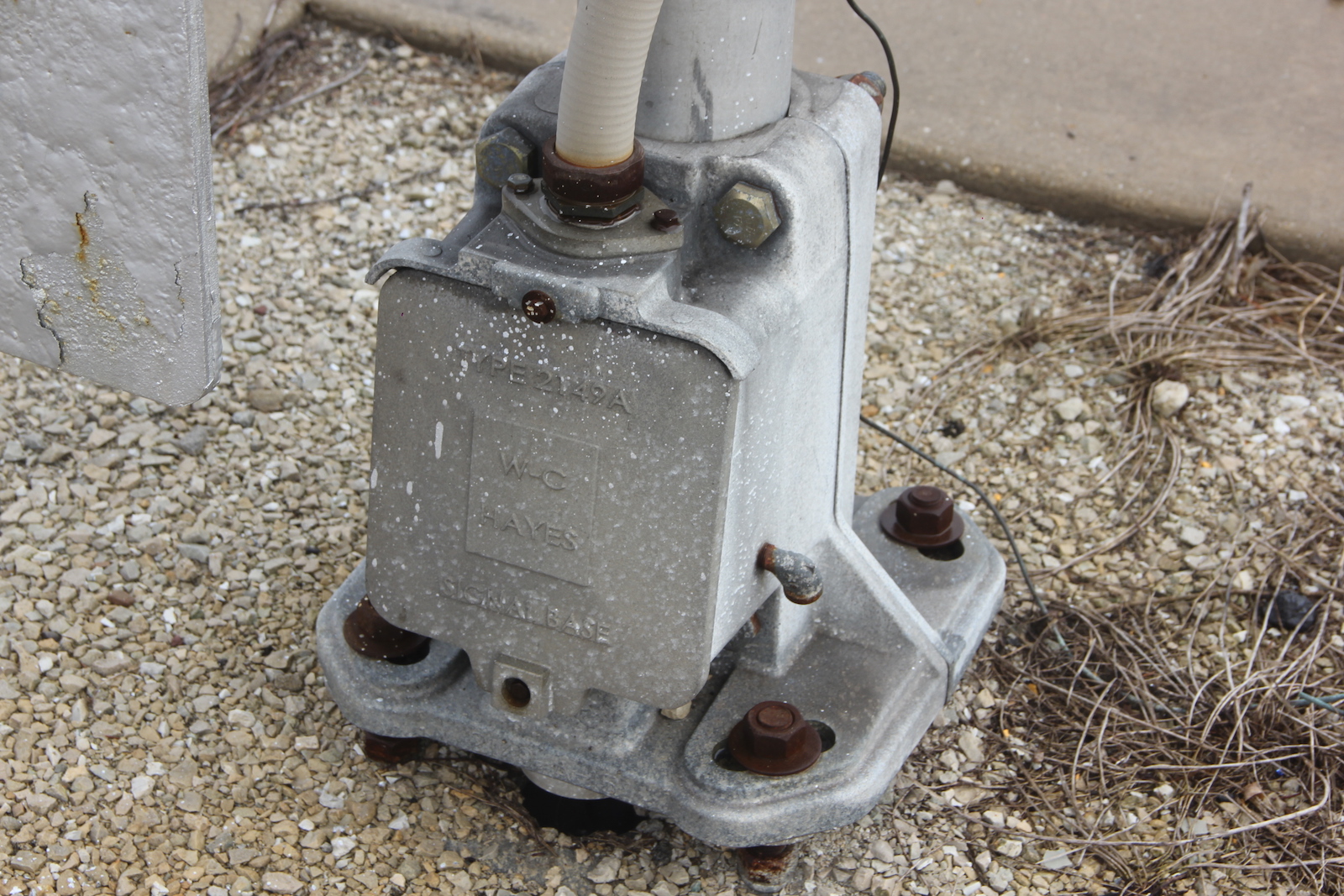

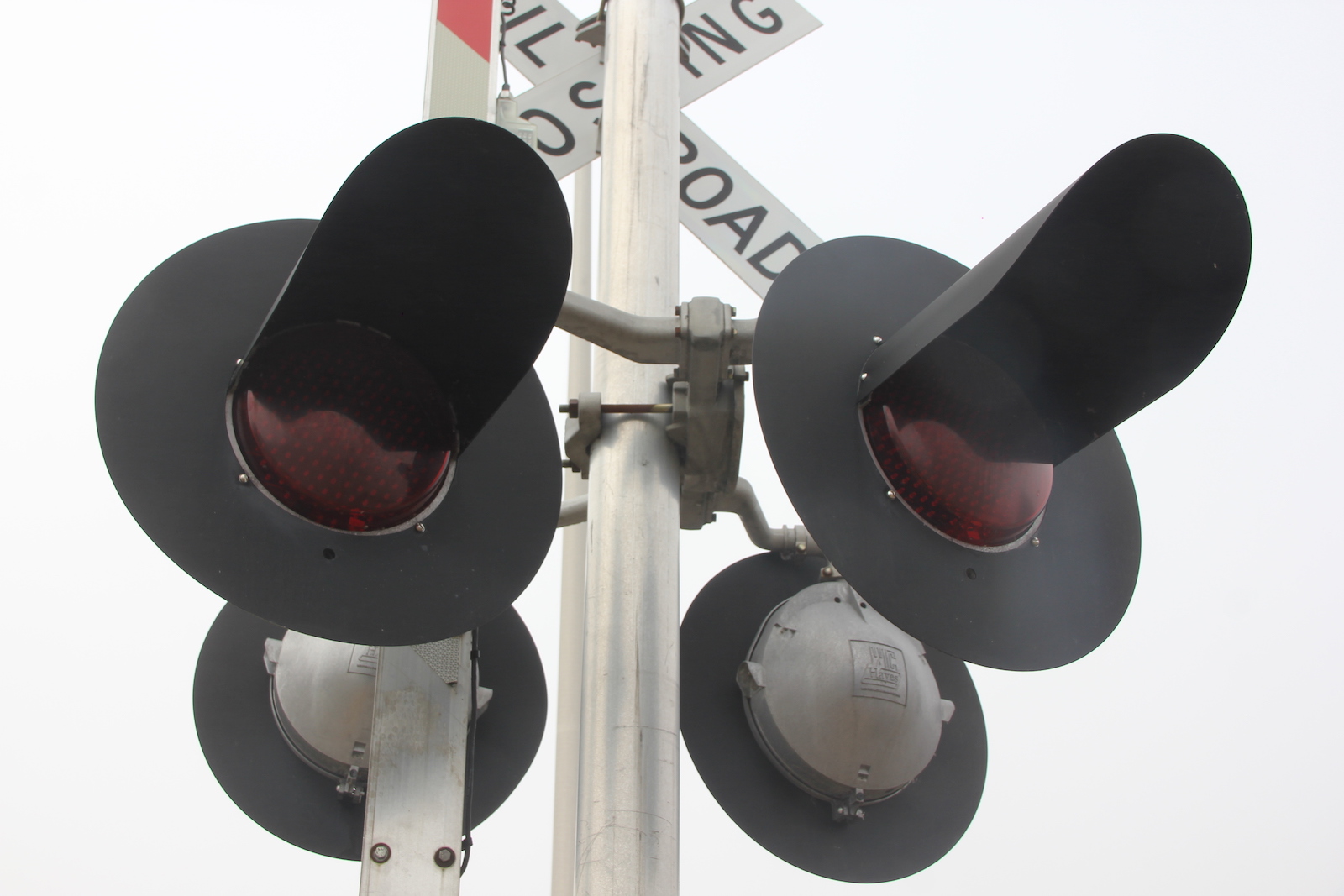

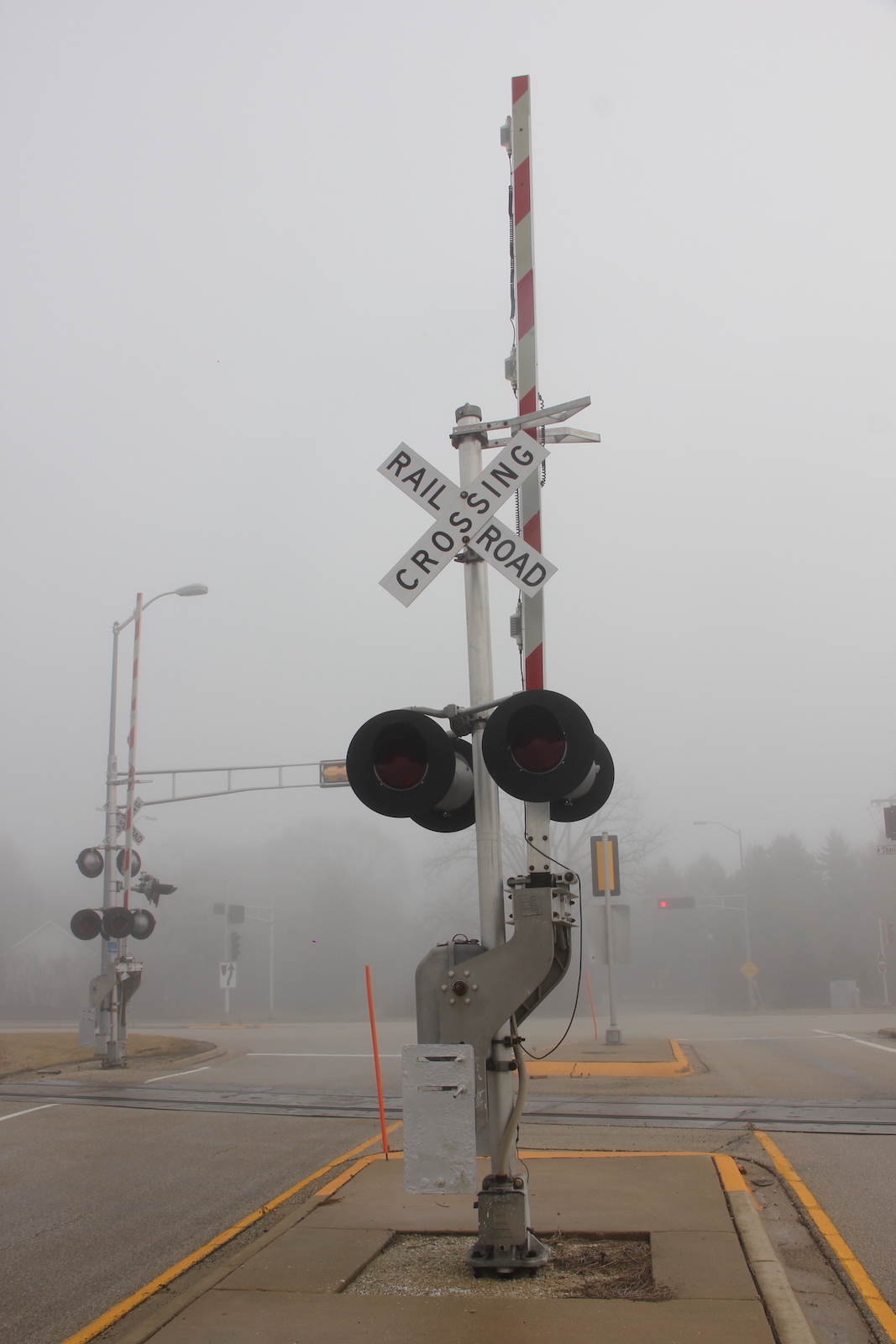

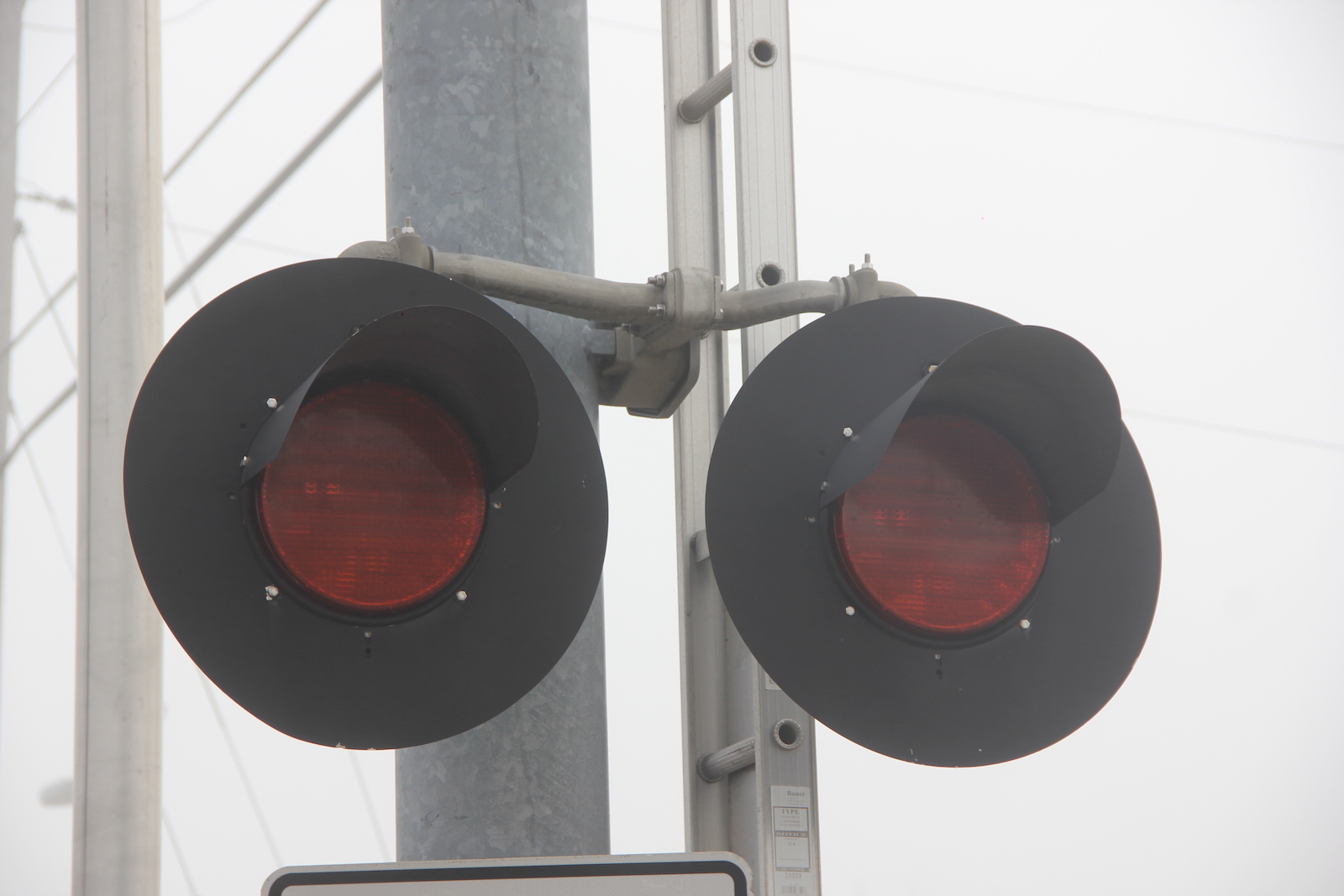

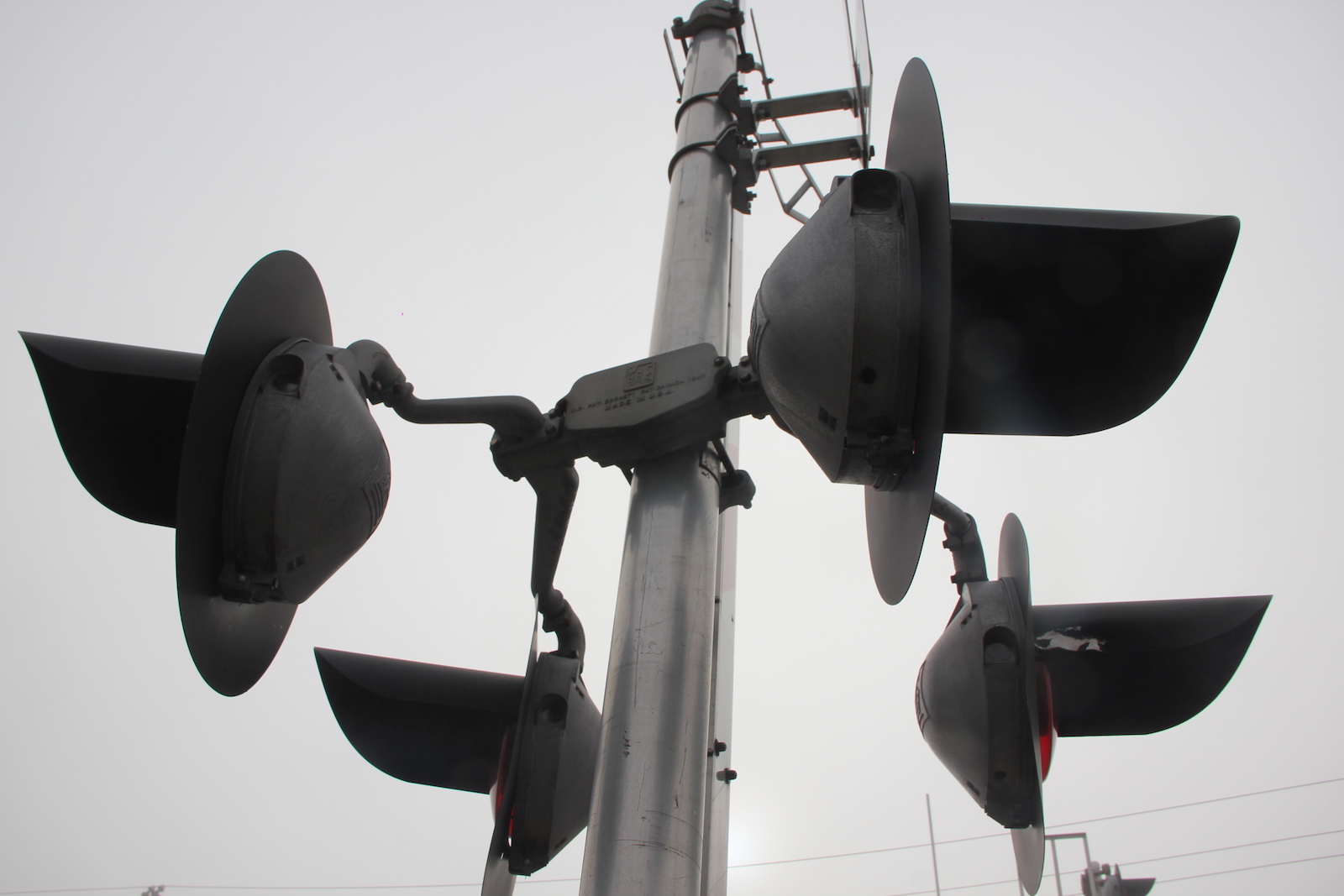

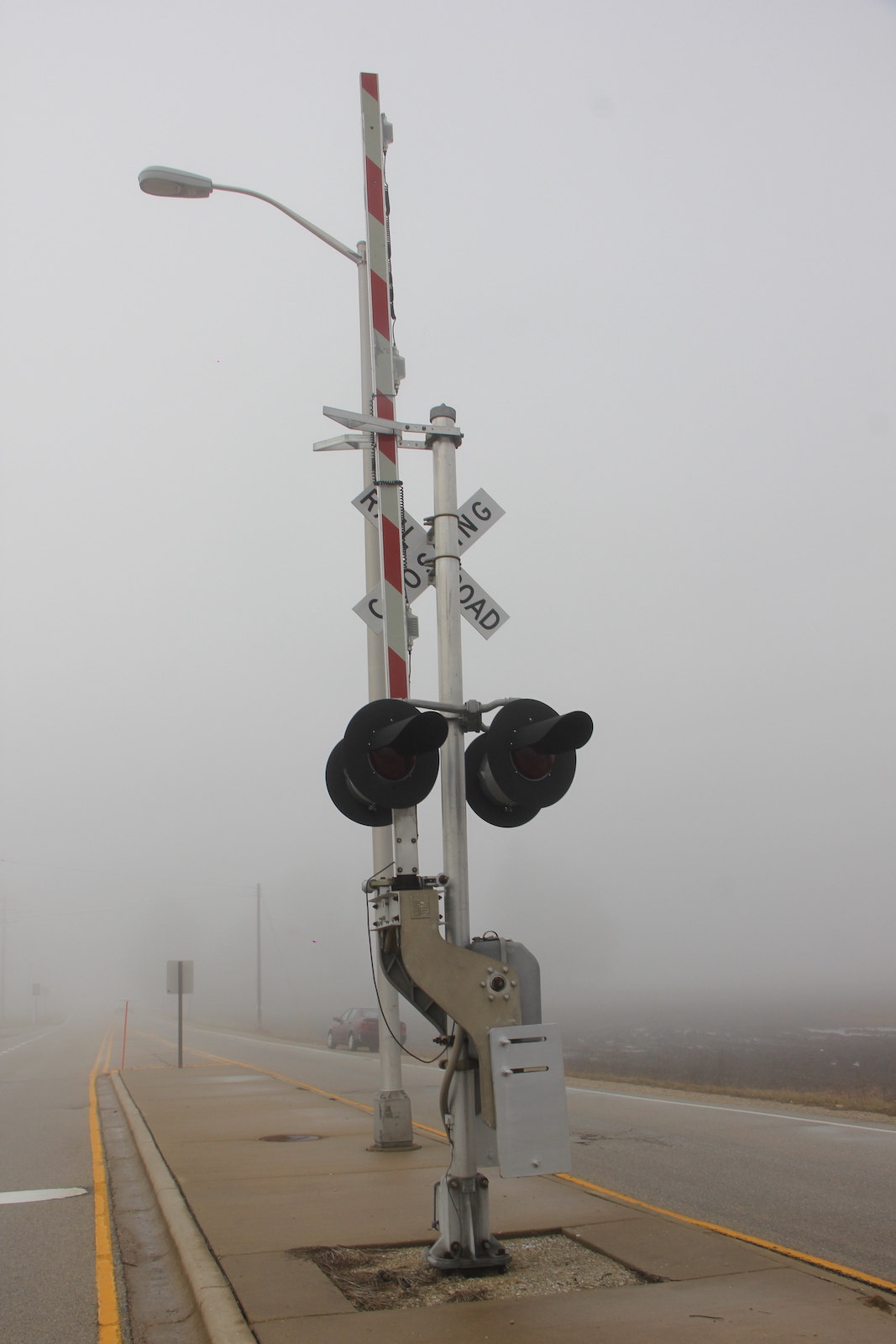

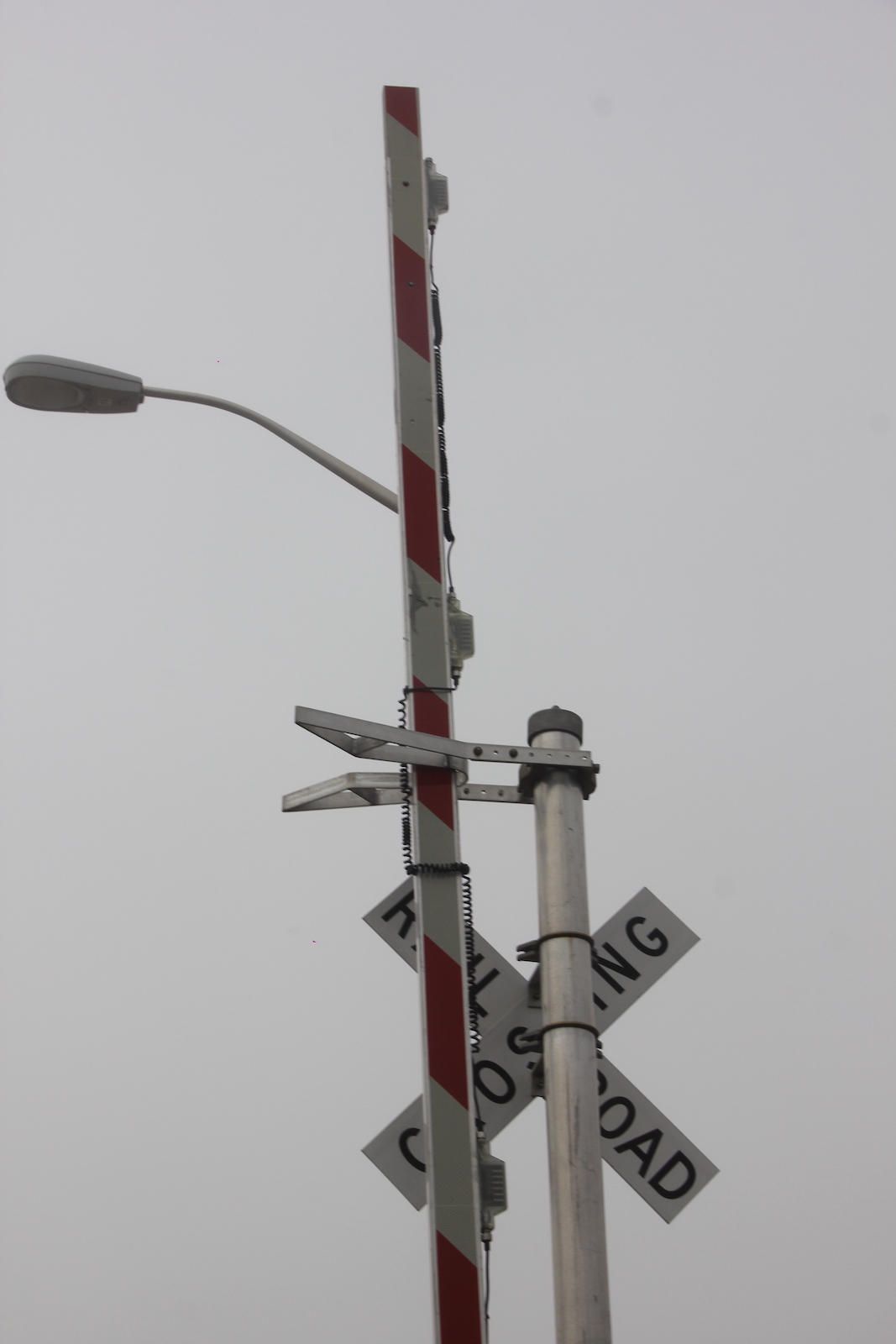

The western median signal.
29 30 31

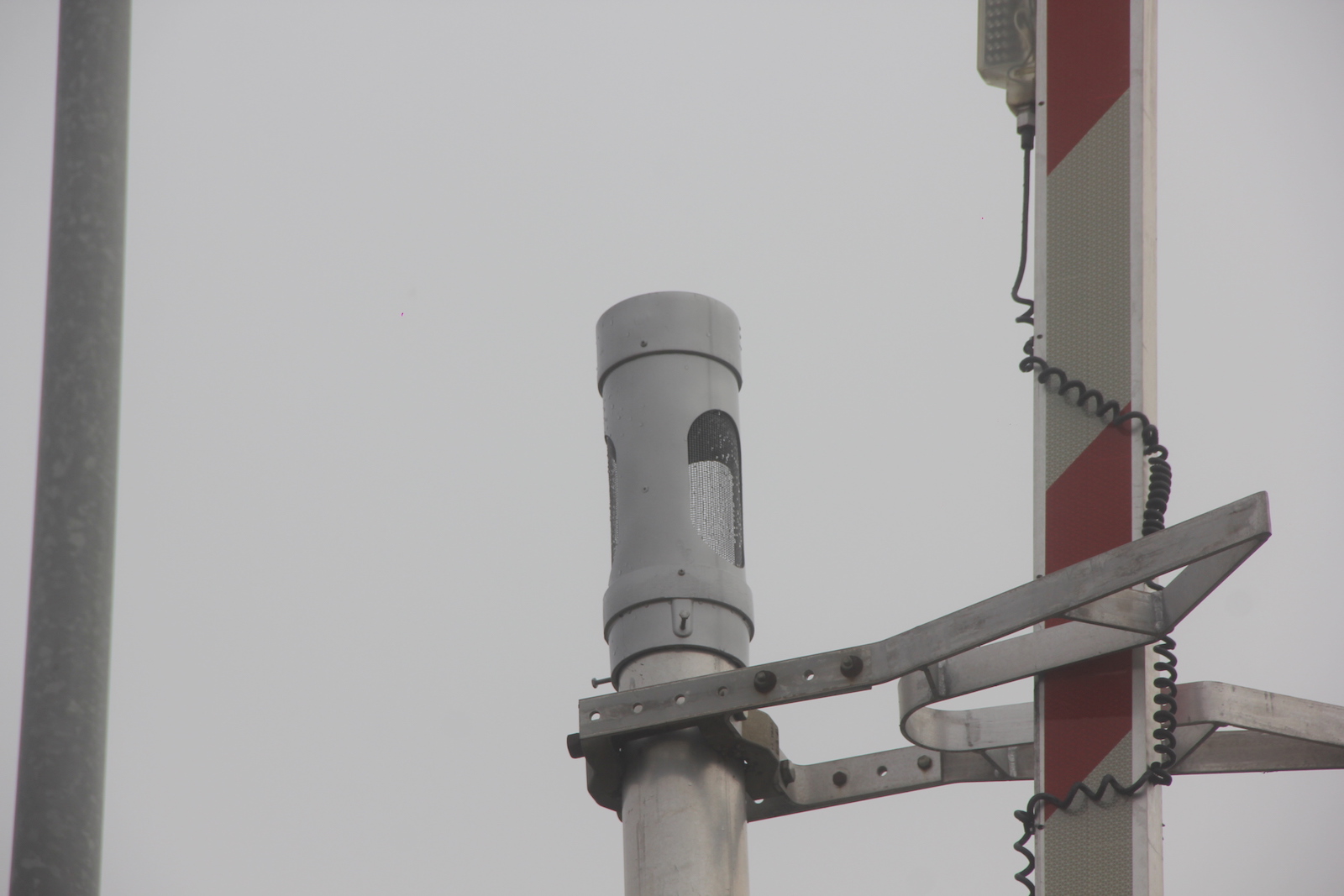

32 33 34
35 36 37 38
39 40 41
42

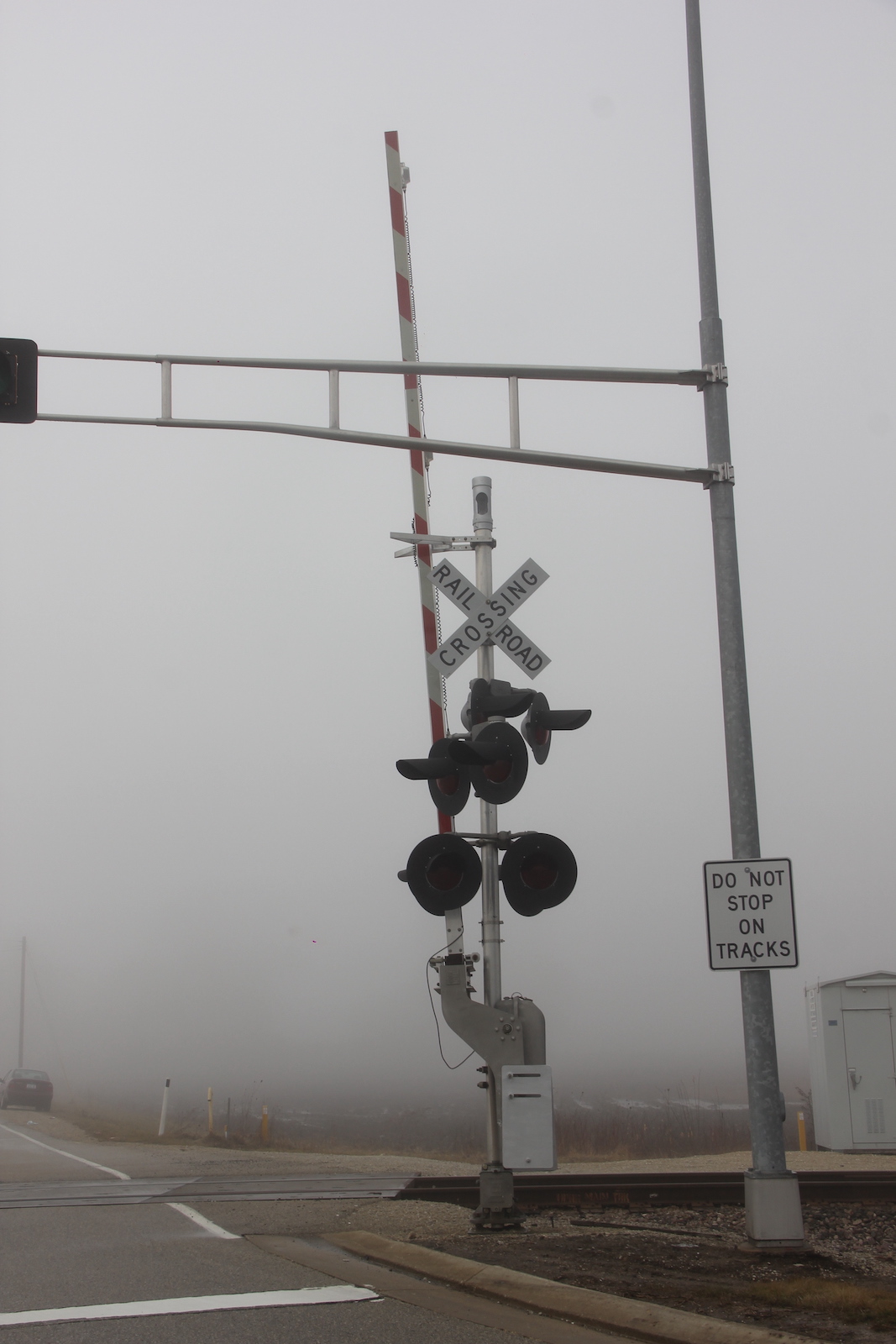

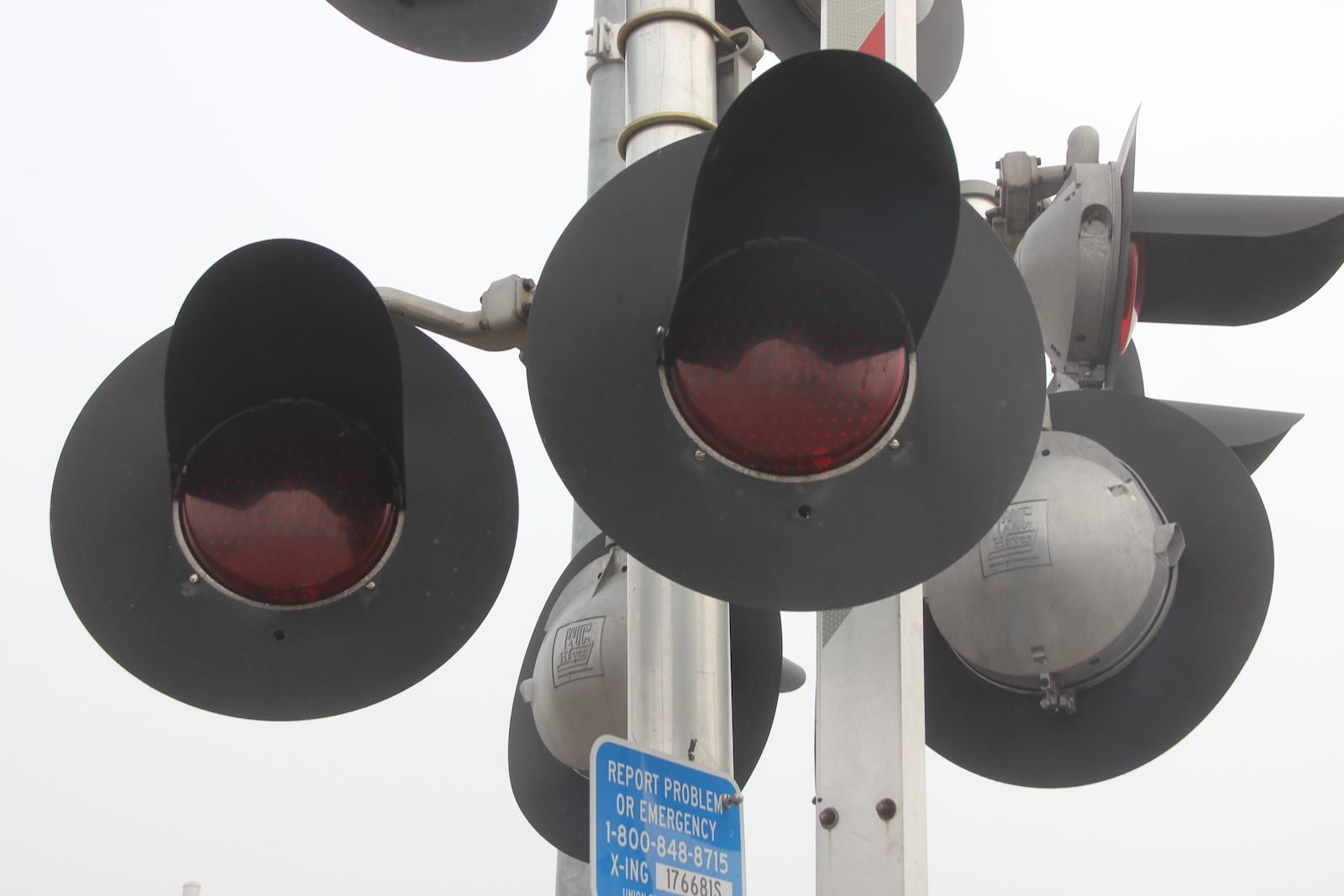

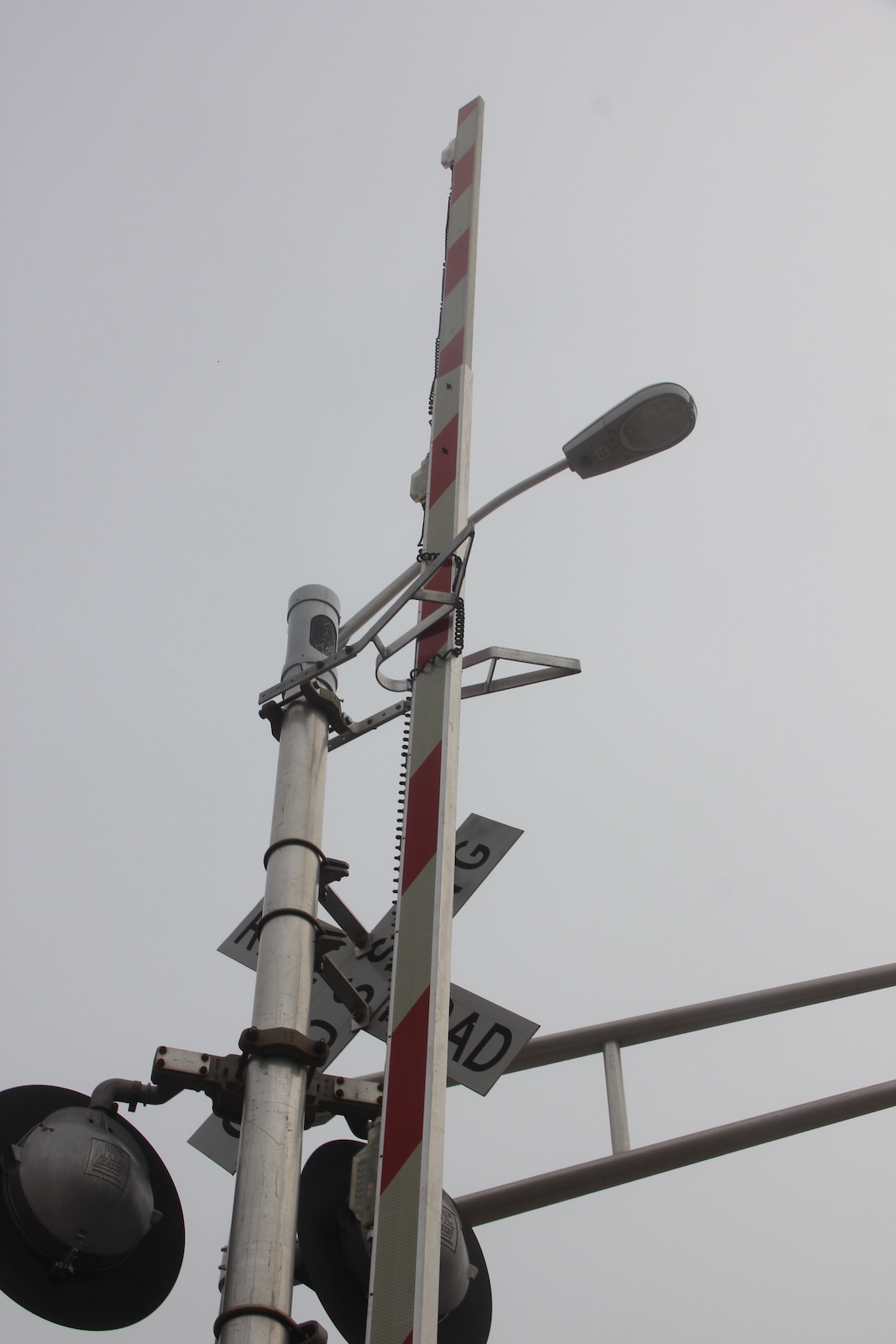

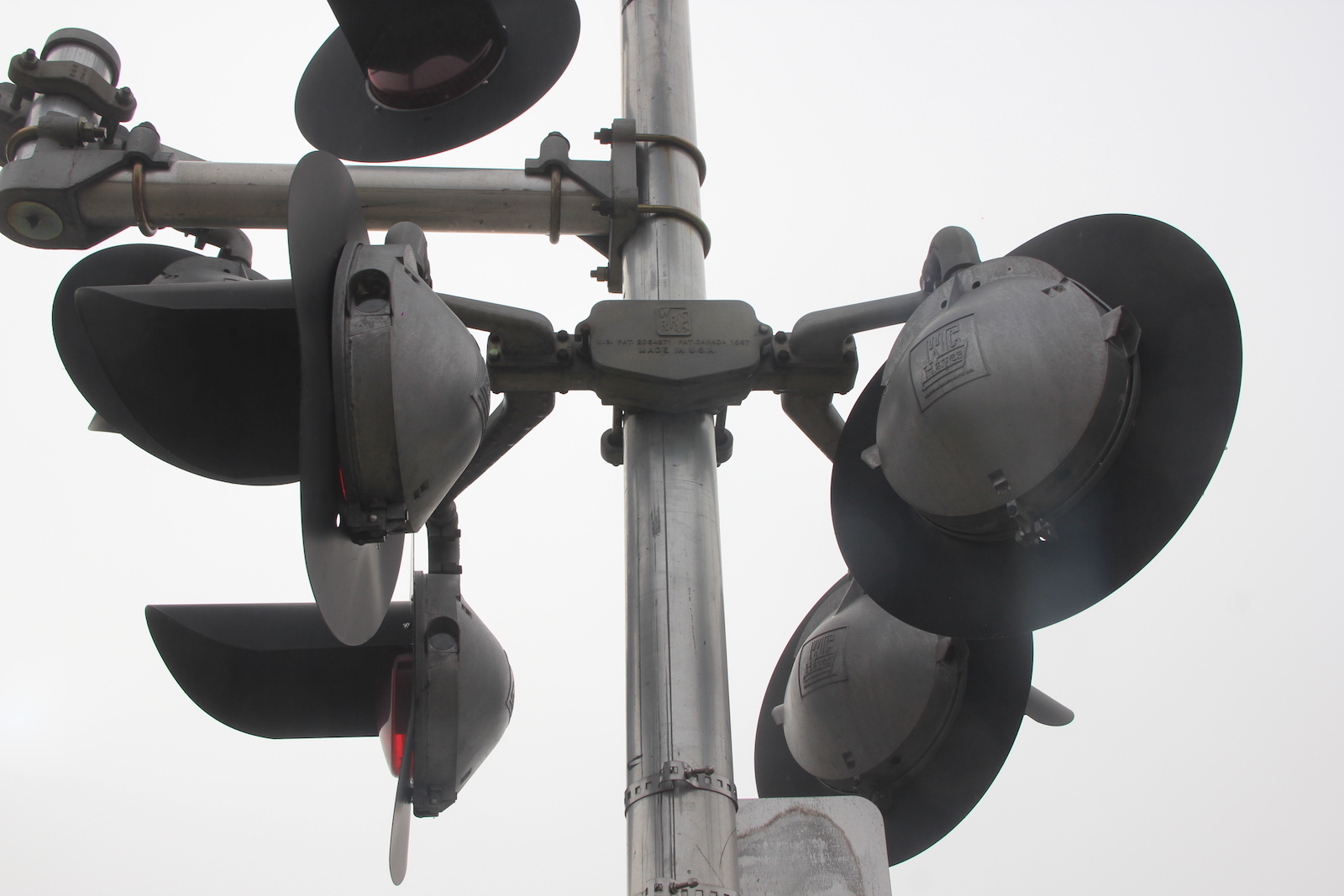

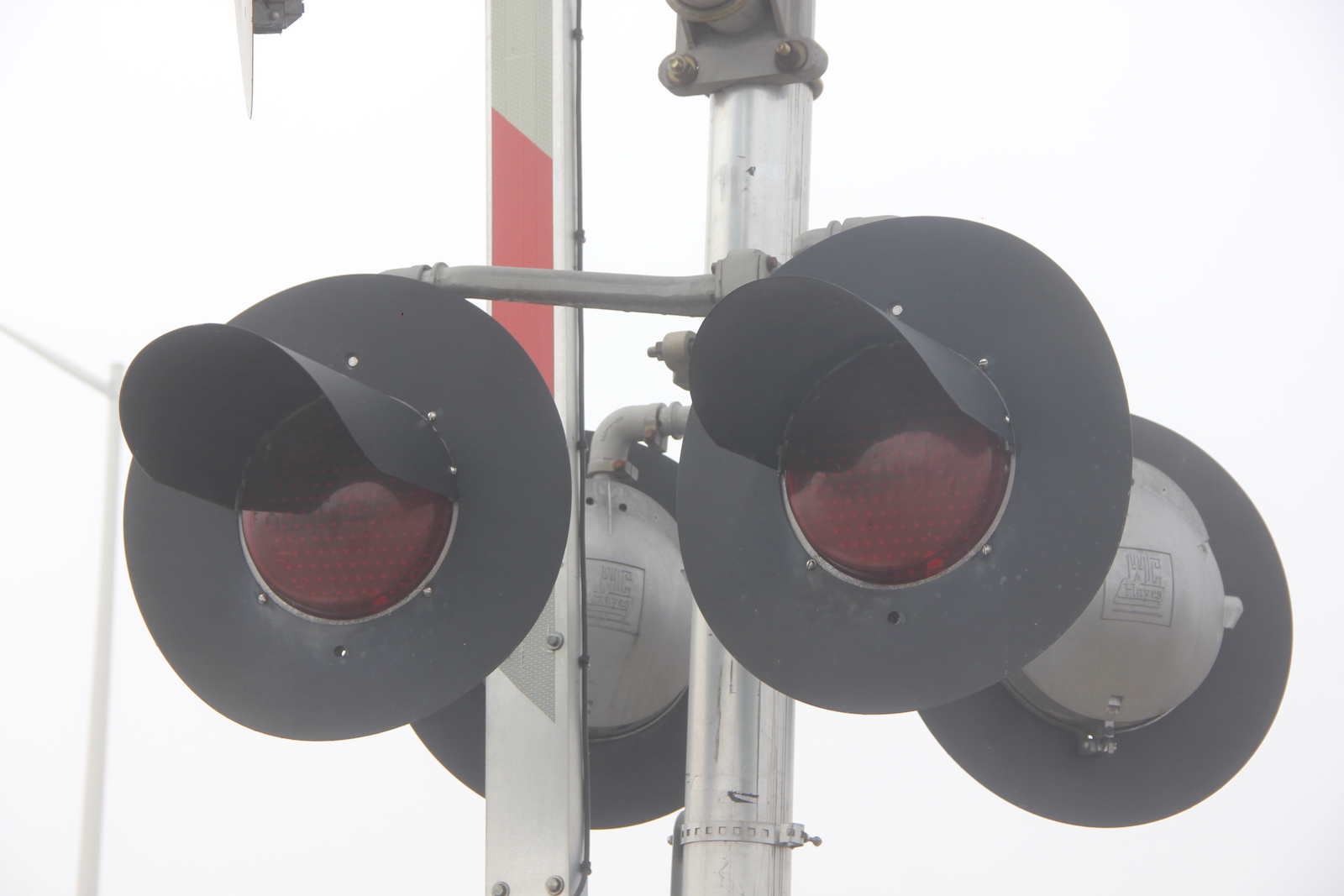

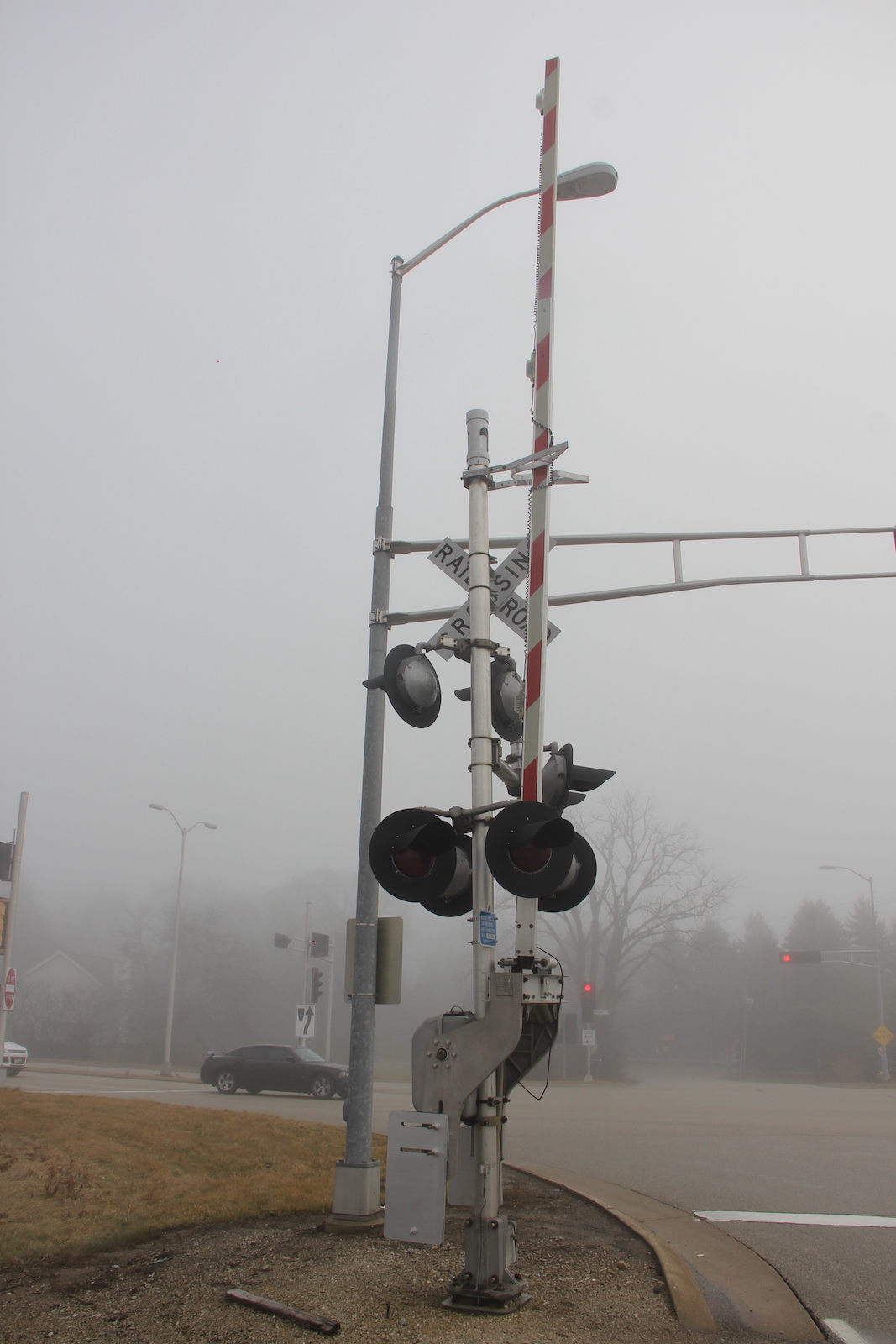

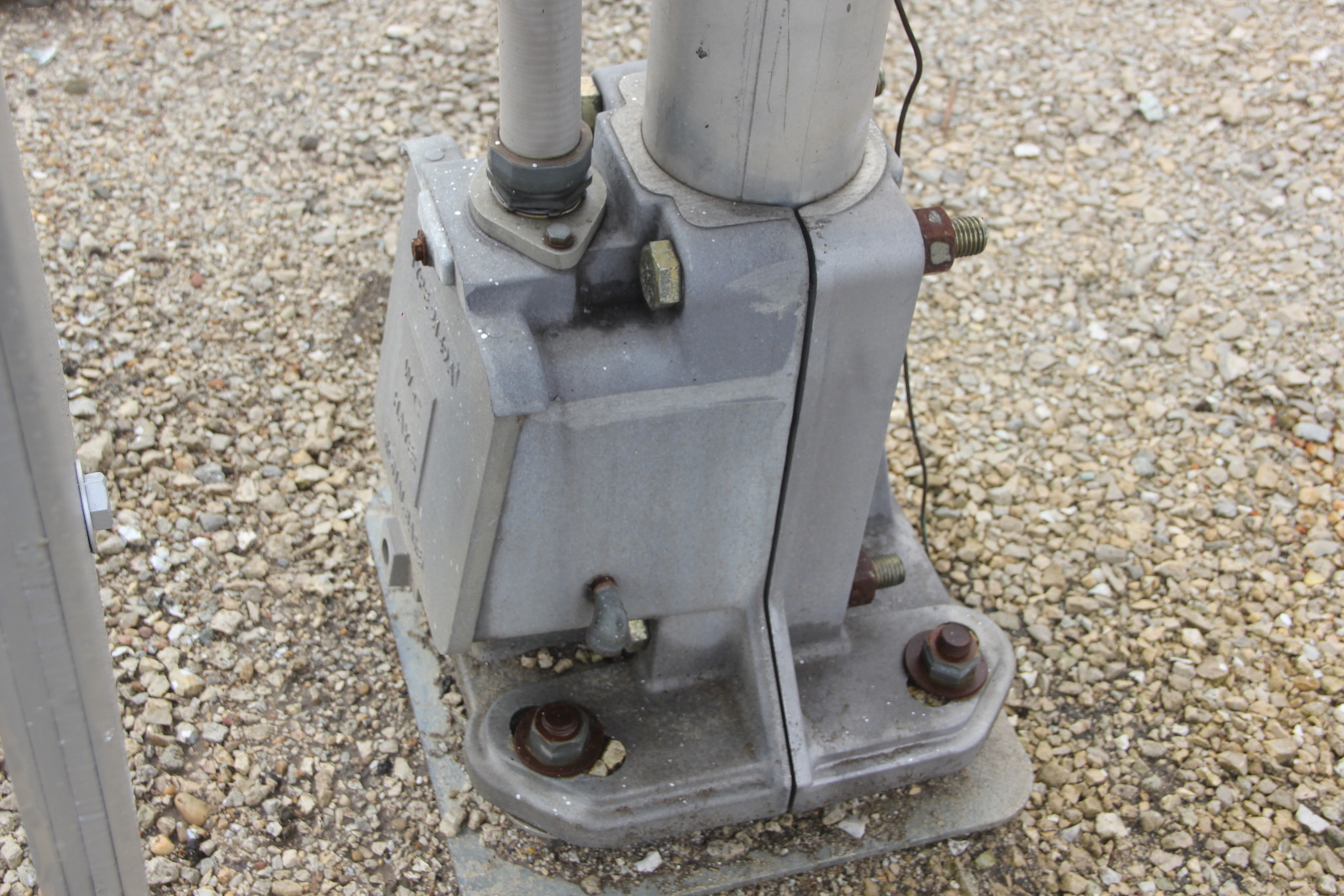

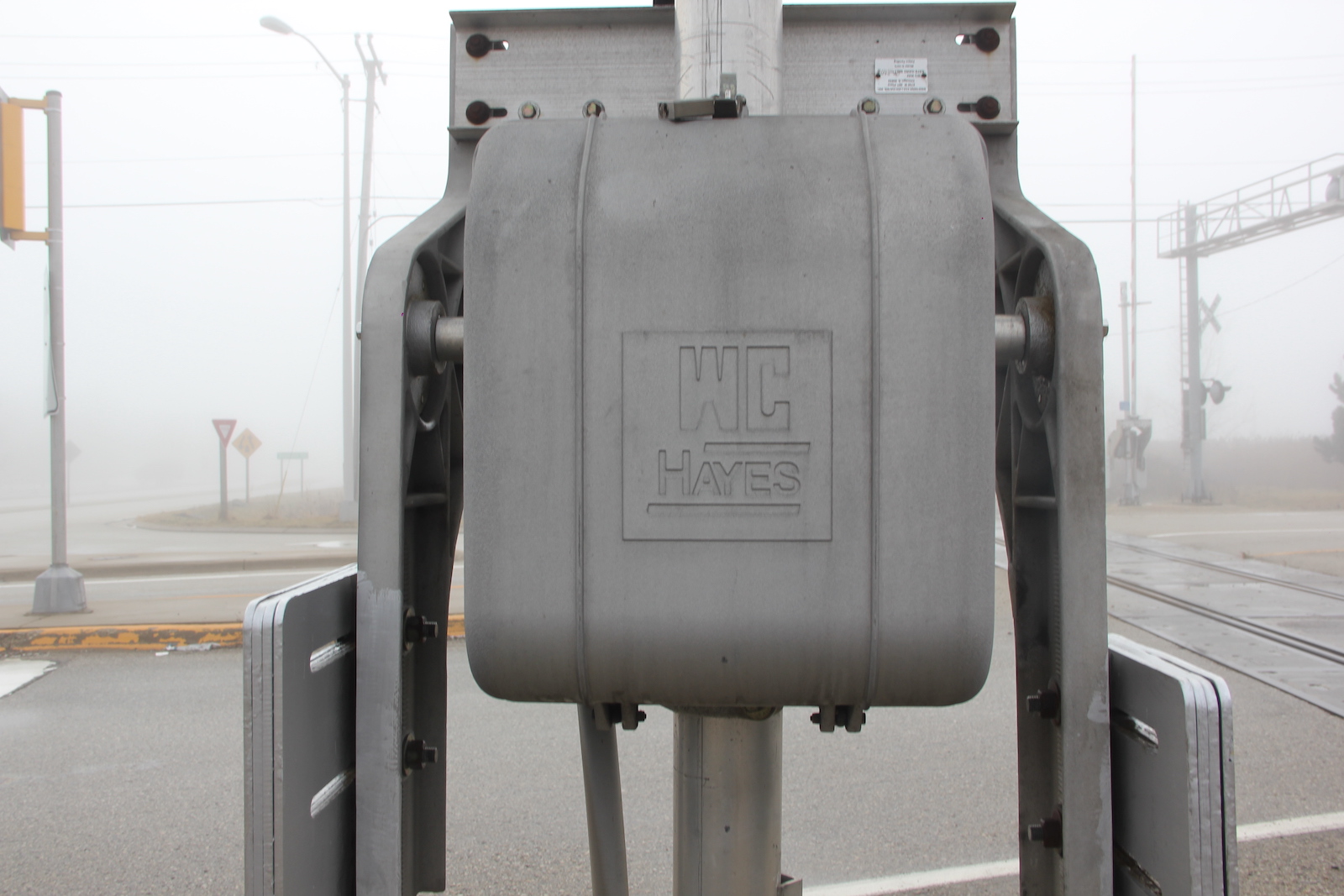

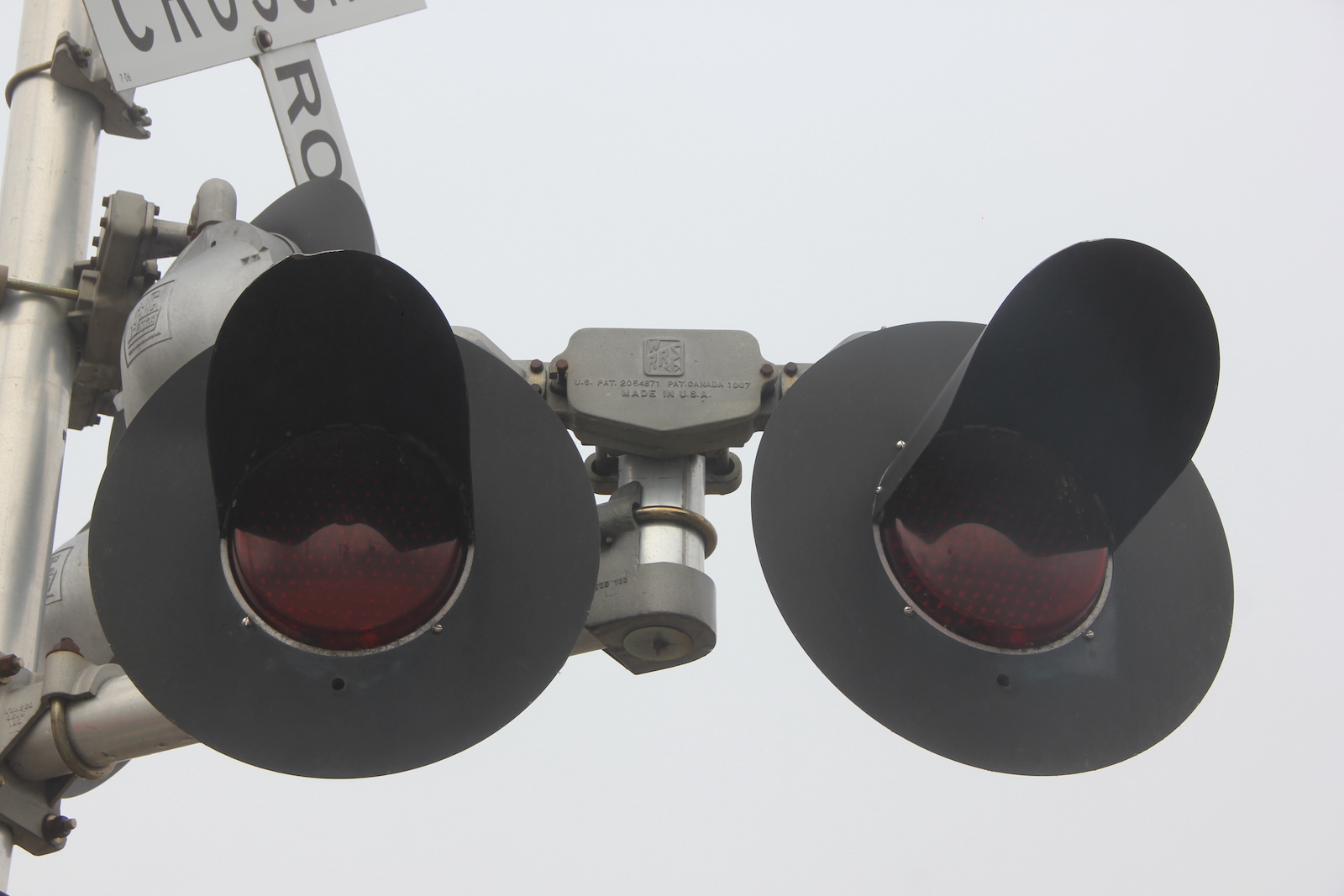

The eastern signal.
43 44 45 46

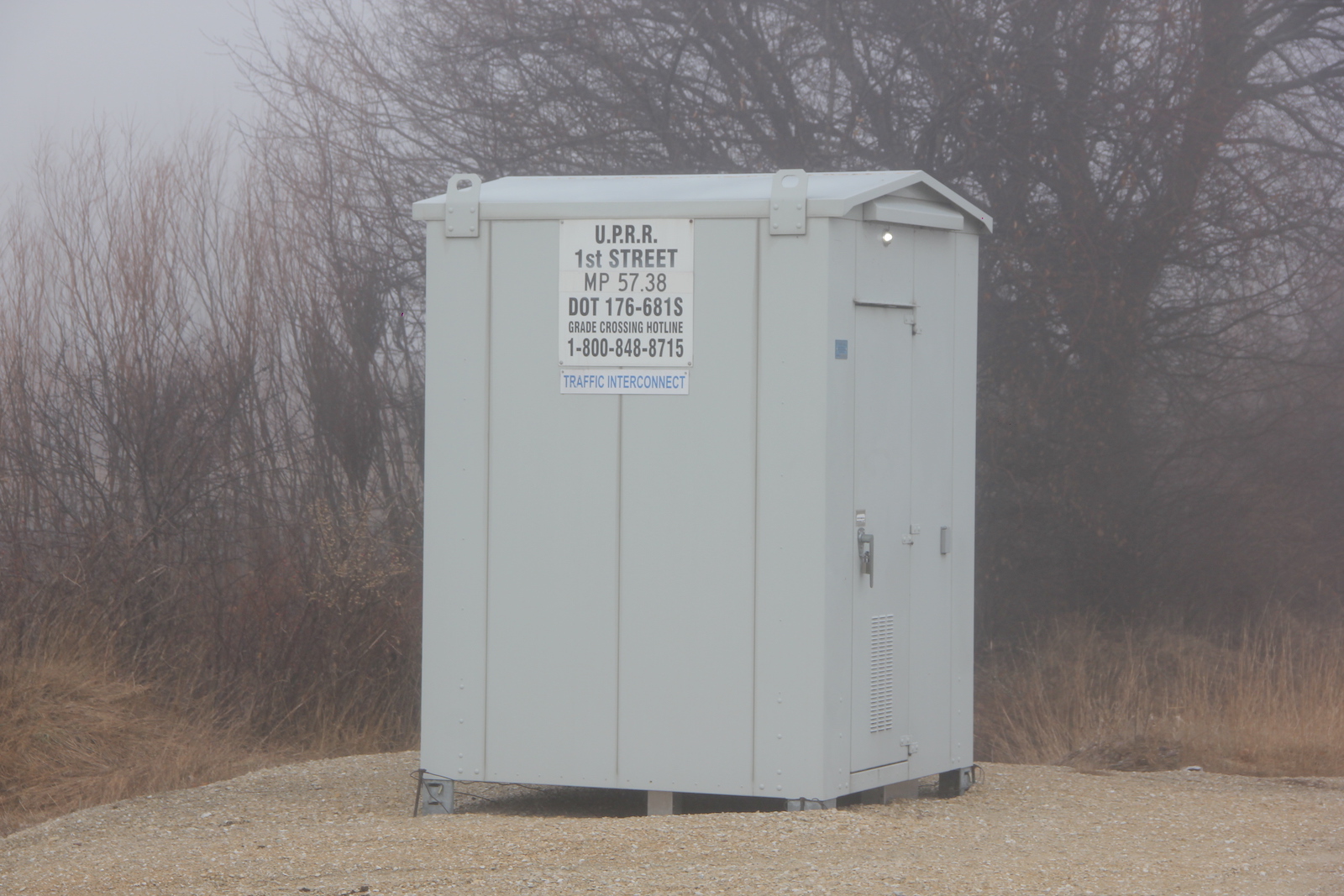

The relay bungalow in the northwest quadrant.

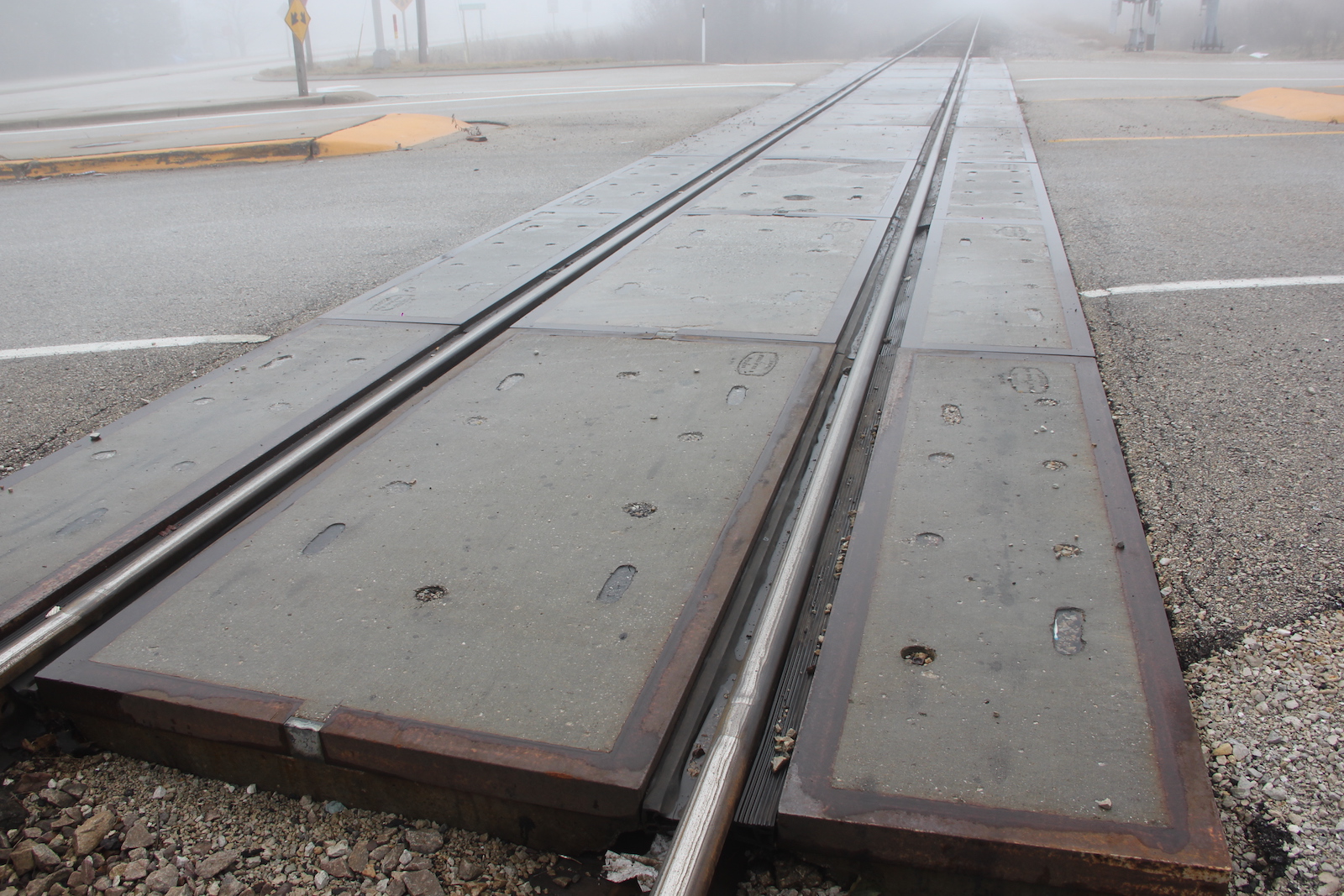

The grade is all concrete.

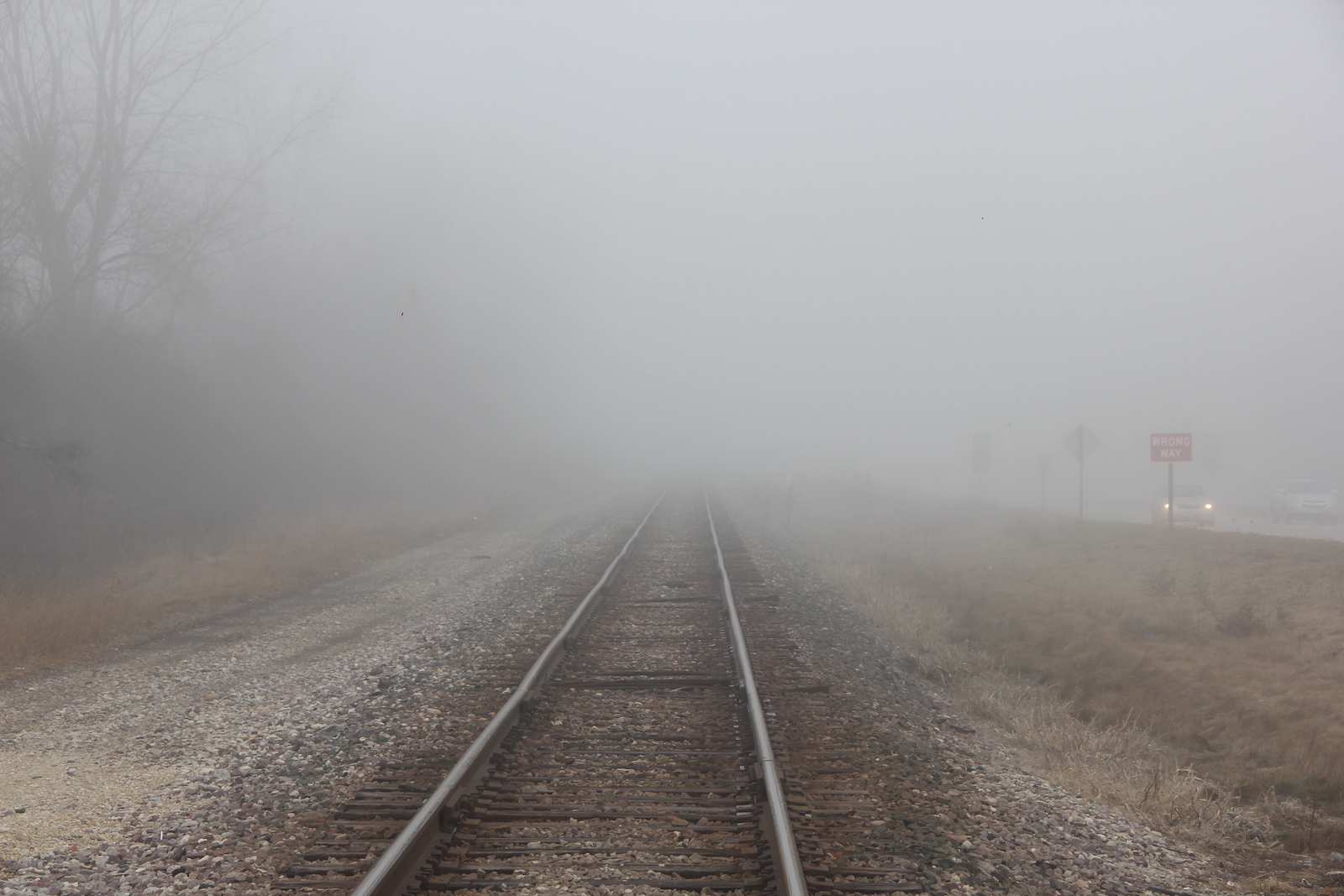

Track view facing north towards Hansche Rd.

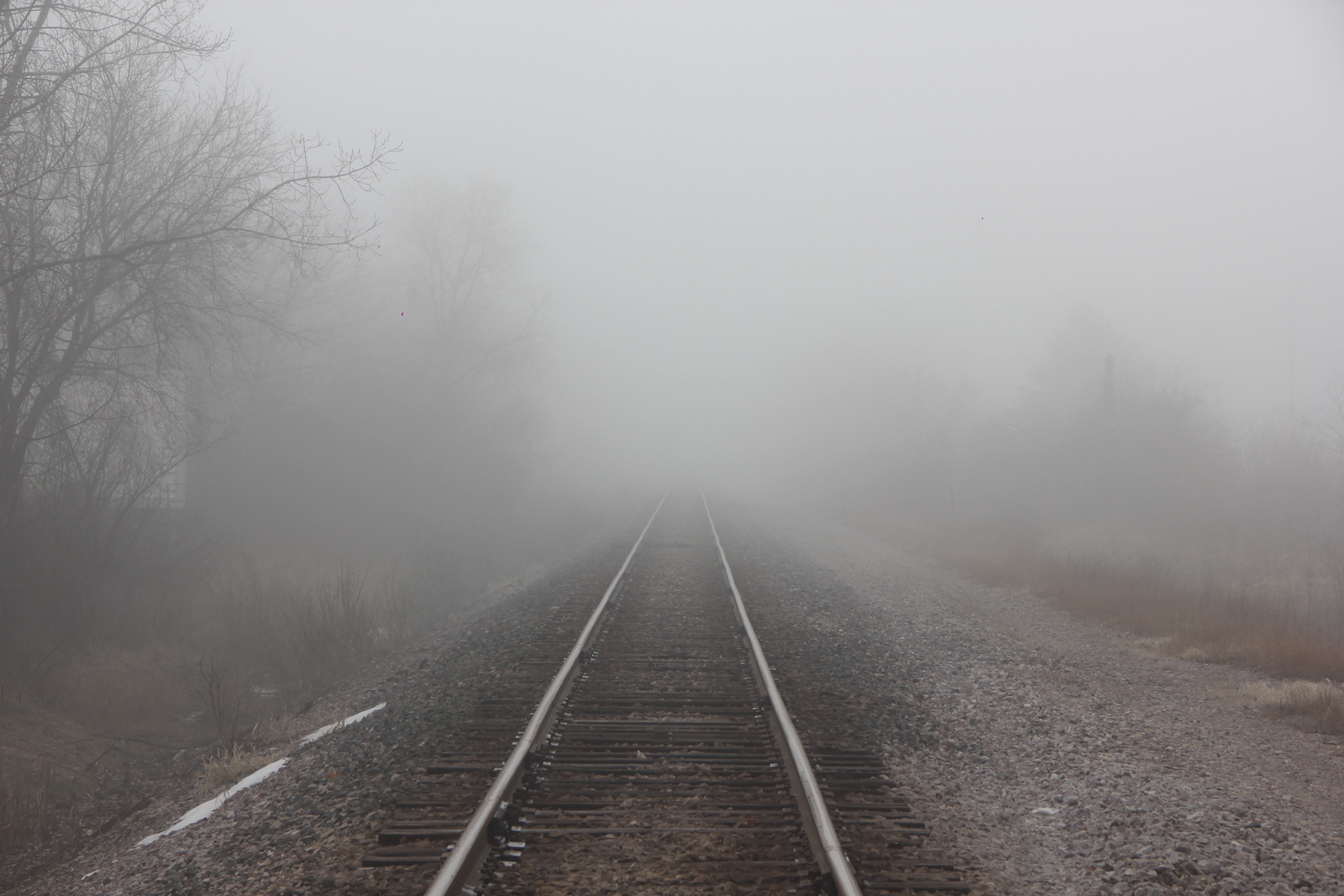

Track view facing south towards 7th St. in Kenosha.
