1

2

3

4

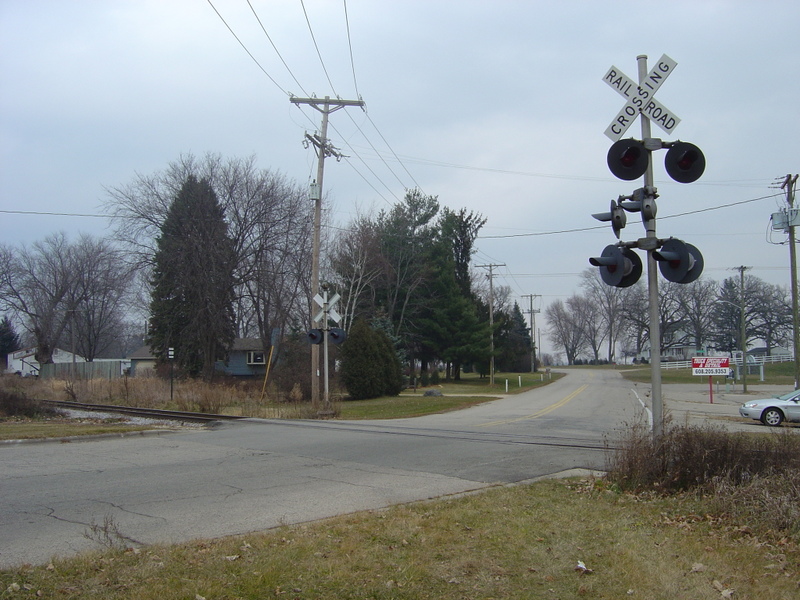

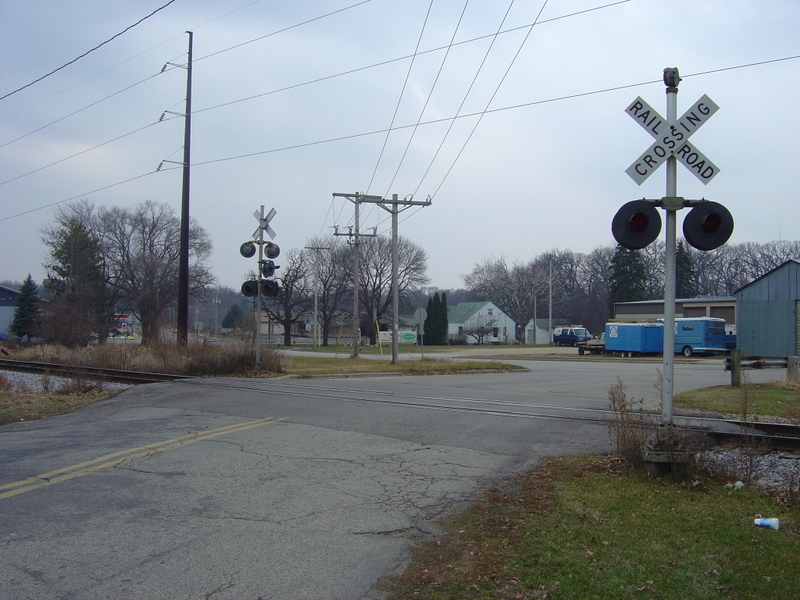

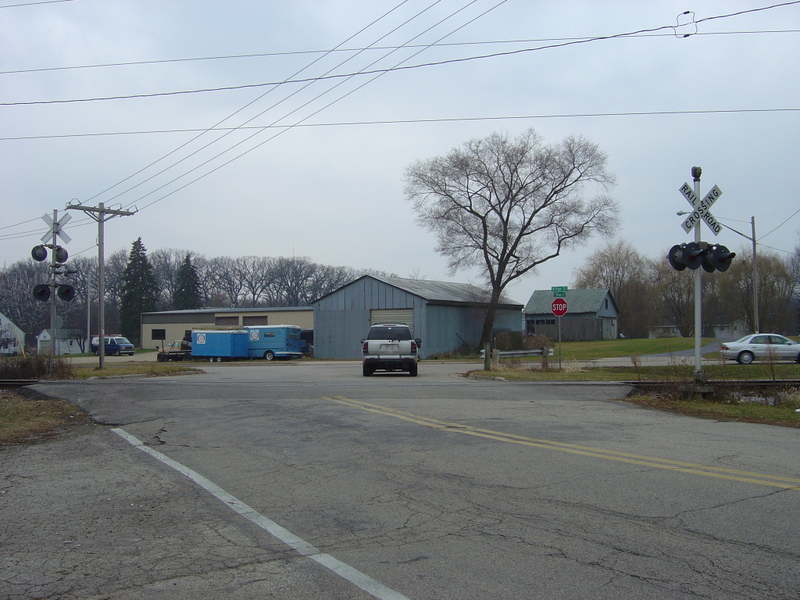

Overview of the crossing facing SouthWest.
Facing West.
Facing NorthEast.

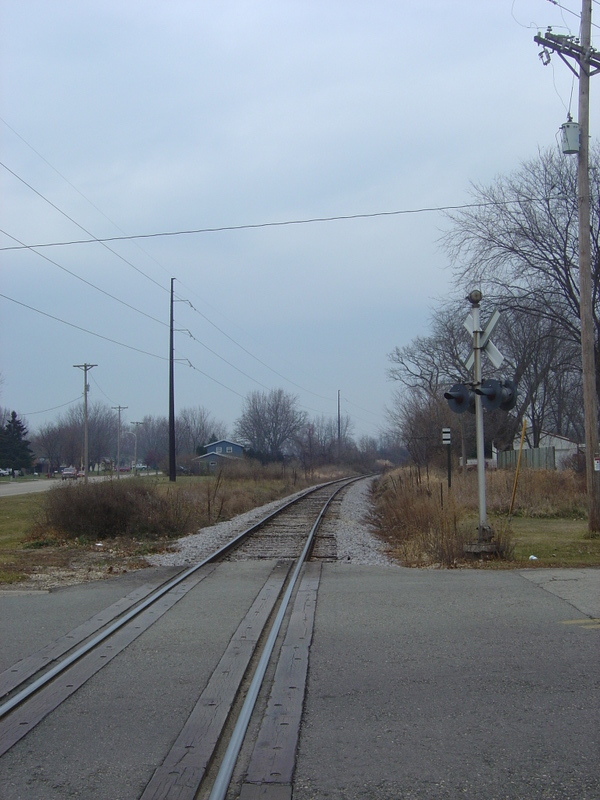

Facing North.

5

6

7

8

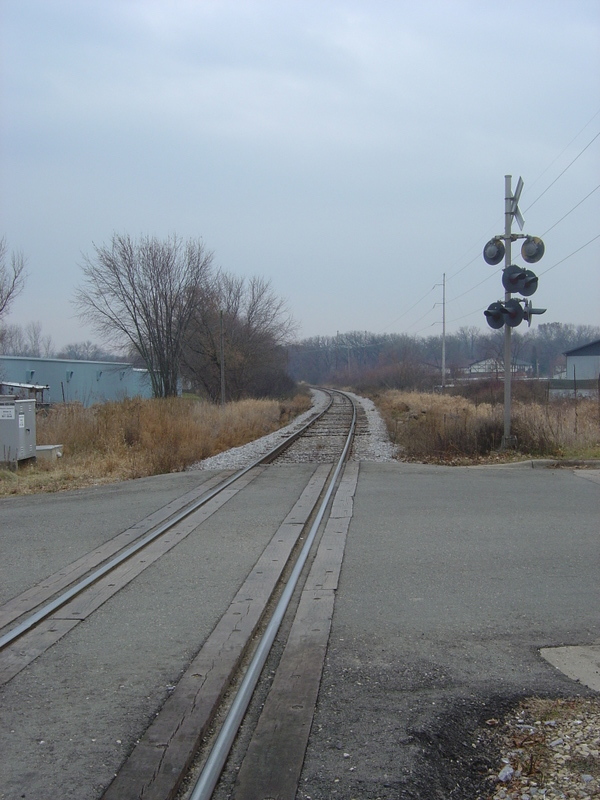

Facing South.

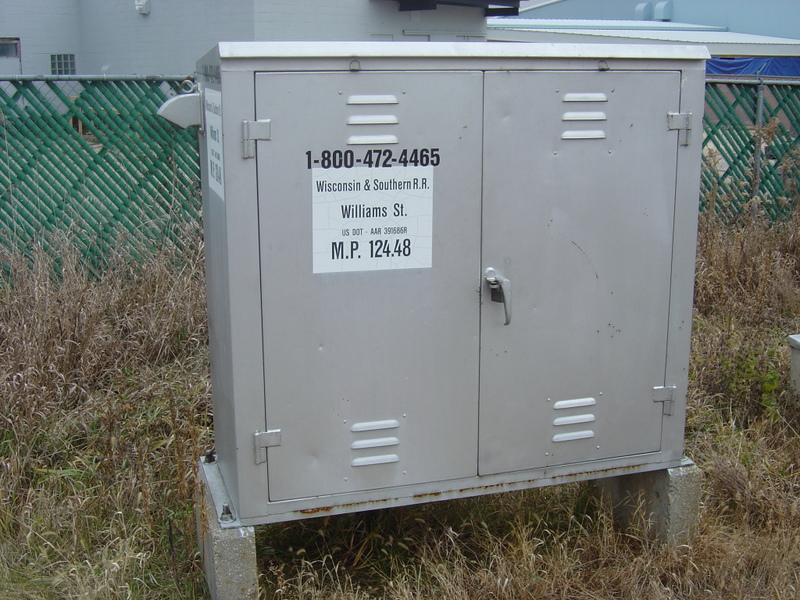

The relay case.

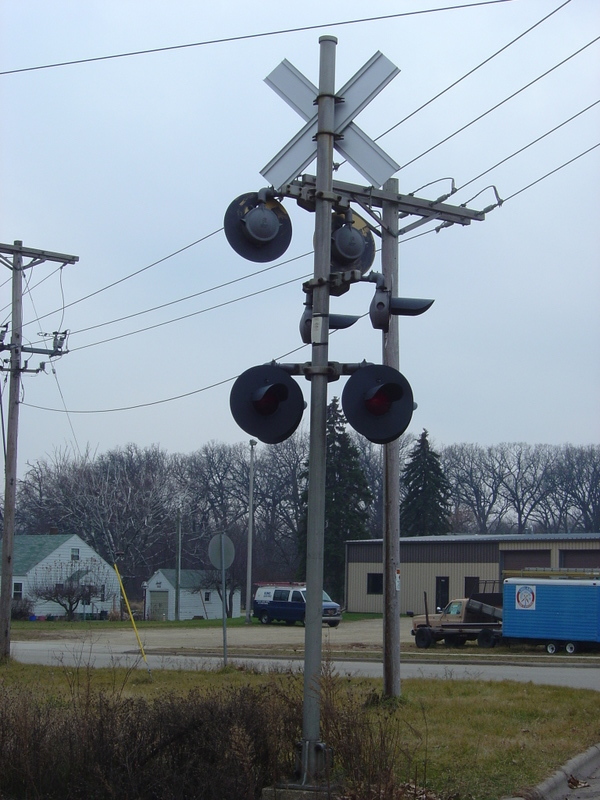

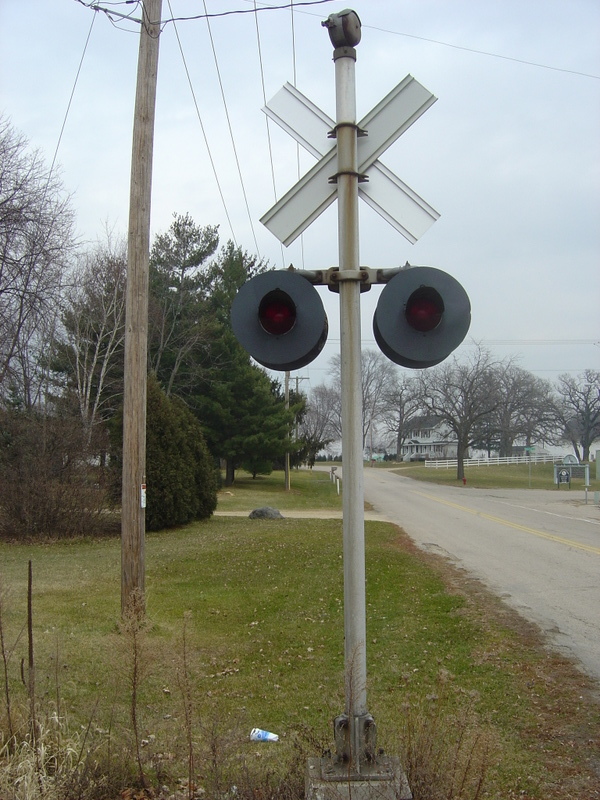

The Westbound signal with a WRRS mini-bell!

9

10

11

12

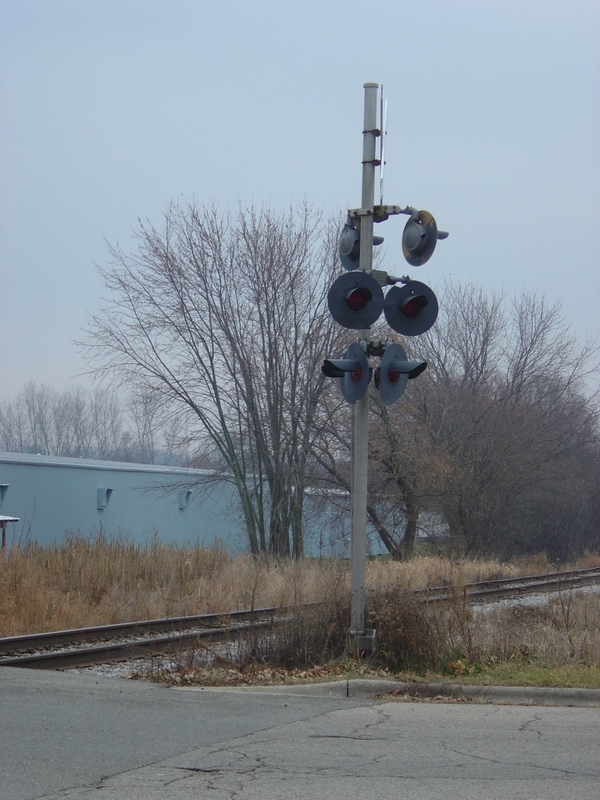

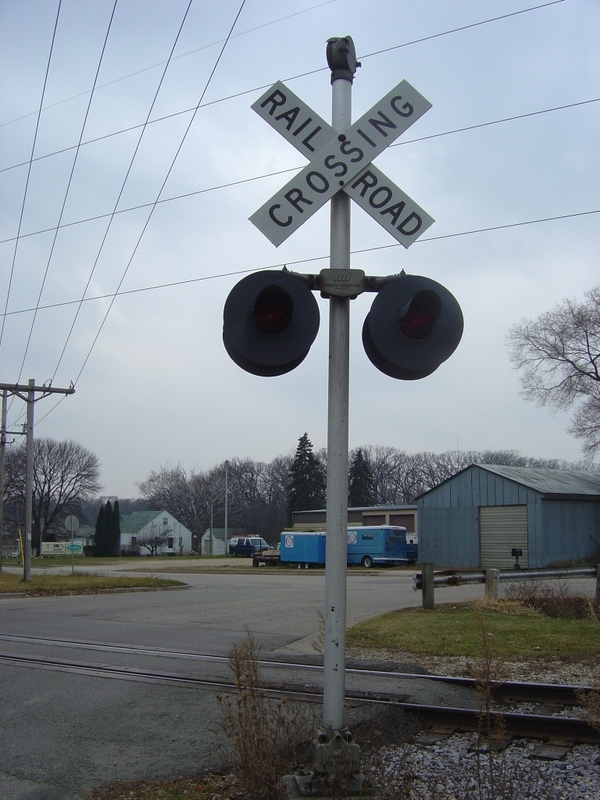

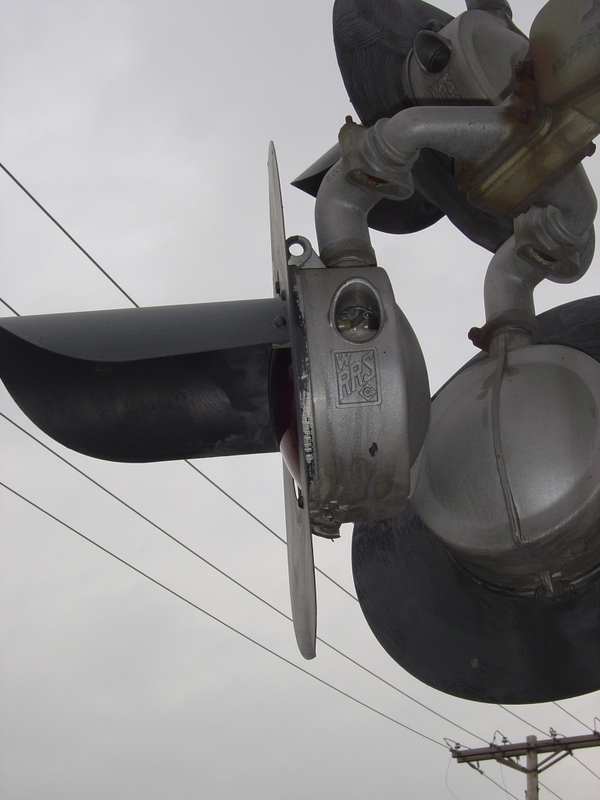

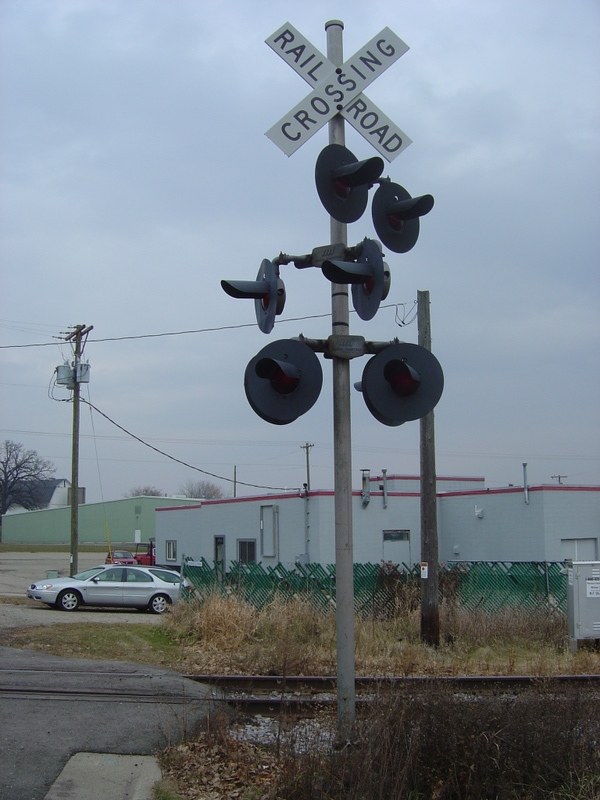

The Eastbound signal. The 8" lights are WRRS, even though all the mounting brackets say Modern Industries.



Pictures 1-12 were taken on November 25, 2006.



13

14

15

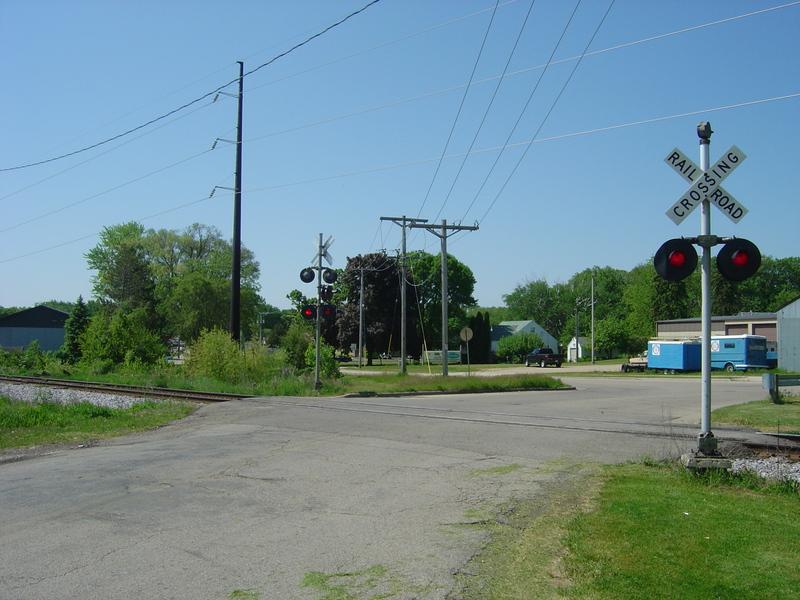

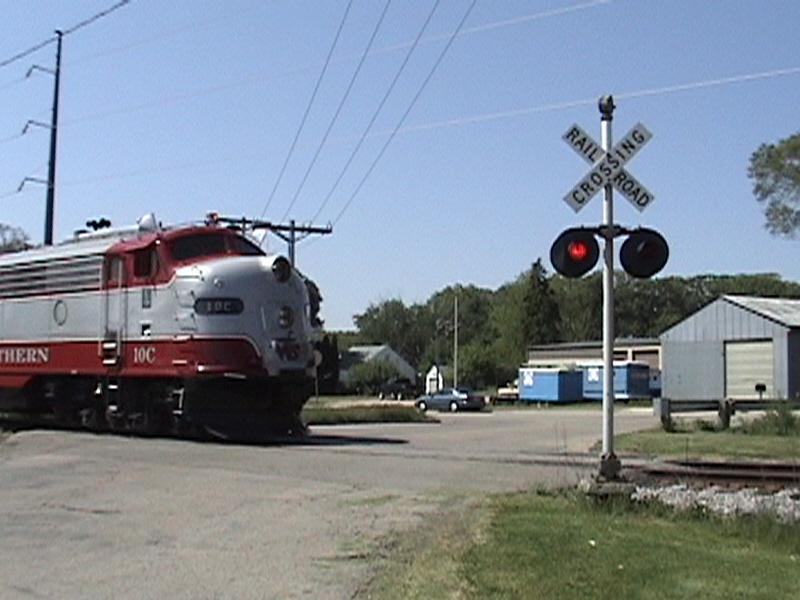

Here's the crossing in action on May 18, 2007 for the WSOR passenger special.

Picture 15 is a camcorder screenshot.


CLICK THE ICON TO THE LEFT TO HEAR THE CROSSING IN ACTION.
(RECORDED MAY 18, 2007)







16

17

18

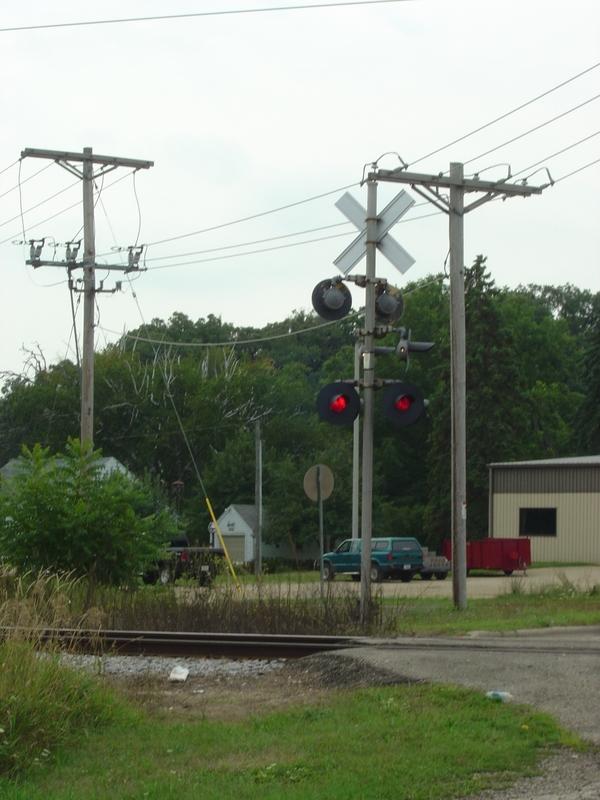

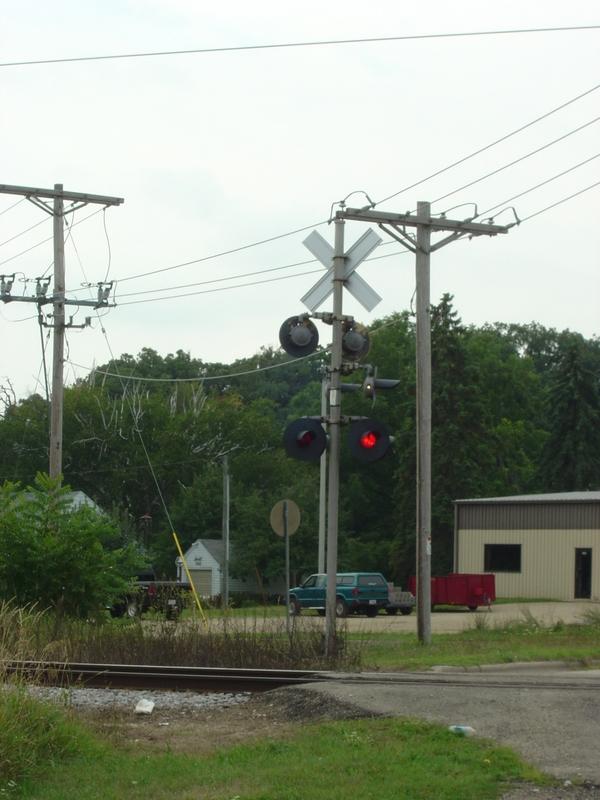

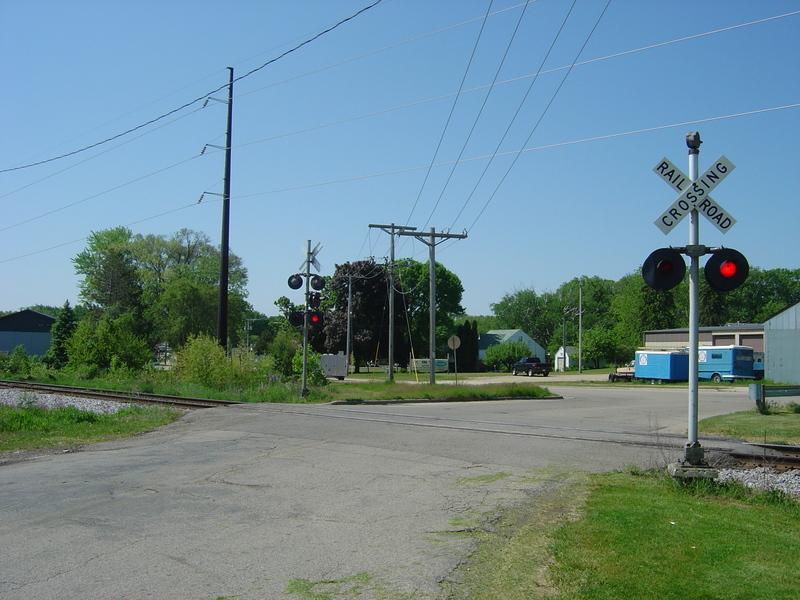

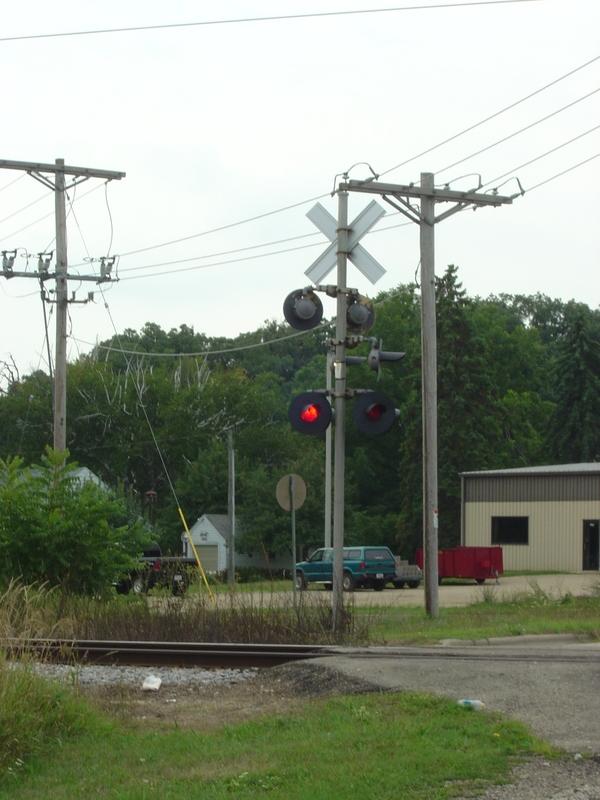

Here are 3 action pictures of the other signal taken on August 8, 2007.



19

20

21

22

23

24

25

26

27

28

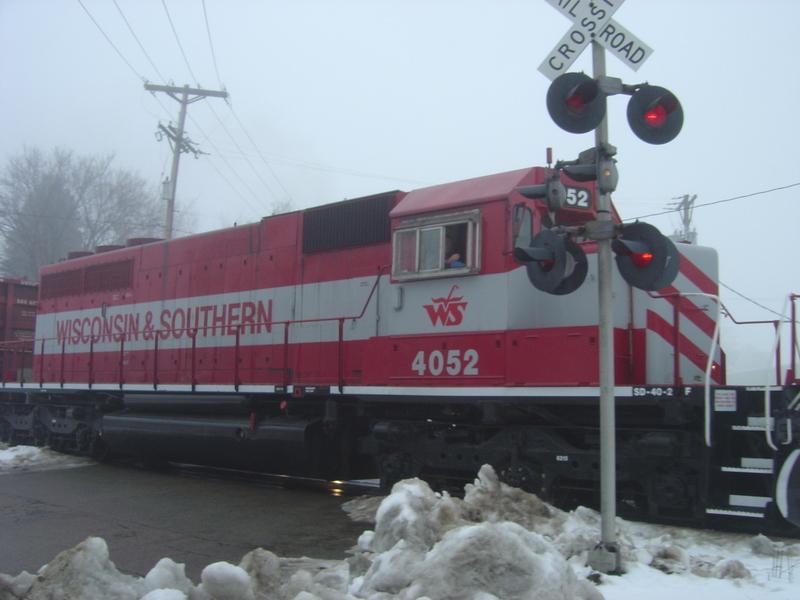

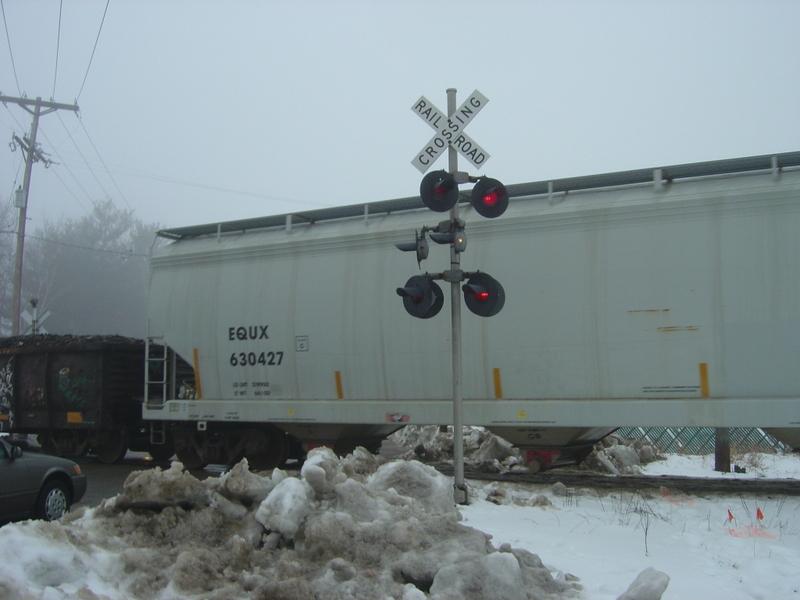

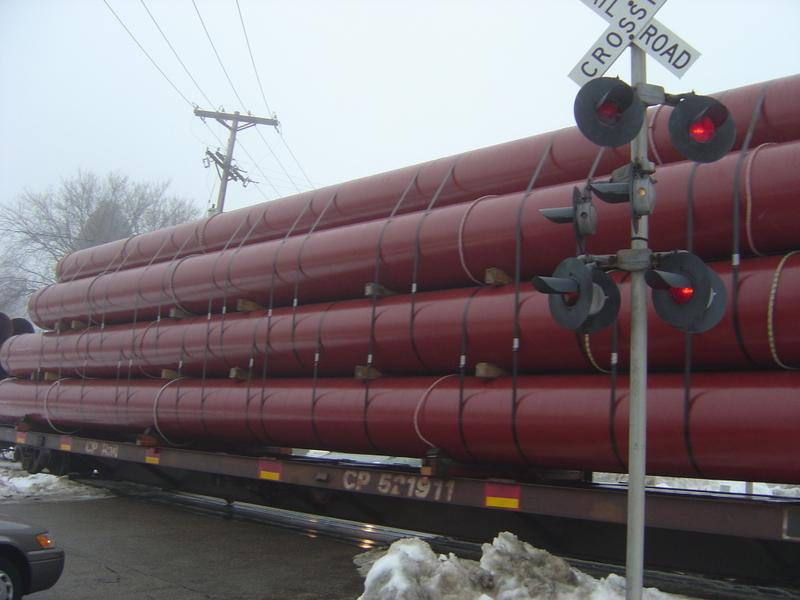

Pictures 19-28 were taken on December 21, 2007.

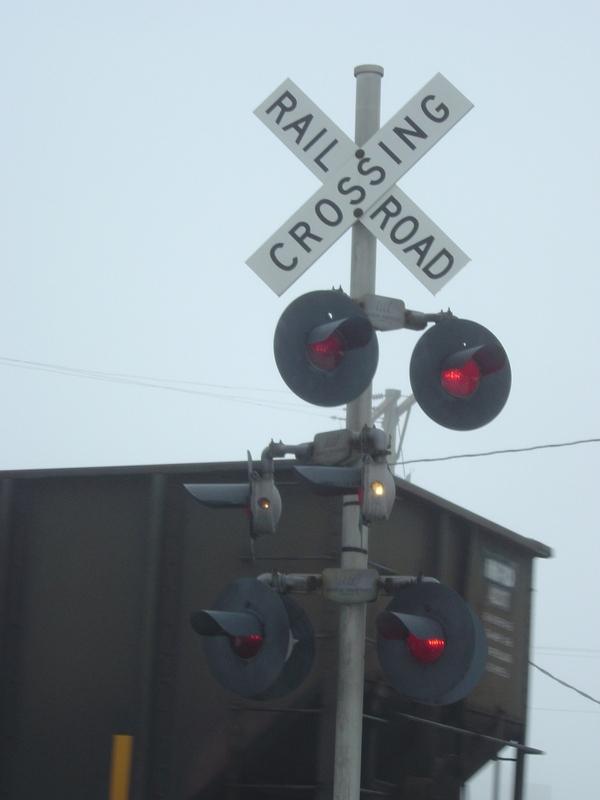

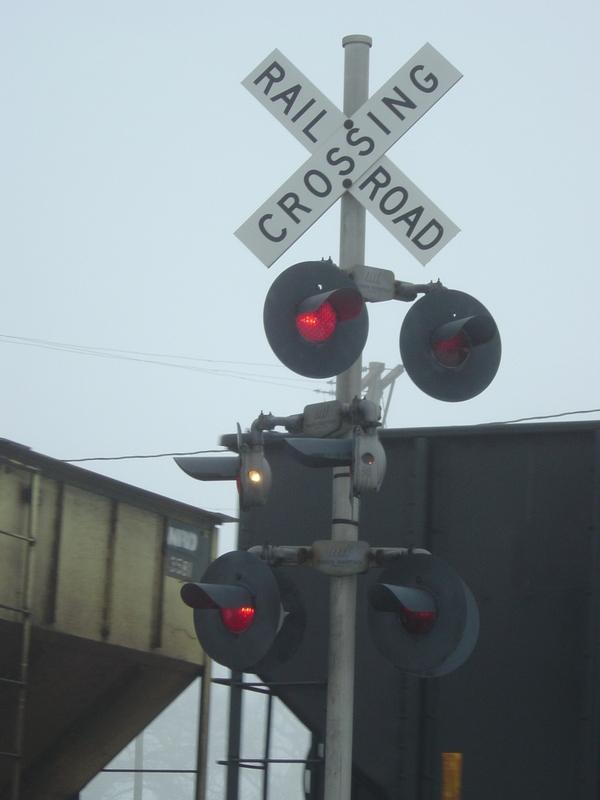

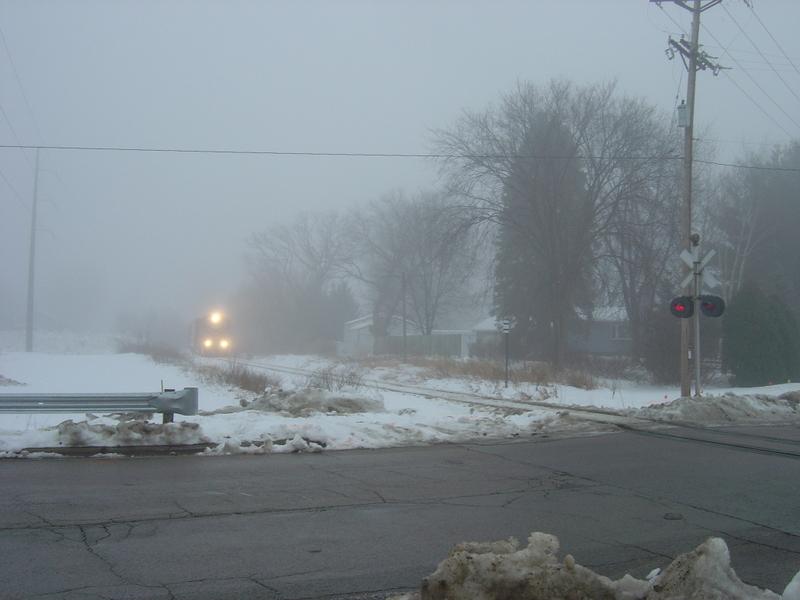

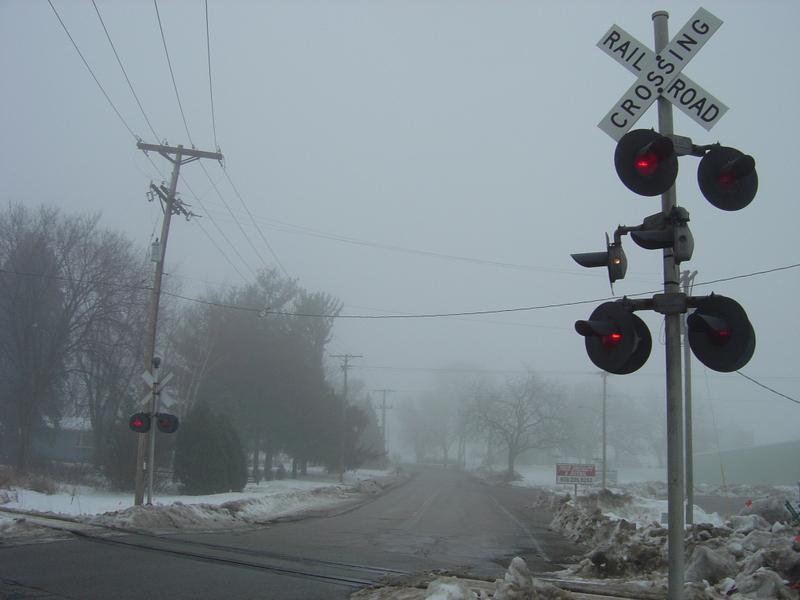

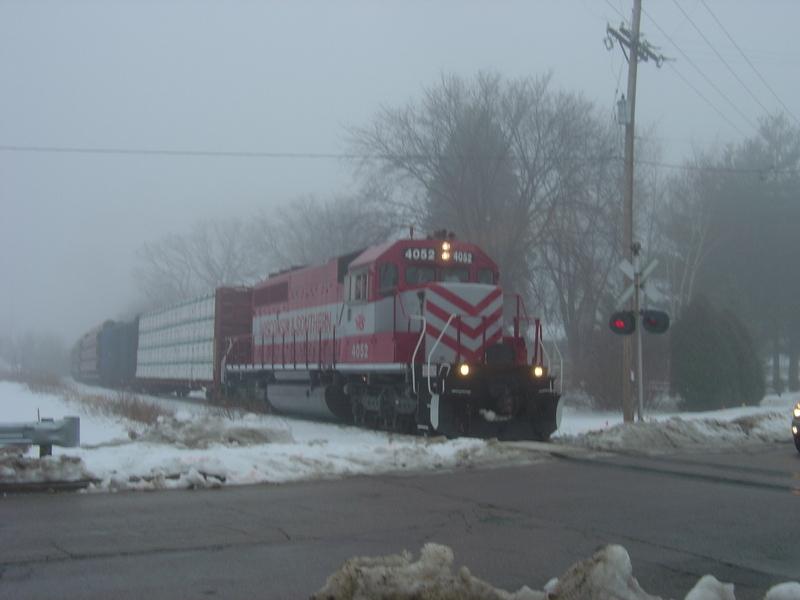

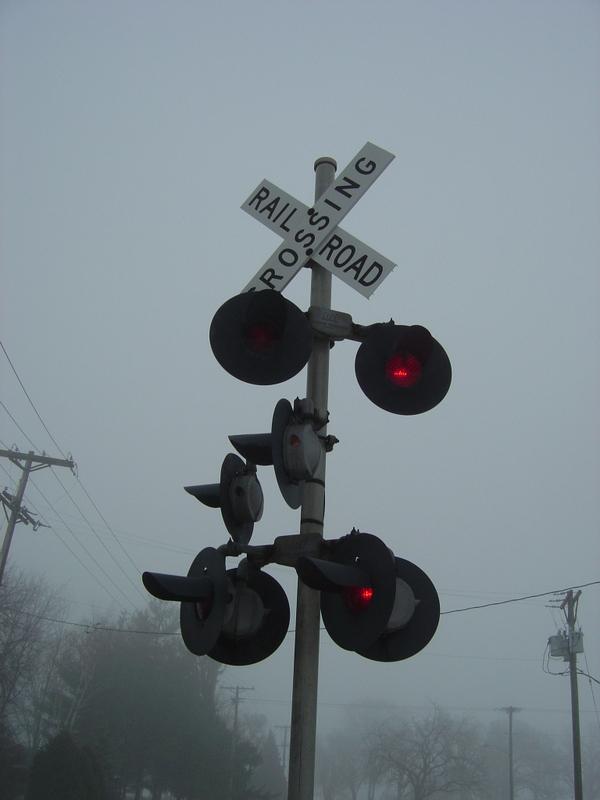

The eastbound signal is shown in action from the front on this foggy day.

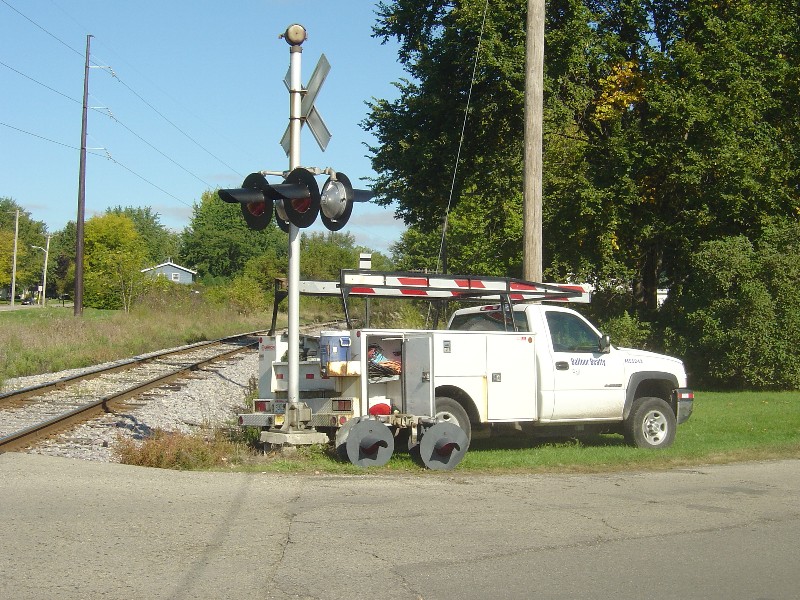

Pictures 29-37 were taken on September 30, 2009. On that day, a Balfour Beatty Rail signal maintainer crew contracted by WSOR took down the 8" WRRS lights and replaced them with 12" x 24" WCH frames with WCH 2nd Generation L.E.D. lights. This is the 7th former 8" crossing along this line to have that done in 2009.



29

30

31

32

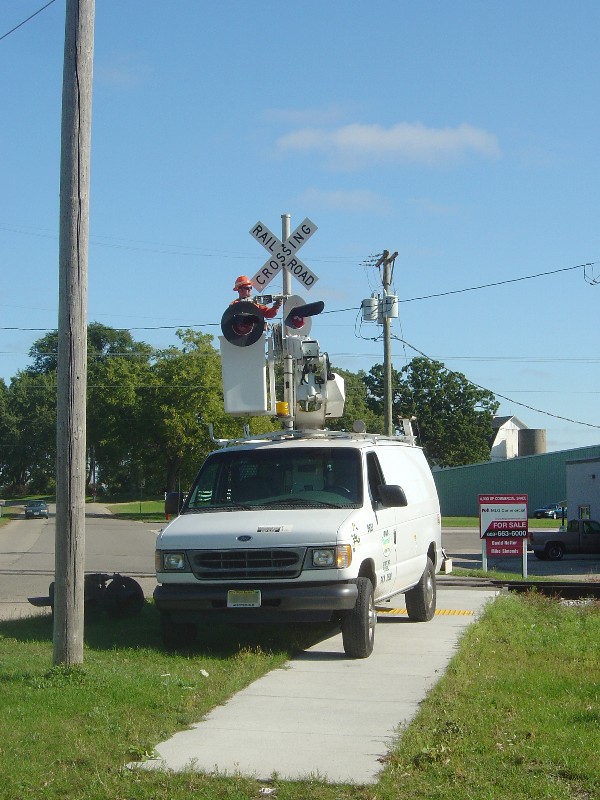

The first pair of new sidelights for the eastbound signal is being lifted into place.

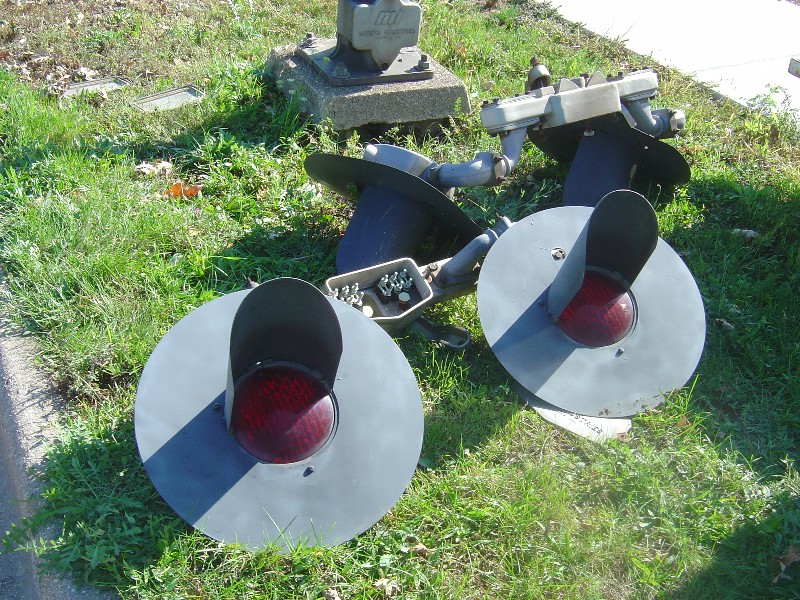

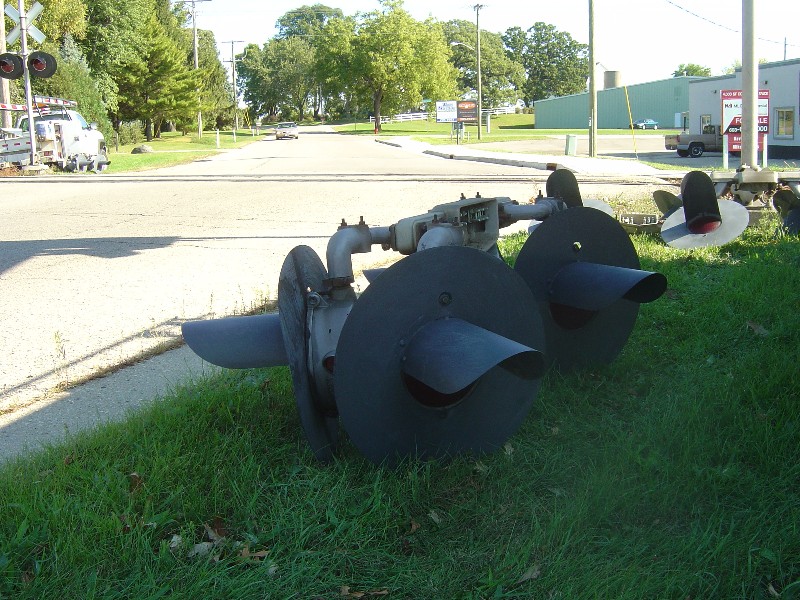

The old 8" lights lying on the ground beneath the signal.

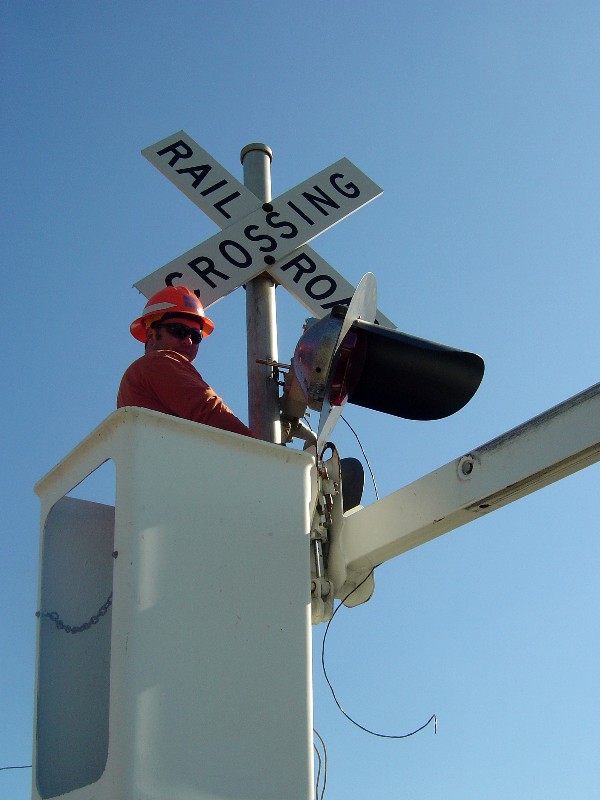

The new lights are being secured to the mast.

33

34

35

36

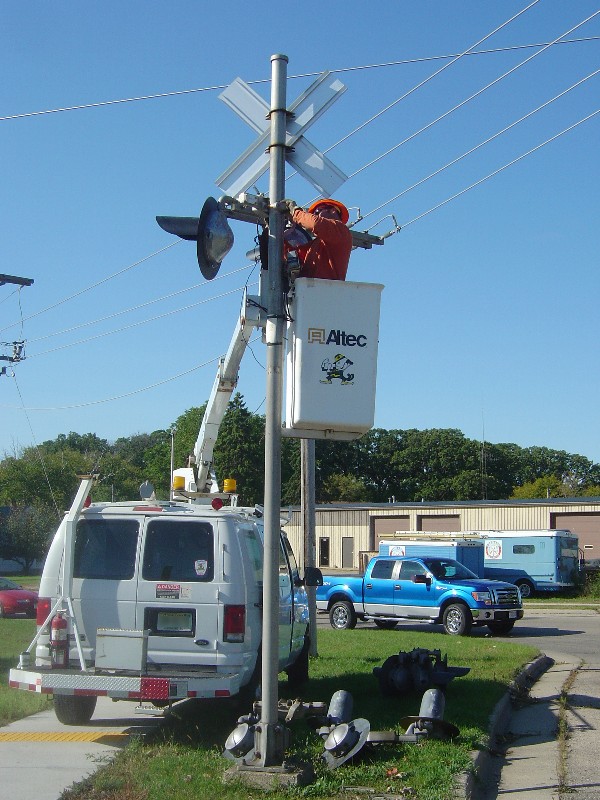

Another view of the new lights are being secured to the mast.

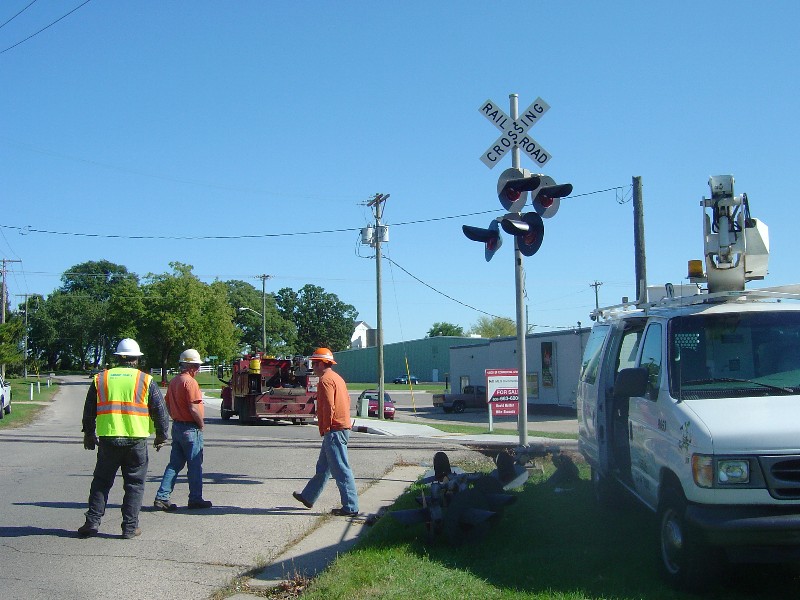

The westbound signal with its new lights already on, and the old lights on the ground. The WRRS mini bell remained in service.

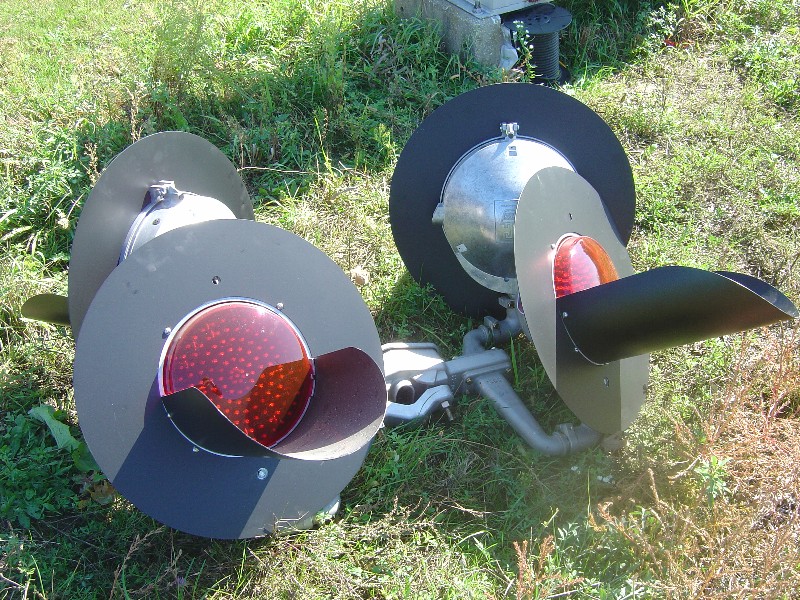

The last four new lights for the eastbound signal waiting to go up.
The eastbound signal with both pairs of sidelights installed, but the main lights were still not up.

37

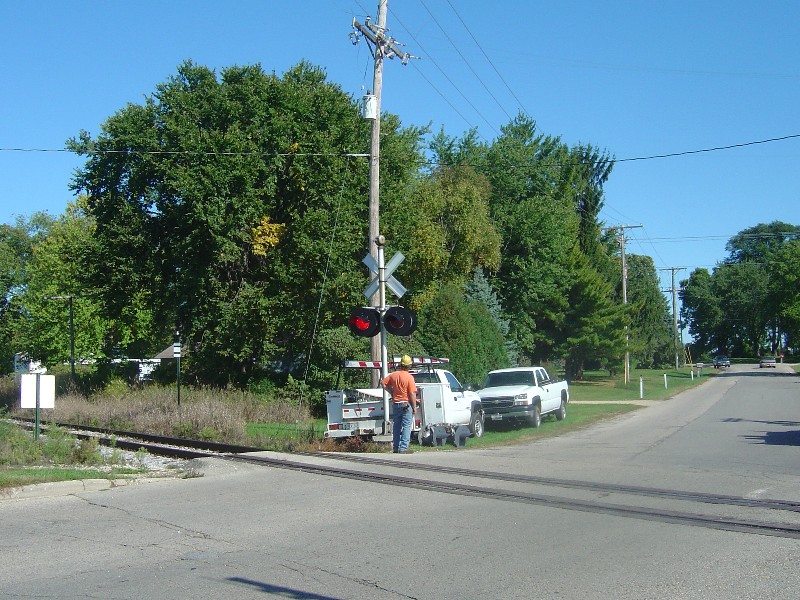

The very first activation of the new lights for a train!



Since the upgrade wasn't complete at this time, flaggers had to assist with stopping traffic.
