Miller Ingenuity (WCH) 2nd Generation LEDs are the current LEDs offered by Miller Ingenuity, and are part of their "EveRRay" product line. They have been around since the late 2000s, and saw usage by Class 1 railroads such as CSX, KCS, and UP. This LED is still popular with smaller railroads and light rail systems. Although both look quite similar, this LED has noticeably more individual LEDs than GE's Pixelated Look LED. The quickest way to tell the two apart is by examining the center of the light. Miller Ingenuity 2nd Generation LEDs have 7 individual LEDs surrounding the center, while GE Pixelated Look LEDs only have 5. Like their 1st Generation LEDs, Miller Ingenuity's 2nd Generation LEDs experienced gasket failures, at least initially. Miller Ingenuity would redesign their 2nd Generation LEDs in 2020 to eliminate this issue, although you'll still find older 2nd Generation LEDs that have fallen into the light head. This type of LED tends to fade or strobe on video cameras. The Miller Ingenuity 2nd Generation LED does not behave this way in real life. This effect is due to the LED's Pulse-Width Modulation (PWM). As of May 2026, the Miller Ingenuity 2nd Generation LED only comes in a 12" form. Miller Ingenuity 2nd Generation LEDs operate on 8-14 Volts DC and 8-14 Volts AC. There are 2 variants of this LED sold by Miller Ingenuity, the prices of which are not known: Fun Fact: According to Miller Ingenuity, there are over 125,000 of these LEDs in service! That equates to 15,000+ railroad crossings with 1 or more Miller Ingenuity 2nd Generation LEDs at them! |

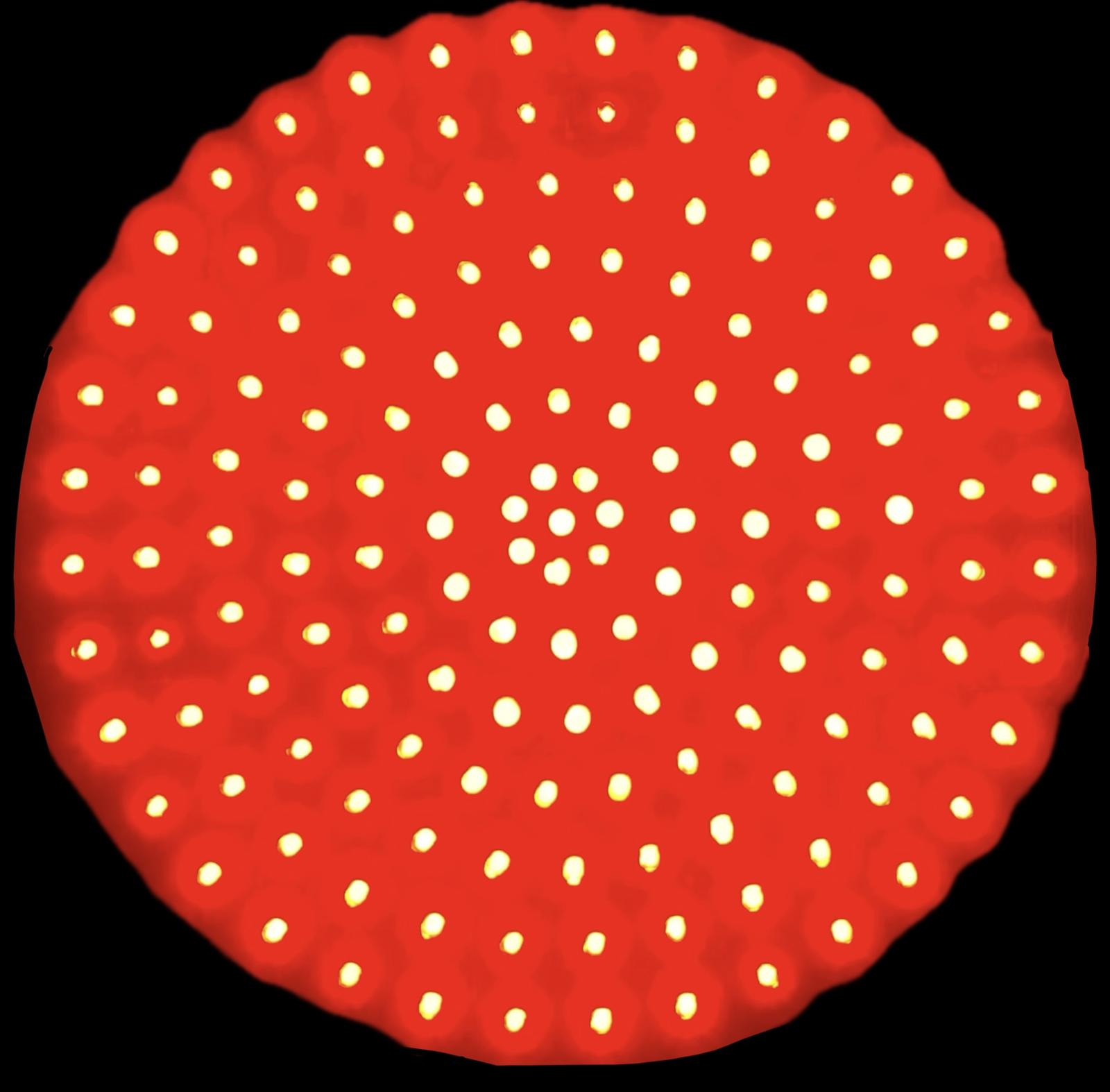

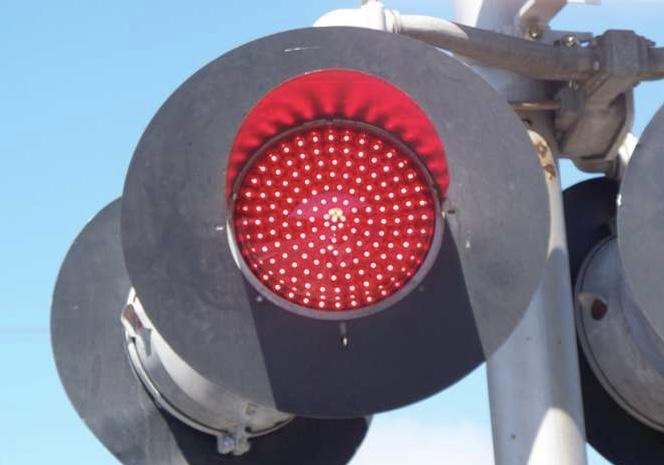

Miller Ingenuity 2nd Generation LED. |

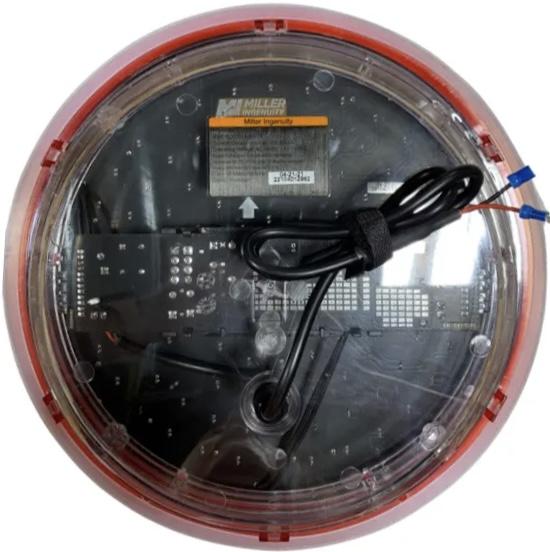

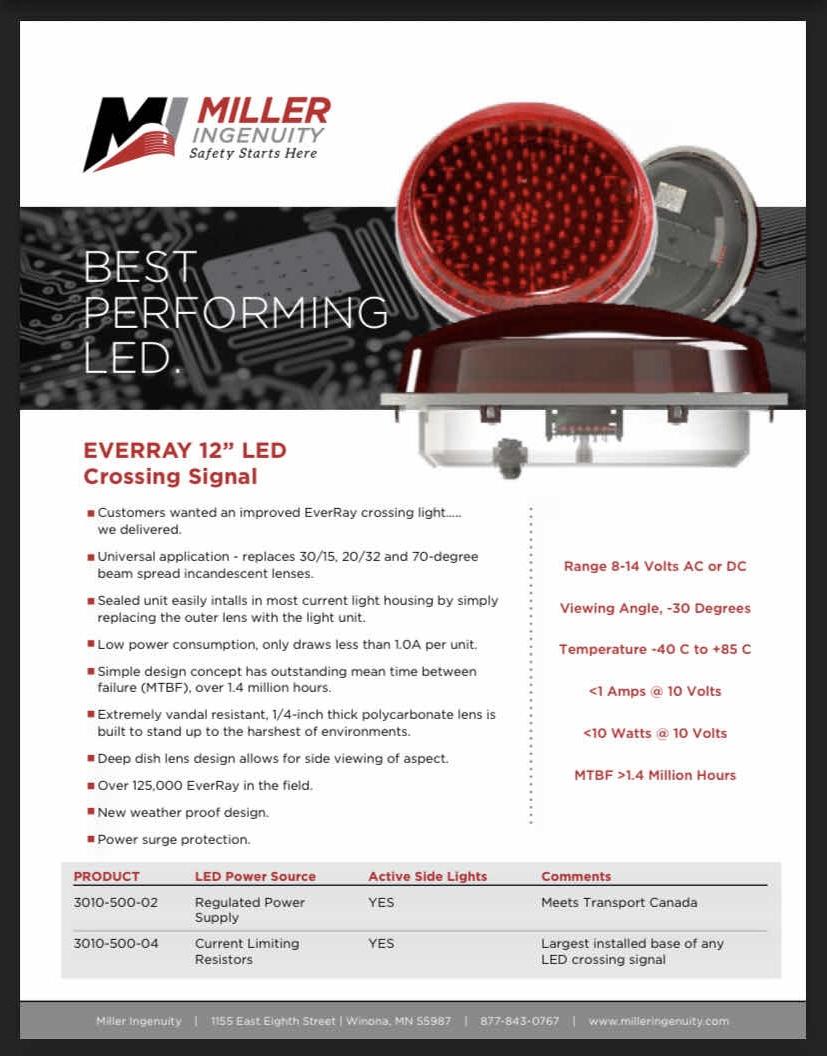

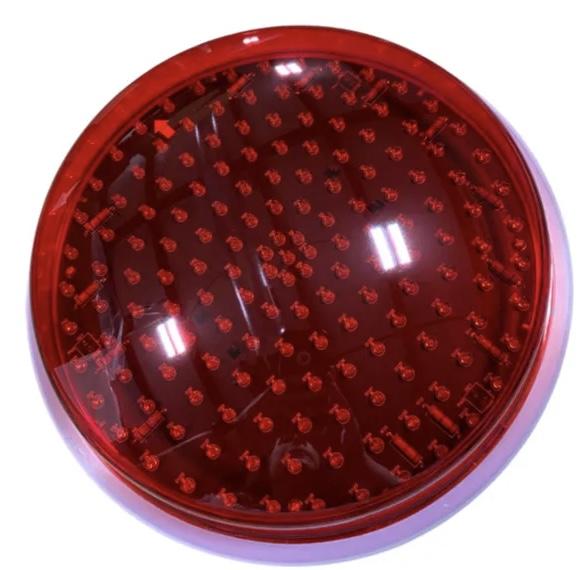

 Miller Ingenuity 2nd Generation LEDs information sheet. |  Miller Ingenuity 2nd Generation LEDs on RRSC's website. |  Miller Ingenuity 2nd Generation LEDs rear view on RRSC's website. |

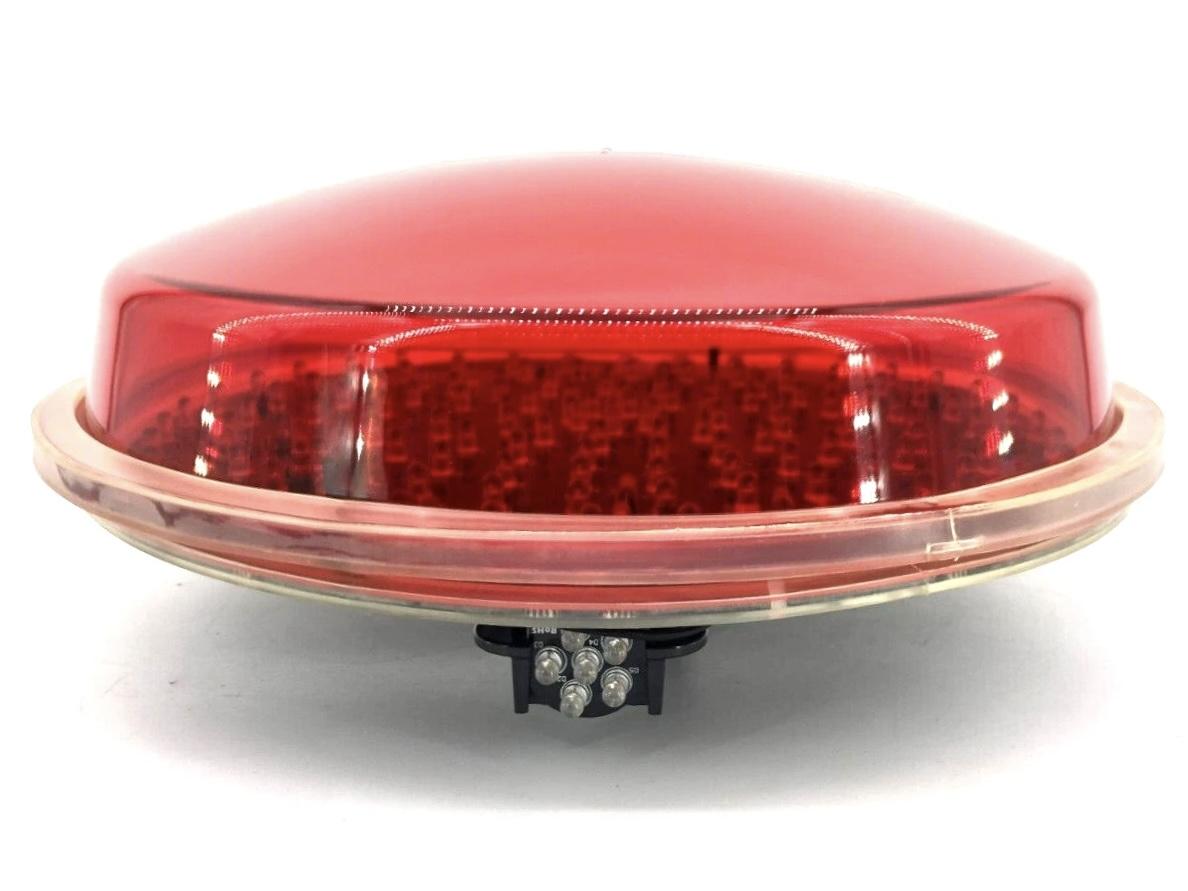

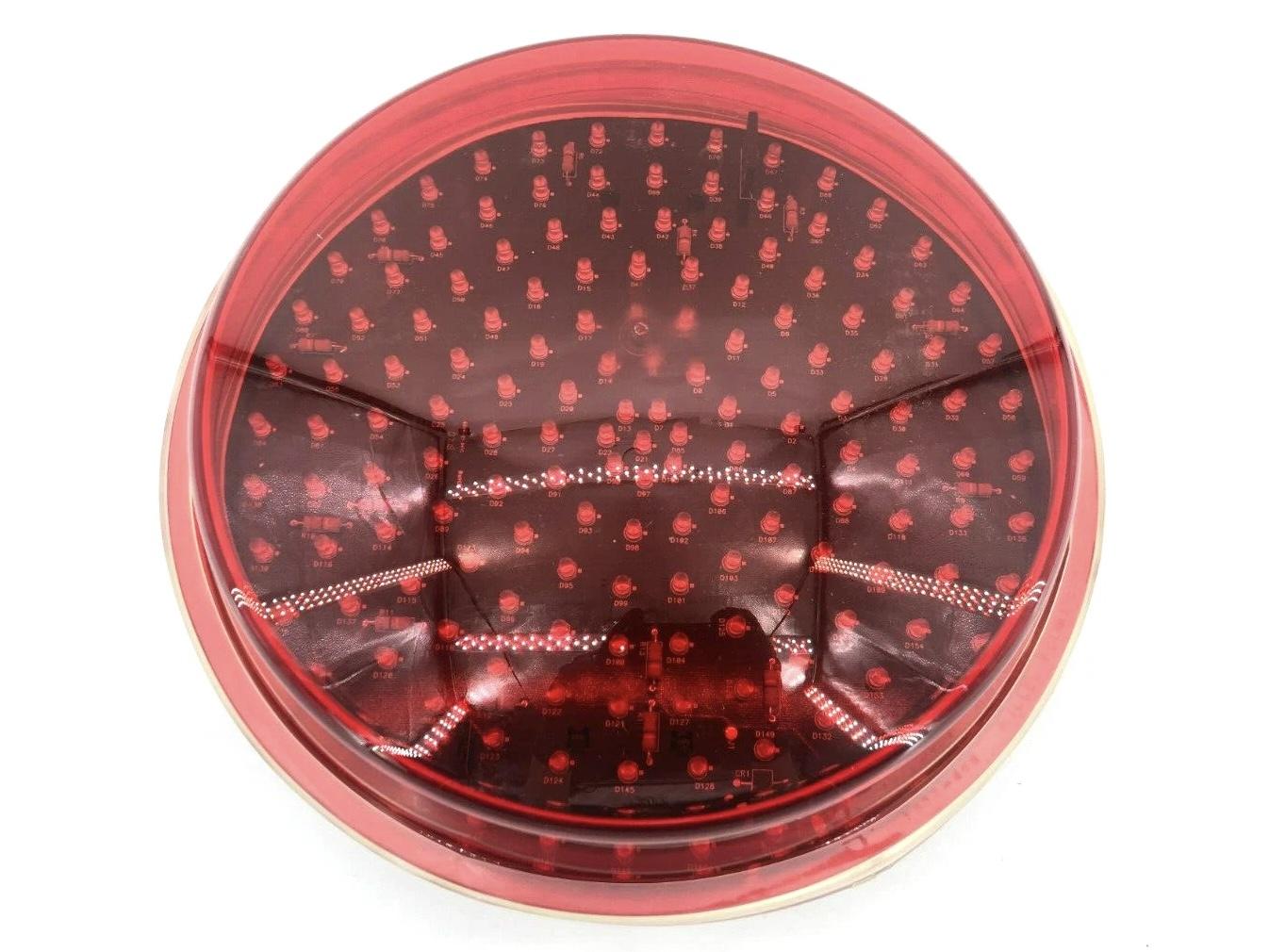

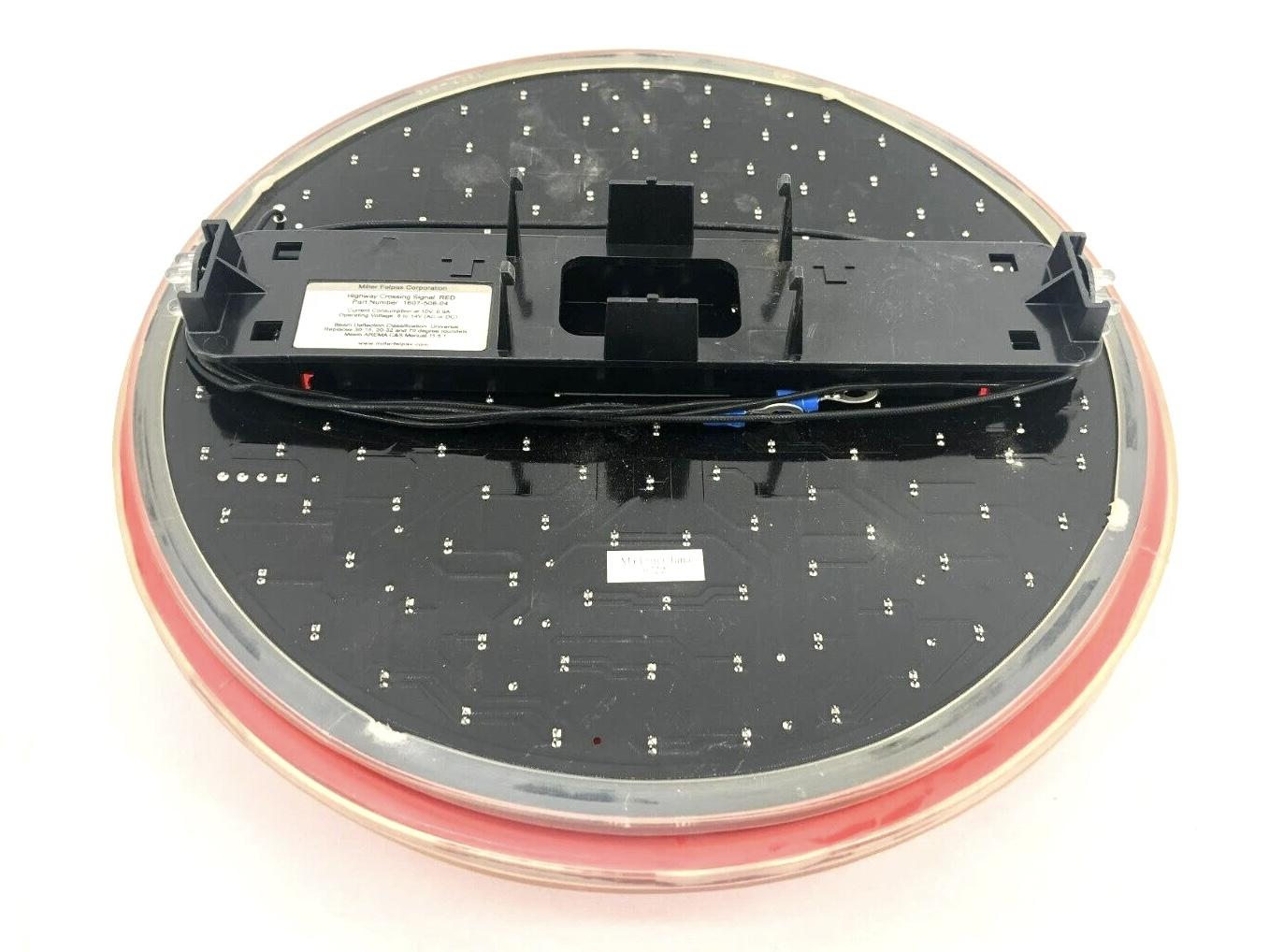

 Older Miller Ingenuity 2nd Generation LEDs on eBay. |  Older Miller Ingenuity 2nd Generation LEDs on eBay, side view. |  Older Miller Ingenuity 2nd Generation LEDs on eBay, rear view. |

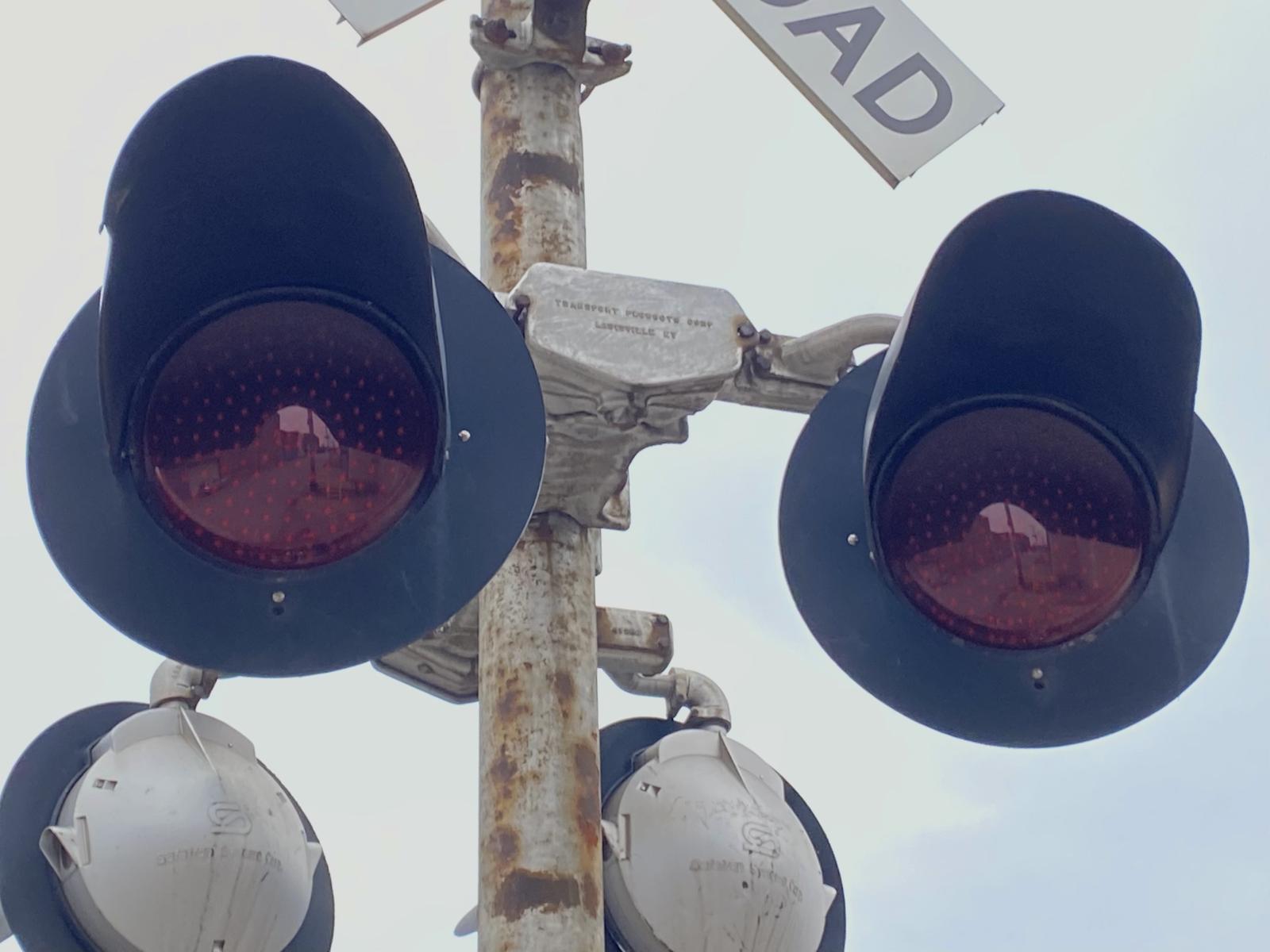

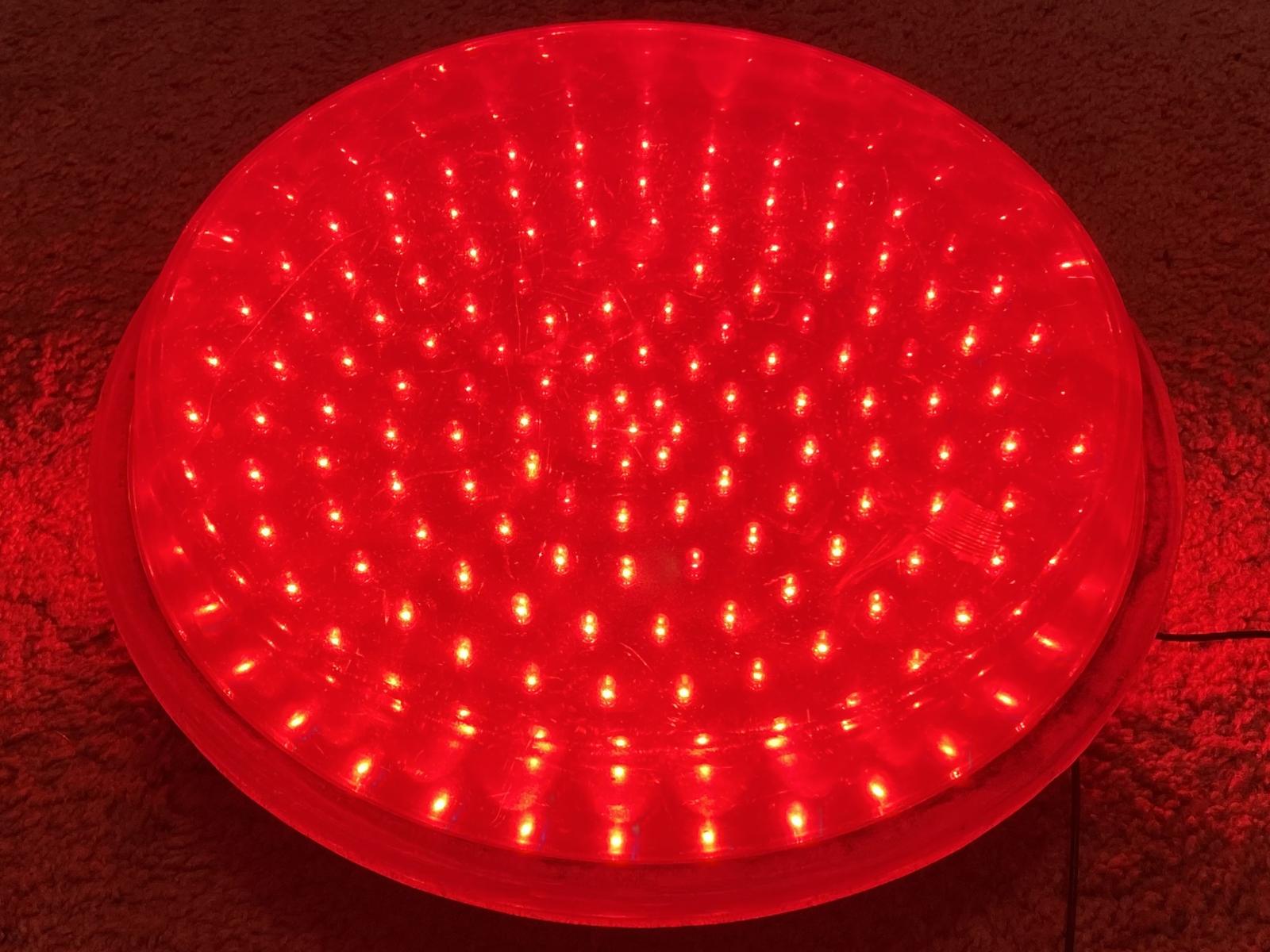

 Older Miller Ingenuity 2nd Generation LEDs lit up. Photo courtesy of UPking. |  Older Miller Ingenuity 2nd Generation LEDs lit up, side view. Photo courtesy of UPking. |  Unlit Miller Ingenuity 2nd Generation LEDs at Clinton St. in St. Louis, MO on 12-13-20. |

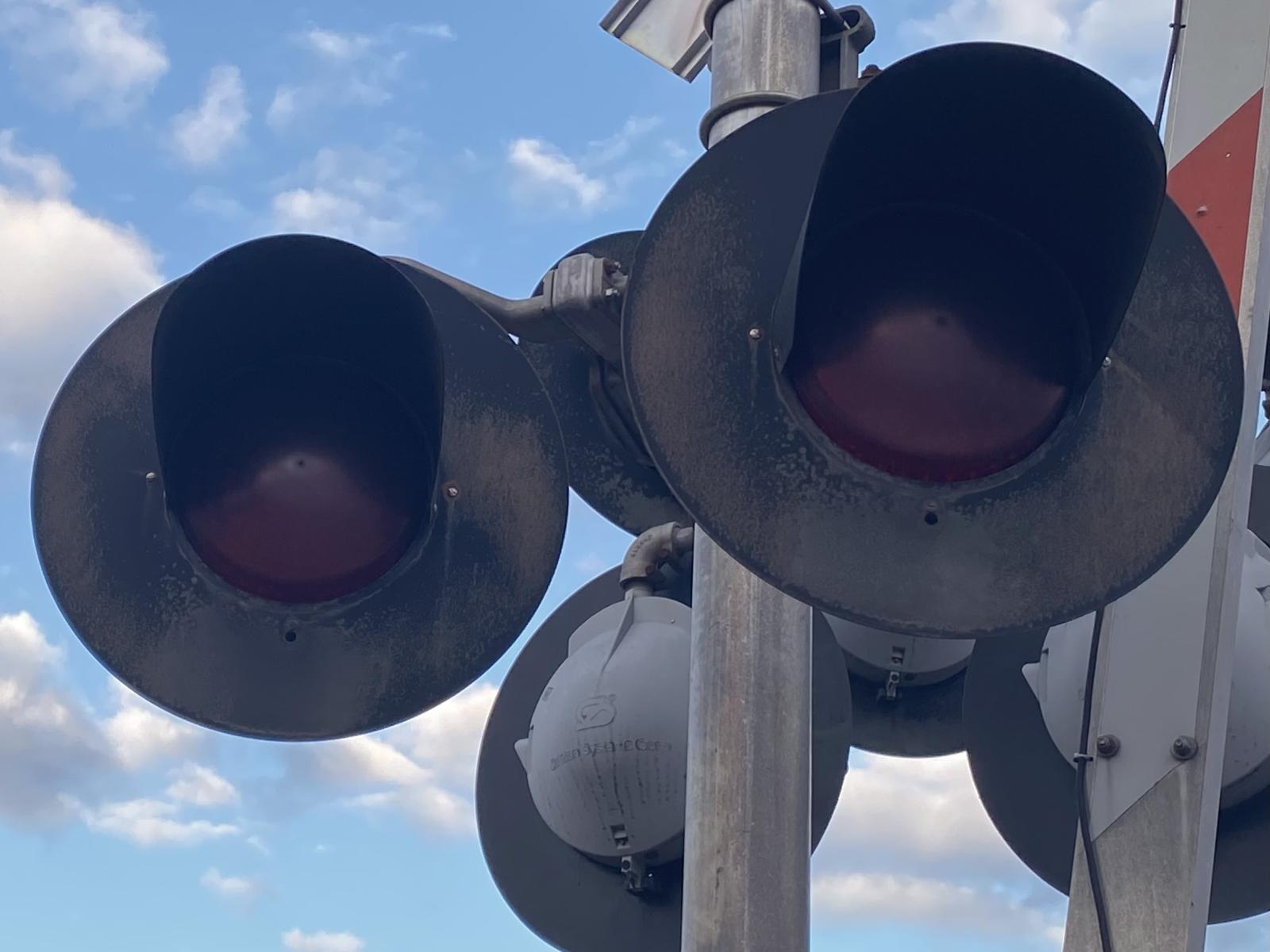

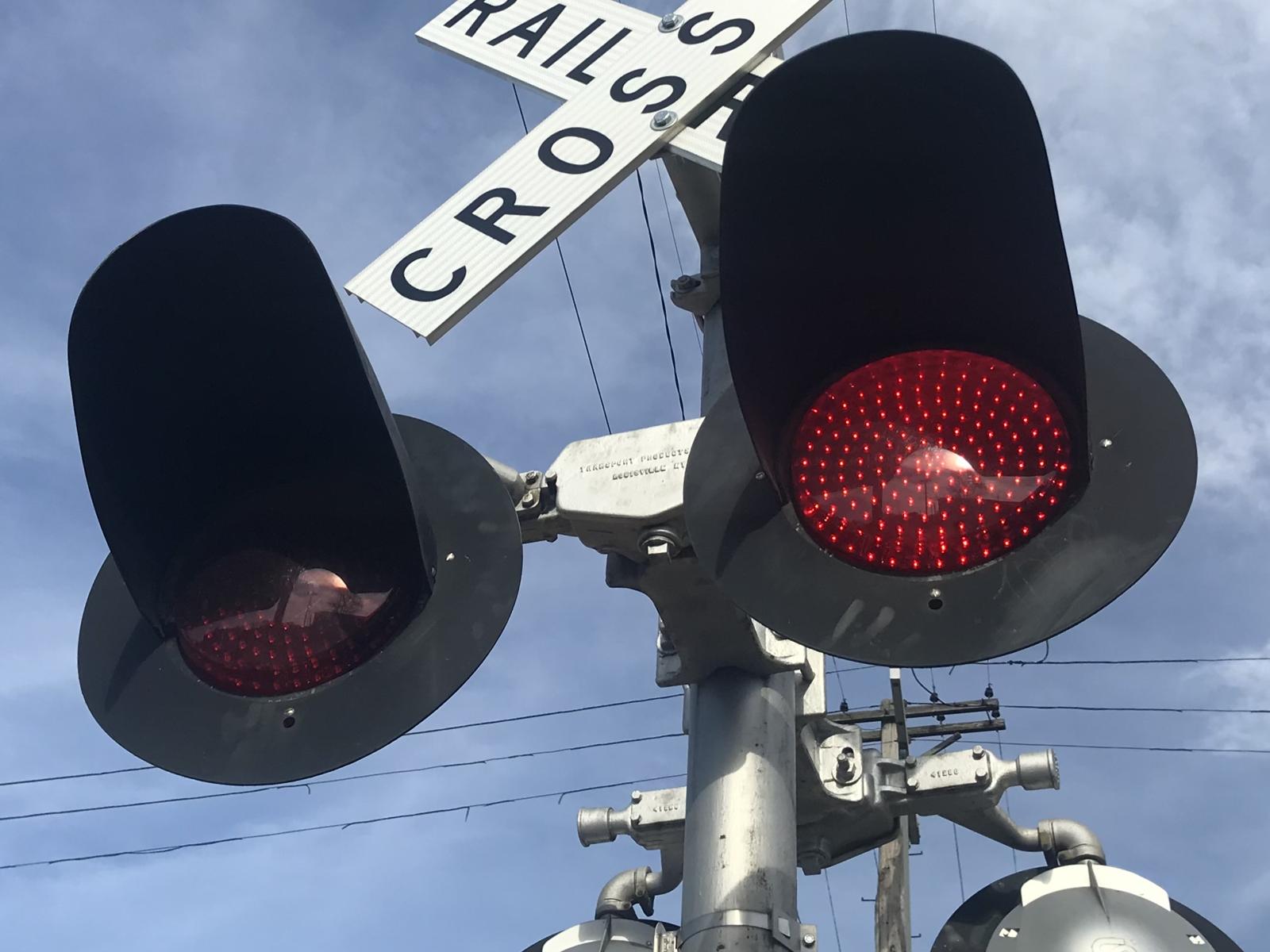

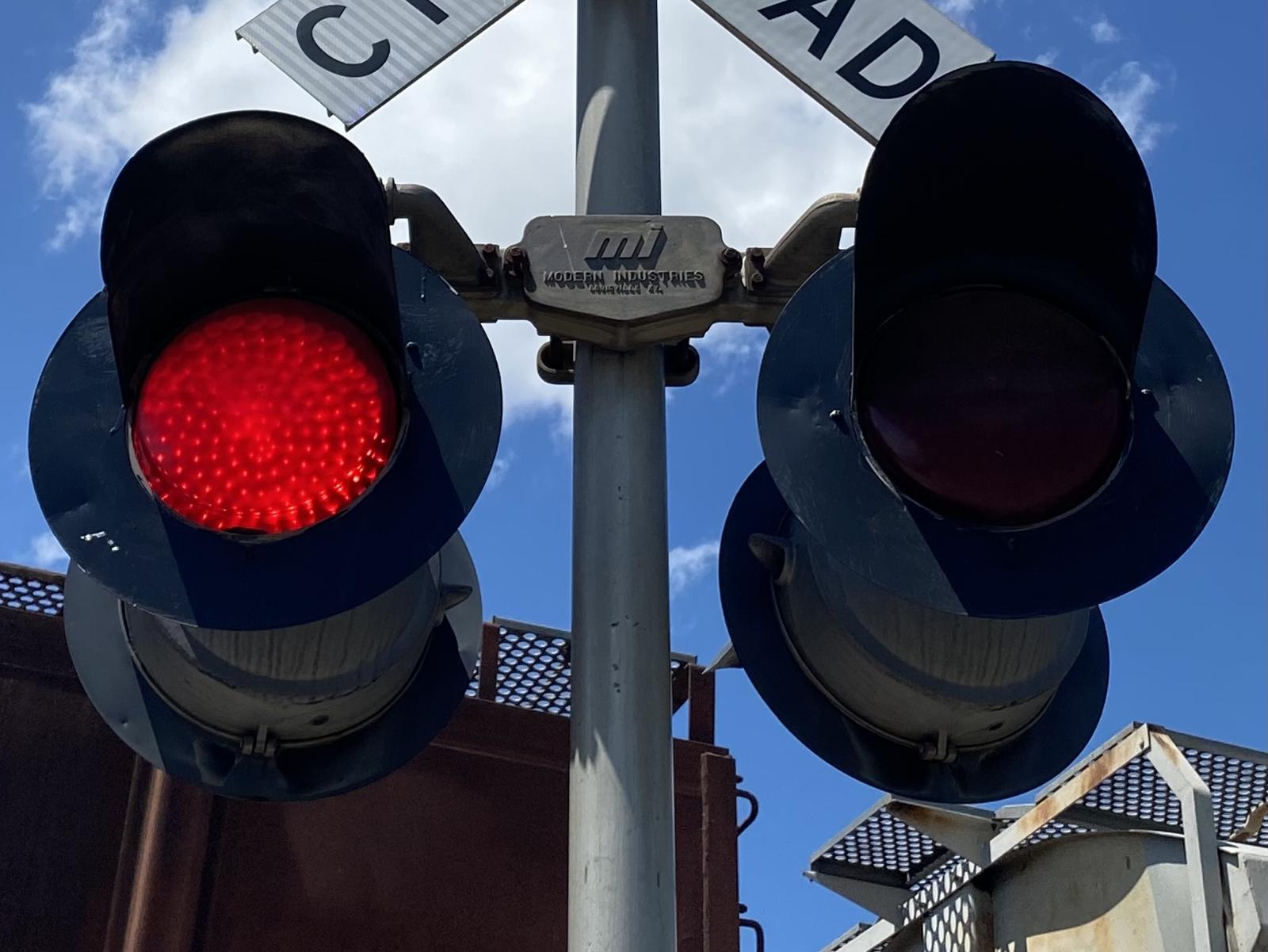

 Miller Ingenuity 2nd Generation LEDs in action at Florida St. in St. Louis, MO on 3-26-20. |  Older Miller Ingenuity 2nd Generation LEDs (w/ failed gaskets) in action at 12th St. in Joplin, MO on 8-17-25. |  Unlit Miller Ingenuity 2nd Generation LEDs at Seventh St. in Mena, AR on 12-22-24. The lenses have fogged up to the point you can't see the LEDs! |

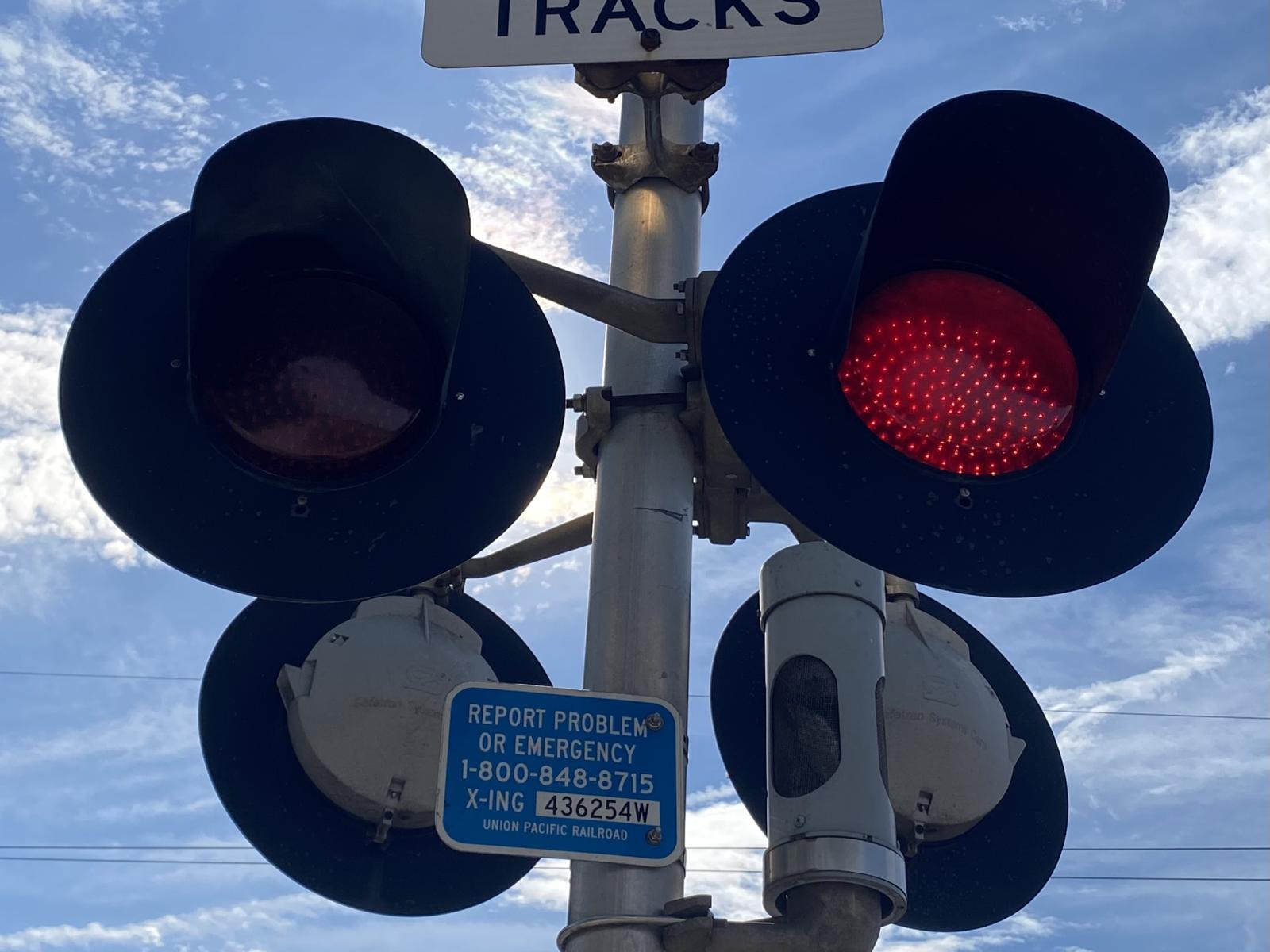

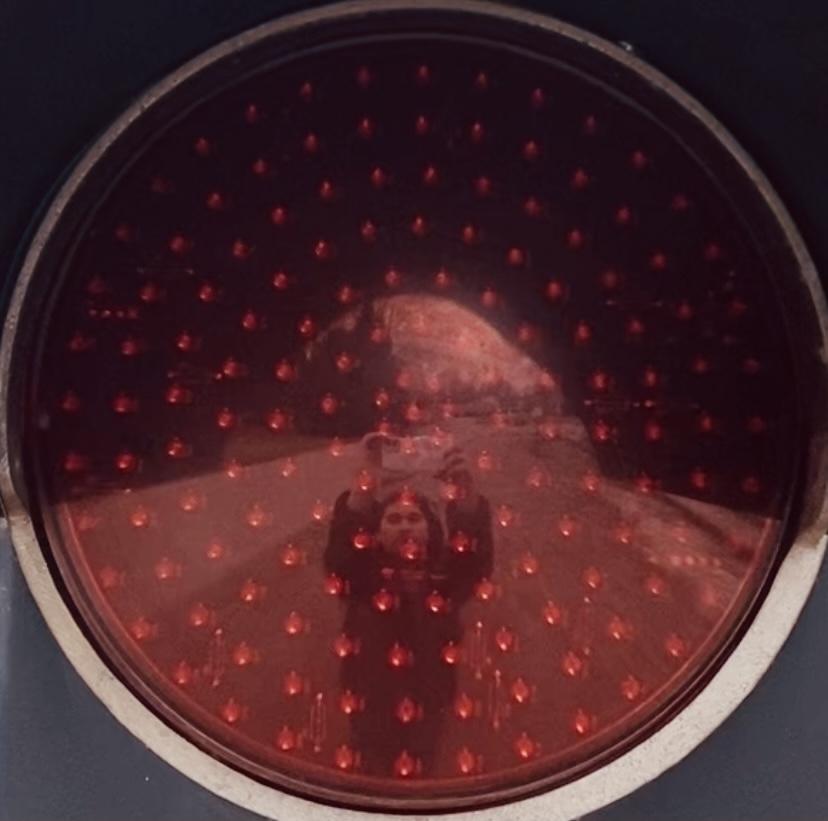

 A Miller Ingenuity 2nd Generation LED in action at Scott St. in San Bruno, CA on 7-29-08. |  Unlit Miller Ingenuity 2nd Generation LEDs at Anderson St. in Sandborn, IN on 3-6-22. Hey look, it's me! |  Older Miller Ingenuity 2nd Generation LEDs (w/ failed gaskets) in action at Modoc Ferry Rd. in Modoc, IL on 10-17-25. |

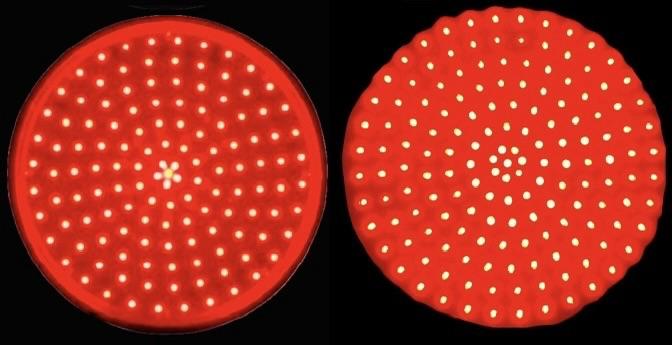

 Comparison between a GE Pixelated Look LED (left) and a Miller Ingenuity 2nd Generation LED (right). |
https://www.milleringenuity.com/products/railroad-crossing-lights/ - Miller Ingenuity's Crossing LEDs.
https://www.rxrsignals.com/104/PDF/Miller_Ingenuity_EveRRay_Sheet_July2020.pdf.pdf - Miller Ingenuity 2nd Generation LED Spec Sheet.
https://www.rebelrail.com/product/12-led-replacement-array - Miller Ingenuity 2nd Generation LED on RRSC's website.
https://www.lwind.com/products/12-miller-ingenuity-led - Miller Ingenuity 2nd Generation LED on L&W's website.
