MP:  722.070



Created October 31, 2020



Total Accidents:   2
Crossing DOT #:  664844V
TOTAL DAILY TRAINS:   8   (AS OF 2020)



Page created by: freebrickproductions



This crossing is located on the BNSF Birmingham Subdivision.



>>>>>>>>>>>>> Signal #1 Signal #2
Bell: General Signals Type 2 electronic N/A
Base: WCH WCH
Light Frames: 6 - 12x20" WCH 6 - 12x20" WCH
Gate Lights:

2 - RECO LEDs

1 - RECO

 3 - RECO LEDs
Gate Mechanism: US&S Model 95 Style 2 US&S Model 95 Style 2
Gate Striping: Vertical Vertical



1

2

3

4

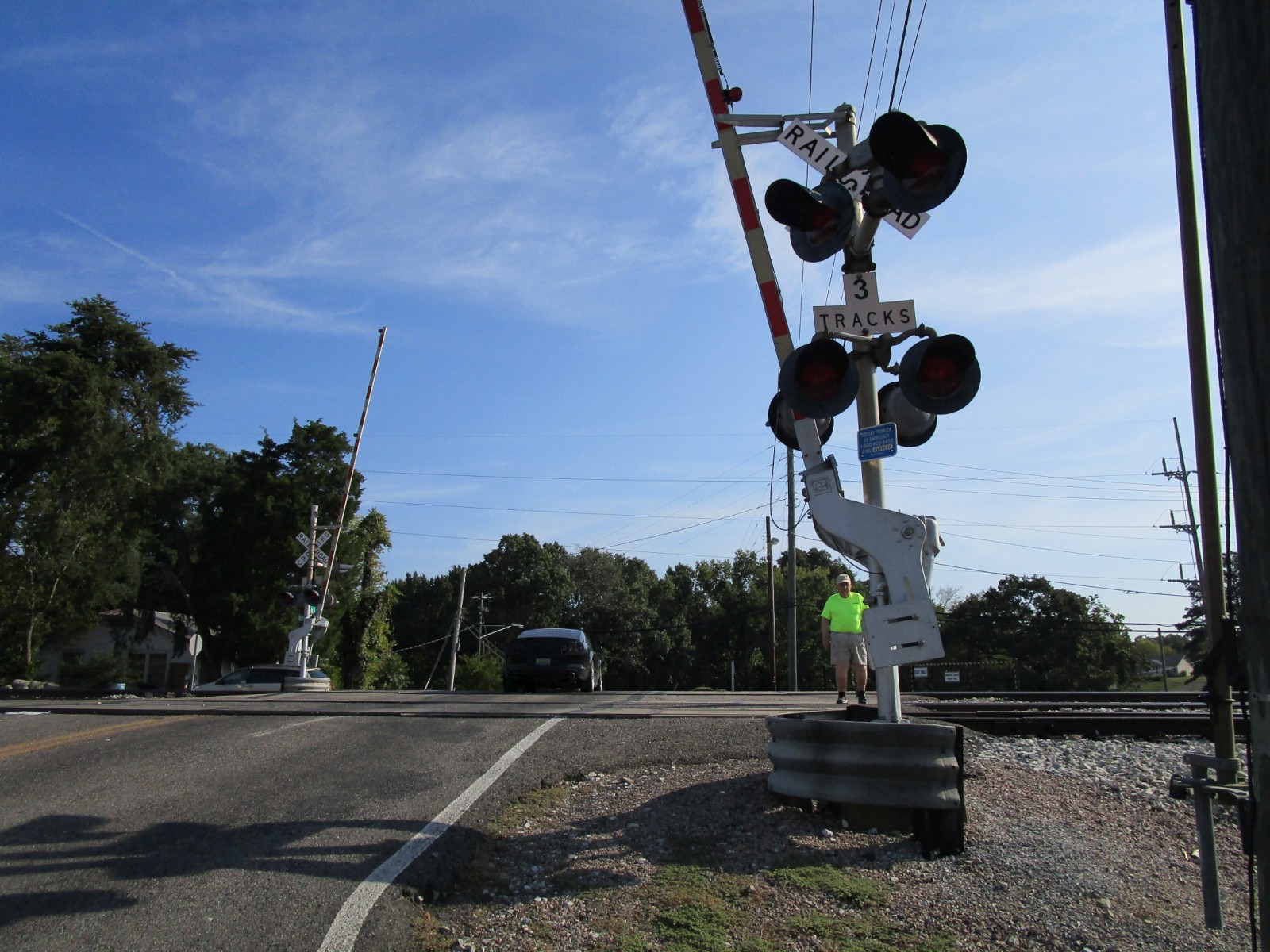

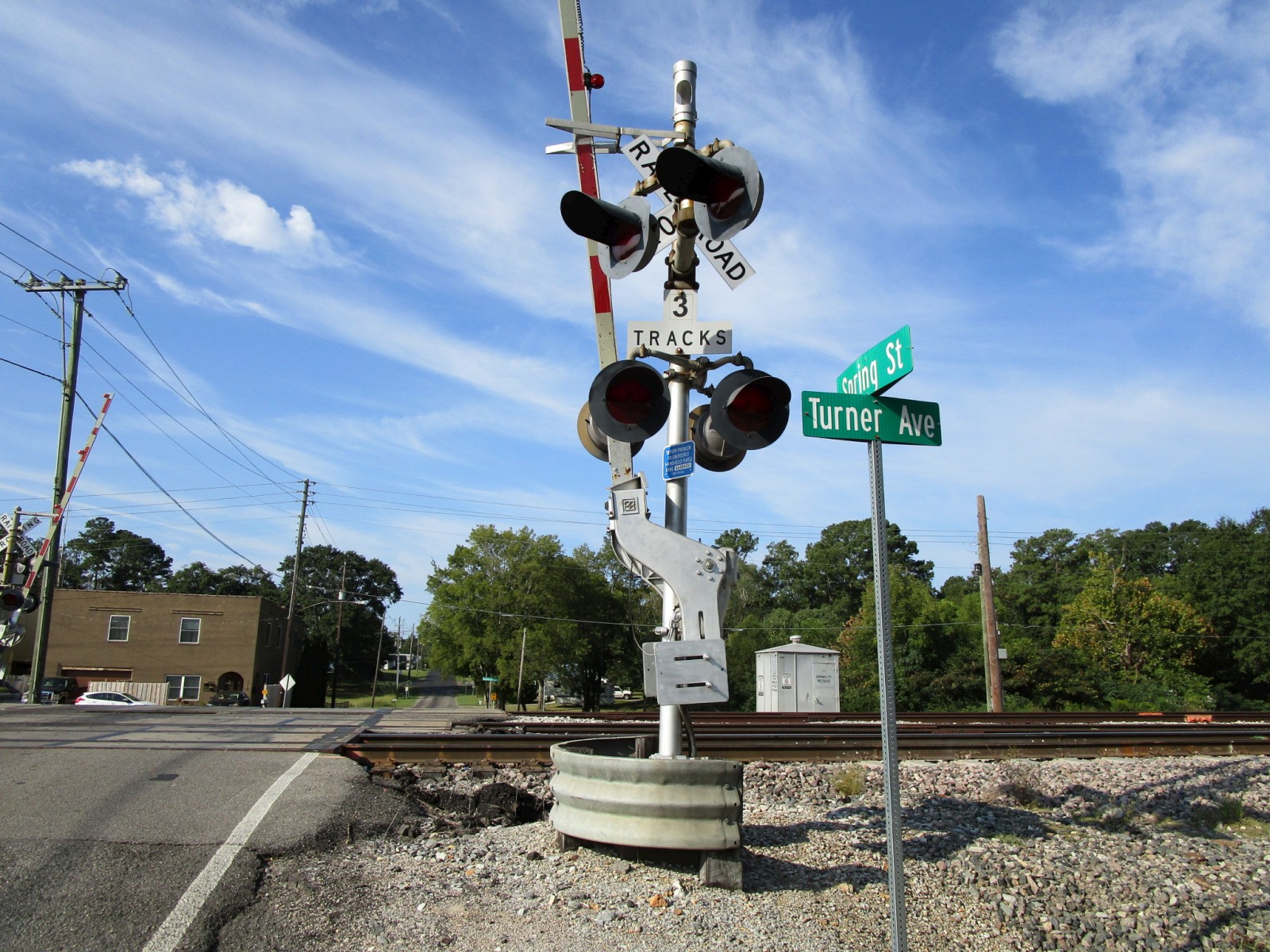

Overviews of the crossing.

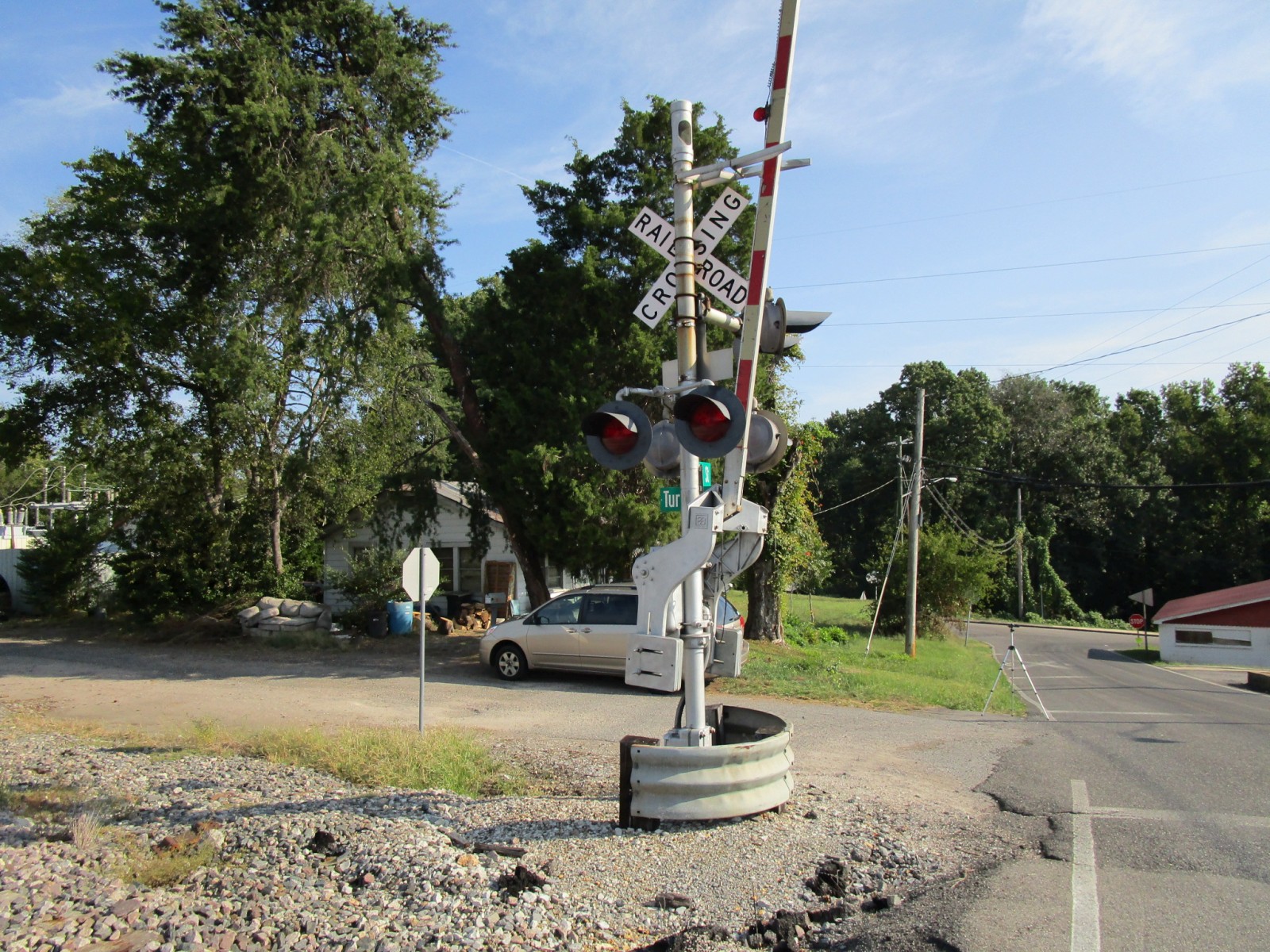

The first signal.

5

6

7

8

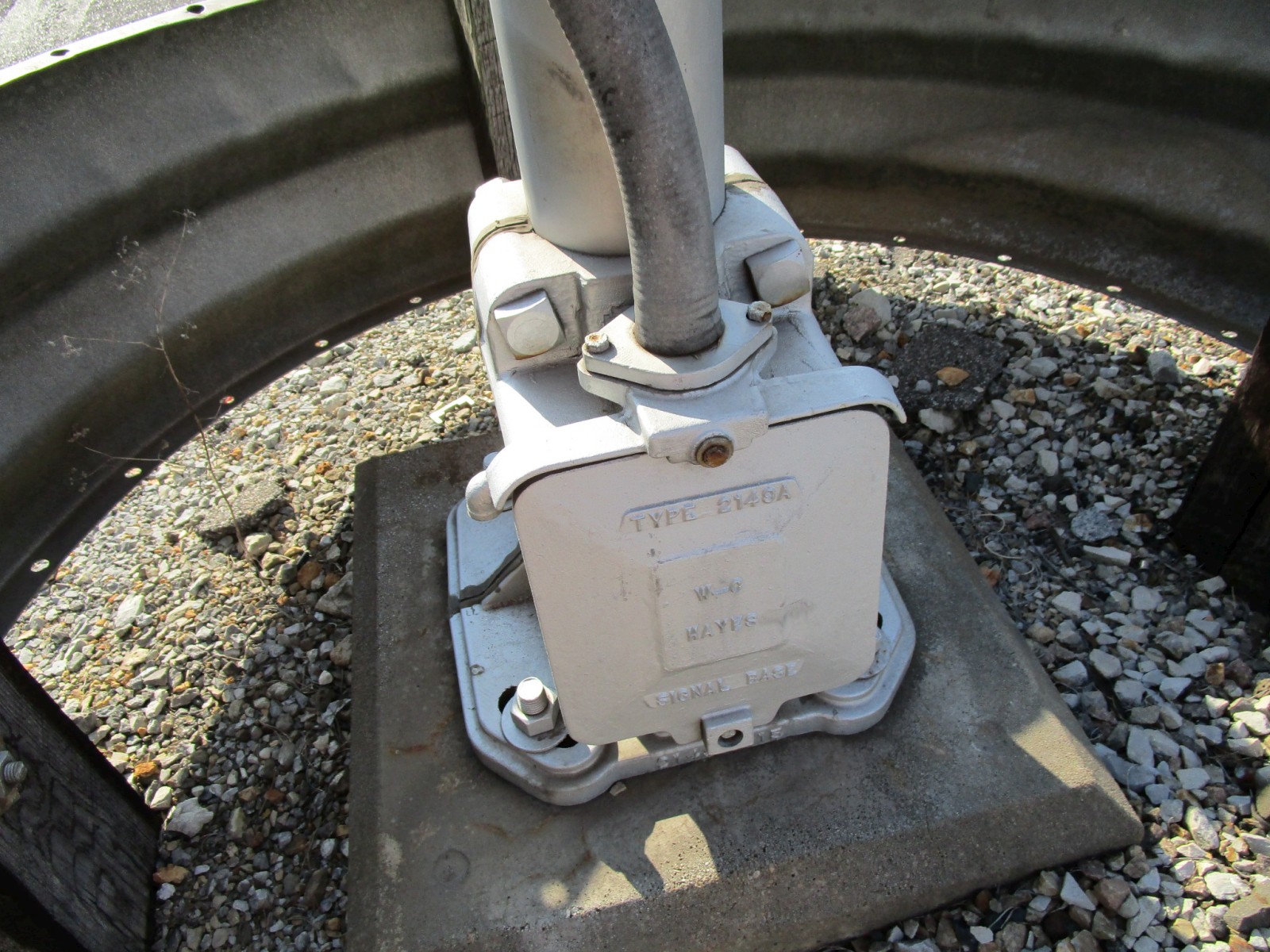

It has a WCH base.

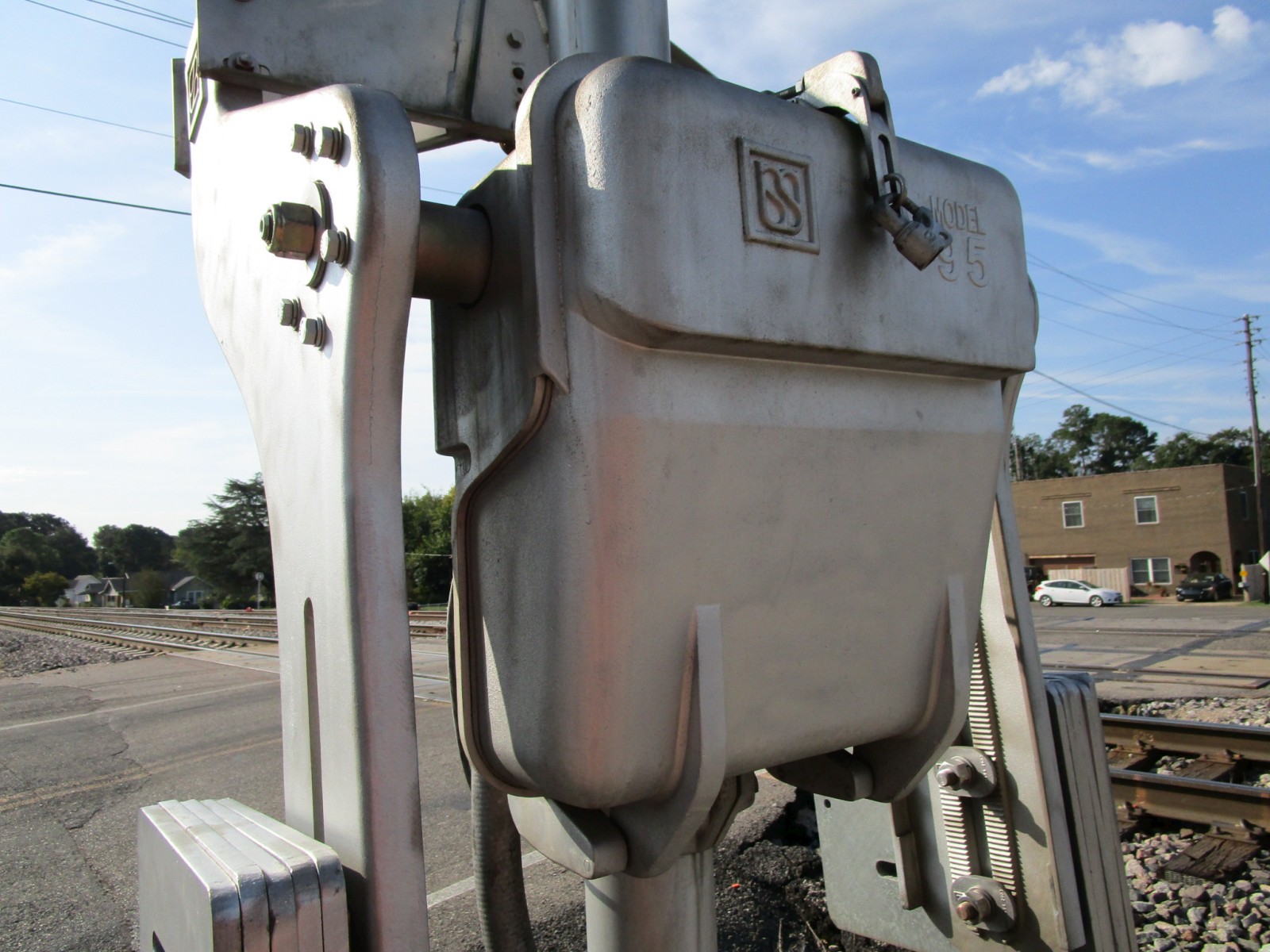

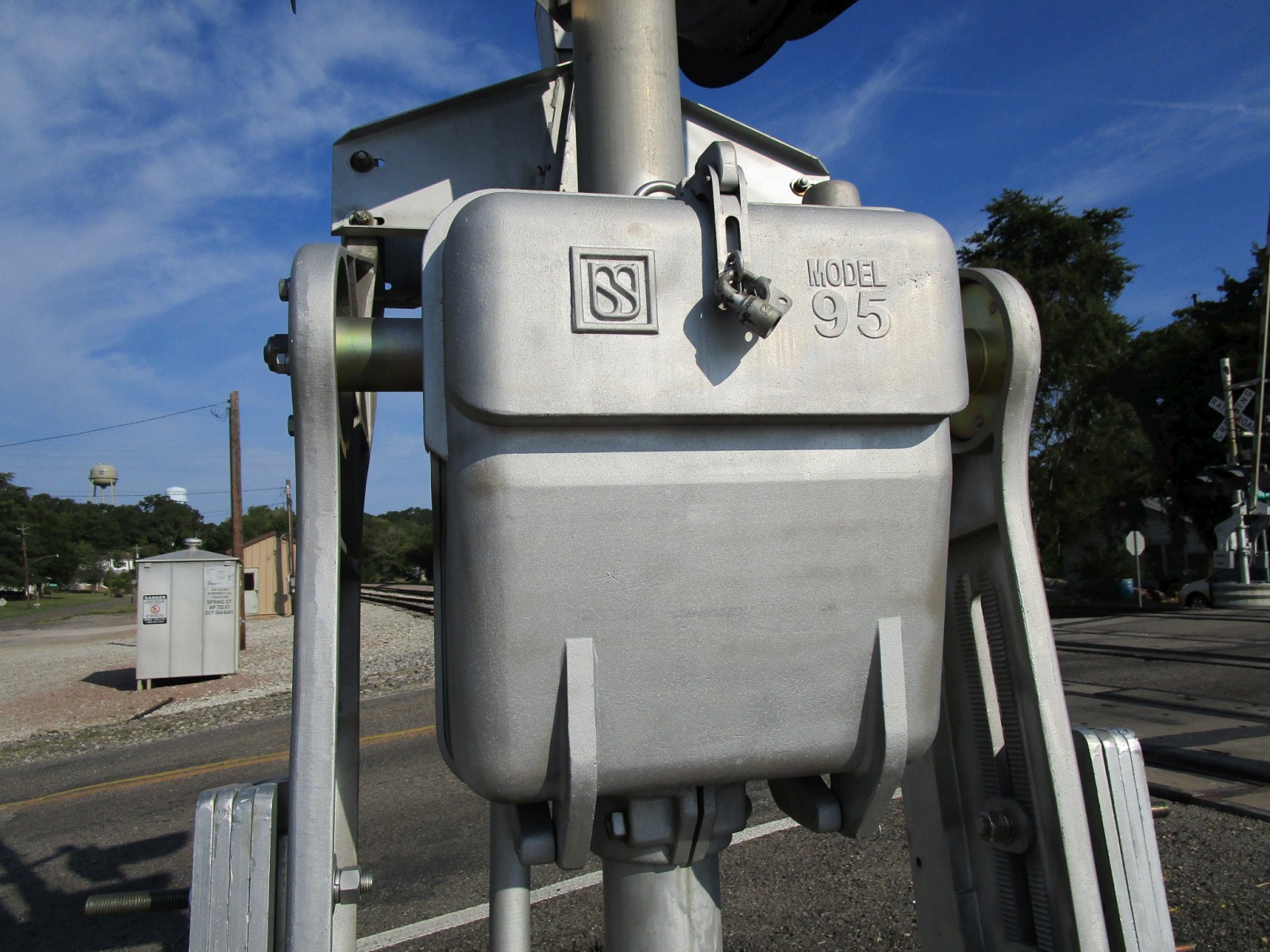

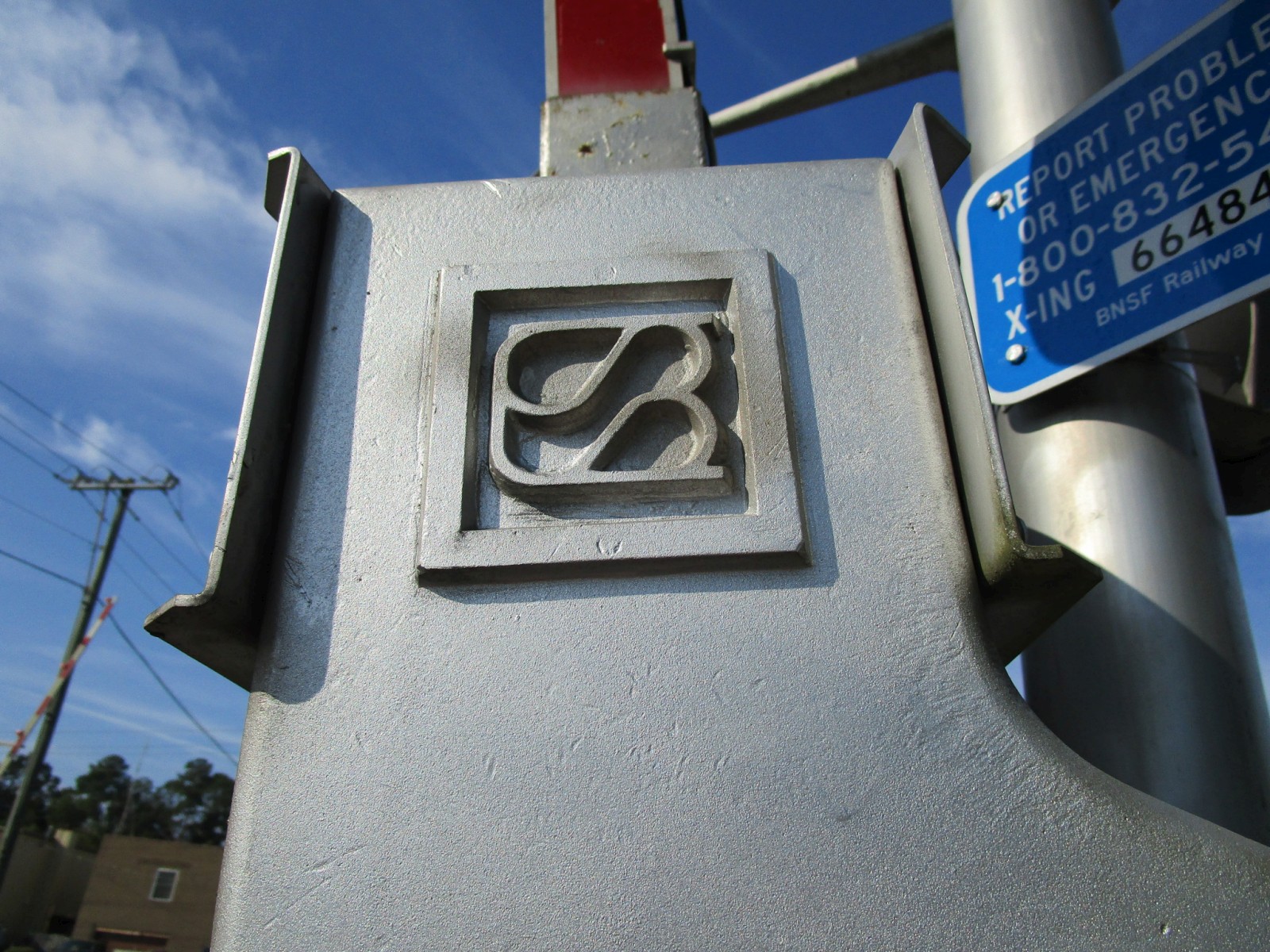

A US&S Model 95 gate mechanism with US&S counterweight arms.

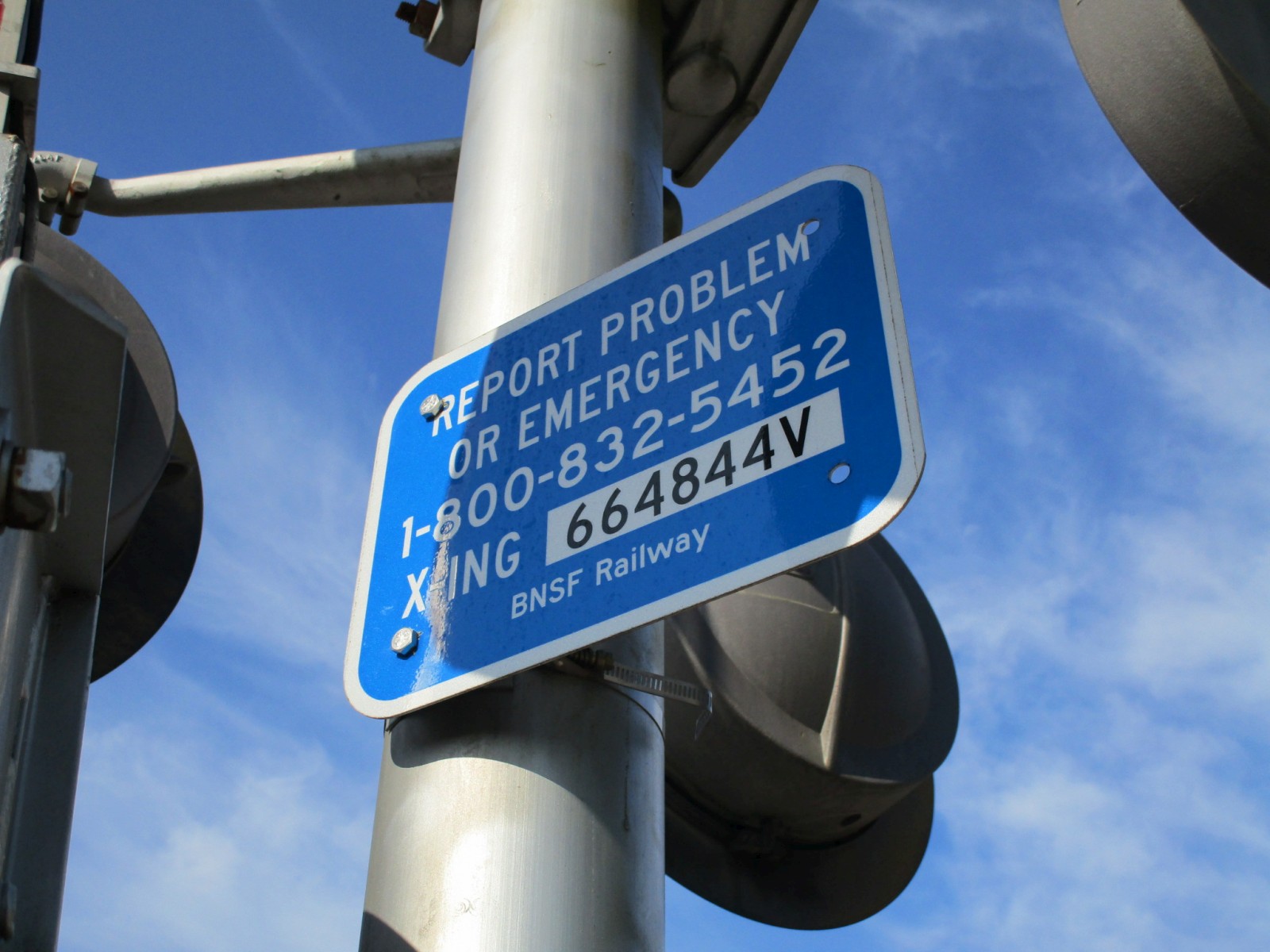

The emergency information.

9

10

11

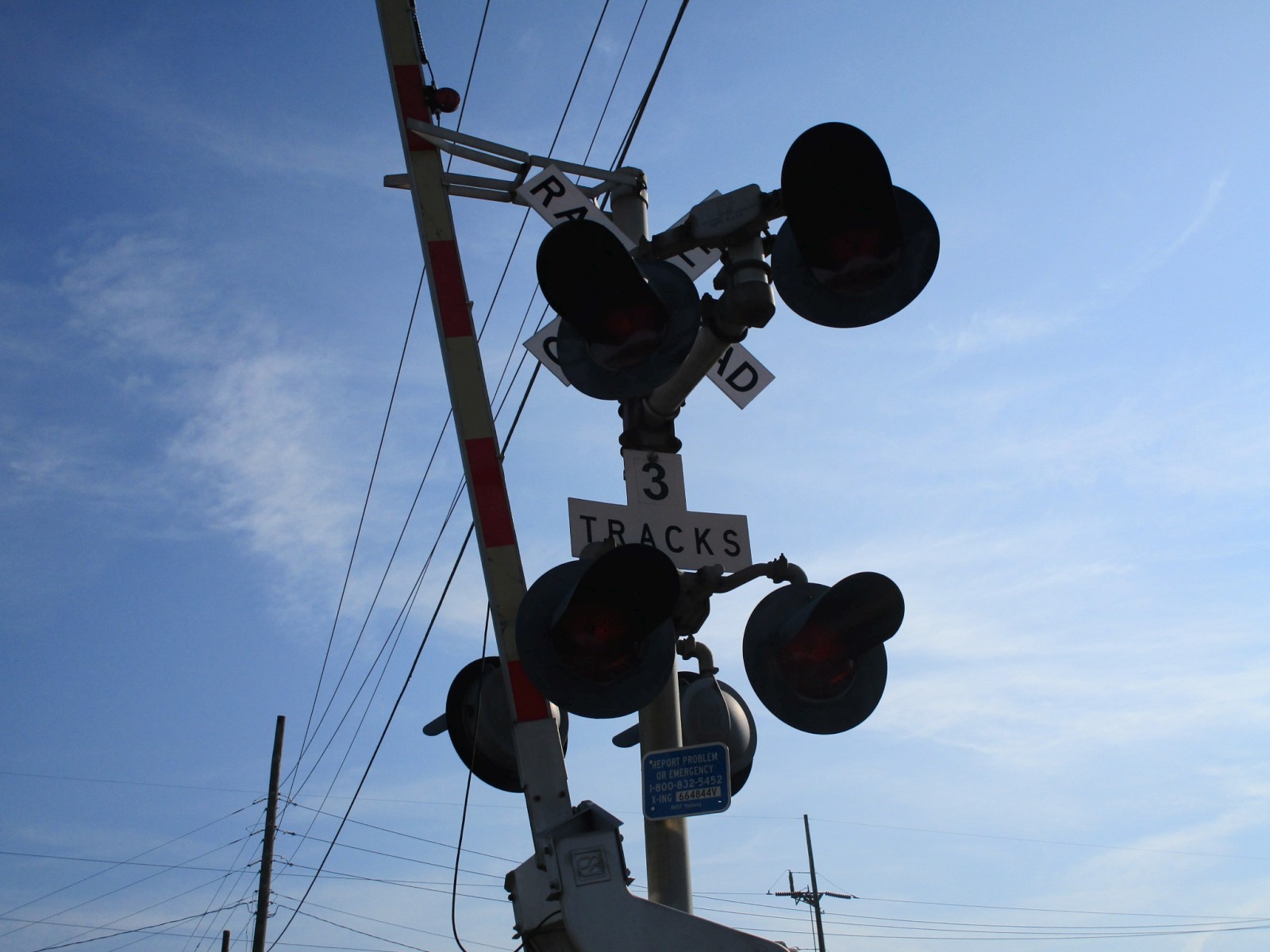

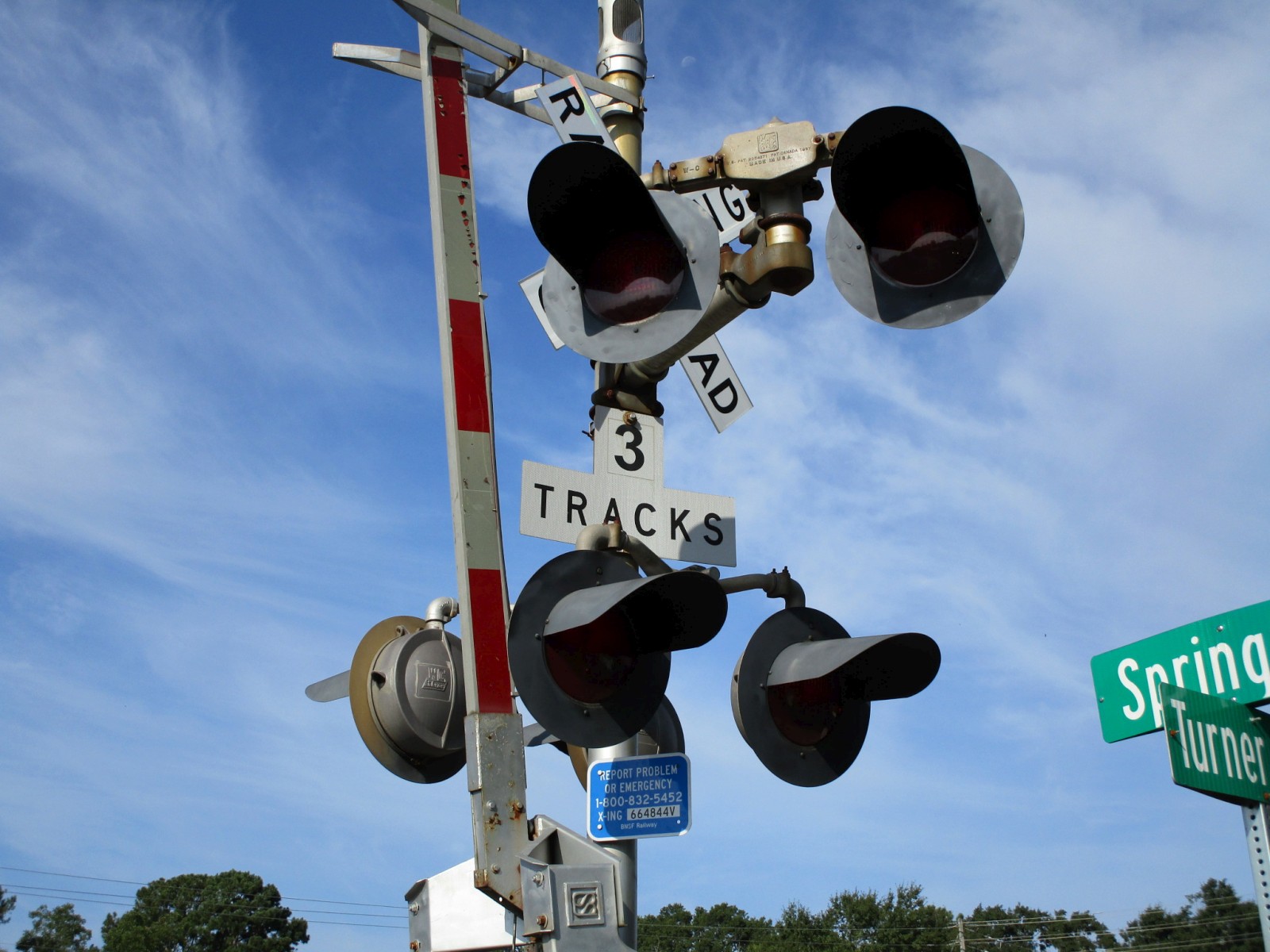

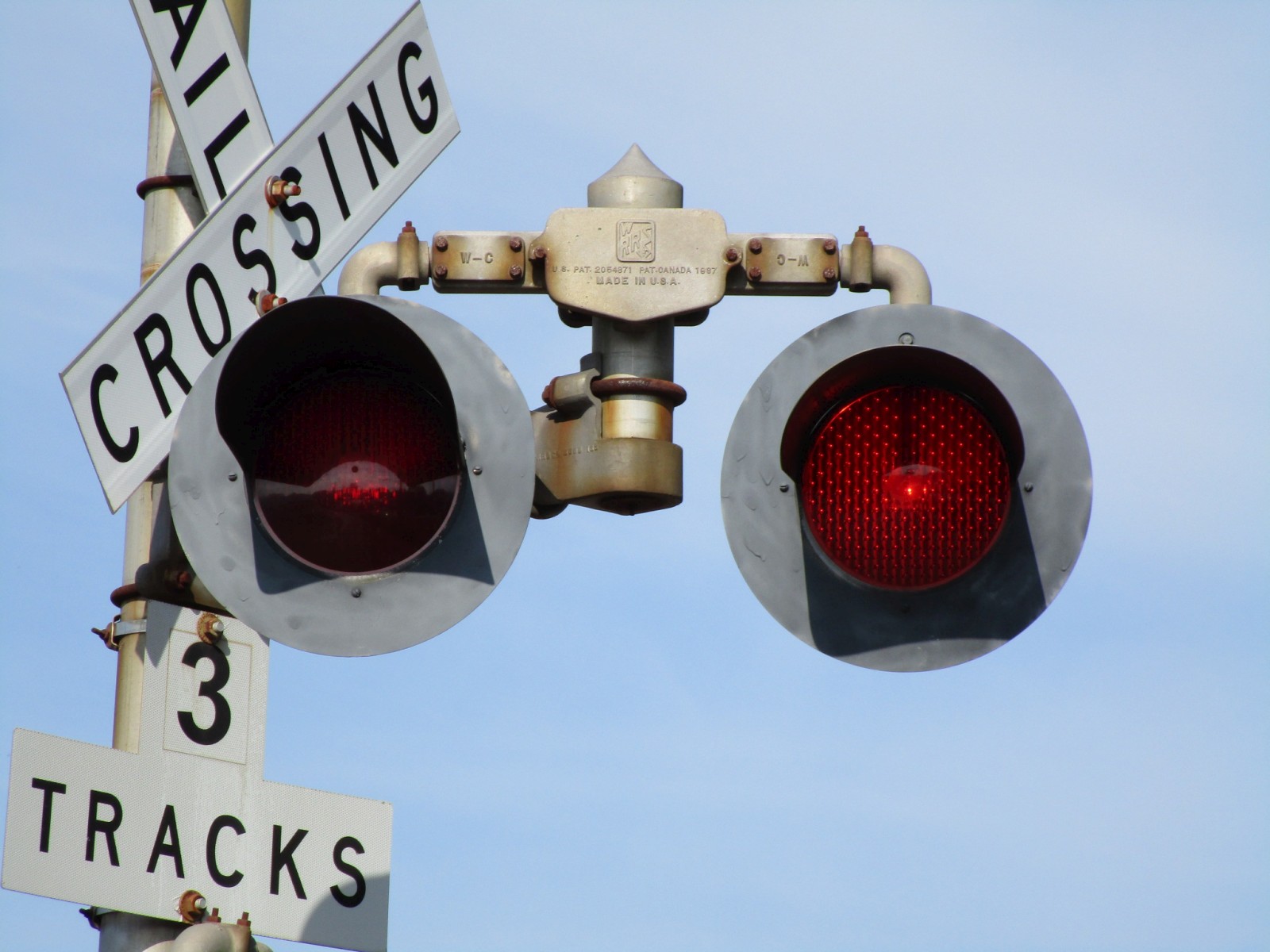

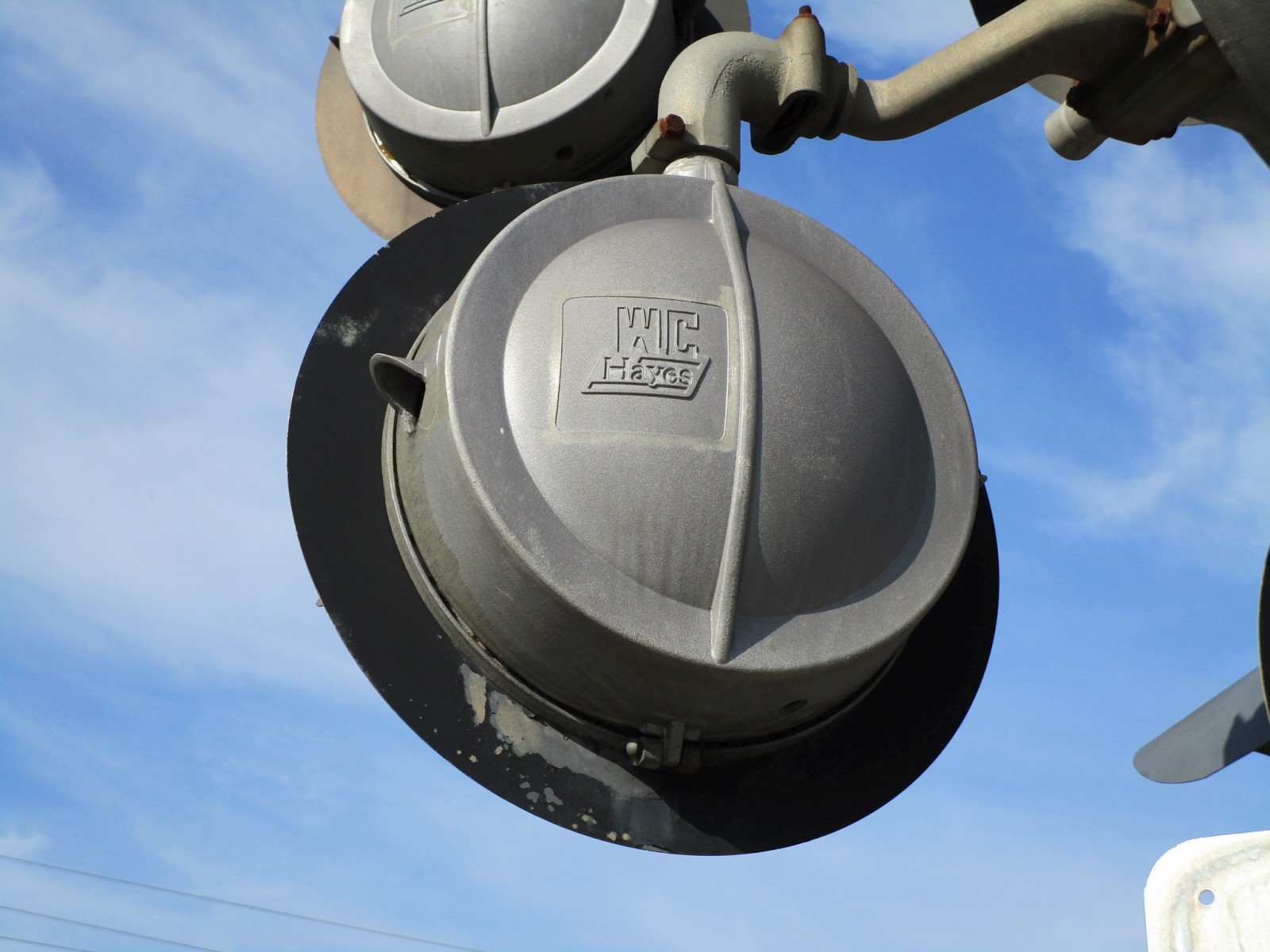

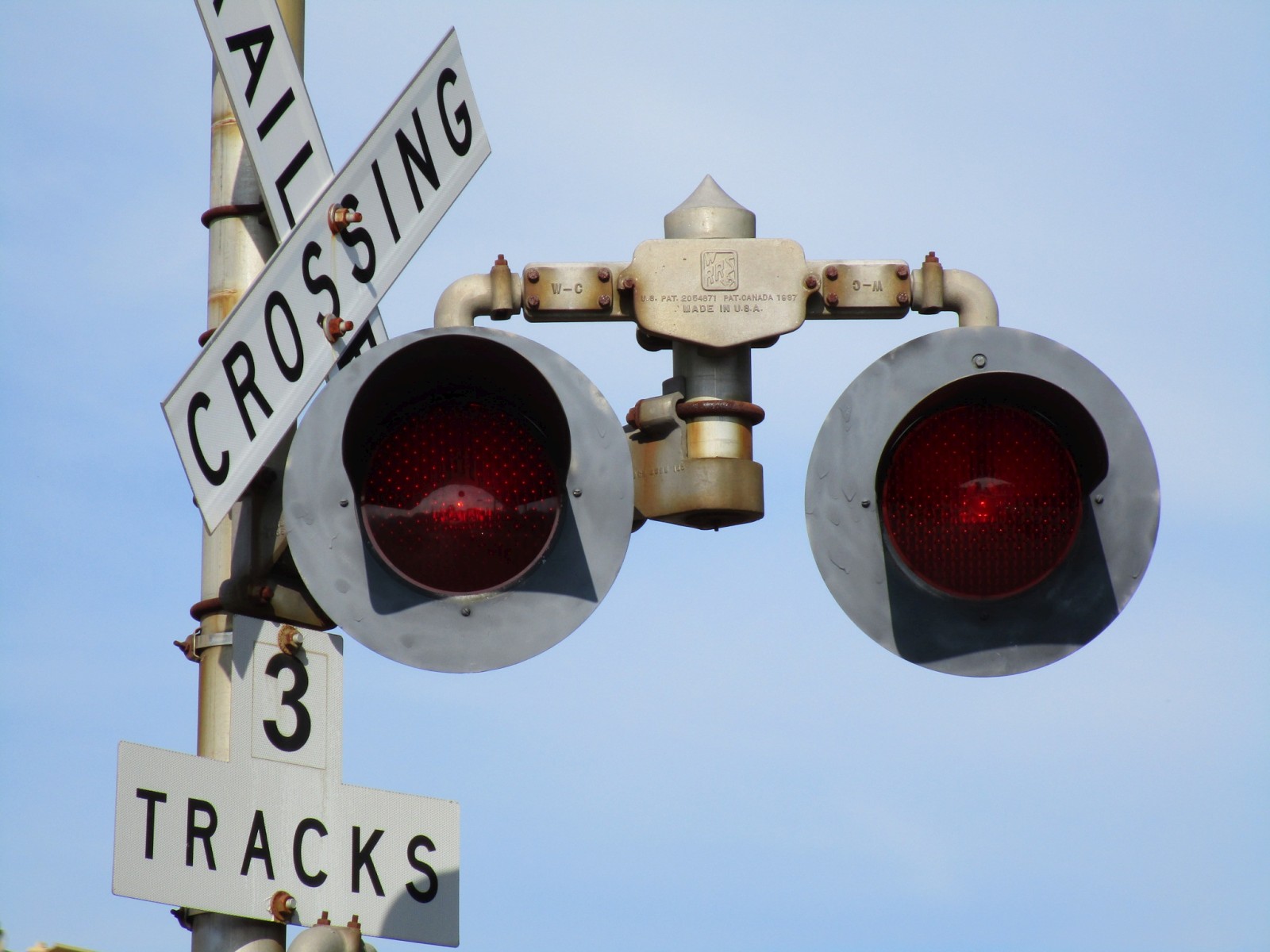

This signal has all WCH 12x20 inch lights!

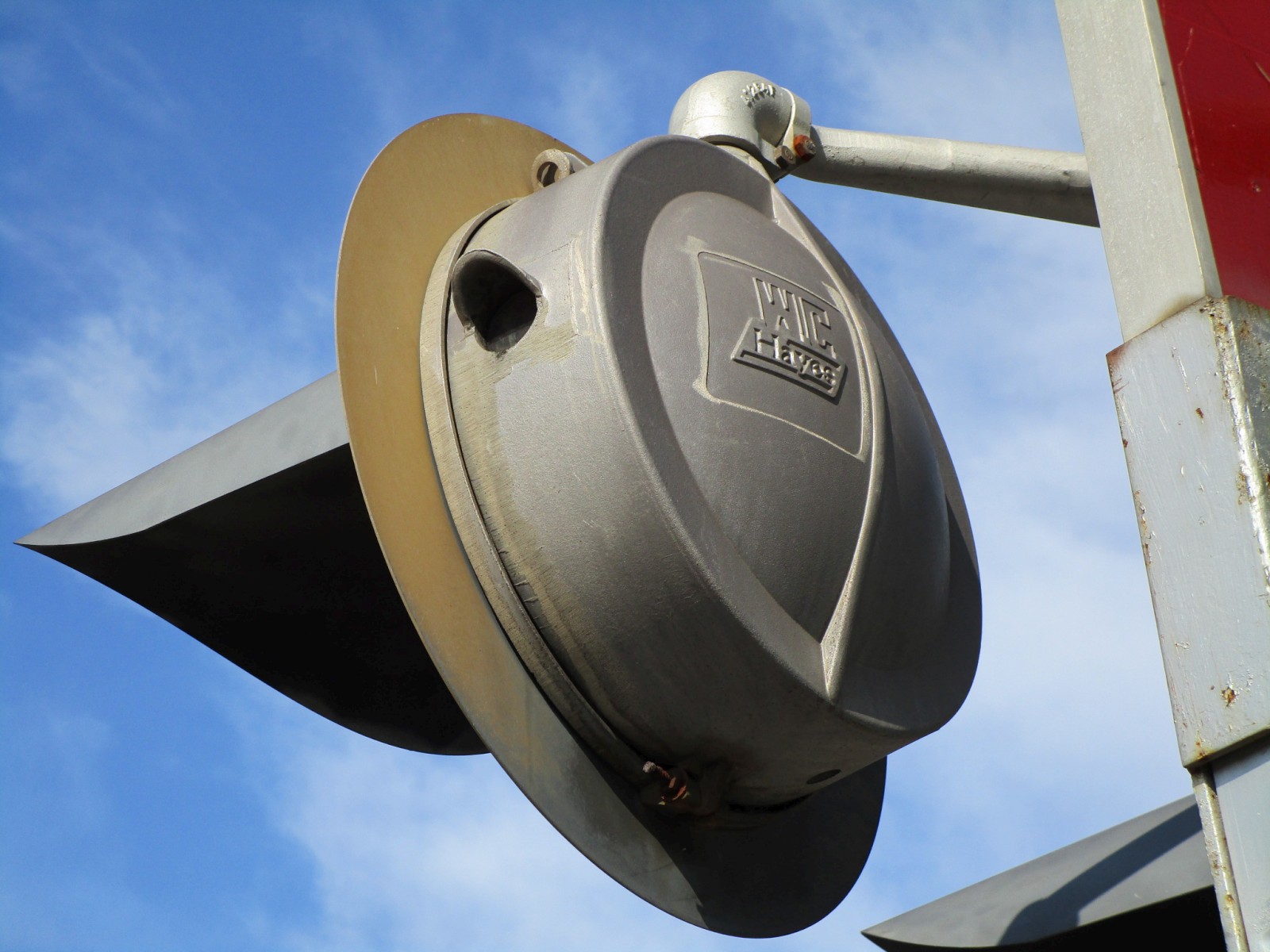

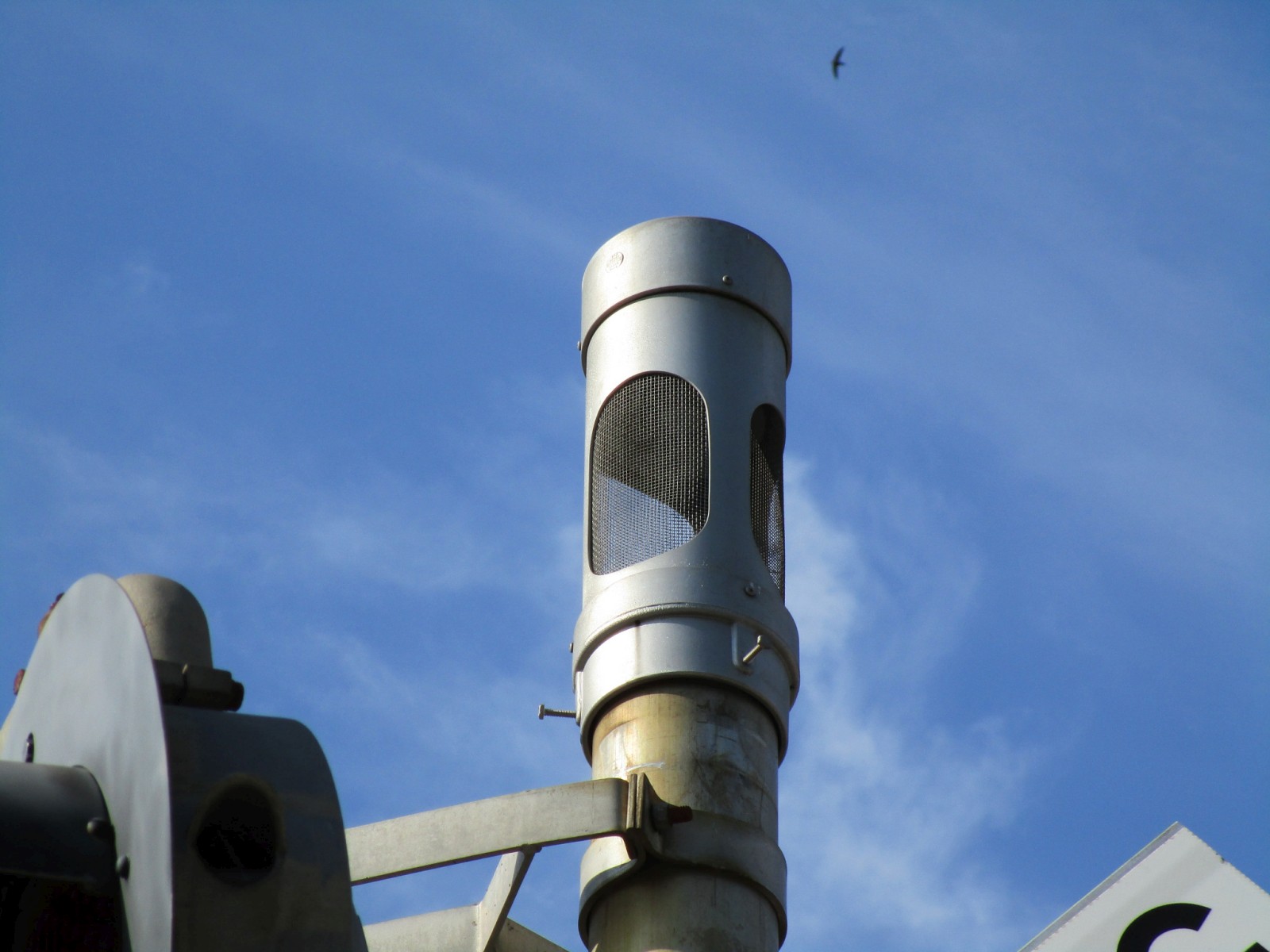

The lone bell here is a General Signals Type 2 e-bell.

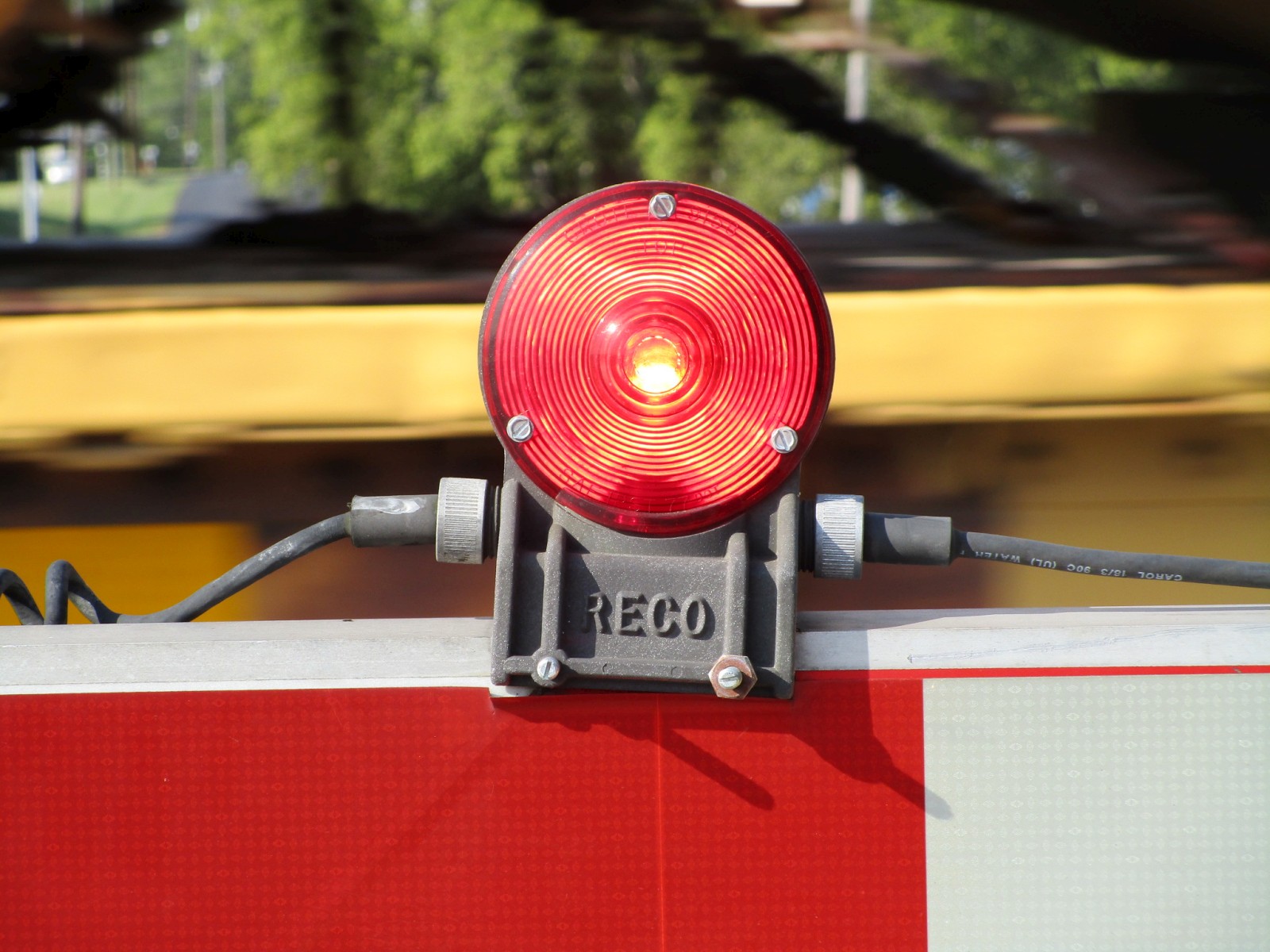

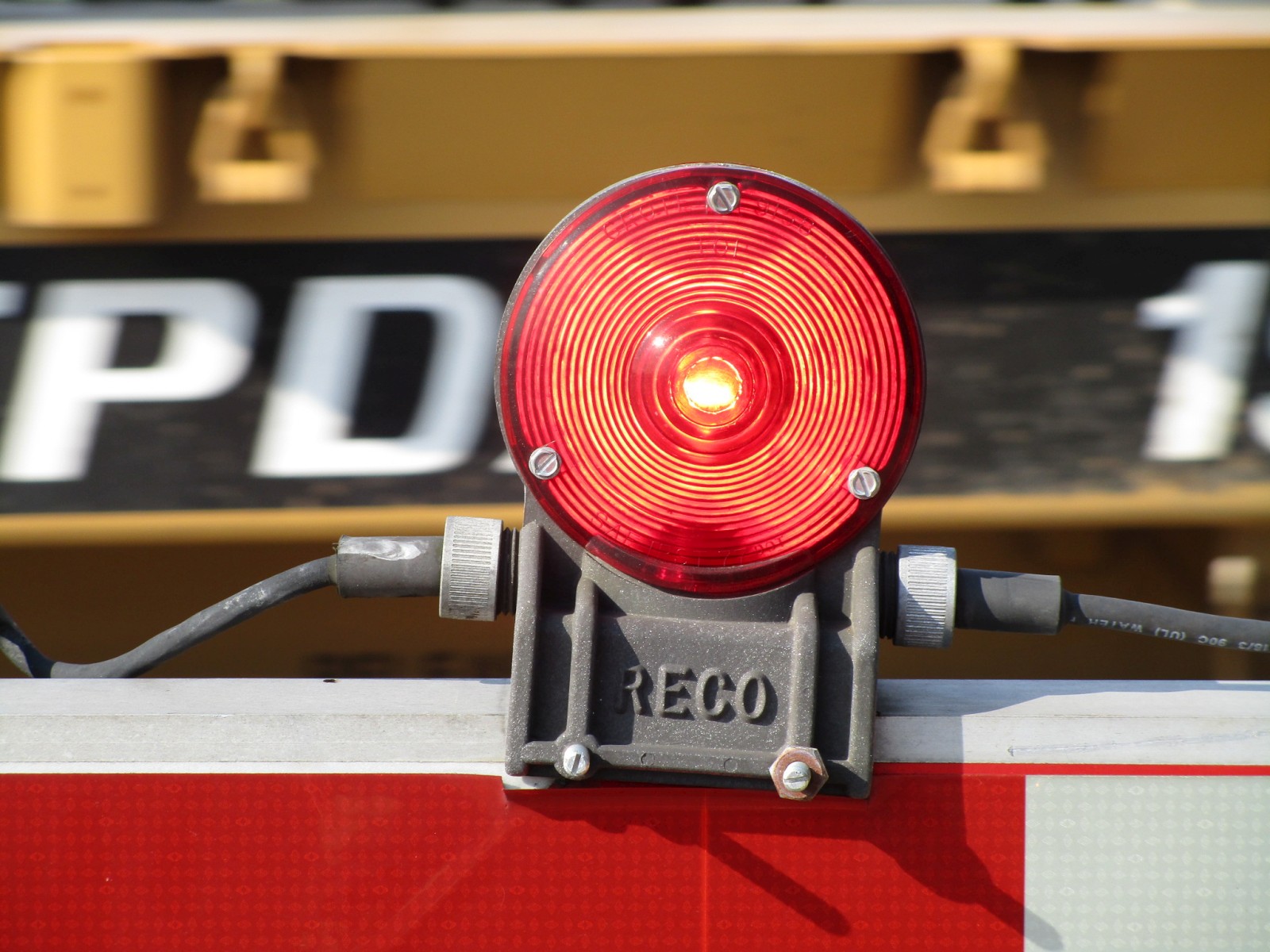

The above signal has two RECO LED gate lights and an older RECO incandescent gate light, which I forgot to photograph while documenting the crossing.

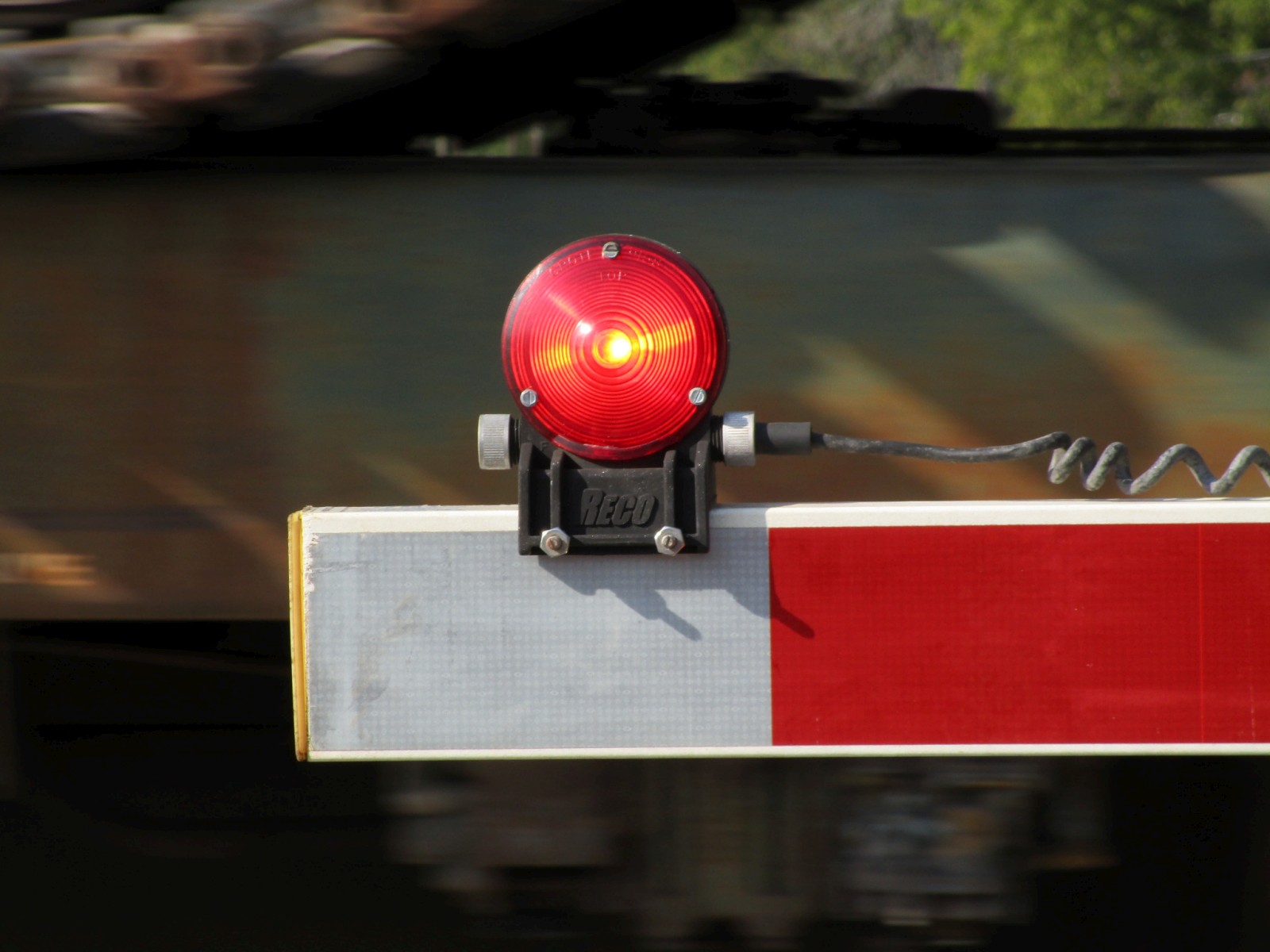

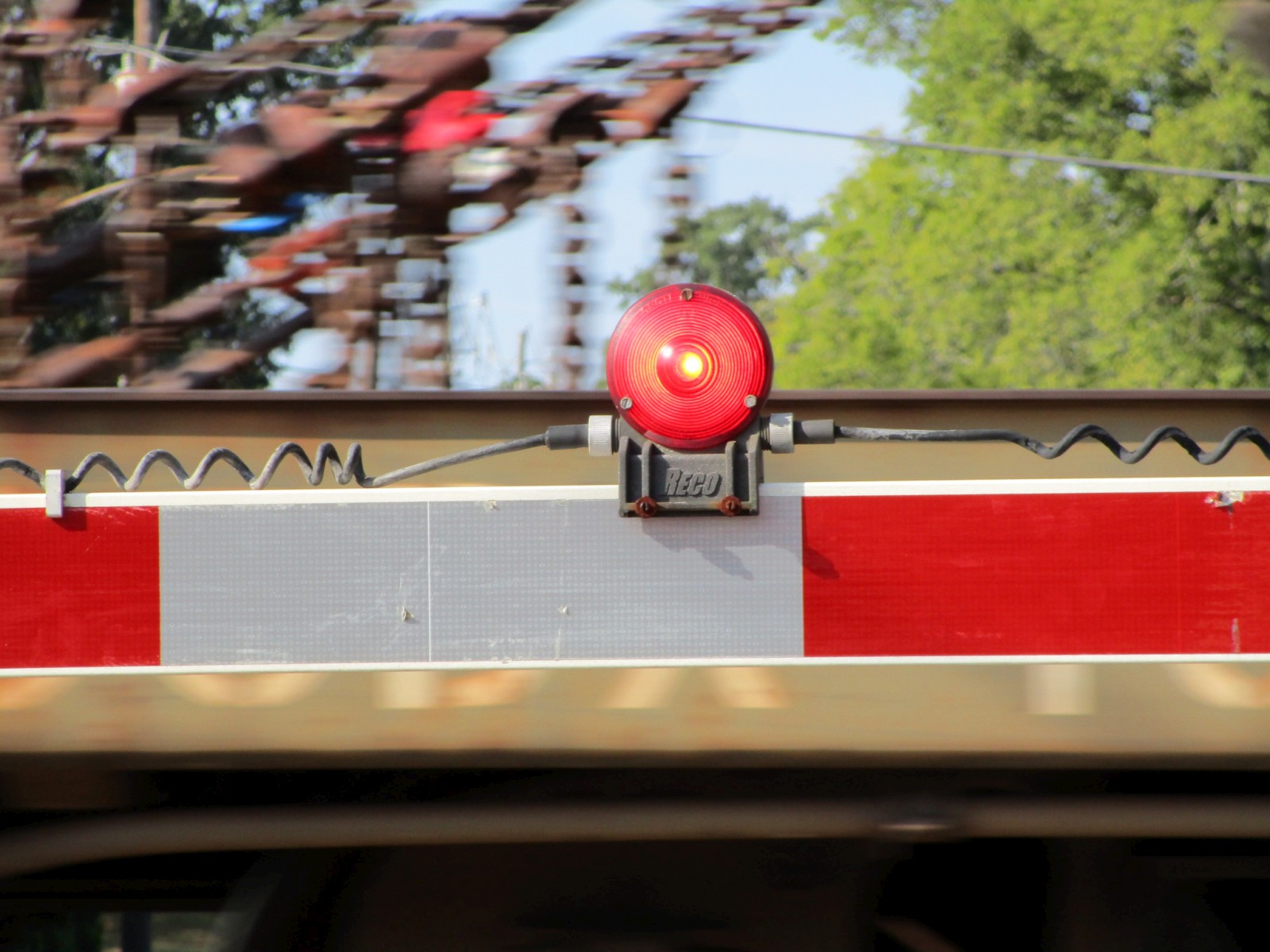

Thankfully, I did get photos of all three gatelights while the crossing was active, which you can see a bit further down this page.



12

13

14

15

16

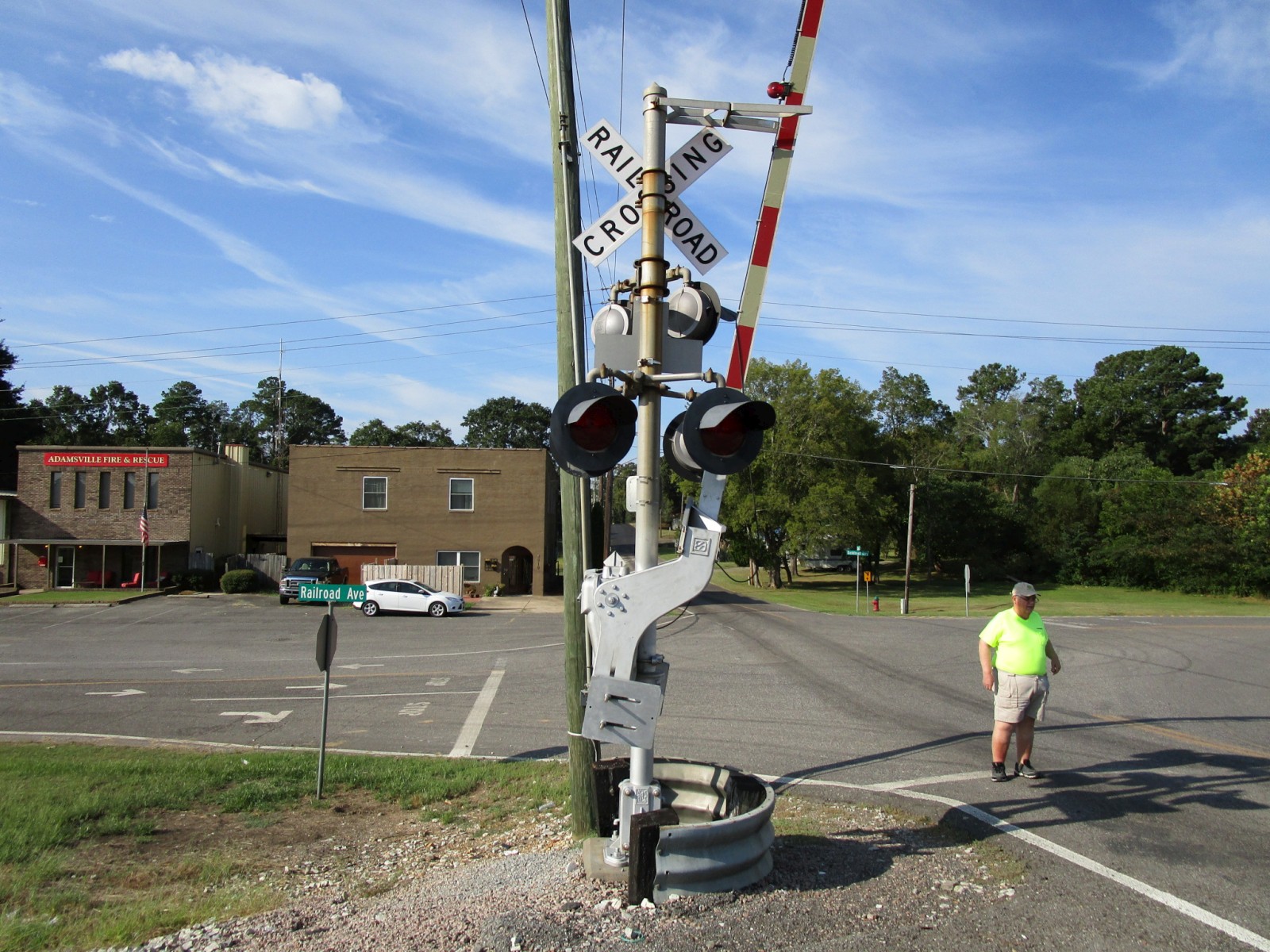

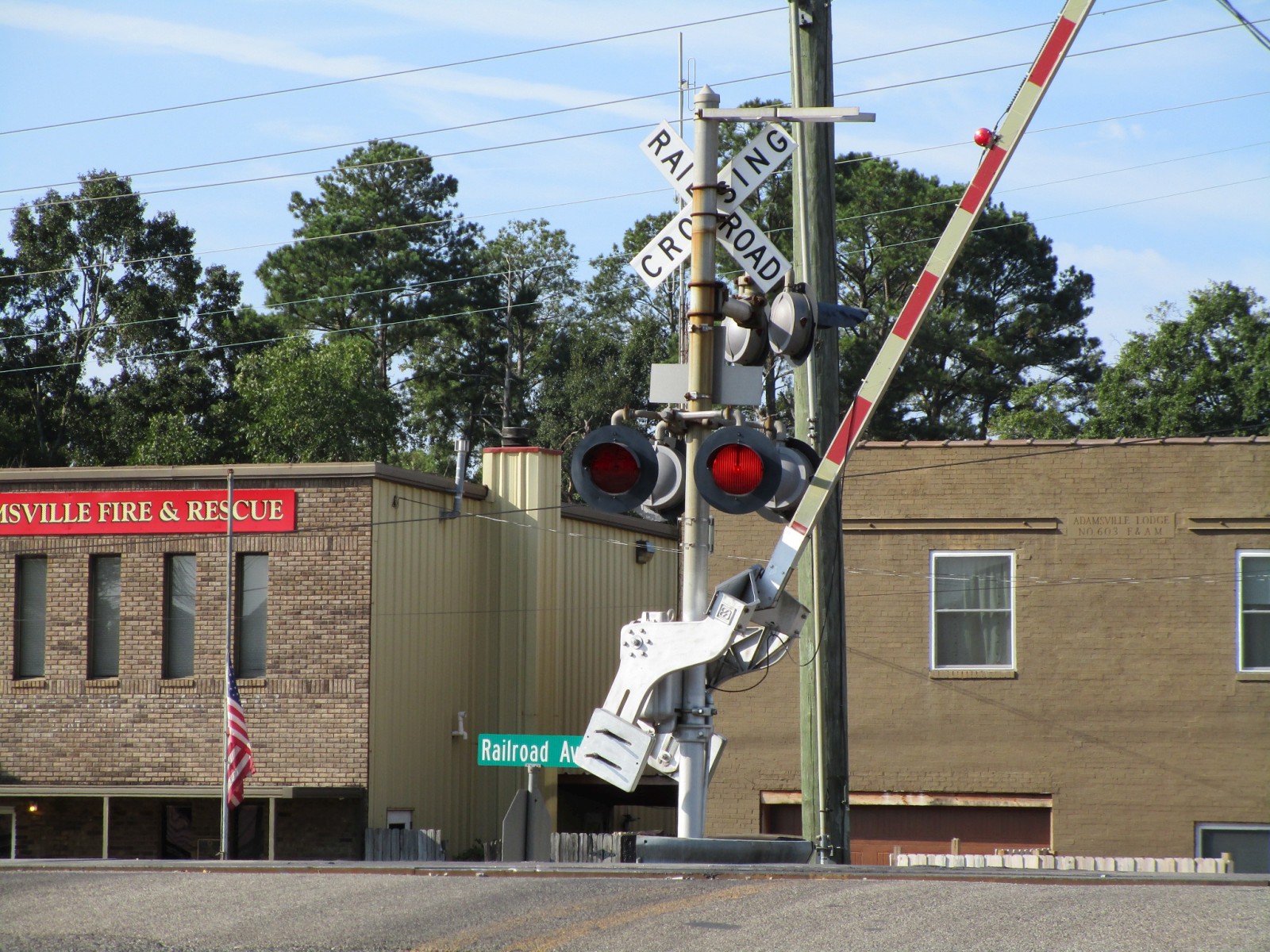

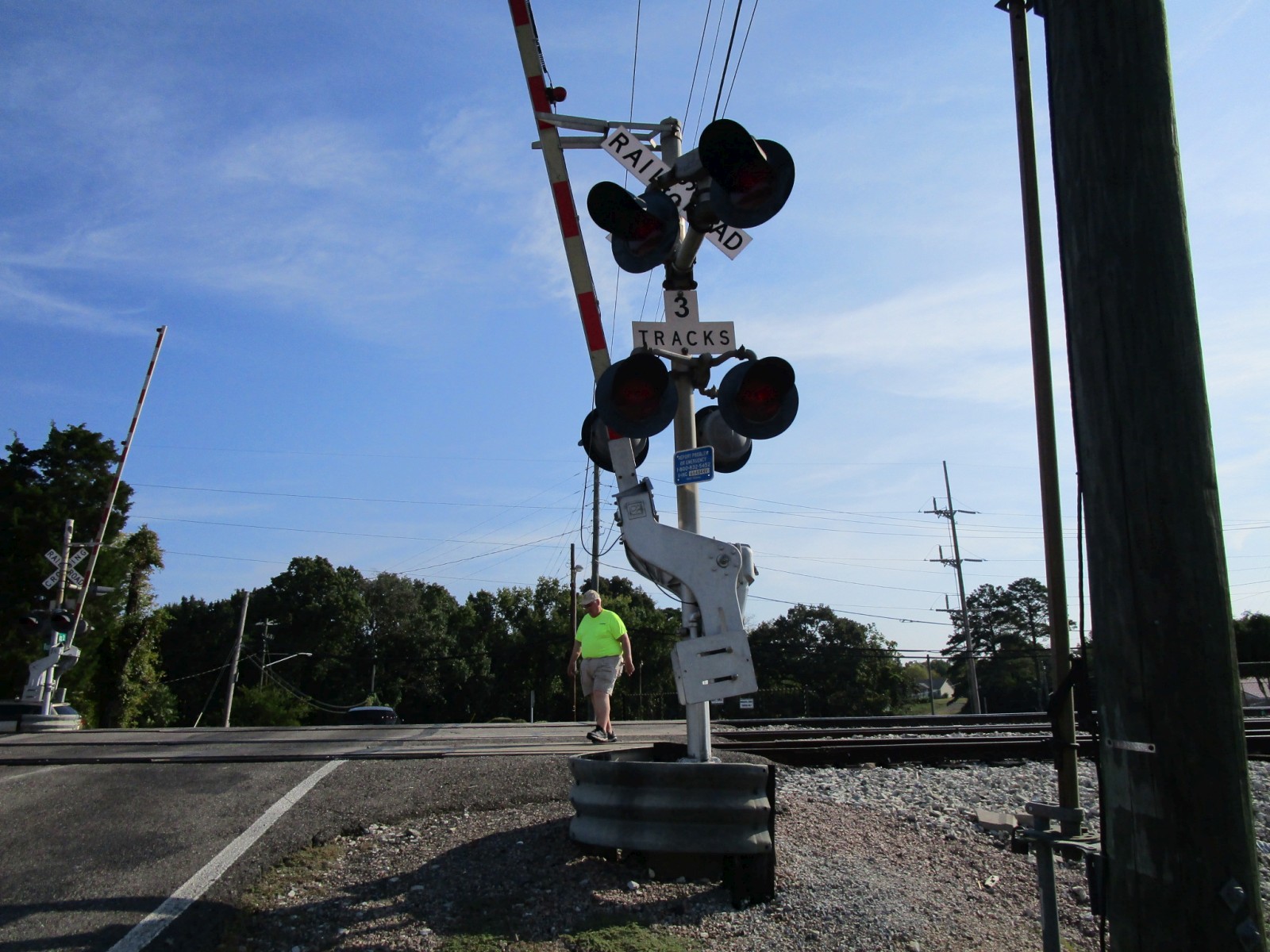

The second signal.
It has another WCH base.

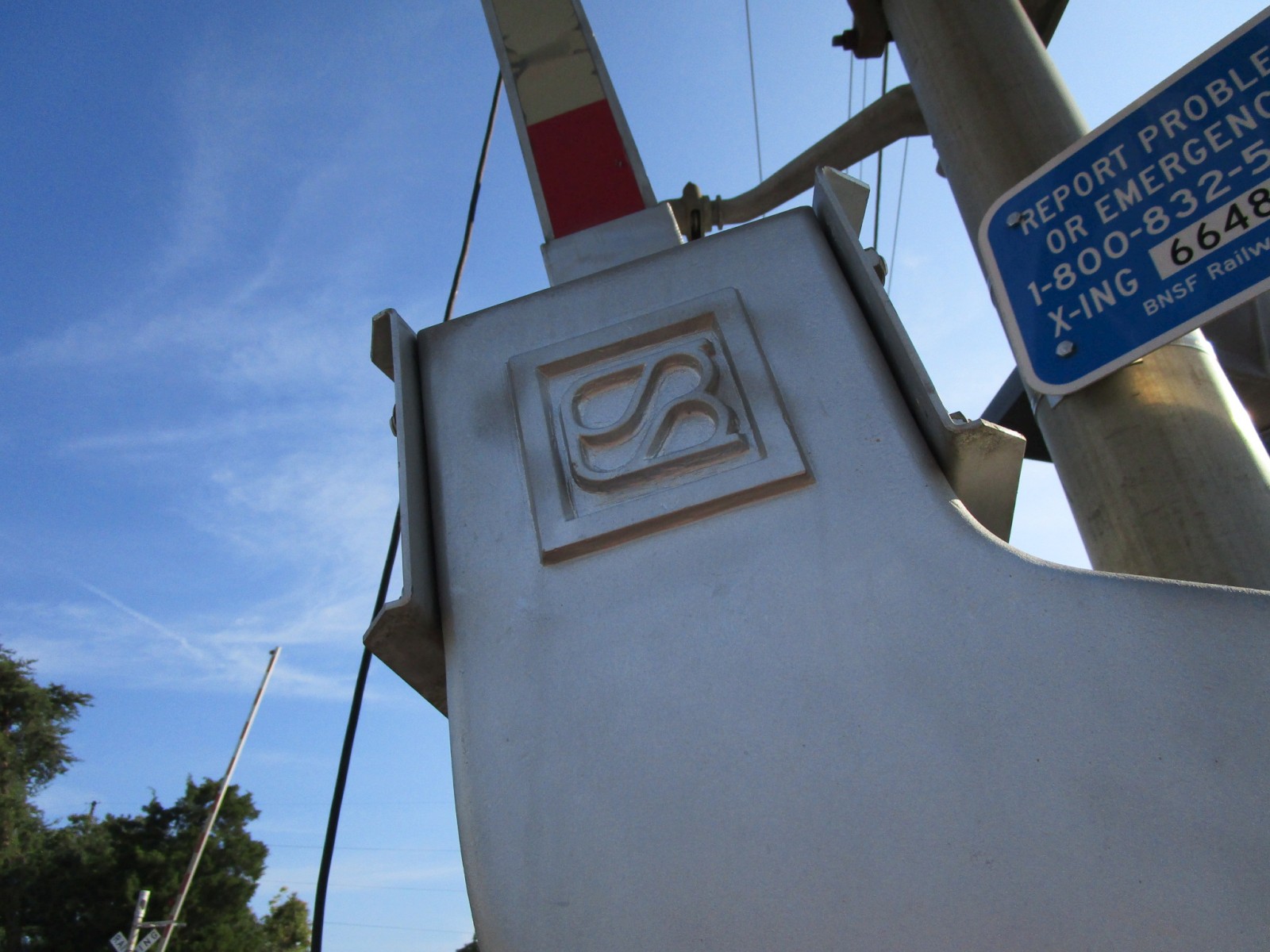

Another US&S Model 95 gate mechanism with US&S counterweight arms.

17

18

19

20

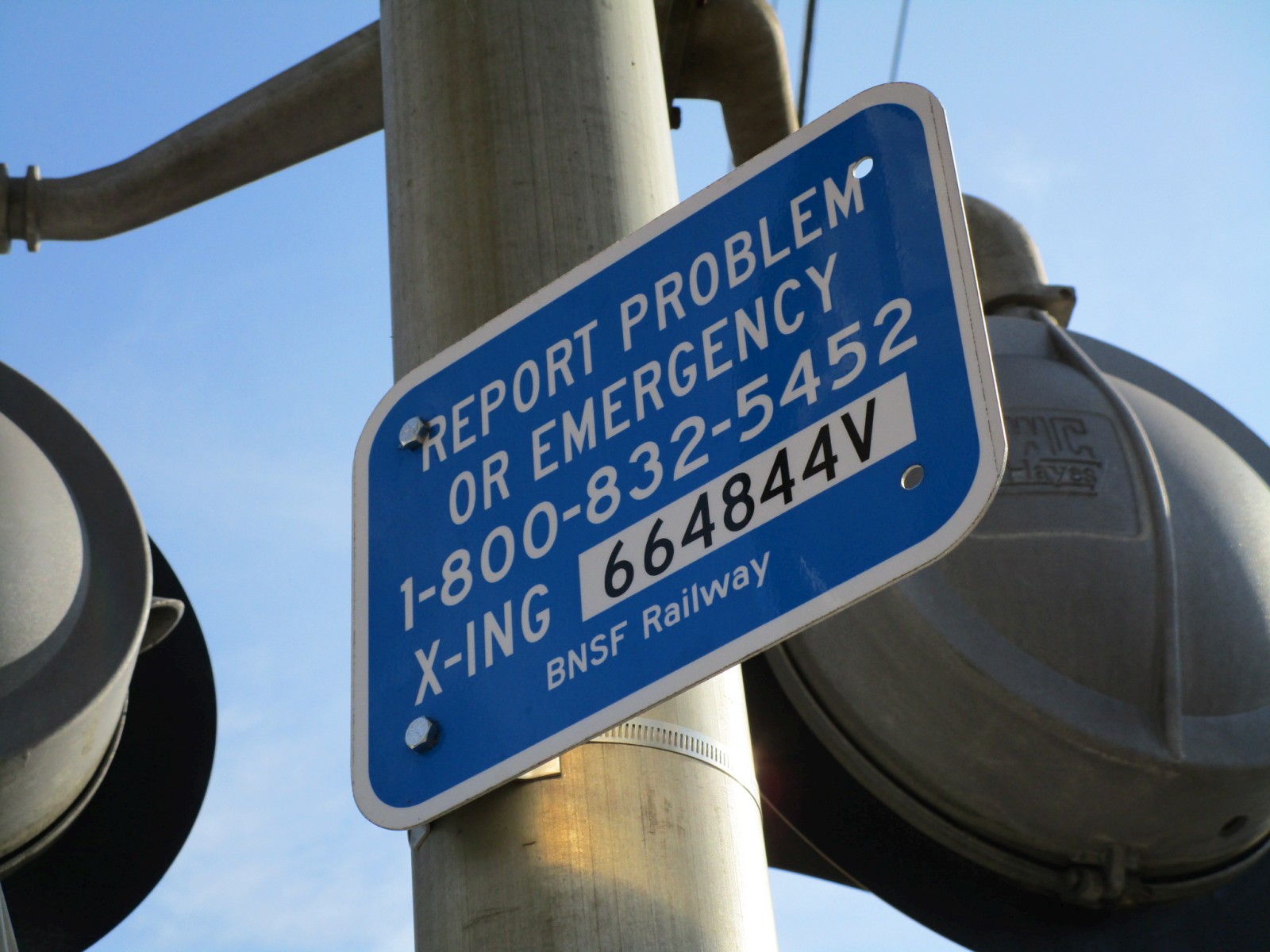

The emergency information.

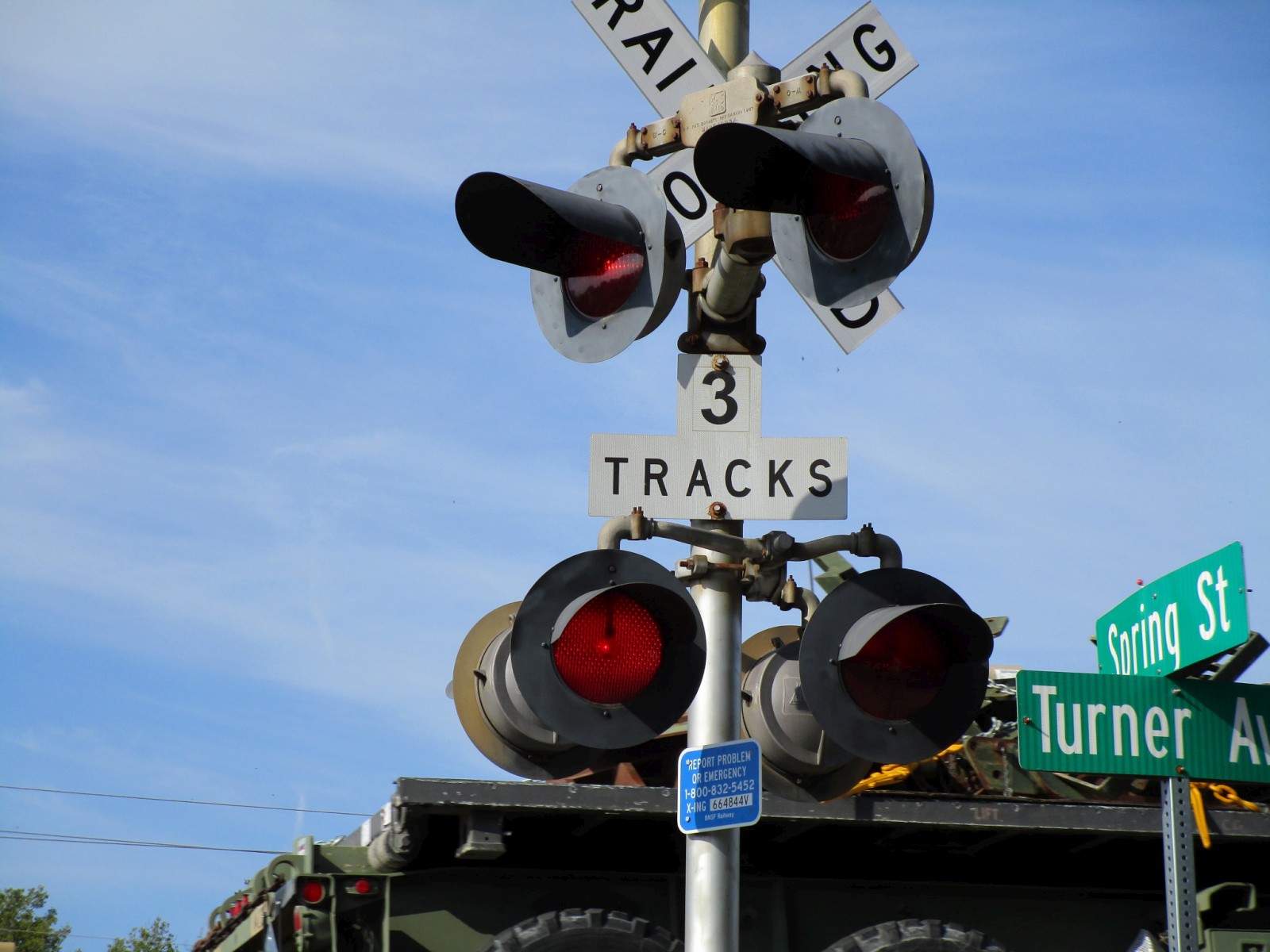

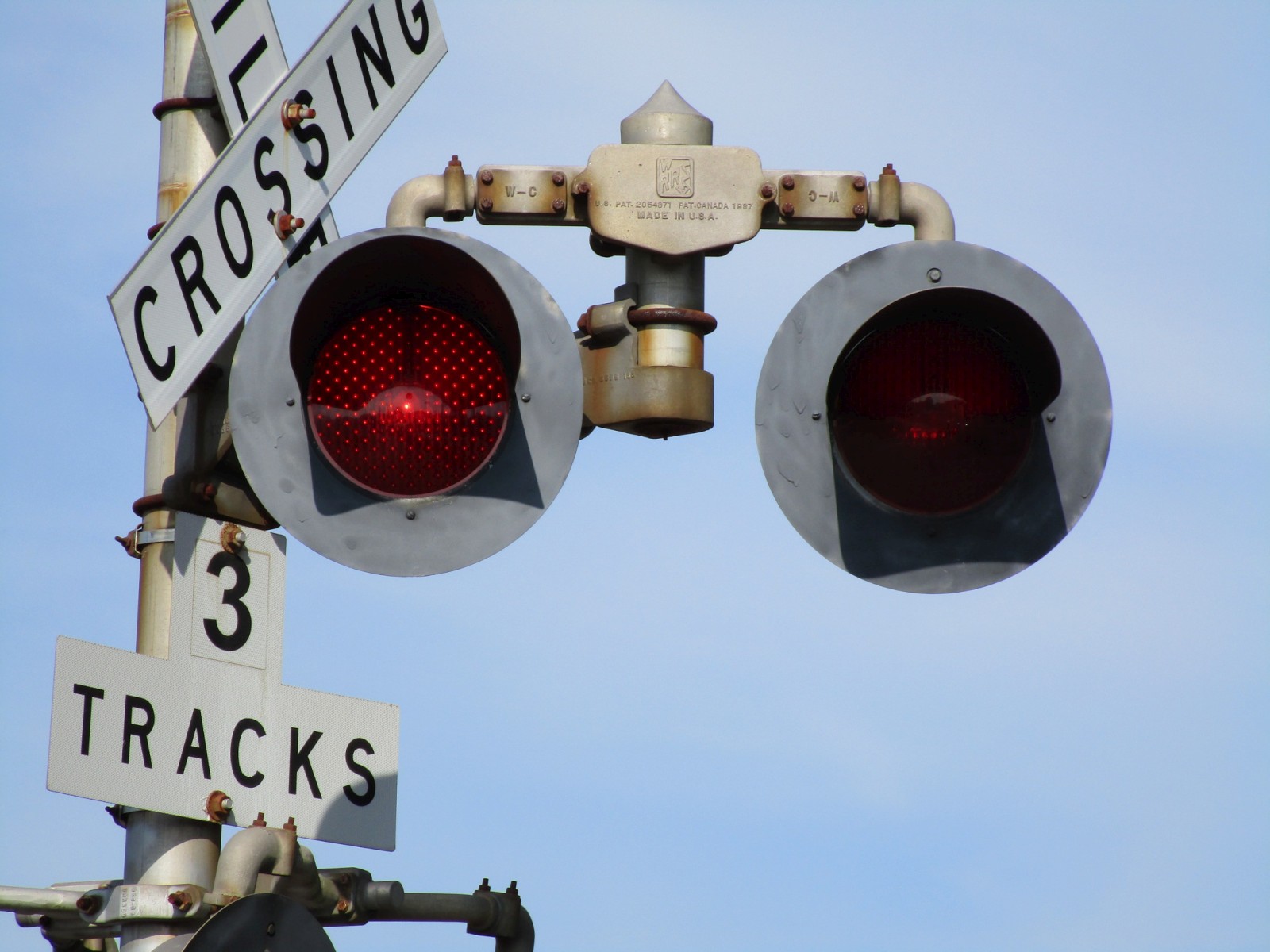

More WCH 12x20 inch lights over here!

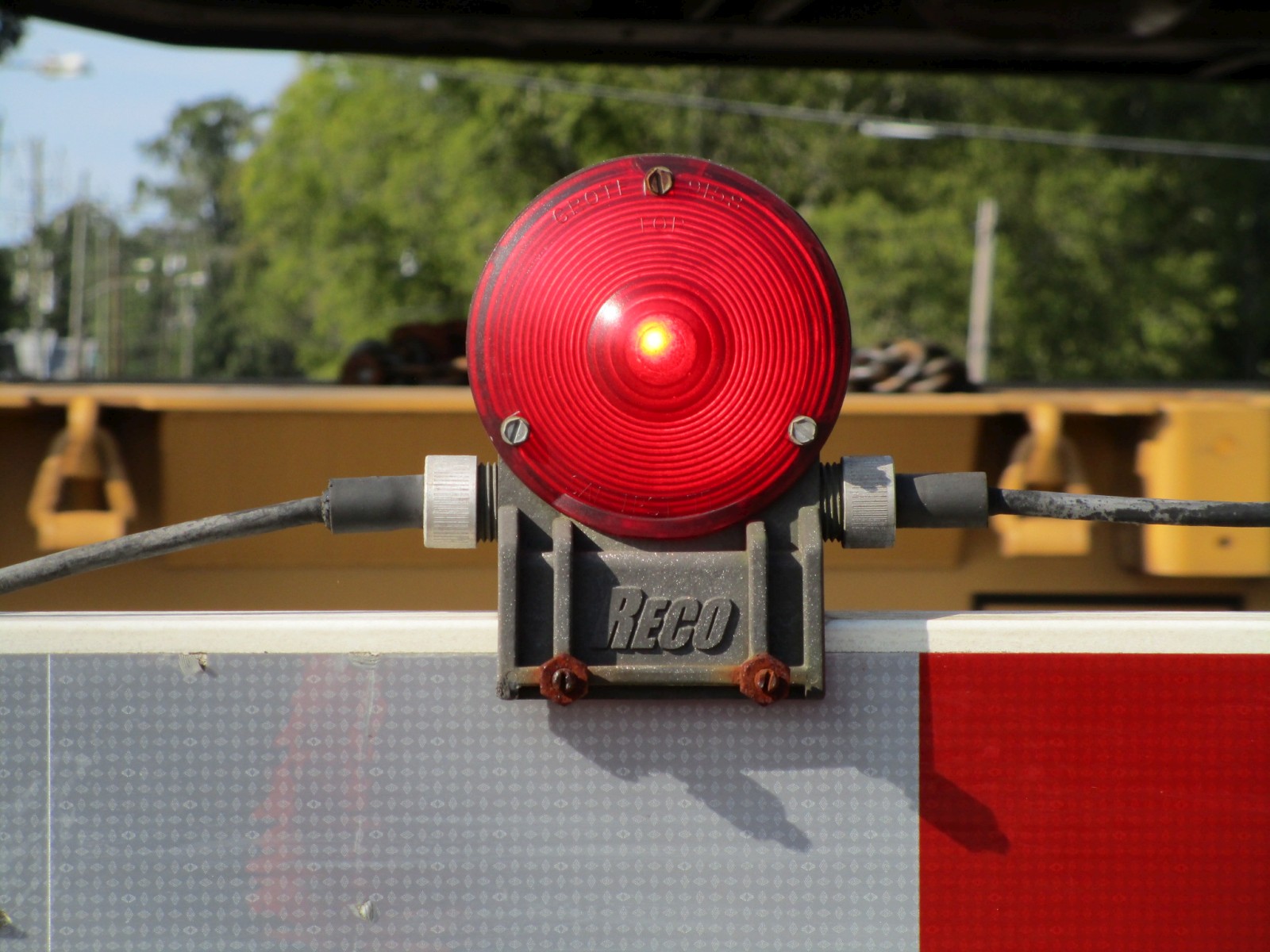

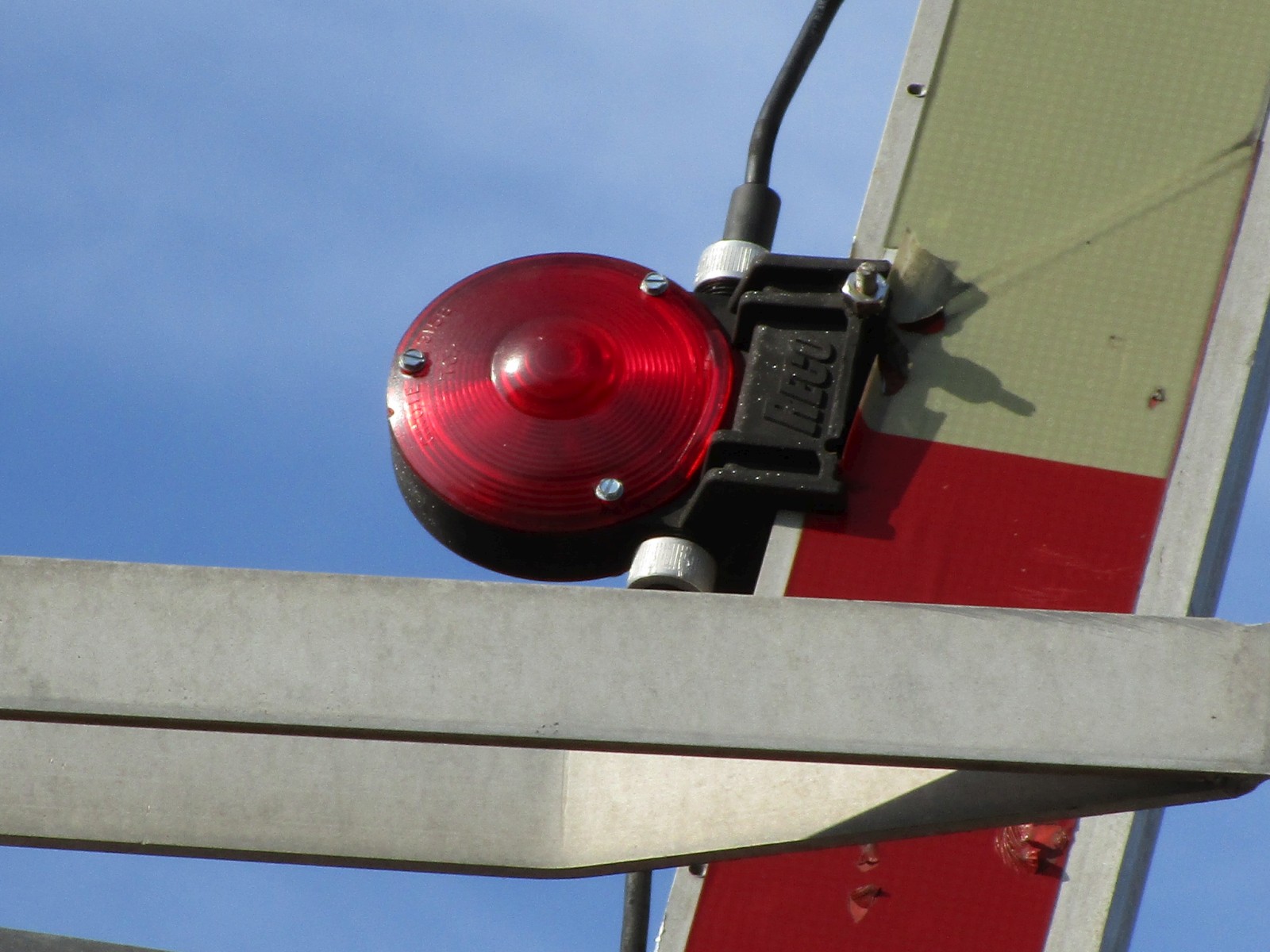

This signal has all RECO LED gate lights.

21

22

23

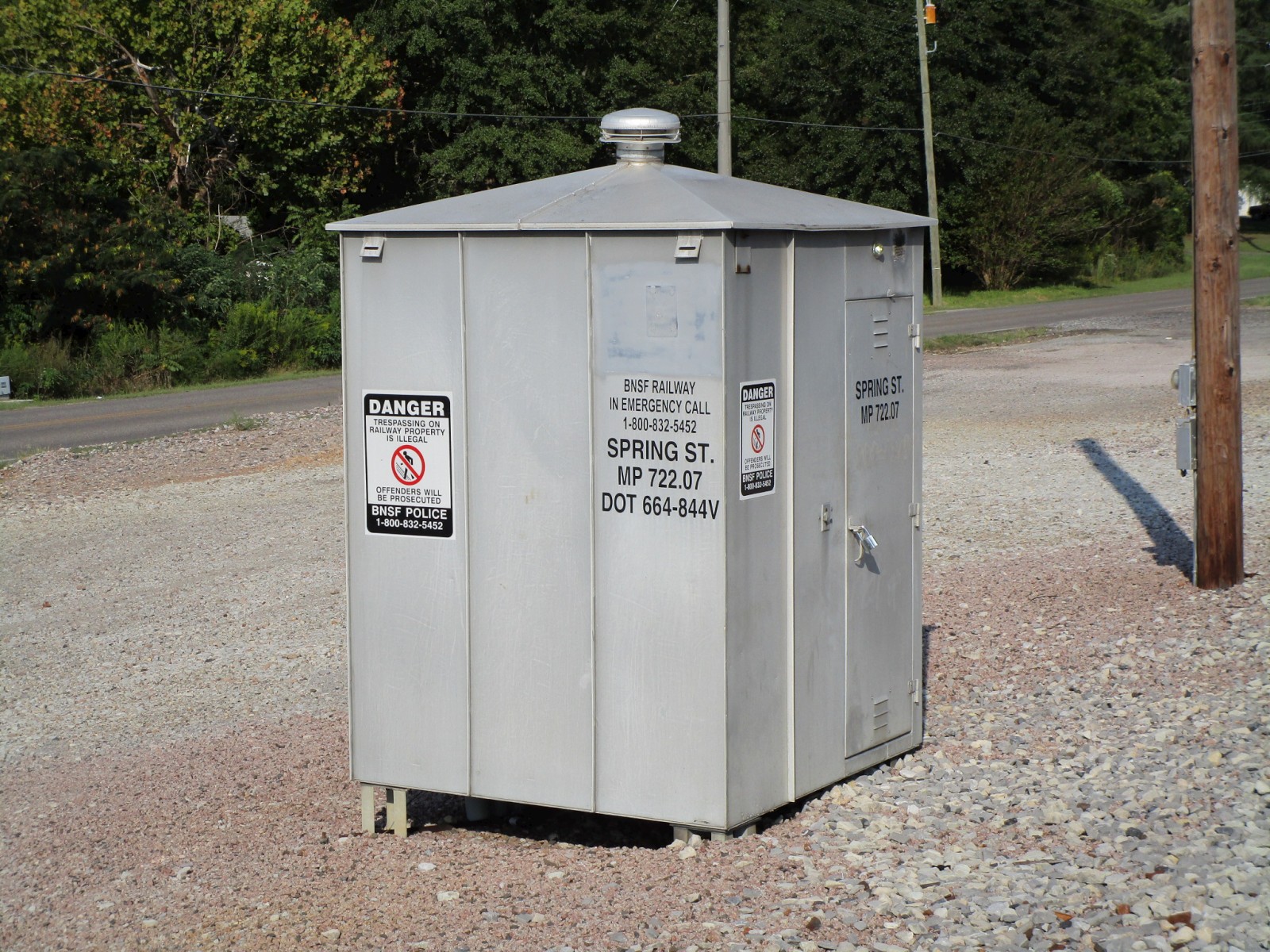

The relay case.

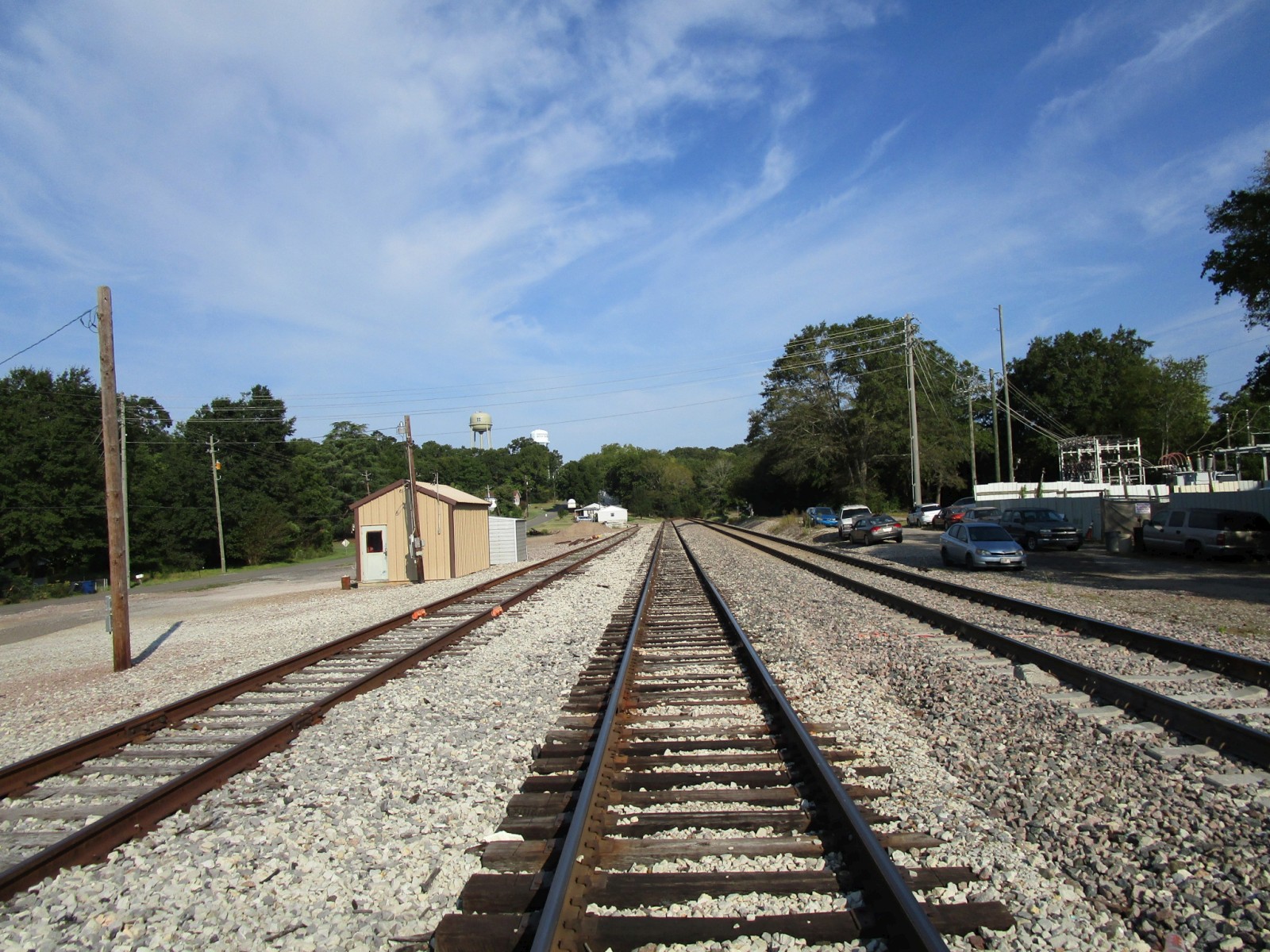

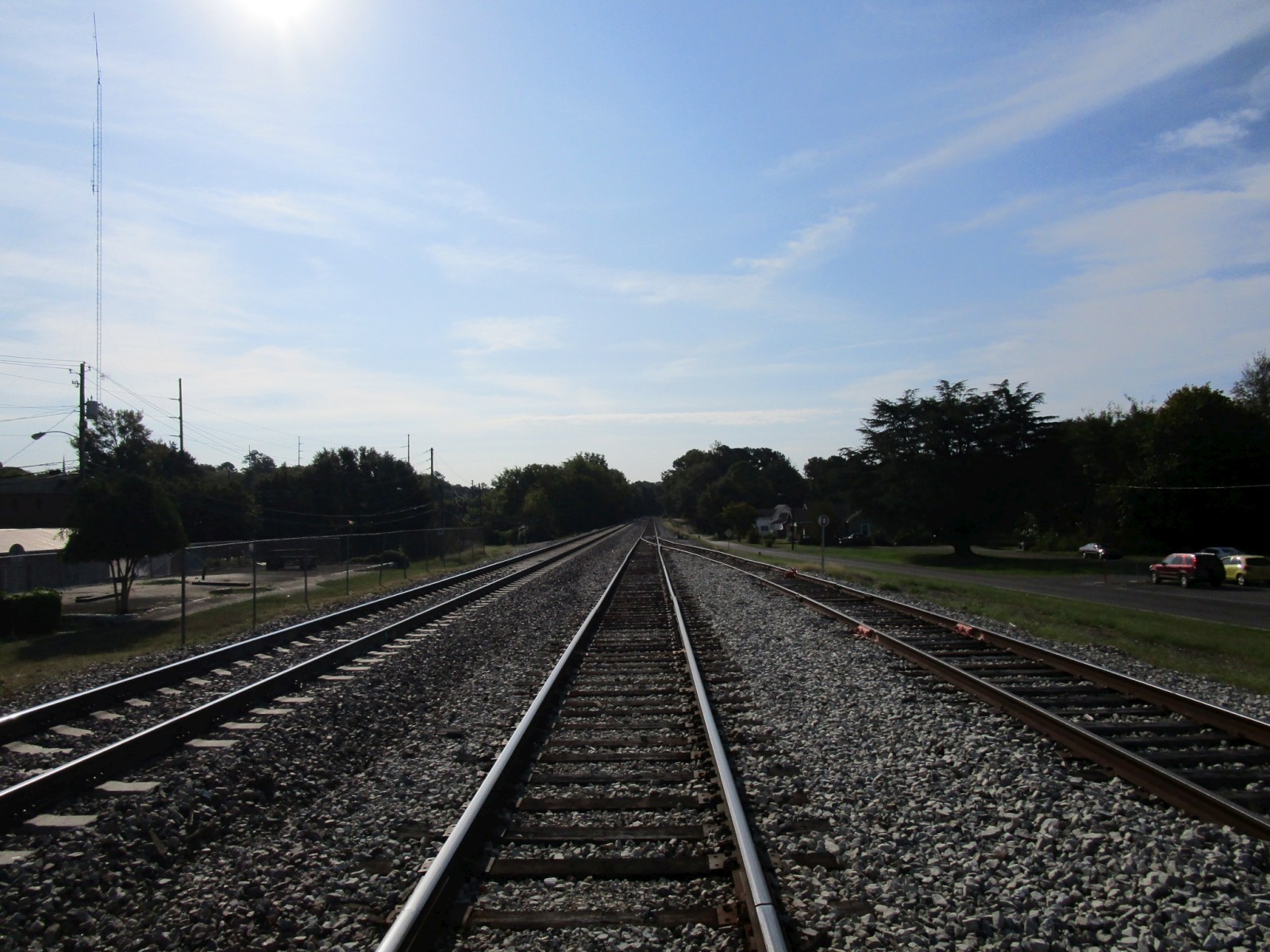

Looking northwest towards Quinton Road in Quinton.
Looking southeast towards Poplar Lane.

24

25

26

27

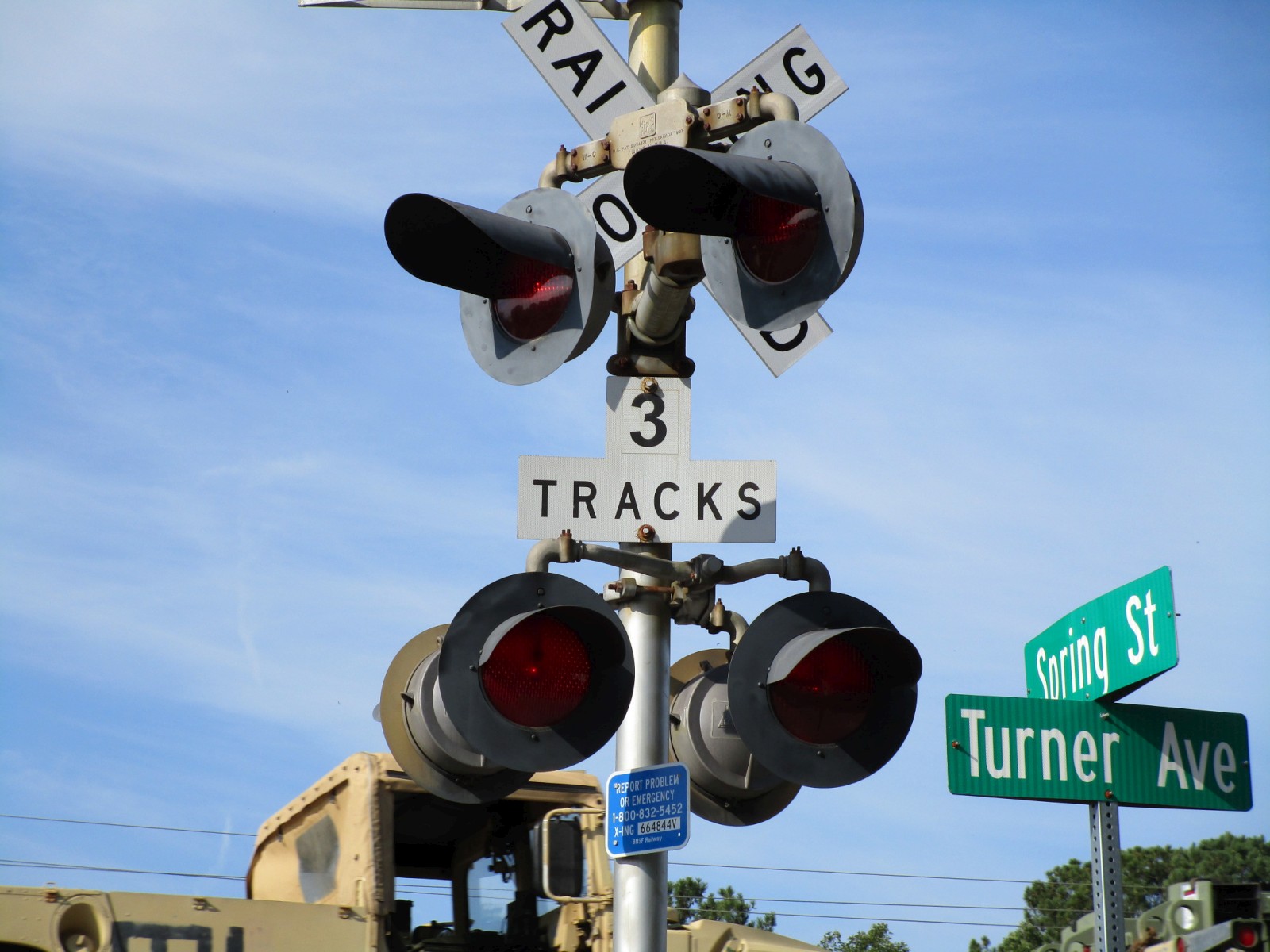

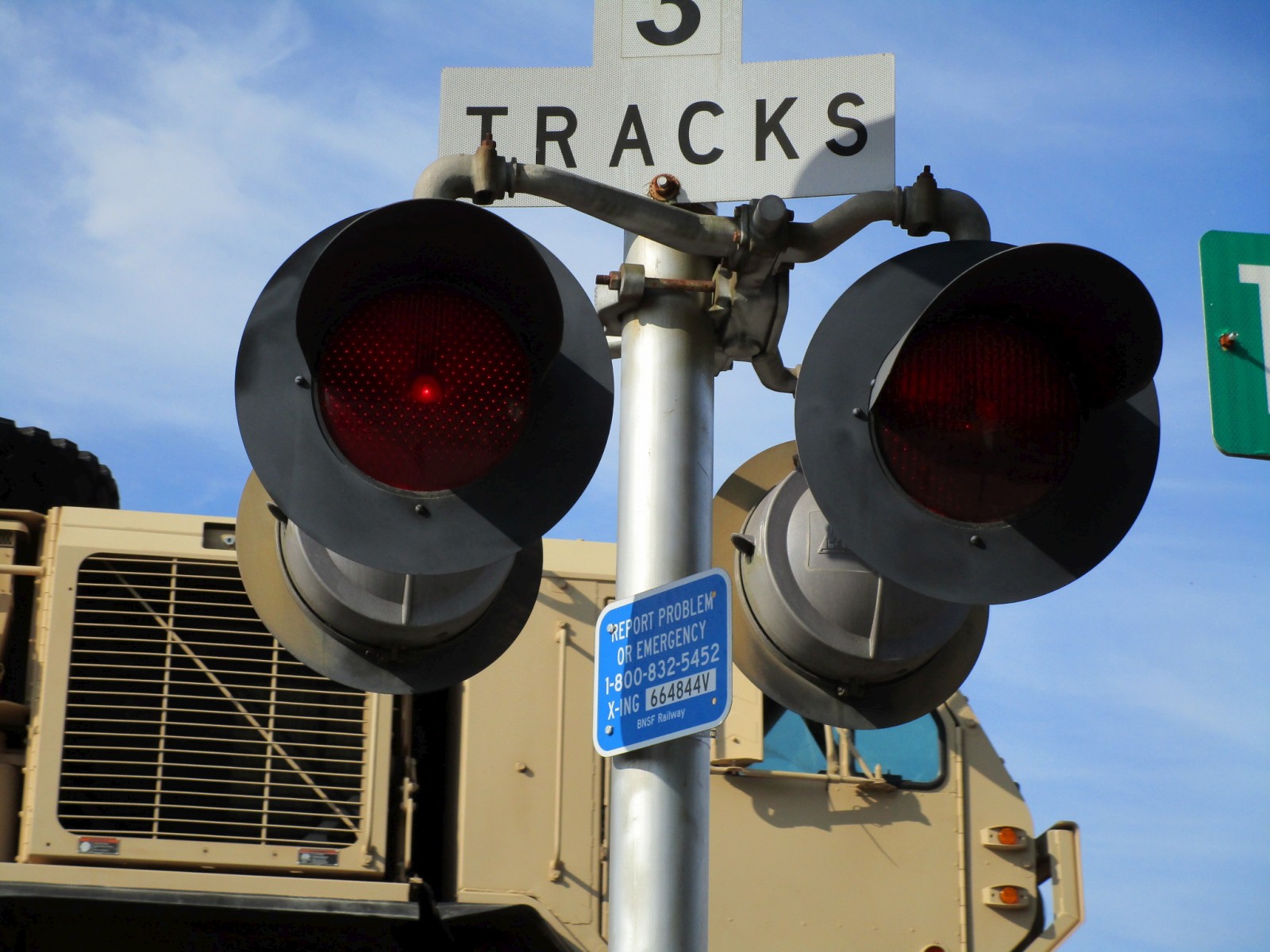

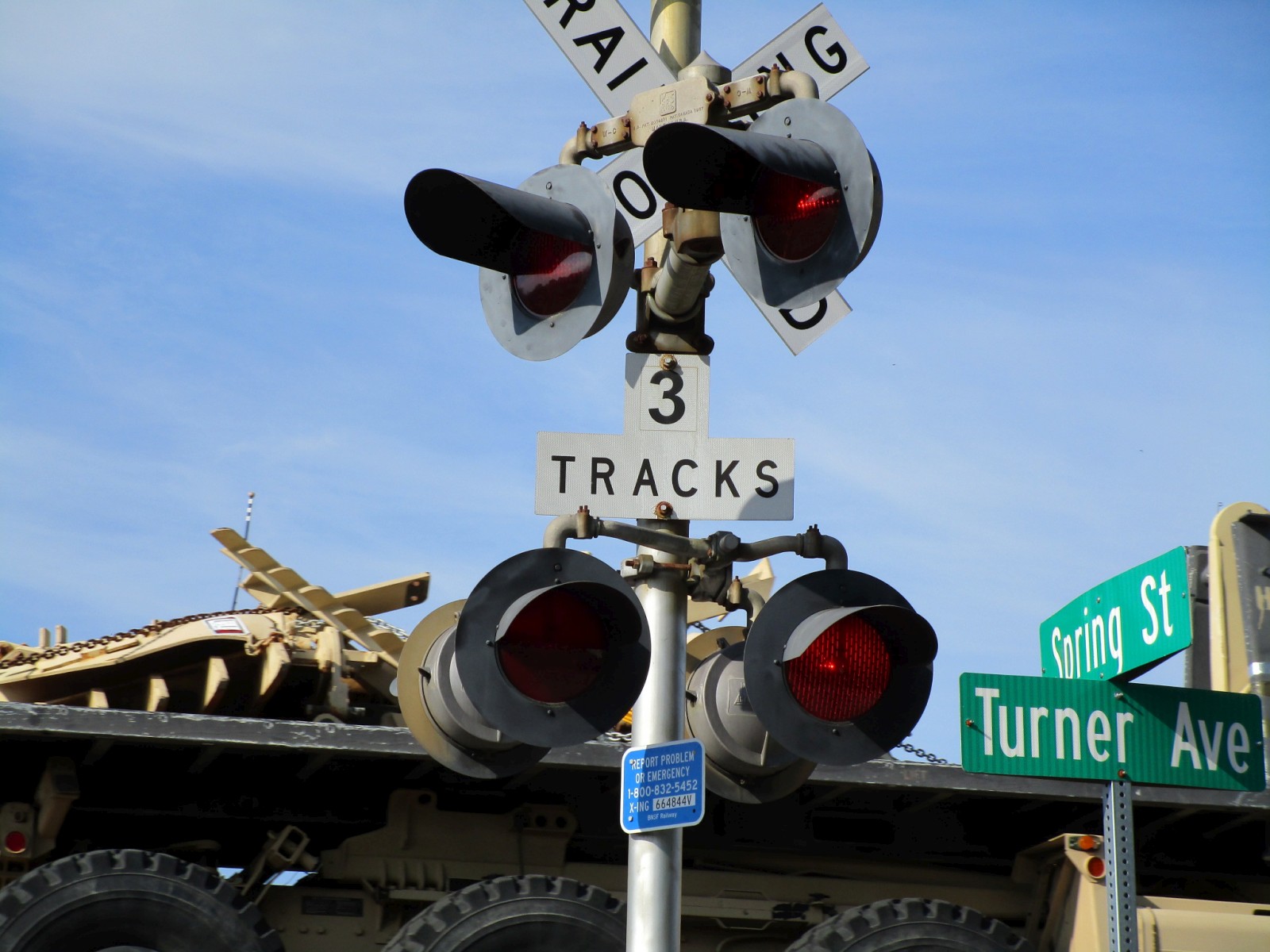

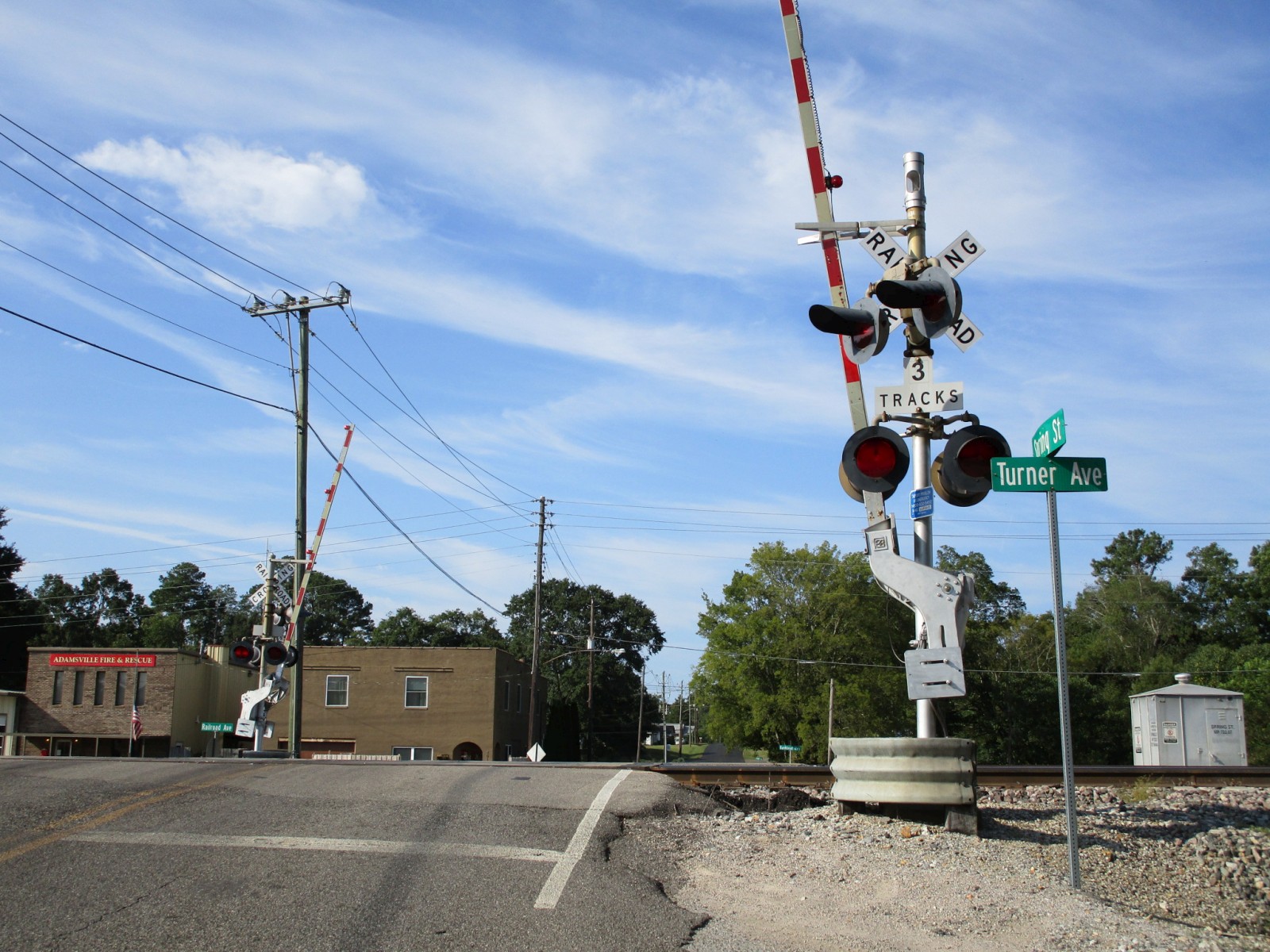

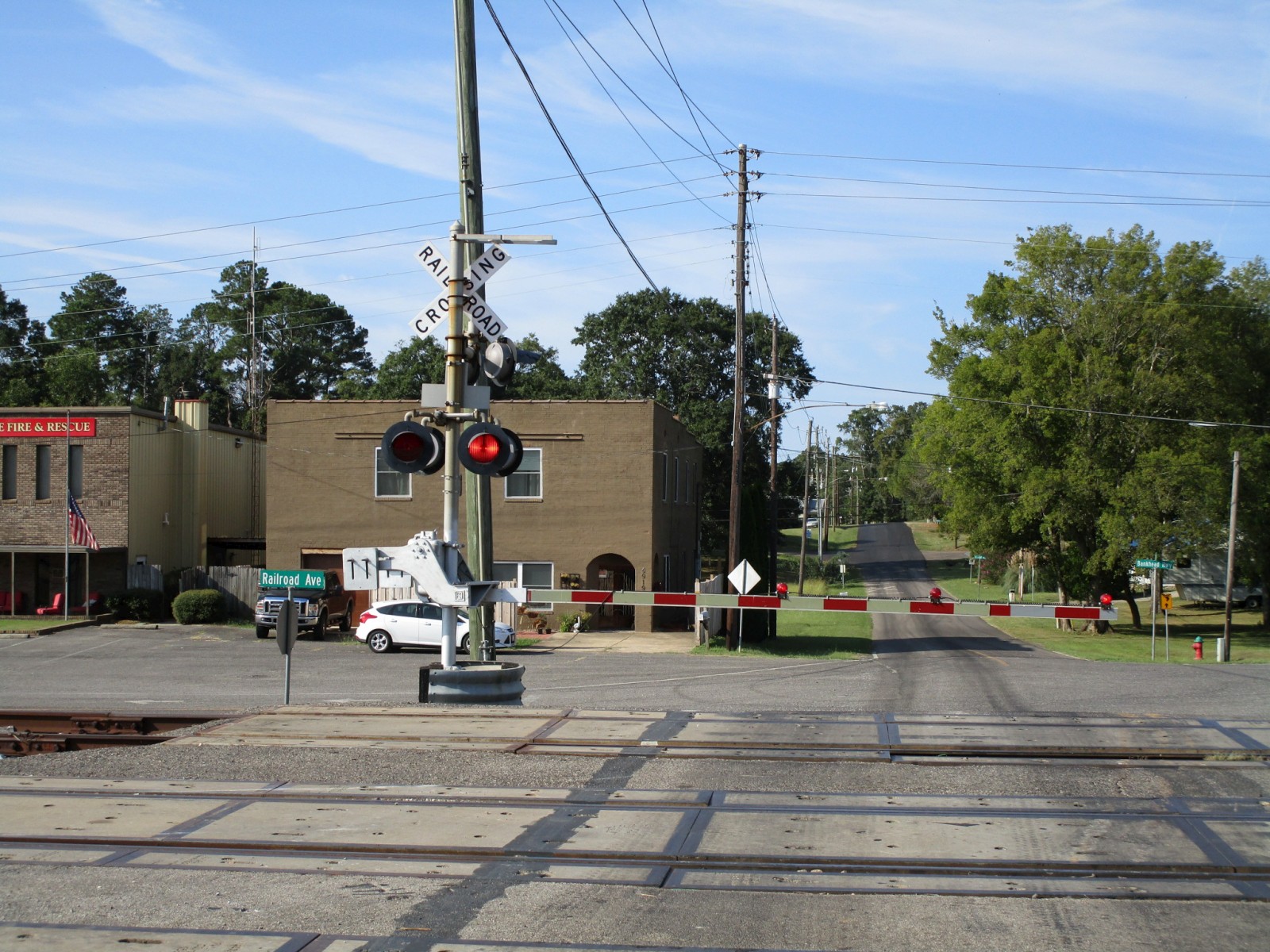

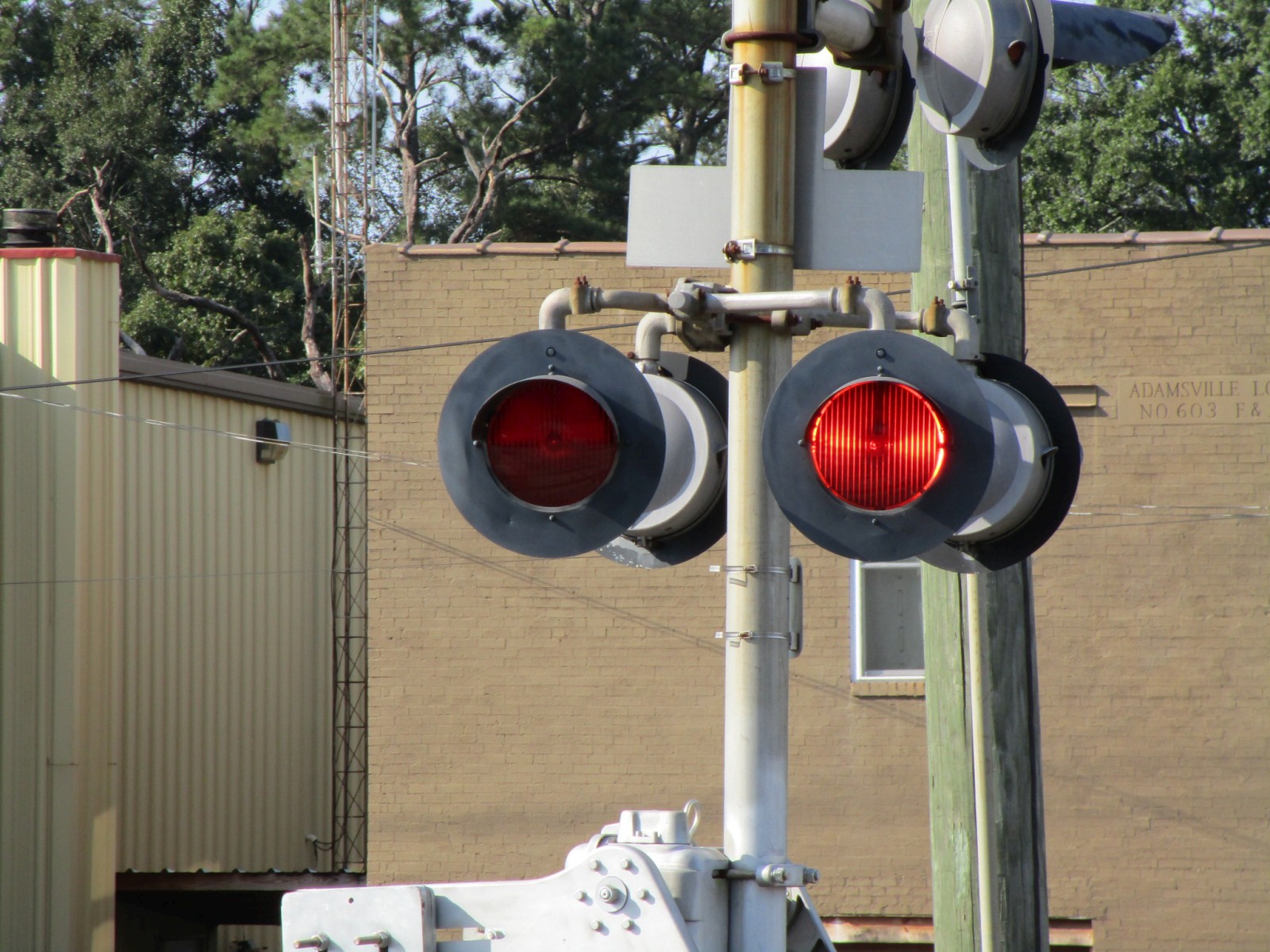

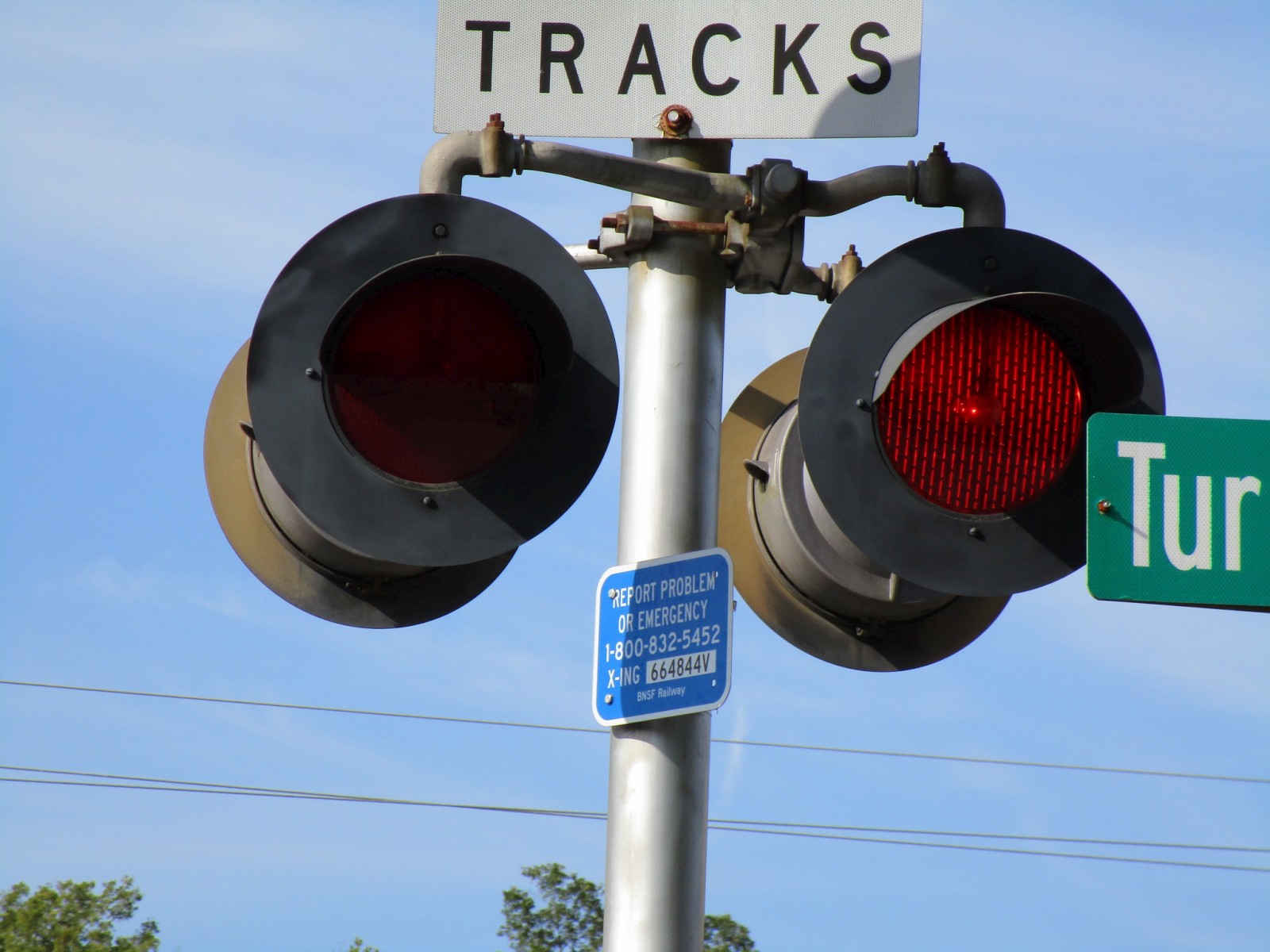

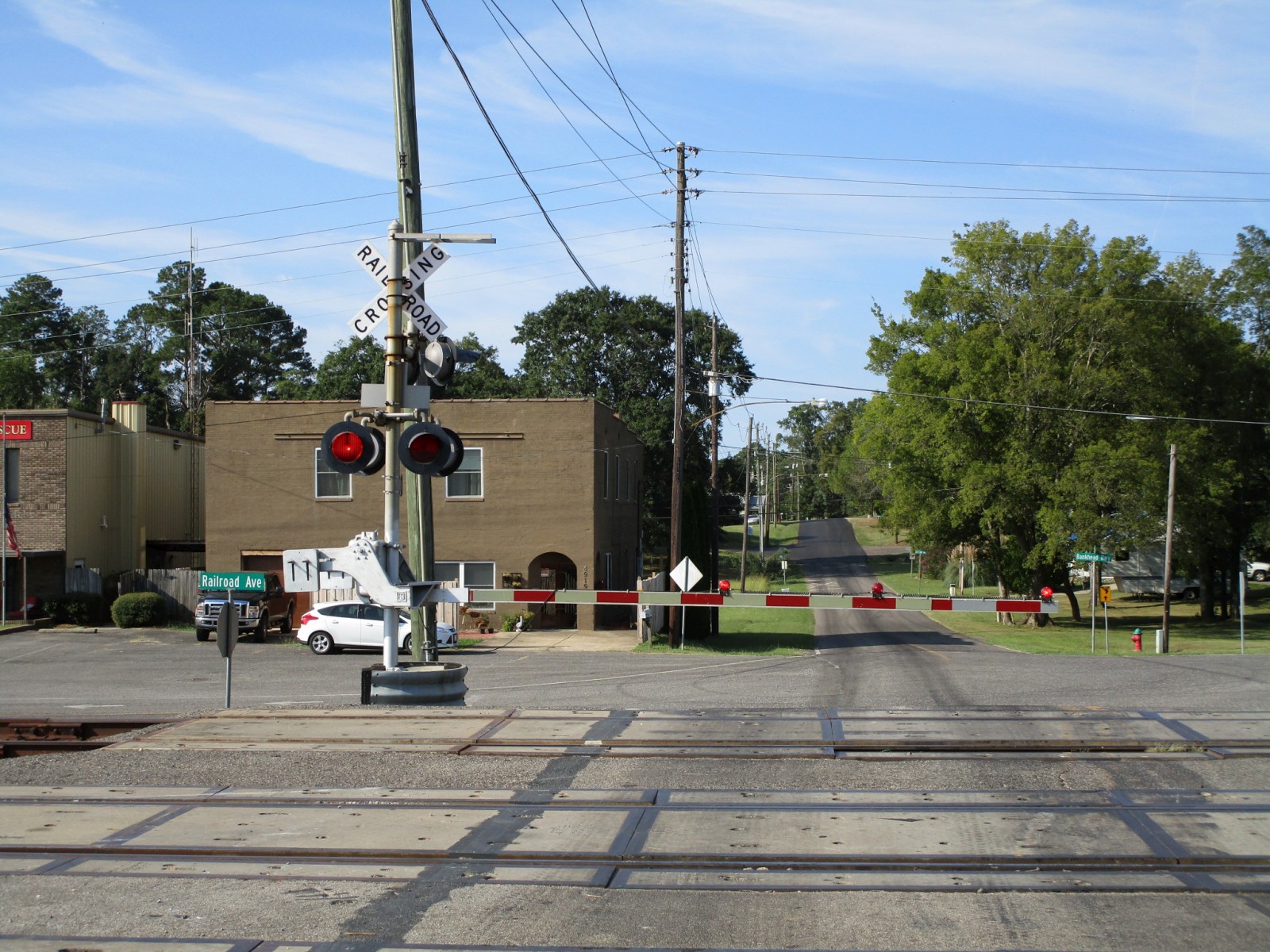

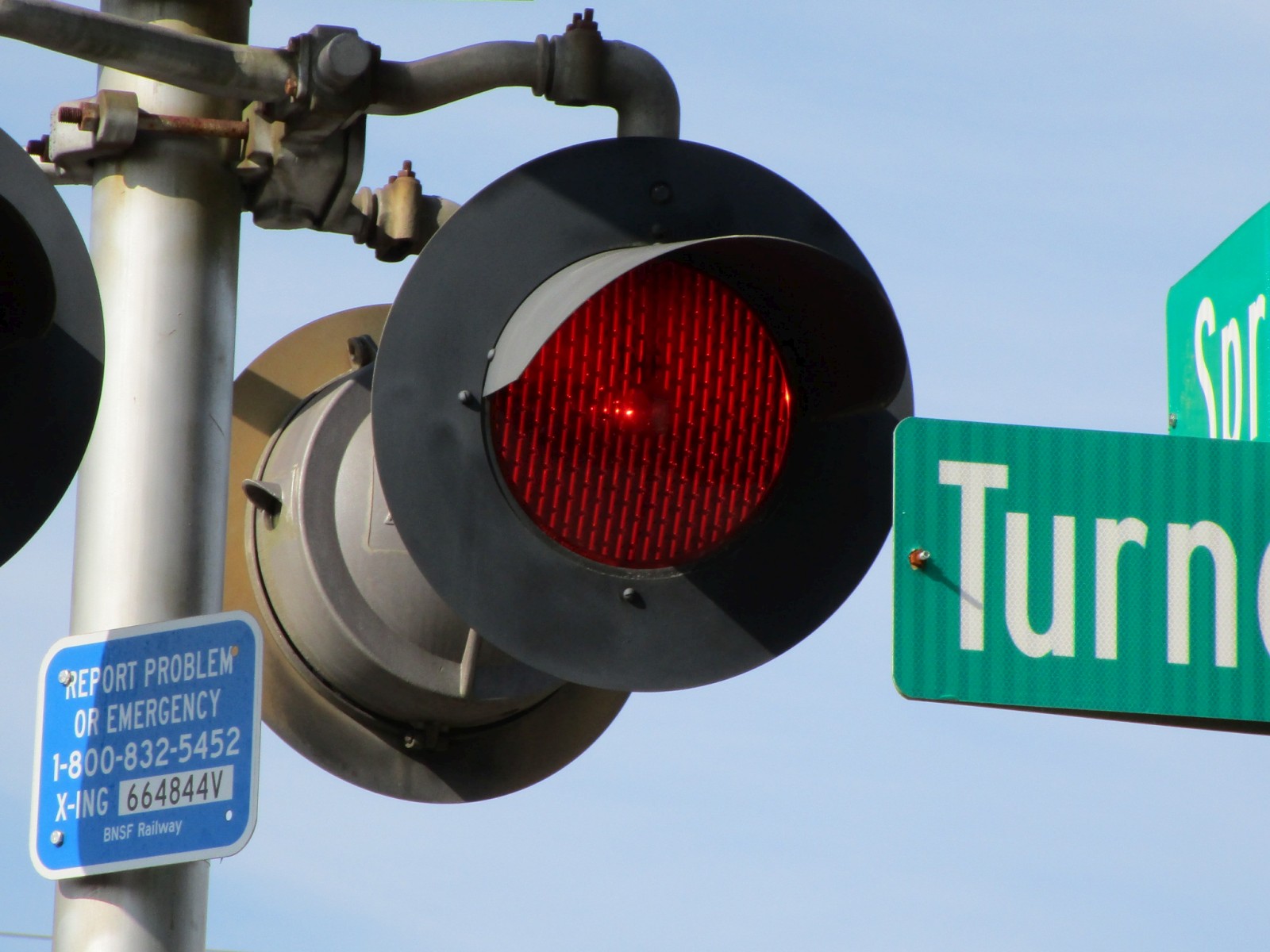

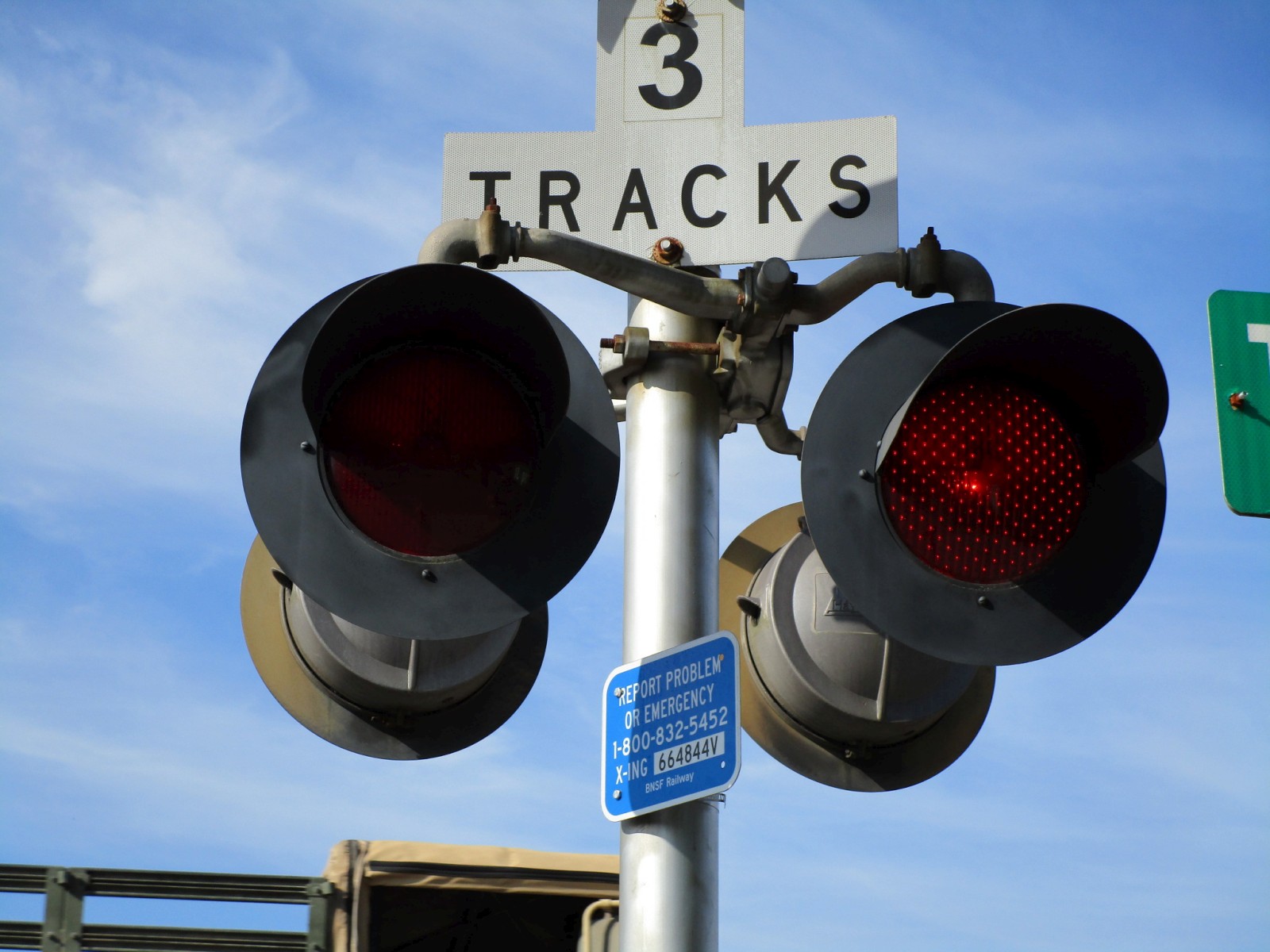

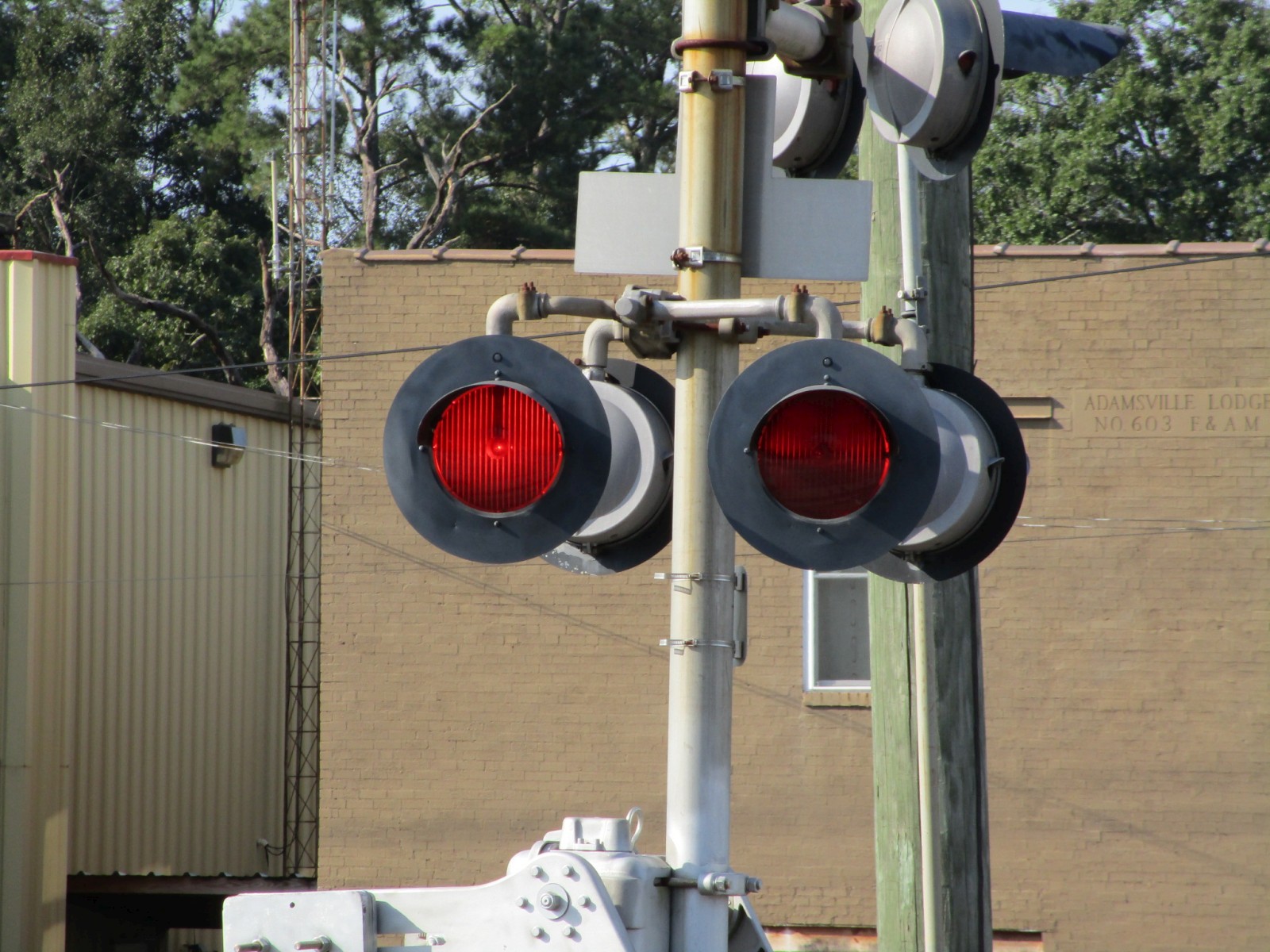

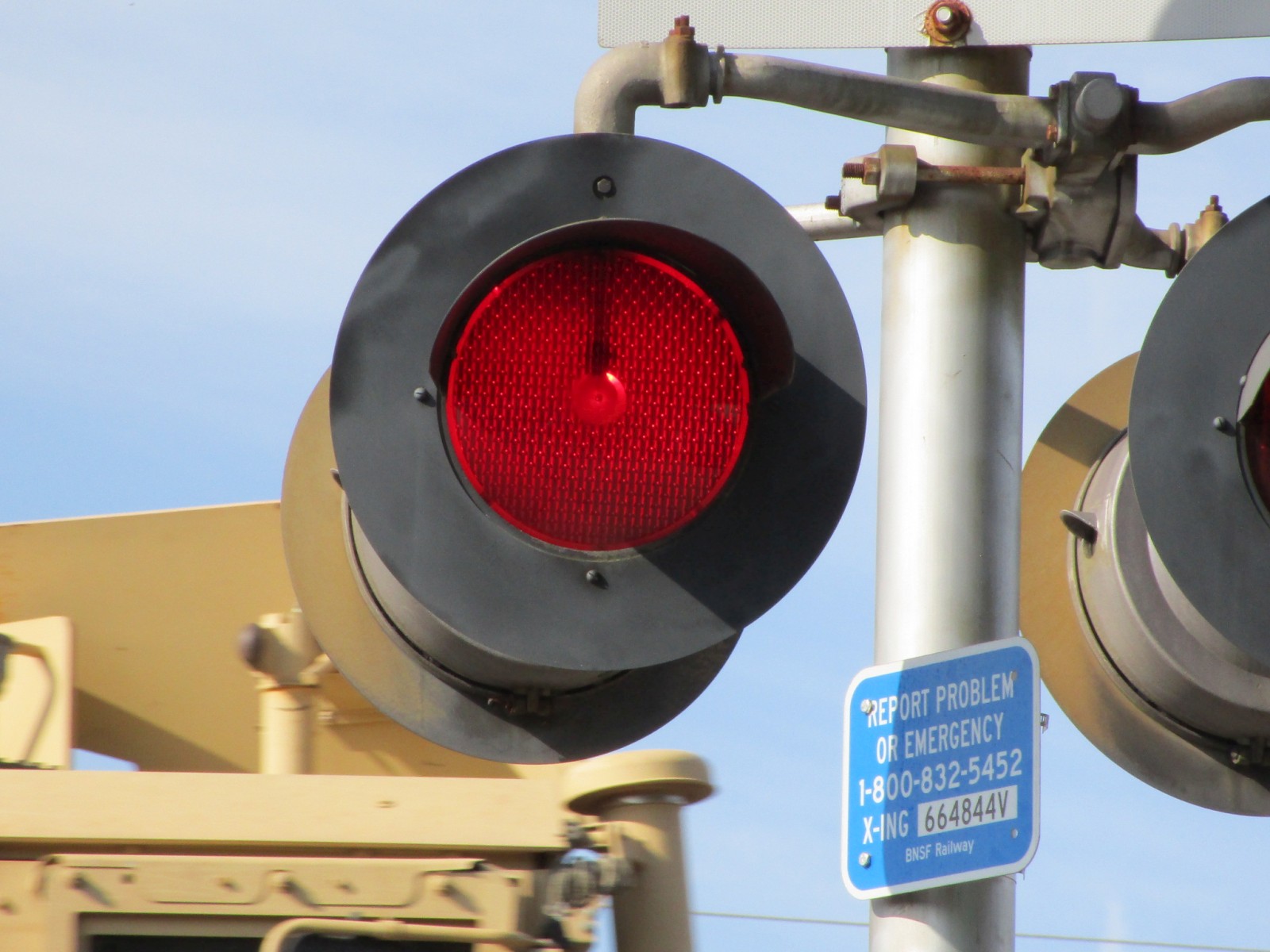

The crossing activates!

28

29

30

31

32

33

34

35

36

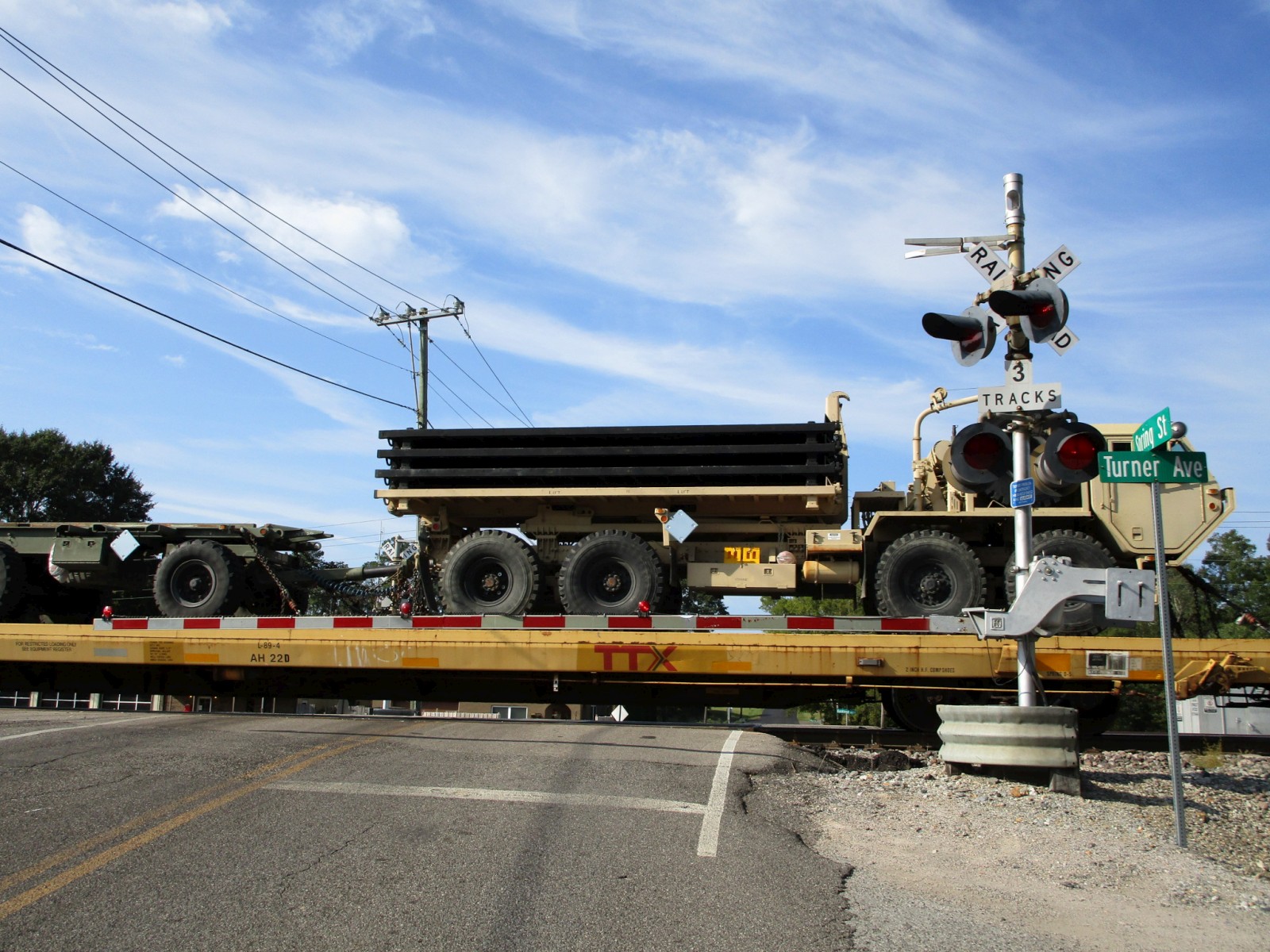

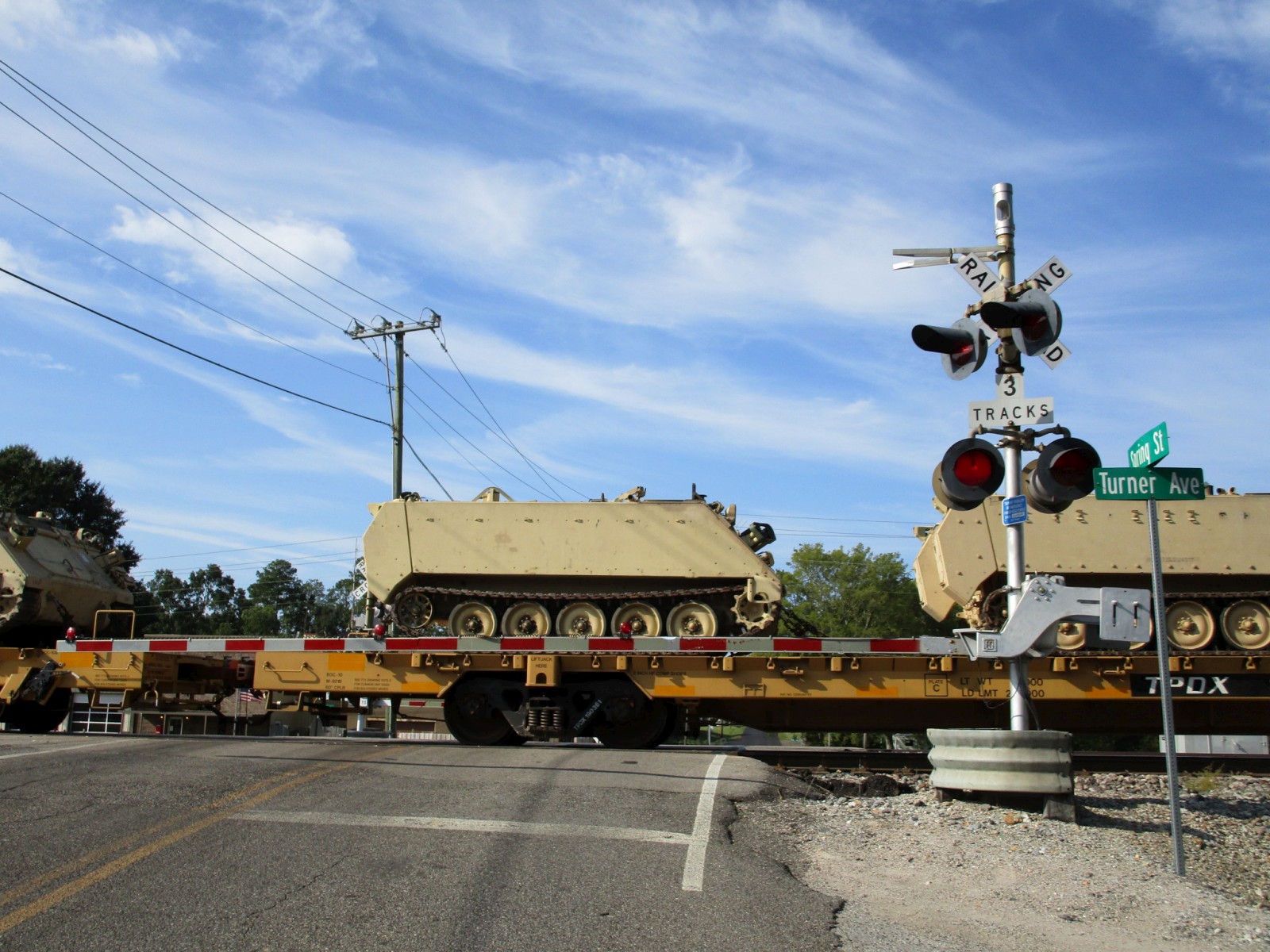

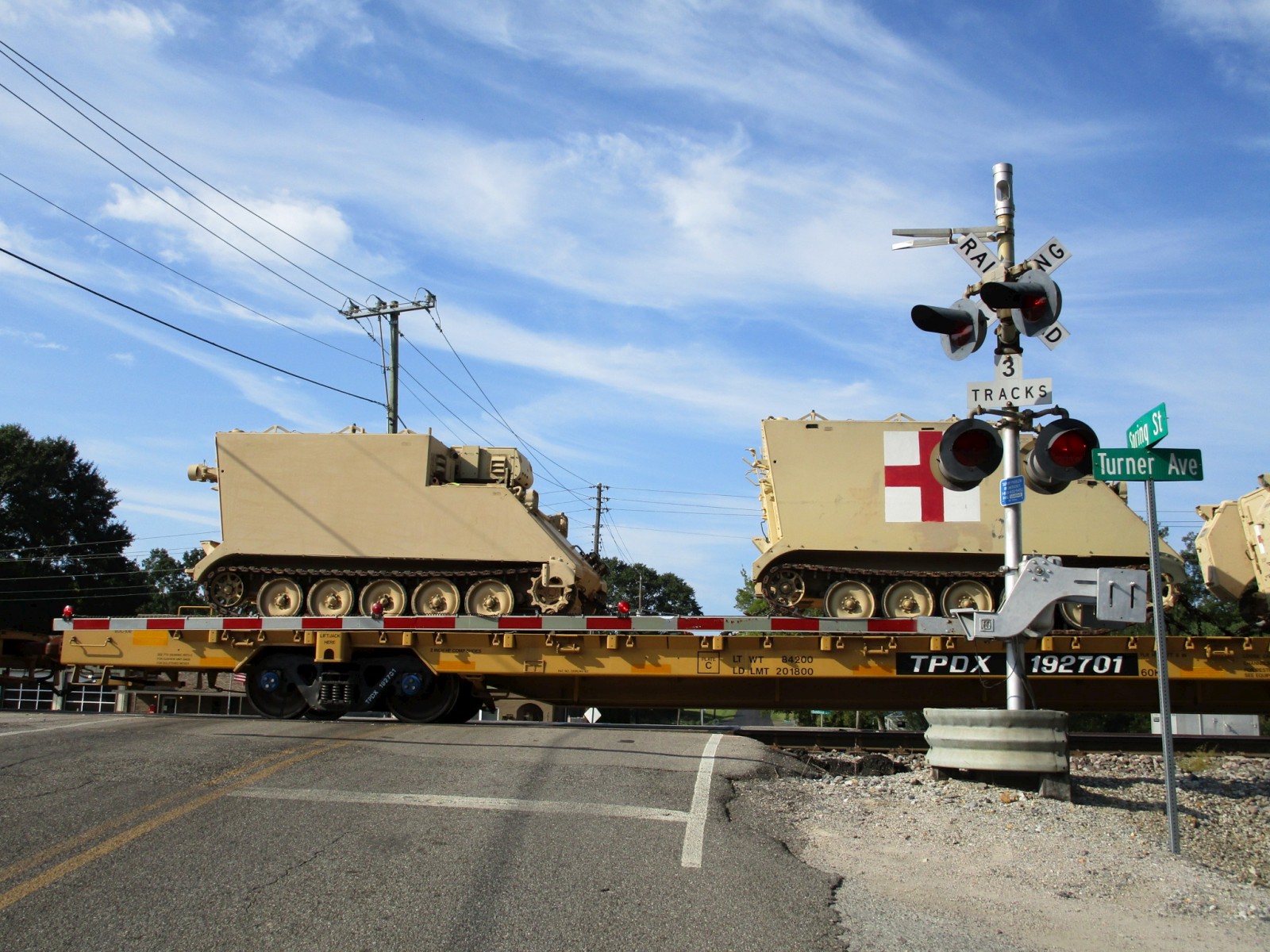

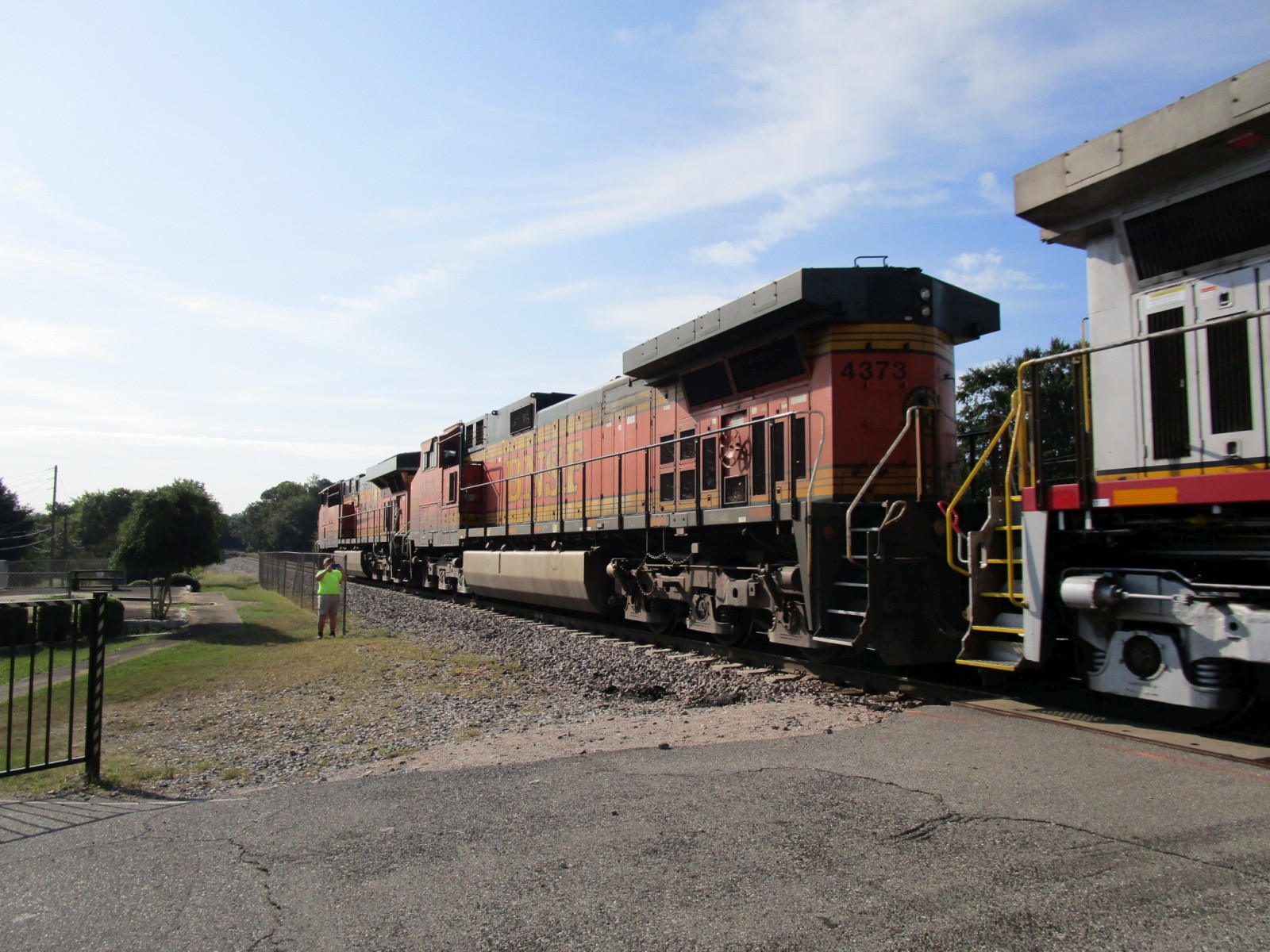

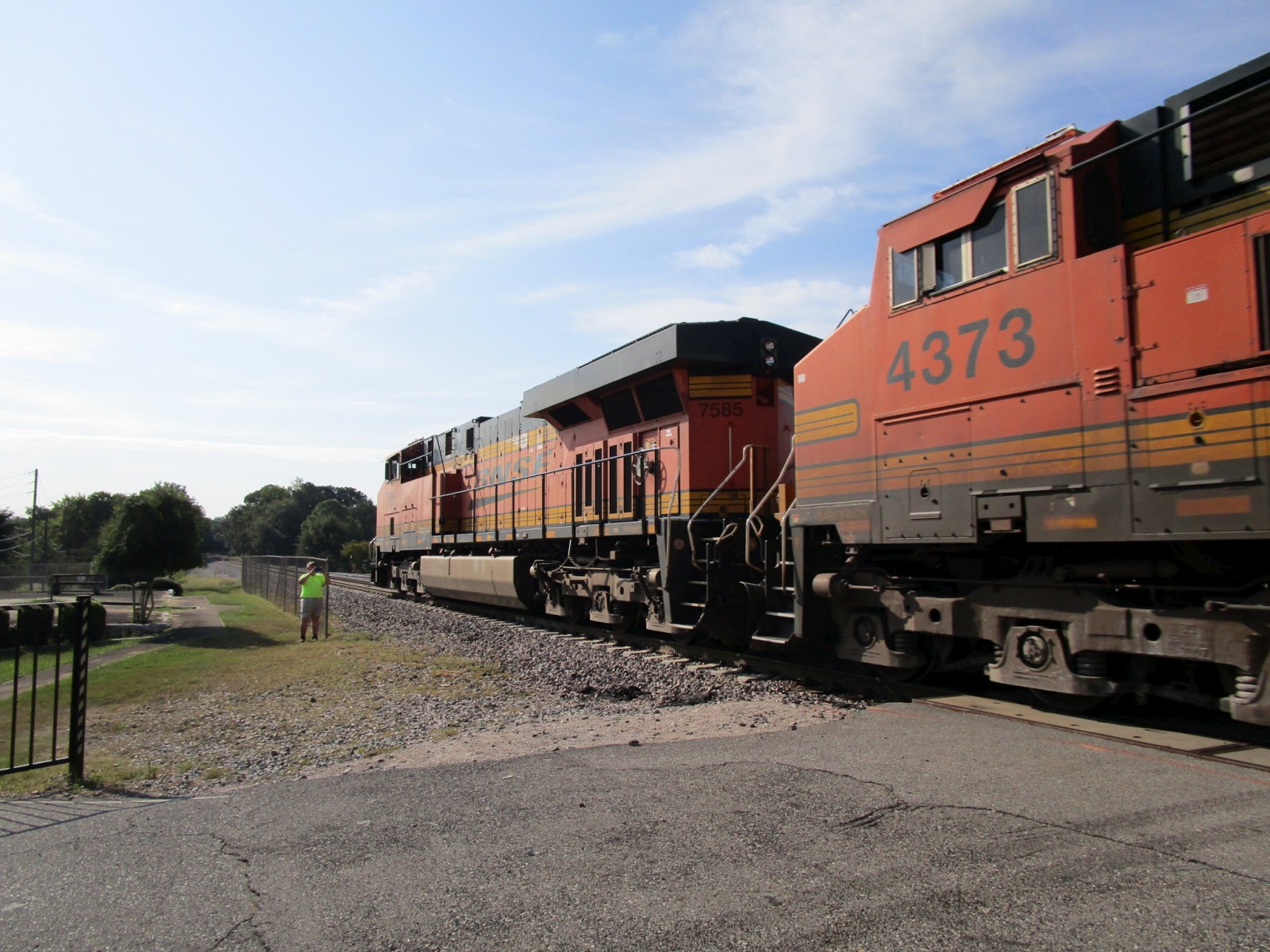

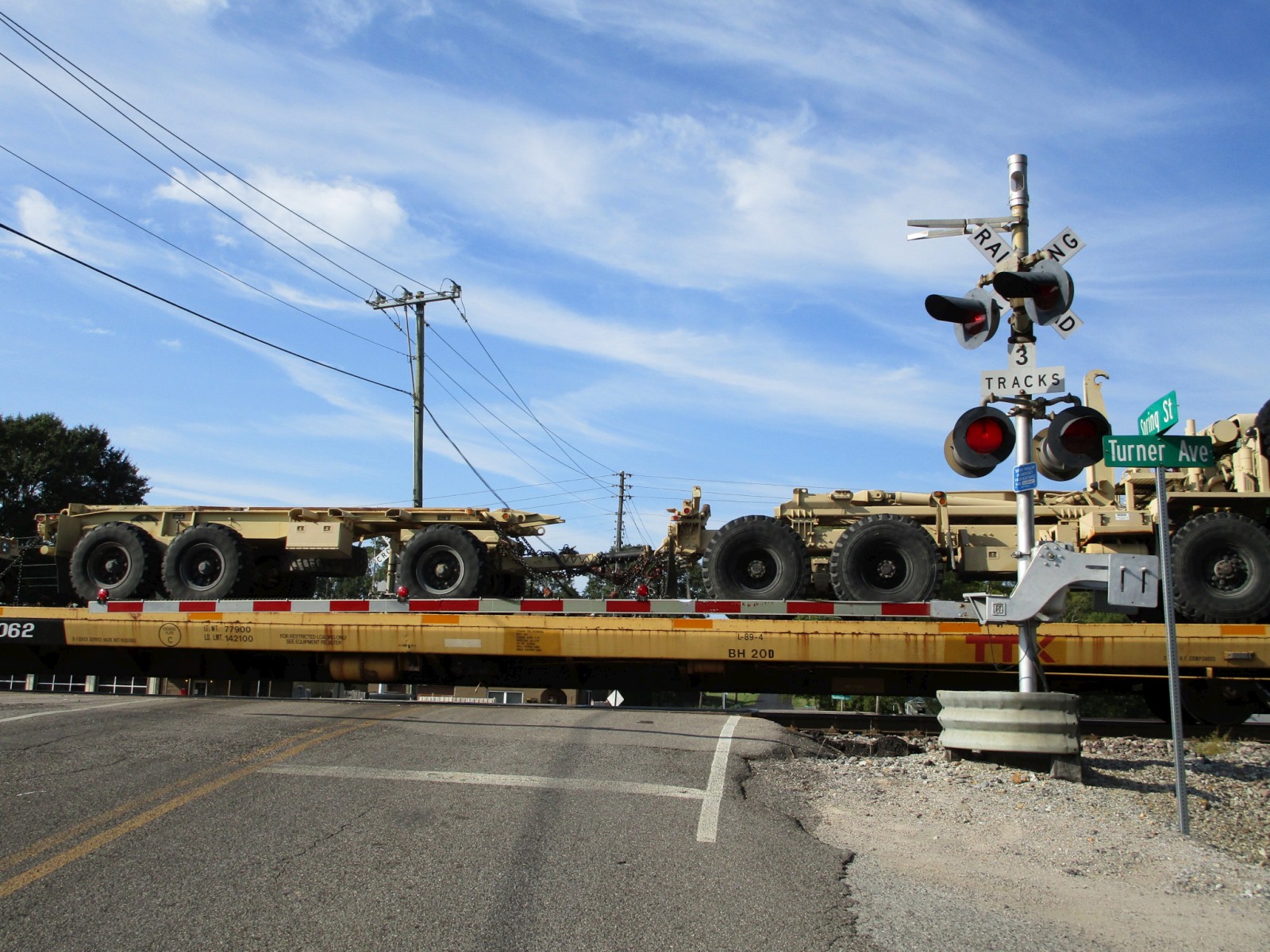

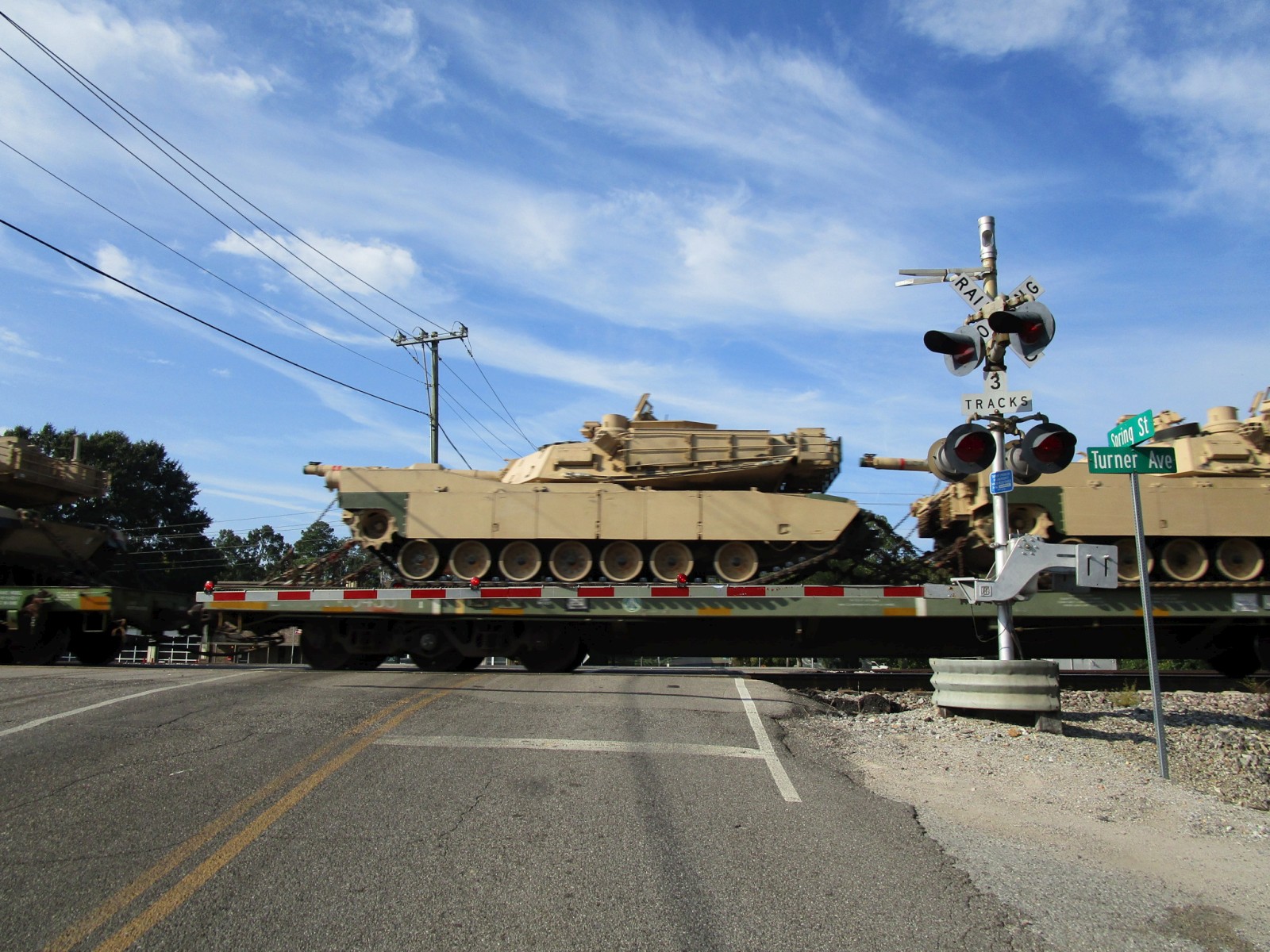

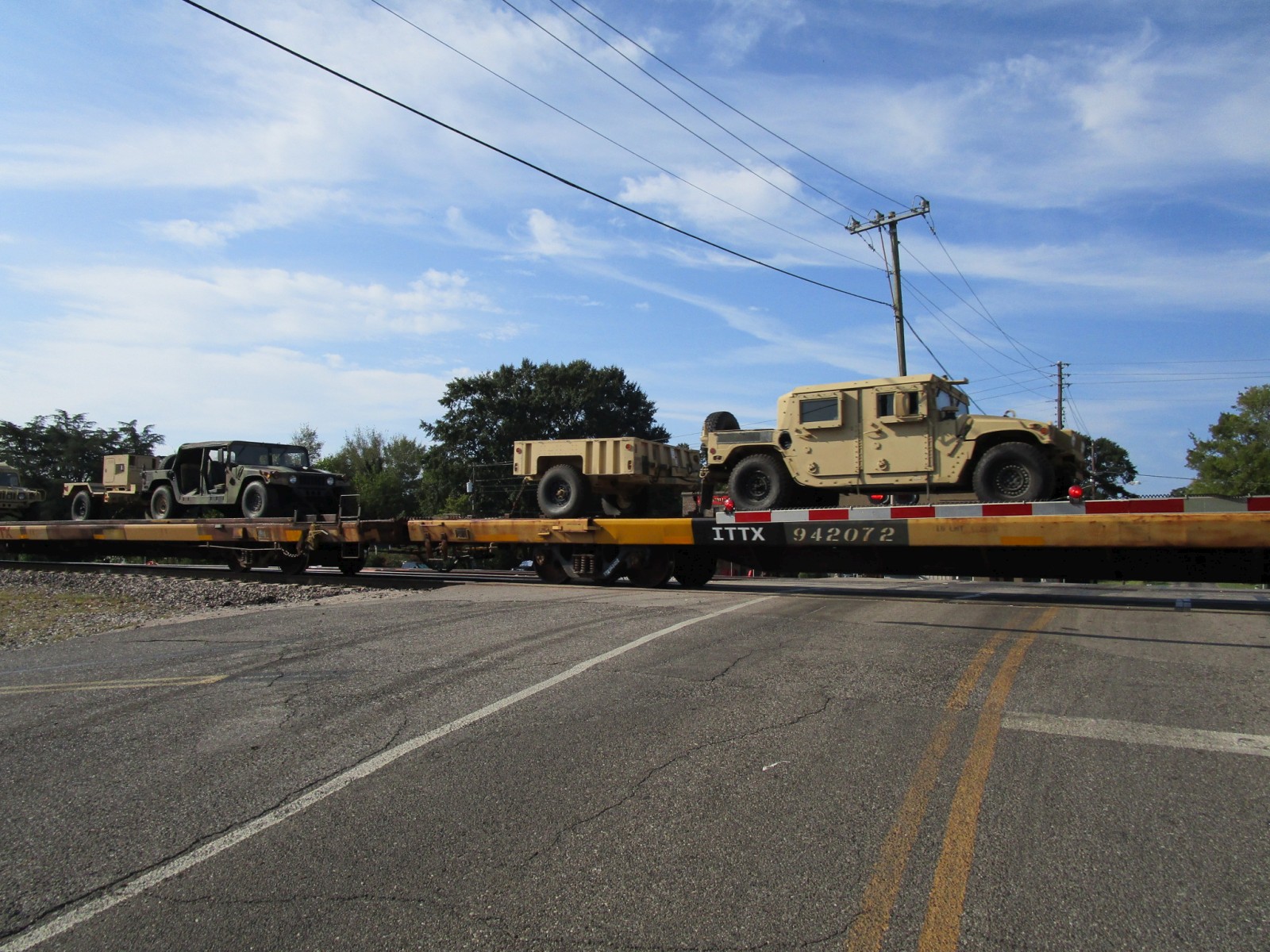

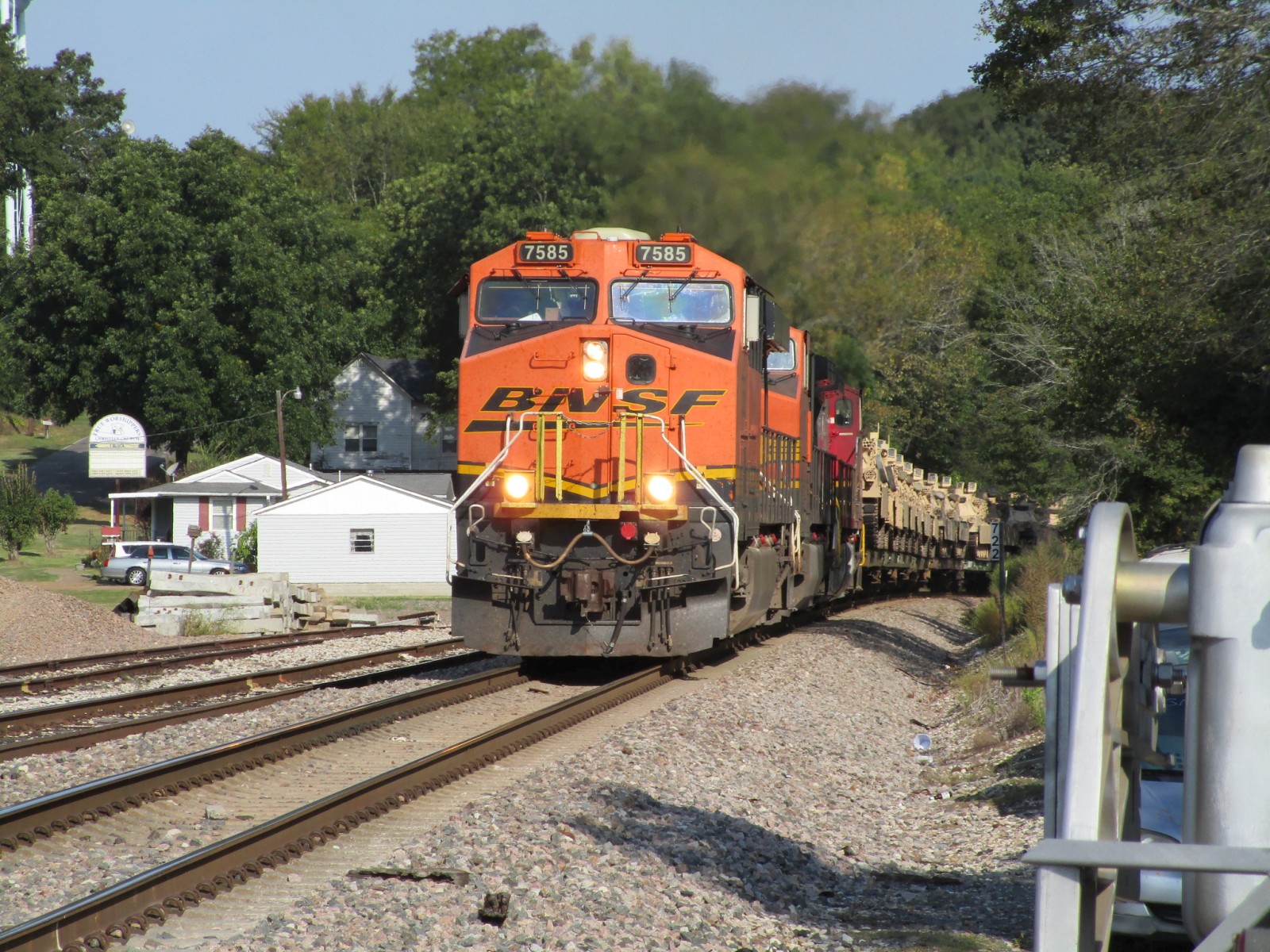

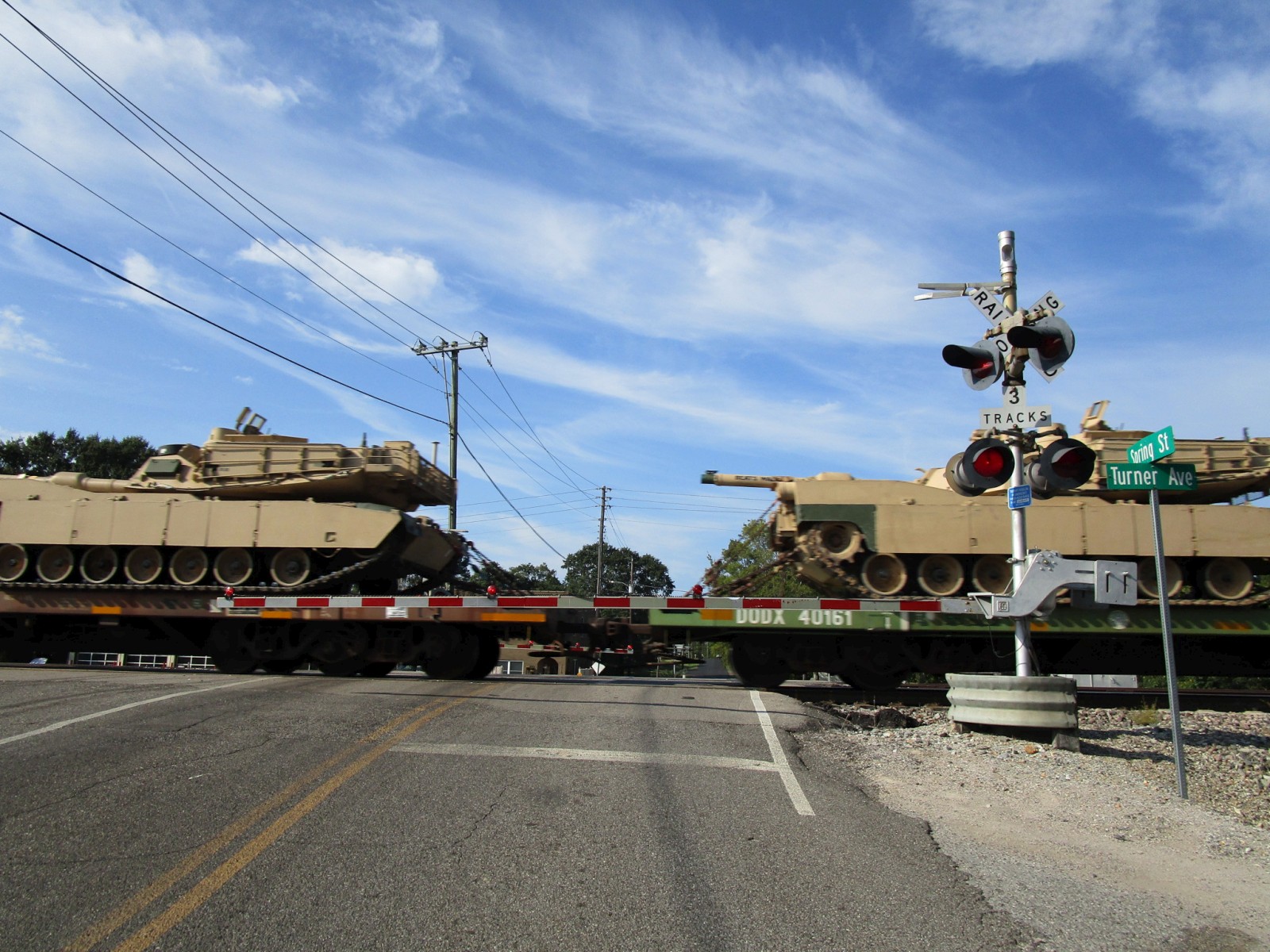

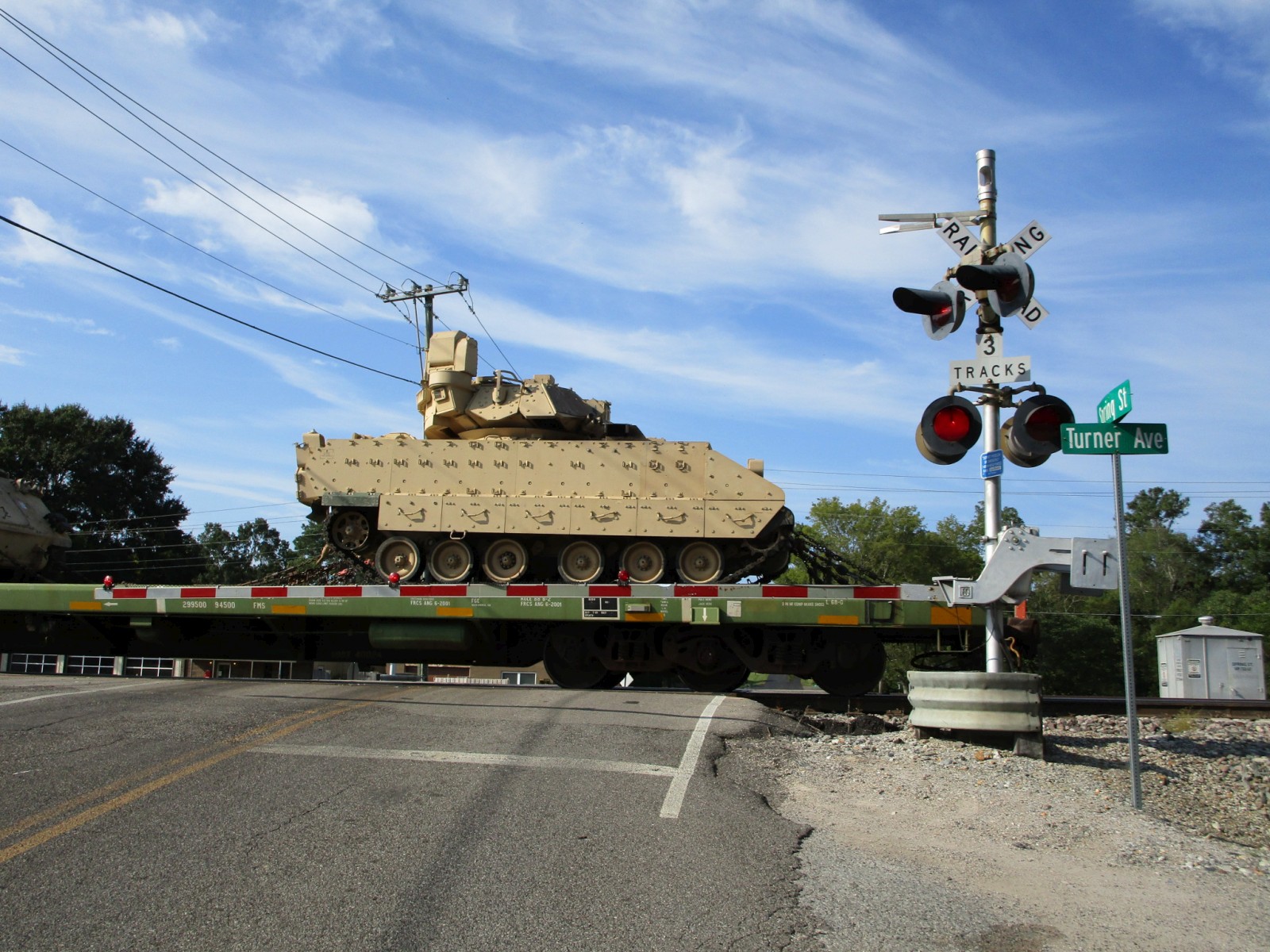

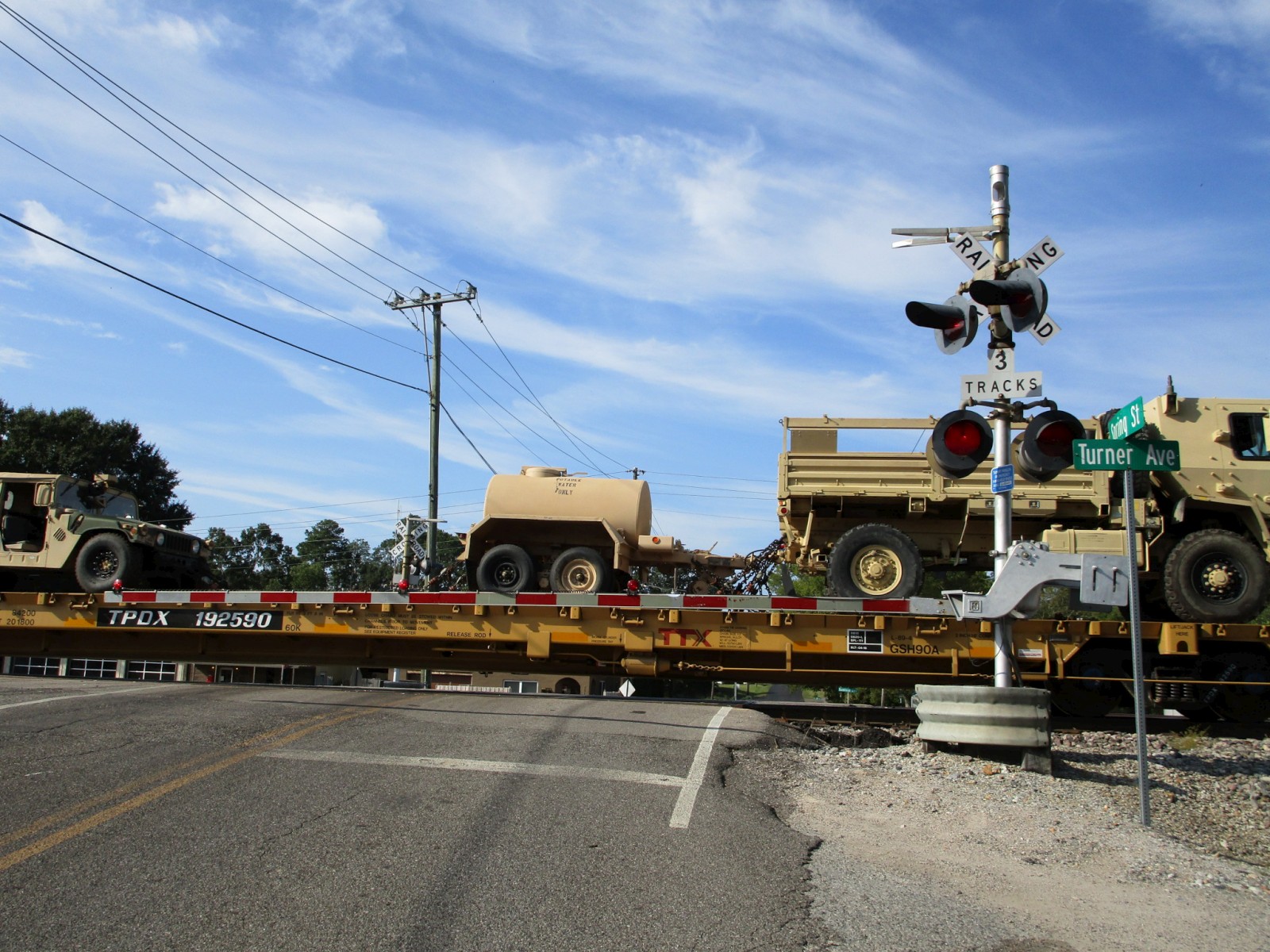

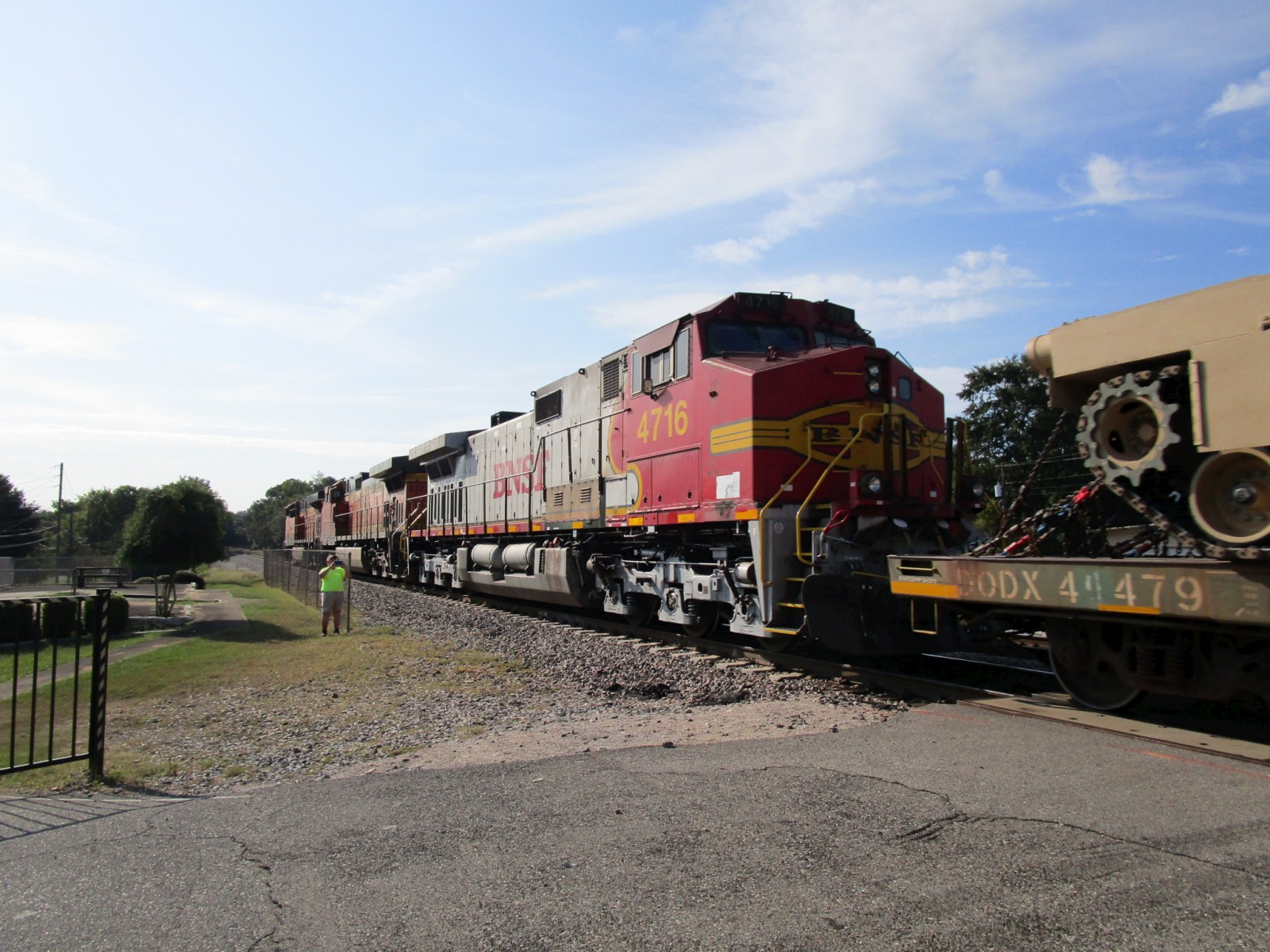

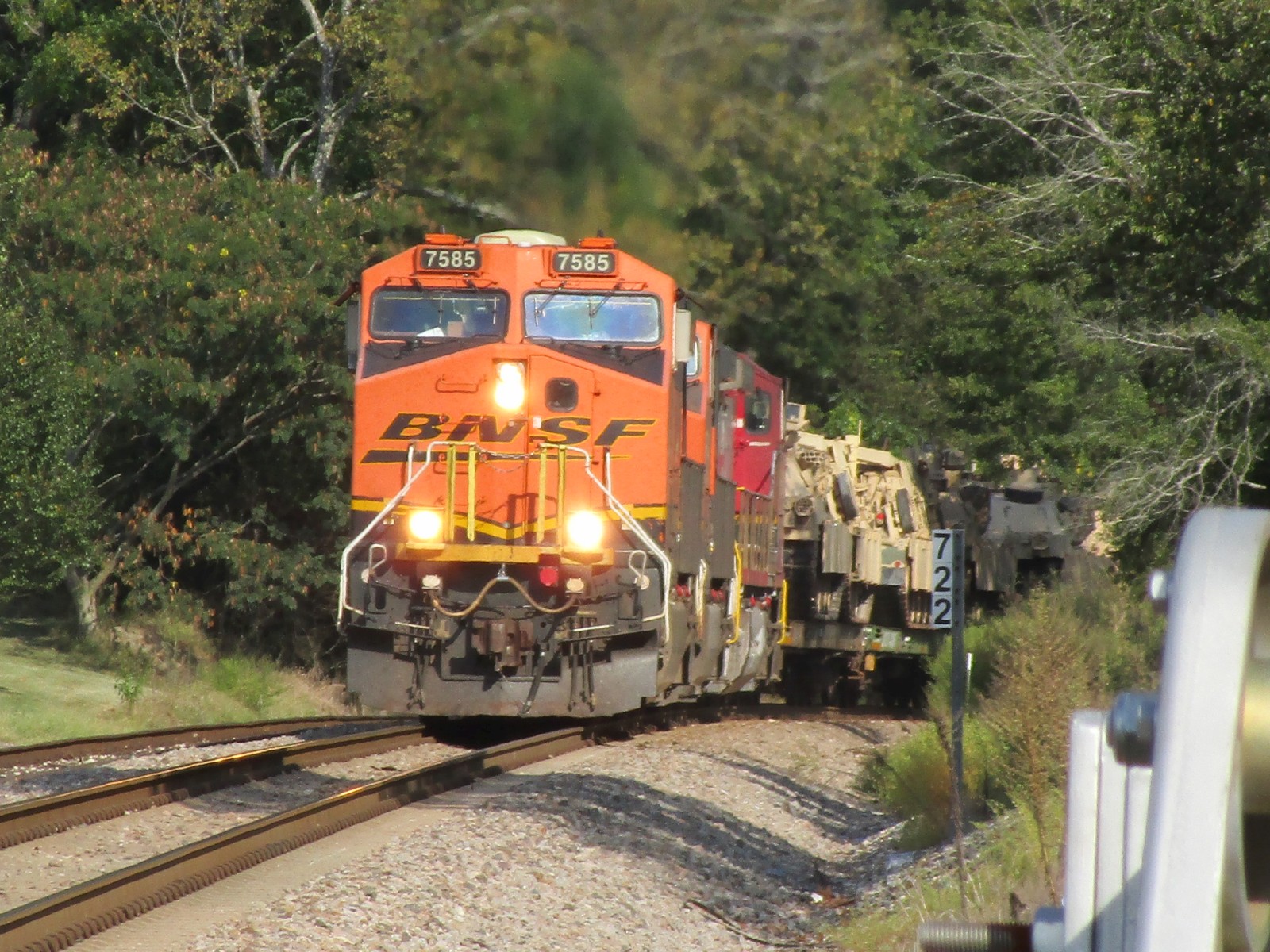

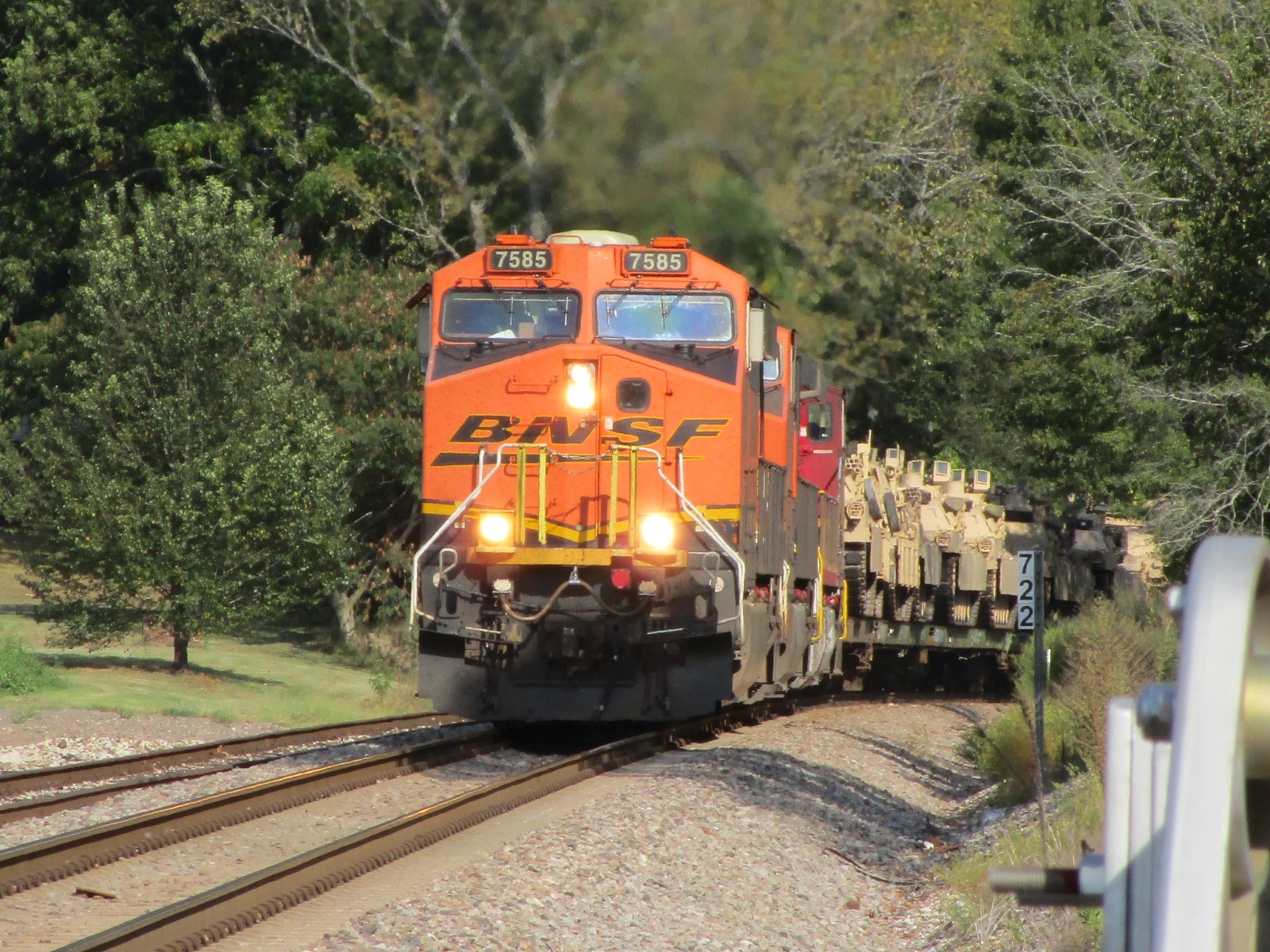

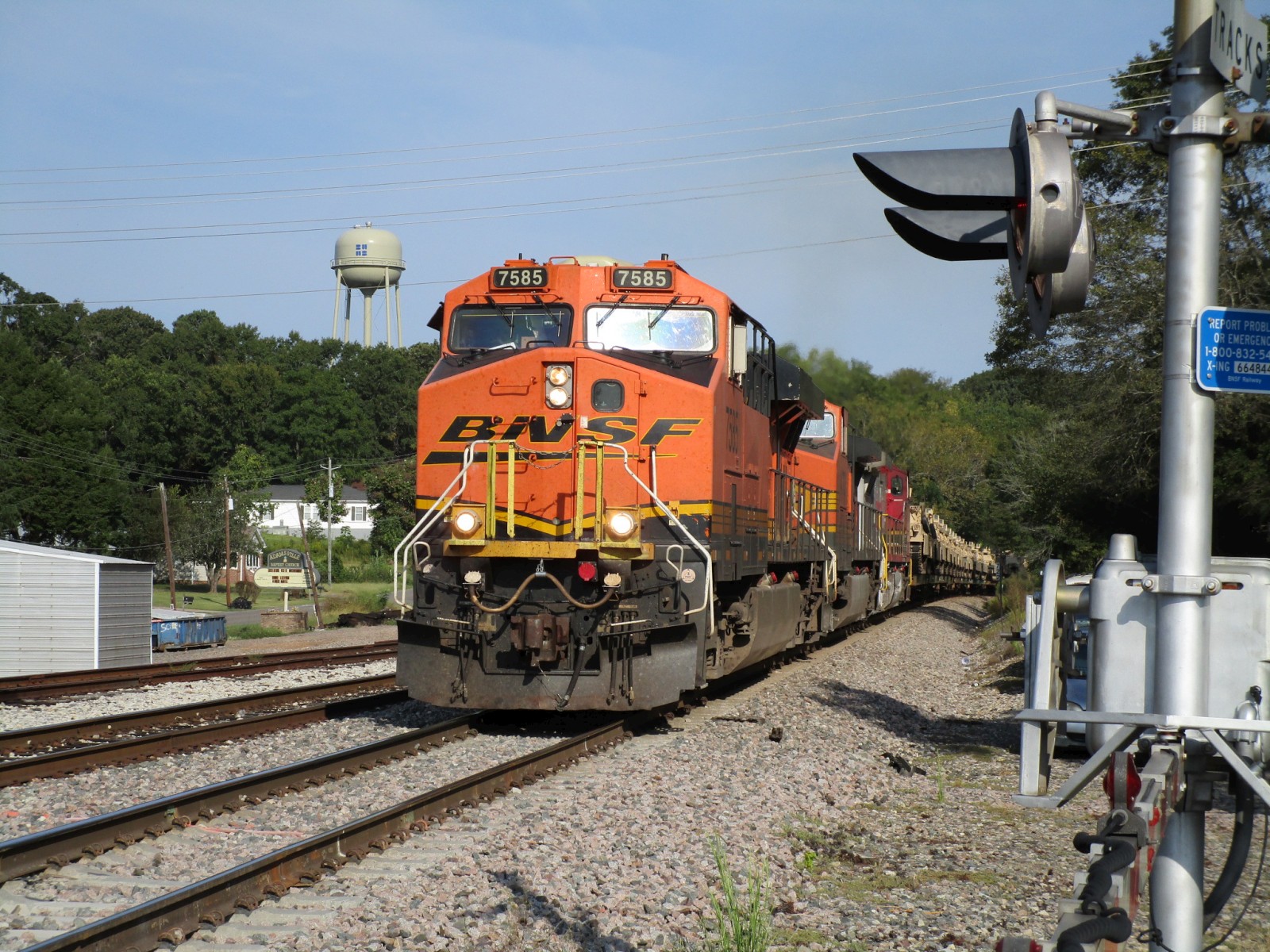

A southbound BNSF military train rolls through the crossing with an ES44DC leading a pair of Dash-9s, with the third unit being in "fakebonnet" paint!

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

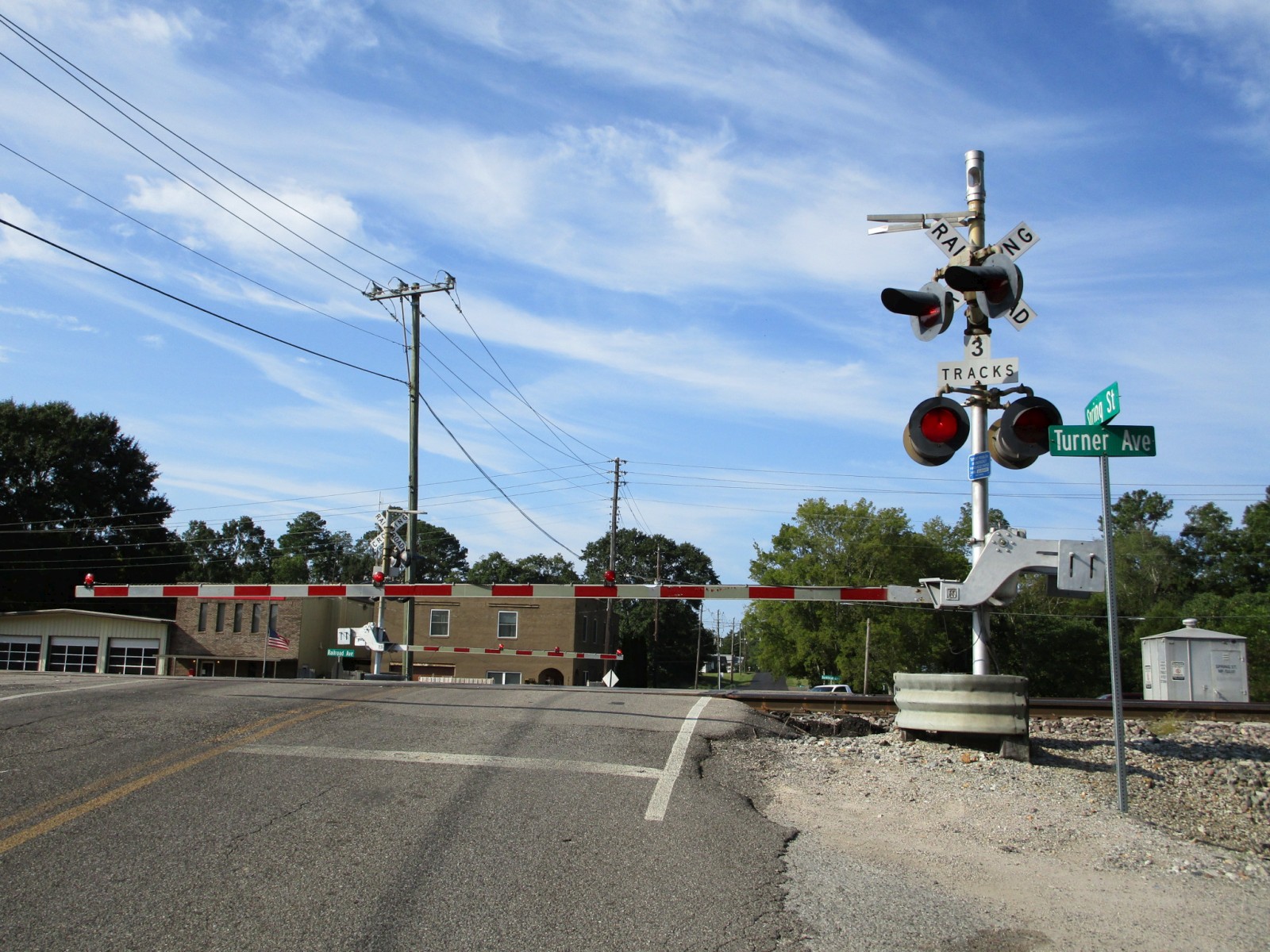

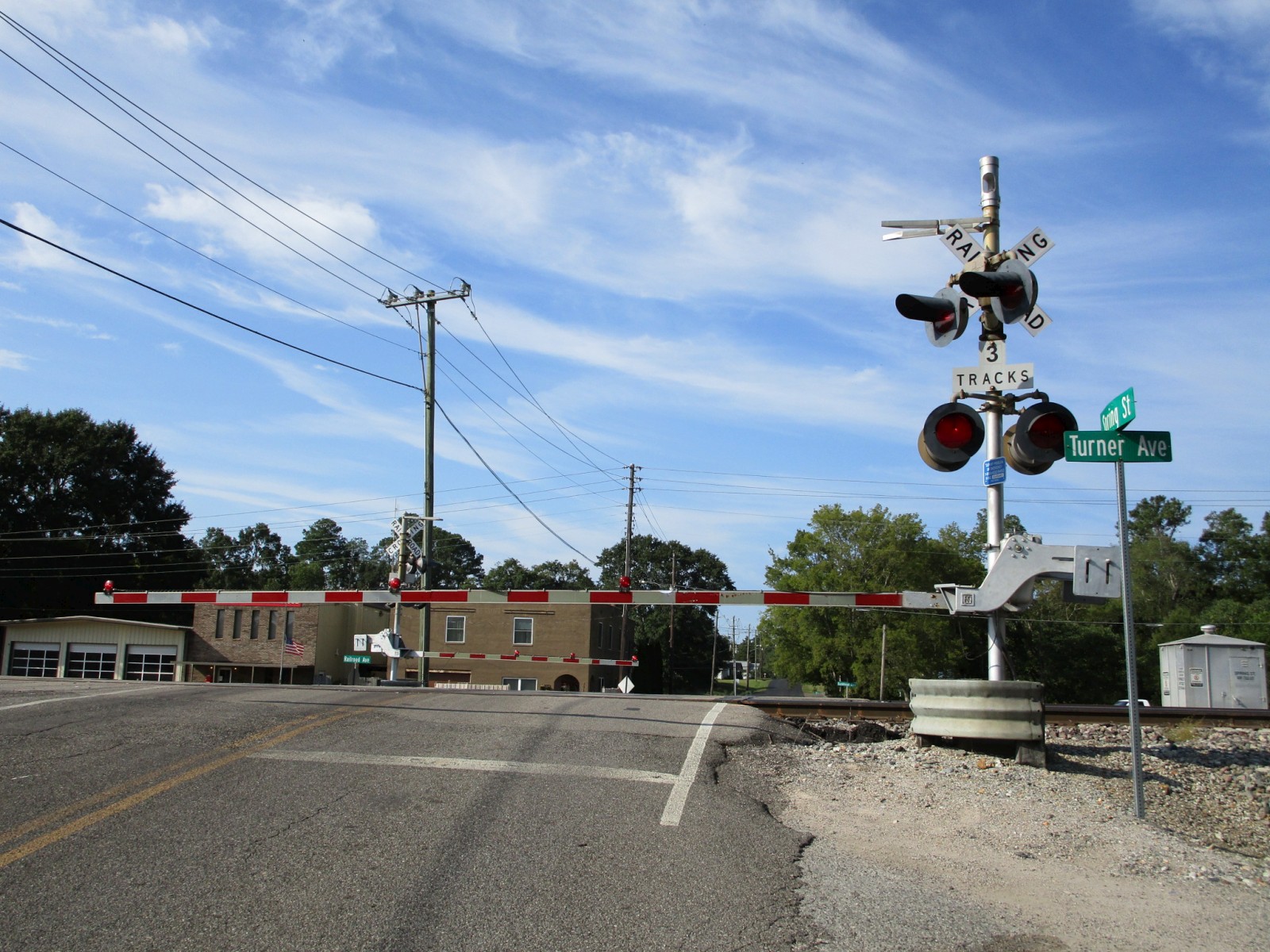

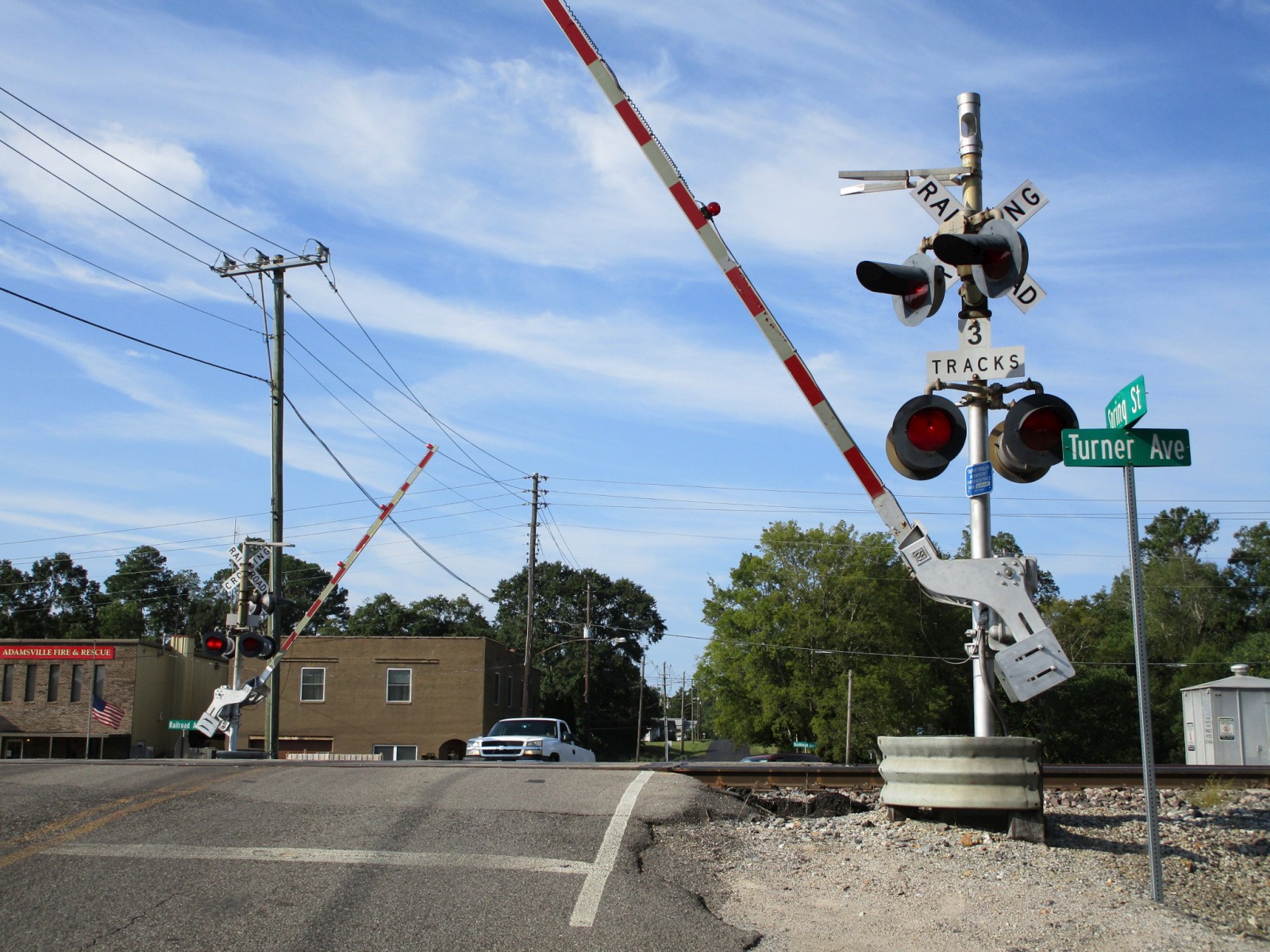

The train passes...

65

66

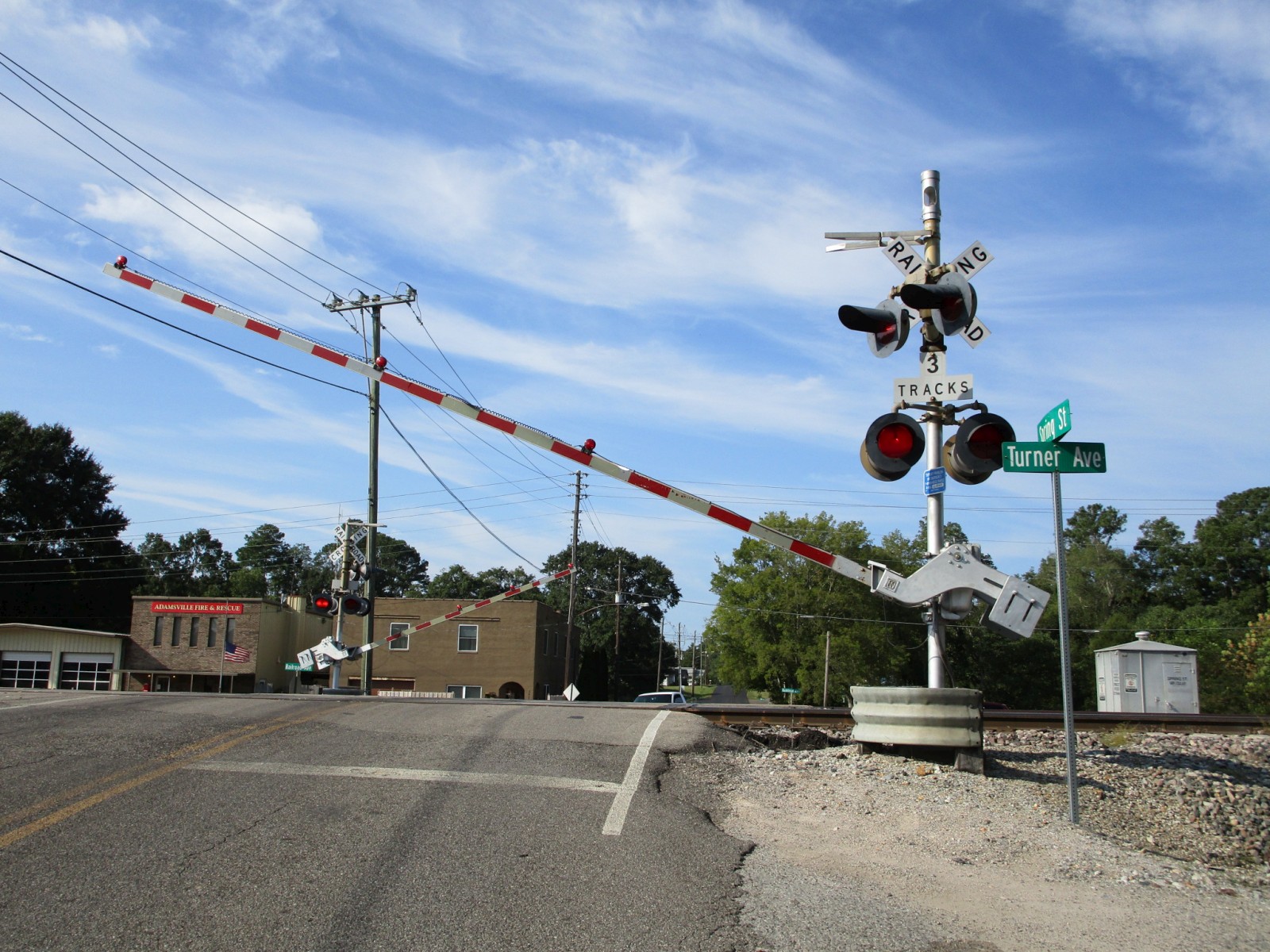

...and the gates rise.





All pictures were taken on 9-20-19.
