MP: 000414.850 |
Created April 28, 2017
Total Accidents: 4
Crossing
DOT #: 352265Y
TOTAL
DAILY TRAINS: 11 (AS OF 2016)
Page created by: freebrickproductions
This crossing is located on the CSX S&NA South Subdivision Main 1.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | NEG electronic | N/A |
| Base: | 5" WCH | 4" WCH |
| Light Frames: | 4 - 12x24" WCH w/ WCH 2nd Gen LEDs | 8 - 12x24" WCH w/ WCH 2nd Gen LEDs |
1 |
2 |
3 |
4 |

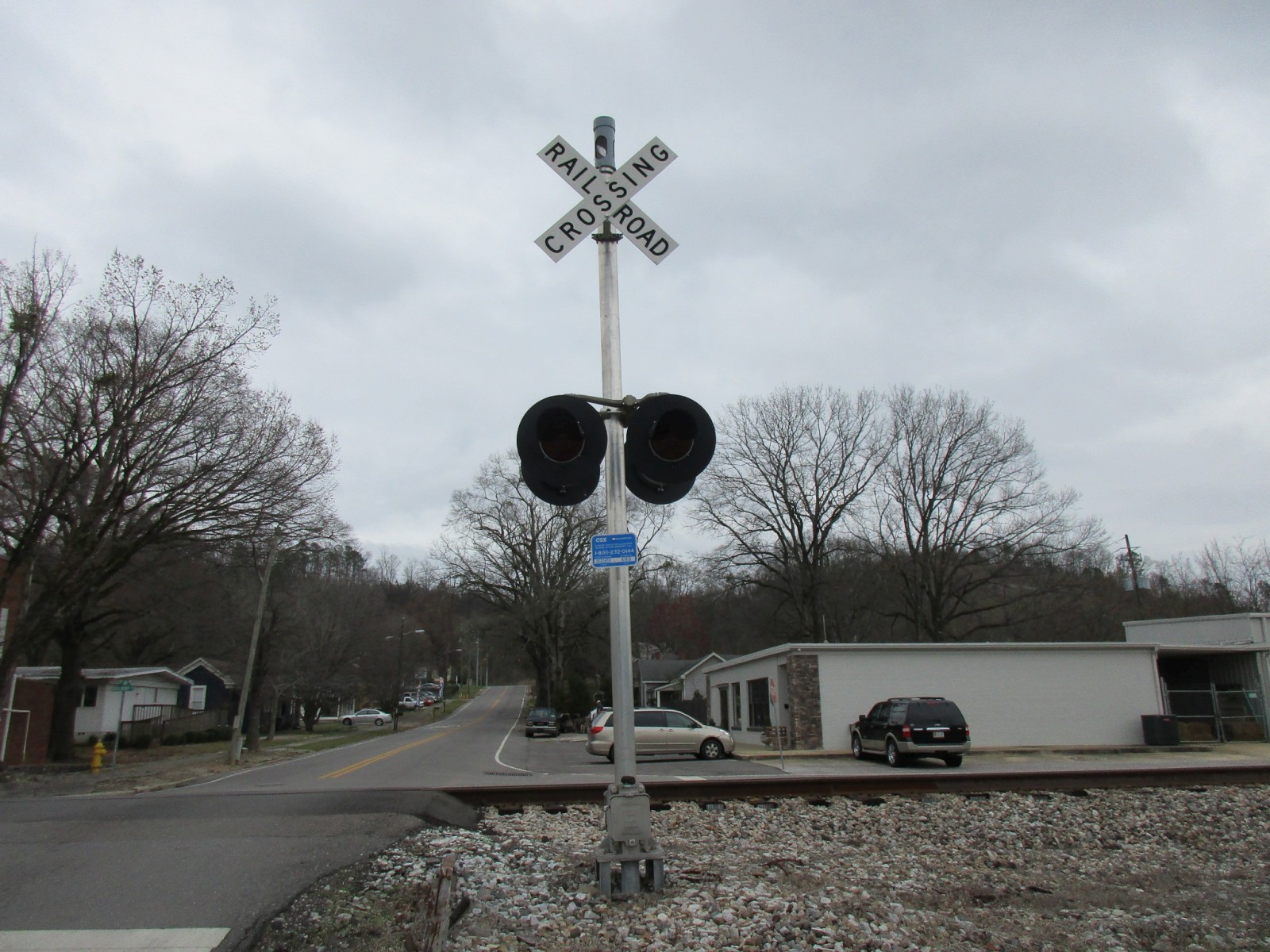

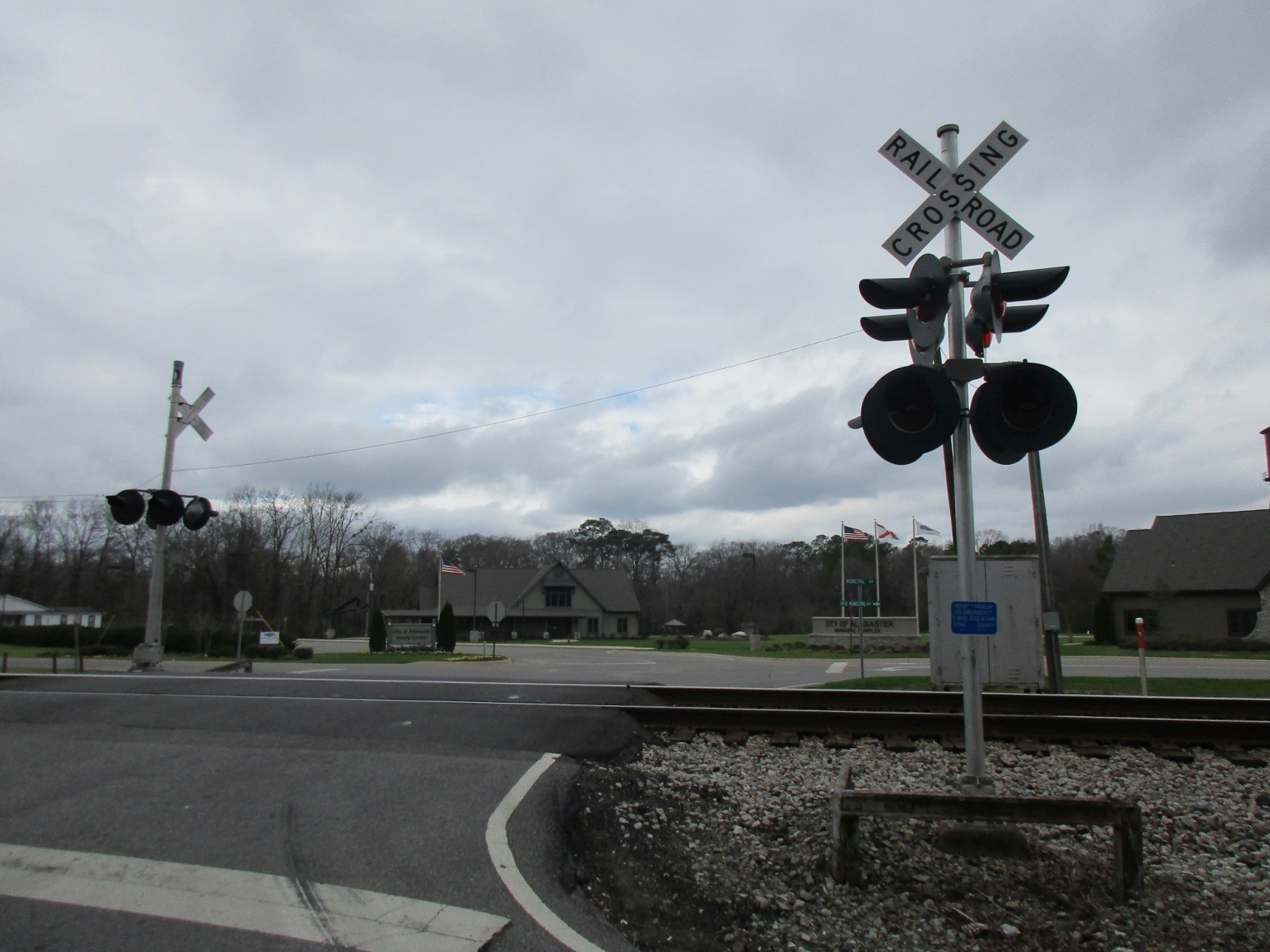

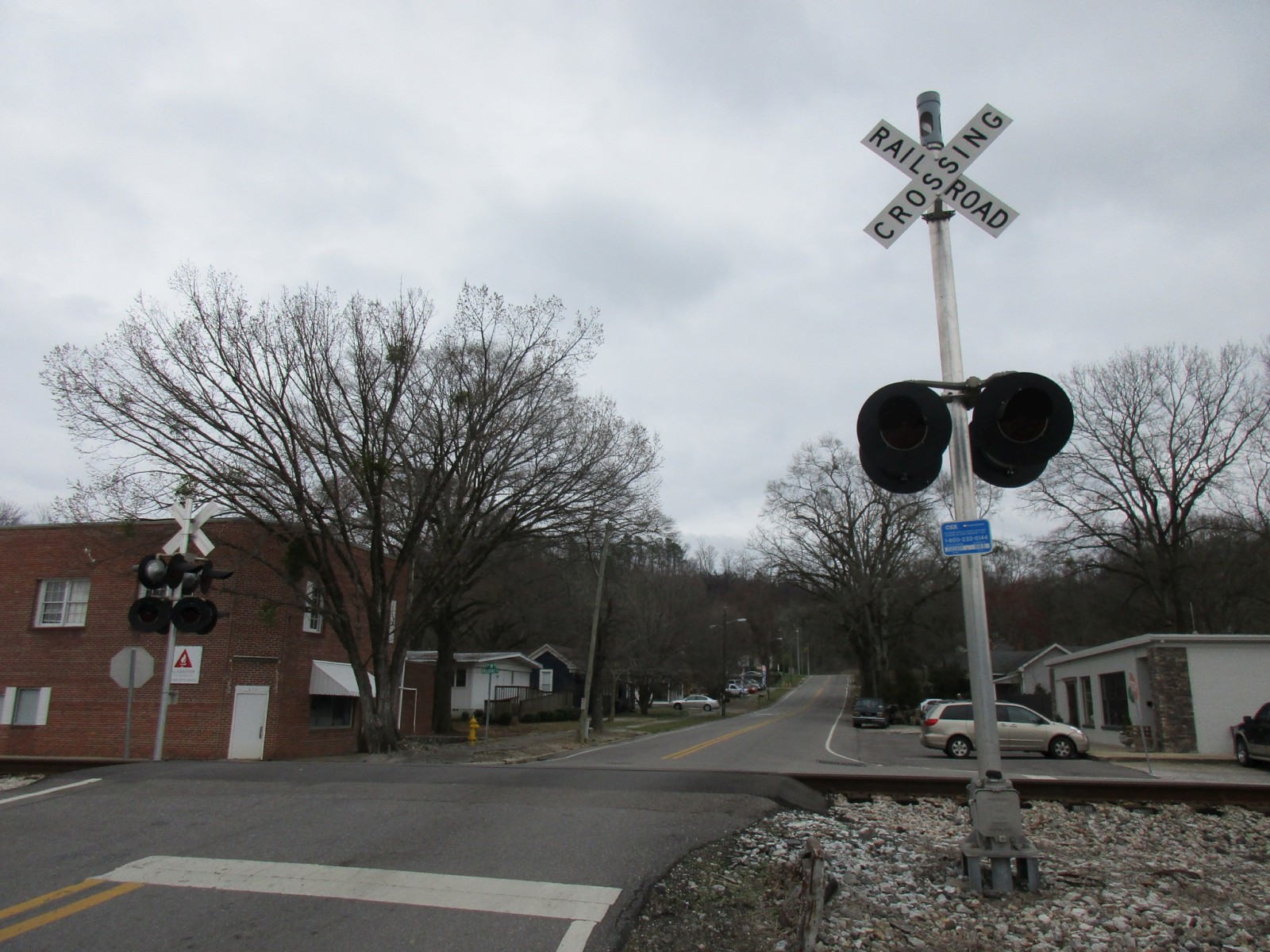

Overviews of the crossing. |
The first signal. |
||
5 |
6 |
7 |
8 |

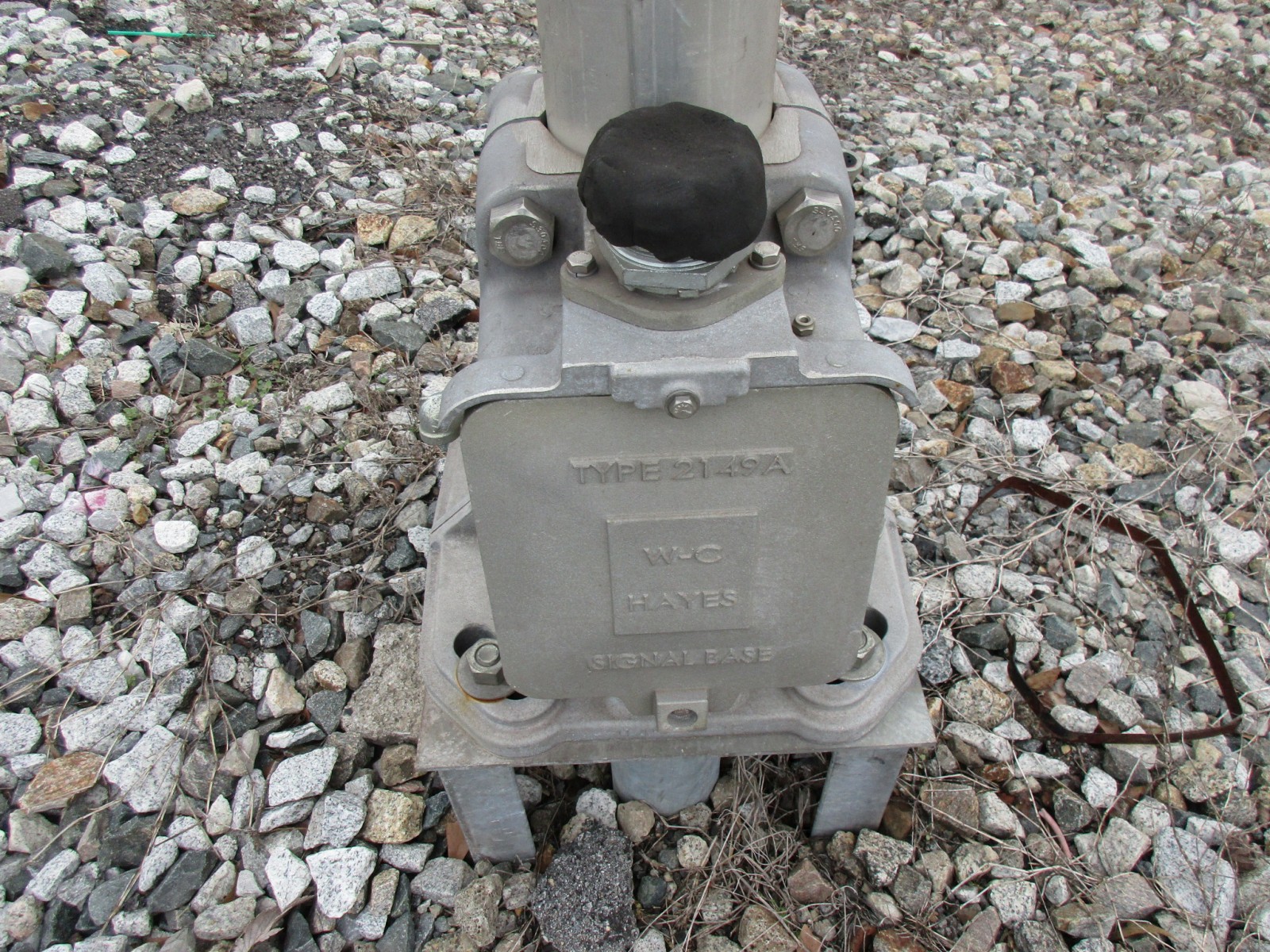

It has a 5 inch WCH base. |

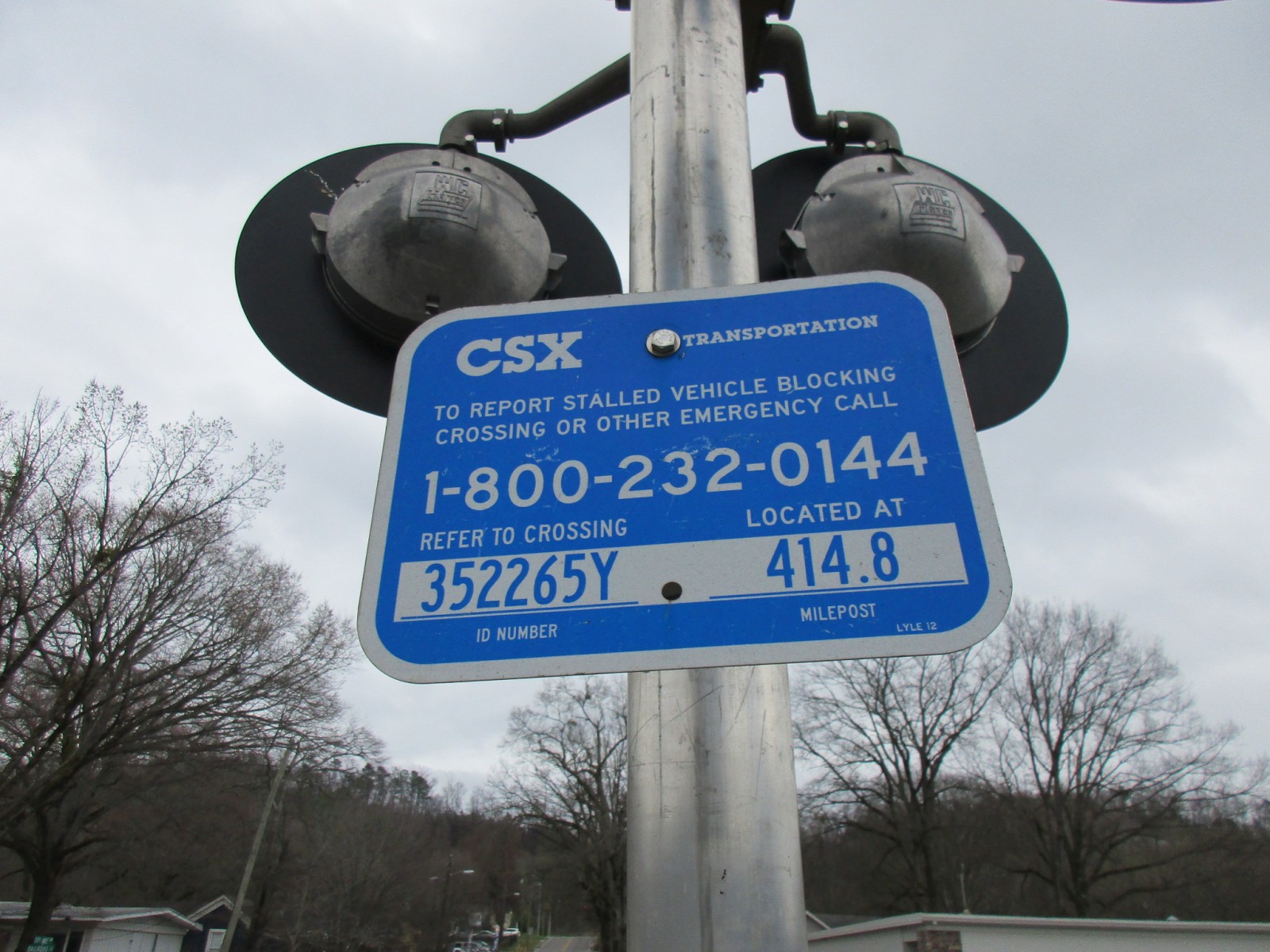

The emergency information. |

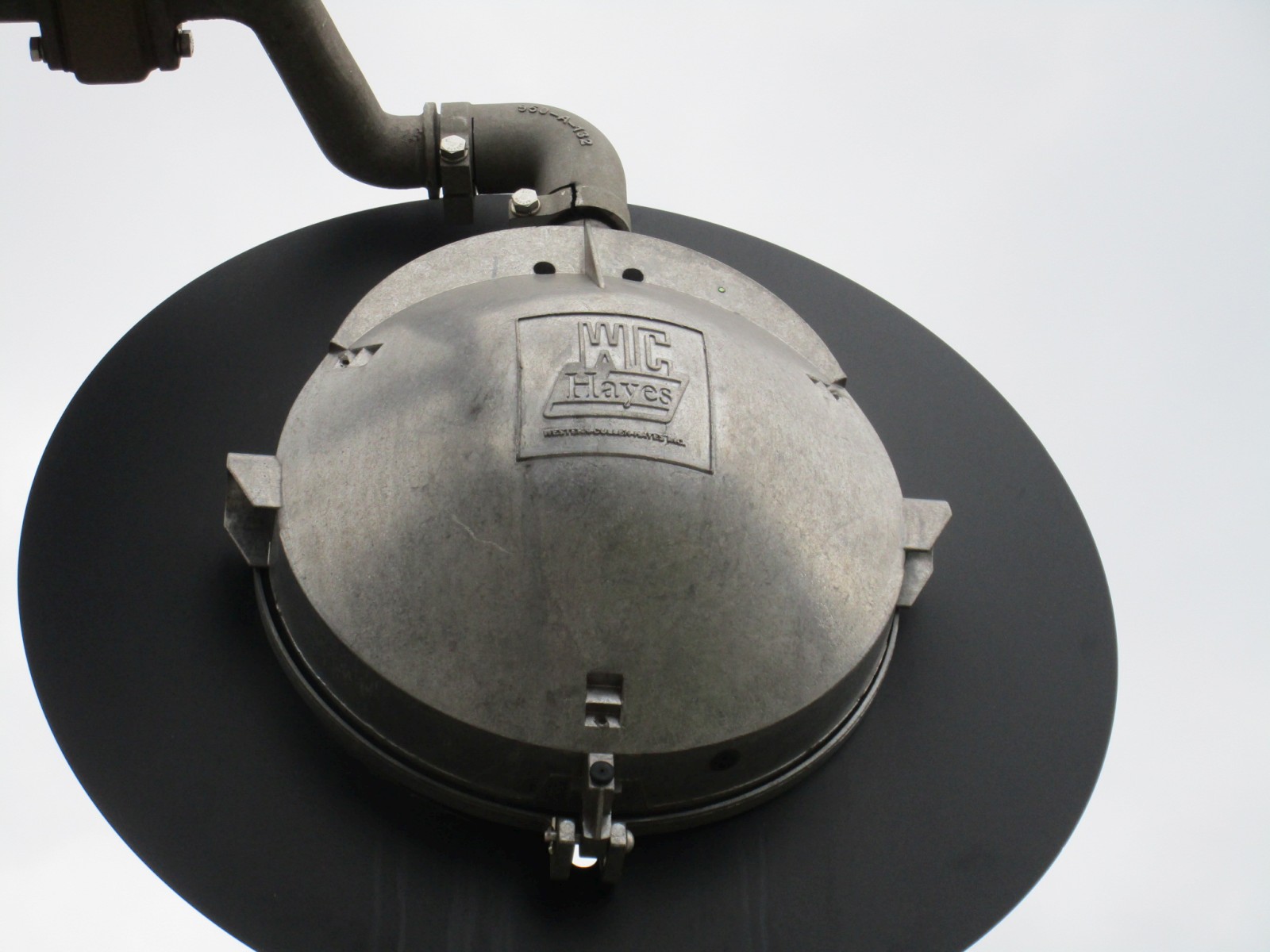

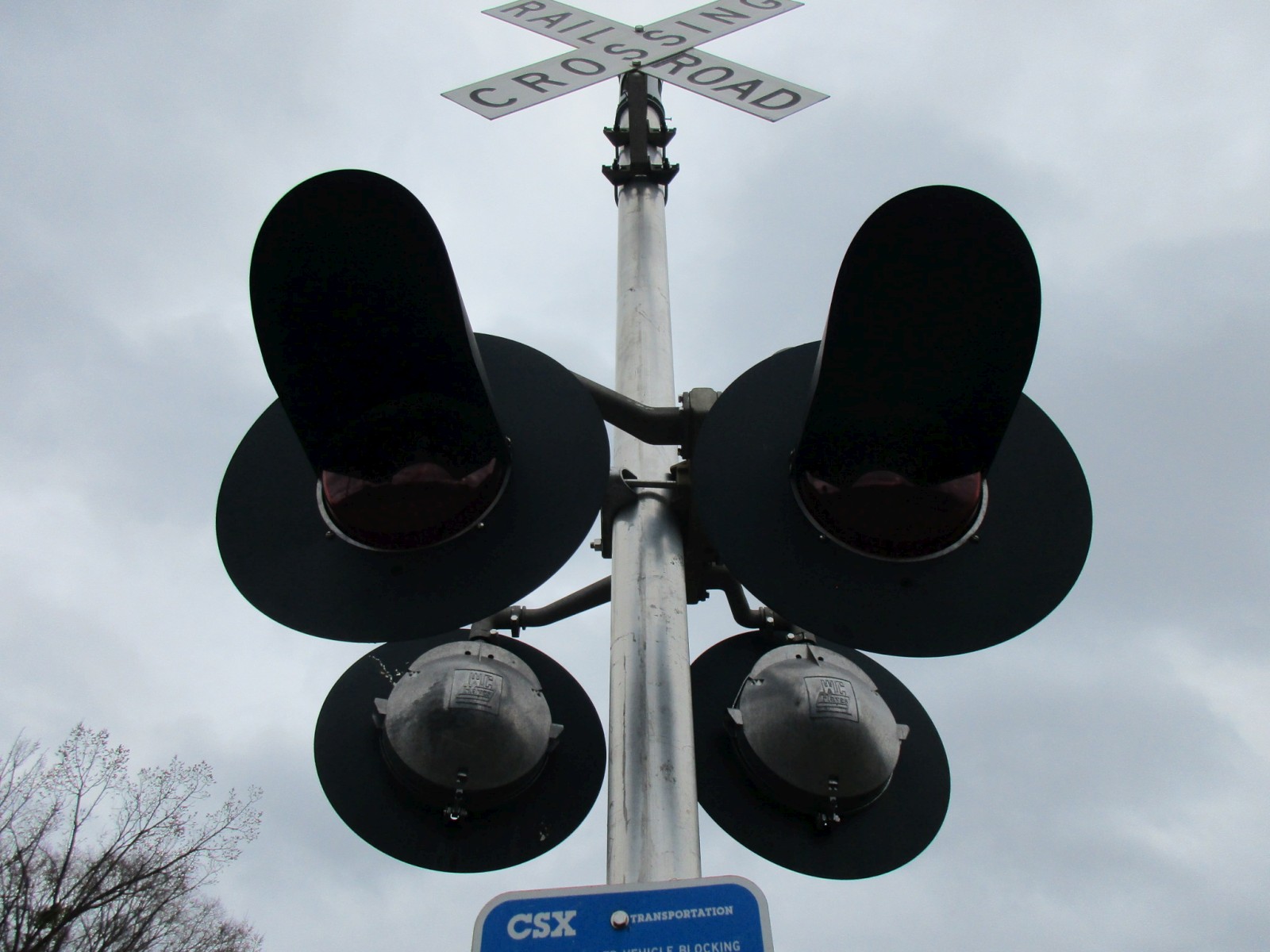

This signal has WCH 12x24 inch lights with WCH 2nd Generaiton LEDs. |
|
9 |
10 |
11 |
12 |

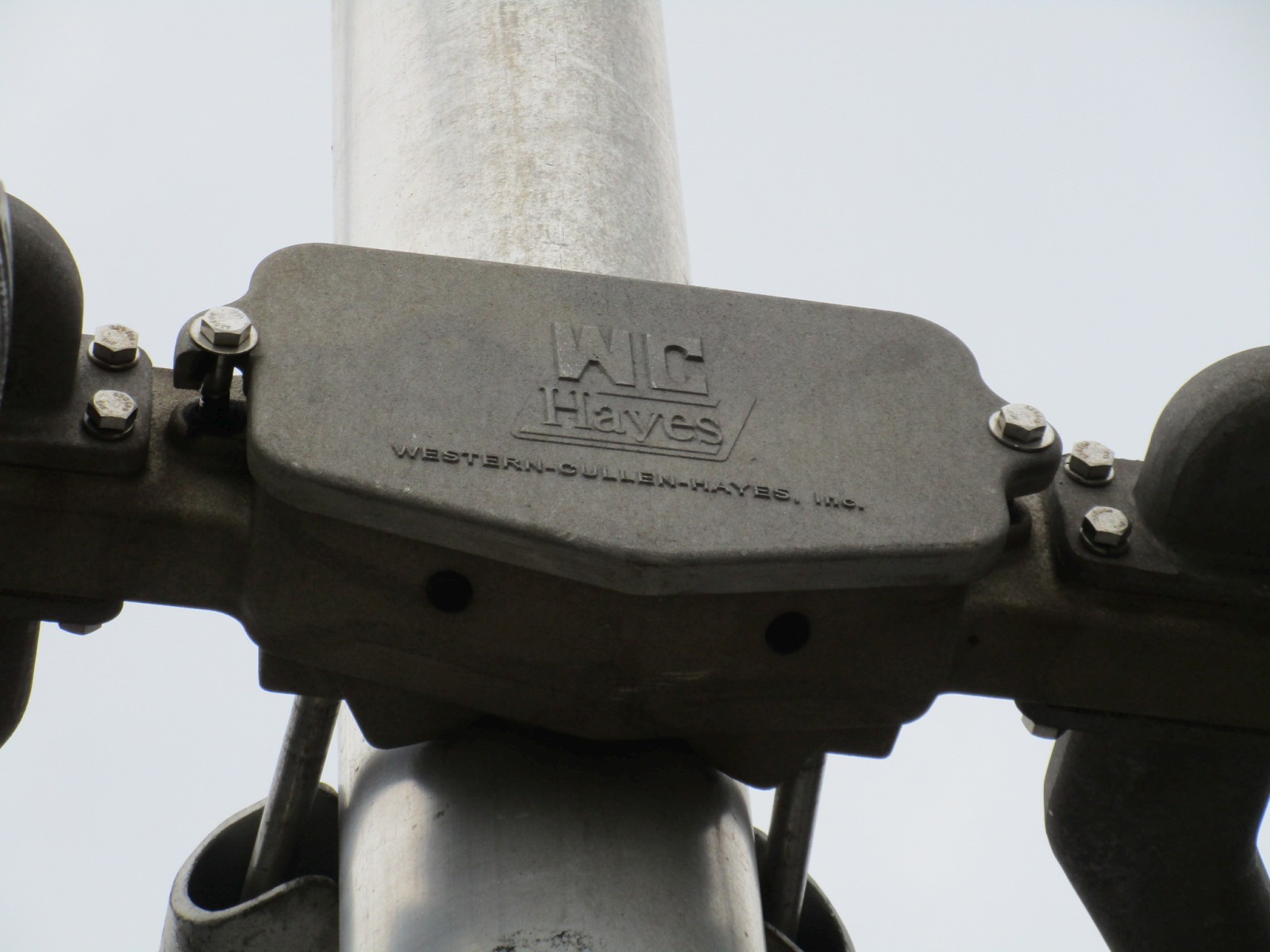

A WCH junction box! |

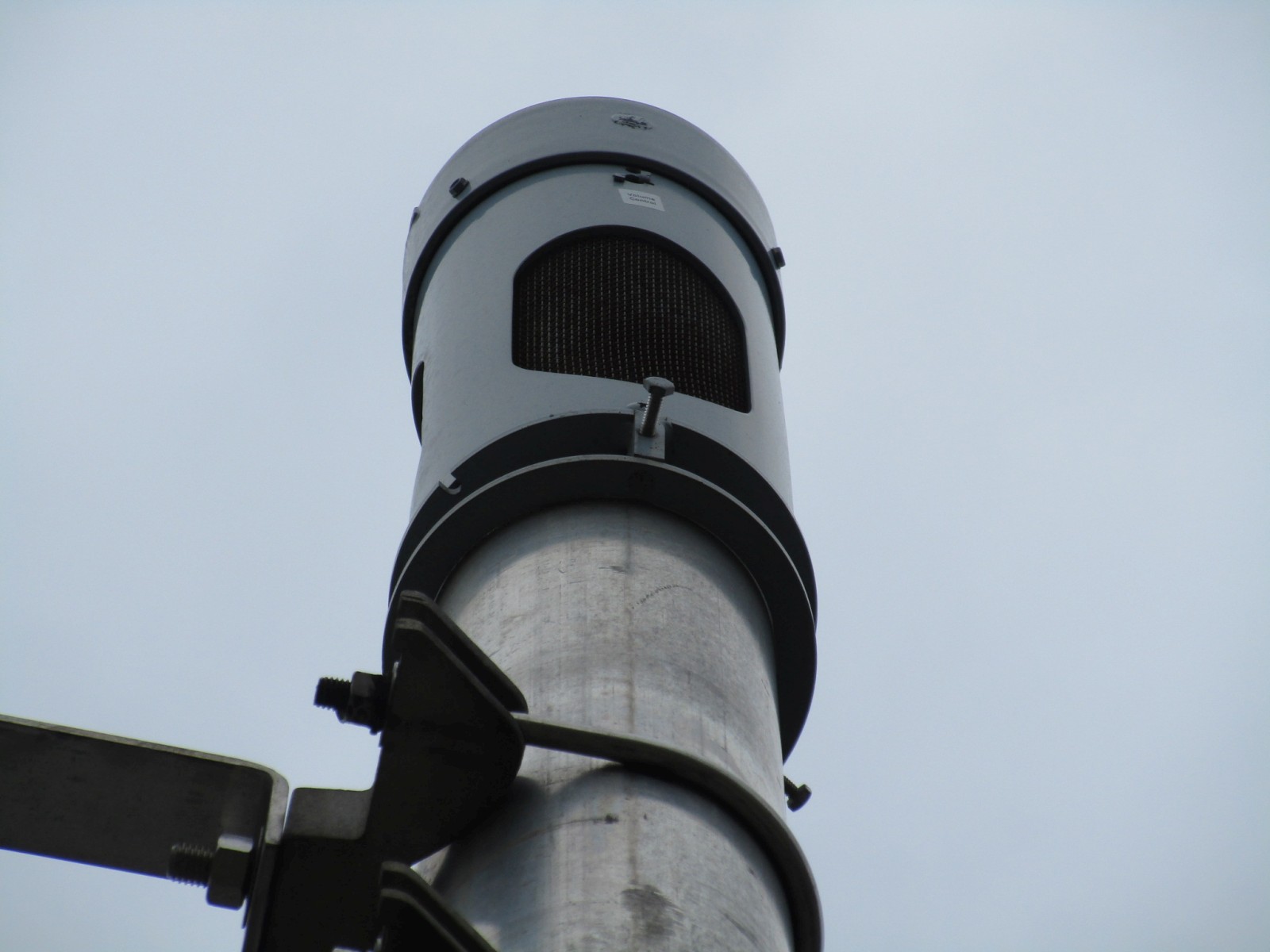

The bell is an NEG electronic bell. |

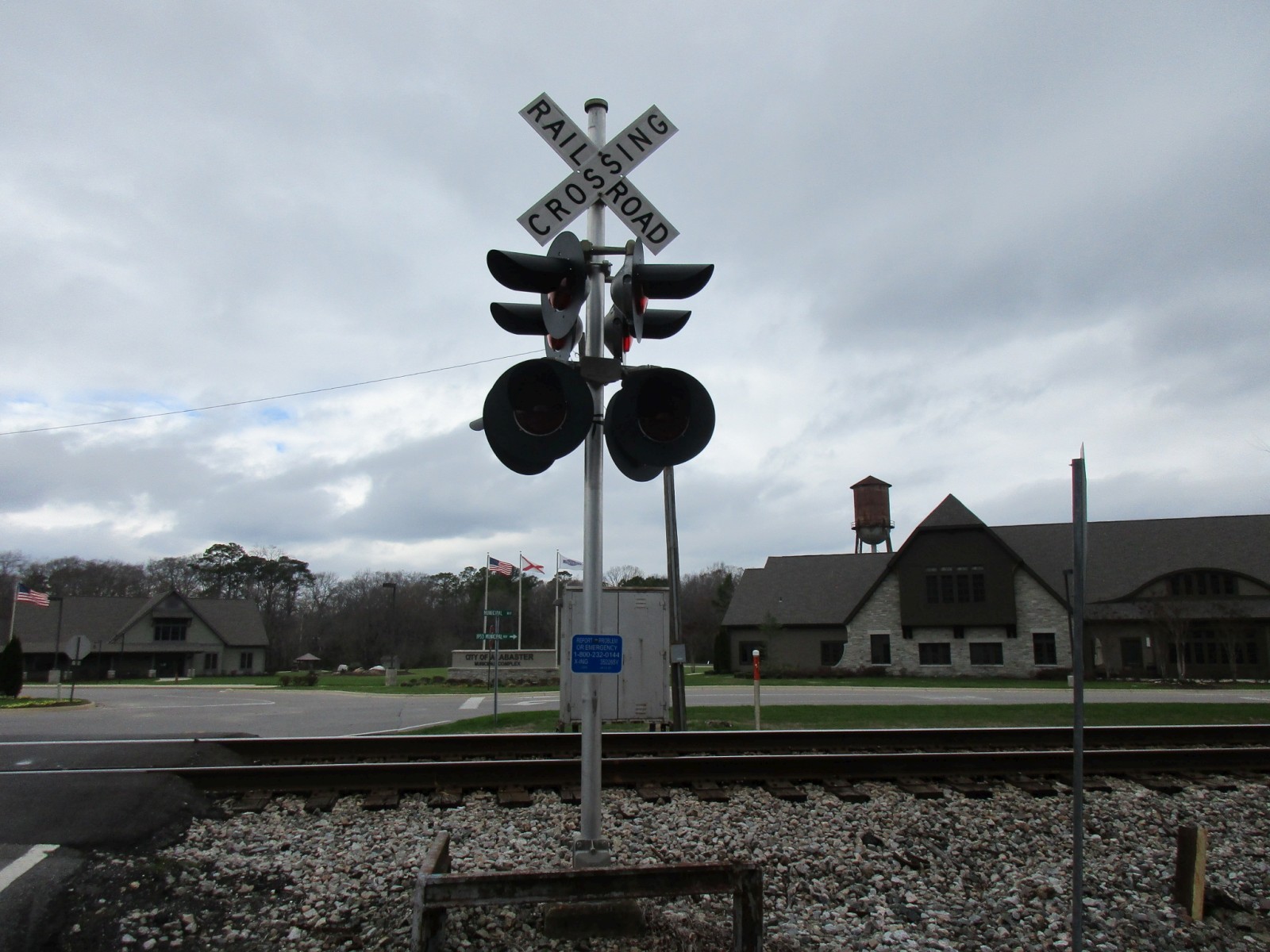

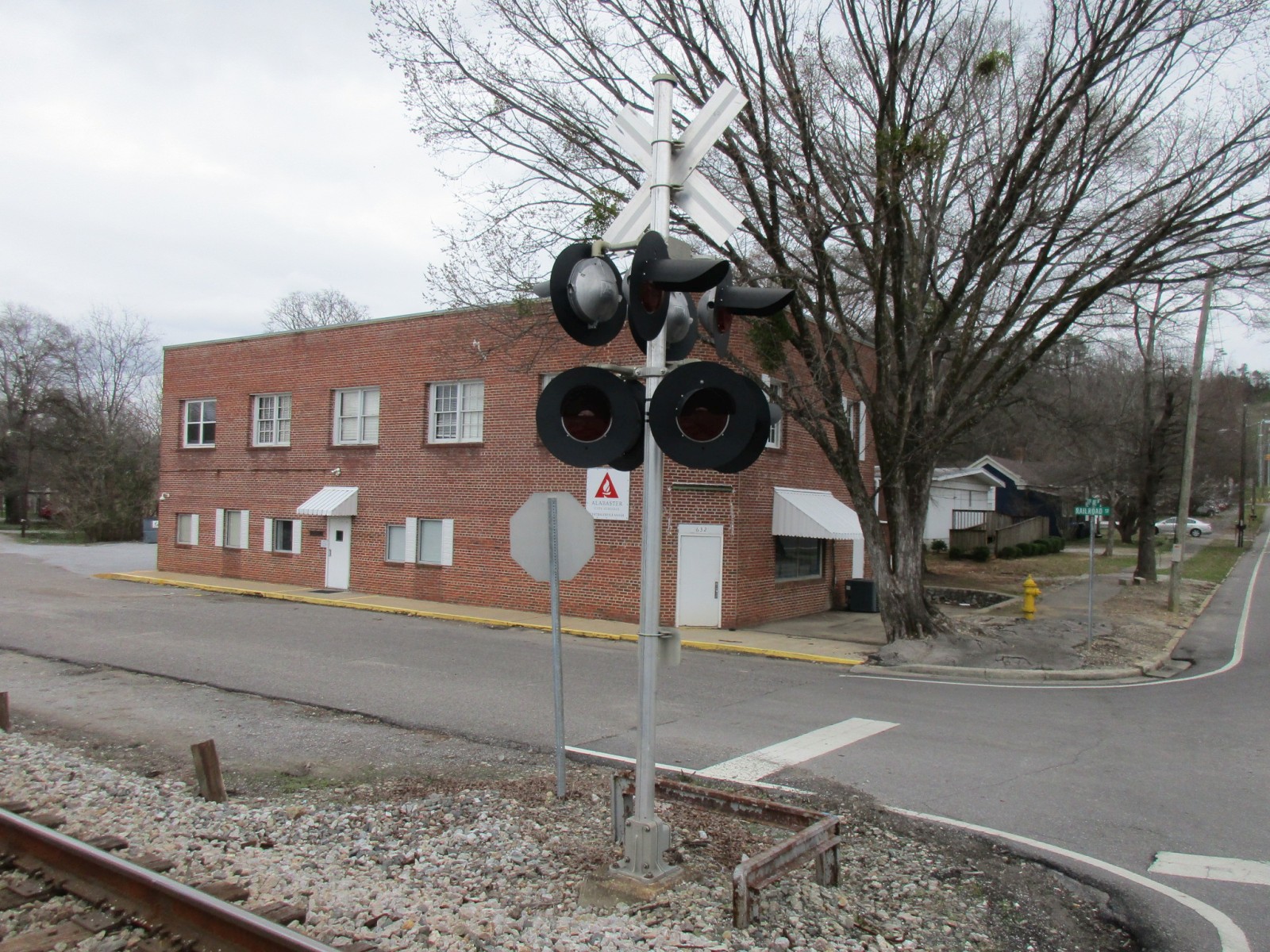

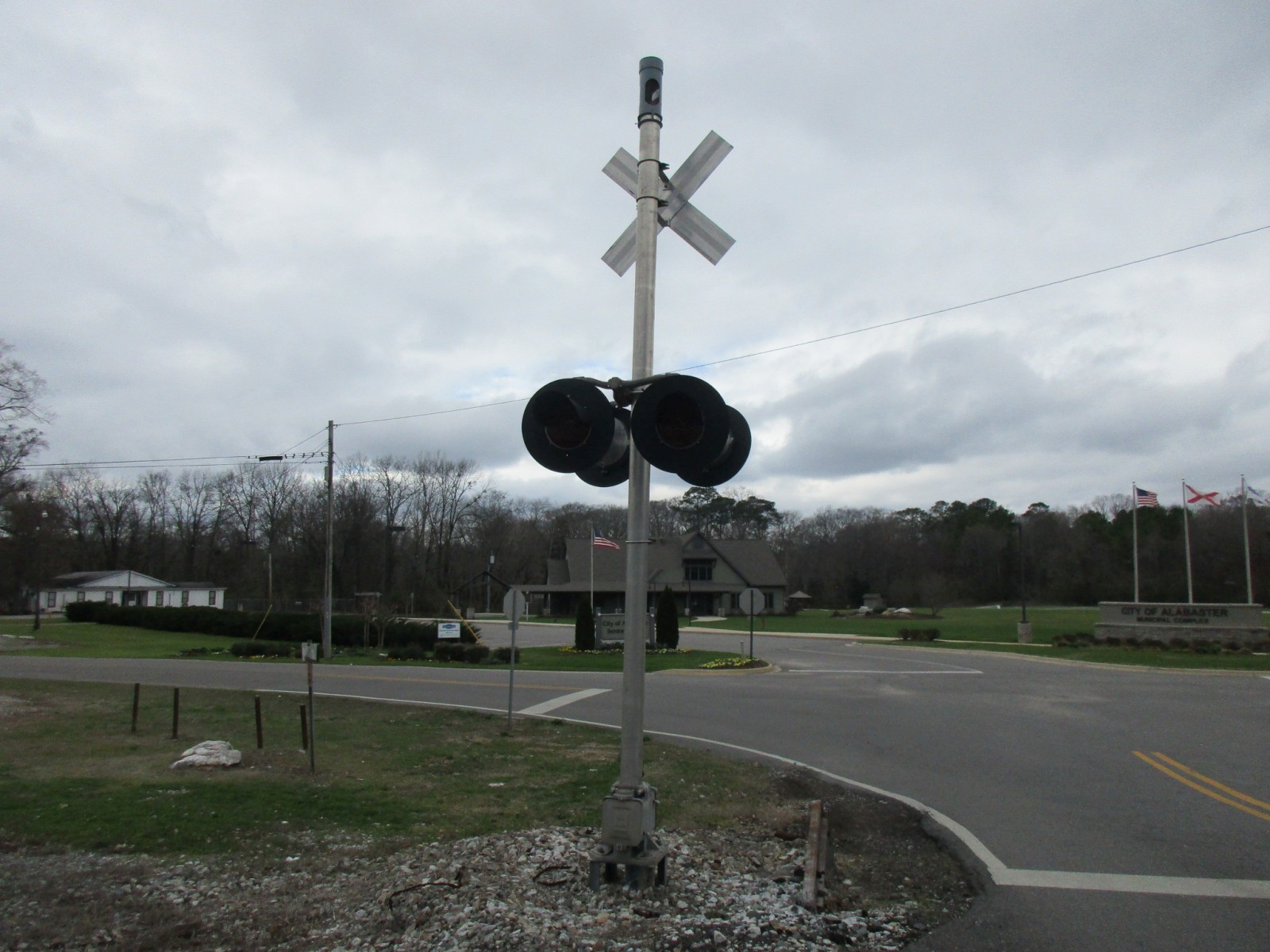

The second signal. |
|
13 |
14 |
15 |
16 |

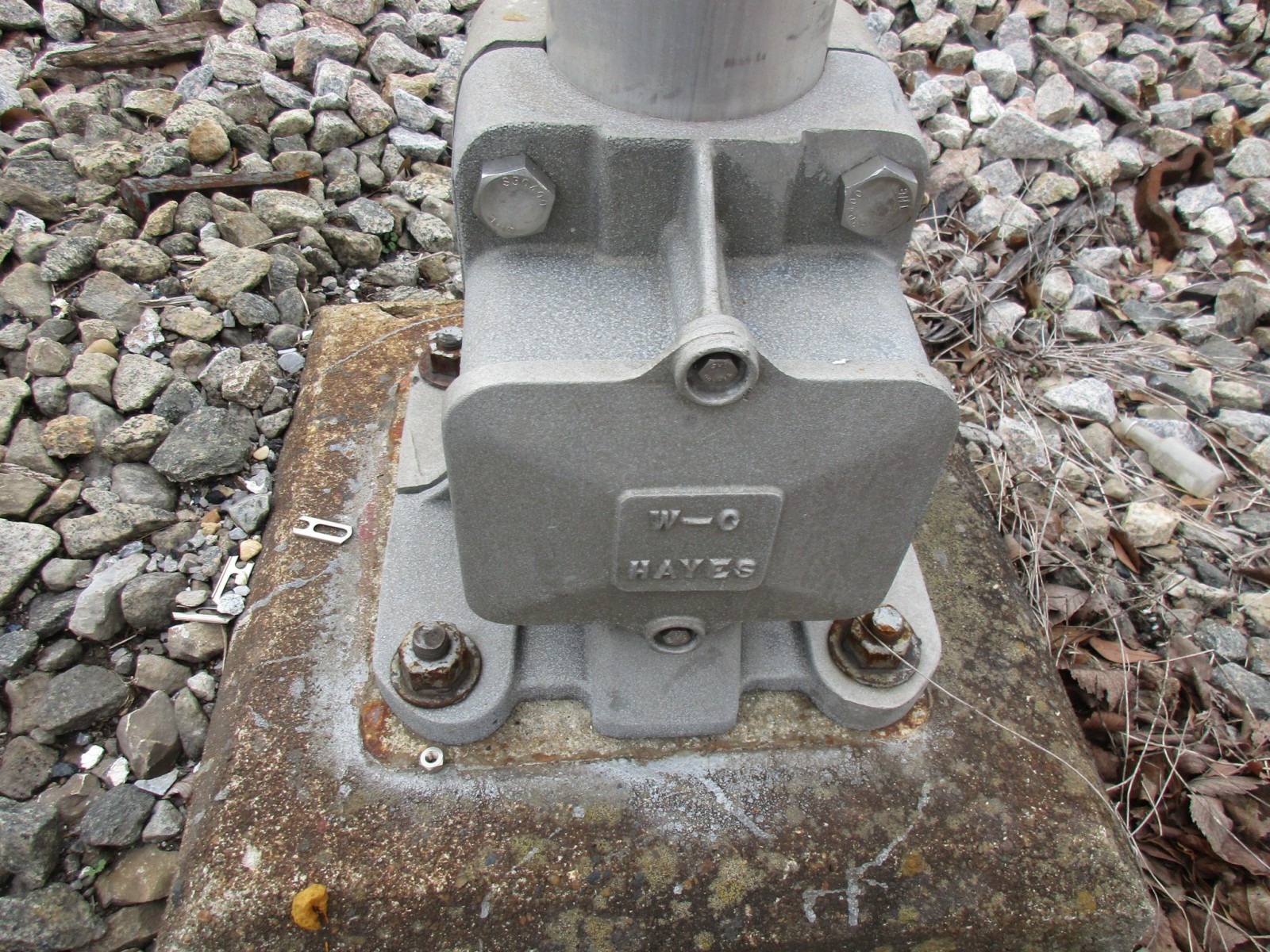

This signal uses a 4 inch WCH base. |

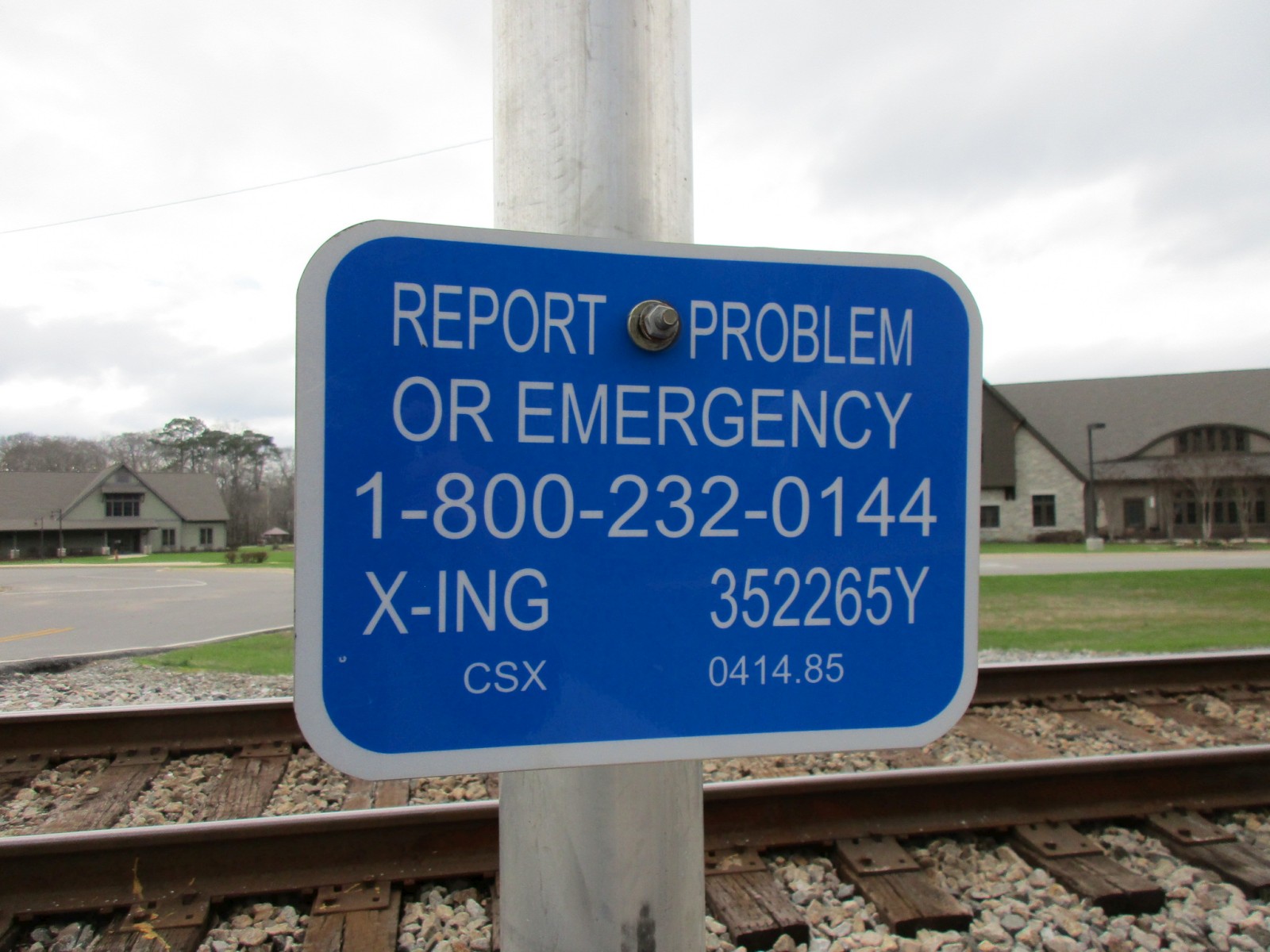

The emergency information. |

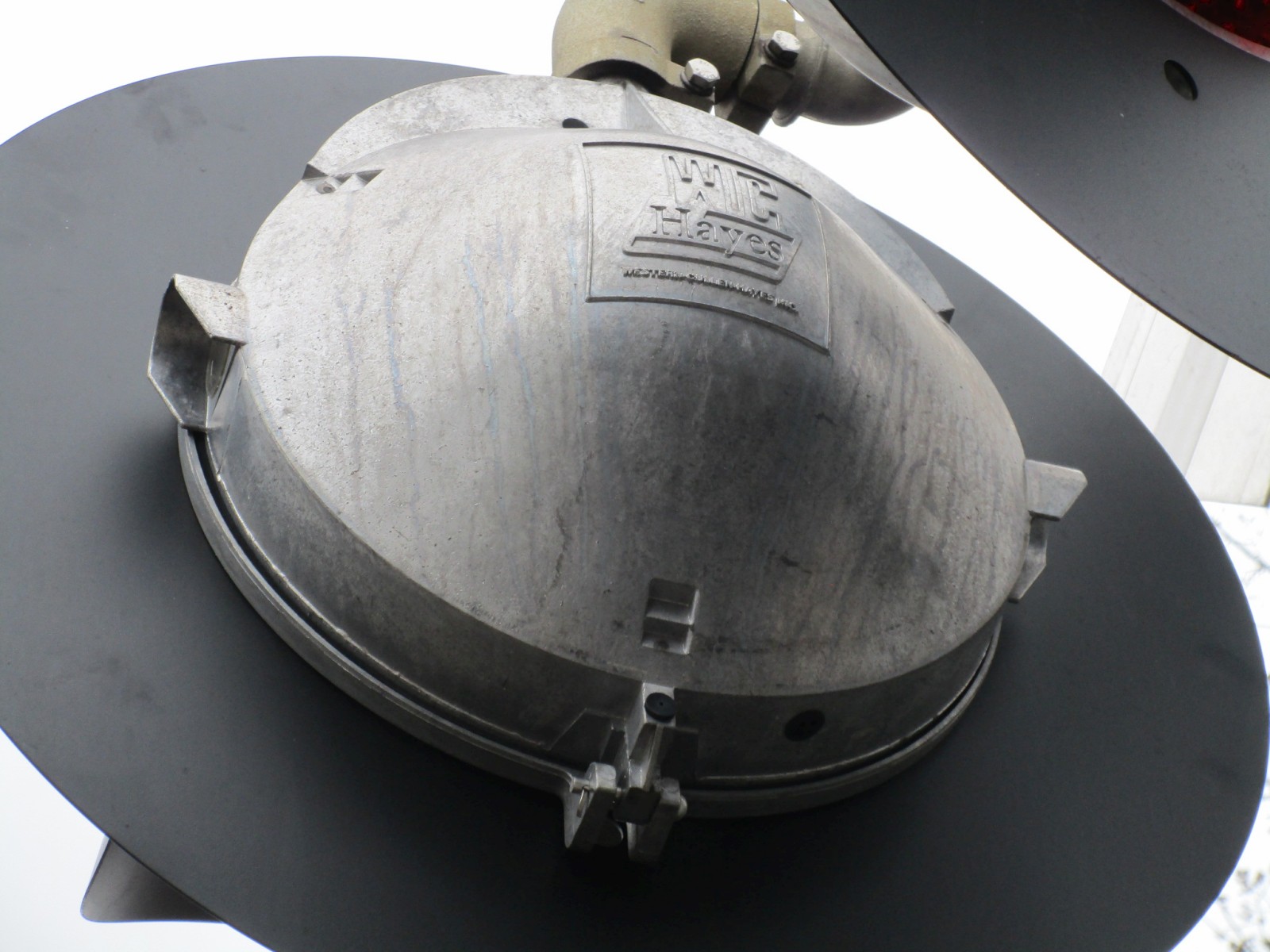

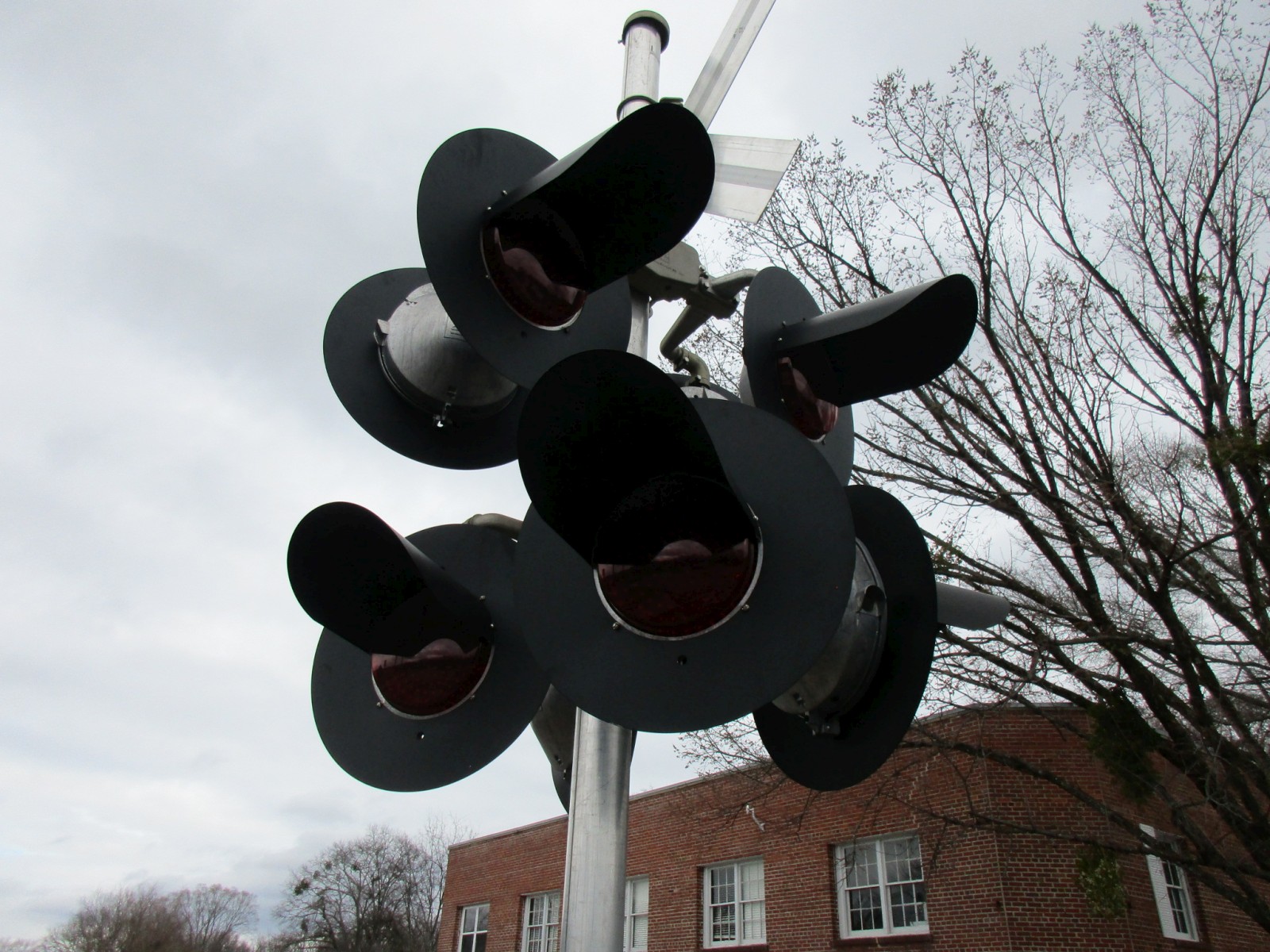

More WCH 12x24 inch lights with WCH 2nd Generaiton LEDs over here. |
|
17 |
18 |
19 |
20 |

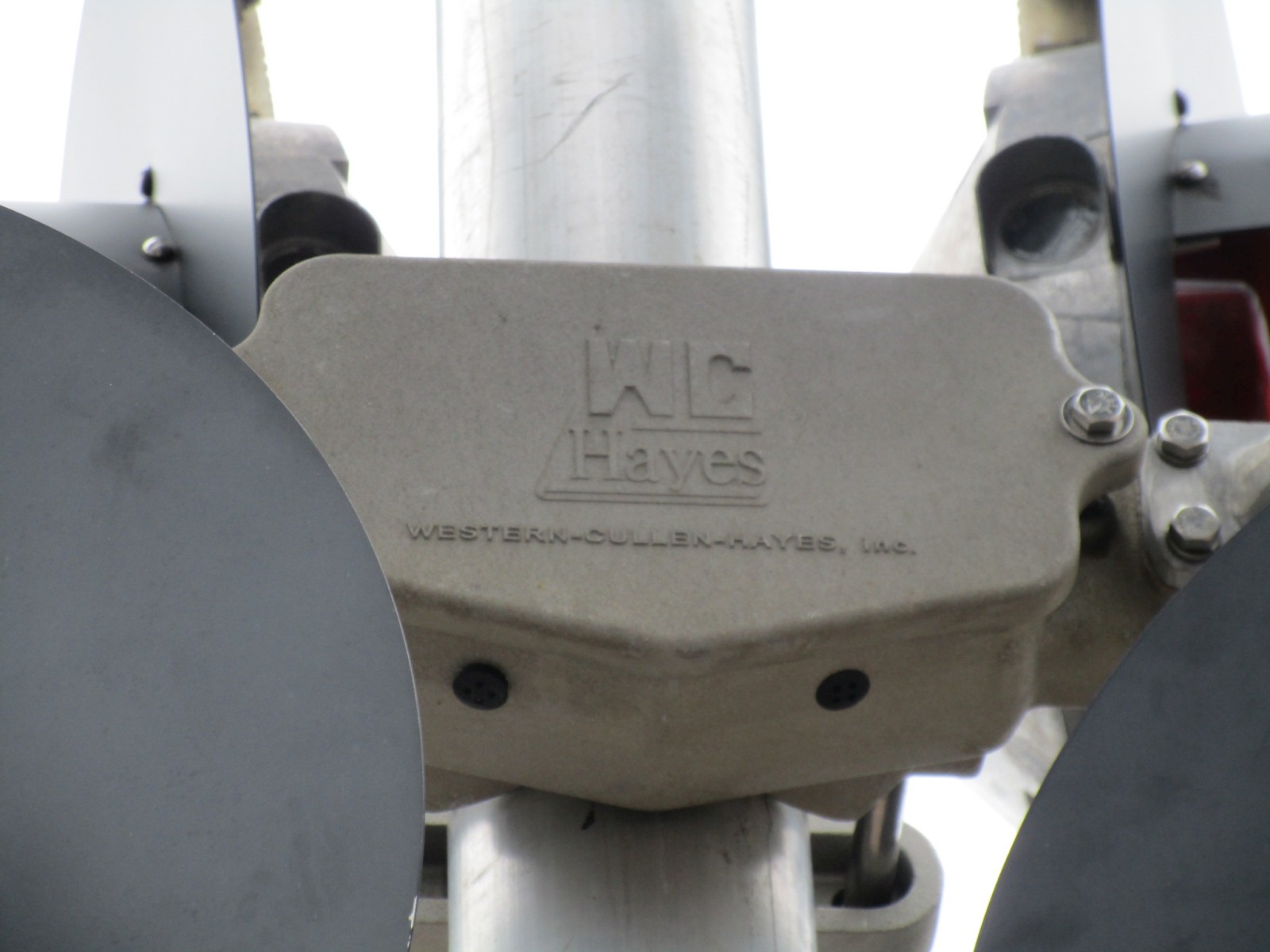

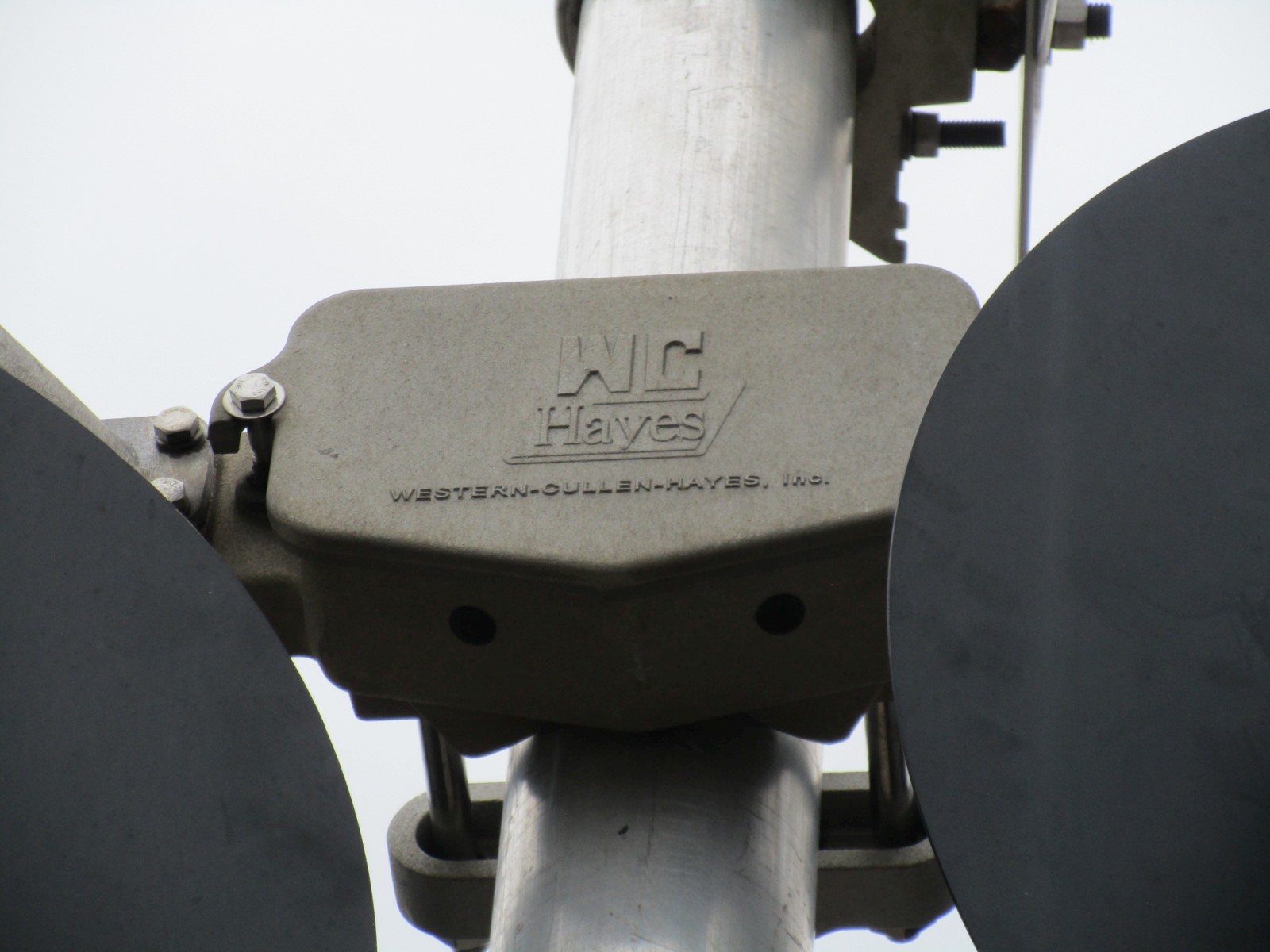

More WCH junction boxes on this signal! |

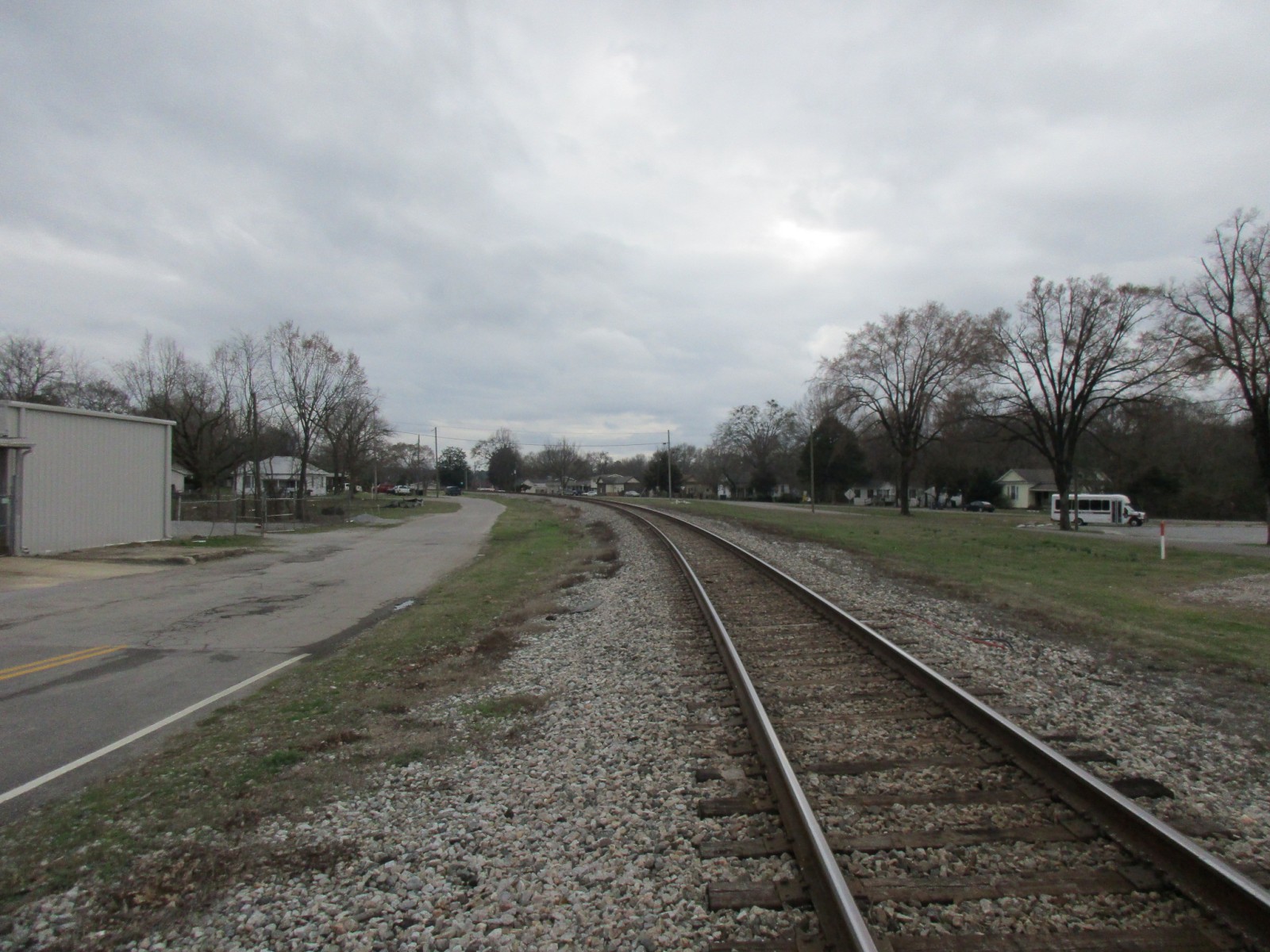

Track view looking south towards Montevallo Road #1. |

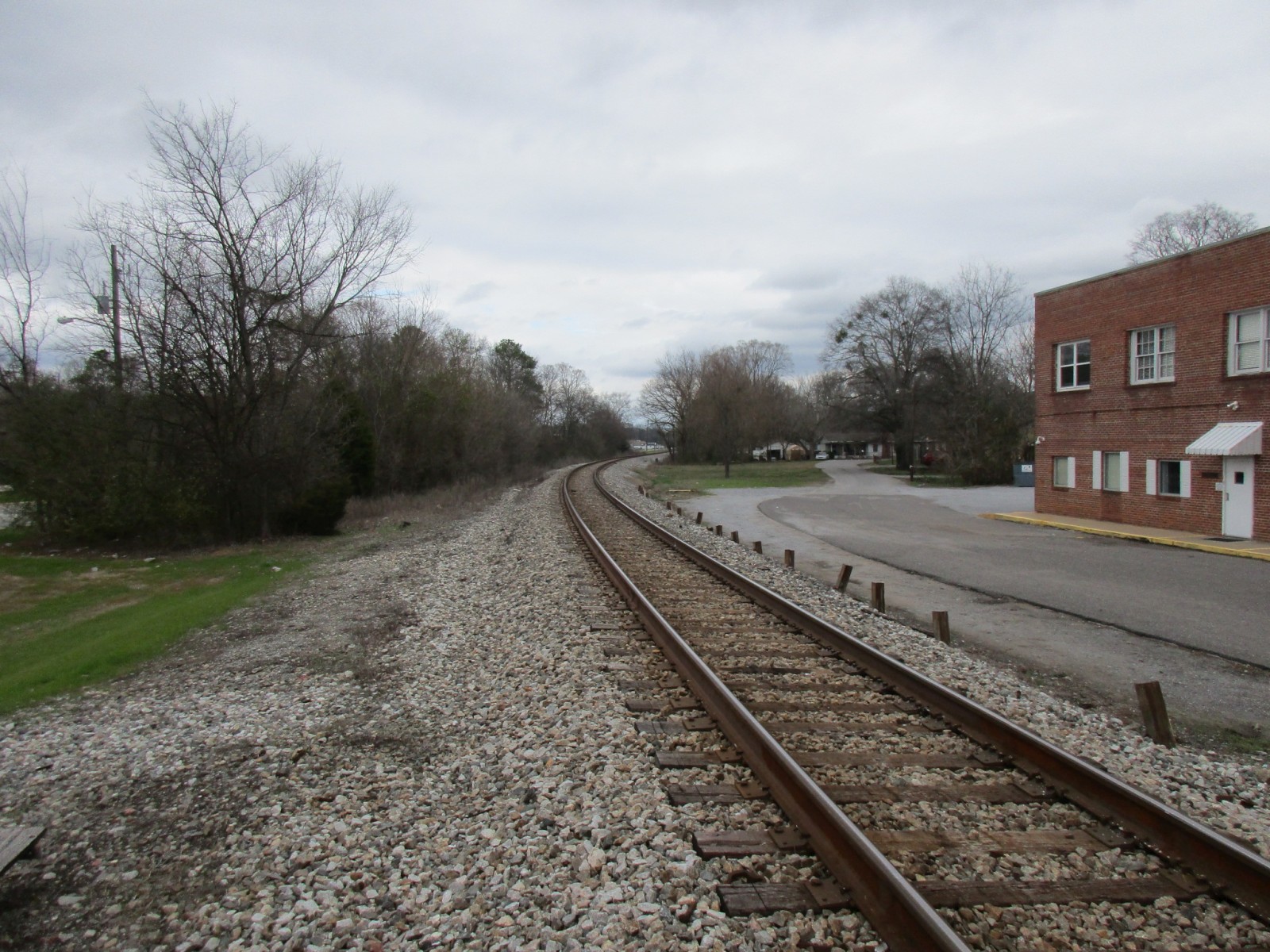

Track view looking north towards 6th Avenue. |
|
21 |

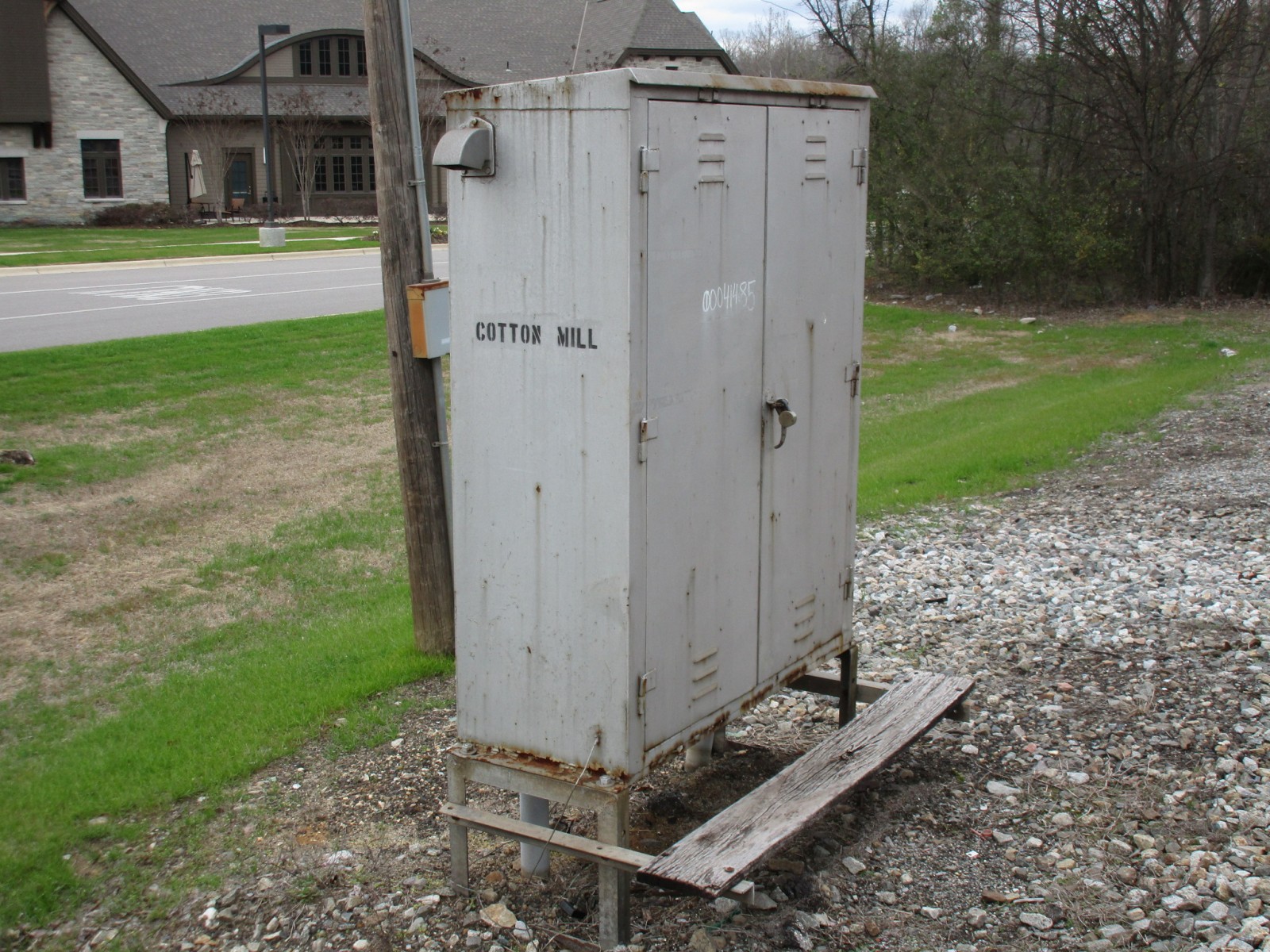

The relay case. |
All pictures were taken on 2-18-17.
